AEG Identifikationssysteme AREI2LF-2 RFID Reader User Manual Mounting instruction AAN X1 1
AEG Identifikationssysteme GmbH RFID Reader Mounting instruction AAN X1 1
Contents
- 1. INstallation guide
- 2. Mounting instruction

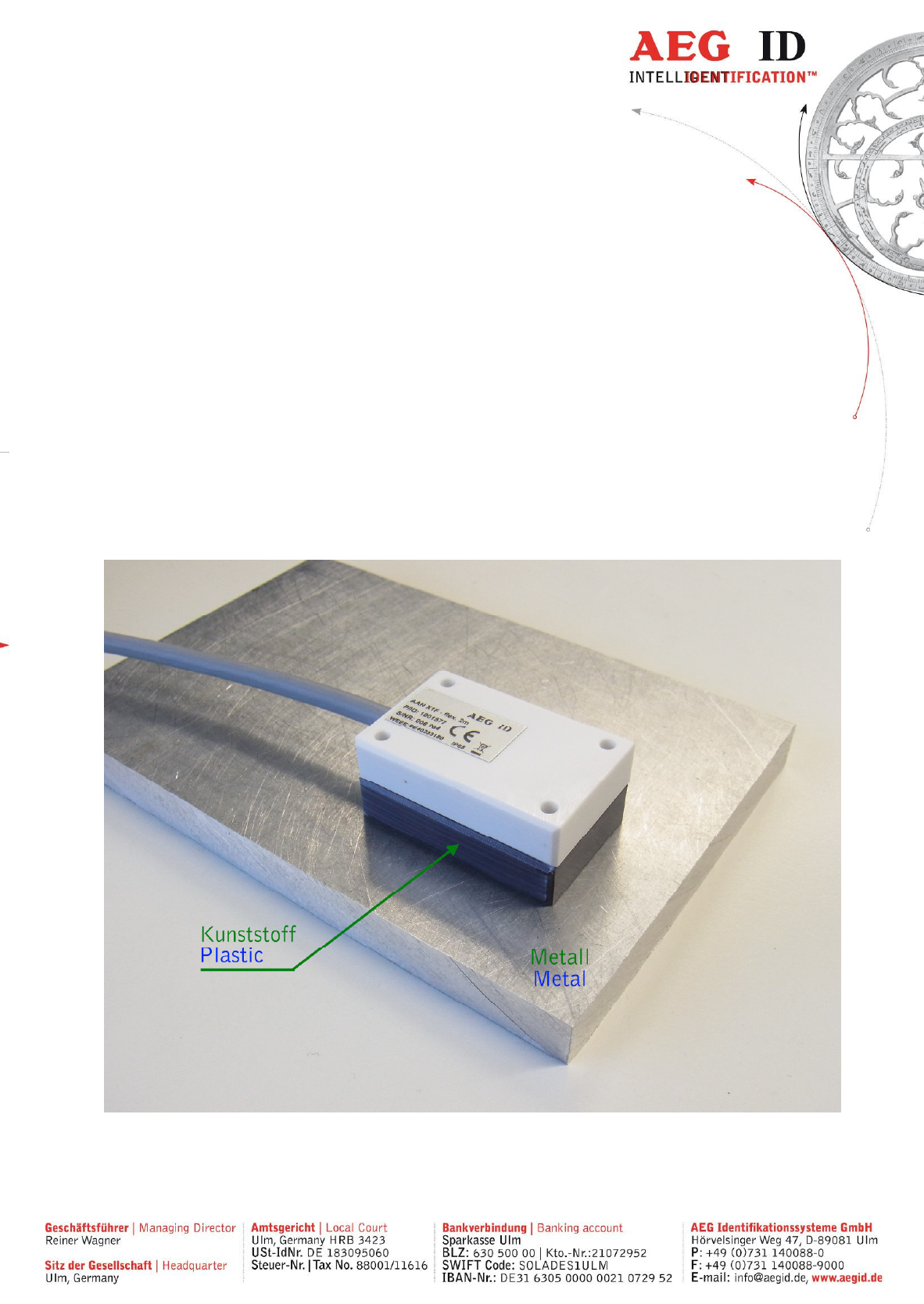

Mounting instruction
Montage der RFID Antenne „AAN X1“
Mounting of RFID antenna „AAN X1“
Montage immer mit nichtleitendem Abstandshalter zu Metall und anderen leitenden Flächen.
Mindeststärke des Abstandshalters: 10mm.
Always mount the antenna using a non-conductive spacer (plastic) between antenna and conduc-
tive surface (e.g.metal).
Minimum thickness of non-conductive spacer: 10mm.
--------------------------------------------------------------------------------2/11--------------------------------------------------------------------------------

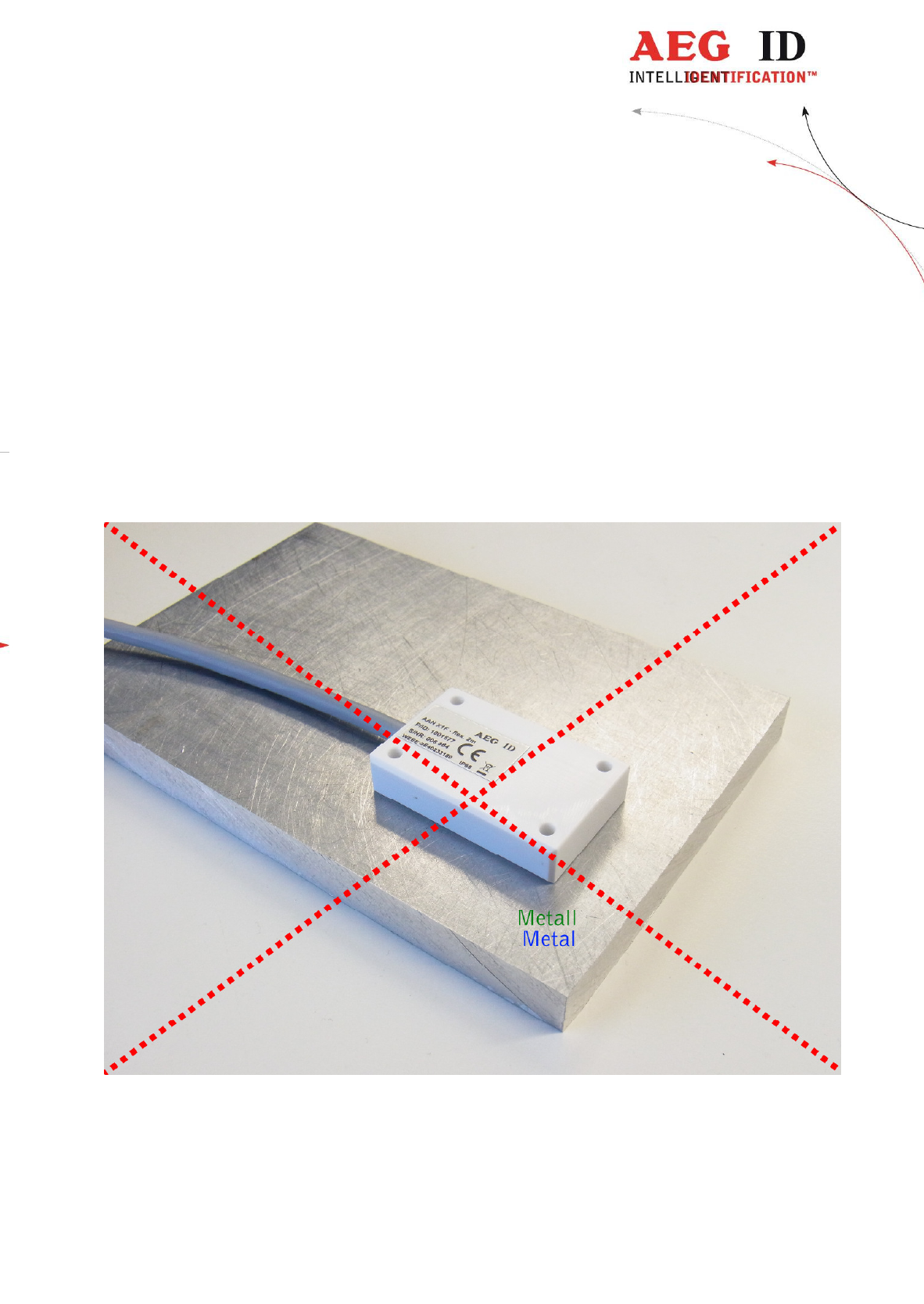

Montage der RFID Antenne „AAN X1“
Mounting of RFID antenna „AAN X1“
Die Antenne unter keinen Umständen direkt auf oder in Metall montieren.
Never mount the antenna directly onto or in metal.
--------------------------------------------------------------------------------3/11--------------------------------------------------------------------------------

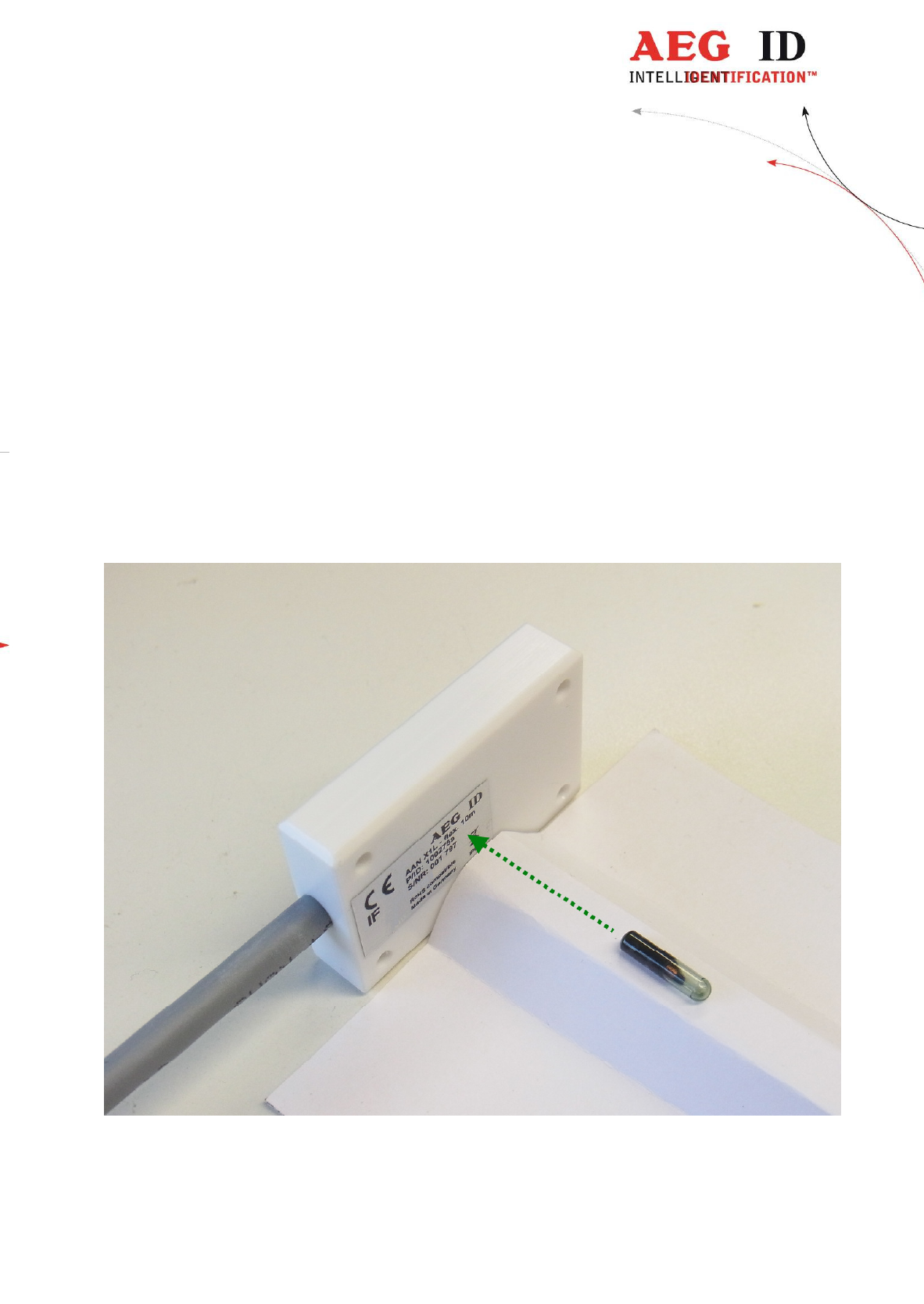

Optimale Ausrichtung Transponder zu Antenne
Optimum orientation transponder - antenna
Antenne | Antenna AAN X1L
Glasrohrtransponder | Glasstube transponder
--------------------------------------------------------------------------------4/11--------------------------------------------------------------------------------

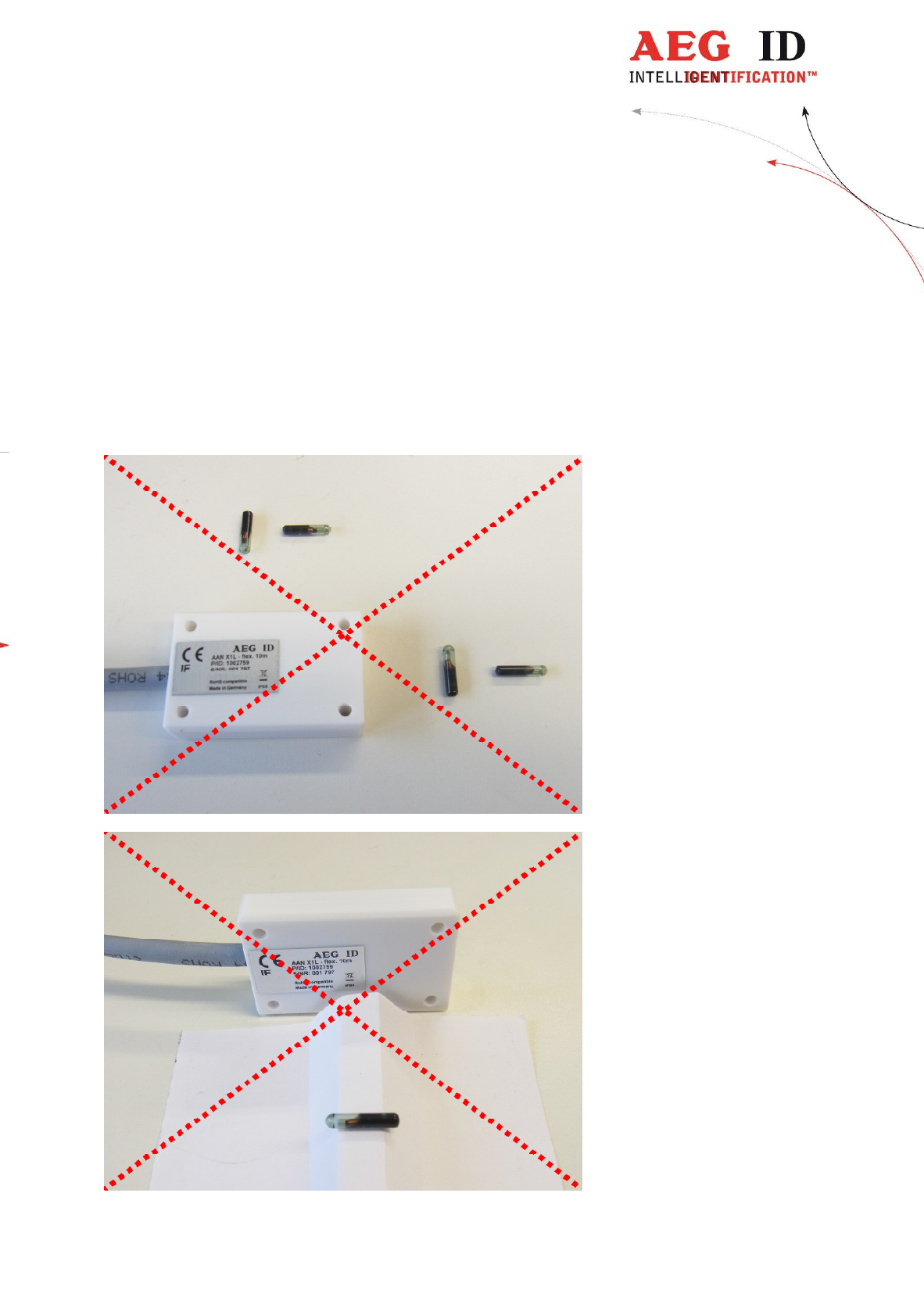

Folgende Ausrichtungen nie verwenden
Never use following orientations
Antenne | Antenna AAN X1L
Glasrohrtransponder | Glasstube transponder
--------------------------------------------------------------------------------5/11--------------------------------------------------------------------------------

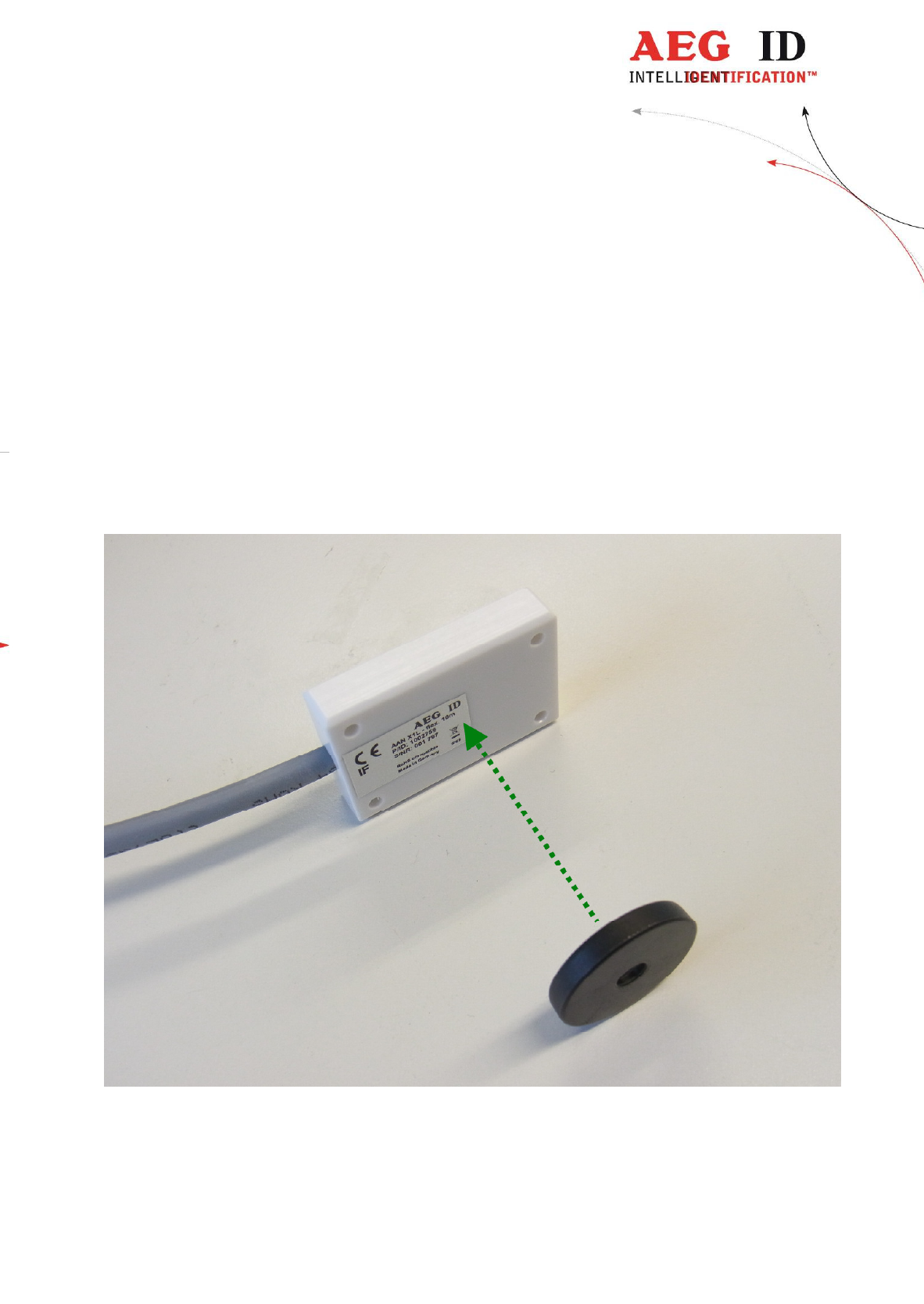

Optimale Ausrichtung Transponder zu Antenne
Optimum orientation transponder - antenna
Antenne | Antenna AAN X1L
Disktransponder | Disk transponder
--------------------------------------------------------------------------------6/11--------------------------------------------------------------------------------

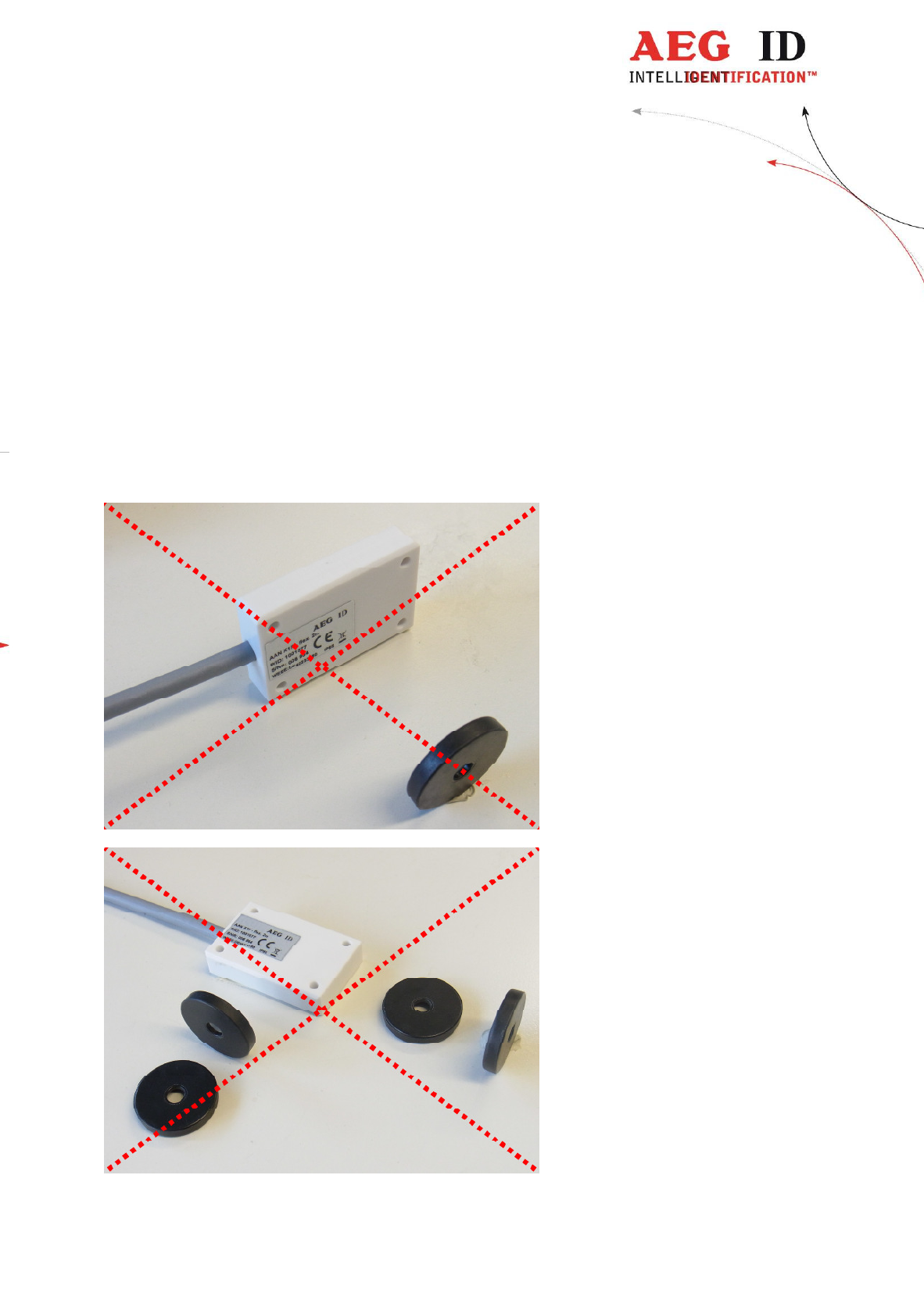

Folgende Ausrichtungen nie verwenden
Never use following orientations
Antenne | Antenna AAN X1L
Disktransponder | Disk transponder
--------------------------------------------------------------------------------7/11--------------------------------------------------------------------------------

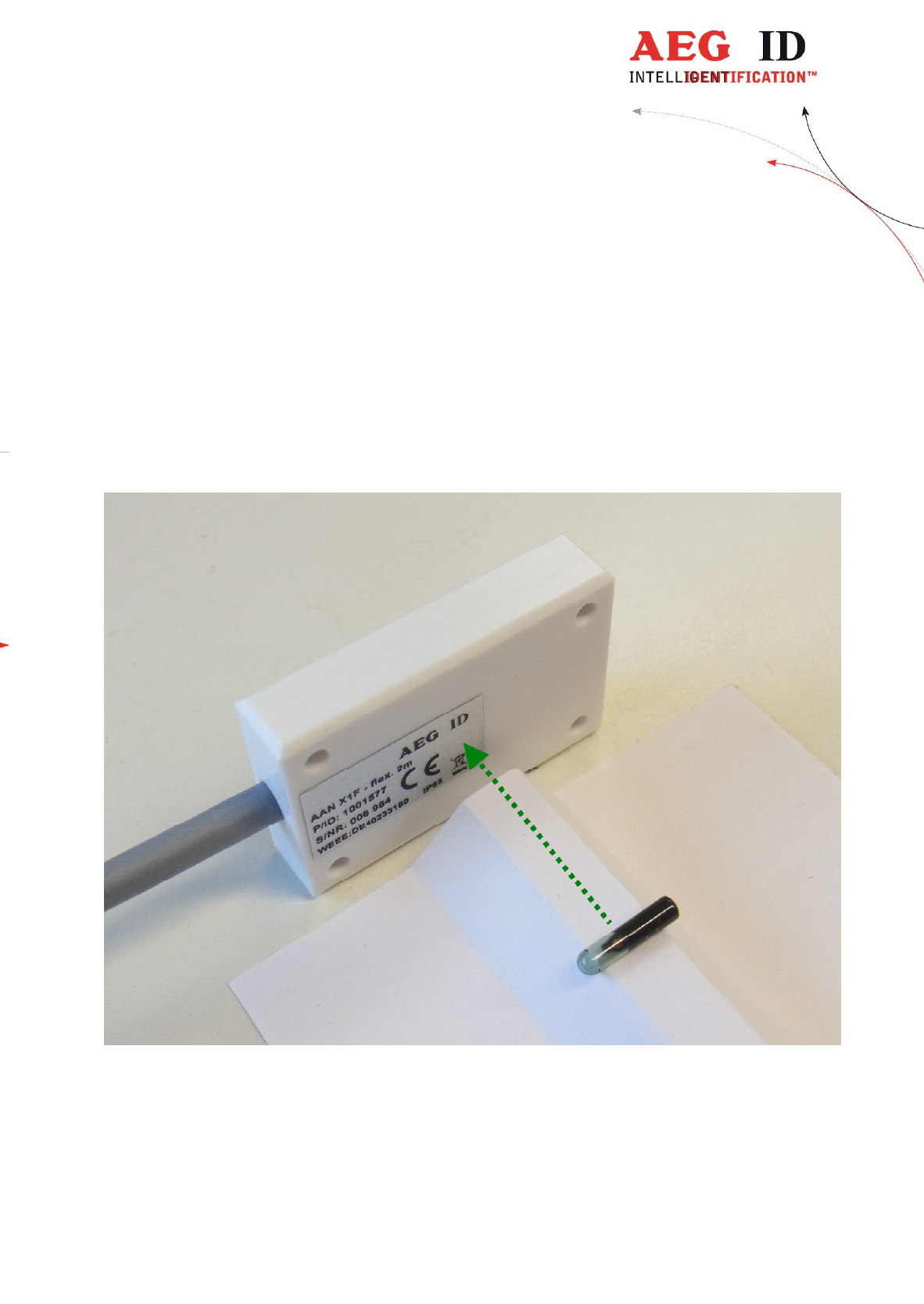

Optimale Ausrichtung Transponder zu Antenne
Optimum orientation transponder - antenna
Antenne | Antenna AAN X1F
Glasrohrtransponder | Glasstube transponder
--------------------------------------------------------------------------------8/11--------------------------------------------------------------------------------

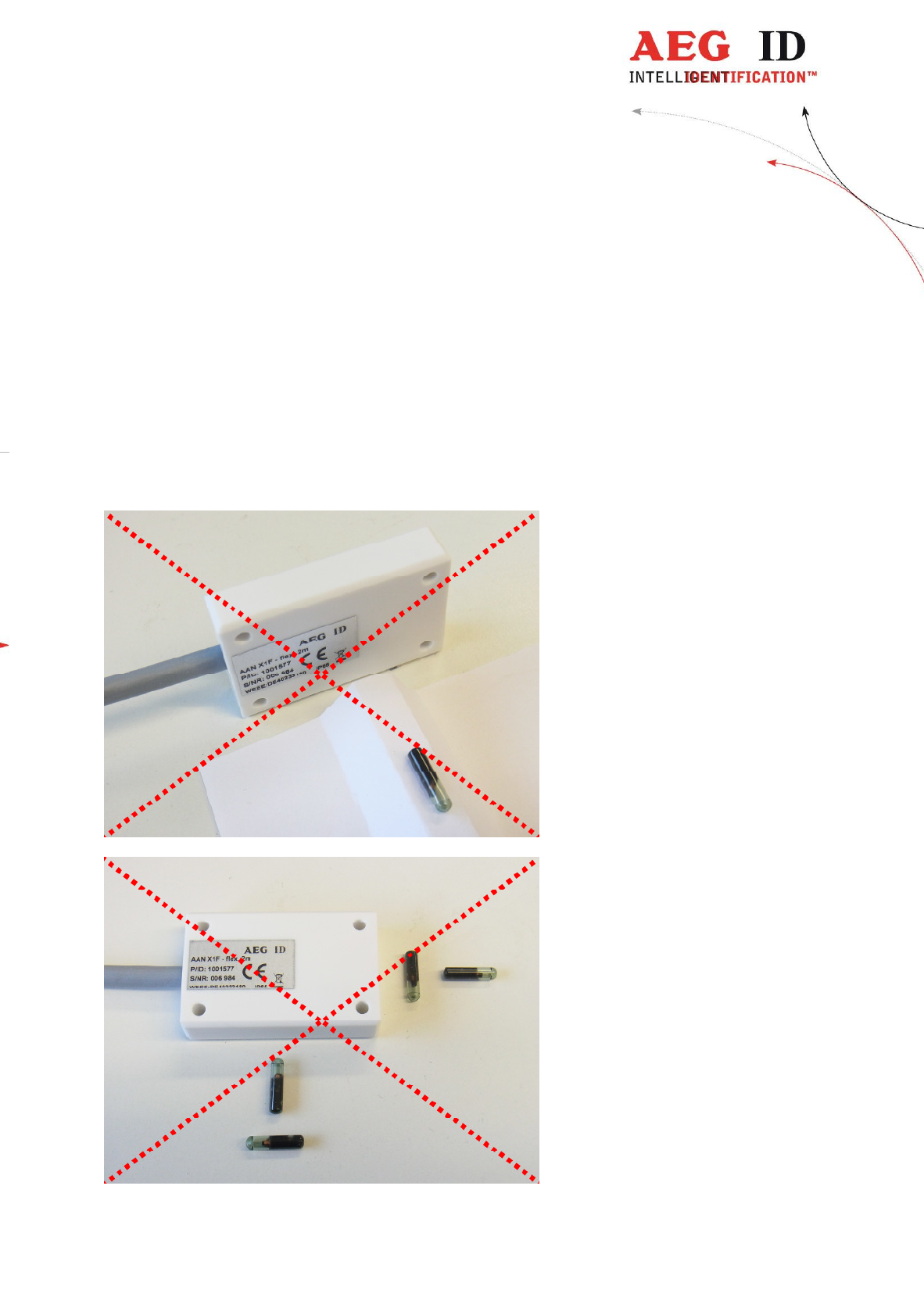

Folgende Ausrichtungen nie verwenden
Never use following orientations
Antenne | Antenna AAN X1F
Glasrohrtransponder | Glasstube transponder
--------------------------------------------------------------------------------9/11--------------------------------------------------------------------------------

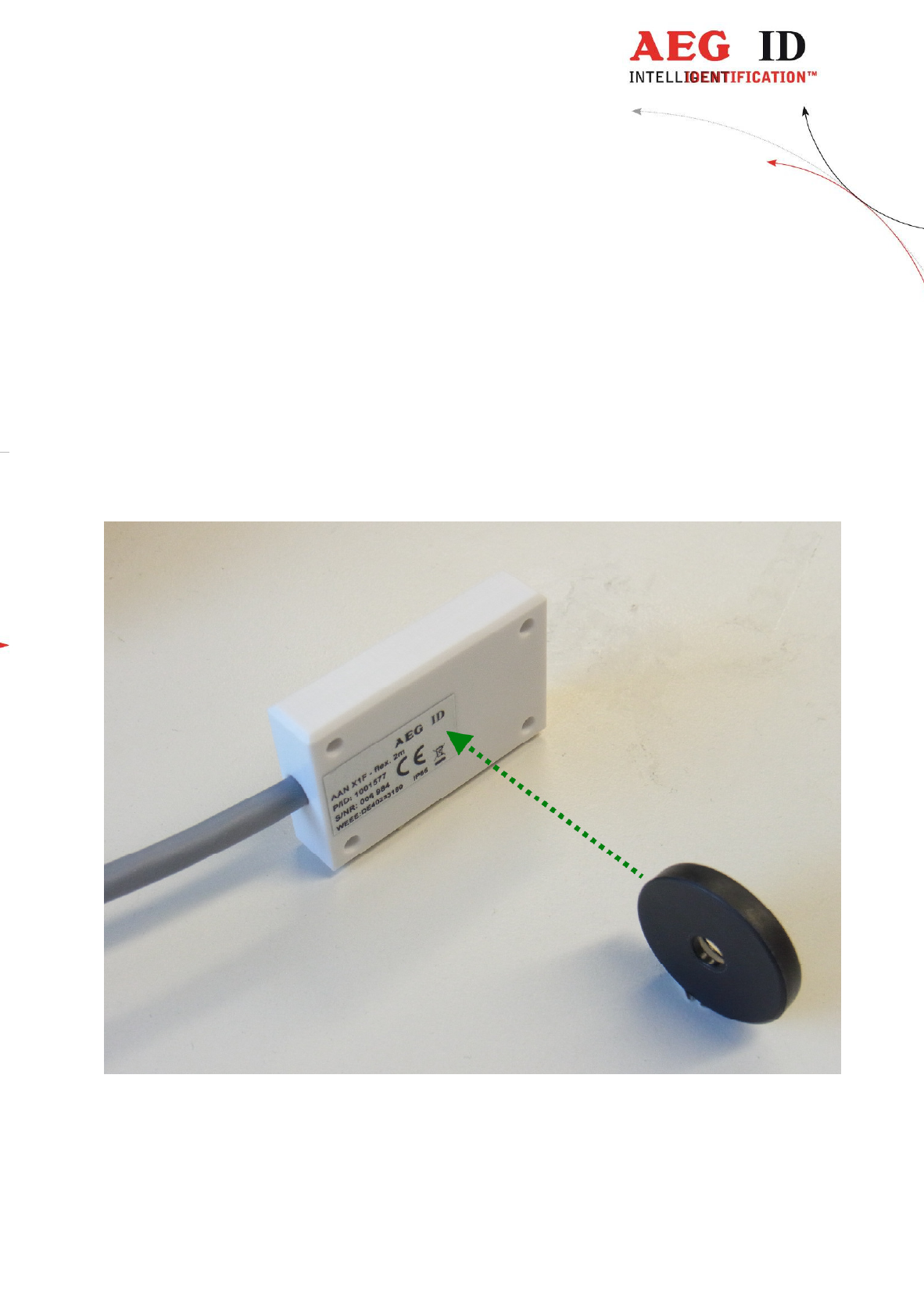

Optimale Ausrichtung Transponder zu Antenne
Optimum orientation transponder - antenna
Antenne | Antenna AAN X1F
Disktransponder | Disk transponder
--------------------------------------------------------------------------------10/11--------------------------------------------------------------------------------
Folgende Ausrichtungen nie verwenden
Never use following orientations
Antenne | Antenna AAN X1F
Disktransponder | Disk transponder
--------------------------------------------------------------------------------11/11--------------------------------------------------------------------------------
Dokument Änderungen | Document changes
Überarbeitung
Revision
Datum
Date
Änderungsbeschreibung
D
escription of changes
Autor
Author
0 16.02.2010
02/16/2010
Erstausgabe
first revision
MM/NK
1 27.10.2016
10/27/2016
Korrektur Bilder, Antennen Etikett
Correction pictures, antenna labels
MK
