Self-Contained
Access Control Reader
AR-2808
User Manual
TABLE OF CONTENTS
INTRODUCTION
SPECIFICATIONS
Package Contents

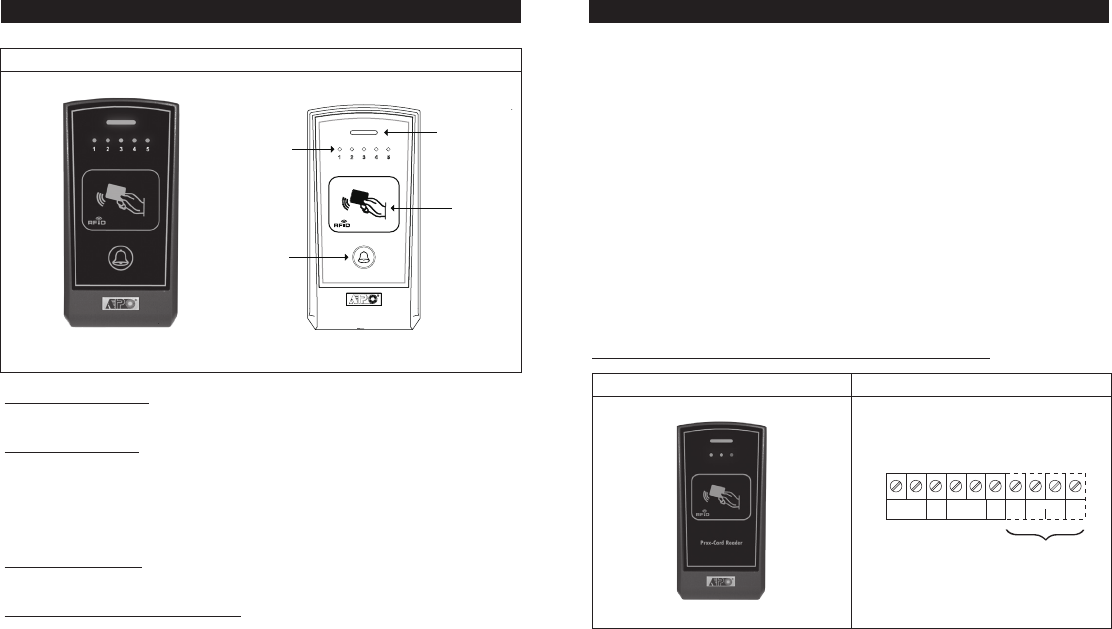

THE FRONT PANEL
Status Indicator (Blue)
Operation Indicators
Card Reader Window
Door Bell Button (Function Selector)
INSTALLATION
Precautions for Installation Location
Precautions for Accidental Short Circuit
Precautions for Electric Spikes & Back EMF

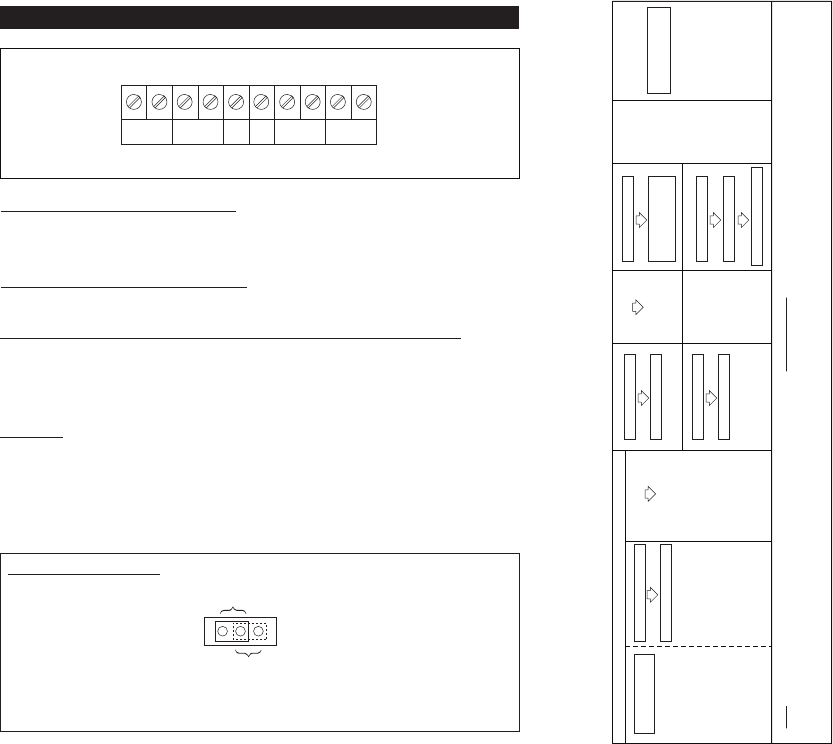

THE CONNECTION TERMINALS
1 - 2 : 12VDC (Power Input Terminal)
3 : (+) 12V Power Supply for The Lock
4 : (-) Power Supply for The Lock (Output Contact for Door Lock Strike)
5 : EG IN (Egress Input for N.O. Button)
6 : Data I/O Port
7 - 8 : Door Bell (Relay Contact for Optional Door Chime)
9 - 10 : Tamper Switch (Tamper Switch with N.C. Contact)
CREATE A MASTER CARD (CMC)
The First Step before Programming - Make A Madter Card
Procedures of Creating A New Master Card with CMC Jumper
PROGRAMMING
1) Criteria for Setting System to Programming Mode
2) Use The Master Card to Set System into Programming Mode for The 5 Feature Groups
3) The Reading Manner for Master Card
4) Audible Indications in Programming & Operation
I ) RECORD USER CARD(S) – Feature Group 1
II ) DELETE USER CARD(S) – Feature Group 2
III ) SET OUTPUT MODE FOR DOOR LOCK -- Feature Group 3
IV ) SET SYSTEM SAFETY LOCK-UP -- Feature Group 4
V ) CREATE / DELETE SUPER USER CARD(S) -- Feature Group 5
OPERATION
FEATURE SETTING PROCEDURES SUMMARY CHART
APPLICATION EXAMPLES
1) Stand Alone Access Control Electric Lock
2) Application Hints for The Auxiliary Terminals
APPLICATION EXPANSION – The Optional Auxiliary Reader AR-2802
Multi- Station Access Control Electric Lock
...................................................................................................................... 3
................................................................................................................... 3
................................................................................................................ 3
................................................................................................................ 4
.......................................................................................................... 4
............................................................................................................. 4
............................................................................................................ 4
...................................................................................... 4
........................................................................................................................ 5
...................................................................................... 5
................................................................................ 5
.......................................................................... 5
............................................................................................. 6
.................................................................................... 6
.................................................................................. 6
................................ 6
................................................................................ 7
..................................................................................................................... 7
..................................................... 7
.................................................... 7
.......................................................................................... 8
.................................................... 8
.............................................. 8
....................................................................................................................... 9
............................................................... 9
.. 9
................................................................................. 9
................................................................ 9
................................................................... 10
.............................................................. 11-12
........................................... 13
...................................................... 14
................................. 15-16
.............................................................................................................................. 17
................................................. 18-19
..................................................................................................... 20
......................................................................... 20
..................................................................... 20
............................. 21
............................................................................ 22
2
SPECIFICATIONS
INTRODUCTION
3
AR-2808 is a self-contained access control reader designed to drive electric door lock directly. It
accommodates up to 500 proximity EM cards and its output is compatible with the Fail-safe and
Fail-secure electric locks. The door lock striking time is programmable. A built-in door chime relay
contact is also available to operate an external low power door chime. It is a full feature compact
reader ideally for the access control system in small office and home applications. The system
employs solid state switch instead of relay contact for door lock strike. It gives longer service life and
prevents the sabotage of opening the door with strong magnet.
AR-2808 is built-in with Data I/O bus for system expansion. Maximum three optional card readers
(AR-2802) can be connected with it to make a multi-station access control system.
● Operation Voltage: 12VDC Nominal, 11-16VDC
● Operating Current: 60mA (quiescent), 80mA Maximum
● Operation Temperature: -20°C to +70°C
● Environmental Humidity: 5-95% Relative Humidity, Non-condensing
● Working Environment & Ingress Protection: Indoor or Outdoor, IP-55 Weatherproof
● Number of User Cards: 500, Standard 125Khz Proximity EM Cards or Keyfobs
● Number of Super User Cards: 5, Standard 125Khz Proximity EM Cards or Keyfobs
● Safety Lock-ups: a) No Lock-up, b) Auto Lock-up after Invalid Trials, & c) Manual Lock-up with
iiiiSuper User Card
● Door Lock Operating Timer: 1-60 Seconds Programmable
● Egress Button: Normally Open (N.O.) Button(s) for Request to Exit from Inside
● Data I/O Bus for Optional Card Readers (AR-2802). Accommodates 3 Optional Readers Max.
● Bell Button: Output Relay Contact for Actuating An Optional Door Chime
● Output Contact Ratings:
iiiia) Solid State Output for Lock Strike – Fail-safe or Fail-secure Selectable, 3A/16VDC Max.
iiiib) Door Chime Relay – N.O. Dry Contact, 1A/24VDC Maximum
iiiic) Tamper Switch – N.C. Dry Contact, 50mA/16VDC Maximum
● Dimensions: 60(W) X 119(H) X 23(D) mm
● Weight: 160g Net
● Housing: ABS Plastic
Specifications are subject to change for modification without notice
PACKAGE CONTENTS
● One AR-2808 Reader
● Two EM Cards
● One Pack of Mounting Screws
● One User Manual
Description
The AR-2808 is expandable to a multi-station system for user convenience with the auxiliary
reader AR-2802. Maximum 3 AR-2802 can be connected in parallel with the Data I/O Bus of
the AR-2808. The auxiliary reader(s) reads the Cards as like the master reader AR-2808
which is the server of the system to manage the data from the auxiliary reader(s).
Multi- Station Access Control Electric Lock
ELECTRIC
LOCK
AR-2808
THE SERVER
AR-2802
AUXILIARY
READER
AR-2802
AUXILIARY
READER
DATA I/O BUS
( + ) POWER SUPPLY
COMMON( – ) GND

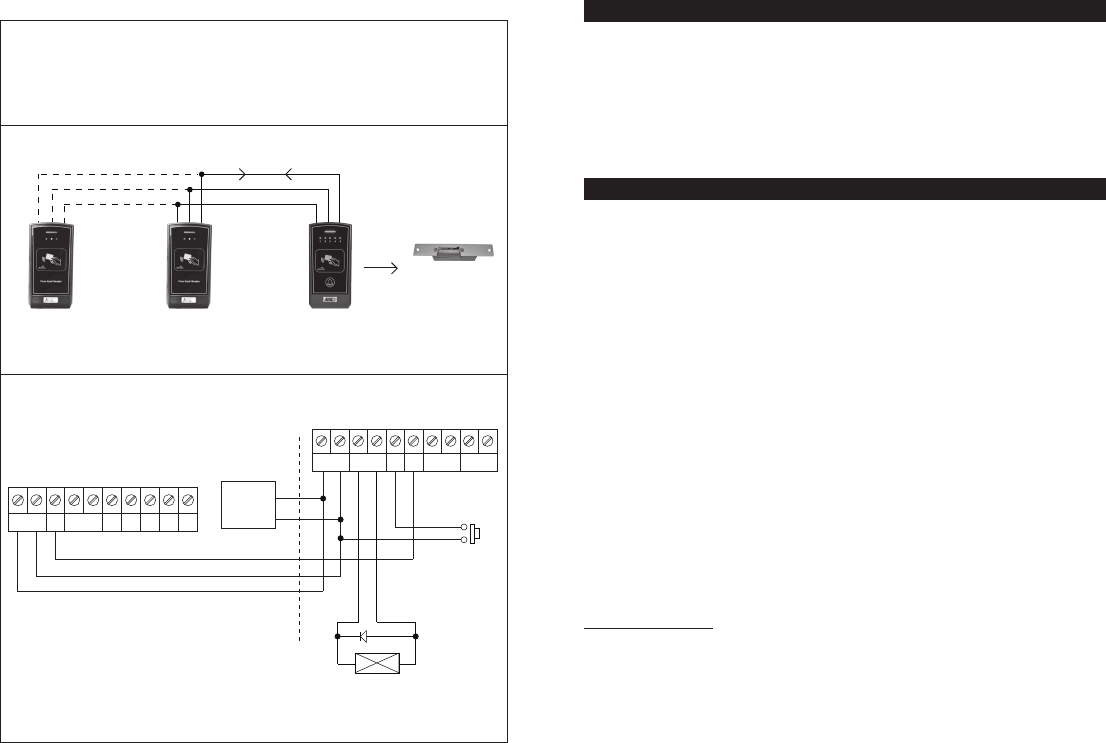

Wiring Diagram
AR-2802 AUXILIARY READER (S)
10987654321
RS232BUZ
LED D1
D0
DATA
I/O
TAMPER
N.C.
( + ) ( – )
12VDC
AR-2808 MASTER READER (THE SERVER)
10987654321
TAMPER
N.C.
DOOR BELL
N.O.
( + ) ( – )
DOOR LOCK
( + ) ( – )
12VDC
DATA
I/O
EG
IN
12VDC
POWER
SUPPLY
ELECTRIC
LOCK
*JUMPER SELECTION
FOR ELECTRIC LOCK OF
(1) FAIL-SAFE OR
(2) FAIL-SECURE
( + )
( – )
EGRESS
BUTTON
N.O.
DATA I/O BUS
( + )
( – )
( + ) ( – )
1N4004
System Connection
COMMON GND
More AR-2802 can be connected in parallel.
22
4
THE FRONT PANEL
Status Indicator (Blue)
It is ON in normal operation. It flashes during programming mode or lock-up mode.
Operation Indicators
The 5 LED indicators with number 1, 2 ,4 and 5 in green and number 3 in amber color show the
status of the system in Operation Mode or in Programming Mode.
1) They indicate the Storage Group of an EM card when it is read in Operation Mode.
2) They show the status of feature settings in Programming Mode. See “Programming” &
“Operation” sections for the details.
Card Reader Window
It is a place for reading EM cards.
Door Bell Button (Function Selector)
This button has two functions. It is a door bell button in normally operation and is a function
selector in programming mode. See the details in “Programming” & “Operation” sections.
●
●
●
●
AR2808 FRONT PANEL
Status Indicator
(Blue)
Card Reader
Window
Operation Indicator
Door Bell Button
(Function Selector)
21
APPLICATION EXPANSION – The Optional Auxiliary Reader AR-2802
Apart from standard-alone operation, AR-2808 is expandable to be a Multi-station System with the
optional auxiliary reader AR-2802. Maximum three optional readers can be allowed and the
connection is very simple. Just connect the devices in parallel with the Data I/O Bus of the
AR-2808. The AR-2808 acts as a server of the system and manages the data among them.
A Multi-station System provides higher security in access control and user convenience to operate
an electric lock at different locations. Such as a dual reader system for area needs controlling of
going in and going out with proximity EM cards.
The optional reader is available in standard version (AR-2802S) and advanced version
(AR-2802A). The advanced version also provides Wiegand and RS-232 data outputs for custom
project development with access control panel and / or PC.
The AR-2802 is also compatible with all the Tri-Tech keypads in the 2nd generation DK-2800
series for system expansion.
＊Please contact your local agent for the optional reader if system expansion is required.
The Auxiliary Reader AR-2802 And It’s Connection Terminals
Connection TerminalsAuxiliary Reader
10987654321
LED
DATA
I/O
TAMPER
N.C.
( + ) ( – )
12-24V DC
WIEGAND
D0 D1
BUZ RS
232
AR-2802A ONLY
5
INSTALLATION
AR-2808 ASSEMBLY
Precautions for Installation Location
The EM Card works at the frequency of 125Khz. Installation precautions are necessary:
Fi) Make sure the location has no strong low frequency electro-magnetic wave signals near it.
IIIIIIEspecially in the range of 100-200Khz.
Fii) If more than one keypads / readers operating in the same frequency, make sure that they are at
IIIIIIleast 60cm (2ft) apart from each other. Otherwise, the reading range may be reduced due to
IIIIIIinterference.
Precautions for Accidental Short Circuit
In the previous experience, most of the damages caused during installation are accidental touch of
the components on the circuit board with the wire(s) carrying power. The following precautions are
necessary:
Fi) Study the manual thoroughly to become familiar with the system before installation.
Fii) Do Not apply power to any connection terminal of the reader during installation.
Fiii) Check all the wirings carefully and confirm that they are correct before applying power to the
F13Ireader for testing.
Precautions for Electric Spikes & Back EMF
Make sure to connect the diode (supplied) or a varistor (MOV) across the electric lock’s power input
terminals to absorb the back EMF and the electric spikes. Fail to do so may cause damage to the
electronic components; in worst case, even burn out the reader.
FRONT COVER
BACK COVER
(Fix it on wall)
20

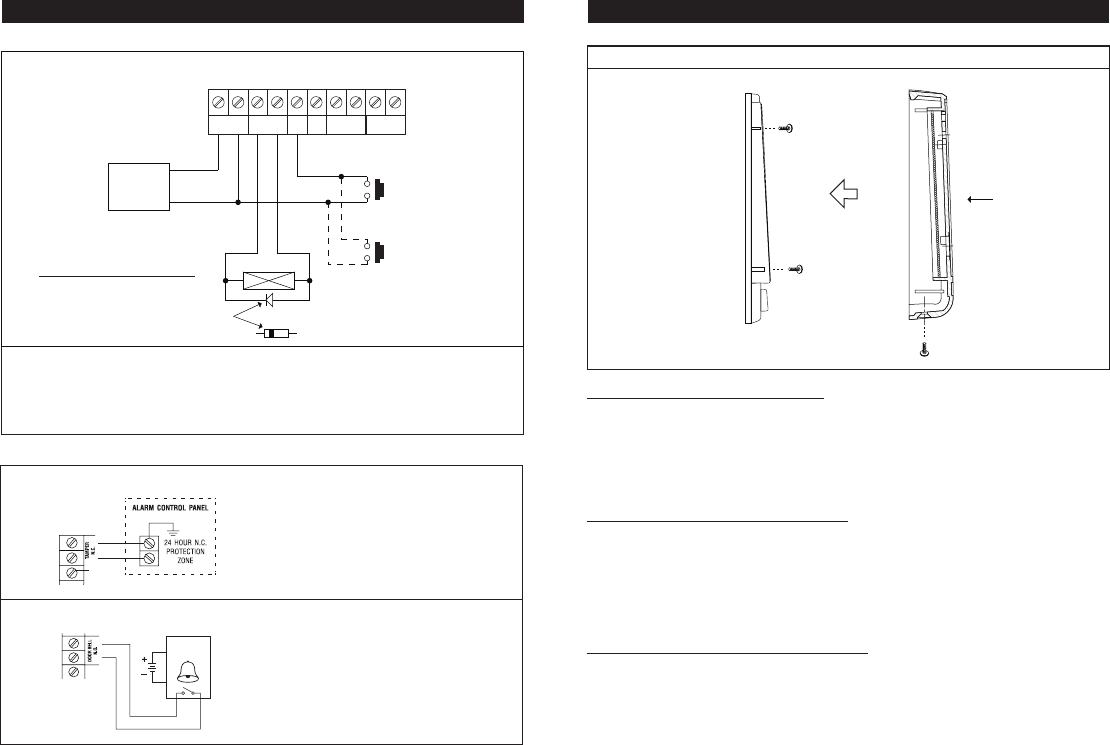

1) Stand Alone Access Control Electric Lock
NOTE:
● Connect the 1N4004 as close as possible to the lock in parallel with the power terminals of the lock to absorb
....the back EMF to prevent it from damaging the reader. The 1N4004 is not required if the electric lock is AC
....operated.
● To aviod Electro-Static-Discharge from interfering with the operation of the reader, always ground the (-) terminal
... 2 to earth.
APPLICATION EXAMPLES
* See Door Lock Selection Jumper
1.SAFE -- For Fail-Safe Electric Lock
2.SECURE -- For Fail-Secure Electric Lock
10987654321
EG
IN
DATA
I/O
DOOR BELL
N.O.
TAMPER
N.C.
( + ) ( – )
DOOR LOCK
( + ) ( – )
12VDC
12 VDC
POWER
SUPPLY
ELECTRIC LOCK
( – )( + )
*
AP-960
AD-2312
AD-2322 ( – )
( + )
AR-2808
N.O.
N.O. MORE EGRESS BUTTONS CAN
BE CONNECTED IN PARALLEL
EGRESS BUTTON
(INSIDE HOUSE)
CATHODE
IN4004
The tamper switch is Normally Closed while the
reader is secured on box. It is open when the
reader is removed from box. To give alert on
sabotage, connect these terminals in series with a
24 hour N.C. protection zone of an alarm system if
required.
10
98
(A) TAMPER N.C.
(B) DOOR BELL N.O.
ELECTRONIC
DOOR CHIME
(OPTIONAL)
N.O.
DOOR
BELL
8
7
6
The connection of the Door Bell is optional. The
door bell contact on the keypad is prepared for
triggering of an low power door chime only. DO NOT
use it as a high voltage power path for a door bell.
The maximum power rating of the contact is 24V
DC/1 Amp.
2) Application Hints for The Auxiliary Terminals
Status LED ON
System Back
to
Normal operation
Read Master Card
1 TIME
FEATURE SETTING PROCEDURES SUMMARY CHART -- CONTINUE
V) CREATE / DELETE SUPER USER CARDS
Read Master Card
5 TIMES
Status LED
ON ► Flashing
Auto-Confirm
Feature Group 4 Selected LED 5 -ON
LED 1 & 2
Flashing
Auto - Confirm
Option 2 - Delete
Auto - Confirm
Option 1 - Create
LED 2 - ON
All 5 LEDs
Flashing
LED 1 - ON
All 5 LEDs
Flashing
Select Location 1-5
Read A New
Super User Card
Select Location 1-5
Execution with Bell Button
Auto - Confirm
Location
LED ON
Audible Indications: 1 Beep - Selection;
Audible Indications: 2 Beeps - Confirm / Successful
Audible Indications: 1 Long Beep - Duplicated Card
Audible Indications: 5 Beeps - Fail
NOTE:
Auto - Confirm: The system confirms the feature / function antomatically 2
.........................seconds after selection.
19
6
1 - 2 : 12VDC (Power Input Terminal)
Connect (+), terminal 1 to a 12V DC power supply. The (-), terminal 2 is the common grounding
point of the system. Make sure the power supply can provide enough power for the electric lock and
the reader.
3 : (+) 12V Power Supply for The Lock
A (+) supply point for the electric lock, which is common to terminal 1.
4 : (–) Power Supply for The Lock (Output Contact for Door Lock Strike)
A 3 Amp rating solid state switch output contact for electric door lock strike, it switches to (-) in
operation. It is selectable for operating Fail-safe or Fail-secure electric lock via jumper setting.
Connect the negative side (-) of the electric lock to this terminal and the positive side (+) to terminal
3. The operating time of the contact is programmable. Please see “Set Output Mode for Door
Lock” for the details.
Important
Two types of electric locks are available on the market. It is necessary to confirm that the lock is
Fail-safe or Fail-secure in order to make the correct jumper selection. Wrong selection may cause
damage to the lock or the reader.
● Fail-safe Electric Lock – Normally energized; power ON to lock, power OFF to unlock
● Fail-secure Electric Lock – Normally de-energized; power ON to unlock, power OFF to lock
10987654321
EG
IN
DATA
I/O
DOOR BELL
N.O.
TAMPER
N.C.
( + ) ( – )
DOOR LOCK
( + ) ( – )
12VDC
THE CONNECTION TERMINALS
Door Lock Selection Jumper
DOOR LOCK
2. SECURE (For Fail-secure Electric Lock)
1. SAFE (For Fail-safe Electric Lock)
7
5 : EG IN (Egress Input for N.O. Button)
A Normally Open (N.O.) input terminal referring to (-) ground for connecting N.O. button to activate
the output contact for door lock strike. Egress button is usually put inside the house near the door
for “request to exit”. More than one egress buttons can be connected in parallel to this terminal for
user convenience at other location(s), such as near the reception desk. Leave this terminal open if
not used.
6 : Data I/O Port
A data communication port prepared for the optional reader AR-2802 connection to expand the
access control system with two or more readers. The enrolled EM cards in the AR-2808 are also
accepted by the optional readers.
7 - 8 : Door Bell (Relay Contact for Optional Door Chime)
A Normally Open (N.O.) relay dry contact with maximum rating of 1Amp/24VDC controlled by the
BELL button, it is prepared to trigger an optional low voltage door chime. The contact point keeps
close as long as the bell button is pressed.
9 - 10 : Tamper Switch (Tamper Switch with N.C. Contact)
A Normally Closed (N.C.) dry contact while the reader is fixed on its back cover. The contact is open
while the reader is separated from its back cover. Connect this N.C. terminal to the 24 hour
protection zone of an alarm system if necessary in order to get alert from sabotage.
18
IV) SET SYSTEM SAFETY LOCK-UP
III) SET OUTPUT MODE FOR DOOR LOCK
Auto - Confirm
Option 1 - 3
Auto - Confirm
Mode 2 - Timing
Stop Time Counting
Start Time Counting
Auto - Confirm
Mode 1 - Start / Stop
FEATURE SETTING PROCEDURES SUMMARY CHART
II) DELETE USER CARDS
I) RECORD USER CARDS
ENTER PROGRAMMING MODE & FEATURE GROUP SELECTION
WITH MASTER CARD
SELECTION & EXECUTION
FUNCTION SELECTION WITH BELL BUTTON EXIT
PROGRAMMING MODE
Auto-Confirm
Feature Group 4 Selected
Auto-Confirm
Feature Group 3 Selected
Auto-Confirm
Feature Group 2 Selected
Read Master Card
4 TIMES
Status LED
ON ► Flashing
Read Master Card
3 TIMES
Status LED
ON ► Flashing
Read Master Card
2 TIMES
Status LED
ON ► Flashing
Auto-Confirm
Feature Group 1 SelectedRead Master Card
1 TIME
Status LED
ON ► Flashing
LED 4 - ON
LED 1, 2 & 3
Flashing
LED 3 - ON
LED 1 & 2
Flashing
LED 2 - ON
LED 1, 2 & 3
Flashing
LED 1 - ON
All 5 LEDs Flashing
Group LED
ON -- Vacancy
Available
Flashing -- Full
Auto - Confirm
Deletion Mode 3
Auto - Confirm
Deletion Mode 2
Auto - Confirm
Auto - Confirm
Deletion Mode 1
Storage Group 1-5
The Selected
LED - ON
Flashing
LED 2 -- ON
Flashing
LED 1 -- ON
Flashing
LED 3 -- ON
5 LEDs Flashing
LED 2 -- ON
2 Beeps
LED 1 -- ON
2 Beeps
Status LED ON
System Back
to
Normal operation
Read Master Card
1 TIME
Select The Group 1-5
For Cleaning
Read The Card of The
Lost Card Follows
Execution with Bell Button
Auto - Confirm
Read Un-used Cards
Read New User Cards
LED Jumper
ON & Stop at
Desired Time
The Selected
Group LED - ON
Flashing During
Cleaning
The Group
LED of the
Deleted Card
ON for 1
Second / card
Group LED
ON for 1
Second / Card
To “ Exit Programming Mode ” Directly
To “ Exit Programming Mode ” Directly
8
The First Step before Programming- Make A Master Card
● The system needs a Master Card to set it into programming mode. Before programming, it is
iiIInecessary to make a Master Card by the owner.
● In case the Master Card is lost, it is necessary to make a new Master Card to replace it. Once a
iiIInew Master Card is made, the old one is invalid.
Procedures of Creating A New Master Card with CMC Jumper:
1) Switch OFF power to the reader completely
2) Put the CMC Jumper from OFF to ON position (The jumper is on the circuit board)
3) Switch ON power again.
iiiiiResponse : The reader gives continuous beeps. The Status LED (blue) starts to flash for one
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiminute. This is the allowed time for making a Master Card.
4) Put the jumper back to OFF position.
iiiiiResponse : The beep stops.
5) Read an EM card (a new EM card or keyfob).
iiiiiResponse : Two beeps confirm reading successful.
6) Press the Bell button 1 Time to save the Master card and exit CMC mode.i
iiiiiResponse : Two beeps confirm reader back to normal operation. The Status LED is ON.
7) Label the card as MASTER.
iiiiiIt is a card for programming authorization purpose. Do not mix it with other User Cards and keep
iiiiiit in a safe place.
CREATE A MASTER CARD (CMC)
NOTE:
The system will get stuck and the status LED will turn OFF if the Master Card can not
be made within the allowed time of one minute. It is necessary to repeat procedures 1-6
and try again.
CMC JUMPER
CMC
2. OFF
1. ON
1) Read User Card to Open Door
● Read User Card once.
● Two beeps confirm success of reading a valid user card and its group LED turns ON during the
iiiidoor lock strike.
● Five beeps are generated for invalid card.
2) Read Super User Card to Open Door
● Read Super User Card twice within 3 seconds.
● Two beeps confirm success of reading a valid super user card and its group LED turns ON during
iiiithe door lock strike.
● Five beeps are generated for invalid card.
iiiiNote:
iiiiSuper User Card is valid all the time in both Normal & System Lock-up conditions.
3) Read Super User Card to Make System Lock-up
● Read Super User Card once, and then, press BELL button once within 3 seconds.
● Two beeps confirm success. The Status LED (blue) flashes slowly (0.5sec ON, 1sec Off) during
iiiithe system lock-up in effect.
● Five beeps are generated for invalid card.
iiiiNote:
● During the lock-up time, the Status LED (blue) flashes slowly and the reader refuses all the
iiiigeneral user cards except the Super User cards.
● The Egress Button works normally all the time and is not affected by the lock-up function.
● The Door Bell button works normally all the time and is not affected by the lock-up function.
4) Read Super User Card to Release System Lock-up
● iRead Super User Card once, and then, press the BELL button once within 3 seconds.
● Two beeps confirm success. System goes back to normal operation and the Status LED (blue)
iiiiiturns ON from flashing.
●iiFive beeps are generated for invalid card.
OPERATION
17
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
PROGRAMMING
1) Criteria for Setting System to Programming Mode
D ● The system is in standby under Normally Operation
D ● A Master card is already in possession
2) Use The Master Card to Set System into Programming Mode for The 5 Feature Groups.
● Feature Group 1 -- Record User Cards (Read Master Card 1 Time)
● Feature Group 2 -- Delete User Cards (Read Master Card 2 Times)
● Feature Group 3 -- Set Output Mode for Door Lock (Read Master Card 3 Times)
● Feature Group 4 -- Set System Safety Lock-up (Read Master Card 4 Times)
● Feature Group 5 -- Create / Delete Super User Cards (Read Master Card 5Times)
3) The Reading Manner for Master Card.
● Set system to Programming Mode with reading of Master Card 1 to 5 times for the 5 .feature
......groups. Each reading must be within 2 seconds.
● Read Master Card 1 time to close Programming Mode.
......Note:
......The reader will stay in Programming Mode until it is closed with Master Card.
4) Audible Indications in Programming & Operation
● 1 Beep – Step jumping in feature selection
● 2 Beeps – Execution successful
● 5 Beeps – Execution failed
● 1 Long Beeps – Rejection to a repeated card in programming mode
9
16
2) Press BELL button to select Option 2 -- Delete
....Response : LED 2 is ON. After 2 seconds, the system confirms the selection with 2 beeps and
.........................then the 5 LEDs flashing.
3) Press BELL button to select the storage location 1-5 for card deletion.
....Response : The selected LED is ON. After 2 seconds, the system confirms the selection with 2
.........................beeps.
4) Press BELL button again to execute card deletion.
....Response : 2 Beeps confirm clearing done.
....Note: Repeat procedure (3) & (4) for other Super User Card(s) deletion if required.
5) Read Master Card 1 Time to exit Programming Mode.
....Response : 2 Beeps confirm reader back to normal operation.
Exit
Programming Mode
Card Deletion
Execution
4
Select
Location 1-5
Select
Option 2 -- Delete
Read Master Card 5 Times
Set System in Feature Group 5
5321
B) Delete Super User Card(s) – Option 2
In case a Super Card is lost, it can be deleted from the system.
I ) RECORD USER CARDS – Feature Group 1
There are 5 Storage Groups available for storing total 500 User Cards. For easy management, each
group accommodates 100 user cards maximum. The indicator LED of the storage group is ON for
vacancy available and flashing for vacancy full.
This system is designed for small office or home that does not have large number of users. It is
suggested to put user cards evenly into the 5 Storage Groups. For example, evenly put 5 User
Cards each into the 5 groups for an office of 25 staff. In case group clearing is required, only to clear
the group that holds the lost card.
It is suggested to make a list recording the User Number and the Name of the card holders for each
of the Storage Groups before programming. It will be helpful to record the cards smoothly and also
to trace them from the system afterward in case a card is lost.
Storage Group 3....5
Storage Group 2
--
--
-
Accounts Dept
Eng Dept
Eng Dept
Admin Dept
Sales Dept
RemarkName of Holder
Sales Dept
Mary
Paul
Alan
Nancy
Tracy
John
-
-
-
Storage Group 1
User Number
6
5
4
3
2
1
100
10
Procedures
1) Read Master Card 1 Time to set system to Feature Group 1 – Record User Cards.
....Response : Status LED (blue)starts to flash during programming mode and group LED 1 is ON.
........................After 2 seconds, the system confirms the selection with 2 beeps and the 5 group
........................LEDs flashing for five storage groups available.
2) Press BELL button to select one of the 5 Storage Groups for storing the User Cards.
....Response : The selected group LED is ON for vacancy available. After 2 seconds the system
........................confirms the selection with 2 beeps.
........................The selected group LED stays flashing for vacancy full without confirmation.
3) Record the User Cards
....They can be read and appended one by one into the desired Storage Group.
....Response : 2 Beeps confirm successful for each card recording.
4) Read Master Card 1 Time to exit Programming Mode.
....Response : 2 Beeps confirm reader back to normal operation.
NOTE:
● Press BELL button to select other Storage Groups with the above procedures 2 & 3 before close
...of programming mode.
● All the User Cards must be unique in the system. Repeat recording of same card into other
...groups will be rejected. One long beep indicates rejection of a repeated card.
Exit
Programming Mode
Record
New User Cards
Select Desired
Storage Group 1-5
Read Master Card 1 Time
Set System in Feature Group 1
4321
15
V ) CREATE / DELETE SUPER USER CARDS -- Feature Group 5
The Super User cards are prepared for the owner or the trustworthy executives, which have TWO
functions that are system lock-up and door open. Total five Super User Cards can be created
with one for each user group.
● Lock-up the system during the time of “after-office-hours” or the house of nobody inside. Lock-up
● Release is in toggle manner.
● Release the system from Lock-up instantly at anytime.
● Act as Owner’s private user card for door open at any condition including in the system lock-up
● period.
Procedures
1) Read Master Card 5 Times to set system to Feature Group 5 – Create / Delete Super User
....Cards.
....Response : Status LED (blue) starts to flash during programming mode and group LED 5 is ON.
........................After 2 seconds, the system confirms the selection with 2 beeps and the group LED
.......................1 & 2 flashing for the two options available.
A) Create Super User Card(s) – Option 1
2) Press BELL button to select Option 1 -- Create
....Response : LED 1 is ON. After 2 seconds, the system confirms the selection with 2 beeps and
........................then the 5 LEDs flashing.
Exit
Programming Mode
Select
Location 1-5
Record
Super User Cards
Select
Option 1 -- Create
Read Master Card 5 Times
Set System in Feature Group 5
54321
3) Press BELL button to select a location 1-5 for one of the Super User Cards.
....Response : The selected LED stays ON. After 2 seconds, the system confirms the selection with
........................2 beeps.
4) Read a new User Card once to make it Super User Card
....Please marked it Super User with location number; location 1 belongs to Storage Group1.
....Response : 2 Beeps confirms successful.
....Note: a) Repeat procedures (3) & (4) to record Super User Cards at other locations if required.
...................Total 5 Super Cards can be made.
..............b) The new card replaces the old card if there was an old card in the location.
5) Read Master Card 1 Time to exit Programming Mode.
....Response : 2 Beeps confirm reader back to normal operation.
Procedures
1) Read Master Card 1 Time to set system to Feature Group 1 – Record User Cards.
....Response : Status LED (blue)starts to flash during programming mode and group LED 1 is ON.
........................After 2 seconds, the system confirms the selection with 2 beeps and the 5 group
........................LEDs flashing for five storage groups available.
2) Press BELL button to select one of the 5 Storage Groups for storing the User Cards.
....Response : The selected group LED is ON for vacancy available. After 2 seconds the system
........................confirms the selection with 2 beeps.
........................The selected group LED stays flashing for vacancy full without confirmation.
3) Record the User Cards
....They can be read and appended one by one into the desired Storage Group.
....Response : 2 Beeps confirm successful for each card recording.
4) Read Master Card 1 Time to exit Programming Mode.
....Response : 2 Beeps confirm reader back to normal operation.
NOTE:
● Press BELL button to select other Storage Groups with the above procedures 2 & 3 before close
...of programming mode.
● All the User Cards must be unique in the system. Repeat recording of same card into other
...groups will be rejected. One long beep indicates rejection of a repeated card.
2) Press BELL button to select deletion mode 1.
....Response : LED 1 is ON. After 2 seconds, the system confirms the selection with 2 beeps.
3) Read the un-used card(s).
....They can be read and appended one by one to delete from the system.
....Response : The card’s Storage Group LED lights up for 1 second and 2 Beeps are generated for
........................each card deletion.
4) Read Master Card 1 Time to exit Programming Mode.
....Response : 2 Beeps confirm reader back to normal operation.
A) Deletion Mode 1 – Delete un-used card:
Exit
Programming Mode
Delete
Un-used Cards
Select
Deletion Mode 1
Read Master Card 2 Times
Set System in Feature Group 2
4321
14
IV ) SET SYSTEM SAFETY LOCK-UP -- Feature Group 4
The reader can be protected with safety lock-up to prevent trials with un-recorded cards. There are
three options for owner’s selection. Only one option can be selected in programming.
Option 1 -- No lock-up function at all (ex-factory setting)
Option 2 -- Lock-up during 60 seconds after 10 false trials
Option 3 -- Lock-up during 15 minutes after 10 false trials
Procedures -- Options 1, 2 or 3
2) Press BELL button to select the desired option 1, 2 or 3.
....Response : The LED of the desired option is ON. After 2 seconds, the system confirms the
.........................selection with 2 beeps.
3) Read Master Card 1 Time to exit Programming Mode.
....Response : 2 Beeps confirm reader back to normal operation.
....Note: The system counts each successive trial within 30 seconds and it resets if no reading of
..............card.
1) Read Master Card 4 Times to set system to Feature Group 4 – Set System Safety Lock-up.
....Response : Status LED (blue) starts to flash during programming mode and group LED 4 is ON.
........................After 2 seconds, the system confirms the selection with 2 beeps and the group LED
........................1, 2 & 3 flashing for the three options available.
Exit
Programming Mode
Select
Option 1, 2 or 3
Read Master Card 4 Times
Set System in Feature Group 4
321
II ) DELETE USER CARD(S) – Feature Group 2
The User Card(s) can be removed from the system if it is not used or lost. Three deletion modes
are available.
Deletion Mode 1 – Delete un-used card
Deletion Mode 2 – Delete lost card
Deletion Mode 3 – Delete a group of cards (Group clearing)
Procedures
1) Read Master Card 2 Times to set system to Feature Group 2 – Delete User Card(s).
....Response : Status LED (blue) starts to flash during programming mode and group LED 2 is ON.
........................After 2 seconds, the system confirms the selection with 2 beeps and the group LED
........................1, 2 & 3 flashing for the three deletion modes available.
B) Deletion Mode 2 – Delete lost user card:
2) Press BELL button to select deletion mode 2.
IIIIResponse : LED 2 is ON. After 2 seconds, the system confirms the selection with 2 beeps.
3) Read the user card that the lost card followed.
IIIIExample, the lost user card is #4, then, read the user card of #3 to delete it. Delete other lost
IIIIcards one by one in the same manner.
IIIIContinuous reading of user card #3 will also delete the succeeding user cards # 5, 6, 7 -- etc. As
IIIIcard #5 becomes the succeeding card of #3 after deleting #4, and so on.
IIIIResponse : The LED of the lost card’s storage group lights up for 1 second and 2 Beeps are
IIIIIIIIIIIIIIIIIIIIIIIIIgenerated for each card deletion.
IIIIRemark:
IIIIFor the lost user card of number 1 in its group and has no user card in front of it, then read the
IIIISuper User card of its group to delete it. The 5 user groups each one has its Super User card.
IIIISee Create Super Cards in page 15 for the details.
Exit
Programming Mode
Delete
Lost Cards
Select
Deletion Mode 2
Read Master Card 2 Times
Set System in Feature Group 2
4321
11
12
C) Deletion Mode 3 – Delete one group of user cards (Group clearing):
2) Press BELL button to select deletion mode 3.
....Response : LED 3 is ON. After 2 seconds, the system confirms the selection with 2 beeps and
.........................then the 5 LEDs flashing for five storage groups available.
3) Press BELL button to select the storage group 1-5 for group clearing.
....Response : The selected LED is ON. After 2 seconds, the system confirms the selection with 2
.........................beeps.
4) Press BELL button again to execute group clearing.
....Response : The group LED flashes during clearing and 2 Beeps confirm clearing done.
....Note: Repeat procedure (3) & (4) for clearing of other storage groups if required.
5) Read Master Card 1 Time to exit Programming Mode.
....Response : 2 Beeps confirm reader back to normal operation.
Remark:
After Group Clearing, it is necessary to re-store all the existing (not lost) User Cards back to the
Storage Group one by one with the procedures stated in the “Record User Cards – The Feature
Group 1” section.
Exit
Programming Mode
Group Clearing
Execution
4
Select Group 1-5
for Clearing
Select
Deletion Mode 3
Read Master Card 2 Times
Set System in Feature Group 2
5
3
2
1
4) Read Master Card 1 Time to close Programming Mode.
IIIIResponse : 2 Beeps confirm reader back to normal operation.
IIIINote:
IIIIThere is a slot left at the memory stack after a card is deleted. In programming, the new cards will
IIIIfill in the slots first according to their position in the queue of the memory stack. After all the slots
IIIIare filled, then the cards will go to the vacancies available at the end of the list.
B) Output Mode 2 – Timing 1 to 60 seconds:
2) Press BELL button to select output mode 2.
....Response : LED 2 is ON. After 2 seconds, the system confirms the selection with 2 beeps.
3) Press BELL button once to start the time counting.
....Response : Counting from 1 second to 60 seconds with 1 second and 1 short Beep per step. The
........................5 indicator LEDs act as timer indicator from 1 to 5 seconds in the 1st round counting,
........................and 6 to 10 seconds in the 2nd round ….. and so on, until 60 seconds.
4) Press BELL button again to stop the counting when the desired time reaches.
....Response : 2 Beeps confirms the time and the counting LED stops at its position
....Note: If it is not the time desired, repeat procedures (3) & (4) for a new counting.
5) Read Master Card 1 Time to exit Programming Mode.
....Response : 2 Beeps confirm reader back to normal operation.
13
Exit
Programming Mode
Stop
Time Counting
Start
Time Counting
Select
Output Mode 2
Read Master Card 3 Times
Set System in Feature Group 3
5
43
2
1
3) Read Master Card 1 Time to exit Programming Mode.
....Response : 2 Beeps confirm reader back to normal operation.
A) Output Mode 1 – Start / Stop (Toggle):
2) Press BELL button to select output mode 1.
....Response : LED 1 is ON. After 2 seconds, the system confirms the selection with 2 beeps.
Exit
Programming Mode
Select
Output Mode 1
Read Master Card 3 Times
Set System in Feature Group 3
321
III ) SET OUTPUT MODE FOR DOOR LOCK -- Feature Group 3
The operation of the door lock output can be set to Start/Stop mode or 1 second to 60 seconds
Timing Mode. The ex-factory setting is 2 seconds.
Output Mode 1 – Start / Stop (Toggle)
Output Mode 2 – Timing 1 to 60 seconds (Door lock striking time)
Procedures
1) Read Master Card 3 Times to set system to Feature Group 3 – Set Output Mode for Door
....Lock.
....Response : Status LED (blue) starts to flash during programming mode and group LED 3 is ON.
........................After 2 seconds, the system confirms the selection with 2 beeps and the group LED
........................1 & 2 flashing for the two output modes available.
5. Paul
4. -- (Slot)4. Alan
3. -- (Slot)3. Nancy
2. Tracy2. Tracy
1. John1. John
AfterBefore
5. Paul
6. -- (Vacancy)6. -- (Vacancy)
Example: An User list before and after deleting Nancy and Alan’s user cards, there are 2 slots (3
.................& 4) left.
This is the programming manner of putting three new user cards into
the system with slots, the 1st one goes to the 1st slot (#3), the 2nd one
goes to the 2nd slot (#4) and the 3rd one goes to the vacancy (#6)
available at the end of the list.
