AGD SYSTEMS AGD932-24 AGD 932 Target Simulator User Manual manual
AGD SYSTEMS LTD AGD 932 Target Simulator manual
manual
AGD Systems Limited
White Lion House, Gloucester Road, Staverton, Cheltenham, Gloucestershire, GL51 0TF UK
+44 (0)1452 854212 www.agd-systems.com
F: +44 (0) 1452 854213 E: info@agd-systems.com
trAffic
|
informAtion
|
meAsurement
|
equipment
glo
glo
bAl
bAl
S
Y
S
TEM
S
detection
AdVAnced
©AGD Systems
Limited 2009
Doc. Ref.
AGD932 INFO01 ISS3

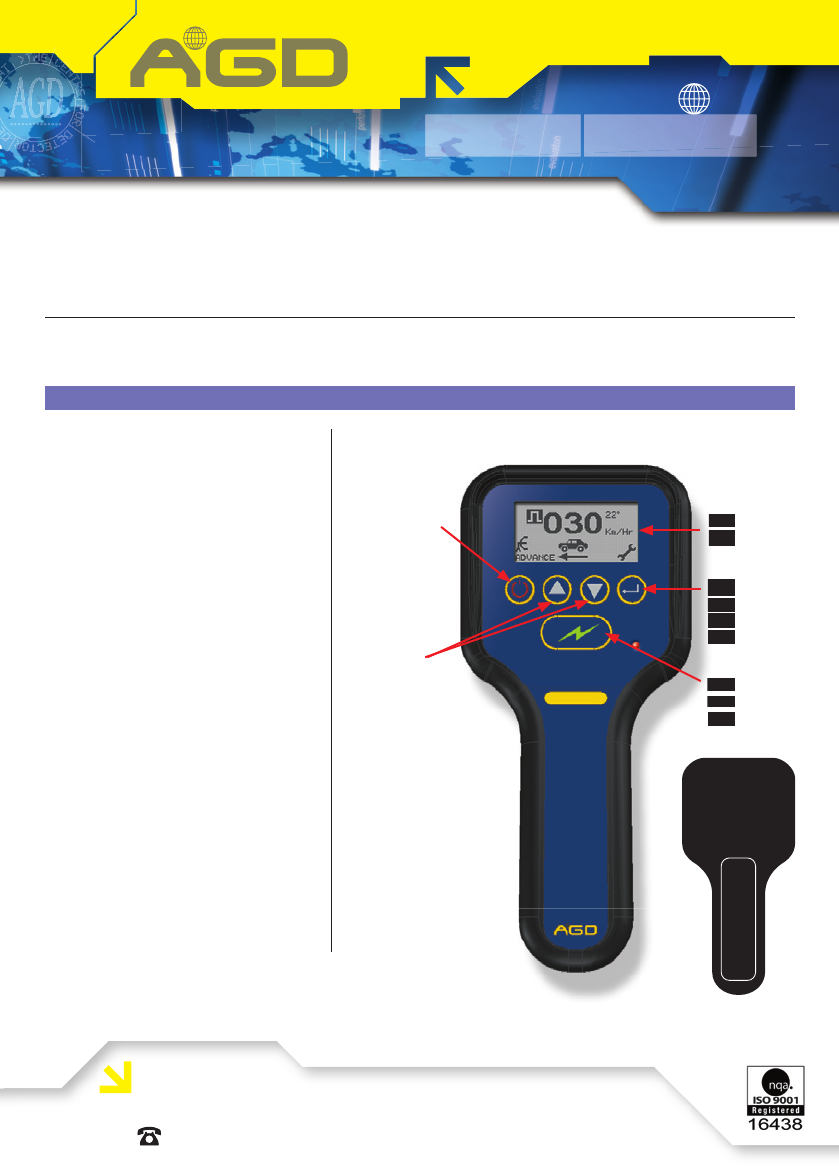

The AGD932 is a compact purpose
designed portable radar target
simulator that can be used to test
radars on site for correct operation and
speed reporting
Incorporating state-of- the-art radar
technology and benefi tting from
a lightweight ergonomic profi le, a
number of special features have been
designed into the target simulator
which make it suitable for many
national requirements.
The target simulator features a number
of user adjustable parameters via an
intuitive user interface and is supplied
in a protective carry case.
Information
Display
Select / Accept
Select highlighted
option / accept
change
Activate Test
Audible
confi rmation given
AGD932
RADAR TARGET SIMULATOR
Customer information 2.2V - 3.6V (2 x AA Batteries)
GENERAL
|
OPERATION
Information
Display
Select / Accept
Select highlighted
option / accept
change
Activate Test
Audible
confi rmation given
Power on / off
press hold for 1
second to power up
or power down unit
(auto power off
after 5 minutes)
Up / Down
Scroll through
options. Inverse
highlighted item
identifi es the
currently selected
parameter
200mm
Compartment
for 2 x AA Batteries
64mm
96mm
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Changes or modifi cations to this equipment, not
expressly approved by AGD Systems Ltd, may void
the user’s authority to operate this equipment.

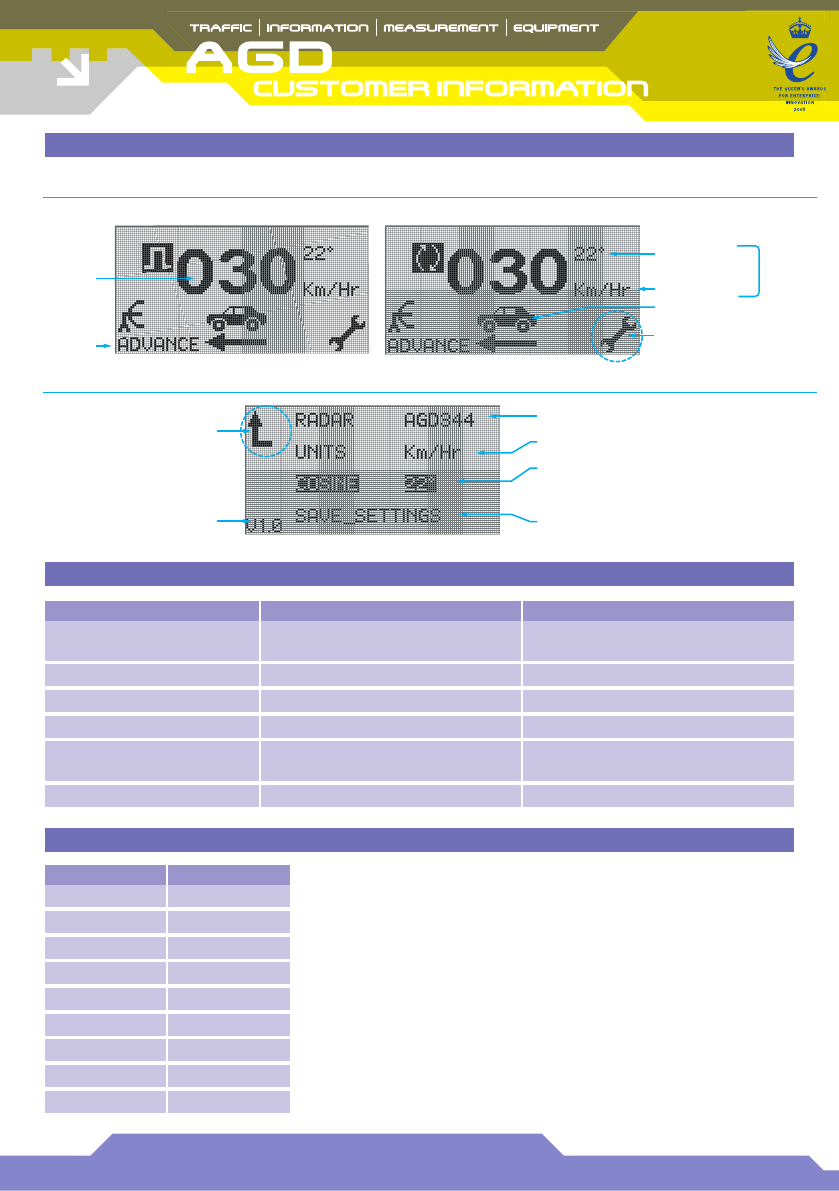

ADJUSTABLE PARAMETERS
DISPLAY / CONFIGURATION
In addition to the pre-set speed
values, user adjustable speed
values between 20Km/Hr
(12mph) and 320Km/Hr
(200mph) can be set.
NOTE: standard operating
distance is between 1 and 2
metres from detector face.
PRE-SET SPEED VALUES
©AGD Systems Limited 2009
Doc. Ref. AGD932 INFO01 ISS3
Parameter Value / Range Comments
Cosine 20° - 30° Fixed 22° for AGD340
Adjustable for AGD344
Speed 20 - 320 km/hr Pre-set or user adjustable
Speed units km/hr / mph
Target Direction Advance / Recede
Operating mode Single Burst Audible indication provided
(whilst simulating signal is active)
Vehicle Type Small / Medium / Long Depicted as Car / Van / Lorry
Speed km/hr Speed mph
21 13
38 24
50 31
64 40
82 51
97 60
110 68
131 81
250 150
Cosine (radar
mounting angle)
INFORMATION DISPLAY
CONTINUOUS MODEPULSE MODE
SET-UP MENU DISPLAY
Adjusted
in set-up
menu
Speed units
Access set-up menu
Radar type
Speed units
Cosine (radar mounting angle)
- only adjustable when radar
type AGD344 selected
Save Settings allows changes that have been
made to be stored in non-volatile memory
Vehicle type
Advance
(recede)
Return to main menu
AGD932
Firmware version
Target
Speed
Preset
values
or user
defined
