AISOLUTION KBD401 USB Bluetooth Dongle User Manual
AISOLUTION CO., LTD. USB Bluetooth Dongle
User Manual
KBD401
USB Bluetooth Dongle
User Manual
For Windows 7 / 8 OS
Regulatory Compliance
FCC ID : VH9KBD401
CE2200
Modification not expressly approved by the manufacture could void the user’s authority to operated the equipment
under FCC rules.
About This guide
This user guide contains information that you need to install and configure
the KoamTac USB Bluetooth dongle.
How this guide is organized.
This guide contains the following parts:
Chapter 1: Knowing your USB Bluetooth dongle
This chapter provides information on the package contents, system
requirements, and specifications of the KoamTac USB Bluetooth
dongle.
Chapter 2: Getting started
This chapter describes how to install.
Chapter 3: Pairing with a Bluetooth device
This chapter describes how to pair your computer with another
Bluetooth devices.
Chapter 4 : Appendices
This chapter provides you with the regulatory Notices and Safety
Statements.
Package contents
- KoamTac KBD401
- Quick Start Guide
System requirements
Before using your KBD401 USB Bluetooth dongle, ensure that your system
meets the following requirements:
Operating system: Microsoft Windows 7 / 8
System memory: 512MB or larger
Hard drive free space: 10MB
KBD401 specifications summary
Feature
Compliant with Class I Bluetooth v2.0 and v2.1
Enhanced Data Rate(EDR) support
Adaptive Frequency Hopping(AFH) support
Chipset
CSR8510
Bluetooth Standards
Class I Bluetooth v2.1 + EDR
Bluetooth 4.0
Interface
USB 2.0/1.1
Antenna
Internal
Range
Up to 30 meters(depending on the environment)
Bluetooth Profile
SPP, HID, DUN, PAN, HCRP
Radio Frequency
2.4 GHz - 2.4835 GHz
Transfer Rate
Up to 3.0Mbps
OS support
Windows 7/8
Power Consumption
5V, 90mA max
Input Power
5V (USB bus-powered)
Physical Dimensions
22mmx15mmx5.35mm (LxWxH)
Weight
2.0g
*Specifications are subject to change without notice.
Getting Start
To install the Bleutooth driver to your computer.
1. There is no driver CD cause Windows will install “Generic Bluetooth
Radio” driver automatically.
2. Insert USB BT Dongle into your computer’s usb port.

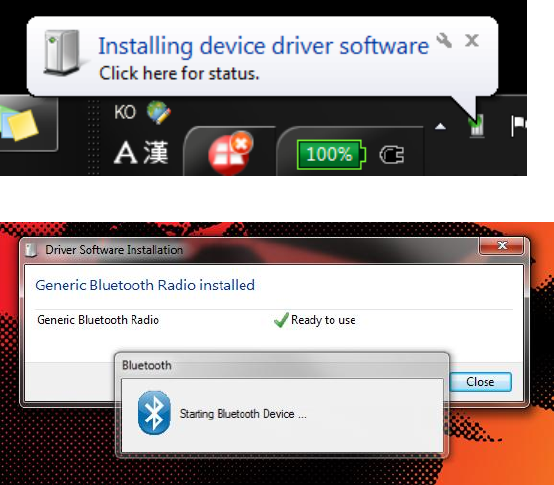

3. Computer will display below message.

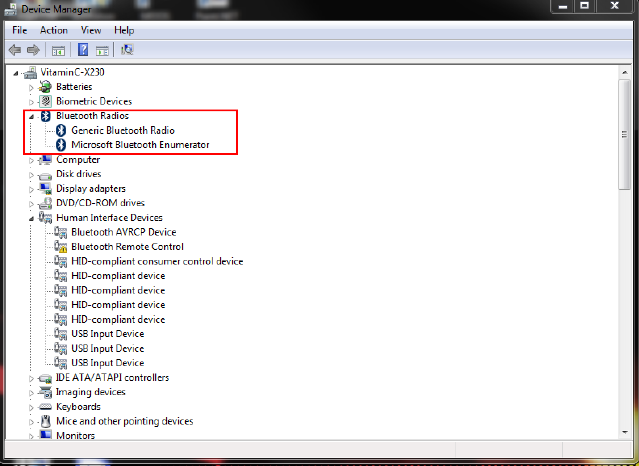

4. If driver install successfully, you can find the device in device manager
( Click Start > Control Panel > Hardware and Sound > Device
Manager )
Pairing with a Bluetooth Device

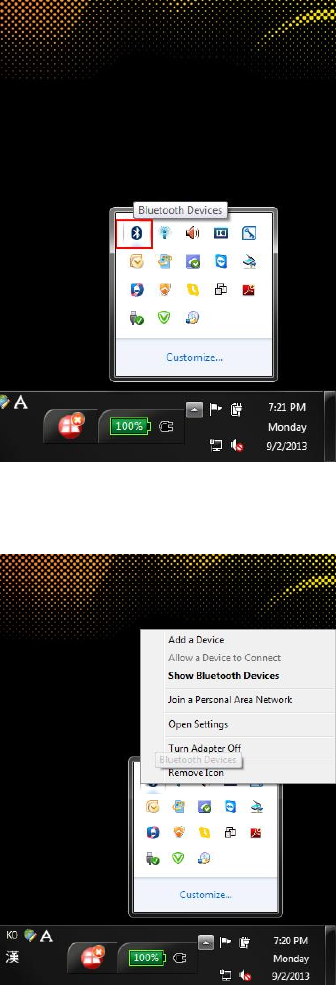

1. Click Bluetooth icon on tray.
2. Click Add a Device menu

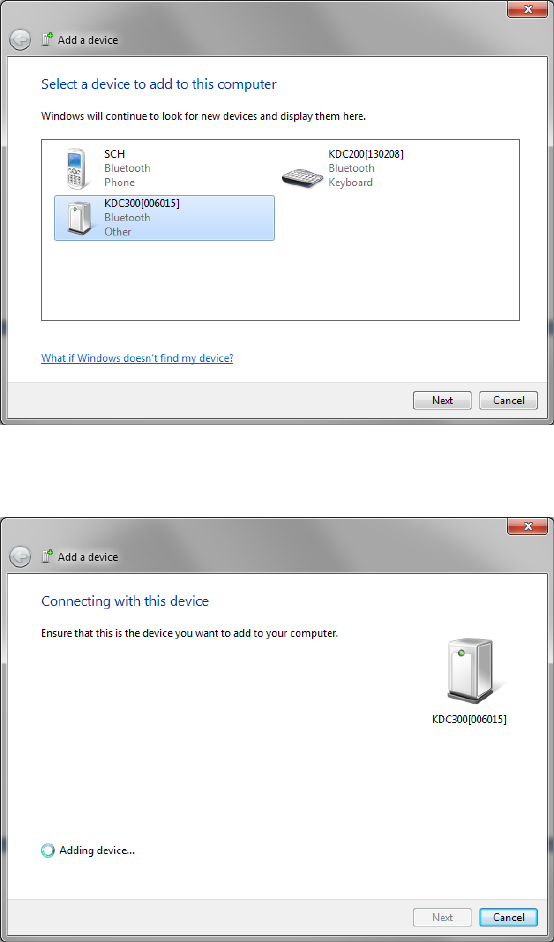

3. Select Bluetooth Device on the list.
4. Select Next.
5. Finish Add a Device
Find Bluetooth Serial Comport #

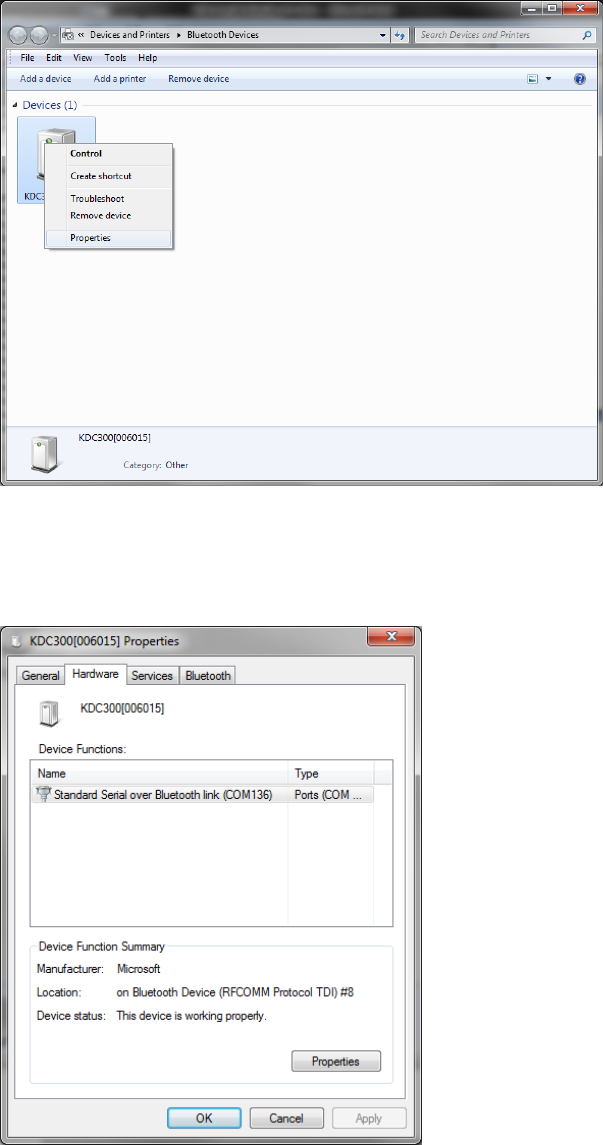

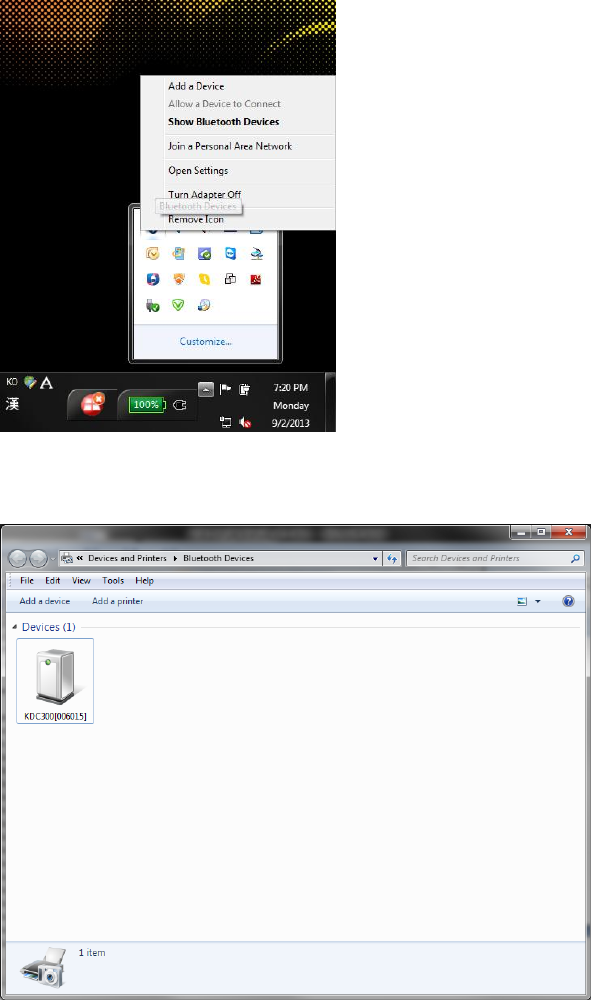

1. Enter Bluetooth device list via “Show Bluetooth Devices” menu
2. Select Bluetooth device to find serial comport #
3. Click right mouse button and click Properties menu
4. Select Hardware tab menu. You can find Bluetooth device’s serial
comport #.
