AISOLUTION KDC20 Barcode Scanner User Manual

AISOLUTION CO., LTD. Barcode Scanner

User Manual

KDC User Manual
Rev 2.85.R6 / 2.86.R6 / 3.05.R6
February 2014
KDC User Manual
2
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Table of Contents
Listing of figures ................................................................................................. 8
Listing of tables .................................................................................................. 9
1. Introduction ................................................................................................ 14

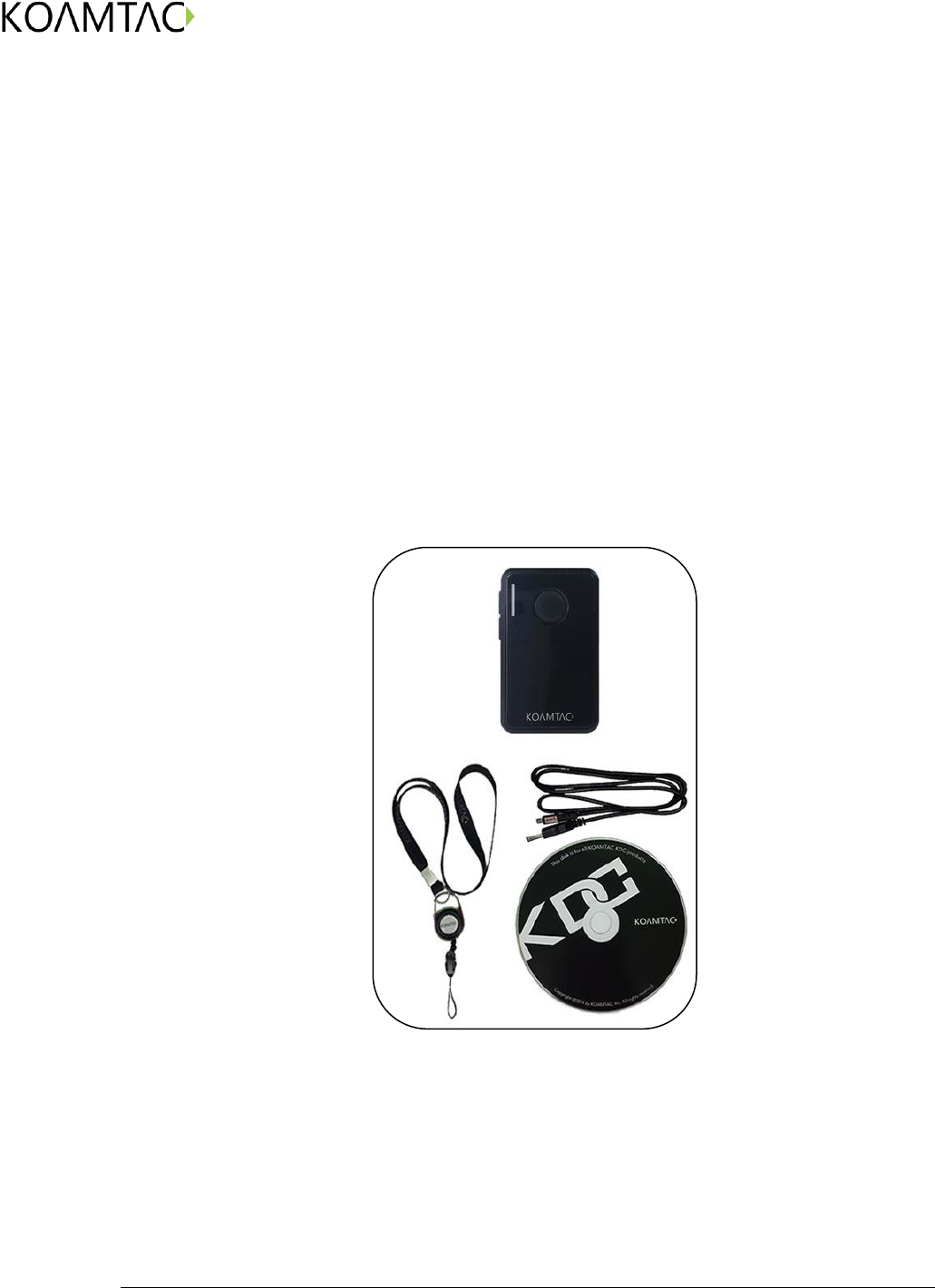

KDC Package ...................................................................................................................... 15 1.1
KDC Characteristics ............................................................................................................ 16 1.2
2. Installation .................................................................................................. 17
Bluetooth Pairing ............................................................................................................... 17 2.1
2.1.1 Preparing for Pairing ............................................................................................. 17
2.1.2 Pairing ................................................................................................................... 18

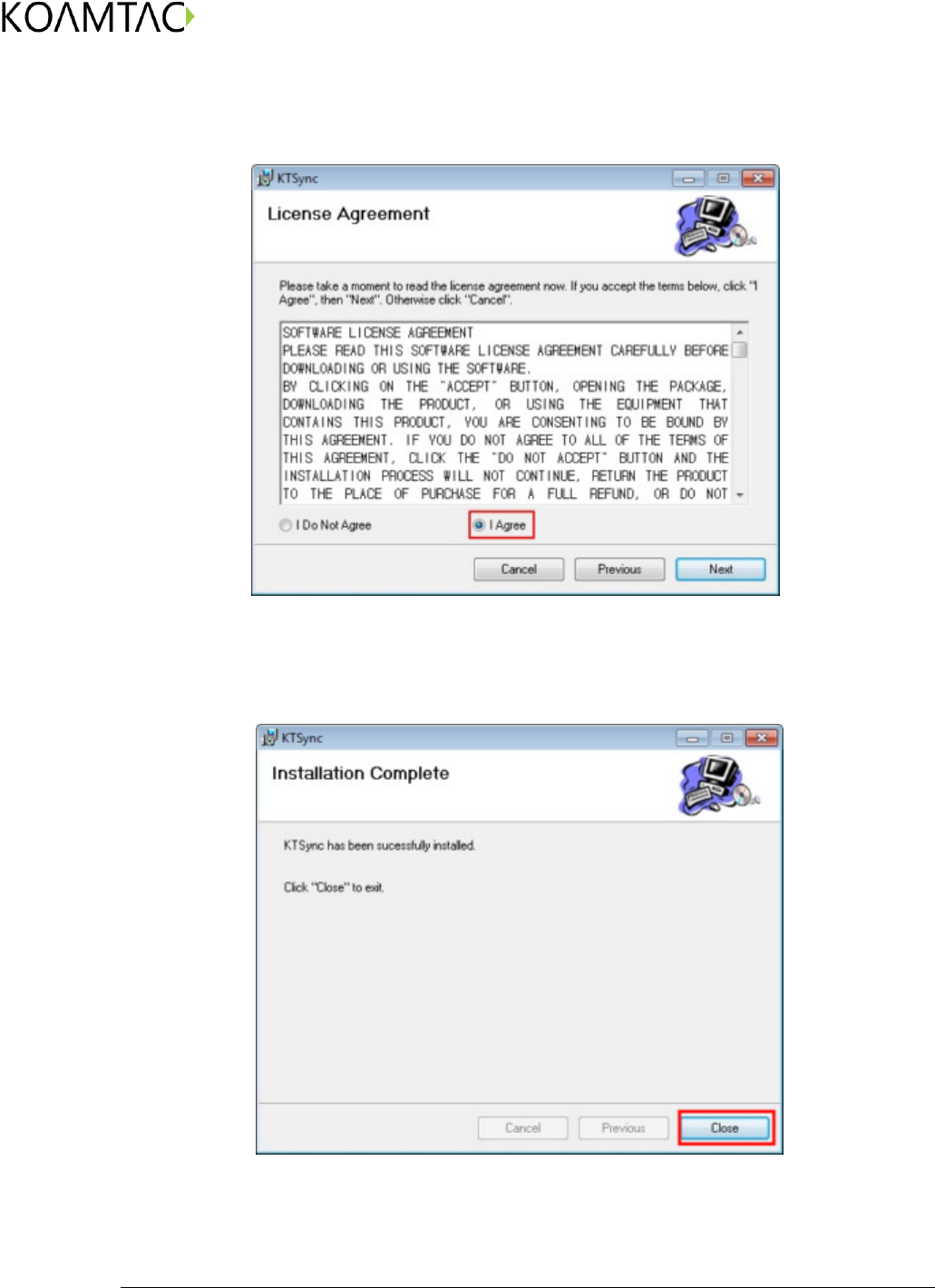

KoamTac Installation Wizard ............................................................................................. 21 2.2
2.2.1 Windows 7 and 8 .................................................................................................. 21
2.2.2 Windows Mobile 5.0+ ........................................................................................... 24
2.2.3 Android ................................................................................................................. 26
2.2.4 Blackberry ............................................................................................................. 26
2.2.5 iPad/iPhone/iPod touch ........................................................................................ 26
Manual Installation............................................................................................................ 27 2.3
2.3.1 Windows XP/Vista7/8 ........................................................................................... 27
2.3.2 Windows Mobile 5.0+ ........................................................................................... 27
3. Operating the KDC ...................................................................................... 28
Getting Started .................................................................................................................. 28 3.1
3.1.1 Attach Lanyard/Hand strap to KDC ....................................................................... 28
3.1.2 Charge KDC Battery ............................................................................................... 28
3.1.3 Configure KDC ....................................................................................................... 28
Basics ................................................................................................................................. 30
3.2
3.2.1 Reading Barcodes .................................................................................................. 30
3.2.2 Delete Data Function in KDC20 ............................................................................. 31
3.2.3 Synchronizing Data to the host device ................................................................. 31
KDC Menus ......................................................................................................................... 32 3.3
3.3.1 Set Barcodes Menu ............................................................................................... 35
KDC User Manual
3
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
3.3.2 Code Options Menu .............................................................................................. 35
3.3.3 Scan Options Menu ............................................................................................... 35
3.3.4 Data Process Menu ............................................................................................... 36
3.3.5 BT Config Menu ..................................................................................................... 40
3.3.6 BT Service .............................................................................................................. 41
3.3.7 System Menu ........................................................................................................ 42

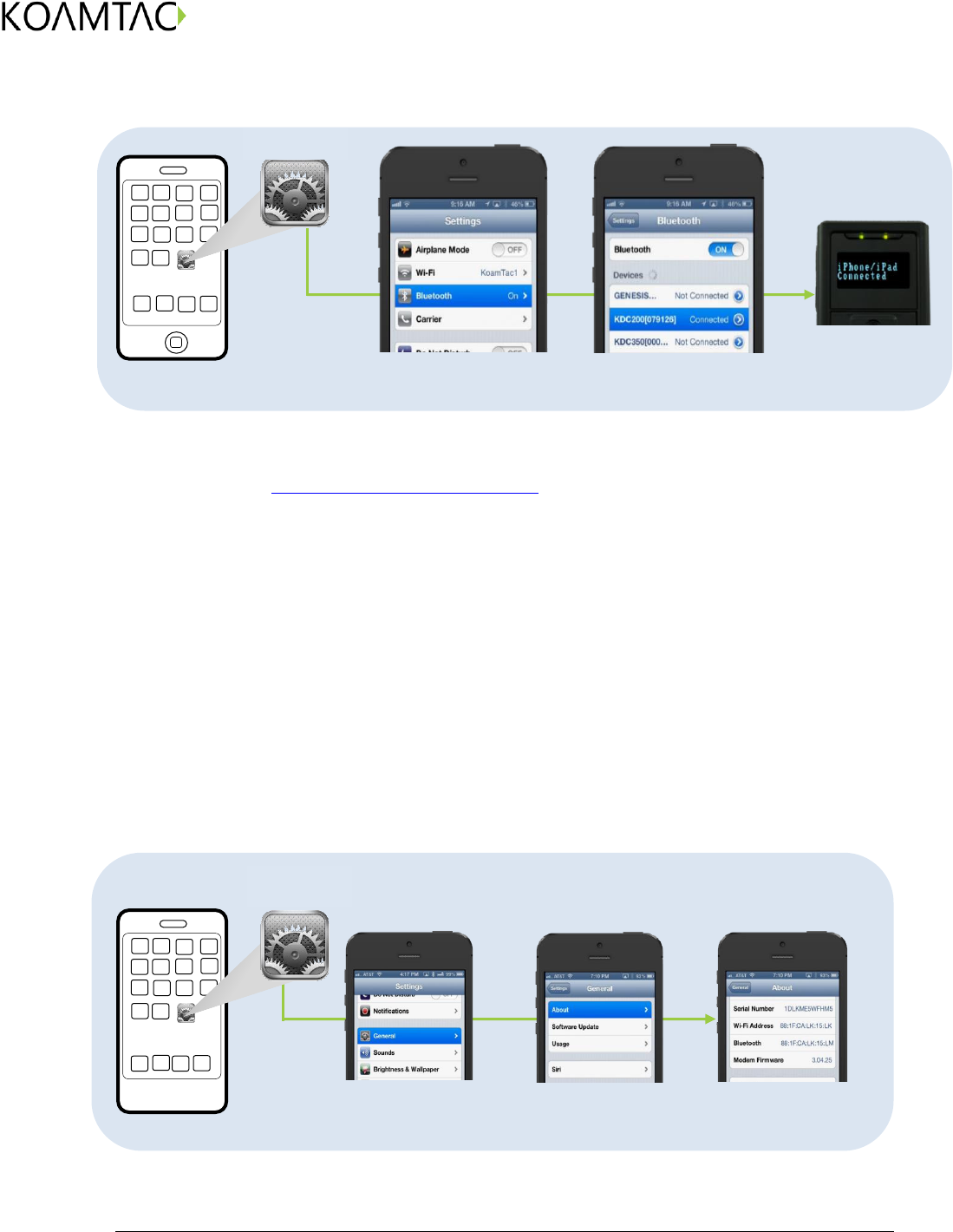

3.3.8 Pair and connect KDC20iand iOS4.0+ in HID mode .............................................. 43
3.3.9 iOS Soft Keyboard toggling using BT Toggle option .............................................. 44
LED Status .......................................................................................................................... 45 3.4
Empty Battery .................................................................................................................... 45 3.5
Buffer Full........................................................................................................................... 46 3.6
Power-on/off...................................................................................................................... 46 3.7
Replace Battery .................................................................................................................. 46 3.8
4. BLUETOOTH ................................................................................................ 48
Bluetooth Config ................................................................................................................ 48 4.1
4.1.1
ConnectDevice
....................................................................................................... 48
4.1.2 Auto Connect ........................................................................................................ 49
4.1.3 Auto Reconnect ..................................................................................................... 49
4.1.4
Auto Power On
...................................................................................................... 49
4.1.5
PWR ON Time
........................................................................................................ 49
4.1.6
Auto Power Off
...................................................................................................... 50
4.1.7
Beep Warning
........................................................................................................ 50
4.1.8
PWR OFF Time
....................................................................................................... 50
4.1.9
PowerOFF Msg
....................................................................................................... 50
4.1.10
MAC Address
......................................................................................................... 50
4.1.11
FW Version
............................................................................................................ 50
4.1.12
Wakeup Nulls
......................................................................................................... 51
4.1.13
Autolock Time
........................................................................................................ 51
4.1.14
HID Keyboard
......................................................................................................... 51
4.1.15
HID Initial and Inter-Character Delay
..................................................................... 51
4.1.16 Control character transmission in HID mode ........................................................ 51
KDC User Manual
4
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
4.1.17 Function key transmission in HID mode ............................................................... 52
4.1.18 Disconnect/Reconnect/BT(HID) Toggle ................................................................ 52
Bluetooth Service ............................................................................................................... 53 4.2
4.2.1
Power
.................................................................................................................... 53
4.2.2
Pairing
.................................................................................................................... 53
4.2.3
Discovering
............................................................................................................ 54
4.2.4 Connect To ............................................................................................................ 54
4.2.5 HID Sync ................................................................................................................ 54
5. Synchronization .......................................................................................... 55
KTSync Menu ..................................................................................................................... 55 5.1

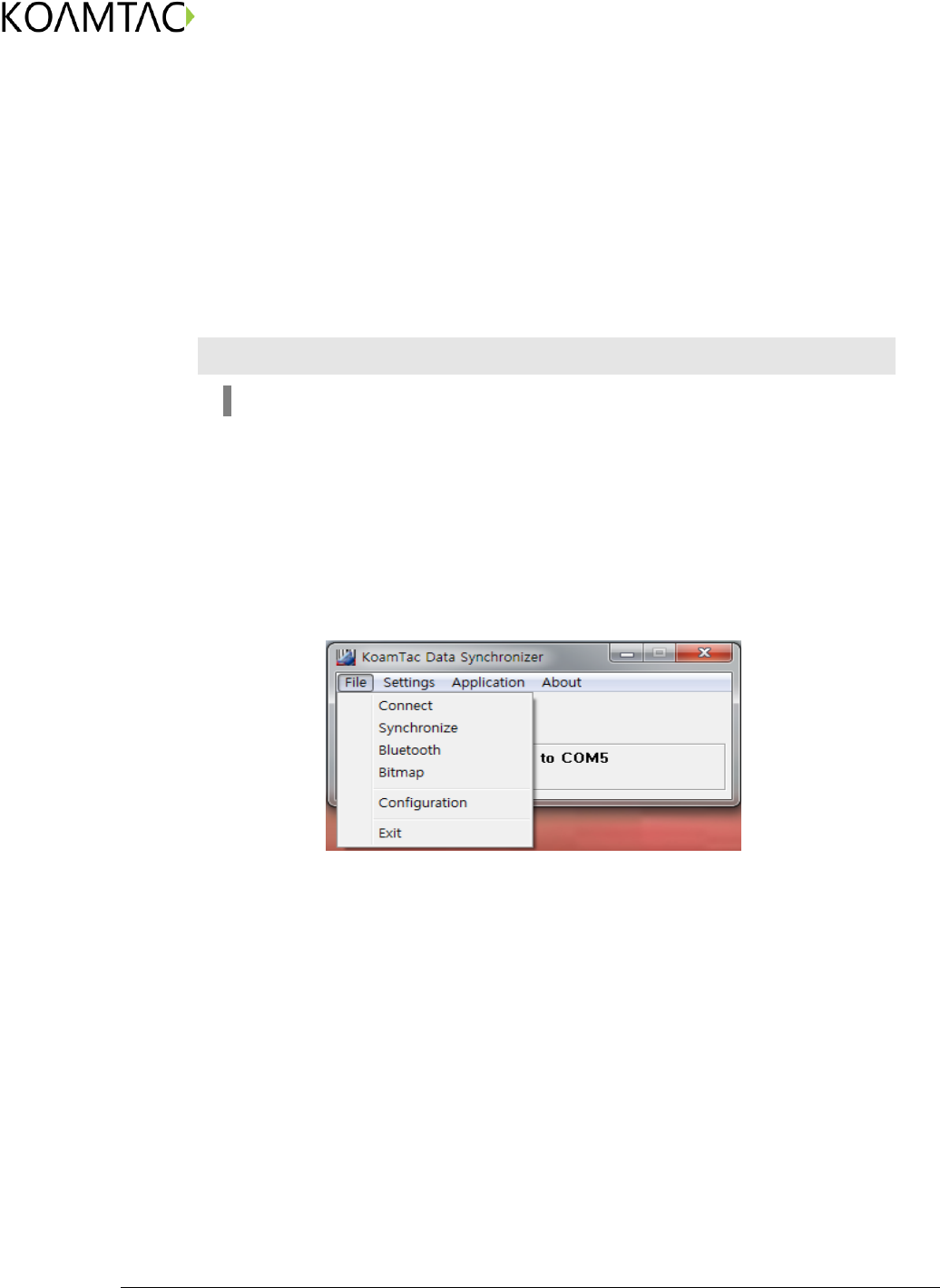

File Menu ........................................................................................................................... 58 5.2

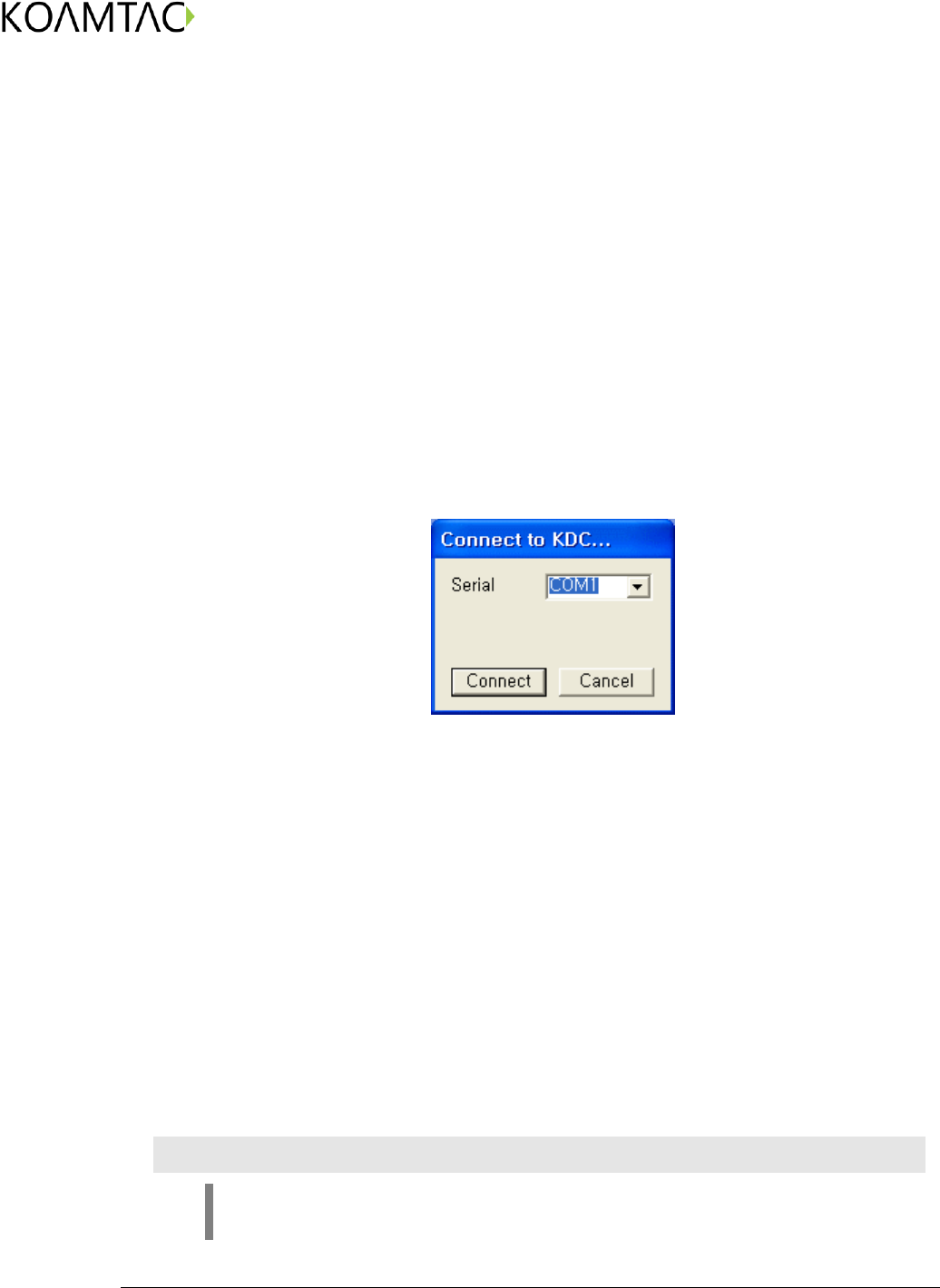

5.2.1 Connect to KDC ..................................................................................................... 58
5.2.2 Synchronize ........................................................................................................... 59
5.2.3 Bluetooth .............................................................................................................. 59
5.2.4 Configuration ........................................................................................................ 60
Synchronization Settings .................................................................................................... 61 5.3
5.3.1 Destination of Data ............................................................................................... 62
5.3.2 Synchronization Methods ..................................................................................... 62
5.3.3 Current KDC Wedge Method ................................................................................ 63
5.3.4 Synchronization Options ....................................................................................... 64
5.3.5 Application Options .............................................................................................. 64
Barcode & KDC Settings ..................................................................................................... 66 5.4
5.4.1 Select Symbologies and Symbology Options ........................................................ 67
5.4.2 Data Editing Option ............................................................................................... 67
Other Settings .................................................................................................................... 68 5.5

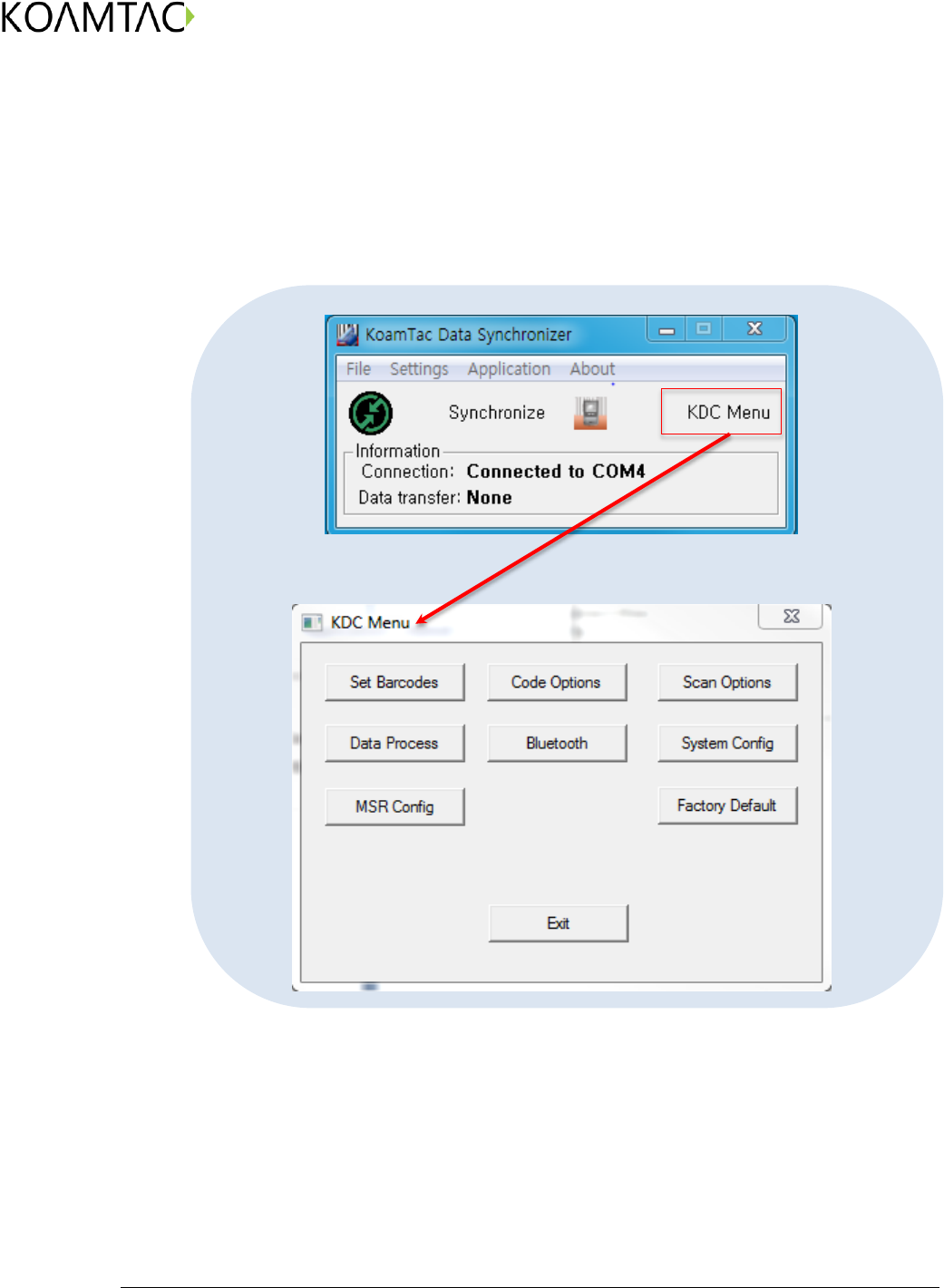

KDC Menu in KTSync .......................................................................................................... 69 5.6

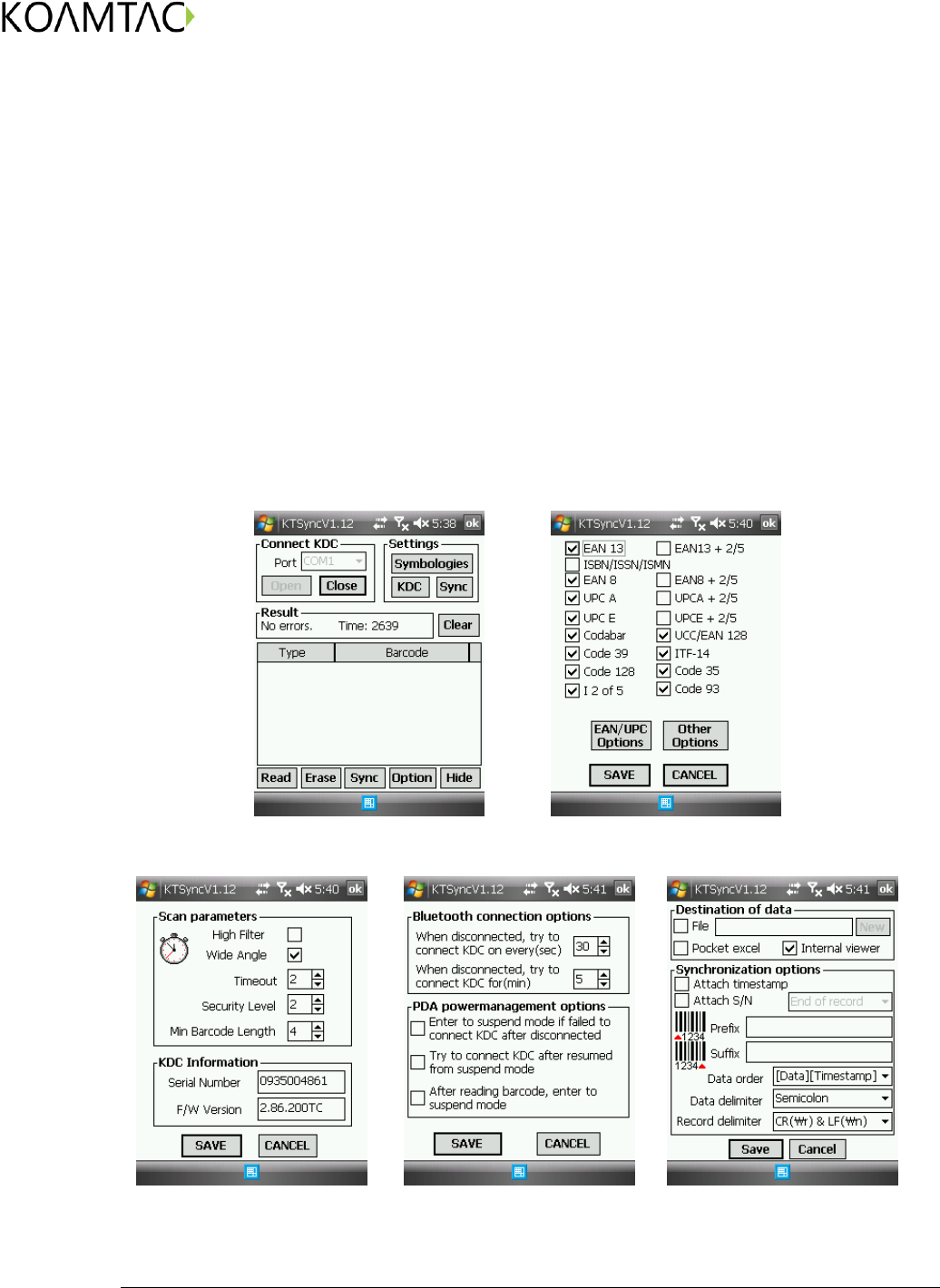

Mobile pKTSync .................................................................................................................. 70 5.7
Android aKTSync ................................................................................................................ 71 5.8
5.8.1 KDC and Android Pairing ....................................................................................... 71
5.8.2 Launch KTSync ....................................................................................................... 71
5.8.3 Keyboard Wedge ................................................................................................... 72

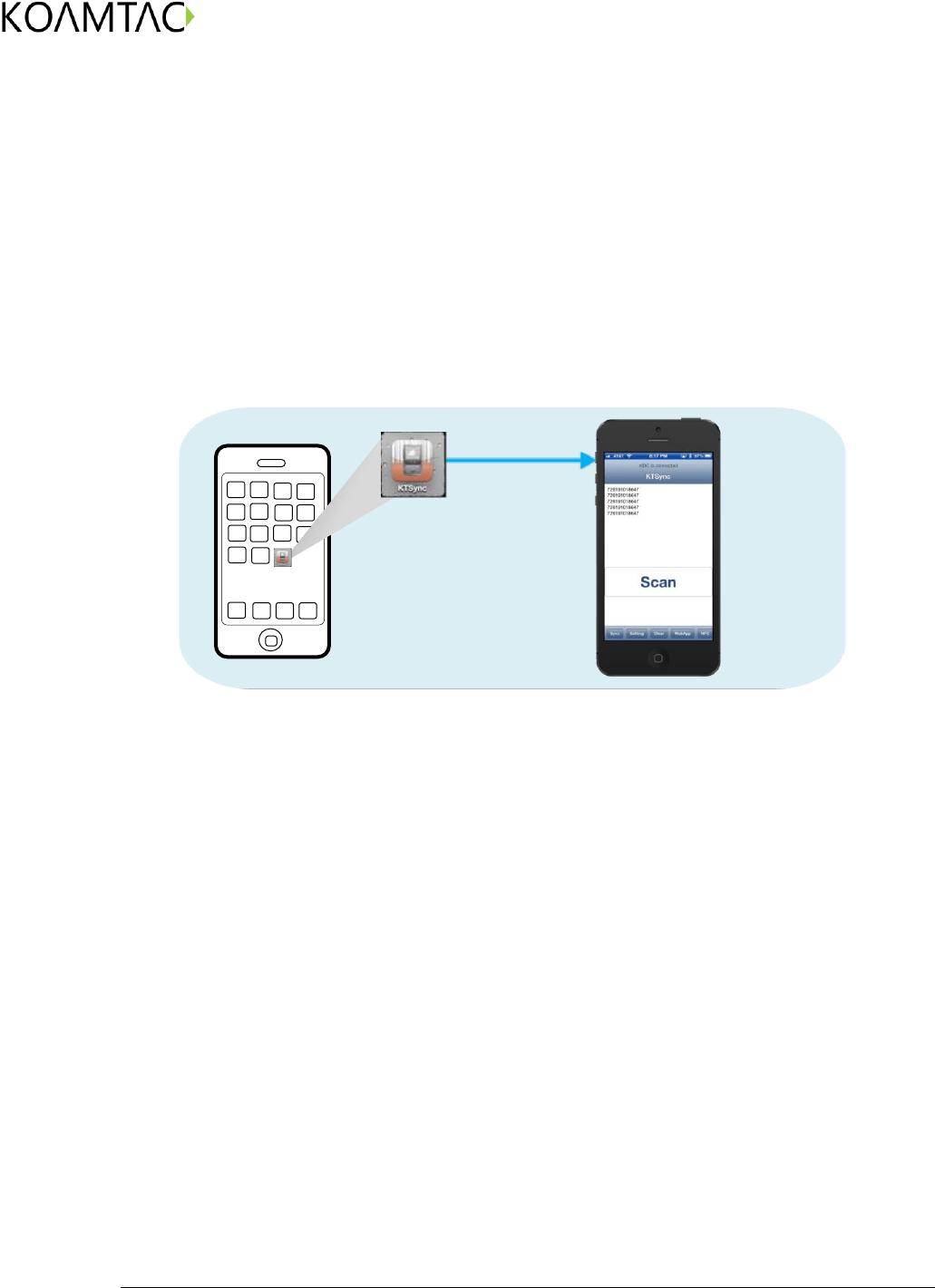

iPad/iPhone/iPod touch KTSync ......................................................................................... 73 5.9
5.9.1 KDC20i connection using iPhone mode ................................................................ 73
KDC User Manual
5
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
5.9.2 iKTSync Settings .................................................................................................... 74
5.9.3 How to connect and reconnect iPhone mode using UP keys ............................... 74
Blackberry bKTSync ............................................................................................................ 75 5.10
KTSync for Mac OS X .......................................................................................................... 77 5.11
5.11.1 Connect Button ..................................................................................................... 78
5.11.2 Disconnect Button................................................................................................. 78
5.11.3 Synchronize Button ............................................................................................. 78
5.11.4 Clear Button .......................................................................................................... 78
5.11.5 Settings Button ..................................................................................................... 79
. TROUBLESHOOTING .................................................................................... 82
. WARRANTY ................................................................................................. 83
8. Contact Information .................................................................................... 84
9. APPENDIX A - Barcode & Scan Options ........................................................ 85
Symbologies ....................................................................................................................... 85 9.1
9.1.1 Bookland EAN vs. EAN-13 ..................................................................................... 86
9.1.2 Add-on Symbologies ............................................................................................. 86
Code Options ...................................................................................................................... 87 9.2
9.2.1 Reverse Direction .................................................................................................. 87
9.2.2 Symbology Conversion .......................................................................................... 88
9.2.3 Verificatio of Optioal Check Digit .................................................................. 88
9.2.4 Trasissio of Check Digit ............................................................................... 89
9.2.5 Resolution of Inconsistencies................................................................................ 90
Miscellaneous Barcode Information .................................................................................. 91 9.3
9.3.1 Height of a Linear Barcode .................................................................................... 91
9.3.2 Check Characters .................................................................................................. 91
9.3.3 Prevent Interleave 2 of 5 Partial Reading ............................................................. 91
9.3.4 Equation to Determining Potential Number of Stored Barcodes ......................... 92
9.3.5 Data Buffer Full ..................................................................................................... 92
. APPENDIX B – FAQ....................................................................................... 93
Symbology ......................................................................................................................... 93 10.1
KDC User Manual
6
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Battery ............................................................................................................................... 94 10.2
Memory ............................................................................................................................. 94 10.3
Programming ..................................................................................................................... 94 10.4
11. Appendix C - Special Barcodes ..................................................................... 96
Set Symbologies ................................................................................................................. 96 11.1
Barcode Options ................................................................................................................ 99 11.2
Delete Last Scanned Barcode ........................................................................................... 102 11.3
Scan Options .................................................................................................................... 103 11.4
Scan Timeout ................................................................................................................... 104 11.5
Minimum Barcode Length ............................................................................................... 105 11.6
Security Level ................................................................................................................... 107 11.7
Data Process - Wedge/Store & Enter Key ........................................................................ 108 11.8
Data Process – Data Edit ................................................................................................. 109 11.9
Data Process - Data Format – Handshake ....................................................................... 110 11.10
Data Process - Termination Character & Duplicate Check ............................................... 111 11.11
Bluetooth ......................................................................................................................... 112 11.12
Bluetooth Auto Power On Time ....................................................................................... 115 11.13
Bluetooth PWR Off Time .................................................................................................. 116 11.14
Auto lock Time ................................................................................................................. 119 11.15
HID Keyboard layout ........................................................................................................ 120 11.16
HID Initial Delay ............................................................................................................... 121 11.17
HID Character Delay ........................................................................................................ 122 11.18
HID Control Character ...................................................................................................... 123 11.19
System.............................................................................................................................. 124 11.20
Sleep Timeout .................................................................................................................. 128 11.21
ETC ................................................................................................................................... 130 11.22
Function ........................................................................................................................... 131
11.23
Number ............................................................................................................................ 132 11.24
Lower Case Alphabet ....................................................................................................... 133 11.25
Upper Case Alphabet ....................................................................................................... 135 11.26
Control Character............................................................................................................. 137 11.27
Symbol Character ............................................................................................................. 138 11.28
KDC User Manual
7
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Auto Power Off Timeout .................................................................................................. 141 11.29
USB DISK (M Model Only) ................................................................................................ 142 11.30
KDC User Manual
8
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Listing of figures
Figure 1- KDC Package
............................................................................................................................. 15

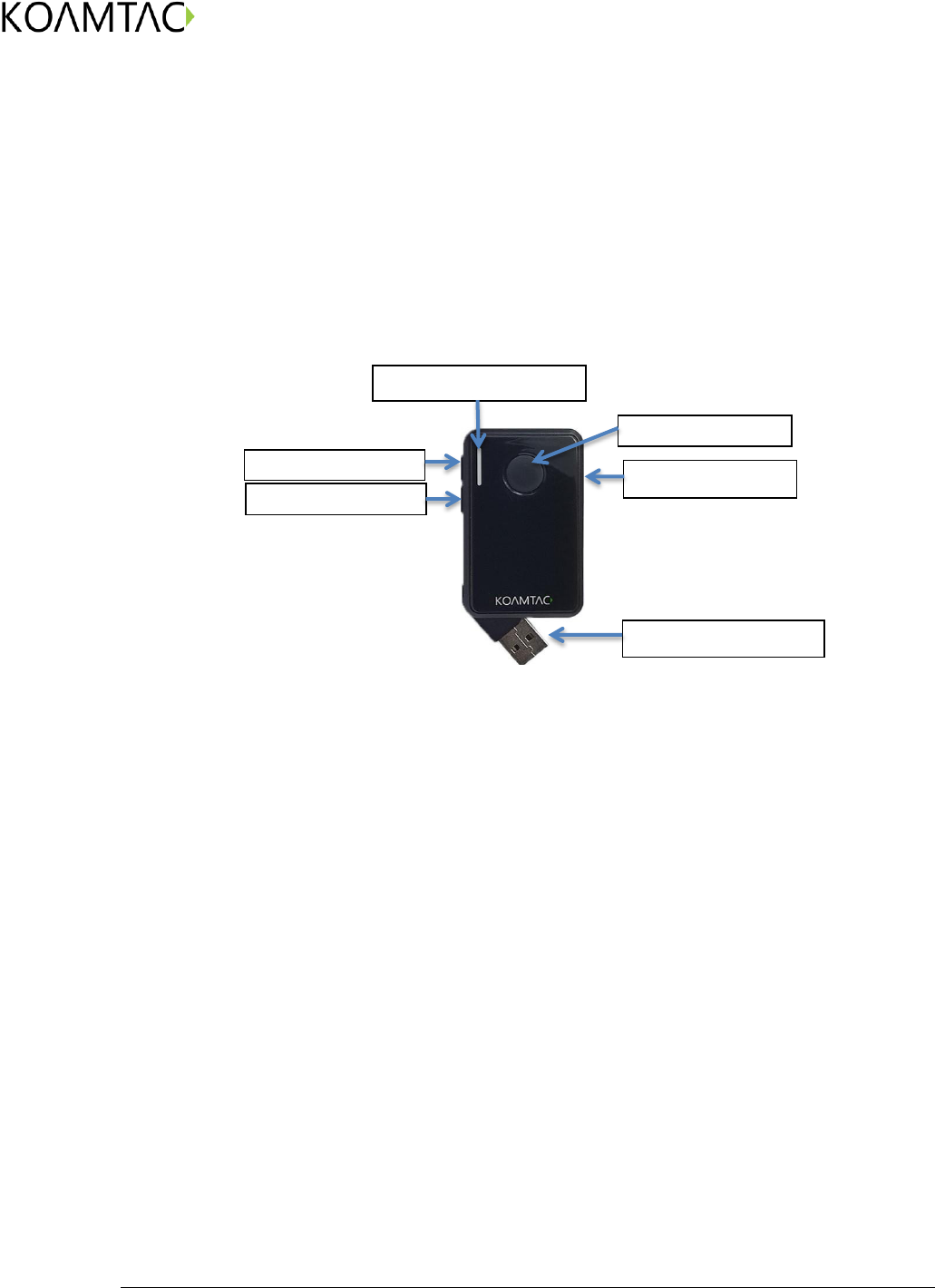

Figure 2 – Characteristics of KDC20
........................................................................................................ 16
Figure 3 – How to turn on the power in KDC20
..................................................................................... 17
Figure 4 – Selecting a Bluetooth device type in KDC
........................................................................... 18
Figure 5 – Selecting Pairing mode in KDC
............................................................................................. 18
Figure 6 – Pairing mode button in KDC20
............................................................................................. 18
Figure 7 – Finding Bluetooth Mac Address
........................................................................................... 19

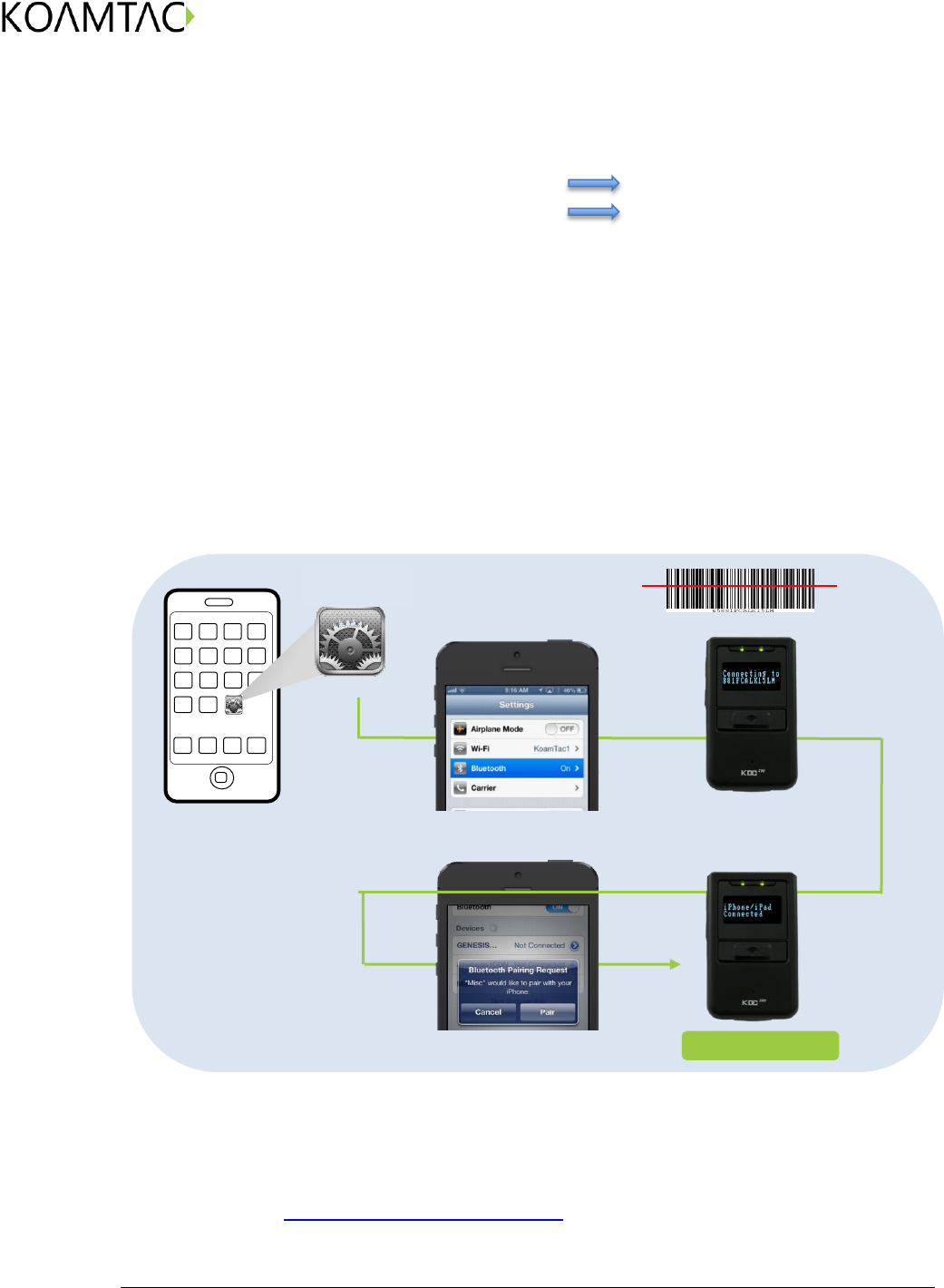

Figure 8 - Connecting KDC with a smart phone by scanning Bluetooth MAC Address Barcode
.. 20
Figure 9 - Location and use of buttons on a keypad (KDC350)
........................................................... 29
Figure 10 – KDC Display
........................................................................................................................... 30
Figure 11 – Scanning barcodes with KTSync
......................................................................................... 30
Figure 12 – Delete Function in KDC20
.................................................................................................... 31
Figure 13 - Replacing Battery
................................................................................................................... 47

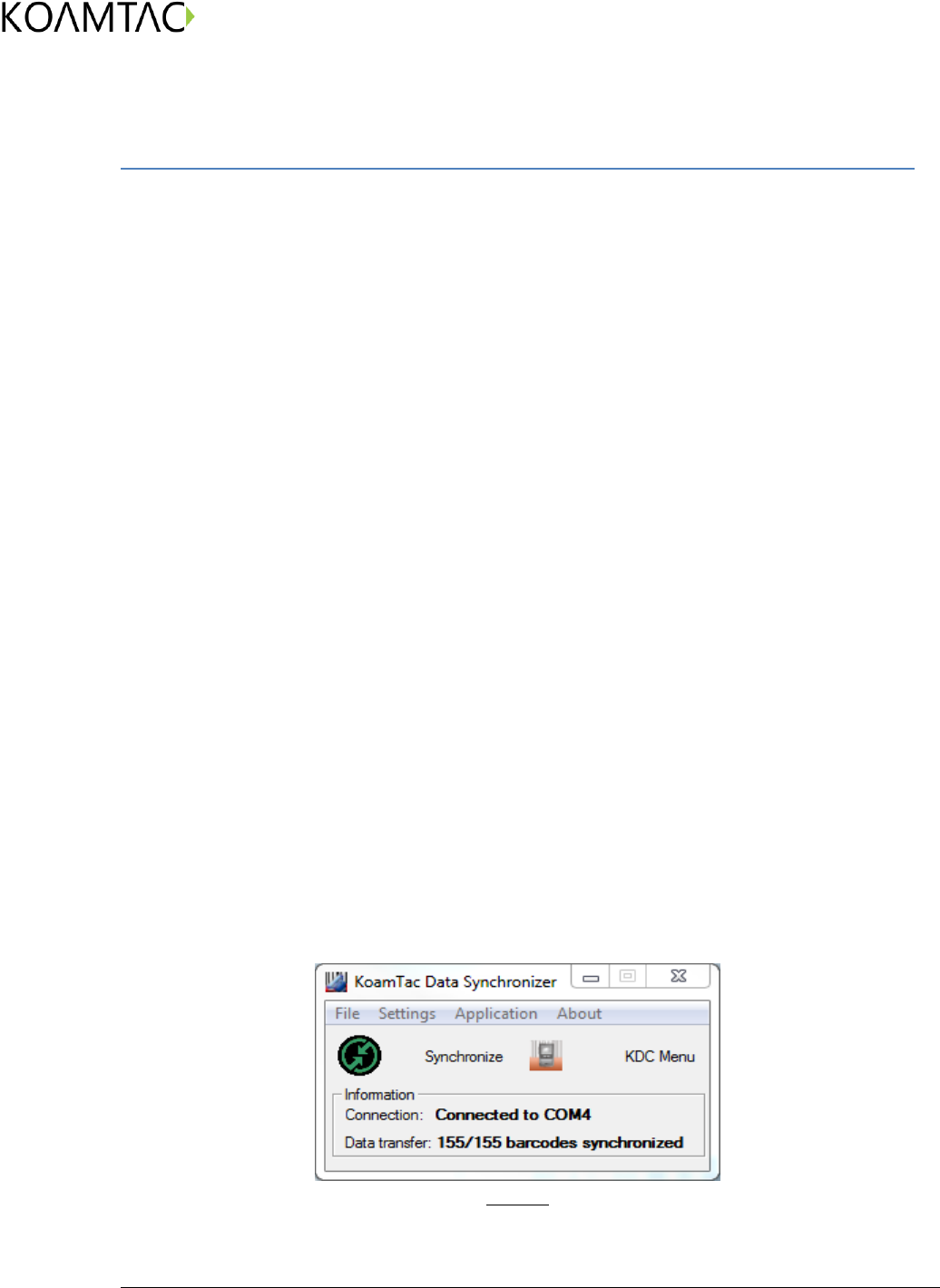

Figure 14 - KTSync
® Synchronizer Menu
................................................................................................. 55
Figure 15 – File Menu
................................................................................................................................ 56

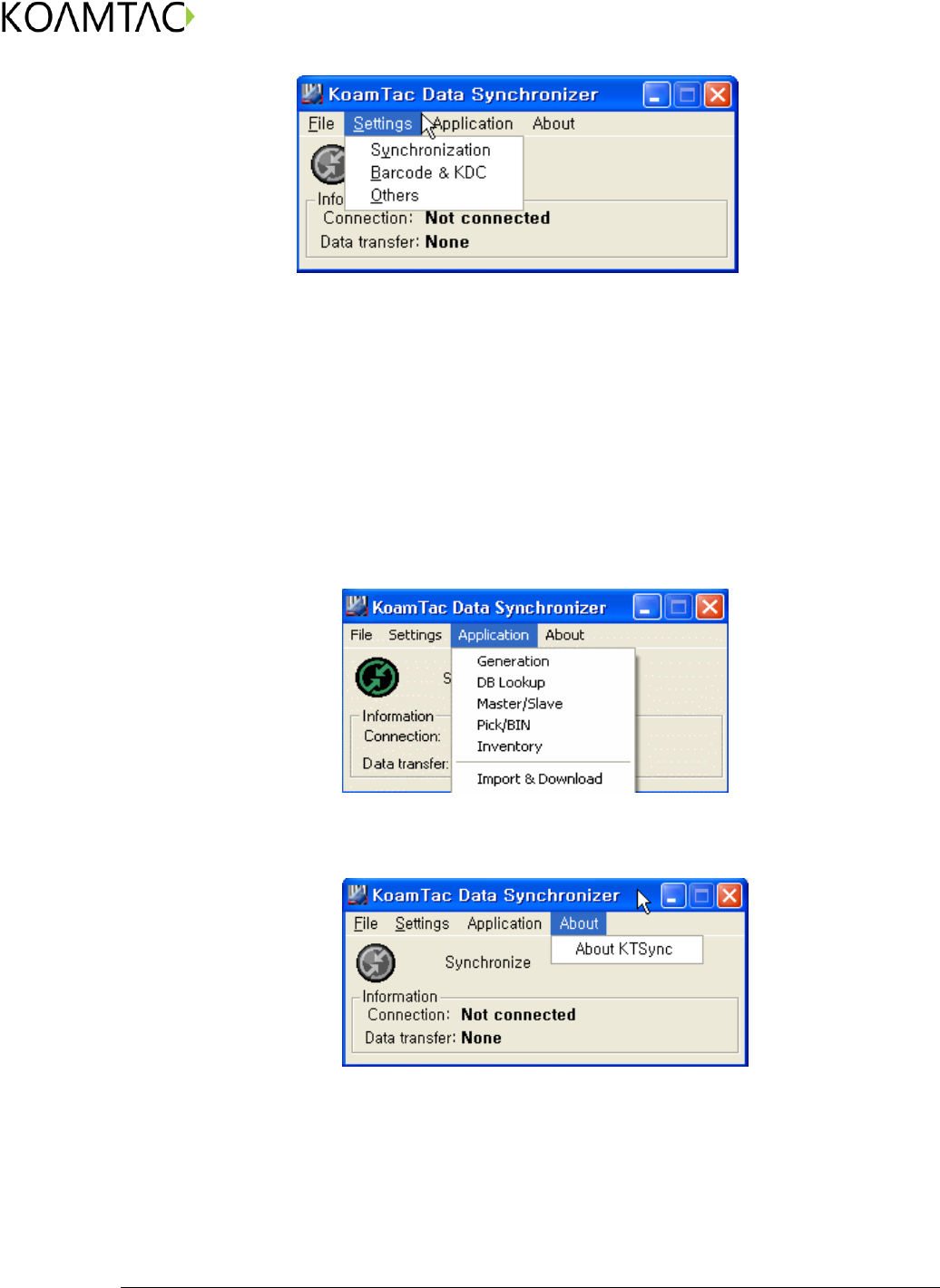

Figure 16 – Setting Menu
......................................................................................................................... 57
Figure 17 – Application Menu
.................................................................................................................. 57
Figure 18 – About Menu
........................................................................................................................... 57
Figure 19 - COM Port Selection for KDC
................................................................................................ 58

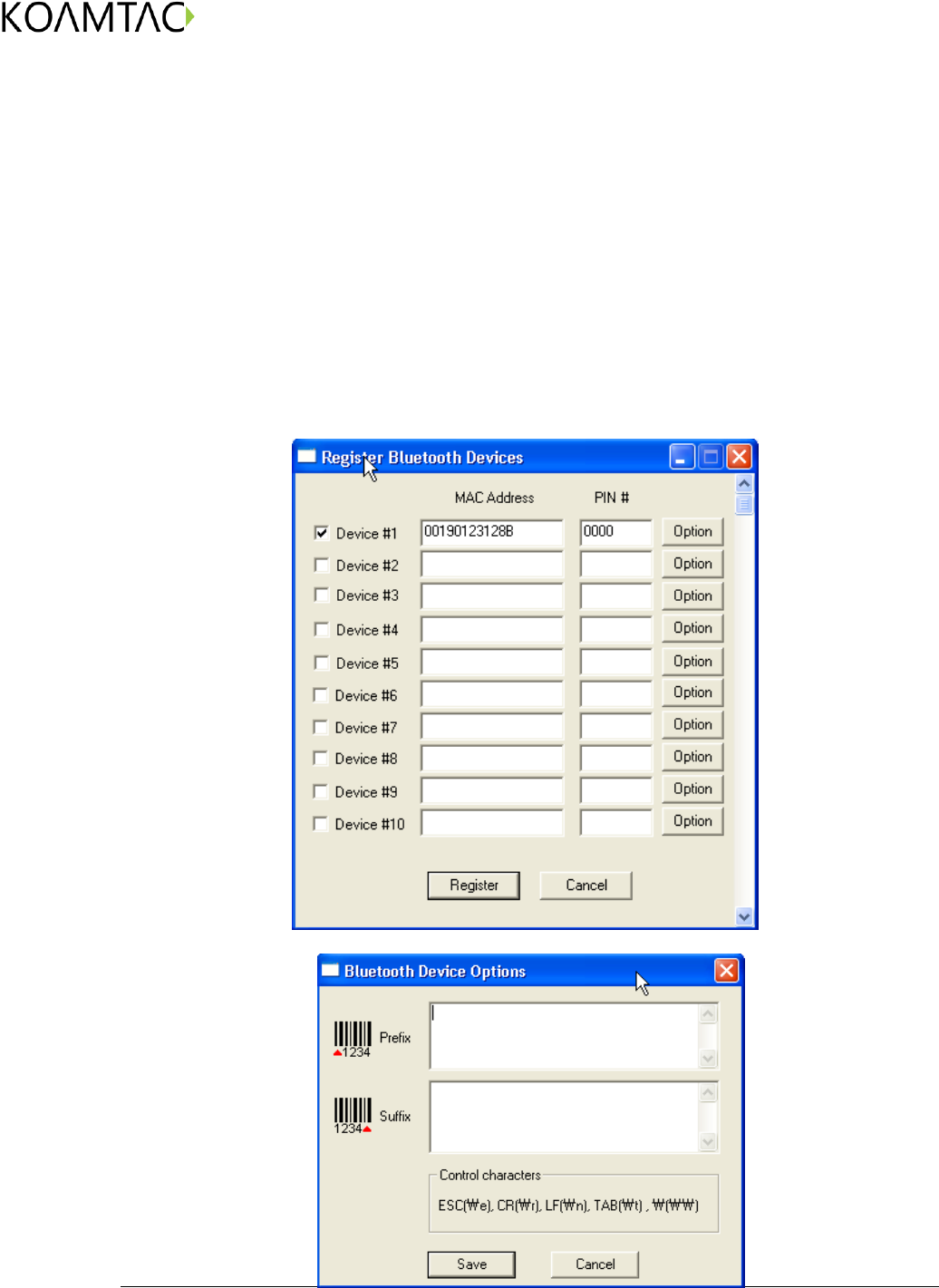

Figure 20 - Bluetooth Device Registry
.................................................................................................... 60

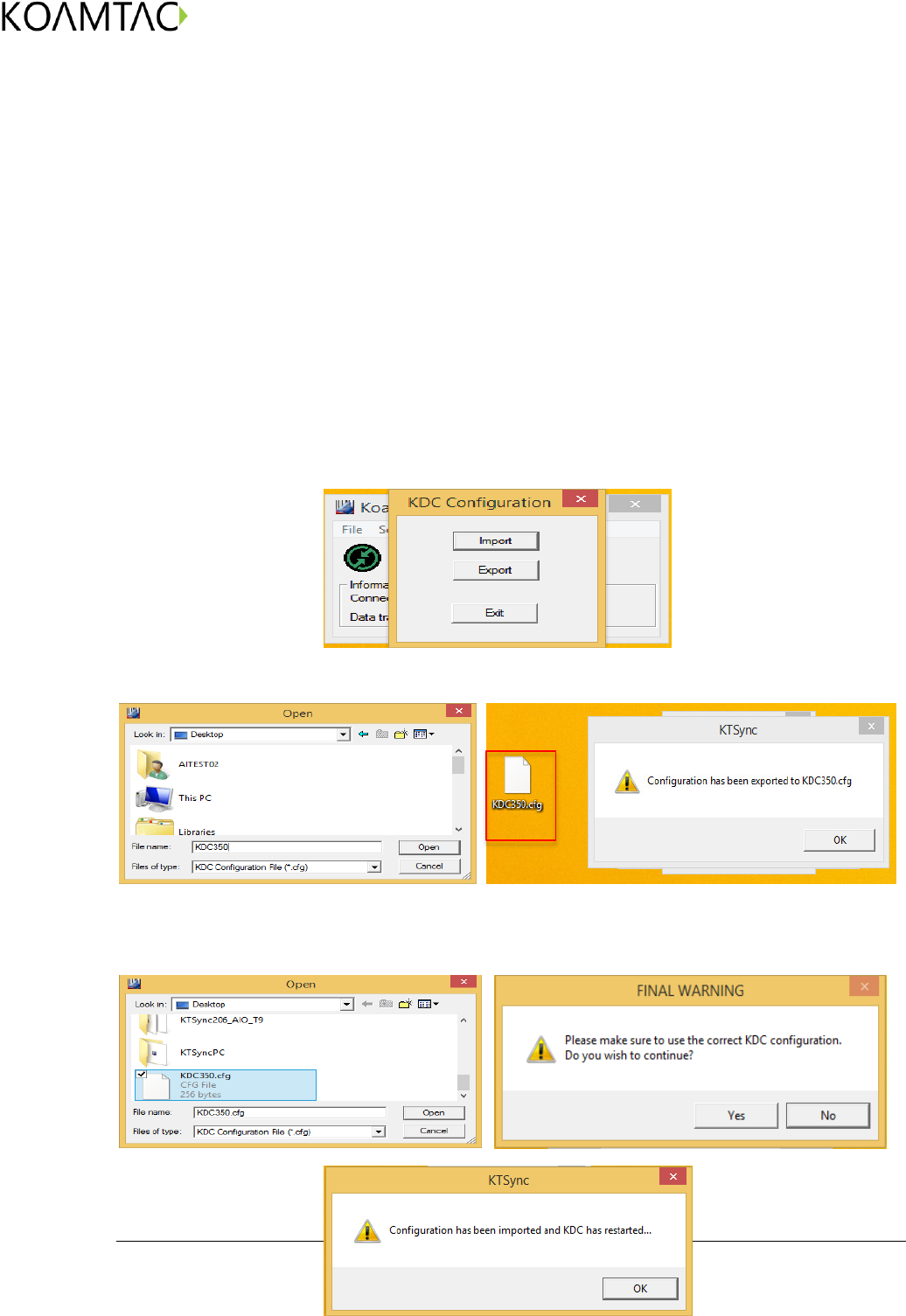

Figure 21 – Configuration
......................................................................................................................... 61
Figure 22 - KTSync

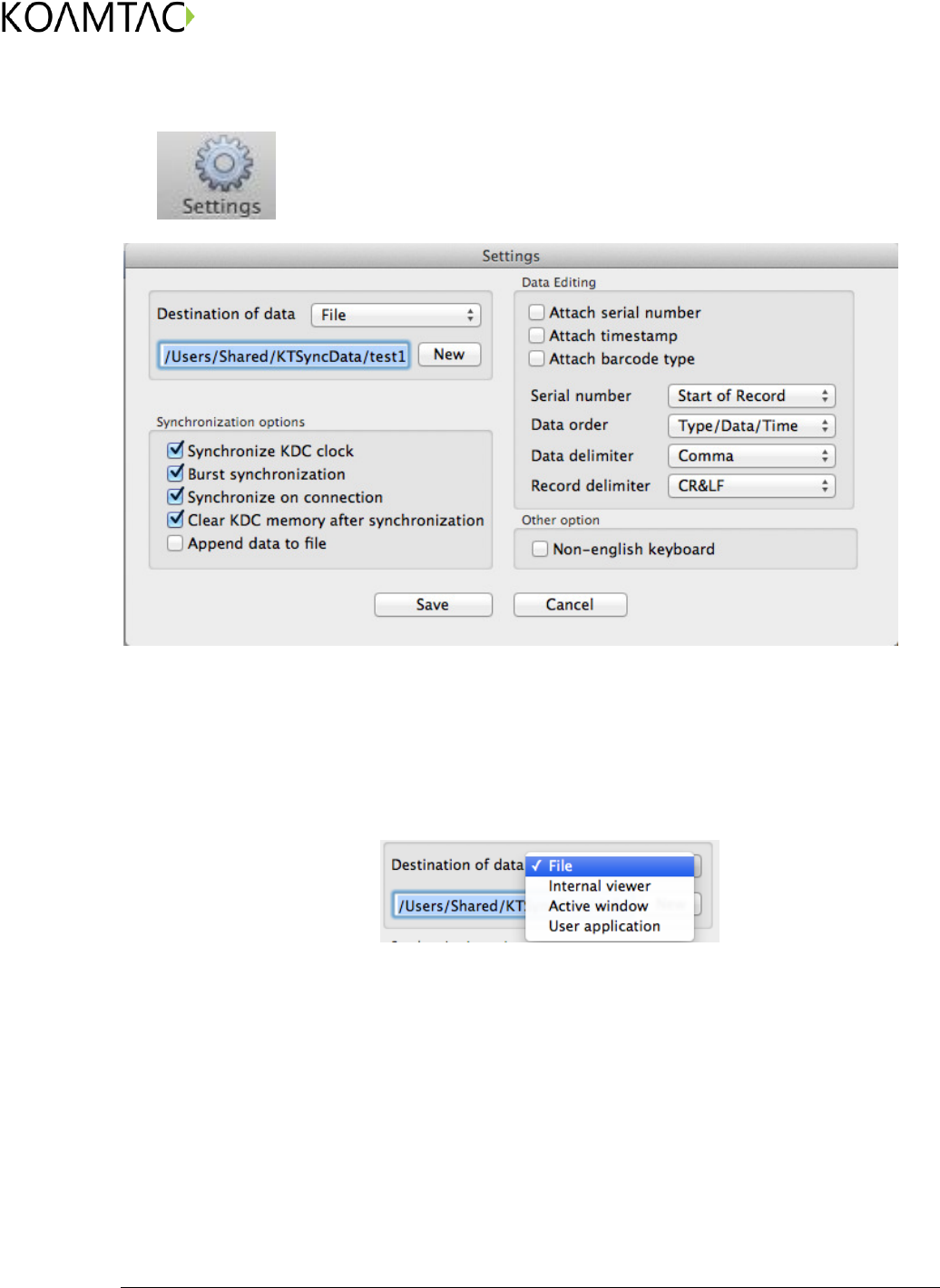

® Synchronization Settings
....................................................................................... 61
Figure 23 - Barcode & KDC Settings, Symbologies, Data Editing and Scan Options
..................... 66
Figure 24 - KTSync
® Confirmation Settings
............................................................................................ 68
Figure 25 – KDC Menu in KTSync (KDC20)
............................................................................................ 69
Figure 26 – Mobile pKTSync
..................................................................................................................... 70

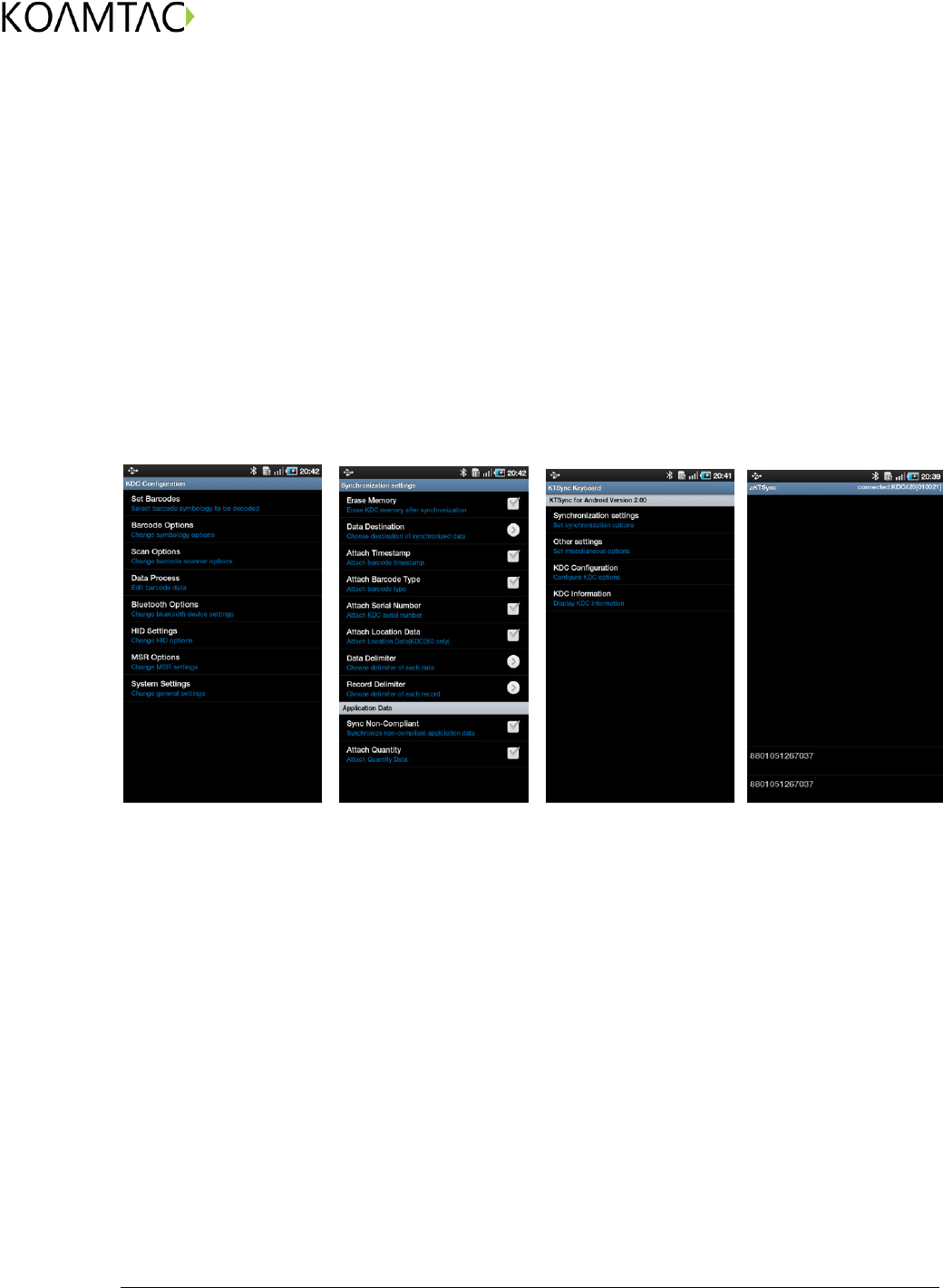

Figure 27 – Android aKTSync
................................................................................................................... 72

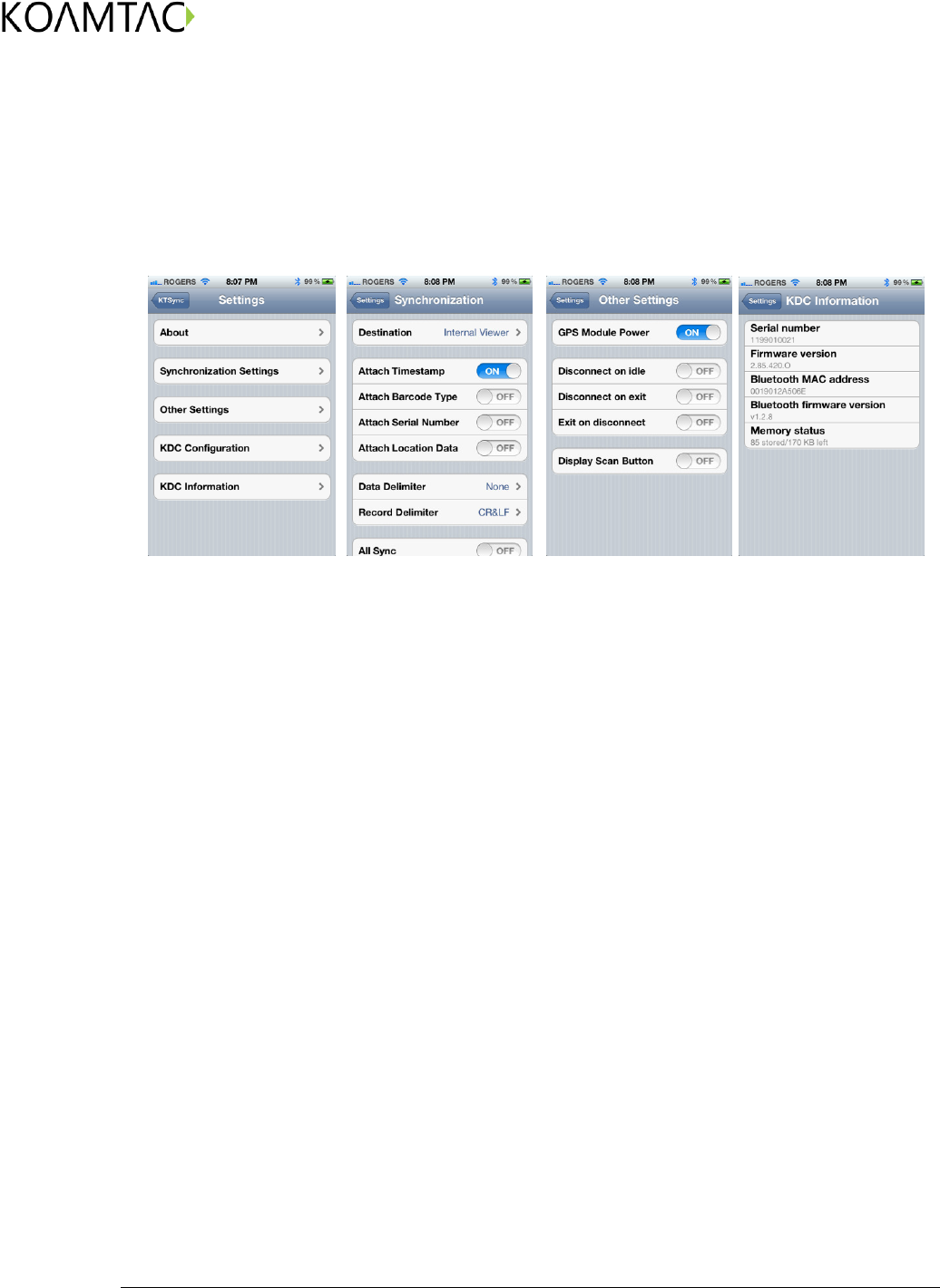

Figure 28 – iPad/iPhone/iPod touch KTSync
......................................................................................... 74

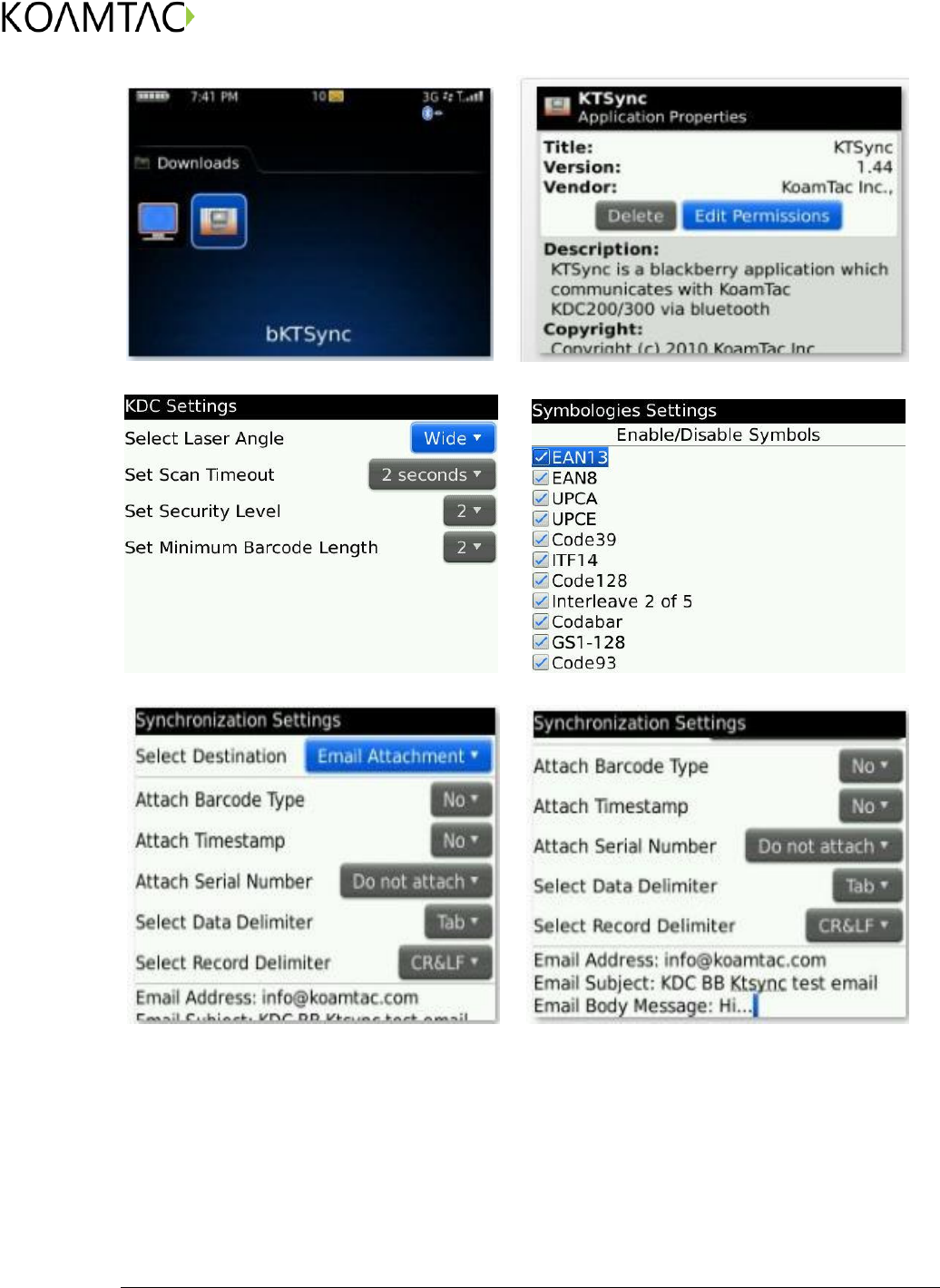

Figure 29 – Blackberry bKTSync
............................................................................................................... 76
KDC User Manual
9
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Listing of tables
Table 1 - KDC20 Specifications
_________________________________________________________ 14
Table 2 – KDC20 Menu Options
________________________________________________________ 35
Table 3 - Explanation of LEDs
__________________________________________________________ 45
Table 4 - Troubleshooting Techniques
__________________________________________________ 82
Table 5 - Symbologies Supported by KDC
_______________________________________________ 85
Table 6 - Add-on for EAN-13 Symbology
________________________________________________ 86
Table 7 - Add-on for EAN-8 Symbology
_________________________________________________ 87
Table 8 - Symbology Conversion
_______________________________________________________ 88
Table 9 - Verification of Optional "Check Digit"
__________________________________________ 88
Table 10 - Transmission of "Check Digit"
________________________________________________ 89
Table 11 - Resolution of Inconsistencies
_________________________________________________ 90
Table 12 – Symbologies supported by KDC20
___________________________________________ 93
KDC User Manual
10
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
COPYRIGHT, LICENSE, and WARNING PAGE
Copyright 2002-2014 by KoamTac, Inc. All rights reserved.
No part of this publication may be reproduced or used in any form, or by any electrical
or mechanical means, without permission in writing from KoamTac, Inc. The material in
this manual is subject to change without notices. KoamTac reserves the right to make
changes to any product to improve reliability, function, or design. KoamTac doesn’t
assume any product liability arising out of, or in connection with, the application or use
of any product, circuit, or application described herein. Follow all warnings and
instructions marked on manual and units. Use only the power source specified in this
manual or marked on the units.
May be covered under one or more pending and/or US Patents: US Pat. Nos. 7,769,917;
7,954,710; 8,126,399; 8,295,368; 8,347,366; 8,346,979; 8,371,506; 8,483,614; UK Pending
Patent App. No. 1203882.4; UK Patent Pending GB2492615.
May be covered under the patent laws of the US and other countries. For patent
information in the US, see http://www.koamtac.com/corpVis.html. There is a patent
pending in UK as GB2492615.
KDC®
is a registered trademark and property of KoamTac, Inc.
KoamTac®
is a registered trademark and property of KoamTac, Inc.
KTSync®
is a registered trademark and property of KoamTac, Inc.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO ANY TYPE OF MOISTURE.
DO NOT LOOK DIRECTLY INTO LASER OR POINT THE LASER INTO ANOTHER PERSON’S EYES.
EXPOSURE TO THE BEAM MAY CAUSE EYE DAMAGE.
CAUTION:
Changes or modifications not expressly approved by the manufacturer responsible for
compliance could void the user’s authority to operate the equipment.
KDC User Manual
11
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Regulatory Compliance
FCC ID: VH9KDC20
This equipment has been tested and found to comply with the limit of a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation; if this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user, is encouraged to try to correct the interference by one or more
of the following measures:
1. Reorient / Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit difference from that to which
the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
WARNING:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

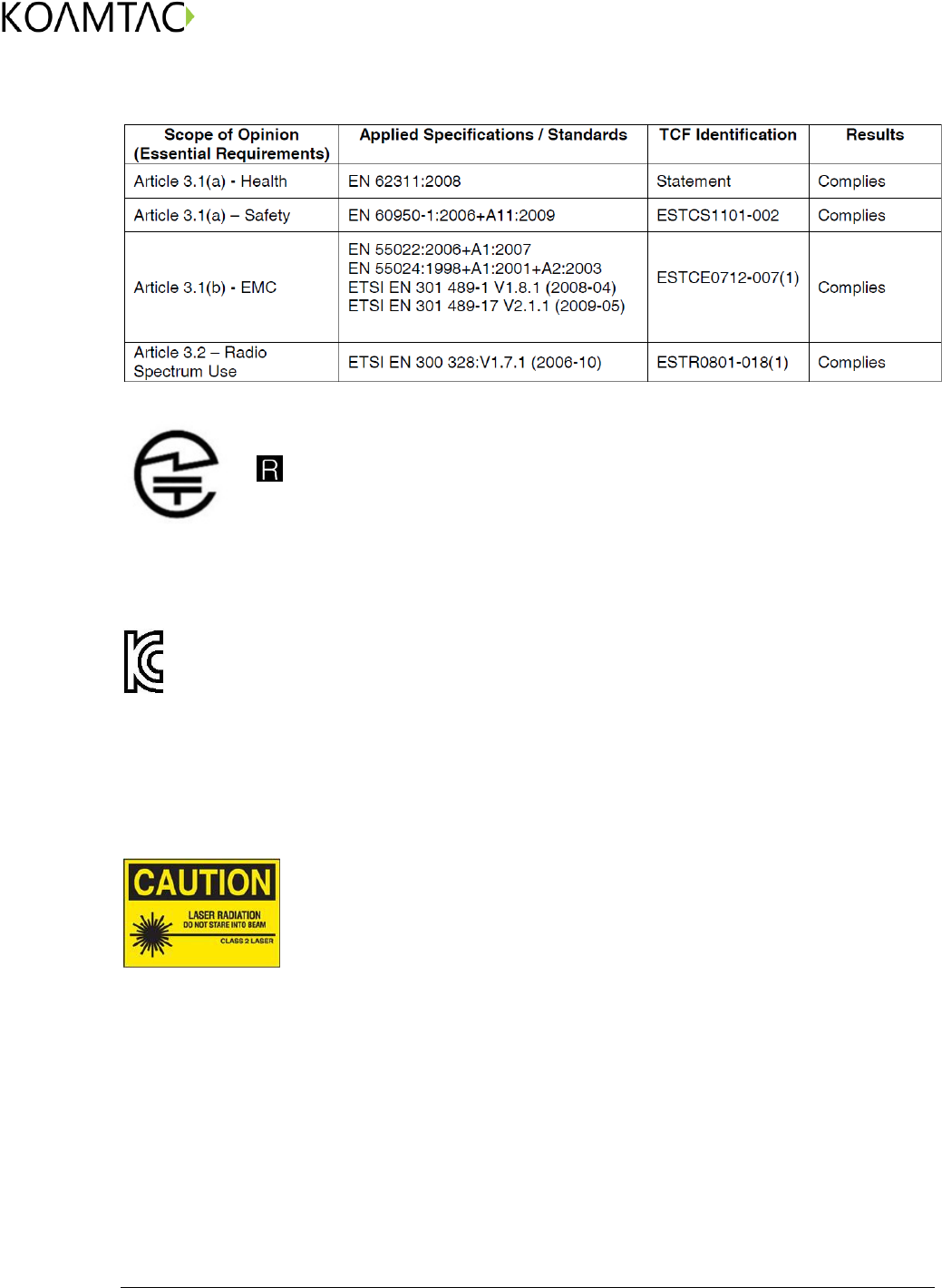

Products intended for sale within the European Union are marked with a CE Mark which
indicates compliance to applicable Directives and European Normes (EN), as follows.
Amendments to these Directives or ENs are included: Normes (EN), as follows:
Applicable Directives:
KDC User Manual
12
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
• Radio ad Telecouicatios Terinal Equipment Directive 1999/5/EC
208-140011
Article 2-1-19, 2.4GHz Wide Band low power data communication system
MSIP-CMM-A13-KDC20
Laser Compliance.
KDC20
Complies with US 21 CFR 1040.10 and 1040.11 except for deviations pursuant to laser
notice no. 50, dated June 24, 2007 and IEC 60825-1 (Ed. 2.0)
Complies with IEC60825-1:1993 + A1:1997 + A2:2001
Battery Warning:
- Your device contains a rechargeable NiMH battery. Never throw the battery into a fire,
as that could cause the battery to explode.
- Never short-circuit the battery by bringing the terminals in contact with another metal
object. This could cause personal injury or a fire, and could also damage the battery.
- Never dispose of used battery with other ordinary solid wastes. Batteries contain
KDC User Manual
13
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
toxic substances.
- Dispose of used battery in accordance with the prevailing community regulations
that apply to the disposal of batteries. Cover the metal terminals with insulating
tape. (This is to prevent accidental short-circuiting).
- Never expose the battery to any liquid.
- Always keep the battery out of reach of infants or small children.
- Never shock the battery by dropping it or throwing it.
- Dispose of a spent or damaged battery promptly.
WARNING: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Product Disposal
Your device should not be placed in municipal waste. Please check local regulations
for disposal of electronic products.
Bluetooth
Core Specification: 2.1+EDR
Apple
Made for iPhone, Made for iPod, Made for iPad
Samsung
Compatible with Galaxy Series
KDC User Manual
14
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
1. Introduction
Congratulations on purchasing KoamTac’s revolutionary barcode scanner and data
collector. Lightweight and compact, with a user-friendly design and superior
functionality, KoamTac’s KDC works in a variety of portable applications. Use it
independently or as an accessory to your PC, PDA, or smartphone. To find out more
about KoamTac, Inc. and our family of products, visit us at www.koamtac.com.
KDC20 Specifications
FEATURE
Barcode scanner
Compliant with Class II Bluetooth v2.0 and v2.1
Enhanced Data Rate(EDR) support
MAJOR PARTS
AT91SAM7S256-AU (ARM7 32bits
PROCESSOR)
F122 (Bluetooth module)
VLM4122 (Scan Engine)
BLUETOOTH STANDARDS
Class II Bluetooth v2.1 + EDR
2.4 GHz - 2.4835 GHz
SPP, HID profile
Internal chip Antenna
INTERFACE
USB 2.0/1.1 (A-type connector)
POWER
Lithium-Polymer Battery (Typ. 3.7V, 190mAh)
max. 110mA consumption @ 3.3V
PHYSICAL DIMENSIONS
1.50”x2.4”x0.56” (38mmx61mmx14.25mm)
WEIGHT
1.25oz. (35.5grams)
KDC User Manual
15
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
KDC Package 1.1
The standard KDC package contains:
1. One KDC Barcode Data Collector
2. One USB Cable
3. One Lanyard
4. KoamTac Installation CD with
KTSync©
for Microsoft Windows XP, Vista 7 and Mobile 5.0+
KDC Device Driver
User Manual
[NOTE]: Depending on your region or distributor, package contents may vary.
Figure 1- KDC Package
KDC20
KDC User Manual
16
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
KDC Characteristics 1.2
Before you use your KDC, please become familiar with its physical characteristics.
Refer to Figure 2 below which indicate placement of SCAN, UP and DOWN buttons,
LEDs, and ports on your KDC. KDC20 does not include LCD screen since it is
designed as the simplest barcode scanner to use without LCD screen.
KDC20 Barcode Reader and Data Collector
Green/Red/Orange LEDs
UP Button
DOWN Button
SCAN Button
DELETE Button
Type A USB-
swings out
KDC20
Figure 2 – Characteristics of KDC20
KDC User Manual
17
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
2. Installation
Bluetooth Pairing 2.1
KDC itself reads barcodes independently, and it can also be used in combination with PC,
PDA, or smart phones. When you want to read barcodes with KDC in connection with
other devices, you need to conduct pairing between your KDC and smart phone via
Bluetooth first. Unless there are changes in Bluetooth settings, your smart phone will
always recognize your KDC that has already been paired. However, if you change
Bluetooth settings, you need to go through pairing process for your KDC again. You can
also refer to Chapter 4. BLUETOOTH for more information about Bluetooth pairing.

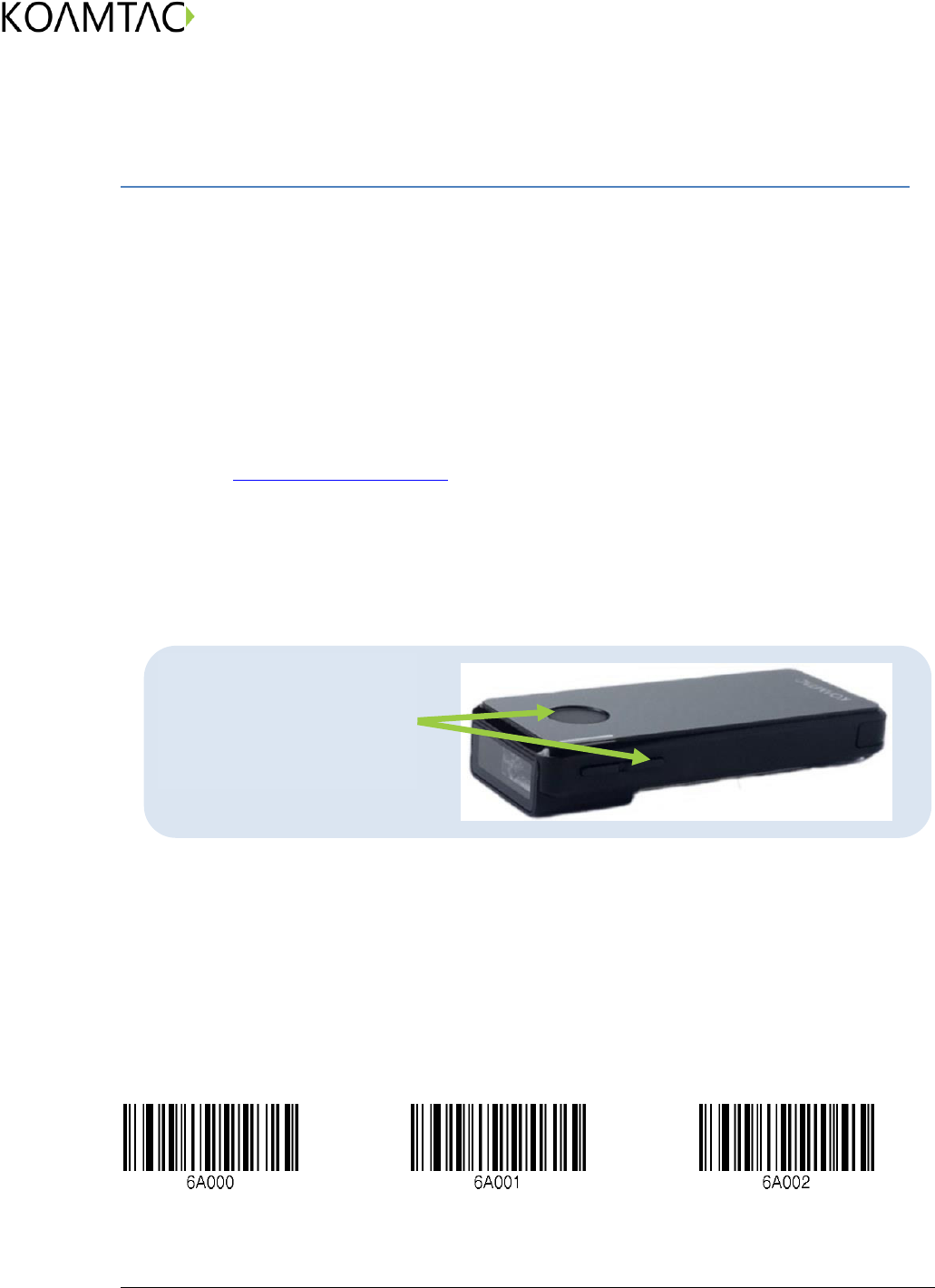

2.1.1 Preparing for Pairing
1. Turn on the power first if you are a KDC20 user.
2. Set a Bluetooth device type mode. There are two ways to set a Bluetooth device
type mode.
Select and scan your Bluetooth device type barcode among the barcodes below, or
Bluetooth Device type Bluetooth Device type iOS Bluetooth Device type
HID SPP IPHONE
Press SCAN and DOWN
buttons simultaneously for 5
seconds. You will hear beep
sound when it is turned on.
Figure 3 – How to turn on the power in KDC20
KDC User Manual
18
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Press SCAN Button for 3 seconds
Bluetooth Device type Bluetooth Device type
SPP2.0 HID normal
2.1.2 Pairing
Way One: Connect your KDC from your smart phone or PDA
This method is recommended for first-time users or when you are only
connecting a few KDCs.
1. Put your KDC into Pairing mode

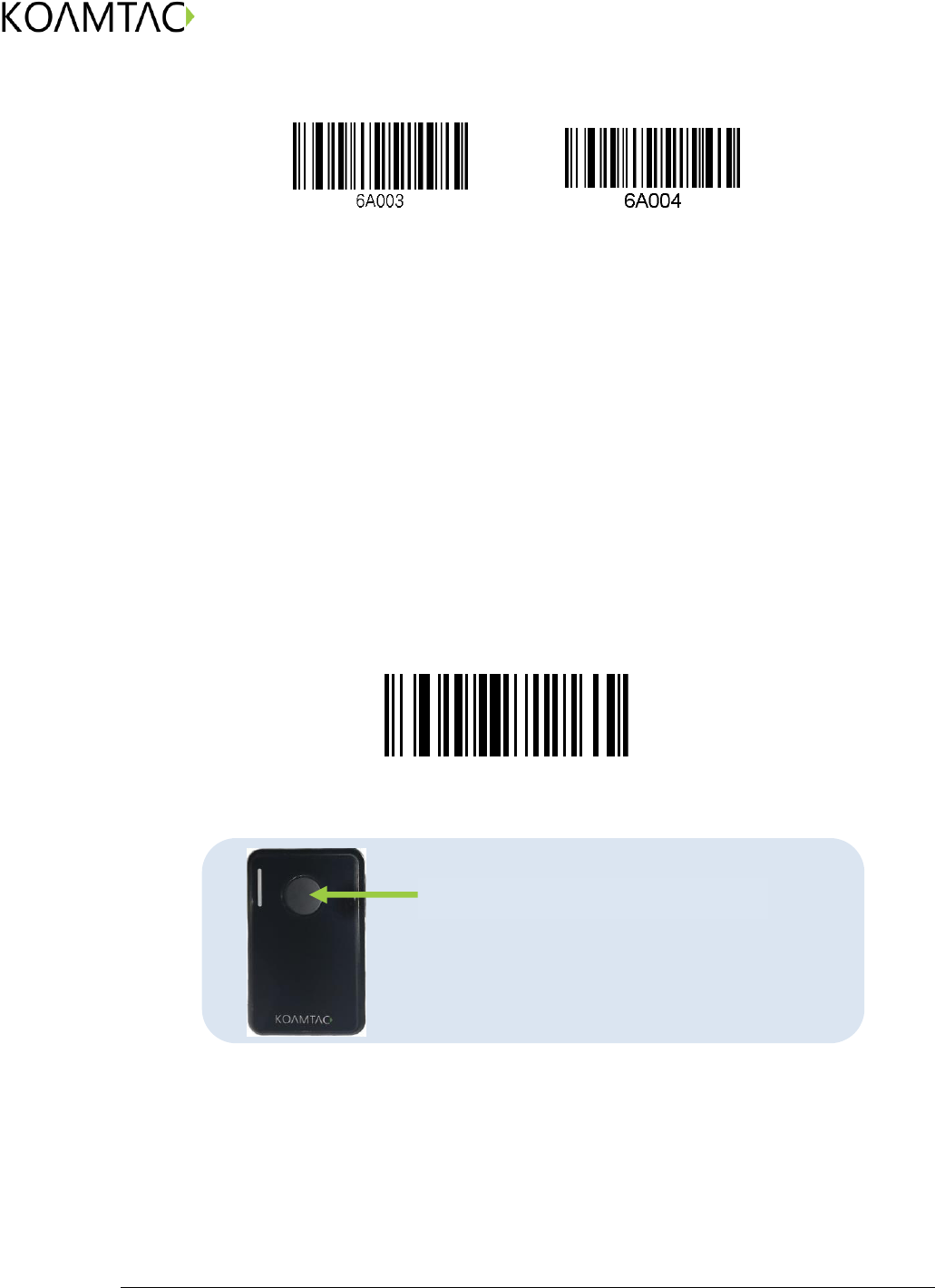

Select and scan a pairing barcode below according to your KDC model, or
KDC 20
Pairing

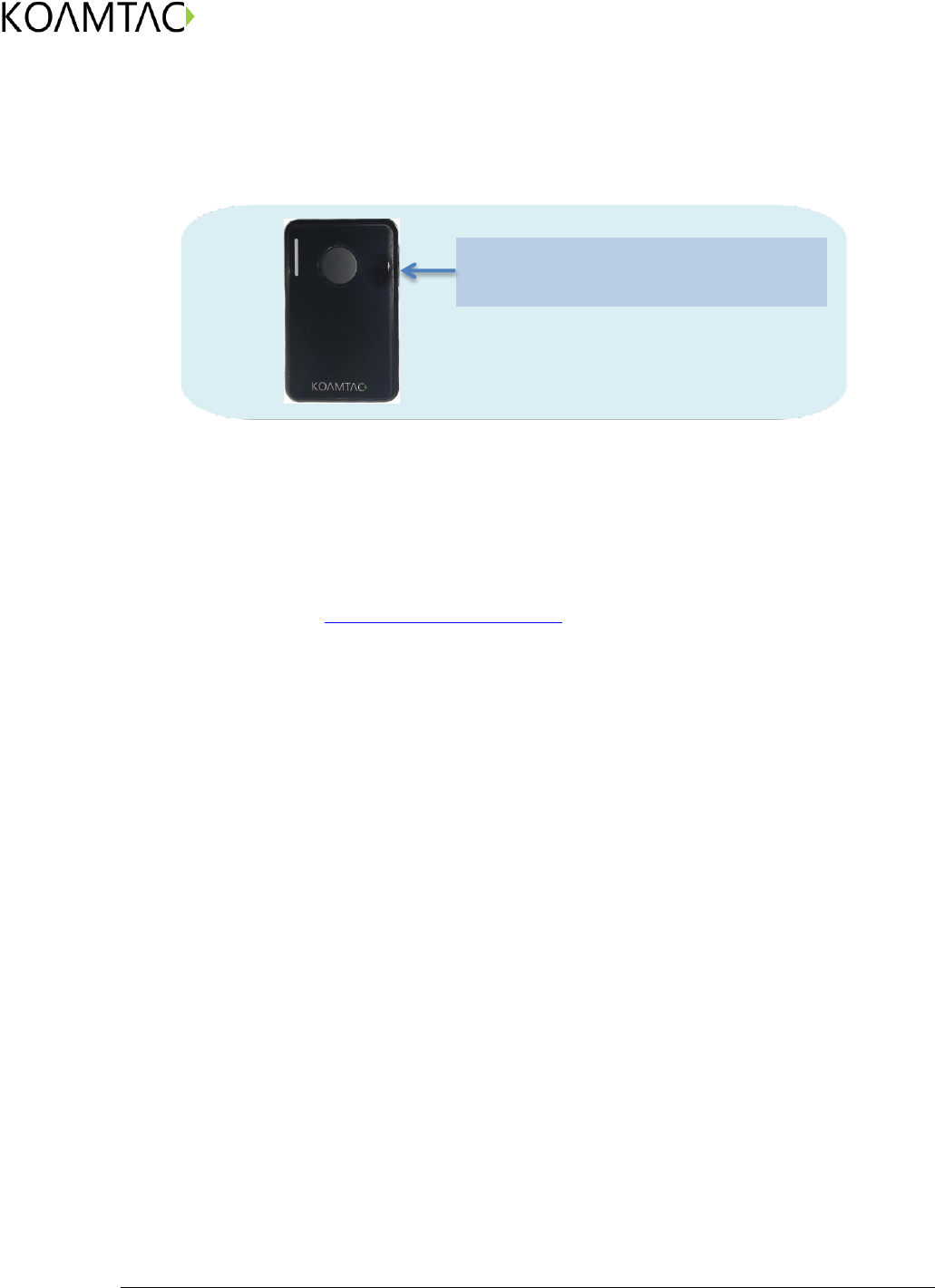

Press Scan button for three seconds to enter Pairing mode.
Figure 6 – Pairing mode button in KDC20
KDC User Manual
19
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
2. On your host device, go to Settings->Bluetooth, find the KDC with which you want to
pair and select it. Your KDC and host device are now communicating each other.
Tap Bluetooth Tap your KDC
3. Open KTSync after it has been installed and it will automatically find the KDC and
connect. (Refer to 2.2 KoamTac Installation Wizard for more information about installing
KTSync)
Way Two: Connect your host device from your KDC by scanning a
Special Bluetooth MAC Address barcode
The method is recommended for more advanced users or when your application or
process calls for pairing one of many KDCs to one of many host devices on a regular
basis.
1. Find the Bluetooth MAC Address of your host device.
1. Tap on General 2. Tap on About 3. Bluetooth address
Figure 7 – Finding Bluetooth Mac Address
Settings
Settings
KDC User Manual
20
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
2. Create your Bluetooth MAC Address Barcode according to the format below.
Bluetooth MAC Address: 1234567890AB
Barcode Type (Symbology): Code 128
Contents: ^FNC3651234567890AB KDC200/250/410/415
SYNMCRKDC651234567890AB KDC300/420/425
Options: includetext parsefnc
3. Print your Bluetooth MAC Address
Note: Laser scanners like KDC20 is not designed to read from a LCD screen and will only
read the printed barcode.
4. Connect your KDC to your host device by scanning the Bluetooth MAC Address
Barcode.
Figure 8 - Connecting KDC with a smart phone by scanning Bluetooth MAC Address Barcode
5. Open KTSync after it has been installed and it will automatically find the KDC and
connect. (Refer to 2.2 KoamTac Installation Wizard for more information about installing
KTSync)
Tap on Bluetooth
Scan the
BT MAC Address Barcode
Tap on Pair
Complete!
Settings
KDC User Manual
21
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
KoamTac Installation Wizard 2.2
2.2.1 Windows 7 and 8
WARNING: DO NOT CONNECT KDC TO USB PORT PRIOR TO INSTALLATION
1. Insert KoamTac Installation CD into your computer’s CD drive.
2. Click Start icon then My Computer icon. A listing of devices on your
computer will be displayed including the disk drive containing the KoamTac
Installation CD.
3. Click on the KoamTac Installation CD icon then click on the Setup directory.
Click on the PC_Setup.exe file which executes the KTSync Setup Wizard.
Note:
If KTSync Setup Wizard locates an older version of KTSync on your
computer, you will be prompted to remove the older program before
installing the new version. Select Remove KTSync then click Finish. When
removal is complete, click Close. Go to Step 2 to run KTSync Setup Wizard.
If you have any problems, please refer to 2.3 Manual Installation.

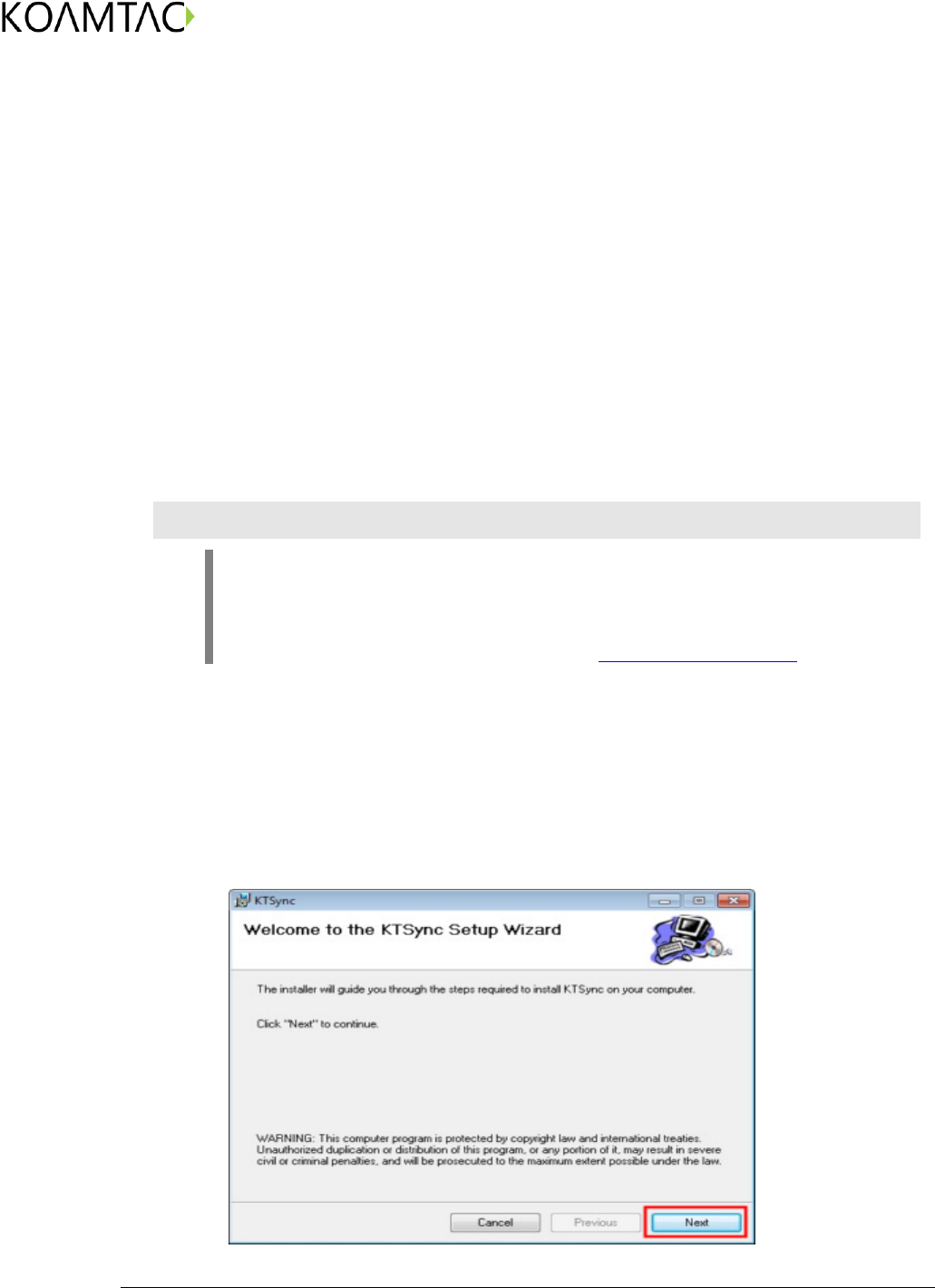

KTSync Setup Wizard
Follow the steps to install KTSync as images below.
Click Next icon in KTSync Setup Wizard window
KDC User Manual
22
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Check” I Agree” and Click Next icon in License Agreement window
Click Close icon in KTSync Installation Complete window and wait for Device
Driver Installation Wizard
KDC User Manual
23
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

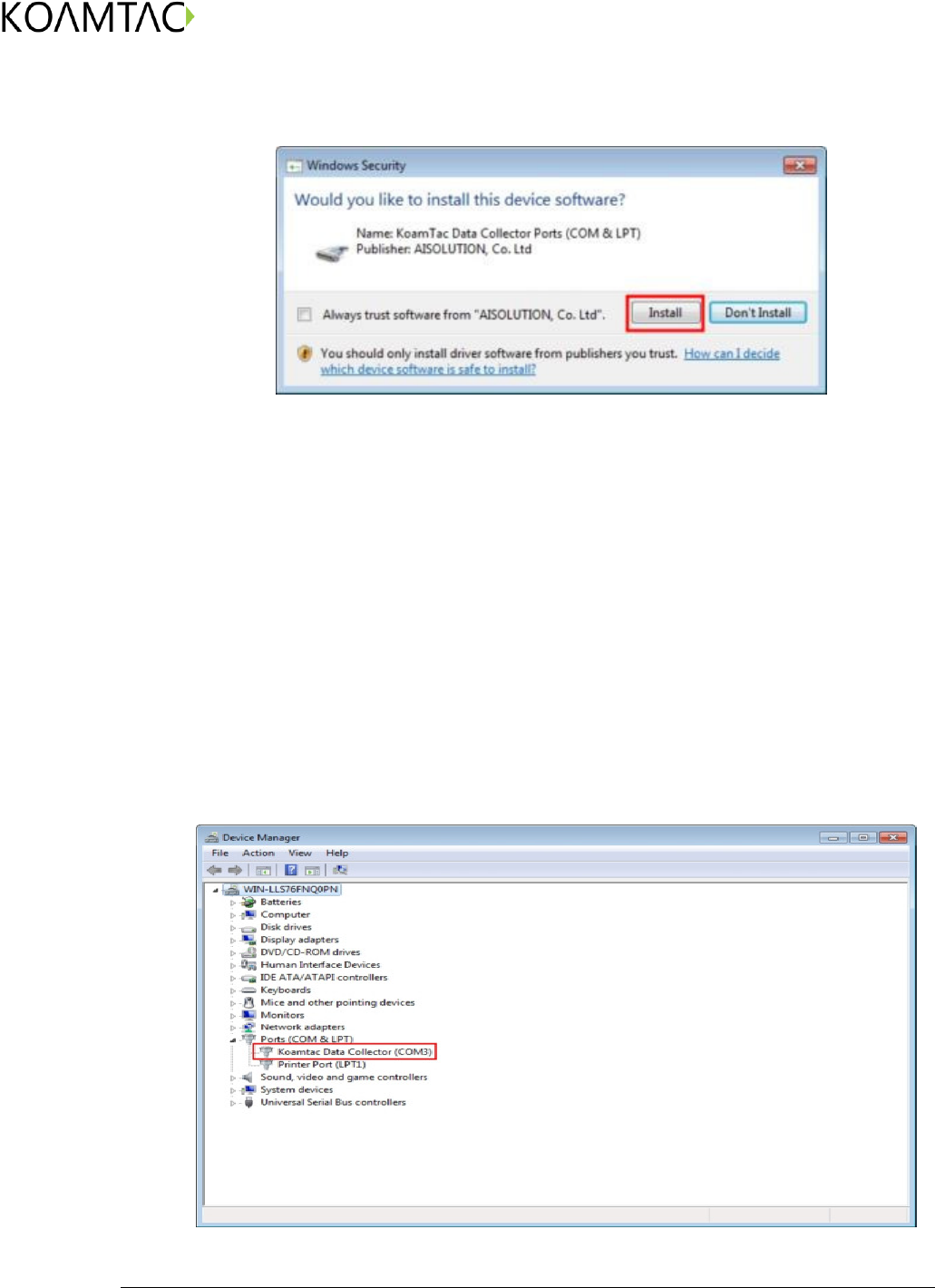

Click Install this driver in Windows Security window and installation is
finished.
Connect KDC to Computer
Using the USB cable included with the KDC, follow the directions below.
Connect mini USB connector to the KDC.
Connect Type A USB connector to your PC.
Wait until your computer beeps and/or displays the message Found
New
Hardware.
Verify COM Port Address
User can verify installed COM Port in Device Manager
KDC User Manual
24
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
2.2.2 Windows Mobile 5.0+
WARNING: PLEASE CONNECT PDA TO PC PRIOR TO INSTALLATION
1. PC_Setup.exe creates Mobile_Setup.exe file under C:\Program
Files\KoamTac\KTSync\Windows.Mobile directory

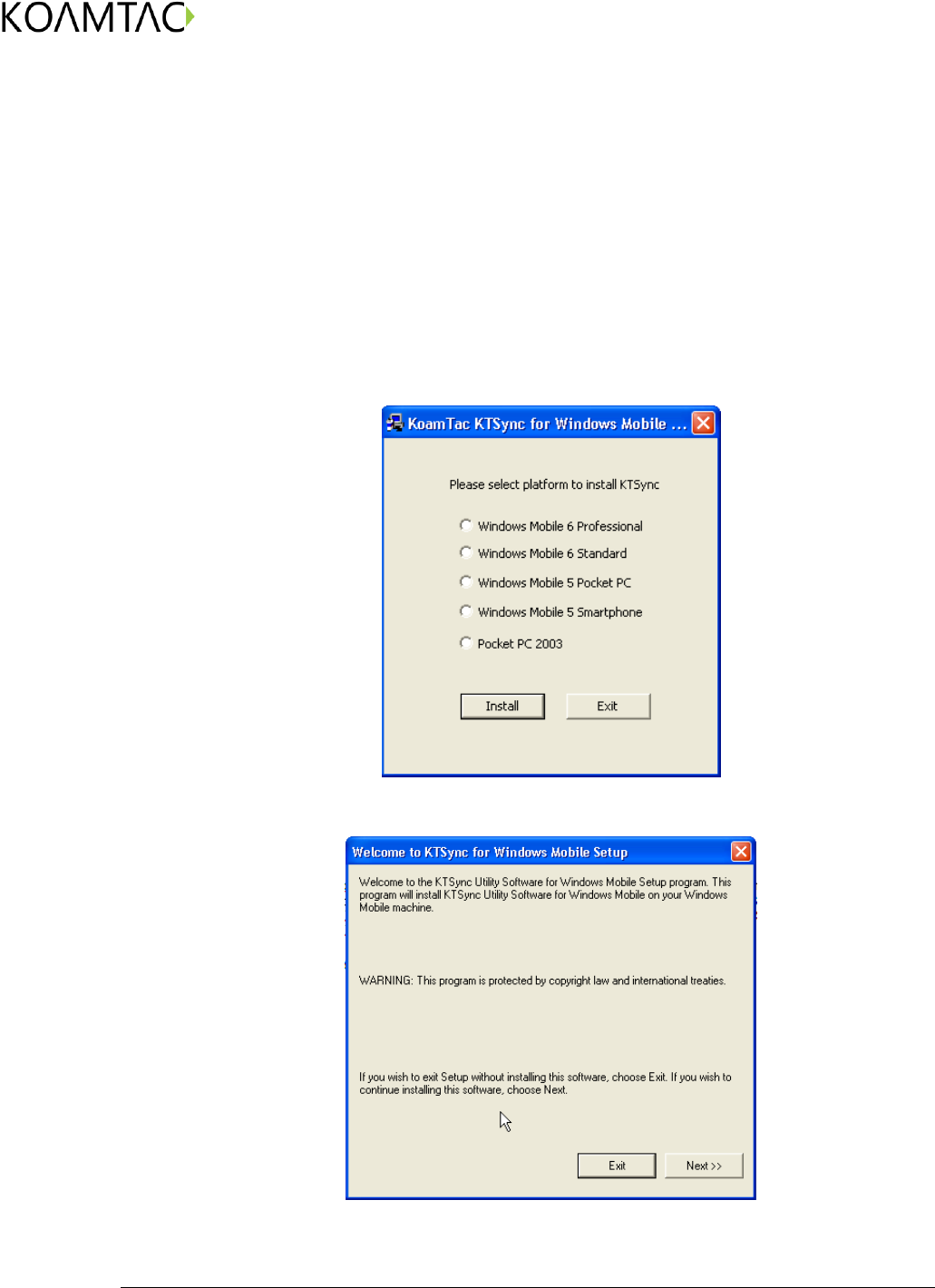

2. Execute Mobile_Setup.exe
Select Windows Mobile version to install.
Click Next icon.
KDC User Manual
25
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

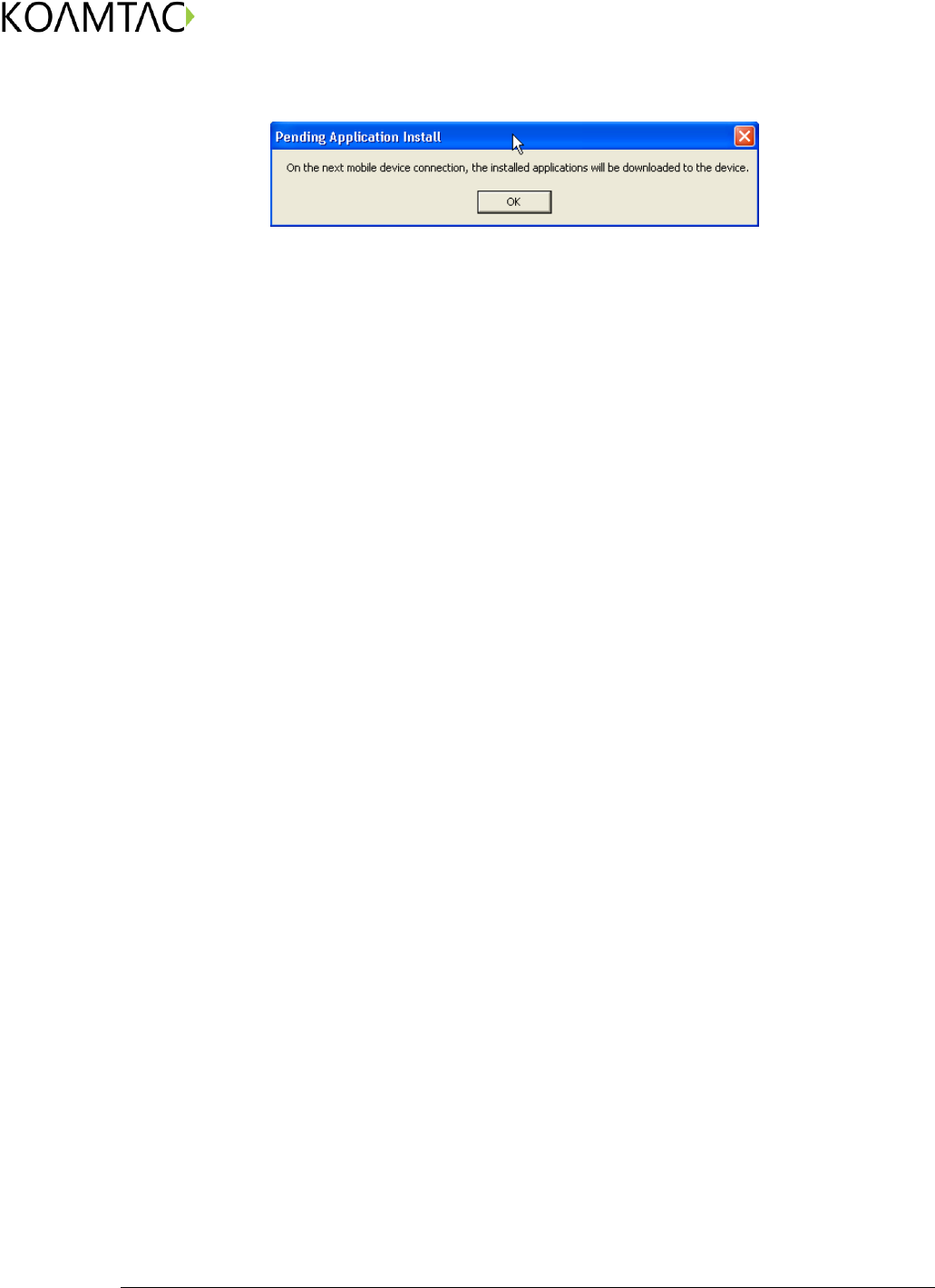

Click OK icon in Pending Application Install window
Follow the instructions on PDA screen
COM port Assignment
User should assign a COM port for KDC before using pKTSync.
User should pair KDC with PDA using PDA
Bluetooth
manager and assign a
COM port for
Bluetooth
communication
Please refer to the PDA manual for the details of COM port assignment
method
KDC User Manual
26
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
2.2.3 Android
Download and install aKTSync from the Android Play Store
https://play.google.com/store/apps/details?id=com.koamtac.ktsync&hl
2.2.4 Blackberry
Download and install bKTSync from the Blackberry App World.
http://appworld.blackberry.com/webstore/content/16861?lang=en
2.2.5 iPad/iPhone/iPod touch
Download and install iKTSync from the Apple App Store.
http://itunes.apple.com/us/app/ktsync/id372916602?mt=8
KDC User Manual
27
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Manual Installation 2.3
2.3.1 Windows XP/Vista7/8
1. Insert the KoamTac Installation CD into your computer’s disk drive.
2. Create a directory called KoamTac on your computer.
3. Copy XP.Vista.7 directory from KoamTac CD to KoamTac directory. The
XP.Vista.7 directory contains KTSync® programs for Microsoft® Windows XP,
Vista, Windows 7 and user manuals.
4. Connect KDC cable to ultra mini USB connector on the KDC.
5. Connect KDC cable to Type A USB connector on your computer. Wait until
your computer beeps and/or displays the message
New Hardware Found
.
You will be prompted to search for a device driver for KDC.
6. Browse then select
KTReader.inf
file from the KoamTac directory created in
Step 2. Follow screen prompts to continue with the device driver installation.
Note:
KTReader.inf is the device driver for 32bit Microsoft
® Windows XP, Vista,
and Windows 7. If you have a 64bit computer, use KTReader.inf file from
XP.Vista.64bit folder in the KoamTac directory.
2.3.2 Windows Mobile 5.0+
Connect Windows Mobile PDA with your computer to install KTSync program.
1. Create a KoamTac folder in your PDA.
2. Copy the Mobile5.0_6.0 folder in KoamTac CD and paste it in the PDA
KoamTac folder that was created in My Computer.
3. In the Mobile5.0_6.0 folder, you will find KTSync® Programs for Microsoft®
Windows Pocket PC 2003, Mobile 5.0, Mobile 6.0 Standard, and Mobile6.0
Professional as well as KDC User Manual.
KDC User Manual
28
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
3. Operating the KDC
Getting Started 3.1
3.1.1 Attach Lanyard/Hand strap to KDC
To prevent possible damage to the KDC, we
strongly
recommend wearing it around
your neck or hand by the included Lanyard/Hand strap. Also, please don’t swing KDC
by the Lanyard/Hand strap because contact with another object may cause it to
malfunction or become damaged.
To attach the Lanyard:
1. Fit the thin end of Lanyard through the pillar of the KDC.
2. Loop the thick end of strap through the thin loop
3. Pull the strap tight to secure
3.1.2 Charge KDC Battery
Prior to using the KDC, you must charge its battery. It will take approximately 2 hours to
charge your KDC20. To charge the battery, follow the directions below.
1. Connect the KDC cable to the mini USB connector on the KDC.
2.
Connect the KDC cable to Type A USB connector on your computer.
Your KDC battery will begin charging. Within a few minutes, two small LEDs on the front
panel will illuminate orange. When the battery is fully charged, the LEDs will illuminate
green.
3.1.3 Configure KDC
The KDC is designed to meet the data collection requirements of many different
industries in a variety of dynamic situations. To perform well in these diverse
environments, the KDC is designed to be configured easily and quickly. But, to perform
KDC User Manual
29
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
at its maximum level, the KDC must be configured properly. Until you are familiar with
configuring the KDC, it is recommended that you DO NOT modify the KDC settings.
The KDC can be configured using three different methods which are explained in
Section 3.3 – KDC Menus, Chapter 4 –Synchronization, and 10. Appendix C – Special
Barcodes.
CONFIGURATION METHODS FOR THE KDC20
KTSync® Software
Special Barcodes
KDC User Manual
30
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Basics 3.2
3.2.1 Reading Barcodes
Reading a barcode is simple. Point the KDC at a barcode and press the scan button. Be
sure to point the scan engine window at the barcode, not at your face, and make sure to
position the light beam on the barcode. If the barcode is scanned successfully, you will
hear one beep and the LEDs will illuminate in green. The scanned barcode data will be
displayed along with the scan time and battery level.
Depending on the configuration of
your KDC, other information may also be displayed.
Figure 11 – Scanning barcodes with KTSync
If the scanning was unsuccessful, you will hear two beeps, the LEDs will illuminate in red,
and the message
Failed reading…
will display. If you have problems with KDC in
scanning a barcode, try the following suggestions while pointing the KDC at the
barcode and pressing the scan button.
Modify the angle of the KDC in relation to the barcode, making the angle
bigger or smaller as needed.
Modify the distance between the barcode and the KDC, moving closer or
further away as needed.
Check option settings defined in the KDC menu section and change options as
needed.
Check that the barcode’s width does not exceed the light beam’s width and vice
versa.
KDC User Manual
31
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
3.2.2 Delete Data Function in KDC20
You can delete the last scanned barcode by pressing the DELETE button on the right
side of your KDC20 although it does not have LCD screen to view the data.
3.2.3 Synchronizing Data to the host device
Use the KTSync® program to synchronize barcode data from the KDC to your host
device. Please refer to Chapter 6. Synchronization for details.
Press Delete button to delete the barcode
scanned at the very end.
Figure 12 – Delete Function in KDC20
KDC User Manual
32
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
KDC Menus 3.3
Top Menu
Sub Menu
Options
KDC20
Set Barcodes
EAN13
Enabled/Disabled
Enabled
EAN8
Enabled/Disabled
Enabled
UPCA
Enabled/Disabled
Enabled
UPCE
Enabled/Disabled
Enabled
CODE39
Enabled/Disabled
Enabled
ITF14
Enabled/Disabled
Enabled
CODE128
Enabled/Disabled
Enabled
I2of5
Enabled/Disabled
Enabled
CODABAR
Enabled/Disabled
Enabled
GS1-128
Enabled/Disabled
Enabled
CODE93
Enabled/Disabled
Enabled
CODE35
Enabled/Disabled
Enabled
BooklandEAN
Enabled/Disabled
Disabled
EAN13withAddon
Enabled/Disabled
Disabled
EAN8withAddon
Enabled/Disabled
Disabled
UPCAwithAddon
Enabled/Disabled
Disabled
UPCEwithAddon
Enabled/Disabled
Disabled
Barcode Options
CodaBar_NoStartStopChars
Enabled/Disabled
Disabled
UPCE_as_UPCA
Enabled/Disabled
Disabled
EAN8_as_EAN13
Enabled/Disabled
Disabled
UPCE_as_EAN13
Enabled/Disabled
Disabled
ReturnCheckDigit
Enabled/Disabled
Disabled
VerifyCheckDigit
Enabled/Disabled
Disabled
UPCA_as_EAN13
Enabled/Disabled
Disabled
I2of5_VerifyCheckDigit
Enabled/Disabled
Disabled
Code39_VerifyCheckDigit
Enabled/Disabled
Disabled
I2of5_ReturnCheckDigit
Enabled/Disabled
Disabled
Code39_ReturnCheckDigit
Enabled/Disabled
Disabled
UPCE_ReturnCheckDigit
Enabled/Disabled
Enabled
UPCA_ReturnCheckDigit
Enabled/Disabled
Enabled
EAN8_ReturnCheckDigit
Enabled/Disabled
Enabled
EAN13_ReturnCheckDigit
Enabled/Disabled
Enabled
Scan Options
Scan Angle(KDC350L)
Narrow/Wide (Opticon Model Only)
Wide
Filter(KDC350L)
Normal/High (Opticon Model Only)
Normal
Time Out
.5 seconds to 10 seconds
2 second(s)
Min. Barcode Length
(KDC350L)
2 to 36 characters
4 chars
KDC User Manual
33
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Min. Barcode Length
(KDC350C)
2 to 48 characters
4 chars
Security Level(KDC350L)
1 to 4 level
2 level
Image Capture(KDC350C)
Enabled/Disabled
N/A
Auto Trigger
Enabled/Disabled
Disabled
Reread Delay
Continuous, Short, Medium, Long,
Extra Long
Medium
Finger Trigger
Enabled/Disabled
Enabled
Partial Display
Start Position
1
No. of Char(s)
0 chars
Action
Select
Data Process
Wedge / Store
Wedge Only
Wedge & Store Always
Default
Store Only
Save if Sent
Save if Not Sent
Data Format
Barcode only
Default
Packet Data
Data Editor/Prefix
Delete
Delete
Data Editor/Suffix
Delete
Delete
Data Editor/AIM ID
None/In Prefix/In Suffix
None
Data Editor/Partial Data
Start Position
1
No. of Char(s)
0 chars
Action
Select
Handshake
Enabled/Disabled
Disabled
Terminator
None, CR, LF, CR+LF, Tab
CR+LF
Chk Duplicate
Enabled/Disabled
Disabled
Enter Key(KDC350 Only)
Enabled/Disabled
Disabled
BT Config
ConnectDevice
( 200/250/300/350/400 )
SPP
Default
HID iOS
SPP2.0
HID normal
ConnectDevice
( 200i/250i/300i/350i/400i)
SPP
iPhone
Default
Auto Connect
Enabled/Disabled
Disabled
Auto Reconnect
Enabled/Disabled
Disabled
Auto Power On
Enabled/Disabled
Disabled
Auto Power On/Power On
Time
Disabled, 1sec to 10second(s)
Disabled
Auto Power Off
Enabled/Disabled
Disabled
Auto Power Off/Power Off
Time
1 to 30 minutes
5 minutes
PowerOff Msg
Enabled/Disabled
Disabled
MAC Address
12 Characters
Bluetooth
MAC Address
KDC User Manual
34
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
BT FW Version
Bluetooth Firmware Version
Wakeup Nulls
Enabled/Disabled
Disabled
BT Toggle
Enabled
BT Disconnect button
Enabled/Disabled
Enabled(KDC200/250/300
/350L/350C)
Disabled(KDC410/415/42
0/425/430/450)
HID AutoLock
Disabled,1,2,3,4,5,10,15 minutes
1 minutes
HID Keyboard
English,German,French,Italian,
Spanish
US
HID Delay/Initial
Disabled, 1,2,3,5,10 secs
Disabled
HID Delay/Inter char
Disabled,10, 20, 30, 50, 100msec
Disabled
HID Ctrl Char
Disabled, Alt+Numpad, ^+Character
Disabled
BT Service
Power
Enabled/Disabled
Enabled
Pairing
Pairing neighboring Bluetooth devices
Discovering
Discovering neighboring
Bluetooth
devices
Connecting to
View Connect to
Bluetooth
device
HID Sync
USB Config
(USB Serial Mode)
USB Mode
USB Serial/USB Disk
USB Serial
USB Config
(USB Disk Mode)
USB Mode
USB Serial/USB Disk
USB Disk
Disk Format
Format KDC USB Disk
Data Format
Data,DataTime,
DataType,DataTimeType
Data
System
Config
Memory Size
0.5/3.5, 1/3, 2/2, 3/1, 4/0
0.5/3.5
Memory Status
No. of Stored Barcodes
Free Memory Available
Reset Memory
Memory(Empties Data)
Application Memory
BT Registry(KDC100 Not use)
Auto Erase
Enabled/Disabled
Disabled
Sleep Timeout
Disabled, 1sec to 10minute(s)
5 second(s)
Auto PowerOff
Bluetooth, GPS, Pwr Off Time
Disabled/
Disabled/
1 hour
Date / Time
YYYY:MM:DD &
HH:MM:SS
KDC User Manual
35
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Battery
% of Battery Charge Available
Version
Firmware Version & Serial No.
Button Lock
Enabled/Disabled
Disabled
Beep Sound
Enabled/Disabled
Enabled
Power On Beep
Enabled/Disabled
Enabled
Beep On Connect
Enabled/Disabled
Enabled
Beep On Scan
Enabled/Disabled
Enabled
Beep Volume
Low/High
Low
MFi Mode
Enabled/Disabled
Enabled
Vibrator
Enabled/Disabled
Enabled
Auto Exit
Enabled/Disabled
Enabled
Port Status
Enabled/Disabled
Enabled
Display Format
Time & Battery / Type & Time / Type &
Battery / Memory Status / GPS
Data(KDC250/350)/Barcode Only
Time & Battery
Menu Barcode
Enabled/ Disabled
Disabled
Scrolling
Enabled/Disabled
Enabled
Brightness
1 to 15 level(8 level)
8 level
Factory Default
Restores Default Settings
Table 2 – KDC20 Menu Options
3.3.1 Set Barcodes Menu
This menu lists all the barcode symbologies supported by your KDC and allows you to
select the barcode symbologies you will be scanning. For maximum scan performance,
you should select only the symbologies you are scanning. Please refer to 11. Appendix –
11.1 Symbologies for a detailed listing of symbologies supported by your KDC.
3.3.2 Code Options Menu
Your KDC supports various Code Options including Transmission of Start and Stop
Characters, Symbology Conversion, Verification of Optional Check Character, and
Transmission of Check Digit. Please refer to 11. Appendix A – 11.2 Code Options for a
detailed explanation of each option.
3.3.3 Scan Options Menu
Scan Angle (Opticon model only): Allows you to configure the laser beam angle
to the barcode. There are two options for scan angle: Wide and Narrow. Wide is
KDC User Manual
36
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
54o and Narrow is 27o. The default is Wide.
Filter (Opticon model only): Allows you to change the Filter mode from Normal
to High for poor quality barcodes. The default is Normal.
Timeout: Allows you to set the interval between one scanning and the other. The
timeout options are from 5 seconds up to 10 seconds. The default is 2 seconds.
Minimum Barcode Length: Allows you to set a barcode length from 2 characters
to 36 characters. It is strongly recommended that you maximize the minimum
barcode length setting to prevent possible errors. The default minimum barcode
length of KDC20 is 4 characters.
Security Level: Allows you to ensure an accurate barcode reading by setting the
number of times the KDC will read a barcode. Security Level is set from 1 up to 4.
The higher security level means more reliable readings though some
performance degradation is likely. For poor quality barcodes, we recommend
increasing the security level. The default is 2.
Auto Trigger: Allows users to scan a barcode automatically once Auto Trigger is
enabled. User can adjust Reread delay from Continuous to Extra Long. Auto
Trigger mode always enables duplicate check option.
[Note1] USB cable insertion requirement is removed from FW2.85/86.O and FW
3.02.
[Note2] Users can exit the auto trigger mode by pressing the scan button for 3
seconds.
Reread Delay: Users can adjust Reread delay from Continuous to Extra Long.
Auto Trigger mode
always enables duplicate check option.
Partial Display: Allows you to display partial data. User defines the start position
and number of characters to be displayed.
3.3.4 Data Process Menu
Wedge/Store
- The KDC provides five modes of data transmission in keyboard wedging
mode.
Wedge Only: Barcode data is NOT stored in memory but transmitted to the host.
Wedge & Store Only: Barcode data is stored in memory and transmitted to the
host.
KDC User Manual
37
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Store Only: Barcode data is stored in memory but NOT transmitted to the host.
Save if Sent: If data transmission is successful, barcode data is stored in memory.
Save if Not Sent: If data transmission is NOT successful, barcode data is stored in
memory.
Data Format
- The KDC provides two data formats, Barcode Only and Packet Data.
Barcode Only: KDC transmits scanned barcodes only. User may incorporate
proper data transmission error detection and correction mechanism in this
mode.
KDC supports various termination characters for barcode only format.
User can select <NONE>, <CR>, <LF>, <CR+LF> or <TAB> as the
termination character.
Packet Data: KDC transmits packet data with checksum to minimize
transmission errors.
KTSync® sets Data Format to Packet Data format upon execution.
User may change Data Format to Barcode only if user prefers to use
Barcode only mode but either KTSync program terminates
abnormally or user disconnects KDC without exiting KTSync program
normally.
Note:
Barcode Index: KDC20i add 4 bytes barcode index to maintain last synchronized
barcode information.
1) This optional index would be added if data format is “Packet Data”.
2) 4 bytes index would be added before “@” when responding to “p” command.
3) 4 bytes index plus “@” character would be added after checksum byte if user scan a
barcode and wedging to the host.
Data Editor
- KDC provides various data editing options.
Prefix - Allows you to add a prefix to scanned data which can then be stored
in KDC or wedged to the host. The Prefix format must be defined in the data
format menu of KTSync. The maximum length for a Prefix is 11 characters.
KDC User Manual
38
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
NOTE: This Prefix option is different from the Prefix option in KTSync
which appends the prefix to data during synchronization.
NOTE: User can also define prefix by scanning characters defined in
Appendix C. between following special barcodes.
KDC 20
Prefix Enter Start
Prefix/Suffix Enter Finish
NOTE: Users can also delete or display current prefix by scanning
following special barcodes.
KDC20
Delete Prefix
Display Prefix
Suffix - Allows you to add a suffix to scanned data which can then be stored in
KDC or wedged to the host. The suffix must be defined in the data format
menu of KTSync. The maximum length for a suffix is 11 characters.
KDC User Manual
39
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
NOTE: This Suffix option is different from the Suffix option in KTSync
which appends the suffix to data during synchronization.
NOTE: User can also define suffix by scanning characters defined in
Appendix C.27 ~ C.28(KDC350L) Appendix D.27 ~ D.28(KDC350C)
between following special barcodes
KDC20
Suffix Enter Start
Prefix/Suffix Enter Finish
NOTE: User can also delete or display current suffix by scanning following
special barcodes
KDC20
Delete Suffix
Display Suffix
AIM ID - Allows you to add AIM ID to scanned data which can then be stored
in KDC or wedged to the host. AIM ID must be defined in data format menu
of KTSync. AIM ID is either added to the end of Prefix or Suffix.
Partial Data: Allows you to store and/or transfer partial data. User defines the
KDC User Manual
40
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
start position and number of characters to be stored and/or transferred.
o Select the
x
characters from
y
position
- Set Partial Data Start Position to
y
, Partial Data Length to
x,
Partial
Data Action to Select
- Partial Data Length
0
means to select all characters from
y
position.
o Erase the
x
characters from
y
position
- Set Partial Data Start Position to
y
, Partial Data Length to
x,
Partial
Data Action to Erase
- Partial Data Length
0
means to erase all characters from
y
position.
Handshake
- KDC provides Handshake mode when Data Format is set to Packet Data.
Handshake Mode will increase the reliability of barcode data transmission.
The default mode for Handshake is Disabled.
Data transmission speed is slower when Handshake Mode is Enabled.
Terminator
– KDC supports various termination characters when the Data Format mode
is set to Barcode Only. This option allows you to select <NONE>, <CR>, <LF>,
<CR+LF>, or <TAB> as the termination character. The default terminator is <CR+LF>.
Up/Down/Left/Right arrow terminator is also available for HID mode.
Chk Duplicate
– This option allows you to prevent collecting duplicated data.
3.3.5 BT Config Menu
The KDC supports
Bluetooth
Ver2.1+EDR. Before utilizing the advantages of Bluetooth
functionality with the KDC, you should become familiar with Bluetooth connectivity and
its impact on your host environment.
To configure your KDC for Bluetooth functionality, you must use the KDC Menus. To
access the menus, simultaneously press the UP and DOWN buttons on the side of the
KDC. Use the DOWN button to scroll to Bluetooth then press SCAN button.
Below is a listing of the Bluetooth options and their settings. The default settings for
these options have been set to increase the usability of Bluetooth technology without
compromising the KDC battery usage.
IMPORTANT: We strongly recommend NOT changing these settings until you have fully
tested the Bluetooth connection between the KDC and the host device.
KDC User Manual
41
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
For more detailed information regarding Bluetooth functionality with the KDC, please
refer to Chapter 4. BLUETOOTH.
ConnectDevice: Users can choose Bluetooth device type
Options - HID normal (KDC20)
- HID iOS (KDC20)
- SPP2.0
- SPP(KDC20/20i)
- iPhone (KDC20i)
Auto Connect : Enabled or Disabled
Auto Reconnect: Enabled or Disabled (iPhone, HID iOS, HID normal mode)
Auto Power On: Enabled or Disabled
PWR On Time: Disabled, 1 to 10 seconds
Auto Power Off : Enabled or Disabled
Beep Warning - Enabled or Disabled
PWR Off Time - 1 to 30 Minutes
PowerOff Msg – Enabled or Disabled
MAC Address – 12 characters
Bluetooth
MAC Address
FW Version – Display
Bluetooth
Firmware Version
Wakeup Nulls – Enabled or Disabled
Autolock Time – 0, 1, 2, 3, 4, 5, 10, 15 minutes
BT Toggle – Enable or Disable HID soft keyboard or iPhone mode
connection On/Off toggle.
BT Disconnect Button – Enable or Disable Bluetooth disconnection by
pressing down button for 3 seconds.
HID AutoLock - Disabled, 1, 2, 3, 4, 5, 10, 15 minutes
HID Keyboard – English, German, French, Spanish, Italian
HID Initial Delay- Define the initial delay between 1 second to 10 seconds
before data transmission in HID mode
HID Inter-character Delay - Define the inter-character delay between 10msec
to 100msec in HID mode
HID Control Character - Map control characters to either ALT+Numlock or
^+Character.
3.3.6 BT Service
Power : Turning on or off Bluetooth Power
Options – Enable/Disable
Pairing Mode
- KDC enters pairing mode so that host
Bluetooth
device can search KDC.
KDC User Manual
42
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
- KDC exits pairing mode either by pressing SCAN button or it fails to pair
with
Bluetooth
host device in 90 seconds.
Discovering: Search neighborhood
Bluetooth
devices
Connecting To: Inquiry to registered
Bluetooth
devices
HID Sync: KDC transmits all stored data to the host over HID profile if HID
Sync option is enabled
3.3.7 System Menu
Memory Size (3.0 version only)
User can select normal data and application database memory partition size.
KDC will erase all stored data upon changing the partition size.
User should enter the following key sequence to change the partition.
UP button + UP button + DOWN button + DOWN button + SCAN button
Memory Status: Checks the number of stored barcodes and memory usage.
Reset Memory: Resets KDC memory by erasing all stored barcodes, application
and BT registry.
Auto Erase: Erases all stored barcodes upon reaching buffer full condition if
Enabled is selected
Sleep Timeout: Sets amount of time KDC waits, when not being used, before
going to
sleep.
Date/Time: Sets the date and time of KDC which can also be set using KTSync®
Battery: Shows current status of battery power level.
Version: Shows KDC firmware version and serial number.
Button Lock: Locks or unlocks KDC scan and scroll buttons.
Beep Alert
Beep Sound: Enables or disables KDC beep sound.
Power On Beep: Enables or disables beep sound when KDC power is on.
Beep On Connect: Enables or disables beep sound when KDC is connected to
host.
Beep On Scan: Enables or disables beep sound when KDC is scanning.
Beep Volume: High or low.
MFi Mode (KDC20i): Enables or disables MFi mode. MFi mode supports SPP and
iPhone Bluetooth profiles. Non-MFi mode supports SPP, SPP2.0, HID iOS and HID
normal.
Vibrator: Enables or disables KDC vibrator.
Auto Exit: Enables KDC to automatically exit KDC Menus.
Port Status: Enables or disables KDC port messages.
Display Format: Selection of display format - Time & Battery, Type & Time, Type &
Battery, Memory Status and Barcode only
Scrolling : Enables or disables display scrolling for a barcode with more than 40
KDC User Manual
43
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
characters
Brightness: Adjusts display brightness
Factory Default: Resets KDC options to factory default settings.
3.3.8 Pair and connect KDC20iand iOS4.0+ in HID mode
Note:
Users have to disable MFi option in System > MFi menu to use HID
Bluetooth profiles
.
Users have to RESET the iPhone/iPad/iPod touch to change HID to iPhone
mode, and vice versa, after removing previous KDC connection.
KDC with Bluetooth Spec2.1+EDR doesn’t prompt Pin code entry menu.
KDC with Bluetooth Spec. 2.1+EDR stack doesn’t require 4 or 6 digits PIN
digits entry
Follow the steps to pair and connect KDC models for MFi and iOS4.0 in HID mode.
1. Go to the KDC System > MFi menu.
2. Change MFi option to Disabled.
3. Change KDC to Pairing mode.
4. The iPhone/iPad/iPod touch will find a new device as
Keyboard
.
5. Click
Keyboard
device.
Note:
Please skip
the
following steps if iPhone/iPad/iPod touch doesn't ask for the
PIN number.
6. Click
Keyboard
device: The iPhone/iPad/iPod touch will ask for the PIN number. The
iPad will ask for 6 digits and the iPhone/iPod touch will ask for 4 digits.
7. As soon as the iPhone/iPad/iPod touch asks for the PIN number, KDC will display the
PIN digits selection menu. By default, it is 6 digits.
8. Press SCAN button to select the 6 digit PIN code for the iPad. Press DOWN button
and then SCAN button to select the 4 digit PIN code for the iPhone/iPod touch.
9. The iPhone/iPad/iPod touch will display the PIN code that users should enter into the
KDC.
10. By default, the KDC displays pin codes 555555(5555). Users can change the PIN code
by using UP button on the side of the KDC unit to increase numbers, DOWN button
to decrease numbers, and SCAN button to confirm and move to the next digit.
KDC User Manual
44
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
11. Once the last PIN number is entered, press and hold SCAN button for a few seconds.
KDC will display
HID connected
message and the iPad/iPhone/iPod touch will
display
Connected
message if paired successfully.
3.3.9 iOS Soft Keyboard toggling using BT Toggle option
1. Users need to select the option to use this feature in the BT Config > BT Toggle.
2. Press DOWN button to disconnect the HID connection and bring a soft keyboard
(If DisconnectBTN option is enabled).
3. Press UP button to connect HID
4. The BT toggle is a useful feature if users desire to use both the KDC and soft keyboard.
KDC User Manual
45
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
LED Status 3.4
Table 3 - Explanation of LEDs
Empty Battery 3.5
Under 30% - Orange LED flickers at 1-second-interval for 5 seconds every minute.
Under 20% - Orange LED flickers in 1- second-interval for 10 seconds every
minute.
Under 10% - Red LED flickers in 1- second-interval for 10 seconds every minute
LED Color
Status
Green
Successful Reading
USB is connected and battery is fully
charged
iPhone mode in pairing mode
Orange
Low battery
USB is connected and battery is charging
HID mode in pairing mode
Red
No reading
SPP mode in pairing mode
KDC User Manual
46
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
1
Unscrew the screw indicated by the arrow.
and you will hear beeping sound.
Buffer Full 3.6
The KDC will display the message
Buffer Full
when the size of collected data reaches
160KB (85 version) / 60KB (86 version) or the number of collected barcodes is 10,240. To
prevent the loss of data, you should synchronize the data then reset the memory when
this message displays.
4MB version KDC reaches Buffer Full condition as follows:
0.5MB Partition - Collected data size reaches 0.5MB or collected number is
25,600
1MB Partition - Collected data size reaches 1MB or collected number is 51,200
2MB Partition - Collected data size reaches 2MB or collected number is 102,400
3MB Partition - Collected data size reaches 3MB or collected number is 153,600
4MB Partition - Collected data size reaches 4MB or collected number is 204,800
Power-on/off 3.7
You can turn the power on and off by pressing DOWN and SCAN button simultaneously
for 5 seconds. When the LED light is in green, you can release the buttons and the
power is on. When you turn off your KDC20, you will hear a beep sound after you press
DOWN and SCAN buttons simultaneously.
Replace Battery 3.8
KDC comes with a rechargeable, Lithium-polymer battery. The battery is recharged from
any USB port or KDC charging cradle and can be recharged about 300 times before it
needs to be replaced. KoamTac recommends replacing the battery every six months as
a declining battery will cause noticeable performance degradation in KDC. Replacement
batteries can be purchased from a KoamTac distributor. Batteries should be disposed
properly according to the WEEE regulation. The steps for replacing the battery are as
follows.
1. Disassemble the KDC back cover by unscrewing the middle screw.
2. Remove old battery and replace with new battery.
3. Reassemble the back cover.
KDC User Manual
47
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

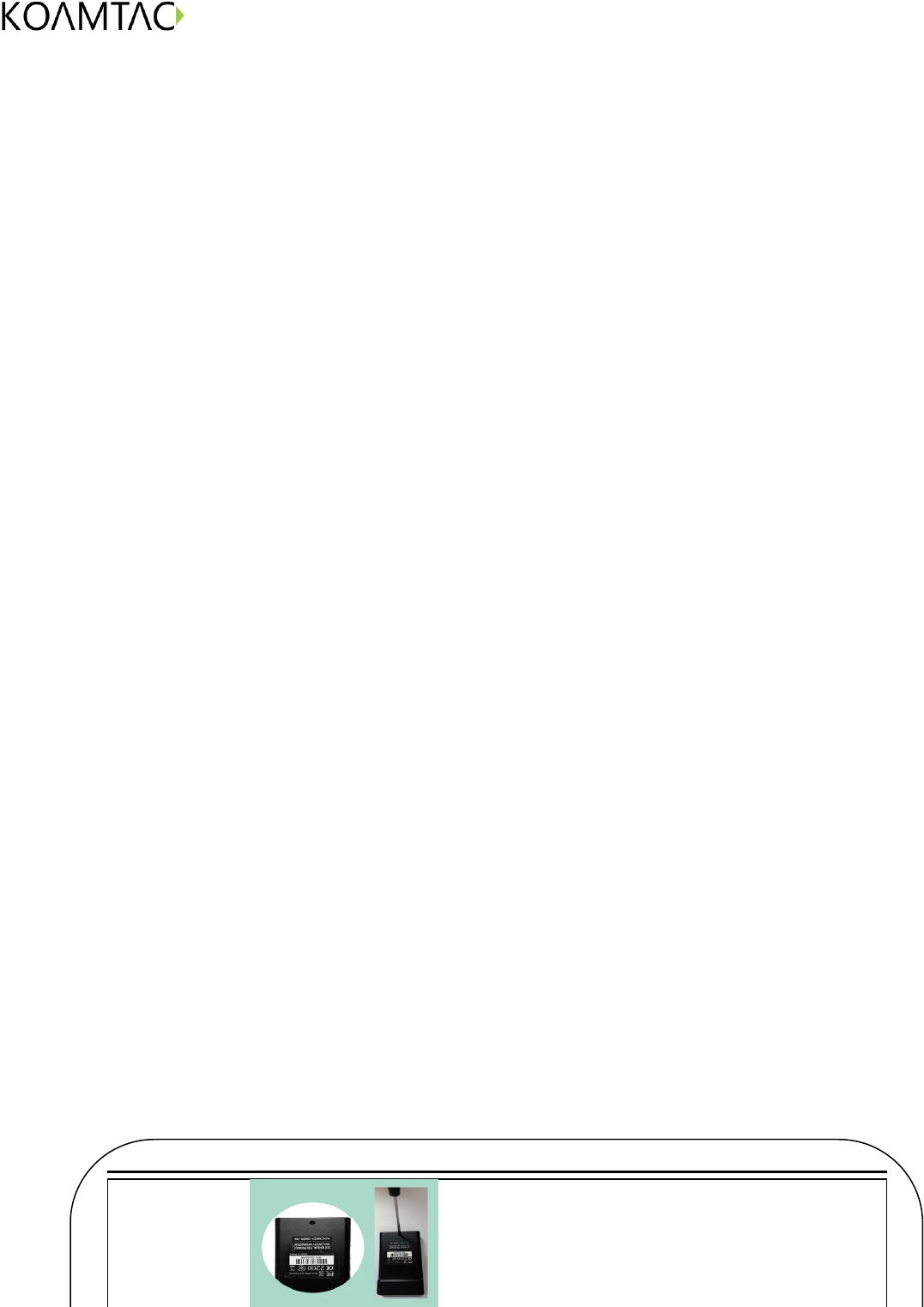

Figure 13 - Replacing Battery
KDC User Manual
48
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
4. BLUETOOTH
The KDC20 support HID (Human Interface Device) normal, HID iOS, SPP (Serial Port
Profile) and SPP2.0 profiles. KDC20i support SPP and iPhone (Made for iPhone) profiles.
They are compatible with the following Bluetooth stacks.
BlueSoleil
Broadcom (Widcomm)
Microsoft Windows XP, Vista, 7, and Mobile5.0+
Toshiba
KDC20 can configure Bluetooth options using PC KTSync and special barcodes.
Bluetooth Config 4.1
4.1.1 ConnectDevice
KDC supports both Serial Port Profile (SPP) and Human Interface Device Profile (HID). User
can choose SPP2.0, SPP (2.1), HID normal, HID iOS profiles to communicate with the host
device. Additional iPhone (Made for iPhone) option is available for KDC20i.
User can connect and disconnect Bluetooth connection with the host device by pressing
UP and DOWN buttons if BT Toggle option in BT Config menu is enabled. It normally
takes 3 seconds to connect and 1 second to disconnect. This is a very useful feature for
iPhone and iPad application.
User can also enable and disable iPhone and iPad soft key instantly using this BT Toggle
option.
UP button shows Bluetooth connection status and DOWN button shows time if KDC is
connected using SPP profile.
Note:
User should unpair the KDC first from the Bluetooth host to change the
Connect Device setting on the scanner to other Bluetooth profile.
KDC User Manual
49
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
4.1.2 Auto Connect
This feature allows the KDC to connect automatically to the host device when the KDC is
powered on.
IMPORTANT: Until the host device and KDC have been fully tested, it is strongly
recommended that this feature be set to Disable because a host device that does not
support this feature can cause problems such as power loss or upload delays.
[Note] KDC automatically tries to connect to the host 10 times during two minutes when
Bluetooth
power is ON,
Bluetooth
is disconnected, Auto Connect is enabled and system
Sleep Timeout is set to 5 seconds
4.1.3 Auto Reconnect
This feature allows the KDC to connect automatically to the host device when the KDC is
disconnected from a host.
IMPORTANT: This feature is available when KDC “Connect Device” options are
“iPhone”,”HID iOS” and “HID Normal “.
Note:
KDC tries to connect automatically to the host 10 times during two minutes if
Bluetooth
is disconnected.
4.1.4 Auto Power On
The Auto Power On option allows the KDC to automatically power on Bluetooth when
the SCAN button is depressed. The default setting is Disabled.
NOTE: The host may have to open the COM port before reconnecting with the KDC.
Power-on time determines the scan button pressing time to activate Auto Power On
feature.
4.1.5 PWR ON Time
The PWR On Time option works in conjunction with the Auto Power On option. Default
value is Disabled. If KDC Bluetooth power is off, user can turn on Bluetooth power by
pressing SCAN button for PWR On Time option value.
KDC User Manual
50
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
4.1.6 Auto Power Off
The Auto Power Off option works in conjunction with the PWR Off Time option. This
option allows the KDC to power off Bluetooth automatically when the KDC is NOT
CONNECTED to the host for the time duration specified in the PWR Off Time option.
The default for this option is Disabled. It is strongly recommended to keep it enabled to
maximize the operation time of the KDC. If Auto Power Off is enabled, Bluetooth can be
manually powered off before specified time in PWR Off Time option.
4.1.7 Beep Warning
The KDC beeps to acknowledge the status of the Bluetooth connection as follows:
1. One high short beep when Bluetooth is connected.
2. One low short when Bluetooth is disconnected.
3. Five short beeps if:
“Beep Warning is ENABLED”
“Auto Power Off is DISABLED”
“KDC20 is DISCONNECTED from HOST”
“Bluetooth power is ON”
4.1.8 PWR OFF Time
The PWR Off Time option works in conjunction with the Auto Power Off option. If Auto
Power Off is Enabled, the KDC powers off Bluetooth when the time duration specified in
the PWR Off Time option is met and the KDC is NOT CONNECTED to the host. The
time setting for this option is from one (1) minute to 30 minutes. The default is five (5)
minutes.
4.1.9 PowerOFF Msg
KDC sends Bluetooth power off message “BTOFF” to the host if PowerOFF message
option is enabled.
4.1.10 MAC Address
User can verify KDC Bluetooth MAC Address.
4.1.11 FW Version
User can verify KDC Bluetooth firmware version in BT FW menu.
KDC User Manual
51
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
4.1.12 Wakeup Nulls
The KDC sends three leading Null bytes to wake up
Bluetooth
connected device. This
feature can be disabled if
Bluetooth
connected device doesn’t require additional bytes
to wake up.
4.1.13 Autolock Time
iPhone/iPad/iPod touch loses incoming Bluetooth data in sleep mode. Users can set KDC
Autolock time to the same Autolock time of your iPhone/iPad/iPod touch to use automatic
wakeup feature in HID mode to prevent data loss. There would be a one second delay of
barcode transmission if Autolock time is set to more than one minute and the barcode scan
interval is larger than the auto-lock time. The auto-lock time would be set as 0, 1, 2, 3, 4, 5,
10, 15 minutes. 0 means iPhone/iPad/iPod touch never enters sleep mode.
4.1.14 HID Keyboard
User can select international keyboard – English, German, French, Spanish and Italian.
4.1.15 HID Initial and Inter-Character Delay
Certain applications can't process HID input fast enough and lose some characters during
transmission. Users would increase initial and inter-character delay to prevent data loss
during HID transmission
HID Initial Delay: Define the initial delay between 1sec to 10sec before data
transmission in HID mode
HID Inter-character Delay: Define the inter-character delay between 10msec
to 100msec in HID mode
4.1.16 Control character transmission in HID mode
Control characters between ASCII value 0x00 and 0x1F can be replaced by ALT+Numpad
or ^+Character.
Disabled Transmit the original control character
Alt+Numpad Transmit Alt+ ASCII value from Numpad.
^+Character Control characters would be substituted as following table.
Replacement to | Control characters would be substituted as “|”.
KDC User Manual
52
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Control
Char
Transmit
Chars
Control
Char
Transmit
Chars
Control
Char
Transmit
Chars
Control
Char
Transmit
Chars
0x01
^A
0x0B
^K
0x14
^T
0x1D
^]
0x02
^B
0x0C
^L
0x15
^U
0x1E
^^
0x03
^C
0x0E
^N
0x16
^V
0x1F
^_
0x04
^D
0x0F
^O
0x17
^W
0x05
^E
0x10
^P
0x18
^X
0x06
^F
0x11
^Q
0x19
^Y
0x07
^G
0x12
^R
0x1A
^Z
0x09
^I
0x13
^S
0x1C
^\
4.1.17 Function key transmission in HID mode
Users can send F1 to F12 function keys by scanning special barcodes in HID mode.
4.1.18 Disconnect/Reconnect/BT(HID) Toggle
Users can disconnect or reconnect the Bluetooth connection or toggle soft keyboard
using side buttons.
Bluetooth
Profile
UP Key
DOWN Key
(DisconnectBTN disabled)
DOWN Key
(DisconnectBTN enabled)
SPP
Do nothing
Do nothing
Release BT connection
HID iOS
Reconnect
Soft Keyboard Toggle
if pressing less than 3sec,
Soft Keyboard Toggle if
pressing less than 3sec,
Release BT connection
iPhone
Reconnect
Do nothing
Release BT connection
SPP 2.0
Do nothing
Do nothing
Release BT connection
HID normal
Reconnect
Do nothing
Release BT connection
KDC User Manual
53
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Bluetooth Service 4.2
4.2.1 Power
The POWER option allows you to Enable or Disable the Bluetooth functionality of the KDC.
To use Bluetooth, this option must be set to Enable. However, like all devices enabled for
Bluetooth, the KDC will search constantly to connect with a Bluetooth host when set to
Enable. Constant searching for Bluetooth devices increases power consumption. Unless
you are using Bluetooth with your KDC, this option should be set to Disable.
IMPORTANT: To prevent unnecessary power problems, it is strongly recommended that
the POWER option be set to Disable if the KDC is idle for an extended period of time.
4.2.2 Pairing
Before you are able to use Bluetooth, the KDC must be paired with the host device. This
pairing process only needs to be completed once with each host device. After pairing, the
host device will always recognize the KDC as a Bluetooth device unless the Bluetooth
configuration is modified. If it is modified, you may need to pair the devices again.
IMPORTANT: The host device must be configured for Bluetooth before it can be paired
to the KDC.
Note:
KDC with Bluetooth Spec2.1+EDR doesn’t prompt Pin code entry menu.
To pair the KDC with the host, follow these instructions.
1. Select Pairing from the Bluetooth menu. The message “Pairing started…”
will displayed.
2. When prompted by the host device, enter the Security PIN “0000”.
3. The “Pairing success” message will display when the Bluetooth connection
is successfully established. The connection must be established before the
pairing timeout which is 60 seconds.
If “Pairing failed...” message displays, the Bluetooth connection with the host
device failed. If the message “Connected” displays, a Bluetooth connection
is established.
KDC User Manual
54
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
It is possible for the message “Pairing failed...” to display on the KDC while
the host device displays “Connected” message. If this occurs, a Bluetooth
connection is established.
4.2.3 Discovering
KDC20 starts to search neighboring
Bluetooth
devices if this Discovering menu is
executed. It would take about 30 seconds to finish search and list available neighboring
Bluetooth
devices. User may enter corresponding Bluetooth MAC address in KTSync
Bluetooth menu instead of searching neighborhood
Bluetooth
devices.
4.2.4 Connect To
This option lets you easily connect KDC to
Bluetooth
devices either previously registered
in KTSync under the File Menu or discovered/connected from KDC
Bluetooth
Service
menu.
Note:
There could be an interoperability issue depending on corresponding device
Bluetooth
stack. Master
Bluetooth
device may request to follow master
Bluetooth
device security procedure if KDC tries to connect to the master
Bluetooth
device.
4.2.5 HID Sync
User can synchronize stored barcode data over HID using HID Sync option. KDC starts to
transmit all stored barcode data upon executing HID Sync option. This option is available
when KDC MFi Mode option is disabled.
KDC User Manual
55
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
5. Synchronization
When barcode data is collected, it must be uploaded to your application. KTSync®,
which is bundled with the KDC, is a software that allows barcode data to be uploaded to
any PC, PDA, or smartphone running Android 2.1+, Apple iOS3.1.3+, Blackberry, Mac
and Windows XP/Vista/7/Mobile 5.0+. It has three major functions. Windows XP/Vista/7
version supports all of the following features. Tablet, PDA and Smartphone versions
support only limited features of PC KTSync.
Synchronization - Provides data upload functionality to your applications.
Keyboard Emulator - Allows scanned data to be uploaded directly into your
application as if the data were being entered manually with a keyboard.
Application Generation - Allows users to create custom applications or download
predefined applications such as Master-Slave, Pick/Bin, DB Lookup and Inventory.
(Application Generation function is not available for KDC20. Only Keyboard
wedging feature is available for KDC20.)
Additional functions include:
Prefix and Suffix add-ons to eliminate manual data entry.
Symbology and Scan Option selections.
Barcode Wedging options.
KTSync Menu 5.1
KTSync® was installed on your PC during the initial installation process. Before data can
be uploaded to any host device, KTSync® must be launched on the host and configured
to recognize the KDC. The following screen displays when KTSync® is launched.
KDC20
Figure 14 - KTSync
® Synchronizer Menu
KDC User Manual
56
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
File Menu
Connect: This option displays the Serial port (COM#) assigned to KDC. You can
also use this option to manually assign the Serial port. The Serial port assigned
to KDC can be found under Windows Device Manager. The port assignment is
used by KTSync® for synchronizing data from the KDC to the host.
Synchronize: This option manually tells the KDC to synchronize data with the
host. While data is being synchronized, KTSync menu options are unavailable.
Note:
Please do not use your computer during data synchronization.
Bluetooth: User can register MAC address to be directly connected by KDC20.
Configuration: This option allows users to set different KDCs with same settings
by exporting and importing settings from one KDC to the other.
Exit: This option ends the KTSync program. You must re-run KTSync before you
can synchronize data on the KDC.
Settings Menu
Synchronization: Select Synchronize options.
Barcode & KDC: Select Barcode and KDC options.

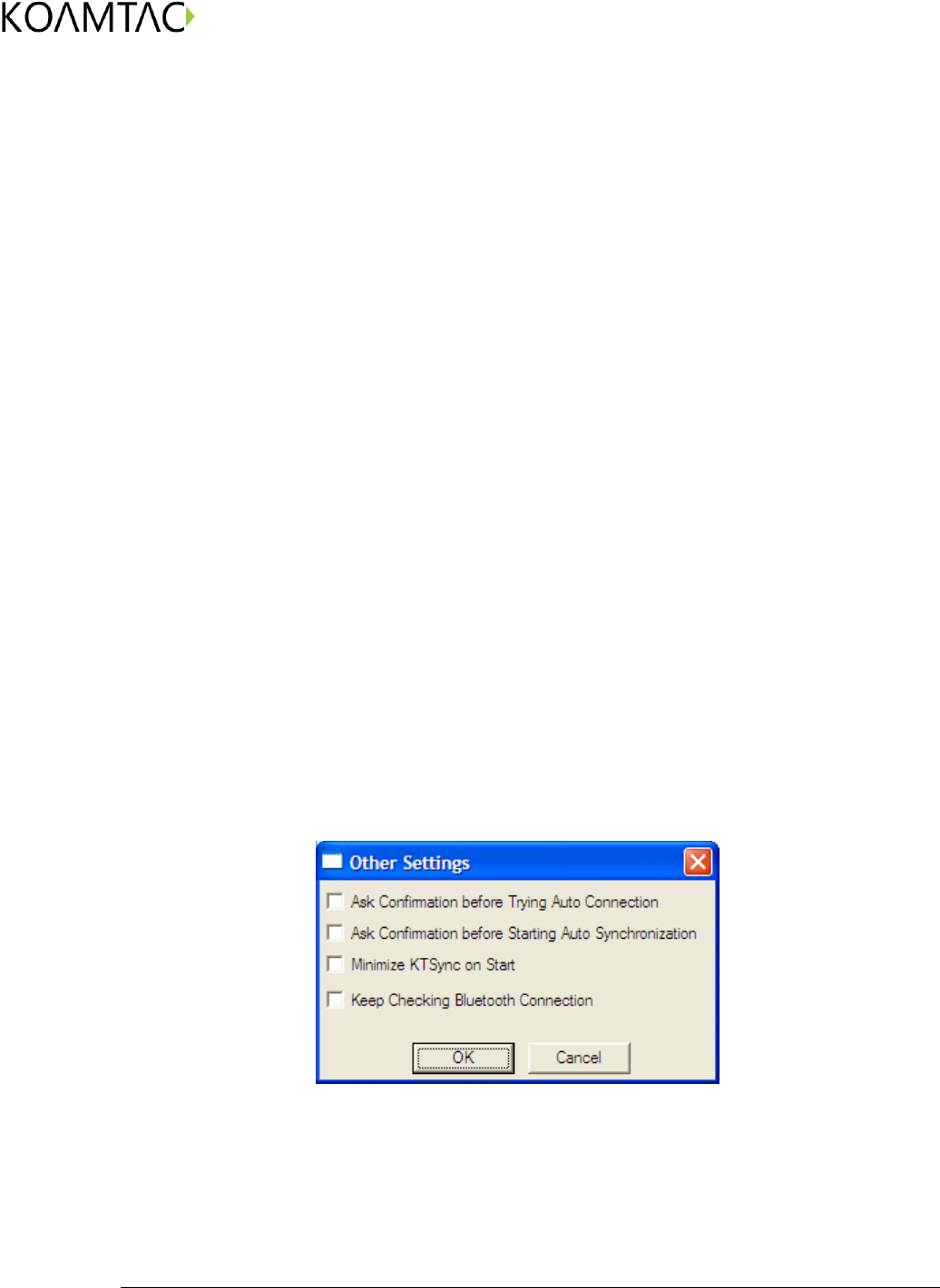

Others: Select Auto Connection and/or Synchronization Confirmation options.
Figure 15 – File Menu
KDC User Manual
57
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Application Menu
Generation: Create user application or download predefined application.
DB Lookup: Allows users to download DB into KDC and display barcode
description field
Master/Slave: User defines a master barcode for comparison with one or more
slave barcodes
Pick/BIN: User defines Pick ID and the barcode symbology for comparison with a
defined Bin
Inventory: Users can count inventories. Inventory description would be displayed
if inventory DB is downloaded into KDC.
About Menu - KTSync® - Version Information
Figure 18 – About Menu
Figure 17 – Application Menu
Figure 16 – Setting Menu
KDC User Manual
58
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
File Menu 5.2
5.2.1 Connect to KDC
The KDC connects to a COM port automatically when connected to your PC’s USB port.
You can manually assign the KDC COM port using KTSync® Connection submenu under
File menu if needed.
The COM port assignment is found in the Windows Device Manager.
KTSync® will not connect to the KDC if it is in KDC Menus. You must EXIT
from the KDC Menus.
If KTSync® fails to connect automatically to the KDC, please follow these
directions.
1. Exit KTSync®.
2. Check that you have connected the KDC to a USB port on your PC.
3. Make sure to use the cable provided with the KDC.
4. Check that the KDC is not in KDC Mode Menu.
5. Restart KTSync®.
Note:
You can manually assign the COM port using KTSync
® Connect option
under the File menu
Figure 19 - COM Port Selection for KDC
KDC User Manual
59
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
5.2.2 Synchronize
Under the File Menu, this option allows you to manually synchronize data on KDC with
the host. This option is similar to clicking on the Synchronize button in the KoamTac Data
Synchronizer box.
5.2.3 Bluetooth
This menu option allows you to register up to ten Bluetooth devices including their MAC
address, PIN #, and optional prefixes or suffixes. This option enables direct Bluetooth
connection between KDC and other Bluetooth devices such as
Bluetooth
printer. User
should choose
Bluetooth
device to be connected in “Connect to” menu in KDC
Bluetooth
Service menu.
KDC User Manual
60
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Figure 20 - Bluetooth Device Registry
5.2.4 Configuration
This menu is useful for the users who need to configure different KDCs with same
settings. In this menu, you can export settings from a KDC to your computer and import
it to other KDCs.
When you select Configuration in File menu, you will need to choose either Export or
Import. First, select Export. You name the settings file, press Open, and it is exported to
your computer. Second, connect a different KDC to your computer and import the
settings file to the KDC by selecting Import in the Configuration menu. Once
configuration has been finished, KDC will restart.
Export
Import
KDC User Manual
61
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Synchronization Settings 5.3
KTSync®
provides several synchronization options for synchronizing data from your KDC
to host devices such as your PC, PDA, or smartphone running Windows XP, Vista,
Windows 7, or Mobile 5.0+.

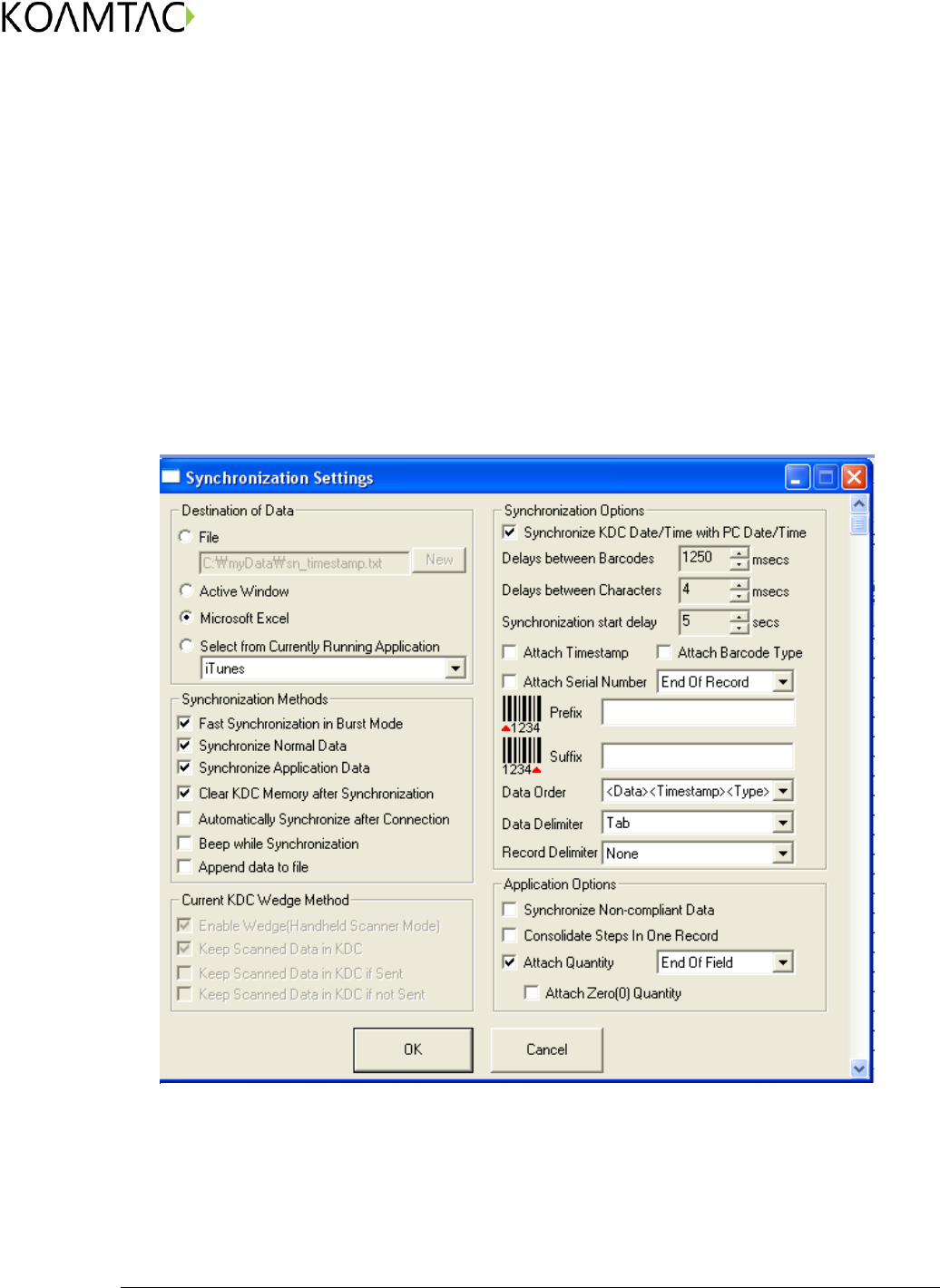

Figure 22 - KTSync
® Synchronization Settings
Figure 21 – Configuration
KDC User Manual
62
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
5.3.1 Destination of Data
When barcode data is uploaded to the host device, you must assign a destination for the
data. Destination of Data options include:
File - This option means data will be saved in the assigned filename. You can select a
different target directory by clicking the New icon. C:\MyData\sn_timestamp.txt is
the default directory. If this directory is not created, you will be prompted to create it
before data can be uploaded to a file.
Active Window - This option means scanned barcode data is sent directly to the
active program running on your device as if the data was being entered directly from
a keyboard.
Microsoft Excel - This option means barcode data is being imported directly into
Microsoft’s Excel. Various parameters can be set when uploading data to Excel.
Select from Current Running Application – This option allows you to select a
currently running application for data synchronization.
Note:
Data synchronization begins immediately if
Automatically After Connection
is selected. If not selected, data synchronization is started manually by the
user.
Users SHOULD NOT operate the PC during the synchronization process. It
can interrupt the process causing unreliable results
.
5.3.2 Synchronization Methods
Fast Synchronization in Burst Mode
The KDC can synchronize data to a host device in Burst mode or Sequential mode. Burst
mode provides the fastest synchronization process but could result in error in a poor
Bluetooth
environment. Fast synchronization in burst mode is only recommended with
USB connection.
Synchronize Normal Data
The KDC will synchronize Normal Data only in KDC memory if Synchronize Normal Data
option is selected. If you want all data in KDC memory synchronized, you should select
Synchronize Normal Data and Synchronize Application Data.
Synchronize Application Data
The KDC will synchronize Application Data only in KDC memory if Synchronize
Application Data option is selected. If you want all data in KDC memory synchronized,
you should select Synchronize Normal Data and Synchronize Application Data.
KDC User Manual
63
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Clear KDC Memory after Synchronization
The stored barcode data is cleared from the KDC memory after synchronization if this
option is selected. The KDC20 can store a total of 10,240 barcodes or 60KB (86
version)/160KB (85 version) of barcode data.
It is important to clear the KDC memory periodically to prevent Buffer Full
message which will prevent the KDC from storing additional data. Stored barcode
data can also be deleted using the Reset Memory feature on the KDC.
Automatically Synchronize after Connection
This option lets you automatically synchronize collected data to your computer
immediately when the KDC is connected to the host.
IMPORTANT: Remember to configure all options properly before selecting this
option.
Data synchronization can be done manually by clicking the synchronize icon if this
option is not selected.
Beep while Synchronization
You can enable or disable the beep tone during the synchronization process. A beep is
sounded each and every time barcode data is synchronized if this option is selected.
The KDC beeps 5 times when the synchronization process is complete.
Append data to File
KTSync would append data to the exiting file instead of creating a new file if user has
specified file name and Append data to File option is enabled.
5.3.3 Current KDC Wedge Method
The KDC can be configured in one of five Wedge/Store modes
Wedge Only - Scanned data is transmitted to the host. The KDC does not store
scanned data.
Wedge & Store - Scanned data is stored in the KDC and transmitted to the host.
Store Only - Scanned data is stored in the KDC but NOT transmitted to the host.
Save if Sent - Scanned data is stored in the KDC ONLY if transmission to the host
is successful.
Save if Not Sent - Scanned data is stored in the KDC ONLY if transmission to the
host is unsuccessful.
KDC User Manual
64
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Enable Wedge (Handheld Scanner Mode) -
This option will be checked if Wedge
Only or Wedge & Store option is selected.
Keep Scan Data in KDC -
This option will be checked if Store Only or Wedge &
Store option is selected.
5.3.4 Synchronization Options
Synchronize KDC Time with PC Time when Connected
This option enables you to synchronize the KDC date and time with the host date and
time. Synchronization of date and time occurs after the data is uploaded to the host
device.
Delays
You can set transmission delays between barcodes and characters during the
synchronization process. It is important to set proper delays to prevent errors during the
transmission of collected barcodes. Some Windows applications such as Excel require
longer delay times.
Attachments
Timestamp, Barcode Type, and Serial Number can be attached to the scanned barcode
by selecting these options. The Serial Number of the KDC can be attached to the Start
or End of Record.
Prefix and Suffix
Enter the characters you want appended to the front (Prefix) or back (Suffix) of the
barcode in the Prefix and Suffix fields.
The character set is any combination of ASCII characters including alphanumeric,
line feed (“\n”), and carriage return (“\r”).
Order and Delimiter
Select Order of Data – Type, Data, and Timestamp
Select the Delimiter between Data – Tab, Space, Comma, and Semicolon
Select the Delimiter between Records – None, LF, CR, Tab, and <LF & CR>
5.3.5 Application Options
Synchronize Non-Compliant Data
The KDC will synchronize both compliant and non-compliant data (filtered data) if
Synchronize Non-Compliant Data option is Enabled.
Consolidate Steps in One Record
KTSync will consolidate the data collected in Step 1 with the data collected in Step 2
and/or Step 3. Data will be consolidated into one record instead of individual data
KDC User Manual
65
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
records for each step when Consolidate Steps in One Record is Enabled. Non-complete
records, i.e. three steps were defined but data was only collected for two steps; would be
discarded if this option is Enabled.
Attach Quantity
Quantity would be attached to the left or right of the data if this option is Enabled.
KDC User Manual
66
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Barcode & KDC Settings 5.4
KTSync® allows you to configure the KDC Scan Options and Barcode Settings. The
configuration options for the KDC using KTSync® are similar to the Set Barcodes, Code
Options, Data Editing and Scan Options on the KDC Menu. Please refer to 11. Appendix
A – Barcode & Scan Options for proper barcode settings for your application.
Note:
You must configure barcode and scan options properly for optimal KDC
performance

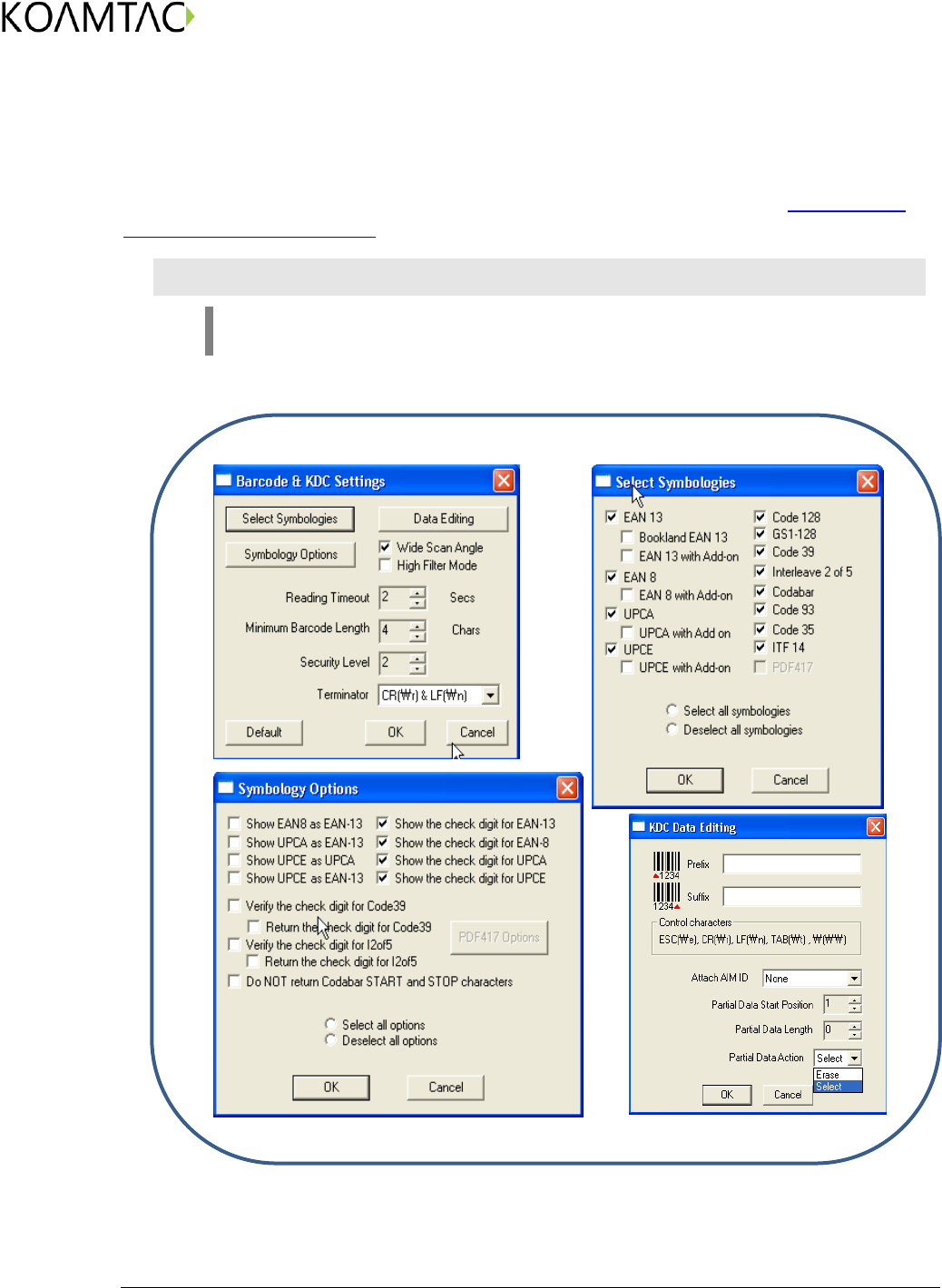

Figure 23 - Barcode & KDC Settings, Symbologies, Data Editing and Scan Options
KDC User Manual
67
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
5.4.1 Select Symbologies and Symbology Options
The process for scanning and reading barcodes is delicate and complicated. Although
your KDC is equipped with a high performance scan engine, if configured incorrectly it
may not perform at its peak performance level. To ensure its high performance, the KDC
comes configured to optimize its scan engine technology. Unless you clearly understand
the impact of your changes to the KDC settings, please do not change factory default
settings. Please refer to Appendix A for details. Pressing the Default icon will reset all
symbology related options to factory default settings.
5.4.2 Data Editing Option
Prefix
- Allows you to add a prefix to scanned data which can then be stored in KDC or
wedged to the host. The Prefix format must be defined in the data format menu of
KTSync. The maximum length for a Prefix is 11 characters.
Note:
This Prefix option is different from the Prefix option in KTSync which
appends the prefix to data during synchronization.
Suffix
- Allows you to add a suffix to scanned data which can then be stored in KDC or
wedged to the host. The Suffix must be defined in the data format menu of KTSync. The
maximum length for a Suffix is 11 characters.
Note:
This Suffix option is different from the Suffix option in KTSync which
appends the suffix to data during synchronization.
AIM ID
- Allows you to add AIM ID to scanned data which can then be stored in KDC or
wedged to the host. AIM ID must be defined in data format menu of KTSync. AIM ID is
either added to the end of Prefix or Suffix.
Partial Data
: Allows you to display and store partial data. User defines the start position
and number of characters to be displayed and stored.
Select the
x
characters from
y
position
Set Partial Data Start Position to
y
, Partial Data Length to
x,
Partial Data
Action to Select
Partial Data Length
0
means Select all characters from
y
position.
KDC User Manual
68
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Erase the
x
characters from
y
position
Set Partial Data Start Position to
y
, Partial Data Length to
x,
Partial Data
Action to Erase
Partial Data Length
0
means Erase all characters from
y
position.
Other Settings 5.5
Other options under the Settings menu allow you to select four additional settings.
Ask Confirmation before Trying Auto Connection prevents unintentional launch
of KTSync.
Ask Confirmation before Starting Auto Synchronization prevents unintentional
synchronization of data.
Minimize KTSync on Start will minimize KTSync and send to the tray upon
execution.
Keep Checking
Bluetooth
Connection allows reconnection of KDC once
Bluetooth
signal is detected. This feature is useful when moving from
Bluetooth
host device frequently. KTSync will automatically reconnect
Bluetooth
connection when you enter an effective
Bluetooth
network range.
To select any of these settings, click on the box to the left of the setting. A check mark ()
will display next to the setting to indicate that it is selected.
Figure 24 - KTSync
® Confirmation Settings
KDC User Manual
69
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
KDC Menu in KTSync 5.6
After connecting KDC 20 to PC with a USB cable, run KTSync in your PC and you will see
KDC Menu on the right side of KTSync window. Click KDC Menu, and you can configure
your KDC20 in KDC Menu window as below.
Figure 25 – KDC Menu in KTSync (KDC20)
KDC User Manual
70
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Mobile pKTSync 5.7
pKTSync provides limited functionality for Pocket PC 2003 and Mobile 5.0+ users.
1. Synchronization - Provides data upload functionality to your applications.
2. Keyboard Emulator - Allows scanned data to be uploaded directly into your
application as if the data were being entered manually on a keyboard.
For detailed explanations of these functions, please refer to earlier sections of this
chapter.
WARNING: The user must assign the correct COM port to KDC prior to use pKTSync.
Please refer to your mobile device manual for details on Bluetooth pairing and COM
port assignment methods.
Figure 26 – Mobile pKTSync
KDC User Manual
71
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Android aKTSync 5.8
The aKTSync provides limited functionality of PC KTSync to Android users.
Note:
aKTSync only supports Android devices with 2.1+ OS version and that are
compatible with BluetoothChat application.
KDC with Bluetooth Spec2.1+EDR doesn’t prompt Pin code entry menu
5.8.1 KDC and Android Pairing
1. Pairing
Select SPP Bluetooth profile from KDC ConnectDevice submenu in BT
Config menu.
Search KDCxxx from Android and pairing two devices.
KDCxxx PIN code is “0000” if SPP2.0 is selected.
2. Connection
Click Connect icon in aKTSync
Android would list up paired
Bluetooth
devices and user should select the
target KDC.
3. Synchronization: Provides data upload functionality to your applications.
4. Settings: User can change various Synchronization options in settings menu.
5. Wedging: User can wedge barcode data to any Android application. Press home
key and launch the target application.
5.8.2 Launch KTSync
1. Download and install aKTSync from the Android Play Store.
http://www.androidzoom.com/android_applications/productivity/ktsync_luxv.html
2. Change KDC Bluetooth ConnectDevice option to
SPP
3. Execute Android
Bluetooth
device scan option and KDC
Bluetooth
pairing option
A. Execute KDC
Bluetooth
Pairing option
B. Launch Settings on the Android device
C. Select Wireless and Networks
D. Click on Bluetooth Settings
E. Click on Scan devices
KDC User Manual
72
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
F. The Android device will display the KDC model and 6 digits of the serial number.
4. Press the KDC list entry, enter “0000” PIN code and press OK.
5. When paired, the Android device will display “
Paired but not connected”
.
6. Launch aKTSync program.
A. Press menu key and select the Connect option on the top left.
B. From the list of paired devices, choose the KDC to use.
C. On the top menu bar of aKTSync, you will see a message “
connecting”
, and then
“
connected”
.
D. On the KDC display, you will see “Pairing Succeeded!!!” then “Bluetooth
Connected”.
E. Select Settings option on the bottom left to change aKTSync setting.
5.8.3 Keyboard Wedge
1. Launch Settings on the Android device.
2. Select Language and Keyboard (or Input method).
3. Select KTSync Keyboard.
4. Launch the application and touch the input box to give focus to it.
5. Barcode would be wedged to the input box upon scanning a barcode.
Figure 27 – Android aKTSync
KDC User Manual
73
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
iPad/iPhone/iPod touch KTSync 5.9
The KTSync for iPad/iPhone/iPod touch provides limited functionality of PC KTSync for
iPad, iPhone and iPod touch users.
1. The KDC supports SPP and iPhone Bluetooth profiles.
2. The iPhone/iPad/iPod touch should use iPhone Bluetooth profiles. iPhone is
the default profile of KDCi models.
3. Download the KTSync program from the App Store.
4. Enable the iPhone/iPad/iPod touch Bluetooth power from the Setting >
General > Bluetooth menu.
Note:
Users have to disable MFi option in System > MFi menu to use HID
Bluetooth profiles.
Users have to RESET the iPhone/iPad/iPod touch to change “HID to iPhone
mode” or “vice versa” after removing previous KDC connection.
KDC with Bluetooth Spec2.1+EDR doesn’t prompt Pin code entry menu.
5.9.1 KDC20i connection using iPhone mode
1. Download and install iKTSync from the Apple App Store.
http://itunes.apple.com/us/app/ktsync/id372916602?mt=8
2. Press the two KDC side buttons together to enter menu mode
3. Scroll down to Bluetooth menu using KDC Down button
4. Press the front middle scan button
5. Scroll down to Discovering and press the front middle scan button
a. “Discovering Started …” message will be displayed on KDC screen
b. Discovering will take about 30 seconds.
6. Select discovered iPhone/iPod touch device name and press the front
middle scan button
a. [Pin Code] User Default/Enter PinCode will be displayed
b. Press the front middle scan button to select the Use Default option
c. The message “Connecting to iPhone/iPod touch device name” will be
displayed
d. iPhone/iPad/iPod touch will ask for the PIN number.
f. Please enter “0000” and hit “connect” icon
g.“iPhone Connected” message will be displayed
7. Launch KTSync and configure Settings
KDC User Manual
74
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
5.9.2 iKTSync Settings
iKTSync provides following Settings menu.
Synchronization - User can configure Synchronization options such as
destination of data, data formation and delimiters.
5.9.3 How to connect and reconnect iPhone mode using UP keys
1. Users needs to select the option to use this feature in the BT Config > BT Toggle
2. Press the UP button to connect or reconnect to the iPhone/iPad/iPod touch
Figure 28 – iPad/iPhone/iPod touch KTSync
KDC User Manual
75
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Blackberry bKTSync 5.10
The bKTSync provides limited functionality of PC KTSync for Blackberry users.
Note:
KDC with Bluetooth Spec2.1+EDR doesn’t prompt Pin code entry menu.
1. Download and install bKTSync from the Blackberry App World.
http://appworld.blackberry.com/webstore/search/ktsync?lang=en
2. Go to Blackberry Options > Applications menu and enable Input Simulation option.
3. Change KDC Bluetooth profile in ConnectDevice option to SPP.
4. Execute Blackberry
Bluetooth
manager and KDC
Bluetooth
pairing option
A. Execute KDC
Bluetooth
Pairing option
B. Launch the Blackberry
Bluetooth
manager and select “Search”. The KDC model and
6 digits of the serial number would be displayed.
C. Highlight the KDC and press the Enter or Select Key
D. Enter “0000” PIN code and press the Enter or Select Key
E.
The Blackberry will display
“Pairing with KDC”…”complete.”
F. Close the Blackberry Bluetooth manager
5. Go to Downloads folder and execute KTSync
6. User can configure KDC options in KDC settings and Symbologies Settings menu
7. Go to KTSync Synchronization Settings and select Destination. To send collected barcode
data as an email attachment, choose Email Attachment as destination and enter in the
email address, subject and body message that you want to send. You can enter multiple
email addresses using the semicolon (;) separator.
8. To scan barcodes into any application (like email, notes, worksheet or web browser), press the
menu key and select Running in the background option. bKTSync will maintain the
connection and place the scanned barcode data wherever the cursor is flashing.
KDC User Manual
76
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Figure 29 – Blackberry bKTSync
KDC User Manual
77
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
KTSync for Mac OS X 5.11
The KTSync Mac OS X version provides limited functionality of PC Windows KTSync for
Mac OS X users.
Note:
KTSync for Mac OS X version supports both Bluetooth SPP profile and USB
connection. User should pair KDC with Mac before using the KTSync
program via Bluetooth connection.
Mac OS X version KTSync is built as a X86 binary application and works with
the Intel-based Mac. It is verified on Mac PC running Mac OS X 10.6.5 and
later versions.
KTSync Mac OS X version supports the following features:
Keyboard wedge function to a file, internal viewer, active window and user
application.
Synchronization to a file, internal viewer, active window and user application.
Automatic connection and disconnection on USB port.

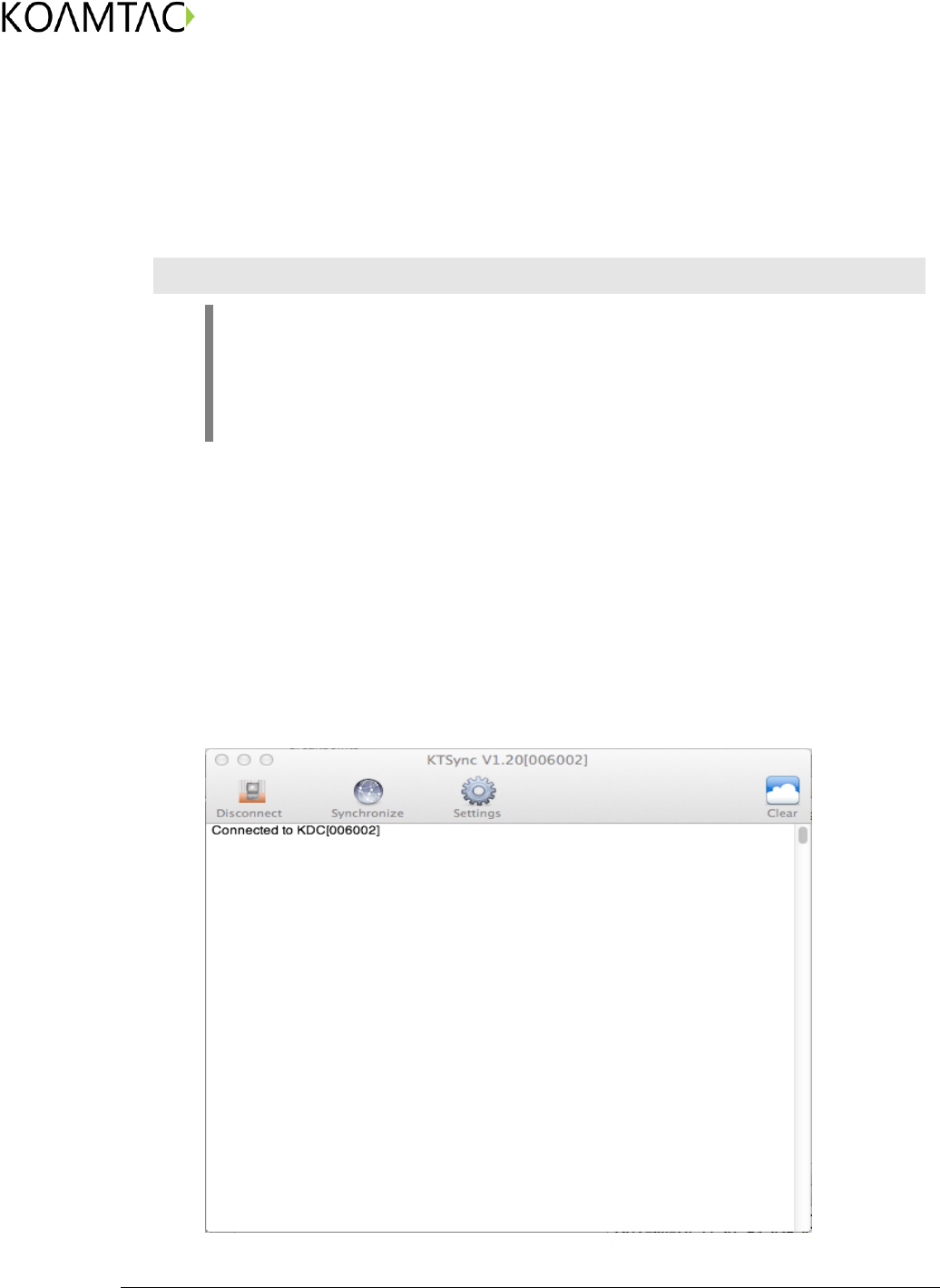

User will see the following initial KTSync screen upon launching the program. KTSync will
connect automatically if KDC is plugged on USB port or KDC is paired.
KDC User Manual
78
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

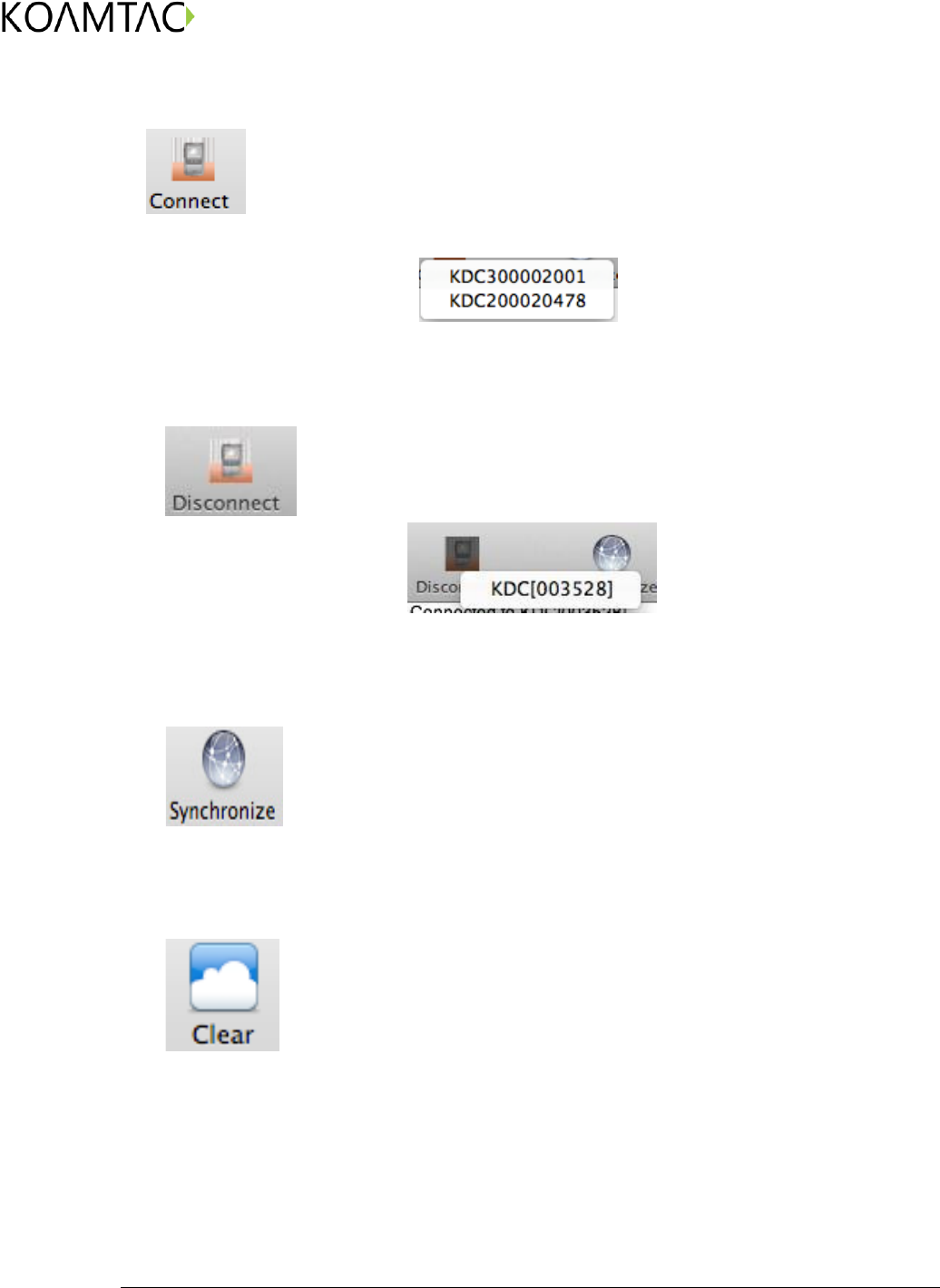

5.11.1 Connect Button
User can connect the Mac with the KDC that is paired or plugged into
the USB port by clicking the Connect button. The following screen will be
displayed when this button is pressed and KTSync will start to connect to
the selected KDC.
5.11.2 Disconnect Button
KTSync changes Connect button to Disconnect button once the
KDC is connected. User can disconnect the KDC manually by
selecting connected KDC on the following screen.
5.11.3 Synchronize Button
User can start the synchronization process by pressing the
Synchronize button. User can select the destination of barcode data
in the settings menu. There are 4 selectable destinations: File,
Internal viewer, Active window and User application.
5.11.4 Clear Button
User may press this button to clear the KTSync internal viewer.
KDC User Manual
79
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
5.11.5 Settings Button
User can configure synchronization options on the following screen by
pressing the Settings button.
Destination of data
The KTSync program wedges or downloads barcode data to one of the following
four destinations:
o File: The KTSync makes file name based on 3.11 if file name is specified as a
“sn_timestamp.txt”. The default directory is /Users/Shared/KTSyncData
directory. User can define other directory or other filename by clicking “New”
button. The maximum file path length is 128 characters.
o Internal viewer: The KTSync displays barcode data in KTSync internal text
viewer.
o Active window: The KTSync sends barcode data to current active window if
Active window option is selected.
o User application: User can define the target application by pressing “New”
button. The maximum application name path length is 128 characters.
KDC User Manual
80
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Synchronization Options
Synchronize KDC clock
KTSync will set the KDC’s date and time with Mac PC date and time when
the KDC is connected to Mac if this option is enabled.
Burst synchronization
KTSync will synchronize barcode data from KDC in the burst mode if this
option is enabled. Otherwise, KTSync will synchronize barcode data one by
one. This option is enabled by default and can’t be disabled.
Synchronization on connection
If this option is enabled, KTSync will automatically synchronize barcode data
from the KDC when the KDC is connected.
Clear KDC memory after synchronization
KTSync clears barcode data stored in the KDC’s memory once
synchronization has
finished if this option is enabled.
Append data to file
KTSync appends synchronized data to existing file specified on destination. If
file doesn’t exist then KTSync creates a new file.
Data Edition
Attach serial number
The KTSync would add a KDC serial number to barcode data if this option is
enabled. This option is enabled by default and can’t be disabled.
Attach time stamp
The KTSync would add timestamp to barcode data if this option is enabled.
This option is enabled by default and can’t be disabled.
Attached barcode type
The KTSync would add barcode type to barcode data if this option is
enabled. This option is enabled by default and can’t be disabled.
Serial number
When Attach serial number is enabled, this option determines when to
attach serial number. “Start of record” means to attach at the front of record
and “End of record” means to attach to the end of record.
Data order
This option specifies the order of data (Barcode Type, Barcode Data and
Timestamp) in the record.
KDC User Manual
81
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Data delimiter
This option is used to select a character to be added between barcode data,
serial number and timestamp and/or barcode type. User can select one of
the following: None, Tab, Space, Comma and Semicolon as the data
delimiter. The Comma is selected by default and can’t be changed.
Record delimiter
This option is used to select a character to be added at the end of the
barcode record. User can select one of None, CR, LF, TAB, and CR&LF as the
record delimiter. The CR&LF is selected by default and can’t be changed.
Other Options
Non-English keyboard
This option is used when the barcode data has non-English characters and a
non-English keyboard.
KDC User Manual
82
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
6. TROUBLE“HOOTING
PROBLEM
CAUSE
SOLUTION
KDC not working
Dead battery
Charge battery by connecting KDC to your PC using the
included cable
Hardware failure
Contact distributor for technical support
KDC not charging
Bad battery
Replace battery – Contact Local Distributor
Poor USB port
USB port doesn’t supply proper current to KDC
- Charge KDC using a different USB port on your PC
Failed reading
Damaged barcode
Scan a different barcode
Out of scan range
Move the scanner closer to barcode
Move scanner farther from the barcode
Incorrect angle
Change the angle of scanner to barcode
Symbology
not supported
Contact KoamTac - www.koamtac.com for possibility of
custom symbology support
Scan options
Check scan option settings
Dirty scan window
Clean scan window
Damaged scan window
Replace scan window
KDC reads
wrong barcode
Dirty scan window
Clean scan window
Damaged scan window
Replace scan window
Poor quality barcode
Select only necessary barcodes
Increase minimum barcode length
Increase security level
Can’t communicate
with PC, PDA,
or smartphone
USB cable is not
connected properly
Check cable connection between KDC and host device
Software is not
working properly
Reload the software
COM configuration
Check COM port configurations
LED blinks yellow
Low battery power
Charge the battery by connecting KDC to PC.
KDC will lose collected data if the battery is empty.
Buffer Full Message
Full Memory
Clear the Memory using Synchronization program
Empty Battery
Message
Empty battery
Connect USB immediately.
Synchronize the collected data and charge KDC
Abnormal KTSync
Operation on DELL PC
Quickset Utility
Disable Quickset Utility before using KTSync.
Dell Quickset utility interrupts normal KTSync
operation
WSED Utility
Disable WSED Wireless enable/disable utility
delete the folder C:\Program Files\WSED,
which contains a file WSED.exe, with the same icon as
in the taskbar
Delete the registry entry KEY_LOCAL_MACHINE
\SOFTWARE\Microsoft\Windows\CurrentVersion\Run\
WSED
Table 4 - Troubleshooting Techniques
KDC User Manual
83
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
7. WARRANTY
LIMITED WARRANTY AND DISCLAIMERS
BY OPENING THE PACKAGE OF THIS PRODUCT YOU AGREE TO BECOME BOUND BY THE
LIABILITY AND WARRANTY CONDITIONS AS DESCRIBED BELOW.
UNDER ALL CIRCUMSTANCES THIS MANUAL SHOULD BE READ ATTENTIVELY, BEFORE
INSTALLING AND OR USING THE PRODUCT.
Serial Number
A serial number appears on the KDC label. This official registration number is strictly related to
the device purchased. Make sure that the serial number appearing on your KDC is not
removed. Removing the serial number will affect the warranty conditions and liability
disadvantageously, so please maintain the label with serial number on the KDC. Units with the
serial number label removed should not be operated.
Warranty/Warranty Period/Liability
KoamTac, Inc. (“KoamTac”) manufactures its hardware products in accordance with industry-
standard practices. Unless otherwise agreed in a contract, KDC is warranted for a period of one
year after purchase, covering defects in material and workmanship except rechargeable battery.
KoamTac will repair or, at its opinion, replace products that prove to be defective in material or
workmanship under proper use during the warranty period. KoamTac will not be liable in cases
(i) in which the unit has been repaired or altered unless done or approved by KoamTac, (ii) in
which the unit has not been maintained in accordance with any operating or handling
instructions supplied by KoamTac, (iii) in which the unit has been subjected to unusual physical
or electrical stress, misuse, abuse, power shortage, negligence or accident or (iv) in which the
unit has been used other than in accordance with the product operating and handling
instructions. Preventive maintenance is the responsibility of the customer and is not covered
under this warranty. Under no circumstance will KoamTac be liable for any direct, indirect,
consequential or incidental damages arising out of use or inability to use either the hardware or
software, even if KoamTac has been informed about the possibility of such damages.
Warranty Coverage and Procedure
During the warranty period, KoamTac will repair or replace defective products returned to
KoamTac warehouse. International customers should contact the local KoamTac office or
support center. If warranty service is required, KoamTac will issue a Return Material
Authorization Number. Products must be shipped in the original or comparable package,
shipping and insurance charges prepaid. KoamTac will ship the repaired or replacement
product freight and insurance prepaid. Customer accepts full responsibility for its software and
data including the appropriate backup thereof. Repair or replacement of a product during
warranty will not extend the original warranty term.
CAUTION: Changes or modifications not expressly approved by the manufacturer responsible
for compliance could void the user’s authority to operate the equipment.
KDC User Manual
84
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
8. Contact Information
CORPORATE HEADQUARTERS
116 Village Blvd., Suite 305
Princeton, NJ 08540, USA
Phone: 609-256-4700, FAX: 609-228-4373
Email: support@koamtac.com
For more information, visit our website - www.koamtac.com
KDC User Manual
85
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
9. APPENDIX A - Barcode & Scan Options
The process for scanning and reading barcodes is delicate and complicated. Although
your KDC is equipped with a high performance scan engine, if configured incorrectly it
may not perform at its peak performance level. To ensure its high performance, the KDC
comes configured to optimize its scan engine technology. Unless you clearly understand
the impact of your changes to the KDC settings, please do not change factory default
settings.
Symbologies 9.1
KoamTac’s KDC products support most major barcode symbologies including 1D, 2D,
Postal, and OCR-Fonts. Below is the list of the barcode symbologies supported by the
KDC with respect to each model’s particular area of support. To ensure superior scan
performance, remember to select only the required symbologies.
KDC20/100/200/250/350L/
410/415
KDC30/300/350C/420/425/450
1D
Barcodes
EAN13, EAN8, UPCA, UPCE, Bookland EAN
EAN13 with Addon, EAN8 with Add-on,
UPCA with Add-on, UPCE with Add-on,
Interleave 2 of 5, ITF14, Code128, Codabar,
GS1-128, Code39, Code93, & Code35
Codabar, Code11, Code32, Code39,
Code128, EAN8, EAN13, GS1-128, I2of5,
MSI, Plessey, PosiCode, GS1 DATABAR
OMNI, GS1 Limited, GS1 Expanded,
S2of5IA, S2of5ID, TLC39, Telepen, Trioptic,
UPCA, & UPCE
2D
Barcodes
N/A
AztecCode, AztecRunes, CodablockF,Code
16K, Code49, DataMatrix, MaxiCode,
MicroPDF, PDF417, & QRCode and
HanXin Code
Postal
Barcodes
N/A
AusPost, CanadaPost, ChinaPost,
JapanPost, KoreaPost, KixPost, Planet
Code, Postnet (US), & UKPost
OCR
Fonts
N/A
OCR-A, OCR-B, OCRUSCurrency,
OCRMICRE13B, & OCRSEMIFONT
Table 5 - Symbologies Supported by KDC
KDC User Manual
86
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
9.1.1 Bookland EAN vs. EAN-13
Bookland EAN, which includes ISBN, ISSN, and ISMN, is supported by the KDC. This group
of symbologies is essentially an EAN-13 barcode with fixed prefixes; 977 for ISSN, 978 for
ISBN, and 979 for ISMN. If EAN-13 and Bookland EAN are both enabled, Bookland EAN
takes precedence. Bookland EAN does not have any options. The Bookland EAN barcode
does not contain any groupings – that is, there are no hyphens or separators. Thus, the
ISBN 957-630-239-0 is transmitted as 9576302390.
9.1.2 Add-on Symbologies
By default, the 2 or 5 digit add-on symbols with a UPCE, UPCA, EAN-8, and EAN-13
barcode is neither decoded nor transmitted. Transmission for these specific symbologies
is enabled by setting the appropriate
withAddon
options. There are 4
withAddon
options, one for each symbology:
UPCEwithAddon
UPCAwithAddon
EAN8withAddon
EAN13withAddon
The decoding of add-on symbols is typified by the following table, which explains the
process for EAN-13 symbols.
Mode
Behavior
Value of flags
EAN13
EAN13withAddon
Auto-
discrimination
If add-on symbol is present, then it is
also decoded; otherwise only the EAN-
13 symbol is decoded.
true
true
With add-on
Only EAN-13 barcodes with 2 or 5 add-
on symbol are decoded.
false
true
Without add-on
The add-on symbol is ignored.
true
false
The add-on symbol is appended to the EAN-13 barcode. The process is similar for UPCE,
UPCA, and EAN-8 barcodes. Note that all the UPCE, UPCA, EAN-8, and EAN-13
Table 6 - Add-on for EAN-13 Symbology
KDC User Manual
87
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
formatting and conversion options are in effect. The following table should help explain
the effect of various options for EAN-8 barcode 12345670 + 12.
Barcode
EAN8_as_EAN13
EAN8_Return
CheckDigit
EAN13_Return
CheckDigit
1234567012
False
True
N/A
123456712
False
00000123456712
True
N/A
false
000001234567012
true
The add-on symbol neither contains check digit nor a terminating guard band. Every
effort has been made to reduce the decoding error; however, it is likely to decode a
partial scan of a 5-digit add-on symbol as a 2-digit add-on symbol. It is strongly
recommended that the minimum security level is set at 2 while decoding add-on symbols.
Since the decoder takes a conservative view on the add-on symbols, it is likely that the
add-on symbol will be missed in the auto-discrimination mode. Auto-discrimination
mode should then be avoided.
Code Options 9.2
The KDC supports the following barcode options:
Transmission of start and stop characters
Reverse direction
Symbology conversion
Verification of optional check character
Transmission of check digit
Transmission of Start and Stop Characters
For Codabar symbols you can choose not to transmit the start and stop symbols, the
NOTIS Editing. By default, they are transmitted. Setting the field
CodaBar_NoStartStopChars to true disables the transmission.
9.2.1 Reverse Direction
This option may be selected if direction oriented symbologies are selected such as
Code35.
Table 7 - Add-on for EAN-8 Symbology
KDC User Manual
88
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
9.2.2 Symbology Conversion
By default the EAN-8, UPCE, and UPCA symbols are transmitted in their native format. It is
possible to show them in a different format. You can choose to display UPCE symbols as either
UPC-A or EAN-13 symbols, EAN-8 symbols as EAN-13 symbols, or UPC-A symbols as EAN-13
symbols. The following table shows the effect of setting various options.
Option
EAN-8
UPC-A
UPC-E
All others
EAN8_as_EAN13
Converted to
EAN-13
No effect
No effect
No
effect
UPCA_as_EAN13
No effect
Converted to
EAN-13
No effect
UPCE_as_EAN13
No effect
No effect
Converted to
EAN-13
UPCE_as_UPCA
No effect
No effect
Converted to
UPC-A
9.2.3 Verification of Optional “Check Digit”
Code39 and Interleave 2 of 5 have an optional check digit, which, by default,
is not verified. Their verification can be enabled by selecting the option
VerifyCheckDigit to true or you can enable the verification for individual
symbologies. If the check digit verification fails then the barcode is not
transmitted.
Table 8 - Symbology Conversion
Option Selected
Verify Code39 check digit
Verify I2of5 check digit
VerifyCheckDigit
Yes
Yes
Code39_VerifyCheckDigit
Yes
No effect
I2of5_VerifyCheckDigit
No effect
Yes
Table 9 - Verification of Optional "Check Digit"
KDC User Manual
89
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
9.2.4 Transmission of “Check Digit”
By default, the check digit – optional or mandatory – is not transmitted. Its transmission
can be enabled for all symbologies by enabling ReturnCheckDigit option.
Option Selected
Is the check digit returned?
EAN-13
EAN-8
UPC-A
UPC-E
Code39
I2of5
ReturnCheckDigit
Yes
Yes
Yes
Yes
Yes
Yes
EAN13_ReturnCheckDigit
Yes
No
effect
No
effect
No
effect
No
effect
No
effect
EAN8_ReturnCheckDigit
No
effect
Yes
No
effect
No
effect
No
effect
No
effect
UPCA_ReturnCheckDigit
No
effect
No
effect
Yes
No
effect
No
effect
No
effect
UPCE_ReturnCheckDigit
No
effect
No
effect
No
effect
Yes
No
effect
No
effect
Code39_ReturnCheckDigit
No
effect
No
effect
No
effect
No
effect
Yes
No
effect
I2of5_ReturnCheckDigit
No
effect
No
effect
No
effect
No
effect
No
effect
Yes
Table 10 - Transmission of "Check Digit"
KDC User Manual
90
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
9.2.5 Resolution of Inconsistencies
Three types of inconsistencies could arise in the assignment of symbology options. The
decoder has pre-defined strategies to resolve these inconsistencies: If UPCE_as_EAN13
is true, then UPCE_as_UPCA is ignored.
If symbology conversion is selected but the target symbology is not enabled, then the
decoder still outputs the symbol in the target symbology. For example, suppose UPC-E
is enabled and UPCE_as_EAN13 is true but EAN-13 is disabled. All UPC-E symbols will
be shown as EAN-13 and EAN-13 options (if specified) will be applied. For the two
symbologies that have optional check digits, Code39 and Interleave 2 of 5, the decoder
will always transmit the check digit if the verification is disabled.
Verify Check
Digit
Return Check
Digit
Description
Disabled
Enabled or Disabled
Check digit is not verified but is transmitted
Enabled
Disabled
Check digit is verified but is not transmitted
Enabled
Enabled
Check digit is verified and is transmitted
Table 11 - Resolution of Inconsistencies
KDC User Manual
91
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Miscellaneous Barcode Information 9.3
9.3.1 Height of a Linear Barcode
Industry standards suggest a height of either 6.5mm or 15% of the symbol length,
whichever is greater. Symbols of less than recommended heights may cause recognition
problems.
9.3.2 Check Characters
Yes, we recommend the use of check-characters in barcodes. Operating without check-
characters is not safe and will lead to errors that are costly to correct. Using check-
characters positively affects data integrity especially when character density is at the
limits and/or image quality is not at its best.
9.3.3 Prevent Interleave 2 of 5 Partial Reading
A partial scan of an Interleave 2 of 5 symbol may decode and cause incorrect data to be
read. To prevent partial scans on long symbols, you should include bearer bars. These
are bars that run along the top and bottom edges of the barcode in the scanning
direction. If a partial scan of the barcode occurs, the scanning beam will hit the bearer
bar and will not decode. The bearer bar must touch the top and bottom of all the bars
and must be at least 3 times as wide.
Another solution for the short scanning problem is to fix all Interleave 2 of 5 symbols to a
set number of digits. Zeros can be used to pad the data to the set number of digits. The
application program would then be set to only accept scans of the correct number of
digits.
Finally, a check digit may be used. The Interleave 2 of 5 symbology has an optional check
character which uses a weighted Modulo 10 scheme. The check character is the last
character in the symbol and should be checked by the decoder and then transmitted
with the data. Since Interleave 2 of 5 must always have an even number of digits, the
leftmost character may need to be a zero when the check character is added. The
standard check digit is calculated by assigning alternating 3,1,3,1… weights to respective
data digits. These weights are then multiplied by their respective data digits and the
products are summed. The check digit is the digit needed to be added to the sum to
make it an even multiple of 10. An example would be if the sum of the products was 37,
then the check digit would be 3.
KDC User Manual
92
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
9.3.4 Equation to Determining Potential Number of Stored
Barcodes
The number of barcodes that can be stored in the KDC memory depends on the size of
the barcodes.
Example: If only UPCA barcodes are scanned and the check digit is not transmitted,
then each barcode takes up 11 (barcode data) + 2 (added bytes) + 2 (length and type) +
4 (time stamp) = 19 bytes. The maximum number of UPCA barcodes that can be saved is
204,800/19 =10,778. However, KDC has limited the maximum number of barcode as
10,240 and users can't store more than 10,240 barcodes in 2.85/86 version. 3.0x version
allows user to store maximum 204,800 barcodes.
9.3.5 Data Buffer Full
When the data buffer is full, the KDC displays a message, Buffer Full, ignoring any
command to scan barcodes. You must reset the data buffer to continue data collection.
KDC User Manual
93
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
10. APPENDIX B – FAQ
Symbology 10.1
Q: What barcode symbologies are supported by the KDC20?
A: The KDC20 support 1D barcode only.
Q: What interface ports are supported by the KDC20?
A: KDC20 have one Swing-out Type A USB port which supports USB to Serial protocol
and Bluetooth with HID, SPP and MFi
Bluethooth
profiles.
Table 12 – Symbologies supported by KDC20
1D Barcodes
EAN13
EAN8
UPCA
UPCE
Bookland EAN
EAN13 with Add-on
EAN8 with Add-on
UPCA with Add-on
UPCE with Add-on
Interleave 2 of 5
ITF14
Code128
Codabar
GS1-128
Code39
Code93
Code35
KDC User Manual
94
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Battery 10.2
Q: How long will the KDC battery last before it needs to be replaced?
A: The battery on the KDC can be charged at least 300 times before it needs to be
replaced.
Q: How long does it take to charge the KDC?
A: It takes about 2 hours to charge the KDC20.
Q: How many barcodes can a fully charged KDC20 scan?
A: If user scans a barcode every 5 seconds, KDC20 scans more than 3,500 barcodes.
Q: How long will the KDC battery lasts in the sleep mode?
A: KDC20 lasts more than 48 hours while connected in Bluetooth.
Q: Can I replace the KDC20 battery?
A: Yes. The KDC has a separate compartment for the battery which can be opened easily
with a torque driver. Contact your distributor for a replacement battery.
Memory 10.3
Q: How many barcodes can be stored in the KDC?
A: KDC20 has 160KB memory. It can store maximum 10,240 barcodes.
Q: Can I download stored barcodes or wedge barcodes to my application?
A: Yes. KTSync® is keyboard wedging program bundled with the KDC20 which supports
host devices running on Android®, iPhone/iPad/iPod touch, Blackberry®, Windows®
XP/Vista/7/Mobile5.0+.
Q: Does the KDC support
Android
®
,
iPhone/iPad/iPod touch
®
,
Blackberry
®
, Mac
®
and
Windows
®
devices?
A: KTSync® supports Android®, iPhone/iPad/iPod touch, Blackberry®, Mac® and
Windows® devices currently.
Programming 10.4
Q: Can the KDC be programmed by a KoamTac partner?
A: Yes. KoamTac’s Application Generation tool provides an enhanced programming
environment for developing custom applications for the KDC.
1. KDC supports, at most, three step data collection processes including the ability
to perform various data functionality features.
2. KDC’s database lookup function provides enhanced data processes enabling the
KDC User Manual
95
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
KDC to display database results with or without scanned barcode data.
3. KDC can display a message from Host enabling two way communications and a
messaging application.
Q: Does KoamTac provide customization services for the KDC?
A: Yes. Custom applications or projects can be developed by KoamTac engineers. This
service is provided for an additional fee to KoamTac. For more information regarding
this service, please contact KoamTac.
Q: Can a partner develop a PC or Smartphone application for the KDC?
A: A software development kit for Windows® XP/Vista/7/Mobile5.0+, Android is available
on KoamTac support page. Android®, iPhone/iPad/iPod touch, Blackberry®, and Mac®
SDK are available through KoamTac authorized distributors.
KDC User Manual
96
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
11. Appendix C - Special Barcodes

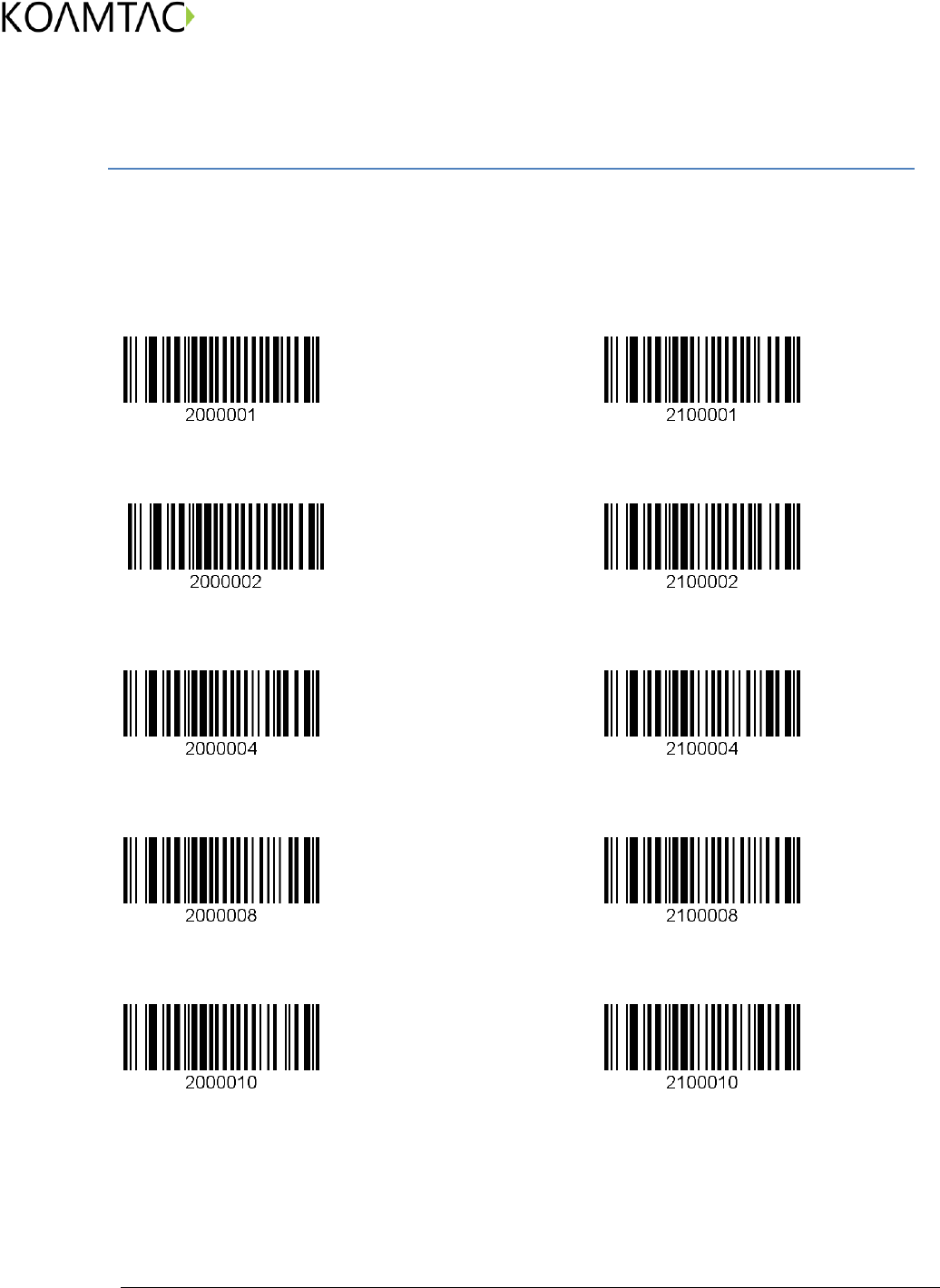

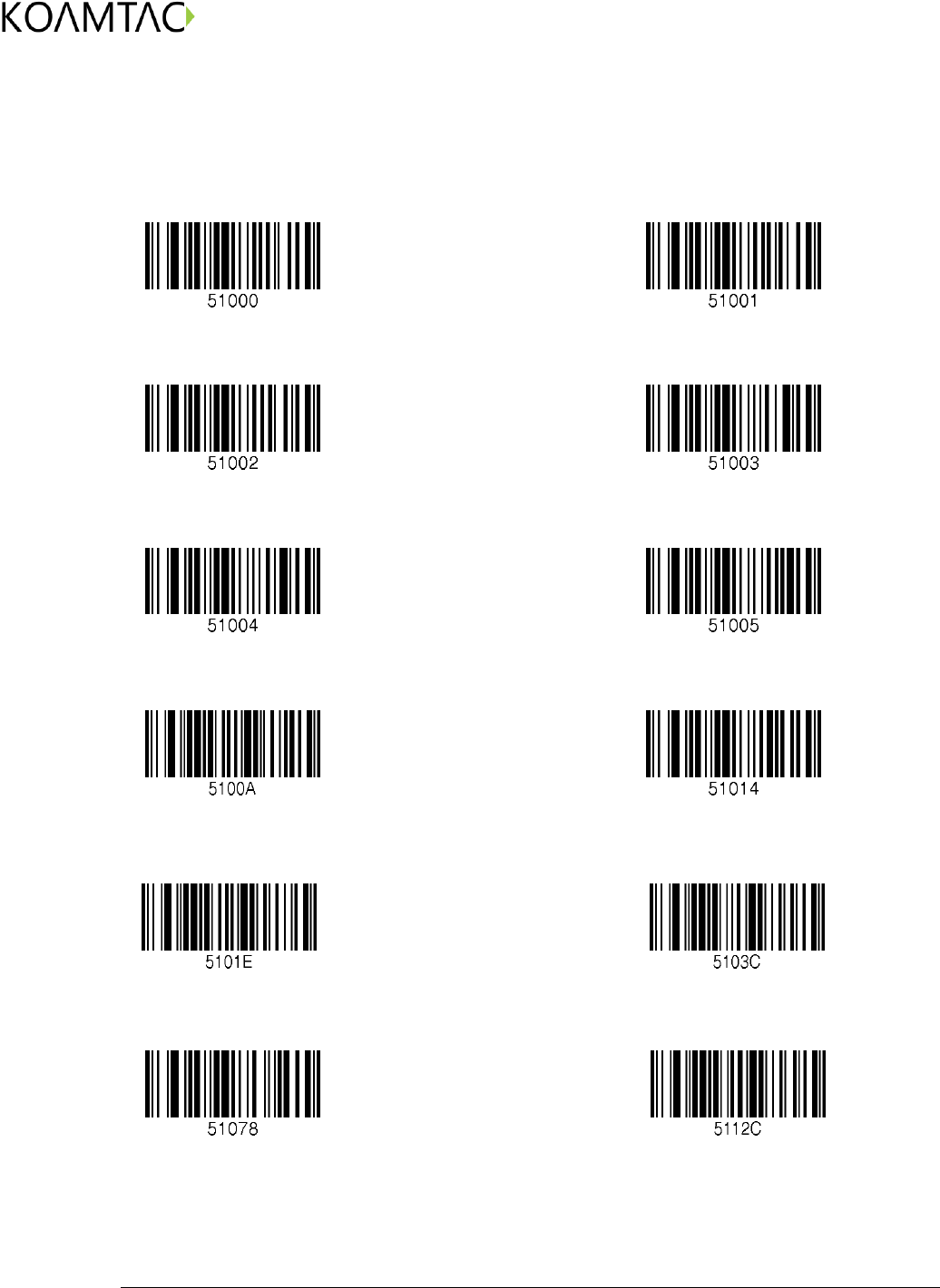

Set Symbologies 11.1
Enable EAN13 Disable EAN13
Enable EAN8 Disable EAN8
Enable UPCA Disable UPCA
Enable UPCE Disable UPCE
Enable Code39 Disable Code39
Enable ITF14 Disable ITF14
KDC User Manual
97
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

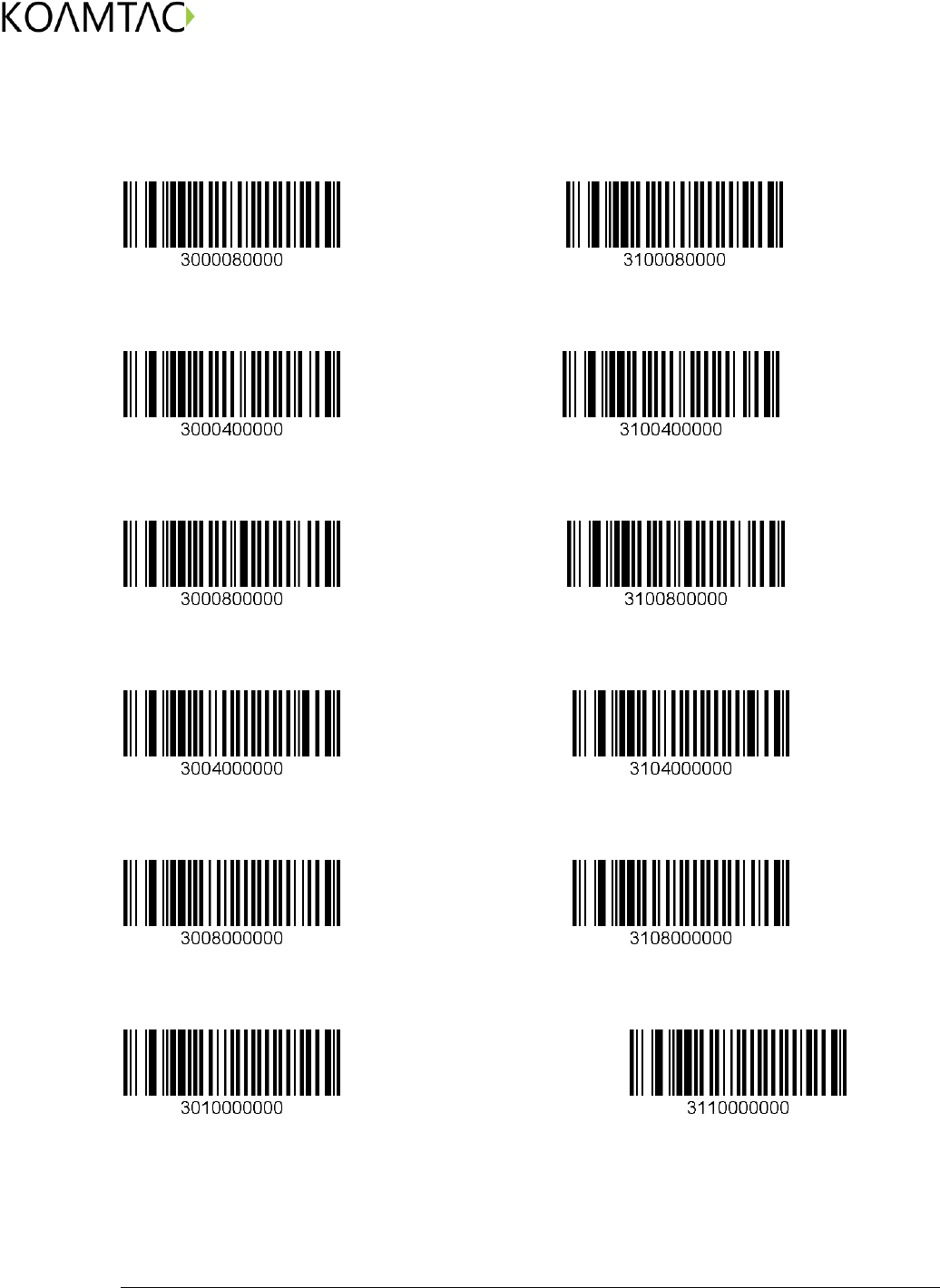

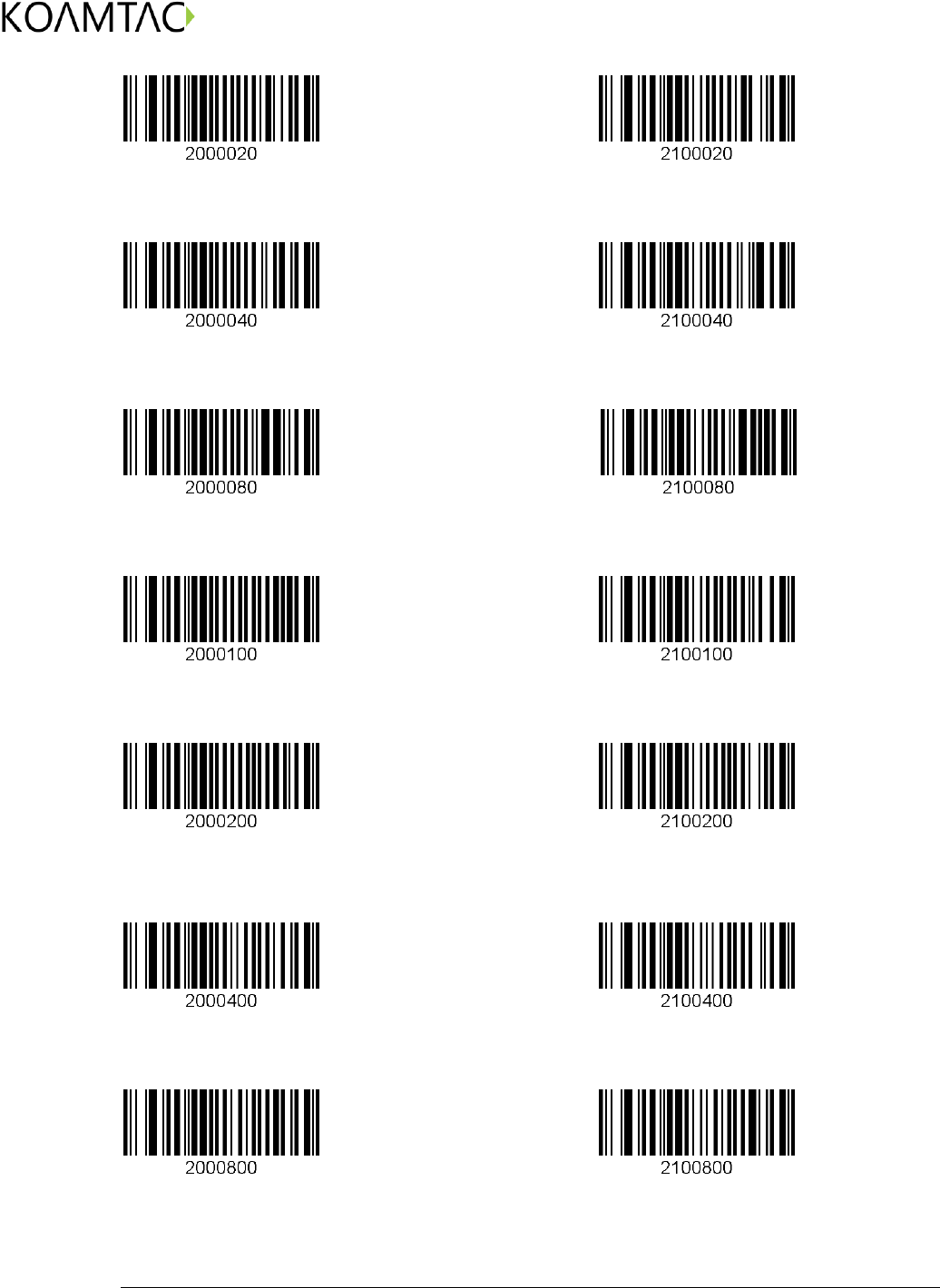

Enable Code128 Disable Code128
Enable I2 of 5 Disable I2 of 5
Enable Codabar Disable Codabar
Enable EAN128 Disable EAN128
Enable Code93 Disable Code93
Enable Code35 Disable Code35
KDC User Manual
98
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

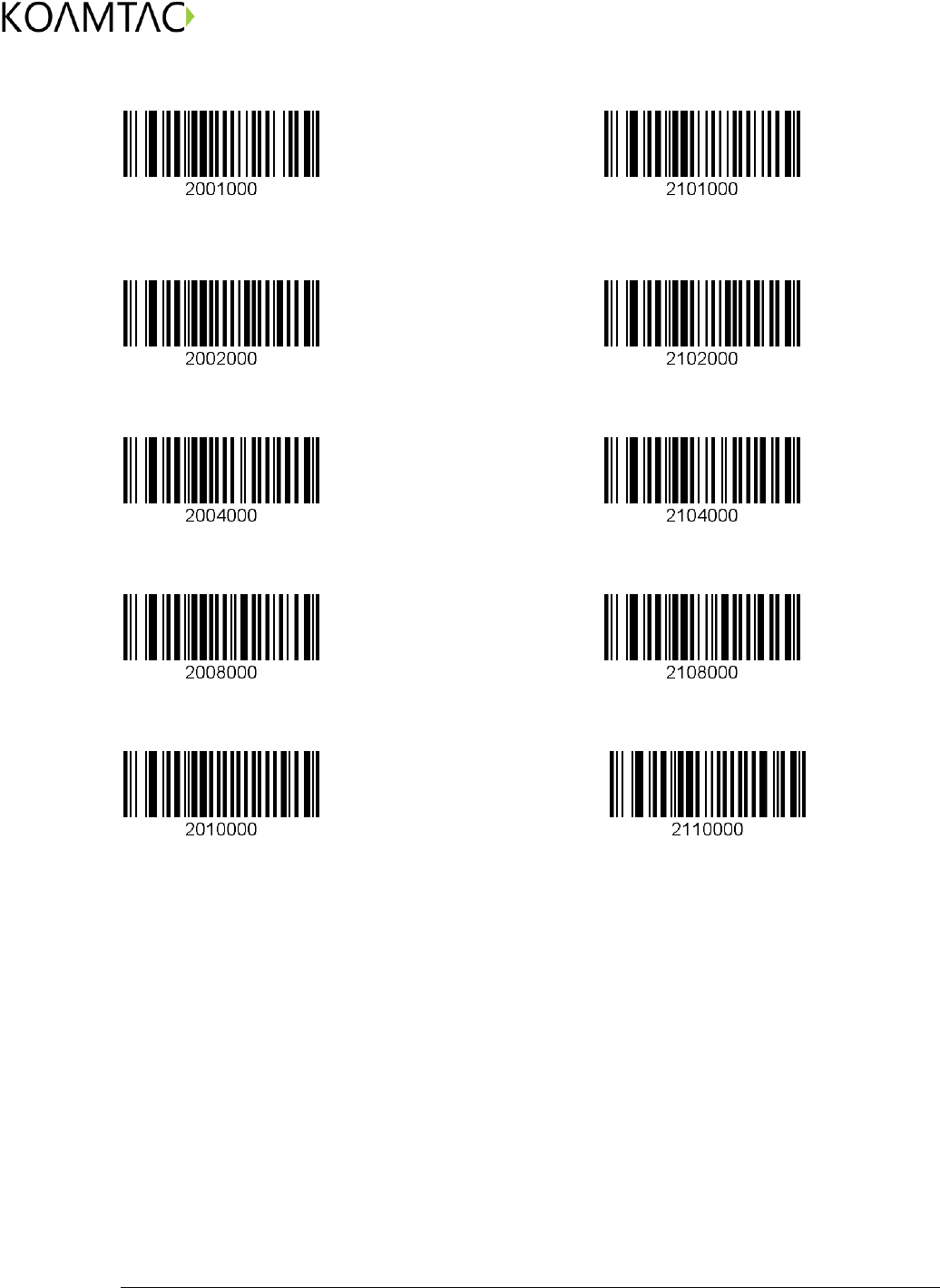

Enable Bookland EAN Disable Bookland EAN
Enable EAN13 with Addon Disable EAN13 with Addon
Enable EAN8 with Addon Disable EAN8 with Addon
Enable UPCA with Addon Disable UPCA with Addon
Enable UPCE with Addon Disable UPCE with Addon
KDC User Manual
99
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Barcode Options 11.2

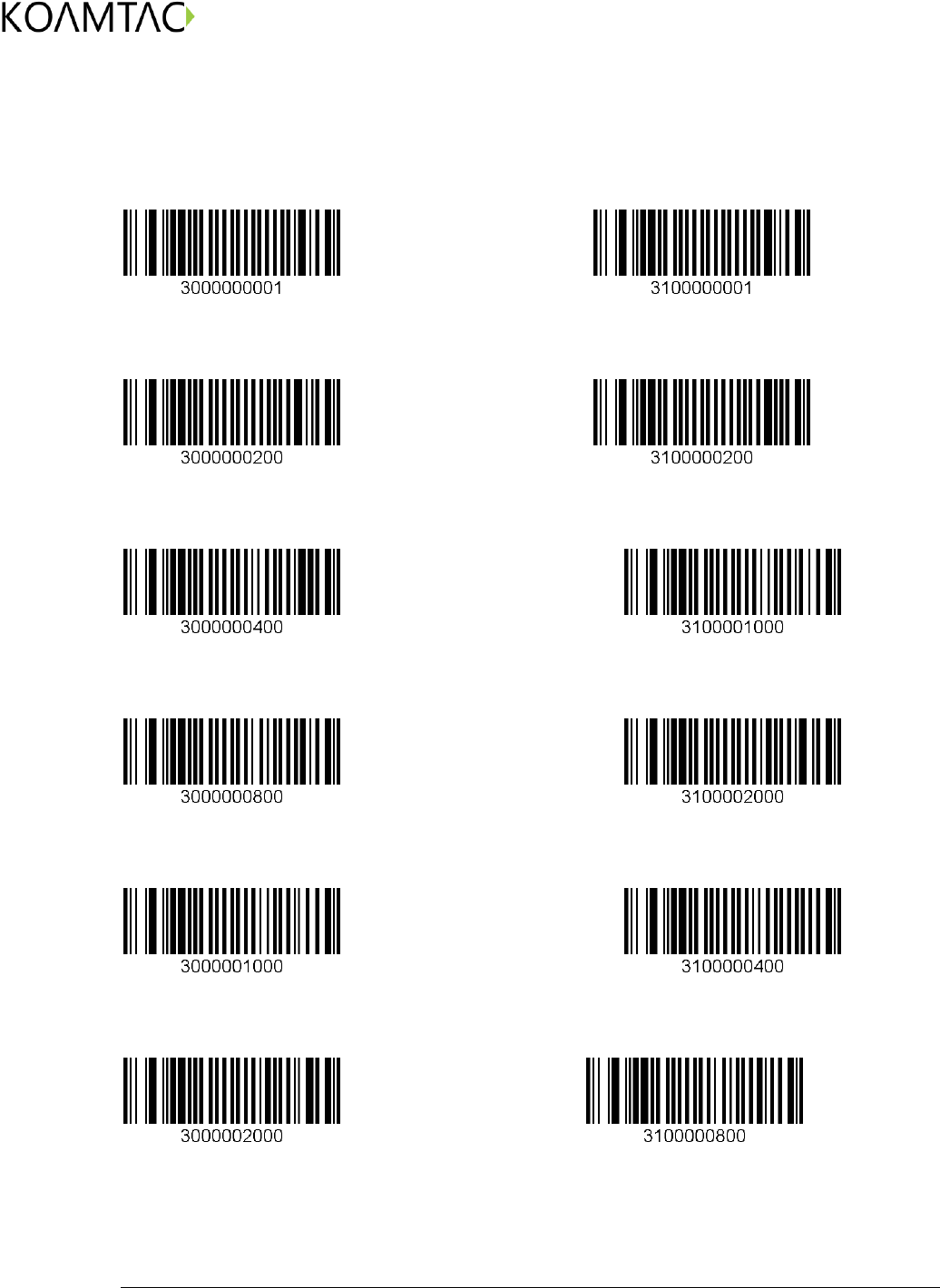

Codabar - do NOT transmit start/stop Codabar - transmit start/stop
Convert UPCE to UPCA Do NOT convert UPCE to UPCA
Convert EAN8 to EAN13 Do NOT Return Check Digit
Convert UPCE to EAN13 Do NOT Verify Check Digit
Return Check Digit Do NOT convert EAN8 to EAN13
Verify Check Digit Do NOT convert UPCE to EAN13
KDC User Manual
100
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Convert UPCA to EAN13 Do NOT Convert UPCA to EAN13
Verify check digit for I2of5 Do NOT verify check digit for I2of5
Verify check digit for Code39 Do NOT verify check digit for Code39
Return check digit for I2of5 Do NOT return check digit for I2of5
Return check digit for Code39 Do NOT return check digit for Code39
Return check digit for UPCE Do NOT return check digit for UPCE
KDC User Manual
101
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

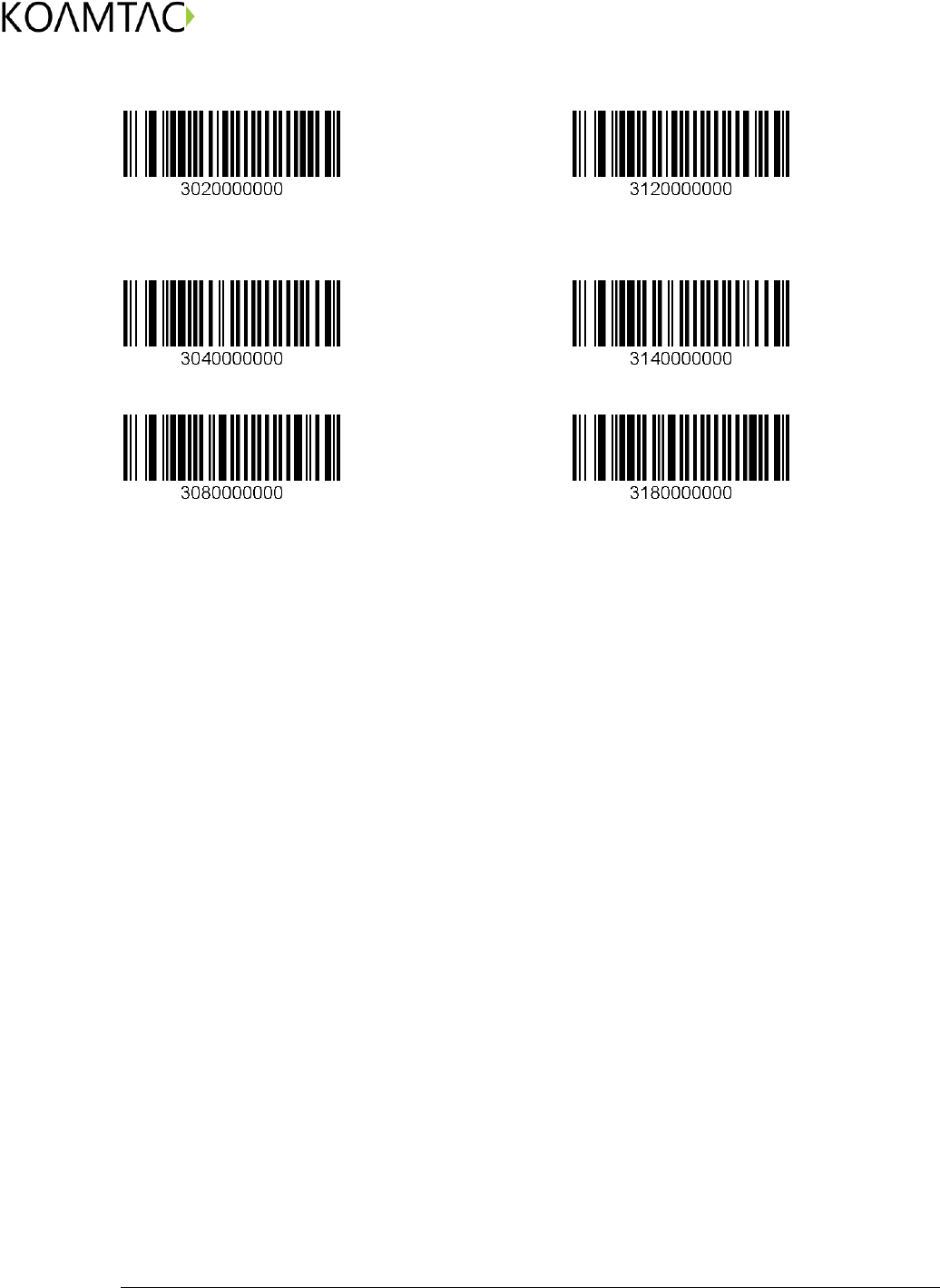

Return check digit for UPCA Do NOT return check digit for UPCA
Return check digit for EAN8 Do NOT return check digit for EAN8
Return check digit for EAN13 Do NOT return check digit for EAN13
KDC User Manual
102
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

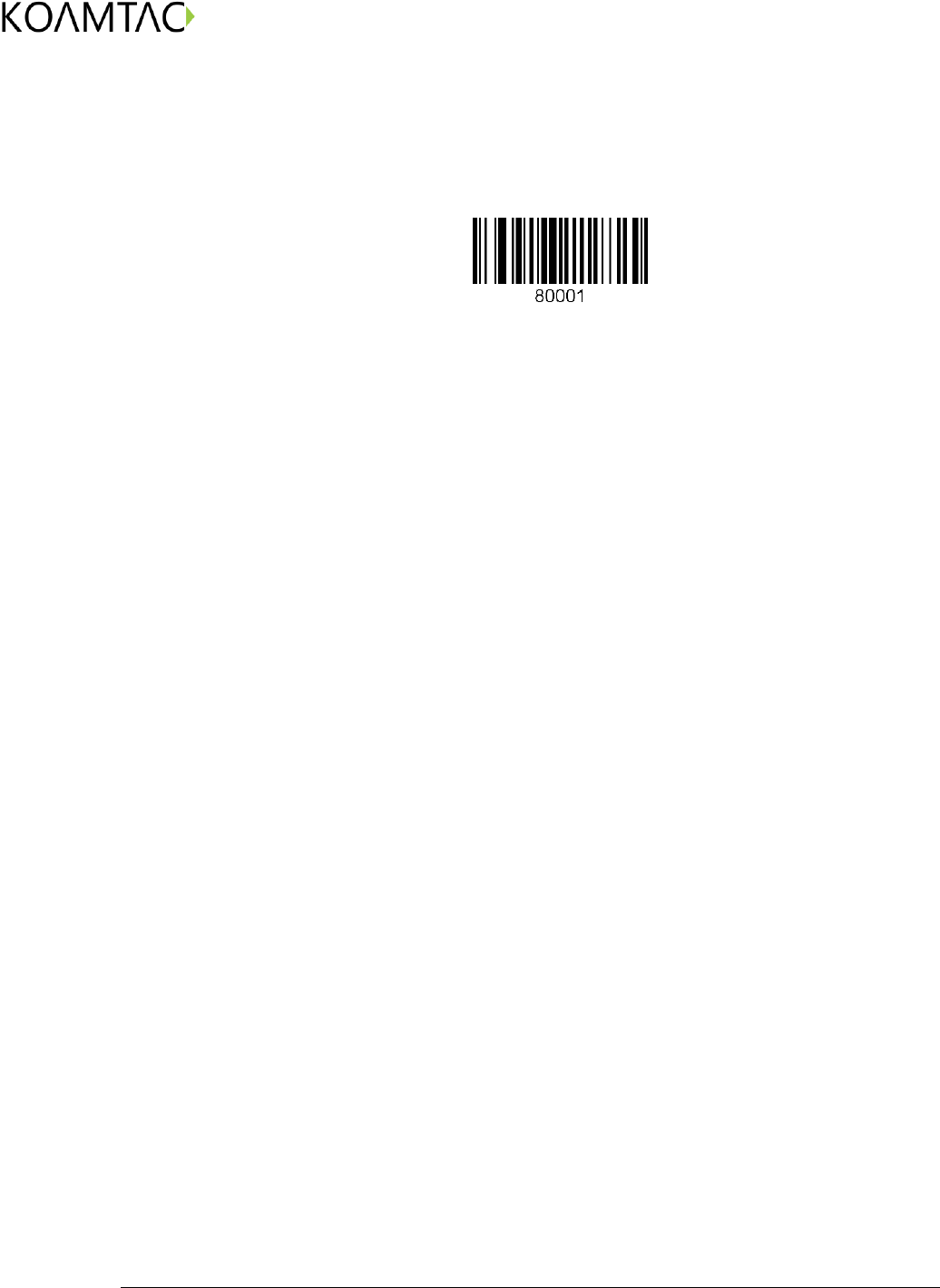

Delete Last Scanned Barcode 11.3
Delete Last Scanned Barcode
KDC User Manual
103
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

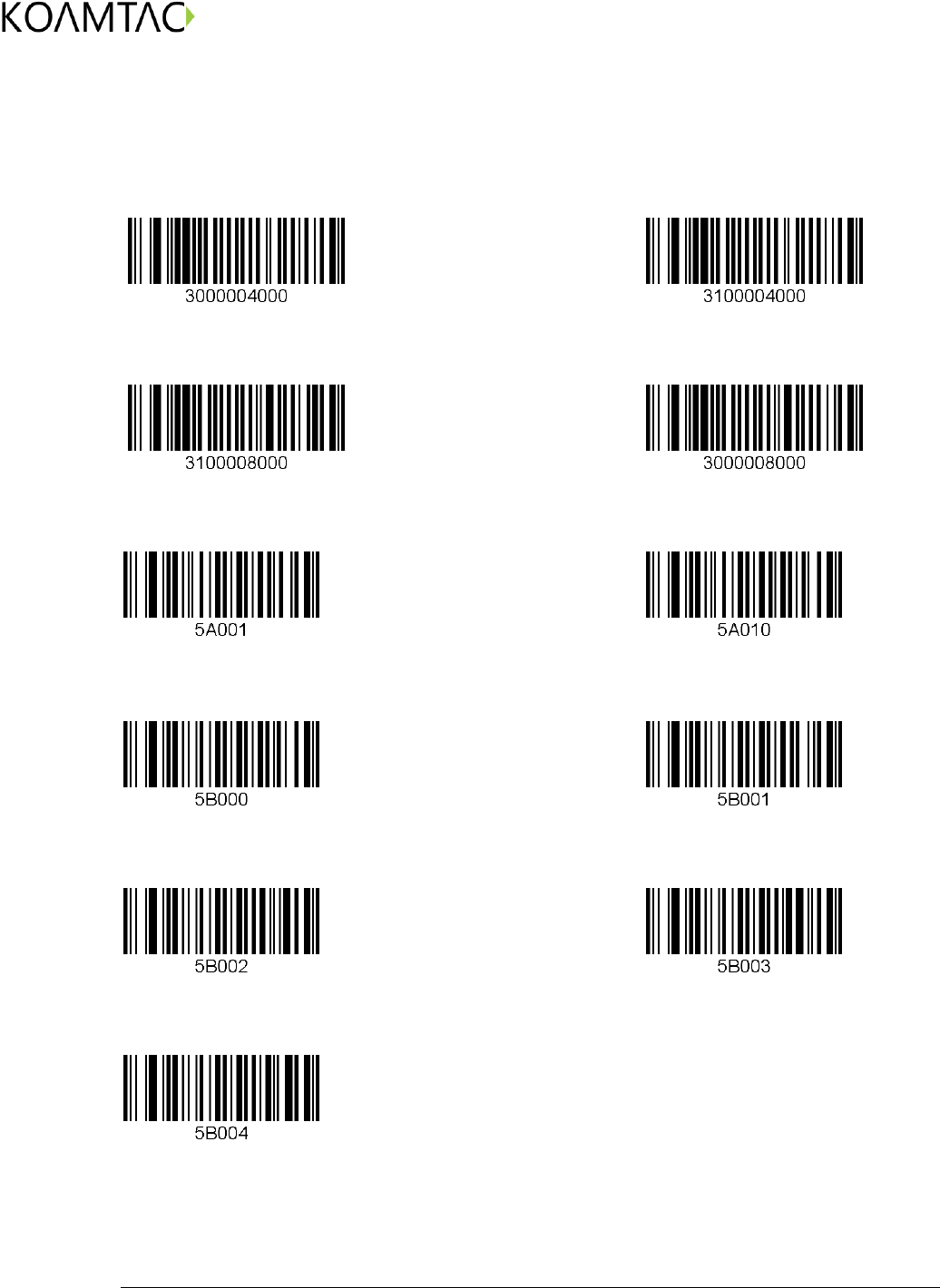

Scan Options 11.4

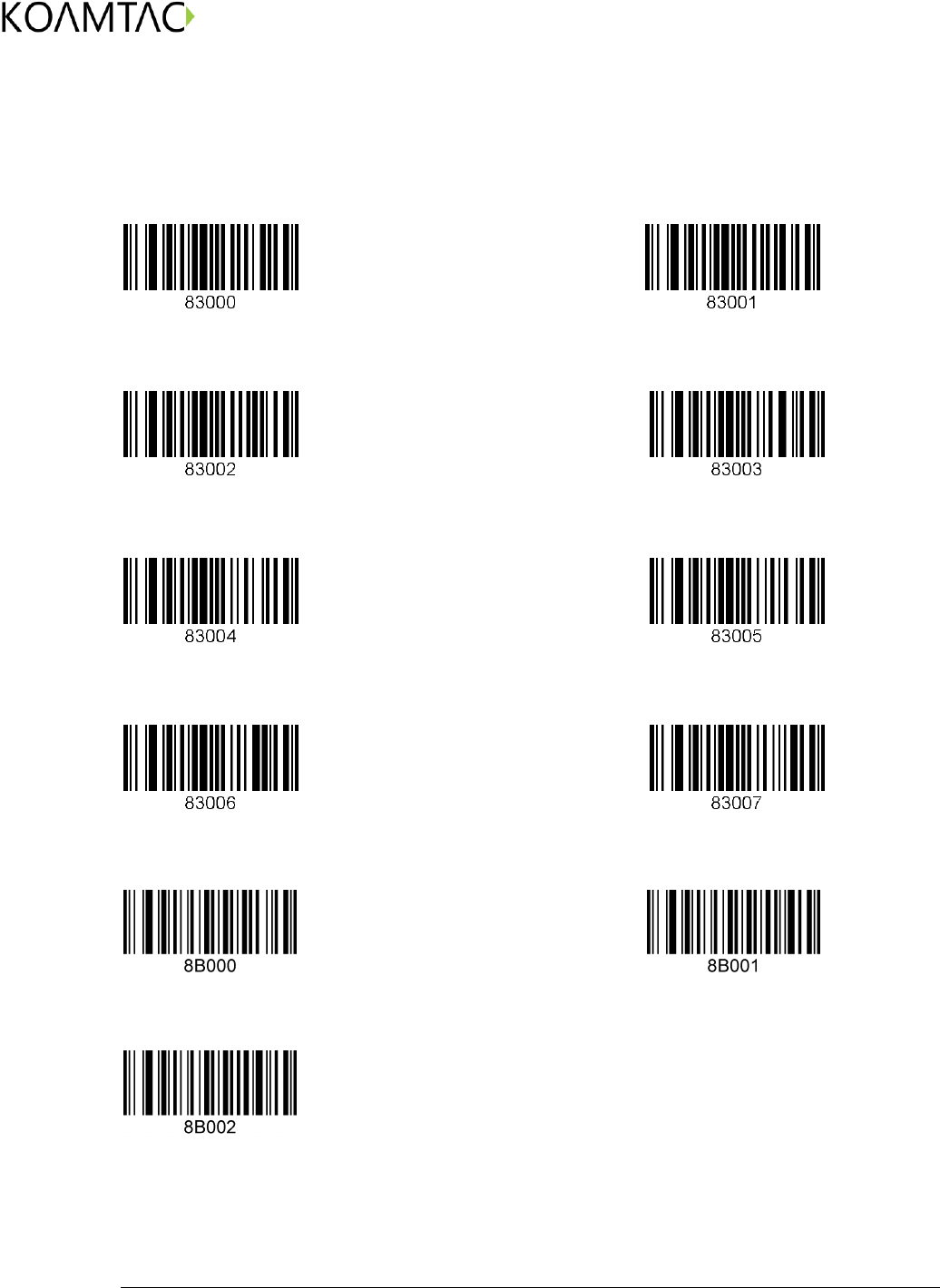

Wide scan angle Narrow scan angle
Normal filter mode High filter mode
Auto Trigger Enable Auto Trigger Disable
Continuous Short
Medium Long
Extra Long
KDC User Manual
104
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

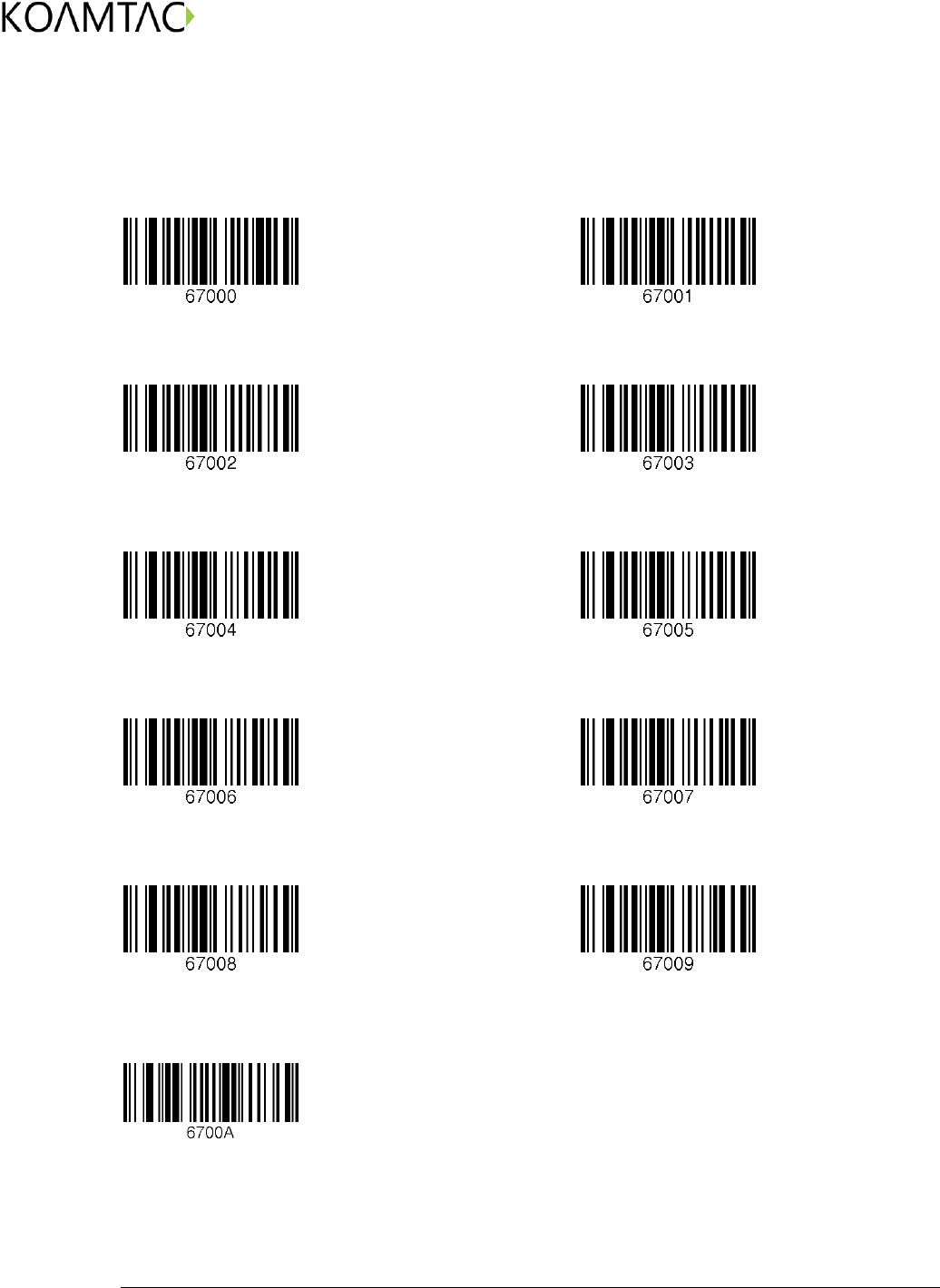

Scan Timeout 11.5

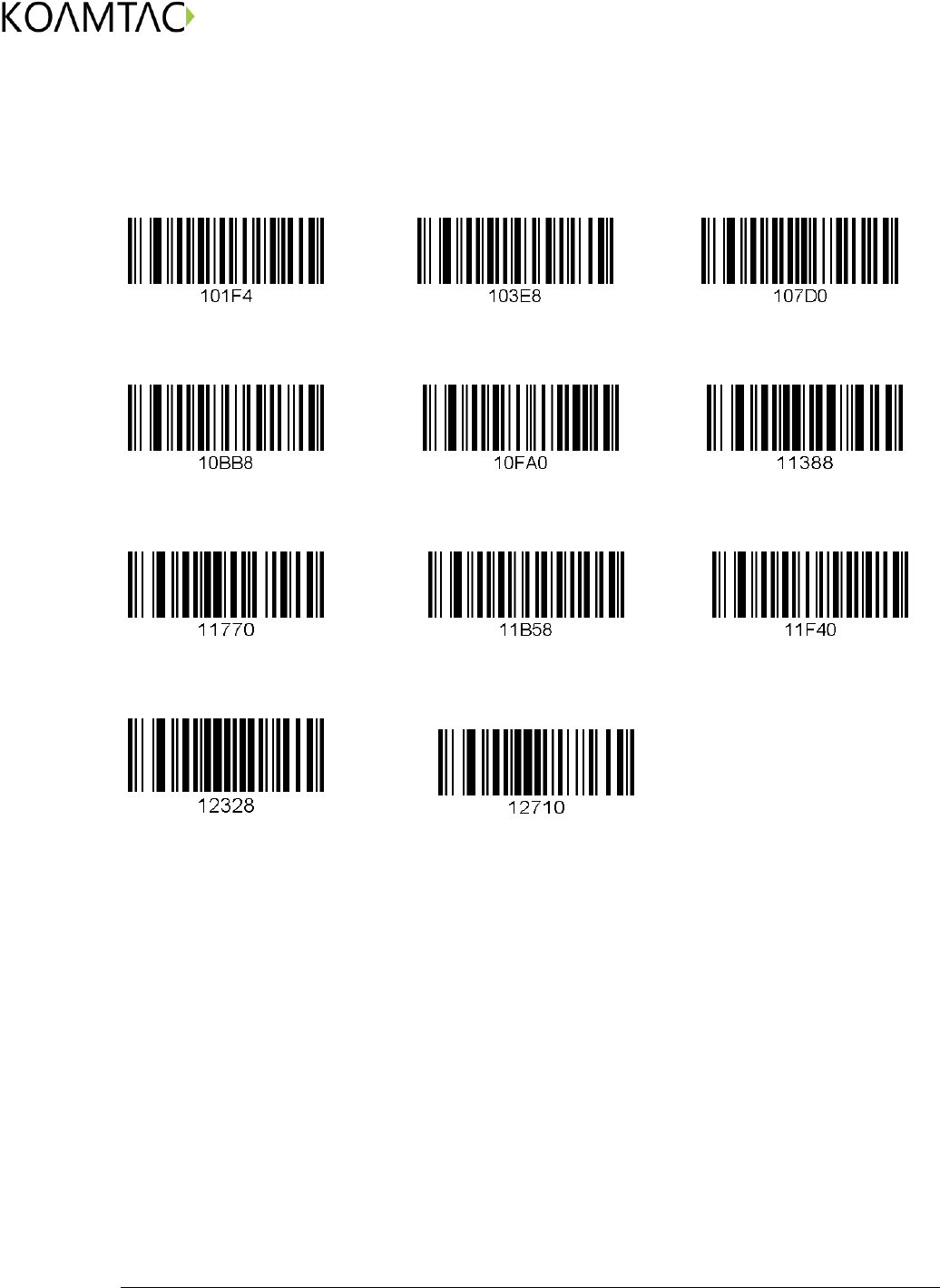

Timeout = 500msec Timeout = 1sec Timeout = 2sec
Timeout = 3sec Timeout = 4sec Timeout = 5sec
Timeout = 6sec Timeout = 7sec Timeout = 8sec
Timeout = 9sec Timeout = 10sec
KDC User Manual
105
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

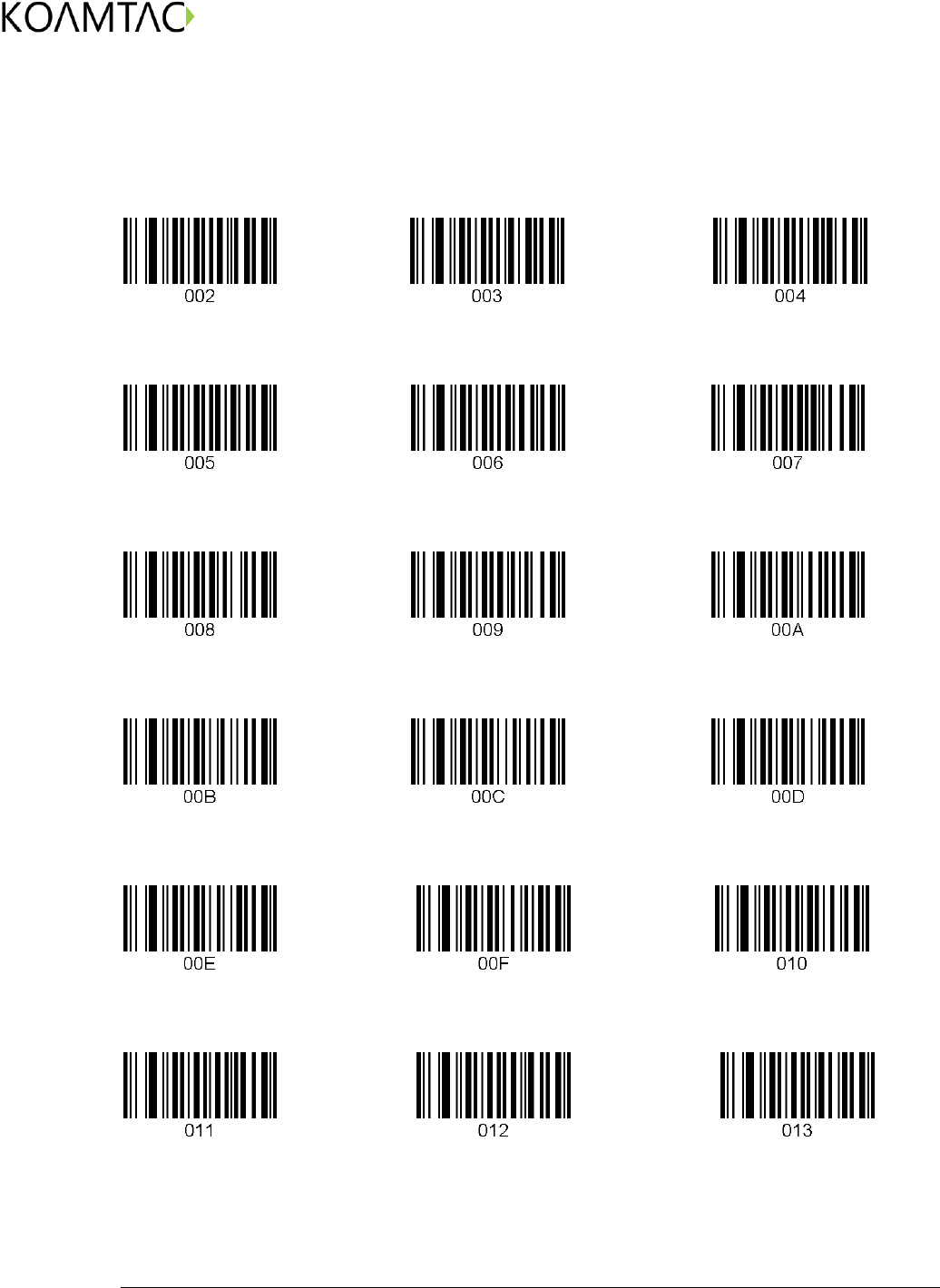

Minimum Barcode Length 11.6
Minimum Length = 2 Minimum Length = 3 Minimum Length = 4
Minimum Length = 5 Minimum Length = 6 Minimum Length = 7
Minimum Length = 8 Minimum Length = 9 Minimum Length = 10
Minimum Length = 11 Minimum Length = 12 Minimum Length = 13
Minimum Length = 14 Minimum Length = 15 Minimum Length = 16
Minimum Length = 17 Minimum Length = 18 Minimum Length = 19
KDC User Manual
106
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

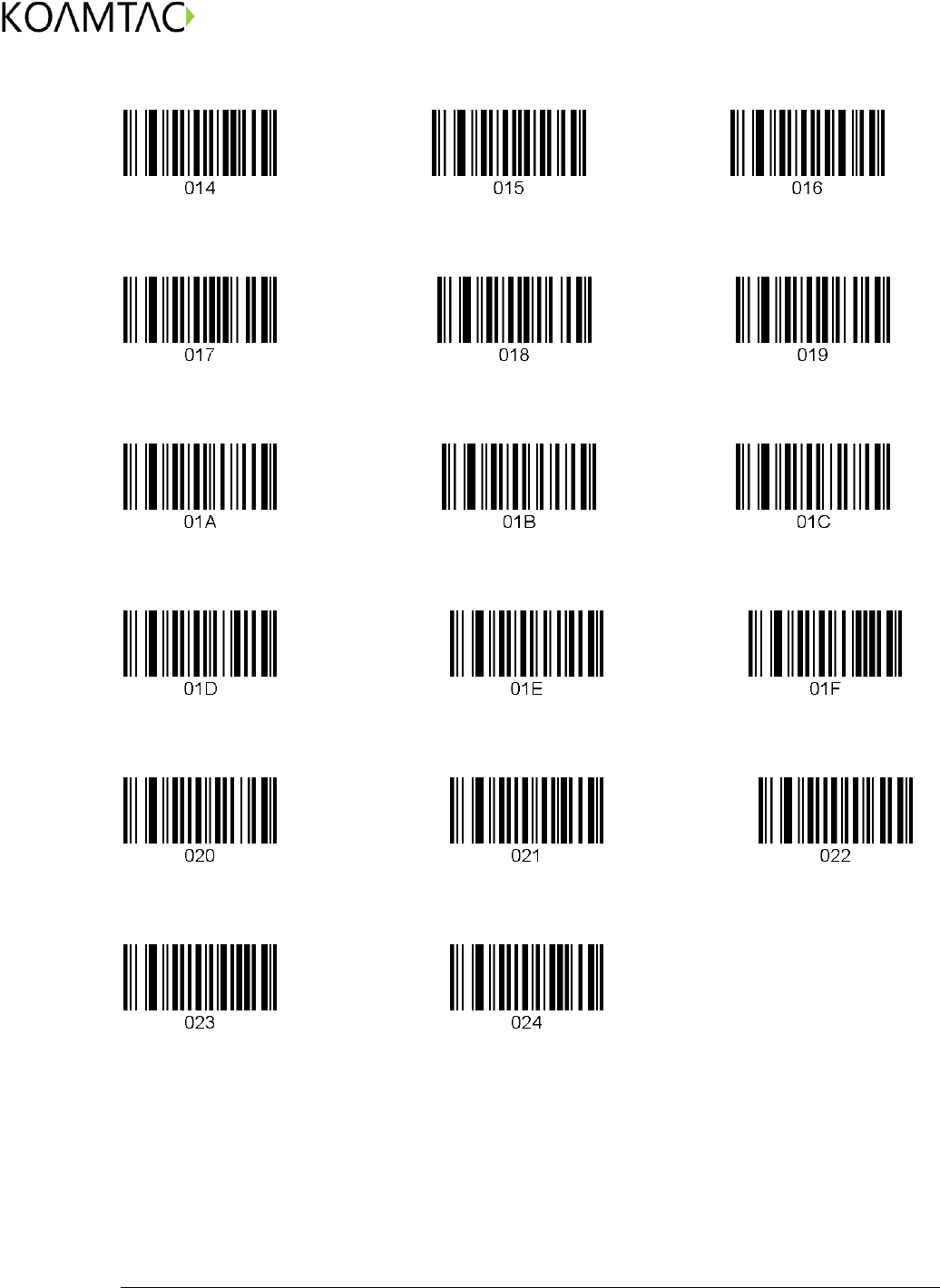

Minimum Length = 20 Minimum Length = 21 Minimum Length = 22
Minimum Length = 23 Minimum Length = 24 Minimum Length = 25
Minimum Length = 26 Minimum Length = 27 Minimum Length = 28
Minimum Length = 29 Minimum Length = 30 Minimum Length = 31
Minimum Length = 32 Minimum Length = 33 Minimum Length = 34
Minimum Length = 35 Minimum Length = 36
KDC User Manual
107
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

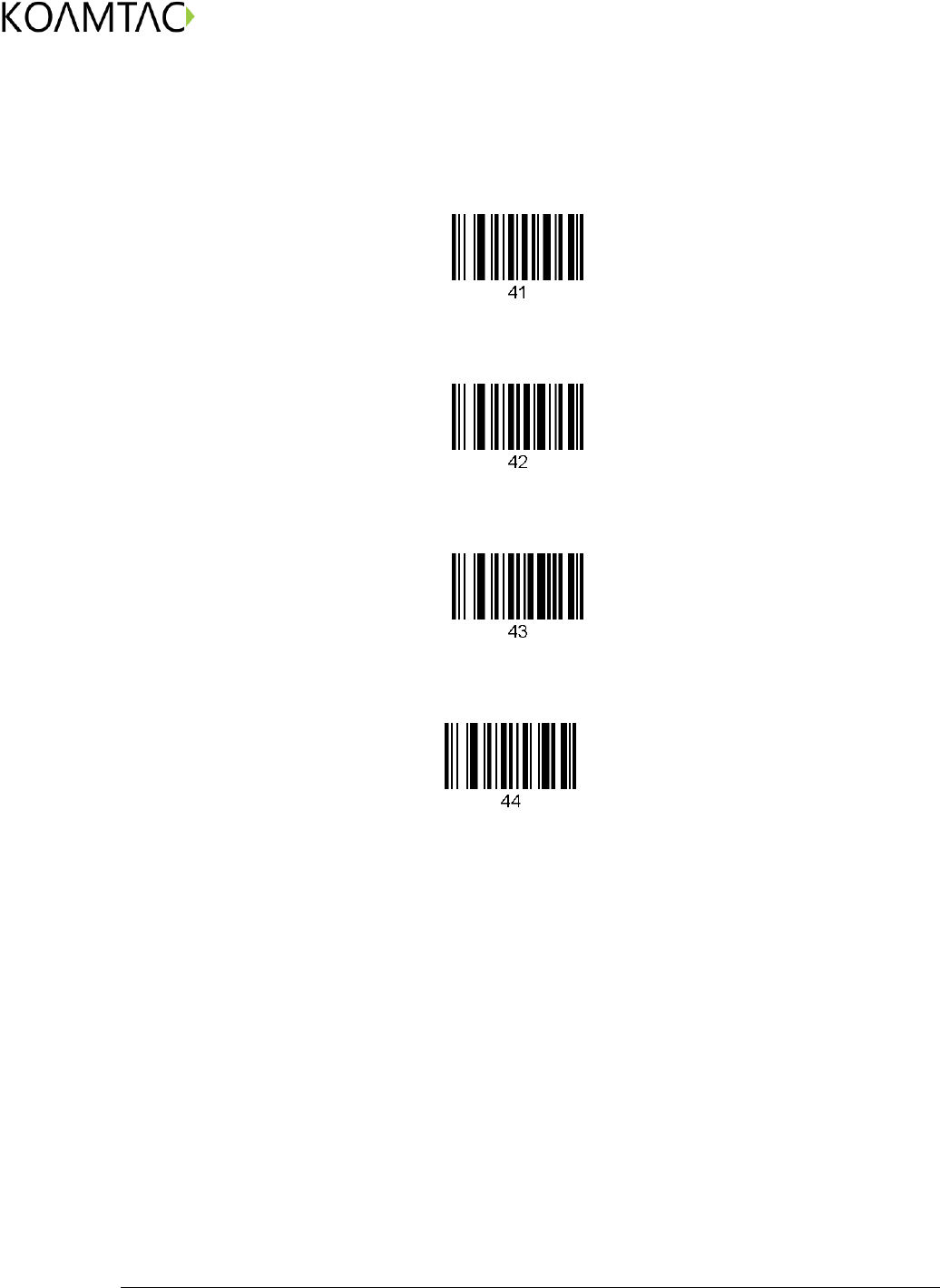

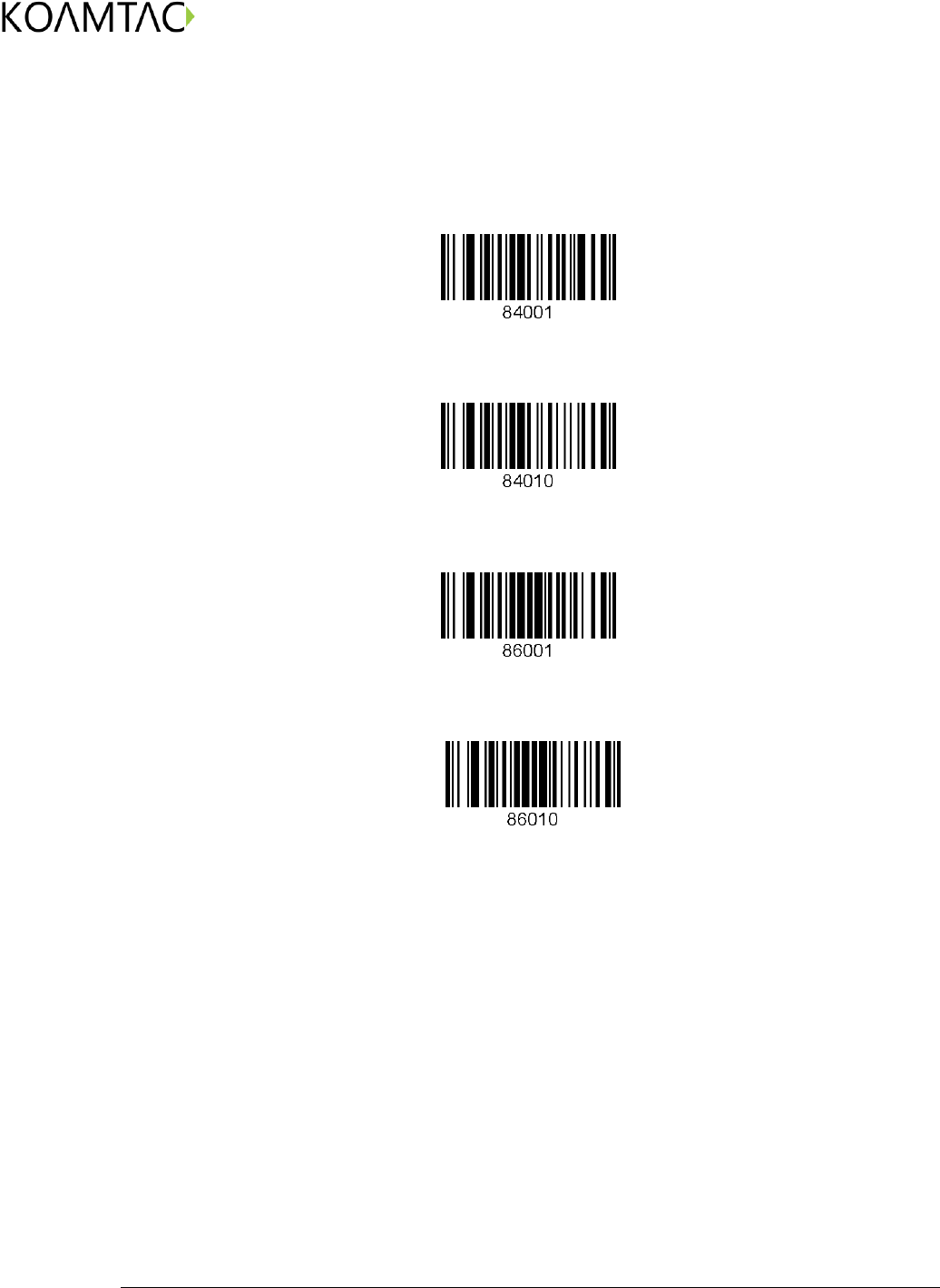

Security Level 11.7
Security level = 1
Security level = 2
Security level = 3
Security level = 4
KDC User Manual
108
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

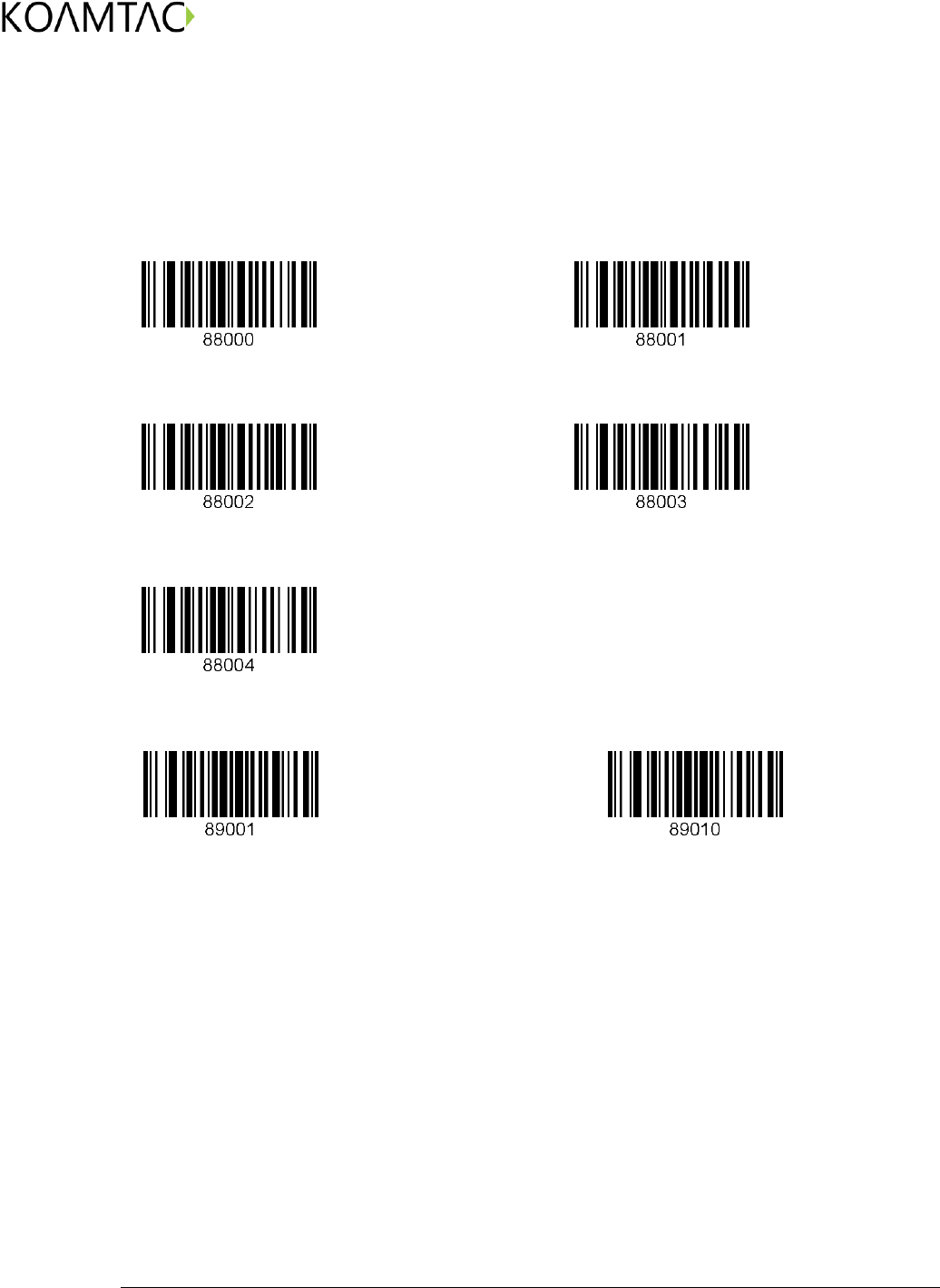

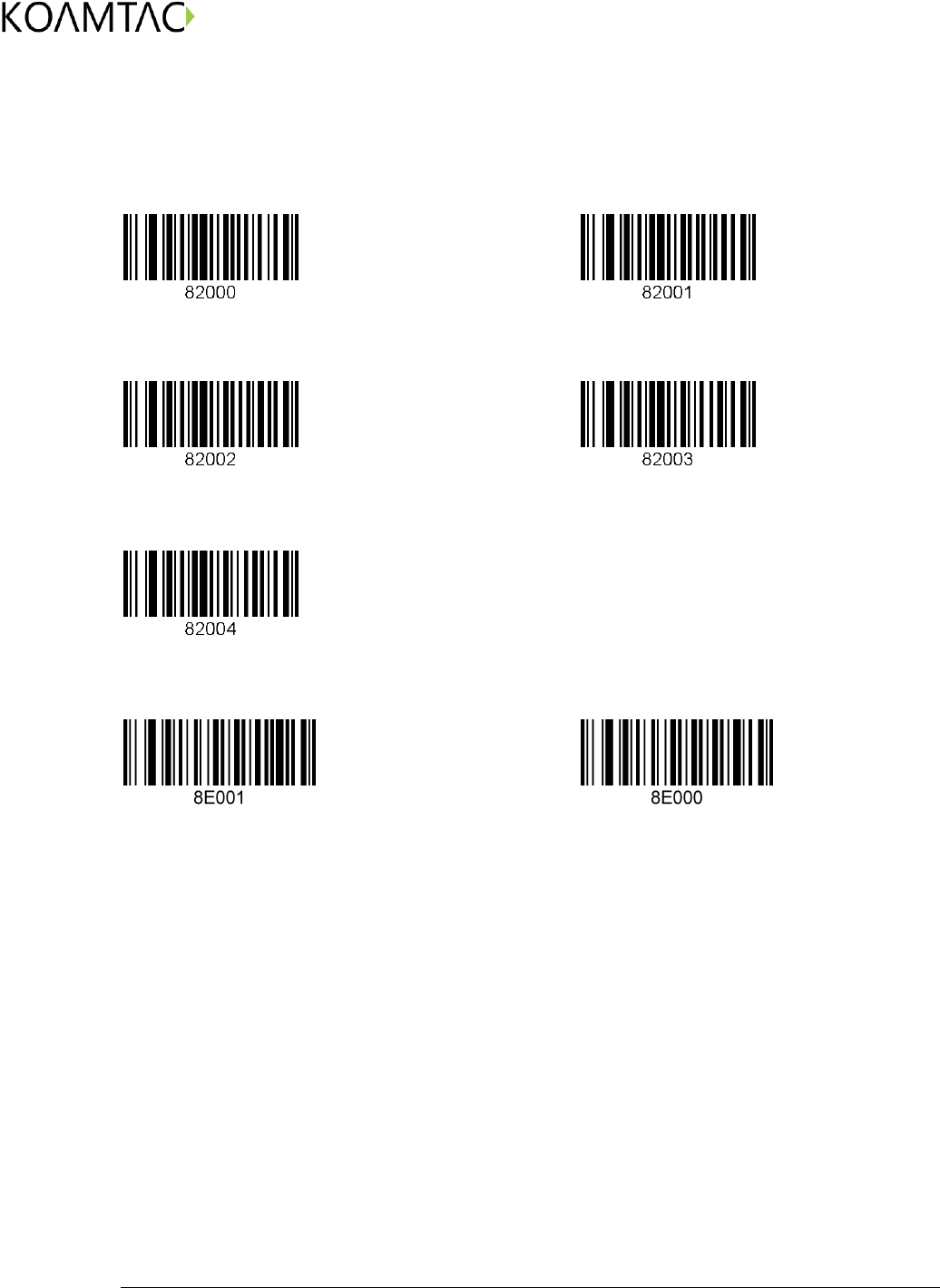

Data Process - Wedge/Store & Enter Key 11.8
Wedge Only Wedge & Store
Store Only Wedge & Store if Sent
Wedge & Store if Not Sent
Enable Enter Key Disable Enter Key
KDC User Manual
109
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Data Process – Data Edit 11.9
Prefix Enter Start Suffix Enter Start
Prefix/Suffix Enter Finish Prefix/Suffix Enter Cancel
Delete Prefix Delete Suffix
Display Prefix Display Suffix
AIM ID None AIM ID In Prefix
AIM ID In Suffix
KDC User Manual
110
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Data Process - Data Format – Handshake 11.10
Data format - Barcode only
Data format - Packet data
Enable Handshake
Disable Handshake
KDC User Manual
111
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Data Process - Termination Character & 11.11
Duplicate Check
None CR
LF CR+LF
Tab
Check Duplicate Enabled Check Duplicate Disabled
KDC User Manual
112
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Bluetooth 11.12
Enable Bluetooth Power Disable Bluetooth Power
Enter Pairing Mode
Discovering Enable Discovering Disable
Connect To Last Connecting to
Disconnect HID Sync
Bluetooth Device type SPP Bluetooth Device type HID iOS
KDC User Manual
113
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Bluetooth Device type IPHONE Bluetooth Device type SPP2.0
Bluetooth Device type HID Normal
Enable Auto Connect Disable Auto Connect
Enable Auto Reconnect Disable Auto Reconnect
Enable Auto Power On Disable Auto Power On
Enable Auto Power Off Disable Auto Power Off
Enable Beep Warning Disable Beep Warning
KDC User Manual
114
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

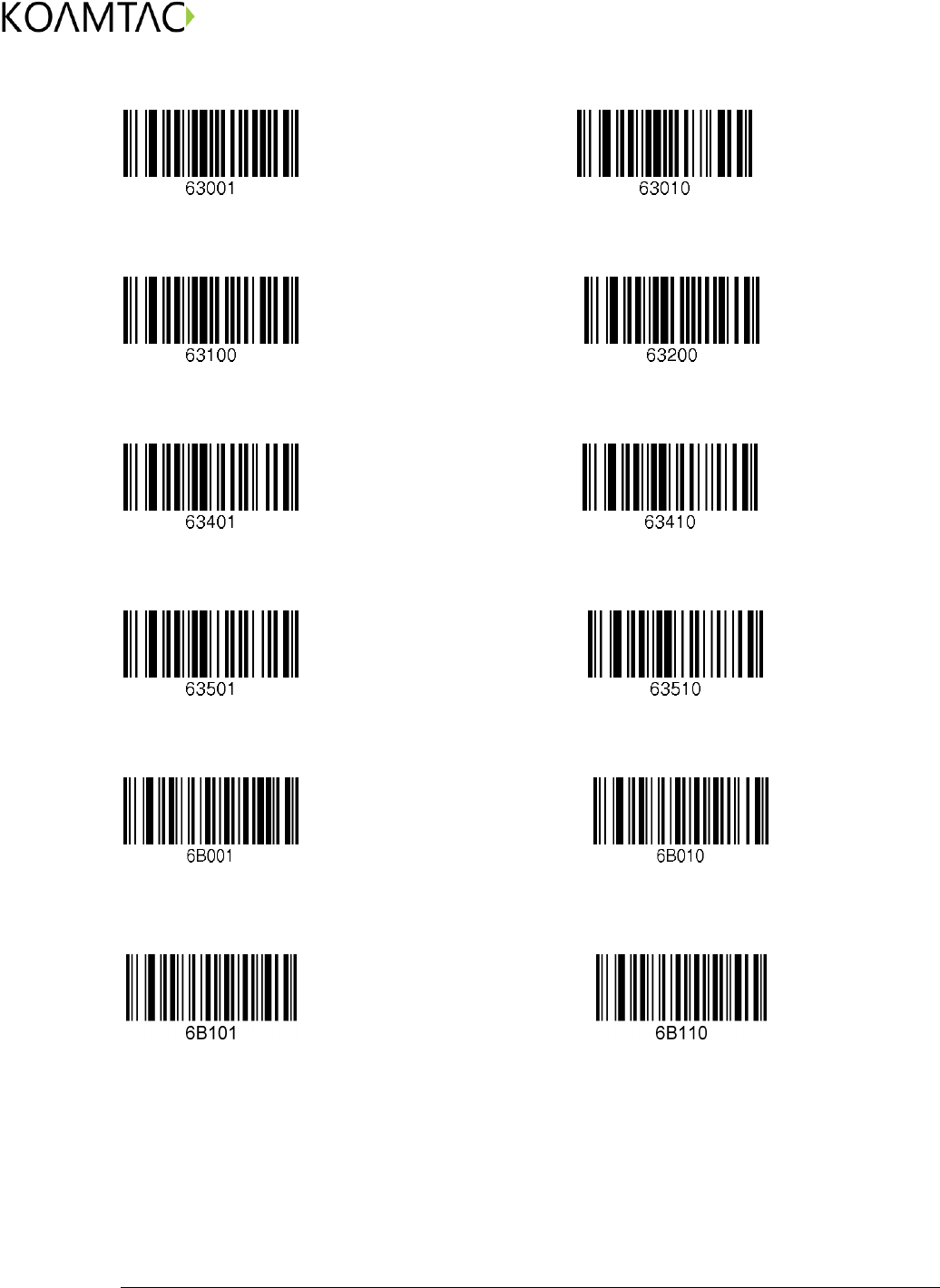

Enable Power Off Msg Disable Power Off Msg
BT MAC Address BT FW Version
Enable Wakeup Nulls Disable Wakeup Nulls
Confirm To Send Enabled Confirm To Send Disabled
BT Toggle Enable BT Toggle Disable
Enable BT Disconnect Button Disable BT Disconnect Button
KDC User Manual
115
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Bluetooth Auto Power On Time 11.13
Auto Power On Time Disabled Auto Power On Time 1sec
Auto Power On Time 2sec Auto Power On Time 3sec
Auto Power On Time 4sec Auto Power On Time 5sec
Auto Power On Time 6sec Auto Power On Time 7sec
Auto Power On Time 8sec Auto Power On Time 9sec
Auto Power On Time 10sec
KDC User Manual
116
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

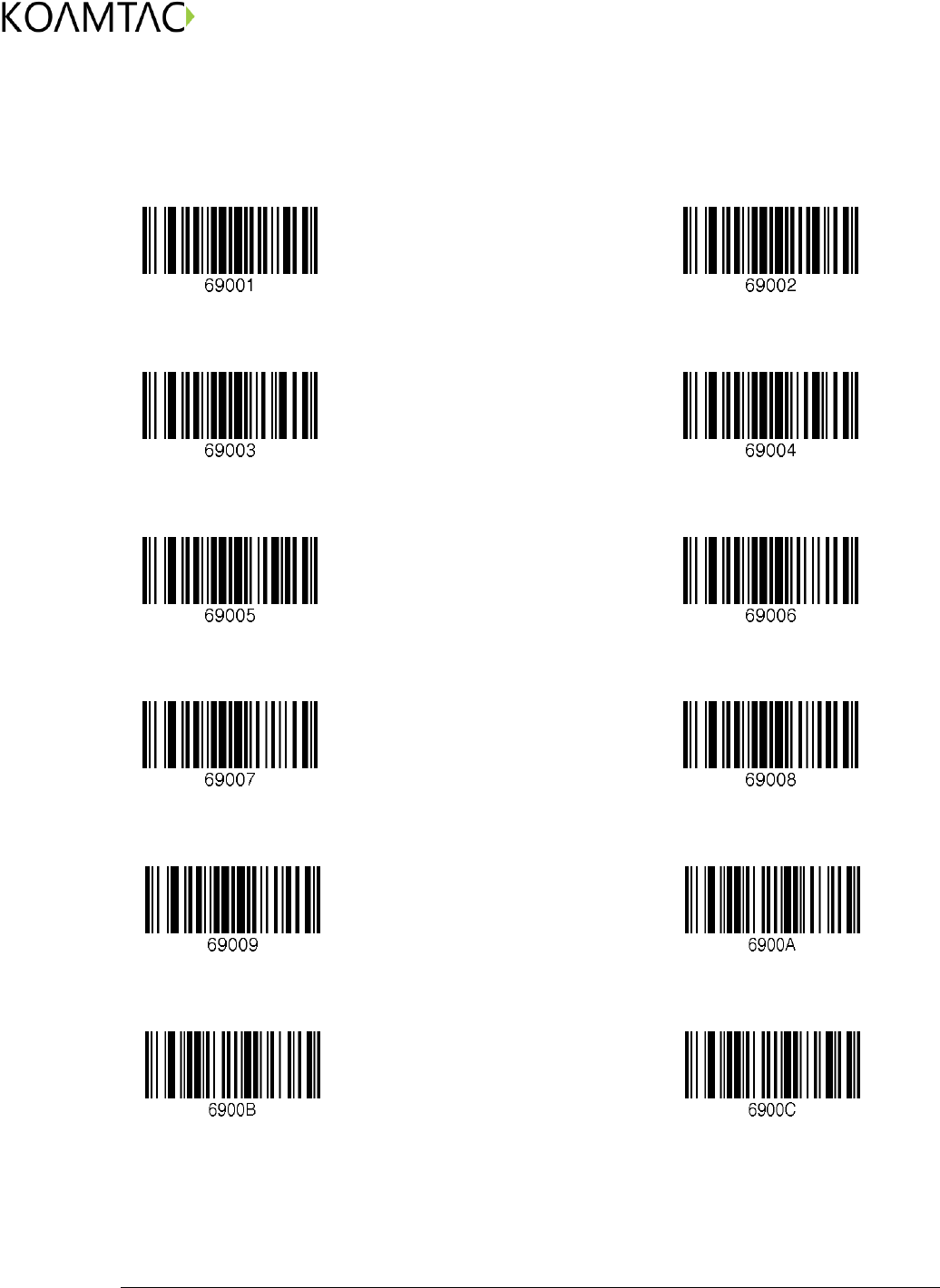

Bluetooth PWR Off Time 11.14
1min 2min
3min 4min
5min 6min
7min 8min
9min 10min
11min 12min
KDC User Manual
117
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

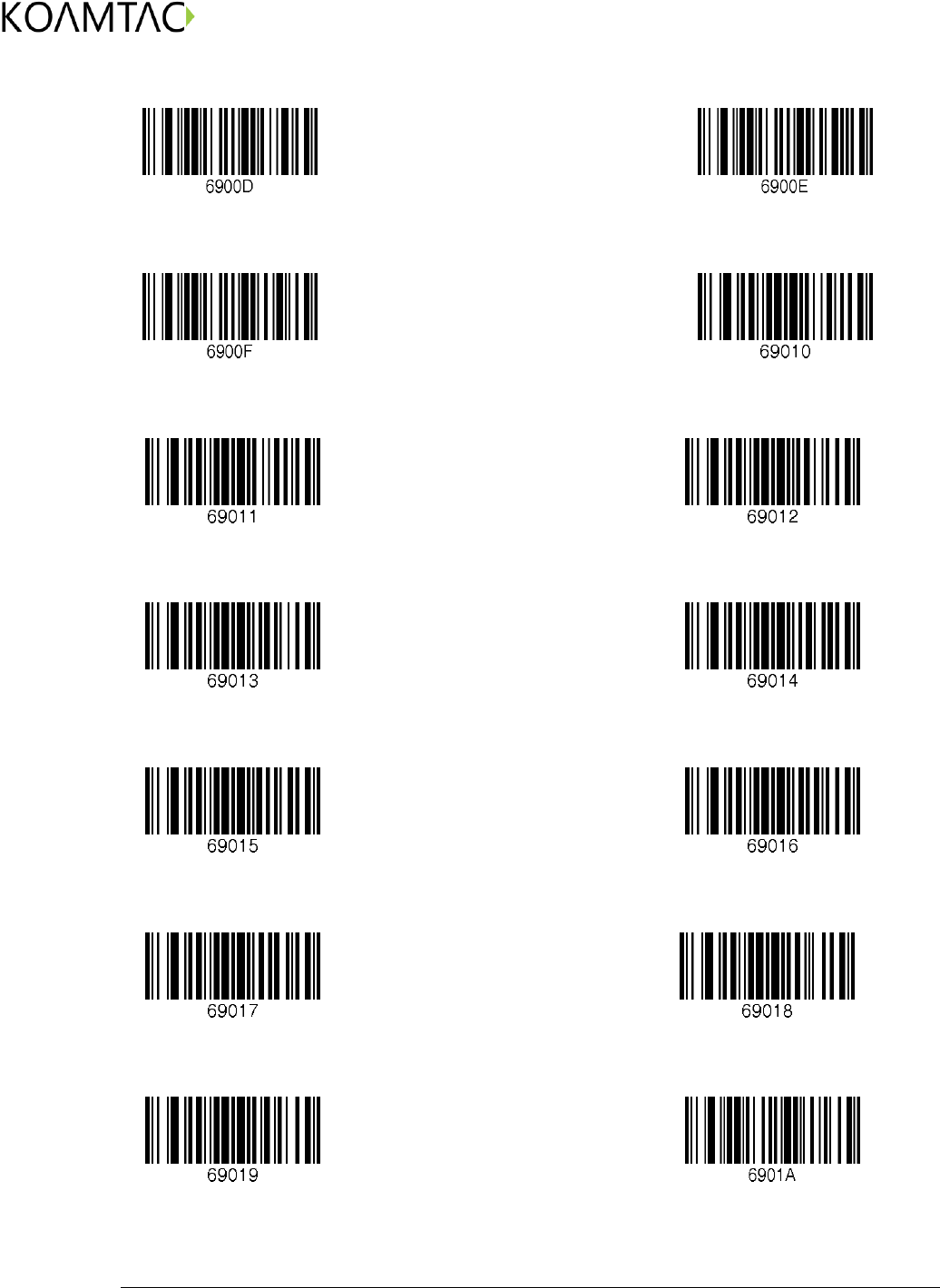

13min 14min
15min 16min
17min 18min
19min 20min
21min 22min
23min 24min
25min 26min
KDC User Manual
118
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
27min 28min
29min 30min
KDC User Manual
119
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

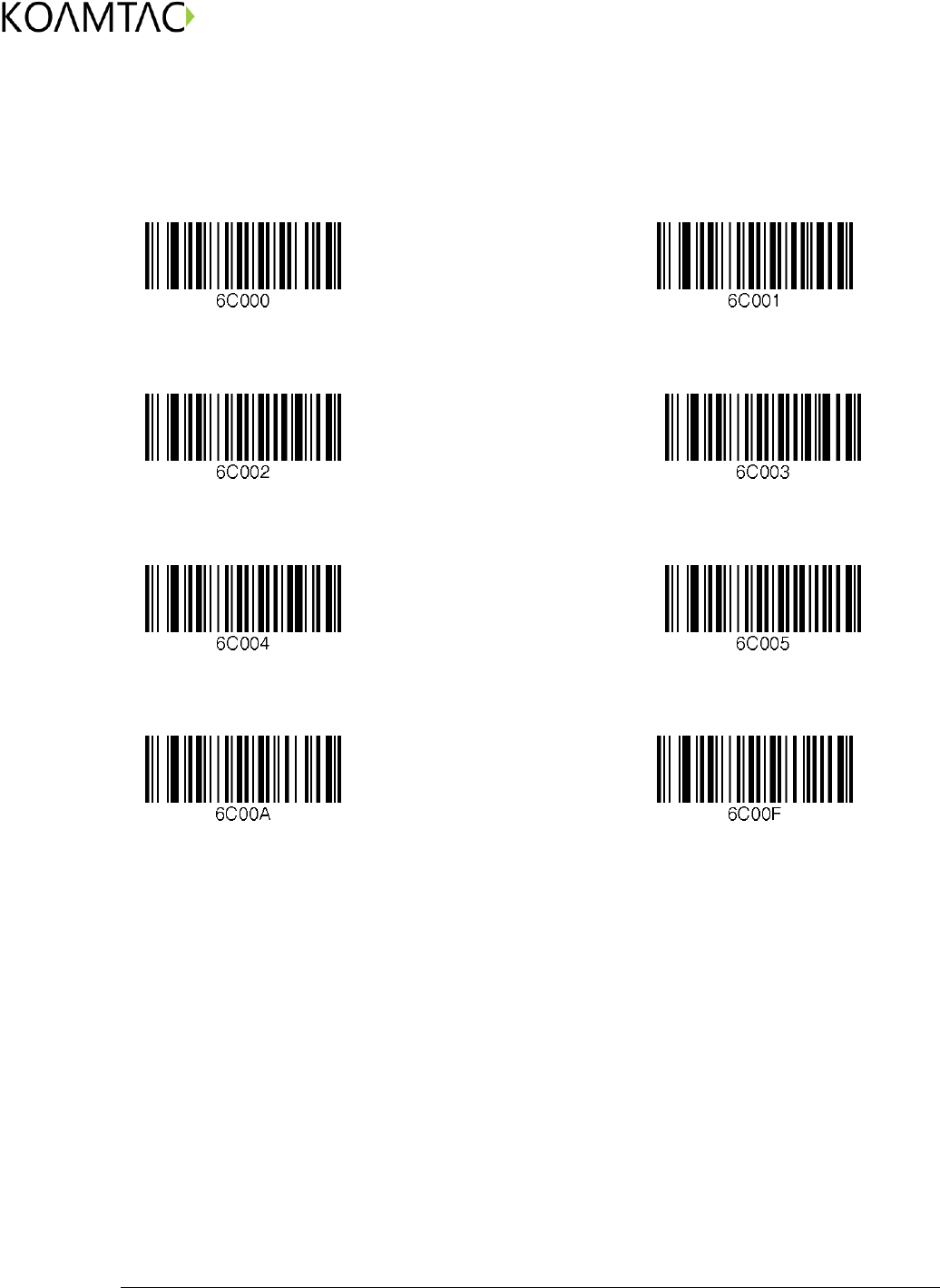

Auto lock Time 11.15
0 min (Never) 1 min
2 min 3 min
4 min 5 min
10 min 15 min
KDC User Manual
120
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
HID Keyboard layout 11.16
US German
French Italian
Spanish
KDC User Manual
121
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
HID Initial Delay 11.17

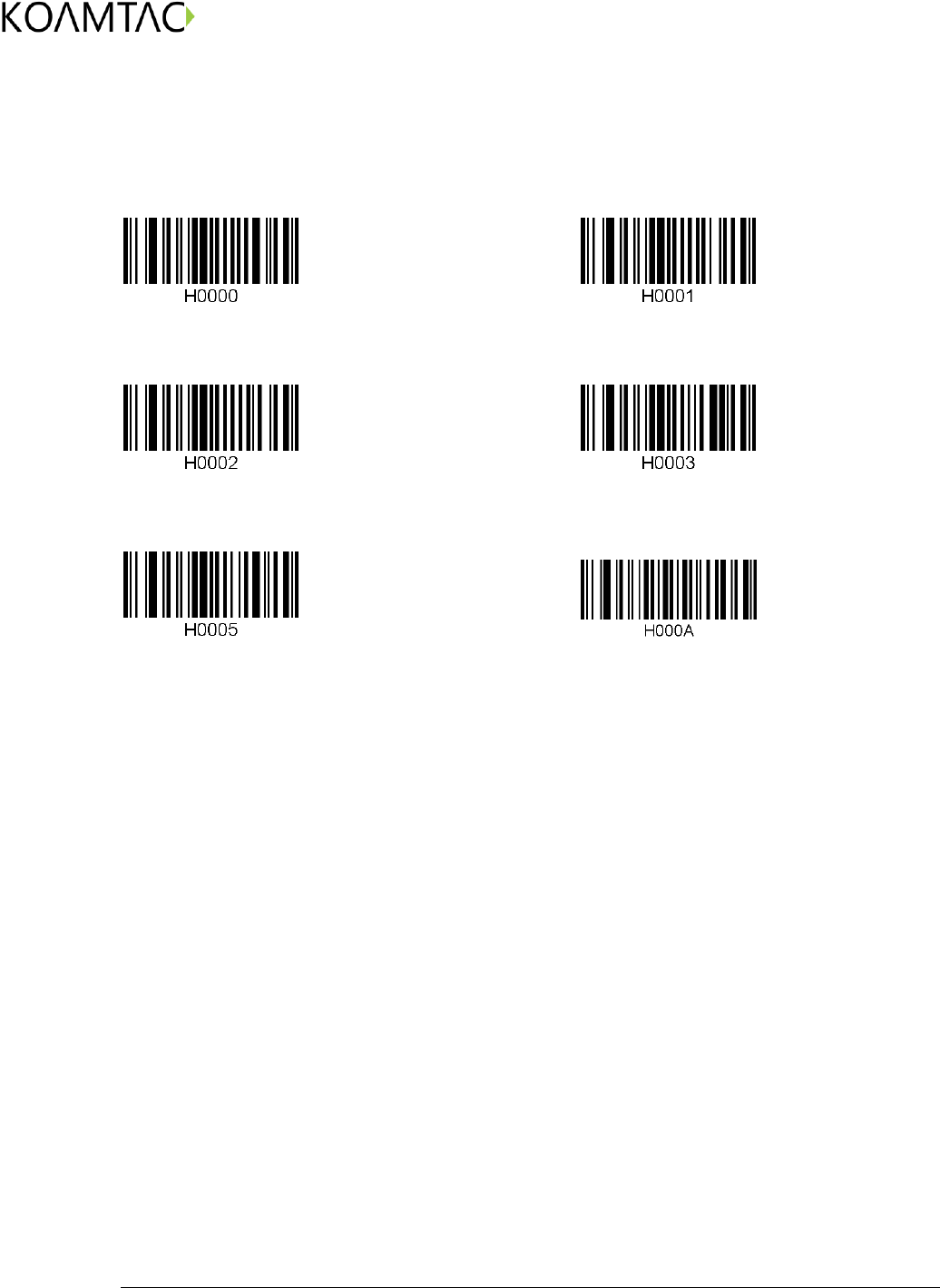

Disabled 1 second
2 seconds 3 seconds
5 seconds 10 seconds
KDC User Manual
122
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
HID Character Delay 11.18
Disabled 10 msec
20 msec 30 msec
50 msec 100 msec
KDC User Manual
123
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

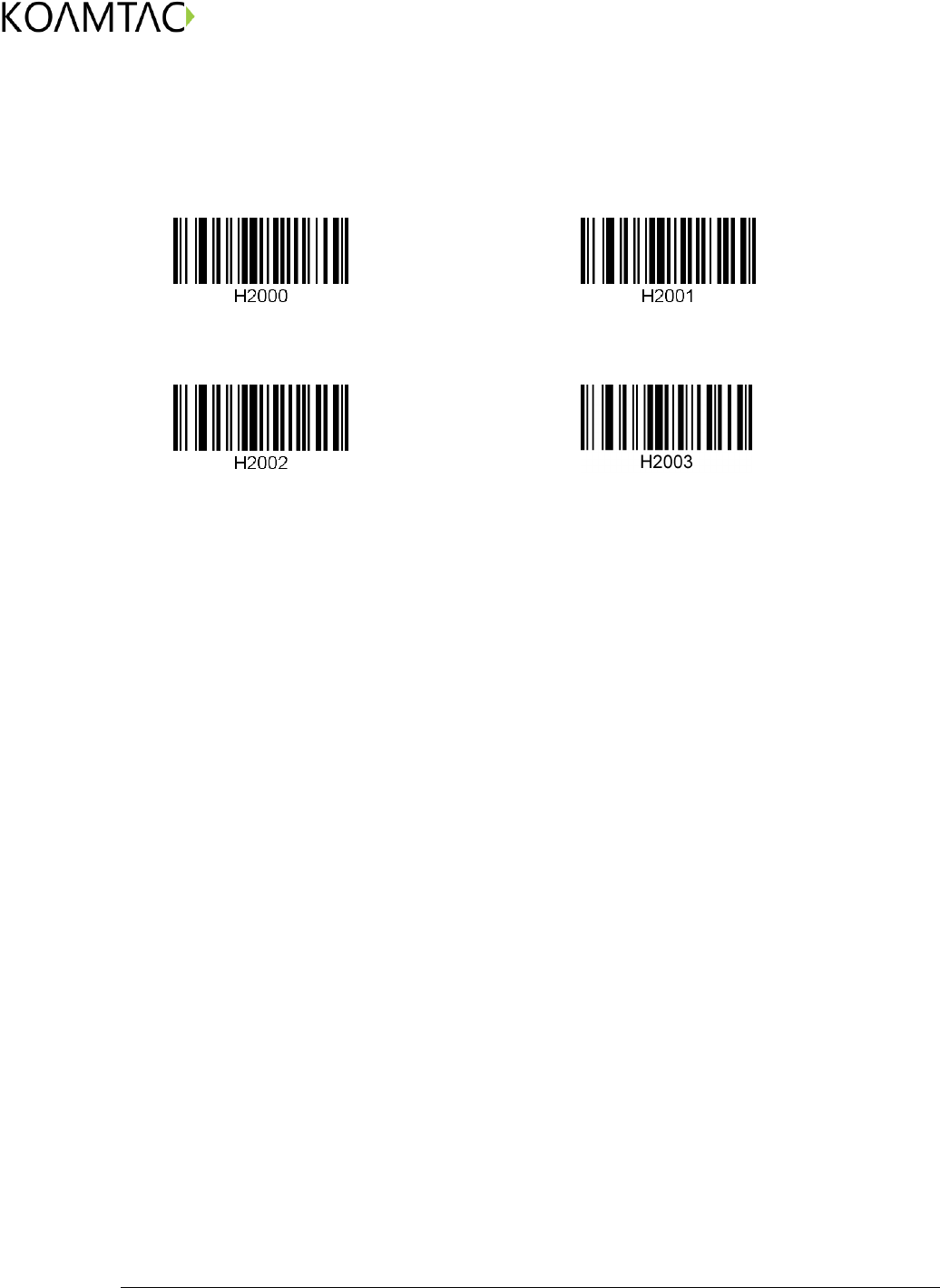

HID Control Character 11.19
Disabled Alt+Numpad
^+Character Replace with ‘|’
KDC User Manual
124
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

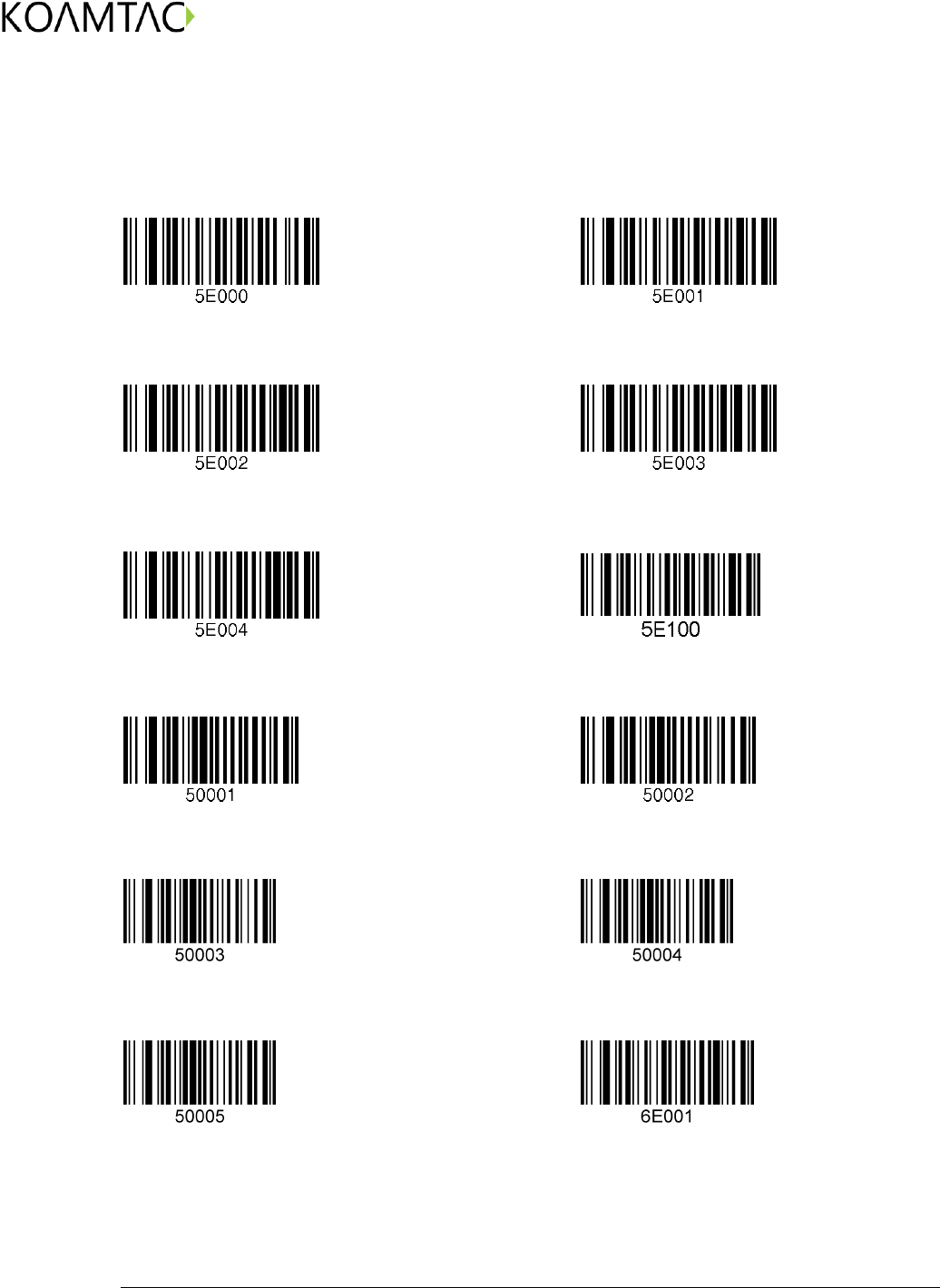

System 11.20
0.5M / 3.5M 1M / 3M
2M / 2M 3M / 1M
4M / 0M Confirm Memory size change
Memory Status Reset Memory
Erase Memory Reset App data
Reset BT Registry SPP Sync
KDC User Manual
125
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

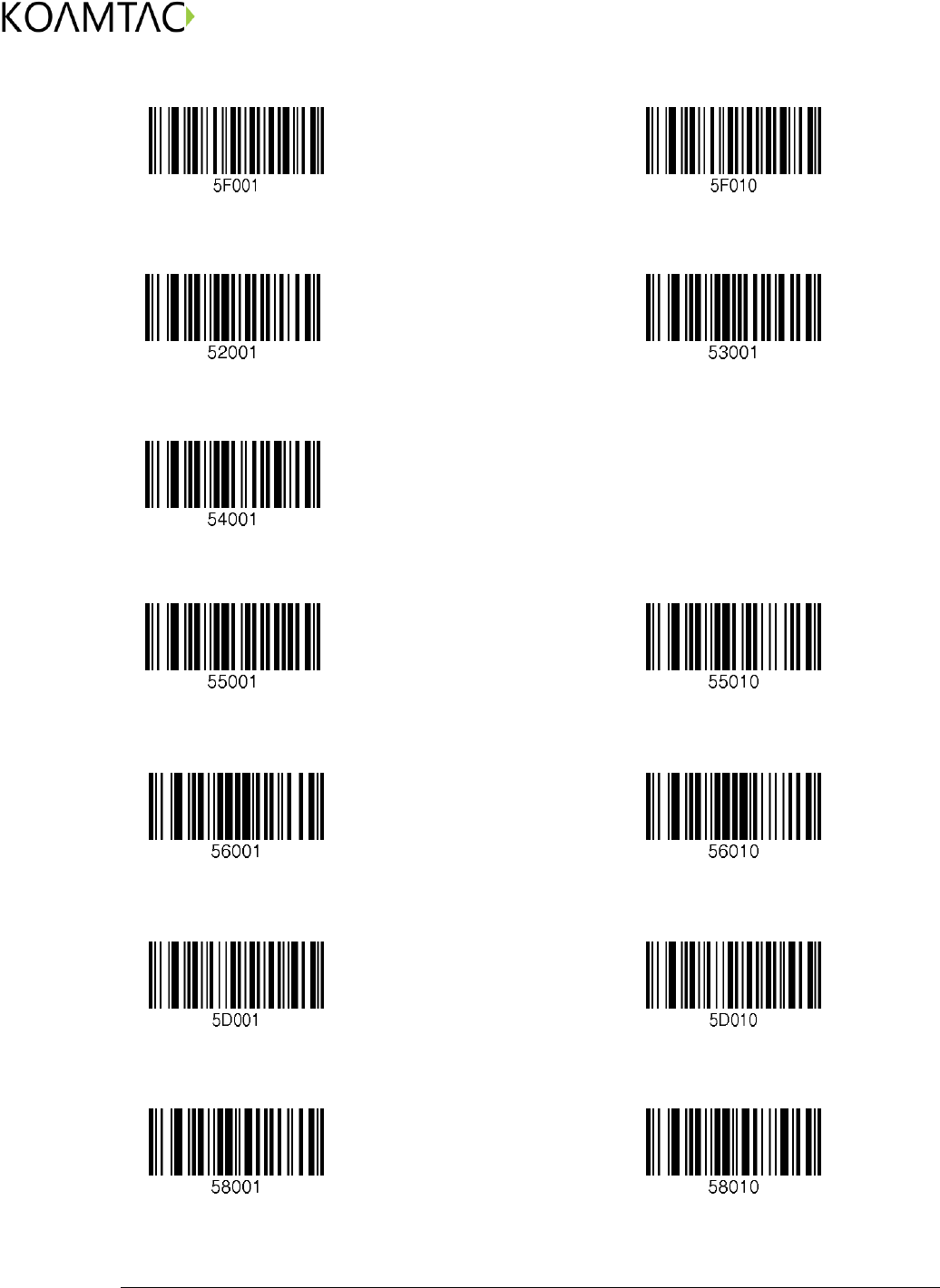

Auto Erase Enable Auto Erase Disable
Date/Time Battery
Version
Button Lock Button Unlock
Enable Beep Sound Disable Beep Sound
High Beep Volume Low Beep Volume
Enable Auto Menu Exit Disable Auto Menu Exit
KDC User Manual
126
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

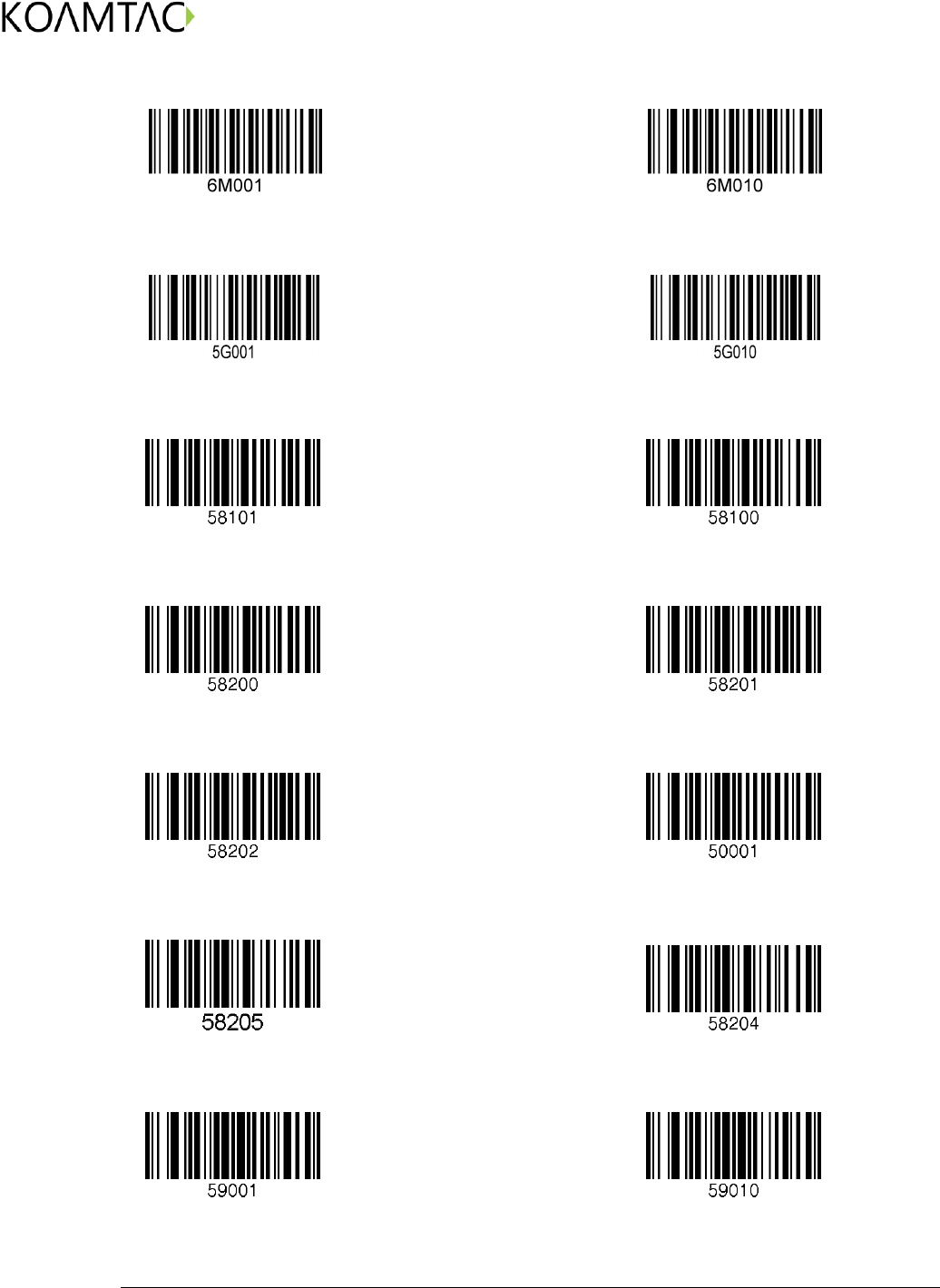

MFi Mode Enable MFi Mode Disable
Vibrator Enable Vibrator Disable
Enable Port Status Disable Port Status
Time & Battery Type & Time
Type & Battery Memory Status
GPS Data (KDC250/350) Barcode Only
Enable Scrolling Disable Scrolling
KDC User Manual
127
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Factory Default
Disable Buttons Enter Menu
KDC User Manual
128
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Sleep Timeout 11.21
Disable 1sec
2sec 3sec
4sec 5sec
10sec 20sec
30sec 1min
2min 5min
KDC User Manual
129
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

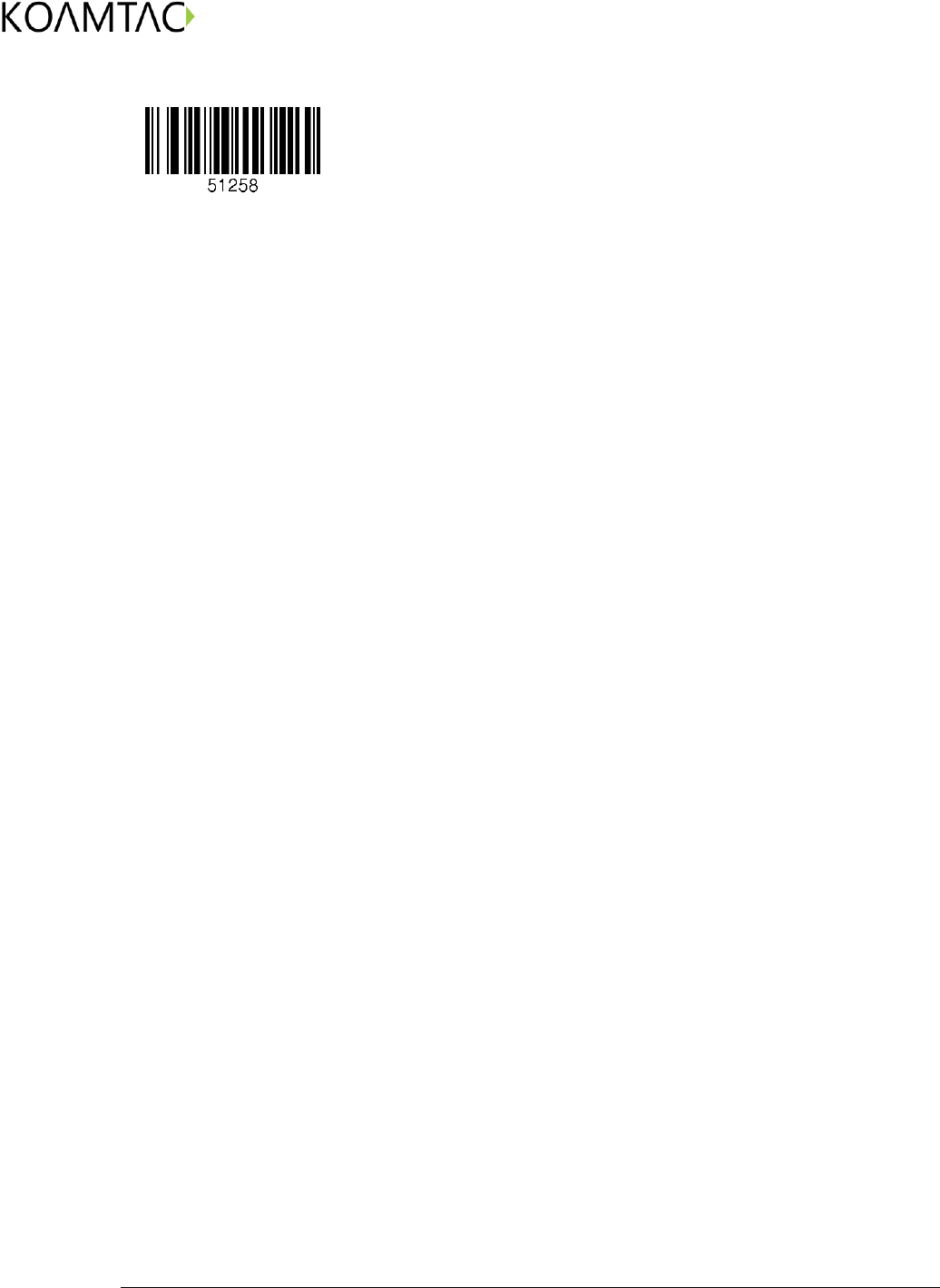

10min
KDC User Manual
130
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

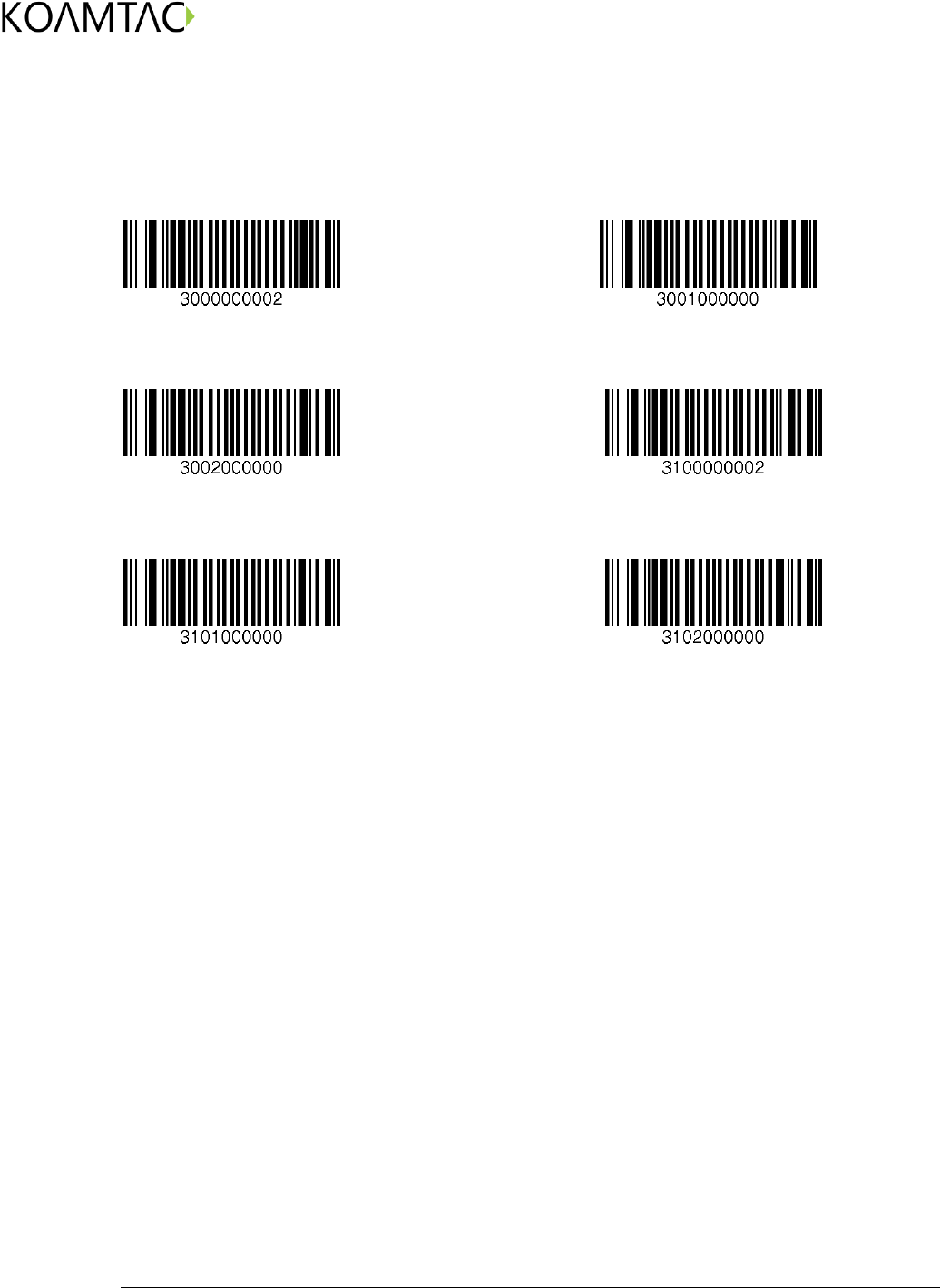

ETC 11.22
Reverse Direction Enable Return check digit Enable
Verify check digit Enable Reverse Direction Disable
Return check digit Disable Verify check digit Disable
KDC User Manual
131
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Function 11.23

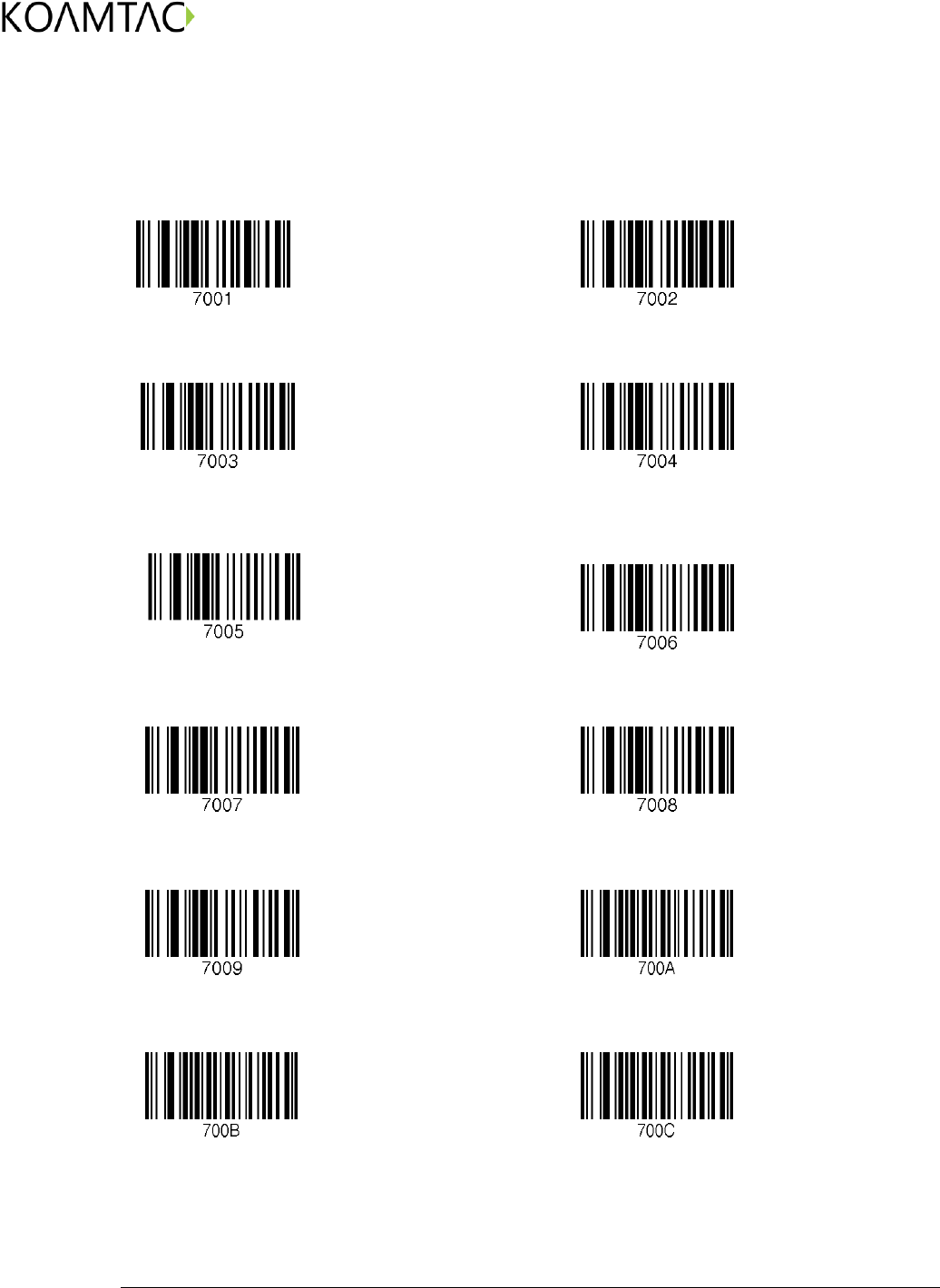

F1 F2
F3 F4
F5 F6
F7 F8
F9 F10
F11 F12
KDC User Manual
132
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

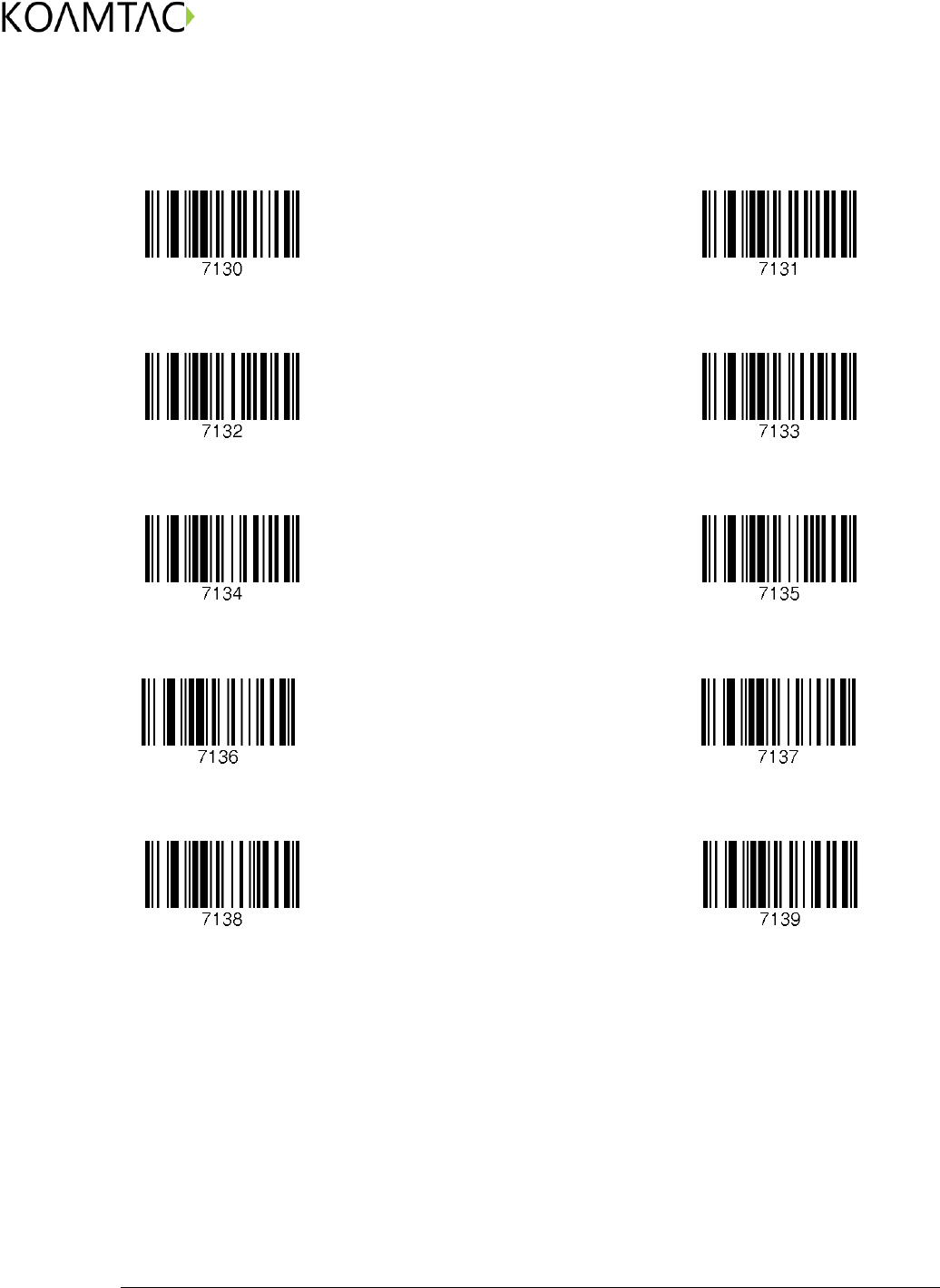

Number 11.24
0 1
2 3
4 5
6 7
8 9
KDC User Manual
133
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Lower Case Alphabet 11.25

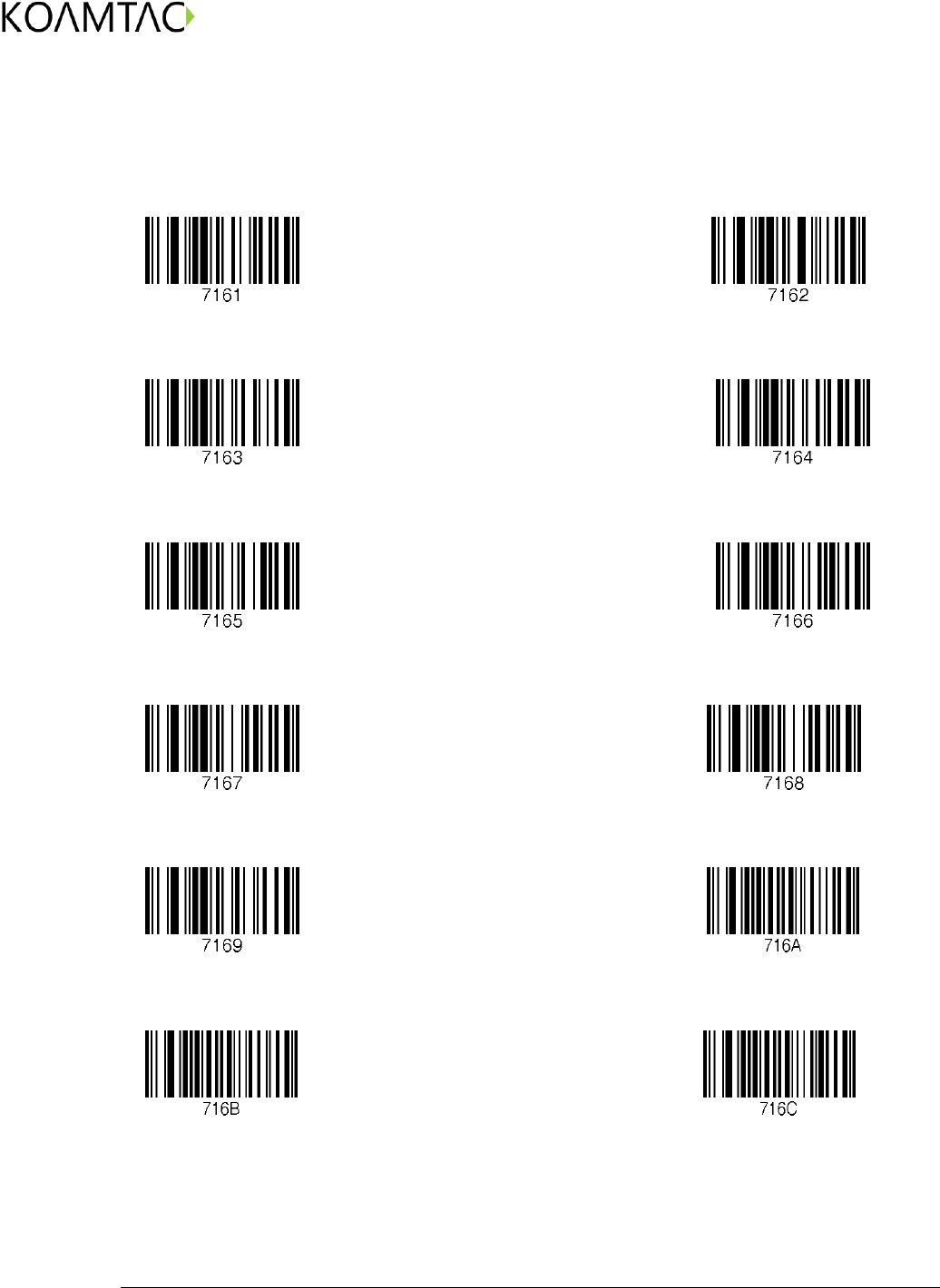

a b
c d
e f
g h
i j
k l
KDC User Manual
134
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

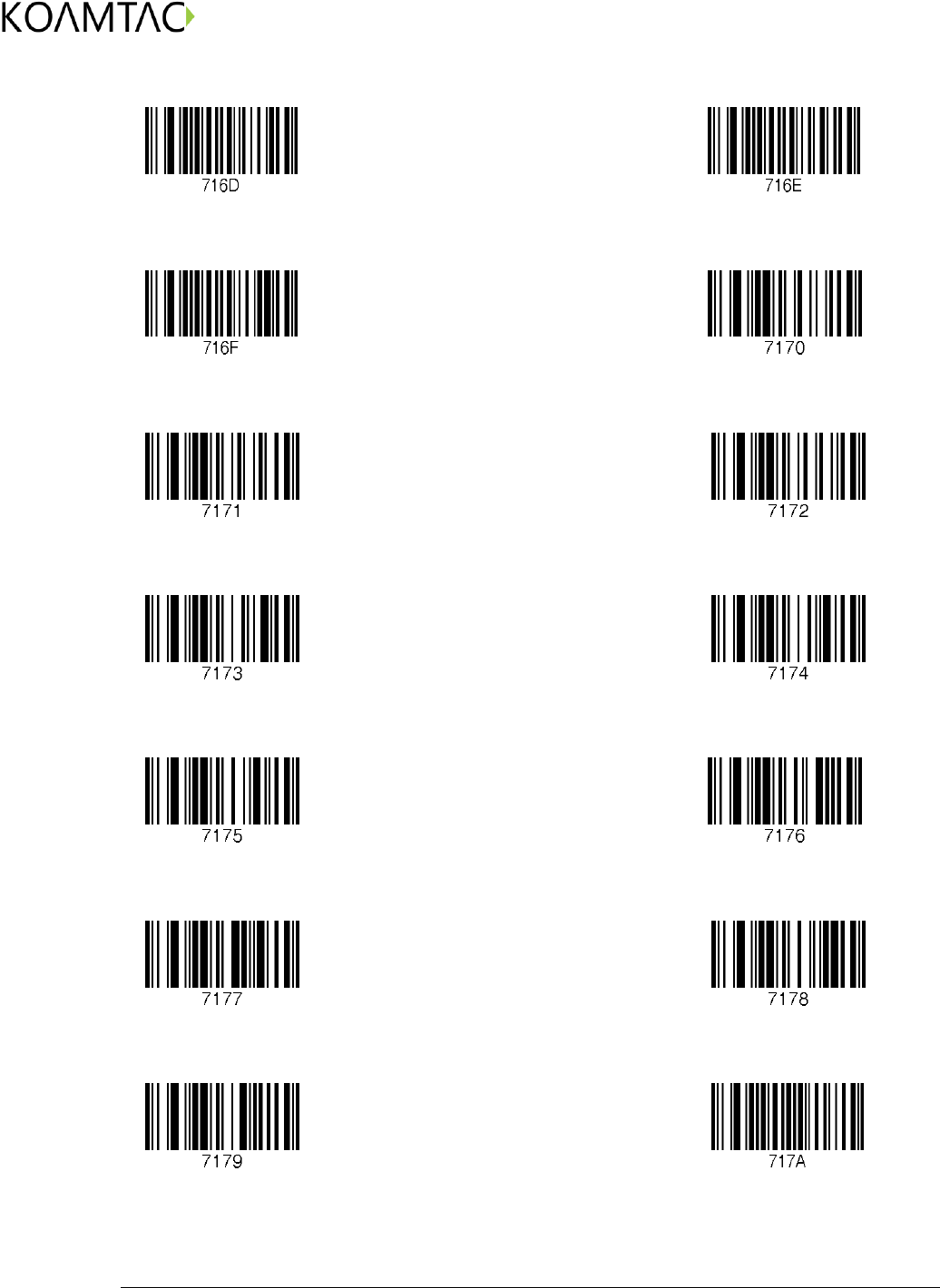

m n
o p
q r
s t
u v
w x
y z
KDC User Manual
135
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

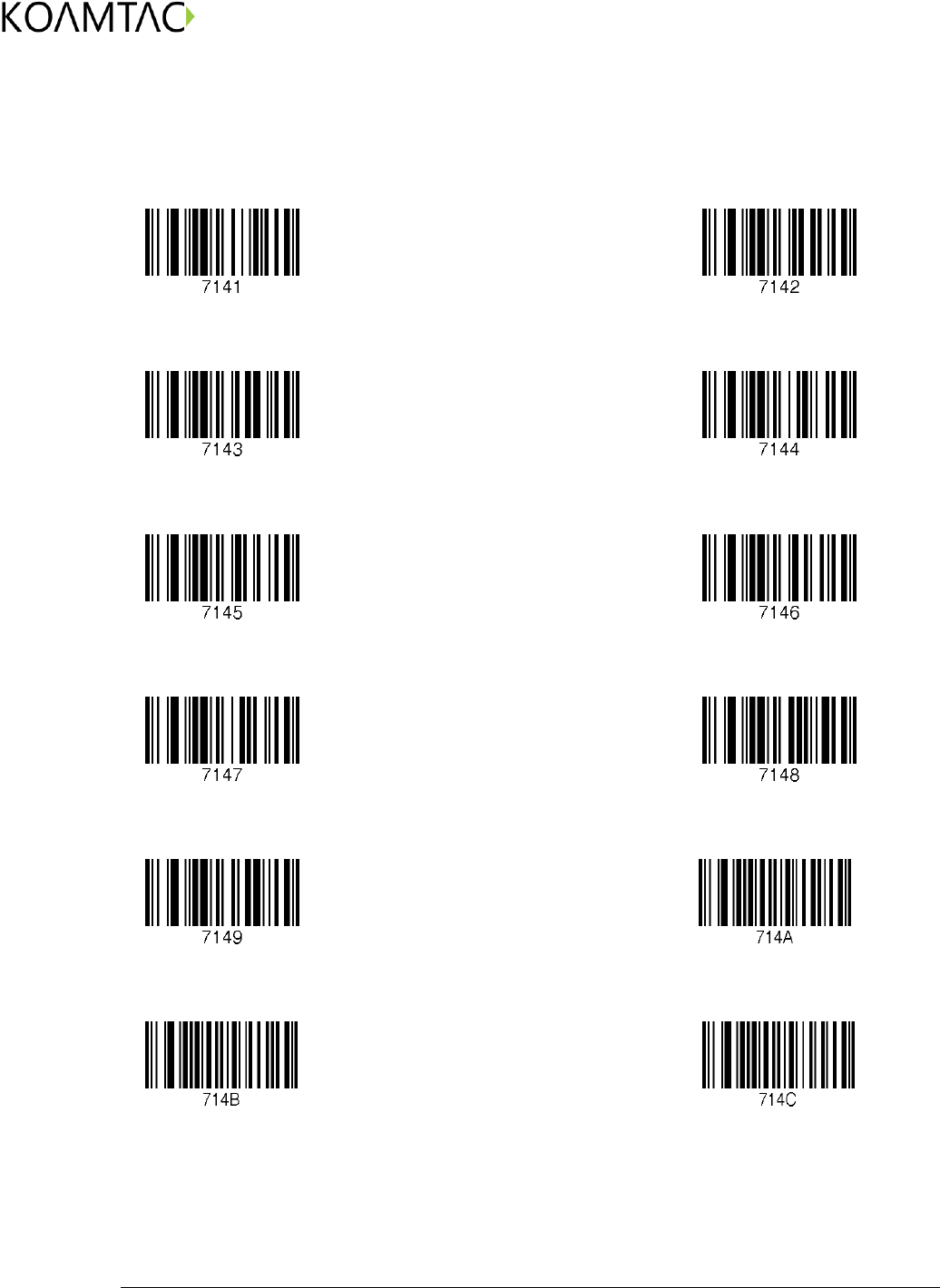

Upper Case Alphabet 11.26
A B
C D
E F
G H
I J
K L
KDC User Manual
136
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

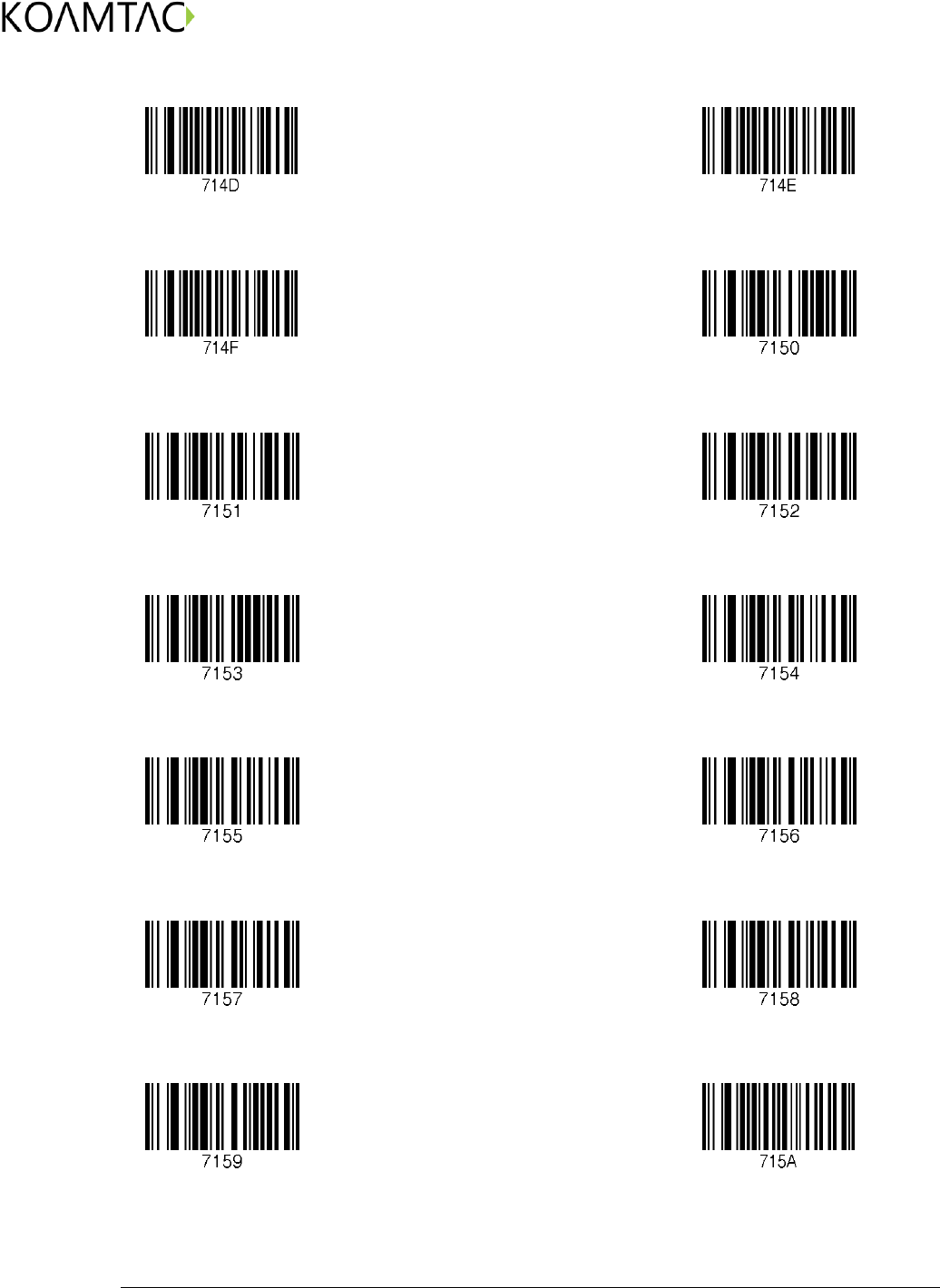

M N
O P
Q R
S T
U V
W X
Y Z
KDC User Manual
137
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

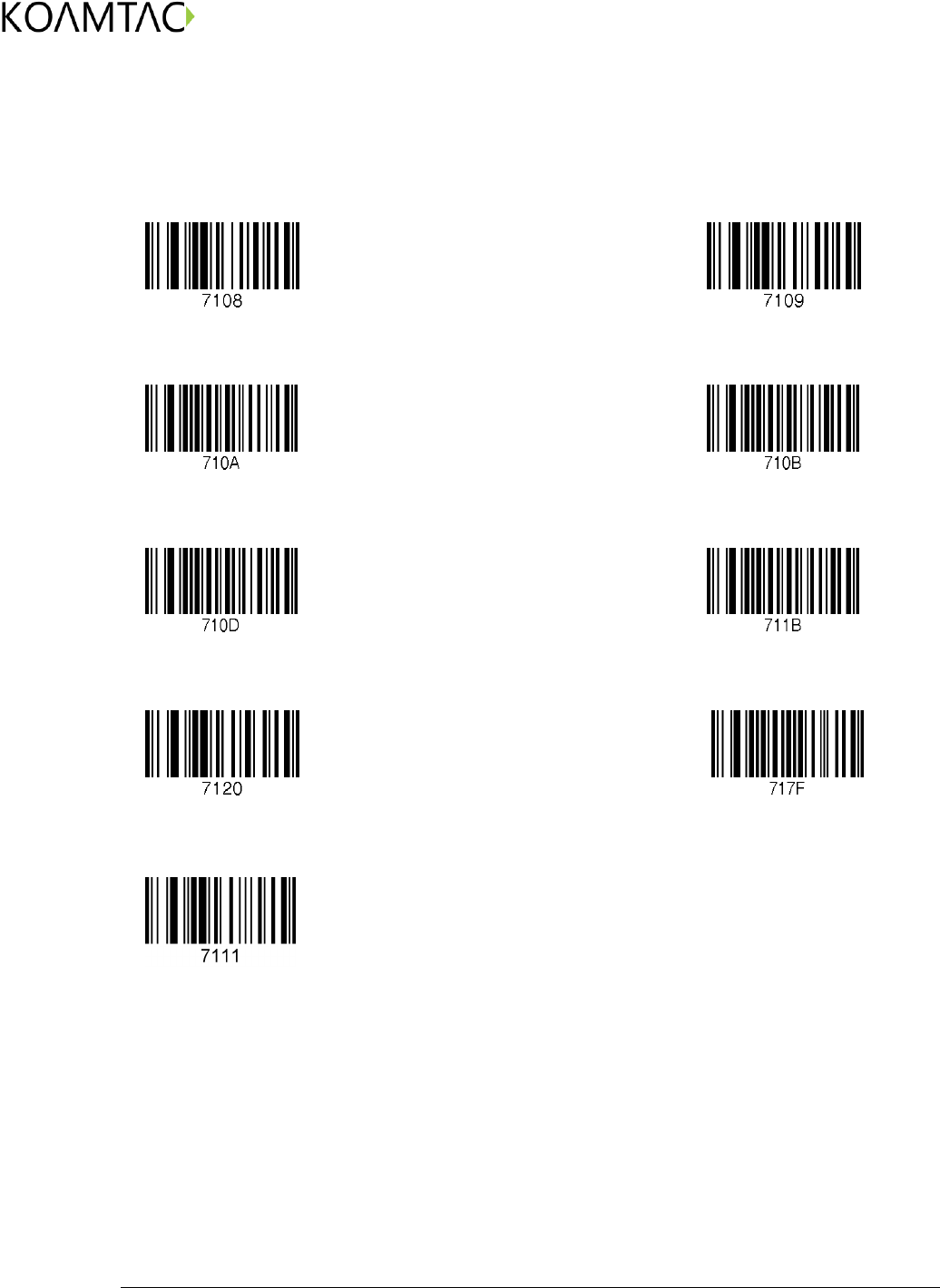

Control Character 11.27
BS TAB
LF VT
CR ESC
Space DEL
Shift + Tab
KDC User Manual
138
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

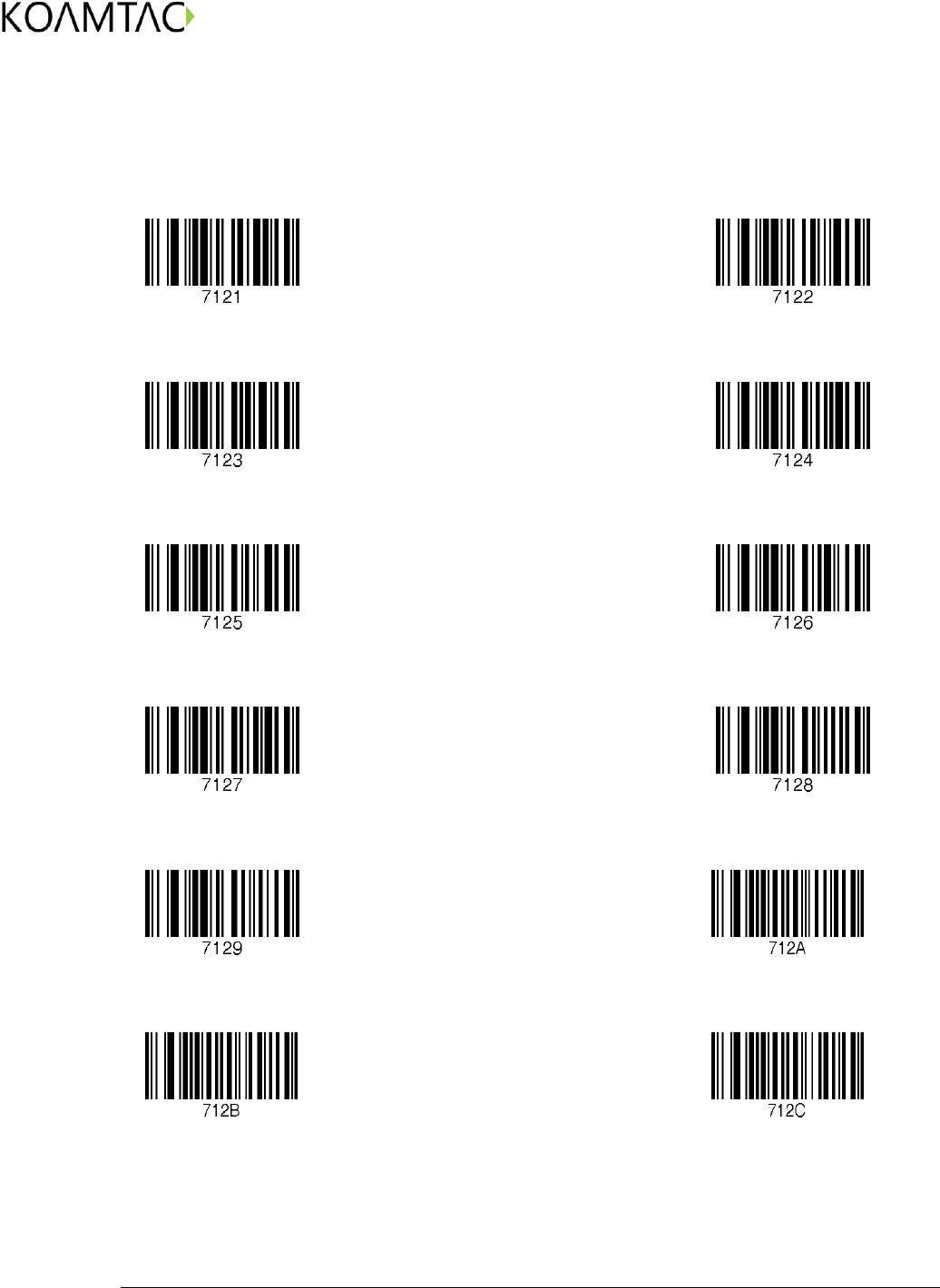

Symbol Character 11.28
! “
# $
% &
‘ (
) *
+ ,
KDC User Manual
139
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
- .
/ :
; <
= >
? @
[ \
] ^

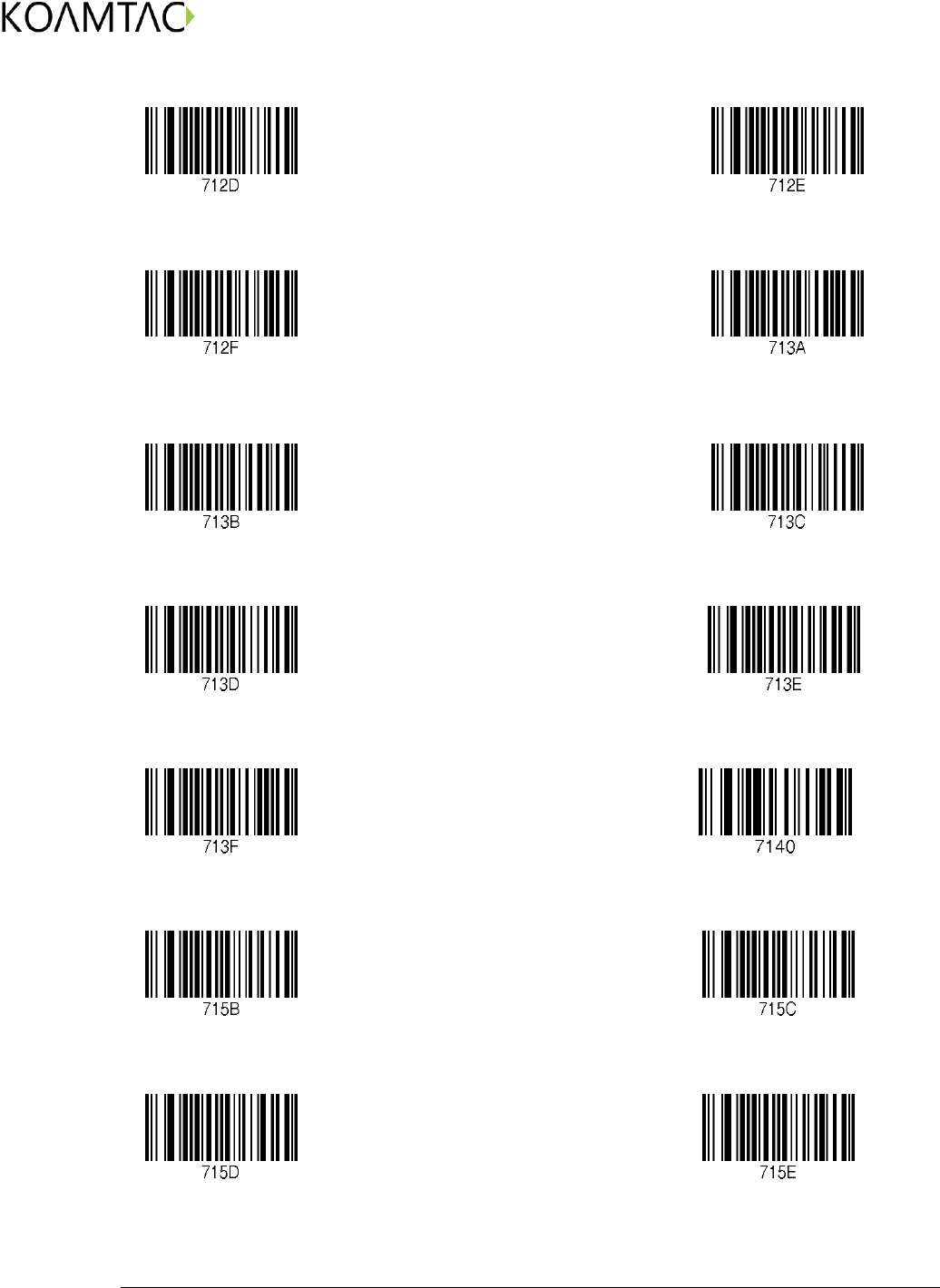

KDC User Manual
140
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

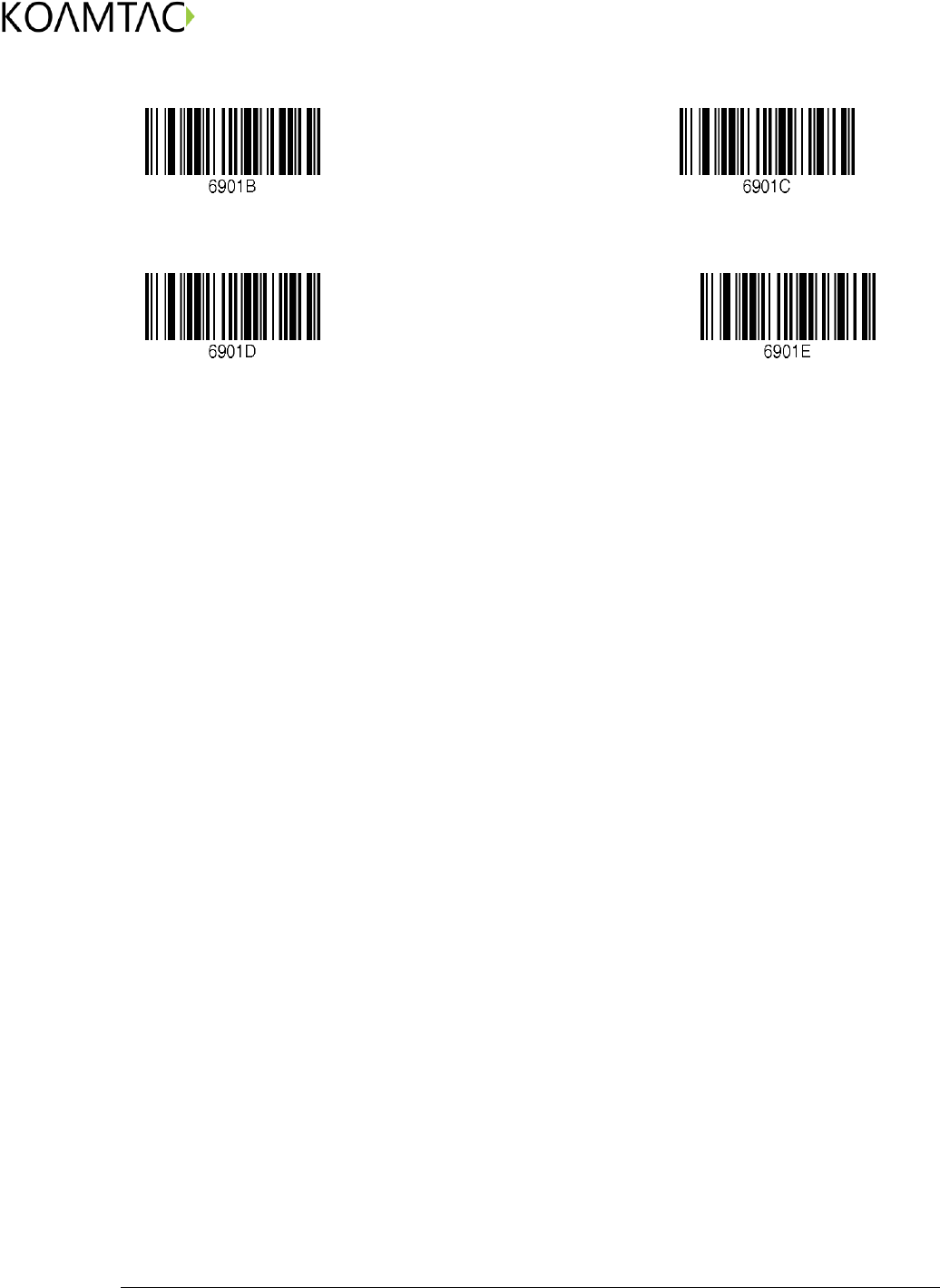

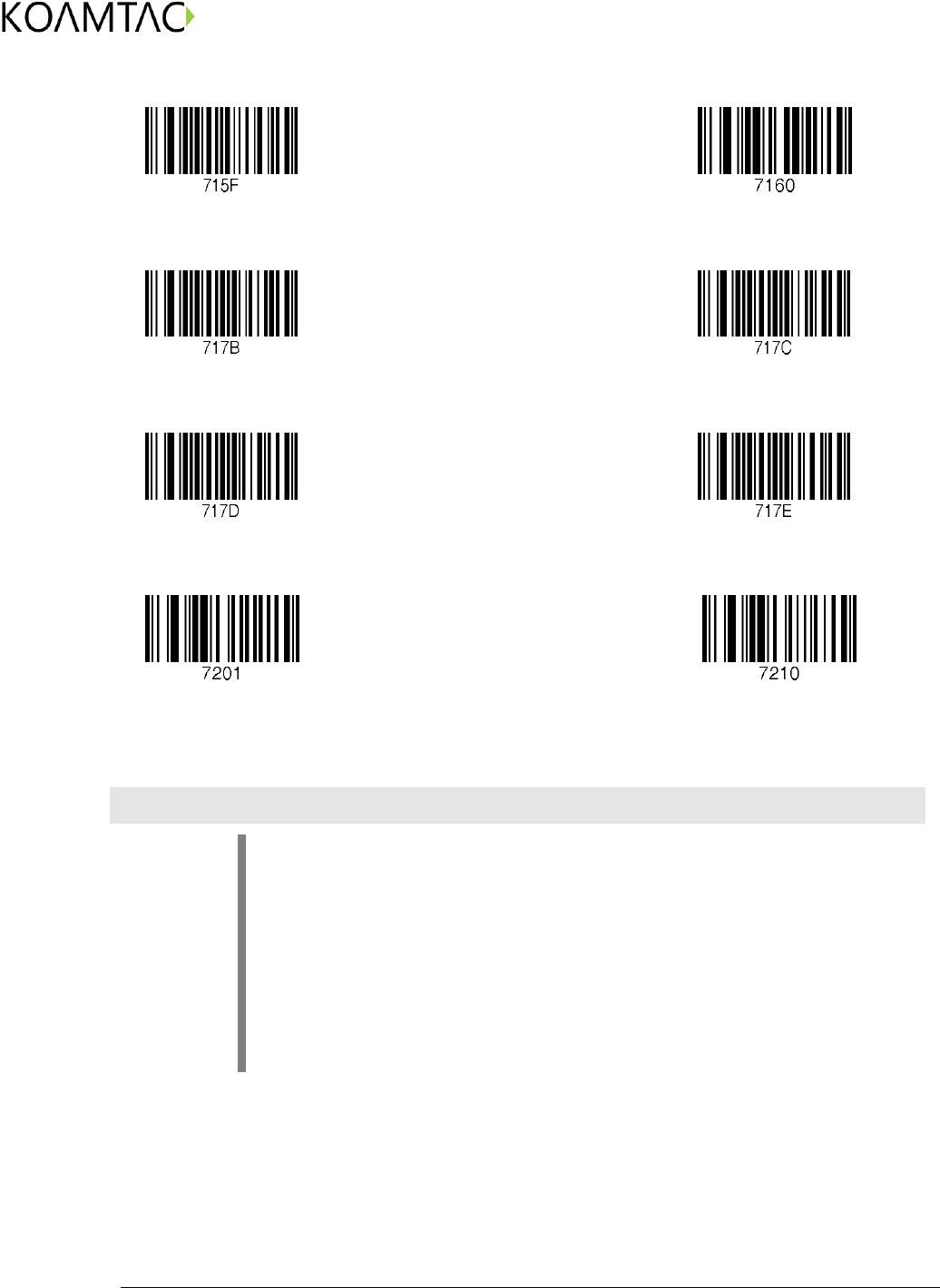

_ `
{ |
} ~
Start-String Stop-String
Note:
You can compose a string up to 16 characters.
A string would be composed by scanning the “Start-String”,
number/alphabet/special characters, and “Stop-String” special
barcodes.
The KDC will abort string composition if you do not scan
“Stop-String” in one minute after scanning “Start-String” and
number/alphabet/special characters.
KDC User Manual
141
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.
Auto Power Off Timeout 11.29
0 min (Disabled) 5 min
10 min 20 min
30 min 60 min
120 min Display Format = GPS Data
KDC User Manual
142
Revision 3.05.R6
Copyright ® 2014, KoamTac, Inc.

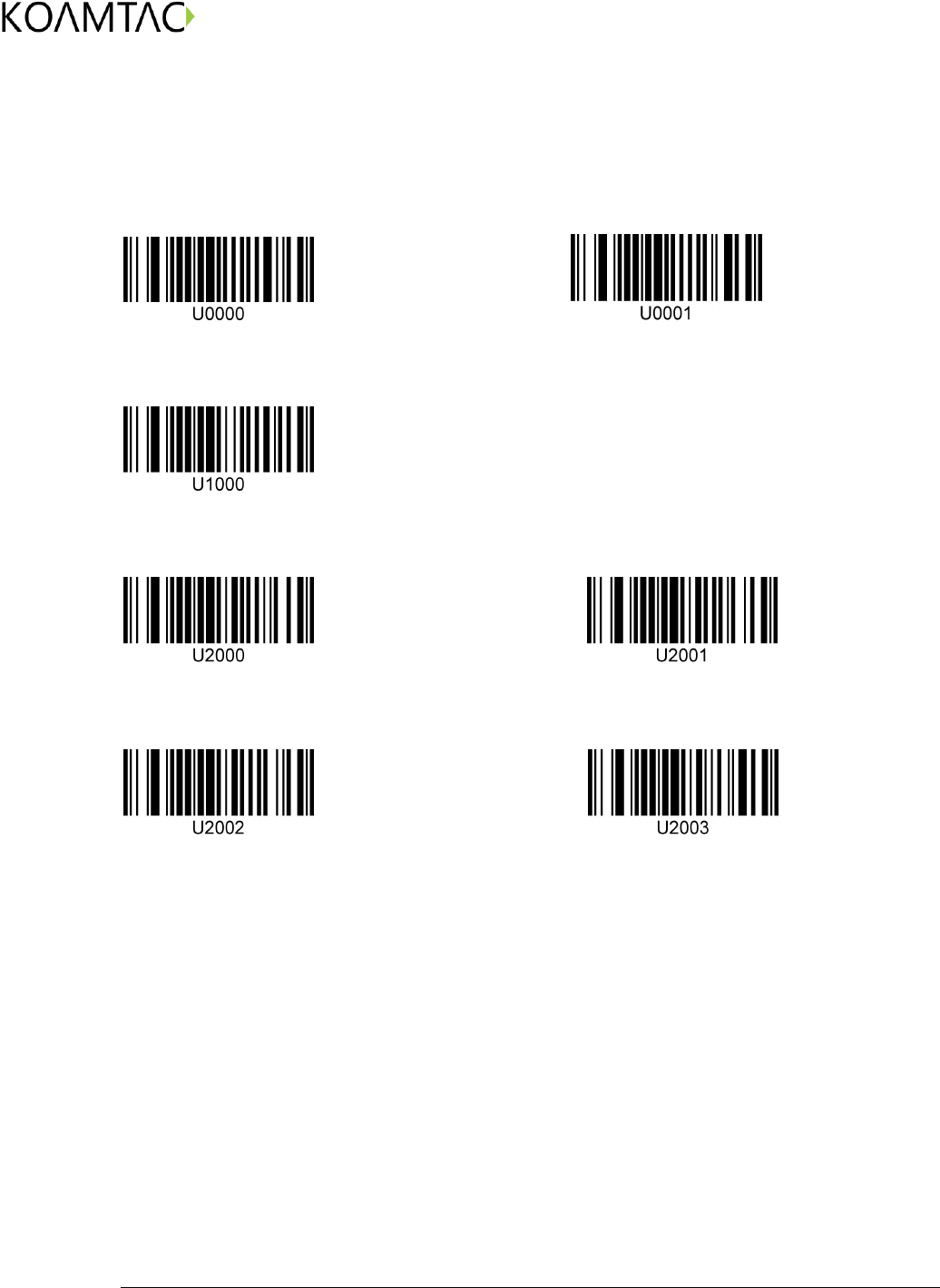

USB DISK (M Model Only) 11.30
USB Serial Mode USB Disk Mode
Format USB Disk
Data Format - Data Data Format – Data,Time
Data Format – Data,Type Data Format – Data,Time,Type
