AISOLUTION KDC350 Barcode Scanner(Bluetooth) User Manual KDC350 User Manual 3 04 English
AISOLUTION CO., LTD. Barcode Scanner(Bluetooth) KDC350 User Manual 3 04 English
user manual
KDC350UserManual
(Rev2.85.Q/2.86.Q/3.04.Q)
October,2012
KDC350 User Manual
2
TABLEOFCONTENTS
1.1 KDC Package ......................................................................................................... 13
1.2 KDC Characteristics .............................................................................................. 14
2. Installation .............................................................................................................. 16
2.1 KoamTac Installation Wizard................................................................................. 17
Windows XP .............................................................................................................. 17
Vista and Windows 7 ................................................................................................ 22
Windows Mobile 5.0+ ................................................................................................ 25
Android ..................................................................................................................... 27
Blackberry ................................................................................................................ 27
iPad/iPhone/iPod touch ............................................................................................. 27
2.2 Manual Installation ................................................................................................ 28
Windows XP, Vista, and 7 ......................................................................................... 28
Windows Mobile 5.0+ ................................................................................................ 28
3.1 Getting Started ...................................................................................................... 29
Attach Lanyard to KDC ............................................................................................. 29
Charge KDC Battery ................................................................................................. 29
Configure KDC .......................................................................................................... 30
3.2 Basics ..................................................................................................................... 31
Reading Barcodes .................................................................................................... 31
Synchronizing Barcode Data to PC .......................................................................... 31
3.3 KDC Menus ............................................................................................................. 32
KDC Mode Menu ....................................................................................................... 38
View Data Menu ........................................................................................................ 38
Set Barcodes Menu .................................................................................................. 38
Code Options Menu .................................................................................................. 38
Scan Options Menu ................................................................................................... 38
Data Process Menu ................................................................................................... 39
BT Config Menu - KDC200/250/300/350/400 ............................................................. 43
BT Service - KDC200/250/300/350/400 ..................................................................... 44
GPS Config - KDC250 / KDC350 ................................................................................ 44
System Menu ............................................................................................................ 44
Pair and connect KDC200i/250i/300i/350i/400i and iOS4.0+ in HID mode ............... 46
iOS Soft Keyboard toggling using BT Toggle option ............................................... 46
LISTINGOFFIGURES ............................................................................................................... 7
LISTINGOFTABLES ................................................................................................................ 8
1. INTRODUCTION ...................................................................................................... 12
3. OPERATING THE KDC .............................................................................................. 29
KDC350 User Manual
3
3.4 LED Status ............................................................................................................. 47
KDC100/200/250/300/350 .......................................................................................... 47
KDC400 ..................................................................................................................... 47
3.5 Empty Battery ........................................................................................................ 47
3.6 Buffer Full ............................................................................................................... 48
3.7 Reset Feature ........................................................................................................ 48
3.8 Replace Battery ..................................................................................................... 49
4.1 ConnectDevice
........................................................................................................ 50
4.2 Auto Connect ......................................................................................................... 50
4.3 Auto Power On
........................................................................................................ 50
4.4 PWR ON Time
.......................................................................................................... 51
4.5 Auto Power Off
....................................................................................................... 51
4.6 Beep Warning
.......................................................................................................... 51
4.7 PWR OFF Time
........................................................................................................ 51
4.8 PowerOFF Msg
........................................................................................................ 52
4.9 MAC Address
.......................................................................................................... 52
4.10 FW Version
............................................................................................................ 52
4.11 Wakeup Nulls
........................................................................................................ 52
4.12 Autolock Time
...................................................................................................... 52
4.13 HID Keyboard
........................................................................................................ 52
4.14 HID Initial and Inter-Character Delay
.................................................................... 52
4.15 Control character transmission in HID mode ...................................................... 53
4.16 Function key transmission in HID mode .............................................................. 53
4.17 Disconnect/Reconnect/BT(HID) Toggle ............................................................... 53
4.18 Power
.................................................................................................................... 54
4.19 Pairing
................................................................................................................... 54
4.20 Discovering
........................................................................................................... 54
4.21 Connect To ........................................................................................................... 55
4.22 HID Sync ............................................................................................................... 55
5.1 KTSync Menu ......................................................................................................... 56
5.2 File Menu ................................................................................................................ 59
Connect to KDC ........................................................................................................ 59
Synchronize .............................................................................................................. 59
Bluetooth .................................................................................................................. 60
5.3 Synchronization Settings ....................................................................................... 61
Destination of Data ................................................................................................... 61
Synchronization Methods ......................................................................................... 62
Current KDC Wedge Method ..................................................................................... 63
4. BLUETOOTH - KDC200/250/300/350/400 .................................................................. 50
5. SYNCHRONIZATION ................................................................................................. 56
KDC350 User Manual
4
Synchronization Options .......................................................................................... 64
Application Options .................................................................................................. 64
5.4 Barcode & KDC Settings ........................................................................................ 65
Select Symbologies and Symbology Options ........................................................... 66
Data Editing Option .................................................................................................. 66
5.5 Others Settings ...................................................................................................... 67
5.6 KDC Menu (KDC400) .............................................................................................. 68
5.7 Mobile pKTSync ..................................................................................................... 69
5.7 Mobile pKTSync ..................................................................................................... 69
5.8 Android aKTSync ................................................................................................... 70
KDC and Android Pairing
.......................................................................................... 70
Launch KTSync
......................................................................................................... 70
5.9 iPad/iPhone/iPod touch KTSync ............................................................................. 72
KDC200i/250i/300i/350i/400i and iPhone/iPad/iPod touch connection instructions 72
KDC200i/250i/300i/350i/400i connection using iPhone mode .................................. 72
iKTSync Settings ...................................................................................................... 73
How to connect and reconnect iPhone mode using UP keys .................................. 73
5.10 Blackberry bKTSync ............................................................................................ 74
5.11 KTSync for Mac OS X ........................................................................................... 76
Connect Button ......................................................................................................... 76
Disconnect Button .................................................................................................... 77
Synchronize Button .................................................................................................. 77
Settings Button ......................................................................................................... 77
Clear Button.............................................................................................................. 80
User may press this button to clear the KTSync internal viewer. .................................................. 80
6.1 Application Generation .......................................................................................... 82
Generate Application ............................................................................................... 82
Data Filter Settings .................................................................................................. 83
Application Download and Execution ...................................................................... 85
6.2 Predefined Applications ......................................................................................... 86
Master/Slave ............................................................................................................. 86
Pick/Bin ..................................................................................................................... 88
DB Lookup Application ............................................................................................. 90
Inventory Application ............................................................................................... 92
A.1 Symbologies .......................................................................................................... 96
6. APPLICATION GENERATION .................................................................................... 81
7. TROUBLESHOOTING ................................................................................................ 93
8. WARRANTY .............................................................................................................. 94
9. CONTACT INFORMATION ........................................................................................ 95
APPENDIX A - BARCODE & SCAN OPTIONS ................................................................ 96
KDC350 User Manual
5
A.2 Code Options ......................................................................................................... 98
Reverse Direction ..................................................................................................... 98
Symbology Conversion ............................................................................................. 98
Verification of Optional “Check Digit” ..................................................................... 99
Transmission of “Check Digit” ................................................................................. 99
Resolution of Inconsistencies ................................................................................ 100
A.3 Miscellaneous Barcode Information ................................................................... 101
Height of a Linear Barcode .................................................................................... 101
Check Characters ................................................................................................... 101
Prevent Interleave 2 of 5 Partial Reading .............................................................. 101
Equation to Determining Potential Number of Stored Barcodes ........................... 102
Data Buffer Full ....................................................................................................... 102
B.1 Symbology ........................................................................................................... 103
B.2 Host Interface ...................................................................................................... 104
B.3 Battery ................................................................................................................. 104
B.4 Memory ................................................................................................................ 104
B.5 Programming ....................................................................................................... 105
C.1 Set Symbologies (KDC100/200/250/350) ............................................................. 106
C.2 Barcode Options (KDC100/200/250/350) ............................................................. 109
C.3 Delete Last Scanned Barcode (KDC100/200/250/350) ........................................ 112
C.4 Scan Options (KDC100/200/250/350) ................................................................... 113
C.5 Scan Timeout (KDC100/200/250/350) .................................................................. 114
C.6 Minimum Barcode Length (KDC100/200/250/350) ............................................... 115
C.7 Security Level (KDC100/200/250/350) ................................................................. 117
C.8 Data Process - Wedge/Store (KDC100/200/250/350) ........................................... 118
C.9 Data Process – Data Edit (KDC100/200/250/350) ................................................ 119
C.10 Data Process - Data Format – Handshake (KDC100/200/250/350) .................... 120
C.11 Data Process - Termination Character & Duplicate Check (KDC100/200/250/350)
................................................................................................................................... 121
C.12 Bluetooth (KDC200/250/350) ............................................................................. 122
C.13 Bluetooth Auto Power On Time (KDC200/250/350) ........................................... 125
C.14 Bluetooth PWR Off Time (KDC200/250/350) ...................................................... 126
C.15 Auto lock Time (KDC200/250/350) ..................................................................... 129
C.16 HID Keyboard layout (KDC100/200/250/350) ..................................................... 130
C.17 HID Initial Delay (KDC200/250/350) ................................................................... 131
C.18 HID Character Delay (KDC200/250/350) ............................................................ 132
C.19 HID Control Character (KDC200/250/350) ......................................................... 133
C.20 System (KDC100/200/250/350) .......................................................................... 134
C.21 Sleep Timeout (KDC100/200/250/350) ............................................................... 138
APPENDIX B – FAQ ..................................................................................................... 103
APPENDIX C - SPECIAL BARCODES ........................................................................... 106
KDC350 User Manual
6
C.22 ETC (KDC100/200/250/350) ................................................................................ 140
C.23 Function (KDC100/200/250/350) ........................................................................ 141
C.24 Number (KDC100/200/250/350) .......................................................................... 142
C.25 Lower Case Alphabet (KDC100/200/250/350) .................................................... 143
C.26 Upper Case Alphabet (KDC100/200/250/350) .................................................... 146
C.27 Control Character (KDC100/200/250/350) ......................................................... 149
C.28 Symbol Character (KDC100/200/250/350) ......................................................... 150
C.29 GPS (KDC250/350) ............................................................................................. 154
C.30 Auto Power Off Timeout (KDC250/350) ............................................................. 155
INDEX ......................................................................................................................... 156
KDC350 User Manual
7
LISTINGOFFIGURES
Figure 1 – KDC Package
___________________________________________________________ 13
Figure 2 - Characteristics of KDC100
_______________________________________________ 14
Figure 3 - Characteristics of KDC200 / KDC250 / KDC300
____________________________ 15

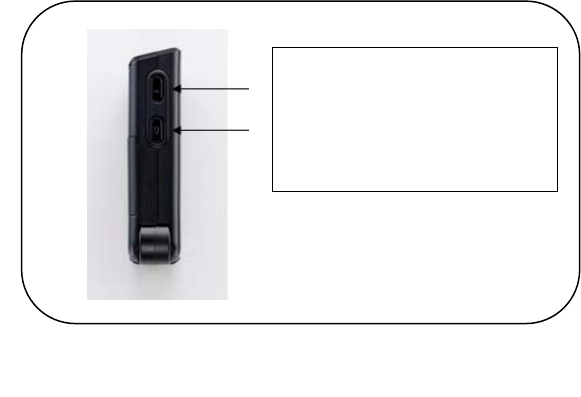

Figure 4 - Location of Scroll Buttons
_______________________________________________ 30

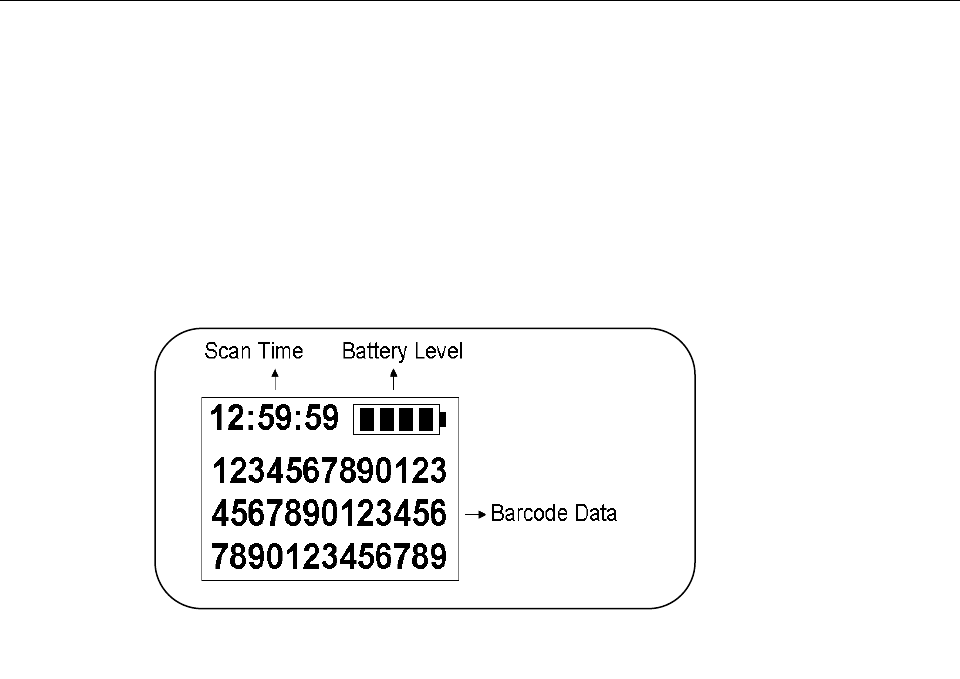

Figure 5 - KDC Display
_____________________________________________________________ 31
Figure 6 - KTSync
®
Synchronizer Menu
_____________________________________________ 56

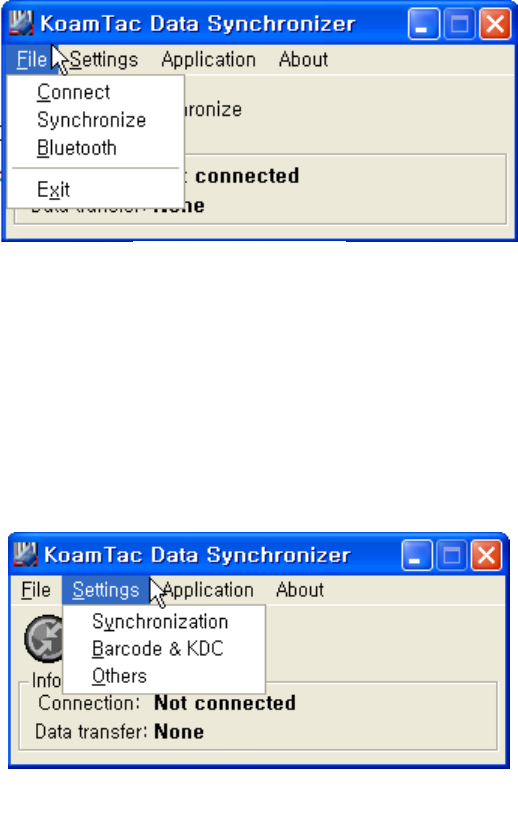

Figure 7 – File Menu
_______________________________________________________________ 57
Figure 8 – Setting Menu
____________________________________________________________ 57

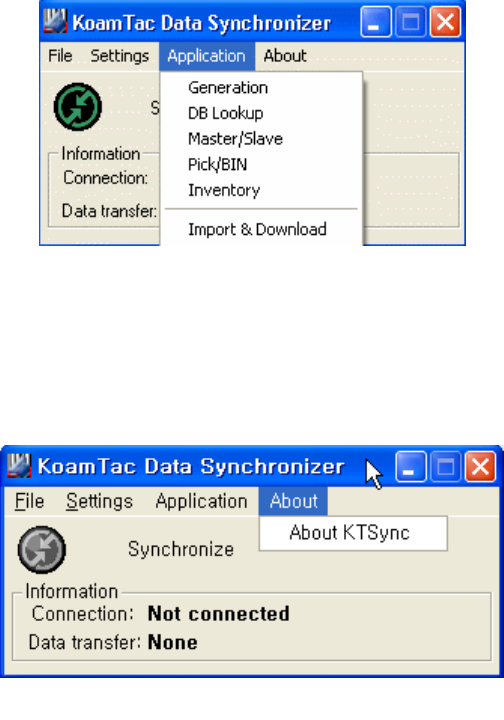

Figure 9 – Application Menu
________________________________________________________ 58
Figure 10 – About Menu
____________________________________________________________ 58

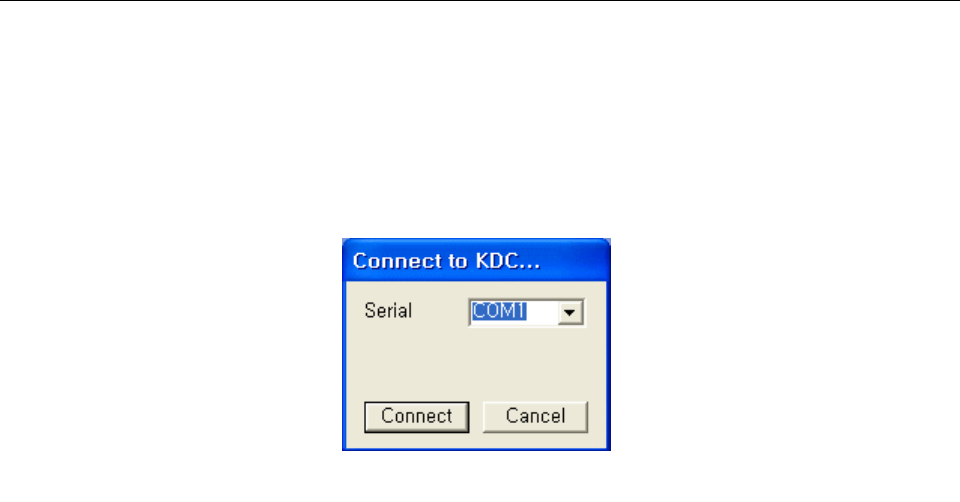

Figure 11 - COM Port Selection for KDC
____________________________________________ 59

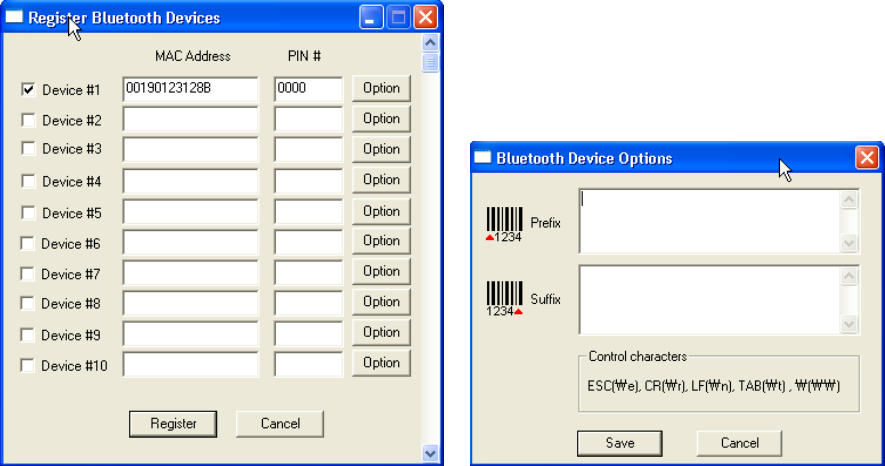

Figure 12 - Bluetooth Device Registry
______________________________________________ 60

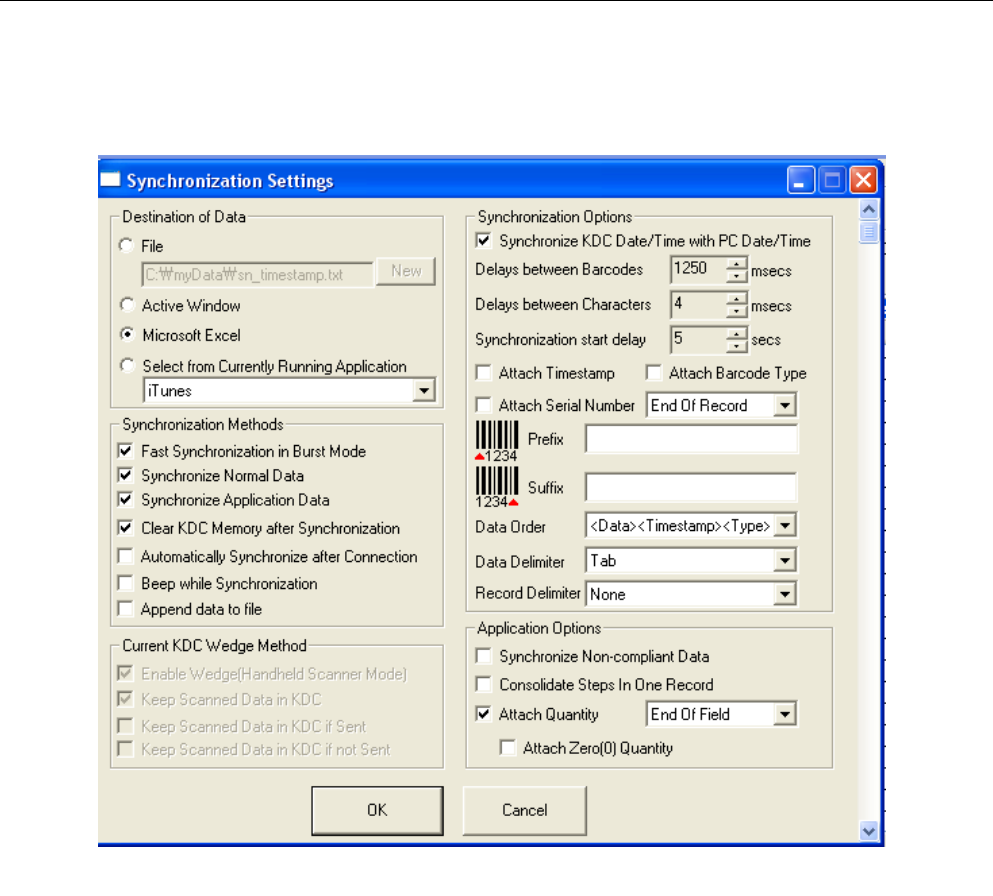

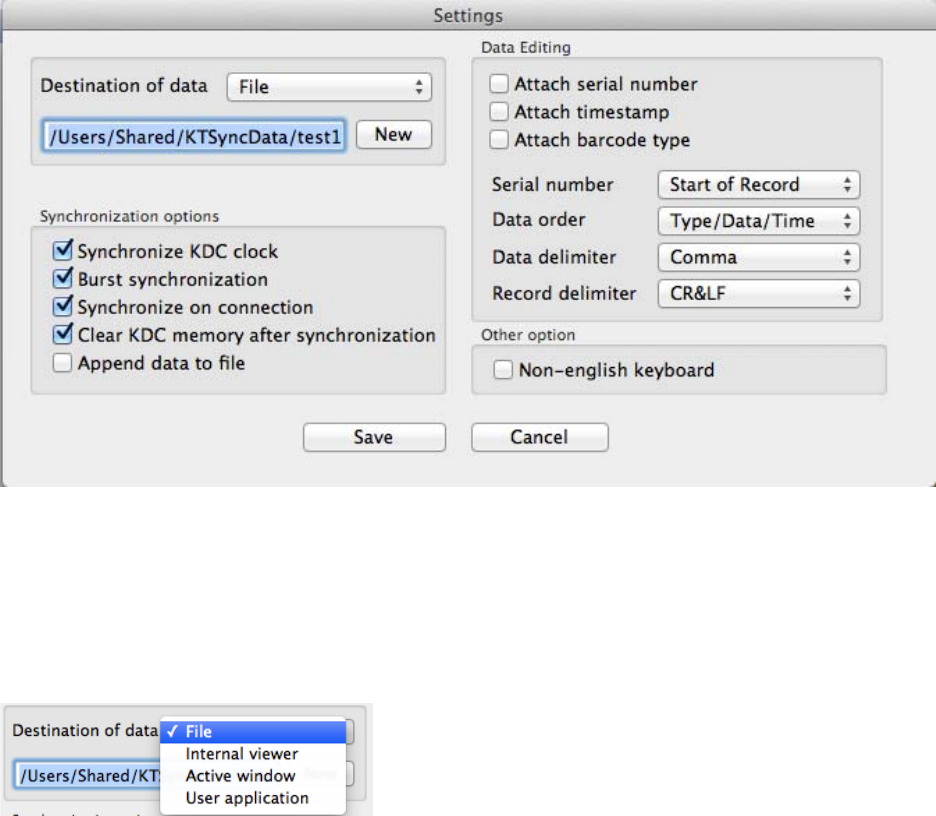

Figure 13 - KTSync
®
Synchronization Settings
______________________________________ 61

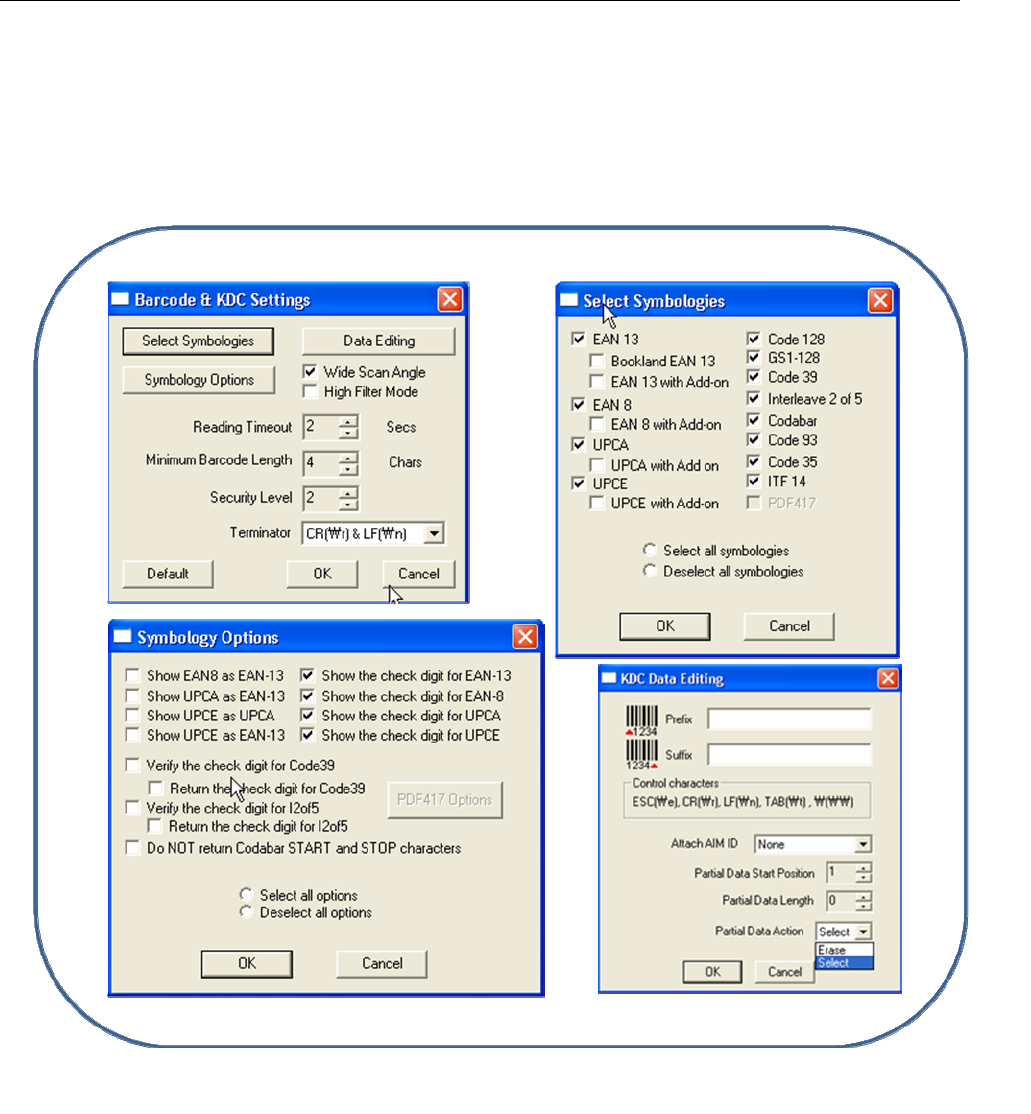

Figure 14 - Barcode & KDC Settings, Symbologies, Data Editing and Scan Options
___ 65

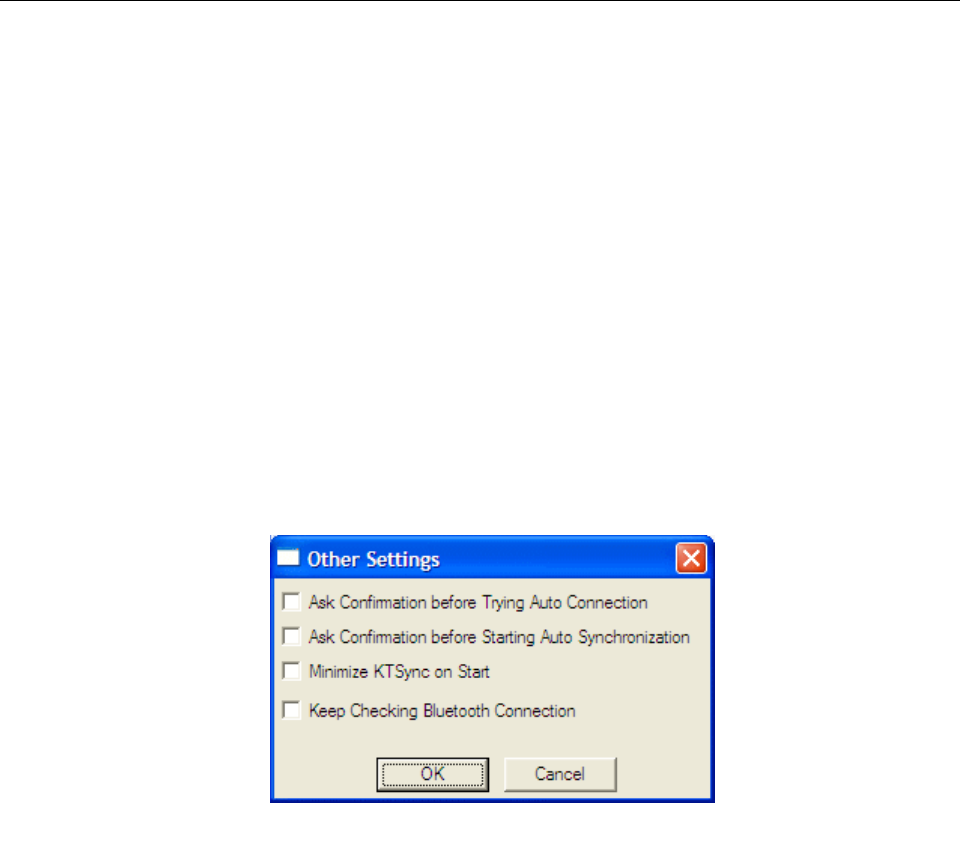

Figure 15 - KTSync
®
Confirmation Settings
_________________________________________ 67

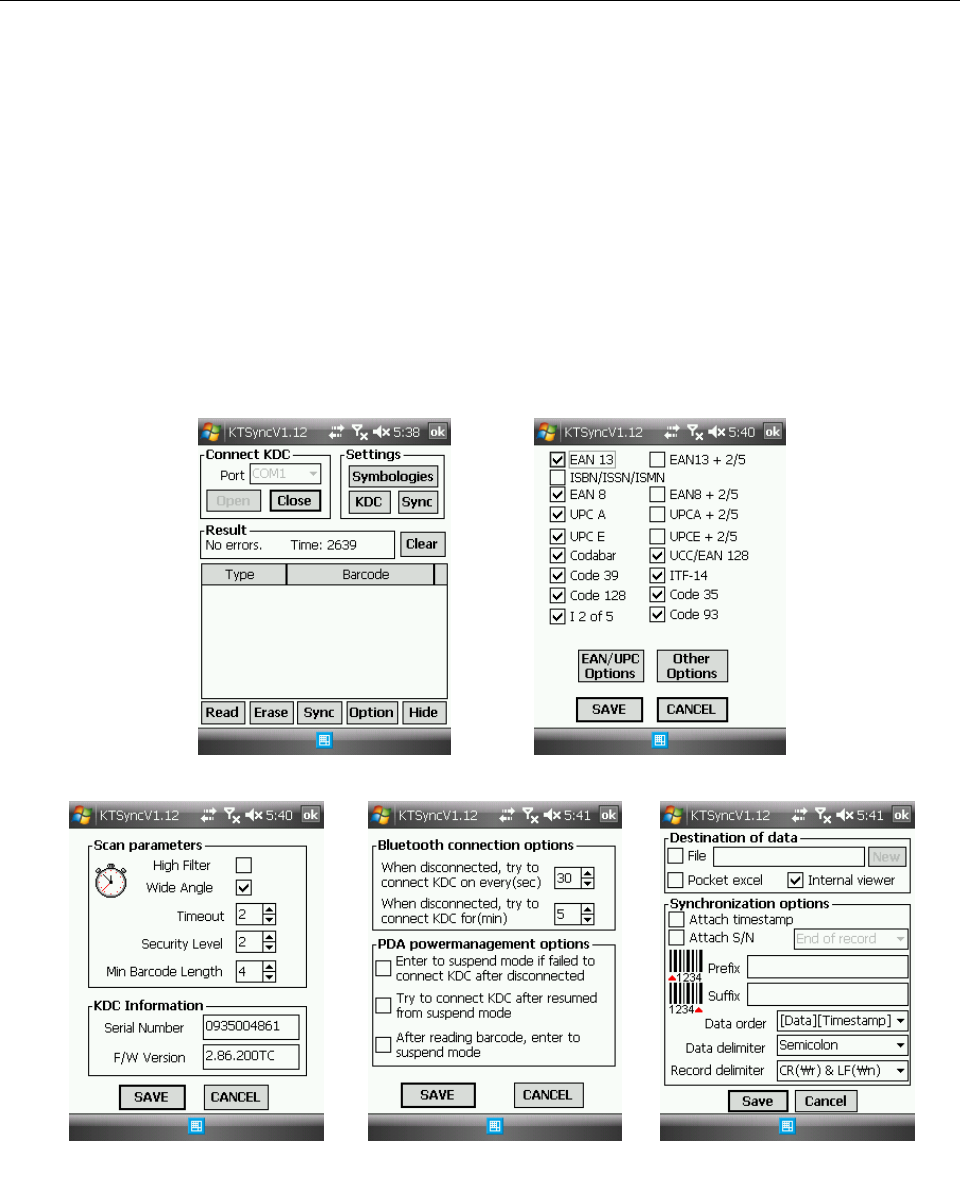

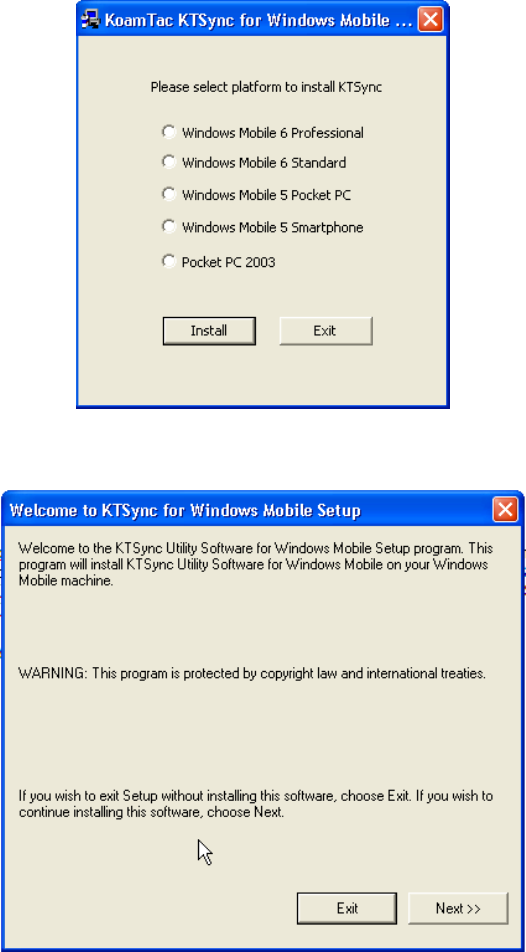

Figure 16 – Mobile pKTSync
________________________________________________________ 69

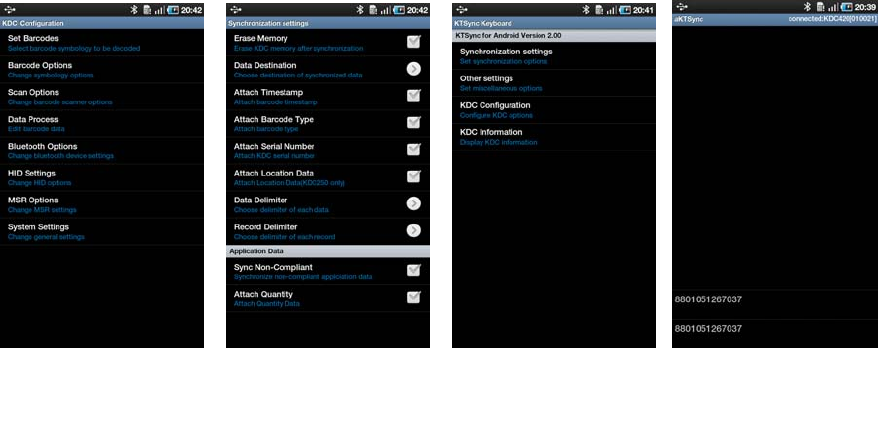

Figure 17 – Android aKTSync
______________________________________________________ 71

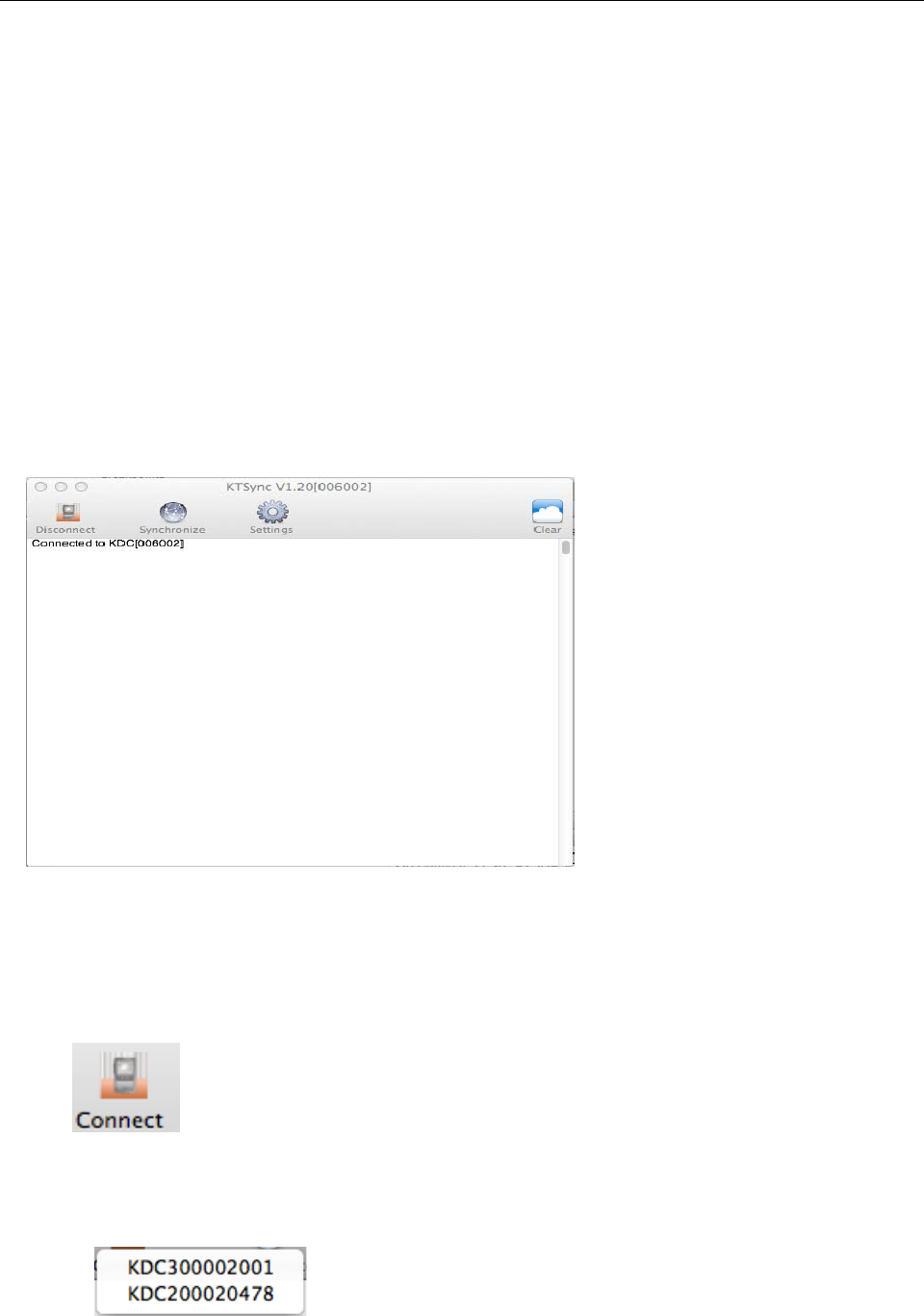

Figure 18 – iPad/iPhone/iPod touch KTSync
_________________________________________ 73

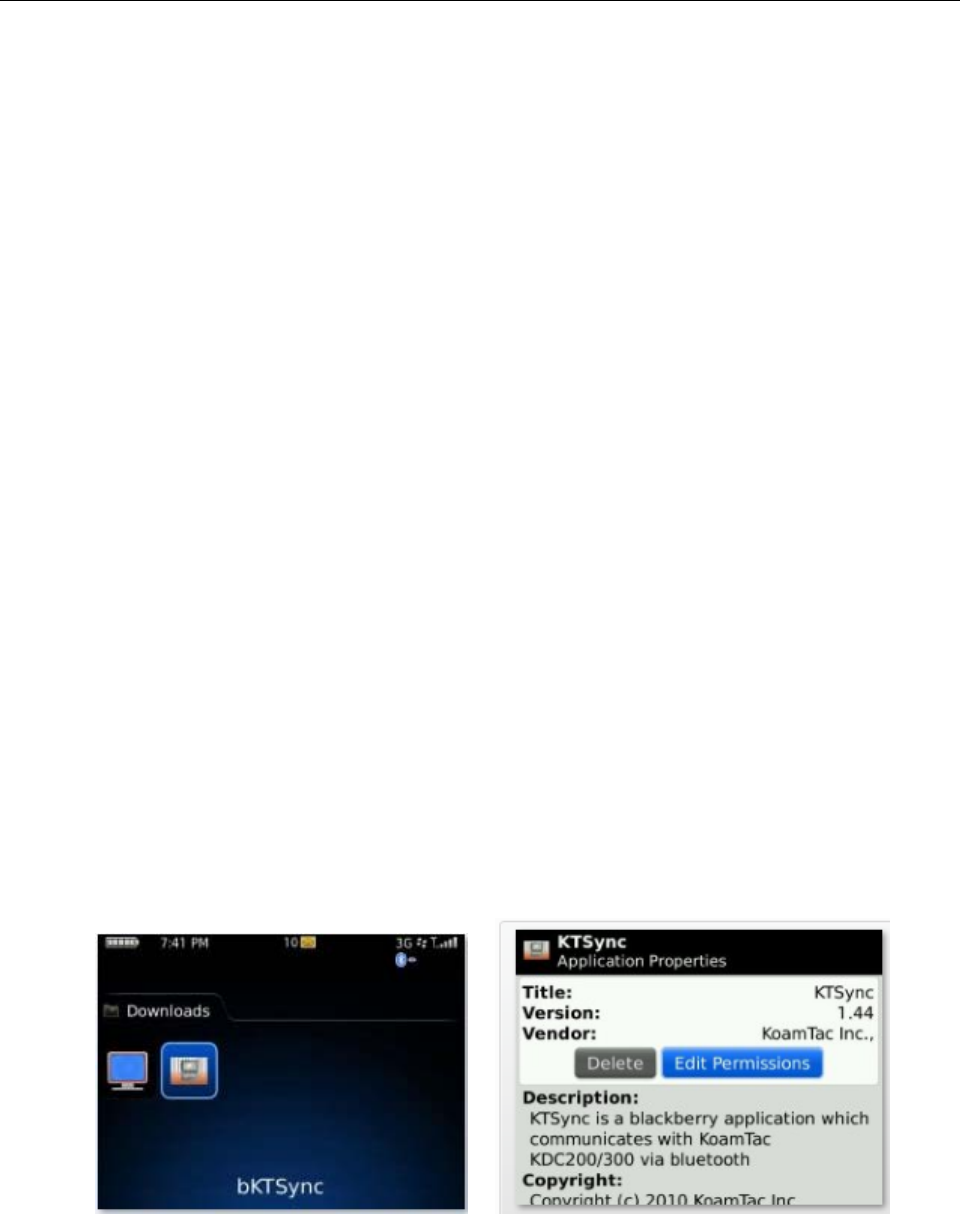

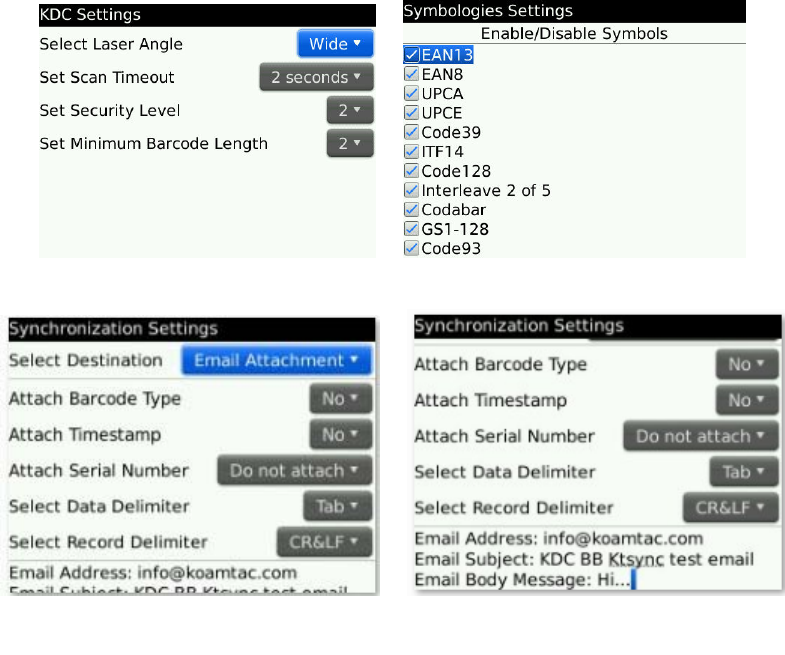

Figure 19 – Blackberry bKTSync
___________________________________________________ 75

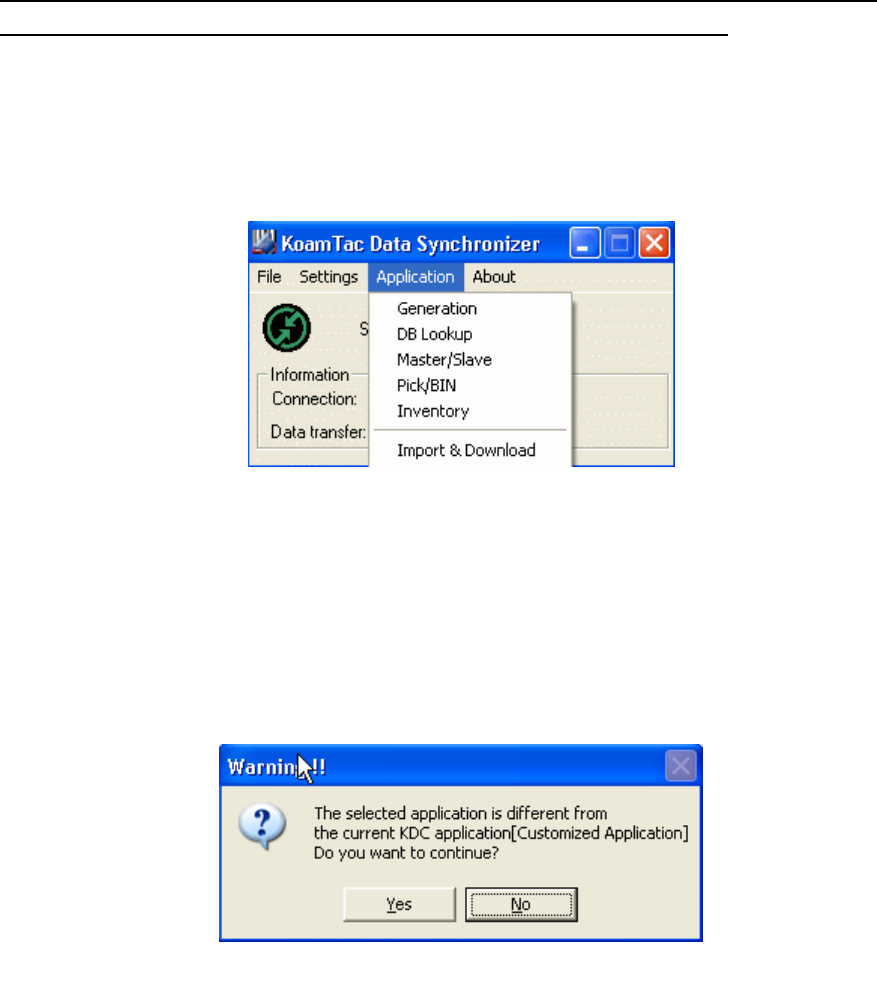

Figure 20 – Application Menu
______________________________________________________ 81
Figure 21 – Application Warning Window
___________________________________________ 81

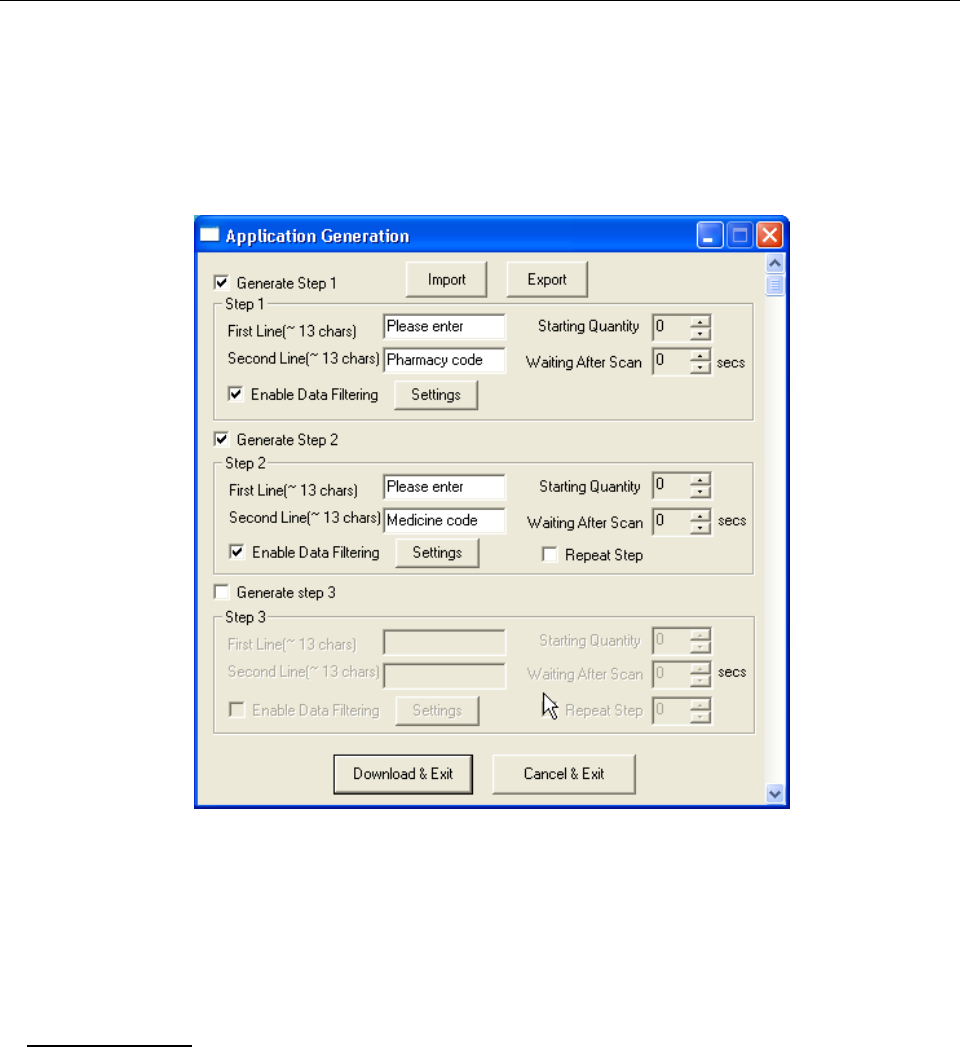

Figure 22 – Application Generation Menu
___________________________________________ 82
Figure 23 – Data Filter Settings
____________________________________________________ 83

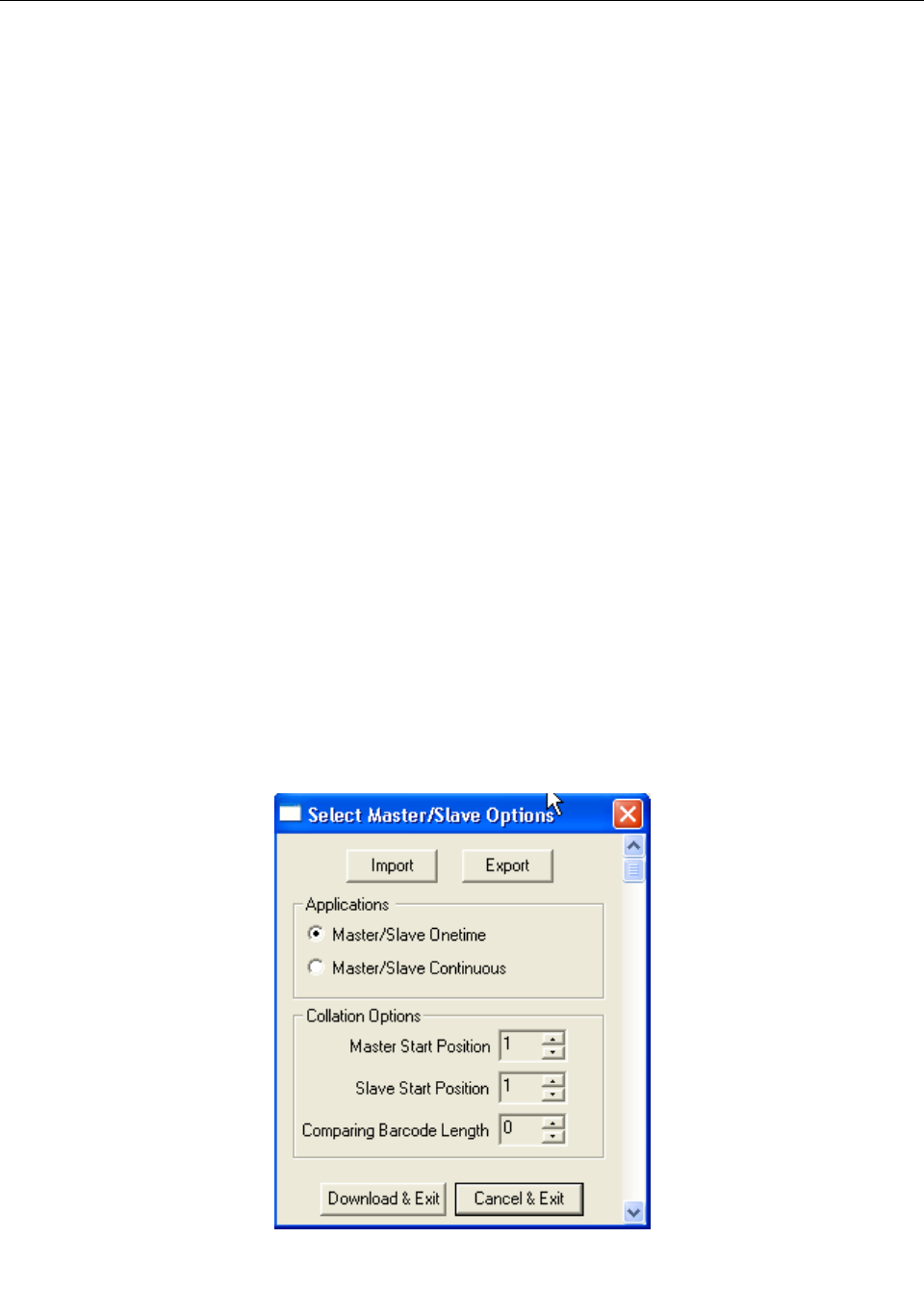

Figure 24 – Master/Slave Application Settings
______________________________________ 86

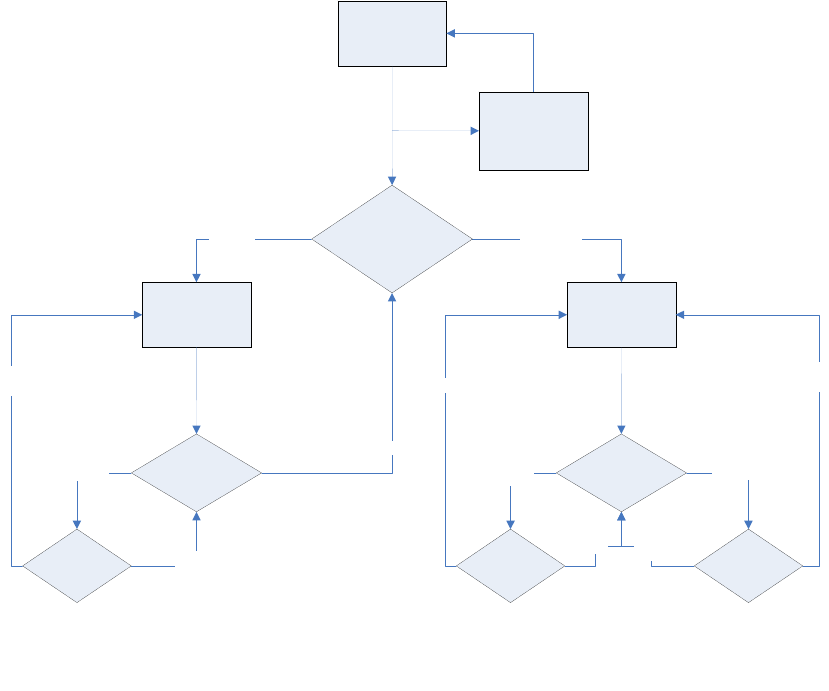

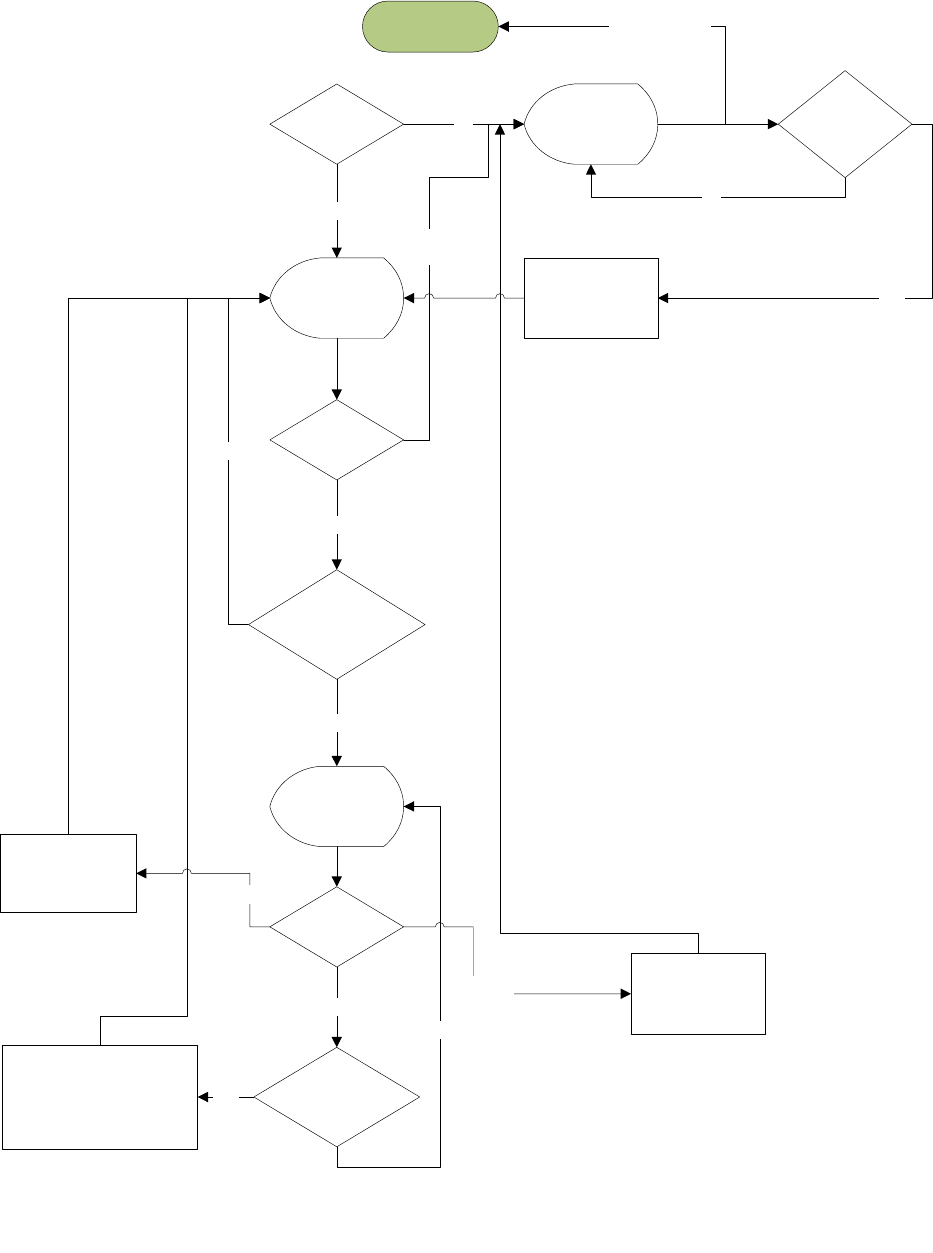

Figure 25 – Master/Slave Application Flow Chart
____________________________________ 87

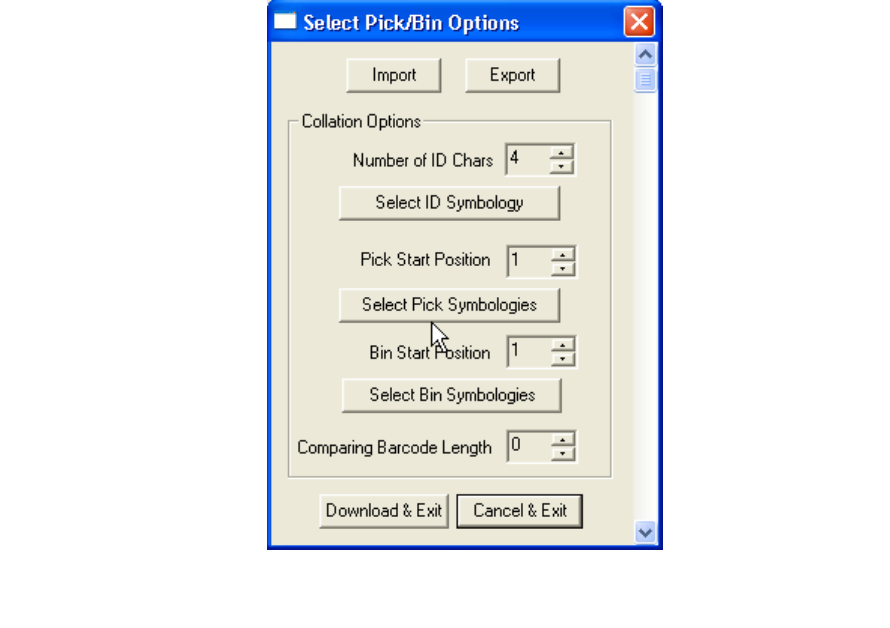

Figure 26 – Pick/BIN Application Menu
_____________________________________________ 88
Figure 27 – Pick/BIN Application Flow Chart
_______________________________________ 89

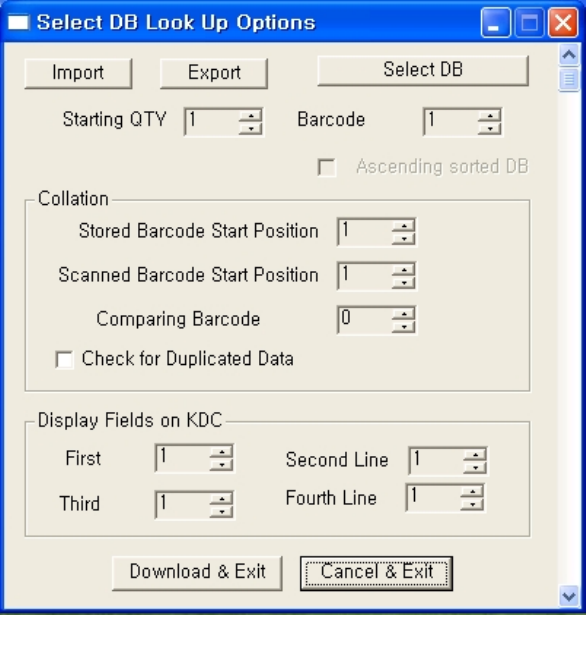

Figure 28 – DB Lookup Application Menu
___________________________________________ 91

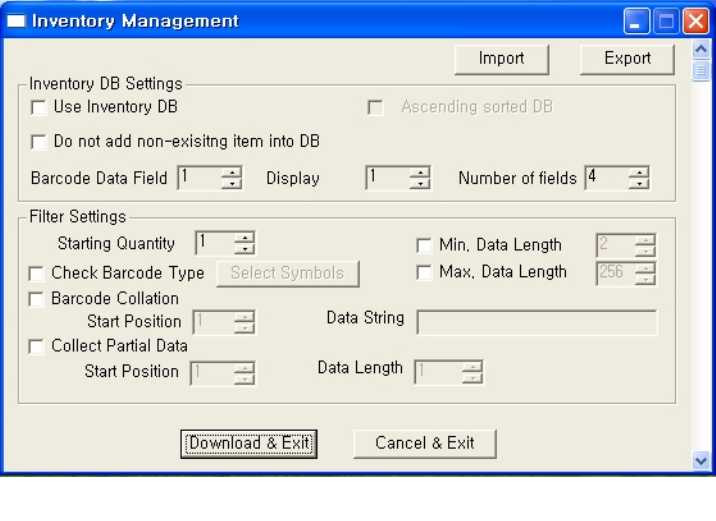

Figure 29 – Inventory Application Menu
____________________________________________ 92
KDC350 User Manual
8
LISTINGOFTABLES
Table 1 - Features of KDC
__________________________________________________________ 12
Table 2 – Approximate Time to Charge KDC Battery
________________________________ 29
Table 3 - KDC Menu Options
_______________________________________________________ 32
Table 4 - Explanation of LEDs
______________________________________________________ 47
Table 5 - Troubleshooting Techniques
______________________________________________ 93
Table 6 - Symbologies Supported by KDC
___________________________________________ 96
Table 7 - Add-on for EAN-13 Symbology
____________________________________________ 97
Table 8 - Add-on for EAN-8 Symbology
______________________________________________ 97
Table 9 - Symbology Conversion
___________________________________________________ 98
Table 10 - Verification of Optional "Check Digit"
____________________________________ 99
Table 11 - Transmission of "Check Digit"
___________________________________________ 99
Table 12 - Resolution of Inconsistencies
__________________________________________ 100
Table 13 - Symbologies Supported by KDC
________________________________________ 103
KDC350 User Manual
9
COPYRIGHT, LICENSE, and WARNING PAGE
Copyright 2012 by KoamTac, Inc. All rights reserved.
No part of this publication may be reproduced or used in any form, or by any electrical or mechanical
means, without permission in writing from KoamTac, Inc. The material in this manual is subject to change
without notices. KoamTac reserves the right to make changes to any product to improve reliability,
function, or design. KoamTac doesn’t assume any product liability arising out of, or in connection with,
the application or use of any product, circuit, or application described herein. Follow all warnings and
instructions marked on manual and units. Use only the power source specified in this manual or marked
on the units.
May be covered under one or more pending and/or US Patents, US Pat. Nos. 7,769,917; 7,954,710;
8,126,399; UK Pending Patent App. No. 1203882.4.
KDC® is a registered trademark and property of KoamTac, Inc.
KoamTac® is a registered trademark and property of KoamTac, Inc.
KTSync® is a registered trademark and property of KoamTac, Inc.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO ANY TYPE OF MOISTURE. DO
NOT LOOK DIRECTLY INTO LASER OR POINT THE LASER INTO ANOTHER PERSON’S EYES. EXPOSURE
TO THE BEAM MAY CAUSE EYE DAMAGE.
CAUTION:
Changes or modifications not expressly approved by the manufacturer responsible for compliance could
void the user’s authority to operate the equipment.
KDC350 User Manual
10
Regulatory Compliance
FCC ID:VH9KDC350
This equipment has been tested and found to comply with the limit of a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation; if this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user, is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient / Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit difference from
that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
WARNING:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Products intended for sale within the European Union are marked with a CE Mark which indicates
compliance to applicable Directives and European Normes (EN), as follows. Amendments to these
Directives or ENs are included: Normes (EN), as follows:
Applicable Directives:
• Radio and Telecommunications Terminal Equipment Directive 1999/5/EC
KDC350 User Manual
11
Article 2-1-19, 2.4GHz Wide Band low power data communication system
LARN8-IO2A2402/2480TR0.003F1DG1D79
Laser Compliance.
Complies with US 21 CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice no.
50,dated June 24, 2007 and IEC 60825-1 (Ed. 2.0)
Complies with IEC60825-1:1993 + A1:1997 + A2:2001
Battery Warning:
- Your device contains a rechargeable NiMH battery. Never throw the battery into a
fire, as that could cause the battery to explode.
- Never short-circuit the battery by bringing the terminals in contact with another
metal object. This could cause personal injury or a fire, and could also damage the
battery.
- Never dispose of used battery with other ordinary solid wastes. Batteries contain
toxic substances.
- Dispose of used battery in accordance with the prevailing community regulations
that apply to the disposal of batteries. Cover the metal terminals with insulating
tape. (This is to prevent accidental short-circuiting).
- Never expose the battery to any liquid.
- Always keep the battery out of reach of infants or small children.
- Never shock the battery by dropping it or throwing it.
- Dispose of a spent or damaged battery promptly.
WARNING: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE
USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Product Disposal
Your device should not be placed in municipal waste. Please check local regulations
for disposal of electronic products.
Bluetooth
Core Specification: 2.1+EDR
Apple
Made for iPhone, Made for iPod, Made for iPad
Samsung
Compatible with Galaxy Series
KDC350 User Manual
12
1. INTRODUCTION
Congratulations on purchasing KoamTac’s revolutionary barcode scanner and data collector.
Lightweight and compact, with a user-friendly design and superior functionality, KoamTac’s KDC works
in a variety of portable applications. Use it independently or as an accessory to your PC, PDA, or
smartphone. To find out more about KoamTac, Inc. and our family of products, visit us at
www.koamtac.com.
Table 1 - Features of KDC
FEATURES KDC100 KDC200 KDC250 KDC300 KDC350 KDC400
USB CONNECTIONS 2 1 1 1 1 1
RECHARGEABLE
BATTERY YES YES YES YES YES YES
SCAN ENGINE Laser Laser Laser Imager
Laser/
Imager
Laser/
Imager
AUTOMATIC
DATA UPLOAD YES YES YES YES YES YES
STORES10,000+
BARCODES YES YES YES YES YES No
KTSYNC® SOFTWARE YES YES YES YES YES YES
SDK FOR DEVELOPERS YES YES YES YES YES YES
SUPPORTS MICROSOFT©
WINDOWS XP, VISTA, 7 &
MOBILE 5.0+
YES YES YES YES YES YES
ANDROID, BLACKBERRY,
IOS NO YES YES YES YES YES
BLUETOOTH NO YES YES YES YES YES
GPS NO NO YES NO YES NO
KDC350 User Manual
13
1.1 KDC Package
The standard KDC package contains:
1. One KDC Barcode Data Collector
2. One USB Cable
3. One Lanyard (KDC100/200/250/300/350) or One Hand Strap (KDC400)
4. KoamTac Installation CD with
KTSync © for Microsoft Windows XP, Vista, 7 and Mobile 5.0+
KDC Device Driver
User Manual
5. One Protective KDC Rubber Case (KDC100/200/250/300/350) or One Smartphone Protective
Rubber Case (KDC400)
NOTE: Depending on your region or distributor, package contents may vary.
KDC100/200/250/300/350 KDC400

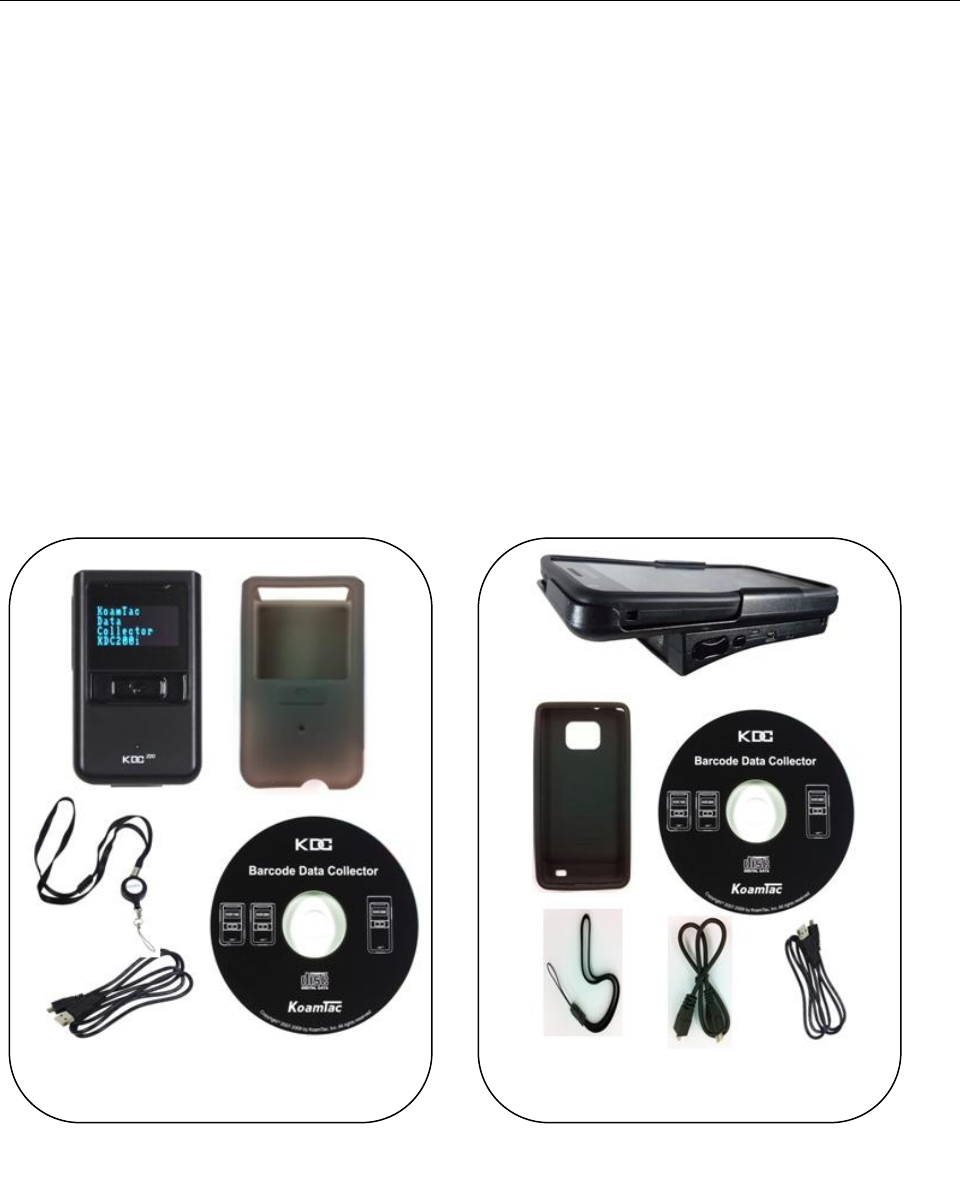

Figure 1 – KDC Package
KDC350 User Manual
14

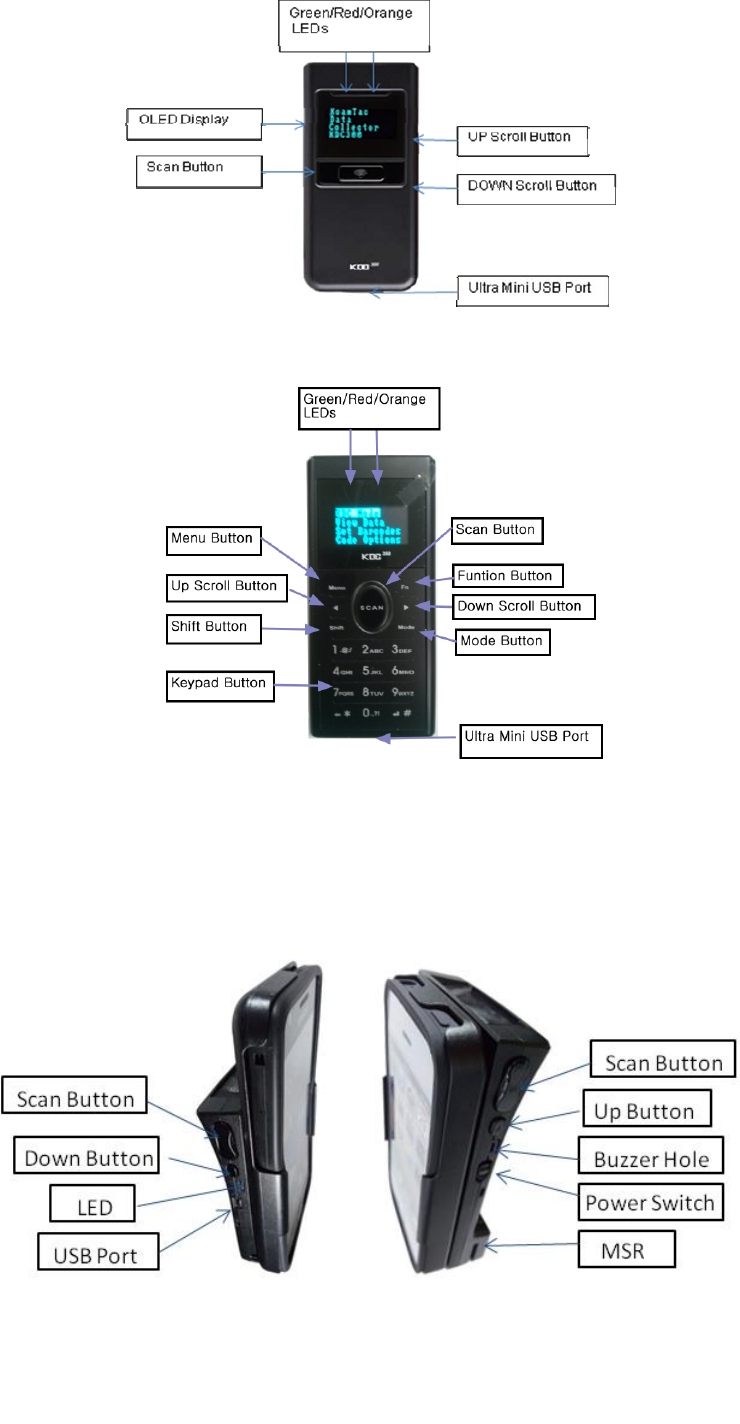

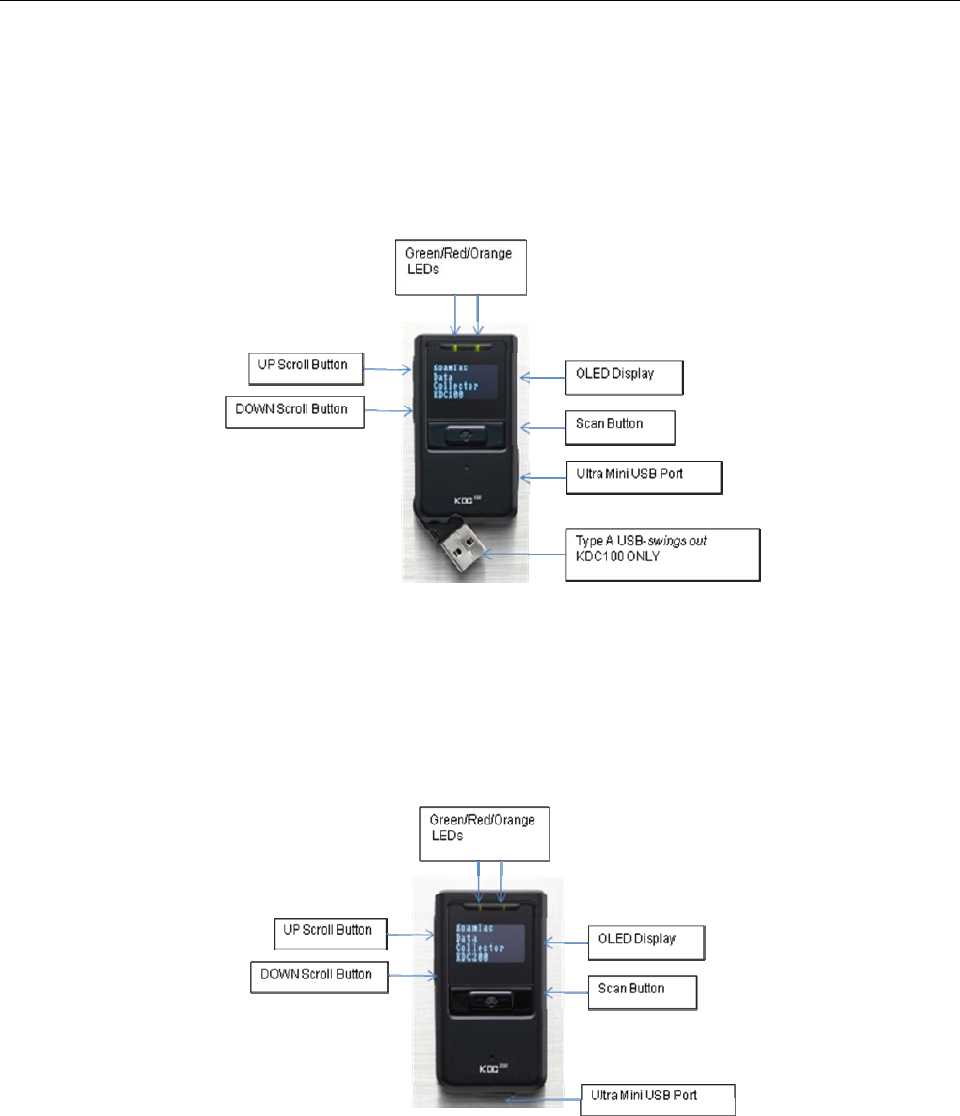

1.2 KDC Characteristics
Before you use your KDC, please become familiar with its physical characteristics. Refer to Figure 2 and
Figure 3 below which indicate placement of scan and scroll buttons, OLED display, LEDs, and ports on
your KDC. All KDC models are similar except for the KDC100 which includes an additional USB
connector.
KDC100 Barcode Reader and Data Collector
KDC200 / KDC250 / KDC300/KDC350
Barcode Reader and Data Collector
KDC200
Figure 2 - Characteristics of KDC100
KDC350 User Manual
15
KDC250/300
KDC350
Figure 3- Characteristics of KDC200 / KDC250 / KDC300 / KDCC350
KDC400
Figure 4 - Characteristics of KDC400
KDC350 User Manual
16
1.3 KDC350 Specifications
Specification Item Descriptions
Physical
Characteristics
Size 93.6(L) x 43(W) x 23.9(H) mm
Weight 84.65g
Electrical
Characteristics
Battery Lithium-Ion( 3.7V DC, 1200mAh)
Charging USB connector
Typical
Operating
Current
170mAh@3.3V
User
Environment
Drop 1.5m
Temperature
Operating: 0C - 45C
Storage: -20C - 45C
Humidity 5% - 80%(Noncondensing)
Performance
Scanning 100 scnas/sec
Bluetooth
Bluetooth V2.1+EDR, Class2
HID/SPP/MFi(Optional 2 ports)
Memory
Flash ROM: 256K + 4MB
RAM: 64KB
KDC350 User Manual
17
2. Installation
2.1 KoamTac Installation Wizard
Windows XP
WARNING: DO NOT CONNECT KDC TO USB PORT PRIOR TO INSTALLATION
1. Insert KoamTac Installation CD into your computer’s CD drive.
2. Click Start icon then My Computer icon. A listing of devices on your computer will be displayed
including the disk drive containing the KoamTac Installation CD.
3. Click on the KoamTac Installation CD icon then click on the Setup directory. Click on the
PC_Setup.exe file which executes the KTSync Setup Wizard.
NOTES
If KTSync Setup Wizard locates an older version of KTSync on your computer, you will be
prompted to remove the older program before installing the new version. Select Remove
KTSync then click Finish. When removal is complete, click Close. Go to Step 2 to run KTSync
Setup Wizard.
If you have any problems, please refer to the Manual Installation section.

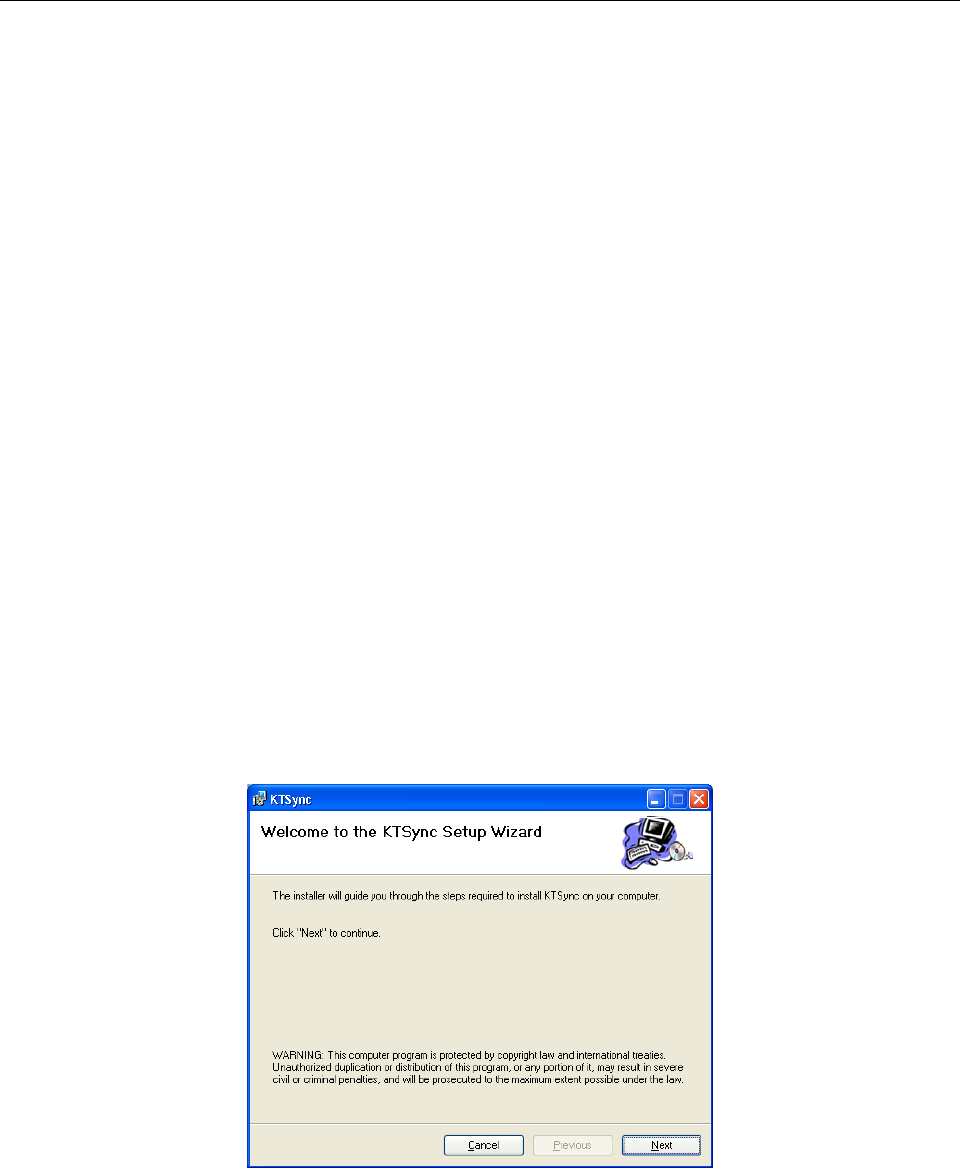

KTSync Setup Wizard
Below are the screen images you will see during the installation of KTSync.
Click Next icon in KTSync Setup Wizard window
KDC350 User Manual
18

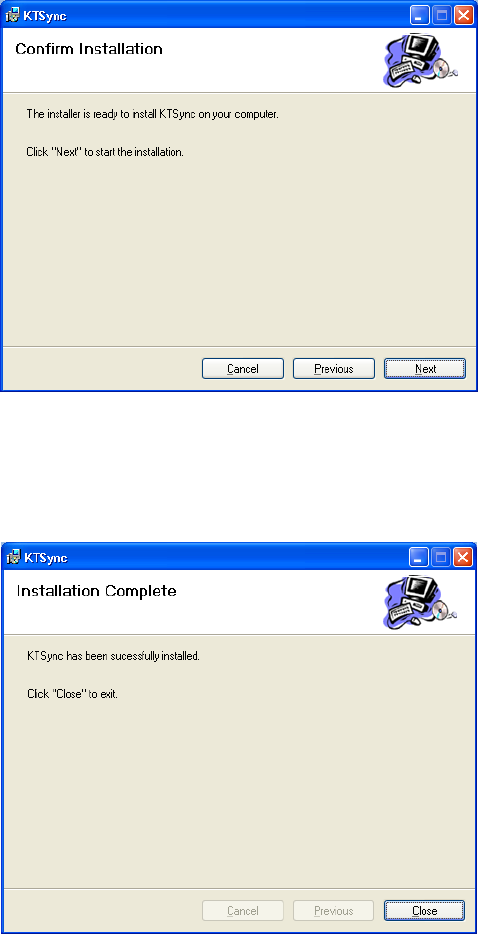

Click Next icon in KTSync Confirm Installation window
Within a few minutes, installation of KTSync will be complete. Click Close icon and wait for the
Device Driver Installation Wizard to load.
KDC350 User Manual
19

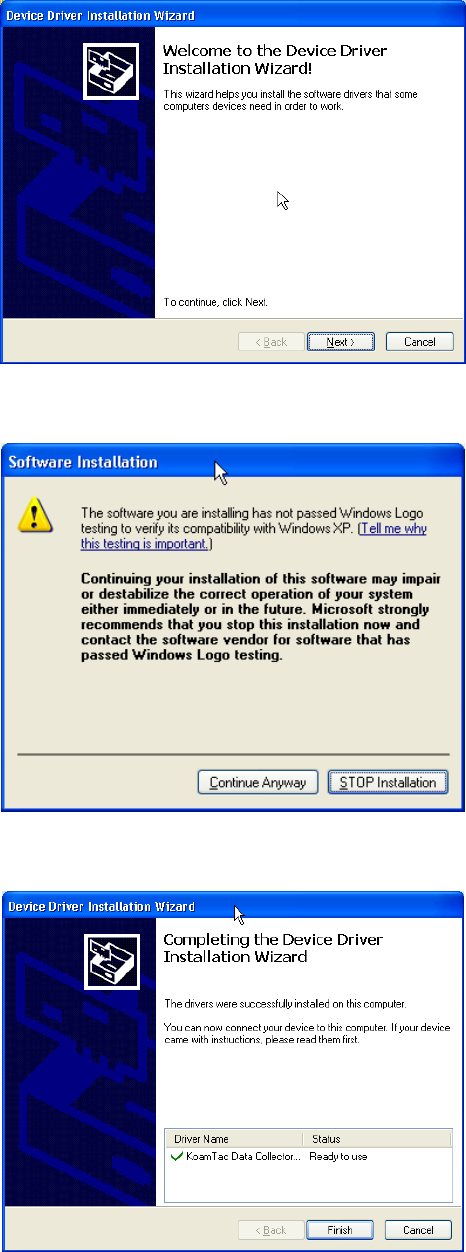

Device Driver Installation Wizard
Below are the screen images you will see during the installation of the KDC Device Driver.
Click Next icon in Device Driver Installation Wizard window
Click Continue Anyway icon in Software Installation Logo testing window
Click Finish icon in Device Driver Installation Wizard window
KDC350 User Manual
20
Connect KDC to Computer
Using the USB cable included with the KDC, follow the directions below.
Connect the cable’s ultra mini USB connector to the KDC.
Connect the cable’s Type A USB connector to your PC.
Wait until your computer beeps and/or displays the message Found New Hardware.

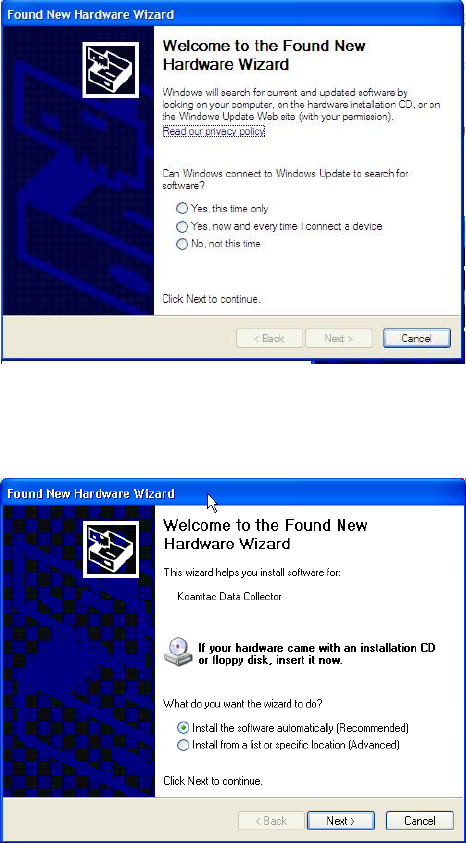

Found New Hardware Wizard
Select “No, not this time” option in Found New Hardware Wizard and click Next if your PC pops
up the following Found New Hardware Wizard.
Select “Install the software automatically (Recommended)” option in Found New Hardware
Wizard and click Next if your PC pops up the following Found New Hardware Wizard.
KDC350 User Manual
21

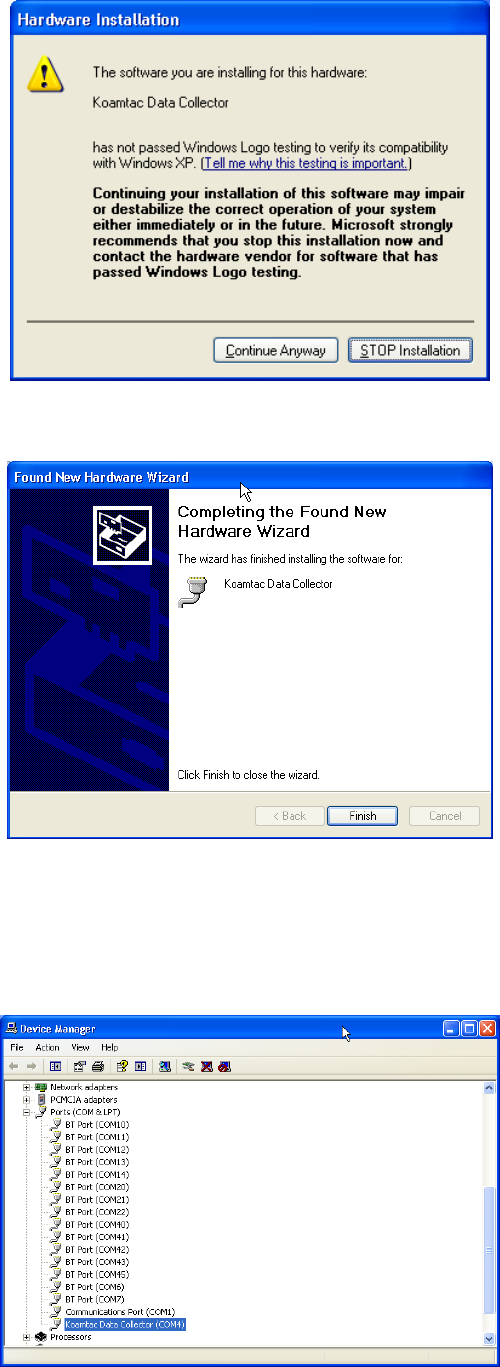

Click Continue Anyway icon in Software Installation Logo testing window
Click Finish icon in Found New Hardware Wizard window
Verify COM Port Address
User can verify installed COM Port in Device Manager
KDC350 User Manual
22
Vista and Windows 7
WARNING: DO NOT CONNECT KDC TO USB PORT PRIOR TO INSTALLATION
1. Insert KoamTac Installation CD into your computer’s CD drive.
2. Click Start icon then My Computer icon. A listing of devices on your computer will be displayed
including the disk drive containing the KoamTac Installation CD.
3. Click on the KoamTac Installation CD icon then click on the Setup directory. Click on the
PC_Setup.exe file which executes the KTSync Setup Wizard.
NOTES
If KTSync Setup Wizard locates an older version of KTSync on your computer, you will be
prompted to remove the older program before installing the new version. Select Remove
KTSync then click Finish. When removal is complete, click Close. Go to Step 2 to run KTSync
Setup Wizard.
If you have any problems, please refer to the Manual Installation section.

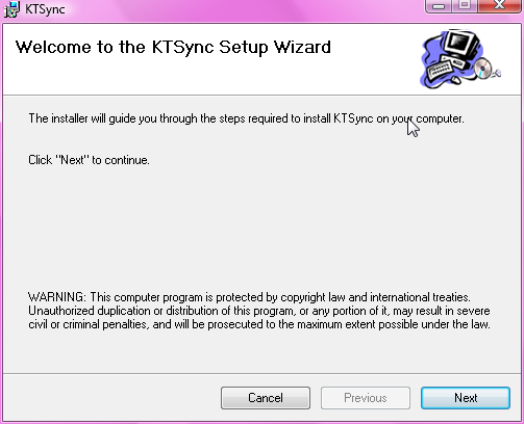

KTSync Setup Wizard
Below are the screen images you will see during the installation of KTSync.
Click Next icon in KTSync Setup Wizard window
KDC350 User Manual
23

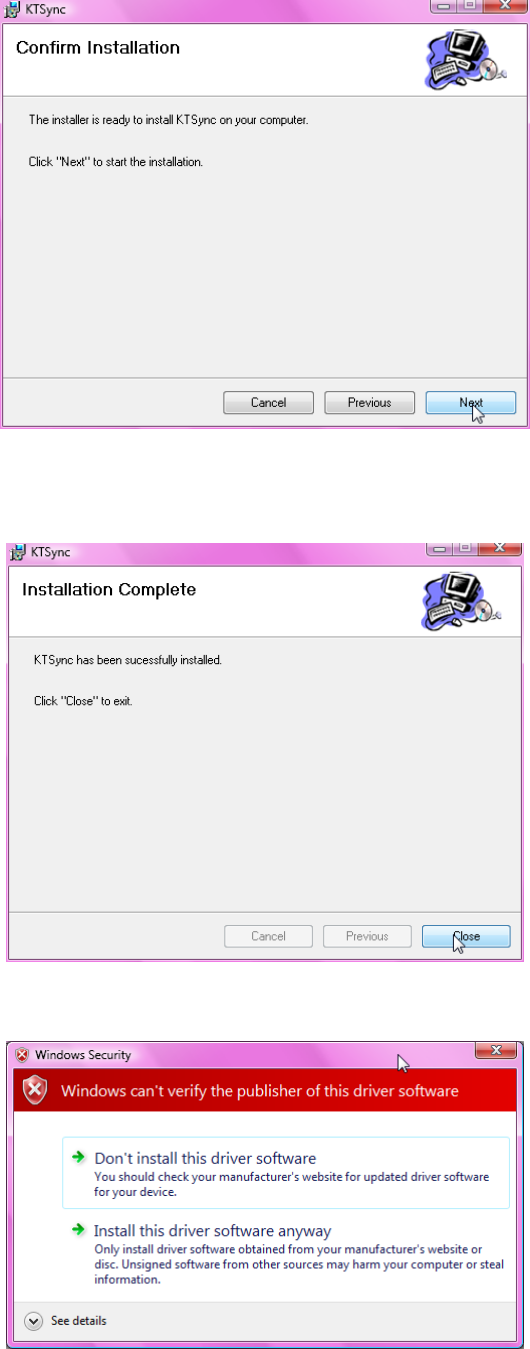

Click Next icon in KTSync Confirm Installation window
Click Close icon in KTSync Installation Complete window and wait for Device Driver Installation
Wizard
Click Install this driver software anyway in Windows Security window
KDC350 User Manual
24

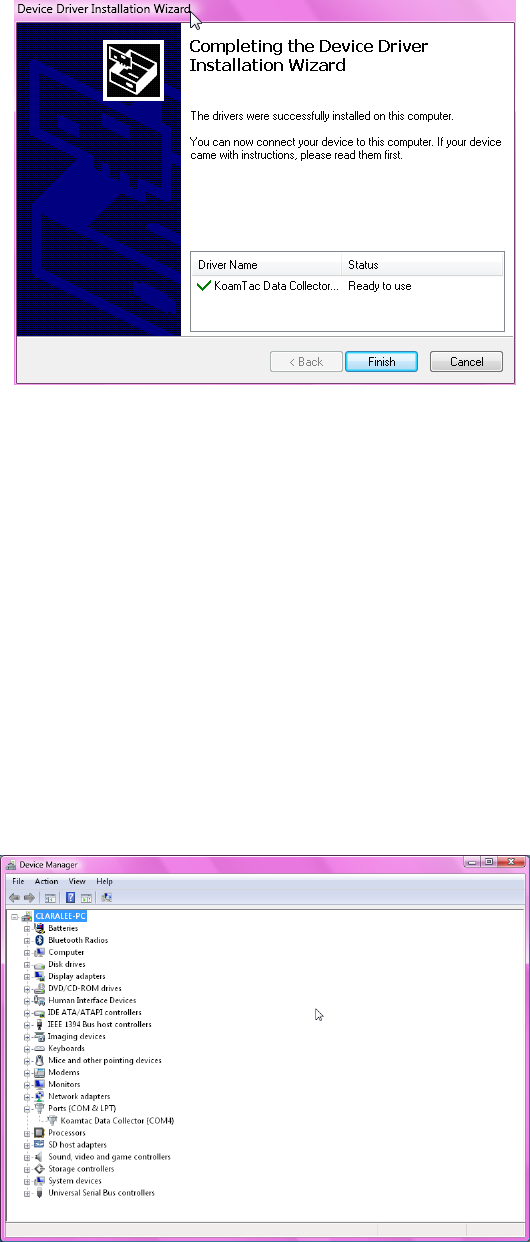

Click Finish icon in Device Driver Installation Wizard window
Connect KDC to Computer
Using the USB cable included with the KDC, follow the directions below.
Connect ultra mini USB connector to the KDC.
Connect Type A USB connector to your PC.
Wait until your computer beeps and/or displays the message Found New Hardware.
Verify COM Port Address
User can verify installed COM Port in Device Manager
KDC350 User Manual
25
Windows Mobile 5.0+
WARNING: PLEASE CONNECT PDA TO PC PRIOR TO INSTALLATION
1. PC_Setup.exe creates Mobile_Setup.exe file under C:\Program Files\KoamTac\KTSync\Windows.Mobile
directory
2. Execute Mobile_Setup.exe
Select Windows Mobile version to install.
Click Next icon.
KDC350 User Manual
26

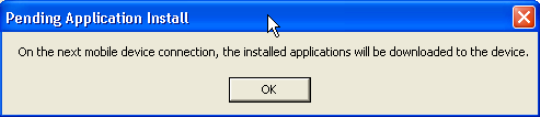

Click OK icon in Pending Application Install window
Follow the instructions on PDA screen
COM port Assignment
User should assign a COM port for KDC before using pKTSync.
User should pair KDC with PDA using PDA Bluetooth manager and assign a COM port for
Bluetooth communication
Please refer to the PDA manual for the details of COM port assignment method
KDC350 User Manual
27
Android
Download and install aKTSync from the Android Market.
http://www.androidzoom.com/android_applications/productivity/ktsync_luxv.html
Blackberry
Download and install bKTSync from the Blackberry App World.
http://appworld.blackberry.com/webstore/content/16861?lang=en
iPad/iPhone/iPod touch
Download and install iKTSync from the Apple App Store.
http://itunes.apple.com/us/app/ktsync/id372916602?mt=8
KDC350 User Manual
28
2.2 Manual Installation
NOTE: If you have the KDC100, it has two ports, Ultra Mini and standard Type A which swings
out. See Figure 2 for more details.
Windows XP, Vista, and 7
1. Insert the KoamTac Installation CD into your computer’s disk drive.
2. Create a directory called KoamTac on your computer.
3. Copy XP.Vista.7 directory from KoamTac CD to KoamTac directory. The XP.Vista.7 directory
contains KTSync® programs for Microsoft® Windows XP, Vista, Windows 7 and user
manuals.
4. Connect KDC cable to ultra mini USB connector on the KDC.
5. Connect KDC cable to Type A USB connector on your computer. Wait until your computer
beeps and/or displays the message New Hardware Found. You will be prompted to search
for a device driver for KDC.
6. Browse then select KTReader.inf file from the KoamTac directory created in Step 2. Follow
screen prompts to continue with the device driver installation.
NOTE: KTReader.inf is the device driver for 32bit Microsoft® Windows XP, Vista, and
Windows 7. If you have a 64bit computer, use KTReader.inf file from XP.Vista.64bit folder
in the KoamTac directory.
Windows Mobile 5.0+
Please connect your Windows Mobile PDA to your computer before software installation.
Create a directory and name it KoamTac on the PDA.
Copy Mobile5.0_6.0 directory from KoamTac CD to PDA KoamTac directory.
Mobile5.0_6.0 contains KTSync® programs for Microsoft® Windows Pocket PC 2003, Mobile
5.0, Mobile 6.0 Standard, and Mobile6.0 Professional. It also includes KDC User Manual.
KDC350 User Manual
29
3. OPERATING THE KDC
3.1 Getting Started
Attach Lanyard to KDC
To prevent possible damage to the KDC, we strongly recommend wearing it around your neck by the
included Lanyard. Also, please don’t swing KDC by the Lanyard because contact with another object
may cause it to malfunction or become damaged.
To attach the Lanyard:
1. Fit the thin end of Lanyard through the pillar of the KDC.
2. Loop the thick end of strap through the thin loop
3. Pull the strap tight to secure
Charge KDC Battery
Prior to using the KDC, you must charge its battery. To charge the battery, follow these directions.
1. Connect the KDC cable to the ultra mini USB connector on the KDC.
2. Connect the KDC cable to Type A USB connector on your computer.
3. Your KDC battery will begin charging. Within a few minutes, two small LEDs on the front panel will
illuminate orange. When the battery is fully charged, the LEDs will illuminate green.
KDC100 KDC200 KDC250/300 KDC350 KDC400
2 Hours 2 Hours 4 Hours 5 Hours 5 Hours
Table 2 – Approximate Time to Charge KDC Battery
KDC350 User Manual
30
Press UP and DOWN Scroll Buttons
simultaneously to access the KDC
menu.
Configure KDC
The KDC is designed to meet the data collection requirements of many different industries in a variety of
dynamic situations. To perform well in these diverse environments, the KDC is designed to be
configured easily and quickly. But, to perform at its maximum level, the KDC must be configured
properly. Until you are familiar with configuring the KDC, it is recommended that you DO NOT modify the
KDC settings. The KDC can be configured in three different methods which are explained in Section 3.3
– KDC Menus(KDC100/200/250/300/350 only), Chapter 4 –Synchronization, and Appendix C – Special
Barcodes.
CONFIGURATION METHODS FOR THE KDC100/200/250/300/350
KDC Menu
KTSync® Software
Special Barcodes
CONFIGURATION METHODS FOR THE KDC400
KTSync® Software
Special Barcodes
Figure 3 - Location of Scroll Buttons
KDC350 User Manual
31
3.2 Basics
Reading Barcodes
Reading a barcode is simple. Point the KDC at a barcode and press the scan button. Be sure to point
the scan engine at the barcode, not at your face, and make sure to position the light beam on the
barcode. If the barcode is scanned successfully, you will hear one beep and the LEDs will illuminate in
green. The scanned barcode data will be displayed along with the scan time and battery level.
Depending on the configuration of your KDC, other information may also be displayed.
If the scan was unsuccessful, you will hear two beeps, the LEDs will illuminate in red, and the message
Failed reading… will display. If you have problems scanning a barcode, try the following suggestions
while pointing the KDC at the barcode and depressing the scan button.
Modify the angle of the KDC in relation to the barcode, making the angle bigger or smaller as needed.
Modify the distance between the barcode and the KDC, moving closer or further away as needed.
Check option settings defined in the KDC menu section and change options as needed.
Check that the barcode’s width does not exceed the light beam’s width and vice versa.
Synchronizing Barcode Data to PC
Use the KTSync ® program to synchroni ze ba rcode data from the KDC to your PC. Please refer to
Chapter 4 for details.
Figure 4 - KDC Display
KDC350 User Manual
32
3.3 KDC Menus
Top Menu Sub Menu Options KDC350
KDC Mode
Normal Default
Application Custom Application
View Data View/Delete View/Delete Data
Set Barcodes
(100/200/25/350)
EAN13 Enabled/Disabled Enable
EAN8 Enabled/Disabled Enable
UPCA Enabled/Disabled Enable
UPCE Enabled/Disabled Enable
CODE39 Enabled/Disabled Enable
ITF14 Enabled/Disabled Enable
CODE128 Enabled/Disabled Enable
I2of5 Enabled/Disabled Enable
CODABAR Enabled/Disabled Enable
GS1-128 Enabled/Disabled Enable
CODE93 Enabled/Disabled Enable
CODE35 Enabled/Disabled Enable
BooklandEAN Enabled/ Disabled Disable
EAN13withAddon Enabled/Disabled Disable
EAN8withAddon Enabled/Disabled Disable
UPCAwithAddon Enabl ed/Disabled Disable
UPCEwithAddon Enabl ed/Disabled Disable
Set Barcodes
(300)
1D Symbology Codabar N/A
Code 11 N/A
Code 32 N/A
Code 39 N/A
Code 93 N/A
Code 128 N/A
EAN-8 N/A
EAN-13 N/A
GS1 Composite N/A
I2of5 N/A
Matrix 2of5 N/A
MSI N/A
Plessey N/A
PosiCode N/A
GS1 Omni N/A
GS1 Limited N/A
GS1 Expanded N/A
S2of5 Ind N/A
S2of5 IATA N/A
TCL39 N/A
Telepen N/A
Trioptic N/A
UPCA N/A
UPCE0 N/A
UPCE1 N/A
2D Symbology AztecCode N/A
AztecRunes N/A
CodablockF N/A
Code16K N/A
Code49 N/A
KDC350 User Manual
33
DataMatrix N/A
MaxiCode N/A
MicroPDF N/A
PDF417 N/A
QRCode N/A
HanXin Code N/A
Postal Codes Postnet N/A
PlanetCode N/A
UK Post N/A
Canada Post N/A
Kix Post N/A
Australia Post N/A
Japan Post N/A
China Post N/A
Korea Post N/A
OCR OCR Off N/A
OCR A N/A
OCR B N/A
OCR USC N/A
OCR MICR N/A
OCR SEMI N/A
Barcode Options
(100/200/250/350)
CodaBar_NoStartStopCha
rs Enabled/Disabled Disable
UPCE_as_UPCA Enabled/ Disabled Disable
EAN8_as_EAN13 Enabled/Disabled Disable
UPCE_as_EAN13 Enabl ed/Disabled Disable
ReturnCheckDigit Enabled/Disabled Disable
VerifyCheckDigit Enabled/Disabled Disable
UPCA_as_EAN13 Enabl ed/Disabled Disable
I2of5_VerifyCheckDigit Enabled/Disabled Disable
Code39_VerifyCheckDigit Enabled/Disabled Disable
I2of5_ReturnCheckDigit Enabled/Disabled Disable
Code39_ReturnCheckDigit Enabled/Disabled Disable
UPCE_ReturnCheckDigit Enabled/Disabled Enabled
UPCA_ReturnCheckDigit Enabled/Disabled Enabled
EAN8_ReturnCheckDigit Enabled/Disabled Enabled
EAN13_ReturnCheckDigit Enabled/Disabled Enabled
Barcode Options
(300)
Codabar Tx StartStop(Enable/disable) N/A
Check
Digit(DoNotVerify/VerfyDONotTX/VerifyD
oTx)
N/A
Concatenate(Disable/Enable/Required) N/A
Code39 Tx StartStop(Enable/disable) N/A
KDC350 User Manual
34
Check
Digit(DoNotVerify/VerfyDONotTX/VerifyD
oTx)
N/A
Append(Enable/Disable) N/A
Full ASCII(Enable/Disable) N/A
I2of5
Check
Digit(DoNotVerify/VerfyDONotTX/VerifyD
oTx)
N/A
Code11 Check Digit(2 digits/1 digit) N/A
Code128 Concatenate( Disable/Enable) N/A
Telepen Output (Original/AIM) N/A
UPCA Verif yChkDgt(Enabled/Disabled) N/A
NumberSys(Enabled/Disabled) N/A
2DgtAddenda(Enabled/Disabled) N/A
5DgtAddenda(Enabled/Disabled) N/A
Req. Addenda(Enabled/Disabled) N/A
Sep. Addenda(Enabled/Disabled) N/A
Coupon Code(Enabled/Disabled) N/A
UPCE Expand (Enabled/Disabled) N/A
Req. Addenda(Enabled/Disabled) N/A
Sep. Addenda(Enabled/Disabled) N/A
Check Digit(Enabled/Disabled) N/A
NumberSys(Enabled/Disabled) N/A
2DgtAddenda(Enabled/Disabled) N/A
5DgtAddenda(Enabled/Disabled) N/A
EAN-13 Verif yChkDgt(Enabled/Disabled) N/A
2DgtAddenda(Enabled/Disabled) N/A
5DgtAddenda(Enabled/Disabled) N/A
Req. Addenda(Enabled/Disabled) N/A
Sep. Addenda(Enabled/Disabled) N/A
KDC350 User Manual
35
ISBN Trans.(Enabled/Disabled) N/A
EAN-8 Verif yChkDgt(Enabled/Disabled) N/A
2DgtAddenda(Enabled/Disabled) N/A
5DgtAddenda(Enabled/Disabled) N/A
Req. Addenda(Enabled/Disabled) N/A
Sep. Addenda(Enabled/Disabled) N/A
MSI Tx CheckChar(Enabled/Disabled) N/A
PosiCode A and B/A&B LimitedA/A&B LimitedB N/A
GS1 UPCEAN Ver.(Enabled/Disabled) N/A
GS1 Emulation(No Emulate/GS1 128
Emul/GS1 Emulate) N/A
PostNet Tx CheckChar(Enabled/Disabled) N/A
PlanetCode Tx CheckChar(Enabled/Disabled) N/A
Scan Options
Scan Angle Narrow/Wide Wide
Filter Normal/High Normal
Time Out .5 seconds to 10 seconds 2 second(s)
Min. Barcode Length 2 to 36 characters 4 chars
Min. Barcode Length 2 to 48 characters N/A
Security Level 1 to 4 level 2 level
Image Capture Enabled/Disabled N/A
Auto Trigger Enabled/Disabled Disable
Reread Delay Continuous, Short, Medium, Long, Extra
Long Medium
Finger Trigger Enabled/Disabled Enabled
Partial Display
Start Position 1
No. of Char(s) 0 chars
Action Select
Data Process
Wedge / Store
Wedge Only
Wedge & Store Always Default
Store Only
Save if Sent
Save if Not Sent
Data Format Barcode only Default
Packet Data
Data Editor/Prefix Delete Delete
Data Editor/Suffix Delete Delete
KDC350 User Manual
36
Data Editor/AIM ID None/In Prefix/In Suffix None
Data Editor/Partial Data Start Position 1
No. of Char(s) 0 chars
Action Select
Handshake Enable/Di sable Disable
Terminator None, CR, LF, CR+LF, Tab CR+LF
Chk Duplicate Enabled/Disabled Disable
BT Config
ConnectDevice
( 200/250/300/350/400 )
SPP Default
HID iOS
SPP2.0
HID normal
ConnectDevice
( 200i/250i/300i/350i/400i)
SPP
iPhone Default
Auto Connect Enabled/Disabled Disabled
Auto Power On Enabled/Disabled Disabled
Auto Power On/Power On
Time Disable, 1sec to 10second(s) Disabled
Auto Power Off Enabled/Disabled N/A
Auto Power Off/Beep
Warning Enabled/Disabled Enabled
Auto Power Off/Power Off
Time 1 to 30 minutes 5 minutes
PowerOff Msg Enabled/Disabled Disabled
MAC Address 12 Characters Bluetooth MAC Address
BT FW Version Bluetooth Firmware Version
Wakeup Nulls Enabled/Disabled Disabled
BT Toggle Enabled
HID AutoLock Disabled,1,2,3,4,5,10,15 minutes 1 minutes
HID Keyboard English,German,French,Italian,
Spanish US
HID Delay/Initial Disabled, 1,2,3,5,10 secs Disabled
HID Delay/Inter char Disabled,10, 20, 30, 50, 100msec Disabled
HID Ctrl Char Disabled, Alt+Numpad, ^+Character Disabled
BT Service
Power Enabled/Disabled Enabled
Pairing Pairing neighboring Bluetooth devices
Discovering Discovering neighboring Bluetooth
devices
Connecting to View Connect to Bluetooth device
HID Sync
GPS Config
GPS Power Enabled/Disabled Disabled
Power Mode Normal/Power Save Normal
Bypass Data Enabled/Disabled Disabled
Acquire Test
KDC350 User Manual
37
Reset GPS
System
Config
Memory Size 0.5/3.5, 1/3, 2/2, 3/1, 4/0 0.5/3.5
Memory Status
No. of Stored Barcodes
Free Memory Available
Reset Memory
Memory(Empties Data)
Application Memory
BT Registry(KDC100 Not use)
Auto Erase Enabled/Disabled Disable
Sleep Timeout Disable, 1sec to 10minute(s) 5 second(s)
Auto PowerOff Bluetooth, GPS, Pwr Off Time
Disabled/
Disabled/
1 hour
Date / Time YYYY:MM:DD &
HH:MM:SS
Battery % of Battery Charge Available
Version Firmware Version & Serial No.
Button Lock Enabled/Disabled Disable
Beep Sound Enabled/Disabled Enable
Beep Volume Low/High High
MFi Mode Enabled/Disabled Enable
Auto Exit Enabled/Disabled Enable
Port Status Enabled/Disabled Enable
Display Format
Time & Battery / Type & Time / Type &
Battery / Memory Status / GPS
Data(KDC250 only)/Barcode Only
Time & Battery
Menu Barcode Enable/Disable N/A
Scrolling Enabled/Disabled Enable
Brightness 1 to 15 level(8 level) 8 level
Factory Default Restores Default Settings
Table 3 - KDC Menu Options
KDC350 User Manual
38
KDC Mode Menu
The KDC Mode Menu has two options – Normal and Application modes.
Normal: This is the default mode which provides basic barcode scanning. In Normal mode
barcode data can be manipulated directly through the KDC or using KTSync® during the
synchronization process.
Application: This mode allows you to run the user application created by Application Generation
Tool described in Chapter 6.
View Data Menu
This menu option allows you to view and/or delete barcodes stored in the KDC.
Set Barcodes Menu
This menu lists all the barcode symbologies supported by your KDC and allows you to select the barcode
symbologies you will be scanning. For maximum scan performance, you should select only the
symbologies you are scanning. Please refer to Appendix A.1 – Symbologies for a detailed listing of
symbologies supported by your KDC.
Code Options Menu
Your KDC supports various Code Options including Transmission of Start and Stop Characters,
Symbology Conversion, Verification of Optional Check Character, and Transmission of Check Digit.
Please refer to Appendix A.2 Options for a detailed explanation of each option.
Scan Options Menu
Scan Angle: Allows you to configure the laser beam angle to the barcode. Wide is 54o and Narrow
is 27o. The default is Wide.
Filter: Allows you to change the Filter mode from Normal to High for poor quality barcodes.
The default is Normal.
Timeout: Allows you to set the length of time before the KDC will stop scanning a barcode from .5
second up to 10 seconds. The default is 2 seconds.
Minimum Barcode Length: Allows you to set a barcode length from 2 characters to 36 characters. It
is strongly recommended that you maximize the minimum barcode length setting to prevent
possible errors. The default is 4 characters.
Security Level: Allows you to ensure an accurate barcode reading by setting the number of times
KDC350 User Manual
39
the KDC will read a barcode. Security Level is set from 1 up to 4. The higher security level means
more reliable readings though some performance degradation is likely. For poor quality barcodes,
we recommend increasing the security level. The default is 2.
Auto Trigger: Allows users to scan a barcode automatically once Auto Trigger is enabled. User can
adjust Reread delay from Continuous to Extra Long. Auto Trigger mode always enables duplicate
check option.
[Note1] USB cable insertion requirement is removed from FW2.85/86.O and FW 3.02.
[Note2] Users can exit the auto trigger mode by pressing the scan button for 3 seconds.
Reread Delay: Users can adjust Reread delay from Continuous to Extra Long. Auto Trigger mode
always enables duplicate check option.
Partial Display: Allows you to display partial data. User defines the start position and number of
characters to be displayed.
Data Process Menu
Wedge/Store - The KDC provides five modes of data transmission in keyboard wedging mode.
Wedge Only: Barcode data is NOT stored in memory but transmitted to the host.
Wedge & Store Only: Barcode data is stored in memory and transmitted to the host.
Store Only: Barcode data is stored in memory but NOT transmitted to the host.
Save if Sent: If data transmission is successful, barcode data is stored in memory.
Save if Not Sent: If data transmission is NOT successful, barcode data is stored in memory.
Data Format - The KDC provides two data formats, Barcode Only and Packet Data.
Barcode Only: KDC transmits scanned barcodes only. User may incorporate proper data
transmission error detection and correction mechanism in this mode.
KDC supports various termination
characters for barcode only format.
User can select <NONE>, <CR>, <LF>,
<CR+LF> or <TAB> as the termination character.
Packet Data: KDC transmits packet data with checksum to minimize transmission errors.
KTSync ® sets Data Format to Packet Data format upon execution.
User may change Data Format to Barcode only if user prefers to use Barcode only
mode but either KTSync program terminates abnormally or user disconnects KDC
without exiting KTSync program normally.
[Note] Barcode Index: KDC200i/250i/300i/350i/400i add 4 bytes barcode index to maintain last
KDC350 User Manual
40
synchronized barcode information. This optional index would be added if data format is “Packet
Data” and
(1) 4 bytes index would be added before “@” when responding to “p” command
(2) 4 bytes index plus “@” character would be added after checksum byte if user scan a
barcode and wedging to the host
Data Editor - KDC provides various data editing options.
Prefix - Allows you to add a prefix to scanned data which can then be stored in KDC or wedged
to the host. The Prefix format must be defined in the data format menu of KTSync. The
maximum length for a Prefix is 11 characters.
NOTE: This Prefix option is different from the Prefix option in KTSync which appends the
prefix to data during synchronization.
NOTE: User can also define prefix by scanning characters defined in Appendix C.18 ~ C.22
between following special barcodes
Prefix Enter Start
Prefix/Suffix Enter Finish
NOTE: User can also delete or display current prefix by scanning following special
barcodes
Delete Prefix
Display Prefix
Suffix - Allows you to add a suffix to scanned data which can then be stored in KDC or wedged
to the host. The Suffix must be defined in the data format menu of KTSync. The maximum
length for a Suffix is 11 characters.
KDC350 User Manual
41
NOTE: This Suffix option is different from the Suffix option in KTSync which appends the
suffix to data during synchronization.
NOTE: User can also define suffix by scanning characters defined in Appendix C.18 ~ C.22
between following special barcodes
Suffix Enter Start
Prefix/Suffix Enter Finish
NOTE: User can also delete or display current suffix by scanning following special
barcodes
Delete Suffix
Display Suffix
AIM ID - Allows you to add AIM ID to scanned data which can then be stored in KDC or wedged
to the host. AIM ID must be defined in data format menu of KTSync. AIM ID is either added to
the end of Prefix or Suffix.
Partial Data: Allows you to store and/or transfer partial data. User defines the start position and
number of characters to be stored and/or transferred.
Select the x characters from y position
Set Partial Data Start Position to y, Partial Data Length to x, Partial Data Action to
Select
Partial Data Length 0 means Select all characters from y position.
Erase the x characters from y position
Set Partial Data Start Position to y, Partial Data Length to x, Partial Data Action to
Erase
Partial Data Length 0 means Erase all characters from y position.
KDC350 User Manual
42
Handshake - KDC provides Handshake mode when Data Format is set to Packet Data.
Handshake Mode will increase the reliability of barcode data transmission.
The default mode for Handshake is Disabled.
Data transmission speed is slower when Handshake Mode is Enabled.
Terminator – KDC supports various termination characters when the Data Format mode is set to Barcode
Only. This option allows you to select <NONE>, <CR>, <LF>, <CR+LF>, or <TAB> as the termination
character. The default terminator is <CR+LF>. Up/Down/Left/Right arrow terminator is also available for
HID mode.
Chk Duplicate – This option allows you to prevent collecting duplicated data.
KDC350 User Manual
43
BT Config Menu - KDC200/250/300/350/400
The KDC supports Bluetooth Ver2.1+EDR. Before utilizing the advantages of Bluetooth functionality with
the KDC, you should become familiar with Bluetooth connectivity and its impact on your host environment.
To configure your KDC for Bluetooth functionality, you must use the KDC Menus. To access the menus,
simultaneously press the UP and DOWN scroll buttons on the side of the KDC. Use the DOWN button to
scroll to Bluetooth then press the Scan button.
Below is a listing of the Bluetooth options and their settings. The default settings for these options have
been set to increase the usability of Bluetooth technology without compromising the KDC battery usage.
IMPORTANT: We strongly recommend NOT changing these settings until you have fully tested the
Bluetooth connection between the KDC and the host device.
For more detailed information regarding Bluetooth functionality with the KDC, please refer to Chapter 4.
ConnectDevice
o HID normal (KDC200/250/300/350/400)
o HID iOS (KDC200/250/300/350/400)
o SPP2.0 (KDC200/250/300/350/400)
o SPP (KDC200/200i/250/250i/300/300i/400/400i)
o iPhone (KDC200i/250i/300i/400i)
Auto Connect - Enabled or Disabled
Auto Power On - Enabled or Disabled
o PWR On Time – Disabled, 1 to 10 seconds
Auto Power Off - Enabled or Disabled (KDC250 should use option in system menu)
o Beep Warning - Enabled or Disabled
o PWR Off Time - 1 to 30 Minutes
PowerOff Msg – Enabled or Disabled
MAC Address – 12 characters Bluetooth MAC Address
FW Version – Display Bluetooth Firmware Version
Wakeup Nulls – Enabled or Disabled
Autolock Time – 0, 1, 2, 3, 4, 5, 10, 15 minutes
BT Toggle – Enable or Disable HID soft keyboard or iPhone mode connection On/Off toggle.
HID AutoLock - Disabled, 1, 2, 3, 4, 5, 10, 15 minutes
HID Keyboard – English, German, French, Spanish, Italian
HID Initial Delay
o Define the initial delay between 1sec to 10sec before data transmission in HID mode
HID Inter-character Delay
o Define the inter-character delay between 10msec to 100msec in HID mode
HID Control Character
o Map control characters to either ALT+Numlock or ^+Character
KDC350 User Manual
44
BT Service - KDC200/250/300/350/400
Power
o Enable or Disable Bluetooth Power
Pairing Mode
o KDC enters pairing mode so that host Bluetooth device can search KDC.
o KDC exits pairing mode either by pressing the scan button or it fails to pair with Bluetooth host
device in 90sec.
Discovering
o Search neighborhood Bluetooth devices
Connecting To
o Inquiry to registered Bluetooth devices
HID Sync
o KDC transmits all stored data to the host over HID profile if HID Sync option is enabled
GPS Config - KDC250 / KDC350
GPS Power
o Enable or Disable GPS Power
Power Mode
o Normal or Power Save
Bypass Data
o Enabled or Disabled
Acquire Test
o Acquiring time test of GPS signal
Reset GPS
o Reset GPS parameters
System Menu
Memory Size (3.0 version only)
User can select normal data and application database memory partition size.
KDC will erase all stored data upon changing the partition size.
User should enter the following key sequence to change the partition.
<Up key> + <Up key> + <Down key> + <Down key> + <Scan button>
Memory Status: Checks the number of stored barcodes and memory usage.
Reset Memory: Resets KDC memory by erasing all stored barcodes, application and BT registry.
Auto Erase: Erases all stored barcodes upon reaching buffer full condition if Enabled is selected
Sleep Timeout: Sets amount of time KDC waits, when not being used, before going to sleep.
Auto Power Off (KDC250 only)
Bluetooth: Enabled/Disabled
GPS: Enabled/Disabled
Power Off Time:0(Never), 5, 10, 20, 30, 60, 120 seconds
Date/Time: Sets the date and time of KDC which can also be set using KTSync®
KDC350 User Manual
45
Battery: Shows current status of battery power level.
Version: Shows KDC firmware version and serial number.
Button Lock: Locks or unlocks KDC scan and scroll buttons.
Beep Sound: Enables or disables KDC beep sound.
Beep Volume: High or low.
MFi Mode(KDC200i,250i,300i,350i,400i): Enables or disables MFi mode. MFi mode supports SPP
and iPhone Bluetooth profiles. Non-MFi mode supports SPP, SPP2.0, HID iOS and HID normal.
Auto Exit: Enables KDC to automatically exit KDC Menus.
Port Status: Enables or disables KDC port messages.
Display Format: Selection of display format - Time & Battery, Type & Time, Type & Battery, Memory
Status and Barcode only
Menu Barcode: Enables or disables Honeywell special barcodes
Scrolling : Enables or disables display scrolling for a barcode with more than 40 characters
Brightness: Adjusts display brightness
Factory Default: Resets KDC options to factory default settings.
KDC350 User Manual
46
Pair and connect KDC200i/250i/300i/350i/400i and
iOS4.0+ in HID mode
[NOTE 1] Users have to disable MFi option in System > MFi menu to use HID Bluetooth profiles
[NOTE 2] Users have to RESET the iPhone/iPad/iPod touch to change “HID to iPhone mode” or “vice
versa” after removing previous KDC connection.
[NOTE 3] KDC with Bluetooth Spec2.1+EDR doesn’t prompt Pin code entry menu.
[Note 4] KDC with Bluetooth Spec. 2.1+EDR stack doesn’t require 4 or 6 digits PIN digits entry
Go to the KDC System > MFi menu.
1. Change MFi option to disabled.
2. Change KDC to pairing Mode
3. The iPhone/iPad/iPod touch will find a new device as “Keyboard”.
4. Click "Keyboard" device
5. Please skip following steps if iPhone/iPad/iPod touch doesn't ask for the PIN number.
A. Click “Keyboard” device- the iPhone/iPad/iPod touch will ask for the PIN number. The iPad will
ask for 6 digits and the iPhone/iPod touch will ask for 4 digits
B. As soon a s the iPhone/iP ad/iPod touch asks for the PIN numbe r, KDC will display the PIN
digits selection menu. By default, it is 6 digits.
C. Press the scan button to select the 6 digit PIN code for the iPad. Press the side down button
and press the scan button to select the 4 digit PIN code for the iPhone/iPod touch.
D. The iPhone/iPad/iPod touch will display the PIN code that users should enter into the KDC.
E. By default the KDC di splays pin codes 55 5555(5555). Users can change th e PIN code by
using the side UP button to increa se numbers, side DOWN button to decrease numbers, and
the SCAN button to confirm and move to next digit
F. Once the last PIN number is entere d, pre ss and ho ld the SCAN button for a few seco nds.
KDC will display “HID connected” and the iPad/iPhone/iPod touc h will di splay “Connected” if
paired successfully
iOS Soft Keyboard toggling using BT Toggle option
1. Users needs to select the option to use this feature in the BT Config > BT Toggle.
2. Press the DOWN button to disconnect the HID connection and bring a soft keyboard.
3. Press the UP button to connect HID
4. The BT toggle is a useful feature if users desire to use both the KDC and soft keyboard.
KDC350 User Manual
47
3.4 LED Status
KDC100/200/250/300/350
LED Color Status
Green Successful Reading
USB is connected and battery is fully charged
Orange Low battery
USB is connected and battery is charging
Red No reading
Empty battery
KDC400
LED Color Status
Green
Successful Reading
USB is connected and battery is fully charged
iPhone mode
Orange
Low battery
USB is connected and battery is charging
HID mode
Red No reading
SPP mode
Table 4 - Explanation of LEDs
3.5 Empty Battery
The KDC will display the message Empty Battery Connect USB when the battery is empty. Please
charge the KDC IMMEDIATELY to prevent data collecting interruption.
KDC350 User Manual
48
3.6 Buffer Full
The KDC will display the message Buffer Full when the size of collected data reaches 60KB (85
version)/160KB(86 version) or the number of collected barcodes is 10,240. To prevent the loss of data, you
should synchronize the data then reset the memory when this message displays.
4MB version KDC reaches Buffer Full condition as follows:
0.5MB Partition - Collected data size reaches 0.5MB or collected number is 25,600
1MB Partition - Collected data size reaches 1MB or collected number is 51,200
2MB Partition - Collected data size reaches 2MB or collected number is 102,400
3MB Partition - Collected data size reaches 3MB or collected number is 153,600
4MB Partition - Collected data size reaches 4MB or collected number is 204,800
3.7 Reset Feature
The Reset feature lets you restart the KDC if necessary without losing any stored barcode data or option
settings. To reset the KDC, follow these steps.
1. Press DOWN scroll button and SCAN button simultaneously for 5 seconds.
2. When the LEDs illuminate yellow, release the buttons.
3. The KDC initial screen, KoamTac Data Collector KDC displays when reset is complete.
Note:
The KDC stores collected data into flash memory and will not lose data or the KDC settings
during the reset process.
KDC350 User Manual
49
3.8 Replace Battery
KDC200 comes with a rechargeable, Lithium-Polymer battery. The battery is recharged from any USB
port and can be recharged about 300 times before it needs to be replaced.
KoamTac recommends replacing the battery every six months as a declining battery will cause
noticeable performance degradation in KDC200. Replacement batteries can be purchased from a
KoamTac distributor. Batteries should be disposed of properly.

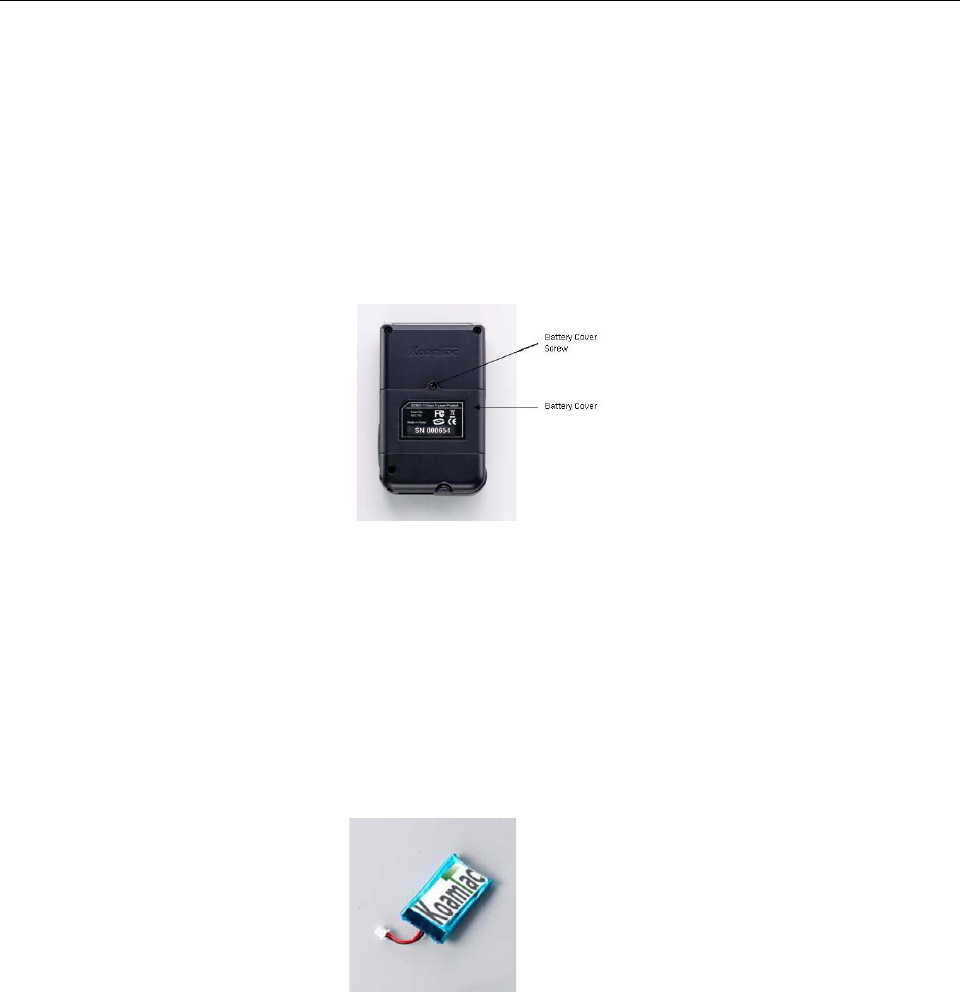

Step One - Place KDC200 face down on a firm surface. On the back, locate the small black screw in the
middle of KDC. This screw secures the battery cover.
Step Two - Press a small Phillips head screwdriver firmly into the screw while simultaneously turning
counterclockwise and loosen the screw. The battery cover will pop open. Remove the cover, keeping
the screw intact. Store cover with screw in a safe place for later.
Step Three - Gently lift the battery to locate a wire connector underneath the battery. The wire
connector is attached to the red and black wires on the battery. It is also attached to a connector on
KDC. Remove the battery using a flat head screwdriver to disengage the connectors, being careful not to
damage the connector on KDC.
Step Four – Use a small flat head screwdriver to reattach the new battery. Connect the white connector
attached to the red and black wires on the replacement battery to the connector on the KDC. Gently
press the battery down, fitting it inside the KDC. Replace the battery cover. With the Phillips head
screwdriver securely tighten the battery cover screw.
Step Five – The replacement battery must be charged before KDC can be used.
KDC350 User Manual
50
4. BLUETOOTH - KDC200/250/300/350/400
The KDC200/250/300/350/400 support HID (Human Interface Device) normal, HID iOS, SPP (Serial Port
Profile) and SPP2.0 profiles. KDC200i/250i/300i/350i/400i support SPP and iPhone(Made for iPhone)
profiles. They are compatible with the following Bluetooth stacks.
BlueSoleil
Broadcom (Widcomm)
Microsoft Windows XP, Vista, 7, and Mobile5.0+
Toshiba
KDC200/250/300/350 can configure Bluetooth options using KDC menu and special barcodes. KDC400 can
configure Bluetooth options using PC KTSync and special barcodes.
Bluetooth Config
4.1 ConnectDevice
KDC supports both Serial Port Profile (SPP) and Human Interface Device Profile (HID). User can choose
SPP2.0, SPP(2.1), HID normal, HID iOS profiles to communicate with the host device. Additional iPhone
(Made for iPhone) option is available for KDC200i/KDC250i/300i/350i/400i models.
User can connect and disconnect Bluetooth connection with the host device by pressing Up and Down key if
BT Toggle option in BT Config menu is enabled. It normally takes 3 seconds to connect and 1 second to
disconnect.
This is a very useful feature for iPhone and iPad application. User can enable and disable iPhone and iPad
soft key instantly using this BT Toggle option.
Up key shows Bluetooth connection status and Down key shows time if KDC is connected using SPP profile.
[NOTE] User should unpair the KDC first from the Bluetooth host to change the Connect Device
setting on the scanner to other Bluetooth profile.
4.2 Auto Connect
This feature allows the KDC to connect automatically to the host device when the KDC is powered on.
IMPORTANT: Until the ho st device a nd KDC have b een fully tested, it is stron gly recommended that thi s
feature be set to Disable because a host device that does not support this feature can cause problems such
as power loss or upload delays.
[Note] KDC tries to connect automatically to the host 10 times during two minutes if Bluetooth power is ON,
Bluetooth is disconnected, Auto Connect is enabled and system Sleep Timeout is set to 5 seconds
4.3 Auto Power On
The Auto Power On option allows the KDC to automatically power on Bluetooth when the SCAN
KDC350 User Manual
51
button is depressed. The default setting is Disabled. NOTE: The host may have to open the COM port
before reconnecting with the KDC. Power on time determines the scan button pressing time to activate auto
power on feature.
4.4 PWR ON Time
The PWR On Time option works in conjunction with the Auto Power On option. Default value is Disabled. If
KDC Bluetooth power is off, us er can t urn on Bluet ooth power by press ing the sc an button for PWR On
Time option value.
4.5 Auto Power Off
The Auto Power Off option works in conjunction with the PWR Off Time option. This option allows the KDC
to power off Bluetooth aut omatically when the KDC is NOT CONNECTED to the ho st for the time durati on
specified in the PWR Off Time option.
The default for this option is Enabled. It is strongly recommended to keep it enabled to maximize the
operation time of the KDC. If Auto Power Off is enabled, Bluetooth can be manually powered off before
specified time in PWR Off Time option.
4.6 Beep Warning
The KDC beeps to acknowledge the status of the Bluetooth connection as follows:
1. One high short beep when Bluetooth is connected.
2. One low short when Bluetooth is disconnected.
3. Five short beeps if:
“Beep Warning is ENABLED”
“Auto Power Off is DISABLED”
“KDC200/250/300/350/400 is DISCONNECTED from HOST”
“Bluetooth power is ON”
4.7 PWR OFF Time
The PWR Off Time option works in conjunction with the Auto Power Off option. If Auto Power Off is
Enabled, the KDC powers off Bluetooth when the time duration specified in the PWR Off Time option is met
and the KDC is NOT CONNECTED to the host. The time setting for this option is from one (1) minute to 30
minutes. The default is five (5) minutes.
KDC350 User Manual
52
4.8 PowerOFF Msg
KDCsendsBluetoothpoweroffmessage“BTOFF”tohostifPowerOFFmessageoptionisenabled.
4.9 MAC Address
User can verify KDC Bluetooth MAC Address.
4.10 FW Version
User can verify KDC Bluetooth firmware version in BT FW menu.
4.11 Wakeup Nulls
The KDC sends three leading Null bytes to wake up connected Bluetooth device. This feature can be
disabled if connected Bluetooth device doesn’t require additional bytes to wake up.
4.12 Autolock Time
iPhone/iPad/iPod touch loses incoming Bluetooth data in sleep mode. Users can set KDC Autolock time to the
same Autolock time of your iPhone/iPad/iPod touch to use automatic wakeup feature in HID mode to prevent
data loss. There would be a one second delay of barcode transmission if Autolock time is set to more than one
minute and the barcode scan interval is larger than auto lock time. The autolock time would be set as 0, 1, 2, 3,
4, 5, 10, 15 minutes. 0 means iPhone/iPad/iPod touch never enters sleep mode.
4.13 HID Keyboard
User can select international keyboard – English, German, French, Spanish and Italian.
4.14 HID Initial and Inter-Character Delay
Certain application can't process HID input fast enough and lose some characters during transmission. Users
would increase initial and inter-character delay to prevent data lose during HID transmission
HID Initial Delay
o Define the initial delay between 1sec to 10sec before data transmission in HID mode
HID Inter-character Delay
KDC350 User Manual
53
o Define the inter-character delay between 10msec to 100msec in HID mode
4.15 Control character transmission in HID mode
Control characters between ASCII value 0x00 and 0x1F can be replaced by ALT+Numpad or ^+Character.
Disable d Transmit the original control character
Alt+Num pad Transmit Alt+ ASCII value from Numpad.
^+Ch aracter Control characters would be substituted as following table.
Control
Char
Transmit
Chars
Control
Char
Transmit
Chars
Control
Char
Transmit
Chars
Control
Char
Transmit
Chars
0x01 ^A 0x0B ^K 0x14 ^T 0x1D ^]
0x02 ^B 0x0C ^L 0x15 ^U 0x1E ^^
0x03 ^C 0x0E ^N 0x16 ^V 0x1F ^_
0x04 ^D 0x0F ^O 0x17 ^W
0x05 ^E 0x10 ^P 0x18 ^X
0x06 ^F 0x11 ^Q 0x19 ^Y
0x07 ^G 0x12 ^R 0x1A ^Z
0x09 ^I 0x13 ^S 0x1C ^\
4.16 Function key transmission in HID mode
Users can send F1 to F12 function keys by scanning special barcodes in HID mode.
4.17 Disconnect/Reconnect/BT(HID) Toggle
Users can disconnect or reconnect the Bluetooth connection or toggle soft keyboard using side buttons.
Bluetooth Profile UP Key DOWN Key
SPP Reconnect Disconnect if pressing more than 3sec
HID iOS Reconnect
Soft Keyboard Toggle if pressing less than 3sec,
Disconnect if pressing more than 3sec
iPhone Reconnect Disconnect if pressing more than 3sec
SPP 2.0 Reconnect Disconnect if pressing more than 3sec
HID normal Reconnect Disconnect if pressing more than 3sec
KDC350 User Manual
54
Bluetooth Service
4.18 Power
The POWER option allows you to Enable or Disable the Bluetooth functionality of the KDC. To use Bluetooth,
this option must be set to Enable. However, like all devices enabled for Bluetooth, the KDC will search
constantly to connect with a Bluetooth host when set to enable. Constant searching uses battery power.
Unless you are using Bluetooth with your KDC, this option should be set to Disable.
IMPORTANT: To prevent unnecessary power problems, it is strongly recommended that the POWER option
be set to Disable if the KDC is idle for an extended period of time.
4.19 Pairing
Before you are able to use Bluetooth, the KDC must be paired with the host device. This paring
process only needs to be completed once with each host device. After pairing, the host device will
always recognize the KDC as a Bluetooth device unless the Bluetooth configuration is modified. If it is
modified, you may need to pair the devices again.
IMPORTANT: The host device must be configured for Bluetooth before it can be paired to the KDC.
[NOTE] KDC with Bluetooth Spec2.1+EDR doesn’t prompt Pin code entry menu
To pair the KDC with the host, follow these instructions.
1. Select Pairing from the Bluetooth menu. The message “Pairing started…” will displayed.
2. When prompted by the host device, enter the Security PIN “0000”.
3.
The
“Pairing success”
message will display when the Bluetooth connection is successfully
established. The connection must be established before the pairing timeout which is 60 seconds.
If “Pairing failed...” message displays, the Bluetooth connection with the host device failed. If the
message “Connected” displays, a Bluetooth connection was established.
It is possible for the message “Pairing failed...” to display on the KDC while the host device displays
“Connected” message. If this occurs, a Bluetooth connection is established.
4.20 Discovering
KDC200/250/300/350/400 starts to search neighboring Bluetooth device if this Discovering menu is executed.
It would take about 30 seconds to finish search and lists available neighboring Bluetooth devices. Use may
enter corresponding Bluetooth MAC address in KTSync Bluetooth menu instead of searching neighborhood
Bluetooth devices.
KDC350 User Manual
55
4.21 Connect To
This option lets you easily connect KDC to Bluetooth devices either previously registered in KTSync under
the File Menu or discovered/connected from KDC Bluetooth Service menu
[Note] There could be an interoperability issue depending on corresponding device Bluetooth stack. Master
Bluetooth device may request to follow master Bluetooth device security procedure if KDC tries to con nect
to the master Bluetooth device.
4.22 HID Sync
User can synchronize stored barcode data over HID using HID Sync option. KDC starts to transmit all stored
barcode data upon executing HID Sync option.
KDC350 User Manual
56
5. SYNCHRONIZATION
When barcode data is collected, it must be uploaded to your application. KTSync®, which is bundled with
the KDC, is software that allows barcode data to be uploaded to any PC, PDA, or smartphone running
Android 2.1+, Apple iOS3.1.3+, Blackberry, Mac and Windows XP/Vista/7/Mobile 5.0+. It has three
major functions. Windows XP/Vista/7 version supports all of the following features. Tablet, PDA and
Smartphone versions support only limited features of PC KTSync.
Synchronization - Provides data upload functionality to your applications.
Keyboard Emulator - Allows scanned data to upload directly into your application as if the data were
being entered manually on a keyboard.
Application Generation - Allows user to create custom applications or download predefined
applications such as Master-Slave, Pick/Bin, DB Lookup and Inventory.
Additional functions include:
Prefix and Suffix add-ons to eliminate manual data entry.
Symbology and Scan Option selections.
Barcode Wedging options.

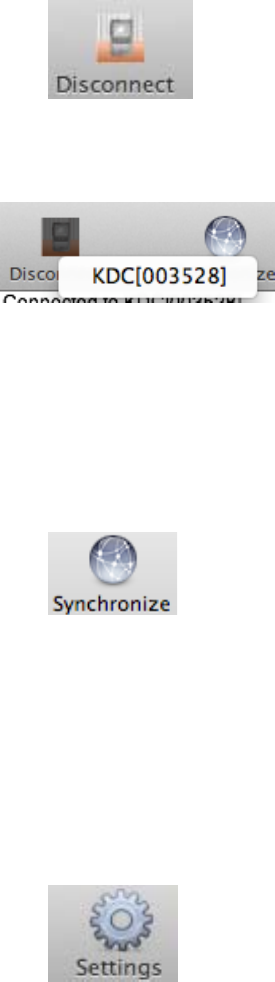

5.1 KTSync Menu
KTSync® was installed on your PC during the initial installation process. Before data can be uploaded to
any host device, KTSync® must be launched on the host and configured to recognize the KDC. The
following screen displays when KTSync® is launched.
KDC100/200/250/300/350 KDC400
Figure 5 - KTSync® Synchronizer Menu
KDC350 User Manual
57
File Menu
Connect: This option displays the Serial port (COM#) assigned to KDC. You can also use this
option to manually assign the Serial port. The Serial port assigned to KDC can be found under
Windows Device Manager. The port assignment is used by KTSync® for synchronizing data from
the KDC to the host.
Synchronize: This option manually tells the KDC to synchronize data with the host. While data is
being synchronized, KTSync menu options are unavailable. NOTE: Please do not use your
computer during data synchronization.
Bluetooth: This option is not available on KDC100. User can register MAC address to be directly
connected by KDC200/250/300/350/400.
Exit: This option ends the KTSync program. You must re-run KTSync before you can synchronize
data on the KDC.
Settings Menu
Synchronization: Select Synchronize options.
Barcode & KDC: Select Barcode and KDC options.
Others: Select Auto Connection and/or Synchronization Confirmation options.
Figure 7 – Setting Menu
Figure 6 – File Menu
KDC350 User Manual
58
Application Menu
Generation: Create user application or download predefined application.
DB Lookup: Allows users to download DB into KDC and display barcode description field
Master/Slave: User defines a master barcode for comparison with one or more slave barcodes
Pick/BIN: User defines Pick ID and the barcode symbology for comparison with a defined Bin
Inventory: Users can count inventories. Inventory description would be displayed if inventory DB is
downloaded into KDC.
About Menu - KTSync® - Version Information
Figure 9 – About Menu
Figure 8 – Application Menu
KDC350 User Manual
59
5.2 File Menu
Connect to KDC
The KDC co nnects to a COM po rt automatica lly when con nected to your PC’s USB port. You can
manually assign the KDC COM port using KTSync® Connection submenu under File menu if
needed.
The COM port assignment is found in the Windows Device Manager.
KTSync® will not connect to the KDC if it is in KDC Menus. You must EXIT from the KDC
Menus.
If KTSync® fails to connect automatically to the KDC, please follow these directions.
1. Exit KTSync®.
2. Check that you have connected the KDC to a USB port on your PC.
3. Make sure to use the cable provided with the KDC.
4. Check that the KDC is not in KDC Mode Menu.
5. Restart KTSync®.
NOTE: You can manually assign the COM port using KTSync® Connect option under the File
menu.
Synchronize
Under the File Menu, this option allows you to manually synchronize data on KDC with host. This option
is similar to clicking on the Synchronize button in the KoamTac Data Synchronizer box.
Figure 10 - COM Port Selection for KD
C
KDC350 User Manual
60
Bluetooth
This menu option allows you to register up to ten Bluetooth devices including their MAC address, PIN #, and
optional prefixes or suffixes. This option enables direct Bluetooth connection between KDC and other
Bluetooth devices such as Bluetooth printer. User should choose Bluetooth device to be connected in
“Connect to” menu in KDC Bluetooth Service menu.
Figure 11 - Bluetooth Device Registry
KDC350 User Manual
61
5.3 Synchronization Settings
KTSync® provides several synchronization options for synchronizing data from your KDC to host devices
such as your PC, PDA, or smartphone running Windows XP, Vista, Windows 7, or Mobile 5.0+.
Destination of Data
When barco de data is u ploaded to the ho st device, you mu st assig n a d estination for the data.
Destination of Data options include:
File - This option means data will be saved in the assigned filename. You can select a different target
directory by clicking the New icon. C:\MyData\sn_timestamp.txt is the default directory. If this directory
is not created, you will be prompted to create it before data can be uploaded to a file.
Active Window - This option means scanned barcode data is sent directly to the active program running
on your device as if the data was being entered directly from a keyboard.
Microsoft Excel - This option means barcode data is being imported directly into Microsoft’s Excel.
Various parameters can be set when uploading data to Excel.
Figure 12 - KTSync® Synchronization Settings
KDC350 User Manual
62
Select from Current Running Application – This option allows you to select a currently running
application for data synchronization.
Note:
Data synchronization begins immediately if Automatically After Connection is selected. If not
selected, data synchronization is started manually by the user.
Users SHOULD NOT operate the PC during the synchronization process. It can interrupt the
process causing unreliable results.
Synchronization Methods
Fast Synchronization in Burst Mode
The KDC can synchronize data to a host device in Burst mode or Sequential mode. Burst mode provides
the fastest synchronization process but could result in error in a poor Bluetooth environment. Fast
synchronization in burst mode is only recommended with USB connection.
Synchronize Normal Data
The KDC will synchronize Normal Data only in KDC memory if Synchronize Normal Data option is
selected. If you want all data in KDC memory synchronized, you should select Synchronize Normal Data
and Synchronize Application Data.
Synchronize Application Data
The KDC will synchronize Application Data only in KDC memory if Synchronize Application Data option
is selected. If you want all data in KDC memory synchronized, you should select Synchronize Normal
Data and Synchronize Application Data.
Clear KDC Memory after Synchronization
The stored barcode data is cleared from the KDC memory after synchronization if this option is selected.
The KDC can store a total of 10,240 barcodes or 80KB(86 version)/180KB(85 version) of barcode data.
It is important to clear the KDC memory periodically to prevent Buffer Full message which will
prevent the KDC from storing additional data.
Stored barcode data can also be deleted using the Reset Memory feature on the KDC.
Automatically Synchronize after Connection
This option lets you automatically synchronize collected data to your computer immediately when the
KDC350 User Manual
63
KDC is connected to the host.
IMPORTANT: Remember to configure all options properly before selecting this option.
Data synchronization can be done manually by clicking the synchronize icon if this option is not
selected.
Beep while Synchronization
You can enable or disable the beep tone during the synchronization process. A beep is sounded each
and every time barcode data is synchronized if this option is selected. The KDC beeps 5 times when the
synchronization process is complete.
Append data to File
KTSync would append data to the exiting file instead of creating a new file if user has specified file name
and Append data to File option is enabled.
Current KDC Wedge Method
The KDC can be configured in one of five Wedge/Store modes -
Wedge Only - Scanned data is transmitted to the host. The KDC does not store scanned data.
Wedge & Store - Scanned data is stored in the KDC and transmitted to the host.
Store Only - Scanned data is stored in the KDC but NOT transmitted to the host.
Save if Sent - Scanned data is stored in the KDC ONLY if transmission to the host is successful.
Save if Not Sent - Scanned data is stored in the KDC ONLY if transmission to the host is
unsuccessful.
Enable Wedge (Handheld Scanner Mode) - This option will be checked if Wedge Only or
Wedge & Store option is selected.
Keep Scan Data in KDC - This option will be checked if Store Only or Wedge & Store option is
selected.
KDC350 User Manual
64
Synchronization Options
Synchronize KDC Time with PC Time when Connected
This option enables you to synchronize the KDC date and time with the host date and time.
Synchronization of date and time occurs after the data is uploaded to the host device.
Delays
You can set transmission delays between barcodes and characters during the synchronization process.
It is important to set proper delays to prevent errors during the transmission of collected barcodes. Some
Windows applications such as Excel require longer delay times.
Attachments
Timestamp, Barcode Type, and Serial Number can be attached to the scanned barcode by selecting these
options. The Serial Number of the KDC can be attached to the Start or End of Record.
Prefix and Suffix
Enter the characters you want appended to the front (Prefix) or back (Suffix) of the barcode in the
Prefix and Suffix fields.
The character set is any combination of ASCII characters including alphanumeric, line feed (“\n”),
and carriage return (“\r”).
Order and Delimiter
Select Order of Data – Type, Data, and Timestamp
Select the Delimiter between Data – Tab, Space, Comma, and Semicolon
Select the Delimiter between Records – None, LF, CR, Tab, and <LF & CR>
Application Options
Synchronize Non-Compliant Data
The KDC will synchronize both compliant and non-compliant data (filtered data) if Synchronize Non-
Compliant Data option is Enabled.
Consolidate Steps in One Record
KTSync will consolidate the data collected in Step 1 with the data collected in Step 2 and/or Step 3. Data
will be consolidated into one record instead of individual data records for each step when Consolidate
Steps in One Record is Enabled. Non-complete records, i.e. three steps were defined but data was only
collected for two steps; would be discarded if this option is Enabled.
Attach Quantity
Quantity would be attached to the left or right of the data if this option is Enabled.
KDC350 User Manual
65
5.4 Barcode & KDC Settings
KTSync® allows you to configure the KDC Scan Options and Barcode Settings. The configuration options
for the KDC using KTSync® are similar to the Set Barcodes, Code Options, Data Editing and Scan
Options on the KDC Menu. Please refer to Appendix A for proper barcode settings for your application.
NOTE: You must configure barcode and scan options properly for optimal KDC performance.
Figure 13 - Barcode & KDC Settings, Symbologies, Data Editing and Scan Options
KDC350 User Manual
66
Select Symbologies and Symbology Options
The process for scanning and reading barcodes is delicate and complicated. Although your KDC is
equipped with a high performance scan engine, if configured incorrectly it may not perform at its peak
performance level. To ensure its high performance, the KDC comes configured to optimize its scan
engine technology. Unless you clearly understand the impact of your changes to the KDC settings,
please do not change factory default settings. Please refer to Appendix A for details. Pressing the Default
icon will reset all symbology related options to factory default settings.
Data Editing Option
Prefix - Allows you to add a prefix to scanned data which can then be stored in KDC or wedged to the
host. The Prefix format must be defined in the data format menu of KTSync. The maximum length for a
Prefix is 11 characters. NOTE: This Prefix option is different from the Prefix option in KTSync which
appends the prefix to data during synchronization.
Suffix - Allows you to add a suffix to scanned data which can then be stored in KDC or wedged to the
host. The Suffix must be defined in the data format menu of KTSync. The maximum length for a Suffix is
11 characters. NOTE: This Suffix option is different from the Suffix option in KTSync which appends the
suffix to data during synchronization.
AIM ID - Allows you to add AIM ID to scanned data which can then be stored in KDC or wedged to the
host. AIM ID must be defined in data format menu of KTSync. AIM ID is either added to the end of Prefix
or Suffix.
Partial Data: Allows you to display and store partial data. User defines the start position and number of
characters to be displayed and stored.
Select the x characters from y position
Set Partial Data Start Position to y, Partial Data Length to x, Partial Data Action to Select
Partial Data Length 0 means Select all characters from y position.
Erase the x characters from y position
Set Partial Data Start Position to y, Partial Data Length to x, Partial Data Action to Erase
Partial Data Length 0 means Erase all characters from y position.
KDC350 User Manual
67
5.5 Others Settings
Other options under the Settings menu allows you to select four additional settings.
Ask Confirmation before Trying Auto Connection prevents unintentional launch of KTSync.
Ask Confirmation before Starting Auto Synchronization prevents unintentional synchronization
of data.
Minimize KTSync on Start will minimize KTSync and send to the tray upon execution.
Keep Checking Bluetooth Connection allows reconnection of KDC once Bluetooth signal is
detected. This feature is useful when moving from Bluetooth host device frequently. KTSync will
automatically reconnect Bluetooth connection when you enter an effective Bluetooth network
range. (Not Available on KDC100)
To select any of these settings, click on the box to the left of the setting. A check mark () will display
next to the setting to indicate that it is selected.
Figure 14 - KTSync® Confirmation Settings
KDC350 User Manual
68
5.6 KDC Menu (KDC400)
KDC Menu allows users to configure KDC400 settings.
KDC350 User Manual
69
5.7 Mobile pKTSync
pKTSync provides limited functionality for Pocket PC 2003 and Mobile 5.0+ users.
1. Synchronization - Provides data upload functionality to your applications.
2. Keyboard Emulator - Allows scanned data to be uploaded directly into your application as if the data
were being entered manually on a keyboard.
For detailed explanations of these functions, please refer to earlier sections of this chapter.
WARNING: The user must assign the correct COM port to KDC prior to use pKTSync. Please refer
to your mobile device manual for details on Bluetooth pairing and COM port assignment methods.
Figure 15 – Mobile pKTSync
KDC350 User Manual
70
5.8 Android aKTSync
The aKTSync provides limited functionality of PC KTSync to Android users.
[NOTE 1] aKTSync only supports Android devices with 2.1+ OS version and that are compatible
with BluetoothChat application.
[NOTE 2] KDC with Bluetooth Spec2.1+EDR doesn’t prompt Pin code entry menu
KDC and Android Pairing
1. Pairing
Select “SPP” Bluetooth profile from KDC ConnectDevice submenu in BT Config menu.
Search KDC200/200i/300/300i/350/350i from Android and pairing two devices.
KDC200/200i/300/300i/350/350i PIN code is “0000”
2. Connection
Click “Connect” icon in aKTSync
Android would list up paired Bluetooth devices and user should select the target KDC.
3. Synchronization - Provides data upload functionality to your applications.
4. Settings – User can change various Synchronization options in settings menu.
5. Wedging – User can wedge barcode data to any Android application. Press home key and launch the
target application.
Launch KTSync
1. Download and install aKTSync from the Android Market.
http://www.androidzoom.com/android_applications/productivity/ktsync_luxv.html
2. Change KDC Bluetooth “ConnectDevice” option to “SPP”
3. Execute Android Bluetooth device scan option and KDC Bluetooth pairing option
A. Execute KDC Bluetooth “Pairing” option
B. Launch “Settings” on the Android device
C. Select “Wireless and Networks”
D. Click on “Bluetooth Settings”
E. Click on “Scan devices”
F. The Android device will display the KDC model and 6 digits of the serial number.
4. Press the KDC list entry, enter “0000” PIN code and press “OK”
5. When paired, the Android device will display “Paired but not connected”.
6. Launch aKTSync program
A. Press menu key and select the “Connect” option on the top left
B. From the list of paired devices, choose the KDC to use
KDC350 User Manual
71
C. On the top menu bar of aKTSync, you will see “connecting” then “connected”.
D. On the KDC display, you will see “Pairing Succeeded!!!” then “Bluetooth Connected”
E. Select “Settings” option on the bottom left to change aKTSync setting
7. Keyboard Wedge
A. Launch “Settings” on the Android device
B. Select “Language and Keyboard (or Input method)”
C. Select “KTSync Keyboard”
D. Launch the application and touch the input box to give focus to it
E. Barcode would be wedged to the input box upon scanning a barcode
Figure 16 – Android aKTSync
KDC350 User Manual
72
5.9 iPad/iPhone/iPod touch KTSync
The KTSync for iPad/iPhone/iPod touch provides limited functionality of PC KTSync for iPad, iPhone and
iPod touch users.
KDC200i/250i/300i/350i/400i and iPhone/iPad/iPod
touch connection instructions
1. The KDC200i/250i/300i/350i/400i supports “SPP” and “iPhone” Bluetooth profiles.
2. The iPhone/iPad/iPod touch should use “iPhone” Bluetooth profiles. “iPhone” is the default profile.
3. Download the KTSync program from the App Store.
4. Enable the iPhone/iPad/iPod touch Bluetooth power from the Setting > General > Bluetooth menu
[NOTE 1] Users have to disable MFi option in System > MFi menu to use HID Bluetooth profiles
[NOTE 2] Users have to RESET the iPhone/iPad/iPod touch to change “HID to iPhone mode” or “vice
versa” after removing previous KDC connection.
[NOTE 3] KDC with Bluetooth Spec2.1+EDR doesn’t prompt Pin code entry menu.
KDC200i/250i/300i/350i/400i
connection using iPhone
mode
1. Download and install iKTSync from the Apple App Store.
A. http://itunes.apple.com/us /app/ktsync/id372916602?mt=8
2. Press the two KDC side buttons together to enter menu mode
3. Scroll down to “Bluetooth” menu using KDC Down button
4. Press the front middle scan button
5. Scroll down to “Discovering” and press the front middle scan button
A. “Discovering Started …” message will be displayed on KDC screen
B. Discovering will take about 30 seconds.
6. Select discovered iPhone/iPod touch device name and press the front middle scan button
A. [Pin Code] User Default/Enter PinCode will be displayed
B. Press the front middle scan button to select the “Use Default” option
C. “Connecting to iPhone/iPod touch device name” will be displayed
D. iPhone/iPad/i Pod touch will ask for the PIN number.
E. Please enter “0000” and hit “connect” icon
F. “iPhone Connected” message will be displayed
KDC350 User Manual
73
7. Launch KTSync and configure Settings
iKTSync Settings
iKTSync provides following Settings menu.
Synchronization - User ca n configure Synchronization option s such as d estination of dat a, data
formation and delimiters.
Other settings - Use rs can configure KDC250 G PS module, disconne ction options and soft trigger
button.
How to connect and reconnect iPhone mode using UP
keys
1. Users needs to select the option to use this feature in the BT Config > BT Toggle
2. Press the UP button to connect or reconnect to the iPhone/iPad/iPod touch
Figure 17 – iPad/iPhone/iPod touch KTSync
KDC350 User Manual
74
5.10 Blackberry bKTSync
The bKTSync provides limited functionality of PC KTSync for Blackberry users.
[NOTE] KDC with Bluetooth Spec2.1+EDR doesn’t prompt Pin code entry menu
1. Download and install bKTSync from the Blackberry App World.
http://appworld.blackberry.com/webstore/search/ktsync?lang=en
2. Go to Blackberry Options > Applications menu and Enable “Input Simulation” option
3. Change KDC Bluetooth profile in “ConnectDevice” option to “SPP”
4. Execute Blackberry Bluetooth manager and KDC Bluetooth pairing option
A. Execute KDC Bluetooth “Pairing” option
B. Launch the Blackberry Bluetooth manager and select “Search”. The KDC model and 6 digits of the
serial number would be displayed.
C. Highlight the KDC and press the Enter or Select Key
D. Enter “0000” PIN code and press the Enter or Select Key
E. The Blackberry will display “Pairing with KDC”…”complete.”
F. Close the Blackberry Bluetooth manager
5. Go to Downloads folder and execute KTSync
6. User can configure KDC options in KDC settings and Symbologies Settings menu
7. Go to KTSync Synchronization Settings and select Destination. To send collected barcode as an email
attachment, choose “Email Attachment” as destination, enter email address, subject and body message.
You can enter multiple email addresses using the semicolon(;) separator.
8. To scan barcodes into any application (like email, notes, worksheet or web browser), press the menu key
and select “Running in the background” option. bKTSync will maintain the connection and place the
scanned barcode data where ever the cursor is flashing.
KDC350 User Manual
75
Figure 18 – Blackberry bKTSync
KDC350 User Manual
76
5.11 KTSync for Mac OS X
The KTSync Mac OS X version provides limited functionality of PC Windows KTSync for Mac OS X users.
[NOTE 1] KTSync for Mac OS X version supports both Bluetooth SPP profile and USB connection.
User should pair KDC with Mac before using the KTSync program via Bluetooth connection.
[NOTE 2] Mac OS X version KTSync is built as a X86 binary application and works with the Intel-
based Mac. It is verified on Mac PC running Mac OS X 10.6.5 and later versions.
KTSync Mac OS X version supports the following features:
Keyboard wedge function to a file, internal viewer, active window and user application.
Synchronization to a file, internal viewer, active window and user application.
Automatic connection and disconnection on USB port.
User will see the following initial KTSync screen upon launching the program. KTSync will connect
automatically if KDC is plugged on USB port or KDC is paired.
Connect Button
User can connect the Mac with the KDC that is paired or plugged into the USB port by clicking the Connect
button. The following screen will be displayed when this button is pressed and KTSync will start to connect to
the selected KDC.
KDC350 User Manual
77
Disconnect Button
KTSync changes Connect button to Disconnect button once the KDC is connected. User can disconnect the
KDC manually by selecting connected KDC on the following screen.
Synchronize Button
User can start the synchronization process by pressing the Synchronize button.
User can select the destination of barcode data in the settings menu. There are 4 selectable
destinations: File, Internal viewer, Active window and User application.
Settings Button
User can configure synchronization options on the following screen by pressing the Settings button.
KDC350 User Manual
78
Destination of data
The KTSync program wedges or downloads barcode data to one of the following four
destinations:
File: The KTSync makes file name based on 3.11 if file name is specified as a
“sn_timestamp.txt”. The default directory is /Users/Shared/KTSyncData directory. User
can define other directory or other filename by clicking “New” button. The maximum file
path length is 128 characters.
Internal viewer: The KTSync displays barcode data in KTSync internal text viewer.
Active window
The KTSync sends barcode data to current active window if Active window option is
selected.
User application
User can define the target application by pressing “New” button. The maximum application
name path length is 128 characters.
Synchronize KDC clock
KTSync will set the KDC’s date and time with Mac PC date and time when the KDC is connected to
Mac if this option is enabled.
Burst synchronization
KDC350 User Manual
79
KTSync will synchronize barcode data from KDC in the burst mode if this option is enabled. Otherwise,
KTSync will synchronize barcode data one by one. This option is enabled by default and can’t be
disabled.
Synchronization on connection
If this option is enabled, KTSync will automatically synchronize barcode data from the KDC when the
KDC is connected.
Clear KDC memory after synchronization
KTSync clears barcode data stored in the KDC’s memory once synchronization has
finished if this option is enabled.
Append data to file
KTSync appends synchronized data to existing file specified on destination. If file doesn’t exist then
KTSync creates a new file.
Attach serial number
The KTSync would add a KDC serial number to barcode data if this option is enabled. This option is
enabled by default and can’t be disabled.
Attach time stamp
The KTSync would add timestamp to barcode data if this option is enabled. This option is enabled by
default and can’t be disabled.
Attached barcode type
The KTSync would add barcode type to barcode data if this option is enabled. This option is enabled by
default and can’t be disabled.
Serial number
When“Attach serial number” is enabled, this option determines when to attach serial number. “Start
of record” means to attach at the front of record and “End of record” means to attach to the end of
record.
Data order
This option specifies the order of data (Barcode Type, Barcode Data and Timestamp) in the record.
Data delimiter
This option is used to select a character to be added between barcode data, serial number and
timestamp and/or barcode type. User can select one of the following: “None”, “Tab”, “Space”, ‘Comma”
and “Semicolon” as the data delimiter. The “Comma” is selected by default and can’t be changed.
Record delimiter
This option is used to select a character to be added at the end of the barcode record. User can
selectone of “None”, “CR”, “LF”, TAB”, and “CR&LF” as the record delimiter.The “CR&LF” is selected
by default and can’t be changed.
Non-English keyboard
KDC350 User Manual
80
This option is used when the barcode data has non-English characters and a non-English keyboard.
Clear Button
User may press this button to clear the KTSync internal viewer.
KDC350 User Manual
81
6. APPLICATION GENERATION
[NOTE] KDC FW2.85.200.x doesn’t support the Application Generation feature. Users should
upgrade FW2.85.200.x to FW2.86.200.x to use Application Generation feature
When you select Application menu from the KTSync, you can choose from the following five Applications
– Generation, DB Lookup, Master/Slave, Pick/BIN, and Inventory. Users can also download saved
programs using Import & Download option.
When the Application tool is selected, the KDC will beep once to acknowledge a connection between the
KDC and the Application tool. KTSync would popup the following warning window if downloaded
application in KDC doesn’t match with KTSync application tool.
[Note] KDC would wedge barcode data to the host in application mode if “wedge and store always”
option in data process menu is selected and KDC firmware version is higher than 2.86.xxx.G.
Figure 19 – Application Menu
Figure 20 – Application Warning Window
KDC350 User Manual
82
6.1 Application Generation
KDC Application Generation tool is a robust feature that allows you to create custom applications for
collecting and managing barcode data. To create a custom application, select the Generation submenu
from the Application menu in KTSync®.
Generate Application
Generate step 1 - To generate a custom application, click on the Generate Step 1 box which enables
you to define the user prompts and data collection settings for Step 1 of your custom application. Below
is a description of each field. These prompts are the same when selecting Generate step 2 and
Generate step 3. NOTE: Your custom application can include only Step 1.
First line
Enter up to 13 characters which will display on the first line of the KDC
Second line
Enter up to 13 characters which will display on the second line of the KDC
Figure 21 – Application Generation Menu
KDC350 User Manual
83
Starting quantity
Enter a predefined start quantity for each scanned barcode. The start quantity can be defined from
1 to 128 and is modifiable using up or down side key.
Waiting to scan
Enter the number of seconds the KDC pauses before the user prompts display. During this timeout
period, the user can modify the quantity. If this field is set to zero, the quantity field cannot be
adjusted. This field can be defined from “-1” to “30” seconds. “-1” second enables infinite waiting of
user quantity input.
Enable data filter
Click on this box to enable the data filtering option. Data filtering allows you to predefine different
aspects of the barcode data you are collecting.
Data Filter Settings
When you select Enable data filtering, you must click on the Settings box to select the Data filter setting.
The option for the data filter settings are the same for Step1, Step 2, and Step 3.
Figure 22 – Data Filter Settings
KDC350 User Manual
84
Barcode Type
This field allows you to select the type of barcodes the KDC will collect. When you click on the box,
Select Symbols is enabled. A listing of the symbologies supported by the KDC displays. To select
a barcode symbology, click on the box associated with the symbology.
Minimum Data Length
This field allows you to define the minimum length of the scanned barcode. The length can be
between 2 and 36 characters. If a user scans a barcode whose length is less than the defined
length, the barcode data is not collected.
[Note] The default KDC minimum barcode length defined in scan option is 4. Therefore, users
should change KDC minimum barcode length to 2 or 3 to define minimum data length to 2 or 3.
Maximum Data Length
This field allows you to define the maximum length of a scanned barcode. The defined length can
be between 2 and 256 characters. If a user scans a barcode whose length is greater than the
defined length, the barcode data is not collected.
[Note] The default KDC minimum barcode length defined in scan option is 4. Therefore, users
should change KDC minimum barcode length to 2 or 3 to define maximum data length to 2 or 3.
Barcode Collation
This option enables you to define a data string that the KDC will use to compare scanned barcodes.
o Starting Position – This is the start position of the scanned barcode data to be compared
with the defined data string.
o Data String – This is the defined value to be compared with scanned barcode data. This
value can be up to 32 characters
Collect Partial Data
This option allows you to define partial barcode data to be collected when a barcode is scanned.
Only the partial data will be stored in the KDC.
o Start position – This is the starting position that the KDC will use when collecting scanned
barcode data.
o Data Length – This is the length of partial data to be stored by the KDC
Check for Duplicated Data
This option allows you to prevent collecting duplicated data.
o Previous Scanned Data – This option allows you to compare the scanned barcode with the
previously scanned barcode and treat it as non-compliant data if you scanned the same
barcode twice.
KDC350 User Manual
85
o All Stored Data – This option allows you to compare the scanned barcode with stored
barcode data and treat it as non-compliant data if the same barcode already scanned and
stored.
Don’t Save Non-Compliant Data
This field tells the KDC how to manage non-compliant data based on the defined data filtering fields.
If this field is enabled, non-compliant data is NOT stored in the KDC. If this option is not enabled,
non-compliant data is stored.
Generate step 2
To include another step in your data collection process, click the box, Generate step 2. This step has
the same options as Step 1. In this step, you have the option of repeating step 2 by clicking the box,
Repeat Step. NOTE: This field is disabled when your application has three steps.
Generate step 3
To include a third step, click the box, Generate step 3. This step has the same options as step 1 and 2.
However, in this step you have the option to repeat steps 2 or 3.
Application Download and Execution
Prior to running your application, it must be downloaded to KDC.
Click “Download” icon from Application Generation Window.
Change KDC from Normal mode to Application mode.
- Press two side buttons simultaneously to enter menu mode
- Select KDC mode and enter scan button
- Change to Application mode
- Save and exit from menu mode
KDC will run in normal mode if you don’t change to Application mode after downloading the
application.
KDC350 User Manual
86
6.2 Predefined Applications
KTSync provides four Predefined Applications – Master/Slave, Pick/Bin, DB Lookup and Inventory.
Master/Slave
Master/Slave predefined application allows you to define a master barcode for comparison with one or
more slave barcodes. The predefined application can be run once or continuously and within either setting,
you can define a substring for comparison of master and slave barcodes.
Master/Slave Onetime
Define one master barcode and compare it with one slave barcode.
Master/Slave Continuous
Define one master barcode and compare it with multiple slave barcodes.
Collation Options
Works in either Onetime or Continuous Mode to compare a substring within the master and slave
barcodes.
Master start position - Select the numeric position of start substring character in Pick
barcode, 1 to 255
Slave start position - Select the numeric position of start substring character in Pick
barcode, 1 to 255
Comparing Barcode Length - Number of characters to be compared, 0 to 255. 0 means all
characters.
Figure 23 – Master/Slave Application Settings
KDC350 User Manual
87
Figure 24 – Master/Slave Application Flow Chart
Collation:
Define substring to
be compared.
Default is entire
barcode
Scan Maste
r
Barcode Scan Maste
r
Barcode
Onetime Continuous
Select MS Mode :
(Onetime,
Continuous)
Scan Check
Barcode
KDC Mode
Up or Down
Key ?
Mismatched
Matched
Up
Key
Down
Key
Scan Chec
k
Barcode
Up or Down
Key?
Matched Mismatched
Up Key?
No
Yes
Down
Key
Up
Key
KDC350 User Manual
88
Pick/Bin
The Pick/Bin predefined application is a special version of the Master/Slave predefined application. The
Pick/Bin application allows you to define Pick ID and the barcode symbology for comparison with a
defined Bin.
Number of ID and Symbology
Define Pick ID characters from 1 to 32 and the barcode symbology.
Pick Start Position and Symbology
Select numeric position of start substring character in Pick barcode from 1 to 255 and the barcode
symbology.
Bin Start Position and Symbology
Select the numeric position of start substring character in Bin barcode from 1 to 255 and the
barcode symbology.
Comparing Barcode Length
Select the number of characters to be compared from 0 to 255. 0 means all characters.
Figure 25 – Pick/BIN Application Menu
KDC350 User Manual
89
User ID
Defined Scan User ID Valid User ID
Store User ID
Please
scan Pick data
User Input
Valid Barcode
Please scan
Bin data
User Input
Barcode
Match?
No
Yes
Yes
No
Up
Side Key
Scan button
Yes
No
Up
Side Key
Scan button
Yes
No
Ignore Scanned
Pick Label
Timeout
Ignore Scanned
Pick Label
Store
User ID,
KDC Serial Number,
Timestamp,
Pick Barcode
Exit to KDC Menu <Up>+<Down>
Figure 26 – Pick/BIN Application Flow Chart
KDC350 User Manual
90
DB Lookup Application
The DB Lookup application allows you to download a database to the KDC which can then be utilized for
advanced AUTO-ID applications like displaying additional data after scanning a barcode. For example,
using our DB Lookup application, you could download a product database including information such as
description, price, and stock quantity. With the advanced data functionality built-in to the KDC, you could
easily display product price, description, and stock level after the product’s barcode is scanned.
Functionality of DB Lookup Application
The database size cannot exceed 800 records.
The maximum record size is 128 bytes.
Each record can have up to 4 fields including the barcode which is the primary key.
The maximum field size is 39 characters.
Quantities can be entered by pressing the UP or DOWN scroll buttons after DB fields displayed.
Quantity can be 1 to 128.
User can create a database using Microsoft Excel.
o Excel file must be saved as .txt.
o Records should be separated by CR/LF
o Fields should be separated by TAB.
o Database should end with CR/LF.
o Last 4 bytes of database should be CR/LF/CR/LF.
DB Lookup Fields and Settings
Download DB to KDC - Downloads user created database to KDC.
Starting Quantity - Enter predefined start quantity for each scanned barcode. The start quantity
can be defined from 1 to 128 and is modifiable using up or down scroll buttons.
Barcode Field - Select the position of barcode field in database from 1 to 4.
Stored Barcode Start Position - Select the numeric position of start substring character of
barcode in database from 1 to 39.
Scanned Barcode Start Position - Select the numeric position of start substring character of
scanned barcode from 1 to 39.
Comparing Barcode Length - Number of characters to be compared from 0 to 255 where 0 is all
characters.
Display on KDC - Define database fields to be displayed on KDC. KDC can display one to three
fields. KDC will display one field in two or three lines if same field is specified in line entering option.
KDC350 User Manual
91
Figure 27 – DB Lookup Application Menu
KDC350 User Manual
92
Inventory Application
The Inventory application allows you to count inventories by scanning inventory barcodes. This application
will increase inventory item count if the same item is scanned. Users can also download an inventory
database to the KDC. KDC will display inventory description after scanning a barcode if inventory DB is
downloaded.
Functionality of Inventory Application
The inventory cannot exceed 800 items.
The maximum record size is 128 bytes.
Each record can have up to 4 fields including the barcode which is the primary key.
The maximum field size is 39 characters.
Quantities 1 to 32786 can be entered by pressing the UP or DOWN scroll buttons after inventory is
scanned.
Starting Quantity can be 1 to 128.
Min/Max. Data Length is between 2 to 256 (KDC100/200) or 4 to 256 (KDC300)
Barcode Collation Start Position is between 1 to 256
The length of Collation Data String is between 1 to 30
Collect Partial Data Start Position is between 1 to 256
Collect Partial Data Length is between 1 to 256
Users can create an inventory database using Microsoft Excel.
o Excel file must be saved as .txt.
o Click User Inventory DB option to display inventory description
o Click Do not add non-existing item into DB if one do not wish to add new items into inventory DB
o The number of Barcode Data Field is between 1 to 4
o The position of Display Filed is between 1 to 4
Figure 28 – Inventory Application Menu
KDC350 User Manual
93
7. Troubleshooting
PROBLEM CAUSE SOLUTION
KDC not working Dead battery Charge battery by connecting KDC to your PC using the
included cable
Hardware failure Contact distributor for technical support
KDC not charging
Bad battery Replace battery – Contact Local Distributor
Poor USB port USB port doesn’t supply proper current to KDC - Charge KDC
using a different USB port on your PC
Failed reading
Damaged barcode Scan a different barcode
Out of scan range Move the scanner closer to barcode
Move scanner farther from the barcode
Incorrect angle Change the angle of scanner to barcode
Symbology
not supported
Contact KoamTac - www.koamtac.com for possibility of
custom symbology support
Scan options Check scan option settings
Dirty scan window Clean scan window
Damaged scan window Replace scan window
KDC reads
wrong barcode
Dirty scan window Clean scan window
Damaged scan window Replace scan window
Poor quality barcode
Select only necessary barcodes
Increase minimum barcode length
Increase security level
Can’t communicate
with PC, PDA,
or smartphone
USB cable is not
connected properly Check cable connection between KDC and host device
Software is not
working properly Reload the software
COM configuration Check COM port configurations
LED blinks yellow Low battery power Charge the battery by connecting KDC to PC.
KDC will lose collected data if the battery is empty.
Buffer Full Message Full Memory Clear the Memory using Synchronization program
Empty Battery
Message Empty battery Connect USB immediately.
Synchronize the collected data and charge KDC
Abnormal KTSync
Operation on DELL
PC
Quickset Utility Disable Quickset Utility before using KTSync.
Dell Quickset utility interrupts normal KTSync operation
WSED Utility
Disable WSED Wireless enable/disable utility
delete the folder C:\Program Files\WSED,
which contains a file WSED.exe, with the same icon as
in the taskbar
Delete the registry entry KEY_LOCAL_MACHINE
\SOFTWARE\Microsoft\Windows\CurrentVersion\Run\WSED
Table 5 - Troubleshooting Techniques
KDC350 User Manual
94
8. Warranty
LIMITED WARRANTY AND DISCLAIMERS
BY OPENING THE PACKAGE OF THIS PRODUCT YOU AGREE TO BECOME BOUND BY THE
LIABILITY AND WARRANTY CONDITIONS AS DESCRIBED BELOW.
UNDER ALL CIRCUMSTANCES THIS MANUAL SHOULD BE READ ATTENTIVELY, BEFORE
INSTALLING AND OR USING THE PRODUCT.
Serial Number
A serial number appears on the KDC label. This official registration number is strictly related to the
device purchased. Make sure that the serial number appearing on your KDC is not removed. Removing
the serial number will affect the warranty conditions and liability disadvantageously, so please maintain
the label with serial number on the KDC. Units with the serial number label removed should not be
operated.
Warranty/Warranty Period/Liability
KoamTac, Inc. (“Koam Tac”) manufa ctures its hard ware produ cts in accord ance with indust ry-standard
practices. Unless othe rwise ag reed in a co ntract, KDC i s warranted for a p eriod of on e year after
purchase, co vering defe cts in material and workm anship excep t recha rgeable battery. Ko amTac will
repair or, at its opinion, re place pr oducts that prove to be defective in material or workman ship under
proper use during the warranty period. KoamTac will not be liable in cases (i) in which the unit has been
repaired or altered unless done or approved by KoamTac, (ii) in which the unit has not been maintained
in accordance with any operating or handling instructions supplied by KoamTac, (iii) in which the unit has
been subjected to unu sual physical or electrical stress, misuse, abuse, power shortage, negligence or
accident or (iv) in which the unit has been used other than in accordance with the product operating and
handling instructions. Prev entive mainte nance is the responsibility of the custo mer and i s not covere d
under this warranty. Under no circumstance will KoamTac be liable for any direct, indirect, consequential
or incidental damages ari sing out of use or inabilit y to use either the hardware or software, even if
KoamTac has been informed about the possibility of such damages.
Warranty Coverage and Procedure
During the warranty period, KoamTac will repair or replace defective products returned to KoamTac
warehouse. International customers should contact the local KoamTac office or support center. If
warranty service is required, KoamTac will issue a Return Material Authorization Number. Products must
be shipped in the original or comparable package, shipping and insurance charges prepaid. KoamTac
will ship the repaired or replacement product freight and insurance prepaid. Customer accepts full
responsibility for its software and data including the appropriate backup thereof. Repair or replacement of
a product during warranty will not extend the original warranty term.
CAUTION: Chang es o r modificatio ns not expre ssly approved by the manufacturer respon sible for
compliance could void the user’s authority to operate the equipment.
KDC350 User Manual
95
9. CONTACT INFORMATION
CORPORATE HEADQUARTERS
116 Village Boulevard, Suite 200, USA
Princeton, NJ 08540
PH: 609-734-4335 FAX: 609-228-4373
email: support@koamtac.com
For more information, visit our website - www.koamtac.com
KDC350 User Manual
96
APPENDIX A - Barcode & Scan Options
The process for scanning and reading barcodes is delicate and complicated. Although your KDC is
equipped with a high performance scan engine, if configured incorrectly it may not perform at its peak
performance level. To ensure its high performance, the KDC comes configured to optimize its scan
engine technology. Unless you clearly understand the impact of your changes to the KDC settings,
please do not change factory default settings.
A.1 Symbologies
KoamTac’s KDC products support most major barcode symbologies including 1D, 2D, Postal, and OCR-
Fonts. Below is a list of the barcode symbologies supported by the KDC with respect to each models
particular area of support. To ensure superior scan performance, remember to select only the required
symbologies.
KDC100/200/250/410/415 KDC300/420/425
1D
Barcodes
EAN13, EAN8, UPCA, UPCE,
Bookland EAN, EAN13 with
Addon, EAN8 with Add-on,
UPCA with Add-on,
UPCE with Add-on,
Interleave 2 of 5, ITF14, Code128,
Codabar, GS1-128, Code39,
Code93, & Code35
Codabar, Code11, Code32,
Code39, Code128, EAN8, EAN13,
GS1-128, I2of5,
MSI, Plessey, PosiCode,
GS1 DATABAR OMNI, GS1 Limited,
GS1 Expanded, S2of5IA, S2of5ID,
TLC39, Telepen, Trioptic, UPCA, &
UPCE
2D
Barcodes N/A
AztecCode, AztecRunes,
CodablockF,Code 16K, Code49,
DataMatrix, MaxiCode, MicroPDF,
PDF417, & QRCode and
HanXin Code
Postal
Barcodes N/A
AusPost, CanadaPost, ChinaPost,
JapanPost, KoreaPost, KixPost,
Planet Code, Postnet (US),
& UKPost
OCR
Fonts N/A OCR-A, OCR-B, OCRUSCurrency,
OCRMICRE13B, & OCRSEMIFONT
Table 6 - Symbologies Supported by KDC
Bookland EAN vs. EAN-13
Bookland EAN which includes ISBN, ISSN, and ISMN, is supported by the KDC. This group of symbologies is
essentially an EAN-13 barcode with fixed prefixes; 977 for ISSN, 978 for ISBN, and 979 for ISMN. If EAN-13
and Bookland EAN are both enabled, Bookland EAN takes precedence. Bookland EAN does not have any
options. The Bookland EAN barcode does not contain any groupings – that is, there are no hyphens or
separators. Thus, the ISBN 957-630-239-0 is transmitted as 9576302390.
KDC350 User Manual
97
Add-on Symbologies
By default, the 2 or 5 digit add-on symbols with a UPCE, UPCA, EAN-8, and EAN-13 barcode is neither
decoded nor transmitted. Transmission for these specific symbologies is enabled by setting the appropriate
withAddon options. There are 4 withAddon options, one for each symbology:
UPCEwithAddon
UPCAwithAddon
EAN8withAddon
EAN13withAddon
The decoding of add-on symbols is typified by the following table, which explains the process for EAN-13
symbols.
Mode Behavior Value of flags
EAN13 EAN13withAddon
Auto-discrimination If add-on symbol is present, then it is also
decoded; otherwise only the EAN-13 symbol
is decoded.
true true
With add-on Only EAN-13 barcodes with 2 or 5 add-on
symbol are decoded.
false true
Without add-on The add-on symbol is ignored. true false
Table 7 - Add-on for EAN-13 Symbology
The add-on symbol is appended to the EAN-13 barcode. The process is similar for UPCE, UPCA, and
EAN-8 barcodes. Note that all the UPCE, UPCA, EAN-8, and EAN-13 formatting and conversion options
are in effect. The following table should help explain the effect of various options for EAN-8 barcode
12345670 + 12.
Barcode EAN8_as_EAN13 EAN8_ReturnCheckDigit EAN13_ReturnCheckDigit
1234567012
False
True
N/A
123456712 False
00000123456712
True N/A
false
000001234567012 true
Table 8 - Add-on for EAN-8 Symbology
The add-on symbol neither contains check digit nor a terminating guard band. Every effort has been made
to reduce the decoding error; however, it is likely to decode a partial scan of a 5-digit add-on symbol as a 2-
digit add-on symbol. It is strongly recommended that the minimum security level is set at 2 while decoding
add-on symbols. Since the decoder takes a conservative view on the add-on symbols, it is likely that the
add-on symbol will be missed in the auto-discrimination mode. Auto-discrimination mode should then be
avoided.
KDC350 User Manual
98
A.2 Code Options
The KDC supports the following barcode options:
Transmission of start and stop characters
Reverse direction
Symbology conversion
Verification of optional check character
Transmission of check digit
Transmission of Start and Stop Characters
For Codabar symbols you can choose not to transmit the start and stop symbols, the NOTIS Editing. By
default, they are transmitted. Setting the field CodaBar_NoStartStopChars to true disables the
transmission.
Reverse Direction
This option may be selected if direction oriented symbologies are selected such as Code35.
Symbology Conversion
By default the EAN-8, UPCE, and UPCA symbols are transmitted in their native format. It is possible to
show them in a different format. You can choose to display UPCE symbols as either UPC-A or EAN-13
symbols, EAN-8 symbols as EAN-13 symbols, or UPC-A symbols as EAN-13 symbols. The following
table shows the effect of setting various options.
Option EAN-8 UPC-A UPC-E All
others
EAN8_as_EAN13 Converted to
EAN-13 No effect No effect
No
effect
UPCA_as_EAN13 No effect Converted to
EAN-13 No effect
UPCE_as_EAN13 No effect No effect Converted to
EAN-13
UPCE_as_UPCA No effect No effect Converted to
UPC-A
Table 9 - Symbology Conversion
KDC350 User Manual
99
Verification of Optional “Check Digit”
Code39 and Interleave 2 of 5 have an optional che ck di git, whi ch, by default, is not verified. Their
verification can be enabled by sel ecting the optio n VerifyCheckDigit to tru e or you can e nable th e
verification f or individu al symbologi es. If the c heck digit verification fails then the barco de is not
transmitted.
Option Selected Verify Code39 check
digit
Verify I2of5 check digit
VerifyCheckDigit Yes Yes
Code39_VerifyCheckDigit Yes No effect
I2of5_VerifyCheckDigit No effect Yes
Table 10 - Verification of Optional "Check Digit"
Transmission of “Check Digit”
By default, the check digit – optional or mandatory – is not transmitted. Its transmission can be enabled
for all symbologies by enabling ReturnCheckDigit option.
Option Selected
Is the check digit returned?
EAN-
13
EAN-
8
UPC-
A
UPC-
E
Code39 I2of5
ReturnCheckDigit Yes Yes Yes Yes Yes Yes
EAN13_ReturnCheckDigit Yes No effect No effect No effect No effect No effect
EAN8_ReturnCheckDigit No effect Yes No effect No effect No effect No effect
UPCA_ReturnCheckDigit No effect No effect Yes No effect No effect No effect
UPCE_ReturnCheckDigit N o effect No effect No effect Yes No effect No effect
Code39_ReturnCheckDigit No effect No effect No effect No effect Yes No effect
I2of5_ReturnCheckDigit No effect No effect No effect No effect No effect Yes
Table 11 - Transmission of "Check Digit"
KDC350 User Manual
100
Resolution of Inconsistencies
Three types of inconsistencies could arise in the assignment of symbology options. The decoder has pre-
defined strategies to resolve these inconsistencies: If UPCE_as_EAN13 is true, then UPCE_as_UPCA
is ignored.
If symbology conversion is selected but the target symbology is not enabled, then the decoder still
outputs the symbol in the target symbology. For example, suppose UPC-E is enabled and
UPCE_as_EAN13 is true but EAN-13 is disabled. All UPC-E symbols will be shown as EAN-13 and
EAN-13 options (if specified) will be applied. For the two symbologies that have optional check digits,
Code39 and Interleave 2 of 5, the decoder will always transmit the check digit if the verification is
disabled.
Verify Check
Digit
Return Check
Digit Description
Disabled Enabled or
Disabled Check digit is not verified but is transmitted
Enabled Disabled Check digit is verified but is not transmitted
Enabled Enabled Check digit is verified and is transmitted
Table 12 - Resolution of Inconsistencies
KDC350 User Manual
101
A.3 Miscellaneous Barcode Information
Height of a Linear Barcode
Industry standards suggest a height of either 6.5mm or 15% of the symbol length, whichever is greater.
Symbols of less than recommended heights may cause recognition problems.
Check Characters
Yes, we recommend the use of check-characters in barcodes. Operating without check-characters is not
safe and will lead to errors that are costly to correct. Using check-characters positively affects data
integrity especially when character density is at the limits and/or image quality is not at its best.
Prevent Interleave 2 of 5 Partial Reading
A partial scan of an Interleave 2 of 5 symbol may decode and cause incorrect data to be read. To
prevent partial scans on long symbols, you should include bearer bars. These are bars that run along the
top and bottom edges of the barcode in the scanning direction. If a partial scan of the barcode occurs,
the scanning beam will hit the bearer bar and will not decode. The bearer bar must touch the top and
bottom of all the bars and must be at least 3 times as wide.
Another solution for the short scanning problem is to fix all Interleave 2 of 5 symbols to a set number of
digits. Zeros can be used to pad the data to the set number of digits. The application program would then
be set to only accept scans of the correct number of digits.
Finally, a check digit may be used. The Interleave 2 of 5 symbology has an optional check character
which uses a weighted Modulo 10 scheme. The check character is the last character in the symbol and
should be checked by the decoder and then transmitted with the data. Since Interleave 2 of 5 must
always have an even number of digits, the leftmost character may need to be a zero when the check
character is added. The standard check digit is calculated by assigning alternating 3,1,3,1… weights to
respective data digits. These weights are then multiplied by their respective data digits and the products
are summed. The check digit is the digit needed to be added to the sum to make it an even multiple of 10.
An example would be if the sum of the products was 37, then the check digit would be 3.
KDC350 User Manual
102
Equation to Determining Potential Number of Stored
Barcodes
The number of barcodes that can be stored in the KDC memory depends on the size of the barcodes.
Example: If only UPCA barcodes are scanned and the check digit is not transmitted, then each barcode
takes up 11 (barcode data) + 2 (added bytes) + 2 (length and type) + 4 (time stamp) = 19 bytes. The
maximum number of UPCA barcodes that can be saved is 204,800/19 =10,778. However, KDC has limited
the maximum number of barcode as 10,240 and users can't store more than 10,240 barcodes in 2.85/86
version. 3.0x version allows user to store maximum 204,800 barcodes.
Data Buffer Full
When the data buffer is full, the KDC displays a message, Buffer Full, ignoring any command to scan
barcodes. You must reset the data buffer to continue data collection.
KDC350 User Manual
103
Appendix B – FAQ
B.1 Symbology
Q: What barcode symbologies are supported by the KDC200?
A: The KDC200 supports most major 1D barcode symbologies. Below is a list of the1D symbologies
supported by the KDC200.
KDC300/420/425
2D Barcodes
AztecCode, AztecRunes, Codablock, Code16K,
Code49, DataMatrix, MaxiCode,
MicroPDF, PDF417, and QRCode
1D Barcodes
Codabar, Code11, Code32, Code39, Code128,
EAN8, EAN13, GS1-128, I2of5, MSI, Plessey,
PosiCode, GS1 DATABAR OMNI, GS1 Limited,
GS1 Expanded, S2of5IA, S2of5ID, TLC39,
Telepen, Trioptic, UPCA, and UPCE
Postal Barcodes
AusPost, CanadaPost, ChinaPost,
JapanPost, KoreaPost, KixPost, Planet Code,
Postnet (US), and UKPost
OCR Fonts
OCR-A, OCR-B, OCRUSCurrency,
OCRMICRE13B, and OCRSEMIFONT
KDC100/200/250/410/415
1D Barcodes
EAN13
EAN8
UPCA
UPCE
Bookland EAN
EAN13 with Add-on
EAN8 with Add-on
UPCA with Add-on
UPCE with Add-on
Interleave 2 of 5
ITF14
Code128
Codabar
GS1-128
Code39
Code93
Code35
Table 13 - Symbologies Supported by KDC
KDC350 User Manual
104
B.2 Host Interface
Q: What interface ports are supported by the KDC200?
A: The KDC200 has one ultra mini USB port which supports serial and USB-Serial. It also supports
Bluetooth profiles.
Q: What Bluetooth protocol stacks are supported by KDC200?
A: The KD200 has Bluetooth HID and SPP profiles. KDC200i/250i/300i/350i/400i also supports "Made
for iPhone" Bluetooth profile.
B.3 Battery
Q: How long will the KDC200 battery last before it needs to be replaced?
A: The battery on the KDC200 can be charged at least 300 times before it needs to be replaced.
Q: How long does it take to charge the KDC200?
A: It takes about 2 hours to fully charge the KDC200 from an empty battery status to a fully charged
status.
Q: How many barcodes can a fully charged KDC200 scan?
A: The KDC200 can scan more than 10,000 barcodes when fully charged. Using Bluetooth, it can
scan more than 7,500 barcodes. KDC200i would scan less barcodes than KDC200.
Q: How long will the KDC200 battery lasts in the sleep mode?
A: KDC200 last several days with Bluetooth connection. KDC200i last less than KDC200.
Q: Can I replace the KDC200 battery?
A: Yes. The KDC200 has a separate compartment for the battery which can be opened easily with a
screw driver. Contact your distributor for a replacement battery.
B.4 Memory
Q: How many barcodes can be stored in the KDC200?
A: KDC200 have basic 180KB data memory and optional 4MB extended memory. 180KB can store
more than 10,000 UPC barcodes and 4MB can store more than 100,000 product database. FW86
version uses 100KB for database area and user data memory is 80KB.
Q: Can I download stored barcodes or wedge barcodes to my application?
A: Yes. KTSync® is keyboard wedging, application generation, DB look up and inventory program
bundled with the KDC100/200/300 which supports host devices running on Android®,
iPhone/iPad/iPod touch, Blackberry®, Windows® XP/Vista/7/Mobile5.0+.
Q: Does the KDC200 support Android®, iPhone/iPad/iPod touch®, Blackberry®, Mac® and
Windows® devices?
A: KTSync® supports Android®, iPhone/iPad/iPod touch, Blackberry®, Mac® and Windows® devices
currently.
KDC350 User Manual
105
B.5 Programming
Q: Can the KDC200 be programmed by a KoamTac partner?
A: Yes. KoamTac’s Application Generation tool provides an enhanced programming environment for
developing custom applications for the KDC.
1. KDC supports, at most, three step data collection processes including the ability to perform
various data functionality features.
2. KDC’s database lookup function provides enhanced data processes enabling the KDC to
display database results with or without scanned barcode data.
3. KDC can display a message from Host enabling two way communications and a messaging
application.
Q: Does KoamTac provide customization services for the KDC200?
A: Yes. Custom applications or projects can be developed by KoamTac engineers. This service is
provided for an additional fee to KoamTac. For more information regarding this service, please
contact KoamTac.
Q: Can a partner develop a PC or Smartphone application for the KDC200?
A: A software development kit for``````````` Windows® XP/Vista/7/Mobile5.0+, Android is available on
KoamTac support page. Android®, iPhone/iPad/iPod touch, Blackberry®, Mac® SDK are available
through KoamTac authorized distributors.
KDC350 User Manual
106
APPENDIX C - SPECIAL BARCODES
C.1 Set Symbologies (KDC100/200/250/350)
Enable EAN13 Disable EAN13
Enable EAN8 Disable EAN8
Enable UPCA Disable UPCA
Enable UPCE Disable UPCE
Enable Code39 Disable Code39
KDC350 User Manual
107
Enable ITF14 Disable ITF14
Enable Code128 Disable Code128
Enable I2 of 5 Disable I2 of 5
Enable Codabar Disable Codabar
Enable EAN128 Disable EAN128
Enable Code93 Disable Code93
KDC350 User Manual
108
Enable Code35 Disable Code35
Enable Bookland EAN Disable Bookland EAN
Enable EAN13 with Addon Disable EAN13 with Addon
Enable EAN8 with Addon Disable EAN8 with Addon
Enable UPCA with Addon Disable UPCA with Addon
Enable UPCE with Addon Disable UPCE with Addon
KDC350 User Manual
109
C.2 Barcode Options (KDC100/200/250/350)
Codabar - do NOT transmit start/stop Codabar - transmit start/stop
Convert UPCE to UPCA Do NOT convert UPCE to UPCA
Convert EAN8 to EAN13 Do NOT Return Check Digit
Convert UPCE to EAN13 Do NOT Verify Check Digit
Return Check Digit Do NOT convert EAN8 to EAN13
Verify Check Digit Do NOT convert UPCE to EAN13
KDC350 User Manual
110
Convert UPCA to EAN13 Do NOT Convert UPCA to EAN13
Verify check digit for I2of5 Do NOT verify check digit for I2of5
Verify check digit for Code39 Do NOT verify check digit for Code39
Return check digit for I2of5 Do NOT return check digit for I2of5
Return check digit for Code39 Do NOT return check digit for Code39
Return check digit for UPCE Do NOT return check digit for UPCE
KDC350 User Manual
111
Return check digit for UPCA Do NOT return check digit for UPCA
Return check digit for EAN8 Do NOT return check digit for EAN8
Return check digit for EAN13 Do NOT return check digit for EAN13
KDC350 User Manual
112
C.3 Delete Last Scanned Barcode
(KDC100/200/250/350)
KDC350 User Manual
113
C.4 Scan Options (KDC100/200/250/350)
Wide scan angle Narrow scan angle
Normal filter mode High filter mode
Auto Trigger Enable Auto Trigger Disable
Continuous Short
Medium Long
Extra Long
KDC350 User Manual
114
C.5 Scan Timeout (KDC100/200/250/350)
Timeout = 500msec Timeout = 1sec Timeout = 2sec
Timeout = 3sec Timeout = 4sec Timeout = 5sec
Timeout = 6sec Timeout = 7sec Timeout = 8sec
Timeout = 9sec Timeout = 10sec
KDC350 User Manual
115
C.6 Minimum Barcode Length
(KDC100/200/250/350)
Minimum Length = 2 Minimum Length = 3 Minimum Length = 4
Minimum Length = 5 Minimum Length = 6 Minimum Length = 7
Minimum Length = 8 Minimum Length = 9 Minimum Length = 10
Minimum Length = 11 Minimum Length = 12 Minimum Length = 13
Minimum Length = 14 Minimum Length = 15 Minimum Length = 16
Minimum Length = 17 Minimum Length = 18 Minimum Length = 19
KDC350 User Manual
116
Minimum Length = 20 Minimum Length = 21 Minimum Length = 22
Minimum Length = 23 Minimum Length = 24 Minimum Length = 25
Minimum Length = 26 Minimum Length = 27 Minimum Length = 28
Minimum Length = 29 Minimum Length = 30 Minimum Length = 31
Minimum Length = 32 Minimum Length = 33 Minimum Length = 34
Minimum Length = 35 Minimum Length = 36
KDC350 User Manual
117
C.7 Security Level (KDC100/200/250/350)
Security level = 1
Security level = 2
Security level = 3
Security level = 4
KDC350 User Manual
118
C.8 Data Process - Wedge/Store
(KDC100/200/250/350)
Wedge Only
Wedge & Store
Store Only
Wedge & Store if Sent
Wedge & Store if Not Sent
KDC350 User Manual
119
C.9 Data Process – Data Edit
(KDC100/200/250/350)
Prefix Enter Start Suffix Enter Start
Prefix/Suffix Enter Finish Prefix/Suffix Enter Cancel
Delete Prefix Delete Suffix
Display Prefix Display Suffix
AIM ID None AIM ID In Prefix
AIM ID In Suffix
KDC350 User Manual
120
C.10 Data Process - Data Format –
Handshake (KDC100/200/250/350)
Data format - Barcode only
Data format - Packet data
Enable Handshake
Disable Handshake
KDC350 User Manual
121
C.11 Data Process - Termination Character &
Duplicate Check (KDC100/200/250/350)
None CR
LF CR+LF
Tab
Check Duplicate Enabled Check Duplicate Disabled
KDC350 User Manual
122
C.12 Bluetooth (KDC200/250/350)
Enable Bluetooth Power Disable Bluetooth Power
Enter Pairing Mode
Discovering Enable Discovering Disable
Connect To Last Connecting to
Disconnect HID Sync
Bluetooth Device type SPP Bluetooth Device type HID iOS
KDC350 User Manual
123
Bluetooth Device type IPHONE Bluetooth Device type SPP2.0
Bluetooth Device type HID Normal
Enable Auto Connect Disable Auto Connect
Enable Auto Power On Disable Auto Power On
Enable Auto Power Off Disable Auto Power Off
Enable Beep Warning Disable Beep Warning
KDC350 User Manual
124
Enable Power Off Msg Disable Power Off Msg
BT MAC Address BT FW Version
Enable Wakeup Nulls Disable Wakeup Nulls
Confirm To Send Enabled Confirm To Send Disabled
BT Toggle Enable BT Toggle Disable
KDC350 User Manual
125
C.13 Bluetooth Auto Power On Time
(KDC200/250/350)
Auto Power On Time Disabled Auto Power On Time 1sec
Auto Power On Time 2sec Auto Power On Time 3sec
Auto Power On Time 4sec Auto Power On Time 5sec
Auto Power On Time 6sec Auto Power On Time 7sec
Auto Power On Time 8sec Auto Power On Time 9sec
Auto Power On Time 10sec
KDC350 User Manual
126
C.14 Bluetooth PWR Off Time
(KDC200/250/350)
1min 2min
3min 4min
5min 6min
7min 8min
9min 10min
KDC350 User Manual
127
11min 12min
13min 14min
15min 16min
17min 18min
19min 20min
21min 22min
KDC350 User Manual
128
23min 24min
25min 26min
27min 28min
29min 30min
KDC350 User Manual
129
C.15 Auto lock Time (KDC200/250/350)
0 min (Never) 1 min
2 min 3 min
4 min 5 min
10 min 15 min
KDC350 User Manual
130
C.16 HID Keyboard layout
(KDC100/200/250/350)
US German
French Italian
Spanish
KDC350 User Manual
131
C.17 HID Initial Delay (KDC200/250/350)
Disabled 1 second
2 seconds 3 seconds
5 seconds 10 seconds
KDC350 User Manual
132
C.18 HID Character Delay (KDC200/250/350)
Disabled 10 msec
20 msec 30 msec
50 msec 100 msec
KDC350 User Manual
133
C.19 HID Control Character (KDC200/250/350)
Disabled Alt+Numpad
^+Character Replace with ‘|’
KDC350 User Manual
134
C.20 System (KDC100/200/250/350)
0.5M / 3.5M 1M / 3M
2M / 2M 3M / 1M
4M / 0M Confirm Memory size change
Memory Status Reset Memory
Erase Memory Re set App data
Reset BT Registry SPP Sync
KDC350 User Manual
135
Auto Erase Enable Auto Erase Disable
Date/Time Battery
Version
Button Lock Button Unlock
Enable Beep Sound Disable Beep Sound
High Beep Volume Low Beep Volume
Enable Auto Menu Exit Disable Auto Menu Exit
KDC350 User Manual
136
MFi Mode Enable MFi Mode Disable
Enable Port Status Disable Port Status
Time & Battery Type & Time
Type & Battery Memory Status
GPS Data (KDC250/350) Barcode Only
Enable Scrolling Disable Scrolling
Factory Default
KDC350 User Manual
137
Disable Buttons Enter Menu
KDC350 User Manual
138
C.21 Sleep Timeout (KDC100/200/250/350)
Disable 1sec
2sec 3sec
4sec 5sec
10sec 20sec
30sec 1min
2min 5min
KDC350 User Manual
139
10min
KDC350 User Manual
140
C.22 ETC (KDC100/200/250/350)
Reverse Direction Enable Return check digit Enable
Verify check digit Enable Reverse Direction Disable
Return check digit Disable Verify check digit Disable
KDC350 User Manual
141
C.23 Function (KDC100/200/250/350)
F1 F2
F3 F4
F5 F6
F7 F8
F9 F10
F11 F12
KDC350 User Manual
142
C.24 Number (KDC100/200/250/350)
0 1
2 3
4 5
6 7
8 9
KDC350 User Manual
143
C.25 Lower Case Alphabet
(KDC100/200/250/350)
a b
c d
e f
g h
i j
k l
KDC350 User Manual
144
m n
o p
q r
s t
u v
w x
KDC350 User Manual
145
y z
KDC350 User Manual
146
C.26 Upper Case Alphabet
(KDC100/200/250/350)
A B
C D
E F
G H
I J
K L
KDC350 User Manual
147
M N
O P
Q R
S T
U V
W X
KDC350 User Manual
148
Y Z
KDC350 User Manual
149
C.27 Control Character (KDC100/200/250/350)
BS TAB
LF VT
CR ESC
Space DEL
KDC350 User Manual
150
C.28 Symbol Character (KDC100/200/250/350)
! “
# $
% &
‘ (
) *
+ ,
KDC350 User Manual
151
- .
/ :
; <
= >
? @
[ \
KDC350 User Manual
152
] ^
_ `
{ |
} ~
Start-String Stop-String
KDC350 User Manual
153
Note:
You can compose a string up to 16 characters.
A string would be composed by scanning the “Start-String”,
number/alphabet/special characters, and “Stop-String” special barcodes.
The KDC will abort string composition if you do not scan
“Stop-String” in one minute after scanning “Start-String” and
number/alphabet/special characters.
KDC350 User Manual
154
C.29 GPS (KDC250/350)
GPS Power Enabled GPS Power Disabled
GPS Bypass Data Enabled GPS Bypass Data Disabled
Reset GPS Module GPS Acquire Test
GPS Power Save Mode(Normal) GPS Power Save Mode(Power Saving)
GPS Auto Power Off Enabled GPS Auto Power Off Disabled
KDC350 User Manual
155
C.30 Auto Power Off Timeout (KDC250/350)
0 min (Disabled) 5 min
10 min 20 min
30 min 60 min
120 min Display Format = GPS Data
KDC350 User Manual
156
INDEX
Angle .................................... 37
Auto .................................... 122
barcode scanner .................. 12
Battery .... 28, 44, 133, 134, 135
Beep ....................... 44, 62, 122
Bluetooth ............................ 121
Button ................................... 44
Clear .............................. 61, 92
Connect .............................. 122
data collectorSee barcode scanner
