AKRAPOVIC d d ASR01 Akrapovic Sound Kit/Sound Remote Receiver User Manual

AKRAPOVIC d.d. Akrapovic Sound Kit/Sound Remote Receiver

User Manual

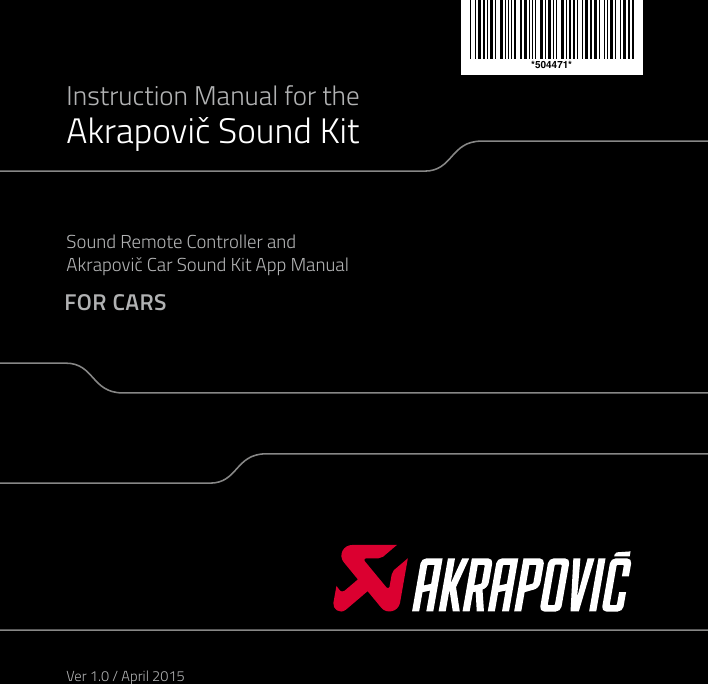

Instruction Manual for theAkrapovič Sound KitFOR CARSSound Remote Controller andAkrapovič Car Sound Kit App ManualVer 1.0 / April 2015*504471*

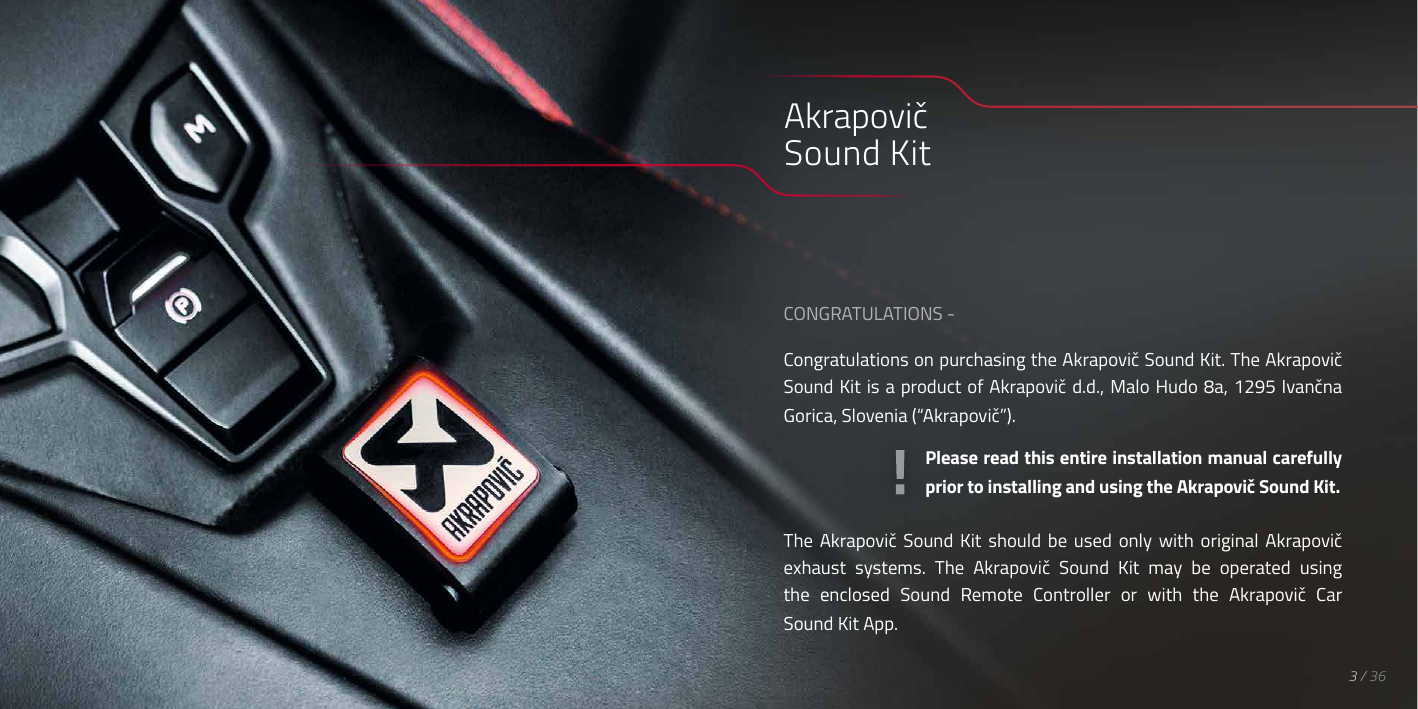

CONGRATULATIONS -Congratulations on purchasing the Akrapovič Sound Kit. The Akrapovič Sound Kit is a product of Akrapovič d.d., Malo Hudo 8a, 1295 Ivančna Gorica, Slovenia (“Akrapovič”).Please read this entire installation manual carefully prior to installing and using the Akrapovič Sound Kit.The Akrapovič Sound Kit should be used only with original Akrapovič exhaust systems. The Akrapovič Sound Kit may be operated using the enclosed Sound Remote Controller or with the Akrapovič Car Sound Kit App.Akrapovič Sound Kit3 / 36

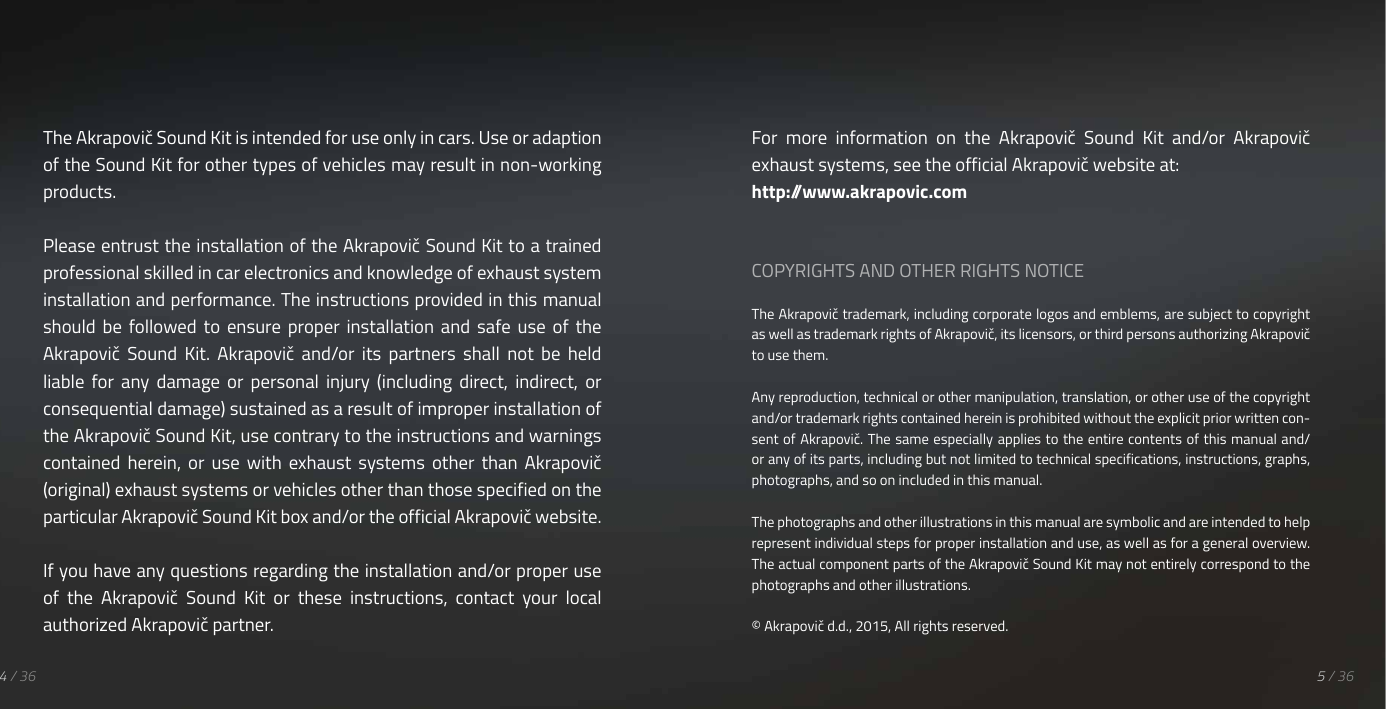

The Akrapovič Sound Kit is intended for use only in cars. Use or adaption of the Sound Kit for other types of vehicles may result in non-working products.Please entrust the installation of the Akrapovič Sound Kit to a trained professional skilled in car electronics and knowledge of exhaust system installation and performance. The instructions provided in this manual should be followed to ensure proper installation and safe use of the Akrapovič Sound Kit. Akrapovič and/or its partners shall not be held liable for any damage or personal injury (including direct, indirect, or consequential damage) sustained as a result of improper installation of the Akrapovič Sound Kit, use contrary to the instructions and warnings contained herein, or use with exhaust systems other than Akrapovič (original) exhaust systems or vehicles other than those specified on the particular Akrapovič Sound Kit box and/or the official Akrapovič website.If you have any questions regarding the installation and/or proper use of the Akrapovič Sound Kit or these instructions, contact your local authorized Akrapovič partner.For more information on the Akrapovič Sound Kit and/or Akrapovič exhaust systems, see the official Akrapovič website at:http://www.akrapovic.comCOPYRIGHTS AND OTHER RIGHTS NOTICEThe Akrapovič trademark, including corporate logos and emblems, are subject to copyright as well as trademark rights of Akrapovič, its licensors, or third persons authorizing Akrapovič to use them.Any reproduction, technical or other manipulation, translation, or other use of the copyright and/or trademark rights contained herein is prohibited without the explicit prior written con-sent of Akrapovič. The same especially applies to the entire contents of this manual and/or any of its parts, including but not limited to technical specifications, instructions, graphs, photographs, and so on included in this manual.The photographs and other illustrations in this manual are symbolic and are intended to help represent individual steps for proper installation and use, as well as for a general overview. The actual component parts of the Akrapovič Sound Kit may not entirely correspond to the photographs and other illustrations.© Akrapovič d.d., 2015, All rights reserved.5 / 364 / 36

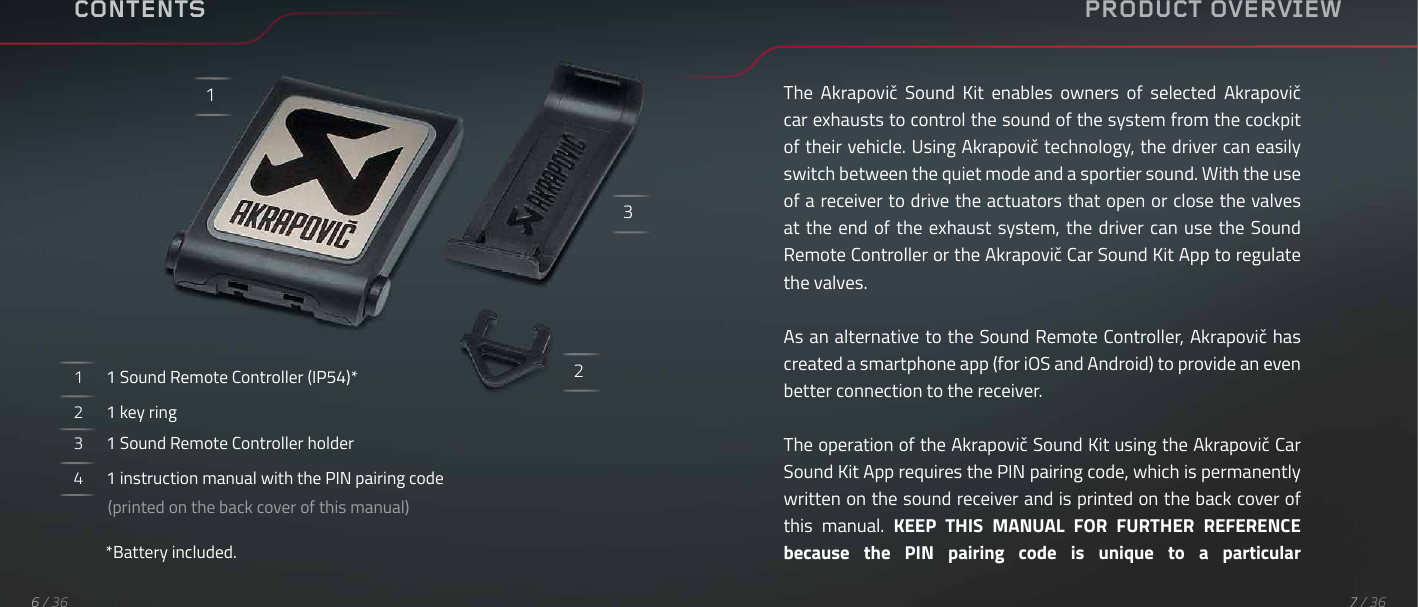

CONTENTS1 1 Sound Remote Controller (IP54)*2 1 key ring3 1 Sound Remote Controller holder4 1 instruction manual with the PIN pairing code (printed on the back cover of this manual)*Battery included.123PRODUCT OVERVIEWThe Akrapovič Sound Kit enables owners of selected Akrapovič car exhausts to control the sound of the system from the cockpit of their vehicle. Using Akrapovič technology, the driver can easily switch between the quiet mode and a sportier sound. With the use of a receiver to drive the actuators that open or close the valves at the end of the exhaust system, the driver can use the Sound Remote Controller or the Akrapovič Car Sound Kit App to regulate the valves.As an alternative to the Sound Remote Controller, Akrapovič has created a smartphone app (for iOS and Android) to provide an even better connection to the receiver.The operation of the Akrapovič Sound Kit using the Akrapovič Car Sound Kit App requires the PIN pairing code, which is permanently written on the sound receiver and is printed on the back cover of this manual. KEEP THIS MANUAL FOR FURTHER REFERENCE because the PIN pairing code is unique to a particular 7 / 366 / 36

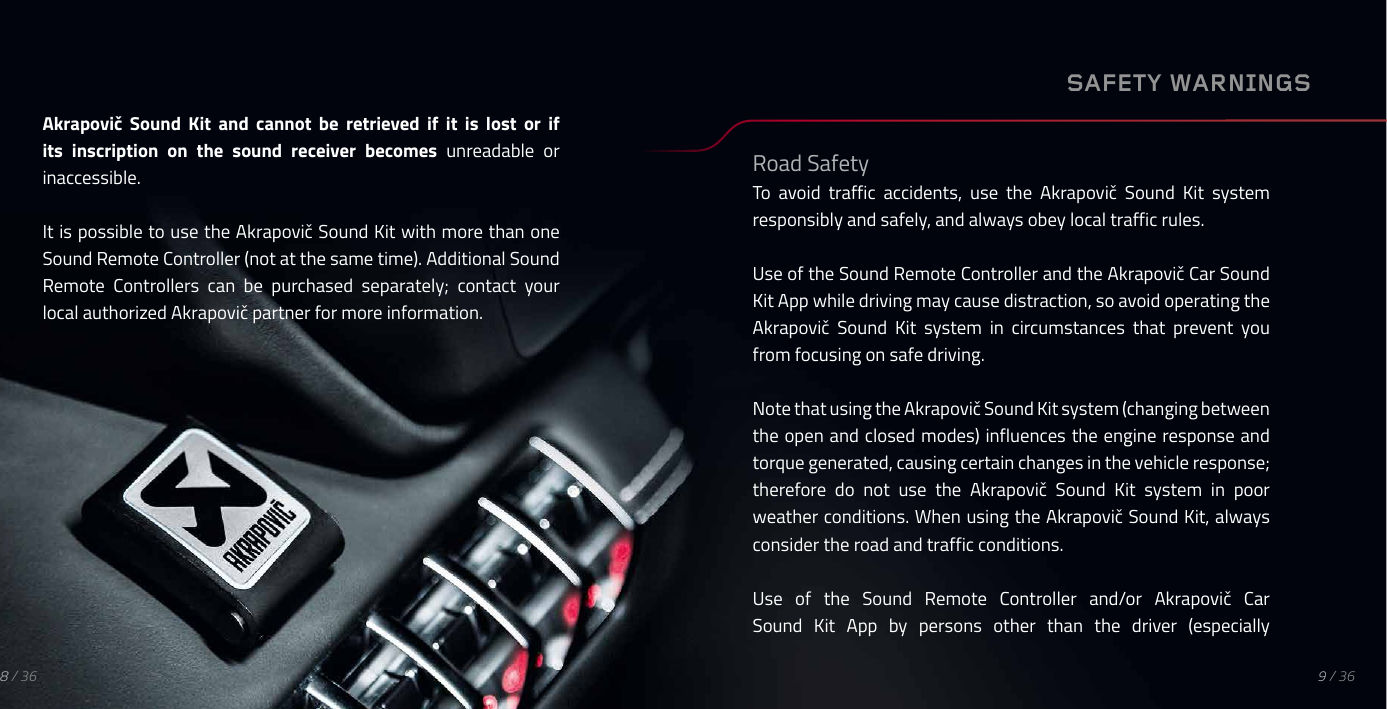

Akrapovič Sound Kit and cannot be retrieved if it is lost or if its inscription on the sound receiver becomes unreadable or inaccessible.It is possible to use the Akrapovič Sound Kit with more than one Sound Remote Controller (not at the same time). Additional Sound Remote Controllers can be purchased separately; contact your local authorized Akrapovič partner for more information.SAFETY WARNINGSRoad SafetyTo avoid traffic accidents, use the Akrapovič Sound Kit system responsibly and safely, and always obey local traffic rules.Use of the Sound Remote Controller and the Akrapovič Car Sound Kit App while driving may cause distraction, so avoid operating the Akrapovič Sound Kit system in circumstances that prevent you from focusing on safe driving.Note that using the Akrapovič Sound Kit system (changing between the open and closed modes) influences the engine response and torque generated, causing certain changes in the vehicle response; therefore do not use the Akrapovič Sound Kit system in poor weather conditions. When using the Akrapovič Sound Kit, always consider the road and traffic conditions.Use of the Sound Remote Controller and/or Akrapovič Car Sound Kit App by persons other than the driver (especially9 / 368 / 36

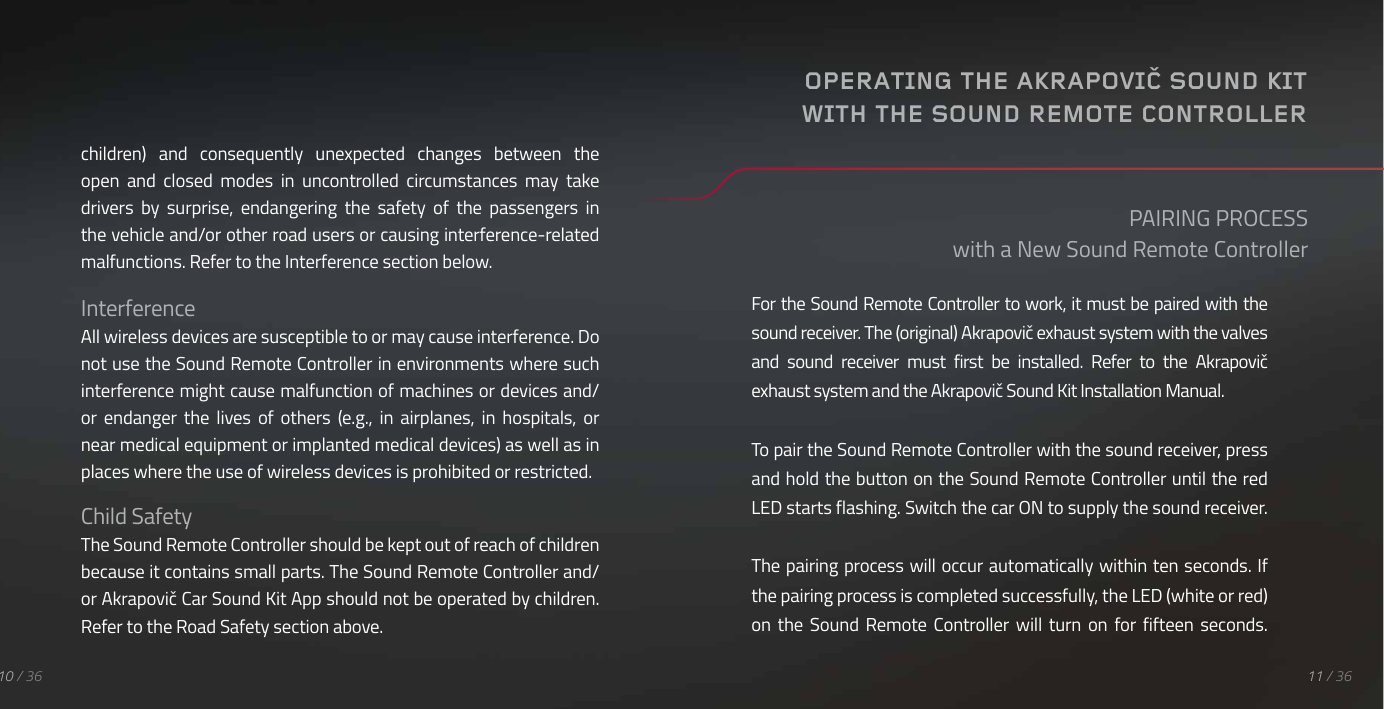

children) and consequently unexpected changes between the open and closed modes in uncontrolled circumstances may take drivers by surprise, endangering the safety of the passengers in the vehicle and/or other road users or causing interference-related malfunctions. Refer to the Interference section below.InterferenceAll wireless devices are susceptible to or may cause interference. Do not use the Sound Remote Controller in environments where such interference might cause malfunction of machines or devices and/or endanger the lives of others (e.g., in airplanes, in hospitals, or near medical equipment or implanted medical devices) as well as in places where the use of wireless devices is prohibited or restricted.Child SafetyThe Sound Remote Controller should be kept out of reach of children because it contains small parts. The Sound Remote Controller and/or Akrapovič Car Sound Kit App should not be operated by children. Refer to the Road Safety section above.For the Sound Remote Controller to work, it must be paired with the sound receiver. The (original) Akrapovič exhaust system with the valves and sound receiver must first be installed. Refer to the Akrapovič exhaust system and the Akrapovič Sound Kit Installation Manual.To pair the Sound Remote Controller with the sound receiver, press and hold the button on the Sound Remote Controller until the red LED starts flashing. Switch the car ON to supply the sound receiver.The pairing process will occur automatically within ten seconds. If the pairing process is completed successfully, the LED (white or red) on the Sound Remote Controller will turn on for fifteen seconds.PAIRING PROCESSwith a New Sound Remote ControllerOPERATING THE AKRAPOVIČ SOUND KIT WITH THE SOUND REMOTE CONTROLLER11 / 3610 / 36

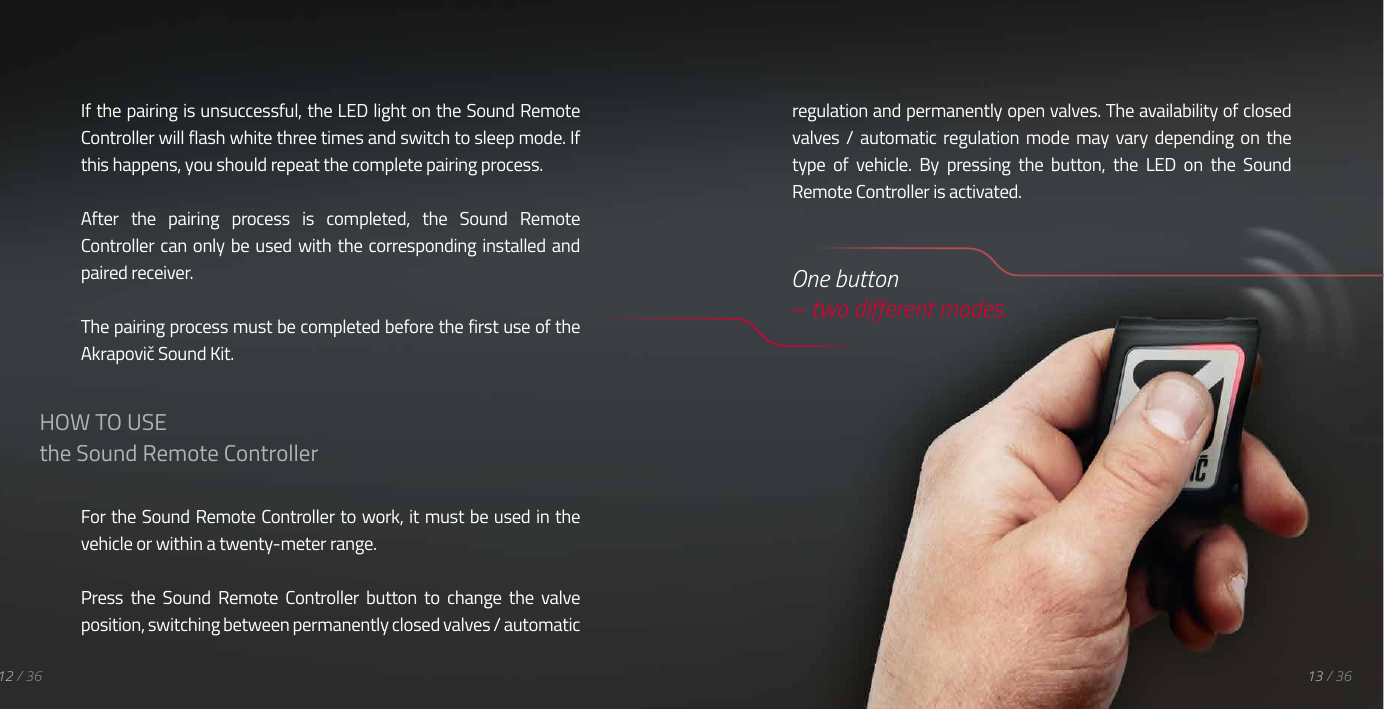

If the pairing is unsuccessful, the LED light on the Sound Remote Controller will flash white three times and switch to sleep mode. If this happens, you should repeat the complete pairing process.After the pairing process is completed, the Sound Remote Controller can only be used with the corresponding installed and paired receiver.The pairing process must be completed before the first use of the Akrapovič Sound Kit.For the Sound Remote Controller to work, it must be used in the vehicle or within a twenty-meter range.Press the Sound Remote Controller button to change the valve position, switching between permanently closed valves / automatic 12 / 36 13 / 36HOW TO USEthe Sound Remote Controllerregulation and permanently open valves. The availability of closed valves / automatic regulation mode may vary depending on the type of vehicle. By pressing the button, the LED on the Sound Remote Controller is activated. One button – two different modes.

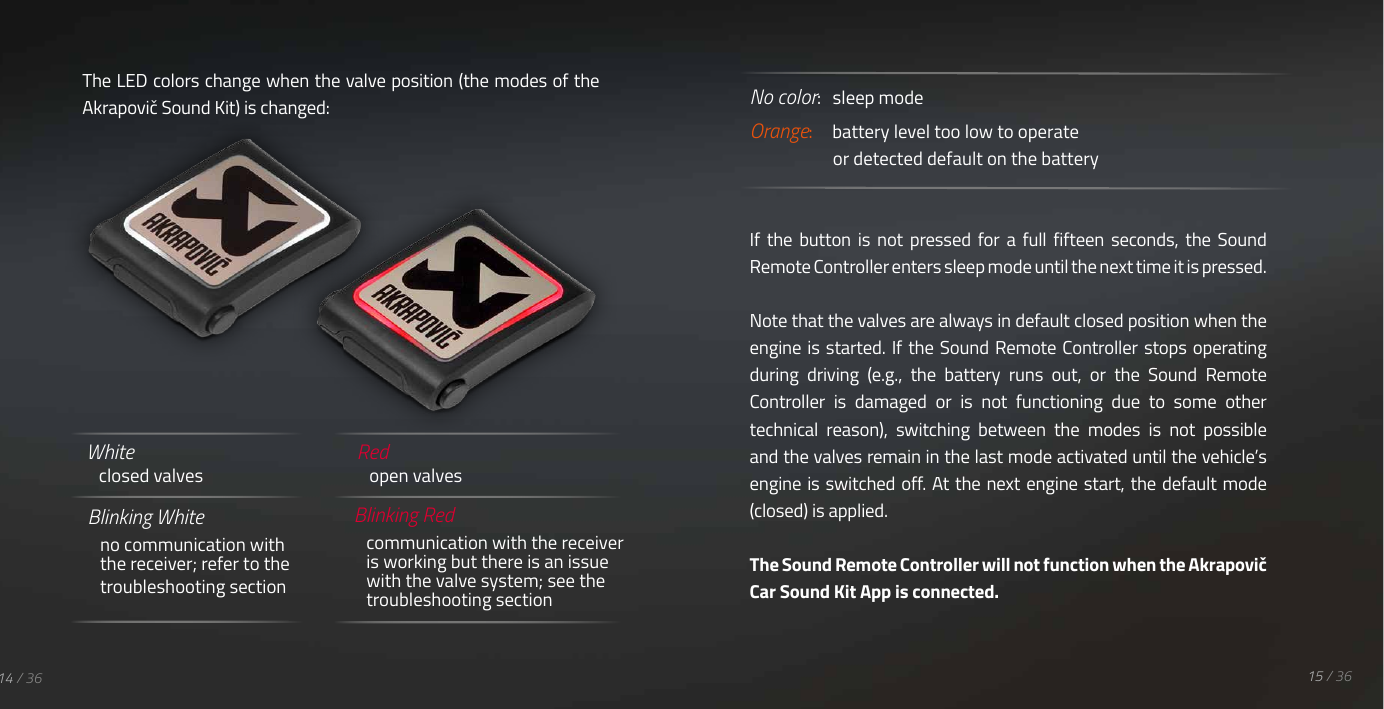

Blinking White no communication with the receiver; refer to the troubleshooting sectionBlinking Redcommunication with the receiver is working but there is an issue with the valve system; see the troubleshooting sectionRed open valvesWhite closed valvesThe LED colors change when the valve position (the modes of the Akrapovič Sound Kit) is changed: No color: sleep modeOrange: battery level too low to operate or detected default on the batteryIf the button is not pressed for a full fifteen seconds, the Sound Remote Controller enters sleep mode until the next time it is pressed.Note that the valves are always in default closed position when the engine is started. If the Sound Remote Controller stops operating during driving (e.g., the battery runs out, or the Sound Remote Controller is damaged or is not functioning due to some other technical reason), switching between the modes is not possible and the valves remain in the last mode activated until the vehicle’s engine is switched off. At the next engine start, the default mode (closed) is applied.The Sound Remote Controller will not function when the Akrapovič Car Sound Kit App is connected. 15 / 3614 / 36

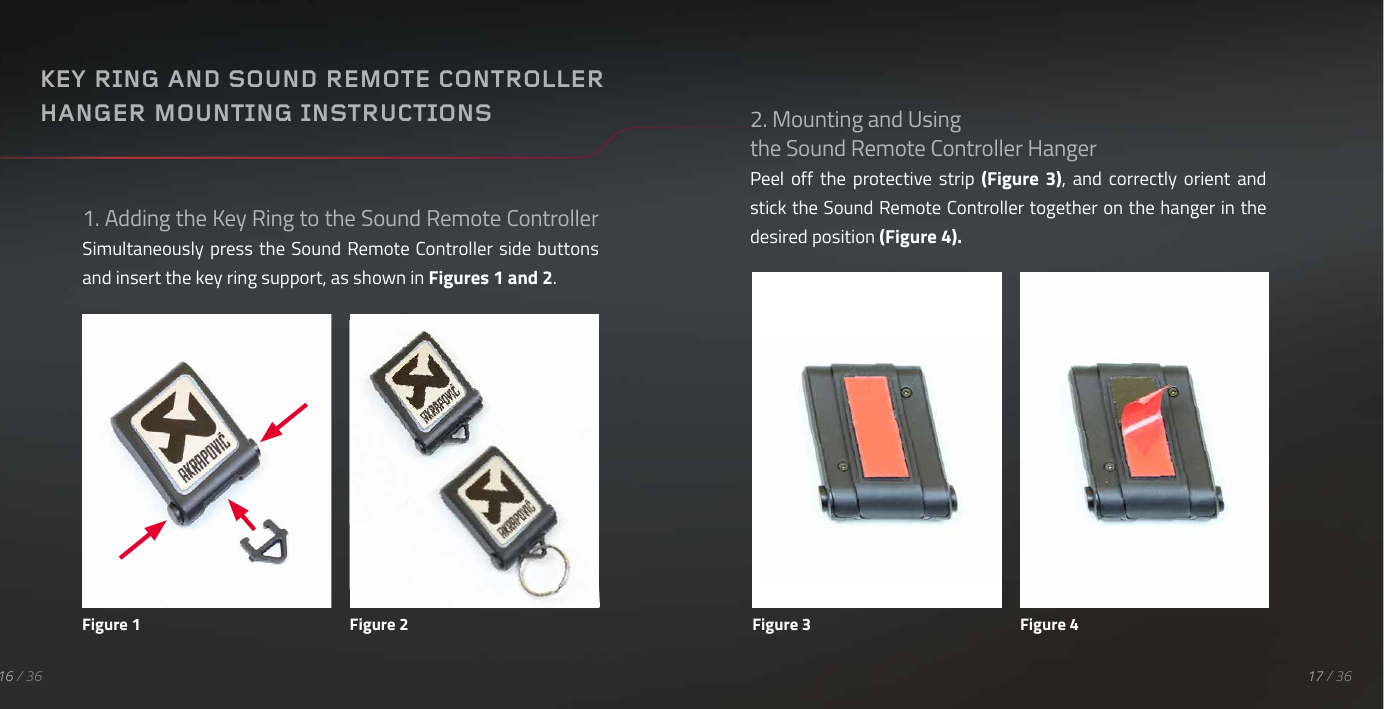

1. Adding the Key Ring to the Sound Remote Controller Simultaneously press the Sound Remote Controller side buttons and insert the key ring support, as shown in Figures 1 and 2.17 / 3616 / 36KEY RING AND SOUND REMOTE CONTROLLER HANGER MOUNTING INSTRUCTIONSFigure 1 Figure 22. Mounting and Using the Sound Remote Controller HangerPeel off the protective strip (Figure 3), and correctly orient and stick the Sound Remote Controller together on the hanger in the desired position (Figure 4).Figure 3 Figure 4

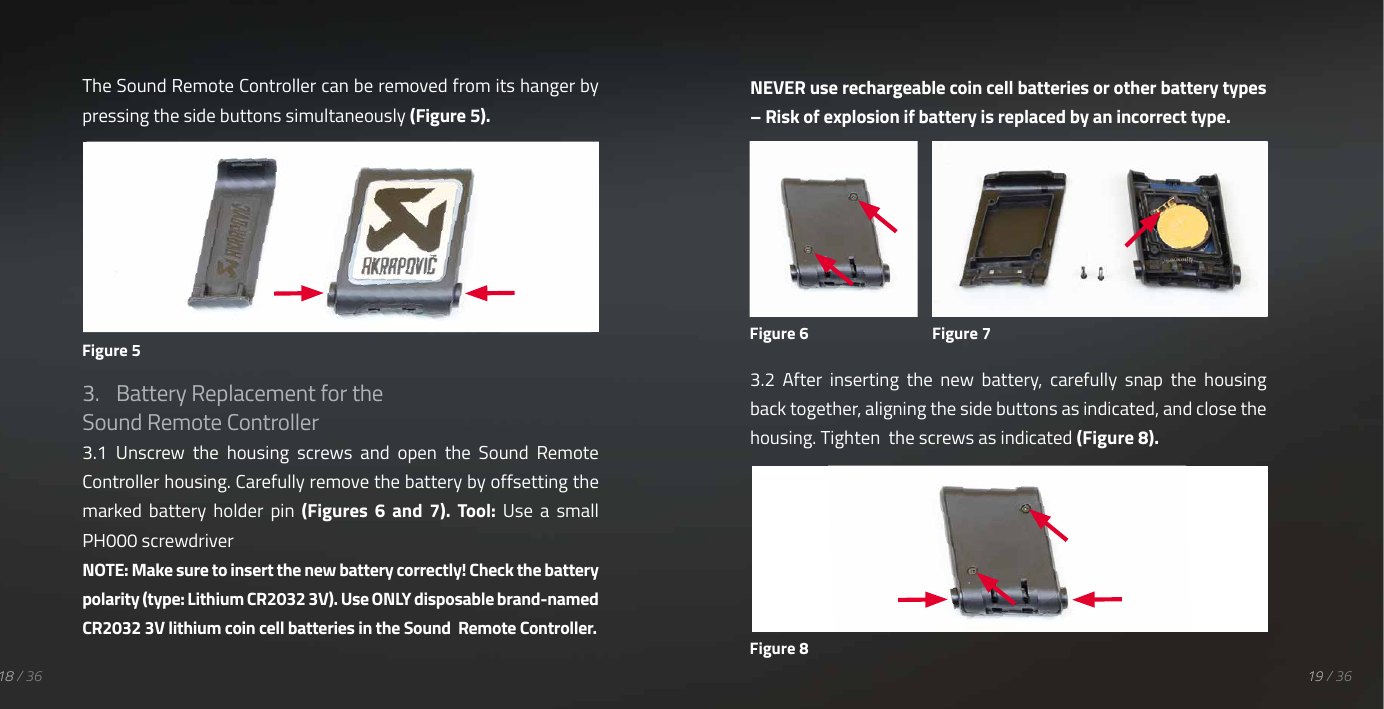

19 / 3618 / 36The Sound Remote Controller can be removed from its hanger by pressing the side buttons simultaneously (Figure 5).3. Battery Replacement for the Sound Remote Controller 3.1 Unscrew the housing screws and open the Sound Remote Controller housing. Carefully remove the battery by offsetting the marked battery holder pin (Figures 6 and 7). Tool: Use a small PH000 screwdriver NOTE: Make sure to insert the new battery correctly! Check the battery polarity (type: Lithium CR2032 3V). Use ONLY disposable brand-named CR2032 3V lithium coin cell batteries in the Sound Remote Controller.NEVER use rechargeable coin cell batteries or other battery types – Risk of explosion if battery is replaced by an incorrect type.3.2 After inserting the new battery, carefully snap the housing back together, aligning the side buttons as indicated, and close the housing. Tighten the screws as indicated (Figure 8).Figure 5Figure 6 Figure 7Figure 8

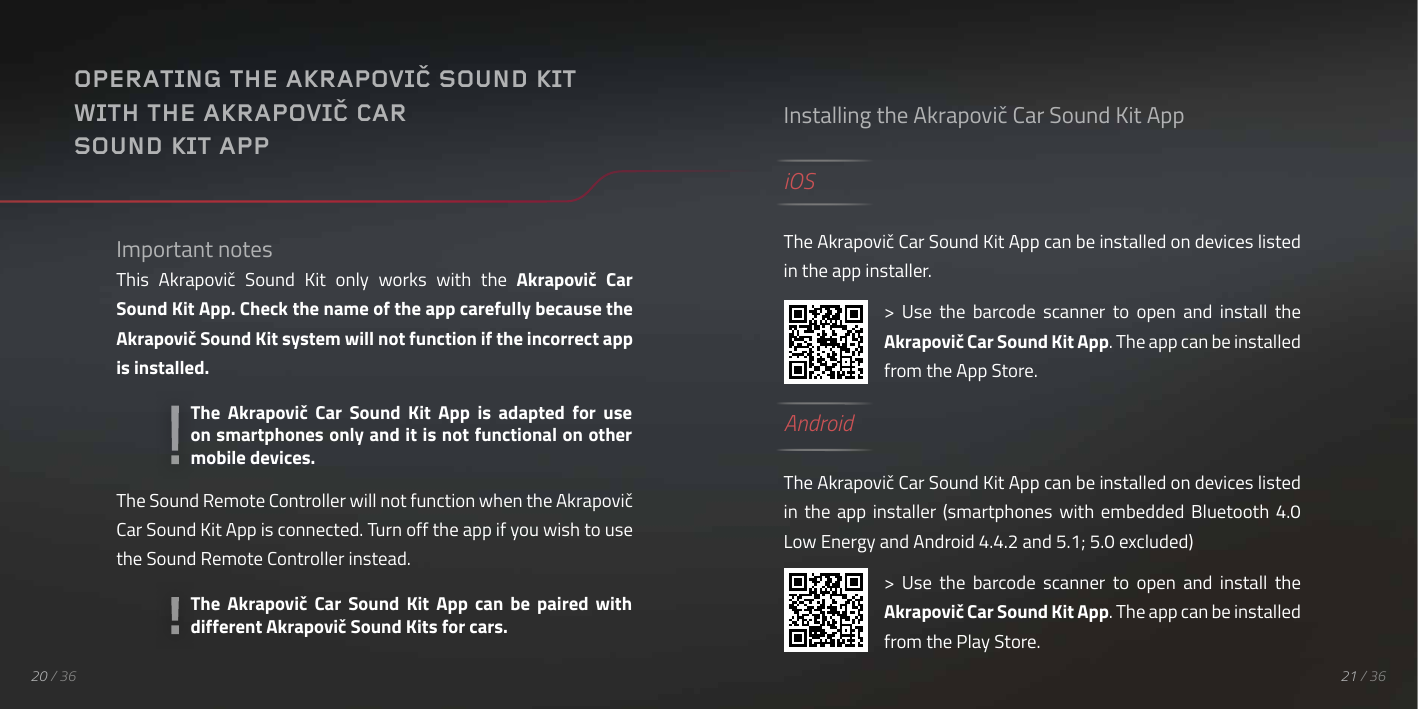

20 / 36Important notesThis Akrapovič Sound Kit only works with the Akrapovič Car Sound Kit App. Check the name of the app carefully because the Akrapovič Sound Kit system will not function if the incorrect app is installed.The Sound Remote Controller will not function when the Akrapovič Car Sound Kit App is connected. Turn off the app if you wish to use the Sound Remote Controller instead.OPERATING THE AKRAPOVIČ SOUND KITWITH THE AKRAPOVIČ CAR SOUND KIT APPInstalling the Akrapovič Car Sound Kit AppiOSThe Akrapovič Car Sound Kit App can be installed on devices listed in the app installer.> Use the barcode scanner to open and install the Akrapovič Car Sound Kit App. The app can be installed from the App Store.AndroidThe Akrapovič Car Sound Kit App can be installed on devices listed in the app installer (smartphones with embedded Bluetooth 4.0 Low Energy and Android 4.4.2 and 5.1; 5.0 excluded)> Use the barcode scanner to open and install the Akrapovič Car Sound Kit App. The app can be installed from the Play Store.The Akrapovič Car Sound Kit App can be paired with different Akrapovič Sound Kits for cars.The Akrapovič Car Sound Kit App is adapted for use on smartphones only and it is not functional on other mobile devices.QR KODA21 / 36

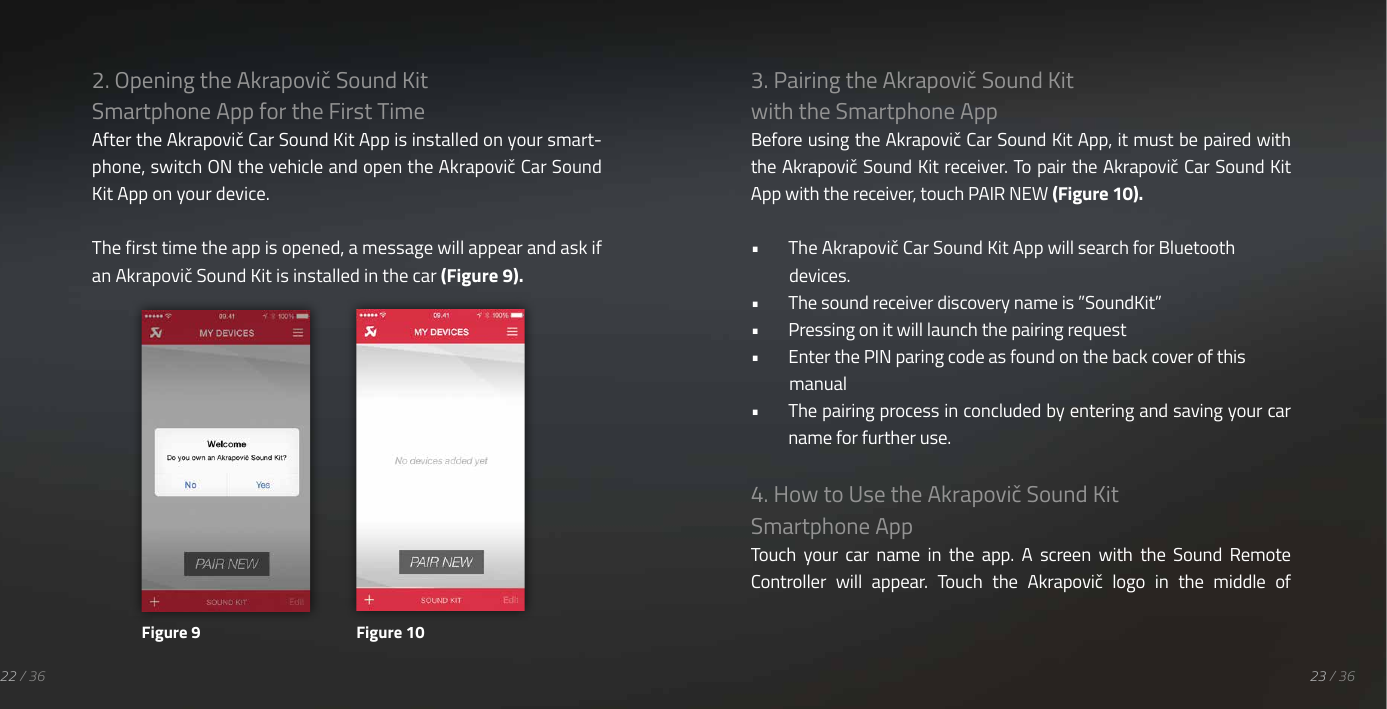

22 / 362. Opening the Akrapovič Sound Kit Smartphone App for the First TimeAfter the Akrapovič Car Sound Kit App is installed on your smart-phone, switch ON the vehicle and open the Akrapovič Car Sound Kit App on your device.The first time the app is opened, a message will appear and ask if an Akrapovič Sound Kit is installed in the car (Figure 9).3. Pairing the Akrapovič Sound Kit with the Smartphone AppBefore using the Akrapovič Car Sound Kit App, it must be paired with the Akrapovič Sound Kit receiver. To pair the Akrapovič Car Sound Kit App with the receiver, touch PAIR NEW (Figure 10).• The Akrapovič Car Sound Kit App will search for Bluetooth devices.• The sound receiver discovery name is ”SoundKit”• Pressing on it will launch the pairing request• Enter the PIN paring code as found on the back cover of this manual• The pairing process in concluded by entering and saving your car name for further use.4. How to Use the Akrapovič Sound Kit Smartphone AppTouch your car name in the app. A screen with the Sound Remote Controller will appear. Touch the Akrapovič logo in the middle of Figure 9 Figure 1023 / 36

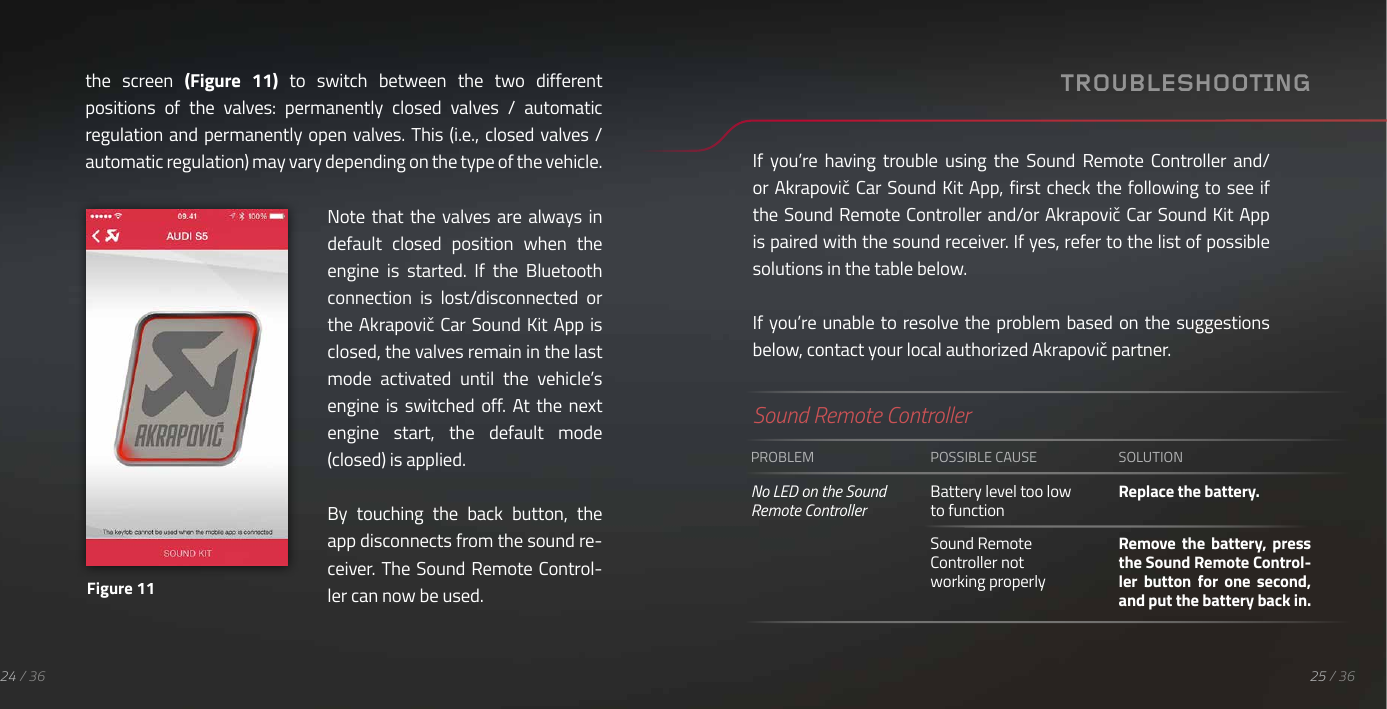

24 / 36the screen (Figure 11) to switch between the two different positions of the valves: permanently closed valves / automatic regulation and permanently open valves. This (i.e., closed valves / automatic regulation) may vary depending on the type of the vehicle.Note that the valves are always in default closed position when the engine is started. If the Bluetooth connection is lost/disconnected or the Akrapovič Car Sound Kit App is closed, the valves remain in the last mode activated until the vehicle’s engine is switched off. At the next engine start, the default mode (closed) is applied.By touching the back button, the app disconnects from the sound re-ceiver. The Sound Remote Control-ler can now be used.Figure 11TROUBLESHOOTINGIf you’re having trouble using the Sound Remote Controller and/or Akrapovič Car Sound Kit App, first check the following to see if the Sound Remote Controller and/or Akrapovič Car Sound Kit App is paired with the sound receiver. If yes, refer to the list of possible solutions in the table below.If you’re unable to resolve the problem based on the suggestions below, contact your local authorized Akrapovič partner.Sound Remote ControllerPROBLEMNo LED on the Sound Remote ControllerPOSSIBLE CAUSEBattery level too low to functionSound Remote Controller not working properlySOLUTIONReplace the battery.Remove the battery, press the Sound Remote Control-ler button for one second, and put the battery back in.25 / 36

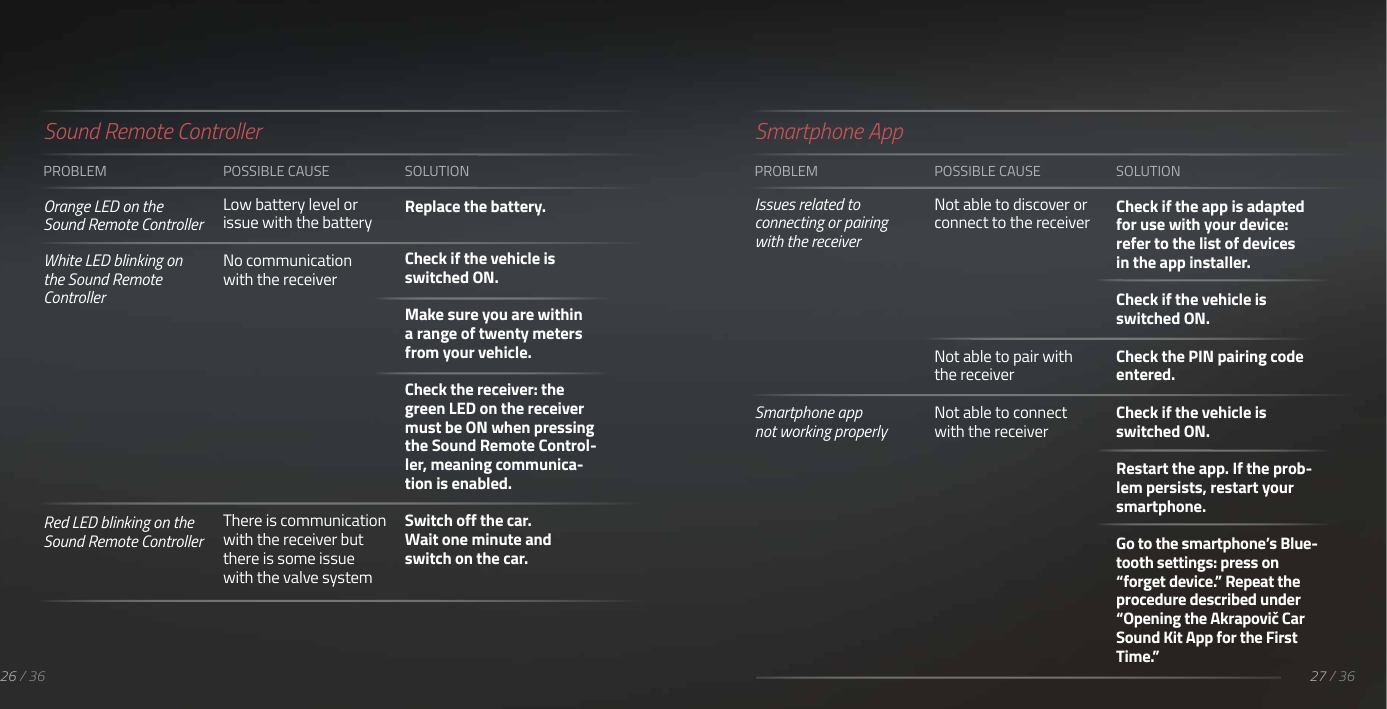

26 / 36PROBLEMOrange LED on the Sound Remote ControllerWhite LED blinking on the Sound Remote ControllerRed LED blinking on the Sound Remote ControllerPOSSIBLE CAUSELow battery level or issue with the batteryNo communication with the receiverThere is communication with the receiver but there is some issue with the valve systemSOLUTIONReplace the battery.Check if the vehicle is switched ON.Make sure you are within a range of twenty meters from your vehicle.Check the receiver: the green LED on the receiver must be ON when pressing the Sound Remote Control-ler, meaning communica-tion is enabled.Switch off the car. Wait one minute and switch on the car.Sound Remote ControllerPROBLEMIssues related to connecting or pairing with the receiverSmartphone app not working properlyPOSSIBLE CAUSENot able to discover or connect to the receiverNot able to pair with the receiverNot able to connect with the receiverSOLUTIONCheck if the app is adapted for use with your device: refer to the list of devices in the app installer. Check if the vehicle is switched ON.Check the PIN pairing code entered. Check if the vehicle is switched ON.Restart the app. If the prob-lem persists, restart your smartphone.Go to the smartphone’s Blue-tooth settings: press on “forget device.” Repeat the procedure described under “Opening the Akrapovič Car Sound Kit App for the First Time.”Smartphone App27 / 36
28 / 36DECLARATION OF CONFORMITYCOMPANY AkrapovičADDRESS: Malo Hudo 8a, 1295 Ivančna Gorica, Sloveniadeclares that the following products:PRODUCT NAME: Sound KitTRADE NAME: AkrapovičTYPE OR MODEL: P-HF841is in conformity with the requirements of the following Directives of the European Union: Regulation UN/ECE-R10 rev5 E1 10 R-057586This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.FCC NOTICEChanges or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.29 / 36
• Consult the dealer or an experienced radio technician for help.Sound Remote Controller: FCC-ID: 2AECJASK01Sound Receiver: FCC-ID: 2AECJASR01Industry Canada compliance statementThis Class B digital apparatus complies with Canadian ICES-003.This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.European Union Directives conformance StatementCaring for the Environment by Recycling31 / 3630 / 36Akrapovič d.d. hereby declares that this Akrapovič Sound Kit P-HF481 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/ECYou can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.akrapovic.com/docs/SoundKitCertification.pdf.Please dispose of any materials in accordance with local recycling regulations. When discarding the unit, comply with local rules or regulations. Batteries should never be thrown away or incinerated, but disposed of in accordance with local regulations concerning battery disposal.Sound Remote Controller: IC: 20099-ASK01Sound Receiver: IC: 20099-ASR01
WARNING / California:California laws prohibit the use of any aftermarket exhaust part or system that modifies, removes, or replaces original equipment catalysts unless the California Air Resources Board has issued an executive order regarding such part or system or unless the part or system is exempted by being used only on racing vehicles on closed courses. Neither Akrapovic d.d. nor any of its subsidiaries make any representation that any of their parts or systems has received such an executive order or that any of their parts or systems conform with the racing vehicles exemption. The purchasers are entirely responsible for informing themselves of applicable California laws and for complying with those laws. 33 / 3632 / 36Because of the worldwide distribution of Akrapovič d.d. products, neither Akrapovič d.d. nor any of its subsidiaries make any representation that the products comply with the air and/or noise emissions laws, or labeling laws, of any jurisdiction. The purchasers are entirely responsible for informing themselves of the applicable laws where the products are to be used and for complying with those laws.WARNING / USA:Various US states and the US federal government have individual laws regulating the use of aftermarket exhaust parts and systems, especially as those parts and systems modify, remove, or replace original equipment catalysts. Consult the appropriate laws in your area before installing any aftermarket part or system on your vehicle to ensure compliance with all applicable laws. Neither Akrapovic d.d. nor any of its subsidiaries nor the sellers of the parts or systems make any representation that any of their parts or systems comply with any such laws.GENERAL WARNING
Absolute control witha simple push of the button.34 / 36

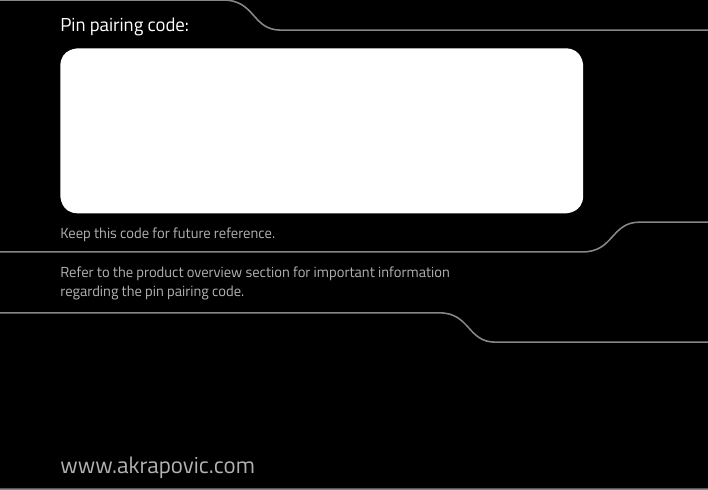

www.akrapovic.comPin pairing code:Keep this code for future reference.Refer to the product overview section for important information regarding the pin pairing code.
