AL Tech AC-100 CAR MP3 Player User Manual

AL Tech, Inc. CAR MP3 Player Users Manual

Users Manual

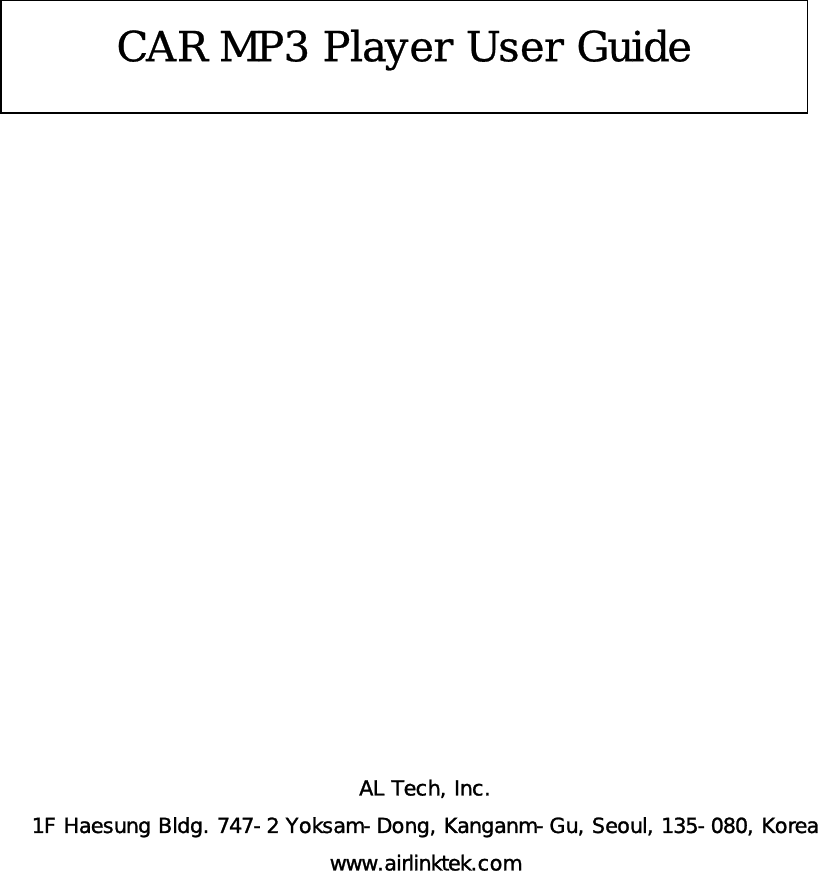

AL Tech, Inc. 1F Haesung Bldg. 747-2 Yoksam-Dong, Kanganm-Gu, Seoul, 135-080, Korea www.airlinktek.com CAR MP3 Player User Guide
CAR MP3 Player Car MP3 Player allows to play mp3 file in a Removable USB memory like AnyDrive. In addition, it transmits mp3 music by FM frequency to FM Radio. Packages CAR MP3 Player / Power Adapter / User Guide ▶ll Play / Pause Play/Pause mp3 file ◀◀ REW Select the previous file ▶▶ FF Select the next file ▲▼ VOL Volume up or down LED DATA Shows the status of data transmission Play (Blinking) / Power On (Lightning) ☞ Play/Pause ☞ REW ☞ FF ☞ ▲ Volume Up ☞ ▼ Volume down ☞ DATA CAR MP3 Player Front View

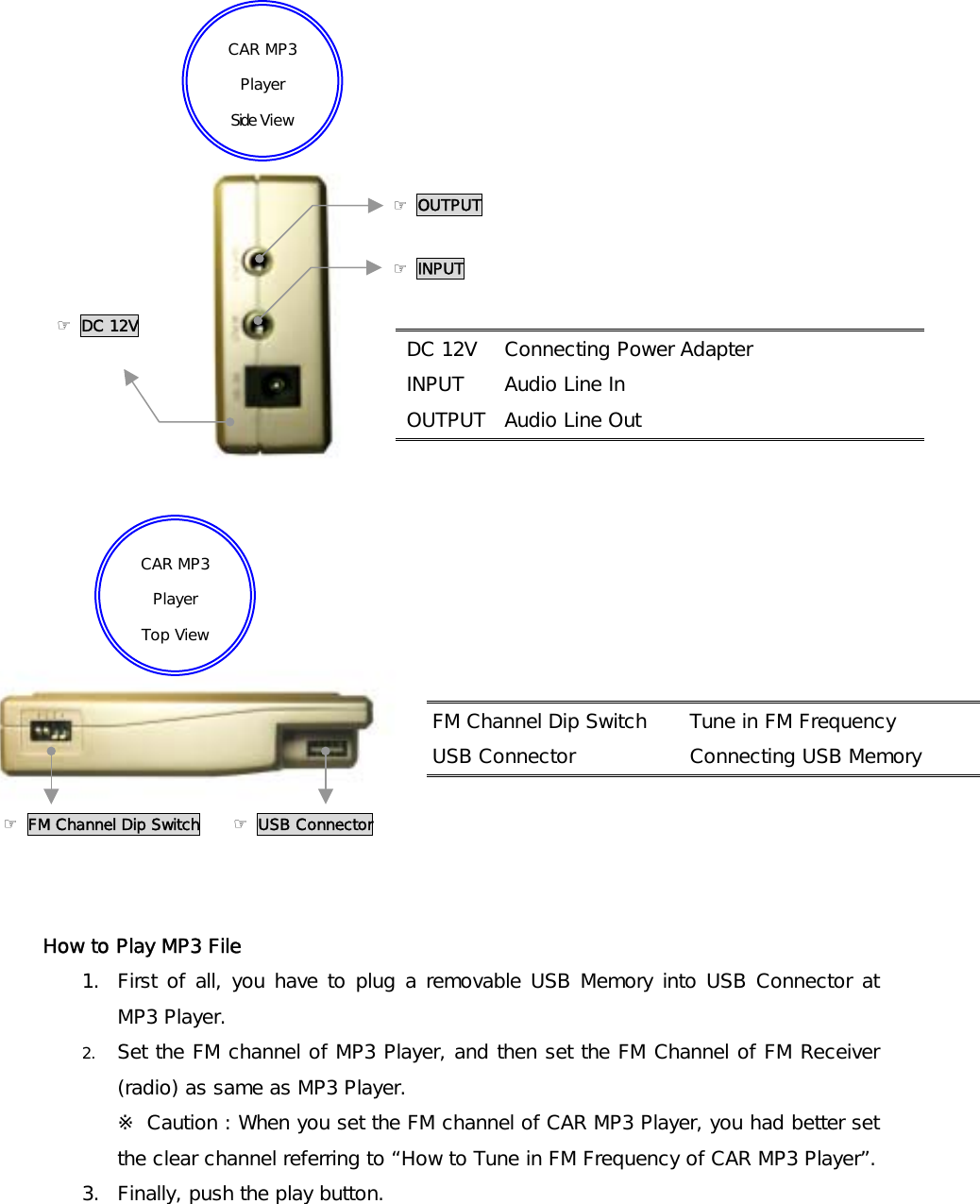

How to Play MP3 File 1. First of all, you have to plug a removable USB Memory into USB Connector at MP3 Player. 2. Set the FM channel of MP3 Player, and then set the FM Channel of FM Receiver (radio) as same as MP3 Player. ※ Caution : When you set the FM channel of CAR MP3 Player, you had better set the clear channel referring to “How to Tune in FM Frequency of CAR MP3 Player”. 3. Finally, push the play button. DC 12V Connecting Power Adapter INPUT Audio Line In OUTPUT Audio Line Out FM Channel Dip Switch Tune in FM Frequency USB Connector Connecting USB Memory CAR MP3 Player Side View CAR MP3 Player Top View ☞ USB Connector ☞ FM Channel Dip Switch ☞ INPUT ☞ OUTPUT ☞ DC 12V

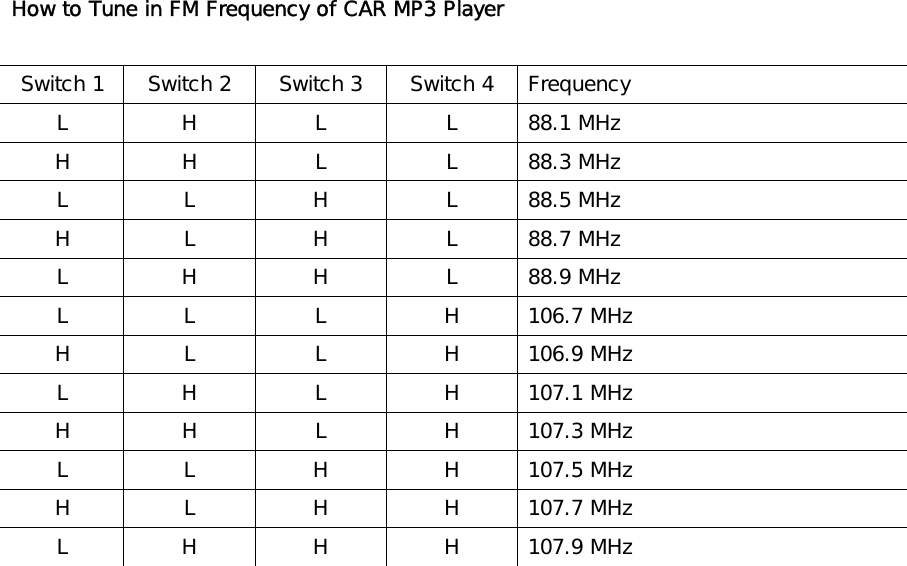

How to Tune in FM Frequency of CAR MP3 Player Switch 1 Switch 2 Switch 3 Switch 4 Frequency L H L L 88.1 MHz H H L L 88.3 MHz L L H L 88.5 MHz H L H L 88.7 MHz L H H L 88.9 MHz L L L H 106.7 MHz H L L H 106.9 MHz L H L H 107.1 MHz H H L H 107.3 MHz L L H H 107.5 MHz H L H H 107.7 MHz L H H H 107.9 MHz
