AL Tech CARMP3AC100 MP3 Player WIth FM Transmitter User Manual CAR MP3 Player

AL Tech, Inc. MP3 Player WIth FM Transmitter CAR MP3 Player

User Manual

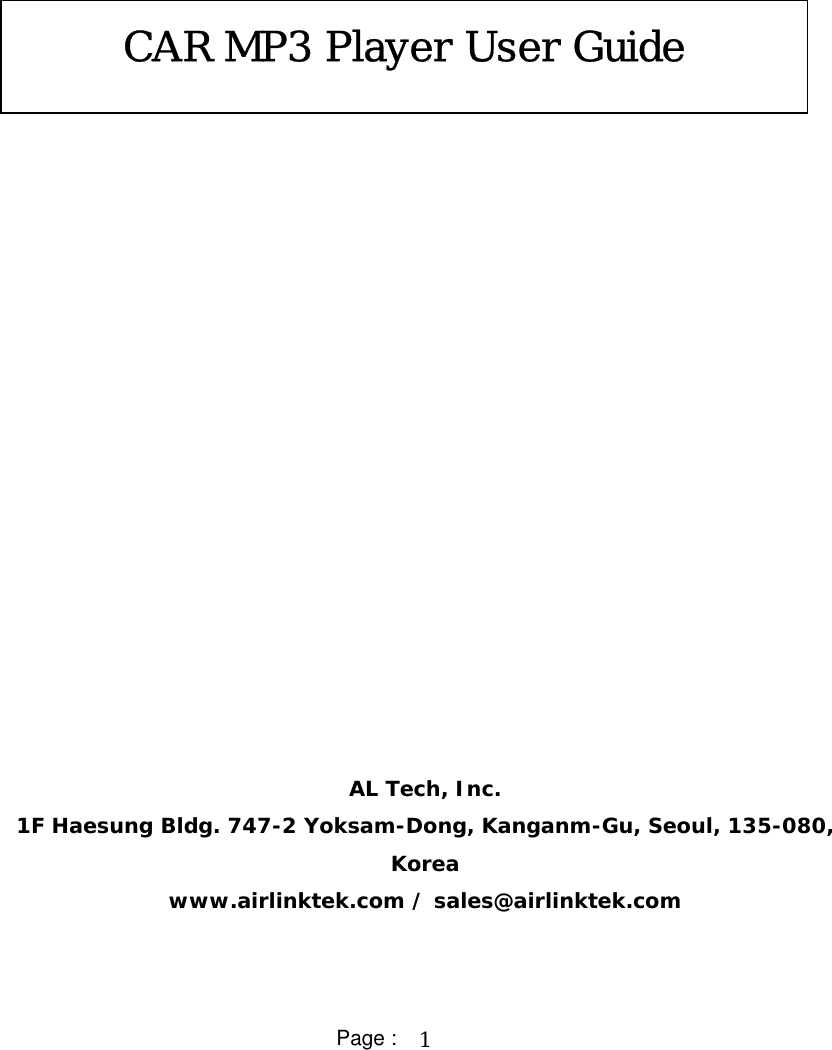

CAR MP3 Player User Guide AL Tech, Inc. 1F Haesung Bldg. 747-2 Yoksam-Dong, Kanganm-Gu, Seoul, 135-080, Korea www.airlinktek.com / sales@airlinktek.com Page : 1

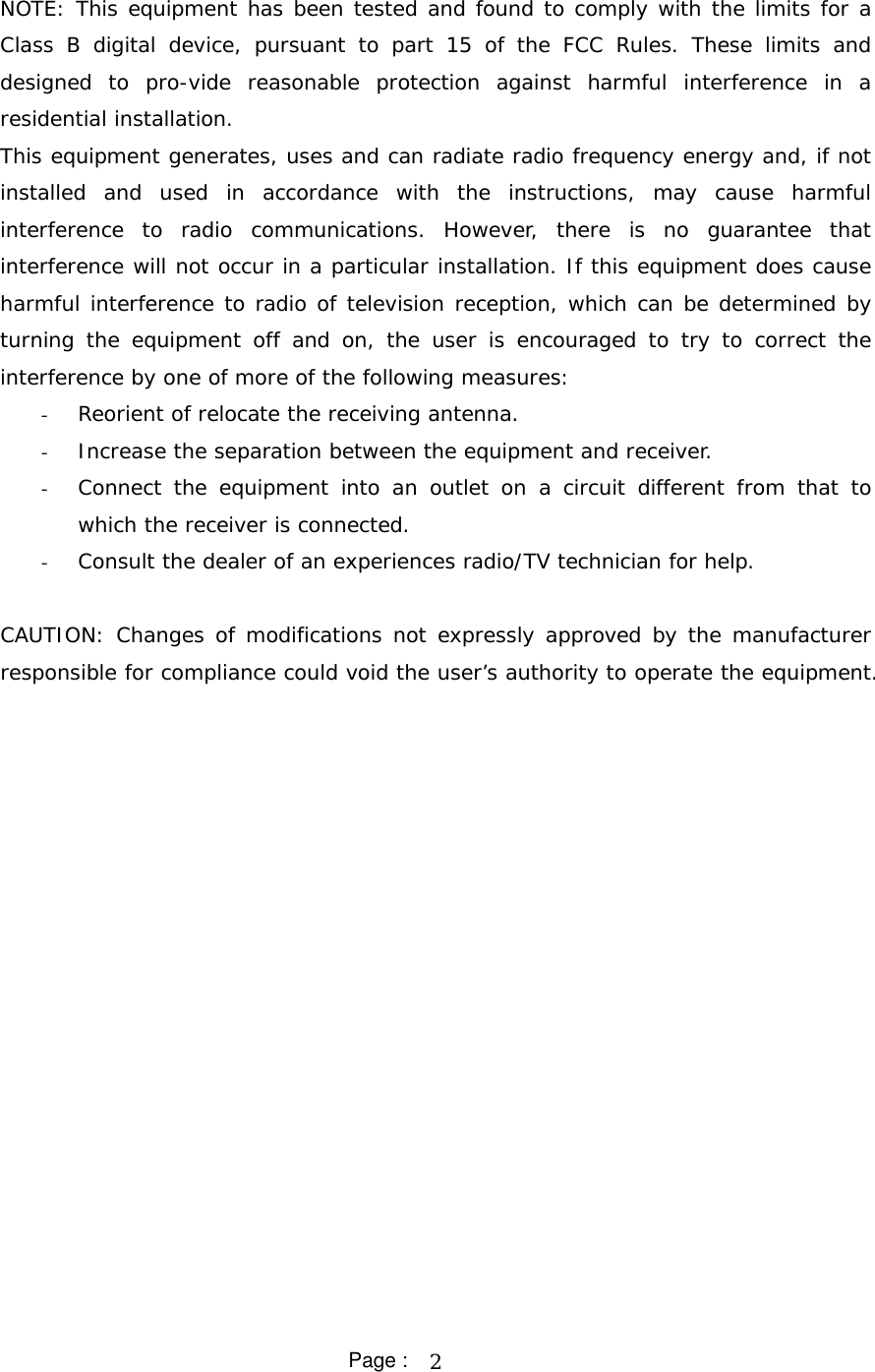

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits and designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio of television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: - Reorient of relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer of an experiences radio/TV technician for help. CAUTION: Changes of modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. Page : 2

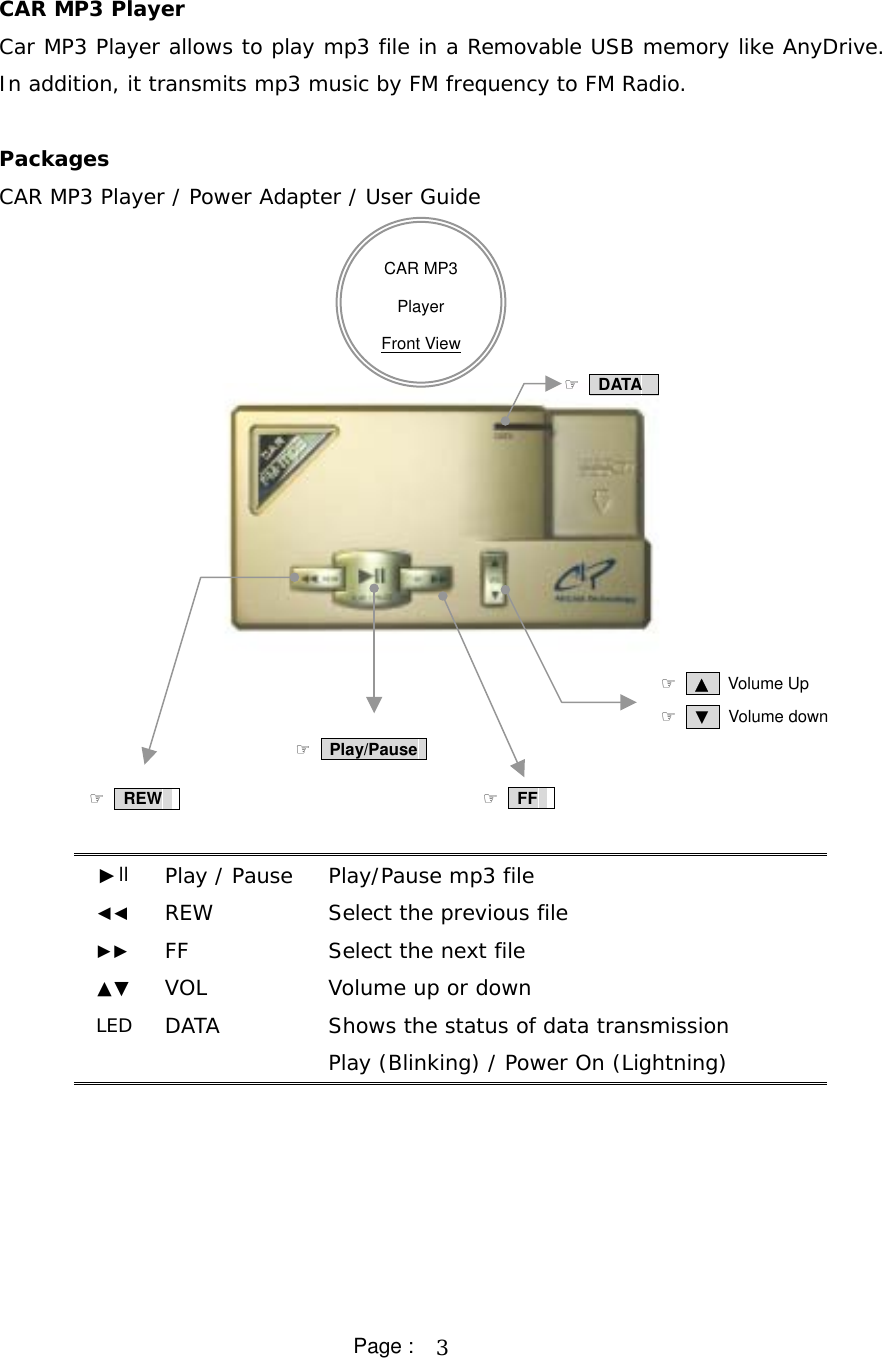

CAR MP3 Player Car MP3 Player allows to play mp3 file in a Removable USB memory like AnyDrive. In addition, it transmits mp3 music by FM frequency to FM Radio. Packages CAR MP3 Player / Power Adapter / User Guide ☞ Play/Pause ☞ ▲ Volume Up ☞ ▼ Volume down CAR MP3 Player Front View☞ DATA ☞ REW ☞ FF ▶ll Play / Pause Play/Pause mp3 file ◀◀ REW Select the previous file ▶▶ FF Select the next file ▲▼ VOL Volume up or down LED DATA Shows the status of data transmission Play (Blinking) / Power On (Lightning) Page : 3

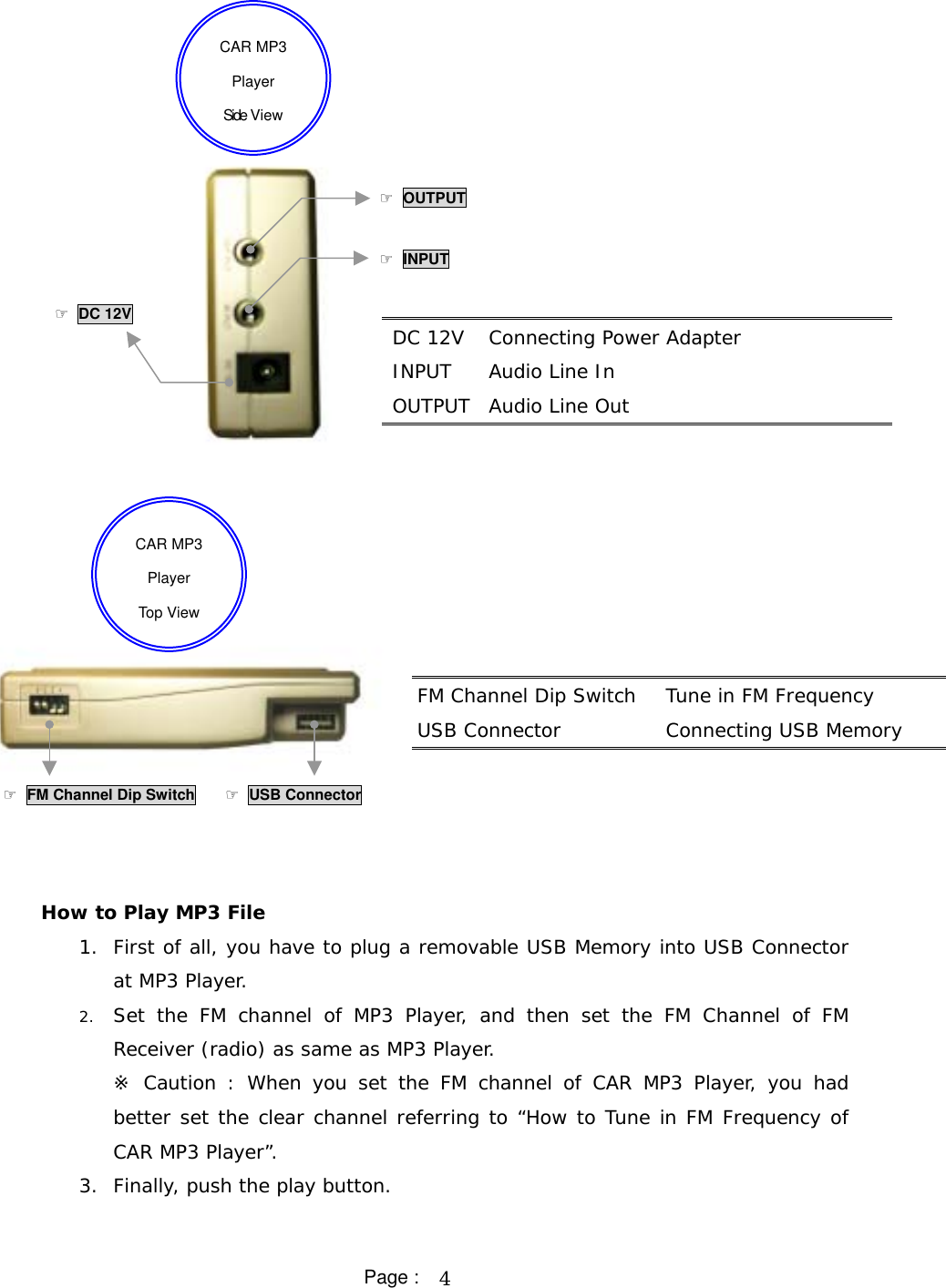

DC 12V Connecting Power Adapter INPUT Audio Line In OUTPUT Audio Line Out FM Channel Dip Switch Tune in FM Frequency USB Connector Connecting USB Memory CAR MP3 Player Top View ☞ USB Connector ☞ FM Channel Dip Switch ☞ INPUT ☞ OUTPUT ☞ DC 12V CAR MP3 Player Side View How to Play MP3 File 1. First of all, you have to plug a removable USB Memory into USB Connector at MP3 Player. 2. Set the FM channel of MP3 Player, and then set the FM Channel of FM Receiver (radio) as same as MP3 Player. ※ Caution : When you set the FM channel of CAR MP3 Player, you had better set the clear channel referring to “How to Tune in FM Frequency of CAR MP3 Player”. 3. Finally, push the play button. Page : 4

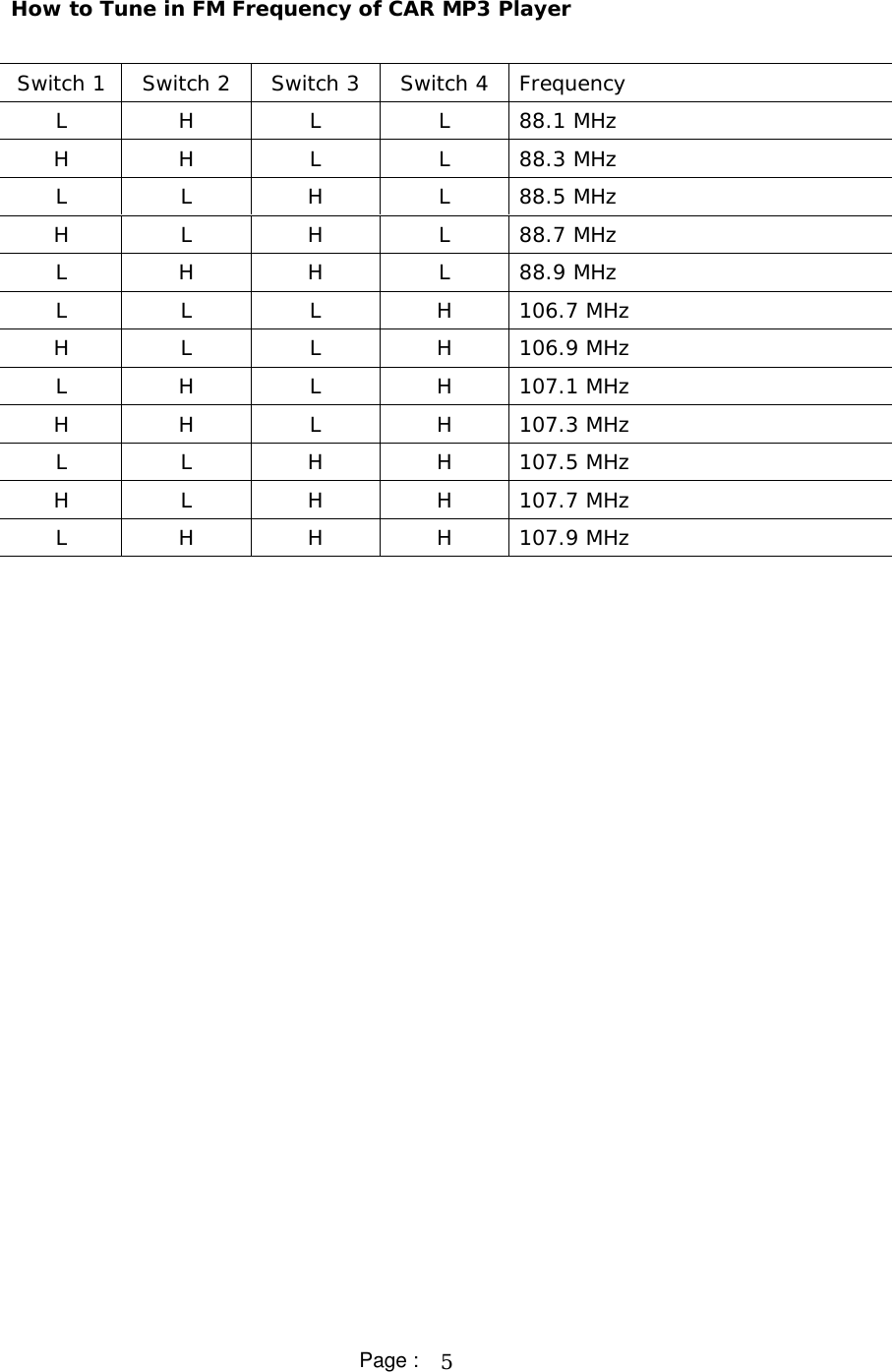

How to Tune in FM Frequency of CAR MP3 Player Switch 1 Switch 2 Switch 3 Switch 4 Frequency L H L L 88.1 MHz H H L L 88.3 MHz L L H L 88.5 MHz H L H L 88.7 MHz L H H L 88.9 MHz L L L H 106.7 MHz H L L H 106.9 MHz L H L H 107.1 MHz H H L H 107.3 MHz L L H H 107.5 MHz H L H H 107.7 MHz L H H H 107.9 MHz Page : 5
