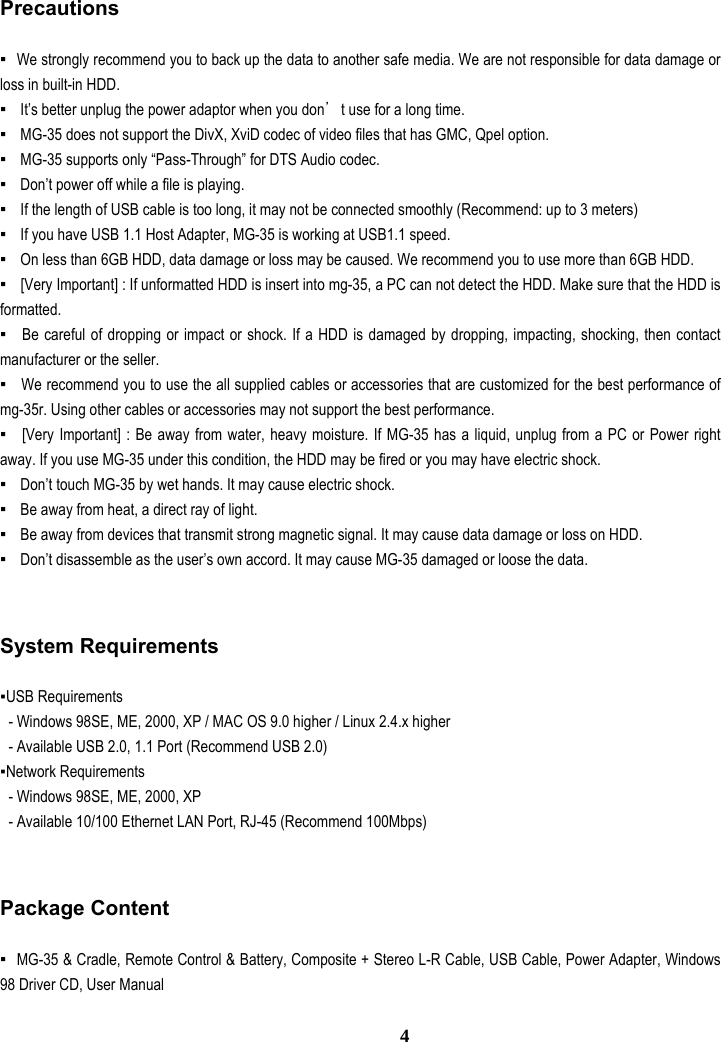

![Precautions ▪We strongly recommend you to back up the data to another safe media. We are not responsible for data damage or loss in built-in HDD. ▪ It’s better unplug the power adaptor when you don’t use for a long time. ▪ MG-35 does not support the DivX, XviD codec of video files that has GMC, Qpel option. ▪ MG-35 supports only “Pass-Through” for DTS Audio codec. ▪ Don’t power off while a file is playing. ▪ If the length of USB cable is too long, it may not be connected smoothly (Recommend: up to 3 meters) ▪ If you have USB 1.1 Host Adapter, MG-35 is working at USB1.1 speed. ▪ On less than 6GB HDD, data damage or loss may be caused. We recommend you to use more than 6GB HDD. ▪ [Very Important] : If unformatted HDD is insert into mg-35, a PC can not detect the HDD. Make sure that the HDD is formatted. ▪ Be careful of dropping or impact or shock. If a HDD is damaged by dropping, impacting, shocking, then contact manufacturer or the seller. ▪ We recommend you to use the all supplied cables or accessories that are customized for the best performance of mg-35r. Using other cables or accessories may not support the best performance. ▪ [Very Important] : Be away from water, heavy moisture. If MG-35 has a liquid, unplug from a PC or Power right away. If you use MG-35 under this condition, the HDD may be fired or you may have electric shock. ▪ Don’t touch MG-35 by wet hands. It may cause electric shock. ▪ Be away from heat, a direct ray of light. ▪ Be away from devices that transmit strong magnetic signal. It may cause data damage or loss on HDD. ▪ Don’t disassemble as the user’s own accord. It may cause MG-35 damaged or loose the data. System Requirements ▪USB Requirements - Windows 98SE, ME, 2000, XP / MAC OS 9.0 higher / Linux 2.4.x higher - Available USB 2.0, 1.1 Port (Recommend USB 2.0) ▪Network Requirements - Windows 98SE, ME, 2000, XP - Available 10/100 Ethernet LAN Port, RJ-45 (Recommend 100Mbps) Package Content ▪MG-35 & Cradle, Remote Control & Battery, Composite + Stereo L-R Cable, USB Cable, Power Adapter, Windows 98 Driver CD, User Manual 4](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-6.png)

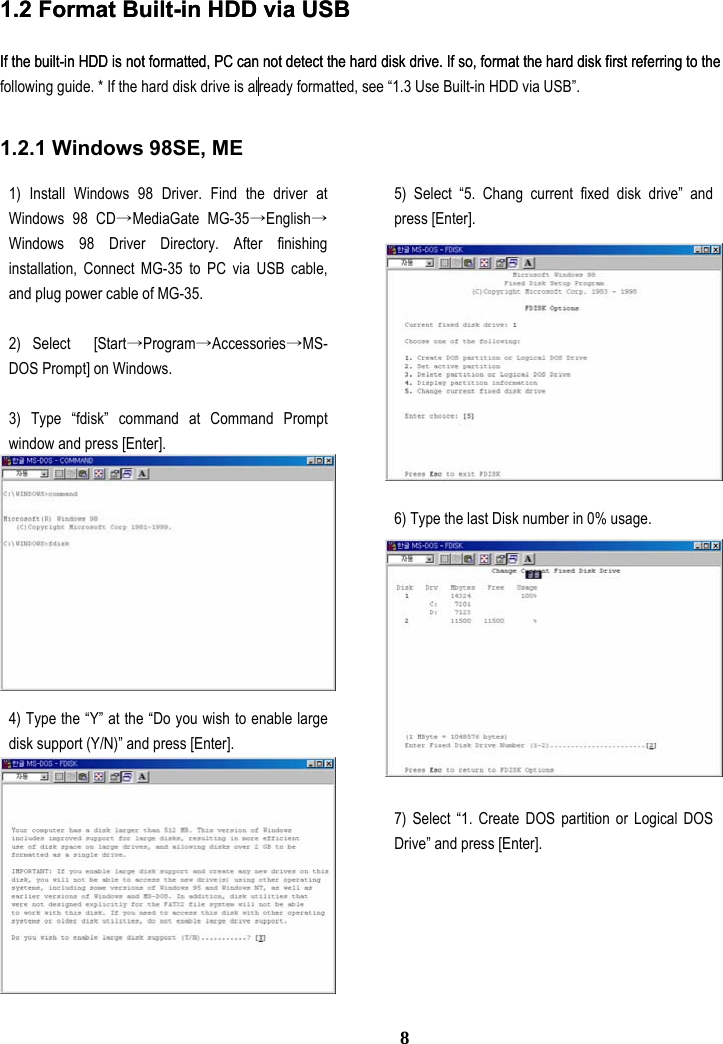

![1.2 Format Built-in HDD via USB 1.2 Format Built-in HDD via USB If the built-in HDD is not formatted, PC can not detect the hard disk drive. If so, format the hard disk first referring to the If the built-in HDD is not formatted, PC can not detect the hard disk drive. If so, format the hard disk first referring to the following guide. * If the hard disk drive is al ready formatted, see “1.3 Use Built-in HDD via USB”. 1.2.1 Windows 98SE, ME 1) Install Windows 98 Driver. Find the driver at Windows 98 CD→MediaGate MG-35→English→Windows 98 Driver Directory. After finishing installation, Connect MG-35 to PC via USB cable, and plug power cable of MG-35. 5) Select “5. Chang current fixed disk drive” and press [Enter]. 6) Type the last Disk number in 0% usage. 7) Select “1. Create DOS partition or Logical DOS Drive” and press [Enter]. 2) Select [Start→Program→Accessories→MS-DOS Prompt] on Windows. 3) Type “fdisk” command at Command Prompt window and press [Enter]. 4) Type the “Y” at the “Do you wish to enable large disk support (Y/N)” and press [Enter]. 8](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-10.png)

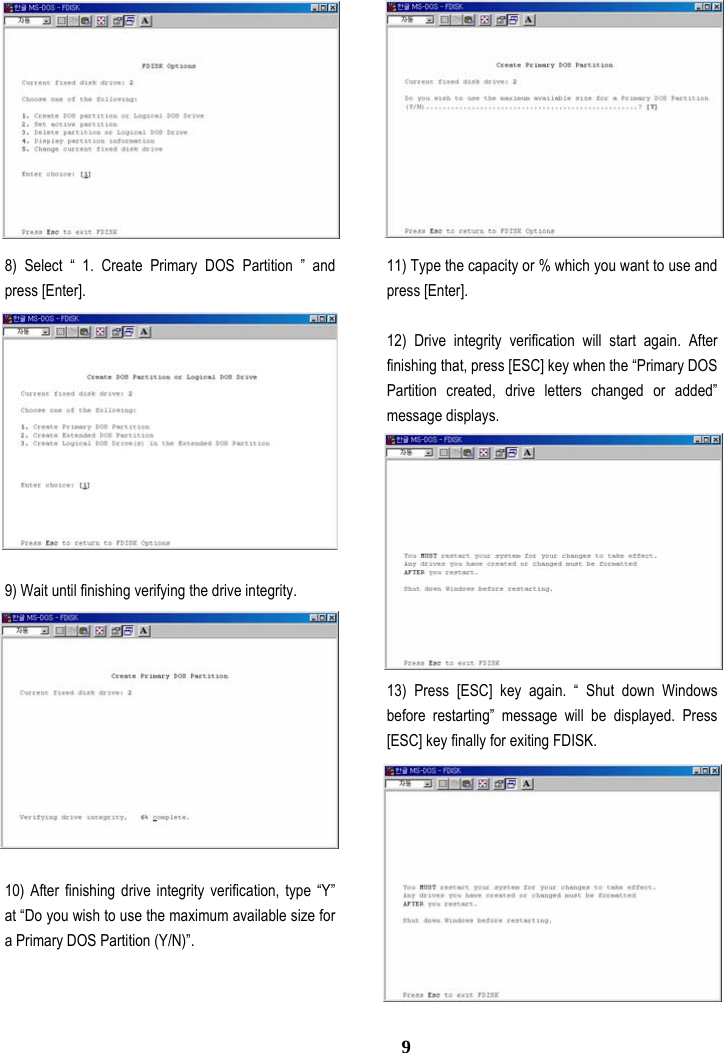

![8) Select “ 1. Create Primary DOS Partition ” and press [Enter]. 9) Wait until finishing verifying the drive integrity. 10) After finishing drive integrity verification, type “Y” at “Do you wish to use the maximum available size for a Primary DOS Partition (Y/N)”. 11) Type the capacity or % which you want to use and press [Enter]. 12) Drive integrity verification will start again. After finishing that, press [ESC] key when the “Primary DOS Partition created, drive letters changed or added” message displays. 13) Press [ESC] key again. “ Shut down Windows before restarting” message will be displayed. Press [ESC] key finally for exiting FDISK. 9](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-11.png)

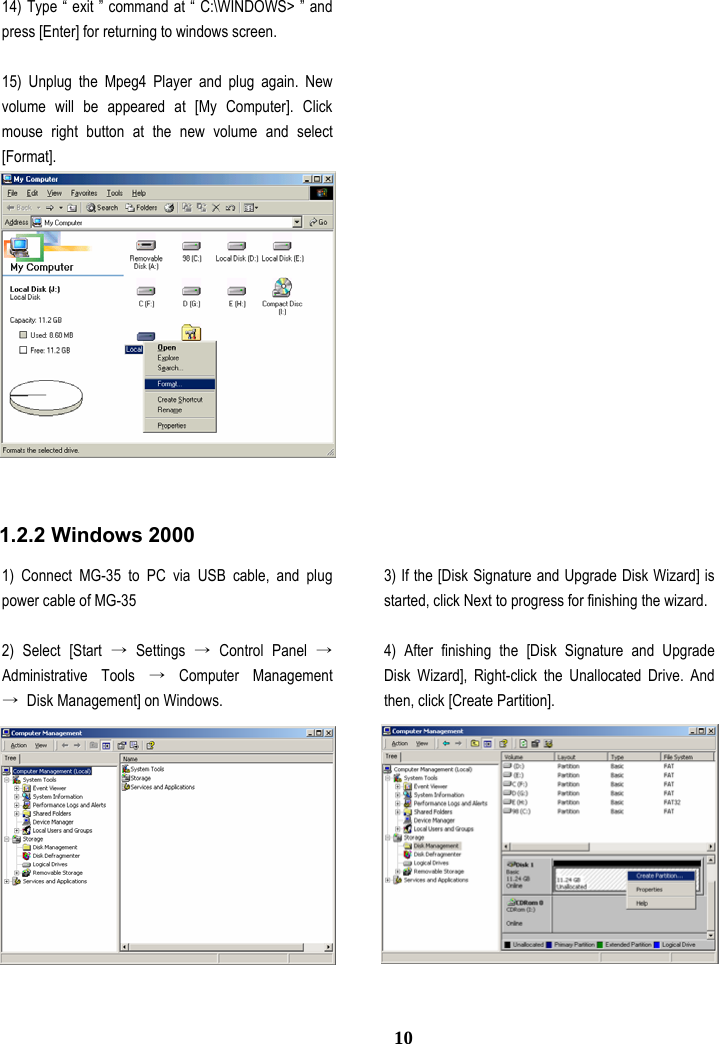

![14) Type “ exit ” command at “ C:\WINDOWS> ” and press [Enter] for returning to windows screen. 15) Unplug the Mpeg4 Player and plug again. New volume will be appeared at [My Computer]. Click mouse right button at the new volume and select [Format]. 1.2.2 Windows 2000 3) If the [Disk Signature and Upgrade Disk Wizard] is started, click Next to progress for finishing the wizard. 4) After finishing the [Disk Signature and Upgrade Disk Wizard], Right-click the Unallocated Drive. And then, click [Create Partition]. 1) Connect MG-35 to PC via USB cable, and plug power cable of MG-35 2) Select [Start → Settings → Control Panel → Administrative Tools → Computer Management → Disk Management] on Windows. 10](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-12.png)

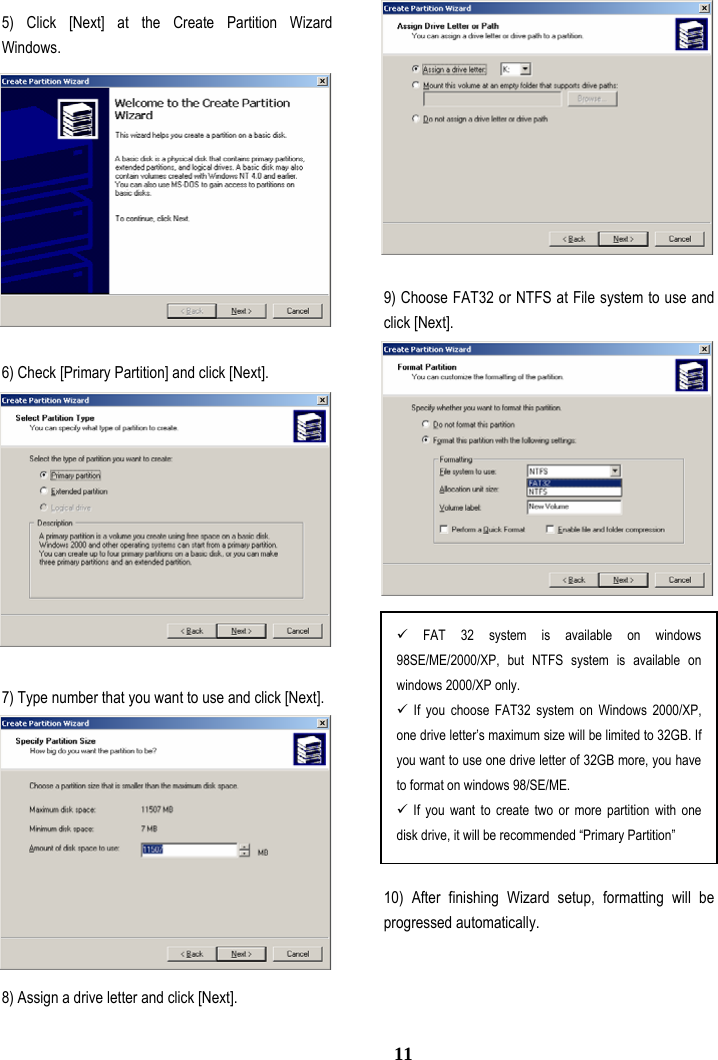

![9) Choose FAT32 or NTFS at File system to use and click [Next]. 10) After finishing Wizard setup, formatting will be progressed automatically. 5) Click [Next] at the Create Partition Wizard Windows. 6) Check [Primary Partition] and click [Next]. 7) Type number that you want to use and click [Next]. 8) Assign a drive letter and click [Next]. 9 If you choose FAT32 system on Windows 2000/XP, one drive letter’s maximum size will be limited to 32GB. If you want to use one drive letter of 32GB more, you have to format on windows 98/SE/ME. 9 If you want to create two or more partition with one disk drive, it will be recommended “Primary Partition” 9 FAT 32 system is available on windows 98SE/ME/2000/XP, but NTFS system is available on windows 2000/XP only. 11](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-13.png)
![1.2.3 Windows XP 1) Connect MG-35 to PC via USB cable, and plug power cable of MG-35 2) Click [Settings→Control Panel→ Administrative Tools→Computer Management→Disk Management] on Windows. If you can’t find Administrative Tools at Control Panel, click “switch to classic view” in left – up corner on screen. 3) If the [Disk Signature and Upgrade Disk Wizard] starts, click [Next] to progress for finishing the wizard. 4) After finishing the [Disk Signature and Upgrade Disk Wizard], Right-click the Unallocated Drive. And then, click [Create Partition]. 5) Click [Next] at the New Partition Wizard. 6) Check [Primary Partition] and click [Next]. 7) Type number that you want to use and click [Next]. 8) Assign a drive letter and click [Next]. 12](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-14.png)

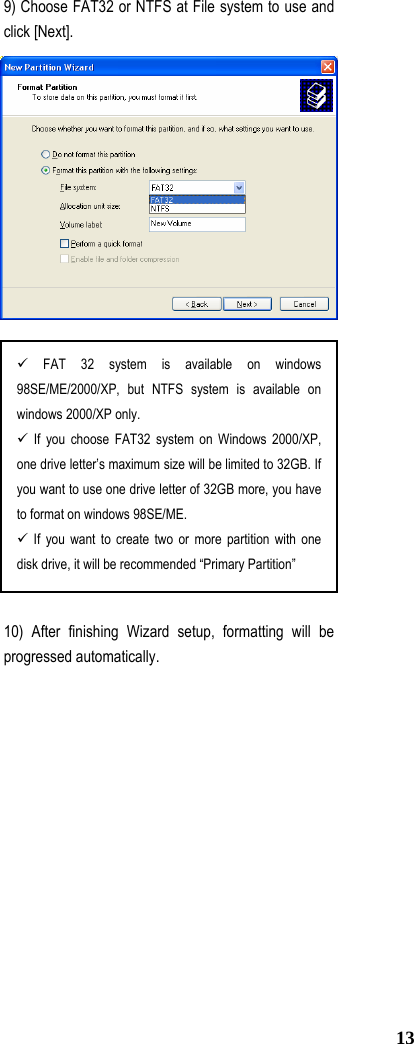

![9) Choose FAT32 or NTFS at File system to use and click [Next]. 9 If you choose FAT32 system on Windows 2000/XP, one drive letter’s maximum size will be limited to 32GB. If you want to use one drive letter of 32GB more, you have to format on windows 98SE/ME. 9 If you want to create two or more partition with one disk drive, it will be recommended “Primary Partition” 9 FAT 32 system is available on windows 98SE/ME/2000/XP, but NTFS system is available on windows 2000/XP only. 10) After finishing Wizard setup, formatting will be progressed automatically. 13](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-15.png)

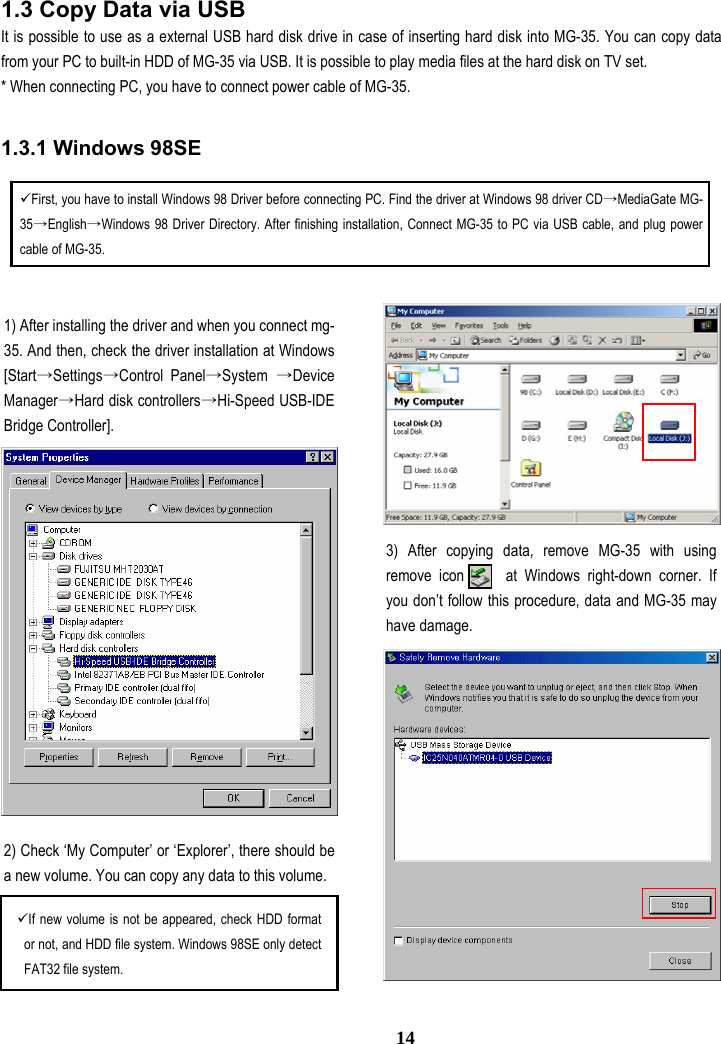

![1.3 Copy Data via USB It is possible to use as a external USB hard disk drive in case of inserting hard disk into MG-35. You can copy data from your PC to built-in HDD of MG-35 via USB. It is possible to play media files at the hard disk on TV set. * When connecting PC, you have to connect power cable of MG-35. 1.3.1 Windows 98SE 9First, you have to install Windows 98 Driver before connecting PC. Find the driver at Windows 98 driver CD→MediaGate MG-35→English→Windows 98 Driver Directory. After finishing installation, Connect MG-35 to PC via USB cable, and plug power cable of MG-35. 1) After installing the driver and when you connect mg-35. And then, check the driver installation at Windows [Start→Settings→Control Panel→System →Device Manager→Hard disk controllers→Hi-Speed USB-IDE Bridge Controller]. 2) Check ‘My Computer’ or ‘Explorer’, there should be a new volume. You can copy any data to this volume. 3) After copying data, remove MG-35 with using remove icon at Windows right-down corner. If you don’t follow this procedure, data and MG-35 may have damage. 9If new volume is not be appeared, check HDD format or not, and HDD file system. Windows 98SE only detect FAT32 file system. 14](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-16.png)

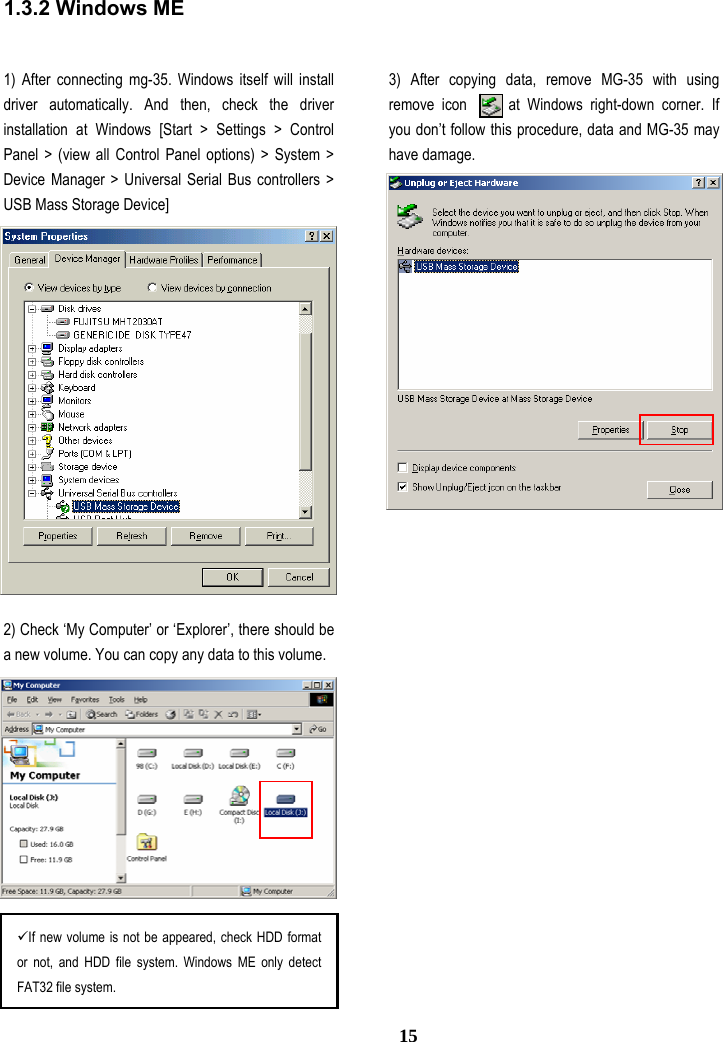

![1.3.2 Windows ME 1) After connecting mg-35. Windows itself will install driver automatically. And then, check the driver installation at Windows [Start > Settings > Control Panel > (view all Control Panel options) > System > Device Manager > Universal Serial Bus controllers > USB Mass Storage Device] 2) Check ‘My Computer’ or ‘Explorer’, there should be a new volume. You can copy any data to this volume. 3) After copying data, remove MG-35 with using remove icon at Windows right-down corner. If you don’t follow this procedure, data and MG-35 may have damage. 9If new volume is not be appeared, check HDD format or not, and HDD file system. Windows ME only detect FAT32 file system. 15](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-17.png)

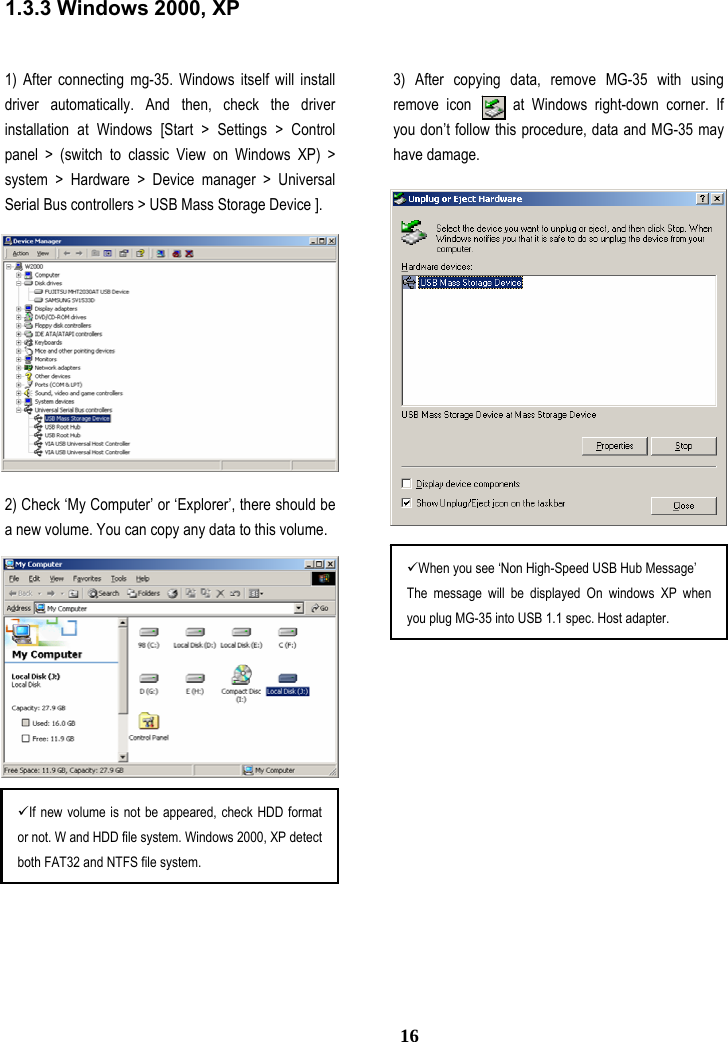

![1.3.3 Windows 2000, XP 1) After connecting mg-35. Windows itself will install driver automatically. And then, check the driver installation at Windows [Start > Settings > Control panel > (switch to classic View on Windows XP) > system > Hardware > Device manager > Universal Serial Bus controllers > USB Mass Storage Device ]. 3) After copying data, remove MG-35 with using remove icon at Windows right-down corner. If you don’t follow this procedure, data and MG-35 may have damage. 2) Check ‘My Computer’ or ‘Explorer’, there should be a new volume. You can copy any data to this volume. 9When you see ‘Non High-Speed USB Hub Message’ The message will be displayed On windows XP when you plug MG-35 into USB 1.1 spec. Host adapter. 9If new volume is not be appeared, check HDD format or not. W and HDD file system. Windows 2000, XP detect both FAT32 and NTFS file system. 16](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-18.png)
![1.3.4 Linux 9It can be available at Linux 2.4 higher. [Automatic Mount] After booting, do log-in. Connect MG-35 -> Power On MG-35 -> Check the detection with [fdisk] -> make Mount Pointer (ex. mediatest) at Folder Mount(/mnt) -> Edit [/etc/fstab] -> add the following; /dev/sda /mnt/mediatest vfat noauto, user 0 0 (in case of FAT32 HDD) /dev/sda /mnt/mediatest ntfs noauto, user 0 0 (in case of NTFS HDD) Do Log-in again. 9above example “sda” is assumed that the Mpeg4 Player will be detected as “sda” on your system. If not, you have to write the drive name which is detected as “USB Mass Storage”, not “sda” [Manual Mount] Connect MG-35 -> Power On MG-35 -> Check the detection with [fdisk] -> make Mount Pointer (ex. mediatest) at Folder Mount(/mnt) -> Edit [/etc/fstab] -> add the following; mount –t vfat /dev/sda /mnt/mediatest (in case of FAT32 HDD) mount –t ntfs /dev/sda /mnt/mediatest (in case of FAT32 HDD) 9above example “sda” is assumed that the Mpeg4 Player will be detected as “sda” on your system. If not, you have to write the drive name which is detected as “USB Mass Storage”, not “sda” [How to stop using] Do [unmount] at Device Control. 1.3.5 Mac 9It can be available at Linux 2.4 higher. No need to install the installation driver at Mac OS 9.x version and the MG-35 will be detected automatically. If the MG-35 is detected correctly, an icon is appeared at a monitor. When removing MG-35 safely, drag the icon to a trash and unplug mg-35. 17](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-19.png)

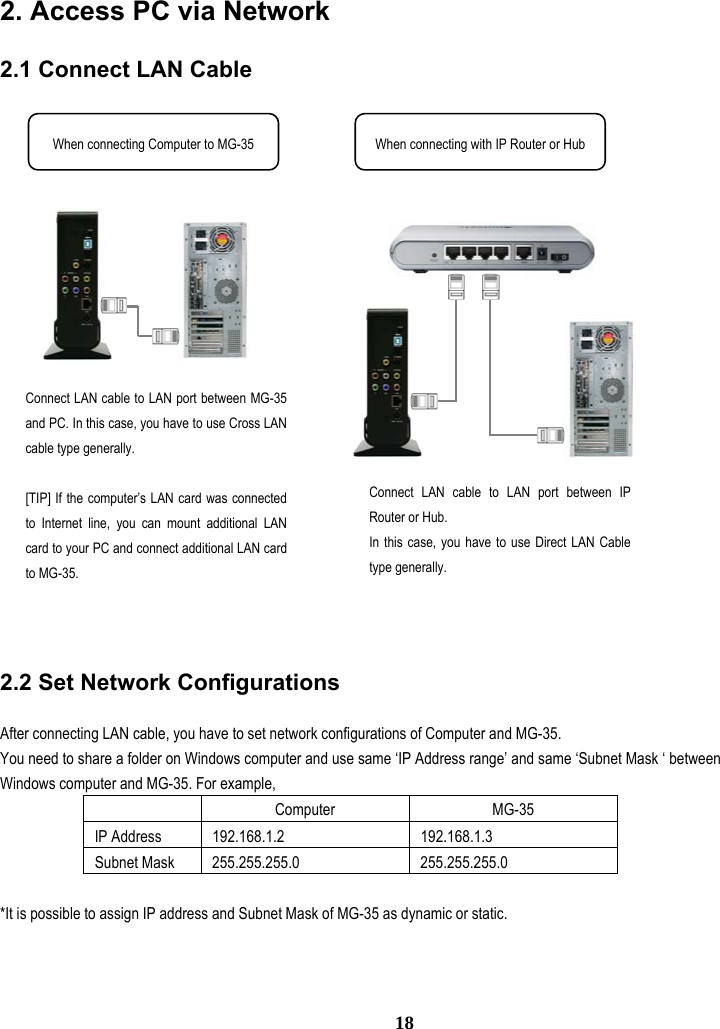

![2. Access PC via Network 2.1 Connect LAN Cable When connecting Computer to MG-35 When connecting with IP Router or Hub Connect LAN cable to LAN port between MG-35 and PC. In this case, you have to use Cross LAN cable type generally. [TIP] If the computer’s LAN card was connected to Internet line, you can mount additional LAN card to your PC and connect additional LAN card to MG-35. Connect LAN cable to LAN port between IP Router or Hub. In this case, you have to use Direct LAN Cable type generally. 2.2 Set Network Configurations After connecting LAN cable, you have to set network configurations of Computer and MG-35. You need to share a folder on Windows computer and use same ‘IP Address range’ and same ‘Subnet Mask ‘ between Windows computer and MG-35. For example, Computer MG-35 IP Address 192.168.1.2 192.168.1.3 Subnet Mask 255.255.255.0 255.255.255.0 *It is possible to assign IP address and Subnet Mask of MG-35 as dynamic or static. 18](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-20.png)

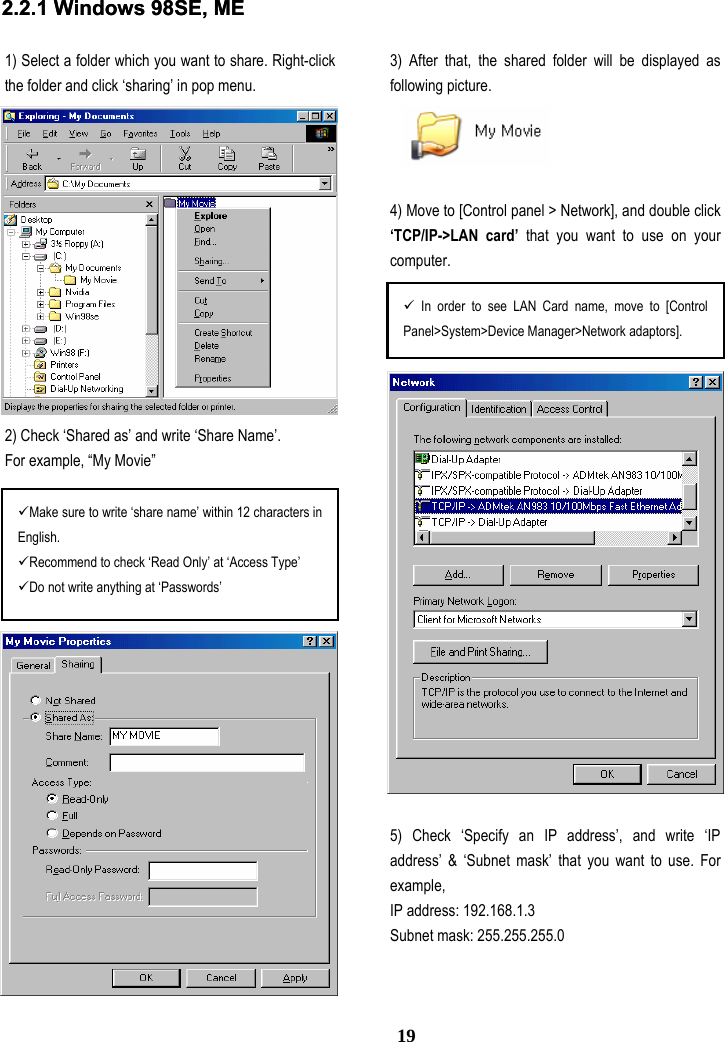

![2.2.1 Windows 98SE, ME 2.2.1 Windows 98SE, ME 1) Select a folder which you want to share. Right-click the folder and click ‘sharing’ in pop menu. 2) Check ‘Shared as’ and write ‘Share Name’. For example, “My Movie” 3) After that, the shared folder will be displayed as following picture. 4) Move to [Control panel > Network], and double click ‘TCP/IP->LAN card’ that you want to use on your computer. 5) Check ‘Specify an IP address’, and write ‘IP address’ & ‘Subnet mask’ that you want to use. For example, IP address: 192.168.1.3 Subnet mask: 255.255.255.0 9 In order to see LAN Card name, move to [Control Panel>System>Device Manager>Network adaptors]. 9Make sure to write ‘share name’ within 12 characters in English. 9Recommend to check ‘Read Only’ at ‘Access Type’ 9Do not write anything at ‘Passwords’ 19](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-21.png)

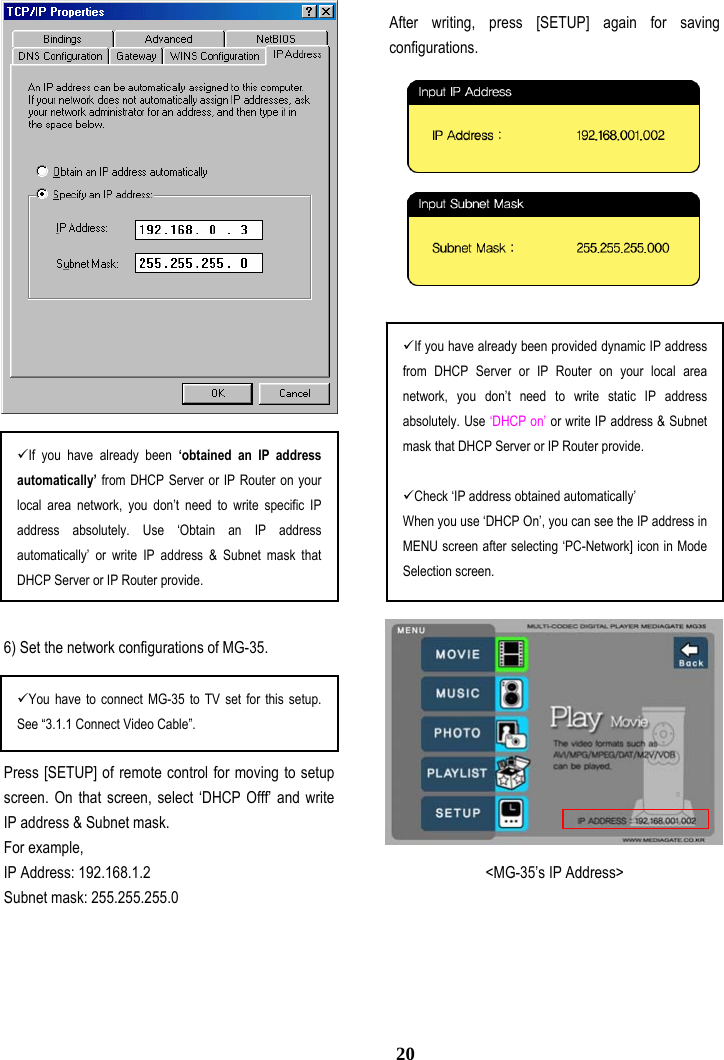

![6) Set the network configurations of MG-35. Press [SETUP] of remote control for moving to setup screen. On that screen, select ‘DHCP Offf’ and write IP address & Subnet mask. For example, IP Address: 192.168.1.2 Subnet mask: 255.255.255.0 After writing, press [SETUP] again for saving configurations. <MG-35’s IP Address> 9Check ‘IP address obtained automatically’ When you use ‘DHCP On’, you can see the IP address in MENU screen after selecting ‘PC-Network] icon in Mode Selection screen. 9If you have already been provided dynamic IP address from DHCP Server or IP Router on your local area network, you don’t need to write static IP address absolutely. Use ‘DHCP on’ or write IP address & Subnet mask that DHCP Server or IP Router provide. 9If you have already been ‘obtained an IP address automatically’ from DHCP Server or IP Router on your local area network, you don’t need to write specific IP address absolutely. Use ‘Obtain an IP address automatically’ or write IP address & Subnet mask that DHCP Server or IP Router provide. 9You have to connect MG-35 to TV set for this setup. See “3.1.1 Connect Video Cable”. 20](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-22.png)

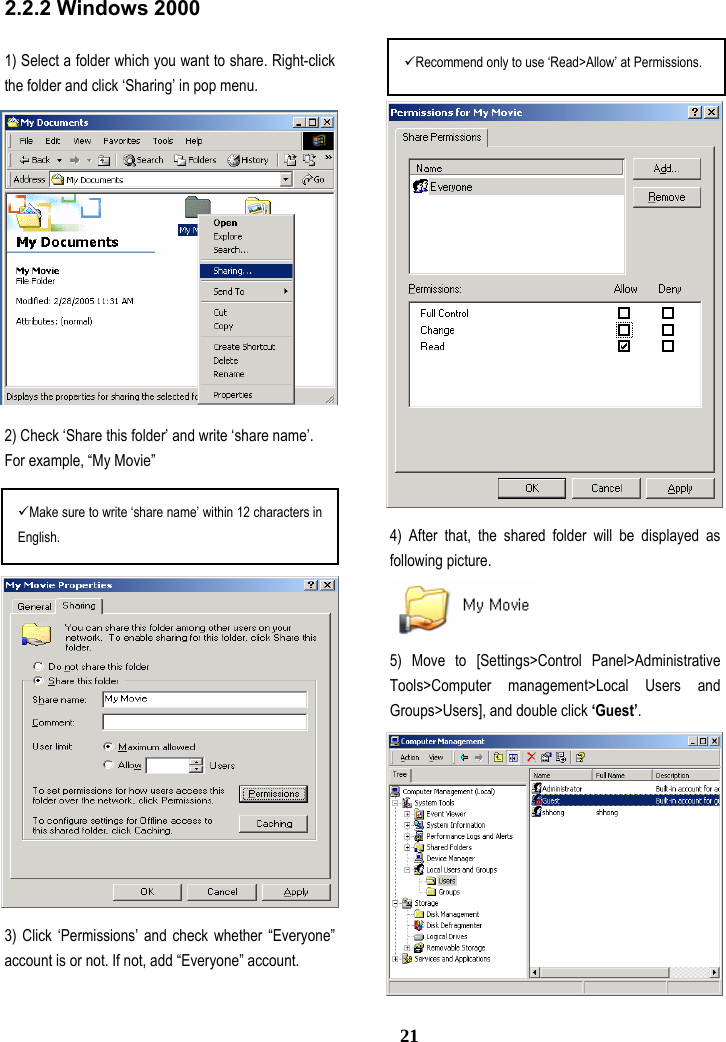

![2.2.2 Windows 2000 1) Select a folder which you want to share. Right-click the folder and click ‘Sharing’ in pop menu. 2) Check ‘Share this folder’ and write ‘share name’. For example, “My Movie” 3) Click ‘Permissions’ and check whether “Everyone” account is or not. If not, add “Everyone” account. 4) After that, the shared folder will be displayed as following picture. 5) Move to [Settings>Control Panel>Administrative Tools>Computer management>Local Users and Groups>Users], and double click ‘Guest’. 9Recommend only to use ‘Read>Allow’ at Permissions. 9Make sure to write ‘share name’ within 12 characters in English. 21](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-23.png)
![9) Check ‘Use the following IP address’, and write ‘IP address’ & ‘Subnet mask’ that you want to use. For example, IP address: 192.168.1.3 Subnet mask: 255.255.255.0 6) Check ‘User cannot change password’ and ‘Password never expires’. 7) Move to [Control Panel>Network and Dial-up Connections], and select Properties of ‘Local Area Connections’ by right click of mouse. 8) Double click ‘Internet Protocol (TCP/IP)’ that you want to use on your computer. 9If you see two or more ‘Local area connections’, select one that you will use for connecting to MG-35. 9If you have already been provided dynamic IP address from DHCP Server or IP Router on your local area network, you don’t need to write static IP address absolutely. Use ‘Obtain an IP address automatically’ or write IP address & Subnet mask that DHCP Server or IP Router provide. 22](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-24.png)

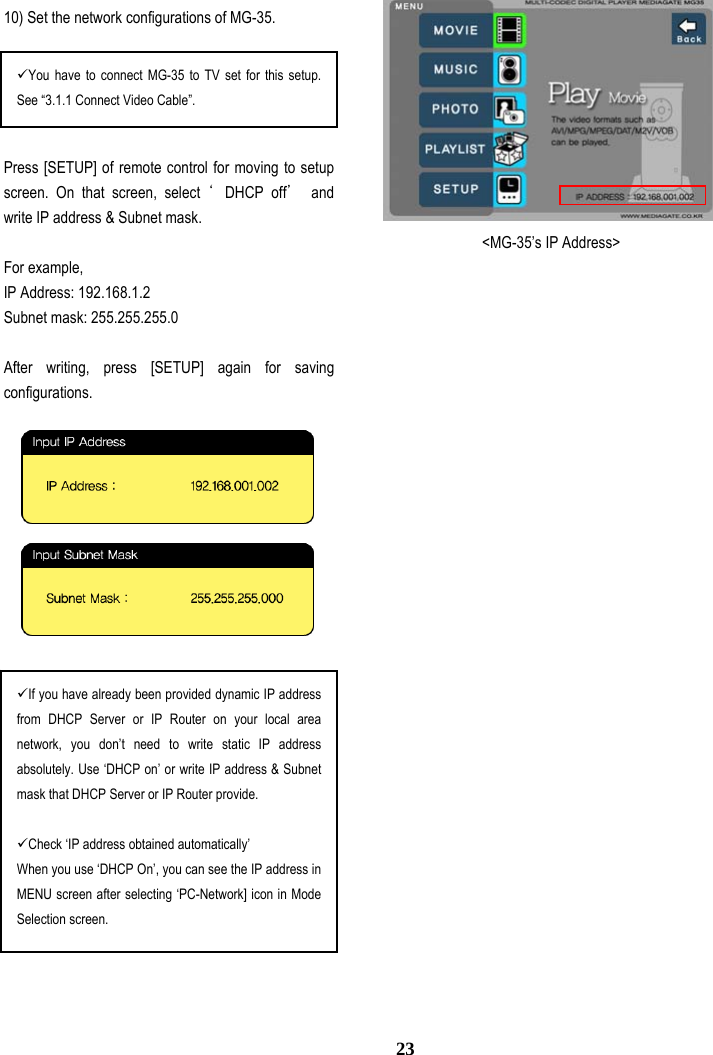

![10) Set the network configurations of MG-35. Press [SETUP] of remote control for moving to setup screen. On that screen, select ‘DHCP off’ and write IP address & Subnet mask. For example, IP Address: 192.168.1.2 Subnet mask: 255.255.255.0 After writing, press [SETUP] again for saving configurations. 9You have to connect MG-35 to TV set for this setup. See “3.1.1 Connect Video Cable”. <MG-35’s IP Address> 9Check ‘IP address obtained automatically’ When you use ‘DHCP On’, you can see the IP address in MENU screen after selecting ‘PC-Network] icon in Mode Selection screen. 9If you have already been provided dynamic IP address from DHCP Server or IP Router on your local area network, you don’t need to write static IP address absolutely. Use ‘DHCP on’ or write IP address & Subnet mask that DHCP Server or IP Router provide. 23](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-25.png)

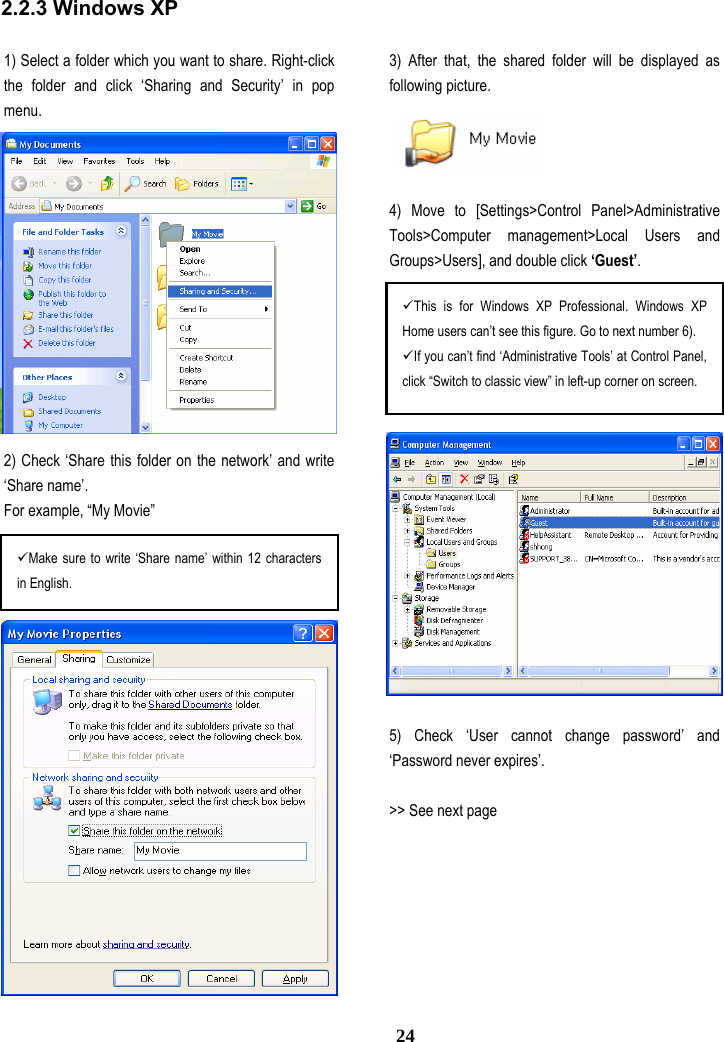

![2.2.3 Windows XP 1) Select a folder which you want to share. Right-click the folder and click ‘Sharing and Security’ in pop menu. 3) After that, the shared folder will be displayed as following picture. 4) Move to [Settings>Control Panel>Administrative Tools>Computer management>Local Users and Groups>Users], and double click ‘Guest’. 5) Check ‘User cannot change password’ and ‘Password never expires’. 9This is for Windows XP Professional. Windows XP Home users can’t see this figure. Go to next number 6). 9If you can’t find ‘Administrative Tools’ at Control Panel, click “Switch to classic view” in left-up corner on screen. 2) Check ‘Share this folder on the network’ and write ‘Share name’. For example, “My Movie” 9Make sure to write ‘Share name’ within 12 characters in English. >> See next page 24](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-26.png)

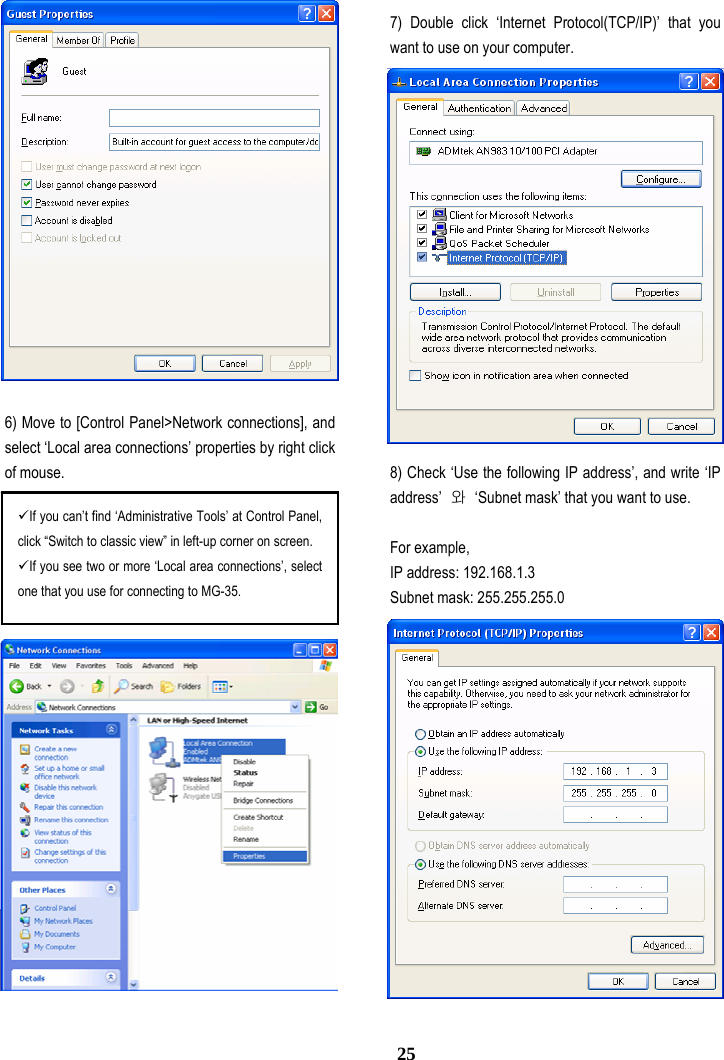

![. 6) Move to [Control Panel>Network connections], and select ‘Local area connections’ properties by right click of mouse. 7) Double click ‘Internet Protocol(TCP/IP)’ that you want to use on your computer. 8) Check ‘Use the following IP address’, and write ‘IP address’ 와 ‘Subnet mask’ that you want to use. For example, IP address: 192.168.1.3 Subnet mask: 255.255.255.0 9If you can’t find ‘Administrative Tools’ at Control Panel, click “Switch to classic view” in left-up corner on screen. 9If you see two or more ‘Local area connections’, select one that you use for connecting to MG-35. 25](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-27.png)

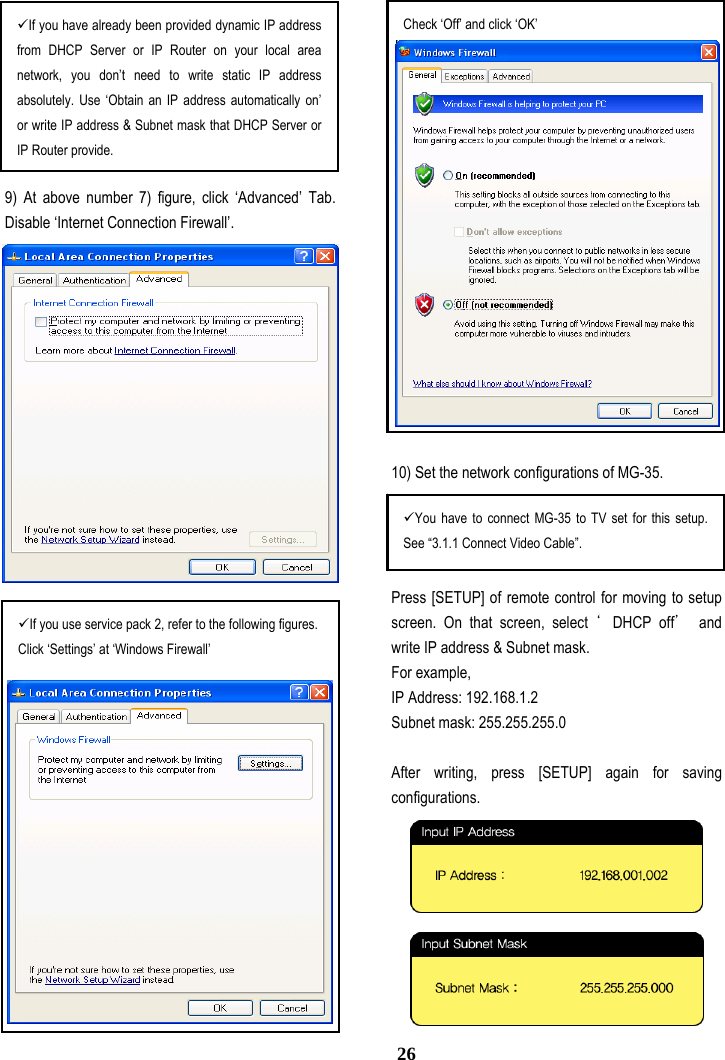

![9) At above number 7) figure, click ‘Advanced’ Tab. Disable ‘Internet Connection Firewall’. 10) Set the network configurations of MG-35. Press [SETUP] of remote control for moving to setup screen. On that screen, select ‘DHCP off’ and write IP address & Subnet mask. For example, IP Address: 192.168.1.2 Subnet mask: 255.255.255.0 After writing, press [SETUP] again for saving configurations. Check ‘Off’ and click ‘OK’ 9If you have already been provided dynamic IP address from DHCP Server or IP Router on your local area network, you don’t need to write static IP address absolutely. Use ‘Obtain an IP address automatically on’ or write IP address & Subnet mask that DHCP Server or IP Router provide. 9You have to connect MG-35 to TV set for this setup. See “3.1.1 Connect Video Cable”. 9If you use service pack 2, refer to the following figures. Click ‘Settings’ at ‘Windows Firewall’ 26](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-28.png)

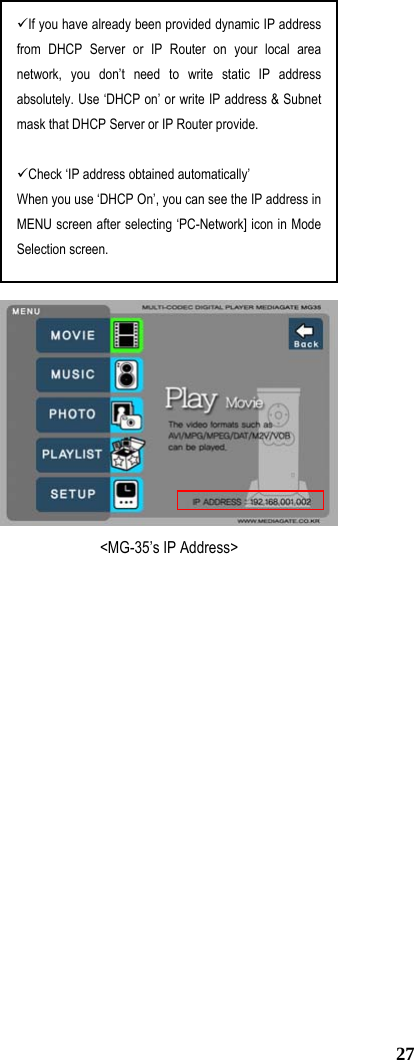

![<MG-35’s IP Address> 9If you have already been provided dynamic IP address from DHCP Server or IP Router on your local area network, you don’t need to write static IP address absolutely. Use ‘DHCP on’ or write IP address & Subnet mask that DHCP Server or IP Router provide. 9Check ‘IP address obtained automatically’ When you use ‘DHCP On’, you can see the IP address in MENU screen after selecting ‘PC-Network] icon in Mode Selection screen. 27](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-29.png)

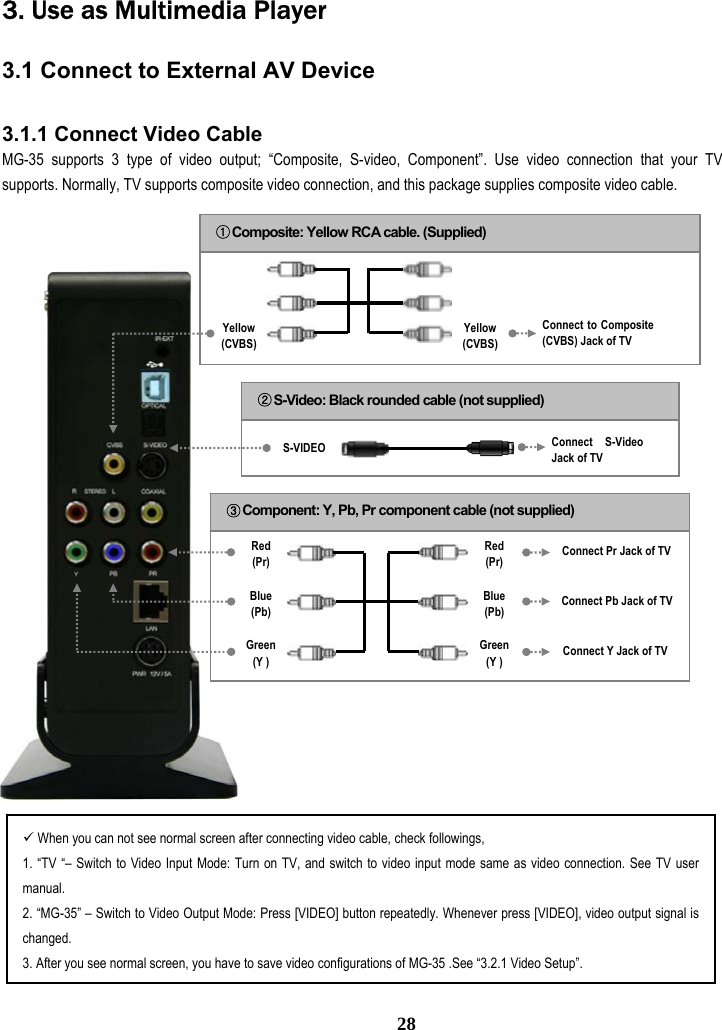

![3. Use as Multimedia Player 3.1 Connect to External AV Device 3.1.1 Connect Video Cable MG-35 supports 3 type of video output; “Composite, S-video, Component”. Use video connection that your TV supports. Normally, TV supports composite video connection, and this package supplies composite video cable. Red (Pr) Blue (Pb) Green (Y ) Red (Pr) Blue (Pb) Green (Y ) Connect Pr Jack of TV Connect Pb Jack of TV Connect Y Jack of TV Yellow (CVBS) Yellow (CVBS) S-VIDEO Connect to Composite (CVBS) Jack of TV Connect S-Video Jack of TV ① Composite: Yellow RCA cable. (Supplied) ② S-Video: Black rounded cable (not supplied) ③ Component: Y, Pb, Pr component cable (not supplied) 9 When you can not see normal screen after connecting video cable, check followings, 1. “TV “– Switch to Video Input Mode: Turn on TV, and switch to video input mode same as video connection. See TV user manual. 2. “MG-35” – Switch to Video Output Mode: Press [VIDEO] button repeatedly. Whenever press [VIDEO], video output signal is changed. 3. After you see normal screen, you have to save video configurations of MG-35 .See “3.2.1 Video Setup”. 28](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-30.png)
![3.2 Basic Setup 3.2.1 Video Setup This is guide for setting video output of MG-35. You have to setup MG-35’s video output mode same as TV set’s video input mode. 9When you can not see normal screen after connecting video cable, check followings, 1. “TV “– Switch to Video Input Mode: Turn on TV, and switch to video input mode same as video connection. See TV user manual. 2. “MG-35” – Switch to Video Output Mode: Press [VIDEO] button repeatedly. Whenever press [VIDEO], video output signal is changed. 3. After you see normal screen, you have to save video configurations of MG-35. TV Video Input Mode MG-35 Video Output Mode Connection Jack of TV, MG-35 Video Cable Type TV Out: NTSC C/S-Video (HD Component OFF) Normal Video TV Out: PAL C/S-Video (HD Component OFF) CVBS or Composite Jack (Generally Yellow Jack) Yellow RCA Cable (Supplied)TV Out: NTSC C/S-Video (HD Component OFF) S-Video TV Out: PAL C/S-Video (HD Component OFF) S-Video Jack S-Video Cable * Black rounded TV Out: NTSC C/YPbPr (HD Component OFF) Component 480i TV Out: PAL C/YPbPr (HD Component OFF) Component 480p HD Component Out On 480p Component 720p HD Component Out On 720p Component 1080i HD Component Out On 1080i Component 3 Jack * Y(Green), Pb(Blue), Pr(Red) Component Cable * Y(Green), Pb(Blue), Pr(Red) 9NTSC, PAL : Standard of TV Output. Select a proper one for using in your country. 30](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-32.png)
![< Setup Procedure> ① Turn on MG-35 and press [SETUP] on Mode Selection screen. ② Move to ‘TV Out’ icon and press [ENTER]. Setup box will be displayed under icon menu. ③ Move to Video Output Mode that you want and press [ENTER]. ④ Finally, press [SETUP] again for saving configurations. 31](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-33.png)
![3.2.2 Audio Setup This is guide for setting audio output of MG-35. You can use Stereo or Digital 5.1 ch.. 9Analogue/DCPM: Select when you connect the supplied audio cables (Red / White) to TV or Audio set directly. 9Encoded Digital: Select when you want to listen through 5.1Ch / DTS Dolby by connecting receiver (or amplifier) with Optical or Coaxial. <Setup Procedure> ① Turn on MG-35 and press [SETUP] in Mode Selection screen. ② Move to ‘Audio’ icon and press [ENTER]. Setup box will be displayed under icon menu. ③ Move to Audio Output Mode that you want and press [ENTER]. ④ Finally, press [SETUP] again for saving configurations. 32](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-34.png)
![3.2.3 Network Setup It is possible to obtain IP address automatically from DHCP Server or IP Router, or set the specific IP address. Check your network environments. 9DHCP On: You can use this option when it is possible to obtain IP address automatically from DHCP Server or IP Router. 9DHCP Off: When it is not possible to obtain IP address automatically or you connect to your PC directly without DHCP Server or IP Router, you have to use this option. Just write IP address and Subnet mask. ‘DHCP On’ Setup Procedure ① Turn on MG-35 and press [SETUP] in Mode Selection screen. ④ Finally, press [SETUP] again for saving configurations. ② Move to ‘Network’ icon and press [ENTER]. Setup box will be displayed under icon menu. ③ Move to DHCP On and press [ENTER]. When you use ‘DHCP On’, you can see the IP address in MENU screen after selecting ‘PC-Network] icon in Mode Selection screen. 9Check ‘IP address obtained automatically’ 33](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-35.png)
![<DHCP Off Setup Procedure> ① Turn on MG-35 and press [SETUP] in Mode Selection screen. ② Move to ‘Network’ icon and press [ENTER]. Setup box will be displayed under icon menu. ③ Move to DHCP Off and press [ENTER]. ④ Move to 'IP Addr' and press [ENTER] IP address Input box will be displayed. Write IP address with arrow and number button of remote control. And then, press [ENTER] again. ⑤ Move to 'Subnet mask' and press [ENTER]. Subnet mask Input box will be displayed. Write Subnet mask with arrow and number button of remote control. And then, press [ENTER] again. ⑥ Finally, press [SETUP] again for saving configurations. 9Check ‘The specific IP address you wrote’ When you use ‘DHCP off’, you can see the IP address in MENU screen after selecting ‘PC-Network] icon in Mode Selection screen. 34](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-36.png)

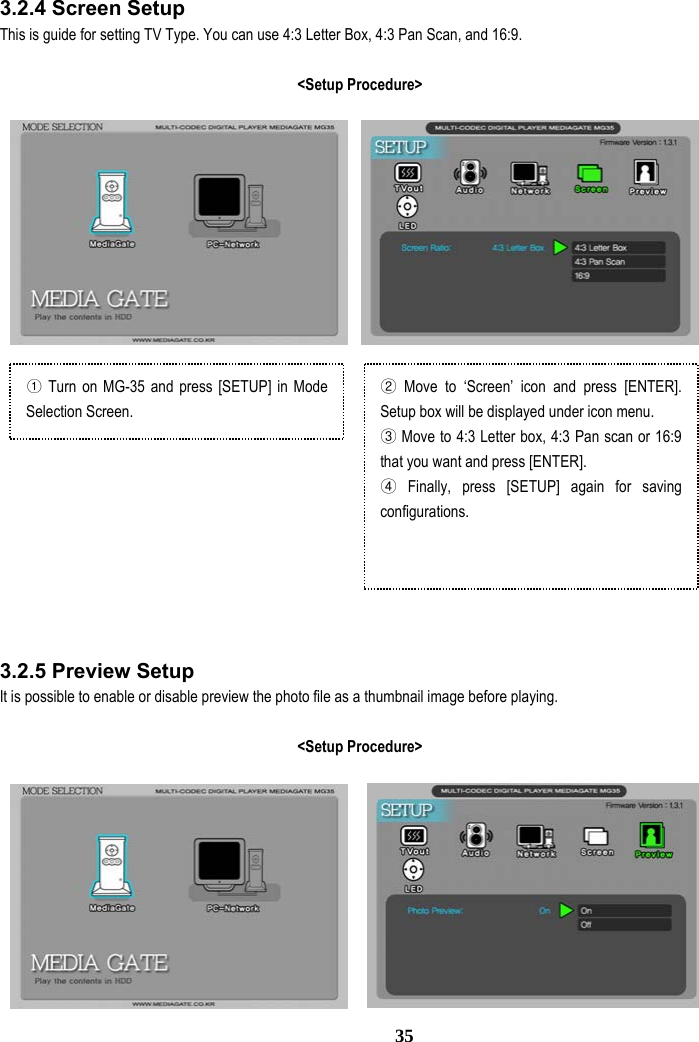

![3.2.4 Screen Setup This is guide for setting TV Type. You can use 4:3 Letter Box, 4:3 Pan Scan, and 16:9. <Setup Procedure> ① Turn on MG-35 and press [SETUP] in Mode Selection Screen. Move to ‘②Screen’ icon and press [ENTER]. Setup box will be displayed under icon menu. Move to ③4:3 Letter box, 4:3 Pan scan or 16:9 that you want and press [ENTER]. Finally, press④ [SETUP] again for saving configurations. 3.2.5 Preview Setup It is possible to enable or disable preview the photo file as a thumbnail image before playing. <Setup Procedure> 35](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-37.png)
![3.2.6 LED Setup It is possible to turn on or off a backlight LED of arrow button on the front side. When the LED disturbs you in night, turn off the LED. <Setup Procedure> ① Turn on MG-35 and press [SETUP] in Mode Selection screen. Move to ‘Preview’ icon and press [ENTER]. ②Setup box will be displayed under icon menu. Move to Picture preview on or off that you ③want and press [ENTER]. ④ Finally, press [SETUP] again for saving configurations. ① Turn on MG-35 and press [SETUP] in Mode Selection screen. Move to ‘②LED’ icon and press [ENTER]. Setup box will be displayed under icon menu. Move to ③LED on or off that you want and press [ENTER]. ④ finally, press [SETUP] again for saving configurations. 36](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-38.png)

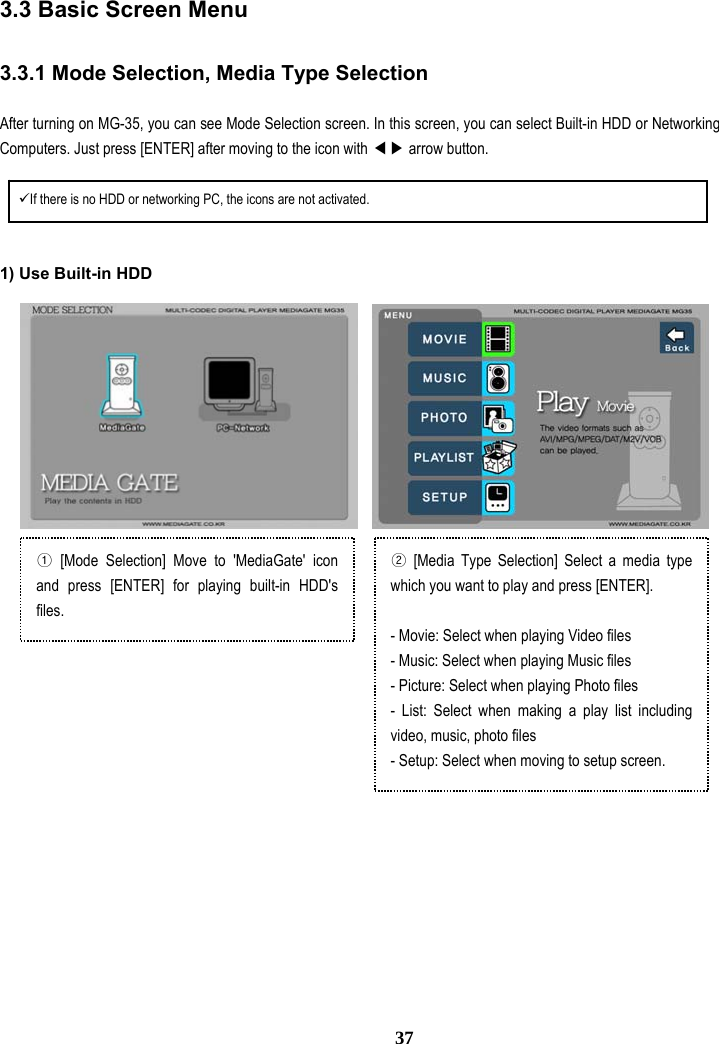

![3.3 Basic Screen Menu 3.3.1 Mode Selection, Media Type Selection After turning on MG-35, you can see Mode Selection screen. In this screen, you can select Built-in HDD or Networking Computers. Just press [ENTER] after moving to the icon with ◀▶ arrow button. 9If there is no HDD or networking PC, the icons are not activated. 1) Use Built-in HDD ① [Mode Selection] Move to 'MediaGate' icon and press [ENTER] for playing built-in HDD's files. ② [Media Type Selection] Select a media type which you want to play and press [ENTER]. - Movie: Select when playing Video files - Music: Select when playing Music files - Picture: Select when playing Photo files - List: Select when making a play list including video, music, photo files - Setup: Select when moving to setup screen. 37](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-39.png)

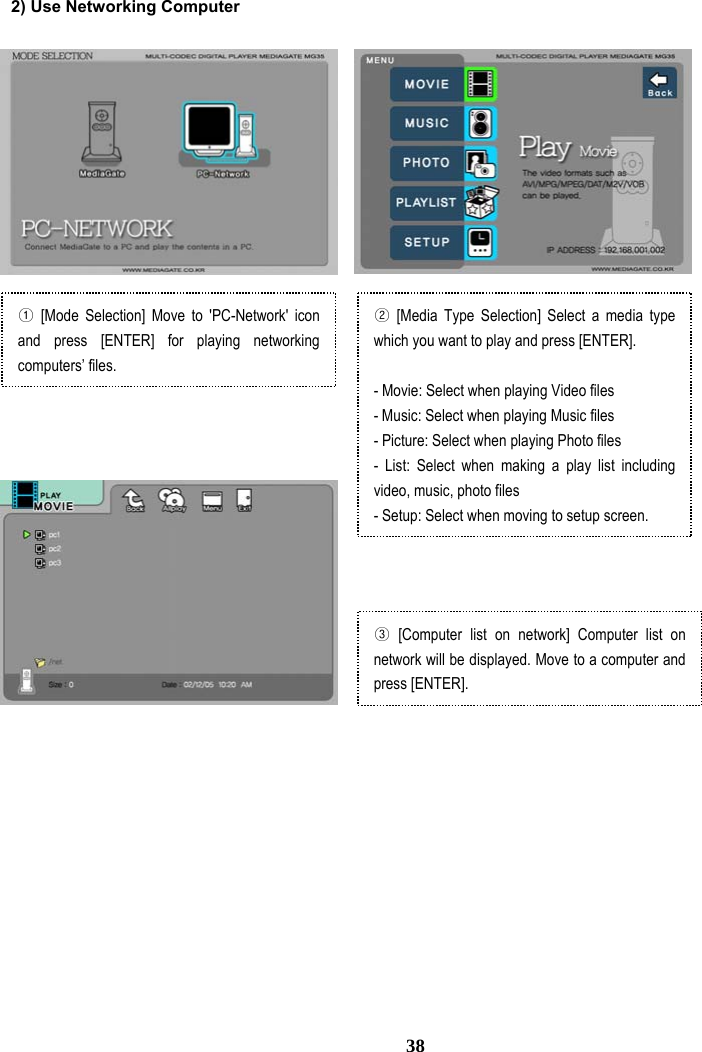

![2) Use Networking Computer ① [Mode Selection] Move to 'PC-Network' icon and press [ENTER] for playing networking computers’ files. ② [Media Type Selection] Select a media type which you want to play and press [ENTER]. - Movie: Select when playing Video files - Music: Select when playing Music files - Picture: Select when playing Photo files - List: Select when making a play list including video, music, photo files - Setup: Select when moving to setup screen. ③ [Computer list on network] Computer list on network will be displayed. Move to a computer and press [ENTER]. 38](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-40.png)

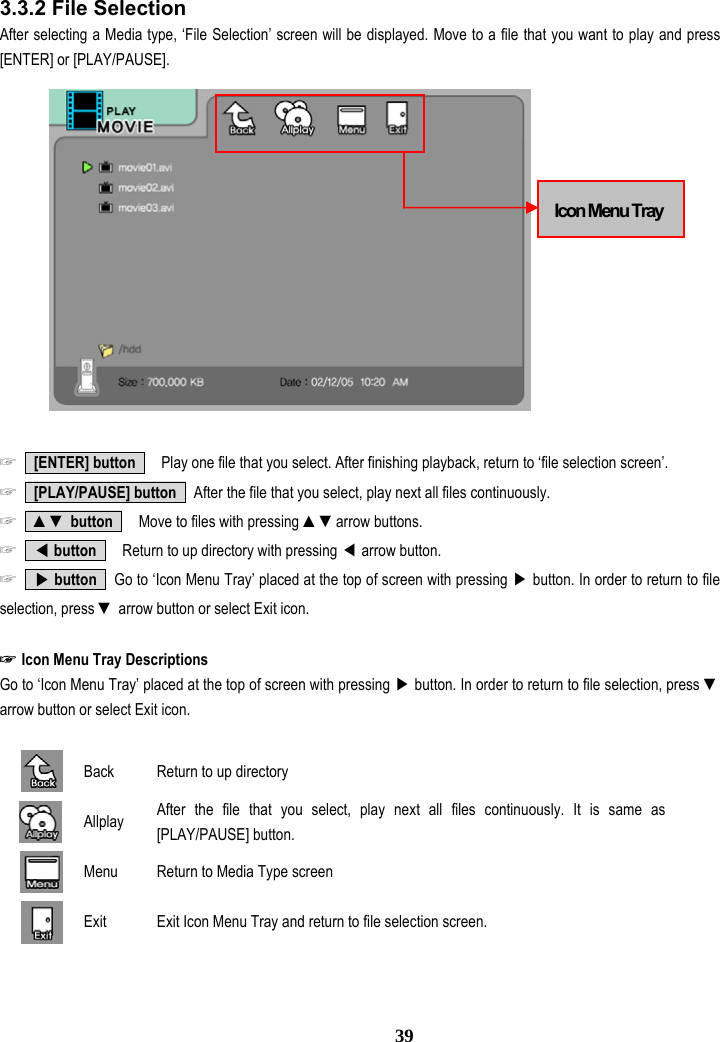

![3.3.2 File Selection After selecting a Media type, ‘File Selection’ screen will be displayed. Move to a file that you want to play and press [ENTER] or [PLAY/PAUSE]. Icon Menu Tray ☞ [ENTER] button Play one file that you select. After finishing playback, return to ‘file selection screen’. ☞ [PLAY/PAUSE] button After the file that you select, play next all files continuously. ☞ ▲▼ button Move to files with pressing ▲▼arrow buttons. ☞ ◀ button Return to up directory with pressing ◀ arrow button. ☞ ▶ button Go to ‘Icon Menu Tray’ placed at the top of screen with pressing ▶ button. In order to return to file selection, press ▼ arrow button or select Exit icon. ☞ Icon Menu Tray Descriptions Go to ‘Icon Menu Tray’ placed at the top of screen with pressing ▶ button. In order to return to file selection, press ▼ arrow button or select Exit icon. Back Return to up directory Allplay After the file that you select, play next all files continuously. It is same as [PLAY/PAUSE] button. Menu Return to Media Type screen Exit Exit Icon Menu Tray and return to file selection screen. 39](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-41.png)

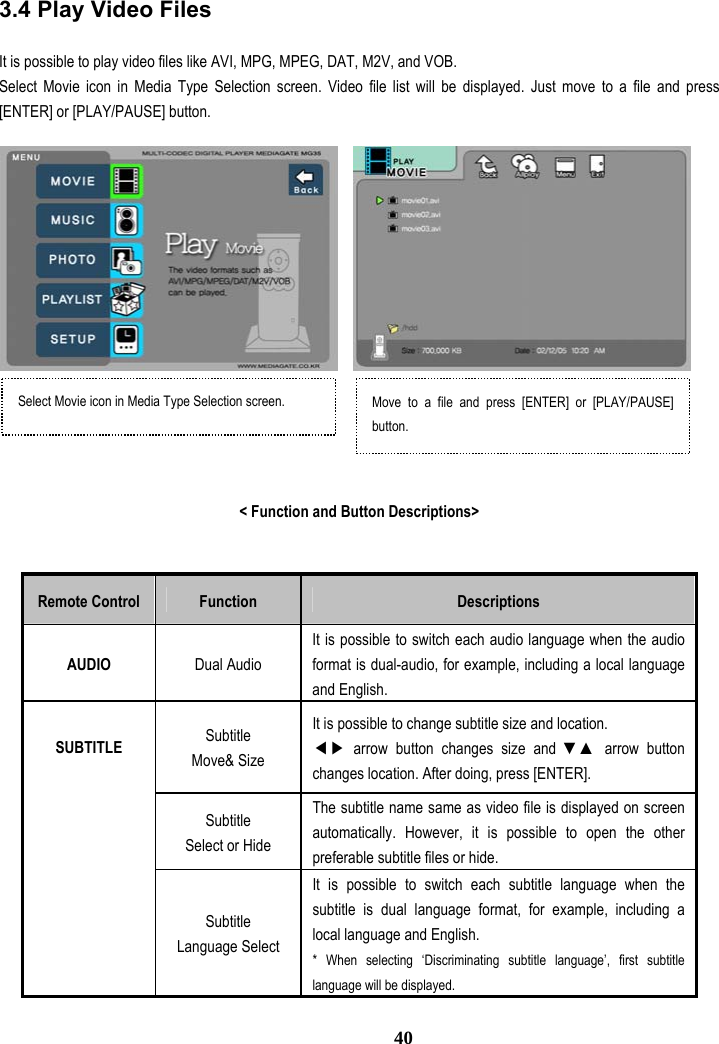

![3.4 Play Video Files It is possible to play video files like AVI, MPG, MPEG, DAT, M2V, and VOB. Select Movie icon in Media Type Selection screen. Video file list will be displayed. Just move to a file and press [ENTER] or [PLAY/PAUSE] button. Select Movie icon in Media Type Selection screen. Move to a file and press [ENTER] or [PLAY/PAUSE] button. < Function and Button Descriptions> Remote Control Function Descriptions AUDIO Dual Audio It is possible to switch each audio language when the audio format is dual-audio, for example, including a local language and English. Subtitle Move& Size It is possible to change subtitle size and location. ◀▶ arrow button changes size and ▼▲ arrow button changes location. After doing, press [ENTER]. Subtitle Select or Hide The subtitle name same as video file is displayed on screen automatically. However, it is possible to open the other preferable subtitle files or hide. SUBTITLE Subtitle Language Select It is possible to switch each subtitle language when the subtitle is dual language format, for example, including a local language and English. * When selecting ‘Discriminating subtitle language’, first subtitle language will be displayed. 40](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-42.png)

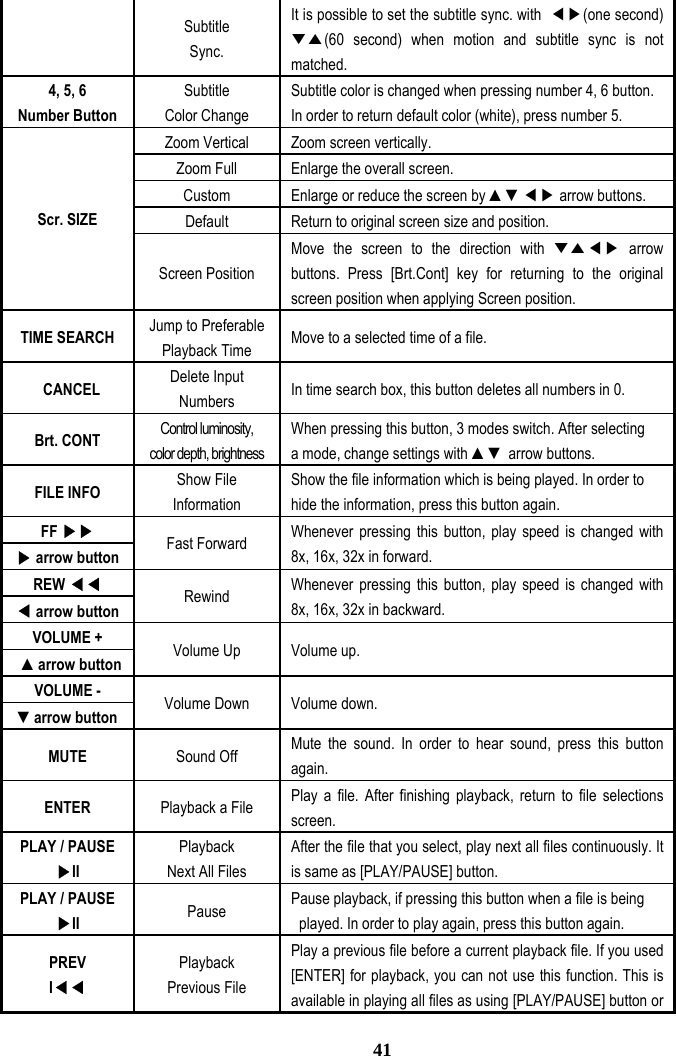

![Subtitle Sync. It is possible to set the subtitle sync. with ◀▶(one second) ▼▲(60 second) when motion and subtitle sync is not matched. 4, 5, 6 Number Button Subtitle Color Change Subtitle color is changed when pressing number 4, 6 button. In order to return default color (white), press number 5. Zoom Vertical Zoom screen vertically. Zoom Full Enlarge the overall screen. Custom Enlarge or reduce the screen by ▲▼ ◀▶ arrow buttons. Default Return to original screen size and position. Scr. SIZE Screen Position Move the screen to the direction with ▼▲◀▶ arrow buttons. Press [Brt.Cont] key for returning to the original screen position when applying Screen position. TIME SEARCH Jump to Preferable Playback Time Move to a selected time of a file. CANCEL Delete Input Numbers In time search box, this button deletes all numbers in 0. Brt. CONT Control luminosity, color depth, brightness When pressing this button, 3 modes switch. After selecting a mode, change settings with ▲▼ arrow buttons. FILE INFO Show File Information Show the file information which is being played. In order to hide the information, press this button again. FF ▶▶ ▶ arrow button Fast Forward Whenever pressing this button, play speed is changed with 8x, 16x, 32x in forward. REW ◀◀ ◀ arrow button Rewind Whenever pressing this button, play speed is changed with 8x, 16x, 32x in backward. VOLUME + ▲arrow button Volume Up Volume up. VOLUME - ▼arrow button Volume Down Volume down. MUTE Sound Off Mute the sound. In order to hear sound, press this button again. ENTER Playback a File Play a file. After finishing playback, return to file selections screen. PLAY / PAUSE II▶ Playback Next All Files After the file that you select, play next all files continuously. It is same as [PLAY/PAUSE] button. PLAY / PAUSE II▶ Pause Pause playback, if pressing this button when a file is being played. In order to play again, press this button again. PREV I◀◀ Playback Previous File Play a previous file before a current playback file. If you used [ENTER] for playback, you can not use this function. This is available in playing all files as using [PLAY/PAUSE] button or 41](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-43.png)

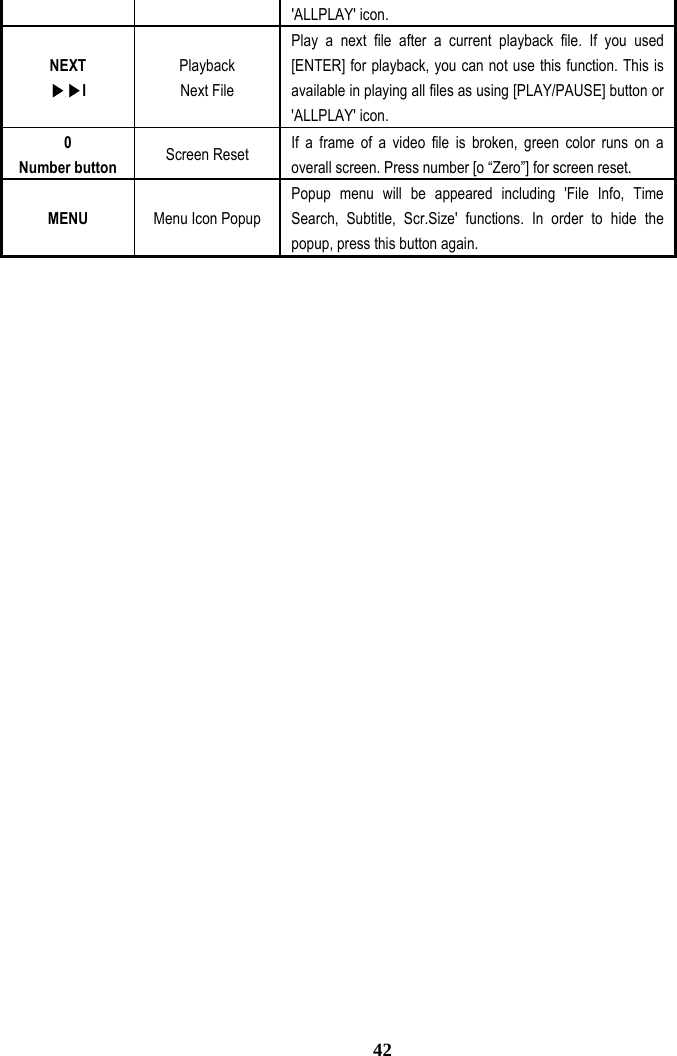

!['ALLPLAY' icon. NEXT I▶▶ Playback Next File Play a next file after a current playback file. If you used [ENTER] for playback, you can not use this function. This is available in playing all files as using [PLAY/PAUSE] button or 'ALLPLAY' icon. 0 Number button Screen Reset If a frame of a video file is broken, green color runs on a overall screen. Press number [o “Zero”] for screen reset. MENU Menu Icon Popup Popup menu will be appeared including 'File Info, Time Search, Subtitle, Scr.Size' functions. In order to hide the popup, press this button again. 42](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-44.png)
![3.5 Play DVD Files DVD manager function support to play DVD Ripping File same as original DVD. Make a folder and then save all ripping files into the folder. After connecting TV(or Monitor), select VIDEO_TS.IFO file at the folder. Make sure that all the ripping files including VIDEO_TS.IFO from one DVD title will be located at one folder. 9If you can not find VIDEO_TS.IFO file among all the ripping files from an original DVD title, DVD manager function will not work. 9When you play DVD file in networking computer, play back time will be delayed, so it’s not possible to play DVD files on networks. Recommend to use built-in HDD. Select Movie icon in Media Type Selection screen. Move to the folder including DVD ripping files and select ‘video_ts.ifo’ file and press [ENTER] button. < Function and Button Descriptions> Remote Control Function Description AUDIO Select Audio Type Audio type will be changed whenever pressing this button. SUBTITLE Select Subtitle Type Subtitle type will be changed whenever pressing this button. Scr. SIZE Screen Size Screen size will be changed when press the button. MENU Go to Menu Move to main menu while playing DVD. SLOW Playback Slow Play slowly 1/2x, 1/4x, and 1/8x whenever pressing this button. 43](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-45.png)

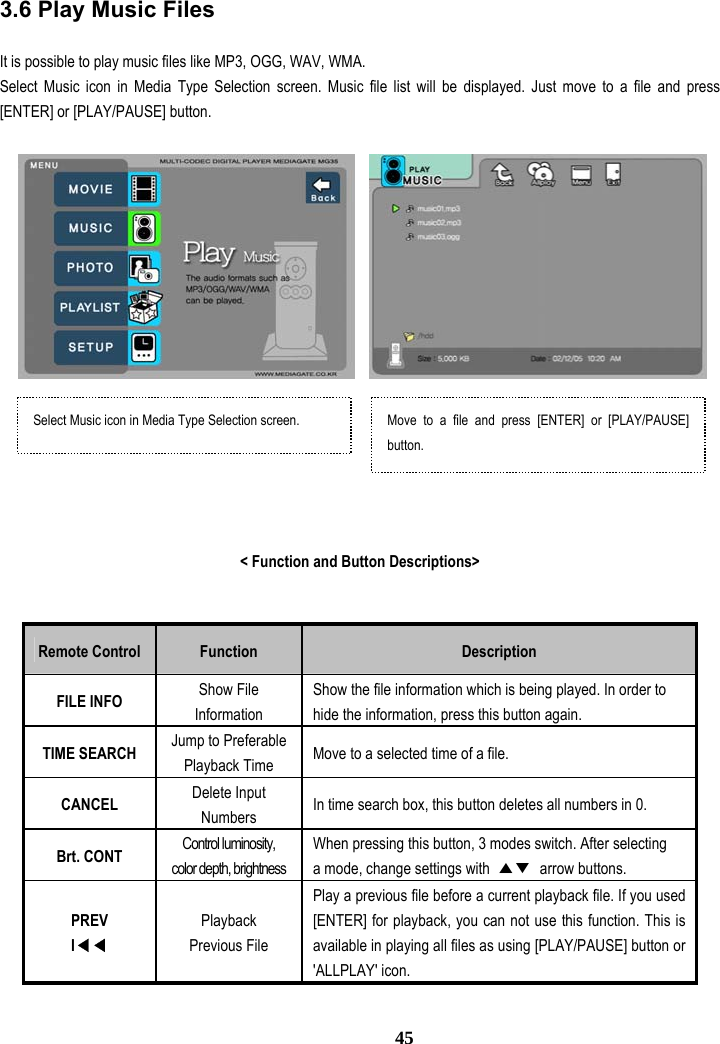

![3.6 Play Music Files It is possible to play music files like MP3, OGG, WAV, WMA. Select Music icon in Media Type Selection screen. Music file list will be displayed. Just move to a file and press [ENTER] or [PLAY/PAUSE] button. < Function and Button Descriptions> Remote Control Function Description FILE INFO Show File Information Show the file information which is being played. In order to hide the information, press this button again. TIME SEARCH Jump to Preferable Playback Time Move to a selected time of a file. CANCEL Delete Input Numbers In time search box, this button deletes all numbers in 0. Brt. CONT Control luminosity, color depth, brightness When pressing this button, 3 modes switch. After selecting a mode, change settings with ▲▼ arrow buttons. PREV I◀◀ Playback Previous File Play a previous file before a current playback file. If you used [ENTER] for playback, you can not use this function. This is available in playing all files as using [PLAY/PAUSE] button or 'ALLPLAY' icon. Move to a file and press [ENTER] or [PLAY/PAUSE] button. Select Music icon in Media Type Selection screen. 45](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-47.png)

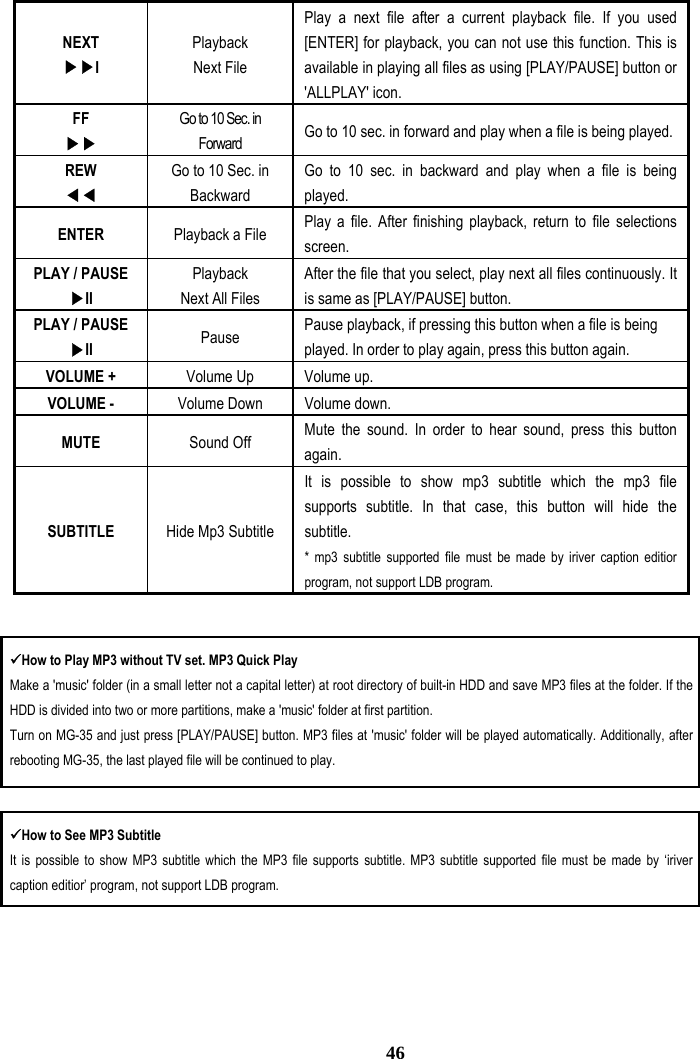

![NEXT I▶▶ Playback Next File Play a next file after a current playback file. If you used [ENTER] for playback, you can not use this function. This is available in playing all files as using [PLAY/PAUSE] button or 'ALLPLAY' icon. FF ▶▶ Go to 10 Sec. in Forward Go to 10 sec. in forward and play when a file is being played. REW ◀◀ Go to 10 Sec. in Backward Go to 10 sec. in backward and play when a file is being played. ENTER Playback a File Play a file. After finishing playback, return to file selections screen. PLAY / PAUSE II▶ Playback Next All Files After the file that you select, play next all files continuously. It is same as [PLAY/PAUSE] button. PLAY / PAUSE II▶ Pause Pause playback, if pressing this button when a file is being played. In order to play again, press this button again. VOLUME + Volume Up Volume up. VOLUME - Volume Down Volume down. MUTE Sound Off Mute the sound. In order to hear sound, press this button again. SUBTITLE Hide Mp3 Subtitle It is possible to show mp3 subtitle which the mp3 file supports subtitle. In that case, this button will hide the subtitle. * mp3 subtitle supported file must be made by iriver caption editior program, not support LDB program. 9How to Play MP3 without TV set. MP3 Quick Play Make a 'music' folder (in a small letter not a capital letter) at root directory of built-in HDD and save MP3 files at the folder. If the HDD is divided into two or more partitions, make a 'music' folder at first partition. Turn on MG-35 and just press [PLAY/PAUSE] button. MP3 files at 'music' folder will be played automatically. Additionally, after rebooting MG-35, the last played file will be continued to play. 9How to See MP3 Subtitle It is possible to show MP3 subtitle which the MP3 file supports subtitle. MP3 subtitle supported file must be made by ‘iriver caption editior’ program, not support LDB program. 46](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-48.png)

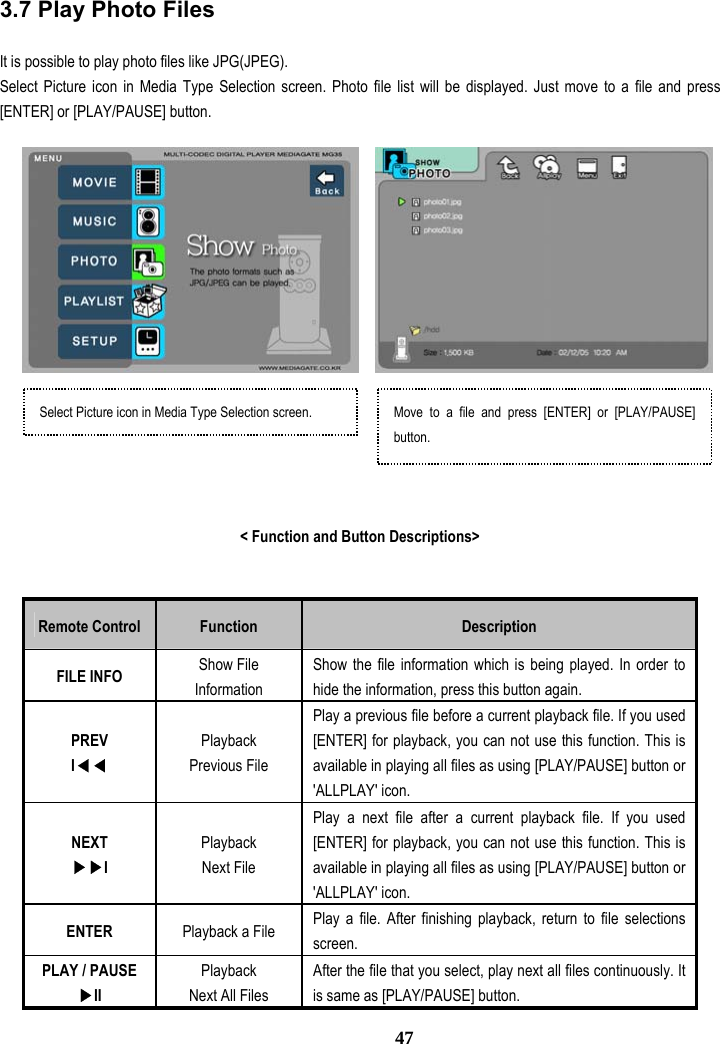

![3.7 Play Photo Files It is possible to play photo files like JPG(JPEG). Select Picture icon in Media Type Selection screen. Photo file list will be displayed. Just move to a file and press [ENTER] or [PLAY/PAUSE] button. < Function and Button Descriptions> Remote Control Function Description FILE INFO Show File Information Show the file information which is being played. In order to hide the information, press this button again. PREV I◀◀ Playback Previous File Play a previous file before a current playback file. If you used [ENTER] for playback, you can not use this function. This is available in playing all files as using [PLAY/PAUSE] button or 'ALLPLAY' icon. NEXT I▶▶ Playback Next File Play a next file after a current playback file. If you used [ENTER] for playback, you can not use this function. This is available in playing all files as using [PLAY/PAUSE] button or 'ALLPLAY' icon. ENTER Playback a File Play a file. After finishing playback, return to file selections screen. PLAY / PAUSE II▶ Playback Next All Files After the file that you select, play next all files continuously. It is same as [PLAY/PAUSE] button. Select Picture icon in Media Type Selection screen. Move to a file and press [ENTER] or [PLAY/PAUSE] button. 47](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-49.png)

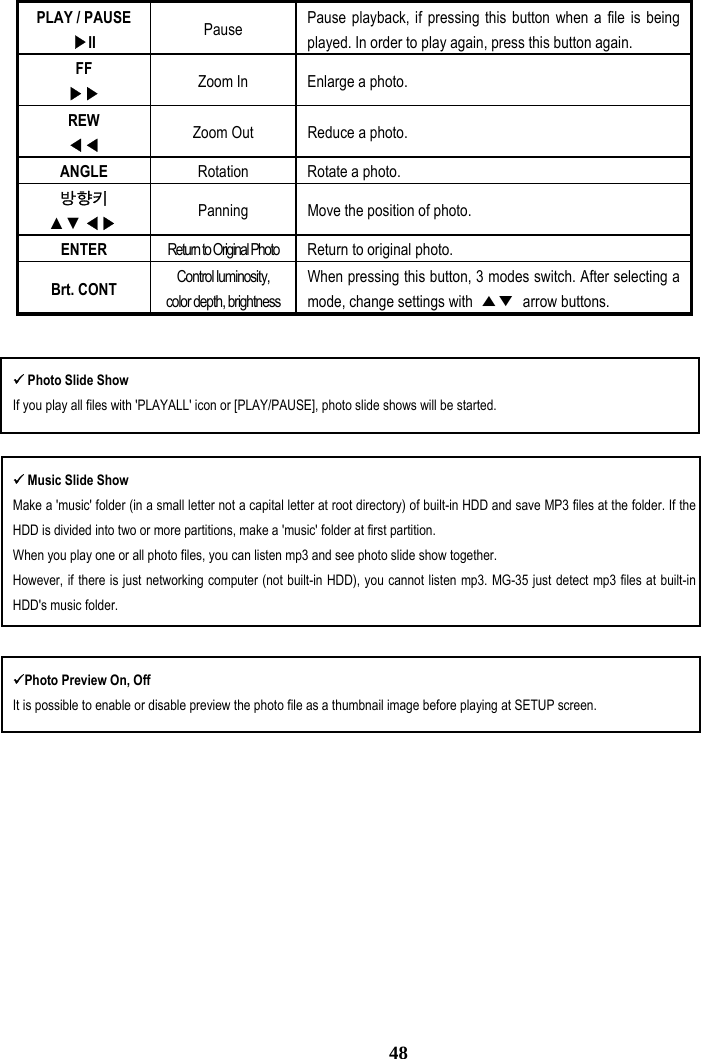

![PLAY / PAUSE II▶ Pause Pause playback, if pressing this button when a file is being played. In order to play again, press this button again. FF ▶▶ Zoom In Enlarge a photo. REW ◀◀ Zoom Out Reduce a photo. ANGLE Rotation Rotate a photo. 방향키 ▲▼◀▶ Panning Move the position of photo. ENTER Return to Original Photo Return to original photo. Brt. CONT Control luminosity, color depth, brightness When pressing this button, 3 modes switch. After selecting a mode, change settings with ▲▼ arrow buttons. 9 Photo Slide Show If you play all files with 'PLAYALL' icon or [PLAY/PAUSE], photo slide shows will be started. 9 Music Slide Show Make a 'music' folder (in a small letter not a capital letter at root directory) of built-in HDD and save MP3 files at the folder. If the HDD is divided into two or more partitions, make a 'music' folder at first partition. When you play one or all photo files, you can listen mp3 and see photo slide show together. However, if there is just networking computer (not built-in HDD), you cannot listen mp3. MG-35 just detect mp3 files at built-in HDD's music folder. 9Photo Preview On, Off It is possible to enable or disable preview the photo file as a thumbnail image before playing at SETUP screen. 48](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-50.png)

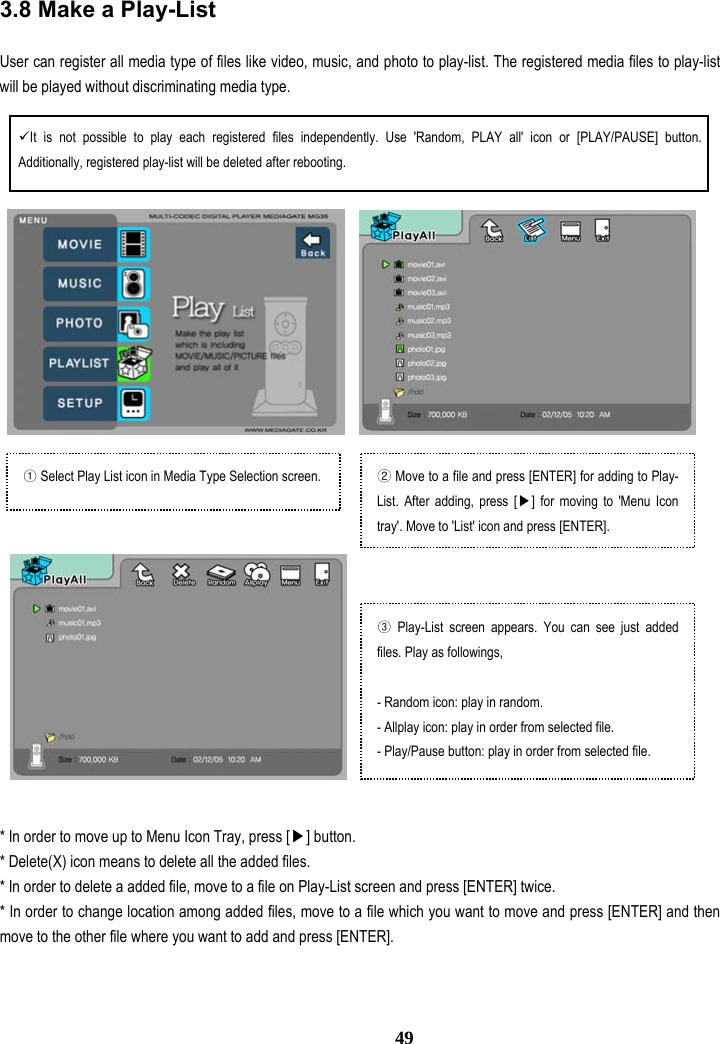

![3.8 Make a Play-List User can register all media type of files like video, music, and photo to play-list. The registered media files to play-list will be played without discriminating media type. 9It is not possible to play each registered files independently. Use 'Random, PLAY all' icon or [PLAY/PAUSE] button. Additionally, registered play-list will be deleted after rebooting. ① Select Play List icon in Media Type Selection screen. ② Move to a file and press [ENTER] for adding to Play-List. After adding, press [ ] for moving to 'Menu Icon ▶tray'. Move to 'List' icon and press [ENTER]. ③ Play-List screen appears. You can see just added files. Play as followings, - Random icon: play in random. - Allplay icon: play in order from selected file. - Play/Pause button: play in order from selected file. * In order to move up to Menu Icon Tray, press [▶] button. * Delete(X) icon means to delete all the added files. * In order to delete a added file, move to a file on Play-List screen and press [ENTER] twice. * In order to change location among added files, move to a file which you want to move and press [ENTER] and then move to the other file where you want to add and press [ENTER]. 49](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-51.png)

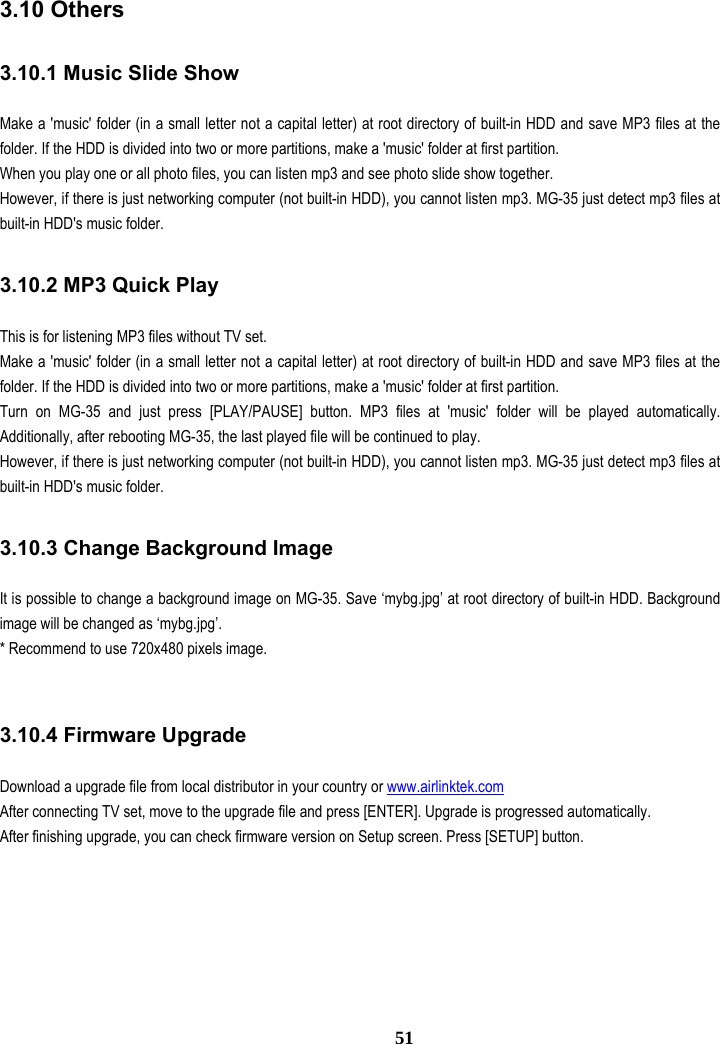

![3.10 Others 3.10.1 Music Slide Show Make a 'music' folder (in a small letter not a capital letter) at root directory of built-in HDD and save MP3 files at the folder. If the HDD is divided into two or more partitions, make a 'music' folder at first partition. When you play one or all photo files, you can listen mp3 and see photo slide show together. However, if there is just networking computer (not built-in HDD), you cannot listen mp3. MG-35 just detect mp3 files at built-in HDD's music folder. 3.10.2 MP3 Quick Play This is for listening MP3 files without TV set. Make a 'music' folder (in a small letter not a capital letter) at root directory of built-in HDD and save MP3 files at the folder. If the HDD is divided into two or more partitions, make a 'music' folder at first partition. Turn on MG-35 and just press [PLAY/PAUSE] button. MP3 files at 'music' folder will be played automatically. Additionally, after rebooting MG-35, the last played file will be continued to play. However, if there is just networking computer (not built-in HDD), you cannot listen mp3. MG-35 just detect mp3 files at built-in HDD's music folder. 3.10.3 Change Background Image It is possible to change a background image on MG-35. Save ‘mybg.jpg’ at root directory of built-in HDD. Background image will be changed as ‘mybg.jpg’. * Recommend to use 720x480 pixels image. 3.10.4 Firmware Upgrade Download a upgrade file from local distributor in your country or www.airlinktek.com After connecting TV set, move to the upgrade file and press [ENTER]. Upgrade is progressed automatically. After finishing upgrade, you can check firmware version on Setup screen. Press [SETUP] button. 51](https://usermanual.wiki/AL-Tech/MG35HDD0127/User-Guide-521823-Page-53.png)
