ALFA NETWORK 05 802.11 a/b/g/n Long-Range Wireless USB Adaptor User Manual AWUS051NH

ALFA NETWORK Inc. 802.11 a/b/g/n Long-Range Wireless USB Adaptor AWUS051NH

User manual

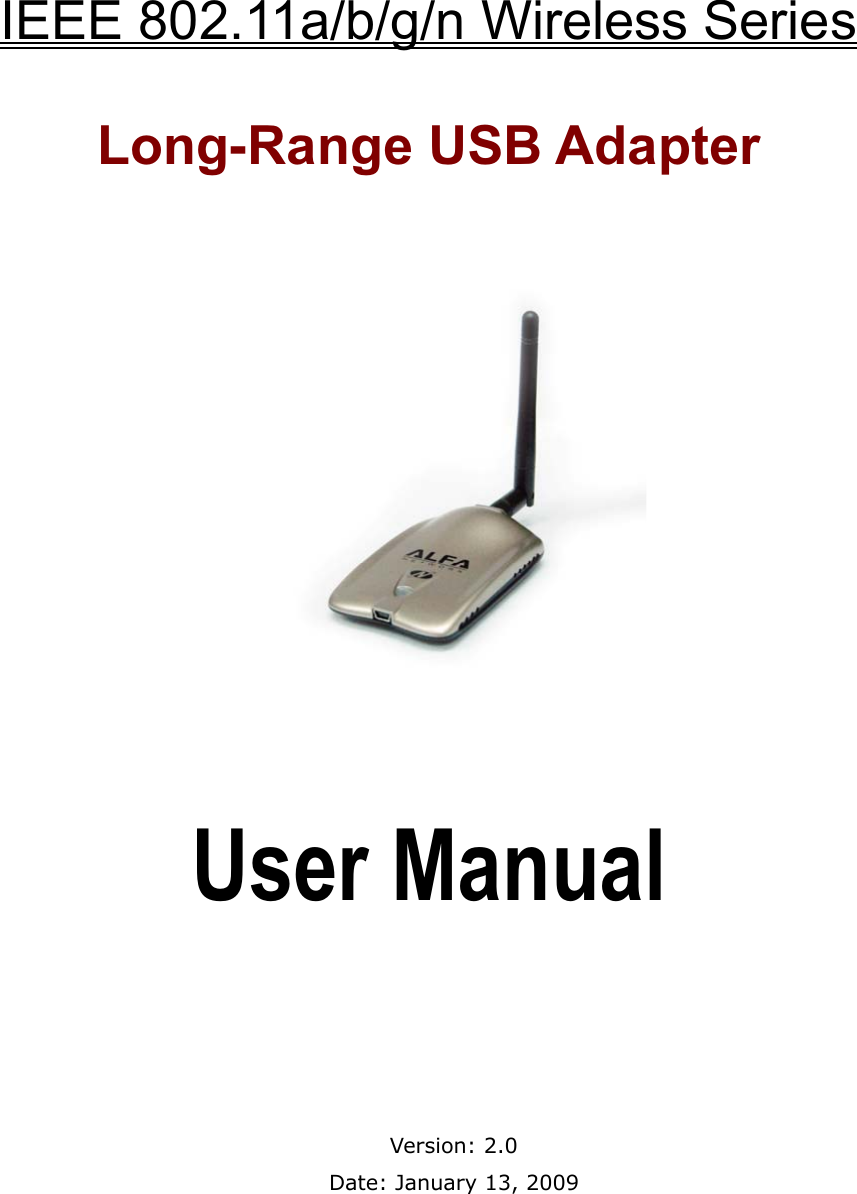

IEEE 802.11a/b/g/n Wireless SeriesLong-Range USB Adapter User Manual Version: 2.0 Date: January 13, 2009

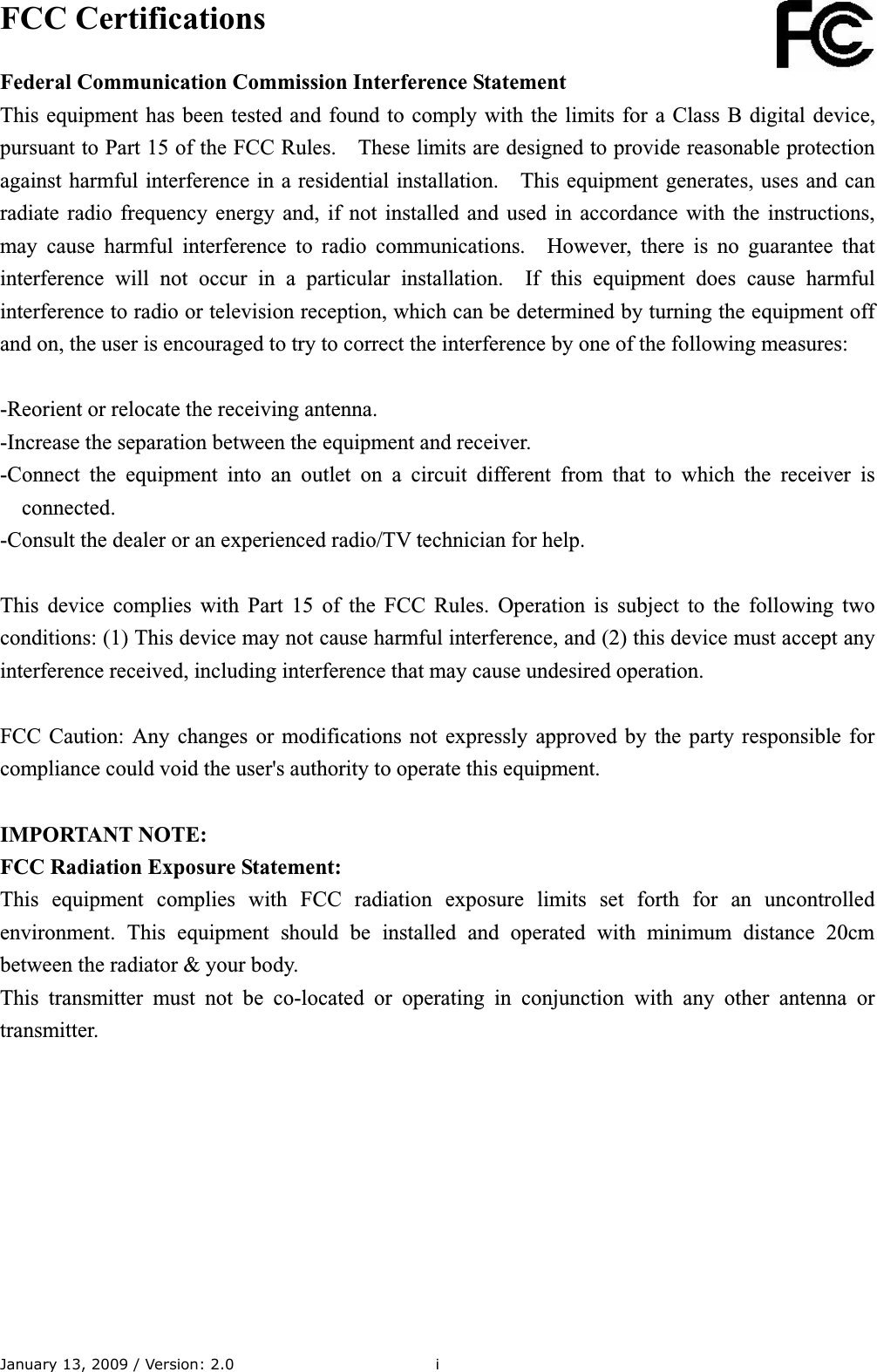

January 13, 2009 / Version: 2.0 iFCC Certifications Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

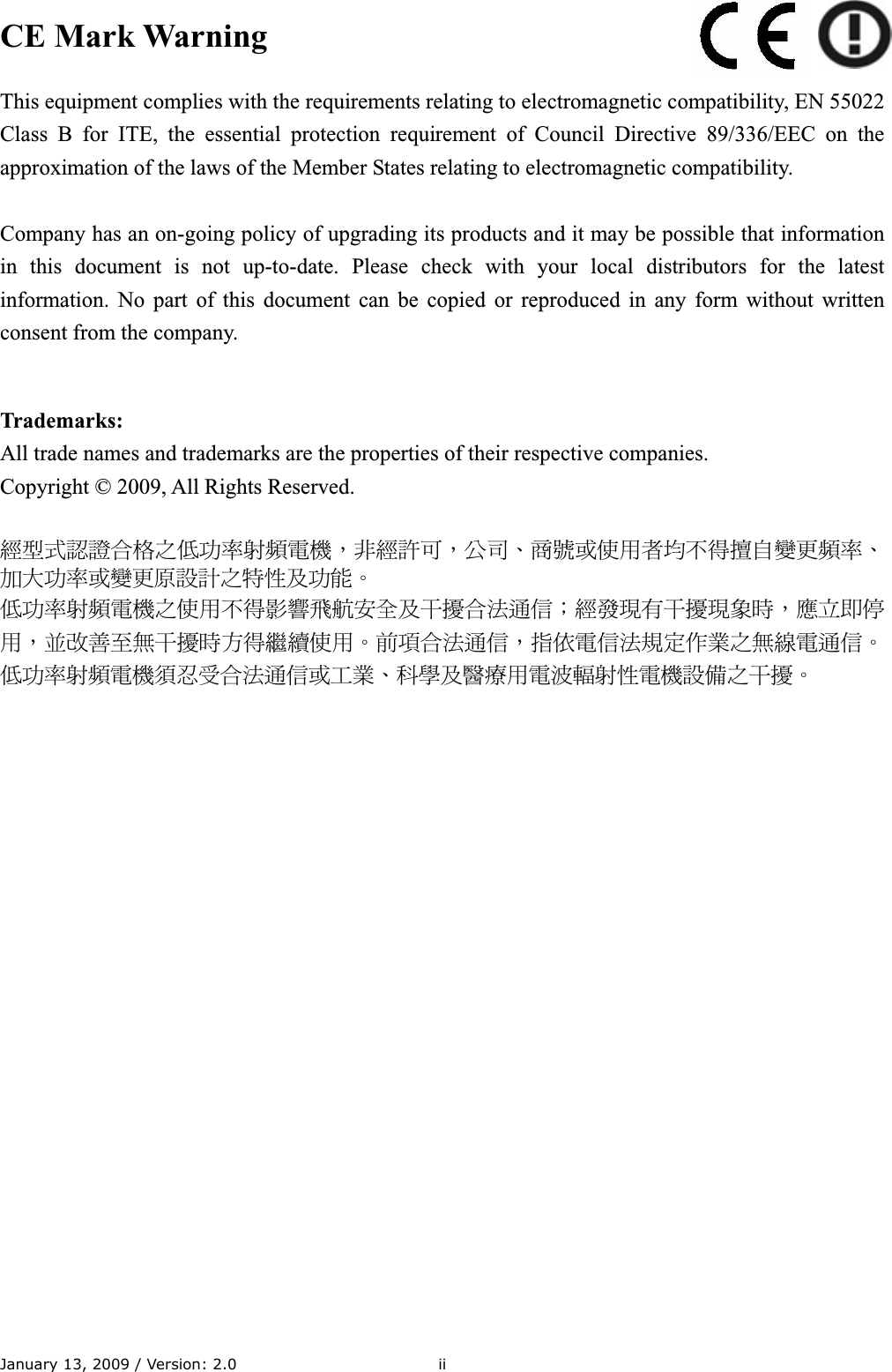

January 13, 2009 / Version: 2.0 iiCE Mark Warning This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 Class B for ITE, the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility. Company has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: All trade names and trademarks are the properties of their respective companies. Copyright © 2009, All Rights Reserved. ᆖীڤᎁᢞٽ௑հ܅פ෷୴᙮ሽᖲΔॺᆖ๺ױΔֆ׹Ε೸ᇆࢨࠌشृ݁լ൓ᖐ۞᧢ޓ᙮෷ΕףՕפ෷ࢨ᧢ޓ଺๻ૠհ௽ࢤ֗פ౨Ζ܅פ෷୴᙮ሽᖲհࠌشլ൓ᐙ᥼ଆ౰ڜ٤֗եឫٽऄຏॾΙᆖ࿇෼ڶեឫ෼ွழΔᚨمܛೖشΔࠀޏ࿳۟ྤեឫழֱ൓ᤉᥛࠌشΖছႈٽऄຏॾΔਐࠉሽॾऄ๵ࡳ܂ᄐհྤᒵሽຏॾΖ܅פ෷୴᙮ሽᖲႊݴ࠹ٽऄຏॾࢨՠᄐΕઝᖂ֗᠔᛭شሽंᘿ୴ࢤሽᖲ๻ໂհեឫΖ

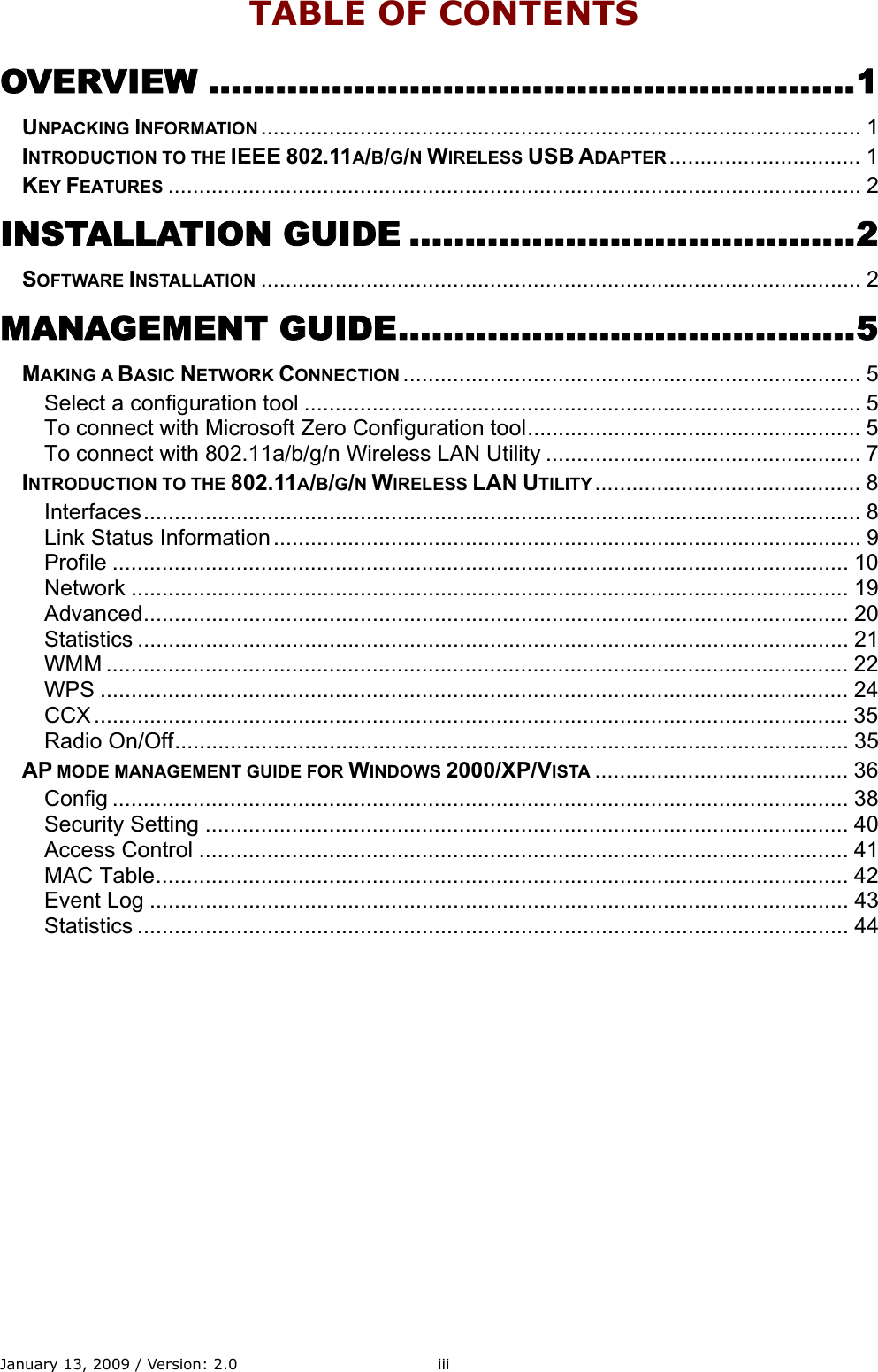

January 13, 2009 / Version: 2.0 iiiTABLE OF CONTENTS OVERVIEW ..........................................................1UNPACKING INFORMATION ................................................................................................. 1INTRODUCTION TO THE IEEE 802.11A/B/G/NWIRELESS USB ADAPTER ............................... 1KEY FEATURES ................................................................................................................ 2INSTALLATION GUIDE ........................................2SOFTWARE INSTALLATION ................................................................................................. 2MANAGEMENT GUIDE.........................................5MAKING A BASIC NETWORK CONNECTION .......................................................................... 5Select a configuration tool .......................................................................................... 5To connect with Microsoft Zero Configuration tool...................................................... 5To connect with 802.11a/b/g/n Wireless LAN Utility ................................................... 7INTRODUCTION TO THE 802.11A/B/G/NWIRELESS LAN UTILITY ........................................... 8Interfaces.................................................................................................................... 8Link Status Information ............................................................................................... 9Profile ....................................................................................................................... 10Network .................................................................................................................... 19Advanced.................................................................................................................. 20Statistics ................................................................................................................... 21WMM ........................................................................................................................ 22WPS ......................................................................................................................... 24CCX .......................................................................................................................... 35Radio On/Off............................................................................................................. 35AP MODE MANAGEMENT GUIDE FOR WINDOWS 2000/XP/VISTA ......................................... 36Config ....................................................................................................................... 38Security Setting ........................................................................................................ 40Access Control ......................................................................................................... 41MAC Table................................................................................................................ 42Event Log ................................................................................................................. 43Statistics ................................................................................................................... 44

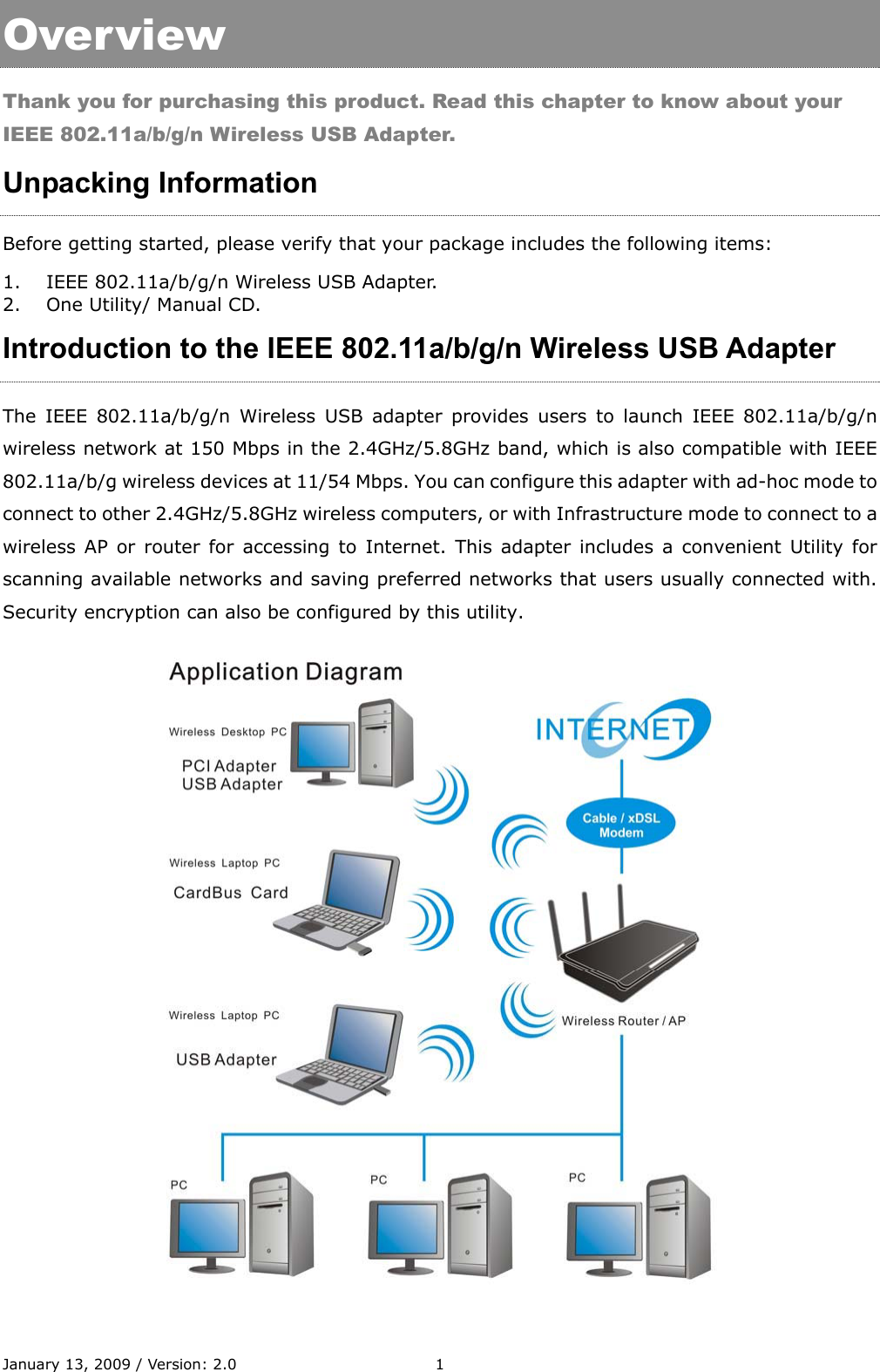

January 13, 2009 / Version: 2.0 1Overview Thank you for purchasing this product. Read this chapter to know about your IEEE 802.11a/b/g/n Wireless USB Adapter.Unpacking Information Before getting started, please verify that your package includes the following items: 1. IEEE 802.11a/b/g/n Wireless USB Adapter. 2. One Utility/ Manual CD. Introduction to the IEEE 802.11a/b/g/n Wireless USB Adapter The IEEE 802.11a/b/g/n Wireless USB adapter provides users to launch IEEE 802.11a/b/g/n wireless network at 150 Mbps in the 2.4GHz/5.8GHz band, which is also compatible with IEEE 802.11a/b/g wireless devices at 11/54 Mbps. You can configure this adapter with ad-hoc mode to connect to other 2.4GHz/5.8GHz wireless computers, or with Infrastructure mode to connect to a wireless AP or router for accessing to Internet. This adapter includes a convenient Utility for scanning available networks and saving preferred networks that users usually connected with. Security encryption can also be configured by this utility.

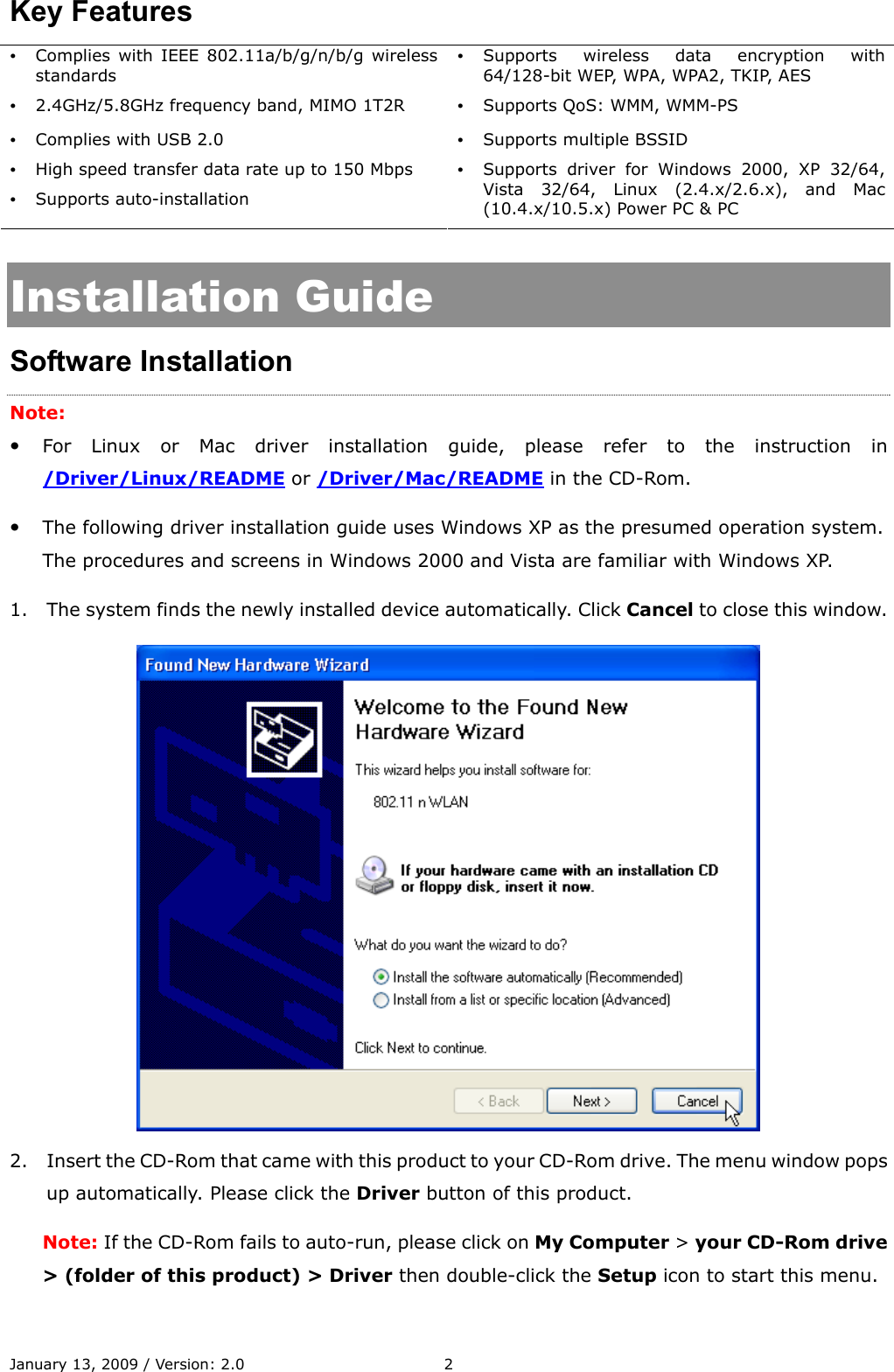

January 13, 2009 / Version: 2.0 2Key Features yComplies with IEEE 802.11a/b/g/n/b/g wireless standardsySupports wireless data encryption with 64/128-bit WEP, WPA, WPA2, TKIP, AESy2.4GHz/5.8GHz frequency band, MIMO 1T2R ySupports QoS: WMM, WMM-PS yComplies with USB 2.0 ySupports multiple BSSIDyHigh speed transfer data rate up to 150 Mbps ySupports auto-installationySupports driver for Windows 2000, XP 32/64, Vista 32/64, Linux (2.4.x/2.6.x), and Mac (10.4.x/10.5.x) Power PC & PCInstallation Guide Software Installation Note:yFor Linux or Mac driver installation guide, please refer to the instruction in /Driver/Linux/README or /Driver/Mac/README in the CD-Rom. yThe following driver installation guide uses Windows XP as the presumed operation system. The procedures and screens in Windows 2000 and Vista are familiar with Windows XP. 1. The system finds the newly installed device automatically. Click Cancel to close this window. 2. Insert the CD-Rom that came with this product to your CD-Rom drive. The menu window pops up automatically. Please click the Driver button of this product. Note: If the CD-Rom fails to auto-run, please click on My Computer >your CD-Rom drive > (folder of this product) > Driver then double-click the Setup icon to start this menu.

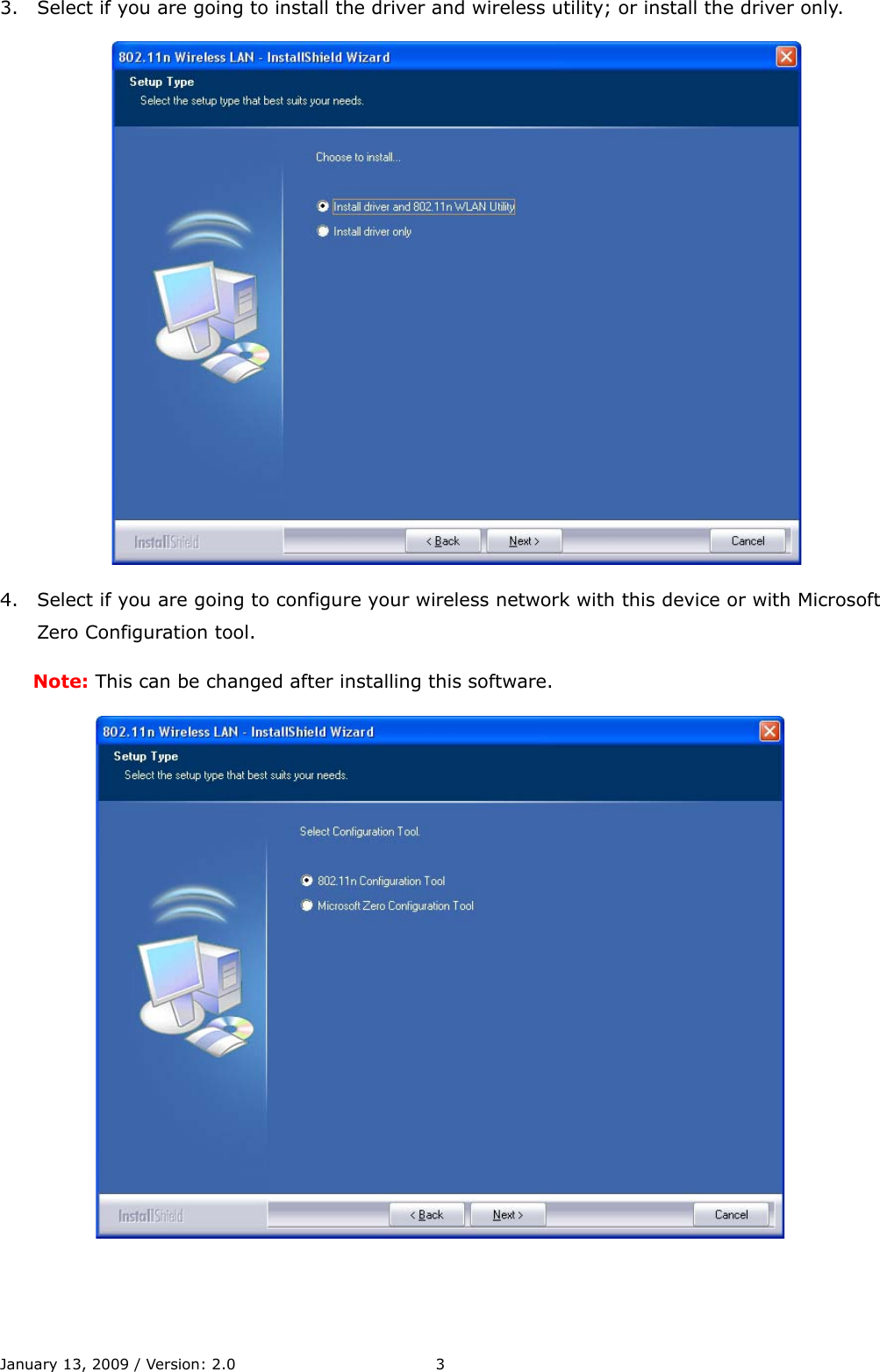

January 13, 2009 / Version: 2.0 33. Select if you are going to install the driver and wireless utility; or install the driver only. 4. Select if you are going to configure your wireless network with this device or with Microsoft Zero Configuration tool. Note: This can be changed after installing this software.

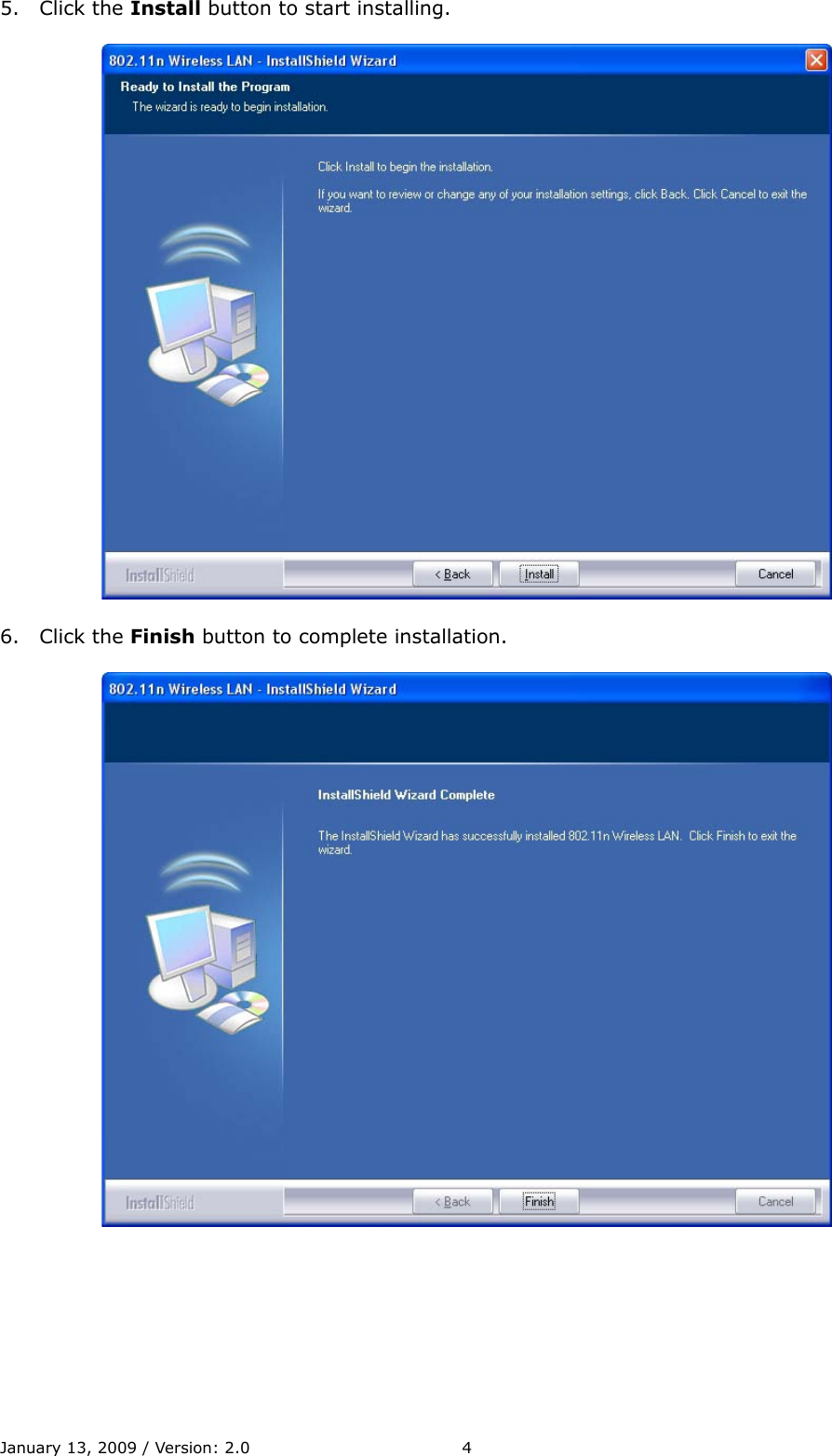

January 13, 2009 / Version: 2.0 45. Click the Install button to start installing. 6. Click the Finish button to complete installation.

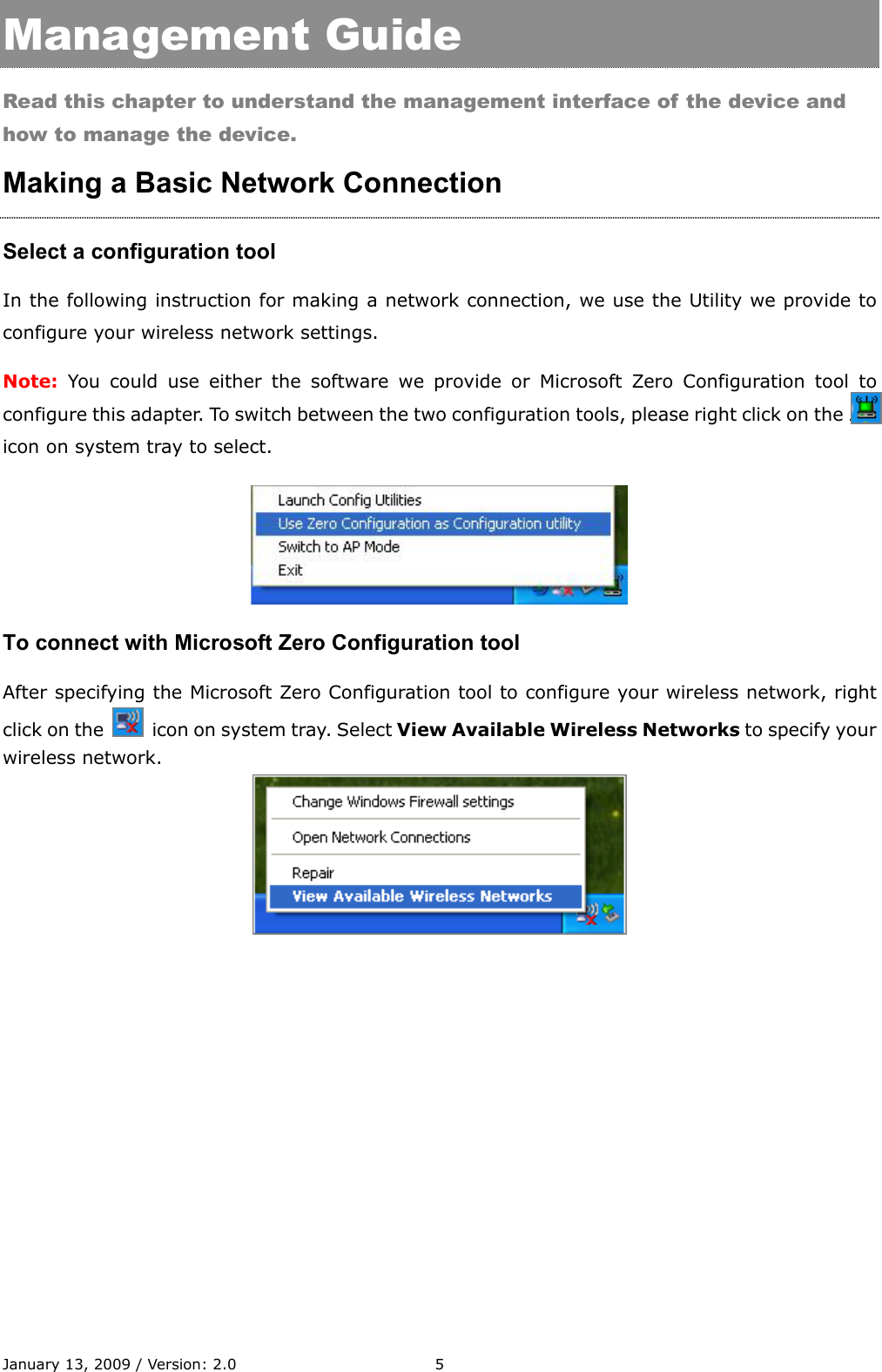

January 13, 2009 / Version: 2.0 5Management Guide Read this chapter to understand the management interface of the device and how to manage the device. Making a Basic Network Connection Select a configuration tool In the following instruction for making a network connection, we use the Utility we provide to configure your wireless network settings. Note: You could use either the software we provide or Microsoft Zero Configuration tool to configure this adapter. To switch between the two configuration tools, please right click on the ….. icon on system tray to select. To connect with Microsoft Zero Configuration tool After specifying the Microsoft Zero Configuration tool to configure your wireless network, right click on the icon on system tray. Select View Available Wireless Networks to specify your wireless network.

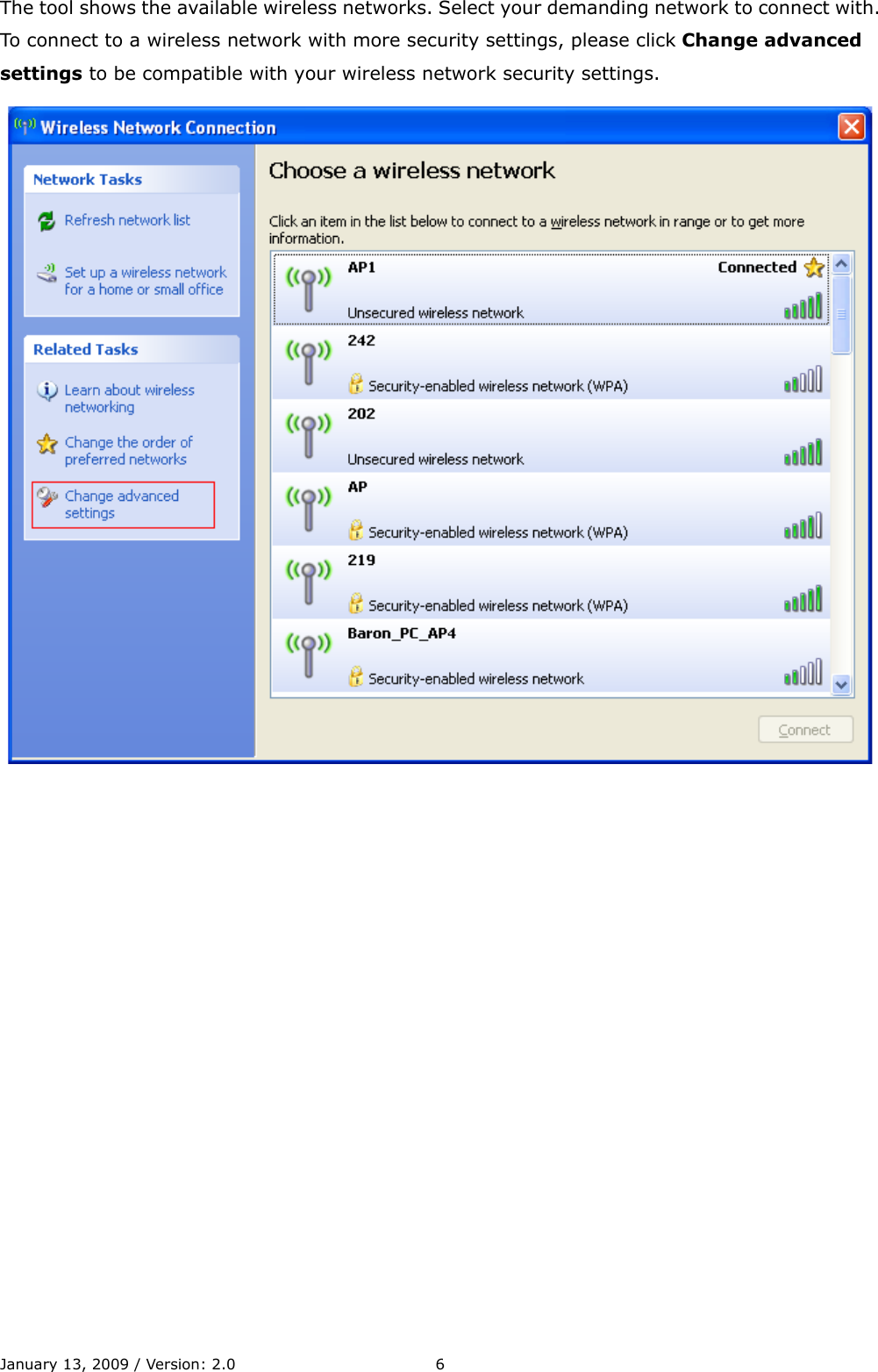

January 13, 2009 / Version: 2.0 6The tool shows the available wireless networks. Select your demanding network to connect with. To connect to a wireless network with more security settings, please click Change advanced settings to be compatible with your wireless network security settings.

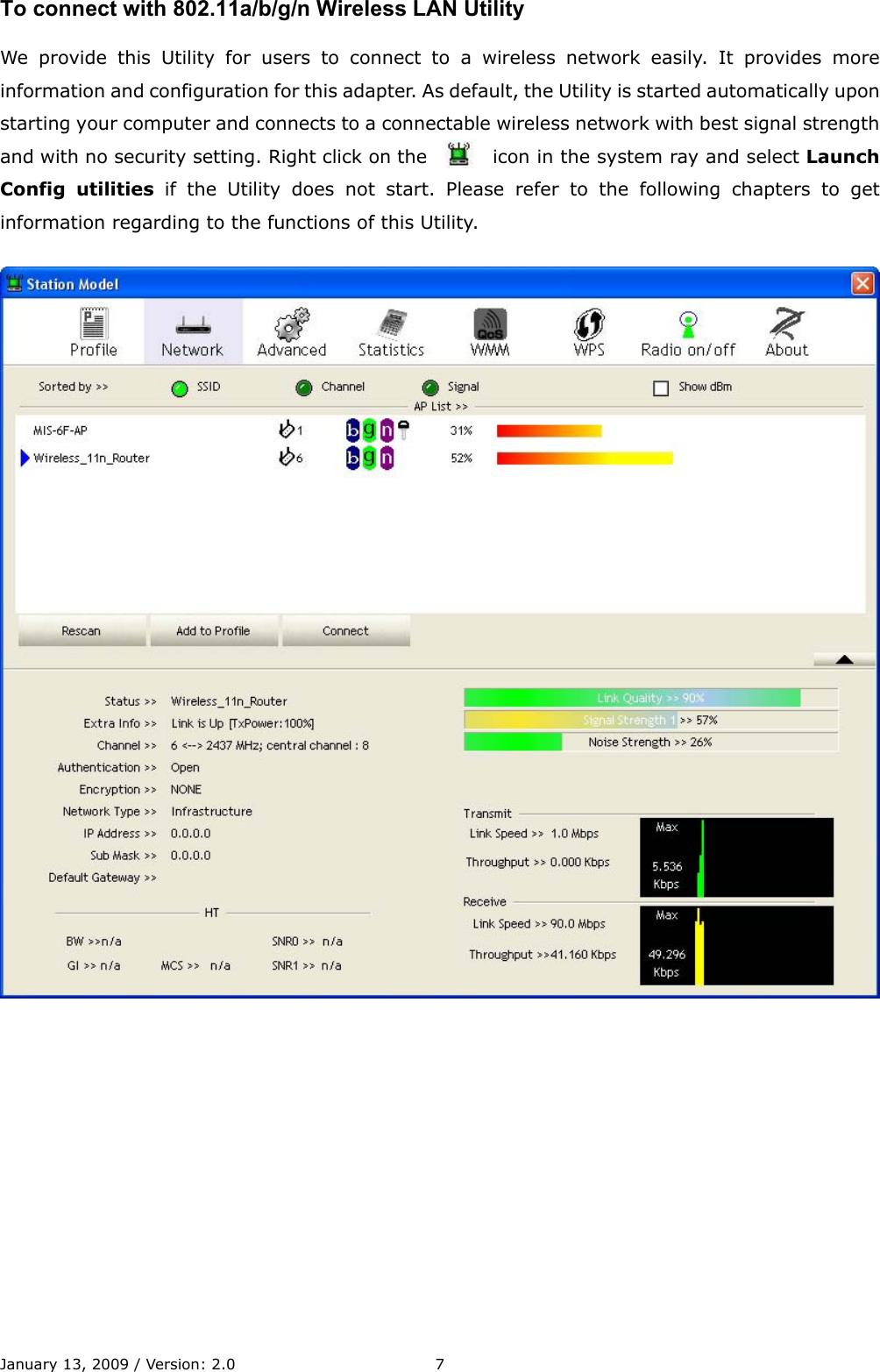

January 13, 2009 / Version: 2.0 7To connect with 802.11a/b/g/n Wireless LAN Utility We provide this Utility for users to connect to a wireless network easily. It provides more information and configuration for this adapter. As default, the Utility is started automatically upon starting your computer and connects to a connectable wireless network with best signal strength and with no security setting. Right click on the icon in the system ray and select Launch Config utilities if the Utility does not start. Please refer to the following chapters to get information regarding to the functions of this Utility.

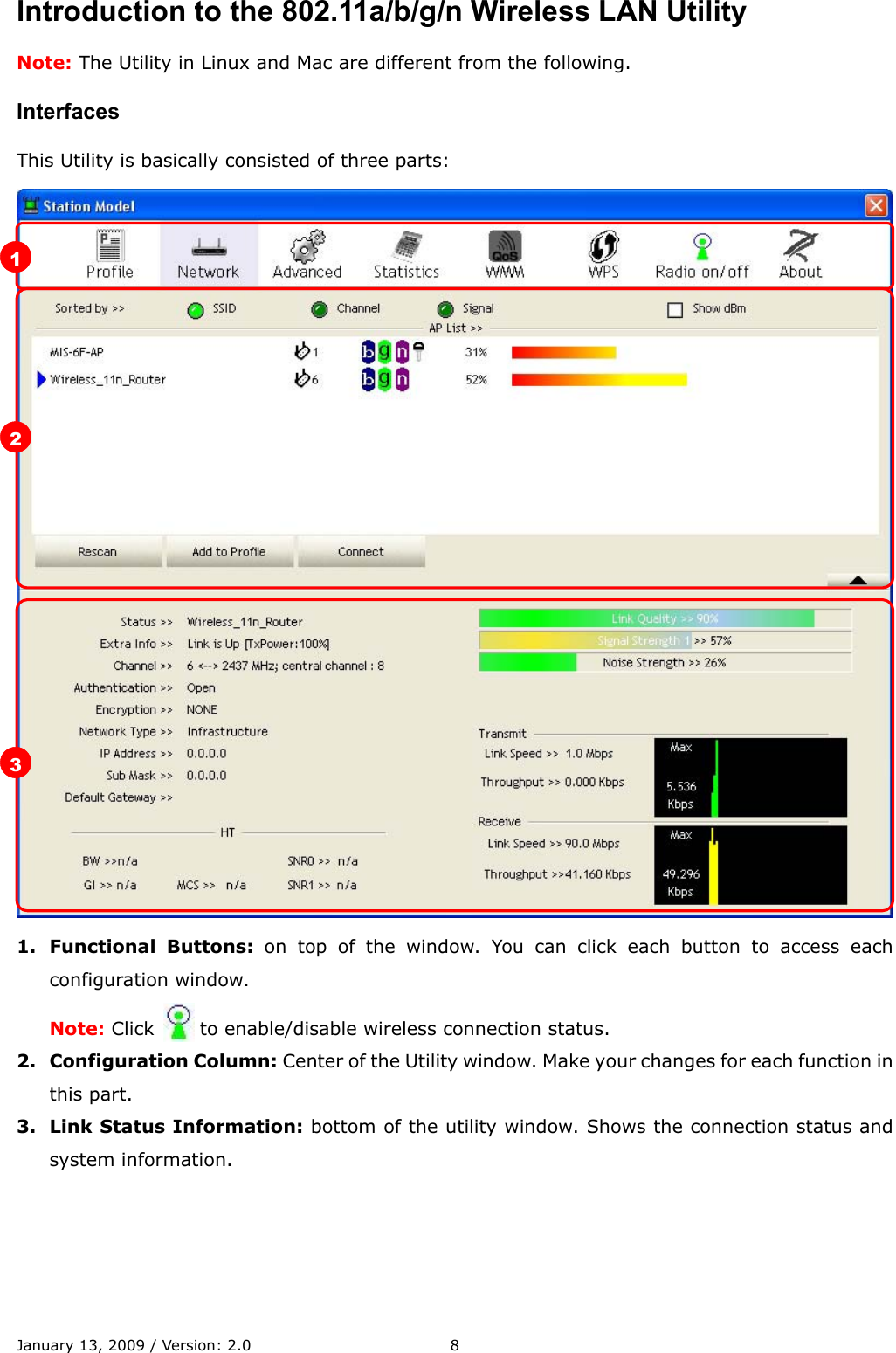

January 13, 2009 / Version: 2.0 8Introduction to the 802.11a/b/g/n Wireless LAN Utility Note: The Utility in Linux and Mac are different from the following. InterfacesThis Utility is basically consisted of three parts: 1. Functional Buttons: on top of the window. You can click each button to access each configuration window. Note: Click to enable/disable wireless connection status. 2. Configuration Column: Center of the Utility window. Make your changes for each function in this part. 3. Link Status Information: bottom of the utility window. Shows the connection status and system information. 123

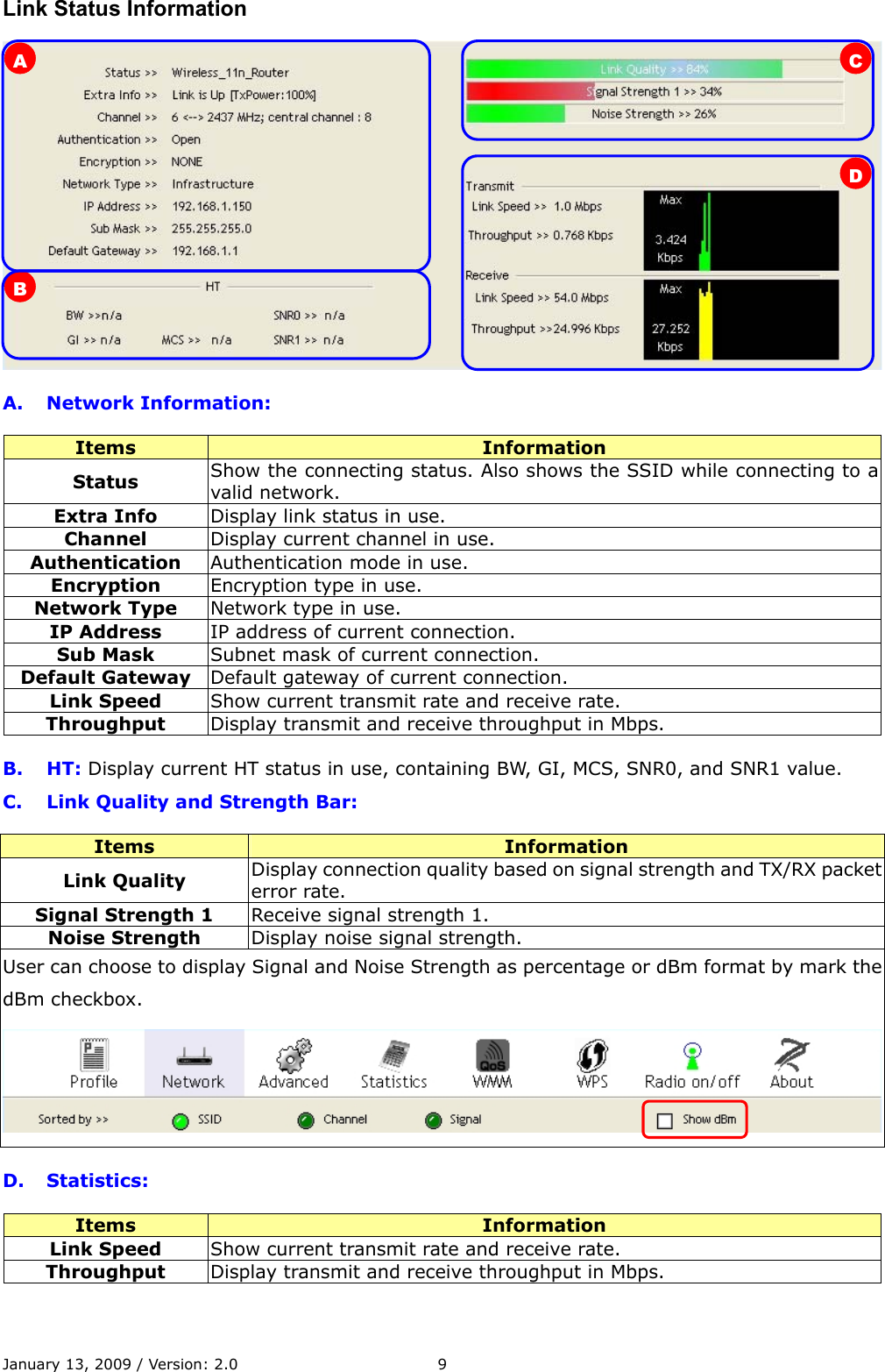

January 13, 2009 / Version: 2.0 9Link Status Information A. Network Information: Items Information Status Show the connecting status. Also shows the SSID while connecting to avalid network. Extra Info Display link status in use. Channel Display current channel in use. Authentication Authentication mode in use. Encryption Encryption type in use. Network Type Network type in use. IP Address IP address of current connection. Sub Mask Subnet mask of current connection. Default Gateway Default gateway of current connection. Link Speed Show current transmit rate and receive rate. Throughput Display transmit and receive throughput in Mbps. B. HT: Display current HT status in use, containing BW, GI, MCS, SNR0, and SNR1 value. C. Link Quality and Strength Bar:Items Information Link Quality Display connection quality based on signal strength and TX/RX packeterror rate. Signal Strength 1 Receive signal strength 1. Noise Strength Display noise signal strength. User can choose to display Signal and Noise Strength as percentage or dBm format by mark thedBm checkbox. D. Statistics:Items Information Link Speed Show current transmit rate and receive rate. Throughput Display transmit and receive throughput in Mbps. ABCD

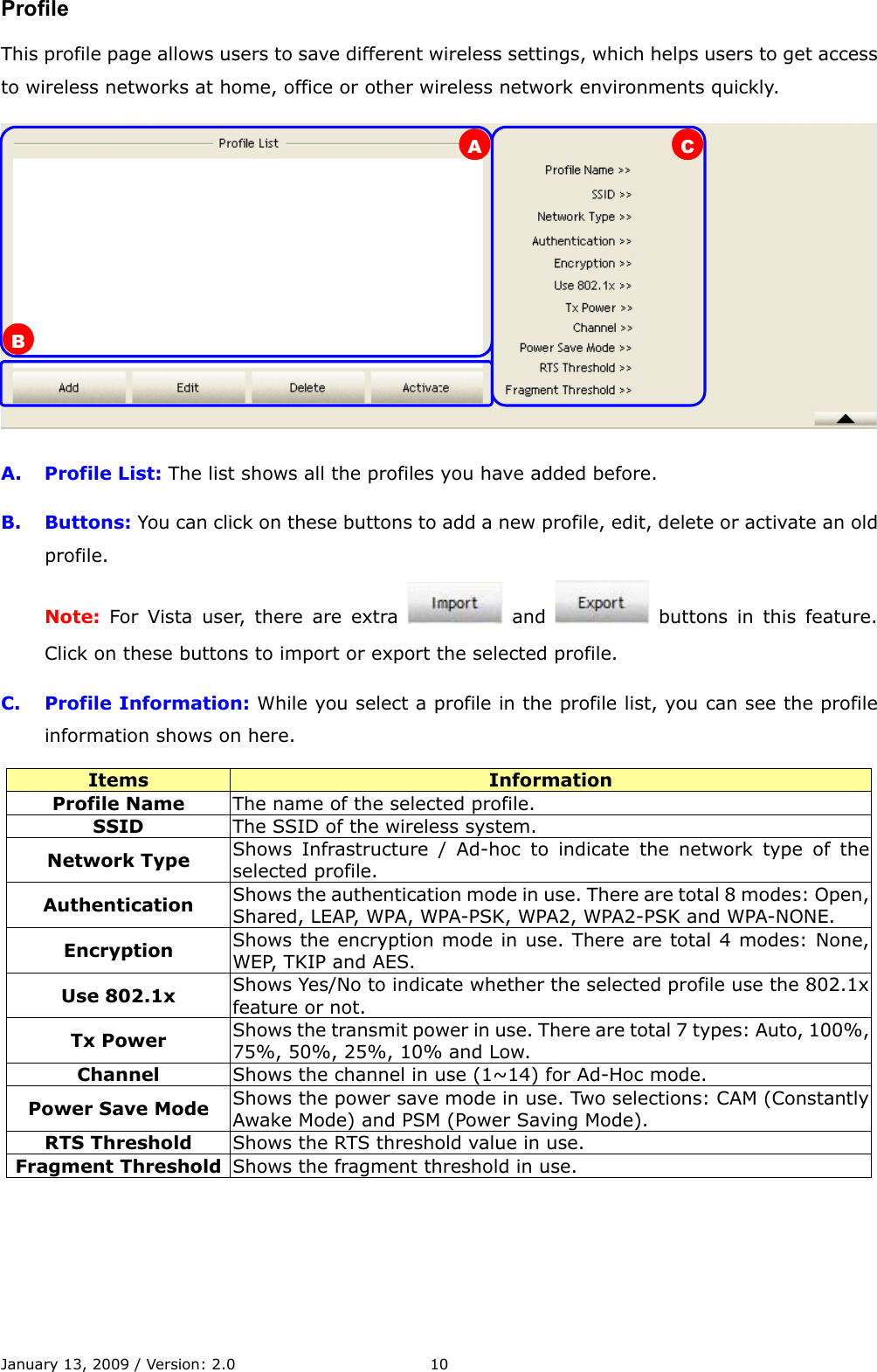

January 13, 2009 / Version: 2.0 10ProfileThis profile page allows users to save different wireless settings, which helps users to get access to wireless networks at home, office or other wireless network environments quickly. A. Profile List: The list shows all the profiles you have added before. B. Buttons: You can click on these buttons to add a new profile, edit, delete or activate an old profile. Note: For Vista user, there are extra and buttons in this feature. Click on these buttons to import or export the selected profile. C. Profile Information: While you select a profile in the profile list, you can see the profile information shows on here. Items Information Profile Name The name of the selected profile. SSID The SSID of the wireless system. Network Type Shows Infrastructure / Ad-hoc to indicate the network type of theselected profile. Authentication Shows the authentication mode in use. There are total 8 modes: Open,Shared, LEAP, WPA, WPA-PSK, WPA2, WPA2-PSK and WPA-NONE. Encryption Shows the encryption mode in use. There are total 4 modes: None,WEP, TKIP and AES. Use 802.1x Shows Yes/No to indicate whether the selected profile use the 802.1xfeature or not. Tx Power Shows the transmit power in use. There are total 7 types: Auto, 100%,75%, 50%, 25%, 10% and Low. Channel Shows the channel in use (1~14) for Ad-Hoc mode. Power Save Mode Shows the power save mode in use. Two selections: CAM (ConstantlyAwake Mode) and PSM (Power Saving Mode). RTS Threshold Shows the RTS threshold value in use. Fragment Threshold Shows the fragment threshold in use. ABC

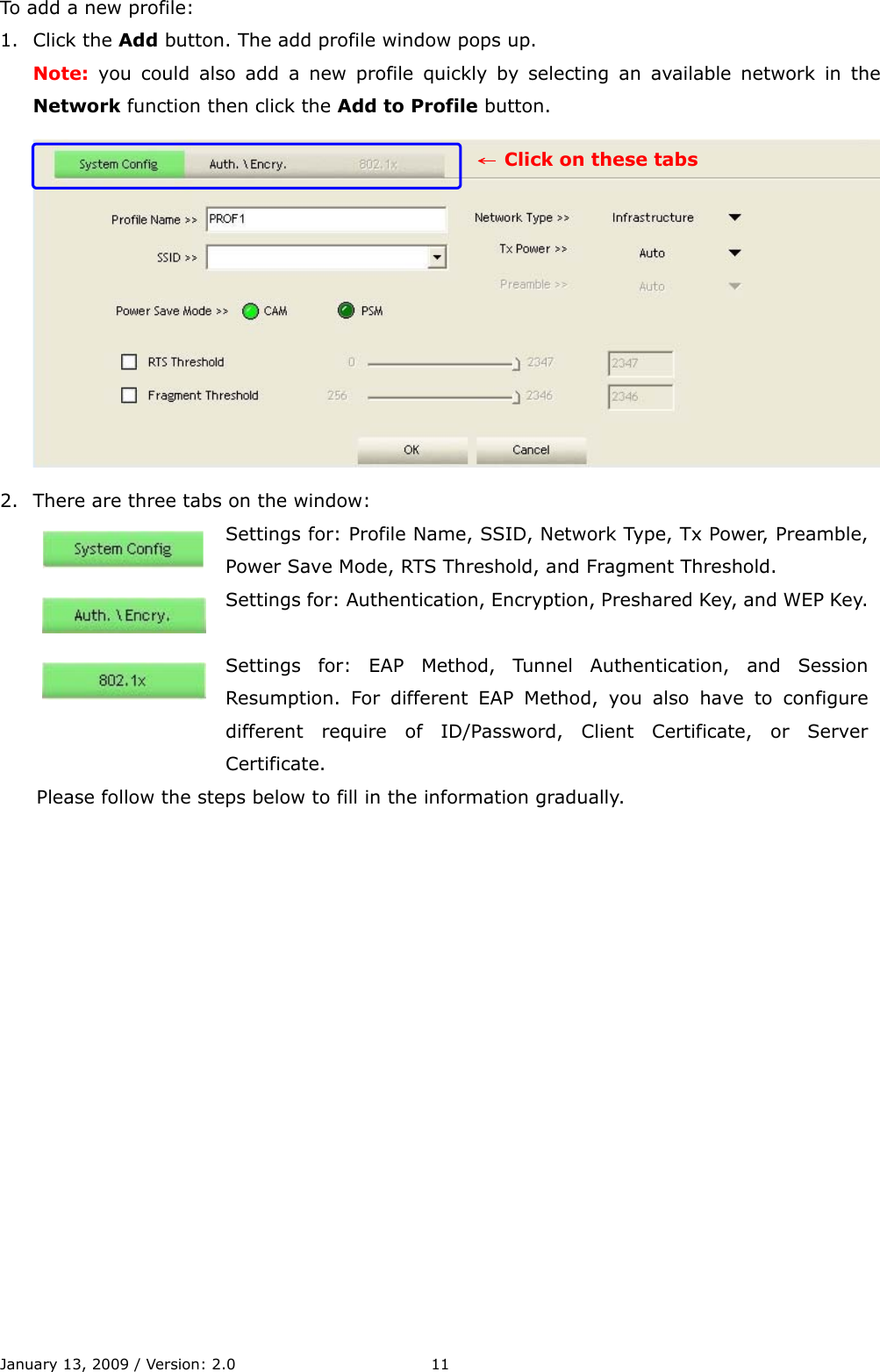

January 13, 2009 / Version: 2.0 11To add a new profile: 1. Click the Add button. The add profile window pops up. Note: you could also add a new profile quickly by selecting an available network in the Network function then click the Add to Profile button. 2. There are three tabs on the window: Settings for: Profile Name, SSID, Network Type, Tx Power, Preamble, Power Save Mode, RTS Threshold, and Fragment Threshold. Settings for: Authentication, Encryption, Preshared Key, and WEP Key.Settings for: EAP Method, Tunnel Authentication, and Session Resumption. For different EAP Method, you also have to configure different require of ID/Password, Client Certificate, or Server Certificate. Please follow the steps below to fill in the information gradually. Чʳ Click on these tabs

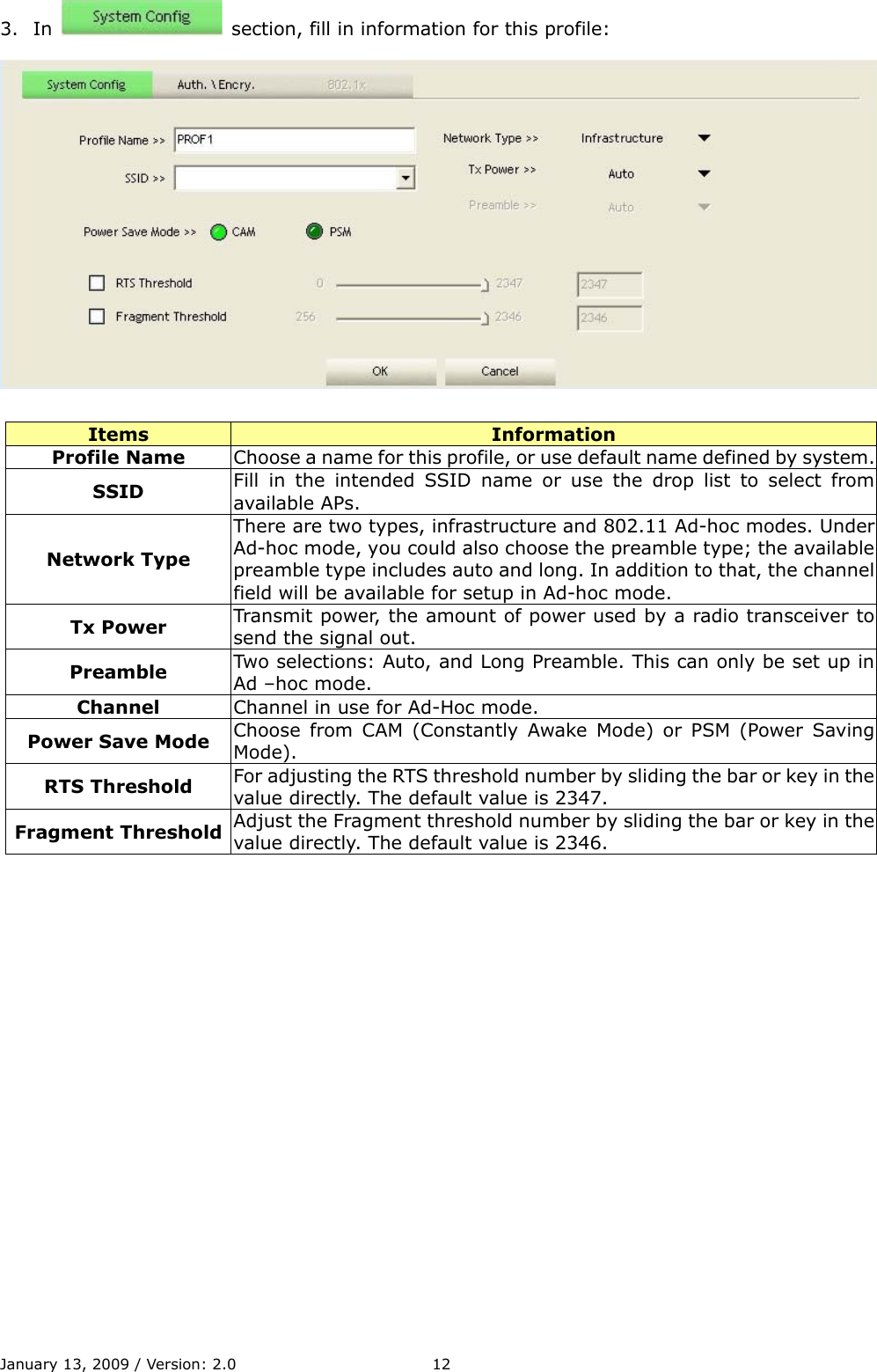

January 13, 2009 / Version: 2.0 123. In section, fill in information for this profile: Items Information Profile Name Choose a name for this profile, or use default name defined by system.SSID Fill in the intended SSID name or use the drop list to select fromavailable APs. Network Type There are two types, infrastructure and 802.11 Ad-hoc modes. UnderAd-hoc mode, you could also choose the preamble type; the availablepreamble type includes auto and long. In addition to that, the channelfield will be available for setup in Ad-hoc mode. Tx Power Transmit power, the amount of power used by a radio transceiver tosend the signal out. Preamble Two selections: Auto, and Long Preamble. This can only be set up inAd –hoc mode. Channel Channel in use for Ad-Hoc mode. Power Save Mode Choose from CAM (Constantly Awake Mode) or PSM (Power SavingMode). RTS Threshold For adjusting the RTS threshold number by sliding the bar or key in thevalue directly. The default value is 2347. Fragment Threshold Adjust the Fragment threshold number by sliding the bar or key in thevalue directly. The default value is 2346.

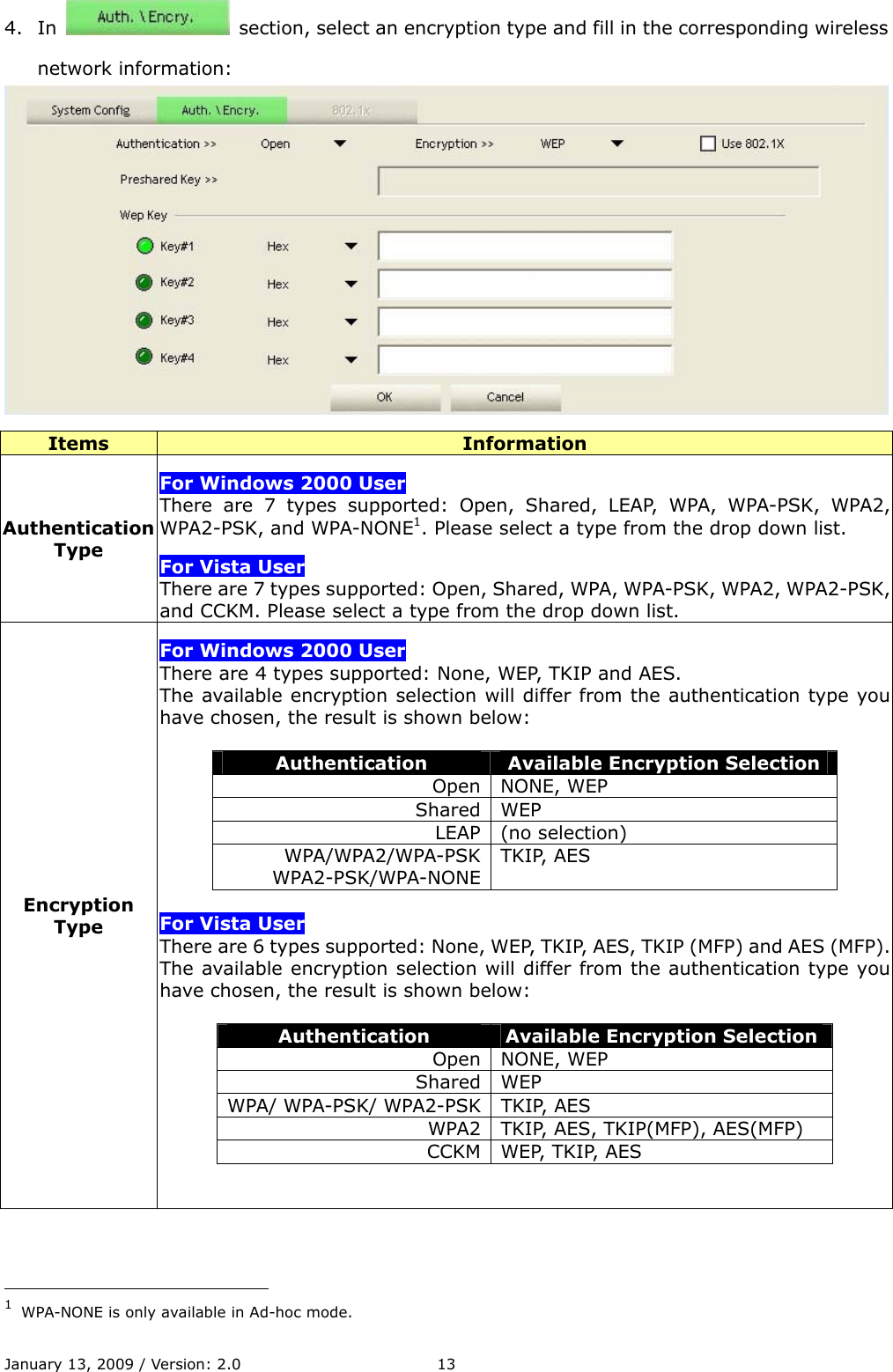

January 13, 2009 / Version: 2.0 134. In section, select an encryption type and fill in the corresponding wireless network information: Items Information AuthenticationType For Windows 2000 UserThere are 7 types supported: Open, Shared, LEAP, WPA, WPA-PSK, WPA2,WPA2-PSK, and WPA-NONE1. Please select a type from the drop down list. For Vista User There are 7 types supported: Open, Shared, WPA, WPA-PSK, WPA2, WPA2-PSK,and CCKM. Please select a type from the drop down list. Encryption Type For Windows 2000 User There are 4 types supported: None, WEP, TKIP and AES. The available encryption selection will differ from the authentication type youhave chosen, the result is shown below: Authentication Available Encryption SelectionOpen NONE, WEP Shared WEPLEAP (no selection) WPA/WPA2/WPA-PSKWPA2-PSK/WPA-NONETKIP, AES For Vista User There are 6 types supported: None, WEP, TKIP, AES, TKIP (MFP) and AES (MFP).The available encryption selection will differ from the authentication type youhave chosen, the result is shown below: Authentication Available Encryption SelectionOpen NONE, WEP Shared WEPWPA/ WPA-PSK/ WPA2-PSK TKIP, AES WPA2 TKIP, AES, TKIP(MFP), AES(MFP) CCKM WEP, TKIP, AES 1WPA-NONE is only available in Ad-hoc mode.

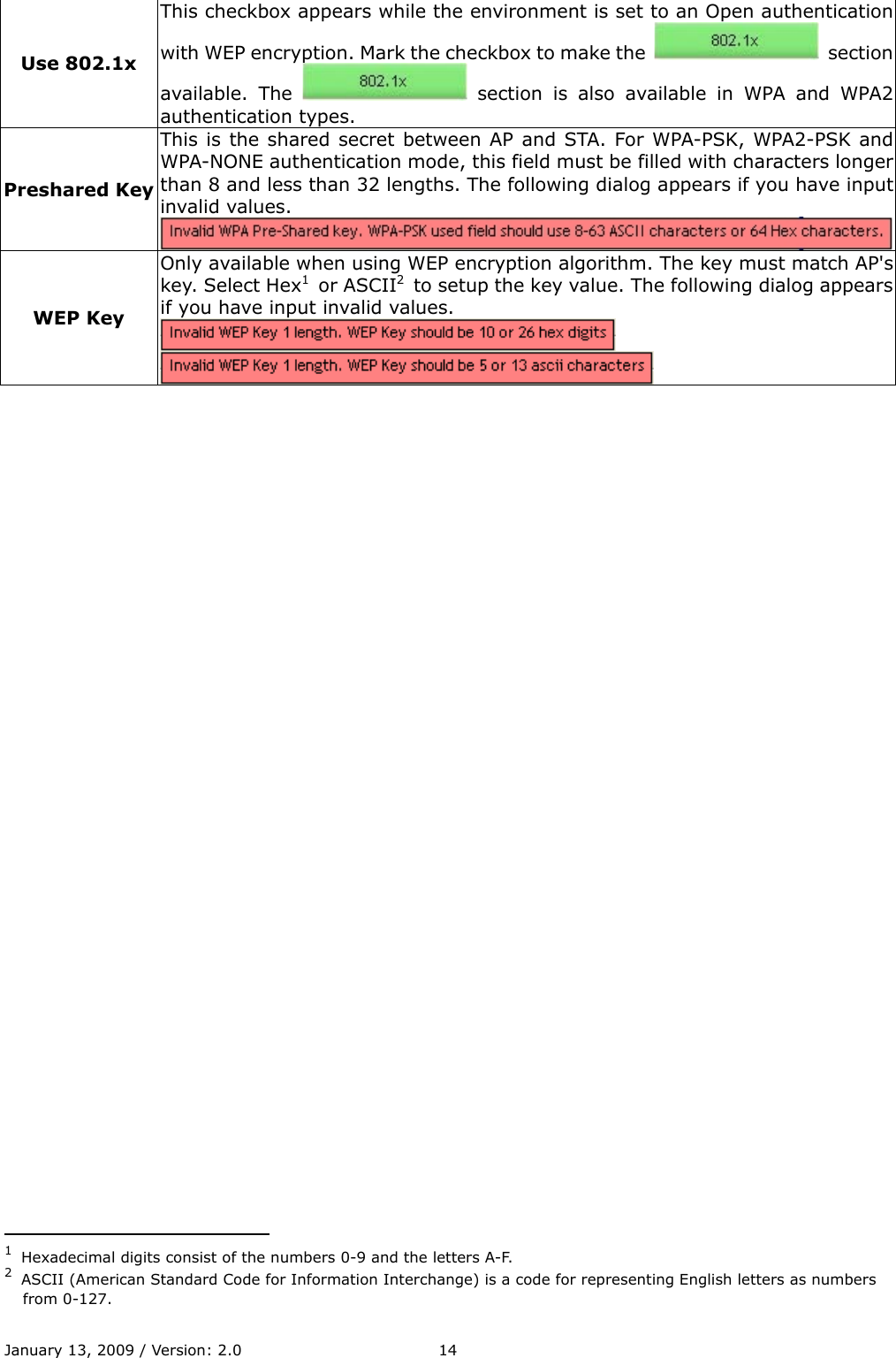

January 13, 2009 / Version: 2.0 14Use 802.1x This checkbox appears while the environment is set to an Open authenticationwith WEP encryption. Mark the checkbox to make the sectionavailable. The section is also available in WPA and WPA2authentication types. Preshared KeyThis is the shared secret between AP and STA. For WPA-PSK, WPA2-PSK andWPA-NONE authentication mode, this field must be filled with characters longerthan 8 and less than 32 lengths. The following dialog appears if you have inputinvalid values. WEP Key Only available when using WEP encryption algorithm. The key must match AP'skey. Select Hex1 or ASCII2 to setup the key value. The following dialog appearsif you have input invalid values. 1Hexadecimal digits consist of the numbers 0-9 and the letters A-F. 2ASCII (American Standard Code for Information Interchange) is a code for representing English letters as numbers from 0-127.

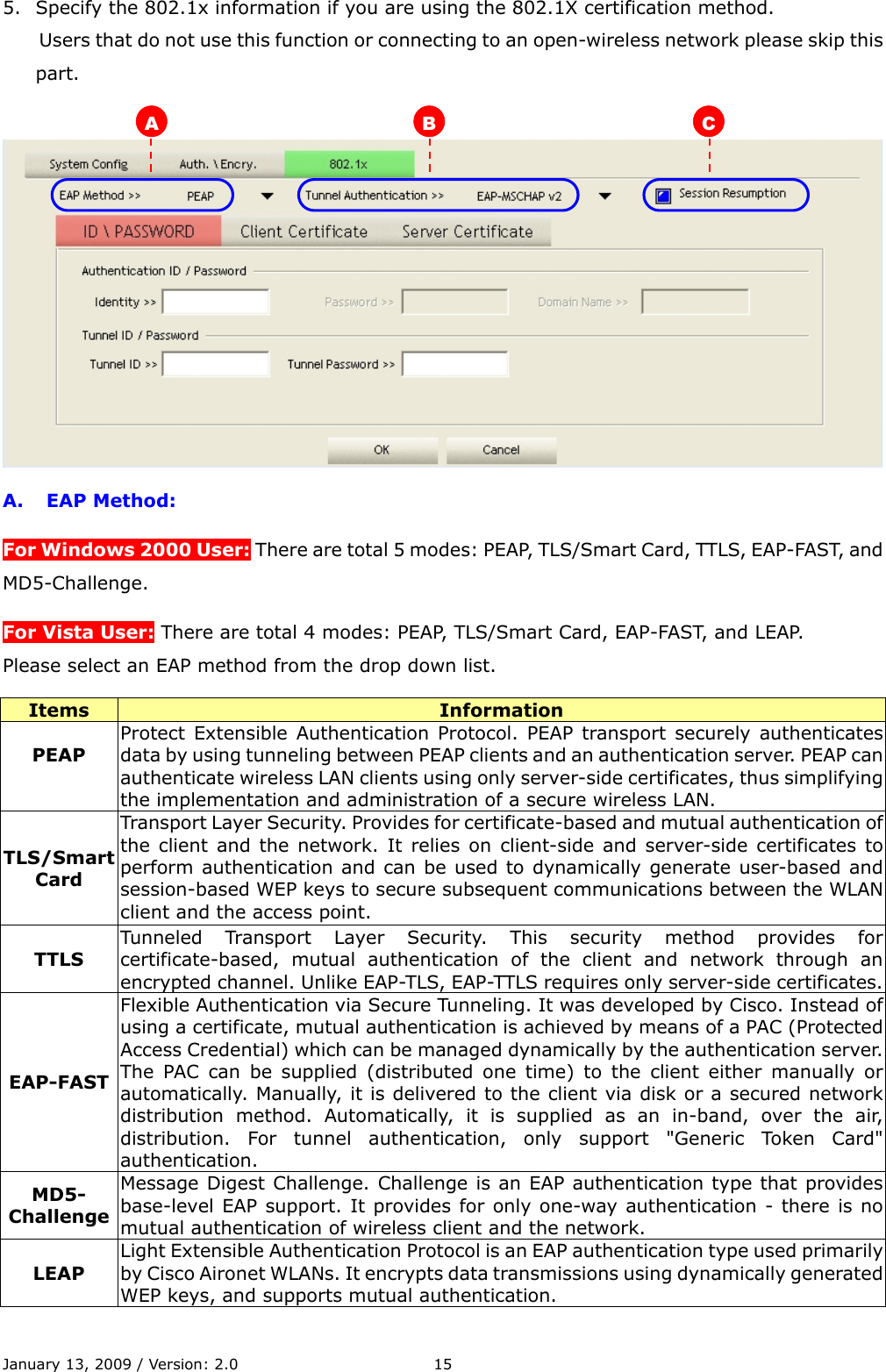

January 13, 2009 / Version: 2.0 155. Specify the 802.1x information if you are using the 802.1X certification method. Users that do not use this function or connecting to an open-wireless network please skip this part.A. EAP Method:For Windows 2000 User: There are total 5 modes: PEAP, TLS/Smart Card, TTLS, EAP-FAST, and MD5-Challenge. For Vista User: There are total 4 modes: PEAP, TLS/Smart Card, EAP-FAST, and LEAP. Please select an EAP method from the drop down list.Items Information PEAPProtect Extensible Authentication Protocol. PEAP transport securely authenticatesdata by using tunneling between PEAP clients and an authentication server. PEAP canauthenticate wireless LAN clients using only server-side certificates, thus simplifyingthe implementation and administration of a secure wireless LAN. TLS/SmartCard Transport Layer Security. Provides for certificate-based and mutual authentication ofthe client and the network. It relies on client-side and server-side certificates toperform authentication and can be used to dynamically generate user-based andsession-based WEP keys to secure subsequent communications between the WLANclient and the access point. TTLSTunneled Transport Layer Security. This security method provides forcertificate-based, mutual authentication of the client and network through anencrypted channel. Unlike EAP-TLS, EAP-TTLS requires only server-side certificates.EAP-FASTFlexible Authentication via Secure Tunneling. It was developed by Cisco. Instead ofusing a certificate, mutual authentication is achieved by means of a PAC (ProtectedAccess Credential) which can be managed dynamically by the authentication server.The PAC can be supplied (distributed one time) to the client either manually orautomatically. Manually, it is delivered to the client via disk or a secured networkdistribution method. Automatically, it is supplied as an in-band, over the air,distribution. For tunnel authentication, only support "Generic Token Card"authentication. MD5-Challenge Message Digest Challenge. Challenge is an EAP authentication type that providesbase-level EAP support. It provides for only one-way authentication - there is nomutual authentication of wireless client and the network. LEAPLight Extensible Authentication Protocol is an EAP authentication type used primarilyby Cisco Aironet WLANs. It encrypts data transmissions using dynamically generatedWEP keys, and supports mutual authentication. AB C

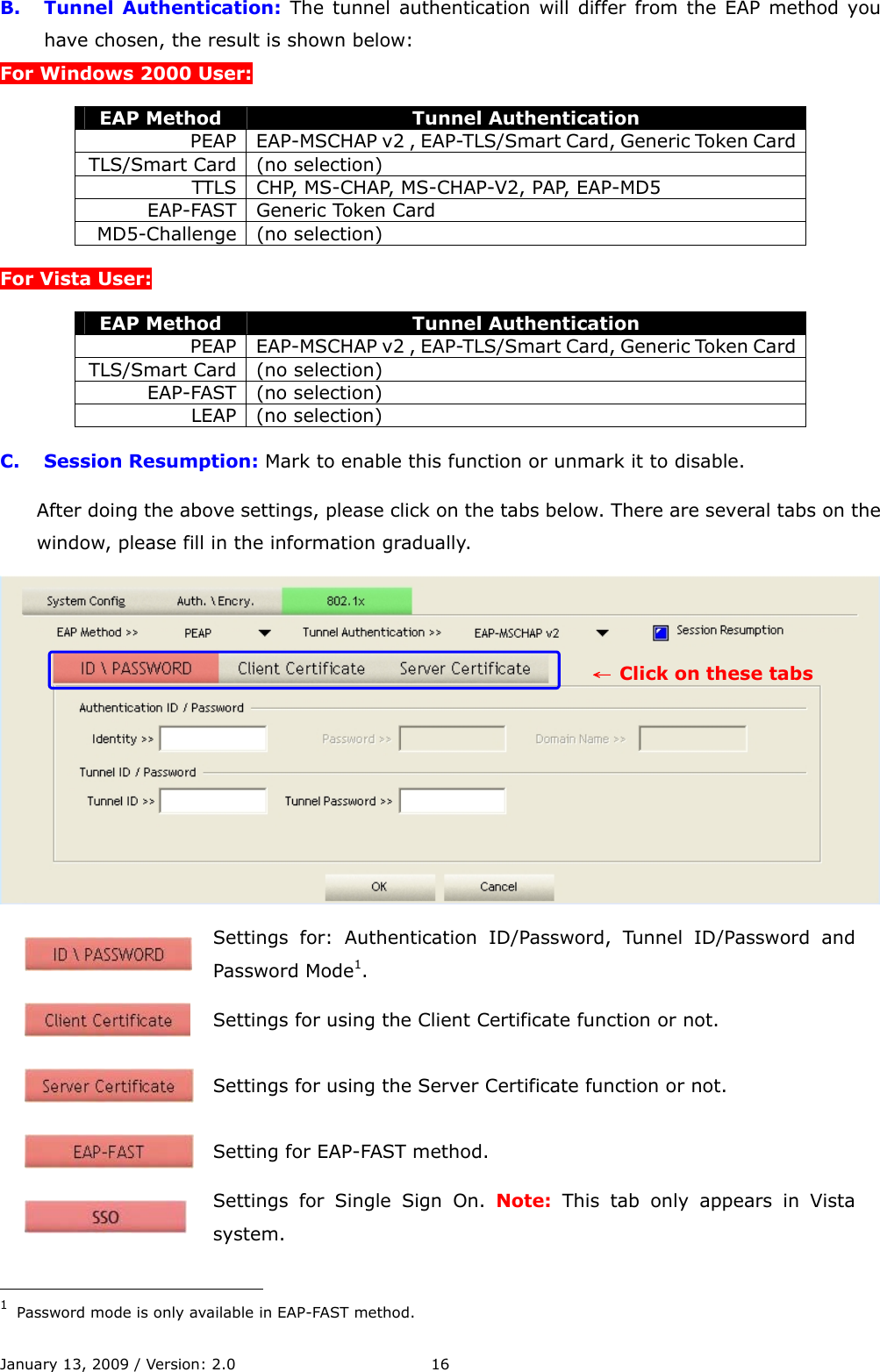

January 13, 2009 / Version: 2.0 16B. Tunnel Authentication: The tunnel authentication will differ from the EAP method you have chosen, the result is shown below: For Windows 2000 User:EAP Method Tunnel AuthenticationPEAP EAP-MSCHAP v2 , EAP-TLS/Smart Card, Generic Token CardTLS/Smart Card (no selection) TTLS CHP, MS-CHAP, MS-CHAP-V2, PAP, EAP-MD5 EAP-FAST Generic Token Card MD5-Challenge (no selection) For Vista User:EAP Method Tunnel AuthenticationPEAP EAP-MSCHAP v2 , EAP-TLS/Smart Card, Generic Token CardTLS/Smart Card (no selection) EAP-FAST (no selection) LEAP (no selection) C. Session Resumption: Mark to enable this function or unmark it to disable. After doing the above settings, please click on the tabs below. There are several tabs on the window, please fill in the information gradually. Settings for: Authentication ID/Password, Tunnel ID/Password and Password Mode1.Settings for using the Client Certificate function or not. Settings for using the Server Certificate function or not. Setting for EAP-FAST method. Settings for Single Sign On. Note: This tab only appears in Vista system.1Password mode is only available in EAP-FAST method. Чʳ Click on these tabs

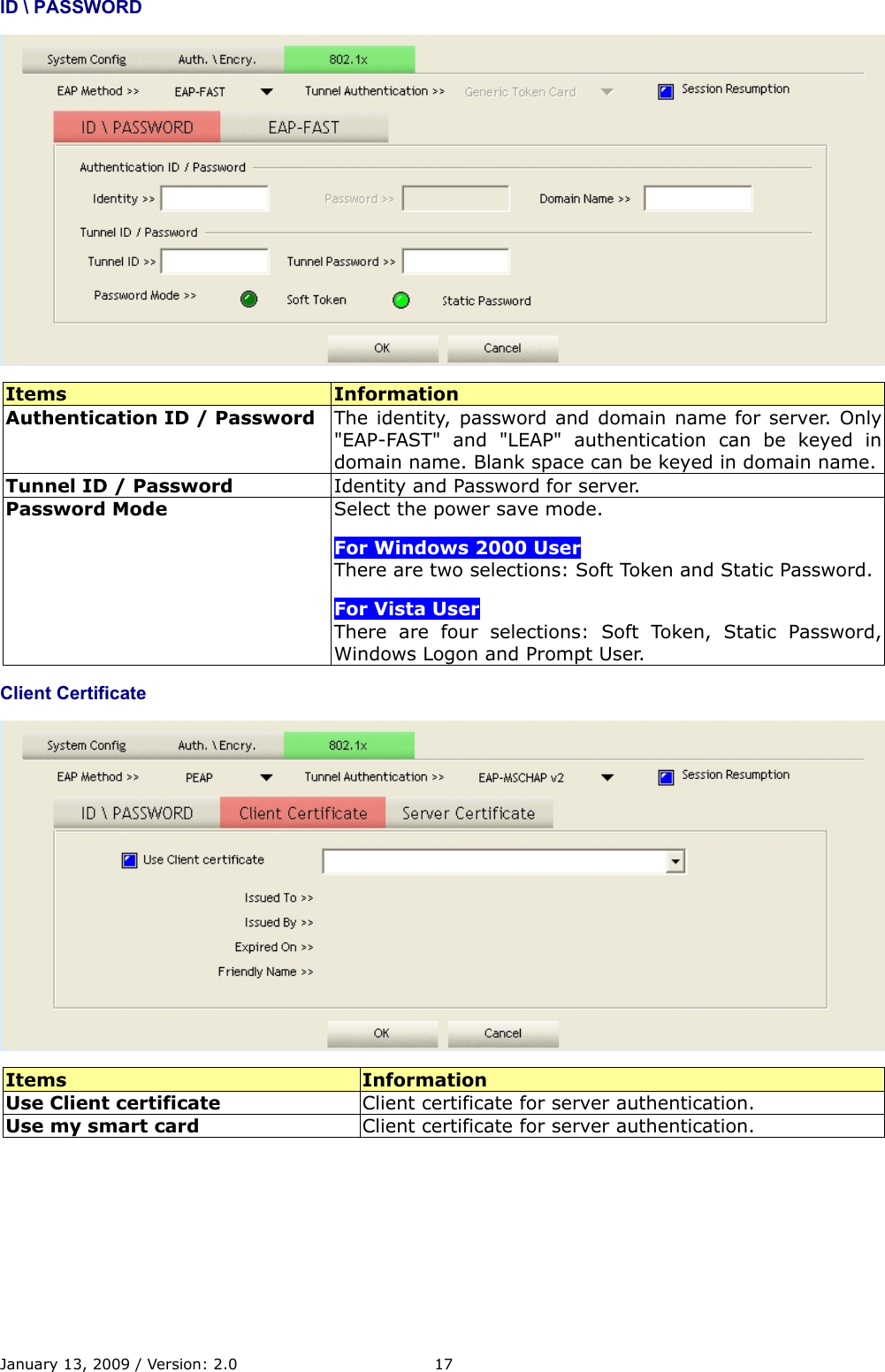

January 13, 2009 / Version: 2.0 17ID \ PASSWORD Items Information Authentication ID / Password The identity, password and domain name for server. Only"EAP-FAST" and "LEAP" authentication can be keyed indomain name. Blank space can be keyed in domain name.Tunnel ID / Password Identity and Password for server. Password Mode Select the power save mode. For Windows 2000 UserThere are two selections: Soft Token and Static Password.For Vista UserThere are four selections: Soft Token, Static Password,Windows Logon and Prompt User. Client Certificate Items Information Use Client certificate Client certificate for server authentication. Use my smart card Client certificate for server authentication.

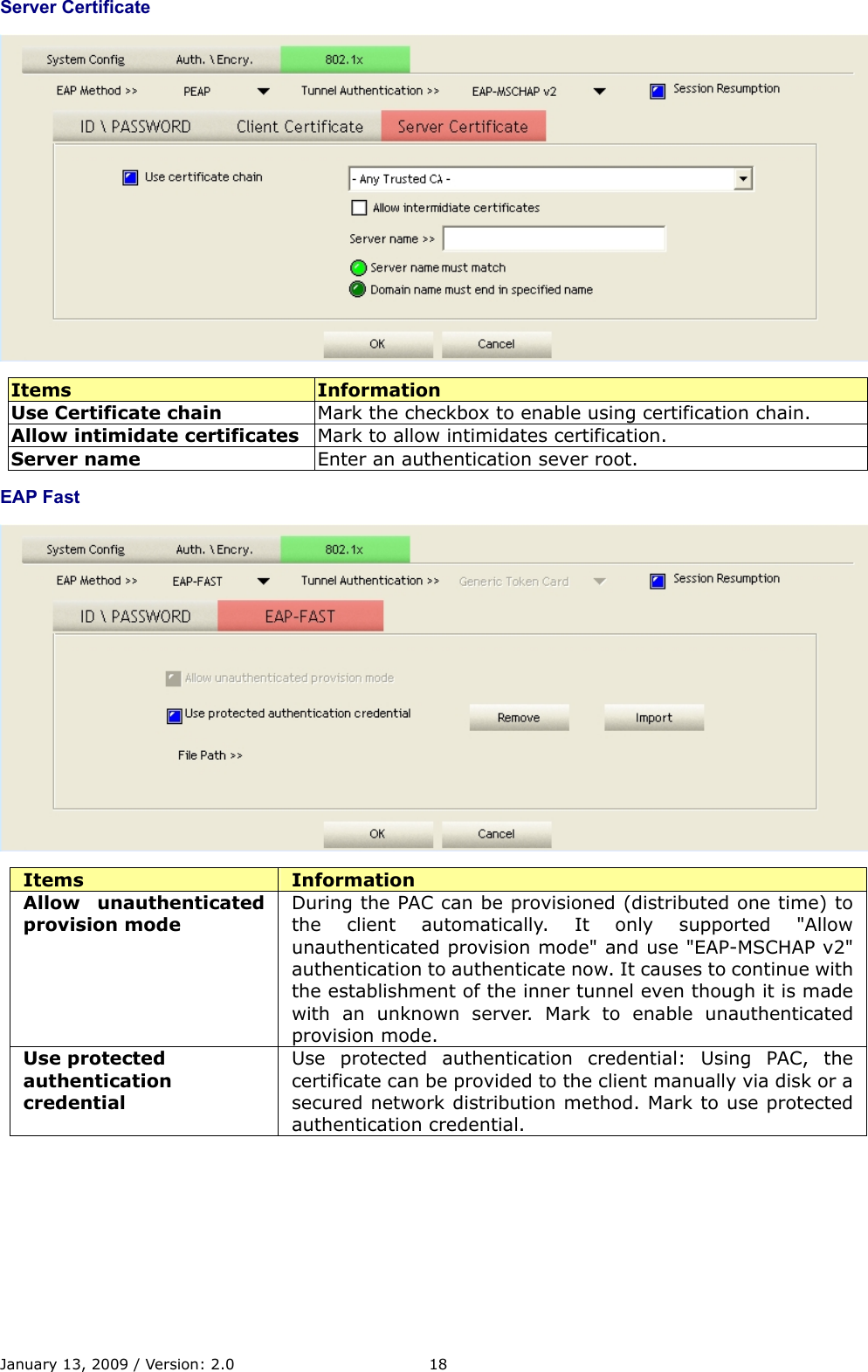

January 13, 2009 / Version: 2.0 18Server Certificate Items Information Use Certificate chain Mark the checkbox to enable using certification chain. Allow intimidate certificates Mark to allow intimidates certification. Server name Enter an authentication sever root. EAP FastItems Information Allow unauthenticated provision mode During the PAC can be provisioned (distributed one time) to the client automatically. It only supported "Allow unauthenticated provision mode" and use "EAP-MSCHAP v2" authentication to authenticate now. It causes to continue with the establishment of the inner tunnel even though it is made with an unknown server. Mark to enable unauthenticated provision mode. Use protected authentication credentialUse protected authentication credential: Using PAC, the certificate can be provided to the client manually via disk or a secured network distribution method. Mark to use protected authentication credential.

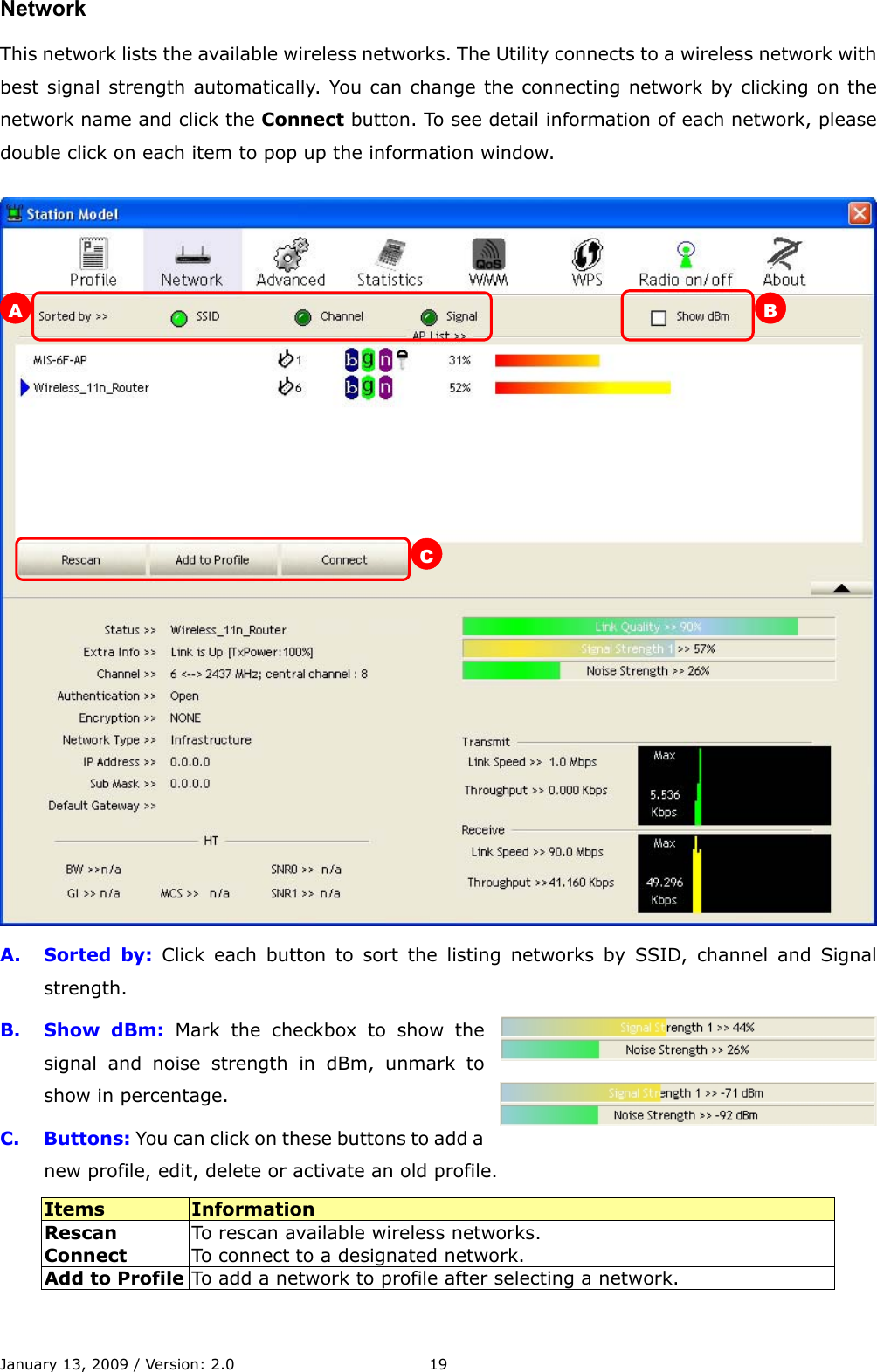

January 13, 2009 / Version: 2.0 19Network This network lists the available wireless networks. The Utility connects to a wireless network with best signal strength automatically. You can change the connecting network by clicking on the network name and click the Connect button. To see detail information of each network, please double click on each item to pop up the information window. A. Sorted by: Click each button to sort the listing networks by SSID, channel and Signal strength.B. Show dBm: Mark the checkbox to show the signal and noise strength in dBm, unmark to show in percentage. C. Buttons: You can click on these buttons to add a new profile, edit, delete or activate an old profile. Items Information Rescan To rescan available wireless networks. Connect To connect to a designated network. Add to Profile To add a network to profile after selecting a network. ABC

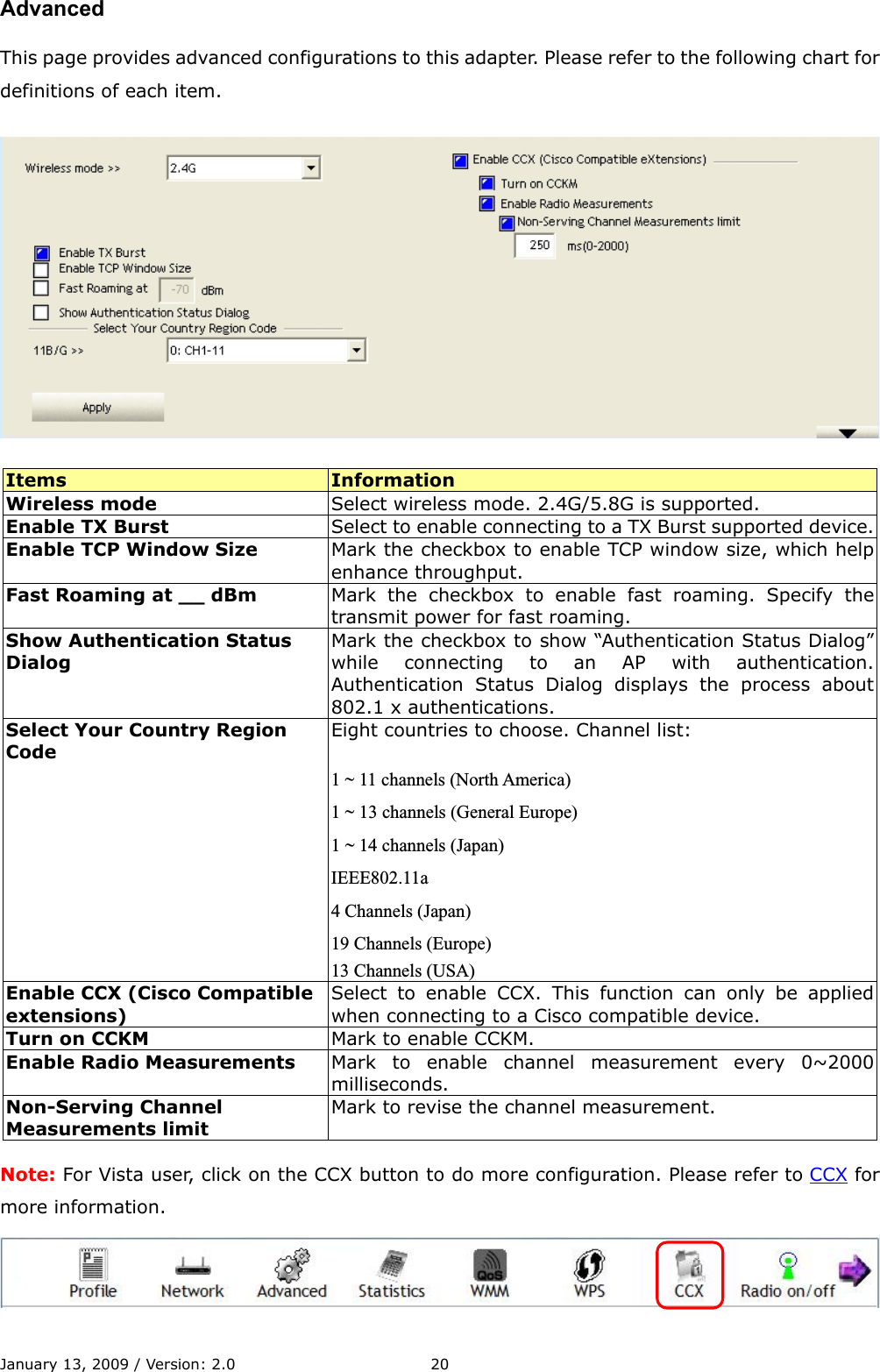

January 13, 2009 / Version: 2.0 20Advanced This page provides advanced configurations to this adapter. Please refer to the following chart for definitions of each item. Items Information Wireless mode Select wireless mode. 2.4G/5.8G is supported. Enable TX Burst Select to enable connecting to a TX Burst supported device.Enable TCP Window Size Mark the checkbox to enable TCP window size, which helpenhance throughput. Fast Roaming at __ dBm Mark the checkbox to enable fast roaming. Specify thetransmit power for fast roaming. Show Authentication Status Dialog Mark the checkbox to show “Authentication Status Dialog”while connecting to an AP with authentication.Authentication Status Dialog displays the process about802.1 x authentications. Select Your Country Region Code Eight countries to choose. Channel list: 1 ~ 11 channels (North America) 1 ~ 13 channels (General Europe) 1 ~ 14 channels (Japan) IEEE802.11a 4 Channels (Japan) 19 Channels (Europe) 13 Channels (USA)Enable CCX (Cisco Compatible extensions) Select to enable CCX. This function can only be appliedwhen connecting to a Cisco compatible device. Turn on CCKM Mark to enable CCKM. Enable Radio Measurements Mark to enable channel measurement every 0~2000milliseconds. Non-Serving Channel Measurements limit Mark to revise the channel measurement. Note: For Vista user, click on the CCX button to do more configuration. Please refer to CCX for more information.

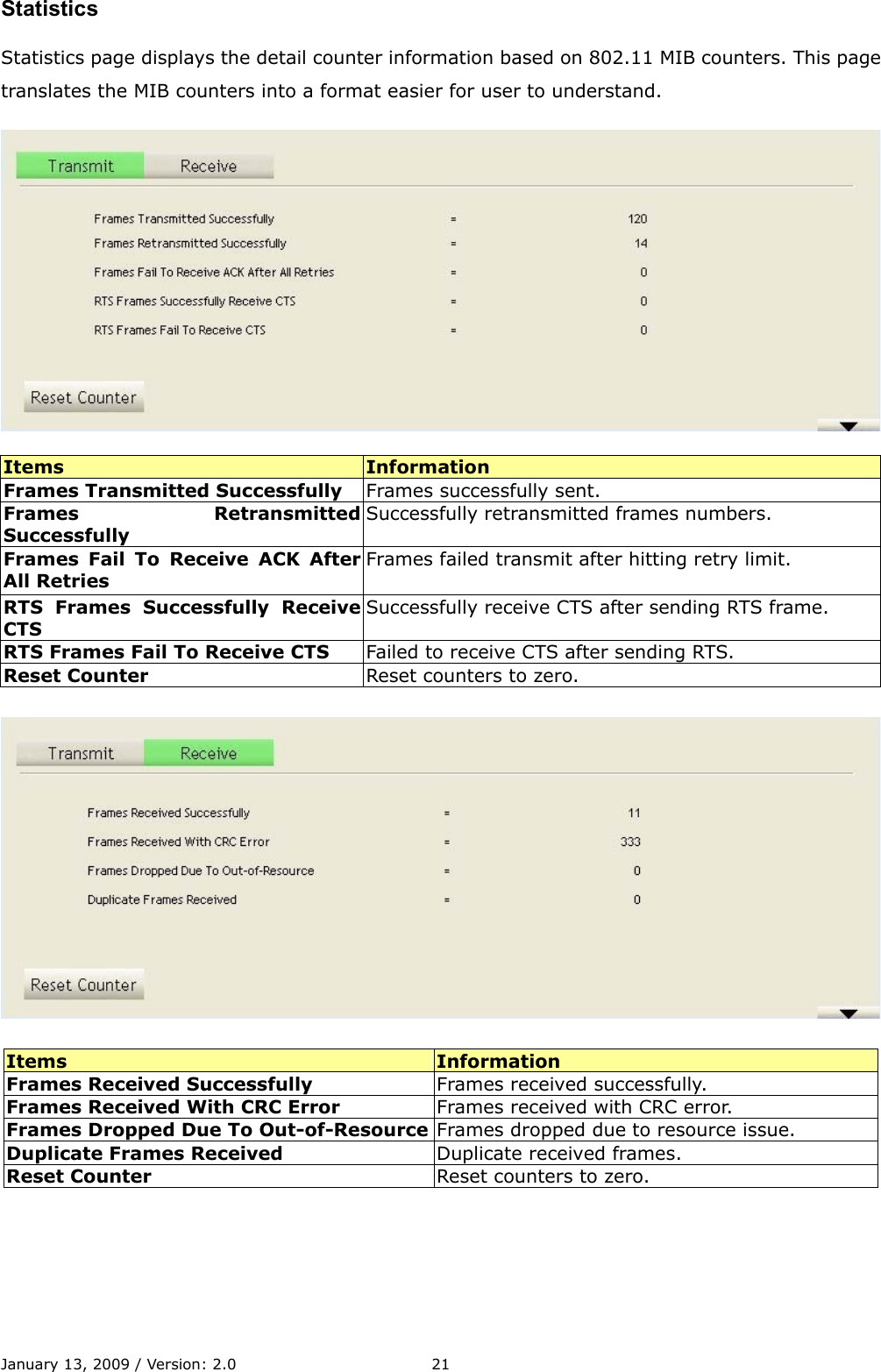

January 13, 2009 / Version: 2.0 21Statistics Statistics page displays the detail counter information based on 802.11 MIB counters. This page translates the MIB counters into a format easier for user to understand. Items Information Frames Transmitted Successfully Frames successfully sent. Frames RetransmittedSuccessfullySuccessfully retransmitted frames numbers. Frames Fail To Receive ACK AfterAll Retries Frames failed transmit after hitting retry limit. RTS Frames Successfully ReceiveCTSSuccessfully receive CTS after sending RTS frame. RTS Frames Fail To Receive CTS Failed to receive CTS after sending RTS. Reset Counter Reset counters to zero. Items Information Frames Received Successfully Frames received successfully. Frames Received With CRC Error Frames received with CRC error. Frames Dropped Due To Out-of-Resource Frames dropped due to resource issue. Duplicate Frames Received Duplicate received frames. Reset Counter Reset counters to zero.
January 13, 2009 / Version: 2.0 22WMMThis page allows users to activate the WMM function for this device. Please note that this function only works while connecting to a WMM compatible device. Items Information WMM Enable Enable Wi-Fi Multi-Media. WMM - Power Save Enable Enable WMM Power Save. Please enable WMM beforeconfiguring this function. Direct Link Setup Enable Enable DLS (Direct Link Setup). Please enable WMM beforeconfiguring this function. MAC Address Fill in the blanks of Direct Link with MAC Address of STA. Timeout Value Time of automatically disconnect after some seconds. Thevalue is integer. The integer must be between 0~65535. Itrepresents that it always connects if the value is zero.Default value of Timeout Value is 60 seconds. Apply / Tear Down After fill in the "MAC Address" and "Timeout Value", click"Apply" button to save your configuration. The result willappear in the following "DLS Status" blanks. To removethe configuration, please select the configuration in theblanks and then click "Tear Down" button.

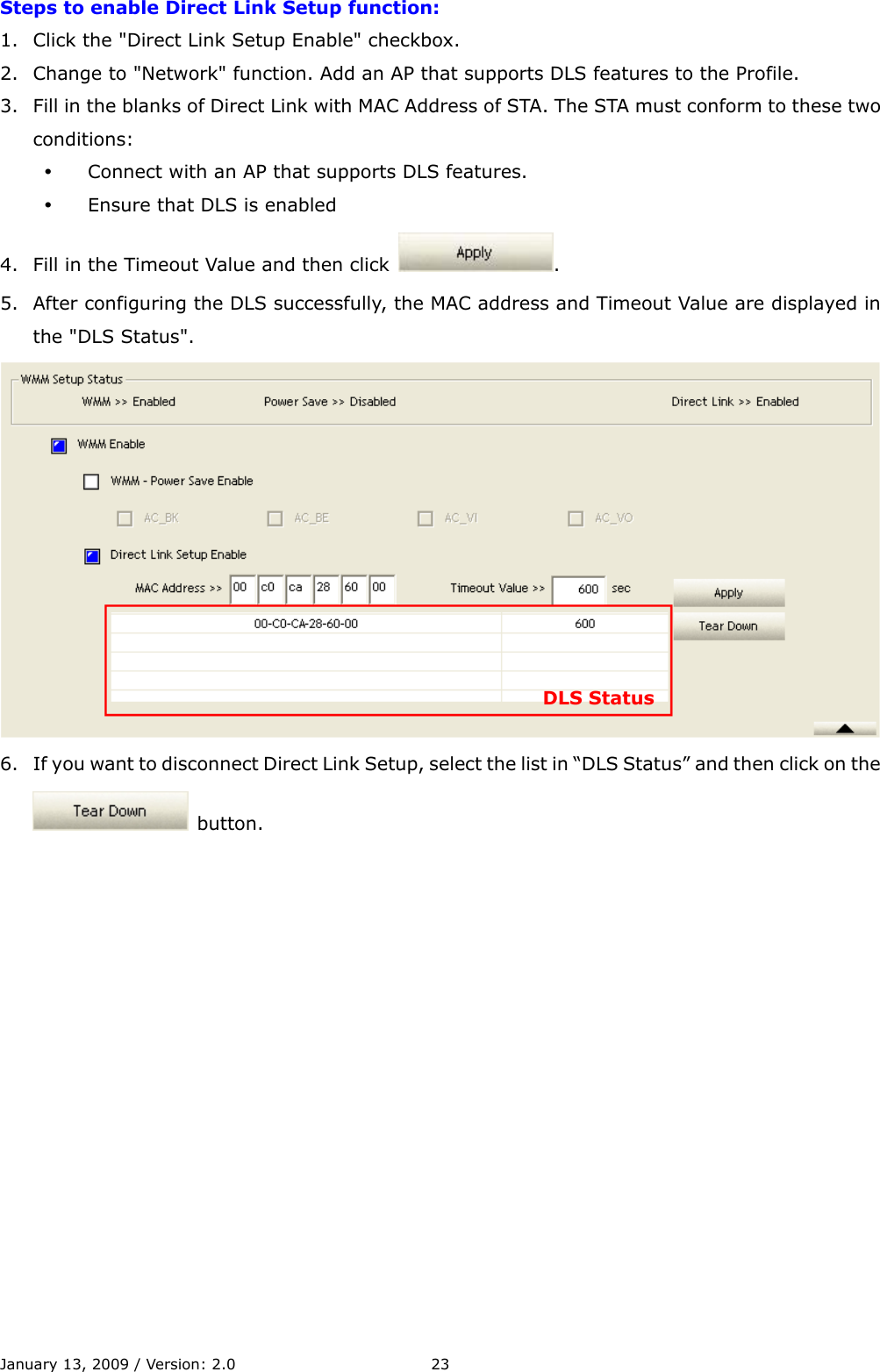

January 13, 2009 / Version: 2.0 23Steps to enable Direct Link Setup function: 1. Click the "Direct Link Setup Enable" checkbox. 2. Change to "Network" function. Add an AP that supports DLS features to the Profile. 3. Fill in the blanks of Direct Link with MAC Address of STA. The STA must conform to these two conditions:yConnect with an AP that supports DLS features. yEnsure that DLS is enabled 4. Fill in the Timeout Value and then click .5. After configuring the DLS successfully, the MAC address and Timeout Value are displayed in the "DLS Status". 6. If you want to disconnect Direct Link Setup, select the list in “DLS Status” and then click on the button. DLS Status

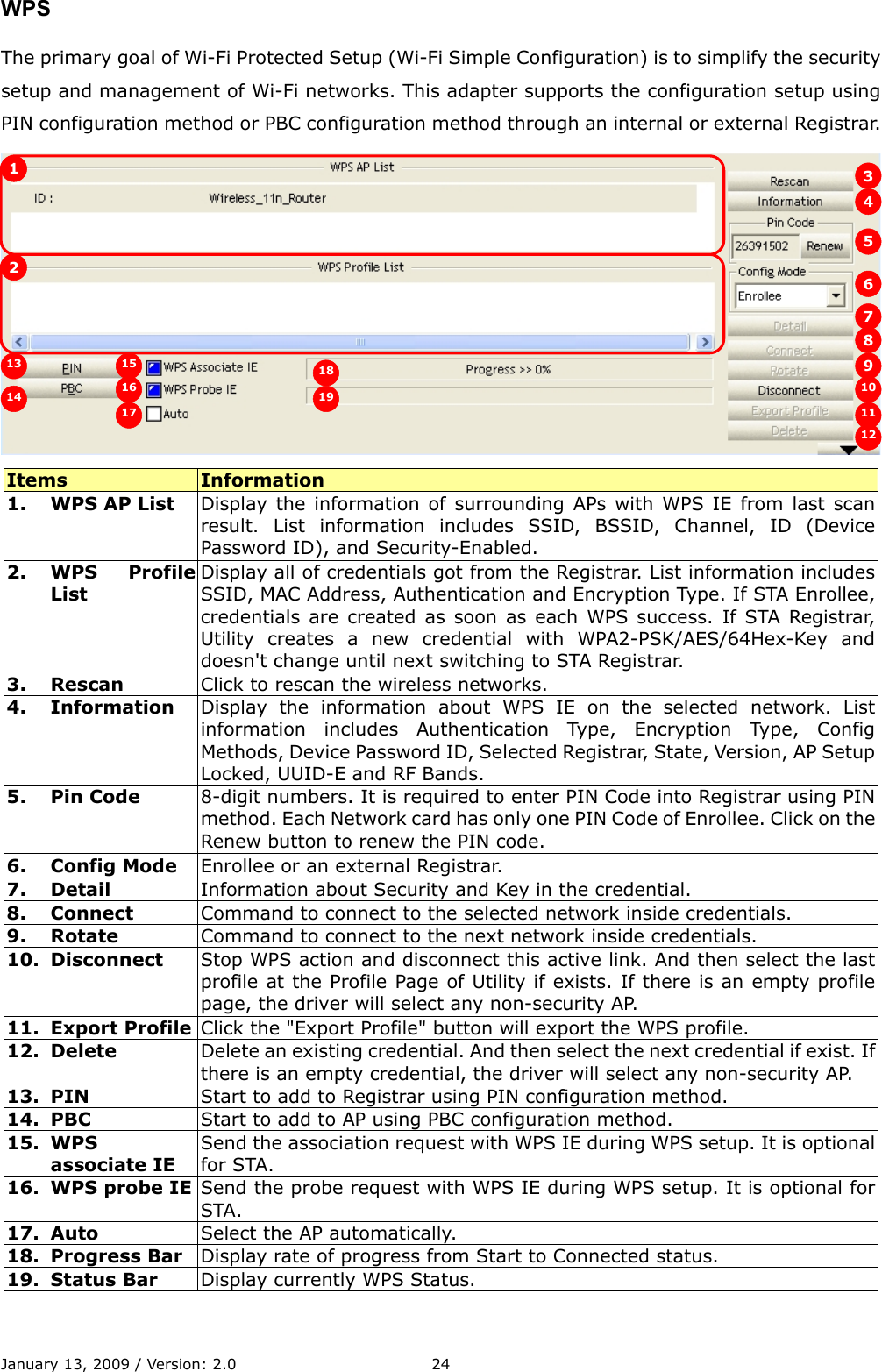

January 13, 2009 / Version: 2.0 24WPSThe primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security setup and management of Wi-Fi networks. This adapter supports the configuration setup using PIN configuration method or PBC configuration method through an internal or external Registrar. Items Information 1. WPS AP List Display the information of surrounding APs with WPS IE from last scanresult. List information includes SSID, BSSID, Channel, ID (DevicePassword ID), and Security-Enabled. 2. WPS ProfileListDisplay all of credentials got from the Registrar. List information includesSSID, MAC Address, Authentication and Encryption Type. If STA Enrollee,credentials are created as soon as each WPS success. If STA Registrar,Utility creates a new credential with WPA2-PSK/AES/64Hex-Key anddoesn't change until next switching to STA Registrar. 3. Rescan Click to rescan the wireless networks. 4. Information Display the information about WPS IE on the selected network. Listinformation includes Authentication Type, Encryption Type, ConfigMethods, Device Password ID, Selected Registrar, State, Version, AP SetupLocked, UUID-E and RF Bands. 5. Pin Code 8-digit numbers. It is required to enter PIN Code into Registrar using PINmethod. Each Network card has only one PIN Code of Enrollee. Click on theRenew button to renew the PIN code. 6. Config Mode Enrollee or an external Registrar. 7. Detail Information about Security and Key in the credential. 8. Connect Command to connect to the selected network inside credentials. 9. Rotate Command to connect to the next network inside credentials. 10. Disconnect Stop WPS action and disconnect this active link. And then select the lastprofile at the Profile Page of Utility if exists. If there is an empty profilepage, the driver will select any non-security AP. 11. Export Profile Click the "Export Profile" button will export the WPS profile. 12. Delete Delete an existing credential. And then select the next credential if exist. Ifthere is an empty credential, the driver will select any non-security AP. 13. PIN Start to add to Registrar using PIN configuration method. 14. PBC Start to add to AP using PBC configuration method. 15. WPSassociate IE Send the association request with WPS IE during WPS setup. It is optionalfor STA. 16. WPS probe IE Send the probe request with WPS IE during WPS setup. It is optional forSTA. 17. Auto Select the AP automatically. 18. Progress Bar Display rate of progress from Start to Connected status. 19. Status Bar Display currently WPS Status. 12131415161734567891011121819

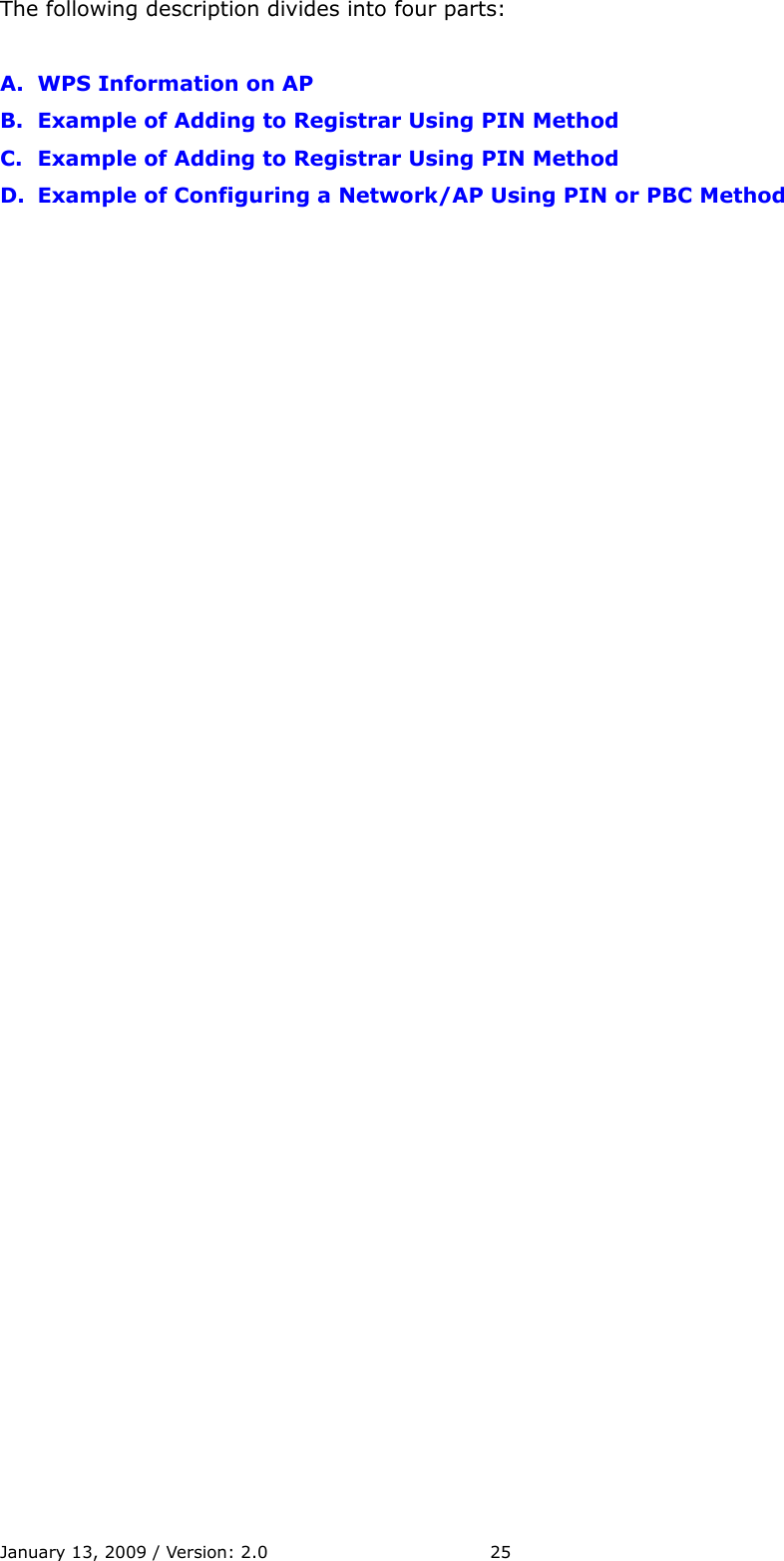

January 13, 2009 / Version: 2.0 25The following description divides into four parts: A. WPS Information on AP B. Example of Adding to Registrar Using PIN Method C. Example of Adding to Registrar Using PIN Method D. Example of Configuring a Network/AP Using PIN or PBC Method

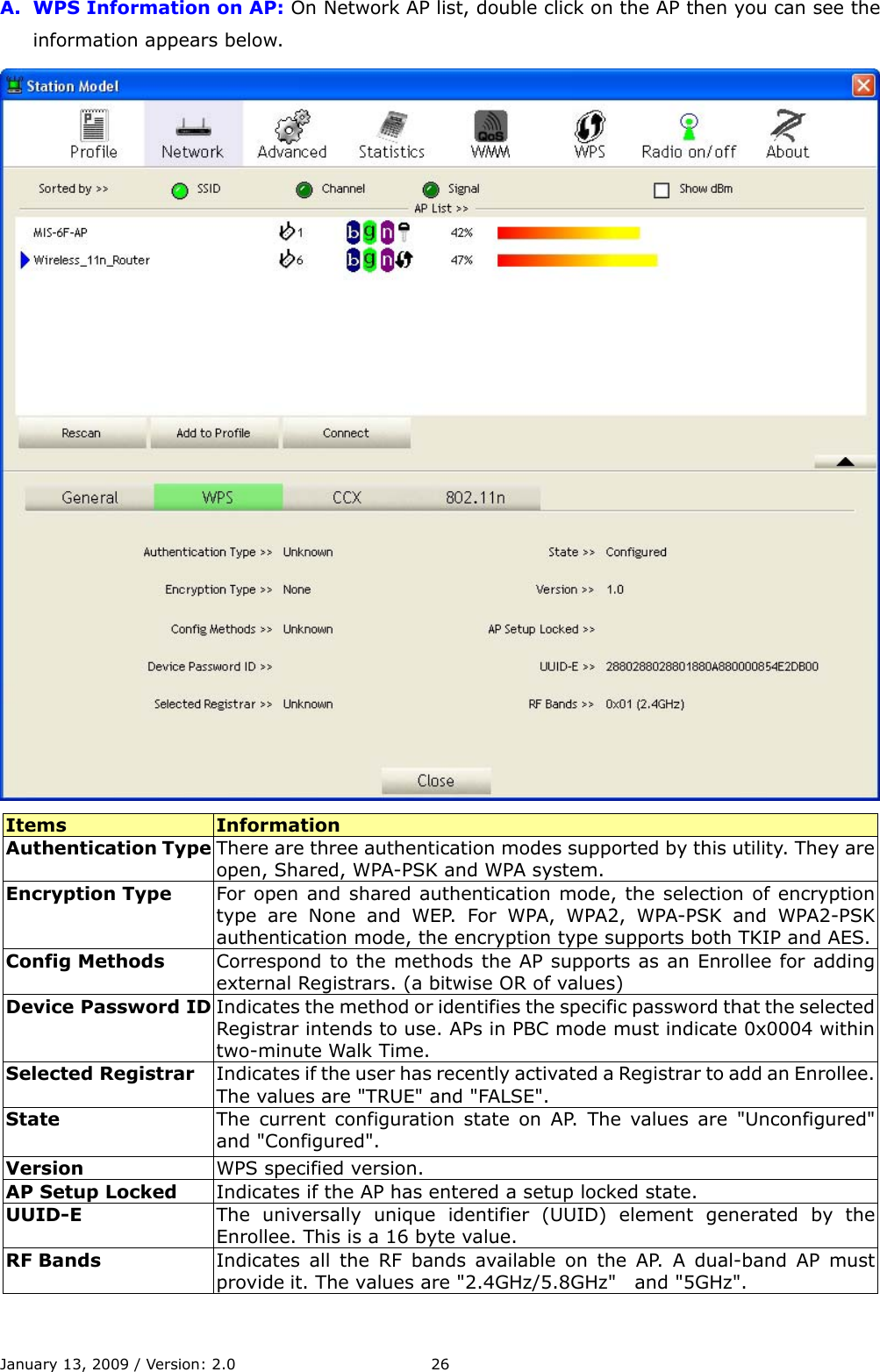

January 13, 2009 / Version: 2.0 26A. WPS Information on AP: On Network AP list, double click on the AP then you can see the information appears below.Items Information Authentication Type There are three authentication modes supported by this utility. They areopen, Shared, WPA-PSK and WPA system. Encryption Type For open and shared authentication mode, the selection of encryptiontype are None and WEP. For WPA, WPA2, WPA-PSK and WPA2-PSKauthentication mode, the encryption type supports both TKIP and AES.Config Methods Correspond to the methods the AP supports as an Enrollee for addingexternal Registrars. (a bitwise OR of values) Device Password ID Indicates the method or identifies the specific password that the selectedRegistrar intends to use. APs in PBC mode must indicate 0x0004 withintwo-minute Walk Time. Selected Registrar Indicates if the user has recently activated a Registrar to add an Enrollee.The values are "TRUE" and "FALSE". State The current configuration state on AP. The values are "Unconfigured"and "Configured". Version WPS specified version. AP Setup Locked Indicates if the AP has entered a setup locked state. UUID-E The universally unique identifier (UUID) element generated by theEnrollee. This is a 16 byte value. RF Bands Indicates all the RF bands available on the AP. A dual-band AP mustprovide it. The values are "2.4GHz/5.8GHz" and "5GHz".
January 13, 2009 / Version: 2.0 27B. Example of Adding to Registrar Using PIN MethodThe user obtains a device password (PIN Code) from the STA and enters the password into the Registrar. Both the Enrollee and the Registrar use PIN Config method for the configuration setup. Please follow the step below. 1. Select "Enrollee" from the Config Mode drop-down list. 2. Click "Rescan" to update available WPS APs. 3. Select an AP (SSID/BSSID) that STA will join to.

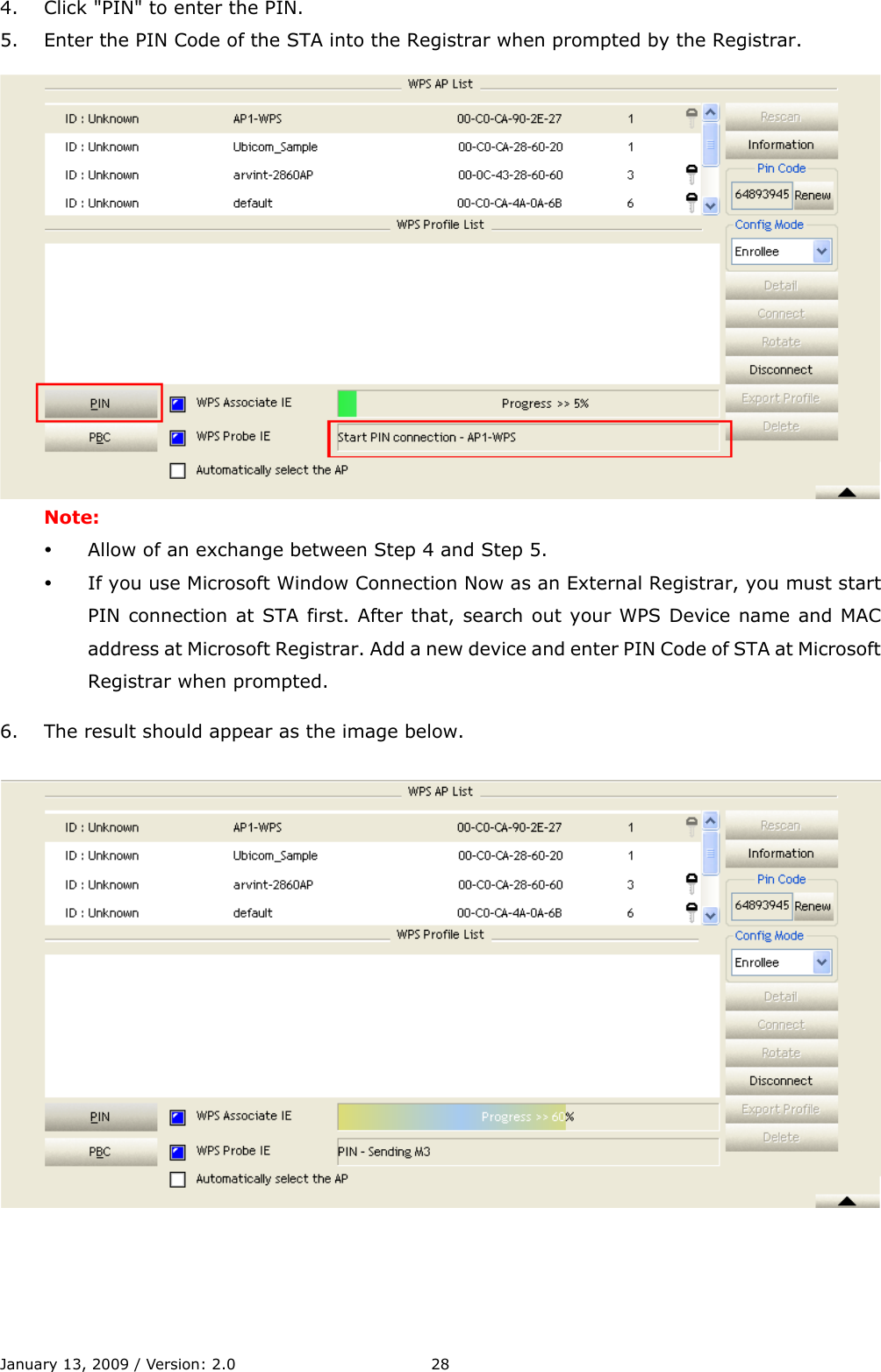

January 13, 2009 / Version: 2.0 284. Click "PIN" to enter the PIN. 5. Enter the PIN Code of the STA into the Registrar when prompted by the Registrar. Note:yAllow of an exchange between Step 4 and Step 5. yIf you use Microsoft Window Connection Now as an External Registrar, you must start PIN connection at STA first. After that, search out your WPS Device name and MAC address at Microsoft Registrar. Add a new device and enter PIN Code of STA at Microsoft Registrar when prompted. 6. The result should appear as the image below.
January 13, 2009 / Version: 2.0 297. Configure one or more credentials. Then connect successfully. 8. Click "Detail." You can see the figure below. C. Example of Adding to the Registrar Using the PBC Method The PBC method requires the user to press a PBC button on both the Enrollee and the Registrar within a two-minute interval called the Walk Time. If there is only one Registrar in PBC mode, the PBC mode selected is obtained from ID 0x0004, and is found after a complete scan. The Enrollee can then immediately begin running the Registration Protocol. If the Enrollee discovers more than one Registrar in PBC mode, it MUST abort its connection attempt at this scan and continue searching until the two-minute timeout. Note: Before you press PBC on STA and candidate AP. Make sure all APs aren't PBC mode or APs using PBC mode have left their Walk Time. The user can configure WPS profiles with either PIN method or PBC method. Please follow the steps below.
January 13, 2009 / Version: 2.0 301. Select "Enrollee" from the Config Mode drop-down list. 2. Click PBC to start the PBC connection. 3. Push the PBC on AP. Note: Allow time for an exchange between Step 2 and Step 3.

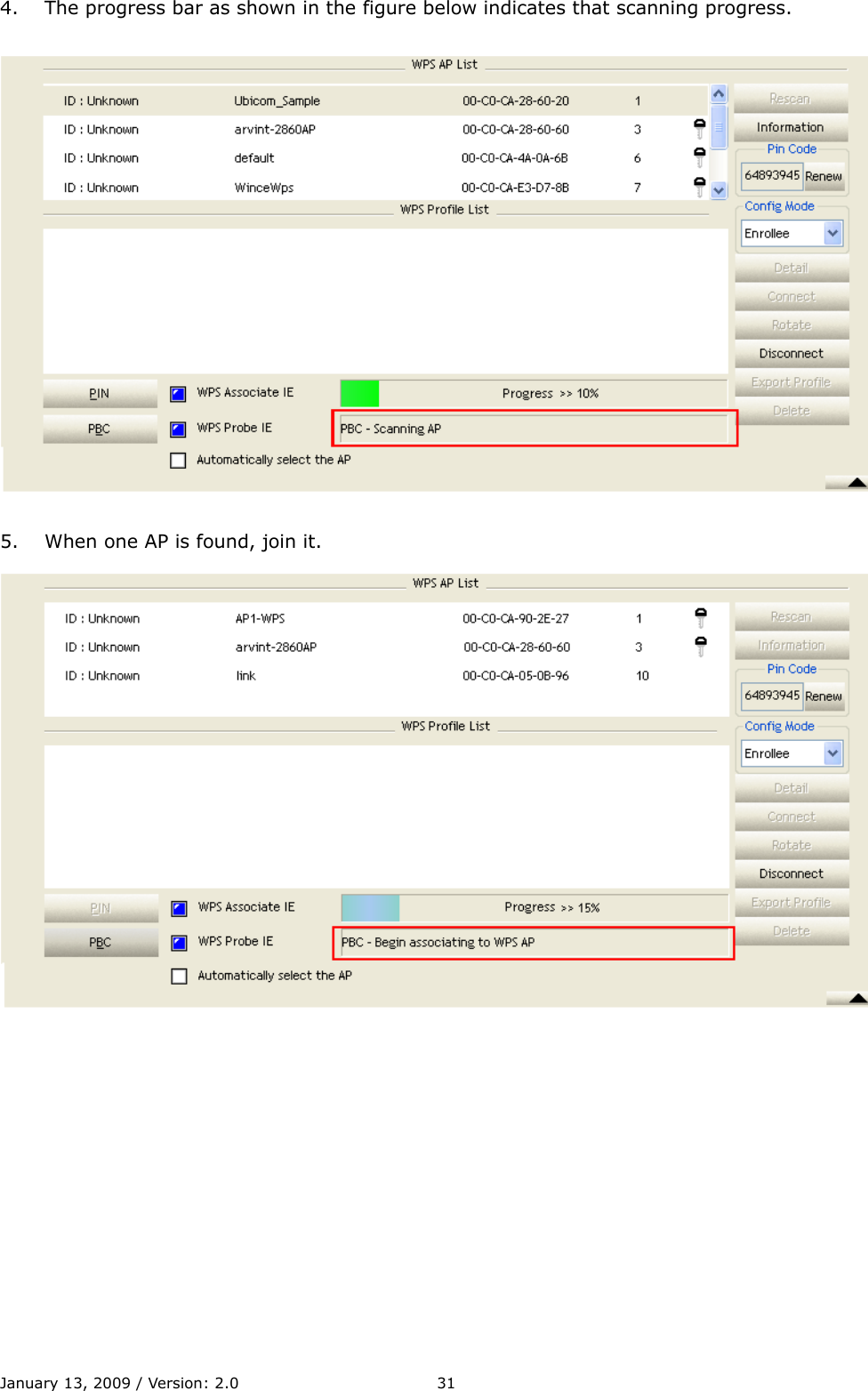

January 13, 2009 / Version: 2.0 314. The progress bar as shown in the figure below indicates that scanning progress. 5. When one AP is found, join it.

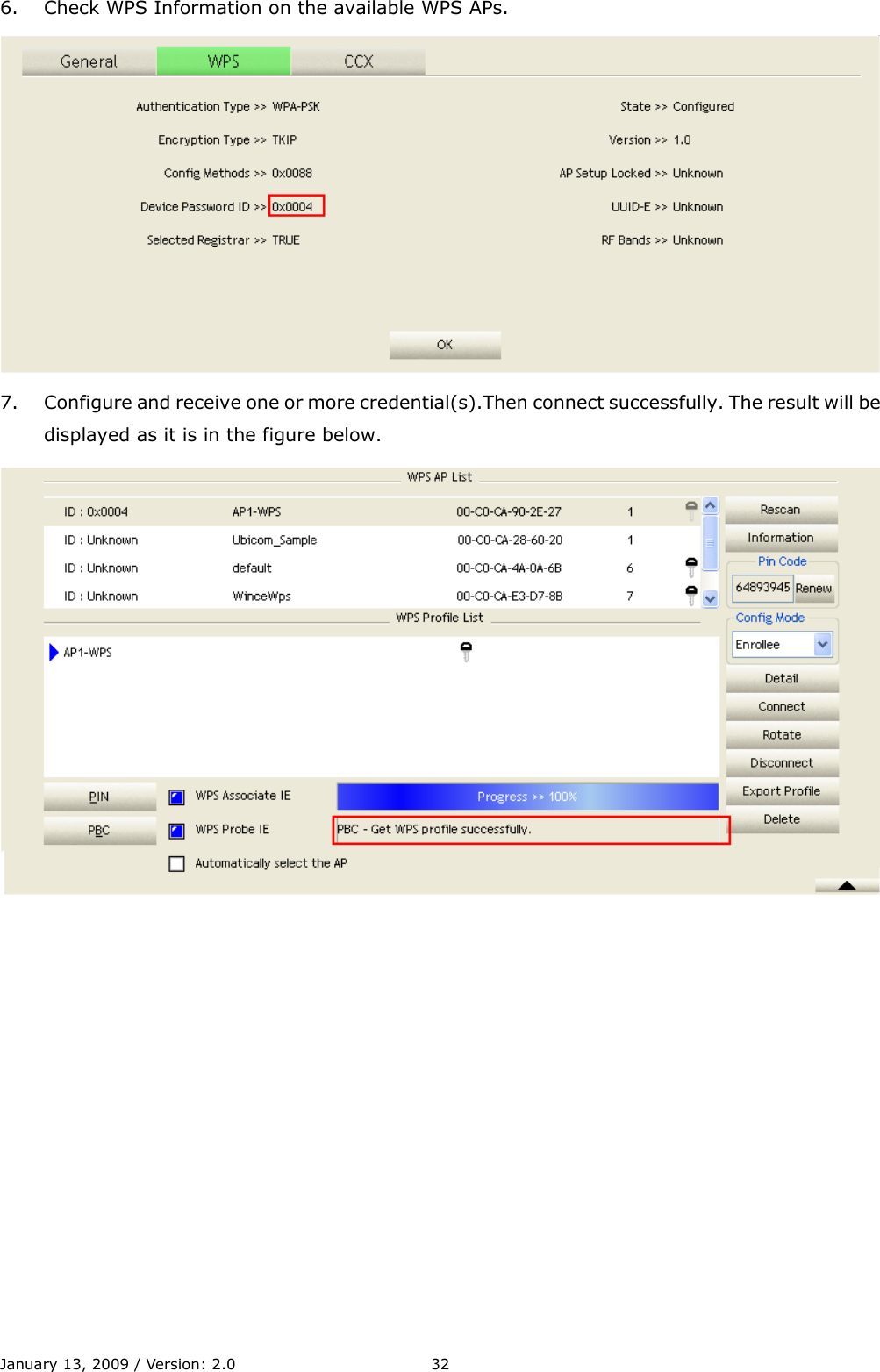

January 13, 2009 / Version: 2.0 326. Check WPS Information on the available WPS APs. 7. Configure and receive one or more credential(s).Then connect successfully. The result will be displayed as it is in the figure below.

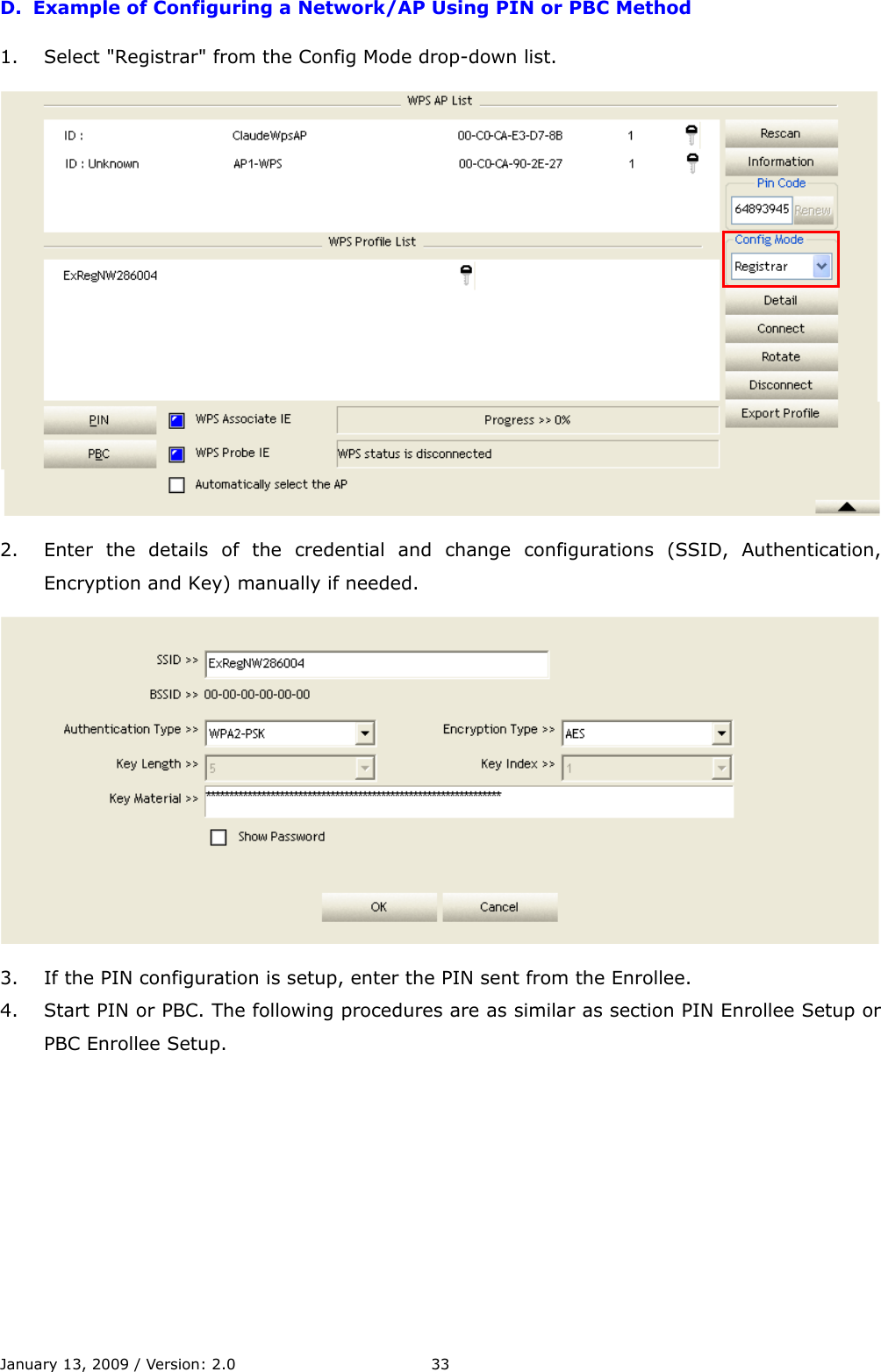

January 13, 2009 / Version: 2.0 33D. Example of Configuring a Network/AP Using PIN or PBC Method 1. Select "Registrar" from the Config Mode drop-down list. 2. Enter the details of the credential and change configurations (SSID, Authentication, Encryption and Key) manually if needed. 3. If the PIN configuration is setup, enter the PIN sent from the Enrollee. 4. Start PIN or PBC. The following procedures are as similar as section PIN Enrollee Setup or PBC Enrollee Setup.

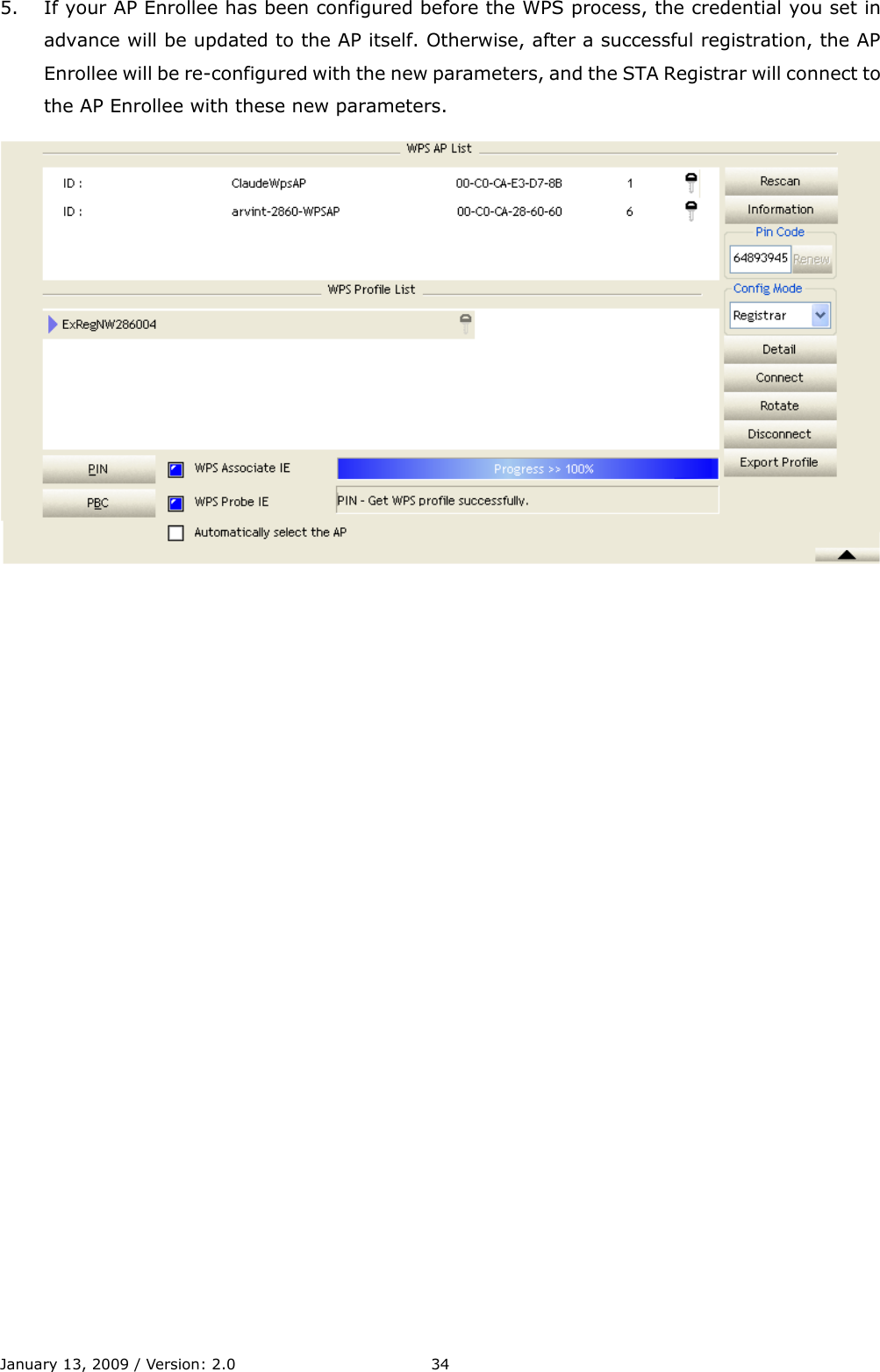

January 13, 2009 / Version: 2.0 345. If your AP Enrollee has been configured before the WPS process, the credential you set in advance will be updated to the AP itself. Otherwise, after a successful registration, the AP Enrollee will be re-configured with the new parameters, and the STA Registrar will connect to the AP Enrollee with these new parameters.

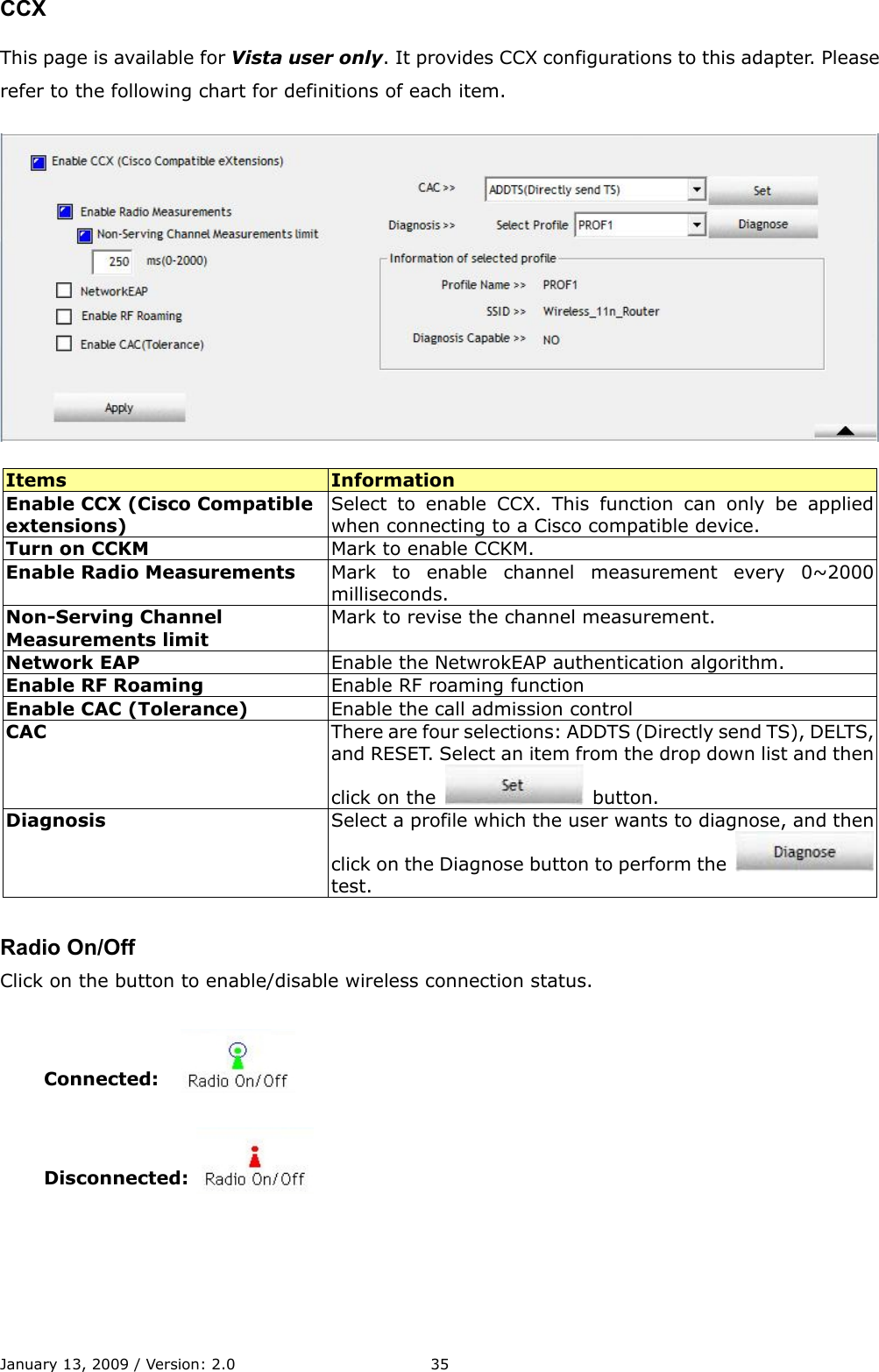

January 13, 2009 / Version: 2.0 35CCXThis page is available for Vista user only. It provides CCX configurations to this adapter. Please refer to the following chart for definitions of each item. Items Information Enable CCX (Cisco Compatible extensions) Select to enable CCX. This function can only be appliedwhen connecting to a Cisco compatible device. Turn on CCKM Mark to enable CCKM. Enable Radio Measurements Mark to enable channel measurement every 0~2000milliseconds. Non-Serving Channel Measurements limit Mark to revise the channel measurement. Network EAP Enable the NetwrokEAP authentication algorithm. Enable RF Roaming Enable RF roaming function Enable CAC (Tolerance) Enable the call admission control CAC There are four selections: ADDTS (Directly send TS), DELTS,and RESET. Select an item from the drop down list and thenclick on the button. Diagnosis Select a profile which the user wants to diagnose, and thenclick on the Diagnose button to perform the test.Radio On/Off Click on the button to enable/disable wireless connection status. Connected: Disconnected:

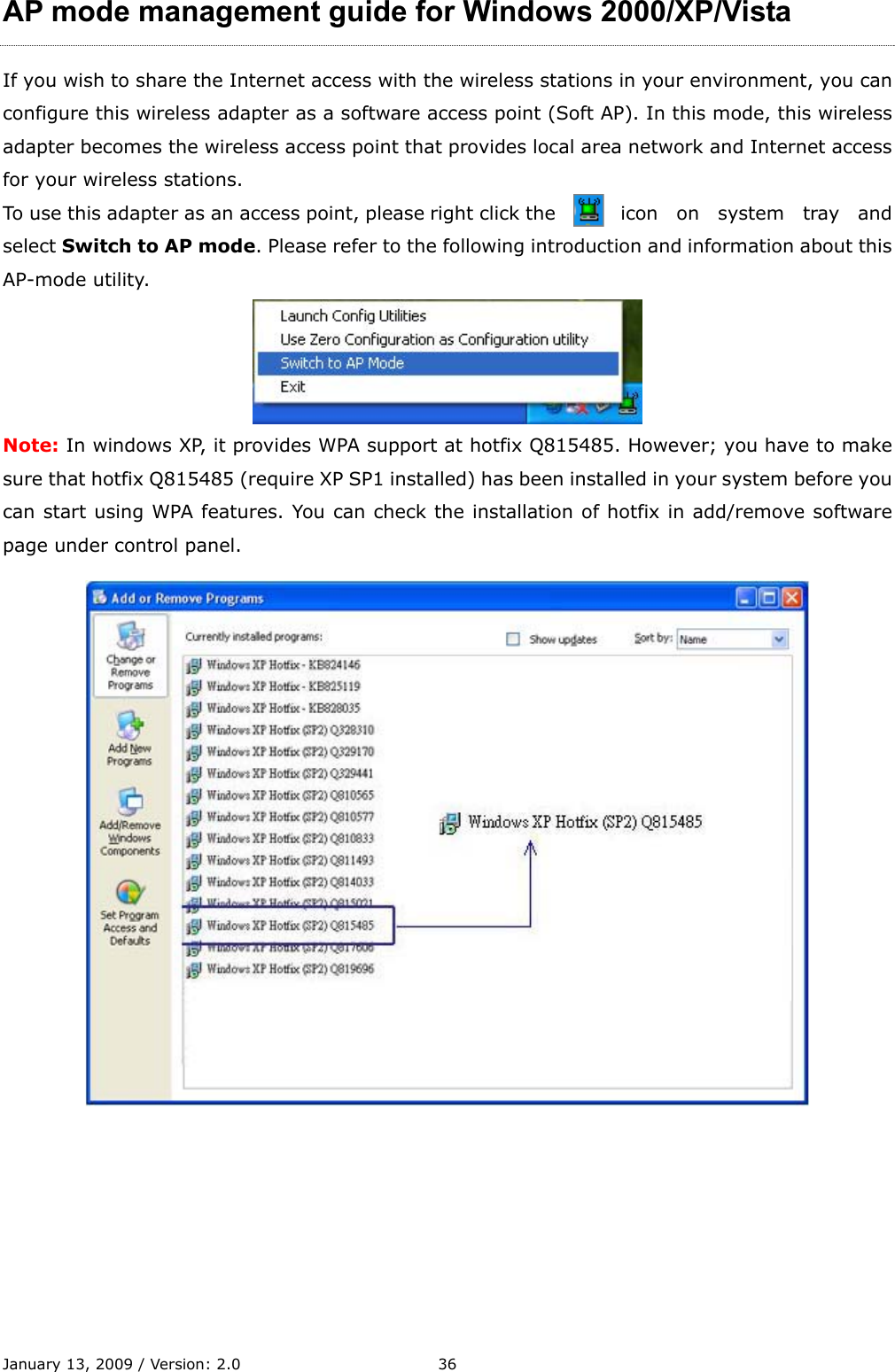

January 13, 2009 / Version: 2.0 36AP mode management guide for Windows 2000/XP/Vista If you wish to share the Internet access with the wireless stations in your environment, you can configure this wireless adapter as a software access point (Soft AP). In this mode, this wireless adapter becomes the wireless access point that provides local area network and Internet access for your wireless stations. To use this adapter as an access point, please right click the icon on system tray and select Switch to AP mode. Please refer to the following introduction and information about this AP-mode utility. Note: In windows XP, it provides WPA support at hotfix Q815485. However; you have to make sure that hotfix Q815485 (require XP SP1 installed) has been installed in your system before you can start using WPA features. You can check the installation of hotfix in add/remove software page under control panel.

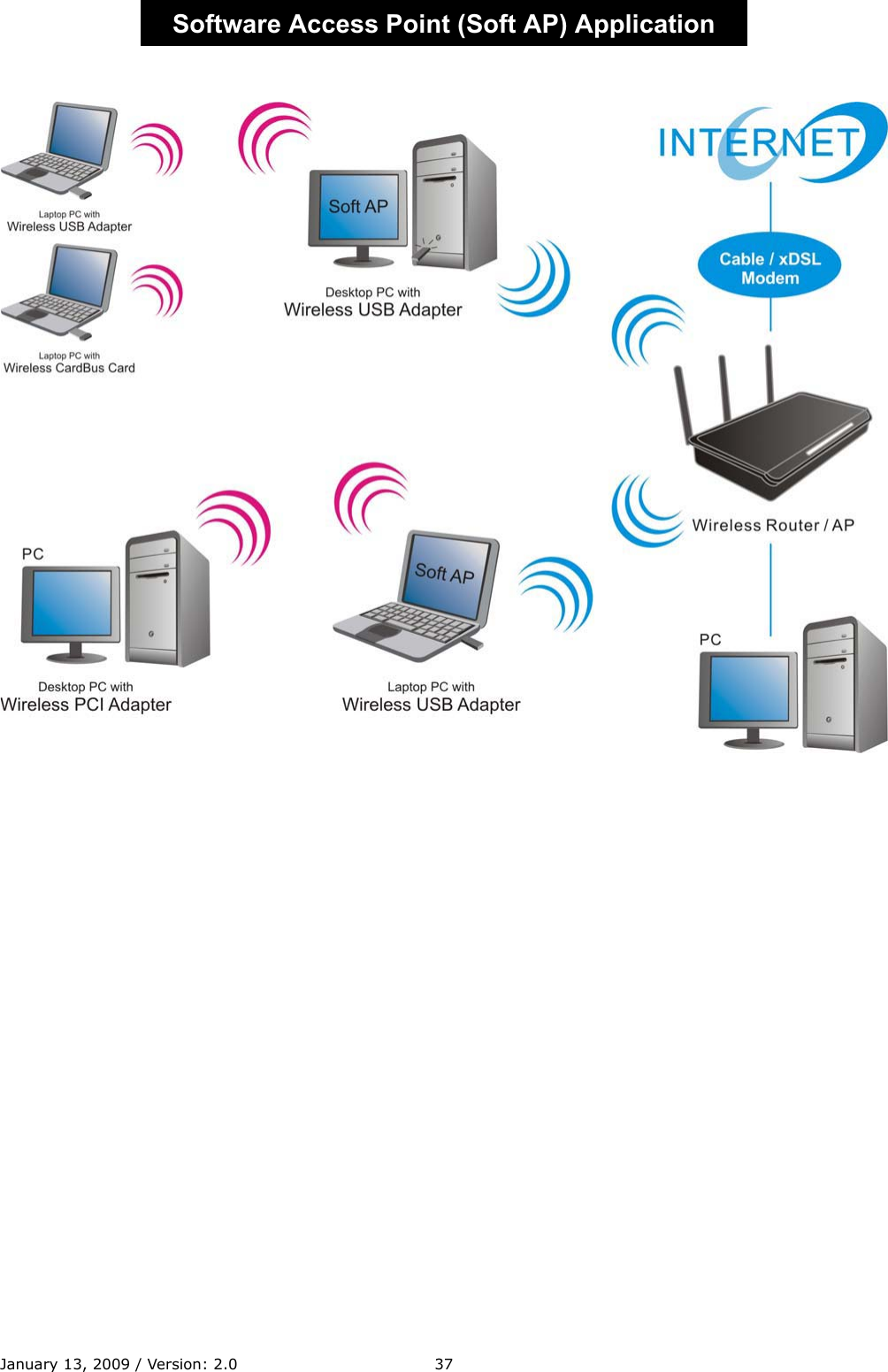

January 13, 2009 / Version: 2.0 37Software Access Point (Soft AP) Application

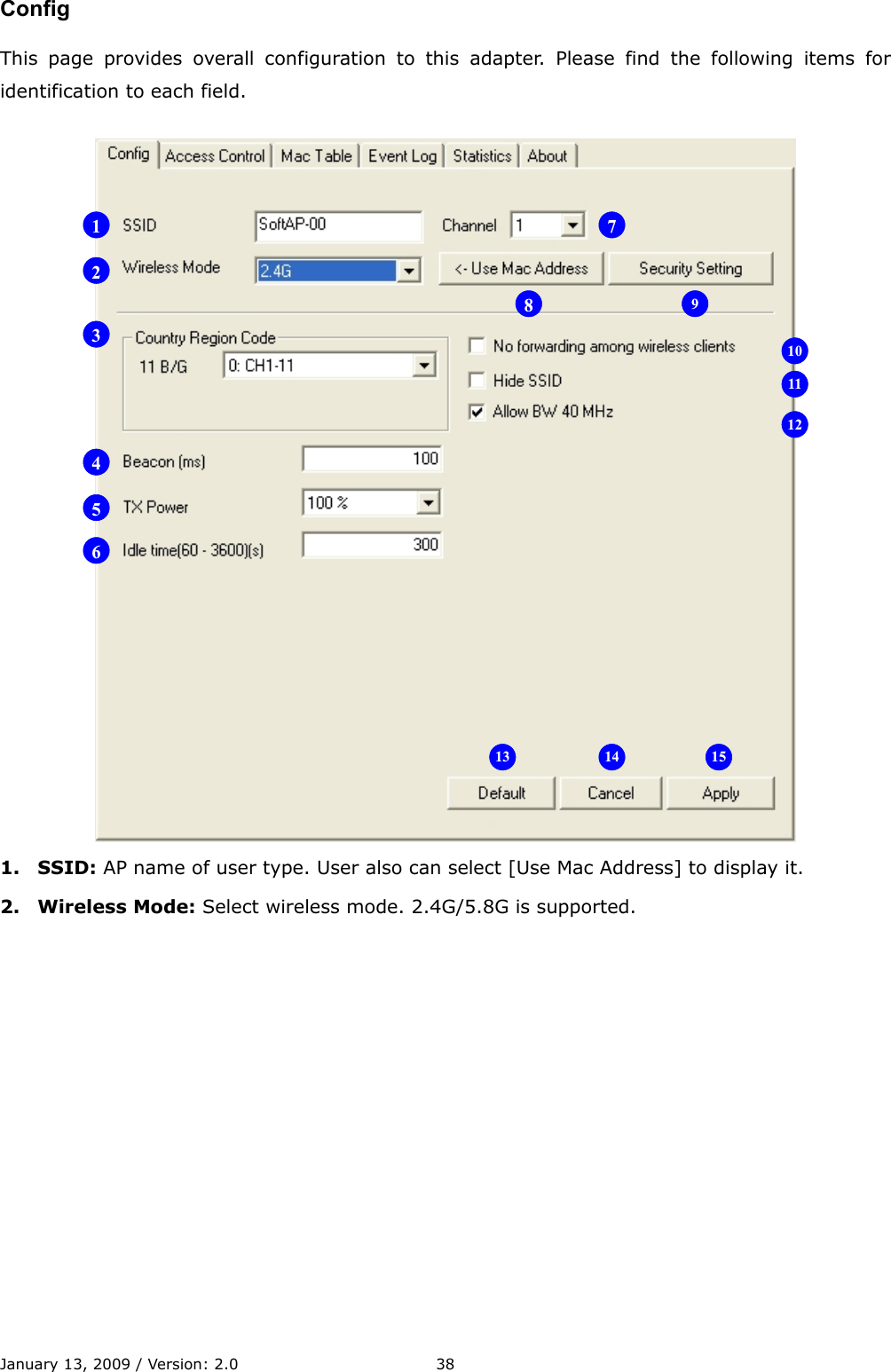

January 13, 2009 / Version: 2.0 38ConfigThis page provides overall configuration to this adapter. Please find the following items for identification to each field. 1. SSID: AP name of user type. User also can select [Use Mac Address] to display it. 2. Wireless Mode: Select wireless mode. 2.4G/5.8G is supported.1234567891011 1213 1514

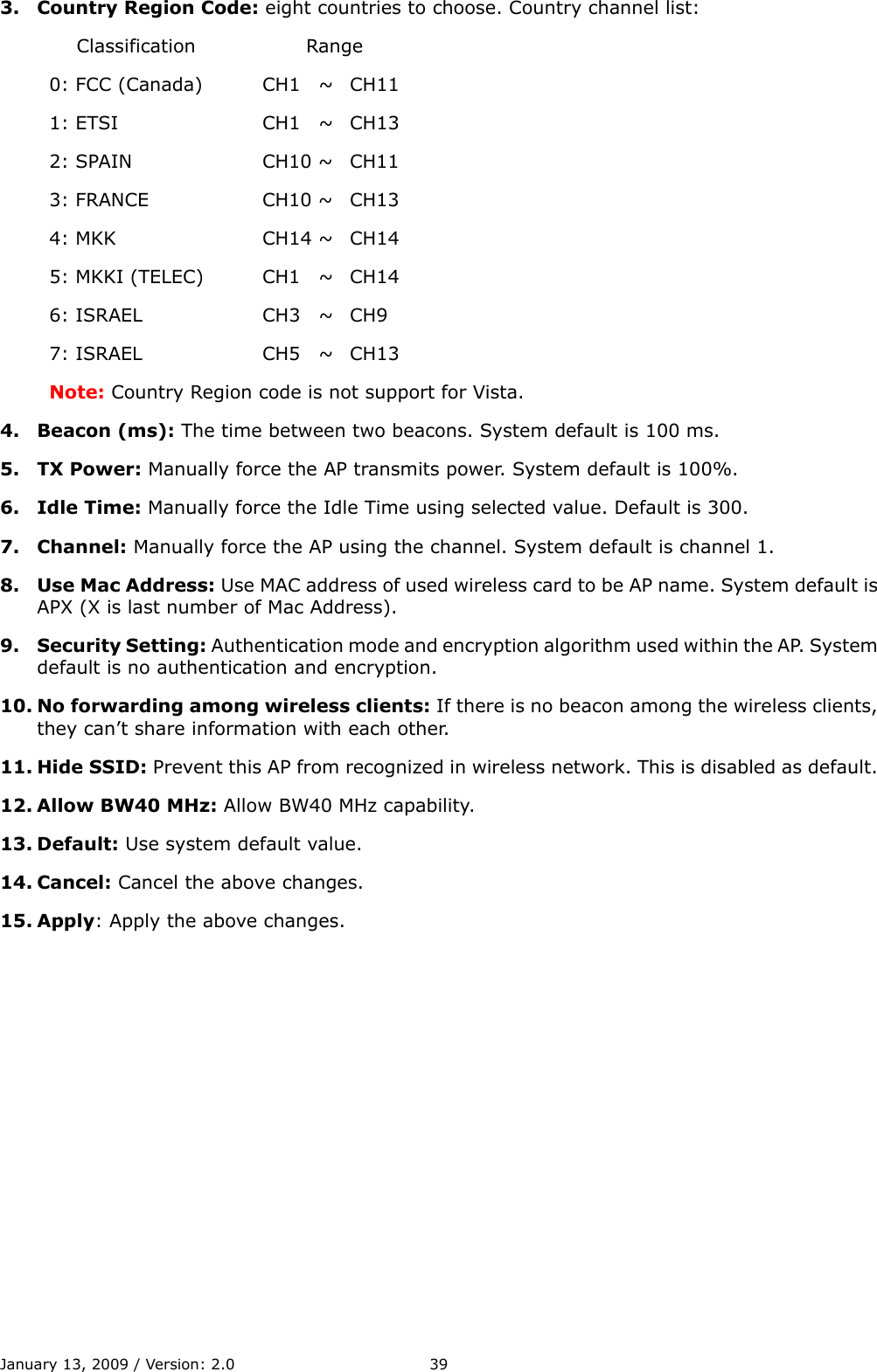

January 13, 2009 / Version: 2.0 393. Country Region Code: eight countries to choose. Country channel list: Classification Range 0: FCC (Canada) CH1 ~ CH11 1: ETSI CH1 ~ CH13 2: SPAIN CH10 ~ CH11 3: FRANCE CH10 ~ CH13 4: MKK CH14 ~ CH14 5: MKKI (TELEC) CH1 ~ CH14 6: ISRAEL CH3 ~ CH9 7: ISRAEL CH5 ~ CH13 Note: Country Region code is not support for Vista. 4. Beacon (ms): The time between two beacons. System default is 100 ms. 5. TX Power: Manually force the AP transmits power. System default is 100%. 6. Idle Time: Manually force the Idle Time using selected value. Default is 300. 7. Channel: Manually force the AP using the channel. System default is channel 1. 8. Use Mac Address: Use MAC address of used wireless card to be AP name. System default is APX (X is last number of Mac Address). 9. Security Setting: Authentication mode and encryption algorithm used within the AP. System default is no authentication and encryption. 10. No forwarding among wireless clients: If there is no beacon among the wireless clients, they can’t share information with each other. 11. Hide SSID: Prevent this AP from recognized in wireless network. This is disabled as default. 12. Allow BW40 MHz: Allow BW40 MHz capability. 13. Default: Use system default value. 14. Cancel: Cancel the above changes. 15. Apply: Apply the above changes.
January 13, 2009 / Version: 2.0 40Security Setting This page pops up after clicking the Security Setting button. Please follow the instructions below:1. Authentication Type: Select to be open, shared, WPA-PSK, WPA2-PSK, or WPA PSK/WPA2-PSK system. 2. Encryption Type: Select an encryption type from the drop list. 3. WPA Pre-shared Key: A shared string between AP and STA. For WPA-PSK authentication mode, this field must be filled with character longer than 8 and less than 32 lengths. 4. Group Rekey Interval: Only valid when using WPA-PSK encryption algorithm. The key will change compliance with seconds or beacon that user set. 5. WEP Key: Only valid when using WEP encryption algorithm. The key must match the key on AP. There are several formats to enter the keys. a. Hexadecimal (40bits): 10 Hex characters. b. Hexadecimal (128bits): 32Hex characters. c. ASCII (40bits): 5 ASCII characters. d. ASCII (128bits): 13 ASCII characters. 1 2345

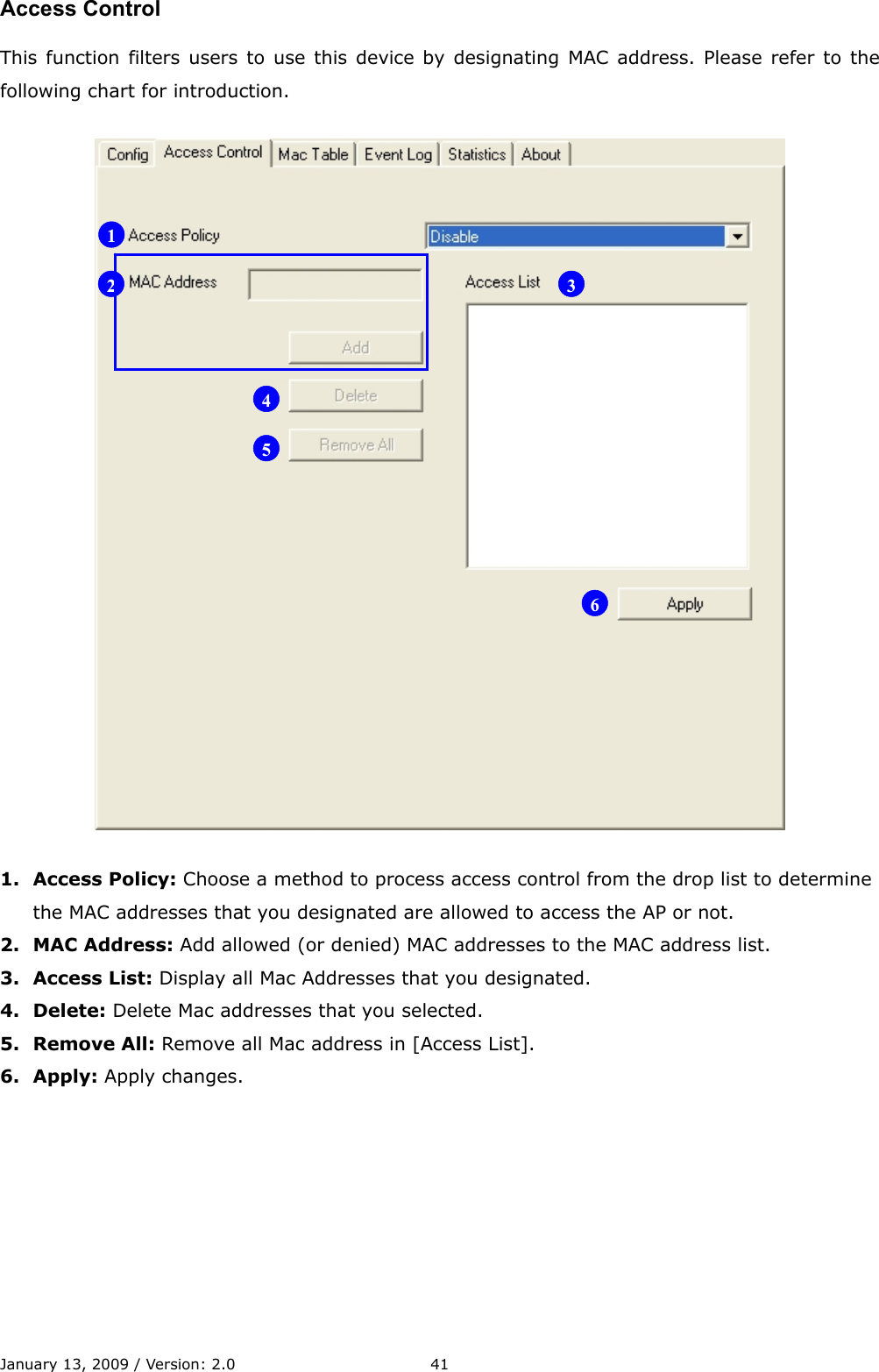

January 13, 2009 / Version: 2.0 41Access Control This function filters users to use this device by designating MAC address. Please refer to the following chart for introduction. 1. Access Policy: Choose a method to process access control from the drop list to determine the MAC addresses that you designated are allowed to access the AP or not. 2. MAC Address: Add allowed (or denied) MAC addresses to the MAC address list. 3. Access List: Display all Mac Addresses that you designated. 4. Delete: Delete Mac addresses that you selected. 5. Remove All: Remove all Mac address in [Access List]. 6. Apply: Apply changes. 12 3456

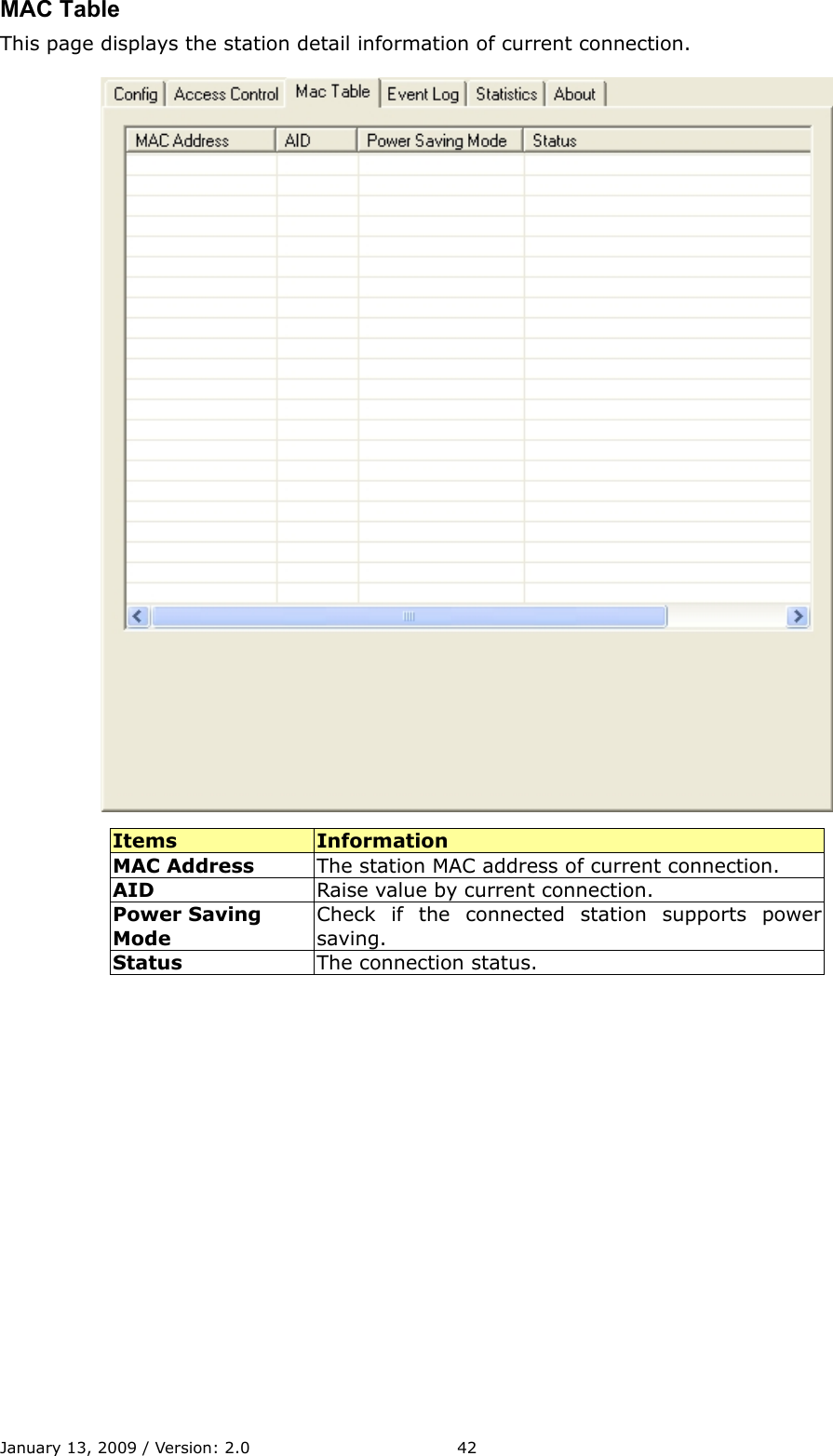

January 13, 2009 / Version: 2.0 42MAC Table This page displays the station detail information of current connection. Items Information MAC Address The station MAC address of current connection.AID Raise value by current connection.Power Saving ModeCheck if the connected station supports powersaving.Status The connection status.

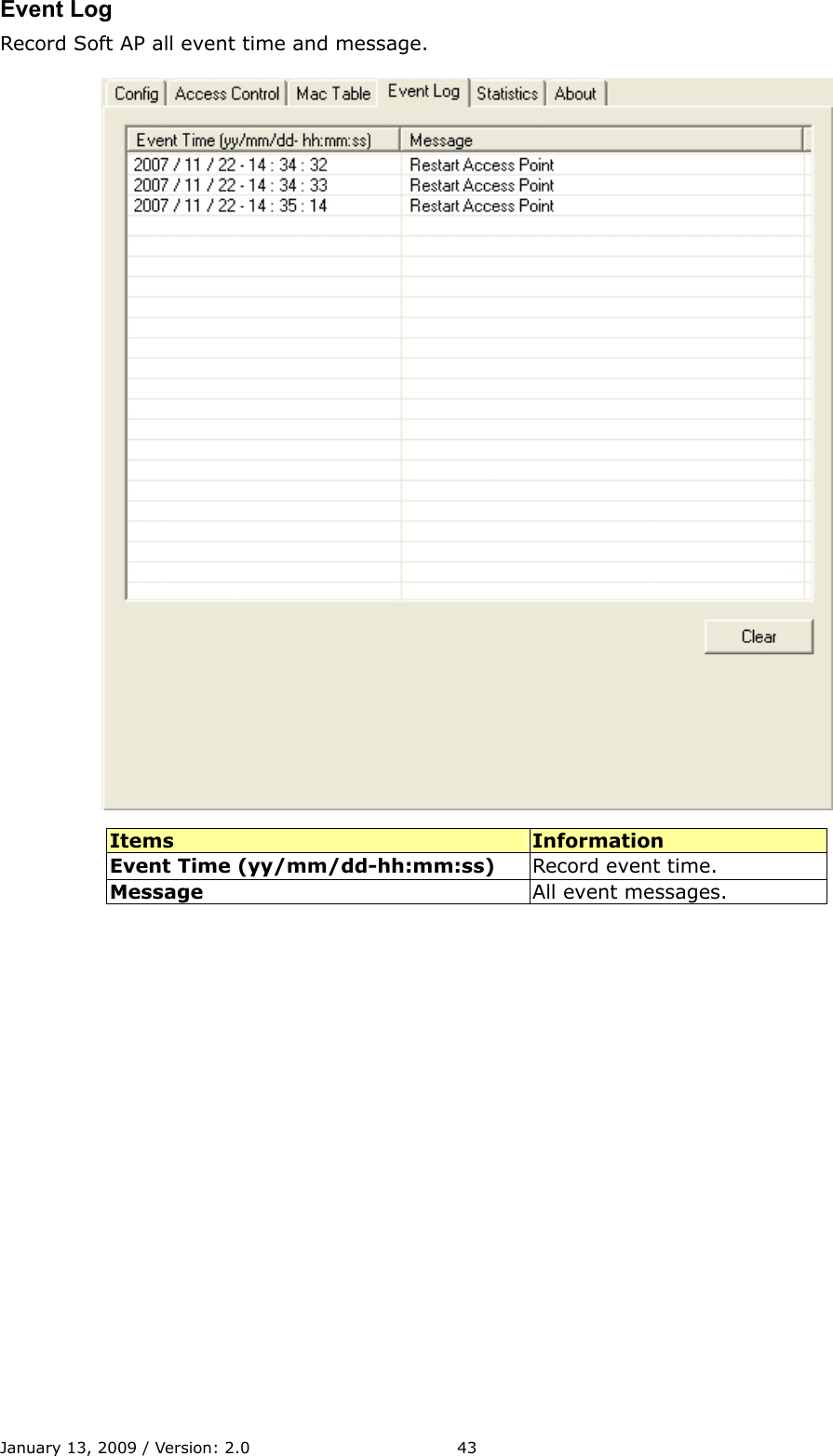

January 13, 2009 / Version: 2.0 43Event Log Record Soft AP all event time and message. Items Information Event Time (yy/mm/dd-hh:mm:ss) Record event time.Message All event messages.

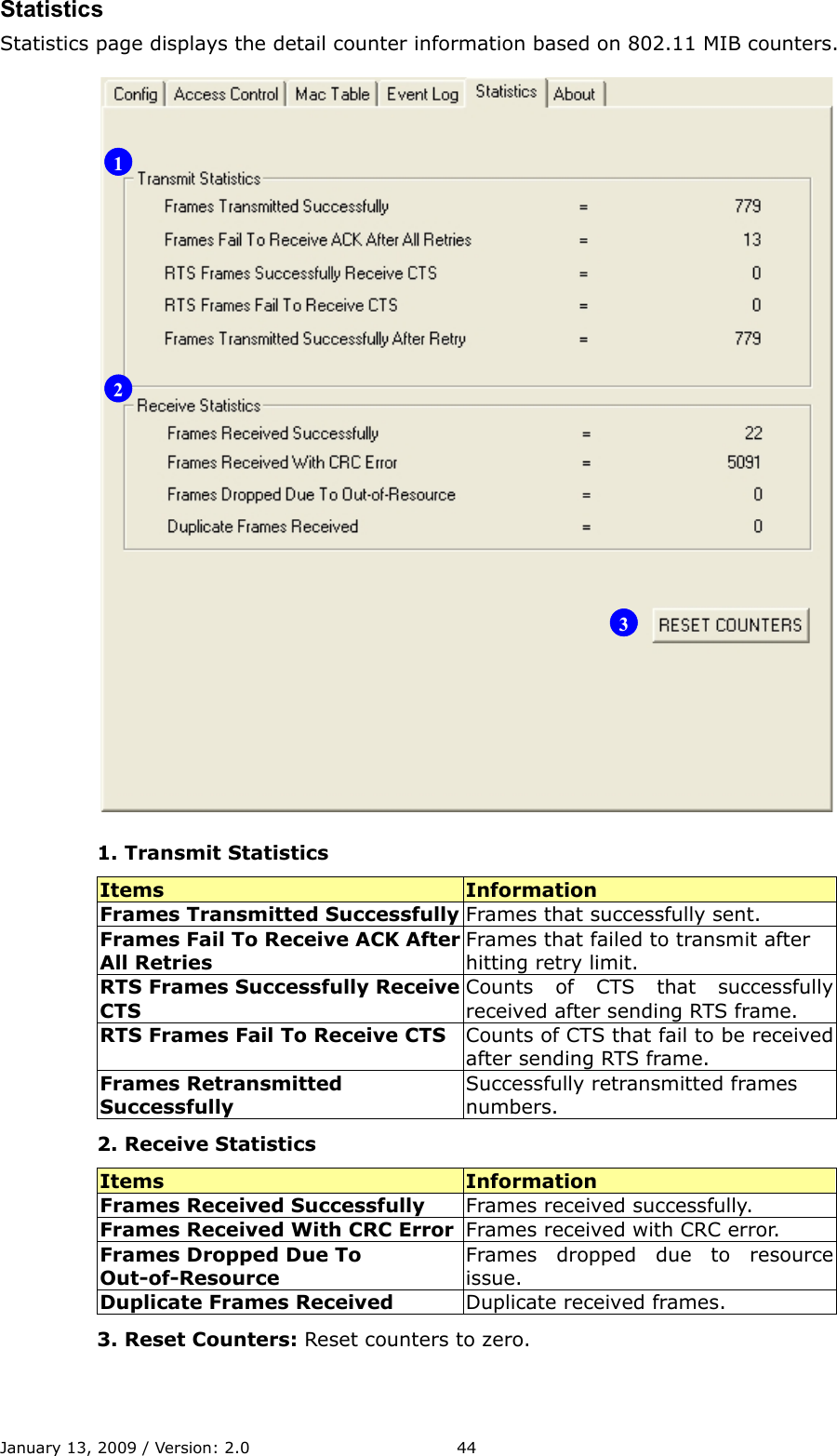

January 13, 2009 / Version: 2.0 44StatisticsStatistics page displays the detail counter information based on 802.11 MIB counters. 1. Transmit StatisticsItems Information Frames Transmitted Successfully Frames that successfully sent.Frames Fail To Receive ACK AfterAll Retries Frames that failed to transmit after hitting retry limit.RTS Frames Successfully ReceiveCTSCounts of CTS that successfullyreceived after sending RTS frame. RTS Frames Fail To Receive CTS Counts of CTS that fail to be receivedafter sending RTS frame. Frames Retransmitted SuccessfullySuccessfully retransmitted frames numbers.2. Receive Statistics Items Information Frames Received Successfully Frames received successfully. Frames Received With CRC Error Frames received with CRC error. Frames Dropped Due To Out-of-Resource Frames dropped due to resourceissue.Duplicate Frames Received Duplicate received frames. 3. Reset Counters: Reset counters to zero. 123
