Alpine Electronics Inc Bluetooth Module Board Installation Manual
Manual
Installation Manual
This module board is to be installed only by the professional line operator and used only for car
audio produced by ALPINE ELECTRONICS, INC.. When this Bluetooth Module Board is
installed in the Car Audio, we shall consider the following points;
1. Since
“96-09386Z98”owns its FCC ID/IC Number, we shall affix an exterior label on the
outside of the product if the FCC ID is not visible. The exterior label shall use wording such
as either ”Contains Transmitter Module Board FCC ID: A269ZUA128 / IC: 700B-09386Z”
or “Contains FCC ID: A269ZUA128 / IC: 700B-09386Z”.
2. “96-09386Z98” complies with requirements of sub-sections 15.19(a)(3) in FCC Rules Part
15 Subpart C. The manual statement 15.19 (a)(3) is included User Guide of the product.
3. “96-09386Z98” is to be installed only by the professional line operator as shown in following
pictures. (Fig 1 and 2)

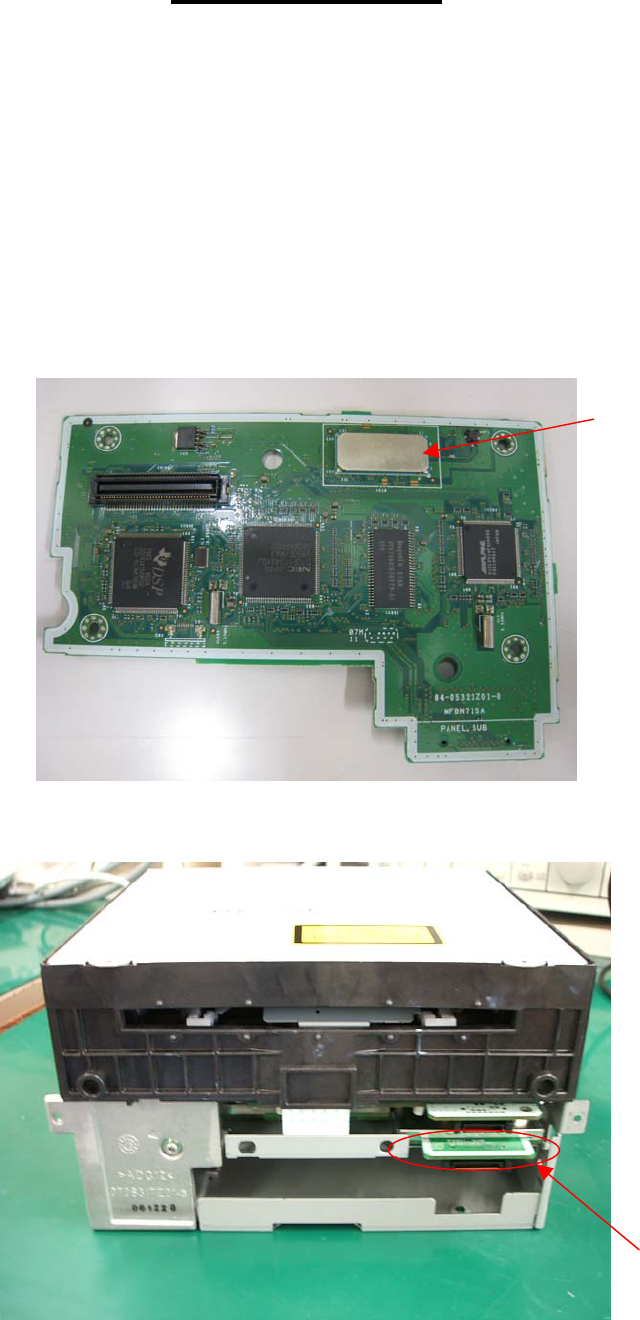

Fig 1. Front side of “96-09386Z98”
Bluetooth
Module
Fig 2. Front view of “96-09386Z98” to be equipped for a Car Audio (example)
Bluetooth Module
Board
There isn’t an official user manual for this Bluetooth Module Board (96-
09386Z98).
However, user manuals of final product, which have Bluetooth module
board, must contain notification corresponding to the following
description.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
(This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules.)
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of this device.
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
This equipment complies with FCC/IC radiation exposure limits set forth for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines
in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure
rules. This equipment has very low levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation (MPE). But it is desirable that it
should be installed and operated with at least 20cm and more between the radiator and
person’s body (excluding extremities: hands, wrists, feet and ankles).
