ALPS ALPINE 9ZUA129 Bluetooth Module User Manual short term confidential Installation Manual

[short term confidential] Installation Manual

Installation Manual

This module is to be installed only by the professional line operator and used only with a Bluetooth Module

for car audio produced by ALPINE ELECTRONICS, INC.. When this Bluetooth Module is installed in

the Car Audio, we shall consider the following points;

1. “PF240009” complies with requirements of sub-sections 15.19(a)(3) in FCC Rules Part 15 Subpart

C. The manual statement 15.19 (a)(3) is included User Guide of the product.

2. “PF240009” is to be installed only by the professional line operator as shown in following pictures.

(Fig1, 2 and 3)

3. If the FCC ID and IC number on the module is not visible externally after setting, there is a need to

display "Contains Transmitter Module FCC ID: A269ZUA129", "Contains Transmitter Module IC:

700B-MCR003" or "Contains FCC ID: A269ZUA129", "Contains IC: 700B-MCR003" on the outside

of device in which this module is implemented.

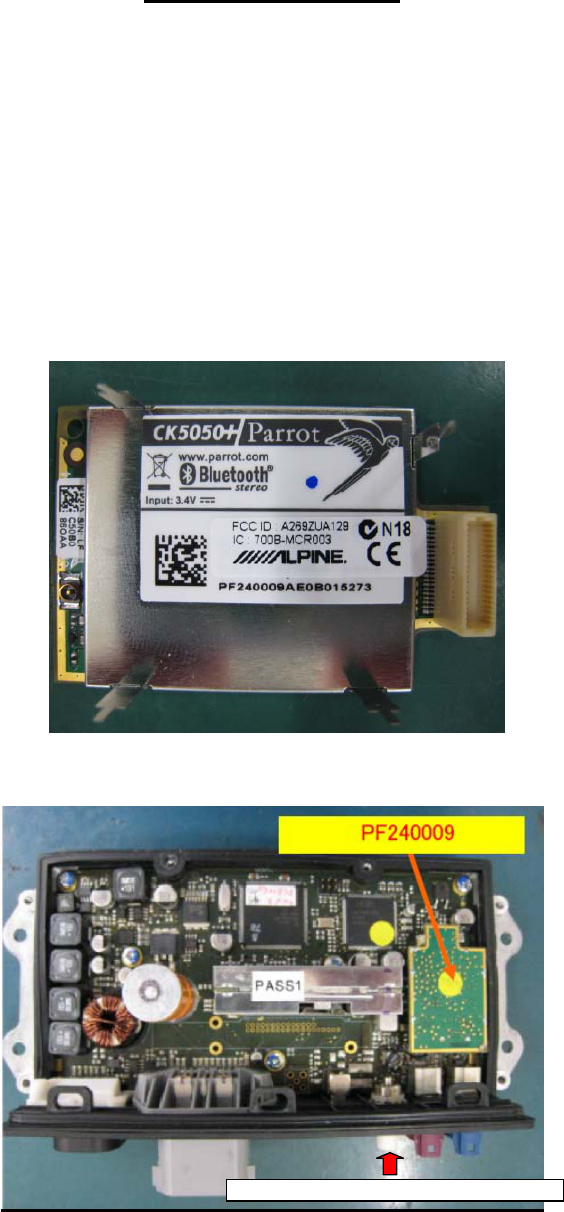

Fig 1. Bottom View of Bluetooth Module “PF240009”

Fig 2. Top View of MAIN PWB that installed Bluetooth Module “PF240009”

External Antenna Connector for Bluetooth

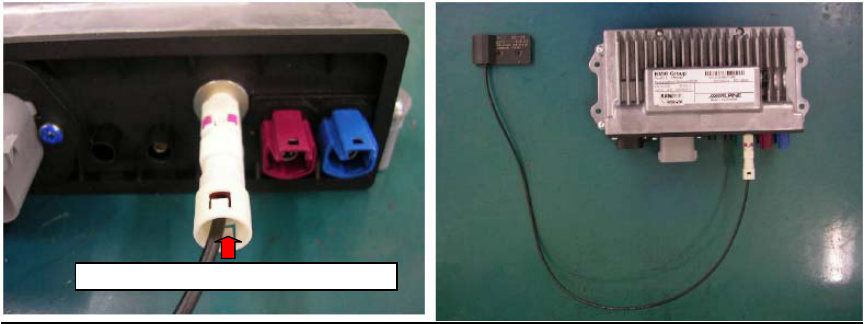

Fig 3. Rear view of MCR that installed “PF240009" (Example)

There isn’t an official user manual for this Bluetooth Module “PF240009”.

However, user manuals of final product, which have the module, must contain

notification corresponding to the following description.

Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

(This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules.)

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference that may

cause undesired operation of this device.

This transmitter must not be co-located or operated in conjunction with any other antenna or

transmitter.

This equipment complies with FCC/IC radiation exposure limits set forth for uncontrolled

environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C

to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has

very low levels of RF energy that it deemed to comply without maximum permissive exposure

evaluation (MPE). But it is desirable that it should be installed and operated with at least

20cm and more between the radiator and person’s body (excluding extremities: hands, wrists,

feet and ankles).

External Antenna Connector for Bluetooth
