ALPS ALPINE UGFZ1 Wireless LAN Module User Manual

Alps Electric Co., Ltd. Wireless LAN Module

User manual

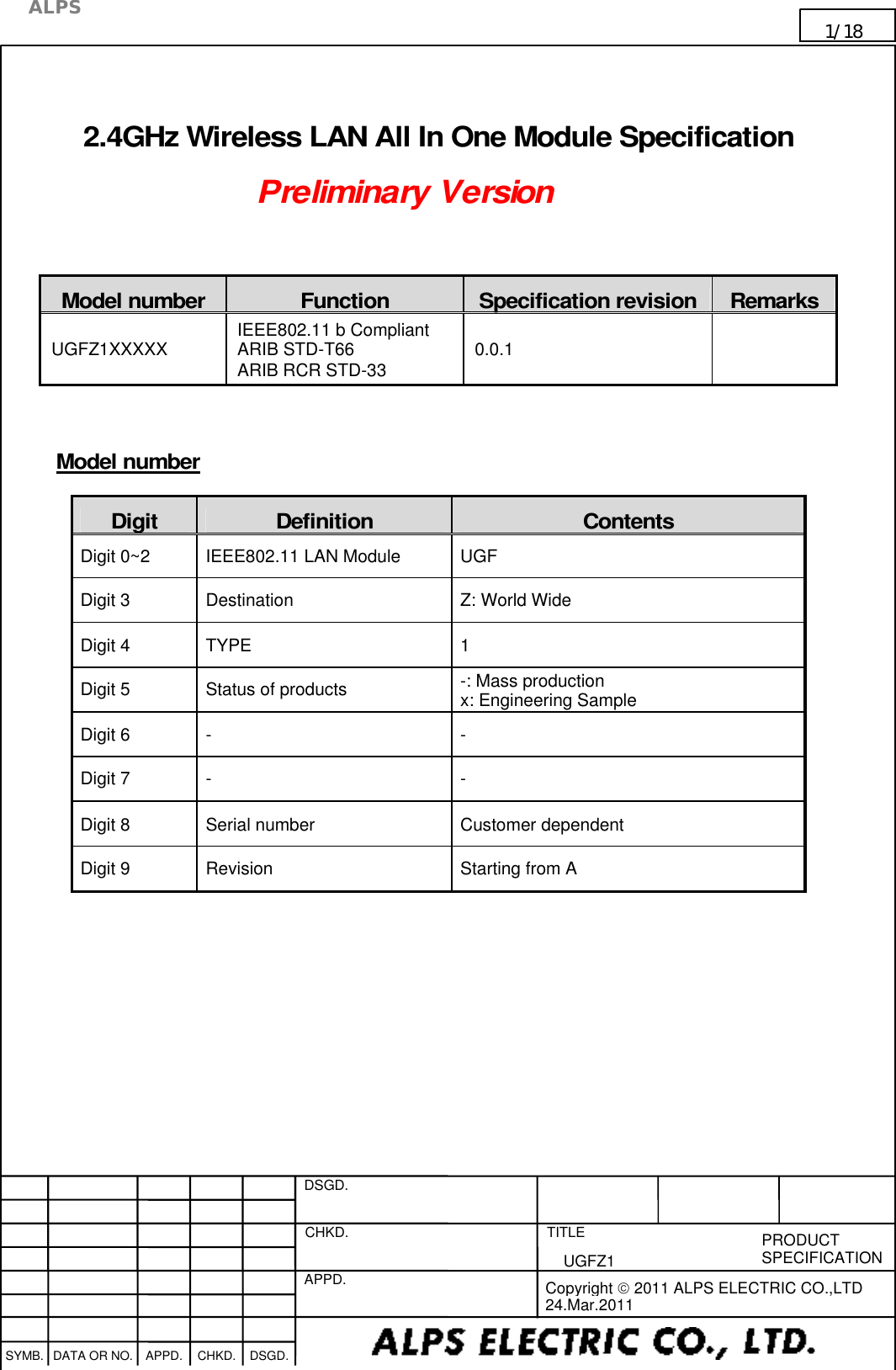

DSGD. CHKD. APPD. TITLE PRODUCT SPECIFICATION SYMB. DATA OR NO. APPD. CHKD. DSGD. Copyright  2011 ALPS ELECTRIC CO.,LTD 24.Mar.2011 ALPS 1/18 UGFZ1 2.4GHz Wireless LAN All In One Module Specification Preliminary Version Model number Function Specification revision Remarks UGFZ1XXXXX IEEE802.11 b Compliant ARIB STD-T66 ARIB RCR STD-33 0.0.1 Model number Digit Definition Contents Digit 0~2 IEEE802.11 LAN Module UGF Digit 3 Destination Z: World Wide Digit 4 TYPE 1 Digit 5 Status of products -: Mass production x: Engineering Sample Digit 6 - - Digit 7 - - Digit 8 Serial number Customer dependent Digit 9 Revision Starting from A
DSGD. CHKD. APPD. TITLE PRODUCT SPECIFICATION SYMB. DATA OR NO. APPD. CHKD. DSGD. Copyright  2011 ALPS ELECTRIC CO.,LTD 24.Mar.2011 ALPS 2/18 UGFZ1 CAUTION :  This product （ or technology ） is subject to the Japanese Foreign Exchange and Foreign Trade law ,and is required to obtain an export license of the Japanese governmental agency , when exported from Japan. 本製品及び技術は、外国為替及び外国貿易管理法に該当しますので、日本から輸出する際は日本政府機関の輸出承認が必要です。  Do not use the product that is dropped in your process. 御社工程にて製品を落下した場合、その製品のご使用はお控えください。  Do not leave and treat the product in a place where it is subjected to strong magnetism or static electricity. 強い磁気、及び静電気がある場所での、取り扱いや保存はお控え下さい。  For the export of products which are controlled items subject to foreign and domestic export laws and regulations, you must obtain approval and/or follow the formalities of such laws and regulations. 国内外の輸出関連法規により規制されている製品の輸出に際しては、同法規を遵守の上、必要な 許可、手続き等をとってください。  Products must not be used for military and/or antisocial purposes such as terrorism, and shall not be supplied to any party intending to use the products for such purposes. 軍事用途又はテロ等の反社会活動目的では、当製品を一切使用しないでください。また、最終的にそれら用途・目的で使用されるおそれがある法人・団体・個人等へも当製品を一切供給しないでください。  Unless provided otherwise, the products have been designed and manufactured for application to equipment and devices which are sold to end-users in the market, such as AV (audio visual) equipment, home electric equipment, office and commercial electronic equipment, information and communication equipment or amusement equipment. The products are not intended for use in, and must not be used for, any application of nuclear equipment, driving control equipment for aerospace or any other unauthorized use. With the exception of the above mentioned banned applications, for applications involving high levels of safety and liability such as medical equipment, burglar alarm equipment, disaster prevention equipment and undersea equipment, please contact an Alps sales representative and/or evaluate the total system on the applicability. Also, implement a fail-safe design, protection circuit, redundant circuit, malfunction protection and/or fire protection into the complete system for safety and reliability of the total system. 当製品は、特に用途を指定していないかぎり、本来、AV、家電、事務機、情報機器、通信機器、アミューズメント機器等の一般電子機器用に設計、製造されたものです。 したがいまして、原子力制御機器宇宙・航空機で運行にかかわる機器等の用途では一切使用しないでください。上記の使用禁止の用途以外で、医療機器、防犯機器、防災機器、海底用機器等の高度の安全性・信頼性を必要とする機器でのご使用の際は、弊社営業担当迄ご相談いただくか、またはセットでの十分な適合性の確認を行っていただいた上で、フェールセーフ設計、保護回路、冗長回路、誤動作防止設計、延焼対策設計等のセットでの安全対策設計を設けてください。  Before using products which were not specifically designed for use in automotive applications, please contact an Alps sales representative. 車載対応製品以外の製品を車載用にご使用される場合は、事前に弊社へご相談ください。

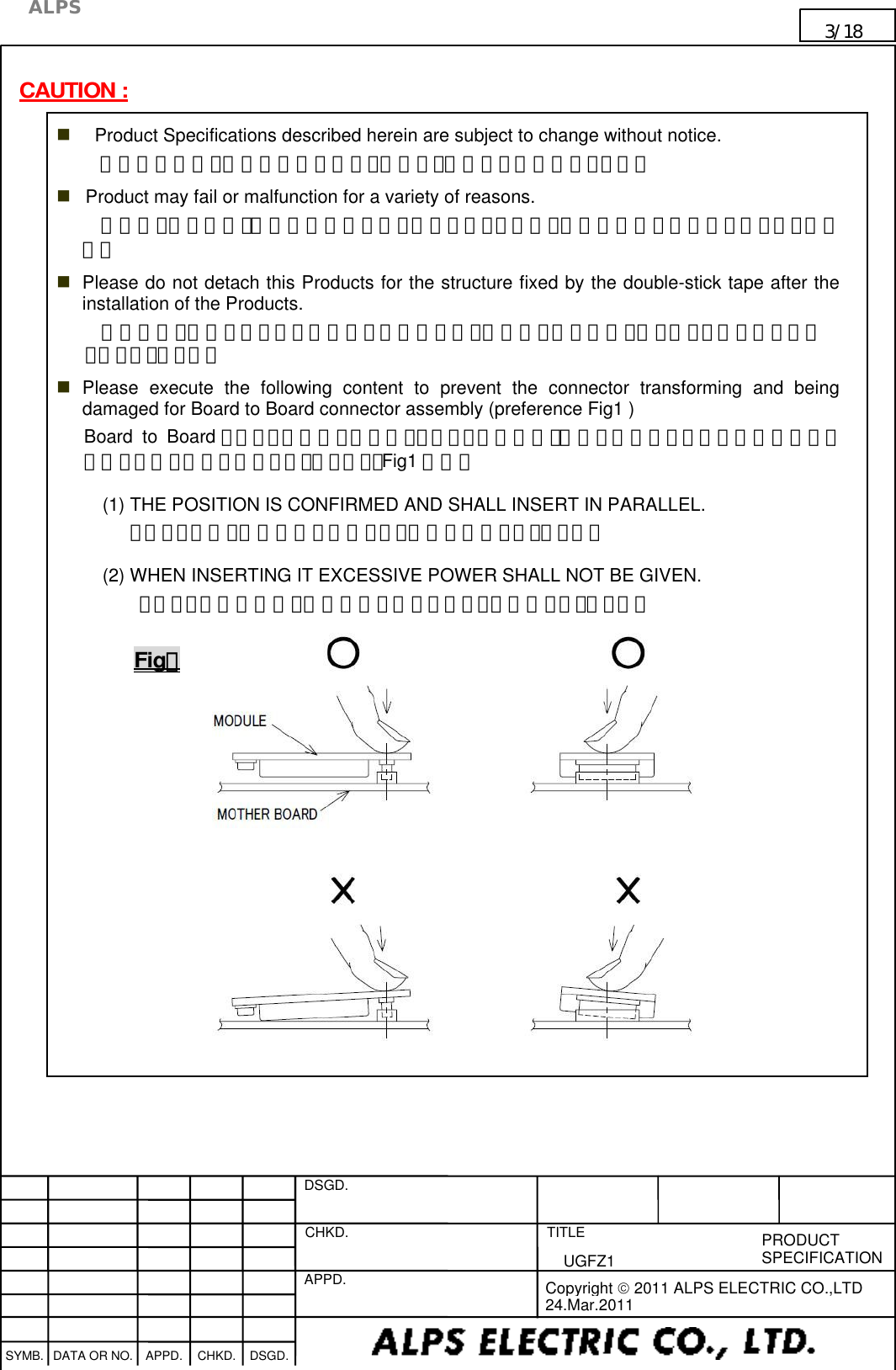

DSGD. CHKD. APPD. TITLE PRODUCT SPECIFICATION SYMB. DATA OR NO. APPD. CHKD. DSGD. Copyright  2011 ALPS ELECTRIC CO.,LTD 24.Mar.2011 ALPS 3/18 UGFZ1 CAUTION :  Product Specifications described herein are subject to change without notice. 本製品仕様は、製品の改良に伴い、予告なく変更する場合があります。  Product may fail or malfunction for a variety of reasons. 弊社は、常に品質・信頼性の向上に取り組んでおりますが、種々の要因で故障する事もあり得ます。  Please do not detach this Products for the structure fixed by the double-stick tape after the installation of the Products. 本製品は、両面テープにて固定する構造のため、製品取り付け後は、取り外しを行なわないようにしてください。  Please execute the following content to prevent the connector transforming and being damaged for Board to Board connector assembly (preference Fig1 ) Board to Boardコネクターの取り付けは、コネクターの変形・破損を防止するために下記内容にしたがって取り付けを行なってください。（Fig1参照） (1) THE POSITION IS CONFIRMED AND SHALL INSERT IN PARALLEL. コネクターは、挿入位置を確認して、平行に挿入してください。 (2) WHEN INSERTING IT EXCESSIVE POWER SHALL NOT BE GIVEN. コネクター挿入時は、過度の力を加えないように注意してください。 Fig１

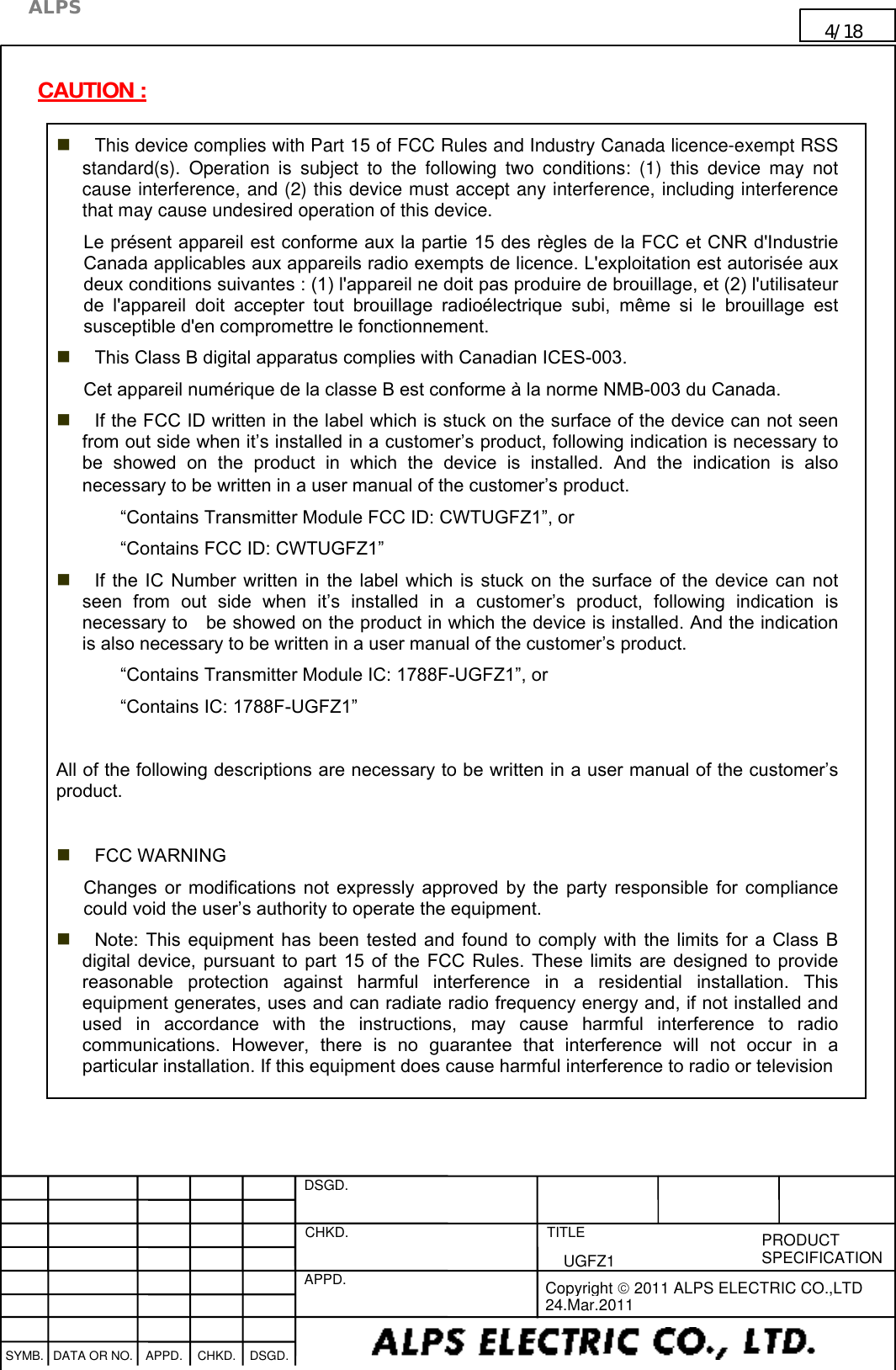

DSGD. CHKD. APPD. TITLE PRODUCT SPECIFICATION SYMB. DATA OR NO. APPD. CHKD. DSGD. Copyright  2011 ALPS ELECTRIC CO.,LTD 24.Mar.2011 ALPS 4/18 UGFZ1 CAUTION :  This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.  This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.  If the FCC ID written in the label which is stuck on the surface of the device can not seen from out side when it’s installed in a customer’s product, following indication is necessary to be showed on the product in which the device is installed. And the indication is also necessary to be written in a user manual of the customer’s product. “Contains Transmitter Module FCC ID: CWTUGFZ1”, or “Contains FCC ID: CWTUGFZ1”  If the IC Number written in the label which is stuck on the surface of the device can not seen from out side when it’s installed in a customer’s product, following indication is necessary to be showed on the product in which the device is installed. And the indication is also necessary to be written in a user manual of the customer’s product. “Contains Transmitter Module IC: 1788F-UGFZ1”, or “Contains IC: 1788F-UGFZ1” All of the following descriptions are necessary to be written in a user manual of the customer’s product.  FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.  Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

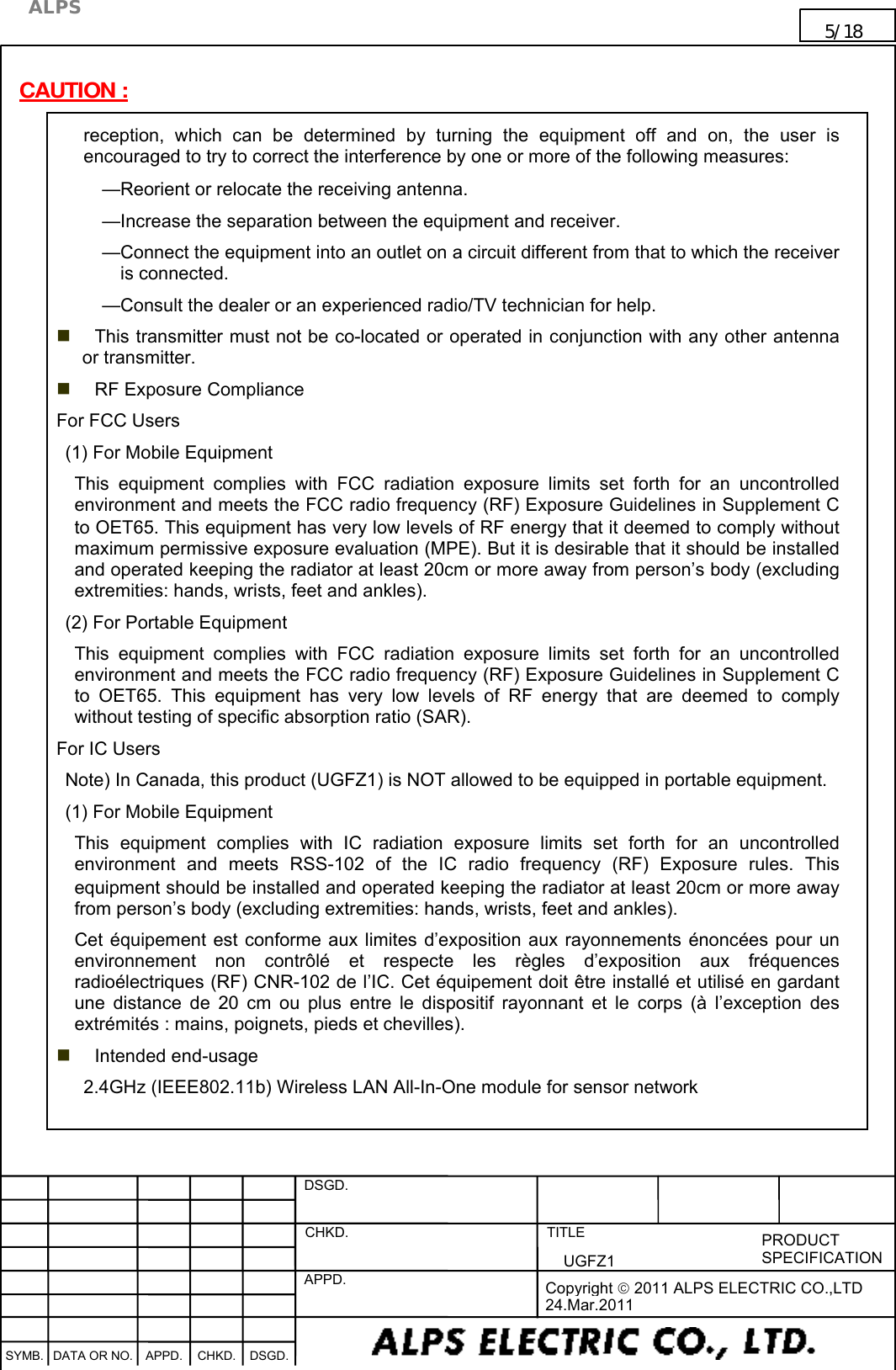

DSGD. CHKD. APPD. TITLE PRODUCT SPECIFICATION SYMB. DATA OR NO. APPD. CHKD. DSGD. Copyright  2011 ALPS ELECTRIC CO.,LTD 24.Mar.2011 ALPS 5/18 UGFZ1 CAUTION : reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.  This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.  RF Exposure Compliance For FCC Users (1) For Mobile Equipment This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). (2) For Portable Equipment This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). For IC Users Note) In Canada, this product (UGFZ1) is NOT allowed to be equipped in portable equipment. (1) For Mobile Equipment This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles).  Intended end-usage 2.4GHz (IEEE802.11b) Wireless LAN All-In-One module for sensor network
