ALPS ALPINE WD1U827 UNIT ASSY IMMOBI & KEYLESS User Manual
Alps Electric Co., Ltd. UNIT ASSY IMMOBI & KEYLESS Users Manual

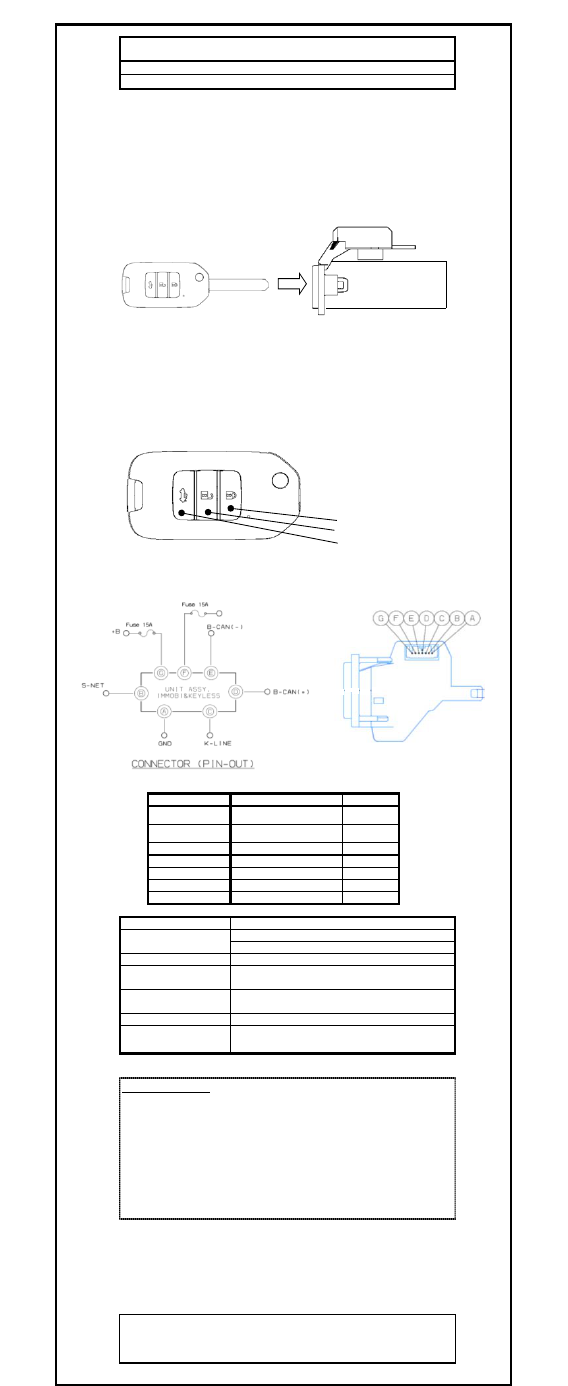

(Short Confidential)Users Manual(TWD1U827)
Immobilizer Function
Ke
y
less Function
LOCK Button
UNLOCK Button
Trunk Button
The connector is arran
g
ed as shown in the fi
g
ure below.
Terminal No. I/O
A-
B I/O
C I/O
D I/O
E I/O
F-
G-
■CAUTION■
MAX 2mA(@12.5V 25℃) at standb
y
Weight
Consumption current
spec MAX 230mA(@12.5V 25℃) at operation
User's Manual
GND
S-NET
K-LINE
This unit is installed in vehicle. It performs communication with keyless unit by
LF, processes RF signal from keyless unit, and performs actions according to
the signal.
Unit Assy Immobi&Keyless communicates with the transponder in the
hand unit when the user inserts the hand unit in the key cylinder, and it
rotates
Product name : UNIT ASSY IMMOBI &KEYLESS
Type : TWD1U827
Terminal Name
When the user pushes LOCK, UNLOCK, and the TRUNK button of HAND
UNIT, the RF electric wave is output, and IMMOBI UNIT receives it, and
an open lock, the close lock of the door, and the signal of the trunk
o
p
enin
g
are out
p
ut.
W69xL90.8xH77.2（mm）
FCC CAUTION
B-CAN(-)
B-CAN(+)
IGN
Operating voltage
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Size
・Give a shock.
・Get it wet. If it got wet, wipe and dry up.
・Disassembly and modification.
Operation of frequency
Please DO NOT the following. Engine is not started by failure of
electronic parts. (Product can not receive the signal correctly)
Pay attention to the following.
・It may not be operated when using the equipment of the same
frequency band in the vicinity.
Keyless DC9～16V
Immobilizer DC6～16V
+B
AC/DC Supply DC12V
This device complies with Part 15 of FCC Rules and Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause
undesired operation of this device.
0.075kg
Operating temperature
range
-40~＋85 degree C
RF : 313.85MHz
LF: 125kHz
HUND UNIT UNIT ASSY IMMOBI&KEYLESS
IG1
