ALPS ALPINE WDU633 Vehicle Entry System Transmitter User Manual 664167

Alps Electric Co., Ltd. Vehicle Entry System Transmitter 664167

User Manual

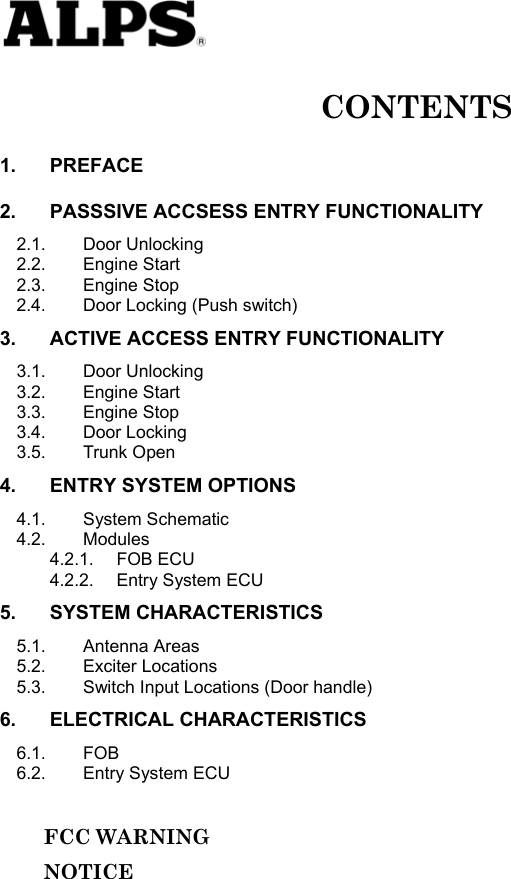

CONTENTS 1. PREFACE 2. PASSSIVE ACCSESS ENTRY FUNCTIONALITY 2.1. Door Unlocking 2.2. Engine Start 2.3. Engine Stop 2.4. Door Locking (Push switch) 3. ACTIVE ACCESS ENTRY FUNCTIONALITY 3.1. Door Unlocking 3.2. Engine Start 3.3. Engine Stop 3.4. Door Locking 3.5. Trunk Open 4. ENTRY SYSTEM OPTIONS 4.1. System Schematic 4.2. Modules 4.2.1. FOB ECU 4.2.2. Entry System ECU 5. SYSTEM CHARACTERISTICS 5.1. Antenna Areas 5.2. Exciter Locations 5.3. Switch Input Locations (Door handle) 6. ELECTRICAL CHARACTERISTICS 6.1. FOB 6.2. Entry System ECU FCC WARNING NOTICE

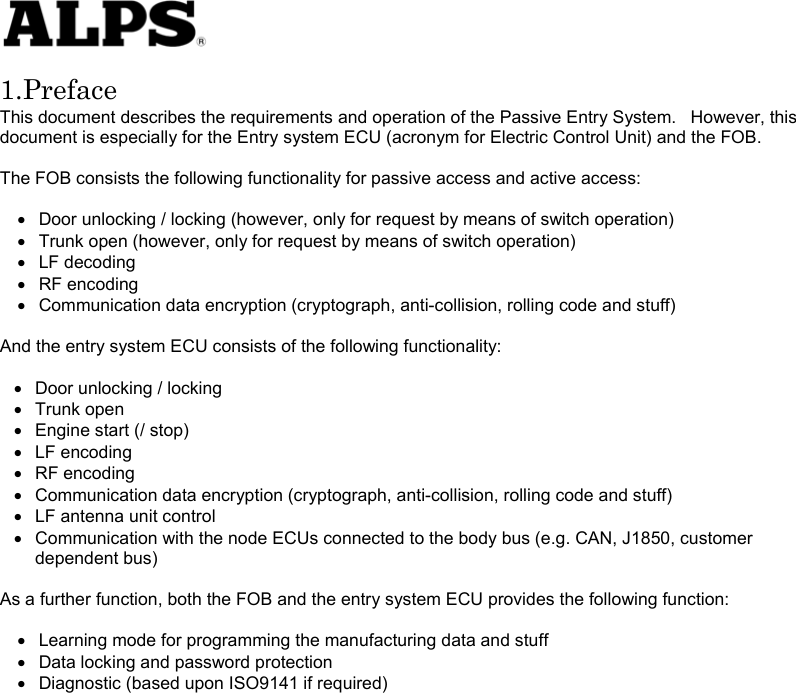

1.Preface This document describes the requirements and operation of the Passive Entry System. However, this document is especially for the Entry system ECU (acronym for Electric Control Unit) and the FOB. The FOB consists the following functionality for passive access and active access: • Door unlocking / locking (however, only for request by means of switch operation) • Trunk open (however, only for request by means of switch operation) • LF decoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) And the entry system ECU consists of the following functionality: • Door unlocking / locking • Trunk open • Engine start (/ stop) • LF encoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) • LF antenna unit control • Communication with the node ECUs connected to the body bus (e.g. CAN, J1850, customer dependent bus) As a further function, both the FOB and the entry system ECU provides the following function: • Learning mode for programming the manufacturing data and stuff • Data locking and password protection • Diagnostic (based upon ISO9141 if required)

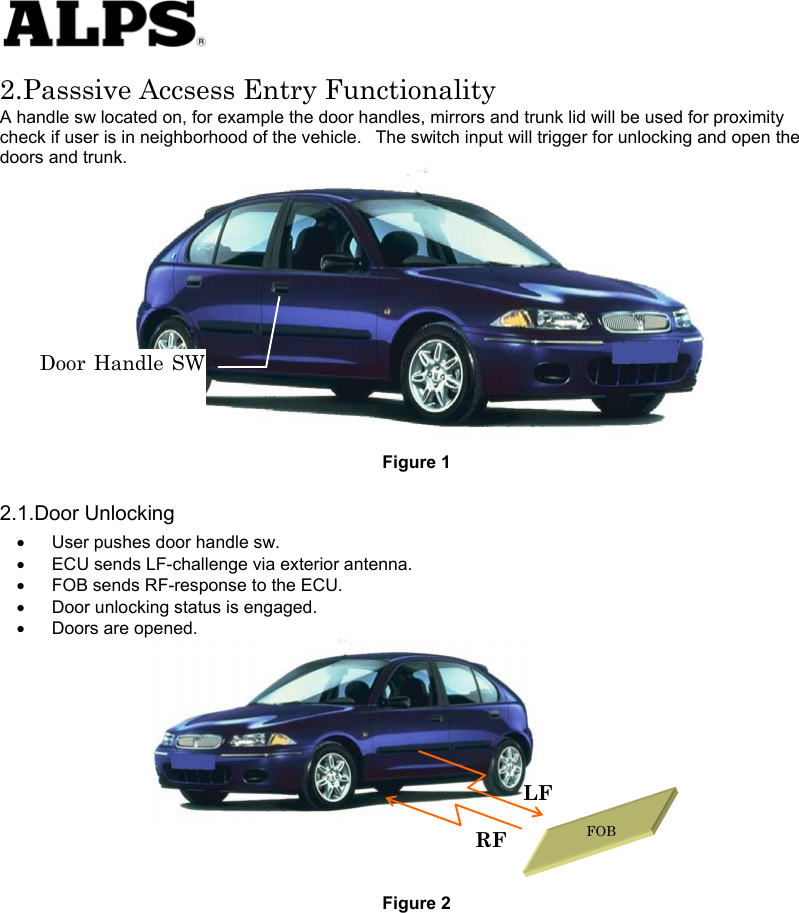

2.Passsive Accsess Entry Functionality A handle sw located on, for example the door handles, mirrors and trunk lid will be used for proximity check if user is in neighborhood of the vehicle. The switch input will trigger for unlocking and open the doors and trunk. Figure 1 2.1.Door Unlocking • User pushes door handle sw. • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door unlocking status is engaged. • Doors are opened. Figure 2 Door Handle SWLF RF FOB

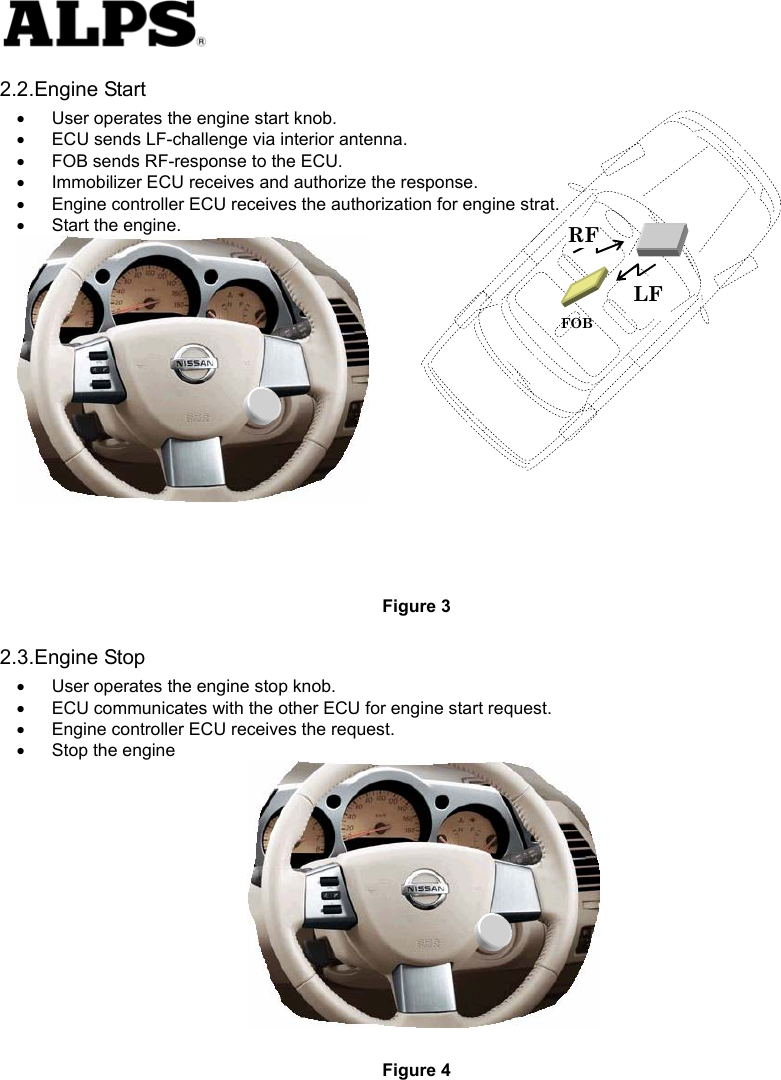

2.2.Engine Start • User operates the engine start knob. • ECU sends LF-challenge via interior antenna. • FOB sends RF-response to the ECU. • Immobilizer ECU receives and authorize the response. • Engine controller ECU receives the authorization for engine strat. • Start the engine. Figure 3 2.3.Engine Stop • User operates the engine stop knob. • ECU communicates with the other ECU for engine start request. • Engine controller ECU receives the request. • Stop the engine Figure 4 LF RFFOB

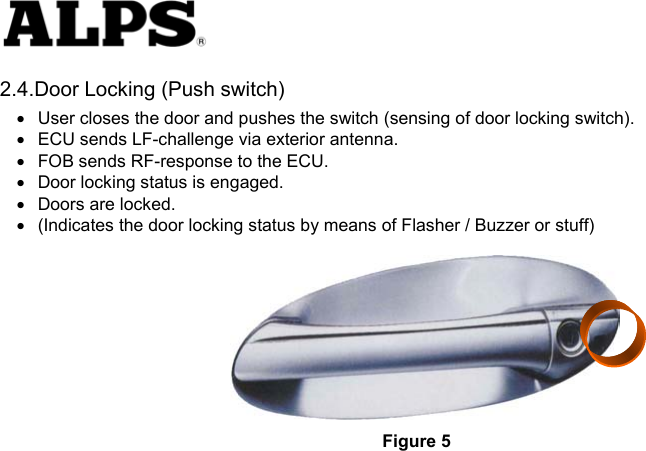

2.4.Door Locking (Push switch) • User closes the door and pushes the switch (sensing of door locking switch). • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door locking status is engaged. • Doors are locked. • (Indicates the door locking status by means of Flasher / Buzzer or stuff) Figure 5

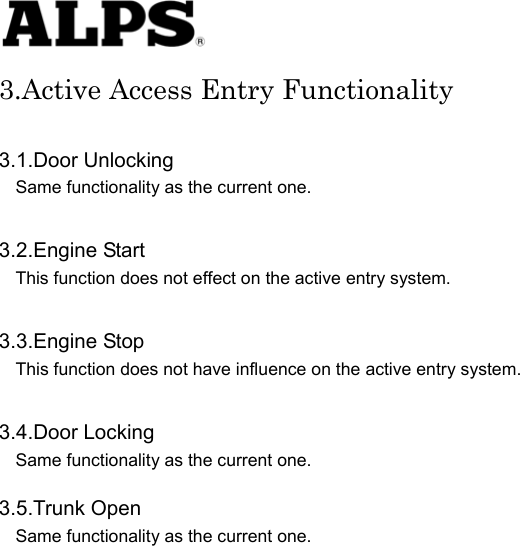

3.Active Access Entry Functionality 3.1.Door Unlocking Same functionality as the current one. 3.2.Engine Start This function does not effect on the active entry system. 3.3.Engine Stop This function does not have influence on the active entry system. 3.4.Door Locking Same functionality as the current one. 3.5.Trunk Open Same functionality as the current one.

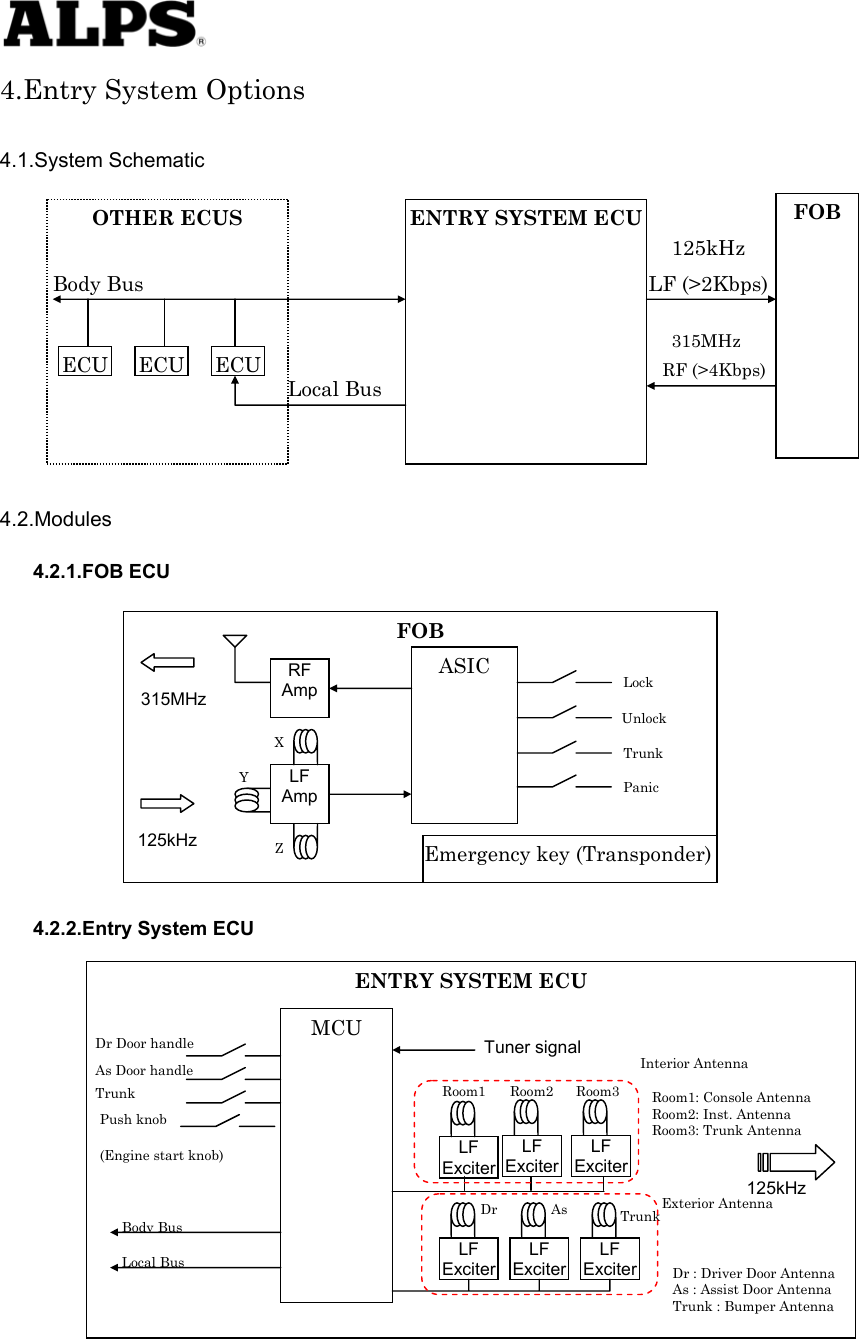

4.Entry System Options 4.1.System Schematic 4.2.Modules 4.2.1.FOB ECU 4.2.2.Entry System ECU OTHER ECUS LF (>2Kbps) Local Bus ECUECUECUBody Bus ENTRY SYSTEM ECU FOB 125kHz RF (>4Kbps) 315MHz FOB RF Amp LF Amp ASIC Z X Y Lock Unlock Trunk Emergency key (Transponder) 125kHz 315MHz ENTRY SYSTEM ECU MCU Dr Door handle As Door handle Trunk Push knob (Engine start knob) Body Bus Local Bus LF ExciterLF ExciterLF ExciterLF ExciterRoom1 Dr As Trunk 125kHz Dr : Driver Door Antenna As : Assist Door Antenna Trunk : Bumper Antenna Exterior Antenna Room1: Console Antenna Room2: Inst. Antenna Room3: Trunk Antenna Interior Antenna LF ExciterLF ExciterRoom2 Room3 Tuner signal Panic

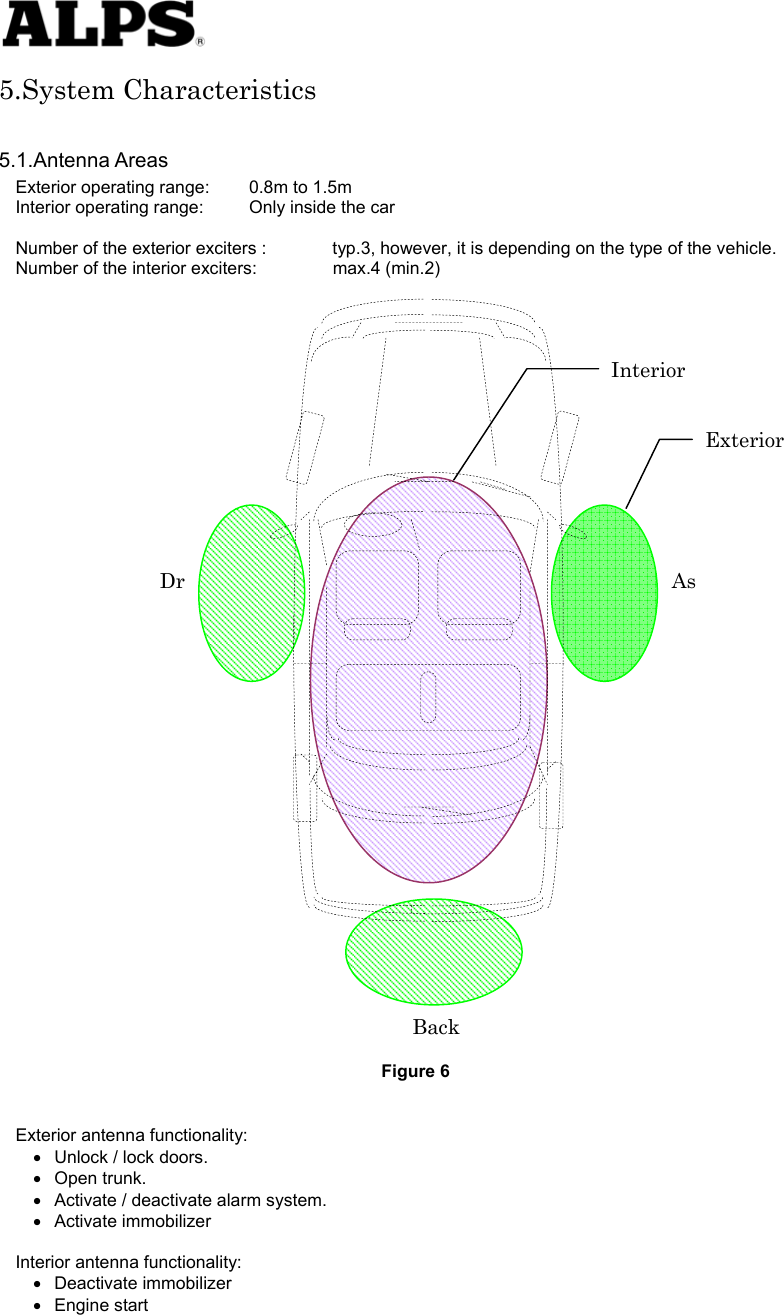

5.System Characteristics 5.1.Antenna Areas Exterior operating range: 0.8m to 1.5m Interior operating range: Only inside the car Number of the exterior exciters : typ.3, however, it is depending on the type of the vehicle. Number of the interior exciters: max.4 (min.2) Figure 6 Exterior antenna functionality: • Unlock / lock doors. • Open trunk. • Activate / deactivate alarm system. • Activate immobilizer Interior antenna functionality: • Deactivate immobilizer • Engine start Exterior Interior Dr As Back
5.2.Exciter Locations Exterior exciters: 3 doors Interior exciters: 1 Center Console 2 Inst panel 3 Trunk Figure 7 Antenna location can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). Exterior Interior Dr As Bumper

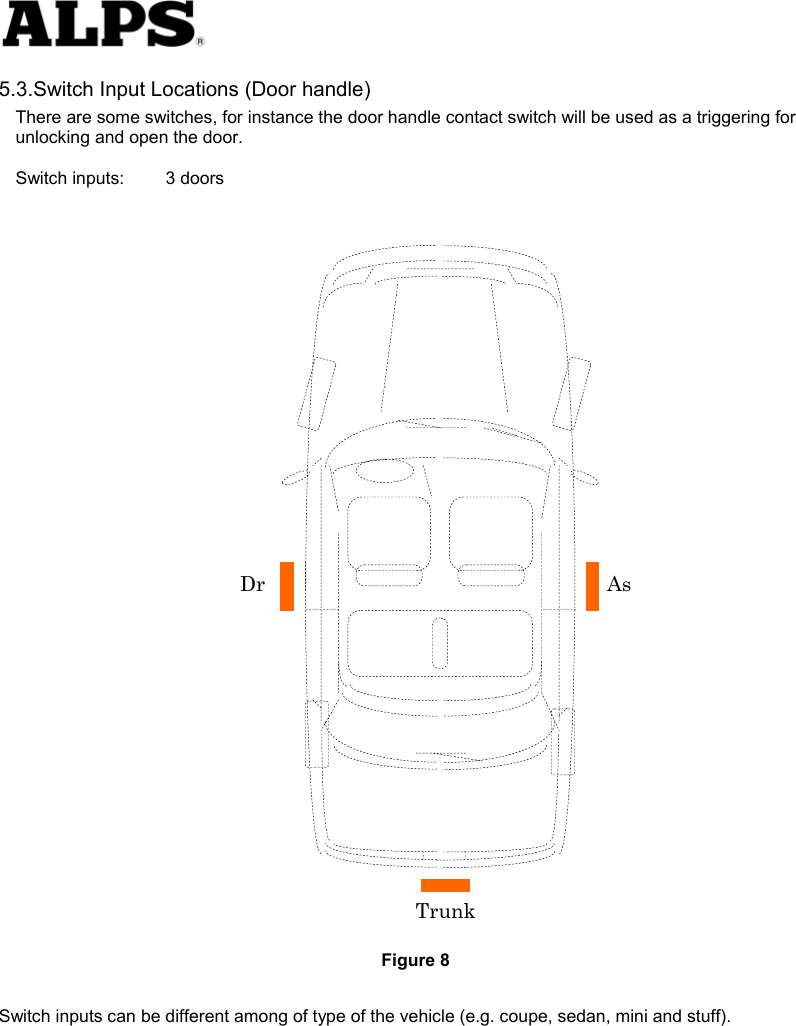

5.3.Switch Input Locations (Door handle) There are some switches, for instance the door handle contact switch will be used as a triggering for unlocking and open the door. Switch inputs: 3 doors Figure 8 Switch inputs can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). Dr As Trunk

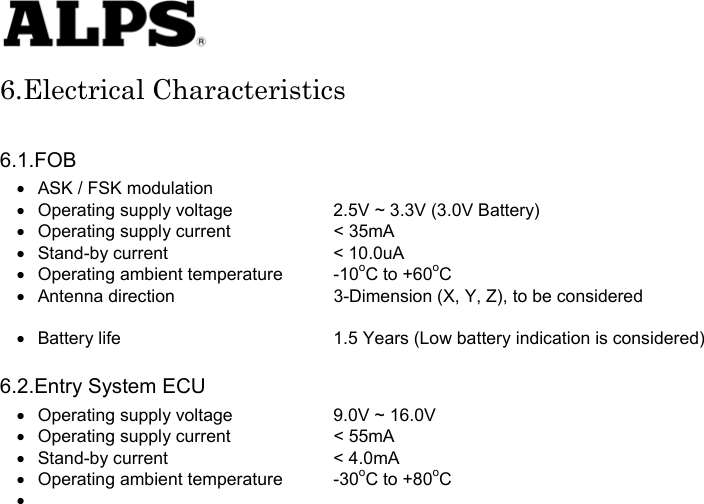

6.Electrical Characteristics 6.1.FOB • ASK / FSK modulation • Operating supply voltage 2.5V ~ 3.3V (3.0V Battery) • Operating supply current < 35mA • Stand-by current < 10.0uA • Operating ambient temperature -10oC to +60oC • Antenna direction 3-Dimension (X, Y, Z), to be considered • Battery life 1.5 Years (Low battery indication is considered) 6.2.Entry System ECU • Operating supply voltage 9.0V ~ 16.0V • Operating supply current < 55mA • Stand-by current < 4.0mA • Operating ambient temperature -30oC to +80oC •

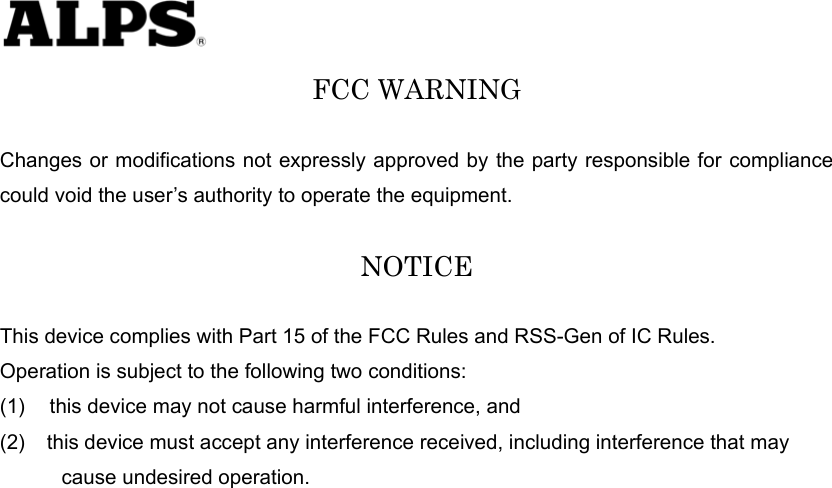

FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
