AMOI Electronics A320A Tri Band GSM Mobile Phone User Manual rev
AMOI Electronics Co., Ltd. Tri Band GSM Mobile Phone rev
Manual
-1-
Thank you very much for choosing AMOI A320a, the fashionable and
elegant camera phone. A320a is a perfect integration of unparalleled
contemporary design and consummate precise craftsmanship, bringing
you easy communication, funny entertainment, as well as highlighting
your tastes.
Key Features:
Compatible with Most Standard GSM Networks
GPRS Class 10, WAP 2.0
AMOI Smart Dial
SMS (Short Message Service)
MMS (Multimedia Messaging Service)
Downloadable 40-Polyphonic Ring Tones
Phonebook Memory: 300 V-card Entries
Built-in 300K pixels CMOS Video Camera
Built-in Amusing Games
Toolbox (Alarm Clock, Record, Unit Conversion, World Time,
Calendar, Calculator)
- 1 -
Specifications:
GSM/GPRS: 850 /1900 MHz
Dimension: 104 x 43.6 x 17 mm; 4.09 x 1.72 x 0.67 inch
Screen: 128 x 160 pixels, 1.8 inch, 65k colors CSTN display
Weight: 80g; 2.83oz
Battery Capacity: 750 mAh
Standby Time: 70-120 hrs
Talk Time: 2-4 hrs
Voice Encoding: FR / EFR / HR
The manufacturer may, at any time and without notice, make changes or
improvements to the products offered, but provide necessary corrigendum with this
manual or release new version of this manual for the following lot. The Amoi logo
and trademark are the property of the manufacturer. Sep. 2005
- 2 -
INTELLECTUAL PROPERTY
All Intellectual Property, as defined below, owned by or which is
otherwise the property of AMOI or its respective suppliers relating to
the AMOI mobile phones, including but not limited to, accessories,
parts, or software relating thereto (the “Phone System”), is proprietary
to AMOI and protected under federal laws, state laws, and
international treaty provisions. Intellectual Property includes, but is
not limited to, inventions (patentable or unpatentable), patents, trade
secrets, copyrights, software, computer programs, and related
documentation and other works of authorship. You could not infringe
on it, otherwise you may violate the rights secured by the Intellectual
Property. Moreover, you must agree that you will not (and will not
attempt to) modify, prepare derivative works, recompile, disassemble,
or attempt to create source code from the software. No title or
ownership in the Intellectual Property is transferred to you. All
applicable rights of the Intellectual Property shall remain with AMOI
and its suppliers.
- 3 -
TABLE OF CONTENTS
Safety Precautions ......................................…........................ 7
Unpacking ................................................….......................….9
Your Phone ...........................………........…….........…...... 11
Phone’s Layout ............................……………..................... 11
Keys Description ……...…...……………………………….13
Display .........................................………………................. 14
Getting Started ......................................………………...... 16
Installing a SIM Card ......................................…………….. 16
Charging a Battery ........................………………................ 18
Switching the Phone On/Off ..............………………........... 22
Your Phone’s Mode......................…………….………….... 23
Call Functions ..............................……………………....... 24
Making Calls .................................................…………….... 24
Receiving / Rejecting Calls .................……………............. 25
Volume Adjusting…..........................……………................ 27
Missed Calls ..................................………………............... 26
Call Menu…………...……………....................................... 27
Entering Text ........................................…………….......... 30
Changing Text Input Mode ..............……….…………........ 30
Insert Symbol .......................................………………......... 31
Insert Template………………………..…………………….33
Insert Phone No……………………..………………………33
Dictionary .................................................……………….... 34
eZi Eng……………..............……..……………................... 31
- 4 -
Abc................................………………………..................... 32
123………………….....................……………................. 33
Phonebook ........................................................................... 35
Smart Dial…………………….…………….…………...... 35
Search……..………………………………………………...35
New…………………………………………………………35
Number Group………………………………………………35
Calls…………………………………………………………35
Speed Dial…………………………………………………35
Phbook Manager.......................…….……………................ 35
Country/Area Code……..…………………...………………36
Entertainment ..............................…................................... 70
Push Box…………………………………………………….71
Gobang…..…………………………………………………..70
Tetris………………..……………………………………….71
Messages ................................…………….......................... 48
SMS .......................................................…………….…...... 48
MMS………………………………………………………..51
Voice Mail…………...…………………………………….51
Cell Broadcast ..............................................……………..... 51
Memory……………………………………………………51
Settings ..................................................……………........... 51
Personality..................................………………….............. 52
Music Select……...………………….……………............... 52
Alert Type……………………………....…………….......... 52
Ring Volume………………………………………………53
- 5 -
Standby Interface……………………………………………53
Menu Style…………………………………………………53
Power On/Off Display………………………………………54
Multimedia…........................................................................53
Recorder…...….………………...................……...................53
Camera………………………………………………………53
PhBook……………………………………………………...54
Download Resource…….……………..…….........................54
User Custom 1………………………………………………55
User Custom 2………………………………………………55
View………………………………....………………………56
Camera……………………………………………………...71
Take Photo…………………………………………………..71
Video Recording…………………………………………….72
Browse Photos………………………………………………72
Play Video…………………………………………………...73
Toolbox ...............…….………………................................ 63
Alarm………………………………………………………..63
Record……….………………………………………………63
Calendar...................................……………........................64
Unit Conversion……………………………………………64
World Time ...............................................………………..65
Calculator…………………………………………………..66
Data Service...........................................................................67
Browser…………………………………………………...…67
PC Sync…………………………………………………..…68
- 6 -
Settings…………………………………………………....... 68
Settings .......................................………….......................... 55
Time…………………………………………………………55
Mobile……………………...............……………................. 55
Call………………………….......……………...................... 57
Network…………………..........……………………........... 59
Security Info………………………………………..……….70
Reference Information .......……….…………................... 71
Access Codes ....…………………….................................... 71
Using the Battery ..………………...…................................. 73
Care and Maintenance .......................................................... 75
Glossary ................….……….…………............................. 77
TroubleShooting ...…………….......................................... 84
FCC Interference Statement................................................... 92
- 7 -
SAFETY PRECAUTIONS
Read these brief guidelines. Failure to comply with them
may be dangerous or illegal.
Road safety comes first
Do not use a hand-held mobile phone while driving;
park the vehicle first. Remember that in some countries,
it is illegal to use a mobile phone while driving.
Switch off on aircraft
Mobile phones can cause interference. Using them on
aircraft is both illegal and dangerous. (Please also close
the power-off alarm clock.)
Switch off near an explosion place
Do not use the phone near an explosion place, because
it likely disturbs the remote control of the explosion.
Switch off when refueling
Do not use the phone at a refueling point (service
station) or near fuels or chemicals.
- 8 -
Switch off in hospital
Follow any regulations or rules. Switch phone off near
medical equipment.
Interference
All wireless phones may be subject to radio interference,
which may affect their performance.
Accessories and batteries
Use only approved accessories and batteries.
Use sensibly
Use only in the normal position (to ear). Do not touch
the antenna unnecessarily when the phone is switched
on. Your package contains the following items.
Emergency Call ( SOS)
By pressing the soft key SOS you can reach an emergency
call on any network without a SIM card and without
entering a pin ( not available in all countries )
- 9 -
UNPACKING
Your package contains the following items.
Handset Battery
Travel Charger User’s Manual
Earphone
- 10 -
YOUR PHONE
Phone’s Layout
The following illustrations show the main elements of your phone.
Open View
Earpiece
Main Display
Left Soft Key
Send Key
Right Soft Key
Power On/ Off Key
Navigation/ Hot Key
Alphanumeric Keys
*,# Special Function Keys
- 11 -
Side View
Rear View
Down Key
Up Key
Earphone Jack
Side Camera Key
Camera
Self –portrait Mirror
- 12 -
Keys Description
Key Description
Two soft keys perform the functions indicated by the text above
them (in the bottom line of the display).
Navigation Keys: In the menu facility, scroll through the menu
Options and Phonebook memory. In Standby mode, the ▲
key to enter Entertainment, the ▼ key to view the phonebook
entries, the e key to enter the Call Lists and the f key to
enter Messages. In standby mode, press down the center of the
key to enter the WAP Internet directly.
Send Key (Call Key): Makes or answers a call. In Standby
mode, recalls the last number dialed. In eZi editing interface,
press the key to switch among the different input modes.
Power On/ Off Key: Ends a call; hold it to switch the phone
on/off. In the menu facility, returns to the Standby mode or
cancels your input.
# Key: Hold the # key to lock your keyboard;
* Key: Hold the * key to switch between the silent and
typical mode.
Up & Down Keys (On the side of the phone): During a
call, adjusts the voice volume. In Standby mode, adjusts the
key tone volume.
- 13 -
Display
The display consists of three areas.
Areas Description
First area Displays various icons
Middle
area
Displays phone numbers, messages, graphics and any data
that you enter.
Last area Shows the functions currently assigned to the two soft keys.
- 14 -
Icons
Signal Strength: Shows the received signal strength. The
greater the number of bars, the better the signal strength.
New SMS: Appears when a new message has been received;
flash indicates that your message box is full.
New MMS: Appears when a new multimedia message has
been received; flash indicates that your message box is full.
Roaming: Appears when you are out of your home area and
under another different network.
Tone & Vibrator: Indicates that your phone will ring and
vibrate when there is a new incoming call or message.
Ring: Indicates that your phone will ring when there is a new
incoming call or message.
Vibrate: Indicates that your phone will vibrate when a new
call or message is coming.
No Notification: There is no notification when a new message
or call is coming.
WAP Alert: Icon for the WAP Alert Info.
Alarm: Appears when you set the alarm active.
Battery Status: Shows the level of your battery. The more
black area you see, the more power you have left.
- 15 -
GETTING STARTED
Installing a SIM Card
When you subscribe to a mobile network, you are provided with a
plug-in SIM (Subscriber Identity Module) card loaded with your
subscription details (PIN, Phone book information and so on).
Note: The SIM card can be easily damaged by scratching or bending, so
you should be careful when handling, inserting or removing the card.
Follow the instructions supplied with the SIM card. Keep all SIM cards
out of the reach of small children.
1. Hold the Power On/off key to switch the phone off.

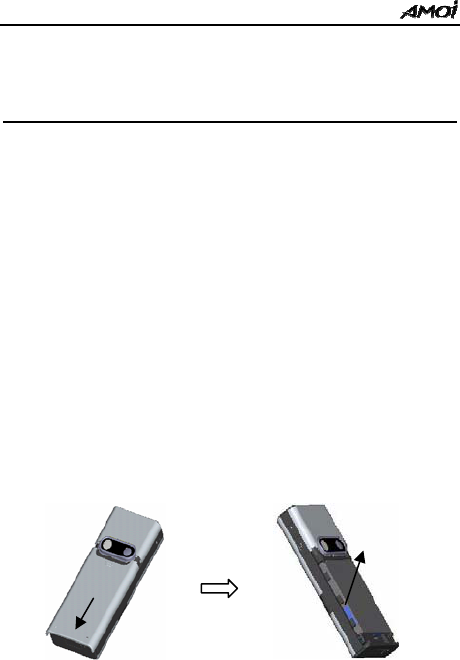

2. Remove the battery. To do so:
① Press the bottom of the battery cover, and at the same time
pull it down as shown.
② Remove the cover, then you can take down the battery.
- 16 -

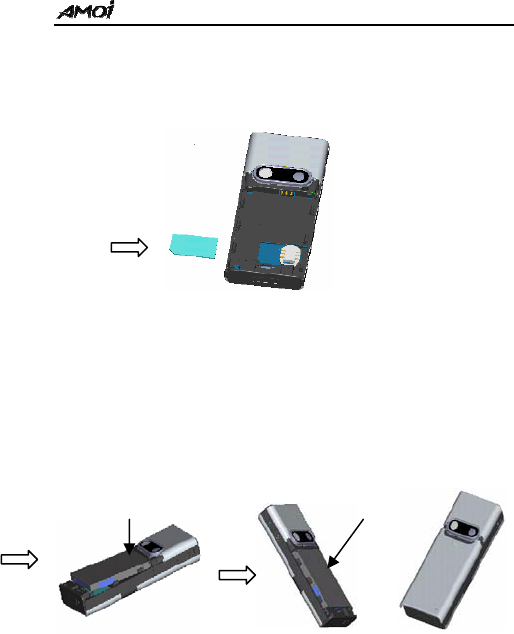

3. Insert the SIM card as shown. Make sure that the notched corner
is at the top right and the gold contacts of the card face into the
phone.
4. Reinstall the battery. To do so:
① Place the battery back, taking care to match the tabs on the
battery with the grooves on the phone.
② Place back the cover. Make sure that the battery is properly
installed before switching on the phone.
- 17 -
Charging a Battery
Your phone is powered by a rechargeable Li-ion battery.
You are provided with a travel charger when buying the phone. Use
only approved batteries and chargers. Ask your local dealer for further
details.
Note: You must fully charge the battery before using your phone for the
first time. The phone can be used while the battery is charging.

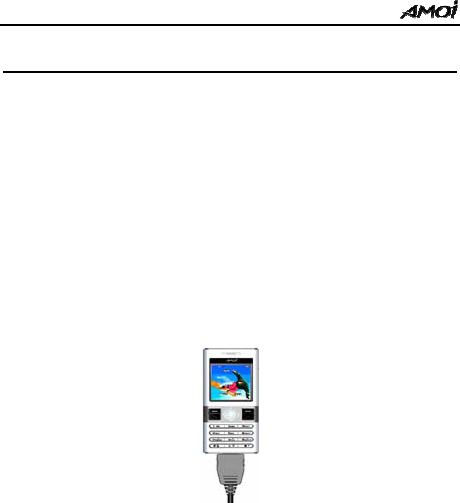

Using the Travel Charger
1. Place the battery on the back of the phone, connect the lead from
the travel adapter to the connector at the bottom of the phone.
2. Connect the adapter to a standard AC wall outlet.
3. When charging is finished (the full battery icon becomes solid),
disconnect the adapter from the AC wall outlet, then from the
phone.
Note: When disconnect the lead of the adapter from the phone, you
should press the buttons on both sides of it, otherwise it’s easily
- 18 -
damaged.

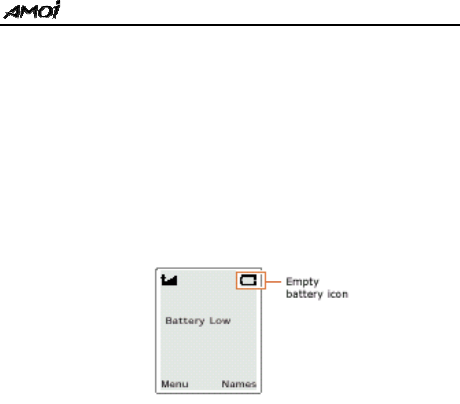

Low Battery Indicator
When the battery charge level gets low, you can see an empty battery
icon at the top right of the display and a text notification.
If the battery level gets too low, the phone will turn off automatically.
Unfortunately, if this happen, you’ll lose whatever you are doing,
including dropping your call. Watch the battery strength icon and
make sure your battery is adequately charged.
- 19 -
Switching the Phone On/Off
1. Press down the Power On / Off key for about 2 seconds to
switch the phone on.

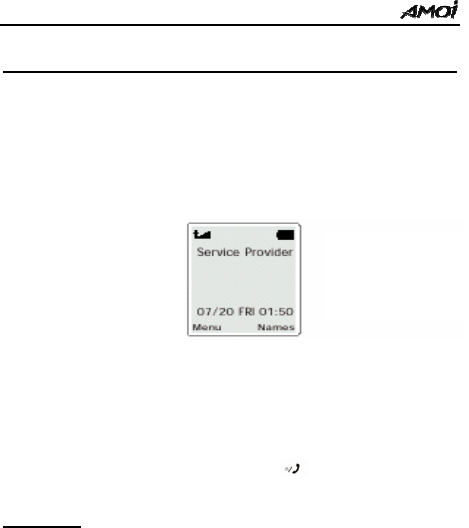

2. Enter the PIN code (if you have set to PIN check On), and press
OK soft key. Then your phone connects to the GSM network
automatically, and you’ll see the following display:
Note: If the phone is out of service, ‘No Service’ appears. In this case,
you cannot make or receive any calls. Wait for a better signal or move
into an open area to regain the service.
3. To switch the phone off, hold the key for more than two
seconds.
WARNING!
Do not switch on the phone when the mobile phone use is prohibited or
when it may cause interference or danger.
Note: The unnecessary touch of the antenna when the phone is switched
on may affect the call quality and cause the phone to operate at a higher
power level than otherwise needed.
- 20 -
Your Phone’s Mode
Standby Mode
Standby is the most basic state of your phone. The phone goes into
Standby mode soon after you turn it on, or whenever you briefly press
the key. When your phone is in Standby mode, you will typically
see the current date and time.
Press the key at any time to return to Standby mode. Be careful if
you are on a call when you press the key, you will return to
Standby mode, but it also disconnects the call.
Talk Mode
You can place and answer calls only when your phone is turned on.
During a call, the phone is in Talk mode. While you are in Talk mode,
press Left soft key to enter the Call Menu; press Right soft key to
enter the Phonebook menu.
- 21 -
CALL FUNCTIONS
Making Calls
Before you can make or receive a call, you must turn on the phone and
be within the range of a network.
1. In Standby mode, enter the area code and phone number. (If you
make a mistake while dialing, use the Left or Right direction key to
move the cursor to the right of the digit, press the right soft key to
erase; and hold it to erase the entire number.)
Note: While entering the number, hold the # key to insert a pause (for
example: between the switchboard and the extension). The number after
the pause will be sent a few seconds after dialing the first number.
2. Press the Call key to dial the number.
3. When you finish talking, press the Power on/off key or simply
close the phone to end the call.
Making International Calls
1. Hold the 0 key until a ‘+’ character apperas on the display.
2. Enter the country code, area code, and phone number, then press
the Call key to begin dialling.
- 22 -
Last Number Redialing
To redial the last number you dialed, press the key to view the
outgoing call list, then choose the desired one by using the Up and
down direction key and then press the key to dial it. Your phone
can store up to 10 last numbers you dialed.
Making a Call from the Phonebook
Press the right soft key to enter the phonebook, search the desired
number from it, and press the key to dial it.
Receiving Calls
When somebody calls you, the phone rings or vibrates (if you have set
for that), the screen displays an incoming call message. If you have
subscribed to the Line Identification Service (contact your service
provider) and the caller’s phone number displays; if you have saved
the number in your phone book, the name displays.
Two modes are provided for receiving a call: Call Key & Auto
Answer. Refer to Settings/ Call/ Answer mode for the details.
Note: You can answer a call while using the phonebook or menu
features, while the current operation will be halted. If you use the
hands-free kit, hold the OK key on it for about three seconds to answer it.
- 23 -
Rejecting a Call
Press the Power On/Off key or the Right soft key to reject it when the
phone is opened.
End a Call
Press the Power On/Off key to end the call.
Adjusting the Volume
During a call, use the volume key on the side of the phone to adjust
the volume of the voice. Press the Up key to increase the volume, the
Down key to decrease it. In Standby mode, you can adjust the key
tone volume by using the volume key.
Missed Calls
When an incoming call is not answered for any reason, the Missed call
log displays on your screen.
1. To view the missed call immediately, press the List soft key, the
number or the name (if available) displays, scroll through the desired
one, press the key to dial it.
2. Press the Option soft key, you’ll enter the Missed Calls menu, the
following options are available:
- 24 -
Call: Dial the number.
Detail: View the details of the missed call (the caller’s name, number
& calling time of the call.
Save to Phone Book / SIM: Allows you to add the number of the
missed call to the phonebook or SIM
card.
Write SMS: Send a short message to the number.
Delete: Delete the number from the missed calls list.
Delete All: Delete all numbers from the missed calls list.
Note: Press the key at any time to exit the Missed Call menu, or
view the missed calls at any time by entering the Call Lists.
- 25 -
Quick Switch to Silent Mode
You can quickly switch your phone to the silent mode by holding the
* key. In mute mode, the phone vibrates instead of ringing when there
is a call coming. To switch back to the Typical mode, hold the * key
for about three seconds again.
Call Menu
Some of the features you can use during the call depend on the
support of your network service.
During the call, press the Option soft key to enter Call Menu. The
options may change in different conversation circumstances.
The followings are the possible options:
Record: Record the conversation during a call. It can be recorded up
to 30 seconds.
Note: Recording conversation in some countries is illegal, so please first
get the consent from the other party before you begin the recording.
Mute: You can switch the microphone off so that the caller can’t hear
you.
Hold ( current call ): You can hold the current call.
End the Active: Select it to end the current call.
Message: Send message to the number.
- 26 -
ENTERING TEXT
When storing a name in the phonebook, creating your personal
greetings or scheduling events in your calendar or writing any other
message, you will need to enter text.

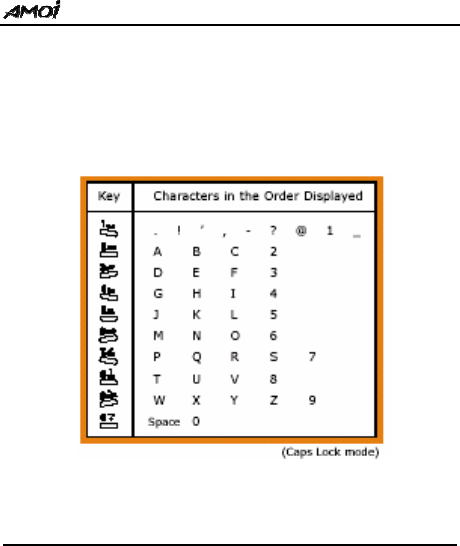

You are provided with the following eZi text input modes:
• Symbol
• Template
• English/ ENGLISH/ english
• Chinese / CHINESE/ chinese
• Abc/ ABC/ abc
• 123 (Numeric input mode)
Note: The current input mode is indicated on the top left of the display.
The number on the top right indicates the number you can enter for your
text info.
Changing Text Input Mode
When in a text entry screen, you will see the text input mode indicator
on the top left of the display. Press OK key to enter the text input
mode menu, and press Up or down direction key to find the desired
one. Or you can simply change the input mode by pressing the Call
key in text entering interface.
Note: The text input mode may vary in different markets.
- 27 -
Insert Symbol
Symbols mode enables you to enter symbols into a text message.
To enter a symbol, you should:
1. When entering text, press the OK key to enter the ‘eZi Menu’.
2. Enter the ‘Insert Symbol’ and you will see a symbol chart. Press
the Up or down direction key to select the column which
includes the symbol you want to use.
3. Press the corresponding numeric key on the bottom of the chart
to insert the desired symbol mark.
Insert Template
There are 10 templates stored in the phone that allows you to insert
directly when editing the message.
Insert Phone No.
In text entering mode, press the OK soft key to enter ‘Menu/ Insert
Phone No.’. Press the Up or down direction key to choose the number,
then press the OK soft key. The number will be inserted to the
message.
Dictionary
While entering a SMS message, you can use your own dictionary
which allows you to add a new word and then the word has a high
- 28 -
priority in English mode.
New
1. In the text entry mode, press OK key to enter the eZi ‘Menu’.
2. Scroll to ‘Dictionary’ and press OK soft key to enter.
3. Select “New” and input the word you want to add.
4. Press ‘Options’ and select ‘Save’, then the word is saved in your
dictionary.
Now, the word saved in your dictionary becomes the one with first
priority for the associated key press. You can check the added words
in the ‘List’ of ‘Dictionary’.
List
1. Enter the Dictionary in the eZi Menu, press OK soft key.
2. Scroll to the List, and press OK soft key.
3. All the words list out, and then choose the desired one by
pressing Left soft key.
4. Press Options soft key to choose to Save or Delete it.
eZi Chinese
Please refer to the Chinese user’s manual.
Chinese Stroke Input
Please refer to the Chinese user’s manual.
- 29 -
eZi English Mode
This mode allows you to enter words with only one keystroke per
letter. Each key on the keypad has more than one letter – when you
press once, every letter on it may be displayed. The English mode
automatically compares your keystrokes with an internal linguistic
dictionary to determine the correct word, thus requiring far fewer
keystrokes than the ABC mode.
For example: to enter ‘hello’, press the following keystrokes: 4, 3, 5, 5,
6.
If the word that appears in the display is not the word you desire, press
the Left or Right direction key to display alternate word choices for
the keys you have typed. (For example, ‘of’ and ‘me’ both shares
keystrokes 6, 3 in the same sequence) The phone displays the most
commonly used choice first. Press Up or Down direction key to
switch between the Upper and Lower case.
ABC Mode
This mode allows you to enter letters by pressing the key labeled with
the required letter, once for the first letter, twice for the second letter,
and so on.
For example, press the key “2” three times in succession to display the
letter “C”, press the key “5” two times quickly to display the letter
“K”.
- 30 -
Note: When you require the same letter twice or more in succession (or a
different letter on the same key), just wait for a few seconds for the
cursor to automatically move right , and then select the next letter.
List of characters available:
123 (Numeric) Mode
123 Mode enables you to enter numbers into a text. You can enter
your desired digits by simply pressing the key on which the digit is.
- 31 -
PHONEBOOK
You can store your phone numbers and their corresponding names in
your SIM card or in your phone memory. You can store up to 500
numbers in phone memory; the number of the entries which SIM card
can store, depends on the type of the SIM card.
Smart Dial
This Option allows you to find an entry quickly in your PB.
1. When Smart Dial is highlighted, press Left soft key to enter.
2. Input the corresponding first letter of the desired name.
3. Scroll to your desired entry and press OK left soft key.
4. Press the Send key to dial it directly or press Select soft key to enter
“Select Operation”, the following options are available:
Edit: Edit the details of the selected entry (name, number).
Duplicate: Allows you to copy the selected entry from the Local to
the SIM memory and vice versa.
Delete: Press the Left key and phone will display ‘Delete? OK or
Back’. Select "OK" to delete this entry. Select "Back" to
cancel this operation.
Call: Press OK left soft key to dial this number.
Write SMS: Send short message to the number.
Send Number: Send the phone number through SMS to a desired
number.
- 32 -
Search
1. Search Name
Enter the name you want to search, then press Left soft key. The entry
will display. Choose the entry, and press Select soft key, you’ll have
the same operations as the Smart Dial.
2. Search Position
Enter the position number, then press Left soft key to display the
desired entry. (The entries stored in the local are numbered from 1 to
300, and the entries stored in the SIM are numbered from 301.)
New
It allows you to add new entries to your Phonebook. Press Left soft
key to enter New, and choose Save to Local or SIM.
Save to Local:
(1) Press Edit soft key to enter name. When finish, press Ok Left soft
key.
(2) Enter three phone numbers by sequence (When finish inputting the
Mobile number, press Left soft key, and then press Down direction
key to enter the Family and Office Number).
(3) Enter Private E-mail address & Memo.
(4) When finish editing, press Power On/Off or Back soft key, the
phone displays ‘Save it?’, press Ok left soft key to save, Back key to
- 33 -
cancel.
Note: You must at least enter a name & one number item. You can also
set a specified Alert Ring tone for the entry.
Save to SIM:
(1) Input name, press Left soft key.
(2) Key in the numbers and press OK left soft key to confirm.
(3) When finish, press Power On/Off key or Back left soft key, the
phone displays “Save it ?’, press Ok soft key to confirm, Back
key to cancel.
Number Group
The phone allows you to group the numbers stored in the Local. (The
numbers stored in the SIM card cannot be grouped.) It allows you to
set 6 groups, Family, Sweetie, Friend, Colleague, VIP & User-Defined.
When the number in the group dialed, the phone rings and lights in the
way you’ve set. Enter the desired group, you’ll have the following
options:
Group List: List all the members stored in the group.
From Phonebook: When the Member List is empty, enter From
Phonebook to add the entries stored in Local to
the group.
Ring Tone Alert: Set the specified ring tone for the group.
- 34 -
Group Picture: Set a specified picture from the Multimedia resource.
Change Name: Rename the group.
Calls
1. Missed
Allows you to view the missed call info, 20 pieces are available.
2. Incoming
Allows you to view the incoming call info, 20 pieces are available.
3. Outgoing
Allows you to view the outgoing call info, 20 pieces are available.
4. Last Time
Allows you to view the duration of your last call, the max time that
can be displayed is 1 hour.
5. Total Time
Allows you to view the duration of your total calls, the max time that
can be displayed is 99 hours.
6. Charger Info
The function allows you to set the Unit price & Max charge for your
call (The function needs the support of your network.):
- 35 -
Total Charge: The function allows you to view the total charge for
your calls. Press OK soft key to reset it back to Zero,
while you need to input the PIN2 code first.
Max Charge: Set a desired max charge that can be used for making
calls. When your call charge exceeds this limit, no more
calls (except free calls) can be made unless you reset it.
PIN2 code is required when making modification.
Unit Price: It allows you to view or modify the unit price for your call.
PIN2 code is also needed.
Speed Dial
Enter the number or search an entry from the phonebook you desire
for speed dial, then press the left soft key to save the option. It allows
you to set up to 9 numbers for speed dial. For example, set the number
of Steven as the first one in the Speed Dial list, in standby mode, hold
the corresponding 1 numeric key, the number can be dialed quickly
and directly. The first number in the speed dial list is defaulted as the
number of the Voice Mail.
PhBook Manager
Duplicate (Take “Local to SIM” for example)
(1) Duplicate One by One: Press c or d to view the phone number
one by one and press Left soft key to copy the desired one.
(2) Duplicate Range: Input the beginning number and the last number,
- 36 -
then press Left soft key to copy these entries you want to SIM
card.
(3) Duplicate All: Copy all the numbers stored in phone to SIM card.
Note: If the entry has already existed in target PB, the entry will not be
copied. If the space of target PB is not enough for the copy, only the
foregoing phone numbers will be copied until the target PB is full.
If the name length of target PB is less than that of the original PB, the
exceeded part will be lost.
Delete
Choose Delete from Local or SIM, then choose Delete One By One,
Delete All or Delete a specified range.
Incoming Filter
With this operation, you can put phone numbers into ‘Reject List’ so
that they will never get through your phone; and put numbers into
‘Accept List’ in some special circumstances, only the numbers in the
‘Accept List’ can get through.
Reject List: It allows you to enter 10 rejected numbers. The option
allows you to view all the numbers put in the list.
Reject Number: Press numeric keys to enter the numbers you want to
reject, or search the number from the phonebook.
Accept List: The same as the Reject List.
Accept Number: The same as the Reject Number.
- 37 -
Note: Only when your SIM card is subscribed to the Line Identification
Service can you use the function.
Fixed Numbers
If the network service provider and your SIM card supports the
function, you can limit the outgoing telephone number. If this function
is set On, your mobile phone can only dial the number in the fixed
number list. If you dial the other number (except the urgent number),
the phone displays ‘Forbidden Number’. You need to input the PIN2
code to set the function for the first time.
Own Number
Store the SIM card number of local phone for reference.
Memory Status
Check the memory status of the SIM & Local.
Country/Area Code

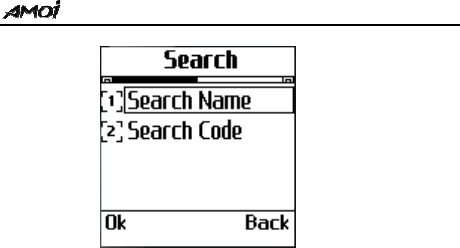

The function allows you to view the country and area code. Press the
Up or Down direction key to view the country/ area codes, press the
left soft key to search by name or by code.
- 38 -
- 39 -
ENTERTAINMENT
A320a provides you with 3 amusing games.
Push Box
You are successful if you can push all boxes to the desired
destinations.
You can push boxer by using the direction keys and restart game by
pressing the Call key, and you can select the level by pressing the * &
# key.
Start: Start a game.
Beep: Allow you to select voice on/off of the game.
Help: Describes operation and rules in the game.
Gobang
Start: Start the new game.
Load Game: Continue the game you last played.
Select Level: 3 levels are provided, Primary, Middle & Serior.
Help: Tells you how to play the game.
Tetris
Start: Start a new game.
Settings: Set the level for your game. 4 options are available.
Beep: Switch on/off the sound when playing the game.
- 40 -
Scores: Keep the record of the first 5 players.
Help: Illustrates the rules of the game.
- 41 -
MESSAGES
SMS
The SMS (Short Message Service) function is network service and
may not be supported by your network. You must obtain the number
of the SMS center from your service provider. Mostly it is
automatically available from your SIM card.
Your phone can store up to 250 incoming and outgoing messages.
SIM card memory depends on the type of the SIM card.
Two message boxes are available: Personal SMS and Broadcasting
SMS.
Personal SMS: It is the message for mobile users to transmit personal
information.
Broadcasting SMS: If you select this option, you will receive public
information from Network Operators such as
Weather Broadcasting and so on.
SMS Indicator: When you receive a new message, an icon
appears on the screen. If the message memory is
full, continues flashing and you cannot receive
any new messages. Then use the ‘Delete’ menu to
delete obsolete messages.
- 42 -
1. Inbox
Inbox stores the messages you have received. The messages with the *
symbol before are the messages that you haven’t read.
1. Use the direction key to scroll to the desired message.
2. Press OK left soft key to enter the message, then press Options soft
key to have the following operations:
Reply: Reply to the sender. You can write a piece of new message
and then choose ‘Send’, ‘Save & Send’, ‘Save’ or ‘Multiple
Send’.
Forward: Allows you to send the message to others. You can edit the
message and then choose ‘Send’, ‘Save & Send’, ‘Save’ or
‘Multiple Send’.
Extract Number: Allows you to extract the sender’s number or
extract 2 – 21 numbers contained in the message.
You can save or call the extracted number, or send
short message to the number.
Save to Local / SIM: You can store the message to Local or SIM.
Delete: Delete the selected message.
2. Write SMS
The text message can be made up to 70 Chinese characters or 160
letters. Write down your own words or press the OK soft key to enter
the eZi Menu, then select ‘Insert Template’ to add a daily used
template to your text message. In editing mode, press Call key to
change the text input mode directly, or press OK key to enter the text
input menu. When finish editing, press Left soft key, the following
- 43 -
options are available:
Send: Write down your own message. When finish, press the Ok left
soft key to enter the number you want to send or search the
number from the Phonebook.
Save & Send: Allows you to save and send the message. Even if the
sending fails, the message can be stored in the Outbox.
Save: Allows you to save the message in the Outbox so that it can be
sent later. The message marked with * is the unsent message.
Multiple Send: Allows you to send the message to up to 5 receivers.
3. Outbox
Outbox stores the messages that you have already sent or unsent.
1. Use the direction key to view the messages.
2. Enter the message, and press Options left soft key:
Edit: Allows you to edit the message and then choose ‘Send’, ‘Save &
Send’, ‘Save’ or ‘Multiple Send’.
Extract Number: You can extract phone number or the number
contained in the message. Then you can dial or
save the number to your phone or SIM card, or
send message to the number.
Save to SIM / Phone: You can store this message to your SIM card or
phone.
Delete: Delete this message.
4. Status Report
In the menu of Messages Settings, set this function ‘On’ to require the
- 44 -
SMS center to inform whether your message has been sent or not.
5. Delete
The function allows you to delete the message from the Inbox, Outbox
or Status Report.
MMS
MMS is a current technology of message development with highest
standard. Its feature contains: supporting multimedia function,
supporting sending several kinds of message (letters, pictures, voice
and other multimedia message). It makes multimedia sending as
phone-to-phone and phone terminal-to-network possible. MMS also
needs the support of your SIM card and service provider. Contact with
your network service for more details.
For the successful use of the MMS, please first make sure the setting
for the WAP and MMS parameter is correct.
Audio files in MIDI & AMR format are supported; Image files in
BMP, JPEG, PNG & WBMP format are supported. The size for the
MMS can not excel 100KB.
- 45 -
Refer to the following chart for the MMS icons.
Icon Description
New MMS
Messages that fail to be received.
Messages that fail to be sent .
New message to be read
Message that has been read
Forwarded Message
Replied Message
File with Image
MIDI audio file
AMR audio file
1. Inbox
When a new MMS is received, the phone rings or vibrates (if you
have set for that), a new MMS icon displays. The message will
be stored in the Inbox automatically.
① Press Up or Down direction key to choose the desired message.
② Press OK soft key to view details of message.
③ Press Options left soft key and you can have the following
options:
View/Receive: Press OK soft key to view the selected MMS or
receive the new MMS.
Reply: Reply to the sender.
Delete: Delete this message.
Detail Info: View the Subject, the sender, the time and the MMS size
- 46 -
of the MMS.
2. New
Enter the New, press Left soft key, the following interface displays:
Add Text: Enter the text. Press left soft key to enter, the cursor glints
in the editing frame, enter the text directly. Press the Call
key to enter the eZi input mode.
Add Image: Press Left soft key to select the image from Download
Resource, User Custom 1 or User Custom 2.
Add Sound: Press Left soft key to select the stored music or voice
memo from Voice Memo, Download Resource, User
Custom 1 or User Custom 2.
Add Slide: Press left soft key to add one slide. You can add up to 20
slides.
When you finish editing, press Menu soft key to choose the following
options:
- 47 -
Send: Select ‘Send’ to enter the Number editing interface. Press the
Left soft key to select the number or E-mail address from your
Phonebook, or input a new number or E-mail address. Only
when the cursor is in the editing frame can you make the editing.
The phone allows you to send the message to multi receivers;
use the blank mark to separate the receivers. Press Right soft
key to erase the input.
Preview: Preview the edited MMS.
Save: Save the MMS as Draft or Template.
Slide Duration: Allows you to set the duration for the slide.
Slide Format: Allows you to set the format for the slide.
Add Slide: Allows you to add the Slide.
Remove Slide: Remove the slide from the message.
Add Image: Add the image file to the current message.
Delete Image: Delete the image file from the current message.
Add Sound: Add the sound file to the current message.
Delete Sound: Delete the added sound from the message.
Create from the Template:
Enter the New and choose from Template, and use the Up or Down
direction key to choose the desired template, then press Options soft
key:
--Edit: Edit the message based on the template.
--Delete: Delete the template.
--Detail: Allows you to view the title and size of the template.
- 48 -
When finish editing, you can have the same options as the New
mentioned above.
3. Outbox
Outbox stores the messages that fail to be sent.
①. Press Up or Down direction key to choose the desired message.
②. Press Left soft key and you can operate as follows:
Edit: Edit the MMS.
Delete: Delete the MMS.
4. Drafts
The Drafts stores the edited messages.
①. Press Up or Down direction key to choose the desired message.
②. Press Left soft key and the following options are available:
Edit: Edit the multimedia message.
Delete: Delete the MMS.
5. Sent
The Sent box stores the messages that have been sent successfully.
①. Press Up or Down direction key to choose the desired message.
②. Press Left soft key and you can operate as follows:
View: Allows you to view the multimedia message.
Delete: Delete the MMS.
Detail Info: View the details of the multimedia message.
- 49 -
6. Templates
You can save the multimedia messages edited by yourself as the
Templates.
①. Press Up or Down direction key to choose the desired message.
②. Press ‘Options’ Left soft key and the following options are
available:
Edit: Edit the MMS.
Delete: Delete the MMS.
Detail Info: View the details of the multimedia message.
Voice Mail
This menu provides you a quick way to access your voice mail. In
standby mode, hold the 1 numeric key to dial the number directly. In
the Voice Mail menu facility, the following options are available:
Call: Press the ‘OK’ soft key to call the number and listen to your
messages. If there is no mailbox number, enter the number first.
Number: Allows you to input or modify the number of the voice
mail.
Cell Broadcast
You can receive broadcast messages with various contents via this
network service, such as weather or traffic. Enter the Cell Broadcast,
you’ll have the following options:
- 50 -
Read: You can view the up-to-date broadcast message you’ve
received.
Auto Display: If you set this function ‘On’, messages will be
displayed immediately when they are received; select
‘Off’ to cancel it.
Channel List: Set the channel list for receiving broadcast message:
--All: Allows you to receive all the broadcast messages.
--None: No broadcast messages will be received.
--List: Only the message sent from the list can be received. You are
allowed to add or delete the channel to the list.
Memory
This menu allows you to view how many messages are currently
stored in your SIM card and Phone. The phone can store up to 250
short messages; the number of message that SIM card can store
depends on the type of the card.
Settings
1. SMS
Use the function to set the special features for the SMS. You can have
the following options:
Auto Display: If set the function to be ‘On’, the new incoming
message displays automatically on the screen. Press
Left soft key to read it directly, Right soft key to read it
- 51 -
later from the Inbox. You can select ‘Off ’to cancel this
function.
SMS Center: Allows you to store or change the number of your SMS
center while sending messages. You can obtain this
number from your service provider.
Status Report: You can select ‘On’ to require the SMS center to
inform whether your message has been sent or not.
SMS Filter: By setting this function, you’re able to avoid messages
from the numbers you specify.
Templates: There are 10 message templates stored to be edited. It
allows you to send the message conveniently and quickly
whenever you want.
2. MMS
Connection: Enter the ‘Connection’, you can set the server for you
MMS. You can choose from the following options:
--SingTel GPRS
--New: It allows you to not only add new servers to the Connection
list, but also reset the parameter of the selected server.
--List: Add new servers from the list.
To a specified sever, you are allowed to:
--Activate: Enable the server.
--Modify: Modify the settings of the server.
--Delete: Delete the server.
- 52 -
Reception: It allows you to set the receiving mode for your MMS. 2
modes are available: Auto or Manual.
Ad Allowed: You can choose whether or not to receive the adverts.
Save Sent: Set whether or not to store the messages which have been
sent.
- 53 -
PERSONALITY
Music Select
Enter the Music Select. The phone allows you to set the ring tone for
the incoming call, message, alarm clock, and so on. You can choose
the ring tones from the Immobile Data, More Downloading or
Multimedia.
Alert Type
It allows you to set the alert type for a new incoming call & message.
There are four types provided for you: Tone, Vibrator, Tone &
Vibrator and No Notification. Scroll to the option you want, press OK
left soft key to confirm.
Ring Volume
Adjust the volume for the ring and the key. Use the volume key on the
side of the phone to increase and decrease the volume, or use the
direction keys to adjust it.
- 54 -
Standby Interface
By using this menu, you can set your standby interface.
Picture: Set the picture as the standby interface, 5 pieces are
available.
Animations: Set the animation as the standby interface.
Standby Text: Enter your own words as the standby text.
Calendar: Set the calendar as the standby interface.
More Downloadings: Download image or text as the standby
interface through the Internet.
Multimedia: Select image from the multimedia as the standby
interface.
Menu Style
The function allows you to set the menu style for your phone. 3
options are available.
Power On/Off Display
The phone provides you 2 modes for your Power On/ Off Display.
You can set the Animations or edit your own text for it.
- 55 -
MULTIMEDIA
The Multimedia is a menu that helps to manage the mobile phone
resources, such as “Recorder”, “Downloaded Resource”, “User
Custom1” and “User Custom2”.
Recorder
When the cursor is right to the Voice Memo options, press Options left
soft key, you’ll have the following 3 options:
1. Enter
Choose ‘Enter’, and use the Up & Down direction key to choose the
desired memo, then press ‘Options’ left soft key, you’ll have the
following operations are available.
--Play: Play the voice memo.
--Copy: Copy the voice memo to “User Custom1” or “User
Custom2”.
--Move: Move the voice memory to “User Custom1” or “User
Custom2”.
--Rename: Rename the voice memo.
--Property: View the title, size and recording time.
--Delete: Delete the voice memo.
--Send as MMS: Edit the voice as MMS. See the menu of
“Message-MMS”.
- 56 -
2. Property
View the total files and file size of your voice memo.
3. Delete
Delete all the voice memos.
Camera
When the cursor is right to the Camera option, press Options left soft
key, you’ll have the following 3 options:
1. Enter
Choose “Enter”, then the images stored will be displayed. Use the Up
& Down direction to choose the desired image, and then press Options
left soft key to enter the following options:
Preview: Allows you to view the image.
Copy: Copy the image to User Custom 1 or User Custom 2.
Move: Move the image to User Custom 1 or User Custom 2.
Rename: Rename the image.
Property: View the title, size and taking date of the image.
Delete: Delete all the images stored.
Send as MMS: Send the image through MMS function to the desired
receiver.
Set as Standby Picture: Set the image as the standby interface.
- 57 -
2. Property
View the total files and file size of your camera.
3. Delete
Delete all the images.
Phonebook
When the cursor is right to the Phonebook option, press Left soft key
to enter. Then refer to the options of Camera for the operations.
Download Resource
The function allows you to save the images and audio resource
downloaded through the Internet.
1. Image
The images downloaded are allowed to be set as the standby interface.
Press Left soft key, you can have Enter, Property and Delete options.
Choose the desired option, and press Left soft key to enter. You can
have the similar options as the Camera & Voice Memo.
2. Audio
The function allows you to save the audio file downloaded through the
Internet, the audio downloaded can be set as the different message
tone. Press ‘Options’ left soft key and then “Enter” key to view the list
of ring tones you’ve downloaded. Other operations are the same as in
- 58 -
“Voice Memo”.
User Custom 1
You can store voice memos, pictures, phonebook, photos and ring
tones in User Custom 1.
1.Enter
Press OK and then “Enter” key to view “User Custom1”. Operations
are the same as the “Voice Memo”.
2. Property
View the total files and file size of your voice memo.
3. Delete
Delete all the files.
4. Rename
Rename User Custom 1. For example, you can rename ‘User Custom
1’ as ‘Ring tone’.
User Custom 2
The operations are the same as the User Custom 1.
- 59 -
View
Allows you to view the total files and memory status of the
Multimedia.
- 60 -
CAMERA
Amoi A320a is installed with a built-in 300k pixels CMOS camera, and
it allows you to capture the wonderful moment in your life directly.
The images taken can also be sent to others through MMS.
Note:
• Do not take photos of people without their permission.
• Do not take photos in a place where photo taking are prohibited.
• Do not take photos in a place where you may interfere with another
person’s privacy.
Take Photo
Enter ‘Take Photo’, press OK soft key take photos. When taking
photos, press the e or f key, you’ll have the following options, press
▲or▼to choose the desired options under each item:
Shooting Mode: 2 photo effects are available to be selected.
is the auto shooting mode, and is the
night shooting mode.
Rotate: Rotate the camera in 3 angles.
Camera Mode: 2 modes are available for camera: NOR &
VGA.
- 61 -
Photo Quality: 4 options are available.
Brightness: Adjust the brightness of the image. There are all
together 6 levels to be chosen.
Color Saturation: Adjust the color saturation. 6 choices are
provided.
Frame: Allows you to add a frame to your photo.
Focus: When in NOR mode, you are allowed to focus in 6
levels. (While in VGA mode, you cannot use the
function.) Use the Up & Down direction key to zoom.
Delay: Choose to shoot the photo directly or 10 seconds later.
Take the photo, then you’ll have the following options:
Save: Press ‘Save’ left soft key to save the photos.
Back: Press ‘Back’ right soft key to cancel.
Video Recording
Enter the Video Recording.
Press Left soft key to begin recording.
1. Take: Choose the object, press OK soft key to begin recording.
- 62 -
Before recording, press Left & Right direction key to choose the
option, and Up & Down direction key to choose the desired option
under each item. The operations are the same as photo taking. Press
OK soft key to stop recording, or the phone will auto stop recording
when the max recording time allowed is reached.
Browse Photos
Press left soft key to enter the album, all the images you’ve saved list
out in miniature. Press Options left soft key or OK soft key to view it
in full screen.
Play Video
Press OK or Left soft key to enter the function. Choose the desired
video, press Left soft key, you’ll have:
Play Video: Choose a desired video, press Left soft key to enter.
: Play in sequence (play from the beginning)
：Play the video from the back.
: Pause.
: Stop Playing.
Delete: Delete the current video.
Delete All: Delete all the videos
- 63 -
TOOLBOX
Alarm
There are three alarm clocks provided for you. For every alarm, you
can make the following operations:
1. On / Off: Press the Select soft key repeatedly to switch between On
& Off. An ‘√’ indication displays when you set the alarm
activated.
2. Time: Set the time when you want the alarm to ring.
3. Mode: Set the mode for your alarm.
① Everyday: The alarm bell rings at the set time every day.
② Workday: The alarm bell rings at the set time from Monday to
Friday.
③ Personal: You can choose one or several days of one week for
the alarm bell to ring at the set time.
You can also cancel all the alarms.
Note: When the alarm rings at the set time, press any key to stop it; if not,
it continues to ring for one minute.
Record
With your phone, you can record up to 5 voice memos (including
recording conversation during a call). And each memo can be
recorded up to 30 seconds in length.
- 64 -
Notes: Recording voice conversations during a call is illegal in some
countries. Make sure the other part on the line has stated his consent to
being recorded.
Record
1. Press the OK soft key to begin recording.
2. Record the voice memo by speaking into the microphone.
Note: When recoding, press Pause soft key to have a pause then Record
key to continue; A timer displays to show the elapsed time. When the time
expires, the phone will automatically save the memo already recorded by
that time.
3. When recording is completed, press Exit right soft key; the record
will be kept at once with the date and time together.
When recording, you can also use the navigation hot keys to control
the recording.
Calendar
When you enter the menu, a calendar displays with the current date
highlighted.
Scroll the calendar:
1. You can move the underscore to Year, Month and Day fields by
- 65 -
pressing Left & Right direction key.
2. When the desired field is highlighted, press the Up and down
direction key to move up or down the Date.
You can also enter the desired date by using the numeric key.
When the time is highlighted, press OK left soft key to get the
following options:
1. Settings
Set a new log for Memo, Call & Anniversary. Enter one type:
--Memo: Make a note of general schedule, i.e. appointments or
meetings. It allows you to set the title and reminder date for
your memo.
--Call: Schedule a call. Enter the scheduled call number or search one
from the phonebook. The phone will remind you automatically
at the scheduled time. You can set the phone to remind you on
time, 1 hour before, 1 day before, 2 or 3 days before the
scheduled time.
--Anniversary: Select to make notes for anniversaries. Set the
scheduled time and the time for the phone to remind
you.
2. View
Press the View soft key to view the schedules you’ve set, press Up &
Down direction key to scroll through these notes.
- 66 -
3. Delete
Delete the note.
z Delete One by One
z Delete All
z Expired
Unit Conversion
This menu allows you to convert the original unit to the desired one.
To use the Unit Conversion, do as follows:
1. Press Up & Down direction key to scroll to the desired category:
Length, Area, Volume and Weight.
2. Press OK or Left soft key to enter one of the categories you
desire and you can see two columns. The upper unit column is
comprised of the current units, while the lower unit column is
comprised of the units which you want to convert to.
3. Put the cursor to the upper column, press Left or Right direction
key to move to the current unit. Move the cursor to the lower
column by pressing Down direction key and press Left or Right
direction key to choose one of the units that you want the current
value to be converted to.
4. Enter the current numerical value below the upper column and
the converted value will be automatically displayed below the
lower unit column.
- 67 -
5. To reset the Unit Conversion and do new conversion, press
‘Reset’ or Left soft key.
World Time
The display shows:
• City name
• Current date and time according to the time format setting (12/24
Hours)
To… Then…
Select the time zone Press Left or Right dirction key
Select the city in the Press Up or Down direction
time zone key
Make some settings (Set Press OK left soft key and
as local, Enable DS, scroll to desired one
Disable DS)
Calculator
By this function, you can use the phone as a calculator. The calculator
provides the basic arithmetic functions: addition, subtraction,
multiplication and division.
Performing the Calculation
1. Use the numeric key to enter the first desired number.
2. Press Up direction key for multiplication sign ‘+’, Down
- 68 -
direction key for division sign ‘-’, Left direction key for plus
sign ‘x’, and Right direction key for subtraction sign ‘÷’;
3. Enter the second number.
4. To calculate the result, press Equal soft key to get the result.
5. Repeat steps 1 to 4 as many times as needed.
Notes: Press the # key to enter a decimal point and the * key to change
the sign of a number to a negative (-).
z Expired
- 69 -
DATA SERVICE
WAP is a platform for combining wireless communication with
Internet. WAP allows you to access the Internet and also provides you
with some E-commerce applications by phone.
Note: To connect WAP net, your network must provide the service and
you should perform the dredging operation described in detail in
‘Settings / Browser’.
Browser
1. Homepage
By selecting this item, your mobile phone will connect to the
homepage that you’ve preset directly.
2. Bookmarks
You can store the commonly used websites in your favorite and entitle
them. Choose one to connect to it automatically.
3. Alert Message
The function allows you to view the WAP Push information you’ve
sent to the Internet.
4. Go To URL
Enter a URL and press OK soft key to connect to the page. If your
- 70 -
mobile phone cannot connect to the URL, it will connect to the
homepage automatically.
PC Sync
With this function, you can make a data transmission between your
phone and your PC through the ‘PC Sync Program’. By PC Sync, you
can do the following options:
--View or edit the Phonebook information.
--View or edit the SMS.
--Upload or download images.
--Download ring tones, images or animations.
Operation Process:
Main Menu – Data Service – PC Sync, through such route you can
enter the ‘PC Sync’ menu facility.
Note: During the transmission, please don’t exit from the PC Sync, and
ensure that the data link kit is well connected; when there is an incoming
call, the transmission will be intermitted. When finish, press the Back
soft key to exit from the PC Sync.
- 71 -
Settings
Browser
Press left soft key to enter the settings of browser, you’ll have the
following options:
1. Connection:
Scroll with Up or Down direction key to choose ‘IDEAS (GPRS)’,
‘New’ or ‘From List’. You can perform the following operations:
● Activate
● Modify
● Delete
Note: To connect WAP net, you need the network suppport and you
should apply for the service of surfing Internet. For setting details, please
see ‘Setiings / Browser’.
Select ‘New’, you can add a new server as your operator:
New: Edit your name of the new server.
Bearer: Set the types of data service, choose from GPRS, CSD &
Serial.
Homepage: You can set a homepage.
IP Address: Set IP address linking to homepage.
APN: Input AP name.
User ID: Set the user name for WAP.
Password: Set password for WAP.
Security: You can set it as ‘On’ or set it as ‘Off’.
- 72 -
Save: Save the operation.
Tips: In standby mode, hold OK soft key to visit the default homepage
directly.
2. Clear Cache
Clear the Cache.
3. Reset
Reset all of the settings.
- 73 -
SETTINGS
Many different features of your phone can be customized for your
preferences.
Time
This function allows you to adjust the current time and date displayed
in standby screen.
The following options are available:
Time: Allows you to adjust the current time.
Time Format: Choose between 24 hours mode and 12 hours mode.
Date: Allows you to modify the current date.
Date Format: Select the date format:
D/M/Y
M/D/Y
Y/M/D
The cursor is right to the current option, press Left soft key to make
modification. When finish, press Left soft key again to confirm your
operation.
Mobile
1. Auto On / Off
Set the time when you want your phone to be powered on/ off. Enable
the function, your phone will power on/ off automatically at the preset
- 74 -
time.
2. Backlight Level
Set the duration time of your backlight, 3 options are available: High,
Middle, or Low Backlight.
3. Language
Chinese: All the menus and information is displayed in
Chinese.
English: All the menus and information to be displayed in
English.
Note: Press the *,9,9,# in succession to switch the two language in
standby mode.
4. Contrast
Adjust the contrast of the Internal and External screen. Press Left or
Right direction key to adjust, and Left soft key to confirm your
operation.
5. Auto Key Lock
Set the function On, you key will auto lock if you press no key in 30
seconds.
6. Master Reset
You can reset settings back to factory set. You need to enter the PWD
- 75 -
number first. The original PWD number is 0000.
Call
Press the OK or left soft key to enter the Call setting, you’ll have the
following operations:
1. Call Volume
It allows you to adjust the volume of the call. Use the Left or Right
direction key to adjust it; or you can use the side key to adjust the
voice volume during the call.
2. Divert
This network service enables the incoming calls to be transferred to
the number that you specify. For example: You may hope to transfer
your business calls to a colleague when you are on holiday. 5 options
are available:
Unreachable: Calls will be transferred to the appointed number when
you are not in an area covered by your service network
or when the phone is switched off.
No Reply: Calls will be transferred if you are not available to answer
the call.
Busy: Calls will be transferred when your line is busy.
All: All incoming calls will be transferred.
Cancel All: All Call Transfer functions are cancelled.
- 76 -
3. Answer Mode
There are 3 modes provided for you to answer a call.
Call Key: You can answer the call only by pressing the Call key.
Any Key: You can press any key except the Power On/off or the right
soft key to answer the incoming call.
Auto Answer: If you insert a Car Kit, the phone can answer the call
automatically 3 seconds later. Before the Auto answer,
you can also press the Call key to answer it.
4. Call Waiting
The phone supports the function of ‘Call Waiting’ and ‘Call Holding’
of GSM net. If you select this function, the network will inform you
when there is a new incoming call during another call. You can answer
the new call by holding the current call.
On: Set the function On, when there is a new incoming call, the
network alerts you that there is a call incoming. You can hold
the current call, and answer the new call.
Off: Select ‘Off’ to invalidate the Call Waiting function.
Note: For more details about the Send Number & Call Waiting, please
contact with your local service provider.
5. Send Number
This function must be supported by the network.
Set by Net: When making a call, your phone number will be hidden
or displayed according to your Net.
- 77 -
On: Your phone number will be displayed to receivers.
Off: Your phone number will be hidden and unknown to receivers.
Note: The function needs the support of the network service.
Network
When you use the phone, the phone will automatically select the
Internet service. When the phone is out of the service area or in abroad,
you can select the appropriate Internet manually.
1. Mode
Switch between these two modes: Auto & Manual.
2. Search
To select this item, the phone displays " Searching ...". After you get it,
the GSM will auto display the found networks. If there are more than
one available networks, you can use the Up or Down direction key to
select. Networks marked with * are forbidden to use.
3. Sequence
This item allows you to list the networks you can use when your GSM
is in roaming. If the listed network can be used, your phone will select
the network from the prior list. Three operations are available.
Move: To press the Up or Down direction key to shift it to your
desired place.
- 78 -
New: You can add new networks. Input the country code and the
network code then press OK soft key.
Delete: You can cancel the chosen network.
4. Band
Press the Up or Down direction to view choose the desired band, press
the OK soft key to confirm.
There are three bands are provided: GSM850/1900, and Automatic.
You can select one of them.
- 79 -
REFERENCE INFORMATION
Access Codes
There are several access codes that are used by your phone and its
SIM card. These codes help you protect the phone against
unauthorized use.
Phone Password
The security code can be used to avoid unauthorized use of your
phone. The security code 0000 is usually supplied with the phone.
Change the security code before you start using your phone. Keep the
new code secret and in a safe place, which is separate from the phone.
PIN Code
The PIN (Personal Identification Number) code protects your SIM
card against unauthorized use. The PIN code is usually supplied with
the SIM card. When the PIN code is enabled, the code is required each
time the phone is switched on.
Note: If you key in an incorrect PIN code three times in succession, the
SIM card will be locked. To unlock the SIM card, you’d key in the PUK
code and press the OK soft key, and key in a new PIN code twice.
PIN2 code
The PIN2 code, supplied with some SIM cards, is required to access
- 80 -
some functions, such as charging unit counters. These functions are
only available if supported by your SIM card.
If you key in an incorrect PIN2 code three times in succession, the
PIN2 will be locked. To unlock the PIN2, you’d key in the PUK2
code and press OK soft key (or OK key), and key in a new PIN2 code
twice.
PUK code
The PUK (Personal Unblocking Key) code is required to change a
blocked PIN code. The PUK code may be supplied with the SIM card.
If not, contact your local service provider for the code.
If you key in an incorrect PUK code ten times in succession, the SIM
card cannot be used anymore. Contact your service provider for a new
card.
You cannot change the PUK code. If you lose the code, contact your
service provider.
PUK2 code
The PUK2 code, supplied with some SIM cards, is required to change
a blocked PIN2 code.
If you key in an incorrect PUK2 code ten times in succession, you
cannot use the functions requiring the PIN2 code. Contact your
service provider for a new card.
You cannot change the PUK2 code. If you lose the code, contact your
service provider.
- 81 -
Using the Batteries
A rechargeable Li-ion standard battery powers your phone. The
following batteries are also available (ask your local dealer for further
details):
Type Capacity Talk Time Standby Time
Li-ion 750mAh 2~4hrs 70~120hrs
Precautions When Using Batteries
Never use any charger or battery that is damaged in any way.
Use the battery only for its intended purpose.
If you use the phone near the network’s base station, it uses less
power; talk and standby times are greatly affected by the signal
strength on the cellular network and the parameters set by the
network operator.
Battery charging times depend on the remaining battery charge and
the type of battery and charger used. The battery can be charged
and discharged hundreds of times, but it will gradually wear out.
When the operation time (talk time and standby time) is noticeably
shorter than normal, it is time to buy a new battery.
- 82 -
If left unused, a fully charged battery will discharge itself over
time.
Use only approved batteries; and recharge your battery only with
approved chargers. When a charger is not in use, disconnect it from
the power source. Do not leave the battery connected to a charger
for more than a week, since overcharging may shorten its life.
Extreme temperatures will affect the charging capacity of your
battery: it may require cooling or warming first. Do not leave the
battery in hot or cold places, such as in a car in summer or winter
conditions, as you will reduce the capacity and lifetime of the
battery. Always try to keep the battery at room temperature. A
phone with a hot or cold battery may temporarily not work, even
when the battery is fully charged. Li-ion batteries are particularly
affected by temperatures below 0 °C (32 °F).
Do not short-circuit the battery. Accidental short-circuiting can
occur when a metallic object (coin, clip or pen) causes a direct
connection between the + and - terminals of the battery (metal
strips on the back of the battery), for example when you carry a
spare battery in a pocket or bag. Short-circuiting the terminals may
damage the battery or the object causing the short-circuit.
Dispose of used batteries in accordance with local regulations.
Always recycle. Do not dispose of batteries in a fire.
- 83 -
Care & Maintenance
Your phone is a product of superior design and craftsmanship and
should be treated with care. The suggestions below will help you to
fulfill any warranty obligations and allow you to enjoy this product for
many years. When using your phone, battery, charger, or any
accessory:
Keep it and all its parts and accessories out of small children’s
reach.
Keep it dry. Precipitation, humidity and liquids contain minerals
that will corrode electronic circuits.
Do not use or store it in dusty, dirty areas as its moving parts can
be damaged.
Do not store it in hot areas. High temperatures can shorten the life
of electronic devices, damage batteries, and warp or melt certain
plastics.
Do not store it in cold areas. When the phone warms up (to its
normal operating temperature), moisture can form inside the phone,
which may damage the phone’s electronic circuit boards.
- 84 -
Do not drop, knock or shake it. Rough handling can break internal
circuit boards.
Do not use harsh chemicals, cleaning solvents, or strong detergents
to clean it. Wipe it with a soft cloth slightly dampened in a mild
soap-and- water solution.
Do not paint it. Paint can clog the device’s moving parts and
prevent proper operation.
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications of attachments could
damage the phone and may violate regulations governing radio
devices.
If the phone, battery, charger, or any accessory is not working
properly, take it to your nearest qualified service facility.
This phone features large inner & outer display screens, which are
damageable. Please be most careful to avoid dropping or knocking
it or scratch it with a sharp thing.
- 85 -
GLOSSARY
Antenna
A device for transmitting or receiving signals. The size and shape of
antennas is determined, in part, by the frequency of the signal they
receive. Wireless phones and the base station must have antennas.
Alarm Clock
Your pager alarm can be set for a specific time and date or can used as
a daily alarm.
Smart Dial
An intelligent way to dial a number which is stored in your phonebook.
Say you want to dial Steven, at idle, press st, then press *, you can
find the number of Steven. Or press st when you select Smart Dial in
phonebook.
Band
Range of radio frequencies between two defined limits which are used
in wireless communications.
- 86 -
Call Barring
Enable it to restrict outgoing and incoming calls.
Call Divert
Allows you to set your phone to forward calls to an alternate phone
number. (Network and subscription dependent feature -- not available
in all areas).
Call Holding
You can put callers on hold. (Network and subscription dependent
feature -- not available in all areas).
Call Waiting
While making a call, the phone will alert you that another person is
trying to call you. You can choose to answer the call or it will forward
to your voice mail. (Network and subscription dependent feature -- not
available in all areas).
Conference Call
The feature allows you to establish a conference call which can
involve up to five additional parties.
- 87 -
GSM (Global System for Mobile Communication)
GSM is the pan-European standard for digital cellular telephone
service. It is also one of the technologies available in the Americas.
GSM was designed for markets to provide the advantage of automatic,
international roaming in multiple countries. The SIM (Subscriber
Identification Module) card is a vital component in GSM operation.
The user can store all relevant data for the phone on a removable
plastic card. The card can be plugged into any GSM compatible phone
and the phone is instantly personalized to the user.
GSM850
GSM850, called GSM, is the most widely used digital network and
now operating in more than 100 countries around the world.
GSM1900
The digital GSM network used in Europe and Asia.
Hands-Free
A feature that permits a driver to use a wireless phone without lifting
or holding the handset - an important safety feature for automobiles,
tractors and most other motorized vehicles.
- 88 -
LED (Light Emitting Diode)
It is commonly used to refer to a small light on the wireless phone or
on the desktop charger. The LED lights on the phone to indicate an
incoming call. The lights on the charger indicate that battery charging
is taking place.
Line Identification Service
The service allows the subscribers to view or block the telephone
numbers of callers.
Mobile Phone
The term that can be inter-changed with cellular phone or wireless
phone.
PIN (Personal Identification Number)
Security code that protects the phone against unauthorized use. The
PIN is supplied by the service provider with the SIM card. It may be a
four to eight-digit number and can be changed, if required.
PUK (PIN Unlocking Key)
Security code used to unlock the phone when an incorrect PIN has
- 89 -
been entered three times in succession. The eight-digit number is
supplied by the service provider with the SIM card.
Roaming
A service offered by most cellular service providers that allows
subscribers to use cellular service while traveling outside their home
service area. When they are outside their home service area and come
within range of another cellular system, the ROAM indicator on the
cellular phone will light to show that they are in range.
SIM (Subscriber Identification Module)
Card containing a chip with all the information required to operate the
phone (network and memory information, as well as the subscriber’s
personal data). The SIM card fits into a small slot in the back of the
phone and is protected by the battery.
SMS (Short Message Service)
Network service that allows you to send and receive messages to and
from another subscriber without speaking to the correspondent. The
message created or received (up to 160 characters) can be displayed,
received, edited or sent.
- 90 -
Soft Keys
There are 2 soft keys, and the purpose of which:
• Varies according to the function that you are currently using
• Is indicated on the bottom line of the display just above the
corresponding key.
Standby Time
The time a battery can power a phone in the standby mode, ready to
make or receive a call, without being used for an actual call. The
longer a phone is in standby mode, the less standby time remains in
the battery.
Talk Time
The total time a battery can power a phone for cellular calls. As the
phone drains the battery during a call, the talk time left in the battery
diminished until the phone is turned off or the battery is recharged.
Voice Mail
Computerized answering service that automatically answers your calls
when you are not available, plays a greeting (Optionally in your own
voice) or records a message.
- 91 -
TROUBLESHOOTING
If the phone does not work properly, please check the following
troubleshooting and find a solution. If you can’t solve the problems,
please contact your local dealer for help.
Questions Solutions
Cannot make or receive
calls.
● Check whether the phone is powered on or not.
● Check if the battery is lack of power.
● Check if the signal is strong enough.
● Check if you’ve set ‘Call Barring’, SDN or the
other options in Call Set menu.
● Check if you’ve set the ‘Call Divert’.
● Check if you’ve placed the SIM card properly.
Conversation volume is low. ● Check if you’ve set the Voice Volume too low.
Does not ring when an
incoming calls comes in.
● Check if you’ve set ‘Silent’ or ‘Vibrator’ modes.
● Check if the ring volume is set too low.
● Check if the surrounding noise is too loud.
● Check if you’ve set the ‘Call Divert’.
LCD is not clear. ● Check if you’ve set the LCD contrast too low.
The keypad doesn’t work. ● Check if you’ve locked the keypad.
The one on the other part of
the line cannot hear you.
● Check if you’ve set ‘Mute’.
● Check whether you speak near the MIC.
- 92 -
IMPORTANT SAR INFORMATION
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission limits
for exposure to radiofrequency (RF) energy set by the FCC of
USA. These limits are part of comprehensive guidelines and
establish permitted levels of RF energy for the general
population. The guidelines are based on standards that were
developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to
assure the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a
unit of measurement known as the Specific Absorption Rate,
or SAR. The SAR limit set by the FCC is 1.6 W/kg. *
Tests for SAR are conducted with the phone transmitting at its
highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can
be well below the maximum value. This is because the phone
is designed to operate at multiple power levels so as to use
only the power required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the
power output.
Before a phone model is available for sale to the public, it
must be tested and certified to the FCC that it does not exceed
the limit established by the government adopted requirement
for safe exposure. The tests are performed in positions and
locations (e.g., at the ear and worn on the body) as required by
the FCC for each model. The highest SAR value for this
model phone when tested for use at the ear is 0.919 W/Kg and
- 93 -
when worn on the body, as described in this user guide, is 1.540
W/Kg. (Body-worn measurements differ among phone models,
depending upon available accessories and FCC requirements).
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirement for safe exposure.
* In the United States and Canada, the SAR limit for mobile
phones used by the public is 1.6 watts/kg (W/kg) averaged
over one gram of tissue. The standard incorporates a
substantial margin of safety to give additional protection for
the public and to account for any variations in measurements.
Use only the supplied or an approved antenna. Unauthorized
antennas, modifications, or attachments could impair call
quality, damage the phone, or result in violation of FCC
regulations. Do not use the phone with a damaged antenna. If
a damaged antenna comes into contact with the skin, a minor
burn may result. Please contact your local dealer for
replacement antenna.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Body-worn Operation
This device was tested for typical body-worn operations. To
comply with RF exposure requirements, a minimum
separation distance of 1.5cm must be maintained between the
user’s body and the handset, including the antenna.
Third-party belt-clips, holsters, and similar accessories used
by this device should not contain any metallic components.
- 94 -
Body-worn accessories that do not meet these requirements
may not comply with RF exposure requirements and should be
avoided.
Use only the supplied or an approved antenna. Unauthorized
antennas, modifications, or attachments could impair call
quality, damage the phone, or result in violation of regulations.
Do not use the phone with a damaged antenna. If a damaged
antenna comes into contact with the skin, a minor burn may
result. Please contact your local dealer for replacement
antenna.
FCC Part 15 Notice
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
Warning: This device has been tested and found to comply
with the limits for a Class B digital device pursuant to Part 15
of the Federal Communications Commissions Rules and
Regulations. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction
manual, may cause harmful interference to radio
- 95 -
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try and correct
the interference by one or more of the following measures:
. Relocate this device
. Increase the separation between the device and the receiver
. Connect the device into an outlet on a circuit different from
that of other electronics. Consult the dealer or an experienced
radio technician for help.
FCC Radiation Exposure Statement
Important Note: To comply with FCC RF exposure
compliance requirement, the antenna used for this transmitter
must not be co-located or operating in conjunction with any
other transmitter.
Caution
Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate this equipment.
Printed in China
English-USA 10/ 2005 Rev. 1.0
