Users Manual Part I
- 1 -
Thank you very much for choosing Amoi A6a, the fashionable and
elegant blue screen mobile phone. A6a is a perfect integration of
unparalleled contemporary design and consummate craftsmanship,
bringing you easy communication and entertainment, as well as
highlighting your tastes.
Key Features:
GSM World Tri-band Unlocked
Compatible with Most Standard GSM Networks
Metal Silver Keys with Sapphire Blue Backlight
SMS (Short Messaging Service)
Phonebook Memory: 150 V-card Entries
AMOI Smart Dial
16-Polyphonic Ring Tones
Interesting Standby Animations & Images
Multi Call Functions (Call Divert, Call Wait/ Hold, Auto-Redial/
Answer, Incoming Call Filter)
Built-in Amusing Games
Tool Kit (Alarm Clock, Calculator, World Time, Voice Memo)
- 2 -
Specifications:
GSM/ GPRS: 850/ 1800/ 1900MHz
Voice Encoding: FR/ EFR/ HR
Screen: 1.8" FSTN Main Screen (128 x 128 Pixels)
Dimension: 86.5 x 44 x 17.9 mm; 3.41" x 1.73" x 0.70"
Weight: 78 g; 2.75 oz
Battery Capacity: 650 mAh
Standby Time: 80~120 hrs
Talk Time: 2~3 hrs
The manufacturer may, at any time and without notice, make changes or
improvements to the products offered, but provide necessary corrigendum with this
manual or release new version of this manual for the following lot. The Amoi logo
and trademark are the property of the manufacturer. Nov. 2004
- 3 -
INTELLECTUAL PROPERTY
All Intellectual Property, as defined below, owned by or which is
otherwise the property of AMOI or its respective suppliers relating to
the AMOI mobile phones, including but not limited to, accessories,
parts, or software relating thereto (the “Phone System”), is proprietary
to AMOI and protected under federal laws, state laws, and
international treaty provisions. Intellectual Property includes, but is
not limited to, inventions (patentable or unpatentable), patents, trade
secrets, copyrights, software, computer programs, and related
documentation and other works of authorship. You could not infringe
on it, otherwise you may violate the rights secured by the Intellectual
Property. Moreover, you must agree that you will not (and will not
attempt to) modify, prepare derivative works, recompile, disassemble,
or attempt to create source code from the software. No title or
ownership in the Intellectual Property is transferred to you. All
applicable rights of the Intellectual Property shall remain with AMOI
and its suppliers.
- 4 -
TABLE OF CONTENTS
Safety Precautions ......................................…........................ 7
Unpacking ................................................….......................….9
Your Phone ...........................………........…….........…...... 11
Phone’s Layout ............................……………..................... 11
Keys Description ……...…...……………………………….13
Display .........................................………………................. 14
Backlight .......................................…………….................... 15
7 Color LED………………………………………………15
Getting Started ......................................………………...... 16
Installing a SIM Card ......................................…………….. 16

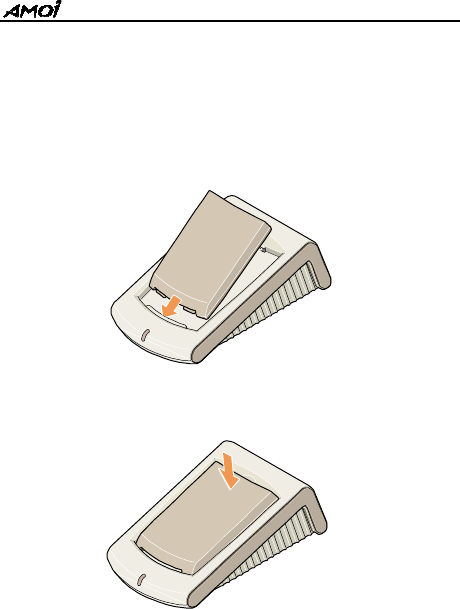

Charging a Battery ........................………………................ 18
Switching the Phone On/Off ..............………………........... 22
Your Phone’s Mode......................…………….………….... 23
Call Functions ..............................……………………....... 24
Making Calls .................................................…………….... 24
Receiving Calls ....................................……………............. 25
Rejecting a Call……………………………………………26
Missed Calls ..................................………………............... 26
Adjusting the Volume........................……………................ 27
Quick-switch to Mute Mode.............……………...….......... 27
Call Menu…………...……………....................................... 27
Making a Conference Call…………………………………29
Entering Text ........................................…………….......... 30
Changing Text Input Mode ..............……….…………........ 30
- 5 -
Insert Symbol .......................................………………......... 31
English Mode ...............…………..……………................... 31
Spanish Mode………………………………………….……31

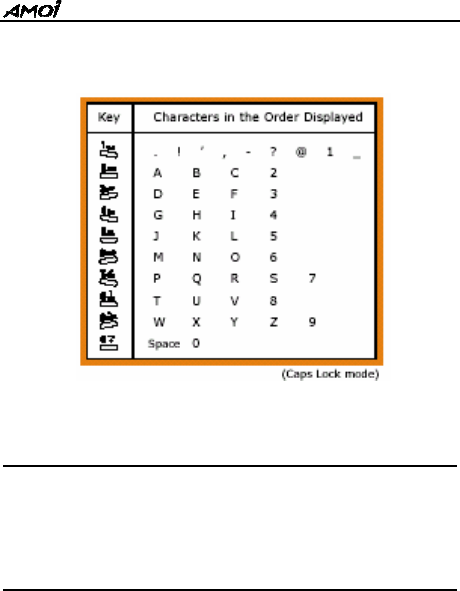

ABC Mode ...................………………………..................... 32
123(Numeric) Mode ........................……………................. 33
Insert Template………………………..…………………….33
Insert Phone Number………………..………………………34
Using User’s Dictionary ...........................……………….... 34
Phonebook ........................................................................... 36
Storing a Phone Number in PB...…………….…………...... 36
Phonebook Menu......................…….……………................ 36
Using Menus …………..……….……................................. 43
Accessing a Menu Function…………………………...…….43
List of Menu Functions ...........……….…………................. 44
Messages ................................…………….......................... 48
Voice Mail .................................……………........ 48
SMS…………………...…………………………………….49
Broadcast .....................................................……………..... 51
Settings ..................................................……………........... 52
Display ...............................………………….............. 53
Power On/ Off Display………………....…………….......... 53
Standby Display ....………………….……………............... 53
Audio Profile ....................................................................... 54
Music Select…………………… ................…….................. 54
Volume………………….……………………..................... 55
Call Prompt……………………......……………….............. 55
- 6 -
Settings .......................................………….......................... 56
Mobile……………………...............……………................. 56
Call………………………….......……………...................... 58
Network…………………..........……………………........... 61
Security…………………..............…....………………….... 62
Toolbox ...............…….………………................................ 65
Calendar……………………………………………………..65
Calculator..............................................……………............. 66
World Time ...............................................………………..67
Voice Memo ............………………….…………............. 67
Private Info ..................................…………........................70
Call Lists .............………………………..………................ 70
Calls………………………...................……………….........70
Bio Rhythm .........………………………..……….................71
Monthly Care.......................................……………….......... 71
Games ................................…………................................... 72
Reference Information .......……….…………................... 73
Access Codes ....…………………….................................... 73
Using the Battery ..………………...…................................. 75
Care and Maintenance .......................................................... 77
Glossary ................….……….…………............................. 79
TroubleShooting ...……………...........................................86
- 7 -
SAFETY PRECAUTIONS
Read these brief guidelines. Failure to comply with
them may be dangerous or illegal.
Road safety comes first
Do not use a hand-held mobile phone while driving; park the vehicle
first. Remember that in some countries, it is illegal to use a mobile
phone while driving.
Switch off on aircraft
Mobile phones can cause interference. Using them on
aircraft is both illegal and dangerous. (Please also close
the power-off alarm clock.)
Switch off near an explosion place
Do not use the phone near an explosion place, because it
likely disturbs the remote control of the explosion.
Switch off when refueling
Do not use the phone at a refueling point (service station)
or near fuels or chemicals.
- 8 -
Switch off in hospital
Follow any regulations or rules. Switch phone off near
medical equipment.
Interference
All wireless phones may be subject to radio interference,
which may affect their performance.
Accessories and batteries
Use only approved accessories and batteries.
Use sensibly
Use only in the normal position (to ear). Do not touch
the antenna unnecessarily when the phone is switched
on. Your package contains the following items.
Emergency Call ( SOS)
By pressing the soft key SOS you can reach an emergency
call on any network without a SIM card and without
entering a pin ( not available in all countries )
- 9 -
UNPACKING
Your package contains the following items.
Handset Battery
Travel Charger Hands-free Headset
User’s Manual Addendum to User’s Manual
- 10 -
In addition, you can buy the following accessories for your phone
from your AMOI local dealer:
• Standard Battery
• Hands-free Car Kit
• Car Charger
• Leather Case
• Desktop Charger
• PC Data Link Kit (PC data link cable + PC link CD)
Note: Accessory availability may vary by market.
- 11 -
YOUR PHONE
Phone’s Layout
The following illustrations show the main elements of your phone.
Open View
Earpiece
Display
Vo l u me K e y
Left Soft Key
Send Key
Right Soft Key
Power On/ Off Key
Navigation/ Hot Key
Alphanumeric Key
Special Function Keys
Microphone
- 12 -
Closed View
Rear View
Antenna
Earphone Jack
(On Upper Side)
7-Colors LED
Speaker
Hand Strap Hold
Battery Lock
Battery Terminals
SIM Card Socket
Metal Lock
Cable Connector Slot
- 13 -
Keys Description
Key Description
Two soft keys perform the functions indicated by the text above them
(in the bottom line of the display).
Navigation Keys: In the menu facility, scroll through the menu
Options and Phonebook memory. In Standby mode, the ▲ key to
enter the Voice Memo, the d key to view the Call Lists, the e key
to use My Favorite and the f key to enter Messages.
OK Soft Key: In the menu facility, confirms your selection or entry.
In editing mode, press it to enter the Input Mode Menu.
Send Key (Call Key): Makes or answers a call. In Standby mode,
recalls the last number dialed.
Power On/ Off Key: Ends a call; hold it to switch the phone on and
off. In the menu facility, returns to the Standby mode and cancels
your input.
Alphanumeric Keys: Enter numbers, letters and some special
characters. In Standby mode, hold the 1 numeric key to enter the
Voice Mail.
Volume Keys (On the side of the phone): During a call,
adjusts the voice volume. In Standby mode, adjusts the key
tone volume.
OK
- 14 -
Display
The display comprises three areas.
Area Description
First
line
Displays various
icons.
Middle
lines
Displays messages,
instructions and any
information that
you enter.
Last
line
Shows the
functions currently
assigned to the two
soft keys.
Icons
Signal Strength: Shows the received signal strength. The
greater the number of bars, the better the signal strength.
Service: Appears when there is a call incoming.
No Service: Appears when you are not covered by the network
service provider. In this case, you cannot make or receive
calls.
Roaming: Appears when you are out of your home area and
under another different network.
- 15 -
New Message: Indicates that there is a new message received.
Mute: Appears when you set the Mute mode active. The
phone vibrates instead of ringing when there is a call coming.
Alarm: Appears when you set the alarm active.
Battery Status: Shows the level of your battery. The more
black area you see, the more power you have left.
Backlight
The display and keypad are illuminated by a backlight. When you
press any key, the backlight illuminates. It turns off if no key is
pressed within a given period of time, depending on the Backlight
Option set in the Phone Set menu.
7 –Color LED
The 7-colors LED is on the bottom of the upper cover, you can set
different flickering modes when you switch on your phone or receive
an incoming call. It flickers when:
Standby: Green light flickers;
During a call: Blue light flickers;
Missed a call: Purple light flickers;
New SMS: Red/Green/Blue lights flickers alternately;
Un-read SMS: Yellow lights flickers;
Charging: Red light shines;
Full charged: Green lights shines.
- 16 -
GETTING STARTED
Installing a SIM Card
When you subscribe to a mobile network, you are provided with a
plug-in SIM (Subscriber Identity Module) card loaded with your
subscription details (PIN, Phone book information and so on).
Note: The SIM card can be easily damaged by scratching or bending, so
you should be careful when handling, inserting or removing the card.
Follow the instructions supplied with the SIM card. Keep all SIM cards
out of the reach of small children.
1. Switch the phone off to press and hold down the key.
2. Remove the battery. To do so:
① Press down the catch above the battery and hold it in the
position.
② Slide the battery and lift it away, as shown.
- 17 -

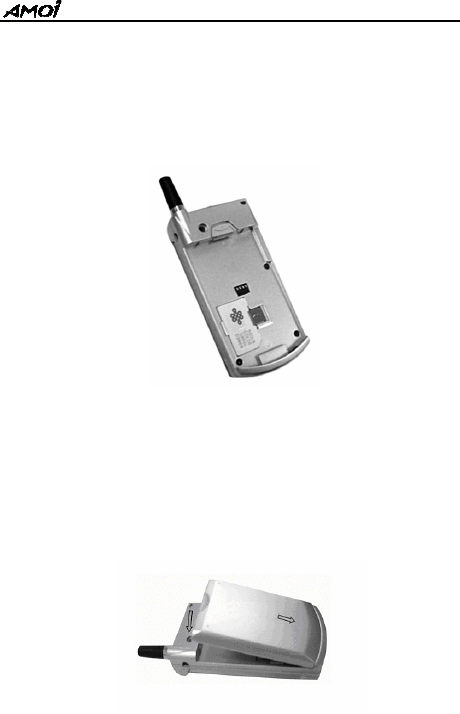

3. Insert the SIM card into the SIM card holder so that the holder
locks the card in the position. Make sure that the notched corner
is at the top right and the gold contacts of the card face into the
phone.
4. Reinstall the battery. To do so:
① Place the battery back, taking care to match the tabs on the
battery with the grooves on the phone.
② Push the battery down until it clicks into place. Make sure
that the battery is properly installed before switching on the
phone.
- 18 -
Charging a Battery
Your phone is powered by a rechargeable Li-ion battery.
You are provided with a travel charger when buying the phone. Use
only approved batteries and chargers. Ask your local dealer for further
details.
Note: You must fully charge the battery before using your phone for the
first time. The phone can be used while the battery is charging.
Using the Travel Charger
1. Place the battery on the back of the phone, connect the lead from
the travel adapter to the connector at the bottom of the phone.
2. Connect the adapter to a standard AC wall outlet.
3. When charging is finished (the full battery icon becomes solid),
disconnect the adapter from the AC wall outlet, then from the
phone.
Note: When disconnect the lead of the adapter from the phone, you
should press the buttons on both sides of it, otherwise it’s easily
damaged.
- 19 -
Using the Desktop Charger
To charge the battery alone, use the desktop charger unit.
1. Insert the battery alone into the slot making sure that the
terminals on the battery contact to the terminals on the charger.
2. Push down the battery until you hear a click.
- 20 -

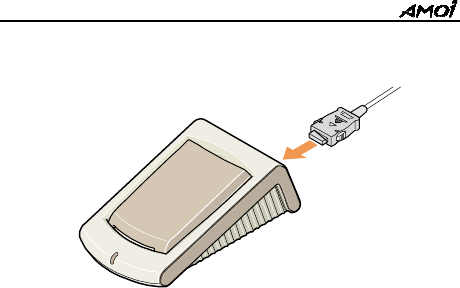

3. Insert the lead of the travel adapter into the connector socket of
the desktop charger.
4. Connect the adapter to a standard AC wall outlet.
5. The colour indication of the LED on the charger is as follows:
• Red: Charging
• Green: Fully Charged
6. When charging is finished (the LED flashes in green), unplug
the power cord of the adapter from the AC outlet and remove the
battery from the charger.

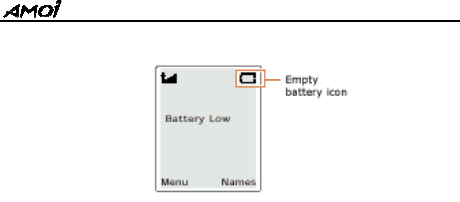

Low Battery Indicator
When the battery charge level gets low, you can see an empty battery
icon at the top right of the display and a text notification.
- 21 -
If the battery level gets too low, the phone will turn off automatically.
Unfortunately, if this happen, you’ll lose whatever you are doing,
including dropping your call. Watch the battery strength icon and
make sure your battery is adequately charged.
- 22 -

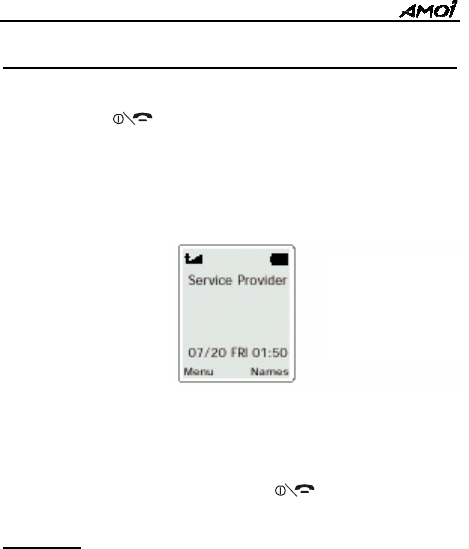

Switching the Phone On/Off
1. Open the phone.
2. Hold the key for more than one second to switch the
phone on.
3. Enter the PIN code (if you have set to PIN check On), and press
the OK soft key. Then your phone connects to the GSM network,
and you’ll see the following screens.
Note: If the phone is out of service, ‘No Service’ appear in the display. In
this case, you cannot make or receive any calls. Wait a little while for a
better signal or move into an open area to regain the service.
4. To switch the phone off, hold the key for more than
two seconds.
WARNING!
Do not switch on the phone when the mobile phone use is prohibited or
when it may cause interference or danger.
Note: The unnecessary touch of the antenna when the phone is switched
on may affect the call quality and cause the phone to operate at a higher
power level than otherwise needed.
- 23 -
Your Phone’s Mode
Standby Mode
Standby is the most basic state of your phone. The phone goes into
Standby mode soon after you turn it on, or whenever you briefly press
the key. When your phone is in Standby mode, you will
typically see the current date and time. If you enter a phone number,
you can press the OK key to dial it, or press the Save soft key to save
it in the internal Phonebook.
Press the key at any time to return to Standby mode. Be
careful; if you are on a call when you press the key, you will
return to Standby mode, but it also disconnects the call.
Talk Mode
You can place and answer calls only when your phone is turned on.
During a call, the phone is in Talk mode. While you are in Talk mode,
pressing the left soft key gives you a list of Options referred to as
“Call Menu”.
- 24 -
CALL FUNCTIONS
Making Calls
Before you can make or receive a call, you must turn on the phone and
be within the range of a network.
1. In Standby mode, enter the area code and phone number. (If you
make a mistake while dialing, use the e or f key to move the cursor
to the right of the digit, press the right soft key to erase; and hold it to
erase the entire number.)
Note: While entering the number, hold the # key to insert a pause (for
example: between the switchboard and the extension). The number after
the pause will be sent a few seconds after dialing the first number.
2. Press the key to dial the number.
3. When you finish talking, press the key or simply close
the phone to end the call.
Making International Calls
1. Hold the 0 key UNTIL A ‘+’ character apperas on the display.
2. Enter the country code, area code, and phone number, then press
the key to begin dialling.
- 25 -
Last Number Redialing
To redial the last number you dialed, press the key to view the
outgoing call list, then choose the desired one by using the c, d key
and then press the key to dial it. Your phone can store up to 10
last numbers you dialed.
Making a Call from the Phonebook

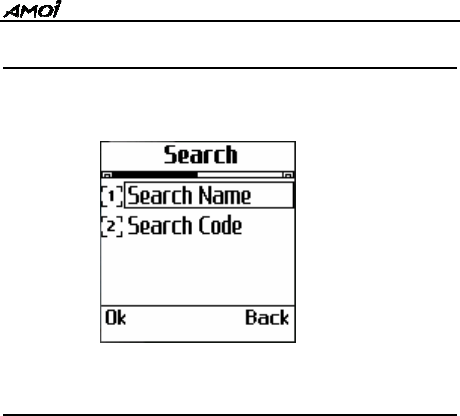

Press the right soft key to enter the phonebook, search the desired
number from it, and press the key to dial it.
Receiving Calls
When somebody calls you, the phone rings or vibrates (if you have set
for that), the screen display an incoming call message. If you have
subscribed the Line Identification Service (contact your service
provider) and the caller’s phone number displays; if you have saved
the number in your phone book, the name displays.
Two modes are provided for receiving a call: Call Key & Open
Mobile. Refer to Settings/ Mobile/ Answer mode for the details.
Press the key to answer the call the key to reject it when
the phone is opened.
Note: You can answer a call while using the phonebook or menu
features, while the current operation will be halted. If you use the
- 26 -
hands-free kit, hold the OK key on it for about three seconds to answer it.
Rejecting a Call
Pressing and holding down the Volume key for about 3 seconds to
reject a call when the phone is closed; press the Reject soft key to
reject it when the phone is opened.
Missed Calls
When an incoming call is not answered for any reason, the Missed call
log displays on your screen.
1. To view the missed call immediately, press the List soft key, the
number or the name (if available) displays, scroll through the desired
one, press the key to dial it.
2. Press the Option soft key, you’ll enter the Missed Calls menu, the
following options are available:
Edit: Edit the number. It allows you to save the number in your SIM
card or Local.
Delete: Delete the number from the missed calls list.
Delete All: Delete all numbers from the missed calls list.
Note: Press the key at any time to exit the Missed Call menu, or
view the missed calls at any time by entering the Call Lists.
- 27 -
Adjusting the Volume
During a call, use the volume key on the left side of the phone to
adjust the volume of the voice. Press the Up key to increase the
volume, the Down key to decrease it. In Standby mode, you can
adjust the key tone volume by using the volume key.
Quick Switch to Mute Mode
You can quickly switch your phone to the Mute mode by holding the
* key. In mute mode, the phone vibrates instead of ringing when there
is a call coming. When the Mute mode is set to be active, an
icon appears on the display. To switch back to the Normal mode,
hold the * key for about three seconds.
Call Menu
Some of the features you can use during the call depend on the
support of your network service.
During the call, press the Option soft key to enter Call Menu. The
options may change in different conversation circumstances.
The followings are the possible options:
Record: Record the conversation during a call. It can be recorded up
to 30 seconds.
- 28 -
Note: Recording conversation in some countries is illegal, so please first
get the consent from the other party before you begin the recording.
Mute: You can switch the microphone off so that the caller can’t hear
you.
Hold ( current call ): You can hold the current call.
Resume held call: Connect the held call.
Hold current call/Dial new number: You can dial a new number
while holding the current call.
Hold current call/ Answer new call: You can answer a new call
while holding the current call.
Switch Call: Hold the current call and connect the held call.
Connect the held call to a conference call: You can connect the held
call to a conference call.
End the current call: Select it to end the current call.
End held call: Select it to end the held call.
End current call/ Answer new call: You can end the current call and
answer the new call.
End current call/ Answer held call: You can end the current call and
answer the held call.
End all calls: Select it to end all the calls.
Message: Enter the Message / SMS feature.
DTMF Off: Switch the DTMF off.
- 29 -
Making a Conference Call
Conference Call is a network service. It allows up to six people to take
part simultaneously in a call.
1. During a call, dial a phone number of the second participant, and
press the key. The first participant is automatically put on
hold.
2. Press the Menu soft key to enter Options.
3. Press the c or d key to scroll to Conference Call and press the
OK soft key.
4. When Join is highlighted, press the OK soft key (or OK key) to
join the first participant in the call.
5. To add more participants to the call, repeat steps 1 to 4.
6. Press the key to end the whole conference call.
- 30 -
ENTERING TEXT
When storing a name in the phonebook, creating your personal
greetings or scheduling events in your calendar or writing any other
message, you will need to enter text.
You are provided with the following eZi text input modes:
• Symbol
• English/ ENGLISH/ english
• Spanish / SPANISH/ Spanish
• Abc/ ABC/ abc
•123 (Numeric input mode)
Note: The number on the top right is a word count of the message, it
points out how many characters you can enter in the edit zone. The
current input mode indicates on the top left of the display.
Changing Text Input Mode
When in a text entry screen, you will see the text input mode indicator
on the top left of the display. Press the OK key to enter the text input
mode list, and press the c or d key to find the desired one. Or you
can simply change the input mode by pressing the key in text
entering mode.
Note: The text input mode may vary in different markets.
- 31 -
Symbol
. , : ; ? ! “
‘( ) * + - / =
<> # % _ ［ ］ @
｛｝$ ~ ^ \ ` |
1 2 3 4 5 6 7 8
Insert Symbol
Symbols mode enables you to enter symbols into a text message.
To enter a symbol, you should:
1. When entering text, press the OK key to enter the ‘eZi Menu’.
2. Enter the ‘Insert Symbol’ and you will see a symbol chart as
below. Press the c or d key to select the column which
includes the symbol you want to use.
3. Press the corresponding numeric key on the bottom of the chart
to insert the desired symbol mark.
eZi English Mode
This mode allows you to enter English words with only one keystroke
per letter. Each key on the keypad has more than one letter. For
example, when you press the 5 key J, K, or L may be displayed. The
English mode automatically compares your keystrokes with an
internal linguistic dictionary to determine the correct word, thus
- 32 -
requiring far fewer keystrokes than the ABC mode. For example, to
enter ‘hello’, press the following keystrokes: 4,3,5,5,6.
If the word that appears in the display is not the word you desire, press
the f or e key to display alternate word choices for the keys you
have typed. (For example, ‘of ’ and ‘me’ both shares keystrokes 6, 3
in the same sequence) The phone displays the most commonly used
choice first.
Press the c or d key to change the case, the c key for upper case,
the d key for lower case.
eZi Spanish Mode
Please refer to English mode.
ABC Mode
This mode allows you to enter letters by pressing the key labeled with
the required letter, once for the first letter, twice for the second letter,
and so on.
For example, press the key “2” three times in succession to display the
letter “C”, press the key “5” two times quickly to display the letter
“K”.
Note: When you require the same letter twice or more in succession (or a
different letter on the same key), just wait for a few seconds for the
- 33 -
cursor to automatically move right , and then select the next letter.
List of characters available:
123 (Numeric) Mode
123 Mode enables you to enter numbers into a text. You can enter
your desired digits by simply pressing the key on which the digit is.
Insert Template
There are 5 daily used templates stored in the phone that allows you to
insert directly when editing the message.
- 34 -
Insert Phone No.
In text entering mode, press the OK soft key to enter ‘Menu/ Insert
Phone No.’. Press the c or d key to choose the number, then press
the OK soft key. The number will be inserted to the message.
Dictionary
While entering a SMS message, you can use your own dictionary
which allows you to add a new word and then the word has a high
priority in English mode.
Adding a word to the Dictionary
1. In the text entry mode, press the OK key to enter the ‘eZi Menu’.
2. Scroll to ‘Dictionary’ and press the OK soft key to enter.
3. Select “New” and input the word you want to add.
4. Press ‘Select’ and select ‘Save’, then the word is saved in your
dictionary.
Now, the word saved in your dictionary becomes the one with first
priority for the associated key press. You can check the added words
in the ‘List’ of ‘Dictionary’.
Dictionary List
1. Enter the Dictionary in the eZi Menu, press the OK soft key.
2. Scroll to the List, and press the OK or Select soft key.
- 35 -
3. All the words list out, and then choose the desired one by
pressing the OK soft key.
4. Press the Select soft key to choose to Save or Delete it.
- 36 -
PHONEBOOK
You can store your phone numbers and their corresponding names in
your SIM card or in your phone memory. You can store up to 150
numbers in your phone memory; the number of the entries which SIM
card can store, depends on the type of the SIM card.
Storing a Phone Number in PB
1. Key in the number to be stored.
2. Press the Save soft key.
3. Enter the corresponding name up to 10 characters.
4. After that, press the OK soft key.
5. Press the c or d key to select to save in the SIM card or Local.
6. Press the OK soft key to store the name and number.
There are two ways provided for you to enter the Phonebook.
1. In standby mode, press the right soft key to enter it.
2. Enter the corresponding numeric key and then press the * key,
you’ll enter the associated entry of the phonebook.
Phonebook Menu
When you enter the phonebook, the following options are available:
- 37 -
Country/ Area Codes
Press the ▲or▼ key to view the country/ area codes, press the left
soft key to search by name or by code.
Smart Dial
This Option allows you to find an entry quickly in your PB.
1. When Smart Dial is highlighted, press the left soft key to enter.
2. Input the corresponding numeric key of the desired name.
3. Scroll to your desired entry and press the Left soft key.
4. Press the Send key to dial it or press OK left soft key to enter
“Option”, the following options are available:
Edit: Edit the details of the selected entry (name, number).
Copy: Allows you to copy the selected entry from the phone
memory to the SIM memory or vice versa.
- 38 -
Delete: Press the Left key and phone will display ‘Delete? OK or
Back’. Select "OK" to delete this entry. Select "Back" to
cancel this operation.
Call: Press the OK key to dial this number.
Write SMS: Refer to Messages/Write.
Send number: Send all the numbers in this entry to the appointed
number.
View
This Option allows you to find a Phonebook entry by searching from
the list of all entries sorted by name.
(1) Press c or d key to view the entries.
(2) If the entry contains more than one item, press the f or e key to
view the items. The cursor is right to the current item.
(2) Choose the desired one. Press the Option soft key, you’ll have the
following operations:
Edit: Edit the current entry.
Find: Find a new entry from the Phonebook.
Copy: Allows you to copy the selected entry from the phone
memory to the SIM memory or vice versa.
Delete: Delete the selected entry.
Call: Dial this number.
Write SMS: Refer to Messages/Write.
Send number: Send all the numbers in this entry to the appointed
- 39 -
number.
Search Name
Press the corresponding alphanumeric key(s) of the entry and you can
have the same options as in the View.
New
It allows you to add new entries to your Phonebook. When New is
highlighted, press Left soft key. Enter the name and the number of the
new entry, then press the OK left soft key. When finishing entering,
press the left soft key to choose the Save Local or SIM. (refer to
Storing a phone number in PB)
Speed Dial
Enter the number or search an entry from the phonebook you desire
for speed dial, then press the left soft key to save the option. It allows
you to set up to 10 numbers for speed dial. For example, set the
number of Steven as the first one in the Speed Dial list, in standby
mode, hold the corresponding 1 numeric key, the number can be
dialed quickly and directly.
- 40 -
Caller Groups
The phone allows you to group the numbers stored in the Local. (The
numbers stored in the SIM card cannot be grouped.) It allows you to
set 10 groups, such as Family, Friend, VIP and so on. When the
number in the group dialed, the phone rings and lights in the way
you’ve set. Enter one desired group, you’ll have the following options:
Member List: List all the members stored in the group. When the
Member List is empty, press the New left key to select
Add From Pb or New; or choose the desired existed
one, press the OK left soft key to choose Add From Pb,
New or Delete.
Delete: Delete the group.
Rename: Rename the group.
Light Alert: Set the Alert light for the group. There are 10 choices,
press the ◄or ► key to choose the desired one, press the
left soft key to save the option.
PhBook Manager
Own Number
Store the SIM card number of local phone for reference.
Memory Status
Check the total capacity and the amount of used entries of PB in SIM
- 41 -
card and Local.
Copy (Take “Local to SIM” for example)
(1) Copy One: Press c or d to view the phone number one by one
and press left soft key to copy the desired one.
(2) Copy All: Copy all the numbers stored in phone to SIM card.
Note: If the entry already exists in target PB, the entry will not be copied.
If the space of target PB is not enough for the copy, only the front phone
numbers will be copied until the target PB is full.
If the name length of target PB is less than that of original PB, the
exceeded part will be lost.
Move
It allows you to move the entries from the SIM to Local or from Local
to SIM. Press the OK left soft key to enter one menu, select Copy one
or ALL to move the entries.
Delete All
Delete all the entries in the SIM card or in the Local.
- 42 -
USING MENUS
Accessing a menu function
By Scrolling
1, In Standby mode, press ‘Menu’ soft key.
2, Scroll with c, d,f ,e key through the menus and press OK to
enter the one you desire.
3, If the menu contains submenus, select the one you want, for
example Call settings.
4, If the selected submenu contains further submenus, repeat step 3.
5, Press the OK soft key to confirm the desired setting.
By Shortcut
The menus, submenus and setting options are numbered and can be
accessed directly by using their corresponding shortcut keys.
1, In Standby mode, press the ‘Menu’ soft key.
2, Within three seconds, key in the corresponding number of the menu
function you want to access.
Notes: The numbers assigned to each menu function are indicated on the
list of the following pages. They may not match the menu number on the
phone. It depends on the services supported by the SIM card.
- 43 -
List of Menu Functions
The list shows the menu structure available and indicates the number
assigned to each option.
1. Messages
1-1-1: Call
1-1: Voice Mail
1-1-2: Number
1-2-1: Write SMS
1-2-2: Outbox
1-2: SMS 1-2-3: Inbox
1-2-4: Status Report
1-2-5: Memory Status
1-3-1: Auto Display
1-3: Broadcast 1-3-2: Filter
1-3-4: Read
1-4-1: Status Report
1-4: Settings 1-4-2: Validity
1-4-3: SMS Center
1-4-4: Models
- 44 -
2. Display
2-1: Power On/ Off Display
2-2-1: Calendar
2-2-2: Text
2-2: Standby 2-2-3: Clock
2-2-4: Picture
2-2-5: Animation
3. Auto Profile
3-1-1: Incoming Tone
3-1-2: Message Tone
3-1: Music Select 3-1-3: Alarm Clock Tone
3-1-4: Power on tone
3-1-5: Connect Tone
3-2-1: Ring Volume
3-2: Volume
3-2-2: Key Volume
3-3-1: Tone
3-3-2: Vibrator
3-3: Call Prompt 3-3-3: Tone & Vibrator
3-3-4: No Notify
- 45 -
4. Settings
4-1-1: Time
4-1-2: Answer Mode
4-1-3: Auto
4-1-4: Auto Redial
4-1: Mobile 4-1-5: Backlight
4-1-6: Language
4-1-7: 7 Color LED
4-1-8: Contrast
4-1-9: Reset All
4-2-1: Divert
4-2-2: Bar Calls
4-2: Call 4-2-3: Call Waiting
4-2-4: Send Waiting
4-2-5: 1’ Beep
4-3-1: Mode
4-3-2: Search
4-3: Network 4-3-3: Sequence
4-3-4: Band
4-4-1: Check PIN
4-4-2: Password
4-4: Security 4-4-3: Set lock
4-4-4: PIN2 Change
- 46 -
5. Toolbox
5-1: Calendar
5-2: Calculator
5-3: World Time
5-4-1: Record
5-4-2: Play
5-4: Voice Memo 5-4-3: Label
5-4-4: Delete OneByOne
5-4-5: Delete All
6. Private Info
6-1-1: Missed
6-1: Call Lists 6-1-2: Incoming
6-1-3: Outgoing
6-2-1: Last
6-2-2: Total
6-2: Calls 6-2-3: Incoming
6-2-4: Outgoing
6-2-5: Reset
6-3-1: Me
6-3-2: Friend
6-3: Bio Rhythm 6-3-3: Spec Days
6-3-4: Settings
- 47 -
6-4: Monthly Care
7. Games
7-1: Eat Bean
7-2: Push Box
8. STK
Note: STK is a function that must be supported by the SIM card, so
please ask the provider for more details.
- 48 -
MESSAGES
The SMS (Short Message Service) function is network service and
may not be supported by your network. You must obtain the number
of the SMS center from your service provider. Mostly it is
automatically available from your SIM card.
Your phone can store up to 100 incoming and outgoing messages.
SIM card memory depends on the type of the SIM card.
Two message boxes are available: Personal SMS and Broadcasting
SMS.
Personal SMS: It is the message for mobile users to transmit personal
information.
Broadcasting SMS: If you select this option, you will receive public
information from Network Operators such as
Weather Broadcasting and so on.
SMS Indicator: When you receive a new message, an icon
appears on the screen. If the message memory is full,
continues flashing and you cannot receive any
new messages. Then use the ‘Delete’ menu to delete
obsolete messages.
Voice Mail
This menu provides you a quick way to access your voice mail (if
provided by your network). In standby mode, hold the 1 numeric key
- 49 -
to dial the number directly. In the Voice Mail menu facility, the
following options are available:
Call: Press the ‘OK’ soft key to listen to your messages. If there is no
mailbox number, enter the number first.
Number: Allows you to input or modify the mailbox number obtained
from your service provider.
SMS
Write SMS
The text message can be made up to 140 characters. Write down your
own words or press the OK soft key to enter the eZi Menu, then select
‘Insert Template’, choose the desired one to add to your message. In
editing mode, press Call key to change the text input mode, or press
the OK soft key to enter the text input menu. Press the left soft key to
enter the Write SMS menu, and then the following options are
available:
Send: Write down your own message. When finish, press the Ok left
soft key to enter the number you want to send or search the
number from the Phonebook.
Save: Allows you to save the message and the number, so that you
can send it whenever you want.
Outbox
Outbox stores the messages that you have already sent or unsent.
1. Scroll to the desired message by pressing the e or f key and scan
- 50 -
through the message by pressing the c or d key.
2. Press the Options left soft key to view the details of the messages.
Then press the Ok left soft key to have the following options:
Send: Allows you to send the message.
Save: Allows you to save the message.
Extract Number: Allows you to extract the receiver’s number from
the message.
Delete: Delete the stored message.
Inbox
Inbox stores the messages you have received.
1. Scroll to the desired message by pressing the e or f key and scan
through the message by pressing the c or d key.
2. Press the Options left soft key to enter the Options menu facility,
you’ll have the following options:
Reply: Reply to the sender. You can write a piece of new message
and then choose ‘Send’, ‘Save’, ‘Extract Number’ and
‘Delete’.
Forward: Allows you to send the message to others. You can edit the
message and then choose ‘Send’, ‘Save’, ‘Extract Number’
and ‘Delete’.
Extract Number: Allows you to extract the sender’s number.
Delete: Delete the selected message.
Delete All: Delete all the messages in the inbox.
- 51 -
Status Report
In the Messages’ Settings menu, set this function ‘On’ to require the
SMS center to inform whether your message has been sent or not.
Memory Status
This menu allows you to view how many messages are currently
stored in your SIM card and Phone. The phone can store up to 100
short messages; the numbers of message that SIM card can store
depend on the type of the card.
Broadcast
You can receive broadcast messages with various contents via this
network service, such as weather or traffic. Enter the Broadcast, you’ll
have the following options:
Auto Display: If you set this function to be ‘On’, messages will be
displayed immediately when they are received; select
‘Off’ to cancel it.
Filter: Set the channel list for receiving broadcast message:
All: Allows you to receive all the broadcast messages.
List: Only the message sent from the list can be received. You are
allowed to add or delete the channel to the list.
None: No broadcast messages will be received.
Read: You can view the up to date broadcast message.
- 52 -
Settings
Use the function to set the special features for the SMS. You can have
the following options:
Status Report: You can select ‘On’ to require the SMS center to
inform whether your message has been sent or not.
Validity: Allows you to set the length of time for which your text
messages will be stored at the message center while attempts
are still made to deliver them. Max, 1 hour, 6 hours, 12
hours, 1 day, 2 days & 1 week are available.
SMS Center: Allows you to store or change the number of your SMS
center while sending messages. You can obtain this
number from your service provider.
Models: There are several message models stored to be edited. It
allows you to send the message conveniently and quickly
whenever you want.
- 53 -
DISPLAY
Power On/Off Display
The phone provides you 2 modes for your Power On/ Off Display.
You can set the Theme or Text for it.
Standby Interface
By using this menu, you can set the Calendar, Text, Clock, Picture or
Animation as your standby interface.
- 54 -
AUDIO PROFILE
Music select
Enter the Music Select. The phone allows you to set the ring tone for
the incoming call, message, alarm clock, and so on.
Incoming Tone
It allows you to set the music for the incoming call. 20 pieces of music
are available.
Message Tone
Set the music for the incoming message. 20 pieces of music are
available.
Alarm Clock Tone
Set the music for the alarm clock. 20 pieces of music are available.
Power on Tone
Set the music for the phone as the Power on tone. 21 pieces are
available.
Connect Tone
Set the music for the Connect Tone. 6 pieces are available.
- 55 -
Volume
Adjust the volume for the ring and the key. Use the volume key on the
side of the phone to increase and decrease the volume, or use the c or
d,e or f to adjust it.
Call Prompt
It allows you to set the alert type for a new incoming call & message.
There are four types provided for you: Tone, Vibrator, Tone &
Vibrator and No Notify. Scroll to the option you want, press OK left
soft key to confirm.
- 56 -
SETTINGS
Many different features of your phone can be customized for your
preferences.
Mobile
Time
This function allows you to change the current time displayed in the
standby state. Enter the Time, you’ll have the following options:
Clock: Set the current time and the time format for the time display. 2
formats are available: 12 hours and 24 hours.
Date: Allows you to set or change the date and date format. 3 formats
are available: Y/ M/ D, D/ M/ Y, M/ D/ Y.
Alarm: 3 alarms are provided for you. You can set the 3 alarms to be
active at the same time o r you can choose to cancel all the
alarms. For every alarm, you can have the following options:
Enter Time: Enter the time you desire for the alarm to ring.
Sound: Set the mode for the alarm to work for one time or for
every day.
Answer Mode
There are 2 modes provided for you to answer a call.
Call Key: Press the key to answer the call.
Open Mobile: Open the mobile to answer the call.
- 57 -
Auto
You can set the phone to auto answer the incoming call. The phone
provides you 2 choices for the time of auto answer: 5 seconds & 10
seconds. Choose the desired one, your phone will auto answer the call
if you do not answer it in 5 or 10 seconds. You can also set it off.
Auto Redial
If you set the Auto Redial on, the phone will auto redial the missed
call. Press the call key to redial.
Backlight
Set the length for the backlight. Four lengths are available: Always, 5
seconds, 10 seconds & 20 seconds. You can also choose Off to switch
the backlight off.
Language
Two language modes are provided for your phone to display the text
information.
English: All the menus and information are displayed in English.
Spanish: All the menus and information are displayed in Spanish.
Note: Press the *,9,9,# in succession to switch the two language in
standby mode. And the languages may vary in different markets, please
check with the local AMOI retailer.
- 58 -
7 Color LED
Set the 7 Color LED for the incoming call or set for Power On light.
Call Prompt: Allows you to set the LED for the incoming call. 10
patterns are provided for you.
Power On: Allows you to set the pattern of the light when the phone
is switched on. 10 patterns are available.
Contrast
Set the contrast for the Main LCD. Use the e or f key to adjust the
contrast.
Reset All
You can reset some settings back to factory set. You need to enter the
PWD number. The original PWD number is 0000.
Call
Press the OK or left soft key to enter the Call setting, you’ll have the
following operations:
Divert
This network service enables the incoming calls to be transferred to
the number that you specify. For example: You may hope to transfer
your business calls to a colleague when you are on holiday. 5 options
are available:
- 59 -
All: All incoming calls will be transferred.
Not Reachable: Calls will be transferred to the appointed number
when you are not in an area covered by your service
network or when the phone is switched off.
Busy: Calls will be transferred when your line is busy or the call is
rejected.
No Reply: Calls will be transferred if you do not answer the call.
Cancel All: All Call Transfer functions are cancelled.
Bar Calls
The Call Barring function helps you to restrict the incoming and
outgoing calls. But this service may not be available in all networks.
Enter the first option Tele/ Speech, the following operations are
available:
All Out: To select this option, the phone will be restricted to make
any calls (except the urgent calls).
Out Intl: To select this option, the phone will be restricted to make
any international calls.
Out Intl Roam: To select this item, the phone will be restricted to
make any international calls except to your home
country when roaming (out of the network service
area).
All In: To select this item, it will restrict all incoming calls.
In When Roam: To select this item, it will restrict all incoming
calls when roaming.
- 60 -
Cancel All: To select this item, the phone will allow making and
answering all calls.
To change the PCK, you have to enter the Net PWD first.
Call Waiting
The phone supports the function of ‘Call Waiting’ and ‘Call Holding’
of GSM net. If you select this function, the network will tell you there
is a new incoming call during another call. You can answer the new
call by holding the current call. When you enter the Call Waiting
menu, the phone displays ‘Status Report…’ automatically. You can see
whether you have set the function on or off. Press the left soft key to
change the status.
Activate: Press the Activate left soft key to switch the call waiting
function on, when there is a new incoming call, the
network alerts you that there is a call incoming. You can
hold the current call, and answer the new call.
Cancel: Press the Cancel left key to invalidate the Call Waiting
function.
Send Number
This function must be supported by the network.
On: Your phone number will be displayed to receiver.
Off: Your phone number will be hidden and unknown to receiver.
- 61 -
1’ Beep
Set to hear an elapsed time reminder in the 45th second of every
minute during your calls.
On: Set to hear the time reminder.
Off: Set the reminder off.
Network
When you use the phone, the phone will automatically select the
Internet service. When the phone is out of the service area or in abroad,
you can select the appropriate Internet manually.
Mode
Switch between these two modes: Auto & Manual.
Search
To select this item, the phone displays " Searching …..". After you get
it, the GSM will auto display the found networks. If there are more
than one available networks, you can use the ▲ or ▼ to select.
Networks marked with * are forbidden to use.
Sequence
This item allows you to list the networks you can use when your GSM
is in roaming. If the listed network can be used, your phone will select
the network from the prior list. Three operations are available.
Move: To press the ▲ or ▼ key to shift it to your desired place.
- 62 -
New: You can add new networks. Input the country code and the
network code then press OK soft key.
Delete: You can cancel the chosen network.
Band
Press the ▲ or ▼ key to view choose the desired band, press the OK
soft key to confirm.
There are three bands are provided: GSM850/1800, GSM1900 and
Automatic. You can select one of them.
Security
Check PIN
Press the "OK" left soft key to enter this function. 2 options are
available:
PIN Enabled: Enter the PIN code and enable the function of PIN
check by pressing the left soft key.
PIN Change: To change the PIN, you have to set PIN check on first.
Note: If you have enabled the function of PIN check, you’ll have to
input the PIN code each time you switch on your mobile phone. If you
input the wrong number for three times in succession, the SIM card will
be locked. In this case, you’ll need to enter the PUK code to unlock the
SIM card. More details, please contact with your service provider.
- 63 -
Password
Enter the menu, you’ll have the following options:
Enable PWD: Allows you to set the PWD check Activate or cancel.
PCK Change: 1. Press OK or left soft key and input the old PWD,
then press left soft key.
2. Input the new password and press left soft key.
3. Re-input the new phone password and press left
soft key.
4. ‘Phone Password Changed’ displays.
Set lock
If you activate this function by choosing ‘Activate’, only the current
SIM card is valid. When changing to another SIM card, phone code
will be required. To set the function, you have to enter the PWD first.
PIN Change:
1. Press OK soft key to enter ‘PIN Change’.
2. Input the old PIN code and press left soft key.
3. Input the new PIN code (four to eight digits) and press left soft key.
4. Re-input the new PIN code and press left soft key.
5. LCD indicates "PIN Changed".
Note: Only when the PIN check is set on can you alter the PIN code.
Note: PIN code is provided with the SIM card, which is used for some
special service such as "Call Charge" function etc. If you want to know
- 64 -
whether your SIM card can support these functions, please contact the
network service supplier.
PIN2 Change:
The process is the same as "PIN1 Changed"
- 65 -
TOOLBOX
Calendar
When you enter the menu, a calendar displays with the current date
highlighted.
Scroll the calendar:
1. You can move the underscore to Year, Month and Day fields by
pressing e or f.
2. When the desired field is highlighted, press the c or d to move
up or down the Date.
You can also enter the desired date by using the numeric key.
When the time is highlighted, press OK left soft key to get the
following options:
Set: Set a new log for Memo, Call & Anniversary. Enter one type:
• Memo: Make a note of general schedule, i.e. appointments or
meetings. It allows you to set the title and reminder date for
your memo.
• Call: Schedule a call. Enter the scheduled call number or search
one from the phonebook. The phone will remind you
automatically at the scheduled time. You can set the phone to
remind you on time, 1hour before, 1 day before, 2 or 3 days
before the scheduled time.
- 66 -
• Anniversary: Select to make notes for anniversaries. Set the
scheduled time and the time for the phone to remind
you.
View
Press the View soft key to view the schedules you’ve set, press ▲or▼
to scroll through these notes.
Delete
Delete the note.
z Delete One by One
z Delete All
z Expired
Calculator
By this function, you can use the phone as a calculator. The calculator
provides the basic arithmetic functions: addition, subtraction,
multiplication and division.
Performing the Calculation
1. Use the numeric key to enter the first desired number.
2. Press c for multiplication sign ‘x’, d for division sign ‘/’, e for
plus sign ‘+’, and f for subtraction sign ‘-’;
3. Enter the second number.
4. To calculate the result, press left soft key to get the result.
- 67 -
5. Repeat steps 1 to 4 as many times as needed.
Notes: To erase any mistakes and clear the display, press the ‘Clear’
(Back) soft key. Press the * key to enter a decimal point and the #
key to change the sign of a number to a negative (-).
World Time
The display shows:
• City name
• Current date and time according to the time format setting (12/24
Hours)
To… Then…
Select the time zone Press e or f
Select the city in the Press c or d
same time zone.
Make some settings (Set Press OK left soft key and
as local, Enable DS, scroll to desired one
Disable DS)
Voice Memo
With your phone, you can record 2 voice memos (including recording
conversation) of 30 seconds in length.
- 68 -
Note: Recording voice conversations is illegal in some countries. Make
sure to get the consent from the other party.
Record
1. Press the OK left soft key to enter the Record.
2. Record the voice memo by speaking into the microphone.
Note: When recoding, press Pause soft key to have a pause then Record
key to continue; A timer displays to show you the elapsed time. When
recording time expires, the phone will automatically save the memo
already recorded by that time.
3. When recording is completed, press End soft key; the record will
be kept at once with the date and time together.
Play
1. Press the left soft key to enter the Play, the recorded voice memo
display.
2. Press c or d key to scroll to the desired one and press the left soft
key to play it back.
Note: While playback, press the End soft key to stop playing and exit the
playing mode.
- 69 -
Label
You can make a label for your voice memo by this operation.
1. Press c or d key to choose the memo you want to label.
2. Press the alphanumeric key to enter the desired character as the
memo’s label.
3. Press the Save left soft key to save the operation.
Delete OneByOne
It allows you to delete the memo one by one. Use c or d key to
scroll to the desired memo, press Delete left soft key to delete it.
- 70 -
PRIVATE INFO
The Private menu allows you to maintain a lot of private information.
Call Lists
This menu allows you to view the timers for calls made and received.
The following timers are available:
Missed: Enter the missed call menu, you’ll see the details of the call
(time of the call, the caller’s name if available). Press the
Option left soft key to have the following options:
Edit: Edit the missed call number and name.
Delete: Delete the missed call record.
Delete All: Delete all the records in the missed call list.
Incoming: Enter the incoming call list. The available operations are
the same as the Missed.
Outgoing: Enter the outgoing call list. The available operations are
the same as the Missed.
Calls
Last: You can see the duration of the last call.
Total: You can see the duration of your total calls (incoming and
outgoing).
Incoming: Allows you to view the duration for the incoming calls.
Press the Reset left soft key and then OK left soft key to
reset the record back to zero.
- 71 -
Outgoing: Allows you to view the duration for the outgoing calls.
Press the Reset left soft key and then OK left soft key to
reset the record back to zero.
Reset: Reset all the record (Last, Total, Incoming & Outgoing) back
to zero.
Bio Rhythm
You can check the physical, emotional, or intellectual rhythm of your
or your friend’s body for today or a specified day. To check the bio
rhythm, you must enter your or your friend’s birthday in the Settings.
Me: Enter it to view the bio rhythm of yourself.
Friend: Enter it to view the bio rhythm of your friend.
Spec Days: If you want to know your friend and your bio rhythm of a
special day, enter the day you want. Then press the OK left
soft key to view.
Settings: Allows you to enter your birthday and your friend’s birthday.
To get the bio rhythm, you have to enter the birthday first.
Monthly Care
Enter the time for your last menses. When finish, press the OK left
soft key to enter the longest menstrual cycle. Then press the left soft
key, you’ll see your ovulation day and conceptive period.
- 72 -
GAMES
Eat Bean
A big mouth eating beans. Press OK left soft key to enter the game,
you’ll have the the options as follows, press the direction soft key to
choose the desired one:
Start: Start playing the game
Load Game: Load the game.
Record: Record the scores of the best winner.
Help: Provides you with some instructions on playing the game.
Push Box
You are successful if you can push all boxes to destinations.
You can push boxer by ▲▼◄► key and restart/end game by
pressing some keys, and you can select pass by pressing “2” and “8”
key.
Start: Start a game.
Help: Describes operation and rules in the game.
Beep: Allow you to select voice on/off of the game.
- 73 -
REFERENCE INFORMATION
Access Codes
There are several access codes that are used by your phone and its
SIM card. These codes help you protect the phone against
unauthorized use.
Phone Password
The security code can be used to avoid unauthorized use of your
phone. The security code 0000 is usually supplied with the phone.
Change the security code before you start using your phone. Keep the
new code secret and in a safe place, which is separate from the phone.
PIN Code
The PIN (Personal Identification Number) code protects your SIM
card against unauthorized use. The PIN code is usually supplied with
the SIM card. When the PIN code is enabled, the code is required each
time the phone is switched on.
Note: If you key in an incorrect PIN code three times in succession, the
SIM card will be locked. To unlock the SIM card, you’d key in the PUK
code and press the OK soft key, and key in a new PIN code twice.
PIN2 code
The PIN2 code, supplied with some SIM cards, is required to access
- 74 -
some functions, such as charging unit counters. These functions are
only available if supported by your SIM card.
If you key in an incorrect PIN2 code three times in succession, the
PIN2 will be locked. To unlock the PIN2, you’d key in the PUK2
code and press the OK soft key (or OK key), and key in a new PIN2
code twice.
PUK code
The PUK (Personal Unblocking Key) code is required to change a
blocked PIN code. The PUK code may be supplied with the SIM card.
If not, contact your local service provider for the code.
If you key in an incorrect PUK code ten times in succession, the SIM
card cannot be used anymore. Contact your service provider for a new
card.
You cannot change the PUK code. If you lose the code, contact your
service provider.
PUK2 code
The PUK2 code, supplied with some SIM cards, is required to change
a blocked PIN2 code.
If you key in an incorrect PUK2 code ten times in succession, you
cannot use the functions requiring the PIN2 code. Contact your
service provider for a new card.
You cannot change the PUK2 code. If you lose the code, contact your
service provider.
- 75 -
Using the Batteries
A rechargeable Li-ion standard battery powers your phone. The
following batteries are also available (ask your local dealer for further
details):
Type Capacity Talk Time Standby Time
Li-ion 650mAh 2~3hrs 80~120hrs
Precautions When Using Batteries
Never use any charger or battery that is damaged in any way.
Use the battery only for its intended purpose.
If you use the phone near the network’s base station, it uses less
power; talk and standby times are greatly affected by the signal
strength on the cellular network and the parameters set by the
network operator.
Battery charging times depend on the remaining battery charge and
the type of battery and charger used. The battery can be charged
and discharged hundreds of times, but it will gradually wear out.
When the operation time (talk time and standby time) is noticeably
shorter than normal, it is time to buy a new battery.
- 76 -
If left unused, a fully charged battery will discharge itself over
time.
Use only approved batteries; and recharge your battery only with
approved chargers. When a charger is not in use, disconnect it from
the power source. Do not leave the battery connected to a charger
for more than a week, since overcharging may shorten its life.
Extreme temperatures will affect the charging capacity of your
battery: it may require cooling or warming first. Do not leave the
battery in hot or cold places, such as in a car in summer or winter
conditions, as you will reduce the capacity and lifetime of the
battery. Always try to keep the battery at room temperature. A
phone with a hot or cold battery may temporarily not work, even
when the battery is fully charged. Li-ion batteries are particularly
affected by temperatures below 0 °C (32 °F).
Do not short-circuit the battery. Accidental short-circuiting can
occur when a metallic object (coin, clip or pen) causes a direct
connection between the + and - terminals of the battery (metal
strips on the back of the battery), for example when you carry a
spare battery in a pocket or bag. Short-circuiting the terminals may
damage the battery or the object causing the short-circuit.
Dispose of used batteries in accordance with local regulations.
Always recycle. Do not dispose of batteries in a fire.
- 77 -
Care and Maintenance
Your phone is a product of superior design and craftsmanship and
should be treated with care. The suggestions below will help you to
fulfill any warranty obligations and allow you to enjoy this product for
many years. When using your phone, battery, charger, or any
accessory:
Keep it and all its parts and accessories out of small children’s
reach.
Keep it dry. Precipitation, humidity and liquids contain minerals
that will corrode electronic circuits.
Do not use or store it in dusty, dirty areas as its moving parts can
be damaged.
Do not store it in hot areas. High temperatures can shorten the life
of electronic devices, damage batteries, and warp or melt certain
plastics.
Do not store it in cold areas. When the phone warms up (to its
normal operating temperature), moisture can form inside the phone,
which may damage the phone’s electronic circuit boards.
Do not drop, knock or shake it. Rough handling can break internal
circuit boards.
- 78 -
Do not use harsh chemicals, cleaning solvents, or strong detergents
to clean it. Wipe it with a soft cloth slightly dampened in a mild
soap-and- water solution.
Do not paint it. Paint can clog the device’s moving parts and
prevent proper operation.
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications of attachments could
damage the phone and may violate regulations governing radio
devices.
If the phone, battery, charger, or any accessory is not working
properly, take it to your nearest qualified service facility.
This phone features large inner & outer display screens, which are
damageable. Please be most careful to avoid dropping or knocking
it or scratch it with a sharp thing.
- 79 -
GLOSSARY
Antenna
A device for transmitting or receiving signals. The size and shape of
antennas is determined, in part, by the frequency of the signal they
receive. Wireless phones and the base station must have antennas.
Alarm Clock
Your pager alarm can be set for a specific time and date or can used as
a daily alarm.
AMOI Smart Dial
An intelligent way to dial a number which is stored in your phonebook.
Say you want to dial Steven, at idle, press st, then press *, you can
find the number of Steven. Or press st when you select Smart Dial in
phonebook.
Band
Range of radio frequencies between two defined limits which are used
in wireless communications.
- 80 -
Call Barring
Enable it to restrict outgoing and incoming calls.
Call Divert
Allows you to set your phone to forward calls to an alternate phone
number. (network and subscription dependent feature -- not available
in all areas).
Call Holding
You can put callers on hold. (network and subscription dependent
feature -- not available in all areas).
Call Waiting
While making a call, the phone will alert you that another person is
trying to call you. You can choose to answer the call or it will forward
to your voice mail. (Network and subscription dependent feature -- not
available in all areas).
Conference Calling
Able to establish a conference call involving up to five additional
parties.
- 81 -
DTMF (Dual-Tone Modulated Frequency)
You send DTMF signals when you enter numbers by pressing the
digit keys.
GPRS—General Packet Radio Service
GSM (Global System for Mobile Communication)
GSM is the pan-European standard for digital cellular telephone
service. It is also one of the technologies available in the Americas.
GSM was designed for markets to provide the advantage of automatic,
international roaming in multiple countries. The SIM (Subscriber
Identification Module) card is a vital component in GSM operation.
The user can store all relevant data for the phone on a removable
plastic card. The card can be plugged into any GSM compatible phone
and the phone is instantly personalized to the user.
GSM850--The digital GSM network used in America
GSM1800--The digital GSM network used in Europe and Asia.
GSM1900
The digital GSM network of GSM1900 is widely used in North
America and Latin America.
- 82 -
Hands-Free
A feature that permits a driver to use a wireless phone without lifting
or holding the handset - an important safety feature for automobiles,
tractors and most other motorized vehicles.
LCD (Liquid Crystal Display)
It is commonly used to refer to the screen display on the wireless
phone.
LED (Light Emitting Diode)
It is commonly used to refer to a small light on the wireless phone or
on the desktop charger. The LED lights on the phone to indicate an
incoming call. The lights on the charger indicate that battery charging
is taking place.
Line Identification Services
Service allowing subscribers to view or block the telephone numbers
of callers.
Mobile Phone
The term that can be inter-changed with cellular phone or wireless
- 83 -
phone.
PIN (Personal Identification Number)
Security code that protects the phone against unauthorized use. The
PIN is supplied by the service provider with the SIM card. It may be a
four to eight-digit number and can be changed, if required.
PUK (PIN Unlocking Key)
Security code used to unlock the phone when an incorrect PIN has
been entered three times in succession. The eight-digit number is
supplied by the service provider with the SIM card.
Roaming
A service offered by most cellular service providers that allows
subscribers to use cellular service while traveling outside their home
service area. When they are outside their home service area and come
within range of another cellular system, the ROAM indicator on the
cellular phone will light to show that they are in range.
SIM (Subscriber Identification Module)
Card containing a chip with all the information required to operate the
phone (network and memory information, as well as the subscriber’s
personal data). The SIM card fits into a small slot in the back of the
- 84 -
phone and is protected by the battery.
SMS (Short Messaging Service)
Network service that allows you to send and receive messages to and
from another subscriber without speaking to the correspondent. The
message created or received (up to 160 characters) can be displayed,
received, edited or sent.
Soft Keys
Keys marked • and o on the phone, the purpose of which:
• Varies according to the function that you are currently using
• Is indicated on the bottom line of the display just above the
corresponding key.
Standby Time
The time a battery can power a phone in the standby mode, ready to
make or receive a call, without being used for an actual call. The
longer a phone is in standby mode, the less standby time remains in
the battery.
Talk Time
The total time a battery can power a phone for cellular calls. As the
phone drains the battery during a call, the talk time left in the battery
- 85 -
diminished until the phone is turned off or the battery is recharged.
Tri-Band
Wireless phone that operates on any of the three digital GSM
frequencies-typically, 850 MHz, 1800 MHz and 1900 MHz-to
increase service coverage. (1800 MHz is a GSM digital network used
in Europe. This frequency allows for global roaming, where roaming
agreements are in place.)
Voice Mail
Computerized answering service that automatically answers your calls
when you are not available, plays a greeting (Optionally in your own
voice) or records a message.
- 86 -
TROUBLESHOOTING
If the phone does not work properly, please check the following
troubleshooting and find a solution. If you can’t solve the problems,
please contact your local dealer for help.
Questions Solutions
Cannot make or receive
calls.
● Check whether the phone is powered on or not.
● Check if the battery is lack of power.
● Check if the signal is strong enough.
● Check if you’ve set ‘Call Barring’, SDN or the
other options in Call Set menu.
● Check if you’ve set the ‘Call Divert’.
● Check if you’ve placed the SIM card properly.
Conversation volume is low. ● Check if you’ve set the Voice Volume too low.
Does not ring when an
incoming calls comes in.
● Check if you’ve set ‘Silent’ or ‘Vibrator’ modes.
● Check if the ring volume is set too low.
● Check if the surrounding noise is too loud.
● Check if you’ve set the ‘Call Divert’.
LCD is not clear. ● Check if you’ve set the LCD contrast too low.
The keypad doesn’t work. ● Check if you’ve locked the keypad.
The one on the other part of
the line cannot hear you.
● Check if you’ve set ‘Mute’.
● Check whether you speak near the MIC.
- 87 -
For body worn operation this phone has been tested and meets FCC RF
exposure guidelines when used with an accessory that contains no metal
and that positions the handset a minimum of 1.5 cm from the body. Use
of other accessories may not ensure compliance with FCC RF exposure
guidelines.”
We hold the privilege of modifying the product described in this manual
without prior notice. For any errors in publishing, we will make some
necessary modification in the new edition.
Printed in China
FKV2.198.556SSUSA
English-USA 11/ 2004 Rev. 2.0
