Users Manual
-1-
1
Thank you very much for choosing Amoi DF9, the irresistible
fashionable and elegant color screen mobile phones, especially for
younger. The DF9 is perfect integration of unparalleled contemporary
design and consummate precise craftsmanship, bringing you easy
communication, funny entertainment, as well as highlighting your
tastes.
Key features:
65536-dual TFT color screen (main128x128 /sub 96x64 pixels)
JAVA
MMS
Dictionary
64-polyphonic ringtone
7-color light indicator
CCD camera
Games, karaoke and nutrition analyse
Specifications:
GSM 900/1800MHz
HR, FR and EFR voice codec
SMS, STK
The manufacturer may, at any time and without notice, make changes or
improvements to the products offered, but provide necessary corrigendum with this
manual or release new version of this manual for the following lot. The Amoi logo
and trademark are the property of the manufacturer. May 2003
-2-
2
TABLE OF CONTENTS
Safety precautions………………………………………….6
Getting Started……………………………………………8
Installing a SIM Card………………………………………8
Charging a Battery…………………………….……….…..11
Switching the Phone On/Off………………………………..14
Your Phones Mode………………………….……………...15
Key Description......................................................................16
Display....................................................................................17
Call Function………………………………………………19
Making Calls……………………………………………....19
Making a Call From PhoneBook………………….………...19
Last Number Redialing…………………………………...…19
Making an International Call…….……………….………...20
Receiving Calls……………………………….…………...20
Missed Calls………………….…………………...21
Call Menu…..………………….……………………...22
Phonebook………………………………………………....26
Storing a Phone Number in PB……………………………...27
PB Menu…………………………………………………….28
Smart-Dialing ………………………………………………28
View All…….………………………………………29
Name Search…….……………………….………...29
Add……………………………………………….………...29
PhBook Manager………………………………….…..30
-3-
3
Information……………………………………….………...31
Call List……………………………………………………32
Incoming……………….……………………………….…..32
Missed Calls.……………………………………………...32
Outgoing…………….……………………………………...32
Entering Text………………………………………………33
Changing Text Input Mode………………………………....34
eZi Pinyin Mode……………………………….………...34
eZi Stroke Mode………………………………….………...34
eZi English Mode…………………………………….…….34
ABC Mode……………………………….……...….…..36
abc Mode…………………………………….……...….…..37
Numeric/123 Mode…………………………………….…...37
Insert Symbol..…………………………………….……...37
Using User’s Dictionary…………………………………….38
Adding a Word to the Dictionary……………………………38
Deleting a Word from the Dictionary………….……………38
Using Menus………..……………………………..……..39
Accessing a Menu Function………………………………....39
List of Menu Functions…………………………………....40
Messages………………………………...……………….41
SMS …………..………………………………………..…41
Voice Mail………….…………..….……………….………..44
Broadcast…………….…….……..……..………………..…44
Message set………………………………………………….45
Data Service.….…………………………...………………..45
Sound&Display…………………………………………….46
-4-
4
Settings……………………………………………………...49
Clock…………….……………………………………..……49
Mobile Setting……..………………………..………………49
Call Setting………………………………………..………...50
Network……………………………………………………..53
Toolkit…...………………………………………………....54
Personal Info…….………………………………………....59
Entertainment………………………………………...…...65
PreferenceInformation……………………………..……...66
Access Codes……………………………………..……....…99
Using the Batteries………………………………..…….….66
Care and Maintenance……………………………..……….70
Glossary………..…………………………………..……….72
TroubeShooting..…………………………………..………77
-5-
5
SAFETY PRECAUTIONS
Read these brief guidelines. Failure to comply with them
may be dangerous or illegal.
Road safety comes first
Do not use a hand-held mobile phone while driving;
park the vehicle first. Remember that in some countries,
it is illegal to use a mobile phone while driving.
Switch off on aircraft
Mobile phones can cause interference. Using them on
aircraft is both illegal and dangerous. (Please also close
the power-off alarm clock.)
Switch off near an explosion place
Do not use the phone near an explosion place, because it
likely disturbs the remote control of the explosion.
Switch off when refueling
Do not use the phone at a refueling point (service station)
or near fuels or chemicals.
-6-
6
Switch off in hospital
Follow any regulations or rules. Switch phone off near
medical equipment.
Interference
All wireless phones may be subject to radio interference,
which may affect their performance.
Accessories and batteries
Use only approved accessories and batteries.
Use sensibly
Use only in the normal position (to ear). Do not touch
the antenna unnecessarily when the phone is switched
on.
-7-
7
GETTING STARTED
You must insert the SIM card and charge the battery before you can
use the phone.
Installing a SIM Card
When you subscribe to a mobile network, you are provided with a
plug-in SIM (Subscriber Identity Module) card loaded with your
subscription details (PIN, Phone book information, and so on).
Note:
The SIM card can be easily damaged by scratching or bending, so you
should be careful when handling, inserting or removing the card. Follow
the instructions supplied with the SIM card. Keep all SIM cards out of
the reach of small children.
1. Switch the phone off.
2. Remove the battery. To do so:
Pull the battery lock above the battery toward the top of the
phone and hold it in the position.
Lift the battery away, as shown.
-8-
8

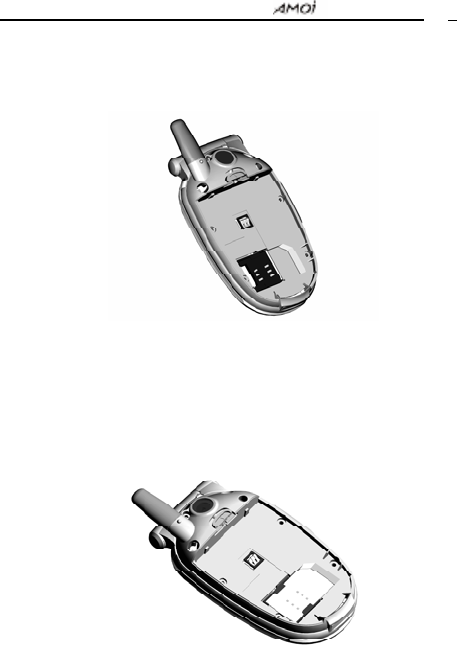

3. Slide the ivory lock in the SIM card holder as shown below to
unlock the SIM card holder and lift it up.
4. Insert the SIM card ensuring that the cut corner is at the top right
and the gold contacts of the card face into the phone.
-9-
9
5. Replace the card holder, and slide the ivory lock to lock the card
holder.
6. Reinstall the battery. To do so:
Place the battery so that the tabs on it align to the notches at
the bottom of the phone.
Push the battery down until it clicks into place. Make sure
that the battery is properly installed before switching on the
phone.
-10-
10
Charging a Battery
Your phone is powered by a rechargeable Li-ion battery.
You are provided with a travel adapter when buying the phone. Use
only approved batteries and chargers. Ask your local dealer for further
details.
Note:
You must fully charge the battery before using your phone for the first
time. The phone can be used while the battery is charging.
Charging the Battery with the Phone
1. Place the battery on the back of the phone, connect the lead from
the travel adapter to the connector at the bottom of the phone.
2. Connect the adapter to a standard AC wall outlet.
3. When charging is finished (the full battery icon becomes solid),
disconnect the adapter from the AC wall outlet, then from the
phone.
Note: When disconnect the lead of the adapter from the phone, you
should press the buttons on both sides of it, otherwise it’s easily damaged.
Low Battery Indicator
-11-
11

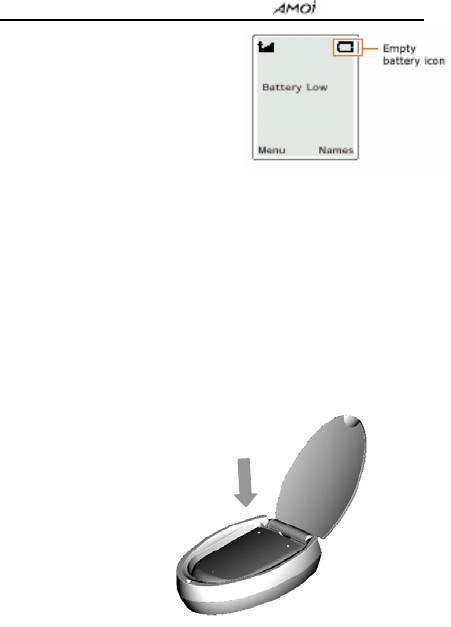

When the battery charge level gets
low, you can see an empty battery
icon at the top right of the display
and a text notification.
If the battery level gets too low, the phone
will turn off automatically. Unfortunately,
if this happen, you’ll lose whatever you are doing, including dropping your call. Watch
the battery strength icon and make sure your battery is adequately charged.

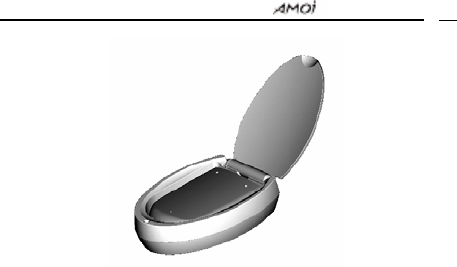

Charging the Battery Alone
To charge the battery alone, use the desktop charger unit.
1. Insert the battery alone into the slot making sure that the
terminals on the battery contact to the terminals on the charger.
2. Push down the battery until you hear a click.
3. Insert the lead of the travel adapter into the connector socket of
the desktop charger.
-12-
12
4. Connect the adapter to a standard AC wall outlet.
5. The colour indication of the LED on the charger is as follows:
• Red: charging
• Green: fully charged
6. When charging is finished , unplug the power cord of the adapter
from the AC outlet and remove the battery from the charger.
-13-
13
Switching the Phone On/Off
1. Open the phone.
2. Press and hold the key until switch the phone on.
3. Enter your PIN , if you have one for your SIM card.
4. Press the OK soft key, then your phone connects to the GSM
network, and you’ll see the following idle screens on the main
and Sub LCD respectively.
Note: If the phone is out of service, ‘No Service’ appears in the display.
In this case, you cannot place and receive calls. Wait a little while for
a better signal or move into an open area to regain the service.
5. To switch the phone off, hold down the key for more
than two seconds.
WARNING!
Do not switch on the phone when the mobile phone use is prohibited or when it may
cause interference or danger.
Note: Do not touch the antenna on the phone unnecessarily when the
phone is switched on. Contact with the antenna affects call quality
and may cause the phone to operate at a higher power level than
otherwise needed.
Service Provider
07/20 FRI 08:00
Menu Phone
-14-
14
Your Phone’s Mode
Standby Mode
Standby is the most basic state of your phone. The phone goes into
Standby mode soon after you turn it on, or whenever you briefly press
the key. When your phone is in Standby mode, you will typically
see the current date and time. If you enter a phone number, you can
press the key to dial it.
Press the key at any time to return to Standby mode. Be
careful; if you are on a call when you press the key, you will
return to Standby mode, and it also disconnects the call.
Talk Mo d e
You can place and answer calls only when your phone is turned on.
During a call, the phone is in Talk mode. While you are in Talk mode,
pressing the left soft key gives you a list of Options referred to as
“Call Menu.”
-15-
15
Keys Description
Key Description
Two soft keys perform the functions indicated by the text above
them (in the bottom line of the display).
In the menu facility, scroll through the menu Options and
Phonebook memory.
In Standby mode, the d key to use phonebook , the e key to
view the call records and the f key to use SMS (Short Message
Service) feature.
In the menu facility, confirms your selection or entry.
Retrieves the input method list in editing model.
Makes or answers a call.
In Standby mode, recalls the last number dialed.
Ends a call. Also switches the phone on and off when pressed
and held.
In the menu facility, returns to the Standby mode and cancels
your input.
Enter numbers, letters and some special characters.
Use these keys for various special functions.
(On the side of the phone)
During a call, adjusts the voice volume.
Tip: Hole the key * for 2 seconds to alternate between silence mode and
other mode.
-16-
16
Display
Display Layout
The display comprises three areas.
Area Description
First
line
Displays various icons
Middle
lines
Displays messages,
instructions and any
information that you
enter
Last
line
Shows the functions
currently assigned to the
two soft keys.
Icons
Signal strength: Shows the received signal strength. The
greater the number of bars, the better the signal strength.
Email: Appears when a email is received.
MMS: Appears when a MMS is received
New Message: Appears when a new message has been
received; flash indicates that your message box is full.
WAP security: Indicates the WAP security level.
Vibrate Mode: Appears when the vibrate mode is active.
Ring+Vibrate: Indicate that your phone will ring and vibrate
when a call coming.
Roaming: Appears when you are out of your home area and
have registered with a different network.
AlarmAppears when the alarm is active.
-17-
17
WAP Alert: Appears when a wap alert message has been
received
Battery status: Shows the level of battery.
Backlight
The display and keypad are illuminated by a backlight. When you
press any key, the backlight illuminates. It turns off if no key is
pressed within a given period of time.
Seven-color Service Light
Seven-color lights can be found on folder of your phone. In standby
mode, the GREEN colors lights flash slowly and seven colors lights
flashes quickly when you have an call coming; The purple light
flashes quickly to indicate that you have a missed call or messages not
be checked; The red light shines when charging, and it turns green
when charging is completed.
-18-
18
CALL FUNCTIONS
Making Calls
Before you can make or receive any calls, you must turn on the phone
and be within range of a network.
1. In Standby mode, enter the phone number. (If you make a mistake
while dialing, use e or f key to put the cursor to the right of the
digit, press the right soft key to erase it; Press and hold to erase the
entire number.)
2. Press the key to make the call.
3. When you finish the talk, press or close the phone to end the
call.
Making a Call from the Phonebook
See “enter the phonebook” on page 26 to search a desired number, and
press the key to dial.
Last number redialing
In standby mode, press once to access the list of the 20 numbers
you last called; scroll to the number or name you want, and press
to call the number.
-19-
19
Making International Calls
1. Press and hold the “0” key until a “+” sign appears in the display.
2. Enter the country code, area code, and phone number, then press the
key to begin dialing.
Receiving Calls
When a call comes in, the phone alerts you by ringing and/or vibrating;
The screen displays an incoming call message. If you have subscribed
to the Line Identification Service (contact your service provider), the
caller’s phone number is displayed; if you have saved the number in
your phone book, the name is displayed.
To answer a call
-Press
To reject a call
-Press
-20-
20
Missed Calls
When an incoming call is not answered, the Missed Call log is
displayed on your screen.
-- To view the missed call immediately, press the left soft key, the
number or the name is displayed, if available. Scroll through the
missed calls, press to call the number.
-- Press the Option soft key, you’ll enter the missed calls menu. The
following operations are available:
Call To press OK soft key to call the number.
Detail To view the details (name, number, time)
Add to Pb To store the number to the phonebook.
Delete To delete the number from the missed calls list.
Tip: You can press the key at any time to exit the Missed Call
menu.
Note: You can view the missed calls at any time.
.
-21-
21
Call Menu
Many of the options you can use during a call if your network provide
these services.
During a call, press Option soft key to enter Call Menu. The options
change in different conversation circumstance.
The followings are the possible items.
Mute
You can switch microphone off and the caller can’t hear you.
Hold ( current call )
You can hold the current call.
Hold current call/Dial new number
You can hold the current call and dial new number.
Hold current call/ Answer new call
You can hold the current call and answer a new call.
Connect held call to conference call
You can connect the held to a conference call.
End the current call
Select it to end the current call.
End held call
Select it to end the held call.
-22-
22
End current call/ Answer new call
You can end the current call and answer the new call.
End current call/ Answer held call
You can end the current call and answer the held call.
End all calls
Select it to end all the calls.
Other Options in Call Menu
You may also directly press the number-keys to choose the functions
and press to make it.
Hold/ Switch
The ‘Hold’ function can switch the current call to a held one and
recover the previous call.
When there is a held call and a current call:
Press 0 + to end the held call
Press 1 + to end the current call and recover the held call.
Press 2 + to switch the current call to a held one and switch the
held one to the current call.
Call Waiting
If the network supports this function and you also set it active, the
mobile will remind you when there’s a new incoming call during one
call.
-23-
23
Call Hold
If the networks supports this function you can dial another number
while you have a call in progress.
Way 1: (1) Input the required number or find the required number
from telephone book and then press to make the
second call.
(2) The first call will be put o hold automatically.
Way 2: (1) Press to hold the current call.
(2) Dial the second call. When the new call is connected, the
previous one will be held automatically. These two calls can
be switched freely. Please refer to Hold/ Switch function.
Conference Call
Conference Call is a network service. It allows up to six people to take
part simultaneously in a call.
(1) Dial the first number.
(2) Dial the second number and the first number is
held automatically after the first is connected.
(3) Press 3 + to let the first number to
participate in the conference.
(4) Repeat Step 2 and 3 to add more numbers to
participate in the conference.
(5) Press and 3 + to allow the new number
to participate in the conference, repeat the
operation to have more numbers to the
conference.
-24-
24
(6) Press 1 + x + to refuse one current number,
repeat the operation to refuse more numbers (x
means the number you choose to refuse ).
(7) Press to end the whole conference call.
PHONEBOOK (NAMES)
-25-
25
You can store your phone numbers and the relative name in SIM card
or in your phone memory. Phone memory can store 500 entries at the
most; in every entry including a name, three phone numbers, one
email addresses, one memo and one member group selection,one
member ringtone selection,one member picture and LED color
selection . The quantities of the entries, which SIM can store, depend
on the type of SIM; for every entry including a name and a number.
Phone Number: 20 digits at the most; For SIM, it depends on the
type of SIM.
Name: 16 characters at the most; For SIM, it depends on the type of
SIM.
Tip: If you change phones, any numbers stored in your SIM card are
available with the new phone.
Storing a Phone Number in PB
1. Key in the number to be stored.
2. Press the Store soft key.
3. Select Local PB or SIM PB then press OK soft key.
-26-
26
Add to Local :
(1) Select name and press left soft key to enter then input name and
press left soft key to complete.
(2) Enter three phone numbers by sequence (after input the first
number, press Next soft key and then enter the second and the
third number).
(3) Enter email address, and memo separately (the same method as
step 2).
(4) Select member group to sort your Local PB.
(5) Select personal alert ringtone, personal picture and LED color .
(5) Press key to store all your input.
Add to SIM:
(1) Select name and press left soft key to enter then input name and
press left soft key to complete.
(2) Select number and press left soft key to enter then key in the
numbers, press Store soft key.
(3) Press key to store all your input.
There are three ways to enter phone number in standby mode:
Press right soft key.
Enter the serial number.
Enter the associated alphanumeric keys then press *. For
example, enter 866* to search the name of Tom.
For a Chinese name, enter the first letter of every character
(for example: enter 52* to search the name (LiBai) ).
-27-
27
PB Menu
In the PB (PhoneBook) Menu, the following operations are available:
Smart Dial
This Option allows you to find an entry quickly in your PB.
1. When Smart Dial is highlighted, press Ok soft key to enter.
2. Input the correspondent numerical key of the desired name
3. Press OK soft key. Scroll to your desired entry.
4. Press to dial it or press Select soft key to enter “Select
operation” to display the following Options:
Edit: Edit the details in the PB of the selected entry.
Search: Key in the name then press OK soft key to search another
desired entry.
Copy: Allows you to copy the selected entry from the phone
memory to the SIM memory and vice versa.
Delete: Press the OK key and phone will display " Delete?"
Select "Yes" to delete this entry. Select "No" to reserve this
entry.
Call: Press the OK key to dial this number.
Write SMS: See Messages Menu.
Send Telnr: Send all the numbers in this entry to the appointed
number.
View all
-28-
28
This Option allows you to find a Phonebook entry by searching from
the list of all entries sorted by name.
(1) Press the c or d key until you find the desired entry from the list.
(2) Press the key to dial the number or press the OK soft key for
more details.
Name Search
Enter the character(s) of the desired name by pressing the associated
alphanumeric key(s) and press the Search soft key to see the details in
your phonebook.
Member Group
This Option allows you to sort your Phonebook .
(1) Press OK soft key to enter and you will see different groups.
(2) Select you desired group and press OK soft key to display the
following Options:
Group List: shows you all the items in this group.
Add From Pb : Allows you to add new items to this group from
phonebook.
Alert ringtone: Allows you to set ringtone of this group
Picture: Allows you to set bitmap of this group
LED: Allows you to set light color of this group
-29-
29
Change Name: Allows you to change the name of this group
Add
When Add contact is highlighted, press OK soft key. Choose the
Local PB or SIM PB.
Note: If the input position already exists, the phone will display
"Message Full".
PhBook Manager
Copy ( Take “Local to SIM” for example)
(1)Copy one: Press c or d to view the phone number one by one and
press left soft key to copy the desired one.
(2)Copy All: Copy all the numbers stored in phone to SIM card.
(3)Copy range: Input the start number and the end number, then press
OK soft key to copy these entries you want to SIM card.
(view the following picture)
Note: If the entry already exists in target PB, the entry will not be copied.
Local to SIM
1 Copy One
1 Copy Range
2 Copy All
Ok ▲▼ Cancel
Range: 1-500
Start: |
End:
Ok ▲▼ Cancel
-30-
30
If the space of target PB is not enough for copy, only the front phone
numbers will be copied until the target PB is full.
If the name length of target PB is less than that of original PB, the
exceeded part will lost.
Delete
Just same as Copy, you can delete One, All and the specify Range.
Check Capacity
Check the total capacity and the amount of used entries of PB of SIM
card and Local.
Information
City code
Select this function, the following content is displayed:
Press ▲ and ▼ to choose one city; press e or f to choose the
province . And press Select soft key to search according to a city name
City Code
Zhixiashi
Beijing 010
Shanghai 021
Ok ▲▼ Cancel
Search
1 View by name
2 View by code
Ok ▲▼ Cancel
-31-
31
or a code number.
Country/Area Code
Refer to City Code.
Own Number
Store the SIM card number of local phone for reference.
CALL LIST
In Standby mode, press the W key to view the call list.
With this function, the phone can record automatically 20 missed, received
and dialed phone numbers respectively. The number and the name (if
available) are given together with the date and time when the call is made.
Incoming
Missed Call
Outgoing
For the above three kinds of calls, you can carry on the following
operations:
1. Scroll to one of these three items and press Select soft key, the calls
list will be displayed.
2. Press STkey to select the desired number.
3. press to dial it; Or press Options soft key to the following
operations: Call, Detail, Move to Pb, Delete
-32-
32
ENTERING TEXT
When storing a name in the phonebook, creating your personal
greetings or scheduling events in your calendar, you will need to enter
text.
You are provided with the following text input modes.
• Pinyin
• Stroke
• English
• ABC/abc
• 123 / Numeric
• Symbol
Changing Text Inputting Mode
When in a text entry screen, press to change Text Input Mode or
press the @ key to select one mode. You will see the text input mode
indicator in the top line of the display:
-33-
33
• Pinyin › eZi Pinyin mode
• Stroke › eZi Stroke mode
• eng › eZi English mode
• ABC › ABC mode
• abc › abc mode
• 123 › Numeric mode
Note: The current input method will be the same as the one you last used
before you quite the input mode.
eZi Pinyin Mode
With the pinyin input method, you can enter Chinese characters by
keying in the pinyin string from the phone keypad.
In this manual for English-spoken users only, the details on how to
use this text input method are omitted accordingly.
If you want to know how to use the pinyin input method, please
contact your dealer.
eZi Stroke Mode
This mode allows you to enter individual Chinese strokes, in written
order - from top to bottom, and from left to right. Even though there
are many different strokes used to create Chinese characters, the
strokes are classified into 5 basic categories; heng, shu, pie, dian and
zhe.
-34-
34
In this manual for English-spoken users only, the details on how to
use this text input method are omitted accordingly.
If you want to know how to use the stroke input method, please
contact your dealer.
eZi English Mode
This mode allows you to enter words with only one keystroke per
letter. Each key on the keypad has more than one letter – when you
press once, J, K or L may be displayed. The English mode
automatically compares your keystrokes with an internal linguistic
dictionary to determine the correct word, thus requiring far fewer
keystrokes than the ABC mode.
For example: to enter ‘hello’, press the following keystrokes: 4, 3, 5, 5,
6.
If the word that appears in the display is not the word that you desire,
press the f or e key to display alternate word choices for the keys
you have typed. (For example, ‘of’ and ‘me’ both shares the sequence
6, 3) The phone displays the most commonly used choice first.
ABC Mode
This mode allows you to enter letters by pressing the key labeled with
the required letter once, twice, three or four times until the letter is
displayed.
-35-
35
For example, you press the 2 key three times quickly to display the
character “C”, the 5 key two times quickly to display the character
“L”.
Note: When entering the same character twice (or a different character
on the same key), just wait for a few seconds for the cursor to move
right automatically, and then select the next character.
List of characters available:
abc Mode
The same as ABC Mode
Note: pressing the
f
key without completing a word by the 0 key displays
-36-
36
Symbol
. , : ; ? ! “
‘( ) * + - / =
<> # % _ @
$ ~ ^ \ ` |
1 2 3 4 5 6 7 8
Back
the alternative word.
Numeric/123 Mode
Numeric or 123 indicate numeric mode. It enables you to enter
numbers into a text message. Press keys corresponding to the desired
digits, and manually switch back to the text entry mode of choice.
Insert Symbol
Symbolic mode enables you to enter symbols into a text message.
To enter a symbol,
1. Press the @ key in the text entry mode.
2. Press the c or d key to select the column which including the
symbol mark you want to use.
3. Press the corresponding numeric key to insert the desired symbol
mark.
-37-
37
Then, the phone automatically switches back to the text entry mode
used just prior to selecting Symbols mode.
Tip: The alternate method to enter a common symbol is pressing the 1
key one or more times in the text entry mode.
Using User’s Dictionary
While entering a SMS message, you can use your own dictionary
which allows you to add a new word-and then the word has a high
priority in eZi English mode.
Adding a Word to the Dictionary
1. In the text entry mode, press the@ key.
2. Press the c or d key to scroll to Dictionary and press the OK
soft key.
3. Select New and input the word you want to add, then press the
Options soft key.
4. Press the c or d key to scroll to Add to UPD and press the OK
soft key to add the word.
Now, the added word becomes the first candidate for the associated
keypress. You can check the added words on the List Dictionary menu.
Deleting the Words from the Dictionary
-38-
38
1. In the screen of eZi text mode, press OK soft key.
2. Use the c or d key to scroll to List Dictionary and press OK
soft key .You can see the list of the words you have added.
3. Use the c or d key to find the word you want to delete, and
press the Options soft key.
4. Press the d key to scroll to Del from UPD then OK soft key to
delete the selected word.
USING MENUS
The phone offers a range of functions that allows you to tailor the
phone to your needs. These functions are arranged in menus and
submenus.
Accessing a menu function
By scrolling
1. In Standby mode, press Menu soft key.
2. Scroll with c or d through the menu and select, for
example, Settings by pressing Select soft key.
3. If the menu contains submenus, select the one you want,
for example Call settings.
4. If the selected submenu contains further submenus, repeat
step 3.
5. Select the setting of your choice.
6. Press Cancel key to return to the previous menu level, and
key to exit the menu without changing the menu
-39-
39
settings.
By shortcut
The menus, submenus and setting options are numbered and you can
access them by using their shortcut number.
1. In Standby mode, press the Menu soft key.
2. Within three seconds, key the index number of the menu
function you want to access.
Example: Setting the Clock function
Press the Menu soft key, and key in 4, 1.
Notes:
The numbers assigned to each menu function are indicated on the list on
page xx. They may not match the menu number on the phone. It depends
on the services supported by the SIM. For example, the STK menu will
locate the first main menu and all the other menu functions backspace.
List of Menu Functions
1. Messages
2. Data service
3. Sound&Display
4. Settings
5. Toolkit
6. Personal info
7. Entertainment
8. Multimedia
9. Camera
-40-
40
10. Information
11. STK
1. MESSAGES
1-1. SMS
The SMS (Short Message Service) function is network service and
may not be supported by your network. You must obtain the number
of the SMS center from your service provider. Mostly it is
automatically available from your SIM.
Two message boxes are available: Personal SM and Broadcasting SM.
Personal SM: It is the message which the mobile users uses to transmit
information.
Broadcast SM: If you select this option, you can receive public
information from Network Operators such as Weather
Broadcasting and so on.
SM Indicator: When you receive a new message,
will appear in the screen. If the message memory is full,
is flicker and you cannot receive any new messages. Use
the ‘Delete’ menu to delete obsolete messages.
Note: In standby mode , press
f
, or after entering Main menu to select
SMS, both can enter Message option.
-41-
41
1-1-1. Inbox
Inbox stores the messages that you have received, the one with ‘*’ is new
message.
.Press key to choose the desired message.
.Press Ok soft key to view details of message.
.Press ‘Option’ left soft key and you can operate as follows:
Reply: reply to the sender. You can write a piece of new message and
then choose ‘Send’, ‘Store & Send’ , ‘Store’ or ‘Mul Send’
Forward: send the received message to others. You can edit the message
and then choose ‘Send’, ‘Store & Send’ , ‘Store’ or ‘Mul Send’
Extract Number: you can extract numbers from this message.
Delete: Delete this message.
1-1-2.Outbox
Outbox stores the messages that you have already sent or unsent. The letter
with ‘*’ is unsent message.
. Press key to choose the desired message.
.Press Ok soft key to view details of message.
.Press ‘Option’ soft key and you can operate as follows:
Write: You can write a piece of new message or edit the message and then
choose ‘Send’, ‘Store & Send’ , ‘Store’ or ‘Mul Send’to do with the
Message.
Extract Number: you can extract numbers from this message.
Delete: Delete this message.
-42-
42
1-1-3. Write
The text message can be made up of 160 characters at the most. After
inputting the text message, press Ok soft key and you have the following
options:
Send: send the message.
Send & Store: Allow you to save and send the message. Even if you fail
sending, it can be stored in outbox.
Store: Allows you to save the message so that it can be send later.
Mul Send: Allow you to send the message to multi receivers. You can
send the message to less than 5 phone numbers.
Finally, press Ok soft key. The number you last send message is displayed,
To… Then…
Send this message to this Press OK soft key
number
Input a new number Hold Delete soft key to erase then
input new number
Search a number from PB Hold Delete soft key to erase
then press Search soft key
1-1-4. Delete
You can delete the messages in Inbox or Outbox.
-43-
43
For example: Press ‘Select’ left soft key to select ‘Inbox’, You can
delete all messages in the inbox.
1-3. Voice Mail
This menu provides you with a quick way of accessing your voice
mail (if provided by your network):
Voice mail: Allow you to input the mailbox number obtained from
your service provider.
Call V-mail: press the ‘Send’ soft key to listen to your messages.
1-4. Broadcast
You can receive broadcast messages with various contents via this
network service, such as weather or traffic.
Read: You can view the up to date broadcast message .
Auto display: If you set this function ‘on’, messages are displayed
immediately when they are received.
Filter: Help you choose the channels you like from which you can receive
broadcast messages.
Language: Help you select the language you prefer in which the broadcast
message displays.
Note:
Language support depends on the Network operator.
1-6. Free Count
You can select the menu to check total space and space available.
1-7. Message Set
-44-
44
1-7-1. SMS
Auto display: Select this function and select ‘On’ . When you receive a
new message, it can display automatically. You can select
‘off ’to cancel this function.
SMS Center: Allow you to store or change the number of your SMS
center while sending messages. You can obtain this
number from your service provider.
Status report: You can select ‘On’ to require the SMS center to inform
whether your message has been sent or not.
2.DATA SERVICE
-45-
45
3.SOUND&DISPLAY
3-1. Music select
You can select the music styles of your phone’s ringing and set the
different profiles.
3-1-1. Incoming music.
There are also 26 kinds of rings for you to choose :
Press ▲▼key to scroll then Ok soft key to select.
3-1-2.SMS Music.
There are 6 kinds of rings for you to choose ;
3-1-3. AlarmClock Music.
There are 26 kinds of rings for you to choose ;
3-1-4. Log Music.
There are 26 kinds of rings for you to choose ;
3-1-5. Start Up Music.
There are 26 kinds of rings for you to choose ;
3-2. Ring Type
You can select Music alert , Vibration, Music&vibrator,or No notify
-46-
46
when there is an incoming call. Scroll to the option you want, press
‘Ok’ soft key to confirm.
3-3. Ring Volume
You can adjust the volume of ring. Press ▲key to increase volume
and ▼ key to decrease .
3-4.standby interface
Using this menu, you can customize the various settings for the
display screen.
. Staby Setting
The phone offers you several types of display for the standby mode.
Picture: Press the e or f key to preview the pictures; press OK soft
key to choose one.
Animation:select an animation style
Text: Displays your own greetings. Create your own message up to 19
characters.
3-5. Power OnOff
3-5-1.Power On Display
You can select what will be displayed when the phone is switched on.
Choose between Animation and Text.(See Power Off on the last page)
-47-
47
3-5-2. Power Off Display
You can select what will be displayed when the phone is switched off.
Choose between Animation and Text.
Animation: Press OK soft key to save your choice .
Text: Displays your own greetings. Create your own message up to 19
characters.
-48-
48
4. SETTINGS
Many different features of your phone can be customized for your
preferences.
4-1. Set time
This function allows you to change the current time and date
displayed in standby state.
The following functions are available.
Set time: Enter the time according to the preset Format.
Set date: Enter the day, month and year according to the preset Format.
Format time: Choose between 24 hours mode and 12 hours mode.
Format date: Select the day format:
dd/mm/yy
mm/dd/yy
yy/mm/dd
4-2. Mobile Setting
4-2-1. Auto On/Off
The phone will switch on or off at the preset time.
Enable: Enable the automatic power on/off of the phone.
Set time: Enter the time when you want your phone to switch
on/off.
4-2-2.Backlight level
4-2-3. Language:
-49-
49
Chinese: All the menus and information is displayed in
Chinese.
English: All the menus and information is displayed in English.
Note: You can change it at the stand-by state by press ‘*99#’.
.
4-2-4. Reset Settings
You can reset some settings to factory set. You need enter PCK
number.
4-3. Call setting
4-3-1. Incoming Filter: With this operation, you can put numbers
into Reject Number that will never get through your
phone; and put numbers into Accept Number so that
the others can’t get through your phone.
Reject List: The rejected numbers are listed and you can get the
prompt information in the standby mode.
Reject Number: Enter the numbers that you want to reject.
4-3-2. Divert
This network service enables the incoming calls to be transferred to
the number that you specify. For example: You maybe hope to transfer
your business calls to a colleague while you are on holiday.
Not reachable: Calls are transferred if you are not in an area
covered by your service provider.
-50-
50
If no reply: Calls are transferred if you do not answer the call.
All calls: All calls are transferred.
If busy: Calls are transferred if you are already making another
call.
Status: You can inquire the network about the current status of
Call Transfer function.
Cancel all: All Call Transfer functions are cancelled.
Select one item to divert your phone, you should:
1.Scroll to the desired item then press OK soft key.
2.Select ‘Divert On’ and press OK soft key (If you want to cancel this
operation, select ‘Divert Off’)
3.Input the number you want to divert to, press OK soft key.
4.’after15 sed’ is displayed, press Ok.
5.The info is displayed to indicate if you’ve succeeded this execution
or not.
4-3-3. Call Wait: The phone supported the function of ‘call wait’ and
‘call hold’ of GSM net. If you select this function, the network will tell
you there is a new call come in during another call. You can receive
-51-
51
the new call by hold the present call.
Active: The Call-Wait Tone will be heard when there is another new
call coming during one call. If it’s a domestic fixed phone, its
city name will be displayed, otherwise ‘Incoming’ will be
displayed.
Off: Select it this function will be canceled.
Status: Select it the status of this network function will be displayed:
‘Active’ or ‘Off’.
4-3-4. Answer Mode: There are three methods to answer a call.
Call Key Answer: Press to answer a call.
Open Answer: Open the phone to answer a call.
Auto Answer: If you insert Car Kit, the phone can automatically
answer after 5 seconds. Before the auto answer,
you can also press to answer it.
4-3-5. Present Number: This function must be supported by network.
Net set: Your phone number will be hidden or displayed according to
the network when making a call
On: Your phone number will be displayed to receiver.
Off: Your phone number will be hidden and unknown to receiver.
4-4. Set Network
-52-
52
When you use the phone, the phone will auto select the Internet
service. When the phone is beyond the service area or in abroad, you
can select the appropriate Internet manually.
4-4-1. Sel Method: Switch between these two modes.
. Manual searching
. Auto searching
4-4-2. New Search:
To select this item, the LCD will display " searching …..". After you
get it, the GSM will auto display the found network. If there are two
available networks, you can use the ▲or▼ to select. Those with the
mark "*" is forbid to use.
4-4-3. Sel Sequence:
This item allows you to list out the Internet you can use when your
GSM in the roaming. If the listed network can be used, your phone
will select the network from the prior list. Three operations are
available.
. Move: To press the key ▲or▼ to shift it to your desired place.
.Add: You can add the new Internet. Input the country code and the
Internet code then press the "confirm" button.
.Delete: You can cancel the chosen network.
4-4-4. Band selection:
There are three types of band American, European and Automatic.
You can select one of them.
5.TOOLKIT
-53-
53
5-1. Alarm Clock
There are three alarm clocks to be used. For every alarm, you can
make the following operations:
Set Time: Set the time and press Setting soft key to select On to
confirm .
Alarm Type: There are three modes.
1. Everyday: The alarm works at the set time every day.
2. Workday: The alarm works at the set time from Monday to Friday.
3. Defineself: You can choose one or several days of one week for the
alarm to work.
Note:
The alarm works at the set time, press any key except and to
stop it; if not, it continues to alarm for one minute.
When power off, the alarm still work.
5-2.Voice Memo
With your phone, you can record up to 2 voice memos (including
recording conversation) of 30 seconds in length.
Notes:1. Recording voice conversations is illegal in some countries.
Make sure the other party has stated its consent to being recorded.
2. Hold down @ key to record a conversation during a call.
5-2-1. Record
-54-
54
1. Scroll to Record, press OK soft key.
2. Record the voice memo by speaking into the microphone.
Note:
When recoding, press Pause soft key to have a pause then Record
key to continue;
A timer displays to show you the elapsed time. When recording time
expires, the phone will automatically save the memo already recorded
by that time.
3. When recording is completed, press End soft key.
5-2-2.Playback
1. Scroll to Playback, press OK soft key and then Play soft key, the
latest memo displays.
2. Press the c or d key to scroll to the desired memo and press
Ok soft key to play it back.
Note: While playback, press the End soft key to stop playing and exit the
playback mode.
5-2-3.Label
You can make a label for your voice memo by this operation.
Voice Memo
1 Record
2 Playback
3 Label
Ok ▲▼ Cancel
<1/2>
07/23 09:41
7sec Noplay
Label:
Store▲▼ Cancel
-55-
55
5-2-4.Delete One
Use the c or d key to select the one you want to delete, press Erase
soft key to delete it.
5-2-5.Delete All
1. Press the c or d key to select Delete All, and press OK soft
key .
2. When a confirming message appears (Delete all memos?), press
Yes soft key to delete all memos or No soft key to cancel
deleting.
5-4. World Time
The display shows:
• City name
• Current date and time according to the time format setting (12/24
Hours)
To… Then…
-56-
56
Select the time zone Press e or f
Select the city in the Press c or d
same time zone.
Make some settings (Set Press Ok soft key,
as local, Enable PS, Scroll to desired one
Disable PS)
5-5. Calculator
Using this feature, you can use the phone as a calculator. The
calculator provides the basic arithmetic functions: addition,
subtraction, multiplication and division.
Performing a Calculation
1. Enter the first number using the numeric keys.
2. Press c d e f to set the operator for your calculation
referring to the screen: + (add), - (subtract), x (multiply), /
(divide).
3. Enter the second number.
4. To calculate the result, press the OK soft key.
5. Repeat steps 1 to 4 as many times as required.
Each time you change the operator without pressing OK soft key, the
previous calculation is performed and the result is displayed as the top
number in the display.
-57-
57
Notes: • To erase any mistakes and clear the display, press the Clear soft
key. You can reset the calculator by pressing the Reset soft key.
• Use the OK or * key to enter a decimal point and the # key to
change the sign of a number to a negative (-).
5-6. Unit Convert
This menu allows you to convert some value with the required unit.
After select the desired language, to use the unit converter, do as
follows:
1. Press the c or d key to scroll to the desired category; Length,
Weight, Volumes, and Surface.
2. Press OK soft key.
3. If necessary, press the c or d key to move to the current unit
area and select the current unit by pressing the e or f key.
4. Press the c or d key to move to the value area and enter the
number of the current value.
5. Press the c or d key and select the unit you want to convert the
value with by pressing the e or f key.
6. The converted value will be automatically displayed below the
unit area.
To reset the converter, press the Reset soft key.
-58-
58
6.PERSONAL INFO
This menu allows you to maintain various private information and
activate the password to keep the phone from being used by
unauthorized persons.
6-1. Call Info
This menu allows you to view the timers for calls made and received.
The following timers are available:
Incoming Call
Missed Calls
Outgoing Call
The operations of the above three items you can see page 39.
Last Call: You can see the duration of the last call.
Total Calls: You can see the duration of your total calls (incoming
and outgoing).
For these two items, press the Reset soft key to reset the call timer as
zero or Cancel key to exit.
Charge Info
Total Charge: The total calls fee will be displayed and it also
can be reset to zero with the Reset soft key. You must
input PIN2 code when select Reset.
Max Charge: Input a sum as max charge that can be used for
making calls. When your call charge exceeds this limit,
-59-
59
no more calls (except free calls) unless you reset the sum.
You must input PIN2 code when make modification.
Unit Price: You can inquirer and modify the unit price through
this function. Input PIN2 code when make modification.
6-2. Security info
6-2-1. Check PIN:
Press the "Select" left soft key to enter this function.
1. To select the "On".
2. Input the PIN code and start up the function of PIN check by
press Ok left soft key.
Note: If you have started up the function of the PIN check function, you
have to input the PIN code every time when you switch on your
mobile phone. If you input the wrong number for three times in
succession, the SIM card will be locked.
3. Select “Off” to cancel this function.
6-2-2. SIM lock:
If enable, only the current SIM card is valid. When change another
SIM, the mobile request phone code.
6-2-4 Password Management
6-2-4-1. Change PCK:
1. To press select left soft key and input the old password, then press
the "Ok".
-60-
60
2. Input the new password and press Ok left soft key.
3. Reinput the new phone password and press the Ok left soft key.
4. The screen indicate " phone password changed'.
6-2-4-2. PIN1 Change :
To select the " PIN Change" by the navigation key ▲or▼.
1. Press the " select" soft key.
2. Input the old PIN code and press the " Ok" key.
3. Input the new PIN code (four to eight digit) and press the "Ok"
left soft key.
4. Reinput the new PIN code and press the "Ok" left soft key.
5. LCD indicate "PIN CHANGED".
Note: Only first start up the PIN code can alter the PIN code.
6-2-4-3. PIN2 Change:
The process is the same as "PIN Changed"
PIN code is provided with SIM card, which is used to some special
service such as "call charge" function etc. If you want to know
whether your SIM card can support these functions, please contact
with the network service.
6-2-5. Bar calls
The calling limitation function can help you to limit the incoming
and outgoing calls but this service may not be available on all
networks.
The following operations are available:
-61-
61
. All out: To select this item, the phone will be restricted to dial any
calls (except the urgent calls)
. Out intl: To select this item, the phone will be restricted dialing the
international calls.
. Out x home: To select this item, the phone will restrict dialing the
international calls except to your home country.
. ALL in: To select this item, it will restrict all incoming calls.
In if abr: To select this item, it will restrict all incoming calls when
roaming.
. Status: To select this item, you can query the present state.
. Cancel all: To select this item, the phone will allow dialing and
answering all the calls.
Note: You need to input the PIN2 code to set above functions.
6-3. Log Manager
When you enter this menu, a calendar is displayed with the current
date indicated by a point.
Scrolling through the Calendar
1.You can move the underscore to Year, Month and Day fields by
pressing e or f.
2.When the desired field is underlined, press the c or d to move up
or down the date.
You can also enter the desired date using the number keypad.
-62-
62
Note: In Chinese mode, you can see the associated date of lunar
calendar on the bottom line of the display.
Enter the Log Manager Menu
Highlight a desired date in calendar, press OK. The following
operations are available in this section.
1. Log Set
To create a new log, you should :
(1) Select one type of schedule:
• Log Label: Make a note of general schedule, i.e. appointments or
meetings.
• Call: Schedule a call.
• Anniversary: Select to make note of anniversaries.
(2) Enter a subject of your schedule up to 25 characters and press the
OK soft key. If you are scheduling a call, enter a phone number.
(3)Select the date and time when the scheduler alarms you the
scheduled event.
Note: At the specified time on the scheduled day, the alarm will sound
and the note will display. If you schedule a call, the phone will dial
automatically.
-63-
63
For example: Make the settings as the above diagrams show, the
phone will reminds you that Jan 18 is Ran’s birthday at 7:00 on Jan 17.
2. Log view
(1) View the schedules you’ve set, press ▲or▼ to scroll through these
notes.
(2) Select desired one, press Option soft key.
Modify: Make some modifications to this note.
Log Delete: Delete this note.
3. Alarm Ring: Select the type of alarm ringing.
4. Log Delete: Delete the schedules.
z One By One
z All
z Expired
Log Set
1 Log Label
2 Call
2 Anniversary
Ok ▲▼ Cancel
Input time
24 hour mode
07:00
Ok ▲▼ Cancel
abc @ Anniver
Jan. 18-Ran’s
birthday
Ok ▲▼ Back
Ahead Of Time
1 On Time
2. An Hour
3 One Day
Ok ▲▼ Cancel
-64-
64
7.ENTERTAINMENT
7-1.Games
7-2.Karaoke
You can enjoy some music with words and flash animation through
this music player. There’re five songs stored in this player. Press e or
f to scroll to your desired song.
To… Then press…
Play the song Ok soft key
Repeat Left soft key
Advance or back e or f
Adjust the music scale c or d
Exit Right soft key
7-3.E-Book
-65-
65
REFERENCE INFORMATION
Access Codes
There are several access codes that are used by your phone and its
SIM card. These codes help you protect the phone against
unauthorized use.
Phone Password
The security code can be used to avoid unauthorized use of your
phone. The security code 0000 is usually supplied with the phone.
Change the security code before you start using your phone. Keep the
new code secret and in a safe place, which is separate from the phone.
PIN Code
The PIN (Personal Identification Number) code protects your SIM
card against unauthorized use. The PIN code is usually supplied with
the SIM card. When the PIN code request is enabled, the code is asked
each time the phone is switched on.
If you key in an incorrect PIN code three times in succession, the SIM
card will be locked. To unlock the SIM card, you’d key in the PUK
code and press the OK soft key, and key in a new PIN code twice.
-66-
66
PIN2 code
The PIN2 code, supplied with some SIM cards, is required to access
some functions, such as charging unit counters. These functions are
only available if supported by your SIM card.
If you key in an incorrect PIN2 code three times in succession, the
PIN2 will be locked. To unlock the PIN2, you’d key in the PUK2
code and press the OK soft key (or OK key), and key in a new PIN2
code twice.
PUK code
The PUK (Personal Unblocking Key) code is required to change a
blocked PIN code. The PUK code may be supplied with the SIM card.
If not, contact your local service provider for the code.
If you key in an incorrect PUK code ten times in succession, the SIM
card cannot be used anymore. Contact your service provider for a new
card.
You cannot change the PUK code. If you lose the code, contact your
service provider.
PUK2 code
The PUK2 code, supplied with some SIM cards, is required to change
-67-
67
a blocked PIN2 code.
If you key in an incorrect PUK2 code ten times in succession, you
cannot use the functions requiring the PIN2 code. Contact your
service provider for a new card.
You cannot change the PUK2 code. If you lose the code, contact your
service provider.
Using the Batteries
A rechargeable Li-ion standard battery powers your phone. The
following batteries are also available (ask your local dealer for further
details):
-68-
68
Precautions When Using Batteries
Never use any charger or battery that is damaged in any way.
Use the battery only for its intended purpose.
If you use the phone near the network’s base station, it uses less
power; talk and standby times are greatly affected by the signal
strength on the cellular network and the parameters set by the
network operator.
Battery charging times depend on the remaining battery charge and
the type of battery and charger used. The battery can be charged
and discharged hundreds of times, but it will gradually wear out.
When the operation time (talk time and standby time) is noticeably
shorter than normal, it is time to buy a new battery.
If left unused, a fully charged battery will discharge itself over
time.
Use only approved batteries; and recharge your battery only with
approved chargers. When a charger is not in use, disconnect it from
the power source. Do not leave the battery connected to a charger
for more than a week, since overcharging may shorten its life.
Type Capacity Talk Time Standby Time
Li-ion Slim 650mAh 2~3hrs 60~100hrs
Li-ion Slim 860mAh 2~4hrs 70~120hrs
-69-
69
Extreme temperatures will affect the charging capacity of your
battery: it may require cooling or warming first. Do not leave the
battery in hot or cold places, such as in a car in summer or winter
conditions, as you will reduce the capacity and lifetime of the
battery. Always try to keep the battery at room temperature. A
phone with a hot or cold battery may temporarily not work, even
when the battery is fully charged. Li-ion batteries are particularly
affected by temperatures below 0 °C.
Do not short-circuit the battery. Accidental short-circuiting can
occur when a metallic object (coin, clip or pen) causes a direct
connection between the + and - terminals of the battery (metal
strips on the back of the battery), for example when you carry a
spare battery in a pocket or bag. Short-circuiting the terminals may
damage the battery or the object causing the short-circuit.
Dispose of used batteries in accordance with local regulations.
Always recycle. Do not dispose of batteries in a fire.
Care and Maintenance
Your phone is a product of superior design and craftsmanship and
should be treated with care. The suggestions below will help you to
fulfill any warranty obligations and allow you to enjoy this product for
-70-
70
many years. When using your phone, battery, charger, or any
accessory:
Keep it and all its parts and accessories out of small children’s
reach.
Keep it dry. Precipitation, humidity and liquids contain minerals
that will corrode electronic circuits.
Do not use or store it in dusty, dirty areas as its moving parts can
be damaged.
Do not store it in hot areas. High temperatures can shorten the life
of electronic devices, damage batteries, and warp or melt certain
plastics.
Do not store it in cold areas. When the phone warms up (to its
normal operating temperature), moisture can form inside the phone,
which may damage the phone’s electronic circuit boards.
Do not drop, knock or shake it. Rough handling can break internal
circuit boards.
Do not use harsh chemicals, cleaning solvents, or strong detergents
to clean it. Wipe it with a soft cloth slightly dampened in a mild
soap-and-water solution.
-71-
71
Do not paint it. Paint can clog the device’s moving parts and
prevent proper operation.
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications of attachments could
damage the phone and may violate regulations governing radio
devices.
If the phone, battery, charger, or any accessory is not working
properly, take it to your nearest qualified service facility.
This phone features large inner & outer display screens, which are
damageable. Please be most careful to avoid dropping or knocking
it or scratch it with a sharp thing.
GLOSSARY
Antenna
A device for transmitting or receiving signals. The size and shape of
antennas is determined, in part, by the frequency of the signal they
-72-
72
receive. Wireless phones and the base station must have antennas.
ALS (Alternate Line Service)
ALS provides the capability of associating two alternate lines with one
SIM card. You can make and receive calls on either line as desired
with this service.
Call Barring
Ability to restrict outgoing and incoming calls.
Call Diverting
Ability to reroute calls to another mobile or fixed line.
Call Holding
Ability to put one call on standby while answering or making another
call; you can then switch between the two calls, as required.
Call Waiting
Ability to inform users that they have an incoming call when engaged
on another call.
-73-
73
Conference Calling
Ability to establish a conference call involving up to five additional
parties.
DTMF (Dual-Tone Modulated Frequency)
You send DTMF signals when you enter numbers by pressing the
digit keys.
Hands-Free
A feature that permits a driver to use a wireless phone without lifting
or holding the handset - an important safety feature for automobiles,
tractors and most other motorized vehicles.
GSM (Global System for Mobile communication)
International standard for cellular communication, guaranteeing
compatibility between the various network operators. GSM covers
most European countries and many other parts of the world.
LCD (Liquid Crystal Display)
Commonly used to refer to the screen display on the wireless phone.
-74-
74
LED (Light Emitting Diode)
Commonly used to refer to a small light on the wireless phone or on
the Desktop Charger. The LED lights on the phone to indicate an
incoming call. The lights on the charger indicate that battery charging
is taking place.
Line Identification Services
Service allowing subscribers to view or block the telephone numbers
of callers.
PIN (Personal Identification Number)
Security code that protects the phone against unauthorised use. The
PIN is supplied by the service provider with the SIM card. It may be a
four to eight-digit number and can be changed, as required.
PUK (PIN Unlocking Key)
Security code used to unlock the phone when an incorrect PIN has
been entered three times in succession. The eight-digit number is
supplied by the service provider with the SIM card.
Roaming
Use of your phone when you are outside your home area (when
-75-
75
traveling for example).
SIM (Subscriber Identification Module)
Card containing a chip with all the information required to operate the
phone (network and memory information, as well as the subscriber’s
personal data). The SIM card fits into a small slot on the back of the
phone and is protected by the battery.
SMS (Short Message Service)
Network service sending and receiving messages to and from another
subscriber without having to speak to the correspondent. The message
created or received (up to 160 characters long) can be displayed,
received, edited or sent.
Soft Keys
Keys marked • and o on the phone, the purpose of which:
• Varies according to the function that you are currently using
• Is indicated on the bottom line of the display just above the
corresponding key
Voice Mail
Computerized answering service that automatically answers your calls
when you are not available, plays a greeting (Optionally in your own
-76-
76
voice) or records a message.
TROUBLESHOOTING
If the phone does not works properly, please check the following
troubleshooting and find a solution. If you can’t solve the problems,
please contact your local dealer for helps.
Question Solution
Cannot make or receive calls.
Check whether the phone is power on
or not.
Check whether the battery is lack of
power.
Check whether the field signal
strength is enough.
Check whether to set up the Call
Barring, SDN or the other options in
Call Set menu.
Check whether to set up the Call
Divert.
Check whether to place the SIM card
properly.
Conversation volume is low. Check whether to set the Voice
Volume too low.
Does not ring when an incoming calls
comes in.
Check whether to select the Silent or
Vibrator modes.
Check whether the ring volume is set
too low.
Check whether the surrounding noise
is too loud.
Check whether to set up the Call
Divert.
The other part cannot hear you. Check whether to select Mute.
Speak near the MIC.
-77-
77
“For body worn operation this phone
has been tested and meets FCC RF
exposure guidelines when used with an
accessory that contains no metal and
that positions the headset a minimum of
1.5cm from the body. Use of other
accessories may not ensure compliance
with FCC RF exposure guidelines.”
