AMOI Electronics S6 PCS1900 (Mobile Phone) User Manual 468449
AMOI Electronics Co., Ltd. PCS1900 (Mobile Phone) 468449
User Manual new
1
Thank you very much for choosing Amoi S6, the fashionable and
elegant blue screen mobile phone. Amoi S6 is perfect integration of
unparalleled contemporary design and consummate craftsmanship,
bringing you easy communication and entertainment, as well as
highlighting your tastes.
Key features:
GSM world tri-band unlocked
Compatible with most standard GSM networks
Innovative slide-up design
Classic “V” style metallic keypad with sapphire blue backlight
Cool OLED display
GPRS class 8, WAP 1.2.1
Speaking Clock
AMOI’s Smart Dial
Downloadable 40-Polyphonic Ring Tones
Phone book memory: 200 V-card entries
Built-in 6 amusing games
Voice memo
Tool Kit (Alarm, Voice Memo, PC Sync, Calculator, Count Down,
Unit Conversion, World Time)
Specifications:
GSM/GPRS: 900 /1800 /1900 MHz
Screen: 128 x 128 pixels blue backlight OLED display
Size: 91.5 x 44 x 20.2 mm Weight: 78 g (w /a standard battery)
Battery capacity: 780 mAh Standby time: 80-110 hrs
Talk time: 120-300 minutes Voice encoding: FR / EFR / HR
2
The manufacturer may, at any time and without notice, make changes or
improvements to the products offered, but provide necessary corrigendum with this
manual or release new version of this manual for the following lot. The Amoi logo
and trademark are the property of the manufacturer. June 200 4
3
TABLE OF CONTENTS
Safety precautions………………………………………….6
Unpacking…………………………………………………….9
Your Phone………………………………………………10
Phone Layout……………………………………………….10
Keys Description………………………………………….12
Display………………………………………………………13
Getting Started…………………………………………….14
Installing a SIM Card………………………………………14
Charging a Battery…………………………….……….…..16
Switching the Phone On/Off………………………………..21
Your Phones Mode………………………….……………...22
Speaking Clock.......................................................................22
Call Function………………………………………………23
Making Calls……………………………………………......23
Receiving Calls……………….………………….……….....25
Missed Calls………………….………………….......25
Call Menu…..………………….…………………….......26
Conference Call……………………………………………..28
Entering Text………………………………………………29
Changing Text Input Mode………………………………....29
English Mode……………………………….………...30
Spanish Mode………………………………….………...30
BoPoMoFo Mode…………………………………….……..31
Abc Mode……………………………….……...….…......31
Numeric/123 Mode…………………………………….…...32
Insert Symbol..…………………………………….……...32
4
Insert Template..…………………………………….……...33
Insert Phone Num..………………………………….……...33
Using User’s Dictionary…………………………………….34
Phonebook……………………………………………….....35
Storing a Phone Number in PB……………………………...35
PB Menu…………………………………………………….36
Using Menus………………………………………….........40
Select functions of options……………………………….....40
List of Menu Function……………...………….……………42
Amusement……………………………………………...….48
Music Player…….………………………………….…...…..48
Games…….…….......……………………………………....48
E-Book….........………….………………………….…...…..50
Lucky Number……….………………………………....…...51
Internet/WAP..…………………………...……………….52
Personality…………………..…...…………………………55
Display...........................................................................55
Audio Setting.................................................................56
Settings……………………………………………………...58
Clock………………………………………………………58
Mobile……………………………………………………..59
Call…………………………………………………………60
Network……………………………………………………63
Se curity…………………………………………………64
Toolbox…...………………………………………………....67
Voice Memo……………………………………………….67
PC Sync……….…….…………………………………….69
Calculator……………….……………………………….......69
5
World Time………………………………………………….70
Countdown……………………………………………….71
Unit Convert………….………………………………….….71
Info…………………………………………………………73
Call List..................................................................................73
Calendar..................................................................................74
Notes.......................................................................................76
Bio Rhythm...........................................................................77
SMS.…………………...…………………………….....78
Inbox.…..………………………………….………………...79
Outbox………………………………………………………81
Write SMS………………………………………….……....81
Delete……………………………………….…………….....82
Memory ………………………………………….……....82
Settings……………………………………………………83
Broadcast………….………………………………………...85
Voice Mail…………………………………………………...85
Models..……...……………………………….…………..…85
Reference Information…………………………………..86
Access Code…………………………………………………86
Using The Batteries…………………………………………88
Care And Maintenance……………………………………90
Glossary……………………………………………………92
Troubleshooting..…………………………………………..97
6
SAFETY PRECAUTIONS
Read these brief guidelines. Failure to comply with them
may be dangerous or illegal.
Road safety comes first
Do not use a hand-held mobile phone while driving;
park the vehicle first. Remember that in some countries,
it is illegal to use a mobile phone while driving.
Switch off on aircraft
Mobile phones can cause interference. Using them on
aircraft is both illegal and dangerous. (Please also close
the power-off alarm clock.)
Switch off near an explosion place
Do not use the phone near an explosion place, because it
likely disturbs the remote control of the explosion.
Switch off when refueling
Do not use the phone at a refueling point (service
station) or near fuels or chemicals.
7
Switch off in hospital
Follow any regulations or rules. Switch phone off near
medical equipment.
Interference
All wireless phones may be subject to radio interference,
which may affect their performance.
Accessories and batteries
Use only approved accessories and batteries.
Use sensibly
Use only in the normal position (to ear). Do not touch
the antenna unnecessarily when the phone is switched
on.
Emergency Call ( SOS)
By pressing the soft key SOS you can reach an emergency
call on any network without a SIM card and without
entering a pin ( not available in all countries )
Radio frequency exposure information
These guidelines are consistent with the safety standard for human
exposure to radio frequency electromagnetic energy previously set by
both U.S. and international standards bodies. The design of this phone
complies with the FCC guidelines and these international standards.
Deleted: To maintain compliance with
FCC RF exposure guidelines, if you wear
a handset on your body, use the supplied
or approved carrying case, holster, or
other body-worn accessory.
8
UNPACKING
Yo u package contains the following items.
In addition, you can buy the following accessories for your phone
from your AMOI local retailer/dealer:
• Standard battery • Desktop charger
• Car charger • Leather case
• Hands-free car kit
• PC data link kit (PC data link cable + PC link CD)
Note: Accessory availability may vary by market.
Travel Charger
Phone Battery
Hands-free Headset
User’s Manual
Addendum to User’s Manual
Deleted: <sp>
Deleted: User’s Manual¶
9
YOUR PHONE
Phone Layout
The following illustrations show the main elements of your phone.
Open View
Earpiece
Display
Left Soft Key
Right Soft Key
Power On/Off Key
Send Key
Alphanumeric Key
Special Function Key
10
Closed View
Rear view
Antenna
External Display
Speaker
Earpiece
Hand Strap Hole
Battery Lock
Battery Terminals
Metal Lock
Cable Connector Slot
11
Keys Description
Key
Description
Two soft keys perform the functions indicated by
the text above them (in the bottom line of the
display).
Navigation Keys: Scroll through the menus;
In Standby mode, the ‚ key to view the call
records, the ƒ key to enter Amusement Menu and
the „ key to use SMS (Short Message Service)
feature. Press • key to give the current time;
press and hold • key to use Internet feature.
Send key: Makes or answers a call.
In Standby mode, recalls the last number dialed.
Power On/Off key :Hold it to switch on/off the
phone; End a call ;In the menu facility, returns to
the Standby mode and cancels your input.
Shortcut key for voice mail.
Enter numbers and some special characters.
Use these keys for various special functions.
12
Di splay
Display Layout
The display comprises three areas.
Area Description
First
line Displays various icons
Middle
lines
Displays messages,
instructions and any
information that you
enter
Last
line
Shows the functions
currently assigned to the
two soft keys.
Icons
Signal strength: Shows the received signal strength. The
greater the number of bars, the better the signal strength.
* New Message: Appears when a new message has been
received; flash indicates that your message box is full.
Ring Mode: Indicates the phone rings when a call coming.
Ring + Vibrate: Indicate that your phone will ring and vibrate
when a call coming.
Mute Mode: Appears when the vibrate mode is active.
Call Divert: Appears when the call divert is active.
Alarm:Appears when the alarm is active.
Battery status: Shows the level of your battery. The more
black area you see, the more power you have left.
13
GETTING STARTED
You must insert the SIM card and charge the battery before you can
use the phone.
Installing a SIM Card
When you subscribe to a mobile network, you are provided with a
plug-in SIM (Subscriber Identity Module) card loaded with your
subscription details (PIN, Phone book information, and so on).
Note: The SIM card can be easily damaged by scratching or bending, so
you should be careful when handling, inserting or removing the card.
Follow the instructions supplied with the SIM card. Keep all SIM cards
out of the reach of small children.
1. Switch the phone off.

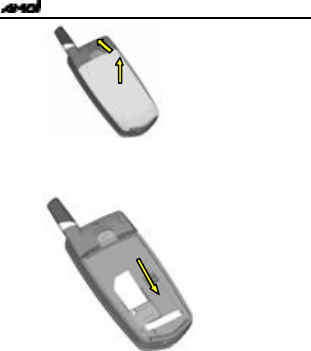

2. Remove the battery. To do so:
? Press down the catch above the battery and hold it in this
position.
? Slide the battery and lift it away, as shown.
14
Slide the SIM card into the SIM card holder so that the holder locks
the card in position. Make sure that the notched corner is at the top left
an d the gold contacts of the card face into the phone.

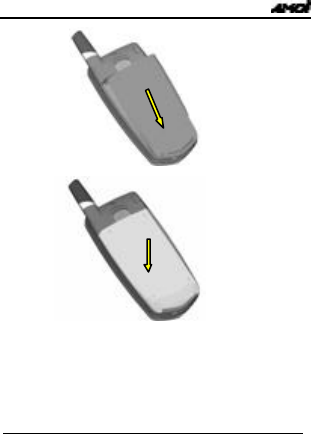

3. Reinstall the battery. To do so:
?Place the battery back, taking care to match the tabs on the
battery with the grooves on the phone.
?
1
?
2
15
? Push the battery down until it clicks into place. Make sure that
the battery is properly installed before switching on the phone.
Charging a Battery
Your phone is powered by a rechargeable Li-ion battery.
You are provided with a travel charger when buying the phone. Use
16
only approved batteries and chargers. Ask your local dealer for further
details.

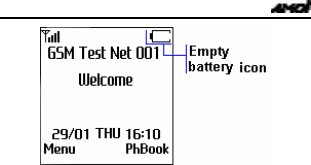

Note: You must fully charge the battery before using your phone for the
first time. The phone can be used while the battery is charging.
17

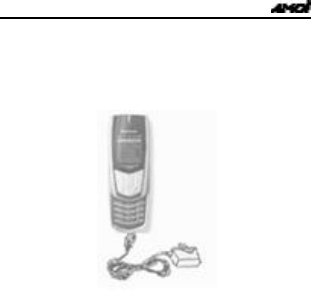

Using a Travel Charger
1. Place the battery on the back of the phone (see“reinstall the
battery” ), connect the lead from the travel adapter to the connector
at the bottom of the phone.
2. Connect the adapter to a standard AC wall outlet.
3. When charging is finished (the full battery icon becomes solid),
disconnect the adapter from the AC wall outlet, then from the
phone.
Note: When disconnect the lead of the adapter from the phone, you
should press the buttons on both sides of it, otherwise it’s easily damaged .
Using a Desktop Charger
1. Insert the battery alone into the slot making sure that the terminals
on the battery contact to the terminals on the charger.
18
2. Push down the battery until you hear a click.
3. Insert the lead of the travel adapter into the connector socket of the
desktop charger.
4. Connect the adapter to a standard AC wall outlet.
5. The colour indication of the LED on the charger is as follows:
• Red: charging
• Green: fully charged
6. When charging is finished , unplug the power cord of the adapter
from the AC outlet and remove the battery from the charger.
Note: This charger is applicable to the series of S6 battery.
Low Battery Indicator
When the battery charge level gets low, you can see an empty battery
icon at the top right of the display and a text notification.
Formatted: Bullets and Numbering
19
If the battery level gets too low, the phone will turn off automatically.
Unfortunately, if this happen, you’ll lose whatever you are doing,
including dropping your call. Watch the battery strength icon and
make sure your battery is adequately charged.
20

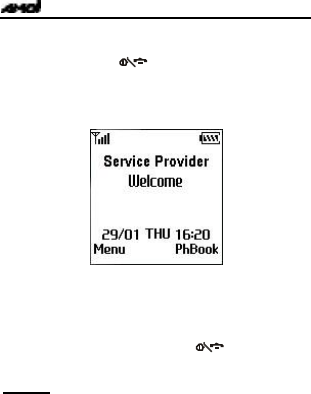

Switching the Phone On/Off
1. Press and hold the key until switch the phone on.
2. Enter your PIN, if you have one for your SIM card. (Refer to
Glossary/PIN)
3. Press the left soft key, then your phone connects to the GSM
network, and you’ll see the following screens.
Note: If the network signal is very weak, ‘No Service’ appears in the
display, and you cannot place and receive calls. Wait a little while for a
better signal or move into an open area to regain the service.
4. To switch the phone off, hold down the key for more
than two seconds.
WARNING!
Do not switch on the phone where mobile phone use is prohibited or when it may
cause interference or danger.
Note: Do not touch the antenna on the phone unnecessarily when the
phone is switched on. Contact with the antenna affects call quality and
may cause the phone to operate at a higher power level than otherwise
needed.
21
Your Phone’s Mode
Standby Mode
Standby is the basic mode of your phone. The phone goes into
Standby mode soon after you turn it on, or whenever you briefly press
the key. When your phone is in Standby mode, you will typically
see the current date and time. If you enter a phone number, you can
press the key to dial it.
Press the key at any time to return to Standby mode. Be
careful; if you are on a call when you press the key, you will
return to Standby mode, and the call disconnected.
Talk Mode
You can place and answer calls only when your phone is turned on.
During a call, the phone is in Talk mode. While you are on Talk mode,
pressing the left soft key which will offer you a list of Options (please
referred to Call Menu).
Speaking Clock
Press the ? key in the standby mode, the phone will give the current
time.
Note: This function is available only in non-silent style.
22
CALL FUNCTIONS
Making Calls
Before you can make or receive a call, you must turn on the phone and
be within range of a network.
1. In Standby mode, enter the phone number. (If you make a mistake
while dialing, use ƒ or „ key to move the cursor to the right of
the digit, press the right soft key to erase it; Press and hold to
erase the entire number .)
TIP: When inputting a number, you can insert a pause by holding the #
key (for example: between the switchboard and the extension), the latter
number will be dialed several seconds after the former one.
2. Press the key to make the call.
3. When you finish talking, press to end the call.
TIP: When using the hands-free kit, you can press the Send key on it to
end the call.
Making a Call from the Phonebook
See “entering the phonebook” to search for a desired number, and
press the key to dial.
23
Last number redialing
In standby mode, press the ‚ key to access the list of the 20 numbers
you last called; scroll to the desired number or name, and press to call
the number.
Note: If you have set Auto Redial menu to On, if there is no answer or
the line is busy, the phone automatically retries to make the call.
Making International Calls
1. Press and hold down the “0” key until a “+” character appears in the
display.
2. Key in the country code, area code, and phone number, then press
the key.
Deleted:
Deleted: ¶
Deleted: to begin dialing.
24
Receiving Calls
When somebody calls you, the phone rings or vibrates; the screen
displays an incoming call message. If you have subscribed to the Line
Identification Service (contact your service provider), the caller’s
phone number display s; if you have saved the number in your phone
book, the name display s.
Three modes are provided for receiving a call. Refer to Settings/
Call/Answer mode for the details.
Press to answer a call and to reject.
Note:If you receive a call while using the phone functions and menus,
the current operation will be halted.
Missed Calls
When an incoming call is not answered, the Missed Call log is
displayed on your screen.
-- To view the missed call immediately, press the left soft key, the
number or the name is displayed, if available. Scroll through the
missed calls, press to call the number.
-- Press the Option soft key, you’ll enter the missed calls menu. The
following options are available:
Call To press the left soft key to call the number.
Detail To view the details (name, number, time)
Deleted: is displayed
Deleted: is displayed
25
Save To store the number to the phonebook.(refer to Storing
a phone number in PB)
Send Edit the message to this number.
Delete To delete the number from the missed calls list.
Delete All Delete all numbers from the missed calls list.
Tip: You can press the key at any time to exit the Missed Call
menu. You can view the missed calls at any time. Refer to Call list for
details.
Call Menu
Some of the features you can use during a call depend on the support
of your network.
During a call, press Option soft key to enter Call Menu. The options
change in different conversation circumstance.
The followings are the possible options.
Mute: You can switch microphone off and the caller can’t hear you.
Hold (current call ): You can hold the current call.
Hold current call/Dial new number: You can hold the current call
and dial new number.
Hold current call/ Answer new call: You can hold the current call
and answer a new call.
Connect held call to conference call: You can connect the held call
to a conference call.
Deleted: s
Deleted: whether your network
provides these services.
26
End the current call: Select to end the current call.
End held call: Select to end the held call.
End current call/ Answer new call: You can end the current call and
answer the new call.
End current call/ Answer held call: You can end the current call and
answer the held call.
End all calls: Select to end all calls.
Main menu: Select to enter the main menu and make the general
operations.
Other Options in the Call Menu
You may also directly press the number-keys to choose the functions
and press to make it.
Hold/ Switch
The ‘Hold’ function can switch the current call to a held one and
recover the previous call.
When there is a held call and a current call:
Press 0 + to end the held call
Press 1 + to end the current call and recover the held call.
Press 2 + to switch the current call to a held one and switch the
held one to the current call.
Call Waiting
If your network supports this function and you have activated the
feature, the phone will remind you when there’s a new incoming call
during a call.
Deleted: the
27
Ca ll Hold
If your network supports this function you can dial another number
while you have a call in progress.
Method 1: (1) Dial the required number or find the required number
from telephone book and then press to make the
second call.
(2) The first call will be put on hold automatically.
Method 2: (1) Press to hold the current call.
(2) Dial the second call. When the new call is connected,
the previous one will be held automatically. These two
calls can be switched freely. Please refer to Hold/ Switch
function.
Conference Call
Conference Call is a network service. It allows up to six people to take
part simultaneously in a call.
(1) Dial the first number.
(2) Dial the second number and the first number is held automatically
after the first is connected.
(3) Press 3 + to let the first number to participate in the conference.
(4) Repeat Step 2 and 3 to add more numbers to participate in the
conference.
(5) Press and 3 + to allow the new number to participate in
the conference, repeat the operation to have more numbers to the
conference.
(6) Press 1 + x + to refuse one current number, repeat the
operation to refuse more numbers (x means the number you choose
to refuse ).
(7) Press to end the whole conference call.
28
ENTERING TEXT
When storing a name in the phonebook, creating your personal
greetings or scheduling events in your calendar or writing any other
message, you will need to enter text.
You are provided with the following text input modes.
• English/english/ENGLISH
• Spanish / spanish/ SPANISH
• BoPoMoFo (Traditional Chinese)
• Abc/abc/ABC
• 123 (Numeric input mode)
TIP: The number on the top right is a word count of the message, it
points out how many characters you can write in the edit zone.
Note: The input modes may vary in different markets, with the same
operation as the English Mode.
Changing Text Input Mode
When in a text entry screen, press to change Text Input Mode or
press and hold it to enter eZi Menu. You can see current text
input mode indicator on the top left of the display:
• English / english / ENGLISH
• Spanish / spanish / SPANISH
Deleted: e
Deleted: to the
29
• BoPoMoFo (Traditional Chinese)
• Abc / abc / ABC
• 123 (Numeric input mode)
Note: The current input method will be the same as the one you last used
before you quit the input mode.
English Mode
This mode allows you to enter words with only one keystroke per
letter. Each key on the keypad has more than one letter – when you
press once, J, K or L may be displayed. The English mode
automatically compares your keystrokes with an internal linguistic
dictionary to determine the correct word, thus requiring far fewer
keystrokes than the ABC mode. For example: to enter ‘hello’, press
the following keystrokes: 4, 3, 5, 5, 6.
If the word in the display is not the word that you desire, press the „
or ƒ key to display alternate word choices for the keys you have
typed. (For example, ‘of’ and ‘me’ both shares the sequence 6, 3) The
phone displays the most commonly used choice first.
Spanish Mode
Please refer to English Mode.
30
BoPoMoFo Mode
With the BoPoMoFo input method, you can edit text in Traditional
Chinese.
Details as follows:
Key Character The Corresponding Chinese
Pinyin
0 ? ? ? i/? u/? ü/?
1 ? ? ? ? b/? p/? m/? f/?
2 ? ? ? ? d/? t/? n/? L/?
3 ? ? ? g/? k/? h/?
4 ? ? ? j/? q/? x/?
5 ? ? ? ? zh/? ch/? sh/? r/?
6 ? ? ? z/? c/? s/?
7 ? ? ? ? a/? o/? e/? ie/?
8 ? ? ? ? ai/? ei/? ao/? ou/?
9 ? ? ? ? ? er/? an/? en/ ? ang/? eng/
?
* *
# #
ABC Mode
This mode allows you to enter letters by pressing the key labeled with
the required letter once, twice, three or four times until the letter is
Deleted: enter
Deleted: characters
Deleted: by keying in the BoPoMoFo
string from the phone keypad.
Deleted: In this This manual is for
English-spoken users only, so the details
on how to use itthis text input method are
omitted accordingly. ¶
If you want to know how to use the
BoPoMoFo input method, More details
about it, please contact your dealer. ¶
¶
31
displayed. For example, press the 2 key three times in succession to
display the character “C”, the 5 key two times quickly to display the
character “K”.
Note: When entering the same character twice (or a different character
on the same key), just wait for a few seconds for the cursor to move to the
right automatically, and then select the next character.
To… Then…
Choose a highlighted word Press “0” key
Alternate among the following modes:
abc, Abc, ABC Press the # key
Change the modes of a highlighted word: Press • or ‚ key
Insert the symbols Press 1 key
Insert more symbols Press * key
End the edition Press left soft key
Exit Press the key
123 (Numeric)Mode
It enables you to enter numbers into a text message. Press keys
corresponding to the desired digits, and manually switch back to the
text entry mode of choice.
Besides these text inputting modes, the following options are available
Deleted: you
Deleted: ¶
¶
Deleted: ¶
Deleted: the
Deleted:
Deleted: ¶
32
in the text inputting mode: Insert Symbol, Insert Template, Insert
Phone No. and Dictionary.
Insert Symbol
Symbolic mode enables you to enter symbols into a text message.
To enter a symbol,
1. Hole the key in the text entry mode to enter eZi Menu.
2. Select Insert symbol.
3. Press the ? or ? key to select the column which including the
symbol mark you want to use.
4. Press the corresponding numeric key to insert the desired symbol
mark.
Insert Template
There are several customs stored in this option that allows you to
insert directly when editing the message; you can also edit and store
several messages in the empty entry.
Insert Phone No.
You can insert the telephone number stored in your phonebook when
editing the message.
Then, the phone automatically switches back to the text entry mode.
Deleted: you can
Deleted: ¶
33
Using User’s Dictionary
While entering a SMS message, you can use your own dictionary,
which allows you to add a new word and then the word has a high
priority in English mode.
Adding a Word to the Dictionary
1. In the text en try mode, hold the key to enter eZi Menu.
2. Press the ? or ? key to scroll to Dictionary and press the
Left soft key.
3. Select New and input the word you want to add, then press the
left soft key.
4. Select Save and press left soft key.
Now, the added word becomes the first candidate for the associated
key press. You can check the added words on the List Dictionary
menu.
Deleting the Words from the Dictionary
1. In the text en try mode, hold the key to enter eZi Menu.
2. Use the ? or ? key to scroll to Dictionary/List and press left
soft key .You can see the list of the words you have added.
3. Use the ? or ? key to find the word you want to delete, and
press the left soft key.
4. Select Delete and press left soft key .
34
PHONEBOOK (NAMES)
You can store your phone numbers and the corresponding name in
SIM card or in your phone memory. In addition, you can store up to
200 numbers in the Phone memory; every entry includes a name,
three phone numbers, two email addresses, one fax number, one
OICQ number and one remark. The quantities of the entries, which
SIM can store, depend on the type of SIM for every entry including a
name and a number.
Tip: If you change phones, any numbers stored in your SIM card are
available with the new phone.
Storing a Phone Number in PB
1. Key in the number to be stored.
2. Press the Store soft key.
3. Select Local PB or SIM PB then press Left soft key.
Save Local:
(1) Input name, press Left soft key.
(2) Enter three phone numbers by sequence (after input the Mobile
Number, press Next soft key and then enter the Home Number and
the Office Number).
(3) Enter Private email address, Public email address, Fax number,
OICQ number and Memo separately (the same method as step 2).
(4) Press Left soft key and “Saved” is displayed.
Deleted: relative
Deleted: can store 200 entries at the
most
Deleted: in
Deleted: ing
Deleted:
Deleted:
35
Save SIM:
(1) Input name, press Left soft key.
(2) Key in the numbers, press Store soft key.
(3) Press Left soft key and “Saved” is displayed.
There are two ways to enter phonebook in standby mode:
² Press right soft key.
² Enter the associated alphanumeric keys then press *. For
example, enter 866* to search the name of Tom.
PB Menu
In the PB (PhoneBook) Menu, the following operations are available:
Smart Dial
This Option allows you to find an entry quickly in your PB.
1. When Smart Dial is highlighted, press the left soft key to enter.
2. Input the corresponding numerical key of the desired name (see the
second way to enter PB).
3. Press Left soft key. Scroll to your desired entry.
4. Press to dial it or press Select soft key to enter “Select
operation” to display the following Options:
Edit: Edit the details of the selected entry.
Copy: Allow you to copy the selected entry from the phone
memory to the SIM memory and vice versa.
Delete: Press the OK key and phone will display " Delete?"
Select "Yes" to delete this entry. Select "No" to cancel this operation.
Deleted: For a Chinese name, enter the
first letter of every character (for example:
enter 21* to search the name ??).
Deleted: ¶
Deleted: ent
Deleted:
Deleted:
Deleted:
36
Call: Press the OK key to dial this number.
Write SMS: Refer to Messages/Write.
Send number: Send all the numbers in this entry to the appointed
number.
View
This Option allows you to find a Phonebook entry by searching from
the list of all entries sorted by name.
(1)Press the • or ‚ key until you find the desired entry from the list.
(2)Press the left soft key for more details.
Search Name
Enter the character(s) of the desired name by pressing the associated
alphanumeric key(s) and press the Search soft key to see the details in
your phonebook.
Note: While viewing details on the entry, press the Left soft key to enter
“Select operation ” (refer to Smart Dial )
New
When a new contact is highlighted, press Left soft key. Choose the
Local PB or SIM PB. (refer to Storing a phone number in PB)
37
PhBook Manager
Copy ( Take “Local to SIM” for example)
(1) Copy One: Press • or ‚ to view the phone number one by one
and press left soft key to copy the desired one.

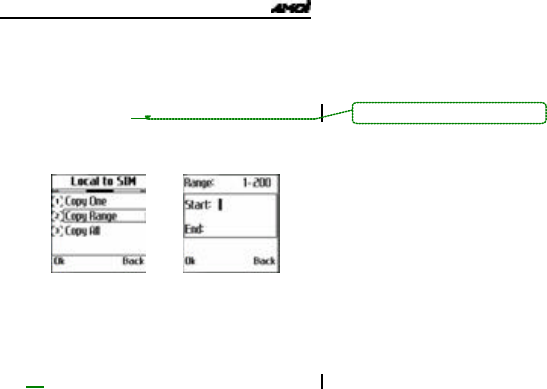

(2) Copy Range: Input the first number and the end number, then
press Left soft key to copy these entries you want to SIM card.
(view the following picture)
(3) Copy All: Copy all the numbers stored in phone to SIM card.
Note: If the entry already exists in target PB, the entry will not be copied.
If the space of target PB is not enough for copy, only the front phone
numbers will be copied until the target PB is full.
If the name length of target PB is less than that of original PB, the
exceeded part will lost.
Delete
Just the same as Copy, you can delete One, All and the specified
Range.
Deleted: start
38
Memory
Check the total capacity and the amount of used entries of PB of SIM
card and Local.
Info
Country/Area Code
Select this function, press ƒ or „ to view the country/area code;

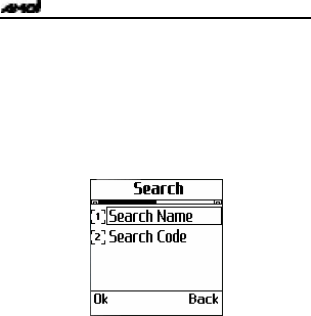

Press left soft key to search by name or by code:
Own Number
Store the SIM card number of local phone for reference.
39
USING MENUS
Select functions of options
Your phone offers a set of functions that allow you to customize your
phone. These functions are arranged in menus and sub-menus,
accessed via . Each menu and sub-menu allows you to view and
alter the settings of a particular function.
The roles of the so ft keys vary according to the current context; the
label on the bottom line of the display just above each key indicates its
current role.
To view the various functions/options available and select the one
required, proceed as follows.
1. Press the corresponding soft key.
2. To... Then press the...
Select the function displayed Left soft key
Move up or down in the options • or ‚ key.
Move right or left in the options „ or ƒ key.
Back to the previous menu Back soft key.
Exit without changing the settings the key
In some functions, a password or PIN may be need ed. Enter the
required code and press the Left soft key.
Deleted: you may be asked for
Deleted: .
40
Example: Setting the Display Language
1? In the standby mode, press the Menu soft key to enter the main
menu.
2? Scroll to the Settings menu by pressing the ?? or ? ? key
repeatedly.
3? To enter the Set tings menu, press the Left soft key.
4? Scroll through the sub-menus until you reach the Mobile
sub-menu, by pressing the • or ‚ key
5? To enter the Mobile menu, press the Left soft key.
6? Scroll through the sub-menus until you reach the Language
sub-menu, by pressing the • or ‚ key
Deleted:
Deleted: through the menus until
Deleted: ,
41
7? To view the languages available, press the Left soft key .
The display shows the current setting.
8? Find the appropriate language by pressing the ? or ? key.
9? Press the Left soft key to confirm your selection.
10? Press the Back soft key twice or the key to exit the menu
structure.
By shortcut
The menus, submenus and setting options are numbered and you can
access them by using their shortcut number.
1. In Standby mode, press the Menu soft key .
2. Within three seconds, key in the index number of the menu
function you want to access.
Notes:
The numbers assigned to each menu function are indicated on the list of
the following pages. They may not match the menu number on the phone.
It depends on the services supported by the SIM. For example, the STK
menu will locate the first main menu and all the other menu functions
backspace. By press the „ navigation key you can access the SMS
function.
List of Menu Functions
The list shows the menu structure available and indicates the number
assigned to each option.
42
1?Amusement
1-1:Music Player
1-2:Games
1-3: E-book
1-4:Lucky num
2?Internet
3?Personality:
3-1-1:Menu Style
3-1:Display
3-1-2:Screen Display
3-1-2-1:Standby
3-1-2-2:Power On
3-1-2-3:Power Off
3-1-2-4:Screen Saver
1-2-1:Guess Ball
1-2-2:Snake
1-2-3:Tetris
1-2-4:Push Box
1-2-5:Gobang
1-2-6:Egg Throw
2-1-1:Homepage
2-1-2:WAP
3-1-1-1:Animated
3-1-1-2:Bitmap
Deleted: ¶
Deleted: ¶
43
3-2:Sound
4?Settings
4-1:Clock
4-2:Mobile
4-3:Call
3-2-1:Tones
3-2-2:Volume
3-2-3:Call Prompt
3-2-4:Key Sound
3-2-5:Prompt Sounds
4-1-1:Alarm
4-1-2:Auto On/Off
4-1-3:Time
4-1-4:Date
4-1-5:Time Format
4
-
1
-
6
:
Date Format
4-2-1:Language
4-2-2:Auto Key Lock
4-2-3:Reset All
4-2-4:Contrast
4-3-1:Divert
4-3-2:Incoming Filter
4-3-3:Volume
4-3-4:Answer Mode
4-3-5:Auto Redial
4-3-6:Send Number
4-3-7:1’Beep
4-3-8:Call Waiting Deleted: ¶
44
4-4:Network
4-5:Security
5?Toolbox
5-1:Voice Memo
5-2:PC Sync
5-3:Calculator
5-4:Word Time
5-5:Countdown
5-6:Unit Convert
6?Info
6-1-1:Incoming
6-1-2:Missed
6-1-3:Outgoing
6-1-4:Last
6-1-5:Total
4-4-1:Mode
4-4-2:Search
4-4-3:Sequence
4-4-4:Band
4-5-1:SIM Lock
4-5-2:Check PIN
4-5-3:PIN Change
4-5-4:PIN2 Change
4-5-5:PWD Change
4-5-6:Fixed Numbers
4
-
5
-
7
:
Bar
Calls
5-1-1:Record
5-1-2:Play
5-1-3:Label
5-1-4:Delete One By One
5
-
1
-
5
:
Delete All
5-6-1:Length
5-6-2:Weight
5-6-3:Volume
5
-
6
-
4
:
Surface
45
6-1: Call Lists
6-2: Calendar
6-3: Notes
6-4-1:Setting
6-4: Bio Rhythm 6-4-2:View
6-4-3:Spec Days
7?SMS
7-2:Outbox
7-3:Write SMS
7-4:Delete
7-5:Memory
7-1:Inbox
7-4-1:Inbox
7
-
4
-
2
:
Outbox
7-6-1:Auto Display
7-6-2:SMS Center
7-6-3:Validity
7-6-4:Status Report
46
7-6:Settings
7-7:Broadcast
7-8:Voice Mail
7-9:Models
7-7-1:Read
7-7-2:Auto Display
7-7-3:Filter
7-7-4:CB Tone
7-8-1:Number
7-8-2:Call
7-9-1:Please call me
7-9-2:In meeting now
7-9-3:Thank you
7-9-4:Sorry about
7-9-5:I will be late.
7-9-6:I am here
7-9-7:Urgent Please
7
-
9
-
8
:
Take care
Deleted: .
Deleted: .
47
AMUSEMENT
Music player
In this music box, you can enjoy the melody continually. When
operating:
Press ? to play, ? to stop, ? to skip to the previous, and? key to
skip to the next .Press option soft key, you can enter "my favorite" to
sieve the songs to play.
Loop setting: Whether or not to play the music circularly.
Games
Guess Ball
Start: Start a new game.
Help:Start a new game, the class is ‘1’ and the ball is in the first bowl.
Then exchange the sequence of bowls, and the times of exchanging
equals to the current class. After exchanging, you can guess which
bowl the ball is in. You can press ?, ? and ?or the key 1,2,and 3 to
choose the bowls in the left, center and right of LCD. If you are right,
the class will increase 1,the highest class is 50: Otherwise, the class
will decrease 1. until the class is 0, then you must restart the game.
Beep :Allow you to select voice on /off of the game.
Snake
The directional key controls the direction of snake moving. The snake
Deleted:
Deleted:
Deleted:
48
will lengthen when you eat. The more you can eat without bumping
the wall and itself, the higher score you can get Level :The speed will
go up with the class increasing.
Help: Detailed operation method in offering.
Scores:Five best scores are recorded.
Tetris
Start: Start a new game.
Level: The speed of the descending
Help: Describes the rules in the game.
Scores: You can look up score list.
Beep: Switch on/off the sound.
Push Box
You are successful if you pushed all boxes to destinations.
You can push boxer by ???? key and restart/end game by
pressing some keys, and you can select pass by pressing “2” and “8”
key.
Start: Allow you to start a game.
Help: Describes operation and rules in the game.
Beep : Allow you to select voice on/off of the game.
Gobang
When you enter this game, you can select:
Start:Start game.
Help:Explain game instruction. Score measure:remove one-off 5-6,
each 2;7-8,each 3;9-10,each 4;11-12 ,each 5;12 or more,each 6.
Scores:You can look up score list.
Deleted: If you can eat much food
without bumping the wall and itself, you
can get higher score.
Deleted: ¶
49
Beep :If you turn on beep, game background music turns on,you can
hear suggestive music when you remove chessmen or move chessman
wrong in game, if you don’t like, you can cancel it.
In game ,you can press 2?8 key to adjust volume, left soft key to
select, navigation key to Move chessman, right soft key to save game
and exit , power off key to exit game directly. If your score is high,
you can input your n ame into Scores.
Egg Throw
Start: To start a new game.
Continue: Enables you to continue the previous game, which has
been saved.
Help: Describes the rules in the game.
Beep: Switch on/off the sound.
E-book
You can download up to 10 E-books to read through this function.
Please refer to PC SYNC about how to download E-book.
Note: The content of every book is up to 100k.
After downloading, the following operations are available in this item.
² Read Book:
Deleted:
Deleted:
Deleted: e
Deleted: e
50
To… Then…
Browse on the same page Press • or ‚
Turn on pages Press ƒ or „
Make a mark at the point Press Bookmark soft key where
you stop reading
Exit Press Cancel soft key
Delete: To delete any book you’ve downloaded.
Lucky number
Select two numbers then you’ll get a group of numbers. The first
number limits the scale of this group numbers; the second number is
the unit of this group.
To scroll between the first number and the second, then press • or ‚
key.
To select the numbers, then press ƒ or „ key.
To produce groups of numbers, then press Left soft key.
To choose a desired group, then press Select soft key.
To choose another group, then press Continue soft key.
To skip to the previous menu, then press Cancel soft key.
INTERNET/WAP
Deleted: ¶
¶
51
WAP is a platform of combining wireless communication with
Internet, you can gain abundant Internet information and some
application of E -commerce by phone.
Note:To connect WAP net, you need network support and you should
apply for the service of surfing Internet, the method of setting details in
‘Setiings/WAP Settings’.
Select Internet -> Homepage to connect WAP. You can also seclet Go
to URL from WAP Settings to visit a certain URL.
Note: Press and hold the key * to enter the browser menu.
The following options are available when visit WAP.
Back: To return the previous window.
Home: Skip to the homepage.
Exit: Exit the browser window.
Mark Site: Allow the user to add website in bookmark, in order to
visit anon.
Bookmarks: Display the websites list you have added, select one to
visit the corresponding web.
Inbox: You can check up what’s in your inbox.
Save Image: You can store your favorite pictures.
Reload: Exit browser menu, return to the page you just visiting.
Settings: You can make some modifications on settings of homepage
and proxy server.
About: You can look up some information about the browser.
Deleted: internet
Deleted: internet
Deleted: e
Deleted: wap
Deleted: sustain
Deleted: i
52
Note: Some functions may not be supported by your network.)
Chinese input:
When the phone’s language mode is Chinese, The Internet request
inputs, press “call” key to enter eZi and input Chinese.
Keyboard use:
Press “end” key to shift letter symbol or number input, press “ *” key
to shift letter, press “right” soft to delete, hold “right” soft key to clear
edited text. Press • ‚ key to move the cursor.
Shortcut:
In WAP window, press and hold 1-9 key, to enter directly the
corresponding website in your bookmark; hold 0 key to enter your
Inbox; hold to exit the browser.
Internet Setting
1. Connection
You can choose from the preset options or according to your own
preferences.
Take Cingular GPRS for example:
Name: Set your favorite names such as Cingular GPRS.
Home: You can set the homepage, such as http://device:home.
Security: You can set it as On or Off.
IP Address: Set IP address linking to homepage. For example:
199.176.084.011
Bearer: Set the types of data service, choose from GPRS and Data.
AP Name: Input AP name, such as WAP.cingular.
Deleted: n
Deleted: connection
Deleted: wap
53
User Name: Set the user name for WAP, for example, lovely.
Passeword: Set password for WAP.
Note: Please consult yo ur service provider for these WAP parameters.
2. Bookmarks
New Bookmark: You can add a URL which you visit frequently to
your Favorite and entitle it so that you can visit it easily.
Go To Bookmark: Enter the favorite, select one URL title and link to
the corresponding homepage.
3. Go to URL
Enter an URL and press the OK key, then your handset can start to
link. When your handset cannot link to the URL, it will link to the
homepage automatically.
4. Reset
Reset all of the settings of WAP.
Deleted: correspondent
Deleted: ok
54
PERSONALITY
Display
Menu Style
This option allows you to select the menu display style. You can
choose between Bitmap and Animated.
Screen Display
Standby
Your phone provides you with a variety of items to display in Standby
mode. You can change the idle screen to one of the following items
depending on your preference.
The following Options are available:
Animation: Display the selected animation.
Calendar: Display a calendar. You can select Monthly calendar
Picture: Displayed the selected picture.
Text: Display the text you have created as your preference. Create
your message up to 19 characters.
Downloaded: Display the downloaded picture. You can use RAF tool
or WAP to download back images and animations into your phone
first.
Power On/Off
You can select the Animation or Text for your phone’s display when
the phone is switched on or off.
Deleted: .
Deleted:
Deleted: turned
55
Screen Saver
In order to protect the screen, this mobile offers several screen savers
for you. If you choose ‘Blank”, screen saver will be closed. After you
choose a screen saver, the screen will be saved if you do nothing in
40seconds.
Audio Setting
You can select the music styles of your phone’s ringing and set the
different profiles.
Tones
Incoming Tone
There are 27 kinds of rings for you to choose ;
SMS Tone
There are 5 kinds of rings for you to choose ;
Alarm Clock Tone
There are 25 kinds of rings for you to choose ;
Log Tone
There are 25 kinds of rings for you to choose ;
Count Tone
There are 25 kinds of rings for you to choose ;
Deleted: don’t
Deleted: anything
56
Power on Tone
There are 25 kinds of rings for you to choose ;
Downloaded
You can make the following operations to the downloaded music.
² Audition
² Add
² Delete
Volume
You can adjust the volume of ring. Press ?key to increase volume
and ? key to decrease .
Call Prompt
You can select Tone alert , Vibrator, Tone&vibrator,or No notify when
there is an incoming call. Scroll to the option you want, press ‘Ok’ soft
key to confirm.
Key Sound
To adjust the Key sound, you can select ‘DTMF Tone’, or ‘Silent’.
Prompt Sounds
Info Tones: Tones to indicate some information of the phone. For
example: tone if low battery. Select it and then press ‘on’ soft key. To
cancel this feature, press ‘off’.
Service Beep: The phone will send out the service tone when it
connects to the network for the first time, if it is active.
57
SETTINGS
Many different features of your phone can be customized for your
preferences.
Clock
Alarm
There are three alarm clocks to be used. For every alarm, you can
make the following operations:
Time: Set the time when the alarm will work.
Mode: There are three modes.
1. Everyday: The alarm works at the set time every day.
2. Workday: The alarm works at the set time from Monday to Friday.
3. Personal: You can choose one or several days of one week for
alarming.
Cancel All: Close all alarms.
Note: The alarm works at the set time, press any key except and
to stop it; if not, it continues to alarm for one minute.
Auto On/Off
The phone will switch on or off at the preset time.
On: Enable the automatic power on/off of the phone.
Set: Enter the time when you want your phone to switch on/off.
Time
This function allows you to change the current time displayed in
Deleted: the
58
standby state.
Date
This function allows you to change the current date displayed in
standby state.
Time Format
Choose between 24 hours mode and 12 hours mode.
Date Format
Format date: Select the day format:
D / M / Y
M / D / Y
Y / M / D
Mobile
Language
² English: All the menus and information are displayed in English.
² Spanish: All the menus and information are displayed in Spanish.
² BoPoMoFo:All the menus and information are displayed in
Traditional Chinese.
Note: The languages may vary in the different markets, please check
with the local AMOI retailer.
Tip: In standby mode, press *99# to switch among the different
languages.
Deleted: dd/mm/yy
Deleted: mm/dd/yy
Deleted: yy/mm/dd
Deleted: ????
Deleted: ,
Deleted: ¶
59
Auto Key Lock
You can use the auto key lock to avoid touching keyboard wrongly.
When you choose this function, the keyboard will be locked after
30seconds idle.
Note: You can lock the keyboard by hands.
Reset All
You can reset some settings to factory set. You need enter PCK
number, the default PCK number is 0000.
Contrast
You can adjust the contrast of the LCD by pressing ?? keys.
Call
Divert
This network service enables the incoming calls to be transferred to
the number that you specify. For example: You maybe hope to transfer
your business calls to a colleague while you are on holiday.
Not reachable: Calls are transferred if you are not in an area covered
by your service provider.
If no reply: Calls are transferred if you do not answer the call.
All calls: All calls are transferred.
If busy: Calls are transferred if you are already making another call.
Note: This option is invalid if Call Waiting is activated, unless you
reject the incoming call.
60
Status: You can inquire the network about the current status of Call
Transfer function.
Cancel all: All Call Transfer functions are cancelled.
Select one item to divert your phone, you should:
1. Scroll to the desired item then press Left soft key.
2. Select ‘Divert On’ and press Left soft key (If you want to cancel this
operation, select ‘Divert Off’)
3. Input the number you want to divert to, press Left soft key.
4. The info is displayed to indicate if you’ve succeeded this execution
or not.
Incoming Filter
With this operation, you can put numbers into Reject Number that
will never get through your phone; or put numbers into Accept
Number so that the others can’t get through your phone.
Reject List: The rejected numbers are listed and you can get the
prompt information in the standby mode.
Reject Number: Enter the numbers that you want to reject.
Volume
Adjust volume of talk by pressing the ƒ or „ key or via side keys
during a call.
Answer Mode
Deleted: and
61
There are three methods to answer a call.
Call Key: Press to answer a call.
Any key Answer: Press any key to answer a call.
Auto Answer: If you insert Car Kit, the phone can automatically
answer after 3 seconds. Before the auto answer, you can also press
to answer it.
Auto redial
If switching auto redial on, the phone will display “Auto redial” after
an unsuccessful call. Press to redial.
Sent Number
This function must be supported by network.
Set by Network:
Your phone number will be hidden or displayed according to the
network when making a call
On : Your phone number will be displayed to receiver.
Off: Your phone number will be hidden and unknown to receiver.
1’ Beep
Set to hear an elapsed time reminder in the 45th second of every
minute during your calls.
Call Waiting
The phone supports the function of ‘call wait’ and ‘call hold’ of GSM
net. If you select this function, the network will tell you there is a new
incoming call during another call. You can receive the new call by
Deleted: ed
Deleted: come in
62
hold the present call.
Activate: The Call-Wait Tone will be heard when there is another new
call coming during one call. If it’s a domestic fixed phone, its city
name will be displayed, otherwise ‘Incoming’ will be displayed.
Cancel: Select it this function will be canceled.
Status: Select it the status of this network function will be displayed:
‘Active’ or ‘Off’.
Network
When you use the phone, the phone will auto select the Internet
service. When the phone is beyond the service area or in abroad, you
can select the appropriate Internet manually.
Mode:
Switch between these two modes.
. Auto searching
. Manual searching
Search:
To select this item, the LCD will display " searching …..". After you
get it, the GSM will auto display the found network. If there are two
available networks, you can use the ?or? to select. Those with the
mark "*" is forbidden to use.
Sequence:
This item allows you to list out the Internet you can use when your
phone is in the roaming. If the listed network can be used, your phone
will select the network from the prior list. Three operations are
63
available.
Move: To press the key ?or? to shift it to your desired place.
New: You can add the new Internet. Input the country code and the
Internet code then press the "confirm" button.
Delete: You can delete the chosen network.
Band: You have 3 choices: GSM1900, GSM900/1800 and
Automatic.
Security
SIM lock:
If enable, only the current SIM card is valid. When change another
SIM, the mobile will request the phone password.
Check PIN:
Press the "Select" left soft key to enter this function.
1. To press the "On" left soft key.
2. Input the PIN code and start up the function of PIN check by press
Ok left soft key.
Note: If you have started up the function of the PIN check function,
you have to input the PIN code each time you switch on the phone.
If you input the wrong number for three times in succession, the
SIM card will be locked.
3. Press Off right soft key to cancel this function.
PIN Change
Deleted: every
Deleted: when
Deleted: your mobile
64
To select the PIN Change by the navigation key ?or?.
1. Press the left soft key.
2. Input the old PIN code and press the Ok key.
3. Input the new PIN code (four to eight digit) and press the Ok left
soft key.
4. Reinput the new PIN code and press the Ok left soft key.
5. LCD indicate "PIN CHANGED".
Note: Only first enable the PIN check can alter the PIN code.
PIN2 Change
The process is the same as "PIN Changed"
PIN code is provided with SIM card, which is used to some special
service such as "call charge" function etc. If you want to know
whether your SIM card can support these functions, please contact
with the network service.
PWD Change
1. Press select left soft key and input the old password, then press the
Ok.
2. Input the new password and press Ok left soft key.
3. Reinput the new phone password and press the Ok left soft key.
4. The screen indicate " phone password changed'.
Fixed Numbers
If the network service can support and your SIM card has this function,
you can limit the outgoing telephone number.
If this function is set in the "On" mode, your mobile phone can only
Deleted: start up
65
call the number in the fixed telephone number book. If you dial the
other number (except the urgent number), the phone will display
"Forbidden number". You need input PIN2 code to set this function.
Bar calls
The call Barring function can help you to restrict the incoming and
outgoing calls but this service may not be available on all networks.
The following operations are available:
. All Out: To select this item, the phone will be restricted to dial any
calls (except the urgent calls)
. Out Intl: To select this item, the phone will be restricted dialing the
international calls.
. Out Intl Roam: To select this item, the phone will restrict dialing
the international calls except to your home country.
. ALL In: To select this item, it will restrict all incoming calls.
. In When Roam: To select this item, it will restrict all incoming calls
when roaming.
. Status: To select this item, you can query the present state.
. Cancel All: To select this item, the phone will allow dialing and
answering all the calls.
Deleted: ing limitation
Deleted: limit
66
TOOLBOX
Voice Memo
With your phone, you can record up to 5 voice memos (including
recording conversation) of 30 seconds in length.
Note: Recording voice conversations is illegal in some countries. Make
sure the other party has stated its consent to being recorded.
Record
1. Scroll to Record, press the left soft key.
2. Record the voice memo by speaking into the microphone.
Note: When recoding, press Pause soft key to have a pause then Record
key to continue; A timer displays to show you the elapsed time. When
recording time expires, the phone will automatically save the memo
already recorded by that time.
3. When recording is completed, press End soft key; the record will
be kept at once with the date and time together.
67
Play
1. Scroll to Playback, press the left soft key and then Play soft key,
the latest memo displays.
2. Press the • or ‚ key to scroll to the desired memo and press the
left soft key to play it back.
Note: While playback, press the End soft key to stop playing and exit the
playback mode.
Label
You can make a label for your voice memo by this operation.
1. Press the • or ‚key to select Label, the recording list is
displayed .
2. Press Direction soft key to select recording record that you want to
label. Entering the label edit interface, input some letter labels or
press • key to enter ZI proceed Chinese edit (limit length is three
Chinese characters), press Save soft key to save in order to search
later on.
68
Delete One by One
Use the • or ‚ key to select the one you want to delete, press the left
soft key to delete it.
Delete All
1. Press the • or ‚ key to select Delete All, and press Left soft key.
2. When a confirming message appears (Delete all memos?), press
Yes soft key to delete all memos or No soft key to cancel deleting.
PC Sync
With this function, your PC can make a data communication with your
phone through “PC Sync Program”, such as read and edit phonebook;
read, edit and send a message; download ring tones, pictures, E-book
and so on.
To use this function, you should enter the “PC Sync” window to
switch off AT and activate PC Sync.
In the course of communication, don’t exit this window and make sure
that the data line is well connected. You can press to exit.
Note: An incoming call may break RAF.
Please refer to Help Menu of “PC Sync” for more detail operations.
Calculator
Using this feature, you can use the phone as a calculator. The
calculator provides the basic arithmetic functions: addition,
subtraction, multiplication and division.
Deleted:
Deleted: e
Deleted: be
69
Performing a Calculation
1. Enter the first number using the numeric keys.
2. Press • ‚ ƒ „ to set the operator for your calculation referring
to the screen: + (add), - (subtract), x (multiply), / (divide).
3. Enter the second number.
4. To calculate the result, press the Left soft key.
5. Repeat steps 1 to 4 as many times as required.
Each time you change the operator without pressing Left soft key, the
previous calculation is performed and the result is displayed as the top
number in the display.
Notes: • To erase any mistakes and clear the display, press the Clear soft
key. You can reset the calculator by pressing the Reset soft key.
• Use the OK or * key to enter a decimal point and the # key to change
the sign of a number to a negative (-).
World time
The display shows:
• City name
• Current date and time according to the time format setting (12/24
Hours)
To… Then…
Select the time zone Press ƒ or „
Deleted:
70
Select the city in the Press • or ‚
same time zone.
Make some settings (Set Press Left soft key,
as local, Enable PS, Scroll to desired one
Disable PS)
Countdown
You can set countdown, when the time reaches, the phone will alert.
Enable: Set Time and Start the countdown.
When the countdown starts, you can enter “Enable” men u to look over
the time; press Stop soft key to cancel this countdown
Unit Convert
This menu allows you to convert some value with the required unit.
Length: To some common use length unit, proceeding number
converts. The length unit is: centimeter, decimeter, meter, inch, feet,
yard, mile, and kilometer.
Weight: To some common use weight unit, proceeding number
converts. The weight unit is: gram, decagram, hectogram, kilogram,
ton, ounce and pound.
Volumes: To some common use volumes unit, proceeding number
converts. The volumes unit is: cube centimeter, cube decimeter, cube
meter, cube inch, cube inch, cube yard, liter and gallon.
Surface: To some common use surface unit, proceeding number
71
converts. The volume unit is: square centimeter, square decimeter,
square meter, square inch, square yard, mu, hectare and acre.
After select the desired language, to use the unit converter, do as
follows:
1. Press the • or ‚ key to scroll to the desired category; Length,
Weight, Volumes, and Surface.
2. Press Left soft key.
3. If necessary, press the • or ‚ key to move to the current unit area
and select the current unit by pressing the ƒ or „ key.
4. Press the • or ‚ key to move to the value area and enter the
number of the current value.
5. Press the • or ‚ key and select the unit you want to convert the
value with by pressing the ƒ or „ key.
6. The converted value will be automatically displayed below the unit
area.
To reset the converter, press the Reset soft key.
72
INFO
The Private menu allows you to maintain a lot of private information
and activate the password to keep the phone from being used by
unauthorized persons.
Call Lists
This menu allows you to view the timers for calls made and received.
The following timers are available:
Incoming
Missed
Outgoing
Last: You can see the duration of the last call.
Total: You can see the duration of your total calls (incoming and
outgoing).
For these two items, press the Reset soft key to reset the call timer as
zero or Cancel key to exit.
Charge Info
1. Total Charge: Displayed and it can be reset to zero with the Reset
soft key. You must enter the PIN2 code when Reset.
2. Max Charge: Input a sum as max charge that can be used for
making calls. When your call charge exceeds this limit, no more
calls (except free calls) can be made unless you reset the sum. You
must input PIN2 code when make modification.
3. Unit Price: You can inquire and modify the unit price through
Deleted: various
Deleted: inter
Deleted: r
73
this function. Input PIN2 code when make modification.
Blacklist
The number in the blacklist is forbidden to redial automatically.
While redialing automatically, the phone judges automatically
whether to continue redialing on the basis of the times of redialing and
the failure cause of connections. If the phone judges that the number
should not be redialed, it will be stored in Blacklist.
Calendar
When you enter this menu, a calendar is displayed with the current
date indicated by a point.
Scrolling through the Calendar
1. You can move the underscore to Year, Month and Day fields by
pressing ƒ or „.
2. When the desired field is underlined, press the • or ‚ to move up
or down the date.
You can also enter the desired date using the number keypad.
Note: In Chinese mode, you can see the associated date of lunar
calendar on the bottom line of the display.
Deleted:
74
Enter the Log Manager Menu
Highlight a desired date in calendar, press OK. The following
operations are available in this section.
1. Set
To create a new log, you should:
(1) Select one type of schedule:
• Memo: Make a note of general schedule, i.e. appointments or
meetings.
• Call: Schedule a call.
• Anniversary: Select to make note of anniversaries.
(2) Enter a subject of your schedule up to 25 characters and press the
Left soft key. If you are scheduling a call, enter a phone number.
(3) Select the date and the time when the scheduler will alarm you the
scheduled event.
Note: At the specified time on the scheduled day, the alarm will ring and
the note will display. If you schedule a call, the phone will dial
automatically.
Deleted:
Deleted: sound
75
For example: Make the settings as the above diagrams show, the
phone will reminds you that Jan 18 is Ran’s birthday at 17:51 on Jan
18.
2. View
(1) View the schedules you’ve set, press ?or? to scroll through
these notes.
(2) Select the desired one, press the left soft key.
Modify: Make some modifications to this note.
Log Delete: Delete this note.
3. Delete: Delete the schedules.
l One By One
l All
? Expired
Notes
You can store 10 notes in this box, up to 32 characters for each note.
Deleted: <sp>
Deleted: ¶
76
Bio Rhythm
You can check the physical, emotional, or intellectual rhythm of your
or your friend’s body for today or a specified day. To check the bio
rhythm, you must enter your or your friend’s birthday in Input menu
first.
The following Options are available:
Settings: Enter the date of you and your friend’s birthday.
View: shows your and your friend’s biorhythm. You can see the graph
and number at the same time for each biorhythm index. Press the • or
‚ key to scroll to the other indexes, and ƒ or „ to select the other
date.
Spec Days : Showed a specified day’s biorhythm. Enter the desired
date and press Left soft key.
Deleted:
Deleted:
Deleted:
77
SMS
The SMS (Short Message Service) function is a network service and
may not be supported by your network. Message can be sent by text,
fax, E-mail and paging messaging systems. To send text messages by
phone, you must obtain the number of the SMS center from your
service provider. This number may be automatically available from
your SIM.
Two message boxes are available: Personal SM and Broadcasting SM.
Personal SM: It is the message that the mobile users use to transmit
information.
Broadcast SM: If you select this option, you can receive public
information from Network Operators such as Weather Broadcasting
and so on.
Note: You can store short messages in SIM card or in your phone
memory. Phone memory can store up to 50 entriest; SIM card’s memory
depends on the type of SIM, SIM card has the priority when saving.
SM Indicator: When you receive a new message, * will
appear in the screen. If the message memory is full,
SMS icon * continues flashing and you cannot receive or save any
new messages. Use the ‘Delete’ menu to delete obsolete messages.
Deleted:
t
Deleted:
which
Deleted:
at the mos
Deleted: sms
78
If you enable the SMS key in Settings, you must enter right SIM Lock
code, otherwise you can ’t read SMS.
Note: In standby mode, use „ or after entering Main menu to select
Message, both can enter Message option. But if your SIM card has
the function of STK, you can only use the former.
Inbox
Inbox stores the messages that you have received, the one with ‘*’ is
new message.
1. Press • or ‚ to choose the desired message.
2. Press Left soft key to view details of message. (To scroll through
the message, press • or ‚ key.)
3. Press ƒ or „ key to show the previous or next SMS..
Deleted:
79
4. Press the left soft key and you can operate as follows:
Reply: Reply to the sender. You can write a piece of new message and
then choose ‘Send’, ‘Store & Send’ , ‘Store’ or ‘Mul Send’.
Forward: Send the message to others. You can edit the message and
then choose ‘Send’, ‘Store & Send’ , ‘Store’ or ‘Mul Send’.
Extract Number: You can extract numbers from this message.
Delete: Delete this message.
Outbox
Deleted:
Deleted: to do with the Message
Deleted:
Deleted: to do with the Message
80
Outbox stores the messages that you have already sent or unsent. The
letter with ‘*’ is unsent message.
1. Press • or ‚ to choose the desired message.
2. Press Left soft key to view details of message.
3. Press Option soft key and you can operate as follows:
Write SMS : You can write a piece of new message or edit the
message and then choose ‘Send’, ‘Store & Send’, ‘Store’ or ‘Multiple
Send ’.
Extract Number: You can extract numbers from this message.
Delete: Delete this message.
Write SMS
The text message can be made up to160 characters (or 70 Chinese
words). Edit a new message or hold ‘Send’ key to enter the “eZi
Menu”, select Insert Template, press left soft key to insert the desired
custom. After inputting the text message, press the left soft key and
you can perform the following options:
Send: Send the message.
Save/Send: Allows you to save and send the message. Even if the
Deleted: to do with the message
Deleted: of
Deleted: at the most
Deleted:
Deleted: it
81
sending fails, it can be stored in outbox.
Save : Allows you to save the message so that it can be sent later.
Multiple Send: Allows you to send the message to several receivers.
You can send the message to no more than 5 phone numbers.
Note:
1. To send text messages by phone, you must obtain the number of
the SMS centre from your service provider. The number of the SMS
centre is included in SIM card mostly.
2. Enter the number of destination, or press left soft key to enter the
PhoneBook, select the number by Name.
Delete
You can delete the messages in Inbox or Outbox.
For example: Select Inbox, choose One By One, press • or ‚ keys
to select the message you want to delete and then press the left soft
key to delete it. You can also select Delete All to delete all messages
in the inbox.
Memory
You can select the menu to check total space available.
Deleted: d
82
Settings
Auto Display: Sel ect this function and press Ok soft key. When you
receive a new message, it can be displayed automatically. You can
select Cancel to cancel this function.
83
SMS Center: Allows you to store or change the number of your SMS
center while sending messages. You can obtain this number from your
service provider.
Validity: Allows you to set the length of time for which your text
messages will be stored at the message center while attempts are made
to deliver them. 1 hour, 6 hours, 12 hours, 1 day, 2 days, 1 week, and
Max are available.
Status Report: You can select ‘On’ to require the SMS center to
inform whether your message has been sent or not.
SMS PWD: You can select ‘On’ to require operator to input SIM
Lock Code when the operator want to read inbox and outbox.
84
Broadcast
You can receive broadcast messages with various contents via this
network service, such as weather or traffic.
Read: You can view the up to date broadcast message.
Auto display: If you set this function ‘on’, messages are display ed
immediately when they are received.
Filter: Help you choose the channels you like from which you can
receive broadcast messages.
CB Tone: Set the prompt tone of the broadcast massage
Voice Mail
This menu provides you with a quick way of accessing your voice
mail (if provided by your network):
Number: The default number is set to 1-626-674-1234 from
Cingular; you can set the different number obtained from your
service provider.
Call: Press the left soft key to listen to your messages.
Models
Several customs short message have been stored in this item and you
can edit some customized message to be sent conveniently later.
Deleted: .
85
REFERENCE INFORMATION
Access Codes
There are several access codes that are used by your phone and its
SIM card. These codes help you protect the phone against
unauthorized use.
Phone Password
The security code can be used to avoid unauthorized use of your
phone. The security code 0000 is usually supplied with the phone.
Change the security code before you start using your phone. Keep the
new code secret and in a safe place, which is separate from the phone.
PIN Code
The PIN (Personal Identification Number) code protects your SIM
card against unauthorized use. The PIN code is usually supplied with
the SIM card. When the PIN code request is enabled, the code is asked
each time the phone is switched on.
If you key in an incorrect PIN code three times in succession, the SIM
card will be locked. To unlock the SIM card, you’d key in the PUK
code and press the Left soft key, and key in a new PIN code twice.
86
PIN2 code
The PIN2 code, supplied with some SIM cards, is required to access
some functions, such as charging unit counters. These functions are
only available if supported by your SIM card.
If you key in an incorrect PIN2 code three times in succession, the
PIN2 will be locked. To unlock the PIN2, you’d key in the PUK2
code and press the Left soft key, and key in a new PIN2 code twice.
PUK code
The PUK (Personal Unblocking Key) code is required to change a
blocked PIN code. The PUK code may be supplied with the SIM card.
If not, contact your local service provider for the code.
If you key in an incorrect PUK code ten times in succession, the SIM
card cannot be used anymore. Contact your service provider for a new
card.
You cannot change the PUK code. If you lose the code, contact your
service provider.
PUK2 code
The PUK2 code, supplied with some SIM cards, is required to change
a blocked PIN2 code.
87
If you key in an incorrect PUK2 code ten times in succession, you
cannot use the functions requiring the PIN2 code. Contact your
service provider for a new card.
You cannot change the PUK2 code. If you lose the code, contact your
service provider.
Using the batteries
A rechargeable Li-ion standard battery powers your phone. The
following batteries are also available (ask your local dealer for further
details):
Type Capacity Talk Time Standby Time
Li-ion 780mAh 2~5hrs 80~110hrs
Precautions When Using Batteries :
• Never use any charger or battery that is damaged in any way.
• Use the battery only for its intended purpose.
• If you use the phone near the network’s base station, it uses less
power; talk and standby times are greatly affected by the signal
strength on the cellular network and the parameters set by the
network operator.
88
• Battery charging times depend on the remaining battery charge and
the type of battery and charger used. The battery can be charged
and discharged hundreds of times, but it will gradually wear out.
When the operation time (talk time and standby time) is noticeably
shorter than normal, it is time to buy a new battery.
• If left unused, a fully charged battery will discharge itself over
time.
• Use only approved batteries; and recharge your battery only with
approved chargers. When a charger is not in use, disconnect it from
the power source. Do not leave the battery connected to a charger
for more than a week, since overcharging may shorten its life.
• Extreme temperatures will affect the charging capacity of your
battery: it may require cooling or warming first. Do not leave the
battery in hot or cold places, such as in a car in summer or winter
conditions, as you will reduce the capacity and lifetime of the
battery. Always try to keep the battery at room temperature. A
phone with a hot or cold battery may temporarily not work, even
when the battery is fully charged. Li-ion batteries are particularly
affected by temperatures below 0 °C.
• Do not short-circuit the battery. Accidental short-circuiting can
occur when a metallic object (coin, clip or pen) causes a direct
connection between the + and - terminals of the battery (metal
strips on the back of the battery), for example when you carry a
spare battery in a pocket or bag. Short-circuiting the terminals may
89
damage the battery or the object causing the short-circuit.
• Dispose of used batteries in accordance with local regulations.
Always recycle. Do not dispose of batteries in a fire.
Care and maintenance
Your phone is a product of superior design and craftsmanship and
should be treated with care. The suggestions below will help you to
fulfill any warranty obligations and allow you to enjoy this product for
many years. When using your phone, battery, charger, or any
accessory:
• Keep it and all its parts and accessories out of small children’s
reach.
• Keep it dry. Precipitation, humidity and liquids contain minerals
that will corrode electronic circuits.
• Do not use or store it in dusty, dirty areas as its moving parts can
be damaged.
• Do not store it in hot areas. High temperatures can shorten the life
of electronic devices, damage batteries, and warp or melt certain
plastics.
Deleted:
90
• Do not store it in cold areas. When the phone warms up (to its
normal operating temperature), moisture can form inside the phone,
which may damage the phone’s electronic circuit boards.
• Do not drop, knock or shake it. Rough handling can break internal
circuit boards.
• Do not use harsh chemicals, cleaning solvents, or strong detergents
to clean it. Wipe it with a soft cloth slightly dampened in a mild
soap-and-water solution.
• Do not paint it. Paint can clog the device’s moving parts and
prevent proper operation.
• Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications of attachments could
damage the phone and may violate regulations governing radio
devices.
• If the phone, battery, charger, or any accessory is not working
properly, take it to your nearest qualified service facility.
• This phone features large inner & outer display screens, which are
damageable. Please be most careful to avoid dropping or knocking
it or scratch it with a sharp thing.
91
Glossary
Antenna
A device for transmitting or receiving signals. The size and shape of
antennas is determined, in part, by the frequency of the signal they
receive. Wireless phones and the base station must have antennas.
Alarm Clock
Your pager alarm can be set for a specific time and date or can used as
a daily alarm.
ALS (Alternate Line Service)
ALS provides the capability of associating two alternate lines with one
SIM card. You can make and receive calls on either line as desired
with this service.
AMOI’s Smart Dial
An intelligent way to dial a number which is stored in your phonebook.
Say you want to dial Steven, at idle, press st, then press *, you can
find the number of Steven. Or press st when you select Smart Dial in
phonebook.
Band
92
Range of radio frequencies between two defined limits which are used
in wireless communications.
Call Barring
Enable it to restrict outgoing and incoming calls.
Call Divert
Allows you to set your phone to forward calls to an alternate phone
number. (network and subscription dependent feature -- not available
in all areas).
Call Holding
You can put callers on hold. (network and subscription dependent
feature -- not available in all areas).
Call Waiting
While making a call, the phone will alert you that another person is
trying to call you. You can choose to answer the call or it will forward
to your voice mail. (network and subscription dependent feature -- not
available in all areas).
Conference Calling
93
Ab le to establish a conference call involving up to five additional
parties.
DTMF (Dual-Tone Modulated Frequency)
You send DTMF signals when you enter numbers by pressing the
digit keys.
GPRS—General Packet Radio Service
GSM (Global System for Mobile communication)
GSM is the pan -European standard for digital cellular telephone
service. It is also one of the technologies available in the Americas.
GSM was designed for markets to provide the advantage of automatic,
international roaming in multiple countries. The SIM (Subscriber
Identification Module) card is a vital component in GSM operation.
The user can store all relevant data for the phone on a removable
plastic card. The card can be plugged into any GSM compatible phone
and the phone is instantly personalized to the user.
GSM900
GSM900, called GSM, is the most widely used digital network and
now operating in more than 100 countries around the world.
GSM1800--The digital GSM network used in Europe and Asia.
94
GSM1900
The digital GSM network of GSM1900 is widely used in North
America and Latin America.
Hands-Free
A feature that permits a driver to use a wireless phone without lifting
or holding the handset - an important safety feature for automobiles,
tractors and most other motorized vehicles.
LCD (Liquid Crystal Display)
Commonly used to refer to the screen display on the wireless phone.
Line Identification Services
Service allowing subscribers to view or block the telephone numbers
of callers.
Mobile Phone
The term that can be inter-changed with cellular phone or wireless
phone.
PIN (Personal Identification Number)
95
Security code that protects the phone against unauthorized use. The
PIN is supplied by the service provider with the SIM card. It may be a
four to eight-digit number and can be changed, if required.
PUK (PIN Unlocking Key)
Security code used to unlock the phone when an incorrect PIN has
been entered three times in succession. The eight-digit number is
supplied by the service provider with the SIM card.
Roaming
A service offered by most cellular service providers that allows
subscribers to use cellular service while traveling outside their home
service area. When they are outside their home service area and come
within range of another cellular system, the ROAM indicator on the
cellular phone will light to show that they are in range.
SIM (Subscriber Identification Module)
Card containing a chip with all the information required to operate the
phone (network and memory information, as well as the subscriber’s
personal data). The SIM card fits into a small slot in the back of the
phone and is protected by the battery.
SMS (Short Message Service)
Network service that allows you to send and receive messages to and
96
from another subscriber without speak ing to the correspondent. The
message created or received (up to 160 characters) can be displayed,
received, edited or sent.
Soft Keys
Keys marked • and o on the phone, the purpose of which:
• Varies according to the function that you are currently using
• Is indicated on the bottom line of the display just above the
corresponding key .
Standby Time
The time a battery can power a phone in the standby mode, ready to
make or receive a call, without being used for an actual call. The
longer a phone is in standby mode, the less standby time remains in
the battery.
Talk Time
The total time a battery can power a phone for cellular calls. As the
phone drains the battery during a call, the talk time left in the battery
diminished until the phone is turned off or the battery is recharged.
Tri-Band
Wireless phone that operates on any of the three digital GSM
frequencies -typically, 900 MHz, 1800 MHz and 1900 MHz-to
97
increase service coverage. (1800 MHz is a GSM digital network used
in Europe. This frequency allows for global roaming, where roaming
agreements are in place.)
Voice Mail
Computerized answering service that automatically answers your calls
when you are not available, plays a greeting (Optionally in your own
voice) or records a message.
WAP (Wireless Application Protocol)
By working on top of standard data link protocols, WAP provides a
complete set of specifications to support Internet protocols. Simply
put, it's a special way of formatting content so that it can appear on
small screens, like those on wireless phones or PDAs. WAP is
becoming a global standard for developing and delivering Internet
content to wireless devices.
98
TROUBLESHOOTING
If the phone does not work properly, please check the following
troubleshooting and find a solution. If you can’t solve the problems ,
please contact your local dealer for helps.
Question
Solution
Cannot make or receive calls.
• Check whether the phone is powered
on or not.
• Check whether the battery is lack of
power or not .
• Check whether the field signal
strength is strong enough.
• Check whether the Call Barring, SDN
or the other options in Call Set menu
have been set up.
• Check whether the Call Divert has
been set up.
• Check whether the SIM card is placed
properly.
Conversation volume is low. • Check whether the Voice Volume is
set too low.
Does not ring when an incoming calls
comes in.
• Check whether the Silent or Vibrator
mode is set up or not .
• Check whether the ring volume is set
too low.
• Check whether the surrounding noise
is too loud.
• Check whether the Call Divert is set
up.
LCD is not clear. • Check whether the LCD Contrast is
set too low.
The keypad does not work • Check whether the keypad is locked
or not.
The other part cannot hear you.
• Check whether the Mute mode is set
up.
• Speak near the MIC.
Deleted: Antenna--A device for
transmitting or receiving signals. The size
and shape of antennas is determined, in
part, by the frequency of the signal they
receive. Wireless phones and the base
station must have antennas. ¶
¶
ALS (Alternate Line Service)--ALS
provides the capability of associating two
alternate lines with one SIM card. You
can make and receive calls on either line
as desired with this service.¶
¶
Deleted: s
Deleted: to set up
Deleted: to set up
Deleted: to place
Deleted: to set
Deleted: to select
Deleted: s
Deleted: to set up
Deleted: to select
Deleted: ¶
... [1]
99
For body worn operation this phone has been tested and meets FCC RF
exposure guidelines when used with an accessory that contains no metal
and that positions the handset a minimum of 1.5 cm from the body. Use
of other accessories may not ensure compliance with FCC RF exposure
guidelines.”
We hold the privilege of modifying the product described in this manual
without prior notice. For any errors in publishing, we will make some
necessary modification in the new edition.
Printed in China
FKV2.198.042SSB01
English-USA.08/2004.Rev.4.0
Deleted: ¶
Deleted: ¶
¶
¶
¶
¶
¶
¶
Deleted: ¶
¶
Deleted: 2
Page 98: [1] Deleted sunny.qiu 9/9/2004 4:29:00 PM
Antenna--A device for transmitting or receiving signals. The size and shape of antennas is determined, in part, by the frequency of
the signal they receive. Wireless phones and the base station must have antennas.
ALS (Alternate Line Service)--ALS provides the capability of associating two alternate lines with one SIM card. You can make
and receive calls on either line as desired with this service.
Amoi’s Smart Dial--An intelligent way to dial a number which is stored in your phonebook. Input the correspondent numerical
key of the desired name and then press the * key, you’ll find the desired number.
AMR (Adaptive Multi Rate)--A high–data rate service and transmission principle for 3G cell phones and networks.
Band--Range of radio frequencies between two defined limits which are used in wireless communications.
Base Stantion--The transmission and reception station which handles the cellular and PCS calls. They are placed on tall buildings,
towers, and other tall objects.
Call Barring--Ability to restrict outgoing and incoming calls.
Call Diverting--Ability to reroute calls to another mobile or fixed line.
Call Holding--Ability to put one call on standby while answering or making another call; you can then switch between the two calls,
as required.
Call Waiting--Ability to inform users that they have an incoming call when engaged on another call.
Caller ID--A calling feature thatwhich displays the originating phone number of an incoming call.
Carrier Frequency--The frequency of a radio channel for wireless communications. Same as baseband.
Conference Calling--Ability to establish a conference call involving up to five additional parties.
Coverage Area--The frequency of a radio channel for wireless communications. Same as baseband.
DTMF (Dual-Tone Modulated Frequency)--You send DTMF signals when you enter numbers by pressing the digit keys.
EFR (Enhanced Full Rate)--A high–data rate service for 3G cell phones and devices.
Hands-Free--A feature that permits a driver to use a wireless phone without lifting or holding the handset - an important safety
feature for automobiles, tractors and most other motorized vehicles.
GSM (Global System for Mobile communication)--
International standard for cellular communication, guaranteeing compatibility between the various network operators. GSM covers
most European countries and many other parts of the world.
LCD (Liquid Crystal Display)--Commonly used to refer to the screen display on the wireless phone.
LED (Light Emitting Diode)--Commonly used to refer to a small light on the wireless phone or on the Desktop Charger. The
LED lights on the phone to indicate an incoming call. The lights on the charger indicate that battery charging is taking place.
Line Identification Services--Service allowing subscribers to view or block the telephone numbers of callers.
PIN (Personal Identification Number)--Security code that protects the phone against unauthorizsed use. The PIN is supplied
by the service provider with the SIM card. It may be a four to eight-digit number and can be changed, as required.
PUK (PIN Unlocking Key)--Security code used to unlock the phone when an incorrect PIN has been entered three times in
succession. The eight-digit number is supplied by the service provider with the SIM card.
Roaming--Use of your phone when you are outside your home area (when traveling for example).
SIM (Subscriber Identification Module)--Card containing a chip with all the information required to operate the phone
(network and memory information, as well as the subscriber’s personal data). The SIM card fits into a small slot on the back of the
phone and is protected by the battery.
SMS (Short Message Service)--Network service sending and receiving messages to and from another subscriber without having
to speak to the correspondent. The message created or received (up to 160 characters long) can be displayed, received, edited or sent.
Voice Mail--Computerized answering service that automatically answers your calls when you are not available, plays a greeting
(Optionally in your own voice) or records a message.
GPRS --General Packet Radio Service.
GSM900--GSM900, called GSM, is the most widely used digital network and now operating in more than 100 countries around the
world.
GSM1800--The digital GSM network used in Europe and Asia using the 1800 MHz frequency.
GSM1900—GSM network of GSM1900 is widely used in North America and Latin America.
Mobile Phone--The term that can be inter-changed with cellular phone or wireless phone.
Standby Time--The length of time that a cell phone is completely ready to send or receive calls, but is not being used in a
call. This is one way of evaluating the battery, as well as the efficiency of the cell phone.
Talk Time--The length of time a person can talk on the cellphone without recharging the battery. Usually expressed in minutes.
WAP (Wireless Application Protocol)--Wireless Application Protocol is an open, global specification that empowers mo bile
users with wireless devices to easily access and interact with information and services instantly.
Page Break
