1. AP6XXX Evaluation Board Introduction
AP6XXX Evaluation board (EVB) likes as figure1. That is designed for IEEE802.11
a/b/g/n/ac WLAN with integrated Bluetooth, FM, NFC and GPS application. It is subject
to provide a convenient environment for customer’s verification on WiFi or Bluetooth
function. There are many controller pins and reserved GPIO on Evaluation board which
describes as below.

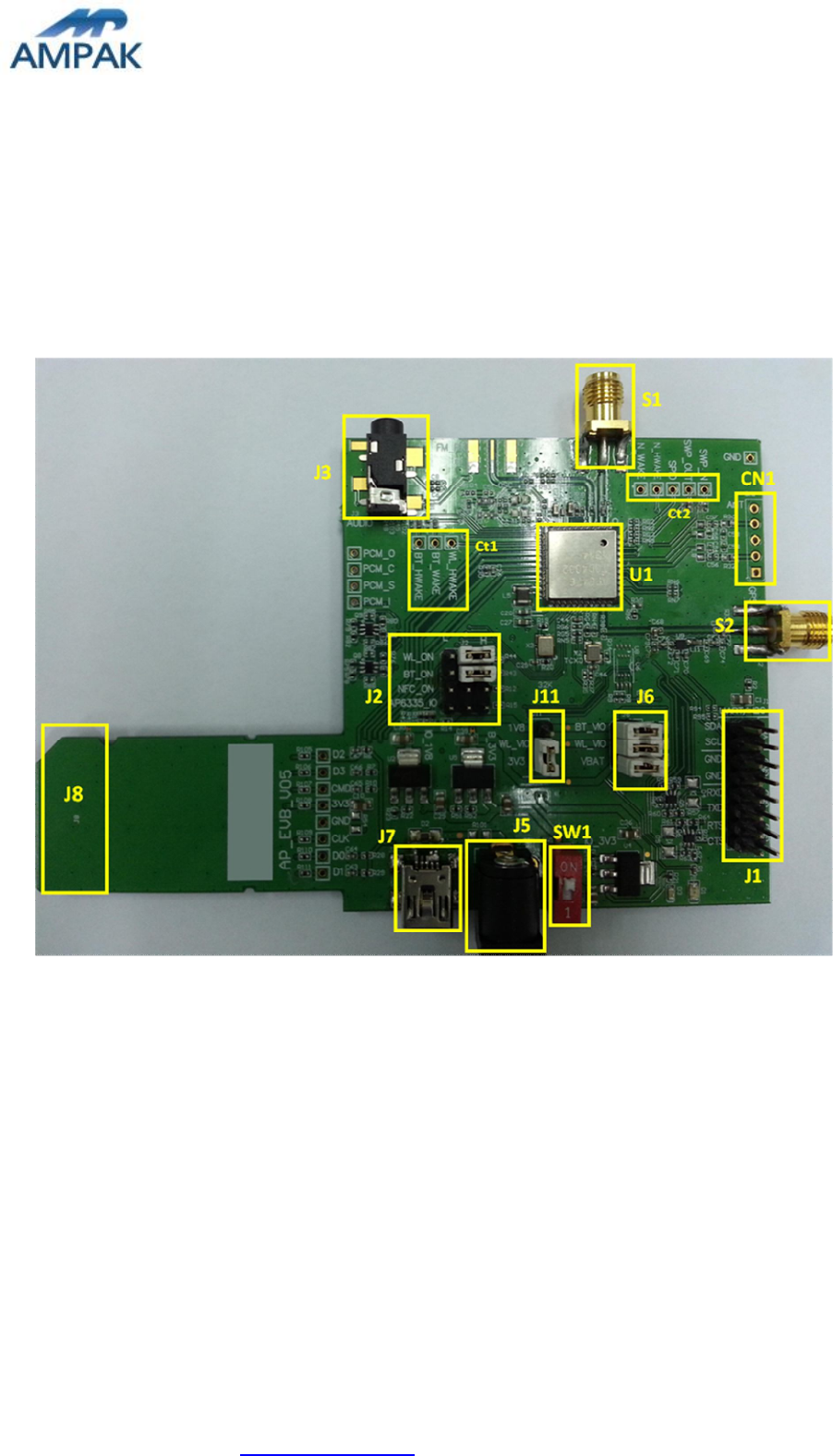

Figure1. Top view of AP6XXX EVB
Interface highlights:
1. U1: AP6XXX SIP module.
2. J1: UART interface connects with UART transport board for BT and GPS
measuring, it also provides I2C (SDA/SCL) for NFC measuring.
3. J2: Enable(H) or disable(L) Bluetooth, WiFi, NFC function and AP6335_SDIO I/O
voltage selection.(H for SDIO 3.3V, L for SDIO 1.8V)
4. J3: FM audio out interface.
5. J5: 5V DC adaptor input connector.
6. J6: VBAT / WL_VIO / BT_VIO for main system I/O power path.
7. J7: 5V DC mini USB input connector.
8. J8: Standard SDIO interfaces for Wi-Fi performance measured.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
2
9. J11: WL_VIO power path for 1V8 or 3V3 selection.
10. SW1: Power on/off switch.
11. CN1: NFC interface connects with NFC antenna.
12. S1: SMA connector let RF signal in/out path, you could connect with RF cable or
Dipole antenna.
13. S2: SMA connector let GPS RF signal input, you could connect with GPS
antenna.
14. Ct1: WLAN and BT control pins, strongly recommended WL_HWAKE(IRQ)
connected to MCU.
15. Ct2: NFC control pins, strongly recommended N_WAKE and N_H_WAKE
connected to MCU.
2. WiFi function verification step
WIFI SDIO: Using external pull up resistors depends on the SDIO supply voltage. For
1.8V, the resistance range is 30KΩ~82KΩ. For 3.3V, its range from 21
KΩ~41 KΩ on the four data lines and the CMD line as the following circuitry.
SDIO_D3
SDIO_D2
SDIO_D1
C10
10uF
1 2
R6 R7 R10
SDIO_D0
J8
Golden Finger_9
SD3 1
SDCMD 2
GND 3
3.3V 4
SDCLK 5
GND 6
SD0 7
SD1 8
SD2 9
SDIO_CLK
R28 R29
SDIO_CMD
VIO_3V3
SDIO_3V3

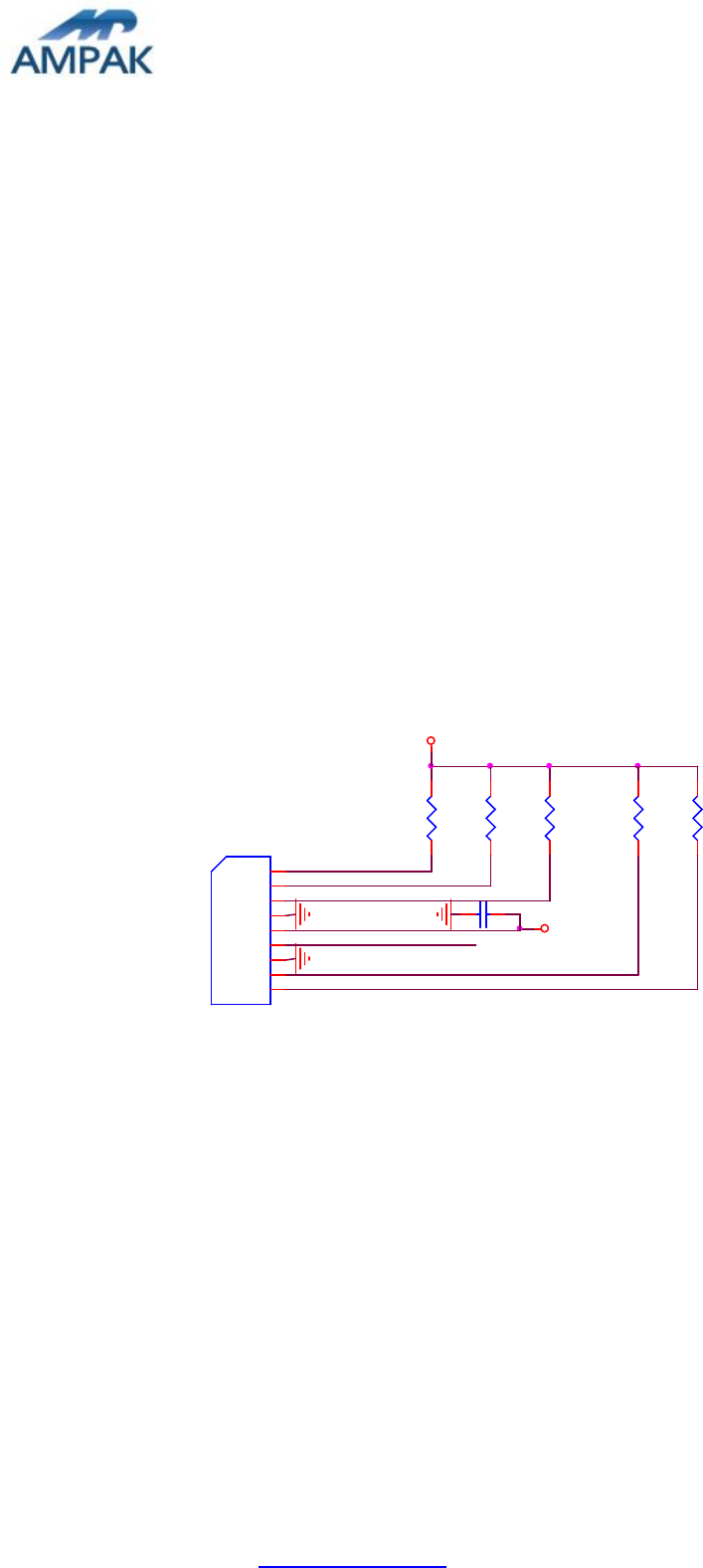

Figure2. WiFi verification connection interface to Host SDIO
Hardware Setup:
Refer to Figure2 SDIO pin definition connects the J8 interface of AP6XXX
evaluation board to Host SDIO control interface.
Using pull high resistors (R6, R7, R10, R28, R29) that resistance is 30Kohm for
1.8V or 3.3V VDDIO pull up voltage. (Pull high resistors are un-necessary if at
verification phase.)
Connects an external antenna at SMA connector on the evaluation board.
Note to the VDDIO voltage level should be the same with GPIO voltage level of
Host CPU. (VDDIO 3.3V or 1.8V selection by jump J11)
WiFi software setup:
Please follow up software guideline of Ampak official released.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
3
3. Bluetooth function verification step

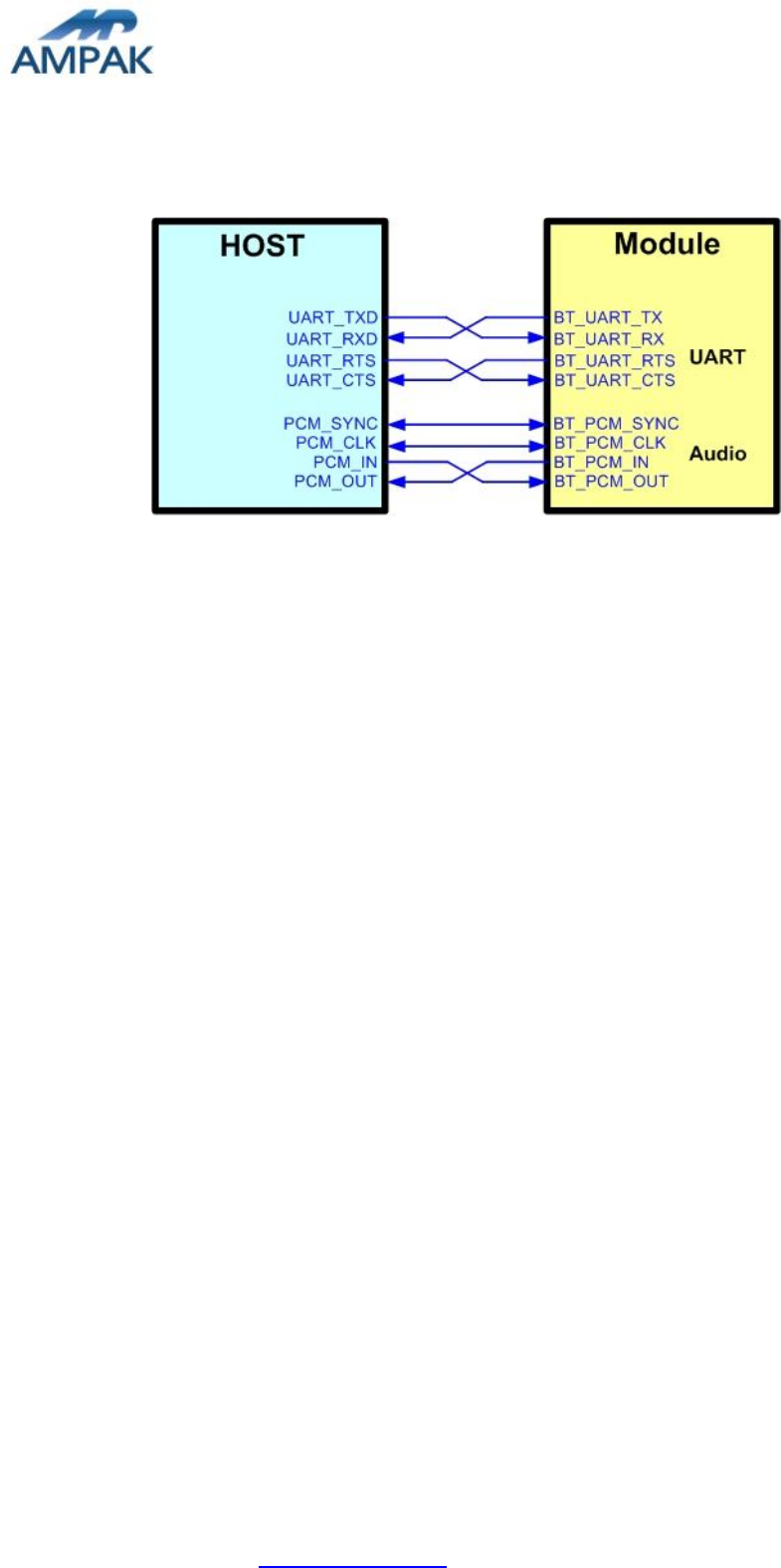

Figure3. Bluetooth verification connection interface to Host UART
Hardware Setup:
Refer to Figure3 UART pin definition connects the J1 interface of AP6XXX
evaluation board to Host UART control interface.
Connects an external antenna at SMA connector on the evaluation board.
Note to the VDDIO voltage level should be the same as GPIO voltage level of
Host CPU.
WiFi and Bluetooth software setup:
Please follow up software guideline of Ampak official released.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
