AMPAK Technology WUBB743GN WiFi USB module User Manual
AMPAK Technology Inc. WiFi USB module
User manual
1. WUBB-743GN_WO PIN Evaluation Board Introduction
WUBB-743GN_WO PIN Evaluation board (EVB) likes as figure1. That is designed for
IEEE802.11 b/g/n WLAN application. It is subject to provide a convenient environment
for customer’s verification on Wi-Fi function.

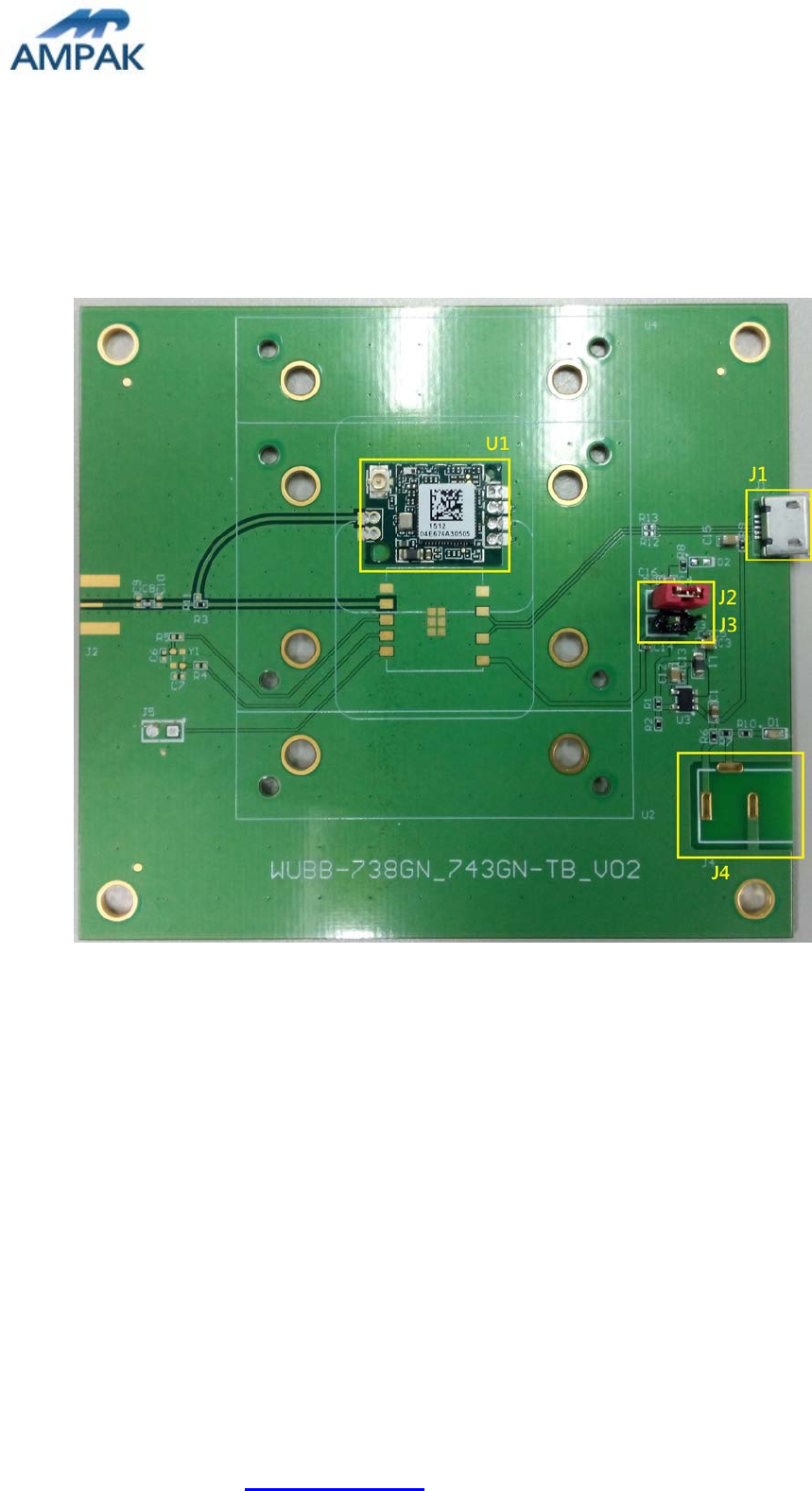

Figure1. Top view of WUBB-743GN_WO PIN EVB
Interface highlights:
1. U1: WUBB-743GN_WO PIN module.
2. J1: USB interface for Wi-Fi performance measured.
3. J2: VBAT(3.3V) for main system I/O power path(WUBB-743GN_WO PIN).
4. J3: VBAT(3.3V) for main system I/O power path(WUBB-738GN).
5. J4: 5V DC adaptor input connector.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO: 1
2. WiFi function verification step
Hardware Setup:
USB pin definition connects the J1 interface of WUBB-743GN_WO PIN
evaluation board to Host USB control interface.
Connects an external antenna at IPEX connector on the evaluation board.
WiFi software setup:
Please follow up software guideline of Ampak official released.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO: 2
