AMS DIFFUSION CB710 Car Audio User Manual

AMS DIFFUSION Car Audio Users Manual

Users Manual

NL-4IT- 5ES-6DA-7DE-3FR-2EN-1OWNER'S MANUALCB710 DAB BT PL- 89482CMB747NA338A说明书-1-EN.indd 1 2014-10-28 13:44:28

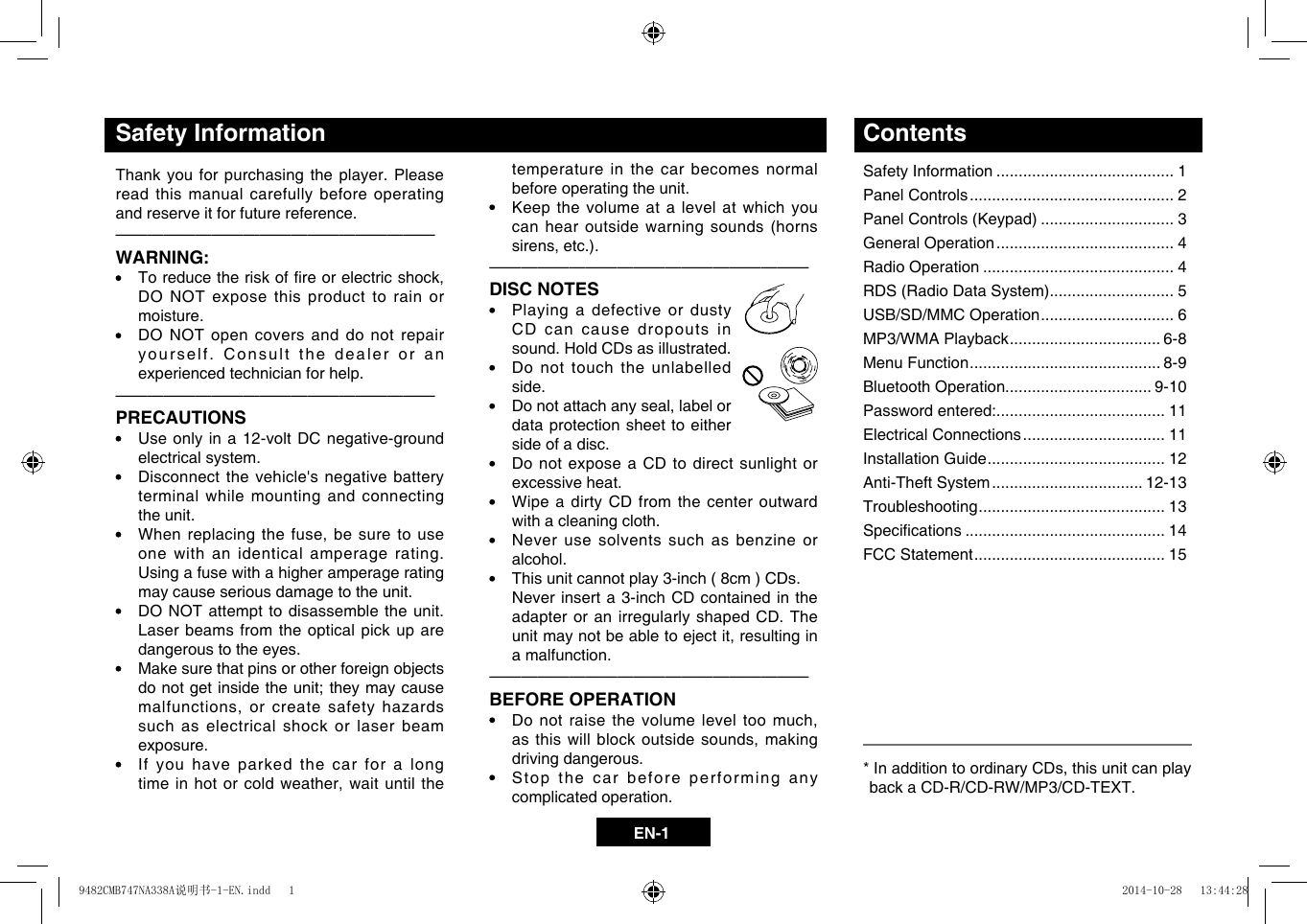

EN-1Safety InformationThank you for purchasing the player. Please read this manual carefully before operating and reserve it for future reference.— — — — — — — — — — — — — — — — — — ——WARNING:  Toreducetheriskofreorelectricshock,DO NOT expose this product to rain or moisture. DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for help.— — — — — — — — — — — — — — — — — — ——PRECAUTIONS Use only in a 12-volt DC negative-ground electrical system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. Whenreplacingthe fuse,besuretouseone with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit. DO NOT attempt to disassemble the unit. Laser beams from the optical pick up are dangerous to the eyes. Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions,orcreatesafetyhazardssuch as electrical shock or laser beam exposure. If you have parked the car for a long timeinhotorcoldweather,waituntilthe *InadditiontoordinaryCDs,thisunitcanplayback a CD-R/CD-RW/MP3/CD-TEXT.temperature in the car becomes normal before operating the unit. Keep the volume at a level at which you can hear outside warning sounds (horns sirens,etc.).— — — — — — — — — — — — — — — — — — ——DISC NOTES Playing a defective or dusty CD can cause dropouts in sound. Hold CDs as illustrated. Do not touch the unlabelled side.  Donotattachanyseal,labelordata protection sheet to either side of a disc. Do not expose a CD to direct sunlight or excessive heat. Wipe a dirty CD from the center outward with a cleaning cloth.  Neverusesolventssuchasbenzineoralcohol.  Thisunitcannotplay3-inch(8cm)CDs. Never insert a 3-inch CD contained in the adapter or an irregularly shaped CD. The unitmaynotbeabletoejectit,resultingina malfunction.— — — — — — — — — — — — — — — — — — ——BEFORE OPERATION Donotraisethevolumelevel toomuch,asthiswillblockoutside sounds,makingdriving dangerous. Stop the car before performing any complicated operation.ContentsSafety Information ........................................ 1Panel Controls .............................................. 2PanelControls(Keypad) .............................. 3General Operation ........................................ 4Radio Operation ........................................... 4RDS(RadioDataSystem)............................ 5USB/SD/MMC Operation .............................. 6MP3/WMA Playback .................................. 6-8Menu Function ........................................... 8-9Bluetooth Operation................................. 9-10Password entered:...................................... 11Electrical Connections ................................ 11Installation Guide ........................................ 12Anti-Theft System .................................. 12-13Troubleshooting .......................................... 13Specications ............................................. 14FCC Statement ........................................... 159482CMB747NA338A说明书-1-EN.indd 1 2014-10-28 13:44:28

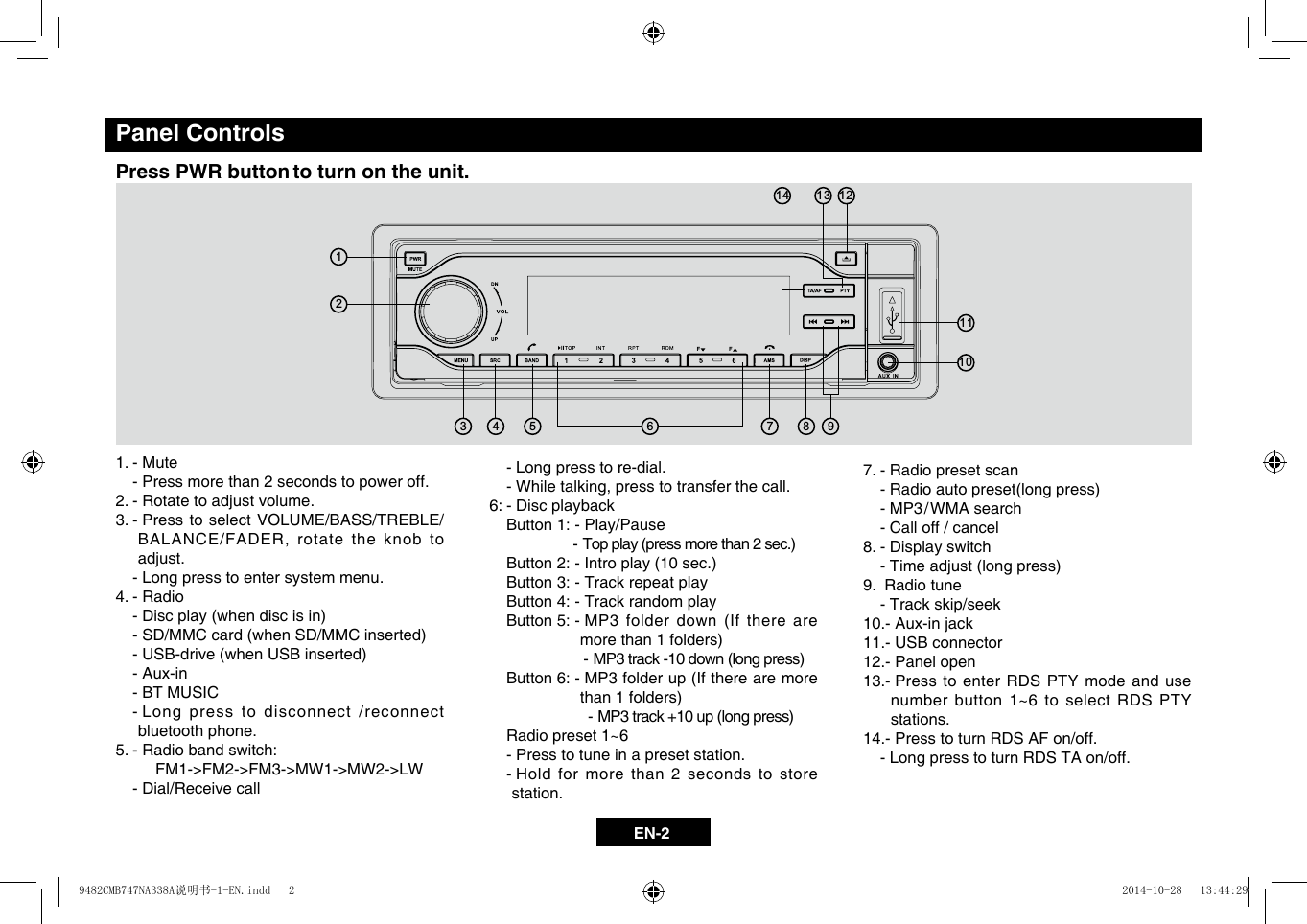

EN-2Panel ControlsPress PWR button to turn on the unit.1. - Mute - Press more than 2 seconds to power off.2. - Rotate to adjust volume.3. - Press to select VOLUME/BASS/TREBLE/BALANCE/FADER,rotatetheknobtoadjust. - Long press to enter system menu.4. - Radio-Discplay(whendiscisin)-SD/MMCcard(whenSD/MMCinserted) -USB-drive(whenUSBinserted) - Aux-in - BT MUSIC - Long press to disconnect /reconnect bluetooth phone.5. - Radio band switch: FM1->FM2->FM3->MW1->MW2->LW - Dial/Receive call7. - Radio preset scan -Radioautopreset(longpress) - MP3/ WMA search - Call off / cancel8. - Display switch -Timeadjust(longpress)9. Radio tune - Track skip/seek10.- Aux-in jack11.- USB connector12.- Panel open13.- Press to enter RDS PTY mode and use number button 1~6 to select RDS PTY stations.14.- Press to turn RDS AF on/off. - Long press to turn RDS TA on/off. - Long press to re-dial. -Whiletalking,presstotransferthecall.6: - Disc playback Button 1: - Play/Pause -Topplay(pressmorethan2sec.) Button2:-Introplay(10sec.) Button 3: - Track repeat play Button 4: - Track random play Button 5: - MP3 folder down (If there are morethan1folders)  -MP3track-10down(longpress) Button 6: - MP3 folder up (If there are more than1folders)  -MP3track+10up(longpress) Radio preset 1~6 - Press to tune in a preset station. - Hold for more than 2 seconds to store station.123451113 1271481096FF9482CMB747NA338A说明书-1-EN.indd 2 2014-10-28 13:44:29

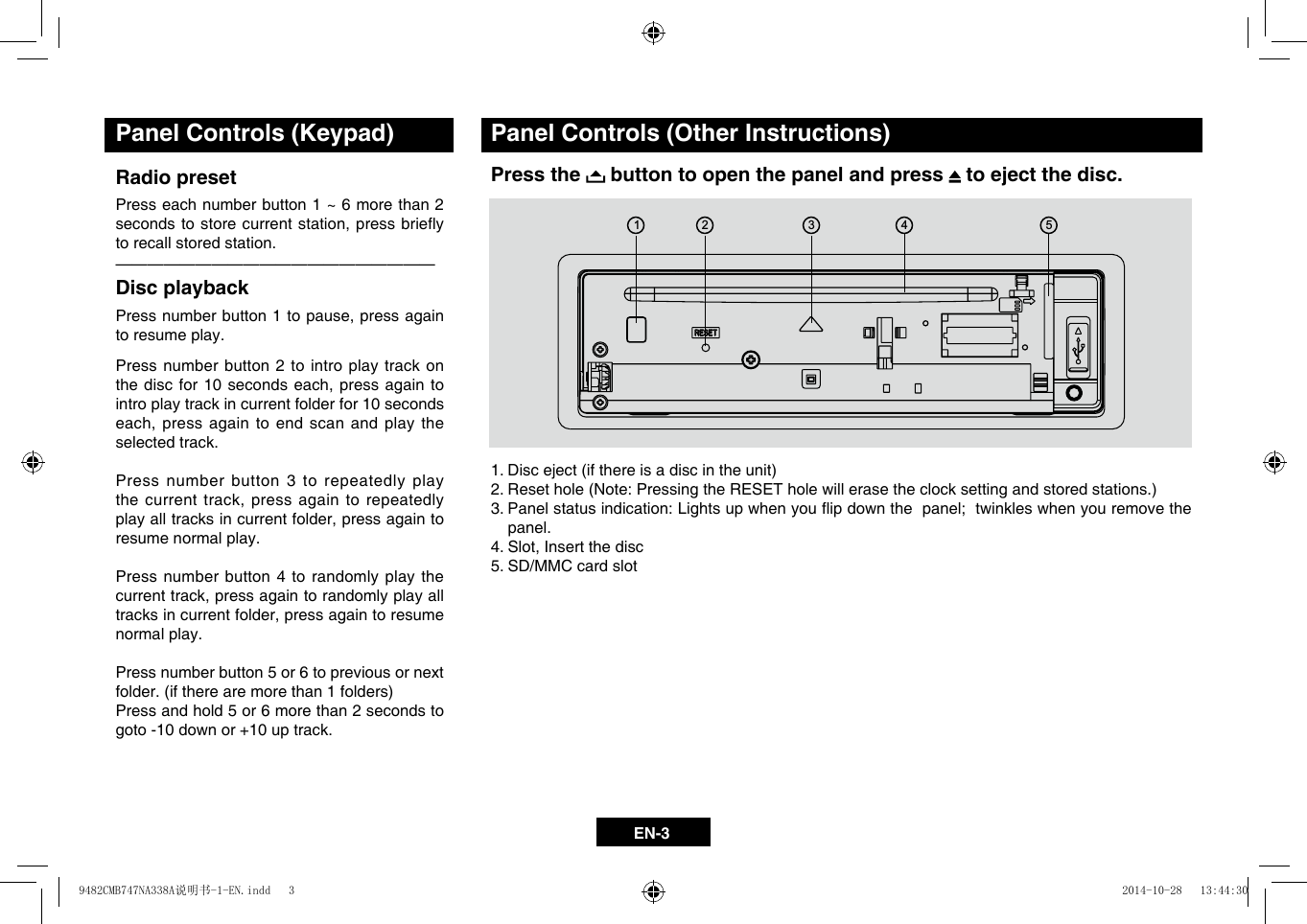

EN-3Panel Controls (Keypad)Radio preset Press each number button 1 ~ 6 more than 2 secondstostorecurrentstation,pressbrieyto recall stored station.— — — — — — — — — — — — — — — — — — ——Disc playback Pressnumberbutton1topause,pressagainto resume play.Press number button 2 to intro play track on thediscfor10seconds each,pressagaintointro play track in current folder for 10 seconds each,pressagaintoendscanandplaytheselected track.Press number button 3 to repeatedly play thecurrenttrack,pressagaintorepeatedlyplayalltracksincurrentfolder,pressagaintoresume normal play.Press number button 4 to randomly play the currenttrack,pressagaintorandomlyplayalltracksincurrentfolder,pressagaintoresumenormal play.Press number button 5 or 6 to previous or next folder.(iftherearemorethan1folders)Press and hold 5 or 6 more than 2 seconds to goto -10 down or +10 up track.Panel Controls (Other Instructions)Press the button to open the panel and press to eject the disc.1.Disceject(ifthereisadiscintheunit)2.Resethole(Note:PressingtheRESETholewillerasetheclocksettingandstoredstations.)3.Panelstatusindication:Lightsupwhenyouipdownthepanel;twinkleswhenyouremovethepanel.4.Slot,Insertthedisc5. SD/MMC card slot134259482CMB747NA338A说明书-1-EN.indd 3 2014-10-28 13:44:30

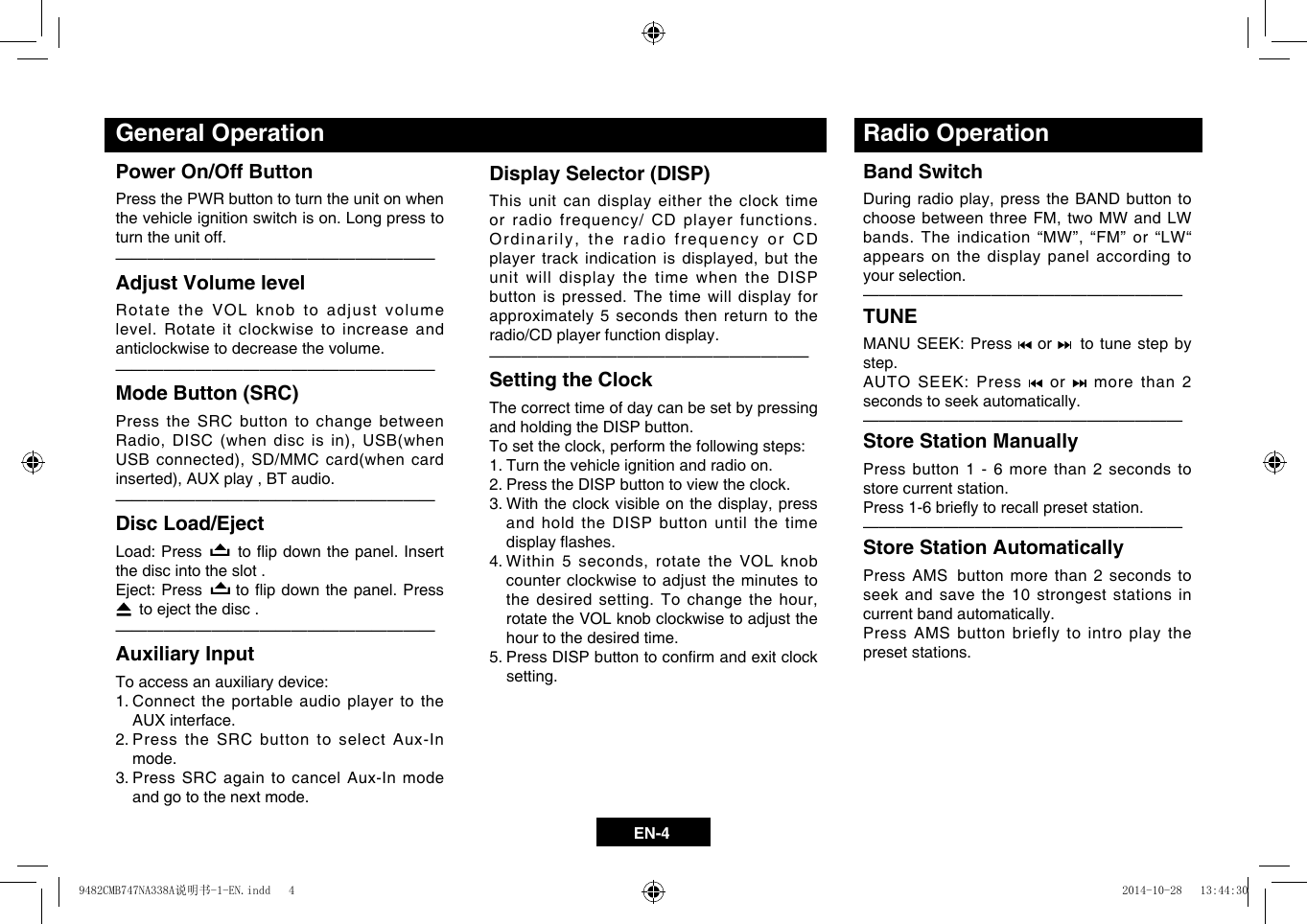

EN-4Display Selector (DISP)This unit can display either the clock time or radio frequency/ CD player functions. Ordinarily,theradiofrequencyorCDplayertrackindicationisdisplayed,buttheunit will display the time when the DISP button is pressed. The time will display for approximately 5 seconds then return to the radio/CD player function display. — — — — — — — — — — — — — — — — — — ——Setting the ClockThe correct time of day can be set by pressing and holding the DISP button. Tosettheclock,performthefollowingsteps:1. Turn the vehicle ignition and radio on.2. Press the DISP button to view the clock.3.Withtheclockvisibleonthedisplay,pressand hold the DISP button until the time displayashes.4.Within5seconds,rotatetheVOLknobcounter clockwise to adjust the minutes to thedesiredsetting.Tochangethehour,rotate the VOL knob clockwise to adjust the hour to the desired time.5.PressDISPbuttontoconrmandexitclocksetting.General OperationPower On/Off ButtonPress the PWR button to turn the unit on when the vehicle ignition switch is on. Long press to turn the unit off.— — — — — — — — — — — — — — — — — — ——Adjust Volume levelRotate the VOL knob to adjust volume level. Rotate it clockwise to increase and anticlockwise to decrease the volume.— — — — — — — — — — — — — — — — — — ——Mode Button (SRC)Press the SRC button to change between Radio,DISC(whendiscisin),USB(whenUSBconnected),SD/MMCcard(whencardinserted),AUXplay,BTaudio.— — — — — — — — — — — — — — — — — — ——Disc Load/EjectLoad: Press toipdownthepanel.Insertthe disc into the slot .Eject: Press toip downthepanel.Press to eject the disc . — — — — — — — — — — — — — — — — — — ——Auxiliary Input To access an auxiliary device:1. Connect the portable audio player to the AUX interface.2. Press the SRC button to select Aux-In mode. 3. Press SRC again to cancel Aux-In mode and go to the next mode.Radio OperationBand Switch Duringradioplay,pressthe BANDbuttontochoosebetweenthreeFM,twoMWandLWbands.Theindication“MW”,“FM”or“LW“appears on the display panel according to your selection.— — — — — — — — — — — — — — — — — — ——TUNE MANU SEEK: Press or to tune step by step. AUTO SEEK: Press or more than 2 seconds to seek automatically.— — — — — — — — — — — — — — — — — — ——Store Station Manually Press button 1 - 6 more than 2 seconds to store current station.Press1-6brieytorecallpresetstation.— — — — — — — — — — — — — — — — — — ——Store Station Automatically Press AMS button more than 2 seconds to seek and save the 10 strongest stations in current band automatically.Press AMS button briefly to intro play the preset stations.9482CMB747NA338A说明书-1-EN.indd 4 2014-10-28 13:44:30

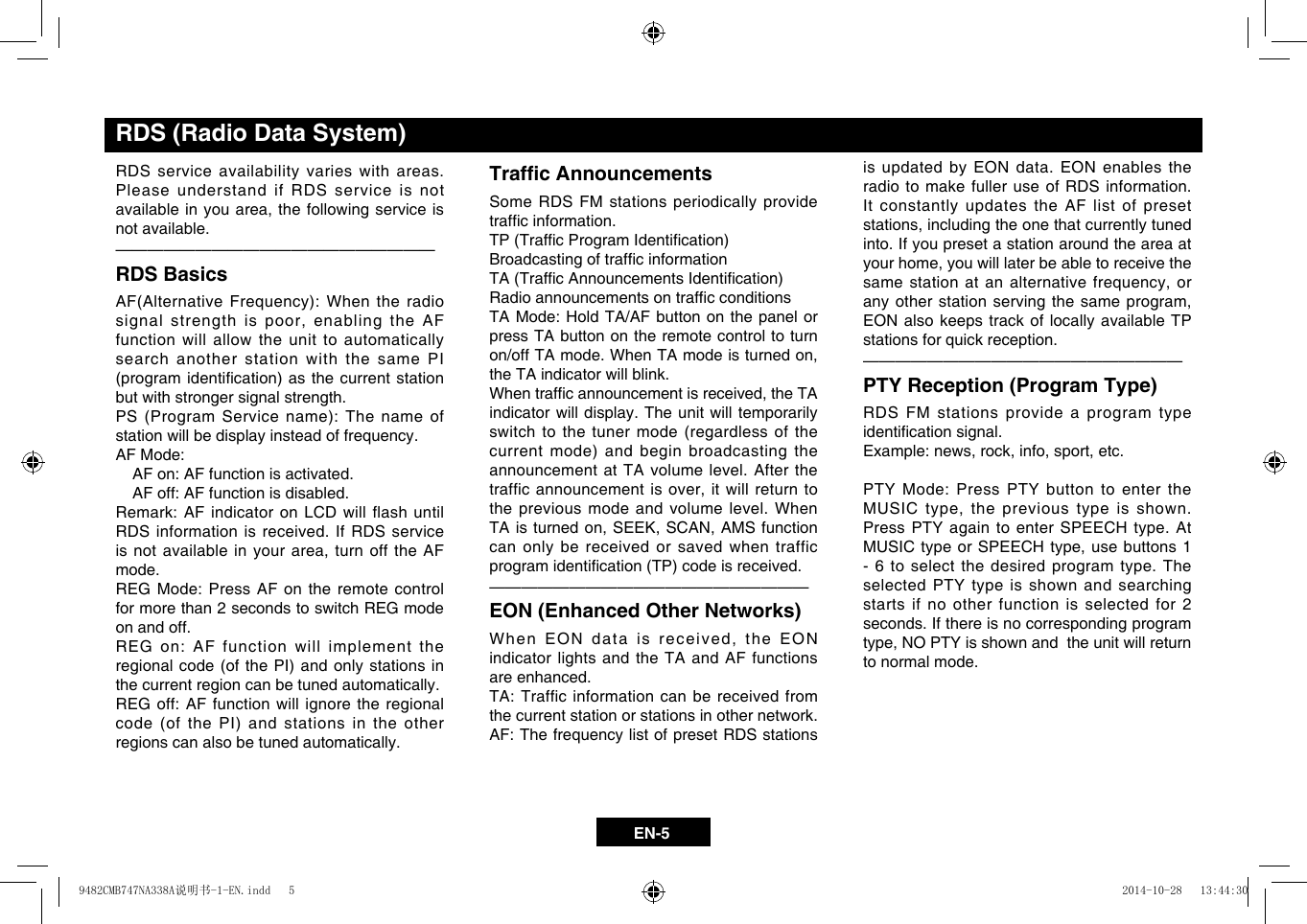

EN-5RDS service availability varies with areas. Please understand if RDS service is not availableinyouarea,the followingserviceisnot available. — — — — — — — — — — — — — — — — — — ——RDS BasicsAF(AlternativeFrequency): Whentheradiosignalstrengthispoor,enablingtheAFfunction will allow the unit to automatically search another station with the same PI (programidentication)asthecurrentstationbut with stronger signal strength. PS(ProgramServicename):The nameofstation will be display instead of frequency.AF Mode: AF on: AF function is activated. AF off: AF function is disabled. Remark: AF indicator on LCD will flash until RDS information is received. If RDS service isnotavailableinyourarea,turnofftheAFmode. REG Mode: Press AF on the remote control for more than 2 seconds to switch REG mode on and off. REG on: AF function will implement the regionalcode(ofthePI) andonlystationsinthe current region can be tuned automatically. REG off: AF function will ignore the regional code(ofthePI)andstationsintheotherregions can also be tuned automatically.Trafc AnnouncementsSome RDS FM stations periodically provide trafcinformation.TP(TrafcProgramIdentication)BroadcastingoftrafcinformationTA(TrafcAnnouncementsIdentication)RadioannouncementsontrafcconditionsTA Mode: Hold TA/AF button on the panel or press TA button on the remote control to turn on/offTAmode.WhenTAmodeisturnedon,the TA indicator will blink. Whentrafcannouncementisreceived,theTAindicator will display. The unit will temporarily switch to the tuner mode (regardless of the currentmode)andbeginbroadcastingtheannouncement at TA volume level. After the trafficannouncementisover,itwillreturntothe previous mode and volume level. When TAisturnedon,SEEK,SCAN,AMSfunctioncan only be received or saved when traffic programidentication(TP)codeisreceived.— — — — — — — — — — — — — — — — — — ——EON (Enhanced Other Networks)WhenEONdataisreceived,theEONindicator lights and the TA and AF functions are enhanced.TA: Traffic information can be received from the current station or stations in other network.AF: The frequency list of preset RDS stations is updated by EON data. EON enables the radio to make fuller use of RDS information. It constantly updates the AF list of preset stations,includingtheonethatcurrentlytunedinto. If you preset a station around the area at yourhome,youwilllaterbeabletoreceivethesamestationatanalternativefrequency,oranyotherstationservingthesameprogram,EON also keeps track of locally available TP stations for quick reception.— — — — — — — — — — — — — — — — — — ——PTY Reception (Program Type)RDS FM stations provide a program type identicationsignal.Example:news,rock,info,sport,etc.PTY Mode: Press PTY button to enter the MUSICtype,theprevioustypeisshown.Press PTY again to enter SPEECH type. At MUSICtypeorSPEECHtype,usebuttons1- 6 to select the desired program type. The selected PTY type is shown and searching starts if no other function is selected for 2 seconds. If there is no corresponding program type,NOPTYisshownandtheunitwillreturnto normal mode. RDS (Radio Data System)9482CMB747NA338A说明书-1-EN.indd 5 2014-10-28 13:44:30

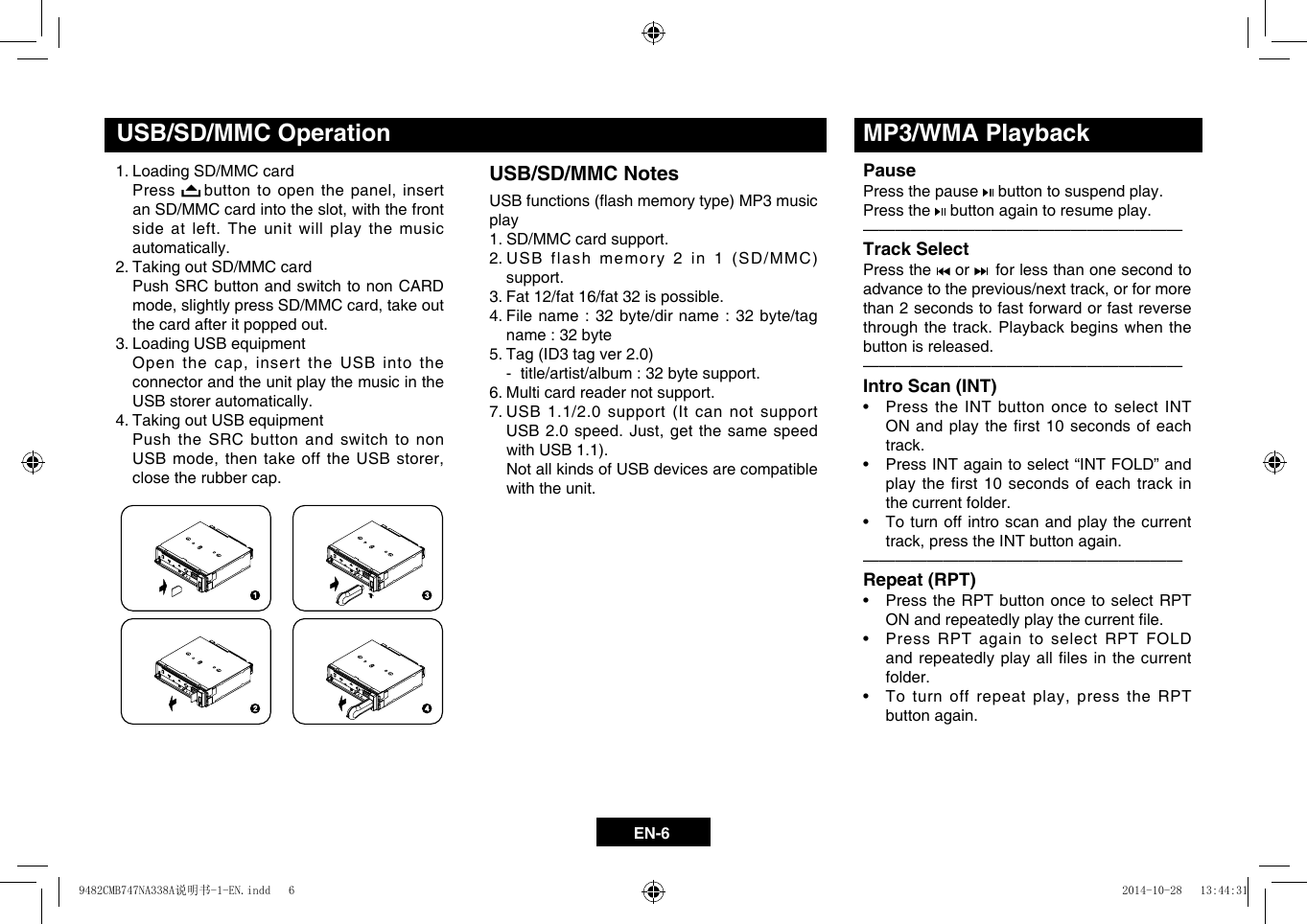

EN-61. Loading SD/MMC card Press buttonto openthepanel,insertanSD/MMCcardintotheslot,withthefrontside at left. The unit will play the music automatically.2. Taking out SD/MMC card Push SRC button and switch to non CARD mode,slightlypressSD/MMCcard,takeoutthe card after it popped out.3. Loading USB equipment Openthecap,insert theUSBintotheconnector and the unit play the music in the USB storer automatically.4. Taking out USB equipment Push the SRC button and switch to non USBmode,thentakeofftheUSBstorer,close the rubber cap.USB/SD/MMC OperationUSB/SD/MMC NotesUSBfunctions(ashmemorytype)MP3musicplay 1. SD/MMC card support. 2.USBflashmemory2in1(SD/MMC)support. 3. Fat 12/fat 16/fat 32 is possible. 4. File name : 32 byte/dir name : 32 byte/tag name : 32 byte 5.Tag(ID3tagver2.0)  - title/artist/album : 32 byte support. 6. Multi card reader not support. 7. USB 1.1/2.0 support (It can not support USB2.0speed.Just,getthesamespeedwithUSB1.1). Not all kinds of USB devices are compatible with the unit.MP3/WMA PlaybackPausePress the pause button to suspend play. Press the button again to resume play.— — — — — — — — — — — — — — — — — — ——Track SelectPress the or for less than one second to advancetotheprevious/nexttrack,orformorethan 2 seconds to fast forward or fast reverse through the track. Playback begins when the button is released.— — — — — — — — — — — — — — — — — — ——Intro Scan (INT)• PresstheINTbuttononcetoselectINTONandplaytherst 10secondsofeachtrack. • PressINTagaintoselect“INTFOLD”andplay the first 10 seconds of each track in the current folder. • Toturnoffintroscanandplaythecurrenttrack,presstheINTbuttonagain.— — — — — — — — — — — — — — — — — — ——Repeat (RPT)• Press theRPTbuttononcetoselectRPTONandrepeatedlyplaythecurrentle.• PressRPTagaintoselectRPTFOLDandrepeatedlyplayalllesinthecurrentfolder. • Toturnoffrepeatplay,presstheRPTbutton again. 9482CMB747NA338A说明书-1-EN.indd 6 2014-10-28 13:44:31

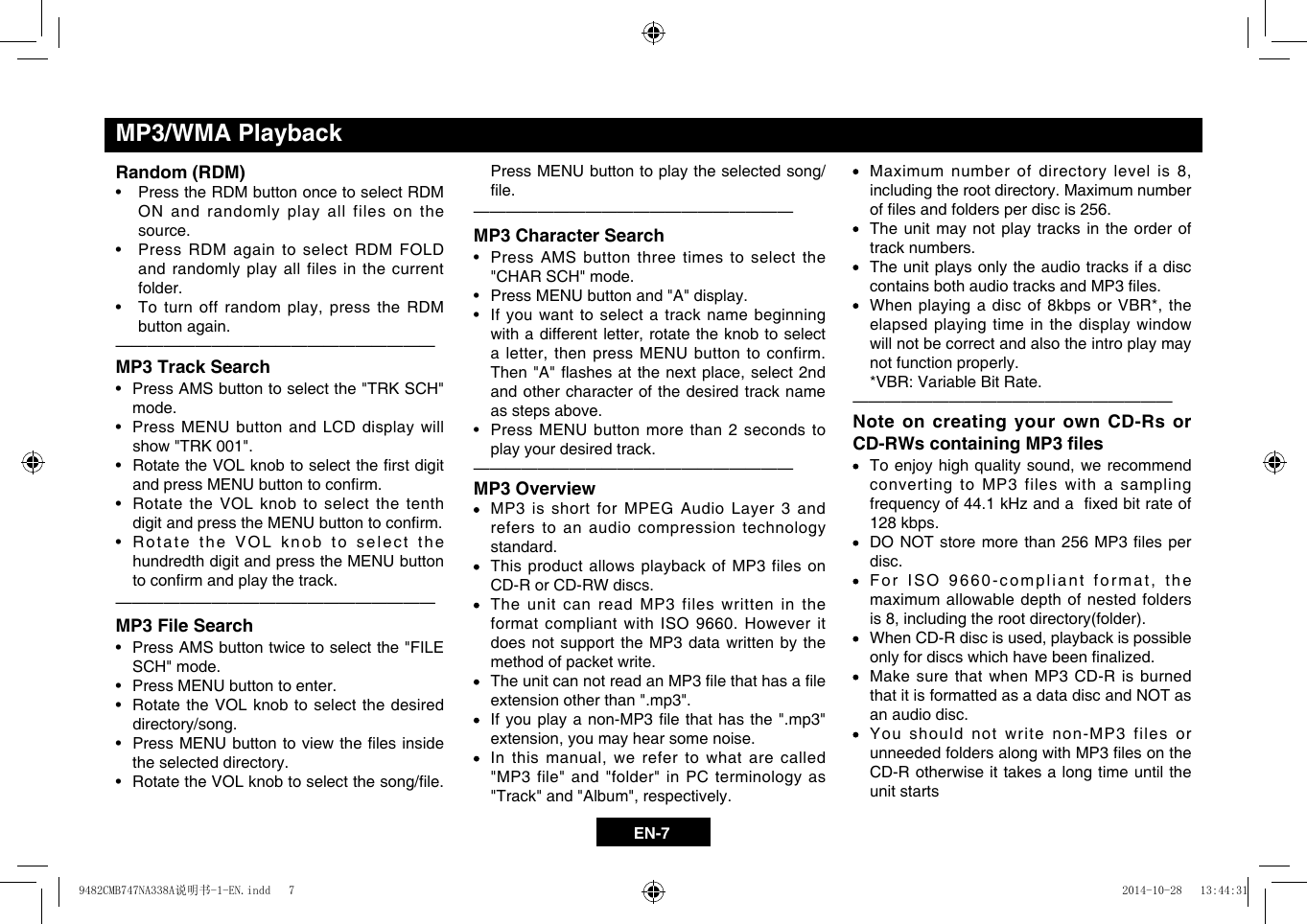

EN-7 Maximum numberofdirectorylevelis8,including the root directory. Maximum number oflesandfoldersperdiscis256. The unit may not play tracks in the order of track numbers. The unit plays only the audio tracks if a disc containsbothaudiotracksandMP3les. Whenplayingadiscof8kbpsorVBR*,theelapsed playing time in the display window will not be correct and also the intro play may not function properly. *VBR: Variable Bit Rate.— — — — — — — — — — — — — — — — — — ——Note on creating your own CD-Rs or CD-RWs containing MP3 les Toenjoyhighqualitysound,werecommendconverting to MP3 files with a sampling frequencyof44.1kHzandaxedbitrateof128 kbps. DONOTstoremorethan256MP3 lesperdisc. ForISO9660-compliantformat,themaximum allowable depth of nested folders is8,includingtherootdirectory(folder). WhenCD-Rdiscisused,playbackispossibleonlyfordiscswhichhavebeennalized. Make sure that when MP3 CD-R is burned that it is formatted as a data disc and NOT as an audio disc. You should not write non-MP3 files or unneededfoldersalongwithMP3lesontheCD-R otherwise it takes a long time until the unit starts Press MENU button to play the selected song/le.— — — — — — — — — — — — — — — — — — ——MP3 Character Search• PressAMSbuttonthreetimesto selectthe"CHAR SCH" mode.• PressMENUbuttonand"A"display.• Ifyouwanttoselectatracknamebeginningwithadifferentletter,rotatetheknobtoselectaletter,thenpressMENUbuttontoconfirm.Then"A"ashesatthenextplace,select2ndand other character of the desired track name as steps above.• PressMENUbuttonmorethan2secondstoplay your desired track.— — — — — — — — — — — — — — — — — — ——MP3 Overview MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write. TheunitcannotreadanMP3lethathasaleextension other than ".mp3". Ifyouplayanon-MP3lethat hasthe".mp3"extension,youmayhearsomenoise. Inthismanual,werefer towhatarecalled"MP3 file" and "folder" in PC terminology as "Track"and"Album",respectively.Random (RDM)• PresstheRDMbuttononcetoselectRDMON and randomly play all files on the source. • PressRDMagaintoselectRDMFOLDand randomly play all files in the current folder. • Toturnoffrandomplay,presstheRDMbutton again. — — — — — — — — — — — — — — — — — — ——MP3 Track Search• PressAMSbuttontoselectthe"TRKSCH"mode.• PressMENUbuttonandLCDdisplaywillshow "TRK 001".• RotatetheVOLknobtoselecttherstdigitandpressMENUbuttontoconrm.• RotatetheVOLknobtoselectthetenthdigitandpresstheMENUbuttontoconrm.• RotatetheVOLknobtoselectthehundredth digit and press the MENU button toconrmandplaythetrack.— — — — — — — — — — — — — — — — — — ——MP3 File Search• PressAMSbuttontwicetoselectthe"FILESCH" mode.• PressMENUbuttontoenter.• RotatetheVOLknobtoselect thedesireddirectory/song.• PressMENUbuttontoviewtheles insidethe selected directory.• RotatetheVOLknobtoselectthesong/le.MP3/WMA Playback9482CMB747NA338A说明书-1-EN.indd 7 2014-10-28 13:44:31

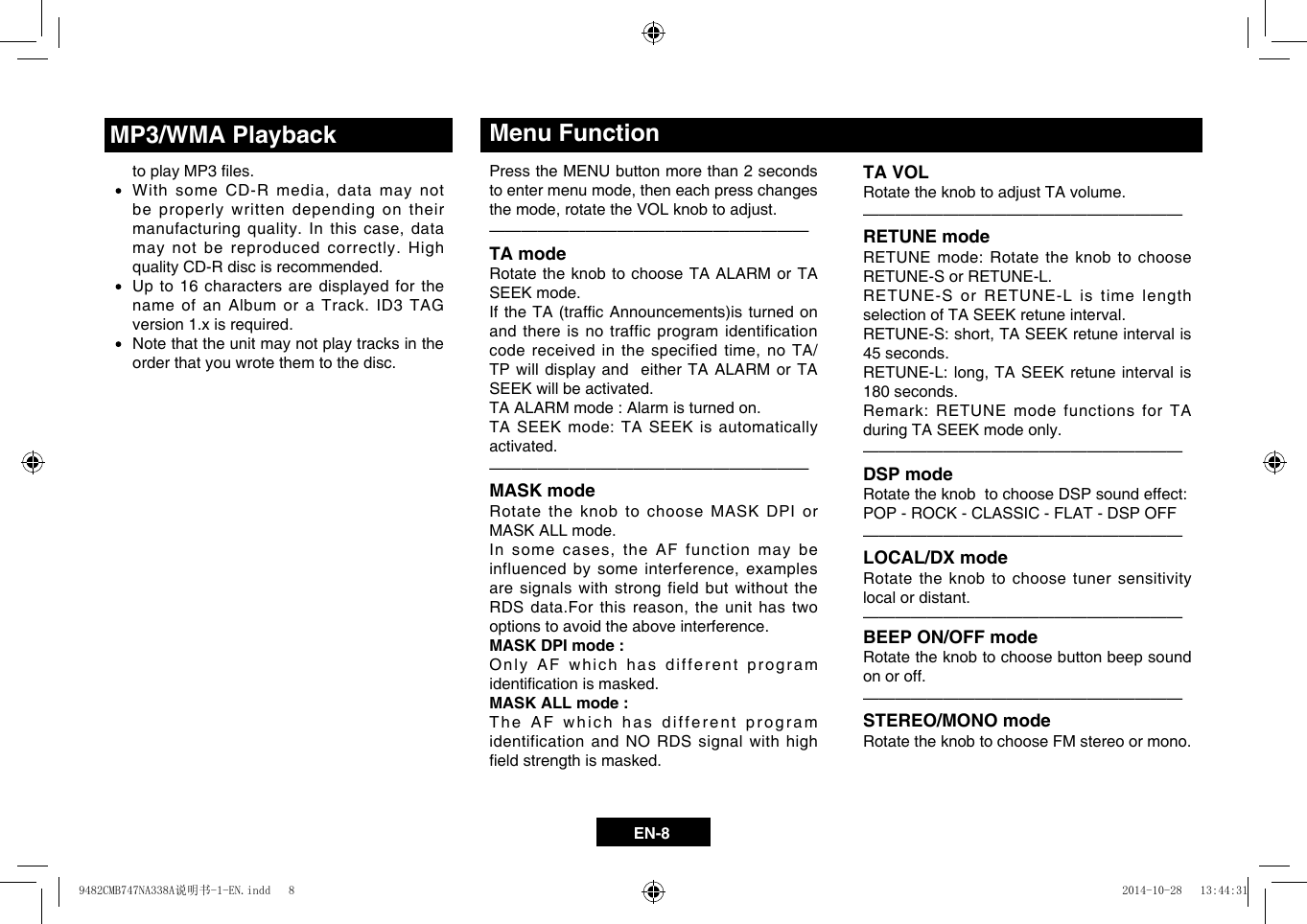

EN-8TA VOLRotate the knob to adjust TA volume. — — — — — — — — — — — — — — — — — — ——RETUNE modeRETUNE mode: Rotate the knob to choose RETUNE-S or RETUNE-L.RETUNE-S or RETUNE-L is time length selection of TA SEEK retune interval.RETUNE-S:short,TASEEKretuneintervalis45 seconds.RETUNE-L:long,TASEEKretune intervalis180 seconds.Remark: RETUNE mode functions for TA during TA SEEK mode only. — — — — — — — — — — — — — — — — — — ——DSP modeRotate the knob to choose DSP sound effect: POP - ROCK - CLASSIC - FLAT - DSP OFF— — — — — — — — — — — — — — — — — — ——LOCAL/DX modeRotate the knob to choose tuner sensitivity local or distant.— — — — — — — — — — — — — — — — — — ——BEEP ON/OFF modeRotate the knob to choose button beep sound on or off.— — — — — — — — — — — — — — — — — — ——STEREO/MONO modeRotate the knob to choose FM stereo or mono.Press the MENU button more than 2 seconds toentermenumode,theneachpresschangesthemode,rotatetheVOLknobtoadjust.— — — — — — — — — — — — — — — — — — ——TA modeRotate the knob to choose TA ALARM or TA SEEK mode. IftheTA(trafcAnnouncements)isturnedonand there is no traffic program identification codereceivedinthespecifiedtime,noTA/TP will display and either TA ALARM or TA SEEK will be activated. TA ALARM mode : Alarm is turned on.TA SEEK mode: TA SEEK is automatically activated.— — — — — — — — — — — — — — — — — — ——MASK modeRotate the knob to choose MASK DPI or MASK ALL mode.Insomecases,theAF functionmaybeinfluencedbysomeinterference,examplesare signals with strong field but without the RDSdata.Forthisreason,theunithastwooptions to avoid the above interference.MASK DPI mode : Only AF which has different program identicationismasked.MASK ALL mode : The AF which has different program identification and NO RDS signal with high eldstrengthismasked.Menu Function toplayMP3les. WithsomeCD-Rmedia,datamaynotbe properly written depending on their manufacturingquality.Inthiscase,datamay not be reproduced correctly. High quality CD-R disc is recommended. Up to 16 characters are displayed for the name of an Album or a Track. ID3 TAG version 1.x is required. Note that the unit may not play tracks in the order that you wrote them to the disc.MP3/WMA Playback9482CMB747NA338A说明书-1-EN.indd 8 2014-10-28 13:44:31

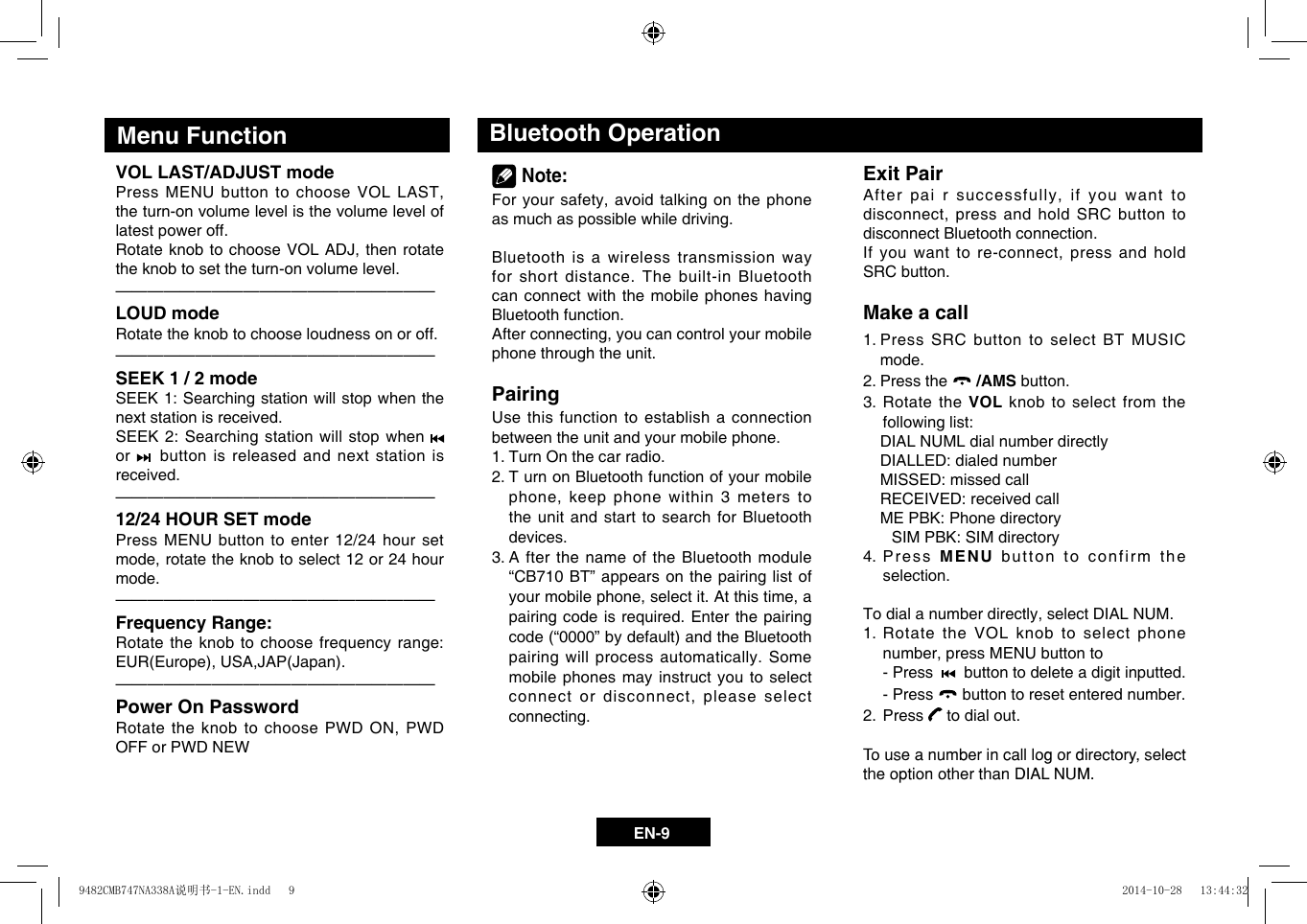

EN-9VOL LAST/ADJUST modePressMENUbuttontochooseVOLLAST,the turn-on volume level is the volume level of latest power off.RotateknobtochooseVOLADJ,thenrotatethe knob to set the turn-on volume level.— — — — — — — — — — — — — — — — — — ——LOUD modeRotate the knob to choose loudness on or off.— — — — — — — — — — — — — — — — — — ——SEEK 1 / 2 modeSEEK 1: Searching station will stop when the next station is received.SEEK 2: Searching station will stop when or button is released and next station is received.— — — — — — — — — — — — — — — — — — ——12/24 HOUR SET modePress MENU button to enter 12/24 hour set mode,rotatetheknobtoselect12or24hourmode.— — — — — — — — — — — — — — — — — — ——Frequency Range:Rotate the knob to choose frequency range: EUR(Europe),USA,JAP(Japan).— — — — — — — — — — — — — — — — — — ——Power On PasswordRotatetheknobtochoosePWDON,PWDOFF or PWD NEW Menu Function Bluetooth Operation Note:Foryoursafety,avoidtalkingonthephoneas much as possible while driving.Bluetooth is a wireless transmission way for short distance. The built-in Bluetooth can connect with the mobile phones having Bluetooth function.Afterconnecting,youcancontrolyourmobilephone through the unit.PairingUse this function to establish a connection between the unit and your mobile phone.1. Turn On the car radio.2. T urn on Bluetooth function of your mobile phone,keepphonewithin3meterstothe unit and start to search for Bluetooth devices.3. A fter the name of the Bluetooth module “CB710 BT” appears on the pairing list of yourmobilephone,selectit.Atthistime,apairing code is required. Enter the pairing code(“0000”bydefault)andtheBluetoothpairing will process automatically. Some mobile phones may instruct you to select connectordisconnect,pleaseselectconnecting. Exit PairAfterpairsuccessfully,ifyouwanttodisconnect,pressandholdSRCbuttontodisconnect Bluetooth connection.Ifyouwanttore-connect,pressandholdSRC button.Make a call1. Press SRC button to select BT MUSIC mode.2. Press the /AMS button.3. Rotate the VOL knob to select from the following list: DIAL NUML dial number directly DIALLED: dialed number MISSED: missed call RECEIVED: received call ME PBK: Phone directory SIM PBK: SIM directory 4. Press MENU button to confirm the selection.Todialanumberdirectly,selectDIALNUM.1. Rotate the VOL knob to select phone number,pressMENUbuttonto - Press button to delete a digit inputted. - Press button to reset entered number.2. Press to dial out.To use a number in call log or directory, selectthe option other than DIAL NUM.9482CMB747NA338A说明书-1-EN.indd 9 2014-10-28 13:44:32

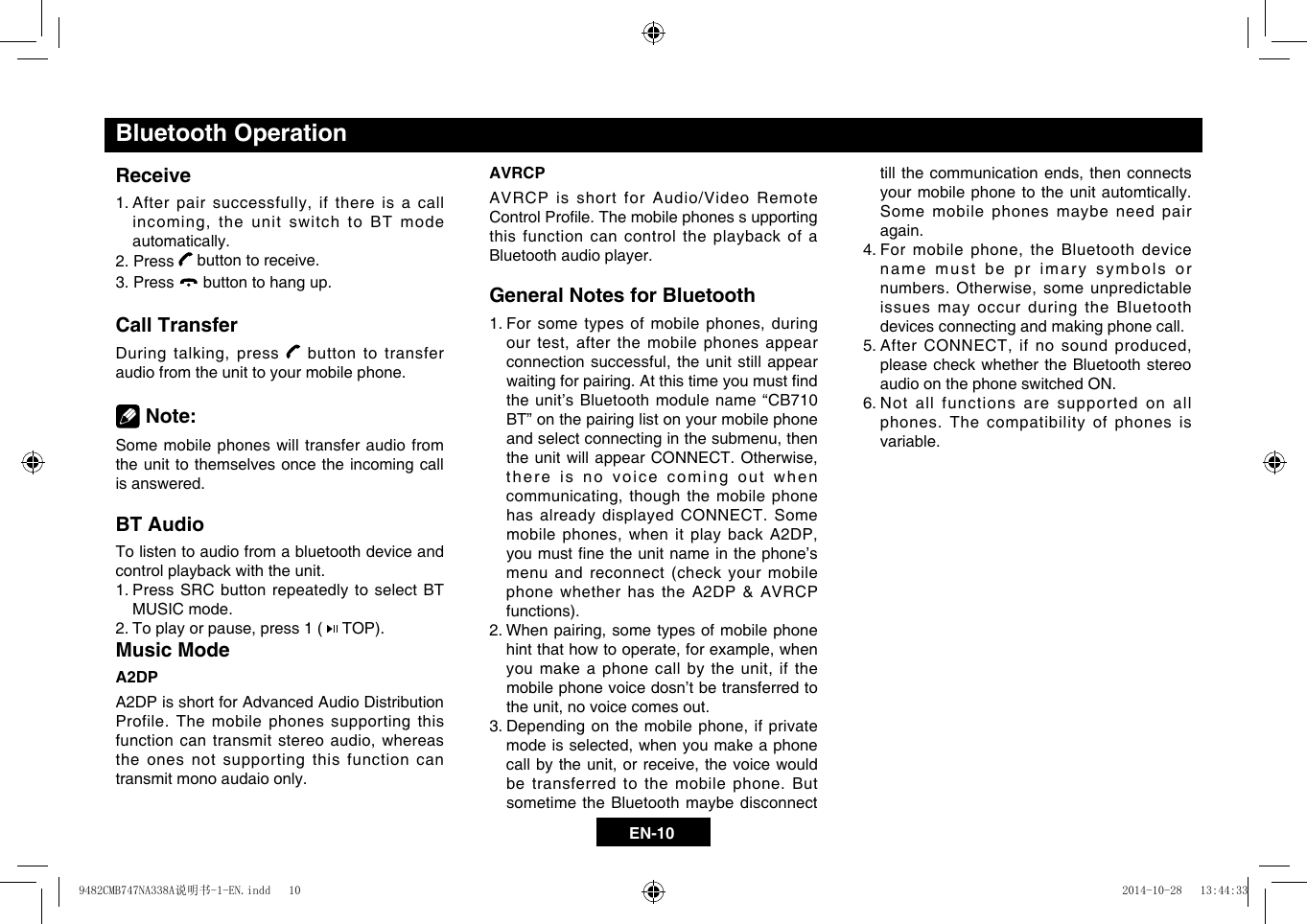

EN-10Bluetooth OperationReceive1.Afterpairsuccessfully,ifthereisacallincoming,theunitswitchtoBTmodeautomatically.2. Press button to receive.3. Press button to hang up.Call TransferDuringtalking,press button to transfer audio from the unit to your mobile phone. Note:Some mobile phones will transfer audio from the unit to themselves once the incoming call is answered.BT AudioTo listen to audio from a bluetooth device and control playback with the unit.1. Press SRC button repeatedly to select BT MUSIC mode.2. Toplayorpause,press1( TOP).Music ModeA2DPA2DP is short for Advanced Audio Distribution Profile. The mobile phones supporting this functioncantransmitstereoaudio,whereasthe ones not supporting this function can transmit mono audaio only.AVRCPAVRCP is short for Audio/Video Remote ControlProle.Themobilephonessupportingthis function can control the playback of a Bluetooth audio player.General Notes for Bluetooth1.Forsometypesofmobilephones,duringourtest,afterthemobile phonesappearconnectionsuccessful,theunitstill appearwaitingforpairing.Atthistimeyoumustndthe unit’s Bluetooth module name “CB710 BT” on the pairing list on your mobile phone andselectconnectinginthesubmenu,thentheunitwillappearCONNECT.Otherwise,there is no voice coming out when communicating,thoughthemobilephonehas already displayed CONNECT. Some mobilephones,whenitplaybackA2DP,youmustnetheunitnameinthephone’smenu and reconnect (check your mobile phone whether has the A2DP & AVRCP functions).2.When pairing,sometypesofmobilephonehintthathowtooperate,forexample,whenyoumakeaphonecallbytheunit,ifthemobile phone voice dosn’t be transferred to theunit,novoicecomesout.3.Dependingonthemobilephone,ifprivatemodeisselected,whenyoumakeaphonecallbytheunit,orreceive,thevoicewouldbe transferred to the mobile phone. But sometime the Bluetooth maybe disconnect tillthecommunicationends,thenconnectsyour mobile phone to the unit automtically. Some mobile phones maybe need pair again.4.Formobilephone,theBluetoothdevicename must be pr imary symbols or numbers.Otherwise,someunpredictableissues may occur during the Bluetooth devices connecting and making phone call.5.AfterCONNECT,ifnosoundproduced,please check whether the Bluetooth stereo audio on the phone switched ON. 6. Not all functions are supported on all phones. The compatibility of phones is variable.9482CMB747NA338A说明书-1-EN.indd 10 2014-10-28 13:44:33

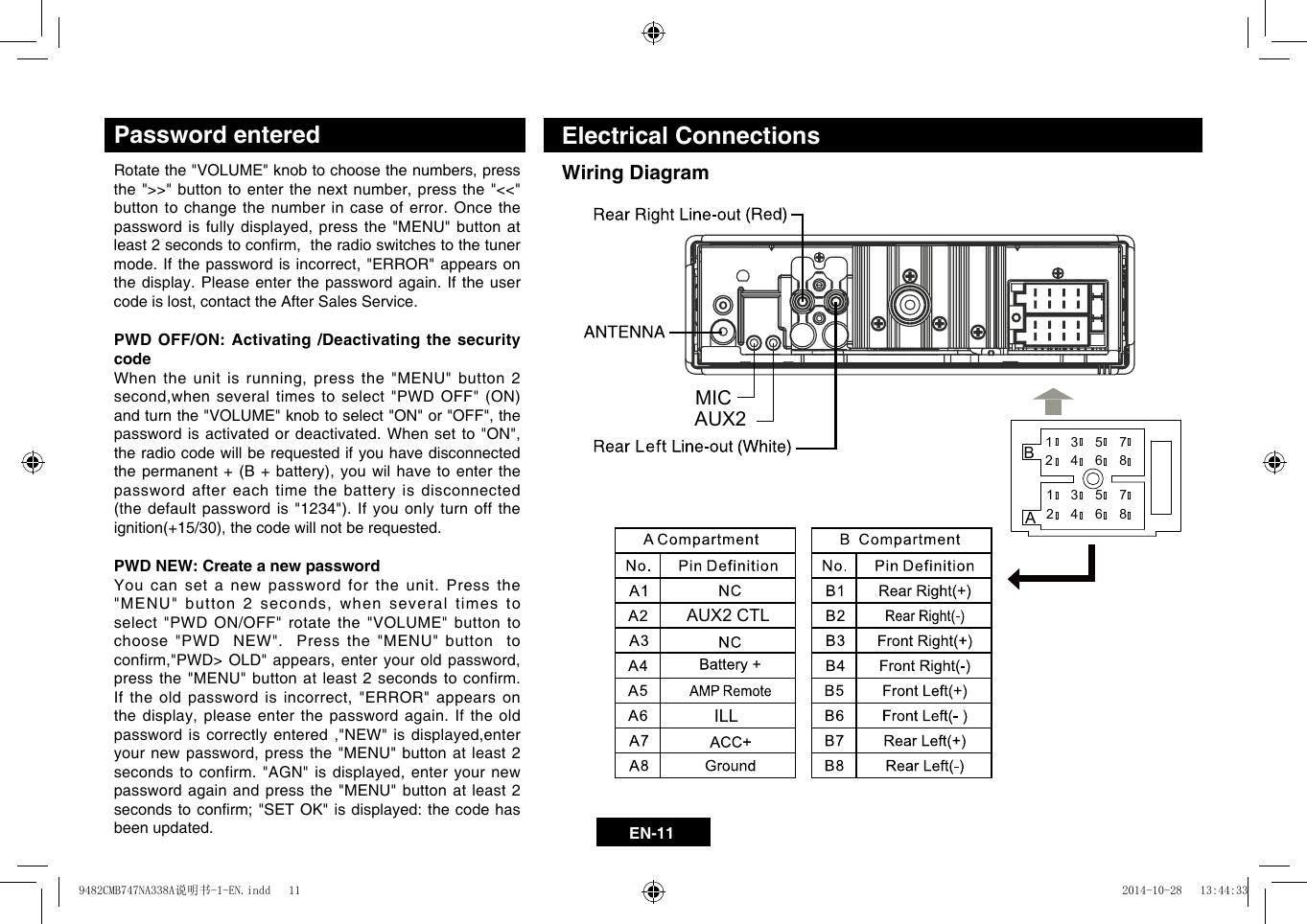

EN-11Electrical ConnectionsWiring DiagramPassword enteredRotatethe"VOLUME"knobtochoosethenumbers,pressthe">>"buttontoenterthenextnumber,pressthe"<<"button to change the number in case of error. Once the passwordisfullydisplayed,pressthe"MENU"buttonatleast2secondstoconrm,theradioswitchestothetunermode.Ifthepasswordisincorrect,"ERROR"appearsonthe display. Please enter the password again. If the user codeislost,contacttheAfterSalesService.PWD OFF/ON: Activating /Deactivating the security code Whentheunitisrunning,pressthe"MENU"button2second,whenseveraltimestoselect"PWDOFF"(ON)andturnthe"VOLUME"knobtoselect"ON"or"OFF",thepasswordisactivatedordeactivated.Whensetto"ON",the radio code will be requested if you have disconnected thepermanent+(B+ battery),youwilhavetoenterthepassword after each time the battery is disconnected (thedefaultpasswordis"1234").Ifyouonlyturnofftheignition(+15/30),thecodewillnotberequested. PWD NEW: Create a new passwordYou can set a new password for the unit. Press the "MENU"button2seconds,whenseveraltimestoselect "PWD ON/OFF" rotate the "VOLUME" button to choose "PWD NEW". Press the "MENU" button to confirm,"PWD>OLD"appears,enteryouroldpassword,press the "MENU" button at least 2 seconds to confirm. Iftheoldpasswordis incorrect,"ERROR"appearsonthedisplay,pleaseenterthepasswordagain.Iftheoldpasswordiscorrectlyentered,"NEW"isdisplayed,enteryournewpassword,pressthe"MENU"buttonatleast 2secondstoconfirm."AGN"is displayed,enteryournewpassword again and press the "MENU" button at least 2 secondstoconrm;"SETOK"isdisplayed:thecodehasbeen updated.AB1 3 5 72 4 6 813 5 724 6 8MICAUX2ILLAUX2 CTL9482CMB747NA338A说明书-1-EN.indd 11 2014-10-28 13:44:33

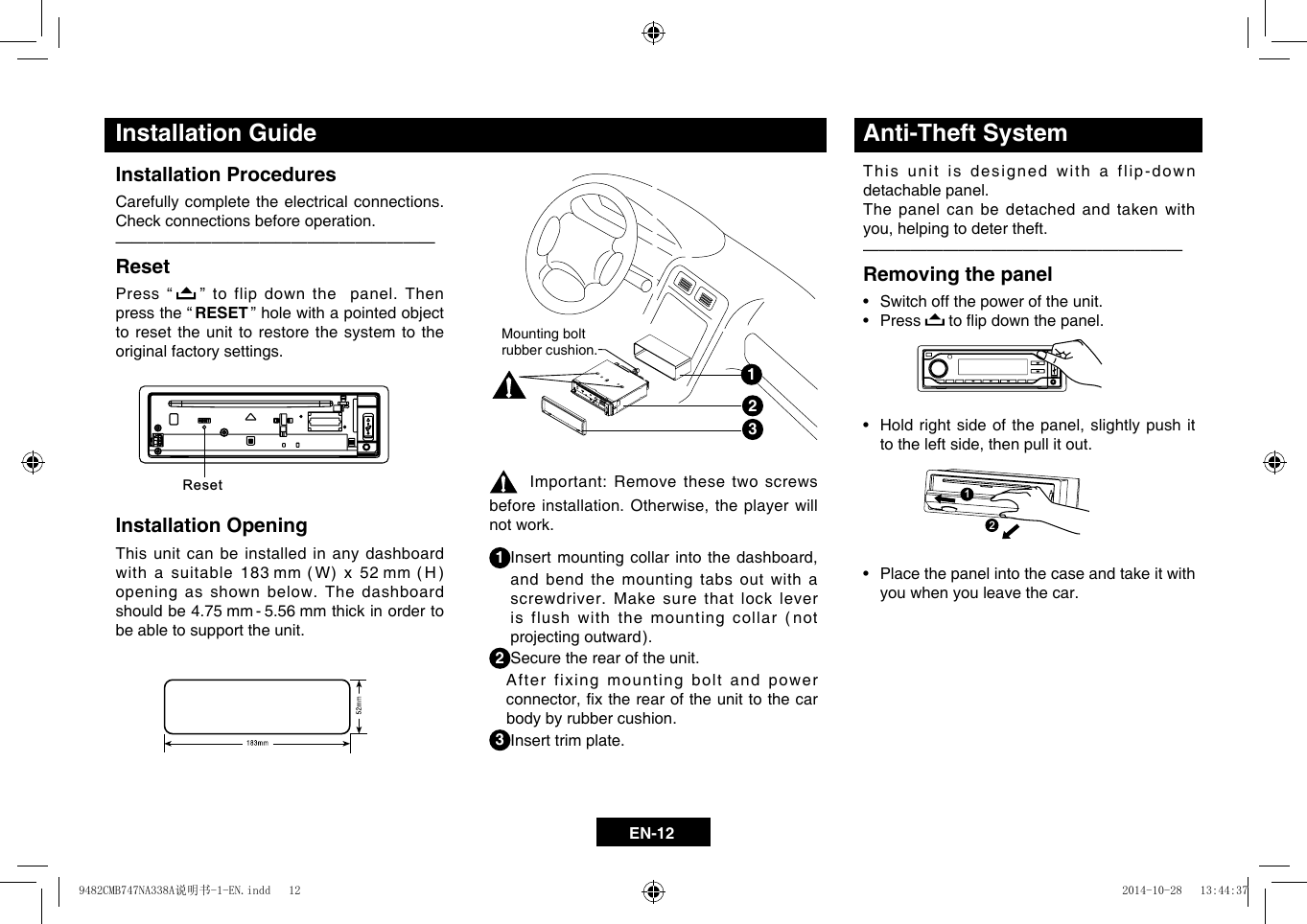

EN-12Installation ProceduresCarefully complete the electrical connections. Check connections before operation.— — — — — — — — — — — — — — — — — — ——ResetPress “ ” to flip down the panel. Then press the “ RESET ” hole with a pointed object to reset the unit to restore the system to the original factory settings.Installation OpeningThis unit can be installed in any dashboard withasuitable183mm (W)x52mm (H)opening as shown below. The dashboard should be 4.75 mm - 5.56 mm thick in order to be able to support the unit.Mounting bolt rubber cushion.123Installation GuideImportant: Remove these two screws beforeinstallation.Otherwise,theplayerwillnot work.1Insertmountingcollarintothedashboard,and bend the mounting tabs out with a screwdriver. Make sure that lock lever is flush with the mounting collar (not projectingoutward).2 Secure the rear of the unit. After fixing mounting bolt and power connector,xtherearoftheunittothecarbody by rubber cushion.3 Insert trim plate.Anti-Theft SystemThis unit is designed with a flip-down detachable panel.The panel can be detached and taken with you,helpingtodetertheft.— — — — — — — — — — — — — — — — — — ——Removing the panel• Switchoffthepoweroftheunit.• Press toipdownthepanel.• Holdrightsideofthepanel,slightlypushittotheleftside,thenpullitout.• Placethepanelintothecaseandtakeitwithyou when you leave the car. Reset112211229482CMB747NA338A说明书-1-EN.indd 12 2014-10-28 13:44:37

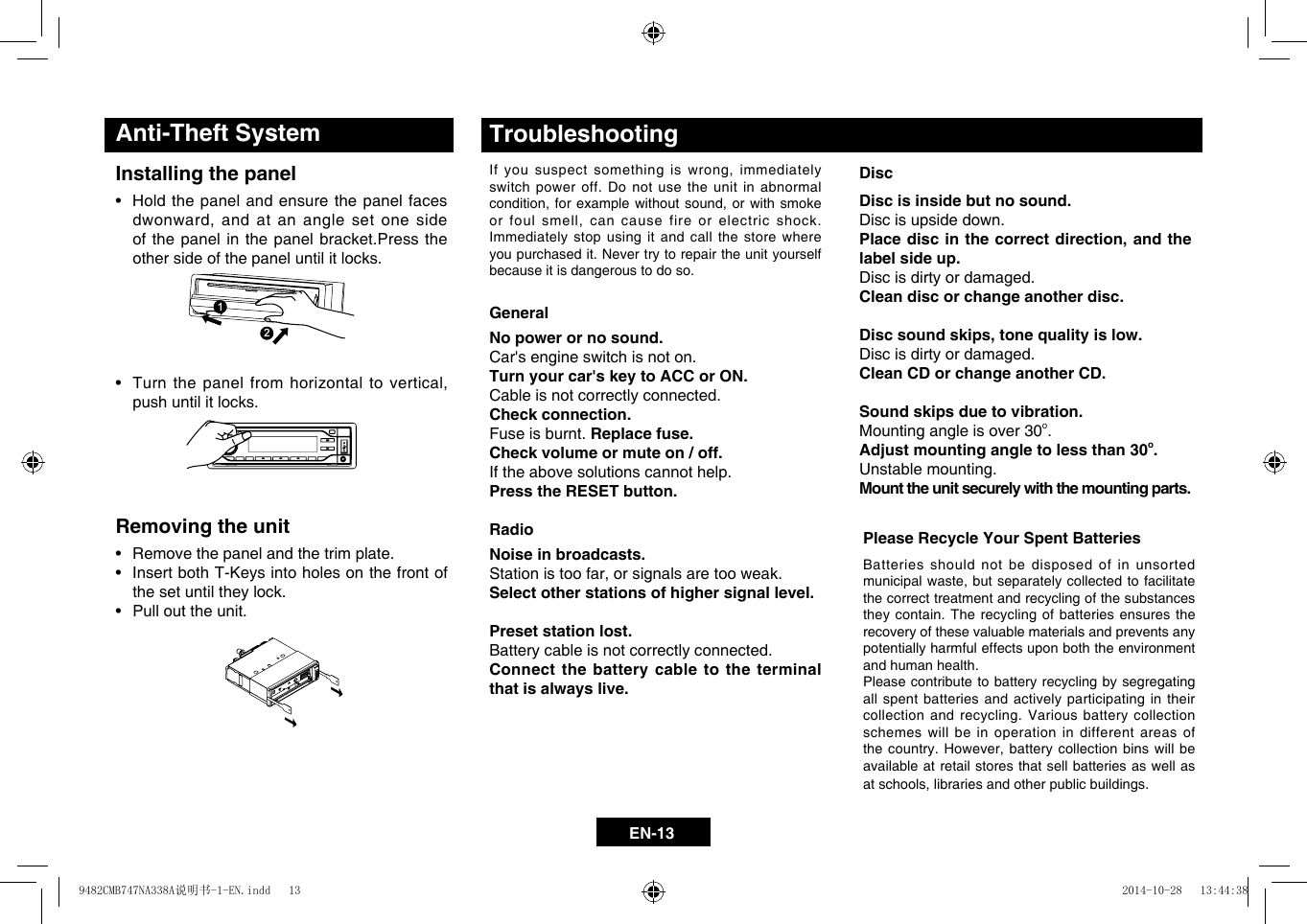

EN-13DiscDisc is inside but no sound. Disc is upside down. Place disc in the correct direction, and the label side up. Disc is dirty or damaged. Clean disc or change another disc.Disc sound skips, tone quality is low.Disc is dirty or damaged. Clean CD or change another CD. Sound skips due to vibration.Mounting angle is over 30o. Adjust mounting angle to less than 30o.Unstable mounting. Mount the unit securely with the mounting parts.GeneralNo power or no sound.Car's engine switch is not on. Turn your car's key to ACC or ON. Cable is not correctly connected. Check connection. Fuse is burnt. Replace fuse. Check volume or mute on / off. If the above solutions cannot help. Press the RESET button.RadioNoise in broadcasts.Stationistoofar,orsignalsaretooweak.Select other stations of higher signal level. Preset station lost.Battery cable is not correctly connected. Connect the battery cable to the terminal that is always live.TroubleshootingIfyoususpectsomething iswrong,immediatelyswitch power off. Do not use the unit in abnormal condition,forexamplewithoutsound, orwithsmokeorfoulsmell,cancausefireorelectric shock.Immediately stop using it and call the store where you purchased it. Never try to repair the unit yourself because it is dangerous to do so.Please Recycle Your Spent BatteriesBatteries should not be disposed of in unsorted municipalwaste,butseparatelycollectedtofacilitatethe correct treatment and recycling of the substances they contain. The recycling of batteries ensures the recovery of these valuable materials and prevents any potentially harmful effects upon both the environment and human health.Please contribute to battery recycling by segregating all spent batteries and actively participating in their collection and recycling. Various battery collection schemes will be in operation in different areas of thecountry.However, batterycollectionbinswill beavailable at retail stores that sell batteries as well as atschools,librariesandotherpublicbuildings.Installing the panel• Holdthepanelandensurethepanelfacesdwonward,andatananglesetone sideof the panel in the panel bracket.Press the other side of the panel until it locks.Anti-Theft SystemRemoving the unit• Removethepanelandthetrimplate.• InsertbothT-Keysintoholesonthefrontofthe set until they lock.• Pullouttheunit.• Turn thepanelfromhorizontaltovertical,push until it locks.1122112211229482CMB747NA338A说明书-1-EN.indd 13 2014-10-28 13:44:38

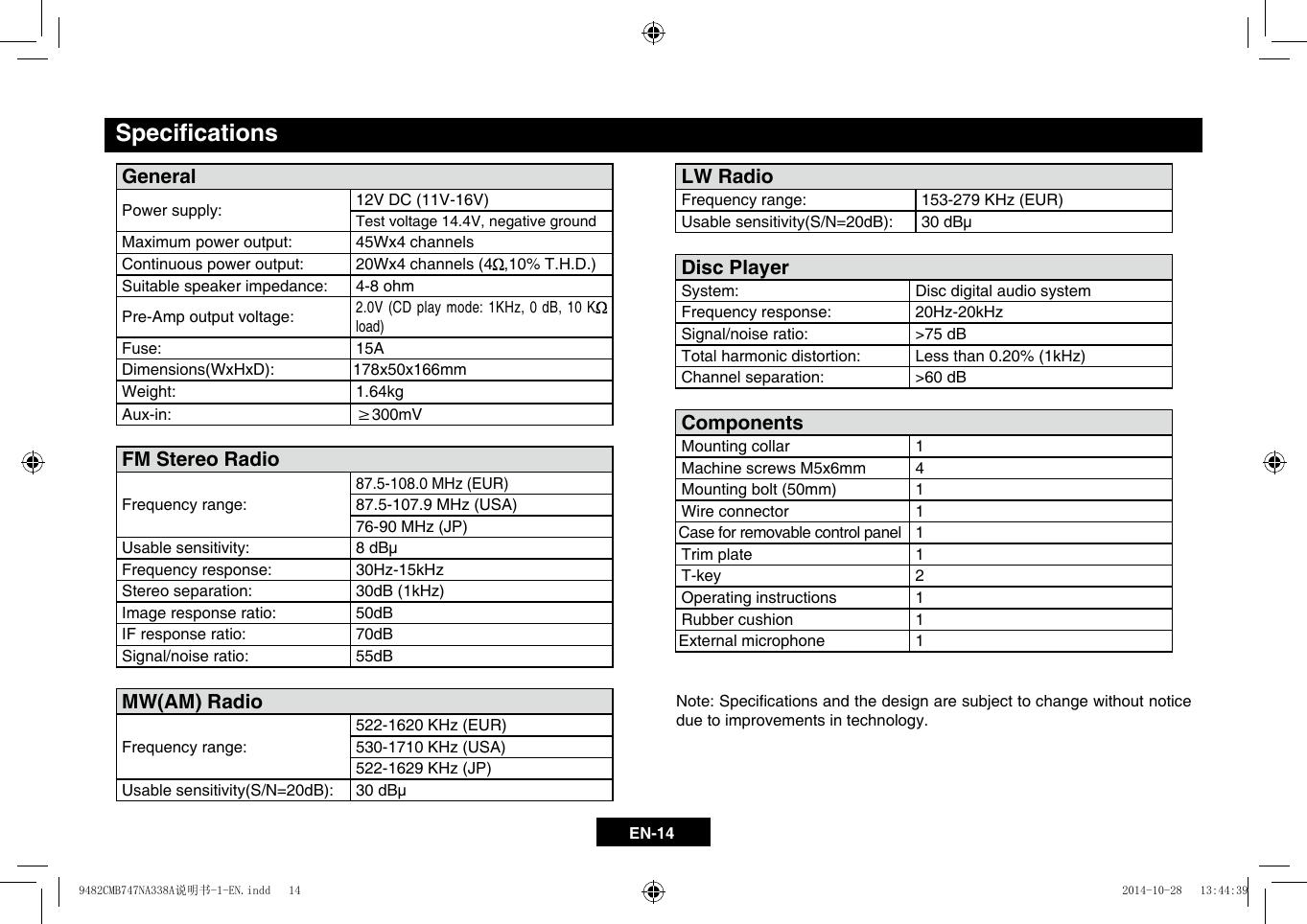

EN-14SpecicationsGeneralPower supply: 12VDC(11V-16V)Testvoltage14.4V,negativegroundMaximum power output: 45Wx4 channelsContinuous power output: 20Wx4 channels (4 ,10%T.H.D.)Suitable speaker impedance: 4-8 ohmPre-Amp output voltage: 2.0V(CDplaymode:1KHz,0dB,10K load)Fuse: 15ADimensions(WxHxD): 178x50x166mmWeight: 1.64kgAux-in: ≥300mVFM Stereo RadioFrequency range: 87.5-108.0MHz(EUR)87.5-107.9MHz(USA)76-90MHz(JP)Usable sensitivity: 8 dBμFrequency response: 30Hz-15kHzStereo separation: 30dB(1kHz)Image response ratio: 50dBIF response ratio: 70dBSignal/noise ratio: 55dBMW(AM) RadioFrequency range:522-1620KHz(EUR)530-1710KHz(USA)522-1629KHz(JP)Usablesensitivity(S/N=20dB): 30 dBμNote:Specicationsandthedesignaresubjecttochangewithoutnoticedue to improvements in technology.LW RadioFrequency range: 153-279KHz(EUR)Usablesensitivity(S/N=20dB): 30 dBμDisc PlayerSystem: Disc digital audio systemFrequency response: 20Hz-20kHzSignal/noise ratio: >75 dBTotal harmonic distortion: Lessthan0.20%(1kHz)Channel separation: >60 dBComponentsMounting collar 1Machine screws M5x6mm 4Mountingbolt(50mm) 1Wire connector 1Case for removable control panel 1Trim plate 1T-key 2Operating instructions 1Rubber cushion 1External microphone 19482CMB747NA338A说明书-1-EN.indd 14 2014-10-28 13:44:39

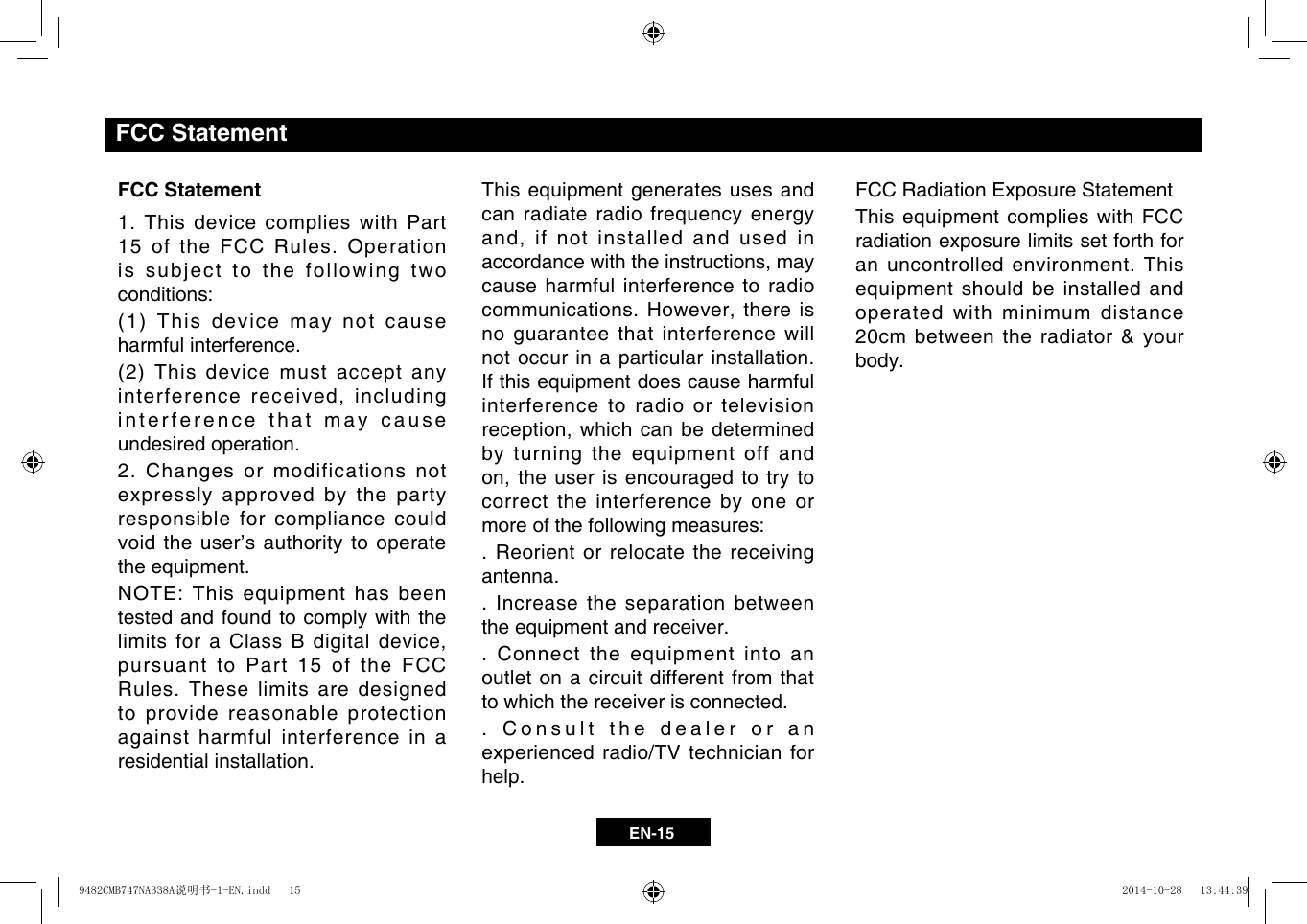

EN-15FCC Statement1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)Thisdevicemaynotcauseharmful interference.(2)Thisdevicemustacceptanyinterferencereceived,includinginterference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limitsforaClassBdigitaldevice,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and,ifnotinstalledandusedinaccordancewiththeinstructions,maycause harmful interference to radio communications.However,thereisno guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,whichcanbedeterminedby turning the equipment off and on,theuserisencouragedtotrytocorrect the interference by one or more of the following measures:. Reorient or relocate the receiving antenna.. Increase the separation between the equipment and receiver.. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.. Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.FCC Statement9482CMB747NA338A说明书-1-EN.indd 15 2014-10-28 13:44:39
PN: 12707500xxxx25 Impasse de la Commanderie – 59500 DOUAI – FrancePhone:+33(0)327944444/Fax:+33(0)3279444459482CMB747NA338A说明书-1-EN.indd 16 2014-10-28 13:44:39
