AMS DIFFUSION CT424DABBT CAR AUDIO PLAYER User Manual
AMS DIFFUSION CAR AUDIO PLAYER
User Manual
OWNER'S MANUAL
CT424 DAB BT/ TUNER CT424 DAB BT
EN-1
Safety Information
Safety Information ..................... ..................1
Specifications............................................... 1
Panel Controls..............................................2
Button Tips....................................................3
Bluetooth Functions .................... .................7
USB function Summarization.........................7
Other function
.................................................8
...............................................10
DAB function
FCC................................................11
Troubleshooting............................................12
Thank you for purchasing this product, please
read the manual carefully before operating,
and reserve it for future reference.
PRECAUTIONS
• Only in a 24-volt DC negative-ground
electrical system.
• Disconnect the vehicle's negative battery
terminal while mounting and connecting
the unit.
• When replacing the fuse, be sure to use
one with an identical amperage rating.
Using a fuse with a higher amperage
rating may cause serious damage to the
unit.
• Make sure that pins or other foreign
objects do not get inside the unit, they
may cause malfunctions, or create safety
hazards such as electrical shock.
• If you have parked the car for a long
time in hot or cold weather, wait until the
temperature in the car becomes normal
before operating the unit.
• Keep the volume at a level at which you
can hear outside warning sounds (horns
sirens, etc.).
CAUTION
• DO N O T o pe n co ve r s a n d do n ot
repair by yourself. Ask the dealer or an
experienced technician for help.
BEFORE OPERATION
• Do not raise the volume level too much,
as this will block outside sounds, making
driving dangerous.
• Stop the car before performing any
complicated operation.
User Safety Code
You need to enter password when power on,
the original password is 1234.
Note:
1. According to models with different wiring
harness to connect the of the
content, please refer to the model
label.
2. and the design are
subject to change without notice due to
improvements in technology.
Contents
General
Power supply: 24V DC (18~32V)
Maximum power speaker: 4X20W
Suitable speaker impedance: 4 ohm
Fuse spec: 10A
Weight: 0.56kg
Dimensions (WxDxH): 188x118x58.5mm
FM Stereo Radio
Frequency range: 76 - 90 Mhz (japan mode )
87.5 - 108 MHz
Signal/noise ratio: 50dB
AUTO Step: 100KHz
AM (MW) Radio
Frequency range: 522-1620KHz
Step: 9KHz
LW Radio(EURO)
Frequency range: 153-280KHz
AUTO Step: 1KHz
EXT (AUX)
Jack Stereo 3.5mm ≥ 300mV auxiliary source
DIGITAL RADIO (DAB)
Frequency range: 174.928-239.200 MHz
1452.960-1490.624MHz
Step: 20KHz
EN-2

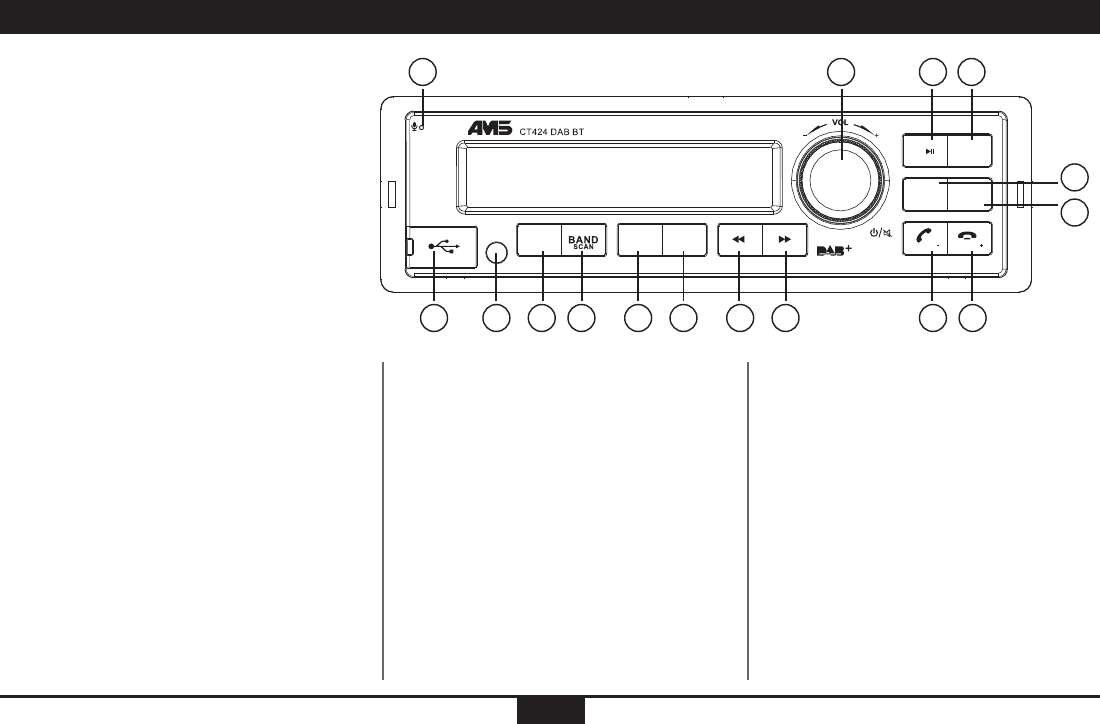

Panel Controls
(1). - Microphone
(2). - Power on (press),
- Mute (short press),
- Adjust volume (rotate)
- Power off (long press)
(3). - Press to toggle the playing Sources:
Radio,
USB (when USB inserted),
AUX IN,
A2DP (when Bluetooth is connected),
DAB
- Hold it more than 2 seconds and rotate the
[volume] knob to select PTY mode.
(4).- Band switch:
DAB 1 / DAB 2 / DAB 3
- Auto memory system:hold it to automatically
search station and save the strongest signal
station to preset from 1 to 6 on the current
band.
(5). - Press [SEL] and rotate [volume] knob to
select EQ (equalizer) preset mode.
- Press to confirm,when selecting the PTY
mode,
When in dial number mode, press [SEL] to
start and rotate [volume] knob to dial
a phone number.
(6). - Radio mode: Press [DSP] (display) to
access: PTY info/ Display FM/AM
frequency/clock
- MP3 mode: track duration
- Hold it to enter setting mode
(7). - Radio mode:
Automatic search the station from high
to low.
Hold the touch 2 seconds for manual
station search.
- MP3 / BT music mode
Select the previous track
Fast rewind (long press) only USB
(8). - Radio mode
Automatic search the station from low
to high:
Hold the touch 2 seconds for manual
station search
- MP3 / BT music mode
Select the next track
Fast forward (long press) only USB
(9). - USB slot
(10). - Play/pause (when USB / BT music)
(11). - Auto playback at the begining
of the track (10 seconds) with an
USB device.
(12). - MP3 repeat play
(13). - MP3 random play
(14). - MP3 folder back/Answer/Dial/Call
transfer/Hang on
(15). - MP3 folder ahead/Hang off/
Disconnect (long press)
(10-15).
-1-6 radio preset
Press to select tune in a preset
station.
Hold for more than 2 seconds to
save current station.
(16). - AUX
210
14
11
15
12
13
3 4 5 6 7 89
1
16
SRC SEL DSP
2INT
1
4RDM
3RPT
5F 6F
EN-3
Button Tips
Tuner mode DAB mode USB/AUX/BT source
TA TA TA ON ON ON
ON
ALARM ON FRONT
ON ON
PASSIVE ON
RETUNEL
10 to 35
-3 to +3
-3 to +3
-3 to +3
-3 to +3
-3 to +3
-3 to +3
5 to 30
5 to 30
5 to 30
ON ON 0 to +7
ON
ON
RURAL
STEREO
AUTO
AUTO
AUTO
DIMDAY
DIMDAY
DIMDAY
ON
ON
ON
ON
ON
REIST
RESIST
RESIST
ADJ
ADJ
ADJ
ON
ON
ON
ON
ON
ON
00:00 00:00
00:00
00:00
00:00
00:00
24HOURS
24HOURS
24HOURS
12HOURS
12HOURS
12HOURS
ON
ON
ON
ON
ON
ON
EUR JAPAN
OFF OFF OFF
OFF
SEEK OFF REAR (BT source)
(BT source)
(BT source)
(BT source)
(USB(MP3) source)
OFF OFF
ACTIVE OFF
RETUNES
OFF OFF
OFF
OFF
URBAN
MONO
MANUAL
MANUAL
MANUAL
OFF
OFF
OFF
DIMNIGHT
DIMNIGHT
DIMNIGHT
OFF
OFF
OFF
OFF
OFF
PWM
PWM
PWM
LAST
LAST
LAST
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
USA AUSTRA LATIN
TA mode DAB FMLK MIC SEL
TA return DAB LBND AUTO ANS
TA vol DAB ANT AUTO CON
AF SCROLL BT VOL
SCROLL
REG
CT
RUR/URB
ST/MONO
DIM DISP
DIM DISP
DIM DISP
DISMAN
DISMAN
DISMAN
DIMMING
DIMMING
DIMMING
DIM KEY
DIM KEY
DIM KEY
MW
SWRC SET
SWRC SET
SWRC SET
VOL LAST
VOL LAST
VOL LAST
PWD SET
PWD SET
PWD SET
CLOCK DISP
CLOCK DISP
CLOCK DISP
12/24H
12/24H
12/24H
TIMER
TIMER
TIMER
LW
SWRC TYPE
SWRC TYPE
SWRC TYPE
S-VOL
S-VOL
S-VOL
PWD
PWD
PWD
CLOCK
CLOCK
CLOCK
BEEP
BEEP
BEEP
AREA
AUDIO
BASS
BAS -7 to +7
BALANCE 0LEFT 7 RIGHT 7
LOUD ON OFF
TREBLE
TRE -7 to +7
EQ OFF JAZZCLASSIC ROCKPOP
FADER FRONT 70 REAR 7
EN-4
to 35) AF(ON/OFF) REG(ON/OFF)
CT(ON/OFF) DX/LOCAL ST/MONO
AUTO ANS(ON/OFF) AUTO CON(ON/OFF)
BEEP(ON/OFF) 12/24H MIC/SEL
(REAR/FRONT) AREA SWRC SET (ON/
OFF) TIMER(ON/OFF) SCROLL(ON/
OFF) BT VOL(0 to +7) VOL LAST/ADJ
S- VOL(5 to 30) PWD SET PWD(ON/
OFF)
Wait for 1s and rotate the knob to adjust.
TA mode
Enable /Disable automatic switching to
FM- tuner mode in case of incoming Traffic
announcements.
Rotate the [volume] knob to select TA
ALARM or TA SEEK mode. If the TA (traffic
announcements) is turned on and there is no
traffic program identification code received in
the specified time, no TA/TP will display and
either TA ALARM or TA SEEK will be activated.
TA ALARM mode
Alarm is turned on
A beep sounds and the display show “No TA-
TP” when you are listening a radio station that
does not broadcast TP info.
TA SEEK mode
TA SEEK is automatically activated.
The radio will automaticaly search for a new “TP”
compatible transmitter in case of signal loss on
the station playing.
Note
EUROPE area: add to RDS function, JAPAN,
AUSTRALIA and USA area: no RDS function.
TA setting
Button Tips
MP3 Playback
Track skip
Press the [/ ] button to go to the previous or
next track.
MP3 track fast search
Hold it [ / ] to enter fast forward or reverse
back mode.
Folder select
Press the [ 5F-]/[ 6F+] button to select MP3
folder back/ahead.
Set Clock
Radio mode:
Press [DSP] button, turn and turn display PTY/
Clock/current channel.
MP3 playback mode: press [DSP] button, turn and
turnaboutfoldername/lename/ID3TAG/Clock
Then press [DSP] button more than 2 seconds,
‘Clock‘ displayed, press [SEL] button, rotate the
[volume] knob and press [ /] button to set,
press[SEL]toconrm.
Automatic clock setting :
While listening an FM RDS station, transmitter
updates automatically time on the radio unit.
Clock format:
Press several times on [SEL] button to view “24
hours”.
Rotate [volume] knob to select “12 hours” mode
(displays PM or AM).
System setting
On the non time display menu:
Hold the [DSP] to enter the system setup menu,
and press [ / ] button to select:
CLOCK TA(ON/OFF) TA MODE ALARM/
SEEK TA RETURN/RETURNS TAL VOL(10
Rotate [volume] knob to set ON/OFF.
TA VOL mode
Rotate the [volume] knob to to adjust TA VOL
10-35.
VOL ADJ mode
Rotate the [volume] knob to select VOL ADJ or
LAST mode.
If ADJ selected after pressing >> “S-VOL” will
display to adjust the sound [volume] at the radio
ignition settings from 5 to 30.
TA RETURN
On the FM mode, set the TA time space Info of
auto search with RDS.
Setting for “LONG”, Auto search the TA time
space for 180 sec, Setting for “SHORT”, auto
search the TA time space for 45 sec.
AREA SETTING
AREA setting: Rotate the [volume] knob to select
EUROPE, USA, JAPAN, AUSTRA, LATIN
Audio setting
Press [SEL] button, and press the [ / ]
button to select BASS/TREBLE/BALANCE/
FADER/LOUD/EQ function, rotate the knob to
adjust.
Radio Operation
Radio seek automatically
Press the [/ ] button to auto search the
station rewind / forward.
Radio tune by step
Hold [/ ] button more than 2 seconds, switch
to the MANUAL mode, then short press [/ ]
button to step search the station rewind / forward.
Manual Memory Store
At FM1/FM2/FM3/MW1/MW2/LW mode, press
and hold button 1-6 to save current station in
memory. You can save up to 36 stations in total.
EN-5
RDS
AF (Alternative Frequency):
When the radio signal strength is weak,
enabling the AF function will allow the unit
to automatically search another station
with the same PI, but with stronger signal
strength.
PS (Program Service name): The name of
station will be display instead of frequency.
Press 2 seconds the [DSP] button and
select [ / ] to set AF/TA/REG, rotate the
[volume] knob to open or close AF/TA function.
PTY function
Hold the [SRC] button to PTY function, rotate
the [volume] knob, display NEWS and POP
program type.
Press 2 seconds [SRC] button and rotate
the [volume] knob to select the type of
station INFO-SPORT-EDUCATE-DRAMA-
CULTURE-SCIENCE-VARIED-POPM-
ROCK M-EASY M-LIGHT M-CLASSICS-
OTHER M-WEATHER-FINANCE-CHILDREN-
SOCIAL-RELIGION-PHONEIN-TRAVEL-
LEISURE-JAZZ-COUNTRY-NATIONM-
OLDIES-FOLK-DOCUMENT-TEST-ALARM
REG on: AF function will implement the
regional code (of the PI) and only stations in
the current region can be tuned automatically.
REG off: AF function will ignore the regional
code(of the PI) and stations in the other
regions can also be tuned automatically.
Button Tips
CT ON/OFF
While listening an FM RDS station, transmitter
updates automatically the clock on the radio
unit.
Automatic display of the clock
This function allows to display automatically
the clock instead of the "standard" display
(tuner, Aux, A2DP, USB). After 15 seconds, in
case of manipulation of buttons the display will
turn back to "standard" display and will return
on the clock.
nb : Noted: some radio stations, besides their
name, reveal " RT + " information (name of
the artist, titles, etc.), in this case the clock will
display between 2 scrollings of text.
Activation:
Press 2 seconds on "DSP" and then press the
button [ / ] several times to select function.
CLOCK_DISP displays, select ON to activate
the function.
BT Audio
To play music from a Bluetooth device and
control with the unit.
1. Press [SRC] button several time up to select
BT MUSIC mode. If the Bluetooth device is
connected, the display shows A2DP.
2. To play or pause, press "1" and/or [ / ]
to skip the track
MUSIC mode : If the Bluetooth device is
connected, the display shows A2DP.
VOL LAST/ADJ mode
Rotate the [volume] knob to select VOL LAST
or ADJ mode.
In ADJ mode, rotate the [volume] knob to adjust
S-VOL 5-30.
BEEP mode
Rotate the [volume] knob to select button beep
sound on or off.
SCROLL mode
Rotate the [volume] knob to select SCROLL (ID
Tag) mode on or off.
SWRC function
(system wired remote control)
This function allows to control main functions of
the radio (VOL-/VOL+ /Source /SEEK+/SEEK-/
Tune Memory /BT-OFF hang off) in USB/BT/
A2DP/AUX.
To do so, you need a wired remote to connect
to the female input 3.5, yellow connector at the
back of the radio.
SWRC SET
Activate or deactivate the steering wheel
controls
SWRC (RESIST / PWM) on CT412-
DAB
Allows you to select the signal
mode of the steering wheel controls:
EN-6
Button Tips
> RESIST: chain of resistors
> PWM: frequency - 100 Hz at 12 Volts
Timer ON/OFF
Timer ON: when ignition of the machine is off,
you can turn the unit on by pressing POWER
button, and it can work for about 2 hours
Timer OFF: when ignition of the machine is
off, the unit can't work anymore.
AREA mode
Press [DSP] button more than 2 seconds, then
press [ /] button several time to select
AREA funtion. Rotate the knob to select
"EUROPE--USA--JAPAN- AUSTRA-LATIN".
NB : the radio will delete the preselected
station memory
LOUD ON/OFF
Press [SEL] to display EQ OFF,then press
[/] button several time to select LOUD
function.
Rotate the [volume] knob to select Loudness
ON or OFF.
STEREO/MONO mode
(in Radio mode)
Press [DSP] button more than 2 seconds, then
press [ /] button several time to select ST/
MONO funtion. Rotate the [volume] knob to
select FM stereo or mono.
LOCAL ON/OFF mode (OFF=DX)
Press [DSP] button more than 2 seconds,
then press [ /] button several time to
select DX/LO. Rotate the [volume] knob to
select tuner sensitivity distant or local.
MIC
In Default settings, the MIC SEL is "REAR".
The micro cable is connected at the rear of
the radio, we advise you not disconnect the
micro cable in order to avoid losing it.
On the non time display menu:
Press and hold [DSP] button more than 2
seconds, then press [ / ] button several
time to select MIC SEL and rotate the [volume]
knob to select "FRONT".
EN-7
Bluetooth Functions
Pairing
1. Open the device's BT function,
2. Search bluetooth equipments by your device.
Please make sure your device be detectable
(through the menu on the device).
3. Select unit CT424 DAB BT to connect.
Press [ 6F+] button more than 2
seconds, and the Bluetooth device will be
disconnected (only in A2DP mode or phone
use).
AUTO CON mode
Press [DSP] button more than 2 seconds.
Press [ ] or [ ] to display "AUTO CON".
Rotate the [volume] knob to select AUTO CON
mode, select on or off. When it is on, it will
automatically connect the device.
AUTO ANS
Press [DSP] button more than 2 seconds. Press
[ ] or [ ] to display "AUTO ANS". Rotate
the [volume] knob to select AUTO ANS mode,
select on or off. When it is ON, the radio will
automatically hang on after a ring tone (4/5).
BT mode selecting
Press [SRC] button to select BT mode.
Press [DSP] bu tton to display the A2DP
information.
Dialing
1. Phone dialing
Use your mobile phone dialing, LCD screen
displays dialing information.
2. Unit dialing
Press [SRC] button to switch to A2DP(BT)
mode. Press [ 5F-] the picture hang on and
"DIAL NO" appears on the LCD, then press
[SEL] button to enter dialing mode. Press
[ / ] button and rotate the [volume] knob
to input dialing numbers, press [ 5F-]
button to dial out.
3.You can search for any call, dialed, missed,
or received. As previously for ""DIAL NUM""
function, select ""Dialed"", ""Missed"" or
""Received"",
> Press the [SEL] button to enter the selected
history.
> Turn the [VOL] knob to scroll through the
contacts.
> When the contact's name or mobile phone
number is displayed, press the [5F /] button to
call the mobile phone number of this contact.
Press the [6F /] key to end the call
Voice switch
During the call, Press the [ 5F-] button to
transfer between the unit and your phone.
Hang up/Answer
Press [ 5F-] button to answer a call,
Press [ 6F+] button to hang up.
A2DP mode
On A2DP music playing mode, press [1] button to
pause/play.
Press [ / ] to previous or next track.
In AD2P mode, if your phone is paired you can
order vocally by "SIRI" or "Google " application to
select and give a call.
On some ANDROID versions you can separate
phone book and music management in order to
connect two Bluetooth devices
1. Standard Setting (one device phone and
media)with your phone you can receive and
send a call and listen to your music at your
device
2. Double connection (2 phones connected at
the same time)
• in BT ( receipt and phone call)
• second in A2DP mode(listen to your music)
Loading/Take out USB equipment
1. nepO the USB cap located on the bottom
left of the unit, insert a USB device into the
connector and the unit will begin to play
automatically.
2. oT stop playback of USB device, push the
[SRC] button to non USB mode and then
remove the USB device.
USB Function Summarization
you can free media connection on the
phone
• on the phone, enter the Bluetooth setting
• position yourself on the device
• go to the setting at this device
• uncheck the setting " audio parameter
Media"
• close the acces parameter the first device
received an transmit call, the second device
playing the audio media, to return to
standard parametrage, tick the box of
the first device having disconnected
the second device
Voice commands
In the A2DP mode, you can use voice
commands (mobile application SIRI / Google
voice / and Android) to make a telephone
call from the phone book or write a SMS.
“ Voic e commands ” func t ion mus t be
activated on your telephone and avoid noisy
environment.
EN-8
DAB function
DAB Radio Selection
DAB/DAB+ Provides radio programs in digital
sound quality. To access Digital Audio Broadcast
(DAB) press the [SRC] button and select DAB
DAB Service SCAN "Synchronising"
If the antenna is not connected, ""No signal""
will be displayed. If the tuner has never
been used, ""No service"" will be displayed.
Automatic scan:
The radio will initiate an automatic scan of the
DABtransmittersfortherstoperation,orifthe
DAB transmitters is lost.
Manual scan:
In DAB mode, if you want to launch a scan, hold
down the ""BAND/SCAN"" button for 1 second.
The screen will display the message ""SCAN
OK""andwilldisplaythenumbers1to100K
one after the other (DAB block). At the end of
the scan, the screen will display the number of
stations received (e.g. FOUND 39 = 39 stations
found)andwillbroadcasttherststation.
Select DAB group
"Press the [ BAND ] Button to select one of the
available DAB groups:
DAB1 > DAB2 > DAB3. They allow the storage
of 6 stations each"
Tuning a DAB Service
To tune a DAB service push [<< / >> ]
to select the next/previous DAB service.
“Tuning” is shown on the Display, Then the
station is automaticaly broadcast
DAB Service List
"To get an overview of receivable DAB
services . Push [SEL] for 2 seconds to open
the DAB Service List, Rotate the [VOL]
knob to scroll through the list of receivable
stations. Push [SEL] to tune a DAB service
. “Tuning” is shown on the display, then the
station is automaticly broadcast "
Storing DAB Favourites
"There are 3 favorite DAB groups
available (DAB1 -> DAB2 -> DAB 3).
Select DAB1-2-3 where you want to store the
station, then press the preset button for more
than 2 seconds "
Recall Stored Favourites
To recall a preset station, briefly press the
desired button (1 to 6)
Switching automatic between
DAB and FM (DABFMLNK)
When the DAB signal quality drops
signicantly,itispreferedtoswitchandlisten
to the service via FM. Switching between
DABandFM(DABFMLNK)canbedisabled
via the system settings menu.
Note: If the AF indicator is not displayed,
the radio has not found the corresponding
station in FM and can not switch from DAB
to FM and vice versa
Rural / Urban
Press the [</>] button several times to
select RURAL / URBAN. Turn the [volume]
button to select the appropriate tuner mode:
RURAL (poor reception) or URBAN (locations
near emitters).
BT VOL
Adjusts the level of the AD2P-BT relative to
other sourcies (from 0 to +7).
This radio allows manual or automatic
dimming of the display and key buttons.
Select ""DIMMING"" from the setup
menu and select one of the following:
> Select ""OFF"" to deactivate dimming
> Select the ""MANUAL"" attenuation when
the radio is not connected to the vehicle
ignition pin . The change between day and
night mode is done by selecting Settings
menu ""DIMDAY"" or ""DIMNIGHT""
> Select the ""AUTO"" attenuation when
the radio is correctly connected to the
vehicle ignition pin (A6, +12 V lantern
or pilot lights), the lighting will change
when the parking light is switched on.
Select Manual dimming to adjust Brightness
of display and Buttons". Select DIM MAN and
change between day mode and night mode
by selecting “DIMDAY“ or “DIMNIGHT”"
> To adjust Night Brightness of the display
and buttons select “DIMNIGHT”
> To adjust Day Brightness of the display
and buttons select “DIMDAY""
EN-9
DIM KEY
Select"DIMKEY"andadjustthebrightnessfrom
the buttons
DIM DISP
Select"DIMKEY"andadjustthebrightnessfrom
the display
MW (ON/OFF)
To enable/disable MW Reception
LW (ON/OFF)
To enable/disable LW Reception
DAB FMLK
Switching automatic between DAB and FM
(DABFMLNK).WhentheDABsignalquality
dropssignicantly,itispreferredtoswitchand
listen to the service via FM.
SwitchingbetweenDABandFM(DABFMLNK)
can be disabled via the system settings menu.
Note: If the AF indicator is not displayed, the
radio has not found the corresponding station in
FM and can not switch from DAB to FM and vice
versa
DAB ANT
Selection of Active or Passive antenna
DAB LBND
Rotate the knob to choose DAB LBND ON or
OFF (Enable/Disable L-Band Decoding)

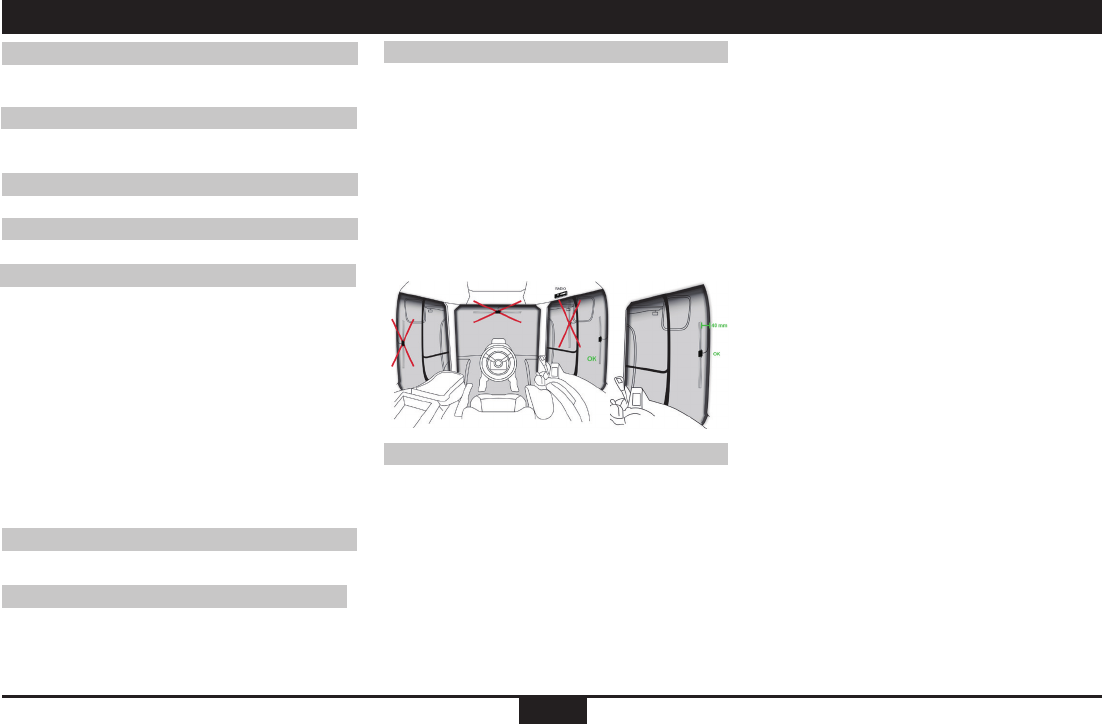

DAB antenna set-up
Position the antenna
- on the windscreen inside the car
- to the right of the driver for safety reasons
-onaxedsurface;avoidmoving
parts such as doors, windows, etc.
- vertically and half way up the windscreen,
outofthedriver'seldofvision.
A detailed version of the assembly
notes is available to download
http://pro.ams-diffusion.fr/aftersale/
Characteristics
Thesespecicationsmaybemodiedwithout
notice.
Frequency band: 170 - 240 MHz (Band III),
1452-1492MHz(BandL),Impedance:50Ω
Connector type: SMB
Cable length: 2.9m
DAB function
EN-10
USB functions(ash memory type)
1.USBashmemory2in1support
2. FAT 12/FAT 16/FAT 32 format supported.
3. USB 1.1 support, USB 2.0 support (For
2.0,speed performance is as USB 1.1)
4.WMAlessupported
5.MaximumnumberofMP3lesFAT32format
supportedis65535les.(Maximumnumber
ofMP3lesNTFSsupportedis1000les.)
Maximum number of folders is 999.
6. Maximum USB capacity support is 8 GB and
best performance with tracks not more than
500, and not exceeding 30 folders.
7. Not all USB devices are compatible with the
unit.
AUX mode
When radio is on, press [SRC] button several
time, to display AUX.
When the radio is OFF but the contact and the
power are ON : If your device detected the Tele-
mute signal (ground A2), the device switch ON
automatically.
When the signal disapeared, the device switch
OFF.
nb: Control the track with the external device
When using AUX mode, only the POWER knob,
the [volume] and [SRC] button can be used.
Timer function
If the device is switched on while the ignition
is on, it then switches off and on again
automatically with the ignition. This is provided
Other functions
that the A7 contact is connected to the terminal
15/30 of the vehicle. If the device is switched
on without the ignition by pressing "POWER",
it switches off again after 120 minutes to save
the battery. The device can then be switched
on again with "POWER".
Caution: When the radio is switched on, the
automatic antenna extends.
Therefore always switch off the device when
the situation requires it (e.g. in a station car
wash).
You can stop this function in the MENU.
SRC Button
Press the [SRC] button to switch from Radio,
USB (when USB is connected), AUX (when
the device is connected), BT audio, AD2P (when
the BT device is connected)
Password entered
Rotate the [volume] knob to select the digits,
press the [ / ] buttons to change the digits.
Once the password is fully displayed, press the
[SEL]buttonatleast2secondstoconrm,the
radio switches to the last tuner mode listened.
If the password is incorrect, "ERROR" appears
on the display. Please enter the password
again. If the user code is lost, contact the After
Sales Service.
PWD OFF/ON: Activating/
Desactivating the security code.
When the unit is switched on, Press [DSP]
button more than 2 seconds then press
[ / ] button several time to select "PWD
OFF/ON" and turn the [volume] knob to select
"ON" or "OFF": the password is activated or
deactivated.
When set to "ON", the radio code will be
requested or if you have disconnected the
permanent + (B + battery), you will have
to enter the password after each time the
battery is disconnected (the default password
is "1234"). If you only turn off the ignition
(+15/30), the code will not be requested.
PWD NEW: Create a new password
You can set a new password for the unit:
Press [DSP] button more than 2 seconds then press
[/ ] button several time to select "PWD SET",
enter your old password, press the [SEL] button at
least 2 seconds to confirm. If the old password is
incorrect,"ERROR" "AGN" appears on the display,
please enter the password again.
If the old password is correctly entered, "NEW"
is displayed, enter your new password, press the
[SEL]buttonatleast2secondstoconrm."AGN"
is displayed, enter your new password again
and press the [SEL] button at least 2 seconds to
conrm;"SETOK"is;displayed:thecodehasbeen
updated.
EN-11
FCC STATEMENT
1. This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference,and.
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
2.anyChangesormodicationsnotexpressly
approved by the party responsible for
compliance could void the user's authority to
operate the equipment.
NOTE: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be
installed and operated with minimum distance
20cm between the radiator & your body
FCC
EN-12
TROUBLESHOOTING
Issue Possible cause Solution
General
The unit does not switch
on. Car ignition is not on.
Cable is not properly connected.
Fuse is burnt.
Turn your car key in the ignition.
Check cables connection.
Replace fuse with a new fuse of the same capacity.
No sound Volume is set at minimum or the MUTE
function is on. Check the volume or switch the MUTE function off.
The unit or screen does
not work normally. The unit system is unstable. Please contact our After Sales Service
Tuner mode
Unable to receive stations. The antenna is not correctly connected properly. Please check if the antenna is correctly connected and check adaptors.
Bad quality reception of
radio station. The antenna is not fully extended or it is broken. Fully extend the antenna and if broken, replace it with a new one.
Preset stations are lost. - You may have changed reception AREA
(USA...) as this changing cancel all your presets
stations.
- You maybe RESET the unit inadvertently (the
unit has turned back to factory settings
- Please turn back to the right AREA.
- You need to set again all parameters
USB mode
Unable to insert USB
device The USB device has been inserted the wrong
way round. Insert it the other way around.
The USB device cannot
be read. NTFS format is not supported.
Applicationlessuchas".exe"cannotberead
CheckthatthelesystemisinFATorFAT32format.Due
to different formats, some models of storage devices or
MP3 players may not be read.
Please make sure that the USB device only contain WMA or MP3 (AAC not
compatible)
Microphone
practical advice :
Bluetooth microphone
recommandation
Bad quality sound of the microphone
According the location of the radio in your machine, which microphone to use :
- If the radio location is in face to the driver, we recommend then to use the front panel
microphone.
- If the radio location is not face to the driver but on the sides or rear, we highly recommend the
use of wired remote microphone (rear connection) and place the microphone face to the driver.
The following checklist can help you to solve some issues which you may encounter when using the unit. Before consulting it, check the connections and
followtheinstructionsintheusermanual.Donotusetheunitinabnormalcondition,forexamplewithoutsound,orwithsmokeorfoulsmellcancausere
or electric shock, immediately stop using it and call the save where you purchased it.
P/N:12707500XXXX
V1-122018
ZA du Chevalement - Rue des Galeries 59286 ROOST WARENDIN - FRANCE
Phone : +33 (0)3 27 94 44 44 Fax : +33 (0)3 27 94 44 45
Web : www.ams-diffusion.com
