WN3320M-A7 Specification Page 1/1 2006/3/21
LTC Network Access Confidential
USER’S MANUAL
2.4 GHz 54 Mbps Wireless LAN Compact Flash
WN3320M-A7
Version 1.0
This document contains confidential proprietary information and is property of LTC. The contents of this document should not
be disclosed to unauthorized persons without the written consent of LTC.
Change History:
Revision Date Author Change List
Version 1.0 2006/01/19 Brian Liu Preliminary
Author: Brian Liu Approved by: Allen Hsu
Editor: Brian Liu Project Leader: GR Huang
WN3320M-A7 Specification Page 2/2 2006/3/21
LTC Network Access Confidential
PRODUCT SPECIFICATION
2.4 GHz 54 Mbps Wireless LAN Compact Flash
WN3320M-A7
Version 1.0
Networking B.U.
Lite-on Technology Corporation
4F, 90, Chien I Rd.
Chung-Ho, Taipei 235, Taiwan, R.O.C.
Phone: 886-2-2222-6181
Fax: 886-2-2222-3882
Contact: Product Marketing
Mr. Brian Liu #8115
E-mail: brian.liu@liteon.com
Customer Approval: (Signature)
(Title)
(Company)
(Date)
(Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business)
WN3320M-A7 Specification Page 3/3 2006/3/21
LTC Network Access Confidential
CONTENT
PRODUCT DESCRIPTION ..............................................................................................................4
PRODUCT FEATURES.....................................................................................................................4
PRODUCT SPECIFICATIONS........................................................................................................4
MAIN CHIPSET .....................................................................................................................................4
FUNCTIONAL SPECIFICATIONS..........................................................................................................4
MECHANICAL ......................................................................................................................................5
LED DEFINITION ................................................................................................................................6
BLOCK DIAGRAM................................................................................................................................6
ENVIRONMENTAL ..........................................................................................................................7
OPERATING..........................................................................................................................................7
STORAGE..............................................................................................................................................7
FCC STATEMENT ............................................................................................................................8
CANADA-INDUSTRY CANADA (IC)...........................................................................................10
WN3320M-A7 Specification Page 4/4 2006/3/21
LTC Network Access Confidential
PRODUCT DESCRIPTION
The WN3320M Wireless LAN Compact Flash Card is a sleek miniature Wireless LAN card
working under 2.4GHz ISM frequency brand. The WN3320M is a compatible with IEEE
802.11b standards. It provides full functional wireless access within wireless environments
anytime, anywhere at a data rate of up to 54Mbps. WN3320M can provide speed and convenience
of wireless networking on your mobile device, such like PDA, mobile phone. The wireless Compact
Flash Card can install directly into your mobile devices.
The WN3320M is developed using advanced chipsets designed by Marvell Technology. To
ensure that user’s privacy is well protected, the WN3320M is developed to feature
enterprise-class security, i.e. Wired Equivalent Privacy (WEP) encryptions, and Advanced
Encryption Standard (AES) encryptions. It also supports 802.11x which is a centralized,
server-based authentication.
PRODUCT FEATURES
• Operate at ISM frequency bands (2.4GHz) with 54Mbps data rate
• IEEE standards support: IEEE 802.11b, 802.11g
• Enterprise-class security
• Superior range and throughput
• Full-featured software utility for easy configuration and management
• Power savings features and low power consumptions for mobile powered applications
Product specifications
Main chipset
Baseband / MAC: Marvell 88W8385
RF / PA: Marvell 88W8015
Functional Specifications
Standard IEEE802.11b; IEEE 802.11g; IEEE 802.11i compliance
Bus Interface Compact Flash Type I
Data Rate 802.11g compliant: 11, 5.5, 2, 1 (DSSS/CCK); 6, 9, 12, 18, 24, 36, 48,
54 (OFDM) Mbps data rates
Media Access Control CSMA/CA with ACK
Radio Technology 802.11b: DSSS (Direct Sequence Spread Spectrum) / CCK
802.11g: DSSS/CCK, OFDM (Orthogonal Frequency Division
Multiplexing)
Modulation Techniques 802.11b
DSSS:
CCK @ 11, 5.5 Mbps
DQPSK @ 2 Mbps
DBPSK @ 1 Mbps
802.11g
OFDM:
BPSK @ 6, 9 Mbps
QPSK @ 12, 18 Mbps
16-QAM @ 24, 36 Mbps
64-QAM @ 48, 54 Mbps
Network architecture Ad-hoc mode (Peer-to-Peer )
Infrastructure mode
WN3320M-A7 Specification Page 5/5 2006/3/21
LTC Network Access Confidential
Operating Channel
802.11b & g
11: (Ch. 1-11) – N. America
14: (Ch. 1-14) – Japan
13: (Ch. 1-13) – Europe ETSI
Frequency Range
802.11 b & g
2.412 ~ 2.462 GHz – N. America
2.412 ~ 2.484 GHz – Japan
2.412 ~ 2.472 GHz – Europe ETSI
Transmit Output Power 802.11b
10 +-1 dBm (1, 2, 5.5, 11 Mbps) 802.11 g
10 +-1 dBm (6, 9, 12, 18, 24, 36,
48, 54 Mbps)
Receiver Sensitivity
802.11b
@FER<8%
11 Mbps: -85 dBm
5.5 Mbps: -87 dBm
2 Mbps: -89 dBm
1 Mbps: -92 dBm
802.11 g
@PER<10%
54 Mbps: -70 dBm
48 Mbps: -71 dBm
36 Mbps: -75 dBm
24 Mbps: -81 dBm
18 Mbps: -83 dBm
12 Mbps: -84 dBm
9 Mbps: -85 dBm
6 Mbps: -85 dBm
Security 64-bit, 128-bit WEP, AES, 802.11i compliance
Operating Voltage 3.3 V ±5% I/O supply voltage
OS supported WinCE 4.2, 5.0, Linux
Power Consumption 802.11b
Rx: 3.3V / 270 mA
Tx: 3.3V / 435 mA
Standby: 3.3V / 240 mA
802.11g
Rx: 3.3V / 270 mA
Tx: 3.3V / 460 mA
Standby: 3.3V / 240 mA
Antenna Type 1 RF connector + 1 PIFA omni-oriented antenna
*Enviromental factors dependent

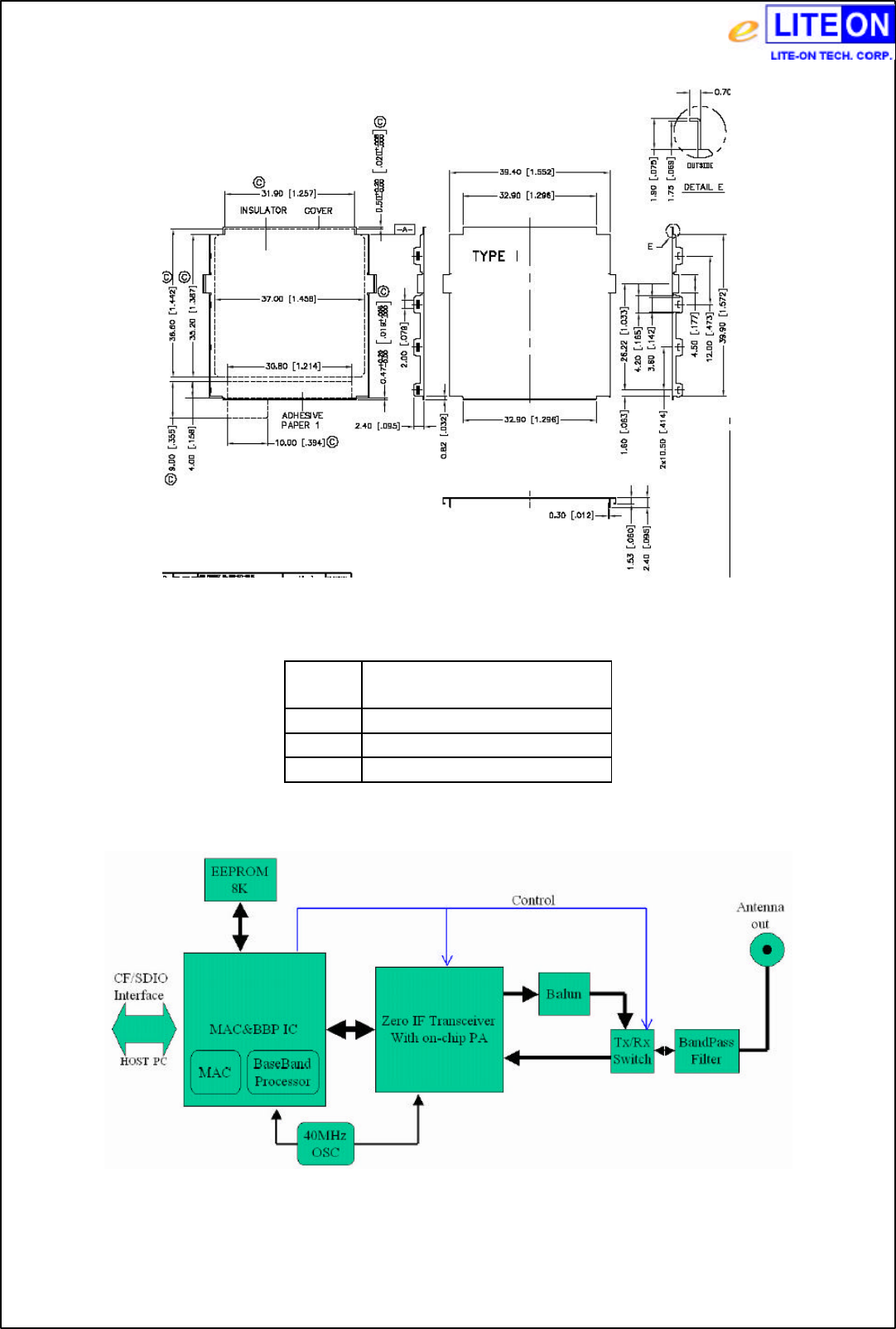

Mechanical
Dimensions (Length x Width x Height):
61.0 x 42.8 x 3.30 mm (2.40” x 1.68” x 0.130”)
Weight: TBD
WN3320M-A7 Specification Page 6/6 2006/3/21
LTC Network Access Confidential
LED Definition
LINK / ACT
(Green)
OFF All other states
ON Link
Blink Data Transmitting
Block Diagram
WN3320M-A7 Specification Page 7/7 2006/3/21
LTC Network Access Confidential
ENVIRONMENTAL
Operating
Operating Temperature: 0 to 45 °C (32 to 131 °F)
Relative Humidity: 5-90% (non-condensing)
Storage
Temperature: -20 to 70 °C (-4 to 158 °F)
Relevant Humidity: 5-95% (non-condensing)
WN3320M-A7 Specification Page 8/8 2006/3/21
LTC Network Access Confidential
FCC STATEMENT
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
LITE-ON declares that WN3320M-A7 ( FCC ID: CWU-CF80211G ) is
limited in CH1~CH11 for 2.4 GHz by specified firmware controlled in
U.S.A.
WN3320M-A7 Specification Page 9/9 2006/3/21
LTC Network Access Confidential
This device is intended only for OEM integrators under the following
conditions:
1) The transmitter module may not be co-located with any other transmitter
or antenna.
As long as conduction above is met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this
module installed (for example, PDA, Tablet PC… etc.).
IMPORTANT NOTE:
In the event that these conditions cannot be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not be used
on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following:
“Contains TX FCC ID: CWU-CF80211G”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end
user regarding how to install or remove this RF module in the users manual of
the end product which integrate this module.
The users manual for OEM integrators must include the following information
in a prominent location “ IMPORTANT NOTE: To comply with FCC RF
exposure compliance requirements. The antenna must not be co-located or
operating in conjunction with any other antenna.
WN3320M-A7 Specification Page 10/10
2006/3/21
LTC Network Access Confidential
CANADA-INDUSTRY CANADA (IC)
IC statement
Operation is subject to the following two conditions:
1)This device may not cause interference and
2)This device must accept any interference, including interference that may
cause undesired operation of the device.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with IC RF exposure
compliance requirements, please avoid direct contact to the transmitting
antenna during transmitting.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
