ANHUI KONKA ELECTRONIC E4SFT5517 LCD TV User Manual

ANHUI KONKA ELECTRONIC CO., LTD LCD TV

User Manual

INSTRUCTION MANUALPlease read all the instructions carefully before using this TV, and keep the manual for future reference. LCD TVE4SFT5517Please refer to the actual product

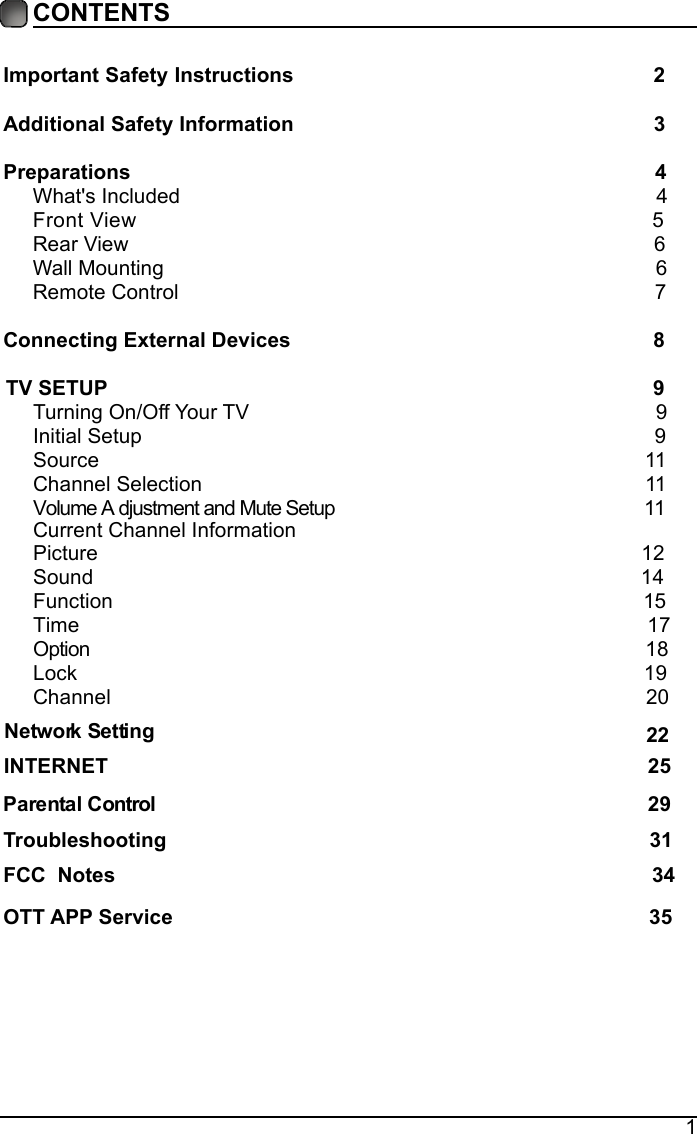

1CONTENTSImportant Safety Instructions 2Additional Safety Information 3Preparations 4What's Included 4 FrontView 5 Rear View 6Wall Mounting 6Remote Control 7Connecting External Devices 8 TV SETUP 9Turning On/Off Your TV 9Initial Setup 9Source 11Channel Selection 11VCurrent Channel Informationolume A djustment and Mute Setup 11 Picture 12Sound 14Function 15 Time 17 Option 18Lock 19Channel 20 Network Setting INTERNET 25 22Parental Control 29 Troubleshooting 31FCC Notes 34OTT APP Service 35

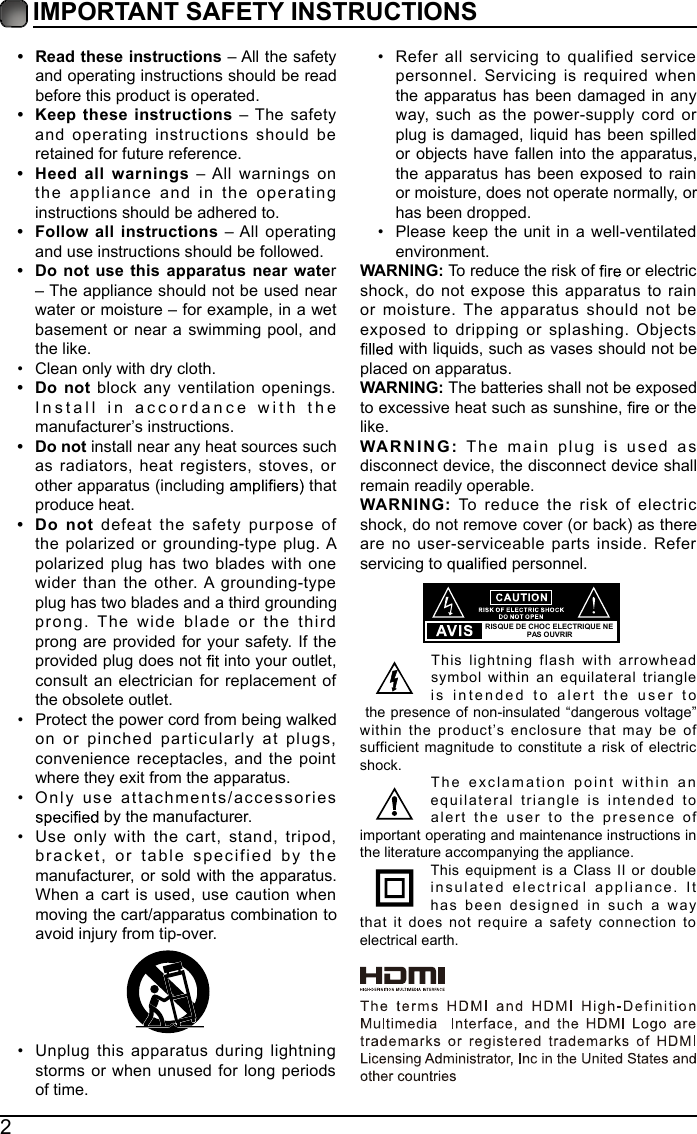

2IMPORTANT SAFETY INSTRUCTIONS• Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. • Follow all instructions – All operating and use instructions should be followed. • Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.• Clean only with dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not into your outlet, consult an electrician for replacement of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• Only use attachments/accessories by the manufacturer.• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time.• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• Please keep the unit in a well-ventilated environment.WARNING: To reduce the risk of or electric shock, do not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing. Objects with liquids, such as vases should not be placed on apparatus. WARNING: The batteries shall not be exposed to excessive heat such as sunshine, or the like.WARNING: The main plug is used as disconnect device, the disconnect device shall remain readily operable.WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to personnel.This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

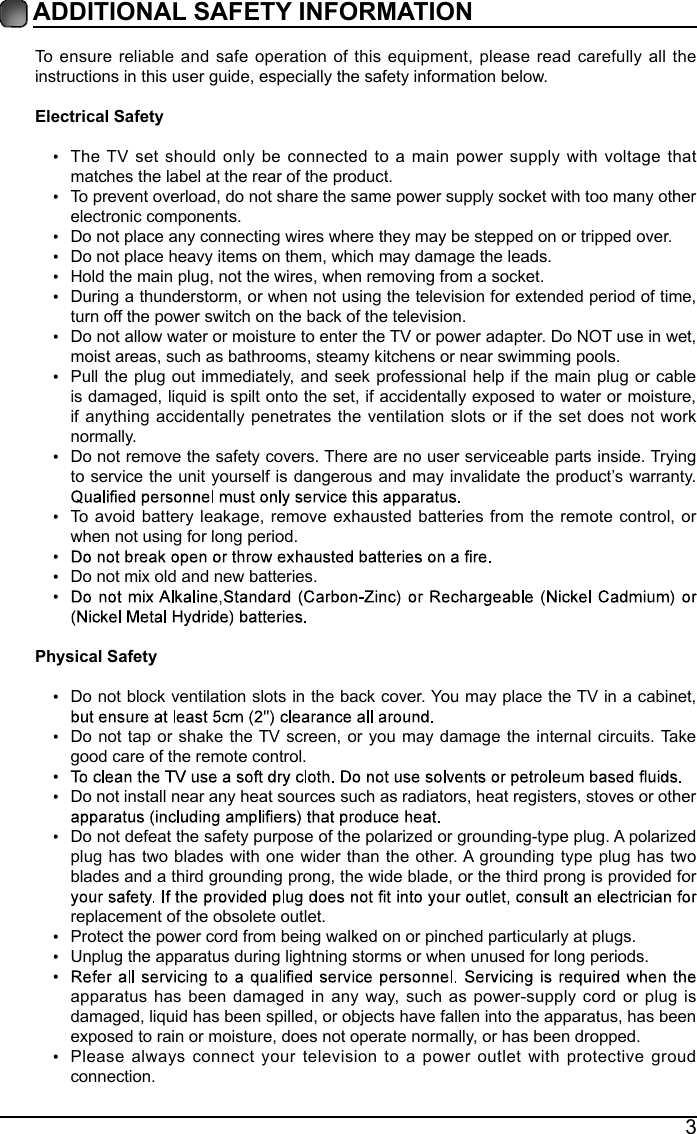

3ADDITIONAL SAFETY INFORMATION To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below.Electrical Safety The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.To prevent overload, do not share the same power supply socket with too many other electronic components.Do not place any connecting wires where they may be stepped on or tripped over.Do not place heavy items on them, which may damage the leads.Hold the main plug, not the wires, when removing from a socket.During a thunderstorm, or when not using the television for extended period of time, turn off the power switch on the back of the television.Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid is spilt onto the set, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the set does not work normally.Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit yourself is dangerous and may invalidate the product’s warranty. To avoid battery leakage, remove exhausted batteries from the remote control, or when not using for long period.Do not mix old and new batteries.Physical Safety Do not block ventilation slots in the back cover. You may place the TV in a cabinet, Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.Do not install near any heat sources such as radiators, heat registers, stoves or other Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, the wide blade, or the third prong is provided for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs. Unplug the apparatus during lightning storms or when unused for long periods.apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled, or objects have fallen into the apparatus, has been exposed to rain or moisture, does not operate normally, or has been dropped.Please always connect your television to a power outlet with protective groud connection.

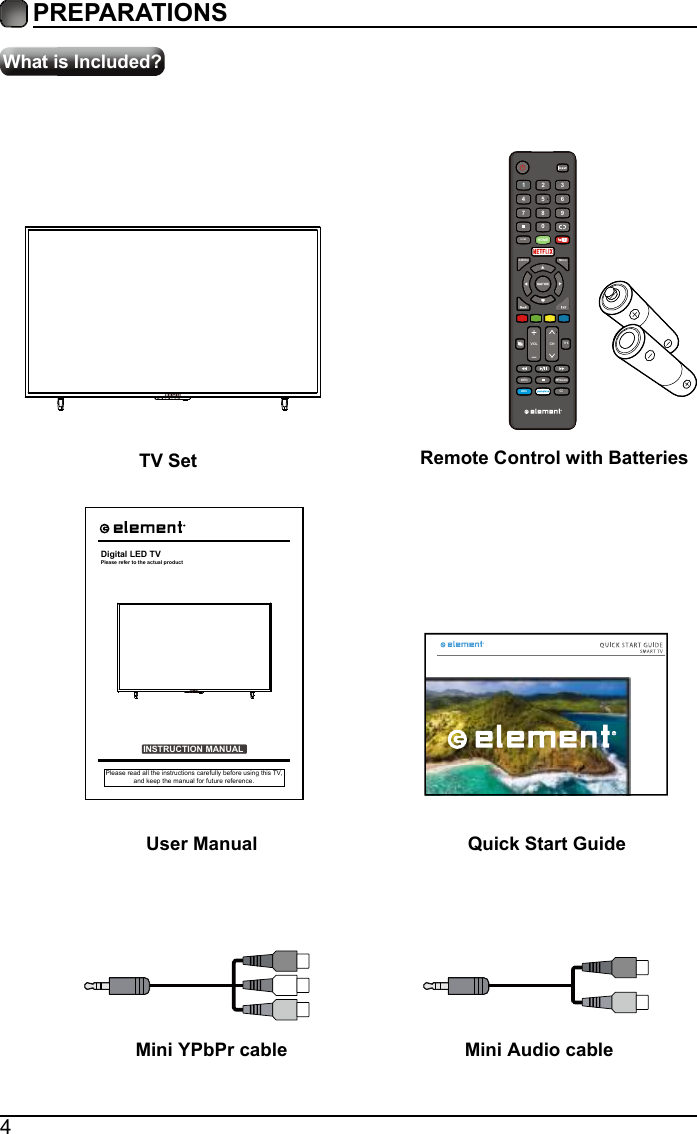

4What is Included?PREPARATIONS TV Set Remote Control with BatteriesUser ManualMini YPbPr cable Mini Audio cableQuick Start GuideINSTRUCTION MANUALPlease read all the instructions carefully before using this TV,and keep the manual for future reference.Digital LED TVPlease refer to the actual productInput07894561 2 3Q.MENUMenuExitBack VOL CHTTSINFOMTVUDUS/AudioCCList HOME

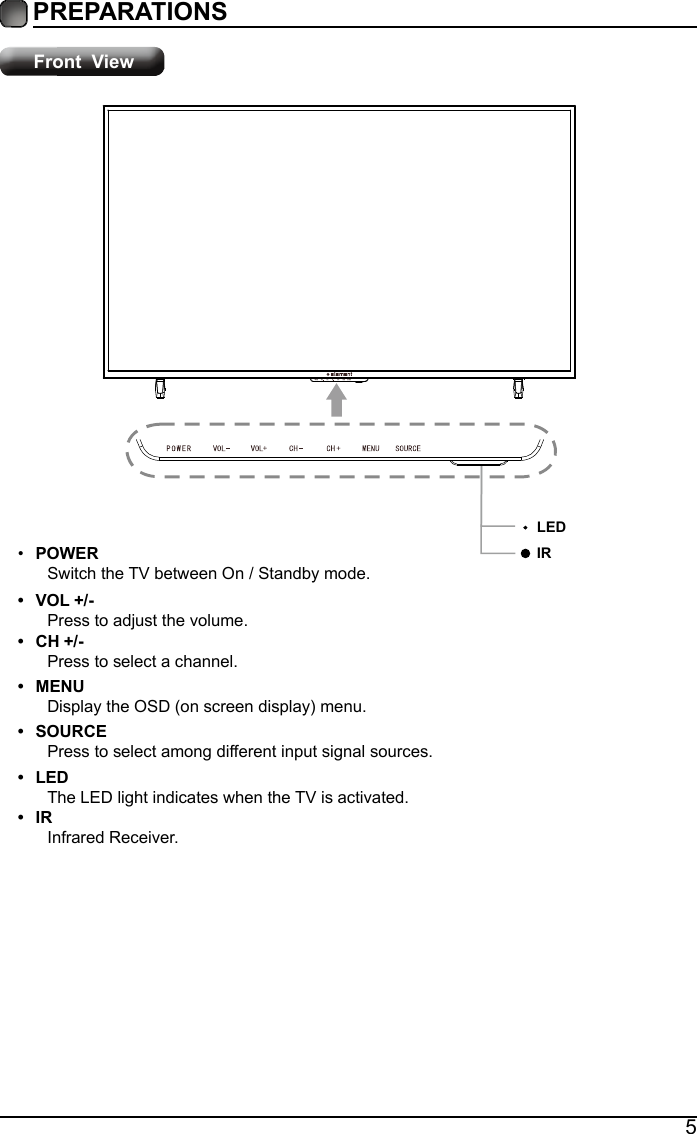

5PREPARATIONS Front View•SOURCEPress to select among different input signal sources.•MENUDisplay the OSD (on screen display) menu.•CHPress to select a channel.•VOL +/- +/-Press to adjust the volume.•LEDThe LED light indicates when the TV is activated.•IRInfrared Receiver.POWER• Switch the TV between On / Standby mode.LEDIR

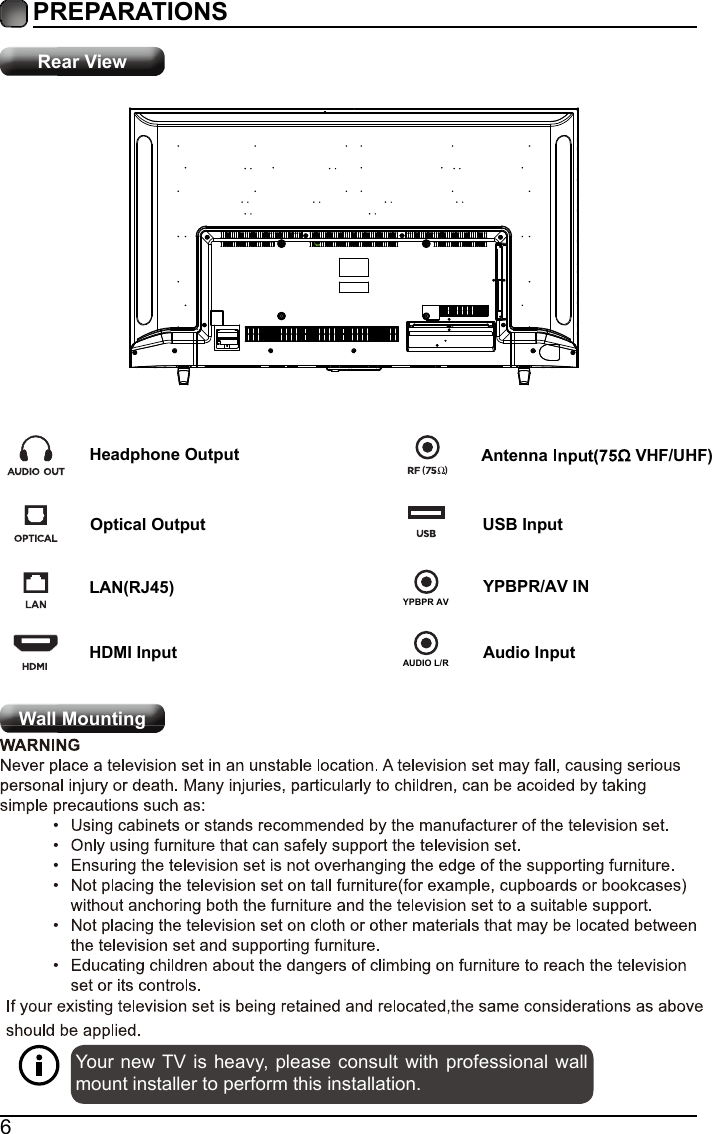

6PREPARATIONS Rear ViewYour new TV is heavy, please consult with professional wall mount installer to perform this installation. Wall MountingHeadphone OutputHDMI InputAntenna VHF/UHF)Optical Output USB InputAudio InputYPBPR AVAUDIO L/RYPBPR/AV INLAN(RJ45)

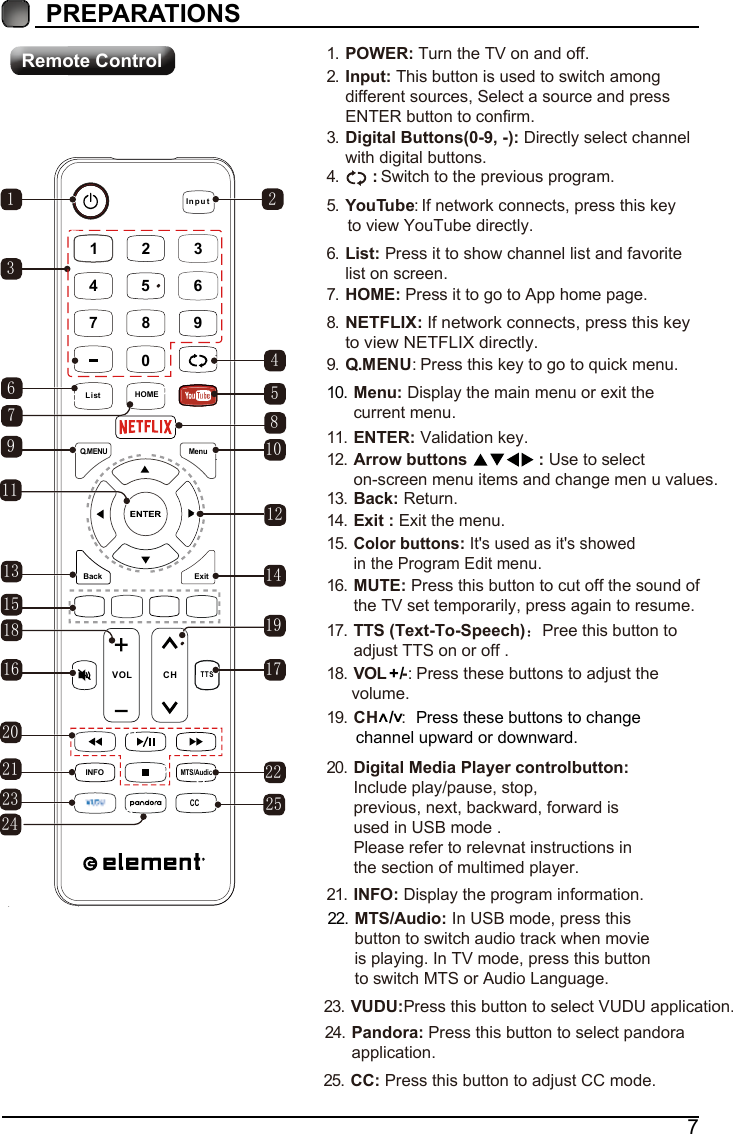

7PREPARATIONS Remote ControlInputHOME0789456123Q.MENU MenuExitBack VOL CHTTSINFOMTS/AudioCCLHOMEist311913162324181561274512101722191425820211. POWER: Turn the TV on and off.2. Input: This button is used to switch amongdifferent sources, Select a source and pressENTER button to confirm.3. Digital Buttons(0-9, -): Directly select channelwith digital buttons.4. Switch to the previous program.:5. : If network connects, press this keyto view YouTube directly.YouTube6. List: Press it to show channel list and favoritelist on screen.7. HOME: Press it to go to App home page.8.NETFLIX: If network connects, press this keyto view NETFLIX directly.9.: Press this key to go to quick menu.Q.MENU10. Menu: Display the main menu or exit thecurrent menu.11. ENTER: Validation key.12. Arrow buttons : Use to selecton-screen menu items and change men u values. 13. Back: Return.14. Exit : Exit the menu.15.Color buttons: It's used as it's showedin the Program Edit menu.16. MUTE: Press this button to cut off the sound ofthe TV set temporarily, press again to resume.17. TTS (Text-To-Speech) Pree this button toadjust TTS on or off .18. : Press these buttons to adjust thevolume.VOL-+/19.:CH / Press these buttons to changechannel upward or downward.20. Digital Media Player controlbutton:Include play/pause, stop,previous, next, backward, forward isused in USB mode .Please refer to relevnat instructions inthe section of multimed player.21. INFO: Display the program information.MTS/Audio: In USB mode, press thisbutton to switch audio track when movieis playing. In TV mode, press this buttonto switch MTS or Audio Language.22. 23. VUDU:Press this button to select VUDU application.24. Pandora: Press this button to select pandoraapplication.25. CC: Press this button to adjust CC mode.

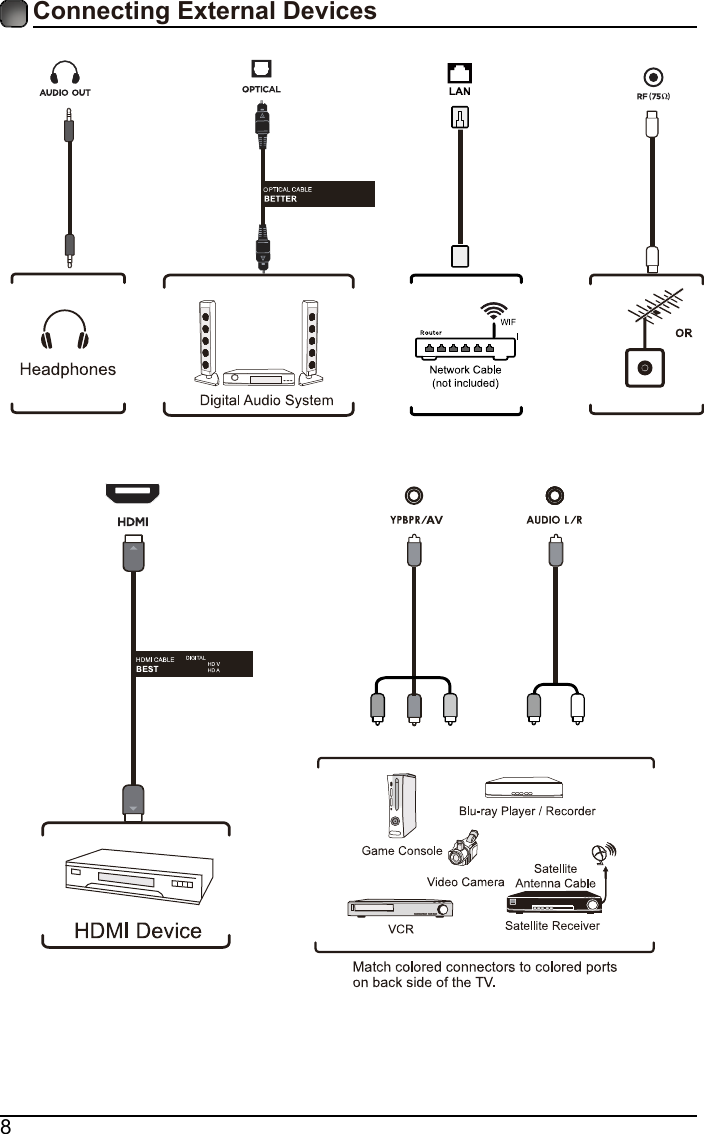

8Connecting External Devices

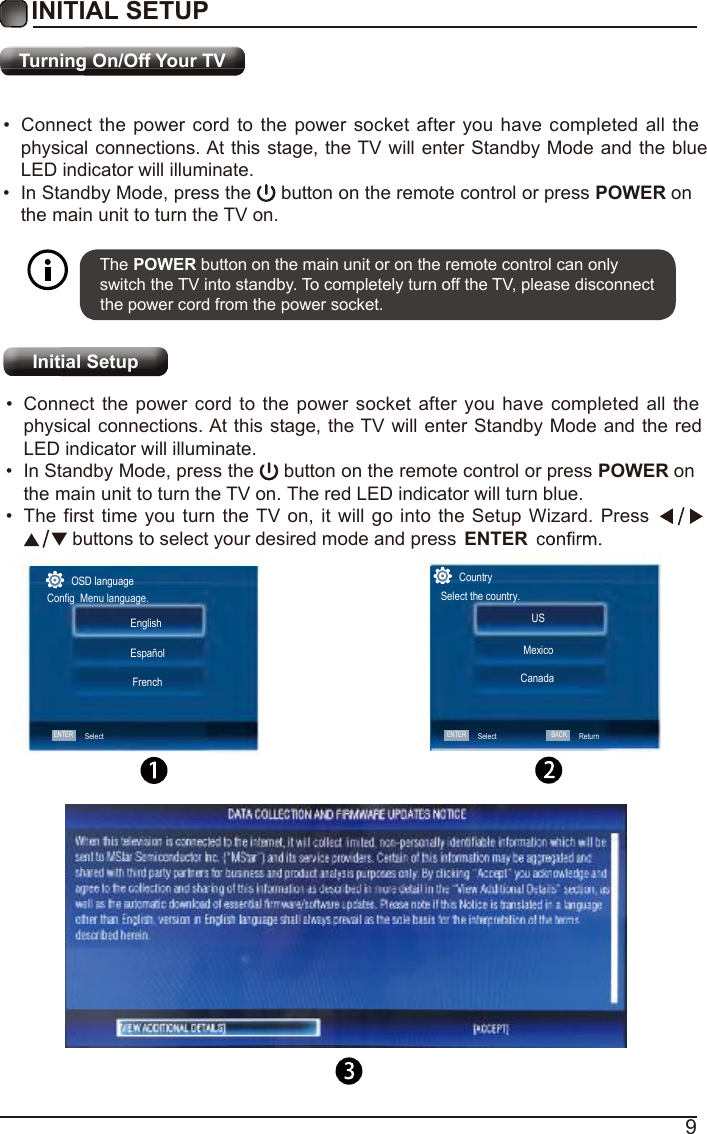

9Turning On/Off Your TV•Connect the power cord to the power socket after you have completed all thephysical connections. At this stage, the TV will enter Standby Mode and the blueLED indicator will illuminate.•In Standby Mode, press the button on the remote control or press POWER on the main unit to turn the TV on.The POWER button on the main unit or on the remote control can only switch the TV into standby. To completely turn off the TV, please disconnect the power cord from the power socket. Initial Setup•Connect the power cord to the power socket after you have completed all thephysical connections. At this stage, the TV will enter Standby Mode and the redLED indicator will illuminate.•In Standby Mode, press the button on the remote control or press POWER on the main unit to turn the TV on. The red LED indicator will turn blue.•The first time you turn the TV on, it will go into the Setup Wizard. Press buttons to select your desired mode and press ENTEROSD languageConfig Menu language.ENTERSelectEnglish FrenchEspañolCountrySelect the country.USCanadaMexicoSelectENTER BACKReturnINITIAL SETUP

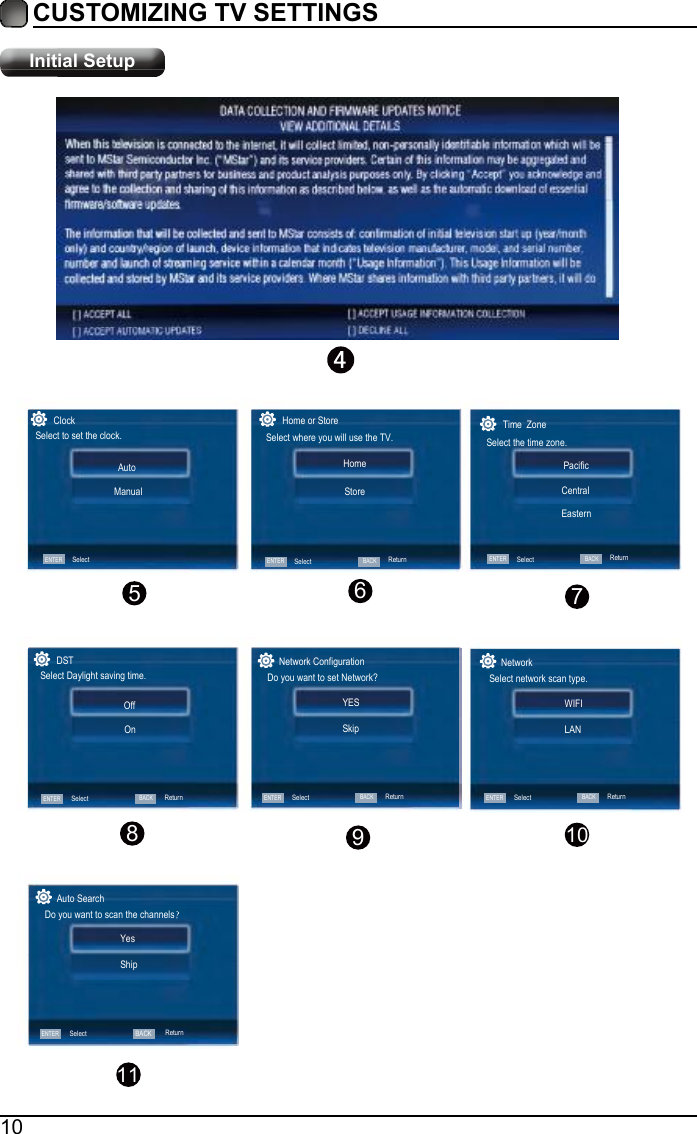

10CUSTOMIZING TV SETTINGSInitial SetupHome or StoreSelect where you will use the TV.StoreHomeENTERSelectBACKReturn6Time ZoneSelect the time zone.EasternCentralPacificENTERSelectBACKReturn7DSTSelect Daylight saving time.OnOffReturnENTERSelectBACK89ReturnENTERSelectBACKYESSkipNetwork ConfigurationDo you want to set Network?10ReturnENTERSelectBACKWIFILANNetwork Select network scan type.5SelectClockSelect to set the clock.ManualAutoENTER11BABCK ReturnENTERSelectYesShipAuto SearchDo you want to scan the channelsBACK

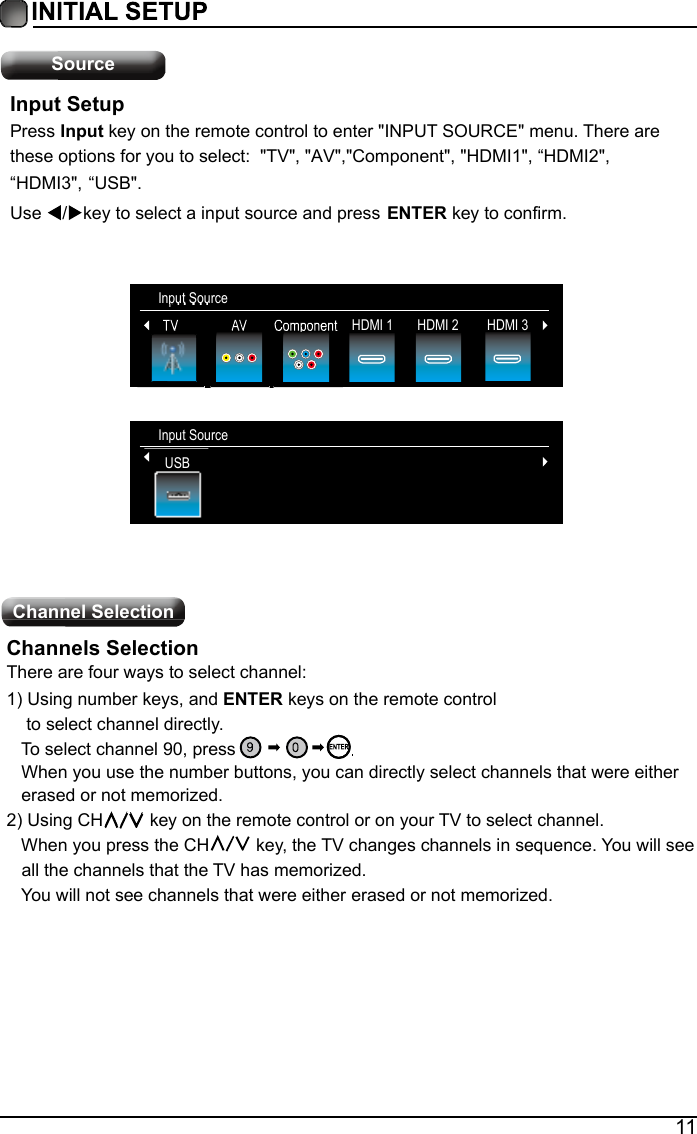

11SourceChannel Selection Input SourceTV HDMI 2 HDMI 3AV Component HDMI 1Input SetupPress Input key on the remote control to enter "INPUT SOURCE" menu. There are these options for you to select: "TV", "AV","Component", "HDMI1", “HDMI2", “HDMI3", Use / key to select a input source and press ENTER key to confirm.Channels SelectionThere are four ways to select channel:1)Using number keys, and ENTER keys on the remote control to select channel directly. To select channel 90, press When you use the number buttons, you can directly select channels that were either erased or not memorized. 2)Using CH key on the remote control or on your TV to select channel. When you press the CH key, the TV changes channels in sequence. You will see all the channels that the TV has memorized. You will not see channels that were either erased or not memorized. Input SourceUSBUSB“USB".

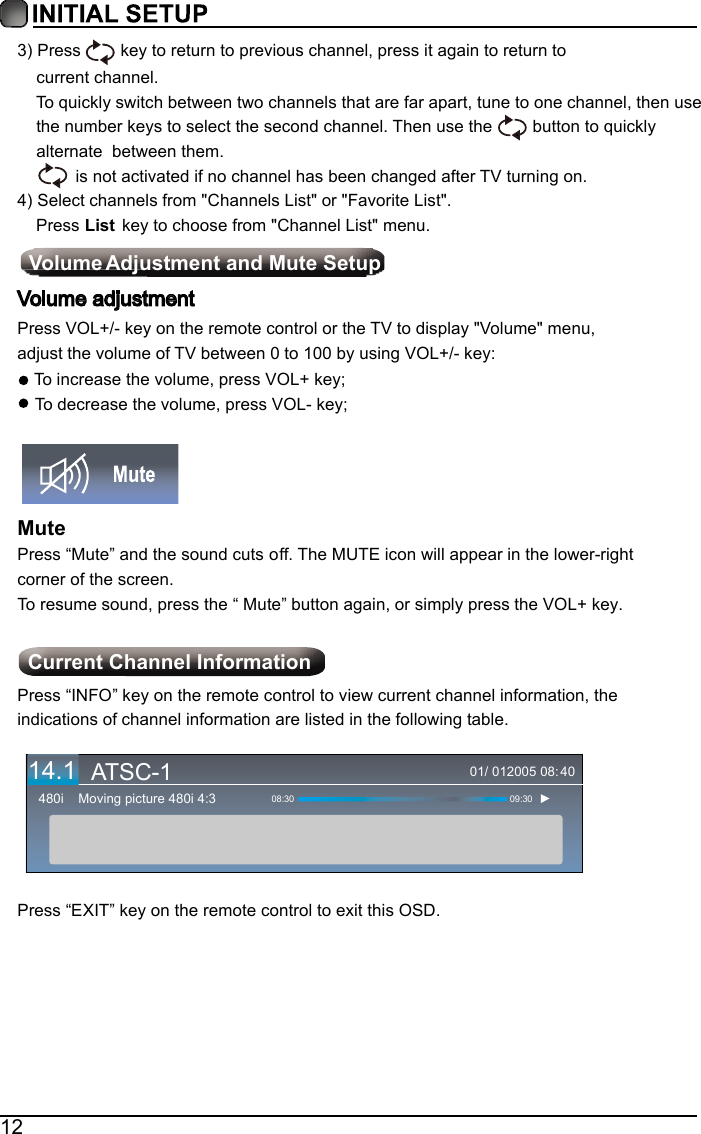

123)Press key to return to previous channel, press it again to return tocurrent channel.To quickly switch between two channels that are far apart, tune to one channel, then usethe number keys to select the second channel. Then use the button to quickly alternate between them..no gninrut VT retfa degnahc neeb sah l ennahc on fi detavitca ton s i 4)Select channels from "Channels List" or "Favorite List". Press List key to choose from "Channel List" menu. Volume Adjustment and Mute SetupVolume adjustmentPress VOL+/- key on the remote control or the TV to display "Volume" menu, adjust the volume of TV between 0 to 100 by using VOL+/- key:To increase the volume, press VOL+ key;To decrease the volume, press VOL- key;MutePress “Mute” and the sound cuts off. The MUTE icon will appear in the lower-right corner of the screen.To resume sound, press the “ Mute” button again, or simply press the VOL+ key. Current Channel InformationPress “INFO” key on the remote control to view current channel information, the indications of channel information are listed in the following table.Press “EXIT” key on the remote control to exit this OSD.01/ 012005 08:Moving picture 480i 4:3480i 08:30 09:304014.1 ATSC-1

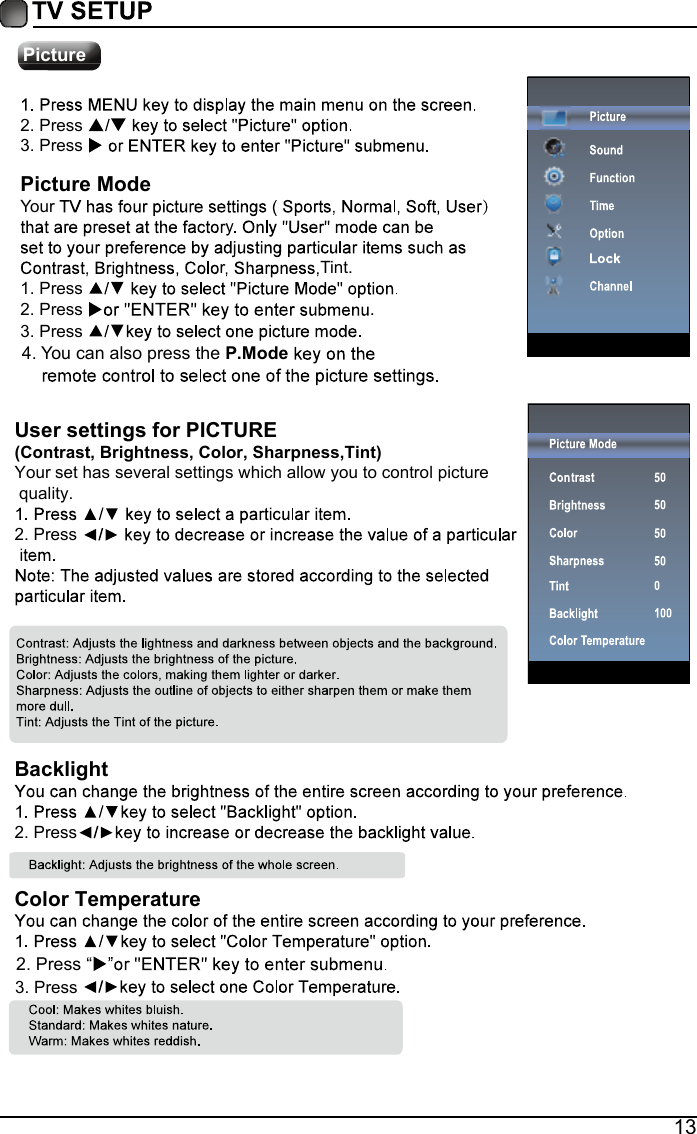

13PictureUser settings for PICTURE (Contrast, Brightness, Color, Sharpness,Tint)Your set has several settings which allow you to control picture quality.2.Press Backlight2.PressColor Temperature3.Press 2.Press “2.Press 3.Press Picture ModeYour yrTint.1.Press2.Press .3.Press 4.You can also press the P.Mode

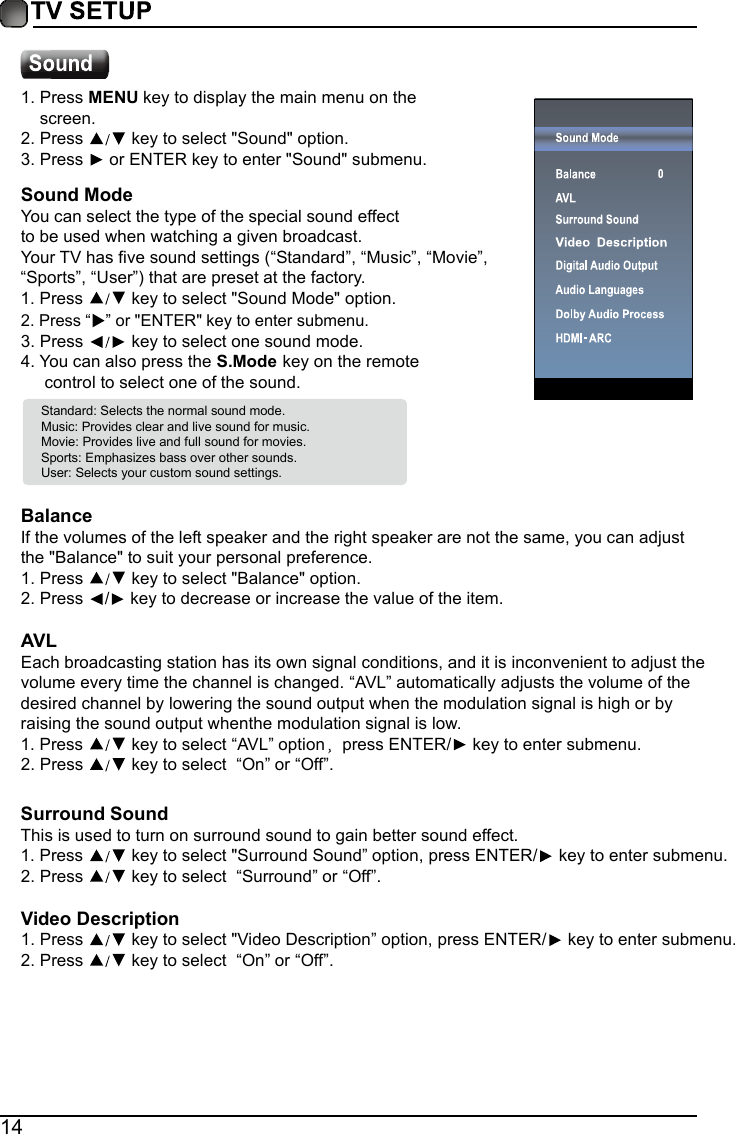

14Standard: Selects the normal sound mode.Music: Provides clear and live sound for music.Movie: Provides live and full sound for movies.Sports: Emphasizes bass over other sounds.User: Selects your custom sound settings. BalanceIf the volumes of the left speaker and the right speaker are not the same, you can adjust the "Balance" to suit your personal preference.1.Press key to select "Balance" option.2.Press / key to decrease or increase the value of the item.AVLEach broadcasting station has its own signal conditions, and it is inconvenient to adjust the volume every time the channel is changed. “AVL” automatically adjusts the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output whenthe modulation signal is low.1.Press key to select “AVL” option press ENTER/ key to enter submenu.2.Press key to select “On” or “Off”.Surround SoundThis is used to turn on surround sound to gain better sound effect.1.Press key to select "Surround Sound” option, press ENTER/ key to enter submenu.2.Press key to select “Surround” or “Off”.Video Description1.Press key to select "Video Description” option, press ENTER/ key to enter submenu.2.Press key to select “On” or “Off”.1.Press MENU key to display the main menu on thescreen.2.Press key to select "Sound" option.3.Press or ENTER key to enter "Sound" submenu.4.You can also press the S.Mode key on the remotecontrol to select one of the sound.Sound ModeYou can select the type of the special sound effect to be used when watching a given broadcast.Your TV has five sound settings (“Standard”, “Music”,“Movie”, “Sports”,“User”) that are preset at the factory. 1.Press key to select "Sound Mode" option.3.Press key to select one sound mode.2.Press “ ” or "ENTER" key to enter submenu.

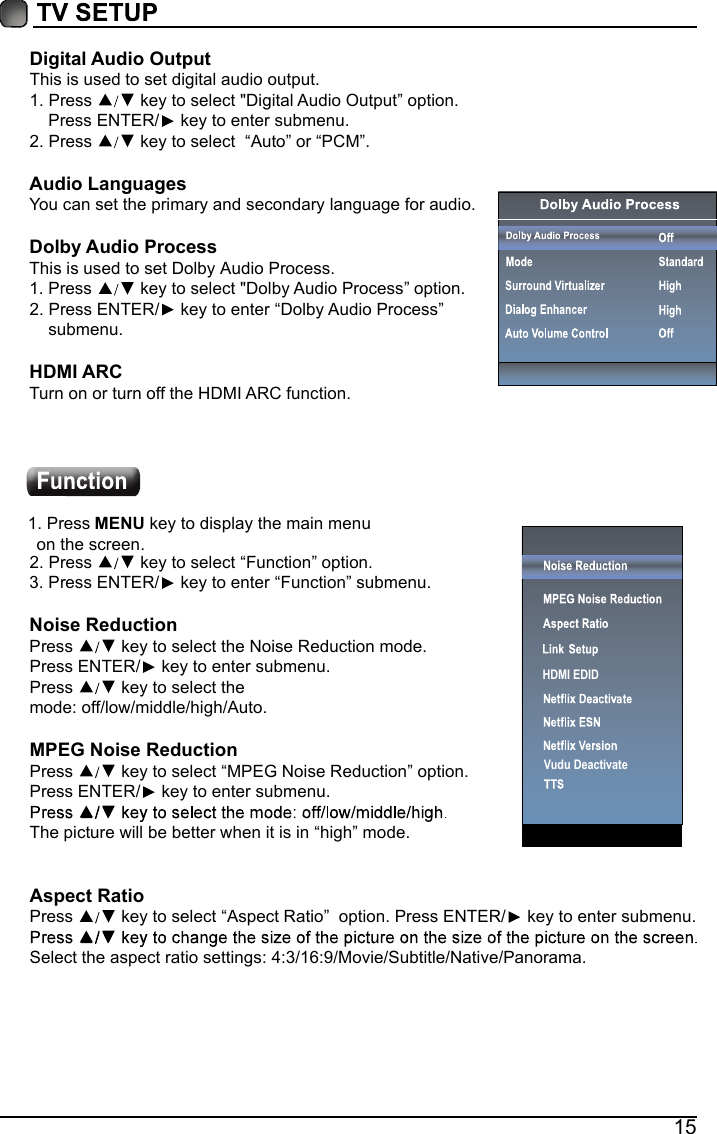

15Digital Audio OutputThis is used to set digital audio output.1.Press key to select "Digital Audio Output” option. Press ENTER/ key to enter submenu. 2.Press key to select “Auto” or “PCM”.Audio LanguagesYou can set the primary and secondary language for audio.Dolby Audio ProcessThis is used to set Dolby Audio Process.1.Press key to select "Dolby Audio Process” option. 2.Press ENTER/ key to enter “Dolby Audio Process”submenu.HDMI ARCTurn on or turn off the HDMI ARC function.1.Press MENU key to display the main menu on the screen.2.Press key to select “Function” option.3.Press ENTER/ key to enter “Function” submenu.Noise Reduction Press key to select the Noise Reduction mode. Press ENTER/ key to enter submenu.Press key to select the mode: off/low/middle/high/Auto. MPEG Noise Reduction Press key to select “MPEG Noise Reduction” option.Press ENTER/ key to enter submenu.The picture will be better when it is in “high” mode.Aspect RatioPress key to select “Aspect Ratio” option. Press ENTER/ key to enter submenu. Select the aspect ratio settings:4:3/16:9/Movie/Subtitle/Native/Panorama.Vudu DeactivateHDMI EDID

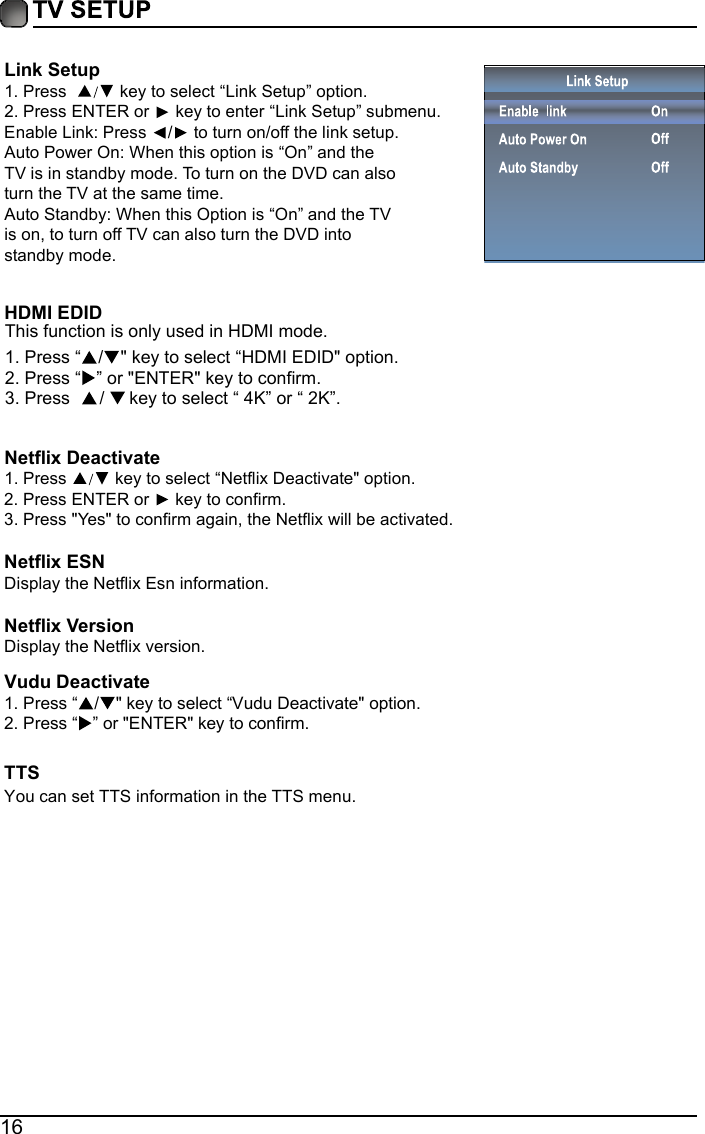

16Link Setup1. Press key to select “Link Setup” option.2. Press ENTER or key to enter “Link Setup” submenu.Enable Link: Press / to turn on/off the link setup.Auto Power On: When this option is “On” and the TV is in standby mode. To turn on the DVD can also turn the TV at the same time.Auto Standby: When this Option is “On” and the TV is on, to turn off TV can also turn the DVD into standby mode. Netflix DeactivateHDMI EDID 1. Press key to select “Netflix Deactivate" option.2. Press ENTER or key to confirm.3. Press "Yes" to confirm again, the Netflix will be activated.Netflix ESNDisplay the Netflix Esn information.Netflix VersionDisplay the Netflix version.TTSYou can set TTS information in the TTS menu. 1. Press “/" key to select “Vudu Deactivate" option.2. Press “ ” or "ENTER" key to confirm.Vudu Deactivate1. Press “This function is only used in HDMI mode./" key to select “HDMI EDID" option.2. Press “ ” or "ENTER" key to confirm.3. Press / key to select “ 4K” or “ 2K”.
171. Press MENU key to display the main menu on the screen.2. Press key to select "Time" option.3. Press ENTER/ key to enter "Time" submenu. Off TimeIn "Off Time” item, press button or ENTER button to enter the submenu, set the day & time to turn off the TV set. On Time In "On Time” item, press button or ENTER button to enter the submenu, set the time to turn on the TV set, when the TV set is in the standby mode. You can also choose which day to control you TV set in a week.Sleep Timer1. Press key to select "Sleep Timer" option,press or ENTER button to enter the submenu.2. Press key repeatedly until the desired time appears (Off, 10mins, 20mins, 30mins, 60mins, 90mins, 120mins, 180mins, 240mins).Notes: The sleep timer you have set will be cancelled when the TV turns off or if a power failure occurs. Notes: When the time is less than 60 seconds, remind information will be displayed on the screen. Press any key button to cancel timer function.Auto SleepPress key to select whether to open the Nosignal Power off features. If this function is opened, the TV will power off in ten minutes when there is no signal.Auto SyncYou can modify the time of your TV set in Manual mode. In Auto mode, the “clock” is decided by the DTV signal.Clock When Auto Sync is on, the clock is got from DTV streams; Set the clock when Auto Sync is off.Time ZoneYou can choose it to modify your time zone in the TV set.1. Press key to select "Time Zone" option,press or ENTER button to enter the submenu.2. Press key to select time zone.02:04

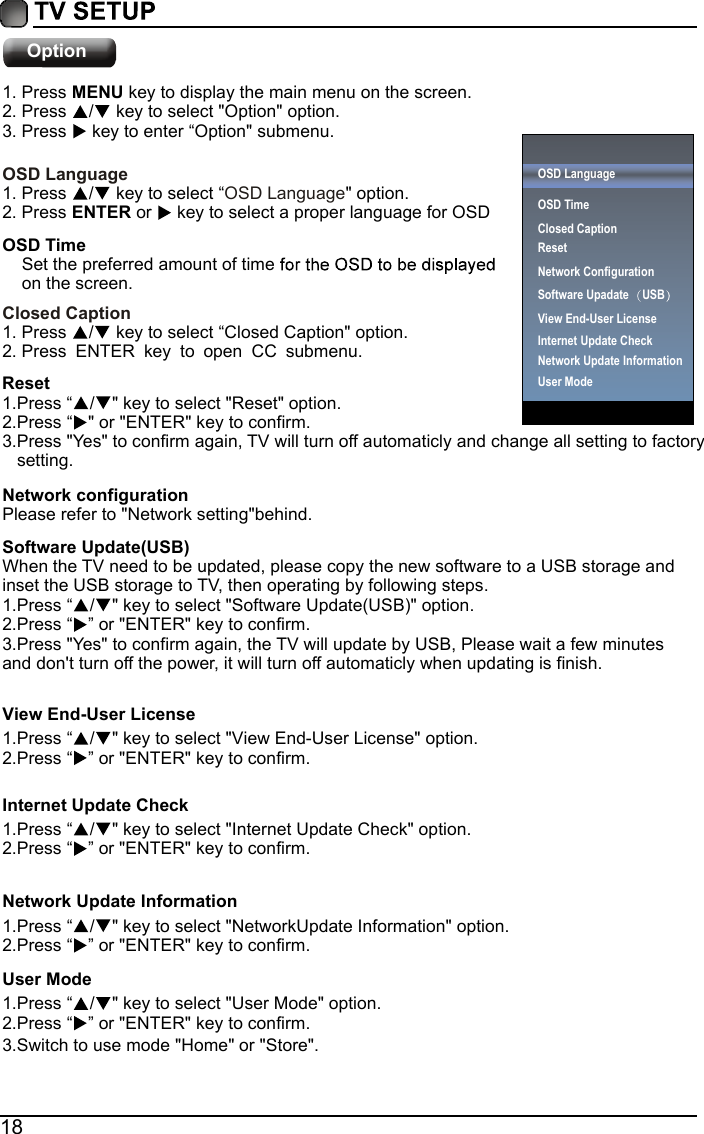

18Option1. Press MENU key to display the main menu on the screen.2. Press / key to select "Option" option. 3. Press key to enter “Option" submenu.OSD LanguageOSD Language1. Press / key to select “" option. 2. Press ENTER or key to select a proper language for OSD OSD Time Set the preferred amount of time on the screen.Closed Caption1. Press / key to select “Closed Caption" option. 2. Press ENTER key to open CC submenu.Reset1.Press “/ " key to select "Reset" option.2.Press “" or "ENTER" key to confirm.3.Press "Yes" to confirm again, TV will turn off automaticly and change all setting to factory setting.Network configurationPlease refer to "Network setting"behind.Software Update(USB)When the TV need to be updated, please copy the new software to a USB storage and inset the USB storage to TV, then operating by following steps.1.Press “/ " key to select "Software Update(USB)" option.2.Press “ ” or "ENTER" key to confirm.View End-User License1.Press “/ " key to select "View End-User License" option.2.Press “ ” or "ENTER" key to confirm.Internet Update Check1.Press “/ " key to select "Internet Update Check" option.2.Press “ ” or "ENTER" key to confirm.Network Update Information1.Press “/ " key to select "NetworkUpdate Information" option.2.Press “ ” or "ENTER" key to confirm.User Mode1.Press “/ " key to select "User Mode" option.2.Press “3.Switch to use mode "Home" or "Store".” or "ENTER" key to confirm.3.Press "Yes" to confirm again, the TV will update by USB, Please wait a few minutes and don't turn off the power, it will turn off automaticly when updating is finish.OSD LanguageOSD Time Closed CaptionResetNetwork ConfigurationSoftware Upadate USB Internet Update CheckView End-User LicenseNetwork Update InformationUser Mode

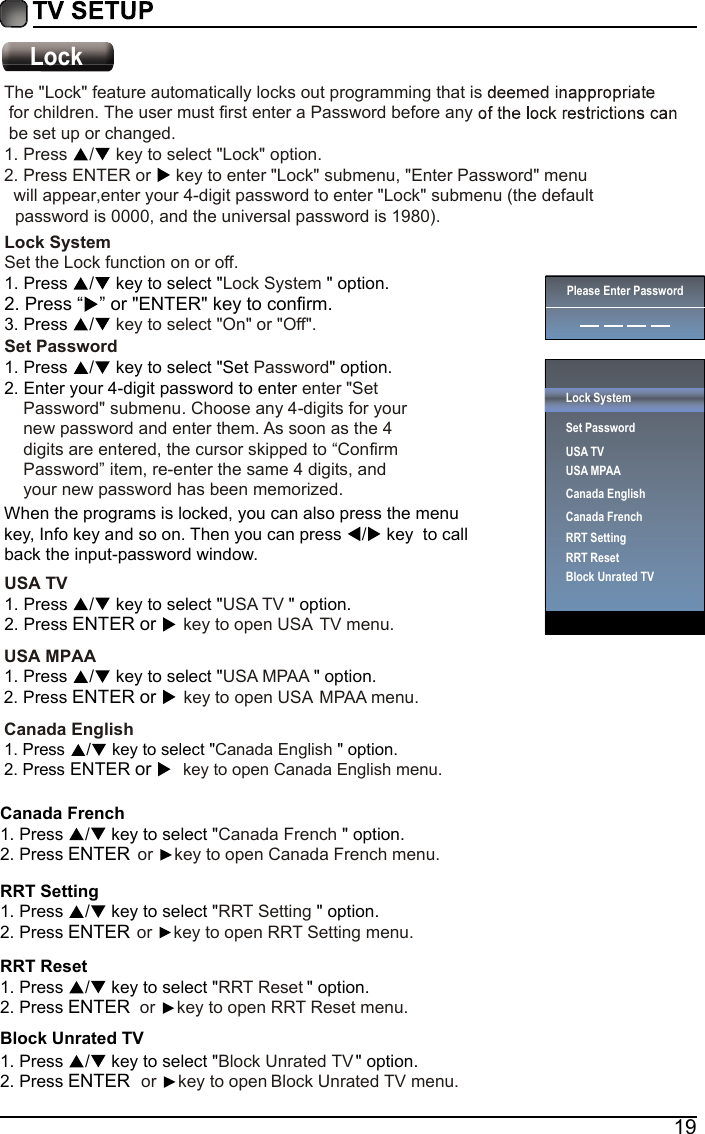

19Canada FrenchCanada French 1. Press / key to select " " option. 2. Press ENTER or key to open Canada French menu.RRT SettingRRT Setting 1. Press / key to select " " option. 2. Press ENTER or key to open RRT Setting menu.RRT ResetBlock Unrated TVRRT Reset 1. Press / key to select " " option. 2. Press ENTER or key to open RRT Reset menu.Block Unrated TV1. Press / key to select " " option. 2. Press ENTER or key to open Block Unrated TV menu.Lock System Set the Lock function on or off.Lock System 1. Press / key to select " " option. 3. Press / key to select "On" or "Off".Set Password Password1. Press / key to select "Set" option. 2. Enter your 4-digit password to enter enter "Set Password" submenu. Choose any 4-digits for your new password and enter them. As soon as the 4 digits are entered, the cursor skipped to “Confirm Password” item, re-enter the same 4 digits, and your new password has been memorized. When the programs is locked, you can also press the menu key, Info key and so on. Then you can press / key to callback the input-password window.USA TV USA TV 1. Press / key to select "" option. 2. Press ENTER or .unem VT ASU nepo ot yek USA MPAA USA MPAA 1. Press / key to select " " option. 2. Press ENTER or key to open USA MPAA menu.LockPlease Enter PasswordLock SystemSet PasswordUSA TVUSA MPAACanada EnglishCanada FrenchRRT SettingRRT ResetBlock Unrated TV2. Press “ ” or "ENTER" key to confirm.Canada EnglishCanada English 1. Press / key to select " " option. 2. Press ENTER or key to open Canada English menu.The "Lock" feature automatically locks out programming that is for children. The user must first enter a Password before any be set up or changed. 1. Press / key to select "Lock" option. 2. Press ENTER or key to enter "Lock" submenu, "Enter Password" menu will appear,enter your 4-digit password to enter "Lock" submenu (the default password is 0000, and the universal password is 1980).

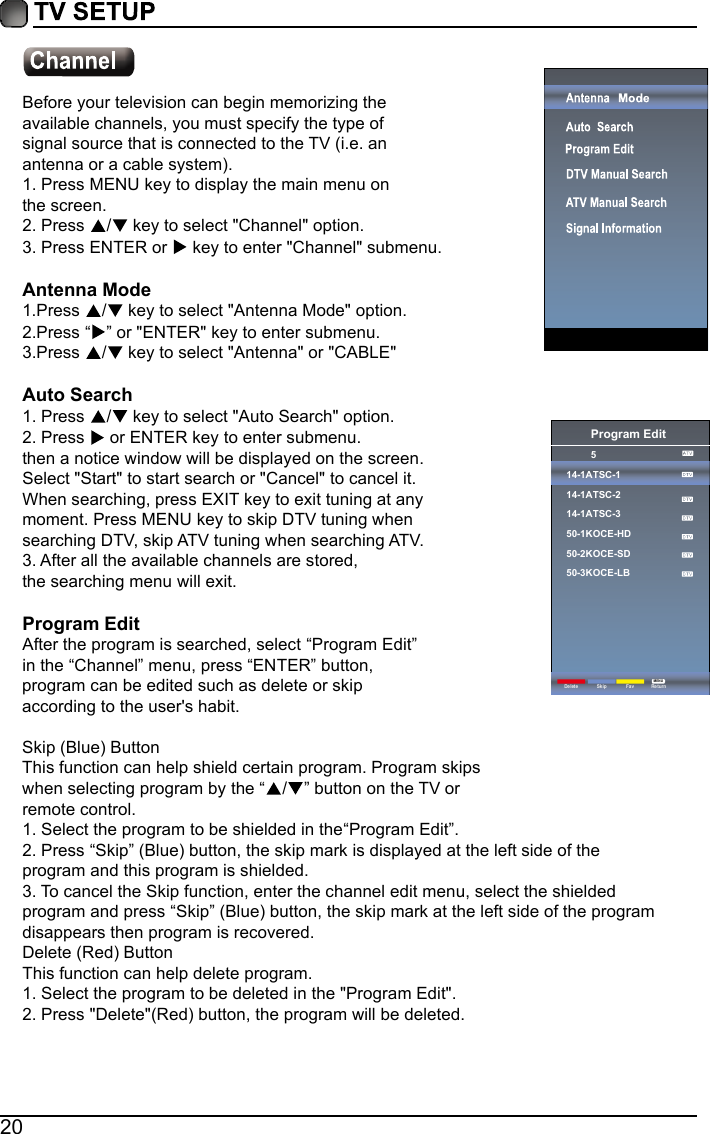

20Before your television can begin memorizing theavailable channels, you must specify the type ofsignal source that is connected to the TV (i.e. anantenna or a cable system).1. Press MENU key to display the main menu onthe screen.2. Press / key to select "Channel" option.3. Press ENTER or key to enter "Channel" submenu.Antenna Mode1.Press / key to select "Antenna Mode" option.2.Press “ ” or "ENTER" key to enter submenu.3.Press / key to select "Antenna" or "CABLE"Auto Search1. Press / key to select "Auto Search" option.2. Press or ENTER key to enter submenu. then a notice window will be displayed on the screen.Select "Start" to start search or "Cancel" to cancel it.When searching, press EXIT key to exit tuning at anymoment. Press MENU key to skip DTV tuning whensearching DTV, skip ATV tuning when searching ATV.3. After all the available channels are stored,the searching menu will exit.Program EditAfter the program is searched, select “Program Edit”in the “Channel” menu, press “ENTER” button,program can be edited such as delete or skipaccording to the user's habit.Skip (Blue) ButtonThis function can help shield certain program. Program skipswhen selecting program by the “/” button on the TV orremote control.1. Select the program to be shielded in the“Program Edit”.2. Press “Skip” (Blue) button, the skip mark is displayed at the left side of theprogram and this program is shielded.3. To cancel the Skip function, enter the channel edit menu, select the shieldedprogram and press “Skip” (Blue) button, the skip mark at the left side of the programdisappears then program is recovered.Delete (Red) ButtonThis function can help delete program.1. Select the program to be deleted in the "Program Edit".2. Press "Delete"(Red) button, the program will be deleted.Program Edit514-1ATSC-114-1ATSC-214-1ATSC-350-1KOCE-HD50-2KOCE-SD50-3KOCE-LBDelete ReturnMENUSkip Fav

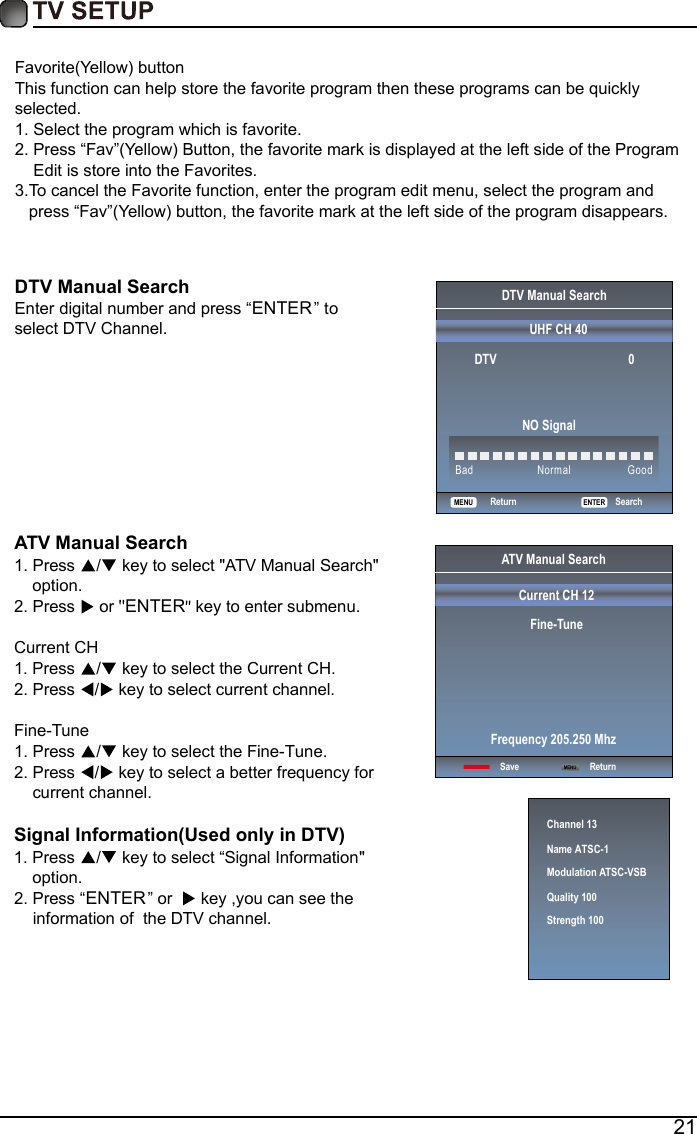

21Favorite(Yellow) buttonThis function can help store the favorite program then these programs can be quickly selected.1. Select the program which is favorite.2. Press “Fav”(Yellow) Button, the favorite mark is displayed at the left side of the Program Edit is store into the Favorites.3.T o cancel the Favorite function, enter the program edit menu, select the program and press “Fav”(Yellow) button, the favorite mark at the left side of the program disappears. DTV Manual Search Enter digital number and press “ENTER” to select DTV Channel. DTV Manual SearchUHF CH 40 ENTER SearchBad NormalGoodDTV 0NO SignalReturnMENUATV Manual Search 1. Press / key to select "ATV Manual Search" option. 2. Press or ENTER key to enter submenu.Current CH 1. Press / key to select the Current CH. 2. Press / key to select current channel.Fine-Tune1. Press / key to select the Fine-Tune. 2. Press / key to select a better frequency for current channel.Signal Information(Used only in DTV)Signal Information1. Press / key to select “" option.2. Press “ENTER”or key ,you can see the i of the DTV channel. nformation ATV Manual SearchCurrent CH 12Fine-TuneSave ReturnFrequency 205.250 MhzMENUChannel 13Name ATSC-1Modulation ATSC-VSBQuality 100Strength 100

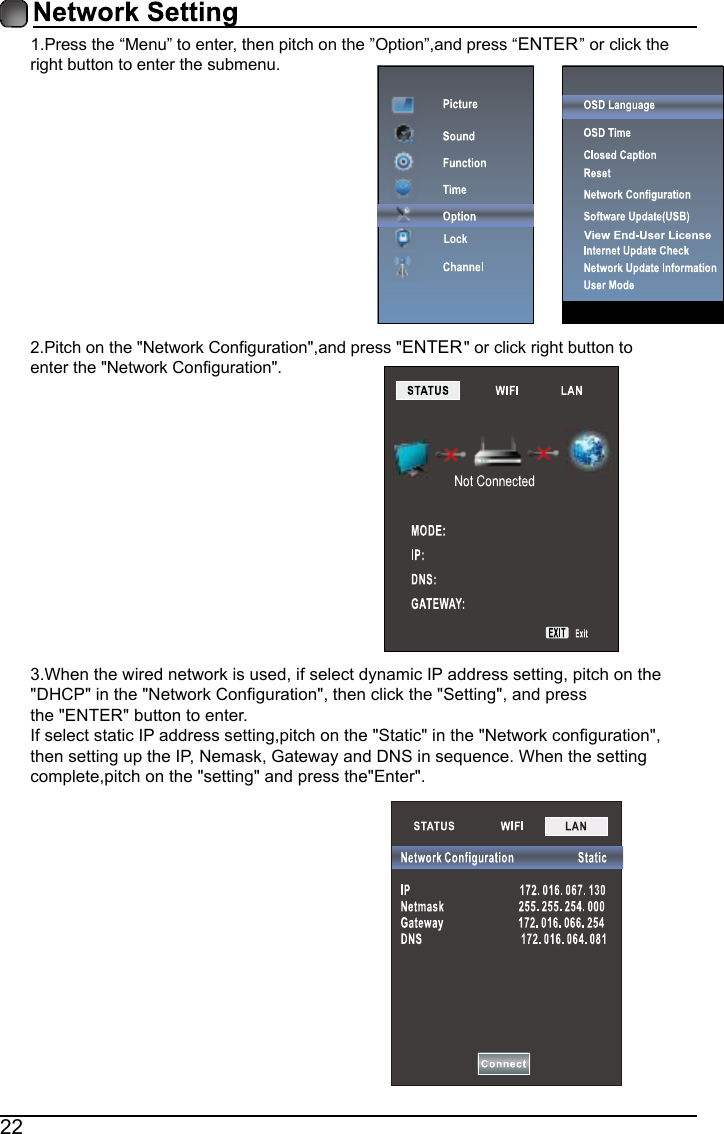

221.Press the “Menu” to enter, then pitch on the ”Option”,and press “ENTER” or click the right button to enter the submenu.2.Pitch on the "Network Configuration",and press "ENTER" or click right button to enter the "Network Configuration".3.When the wired network is used, if select dynamic IP address setting, pitch on the"DHCP" in the "Network Configuration", then click the "Setting", and pressthe "ENTER"button to enter.If select static IP address setting,pitch on the "Static" in the "Network configuration",then setting up the IP,Nemask,Gateway and DNS in sequence.When the settingcomplete,pitch on the "setting" and press the"Enter".Lock

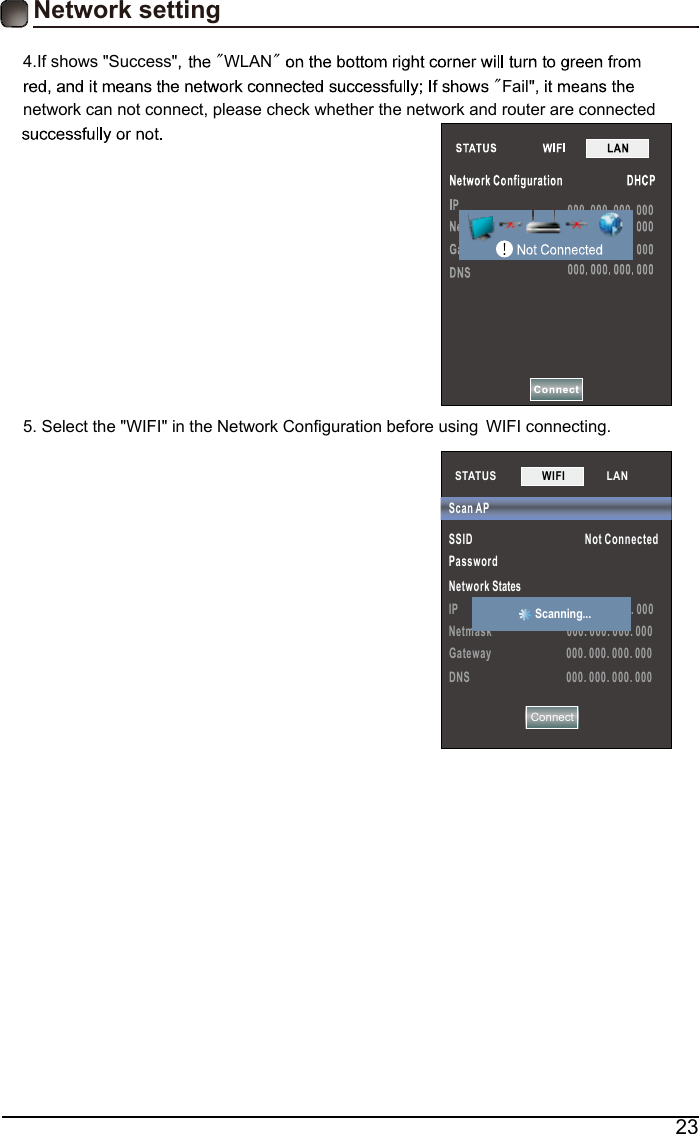

234.If shows "Success" "WLAN""Failnetwork can not connect, please check whether the network and router are connected 5. Select the "WIFI" in the Network Configuration before using WIFI connecting.STATUS SSID Not ConnectedPassword Network StatesIP 000. 000. 000. 000Netmask 000. 000. 000. 000Gateway 000. 000. 000. 000DNS 000. 000. 000. 000Scan APWIFI LAN Scanning... ConnectNetwork setting

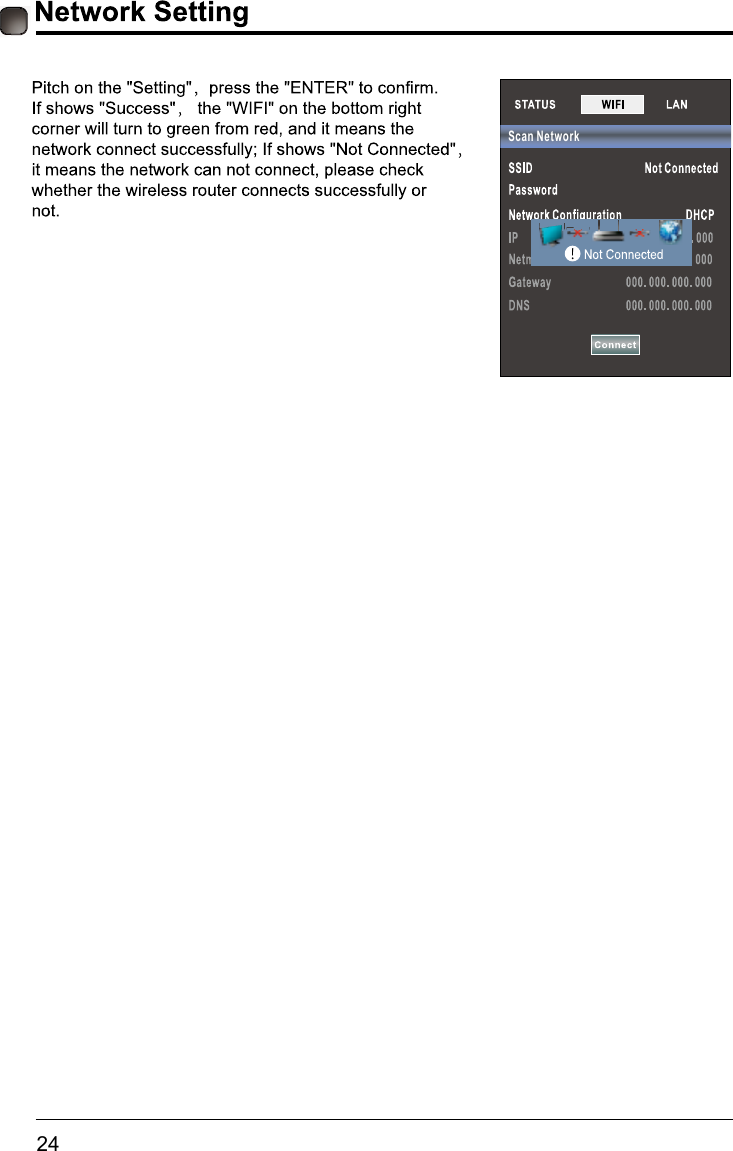

24 Scan Network

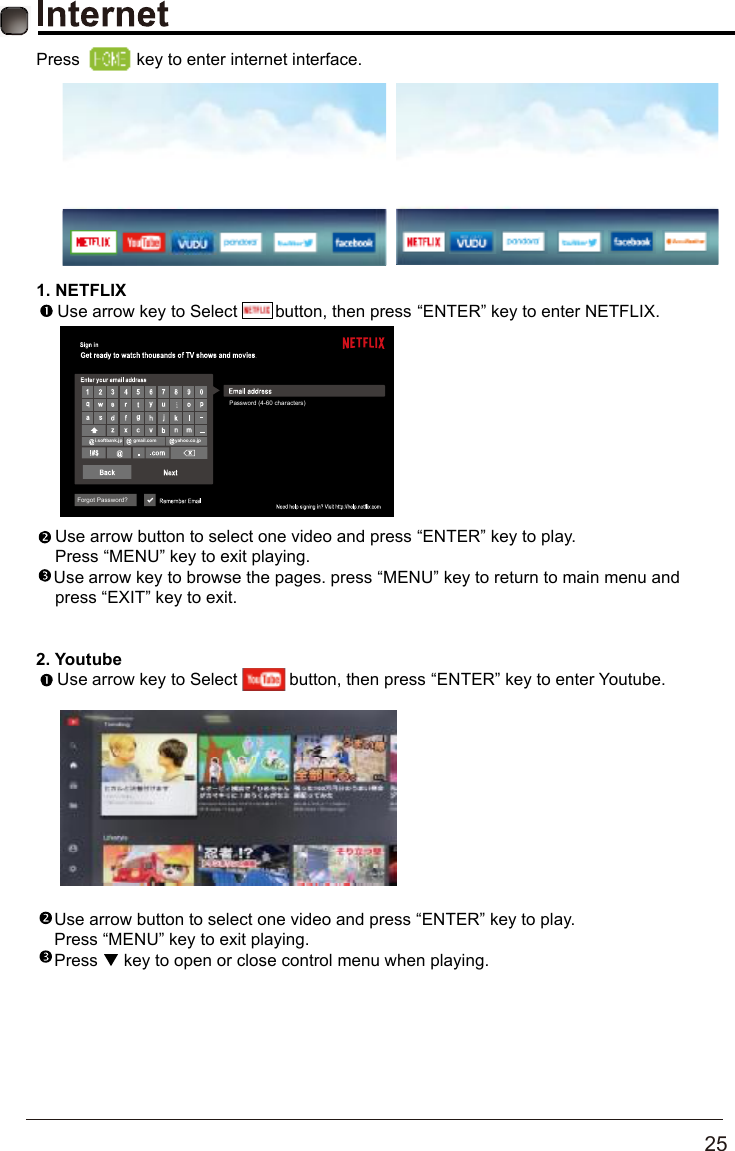

25 Press key to enter internet interface.1.NETFLIXUse arrow key to Select button, then press “ENTER” key to enter NETFLIX. Use arrow button to select one video and press “ENTER” key to play. Press “MENU” key to exit playing.Use arrow key to browse the pages. press “MENU” key to return to main menu and press “EXIT” key to exit.2.YoutubeUse arrow key to Select button, then press “ENTER” key to enter Youtube. Use arrow button to select one video and press “ENTER” key to play. Press “MENU” key to exit playing.Press key to open or close control menu when playing.Forgot Password?i.softbank.jpgmail.comyahoo.co.jpPassword (4-60 characters)

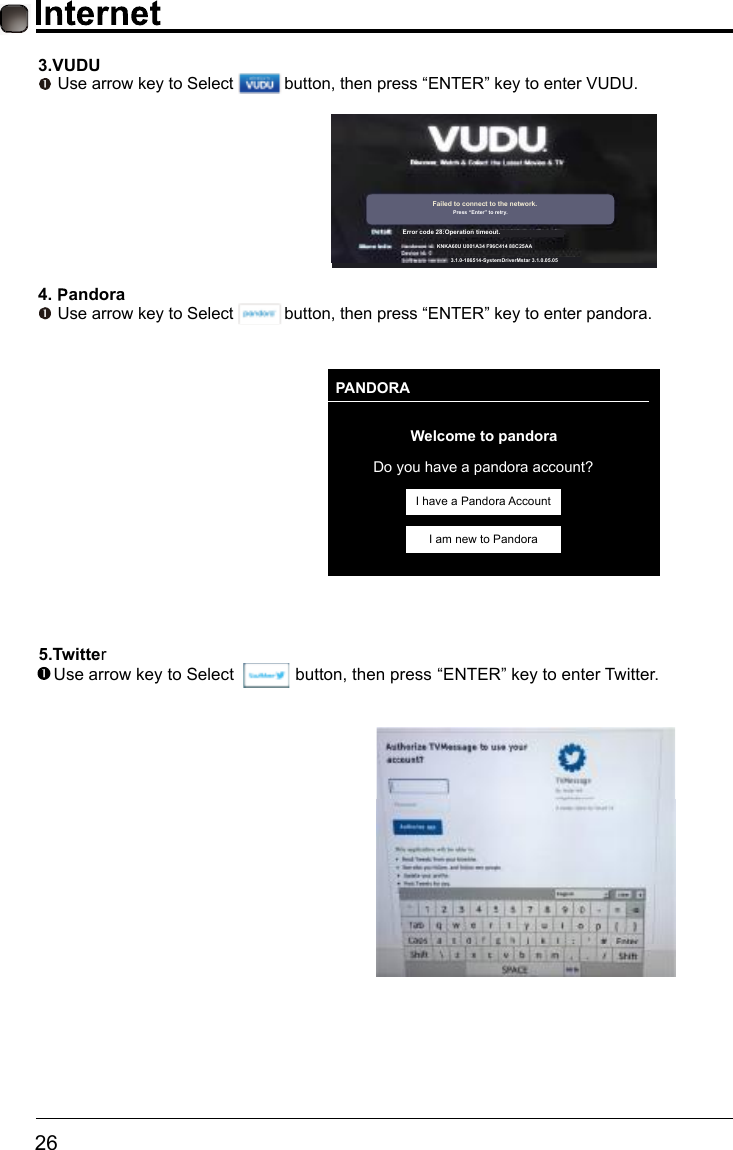

26 5.Twitter Use arrow key to Select button, then press “ENTER” key to enter Twitter.PANDORAWelcome to pandoraDo you have a pandora account?I have a Pandora AccountI am new to Pandora3.VUDU Use arrow key to Select button, then press “ENTER” key to enter VUDU.4. andora Use arrow key to Select button, then press “ENTER” key to enter pandora.KNKA60U U001A34 F96C414 88C25AAError code 28:Operation timeout.Failed to connect to the network.Press “Enter” to retry.3.1.0-186514-SystemDriverMstar 3.1.0.05.05

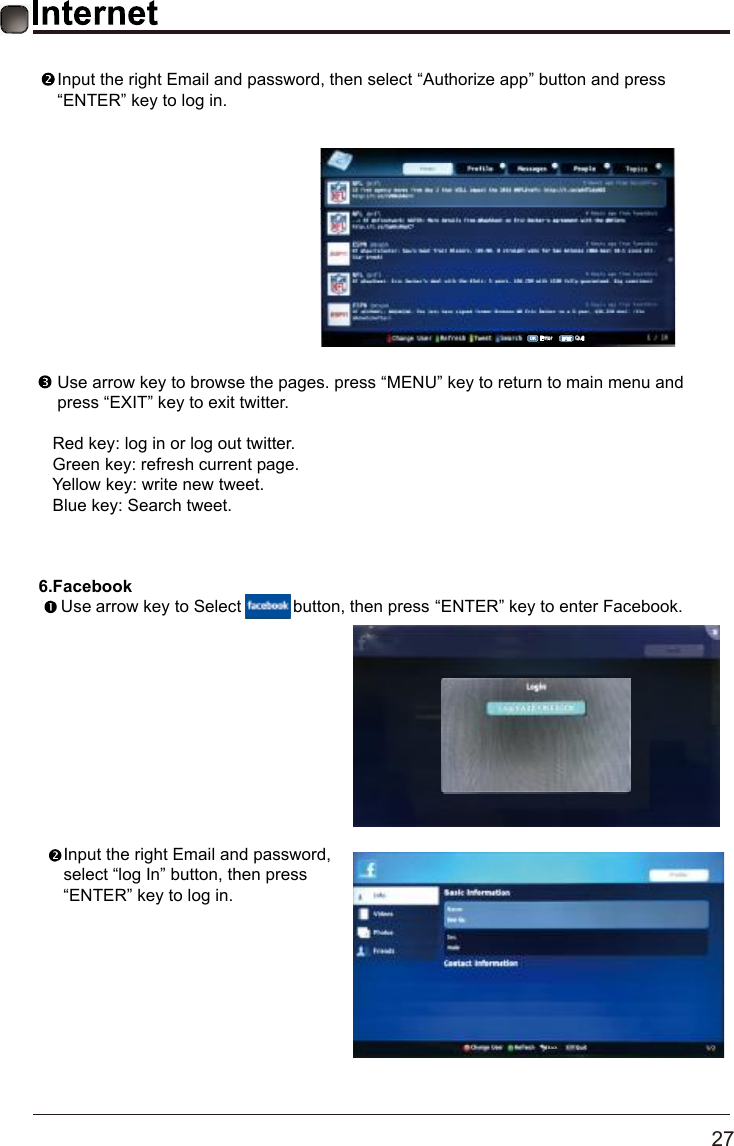

27 6.Facebook Use arrow key to Select button, then press “ENTER” key to enter Facebook.Input the right Email and password,select “log In” button, then press“ENTER” key to log in.Back Input the right Email and password, then select “Authorize app” button and press “ENTER” key to log in. Use arrow key to browse the pages. press “MENU” key to return to main menu and press “EXIT” key to exit twitter. Red key: log in or log out twitter. Green key: refresh current page. Yellow key: write new tweet. Blue key: Search tweet.OK Enter EXIT Quit

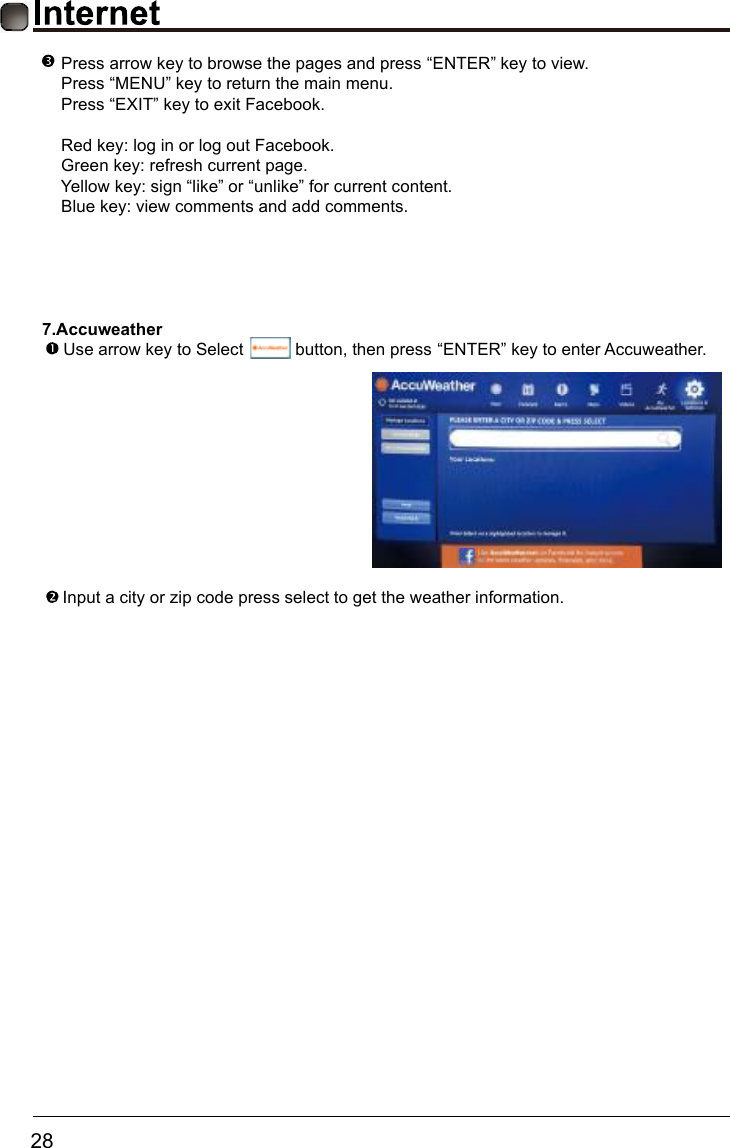

28 7.AccuweatherUse arrow key to Select button, then press “ENTER” key to enter Accuweather.Input a city or zip code press select to get the weather information. Press arrow key to browse the pages and press “ENTER” key to view. Press “MENU” key to return the main menu. Press “EXIT” key to exit Facebook. Red key: log in or log out Facebook. Green key: refresh current page. Yellow key: sign “like” or “unlike” for current content. Blue key: view comments and add comments.

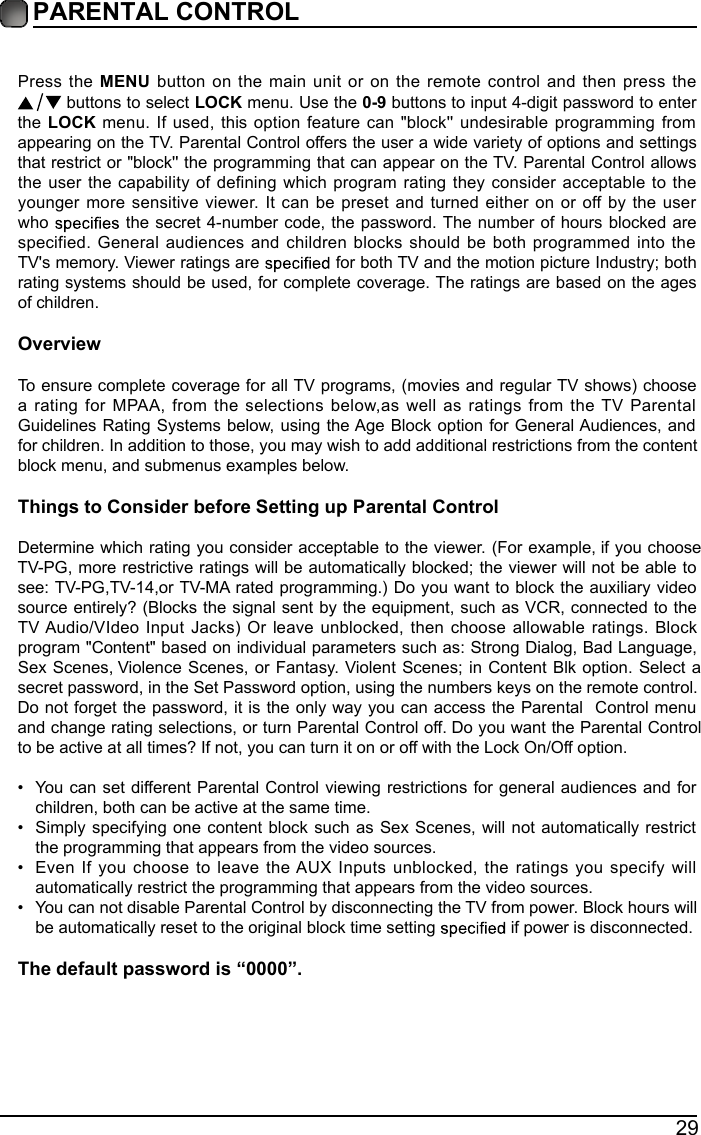

29Press the MENU button on the main unit or on the remote control and then press the buttons to select LOCK menu. Use the 0-9 buttons to input 4-digit password to enter the LOCK menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings that restrict or "block'' the programming that can appear on the TV. Parental Control allows the user the capability of defining which program rating they consider acceptable to the younger more sensitive viewer. It can be preset and turned either on or off by the user who the secret 4-number code, the password. The number of hours blocked are specified. General audiences and children blocks should be both programmed into the TV's memory. Viewer ratings are for both TV and the motion picture Industry; both rating systems should be used, for complete coverage. The ratings are based on the ages of children.OverviewTo ensure complete coverage for all TV programs, (movies and regular TV shows) choose a rating for MPAA, from the selections below,as well as ratings from the TV Parental Guidelines Rating Systems below, using the Age Block option for General Audiences, and for children. In addition to those, you may wish to add additional restrictions from the content block menu, and submenus examples below.Things to Consider before Setting up PThe default password is “0000”.arental ControlDetermine which rating you consider acceptable to the viewer. (For example, if you choose TV-PG, more restrictive ratings will be automatically blocked; the viewer will not be able to see: TV-PG,TV-14,or TV-MA rated programming.) Do you want to block the auxiliary video source entirely? (Blocks the signal sent by the equipment, such as VCR, connected to the TV Audio/VIdeo Input Jacks) Or leave unblocked, then choose allowable ratings. Block program "Content" based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes, Violence Scenes, or Fantasy. Violent Scenes; in Content Blk option. Select a secret password, in the Set Password option, using the numbers keys on the remote control.Do not forget the password, it is the only way you can access the Parental Control menu and change rating selections, or turn Parental Control off. Do you want the Parental Control to be active at all times? If not, you can turn it on or off with the Lock On/Off option.• You can set different Parental Control viewing restrictions for general audiences and for children, both can be active at the same time.• Simply specifying one content block such as Sex Scenes, will not automatically restrict the programming that appears from the video sources.• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will automatically restrict the programming that appears from the video sources.• You can not disable Parental Control by disconnecting the TV from power. Block hours will be automatically reset to the original block time setting if power is disconnected.PARENTAL CONTROL

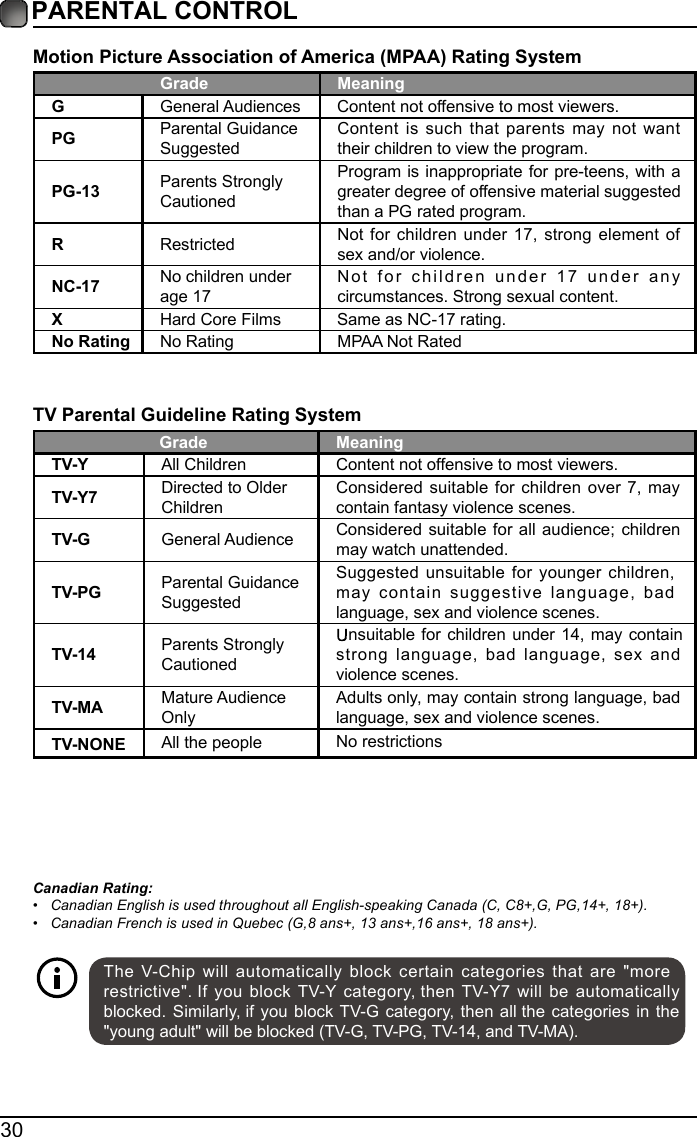

30Motion Picture Association of America (MPAA) Rating SystemGrade MeaningGGeneral AudiencesContent not offensive to most viewers.PG Parental Guidance SuggestedContent is such that parents may not want their children to view the program.PG-13 Parents Strongly CautionedProgram is inappropriate for pre-teens, with a greater degree of offensive material suggested than a PG rated program.RRestricted Not for children under 17, strong element of sex and/or violence.NC-17 No children under age 17Not for children under 17 under any circumstances. Strong sexual content.XHard Core FilmsSame as NC-17 rating.No Rating No Rating MPAA Not RatedTV Parental Guideline Rating System Grade MeaningTV-Y All Children Content not offensive to most viewers.TV-Y7 Directed to Older ChildrenConsidered suitable for children over 7, may contain fantasy violence scenes.TV-G General Audience Considered suitable for all audience; children may watch unattended.TV-PG Parental Guidance SuggestedSuggested unsuitable for younger children, may contain suggestive language, bad language, sex and violence scenes.TV-14 Parents Strongly Cautionednsuitable for children under 14, may contain strong language, bad language, sex and violence scenes.TV-MA Mature Audience OnlyAdults only, may contain strong language, bad language, sex and violence scenes.TV-NONE All the people No restrictions Canadian Rating:• Canadian English is used throughout all English-speaking Canada (C, C8+,G, PG,14+, 18+).• Canadian French is used in Quebec (G,8 ans+, 13 ans+,16 ans+, 18 ans+).The V-Chip will automatically block certain categories that are "more restrictive".If you block TV-Y category,then TV-Y7 will be automatically blocked. Similarly,if you block TV-G category, then allthe categories in the "young adult" will be blocked (TV-G, TV-PG,TV-14,and TV-MA).PARENTAL CONTROL

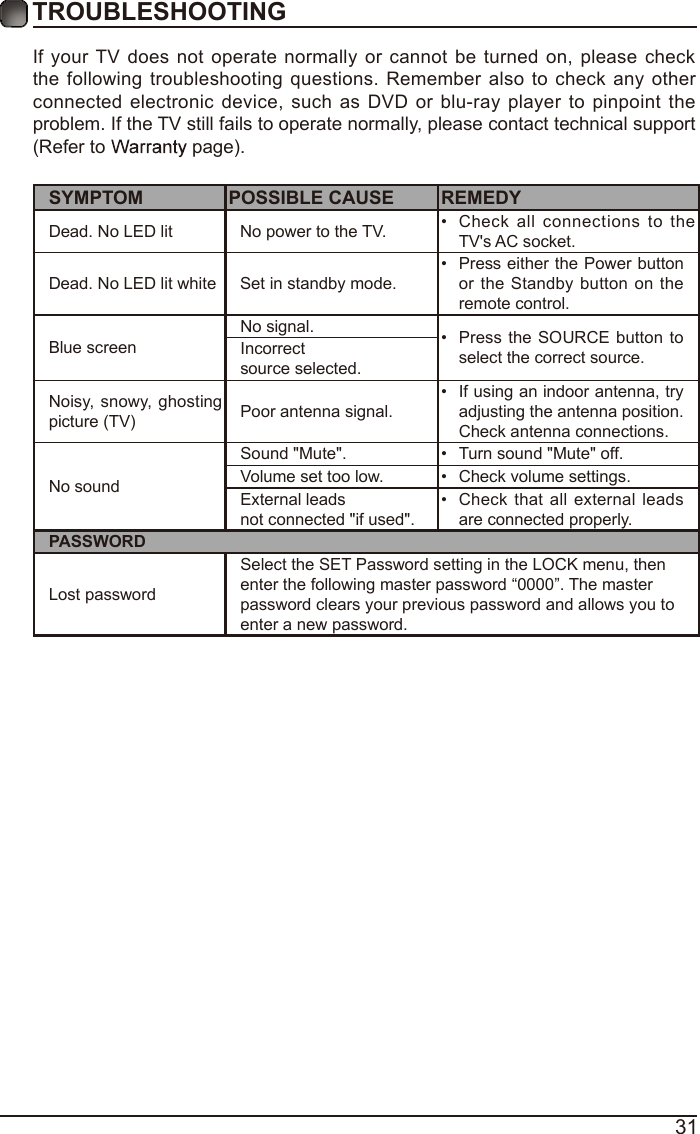

31TROUBLESHOOTING If your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support (Refer to page).SYMPTOMPOSSIBLE CAUSEREMEDYDead. No LED litNo power to the TV. • Check all connections to the TV's AC socket.Dead. No LED lit whiteSet in standby mode.• Press either the Power button or the Standby button on the remote control. Blue screen No signal. • Press the SOURCE button to select the correct source.Incorrect source selected.Noisy, snowy, ghosting picture (TV) Poor antenna signal.• If using an indoor antenna, try adjusting the antenna position. Check antenna connections.No soundSound "Mute". • Turn sound "Mute" off.Volume set too low. • Check volume settings.External leads not connected "if used".• Check that all external leads are connected properly.PASSWORDLost passwordSelect the SET Password setting in the LOCK menu, thenenter the following master password “0000”. The masterpassword clears your previous password and allows you toenter a new password.

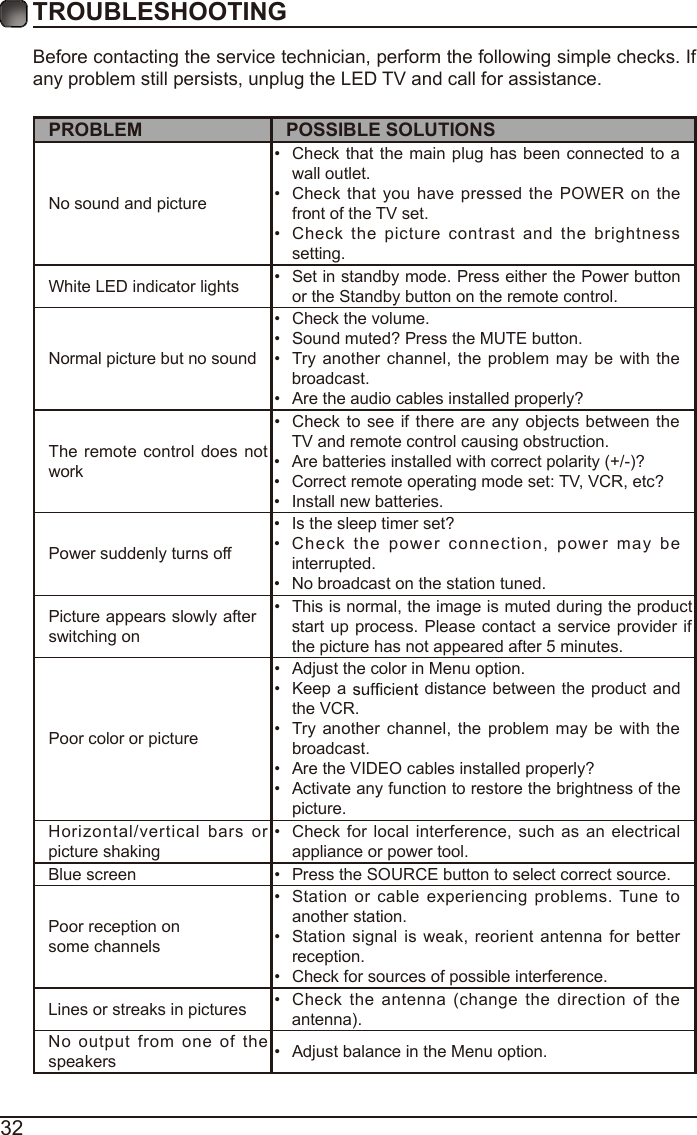

32Before contacting the service technician, perform the following simple checks. If any problem still persists, unplug the LED TV and call for assistance.PROBLEM POSSIBLE SOLUTIONSNo sound and picture• Check that the main plug has been connected to a wall outlet.• Check that you have pressed the POWER on the front of the TV set.• Check the picture contrast and the brightness setting.White LED indicator lights • Set in standby mode. Press either the Power button or the Standby button on the remote control. Normal picture but no sound• Check the volume.• Sound muted? Press the MUTE button. • Try another channel, the problem may be with the broadcast. • Are the audio cables installed properly? The remote control does not work• Check to see if there are any objects between the TV and remote control causing obstruction. • Are batteries installed with correct polarity (+/-)?• Correct remote operating mode set: TV, VCR, etc?• Install new batteries. Power suddenly turns off • Is the sleep timer set?• Check the power connection, power may be interrupted. • No broadcast on the station tuned. Picture appears slowly after switching on • This is normal, the image is muted during the product start up process. Please contact a service provider if the picture has not appeared after 5 minutes. Poor color or picture• Adjust the color in Menu option.• Keep a distance between the product and the VCR.• Try another channel, the problem may be with the broadcast.• Are the VIDEO cables installed properly?• Activate any function to restore the brightness of the picture.Horizontal/vertical bars or picture shaking• Check for local interference, such as an electrical appliance or power tool.Blue screen • Press the SOURCE button to select correct source.Poor reception on some channels• Station or cable experiencing problems. Tune to another station.• Station signal is weak, reorient antenna for better reception.• Check for sources of possible interference. Lines or streaks in pictures • Check the antenna (change the direction of the antenna).No output from one of the speakers • Adjust balance in the Menu option.TROUBLESHOOTING

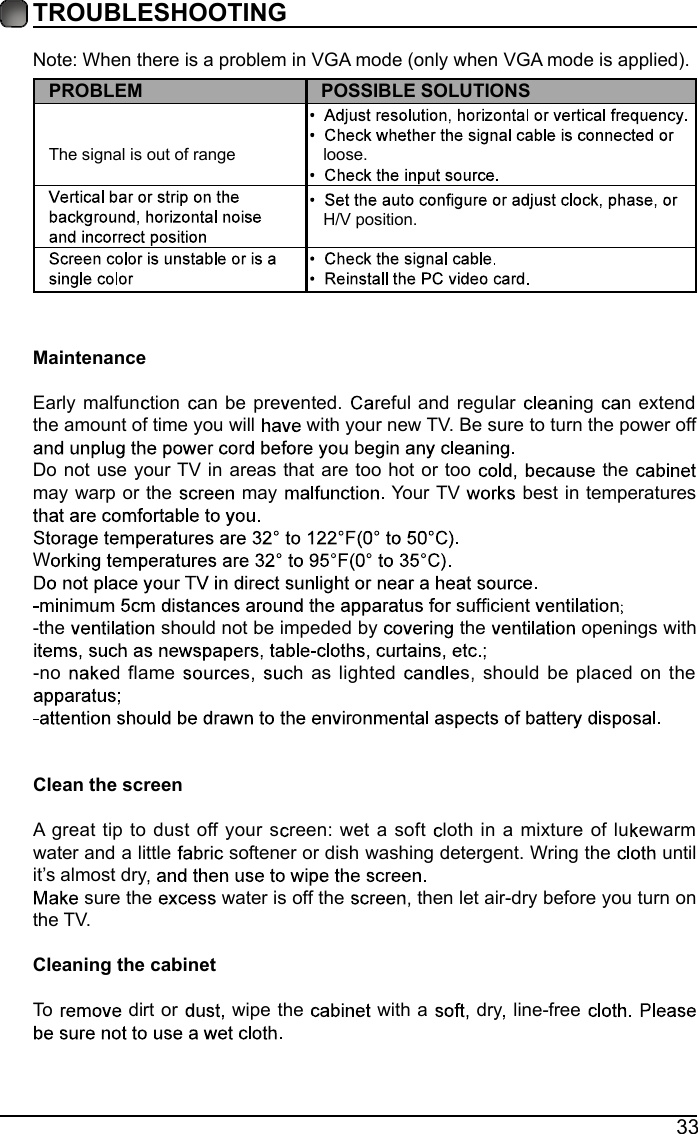

33TROUBLESHOOTINGNote: When there is a problem in VGA mode (only when VGA mode is applied). PROBLEM POSSIBLE SOLUTIONSThe signal is out of range loose. H/V position.MaintenanceEarly malfun tion an be pre ented. eful and regular g n extend the amount of time you will with your new TV. Be sure to turn the power off bDo not use your TV in areas that are too hot or too the may warp or the may Your TV best in temperatures W -the should not be impeded by the openings with -no d flame s h as lighted s should be pla ed on the oClean the screenA great tip to dust off your s reen: wet a soft loth in a mixture of lu ewarm water and a little softener or dish washing detergent. Wring the until it’s almost dry sure the water is off the then let air-dry before you turn on the TV. Cleaning the cabinetTo dirt or wipe the with a dry line-free

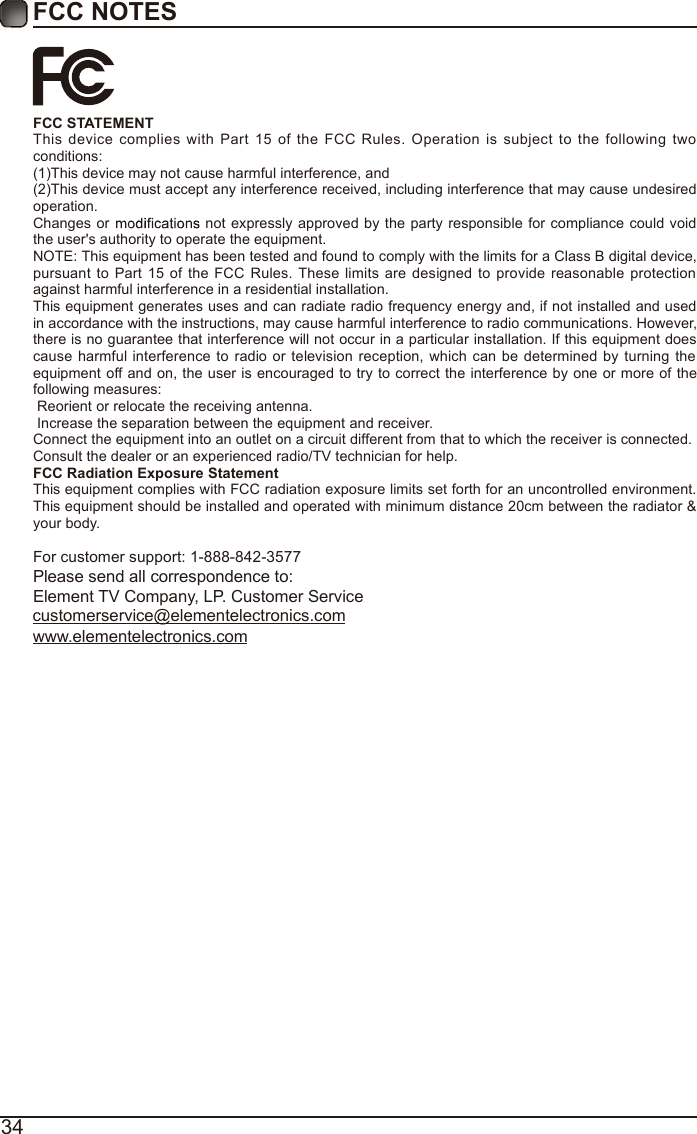

34FCC NOTESFCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and(2)This device must accept any interference received, including interference that may cause undesired operation. Changes or not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.For customer support: 1-888-842-3577Please send all correspondence to:Element TV Company, LP. Customer Servicecustomerservice@elementelectronics.comwww.elementelectronics.com
