ELST4316SINSTRUCTION MANUALPlease read all the instructions carefully before using this TV,and keep the manual for future reference.43" FHD Digital LED TV

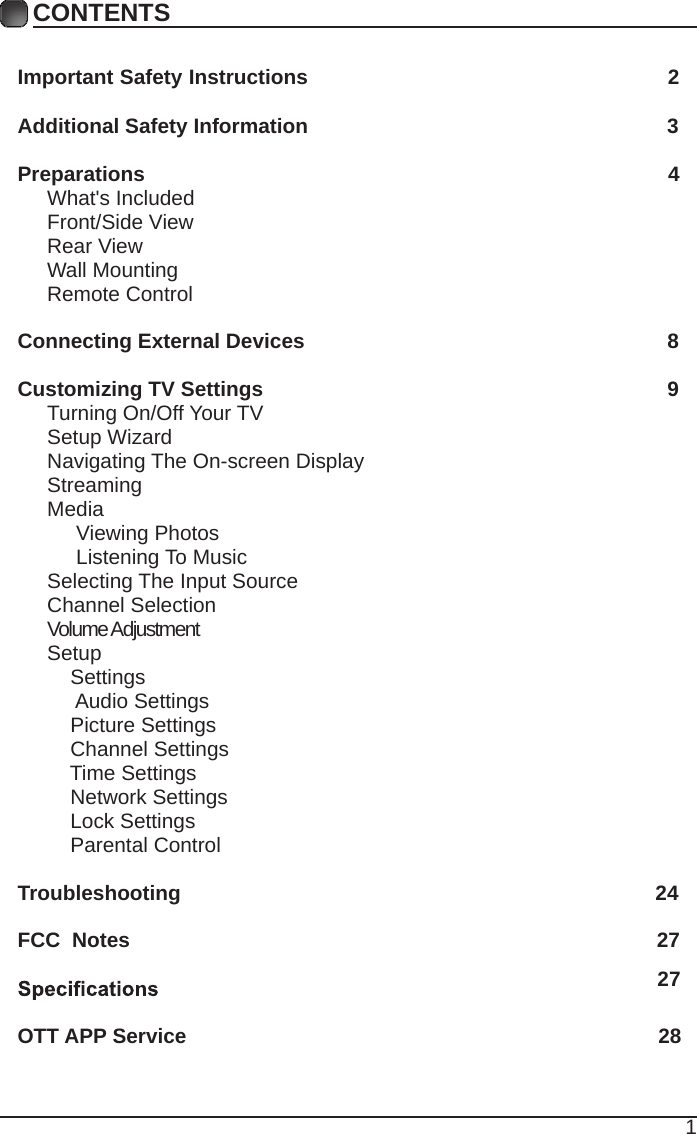

1CONTENTSCONTENTSImportant Safety Instructions 2Additional Safety Information 3Preparations 4What's Included Front/Side View Rear View Wall Mounting Remote Control Connecting External Devices 8Customizing TV Settings 9Turning On/Off Your TV Setup Wizard Navigating The On-screen Display Streaming Media Viewing Photos Listening To Music Selecting The Input Source Channel Selection Volume Adjustment Setup Settings Audio Settings Picture Settings Channel Settings Time Settings Network Settings Lock Settings Parental Control Troubleshooting 24FCC Notes 27OTT APP Service 2827

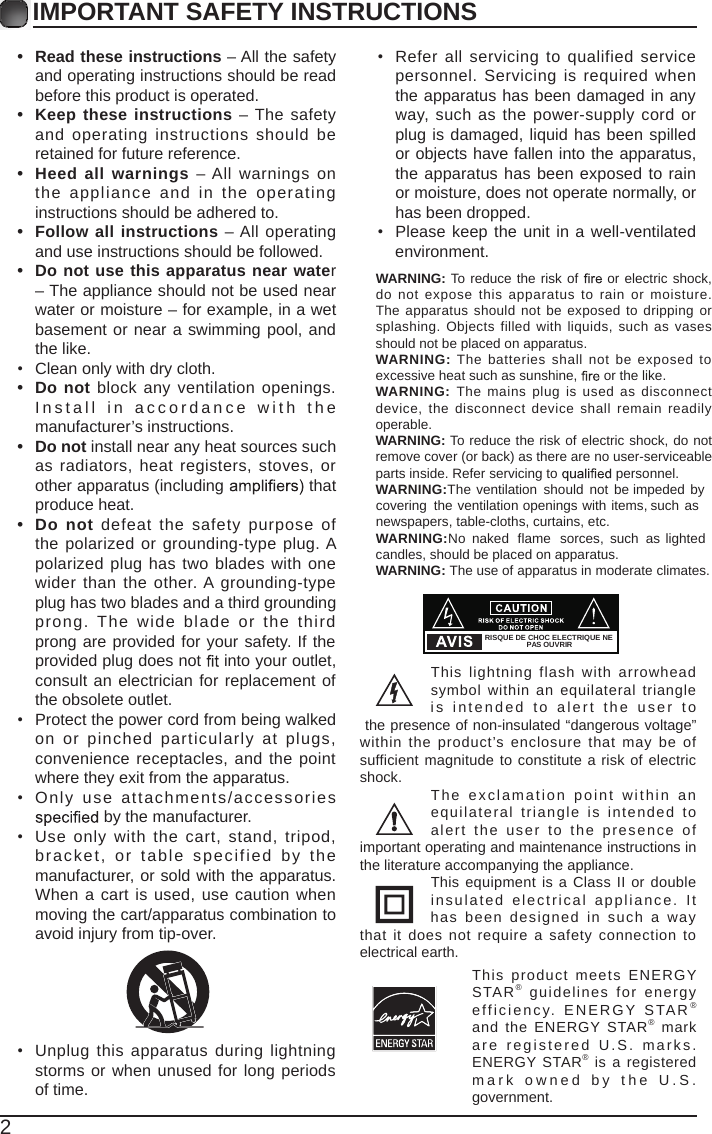

2IMPORTANT SAFETY INSTRUCTIONS• Read these instructions – All the safety and operating instructions should be read before this product is operated. •Keep these instructions – The safety and operating instructions should be retained for future reference. •Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. •Follow all instructions – All operating and use instructions should be followed. • Do not use this apparatus near water– The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.• Clean only with dry cloth.• Do not block any ventilation openings. Ins t a l l i n a c c o rda n c e w i t h t h e manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including thatproduce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not into your outlet, consult an electrician for replacement of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• Only use attachments/accessories by the manufacturer.• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time.• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• Please keep the unit in a well-ventilated environment.This lightning flash with arrowhead symbol within an equilateral triangle is intend ed to ale rt t he us er t o the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The ex cla mat ion poi nt wi thi n an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insula ted electr ical ap pliance. It has been designed in such a way that it does not require a safety connection to electrical earth.This product meets ENERGY STAR®guidelines for energy eff iciency. ENERGY STAR ®and the ENERGY STAR® markar e registered U.S. marks. ENERGY STAR® is a registered m a rk o w n e d b y t h e U.S . government.RISQUE DE CHOC ELECTRIQUE NEPAS OUVRIRWARNING: To reduce the risk of or electric shock, do not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing. Objects filled with liquids, such as vases should not be placed on apparatus. WARNING: The batteries shall not be exposed to excessive heat such as sunshine, or the like.WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to WARNING: yb dedepmi eb ton dluohs noitalitnev ehTcovering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.WARNING:No naked flame sorces, such as lighted candles, should be placed on apparatus.WARNING: The use of apparatus in moderate climates. personnel.

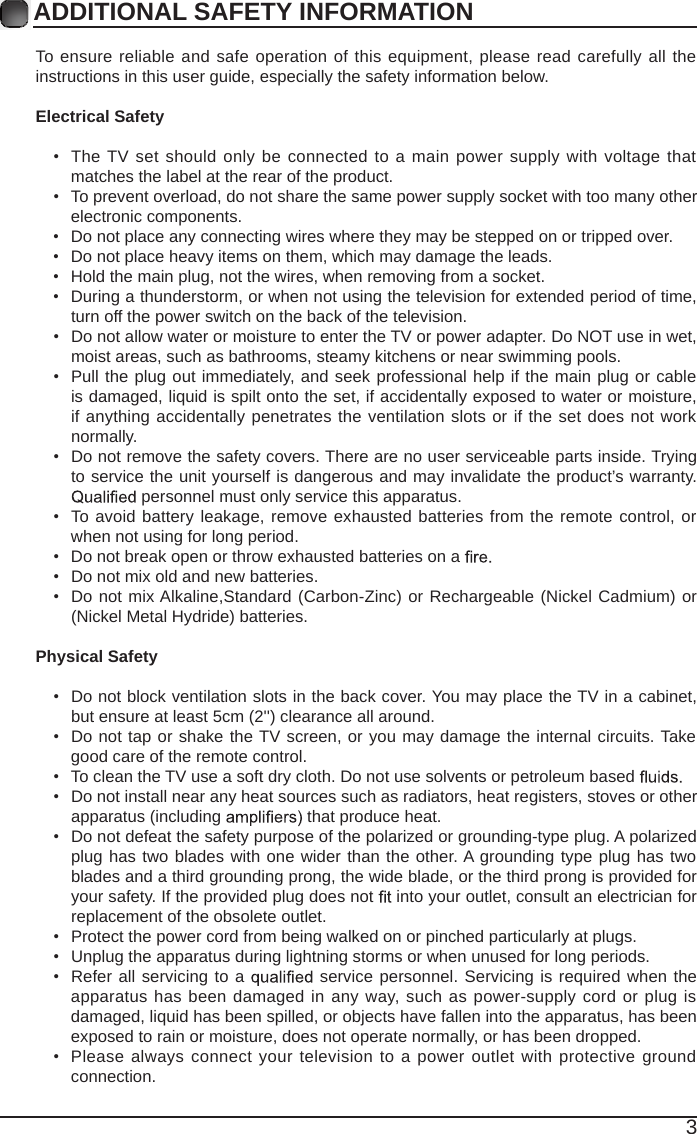

3ADDITIONAL SAFETY INFORMATION To ensure reliableand safe operation of this equipment, please read carefully all theinstructions in this user guide, especially the safety information below.Electrical Safety • The TV set should only be connected to a main power supply with voltage thatmatches the label at the rear of the product.• To prevent overload, do not share the same power supply socket with too many otherelectronic components.• Do not place any connecting wires where they may be stepped on or tripped over.• Do not place heavy items on them, which may damage the leads.• Hold the main plug, not the wires, when removing from a socket.• During a thunderstorm, or when not using the television for extended period of time, turn off the power switch on the back of the television.• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.• Pulltheplugout immediately, and seek professional help if the main plug or cableis damaged, liquid is spilt onto the set, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the set does not work normally.• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit yourself is dangerous and may invalidate the product’s warranty. personnel must only service this apparatus.• To avoidbattery leakage, remove exhausted batteries from the remote control, or when not using for long period.• Do not break open or throw exhausted batteries on a • Do not mix old and new batteries.• Do not mix Alkaline,Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal Hydride) batteries.Physical Safety • Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least 5cm (2'') clearance all around.• Do not tap or shake the TV screen, or youmaydamage the internal circuits. Take good care of the remote control.• To clean the TV use a soft dry cloth. Do not use solvents or petroleum based • Do not install near any heat sources such as radiators, heat registers, stoves or otherapparatus (including that produce heat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with onewider than the other. A grounding type plug has two blades and a third grounding prong, the wide blade, or the third prong is provided for your safety. If the provided plug does not into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs. • Unplug the apparatus during lightning storms or when unused for long periods.• Refer all servicing to a service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled, or objects have fallen into the apparatus, has been exposed to rain or moisture, does not operate normally, or has been dropped. • Please always connectyour television to a power outlet with protective groundconnection.

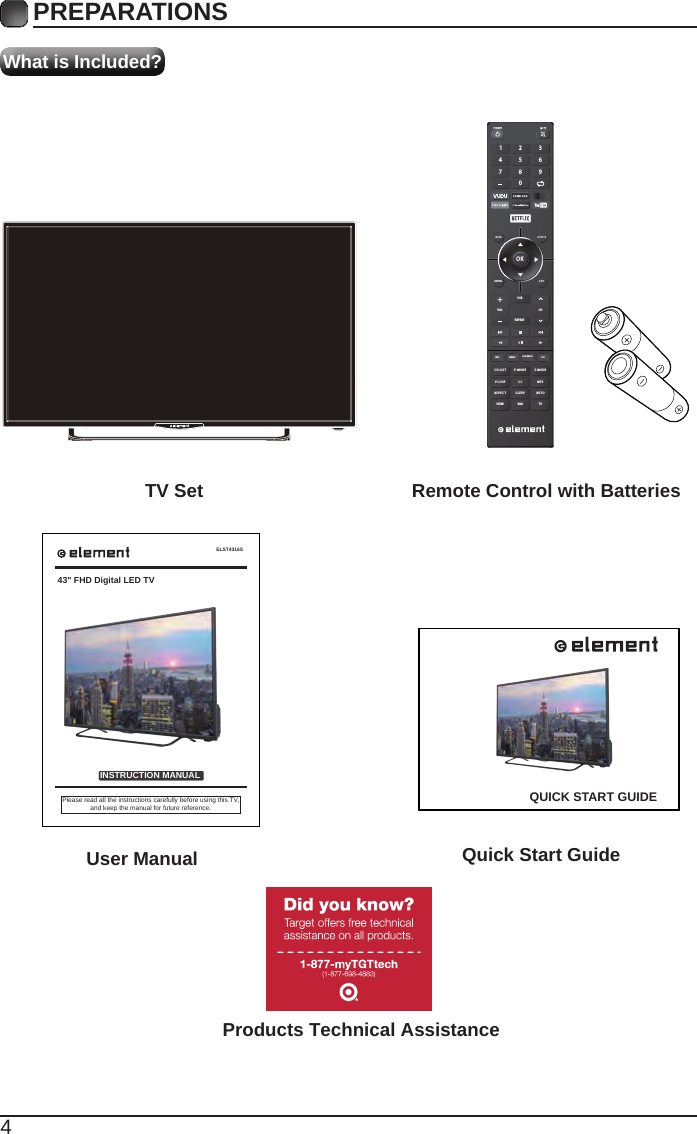

4What is Included?PREPARATIONS TV Set Remote Control with Batteries User Manual Quick Start GuideELST4316SINSTRUCTION MANUALPlease read all the instructions carefully before using this TV,and keep the manual for future reference.43" FHD Digital LED TVOKME NU SO UR C ERETURN EX ITVOLUSBREPEATCHC H. L ISINFO FREEZE ADD/ERASE FAVT P. MO D E S . M O DEV- CH IP C C MT SAS P E C THDMI VGA TVSL E EP AUT O1 4 7 2 5 8 0 3 6 9 QUICK START GUIDEProducts Technical Assistance

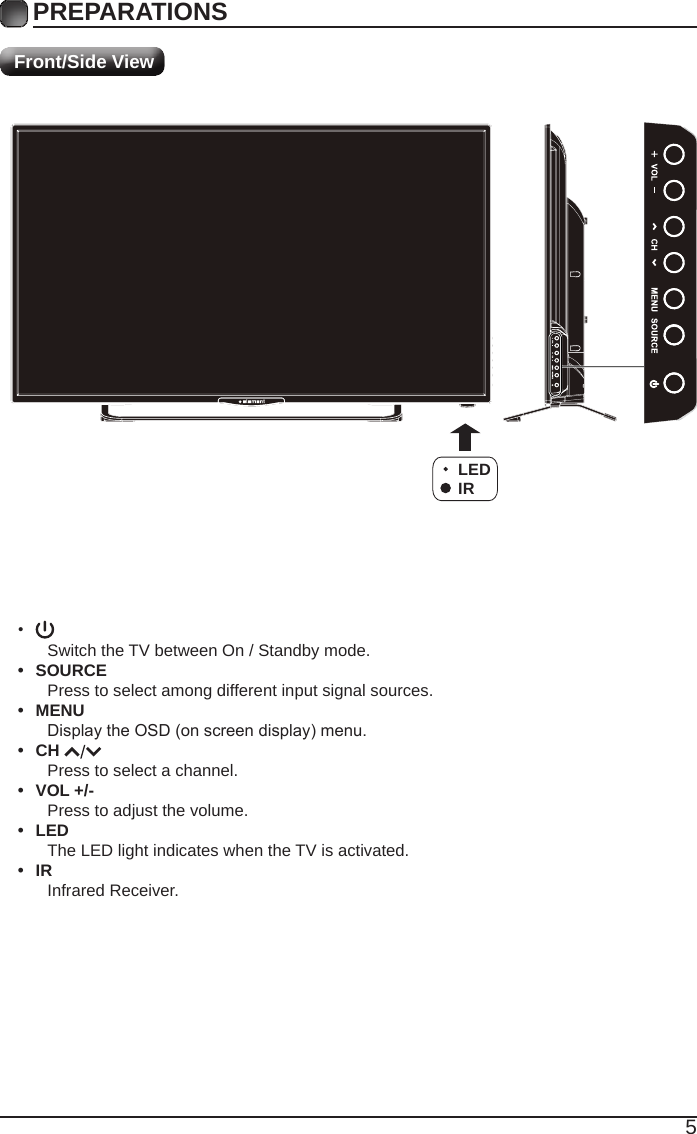

5•Switch the TV between On / Standby mode.• SOURCEPress to select among different input signal sources.• MENUDisplaytheOSD(onscreendisplay)menu.• CH Press to select a channel.• VOL +/-Press to adjust the volume.• LEDThe LED light indicates when the TV is activated.• IRInfrared Receiver.PREPARATIONS Front/Side ViewLEDIR

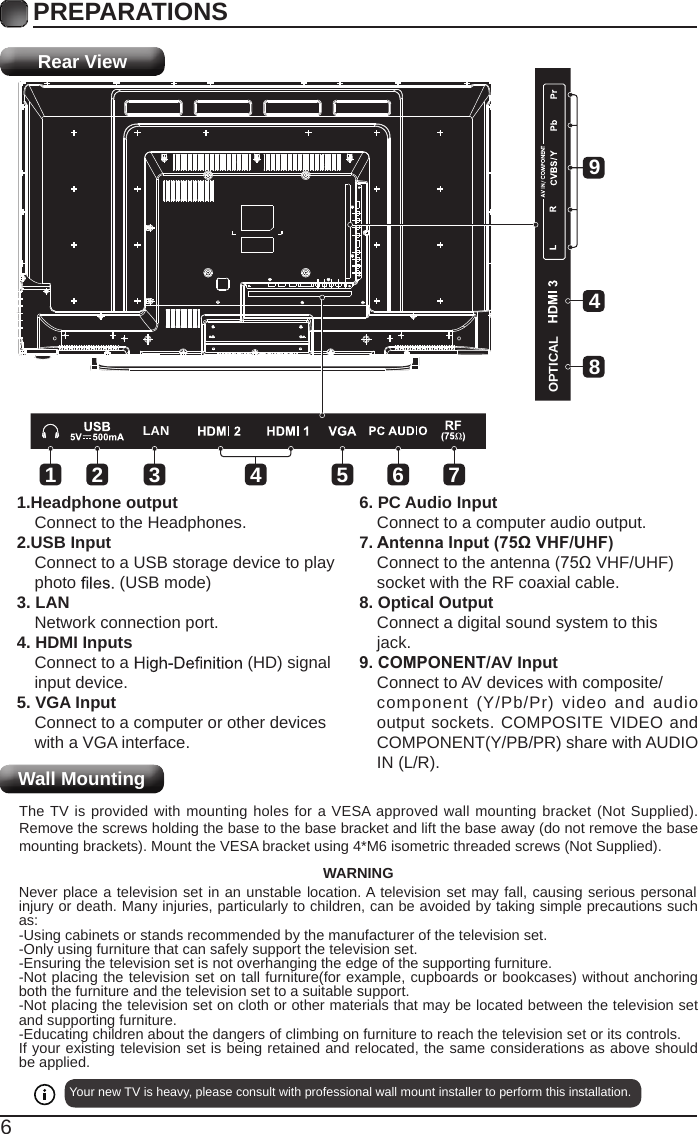

6PREPARATIONS Rear ViewWall Mounting1.Headphone outputConnect to the Headphones.2.USB InputConnect to a USB storage device to play photo (USB mode)3. LANNetwork connection port.4. HDMI InputsConnect to a (HD) signalinput device.5. VGA InputConnect to a computer or other deviceswith a VGA interface.6. PC Audio InputConnect to a computer audio output.7. Antenna Input (75Ω VHF/UHF)Connect to the antenna (75Ω VHF/UHF)socket with the RF coaxial cable.8. Optical OutputConnect a digital sound system to thisjack.9. COMPONENT/AV InputConnect to AV devices with composite/component (Y/Pb/Pr) video and audio output sockets. COMPOSITE VIDEO and COMPONENT(Y/PB/PR) share with AUDIO IN (L/R).LANOPTICAL18492 3 5 6 74Your new TV is heavy, please consult with professional wall mount installer to perform this installation. The TV is provided with mounting holes for a VESA approved wall mounting bracket (Not Supplied). Remove the screws holding the base to the base bracket and lift the base away (do not remove the base mounting brackets). Mount the VESA bracket using 4*M6 isometric threaded screws (Not Supplied). WARNINGNever place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:-Using cabinets or stands recommended by the manufacturer of the television set.-Only using furniture that can safely support the television set.-Ensuring the television set is not overhanging the edge of the supporting furniture.-Not placing the television set on tall furniture(for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.-Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.-Educating children about the dangers of climbing on furniture to reach the television set or its controls.If your existing television set is being retained and relocated, the same considerations as above should be applied.

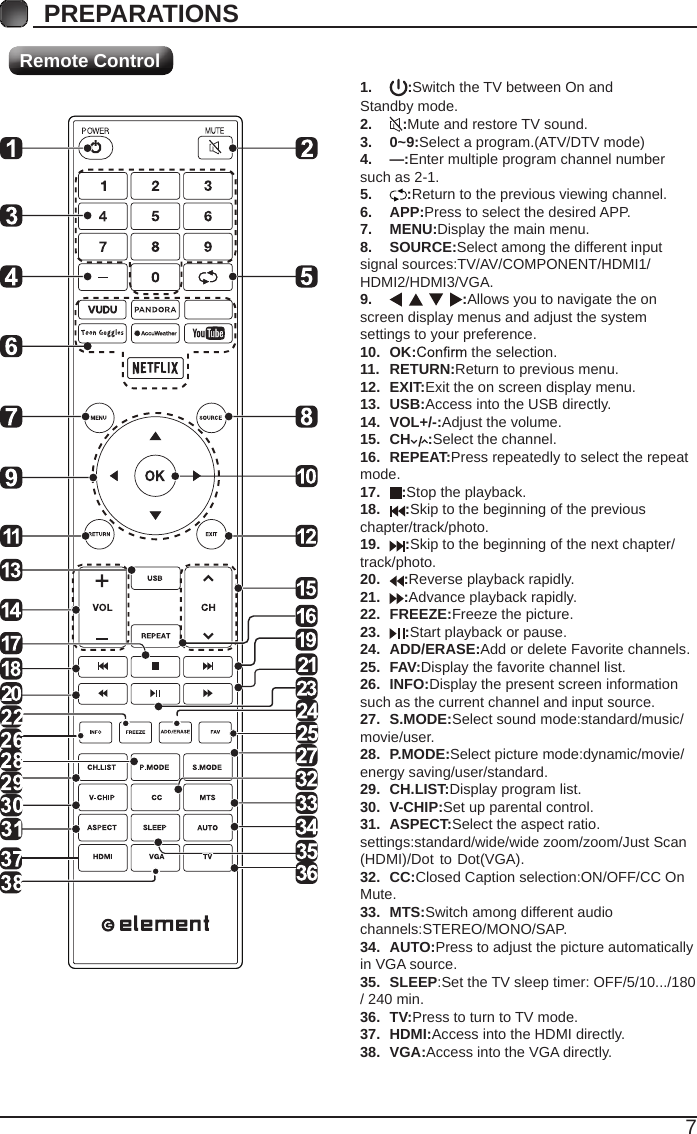

7PREPARATIONS Remote Control1. :Switch the TV between On and Standby mode.2. :Mute and restore TV sound.3. 0~9:Select a program.(ATV/DTV mode)4. —:Enter multiple program channel number such as 2-1.5. :Return to the previous viewing channel.6. APP:Press to select the desired APP.7. MENU:Display the main menu.8. SOURCE:Select among the different input signal sources:TV/AV/COMPONENT/HDMI1/HDMI2/HDMI3/VGA.9. :Allows you to navigate the on screen display menus and adjust the system settings to your preference.10. OK: the selection.11. RETURN:Return to previous menu.12. EXIT:Exit the on screen display menu.13. USB:Access into the USB directly.14. VOL+/-:Adjust the volume.15. CH :Select the channel.16. REPEAT:Press repeatedly to select the repeat mode.17. :Stop the playback.18. :Skip to the beginning of the previous chapter/track/photo.19. :Skip to the beginning of the next chapter/ track/photo.20. :Reverse playback rapidly.21. :Advance playback rapidly.22. FREEZE:Freeze the picture.23. :Start playback or pause.24. ADD/ERASE:Add or delete Favorite channels.25. FAV:Display the favorite channel list.26. INFO:Display the present screen information such as the current channel and input source.27. S.MODE:Select sound mode:standard/music/movie/user.28. P.MODE:Select picture mode:dynamic/movie/energy saving/user/standard.29. CH.LIST:Display program list.30. V-CHIP:Set up parental control.31. ASPECT:Select the aspect ratio. settings:standard/wide/wide zoom/zoom/Just Scan (HDMI)/Dot to Dot(VGA).32. CC:Closed Caption selection:ON/OFF/CC On Mute.33. MTS:Switch among different audio channels:STEREO/MONO/SAP.34. AUTO:Press to adjust the picture automatically in VGA source.35. SLEEP:Set the TV sleep timer: OFF/5/10.../180 / 240 min.36. TV:Press to turn to TV mode.37. HDMI:Access into the HDMI directly.38. VGA:Access into the VGA directly.
