ANHUI KONKA ELECTRONIC WD32HBB101 LCD TV User Manual

ANHUI KONKA ELECTRONIC CO., LTD LCD TV

User Manual

WD32HBB101

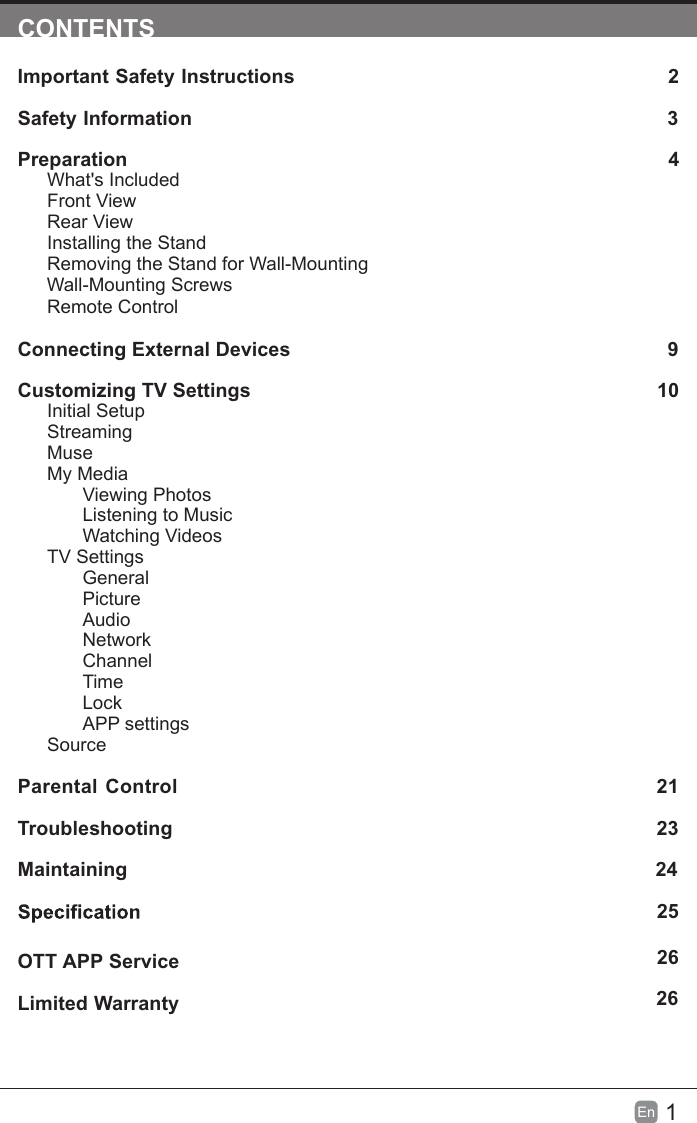

1En CONTENTSImportant Safety Instructions 2Safety Information 3Preparation 4What's IncludedFront ViewRear ViewInstalling the StandRemoving the Stand for Wall-Mounting Wall-Mounting ScrewsRemote ControlConnecting External Devices 9Customizing TV Settings 10Initial SetupStreamingMuseMy MediaViewing PhotosListening to MusicWatching VideosTV SettingsGeneralPictureAudioNetworkChannelTimeLockAPP settingsSourceParental Control 21Troubleshooting 23Maintaining 24 25Limited Warranty 26OTT APP Service26

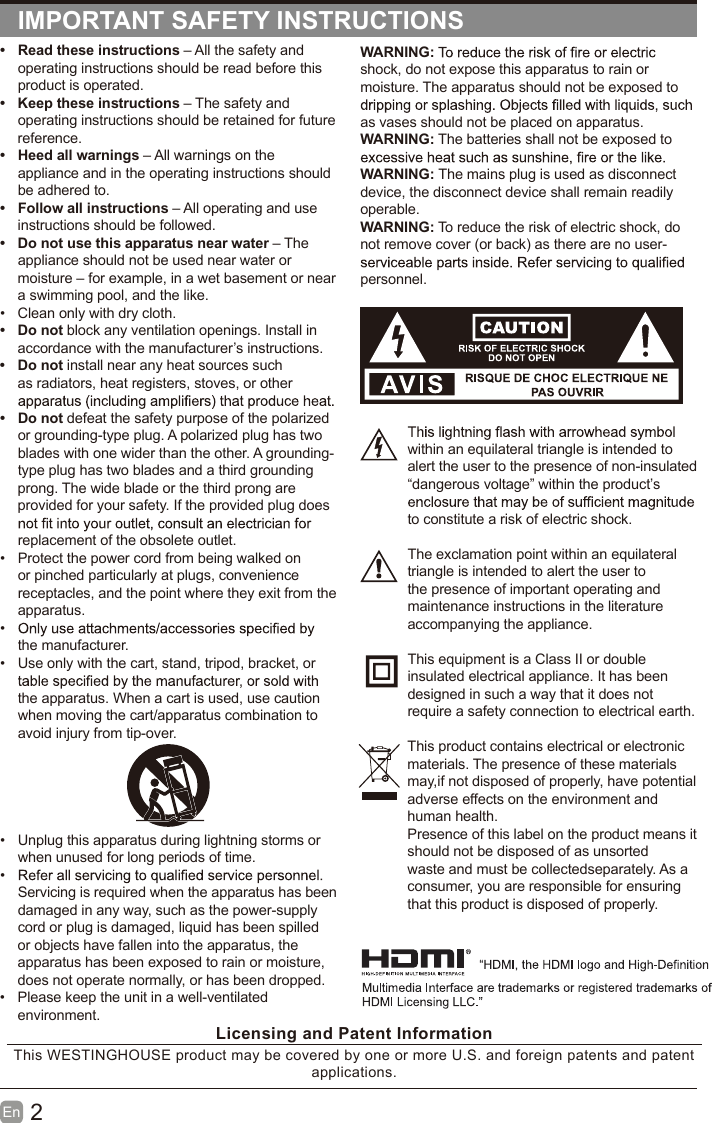

2En IMPORTANT SAFETY INSTRUCTIONSWARNING:shock, do not expose this apparatus to rain or moisture. The apparatus should not be exposed to as vases should not be placed on apparatus. WARNING: The batteries shall not be exposed to WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-personnel.within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s to constitute a risk of electric shock.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.This product contains electrical or electronicmaterials. The presence of these materialsmay,if not disposed of properly, have potentialadverse effects on the environment and human health.Presence of this label on the product means itshould not be disposed of as unsorted waste and must be collectedseparately. As a consumer, you are responsible for ensuring that this product is disposed of properly.• Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. • Follow all instructions – All operating and use instructions should be followed. • Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.• Clean only with dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does replacement of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• the manufacturer.• Use only with the cart, stand, tripod, bracket, or the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time.• Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• Please keep the unit in a well-ventilated environment.Licensing and Patent InformationThis WESTINGHOUSE product may be covered by one or more U.S. and foreign patents and patent applications.

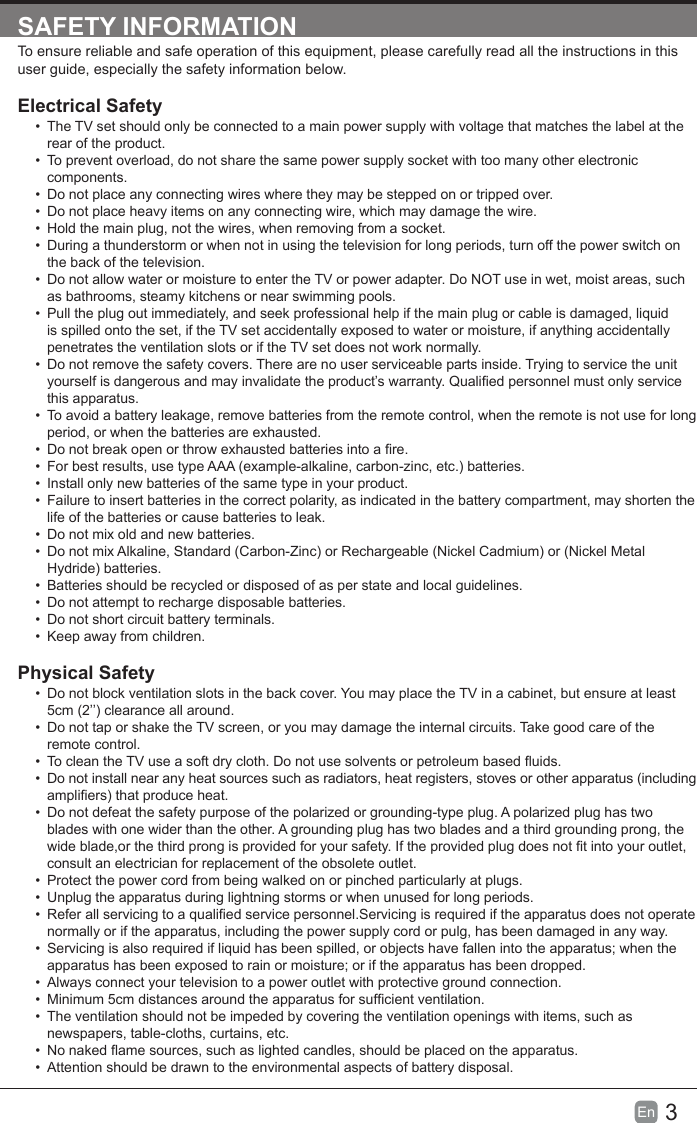

3En SAFETY INFORMATIONTo ensure reliable and safe operation of this equipment, please carefully read all the instructions in this user guide, especially the safety information below.Electrical Safety• The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.• To prevent overload, do not share the same power supply socket with too many other electronic components.• Do not place any connecting wires where they may be stepped on or tripped over.• Do not place heavy items on any connecting wire, which may damage the wire.• Hold the main plug, not the wires, when removing from a socket.• During a thunderstorm or when not in using the television for long periods, turn off the power switch on the back of the television.• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the TV set does not work normally.• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit yourself is dangerous and may invalidate the product’s warranty. Qualied personnel must only service this apparatus.• To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long period, or when the batteries are exhausted.• Do not break open or throw exhausted batteries into a re.• For best results, use type AAA (example-alkaline, carbon-zinc, etc.) batteries.• Install only new batteries of the same type in your product.• Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the life of the batteries or cause batteries to leak.• Do not mix old and new batteries.• Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal Hydride) batteries.• Batteries should be recycled or disposed of as per state and local guidelines.• Do not attempt to recharge disposable batteries.• Do not short circuit battery terminals.• Keep away from children.Physical Safety• Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least 5cm (2’’) clearance all around.• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.• To clean the TV use a soft dry cloth. Do not use solvents or petroleum based uids.• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including ampliers) that produce heat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong, the wide blade,or the third prong is provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs. • Unplug the apparatus during lightning storms or when unused for long periods.• Refer all servicing to a qualied service personnel.Servicing is required if the apparatus does not operate normally or if the apparatus, including the power supply cord or pulg, has been damaged in any way.• Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus; when the apparatus has been exposed to rain or moisture; or if the apparatus has been dropped.• Always connect your television to a power outlet with protective ground connection. • Minimum 5cm distances around the apparatus for sufcient ventilation.• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.• No naked ame sources, such as lighted candles, should be placed on the apparatus.• Attention should be drawn to the environmental aspects of battery disposal.

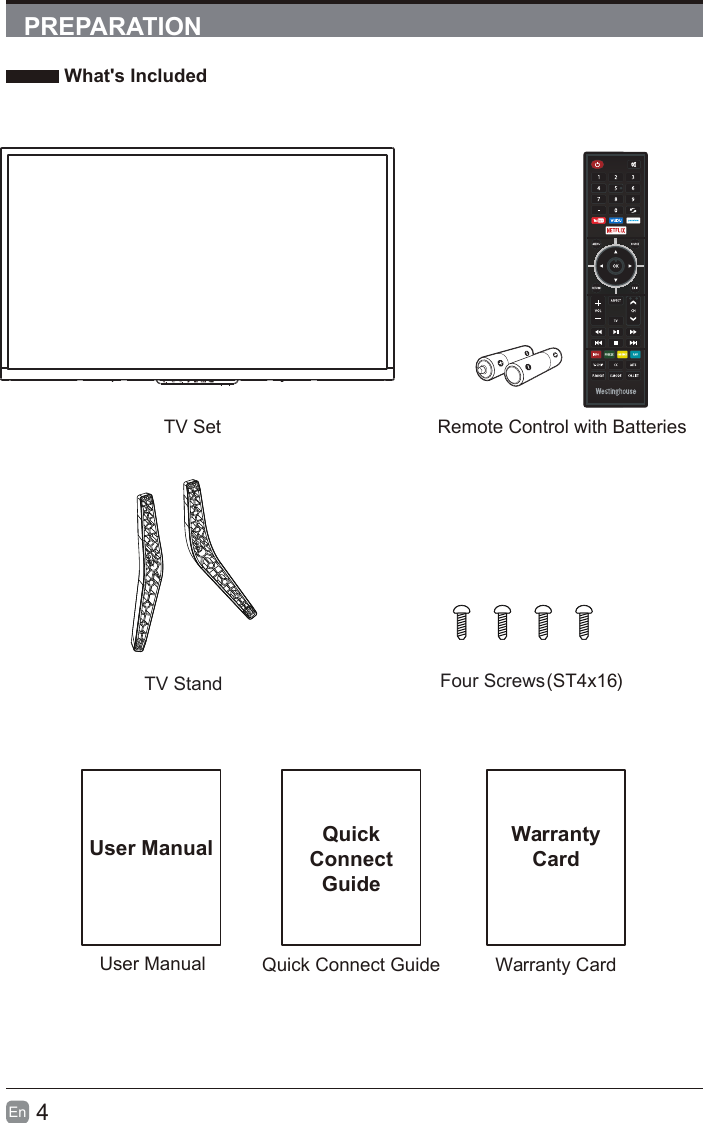

4En PREPARATION What's IncludedUser ManualUser ManualQuick Connect GuideQuickConnect GuideWarranty CardWarrantyCardRemote Control with BatteriesTV SetTV Stand Four Screws ) ST4x16(ASPECTSLEEPCH.LIST

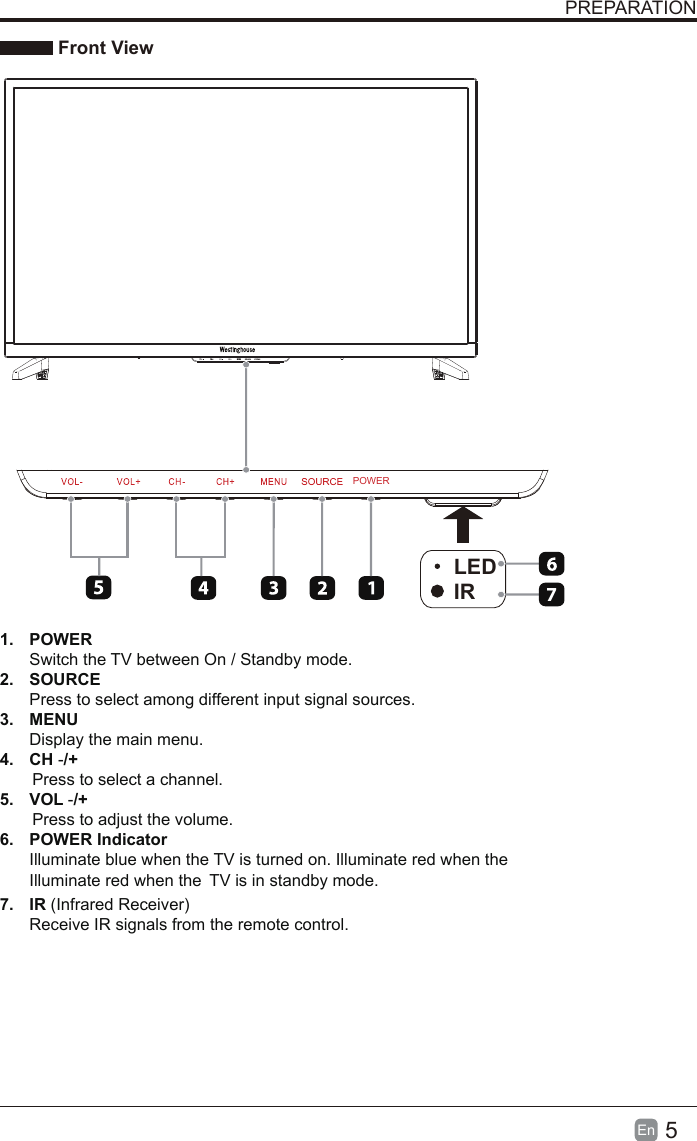

5En PREPARATION Front View1. POWERSwitch the TV between On / Standby mode.2. SOURCEPress to select among different input signal sources.3. MENUDisplay the main menu.4. CHPress to select a channel.5. VOL -/+-/+Press to adjust the volume.6. POWER IndicatorIlluminate blue when the TV is turned on. Illuminate red when theIlluminate red when the TV is in standby mode.7. IR (Infrared Receiver)Receive IR signals from the remote control.LEDIRPOWER7

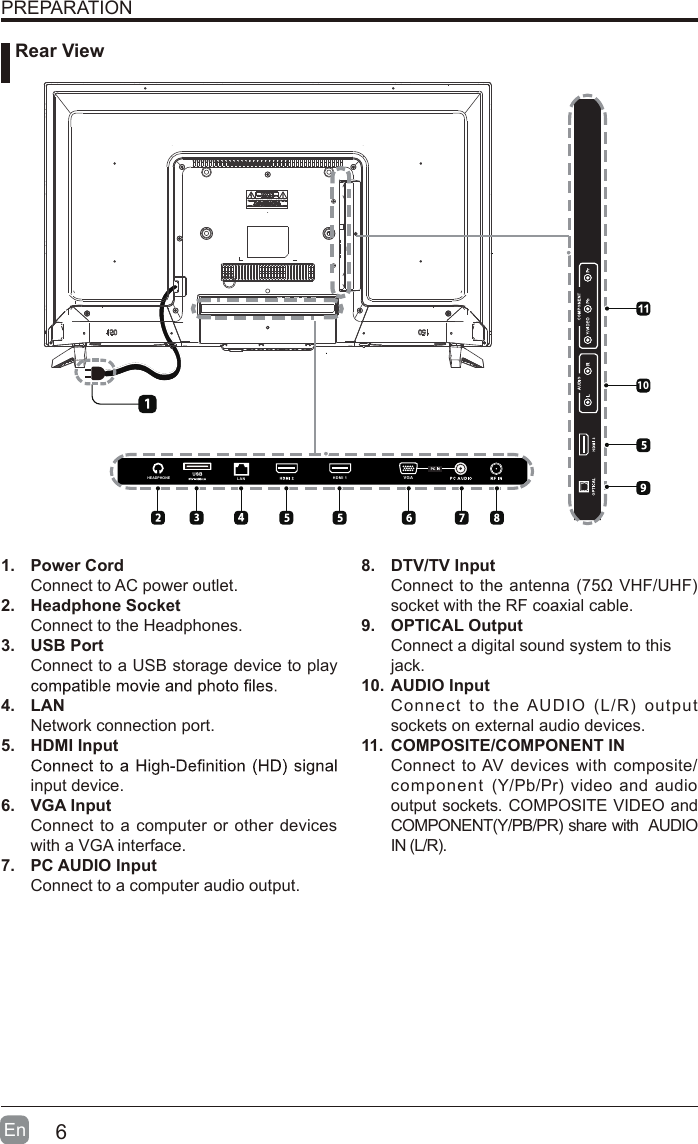

6En PREPARATION1. Power CordConnect to AC power outlet.2. Headphone SocketConnect to the Headphones.3. USB PortConnect to a USB storage device to play4. LANNetwork connection port.5. HDMI Inputinput device.6. VGA InputConnect to a computer or other deviceswith a VGA interface.7. PC AUDIO InputConnect to a computer audio output.8. DTV/TV InputConnect to the antenna (75Ω VHF/UHF)socket with the RF coaxial cable.9. OPTICAL OutputConnect a digital sound system to thisjack.10. AUDIO InputConnect to the AUDIO (L/R) outputsockets on external audio devices.11. COMPOSITE/COMPONENT INConnect to AV devices with composite/component (Y/Pb/Pr) video and audio output sockets. COMPOSITE VIDEO and COMPONENT(Y/PB/PR) share with AUDIO IN (L/R). Rear ViewHDMI 1LAN VG A10HEADPHONE

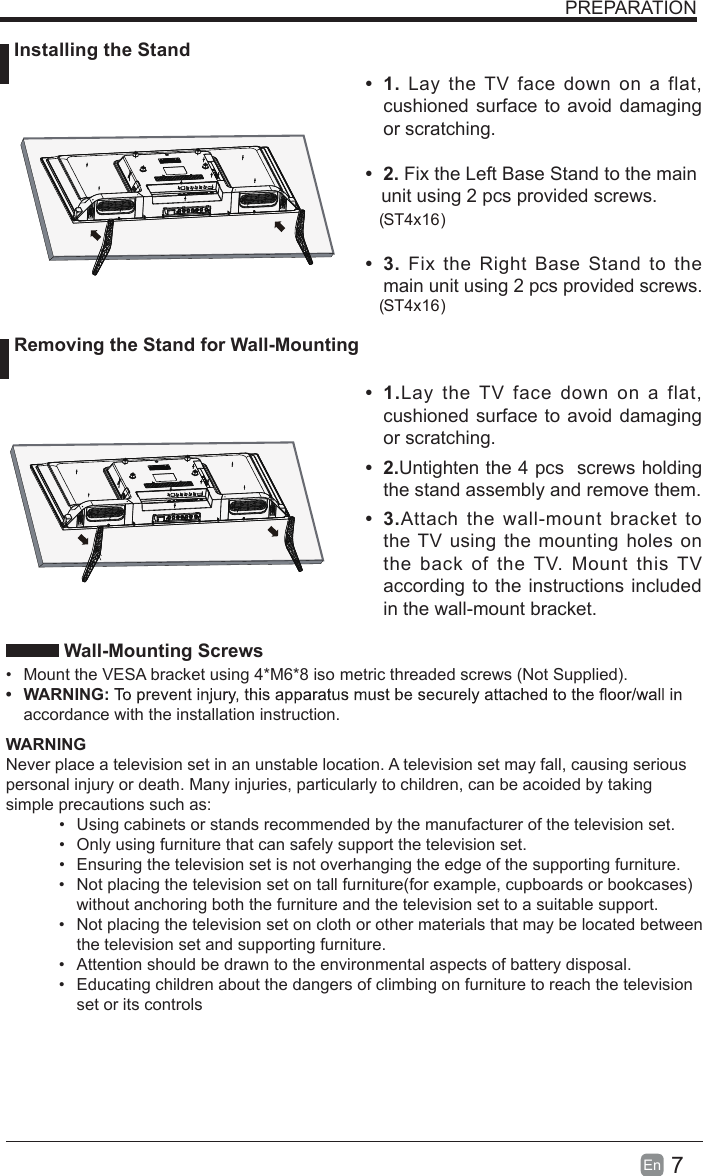

7En Wall-Mounting Screws•Mount the VESA bracket using 4*M6*8 iso metric threaded screws (Not Supplied).•WARNING:accordance with the installation instruction.WARNINGNever place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be acoided by taking simple precautions such as:•Using cabinets or stands recommended by the manufacturer of the television set.•Only using furniture that can safely support the television set.•Ensuring the television set is not overhanging the edge of the supporting furniture.•Not placing the television set on tall furniture(for example, cupboards or bookcases)without anchoring both the furniture and the television set to a suitable support.•Not placing the television set on cloth or other materials that may be located betweenthe television set and supporting furniture.•Attention should be drawn to the environmental aspects of battery disposal.•Educating children about the dangers of climbing on furniture to reach the televisionset or its controlsPREPARATION Installing the Stand Removing the Stand for Wall-Mounting• 1. Lay the TV face down on a flat, cushioned surface to avoid damaging or scratching.• 2. Fix the Left Base Stand to the main unit using 2 pcs provided screws.• 3. Fix the Right Base Stand to the main unit using 2 pcs provided screws.ST4x16 ( )ST4x16( ) • 1.Lay the TV face down on a flat, cushioned surface to avoid damaging or scratching.• 2.Untighten the 4 pcs screws holding the stand assembly and remove them. • 3.Attach the wall-mount bracket to the TV using the mounting holes on the back of the TV. Mount this TV according to the instructions included in the wall-mount bracket.

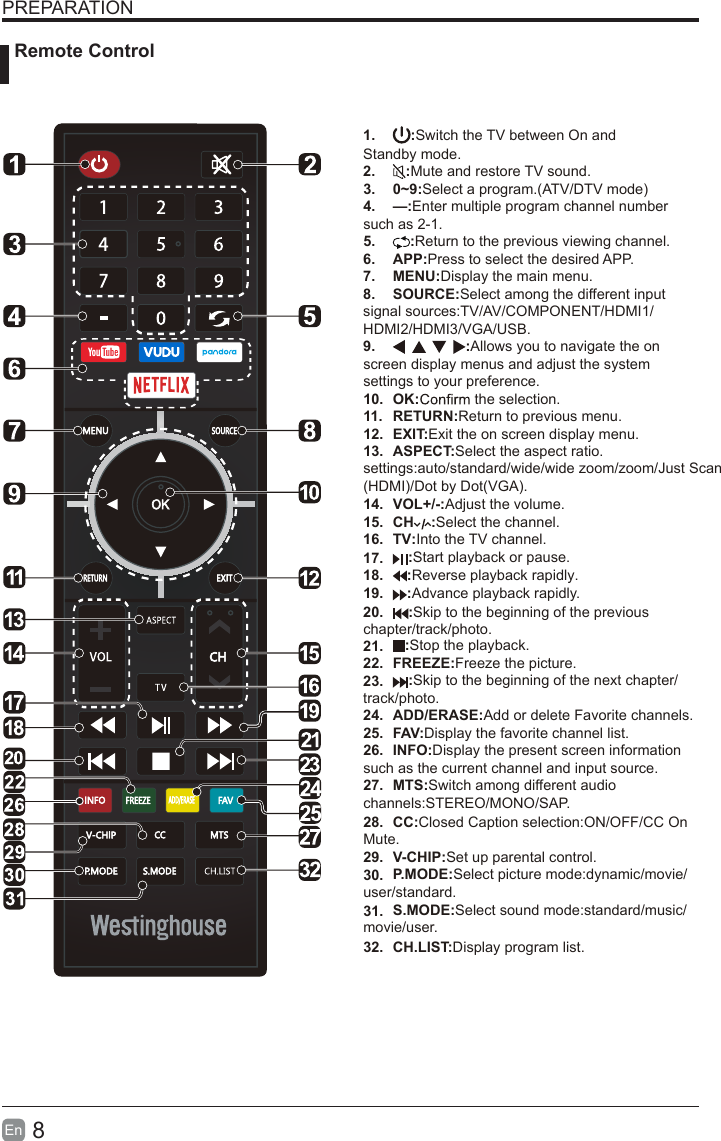

8En PREPARATION Remote Control1. :Switch the TV between On and Standby mode.2. :Mute and restore TV sound.3. 0~9:Select a program.(ATV/DTV mode)4. —:Enter multiple program channel number such as 2-1.5. :Return to the previous viewing channel.6. APP:Press to select the desired APP.7. MENU:Display the main menu.8. SOURCE:Select among the different input signal sources:TV/AV/COMPONENT/HDMI1/HDMI2/HDMI3/VGA/USB.9. :Allows you to navigate the on screen display menus and adjust the system settings to your preference.10. OK: the selection.11. RETURN:Return to previous menu.12. EXIT:Exit the on screen display menu.13. 14. VOL+/-:Adjust the volume.15. CH :Select the channel.16. TV:Into the TV channel.17. :Stop the playback.18. :Skip to the beginning of the previous chapter/track/photo.19. :Skip to the beginning of the next chapter/ track/photo.20. :Reverse playback rapidly.21. :Advance playback rapidly.22. FREEZE:Freeze the picture.23. :Start playback or pause.24. ADD/ERASE:Add or delete Favorite channels.25. FAV:Display the favorite channel list.26. INFO:Display the present screen information such as the current channel and input source.27. S.MODE:Select sound mode:standard/music/movie/user.28. P.MODE:Select picture mode:dynamic/movie/user/standard.29. CH.LIST:Display program list.30. V-CHIP:Set up parental control.ASPECT:Select the aspect ratio. settings:auto/standard/wide/wide zoom/zoom/Just Scan (HDMI)/Dot by Dot(VGA).32.31. CC:Closed Caption selection:ON/OFF/CC On Mute.MTS:Switch among different audio channels:STEREO/MONO/SAP.

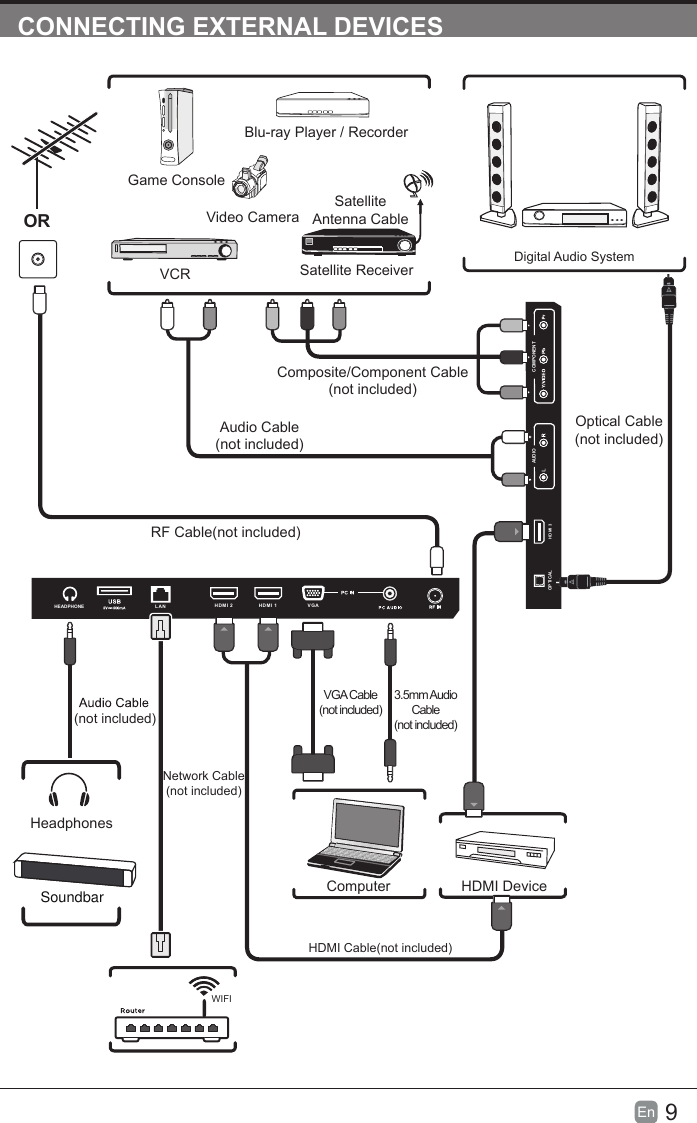

9En CONNECTING EXTERNAL DEVICESCOMPONENTAUDIOHDMI 3OPTICALHDMI 2 HDMI 1 VGALA NRF Cable(not included)Audio Cable(not included)Composite/Component Cable(not included)Video CameraGame ConsoleBlu-ray Player / RecorderVCR Satellite ReceiverSatelliteAntenna CableORHDMI DeviceComputerDigital Audio SystemVGA Cable(not included) 3.5mm Audio Cable(not included)Headphones(not included)HDMI Cable(not included)Optical Cable(not included)WIFINetwork Cable(not included)SoundbarHEADPHONE

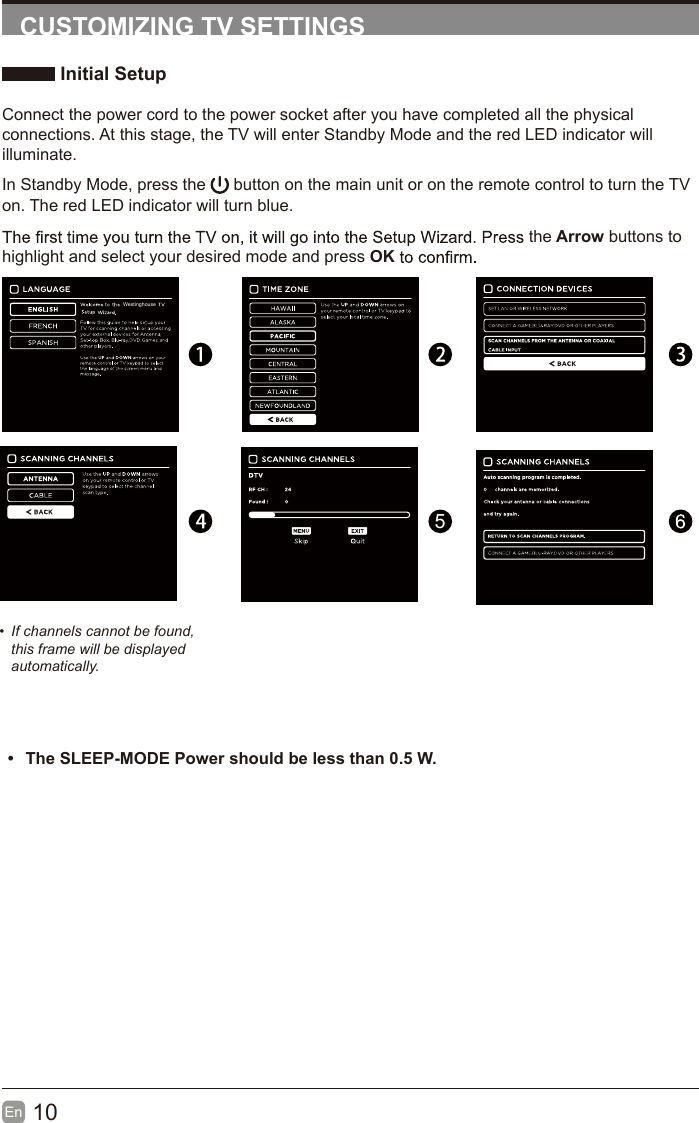

10En CUSTOMIZING TV SETTINGS Initial SetupConnect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate. In Standby Mode, press the button on the main unit or on the remote control to turn the TV on. The red LED indicator will turn blue.the Arrow buttons to highlight and select your desired mode and press OK5• If channels cannot be found, this frame will be displayed automatically.•The SLEEP-MODE Power should be less than 0.5 W.Westinghouse

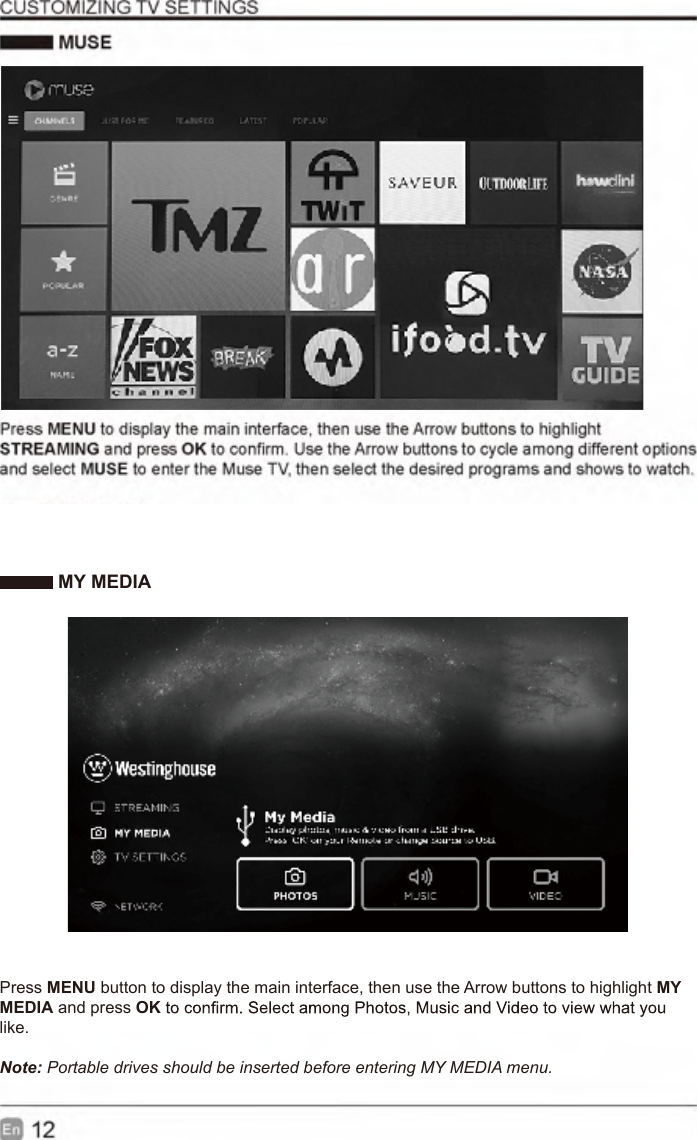

STREAMINGMY MEDIANETWORK PHOTOS VIDEOMUSICTV SETTINGS MY MEDIAPress MENU button to display the main interface, then use the Arrow buttons to highlight MY MEDIA and press OKlike. Note: Portable drives should be inserted before entering MY MEDIA menu.

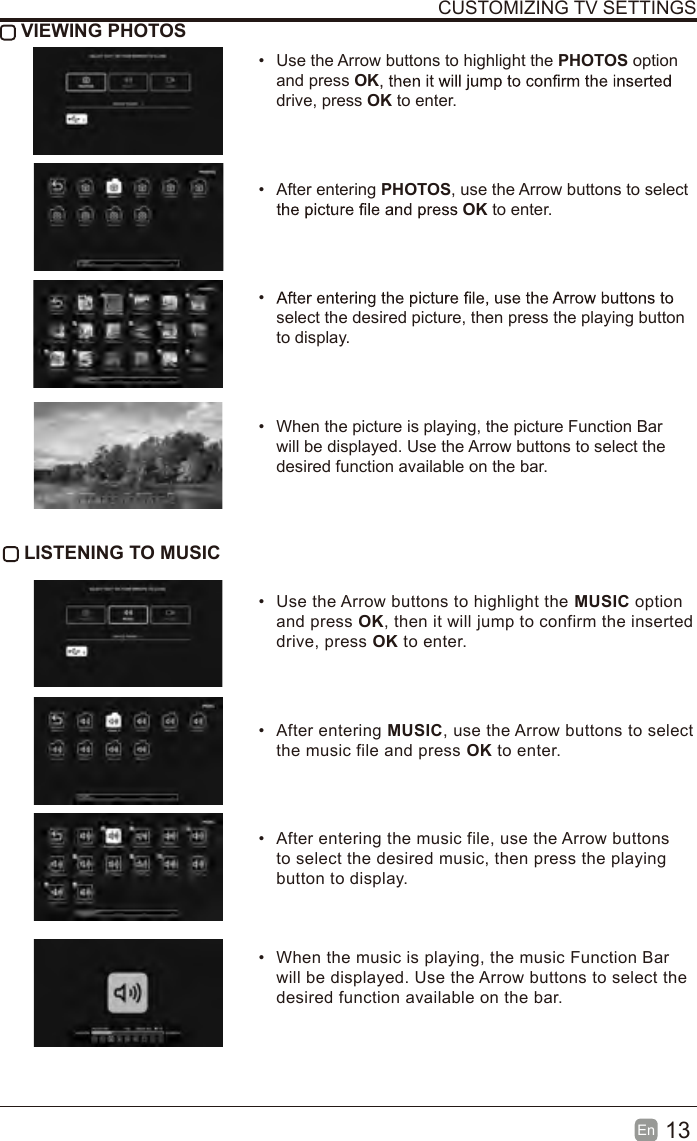

13En CUSTOMIZING TV SETTINGS VIEWING PHOTOS•Use the Arrow buttons to highlight the PHOTOS optionand press OKdrive, press OK to enter.•After entering PHOTOS, use the Arrow buttons to selectOK to enter.• select the desired picture, then press the playing button to display.•When the picture is playing, the picture Function Barwill be displayed. Use the Arrow buttons to select thedesired function available on the bar. LISTENING TO MUSIC•Use the Arrow buttons to highlight the MUSIC optionand press OK, then it will jump to confirm the inserteddrive, press OK to enter.•After entering MUSIC, use the Arrow buttons to selectthe music file and press OK to enter.•After entering the music file, use the Arrow buttonsto select the desired music, then press the playingbutton to display.•When the music is playing, the music Function Barwill be displayed. Use the Arrow buttons to select thedesired function available on the bar.

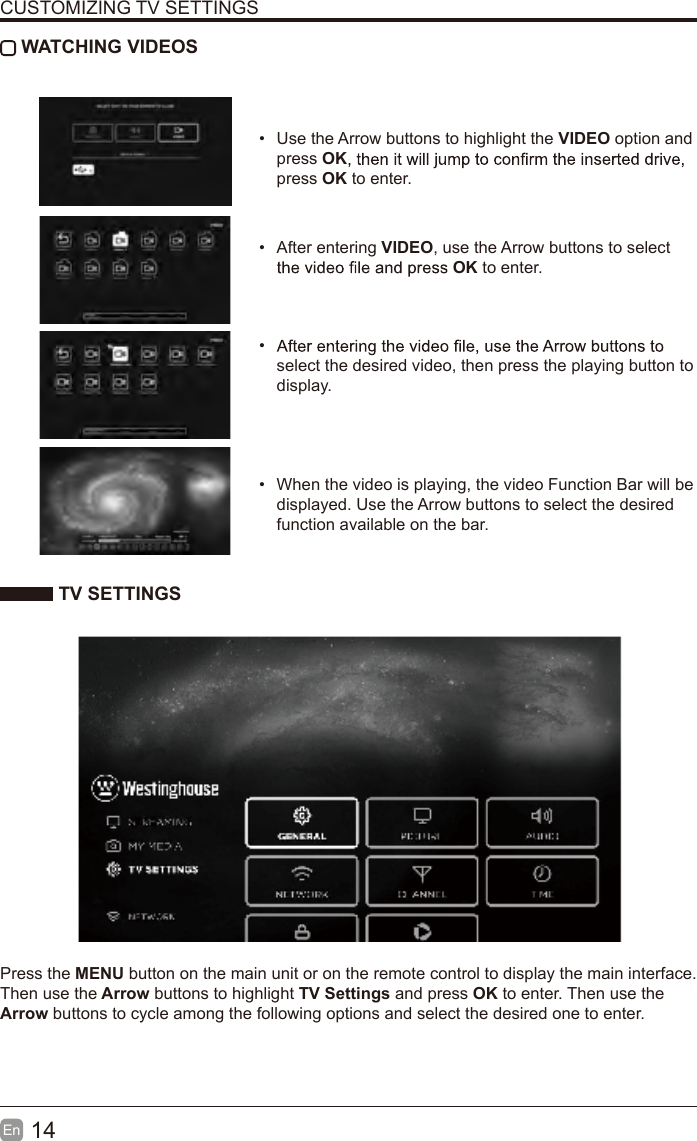

14En CUSTOMIZING TV SETTINGS WATCHING VIDEOS•Use the Arrow buttons to highlight the VIDEO option andpress OKpress OK to enter.•After entering VIDEO, use the Arrow buttons to selectOK to enter. • select the desired video, then press the playing button to display.•When the video is playing, the video Function Bar will bedisplayed. Use the Arrow buttons to select the desiredfunction available on the bar. TV SETTINGSPress the MENU button on the main unit or on the remote control to display the main interface. Then use the Arrow buttons to highlight TV Settings and press OK to enter. Then use the Arrow buttons to cycle among the following options and select the desired one to enter.

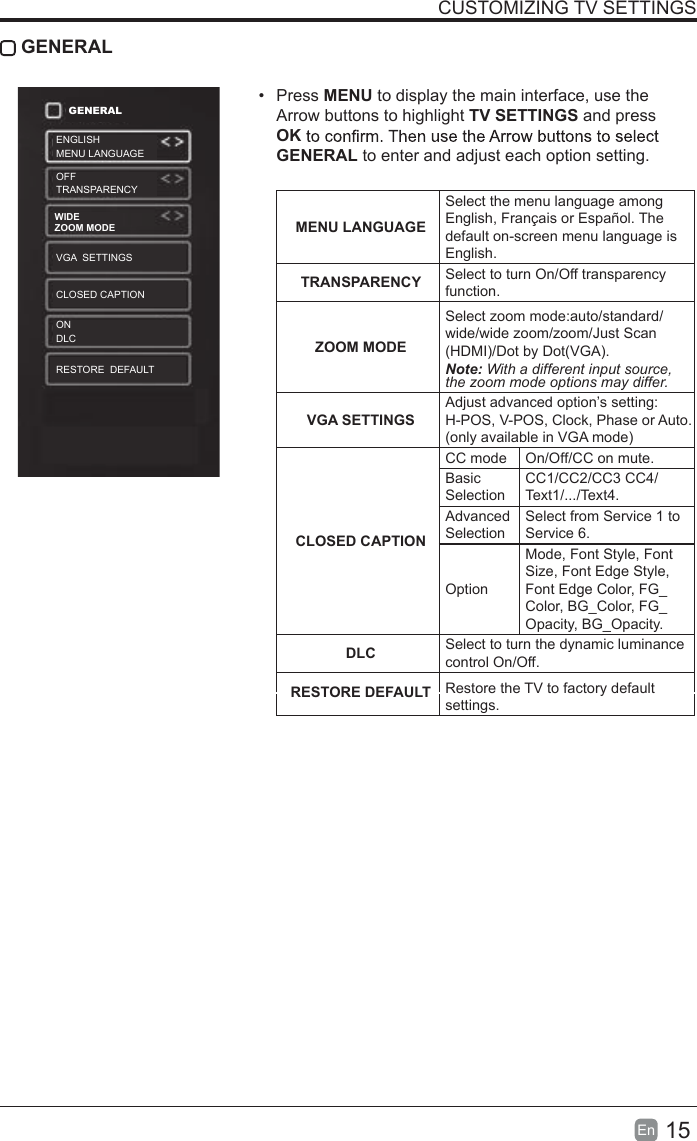

15En CUSTOMIZING TV SETTINGS GENERAL•Press MENU to display the main interface, use theArrow buttons to highlight TV SETTINGS and pressOKGENERAL to enter and adjust each option setting.MENU LANGUAGESelect the menu language among English, Français or Español. The default on-screen menu language is English.TRANSPARENCY Select to turn On/Off transparency function.ZOOM MODESelect zoom mode:auto/standard/wide/wide zoom/zoom/Just Scan(HDMI)/Dot by Dot(VGA). Note: With a different input source, the zoom mode options may differ.VGA SETTINGS Adjust advanced option’s setting: H-POS, V-POS, Clock, Phase or Auto. (only available in VGA mode)CLOSED CAPTIONCC mode On/Off/CC on mute.Basic Selection CC1/CC2/CC3 CC4/Text1/.../Text4.Advanced Selection Select from Service 1 to Service 6.OptionMode, Font Style, Font Size, Font Edge Style, Font Edge Color, FG_Color, BG_Color, FG_Opacity, BG_Opacity. DLC Select to turn the dynamic luminance control On/Off.RESTORE DEFAULT Restore the TV to factory default settings.ZOOM MODEWIDEENGLISHMENU LANGUAGEOFFTRANSPARENCYONDLCRESTORE DEFAULTGENERAL CLOSED CAPTIONVGA SETTINGS

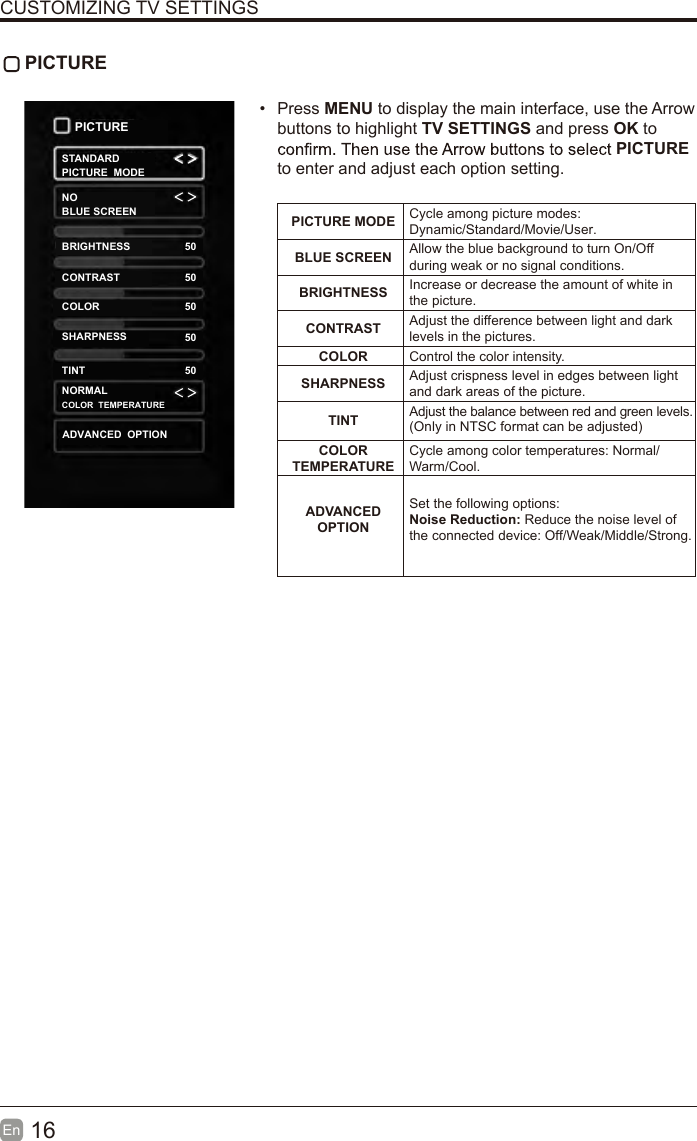

16En CUSTOMIZING TV SETTINGS PICTURE•Press MENU to display the main interface, use the Arrowbuttons to highlight TV SETTINGS and press OK toPICTURE to enter and adjust each option setting.PICTURE MODE Cycle among picture modes:Dynamic/Standard/Movie/User.BLUE SCREEN Allow the blue background to turn On/Off during weak or no signal conditions.BRIGHTNESS Increase or decrease the amount of white in the picture.CONTRAST Adjust the difference between light and dark levels in the pictures.COLOR Control the color intensity.SHARPNESS Adjust crispness level in edges between light and dark areas of the picture.TINT A(Only in NTSC format can be adjusted)djust the balance between red and green levels.COLOR TEMPERATURE Cycle among color temperatures: Normal/Warm/Cool.ADVANCED OPTIONSet the following options:Noise Reduction: Reduce the noise level of the connected device: Off/Weak/Middle/Strong.STANDARDPICTURE MODENO5050505050BLUE SCREENNORMALCOLOR TEMPERATUREBRIGHTNESSCONTRASTCOLORSHARPNESSADVANCED OPTIONTINTPICTURE

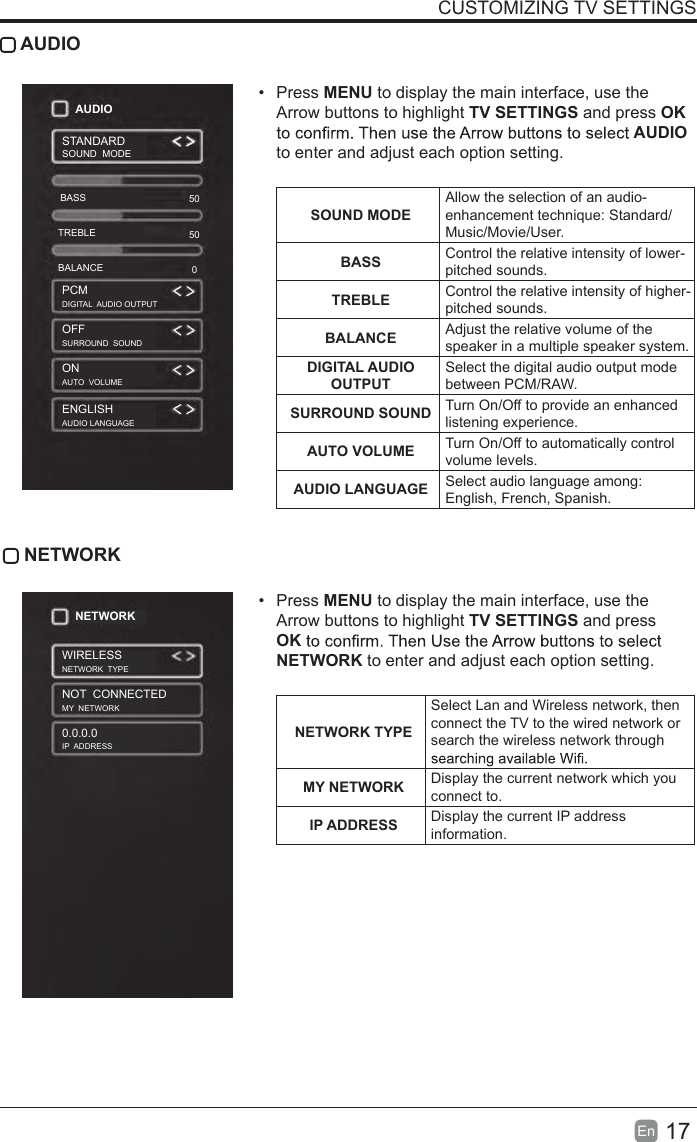

17En CUSTOMIZING TV SETTINGS AUDIO•Press MENU to display the main interface, use theArrow buttons to highlight TV SETTINGS and press OKAUDIO to enter and adjust each option setting. SOUND MODE Allow the selection of an audio-enhancement technique: Standard/Music/Movie/User.BASS Control the relative intensity of lower-pitched sounds.TREBLE Control the relative intensity of higher-pitched sounds.BALANCE Adjust the relative volume of the speaker in a multiple speaker system.DIGITAL AUDIO OUTPUT Select the digital audio output mode between PCM/RAW.SURROUND SOUND Turn On/Off to provide an enhanced listening experience.AUTO VOLUME Turn On/Off to automatically control volume levels.AUDIO LANGUAGE Select audio language among: English, French, Spanish. NETWORK•Press MENU to display the main interface, use theArrow buttons to highlight TV SETTINGS and pressOKNETWORK to enter and adjust each option setting.NETWORK TYPESelect Lan and Wireless network, then connect the TV to the wired network or search the wireless network through MY NETWORK Display the current network which you connect to.IP ADDRESS Display the current IP address information.AUDIONETWORKSTANDARDSOUND MODEPCMDIGITAL AUDIO OUTPUTOFFSURROUND SOUNDONAUTO VOLUMEENGLISHAUDIO LANGUAGEWIRELESSNETWORK TYPENOT CONNECTEDMY NETWORK0.0.0.0IP ADDRESSBASS 5050 0TREBLEBALANCE

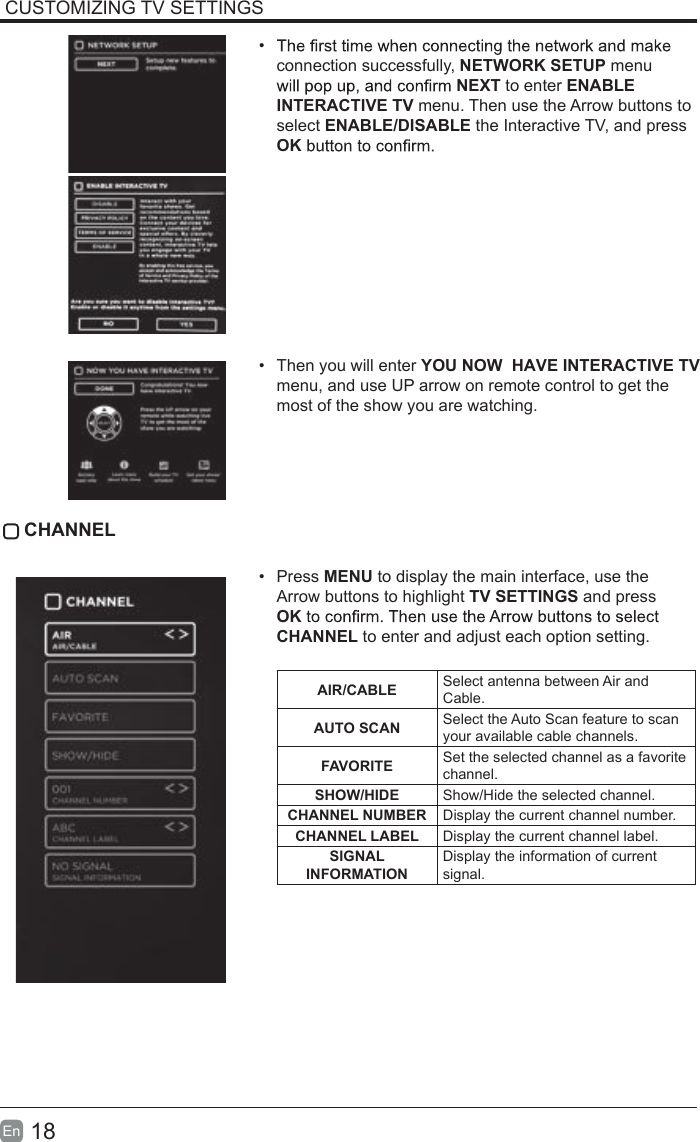

18En CUSTOMIZING TV SETTINGS• connection successfully, NETWORK SETUP menu NEXT to enter ENABLE INTERACTIVE TV menu. Then use the Arrow buttons to select ENABLE/DISABLE the Interactive TV, and press OK•Then you will enter YOU NOW HAVE INTERACTIVE TV menu, and use UP arrow on remote control to get themost of the show you are watching. CHANNEL•Press MENU to display the main interface, use theArrow buttons to highlight TV SETTINGS and pressOKCHANNEL to enter and adjust each option setting.AIR/CABLE Select antenna between Air and Cable.AUTO SCAN Select the Auto Scan feature to scan your available cable channels.FAVORITE Set the selected channel as a favorite channel.SHOW/HIDE Show/Hide the selected channel.CHANNEL NUMBER Display the current channel number.CHANNEL LABEL Display the current channel label.SIGNAL INFORMATION Display the information of current signal.Y A

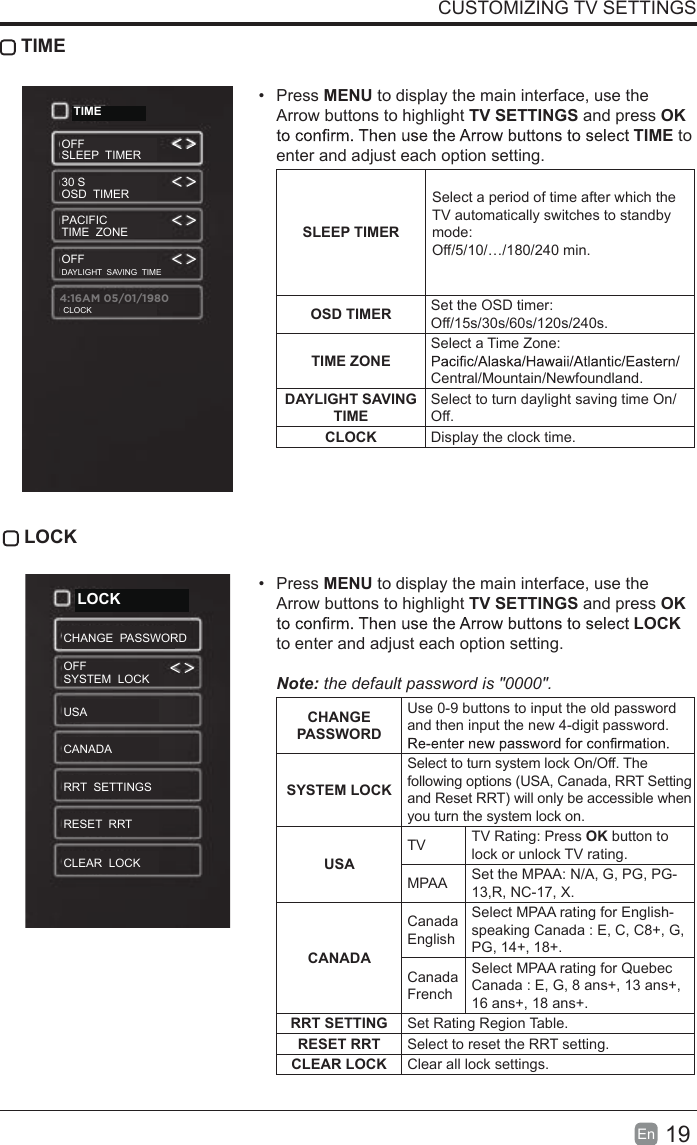

19En CUSTOMIZING TV SETTINGS TIME•Press MENU to display the main interface, use theArrow buttons to highlight TV SETTINGS and press OKTIME to enter and adjust each option setting.SLEEP TIMERSelect a period of time after which the TV automatically switches to standby mode:Off/5/10/…/180/240 min. OSD TIMER Set the OSD timer: Off/15s/30s/60s/120s/240s. TIME ZONE Select a Time Zone: Central/Mountain/Newfoundland.DAYLIGHT SAVING TIME Select to turn daylight saving time On/Off.CLOCK Display the clock time. LOCK•Press MENU to display the main interface, use theArrow buttons to highlight TV SETTINGS and press OKLOCK to enter and adjust each option setting. Note: the default password is "0000".CHANGE PASSWORDUse 0-9 buttons to input the old password and then input the new 4-digit password. SYSTEM LOCKSelect to turn system lock On/Off. The following options (USA, Canada, RRT Setting and Reset RRT) will only be accessible when you turn the system lock on.USATV TV Rating: Press OK button to lock or unlock TV rating.MPAA Set the MPAA: N/A, G, PG, PG-13,R, NC-17, X.CANADACanada EnglishSelect MPAA rating for English-speaking Canada : E, C, C8+, G, PG, 14+, 18+.Canada FrenchSelect MPAA rating for Quebec Canada : E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.RRT SETTING Set Rating Region Table.RESET RRT Select to reset the RRT setting.CLEAR LOCK Clear all lock settings. 4:16AM 05/01/1980TIMEOFFSLEEP TIMER30 SOSD TIMERPACIFICTIME ZONECHANGE PASSWORDLOCKUSACANADARRT SETTINGSRESET RRTCLEAR LOCKOFFDAYLIGHT SAVING TIMECLOCKOFFSYSTEM LOCK

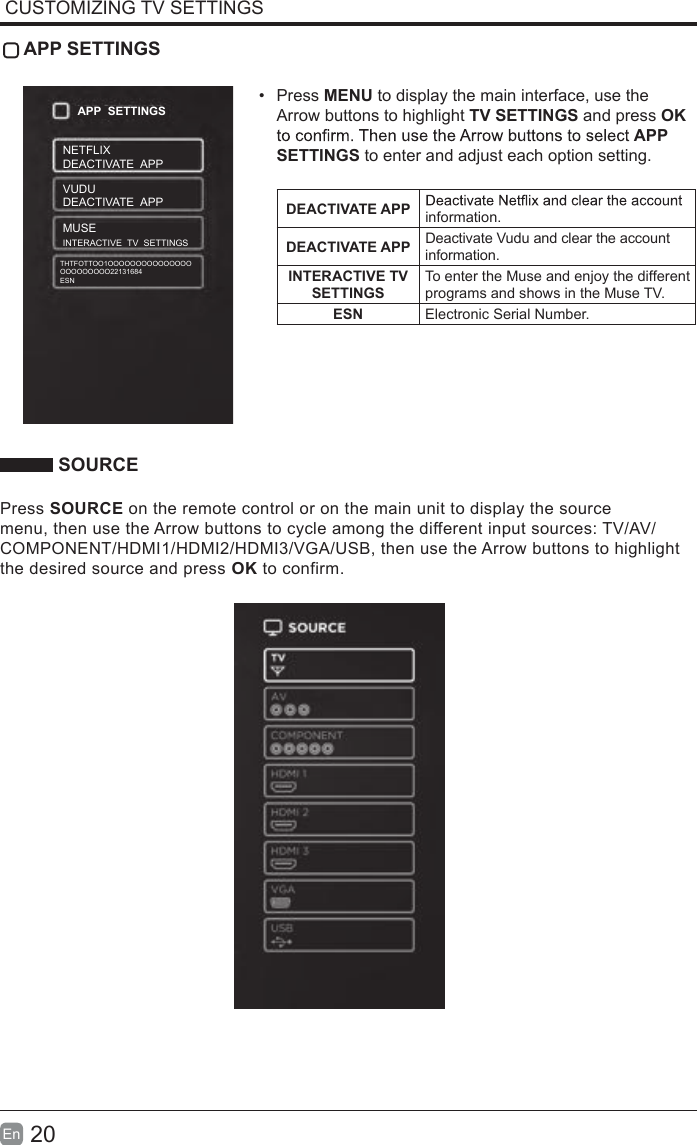

20En CUSTOMIZING TV SETTINGS APP SETTINGS•Press MENU to display the main interface, use theArrow buttons to highlight TV SETTINGS and press OKAPP SETTINGS to enter and adjust each option setting.DEACTIVATE APP information.DEACTIVATE APP Deactivate Vudu and clear the account information.INTERACTIVE TV SETTINGS To enter the Muse and enjoy the different programs and shows in the Muse TV.ESN Electronic Serial Number. SOURCEPress SOURCE on the remote control or on the main unit to display the source menu, then use the Arrow buttons to cycle among the different input sources: TV/AV/COMPONENT/HDMI1/HDMI2/HDMI3/VGA/USB, then use the Arrow buttons to highlight the desired source and press OK to confirm.APP SETTINGSNETFLIXDEACTIVATE APPVUDUDEACTIVATE APP MUSEINTERACTIVE TV SETTINGSTHTFOTTOO1OOOOOOOOOOOOOOOOOOOOOOOO22131684ESN

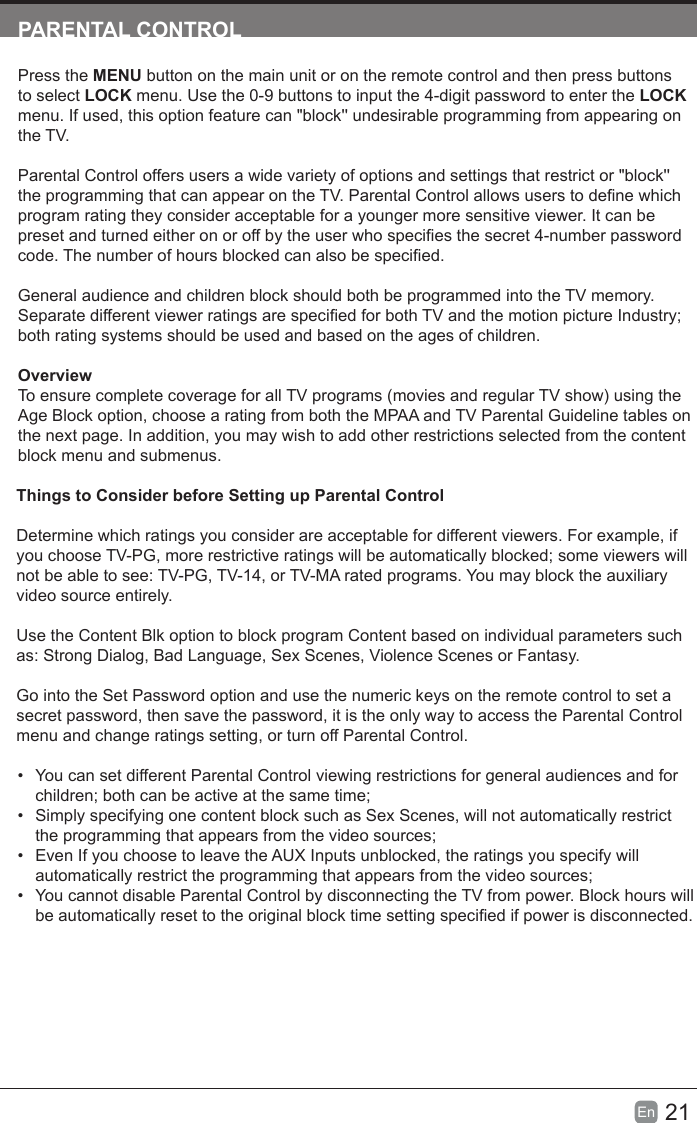

21En PARENTAL CONTROLPress the MENU button on the main unit or on the remote control and then press buttons to select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter the LOCK menu. If used, this option feature can "block'' undesirable programming from appearing on the TV.Parental Control offers users a wide variety of options and settings that restrict or "block'' the programming that can appear on the TV. Parental Control allows users to dene which program rating they consider acceptable for a younger more sensitive viewer. It can be preset and turned either on or off by the user who species the secret 4-number password code. The number of hours blocked can also be specied.General audience and children block should both be programmed into the TV memory. Separate different viewer ratings are specied for both TV and the motion picture Industry; both rating systems should be used and based on the ages of children.OverviewTo ensure complete coverage for all TV programs (movies and regular TV show) using the Age Block option, choose a rating from both the MPAA and TV Parental Guideline tables on the next page. In addition, you may wish to add other restrictions selected from the content block menu and submenus.Things to Consider before Setting up Parental ControlDetermine which ratings you consider are acceptable for different viewers. For example, if you choose TV-PG, more restrictive ratings will be automatically blocked; some viewers will not be able to see: TV-PG, TV-14, or TV-MA rated programs. You may block the auxiliary video source entirely.Use the Content Blk option to block program Content based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes, Violence Scenes or Fantasy.Go into the Set Password option and use the numeric keys on the remote control to set a secret password, then save the password, it is the only way to access the Parental Control menu and change ratings setting, or turn off Parental Control.• You can set different Parental Control viewing restrictions for general audiences and forchildren; both can be active at the same time;• Simply specifying one content block such as Sex Scenes, will not automatically restrictthe programming that appears from the video sources;• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify willautomatically restrict the programming that appears from the video sources;• You cannot disable Parental Control by disconnecting the TV from power. Block hours willbe automatically reset to the original block time setting specied if power is disconnected.

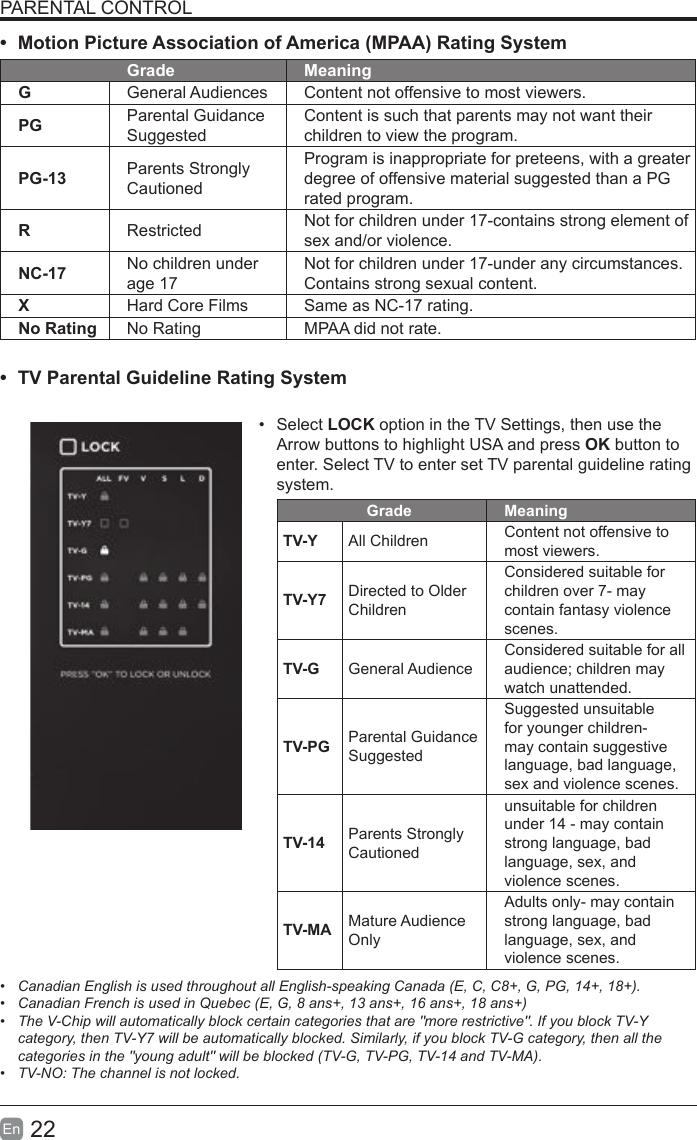

22En PARENTAL CONTROL•Motion Picture Association of America (MPAA) Rating SystemGrade MeaningGGeneral Audiences Content not offensive to most viewers.PG Parental Guidance Suggested Content is such that parents may not want their children to view the program.PG-13 Parents Strongly CautionedProgram is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program.RRestricted Not for children under 17-contains strong element of sex and/or violence.NC-17 No children under age 17 Not for children under 17-under any circumstances. Contains strong sexual content.XHard Core Films Same as NC-17 rating.No Rating No Rating MPAA did not rate.•TV Parental Guideline Rating System•Select LOCK option in the TV Settings, then use theArrow buttons to highlight USA and press OK button toenter. Select TV to enter set TV parental guideline ratingsystem.Grade MeaningTV-Y All Children Content not offensive to most viewers.TV-Y7 Directed to Older ChildrenConsidered suitable for children over 7- may contain fantasy violence scenes.TV-G General Audience Considered suitable for all audience; children may watch unattended.TV-PG Parental Guidance SuggestedSuggested unsuitable for younger children-may contain suggestive language, bad language, sex and violence scenes.TV-14 Parents Strongly Cautionedunsuitable for children under 14 - may contain strong language, bad language, sex, and violence scenes.TV-MA Mature Audience OnlyAdults only- may contain strong language, bad language, sex, and violence scenes.• Canadian English is used throughout all English-speaking Canada (E, C, C8+, G, PG, 14+, 18+). • Canadian French is used in Quebec (E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+) • The V-Chip will automatically block certain categories that are "more restrictive". If you block TV-Y category, then TV-Y7 will be automatically blocked. Similarly, if you block TV-G category, then all the categories in the "young adult" will be blocked (TV-G, TV-PG, TV-14 and TV-MA).• TV-NO: The channel is not locked.

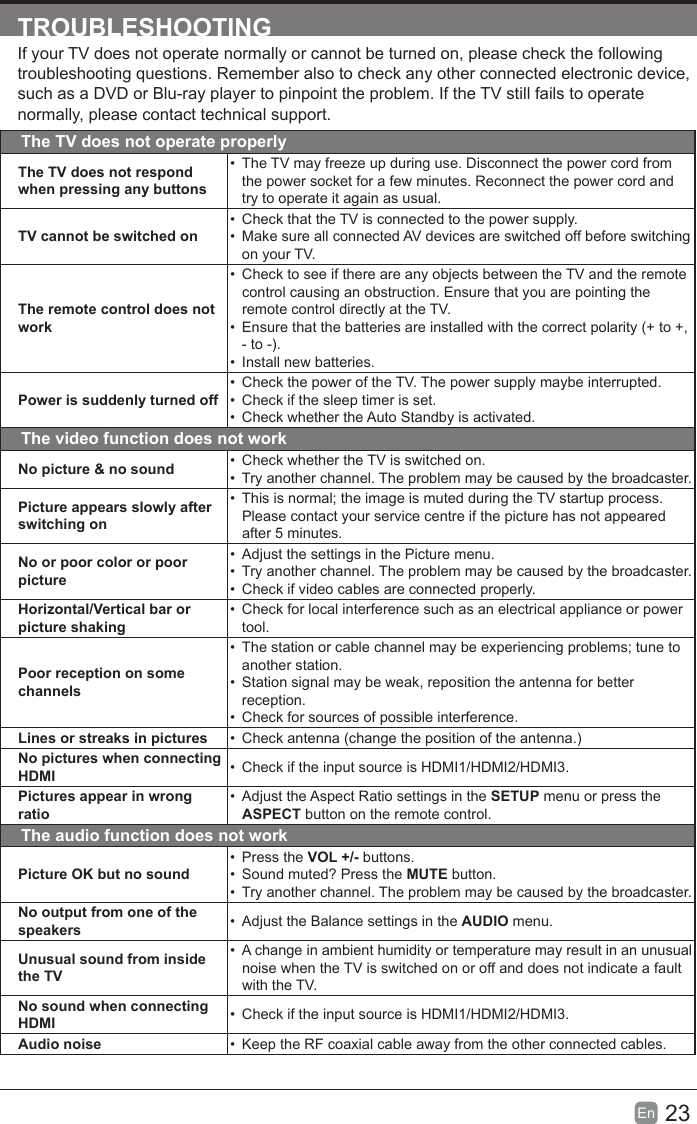

23En TROUBLESHOOTINGIf your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as a DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support.The TV does not operate properlyThe TV does not respond when pressing any buttons• The TV may freeze up during use. Disconnect the power cord from the power socket for a few minutes. Reconnect the power cord and try to operate it again as usual.TV cannot be switched on• Check that the TV is connected to the power supply.• Make sure all connected AV devices are switched off before switching on your TV.The remote control does not work• Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV.• Ensure that the batteries are installed with the correct polarity (+ to +, - to -).• Install new batteries. Power is suddenly turned off• Check the power of the TV. The power supply maybe interrupted.• Check if the sleep timer is set.• Check whether the Auto Standby is activated. The video function does not workNo picture & no sound • Check whether the TV is switched on.• Try another channel. The problem may be caused by the broadcaster.Picture appears slowly after switching on• This is normal; the image is muted during the TV startup process. Please contact your service centre if the picture has not appeared after 5 minutes.No or poor color or poor picture• Adjust the settings in the Picture menu.• Try another channel. The problem may be caused by the broadcaster. • Check if video cables are connected properly.Horizontal/Vertical bar or picture shaking• Check for local interference such as an electrical appliance or power tool.Poor reception on some channels• The station or cable channel may be experiencing problems; tune to another station.• Station signal may be weak, reposition the antenna for better reception. • Check for sources of possible interference.Lines or streaks in pictures • Check antenna (change the position of the antenna.)No pictures when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.Pictures appear in wrong ratio• Adjust the Aspect Ratio settings in the SETUP menu or press the ASPECT button on the remote control.The audio function does not workPicture OK but no sound• Press the VOL +/- buttons. • Sound muted? Press the MUTE button.• Try another channel. The problem may be caused by the broadcaster.No output from one of the speakers • Adjust the Balance settings in the AUDIO menu.Unusual sound from inside the TV• A change in ambient humidity or temperature may result in an unusualnoise when the TV is switched on or off and does not indicate a fault with the TV.No sound when connecting HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.Audio noise • Keep the RF coaxial cable away from the other connected cables.

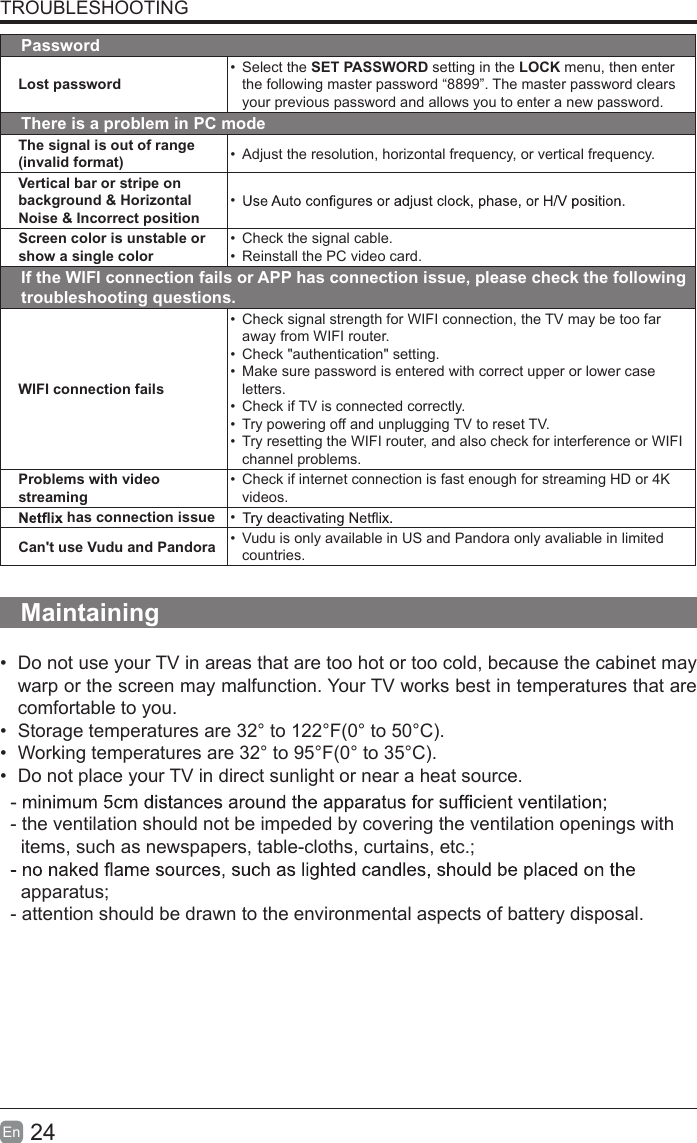

24En TROUBLESHOOTINGPasswordLost password • Select the SET PASSWORD setting in the LOCK menu, then enter the following master password “8899”. The master password clears your previous password and allows you to enter a new password.There is a problem in PC modeThe signal is out of range (invalid format) • Adjust the resolution, horizontal frequency, or vertical frequency.Vertical bar or stripe on background & Horizontal Noise & Incorrect position • Screen color is unstable or show a single color • Check the signal cable.• Reinstall the PC video card.If the WIFI connection fails or APP has connection issue, please check the following troubleshooting questions.WIFI connection fails• Check signal strength for WIFI connection, the TV may be too far away from WIFI router.• Check "authentication" setting.• Make sure password is entered with correct upper or lower case letters.• Check if TV is connected correctly.• Try powering off and unplugging TV to reset TV.• Try resetting the WIFI router, and also check for interference or WIFI channel problems.Problems with video streaming • Check if internet connection is fast enough for streaming HD or 4K videos. has connection issue • Can't use Vudu and Pandora • Vudu is only available in US and Pandora only avaliable in limited countries.Maintaining• Do not use your TV in areas that are too hot or too cold, because the cabinet maywarp or the screen may malfunction. Your TV works best in temperatures that arecomfortable to you.• Storage temperatures are 32° to 122°F(0° to 50°C).• Working temperatures are 32° to 95°F(0° to 35°C).• Do not place your TV in direct sunlight or near a heat source.- the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.; apparatus;- attention should be drawn to the environmental aspects of battery disposal.

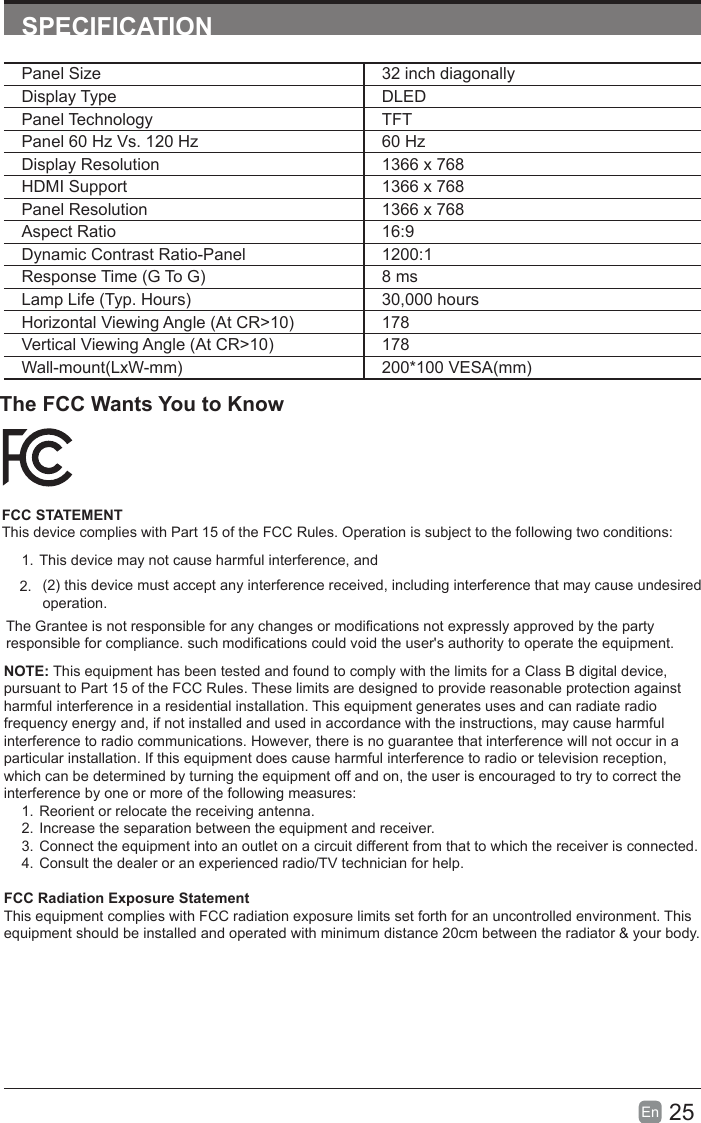

25En SPECIFICATIONThe FCC Wants You to KnowFCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:1. Reorient or relocate the receiving antenna.2. Increase the separation between the equipment and receiver.3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.Panel Size 32 inch diagonally Display Type DLEDPanel Technology TFTPanel 60 Hz Vs. 120 Hz 60 HzDisplay Resolution 1366 x 768HDMI Support 1366 x 768Panel Resolution 1366 x 768Aspect Ratio 16:9Dynamic Contrast Ratio-Panel 1200:1Response Time (G To G) 8 msLamp Life (Typ. Hours) 30,000 hoursHorizontal Viewing Angle (At CR>10) 178Vertical Viewing Angle (At CR>10) 178Wall-mount(LxW-mm) 200*100 VESA(mm)(2) this device must accept any interference received, including interference that may cause undesired operation.The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.
26En If you want to know about these APP information or get more service. Please refer to following content.• You can call the following telephone for more help: 866-579-7172 If your matter is regarding customer service, please refer to for alternative contact information.• YouTube You can browse the following website for more help: https://productforums.google.com/forum/#!categories/youtube/smart-tvs• VUDU You can call the following telephone for more help: 888-554-8838• TG You can call the following telephone for more help: 888-874-5411• Pandora You can send E-mail to Pandora for more help: pandora-support@pandora.com• AccuWeather You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com OTT APP SERVICE OBTAINING WARRANTY SERVICEPlease call Westinghouse Electronics at (800) 701-0680 for the locations of the nearest Westinghouse Electronics service center or to obtain in-home services.
