APEMAN IH74 Apeman wifi camera User Manual W1

APEMAN INTERNATIONAL CO.,LIMITED. Apeman wifi camera W1

User Manual

W1 Plus WIFI Camera Product Manual

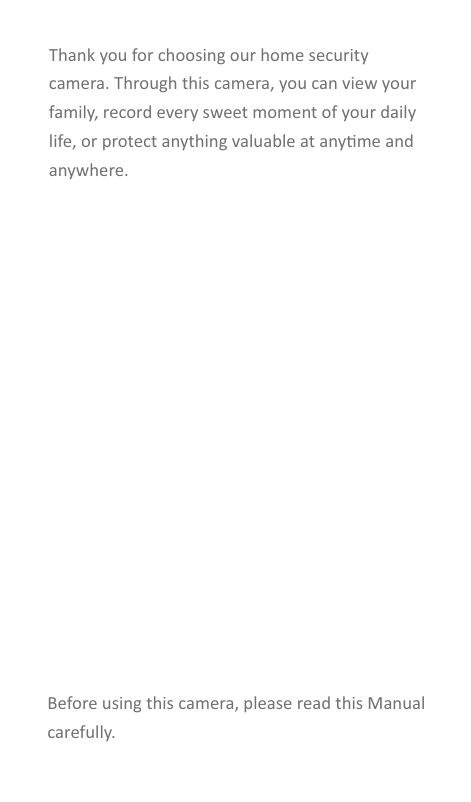

Thank you for choosing our home security camera. Through this camera, you can view your family, record every sweet moment of your daily life, or protect anything valuable at anyme and anywhere.Before using this camera, please read this Manual carefully.
AppearanceFrontLEDLoncMicBackMicro SDCard SlotReset KeySpeakerPowerPort

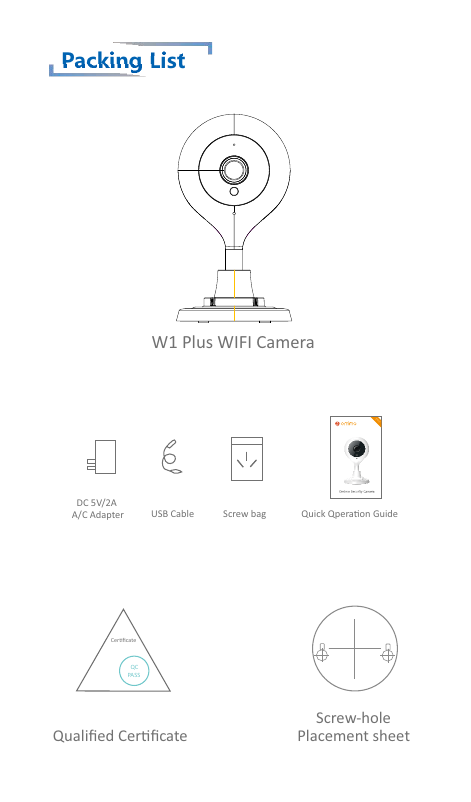

Packing ListW1 Plus WIFI CameraQualified Cerficate Screw-holePlacement sheetCerficate QCPASSUSB Cable DC 5V/2AA/C Adapter Screw bag Quick Qperaon Guide1080P

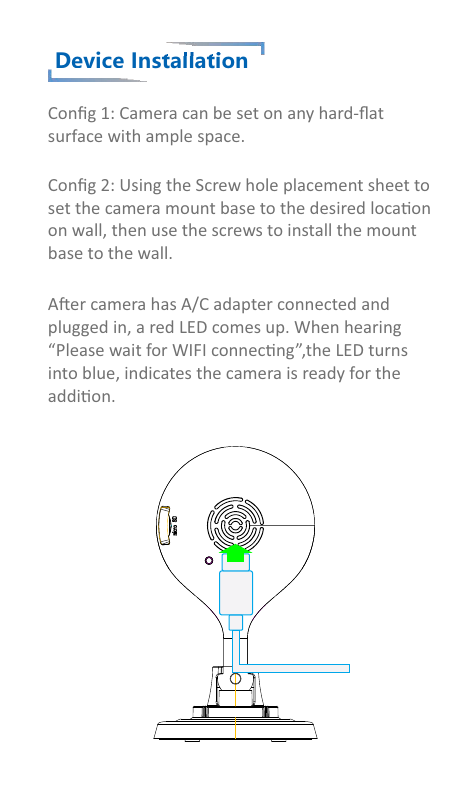

Device InstallationConfig 1: Camera can be set on any hard-flat surface with ample space.Config 2: Using the Screw hole placement sheet to set the camera mount base to the desired locaon on wall, then use the screws to install the mount base to the wall.Aer camera has A/C adapter connected and plugged in, a red LED comes up. When hearing “Please wait for WIFI connecng”,the LED turns into blue, indicates the camera is ready for the addion.

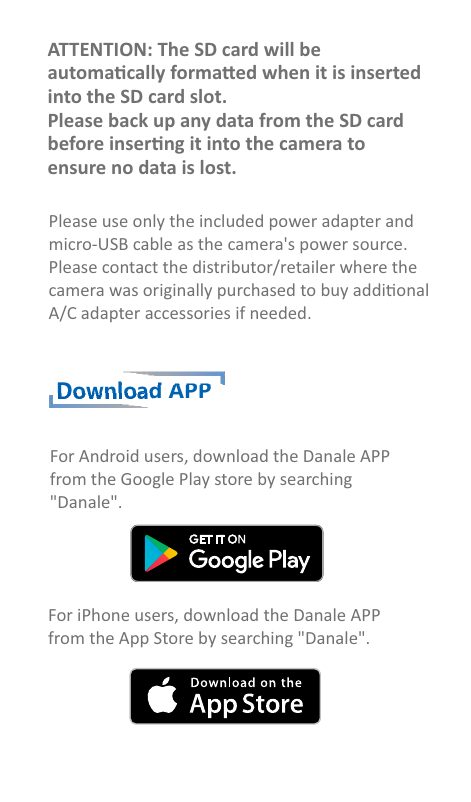

Download APPATTENTION: The SD card will beautomacally formaed when it is insertedinto the SD card slot.Please back up any data from the SD cardbefore inserng it into the camera toensure no data is lost.Please use only the included power adapter and micro-USB cable as the camera's power source. Please contact the distributor/retailer where the camera was originally purchased to buy addional A/C adapter accessories if needed.For Android users, download the Danale APPfrom the Google Play store by searching "Danale".For iPhone users, download the Danale APPfrom the App Store by searching "Danale".

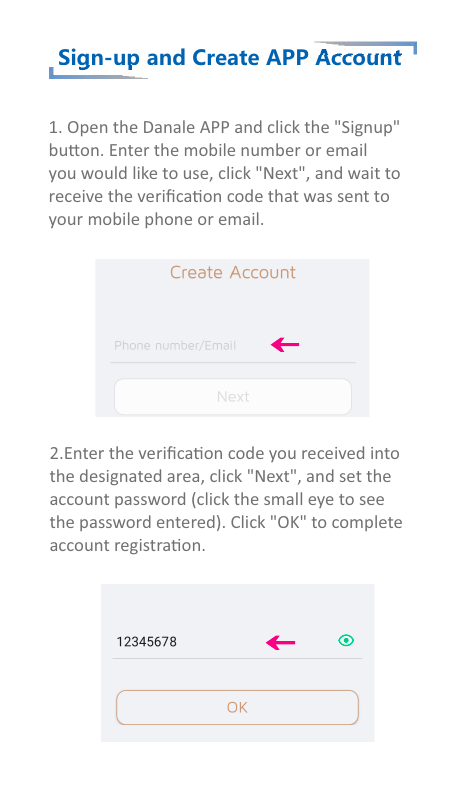

Sign-up and Create APP Account1. Open the Danale APP and click the "Signup" buon. Enter the mobile number or emailyou would like to use, click "Next", and wait toreceive the verificaon code that was sent toyour mobile phone or email.2.Enter the verificaon code you received intothe designated area, click "Next", and set theaccount password (click the small eye to seethe password entered). Click "OK" to completeaccount registraon.

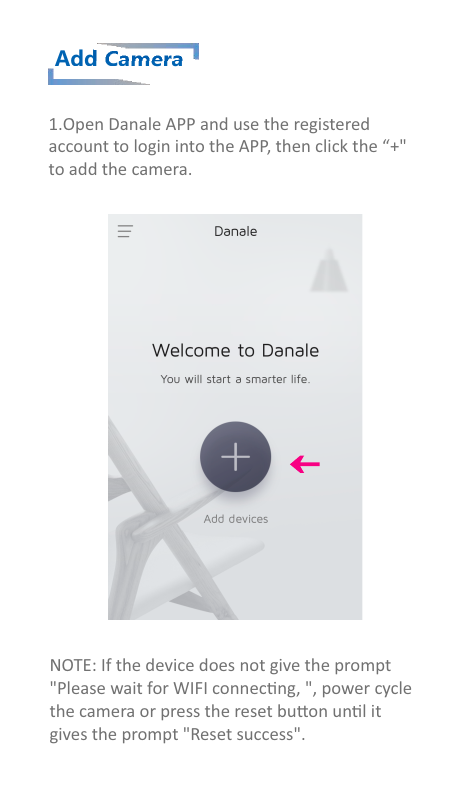

Add Camera1.Open Danale APP and use the registeredaccount to login into the APP, then click the “+"to add the camera.NOTE: If the device does not give the prompt"Please wait for WIFI connecng, ", power cycle the camera or press the reset buon unl it gives the prompt "Reset success".

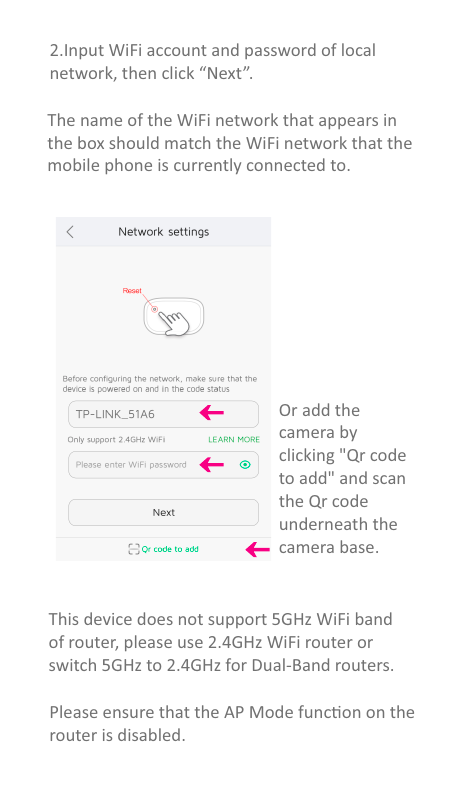

The name of the WiFi network that appears inthe box should match the WiFi network that themobile phone is currently connected to.2.Input WiFi account and password of local network, then click “Next”.Or add thecamera byclicking "Qr codeto add" and scanthe Qr codeunderneath the camera base.This device does not support 5GHz WiFi bandof router, please use 2.4GHz WiFi router orswitch 5GHz to 2.4GHz for Dual-Band routers.Please ensure that the AP Mode funcon on the router is disabled.

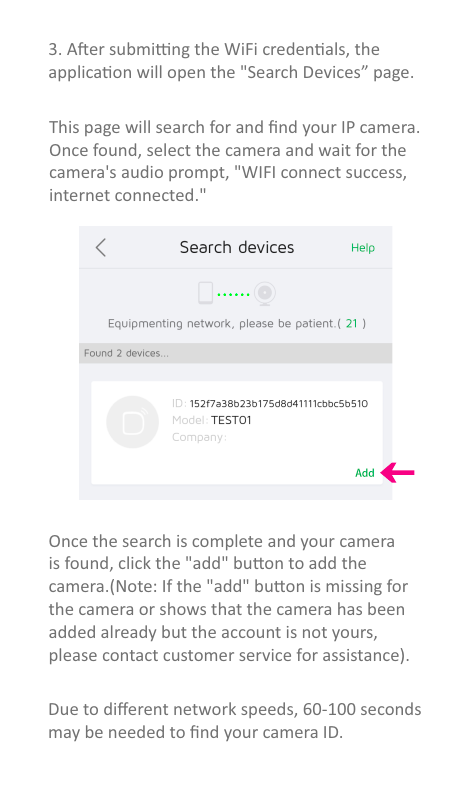

3. Aer subming the WiFi credenals, theapplicaon will open the "Search Devices” page.This page will search for and find your IP camera. Once found, select the camera and wait for the camera's audio prompt, "WIFI connect success, internet connected."Once the search is complete and your camerais found, click the "add" buon to add the camera.(Note: If the "add" buon is missing forthe camera or shows that the camera has been added already but the account is not yours, please contact customer service for assistance).Due to different network speeds, 60-100 seconds may be needed to find your camera ID.

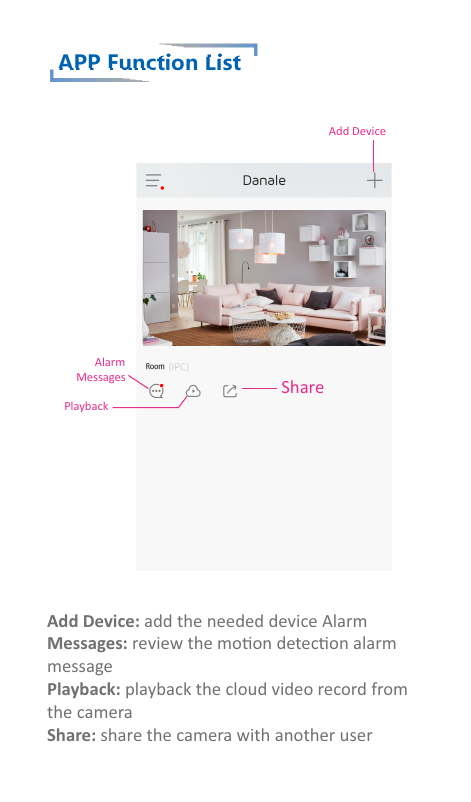

APP Function ListAdd Device: add the needed device AlarmMessages: review the moon detecon alarm messagePlayback: playback the cloud video record from the cameraShare: share the camera with another userAdd DeviceShareAlarmMessagesPlayback

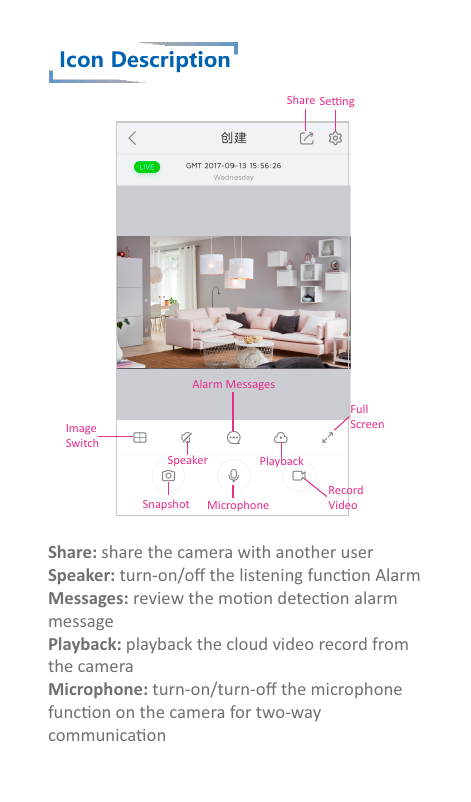

Icon DescriptionShare SengPlaybackImageSwitchFullScreenRecordVideoSpeakerSnapshot MicrophoneAlarm MessagesShare: share the camera with another userSpeaker: turn-on/off the listening funcon AlarmMessages: review the moon detecon alarm messagePlayback: playback the cloud video record from the cameraMicrophone: turn-on/turn-off the microphonefuncon on the camera for two-way communicaon

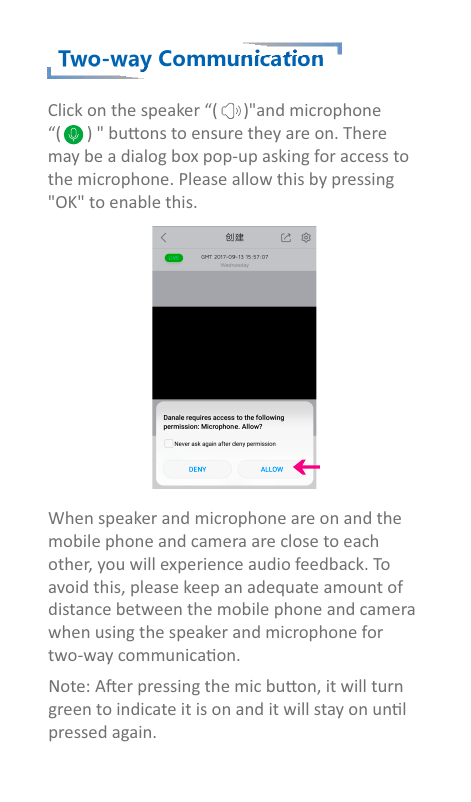

Two-way CommunicationClick on the speaker “( )"and microphone“( ) " buons to ensure they are on. Theremay be a dialog box pop-up asking for access tothe microphone. Please allow this by pressing"OK" to enable this.When speaker and microphone are on and themobile phone and camera are close to each other, you will experience audio feedback. Toavoid this, please keep an adequate amount ofdistance between the mobile phone and camerawhen using the speaker and microphone fortwo-way communicaon.Note: Aer pressing the mic buon, it will turngreen to indicate it is on and it will stay on unlpressed again.

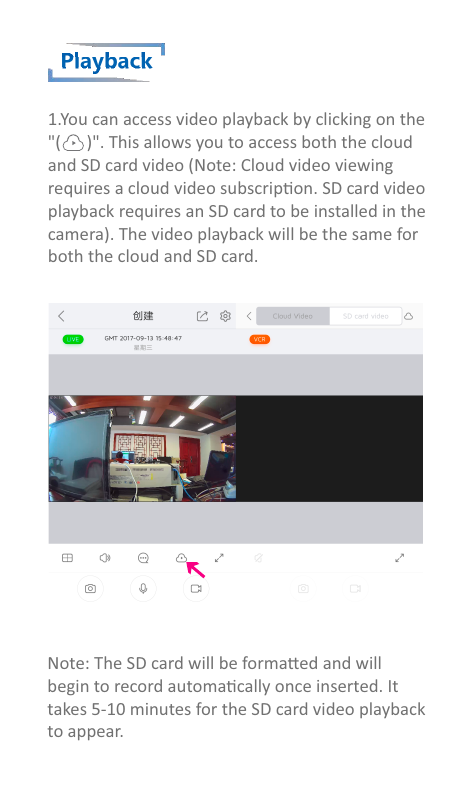

Playback1.You can access video playback by clicking on the "( )". This allows you to access both the cloud and SD card video (Note: Cloud video viewing requires a cloud video subscripon. SD card video playback requires an SD card to be installed in thecamera). The video playback will be the same for both the cloud and SD card.Note: The SD card will be formaed and willbegin to record automacally once inserted. Ittakes 5-10 minutes for the SD card video playback to appear.
2. Click on the tab labeled "SD card video" to view the SD card video playback page. The device automacally plays the earliest video files of the day. Drag the me-line to the le or right to select the me to play. Click on the date to the right of the me-line to select a date to view video playback.

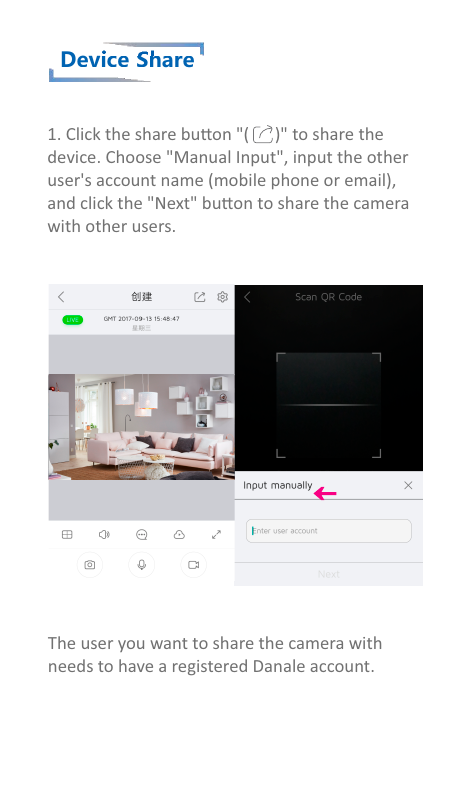

Device Share1. Click the share buon "( )" to share thedevice. Choose "Manual Input", input the other user's account name (mobile phone or email), and click the "Next" buon to share the camera with other users.The user you want to share the camera with needs to have a registered Danale account.

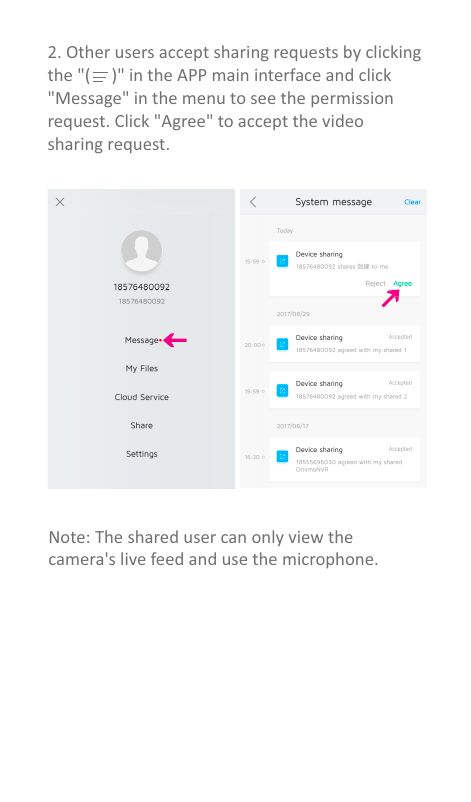

2. Other users accept sharing requests by clicking the "( )" in the APP main interface and click "Message" in the menu to see the permission request. Click "Agree" to accept the video sharing request.Note: The shared user can only view thecamera's live feed and use the microphone.

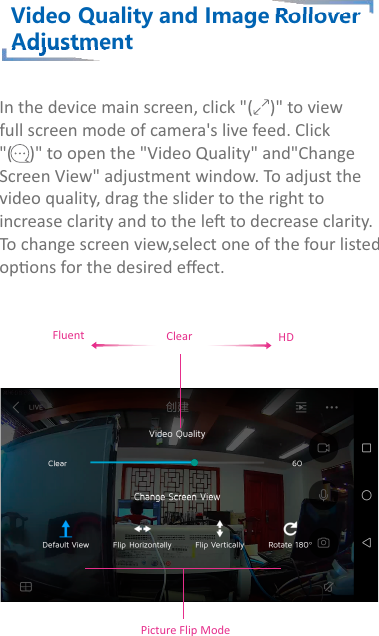

Video Qualityand ImageRolloverAdjustmentIn the device main screen, click "( )" to viewfull screen mode of camera's live feed. Click"( )" to open the "Video Quality" and"Change Screen View" adjustment window. To adjust the video quality, drag the slider to the right to increase clarity and to the le to decrease clarity. To change screen view,select one of the four listed opons for the desired effect.FluentPicture Flip ModeClear HD

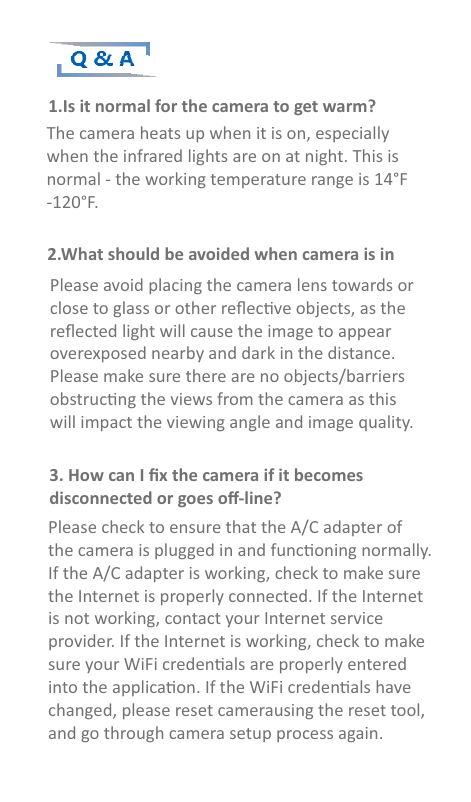

Q & A1.Is it normal for the camera to get warm?The camera heats up when it is on, especiallywhen the infrared lights are on at night. This isnormal - the working temperature range is 14°F-120°F.Please avoid placing the camera lens towards or close to glass or other reflecve objects, as the reflected light will cause the image to appearoverexposed nearby and dark in the distance.Please make sure there are no objects/barriersobstrucng the views from the camera as thiswill impact the viewing angle and image quality.Please check to ensure that the A/C adapter ofthe camera is plugged in and funconing normally. If the A/C adapter is working, check to make sure the Internet is properly connected. If the Internet is not working, contact your Internet service provider. If the Internet is working, check to make sure your WiFi credenals are properly entered into the applicaon. If the WiFi credenals have changed, please reset camerausing the reset tool, and go through camera setup process again.2.What should be avoided when camera is in 3. How can I fix the camera if it becomes disconnected or goes off-line?

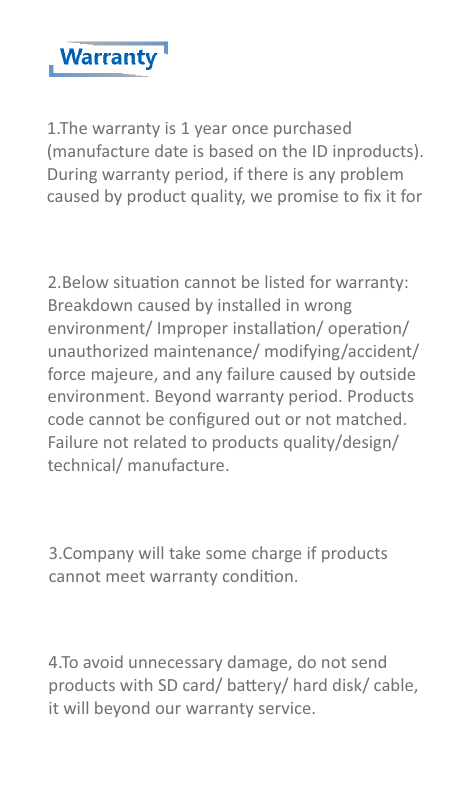

Warranty1.The warranty is 1 year once purchased(manufacture date is based on the ID inproducts). During warranty period, if there is any problem caused by product quality, we promise to fix it for 2.Below situaon cannot be listed for warranty:Breakdown caused by installed in wrongenvironment/ Improper installaon/ operaon/unauthorized maintenance/ modifying/accident/force majeure, and any failure caused by outsideenvironment. Beyond warranty period. Productscode cannot be configured out or not matched.Failure not related to products quality/design/technical/ manufacture.3.Company will take some charge if productscannot meet warranty condion.4.To avoid unnecessary damage, do not sendproducts with SD card/ baery/ hard disk/ cable,it will beyond our warranty service.

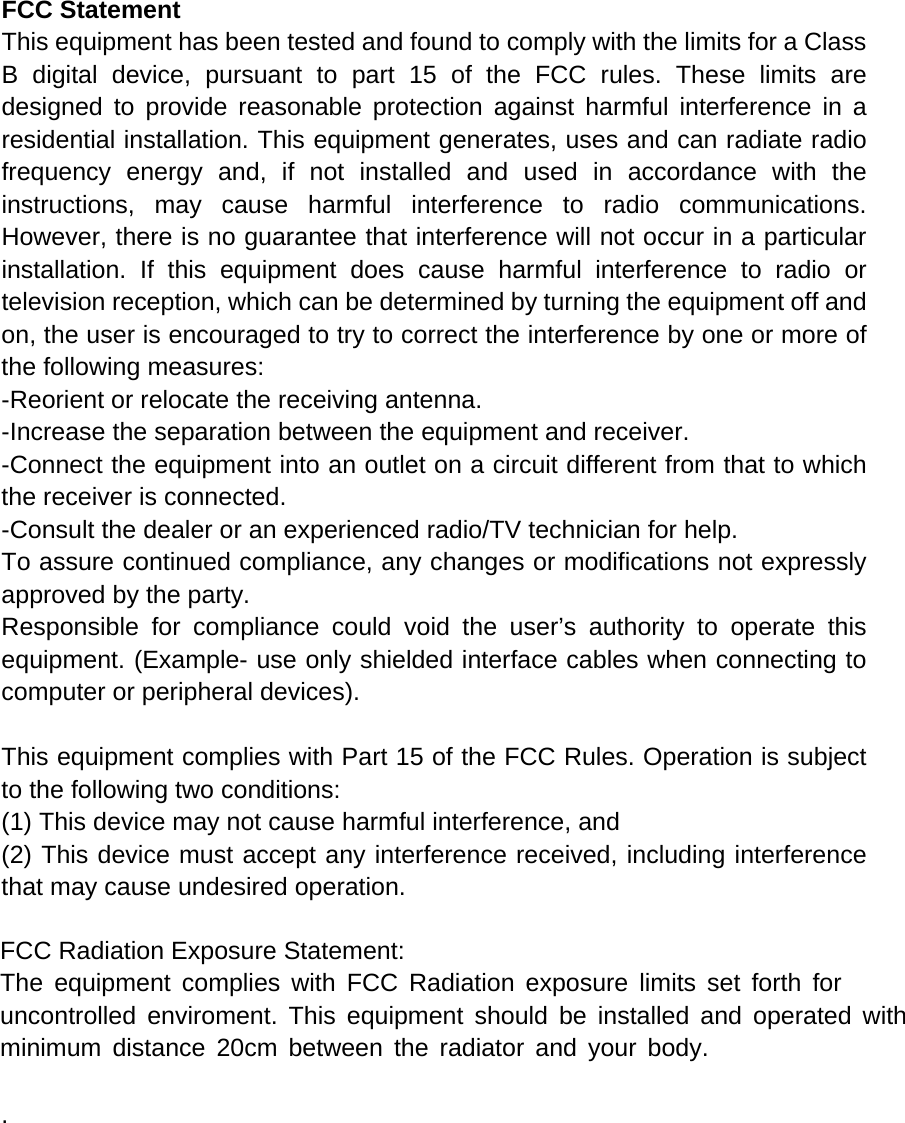

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth foruncontrolled enviroment. This equipment should be installed and operated withminimum distance 20cm between the radiator and your body. .
