AQUATIC AV AQRFDM4D Water/Dust Proof MP3 / iPod Digital Media Locker with Floating RF LCD 2-way RC User Manual Instruction manual DM 4U 103012A
AQUATIC AV Water/Dust Proof MP3 / iPod Digital Media Locker with Floating RF LCD 2-way RC Instruction manual DM 4U 103012A
user manual
Model AQ-DM-4UBT
TM TM
Water/Dust Proof MP3/iPod Digital Media Locker
With
Floating RF LCD Wireless Remote Control
INSTRUCTION MANUAL
Please read this Instruction Manual
before installation and operation
MODEL: AQ-DM-4UBT
FILE NAME: IB-DM-4UBT_manual_103012
TM
iPod + MP3 TM
R
AQ-DM-4
MODEAUDIO
123
1
TM TM
MP3/iPod Water/Dust Proof Digital Media Locker

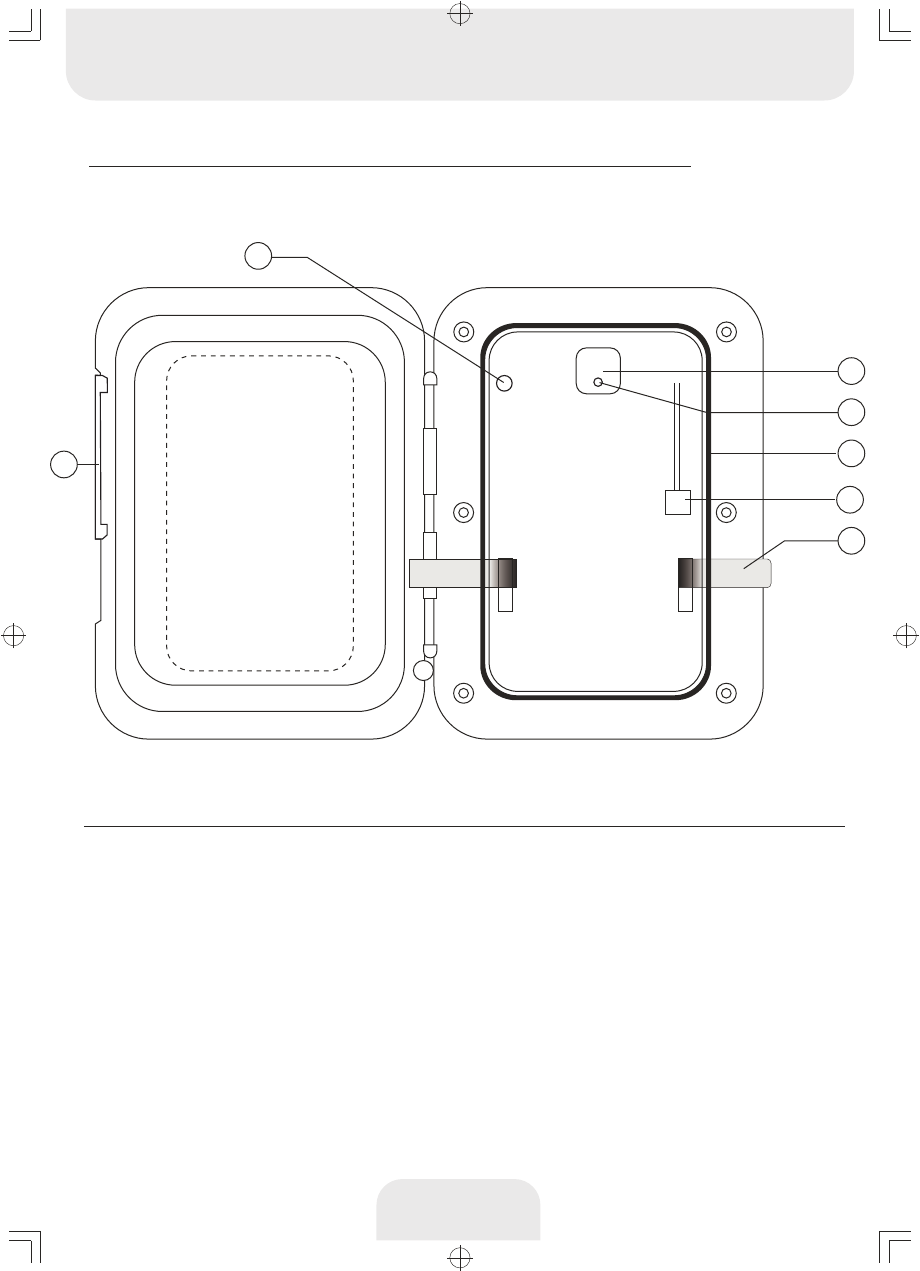

LOCATION OF CONTROLS
1
2
3
4
5
6
7
Digital Media Locker Knob and Protective Door
Part Description
ON/Off Power Button
Water/Dust Protection Inner Gasket
3.5mm Aux Input Jack for Devices
Audio player
ON/Off Power LED
TM
Security Strap for Digital Media Devices (MP3/iPod )
TM
USB Connector (for music Play back only, cannot be connected with PC and palm function devices)
2
3
4
6
7
1
5
MODEL: AQ-DM-4UBT
FILE NAME: IB-DM-4UBT_manual_103012
INSTALLATION

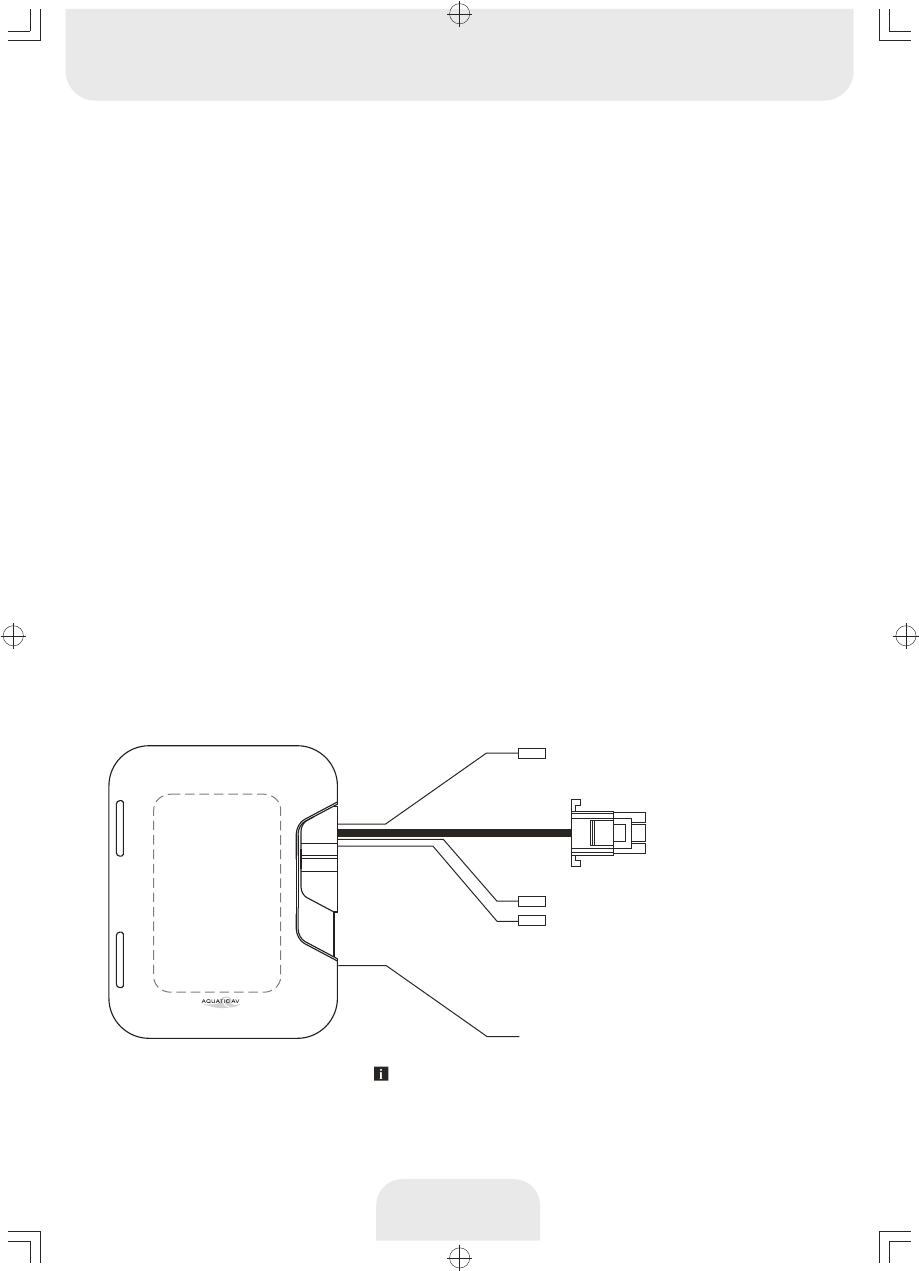

Cable Connection
2
GETTING STARTED
FM Radio: make sure the FM Antenna is fully extended at the highest
possible level (Height) for best performance.
2.
Plug and Play Connector: The AQ-DM-4UBT incorporates a 12 pin "plug
and play" connector harness. Owner product application options may
require an "optional" connector option. Contact your dealer for details.
1.
3. Aux Inputs: The AQ-DM-4UBT has a 3.5mm jack Audio Auxiliary
Inputs so you can connect other RCA based devices.
CONTENTS:
Please make sure the following items are included.
TM
a) AQ-DM-4UBT Digital Media Locker
b) Water/Dust Proof RF Wireless Remote Control
c) Six (6) Stainless Steel Wood Screws
d) One (1) CR-2430 Battery
e) Mounting template
12 pin
Harness Cable
RCA Output Jack
FM Radio
Antenna jack
Left Audio
Right Audio
For non-OEM use, wiring harness must be
ordered separately
Part number AQ-UNH-1 or AQ-UNH-2
AQ-DM-3
External 12V Trigger (Brown)
MODEL: AQ-DM-4UBT
FILE NAME: IB-DM-4UBT_manual_103012
External
Trigger +12VDC (7)
DC Ground (10)
LR-(2) +12VDC(1)
LR+(3)
LF-(5)
LF+(6)
RF-(8)
RF+(9)
Not connected (4)
RR-(11)
RR+(12)
FUSE BOX
Left Rear Speaker
+
-
Left Front Speaker
+
-
+
-
+
-
Right Front Speaker
Right Rear Speaker
Please put a
fuse into the box
3
(Red color)
(Blue color)
(Green/strip)
(Green color)
(White/strip)
(White color)
(Gray/strip)
(Gray color)
(Purple color)
(Purple/strip)
(Black color)

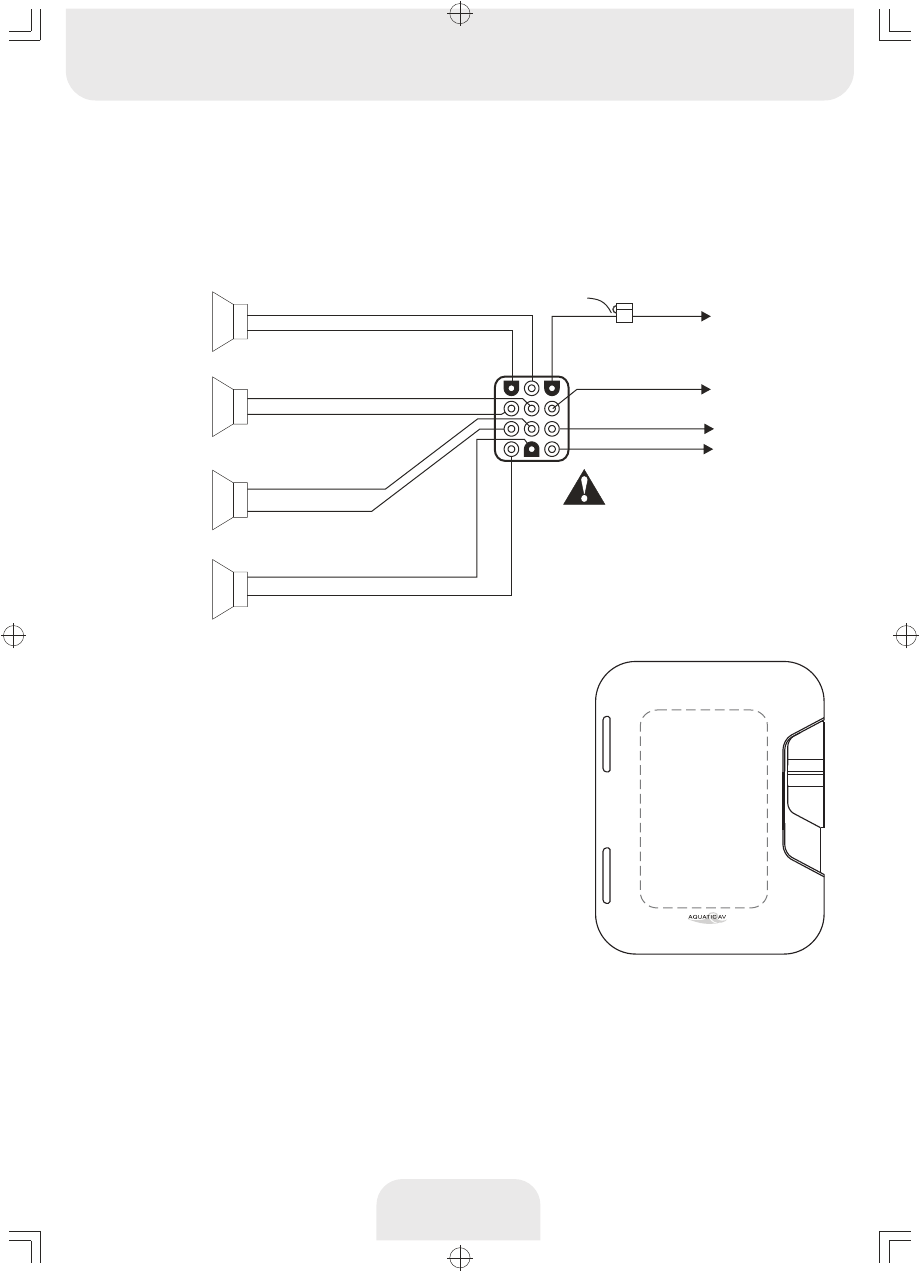

12 Pin Harness Cable Connection
GETTING STARTED
Aquatic AV recommends the use of a optional "plug and play" connector for best
performance (AQ-UNH-1). This connector is not included.
For detailed information, please call the re-seller. If you choose
not to use the "plug and play" option, you can use the wiring schematic below.
All open wire connections should be soldered, and protected against
Water/Dust for best long term performance.
4 ohm
4 ohm
4 ohm
4 ohm
Must use 4 ohm load or
damage may occur to the AQ-DM-2Bx
(Yellow color)
Once the mounting hole is complete, make sure
the outside surface is clear of debris. The
AQ-DM-4 has an external water/dust proof UBT
gasket, but it needs a clean surface for best
performance.
2.
Mounting templates are included. Aquatic AV
recommends to utilize the "measure twice, cut
once" Method.
1.
Review all outside surfaces of the AQ-DM-4UBT to insure proper water/dust U
seal. This is important for the long term environmental protection
performance for iPod or MP3 devices.
4.
The AQ-DM-4 has Six (6) front screwsUBT
Drive the pcs of screws with a screw driver. 6
During final mounting, apply equal pressure to
all points for best water/dust outer seal performance.
3.
Mounting the Unit
Make sure the polarity of speakers
are connected correctly.
AQ-DM-4
MODEL: AQ-DM-4UBT
FILE NAME: IB-DM-4UBT_manual_103012
4
Remove the Water/Dust Proof RF Wireless Remote control from the Digital Media
TM
Locker . place the Unscrew the waterproof cap on the back of the remote control.
CR-2430 battery in the RF Remote control and replace the water/dust proof cap.
The remote control uses state-of-the-art technology and will inform you if the dock is
receiving the command from the remote control. In any case, if the LCD display "NO LINK"
this means that your Locker is off or remote control is out of reception range.
GETTING STARTED
TM
To activate the Digital Media Locker , press the on/off button, standby mode will be
indicated by a red LED. ON mode will be indicated by a blue LED.
When the unit is in the standby position the red LED will be lit
If you loose your remote control and buy another new remote control, please follow
the above to start pairing before normal usage.
TM
Each Digital Media Locker comes with a matching RF (Radio Frequency) Wireless
LCD Remote control. This remote is required use any functions on the unit.For any
additional remote controls, you will need to activate/Synchronize those remote controls
to the S1 by following the steps above.
REMOTE BATTERY INSTALL
REMOTE SYNCHRONIZING
POWER ON
Press and hold MODE button on the remote. Then it will show “pair”. Keep pressing
this key. Then press the power button of the locker from off(no light) to standby (red light)
If the pairing is successful it will show “welcome”. LED will turn blue. If pair is not successful.
Please repeat the step above.
to pair with the locker.
MODEL: AQ-DM-4UBT
FILE NAME: IB-DM-4UBT_manual_103012

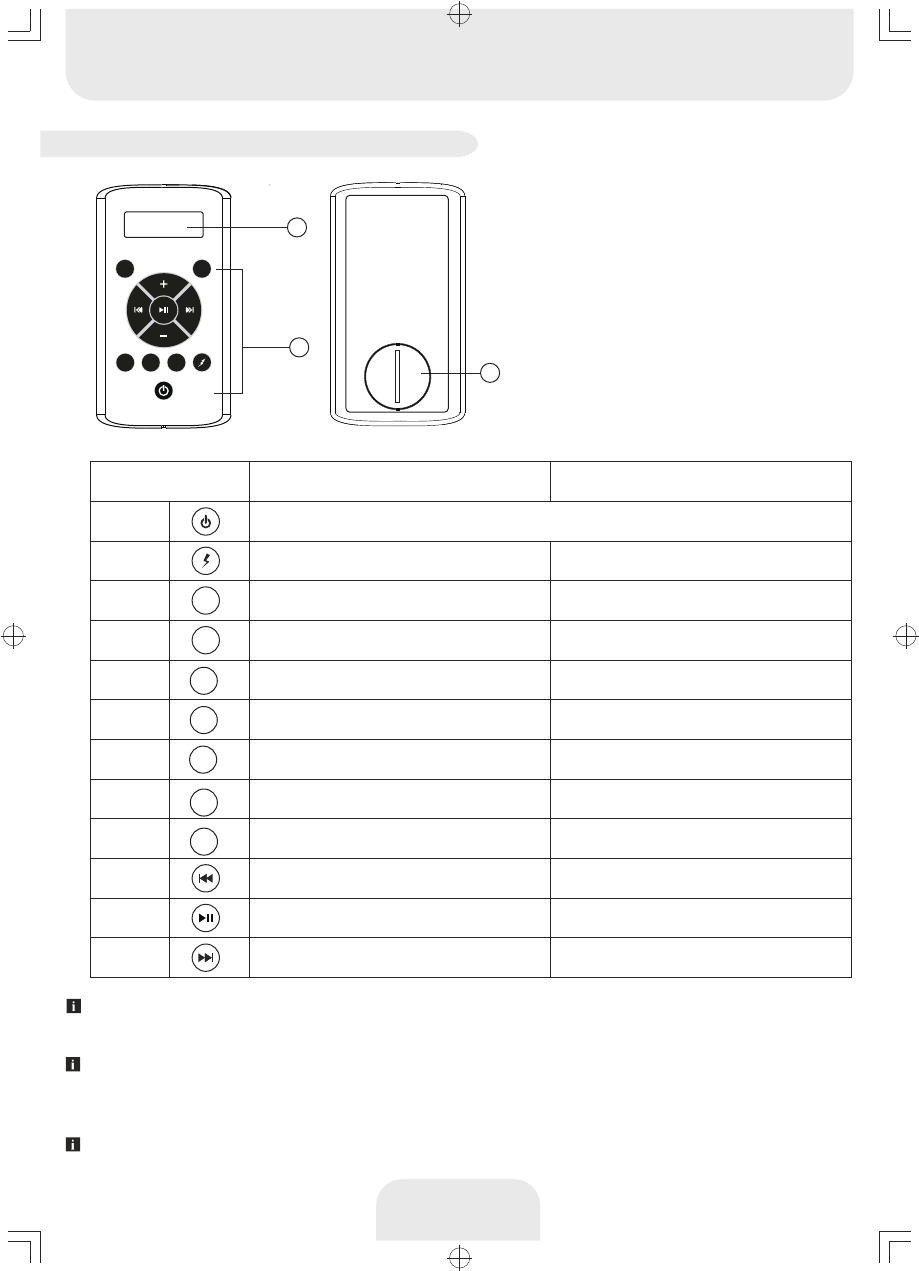

DIR- REPEAT DIR+ RANDOM
A
B
A
B
C
Remote Control LCD
Remote Control Buttons
Battery Door.
ltem Description
C
5
LOCATION OF CONTROLS
Music Mode FM Radio Mode
Press once: toggle from Operation mode to Standby mode or vise versa.
Press once: Volume DOWN a value
Press and hold: Fast volume down
Press once: Volume UP a value
Press and hold: Fast volume up
Press once: random function Press once: function.No
Press and hold: Toggle external power Press and hold: Toggle external power
Press once: Change the source.
Press and hold: Pair
Press once: Enter BAL- DSP-LOUD-VOLFAD-
Press once: to next folder.
Press and hold: to next folder.
Press once: repeat function.
Press and hold: repeat function.
Press and hold: back to previous folder.
Press once: Last track
Press and hold: Fast Rewind
Press once:Play/Pause
Press and hold: Play/Pause
Press once: Next track
Press and hold: Fast Forward
Press once: Change the source.
Press and hold: Pair
Press once: Listen to the station which in the No.2
Press once: Listen to the station which in the No.3
Press once: back to previous folder.
Press once: Listen to the station which in the No.1
Press and hold: stored a station into No.1.
Press and hold: stored a station into No.2.
Press and hold: stored a station into No.3.
Press once: seek down
Press and hold: change to manual scanning
Press once: toggle mute
Press and hold: toggle mute
Press once: seek up.
Press and hold: change to manual scanning
Press once: Volume DOWN a value
Press and hold: Fast volume down
Press once: Volume UP a value
Press and hold: Fast volume up
Buttons
Power
12V trigger
/Random
Volume
up
Volume
down
Mode
1/DIR- 1
2/Repeat 2
3/DIR+ 3
Audio
Fast
Rewind
Pause/
Play
Fast
Forward
If your music player is not an ipod, you will not be able to control track or recieve track
In order to prolong remote battery life the LCD will shut off in 20 seconds if no
other button is pressed. To turn remote back on press once and then any key
press the command desired.
MODE
MODE
AUDIO
AUDIO
123
+
-
RF LCD WIRELESS REMOTE CONTROL
Press once: Enter BAS-TRE-BAL-FAD-DSP
information
-AREA-LOUD-DX-STEREO-VOL.
Shut off DSP to access control of Bass and Treble control
MODEL: AQ-DM-4UBT
FILE NAME: IB-DM-4UBT_manual_103012
6
TM
Power up the Digital Media Locker .
1.
Press (VOLUME UP) once to increase the volume by 3 decibels. 1.
Press (VOLUME DOWN) once to reduce the volume by 3 decibels. 2.
TM
Press and hold either UP or DOWN and the Digital Media Locker will
increase or decrease audio volume continuously.
3.
LISTENING TO PLAYERS
If you are listening to iPod and you change your mode to Radio or standby mode, the iPod
will automatically pause playing and the Charging screen will appear.
3. Press(POWER) on the remote control or Power button on the locker to turn it ON.
Attach your USB/iPod device to the Digital Media Locker.2.
Press (Mode) on the remote control to select ipod mode. Use the USB/
Press (Mode) on the remote control to select AUX mode.
buttons as shown in the remote function chart.
3.
MODE
MODE
4.
TM
1. Power up the Digital Media Locker .
2. Attach your MP3 device to the 3.5mm connector.
+
-
LISTENING TO USB/IPOD
LISTENING TO MP3
ADJUSTING VOLUME LEVEL
Always ensure to connect and disconnect your media player with dry hands.
MODEL: AQ-DM-4UBT
FILE NAME: IB-DM-4UBT_manual_103012
7
2
2
2
3
3
3
If you want to save the current frequency into memory.
MODE
Press or (FAST REWIND) (FAST REWIND) to seek another station.
1.
Press key or button once to listen to the station stored in button.
1.
1
1
1
Press and hold either (FAST REWIND) or (FAST FORWARD) for
manual tuning back or forward.
2.
LISTENING TO FM RADIO
BT mode.
1. Pair with the BT mobile phone.
Switch on your mobile phone BT device scan program to scan the BT device. You
will find the ‘AQUATIC AV’ device. Select it to pair. The password is “0000”.
2. Play mobile's song.
BT mode will be activated once a blue tooth device is linked. Then play the song
in your mobile.The sound will come from the speaker of the unit. Press I<< /
>>I button for previous/next file. Press >I for play/pause.
ENTER FM RADIO MODE
1. If you want to save the current frequency into memory, press and hold or or
for more than 2 seconds.The station will be stored the to relevant button or or
SAVING RADIO CHANNEL TO MEMORY
LISTENING TO SAVED RADIO MEMORY
TO SCAN OR NAVIGATE CHANNELS
1. Press (MODE) on remote control to switch to FM radio model.
If this is the first time you listen to FM radio, the default frequency will be 87.5MHz,
as shown on the remote LCD.
FM radio is only available when you are in the FM Radio Mode.
MODEL: AQ-DM-4UBT
FILE NAME: IB-DM-4UBT_manual_103012
When specified iPod devices are connected to the USB connector
the iPod battery will charge.
8
In any operational mode, press and hold the (12V TRIGGER) key to activate.
Press again to deactivate. and hold
We strongly recommend you to speak our technical service staff or your
dealer if you are cons dering using this feature.
2.
1.
OTHER FEATURES
We understands the need for more flexible remote applications. With
the Digital Media Locker, We have provided an independent 12V
"accessory" trigger, activated from the RF Wireless Remote that allows the user
to activate non-iPod, MP3 related devices. This could include any 12V based
devices like 12V lights or surveillance camera.
To maximize battery life of the RF Wireless Remote Control, the LCD of the
Control remote will be OFF if no key is pressed in 20 seconds. To re-activate
the LCD display, press any key once to bring the remote control to normal
operation.
Load on External Trigger should not exceed 350mA.
To avoid rusting as a result of electrical potential in the connector, the battery
of your iPod devices must not be totally drained. If your iPod is not charged at
all then the will not charge it. Digital Media Locker
EXTERNAL TRIGGER
IPOD CHARGING
REMOTE CONTROL LCD AUTO OFF
MODEL: AQ-DM-4UBT
FILE NAME: IB-DM-4UBT_manual_103012
Power Supply
FM Radio Sensitivity
FM Antenna
Remote Control Frequency
Remote Control Battery
External Trigger
10.7V-14.4V DC, A min. 5
8uV
Dipole Antenna (not included)
2.4GHz
3V (1 x Cr2430 battery)
12V DV, 350mA max.
:
:
:
:
:
:
SPECIFICATION
Current drain when Standby 10 mA
:
FM Radio
General
FM Radio Reception Stereo
:
Number of Preset Radio 3
:
9
TECHNICAL SPECIFICATION
MODEL: AQ-DM-4UBT
FILE NAME: IB-DM-4UBT_manual_103012
10
FCC STATEMENT
10
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE:
The equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Consult the dealer or an experienced radio/TV technician for help.
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such
modifications could void the user authority to operate the equipment.
FCC ID:
MADE IN CHINA
MODEL: AQ-DM-4UBT
FILE NAME: IB-DM-4UBT_manual_103012
