Usr man

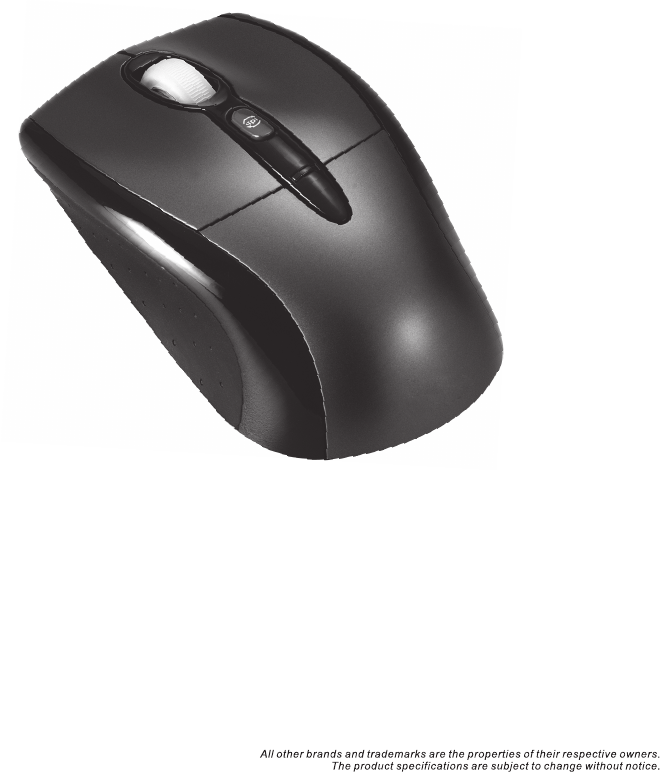

User's Guide
Mini Wireless
Optical Mouse
B-180
1. Insert the batteries
a. Take out the receiver on the bottom case first, press the battery cover release button on
the bottom of the mouse which is under the receiver.
b. Remove the battery compartment cover on the top case of the mouse.
c. Fit in the batteries accordingly to the diagram indicated in the battery cabinet.
d. Close the battery compartments cover properly.
e. Make sure the Power on-off swich on the bottom of the mouse is ON.
f. The Low Power LED in the wheel bar will blink 3 seconds if the mouse power is on.
Wheel button
Dpi button
Battery cover
ID reset button
LED indicator
Receiver
Mouse
Receiver
Introduction
Congratulations on your purchase of the most innovative wireless mini mouse. With an
incredible sensitivity to surface details and high tracking speed than other mice, the mouse
can track reliably even on tricky polished or wood-grain surfaces. It offers even more
advance that will make you more productive and more comfortable.
A. Hardware Installation
2.4GHz (distance 6~8m), 16 Channels/4096 ID
Using state-of-art technology. High tracking speed and sensitivity.
Storable mini receiver
Longer battery life - 6~8 months.
Auto-Link, Plug and Play! No need to set the channel ID.
Power on/off switch
Data report rate : 125 Report/Sec.
800/1600 dpi switchable button.
2*AA Alkaline batteries included.
Power on/off
switch
Features
+
-
A wrong battery placement
may cause batteries overheat.
Battery compartment cover
2 * AA batteries
Battery cover
release button
Low power Led/
Power on indicator/
Dpi switching indicator
2. Connect the receiver
a. Turn on your PC.
b. Connect the receiver to USB port on PC.
PC
USB port
The unit offers a strong power saving management. Once the mouse accesses the sleeping mode, " to click any
button of the mouse" is compulsory to wake it up.
Power on/off:
There is a Power on/off switch designed to save the batteries power while non-usage of a longer period.
Users can push DPI button to change the resolution. The low power LED will be flashed when dpi has been
successfully swithced.
3. Communication : The mouse & the receiver
The 2.4Ghz RF mouse features a dual-way transmission technology which enables the
mouse and the receiver auto-communication.
A. Auto-link mode
1. Make sure the Power On-Off Switch on the bottom of the mouse is ON.
2. Operate the mouse, and the LED in the receiver will blink fast. Now the mouse and the
receiver is auto-linked successfully.
Press ID reset button
Execute ID connection
software
Led indicator
blinks faster
12 3
4
ID links OK!
4. Replace the new batteries
Please replace a pair of new batteries and follow the previous instructions. (2, 3)
The red LED on the scroll wheel is the low batteries power indicator. It indicates that
batteries inside the mouse are needed to be replaced.
Note
While the mouse is working, if encountering any interference, the mouse and the receiver will
automatically source out and transfer to another free channel. During the transferring, the
cursor movement may have a second delay.
Note
Trouble Shooting
a. Make sure you have connected the receiver correctly to the computer's USB port.
b. For the best performance, we suggest you to locate the receiver with a distance from other electrical
devices, such as the computer, the computer monitor or external storage drives.
c. Make sure you have set the communication between the receiver and the mouse. Refer to the
Communication :The mouse and the receiver
d. If you find the communication channel does not connect well. You can use the software connection
tool to re-connect the mouse & receiver to reset a new channel ID. You are able to get the software
from the included diskette of the package or download from your local brand vendor's website.
e. Some system devices might conflict with the mouse. Confirm the IRQ/address settings of these
devices for conflicts, and change the settings as required.
f. Make sure that you are not working the mouse on glossy or reflective surfaces.
g. Try unplugging then reconnecting the receiver cable to your computer.
Battery use reminders
1. Remove worn-out batteries from equipment immediately and dispose of promptly.
2. Keep all batteries (used or new) out of the reach of children.
3. To have the batteries with a regular check and replace new batteries if not used for a long time.
4. Never dispose of batteries in fire, as they could explode.
B. Manual mode
If you find the communication channel does not connect well, you can use the software
connection tool to re-connect the mouse & receiver to reset a new channel ID. You are
able to download the software from your local brand vendor's website.
5. Always replace all the batteries at the same time. Mixing old and new batteries or mining types (such
as alkaline with zinc carbon) will reduce overall performance and could cause leakage or rupture.
6. Do not mix different types of batteries (e.g. Ni MH, NiCd, alkaline, and etc) in the mouse.
7. Remove batteries from the electrical device if the device is not going to be used for a long time.
8. If the performance of the batteries decreases substantially, it is time to replace the batteries.
FCC statement
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation if this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment. (Example-use only
shielded interface cables when connecting to computer or peripheral devices).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference. and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This symbol on the product or in the instructions means that your electrical and electronic equipment should
be disposed at the end its life separately from your household waste. There are sparate collection system for
recycling in the EU.
For more information, please contact the local authority or your retailer where you purchased the product.
Hereby, Areson Technology Corp., declares that this GM-M7700B is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
