ARESON Technology CL0024 2.4GHz wireless mouse User Manual L216 manual cover
ARESON Technology Corp. 2.4GHz wireless mouse L216 manual cover
Manual
Laser
Multi-touch Mouse
User's Guide
Right button
Left button
Middle button
Mode button
ID reset button

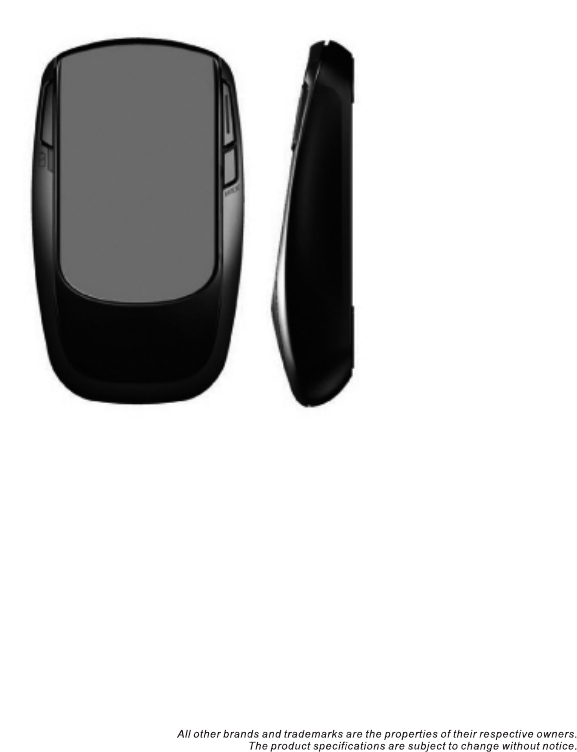

Mouse
Introduction
Congratulations on your purchase of the most innovative mini wireless mouse. With an
incredible sensitivity to surface details and high tracking speed than other mice, the mouse
can track reliably even on tricky polished or wood-grain surfaces. It offers even more
advance that will make you more productive and more comfortable.
A. Hardware Installation
2.4GHz (distance 6~8m), 67 Channels/ 2 24 ID
Multi Touch Function
Using state-of-art technology. High tracking speed and sensitivity.
Nano receiver.
4-way scrolling.
Longer battery life.
Auto-Link, Plug and Play! No need to set the channel ID.
Power on/off switch.
800/1600 dpi switchable button.
2*AAA Alkaline batteries included.
Power on/off
switch
This product complies with IEC 60825-1, Class I laser product.
The product complies with FCC and CE rules.
Safety Notice
Please DO NOT direct the
laser beam at anyone's eyes.
Features
+
-
A wrong battery placement
may cause batteries overheat.
Battery compartment cover 2 * AAA batteries
Battery cover
2. Connect the receiver
a. Turn on your PC.
b. Connect the receivere to USB port on PC.
PC
USB port
The unit offers a strong power saving management. Once the mouse accesses the sleeping mode, " to click any
button of the mouse" is compulsory to wake it up.
Power on/off:
There is a Power on/off switch designed to save the batteries power while non-usage of a longer period.
User can push DPI button to change the resolution. The Low Power LED will be flashed when dpi has been
successfully switched.
Receiver

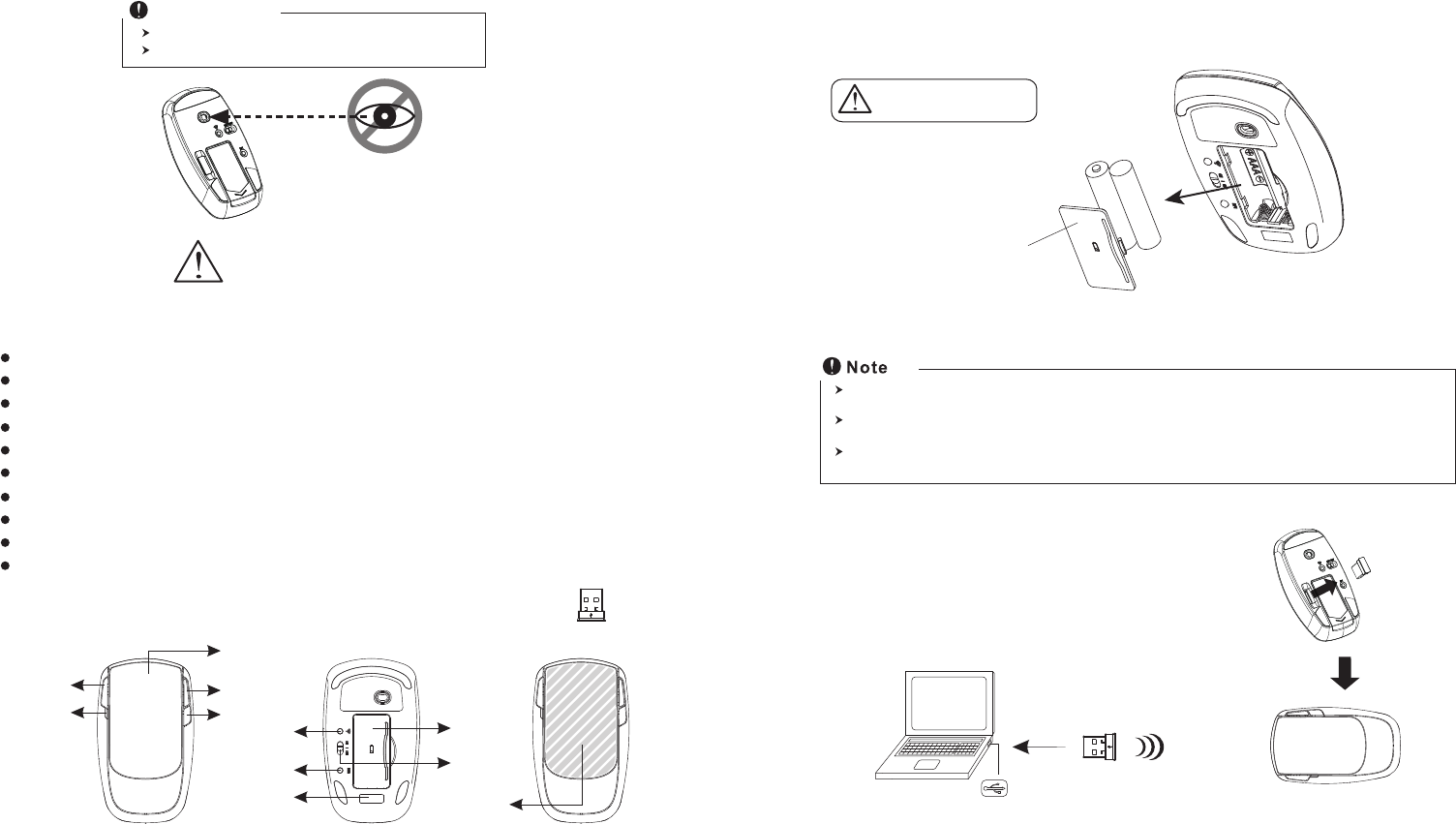

1. Insert the batteries
a. Remove the battery compartment cover from the bottom case of the mouse.
b. Fit in the batteries accordingly to the diagram indicated in the battery cabinet.
c. Close the battery compartment cover properly.
d. Make sure the Power on-off switch on the bottom of the mouse is ON.
e. The Low Power LED will be on for 6 seconds if the mouse power is on.
Pull out
the receiver
Receiver
Dpi button
Low power
indicator / dpi
switch display
Touch area
Scroll up & down Tilt left & right
Scroll up & down
4. Replace the new batteries
Please replace a pair of new batteries and follow the previous instructions. (2, 3)
The red LED is the low batteries power indicator. It indicates that batteries inside the mouse are needed to be
replaced.
Note
Press ID reset button
1 2 3
ID links OK!

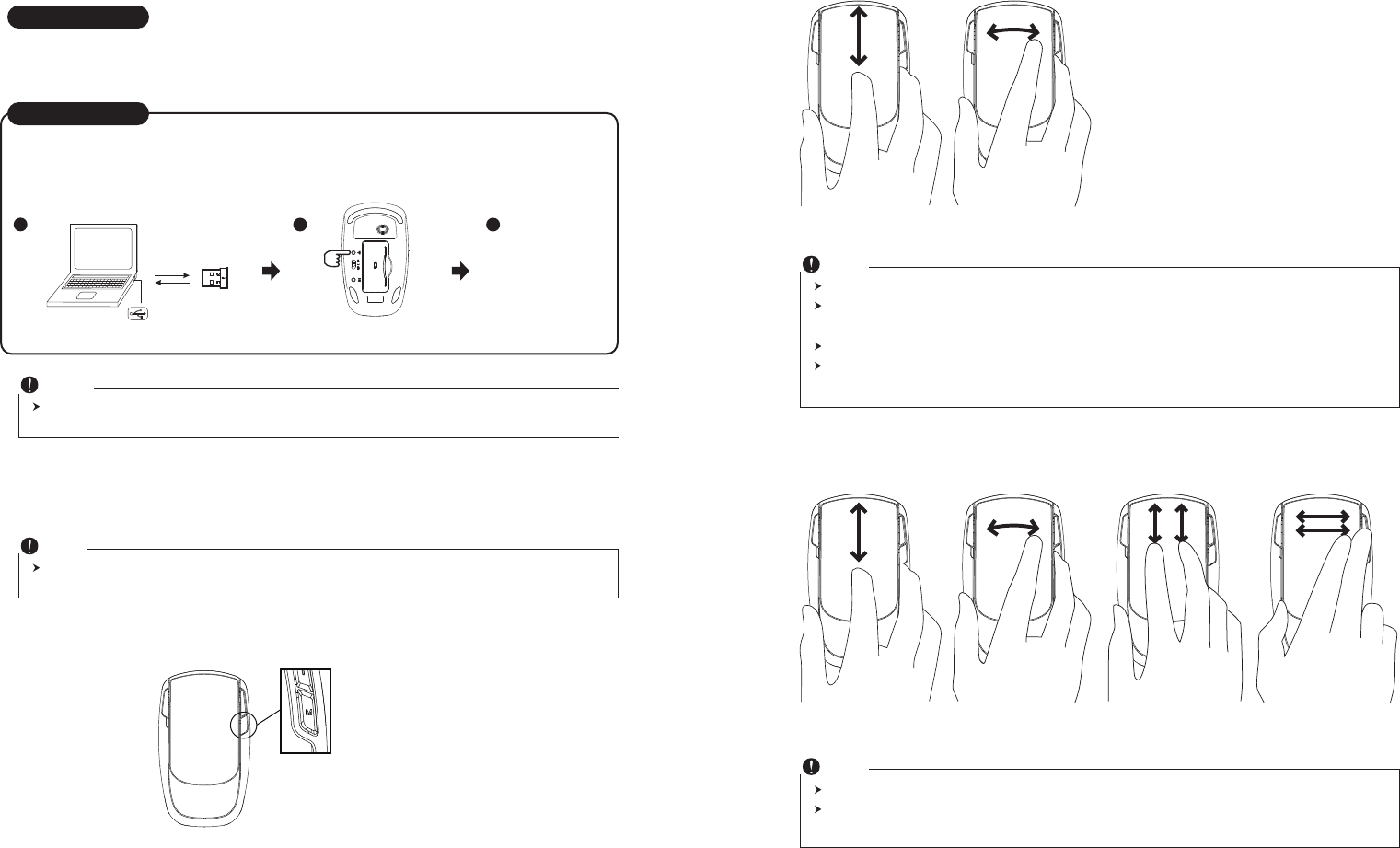

5. Multi Touch Function
a. Mode Switch :
If encountering any interference while the mouse is working, the mouse and the receiver will automatically seek and
transfer to another free channel. During the transfer, you may experience a brief delay in the cursor movement.
Note
3. Communication : The mouse & the receiver
The 2.4Ghz RF mouse features a dual-way transmission technology which enables the
mouse and the receiver auto-communication.
A. Auto-link mode
1. Make sure the Power On-Off Switch on the bottom of the mouse is ON.
2. Operate the mouse, and cursor's movement is mapping mouse movement. Now the
mouse and the receiver is auto-linked successfully.
B. Manual mode
• If the communication channel does not connect well, take the receiver out of the USB
port and plug it in again.
• Then press the ID reset button at the bottom of the mouse to confirm ID links (see
illustration below).
Mode switch
button
Mode light indicator
Mode 1 > LED off
Mode 2 > Red light on
Mode 3 > Green light on
b. Touch Function:
Mode 1 ( LED OFF )
///////////////////////////////////////////////////////
Tilt left & right Page up & down Forward & backward
Mode 2 ( Red LED ON for 6 sec )
///////////////////////////////////////////
Tilt left & right function will be active after driver installation.
To function the 4-way scrolling in some applications in Window VISTA such as Word, Excel,
PowerPoint and etc., the driver should be installed.
Note
Tilt left & right function will be active after driver installation.
Speedy scrolling : moving finger fast on the touch area for continuously scrolling up / down / left
/ right. To stop scrolling, just tip the touch area.
Normal scrolling : moving finger slowly for scrolling.
To function the 4-way scrolling in some applications in Window VISTA such as Word, Excel,
PowerPoint and etc., the driver should be installed.
Note
PC
USB port

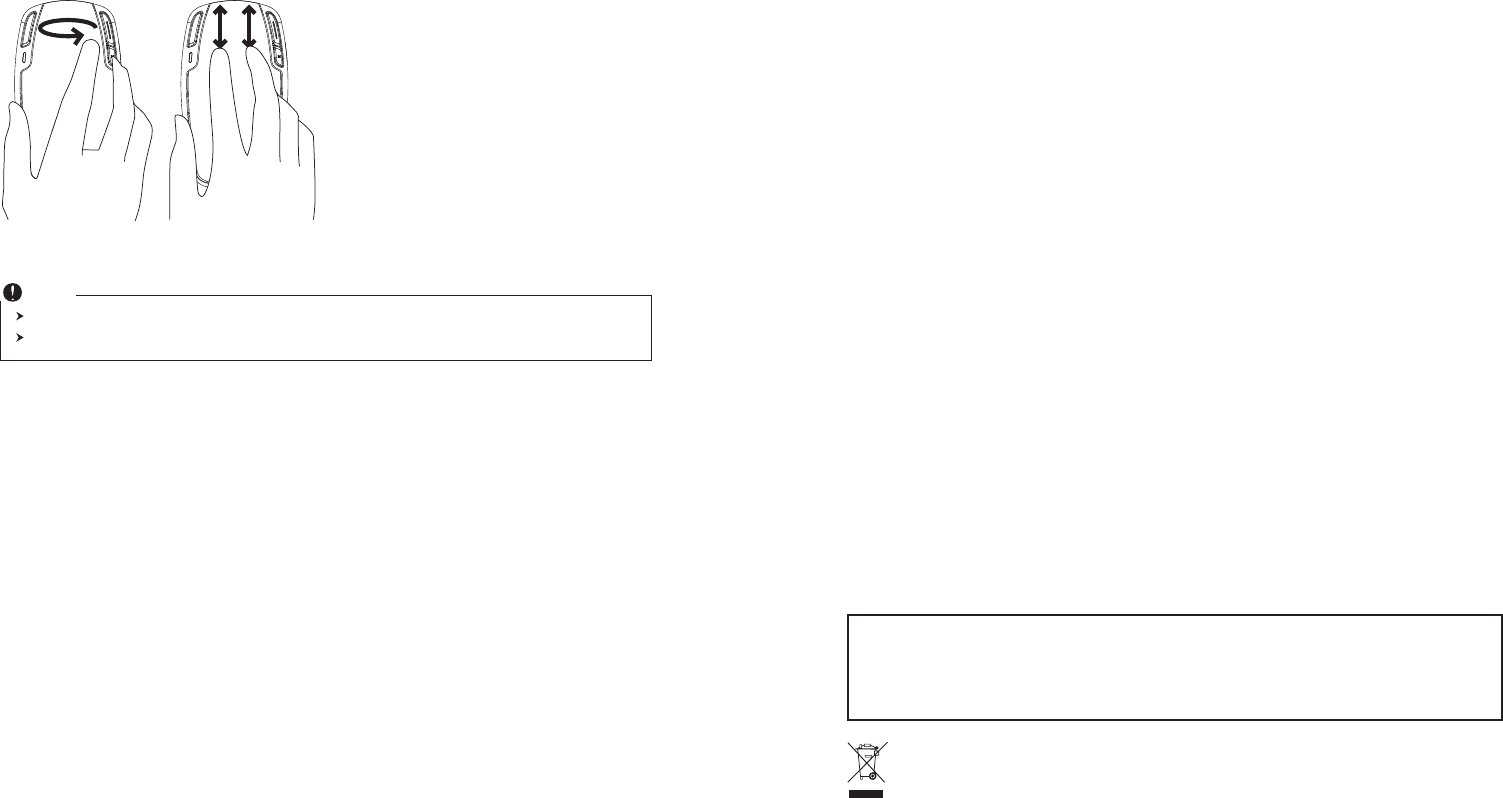

Rotate left & right Zoom in & Zoom out
Mode 3 ( Green LED ON for 6 sec )
////////////////////////////////////////
To zoom in and out on IE, Excel, Word, website
To rotate photos under Windows Picture Viewer in clockwise / anti-clockwise
Note
B. Driver Installation
The mouse features plug & play. It is not necessary to install the driver to operate the mouse.
The driver is an optional item included. However if the model purchased is with 4-Way
Scrolling function, you may require the mouse software driver to make the 4-Way scrolling
function effective.
1. Un-install or removing the current mouse driver
Before installing the driver of the mouse, we suggest that you check if any other mouse
driver installed in your system. If yes, in order not to make conflict, please un-install or
remove that driver before installing the mouse.
2. Install the mouse 4-Way Scrolling driver
a.Select setup.exe to install the driver from the CD.
b.or you can download the 4-Way Scrolling driver from vendor's website.
◎ Battery use reminders
1. Remove worn-out batteries from equipment immediately and dispose of promptly.
2. Keep all batteries (used or new) out of the reach of children.
3. To have the batteries with a regular check and replace new batteries if not used for a long time.
4. Never dispose of batteries in fire, as they could explode.
5. Always replace all the batteries at the same time. Mixing old and new batteries or mining types (such
as alkaline with zinc carbon) will reduce overall performance and could cause leakage or rupture.
6. Do not mix different types of batteries (e.g. Ni MH, NiCd, alkaline, and etc) in the mouse.
7. Remove batteries from the electrical device if the device is not going to be used for a long time.
8. If the performance of the batteries decreases substantially, it is time to replace the batteries.
◎ Trouble Shooting
a. Make sure you have connected the receiver correctly to the computer's USB port.
b. For the best performance, we suggest you to locate the receiver with a distance from other electrical
devices, such as the computer, the computer monitor or external storage drives.
c. Make sure you have set the communication between the receiver and the mouse. Refer to the
Communication :The mouse and the receiver
d. If you find the communication channel does not connect well. You can use the software connection
tool to re-connect the mouse & receiver to reset a new channel ID. You are able to get the software
from the included diskette of the package or download from your local brand vendor's website.
FCC statement
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation if this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment. (Example-use only
shielded interface cables when connecting to computer or peripheral devices).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference. and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This symbol on the product or in the instructions means that your electrical and electronic equipment should
be disposed at the end its life separately from your household waste. There are sparate collection system for
recycling in the EU.
For more information, please contact the local authority or your retailer where you purchased the product.
e. Some system devices might conflict with the mouse. Confirm the IRQ/address settings of these
devices for conflicts, and change the settings as required.
f. Make sure that you are not working the mouse on glossy or reflective surfaces.
