ARESON Technology CL0027 2.4 GHz Dongle User Manual FD10manual 00

ARESON Technology Corp. 2.4 GHz Dongle FD10manual 00

user manual

2.4G WIRELESS/WIRED
L901LR

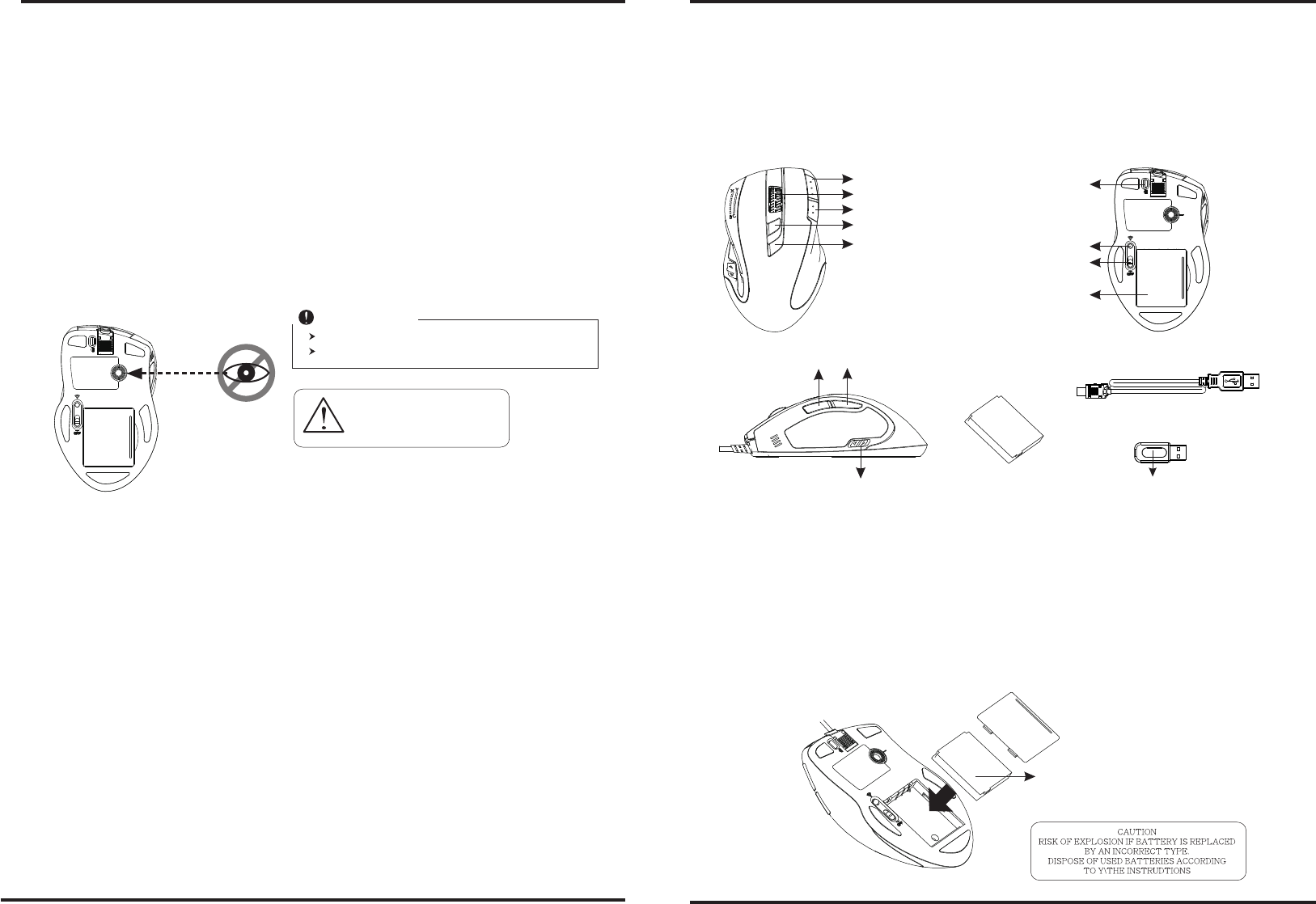

A. Hardware Installation
1. Insert the batteries
a. Remove the battery compartment cover on the bottom case of the mouse.
b. Fit in the batteries according to the diagram indicated in the battery cabinet.
c. Close the battery compartment cover properly.
d. Make sure the Power on-off swich on the bottom of the mouse is ON.
e. The Battery Power Indicate LED will blink 6 seconds if the mouse power is on.
● 2.4GHz (distance 6~8m), 8 Channels/ 224 ID
● 2.4G Hz Wired/Wireless Gaming Mouse
Auto-Link, Plug and Play! No need to set the channel ID.
● Unique 11 programmable buttons plus 5 gaming modes to customize gamers' desired scripts.
● 9+2 buttons USB Gaming Mouse.
● Charging through USB port from charging cable.
● Programmable buttons as gaming buttons or Internet buttons.
● Using state-of-art laser technology.
● 16 bit ultra-data path for ultimate performance.
● Polling rate 1000 Hz.
● Full speed USB.
● 400/800/1600/3200 dpi switchable.( Max. to 5600 dpi)
● 4-way scrolling.
Tracking Speed: 150 inch/sec.
● Omron Micro Switch Max. Life 5 Million times.
Features:
Introduction
The most revolutionary 2.4G Wired/Wireless gaming mouse with the highest advanced laser
engine--Philips PLN2032, reveals a professional gaming spirit and creates the perfect handy match
for pioneer gaming users.Macro setting technology with innovative gaming software is another smart
and efficient feature for expert gamers. This gaming software tool provides a unique platform for
gamers to record, read, and edit scripts which can be saved and assigned to any specific gaming
buttons of the mouse. This powerful feature will help gamers getting rid of repeated practice, reducing
burdens, and having more fun.
This unprecedented performance gaming mouse is the ultimate solution for the gamer who are
enjoying the pleasure and becoming the winner of game competition at the same time. Tilt Wheel button
Button 6
Button 7
Button 4 Button 5
Mode switch button
Function setting button
12
Please DO NOT direct the
laser beam at anyone's eye.
This product complies with IEC 60825-1, Class I laser product.
This product complies with FCC and CE rules.
Safety Notice
Dpi switch button
● Rubber side grips and finger grooves.
● Stylish, ergonomic and comfortable shape.
● Setting DPI and adjusting wheel scrolling by mouse without any driver or software
● Power on/off switch.
● Ergonomic design.
Battery cover
Power ON/OFF
switch
ID reset button
Cable release switch
Rechargable battery
Charging cable
Receiver
LED
Rechargable battery
While the mouse is working, if encountering any interference, the mouse and the receiver will automatically source out and
transfer to another free channel. During the transferring, the cursor movement may have a second delay.
Note
LED indicator
blinks faster
3 4
4
Power on/off: There is a Power on/off switch designed to save the batteries power while non-usage of a longer period.

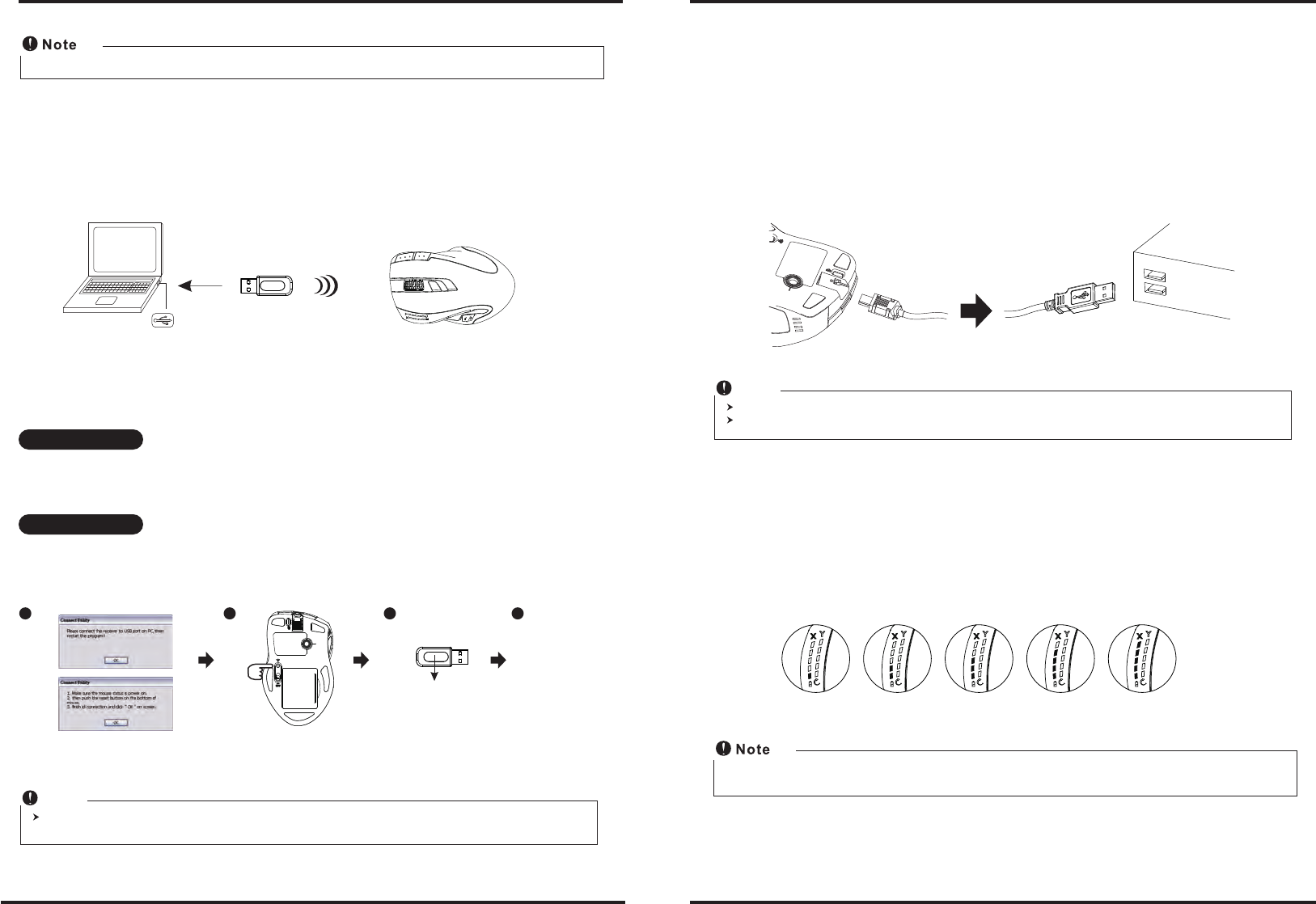

2. Connect the receiver
a. Turn on your PC.
b. Connect the receivere to USB port on PC.
PC
USB port
Press ID reset button
Execute ID connection software
12 3
ID links OK!
3. Communication : The mouse & the receiver
A. Auto-link mode
1. Make sure the Power On-Off Switch on the bottom of the mouse is ON.
2. Operate the mouse, and cursor's movement is mapping mouse movement. Now the mouse and the
receiver is auto-linked successfully.
B. Manual mode
If you find the communication channel does not connect well, you can use the software connection
tool to re-connect the mouse & receiver to reset a new channel ID. You are able to get the software
from the included diskette of the package or download from your local brand vendor's website.
Charging ( Less >>> Progressing >>> Full )
Charging
Completed
Please recharge the batteries when the Low Power LED Flash. If you use up the betteries, you may need to re-install the batteries
again.
4. Recharge the battery
When the mouse Power Indications signals, Please go forward to the charging process by following
solutions.
Recharge directly form the mouse
(1) Through PC`s USB Port
Plug the USB charging cable to an available PC`s USB Port and the socket at the front end of
the mouse. Make sure your PC`s power is on and then, the recharging process begins.
1. The mouse surface may becom warm during charging process. It is a normal phenomenon.
2. Please do not recharge through a USB hub, which may cause an ineffective execution
Note
(2) Re-Charge Indicate
Above is charging progressing diagram, the LED will keep changing from 1 LED to 4 LED. The full
charging will be indicated by 5 LED light on. To charge battery and for data transmission as long
as plus USB charging cable into mouse, meanwhile, the wireless mouse becomes a wired mouse
automatically.
Unplug USB charging cable from mouse, the wired mouse will return to be a wireless mouse.
a.
b.
5 6
(3) After recharging
Remove the mouse from the charging cables.
Make sure whether the communication between the mouse and the receiver is still available or
not. If not, please refer to the ID setting instruction in the manual to re-set the communcation.
a.
b.
B. Software Installation
The CD included in the package contains gaming software. (The Tilt Wheel function will be activated
only after the gaming software is installed.)
Driver Installation
The mouse features plug & play. It is not necessary to install the driver to operate the mouse. You
may require the mouse driver to make the tilt scrolling function effective. Please kindly install gaming
software to complete tilt wheel driver installation.
A. Un-install or removing the current mouse driver
Before installing the driver of the mouse, we suggest that you check if any other mouse driver has
been installed in your system. If yes, please uninstall or remove the existing mouse driver or software
before installing this gaming software to avoid conflict.
B. Install the mouse driver
Select setup.exe to install the driver from the CD.
C. Operation: 4-Way Scrolling
1. Vertical Scrolling
Roll wheel up to scroll up; roll wheel down to scroll down.
2. Horizontal Scrolling
Hold the wheel to left to scroll left; hold the wheel to right to scroll
right. Release wheel to stop scrolling function.
The 4-Way scrolling function is effective only after successful installation of the original mouse driver.
To function the 4-way scrolling in some applications in Windows VISTA such as Word, Excel,
Powerpoint and etc., the driver should be installed.
Note
Gaming Software Tool Installation
To use the powerful gaming function, users need to install and execute the gaming software tool.
Just insert the CD, then run the GM.exe
While executing the gaming software, please close the related Language Input Method.
Not to cause conflict, we suggest you had better uninstall other mouse drivers before installing the gaming software.
The gaming software will auto-detect if the gaming mouse is plugged into the PC. After connecting to the PC, the
mouse photo will display on the upper right corner of the software.
After successful installation, there is a gaming mouse software icon will appear on the lower right corner of the windows
screen.
Note
Dpi light indicator
* 400 dpi : One Blue LED “On”
* 800 dpi : Two Blue LED “On”
* 1600 dpi : Three Blue LED “On”
* 3200 dpi : Four Blue LED “On”
Tips for In-play Sensitivity Switching
1. Try the default settings in practice games first before changing these settings.
2. Practice using the In-game dpi Increase/Decrease buttons on the mouse before engaging in serious combat.
3. In first-person shooter games, programming the mouse to use only two tracking sensitivities may work better than using three or
more. Use a smaller dpi tracking sensitivity (e.g., 100 dpi) for sniping and shooting, and a higher setting (e.g., 5600 dpi) for quicker
movements.
4. Customize each game according to your specific sensitivity switching needs.
Dpi switch button
Dpi Settings
1. Press the dpi switch button to change the different resolution.
2. The default dpi setting:
3.User can change default dpi settings to the
range of 100~5600 dpi with the gaming
software tool included.
Mode light indicator
* Red light on - Mode 1
* Green light on - Mode 2
* Blue light on - Mode 3
* Pink light on – Mode 4
* Cyan light on – Mode 5 Mode switch button
* Users can record a macro or get a built-in function from script library,
and then save and assign a macro or a function to one of available
modes for each gaming button.
* The 4th/5th buttons default is Internet Forward & Backward.
1. There are 11 programming gaming buttons for users
to assign a macro function.
2. There are 5 modes switchable.
3. The mode switch button is on the top of the mouse.
Gaming Modes Setting
Gaming button
Dpi “+” Dpi “-”
1
2
3
6
45
8
911
10
Gaming button
7
7 8
Dpi Setting

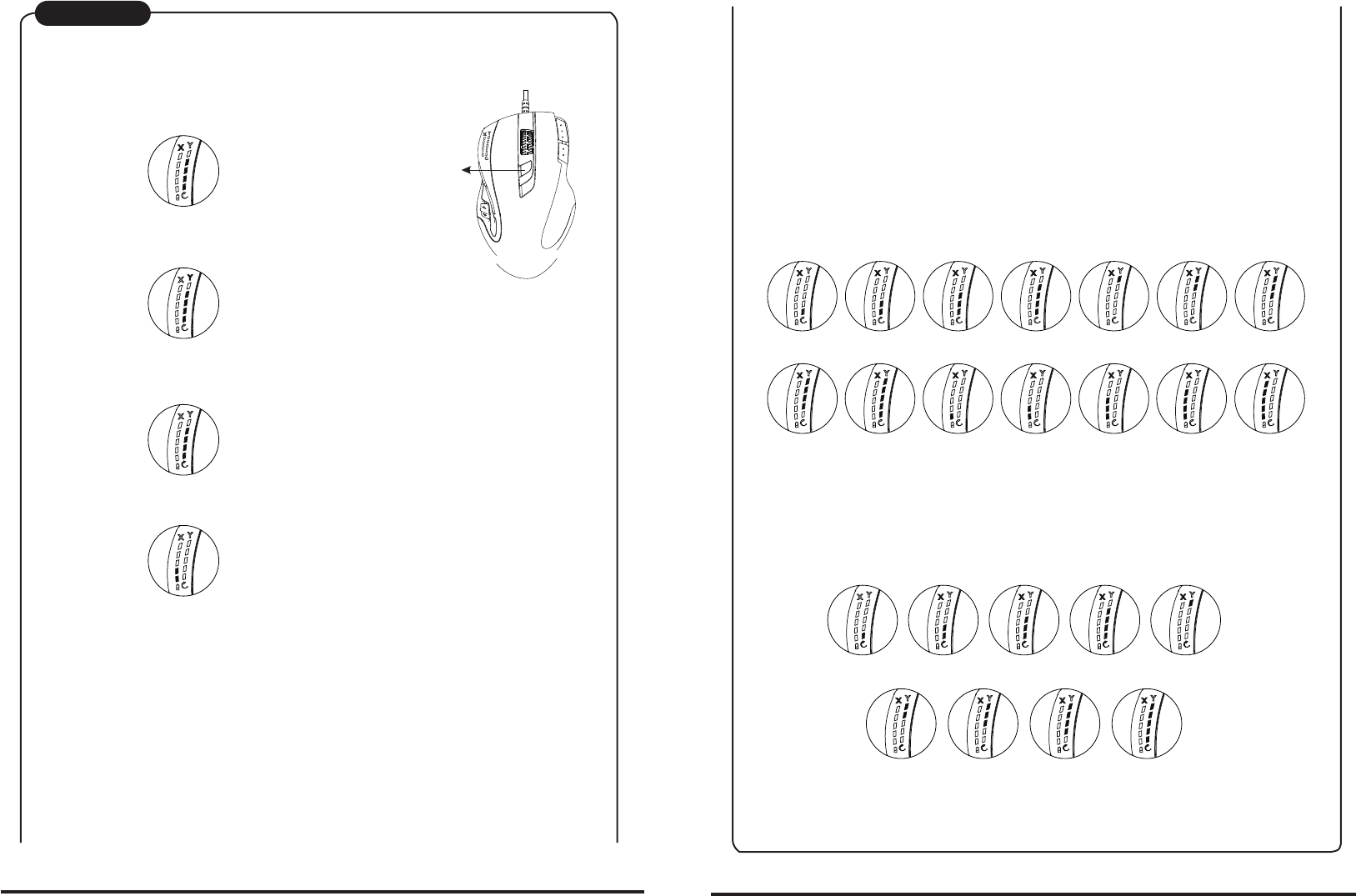

A. Status inspection :
To click F.S. (function setting) button is the way to switch setting mode.
1. X axis - DPI status : click F.S. once, the X axis LED will
light on and indicate the X axis resolution is.
2. Y axis - DPI status : click F.S. twice, the Y axis LED will
light on and indicate the Y axis resolution is.
3. Wheel count calculation status : click F.S. 3rd time, the wheel scrolling image graph will light
on and indicate how many count of wheel scrolling is.
4. Residual battery power : click F.S. 4rd time, at the same time the battery icon will light on.
B. How to Set up :
press and hold F.S. button for 3-sec. to enter set up mode. The setting sequence is : X axis dpi
setting >> Y axis dpi setting >> wheel count setting
1. X axis setting :
press and hold F.S for 3-sec. to enter X axis dpi setting mode, the X axis image graph will
flash. The LED will indicate the currect resolution, and can be adjusted by wheel scrolling up
or down to increase or decrease dpi. Each of squares on behalf of 100 dpi. Scrolling up one
count means to increase 100 dpi; contrarily, scroll down one count to decrease 100 dpi.
Below shows how to reconize dpi level. The dpi range is from 100 dpi to 5600 dpi maximum,
with 57 levels. After setting, press F.S. for 3-sec. to save into memory and drop out of the
setting mode.
Functional
Setting button
2. Y axis setting :
press and hold F.S for 3-sec. is X axis dpi setting mode and then click F.S. to enter Y axis
setting mode, the Y axis image graph will flash. The LED will indicate how resolution is
resolution , and can be adjusted by wheel scrolling up or down to increase or decrease dpi.
Each of squares on behalf of 100 dpi. Scrolling up one count means to increase 100 dpi;
contrarily, scroll down one count to decrease 100 dpi. Below shows how to reconize dpi
level. The dpi range is from 100 dpi to 5,600 dpi maximum with 57 levels. After setting,
press and hold F.S. for 3-sec. to save into memory and drop out of the setting mode.
Remark :
100 dpi ~ 400 dpi : LED down >>> up (1st to 4th LED light on)
500 dpi : the 5th LED light on only
600 dpi ~ 900 dpi : LED up >>> down (5th LED to 1st LED light on)
1000 dpi ~ 5000 dpi : LED down >>> up (1st to 5th LED light on)
100 dpi 200 dpi 300 dpi 400 dpi 500 dpi 600 dpi 700 dpi
900 dpi 1000 dpi 2000 dpi 3000 dpi 4000 dpi 5000 dpi
800 dpi
Count 8 Count 9
Count 1 Count 2 Count 3 Count 4 Count 5
Count 6 Count 7
3. Scrolling count setting :
Press F.S. for 3-sec. and click F.S. twice to enter count calculation mode, the arrow image
arrow image will flash, and show the current count number. Adjust count calculation by
scrolling wheel, scroll up to increase the count, and scroll down to decrease the count
oppositely. Press F.S.for 3-sec. to save into memory and drop out setting mode.
9 10

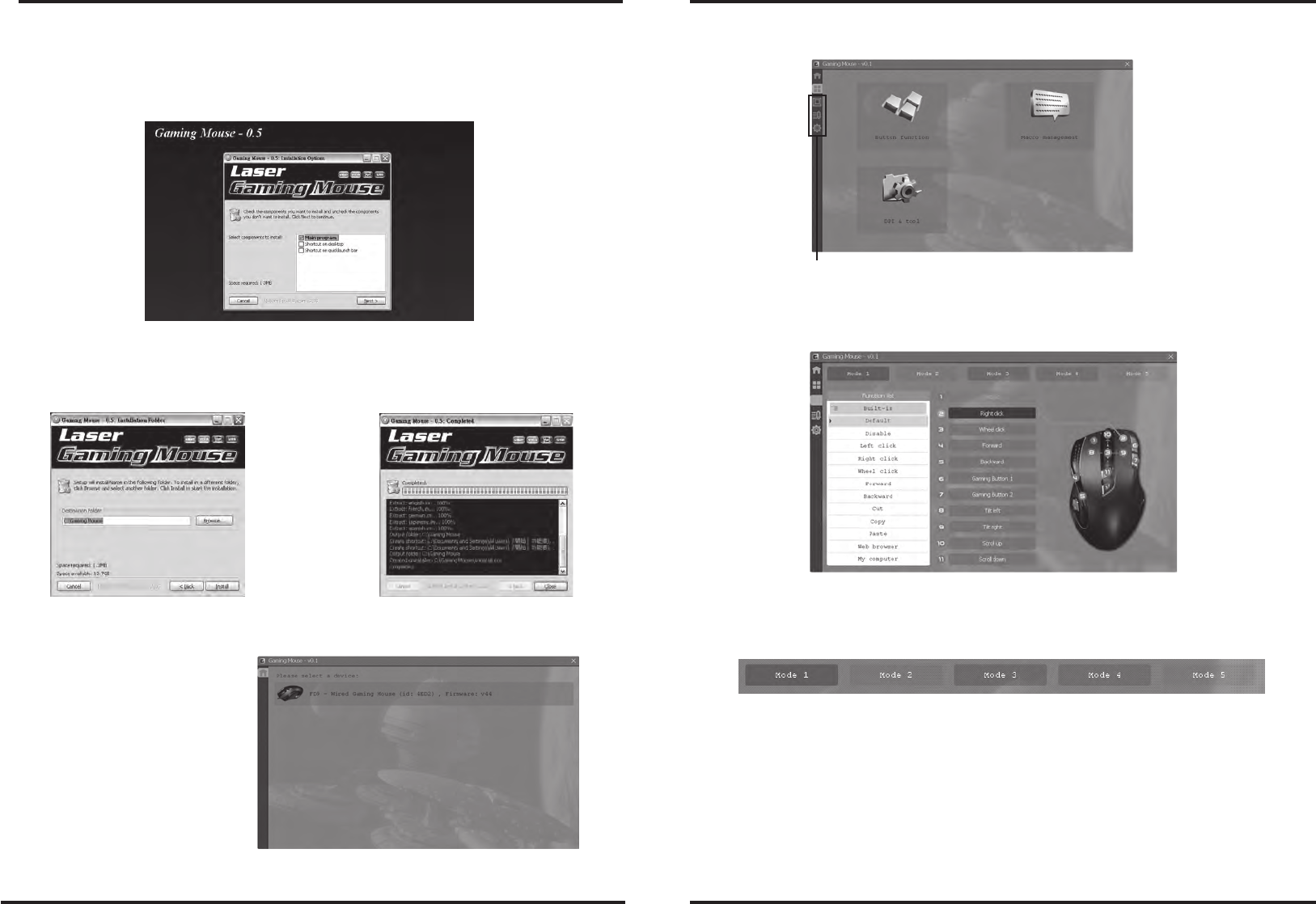

(1) Software Installation Instruction
CD-ROM will execute Software auto-run after putting CD into, then, system will pop-up the message.
Enter into Gaming Mouse installation process. Please select the conponents to install then go to "Next"
Please assign the destination folder and go to
"Install" Please "Close" window when the
installation has been completed
successfully.
(2) Select Device
a. Please select a device.
b. Please choose the function that you would like to make your personal settings.
You can also click the I-con on the left side to choose.

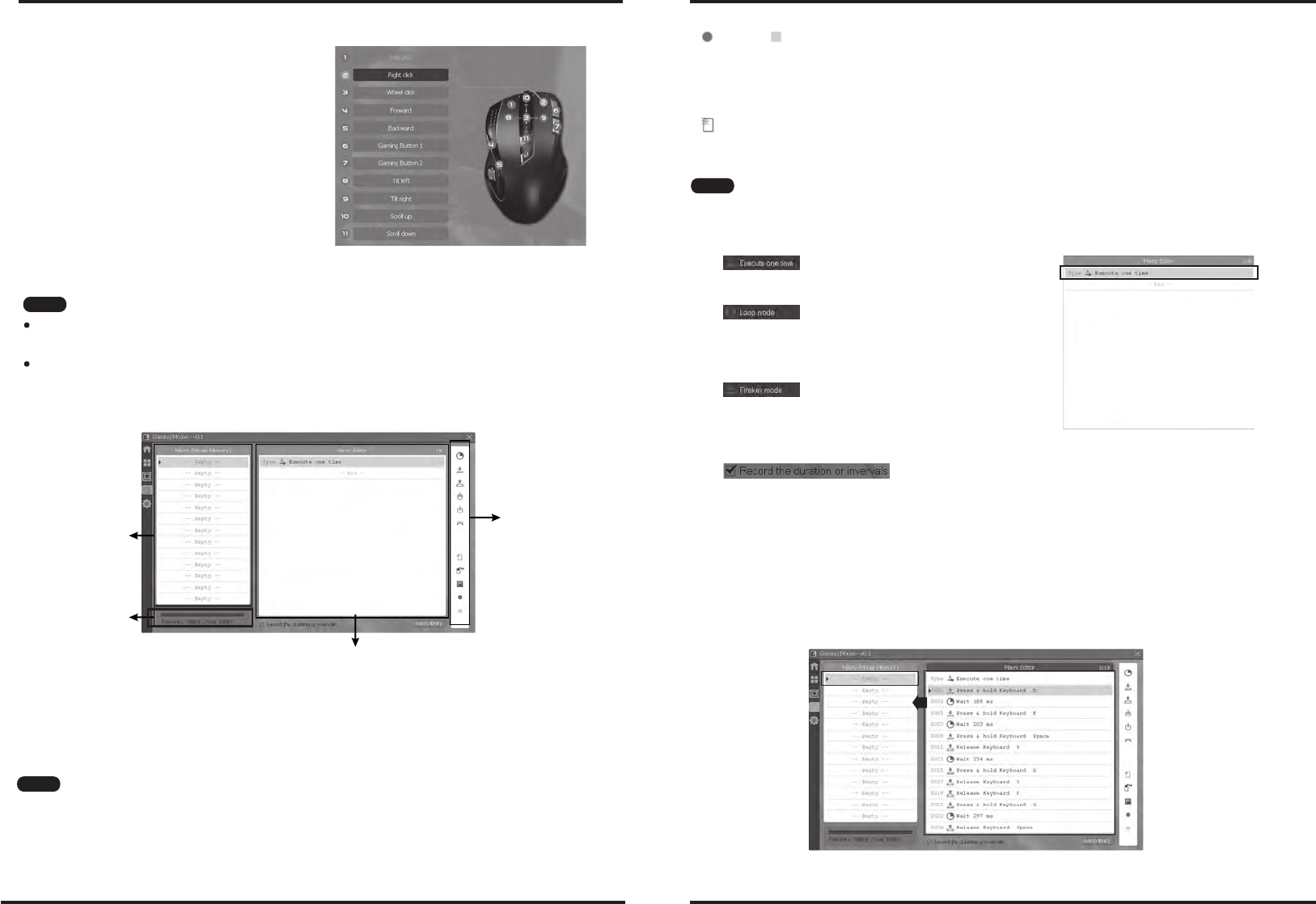

(3) Macro Settings Instruction
Profile Selection / Naming
● Move the cursor to the Profile area and click any color from Red,Green, Blue, Purple, Cyan to
define the profile name.
● Each profile presents a customerized gaming button setting group. Meanwhile, users can define
each profile according to different games.
● Please be noted that the Profile name can be typed maximum 8 letters to define which games.
The mouse offer 5 modes for saving macros. There are Red, Green, Blue, Purple and Cyan light to
indicate each mode / profile obviously. On the other hand, each mode / profile is able to record 11
scripts.
11 12
Button Settings
1. Define profile name well.
2. Move the cursor to Button Setting area and set up
every button function which either assigned in
pop-up manual or customerized marcro list each
by each completely.
3. The product provides 11 gaming buttons to users
for functionality setting.
Please keep in mind that, if any other button functionis assigned to the Left button, the default Left
button function will be inactive until users set it back to the default function.
All assigned button functions are automatically saved after the assignment.
(3) Macro Settings Instruction
Note
Memory Indicator Window
Macro List Window
Macro Editor Window
Function Button Window
I. Macro List Window
Macro List has maximum 64 lines to be set up by users. Every line can be named to indicate the
meaning of the macro. The Macro List provides 5788 Bytes totally.
II. Macro Editor Window
This window is for gamers to record all the keyboard and mouse commands through
this powerful recording function.
Note Please be noted that the space per line can accommodate 14 letters at most.
Reset :
Click "Reset" to get back to the default status, clearing all the recorded contents by gamers.
Start / Stop Recording:
Click the "start" icon to start recording. Click the "stop" icon to stop recording. Between the 2 clicks,
all of your operations on keyboard and mouse are recorded and shown on the Macro Editor
Window. To press the "Pause/Break" button on keyboard can also stop recording.
TIPS Before starting Macro recording, you have to choose one command from "Excute One
Time", "Loop mode" or "Firekey mode" in the first line of Macro Editor Window. Click
twice on this line to check the next command until your required command appears.
Excute One Time :
The recorded script will be executed once.
Run Loop :
After you click once a gaming button, the assigned
function will be repeatedly executed until you click
again the button.
Firekey mode :
The assigned function will be repeatedly executed
while you keep pressing the gaming button, and
will stop once you release the button.
Duration :
This is to allow you to record the duration of a command or intervals between two commands.
The default is active. You can cancel it if it is unnecessary to record the duration.
Duration ms(0.001 second) :
Double click the button, you can manually modify the duration time directly.
After finishing the macro editing, drag the scripts to Macro List Window and name it. The script is
automatically saved once it is dragged into the Marco list.
13 14

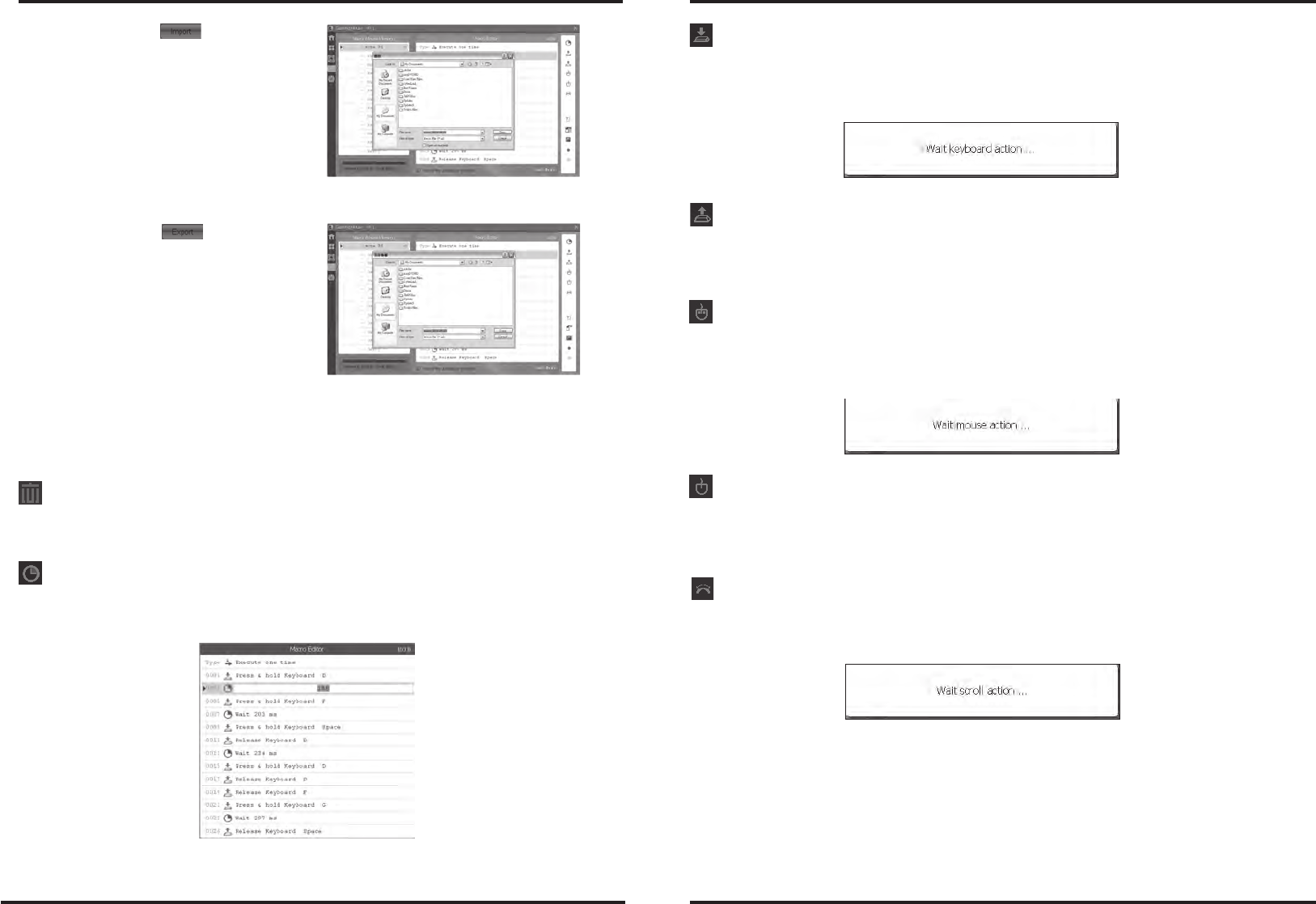

Import Macro / Script :
Other users / friends using this product as well
will be awesome! "Import" allow you to have
the scripts / macros as the same as what your
friends have. Save the scripts / macros
provided from your friends in a certain path.
Then, click "Import" from software panel and
choose the scripts / macros you have had.
Congratuations !! You have imported macros
successfully.
Export Macro / Script :
Click "Export" and the scripts / macros what you
have had which setted through gaming software
panel will export to the destination folder you
assigned.
III. Function Button Window
Please kindly use below command icons to amend / insert the script details when you have done
the record.
Recycle :
Choose and drag the specific scripts, which you want to delete. To the "Recycle" icon for deleting
the scripts forever.
Insert Duration of Intervals :
Drag "Insert Duration of Intervals" icon to Macro Editor area and insert into between two single
scripts. Double-click the new duration and key in the specific second.
Insert Key-Down Command :
Drag "Insert Key-Down Command" icon to Macro Editor area and insert into between 2 script
A message of "Please press a keyboard" will pop-up, meanwhile, please press a key on keyboard
to insert the key-down into scripts.
Insert Key-Up Command :
Drag "Insert Key-Up Command" icon to Macro Editor area and insert into between 2 scripts. A
message of "Please press a keyboard" will pop-up, meanwhile, please press a key on keyboard to
insert the key-up into scripts.
Insert Click Mouse Button Command :
Drag "Insert Click Mouse Button Command" icon to Macro Editor area and insert into between 2
scripts. A message of "Please click a mouse button" will pop-up, at the same time, please click
any mouse button to insert the mouse button function into scripts.
Insert Release Mouse Button Command :
Drag "Insert Release Mouse Button Command" icon to Macro Editor area and insert into between
2 scripts. A message of "Please click a mouse button" will pop-up, at the same time, please click
any mouse button to insert the "release mouse button" function into scripts.
Insert Scrolling Command :
Drag "Insert Scrolling Command" icon to the Macro Editor area and insert into between 2 scripts.
A message of "Please scroll the wheel" will pop-up, at the same time, please scroll the wheel up
or down to insert scrolling up or down function into scripts.

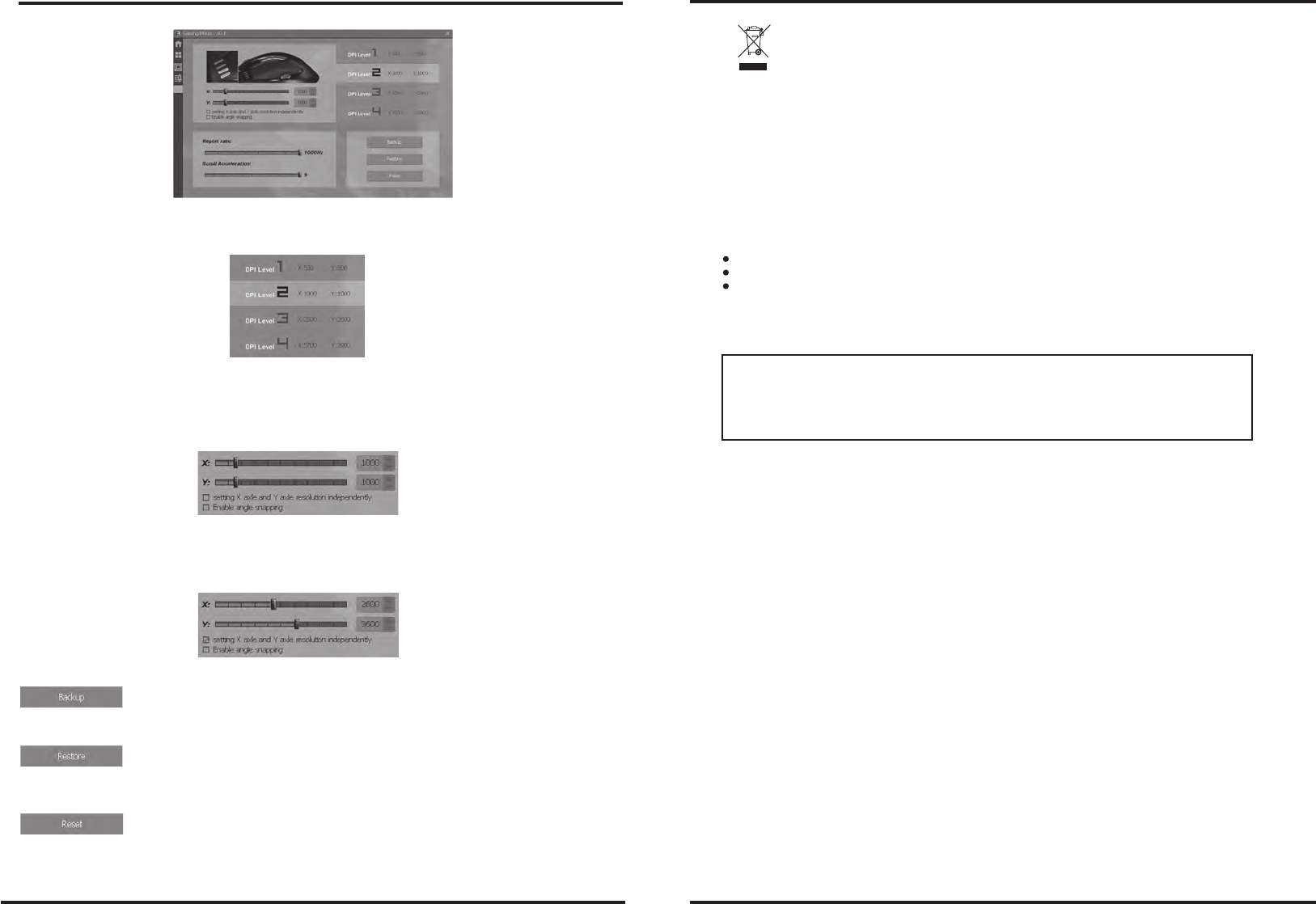

(4) DPI & Tools Instruction
The product provide 4 levels resolution switch, and the default is 400 (One Blue LED On) /800 (Two
Blue LED On) /1600 (Three Blue LED On) / 3200 (Four Blue LED On). Users can define the own
resolution from 100 dpi ~ 5600 dpi for each of the 4 level. Furthermore, the X axle and Y axle
resolution can be set up individually by users.
15 16
b. In the DPI adjustment area, drag the axis along the DPI scale. Meanwhile, the DPI figure is
changing and shown on the right side of the DPI scale.
Note: The computer will save new resolution into mouse automatically.
a. Click the level of DPI you are going to adjust. There are 4 levels can be chosen.
c. Tick the option of "Setting X axle and Y axle resolution independently" if you would like to adjust the 2
axles individually.
Backup :
Backup your mouse setting to file.
Restore :
Restore mouse setting from file.
Reset :
It will reset all setting of mouse.(macro will be deleted)
This symbol on the product or in the instructions means that your electrical and electronic equipment should
be disposed at the end its life separately from your household waste. There are sparate collection system for
recycling in the EU.
For more information, please contact the local authority or your retailer where you purchased the product.
FCC statement
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation if this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment. (Example-use only
shielded interface cables when connecting to computer or peripheral devices).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference. and
(2) This device must accept any interference received, including interference that may cause
undesired operation.

Navigation menu
