ARGtek High Power WLAN USB Adapter which is a highly integrated MIMO (Multiple In, Multiple Out) Wireless
LAN(WLAN) with two transmit and two receive paths (2T2R) and complying with the IEEE 802.11n Draft specification 2.0.
Our WLAN USB adapter is targeted at competitive price-
performance, better power management, high volume desktop and
notebook PCs.
Features
■2x2 MIMO technology for extended reception robustness and exceptional throughput
■Backward compatible with 802.11b/g devices while operating at 802.11n data rates
■IEEE 802.11e QoS Enhancement (WMM)
■Cisco Compatible Extensions (CCX4)
■Fast receiver Automatic Gain Control (AGC)

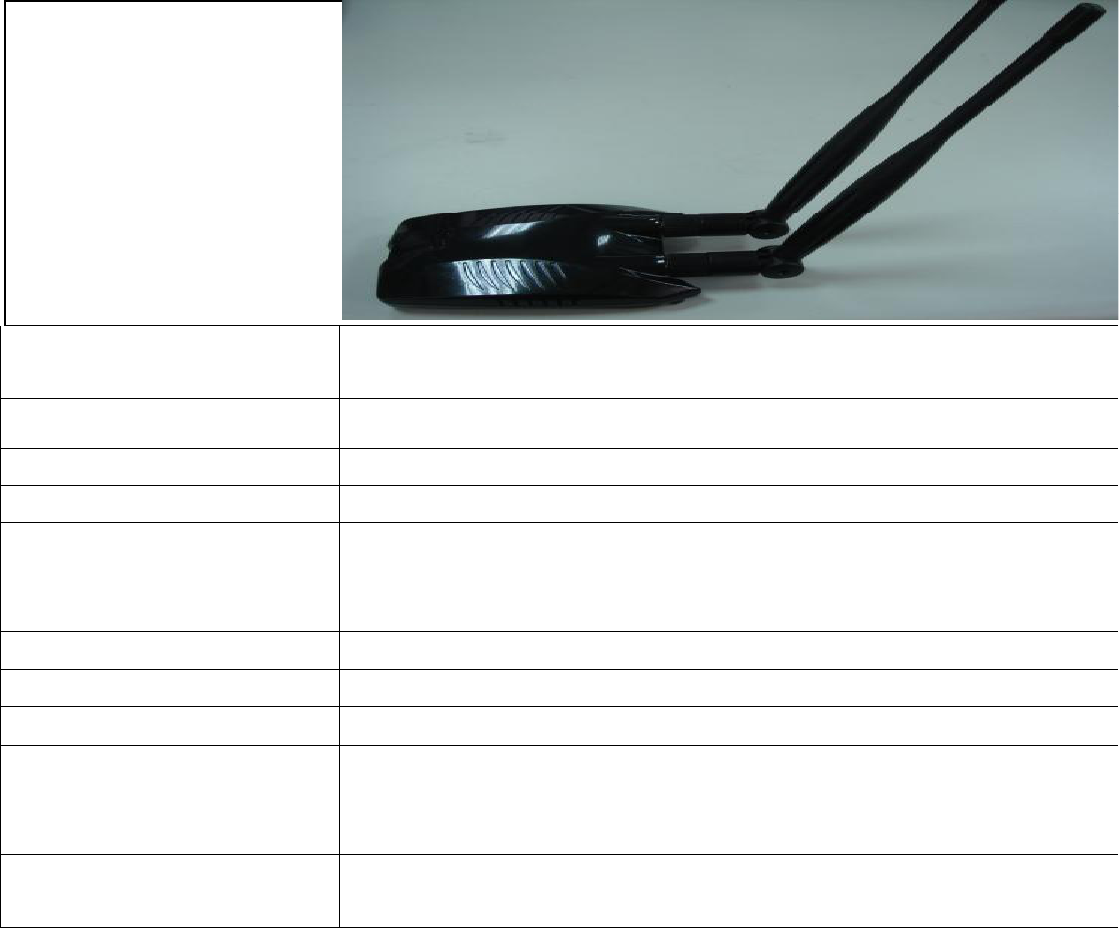

Bat Palm High Power
802.11 b/g/n WLAN
USB Adapter
Model: AWUN 1222
Specifications
Standard IEEE 802.11b, IEEE 802.11g, IEEE802.11n
Chipset RTL8192SU
Frequency Band 2.412GHz~2.484GHz ISM band
Data Rate 802.11b:1, 2, 5.5, 11 Mbps
802.11g:6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n:20Mhz Up to 144Mbps, 40Mhz Up to 300Mbps
LED indicators Active/Power
Interface USB2.0
Antenna 5dBi RP-SMA dipole antenna*2
Transmitter Power 802.11b 23±2 dBm
802.11g 18±2 dBm
802.11n 17±2 dBm
Receive Sensitivity -75dBm@802.11n -76dBm@54Mbps
-86dBm@11Mbps -92dBm@1Mbps
Operating Range Up to 500M, depending on surrounding environment
Power Consumption Transmit:<500mA, Receive:<300mA
Security 64/128-bit WEP(Hex&ASCII), WEP, WPA2, WPA-PSK, WPA2-PSK,
WPA2-PSK(AES/TKIP)
Operating System Windows XP/98/ME/2000, Vista , Linux and Apple Mac
Operating Temperature 0~55 Celsius
Storage Temperature -10 ~ 70 Celsius
Humidity 5~90%(non-condensing)
Size 9.1(L) x 6.8(W) x 2(H) cm
