ARGtek Communication WIFI-010 CPE 2628 User Manual 802 11a CPE QIG 990604

ARGtek Communication Inc. CPE 2628 802 11a CPE QIG 990604

Contents

User Manual - Statement

802.11a CPE
Quick Installation Guide
1. Check the parts in your box
CPE SET 1
DC 12V @ 1.25A Power Adapter 1
PoE DC Power Injector 1
Hose Clamps 2
CD user manual 1

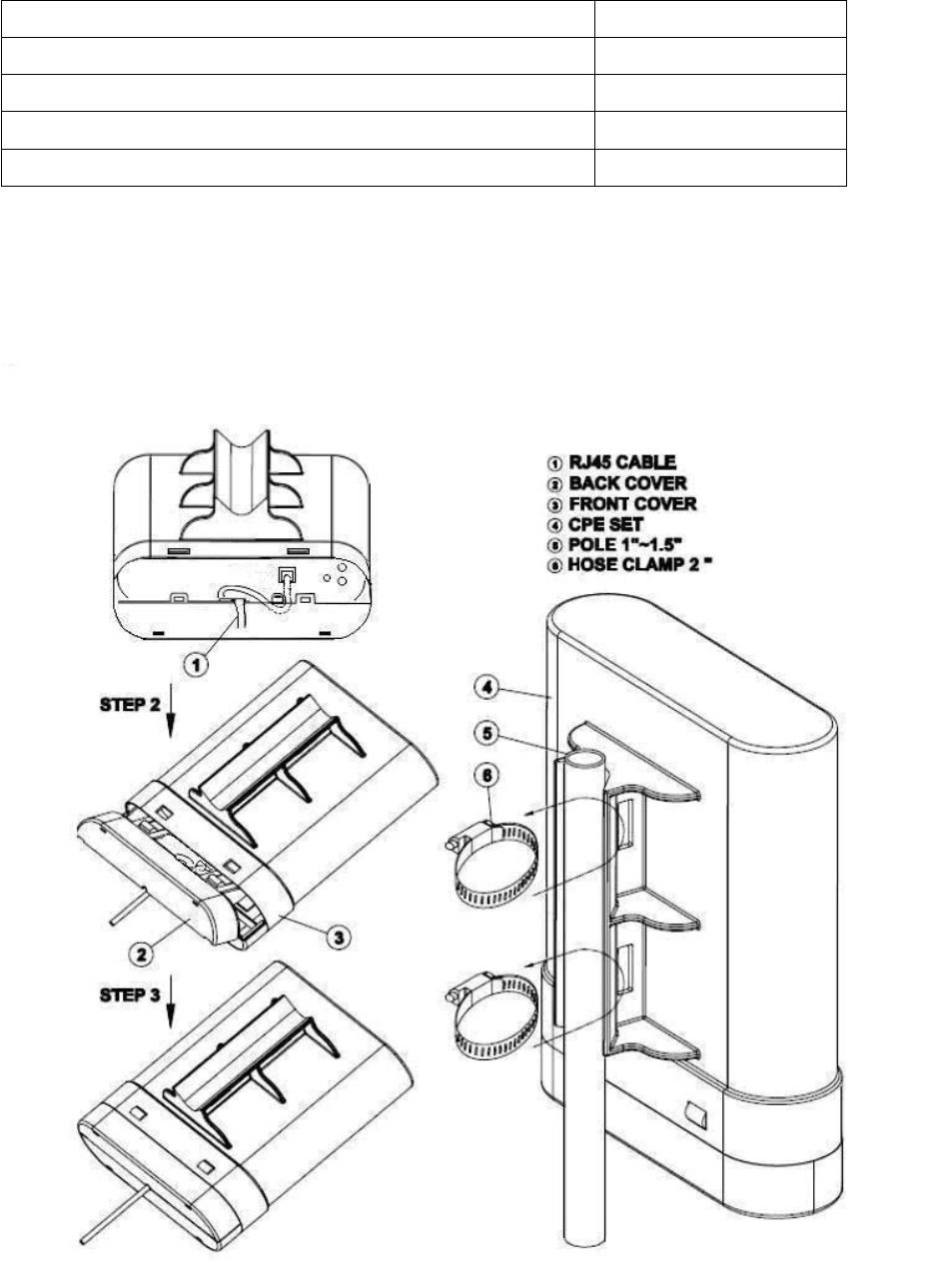

2. How to fix the CPE on the Pole (1”- 1.5”)
(For better water resistance please wrap the RJ45 connector)
3. PoE connection
1. Connect (POE) RJ45 Jack to CPE RJ45 Jack with good quality
Ethernet cable.
2. Connect (LAN) Jack to PC or Switch Hub LAN port.
3. Plug in the power adaptor to PoE DC jack.
4. CPE Connection

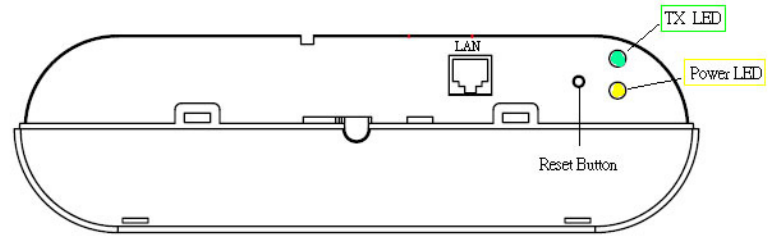

1. Open the CPE enclosure you will find one RJ45 Jacks two LEDs and
one reset button.
2. Connect the PoE cable to either LAN port.
3. To reset the CPE just press and hold the reset button for about 10
seconds and wait for 35 seconds to reboot the CPE.
Notice:
This CPE default operation mode is in Bridge mode. Please go to the
webpage and change the operation mode to other mode for your CPE.
5. CPE configuration
The WLAN Broadband Router is delivered with the following factory
default parameters on the Ethernet LAN interfaces.
Default IP Address: 10.10.10.254
Default IP subnet mask: 255.255.255.0
WEB login User Name: admin
WEB login Password: admin
The device has four operation modes (Gateway/Bridge/WISP/AP Client).
Bridge/WISP/AP Client:
The default IP addresses for the device are 10.10.10.254, so you need to
make sure the IP address of your PC is in the same subnet as the device,
such as 10.10.10.X.
It will take about 25 seconds to complete the boot up sequence after
power on from PoE.
Gateway:
The default IP addresses for the device are 172.32.1.254, so you need to
make sure the IP address of your PC is in the same subnet as the device,
such as 172.32.1.X.
It will take about 25 seconds to complete the boot up sequence after
power on from PoE.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 50cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Please be advised that due to the unique Market and function targeted by this product, this product will need special trained
professional in configuring and installing the product. We hereby declare that the product will be distributed through controlled
distribution channel which has special trained professional to install this product and will not be sold directly to the general
public through retail store.
Important installation notice:
Per FCC Part 15.247 (c), this device is for point to point operation only, the installer is responsible for making sure that the
installation is fully comply with the following requirement as specified in the rule.
1) Fixed, point-to-point operation excludes the use of point-to-multipoint systems, omnidirectional applications, and multiple
co-located intentional radiators transmitting the same information.
2) The operator of the spread spectrum or digitally modulated intentional radiator or, if the equipment is professionally
installed, the installer is responsible for ensuring that the system is used exclusively for fixed, point-to-point operations.
