1
Getting Started
Remove or Disable Conflicting Applications
Internet sharing software and PC based firewall applications typically interfere with the 2Wire gateway, and
should be removed or disabled before you install the gateway. The 2Wire gateway provides the same
features as the products listed below.
If you have any of the following (or similar) applications installed on your computers, remove or disable
them according to the manufacturer’s instructions before proceeding.
Check Your Computer’s Browser and System Requirements
Verify that your computers meet the following minimum requirements:
Browser Requirements
Windows: Microsoft Internet Explorer 6.0 or higher (included on the 2Wire Setup Wizard CD), Netscape
Navigator 4.7 or higher, or Firefox 1.0 or higher.
Macintosh: Safari 1.0, Microsoft Internet Explorer 5.0, or Netscape 4.74 or higher.
System Requirements
• 5 MB of available hard disk space for 2Wire gateway software.
• Windows 98, 98SE, Windows ME, Windows NT 4.0 with Service Pack 6, Windows 2000,
Windows XP, or Mac OS 8.6 or higher
• Network adapter (such as Ethernet, USB, or wireless).
Internet Sharing Applications Proxy Software Security Software
Microsoft Internet Connection Sharing Wingate Norton Internet Security
Intel Anypoint ISS Sygate Black Ice
3Com HomeClick Zone Alarm
![](/img.php?id=562270&img=bg5.png)
2
Connect the First Computer to the Gateway
Congratulations on the purchase of your 2Wire gateway. To install your gateway and configure your network,
follow these steps.
Note: Features for different models may vary. Product details will be specified for each particular
model.
Choose a Computer and Connection Type
There are many ways to set up your network, but typically the first computer is located in the same room as
the gateway and your DSL connection. Ethernet is the preferred connection method for your first computer,
although instructions for connecting via wireless and USB are also provided.
The first computer you connect to the network is used to configure the 2Wire gateway for proper operation.
Choose one of the following methods to connect your first computer to the gateway. Save and close all open
programs before you begin connecting your gateway.
Install the DSL Filter
Note: New DSL customers only. Existing DSL customers with filters already installed should
proceed to Ethernet Connection on page 4, Wireless Connection on page 5, or USB Connection
on page 8.
Regular telephone and Digital Subscriber Line (DSL) signals are carried over the same line. Converting your
regular telephone line to DSL can cause high-pitched tones and static when using the phone.
Installing a filter on every telephone or telephone device sharing the same telephone number as your DSL1
separates these signals and eliminates the noise.
Connection Type Page
Ethernet page 4
Wireless page 5
USB page 8
1. Do not install DSL filters if your telephone line is only carrying a DSL signal.
![](/img.php?id=562270&img=bg6.png)
Connect the First Computer to the Gateway
3
To install the DSL filter:
1. Locate the phone jack where you want to connect your 2Wire
gateway.
2. Insert the DSL filter into the jack.
3. If you have a phone, answering machine, fax machine, satellite TV
equipment, or other phone device in this jack location, plug it into
the filter port labeled PHONE.
4. Install a DSL filter on all other phone devices in your house (such as dial-up modems, fax machines,
caller ID devices, and set top boxes). Plug each of these devices into the filter port labeled PHONE.

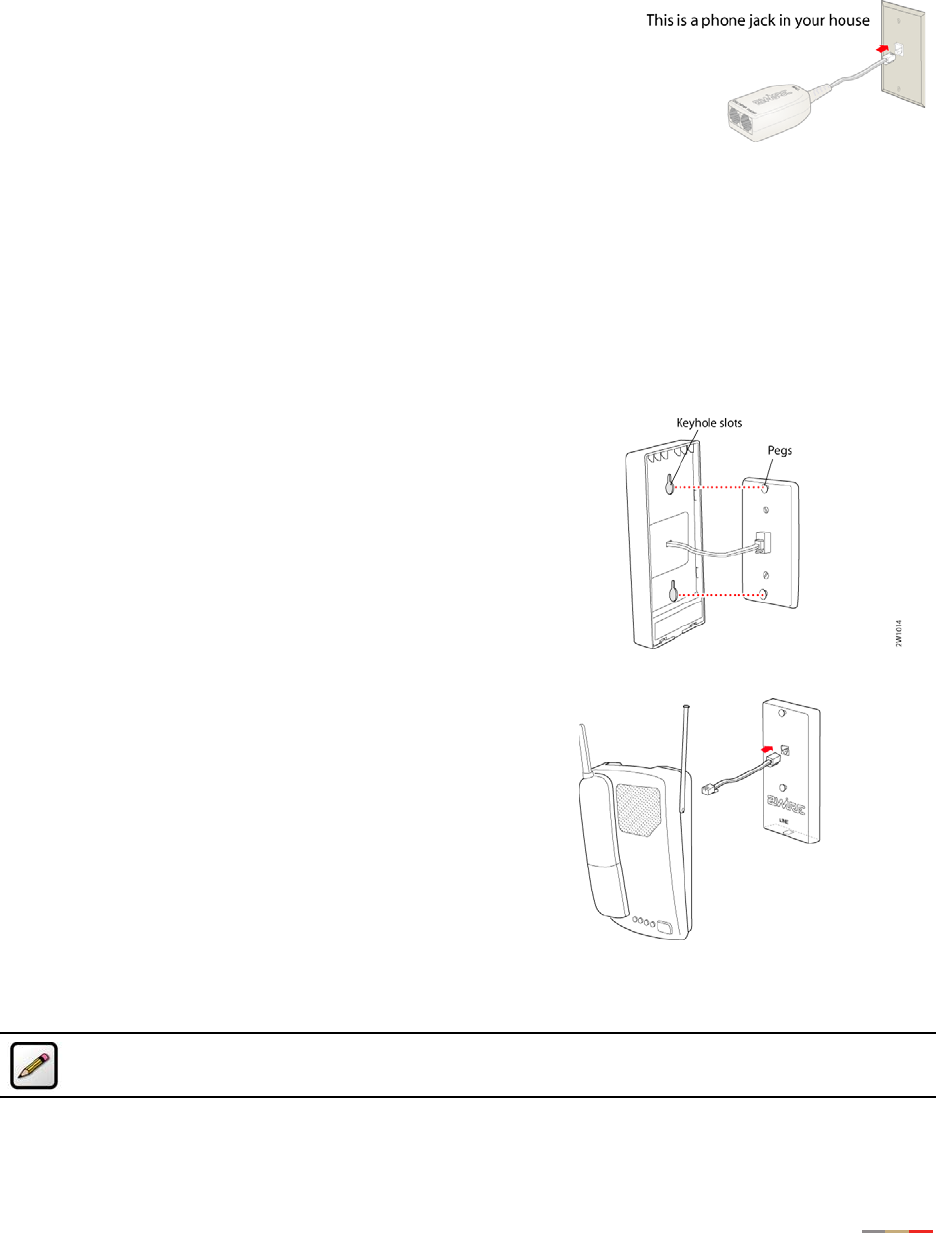

For Wall-Mounted Phones
If you have a wall-mounted telephone, install a wall-mount DSL filter following these steps.
Note: The extra phone jack located at the bottom of the filter (labeled LINE) is provided should
you wish to connect your gateway at this phone connection.
1. Lift the telephone from the wall pegs and disconnect the phone cord from the wall jack.
2. Connect the telephone cord from the back
of the DSL filter into the wall jack. Align the
keyhole slots on the filter with the wall plate
pegs and press down gently to secure.
3. Connect the telephone cord to the phone
jack located on the front of the mounted
filter.
4. Attach the telephone to the mounting pegs on the DSL filter and your installation is complete.
![](/img.php?id=562270&img=bg7.png)
Connect the First Computer to the Gateway
4
Ethernet Connection

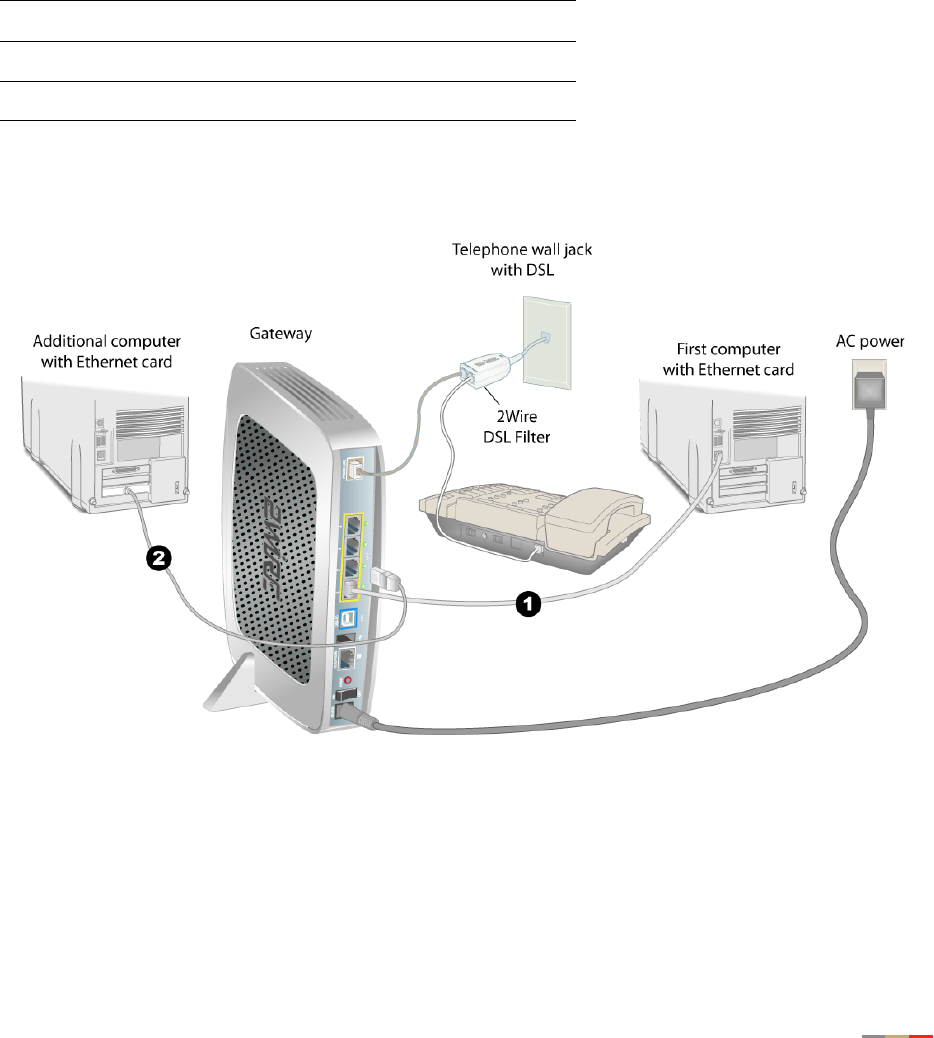

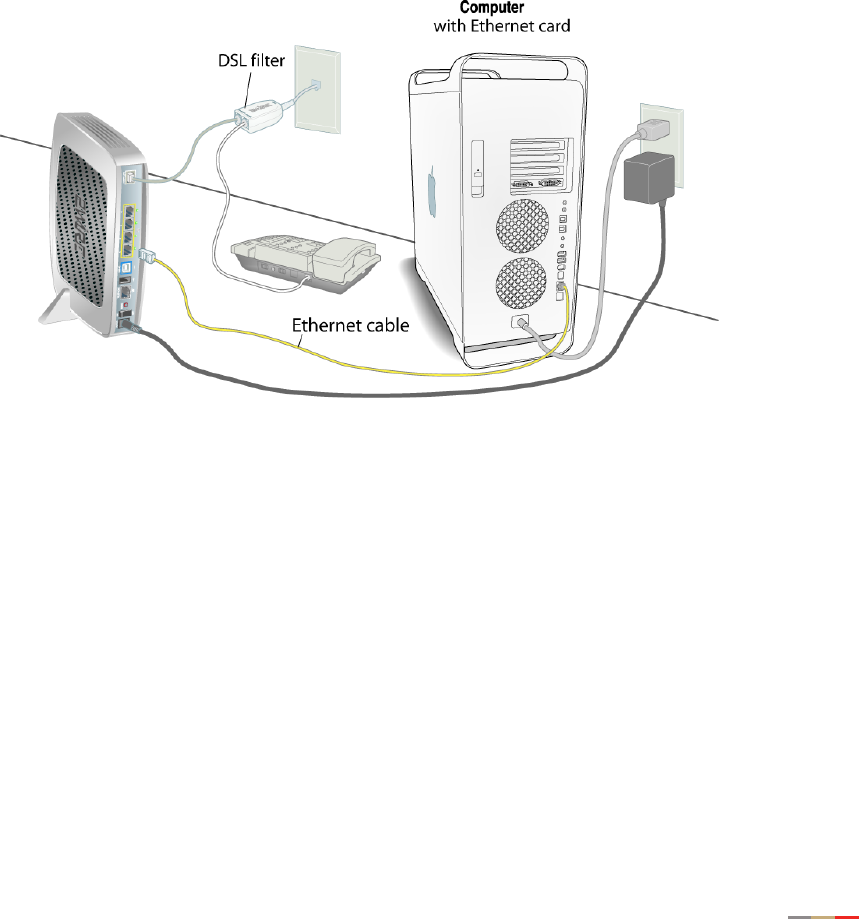

Figure 1. Gateway Connected Via Ethernet
1. Connect the provided power adapter from the gateway's POWER port to an electrical outlet. The POWER
light on the front of the gateway should be green.
2. Connect the provided gray phone cable from the gateway's PHONE LINE port to the DSL filter jack
labeled DSL/HPNA.
3. Connect the yellow Ethernet cable provided with the gateway from any available LOCAL ETHENET port on
the gateway to your computer’s Ethernet port.
Check Your Connections
With your computer completely started, verify the POWER and ETHERNET indicator lights on the front of the
2Wire gateway are green. If they are not, see “Indicator Lights” on page 14. The INTERNET indicator light will
not turn green until the gateway software has been installed and an Internet connection has been established.
![](/img.php?id=562270&img=bg8.png)
Connect the First Computer to the Gateway
5
Wireless Connection
Requires wireless-enabled notebook or a computer with an 802.11b/g wireless network adapter installed.
Wireless adapters can be purchased from your service provider.
Note: The 2Wire 2070, 2070V, and 270 gateways do not include wireless support. If you are
using a 2Wire 2070, 2070V, or 270 gateway, skip this section.

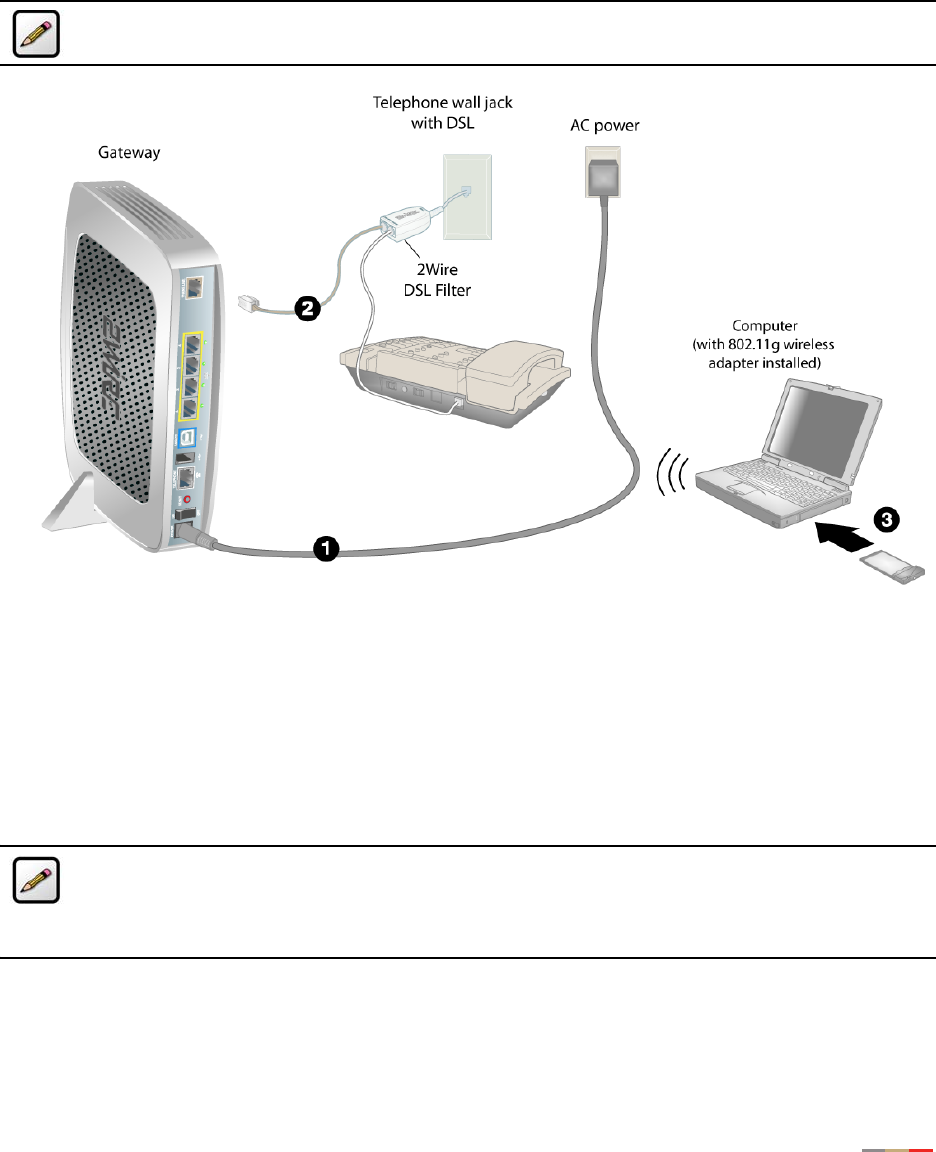

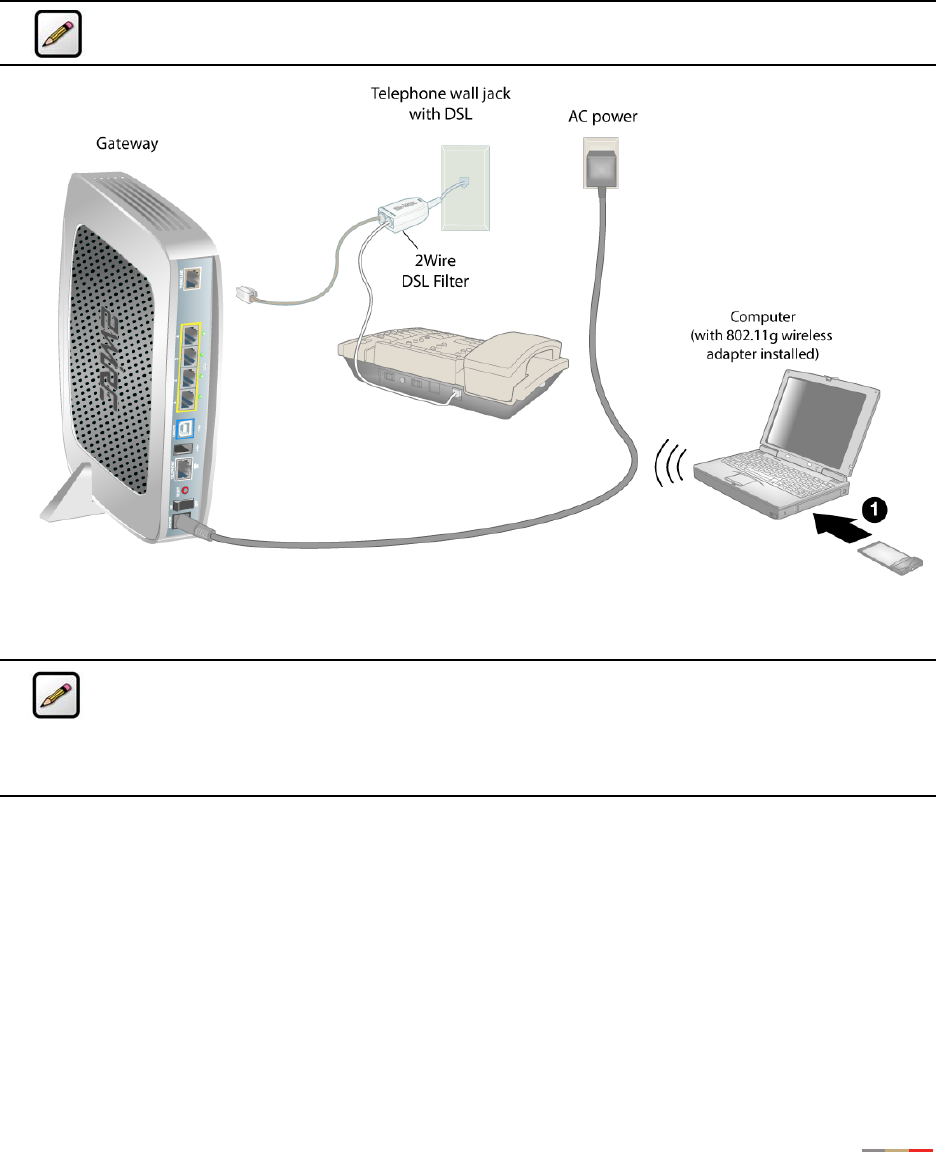

Figure 2. Gateway Connected Via Wireless
1. Connect the provided AC power adapter from the 2Wire gateway’s POWER port to an electrical outlet.
The POWER light on the front of the gateway should be green.
2. Connect the provided gray telephone cable from the gateway’s PHONE LINE port to a telephone jack with
DSL service.
3. Install your wireless adapter according to the manufacturer’s instructions (see note below).
Note: If you use a 2Wire wireless adapter (PCI, PC card, or USB adapter) for wireless networking,
the 2Wire gateway Setup Wizard CD automatically configures it to communicate with the gateway
during setup. If you are NOT using a 2Wire wireless adapter, you must manually configure your
adapter to communicate with the gateway using the information on page 7.
![](/img.php?id=562270&img=bg9.png)
Connect the First Computer to the Gateway
6
Check Your Connections
With your computer completely started, verify the POWER and WIRELESS indicator lights on the front of the
2Wire gateway are green. If they are not, see “Indicator Lights” on page 14. The INTERNET indicator light will
not turn green until the gateway software has been installed and an Internet connection has been established.
![](/img.php?id=562270&img=bga.png)
Connect the First Computer to the Gateway
7
Third-Party Wireless Adapter Configuration
Locating the Serial Number and Wireless
Encryption Key

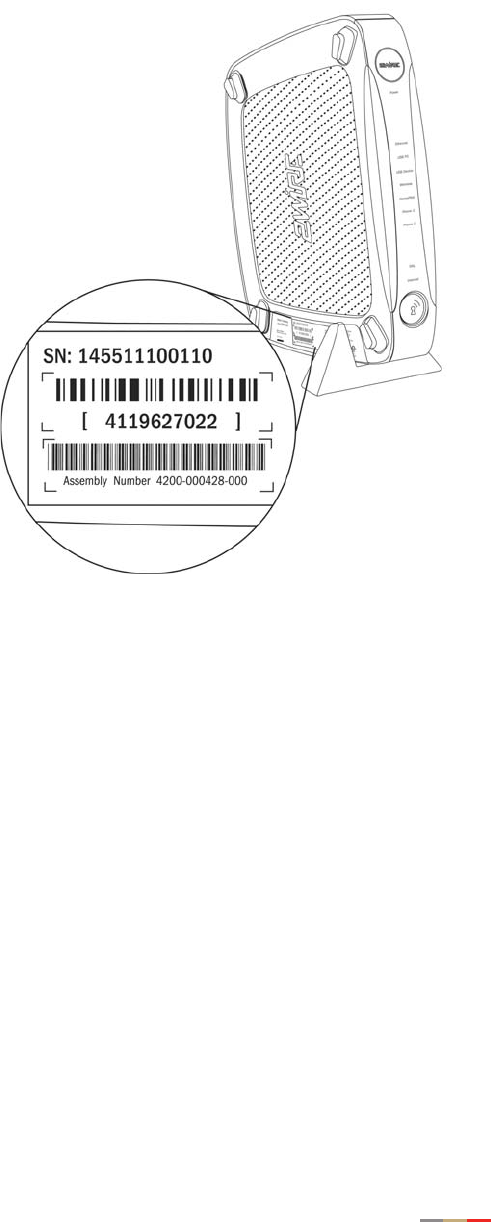

The serial number of your 2Wire gateway is
used as the network name (SSID). Beneath
the serial number is a ten-digit number which
is used as the encryption key. These are
located on the bottom of your gateway (shown
in vertical orientation). You will need this
information to configure your wireless adapter.
Configuring the Adapter
1. Install and configure your wireless
adapter according to the manufacturer’s
instructions.
2. Use the network adapter configuration
software or Windows network connection
wizard to set the network name (SSID)
and encryption key (WEP).
a. The network name is the word “2WIRE”
(in all capital letters), followed by the
last three digits of the gateway serial
number (for example, 2WIRE110).
b. The encryption key is a 64-bit hex value, located beneath the bar code on the bottom of the 2Wire
gateway. In the example, it is 4119627022.
c. For Mac OS X users, you may need to enter the “$” character at the beginning of the encryption key
(for example, $4119627022).
![](/img.php?id=562270&img=bgb.png)
Connect the First Computer to the Gateway
8
USB Connection

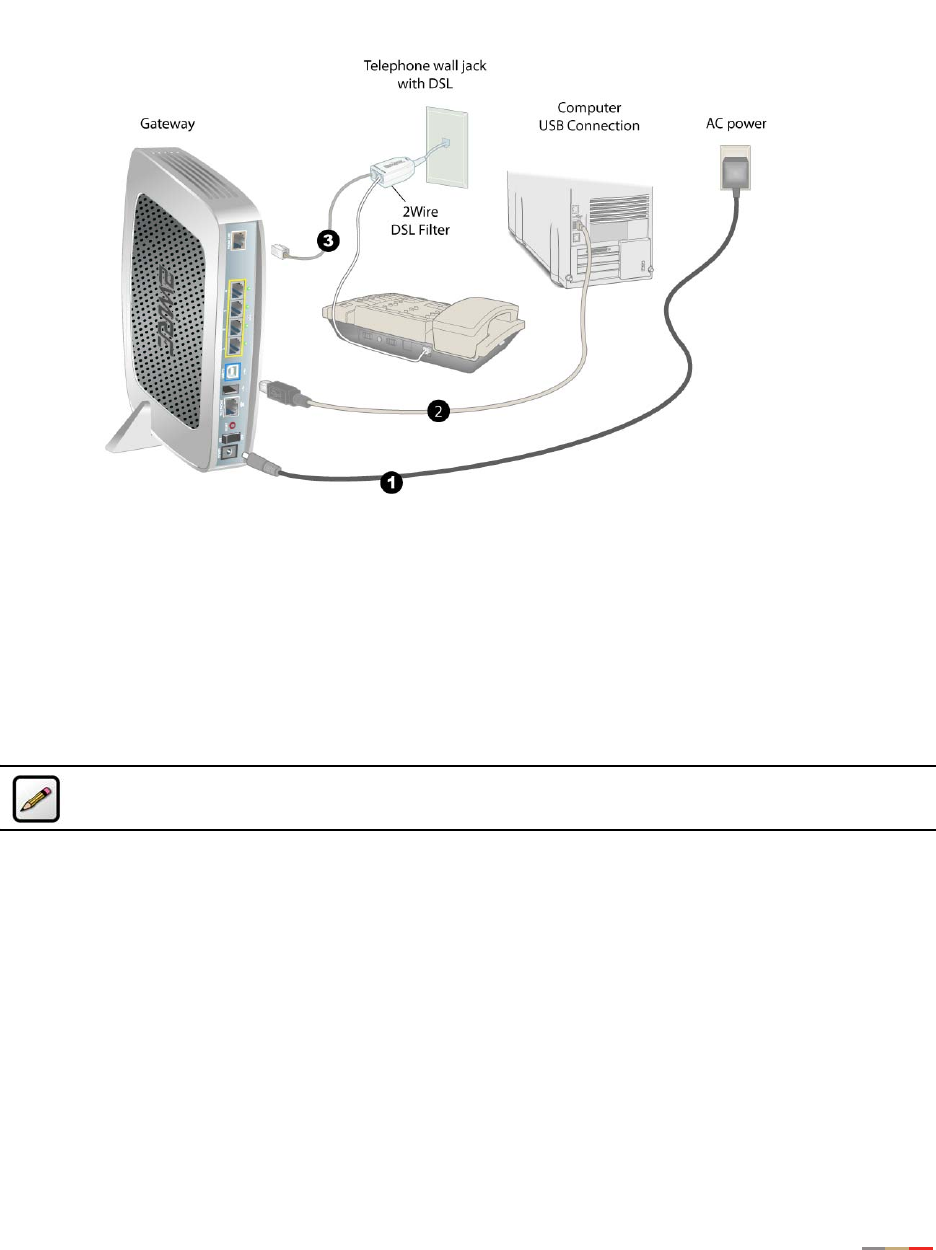

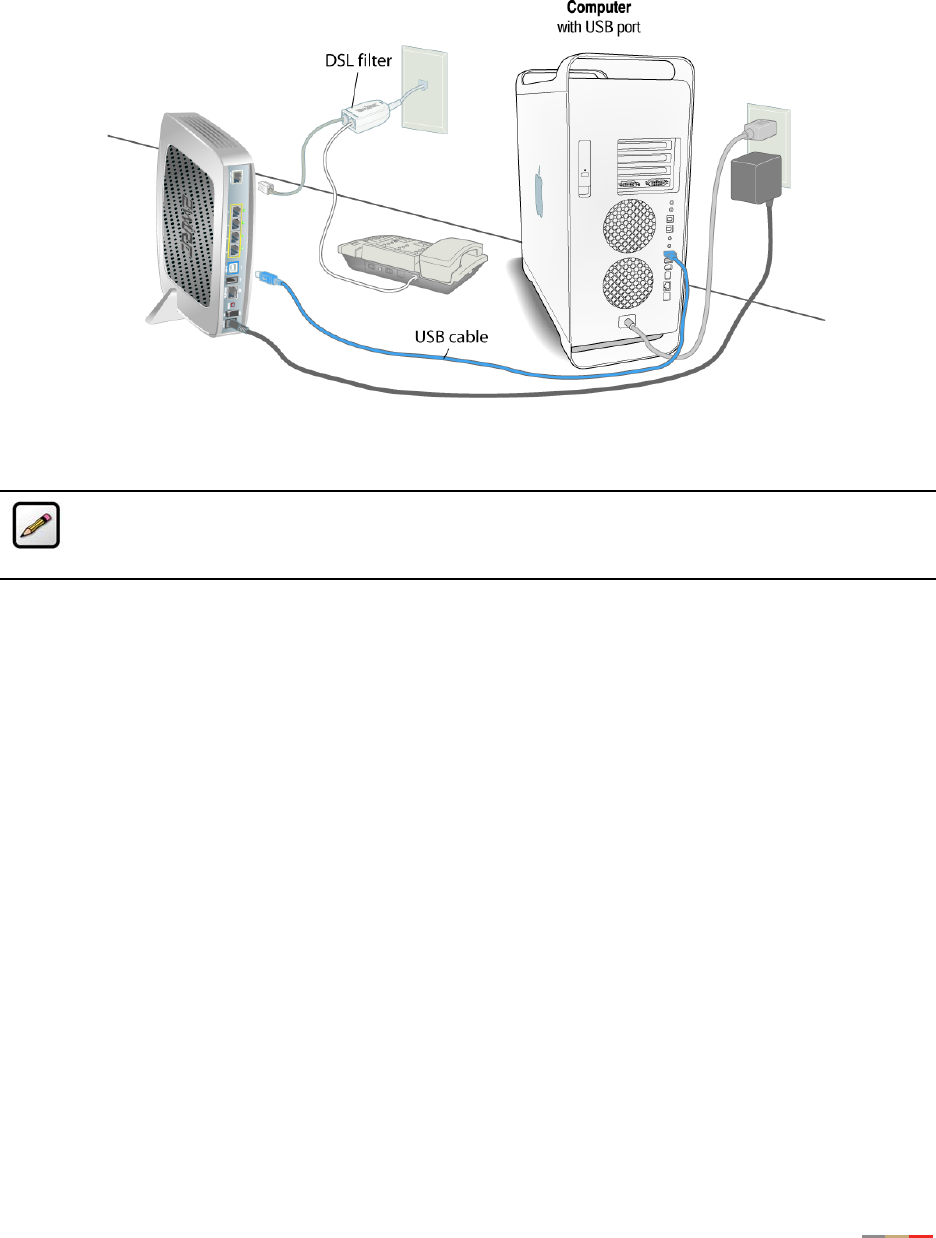

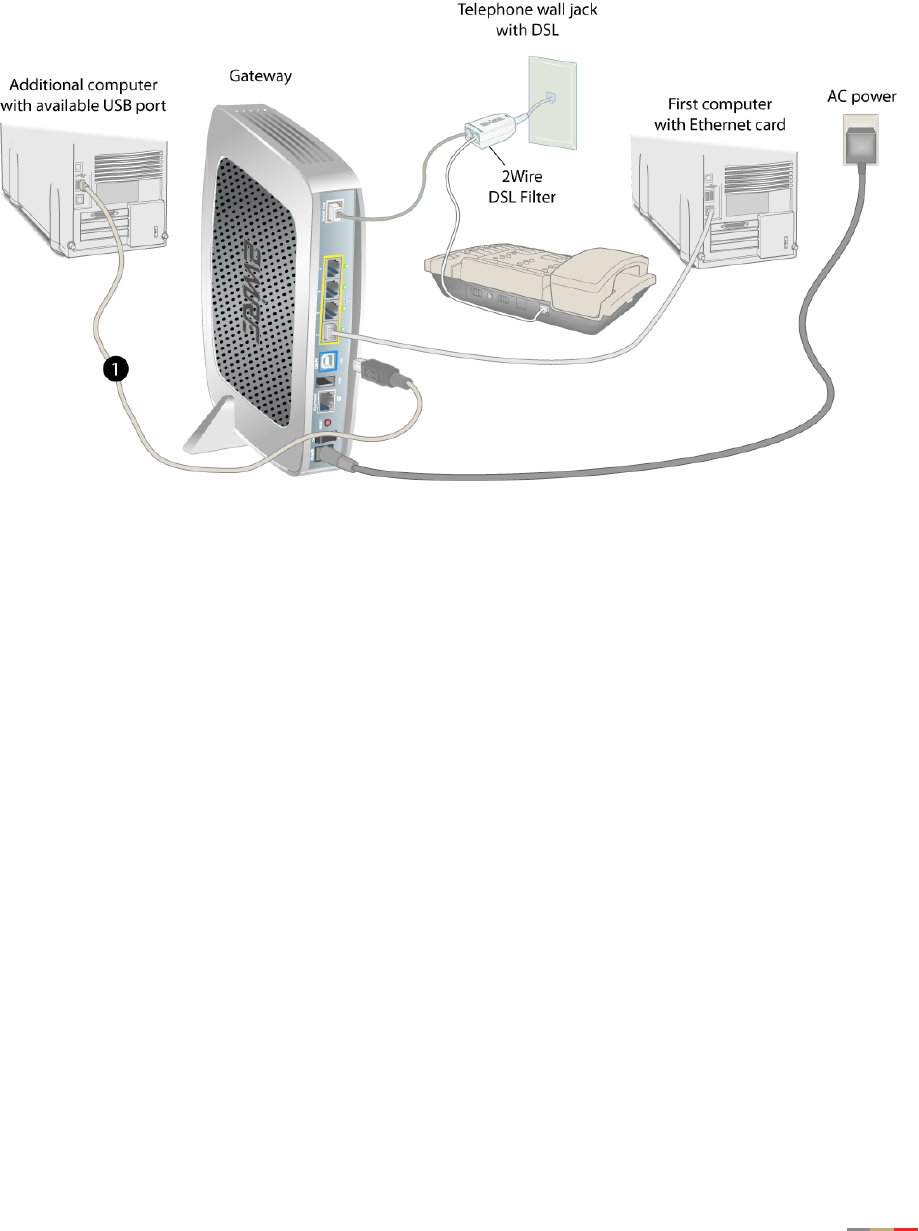

Figure 3. Gateway Connected Via USB
1. Connect the provided AC power adapter from the 2Wire gateway’s POWER port to an electrical outlet.
The POWER light on the front of the gateway should be green.
2. Connect the provided blue USB cable from the gateway’s USB-PC port to the USB port on your computer.
3. Connect the provided gray telephone cable from the gateway’s PHONE LINE port to a telephone jack with
DSL service.
Note: The USB-DEVICE port is reserved for connecting peripheral USB devices, such as digital
cameras or network attached storage. This port is not currently active.
![](/img.php?id=562270&img=bgc.png)
Connect the First Computer to the Gateway
9
Install the 2Wire Gateway USB Driver - Windows
1. Power on your computer. If the Add Hardware Wizard displays, follow the on-screen instructions. If
prompted to identify where to search for drivers, deselect Floppy Disk drive and check CD-ROM drive.
2. After the driver installs click Finish to complete the driver installation. The Setup Wizard will resume
when your PC has rebooted.
Note: Microsoft Windows 98 users may be prompted to insert the Windows 98 installation CD-
ROM after installing the 2Wire gateway USB drivers. After the Windows 98 updates are complete,
remove the Windows 98 CD and reinsert the Setup Wizard CD into your CD-ROM prior to rebooting
your PC.
Install the 2Wire Gateway USB Driver - Macintosh
Note: The 2Wire gateway supports USB for Macintosh OS 8.6, 9.2, 10.1.4, 10.1.5, 10.2.0,
10.2.1 to 10.2.6, 10.3.3 to 10.3.9, 10.4.0, and 10.4.1.
Before making your USB connection to the gateway, you must install the 2Wire gateway USB driver on your
computer. The following instructions are for USB installation on Macintosh computers running OS 10.2.
1. With your computer powered on and the 2Wire Setup Wizard CD still in the CD-ROM drive, double-click
the 2Wire CD icon on your desktop.
2. Double-click 2Wire USB to begin the driver installation.
3. If you have set up an administrator name and password, the Authenticate screen opens. Enter your
administrator name and password and click OK.
4. Follow the on-screen instructions. When the driver installation is complete, you will be prompted to
restart your computer.
5. After your computer restarts, connect the provided blue USB cable from the USB-PC port on the 2Wire
gateway to your computer's USB port.
Check Your Connections
With your computer completely started, verify the POWER and USB-PC indicator lights on the front of the
2Wire gateway are green. If they are not, see “Indicator Lights” on page 14. The INTERNET indicator light will
not turn green until the gateway software has been installed and an Internet connection has been established.
![](/img.php?id=562270&img=bgd.png)
10
Run the 2Wire Setup Wizard
Windows 98/SE/2K/ME/XP
1. Insert the 2Wire Setup Wizard CD and follow the on-screen instructions. If the 2Wire Setup Wizard does
not automatically start:
−Double-click the My Computer icon located on the desktop.
−Double-click the icon that corresponds to your CD-ROM drive.
−Double-click Setup.exe and follow the on-screen instructions.
2. If prompted by the Setup Wizard, enter the 20-digit key code you received from your service provider.
If you were not provided with a key code, refer to “Appendix B: Back-Up Key Codes” on page 19.
Macintosh OS 10.1.4/10.1.5/10.2.0 - 10.2.8/10.3.3 - 10.3.8
Note: MAC OS 9.X AND OTHER OPERATING SYSTEM USERS: Users running Mac OS 9.X and
operating systems other than those stated above must perform a manual configuration of the
gateway. Refer to “Appendix A: Install the Gateway on Other Operating Systems” on page 16 for
step-by-step instructions.
1. Insert the 2Wire Setup Wizard CD.
2. Double-click the 2Wire icon.
3. Double-click the 2Wire Setup Wizard icon.
4. If prompted by the Setup Wizard, enter the 20-digit key code you received from your service provider.
If you were not provided with a key code, refer to “Appendix B: Back-Up Key Codes” on page 19.
![](/img.php?id=562270&img=bge.png)
11
Add Computers to the Network
After your first computer is connected to the 2Wire gateway and your Internet connection has been
established, you can connect other computers to the network.
Use any of the following methods to connect additional computers to your network.
Ethernet Connection
Figure 4. Gateway Connected to Second Computer Via Ethernet
1. Connect an Ethernet cable from any available LOCAL ETHERNET port on the gateway to your computer’s
Ethernet port.
Connection Type Page
Ethernet page 11
USB page 12
Wireless page 13
![](/img.php?id=562270&img=bgf.png)
Add Computers to the Network
12
USB Connection
Figure 5. Gateway Connected to Second Computer Via USB
1. Connect the provided blue USB cable from the gateway’s USB-PC port to the USB port on your computer.
2. Install the USB driver (refer to page 9 for instructions).
3. Repeat “Run the 2Wire Setup Wizard” on page 10.
![](/img.php?id=562270&img=bg10.png)
Add Computers to the Network
13
Wireless Connection
Requires a computer with an 802.11b/g wireless network adapter installed. Wireless adapters are
purchased separately from the 2Wire gateway.
Note: The 2Wire 2070, 2070V, and 270 gateways do not include wireless support. If you are
using a 2Wire 2070, 2070V, or 270 gateway, skip this section.
Figure 6. Gateway Connected to Second Computer Via Wireless
Note: If you use a 2Wire wireless adapter (PCI, PC card, or USB adapter) for wireless
networking, the gateway installation software automatically configures it to communicate with
the gateway during setup.
If you are NOT using a 2Wire wireless adapter, you must manually configure your adapter to
communicate with the gateway using the information on page 7.
1. Install your wireless adapter according to the manufacturer’s instructions (see note above).
2. Repeat “Run the 2Wire Setup Wizard” on page 10.
![](/img.php?id=562270&img=bg11.png)
14
Indicator Lights
The 2Wire gateway has numerous indicator lights that can be used to diagnose installation and connection
problems. The following table describes how to interpret the indicator lights.
Power Light Operating State
OFF The gateway is not getting
power.
Blinking green (slow) The gateway is undergoing
POST (power-on self test).
Solid green Power is on.
Blinking orange The gateway is undergoing a
software upgrade.
Solid red System error. Contact
Technical Support.
Ethernet, USB, or Wireless Light Operating State
OFF The gateway is powered off or
booting up.
Solid green Device(s) connected via
Ethernet, USB, or Wireless.
Flickering green Data traffic is coming into or
going out from the network.
Phone 1 or Phone 2 Light Operating State
OFF Voice service is not operating.
The gateway is powered off or
booting up.
Solid green Voice service is operating.
Blinking green (fast) Voice service is operating;
phone is off hook.
![](/img.php?id=562270&img=bg12.png)
Diagnostics
15
DSL Light Operating State
OFF The gateway is powered off or
booting up.
Blinking green (slow) The gateway is attempting to
establish a connection to your
broadband service(s).
Blinking green (fast) The gateway has been unable
to connect to the DSL signal
for more than three minutes.
Solid green The gateway is fully connected
to your broadband service(s).
![](/img.php?id=562270&img=bg13.png)
16
Appendix A: Install the Gateway on Other
Operating Systems
Follow these instructions if you are using an operating system that is not supported by the Setup Wizard CD
(such as any Macintosh OS prior to 10.2, UNIX, or Linux).
There are many ways to set up your network, but typically the first computer is located in the same room as
the gateway and your DSL connection. Ethernet is the preferred connection method for your first computer,
although instructions for connecting via USB are also provided.
Ethernet Connection
Figure 7. Gateway Connected Via Ethernet (Macintosh)
1. Install DSL phone filters according to the instructions on page 2.
2. Connect the provided power adapter from the gateway’s POWER port to an electrical outlet.
3. Connect the provided gray phone cable from the gateway’s PHONE LINE port to the DSL filter jack
labeled DSL/HPNA.
4. Proceed to “Configuring the Internet Connection” on page 18.
![](/img.php?id=562270&img=bg14.png)
Appendix A: Install the Gateway on Other Operating Systems
17
USB Connection
Figure 8. Gateway Connected Via USB (Macintosh)
Note: Connecting your computer to the gateway using USB requires an available USB port. Only
one Windows or Macintosh computer can be directly connected to the 2Wire gateway using the
USB connection.
1. Install DSL phone filters according to the instructions on page 2.
2. With your computer powered on and the 2Wire Setup Wizard CD still in the CD-ROM drive, double-click
the 2Wire CD icon on your desktop.
3. Double-click 2Wire USB to begin the driver installation.
4. If you have set up an administrator name and password, the Authenticate screen opens. Enter your
administrator name and password and click OK.
5. Follow the on-screen instructions. When the driver installation is complete, you will be prompted to
restart your computer.
6. After your computer restarts, connect the provided blue USB cable from the USB-PC port on the 2Wire
gateway to your computer’s USB port.
7. Open the network Control Panel by selecting the Apple icon > Control Panel > TCP/IP.
8. Verify that Connect Via: 2Wire USB Remote NDIS… is selected to set the network adapter as active.
9. Click Save to complete your installation.
10. Proceed to “Configuring the Internet Connection” on page 18.
![](/img.php?id=562270&img=bg15.png)
Appendix A: Install the Gateway on Other Operating Systems
18
Configuring the Internet Connection
Now that your first computer is connected to the gateway, you need to configure your gateway to
communicate with your Internet service provider.
To activate your Internet account:
1. Open your Internet browser.
2. Type http://gateway.2wire.net/setup into the browser’s address line.
3. When prompted to enter a key code, enter the key code provided by your Internet service in the key
code field, and click NEXT.
4. Select your Local Time Zone and click NEXT.
5. You may be prompted to enter service provider information such as username and password. Enter any
required service provider information and click NEXT.
6. The connection process will begin. During this process the INTERNET light on the front of the gateway
will first blink green then turn solid green. This step could take up to five minutes as the gateway
searches for your broadband service.
7. The gateway will now connect to the Internet. This process may take several minutes. If the registration
screen opens, click the REGISTER button and complete the 2Wire registration process.
![](/img.php?id=562270&img=bg16.png)
19
Appendix B: Back-Up Key Codes
In most cases, you will receive a key code from your ISP. This key code is used to activate the 2Wire
gateway. If you did not receive a key code, you can use the key codes provided in the following table.
If your Internet Service Provider did not provide you with a
user name, password, or IP address to set up your Internet
connection, your broadband connection most likely uses
DHCP (Dynamic Host Configuration Protocol) and you should
use this key code.
52EU-2374-2262-22AT-B222
If your Internet Service Provider gave you a PPPoE username
and password to set up your Internet connection, your
broadband connection uses Point-to-Point Protocol over
Ethernet and you should use this key code.
52EU-2374-6262-22AS-B22Y
If your Internet Service Provider assigned you an IP address
to set up your Internet connection, your broadband
connection uses static IP (Internet Protocol) and you should
use this key code.
52EU-2374-2E66-22AS-B2TW
If your Internet Service Provider gave you a PPPoA username
and password to set up your Internet connection, your
broadband connection uses Point-to-Point Protocol over
ATM. In this case, you would use this key code and
Microsoft Dial-up Networking to connect to the Internet.
52EU-2374-A222-22AS-B2QK
![](/img.php?id=562270&img=bg17.png)
20
Regulatory Information
Declaration of Conformity
Trade Name: 2Wire
Responsible Party: 2Wire, Inc.
Address: 1704 Automation Parkway
San Jose, CA
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to
operate this equipment.
Only peripherals (computer input/output devices, terminals, printers, and so forth) that comply with FCC Class B limits
may be attached to this computer product.
Operation with noncompliant peripherals is likely to result in interference to radio and television reception.
All cables used to connect peripherals must be shielded and grounded. Operation with cables, connected to peripherals
that are not shielded and grounded may result in interference to radio and television reception.
WARNING: While this device is in operation, a separation distance of at least 20 cm (8 inches) must be maintained
between the radiating antenna inside the ERU and the bodies of all persons exposed to the transmitter in order to meet
the FCC RF exposure guidelines. Making changes to the antenna or the device is not permitted. Doing so may result in
the installed system exceeding RF exposure requirements. This device must not be co-located or operated in
conjunction with any other antenna or radio transmitter. Installers and end users must follow the installation
instructions provided in this guide.
FCC Part 68
This equipment complies with Part 68 of the FCC rules. On the bottom of this equipment is a label that contains,
among other information, the FCC equivalence number (REN) for this equipment. If requested, this information must be
provided to the telephone company.
The REN is used to determine the quantity of devices that may be connected to the telephone line. Excessive RENs on
the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the
sum of the RENs should not exceed five. To be certain of the number of devices that may be connected to the line, as
determined by the total RENs, contact the telephone company to determine the maximum REN for the calling area.
![](/img.php?id=562270&img=bg18.png)
Regulatory Information
21
If the terminal equipment causes harm to the telephone network, the telephone company will notify you in advance that
temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will
notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you
believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the
operations of the equipment. If this happens, the telephone company will provide advance notice in order for you to
make the necessary modifications in order to maintain uninterrupted service.
If trouble is experienced with this equipment, please contact the store, reseller, or agent from whom the product was
purchased.
Repair of this equipment should be made only by the 2Wire Service Center or a 2Wire authorized agent.
