ARRIS 3347W Wireless ADSL Router User Manual SoftwareUserGuideV72
ARRIS Group, Inc. Wireless ADSL Router SoftwareUserGuideV72
ARRIS >
User Guide
Software User Guide
Cayman® Operating System
Version 7.2
May 2003
Cayman® 3300 Series Gateways by Netopia
D
Dr
ra
af
ft
t
D
Do
oc
cu
um
me
en
nt
ta
at
ti
io
on
n
-
--
-
N
No
ot
t
f
fo
or
r
D
Di
is
st
tr
ri
ib
bu
ut
ti
io
on
n
2
Disclaimers
Copyright © 2003 Netopia, Inc.
All rights reserved, Printed in the USA.
The information in this document is subject to change without notice. The statements, configurations, technical data, and recom-
mendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty. Users
must take full responsibility for the applications of any products specified in this document.
Portions of this software are subject to the Mozilla Public License Version 1.1. Portions created by Netscape are copyright 1994-2000
Netscape Communications Corporation. You may obtain a copy of the license at http://www.mozilla.org/MPL/. Software distributed
under the License is distributed on an “as is” basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the License
for the specific language governing rights and limitations under the License.
Portions of this software copyright 1988, 1991 by Carnegie Mellon University. All rights reserved. Permission to use, copy, modify,
and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copy-
right notice and this permission notice appear in supporting documentation, and that the name of Carnegie Mellon University not
be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission.
CARNEGIE MELLON UNIVERSITY DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WAR-
RANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL CMU BE LIABLE FOR ANY SPECIAL, INDIRECT, OR CONSE-
QUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA, OR PROFITS, WHETHER IN AN
ACTION OF CONTRACT, NEGLIGENCE, OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THIS SOFTWARE.
The information in this document is proprietary to Netopia, Inc.
Trademarks
Netopia, Cayman, and “Making Broadband Work” are registered trademarks of Netopia, Inc. All rights reserved.
Ethernet is a registered trademark of Xerox Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other trademarks are the property of their respective owners. Mention of third-party products is for informational purposes only
and constitutes neither an endorsement nor a recommendation. Netopia assumes no responsibility with regard to the performance
or use of these products.
Statement of Conditions
In the interest of improving internal design, operational function, and /or reliability, Netopia, Inc. reserves the right to make changes
to the products described in this document without notice.
Netopia
, Inc. does not assume any liability that may occur due to the use or application of the product(s) or network con-
figurations described herein.
Netopia, Inc. Part Number: 616XXXX-00-01d1
3
Table of Contents
Table of Contents
Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
CHAPTER 1
Introduction
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
About Cayman Documentation . . . . . . . . . . . . . . . . . . . . . . . . . 9
Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Documentation Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . 11
General
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Internal Web Interface
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Command Line Interface
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Text
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Overview of Major Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . 14
A Word About Example Screens . . . . . . . . . . . . . . . . . . . . . . . 15
CHAPTER 2
Basic Mode Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 18
POWER SUPPLY INSTALLATION
. . . . . . . . . . . . . . . . . . . . . . . . . . . 18
TELECOMMUNICATION INSTALLATION
. . . . . . . . . . . . . . . . . . . . . . 18
Set up the Cayman Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Configure the Cayman Gateway . . . . . . . . . . . . . . . . . . . . . . . 21
Cayman Gateway Status Indicator Lights . . . . . . . . . . . . . . . . 24
Home Page - Basic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

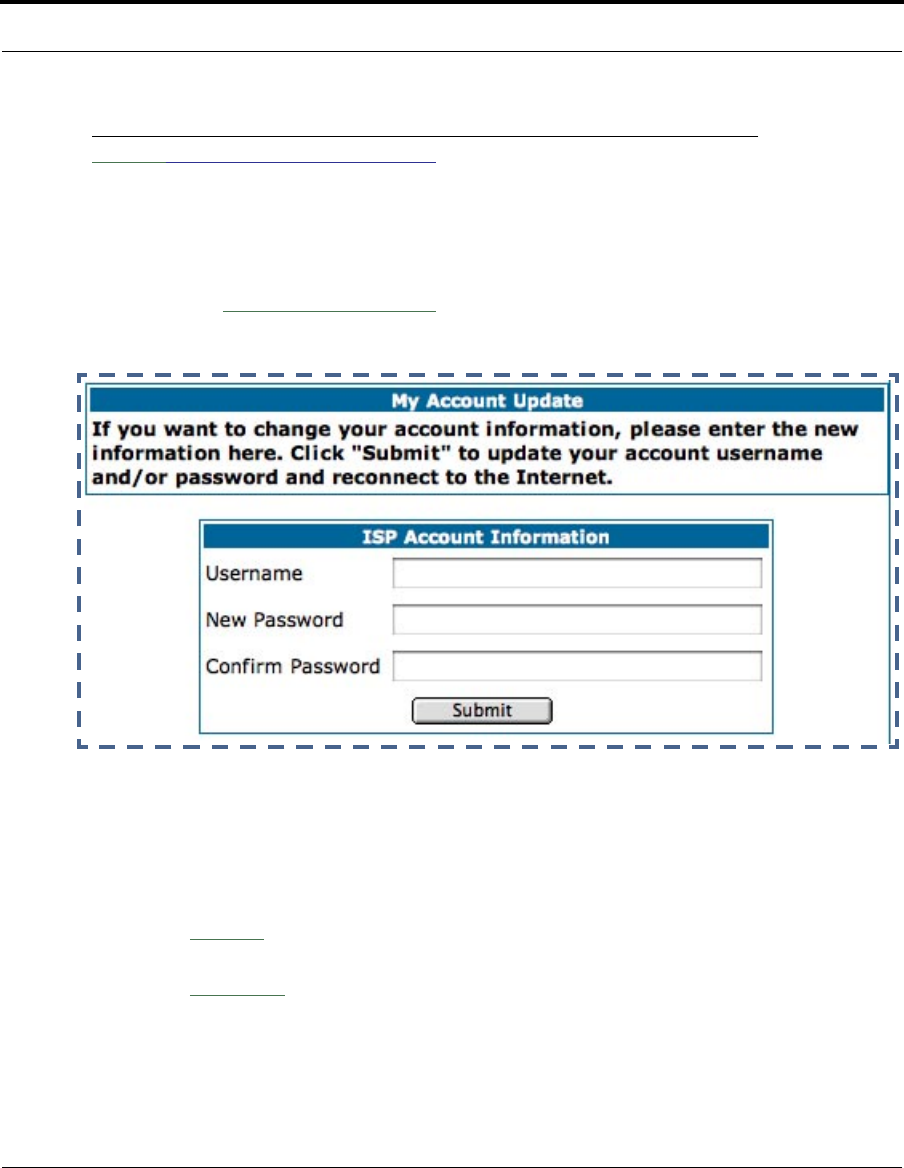

Manage My Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Status Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

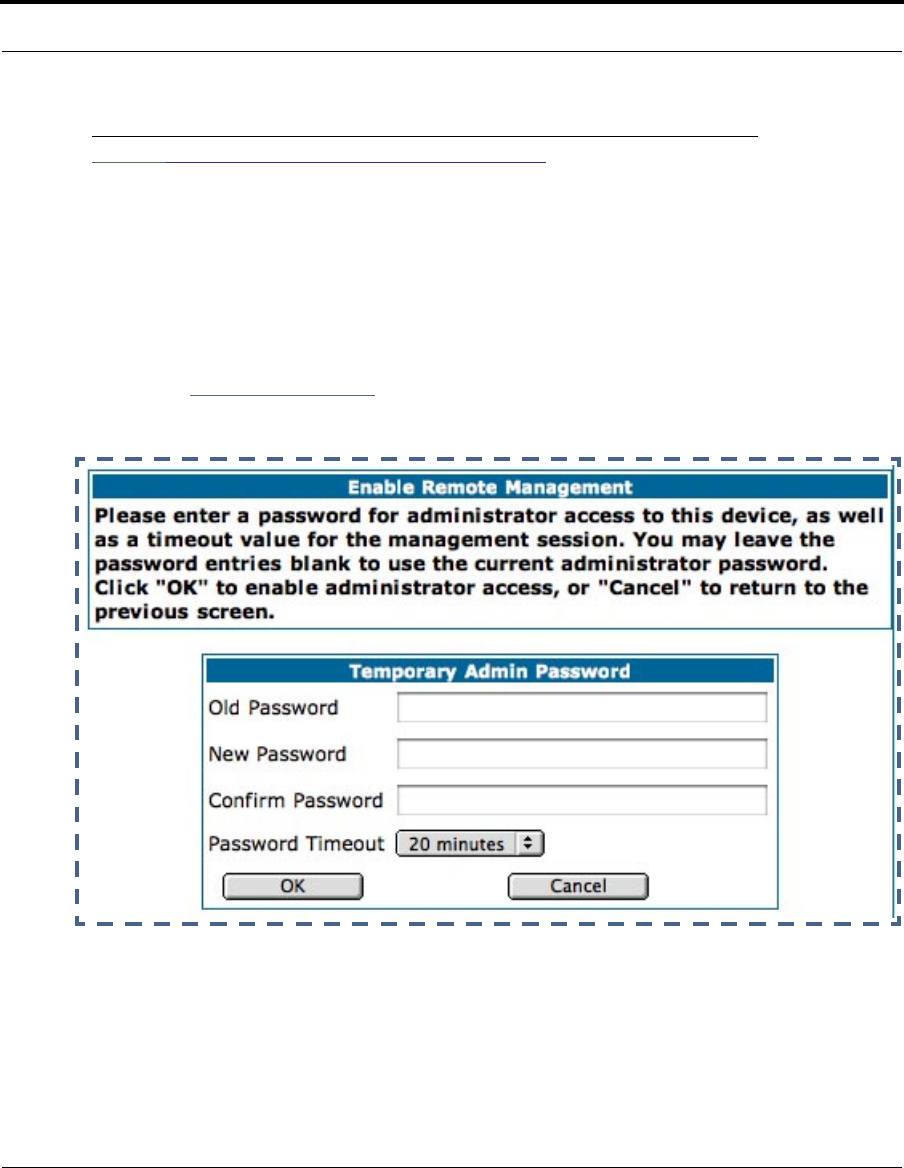

Enable Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Expert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Update Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Table of Contents
4
CHAPTER 3
Expert Mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Overview of Major Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . 33
Wide Area Network Termination
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

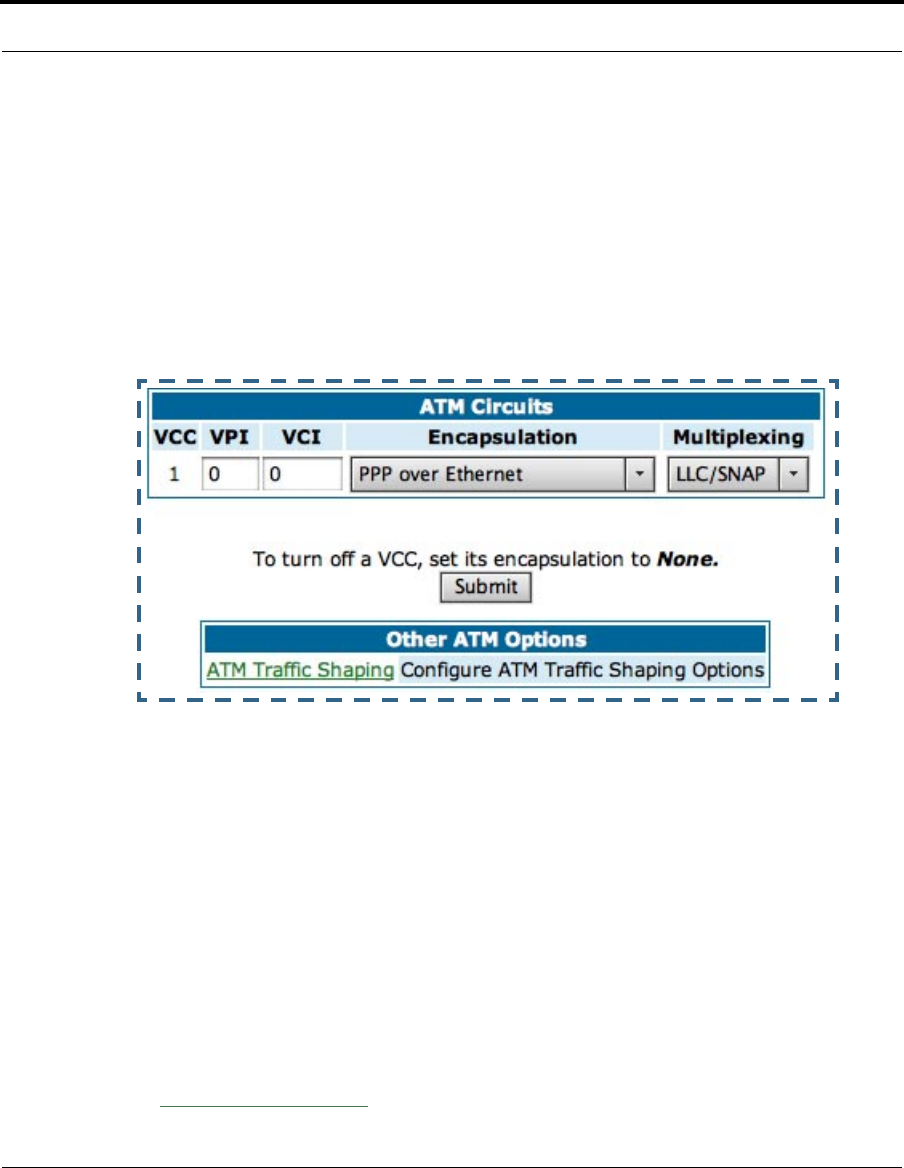

PPPoE/PPPoA (Point-to-Point Protocol over Ethernet/ATM) . . . . 34
Instant-On PPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Simplified Local Area Network Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . 36
DHCP (Dynamic Host Configuration Protocol) Server . . . . . . . . . 36
DNS Proxy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Management
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Embedded Web Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Security
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Remote Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Password Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Network Address Translation (NAT) . . . . . . . . . . . . . . . . . . . . . . . 38
Cayman Advanced Features for NAT . . . . . . . . . . . . . . . . . . . . . . 40
Internal Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Pinholes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Default Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Combination NAT Bypass Configuration . . . . . . . . . . . . . . . . . . . 42
VPN IPSec Pass Through . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Access the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Open the Web Connection
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Home Page - Expert Mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Home Page - Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Navigating the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Breadcrumb Trail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

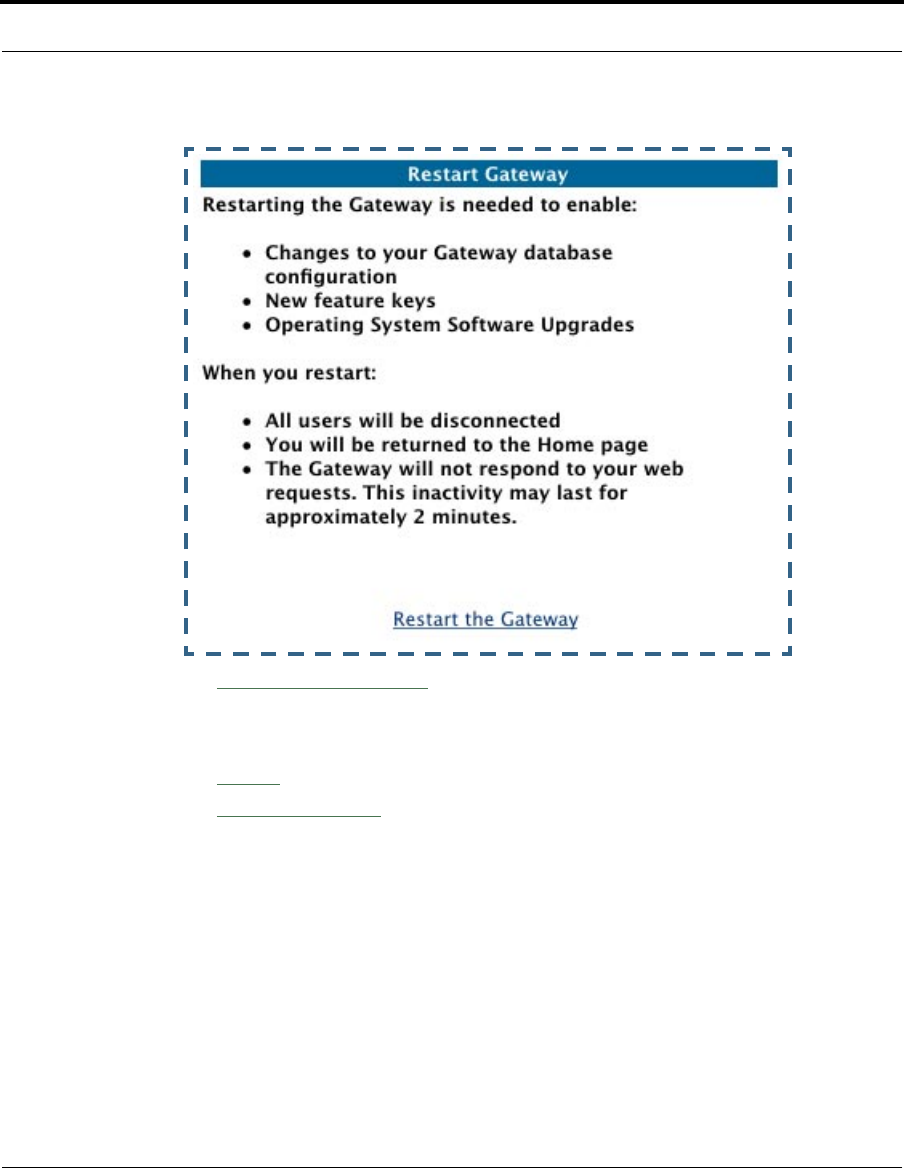

Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Alert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Quickstart
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
How to Use the Quickstart Page . . . . . . . . . . . . . . . . . . . . . . . . . 53
Configure -> Quickstart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Setup Your Gateway using a PPP Connection . . . . . . . . . . . . . . 53
LAN
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Configure -> LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
WAN
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Configure -> WAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
5
Table of Contents
Advanced
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Advanced. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
IP Static Routes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
IP Static ARP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Pinholes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Configure Specific Pinholes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Planning for Your Pinholes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Example: A LAN Requiring Three Pinholes . . . . . . . . . . . . . . . . 70
Pinhole Configuration Procedure . . . . . . . . . . . . . . . . . . . . . . . . 73
IPMaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Configure the IPMaps Feature
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
What are IPMaps and how are they used? . . . . . . . . . . . . . . . . . 77
What types of servers are supported by IPMaps? . . . . . . . . . . . 78
Can I use IPMaps with my PPPoE or PPPoA connection? . . . . . 78
Will IPMaps allow IP addresses from different subnets to be assigned to my
Gateway? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

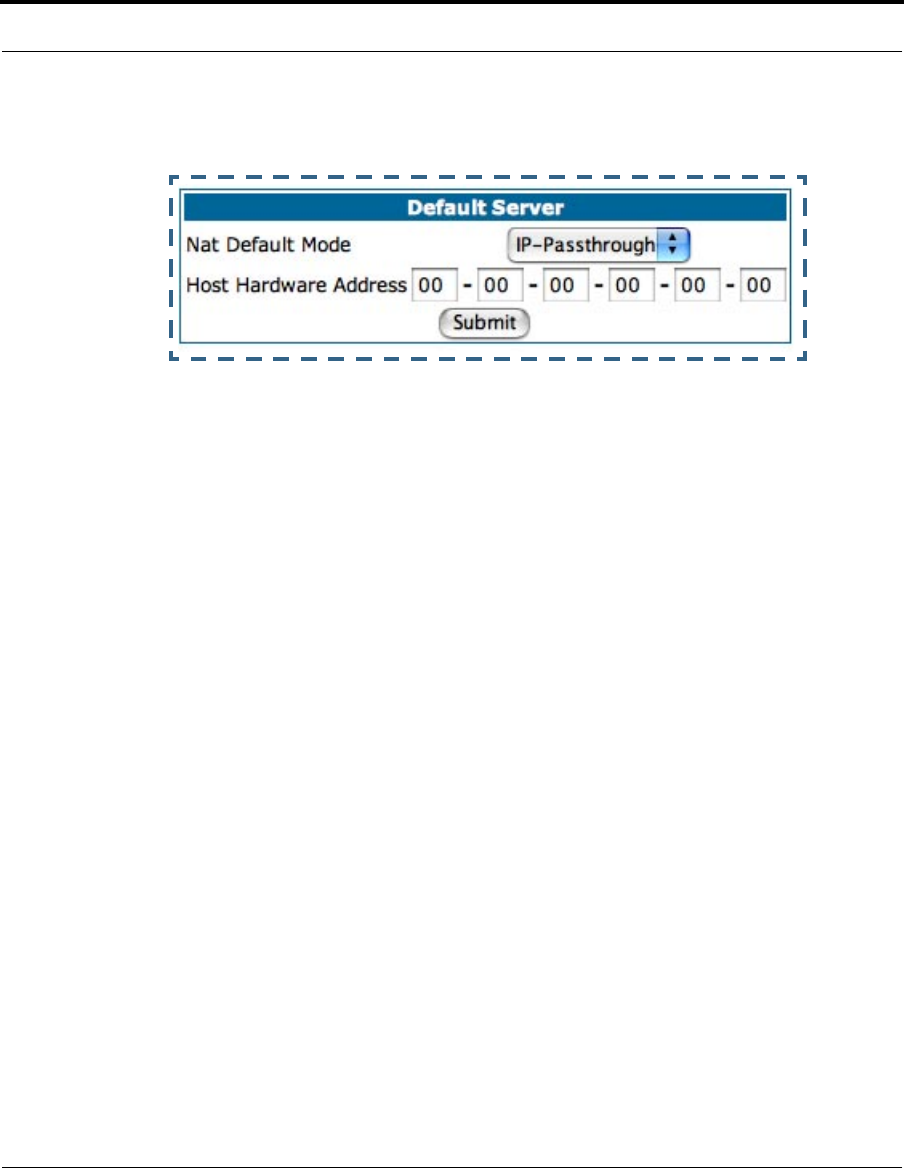

Default Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Configure a Default Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Typical Network Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
NAT Combination Application . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
IP-Passthrough . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
A restriction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
DNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
DHCP Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Advanced -> Ethernet Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Configuring for Bridge Mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Stateful Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Exposed Addresses
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Stateful Inspection Options
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Syslog Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Internal Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Software Hosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Rename a User(PC)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Clear Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Security
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Passwords. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Create and Change Passwords . . . . . . . . . . . . . . . . . . . . . . . . 107
Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
BreakWater Basic Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
IPSec. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Security Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Install
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Table of Contents
6
Install Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Updating Your Gateway’s CaymanOS Version . . . . . . . . . . . . . 119
Task 1: Required Files
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Task 2: CaymanOS Image File
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Install Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Use Cayman Software Feature Keys
. . . . . . . . . . . . . . . . . . . . . . . . . 124
CHAPTER 4
Basic Troubleshooting
. . . . . . . . . . . . . . . . . . . . . . . . . 129

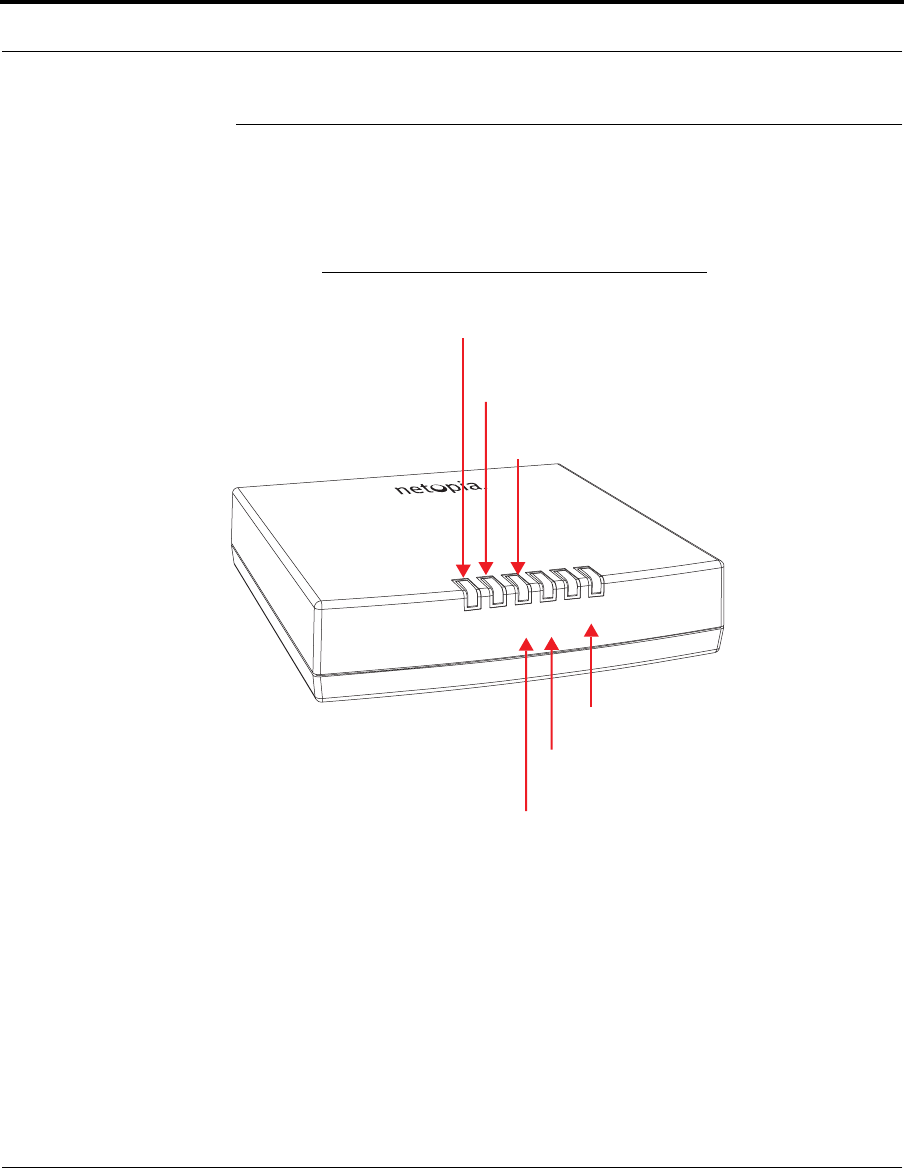

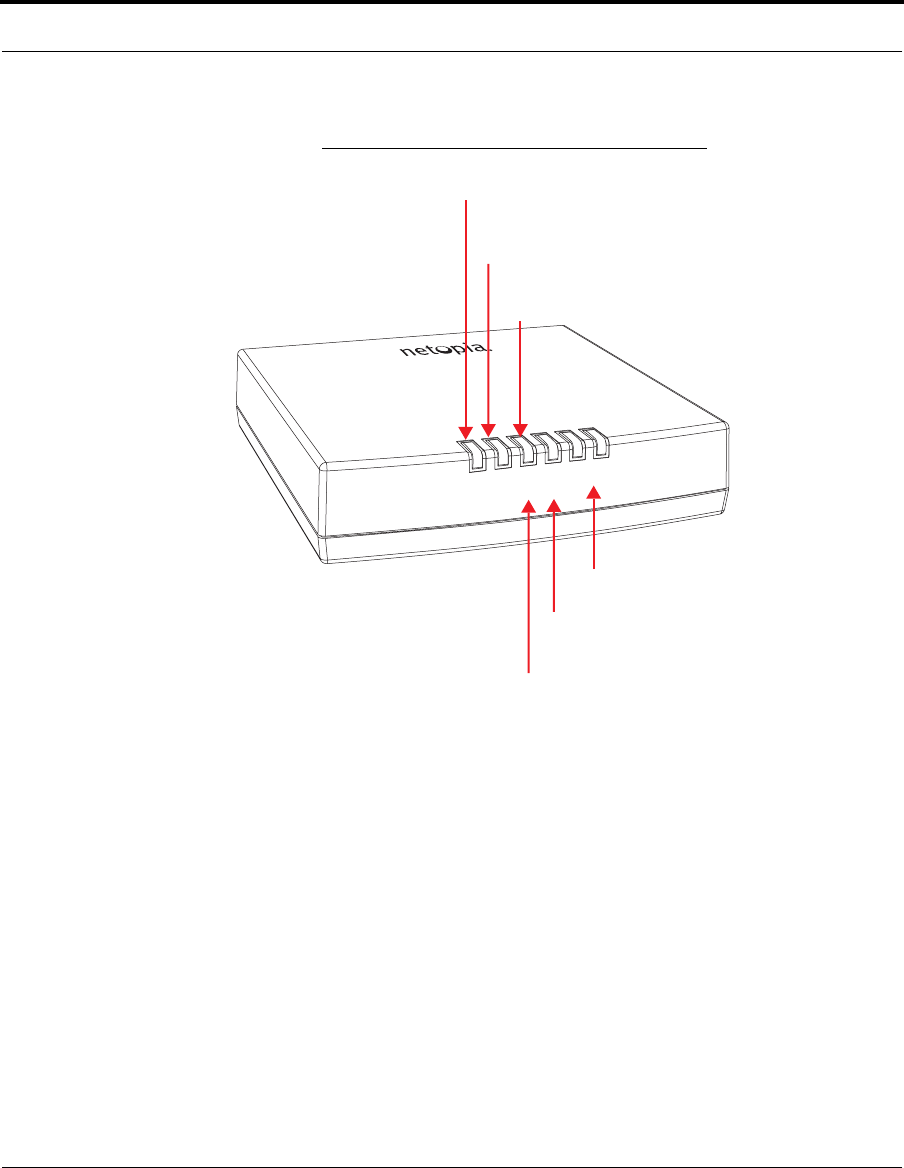

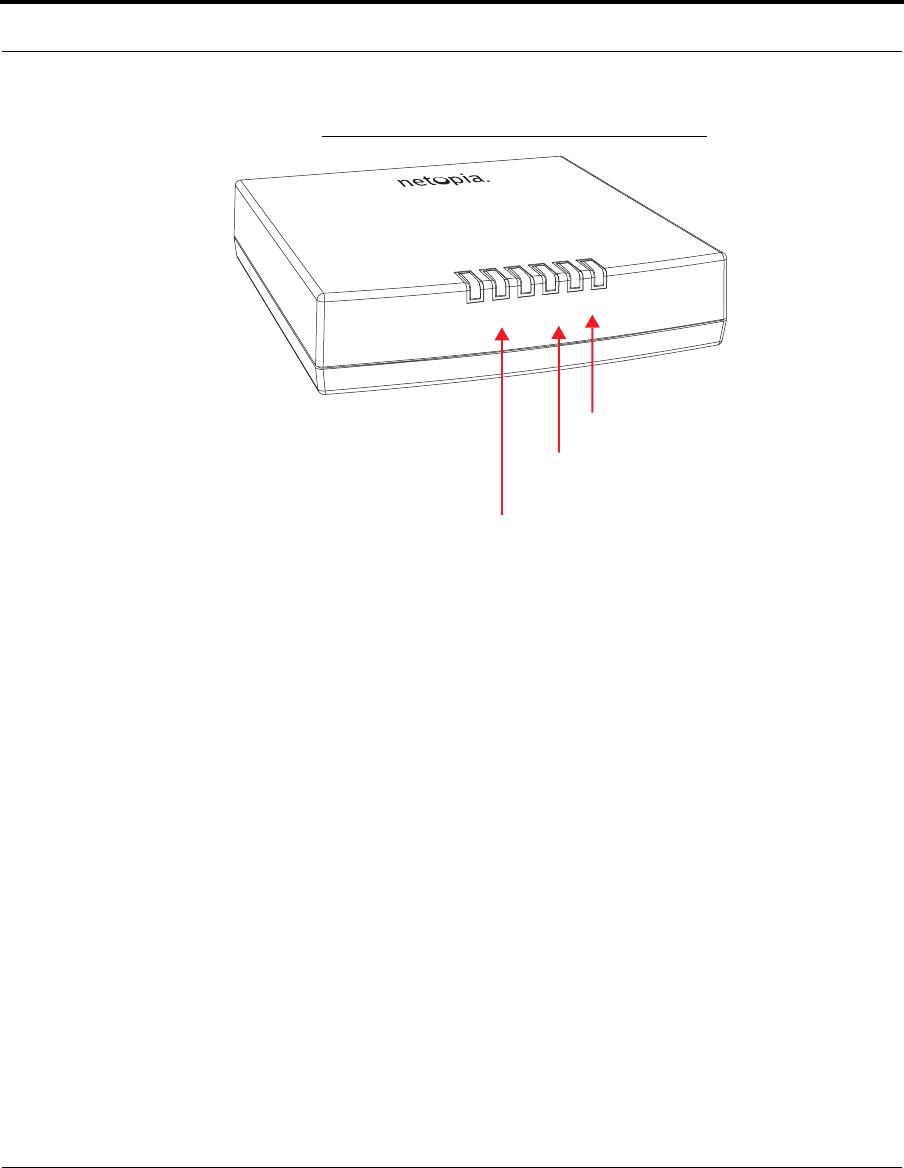

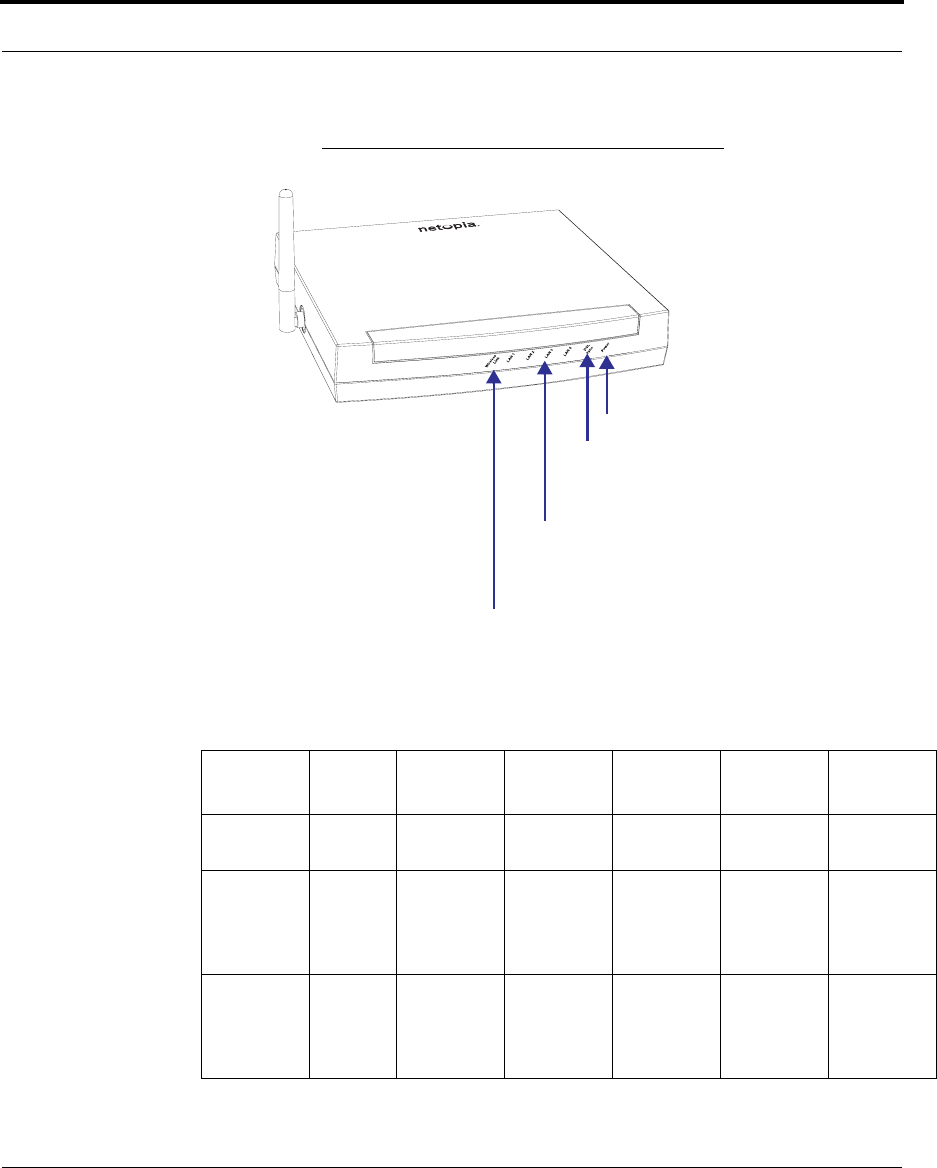

Status Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

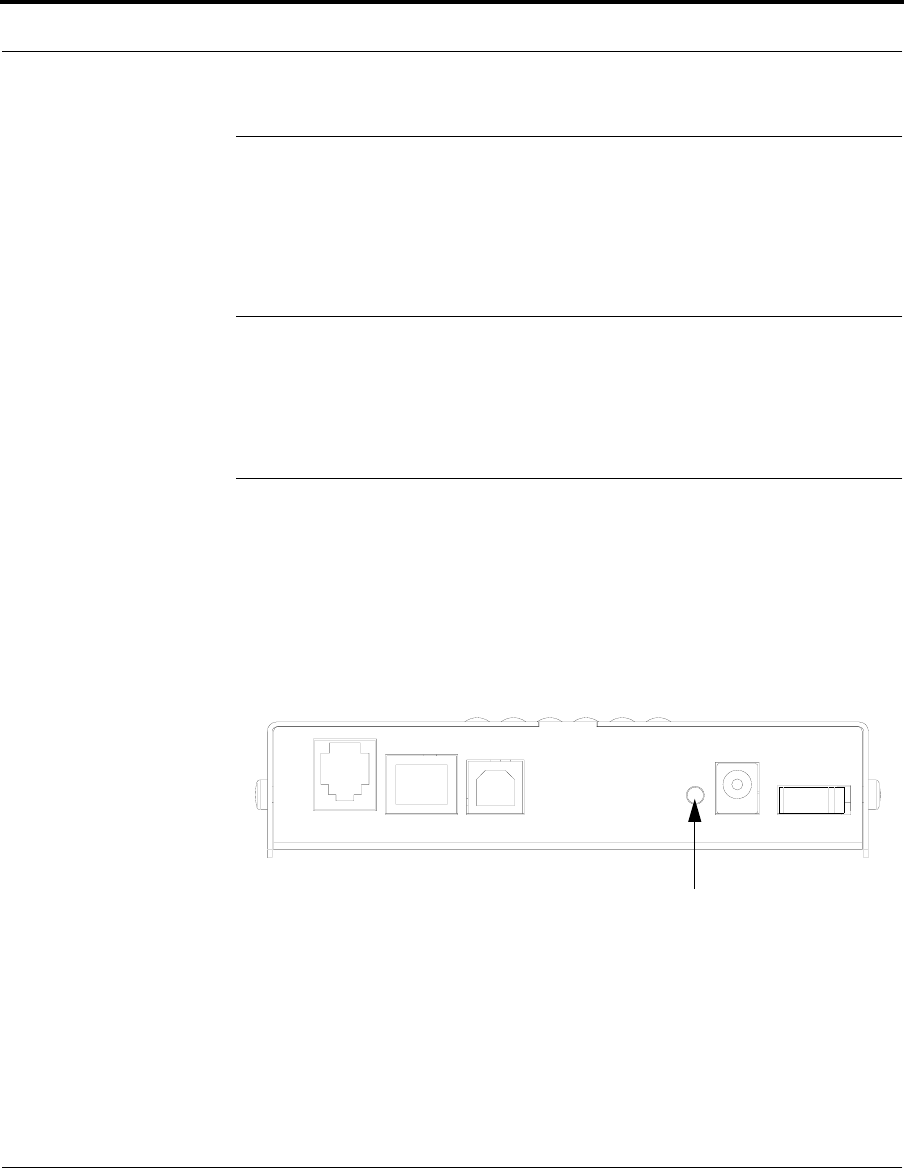

Factory Reset Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
CHAPTER 5
Advanced Troubleshooting
. . . . . . . . . . . . . . . . . . . . . . 139

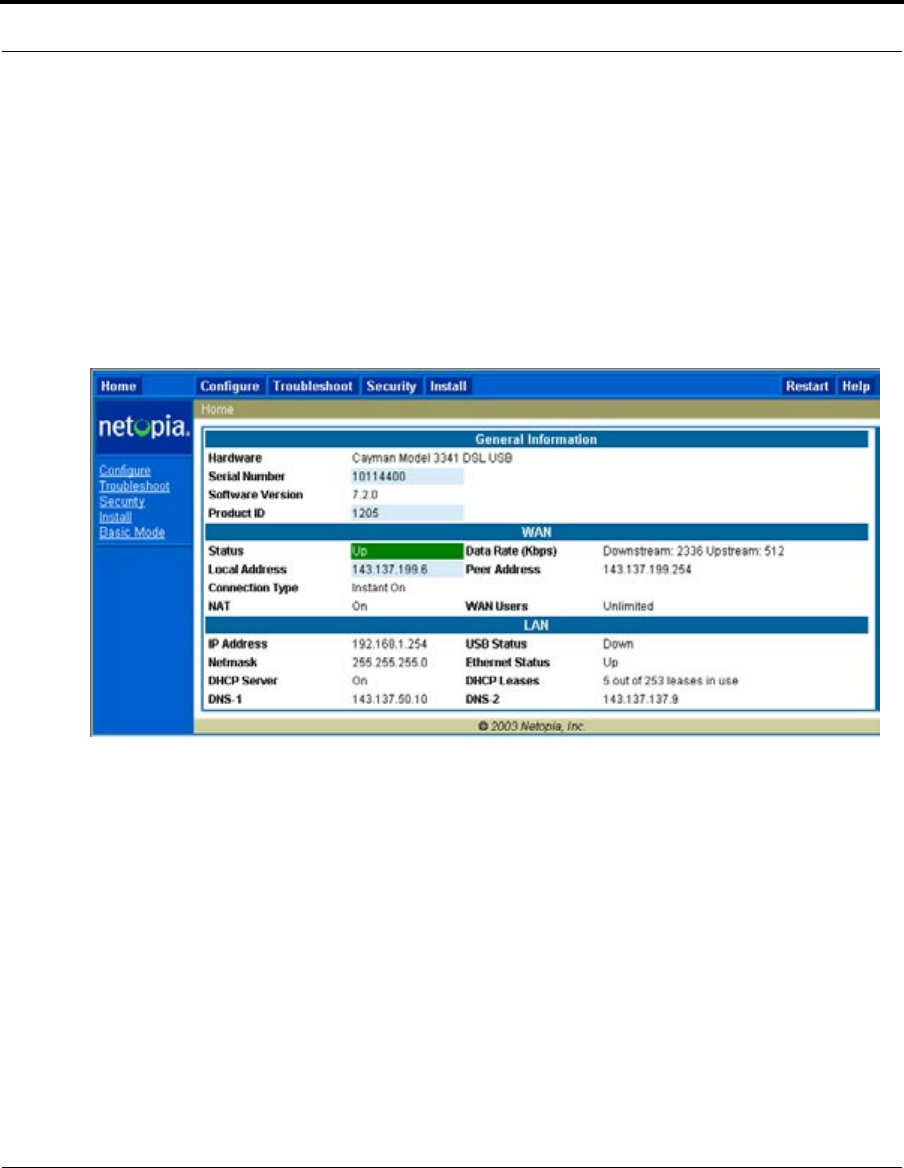

Home Page
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Expert Mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Ports: Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Ports: DSL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
DSL: Circuit Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
System Log: Entire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
CHAPTER 6
Command Line Interface
. . . . . . . . . . . . . . . . . . . . . . . 151
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Starting and Ending a CLI Session . . . . . . . . . . . . . . . . . . . . . 154
Logging In
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Ending a CLI Session
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Saving Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Using the CLI Help Facility . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
About SHELL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
SHELL Prompt
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
SHELL Command Shortcuts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
SHELL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Common Commands
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
DSL Commands
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
About CONFIG Commands . . . . . . . . . . . . . . . . . . . . . . . . . . 168
CONFIG Mode Prompt
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Navigating the CONFIG Hierarchy
. . . . . . . . . . . . . . . . . . . . . . . . . . . 168
7
Table of Contents
Entering Commands in CONFIG Mode
. . . . . . . . . . . . . . . . . . . . . . . 170
Guidelines: CONFIG Commands
. . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Displaying Current Gateway Settings
. . . . . . . . . . . . . . . . . . . . . . . . 172
Step Mode: A CLI Configuration Technique
. . . . . . . . . . . . . . . . . . . 172
Validating Your Configuration
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
CONFIG Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
DSL Commands
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
ATM Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Bridging Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
DHCP Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
DMT Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Domain Name System Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
IP Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
IP-over-PPP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Static ARP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
IPMaps Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Network Address Translation (NAT) Default Settings
. . . . . . . . . . . . 194
Network Address Translation (NAT) Pinhole Settings
. . . . . . . . . . . . 194
PPPoE Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Configuring Basic PPP Settings . . . . . . . . . . . . . . . . . . . . . . . . 196
Configuring Port Authentication . . . . . . . . . . . . . . . . . . . . . . . . 199
Command Line Interface Preference Settings
. . . . . . . . . . . . . . . . . 200
Port Renumbering Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Security Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
SNMP Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
System Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Syslog
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Wireless Settings (supported models). . . . . . . . . . . . . . . . . . . . . . . . 207
CHAPTER 7 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
CHAPTER 8 Technical Specifications and Safety Information . . . . . 231
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Dimensions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Communications interfaces: . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Power requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Operating temperature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Storage temperature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Table of Contents
8
Relative storage humidity: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Software and protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Software media: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Routing: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
WAN support: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Security: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Management/configuration methods: . . . . . . . . . . . . . . . . . . . . . 232
Diagnostics: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Agency approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Regulatory notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
European Community. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Manufacturer’s Declaration of Conformance . . . . . . . . . . . . . 234
United States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Service requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 237
FCC Part 68 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
FCC Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
FCC Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Electrical Safety Advisory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .241
9
About Cayman Documentation
CHAPTER 1 Introduction
About Cayman Documentation
☛ NOTE:
This guide describes the wide variety of features and functionality
of the Cayman Gateway, when used in Router mode. The Cayman
Gateway may also be delivered in Bridge mode. In Bridge mode,
the Gateway acts as a pass-through device and allows the work-
stations on your LAN to have public addresses directly on the
Internet.
Netopia, Inc. provides a suite of technical information for its Cayman-series
family of intelligent enterprise and consumer Gateways. It consists of:
•Software User Guide
•Dedicated Quickstart guides
10
•Specific White Papers
The documents are available in electronic form as Portable Document For-
mat (PDF) files. They are viewed (and printed) from Adobe Acrobat Reader,
Exchange, or any other application that supports PDF files.
They are downloadable from Netopia’s website:
http://www.netopia.com/
Intended Audience
This guide is targeted primarily to residential service subscribers.
Expert Mode sections may also be of use to the support staffs of broad-
band service providers and advanced residential service subscribers.
See “Expert Mode” on page 33.
11
Documentation Conventions
Documentation Conventions
General
This manual uses the following conventions to present information:
Internal Web Interface
Convention (Typeface) Description
bold italic
monospaced
Menu commands
bold italic sans serif Web GUI page links and button names
terminal Computer display text
bold terminal User-entered text
Italic Italic type indicates the complete titles
of manuals.
Convention (Graphics) Description
Denotes an “excerpt” from a Web page
or the visual truncation of a Web page
Denotes an area of emphasis on a Web
page
dot-dashed rectangle or
line
solid rounded rectangle
with an arrow
12
Command Line Interface
Syntax conventions for the Cayman Gateway command line interface are as
follows:
Text
The words “Cayman Gateway” and “Gateway” refer to the Netopia Cayman
Gateway.
The expressions “Release 7.2” and “R 7.2” refer to the most recent gener-
ally available Cayman Operating System.
Convention Description
straight ([ ]) brackets in cmd
line Optional command arguments
curly ({ }) brackets, with values
separated with vertical bars (|). Alternative values for an argument are
presented in curly ({ }) brackets, with
values separated with vertical bars (|).
bold terminal type
face
User-entered text
italic terminal
type face
Variables for which you supply your
own values
13
Organization
Organization
This guide consists of eight chapters, including a glossary, and an index. It
is organized as follows:
•Chapter 1, “Introduction” — Describes the Cayman document suite,
the purpose of, the audience for, and structure of this guide. It gives a
table of conventions and presents a product description summary.
•Chapter 2, “Basic Mode Setup” — Describes how to get up and run-
ning with your Cayman Gateway.
•Chapter 3, “Expert Mode” — Focuses on the “Expert Mode” Web-
based user interface for advanced users. It is organized in the same way
as the Web UI is organized. As you go through each section, functions
and procedures are discussed in detail.
•Chapter 4, “Basic Troubleshooting” — Gives some simple sugges-
tions for troubleshooting problems with your Gateway’s initial configura-
tion.
•Chapter 5, “Advanced Troubleshooting” — Gives suggestions and
descriptions of expert tools to use to troubleshoot your Gateway’s config-
uration.
•Chapter 6, “Command Line Interface” — Describes all the current
text-based commands for both the SHELL and CONFIG modes. A sum-
mary table and individual command examples for each mode is provided.
•Chapter 7, “Glossary”
•Chapter 8, “Technical Specifications and Safety Information”
•Index
14
Overview of Major Capabilities
The Netopia Gateway offers simplified setup and management features as
well as advanced broadband router capabilities. The following are some of
the main features of the Netopia Gateway:
•Wide Area Network Termination
The Gateway combines a traditional modem with an Internet router. It translates
protocols used on the Internet to protocols used by home personal computers
and eliminates the need for special desktop software (i.e. PPPoE client).
•Simplified Local Area Network Setup
Built-in DHCP and DNS proxy features minimize or eliminate the need to pro-
gram any network configuration into your home personal computer.
•Management
A Web server built into the Cayman Operating System makes setup and mainte-
nance easy using standard browsers. Diagnostic tools facilitate troubleshoot-
ing.
•Security
Network Address Translation (NAT), password protection, and other built-in
security features prevent unauthorized remote access to your network. Pin-
holes, default server, and other features permit access to computers on your
home network that you can specify.
Technical details are discussed in “Expert Mode” on page 33.
15
A Word About Example Screens
A Word About Example Screens
This manual contains many example screen illustrations. Since Netopia
Cayman Series Gateways offer a wide variety of features and functionality,
the example screens shown may not appear exactly the same for your par-
ticular Gateway or setup as they appear in this manual. The example
screens are for illustrative and explanatory purposes, and should not be
construed to represent your own unique environment.
16
17
CHAPTER 2 Basic Mode Setup
Most users will find that the basic Quickstart configuration is all that they
ever need to use. This section may be all that you ever need to configure
and use your Cayman Gateway. The following instructions cover installation
in Router Mode.
This section covers:
•“Important Safety Instructions” on page 18
•“Set up the Cayman Gateway” on page 19
•“Configure the Cayman Gateway” on page 21
•“Cayman Gateway Status Indicator Lights” on page 24
•“Home Page - Basic Mode” on page 25
18
Important Safety Instructions
POWER SUPPLY INSTALLATION
Connect the power supply cord to the power jack on the Cayman Gateway.
Plug the power supply into an appropriate electrical outlet.
☛ CAUTION:
The Cayman Gateway is designed for use only with a UL Listed or
CSA Certified Class 2 power supply or Limited Power Source,
rated 12VDC, 1A. Do not substitute other non-approved power
sources.
USB-powered models: For Use with Listed I.T.E. Only
TELECOMMUNICATION INSTALLATION
When using your telephone equipment, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and injury to per-
sons, including the following:
•Do not use this product near water, for example, near a bathtub, wash
bowl, kitchen sink or laundry tub, in a wet basement or near a swimming
pool.
•Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electrical shock from lightning.
•Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
19
Set up the Cayman Gateway
Set up the Cayman Gateway
Refer to your Quickstart Guide for instructions on how to connect your Cay-
man gateway to your power source, PC or local area network, and your Inter-
net access point, whether it is a dedicated DSL outlet or a DSL or cable
modem. Different Cayman Gateway models are supplied for any of these
connections. Be sure to enable Dynamic Addressing on your PC. Perform
the following:
• Windows 95, 98 and ME
• Right-Click on the Network Neighborhood icon on your Windows desk-
top and select Properties from the pull-down menu.
• In the list of network components, highlight the entry that says
“TCP/IP ([your Ethernet card here])”.
• Click the Properties button.
• Click the Obtain an IP address automatically radio button. Click the
DNS Configuration tab. Click the Disable DNS radio button. Click the
Gateway tab and remove any installed Gateways. Click the OK button
twice. When prompted, restart your PC.
Proceed to “Configure the Cayman Gateway” on page 21.
• Windows 2000 and XP
• Right Click on the My Network Places icon on your Windows desktop
and select Properties.
• Select your Local Area Connection.
• Right click on your Local Area Connection and select Properties.
• Select Internet Protocol [TCP/IP].
• Click the Properties button.
• Click the Obtain IP address automatically radio button and the Obtain
DNS server address automatically radio button. Click the OK button.
20
Proceed to “Configure the Cayman Gateway” on page 21.
• Macintosh Mac OS
Your Macintosh must be using MacOS 7.6.1 or higher.
• Select Control Panels from the Apple Menu.
• Open the TCP/IP Control Panel.
• Choose Connect via Ethernet.
• Choose Configure Using DHCP Server. Close and Save.
• You do not have to restart the Macintosh. Launch your Web browser,
such as Netscape Navigator or Internet Explorer.
Proceed to “Configure the Cayman Gateway” on page 21.
• Mac OS X
• Launch System Preferences from the Dock or from the Apple Menu.
• Select the Network Preference Pane.
• Choose Show: Built-in Ethernet.
• Click the TCP/IP tab.
• Choose Configure: Using DHCP.
• Quit System Preferences.
• You do not have to restart the Macintosh. Launch your Web browser,
such as Netscape Navigator or Internet Explorer.
Proceed to “Configure the Cayman Gateway” on page 21.
21
Configure the Cayman Gateway
Configure the Cayman Gateway
1. Run your Web browser application, such as Netscape Navigator or
Microsoft Internet Explorer, from the computer connected to the Cayman
Gateway.
Enter http://192.168.1.254 in the Location text box.

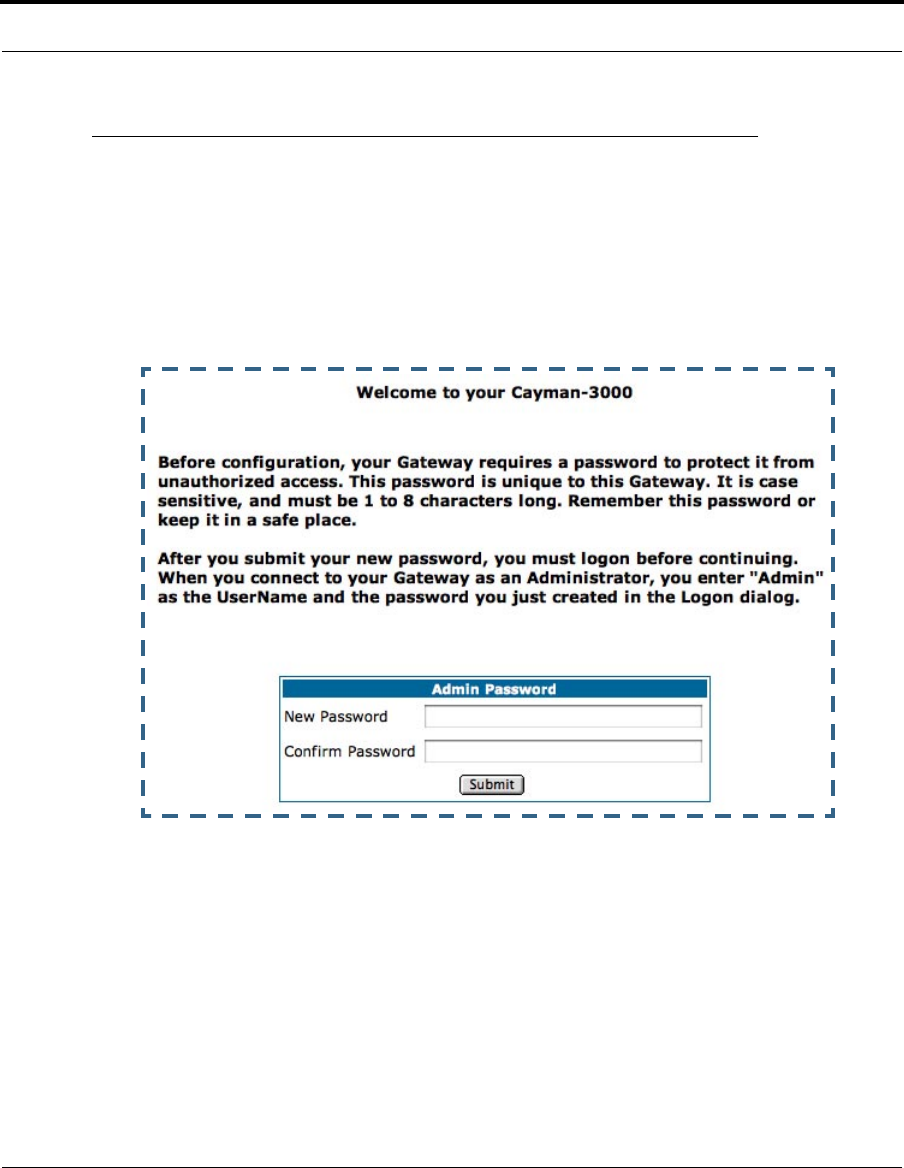

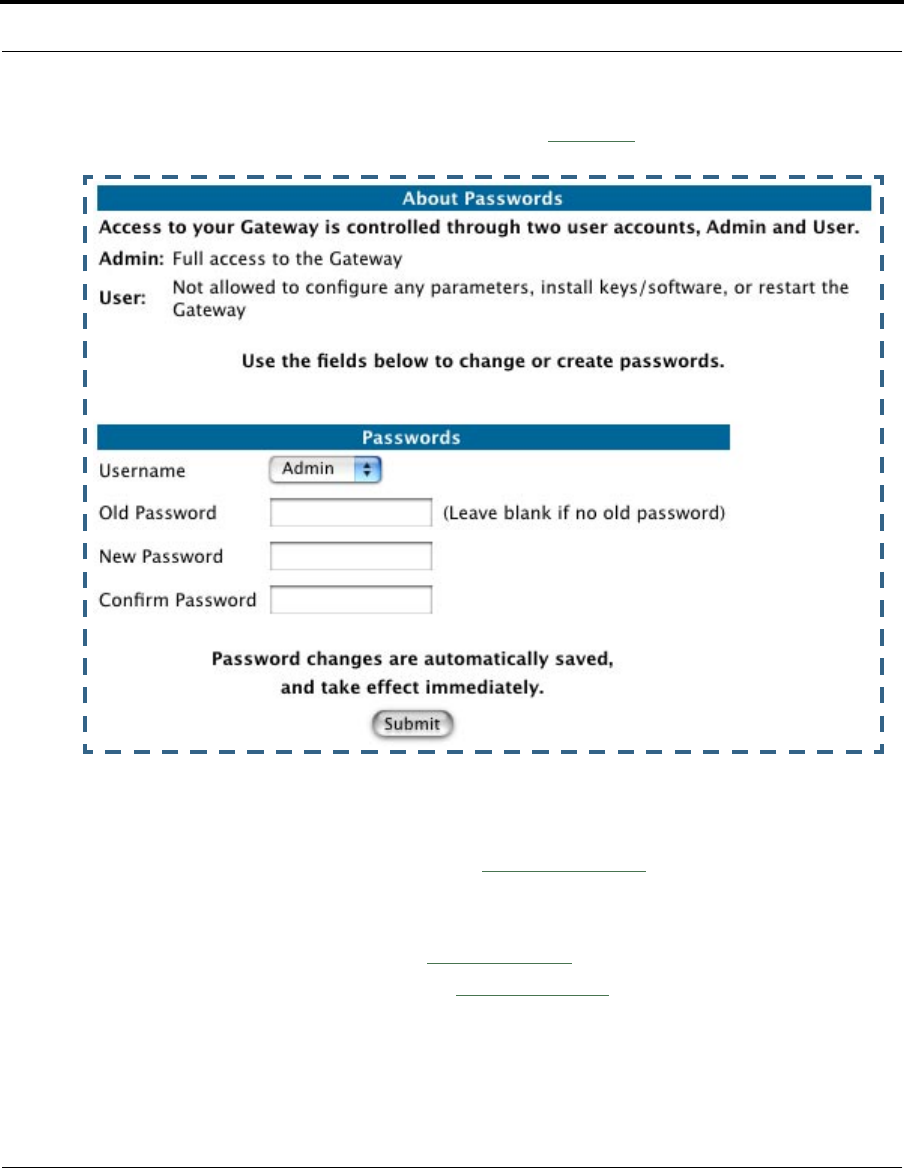

The Admin Password page appears.
Access to your Cayman device can be controlled through two access con-
trol accounts, Admin or User.
•The Admin, or administrative user, performs all configuration, manage-
ment or maintenance operations on the Gateway.
•The User account provides monitor capability only.
A user may NOT change the configuration, perform upgrades or invoke
maintenance functions.
For the security of your connection, an Admin password must be set on
the Cayman unit.
22

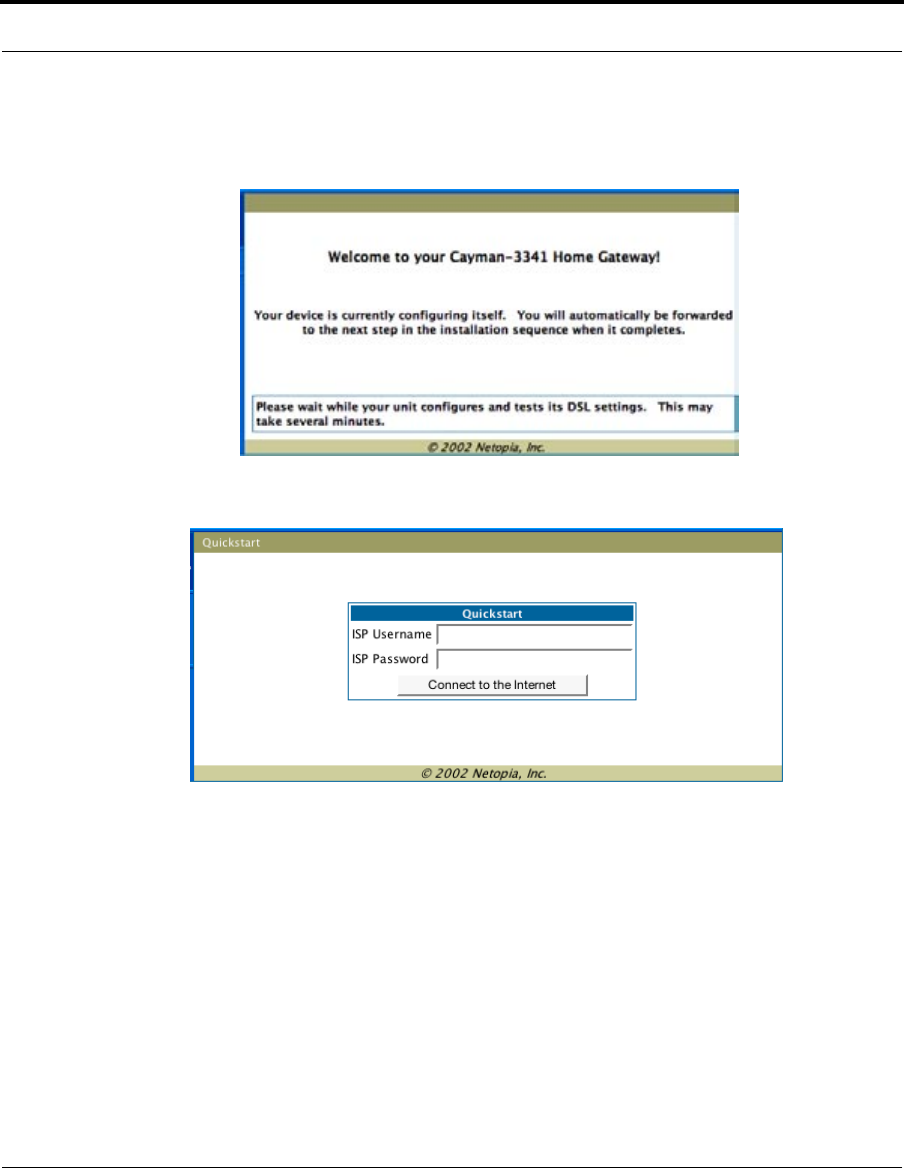

The browser then displays the Welcome page.

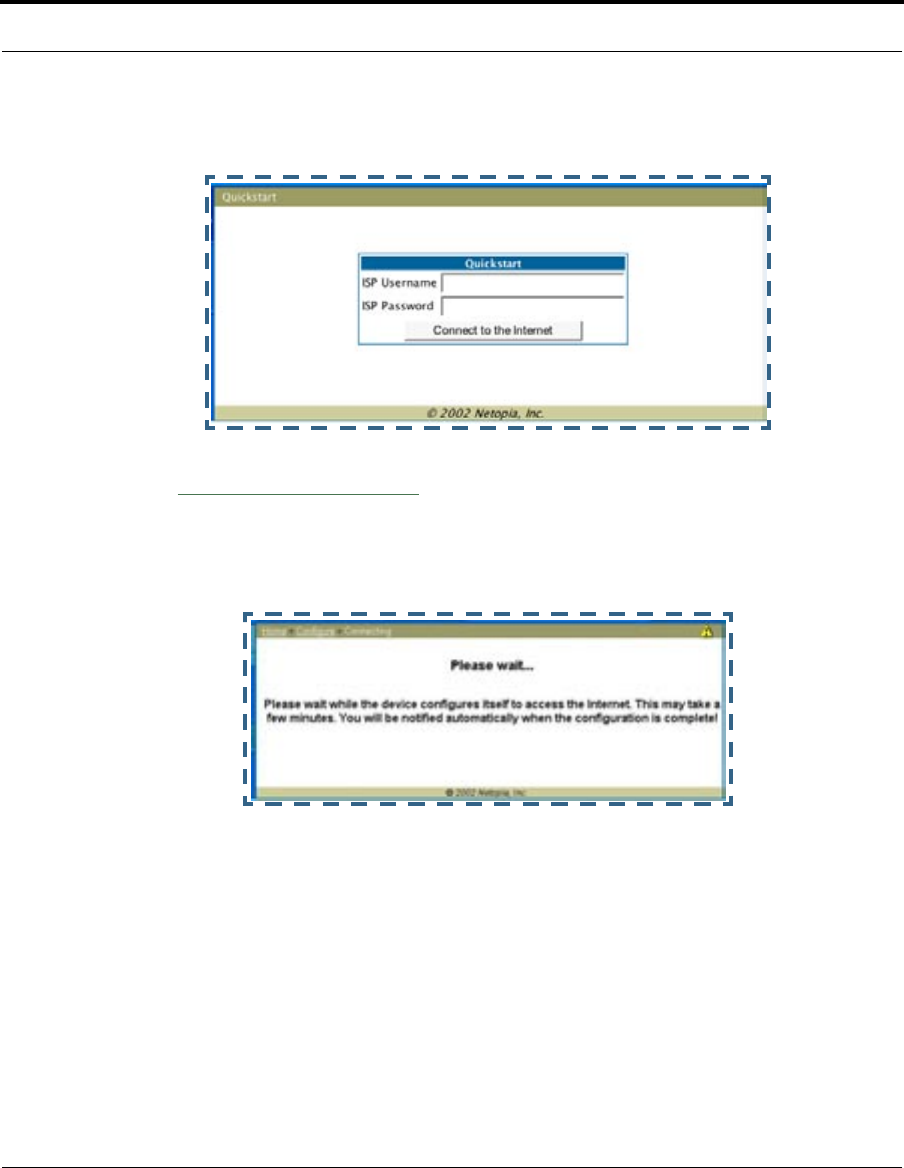

The browser then displays the Quickstart web page.
2. Enter the username and password supplied by your Internet Service Pro-
vider. Click the Connect to the Internet button.
Once you enter your username and password here, you will no longer
need to enter them whenever you access the Internet. The Cayman Gate-
way stores this information and automatically connects you to the Inter-
net.
23
Configure the Cayman Gateway

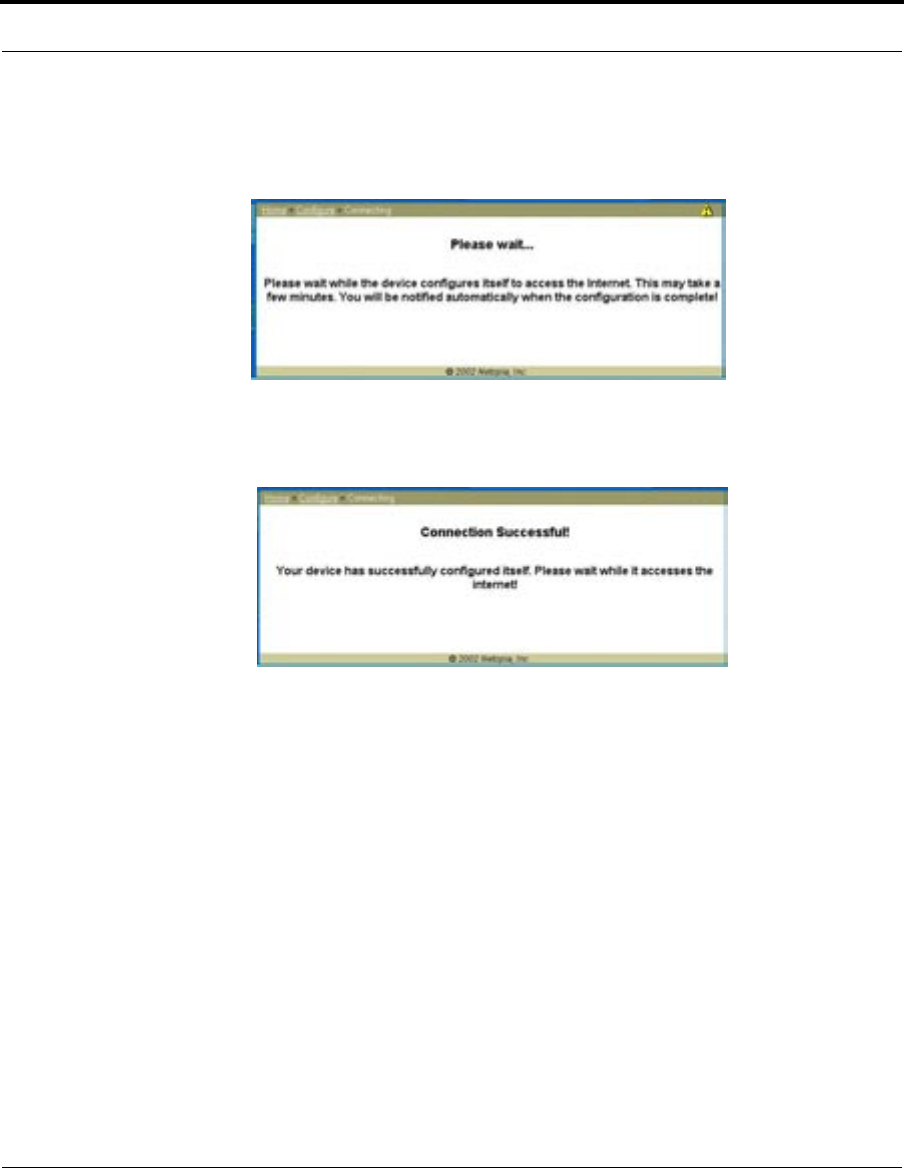

The Gateway displays a message while it configures itself.
3. When the connection succeeds, your browser will display a success
message.
Once a connection is established, your browser is redirected to your ser-
vice provider’s home page or a registration page on the Internet.
4. Congratulations! Your installation is complete. You can now surf to your
favorite Web sites by typing an URL in your browser’s location box or by
selecting one of your favorite Internet bookmarks.
24
Cayman Gateway Status Indicator Lights
Colored LEDs on your Cayman Gateway indicate the status of various port
activity. Different Gateway models have different ports for your connections
and different indicator LEDs. The Quickstart Guide accompanying your Cay-
man Gateway describes the behavior of the various indicator LEDs.

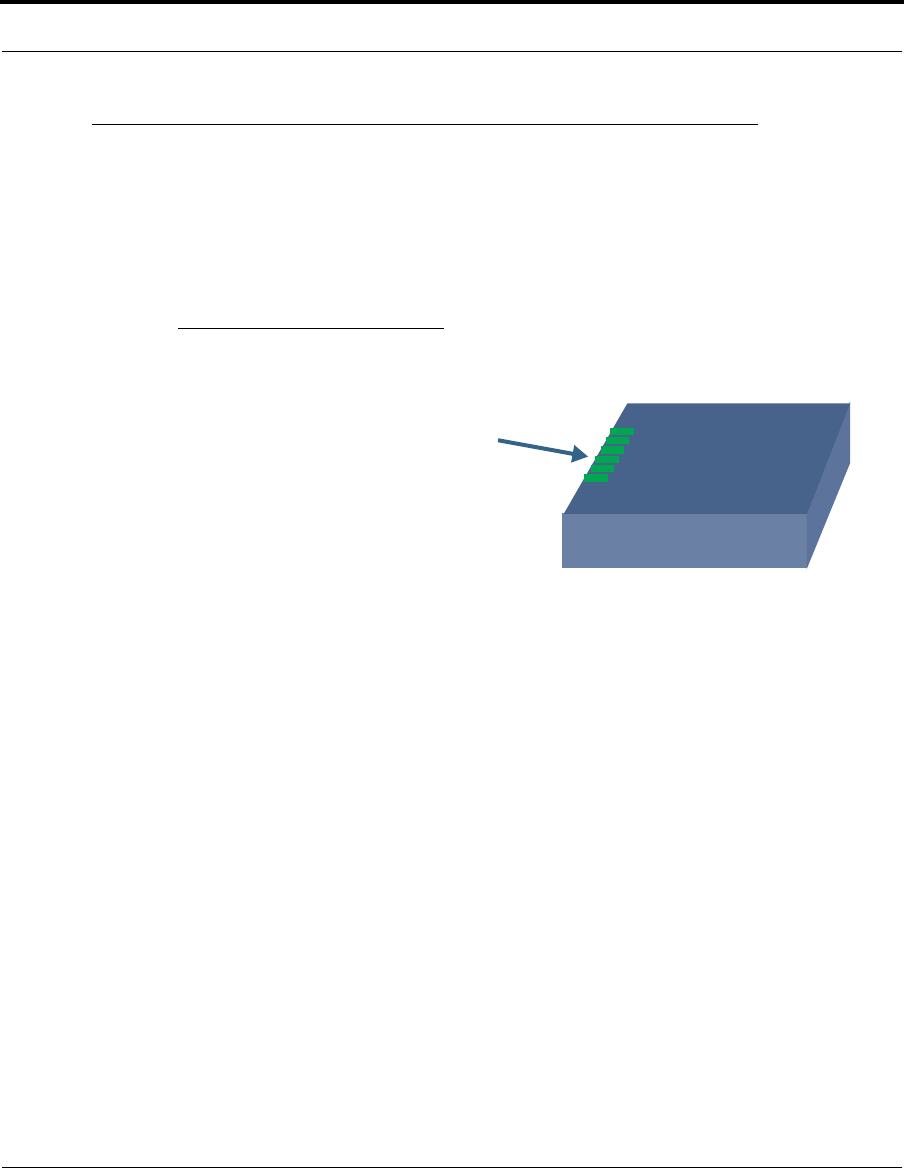

Example status indicator lights
netopia
Status Indicator Lights (LEDs)
25
Home Page - Basic Mode
Home Page - Basic Mode
After you have performed the basic Quickstart configuration, any time you
log in to your Cayman Gateway you will access the Cayman Gateway Home
Page.
You access the Home Page by typing http://192.168.1.254 in your Web
browser’s location box.

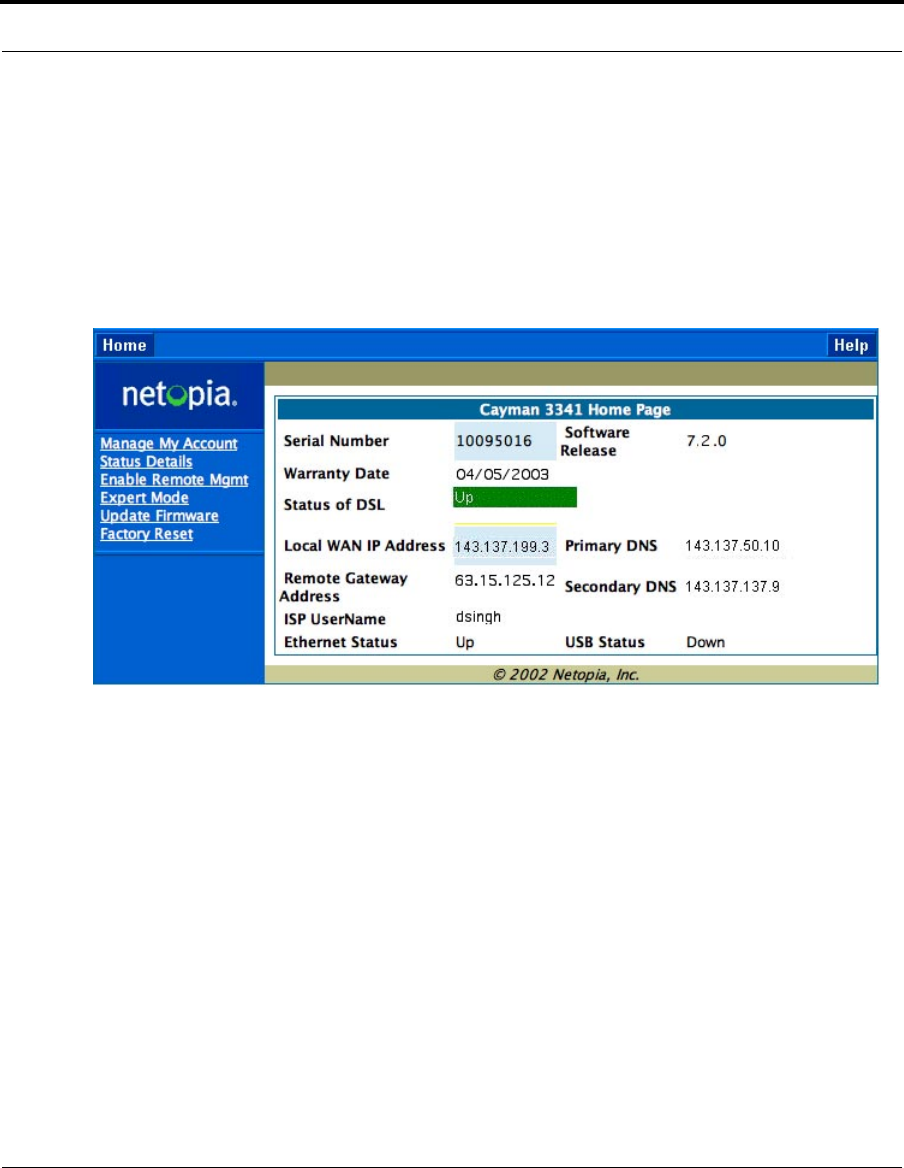

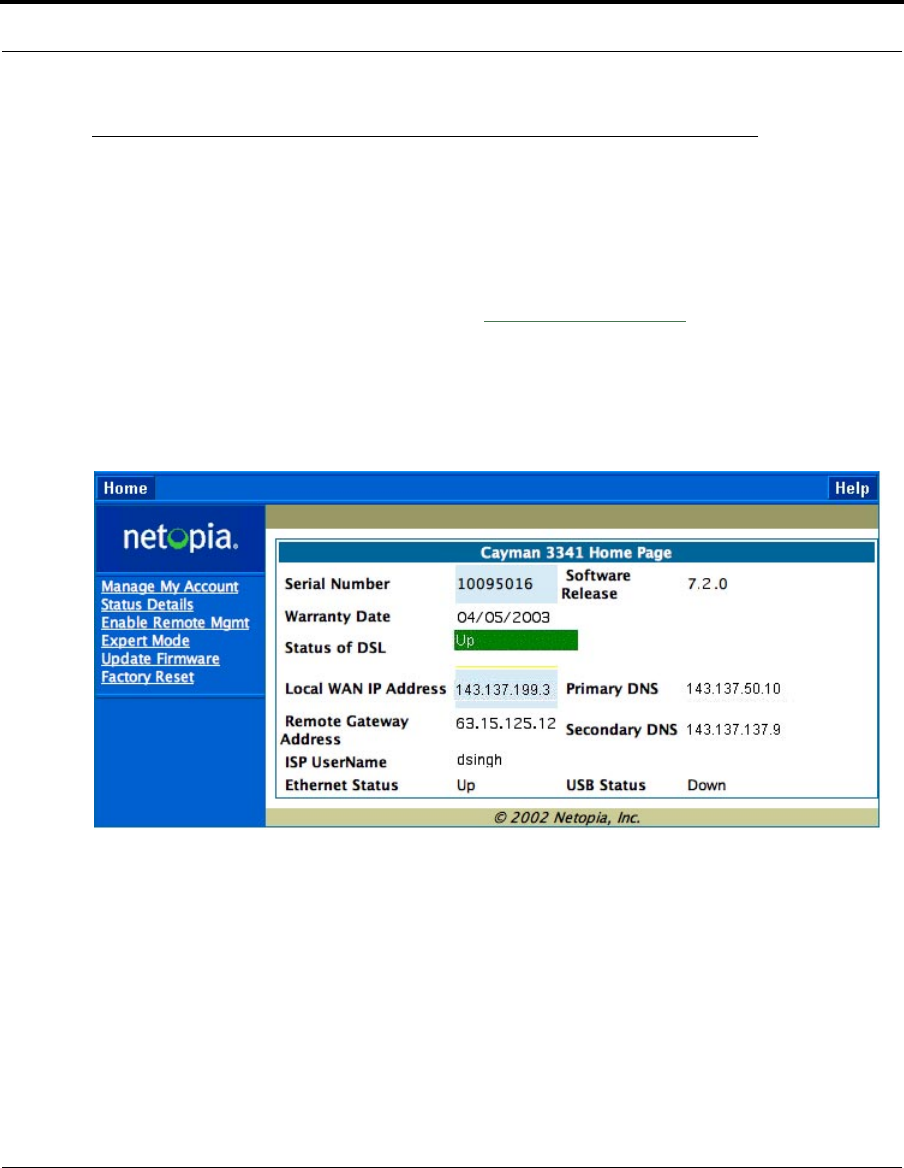

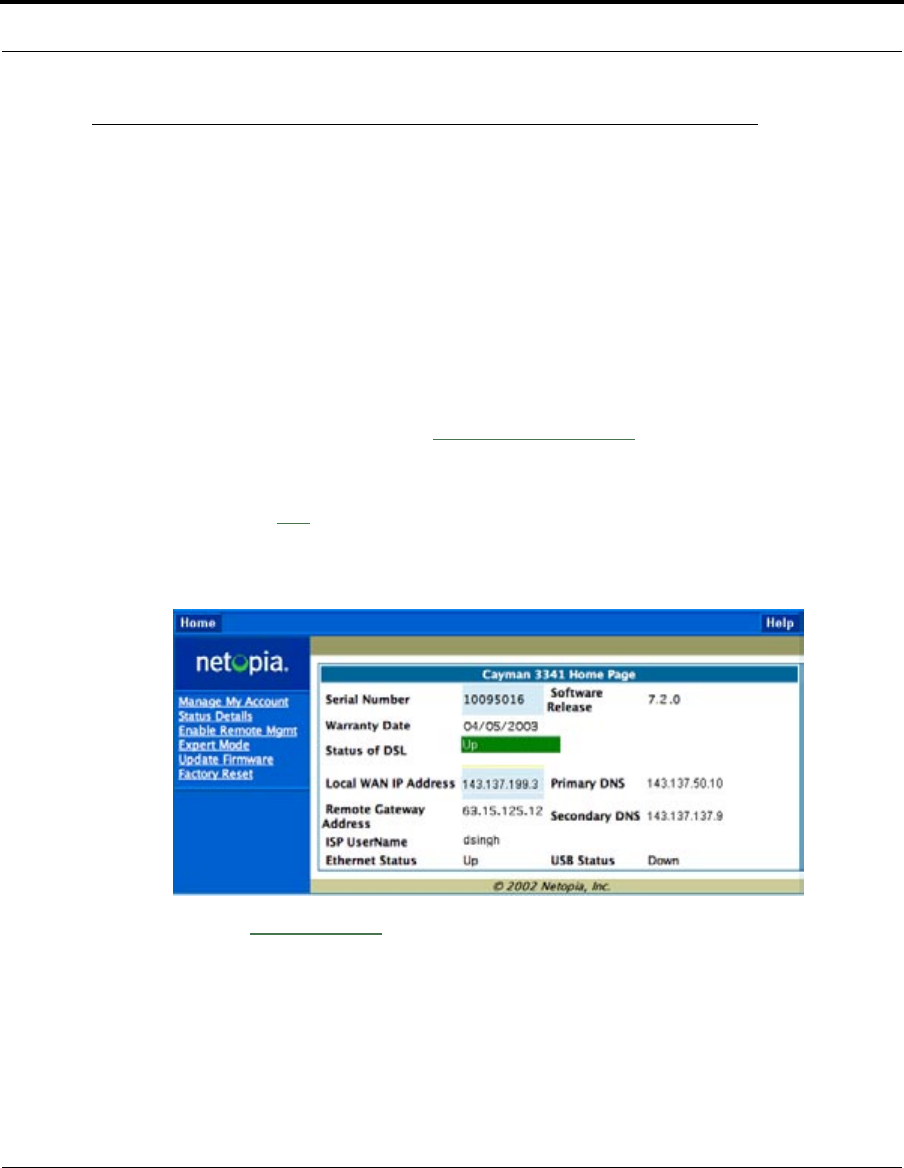

The Basic Mode Home Page appears.
26
The Home Page displays the following information in the center section:
The links in the left-hand column on this page allow you to manage or con-
figure several features of your Gateway. Each link is described in its own
section.
Item Description
Local WAN IP
Address
This is the negotiated address of the Gateway’s WAN interface.
This address is usually dynamically assigned.
Remote
Gateway
Address
This is the negotiated address of the remote router to which this
Gateway is connected.
Primary DNS
Secondary
DNS
These are the negotiated DNS addresses.
ISP Username This is your PPPoE username as assigned by your service pro-
vider.
Status of
Connection
‘Waiting for DSL’ is displayed while the Gateway is training. This
should change to ‘Up’ within two minutes.
‘Up’ is displayed when the ADSL line is synched and the PPPoE
session is established.
Serial Number This is the unique serial number of your Gateway.
Software
Release
This is the version number of the current embedded software in
your Gateway.
Warranty Date This is the date that your Gateway was installed and enabled.
Ethernet
Status
Local Area Network (Ethernet) is either Up or Down
USB Status If your Gateway is so equipped, Local Area Network (USB)
is either Up or Down
27
Home Page - Basic Mode
Link: Manage My Account
You can change your ISP account information for the Cayman Gateway. You
can also manage other aspects of your account on your service provider’s
account management Web site.
Click on the Manage My Account link. The Manage My Account page
appears.
Enter your username, and then your new password. Confirm your new pass-
word. For security, your actual passwords are not displayed on the screen
as you type. You must enter the new password twice to be sure you have
typed it correctly.
Click the Submit button.
Click the Continue button. You will be taken to your service provider’s Web
site account management page.
28
Link: Status Details
If you need to diagnose any problems with your Cayman Gateway or its con-
nection to the Internet, you can run a sophisticated diagnostic tool. It
checks several aspects of your physical and electronic connection and
reports its results on-screen. This can be useful for troubleshooting, or
when speaking with a technical support technician.

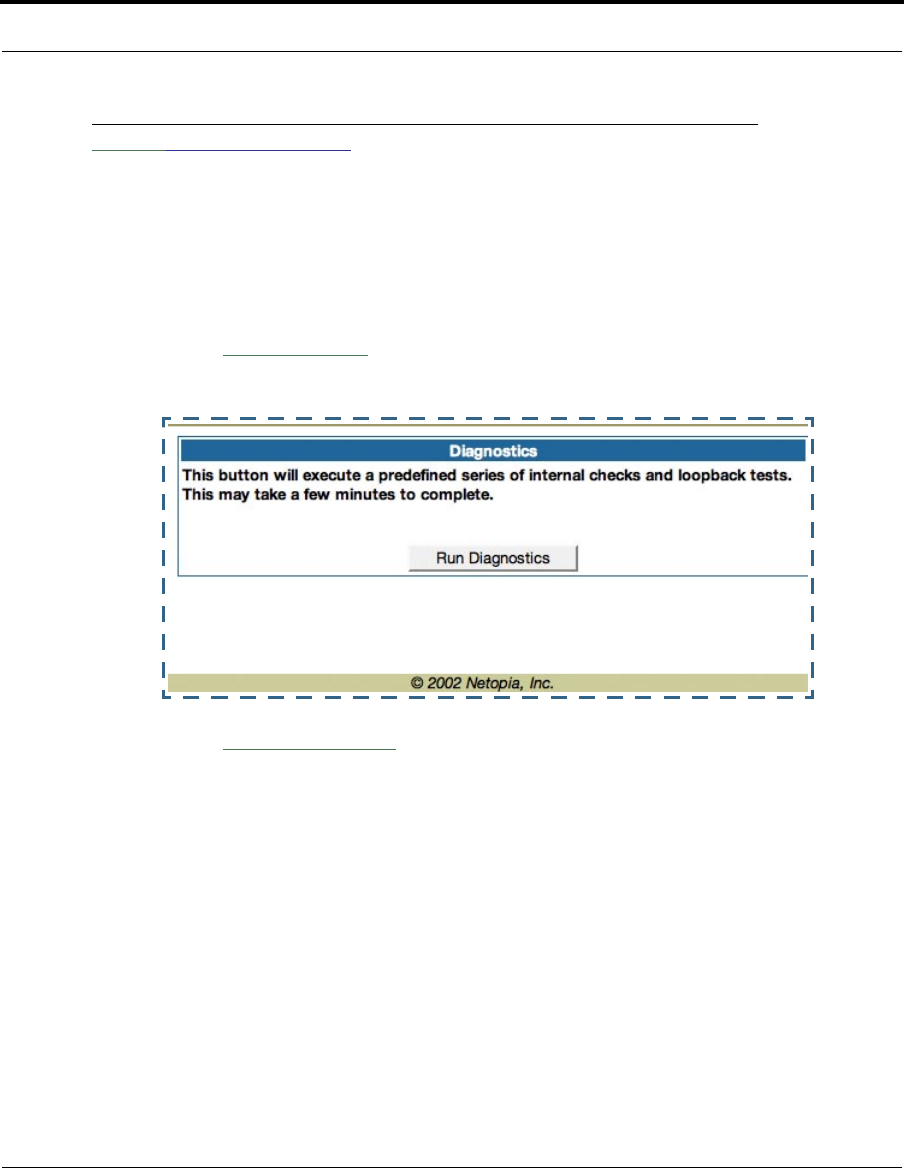

Click on the Status Details link. The Diagnostics page appears.
Click on the Run Diagnostics button to run your diagnostic tests. For a
detailed description of these tests, see “Diagnostics” on page 147.
29
Home Page - Basic Mode
Link: Enable Remote Management
This link allows you to authorize a remotely-located person, such as a sup-
port technician, to directly access your Cayman Gateway. This is useful for
fixing configuration problems when you need expert help. You can limit the
amount of time such a person will have access to your Gateway. This will
prevent unauthorized individuals from gaining access after the time limit
has expired.
Click the Enable Rmt Mgmt link. The Enable Remote Management page
appears.
Since you’ve already has entered an Admin password, you can use that
Admin password or enter a new password. If you enter a new password, it
becomes the temporary Admin password. After the time-out period has
expired, the Admin password reverts to the original Admin password you
entered.
30
Enter a temporary password for the person you want to authorize, and con-
firm it by typing it again. You can select a time-out period for this password,
from 5 to 30 minutes, from the pull-down menu. Be sure to tell the autho-
rized person what the password is, and for how long the time-out is set.
Click the Submit button.
Link: Expert Mode
Most users will find that the basic Quickstart configuration is all that they
ever need to use. Some users, however, may want to do more advanced
configuration. The Cayman Gateway has many advanced features that can
be accessed and configured through the Expert Mode pages.

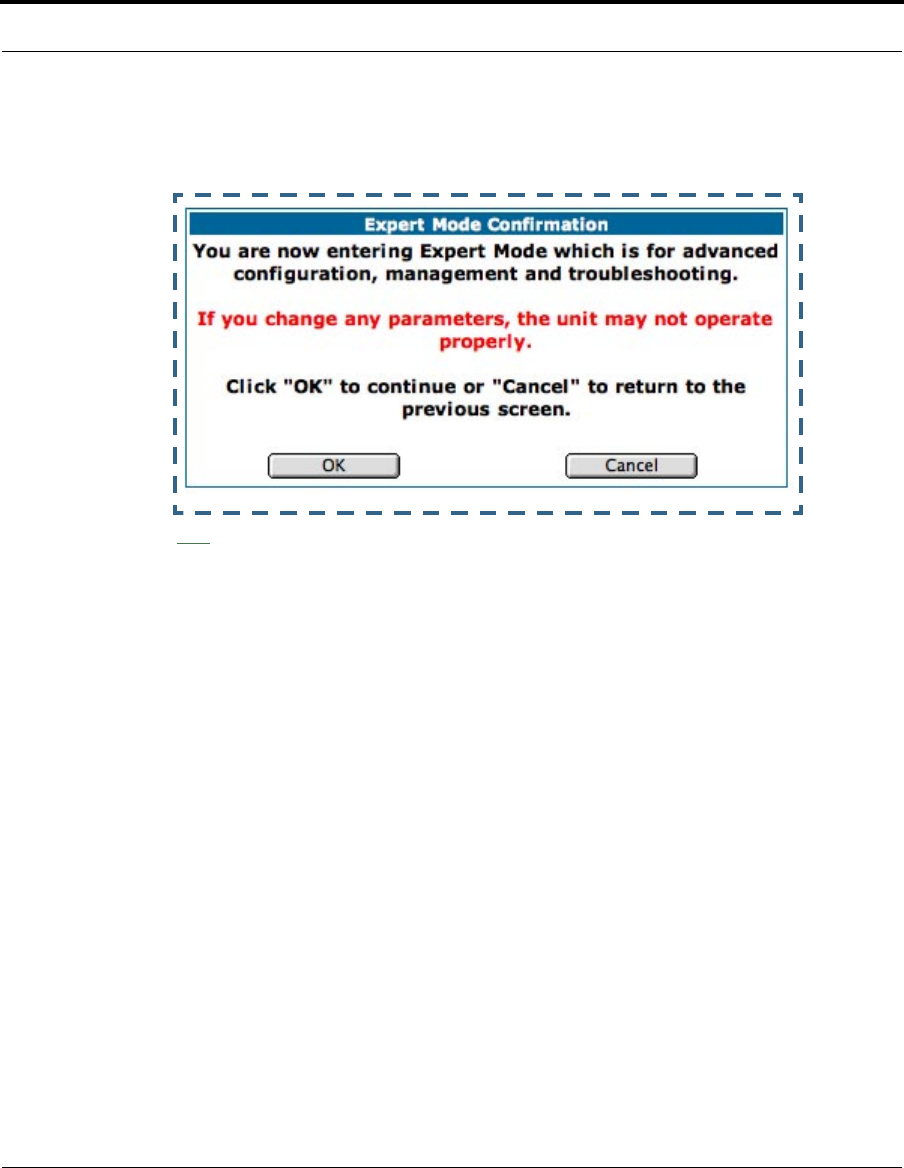

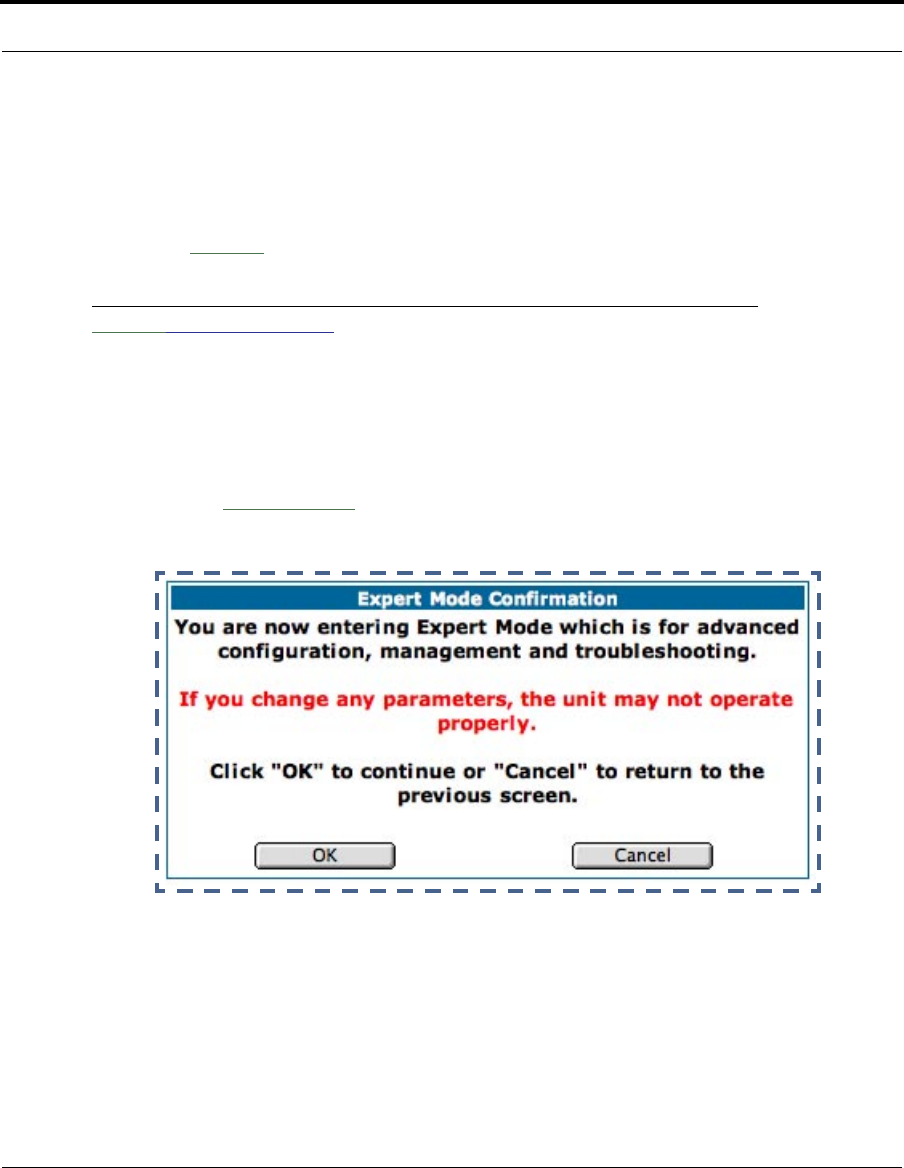

Click on the Expert Mode link to display the Expert Mode Confirmation
page.
You should carefully consider any configuration changes you want to make,
and be sure that your service provider supports them.
Once you click the OK button you will be taken to the Expert Mode Home
Page.
31
Home Page - Basic Mode
The Expert Mode Home Page is the main access point for configuring and
managing the advanced features of your Gateway. See “Expert Mode” on
page 33 for information.
Link: Update Firmware
Periodically, the embedded firmware in your Gateway may be updated to
improve the operation or add new features. Your gateway includes its own
onboard installation capability. Your service provider may inform you when
new firmware is available, or you can check for yourself.

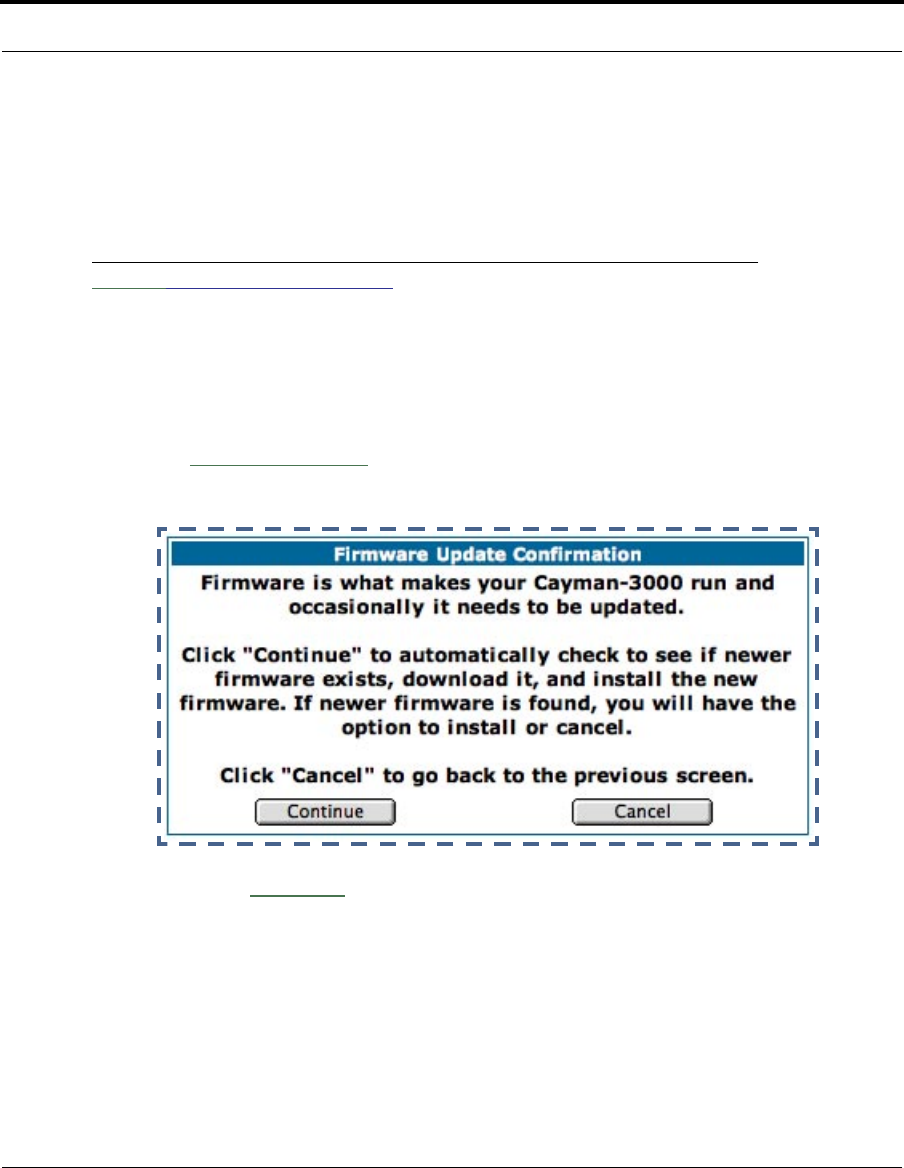

Click the Update Firmware link. The Firmware Update Confirmation page
appears.
If you click the Continue button, the Gateway will check a remote Firmware
Server for the latest firmware revision. If a newer version is found, your firm-
ware will be automatically updated.
32

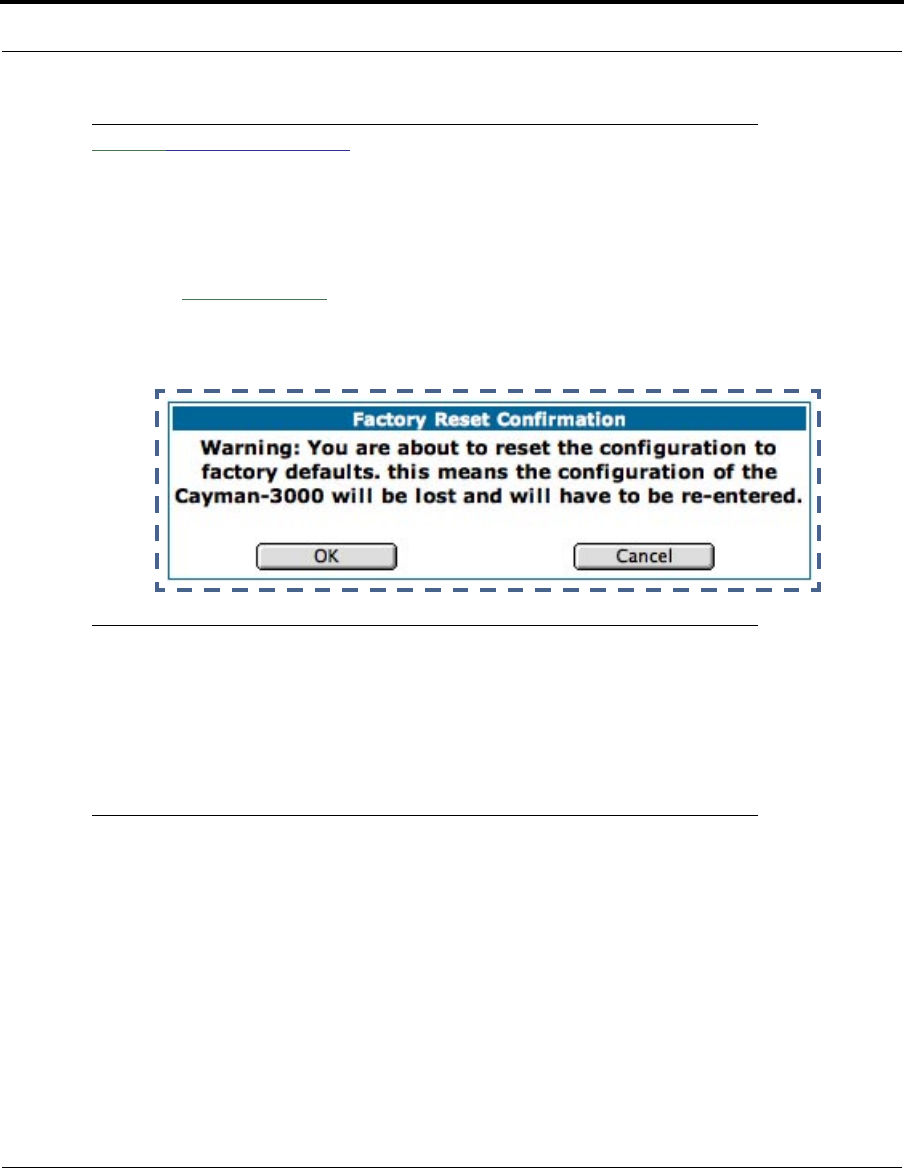

Link: Factory Reset
In some cases, you may need to clear all the configuration settings and
start over again to program the Cayman Gateway. You can perform a factory
reset to do this.
Click on Factory Reset to reset the Gateway back to its original factory
default settings.
☛ NOTE:
Exercise caution before performing a Factory Reset. This will
erase any configuration changes that you may have made and
allow you to reprogram your Gateway.
33
Overview of Major Capabilities
CHAPTER 3 Expert Mode
Using the Expert Mode Web-based user interface for the Netopia Cayman-
series Gateway you can configure, troubleshoot, and monitor the status of
your Gateway.
Overview of Major Capabilities
•“Wide Area Network Termination” on page 34
The Gateway combines a traditional modem with an Internet router. It translates
protocols used on the Internet to protocols used by home personal computers
and eliminates the need for special desktop software (i.e. PPPoE).
•“Simplified Local Area Network Setup” on page 36
Built-in DHCP and DNS proxy features minimize or eliminate the need to pro-
gram any network configuration into your home personal computer.
34
•“Management” on page 37
A Web server built into the Cayman Operating System makes setup and mainte-
nance easy using standard browsers. Diagnostic tools facilitate troubleshoot-
ing.
•“Security” on page 38
Network Address Translation (NAT), password protection, and other built-in
security features prevent unauthorized remote access to your network. Pin-
holes, default server, and other features permit access to computers on your
home network that you can specify.
Wide Area Network Termination
PPPoE/PPPoA (Point-to-Point Protocol over Ethernet/ATM). The PPPoE
specification, incorporating the PPP and Ethernet standards, allows your
computer(s) to connect to your Service Provider’s network through your
Ethernet WAN connection. The Cayman-series Gateway supports PPPoE/
PPPoA, eliminating the need to install PPPoE client software on any LAN
computers.
Service Providers may require the use of PPP authentication protocols such
as Challenge Handshake Authentication Protocol (CHAP) or Password
Authentication Protocol (PAP). CHAP and PAP use a username and password
pair to authenticate users with a PPP server.
A CHAP authentication process works as follows:
1. The password is used to scramble a challenge string.
2. The password is a shared secret, known by both peers.
3. The unit sends the scrambled challenge back to the peer.
PAP, a less robust method of authentication, sends a username and pass-
word to a PPP server to be authenticated. PAP’s username and password
pair are not encrypted, and are therefore sent “unscrambled”.
35
Overview of Major Capabilities
Instant-On PPP. You can configure your Gateway for one of two types of
Internet connections:
•Always On
•Instant On
These selections provide either an uninterrupted Internet connection or an
as-needed connection.
While an Always On connection is convenient, it does leave your network
permanently connected to the Internet, and therefore potentially vulnerable
to attacks.
Cayman's Instant On technology furnishes almost all the benefits of an
Always-On connection while providing two additional security benefits:
•Your network cannot be attacked when it is not connected.
•Your network may change address with each connection making it more
difficult to attack.
When you configure Instant On access, you can also configure an idle time-
out value. Your Gateway monitors traffic over the Internet link and when
there has been no traffic for the configured number of seconds, it discon-
nects the link.
When new traffic that is destined for the Internet arrives at the Gateway, the
Gateway will instantly re-establish the link.
Your service provider may be using a system that assigns the Internet
address of your Gateway out of a pool of many possible Internet addresses.
The address assigned varies with each connection attempt, which makes
your network a moving target for any attacker.
36
Simplified Local Area Network Setup

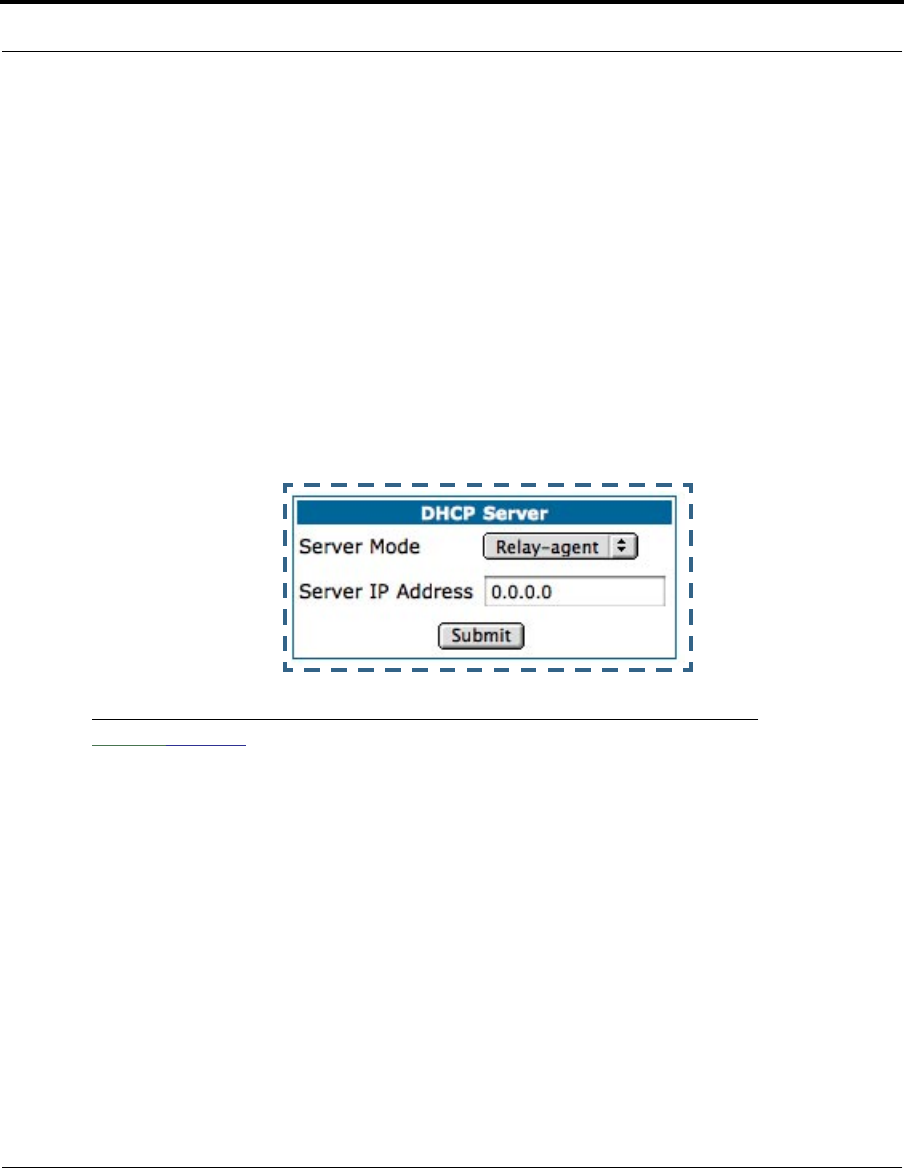

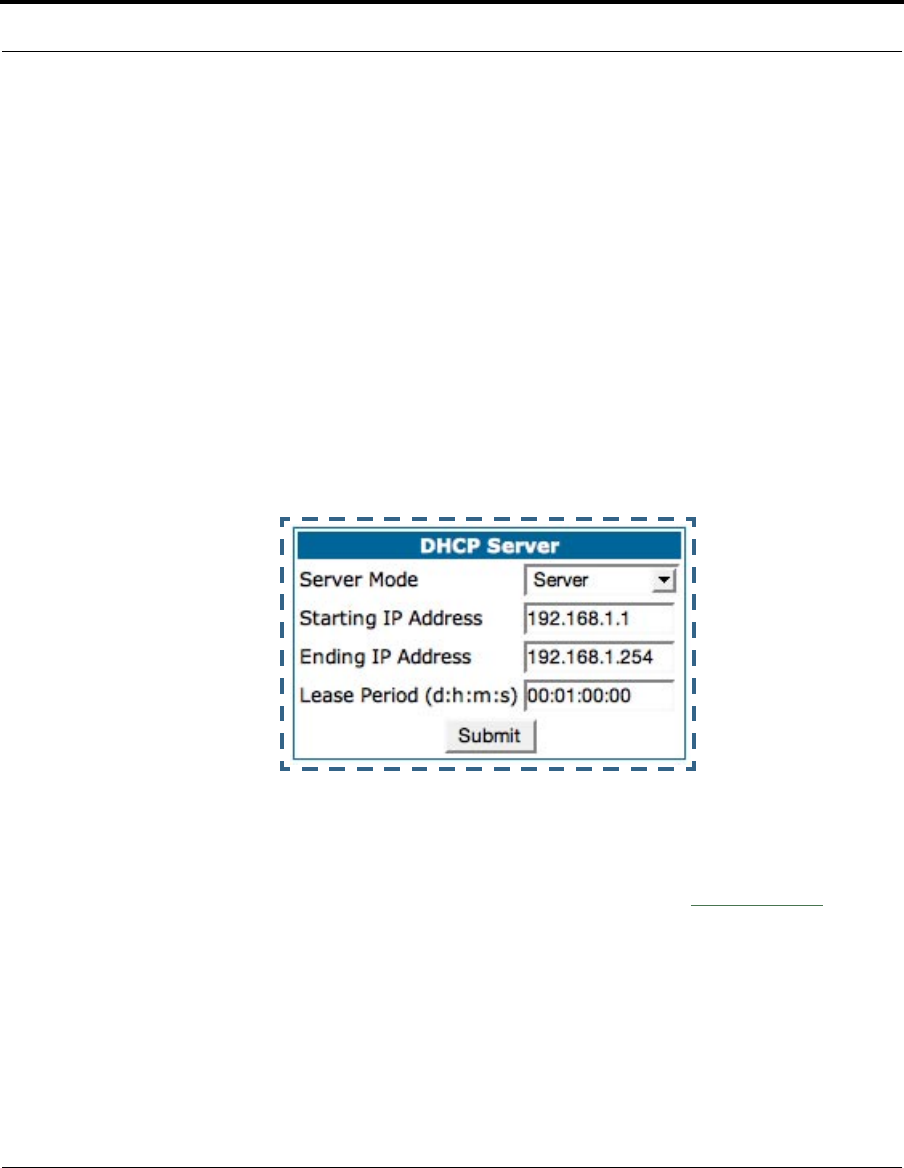

DHCP (Dynamic Host Configuration Protocol) Server. DHCP Server
functionality enables the Gateway to assign to your LAN computer(s) a “pri-
vate” IP address and other parameters that allow network communication.
The default DHCP Server configuration of the Gateway supports up to 253
LAN IP addresses.
This feature simplifies network administration because the Gateway main-
tains a list of IP address assignments. Additional computers can be added
to your LAN without the hassle of configuring an IP address.

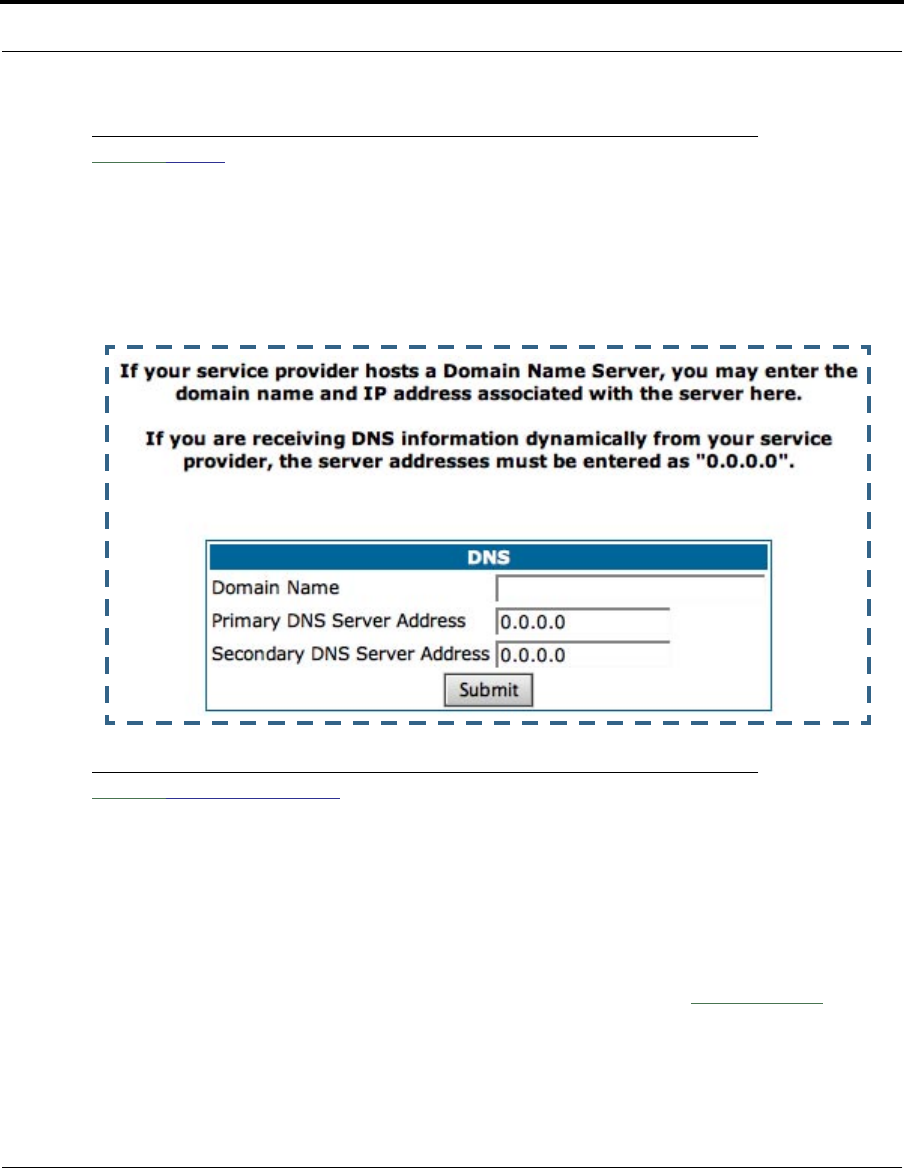

DNS Proxy. Domain Name System (DNS) provides end users with the abil-
ity to look for devices or web sites by typing their names, rather than IP
addresses. For web surfers, this technology allows you to enter the URL
(Universal Resource Locator) as text to surf to a desired website.
The Cayman DNS Proxy feature allows the LAN-side IP address of the Gate-
way to be used for proxying DNS requests from hosts on the LAN to the
DNS Servers configured in the gateway. This is accomplished by having the
Gateway's LAN address handed out as the “DNS Server” to the DHCP cli-
ents on the LAN.
37
Overview of Major Capabilities
☛ NOTE:
The Cayman DNS Proxy only proxies UDP DNS queries, not TCP
DNS queries.
Management
Embedded Web Server. There is no specialized software to install on your
PC to configure, manage, or maintain your Cayman Gateway. Web pages
embedded in the operating system provide access to the following Gateway
operations:
•Setup
•System and security logs
•Diagnostics functions
Once you have removed your Cayman Gateway from its packing container
and powered the unit up, use any LAN attached PC or workstation running a
common web browser application to configure and monitor the Gateway.

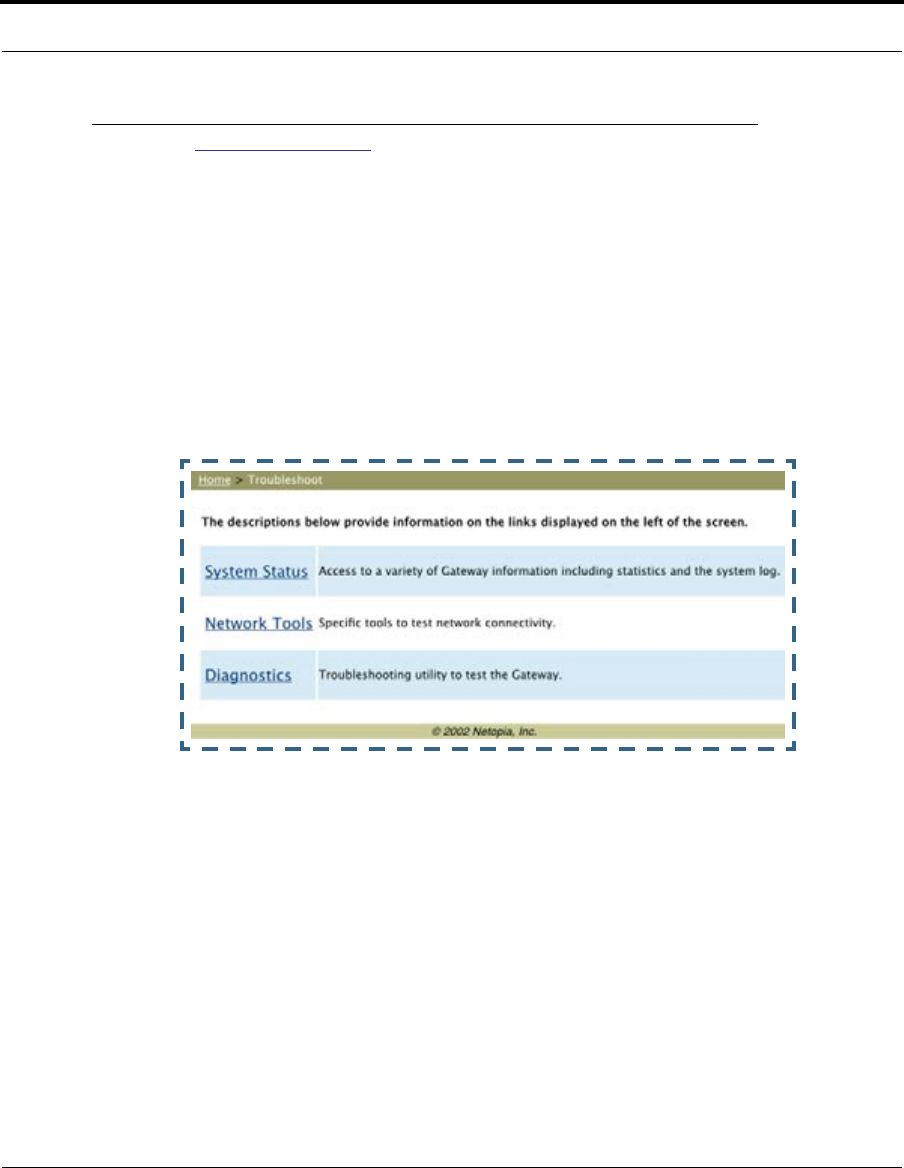

Diagnostics. In addition to the Gateway’s visual LED indicator lights, you
can run an extensive set of diagnostic tools from your Web browser.
Two of the facilities are:
•Automated “Multi-Layer” Test
The Run Diagnostics link initiates a sequence of tests. They examine the
entire functionality of the Gateway, from the physical connections to the
data traffic.

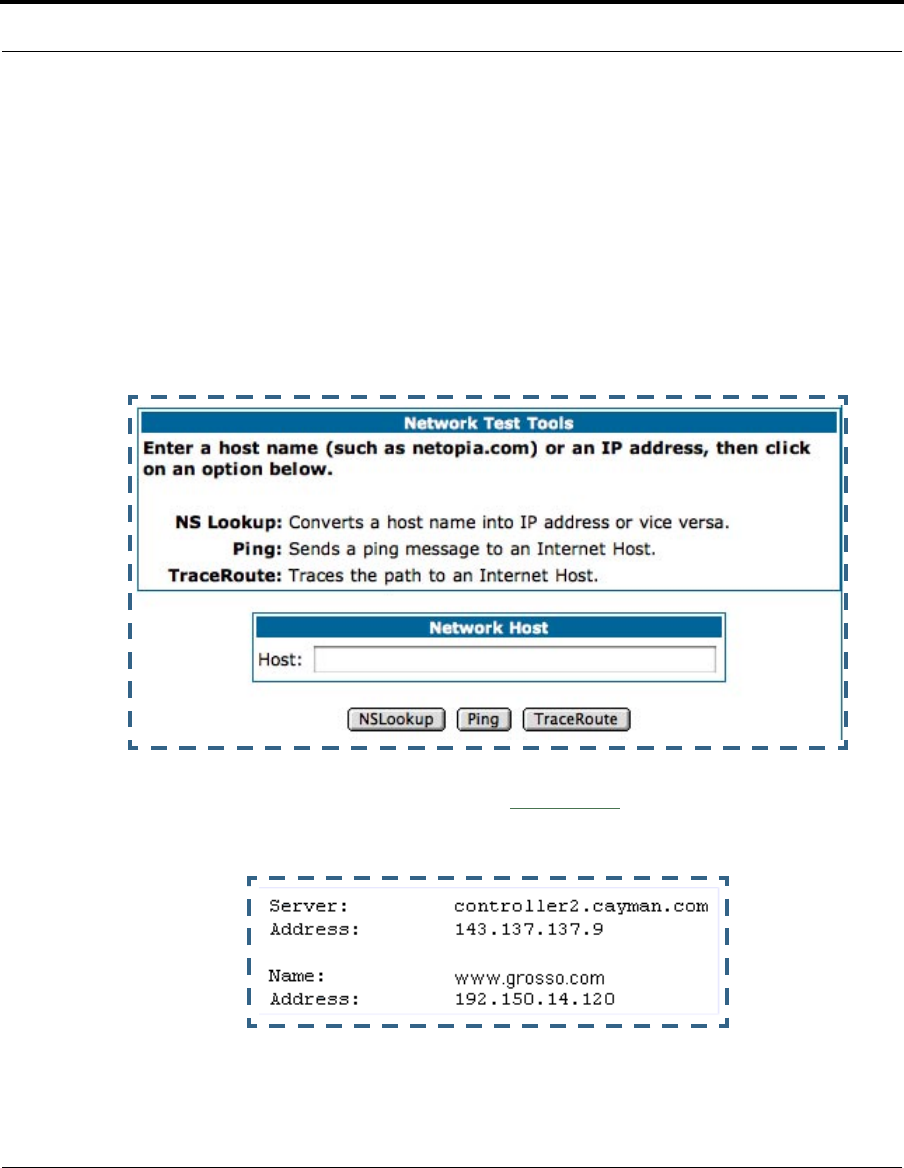

•Network Test Tools
Three test tools to determine network reachability are available:
38
Ping - tests the “reachability” of a particular network destination by
sending an ICMP echo request and waiting for a reply.
NSLookup - converts a domain name to its IP address and vice versa.

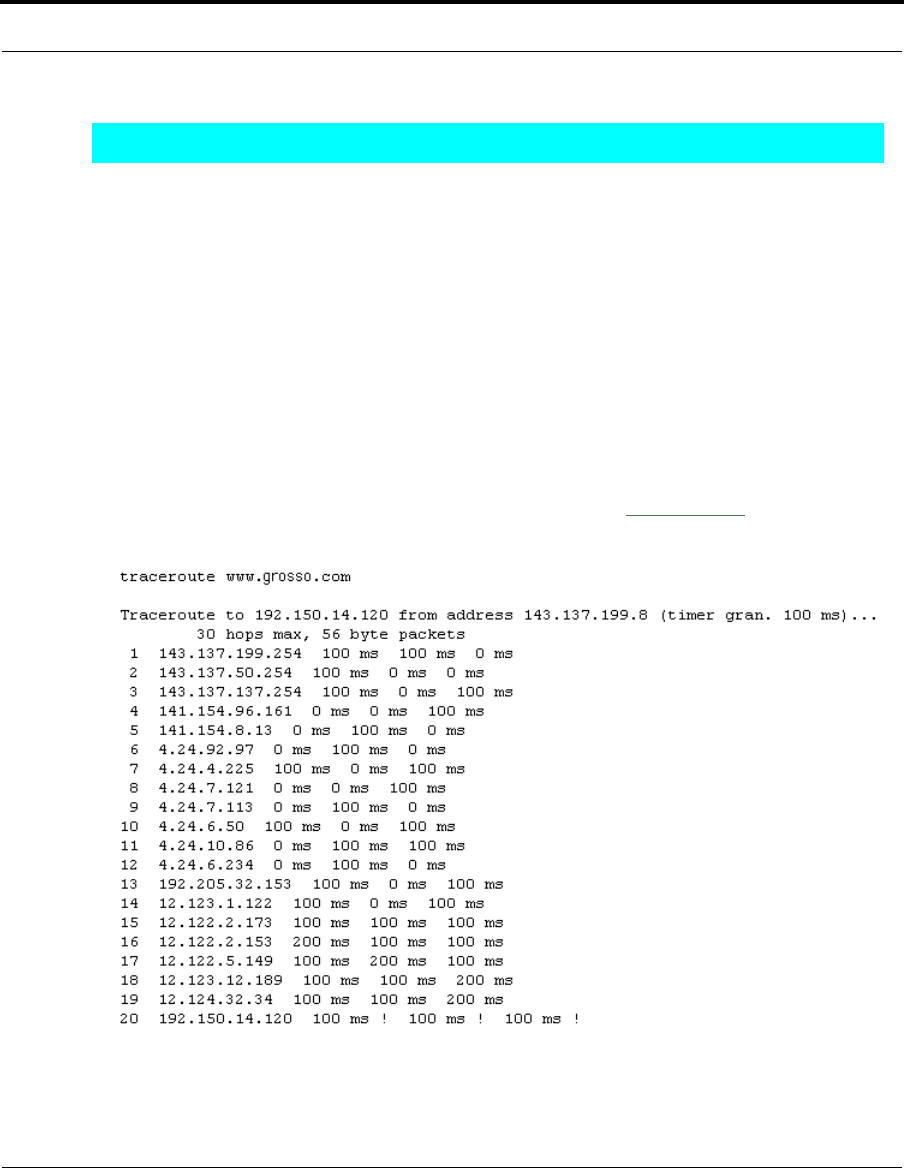

TraceRoute - displays the path to a destination by showing the number
of hops and the router addresses of these hops.
The system log also provides diagnostic information.
☛ NOTE:
Your Service Provider may request information that you acquire
from these various diagnostic tools. Individual tests may be per-
formed at the command line. (See “Command Line Interface” on
page 151.).
Security
Remote Access Control. You can determine whether or not an administra-
tor or other authorized person has access to configuring your Gateway. This
access can be turned on or off in the Web interface.
Password Protection. Access to your Cayman device can be controlled
through two access control accounts, Admin or User.
•The Admin, or administrative user, performs all configuration, manage-
ment or maintenance operations on the Gateway.
•The User account provides monitor capability only.
A user may NOT change the configuration, perform upgrades or invoke
maintenance functions.
Network Address Translation (NAT). The Cayman Gateway Network
Address Translation (NAT) security feature lets you conceal the topology of a
39
Overview of Major Capabilities
hard-wired Ethernet or wireless network connected to its LAN interface from
routers on networks connected to its WAN interface. In other words, the
end computer stations on your LAN are invisible from the Internet.
Only a single WAN IP address is required to provide this security support
for your entire LAN.
LAN sites that communicate through an Internet Service Provider typically
enable NAT, since they usually purchase only one IP address from the ISP.
•When NAT is ON, the Cayman Gateway “proxies” for the end computer
stations on your network by pretending to be the originating host for net-
work communications from non-originating networks. The WAN interface
address is the only IP address exposed.
The Cayman Gateway tracks which local hosts are communicating with
which remote hosts. It routes packets received from remote networks to
the correct computer on the LAN (Ethernet) interface.
•When NAT is OFF, a Cayman Gateway acts as a traditional TCP/IP router,
all LAN computers/devices are exposed to the Internet.

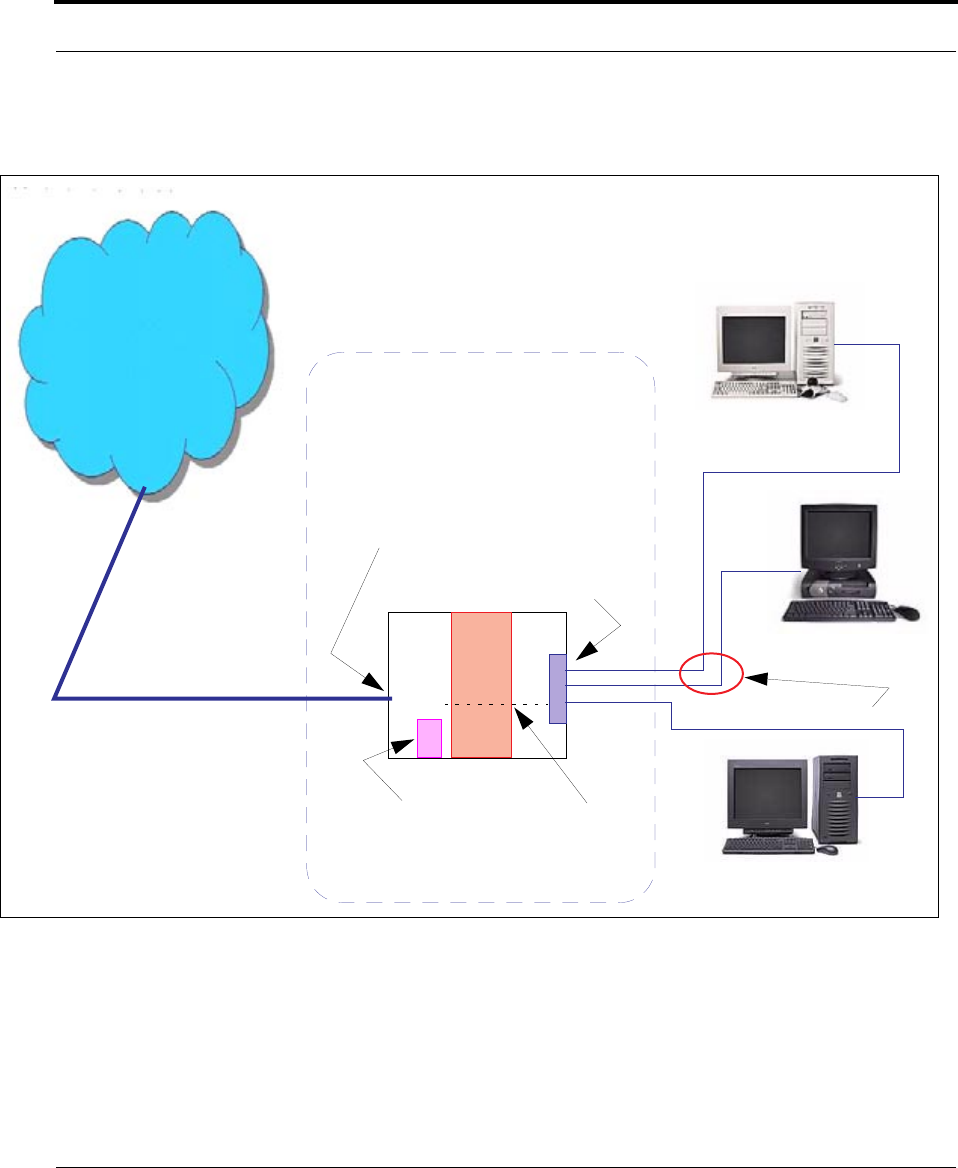

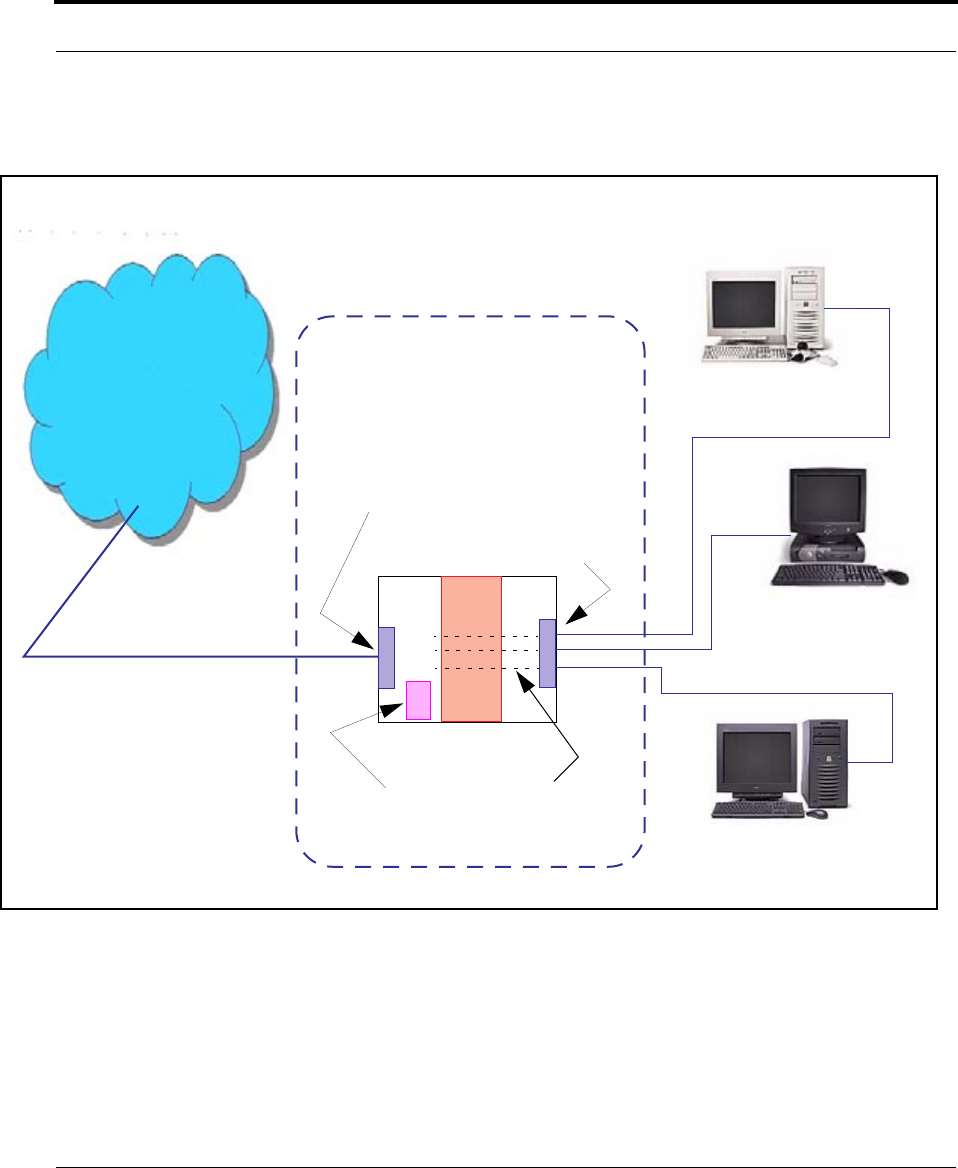

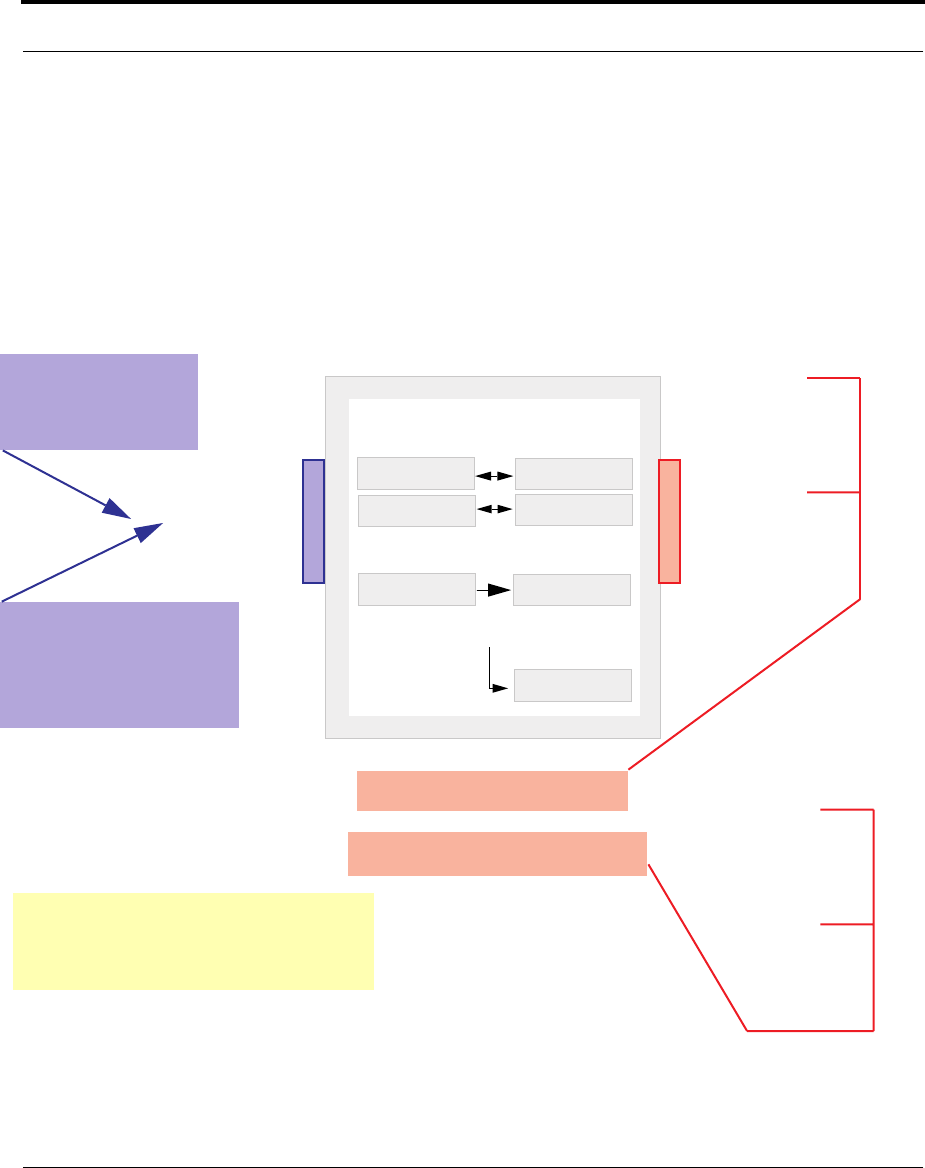

A diagram of a typical NAT-enabled LAN follows:
40
☛ NOTE:
1. The default setting for NAT is ON.
2. Cayman uses Port Address Translation (PAT) to implement the
NAT facility.
3. NAT Pinhole traffic (discussed below) is always initiated from
the WAN side.
Cayman Advanced Features for NAT. Using the NAT facility provides
effective LAN security. However, there are user applications that require
methods to selectively by-pass this security function for certain types of
Internet traffic.
WAN
Interface
LAN
Ethernet
Interface
Cayman Gateway
NAT
Internet
Embedded Admin Services:
HTTP-Web Server and Telnet Server Port
NAT-protected
LAN stations
Ethernet
41
Overview of Major Capabilities
Cayman Gateways provide special pinhole configuration rules that enable
users to establish NAT-protected LAN layouts that still provide flexible by-
pass capabilities.
Some of these rules require coordination with the unit’s embedded admin-
istration services: the internal Web (HTTP) Port (TCP 80) and the internal
Telnet Server Port (TCP 23).
Internal Servers. The internal servers are the embedded Web and Telnet
servers of the Gateway. You would change the internal server ports for Web
and Telnet of the Gateway if you wanted to have these services on the LAN
using pinholes or the Default server. Pinhole configuration rules provide an
internal port forwarding facility that enables you to eliminate conflicts with
embedded administrative ports 80 and 23.

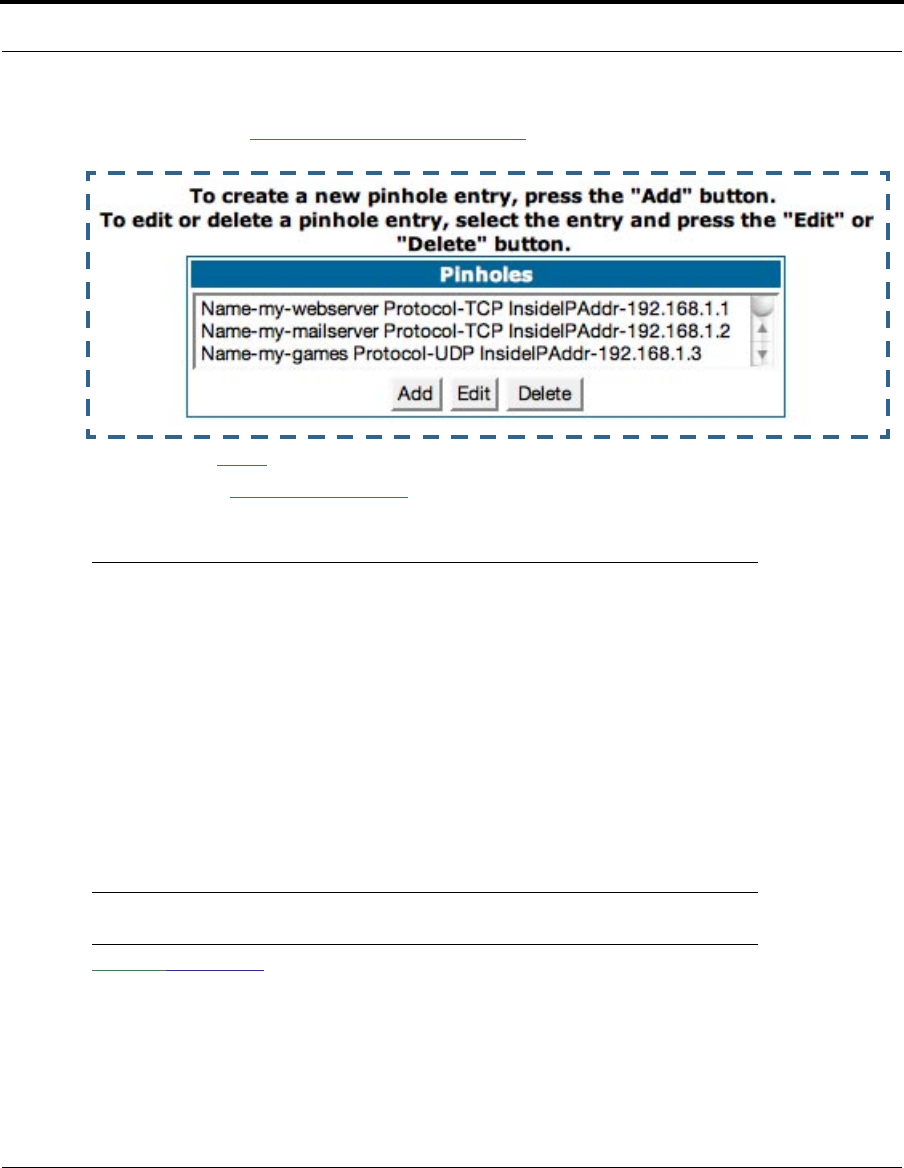

Pinholes. This feature allows you to:
•Transparently route selected types of network traffic using the port for-
warding facility.
FTP requests or HTTP (Web) connections are directed to a specific host
on your LAN.
•Setup multiple pinhole paths.
Up to 32 paths are supported
•Identify the type(s) of traffic you want to redirect by port number.
Common TCP/IP protocols and ports are:
See page 70 for How To instructions.
FTP (TCP 21) telnet (TCP 23)
SMTP (TCP 25) HTTP (TCP 80)
SNMP (TCP 161, UDP 161)
42
Default Server. This feature allows you to:
•Direct your Gateway to forward all externally initiated IP traffic (TCP and
UDP protocols only) to a default host on the LAN.
•Enable it for certain situations:
Where you cannot anticipate what port number or packet protocol an in-
bound application might use.
For example, some network games select arbitrary port numbers when a
connection is opened.
When you want all unsolicited traffic to go to a specific LAN host.

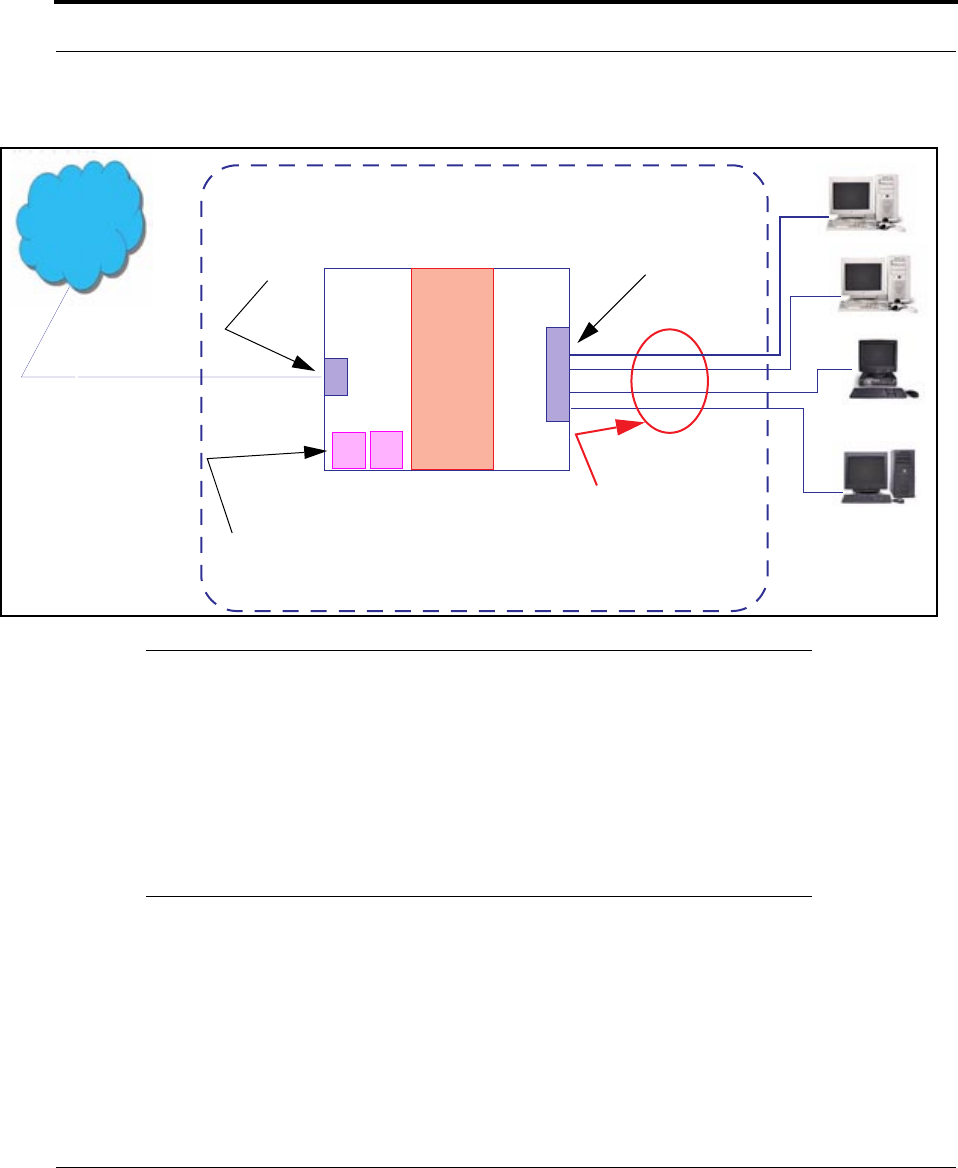

Combination NAT Bypass Configuration. Specific pinholes and Default
Server settings, each directed to different LAN devices, can be used
together.
☛ WARNING:
Creating a pinhole or enabling a Default Server allows inbound
access to the specified LAN station. Contact your Network Admin-
istrator for LAN security questions.

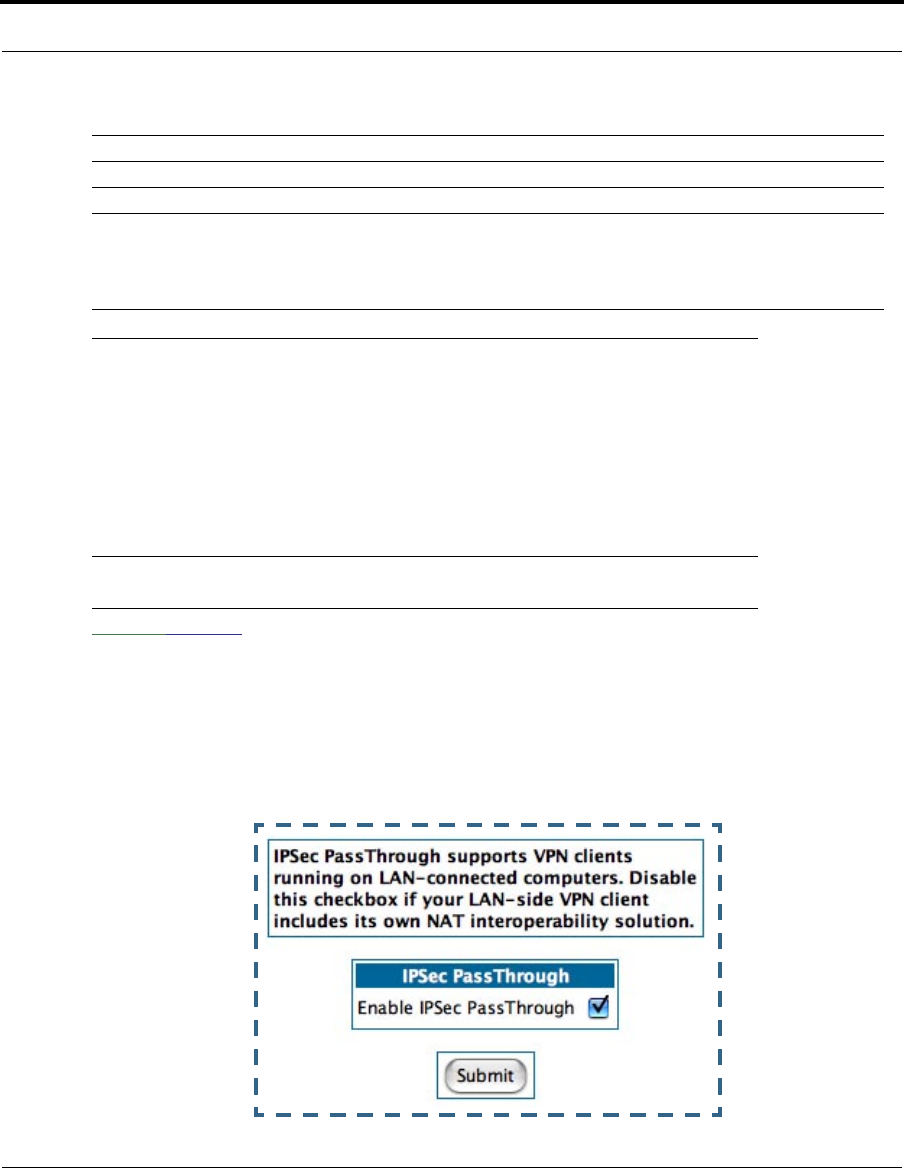

VPN IPSec Pass Through. This Cayman service supports your indepen-
dent VPN client software in a transparent manner. Cayman has imple-
mented an Application Layer Gateway (ALG) to support multiple PCs running
IP Security protocols.
This feature has three elements:
1. On power up or reset, the address mapping function (NAT) of the Gate-
way’s WAN configuration is turned on by default.
43
Overview of Major Capabilities
2. When you use your third-party VPN application, the Gateway recognizes
the traffic from your client and your unit. It allows the packets to pass
through the NAT “protection layer” via the encrypted IPSec tunnel.
3. The encrypted IPSec tunnel is established “through” the Gateway.

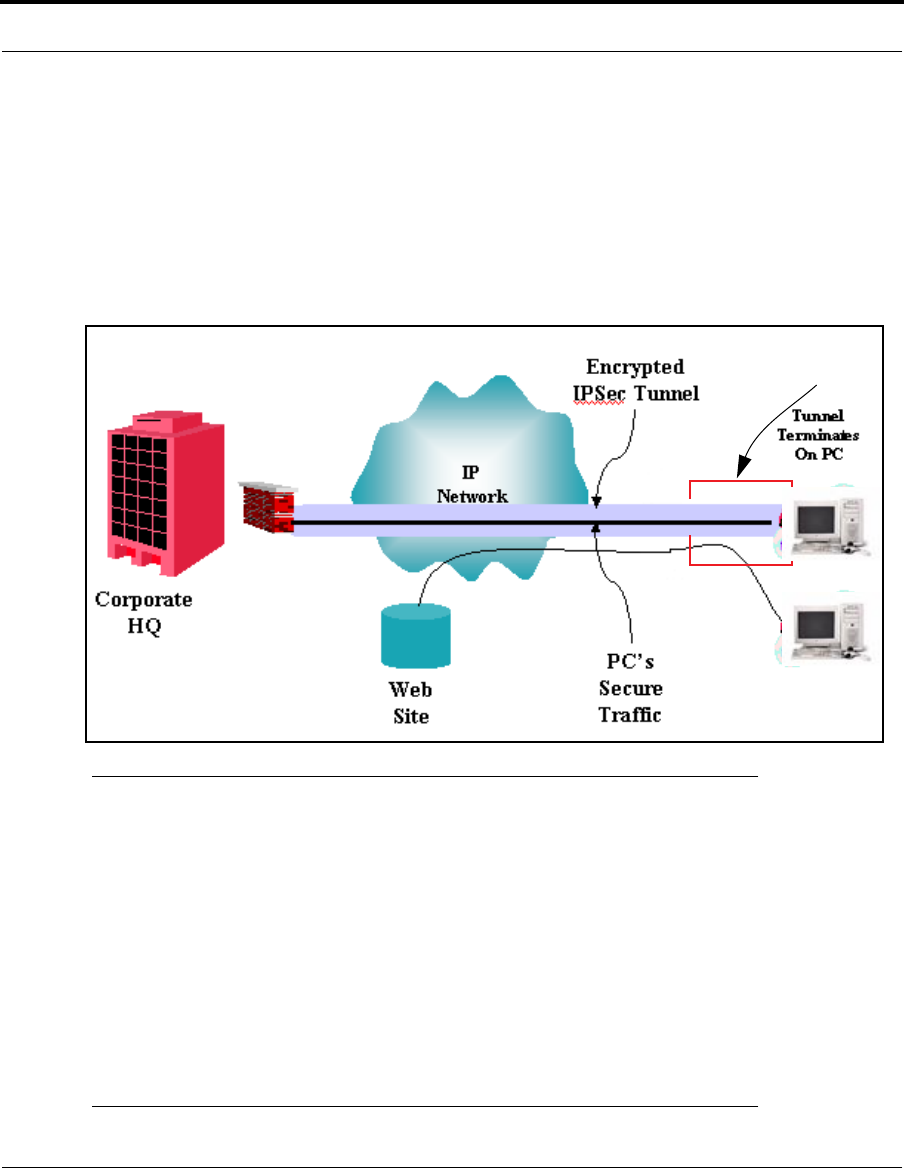

A typical VPN IPSec Tunnel pass through is diagrammed below:
☛ NOTE:
Typically, no special configuration is necessary to use the IPSec
pass through feature.
In the diagram, VPN PC clients are shown behind the Cayman
Gateway and the secure server is at Corporate Headquarters
across the WAN. You cannot have your secure server behind the
Cayman Gateway.
When multiple PCs are starting IPSec sessions, they must be
started one at a time to allow the associations to be created and
mapped.
Cayman
Gateway
44
Access the Web Interface
Open the Web Connection
Once your Gateway is powered up, you can use any recent version of the
best-known web browsers such as Netscape Navigator or Microsoft Internet
Explorer from any LAN-attached PC or workstation. The procedure is:
1. Enter the name or IP address of your Cayman Gateway in the Web
browser's window and press Return.
For example, you would enter http://192.168.1.254.
2. If an administrator or user password has been assigned to the Cayman
Gateway, enter Admin or User as the username and the appropriate pass-
word and click OK.
The Basic Mode Home Page opens.
3. Click on the Expert Mode link in the left-hand column of links.
45
Access the Web Interface
You are challenged to confirm your choice.
Click OK.
The Home Page opens in Expert Mode.
46
Home Page - Expert Mode
The Home Page is the summary page for your Cayman Gateway. The toolbar
at the top provides links to controlling, configuring, and monitoring pages.
Critical configuration and operational status is displayed in the center sec-
tion.
47
Access the Web Interface
Home Page - Information
The Home page’s center section contains a summary of the Gateway’s
configuration settings and operational status.
Summary Information
Field Status and/or Description
General Information
Hardware Model number and summary specification
Serial Number Unique serial number, located on label attached to bottom of unit
Software Version Release and build number of running Cayman Operating System.
Product ID Refers to internal circuit board series; useful in determining which software
upgrade applies to your hardware type.
WAN
Status Wide Area Network is either Up or Down
Data Rate (Kbps) Once connected, displays DSL speed rate, Downstream and Upstream
Local Address IP address assigned to the WAN port.
Peer Address The IP address of the gateway to which the connection defaults. If doing
DHCP, this info will be acquired. If doing PPP, this info will be negotiated.
Connection Type May be either Instant On or Always On.
NAT On or Off. ON if using Network Address Translation to share the IP address
across many LAN users.
WAN Users Displays the number of users allotted and the total number available for use.
LAN
IP Address Internal IP address of the Cayman Gateway.
Netmask Defines the IP subnet for the LAN
Default is 255.255.255.0 for a Class C device
DHCP Server On or Off. ON if using DHCP to get IP addresses for your LAN client
machines.
DHCP Leases A “lease” is held by each LAN client that has obtained an IP address
through DHCP.
DNS The default IP address of the current DNS server, if not specified. 0.0.0.0
means that the gateway address is supplied from the WAN.
48
Toolbar
The toolbar is the dark blue bar at the top of the page containing the major
navigation buttons. These buttons are available from almost every page,
allowing you to move freely about the site.
Home Configure Troubleshoot Security Install Restart Help
Quickstart System Status Passwords Install Key
LAN Network Tools Firewall Install Software
WAN Diagnostics IPSec
Advanced Security
Log
49
Navigating the Web Interface
Navigating the Web Interface

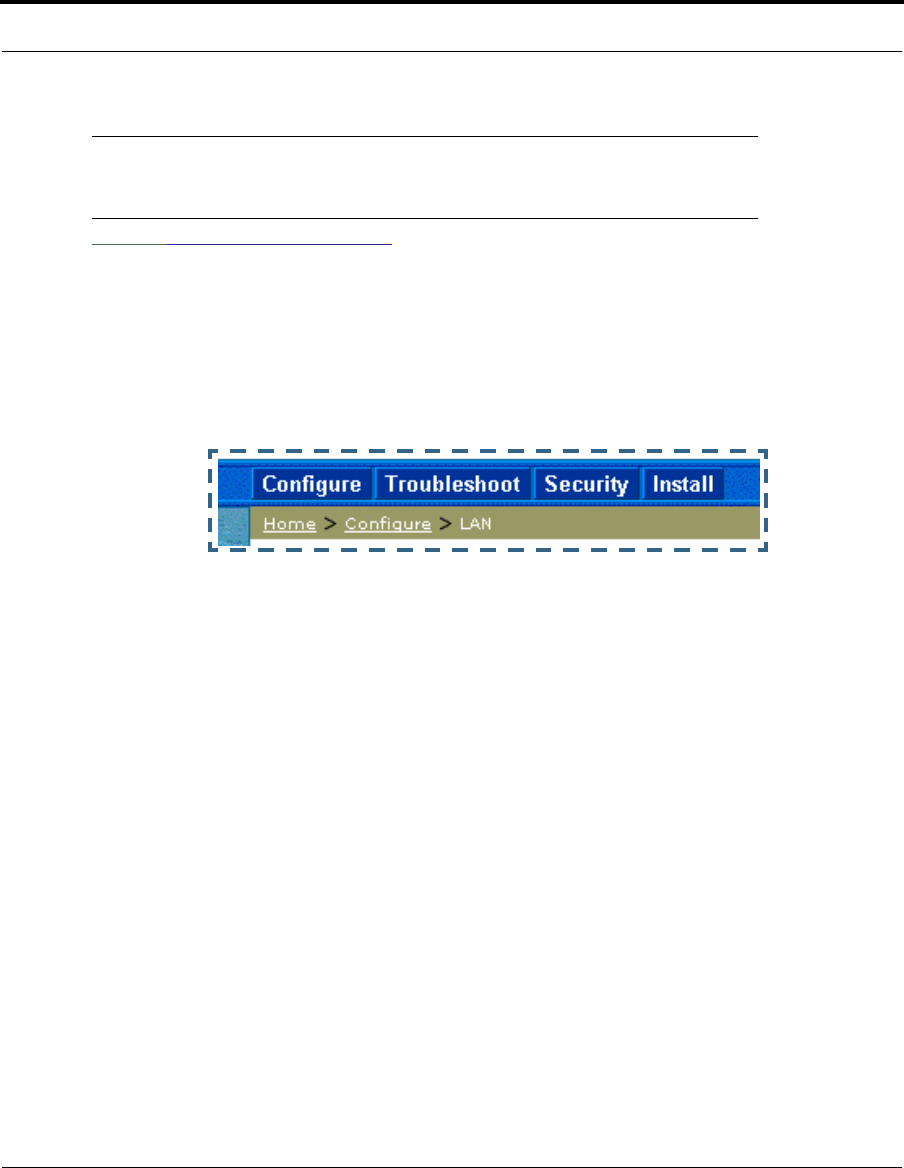

Link: Breadcrumb Trail
The breadcrumb trail is built in the light brown area beneath the toolbar. As
you navigate down a path within the site, the trail is built from left to right.
To return anywhere along the path from which you came, click on one of the
links.
50
Restart
Button: Restart

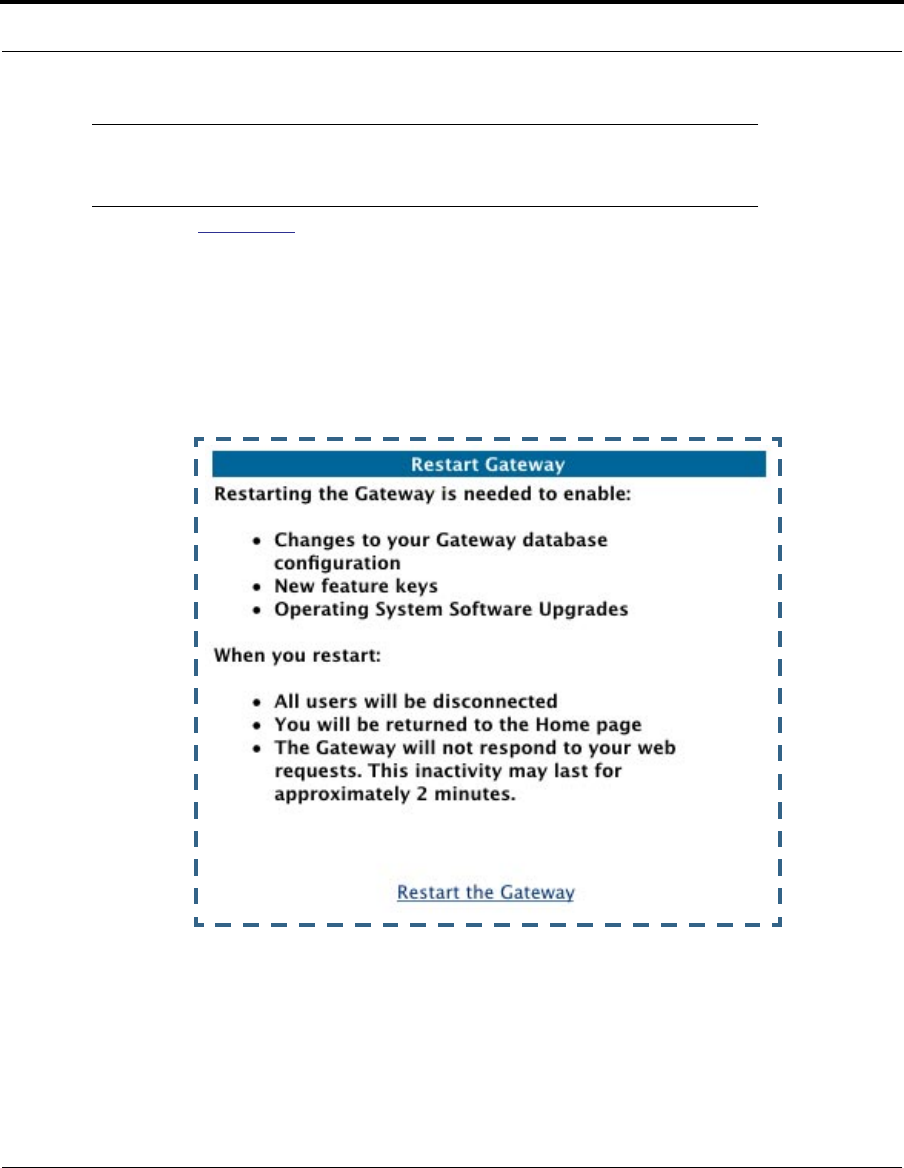

The Restart button on the toolbar allows you to restart the Gateway at any
time. You will be prompted to confirm the restart before any action is taken.
The Restart Confirmation message explains the consequences of and rea-
sons for restarting the Gateway.
51
Restart

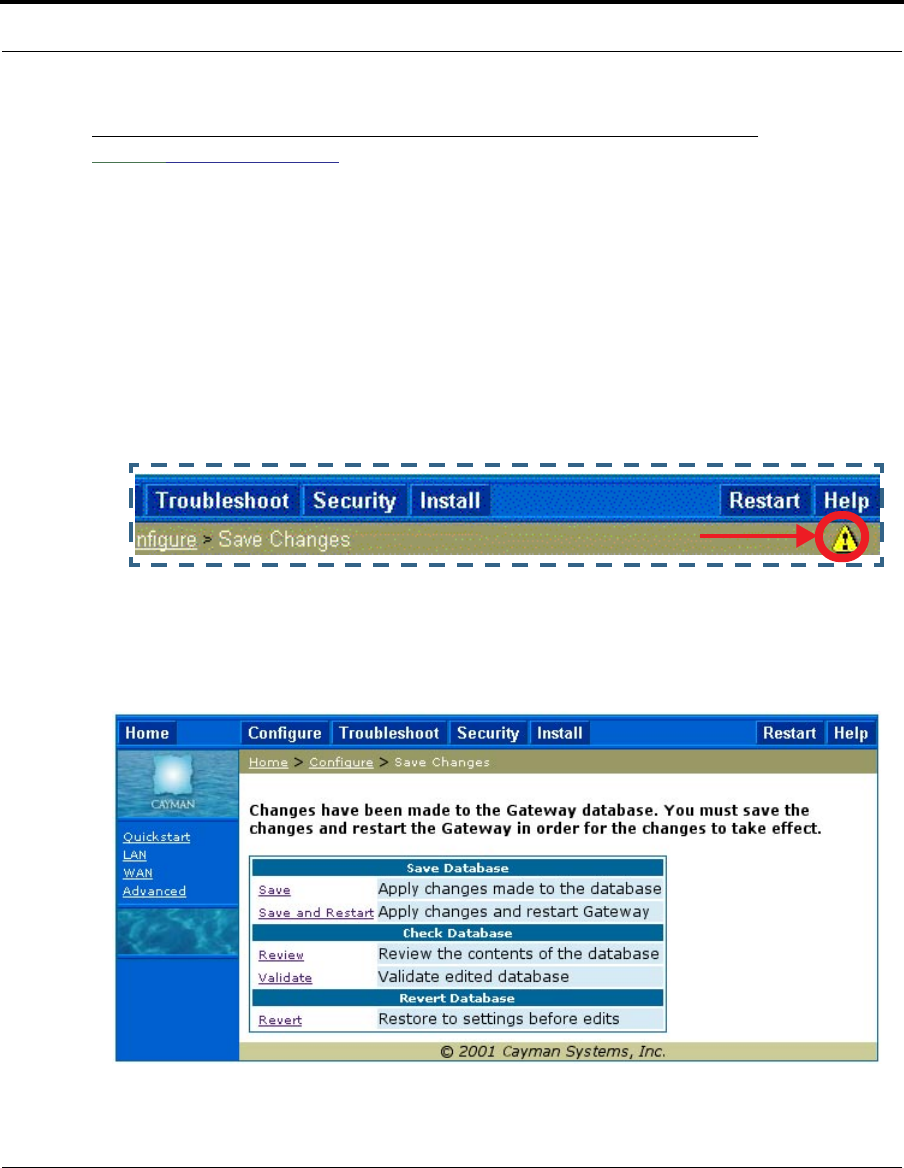

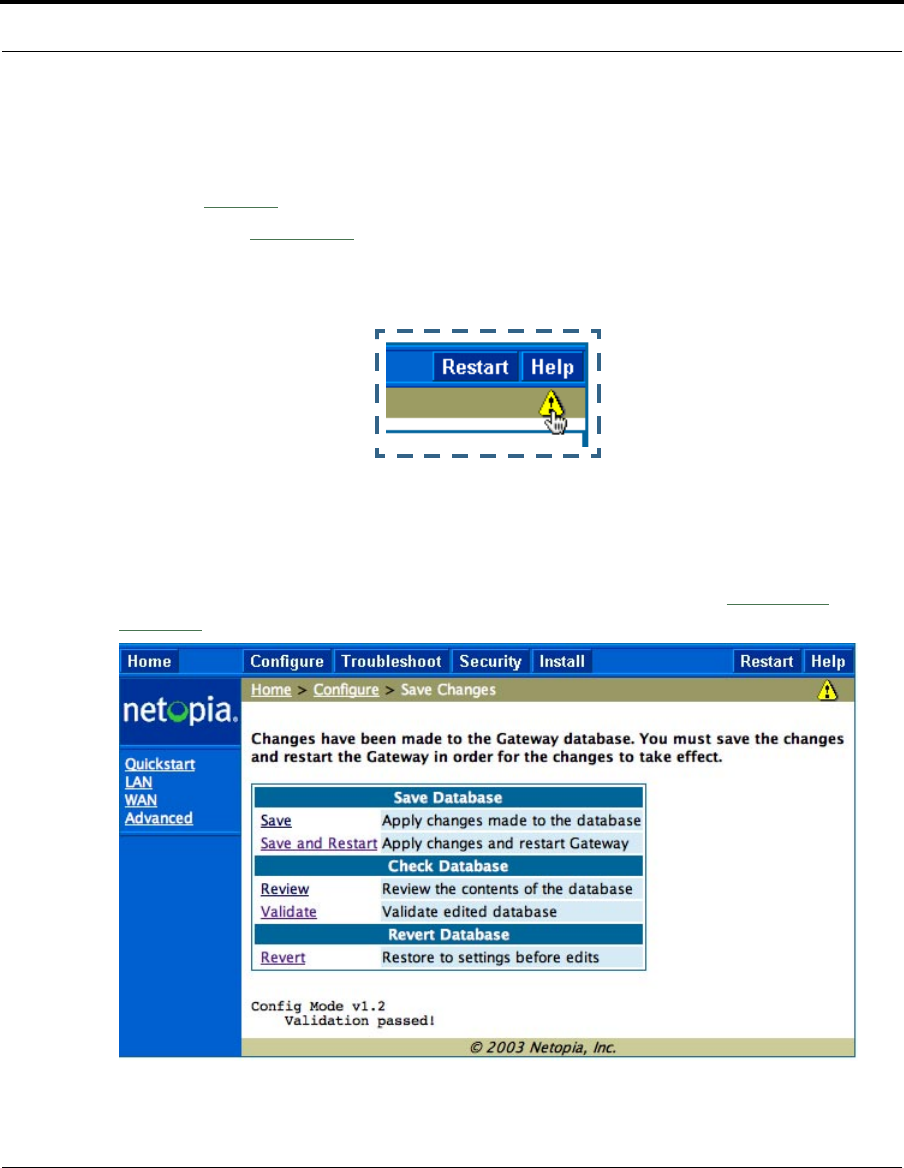

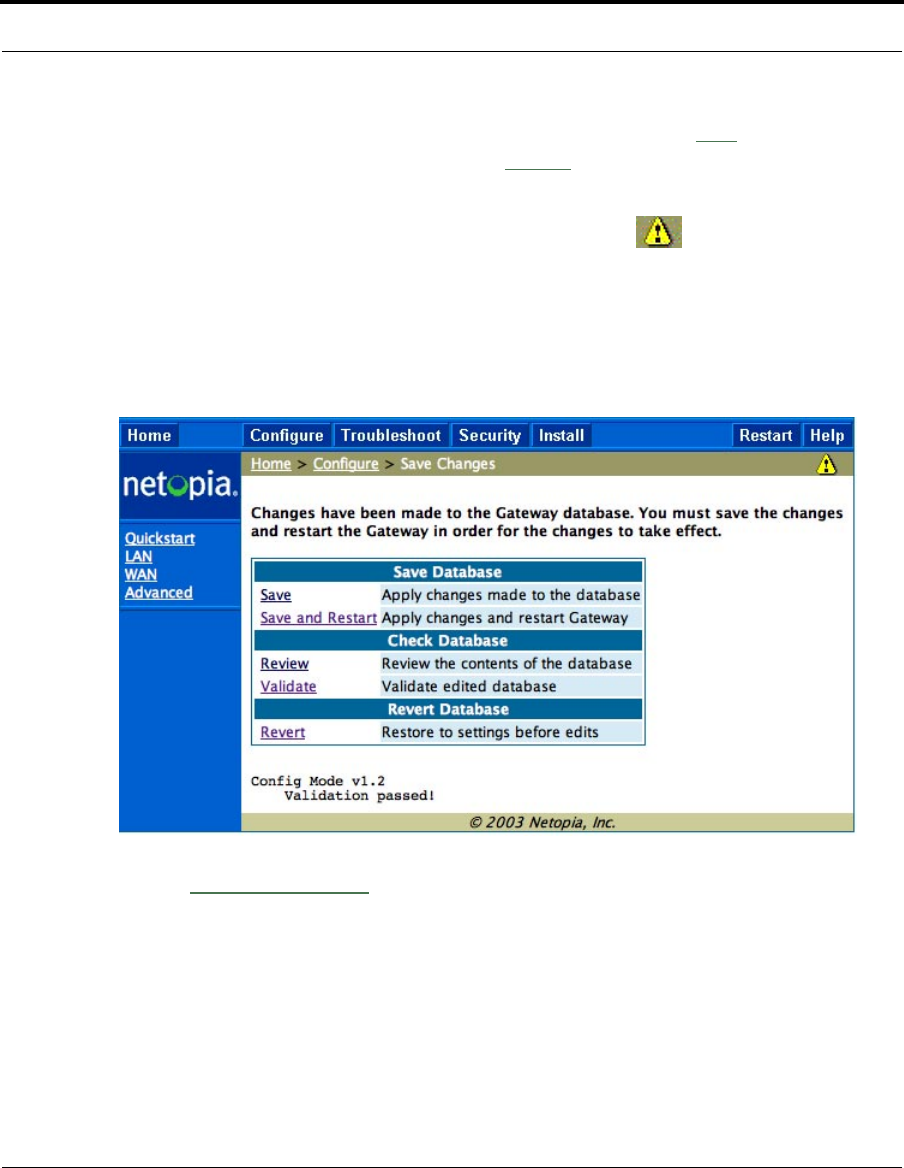

Link: Alert Symbol
The Alert symbol appears in the upper right corner if you make a database
change; one in which a change is made to the Gateway’s configuration. The
Alert serves as a reminder that you must Save the changes and Restart
the Gateway before the change will take effect. You can make many
changes on various pages, and even leave the browser for up to 8 minutes,
but if the Gateway is restarted before the changes are applied, they will be
lost. When you click on the Alert symbol, the Save Changes page appears.
Here you can select various options to save or discard these changes.
If more than one Alert is triggered, you will need to take action to clear the
first Alert before you can see the second Alert.
52

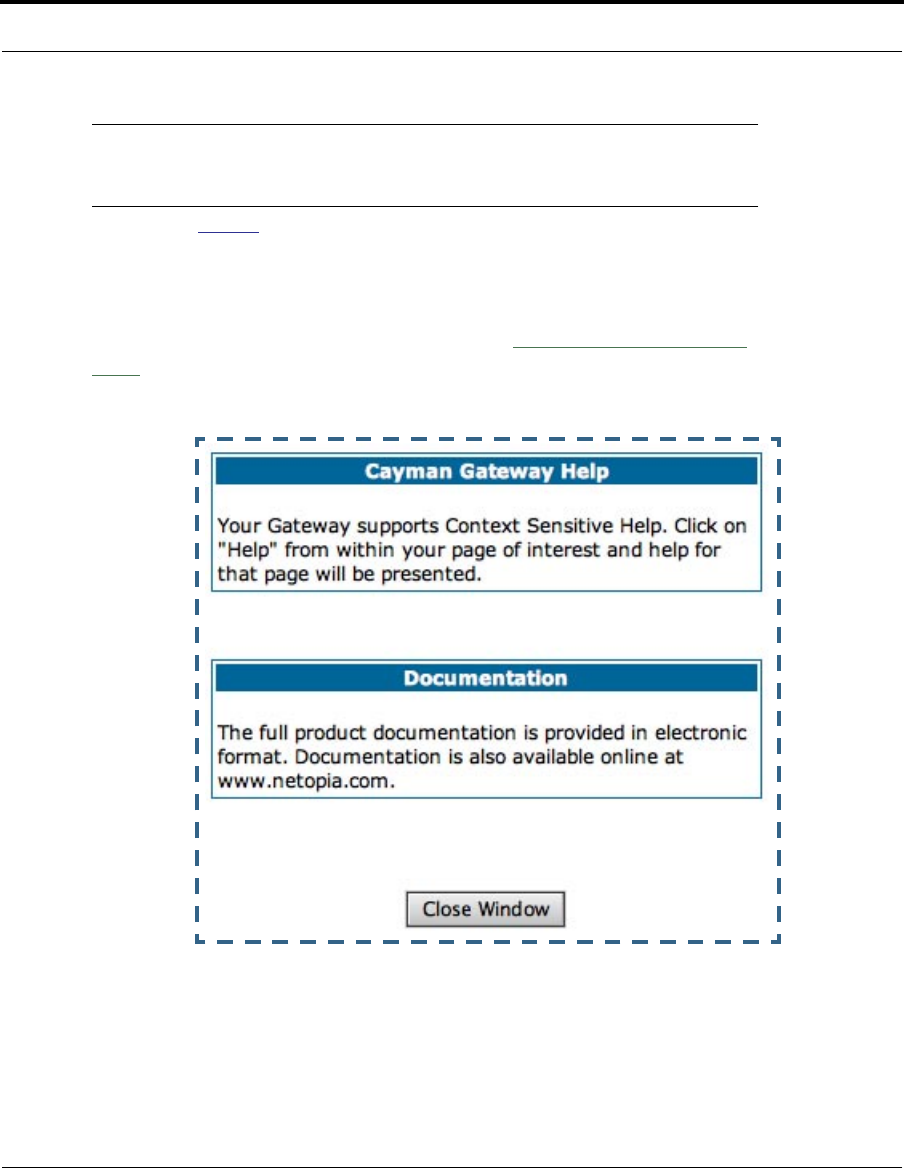

Help
Button: Help
Context-sensitive Help is provided in CaymanOS. The page shown here is
displayed when you are on the Home page or other transitional pages. To
see a context help page example, go to Security -> Passwords, then click
Help.
53
Configure
Configure
Button: Configure
The Configuration options are presented in the order of likelihood you will
need to use them. Quickstart is typically accessed during the hardware
installation and initial configuration phase. Often, these settings should
be changed only in accordance with information from your Service
Provider. LAN and WAN settings are available to fine-tune your system.
Advanced provides some special capabilities typically used for gaming or
small office environments, or where LAN-side servers are involved.
☛ This button will not be available if you log on as User.
Quickstart
How to Use the Quickstart Page. Quickstart is normally used immedi-
ately after the new hardware is installed. When you are first configuring your
Gateway, Quickstart appears first.
(Once you have configured your Gateway, logging on displays the Home
page. Thereafter, if you need to use Quickstart, choose it from the Expert
Mode Configure menu.)
Link: Configure -> Quickstart
Setup Your Gateway using a PPP Connection.
This example screen is the for a PPP Quickstart configuration. Your gate-
way authenticates with the Service Provider equipment using the ISP User-
54
name and Password. These values are given to you by your Service
Provider.
1. Enter your ISP Username and ISP Password.
2. Click Connect to the Internet.
A brief message is displayed while the Gateway attempts to establish a con-
nection.
3. When the connection succeeds, your browser will display your Service
Provider’s home page.
If you encounter any problems connecting, refer to the chapters “Basic
Troubleshooting” on page 129 or “Advanced Troubleshooting” on
page 139.
55
Configure
LAN

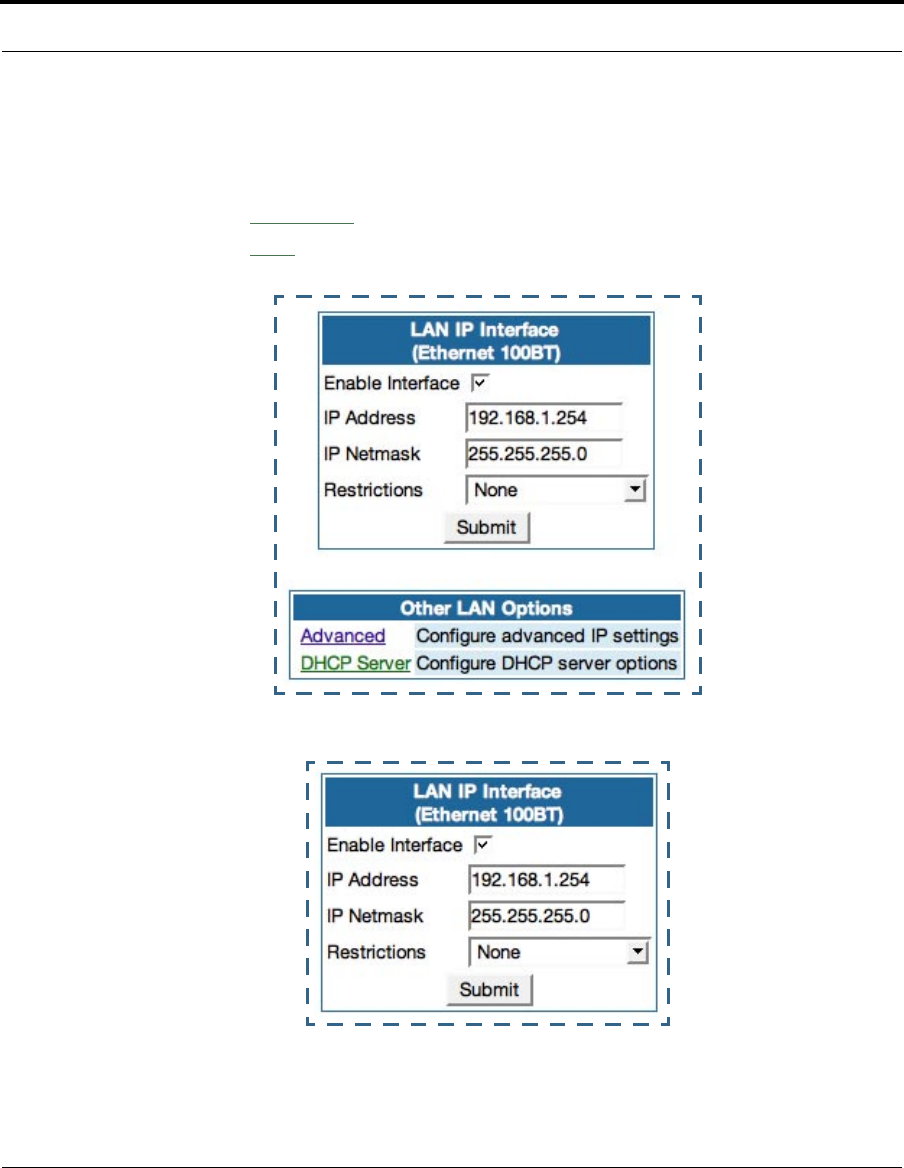

Link: Configure -> LAN
* Enable Interface: Enables all LAN-connected computers to share
resources and to connect to the WAN. The Interface should always be
enabled unless you are instructed to disable it by your Service Provider dur-
ing troubleshooting.
* IP Address: The LAN IP Address of the Gateway. The IP Address you
assign to your LAN interface must not be used by another device on your
LAN network.
* IP Netmask: Specifies the subnet mask for the TCP/IP network con-
nected to the virtual circuit. The subnet mask specifies which bits of the 32-
bit binary IP address represent network information. The default subnet
mask for most networks is 255.255.255.0 (Class C subnet mask.)
56
* Restrictions: Specifies whether an administrator can open a Web Admin-
istrator or Telnet connection to the Gateway over the LAN interface in order
to monitor and configure the Gateway. On the LAN Interface, you can enable
or disable administrator access. By default, administrative restrictions are
turned off, meaning an administrator can open a Web Administrator or Tel-
net connection through the LAN Interface.
• Advanced: Clicking on the Advanced link displays the Advanced LAN IP
Interface page.
•IGMP Forwarding: The default setting is Disabled. If you check this
option, it will enable Internet Group Management Protocol (IGMP) multi-
cast forwarding. IGMP allows a router to determine which host groups
have members on a given network segment.
•RIP Send Mode: Specifies whether the gateway should use Routing
Information Protocol (RIP) broadcasts to advertise its routing tables to
other routers on your network. You may choose from the following proto-
cols:
• RIP-1: Routing Information Protocol version 1
• RIP-2: RIP Version 2 is an extension of the original Routing Information
Protocol (RIP-1) that expands the amount of useful information in the RIP
packets. While RIP-1 and RIP-2 share the same basic algorithms, RIP-2
supports several new features, including inclusion of subnet masks in
RIP packets and implementation of multicasting instead of broadcasting
(which reduces the load on hosts which do not support routing protocols.
57
Configure
• RIP-1 compatibility: Compatible with RIP version 1
• RIP-2 with MD5: MD5 authentication is an extension of RIP-2 that
increases security by requiring an authentication key when routes are
advertised.
• RIP MD5 Key: Secret password when using RIP-2 with MD5.
•RIP Receive Mode: Specifies whether the Gateway should use Routing
Information Protocol (RIP) broadcasts to update its routing tables with
information received from other routers on your network. The protocol
choices are the same as for the RIP send mode.
• DHCP Server: Your Gateway can provide network configuration informa-
tion to computers on your LAN, using the Dynamic Host Configuration Proto-
col (DHCP).
If you already have a DHCP server on your LAN, you should turn this service
off.
If you want the Gateway to provide this service, click the Server Mode pull-
down menu, choose Server, then configure the range of IP addresses that
you would like the Gateway to hand out to your computers.
You can also specify the length of time the computers can use the configu-
ration information; DHCP calls this period the lease time.
58
Your Service Provider may, for certain services, want to provide configura-
tion from its DHCP servers to the computers on your LANs. In this case, the
Gateway will relay the DHCP requests from your computers to a DHCP
server in the Service Provider's network. Click the relay-agent and enter the
IP address of the Service Provider's DHCP server in the Server Address
field. This address is furnished by the Service Provider.
• Wireless: If your Gateway is a wireless model (such as a 3347W) you can
enable or disable the wireless LAN by clicking the Wireless link. When Wire-
less Options are disabled, the Gateway will not provide or broadcast any
wireless LAN services.
If you check the Enable Wireless checkbox, the screen expands to the fol-
lowing:

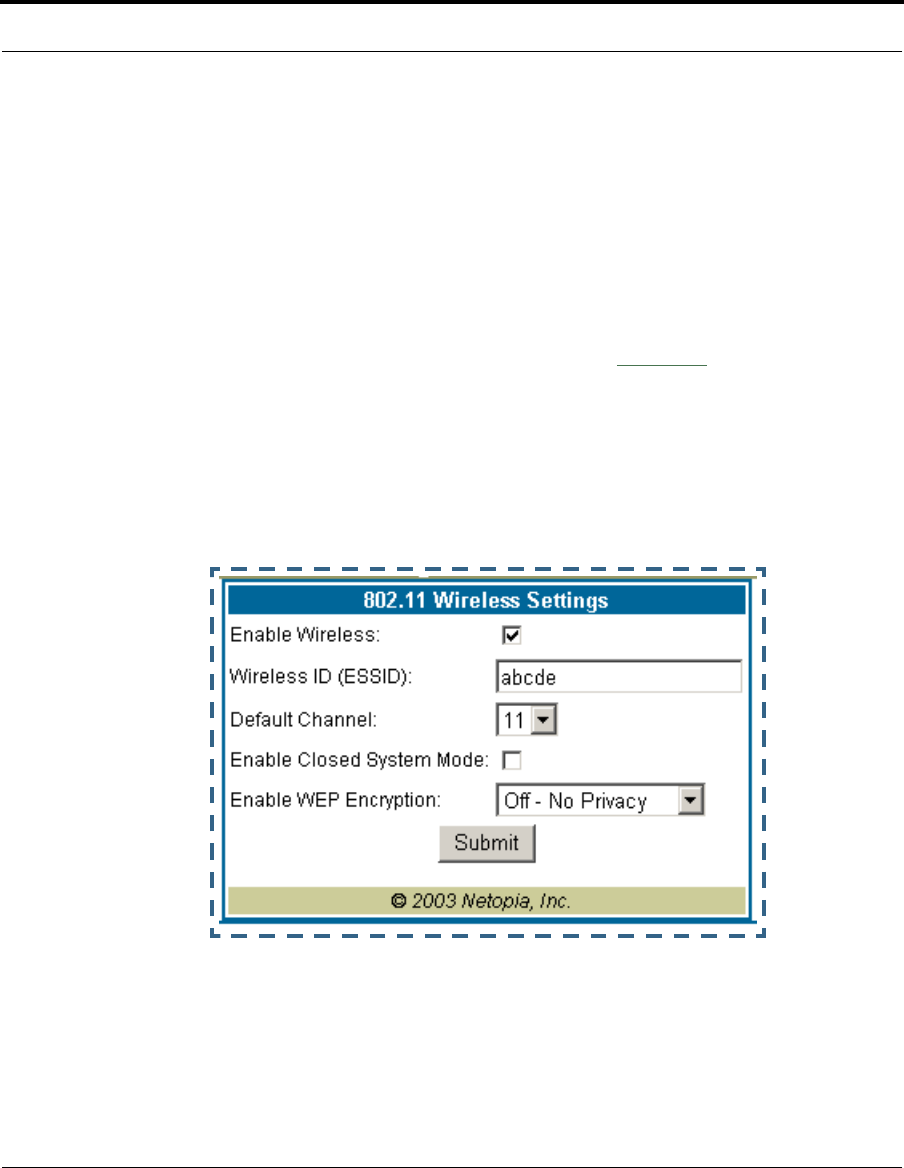

Wireless ID (ESSID): Enter a freeform name of up to 32 characters. This is
used to identify the wireless LAN. Users must select or enter this name on
their clients in order to become a part of this WLAN. On your client PCs’
software, this might be called Network Name or SSID.
59
Configure
You can then configure:
Default Channel: (1 through 11) on which the network will broadcast. This
is a frequency range within the 2.4Ghz band. Channel selection depends on
government regulated radio frequencies that vary from region to region. The
widest range available is from 1 to 14. However, in North America only 1 to
11 may be selected. Channel selection can have a significant impact on
performance, depending on other wireless activity close to this Gateway.
Channel selection is not necessary at the client computers; the clients will
scan the available channels seeking access points using the same ESSID
as the client.
Enable Closed System Mode: If enabled, Closed System Mode hides the
wireless network from the scanning features of wireless client computers.
Members of the Closed System WLAN must log onto the network by ESSID
and logon credentials; it will not appear in scanned lists of available access
points. If disabled, it is more convenient for clients to access your WLAN by
scanning available access points. You must decide based on your own net-
work requirements.
Enable WEP Encryption: You can provide a level of data security by
enabling WEP (Wired Equivalent Privacy) for encryption of network data. You
can enable 40-, 128-, or 256-bit WEP Encryption (depending on the capabil-
ity of your client wireless card) for IP traffic on your LAN.
You select a single key for encryption of outbound traffic. The WEP-enabled
client must have an identical key of the same length, in the identical slot (1
– 4) as the Gateway, in order to successfully receive and decrypt the traffic.
Similarly, the client also has a ‘default’ key that it uses to encrypt its trans-
missions. In order for the Gateway to receive the client’s data, it must like-
wise have the identical key of the same length, in the same slot. For
simplicity, a Gateway and its clients need only enter, share, and use the
first key.
60
You are strongly encouraged to enable WEP encryption on your wireless
LAN.
The pull-down menu for enabling WEP offers three settings: Off - No Pri-
vacy, On - Automatic, and On - Manual Entry.
•Off - No Privacy provides no encryption on your wireless LAN data.
61
Configure

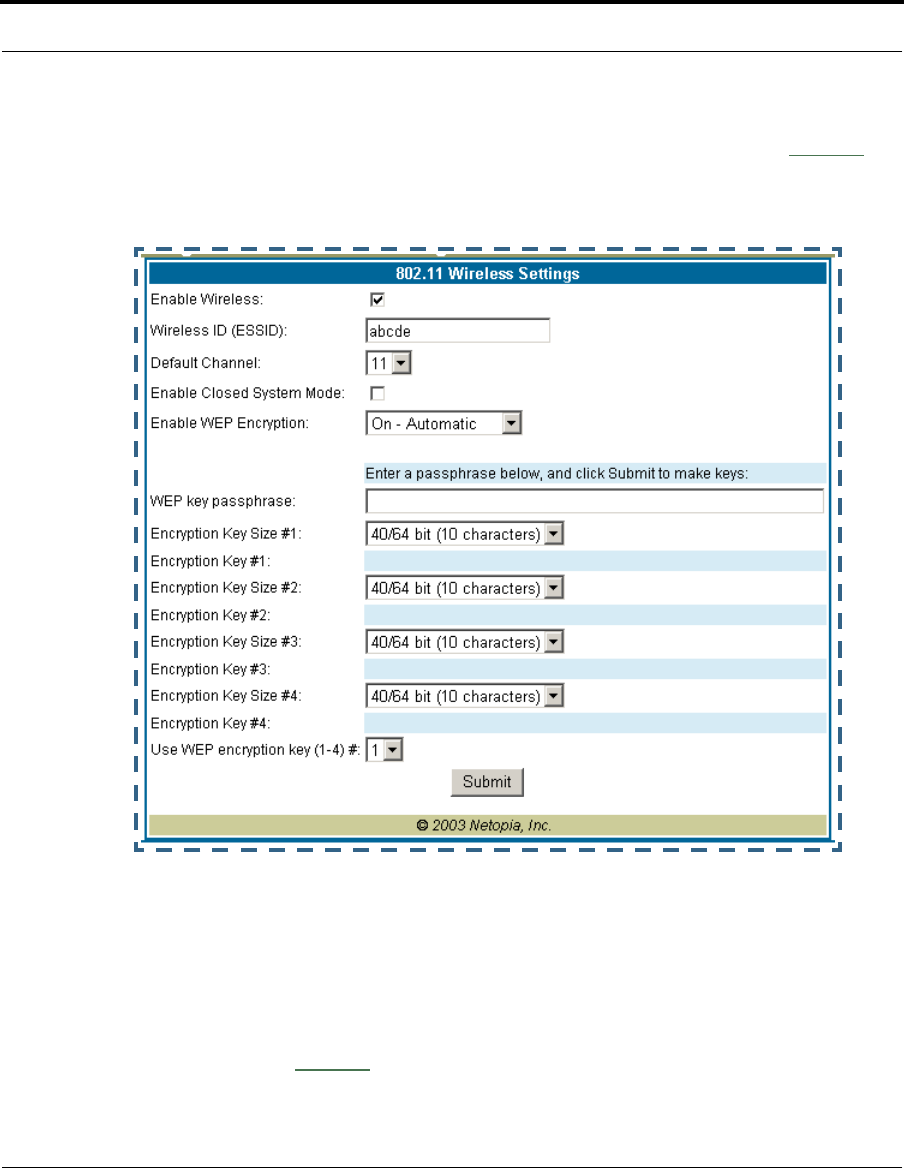

•On - Automatic is a passphrase generator. When you click the Submit
button, the software generates encryption keys automatically. Some cli-
ents may not generate the same keys.
Select the Encryption Key Size #1 – #4 from their respective pull-down
menus.
Use WEP encryption key (1 – 4) # specifies which key the Gateway will
use to encrypt transmitted traffic. The default is key #1.
When you click the Submit button, the software generates encryption keys
automatically.
62

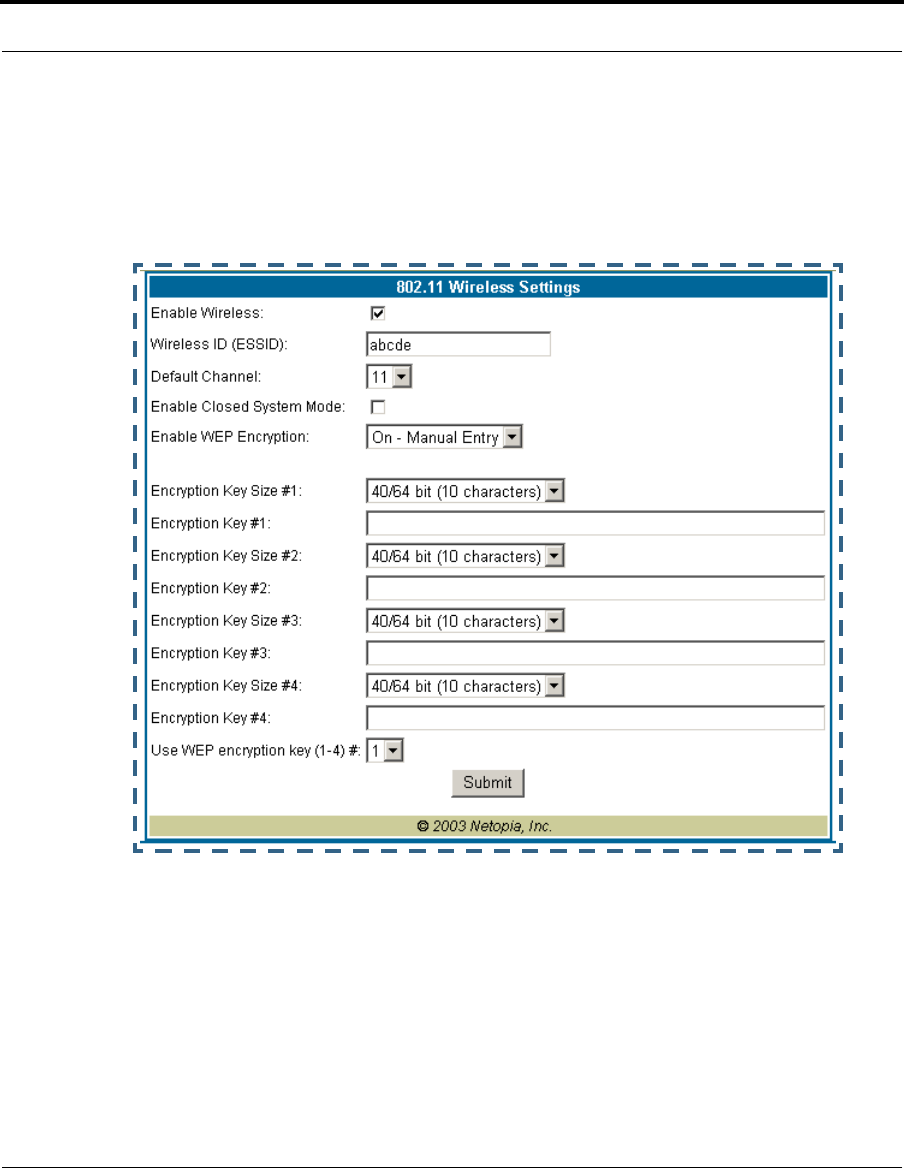

•On - Manual Entry allows you to enter your own encryption keys manu-
ally. This is a difficult process, but only needs to be done once. Avoid the
temptation to enter all the same characters.
Encryption Key Size #1 – #4: Selects the length of each encryption key.
The longer the key, the stronger the encryption and the more difficult it is to
break the encryption.
Encryption Key #1 – #4: The encryption keys. You enter keys using hexa-
decimal digits. For 40/64bit encryption, you need ten digits; 26 digits for
128bit, and 58 digits for 256bit WEP. Hexadecimal characters are 0 – 9,
and a – f.
63
Configure
Examples:
•40bit: 02468ACE02
•128bit: 0123456789ABCDEF0123456789
•256bit: 592CA140F0A238B0C61AE162F592CA140F0A238B0C61AE162F21A09C
Use WEP encryption key (1 – 4) #: Specifies which key the Gateway will
use to encrypt transmitted traffic. The default is key #1.
You disable the wireless LAN by unchecking the Enable Wireless checkbox,
clicking the Submit button, followed by the Save and Restart link.
64
WAN

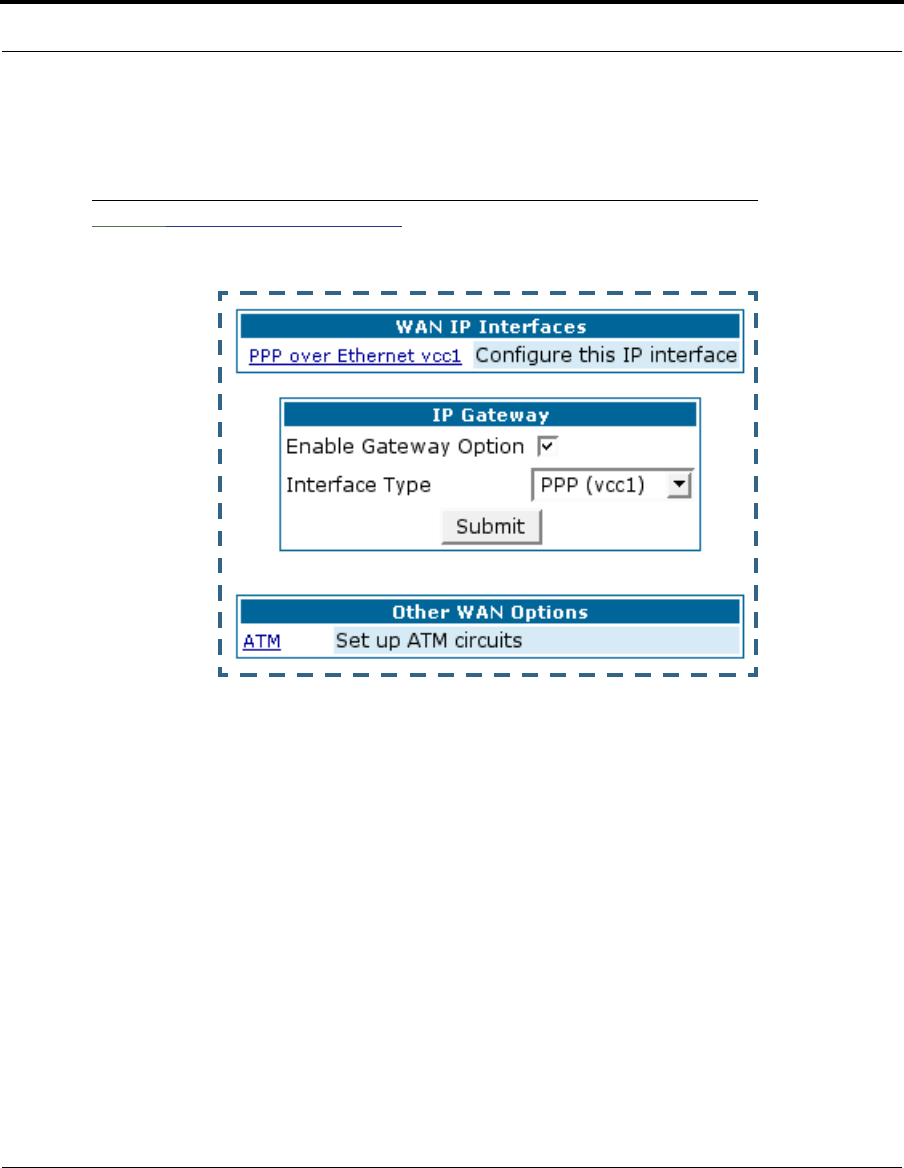

Link: Configure -> WAN
WAN IP Interfaces
Your IP interfaces are listed. Click on an interface to configure it.
IP Gateway
Enable Gateway: You can configure the Gateway to send packets to a
default gateway if it does not know how to reach the destination host.
Interface Type: If you have PPPoE enabled, you can specify that packets
destined for unknown hosts will be sent to the gateway being used by the
remote PPP peer. If you select ip-address, you must enter the IP address
of a host on a local or remote network to receive the traffic.
Default Gateway: The IP Address of the default gateway.
65
Configure
Other WAN Options
PPPoE: You can enable or disable PPPoE. This link also allows configura-
tion of NAT, admin restrictions, PPPoE username/password, and connec-
tion type.
ATM Circuits: You can configure the ATM circuits and the number of Ses-
sions. The IP Interface(s) should be reconfigured after making changes
here.
COS Version 7 supports VPI/VCI autodetection. If VPI/VCI autodetection
is enabled, the ATM Circuits page displays VPI/VCI = 0. If you configure a
new ATM VPI/VCI pair, upon saving and restarting, autodetection is dis-
abled and only the new VPI/VCI pair configuration will be enabled.
Autodetection can only be enabled through the CLI. (See “Command Line
Interface” on page 151.) VPI/VCI Autodetection consists of eight static
VPI/VCI pair configurations. These are 0/35, 8/35, 0/32, 1/35, 8/32,
1/1, 1/32, 2/32. These eight VPI/VCI pairs will be created if the Gate-
way is configured for autodetection. If the Gateway does not train to any
of these preconfigured VPI/VCI pairs, then you can manually enter a VPI/
VCI pair in the ATM Circuits page.
ATM Traffic Shaping: You can prioritize delay-sensitive data by configur-
ing the Quality of Service (QoS) characteristics of the virtual circuit. Click
the ATM Traffic Shaping link.
66
You can choose UBR (Unspecified Bit Rate) or CBR (Constant Bit Rate)
from the pull-down menu and set the Peak Cell Rate (PCR) in the editable
field.
Unspecified Bit Rate (UBR) guarantees no minimum transmission rate.
Cells are transmitted on a “best effort” basis. However, there is a cap
on the maximum transmission rate for UBR VCs. In a practical situation:
• UBR VCs should be transmitted at a priority lower than CBR.
• Bandwidth should be shared equally among UBR VCs.
UBR applications are non real time traffic such as IP data traffic.
Constant Bit Rate (CBR) guarantees a certain transmission rate
(although the application may under utilize this bandwidth). A Peak Cell
Rate (PCR) characterizes CBR. CBR is most suited for real time applica-
tions such as real time voice / video. Although it can be used for other
applications.
Class PCR SCR MBS Transmit
Priority Comments
UBR X N/A N/A Low PCR is a cap
CBR X N/A N/A High PCR is a guaranteed rate
67
Configure
Advanced

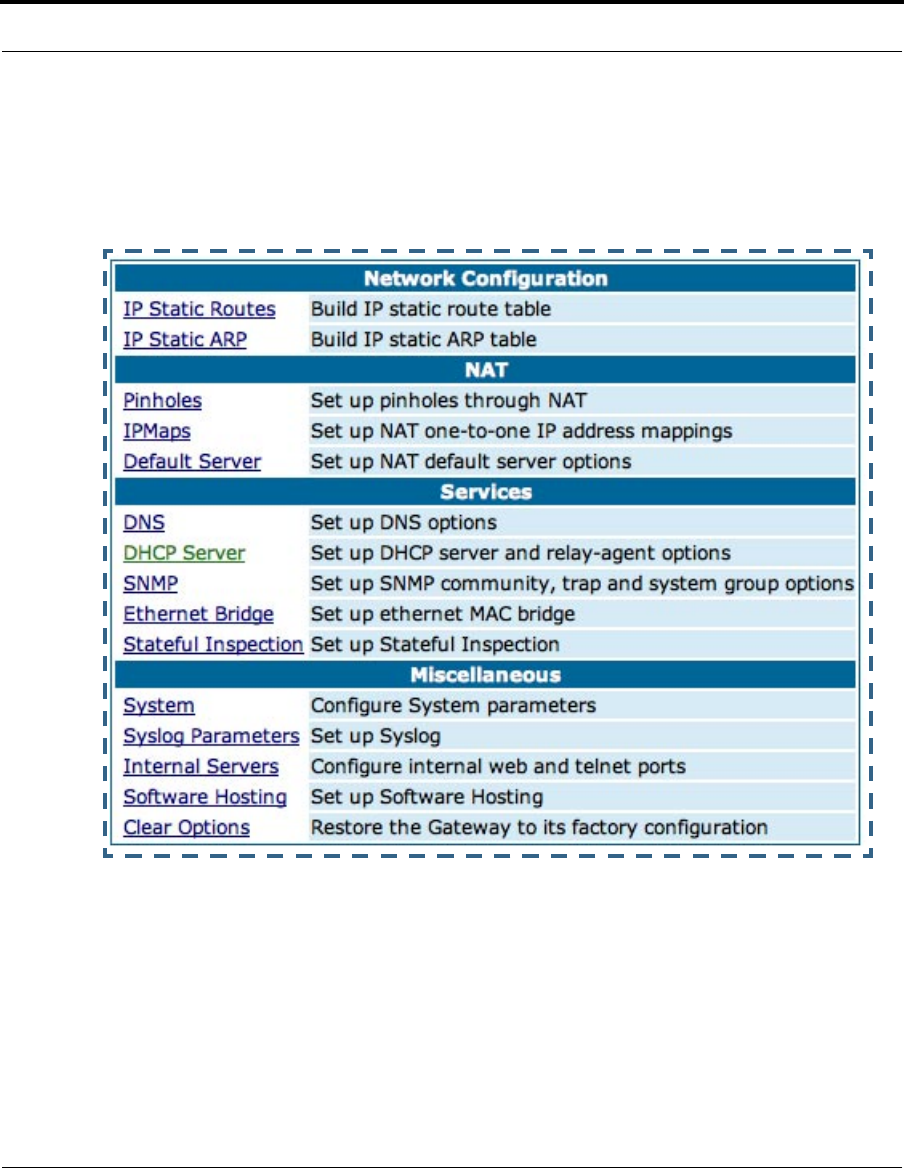

The following are links under Configure -> Advanced:
68
Link: Advanced
Selected Advanced options are discussed in the pages that follow. Many
are self-explanatory or are dictated by your service provider.

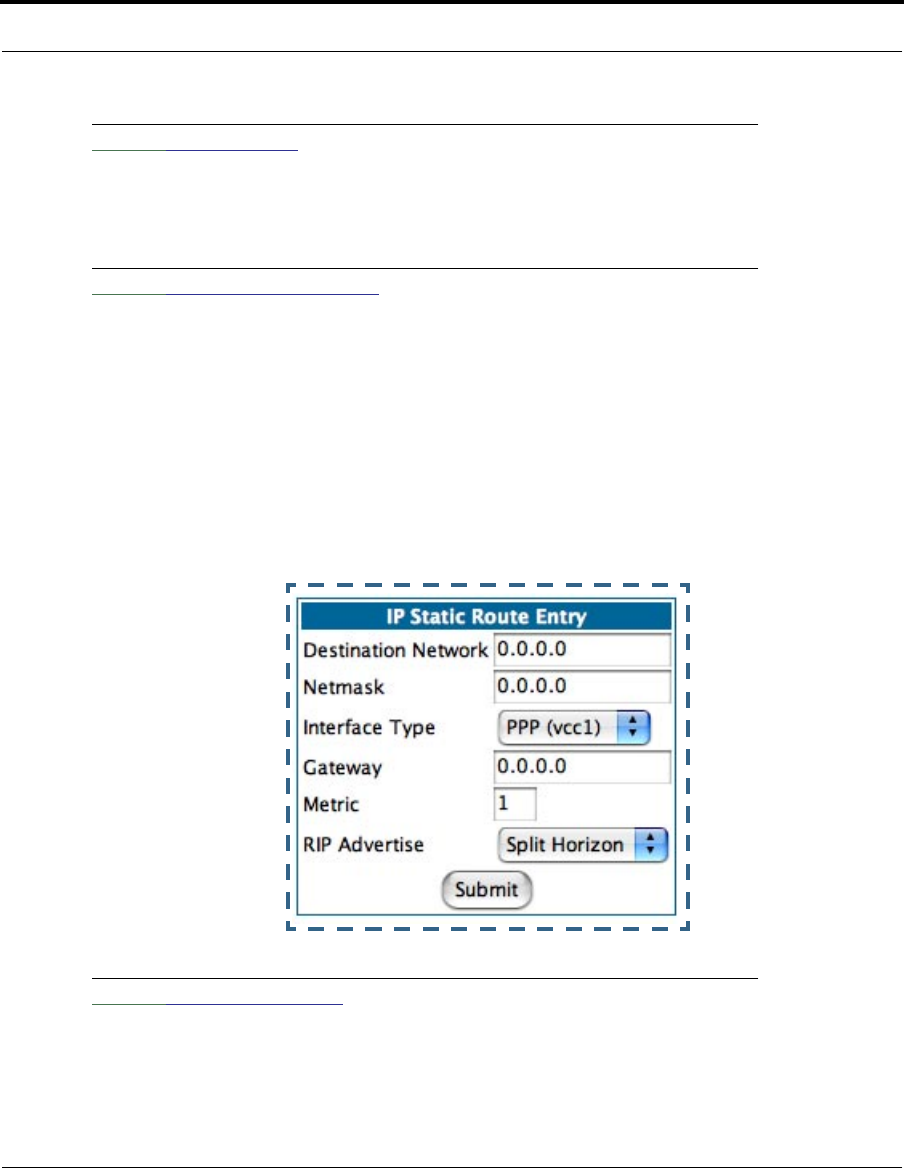

Link: IP Static Routes
A static route identifies a manually configured pathway to a remote network.
Unlike dynamic routes, which are acquired and confirmed periodically from
other routers, static routes do not time out. Consequently, static routes are
useful when working with PPP, since an intermittent PPP link may make
maintenance of dynamic routes problematic.
You can configure as many as 32 static IP routes for the Gateway.
Link: IP Static ARP
Your Gateway maintains a dynamic Address Resolution Protocol (ARP) table
to map IP addresses to Ethernet (MAC) addresses. It populates this ARP
table dynamically, by retrieving IP address/MAC address pairs only when it
69
Configure
needs them. Optionally, you can define static ARP entries to map IP
addresses to their corresponding Ethernet MAC addresses. Unlike dynamic
ARP table entries, static ARP table entries do not time out. The IP address
cannot be 0.0.0.0. The Ethernet MAC address entry is in nn-nn-nn-nn-nn-nn
(hexadecimal) format.
Link: Pinholes
Pinholes allow you to transparently route selected types of network traffic,
such as FTP requests or HTTP (Web) connections, to a specific host behind
the Gateway. Creating a pinhole allows access traffic originating from a
remote connection (WAN) to be sent to the internal computer (LAN) that is
specified in the Pinhole page.
Pinholes are common for applications like multiplayer online games. Refer
to software manufacturer application documentation for specific traffic
types and port numbers.
70
Configure Specific Pinholes. Planning for Your Pinholes. Determine if
any of the service applications that you want to provide on your LAN sta-
tions use TCP or UDP protocols. If an application does, then you must con-
figure a pinhole to implement port forwarding. This is accessed from the
Advanced -> Pinholes page.

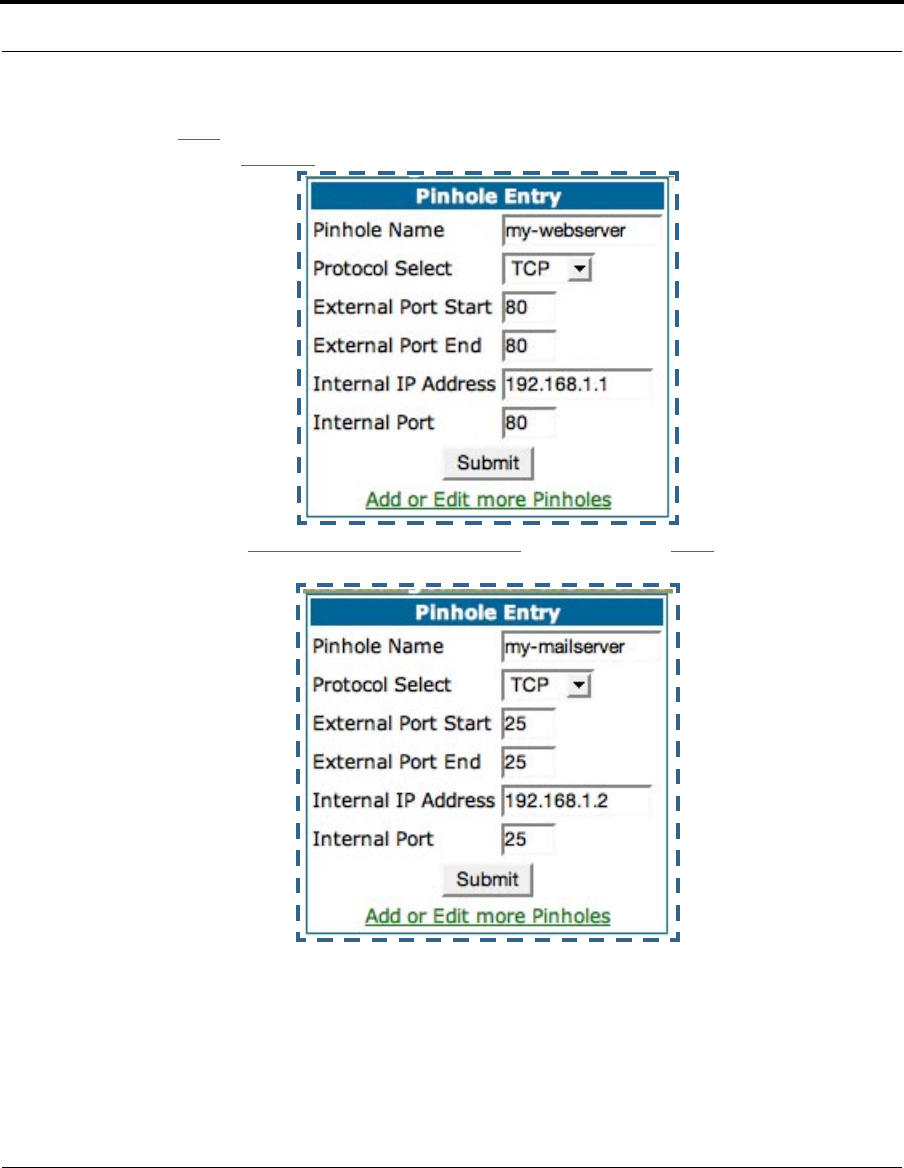

Example: A LAN Requiring Three Pinholes . The procedure on the fol-
lowing pages describes how you set up your NAT-enabled Cayman Gateway
to support three separate applications. This requires passing three kinds of
specific IP traffic through to your LAN.
Application 1: You have a Web server located on your LAN behind your Cay-
man Gateway and would like users on the Internet to have access to it. With
NAT “On”, the only externally visible IP address on your network is the Gate-
way’s WAN IP (supplied by your Service Provider). All traffic intended for that
LAN Web server must be directed to that IP address.
Application 2: You want one of your LAN stations to act as the “central
repository” for all email for all of the LAN users.
Application 3: One of your LAN stations is specially configured for game
applications. You want this specific LAN station to be dedicated to games.
A sample table to plan the desired pinholes is:
For this example, Internet protocols TCP and UDP must be passed through
the NAT security feature and the Gateway’s embedded Web (HTTP) port
must be re-assigned by configuring new settings on the Internal Servers
page.
WAN Traffic Type Protocol Pinhole Name LAN Internal IP
Address
Web TCP my-webserver 192.168.1.1
Email TCP my-mailserver 192.168.1.2
Games UDP my-games 192.168.1.3
71
Configure
☛ TIPS for making Pinhole Entries:
1. If the port forwarding feature is required for Web services,
ensure that the embedded Web server’s port number is re-
assigned PRIOR to any Pinhole data entry.
2. Enter data for one Pinhole at a time.
3. Use a unique name for each Pinhole. If you choose a duplicate
name, it will overwrite the previous information without warning.
72
A diagram of this LAN example is:
You can also use the LAN-side address of the Gateway, 192.168.1.x:8100
to access the web and telnet server.
WAN
LAN
Ethernet
Interface
192.168.1.1
192.168.1.2
192.168.1.3
my-webserver
my-mailserver
my-games
Gateway
NAT
NAT Pinholes
Embedded
Web Server
210.219.41.20
210.219.41.20:8100
Ethernet
Interface
Internet
73
Configure
Pinhole Configuration Procedure. Use the following steps:
1. From the Configure toolbar button -> Advanced link, select the Internal
Servers link.
Since Port Forwarding is required for this example, the Cayman embed-
ded Web server is configured first.
☛ NOTE:
The two text boxes, Web (HTTP) Server Port and Telnet Server
Port, on this page refer to the port numbers of the Cayman Gate-
way’s embedded administration ports.
To pass Web traffic through to your LAN station(s), select a Web (HTTP) Port
number that is greater than 1024. In this example, you choose 8100.
2. Type 8100 in the Web (HTTP) Server Port text box.
3. Click the Submit button.
4. Click Advanced. Select the Pinholes link to go to the Pinhole page.
74
5. Click Add. Type your specific data into the Pinhole Entries table of this
page. Click Submit.
6. Click on the Add or Edit more Pinholes link. Click the Add button. Add the
next Pinhole. Type the specific data for the second Pinhole.
75
Configure
7. Click on the Add or Edit more Pinholes link. Click the Add button. Add the
next Pinhole. Type the specific data for the third Pinhole.
☛ NOTE:
Note the following parameters for the “my-games” Pinhole:
1. The Protocol ID is UDP.
2. The external port is specified as a range.
3. The Internal port is specified as the lower range entry.
76
8. Click on the Add or Edit more Pinholes link. Review your entries to be
sure they are correct.
9. Click the Alert button.
10. Select the Save and Restart link to complete the entire Pinhole creation
task and ensure that the parameters are properly saved.
☛ NOTE:
REMEMBER: When you have re-assigned the port address for the
embedded Web server, you can still access this facility.
Use the Gateway’s WAN address plus the new port number.
In this example it would be
<WAN Gateway address>:<new port number> or, in this case,
210.219.41.20:8100
You can also use the LAN-side address of the Gateway,
192.168.1.x:8100 to access the web and telnet server.
Link: IPMaps

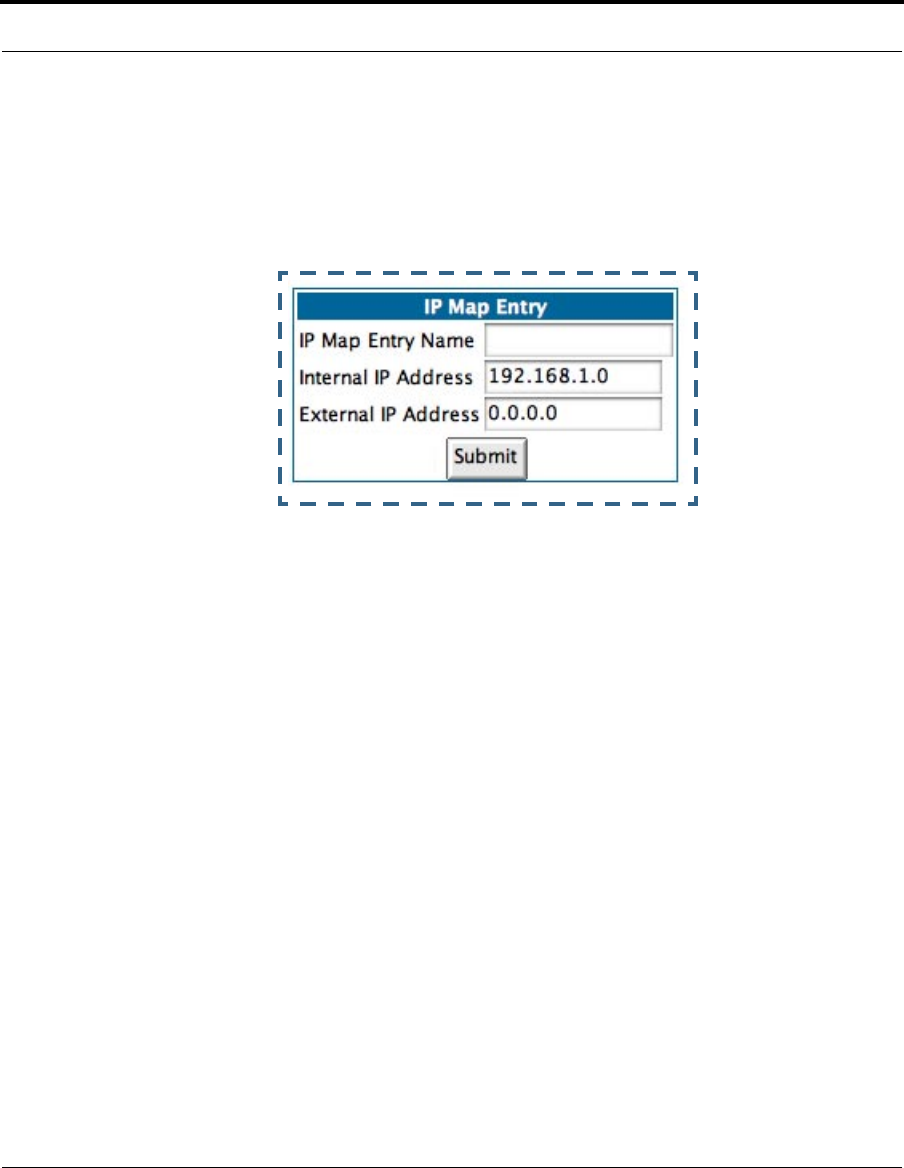

IPMaps supports one-to-one Network Address Translation (NAT) for IP
addresses assigned to servers, hosts, or specific computers on the LAN
side of the Cayman Gateway.
77
Configure
A single static or dynamic (DHCP) WAN IP address must be assigned to sup-
port other devices on the LAN. These devices utilize Cayman’s default NAT/
PAT capabilities.
Configure the IPMaps Feature
FAQs for the IPMaps Feature
Before configuring an example of an IPMaps-enabled network, review these
frequently asked questions.
What are IPMaps and how are they used? The IPMaps feature allows
multiple static WAN IP addresses to be assigned to the Cayman Gateway.
Static WAN IP addresses are used to support specific services, like a web
server, mail server, or DNS server. This is accomplished by mapping a sep-
arate static WAN IP address to a specific internal LAN IP address. All traffic
arriving at the Gateway intended for the static IP address is transferred to
the internal device. All outbound traffic from the internal device appears to
originate from the static IP address.
Locally hosted servers are supported by a public IP address while LAN
users behind the NAT-enabled IP address are protected.
78
IPMaps is compatible with the use of NAT, with either a statically assigned
IP address or DHCP/PPP served IP address for the NAT table.
What types of servers are supported by IPMaps? IPMaps allows a Cay-
man Gateway to support servers behind the Gateway, for example, web,
mail, FTP, or DNS servers. VPN servers are not supported at this time.
Can I use IPMaps with my PPPoE or PPPoA connection? Yes. IPMaps
can be assigned to the WAN interface provided they are on the same
subnet. Service providers will need to ensure proper routing to all IP
addresses assigned to your WAN interface.
Will IPMaps allow IP addresses from different subnets to be assigned
to my Gateway? IPMap will support statically assigned WAN IP addresses
from the same subnet.
WAN IP addresses from different subnets are not supported.
79
Configure
IPMaps Block Diagram
The following diagram shows the IPMaps principle in conjunction with exist-
ing Cayman NAT operations:
NAT/PAT Table
143.137.50.37
143.137.50.36
143.137.50.35
192.168.1.1
192.168.1.n
192.168.1.3
192.168.1.2
...
...
Cayman Gateway
Static IP Addresses
for IPMaps Applications
143.137.50.37
143.137.50.36
143.137.50.35
Static IP Addresses
or
DHCP/PPP Served IP Address
for Cayman’s default NAT/PAT
Capabilities
IPMaps:
One-to-One
Multiple Address Mapping
LAN stations with WAN IP traffic
forwarded by Cayman’s IPMaps
LAN stations with WAN IP traffic
forwarded by Cayman’s NAT function.
WAN Interface LAN Interface
192.168.1.1
192.168.1.2
192.168.1.3
192.168.1.n
.
.
.
80
Link: Default Server
This feature allows you to:
•Direct your Gateway to forward all externally initiated IP traffic (TCP and
UDP protocols only) to a default host on the LAN.
• Enable it for certain situations:
– Where you cannot anticipate what port number or packet protocol an
in-bound application might use. For example, some network games
select arbitrary port numbers when a connection is opened.
– When you want all unsolicited traffic to go to a specific LAN host.
•Configure for IP Passthrough.
Configure a Default Server. This feature allows you to direct unsolicited
or non-specific traffic to a designated LAN station. With NAT “On” in the
Gateway, these packets normally would be discarded.
For instance, this could be application traffic where you don’t know (in
advance) the port or protocol that will be used. Some game applications fit
this profile.
Use the following steps to setup a NAT default server to receive this infor-
mation:
1. Select the Configure toolbar button, then Advanced, then the Default
Server link.
2. From the pull-down menu, select Default-Server. The NAT Server IP
Address field appears.
81
Configure
3. Determine the IP address of the LAN computer you have chosen to
receive the unexpected or unknown traffic.
Enter this address in the NAT Server IP Address field.
4. Click the Submit button.
5. Click the Alert button.
6. Click the Save and Restart link to confirm.
82
Typical Network Diagram. A typical network using the NAT Default Server
looks like this:
You can also use the LAN-side address of the Gateway, 192.168.1.x to
access the web and telnet server.
WAN
LAN
Ethernet
Interface
192.168.1.3
192.168.1.2
192.168.1.1
LAN STN #3
LAN STN #2
NAT Default Server
Gateway
NAT
NAT Pinhole
Embedded
Web Server
210.219.41.20
210.219.41.20
(Port 80 default)
NAT protected
Ethernet
Interface
Internet
83
Configure
NAT Combination Application. Cayman’s NAT security feature allows you
to configure a sophisticated LAN layout that uses both the Pinhole and
Default Server capabilities.
With this topology, you configure the embedded administration ports as a
first task, followed by the Pinholes and, finally, the NAT Default Server.
When using both NAT pinholes and NAT Default Server the Gateway works
with the following rules (in sequence) to forward traffic from the Internet to
the LAN:
1. If the packet is a response to an existing connection created by outbound
traffic from a LAN PC, forward to that station.
2. If not, check for a match with a pinhole configuration and, if one is found,
forward the packet according to the pinhole rule.
3. If there’s no pinhole, the packet is forwarded to the Default Server.
IP-Passthrough. COS Version 7 now offers an IP passthrough feature. The
IP passthrough feature allows a single PC on the LAN to have the Gateway’s
public address assigned to it. It also provides PAT (NAPT) via the same pub-
lic IP address for all other hosts on the private LAN subnet. Using IP
passthrough:
•The public WAN IP is used to provide IP address translation for private
LAN computers.
•The public WAN IP is assigned and reused on a LAN computer.
•DHCP address serving can automatically serve the WAN IP address to a
LAN computer.
When DHCP is used for addressing the designated passthrough PC, the
acquired or configured WAN address is passed to DHCP, which will
dynamically configure a single-servable-address subnet, and reserve the
address for the configured MAC address. This dynamic subnet configura-
tion is based on the local and remote WAN address and subnet mask. If
the WAN interface does not have a suitable subnet mask that is usable,
for example when using PPP or PPPoE, the DHCP subnet configuration
84
will default to a class C subnet mask.
If you select IP-Passthrough the Host Hardware Address field displays.
Here you enter the MAC address of the designated IP-Passthrough com-
puter.
•If this MAC address is not all zeroes, then it will use DHCP to set the LAN
host's address to the (configured or acquired) WAN IP address.
The MAC address must be six colon-delimited or dash-delimited sets of
hex digits ('0' – 'FF').
•If the MAC address is all zeroes, then the LAN host will have to be config-
ured manually.
Once configured, the passthrough host's DHCP leases will be shortened to
two minutes. This allows for timely updates of the host's IP address, which
will be a private IP address before the WAN connection is established. After
the WAN connection is established and has an address, the passthrough
host can renew its DHCP address binding to acquire the WAN IP address.
A restriction. Since both the Gateway and the passthrough host will use
the same IP address, new sessions that conflict with existing sessions will
be rejected by the Gateway. For example, suppose you are a teleworker
using an IPSec tunnel from the Gateway and from the passthrough host.
Both tunnels go to the same remote endpoint, such as the VPN access con-
centrator at your employer’s office. In this case, the first one to start the
IPSec traffic will be allowed; the second one – since, from the WAN, it's
indistinguishable – will fail.
85
Configure
Link: DNS
Your Service Provider may maintain a Domain Name server. If you have the
information for the DNS servers, enter it on the DNS page. If your Gateway
is configured to use DHCP to obtain its WAN IP address, the DNS informa-
tion is automatically obtained from that same DHCP Server.
Link: DHCP Server
Your Gateway can provide network configuration information to computers
on your LAN, using the Dynamic Host Configuration Protocol (DHCP).
If you already have a DHCP server on your LAN, you should turn this service
off.
If you want the Gateway to provide this service, click the Server Mode pull-
down menu, then configure the range of IP addresses that you would like
the Gateway to hand out to your computers.
86
You can also specify the length of time the computers can use the configu-
ration information; DHCP calls this period the lease time.
Your Service Provider may, for certain services, want to provide configura-
tion from its DHCP servers to the computers on your LANs. In this case, the
Gateway will relay the DHCP requests from your computers to a DHCP
server in the Service Provider's network.
Click the relay-agent and enter the IP address of the Service Provider's
DHCP server in the Server Address field. This address is furnished by the
Service Provider.
Link: SNMP
The Simple Network Management Protocol (SNMP) lets a network adminis-
trator monitor problems on a network by retrieving settings on remote net-
work devices. The network administrator typically runs an SNMP
management station program on a local host to obtain information from an
SNMP agent. In this case, the Cayman Gateway is an SNMP agent.
You enter SNMP configuration information on this page.
Your network administrator furnishes the SNMP parameters.
87
Configure
☛ WARNING:
SNMP presents you with a security issue. The community
facility of SNMP behaves somewhat like a password. The
community “public” is a well-known community name. It
could be used to examine the configuration of your Gateway
by your service provider or an uninvited reviewer. While
Cayman's SNMP implementation does not allow changes to
the configuration, the information can be read from the
Gateway.
If you are strongly concerned about security, you may
delete the “public” community.
88
Link: Advanced -> Ethernet Bridge
The Cayman Gateway can be used as a bridge, rather than a router. A
bridge is a device that joins two networks. As an Internet access device, a
bridge connects the home computer directly to the service provider’s net-
work equipment with no intervening routing functionality, such as Network
Address Translation. Your home computer becomes just another address
on the service provider’s network. In a DSL connection, the bridge serves
simply to convey the digital data information back and forth over your tele-
phone lines in a form that keeps it separate from your voice telephone sig-
nals.
If your service provider’s network is set up to provide your Internet connec-
tivity via bridge mode, you can set your Cayman Gateway to be compatible.
Bridges let you join two networks, so that they appear to be part of the
same physical network. As a bridge for protocols other than TCP/IP, your
Gateway keeps track of as many as 255 MAC (Media Access Control)
addresses, each of which uniquely identifies an individual host on a net-
work. Your Gateway uses this bridging table to identify which hosts are
accessible through which of its network interfaces. The bridging table con-
tains the MAC address of each packet it sees, along with the interface over
which it received the packet. Over time, the Gateway learns which hosts are
available through its WAN port and/or its LAN port.
When configured in Bridge Mode, the Cayman will act as a pass-through
device and allow the workstations on your LAN to have public addresses
directly on the internet.
☛ NOTE:
In this mode the Cayman is providing NO firewall protection as is
afforded by NAT. Also, only the workstations that have a public
address can access the internet. This can be useful when you
need to use all five of your static public IPs on the LAN.
89
Configure
Configuring for Bridge Mode
1. Browse into the Cayman Gateway’s web interface.
2. Click on the Configure button in the upper Menu bar.
3. Click on the LAN link.
The LAN page appears.
4. In the box titled LAN IP Interface (Ethernet 100BT):
a. Check the Enable Interface selection.
*Make note of the Ethernet IP Address and subnet mask.
90
You can use this address to access the router in the future.
b. Click Submit.
5. Click on DHCP Server in the box titled Other LAN Options:
a. Set Server Mode to Off.
b. Click Submit.
6. Click on the Advanced link in the left-hand links toolbar.
7. Under the heading of Services, click on the Ethernet Bridge link.
The Ethernet Bridge page appears.
8. Check the Enable Bridging Function selection.
The window expands.
9. Under Ethernet 100BT (LAN):
91
Configure
Check the Enable Bridging on Port selection.
10. Under RFC-1483 Bridged Ethernet vcc1 (WAN), or under PPP over Ether-
net vcc1 (WAN) [as per your configuration]:
a. Check the Enable Bridging on Port selection.
b. Click Submit.
11. Click on the Configure link in the Breadcrumb Trail directly above the
selection box.
12. Click on the WAN link that takes you to the WAN IP Interfaces box.
13. Click on RFC-1483 Bridged Ethernet vcc1, or on PPP over Ethernet vcc1
[as per your configuration]:
a. Uncheck the Enable Interface selection.
b. Click Submit.
14. Click on the WAN link in the Breadcrumb Trail directly above the selection
box.
92
15. In the box labeled IP Gateway:
a. Uncheck the Enable Gateway Option selection.
b. Click Submit.
16. Click on the Configure link in the Breadcrumb Trail directly above the
selection box.
17. At this point you should be ready to do the final save on the configuration
changes you have made.
The yellow Alert symbol will show up underneath the Help button on the
right-hand end on the menu bar.
18. Click on this symbol and you will see whether your changes have been
verified.
19. If you are satisfied with the changes you have made, click Save and
Restart in the Save Database box to Apply changes and restart Gateway.
93
Configure
You have now configured your Cayman Gateway for bridging, and it will
bridge all traffic across the WAN. You will need to make configurations to
your machines on your LAN. These settings must be made in accordance
with your ISP. If you ever need to get back into the Cayman Gateway again
for management reasons, you will need to manually configure your machine
to be in the same subnet as the Ethernet interface of the Cayman.

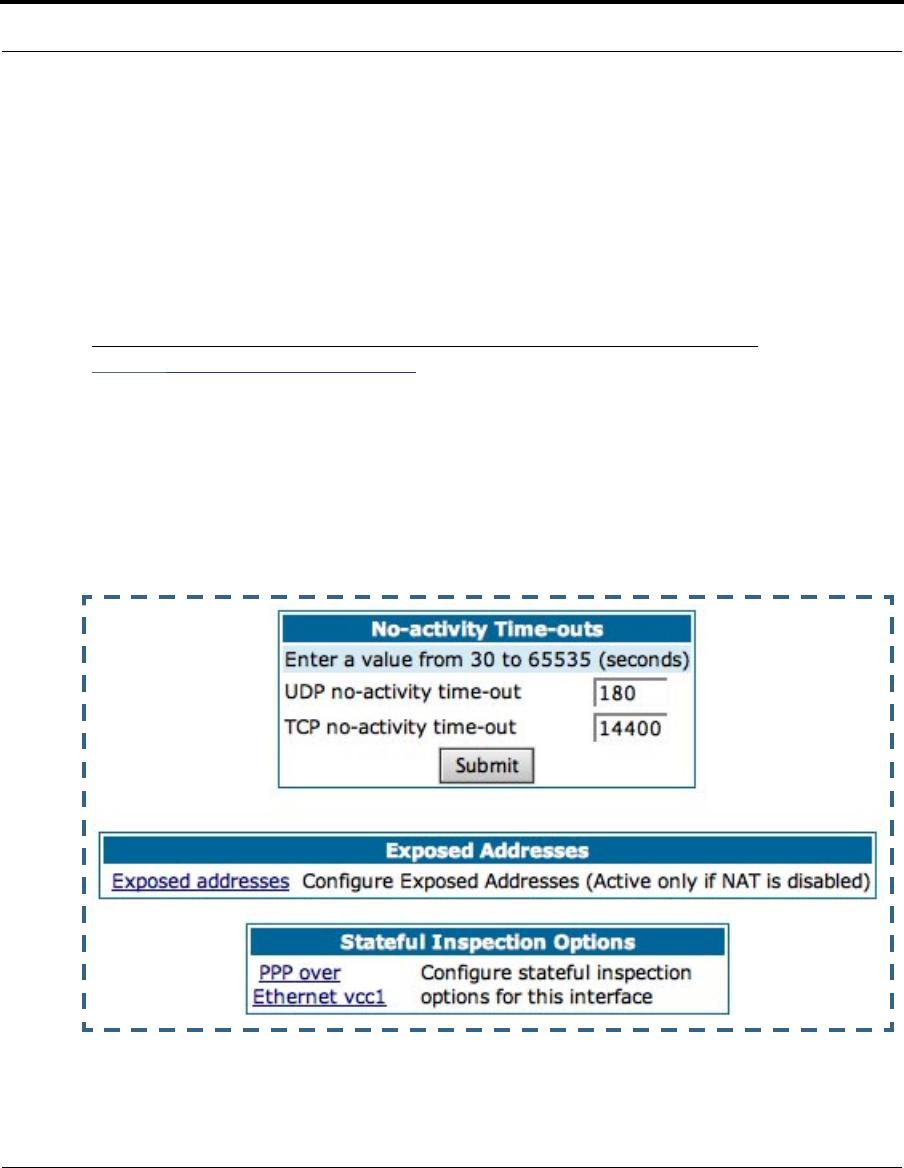

Link: Stateful Inspection
Stateful inspection is a security feature that prevents unsolicited inbound
access when NAT is disabled. You can configure UDP and TCP “no-activity”
periods that will also apply to NAT time-outs if stateful inspection is enabled
on the interface. Stateful Inspection parameters are active on a WAN inter-
face only if enabled on your Gateway. Stateful inspection can be enabled on
a profile whether NAT is enabled or not.
•UDP no-activity time-out: The time in seconds after which a UDP ses-
sion will be terminated, if there is no traffic on the session.
94
•TCP no-activity time-out: The time in seconds after which an TCP ses-
sion will be terminated, if there is no traffic on the session.
•Exposed Addresses: The hosts specified in Exposed addresses will be
allowed to receive inbound traffic even if there is no corresponding out-
bound traffic. This is active only if NAT is disabled on an WAN interface.
•Stateful Inspection Options: Enable and configure stateful inspection
on a WAN interface.

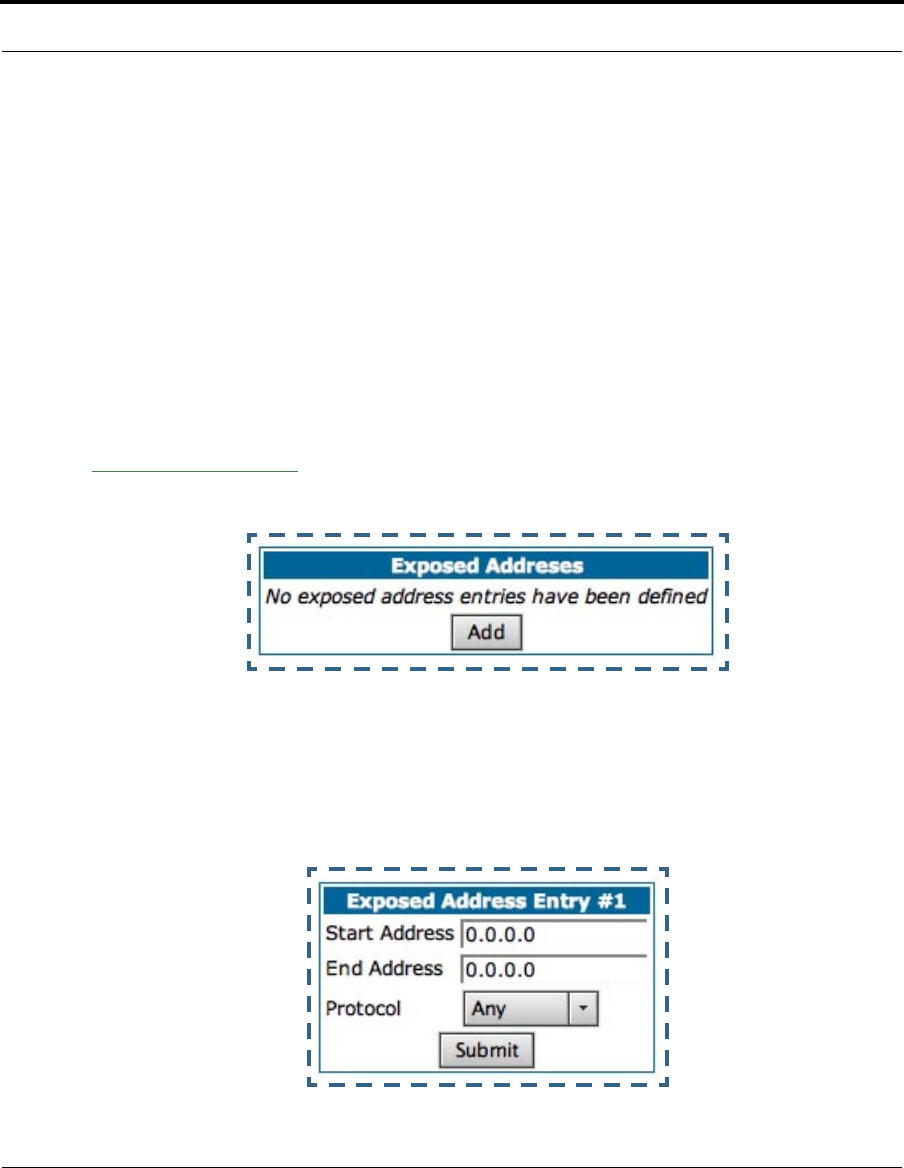

Exposed Addresses
You can specify the IP addresses you want to expose by clicking the
Exposed addresses link.
Add, Edit, or delete exposed addresses options are active only if NAT is dis-
abled on a WAN interface. The hosts specified in exposed addresses will be
allowed to receive inbound traffic even if there is no corresponding out-
bound traffic.
95
Configure

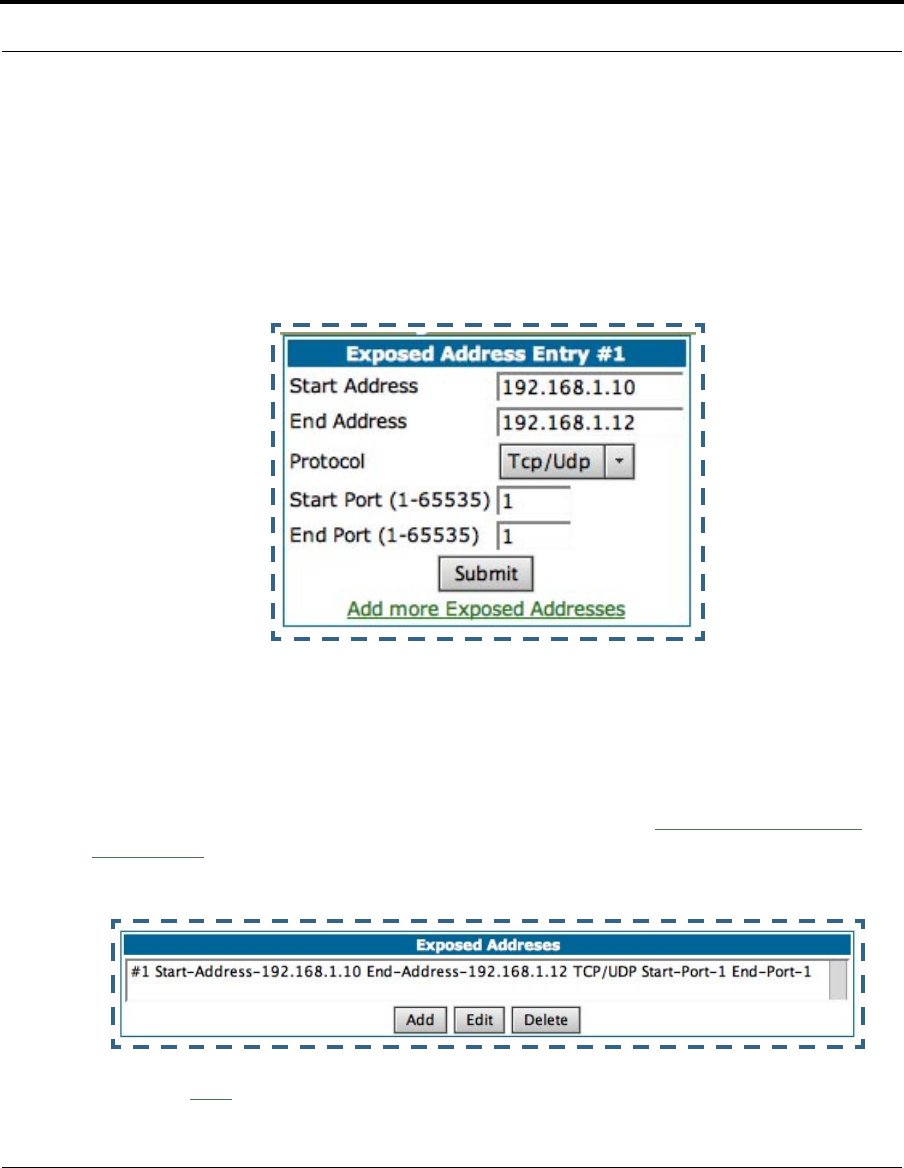

•Start Address: Start IP Address of the exposed host range.
•End Address: End IP Address of the exposed host range
•Protocol: Select the Protocol of the traffic to be allowed to the host
range from the pull-down menu. Options are Any, TCP, UDP, or TCP/UDP.
•Start Port: Start port of the range to be allowed to the host range. The
acceptable range is from 1 - 65535
•End Port: Protocol of the traffic to be allowed to the host range. The
acceptable range is from 1 - 65535
You can add more exposed addresses by clicking the Add more Exposed
Addresses link. A list of previously configured exposed addresses appears.
Click the Add button to add a new range of exposed addresses.
96
You can edit a previously configured range by clicking the Edit button, or
delete the entry entirely by clicking the Delete button.
All configuration changes will trigger the Alert Icon. Click on the Alert
icon.
This allows you to validate the configuration and reboot the Gateway.
Click the Save and Restart link. You will be asked to confirm your choice,
and the Gateway will reboot with the new configuration.
97
Configure

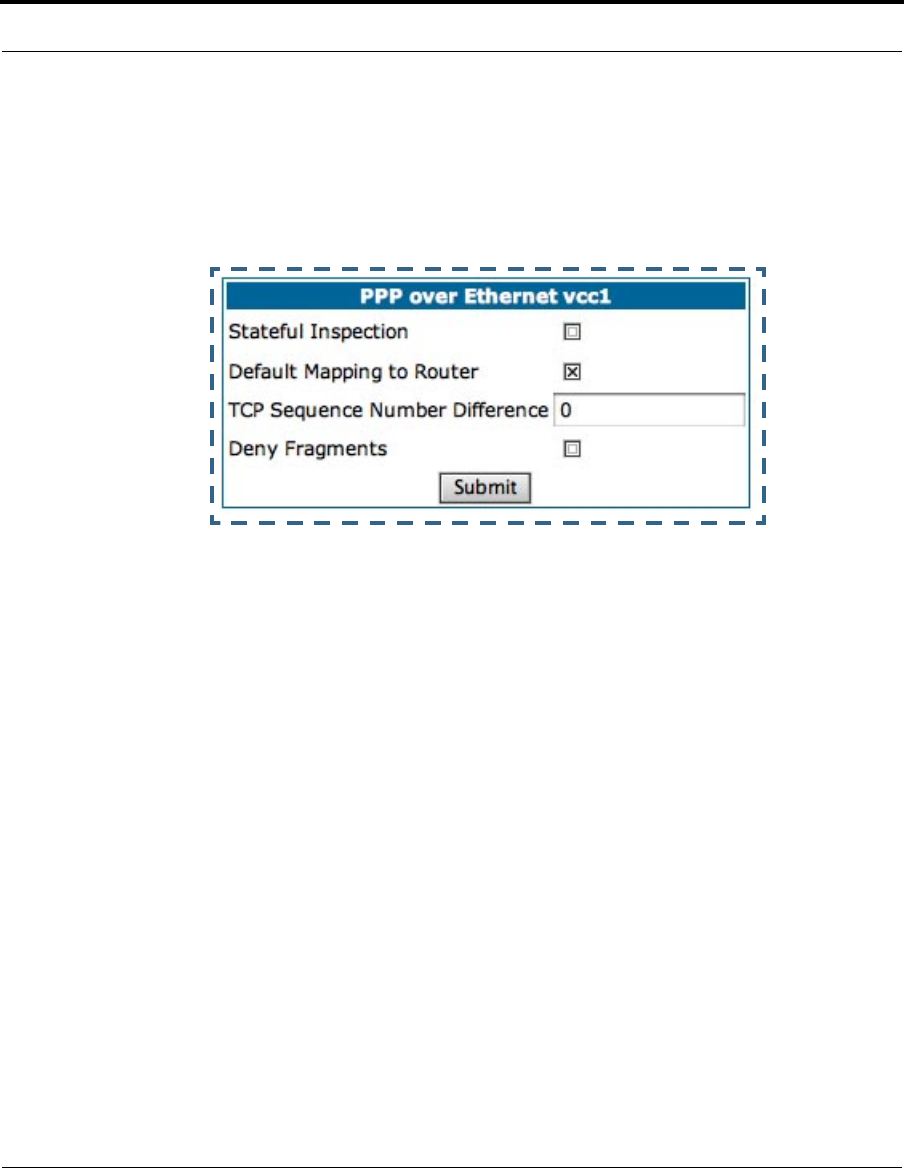

Stateful Inspection Options
Stateful Inspection Parameters are active on a WAN interface only if you
enable them on your Gateway.
•Stateful Inspection: To enable stateful inspection on this WAN inter-
face, check the checkbox.
•Default Mapping to Router: This is enabled by default. This option will
allow the router to respond to traffic received on this interface, for exam-
ple, ICMP Echo requests.
•TCP Sequence Number Difference: Enter a value in this field. This
value represents the maximum sequence number difference allowed
between subsequent TCP packets. If this number is exceeded, the
packet is dropped. The acceptable range is 0 – 65535. A value of 0
(zero) disables this check.
•Deny Fragments: To enable this option, which causes the router to dis-
card fragmented packets on this interface, check the checkbox.
98

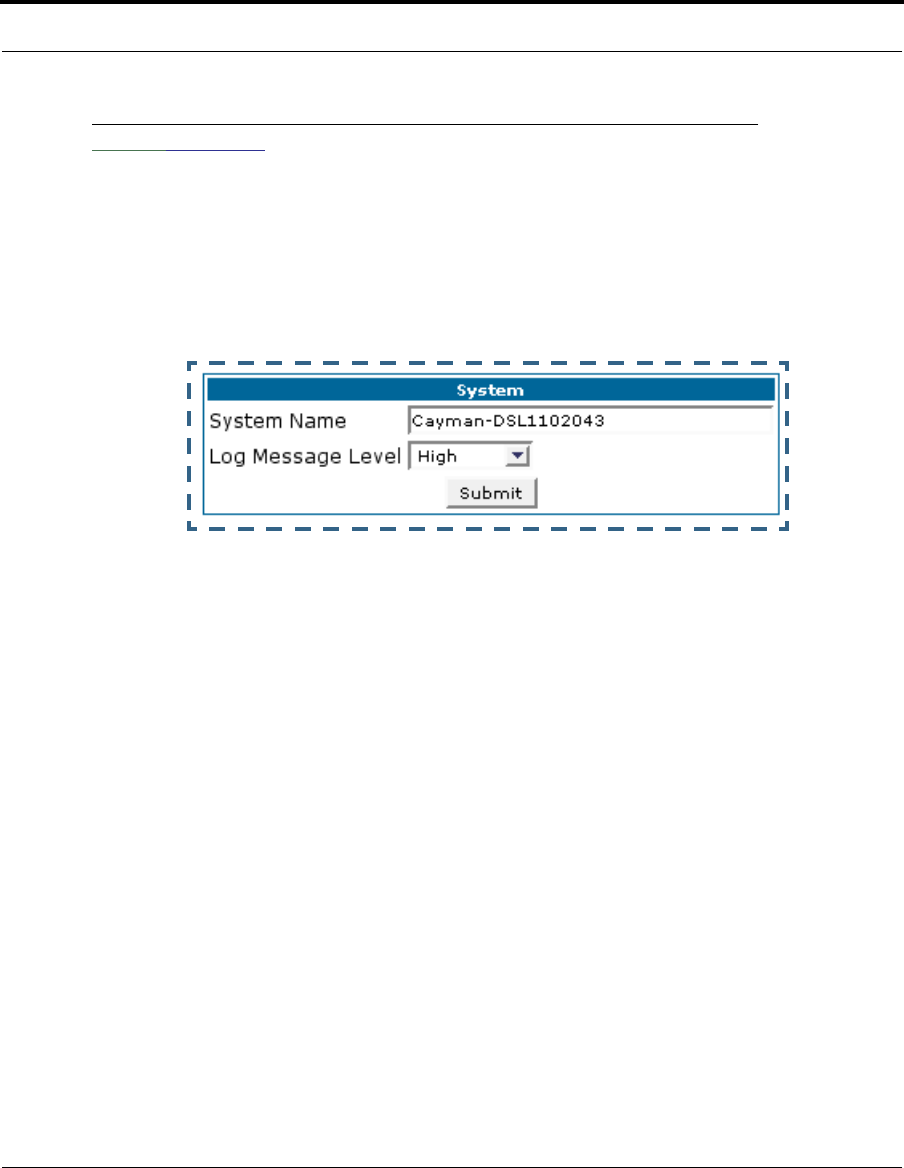

Link: System
The System Name defaults to your Gateway's factory identifier combined
with its serial number. Some cable-oriented Service Providers use the Sys-
tem Name as an important identification and support parameter. If your
Gateway is part of this type of network, do NOT alter the System Name
unless specifically instructed by your Service Provider.
The System Name can be 1-63 characters long; it can include embedded
spaces and special characters.
The Log Message Level alters the severity at which messages are col-
lected in the Gateway's system log. Do not alter this field unless instructed
by your Support representative.
99
Configure
Link: Syslog Parameters
You can configure a UNIX-compatible syslog client to report a number of
subsets of the events entered in the Gateway’s WAN Event History. Syslog
sends log-messages to a host that you specify.
To enable syslog logging, click on the Syslog Parameters link.
Check the Syslog checkbox. The screen expands.
•Syslog: Enable syslog logging in the system.
•Syslog Host Name/IP Address: Enter the name or the IP Address of
the host that should receive syslog messages.
100
•Facility: From the pull-down menu, select the Syslog facility to be used
by the router when generating syslog messages. Options are local0
through local7.
•Log Violations: If you check this checkbox, the Gateway will generate
messages whenever a packet is discarded because it violates the
router's security policy.
•Log Access Attempts: If you check this checkbox, the Gateway will gen-
erate messages whenever a packet attempts to access the router or
tries to pass through the router.
•Log Accepted Packets: If you check this checkbox, the Gateway will
generate messages whenever a packet accesses the router or passes
through the router.
101
Configure
Link: Internal Servers
Your Gateway ships with an embedded Web server and support for a Telnet
session, to allow ease of use for configuration and maintenance. The
default ports of 80 for HTTP and 23 for Telnet may be reassigned. This is
necessary if a pinhole is created to support applications using port 80 or
23. See “Pinholes” on page 69. for more information on Pinhole configura-
tion.
Web (HTTP) Server Port: To reassign the port number used to access the
Cayman embedded Web server, change this value to a value greater than
1024. When you next access the embedded Cayman Web server, append
the IP address with <port number>, (e.g. Point your browser to http://
210.219.41.20:8080).
Telnet Server Port: To reassign the port number used to access your Cay-
man embedded Telnet server, change this value to a value greater than
1024. When you next access the Cayman embedded Telnet server, append
the IP address with <port number>, (e.g. telnet 210.219.41.20 2323).
You can also use the LAN-side address of the Gateway, 192.168.1.x:8100
to access the web and telnet server.
102

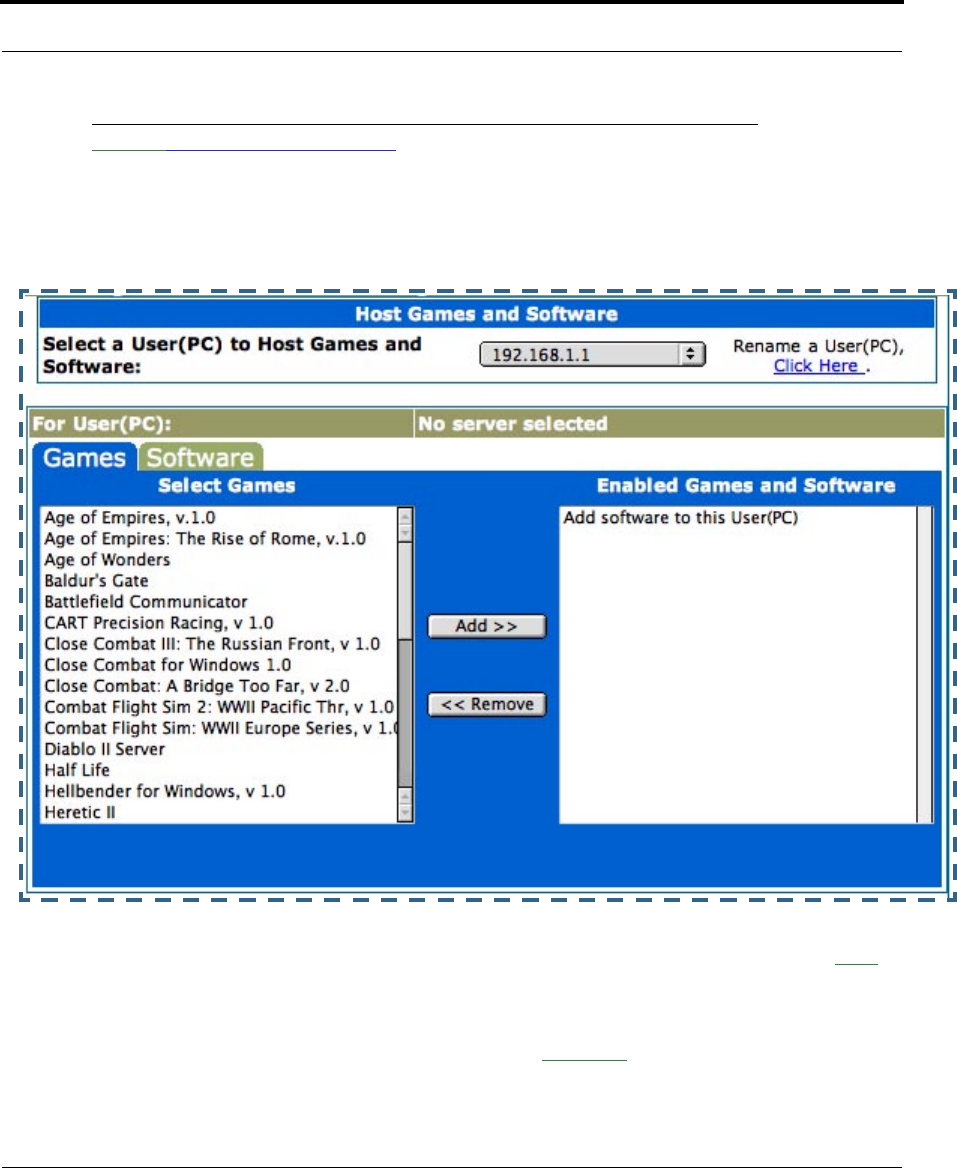

Link: Software Hosting
Software Hosting allows you to host internet applications when NAT is
enabled. User(PC) specifies the machine on which the selected software is
hosted. You can host different games and software on different PCs.
To select the games or software that you want to host for a specific PC,
highlight the name(s) in the box on the left side of the screen. Click the Add
button to select the software that will be hosted.
To remove a game or software from the hosted list, highlight the game or
software you want to remove and click the Remove button.
103
Configure
List of Supported Games and Software

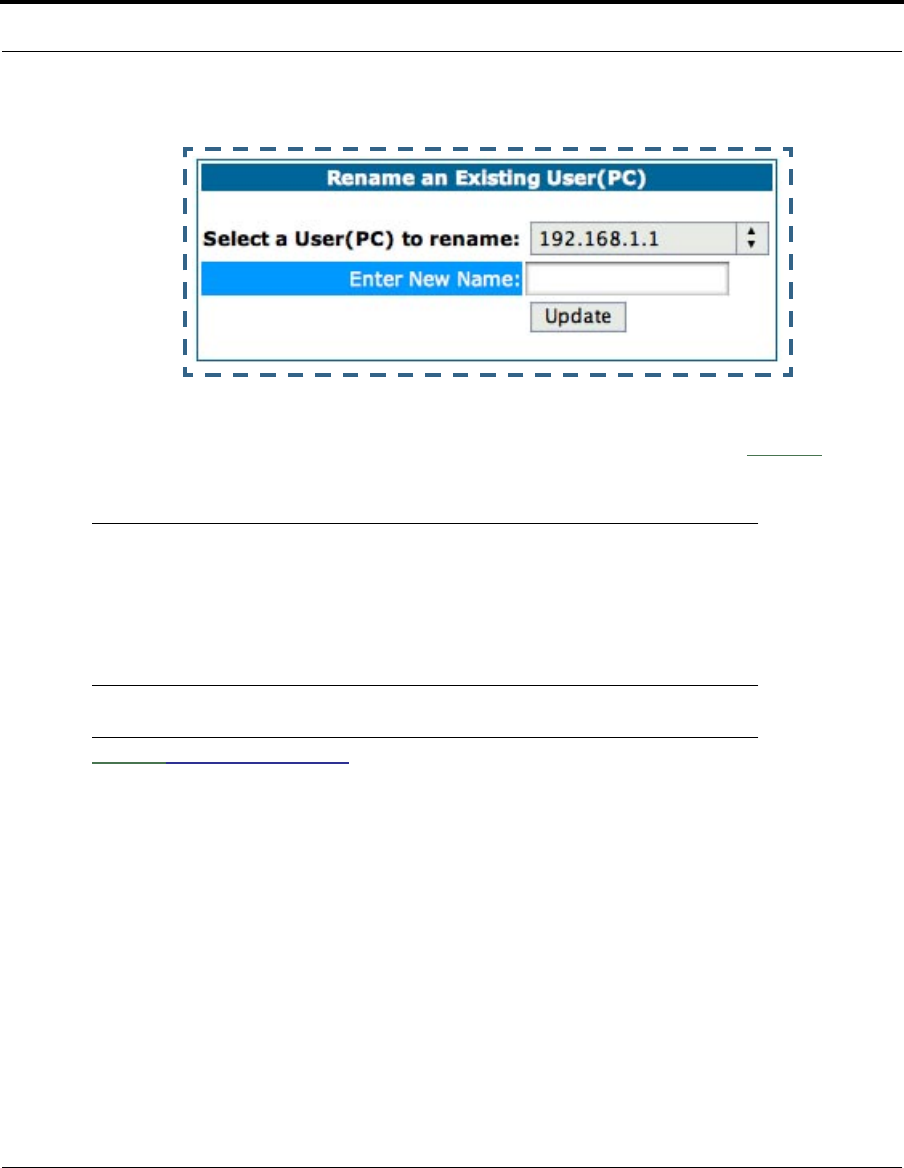

Rename a User(PC)
If a PC on your LAN has no assigned host name, you can assign one by
clicking the Rename a User(PC) link.
Age of Empires, v.1.0 Age of Empires: The Rise of
Rome, v.1.0 Age of Wonders
Bulder's Gate Battlefield Communicator CART Precision Racing, v
1.0
Close Combat for Windows
1.0 Close Combat: A Bridge Too
Far, v 2.0 Close Combat III: The Rus-
sian Front, v 1.0
Combat Flight Sim: WWII
Europe Series, v 1.0 Combat Flight Sim 2: WWII
Pacific Thr, v 1.0 Diablo II Server
FTP GNUtella H.323 compliant (Netmeet-
ing, CUSeeME)
Half Life Hellbender for Windows, v
1.0 Heretic II
HTTP IPSec Jedi Knight II: Jedi Outcast
Lime Wire Links LS 2000 Mech Warrior 3
MechWarrior 4: Vengeance Medal of Honor Allied
Assault Microsoft Flight Simulator 98
Microsoft Flight Simulator
2000 Microsoft Golf 1998 Edition,
v 1.0 Microsoft Golf 1999 Edition
Microsoft Golf 2001 Edition Midtown Madness, v 1.0 Monster Truck Madness, v
1.0
Monster Truck Madness 2, v
2.0 pcAnywhere (incoming) POP-3
PPTP Quake II Quake III
SMTP SSH server StarCraft
StarLancer, v 1.0 Telnet Timbuktu
Total Annihilation TFTP Unreal Tournament Server
Urban Assault, v 1.0 Win2000 Terminal Server
104
To rename a server, select the server from the pull-down menu. Then type a
new name in the text box below the pull-down menu. Click the Update but-
ton to save the new name.
☛
Note: The new name given to a server is only known to Software
Hosting. It is not used as an identifier in other network functions,
such as DNS or DHCP.
Link: Clear Options
To restore the factory configuration of the Gateway, choose Clear Options.
You may want to upload your configuration to a file before performing this
function.
Clear Options does not clear feature keys or affect the software image or
BootPROM.
You must restart the Gateway for Clear Options to take effect.
105
Configure
106
Security
Button: Security
The Security features are available by clicking on the Security toolbar but-
ton. Some items of this category do not appear when you log on as User.
Link: Passwords
Access to your Gateway may be controlled through two optional user
accounts, Admin and User. When you first power up your Gateway, you cre-
ate a password for the Admin account. The User account does not exist by
default. As the Admin, a password for the User account can be entered or
existing passwords changed.
107
Configure
Create and Change Passwords. You can establish different levels of
access security to protect your Cayman Gateway settings from unauthorized
display or modification.
•Admin level privileges let you display and modify all settings in the Cay-
man Gateway (Read/Write mode). The Admin level password is created
when you first access your Gateway.
•User level privileges let you display (but not change) settings of the Cay-
man Gateway. (Read Only mode)
To prevent anyone from observing the password you enter, characters in the
old and new password fields are not displayed as you type them.
108
To display the Passwords window, click the Security toolbar button on the
Home page.
Use the following procedure to change existing passwords or add the User
password for your Cayman Gateway:
1. Select the password type from the Password Level pull-down list.
Choose from Admin or User.
2. If you assigned a password to the Cayman Gateway previously, enter
your current password in the Old Password field.
3. Enter your new password in the New Password field.
Cayman’s rules for a Password are:
•It can have up to eight alphanumeric characters.
•It is case-sensitive.
109
Configure
4. Enter your new password again in the Confirm Password field.
You confirm the new password to verify that you entered it correctly the
first time.
5. When you are finished, click the Submit button to store your modified
configuration in the Cayman unit’s memory.
Password changes are automatically saved, and take effect immediately.
Link: Firewall
Use a Cayman Firewall
BreakWater Basic Firewall. BreakWater delivers an easily selectable set
of pre-configured firewall protection levels. For simple implementation these
settings (comprised of three levels) are readily available through Cayman’s
embedded web server interface.
BreakWater Basic Firewall’s three settings are:
•ClearSailing
ClearSailing, BreakWater's default setting, supports both inbound and
outbound traffic. It is the only basic firewall setting that fully interoper-
ates with all other Cayman software features.
•SilentRunning
Using this level of firewall protection allows transmission of outbound
traffic on pre-configured TCP/UDP ports. It disables any attempt for
inbound traffic to identify the Gateway. This is the Internet equivalent of
having an unlisted number.
•LANdLocked
The third option available turns off all inbound and outbound traffic, iso-
lating the LAN and disabling all WAN traffic.
110
☛ NOTE:
BreakWater Basic Firewall operates independent of the NAT func-
tionality on the Gateway.

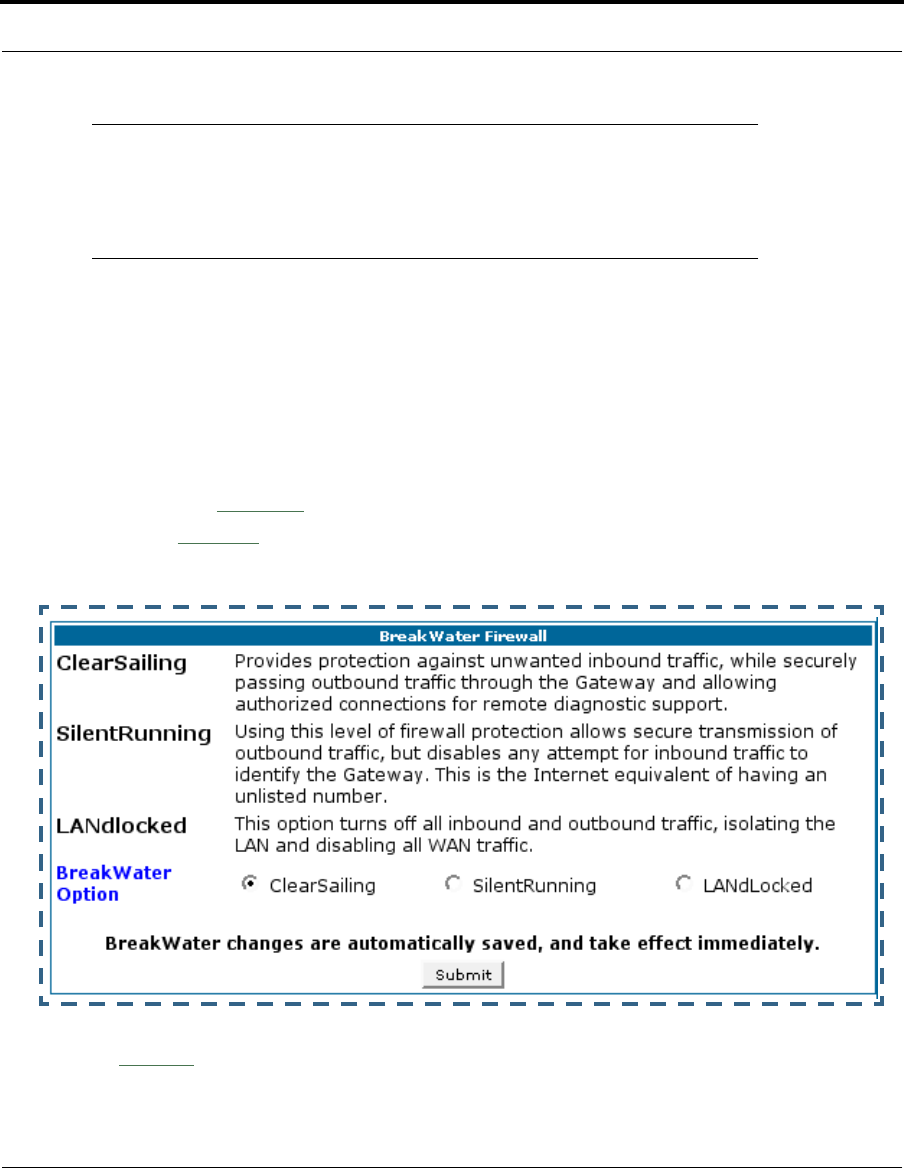

Configuring for a BreakWater Setting
Use these steps to establish a firewall setting:
1. Ensure that you have enabled the BreakWater basic firewall with the
appropriate feature key.
See See “Use Cayman Software Feature Keys” on page 124. for refer-
ence.
2. Click the Security toolbar button.
3. Click Firewall.
4. Click on the radio button to select the protection level you want. Click
Submit.
111
Configure
Changing the BreakWater setting does not require a restart to take
effect. This makes it easy to change the setting “on the fly,” as your
needs change.
TIPS for making your BreakWater Basic Firewall Selection
Basic Firewall Background
As a device on the Internet, a Cayman Gateway requires an IP address in
order to send or receive traffic.
The IP traffic sent or received have an associated application port which is
dependent on the nature of the connection request. In the IP protocol stan-
dard the following session types are common applications:
By receiving a response to a scan from a port or series of ports (which is
the expected behavior according to the IP standard), hackers can identify an
existing device and gain a potential opening for access to an internet-con-
nected device.
Application Select this Level Other Considerations
Typical Internet usage
(browsing, e-mail) SilentRunning
Multi-player online
gaming ClearSailing Set Pinholes; once defined, pinholes will be
active whenever ClearSailing is set.
Restore SilentRunning when finished.
Going on vacation LANdLocked Protects your connection while your away.
Finished online use for
the day LANdLocked This protects you instead of disconnecting your
Gateway connection.
Chatting online or using
instant messaging ClearSailing Set Pinholes; once defined, pinholes will be
active whenever ClearSailing is set.
Restore SilentRunning when finished.
•ICMP •HTTP •FTP
•SNMP •telnet •DHCP
112
To protect LAN users and their network from these types of attacks, Break-
Water offers three levels of increasing protection.
The following tables indicate the state of ports associated with session
types, both on the WAN side and the LAN side of the Gateway.
This table shows how inbound traffic is treated. Inbound means the traffic
is coming from the WAN into the WAN side of the Gateway.
This table shows how outbound traffic is treated. Outbound means the traf-
fic is coming from the LAN-side computers into the LAN side of the Gateway.
Gateway: WAN Side
BreakWater Setting >> ClearSailing SilentRunning LANdLocked
Port Session Type --------------Port State-----------------------
20 ftp data Enabled Disabled Disabled
21 ftp control Enabled Disabled Disabled
23 telnet external Enabled Disabled Disabled
23 telnet Cayman server Enabled Disabled Disabled
80 http external Enabled Disabled Disabled
80 http Cayman server Enabled Disabled Disabled
67 DHCP client Enabled Enabled Disabled
68 DHCP server Not Applicable Not Applicable Not Applicable
161 snmp Enabled Disabled Disabled
ping (ICMP) Enabled Disabled Disabled
Gateway: LAN Side
BreakWater Setting >> ClearSailing SilentRunning LANdLocked
Port Session Type --------------Port State-----------------------
20 ftp data Enabled Enabled Disabled
21 ftp control Enabled Enabled Disabled
23 telnet external Enabled Enabled Disabled
23 telnet Cayman server Enabled Enabled Enabled
80 http external Enabled Enabled Disabled
80 http Cayman server Enabled Enabled Enabled
113
Configure
☛ NOTE:
The Gateway’s WAN DHCP client port in SilentRunning mode is
enabled. This feature allows end users to continue using DHCP-
served IP addresses from their Service Providers, while having
no identifiable presence on the Internet.
Link: IPSec
IPSec PassThrough supports Virtual Private Network (VPN) clients run-
ning on LAN-connected computers. Normally, this feature is enabled. How-
ever, you can disable it if your LAN-side VPN client includes its own NAT
interoperability option.
67 DHCP client Not Applicable Not Applicable Not Applicable
68 DHCP server Enabled Enabled Enabled
161 snmp Enabled Enabled Enabled
ping (ICMP) Enabled Enabled WAN - Disabled
LAN -
Local Address
Only
114

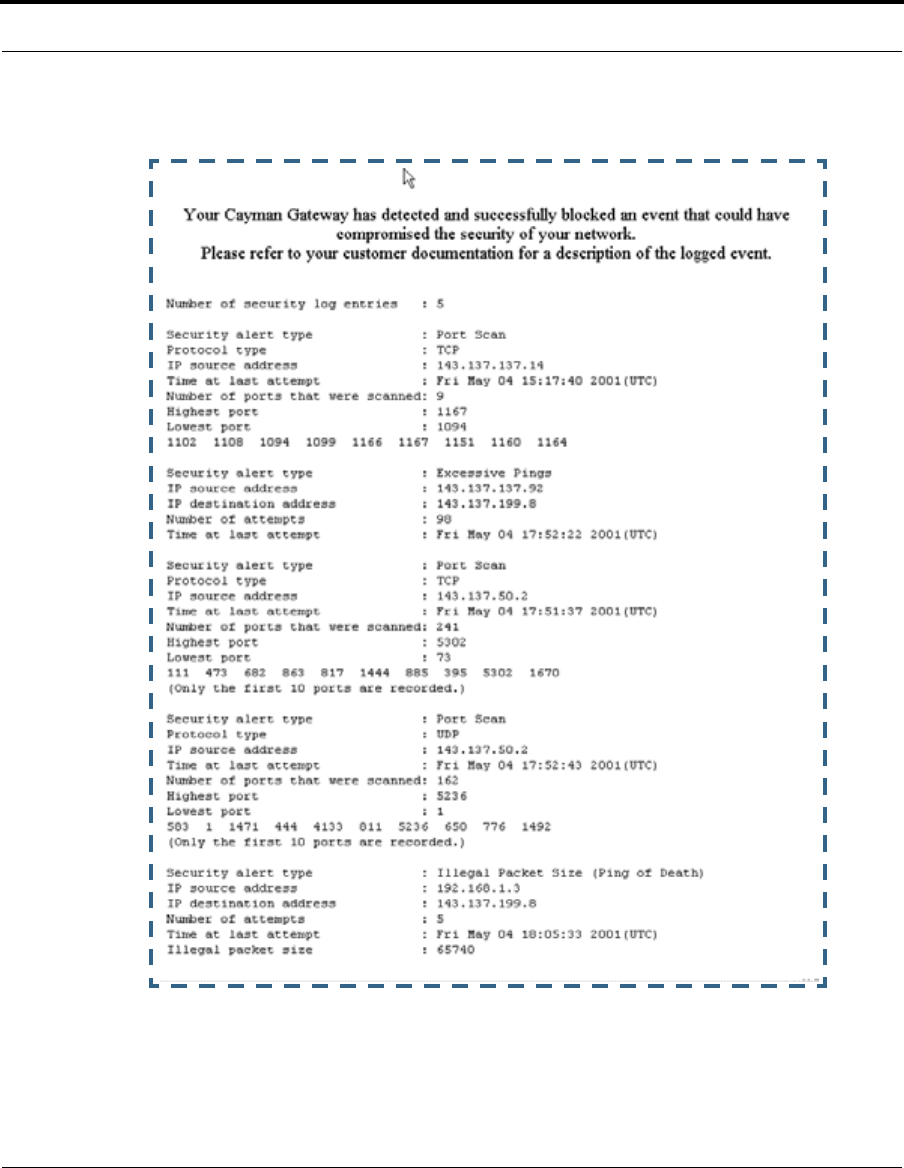

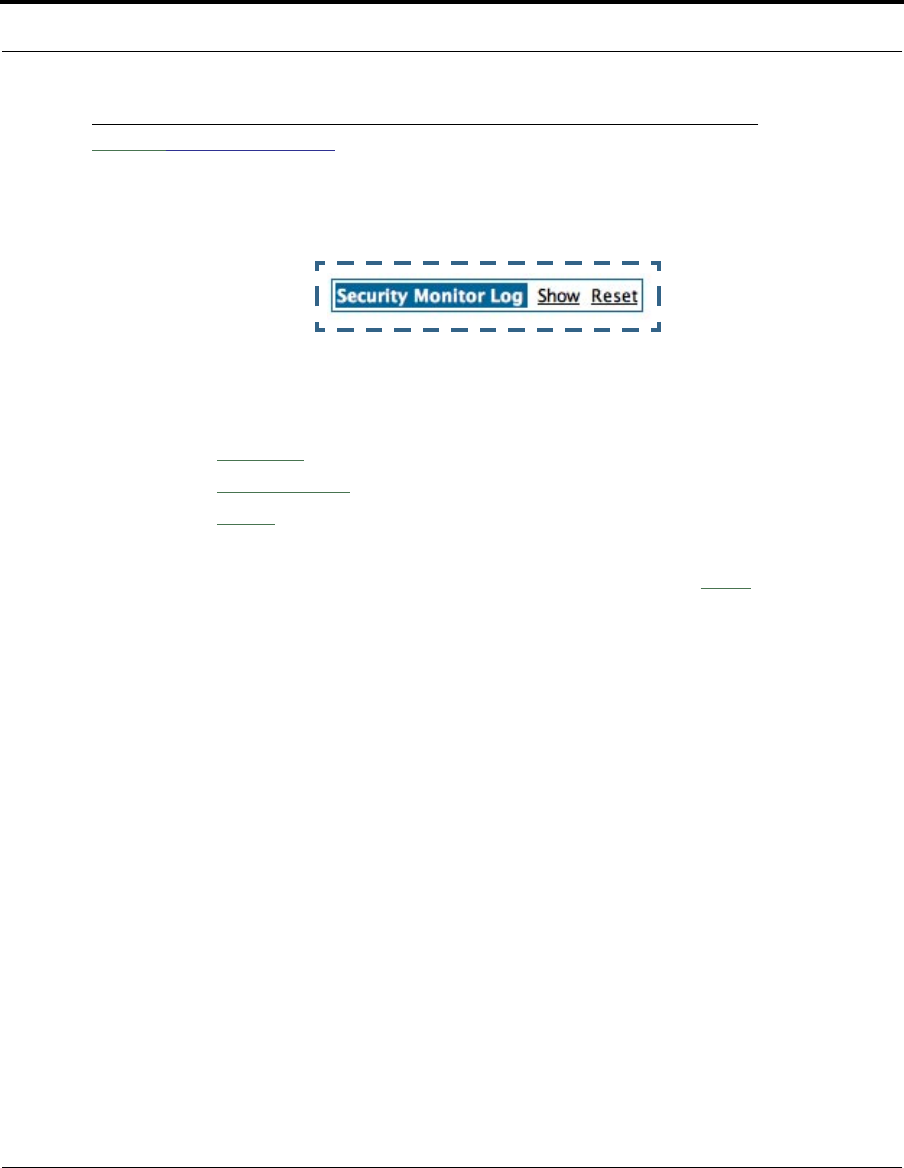

Link: Security Log
Security Monitoring detects security-related events, including common
types of malicious attacks, and writes them to the security log file.
Using the Security Monitoring Log
You can view the Security Log at any time. Use the following steps:
1. Click the Security toolbar button.
2. Click the Security Log link.
3. Click the Show link from the Security Log tool bar.
4. An example of the Security Log is shown on the next page.
5. When a new security event is detected, you will see the Alert button.
The Security Alert remains until you view the information. Clicking the
Alert button will take you directly to a page showing the log.
115
Configure
The capacity of the security log is 100 security alert messages. When the
log reaches capacity, subsequent messages are not captured, but they are
noted in the log entry count.
116
Remember that the “time stamp” is Universal Coordinated Time (UTC) which is
the equivalent of Greenwich Mean Time.
☛ NOTE:
For your convenience, the table below lists the time offsets for
various North American time zones.
See Timestamp Background information on the next page for
more details.
Table of Time Offsets (in hours) from GMT
Take the recorded UTC/GMT value and subtract the offset value to get the
time that an event occurred in your system.
To reset this log, select Reset from the Security Monitor tool bar.
The following message is displayed.
Zone -> Hawaii Alaska Pacific Mountain Central Eastern Atlantic UTC/
GMT
Standard
Time -10 -9 -8 -7 -6 -5 -4 0
Daylight
Savings
Time
N/A -8 -7 -6 -5 -4 -3 0
117
Configure
When the Security Log contains no entries, this is the response:
Timestamp Background
During bootup, to provide better log information and to support improved
troubleshooting, a Cayman Gateway acquires the National Institute of Stan-
dards and Technology (NIST) Universal Coordinated Time (UTC) reference
signal.
Once per hour, the Gateway attempts to re-acquire the NIST reference, for
re-synchronization or initial acquisition of the UTC information. Once
acquired, all subsequent log entries display this date and time information.
UTC provides the equivalent of Greenwich Mean Time (GMT) information.
If the WAN connection is not enabled, the internal clocking function of the
Gateway provides log timestamps based on “uptime” of the unit.
118

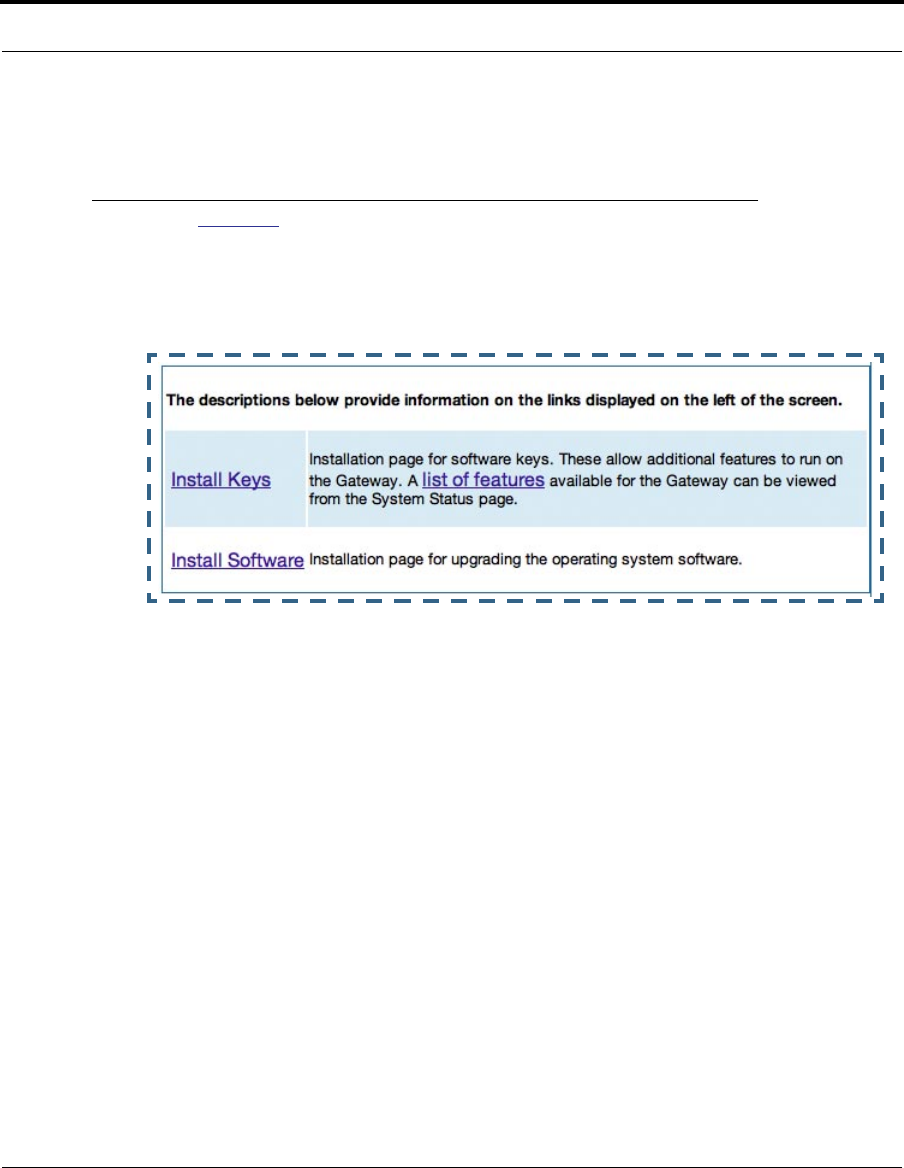

Install
Button: Install
From the Install toolbar button you can Install new Operating System Soft-
ware as updates become available.
119
Configure
Link: Install Software

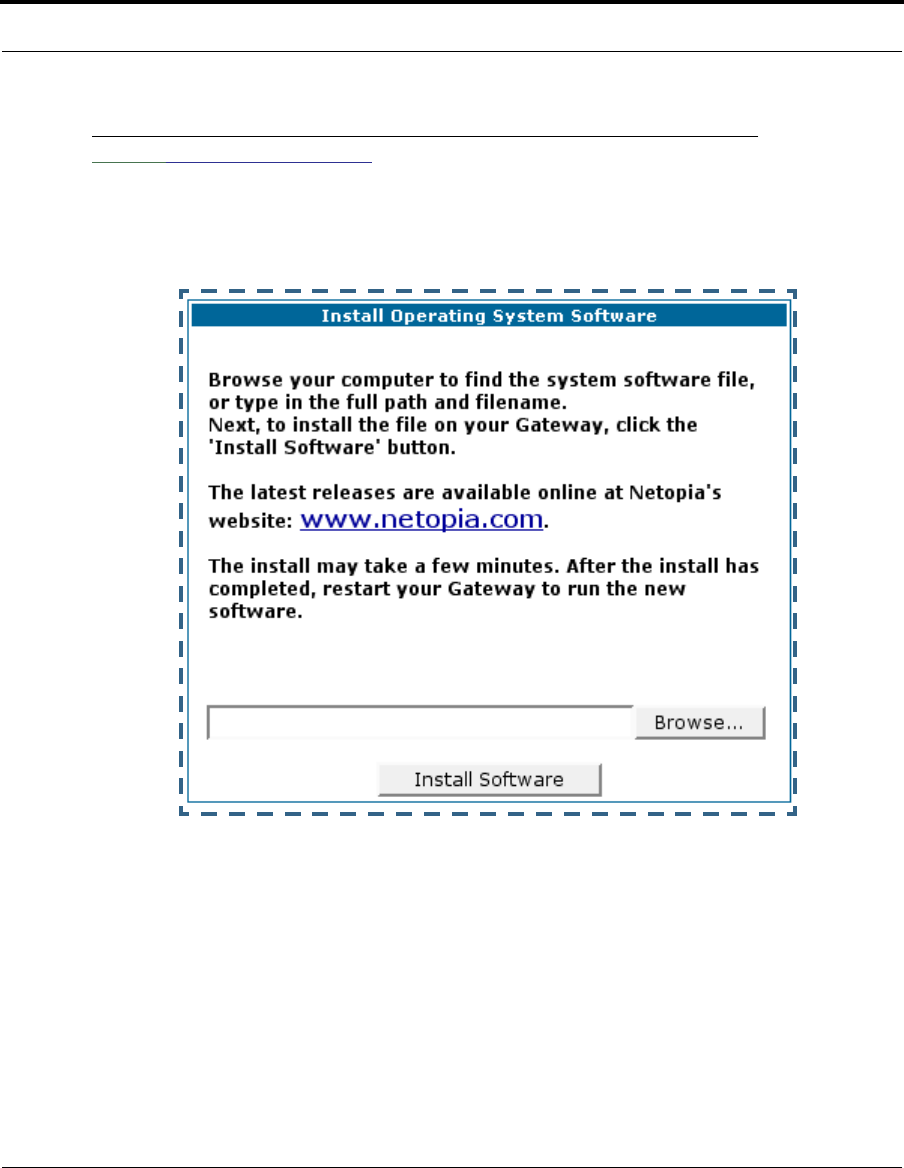

This page allows you to install an updated release of the Cayman Operating
System (CaymanOS).
Updating Your Gateway’s CaymanOS Version. You install a new operat-
ing system image in your unit from the Install Operating System Software
page. For this process, the computer you are using to connect to the Cay-
man Gateway must be on the same local area network as the Cayman Gate-
way.
Required Tasks
•“Task 1: Required Files” on page 120
•“Task 2: CaymanOS Image File” on page 120
120
Task 1: Required Files
Upgrading the CaymanOS requires a Cayman Operating System image file.
Background
Software upgrade image files are posted periodically on the Netopia web-
site. You can download the latest operating system software for your Gate-
way from the following URL:
http://www.netopia.com/en-us/equipment/purchase/fmw_update.html
When you download your operating system upgrade from the Netopia web-
site, be sure to download the latest release notes or User Guide PDF files.
These are posted on the same Web page as the software.
Confirm CaymanOS Image Files
The CaymanOS Image file is specific to the model and the product identifica-
tion (PID) number.
1. Confirm that you have received the appropriate CaymanOS Image file.
2. Save the CaymanOS image file to a convenient location on your PC.
Task 2: CaymanOS Image File
Install the CaymanOS Image
To install the CaymanOS software in your Cayman Gateway from the Home
Page use the following steps:
1. Open a web connection to your Cayman Gateway from the computer on
your LAN.
2. Click the Install Software button on the Cayman Gateway Home page.
The Install New Cayman Software window opens.
3. Enter the filename into the text box by using one of these techniques:
121
Configure
The CaymanOS file name starts with the letter “c” (for “CaymanOS”).
a. Click the Browse button, select the file you want, and click Open.
-or-
b. Enter the name and path of the software image you want to install in
the text field and click Open.
4. Click the Install Software button.
The Cayman Gateway copies the image file from your computer and
installs it into its memory storage. You see a progress bar appear on
your screen as the image is copied and installed.

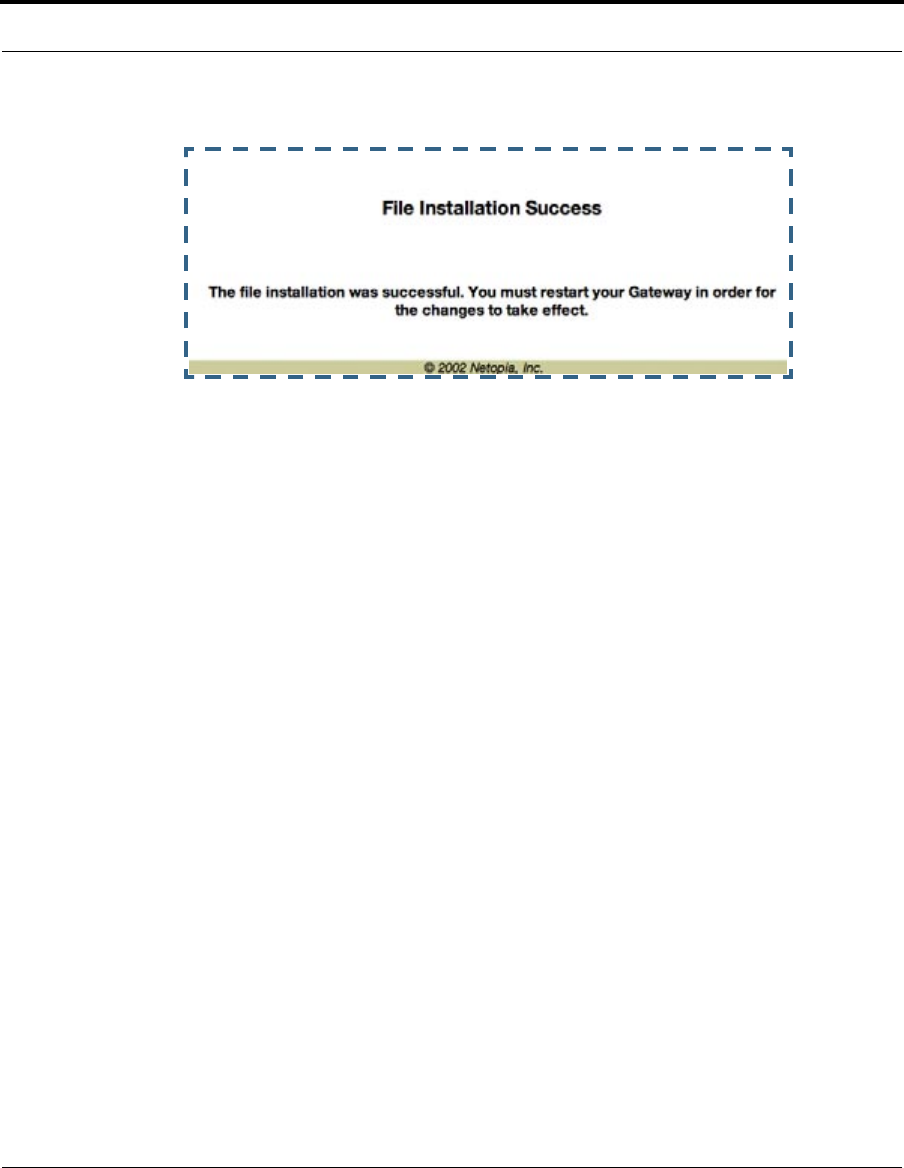

When the image has been installed, a success message displays.
122
5. When the success message appears, click the Restart button and confirm
the Restart when you are prompted.
Your Cayman Gateway restarts with its new image.
123
Configure
Verify the CaymanOS Release
To verify that the CaymanOS image has loaded successfully, use the follow-
ing steps:
1. Open a web connection to your Cayman Gateway from the computer on
your LAN and return to the Home page.
2. Verify your CaymanOS Software Release, as shown on the Home Page.
This completes the upgrade process.
124
Link: Install Keys
You can obtain advanced product functionality by employing a software Fea-
ture Key. Software feature keys are specific to a Gateway's serial number.
Once the feature key file is installed and the Gateway is restarted, the new
feature's functionality becomes enabled.
Use Cayman Software Feature Keys
Cayman Gateway users obtain advanced product functionality by installing a
software feature key. This concept utilizes a specially constructed and dis-
tributed file (referred to as a feature key) to enable additional capability
within the unit.
Software feature key properties are specific to a unit’s serial number; they
will not be accepted on a platform with another serial number.
Once installed, and the Gateway restarted, the new feature’s functionality
becomes available. This allows full access to configuration, operation,
maintenance and administration of the new enhancement.
Obtaining Software Feature Keys
Contact Netopia or your Service Provider to acquire a Software Feature Key.
Procedure - Install a New Feature Key File
With the appropriate feature key file resident on your LAN PC, use the steps
listed below to enable a new function.
1. From the Home page, click the Install toolbar button.
2. Click Install Keys
The Install Key File page appears.

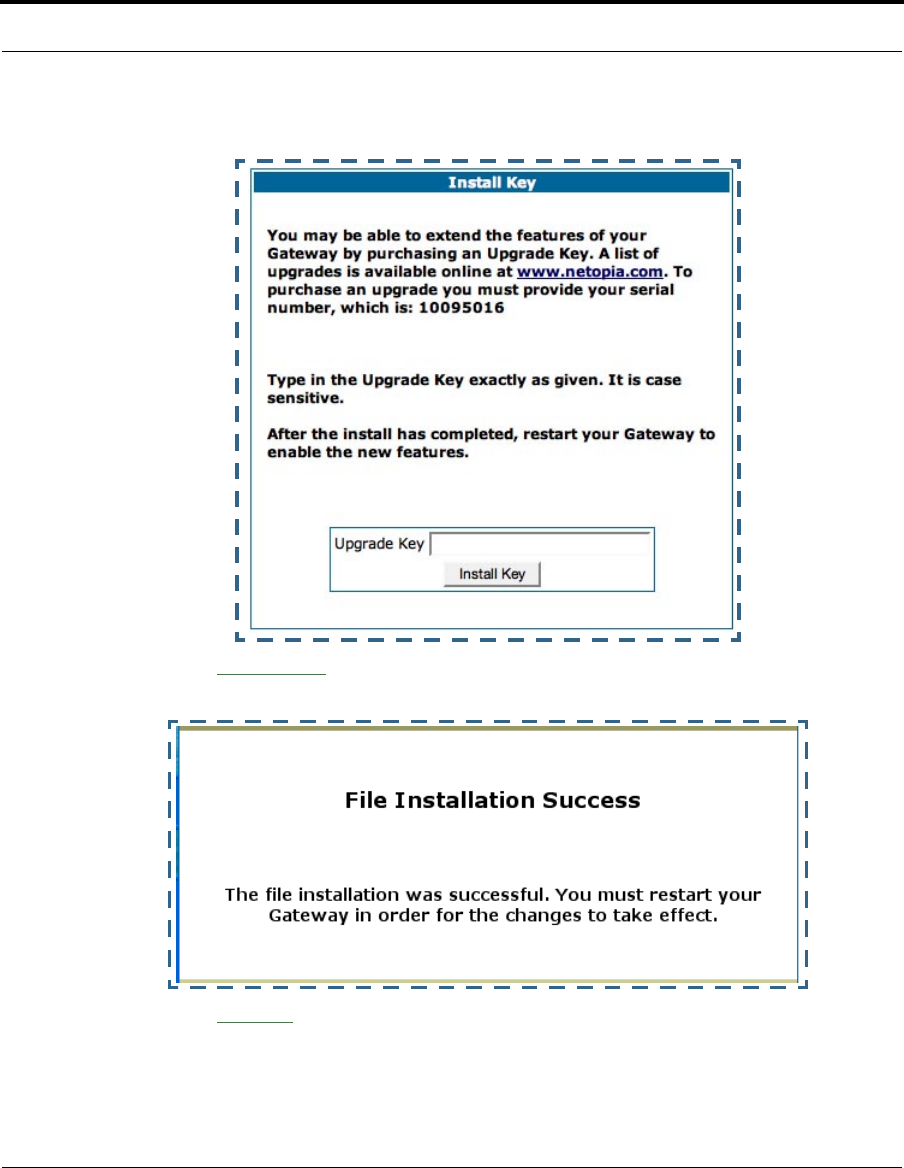

3. Enter the feature key file name in the input Text Box.
Type the full path and file name in the Text Box.
125
Configure
4. Click the Install Key button.
5. Click the Restart toolbar button.
The Confirmation screen appears.
126
6. Click the Restart the Gateway link to confirm.
To check your installed features:
7. Click the Install toolbar button.
8. Click the List of Features link.

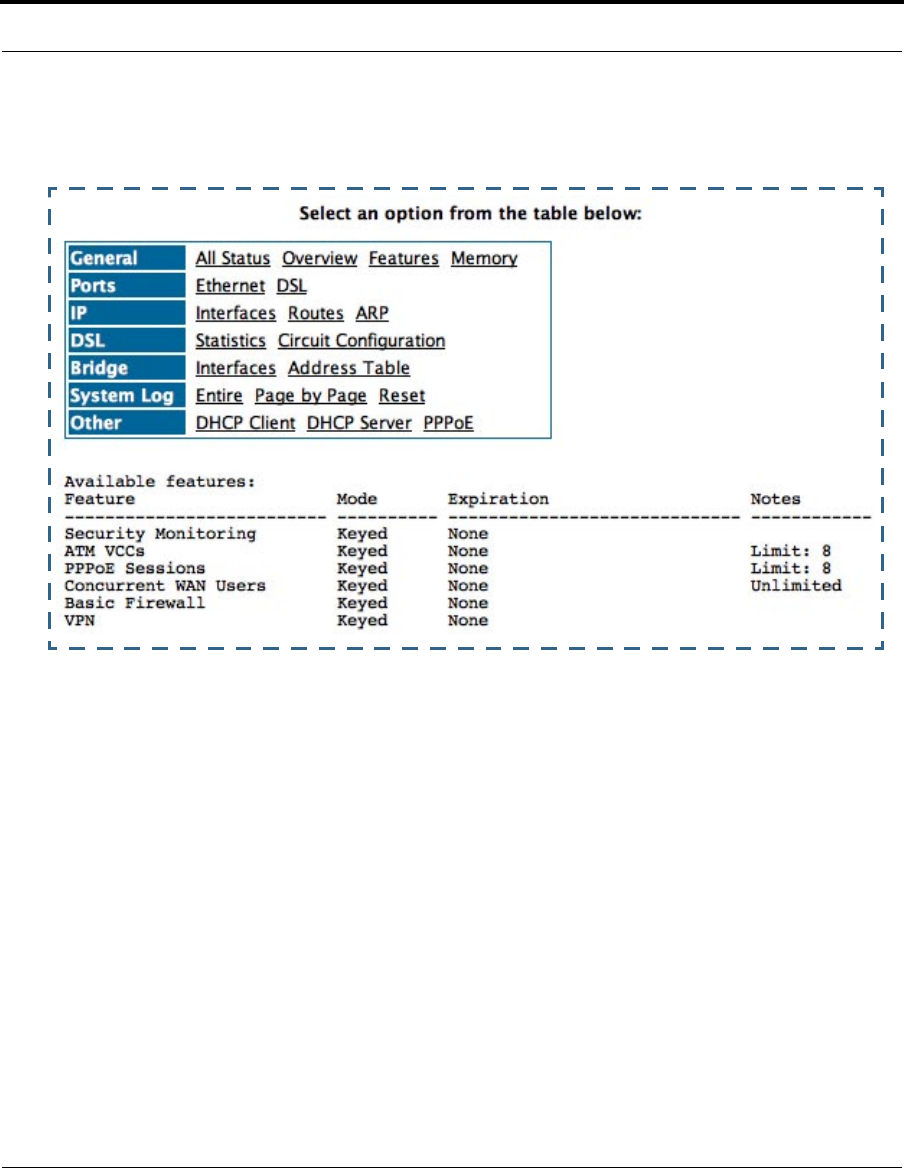

The System Status page appears with the information from the features
link displayed below. You can check that the feature you just installed is
127
Configure
enabled.
128
129
CHAPTER 4 Basic
Troubleshooting
This section gives some simple suggestions for troubleshooting
problems with your Gateway’s initial configuration.
Before troubleshooting, make sure you have
•read the Quickstart Guide;
•plugged in all the necessary cables; and
•set your PC’s TCP/IP controls to obtain an IP address auto-
matically.
130
Status Indicator Lights
The first step in troubleshooting is to check the status indicator
lights (LEDs) in the order outlined below.
Cayman Gateway 3340 status indicator lights
Ethernet Link
Ethernet Traffic
DSL Traffic
DSL Sync
PPPoE Active
Power
Power:
PPPoE Active:
DSL Traffic:
Solid green when the power is on
Solid green when PPPoE is negotiated;
Blinks green when traffic is sent/received
DSL Sync:
Blinking green with no line attached or training,
Ethernet Traffic:
Flashes green when there is
activity on the LAN
Ethernet Link:
Solid green when connected
otherwise, not lit
solid green when trained with the DSL line.
over the WAN
131
Status Indicator Lights
Cayman Gateway 3341 status indicator lights
Ethernet Link
Ethernet Traffic
DSL Traffic
DSL Sync
USB Active
Power
Power:
USB Active:
DSL Traffic:
Solid green when the power is on
Solid green when USB is connected
Blinks green when traffic is sent/received
DSL Sync:
Blinking green with no line attached or training,
Ethernet Traffic:
Flashes green when there is
activity on the LAN
Ethernet Link:
Solid green when connected
otherwise, not lit
solid green when trained with the DSL line.
over the WAN
132
Cayman Gateway 3346 status indicator lights
LAN 1
LAN 2
LAN 3
LAN 4
DSL SYNC
Power
Power:
DSL Sync:
Solid green when trained with the DSL line
Blinks green when traffic is sent or received
LAN 1, 2, 3, 4:
over the Ethernet
Solid green when the power is on
Blinks green with no line attached or training,
Solid green when Ethernet link is established
133
Status Indicator Lights
Cayman Gateway 3347W status indicator lights
LED Function Summary Matrix
Power USB
Active DSL
Sync DSL
TrafficEthernet
TrafficEthernet
Link
Unlit No
power No signal No signal No signal No signal No signal
Solid
Green Power
on USB port
con-
nected to
PC
DSL line
synched
with the
DSLAM
N/A N/A Synched
with
Ethernet
card
Flashing
Green N/A Activity
on the
USB
cable
Attempt-
ing to
train with
DSLAM
Activity
on the
DSL
cable
Activity
on the
Ethernet
cable
N/A
Power - Green when power is applied
Flashes green when training
Solid green when connected
Solid green when trained
to each port on the LAN.
LAN 1, 2, 3, 4 -
DSL SYNC -
Flash green when there is
activity on each port.
3347W Front View
Flashes green for DSL traffic
Wireless Link - Flashes green when there is
activity on the wireless LAN.
134
If a status indicator light does not look correct, look for these
possible problems:
LED State Possible problems
Power Unlit
1. Make sure the power switch is in the ON
position.
2. Make sure the power adapter is plugged
into the 3341 properly.
3. Try a known good wall outlet.
4. Replace the power supply and/or unit.
DSL
Sync Unlit
1. Make sure the you are using the correct
cable. The DSL cable is the thinner stan-
dard telephone cable.
2. Make sure the DSL cable is plugged into
the correct wall jack.
3. Make sure the DSL cable is plugged into
the DSL port on the 3341.
4. Make sure the DSL line has been activated
at the central office DSLAM.
5. Make sure the 3341 is not plugged into a
micro filter.
135
Status Indicator Lights
EN Link Unlit
Note: EN Link light is inactive if using USB.
1. Make sure the you are using the Ethernet
cable, not the DSL cable. The Ethernet
cable is thicker than the standard telephone
cable.
2. Make sure the Ethernet cable is securely
plugged into the Ethernet jack on the PC.
3. If plugging a 3341 into a hub the you may
need to plug into an uplink port on the hub,
or use an Ethernet cross over cable.
4. Make sure the Ethernet cable is securely
plugged into the Ethernet port on the 3341.
5. Try another Ethernet cable if you have one
available.
EN
TrafficUnlit
1. Make sure you have Ethernet drivers
installed on the PC.
2. Make sure the PC’s TCP/IP Properties for
the Ethernet Network Control Panel is set to
obtain an IP address via DHCP.
3. Make sure the PC has obtained an address
in the 192.168.1.x range. (You may have
changed the subnet addressing.)
4. Make sure the PC is configured to access
the Internet over a LAN.
5. Disable any installed network devices
(Ethernet, HomePNA, wireless) that are not
being used to connect to the 3341.
136
USB
Active Unlit
Note: USB Active light is inactive if using Ethernet.
1. Make sure you have USB drivers installed
on the PC.
2. Make sure the PC’s TCP/IP Properties for
the USB Network Control Panel is set to
obtain an IP address via DHCP.
3. Make sure the PC has obtained an address
in the 192.168.1.x range. (You may have
changed the subnet addressing.)
4. Make sure the PC is configured to access
the Internet over a LAN.
5. Disable any installed network devices
(Ethernet, HomePNA, wireless) that are not
being used to connect to the 3341.
DSL
TrafficUnlit Launch a browser and try to browse the Internet. If
the DSL Active light still does not flash, then pro-
ceed to Advanced Troubleshooting below.
137
Factory Reset Switch
Factory Reset Switch
Lose your password? This section shows how to reset the Cay-
man Gateway so that you can access the configuration screens
once again.
☛ NOTE:
Keep in mind that all of your settings will need to be
reconfigured.
If you don't have a password, the only way to access the Cay-
man Gateway is the following:
1. Referring to the diagram below, find the round Reset Switch
opening.
2. Carefully insert the point of a pen or an unwound paperclip
into the opening.
3. Press this switch.
4. This will reset the unit to factory defaults and you will now be
able to reprogram the Cayman Gateway.
1
Power
4
USB
3
Ethernet
2
DSL On / Off
Factory Reset Switch: Push to clear all settings
138
139
CHAPTER 5 Advanced
Troubleshooting
Advanced Troubleshooting can be accessed from the Gateway’s Web UI.
Point your browser to http://192.168.1.254. The main page displays the
device status. (If this does not make the Web UI appear, then do a release
and renew in Windows networking to see what the Gateway address really
is.)
140
Home Page
The home page displays basic information about the Gateway. This includes
the ISP Username, Connection Status, Device Address, Remote Gateway
Address, DNS-1, and DNS-2. If you are not able to connect to the Internet,
verify the following:
Item Description
Local WAN IP
Address This is the negotiated address of the Gateway’s WAN interface.
This address is usually dynamically assigned.
Remote Gateway
Address This is the negotiated address of the remote router to which
this Gateway is connected.
141
Status of Connec-
tion ‘Waiting for DSL’ is displayed while the Gateway is training.
This should change to ‘Up’ within two minutes. If not, make
sure an RJ-11 cable is used, the Gateway is connected to the
correct wall jack, and the Gateway is not plugged into a micro
filter.
‘No Connection’ is displayed if the Gateway has trained but
failed the PPPoE login. This usually means an invalid user
name or password. Go to Expert Mode and change the PPPoE
name and password.
‘Up’ is displayed when the ADSL line is synched and the
PPPoE session is established.
ISP Username This should be the valid PPPoE username. If not, go to Expert
Mode and change to the correct username.
Device Address This is the negotiated address of the Gateway’s WAN interface.
This address is often dynamically assigned. Make sure this is a
valid address.
If this is not the correct assigned address, go to Expert Mode
and verify the PPPoE address has not been manually
assigned.
Device Gateway This is the negotiated address of the remote router. Make sure
this is a valid address.
If this is not the correct address, go to Expert Mode and verify
the address has not been manually assigned.
Primary DNS/
Secondary DNS These are the negotiated DNS addresses. Make sure they are
valid DNS addresses.
If these are not the correct addresses, go to Expert Mode and
verify the addresses have not been manually assigned.
Serial Number This is the unique serial number of your Gateway.
Ethernet Status This is the status of your Ethernet connection. It should be Up.
Software Release This is the version number of the current embedded software
in your Gateway.
Warranty Date This is the date that your Gateway was installed and enabled.
If all of the above seem correct, then access Expert Mode by clicking the
Expert Mode link.
Item Description
142
Button: Troubleshoot
Expert Mode
Expert Mode has advanced troubleshooting tools that are used to pinpoint
the exact source of a problem.
Clicking the Troubleshoot tab displays a page with links to System Status,
Network Tools, and Diagnostics.
•System Status: Displays an overall view of the system and its condition.
•Network Tools: Includes NSLookup, Ping and TraceRoute.
•Diagnostics: Runs a multi-layer diagnostic test that checks the LAN,
WAN, PPPoE, and other connection issues.
System Status
In the system status screen, there are several utilities that are useful for
troubleshooting. Some examples are given below.
143
Link: Ports: Ethernet
The Ethernet port selection shows the traffic sent and received on the
Ethernet interface. There should be frames and bytes on both the upstream
and downstream sides. If there are not, this could indicate a bad Ethernet
cable or no Ethernet connection. Below is an example:
Ethernet Driver Statistics - 10/100 Ethernet
Type: 100BASET
Port Status: Link up
General:
Transmit OK : 7862
Receive OK : 4454
Tx Errors : 0
Rx Errors : 0
Rx CRC Errors : 0
Rx Frame Errors : 0
Upper Layers:
Rx No Handler : 0
Rx No Message : 0
Rx Octets : 975576
Rx Unicast Pkts : 4156
Rx Multicast Pkts : 203
Tx Discards : 0
Tx Octets : 2117992
Tx Unicast Pkts : 3789
Tx Multicast Pkts : 4073
Ethernet driver statistics - USB
Port Status: Link down
General:
Transmit OK : 0
Receive OK : 0
Tx Errors : 0
Rx Errors : 0
Tx Octets : 0
Rx Octets : 0
Ethernet driver statistics - 10/100 Ethernet
Type: 100BASET
Port Status: Link up
General:
Transmit OK : 7863
Receive OK : 4458
Tx Errors : 0
Rx Errors : 0
Rx CRC Errors : 0
Rx Frame Errors : 0
Upper Layers:
Rx No Handler : 0
Rx No Message : 0
Rx Octets : 976327
Rx Unicast Pkts : 4159
Rx Multicast Pkts : 204
Tx Discards : 0
144
Link: Ports: DSL
The DSL port selection shows the state of the DSL line, whether it is up or
down and how many times the Gateway attempted to train. The state
should indicate ‘up’ for a working configuration. If it is not, check the DSL
cable and make sure it is plugged in correctly and not connected to a micro
filter. Below is an example:
ADSL Line State: Up
ADSL Startup Attempts: 5
ADSL Modulation: Unknown
Datapump Version: 3.14.3
Downstream Upstream
---------- ----------
SNR Margin: 18.6 14.0 dB
Line Attenuation: 0.4 4.0 dB
Errored Seconds: 14 3
Loss of Signal: 4 4
Loss of Frame: 0 0
CRC Errors: 0 0
Data Rate: 8000 800
145
Link: DSL: Circuit Configuration
The DSL Circuit Configuration screen shows the traffic sent and received
over the DSL line as well as the trained rate (upstream and downstream)
and the VPI/VCI. Verify traffic is being sent over the DSL line. If not, check
the cabling and make sure the Gateway is not connected to a micro filter.
Also verify the correct PVC is listed, which should be 0/35 (some providers
use other values, such as 8/35. Check with your provider). If not go to the
WAN setup and change the VPI/VCI to its correct value. Below is an exam-
ple:
ATM port status : Up
Rx data rate (bps) : 8000
Tx data rate (bps) : 800
ATM Virtual Circuits:
VCC # Type VPI VCI Encapsulation
---- ---- --- ----- --------------------------
1 PVC 8 35 PPP over Ethernet (LLC/SNAP encapsulation)
ATM Circuit Statistics:
Rx Frames : 17092 Tx Frames : 25078
Rx Octets : 905876 Tx Octets : 1329134
Rx Errors : 0 Tx Errors : 0
Rx Discards : 0 Tx Discards : 0
No Rx Buffers : 0 Tx Queue Full : 0
146
Link: System Log: Entire
The system log shows the state of the WAN connection as well as the
PPPoE session. Verify that the PPPoE session has been correctly estab-
lished and there are no failures. If there are error messages, go to the WAN
configuration and verify the settings. The following is an example of a suc-
cessful connection:
Message Log:
3/30/2003 19:22:58> ADSL detected
3/30/2003 19:23:4> ATM Connected
3/30/2003 19:23:4> ATM layer is up, cell delineation achieved
3/30/2003 19:23:4> ADSL connected
3/30/2003 19:23:8> PPP1 PPPoE Session is established.
3/30/2003 19:23:8> PPP PAP Authentication success
3/30/2003 19:23:8> PPP1: PPP IP address is 163.176.224.71
3/30/2003 19:23:8> PPP1: PPP Gateway IP address is 163.176.224.254
3/30/2003 19:23:8> PPP1: DNS Primary IP address is 163.176.4.10
3/30/2003 19:23:8> PPP1: DNS Secondary IP address is 163.176.4.32
3/30/2003 19:23:8> NAT/NAPT Session Start: VC# 0, WAN IP is 163.176.224.71
3/30/2003 19:23:8> NAPT: sesPVC0 session is up.
3/30/2003 19:23:9> PPP1 Session is up.
147
Diagnostics
The diagnostics section tests a number of different things at the same
time, including the DSL line, the Ethernet interface and the PPPoE session.
The following table summarizes the possible results.
CODE Description
PASS The test was successful.
FAIL The test was unsuccessful.
SKIPPED The test was skipped because a test on which it depended failed, or it was
not supported by the service provider equipment to which it is connected.
PENDING The test timed out without producing a result. Try running the test again.
WARNING The test was unsuccessful. The Service Provider equipment your Gateway
connects to may not support this test.
148
Network Tools
Three test tools are available from this page.
•NSLookup - converts a domain name to its IP address and vice versa.
•Ping - tests the “reachability” of a particular network destination by
sending an ICMP echo request and waiting for a reply.
•TraceRoute - displays the path to a destination by showing the number
of hops and the router addresses of these hops.
1. To use the NSLookup capability, type an address (domain name or IP
address) in the text box and click the NSLookup button
Example: Show the IP Address for grosso.com.
149
Result: The DNS Server doing the lookup is displayed in the Server: and
Address: fields. If the Name Server can find your entry in its table, it is
displayed in the Name: and Address: fields.
PING: The network tools section sends a PING from the Gateway to either
the LAN or WAN to verify connectivity. A PING could be either an IP address
(163.176.4.32) or Domain Name (www.netopia.com).
2. To use the Ping capability, type a destination address (domain name or IP
address) in the text box and click the Ping button.
Example: Ping to grosso.com.
Result: The host was reachable with four out of five packets sent.
Below are some specific tests:
Action If PING is not successful, possible causes are:
From the Gateway's Network
Tools page:
Ping the internet default gateway
IP address DSL is down, DSL or ATM settings are incorrect;
Gateway’s IP address or subnet mask are wrong;
gateway router is down.
Ping an internet site by IP
address Gateway’s default gateway is incorrect, Gate-
way’s subnet mask is incorrect, site is down.
Ping an internet site by name DNS is not properly configured on the Gateway;
configured DNS servers are down; site is down.
From a LAN PC:
150
3. To use the TraceRoute capability, type a destination address (domain
name or IP address) in the text box and click the TraceRoute button.
Example: Show the path to the grosso.com site.
Result: It took 20 hops to get to the grosso.com web site.
Ping the Gateway’s LAN IP
address IP address and subnet mask of PC are not on the
same scheme as the Gateway; cabling or other
connectivity issue.
Ping the Gateway’s wan IP
address Default gateway on PC is incorrect.
Ping the Gateway’s internet
default gateway IP address NAT is off on the Gateway and the internal IP
addresses are private.
Ping an internet site by IP
address PC's subnet mask may be incorrect, site is down.
Ping an internet site by name DNS is not properly configured on the PC, config-
ured DNS servers are down, site is down.
Action If PING is not successful, possible causes are:
151
CHAPTER 6 Command Line
Interface
The Cayman Gateway operating software includes a command
line interface (CLI) that lets you access your Cayman Gateway
over a telnet connection. You can use the command line inter-
face to enter and update the unit’s configuration settings, mon-
itor its performance, and restart it.
This chapter covers the following topics:
•“Overview” on page 152
•“Starting and Ending a CLI Session” on page 154
•“Using the CLI Help Facility” on page 155
•“About SHELL Commands” on page 156
•“SHELL Commands” on page 157
•“About CONFIG Commands” on page 168
•“CONFIG Commands” on page 174
152
Overview
The CLI has two major command modes: SHELL and CONFIG.
Summary tables that list the commands are provided below.
Details of the entire command set follow in this section.
SHELL Commands
Command Status and/or Description
arp send ARP request
atmping send ATM OAM loopback (DSL only)
clear erase all stored configuration information
configure set the unit’s options
diagnose run the automatic self-test
download download the config file
help get more information on a command: “help all” or “help
help”
install download and program an image into flash
log add a message to the diagnostic log
loglevel report or change diagnostic log level
netstat show IP information
nslookup send DNS query for host
ping send ICMP echo request
quit quit this shell
reset reset subsystems
restart restart the Gateway
show display specific system information
start start subsystem
status display basic status of Gateway
telnet telnet to a remote host
traceroute trace route to a remote host
upload upload config file
who show who is using the shell
wireless execute wireless TEACH or LEARN
153
Overview
CONFIG Commands
Command
Verbs Status and/or Description
set Set configuration data
define Define environment data
delete Delete configuration list data
view View configuration data
script Print configuration data
help Help command option
save Save configuration data
Keywords
system Gateway’s system options
pppoe PPP over Ethernet options
dmt DMT ADSL options
atm ATM options (DSL only)
ip TCP/IP protocol options
dhcp Dynamic Host Configuration Protocol options
nat-default Network Address Translation default options
dns Domain Name System options
bridge Bridge options
ppp Peer-to-Peer Protocol options
pinhole Pinhole options
security Security options
servers Internal Server options
validate Validate configuration settings
preference Shell environment settings
Command
Utilities
top Go to top level of configuration mode
quit Exit from configuration mode; return to shell mode
exit Exit from configuration mode; return to shell mode
154
Starting and Ending a CLI Session
Open a telnet connection from a workstation on your network.
You initiate a telnet connection by issuing the following com-
mand from an IP host that supports telnet, for example, a per-
sonal computer running a telnet application such as NCSA
Telnet.
telnet <ip_address>
You must know the IP address of the Cayman Gateway before
you can make a telnet connection to it. By default, your Cayman
Gateway uses 192.168.1.254 as the IP address for its LAN
interface. You can use a Web browser to configure the Cayman
Gateway IP address.
Logging In
The command line interface log-in process emulates the log-in
process for a UNIX host. To logon, enter the username (either
admin or user), and your password.
•Entering the administrator password lets you display and
update all Cayman Gateway settings.
•Entering a user password lets you display (but not update)
Cayman Gateway settings.
When you have logged in successfully, the command line inter-
face lists the username and the security level associated with
the password you entered in the diagnostic log.
Ending a CLI Session
You end a command line interface session by typing quit from
the SHELL node of the command line interface hierarchy.
155
Using the CLI Help Facility
Saving Settings
The save command saves the working copy of the settings to
the Gateway. The Gateway automatically validates its settings
when you save and displays a warning message if the configura-
tion is not correct.
Using the CLI Help Facility
The help command lets you display on-line help for SHELL and
CONFIG commands. To display a list of the commands available
to you from your current location within the command line inter-
face hierarchy, enter help.
To obtain help for a specific CLI command, type help <com-
mand>. You can truncate the help command to h or a question
mark when you request help for a CLI command.
156
About SHELL Commands
You begin in SHELL mode when you start a CLI session. SHELL
mode lets you perform the following tasks with your Cayman
Gateway:
•Monitor its performance
•Display and reset Gateway statistics
•Issue administrative commands to restart Cayman Gateway
functions
SHELL Prompt
When you are in SHELL mode, the CLI prompt is the name of
the Cayman Gateway followed by a right angle bracket (>). For
example, if you open a CLI connection to the Cayman Gateway
named “Coconut,” you would see Coconut> as your CLI prompt.
SHELL Command Shortcuts
You can truncate most commands in the CLI to their shortest
unique string. For example, you can use the truncated com-
mand q in place of the full quit command to exit the CLI. How-
ever, you would need to enter rese for the reset command,
since the first characters of reset are common to the restart
command.
The only commands you cannot truncate are restart and clear.
To prevent accidental interruption of communications, you must
enter the restart and clear commands in their entirety.
You can use the Up and Down arrow keys to scroll backward
and forward through recent commands you have entered. Alter-
natively, you can use the !! command to repeat the last com-
mand you entered.
157
SHELL Commands
SHELL Commands
Common Commands
arp nnn.nnn.nnn.nnn
Sends an Address Resolution Protocol (ARP) request to match
the nnn.nnn.nnn.nnn IP address to an Ethernet hardware
address.
clear [yes]
Clears the configuration settings in a Cayman Gateway. If you
do not use the optional yes qualifier, you are prompted to con-
firm the clear command.
configure
Puts the command line interface into Configure mode, which
lets you configure your Cayman Gateway with Config com-
mands. Config commands are described starting on page 153.
diagnose
Runs a diagnostic utility to conduct a series of internal checks
and loopback tests to verify network connectivity over each
interface on your Cayman Gateway. The console displays the
results of each test as the diagnostic utility runs. If one test is
dependent on another, the diagnostic utility indents its entry in
the console window. For example, the diagnostic utility indents
the Check IP connect to Ethernet (LAN) entry, since that test
will not run if the Check Ethernet LAN Connect test fails.
158
Each test generates one of the following result codes:
download [ –key server_address] [filename] [confirm]
With no flags set, this command installs a file of configuration
parameters into the Cayman Gateway from a TFTP (Trivial File
Transfer Protocol) server. The TFTP server must be accessible
on your Ethernet network.
With the –key flag set, downloads a new feature key to the
Gateway.
You can include one or more of the following arguments with
the download command. If you omit arguments, the console
prompts you for this information.
•The server_address argument identifies the IP address of
the TFTP server from which you want to copy the Cayman
Gateway configuration file.
•The filename argument identifies the path and name of the
configuration file on the TFTP server.
•If you include the optional confirm keyword, the download
begins as soon as all information is entered.
install [server_address] [filename] [confirm]
Downloads a new version of the Cayman Gateway operating
software from a TFTP (Trivial File Transfer Protocol) server, vali-
CODE Description
PASS The test was successful.
FAIL The test was unsuccessful.
SKIPPED The test was skipped because a test on
which it depended failed.
PENDING The test timed out without producing a result.
Try running the test again.
159
SHELL Commands
dates the software image, and programs the image into the
Cayman Gateway memory. After you install new operating soft-
ware, you must restart the Cayman Gateway.
The server_address argument identifies the IP address of
the TFTP server on which your Cayman Gateway operating soft-
ware is stored. The filename argument identifies the path
and name of the operating software file on the TFTP server.
If you include the optional keyword confirm, you will not be
prompted to identify a TFTP server or file name. Your Cayman
Gateway begins the software installation using its default boot
settings.
log message_string
Adds the message in the message_string argument to the
Cayman Gateway diagnostic log.
loglevel [level]
Displays or modifies the types of log messages you want the
Cayman Gateway to record. If you enter the loglevel com-
mand without the optional level argument, the command line
interface displays the current log level setting.
You can enter the loglevel command with the level argu-
ment to specify the types of diagnostic messages you want to
record. All messages with a level number equal to or greater
than the level you specify are recorded. For example, if you
specify loglevel 3, the diagnostic log will retain high-level infor-
mational messages (level 3), warnings (level 4), and failure
messages (level 5).
Use the following values for the level argument:
160
•1 or low – Low-level informational messages or greater;
includes trivial status messages.
•2 or medium – Medium-level informational messages or
greater; includes status messages that can help monitor net-
work traffic.
•3 or high – High-level informational messages or greater;
includes status messages that may be significant but do not
constitute errors.
•4 or warning – Warnings or greater; includes recoverable
error conditions and useful operator information.
•5 or failure – Failures; includes messages describing
error conditions that may not be recoverable.
netstat -i
Displays the IP interfaces for your Cayman Gateway.
netstat -r
Displays the IP routes stored in your Cayman Gateway.
nslookup { hostname | ip_address }
Performs a domain name system lookup for a specified host.
•The hostname argument is the name of the host for which
you want DNS information; for example, nslookup klaatu.
•The ip_address argument is the IP address, in dotted dec-
imal notation, of the device for which you want DNS informa-
tion.
ping [-s size] [-c count]{ hostname | ip_address }
Causes the Cayman Gateway to issue a series of ICMP Echo
requests for the device with the specified name or IP address.
161
SHELL Commands
•The hostname argument is the name of the device you want
to ping; for example, ping ftp.netopia.com.
•The ip_address argument is the IP address, in dotted dec-
imal notation, of the device you want to locate. If a host
using the specified name or IP address is active, it returns
one or more ICMP Echo replies, confirming that it is accessi-
ble from your network.
•The -s size argument lets you specify the size of the ICMP
packet.
•The -c count argument lets you specify the number of ICMP
packets generated for the ping request. Values greater than
250 are truncated to 250.
You can use the ping command to determine whether a host-
name or IP address is already in use on your network. You can-
not use the ping command to ping the Cayman Gateway’s own
IP address.
quit
Exits the Cayman Gateway command line interface.
reset arp
Clears the Address Resolution Protocol (ARP) cache on your
unit.
reset crash
Clears crash-dump information, which identifies the contents of
the Cayman Gateway registers at the point of system malfunc-
tion.
162
reset dhcp server
Clears the DHCP lease table in the Cayman Gateway.
reset enet
Resets Ethernet statistics to zero
reset hosts
Clears all entries in the host name table. Thereafter, when PCs
configured as DHCP clients use the Gateway, new entries will
be rebuilt. DHCP serving must be enabled.
reset ipmap
Clears the IPMap table (NAT).
reset log
Rewinds the diagnostic log display to the top of the existing
Cayman Gateway diagnostic log. The reset log command does
not clear the diagnostic log. The next show log command will
display information from the beginning of the log file.
reset security-log
Clears the security monitoring log to make room to capture new
entries.
reset wan-users [all | ip-address]
This function disconnects the specified WAN User to allow for
other users to access the WAN. This function is only available if
163
SHELL Commands
the number of WAN Users is restricted and NAT is on. Use the
all parameter to disconnect all users. If you logon as Admin you
can disconnect any or all users. If you logon as User, you can
only disconnect yourself.
restart [seconds]
Restarts your Cayman Gateway. If you include the optional
seconds argument, your Cayman Gateway will restart when
the specified number of seconds have elapsed. You must enter
the complete restart command to initiate a restart.
show bridge interfaces
Displays bridge interfaces maintained by the Cayman Gateway.
show bridge table
Displays the bridging table maintained by the Cayman Gateway.
show crash
Displays the most recent crash information, if any, for your Cay-
man Gateway.
show dhcp server leases [ used | free ]
Displays the DHCP leases stored in RAM by your Cayman Gate-
way. You can include the used argument to see the list of DHCP
leases that are in use or that have been used since your Cay-
man Gateway was restarted. You can include the free argument
to see the list of DHCP leases that are available for use.
164
show dhcp server store
Displays the DHCP leases stored in NVRAM by your Cayman
Gateway.
show ip arp
Displays the Ethernet address resolution table stored in your
Cayman Gateway.
show ip igmp
Displays the contents of the IGMP Group Address table and the
IGMP Report table maintained by your Cayman Gateway.
show ip interfaces
Displays the IP interfaces for your Cayman Gateway.
show ip routes
Displays the IP routes stored in your Cayman Gateway.
show log
Displays blocks of information from the Cayman Gateway diag-
nostic log. To see the entire log, you can repeat the show log
command or you can enter show log all.
show memory [all]
Displays memory usage information for your Cayman Gateway.
If you include the optional all argument, your Cayman Gateway
will display a more detailed set of memory statistics.
165
SHELL Commands
show pppoe
Displays status information for each PPP socket, such as the
socket state, service names, and host ID values.
show status
Displays the current status of a Cayman Gateway, the device's
hardware and software revision levels, a summary of errors
encountered, and the length of time the Cayman Gateway has
been running since it was last restarted. Identical to the sta-
tus command.
telnet { hostname | ip_address } [port]
Lets you open a telnet connection to the specified host through
your Cayman Gateway.
•The hostname argument is the name of the device to which
you want to connect; for example, telnet ftp.cayman.com.
•The ip_address argument is the IP address, in dotted dec-
imal notation, of the device to which you want to connect.
•The port argument is the number of t he port over which
you want to open a telnet session.
upload [server_address] [filename] [confirm]
Copies the current configuration settings of the Cayman Gate-
way to a TFTP (Trivial File Transfer Protocol) server. The TFTP
server must be accessible on your Ethernet network. The
server_address argument identifies the IP address of the
TFTP server on which you want to store the Cayman Gateway
settings. The filename argument identifies the path and
name of the configuration file on the TFTP server. If you include
166
the optional confirm keyword, you will not be prompted to
identify a TFTP server or file name.
who
Displays the names of the current shell users.
DSL Commands
atmping vccn [ segment | end-to-end ]
Lets you check the ATM connection reachability and network
connectivity. This command sends five Operations, Administra-
tion, and Maintenance (OAM) loopback calls to the specified
vpi/vci destination. There is a five second total timeout interval.
Use the segment argument to ping a neighbor switch.
Use the end-to-end argument to ping a remote end node.
reset dhcp client release [ vcc-id ]
Releases the DHCP lease the Cayman Gateway is currently
using to acquire the IP settings for the specified DSL port. The
vcc-id identifier is a letter in the rang B-I. Enter the reset
dhcp client release without the variable to see the letter
assigned to each virtual circuit.
reset dhcp client renew [ vcc-id ]
Releases the DHCP lease the Cayman Gateway is currently
using to acquire the IP settings for the specified DSL port. The
vcc-id identifier is a letter in the rang B-I. Enter the reset
dhcp client release without the variable to see the letter
assigned to each virtual circuit.
167
SHELL Commands
reset dsl
Resets any open DSL connection.
reset ppp vccn
Resets the point-to-point connection over the specified virtual
circuit. This command only applies to virtual circuits that use
PPP framing.
show atm [all]
Displays ATM statistics for the Cayman Gateway. The optional
all argument displays a more detailed set of ATM statistics.
show dsl
Displays DSL port statistics, such as upstream and down-
stream connection rates and noise levels.
show ppp [{ stats | lcp | ipcp | lastconnect }] [vccn]
Displays information about open PPP links. You can display a
subset of the PPP statistics by including an optional stats,
lcp, ipcp, or lastconnect argument for the show ppp
command. The optional vccn argument lets you specify the
virtual circuit for which you want statistics.
start ppp vccn
Opens a PPP link on the specified virtual circuit.
168
About CONFIG Commands
You reach the configuration mode of the command line inter-
face by typing configure (or any truncation of configure, such
as c or config) at the CLI SHELL prompt.
CONFIG Mode Prompt
When you are in CONFIG mode, the CLI prompt consists of the
name of the Cayman Gateway followed by your current node in
the hierarchy and two right angle brackets (>>). For example,
when you enter CONFIG mode (by typing config at the SHELL
prompt), the Coconut (top)>> prompt reminds you that you
are at the top of the CONFIG hierarchy. If you move to the ip
node in the CONFIG hierarchy (by typing ip at the CONFIG
prompt), the prompt changes to Coconut (ip)>> to identify
your current location.
Some CLI commands are not available until certain conditions
are met. For example, you must enable IP for an interface
before you can enter IP settings for that interface.
Navigating the CONFIG Hierarchy
•Moving from CONFIG to SHELL — You can navigate from
anywhere in the CONFIG hierarchy back to the SHELL level by
entering quit at the CONFIG prompt and pressing RETURN.
Dogzilla (top)>> quit
Dogzilla >
•Moving from top to a subnode — You can navigate from
the top node to a subnode by entering the node name (or the
significant letters of the node name) at the CONFIG prompt
and pressing RETURN. For example, you move to the IP subn-
ode by entering ip and pressing RETURN.
169
About CONFIG Commands
Dogzilla (top)>> ip
Dogzilla (ip)>>
As a shortcut, you can enter the significant letters of the node
name in place of the full node name at the CONFIG prompt. The
significant characters of a node name are the letters that
uniquely identify the node. For example, since no other CONFIG
node starts with I, you could enter one letter (“i”) to move to
the IP node.
•Jumping down several nodes at once — You can jump
down several levels in the CONFIG hierarchy by entering the
complete path to a node.
•Moving up one node — You can move up through the CON-
FIG hierarchy one node at a time by entering the up com-
mand.
•Jumping to the top node — You can jump to the top level
from anywhere in the CONFIG hierarchy by entering the top
command.
•Moving from one subnode to another — You can move
from one subnode to another by entering a partial path that
identifies how far back to climb.
•Moving from any subnode to any other subnode — You
can move from any subnode to any other subnode by enter-
ing a partial path that starts with a top-level CONFIG com-
mand.
•Scrolling backward and forward through recent com-
mands — You can use the Up and Down arrow keys to scroll
backward and forward through recent commands you have
entered. When the command you want appears, press Enter
to execute it.
170
Entering Commands in CONFIG Mode
CONFIG commands consist of keywords and arguments. Key-
words in a CONFIG command specify the action you want to
take or the entity on which you want to act. Arguments in a
CONFIG command specify the values appropriate to your site.
For example, the CONFIG command
set ip ethernet A ip_address
consists of two keywords (ip, and ethernet A) and one argu-
ment (ip_address). When you use the command to configure
your Gateway, you would replace the argument with a value
appropriate to your site.
For example:
set ip ethernet A 192.31.222.57
171
About CONFIG Commands
Guidelines: CONFIG Commands
The following table provides guidelines for entering and format-
ting CONFIG commands.
If a command is ambiguous or miskeyed, the CLI prompts you
to enter additional information. For example, you must specify
which virtual circuit you are configuring when you are setting up
a Cayman Gateway.
Command
component Rules for entering CONFIG commands
Command verbs CONFIG commands must start with a command verb
(set, view, delete).
You can truncate CONFIG verbs to three characters
(set, vie, del).
CONFIG verbs are case-insensitive. You can enter
“SET,” “Set,” or “set.”
Keywords Keywords are case-insensitive. You can enter “Ether-
net,” “ETHERNET,” or “ethernet” as a keyword without
changing its meaning.
Keywords can be abbreviated to the length that they are
differentiated from other keywords.
Argument Text Text strings can be as many as 64 characters long,
unless otherwise specified.
Special characters are represented using backslash
notation.
Text strings may be enclosed in double (“) or single (‘)
quote marks. If the text string includes an embedded
space, it must be enclosed in quotes.
Special characters are represented using backslash
notation.
Numbers Enter numbers as integers.
IP addresses Enter IP addresses in dotted decimal notation (0 to
255).
172
Displaying Current Gateway Settings
You can use the view command to display the current CONFIG
settings for your Cayman Gateway. If you enter the view com-
mand at the top level of the CONFIG hierarchy, the CLI displays
the settings for all enabled functions. If you enter the view com-
mand at an intermediate node, you see settings for that node
and its subnodes.
Step Mode: A CLI Configuration Technique
The Cayman Gateway command line interface includes a step
mode to automate the process of entering configuration set-
tings. When you use the CONFIG step mode, the command line
interface prompts you for all required and optional information.
You can then enter the configuration values appropriate for your
site without having to enter complete CLI commands.
When you are in step mode, the command line interface
prompts you to enter required and optional settings. If a setting
has a default value or a current setting, the command line inter-
face displays the default value for the command in parenthe-
ses. If a command has a limited number of acceptable values,
those values are presented in brackets, with each value sepa-
rated by a vertical line. For example, the following CLI step com-
mand indicates that the default value is off and that valid
entries are limited to on and off.
option (off) [on | off]: on
You can accept the default value for a field by pressing the
Return key. To use a different value, enter it and press Return.
You can enter the CONFIG step mode by entering set from the
top node of the CONFIG hierarchy. You can enter step mode for
a particular service by entering set service_name. In step-
173
About CONFIG Commands
ping set mode (press Control-X <Return/Enter> to exit. For
example:
Dogzilla (top)>> set system
...
system
name (“Dogzilla”): Mycroft
Diagnostic Level (High): medium
Stepping mode ended.
Validating Your Configuration
You can use the validate CONFIG command to make sure
that your configuration settings have been entered correctly. If
you use the validate command, the Cayman Gateway verifies
that all required settings for all services are present and that
settings are consistent.
Dogzilla (top)>> validate
Error: Subnet mask is incorrect
Global Validation did not pass
inspection!
You can use the validate command to verify your configura-
tion settings at any time. Your Cayman Gateway automatically
validates your configuration any time you save a modified con-
figuration.
174
CONFIG Commands
This section describes the keywords and arguments for the var-
ious CONFIG commands.
DSL Commands
ATM Settings. You can use the CLI to set up each ATM virtual
circuit.
set atm option {on | off }
Enables the WAN interface of the Cayman Gateway to be config-
ured using the Asynchronous Transfer Mode (ATM) protocol.
set atm [vcc n] option {on | off }
Selects the virtual circuit for which further parameters are set.
Up to eight VCCs are supported; the maximum number is
dependent on your Cayman Operating System tier and the capa-
bilities that your Service Provider offers.
set atm [vcc n] qos service-class { cbr | ubr }
Sets the Quality of Service class for the specified virtual circuit
– Constant (cbr) or Unspecified (ubr) Bit Rate.
•ubr: No configuration is needed for UBR VCs. Leave the
default value 0 (maximum line rate).
•cbr: One parameter is required for CBR VCs. Enter the Peak
Cell Rate that applies to the VC. This value should be
between 1 and the line rate. You set this value according to
specifications defined by your service provider.
175
CONFIG Commands
set atm [vcc n] qos peak-cell-rate { 1 ...n }
If QoS class is set to cbr, then specifiy the peak-cell-rate that
should apply to the specified virtual circuit. This value should
be between 1 and the line rate.
set atm [vcc n] vpi { 0 ... 255 }
Select the virtual path identifier (vpi) for VCC n.
Your Service Provider will indicate the required vpi number.
set atm [vcc n] vci { 0 ... 65535 }
Select the virtual channel identifier (vci) for VCC n.
Your Service Provider will indicate the required vci number.
set atm [vccn] encap
{ ppp-vcmux | ppp-llc | ether-vcmux | ether-llc |
ip-vcmux | ip-llc | ppoe-vcmux | pppoe-llc }
Select the encapsulation mode for VCC n. The options are:
ppp-vcmux PPP over ATM, VC-muxed
ppp-llc PPP over ATM, LLC-SNAP
ether-vcmux RFC-1483, bridged Ethernet, VC-muxed
ether-llc RFC-1483, bridged Ethernet, LLC-SNAP
ip-vcmux RFC-1483, routed IP, VC-muxed
ip-llc RFC-1483, routed IP, LLC-SNAP
pppoe-vcmux PPP over Ethernet, VC-muxed
pppoe-llc PPP over Ethernet, LLC-SNAP
176
Your Service Provider will indicate the required encapsulation
mode.
set atm [vccn] pppoe-sessions { 1 ... 8 }
Select the number of PPPoE sessions to be configured for
VCC 1, up to a total of eight. The total number of pppoe-ses-
sions and PPPoE VCCs configured must be less than or equal
to eight.
Bridging Settings
Bridging lets the Cayman Gateway use MAC (Ethernet hard-
ware) addresses to forward non-TCP/IP traffic from one network
to another. When bridging is enabled, the Cayman Gateway
maintains a table of up to 255 MAC addresses. Entries that are
not used within 10 minutes are dropped. If the bridging table
fills up, the oldest table entries are dropped to make room for
new entries.
Virtual circuits that use IP framing cannot be bridged.
☛ NOTE:
For bridging in the 3341 (or any model with a USB
port), you cannot set the bridge option off, or
bridge ethernet option off; these are on by default
because of the USB port.
177
CONFIG Commands
Common Commands
set bridge option {on | off }
Enables or disables bridging services in the Cayman Gateway.
You must enable bridging services within the Cayman Gateway
before you can enable bridging for a specific interface.
DSL Commands
set bridge ethernet option { on | off }
Enables or disables bridging services for the specified virtual
circuit using Ethernet framing.
set bridge interwan-bridging { on | off }
Enables or disables bridging between virtual circuit connec-
tions.
DHCP Settings
As a Dynamic Host Control Protocol (DHCP) server, your Cay-
man Gateway can assign IP addresses and provide configura-
tion information to other devices on your network dynamically. A
device that acquires its IP address and other TCP/IP configura-
tion settings from the Cayman Gateway can use the information
for a fixed period of time (called the DHCP lease).
178
Common Commands
set dhcp option { off | server | relay-agent }
Enables or disables DHCP services in the Cayman Gateway.
You must enable DHCP services before you can enter other
DHCP settings for the Cayman Gateway.
If you turn off DHCP services and save the new configuration,
the Cayman Gateway clears its DHCP settings.
set dhcp start-address ip_address
If you selected server, specifies the first address in the
DHCP address range. The Cayman Gateway can reserve a
sequence of up to 253 IP addresses within a subnet, beginning
with the specified address for dynamic assignment.
set dhcp end-address ip_address
If you selected server, specifies the last address in the DHCP
address range.
set dhcp lease-time lease-time
If you selected server, specifies the default length for DHCP
leases issued by the Cayman Gateway. Enter lease time in
dd:hh:mm:ss (day/hour/minute/second) format.
179
CONFIG Commands
DMT Settings
DSL Commands
set dmt type [ lite | dmt | ansi | multi ]
Selects the type of Discrete Multitone (DMT) asynchronous digi-
tal subscriber line (ADSL) protocol to use for the WAN interface.
Domain Name System Settings
Domain Name System (DNS) is an information service for TCP/
IP networks that uses a hierarchical naming system to identify
network domains and the hosts associated with them. You can
identify a primary DNS server and one secondary server.
Common Commands
set dns domain-name domain-name
Specifies the default domain name for your network. When an
application needs to resolve a host name, it appends the
default domain name to the host name and asks the DNS
server if it has an address for the “fully qualified host name.”
set dns primary-address ip_address
Specifies the IP address of the primary DNS name server.
set dns secondary-address ip_address
Specifies the IP address of the secondary DNS name server.
Enter 0.0.0.0 if your network does not have a secondary DNS
name server.
180
IP Settings
You can use the command line interface to specify whether
TCP/IP is enabled, identify a default Gateway, and to enter
TCP/IP settings for the Cayman Gateway LAN and WAN ports.
☛ NOTE:
For the DSL platform you must identify the virtual
PPP interface [vccn], a number from 1 to 8.
Common Settings
set ip option { on | off }
Enables or disables TCP/IP services in the Cayman Gateway.
You must enable TCP/IP services before you can enter other
TCP/IP settings for the Cayman Gateway. If you turn off TCP/IP
services and save the new configuration, the Cayman Gateway
clears its TCP/IP settings.
DSL Settings
set ip dsl vccn address ip_address
Assigns an IP address to the virtual circuit. Enter 0.0.0.0 if you
want the virtual circuit to obtain its IP address from a remote
DHCP server.
set ip dsl vccn broadcast broadcast_address
Specifies the broadcast address for the TCP/IP network con-
nected to the virtual circuit. IP hosts use the broadcast address
181
CONFIG Commands
to send messages to every host on your network simulta-
neously.
The broadcast address for most networks is the network num-
ber followed by 255. For example, the broadcast address for
the 192.168.1.0 network would be 192.168.1.255.
set ip dsl vccn netmask netmask
Specifies the subnet mask for the TCP/IP network connected to
the virtual circuit. The subnet mask specifies which bits of the
32-bit binary IP address represents network information. The
default subnet mask for most networks is 255.255.255.0
(Class C subnet mask).
set ip dsl vccn restriction { admin-disabled | none }
Specifies restrictions on the types of traffic the Cayman Gate-
way accepts over the DSL virtual circuit. The admin-dis-
abled argument means that router traffic is accepted but that
administrative commands are ignored. The none argument
means that all traffic is accepted. RIP and ICMP traffic is still
accepted.
set ip dsl vccn addr-mapping { on | off }
Specifies whether you want the Cayman Gateway to use net-
work address translation (NAT) when communicating with
remote routers. Address mapping lets you conceal details of
your network from remote routers. It also permits all LAN
devices to share a single IP address.
By default, address mapping is turned “On”.
182
Ethernet Hub Settings
set ip ethernet option { on | off }
Enables or disables communications through the designated
Ethernet port in the Gateway. You must enable TCP/IP functions
for an Ethernet port before you can configure its network set-
tings.
☛ NOTE:
Currently, the only option is on; it cannot be set to
off.
set ip ethernet A address ip_address
Assigns an IP address to the Cayman Gateway on the local area
network. The IP address you assign to the local Ethernet inter-
face must be unique on your network. By default, the Cayman
Gateway uses 192.168.1.254 as its LAN IP address.
set ip ethernet A broadcast broadcast_address
Specifies the broadcast address for the local Ethernet inter-
face. IP hosts use the broadcast address to send messages to
every host on your network simultaneously.
The broadcast address for most networks is the network num-
ber followed by 255. For example, the broadcast address for
the 192.168.1.0 network would be 192.168.1.255.
183
CONFIG Commands
set ip ethernet A netmask netmask
Specifies the subnet mask for the local Ethernet interface. The
subnet mask specifies which bits of the 32-bit binary IP
address represent network information. The default subnet
mask for most networks is 255.255.255.0 (Class C subnet
mask).
set ip ethernet A restrictions { none | admin-disabled }
Specifies whether an administrator can open a telnet connec-
tion to a Cayman Gateway over the Ethernet interface to moni-
tor and configure the unit. On the WAN port, you can enable or
disable administrator access or specify that the WAN port can
only be used for administrative traffic. By default, administra-
tive restrictions are off on the LAN, but Admin-Disabled is set
for the WAN, meaning an administrator can open a telnet con-
nection.
set ip ethernet rip-send { off | v1 | v2 | v1-compat | v2-MD5 }
Specifies whether the Cayman Gateway should use Routing
Information Protocol (RIP) broadcasts to advertise its routing
tables to other routers on your network. RIP Version 2 (RIP-2) is
an extension of the original Routing Information Protocol (RIP-1)
that expands the amount of useful information in the RIP pack-
ets. While RIP-1 and RIP-2 share the same basic algorithms,
RIP-2 supports several additional features, including inclusion
of subnet masks in RIP packets and implementation of multi-
casting instead of broadcasting (which reduces the load on
hosts which do not support routing protocols. RIP-2 with MD5
authentication is an extension of RIP-2 that increases security
by requiring an authentication key when routes are advertised.
184
Depending on your network needs, you can configure your Cay-
man Gateway to support RIP-1, RIP-2, or both.
Default IP Gateway Settings
set ip gateway option { on | off }
Specifies whether the Cayman Gateway should send packets to
a default Gateway if it does not know how to reach the destina-
tion host.
set ip gateway interface { ip-address | ppp-vccn }
Specifies how the Cayman Gateway should route information to
the default Gateway. If you select ip-address, you must enter
the IP address of a host on a local or remote network. If you
specify ppp, the Cayman unit uses the default gateway being
used by the remote PPP peer.
set ip gateway interface { ip-address | ppp-vccn}
Specifies whether a DSL Gateway is reached using a fixed IP
address or through a PPP virtual circuit.
IP-over-PPP Settings. Use the following commands to config-
ure settings for routing IP over a virtual PPP interface.
☛ NOTE:
For a DSL platform you must identify the virtual PPP
interface [vccn], a number from vcc1 to vcc8.
185
CONFIG Commands
set ip ip-ppp [vccn] option { on | off }
Enables or disables IP routing through the virtual PPP interface.
By default, IP routing is turned off. You must enable IP routing
before you can enter other IP routing settings for the virtual PPP
interface. If you turn off IP routing and save the new configura-
tion, the Cayman Gateway clears IP routing settings
set ip ip-ppp [vccn] address ip_address
Assigns an IP address to the virtual PPP interface. If you spec-
ify an IP address other than 0.0.0.0, your Cayman Gateway will
not negotiate its IP address with the remote peer. If the remote
peer does not accept the IP address specified in the
ip_address argument as valid, the link will not come up.
The default value for the ip_address argument is 0.0.0.0,
which indicates that the virtual PPP interface will use the IP
address assigned to it by the remote peer. Note that the
remote peer must be configured to supply an IP address to your
Cayman Gateway if you enter 0.0.0.0 for the ip_address
argument.
set ip ip-ppp [vccn] peer-address ip_address
Specifies the IP address of the peer on the other end of the PPP
link. If you specify an IP address other than 0.0.0.0, your Cay-
man Gateway will not negotiate the remote peer's IP address. If
the remote peer does not accept the address in the
ip_address argument as its IP address (typically because it
has been configured with another IP address), the link will not
come up.
186
