User Manual - DG2470A
Touchstone DG2470 Data
Gateway
User Guide
Release 24 STANDARD 1. 3 February 2015
Touchstone DG2470 Data Gateway User Guide
Release 24 STANDARD 1.3
ARRIS Copyrights and Trademarks
© ARRIS Enterprises, Inc. 2015 All rights reserved. No part of this publication may be
reproduced in any form or by any means or used to make any derivative work (such as
translation, transformation, or adaptation) without written permission from ARRIS
Enterprises, Inc. (“ARRIS”). ARRIS reserves the right to revise this publication and to
make changes in content from time to tim e without obligation on the part of ARRIS to
provide notification of such revision or change.
ARRIS and the ARRIS logo are all tradem arks of ARRIS Enterprises, Inc. Other
tradem arks and trade names may be used in this document to refer to either the entities
claiming the marks and the names of their products. ARRIS disclaims proprietary
interest in the marks and names of others.
ARRIS provides this guide without warranty of any kind, implied or expressed, including,
but not limited to, the implied warranties of merchantability and fitness for a particular
purpose. ARRIS may make improvem ents or changes in the product(s) described in this
manual at any time.
The capabilities, system requirements and/ or com patibility with third-party products
described herein are subject to change without notice.
Patent Notice
Protected under one or more of the following U.S. patents: http:/ / www.arris.com/ legal
Other patents pending.
Table of Contents
Chapter 1. Overview .. ... . ... ... . ... .... ... .... ... .... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... .. 5
Int roduct ion ................................................................................................. 5
Get t ing Support .. . . .. . . ... . . .. . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... 6
Chapter 2. Safety Requirements ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . 7
FCC Part 15 ................................................................................................. 8
RF Exposure .. ... . ... . . ... . ... . . ... . ... . . ... . ... . . .. . . ... . . .. . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... 8
Indust ry Canada Compliance . . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . .. . . ... . . .. . . ... . ... . . ... . ... . . ... . ... 8
For Mexico ................................................................................................... 9
Chapter 3. Getting Started ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... 10

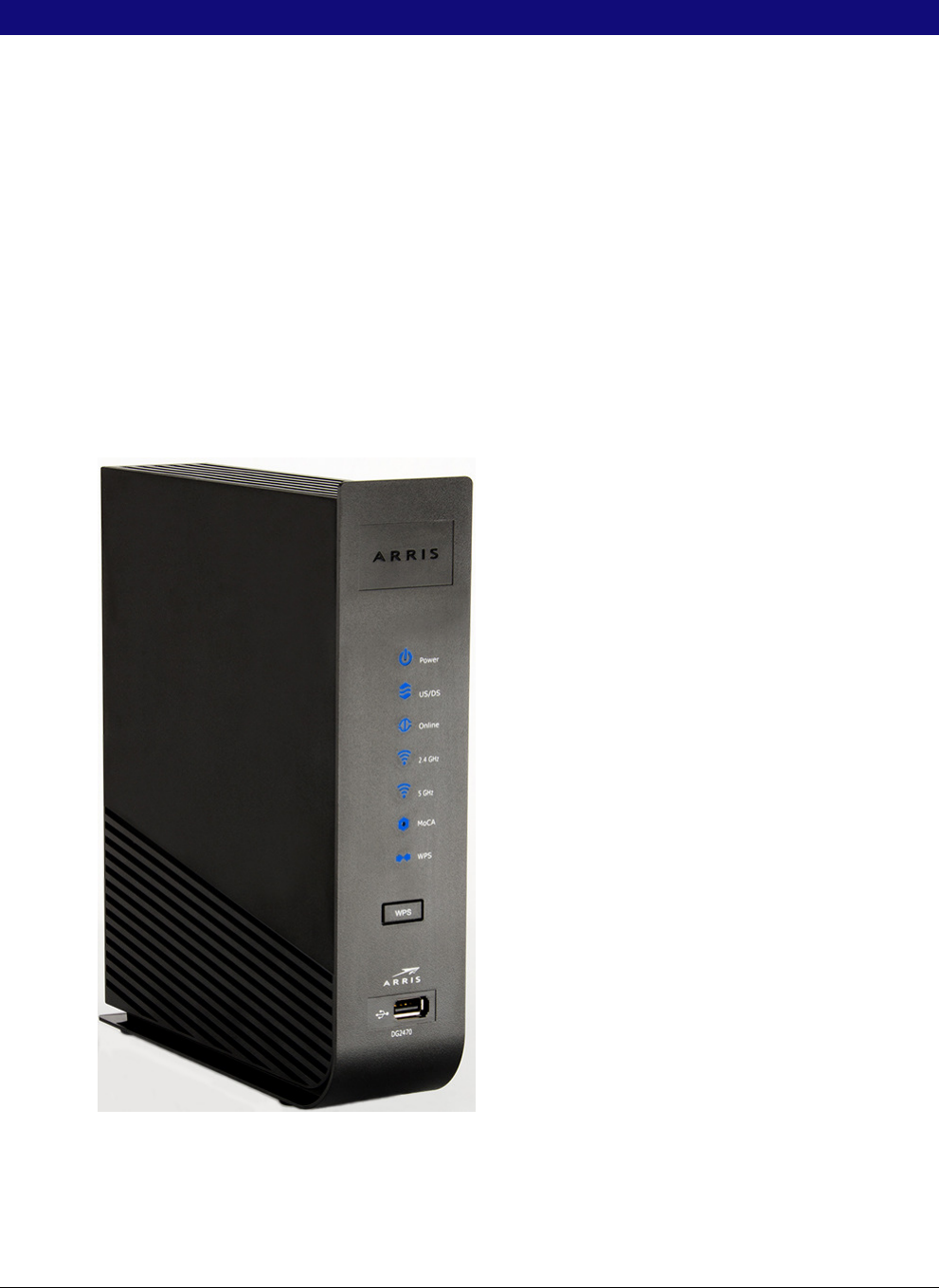

About Your New Dat a Gat eway .. . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . .. . . ... . . .. . . ... . ... . . ... . ... . . . 10

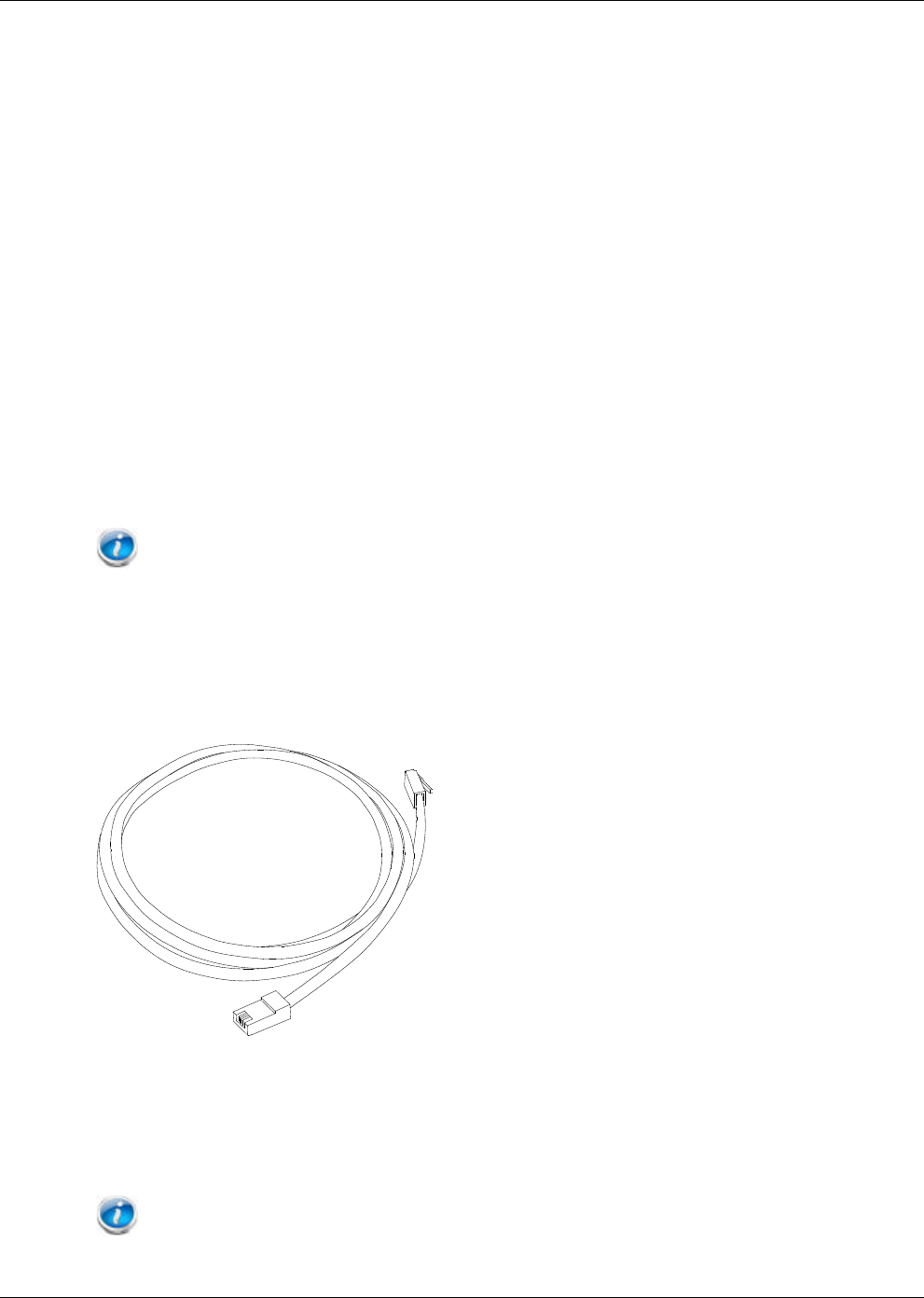

What 's in t he Box ......................................................................................... 10
It ems You Need ........................................................................................... 10
Get t ing Service ........................................................................................... 11
Syst em Requirement s .. ... . . ... . ... . . ... . ... . . ... . ... . . .. . . ... . . .. . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . 12
Recommended Hardware . . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . .. 12
Windows ............................................................................................ 12
MacOS ............................................................................................... 12
Linux/ ot her Unix . . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . .. . . ... 12
About t his Manual ........................................................................................ 13
What about Securit y ..................................................................................... 13
Et hernet or Wireless? . . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . 14
Chapter 4. Installing and Connecting your Data Gateway ................................ 16

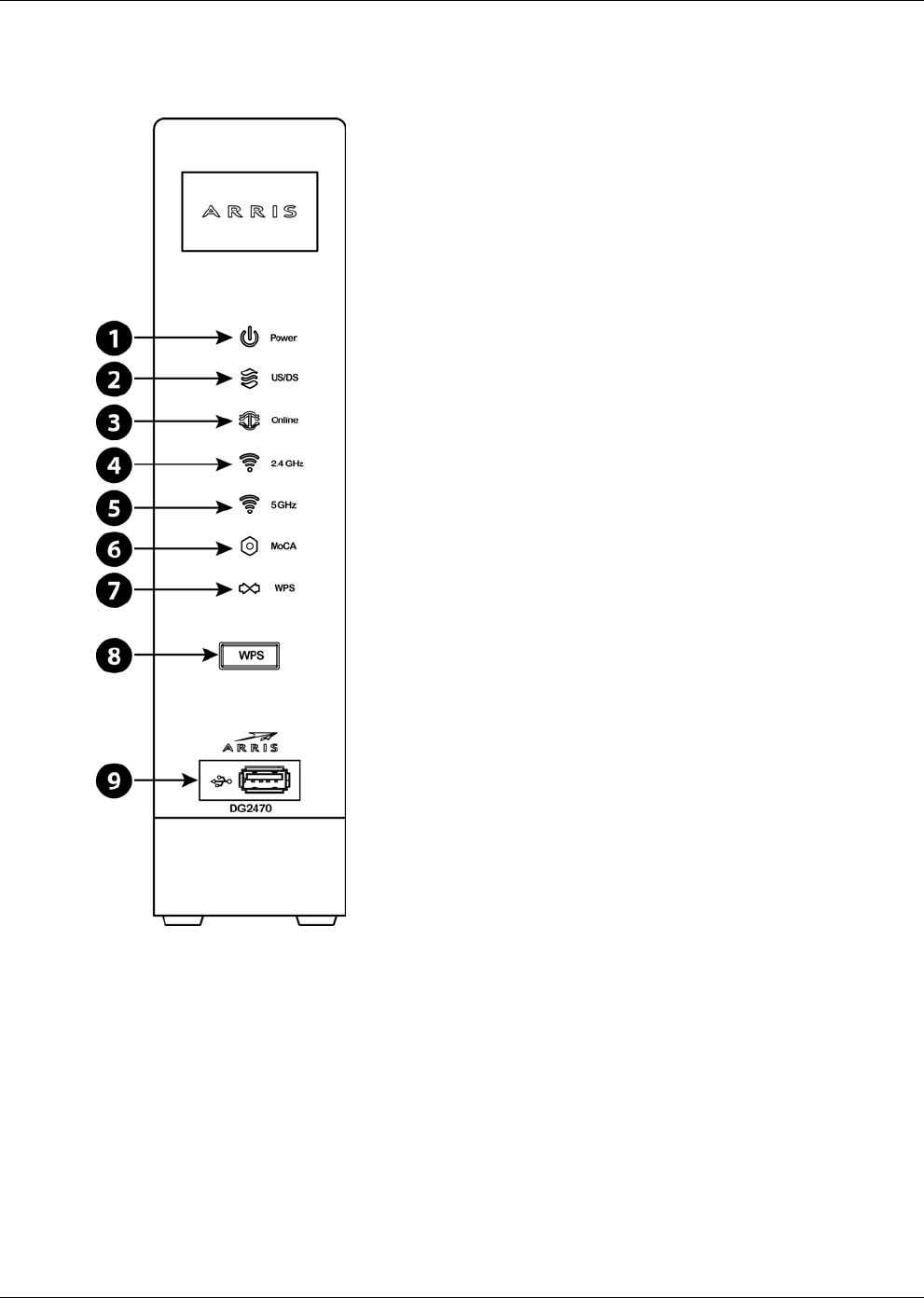

Front Panel ................................................................................................ 17

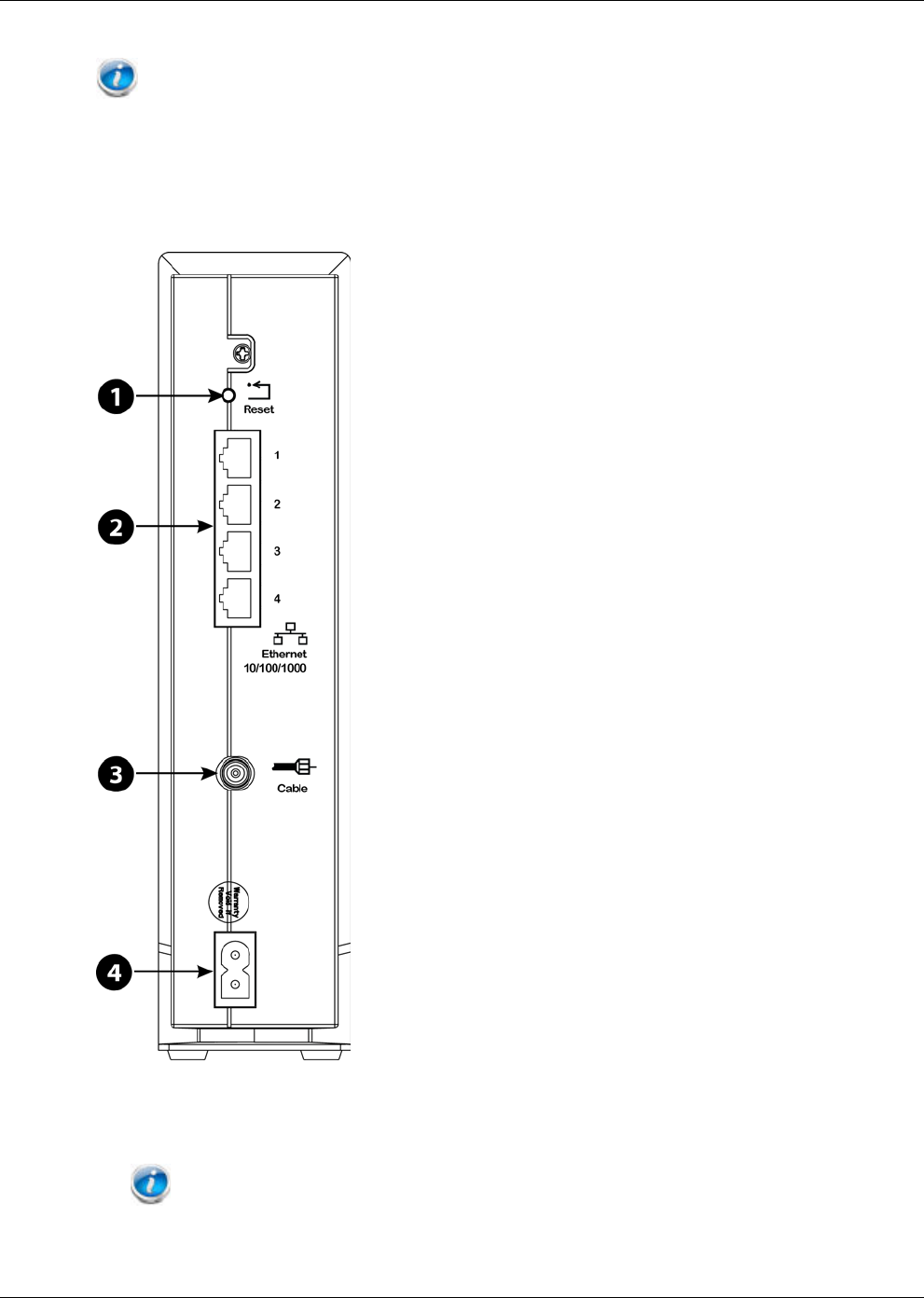

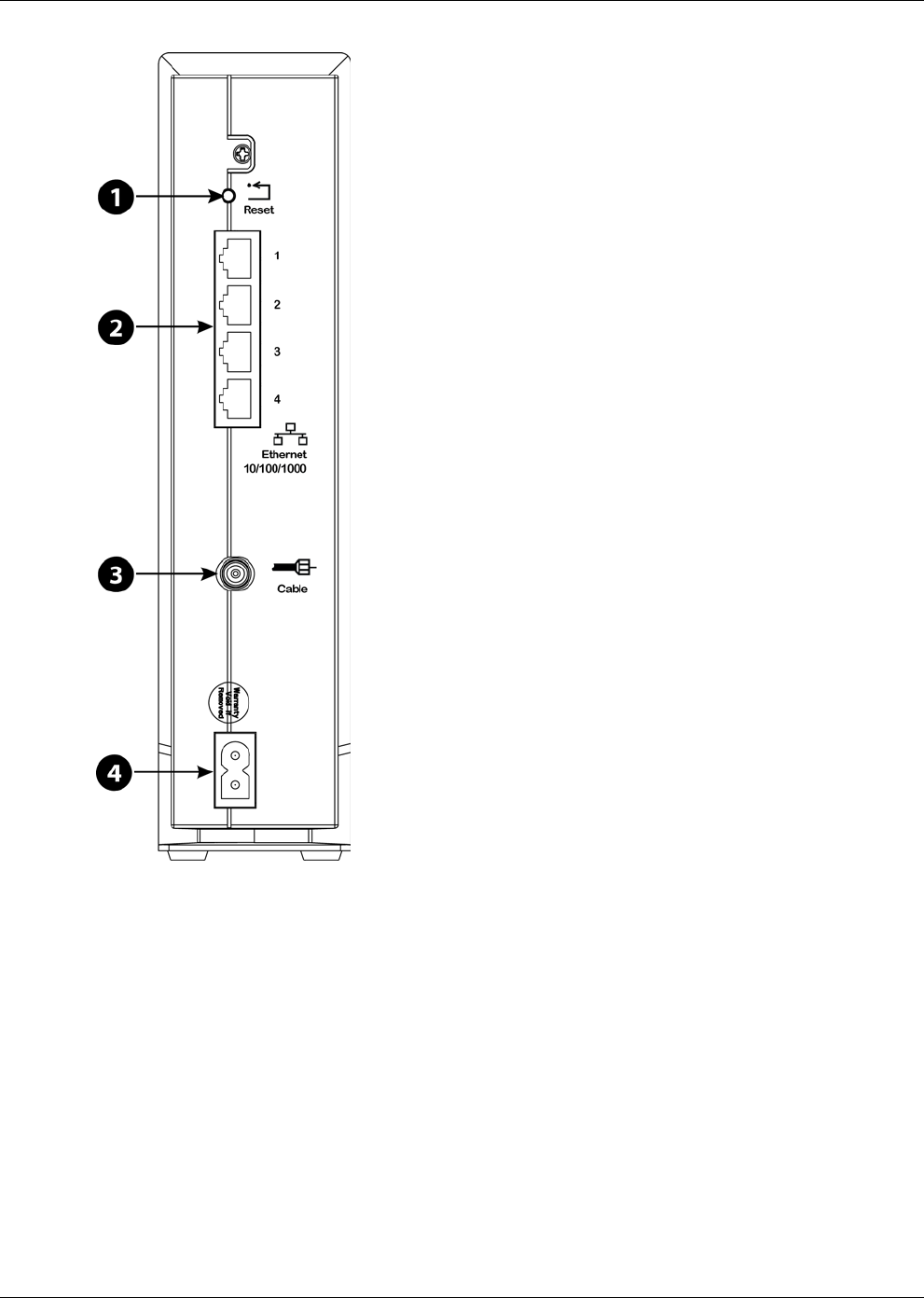

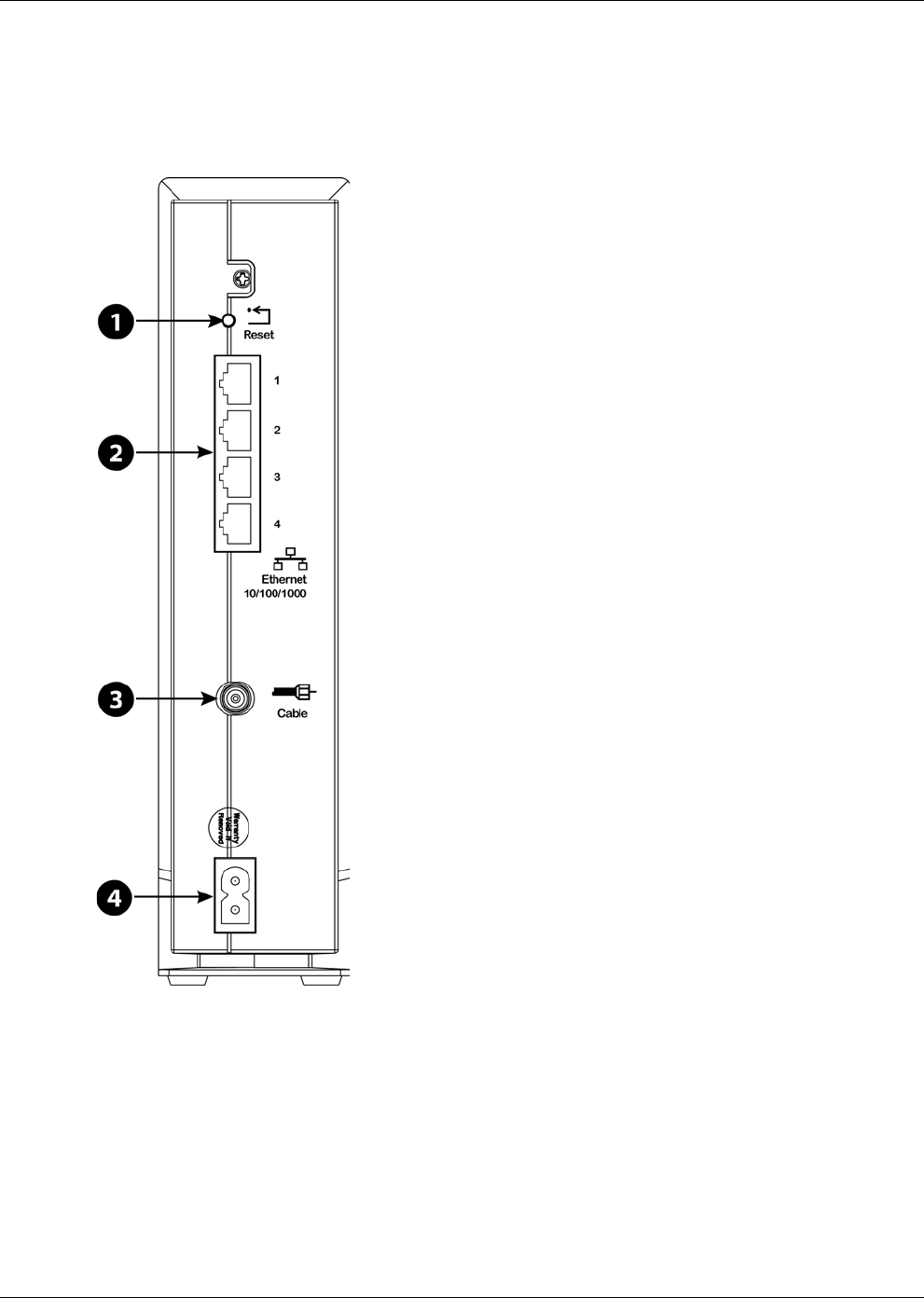

Rear Panel ................................................................................................. 18
Sel ect ing an Inst allat ion Locat ion ..................................................................... 19
Deskt op Mount ing Inst ruct ions .................................................................. 19
Fact ors Af f ect ing Wireless Range .............................................................. 19
Connect ing t he Dat a Gat eway .. . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . .. 20
Conf iguring Your Wireless Connect ion ............................................................... 21
Accessing t he Configurat ion Int erf ace ........................................................ 22

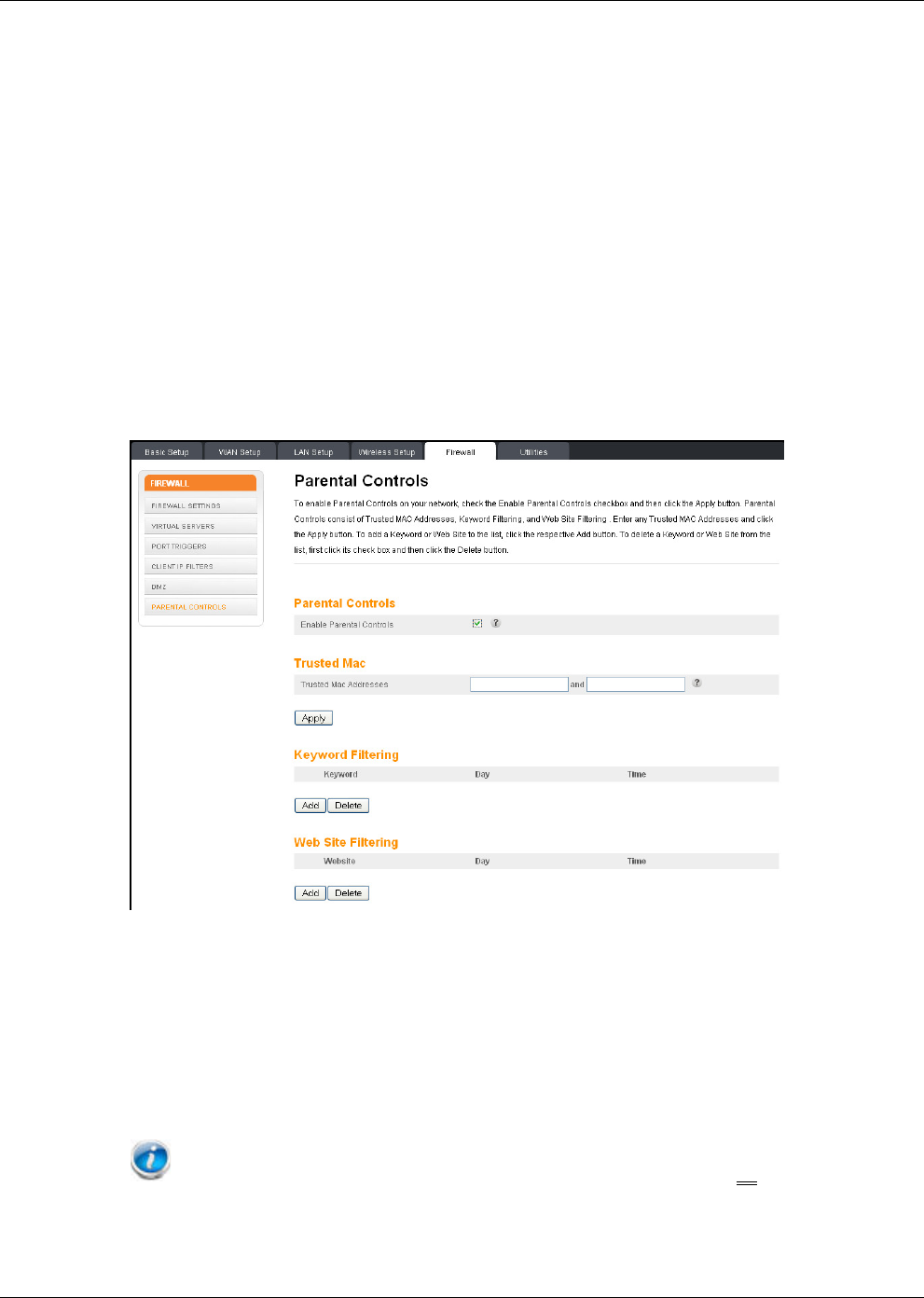

Set t ing Parent al Cont rols . . . ... . ... . . ... . ... . . .. . . ... . . .. . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . 22
Finding t he MAC Address of a Comput er ...................................................... 22
Making Your Parent al Cont rol Set t ings ........................................................ 23
Chapter 5. Configuring Your Ethernet Connection ........................................ 25
Requirement s ............................................................................................. 25
How t o use t his Chapt er .. . . ... . . .. . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . 25
TCP/ IP Conf igurat ion for Windows XP ................................................................ 25
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 3
TCP/ IP Conf igurat ion for Windows Vist a ............................................................. 26
TCP/ IP Conf igurat ion for Windows 7 or Windows 8 ................................................ 26
TCP/ IP Conf igurat ion for MacOS X . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . .. . . ... . 27
Chapter 6. Using the Data Gateway ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . .. 28
Set t ing up Your Comput er t o Use t he Dat a Gat eway .............................................. 28
Indicat or Light s f or t he DG2470 . ... . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . .. . . ... . ... . . ... . ... . . ... . ... 29
Pat t erns: Normal Operat ion (LAN) ............................................................. 29
Pat t erns: Normal Operat ion (WAN) ............................................................ 30
Cable Modem St art up Sequence .. . ... . ... . . ... . ... . . .. . . ... . . .. . . ... . ... . . ... . ... . . ... . ... . . ... 31
Using t he Reset But t on .. . . ... . ... . . ... . ... . . ... . ... . . ... . ... . . .. . . ... . . .. . . ... . ... . . ... . ... . . ... . 31
Reset t ing t he Rout er t o Fact ory Def ault s .................................................... 32
Chapter 7. Troubleshooting .. . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . .. 33
The Dat a Gat eway is plugged in, but t he Power light i s Of f ..................................... 33
I'm not get t ing on t he Int ernet (all connect ions) .................................................. 33
I'm not get t ing on t he Int ernet (Et hernet ) .......................................................... 33
I'm not get t ing on t he Int ernet (Wireless) ........................................................... 33
My wireless Int ernet connect ion st ops working somet i mes ...................................... 34
I can get on t he Int ernet , but everyt hing is slow .................................................. 34
Chapter 8. Glossary .. ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . ... ... . .. 35
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 4
Chapter 1
Overview
Introduction
Get ready to experience the Internet’s express lane! Whether you’re checking out streaming
media, downloading new software, checking your em ail, or talking with friends on the
phone, the Touchstone DG2470 Data Gateway brings it all to you faster and more reliably.
The Touchstone DG2470 Data Gateway provides four Ethernet connections for use as the
hub of your hom e/ office Local Area Network (LAN). The DG2470 also provides
802.11a/ b/ g/ n/ ac wireless connectivity for enhanced m obility and versatility. The Data
Gateway also offers integrated MoCA 2.0 home networking providing Internet access and
transfer of multimedia content between devices over coaxial cable in the home.
Installation is simple and your cable com pany will provide assistance to you for any special
requirem ents.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 5
Chapter 1: Overview
Getting Support
If you need assistance with your ARRIS product please contact your cable company.
For additional technical information and product User Guides please visit the ARRIS
Support website at http:/ / www.arris.com/ consumer.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 6
Chapter 2
Safety Requirements
The ARRIS Data Gateway complies with the applicable requirem ents for performance,
construction, labeling, and information when used as outlined below:
CAU TI ON
Ris k o f s h o c k
Mains voltages inside this unit. No user serviceable parts inside. Refer service to qualified personnel
only!
Do not use product near water (i.e. wet basement, bathtub, sink or near a swimm ing
pool, etc.), to avoid risk of electrocution.
The product shall be cleaned using only a dam p, lint-free, cloth. No solvents or
cleaning agents shall be used.
Do not use spray cleaners or aerosols on the gateway.
Avoid using and/ or connecting the equipment during an electrical storm, to avoid risk
of electrocution.
Do not locate the equipment within 6 feet (1.9 m) of a flam e or ignition source (i.e. heat
registers, space heaters, fireplaces, etc.).
Use only the AC power adapter (if provided) and power cord included with the
equipment.
Equipment should be installed near the power outlet and should be easily -accessible.
The shield of the coaxial cable must be connected to earth (grounded) at the entrance
to the building in accordance with applicable national electrical installation codes. In
the U.S., this is required by NFPA 70 (National Electrical Code) Article 820. In the
European Union and in certain other countries, CATV installation equipotential
bonding requirements are specified in IEC 60 728 -11, Cable netw orks for telev ision
signals, sound signals and interactive services, Part 11: Safety. This equipm ent is
intended to be installed in accordance with the requirem ents of IEC 60 728-11 for safe
operation.
If the equipm ent is to be installed in an area serviced by an IT power line network, as is
found in many areas of Norway, special attention should be given that the installation
is in accordance with IEC 60 728-11, in particular Annex B and Figure B.4.
In areas of high surge events or poor grounding situations and areas prone to lightning
strikes, additional surge protection may be required (i.e. PF11VNT3 from American
Power Conversion) on the AC, RF, Ethernet and Phone lines.
When the Data Gateway is connected to a local computer through Ethernet cables, the
computer must be properly grounded to the building/ residence AC ground network. All
plug-in cards within the computer must be properly installed and grounded to the
computer frame per the manufacturer’s specifications.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 7
Chapter 2: Safety Requirements
Ensure proper ventilation. Position the Data Gateway so that air flows freely around it
and the ventilation holes on the unit are not blocked.
Do not mount the Data Gateway on surfaces that are sensitive to heat and/ or which
may be damaged by the heat gen erated by the modem , its power supply, or other
accessories.
FCC Part 15
This equipm ent has been tested and found to com ply with the requirements for a Class B
digital device under Part 15 of the Federal Communications Comm ission (FCC) rules.
These requirements are intended to provide reasonable protection against harmful
interference in a residential installation. This equipm ent generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning
the equipm en t off and on, th e user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipm ent and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
W ARN IN G
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipm ent.
RF Exposure
This equipment complies with FCC radiation exposure lim its set forth for an uncontrolled
environment. This equipment should be installed and operated with minim um distance of
7.9 inches (20 cm) between the radiator and your body. This transm itter must not be co-
located or operating in conjunction with any other antenna or transmitter.
Industry Canada Compliance
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of th e device.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 8
Chapter 2: Safety Requirements
For Mexico
The operation of this equipment is subject to the following two conditions: (1) This
equipment or device cannot cause harm ful interference and (2) this equipm ent or device
must accept any interference, including interference that may cause some unwanted
operation of th e equipment.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guid e 9
Chapter 3
Getting Started
About Your New Data Gateway
The Touchstone DG2470 Data Gateway is DOCSIS compliant with the following features:
Speed: much faster than dialup or ISDN service; up to twenty four tim es faster than
DOCSIS 2.0 cable m odems.
Convenience: supports Ethernet and 802.11a/ b/ g/ n/ ac wireless connections; both can
be used sim ultaneously
Compatibility:
• Data services: DOCSIS 3.0 com pliant and backward-compatible with DOCSIS 2.0
or 1.1; supports tiered data services (if offered by your cable company)
The DG2470 provides:
2.4 GHz radio and 5 GHz radio for wireless 80 2.11a/ b/ g/ n/ ac connectivity
Four Ethernet ports for connections to non-wireless devices
Integrated MoCA 2.0 hom e networking
DOCSIS 3.0 compliant
On e USB host port (future support for external USB devices)
What's in the Box
Make sure you have the following items before proceeding. Call your cable company for
assistance if anything is missing.
Data Gateway
Power Cord
Wireless Connection Configuration Guide
Ethernet Cable
End User License Agreem ent
Items You Need
If you are installing the Data Gateway yourself, make sure you have the following item s on
hand before continuing:
D a ta Gate w ay p a cka ge : see What's in the Box (page 10) for a list of items in the
package.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 10
Chapter 3: Getting Started

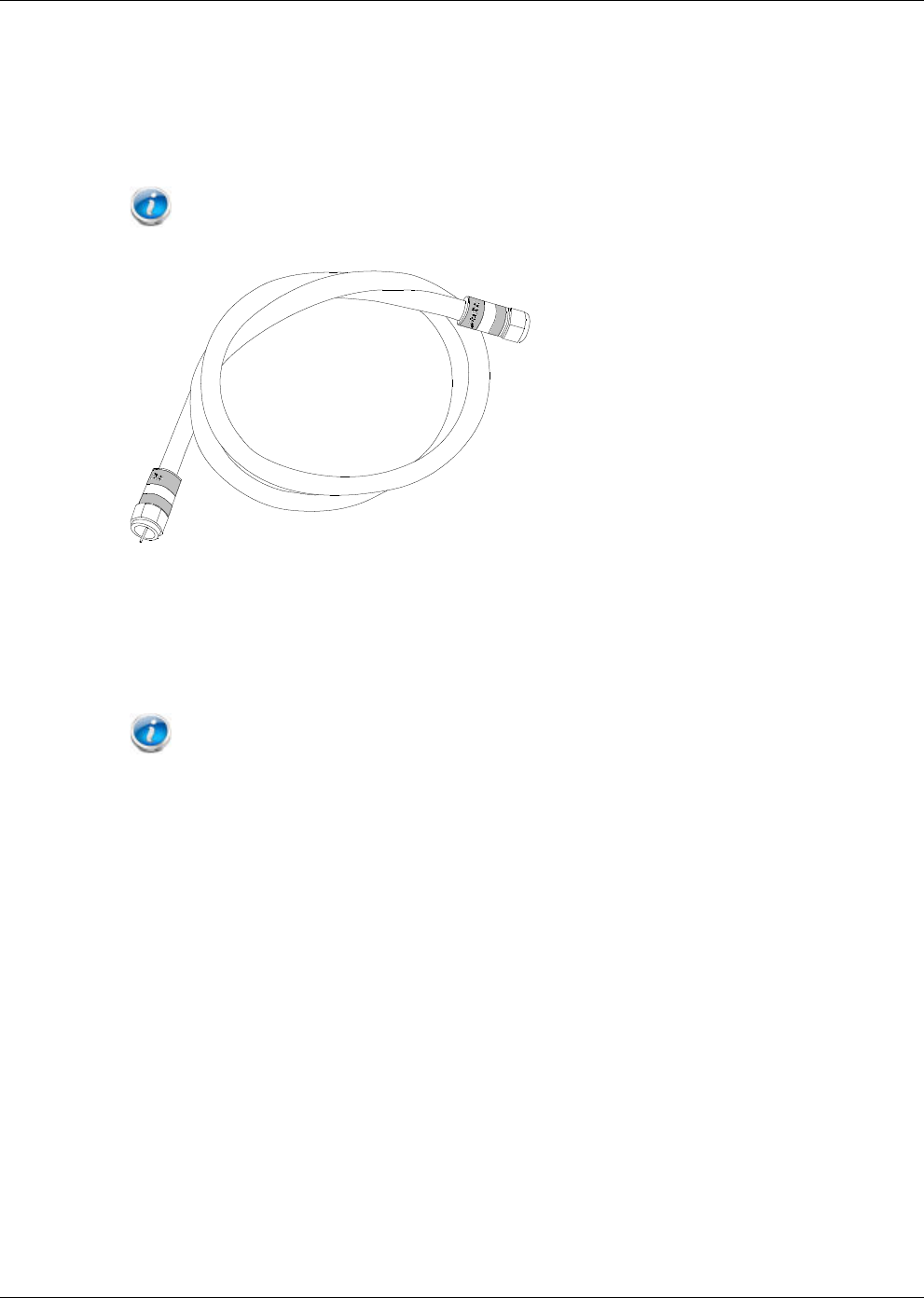

Co a xial ca ble ( co ax) : This is a round cable with a connector on each end. It is the
same kind of wire used to connect to your television for cable TV. You can buy coax
from any electronics retailer and many discount stores; make sure it has connectors on
both ends. There are two types of connectors, slip-on and screw-on; the screw-on
connectors are best for use with your Data Gateway. The coax should be long enough to
reach from your Data Gateway to the nearest cable outlet.
N o te : For best performance, use high-quality RG-6 type coax cable and m inim ize or
eliminate splitters between the cable jack and the Data Gateway.
Splitte r ( o ptio n a l): provides an extra cable connection by splitting a single outlet
into two. You may need a splitter if you have a TV already connected to the cable outlet
that you want to use. You can buy a splitter from any electronics retailer and most
discount stores; you may also need a short piece of coax cable (with connectors); use it
to connect the splitter to the cable outlet and then connect the Data Gateway and TV to
the splitter.
N o te : A splitter effectively cuts the signal in half and sends each half to its two outputs.
Using several splitters in a line may deteriorate the quality of your television, telephone, and/ or
internet con nection.
In fo rm atio n packe t: your cable com pany should furnish you with a packet
containing inform ation about your service and how to set it up. Read this inform ation
carefully and contact your cable com pany if you have any questions.
Getting Service
Before trying to use your new Data Gateway, contact your local cable company to establish
an Internet account and telephone service. When you call, have the following inform ation
ready:
the Data Gateway serial number and cable MAC addresses of the unit (printed on the
Data Gateway)
the model number of the Data Gateway (printed on the Data Gateway)
If the Data Gateway was provided by your cable com pany, they already have the required
information.
In addition, you should ask your cable com pany the following questions:
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 11
Chapter 3: Getting Started
Do you have any special system requirements or files that I need to download after I
am connected?
When can I start using my Data Gateway?
Do I need a user ID or password to access the Internet or my e-m ail?
System Requirements
The Touchstone Data Gateway operates with most computers. The following describes
requirements for each operating system; see the documentation for your system for details
on enabling and configuring networking.
To use the Data Gateway, you need DOCSIS high-speed Internet service from your cable
company.
Recommended Hardware
The following hardware configuration is recommended. Computers not meeting this
configuration can still work with the DG2470, but may not be able to make maxim um use
of DG2470 throughput.
CPU: P4, 3GHz or faster
RAM: 1GB or greater
Hard drive: 7200 RPM or faster
Ethernet: Gig-E (10 00BaseT)
Windows
Windows XP , Windows Vista, Windows 7, or Windows 8. A supported Ethernet or
wireless LAN connection must be available.
MacOS
System 7.5 to MacOS 9.2 (Open Transport recommended) or MacOS X. A supported
Ethernet or wireless LAN connection must be available.
Linux/ other Unix
Hardware drivers, TCP/ IP, and DHCP must be enabled in the kernel. A supported
Ethernet or wireless LAN connection must be available.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 12
Chapter 3: Getting Started

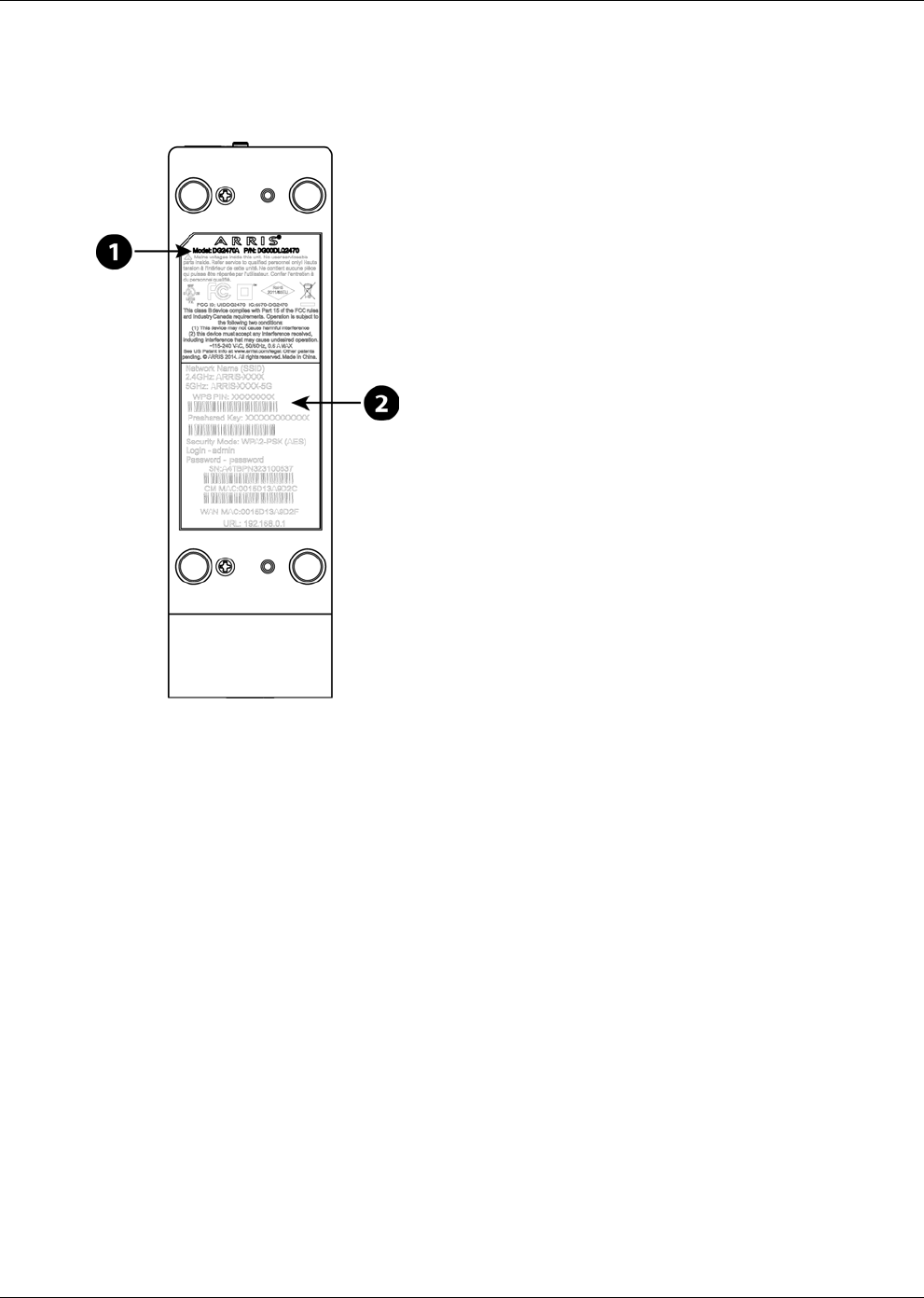

About this Manual
This manual covers the Touchstone DG2470 Data Gateway. The model number is on the
label affixed to the Data Gateway.
1. Model Number
2. Security Label
What about Security
Having a high-speed, always-on connection to the Internet requires a certain amount of
responsibility to other Internet users—including the need to maintain a reasonably secure
system. While no system is 100% secure, you can use the following tips to enhance your
system’s security:
Keep the operating system of your computer updated with the latest security patches.
Run the system update utility at least weekly.
Keep your em ail program updated with the latest security patches. In addition, avoid
opening em ail containing attachments, or opening files sent through chat rooms,
wh enever possible.
Install a virus checker and keep it updated.
Avoid providing web or file-sharing services over your Data Gateway. Besides certain
vulnerability problems, most cable companies prohibit running servers on consumer-
level accounts and may suspend your account for violating your terms of service.
Use the cable company’s mail servers for sending em ail.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 13
Chapter 3: Getting Started
Avoid using proxy software unless you are certain that it is not open for abuse by other
Internet users (som e are shipped open by default). Criminals can take advantage of
open proxies to hide their identity when breaking into other com puters or sending
spam . If you have an open proxy, your cable company may suspend your account to
protect the rest of the network.
The DG2470 ships with wireless LAN security set by default (for the same reasons that
you should run only secured proxies). See the security label on your product for the
factory security settings. If you need to modify the default wireless security settings, see
Configuring Your Wireless Connection.
Ethernet or Wireless?
There are two ways to connect your computer (or other equipment) to the Data Gateway.
The following will help you decide which is best for you:
Eth e rn e t
Ethernet is a standard method of connecting two or more computers into a Local Area
Network (LAN). You can use the Ethernet connection if your computer has built-in
Ethernet hardware.
N o te : To conn ect more than four computers to the DG2470 through the Ethernet ports, you
need an Ethernet hub (available at computer retailers).
The Data Gateway package comes with one 4-foot (1.2m) Ethernet cable (the connectors
look like wide telephone connectors); you can purchase more cables if necessary at a
computer retailer. If you are connecting the Data Gateway directly to a computer, or to an
Ethernet hub with a cross-over switch, ask for Category 5e (CAT5e) straight-through cable.
CAT5e cable is required for gigabit Ethernet (Gig-E), not regular CAT5 cable.
W ire le s s
Wireless access lets you connect additional (wireless-capable) devices to Data Gateway.
The 802.11 wireless LAN standard allows one or more com puters to access the DG2470
using a wireless (radio) signal. These connections are in addition to the connections
supported via Ethernet.
N o te : You can use the wireless connection if your computer has a built-in or aftermarket
plug-in wireless adapter. To learn more about which wireless hardware works best with your
com puter, see your com puter dealer.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 14
Chapter 3: Getting Started
Bo th
If you have two or more computers, you can use Ethernet for up to four devices and
wireless for the others. To connect five or more computers to the Ethernet ports, you will
need an Ethernet hub (available at computer retailers.)
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 15
Chapter 4
Installing and Connecting your Data Gateway
Before you start, make sure that:
You have contacted your cable company and verified that they provide data service
using standard DOCSIS technology.
You have all the Items You Need (page 10).
Cable and power outlets are available near the computer. If a cable outlet is not
conveniently located, your cable company can install a new one.
If you have ordered service, your cable com pany should configure the Data Gateway
autom atically. You need only follow the instructions in this section to install and connect
the Data Gateway.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 16
Chapter 4: Installing and Connecting your Data Gateway
Front Panel
The front of the Data Gateway has the following indicators.
1. P o w e r: indicates whether AC power is available to the unit.
2. U S / D S: indicates upstream/ downstream connectivity.
3. On lin e : indicates internet data transmission status.
4. 2 .4 GH z: indicates the status of the 2.4 GHz wireless LAN.
5. 5 GH z: indicates the status of the 5 GHz wireless LAN.
6. Mo CA: indicates connectivity between the Data Gateway and other home devices
connected via the MoCA network.
7. W PS : indicates Wireless Protected Setup (WPS) is active.
8. W PS Bu tto n : begins associating the Data Gateway with a wireless device.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 17
Chapter 4: Installing and Connecting your Data Gateway
9. U S B: USB host connector - future support for external USB devices.
Rear Panel
The rear of the Data Gateway has the following connectors and controls.
1. Re s e t butto n : resets the Data Gateway as if you power cycled the unit. Use a pointed
non-m etallic object to press this button.
2. Eth e rn et ( 1 - 4 ) : connectors for use with a com puter LAN port.
3. Cable : connector for the coaxial cable.
4. Po w e r: connector for the power cord.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 18
Chapter 4: Installing and Connecting your Data Gateway
Selecting an Installation Location
There are a number of factors to consider when choosing a location to install your Data
Gateway:
Is an AC outlet available nearby? For best results, the outlet should not be switched and
should be close enough to the Data Gateway that extension cords are not required.
Is a cable jack available? For best perform ance, keep the number of splitters between
the jack and cable drop to a minimum. Each splitter attenuates (reduces) the signal
available to the Data Gateway. A large num ber of splitters can slow down the Internet
connection an d even affect your telephone service.
If you are connecting devices to the Ethernet ports, can you easily run cables between
the Data Gateway’s location and those devices?
If you want to install the Data Gateway on a desktop, is there enough space on either
side to keep the vents clear? Blocking the vents may cause overheating.
How close are your wireless devices? The Data Gateway wireless connection range is
typically 10 0 –20 0 feet (30m –65m). A num ber of factors can affect connection range,
as described below.
Desktop Mounting Instructions
Position the Data Gateway so that:
air flows freely aroun d it
the back faces the nearest wall
it will not fall to the floor if bumped or moved
the ventilation holes on the sides of the unit are not blocked
Factors Affecting Wireless Range
A number of factors can affect the usable range for wireless connections.
Increases range Raising the unit above the devices (for example, installing the Data
Gateway in the upper floor of a multi-story dwelling)
Adding a wireless extender to the network
Decreases range Lowering the un it below the devices (for example, installing the
Data Gateway in a basement)
Metal or concrete walls between the Data Gateway and other
devices
Large metal appliances, aquarium s, or metal cabinets between the
Data Gateway and other devices
Interference and RF noise (2.4 GHz wireless phones, microwave
ovens, or other wireless networks)
N o te : Note that decreasing the range of your wireless network may be ben eficial, as long as
the decreased range is sufficient for your needs. By lim iting your network’s range, you reduce
interference with other networks and make it harder for unwanted users to find and connect to your
network.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 19
Chapter 4: Installing and Connecting your Data Gateway
N o te : Setting the transm it power level to High increases the ran ge. Setting it to Medium or
Low decreases the range proportionately.
Connecting the Data Gateway
1. Connect one end of the coax cable to the cable outlet or splitter, and the other end to
the Data Gateway’s Cable connector (3). Tighten the connections by hand, then tighten
an additional 1/ 8 turn with a wrench.
N o te : For best performance, use high-quality coax cable and min im ize or elim inate
splitters between the cable jack and the Data Gateway. If you are using MoCA for your home
network, MoCA filters must be installed on any legacy client devices. Your cable company will
install these filters for you.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 20
Chapter 4: Installing and Connecting your Data Gateway
2. Insert the plug from the power cord into the Power connector on the back of the Data
Gateway (4) and insert the power cord into a convenient AC outlet.
The Power light on the front of the Data Gateway lights up, then flashes once (refer to
the LED tables shown in Using th e Data Gateway). See Troubleshooting (page 33) if the
Power light does not turn on.
3. Connect one end of the Ethernet cable to any Ethernet port on the back of the Data
Gateway, (2) and the other end to the Ethernet port on a computer, hub, or broadband
router.
N o te : If you are connecting to a com puter, use the Ethernet cable included in the Data
Gateway package.
Configuring Your Wireless Connection
The DG2470 ships with wireless LAN security set by default. See the security label on your
product for the factory security settings.
N o te : You must set up your computer and other client devices to work with the security
settings on the DG2470 . Refer to the documentation for your client device for instruction s on
setting security. On m ost com puter systems you only need to select the network name (SSID) device
and enter the encryption key. If your computer or clien t device supports Wi-Fi Alliance WPS
(Wireless Protected Setup), activate WPS on your computer or client device and the DG2470
sim ultaneously to easily set up your system security.
1. Security Label
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 21
Chapter 4: Installing and Connecting your Data Gateway
If you need to modify the Data Gateway’s default wireless security settings, or if you want
to configure any other wireless LAN settings, refer to the following instructions.
Accessing the Configuration Interface
Follow these steps to access the configuration interface. You should have already set up the
DG2470 as described in Installing and Connecting your Data Gateway (page 16).
1. If security has been properly set up on your computer to access the wireless LAN on the
DG2470, use the connection utility for your operating system to connect to the wireless
LAN using its network nam e (SSID), as shown on the security label.
2. If you cannot access the wireless LAN, you must first establish a wired Ethernet
connection between your computer and the DG2470 .
3. In your web browser, open the page http:/ / 192.168.0 .1/ to access the wireless router
setup.
The Login screen display s.
N o te : The default user name is “admin”. The default password is “password”, in lower
case letters.
4. Enter the user name and password and click the Apply button to log in.
The Sy stem Basic Setup screen display s.
5. Use the online help inform ation to set configuration parameters as required.
N o te : Most configuration parameters that you may want to set can be accessed on the
System Basic Setup screen , including the security mode and setting a system password.
Setting Parental Controls
The Parental Control feature allows you to block specified keywords and web sites from
being accessed and also to specify trusted computers in the network. Trusted computers
are not affected by the parental control settings.
Finding the MAC Address of a Computer
In order to set up trusted computers you must first determine the MAC address of those
computers.
Use the operating system of your computer to find its MAC address, as follows:
W in d o w s : from the Start menu, find and select the Control Panel. Double-click Network
Connections (Windows XP), or Network & Sharing Center (Windows Vista or Windows 7). Then
double-click either “Wireless Network Connection” for a wireless connection, or “Local
Area Connection” for an Ethernet connection. Next click the Details button (Windows Vista
or Windows 7), or click the Support tab and then the Details button (Windows XP). The
“Physical Address” line shows the MAC address.
Ma cOS X: open System Preferences and click the Network icon. To find the Ethernet
MAC address, select Built-in Ethernet from the Show drop-down, then click the Ethernet tab.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 22
Chapter 4: Installing and Connecting your Data Gateway
The “Ethernet ID” field shows the MAC address. To find the wireless MAC address, select
Airport from the Show drop-down, then click the Airport tab. The “Airport ID” field shows
the MAC address.
Li n u x: open a shell window and type / s bi n / i f c onf i g (and press Enter). The wireless
interface is eth1 (unless there is no Ethernet adapter, in which case the interface is eth0 ).
Making Your Parental Control Settings
Follow these steps to set up your Parental Controls:
1. Access and log into the wireless configuration interface as explained in Accessing the
Configuration Interface.
2. Click the Firewall tab and then click Parental Controls in th e side m enu to display the
Parental Controls screen.
3. Ch eck th e Enable Parental Controls checkbox and click the Apply button .
4. Configure any or all of the following parental controls:
Tru s te d MAC Ad dre s s e s :
Enter the MAC addresses of any “trusted” computers on the network and click the Apply
button. You can add two trusted computers. Once added, these trusted computers will
not be affected by the parental control settings. For example, you may want the
computers of the father and mother to be trusted, while the childrens’ computers have
parental controls in effect.
N o te : Refer to the Finding the MAC Address of a Computer (page 22) for inform ation
on determinin g the MAC address of your computer.
Ke yw o rd an d W e b Site Filte rin g:
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 23
Chapter 4: Installing and Connecting your Data Gateway
You can add a list of keywords and web sites that you want to block. To add a keyword
or web site to the list, click the respective Add button. To delete a keyword or web site
from the list, first click its check box and then click the Delete button.

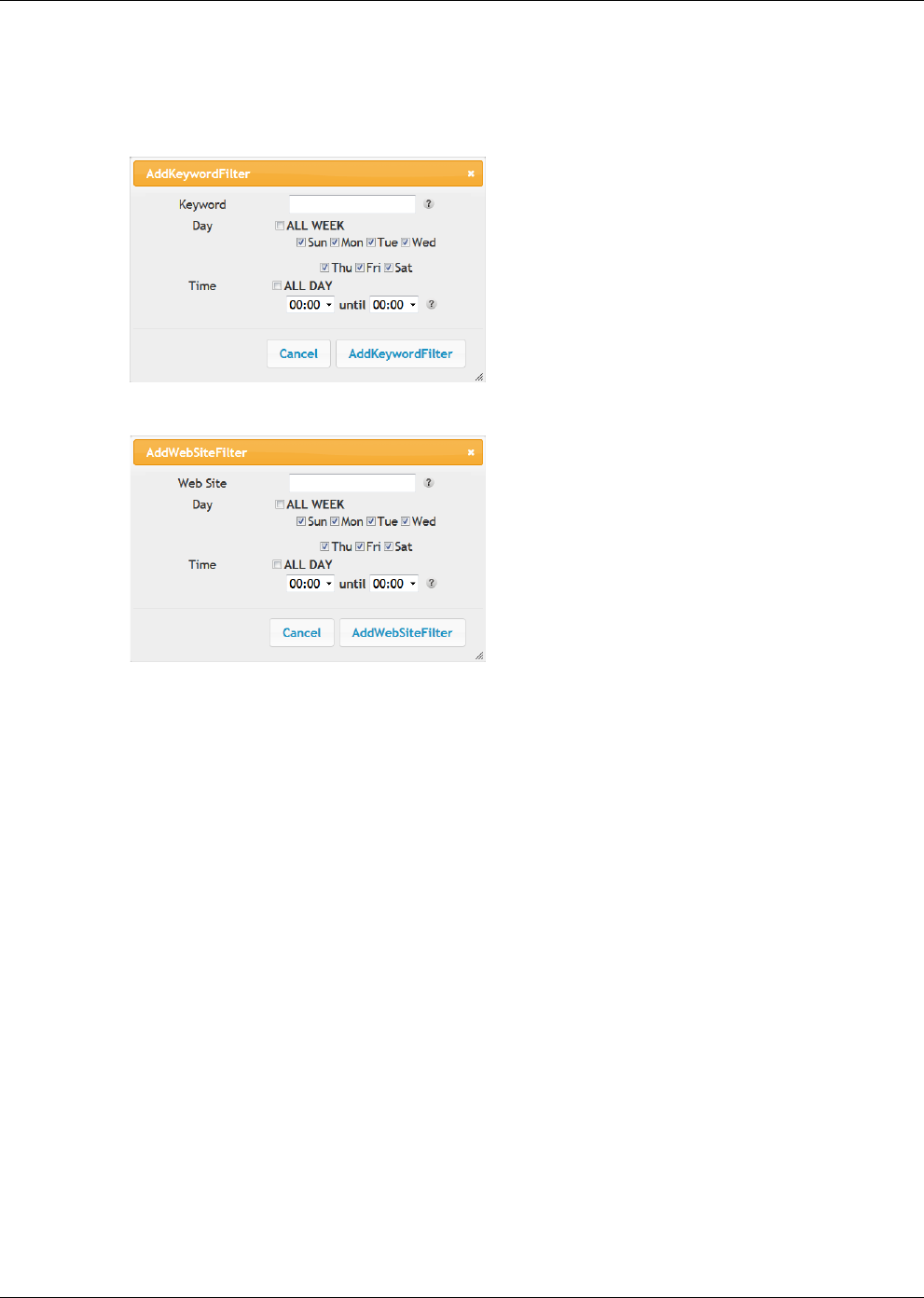

Add Keyword Filter Dialog Box
Add Web Site Filter Dialog Box
Ad d in g a Ke yw o rd o r W e b Site Filte r
a. Enter the keyword in the Keyword field or web site URL address in the Web Site
field.
b. Click the checkboxes for the days you want access blocked, or click the All Week
checkbox for all week.
c. Set the start time and end tim e during the specified days (24-hour clock). (0 :0 0
until 0 :00 indicates all day, or just click the All Day checkbox.)
d. Click the Add Keyword Filter or Add Web Site Filter button respectively. Then click the Apply
button.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 24
Chapter 5
Configuring Your Ethernet Connection
If your computer is equipped with a LAN card providing an Ethernet connection, you may
have to configure your com puter’s TCP/ IP settings. The steps that follow will guide you
through setting your computer’s TCP/ IP settings to work with the Data Gateway.
Requirements
Make sure you have the following before attempting to configure your Ethernet
connection:
Computer with Ethernet interface
Ethernet cable (supplied)
IP address, subnet, gateway, and DNS inform ation for installations not using DH CP
How to use this Chapter
The following list shows the procedures for modifying the TCP/ IP settings on the
computer. The procedure is slightly different depending on the operating system that you
are using. Please ensure you are using the correct steps for the operating system on your
computer. Follow the links below for instructions to configure your Ethernet connection on
your operating system.
TCP/ IP Configuration for Windows XP (page 25)
TCP/ IP Configuration for Windows Vista (page 26)
TCP/ IP Configuration for Windows 7 or Windows 8 (page 26)
TCP/ IP Configuration for MacOS X (page 27)
TCP/ IP Configuration for Windows XP
Follow these steps to configure the Ethernet interface on a Windows XP operating system.
TCP/ IPv6 N o te : This procedure shows the con figuration of TCP/ IPv4. TCP/ IPv6 is not
installed or enabled by default in Windows XP. If your cable provider requires TCP/ IPv6 you must
first install and enable it on your Windows XP system. Refer to Microsoft support m aterials on
Windows XP for installation instructions. Once installed and enabled, follow this sam e
configuration exam ple, but select TCP/ IPv6 at the appropriate step.
1. From the computer, select Start > Settings > Control Panel and double-click Network Connections
in the Control Panel.
The N etw ork Connection w indow display s a list of LAN connections and associated
netw ork adapters.
Release 24 STAN DARD 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 25
Chapter 5: Configuring Your Ethernet Connection
2. Double-click the local area connection to be used for your device’s network connection.
The Local Area Connection Status w idow displays.
3. Click Properties.
4. Select TCP/IP by clicking it one time. Then click Properties.
5. Click the General tab. Then click Obtain an IP address automatically and click OK.
6. Click OK to accept the new settings, and OK again to close the Properties window.
7. You may have to restart your computer in order for your computer to obtain a new IP
address from the network.
TCP/ IP Configuration for Windows Vista
Follow these steps to configure the Ethernet interface on a Windows Vista operating
system.
1. Open the Vista Control Panel.
2. Double-click Network and Sharing Center to display the Network and Sharing Center
Window.
3. Click Manage network connections. If prompted for a connection, choose Local Area Connection.
The N etw ork Connections w indow display s.
4. Double-click the Local Area Connection to open the Properties window:
N o te : If Windows requests permission to continue, click Continue.
5. Double-click Internet Protocol Version 4 (TCP/IPv4) to configure TCP/ IPv4.
N o te : If your cable provider requires TCP/ IP version 6, double-click Internet Protocol
Version 6 (TCP/IPv6) to configure TCP/ IPv6.
The TCP/ IP properties w indow for the version y ou selected display s.
6. For either TCP/ IPv4 or TCP/ IPv6, select Obtain an IP address automatically and Obtain DNS
server address automatically, unless instructed otherwise by your cable provider.
7. Click OK to accept the new settings and close the Properties window.
TCP/ IP Configuration for Windows 7 or Windows 8
Follow these steps to configure the Ethernet interface on a Windows 7 or Windows 8
operating system .
1. Open the Windows Control Panel.
2. Click Network and Internet.
3. Click Network and Sharing Center.
4. Click Local Area Connection to open the Status window.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 26
Chapter 5: Configuring Your Ethernet Connection
5. Click Properties to open the Properties window.
6. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties to configure TCP/ IPv4.
N o te : If your cable provider requires TCP/ IP version 6, select Internet Protocol Version 6
(TCP/IPv6) and click Properties to configure TCP/ IPv6.
The TCP/ IP properties w indow for the version y ou selected display s.
7. For either TCP/ IPv4 or TCP/ IPv6, select Obtain an IP address automatically and Obtain DNS
server address automatically, unless instructed otherwise by your cable provider.
8. Click OK to accept the new settings and close the Properties window. Then click Close to
back out of the rem aining setup screens.
TCP/ IP Configuration for MacOS X
Follow these steps to configure the Ethernet interface on a MacOS X operating system .
1. Open System Preferences, either by choosing System Preferences from th e Apple menu or
by clicking the System Preferences icon in th e dock.
2. Click the Network icon.
3. Choose Automatic from the Location drop-down menu, and Built-in Ethernet from the Show
menu.
4. Choose the TCP/ IP tab, if necessary.
If you are using TCP/IPv4, go to s te p 5.
If your cable provider requires TCP/IPv6, go to step 8 .
5. Choose Using DHCP from the Configure IPv4 menu.
6. If necessary, click the Renew DHCP Lease button.
7. Close the System Properties application.
TCP/ IPv4 configuration is com pleted.
8. If you are using TCP/ IPv6, click Configure IPv6 near the bottom of the previous window.
9. Choose Automatically from the Configure IPv6 drop-down menu and click OK.
10 . Close the System Properties application.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 27
Chapter 6
Using the Data Gateway
This chapter describes the controls and features available on the Data Gateway, and covers
basic troubleshooting procedures.
Setting up Your Computer to Use the Data Gateway (page 28)
Indicator Lights for the DG2470 (page 29)
Using the Reset Button (page 31)
Resetting the Router to Factory Defaults (page 32)
Setting up Your Computer to Use the Data Gateway
Follow the instructions in the information packet supplied by your cable company. Contact
your cable company if you need help setting up your computer.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 28
Chapter 6: Using the Data Gateway
Indicator Lights for the DG2470
The Data Gateway has LED indicator lights to assist in troubleshooting.
1. Power
2. US/ DS
3. Onlin e
4. 2.4 GHz WiFi
5. 5 GHz Wi-Fi
6. MoCA
7. WPS
8. WPS Button
9. USB port
Patterns: Normal Operation (LAN)
The following table shows light patterns for the Ethernet, MoCA and wireless LANs during
norm al operation.
Release 24 STANDARD 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 29
Chapter 6: Using the Data Gateway
Mode Ethernet
(LEDs on rear
panel
connector)
2.4G Wi-Fi / 5G
Wi-Fi
MoCA
AC Power Gre e n LED On =
Com puter with
1Gbps port
connected
Am be r LED On
= Computer with
10 0
Mbps/ 10 Mbps
port connected
Am b e r/ Gre e n
LED Flas h =
Computer activity
Bo th LEDs Off =
Computer not
connected
On = Wi-Fi enabled
Fla s h = Computer
activity
Off = Wi-Fi disabled
On = MoCA
enabled and
MoCA network
device attached
Fla s h = MoCA
network device
activity/ traffic
Off = MoCA
disabled or no
MoCA network
device attached
No AC Power Off Off Off
Firmwar e
Upgrade
(norm al
operation)
(norm al operation) (norm al
operation)
Patterns: Normal Operation (WAN)
The following table shows light patterns during normal operation.
Mode Power US/ DS Online
AC Power Good On On = Connected
to the Internet
Fla s h = Not
connected to the
Internet
On = Internet
available
Off = Internet not
available
No AC Power Off Off Off
Firm ware
Upgrade
On Flas h On
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 30
Chapter 6: Using the Data Gateway
Cable Modem Startup Sequence
US/ DS Online Description
Slo w Flas h
(1/ second)
Off Downstream acquisition in progress
On
(until
Upstream
acquisition
starts)
Off Downstream acquisition com pleted
Fas t Flas h
(3/ second)
Off Upstream acquisition in progress
On
Slo w Flas h
(during
acquisition )
On (when
modem IP
address
obtained)
Upstream acquisition completed, ready for
service
Using the Reset Button
Use the Re s e t button (1), on th e back of the Data Gateway, to reset the modem and
perform initialization as if you power cycled the unit. You may need to reset the Data
Gateway if you are having problem s connecting to the Internet. Using this button will be
rare.
Use a pointed n o n -m e tallic object to press this button. The Re s e t button is recessed to
prevent accidental resets.
Release 24 STANDARD 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 31
Chapter 6: Using the Data Gateway
1. Reset button
2. Ethernet (1 - 4)
3. Cable
4. Power
Resetting the Router to Factory Defaults
To reset the router to factory defaults, press and hold the Re s e t button (1) on the back of
the Data Gateway for more than fifteen seconds. This restores the wireless setup
configuration and router configuration parameters to the factory defaults. You m ay need to
do this if a misconfiguration has locked out all access.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 32
Chapter 7
Troubleshooting
The Data Gateway is plugged in, but the Power light is Off
Check all power connections. Is the power cord plugged in firmly at both ends?
If you plugged the power cord into a power strip, make sure the strip is switched on.
Avoid using an outlet controlled by a wall switch, if possible.
Finally, check the fuse or circuit breaker panel.
I'm not getting on the Internet (all connections)
It may take over 30 minutes to establish a connection the first time you power up your
Data Gateway, especially when many people are online. Always leave your Data Gateway
plugged into AC power and connected to the cable system .
Check the front panel lights:
The Po w e r and On lin e lights should be on.
If the Po w e r light blinks for more than 30 minutes, call your cable com pany for
assistance.
Check your cable connections. Connectors should be tight. The coax cable should not be
pinched, kinked, or bent sharply—any of these can cause a break or short in the cable (you
may have to replace the cable). If you have one or more splitters between the Data Gateway
and CATV outlet, remove the splitters and connect the Data Gateway directly to the outlet.
Proceed to the Ethernet or wireless solutions if necessary.
I'm not getting on the Internet (Ethernet)
If you are using a hub, is the hub turned on?
Are you using the right type of Ethernet cable? Use the supplied cable for direct connection
to a computer; use a cross-over cable for connection to a hub.
Press the Re s e t button on the back of the Data Gateway.
A misconfiguration could lock out all access to the Data Gateway router. If you think this
has happened, see Resetting the Router to Factory Defaults (page 32).
I'm not getting on the Internet (Wireless)
Check the indicator lights, see Using the Data Gateway (page 28) — the Wi-Fi light should
be on.
Does your connection utility discover your wireless LAN? If you turned off “Broadcast
SSID” you need to manually enter the name of your wireless LAN in the connection utility.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 33
Chapter 7: Troubleshooting
Change your security mode to “disabled”. Enable one of the other security modes as soon
as you find the problem .
A misconfiguration could lock out all access to the Data Gateway router. If you think this
has happened, see Resetting the Router to Factory Defaults (page 32).
My wireless Internet connection stops working sometimes
This is usually caused by interference. Two common sources are 2.4GHz “remote”
telephones and microwave ovens. If you cannot remove the interfering product, try using a
different channel or setting Protected Mode.
I can get on the Internet, but everything is slow
If the Web site you are visiting is very popular, that site may be having trouble servicing all
the requests. If other sites download quickly, wait for a few minutes and try again. Usage
during peak hours may also affect the connection speed.
Other com munications on the LAN, or interference with wireless connections, may slow
down the connection.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 34
Glossary
C
Category 5e (Cat5e)
A high-quality type of cable, used for
gigabit Ethernet (10 0 0BaseT)
connections. When purchasing Ethernet
cables, always look for Category 5e cable.
Coaxial cable (coax)
A thin wire, used to connect your
television and Data Gateway to the cable
TV system. You can buy coax from any
electronics retailer and many discount
stores.
CPE
Customer Prem ise Equipment. This is the
equipment that is plugged in to the Data
Gateway; typically a computer or hub.
Cross-over
An Ethernet cable used to connect two
hubs (or a hub and a cable modem)
together. Also, som e Ethernet hubs may
have built-in cross-over on one or more
ports (which eliminates the need for a
cross-over cable).
D
DHCP
Dynam ic Host Configuration Protocol.
An IP protocol used to provide an IP
address and location of services (such as
DNS and TFTP) needed by a device
connecting to th e network. DHCP allows
the cable company to configure your
computer’s networking software for you.
DNS
Dom ain Name Service (Server). An IP
service that associates a dom ain nam e
(such as www.example.com) with an IP
address.
DOCSIS
Data Over Cable System Interface
Specification. Th e interoperability
standards used for data comm unications
equipment on an HFC network.
Downst ream
In an HFC network, the direction from
the head-end to the subscriber. Som e
older cable documentation may refer to
this as the forward path.
E
EMTA
Em bedded Multim edia Term inal
Adapter. An MTA device that is
integrated with a cable modem.
Ethernet
A standard method of connecting two or
more computers into a Local Area
Network (LAN).
EuroDOCSIS
The European version of DOCSIS.
Event
An informational message used for
monitoring network status.
F
F-connector
The type of connector used on coax cable.
There are two com m on types of F-
connector, slip-on and screw-on. Use
coax with screw-on connectors for
connecting your Data Gateway.
Firewall
A hardware or software device that
prevents unauthorized access to a private
network from the Internet. The DG2470
provides a built-in firewall.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 35
G
Gat eway
The device, usually a router, that
connects devices on a given IP subnet to
other IP subn ets.
H
Headend
The “central office” in an HFC network.
The headend houses both video and data
equipment. In larger cable networks, a
“m aster” headend often feeds several
“rem ote” headends to provide distributed
services.
HTTP
HyperText Transfer Protocol.
Hub
A box with several Ethernet connectors.
Ethernet hubs provide a common point of
contact for all connected devices.
I
IP address
A number assigned to your com puter by
your cable company, used to identify your
computer to other systems on the
Internet.
L
LAN
Local Area Network. A network that
allows computers in a single location
(such as a building) to com m unicate with
one another.
LED
Light Emitting Diode. A semi-conductor
diode that emits light when current is
passed through it.
M
MAC address
A number that uniquely identifies any
device connected to a network. Your
cable company uses your Data Gateway’s
MAC address to authorize access to the
Internet. The MAC address is printed on
a label on the bottom of your Data
Gateway.
P
Protocol
A set of rules and formats that
determines the communication behavior
of network entities at a given layer.
Proxy
A device or program that stands in
between a server (for example, a web site)
and a client (your browser), providing a
way to relieve som e of the burden from
the server. For exam ple, your cable
company may have a web proxy that
keeps copies of popular web pages; th e
proxy can send you those pages instead of
fetching them directly from the web site,
resulting in faster page loading and less
network congestion.
R
RF
Abbreviation for Radio Frequency. Som e
literature refers to coax as “RF cable” and
the connectors as “RF connectors.”
RJ-45
A standard 8-conductor modular
connector, comm only used on Ethernet
cable. An RJ -45 connector looks like a
wide RJ -11 (telephone) connector.
S
Splitter
A sm all box with three cable connectors:
one input and two outputs. You may need
a splitter if you have a TV already
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 36
connected to the cable outlet that you
want to use for your Data Gateway. You
can buy a splitter from any electronics
retailer and most discount stores.
SSID
Service Set IDentifier. A string of text (up
to 32 characters long) that uniquely
identifies a wireless LAN.
Switched out let
A power outlet that may be turned on and
off using a wall switch. Usually intended
for lamps. Avoid plugging your computer
or Data Gateway into a switched outlet to
avoid disruptions.
T
TCP/ IP
Transm ission Control Protocol/ Internet
Protocol. The protocols used to facilitate
com munications across one or more
connected networks.
TDMA
Tim e Division Multiple Access. A method
used by DOCSIS-com pliant cable
modems for sending upstream data with
minimal interference.
U
Upst ream
The path from a subscriber device to the
headend. Some older cable
documentation may refer to this as the
return path or reverse path.
W
WEP
Wired Equivalent Privacy. A common
standard for encrypting data sent over a
wireless LAN.
WPA
Wi-fi Protected Access. A standard for
encrypting data sent over a wireless LAN.
WPA offers improved security over WEP.
Release 24 STANDAR D 1.3 February 20 15 Touchstone DG2470 Data Gatew ay User Guide 37
Touchstone DG2470 Data Gateway User Guide
Corporate Headquarters
ARRIS · Suwanee · Georgia · 30024 · USA
T: 1-678 -473-20 0 0 F: 1-678-473-8470
www.arris.com
