Amendment to page 159: “WIRELESS” section of APPENDIX 4
WIRELESS
Create a wireless connection between your wireless router
and your DIRECTV HD DVR, so your receiver can access
the Internet.
For DIRECTV® Receivers up to an including the HR34,
follow the instructions below.
For the HR44 Advanced Whole Home HD DVR, which has
an integral wireless transceiver, see the section entitled
“WIRELESS – HR44”.
2
DRAFT
Additional section for APPENDIX 4
WIRELESS – HR44
The HR44 Advanced Whole Home HD DVR has an integral
wireless transceiver. You can therefore pair it with your
existing wireless router, so that it is connected wirelessly to
your existing broadband service to allow Video-on-Demand,
callback service etc. It is used primarily for data transfer.
Connecting your HR44 to your wireless network
Starting from a TV picture, press MENU on your RC71
remote control.
Select Settings and Help, then Settings, then Network
Setup, then Connect Now, then Continue.
The “Setup: Wireless Connection” screen appears.
Warranty VOID
if Broken
or Removed

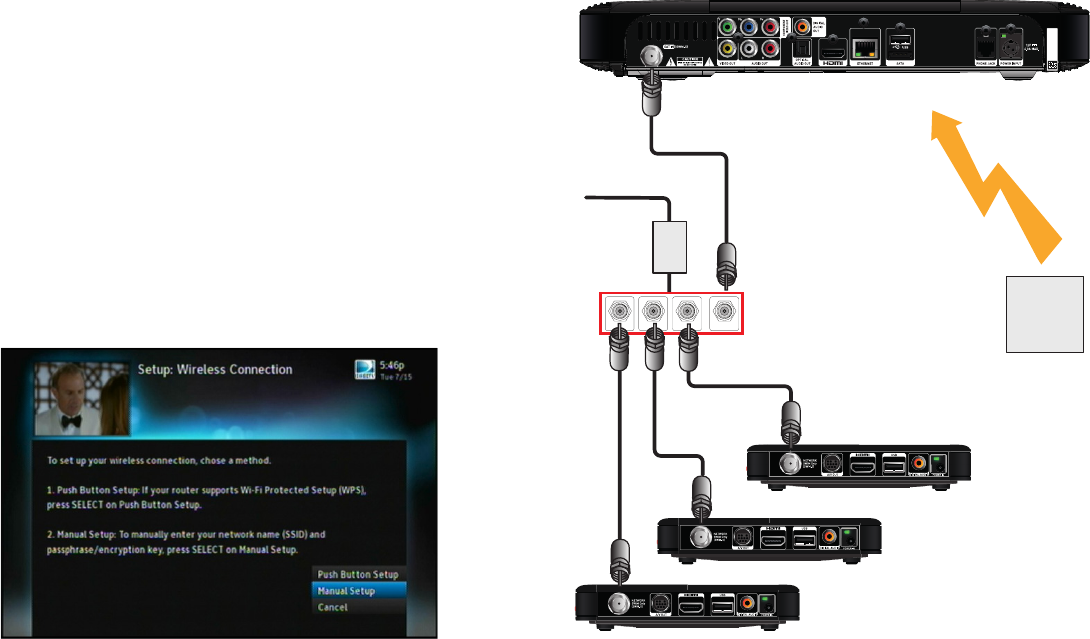

CABLE IN
HR44
Client
Client
Client
SWiM feed
Band
stop
lter
SWiM 4-way
coax splitter
WiFi
router
2.4 or 5 GHz
(selected automatically)
3
DRAFT
Additional section for APPENDIX 4 (cont.)
If your WiFi router is suitable, you can connect using Push
Button Setup (WPS); otherwise you can use Manual Setup,
as described below.
Manual Setup
Select Manual Setup.
Your HR44 searches for wireless networks and lists them
on the screen (this can take a minute or two).
Use the arrow buttons to move the blue dot to be next to
the wireless network you want, then press SELECT.
Use the right arrow button to highlight Continue, then press
SELECT.
Key in the passphrase that you use for your router.
Use the right arrow button to highlight Continue, then press
SELECT.
The wireless connection between your wireless router and
your DIRECTV® HR44 Advanced Whole Home HD DVR
should now be active.
Select Done to complete the manual setup process.
