ARRIS RSGU3500 Residential Seamless Mobility Gateway User Manual RSGu3500 530644 001

ARRIS Group, Inc. Residential Seamless Mobility Gateway RSGu3500 530644 001

Manual

UNCONTROLLED DOCUMENT
User Guide
RSGu3500 Residential
Seamless Mobilitiy
Gateway
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway ii
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Important Safety Information
IMPORTANT SAFETY INSTRUCTIONS when using your telephone equipment, basic safety precautions
should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
Read all of the instructions listed here and/or in the user manual before you operate this device. Give
particular attention to all safety precautions. Retain the instructions for future reference.
This device must be installed and used in strict accordance with manufacturer's instructions as described in
the user documentation that is included with the device.
Comply with all warning and caution statements in the instructions. Observe all warning and caution symbols
that are affixed to this device.
To prevent fire or shock hazard, do not expose this device to rain or moisture. The device must not be
exposed to dripping or splashing. Do not place objects filled with liquids, such as vases, on the device.
To prevent electric shock, this device may require a grounding conductor in the line cord. Connect the device
to a grounding type AC wall outlet using the power cord supplied with the device.
This device was qualified under test conditions that included the use of the supplied cables between systems
components. To ensure regulatory and safety compliance, use only the provided power and interface cables
and install them properly.
Different types of cord sets may be used for connections to the main supply circuit. Use only a main line cord
that complies with all applicable device safety requirements of the country of use.
Installation of this device must be in accordance with national wiring codes and conform to local regulations.
Operate this device only from the type of power source indicated on the device's marking label. If you are not
sure of the type of power supplied to your home, consult your dealer or local power company.
Do not overload outlets or extension cords, as this can result in a risk of fire or electric shock. Overloaded AC
outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are
dangerous. They may result in a shock or fire hazard.
Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or
against them. Pay particular attention to cords where they are attached to plugs and convenience
receptacles, and examine the point where they exit from the device.
Place this device in a location that is close enough to an electrical outlet to accommodate the length of the
power cord.
Place device to allow for easy access when disconnecting the power cord of the device from the AC wall
outlet.
Do not connect the plug into an extension cord, receptacle, or other outlet unless the plug can be fully
inserted with no part of the blades exposed.
Place this device on a stable surface.
It is recommended that the customer install an AC surge protector in the AC outlet to which this device is
connected. This is to avoid damaging the device by local lightning strikes and other electrical surges.
Postpone installation until there is no risk of thunderstorm or lightning activity in the area.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway iii
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of
electric shock from lightning. For added protection, unplug the device from the wall outlet and disconnect the
cables to avoid damage to this device due to lightning and power surges.
Do not cover the device or block the airflow to the device with any other objects. Keep the device away from
excessive heat and humidity and keep the device free from vibration and dust.
Wipe the device with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray cleaners
directly on the device or use forced air to remove dust.
CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA
Certified Telecommunication Line Cord, or national equivalent.
Disconnect TNV circuit connector(s) before disconnecting power.
Disconnect TNV circuit connector before removing cover.
Do not use this product near water for example: near a bathtub, washbowl, kitchen sink or laundry tub, in a
wet basement, or near a swimming pool.
Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of
electric shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak.
Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible disposal instructions.
Upon completion of any service or repairs to this device, ask the service technician to perform safety checks
to determine that the device is in safe operating condition.
Do not open the device. Do not perform any servicing other than that contained in the installation and
troubleshooting instructions. Refer all servicing to qualified service personnel.
SAVE THESE INSTRUCTIONS
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway iv
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the device off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC CAUTION: Any changes or modifications not expressly approved by Motorola for compliance could void the
user's authority to operate the equipment.
FCC Radiation Exposure Statement
IMPORTANT NOTE:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To comply
with the FCC RF exposure compliance requirements, the separation distance between the antenna and any
person's body (including hands, writs, feet and ankles) must be at least 20 cm (8 inches).
This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are
firmware programmed at the factory to match the intended destinations. The firmware setting is not accessible by
the end user.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway v
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Industry Canada (IC) Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions:
1This device may not cause interference, and
2This device must accept any interference, including interference that may cause undesired operation of the
device.
This device has been designed to operate with an dipole antenna having a maximum gain of 3.8dBi. An antenna having a
higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the
EIRP is not more than required for successful communication.
IC Radiation Exposure Statement
IMPORTANT NOTE:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your
body.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Wireless LAN Information
This device is a wireless network product that uses Direct Sequence Spread Spectrum (DSSS) radio technology.
The device is designed to be inter-operable with any other wireless DSSS product that complies with:
The IEEE 802.11 Standard on Wireless LANs (Revision B and Revision G), as defined and approved by the
Institute of Electrical Electronics Engineers
The Wireless Fidelity (Wi-Fi) certification as defined by the Wireless Ethernet Compatibility Alliance (WECA).
Restrictions on the Use of Wireless Devices
In some situations or environments, the use of wireless devices may be restricted by the proprietor of the building
or responsible representatives of the organization: for example, using wireless equipment in any environment
where the risk of interference to other devices or services is perceived or identified as harmful.
If you are uncertain of the applicable policy for the use of wireless equipment in a specific organization or
environment, you are encouraged to ask for authorization to use the device prior to turning on the equipment.
The manufacturer is not responsible for any radio or television interference caused by unauthorized modification
of the devices included with this product, or the substitution or attachment of connecting cables and equipment
other than specified by the manufacturer. Correction of the interference caused by such unauthorized
modification, substitution, or attachment is the responsibility of the user.
The manufacturer and its authorized re-sellers or distributors are not liable for any damage or violation of
government regulations that may arise from failing to comply with these guidelines.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway vi
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
International Declaration of Conformity
We,
Motorola, Inc.
Connected Home Solutions
101 Tournament Drive
Horsham, PA 19044, USA
1-215-323-1000
declare under our sole responsibility that the
RSGu3500 Voice Gateway
To which the declaration relates is in conformity with the following standards:
EN 60950-1
EN 300 328
EN 301 489-1/-17
EN 61000-3-2
EN 61000-3-3
The following provisions of the Directive(s) of the Council of the European Union:
EMC Directive 89/336/EEC
Low Voltage Directive 73/23/EEC
R&TTE Directive 1999/5/EC
Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
Restriction of the Use of Certain Hazardous Substances in Electrical Equipment (RoHS)
Directive 2002/95/EC
Caring for the Environment by Recycling
When you see this symbol on a Motorola product, do not dispose of the product with residential
or commercial waste.
Recycling your Motorola Equipment
Please do not dispose of this product with your residential or commercial waste. Some countries
or regions, such as the European Union, have set up systems to collect and recycle electrical
and electronic waste items. Contact your local authorities for information about practices
established for your region. If collection systems are not available, call Motorola Customer
Service for assistance.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway vii
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Copyright © 2006 by Motorola, Inc.
All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as
translation, transformation or adaptation) without written permission from Motorola, Inc.
Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola
to provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed,
including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Motorola may make improvements or
changes in the product(s) described in this manual at any time.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Microsoft, Windows, and Windows ME are either
trademarks or registered trademarks
of
Microsoft Corporation in the U.S and/or other countries. Microsoft Windows screen shots are used by
permission of Microsoft Corporation.
Macintosh is a registered
trademark
of Apple Computer, Inc. Linux is a registered trademark of Linus
Torvalds. Adobe and Reader are registered trademarks of Adobe Systems, Incorporated in the United States and other countries. Netscape and
Navigator are registered trademarks of
Netscape Communications Corporation
. UNIX is a registered trademark of the Open Group in the United
States and other countries. Firefox is a registered trademark of the Mozilla Foundation. DOCSIS is a registered trademark of Cable Television
Laboratories, Inc. All other
product or service names are the property of their respective owners.
UNCONTROLLED DOCUMENT
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
VT2542 Voice Gateway User Guide viii
Contents
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
FCC Interference Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
FCC Radiation Exposure Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Industry Canada (IC) Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Gather Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Positioning Your RSGu3500 for Optimal Wireless Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Connecting the RSGu3500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

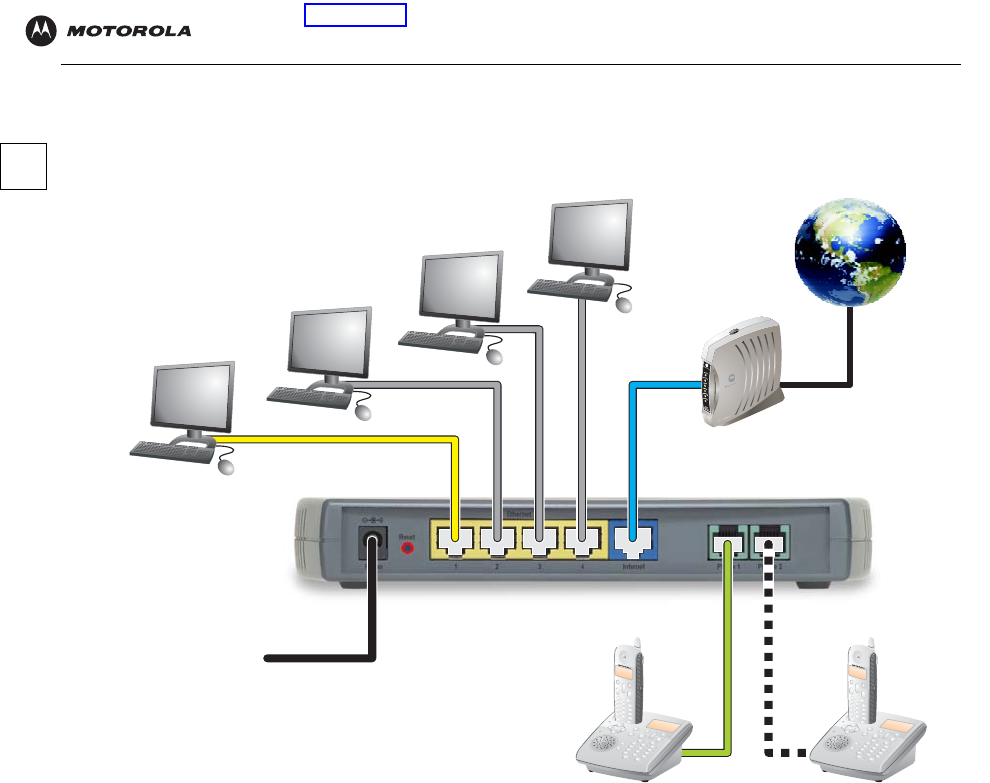

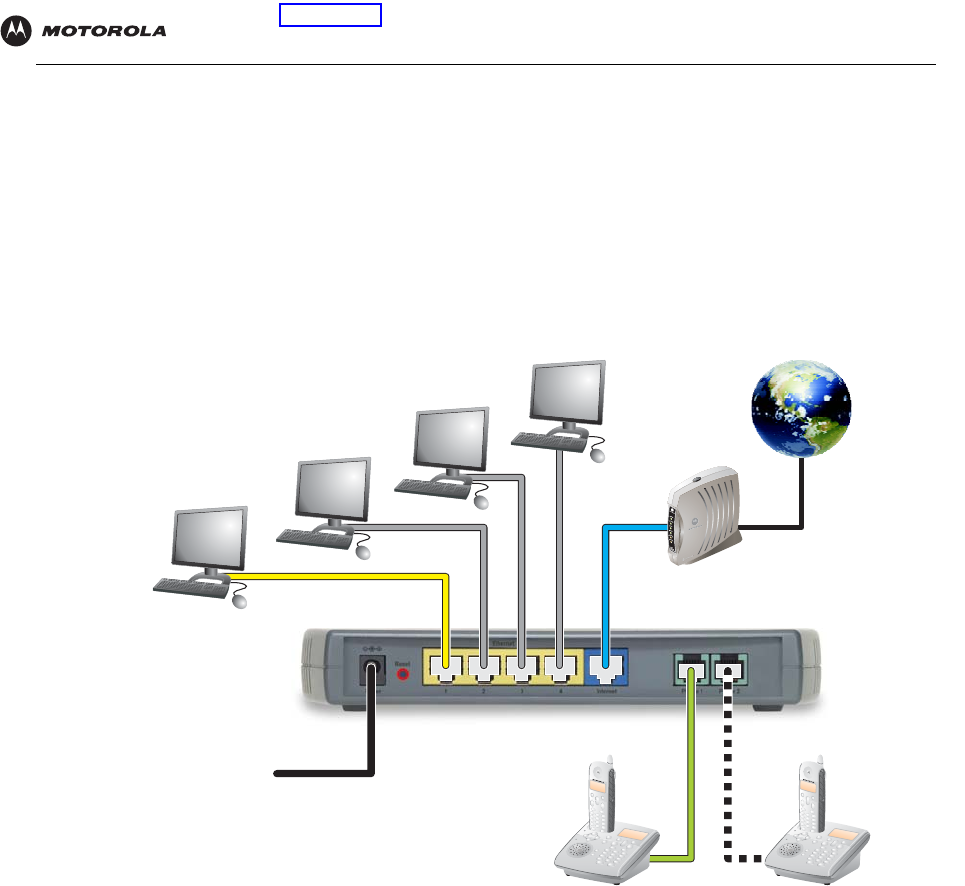

Installation - Wired Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation - Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

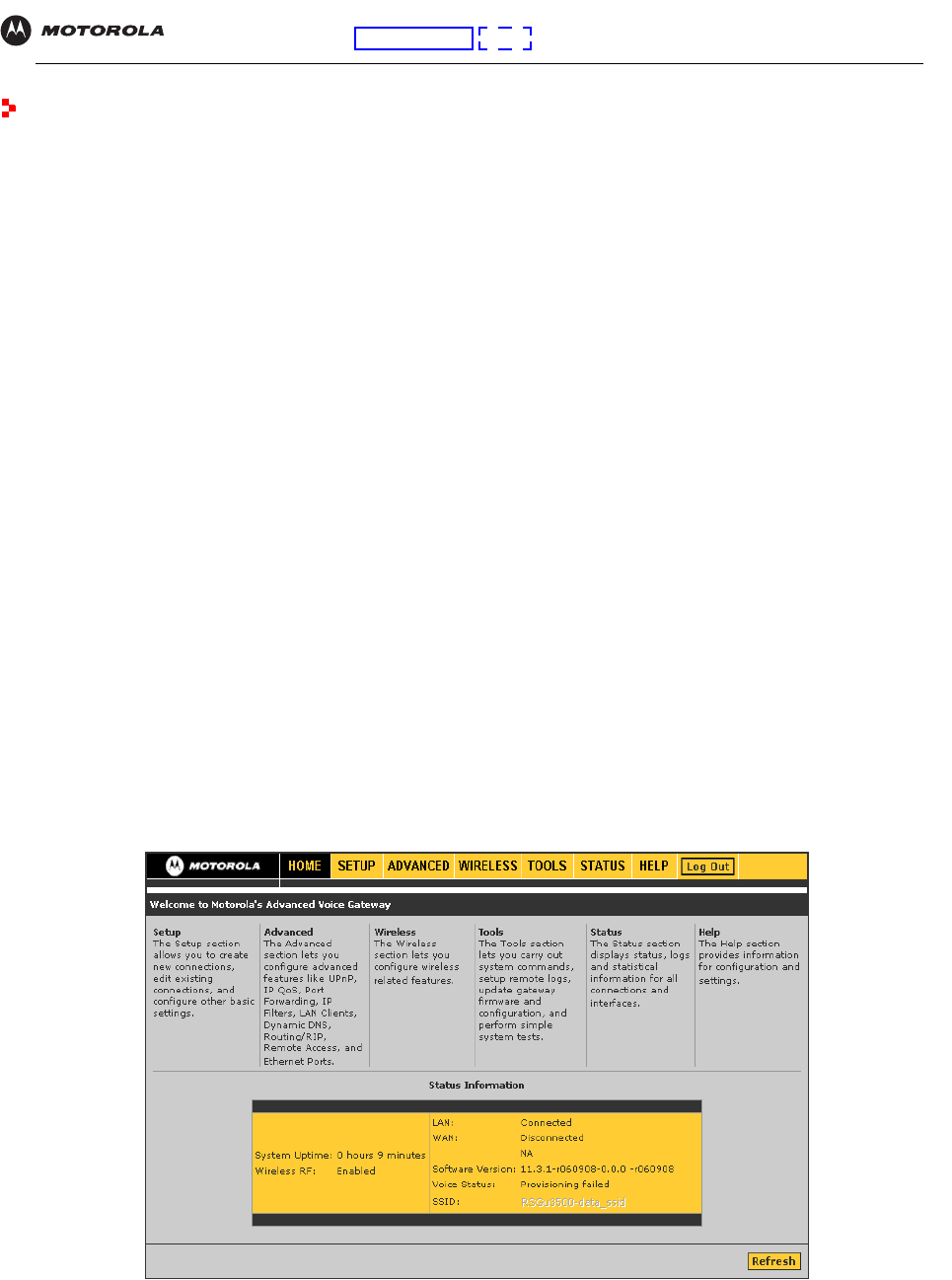

Logging In to the RSGu3500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Configuration Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Exporting the RSGu3500 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Importing the Saved Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Restoring Defaults for the RSGu3500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Logging Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
WAN Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

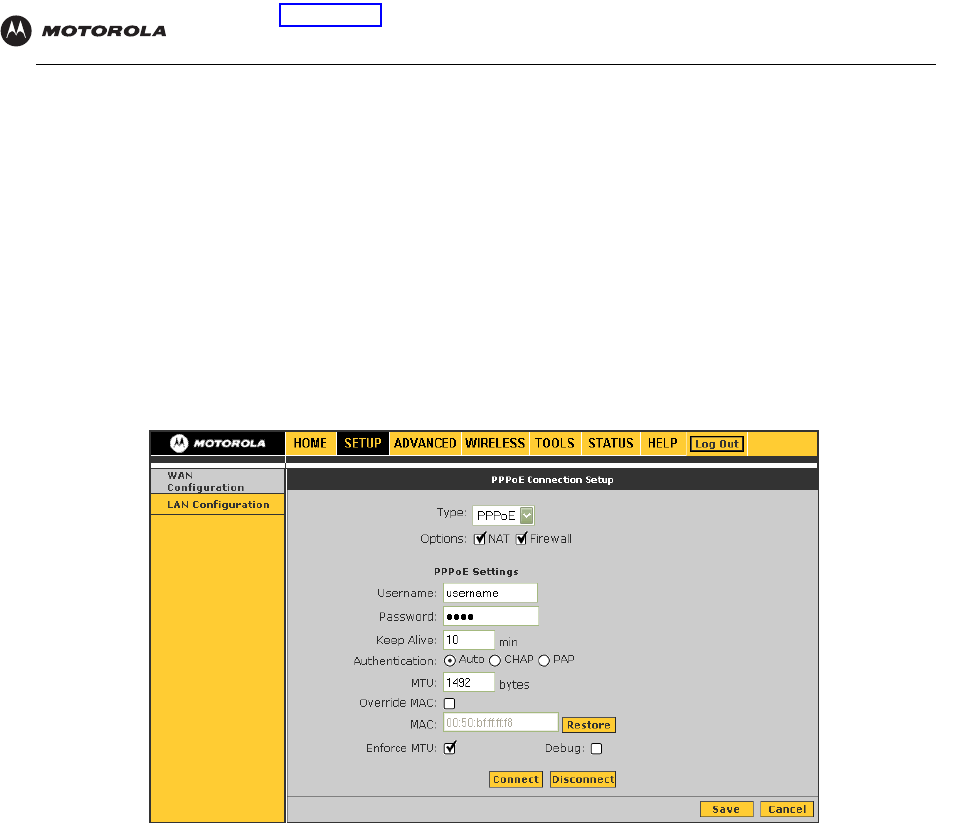

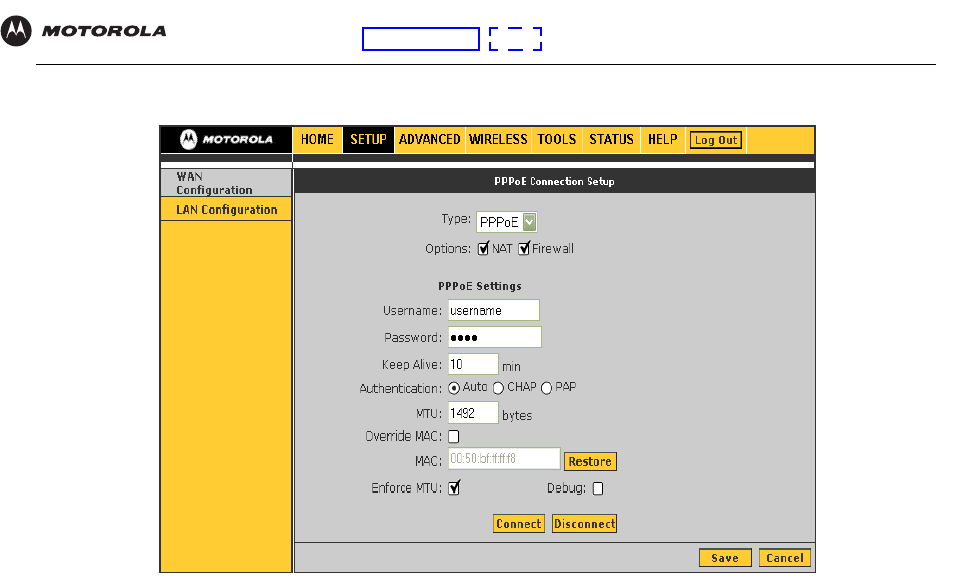

WAN Setup for PPPoE (DSL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

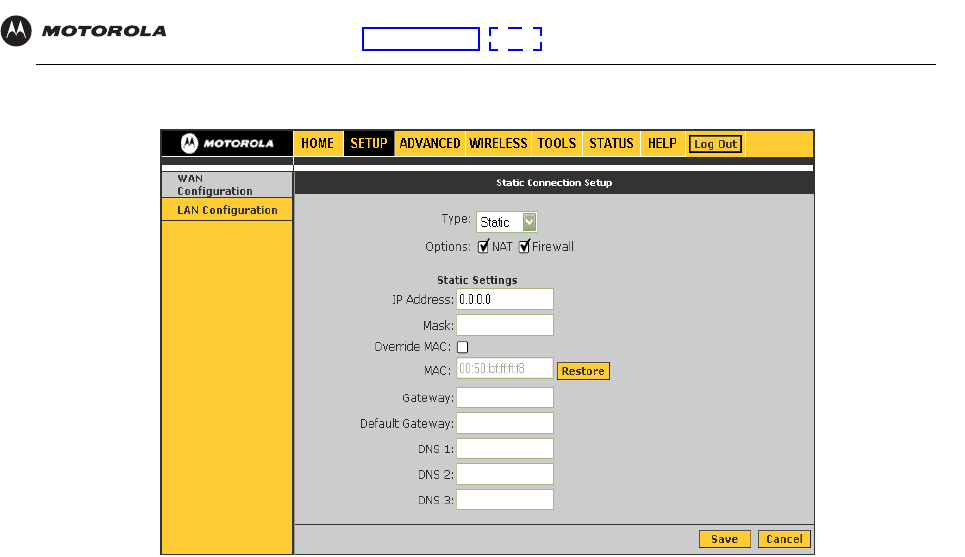

WAN Setup for a Static IP Address (Cable Modem) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
WAN Setup for DHCP (Cable Modem) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

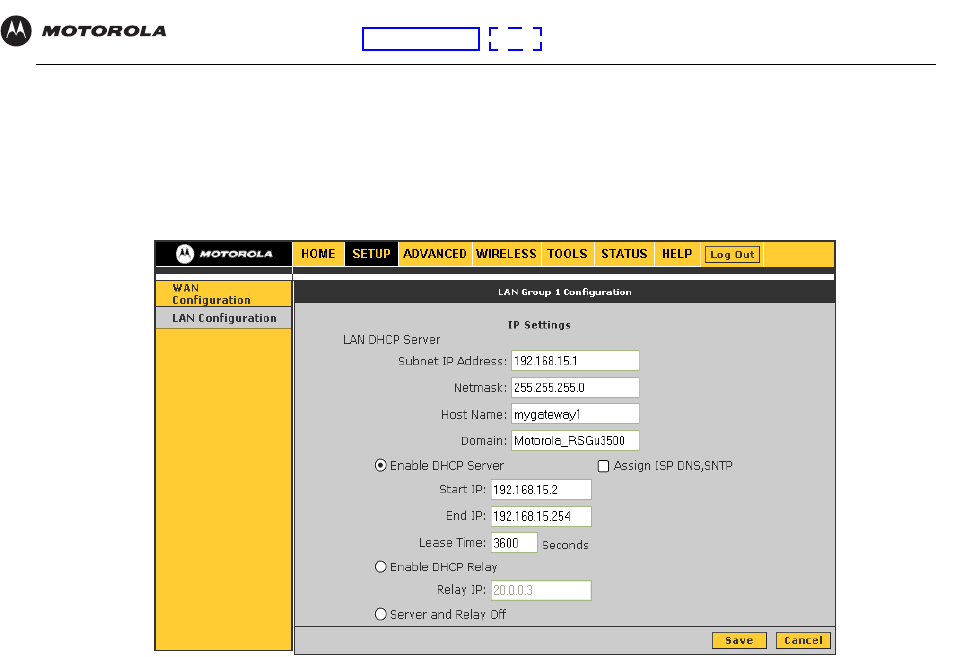

LAN Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Advanced Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

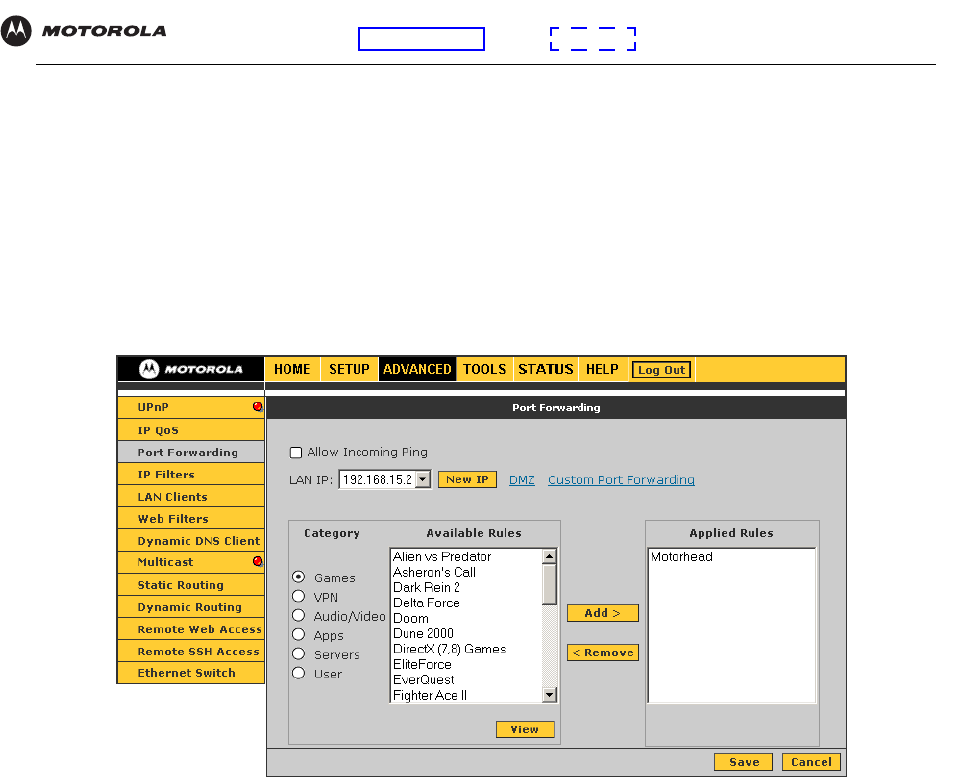

Port Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

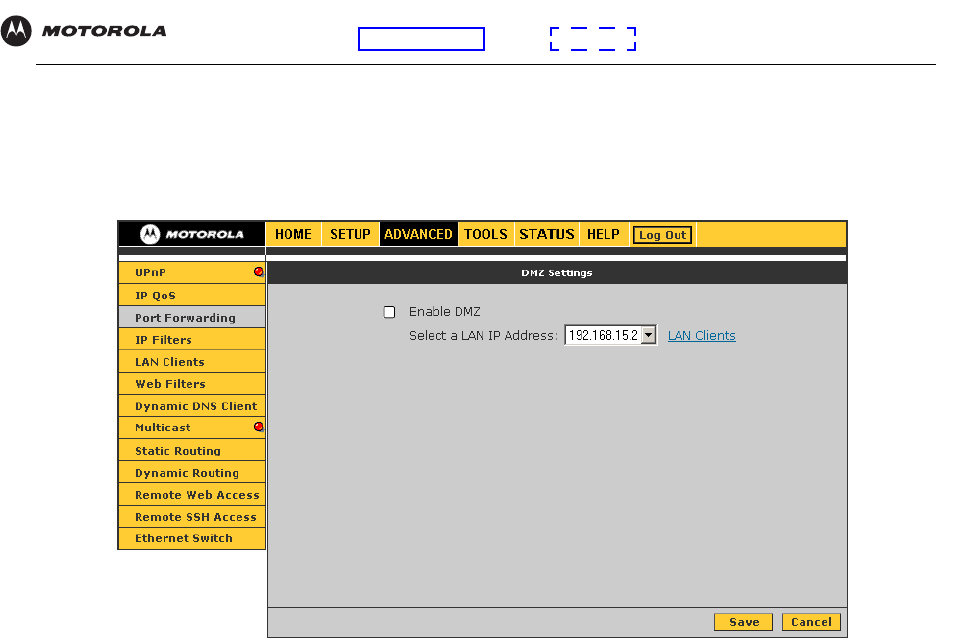

DMZ Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

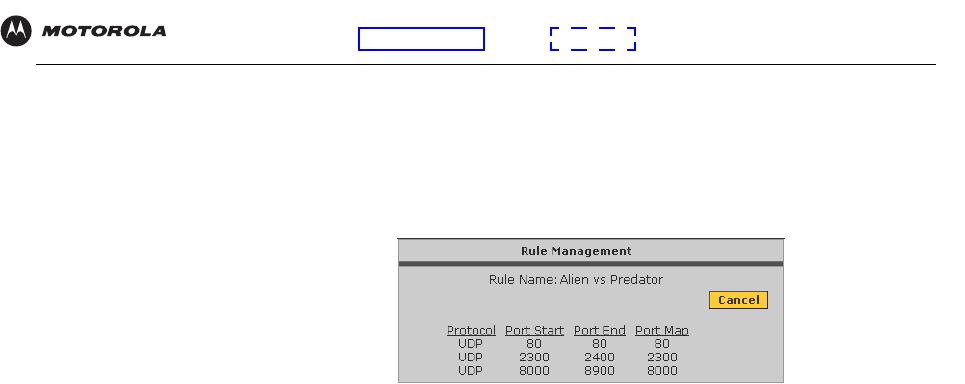

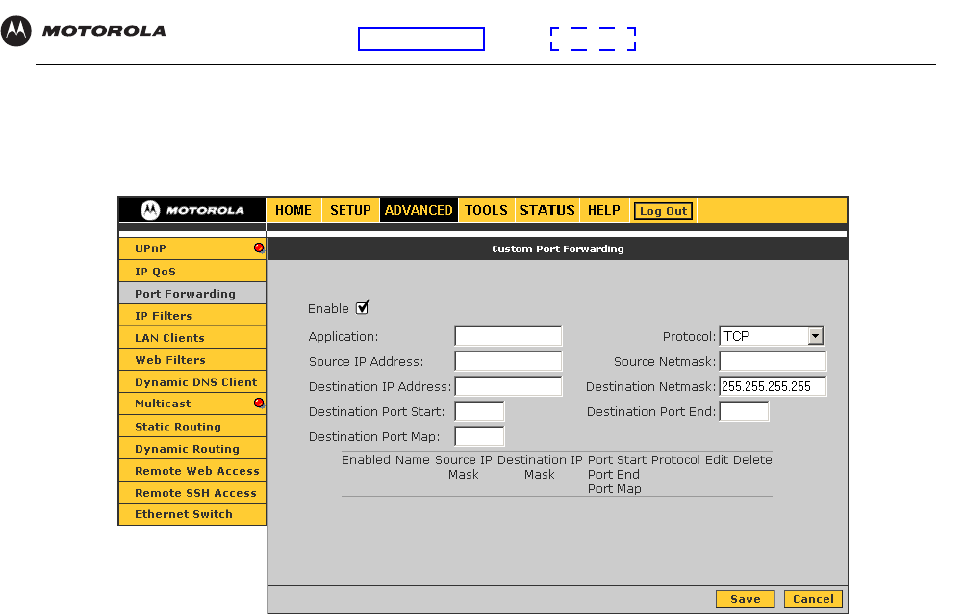

Custom Port Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

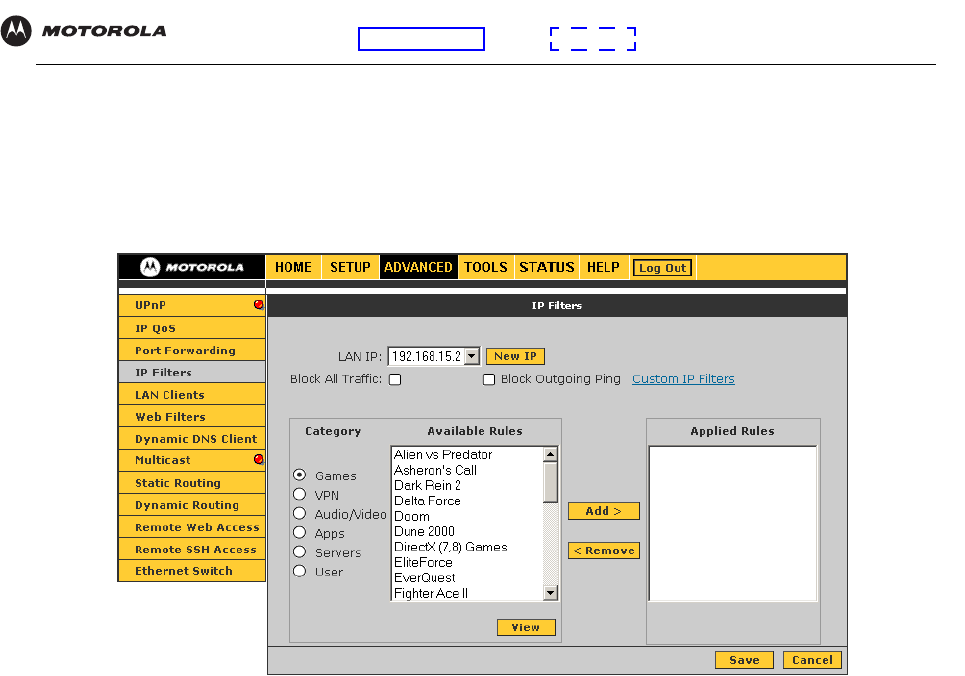

IP Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

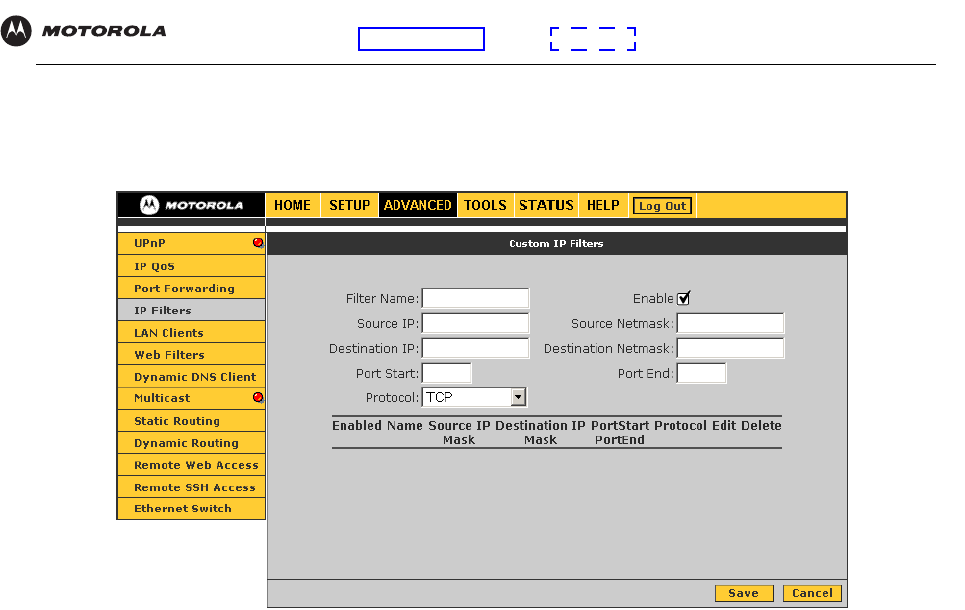

Custom IP Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

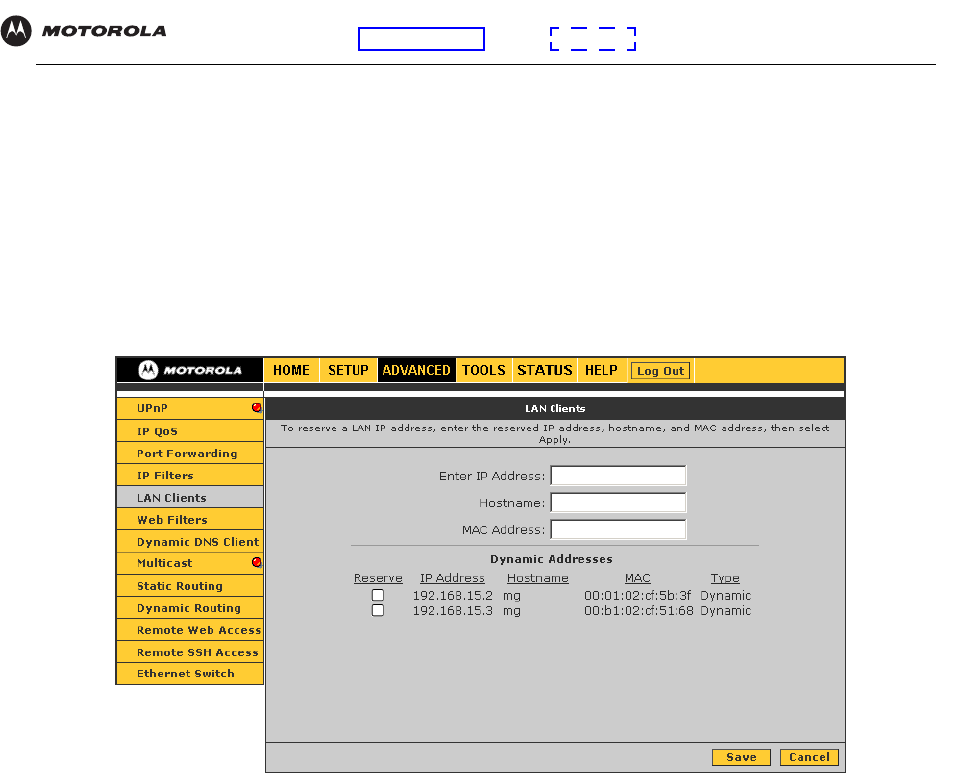

LAN Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

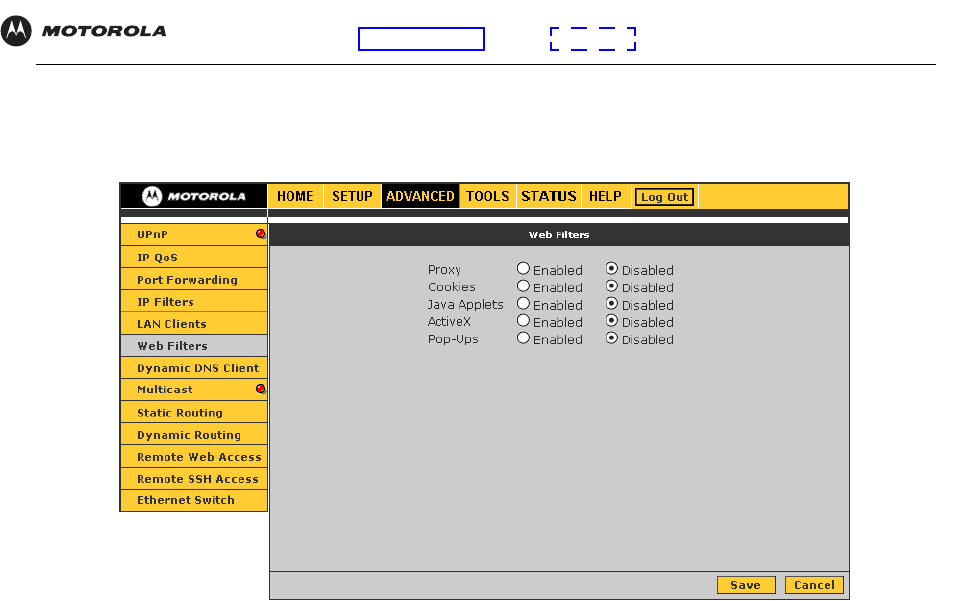

Web Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

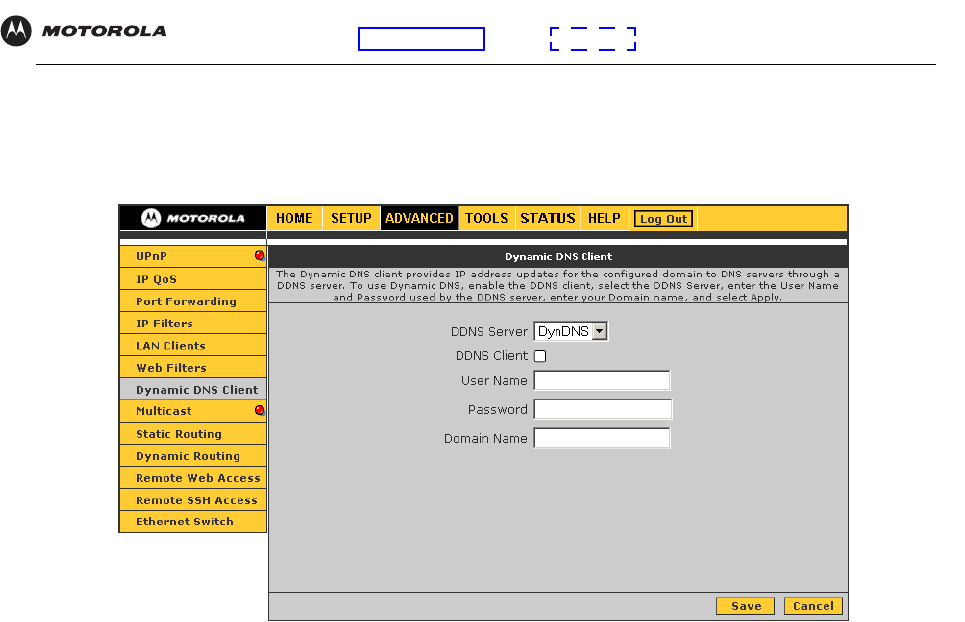

Dynamic DNS Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Multicast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

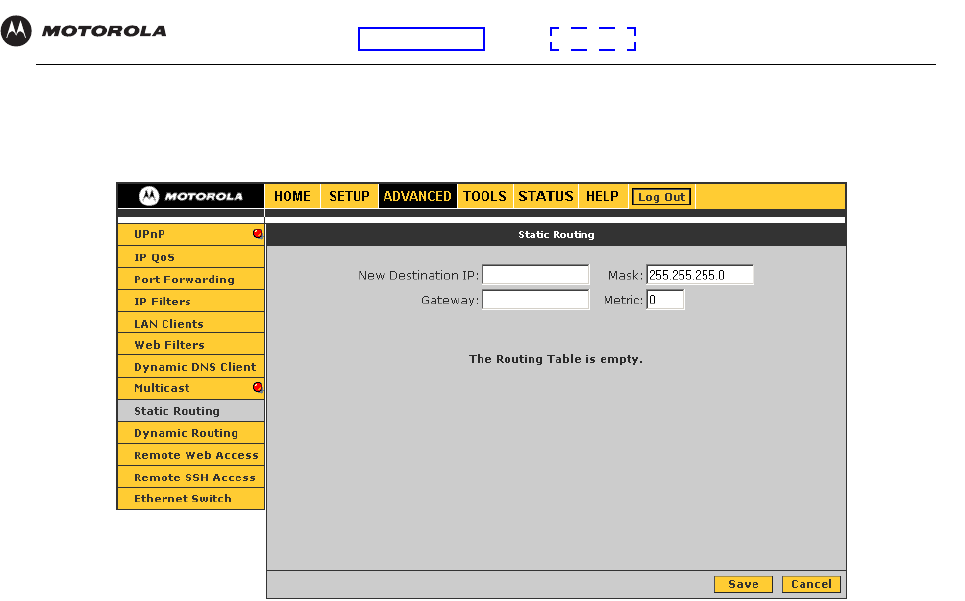

Static Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

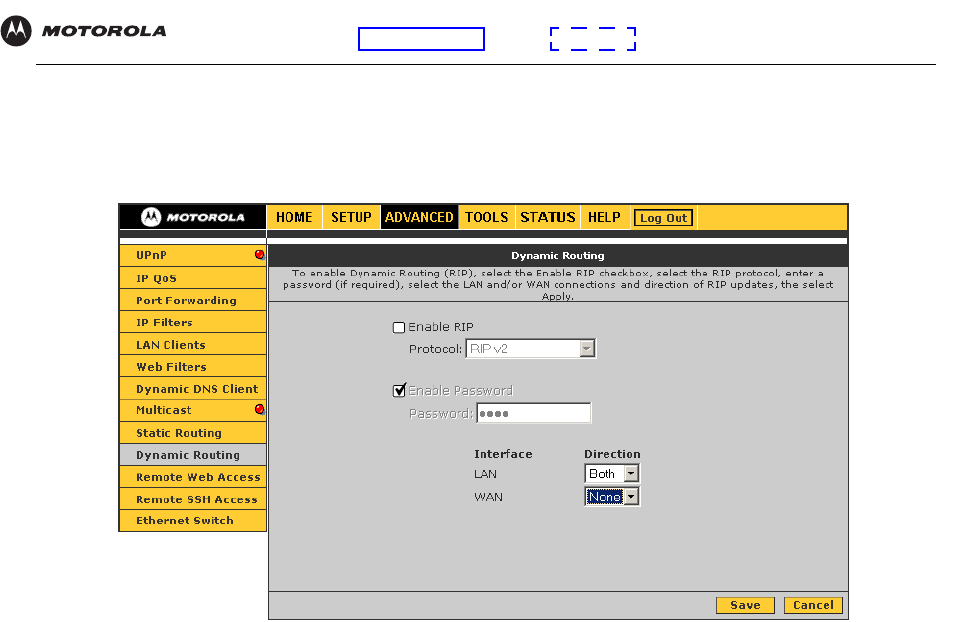

Dynamic Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Remote Web Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
UNCONTROLLED DOCUMENT
VT2542 Voice Gateway User Guide ix
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless

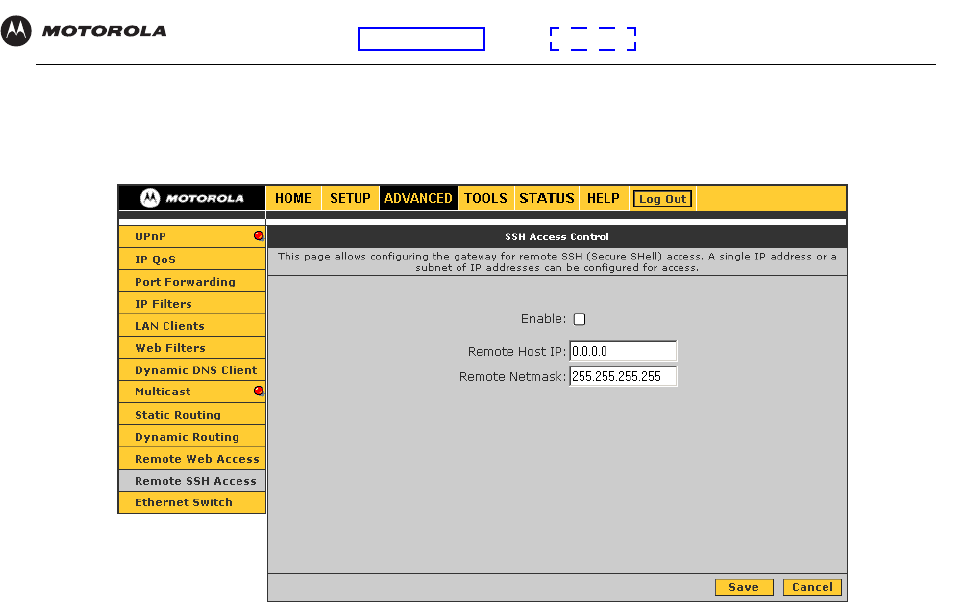

Remote SSH Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Ethernet Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

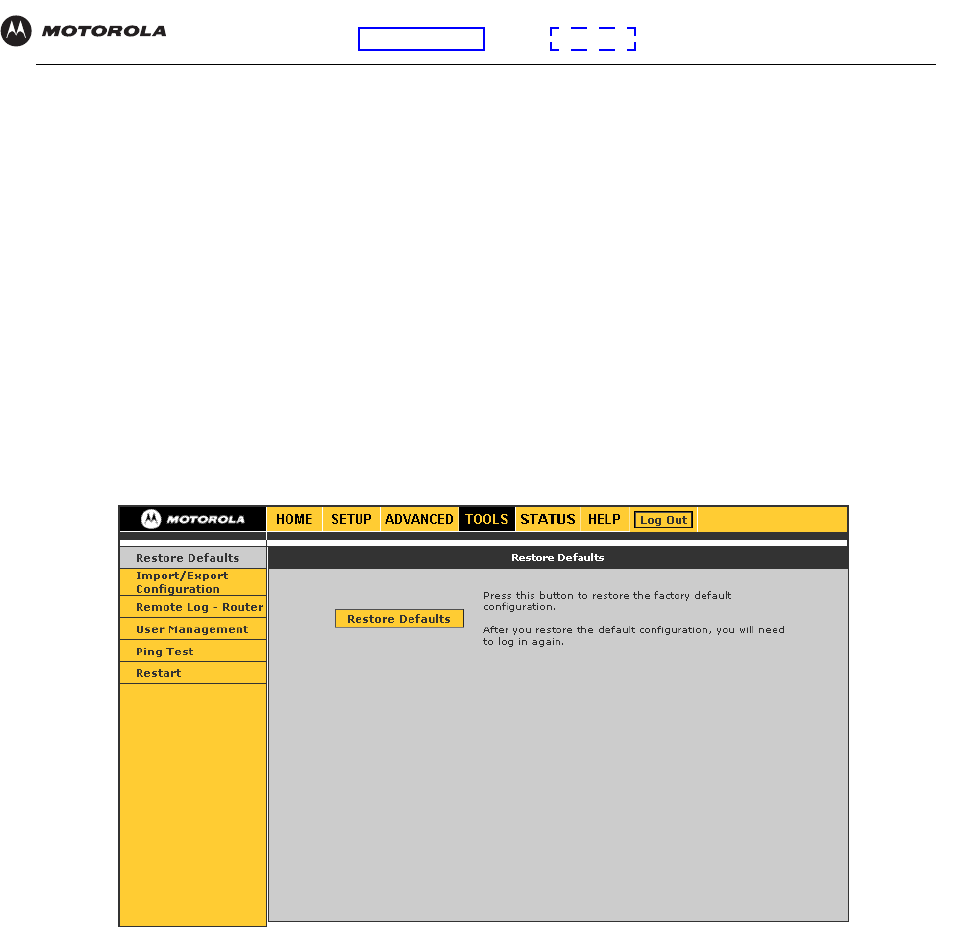

Restore Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

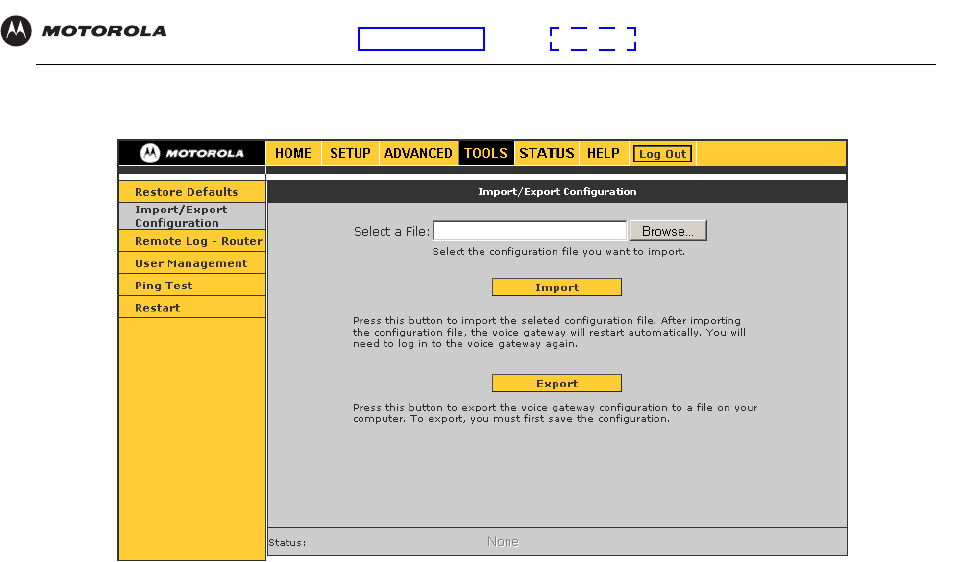

Import/Export Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

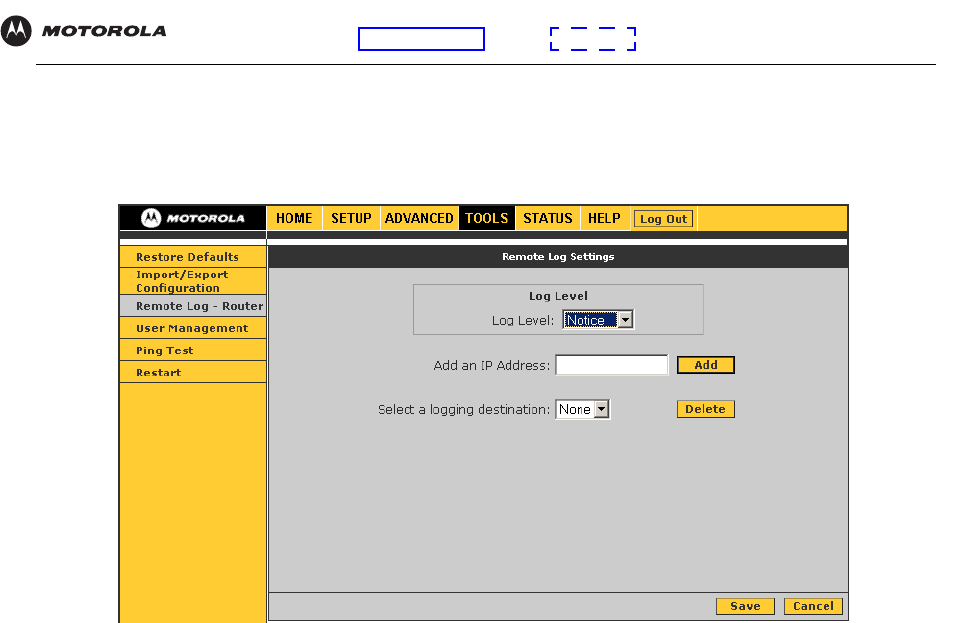

Remote Log – Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

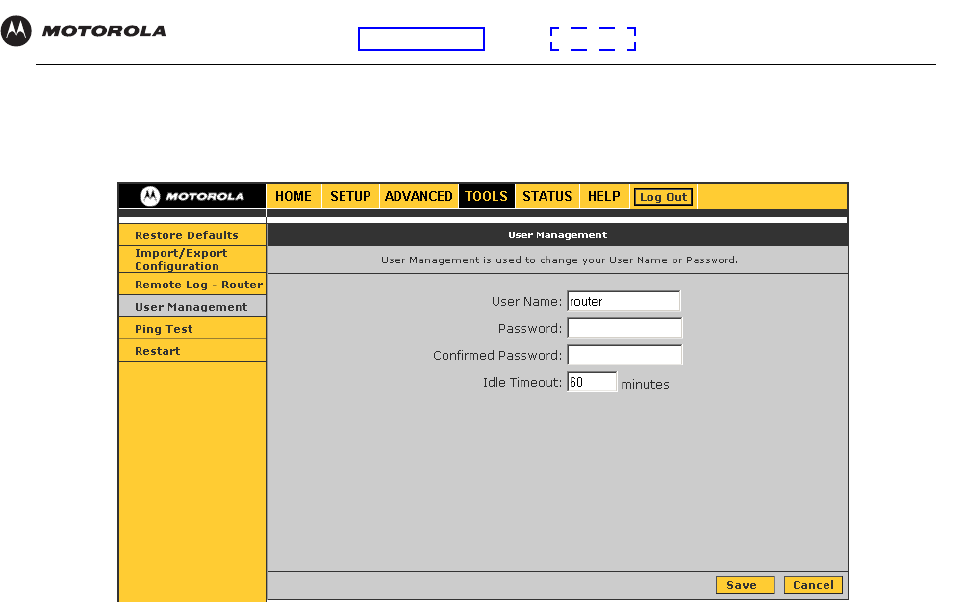

User Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

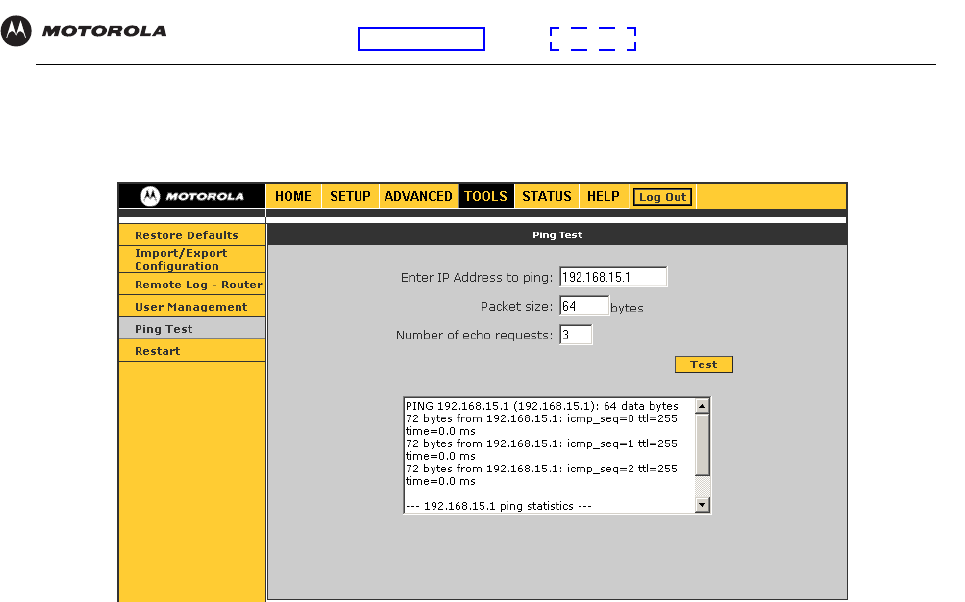

Ping Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

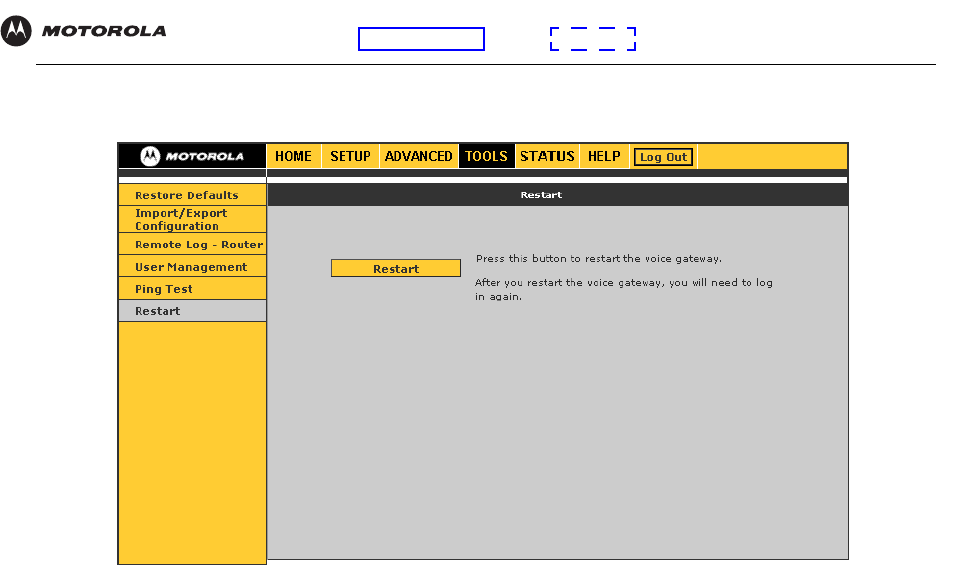

Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
STATUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

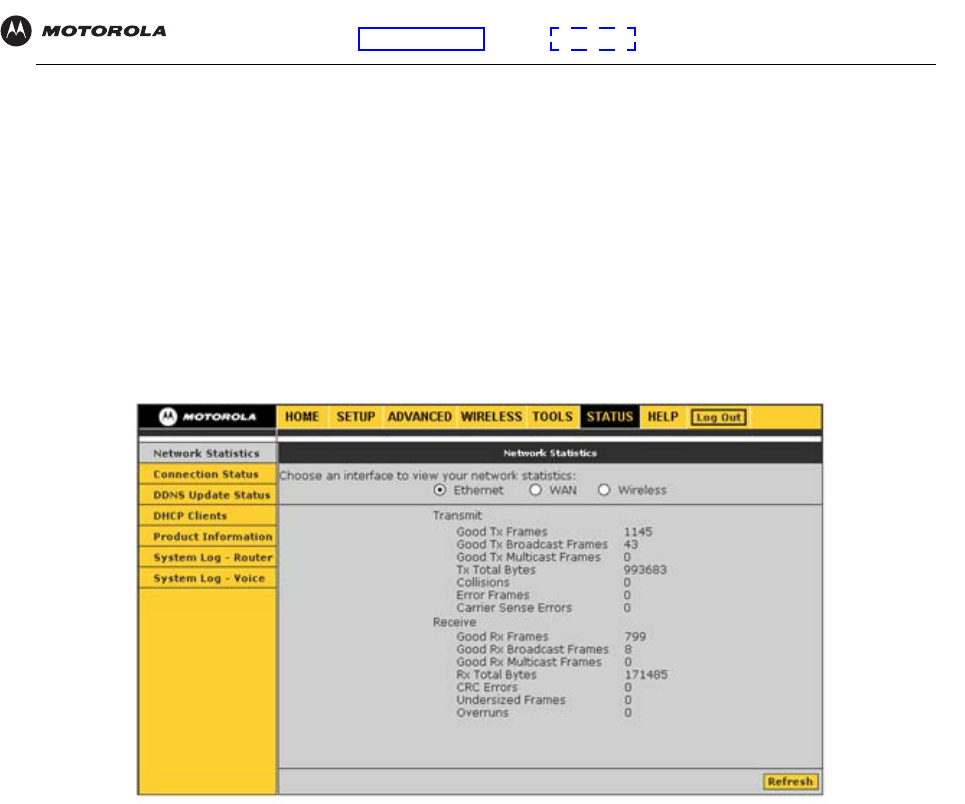

Network Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

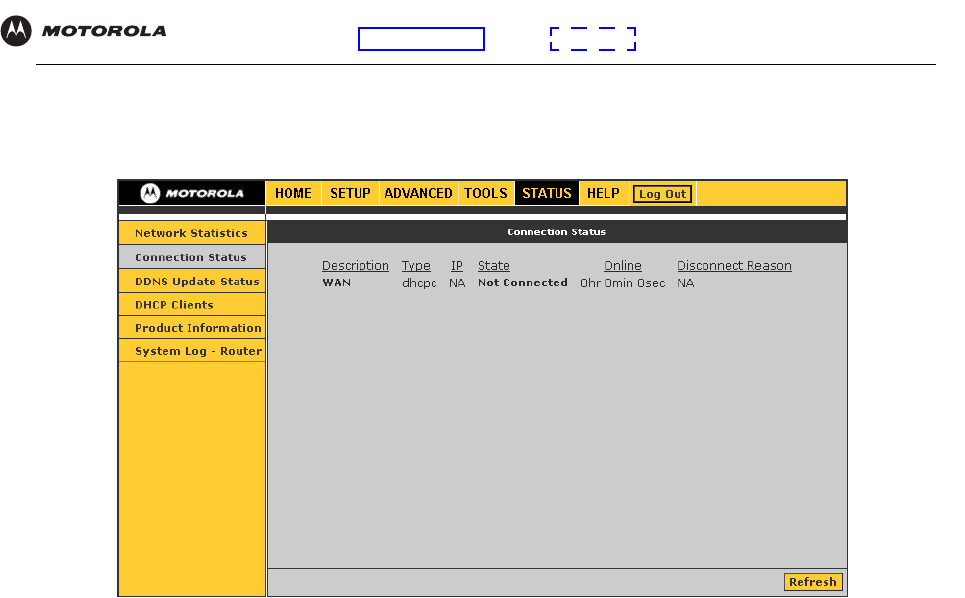

Connection Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

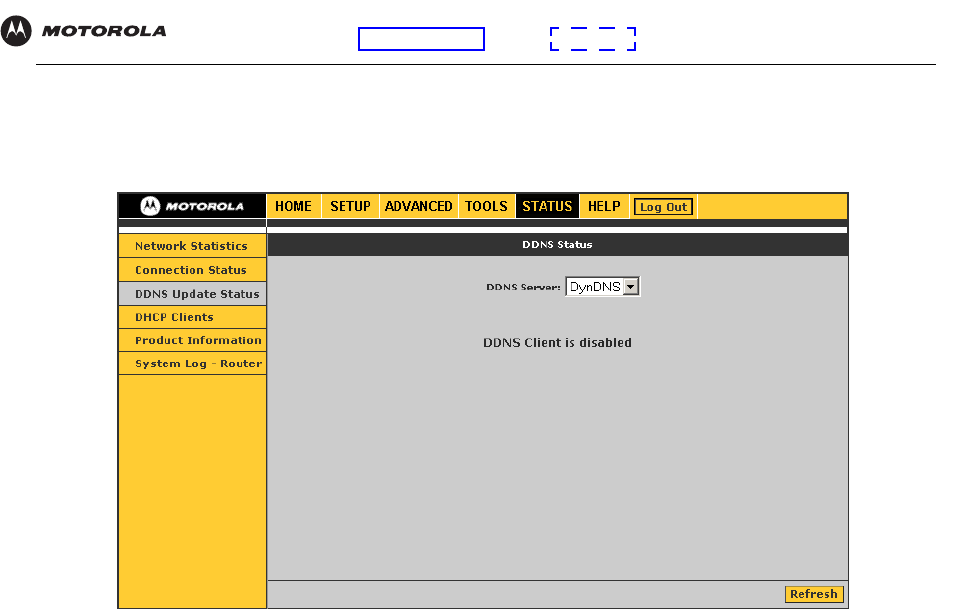

DDNS Update Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
DHCP Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

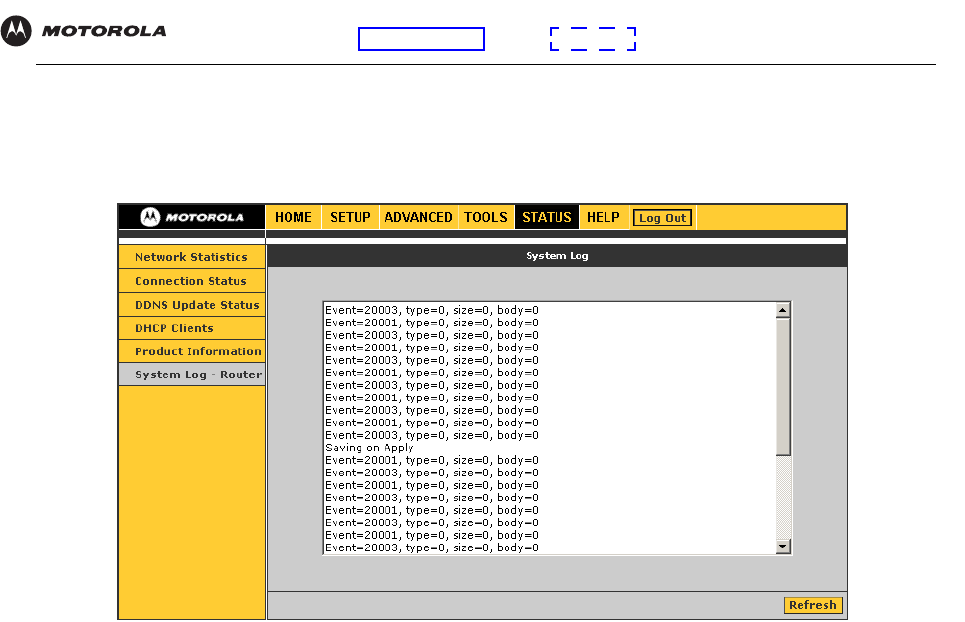

System Log – Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

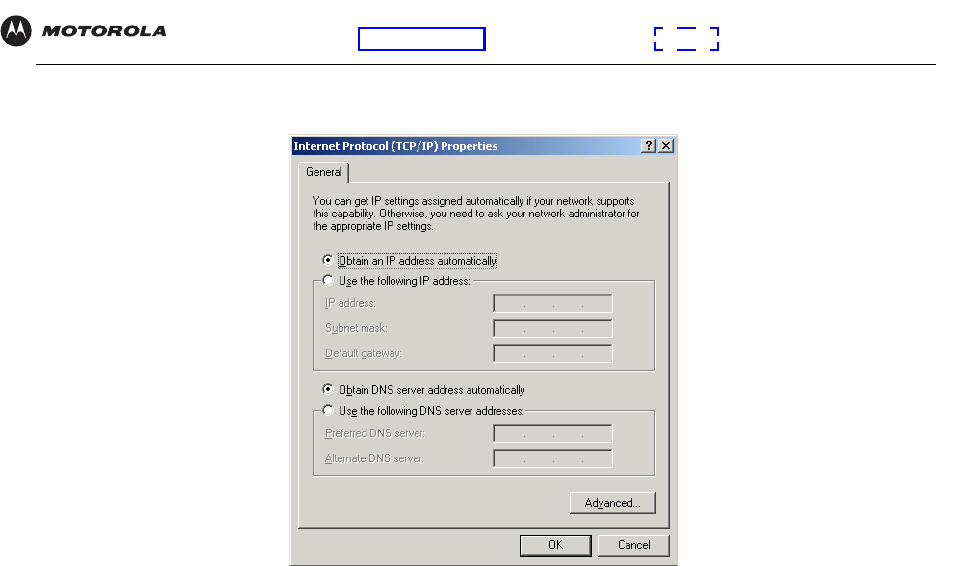

Configuring TCP/IP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

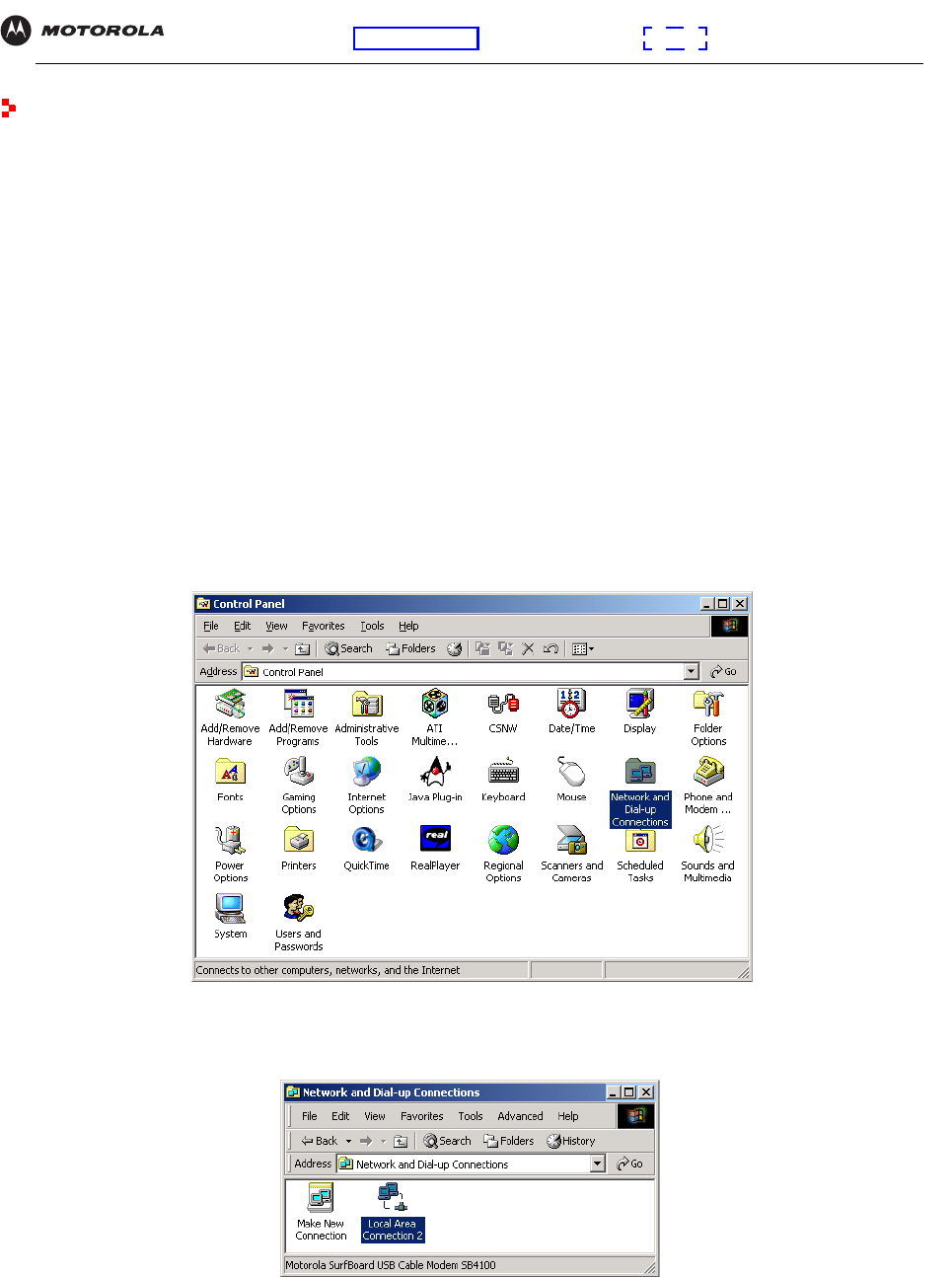

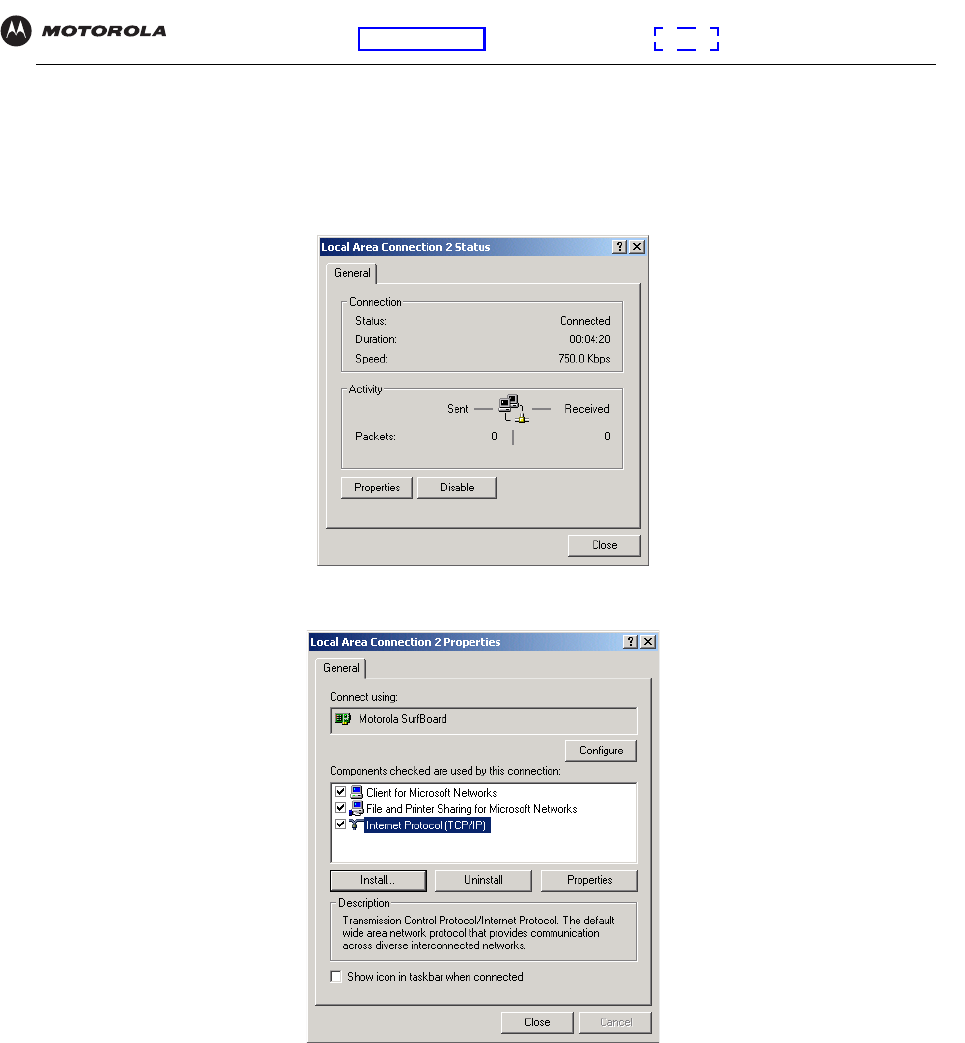

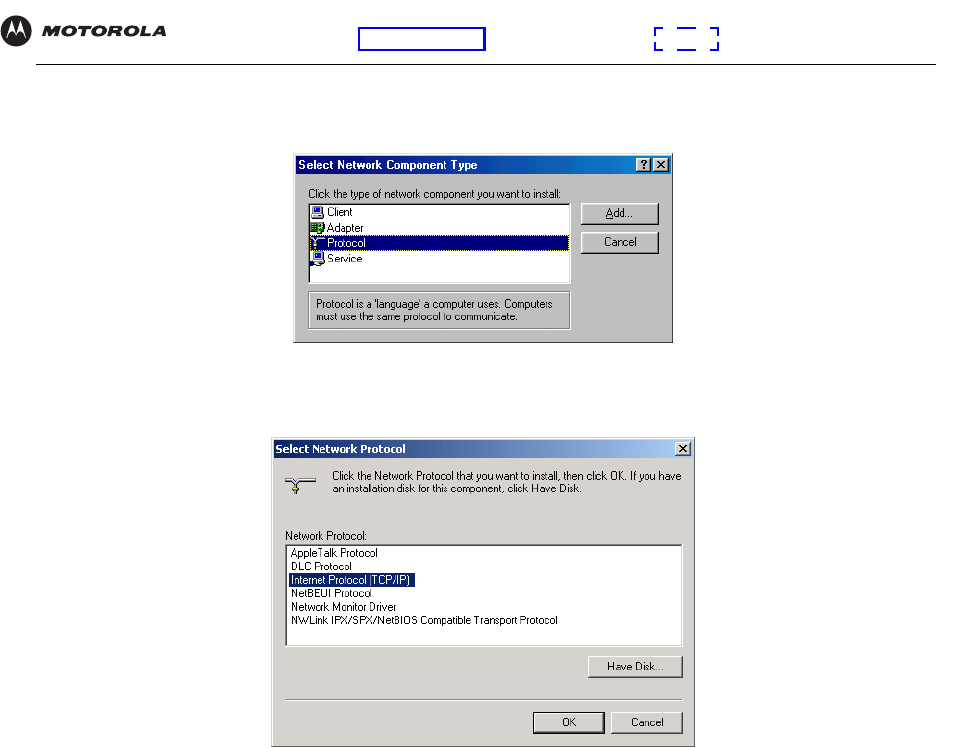

Configuring TCP/IP in Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

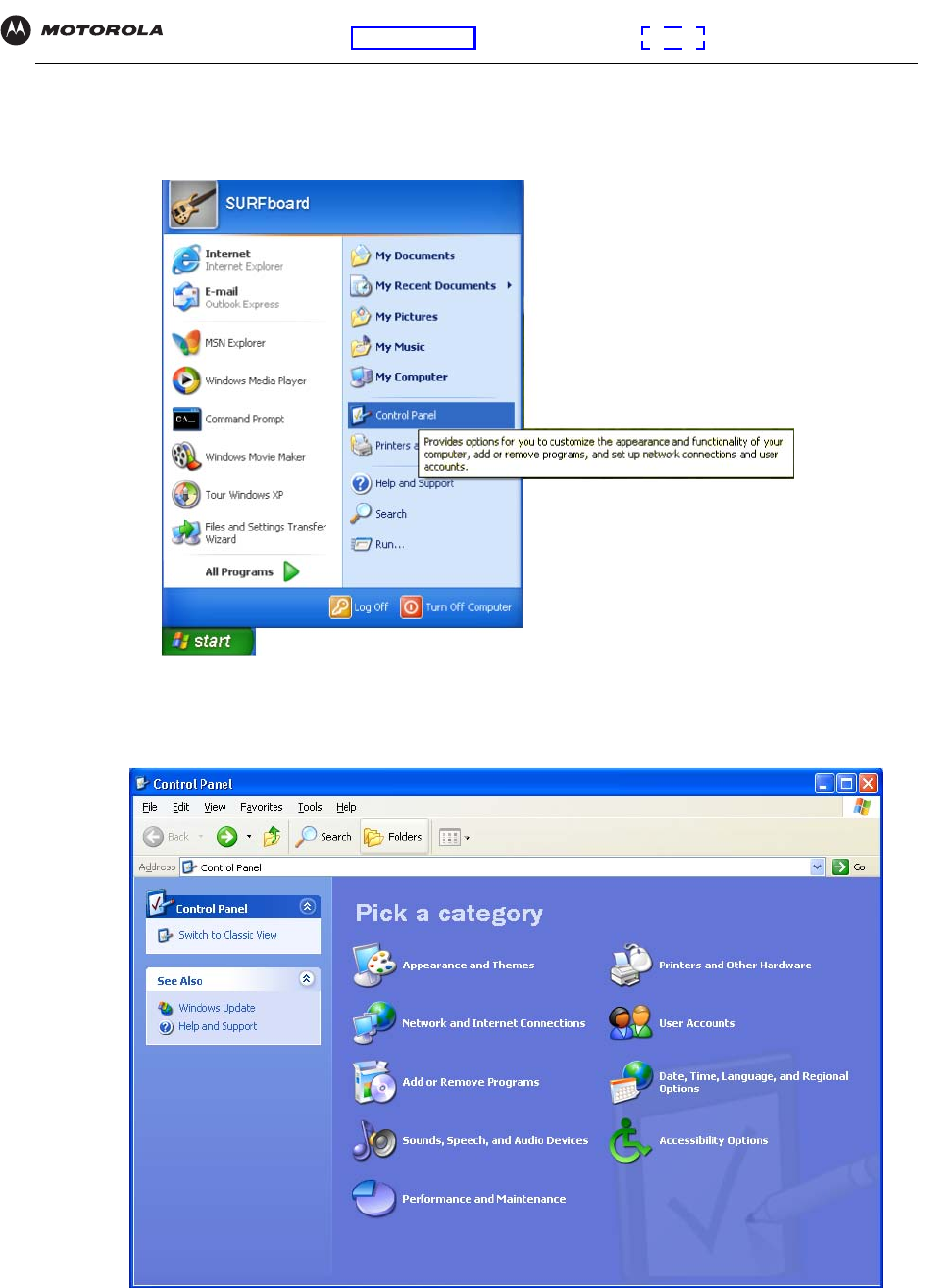

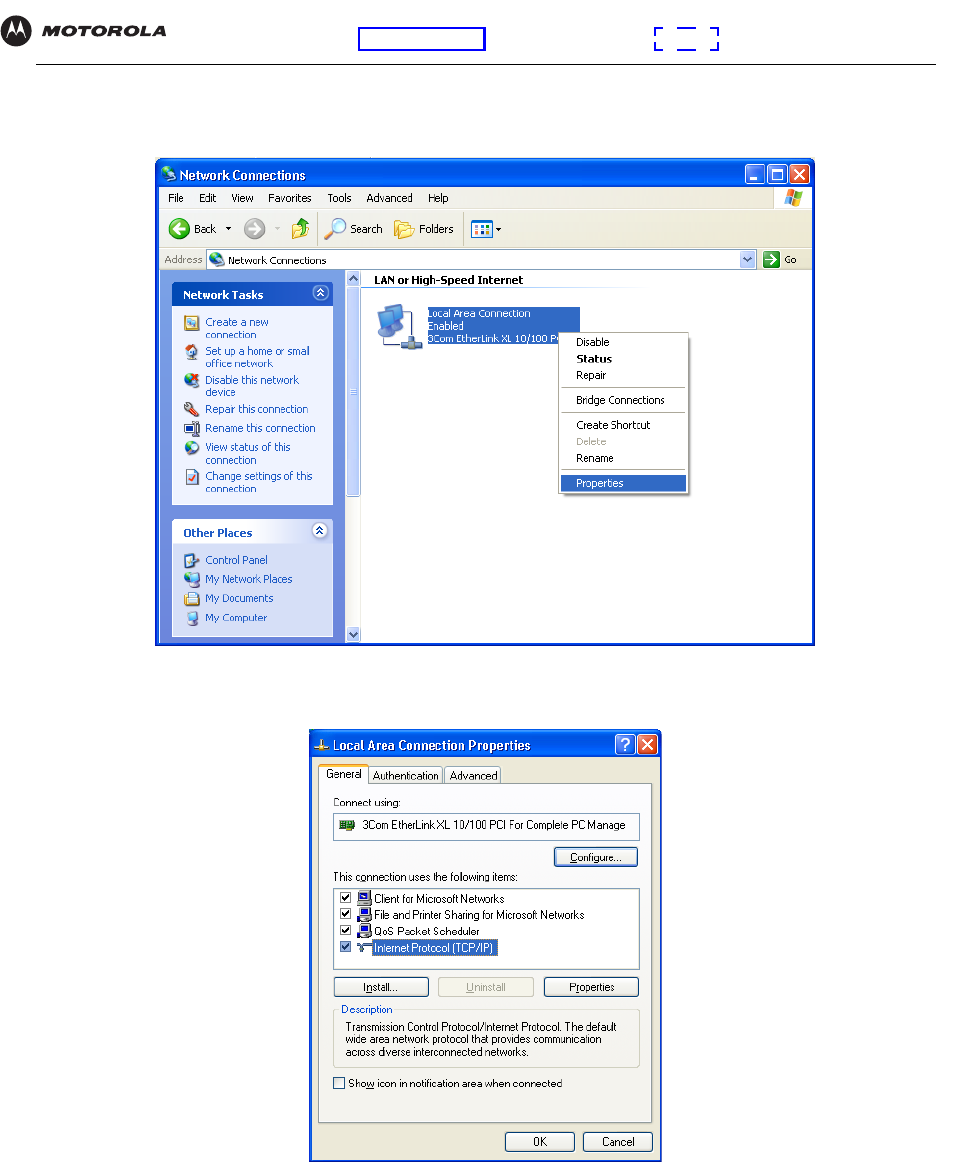

Configuring TCP/IP in Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

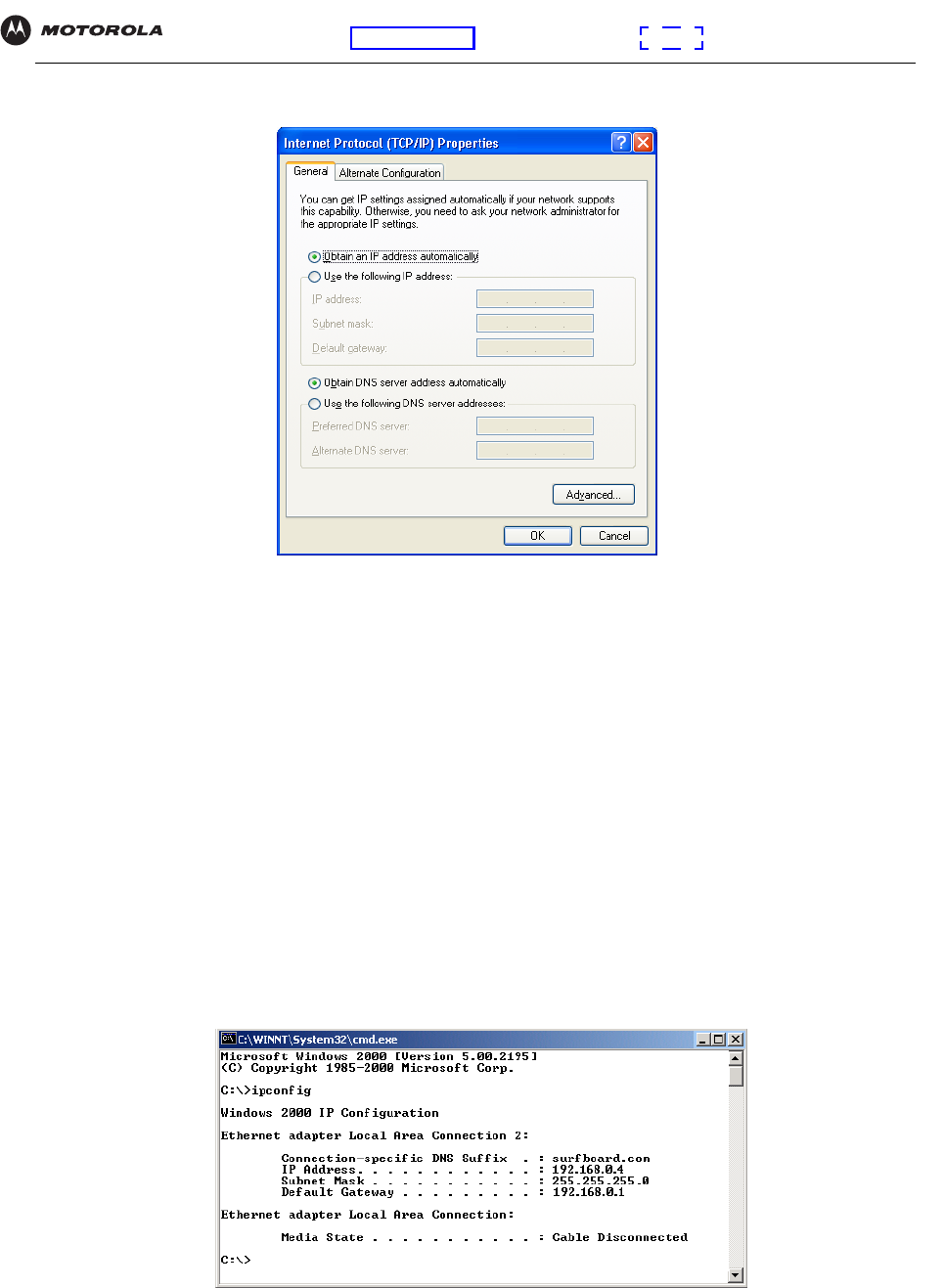

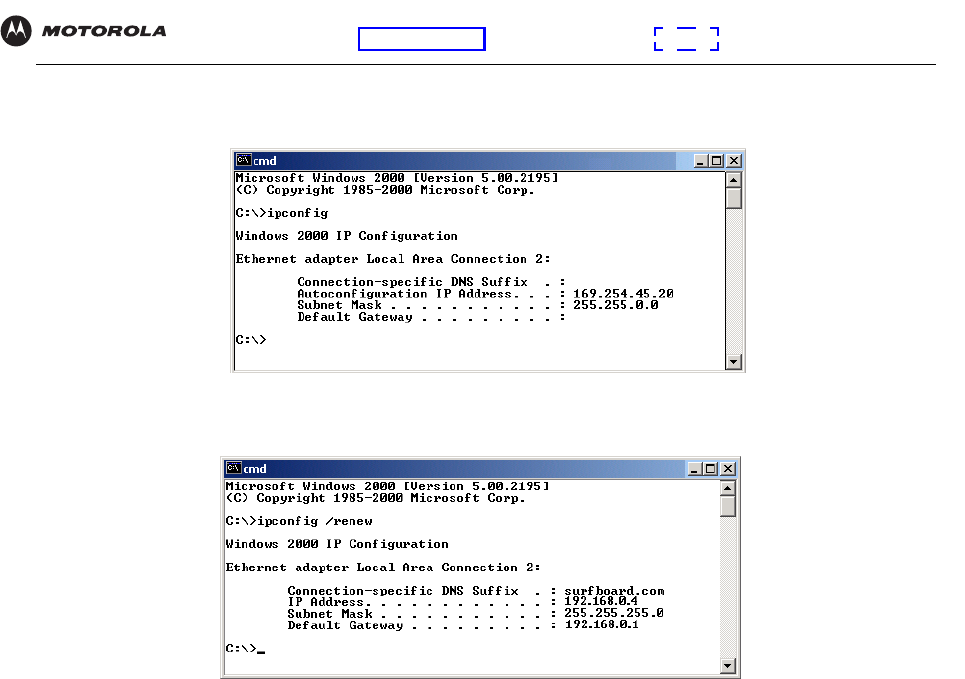

Verifying the IP Address in Windows 2000 or Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

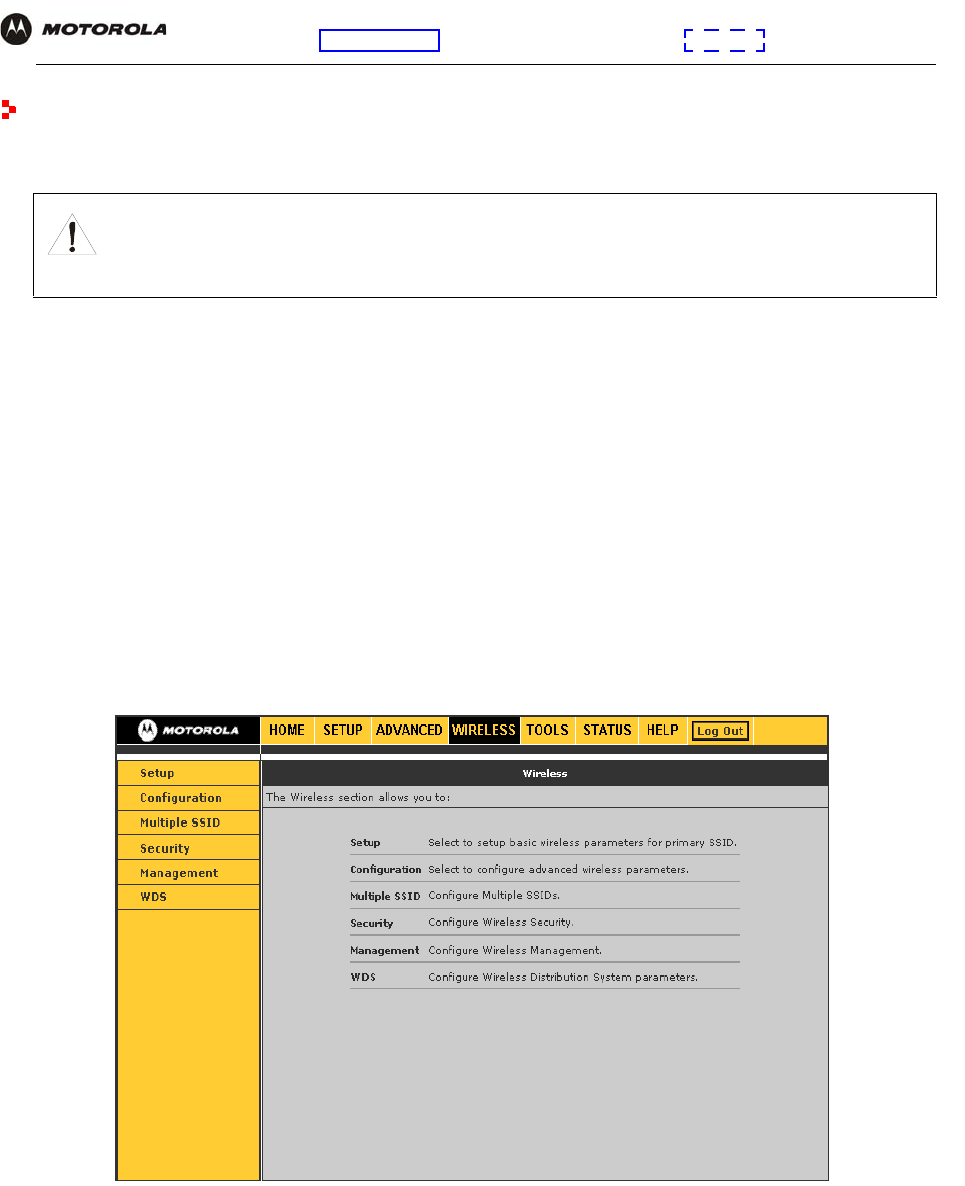

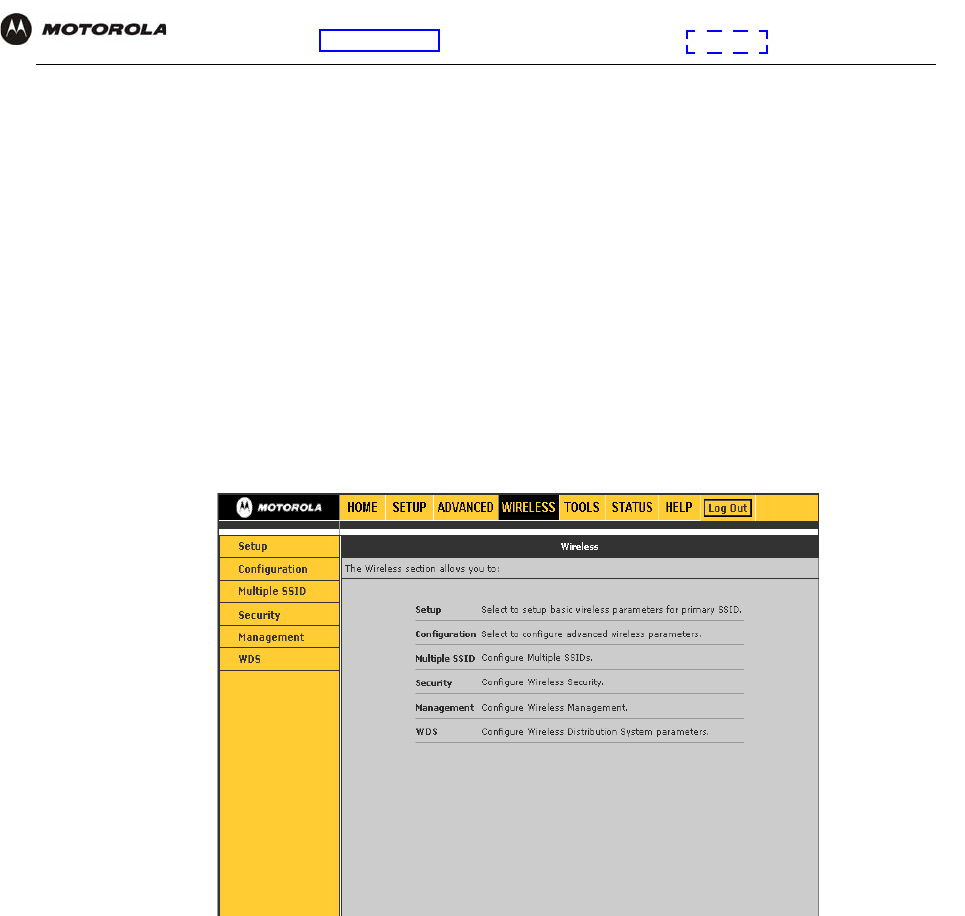

Setting Up Your Wireless LAN (WLAN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Establishing Security for Your Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Configuring WEP on the RSGu3500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

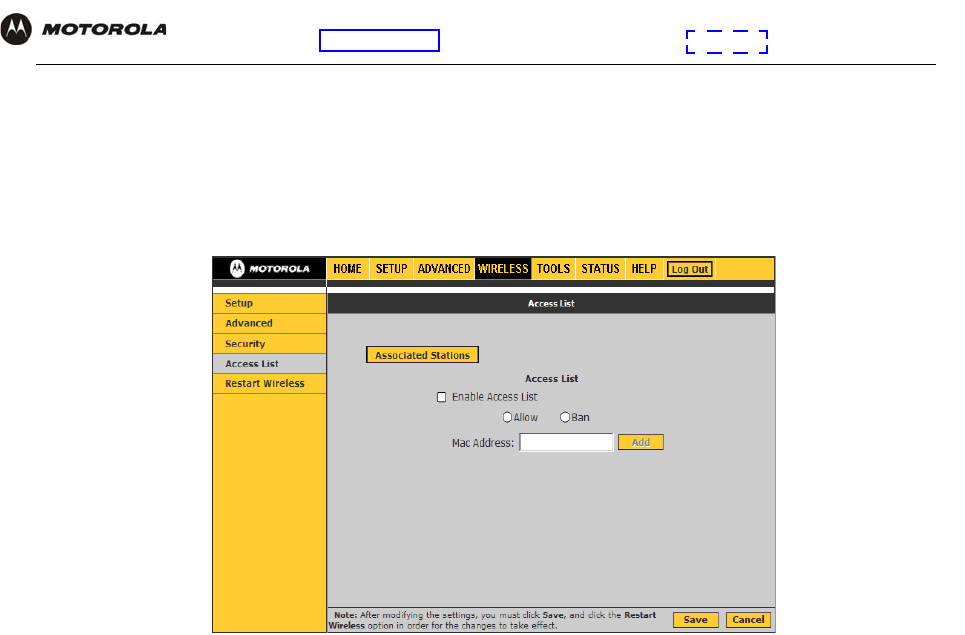

Creating an Access List for Your Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
Resetting All of Your Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Software License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
UNCONTROLLED DOCUMENT
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
RSGu3500 Residential Seamless Mobility Gateway User Guide 1
Overview
Your new RSGu3500 residential gateway enables up to two standard analog telephones to use digital telephone
services over a broadband Internet connection. The broadband connection can be with any high-speed data
service using either a cable modem or a DSL (digital subscriber line) modem.
The RSGu3500 has four ports and wireless capabilities. You can connect up to four devices to your RSGu3500.
Features
The RSGu3500 residential gateway provides:
Four Ethernet ports
Built-in router for a home or small office local area network (LAN)
Wireless and wired network connectivity
Up to two lines of robust, full-featured telephone and fax service
Voice-over-data prioritization so you can speak on the phone while using the Internet with no reduction in
voice quality
VPN passthrough support for remote access to enterprise applications
Portability to plug into any cable or DSL broadband connection
Plug-and-play installation
Compact, low-profile design
Easy Web-based configuration (see “Basic Configuration” on page 10)
Support for features such as caller ID, call waiting, three-way calling, and call forwarding
Firewall to help protect your network against external attacks
Need info on Pairing Devices
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 2
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless

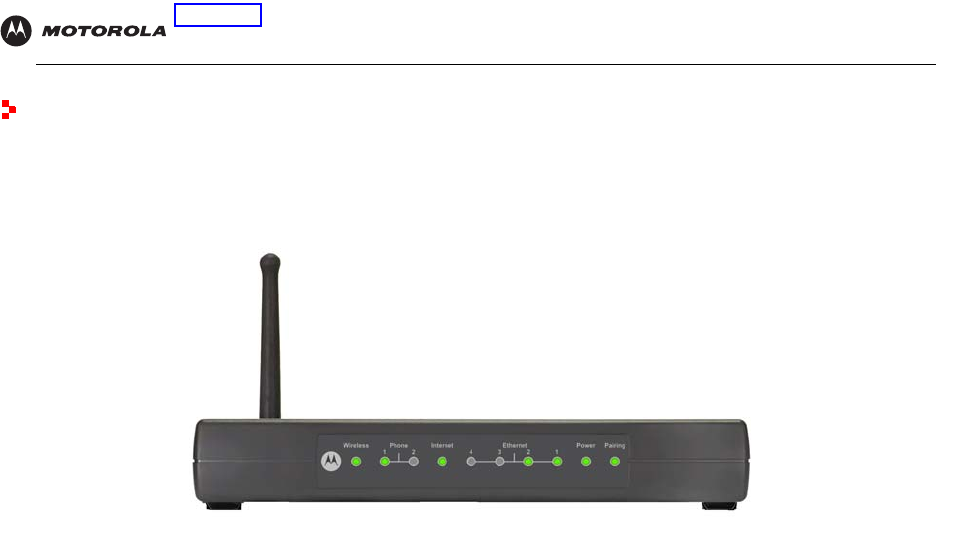

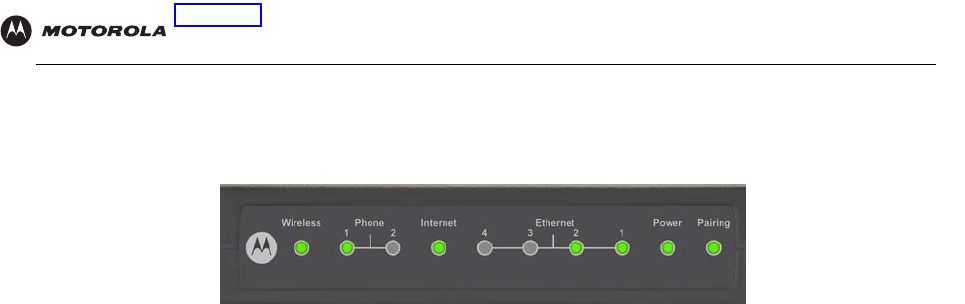

Front Panel
The front panel provides the following lights:
Light Description
Wireless Indicates the status of the wireless network:
If the Wireless LED is
Solid green, the wireless network is active.
Green and flashing, there is wireless network activitiy.
Off, the wireless network is not engaged.
Phone 1, 2 Indicates the status of phone line one and optional line two, respectively:
If the Phone (1, 2, or both) LED is
Solid green, the phone for that line is on hook and ready for use.
Green and flashing, the phone for that line is ringing or off hook.
Orange, you have voice mail.
Flashing in unison with the Power light, the residential gateway is downloading a firmware
upgrade. Please do not unplug or disconnect your residential gateway while it is
downloading firmware.
Off, the phone line is not active. You cannot use it for phone calls.
Internet Indicates the Internet connection speed:
If the Internet LED is
Solid green, your connection speed is 100Base-T
Solid yellow, your connection speed is 10Base-T
The LED flashes when there is activity on the Internet connection.
Ethernet 1 -
4Indicates that a device is connected to the port and the speed of the Ethernet connection:
If an Ethernet LED is
Off, no device is connected to the port
Solid green, a device is connected to the port (100Base-T)
Solid yellow, a device is connected to the port (10Base-T)
A flashing yellow or green LED indicates that there is activity on the Ethernet connection.
Power If the Power LED is red — blinking or solid — restart the residential gateway.
During the power up, the voice gateway flashes several times while connecting, retrieving the
IP address, and downloading configuration information.
During firmware downloads (optional), the Phone and Power LEDs flash rapidly. Please do
not unplug or disconnect your residential gateway while it is downloading firmware.
When the Power LED is a solid green, the residential gateway is successfully connected.
Pairing
W
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 3
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless

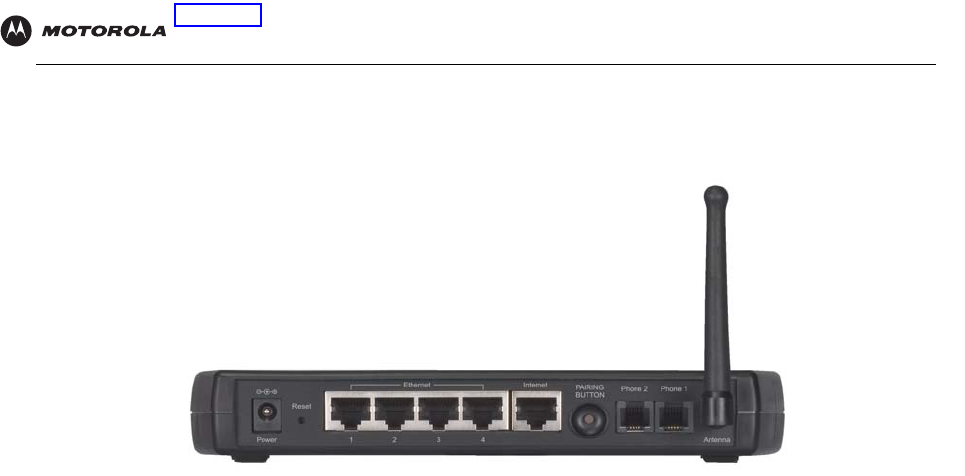

Rear Panel
The rear panel provides the following ports:
Key Item Description
1Power Connector for the AC power adapter.
2 Reset If you lose your internet connection, use the reset button to reestablish communication.
3 Ethernet
1 -4 Ethernet ports that let you to connect up to four devices to your voice gateway.
4InternetConnect your cable or DSL modem to the RSGu3500.
5Pairing
6 Phone
1and2 Connect one or two phones to one and two (optional).
7 Antenna Rotatable antenna used for wireless connections.
UNCONTROLLED DOCUMENT
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
RSGu3500 Residential Seamless Mobility Gateway User Guide 4
Installation
Before You Begin
Before you begin installation, check that you received the following items with your RSGu3500:
Note: The Ethernet cables and telephone cord provided are standard and color coordinated to help with
installation. You can use substitute with other standard cables and cords to meet your needs.
In addition to your RSGu3500 residential gateway, you also need:
An established DSL or cable Internet connection
One or two touch-tone telephones
Your computer must meet the minimum requirements listed below:
Pentium-class processor or faster
16 MB of memory
10 MB of hard disk space available
— Windows® 2000, Windows XP
Gather Information
You may need to obtain the following information about your high-speed Internet connection:
For a DSL connection only, your user name and password
For a cable modem connection using static IP addresses only, your IP address, subnet mask, default
gateway, and DNS server IP address or addresses
If you already have a router, we recommend printing its configuration screens to use for reference during
Basic Configuration.

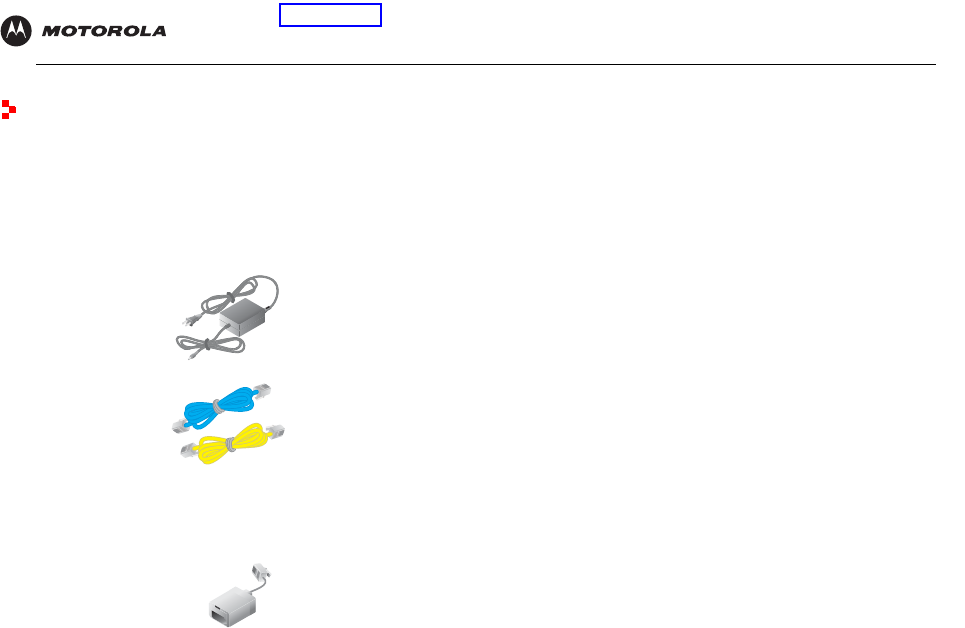

Item Description
AC adapter Connects the RSGu3500 to an AC electrical outlet (the plug shown is for the United
States or Canada; yours may look different)
Ethernet cables Blue cable connects the Internet port on your RSGu3500 to your cable or DSL
modem
Yellow cable connects the Ethernet port on your RSGu3500 to a computer or other
network device
Vertical mounting stand Provides vertical mounting on a desktop or other flat surface to use less space
RSGu3500 Quick Start Guide Provides instructions to quickly set up and configure your residential gateway
Telephone Jack
Adapter (UK only)
Converts a British BT431 telephone cord to RJ-11 to connect to the residential
gateway
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 5
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Positioning Your RSGu3500 for Optimal Wireless Performance
To achieve the best wireless performance, review these guidelines before deciding where to place your
RSGu3500:
Connect at least one computer through a wired Ethernet connection.
Placing your RSGu3500 in the physical center of your network is best, because its antenna sends out signal
in all directions.
Placing the RSGu3500 in a higher location, such as on top of a cabinet, helps disperse the signal cleanly,
especially to upper floors.
If possible, position your RSGu3500 in direct line of sight with other home network devices using a wireless
connection.
Avoid placing the RSGu3500 next to large, solid objects like computer cases, monitors, walls, fireplaces, etc.
This helps the signal penetrate more cleanly.
Other wireless devices, such as televisions, radios, microwaves, or 2.4 GHz cordless telephones, can
interfere with the signal. Keep these devices away from the RSGu3500.
Mirrors, especially those that are silver-coated, can reduce transmission performance.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 6
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Connecting the RSGu3500
Installation - Wired Connection
1Shut down your computer and unplug your cable or DSL modem power cord or adapter.
2Disconnect your computer from the modem. Do not disconnect your modem from the cable or phone line that
provides your Internet connection.
3Connect one end of the blue Ethernet cable to the Ethernet port on your modem. Plug the other end to the
blue Ethernet port (labeled Internet) on the rear panel of your residential gateway.
4Connect one end of the yellow Ethernet cable to the yellow Ethernet port on your residential gateway, and
the other end of the cable to the port on your computer.
5Plug your cable or DSL modem back into an electrical outlet.
Note:
Keep your modem off for approximately 10 minutes to clear its memory so it can recognize the
RSGu3500 when you turn it back on.
A
You must connect a
phone to the
Phone 1 port
Optional phone or fax machine
Cable or DSL
To AC power
Computer to configure
the RSGu3500
You can connect three additional
computers or devices to your RSGu3500.
Adding routers and hubs allows you
to create an even larger network.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 7
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
6Connect the power adapter to the Power port on the rear panel of the voice gateway, and plug the other end
into an electrical outlet.
7Turn on your computer. The Ethernet light on the RSGu3500 front panel should light.
8Test your connection. Open a web browser and enter any website address (you can try www.motorola.com).
If you can access the site, you have successfully installed your voice gateway.
9Repeat step four to connect additional devices.
If your test (STEP 8) is not successful, and you are a:
Cable Modem Users
Turn your cable modem off again for at least 10 minutes. If this does not correct your problem, you may
need to register your RSGu3500 with your cable provider. Please contact them to update your information.
Be sure to have the WAN MAC ID (located on the bottom of the RSGu3500) available. When your Internet
connection works, go to C “Connecting Your Telephone” on page 10.
IMPORTANT: Before you continue, be sure to allow enough time for your residential
gateway to complete its start-up process. RSGu3500 startup is complete when the Power light
on its front panel lights solid green. This usually takes a few minutes.
IMPORTANT: Before you continue, be sure the RSGu3500 Power, Ethernet, and Internet
lights are all on.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 8
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
DSL Modem Users
If you cannot connect to the voice gateway, and your modem was turned off for at least 10 minutes, you may need
to set the PPPoE configurations.
1Open a web browser from a computer connected to one of the RSGu3500 Ethernet ports.
2Type http://192.168.15.1 in the address field and press ENTER to access the sign in window.
3Type router in the Username and Password fields (the default is router for both fields).
4Click on SETUP (located on the top menu bar), and then click on WAN Configuration (located on menu bar
at the left side of the screen).
5Select PPPoE from the Type drop down menu.
6Type the Username and Password you normally use to log into your DSL service.
7In the Keep Alive field, type 0 to ensure that your DSL link is always active.
8Click Connect to start your Internet connection.
9Click Save. Open a web browser and enter a web address (try www.motorola.com). If you can access the
site, you have successfully installed your voice gateway.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 9
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Installation - Wireless Connection
To connect to the voice gateway wirelessly, your computer must have a 802.11b or 802.11g wireless adapter
installed. If all wireless security and encryption are disabled on the adapter and the RSGu3500, the computer will
automatically connect to the voice gateway.
Note: Motorola ships the RSGu3500 with all wireless security functions disabled.
Connect at least one computer to the voice gateway using a wired connection in order to perform the
configuration. Do not attempt to configure the RSGu3500 over a wireless connection. After your wireless LAN is
operational, enable security.
B
Cable or DSL
Modem
Computer to
configure the
RSGu3500
RSGu3500
To AC power
UNCONTROLLED DOCUMENT
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
RSGu3500 Residential Seamless Mobility Gateway User Guide 10
Basic Configuration
The RSGu3500 provides a graphical user interface (GUI) to configure Ethernet, router, DHCP, and security
settings. It is much easier to configure your local area network (LAN) using a RSGu3500 than with traditional
networking equipment. For basic operation, most default settings require no modification.
The following sections describe:
Logging In to the RSGu3500 (see page 10)
Configuration Overview (see page 11)
Restoring Defaults for the RSGu3500 (see page 12)
Logging Out (see page 12)
WAN Configuration (see page 13)
LAN Configuration (see page 18)
If DHCP is enabled on all of the computers on your network (LAN), you do not need to change any of the default
LAN settings. Unless you have sufficient networking knowledge, we recommend not changing any LAN settings.
For information about advanced configuration, see “Advanced Configuration” on page 20.
Logging In to the RSGu3500
1On a computer connected to the RSGu3500, open a Web browser.
2In the Address or Location field, type http://192.168.15.1 and press ENTER to display the Log In page.
3Type router In the Username field.
4Type router In the Password field (the default isrouter” for both fields).
5Click Log In to display the HOME page:
If you have difficulty starting the GUI, see “Troubleshooting” on page 99.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 11
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Configuration Overview
The main menu at the top provides:
The following buttons appear at the bottom right on each configuration page:
Exporting the RSGu3500 Configuration
Before making changes, we recommend exporting the current configuration to use as a backup.
To export the RSGu3500 configuration:
1Click Tools.
2Click Import/Export Configuration to display the Import/Export Configuration page.
3Click Export. The RSGu3500 configuration is saved to a file named config.bin on your computer’s
hard drive.
Importing the Saved Configuration
If you have exported the configuration, you can import the saved configuration to return the residential gateway to
its state when you exported the configuration.
To import a saved configuration from your computer to the RSGu3500:
1Click Tools.
2Click Import/Export Configuration to display the Import/Export Configuration page.
3Type the path and filename or click Browse to select the desired configuration file.
4Click Import. The update status appears at the bottom of the window. When the update is finished, the
residential gateway restarts. You will need to log in again.
Item Click To
HOME Display the home page
SETUP Perform WAN Configuration or LAN Configuration
ADVANCED Enable/configure UPnP, IP QoS, Web filters, multicast, routing, remote Web access, SSH access, port
forwarding, IP filters, and other functionality
TOOLS Restore, import, export, update, or save the configuration, specify log messages, change the password,
determine whether a computer can be reached over the network, or restart the RSGu3500
STATUS Display network statistical information
HELP
Display links to information about the Firewall, LAN Clients, PPPoE Connection, UPnP, IP QoS, and RIP
Log Out Log out of the RSGu3500
Item Click To
Save Save your changes. If you restart your residential gateway without saving your changes, all of your
changes are lost. After it restarts, the residential gateway uses its last saved configuration.
Cancel Clear your changes on the current page and return to the main menu. After you click Save, cancel does
not clear your changes.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 12
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Restoring Defaults for the RSGu3500
1Click TOOLS.
2Click Restore Defaults on the menu at left:
3Click the Restore Defaults button.
If the RSGu3500 Power light is red after you restart the RSGu3500, refer to “Troubleshooting” on page 99.
Logging Out
1On the main menu, click Log Out. The text Are you sure you want to Log Out? is displayed.
2Click Log Out. The RSGu3500 login screen appears.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 13
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
WAN Configuration
1Log in to the RSGu3500 (see “Logging In to the RSGu3500” on page 10).
2Click SETUP.
3Click WAN Configuration.
4From the Type drop-down list, choose one of:
PPPoE PPPoE is used with all DSL modems See “WAN Setup for PPPoE (DSL)” on
page 14
Static For some cable modems, the cable company assigns the
cable modem a static (unchanging) IP address. You must
provide the IP address, subnet mask, default gateway,
and one to three domain name server (DNS) addresses.
See “WAN Setup for a Static IP Address
(Cable Modem)” on page 15
DHCP Most cable modems have a dynamic IP address assigned
by the cable company DHCP server. Typically no
additional configuration is needed for the RSGu3500.
See “PPTP Settings” on page 16
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 14
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
WAN Setup for PPPoE (DSL)
PPPoE Connection Setup fields and buttons
Field or Button Description
Options We recommend leaving the following selected:
NAT — Enables Network Address Translation
Firewall — Enables the RSGu3500 firewall
User name Your PPPoE user name provided by your DSL provider.
Password Your PPPoE password provided by your DSL provider.
Authentication Sets the authentication:
Auto — Automatic
CHAP — Challenge Handshake Authentication Protocol
PAP — Password Authentication Protocol
Microsoft CHAP v2 is supported in the Auto and CHAP options. MS CHAP v1 is not supported.
MTU The maximum transmission unit for the DSL connection. It is a negotiated value that represents
the maximum size in bytes of the packets sent over the connection. The default is 1492. The
maximum is 1500. The minimum is 64.
Override MAC If your cable or DSL provider associates a particular service to a specific device, such as your
computer, select this field and type that MAC address in the MAC field to use as a “virtual” WAN
MAC address instead of the RSGu3500 MAC address. By default, the MAC address printed on
the RSGu3500 is displayed in this field.
Restore Restores the actual RSGu3500 MAC address.
Enforce MTU If enabled (the default), all TCP segments must have a size within the PPPoE MTU. If you disable
this, you may have problems accessing some Internet sites.
Debug Enables PPPoE debugging for use by technical support personnel only.
Connect Establishes the DSL connection.
Disconnect
Ends the DSL connection. If you disconnect your DSL connection, your VoIP service cannot work.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 15
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
WAN Setup for a Static IP Address (Cable Modem)
Type the following in dotted-decimal format as assigned by your cable provider:
Optional fields and buttons are:
Options We recommend leaving the following selected:
NAT — Enables Network Address Translation
Firewall — Enables the RSGu3500 firewall
IP Address The static IP address
Mask The subnet mask
Gateway The gateway IP address
Default Gateway The default gateway IP address
DNS 1, 2, and 3 One to three domain name server IP addresses
Override MAC If your cable or DSL provider associates a particular service to a specific device, such as your
computer, select this field and type that MAC address in the MAC field to use as a “virtual”
WAN MAC address instead of the RSGu3500 MAC address. By default, the MAC address
printed on the RSGu3500 is displayed in this field.
Restore Restores the actual RSGu3500 MAC address.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 16
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
PPTP Settings
If you are connecting to a virtual private network (VPN), consult with your network administrator regarding the
appropriate Point-to-Point Tunneling Protocol (PPTP) settings for your VPN. The PPTP settings are:
Enable Enables PPTP on your RSGu3500
Username Provided by your ISP
Password Provided by your ISP
Server IP Sets the IP address of the server for the VPN, in dotted-decimal format
MPPC Enables Microsoft Point-To-Point Compression (MPPC)
MPPE Enables Microsoft Point-to-Point Encryption (MPPE)
Strength Works with the MPPE feature when the field is checked and enabled
Three encryption strengths are supported by the client:
40-bit
56-bit
128-bit (highest)
Stateless
Authentication You can choose:
Auto — System automatically verify information
CHAP — Challenge Handshake Authentication Protocol
PAP — Password Authentication Protocol
MSCHAP — Microsoft Challenge Handshake Authentication Protocol
MSCHAP-v2 — Microsoft Challenge Handshake Authentication Protocol version 2
Debug Enable or disable the PPTP client application in order to display debug information
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 17
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
WAN Setup for DHCP (Cable Modem)
Optional fields and buttons are:
Options We recommend leaving the following selected:
NAT — Enables Network Address Translation
Firewall — Enables the RSGu3500 firewall
Override MAC If your cable or DSL provider associates a particular service to a specific device, such as your
computer, select this field and type that MAC address in the MAC field to use as a “virtual”
WAN MAC address instead of the RSGu3500 MAC address. By default, the MAC address
printed on the RSGu3500 is displayed in this field.
Restore Restores the actual RSGu3500 MAC address.
Renew Requests a new WAN IP address for your RSGu3500 from the DHCP server.
Release Releases the RSGu3500 WAN IP address.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 18
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
LAN Configuration
If DHCP is enabled on all of the computers on your home network (LAN), you should not need to change any of
the default LAN settings. For information about enabling DHCP, see “Configuring TCP/IP” on page 47.
Unless you have sufficient networking knowledge, we recommend not changing any LAN settings.
LAN Configuration fields and buttons
Field or Button Description
Subnet IP Address Sets your LAN subnetwork IP address in dotted-decimal format. We recommend not
changing the default 192.168.15.1.
Netmask Sets the RSGu3500 subnet mask, in dotted-decimal format. The default is 255.255.255.0,
which enables the RSGu3500 router to support up 253 users connected through multiple
hubs, switches, routers, or wireless access points.
Host Name Sets the residential gateway host name. It can contain any alphanumeric characters, except
spaces.
Domain Sets the domain name. It is used in conjunction with the host name to uniquely identify the
residential gateway. To access the web pages of the residential gateway, you can type
192.168.15.1 (the IP address) or mygateway1.Motorola_VT (hostmame.domain).
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 19
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Enable DHCP Server If selected, the DHCP server on the residential gateway assigns IP addresses to the
computers and other hosts on your network, if they have DHCP enabled (see “Configuring
TCP/IP” on page 47). By default, the residential gateway DHCP server is enabled.
If there is another DHCP server running on your network (on another router), you must
disable one of the DHCP servers.
Start IP Sets the first IP address assigned by the DHCP server, in dotted-decimal format. It must be
greater than the IP address value of the residential gateway. For example, if the IP address
of the residential gateway is 192.168.15.1 (default), the starting IP address must be
192.168.15.2 (or higher).
End IP Sets the final IP address assigned by the DHCP server, in dotted-decimal format. It cannot
exceed the subnet limit of 254. For example, the default is 192.168.15.254. If the DHCP
server runs out of DHCP addresses, users cannot access network resources. If this happens,
increase the End IP (to the limit of 254) or reduce the Lease Time.
If you change Start IP or End IP, be sure they are in the range specified by the Subnet IP
Address and Netmask. For example, if the residential gateway IP address is 192.168.15.1
(the default) and you set Start IP and End IP to 192.168.0.2 and 192.168.0.100 respectively,
computers with DHCP enabled cannot communicate with the residential gateway.
Lease Time Sets the time, in seconds, that a network computer remains connected to the residential
gateway using its current assigned IP address. At the end of this time, the DHCP server
renews the lease or assigns the computer a new IP address. The default is 3600 seconds (1
hour). The maximum is 999999 seconds (about 278 hours).
Enable DHCP Relay If selected, the residential gateway forwards requests and responses between the computers
on your network (the DHCP clients) and the DHCP server you chose to use for your network.
Relay IP If you select Enable DHCP Relay, type the IP address of the DHCP server in dotted-decimal
format.
Server and Relay Off If selected, you must carefully configure the IP address, Subnet Mask, and DNS settings of
every host on your network. Do not assign the same IP address to more than one host. Your
residential gateway must be on the same subnet as the other hosts.
LAN Configuration fields and buttons (continued)
Field or Button Description
UNCONTROLLED DOCUMENT
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
RSGu3500 Residential Seamless Mobility Gateway User Guide 20
Advanced Configuration
The ADVANCED menu provides the following links:
UPnP — Enables UPnP so traffic for applications using UPnP can pass through the residential gateway
Port Forwarding — direct incoming traffic to specific computers on your network
IP Filters — block applications and services based on the IP address of a LAN device
LAN Clients — determine how computers on your network receive an IP address
Web Filters — specify whether proxies, cookies, Java applets, ActiveX controls, or pop-ups can pass through
your residential gateway
Dynamic DNS Client — register your residential gateway with a DNS server to access the residential gateway
each time from the WAN using the host name
Multicast — enable IGMP Multicast
Static Routing — define up to 16 static routes in the residential gateway routing table
Dynamic Routing — define dynamic routes using routing information protocol (RIP)
Remote Web Access — enable access to the residential gateway remotely over the Web
Remote SSH Access — access the residential gateway remotely via secure shell
Ethernet Switch — specify ethernet switch settings
NOTES:
A red bullet point indicates that the feature is not enabled; a green bullet point indicates that the feature is
enabled.
Universal Plug and Play (UPnP) requires one active WAN connection and the host should support this
feature.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 21
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Port Forwarding
Port forwarding enables you to direct incoming traffic to specific LAN hosts (computers on your network) based on
the protocol and port number. It is used to play Internet games or provide local services (such as web hosting) for
a LAN group. Port forwarding is also referred to as “virtual servers.” You can:
Apply predefined port forwarding rules to one or more computers
If you have the necessary networking knowledge, create, edit, or delete your own port forwarding rules
Add a computer to the DMZ
Port Forwarding fields and buttons
Field or Button Description
Allow Incoming Ping Enables the residential gateway to respond to a ping from the Internet.
LAN IP Selects the IP address to host the service.
New IP Displays the LAN Clients window to reserve an IP address.
DMZ Displays the IP Filters page.
Custom Port Forwarding Displays the DMZ Settings page.
Category Sets the category for which rules are displayed in the Available Rules list — Games, VPN,
Audio/Video, Apps (applications), Servers, or User (custom rules you can define and edit).
Available Rules Lists the available rules in the selected Category.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 22
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
View Displays the protocols and port ranges for the selected Available Rule. For example, if you
select Alien vs. Predator and click View, the following is displayed:
Click Cancel to return to the Port Forwarding page.
Add Adds the selected Available Rule to the Applied Rules list.
Remove Deletes the selected rule from the Applied Rules list.
Applied Rules Lists the IP filtering rules you selected to apply for each given category.
Port Forwarding fields and buttons (continued)
Field or Button Description
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 23
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
DMZ Settings
Configuring a computer as a demilitarized zone (DMZ) forwards any network traffic that is not redirected to
another computer through port forwarding to the IP address of the computer. This allows access to the DMZ host
from the Internet.
DMZ Settings fields
Field Description
Enable DMZ Enables or disables the DMZ feature. It is disabled by default.
Select a LAN IP Address Selects the LAN IP address of the DMZ computer to expose to the Internet with no
protection from the RSGu3500 firewall. This may expose your network to security risks.
LAN Clients Displays the LAN Clients page to configure the DMZ computer.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 24
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Custom Port Forwarding
You can create up to 20 custom port forwarding entries to support specific services or applications, such as
concurrent NAT/NAPT operation.
Custom Port Forwarding fields
Field Description
Enable It is selected by default and automatically applies when you click Apply.
Application The name of the application for which ports are opened.
Protocol Can be TCP, UDP and TCP, or UDP.
Source IP Address Sets the source IP address from which incoming traffic is allowed.
Source Netmask Sets a subnet mask used in conjunction with the Source IP Address to set a range of IP
addresses. Enter 0.0.0.0 for all.
Destination IP Address The LAN’s destination IP address for incoming traffic.
Destination Netmask Subnet mask used in conjunction with the Destination IP Address to set a range of IP
addresses. The default is 255.255.255.255.
Destination Port Start The starting port number that is opened for this application.
Destination Port End The ending port number that is opened for this application.
Destination Port Map Destination port mapped on the LAN (destination) side to which packets are forwarded.
There are two types of port mapping:
• One-to-one (one port mapped to one) (WAN = 500 to 600; LAN = 500 to 600)
• Multiple-to-one (several ports mapped to one) (WAN = 500 to 600; LAN = 700)
Wildcard (*) entries are allowed for the IP Address, Netmask, and Port range fields.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 25
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
IP Filters
IP filtering enables you to block applications and services based on the IP address of a LAN device. You can apply
one or more predefined IP filtering rules to one or more LAN computers. You can view the rules associated with a
predefined filter and add the available rules for a given category. You can also create, edit, or delete your own IP
filter rules.
IP Filters fields and buttons
Field or Button Description
LAN IP The IP address in the LAN group to which the IP filters are applied.
New IP Displays the LAN Clients page.
Block All Traffic If selected, network access is blocked for the IP address.
Block Outgoing
Ping If selected, outgoing pings are blocked for the IP address. Blocking outgoing pings can be useful
if a computer has a virus that attempts a Ping-of-Death denial of service attack.
Custom IP Filters Displays the Custom IP Filters page
Category Sets the category for which rules are displayed in the Available Rules list — Games, VPN, Audio/
Video, Apps (applications), Servers, or User (custom rules you can define and edit).
Available Rules Predefined and user-defined IP filtering rules for each category.
View Displays the settings for the selected Available Rule.
Add Adds the selected Available Rule to the Applied Rules list.
Remove Removes the selected rule from the Applied Rules list.
Applied Rules Lists the IP filtering rules selected for the category.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 26
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Custom IP Filters
You can define up to 20 custom filters to block services or applications based on the source and destination IP
address, subnet mask, TCP port, and protocol.
Custom IP Filters fields
Field Description
Filter Name The IP filter rule name
Enable Selected by default and automatically applied when you click Save
Source IP The LAN source IP address assigned to outgoing traffic on which filtering is applied
Source Netmask Subnet mask of the source IP address
Destination IP Sets the destination IP address to which your source IP address is denied access
Destination Netmask Subnet mask of the destination IP address. Enter 0.0.0.0 for all
Port Start The starting port number that will be blocked for this application
Port End The ending port number that will be blocked for this application
Protocol The options are TCP, UDP, TCP and UDP, ICMP, or Any
.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 27
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
LAN Clients
The LAN Clients window displays all computers on your network. For each computer on your LAN, you can do
one of:
Allow it to dynamically (automatically) obtain its IP address from the residential gateway through a DHCP
lease from the DHCP server on the RSGu3500 (the default)
Allow it to dynamically obtain its IP address from a DHCP server on another router on the network
Manually assign it a static IP address in the residential gateway LAN subnet address range
LAN Clients fields
Field Description
Enter IP Address Type the static IP address to assign to the computer or other host. For that host, type its
Hostname (optional) and MAC address (required).
Dynamic Addresses Lists the currently assigned dynamic IP addresses and the hostname, MAC address, and
address Type (always Dynamic in this table) of the assigned computer.
To assign a dynamic IP address to the computer as a static IP address, select Reserve.
Static Addresses (Not shown above.) If any static IP addresses are reserved, lists them and the host name, MAC
address, and address Type (always Static in this table) of the assigned computer.
To remove a static IP address assignment from a computer, select Delete. If you delete a static
IP address entry, it is made available for future allocation.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 28
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Web Filters
Web Filters enable you to manage the type of web content that passes through your residential gateway:
Web Filters fields
Field Description
Proxy Disabled by default.
Cookies Disabled by default.
Java Applets Disabled by default.
ActiveX Disabled by default.
Pop-Ups Disabled by default.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 29
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Dynamic DNS Client
You can register your residential gateway with a DNS server to access the residential gateway from the Internet
using its host name.
Dynamic DNS Client fields
Field Description
DDNS Server Selects a DDNS service provider from the list. A charge may occur, depending on the service
selected.
DDNS Client Enables or disables the DDNS client feature for the WAN connection. It is disabled by default.
User Name The user name assigned by the DDNS service provider.
Password The password assigned by the DDNS service provider.
Domain Name The dynamic domain name to be registered with the DDNS server.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 30
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Multicast
Multicasting is a form of limited broadcast. UDP is used to send datagrams to all computers in a host group, one or
more hosts identified by the same destination IP address. The following statements apply to host groups:
Anyone can join or leave a host group.
There are no restrictions on the host location.
There are no restrictions on the number of members that may belong to a host group.
A host may belong to multiple host groups.
Non-members can send UDP datagrams to the host group.
Multicasting is useful when the same data needs to be sent to more than one device; for example, if one device is
responsible for acquiring data that many other devices need. Using multicasting uses less network bandwidth than
sending the same data to individual devices.
Multicasting also enables you to receive multicast video streams from multicast servers. The residential gateway
supports an Internet Group Management Protocol (IGMP) proxy that handles IGMP messages. When enabled,
the residential gateway acts as a proxy for a LAN host making requests to join and leave multicast groups.
Multicast fields
Field Description
Enable IGMP
Multicast Enables an IGMP proxy for multicast messages. The residential gateway acts as a proxy for a LAN
computer requesting to join or leave multicast groups.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 31
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Static Routing
You can define up to 16 static routes in the residential gateway routing table for specific WAN and LAN subnets.
Static Routing fields
Field Description
New Destination IP The network IP address of the subnet. (You can also enter the IP address of each individual
station in the subnet.)
Mask The network mask of the destination subnet.
Gateway The IP address of the next hop through which traffic will flow towards the destination subnet.
Metric Defines the number of hops between the network nodes through which data packets travel. The
default is 0, which means the subnet is directly one hop away on the LAN.
-
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 32
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Dynamic Routing
Dynamic routing enables you to define dynamic routes using Routing Information Protocol (RIP) to exchange
routing information with other network routers across the WAN (Internet) and LAN interfaces.
Dynamic Routing fields
Field Description
Enable RIP Enables RIP. Any RIP-enabled router:
Sends automatic update packets containing its routing table periodically (every 30 seconds)
Adds, deletes, or modifies routes in its routing table based on periodic updates from other routers
Responds to requests for its routing table
Protocol Sets the RIP version:
• RIP v1 (UDP protocol)
• RIP v2 (multicast protocol)
• RIP v1 compatible (UDP protocol with multicast format)
Routers using RIP v1 or a compatible protocol can communicate with each other, but not to routers
using RIP v2.
Enable
Password (Optional) RIP v2 enables simple plain-text password-based authentication for RIP packets. It is
disabled if RIP v1 is selected.
Password The password can have up to 16 characters.
Interface Normally, when it is enabled on a router, RIP dynamically provides routes on all configured interfaces.
On the RSGu3500, you can select which routes are distributed through the network:
LAN — Sets the direction in which RIP messages are sent on the LAN interface
WAN — Sets the direction in which RIP messages are sent on the WAN interface
The options for LAN and WAN are:
Both — receive and send updates to the routing table to other routers on the interface
In — receive but do not send routing updates on that interface
Out — send but do not receive routing updates on the interface
None — do not send or receive routing updates through the interface
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 33
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Remote Web Access
Web access control enables you to access the residential gateway remotely over the Web.
Remote Web Access fields
Field Description
Enable Enables and disables the remote web access feature.
Remote Network IP Enter the IP address of the remote host (for example, 10.10.10.1).
Remote Netmask Enter the subnet mask of the remote host.
Redirect Port You can enter a port in this field that is different from port 8080. The port you enter is viewed
externally and mapped to port 8080 internally on the residential gateway.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 34
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Remote SSH Access
You can access the residential gateway remotely through secure shell (SSH) over the Internet.
Remote SSH Access fields
Field Description
Enable Enables or disables remote SSH access.
Remote Host IP Sets the IP address of the remote SSH host.
Remote Netmask Sets the subnet mask of the remote SSH host.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 35
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Ethernet Switch
If automatic detection does not work for some reason, you can configure Ethernet switch settings to meet your
requirements.
Ethernet Switch fields
Field Description
Physical Ports 1 to 4 Sets the speed for Ethernet ports 1 to 4. It can be Auto detect (the default), 10 Mbps half
duplex, 10 Mbps full duplex, 100 Mbps half duplex, or 100 Mbps full duplex.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 36
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
TOOLS
The TOOLS menu provides the following links:
Restore Defaults — resets the voice gateway to the default configurations
Import/Export Configuration — import or export the residential gateway configuration
Remote Log – Router — specify the log messages the residential gateway sends to remote computers
User Management — change the residential gateway password
Ping Test — determine whether a computer can be reached over the network
Restart — save the configuration or restart the RSGu3500
Restore Defaults
Button Description
Restore Defaults Restores the factory default configuration. After you restore the defaults, you must log in
again to the residential gateway.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 37
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Import/Export Configuration
Import/Export Configuration fields and buttons
Field or Button Description
Select a File Click Browse to select the configuration file to import to the residential gateway.
Import Imports the selected configuration file. The update status appears at the bottom of the window.
When the update is finished, the residential gateway restarts and you will need to log in again.
Export Downloads a copy of the configuration file (config.bin) saved in the residential gateway flash
memory to your hard drive.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 38
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Remote Log – Router
You can forward logged events of a specified severity level or higher to a remote computer. Each log message is
assigned a severity level, which indicates how seriously the triggering event affects residential gateway functions.
Remote Log – Router fields
Field Description
Log Level Messages having the severity level you specify, or higher, are logged to the logging destination
you select. The levels are, in order of severity:
Panic — system panic or other condition that causes the residential gateway to stop functioning
Alert — conditions that require immediate correction, such as a corrupted system database
Critical — critical conditions, such as hard drive errors
Error — error conditions that generally have less serious consequences than panic, alert, or
critical errors
Warning — conditions that warrant monitoring
Notice — conditions that are not errors but might warrant special handling; this is the default
Log Level setting
Info — events or non-error conditions of interest
Debug — software debugging messages; specify this level only when directed by a technical
support representative
Add an IP
Address Type the IP address of the remote host where you want log information sent and click Add. You
can add multiple IP addresses using the Add button. Any IP address you add here appears in the
Select a logging destination drop-down list.
Select a logging
destination From the list, select the IP address to which you want the log information sent.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 39
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
User Management
Use this window to change the password for the User Name router.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 40
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Ping Test
Use this page to determine whether you can access an IP address from your computer.
Ping Test fields and buttons
Field or Button Description
Enter IP Address to ping Sets the IP address to ping; the default is the RSGu3500 default IP address
192.168.15.1.
Packet size Sets the packet size of the ping test. The default is 64 bytes.
Number of echo requests Sets how many times the IP address is pinged. The default is 3.
Test Starts the test. The results display in the scroll window:
If the test is successful, you can access the IP address.
If the test is unsuccessful, you should restart the RSGu3500 (see “Restoring Defaults
for the RSGu3500” on page 12).
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 41
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Restart
Restart fields
Field Description
Restart Restarts the residential gateway.
Be sure to save the configuration before you restart. If you restart the residential gateway without
saving your changes, it reverts to the previously saved configuration. Your changes are lost.
After you restart the voice gateway, you must log in again.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 42
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
STATUS
The STATUS menu provides links to view the Network Statistics, Connection Status, DDNS Update Status, DHCP
Clients, Product Information, and System Log – Router.
The Refresh button on every STATUS page, except for Product Information, refreshes the information so it is up
to date.
Network Statistics
Use this page to view transmit and receive statistics for the Ethernet (local network), WAN, or wireless (Internet)
interfaces.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 43
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Connection Status
Use this page to view the WAN connection status.
Connection Status fields
Field Description
Description A description of the connection component
Type The type of component
IP The IP address of the component
State The component state — connected or disconnected
Online The amount of time it has been connected
Disconnect Reason The reason it was disconnected
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 44
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
DDNS Update Status
The residential gateway DDNS client is disabled by default. When the DDNS client is enabled, it updates every
time the residential gateway gets a new IP address.
DDNS Status fields
Field Description
DDNS Server Sets the DDNS server — DynDNS or TZO
Status It can be one of:
Updated — the IP address of the client has been changed and an update has been sent to the
DDNS server
No change — the IP address of the client has not been changed
Error — there is an error with the DDNS update
Error If the Status is Error, displays a description of the error.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 45
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
DHCP Clients
Use this page to view the list of LAN DHCP client devices.
Product Information
Use this page to view product hardware and software information, such as model number, hardware revision, and
the software and boot loader versions.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 46
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
System Log – Router
The system log displays router-related events. Depending on the severity, the event is sent to a remote host if
remote logging is enabled on the Remote Log – Router page.
UNCONTROLLED DOCUMENT
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
RSGu3500 Residential Seamless Mobility Gateway User Guide 47
Configuring TCP/IP
All client computers on your network must be configured for TCP/IP (the protocol that controls communication
among computers). Perform one of:
Configuring TCP/IP in Windows 2000
Configuring TCP/IP in Windows XP
Follow the instructions in your Macintosh or UNIX user manual
After configuring TCP/IP, on all computers, perform one of the following to verify its IP address:
Verifying the IP Address in Windows 2000 or Windows XP
Follow the instructions in your Macintosh or UNIX user manual
Configuring TCP/IP in Windows 2000
1On the Windows Desktop, click Start.
2Select Settings and then Control Panel from the pop-up menus to display the Control Panel window:
3Double-click the Network and Dial-up Connections icon to display the Network and Dial-up Connections
window:
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 48
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
In the steps that follow, a connection number like 1, 2, 3, etc., is a reference that is displayed on computers with
multiple network interfaces. Computers with only one network interface may only see the label: Local Area
Connection.
4Click Local Area Connection number. The value of number varies from system to system. The Local Area
Connection number Status window is displayed:
5Click Properties. Information similar to the following window is displayed:
6If Internet Protocol (TCP/IP) is in the list of components, TCP/IP is installed. You can skip to step 10.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 49
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
If Internet Protocol (TCP/IP) is not in the list, click Install. The Select Network Component Type window is
displayed:
7Click Protocol on the Select Network Component Type window and click Add. The Select Network Protocol
window is displayed:
8Click Internet Protocol (TCP/IP).
9Click OK. The Local Area Connection number Properties window is re-displayed.
10 Be sure the box next to Internet Protocol (TCP/IP) is checked.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 50
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
11 Click Properties. The Internet Protocol (TCP/IP) Properties window is displayed:
12 Be sure Obtain IP address automatically and Obtain DNS server address automatically are selected.
13 Click OK to accept the TCP/IP settings.
14 Click Close to close the Local Area Connection number Properties window.
15 Click OK when prompted to restart the computer and click OK again.
When you complete the TCP/IP configuration, go to “Verifying the IP Address in Windows 2000 or Windows XP”
on page 54.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 51
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Configuring TCP/IP in Windows XP
1On the Windows desktop, click Start to display the Start window:
2Click Control Panel to display the Control Panel window. The display varies, depending on your Windows XP
view options. If the display is a Category view as shown below, continue with step 3. Otherwise, skip to
step 5.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 52
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
3Click Network and Internet Connections to display the Network and Internet Connections window:
4Click Network Connections. Skip to step 6.
5If a classic view similar to below is displayed, double-click Network Connections to display the LAN or
High-speed Internet connections.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 53
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
6Right-click the Local Area Connection. If more than one connection is displayed, be sure to select the one for
your network interface.
7Select Properties from the pop-up menu to display the Local Area Connection Properties window:
8On the Local Area Connection Properties window, select Internet Protocol (TCP/IP) if it is not selected.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 54
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
9Click Properties to display the Internet Protocol (TCP/IP) Properties window:
10 Be sure Obtain IP address automatically and Obtain DNS server address automatically are selected.
11 Click OK to close the TCP/IP Properties window.
12 Click OK to close the Local Area Connection Properties window.
When you complete the TCP/IP configuration, go to “Verifying the IP Address in Windows 2000 or Windows XP”
on page 54.
Verifying the IP Address in Windows 2000 or Windows XP
To check the IP address:
1On the Windows Desktop, click Start.
2Select Run. The Run window is displayed.
3Type cmd and click OK to display a command prompt window.
4Type ipconfig and press ENTER to display the IP configuration. A display similar to the following indicates a
normal configuration:
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 55
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
If an Autoconfiguration IP Address is displayed as in the following window, there is an incorrect connection
between the PC, the RSGu3500, and the Internet:
5After verifying your connections, type ipconfig /renew and press ENTER to renew the IP address. If a valid IP
address is displayed as shown, Internet access should be available.
6Type exit and press ENTER to return to Windows.
If after performing this procedure the computer cannot access the Internet, call your cable or DSL provider
for help.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 95
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Setting Up Your Wireless LAN (WLAN)
1Click the Wireless tab to access the features (Setup, Advanced, Security, Access List, WDS, Restart
Wireless).
2Click the Enable Wireless box.
3Enter the Primary SSID information.
4Select the Channel B/G (1 through 11) from the pull down menu.
5Select the 802.11 Mode (Mixed, B only B+, G only, G+)
Set the transmission protocol for your WLAN:
Mixed 802.11b/g
B only 802.11b only
B+ 802.11b+
G only 802.11g
6Click Save. You must use the Restart Wireless feature in order for your changes to take affect.
Caution!
To prevent unauthorized eavesdropping or access to WLAN data, you must enable wireless security. The
default RSGu3500 settings provide no wireless security. After your WLAN is operational, be sure to enable
wireless security.Connect at least one computer to the RSGu3500 Ethernet port to perform
configuration. Do not attempt to configure the RSGu3500 over a wireless connection.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 96
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Establishing Security for Your Wireless LAN
To prevent unauthorized viewing of data transmitted over your WLAN, you must encrypt your wireless
transmissions.
If all of your wireless clients support WPA encryption, we recommend using WPA instead of WEP. The benefits of
using WPA:
Provides a much stronger encryption and is more secure
Provides authentication to ensure that only authorized users can log on to your WLAN
It is much easier to configure
It uses a standard algorithm on all compliant products to generate a key from a textual passphrase
Configuring WPA on the RSGu3500
1Select the WPA option on the Wireless Security page.
2Select the encryption type (WPA, WPA2, WPA/WPA2).
3Enter the Group Key Interval.
4Select the Radius Server if the authentication type is remote; if it is local, select Pre-Shared Key.
5Enter the IP Address, Port, Secret (code), and PSK String.
6Click Save.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 97
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Configuring WEP on the RSGu3500
Use Wired Equivalent Privacy (WEP) if you have wireless clients that do not support WPA.
1Check the Enable WEP Wireless Security box to enable the setting.
2Select the Authentication Type (Open, Shared, Both) from the pull down menu.
3Click the SECURITY tab to display the page.
4Check the key field (0 3).
5Enter the encryption key.
6Select the cipher (64, 128, 256) size from the pull down menu.
7Click Save. You must restart the wireless system in order for the changes to take affect.
Caution!
If you use WEP encryption, you must configure the same WEP key on the RSGu3500 access point
and all wireless clients (stations). Never provide your WEP key or passphrase to anyone who is not
authorized to use your WLAN.
WEP
Authentication Sets whether shared key authentication is enabled to provide data privacy on the WLAN:
Open System — Any WLAN client can transmit data to any other client without
authentication. It is the default, if the Security Mode is set to WEP.
Shared Key — The RSGu3500 authenticates and transfers data to and from all clients
having shared key authentication enabled. We recommend this setting.
Encryption Use a WEP key length that is compatible with your wireless client adapters. Choose one of:
Enable 64-Bit — Use only if you have wireless clients that do not support 128-bit encryption
Enable 128-Bit — We recommend this setting for stronger encryption; it is supported by the
Motorola WN825G and WPCI810G wireless adapters and most current wireless adapters
Key Type
(Key 0 to Key 3)
Select the active key (0 to 3). Only one key can be active.
Four 10-character long key 64-bit WEP keys
Four 26-character long 128-bit WEP keys
We recommend changing the WEP keys frequently. Never provide the WEP key to anyone
who is not authorized to use your WLAN.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 98
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Creating an Access List for Your Wireless LAN
The default RSGu3500 wireless settings enable any computer with a compatible wireless adapter to access your
WLAN. To protect your network from unauthorized intrusions, you can restrict access to your WLAN to a limited
number of computers using the Access List feature.
Only wireless clients configured with your network name can communicate with the RSGu3500
It is more difficult for unauthorized individuals who scan for unsecured WLANs to access your WLAN
UNCONTROLLED DOCUMENT
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
RSGu3500 Residential Seamless Mobility Gateway User Guide 99
Troubleshooting
Problem Possible Solutions
Power light is off Check that the AC power adapter is properly plugged into the electrical outlet and the
RSGu3500.
Check that the electrical outlet is working.
Cannot send or receive
data or phone calls
or
No dial tone
If you subscribed to just one phone line, be sure your phone is connected to the
Phone 1 port on the RSGu3500.
Check all other cabling between the modem, the RSGu3500, and the computer. Be
sure you used the cables provided with the RSGu3500. All Ethernet cables must be
straight-through cables.
Check the lights on the Front Panel (see page 2).
Check the lights on the modem front panel. For information, see your cable or DSL
modem user guide.
If you have only one phone line, be sure your phone is plugged into the green phone
port 1 on the RSGu3500.
Can you access Web pages? If not, check to see whether your ISP (cable or DSL) is
having connection issues in your area.
Be sure the telephone connected to the RSGu3500 is disconnected from the wall
jacks that traditional phone companies use.
Compare your device connections to those shown in “Connecting the RSGu3500” on
page 6 or “Connect the power adapter to the Power port on the rear panel of the voice
gateway, and plug the other end into an electrical outlet.” on page 7.
The order in which you turn the devices on is very important. Try the procedure for
“Resetting All of Your Equipment” on page 100.
A computer cannot
send or receive data Check that the Ethernet cable is properly connected to the RSGu3500 and the
computer.
If you have a cable modem only, check that your TV is working and the picture is
clear. If you cannot receive TV channels, your cable data service will not function.
Contact your cable provider.
If you have a DSL modem only, check that your DSL service is working. Contact your
DSL provider.
My high-speed Internet
connection uses a USB
port, not an Ethernet
port
You need to switch your high-speed Internet connection from USB to Ethernet to use
Internet Phone Service. If your computer does not have an Ethernet adapter, you can
purchase an Ethernet adapter or a USB to Ethernet Converter to connect your
computer to the RSGu3500, and ultimately the Internet.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 100
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Advanced TCP/IP Wireless
Resetting All of Your Equipment
You can resolve many installation issues by resetting all of your equipment.
To reset all of your equipment:
1Turn off your computer, RSGu3500 residential gateway, router (if you have one), and DSL or cable modem.
2Turn the devices back on, one at a time, in this order:
Modem
Router (if present)
RSGu3500
Computer
UNCONTROLLED DOCUMENT
Overview Installation Troubleshooting Contact FAQ Glossary License
Configuration: Basic Advanced TCP/IP Wireless
RSGu3500 Residential Seamless Mobility Gateway User Guide 101
Frequently Asked Questions
If you do not understand a term or abbreviation, check the Glossary.
Q What does the Motorola RSGu3500 Residential Gateway do?
A The RSGu3500 Residential Gateway is a stand-alone media terminal adapter (S-MTA) containing a home
router:
As an S-MTA, it converts analog voice signals to and from a standard telephone to digital data that can
be transmitted through a broadband connection across the Internet. It provides an alternate means to
make voice calls.
Its built-in router provides full network connectivity, a firewall, and VPN passthrough.
Q Will the RSGu3500 Residential Gateway work with a cable modem or DSL modem?
A Yes. The RSGu3500 Residential Gateway supports DHCP, which is specified for DOCSIS® cable modems,
and PPPoE, which is used by most DSL providers.
Q Can I operate a virtual private network (VPN) application behind the RSGu3500?
A Yes. The RSGu3500 Residential Gateway supports IPSec and PPTP, the most common VPN protocols.
Q Can I play online games through my RSGu3500?
A By default, the residential gateway blocks all unsolicited messages to the computer or local network as a
standard security measure. However, for online games that require some unsolicited messages to be
transmitted through the residential gateway, you can specify ports and IP addresses on which to allow
unsolicited messages. The RSGu3500 enables you to set up virtual servers or a DMZ.
Q How do I configure the RSGu3500?
A Most people can send and receive calls immediately after completing Installation! You can configure your
home or office network through a GUI using a connected computer configured to obtain its IP address using
DHCP. Or, you can configure the computer statically to 192.168.15.xxx (xxx is from 2 to 254), subnet mask
255.255.255.0, and default gateway 192.168.15.1.
Q What is included with the built-in router?
A The RSGu3500 supports a firewall, RIP, port triggers, advanced ALGs such as RSVP, POP3, SNMP, and
streaming media. No separate routers are needed.
Q Is any Quality of Service (QoS) implemented on the RSGu3500 Residential Gateway?
A Although VoIP service is typically best-effort, the RSGu3500 provides upstream voice prioritization to ensure
that upstream voice data has priority over other Web data. This ensures good voice quality even during heavy
upstream data transfers, such as e-mail synchronization or file sharing.
UNCONTROLLED DOCUMENT
Overview Installation Troubleshooting Contact FAQ Glossary License
Configuration: Basic Advanced TCP/IP Wireless
RSGu3500 Residential Seamless Mobility Gateway User Guide 102
Glossary
This glossary defines terms and abbreviations used in this manual.
10/100Base-T See Ethernet.
adapter A device or card that connects a computer, printer, or other peripheral device to the network or to
some other device. An Ethernet adapter connects a computer to the LAN.
broadband High-speed telecommunication over a wide range of frequencies, typically 256 Kbps or faster.
Broadband enables more information to be transmitted in less time. The most common broadband
service types available to homes and small-offices are cable modem and DSL. Both cable modem
and DSL are much faster than a traditional dial-up Internet connection.
broadband
provider
If you have a cable modem, the cable company from which you subscribe to high-speed data
service. If you have a DSL modem, the telephone company from which you subscribe to DSL
service.
cable modem A device enabling a broadband connection to the Internet over cable television lines. It requires a
subscription for high-speed data service from your local cable provider.
coaxial cable
(coax)
A type of wire consisting of a center wire surrounded by insulation and a grounded shield of braided
wire traditionally used mainly to carry cable television signals. The shield minimizes electrical and
radio frequency interference.
default gateway A designated router that forwards all traffic not addressed to a host on the local subnet.
DHCP A Dynamic Host Configuration Protocol server dynamically assigns IP addresses to client hosts on
an IP network. DHCP eliminates the need to manually assign static IP addresses by “leasing” an
IP address and subnet mask to each client. It enables the automatic reuse of unused IP addresses.
The RSGu3500 can simultaneously be a DHCP client and a DHCP server:
A DHCP server assigns a WAN IP address to your RSGu3500.
The RSGu3500 contains a built-in DHCP server that assigns private IP addresses to each
computer on its LAN.
DMZ A “de-militarized zone” is one or more hosts logically located between a private LAN and the
Internet. A DMZ prevents direct access by outside users to private data. (The term comes from the
geographic buffers located between some conflicting countries such as North and South Korea.) In a
typical small DMZ configuration, the DMZ host receives requests from private LAN users to access
external web sites and initiates sessions for these requests. The DMZ host cannot initiate a session
back to the private LAN. Internet users outside the private LAN can access only the DMZ host. You
can use a DMZ to set up a web server or for gaming without exposing confidential data.
DOCSIS The Data-Over-Cable Service Interface Specification define a standard interface for cable modems
to deliver data between a cable network and computer systems. Euro-DOCSIS is DOCSIS adapted
for use in Europe.
DNS The Domain Name System is the Internet system for converting domain names to IP addresses. A
DNS server contains a table matching domain names such as Internetname.com to IP addresses
such as 192.169.9.1. When you access the Web, a DNS server translates the URL displayed on the
browser to the destination website IP address. The DNS lookup table is a distributed Internet
database; no one DNS server lists all domain-to-IP address matches.
domain name A unique name, such as motorola.com, that maps to an IP address. Domain names are typically
much easier to remember than IP addresses.
dotted-decimal
format Method of representing an IP address or subnet mask using four decimal numbers called octets.
Each octet represents eight bits.
In a class C IP address, the octets are “network.network.network.host.” The first three octets
together represent the network address and the final octet is the host address. In the RSGu3500
LAN default configuration, 192.168.15 represents the network address. In the final octet, the host
address can be from 2 to 254.
download To copy a file from one computer or other network device to another. You can use the Internet to
download files from a server to your home computer. Your residential gateway downloads its
configuration file and firmware.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 103
Overview Installation Troubleshooting Contact FAQ Glossary License
Configuration: Basic Advanced TCP/IP Wireless
downstream In a cable data or DSL network, the direction of data received by your computer from the Internet.
driver Software that enables a computer to interact with a network or other device. For example, there are
drivers for printers, monitors, graphics adapters, modems, Ethernet, USB, and many others.
DSL A digital subscriber line enables a broadband connection to the Internet over traditional telephone
lines that support DSL. You need a subscription for DSL service from your local telephone company.
dynamic IP
address An IP address that is temporarily leased to a host by a DHCP server. The opposite of static IP
address.
Ethernet The most widely used type of local area network (LAN). The most commonly installed Ethernet
networks are called 10Base-T. 10Base-T provides transmission speeds up to 10 megabits per
second (Mbps), usually over twisted-pair wire. Fast Ethernet (100Base-T) provides transmission
speeds up to 100 Mbps.
F-type connector A type of connector used to connect coaxial cable to equipment such as the RSGu3500.
firewall A security software system on the RSGu3500 that enforces an access control policy between the
Internet and the RSGu3500 LAN.
flow A data path moving in one direction.
GUI graphical user interface
HFC A hybrid fiber/coaxial cable network uses fiber-optic cable as the trunk and coaxial cable to the
subscriber premises.
host Any computer or similar device supporting end-user applications or services with full two-way
network access. Each host has a unique host number that combined with the network number forms
its IP address.
hub On a LAN, a device that connects multiple hosts to the LAN. A hub performs no data filtering. See
also router.
IGMP Internet Group Management Protocol
Internet A worldwide collection of interconnected networks, all using TCP/IP.
IP Internet Protocol is a set of standards that enable different types of computers to communicate with
one another and exchange data through the Internet. IP provides the appearance of a single,
seamless communication system and makes the Internet a virtual network.
IP address An Internet Protocol address identifies a computer or other device on a TCP/IP network. Networks
using the TCP/IP protocol route messages based on the destination IP address.
IPSec The Internet Protocol Security protocols are authentication and encryption standards for secure data
exchange over the Internet.
ISP Internet service provider
LAN A local area network provides a full-time, high-bandwidth connection over a limited area, such as a
building, campus, office, or home. The computers and other devices you connect to your residential
gateway, except for the telephones, form a LAN. Ethernet is the most widely used LAN standard.
MAC address The Media Access Control address uniquely identifies each device that can be connected to an
Ethernet network. It is permanently written to read-only memory (ROM) at the factory and printed on
your RSGu3500.
MHz Mega hertz. A measure of frequency; one MHz means one million cycles per second.
MPPC Microsoft Point-To-Point Compression protocol is a method for compressing PPP packets to
optimize processor and bandwidth usage for many simultaneous connections. MPPC is patented in
the United States by Hifn Inc.
MPPE Microsoft Point-to-Point Encryption is a protocol for encrypting data across PPP and VPNs. It is
frequently used in conjunction with MPPC.
NAT Network Address Translation is a standard for a LAN to use one set of IP addresses for internal
traffic and a second set of IP addresses for external traffic.
NAPT Network Address Port Translation is the most common form of translation between public and
private IP addresses.
network Two or more computers connected to communicate with each other. Networks have traditionally
been connected using some kind of wiring.
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 104
Overview Installation Troubleshooting Contact FAQ Glossary License
Configuration: Basic Advanced TCP/IP Wireless
NIC Network interface card is another name for network adapter. A NIC is installed in an expansion slot
or can be built-in. Every Ethernet NIC has a MAC address permanently saved in its ROM.
OOB DTMF Out-of-Band Dual-Tone Multi-Frequency protocol for voice traffic.
PING A network utility that tests host reachability by sending a small packet to the host and waiting for a
reply. If you PING a computer IP address and receive a reply, you know the computer is reachable
over the network. It also stands for “Packet InterNet Groper.”
port On a computer or other electronic device, a port is a socket or plug used to physically connect it to
the network or to other devices.
I
n TCP/IP, a port is a number from 0 to 65536 used logically by a client program to specify a server
program. Ports 0 to 1024 are reserved.
port triggering A mechanism that enables incoming communication with specified applications. Primarily used for
gaming applications.
POTS “Plain old telephone service;” basic analog telephone service. POTS uses the lowest 4 kHz of
bandwidth on twisted pair wiring.
PPP Point-to-Point Protocol is a method to establish a network connection or session between hosts.
PPPoE Point-to-Point Protocol over Ethernet is a specification for connecting to the Internet used with DSL
modems.
PPTP Point-to-Point Tunneling Protocol encapsulates other protocols to create VPNs. It is developed
jointly by several vendors.
private IP
address An IP address assigned to a computer on the RSGu3500 LAN by the DHCP server on the
RSGu3500 for a specified lease time. Private IP addresses are used by the RSGu3500 LAN only;
they are invisible to devices on the Internet. See also public IP address.
PSTN The public switched telephone network is the traditional circuit-switched, voice-oriented telephone
network. See also POTS.
public IP
address A public IP address is visible to devices on the Internet. See also private IP address.
QoS quality of service
RIP Routing Information Protocol enables routers to exchange routing information with other network
routers. Any RIP-enabled router:
Sends automatic update packets containing its routing table periodically (every 30 seconds)
Accepts periodic updates from other routers and adds, deletes, or modifies routes in its routing
table accordingly
Responds to requests for its routing table
RTP Real Time Protocol for voice traffic.
RJ-11 The most common type of connector for household or office phones.
RJ-45 The most common type of port for Ethernet networks.
router On IP networks, a device connecting at least two networks, which may or may not be similar. A
router filters data based on the IP address, examining the source and destination IP addresses to
determine the best route on which to forward it.
server A dedicated computer that supplies files, data, or services to other “client” computers or devices.
SIP Session Initiation Protocol for voice traffic.
S-MTA A standalone media terminal adapter converts analog voice signals to and from a standard
telephone to digital data that can be transmitted through a broadband connection over the Internet.
SSH secure shell
UNCONTROLLED DOCUMENT
RSGu3500 Residential Seamless Mobility Gateway User Guide 105
Overview Installation Troubleshooting Contact FAQ Glossary License
Configuration: Basic Advanced TCP/IP Wireless
stateful
inspection A type of firewall that tracks each connection traversing all firewall interfaces to ensure validity. In
addition to examining the source and destination in the packet header based on static rules, a
stateful inspection firewall:
Examines packet headers on context established by previous packets that traversed the firewall
Monitors the connection state and saves it in a table
Closes ports until a connection to a specific port is requested
May examine the packet contents up through the application layer to determine more than just the
source and destination
A stateful-inspection firewall is more advanced than a static filter firewall.
static filter A type of firewall that examines the source and destination in the packet header based on
administrator-defined rules only.
static IP address An IP address that is permanently assigned to a host. Normally, a static IP address must be
assigned manually. The opposite of dynamic IP address.
subnet mask A bit mask that is logically ANDed with the destination IP address of a packet to determine the
network address. A router routes packets using the network address.
subnetwork A part of a network; commonly abbreviated “subnet.” When subnetting is used, the host portion of
the IP address is divided into a subnet and host number. Hosts and routers use the subnet mask to
identify the bits used for the network and subnet number.
TCP Transmission Control Protocol provides reliable transport over the network for data transmitted using
IP. It defines rules and procedures for data exchange.
TCP/IP The Transmission Control Protocol/Internet Protocol is a set of protocols that provides rules for
communication between networks. It is the worldwide internetworking standard and the basic
communications protocol of the Internet.
TFTP Trivial File Transfer Protocol is a very simple protocol used to transfer files.
UPnP Universal Plug and Play protocol.
UPS A uninterruptible power supply provides battery back-up for a specified time during a power outage.
upstream In a cable data or DSL network, the direction of data sent from your computer to the Internet.
USB Universal Serial Bus
wireless access
point (WAP) A device that provides network connectivity to one or more client computers using radio signals over
a wireless connection. One example you could use with your residential gateway is the Motorola
Wireless Access Point WA840G.
VoIP Voice over Internet Protocol is a method to exchange voice, fax, and other information over the
Internet. Voice and fax have traditionally been carried over telephone lines using a dedicated circuit
for each line. VoIP enables calls to travel as discrete data on shared lines.
VoIP provider The company from which you purchase VoIP telephone service.
VPN A virtual private network is a private network that uses “virtual” connections (tunnels) routed over a
public network (usually the Internet) to provide a secure and fast connection, usually to users
working remotely at home or in small branch offices. A VPN connection provides security and
performance similar to a dedicated link (for example, a leased line), but at much lower cost.
WAN A wide-area network provides a connection over a large geographic area, such as a country or the
whole world. The bandwidth depends on need and cost, but is usually much lower than for a LAN.
For the residential gateway, “WAN” refers to the VoIP and broadband provider networks.
World Wide Web An interface to the Internet that you use to navigate and hyperlink to information.
UNCONTROLLED DOCUMENT
Overview Installation Troubleshooting Contact FAQ Glossary License
Configuration: Basic Advanced TCP/IP
RSGu3500 Residential Seamless Mobility Gateway User Guide 106
Software License
Motorola, Inc., Connected Home Solutions (“Motorola”) 101 Tournament Drive, Horsham, PA 19044
IMPORTANT: PLEASE READ THIS SOFTWARE LICENSE (“LICENSE”) CAREFULLY BEFORE YOU INSTALL, DOWNLOAD
OR USE ANY APPLICATION SOFTWARE, USB DRIVER SOFTWARE, FIRMWARE AND RELATED DOCUMENTATION
(“SOFTWARE”) PROVIDED WITH MOTOROLA’S VOICE GATEWAY PRODUCT (THE “VOICE GATEWAY PRODUCT”). BY
USING THE VOICE GATEWAY PRODUCT AND/OR INSTALLING, DOWNLOADING OR USING ANY OF THE SOFTWARE,
YOU INDICATE YOUR ACCEPTANCE OF EACH OF THE TERMS OF THIS LICENSE. UPON ACCEPTANCE, THIS
LICENSE WILL BE A LEGALLY BINDING AGREEMENT BETWEEN YOU AND MOTOROLA. THE TERMS OF THIS
LICENSE APPLY TO YOU AND TO ANY SUBSEQUENT USER OF THIS SOFTWARE.
IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS LICENSE (I) DO NOT INSTALL OR USE THE SOFTWARE AND
(II) RETURN THE VOICE GATEWAY PRODUCT AND THE SOFTWARE (COLLECTIVELY, “PRODUCT”), INCLUDING ALL
COMPONENTS, DOCUMENTATION AND ANY OTHER MATERIALS PROVIDED WITH THE PRODUCT, TO YOUR POINT
OF PURCHASE OR SERVICE PROVIDER, AS THE CASE MAY BE, FOR A FULL REFUND.
The Software includes associated media, any printed materials, and any “online” or electronic documentation, as well as
any updates, revisions, bug fixes, or drivers obtained by you from Motorola or your service provider. Software provided
by 3rd parties may be subject to separate end-user license agreements from the manufacturers of such Software.
The Software is never sold. Motorola licenses the Software to the original customer and to any subsequent licensee for
personal use only on the terms of this License. Motorola and its 3rd party licensors retain the ownership of the Software.
You may:
USE the Software only in connection with the operation of the Product.
TRANSFER the Software (including all component parts and printed materials) permanently to another person, but only if the
person agrees to accept all of the terms of this License. If you transfer the Software, you must at the same time transfer the
Product and all copies of the Software (if applicable) to the same person or destroy any copies not transferred.
TERMINATE this License by destroying the original and all copies of the Software (if applicable) in whatever form.
You may not:
(1) Loan, distribute, rent, lease, give, sublicense or otherwise transfer the Software, in whole or in part, to any other
person, except as permitted under the TRANSFER paragraph above. (2) Copy or translate the User Guide included with
the Software, other than for personal use. (3) Copy, alter, translate, decompile, disassemble or reverse engineer the
Software, including but not limited to, modifying the Software to make it operate on non-compatible hardware. (4)
Remove, alter or cause not to be displayed, any copyright notices or startup message contained in the Software
programs or documentation. (5) Export the Software or the Product components in violation of any United States export
laws.
The Product is not designed or intended for use in on-line control of aircraft, air traffic, aircraft navigation or aircraft
communications; or in design, construction, operation or maintenance of any nuclear facility. MOTOROLA AND ITS 3rd
PARTY LICENSORS DISCLAIM ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR SUCH USES. YOU
REPRESENT AND WARRANT THAT YOU SHALL NOT USE THE PRODUCT FOR SUCH PURPOSES.
Title to this Software, including the ownership of all copyrights, mask work rights, patents, trademarks and all other
intellectual property rights subsisting in the foregoing, and all adaptations to and modifications of the foregoing shall at all
times remain with Motorola and its 3rd party licensors. Motorola retains all rights not expressly licensed under this
License. The Software, including any images, graphics, photographs, animation, video, audio, music and text
incorporated therein is owned by Motorola or its 3rd party licensors and is protected by United States copyright laws and
international treaty provisions. Except as otherwise expressly provided in this License, the copying, reproduction,
distribution or preparation of derivative works of the Software, any portion of the Product or the documentation is strictly
prohibited by such laws and treaty provisions. Nothing in this License constitutes a waiver of Motorola’s rights under
United States copyright law.
This License and your rights regarding any matter it addresses are governed by the laws of the Commonwealth of
Pennsylvania, without reference to conflict of laws principles. THIS LICENSE SHALL TERMINATE AUTOMATICALLY if
you fail to comply with the terms of this License.
Motorola is not responsible for any 3rd party software provided as a bundled application, or otherwise, with the Software.
U.S. GOVERNMENT RESTRICTED RIGHTS
The Product and documentation is provided with RESTRICTED RIGHTS. The use, duplication or disclosure by the
Government is subject to restrictions as set forth in subdivision (c)(1)(ii) of The Rights in Technical Data and Computer
Software clause at 52.227-7013. The contractor/manufacturer is Motorola, Inc., Connected Home Solutions,
101 Tournament Drive, Horsham, PA 19044.
UNCONTROLLED DOCUMENT
530644-001
12/06
Visit our website at:
www.motorola.com
