ARRIS SBG900-1 Wireless Cable Modem User Manual SBG900User
ARRIS Group, Inc. Wireless Cable Modem SBG900User
ARRIS >
Users Manual
User Guide
SBG900
Wireless Cable
Modem Gateway
ii SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE. THE UNIT MUST NOT BE EXPOSED TO DRIPPING OR SPLASHING. DO NOT PLACE OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, ON THE UNIT.
CAUTION: TO PREVENT ELECTRICAL SHOCK, THIS EQUIPMENT REQUIRES A GROUNDING
CONDUCTOR IN THE LINE CORD. THE LINE CORD PROVIDED WITH THE EQUIPMENT IS ACCEPTABLE
FOR USE WITH NEMA STYLE 5-15R AC RECEPTACLE SUPPLYING NOMINAL 120 VOLTS. DO NOT
CONNECT THE PLUG INTO AN EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE
PLUG CAN BE FULLY INSERTED WITH NO PART OF THE BLADES EXPOSED.
CAUTION: TO ENSURE REGULATORY AND SAFETY COMPLIANCE, USE ONLY THE PROVIDED POWER
AND INTERFACE CABLES.
CAUTION: DO NOT OPEN THE UNIT. DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED
IN THE INSTALLATION AND TROUBLESHOOTING INSTRUCTIONS. REFER ALL SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION: CHANGES AND MODIFICATIONS NOT EXPRESSLY APPROVED BY MOTOROLA FOR
COMPLIANCE COULD VOID USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
CAUTION: Exposure to Radio Frequency Radiation. To comply with the FCC RF exposure compliance
requirements, the separation distance between the antenna and any person’s body (including hands, wrists, feet
and ankles) must be at least 8 inches (20 cm).
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This device must be installed and used in strict accordance with the manufacturer’s instructions as described in
the user documentation that comes with the product.
Postpone cable modem installation until there is no risk of thunderstorm or lightning activity in the area.
Do not overload outlets or extension cords, as this can result in a risk of fire or electric shock. Overloaded AC
outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are
dangerous. They may result in a shock or fire hazard.
Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against
them. Pay particular attention to cords where they are attached to plugs and convenience receptacles, and
examine the point where they exit from the product.
Place this equipment in a location that is close enough to an electrical outlet to accommodate the length of the
power cord.
iii SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Place this equipment on a stable surface.
Be sure that the outside cable system is grounded, so as to provide some protection against voltage surges and
built-up static charges. Article 820-20 of the NEC (Section 54, Part I of the Canadian Electrical Code) provides
guidelines for proper grounding and, in particular, specifies the CATV cable ground shall be connected in the
grounding system of the building, as close to the point of cable entry as practical.
When using this device, basic safety precautions should always be followed to reduce the risk of fire, electric
shock and injury to persons, including the following:
•Read all of the instructions {listed here and/or in the user manual} before you operate this equipment. Give
particular attention to all safety precautions. Retain the instructions for future reference.
•Comply with all warning and caution statements in the instructions. Observe all warning and caution symbols
that are affixed to this equipment.
•Comply with all instructions that accompany this equipment.
•Avoid using this product during an electrical storm. There may be a risk of electric shock from lightning. For
added protection for this product during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet, and disconnect the cable system. This will prevent damage to
the product due to lightning and power surges.
•Avoid damaging the cable modem with static by touching the coaxial cable when it is attached to the earth
grounded coaxial cable TV wall outlet.
•Always first touch the coaxial cable connector on the cable modem when disconnecting or re-connecting USB
or Ethernet cable from the cable modem or the user’s PC.
•Operate this product only from the type of power source indicated on the product’s marking label. If you are
not sure of the type of power supplied to your home, consult your dealer or local power company.
•Upon completion of any service or repairs to this products, ask the service technician to perform safety
checks to determine that the product is in safe operating condition.
It is recommended that the customer install an AC surge protector in the AC outlet to which this device is
connected. This is to avoid damaging the equipment by local lightning strikes and other electrical surges.
Different types of cord sets may be used for connections to the main supply circuit. Use only a main line cord that
complies with all applicable product safety requirements of the country of use.
Installation of this product must be in accordance with national wiring codes.
Place unit to allow for easy access when disconnecting the power cord/adapter of the device from the AC wall
outlet.
Wipe the unit with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray cleaners directly
on the unit or use forced air to remove dust.
This product was qualified under test conditions that included the use of the supplied cables between system
components. To be in compliance with regulations, the user must use these cables and install them properly.
Connect the unit to a grounding type AC wall outlet using the power adapter supplied with the unit.
Do not cover the device, or block the airflow to the device with any other objects. Keep the device away from
excessive heat and humidity and keep the device free from vibration and dust.
Installation must at all times conform to local regulations.
iv SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
This product is provided with a separate Regulatory, Safety, Software License, and Warranty Information card. If
one is not provided with this product, please ask your service provider or point-of-purchase representative, as the
case may be.
•THIS PRODUCT IS IN COMPLIANCE WITH ONE OR MORE OF THE STANDARDS LISTED ON THE
REGULATORY, SAFETY, SOFTWARE LICENSE, AND WARRANTY INFORMATION CARD. NOT ALL
STANDARDS APPLY TO ALL MODELS.
•NO WARRANTIES OF ANY KIND ARE PROVIDED BY MOTOROLA WITH RESPECT TO THIS PRODUCT,
EXCEPT AS STATED ON THE REGULATORY, SAFETY, SOFTWARE LICENSE, AND WARRANTY
INFORMATION CARD. MOTOROLA’S WARRANTIES DO NOT APPLY TO PRODUCT THAT HAS BEEN
REFURBISHED OR REISSUED BY YOUR SERVICE PROVIDER.
Copyright © 2003 by Motorola, Inc.
All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as
translation, transformation or adaptation) without written permission from Motorola, Inc.
Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola
to provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed,
including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Motorola may make improvements or
changes in the product(s) described in this manual at any time.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Microsoft, Windows, Windows Me, and Windows NT are
registered trademarks and
Windows XP is a trademark of
Microsoft Corporation. Microsoft Windows screen shots are used by permission of
Microsoft Corporation.
Macintosh and AppleTalk are registered
trademarks
of Apple Computer, Inc. Iomega is a registered trademark of Iomega
Corporation. Linux is a registered trademark of Linus Torvalds. Acrobat Reader is a registered trademark of Adobe Systems, Inc. Netscape and
Navigator are registered trademarks of
Netscape Communications Corporation
. UNIX is a registered trademark of the Open Group in the United
States and other countries. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2003.
vSBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Network Connection Types . . . . . . . . . . . . . . . . . . . . . . 2
Powerful Features in a Single Unit . . . . . . . . . . . . . . . . . 3

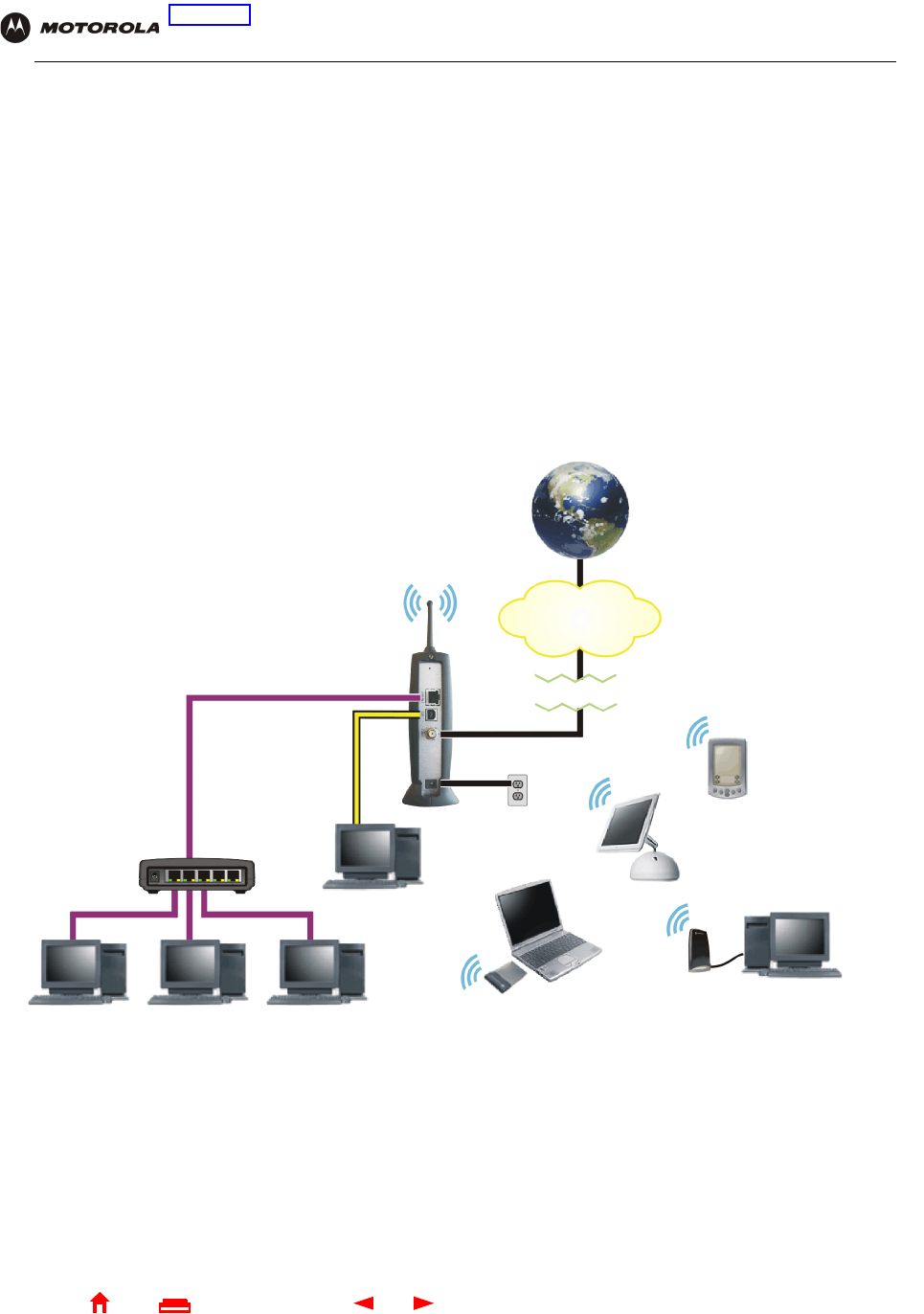

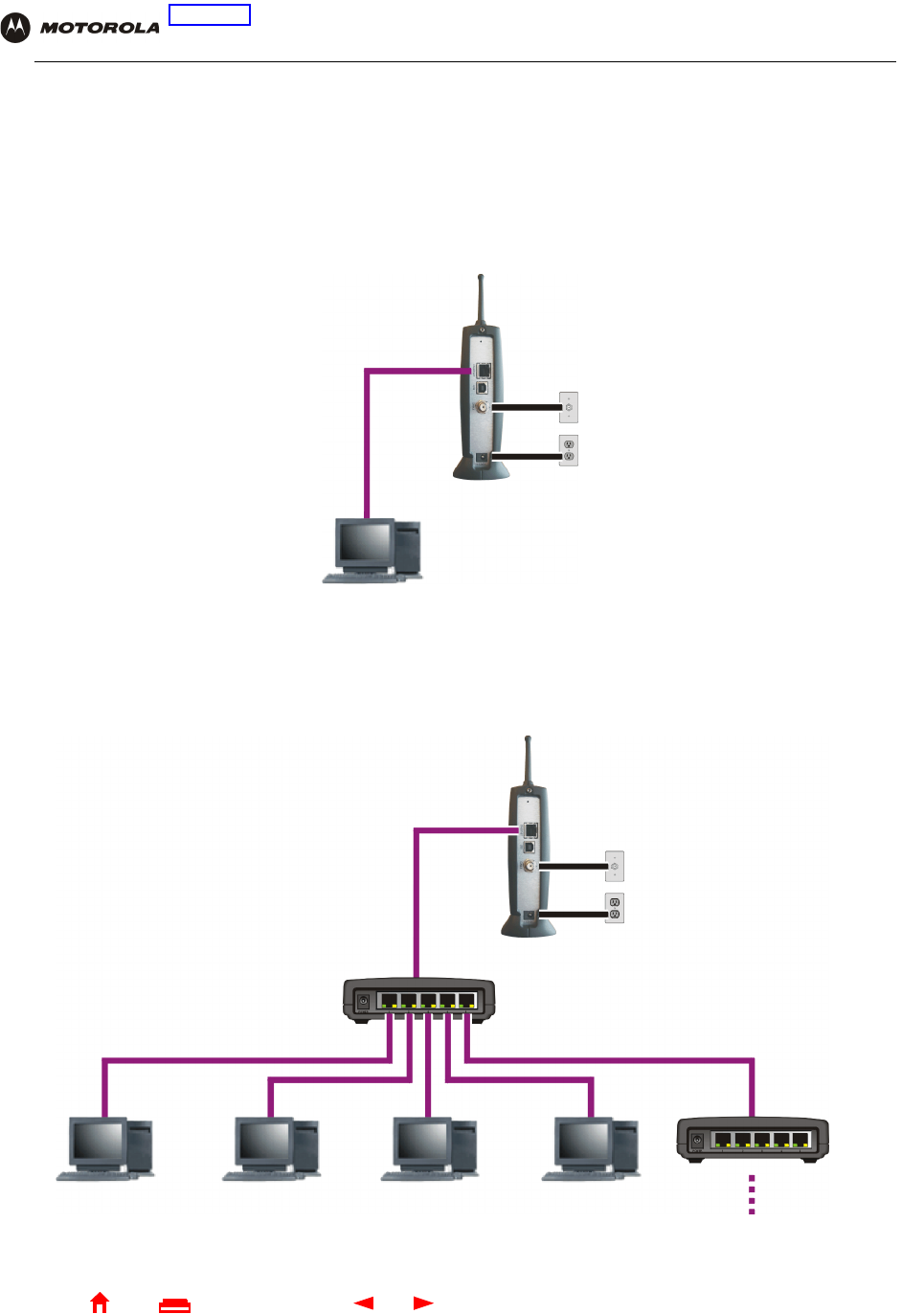

Sample LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

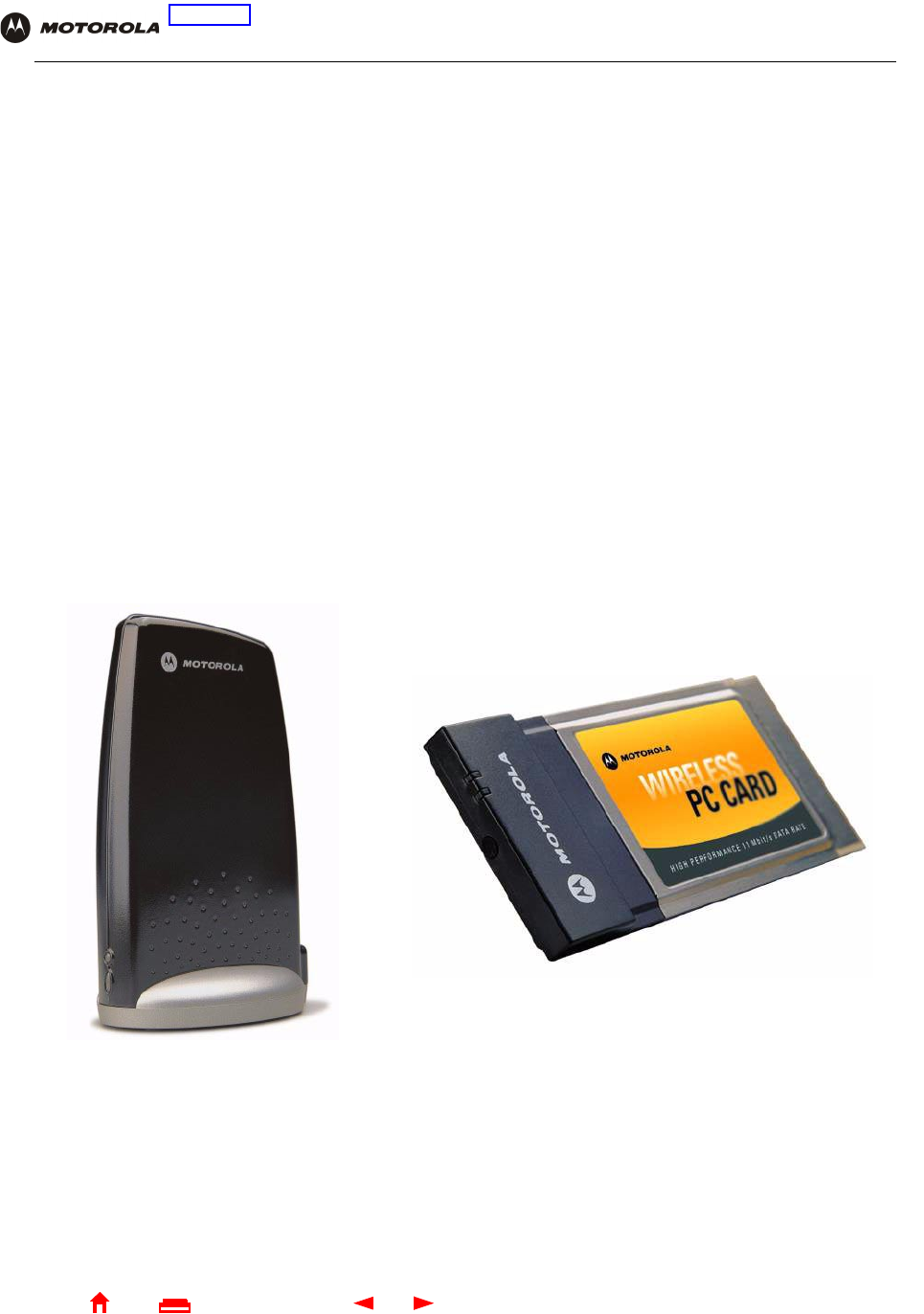

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

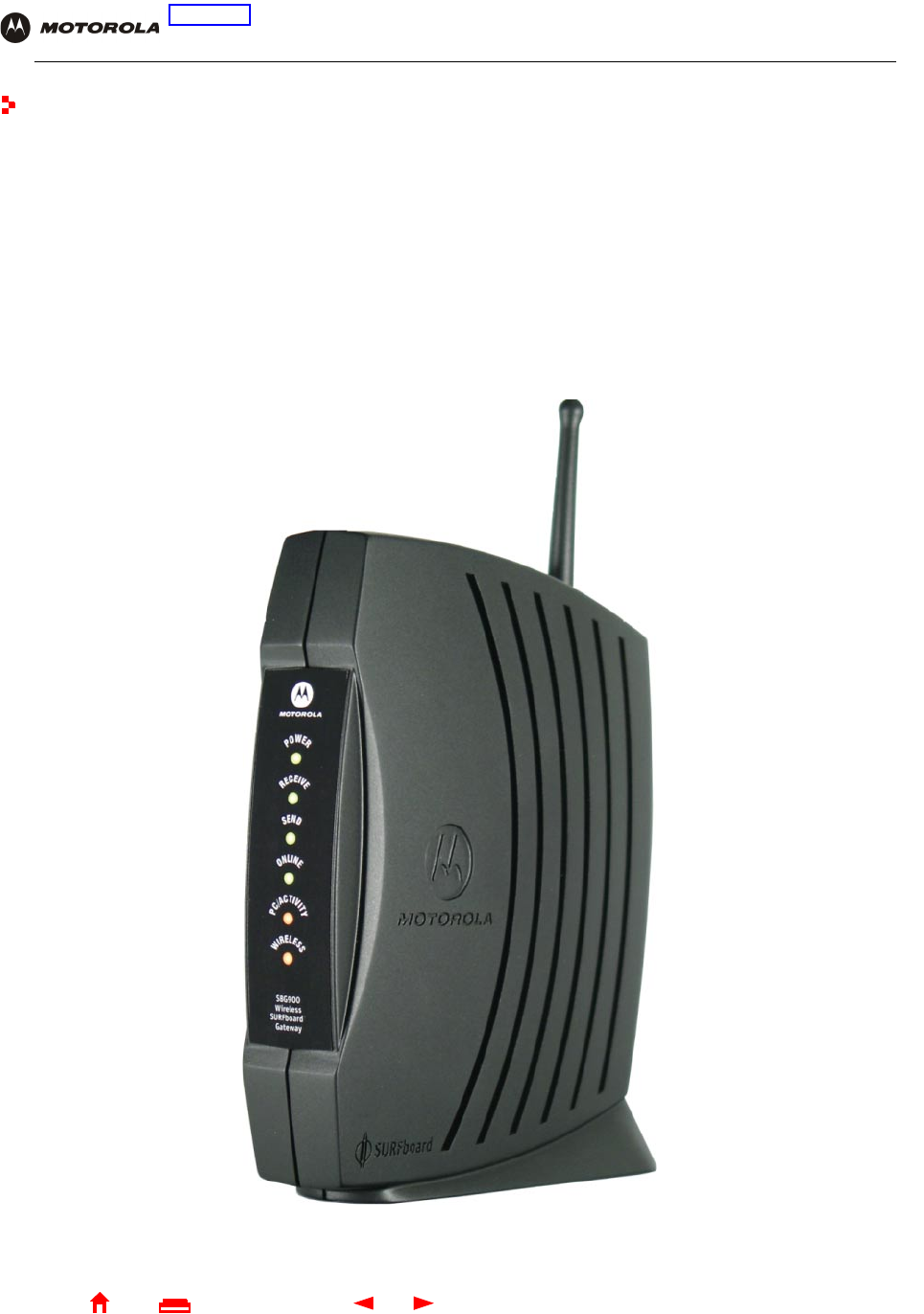

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

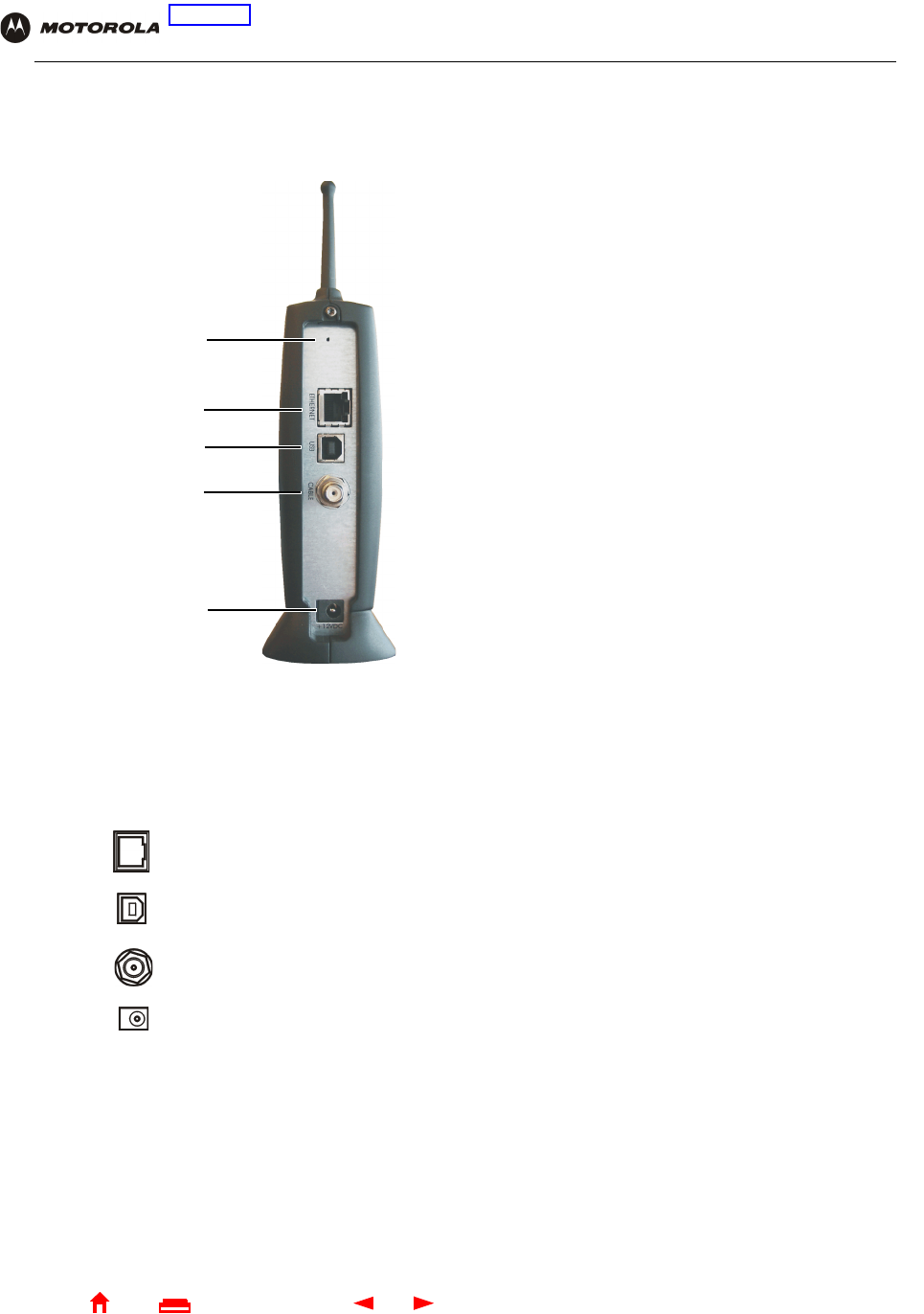

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

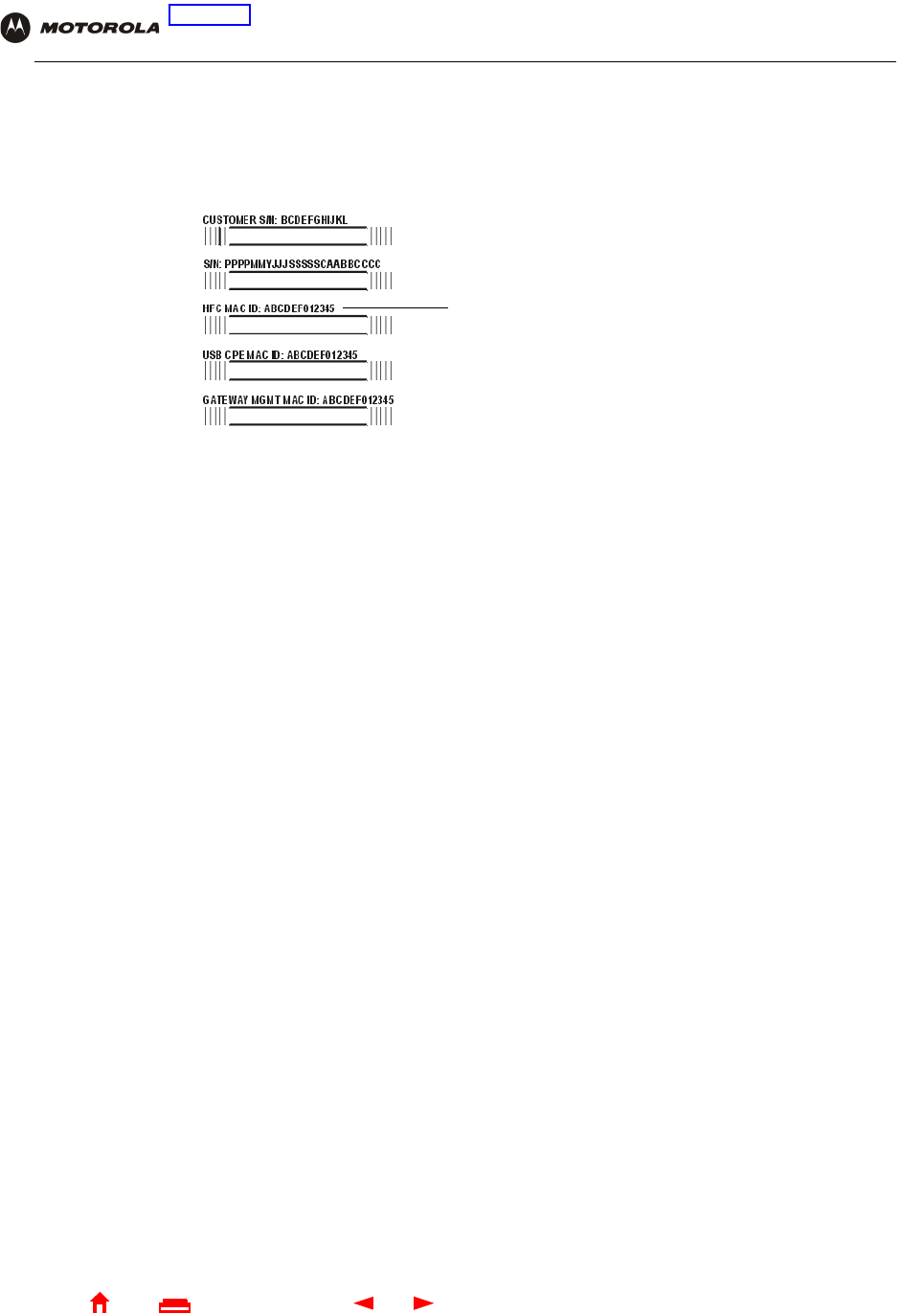

Label on the Bottom of the SBG900 . . . . . . . . . . . . . . . 8
SBG900 LAN Choices . . . . . . . . . . . . . . . . . . . . . . . . . . 8

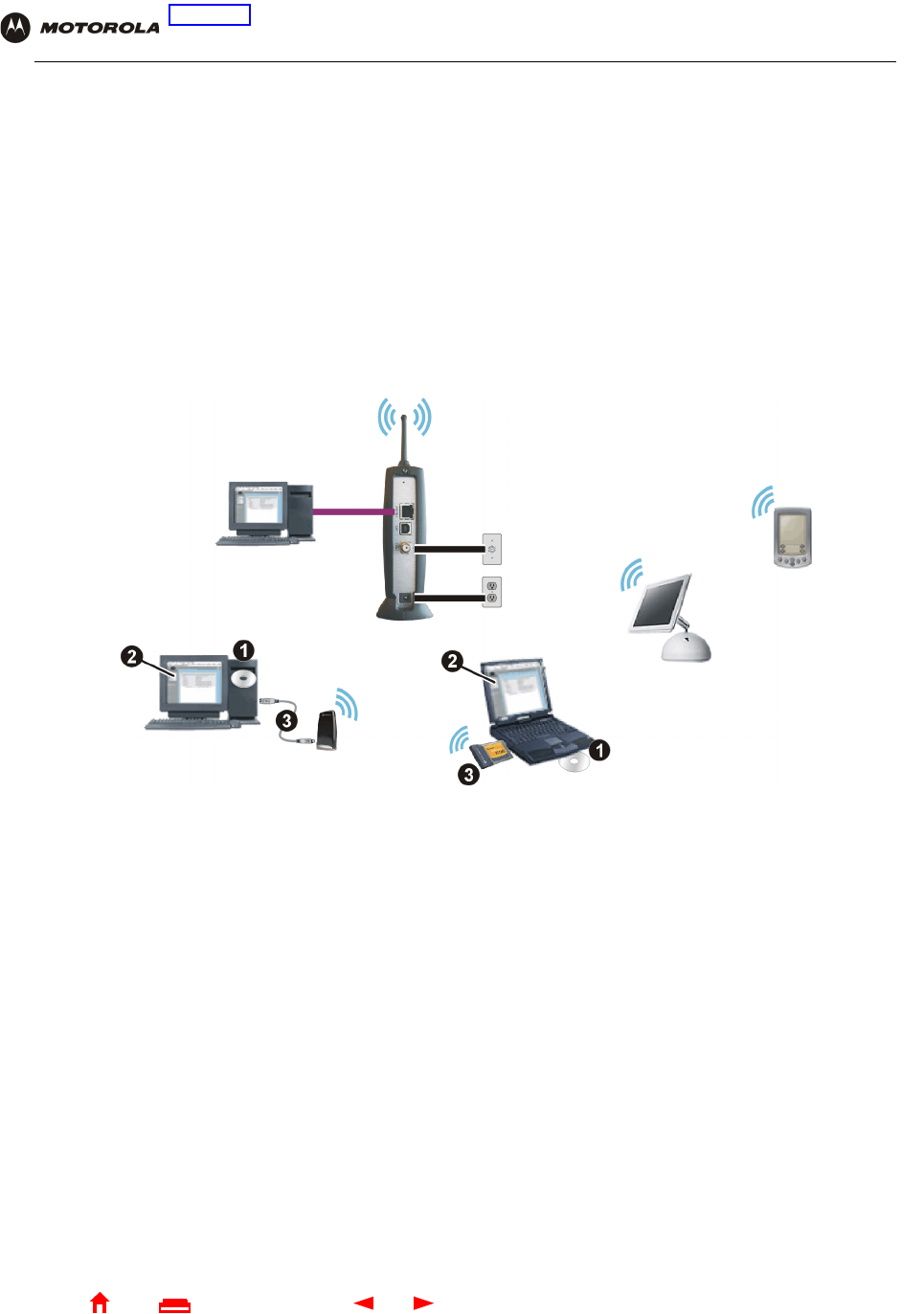

Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wired Ethernet LAN . . . . . . . . . . . . . . . . . . . . . . . . . 10
USB Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

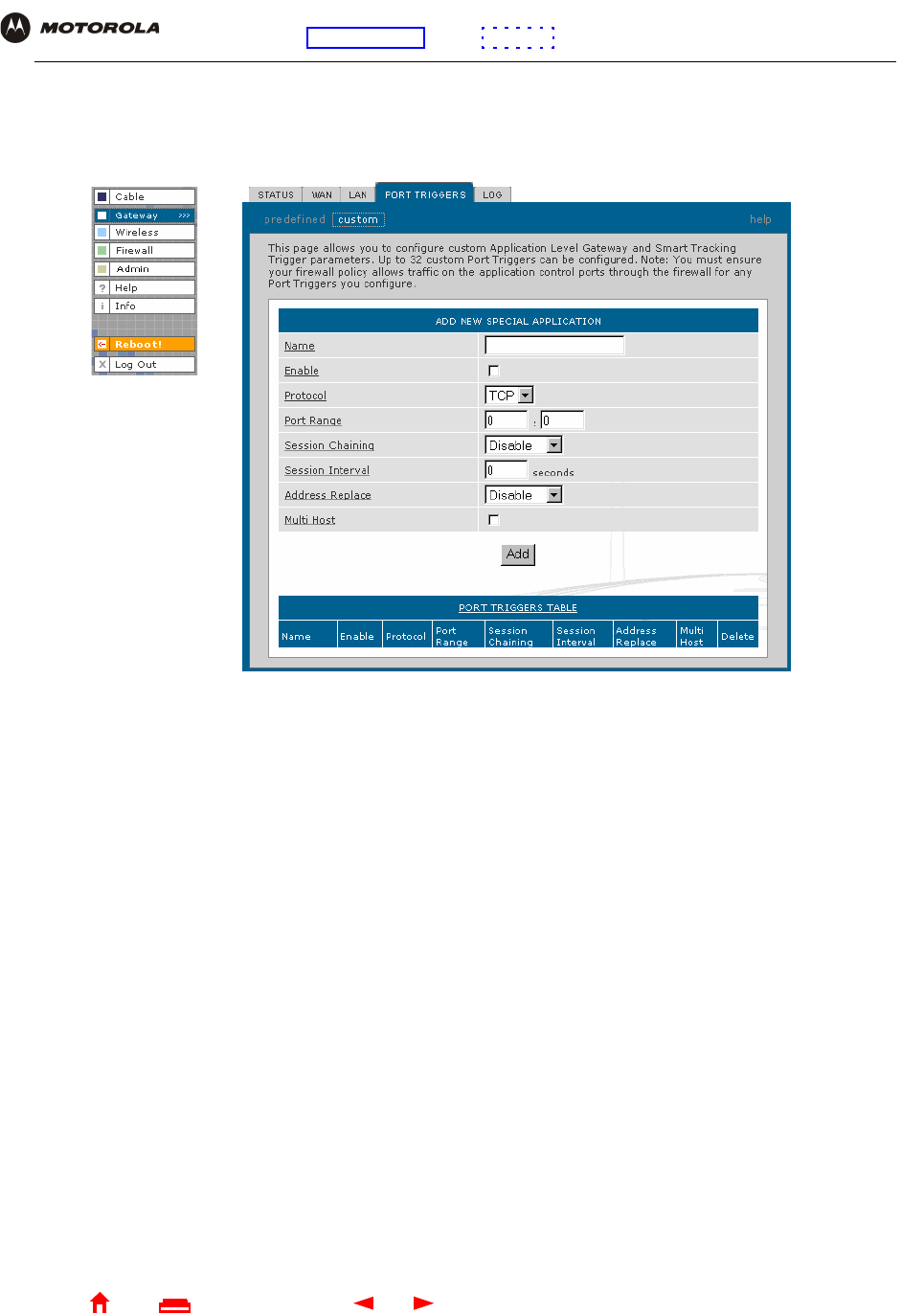

Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

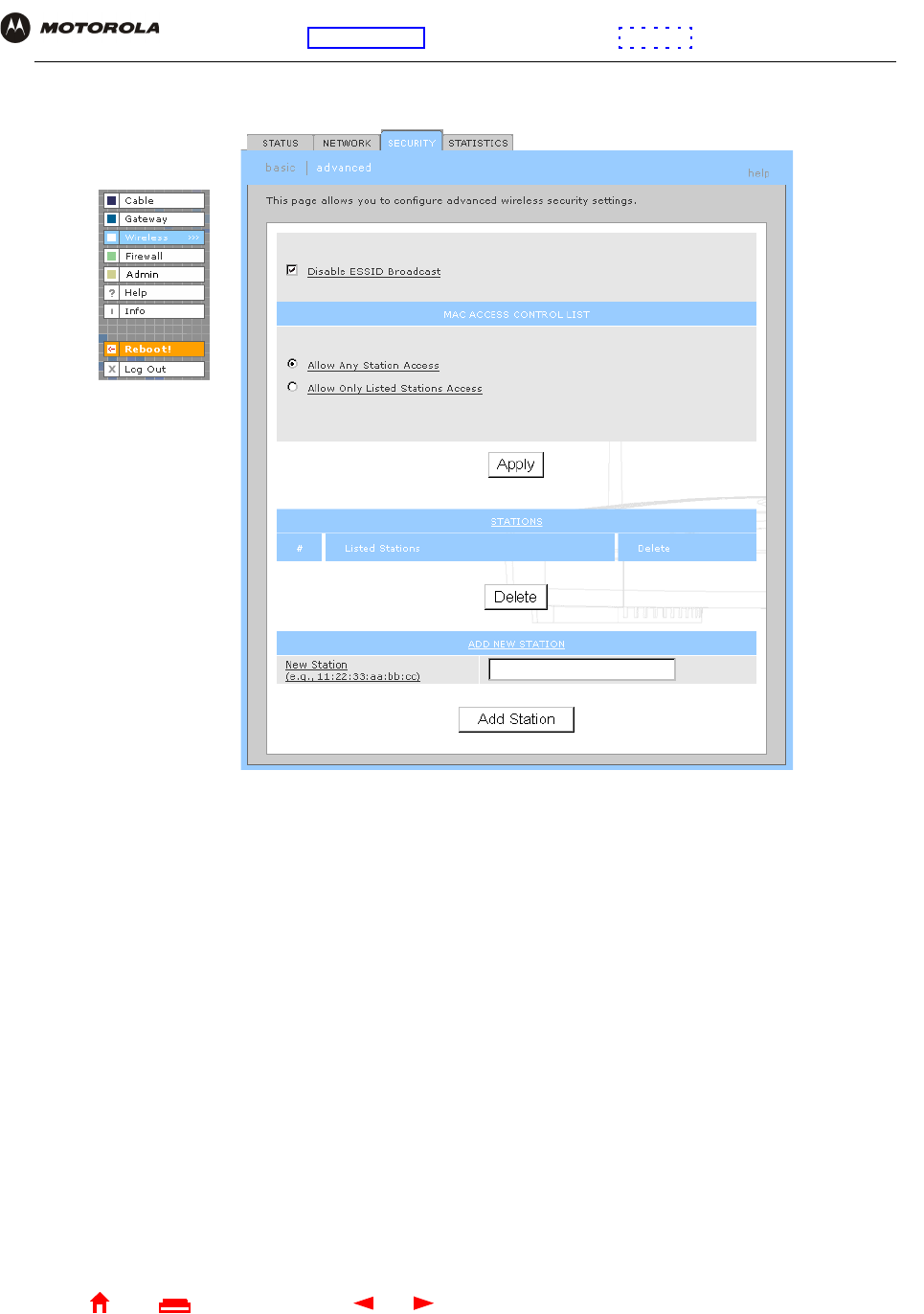

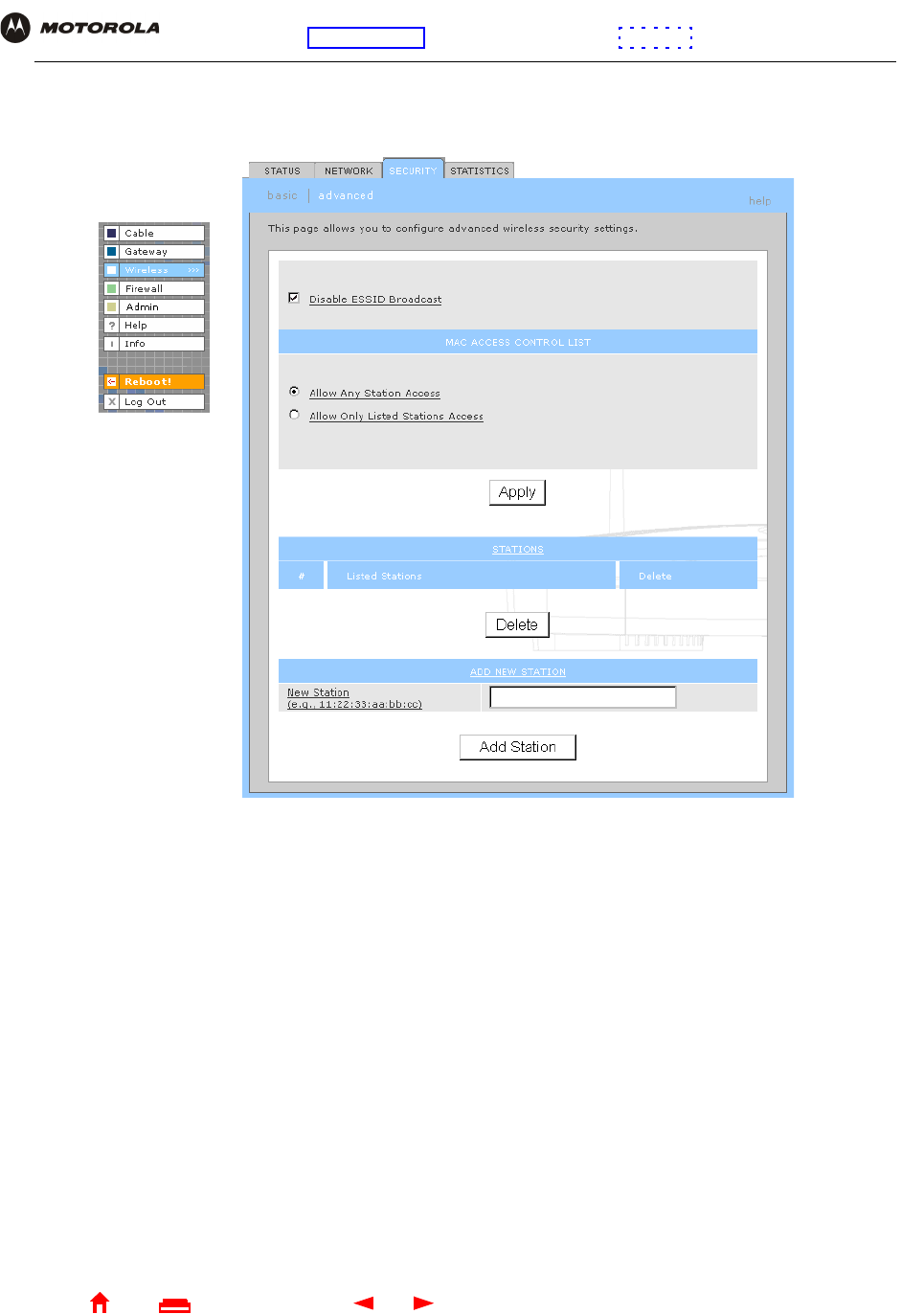

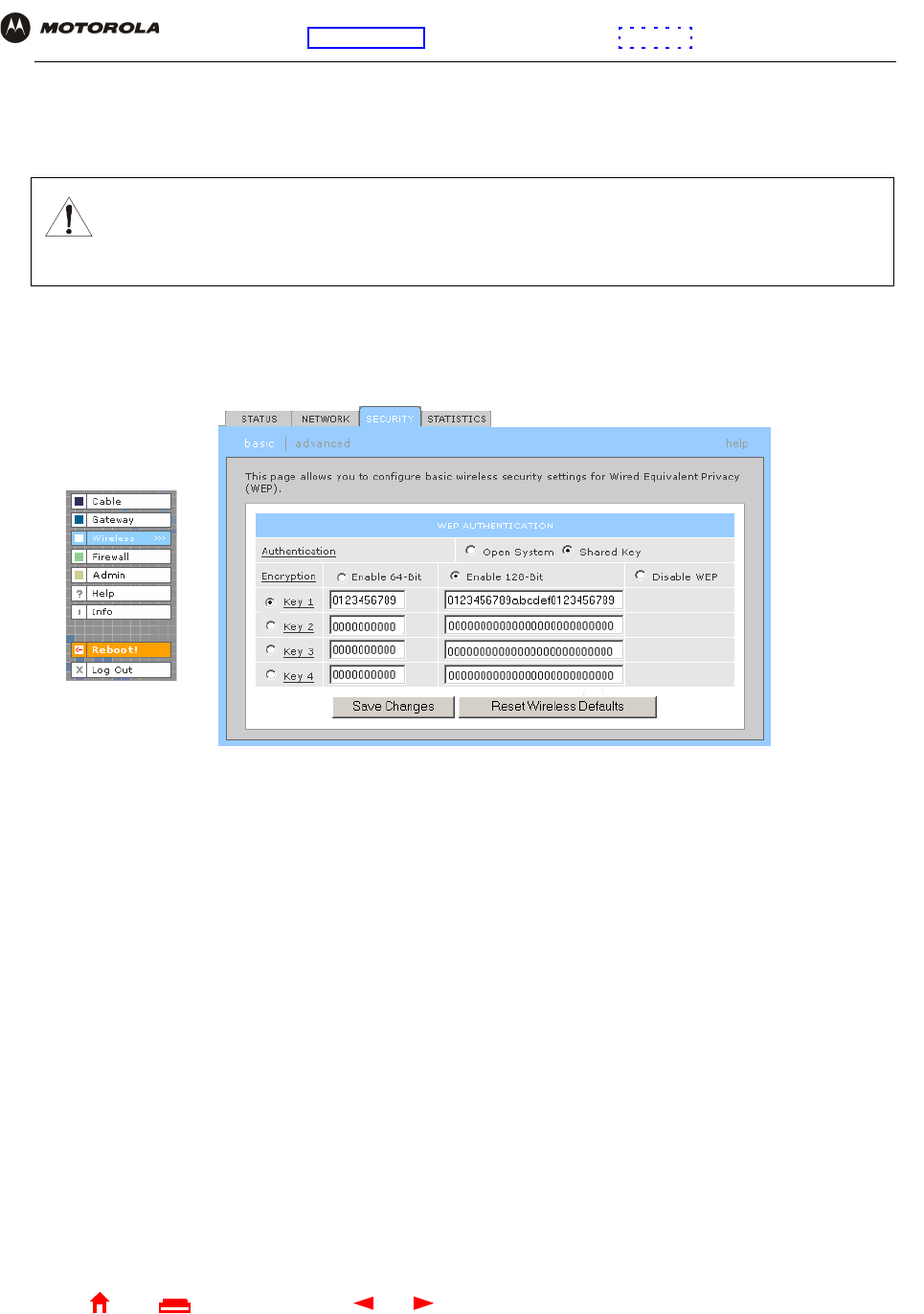

Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

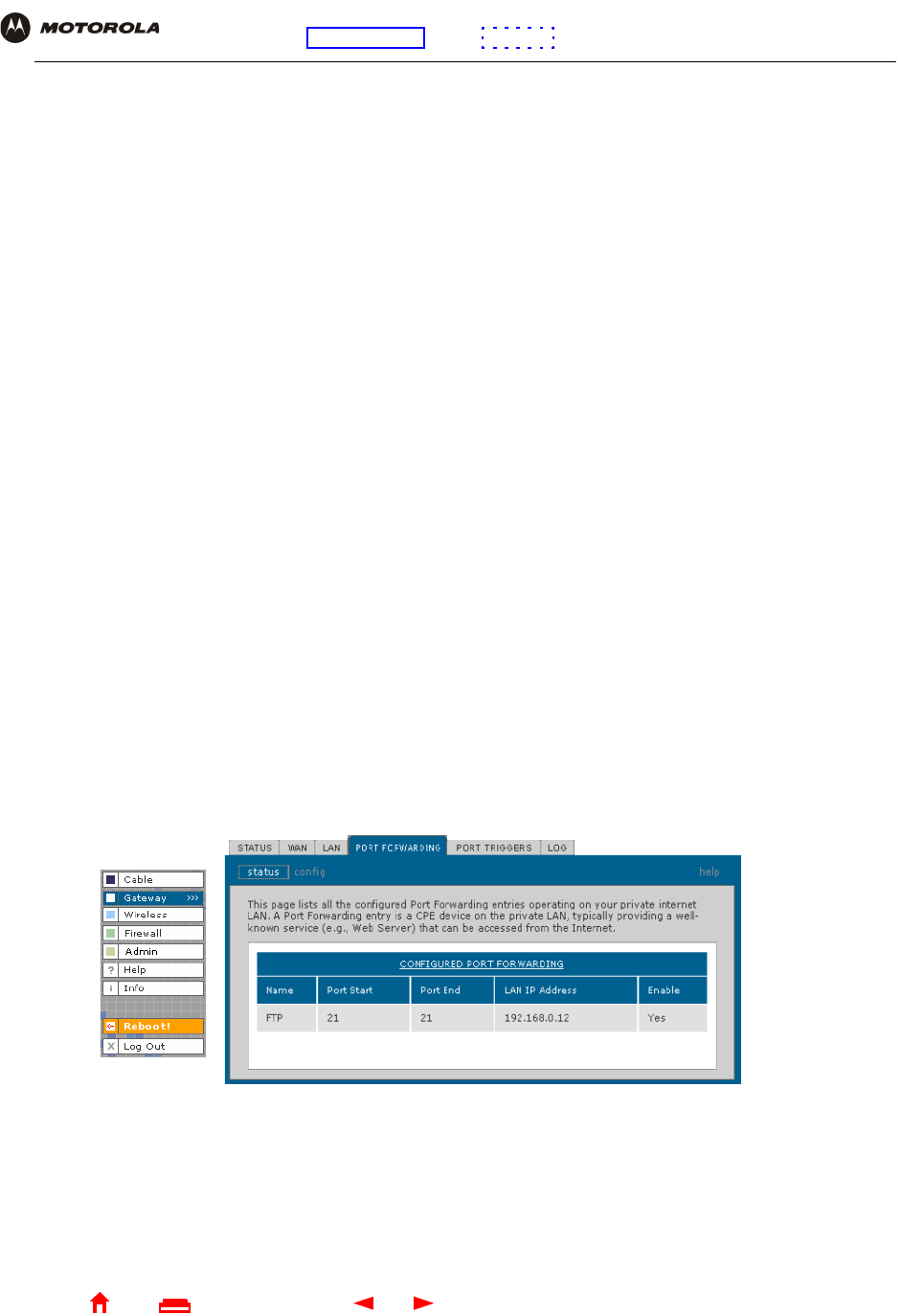

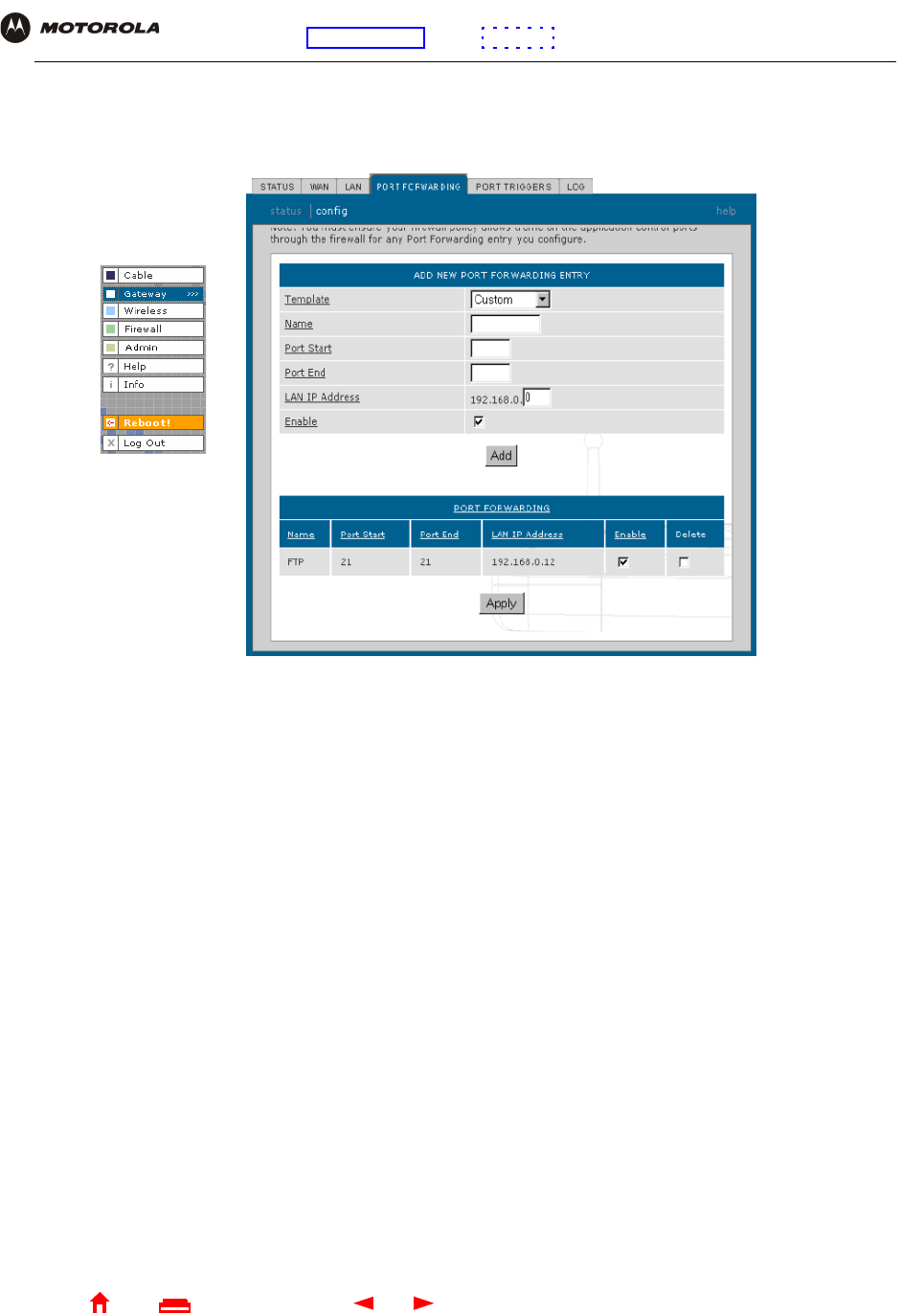

Port Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Virtual Private Networks . . . . . . . . . . . . . . . . . . . . . . . . 14
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation. . . . . . . . . . . . . . . . . . . . . . . . . 15
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Signing Up for Service . . . . . . . . . . . . . . . . . . . . . . . . . 16
Computer System Requirements . . . . . . . . . . . . . . . . . 17

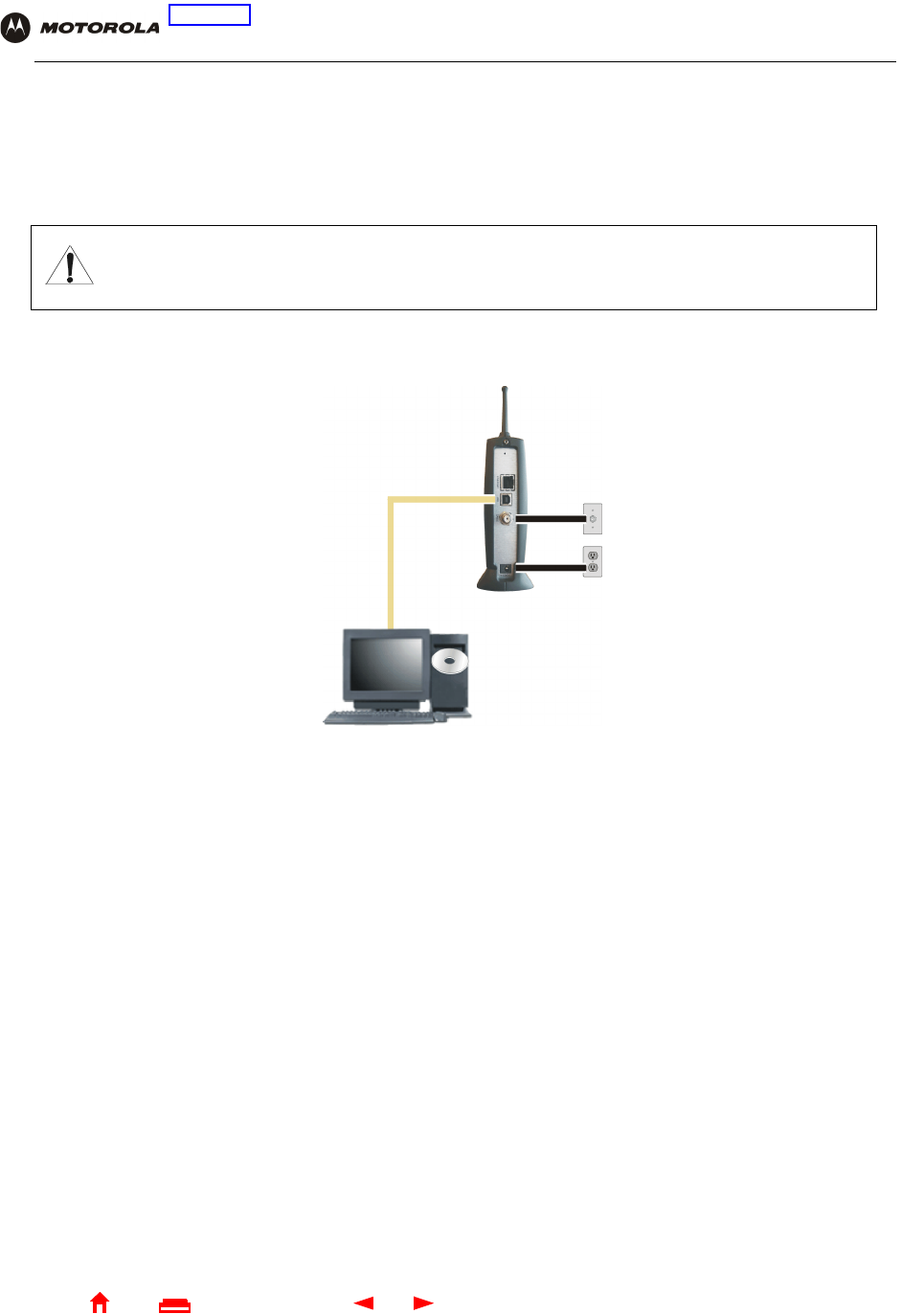

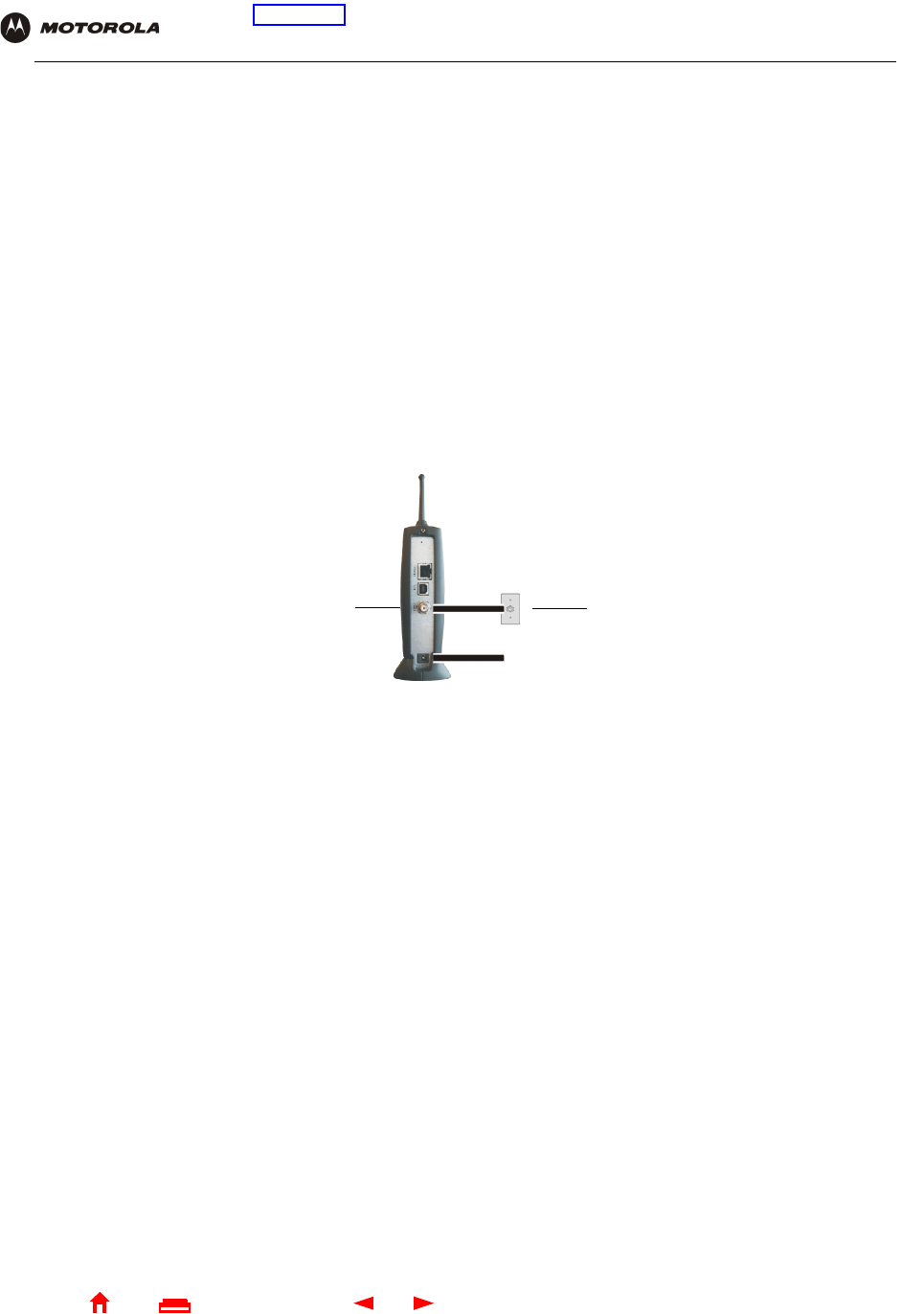

Connecting the SBG900 to the Cable System . . . . . . . 18
Cabling the LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Obtaining an IP Address for Ethernet . . . . . . . . . . . . . 19

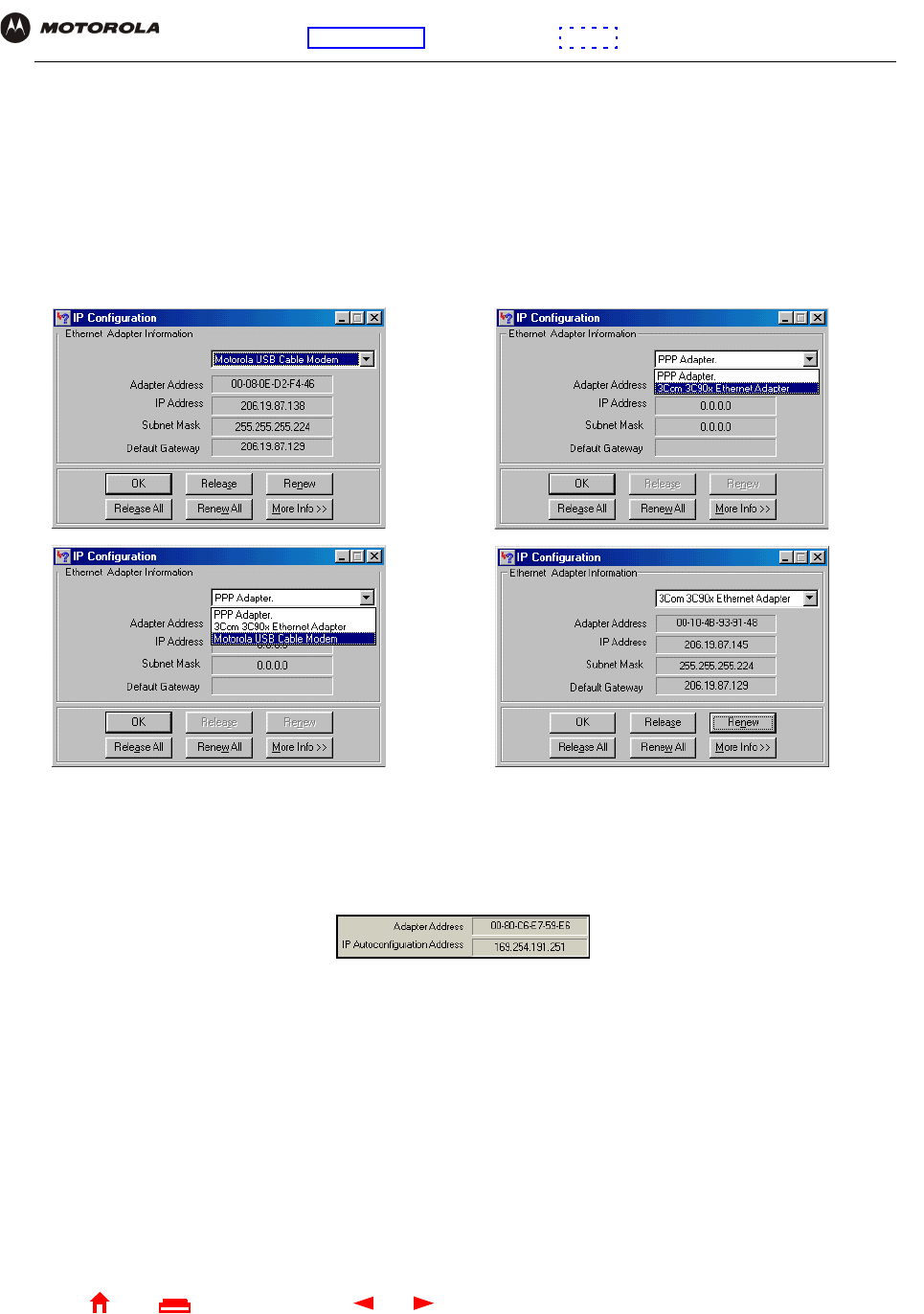

Obtaining an IP Address in Windows 98, Windows 98
SE, or Windows Me . . . . . . . . . . . . . . . . . . . . . . . . . 19

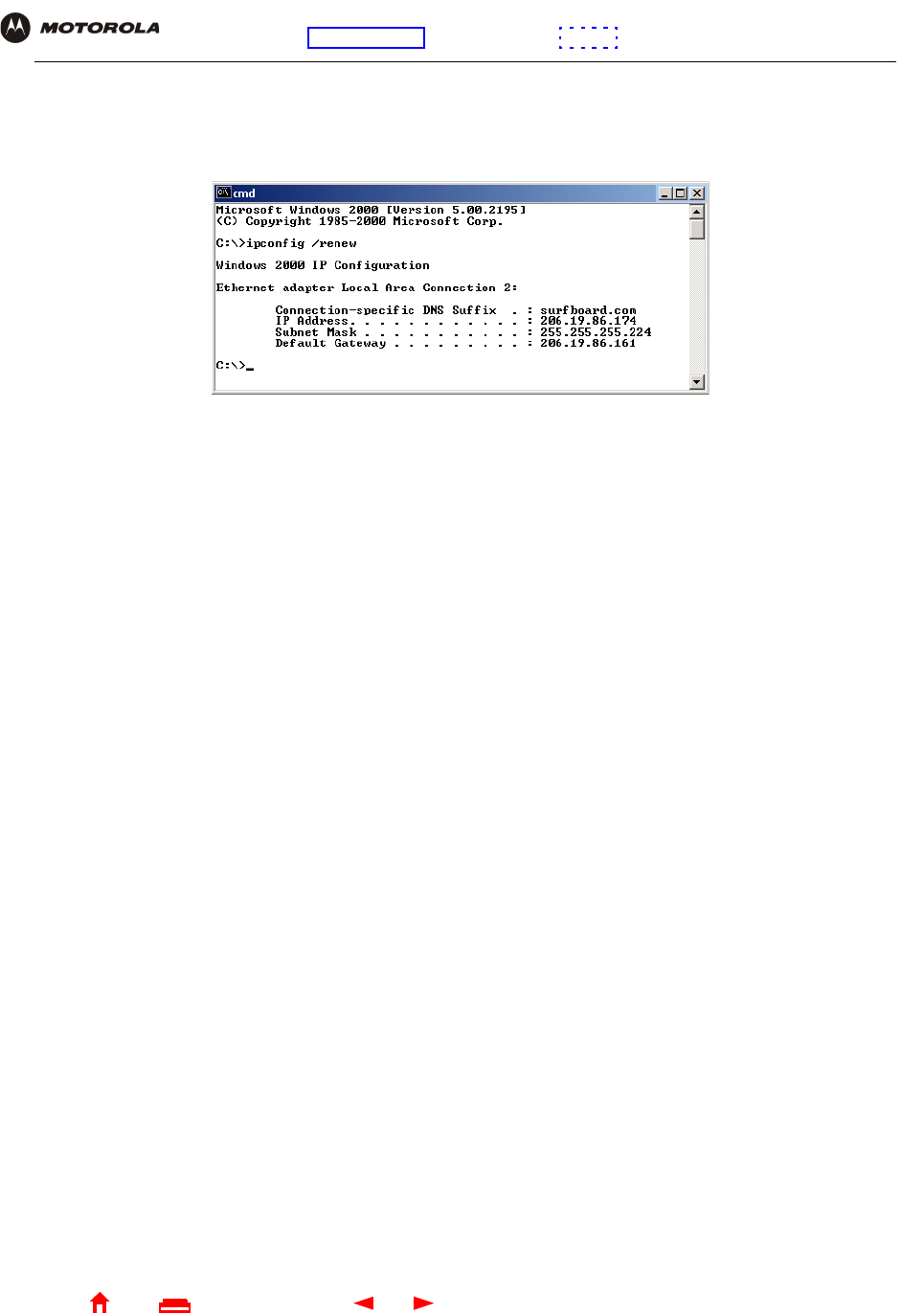

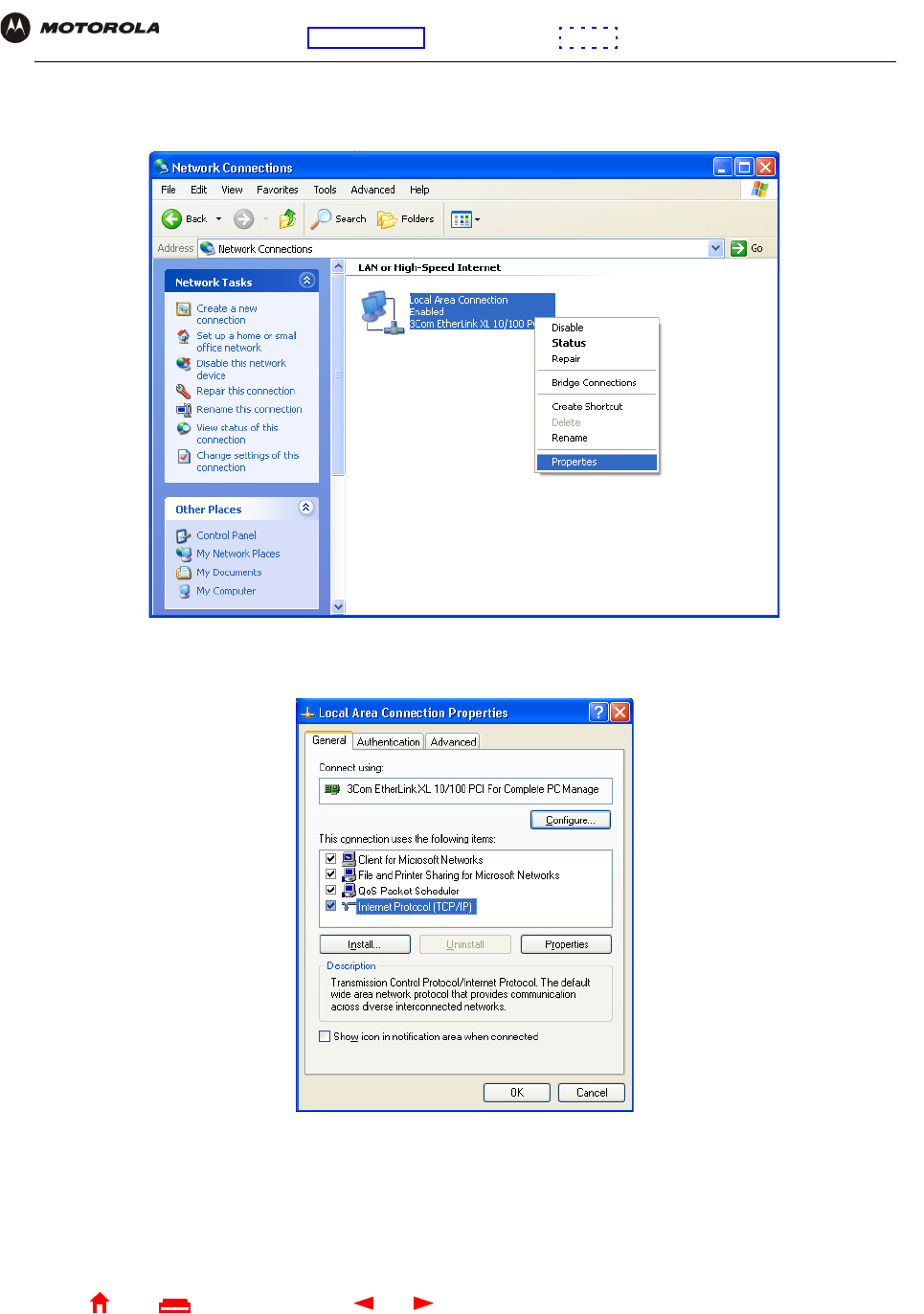

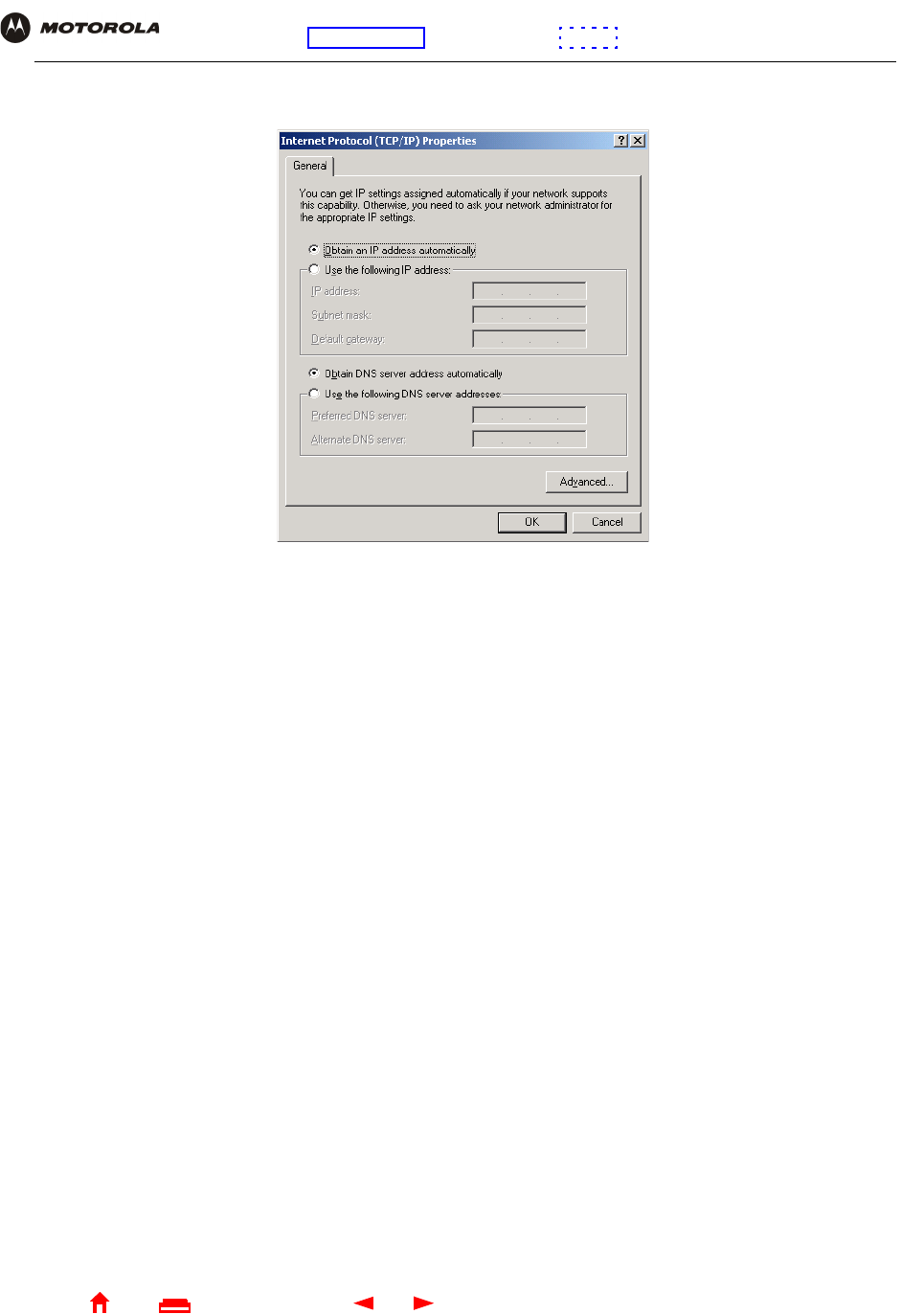

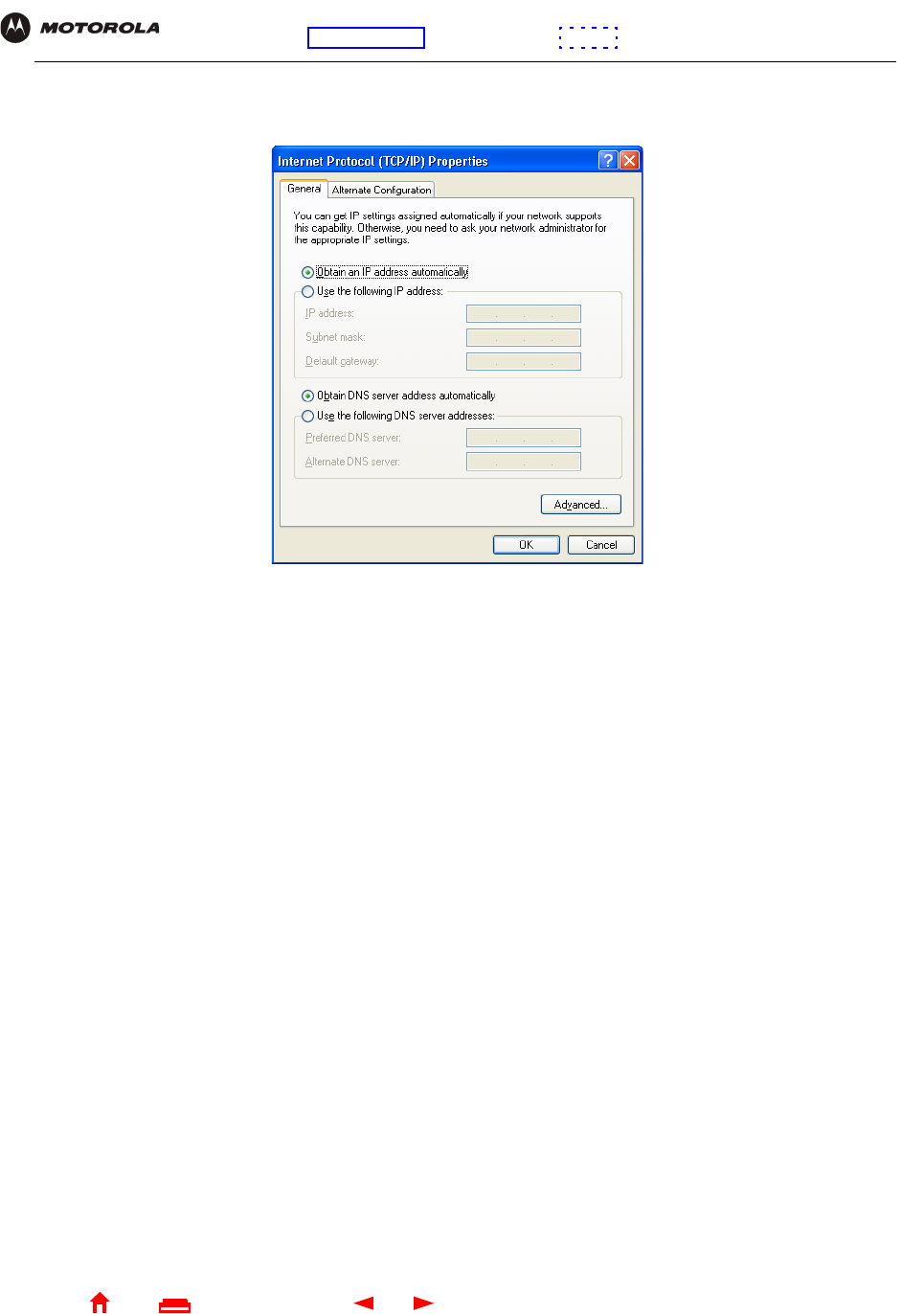

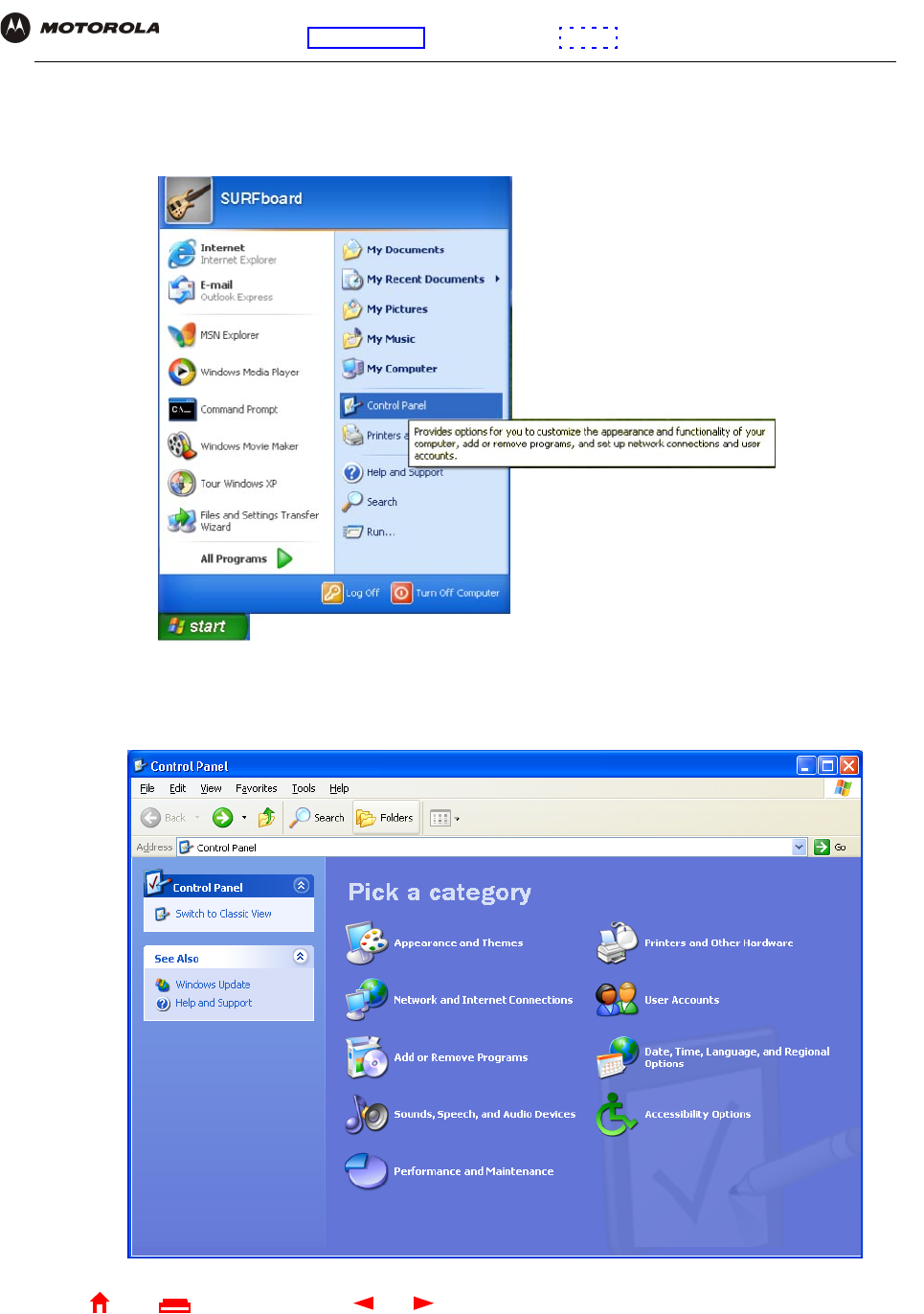

Obtaining an IP Address in Windows 2000 or
Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Obtaining an IP Address on Macintosh or UNIX
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

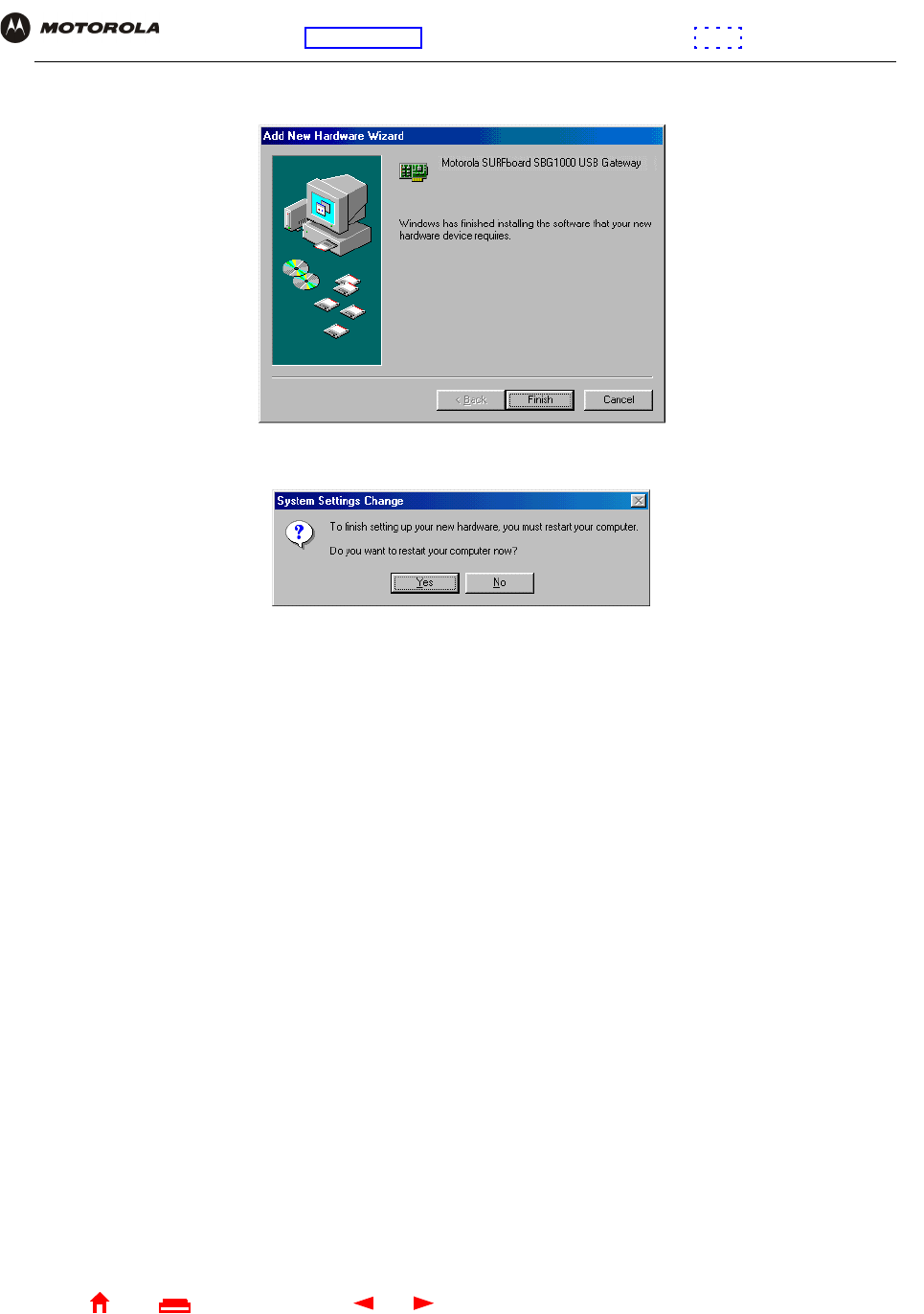

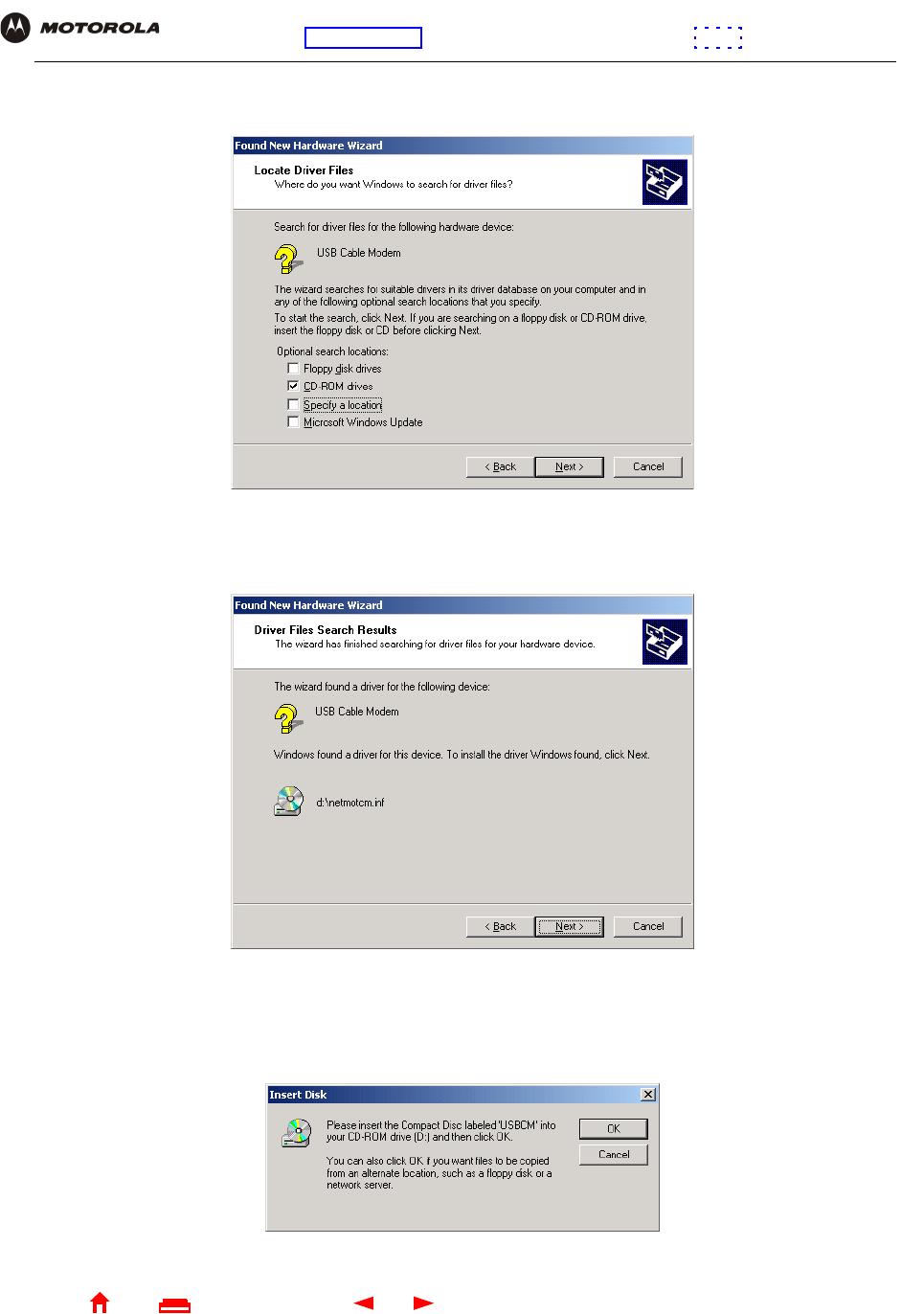

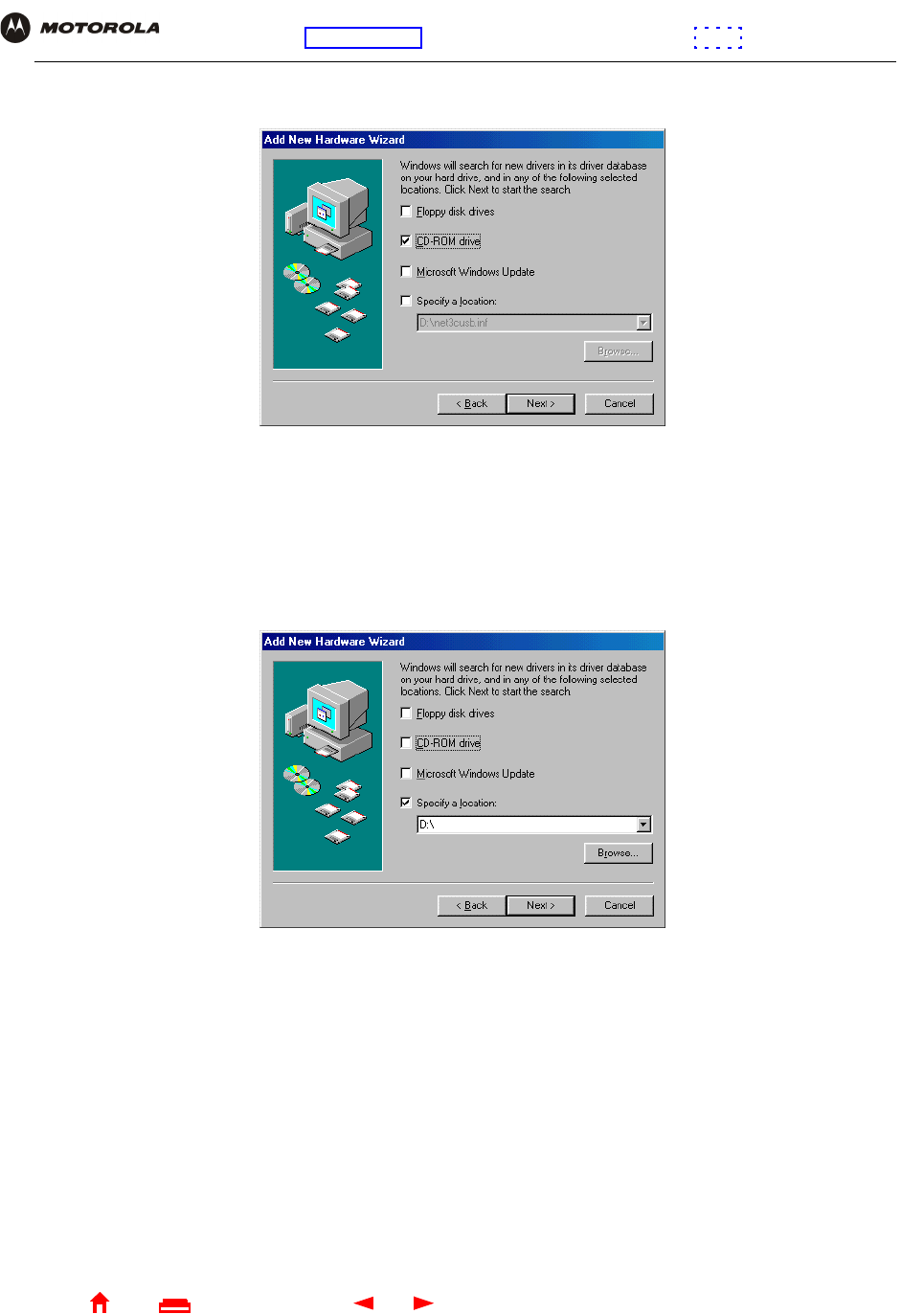

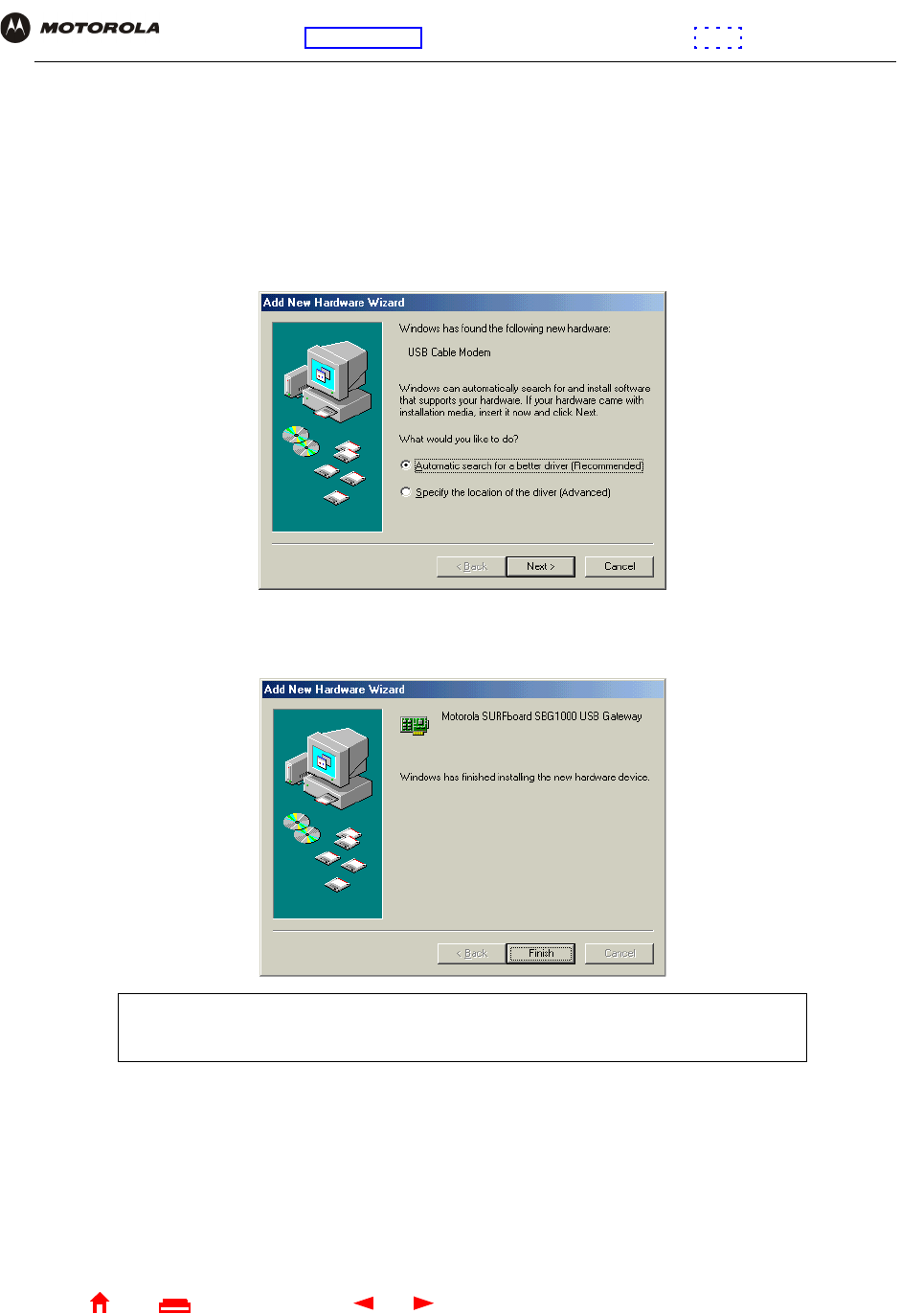

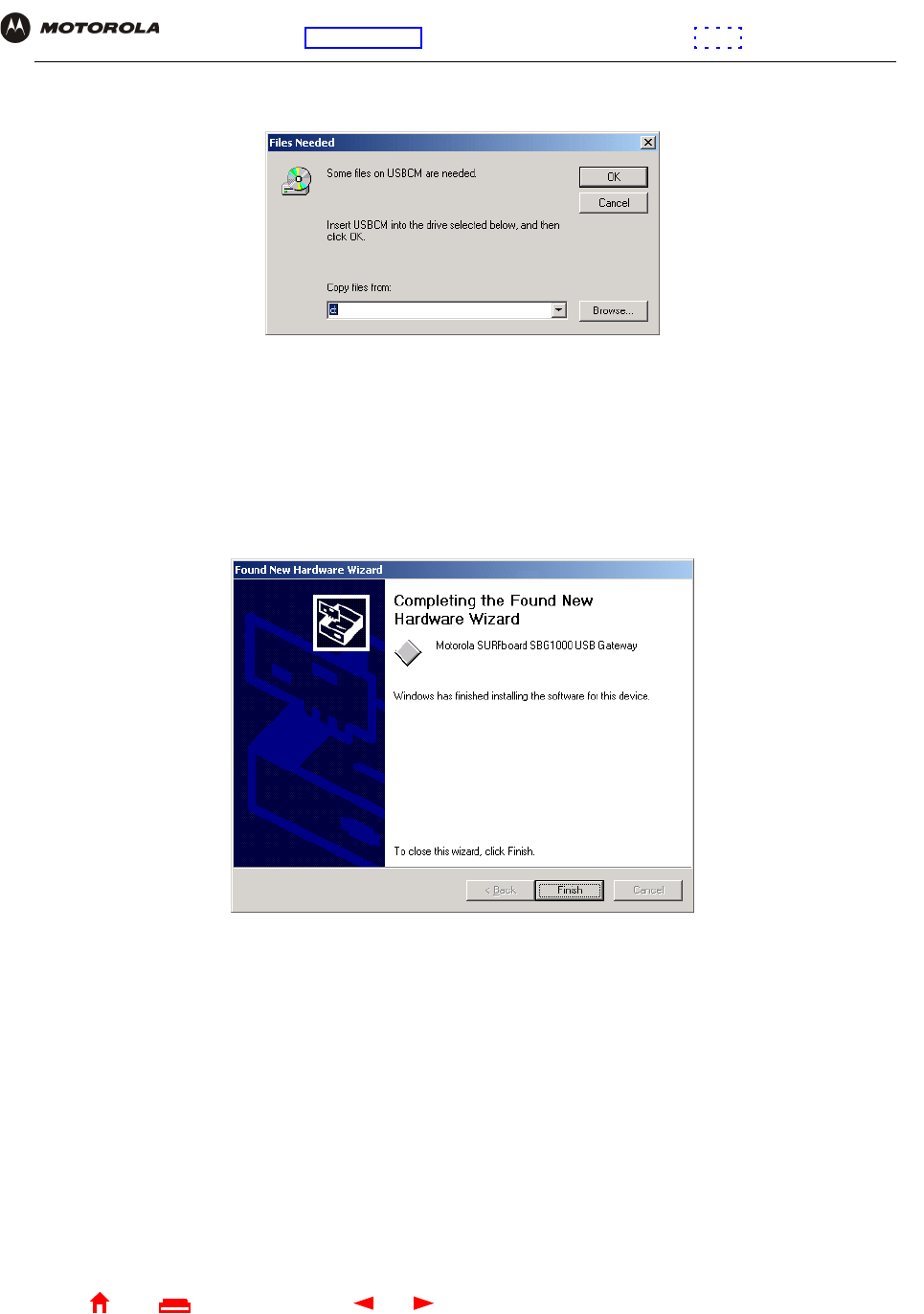

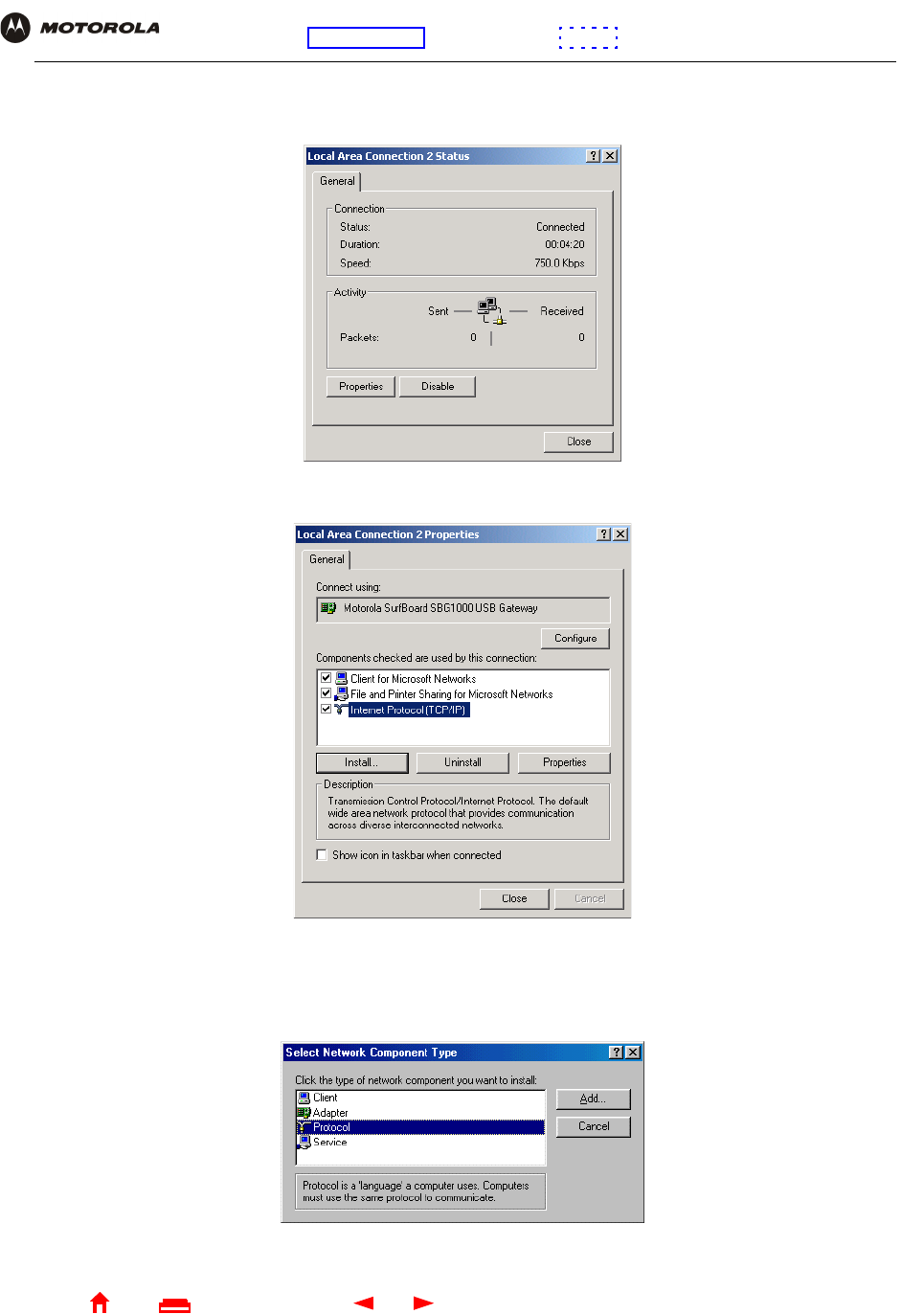

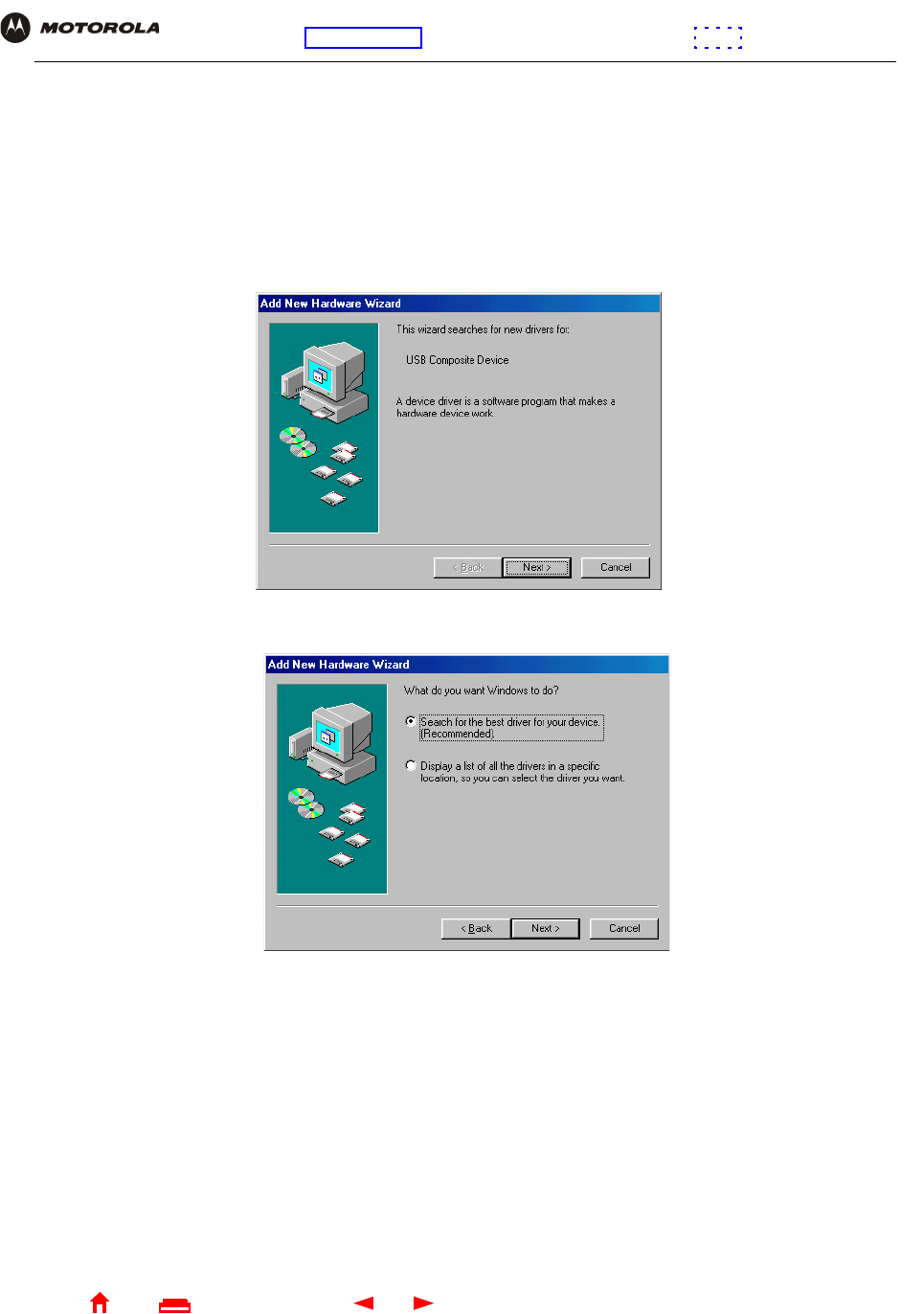

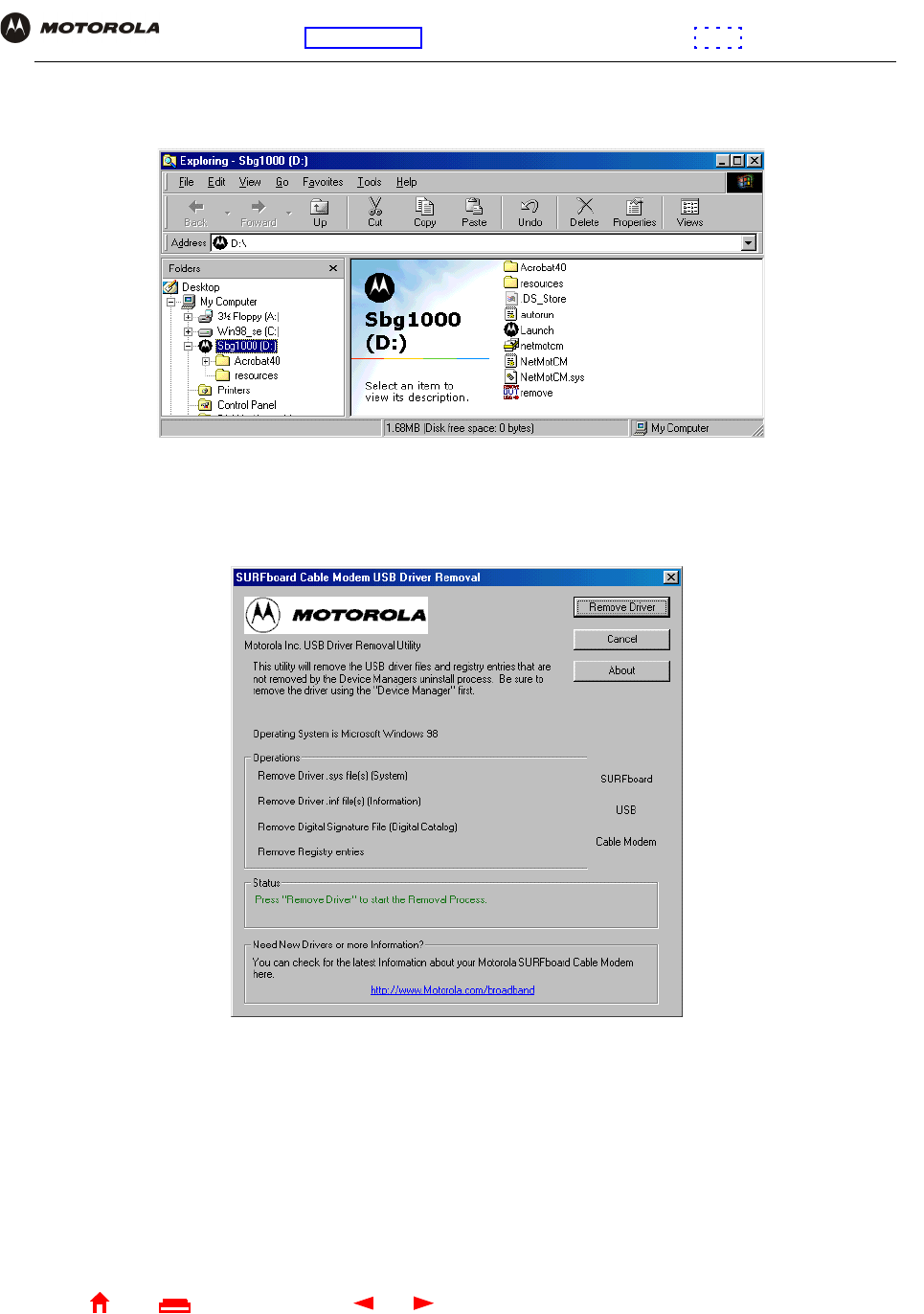

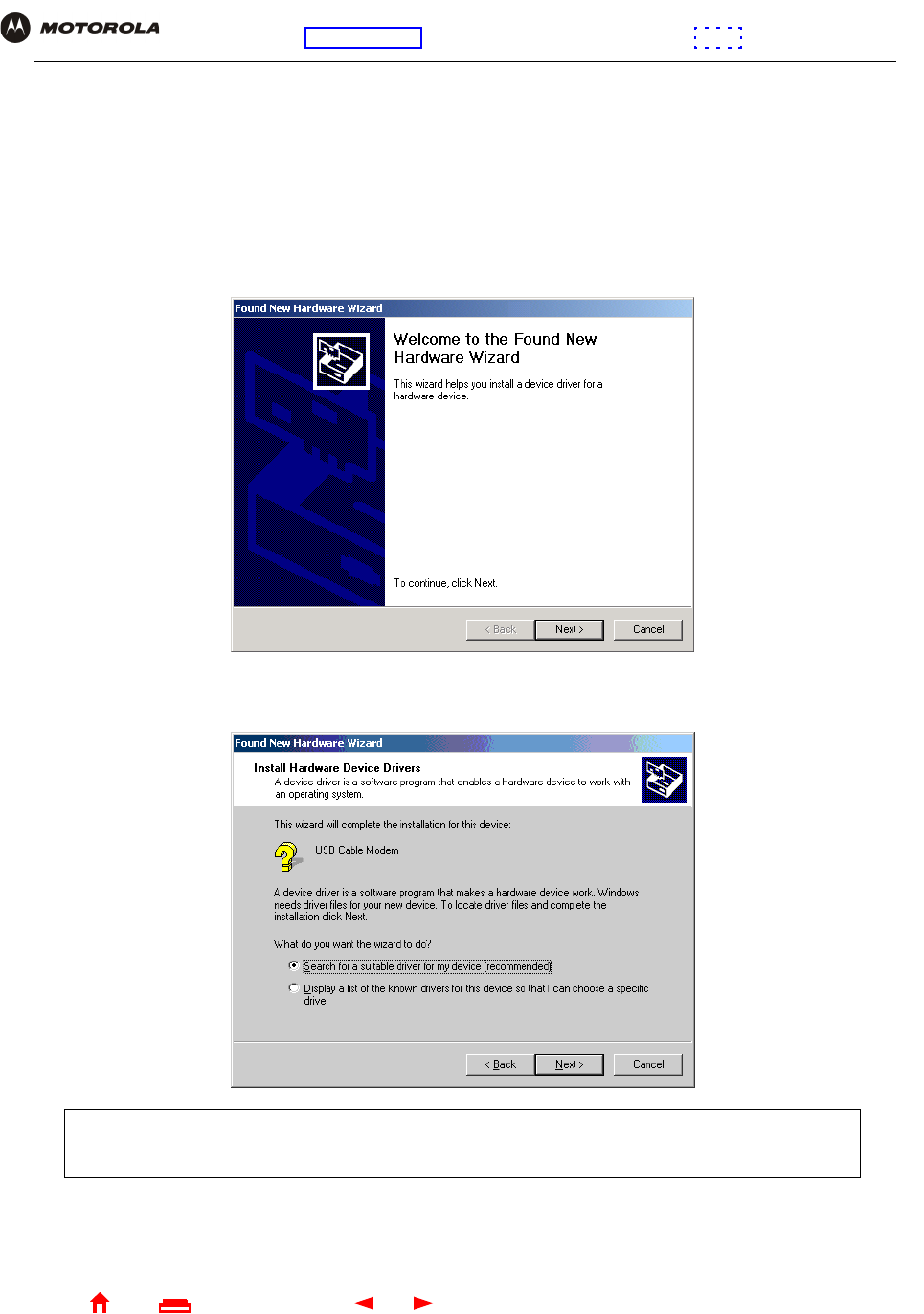

Connecting a PC to the USB Port . . . . . . . . . . . . . . . . 20
Basic Configuration . . . . . . . . . . . . . . . . . 21

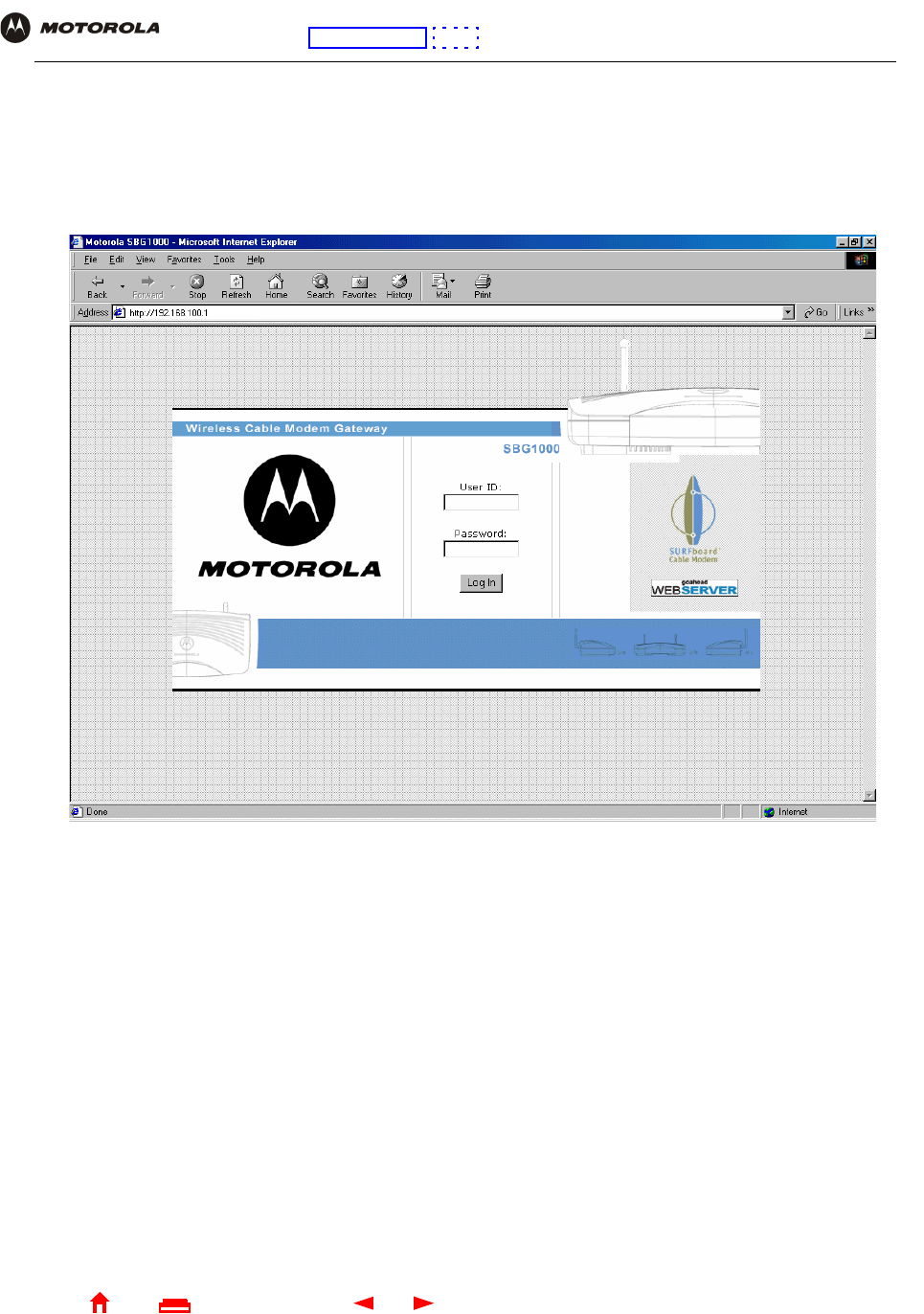

Starting the SBG900 Setup Program . . . . . . . . . . . . . . 22

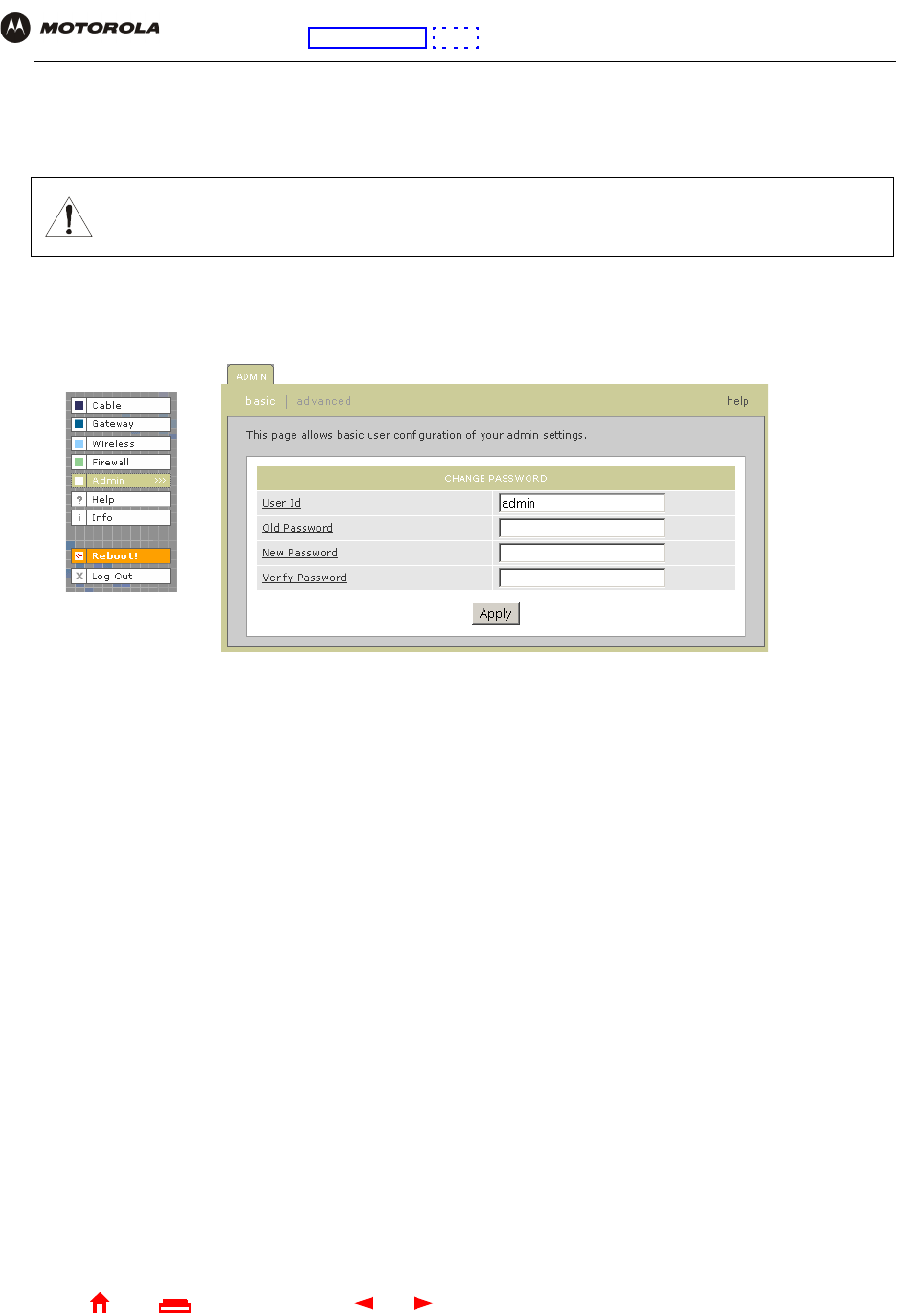

Changing the Default Password . . . . . . . . . . . . . . . . . 24

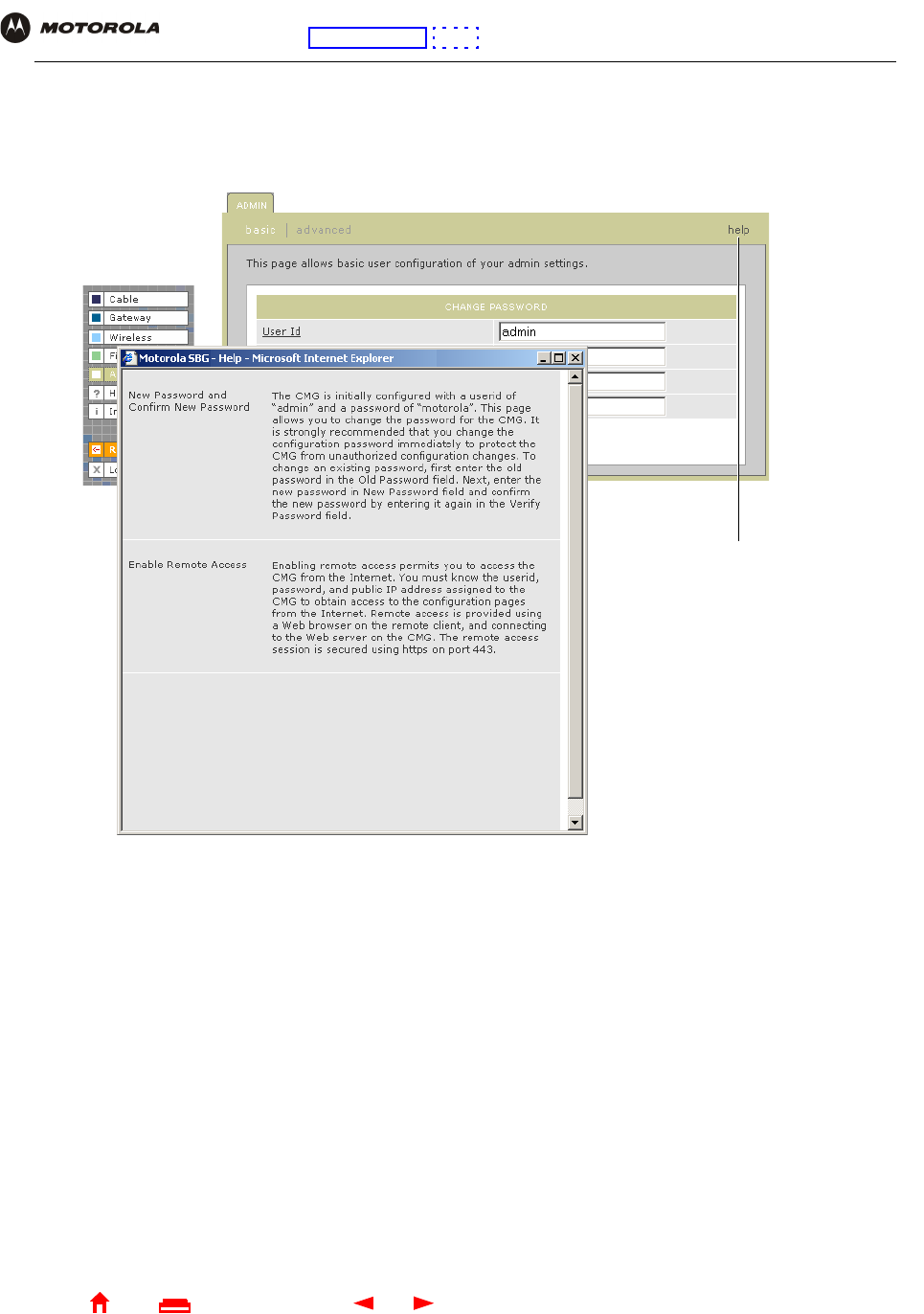

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

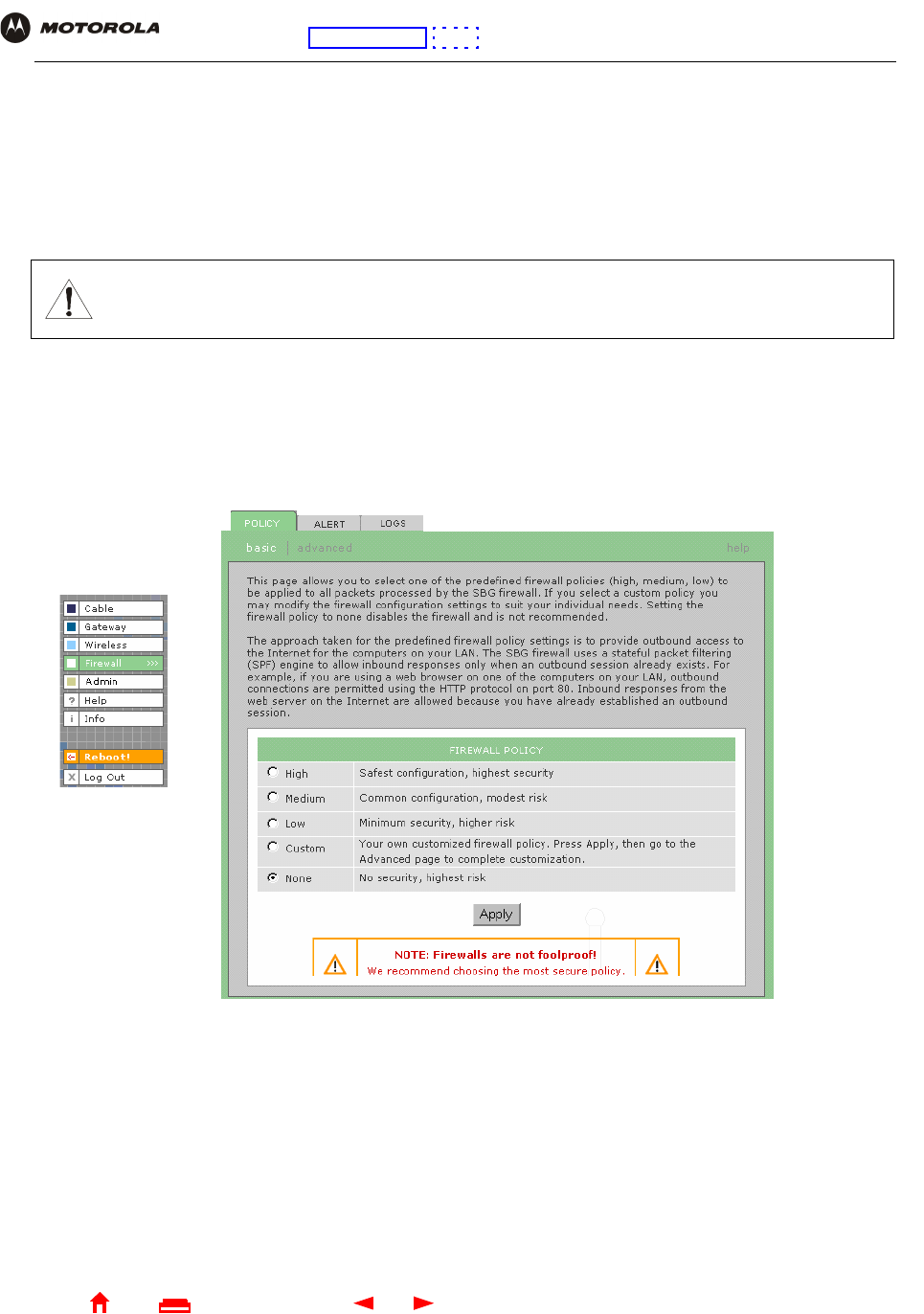

Setting the Firewall Policy . . . . . . . . . . . . . . . . . . . . . . 26

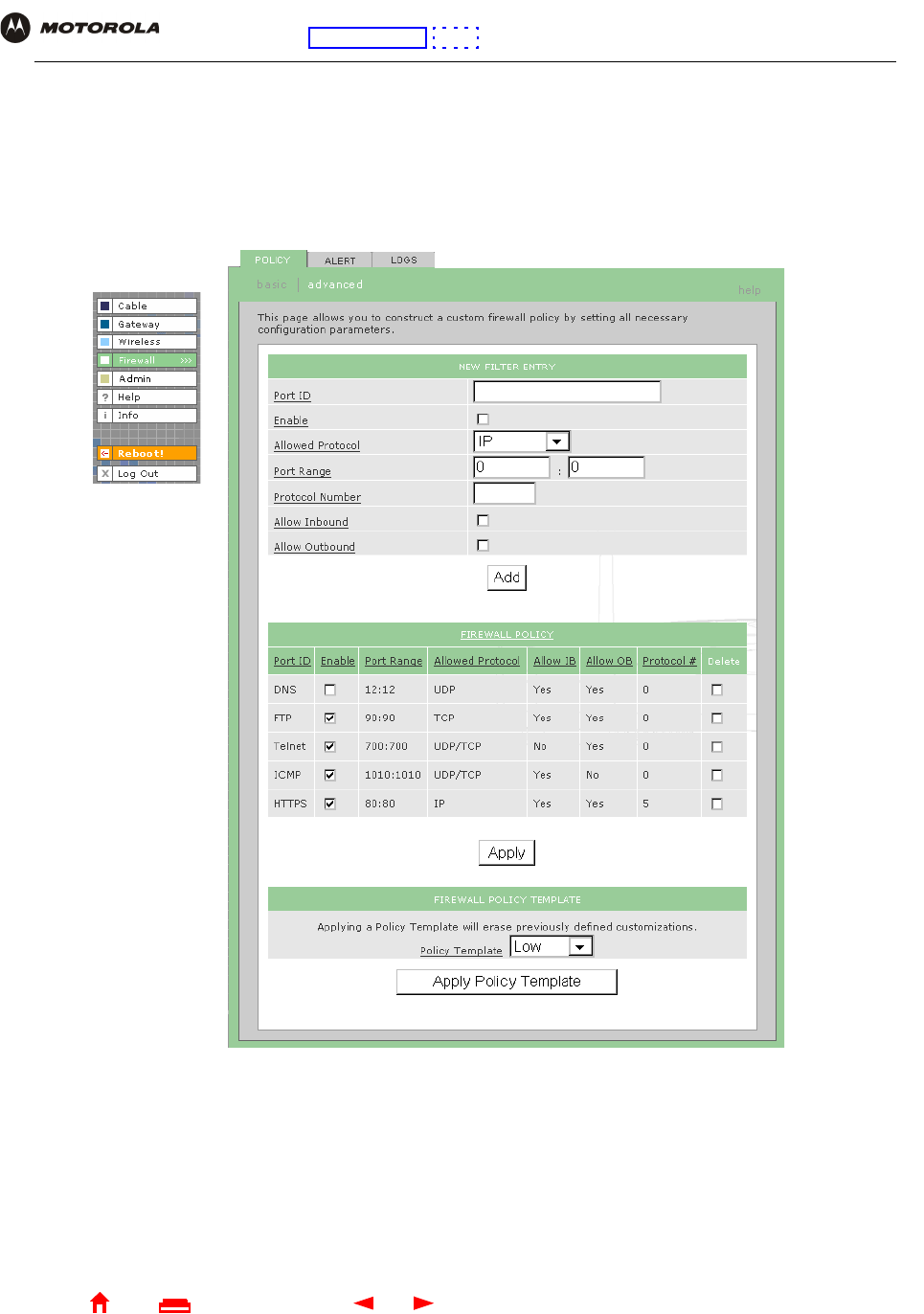

Firewall > POLICY — advanced Page . . . . . . . . . . . 28

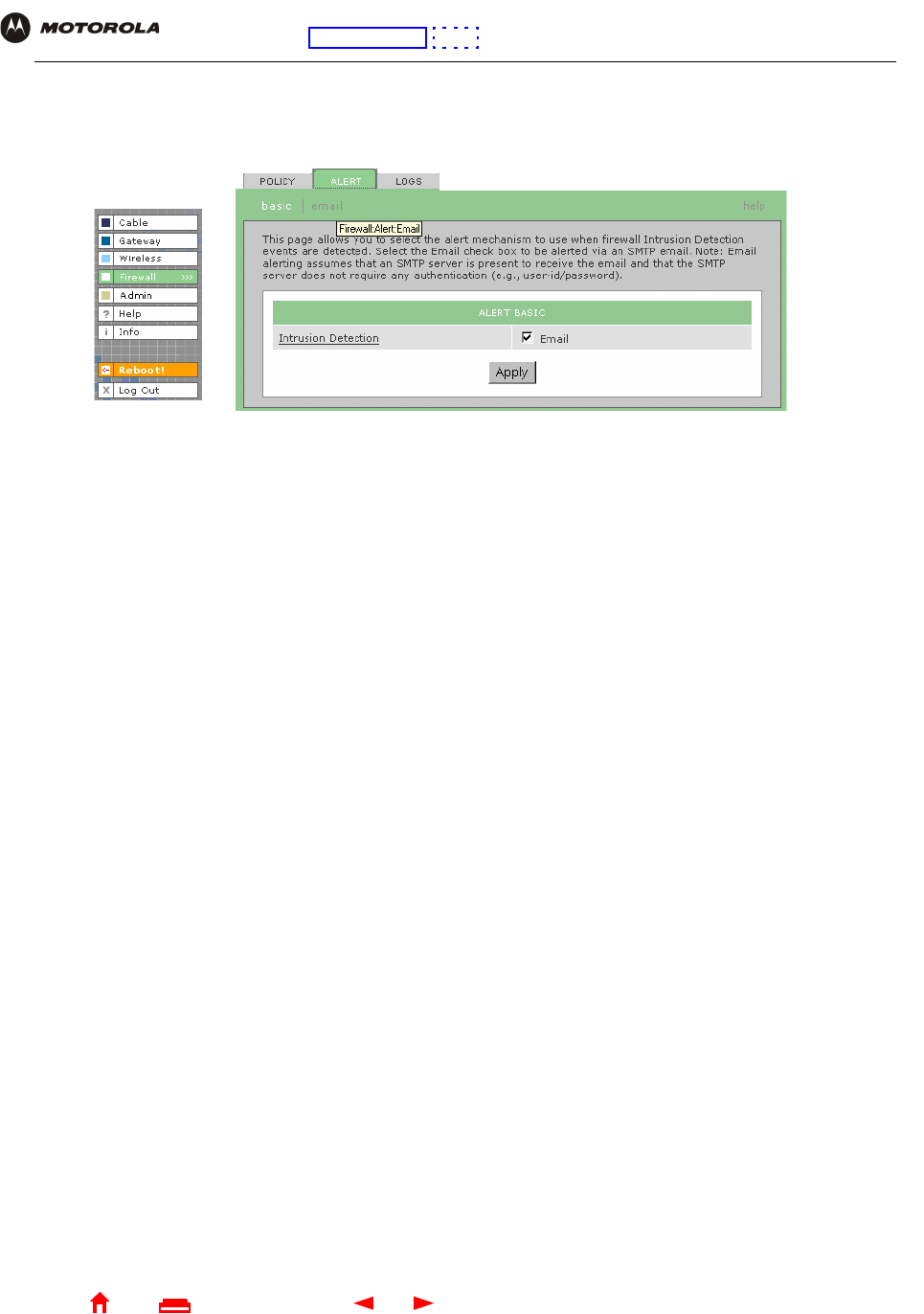

Firewall > ALERT — basic Page . . . . . . . . . . . . . . . 30
Firewall > ALERT — email Page . . . . . . . . . . . . . . . 31

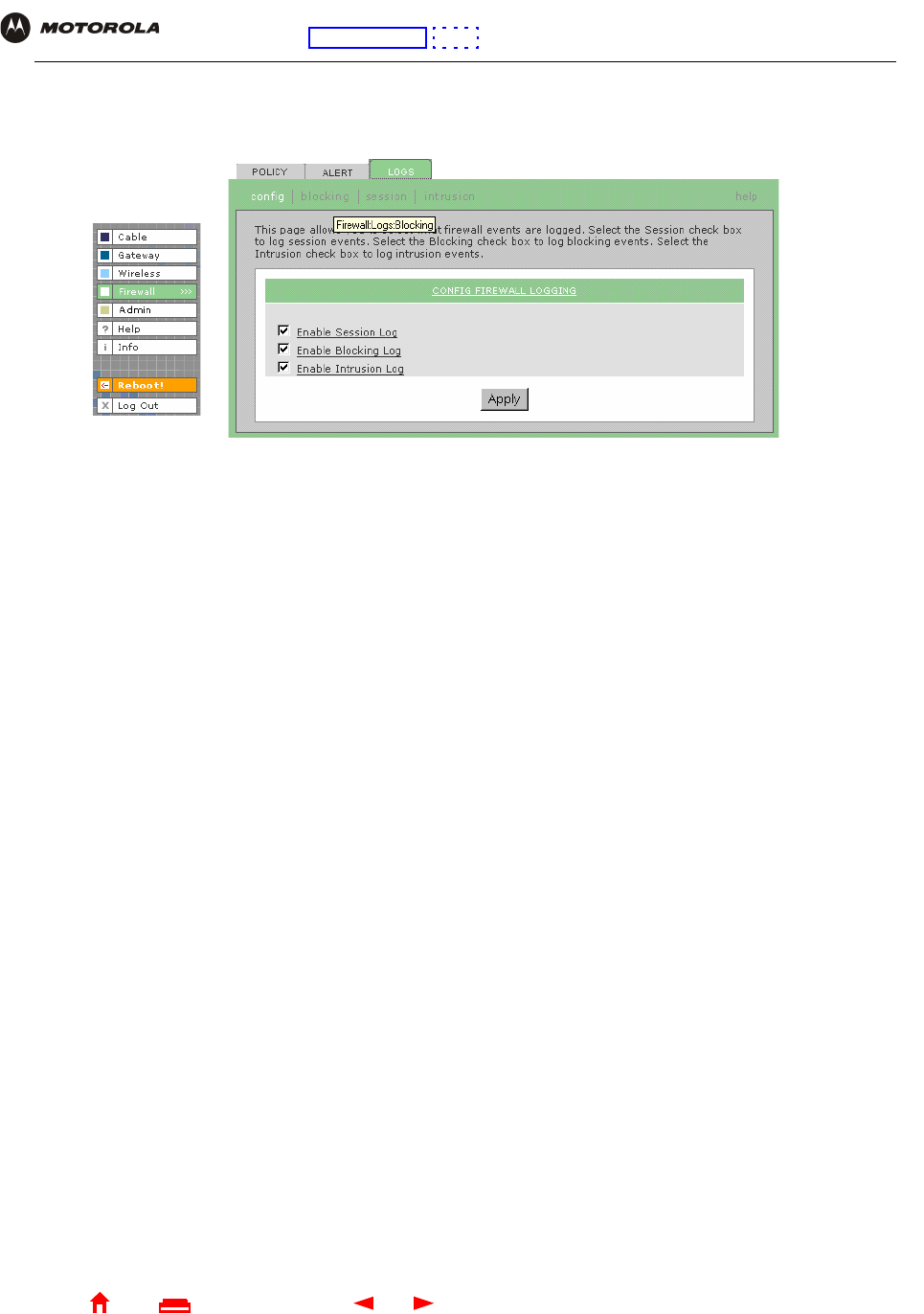

Firewall > LOGS Page . . . . . . . . . . . . . . . . . . . . . . . 32
Gaming Configuration Guidelines . . . . . . . . . . . . . . . . 33
Configuring the Firewall for Gaming . . . . . . . . . . . . 33
Configuring Port Triggers . . . . . . . . . . . . . . . . . . . . 33
Configuring a Gaming DMZ Host . . . . . . . . . . . . . . 34
Configuring the Gateway . . . . . . . . . . . . . 35

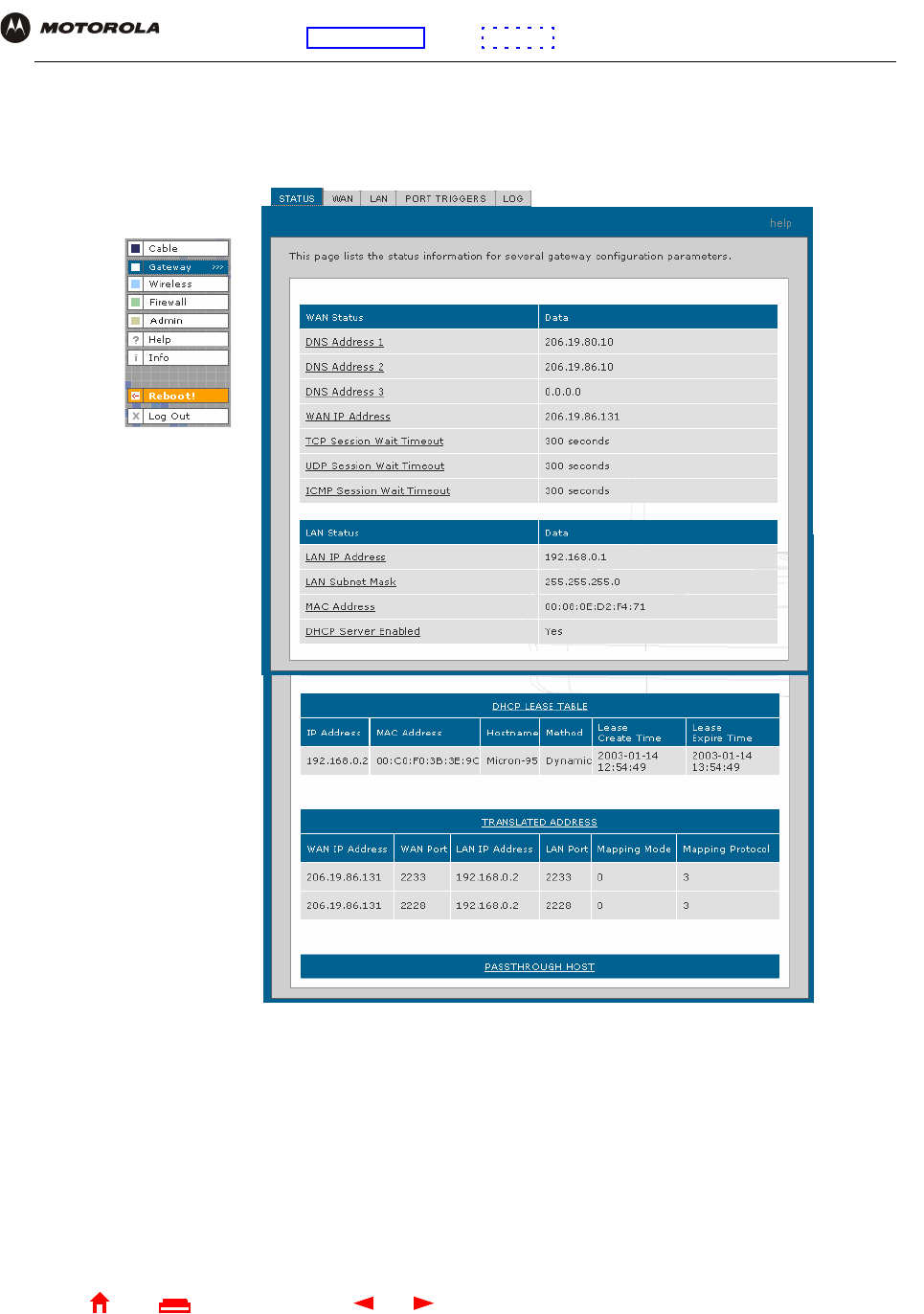

Gateway > STATUS Page . . . . . . . . . . . . . . . . . . . . . 36

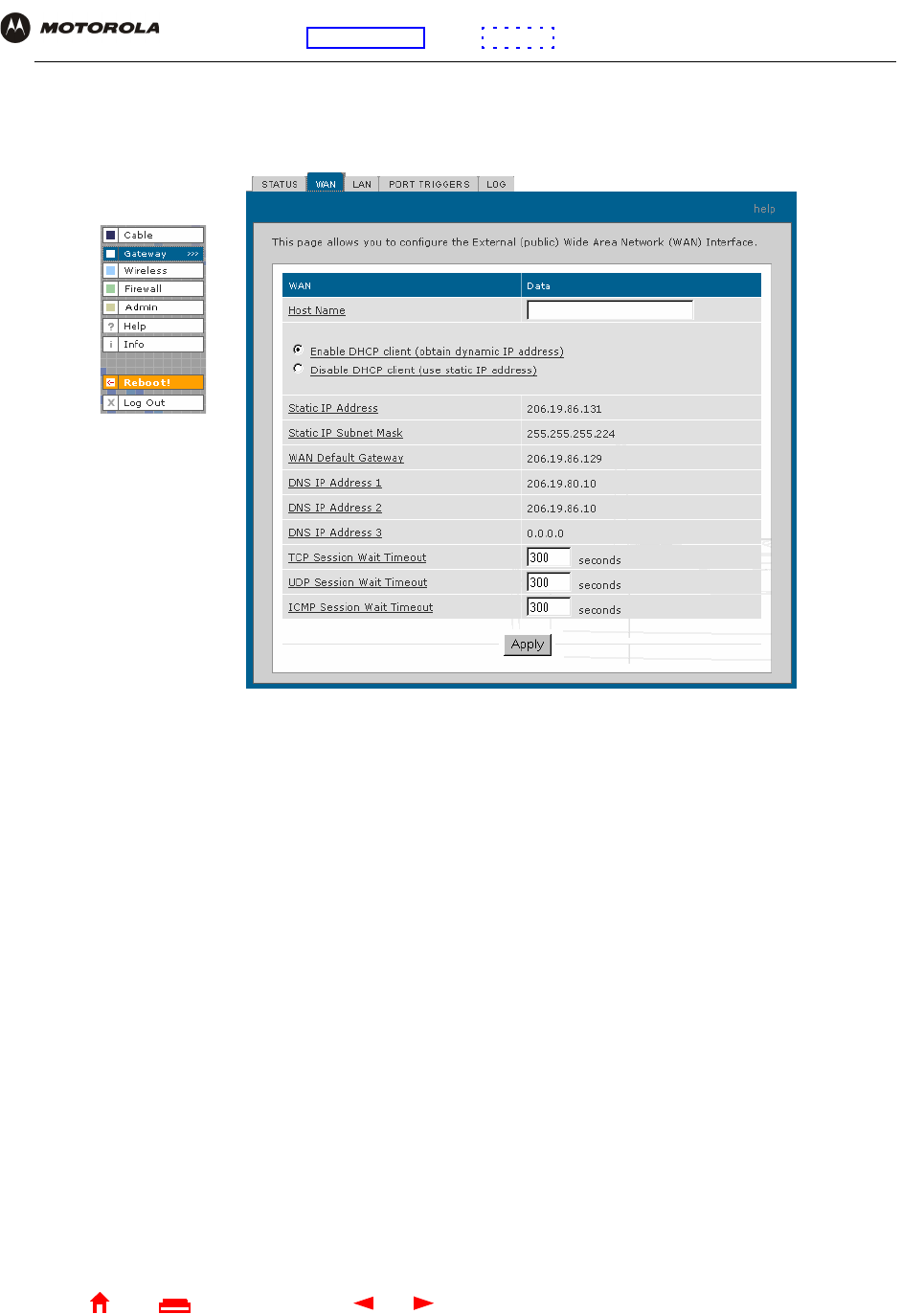

Gateway > WAN Page . . . . . . . . . . . . . . . . . . . . . . . . 37

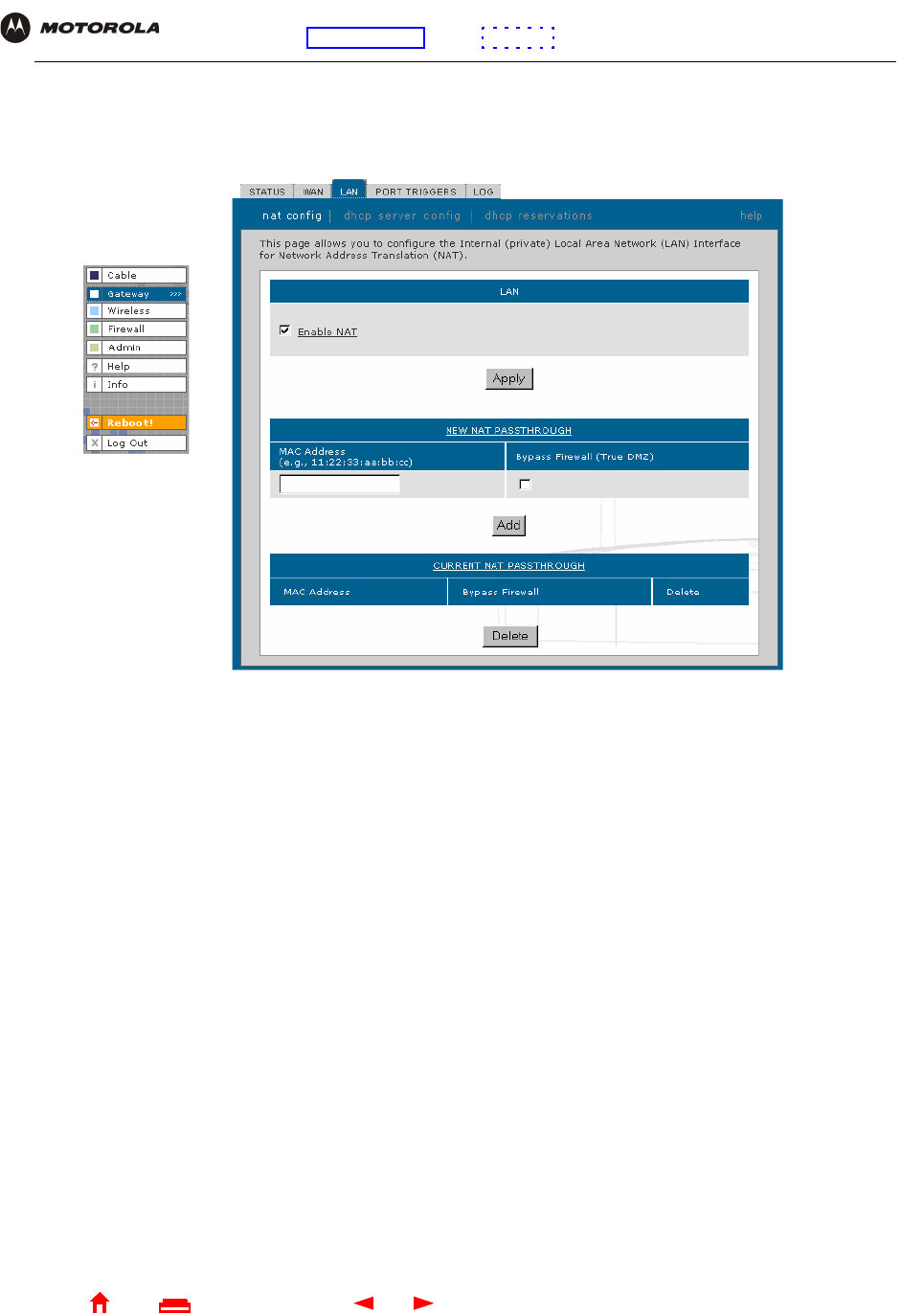

Gateway > LAN — nat config Page . . . . . . . . . . . . . . 39
Gateway > LAN — dhcp server config Page . . . . . . . . 40

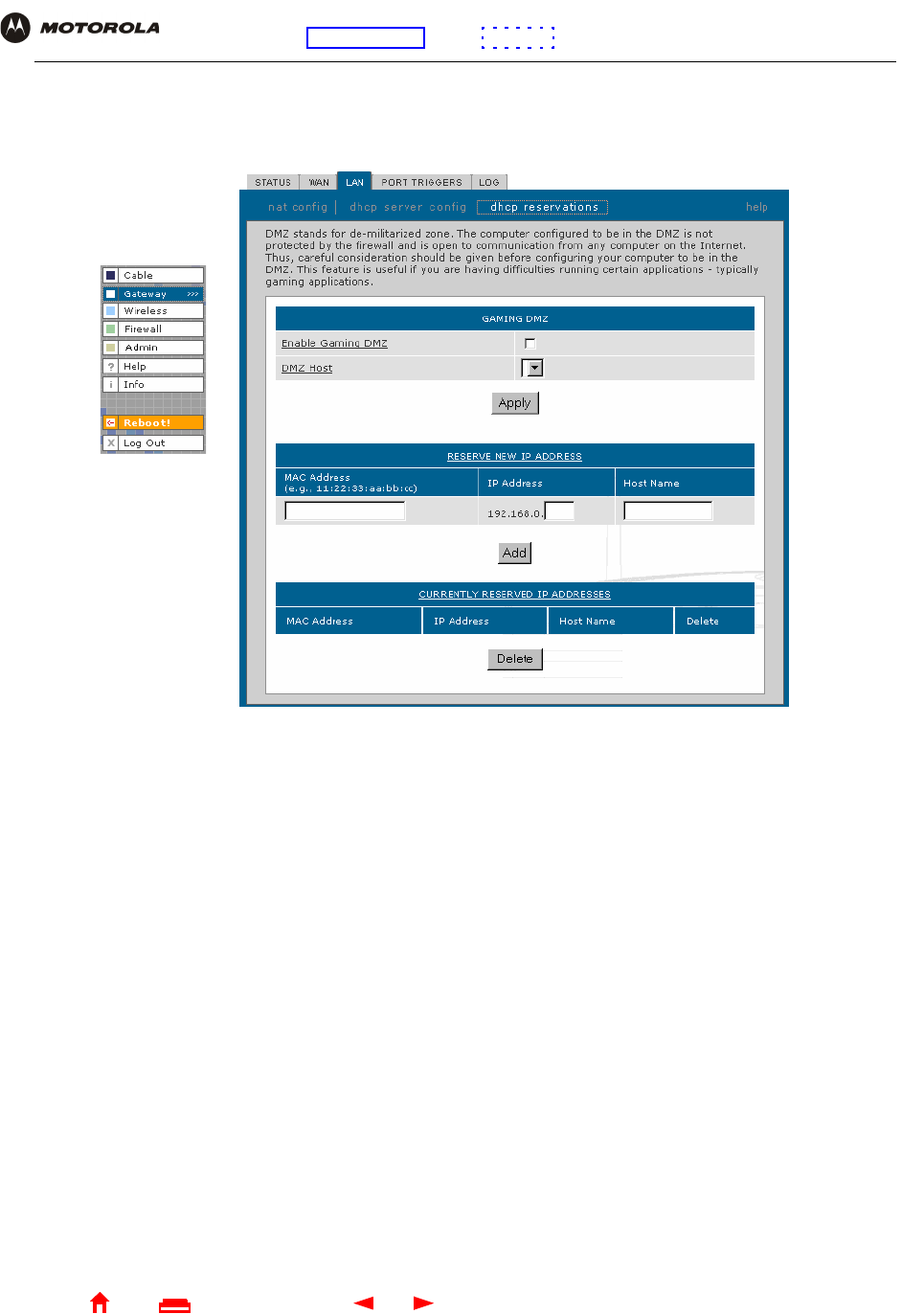

Gateway > LAN — dhcp reservations Page . . . . . . . . 41
Gateway > PORT FORWARDING — status Page . . . 42
Gateway > PORT FORWARDING — config Page . . . 43

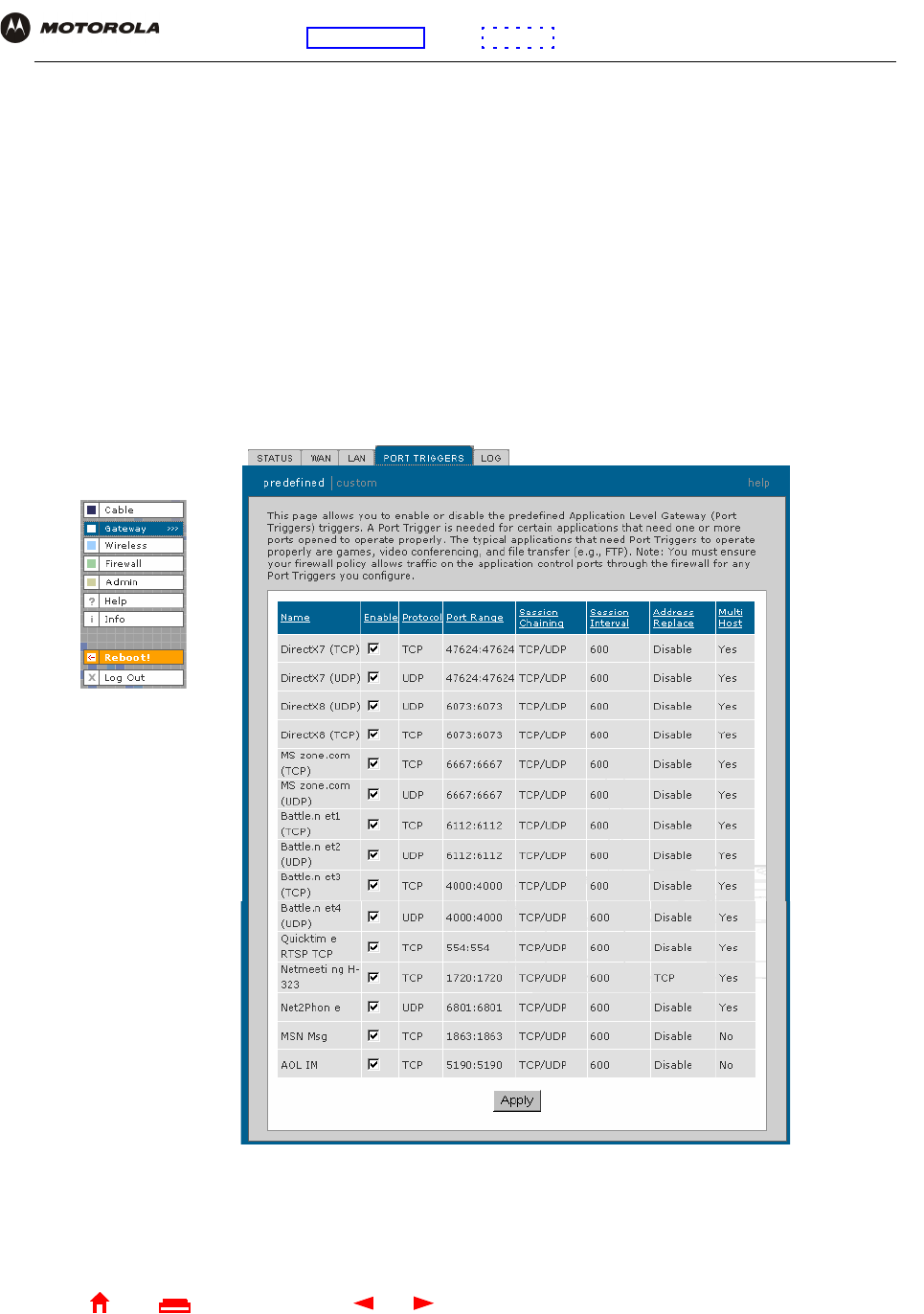

Gateway > PORT TRIGGERS — predefined Page . . 44
Gateway > PORT TRIGGERS — custom Page . . . . . 46

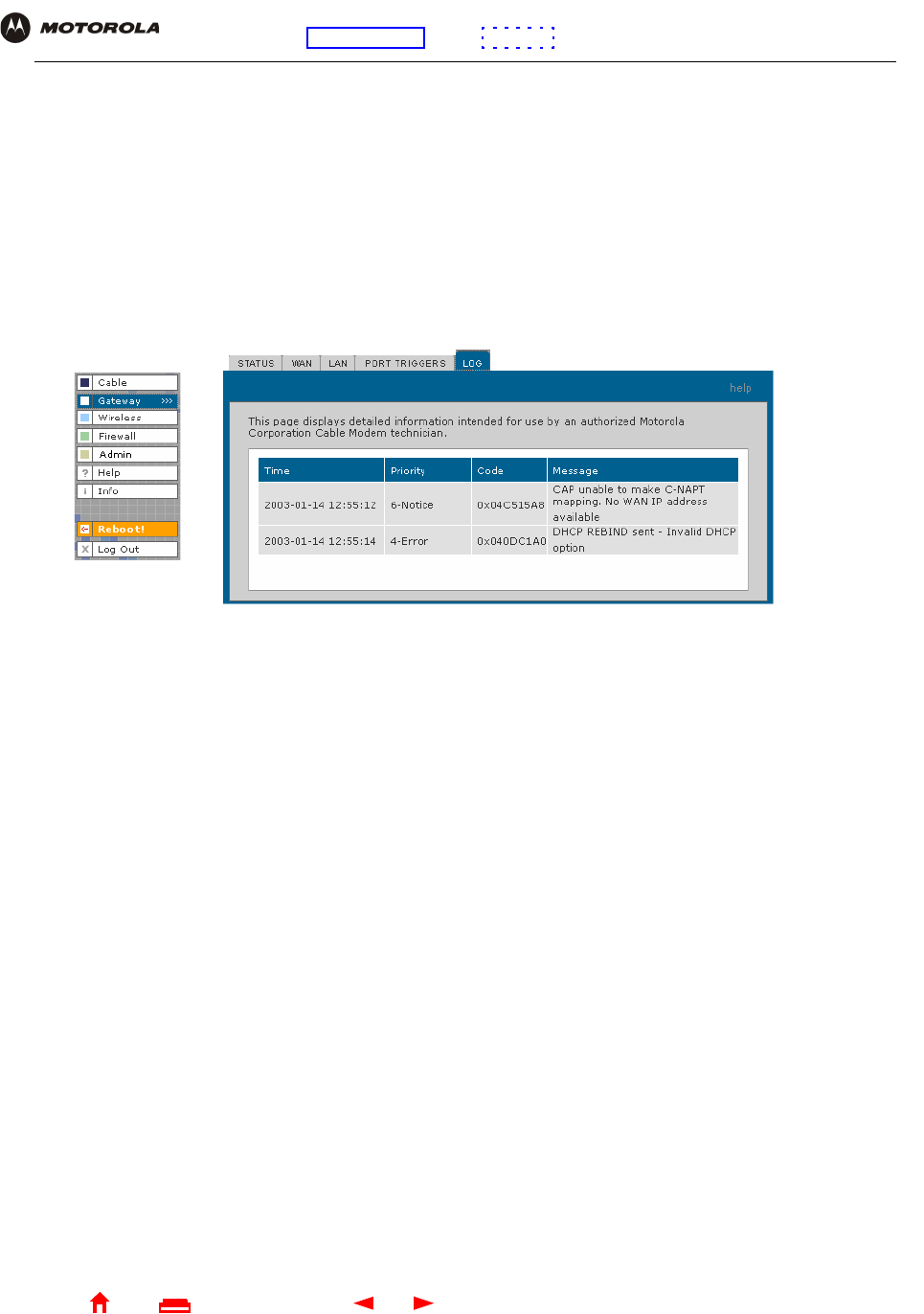

Gateway > LOG Page . . . . . . . . . . . . . . . . . . . . . . . . . 47
Configuring TCP/IP. . . . . . . . . . . . . . . . . . 48

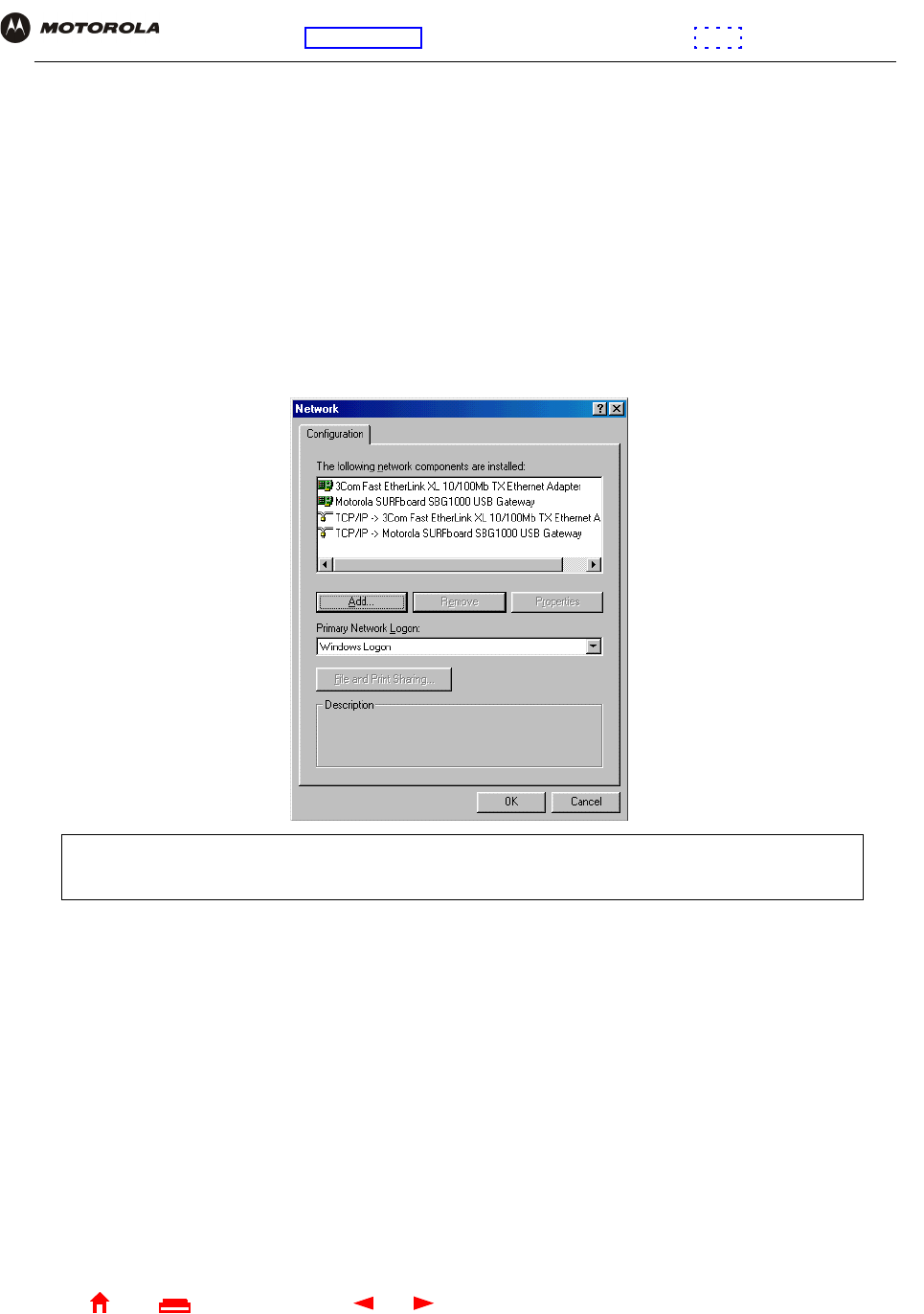

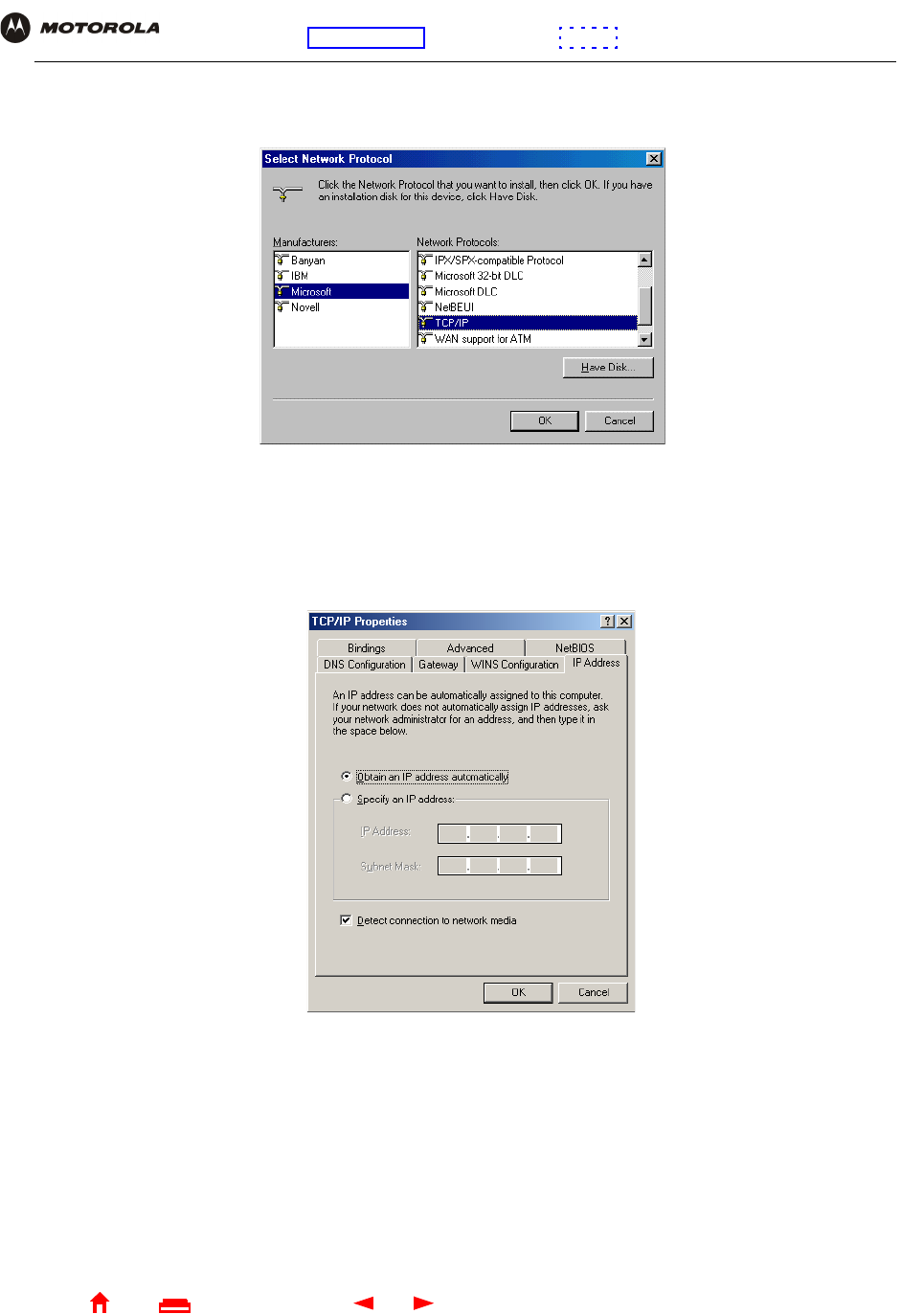

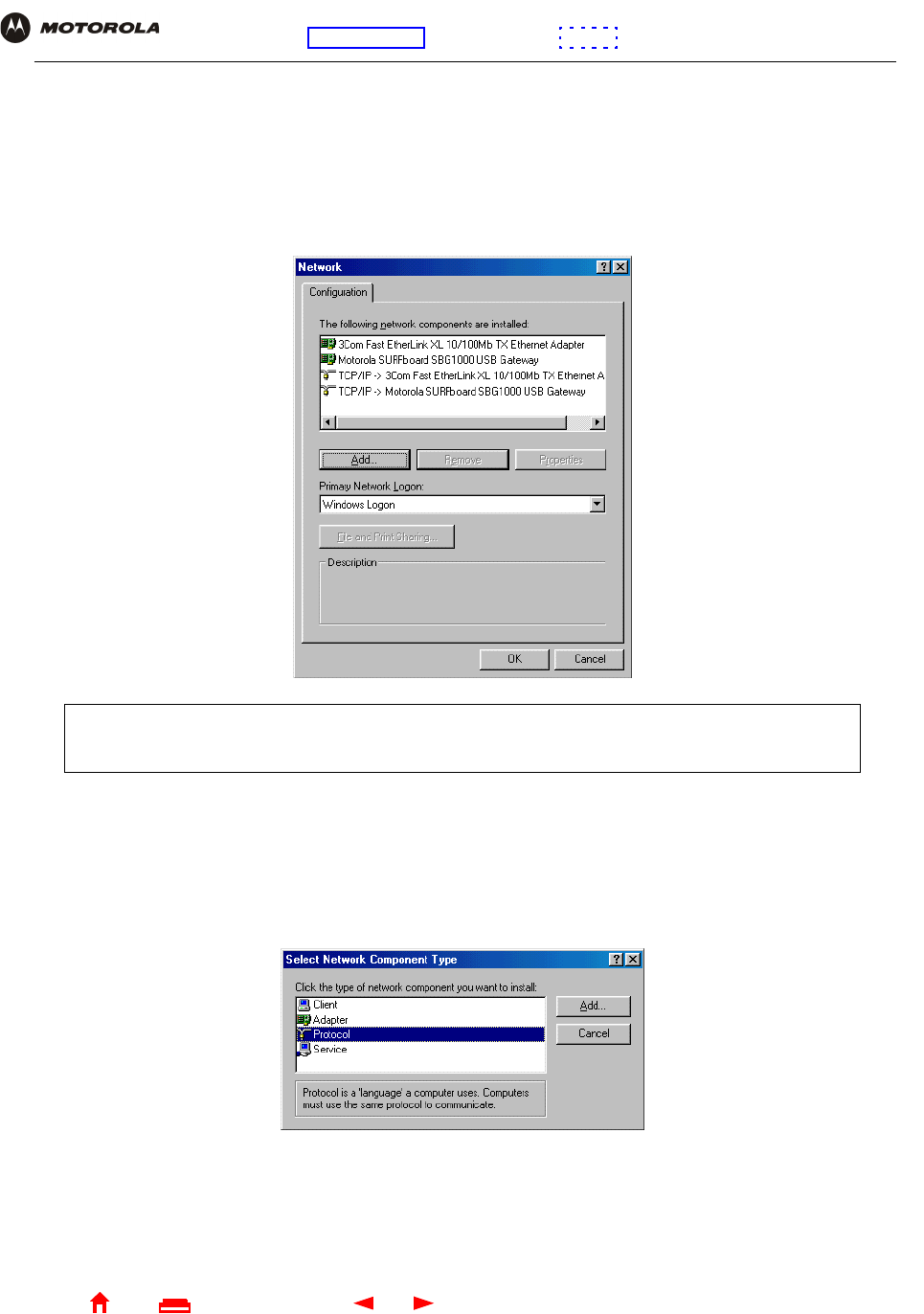

Configuring TCP/IP in Windows 95, Windows 98, or
Windows Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

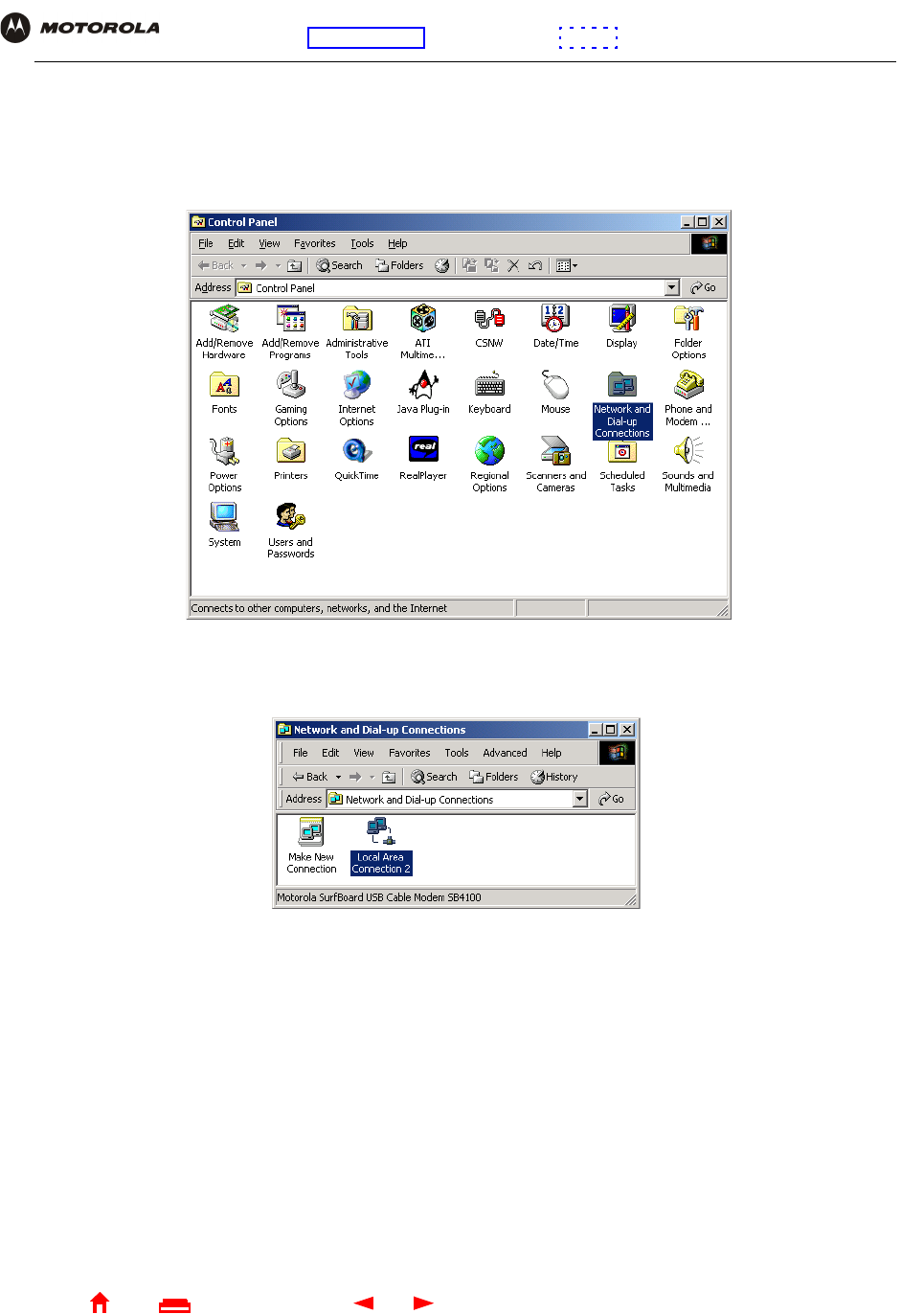

Configuring TCP/IP in Windows 2000 . . . . . . . . . . . . . 51

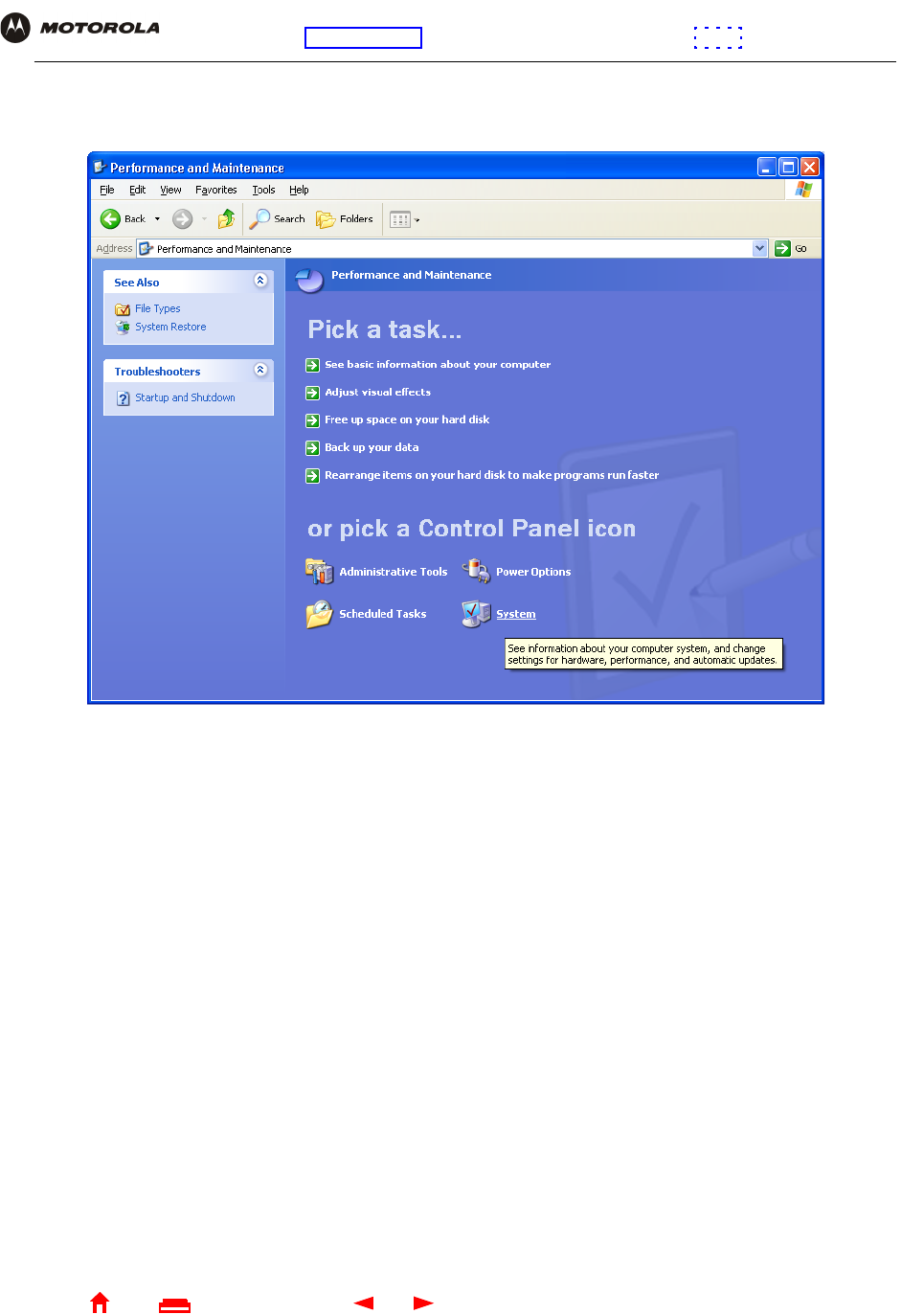

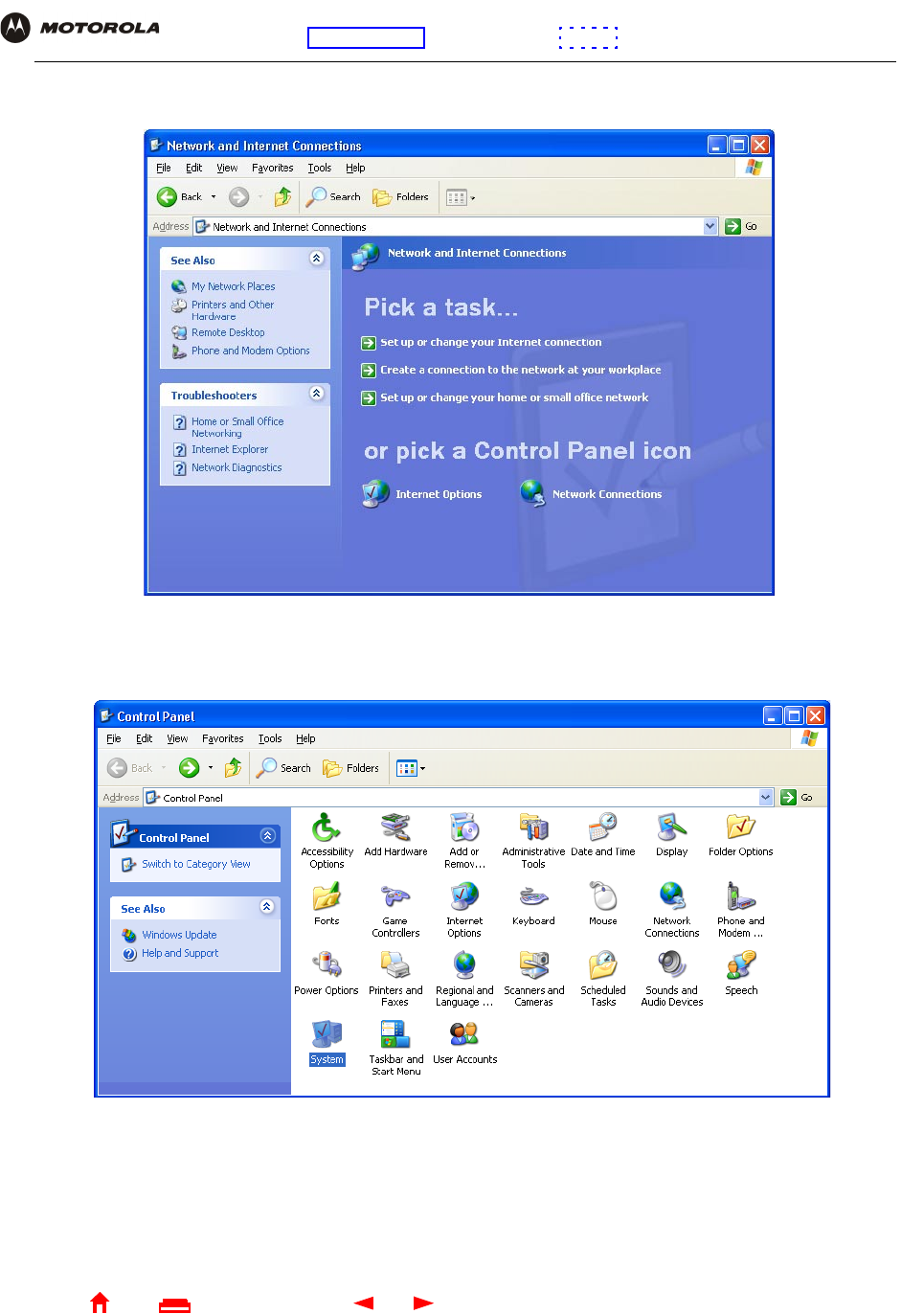

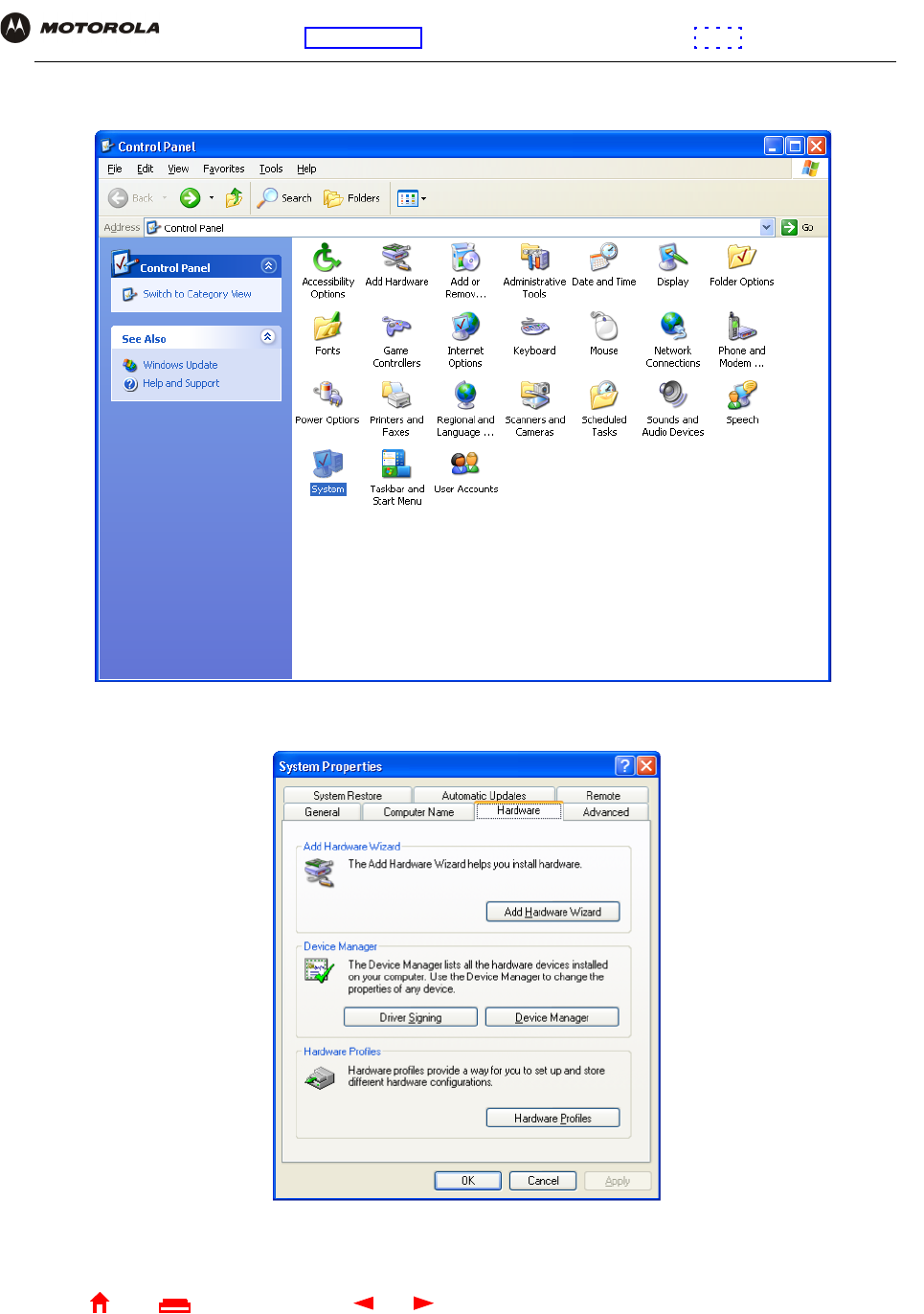

Configuring TCP/IP in Windows XP . . . . . . . . . . . . . . 55
Verifying the IP Address in Windows 95, Windows 98, or
Windows Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

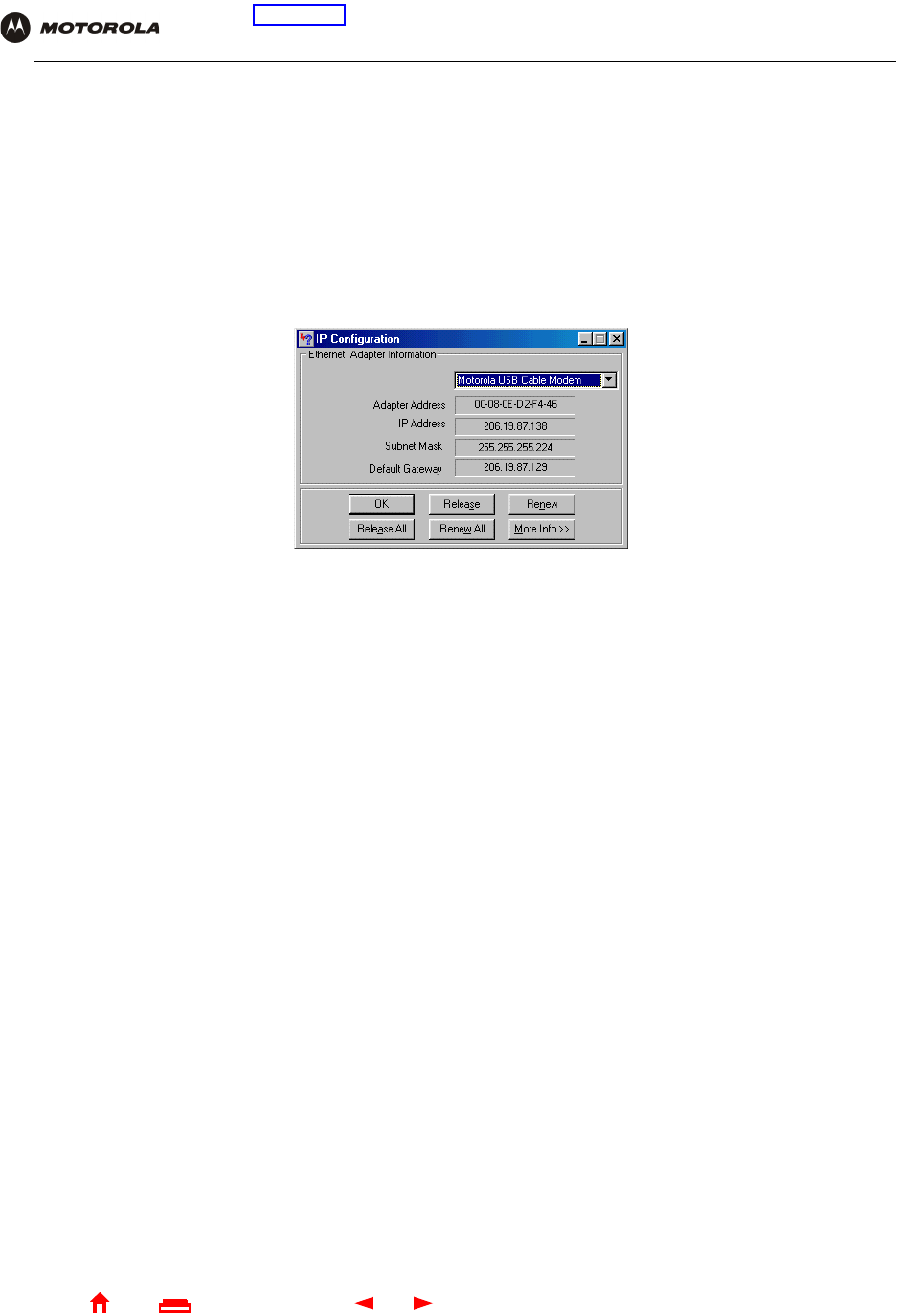

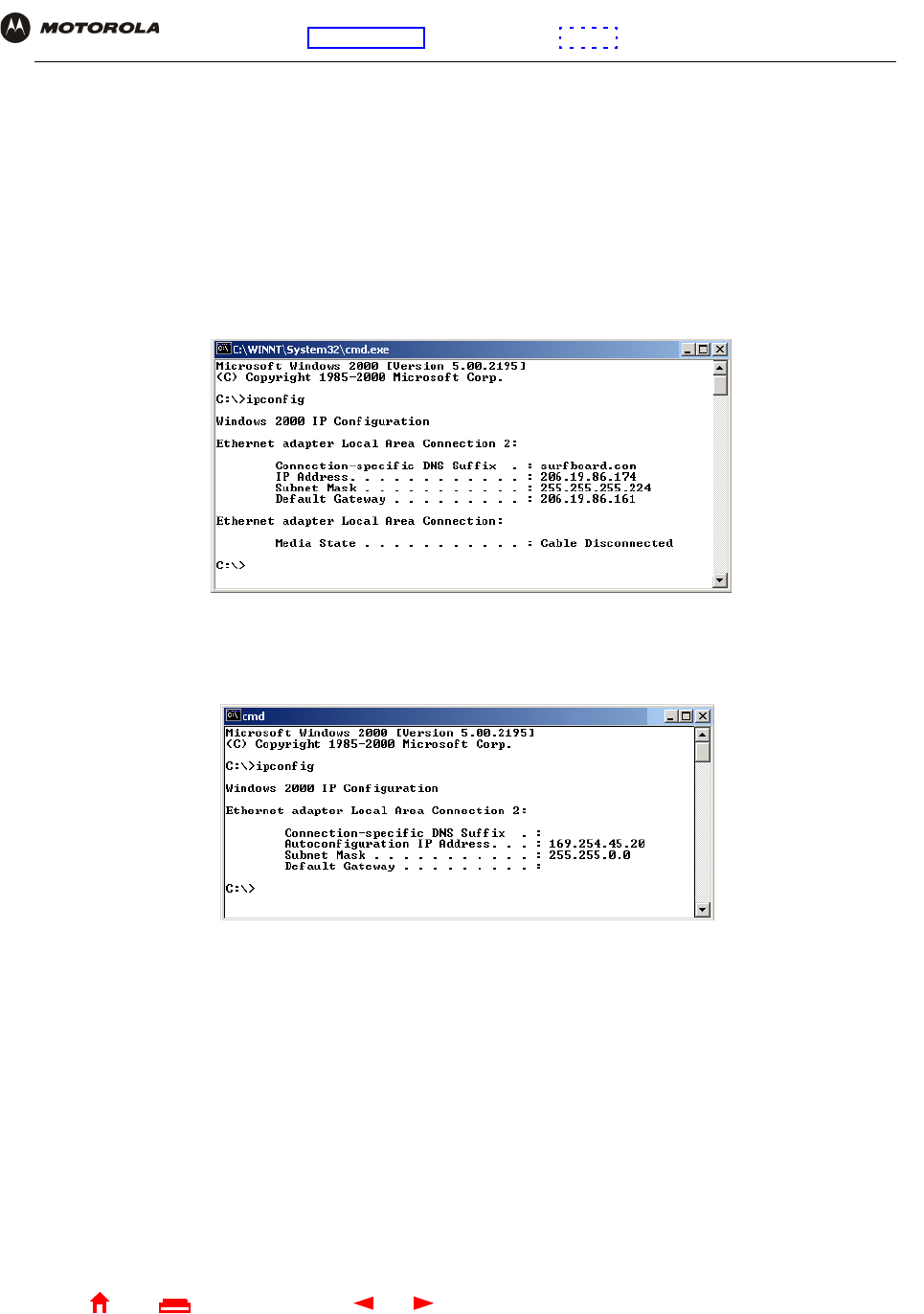

Verifying the IP Address in Windows 2000 or Windows XP
60
Setting Up the Wireless LAN . . . . . . . . . . 62
Configuring the Wireless Network Name on the SBG900
63
Configuring WEP on the SBG900 . . . . . . . . . . . . . . . . 65
Configuring a MAC Access Control List on the SBG900
. 66
Configuring the Wireless Clients . . . . . . . . . . . . . . . . . 67
Configuring a Wireless Client with a Network Name
(ESSID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Configuring a Wireless Client for WEP . . . . . . . . . . 67
Wireless Pages in the SBG900 Setup Program . . . . . 68

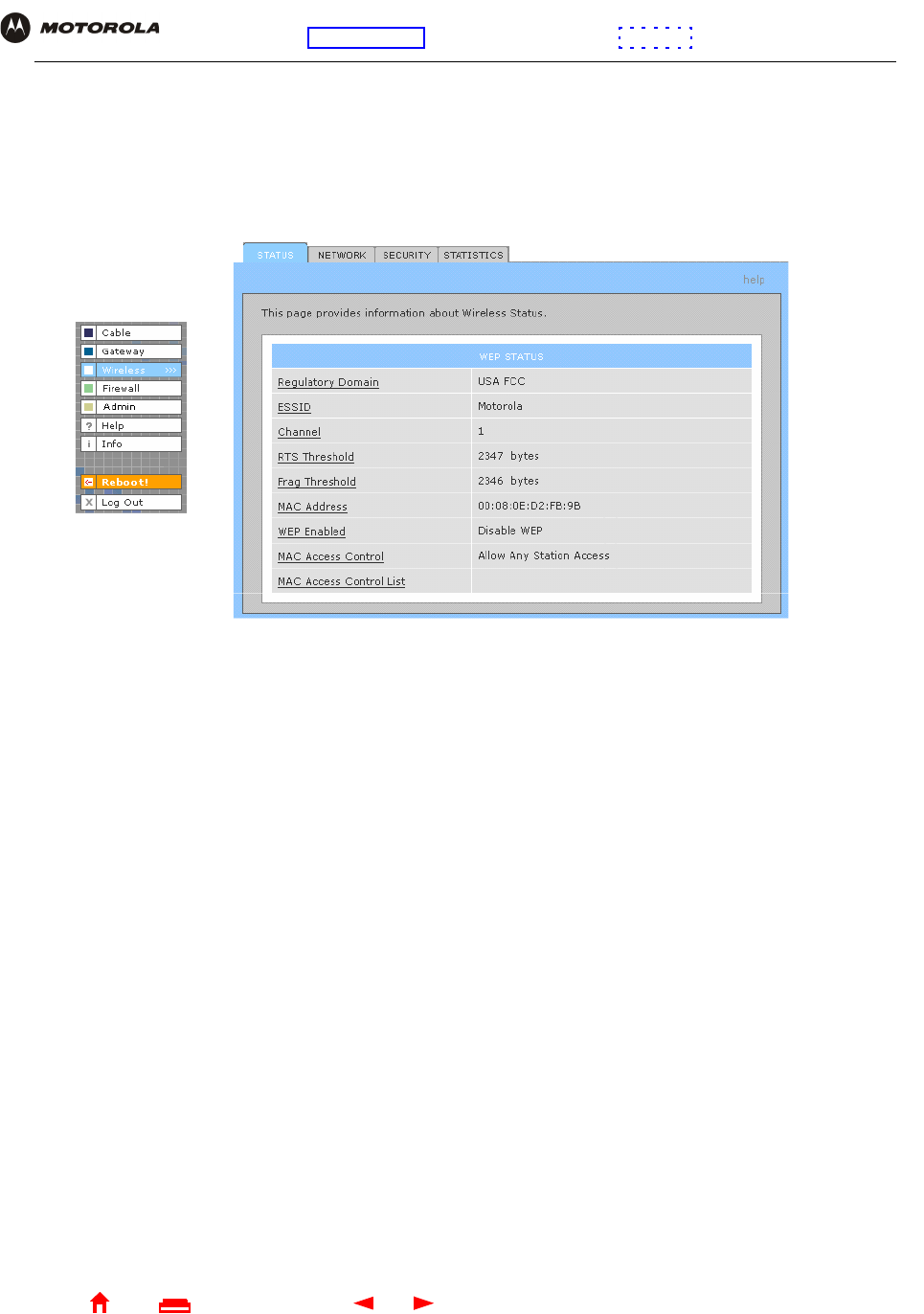

Wireless > STATUS Page . . . . . . . . . . . . . . . . . . . . 69

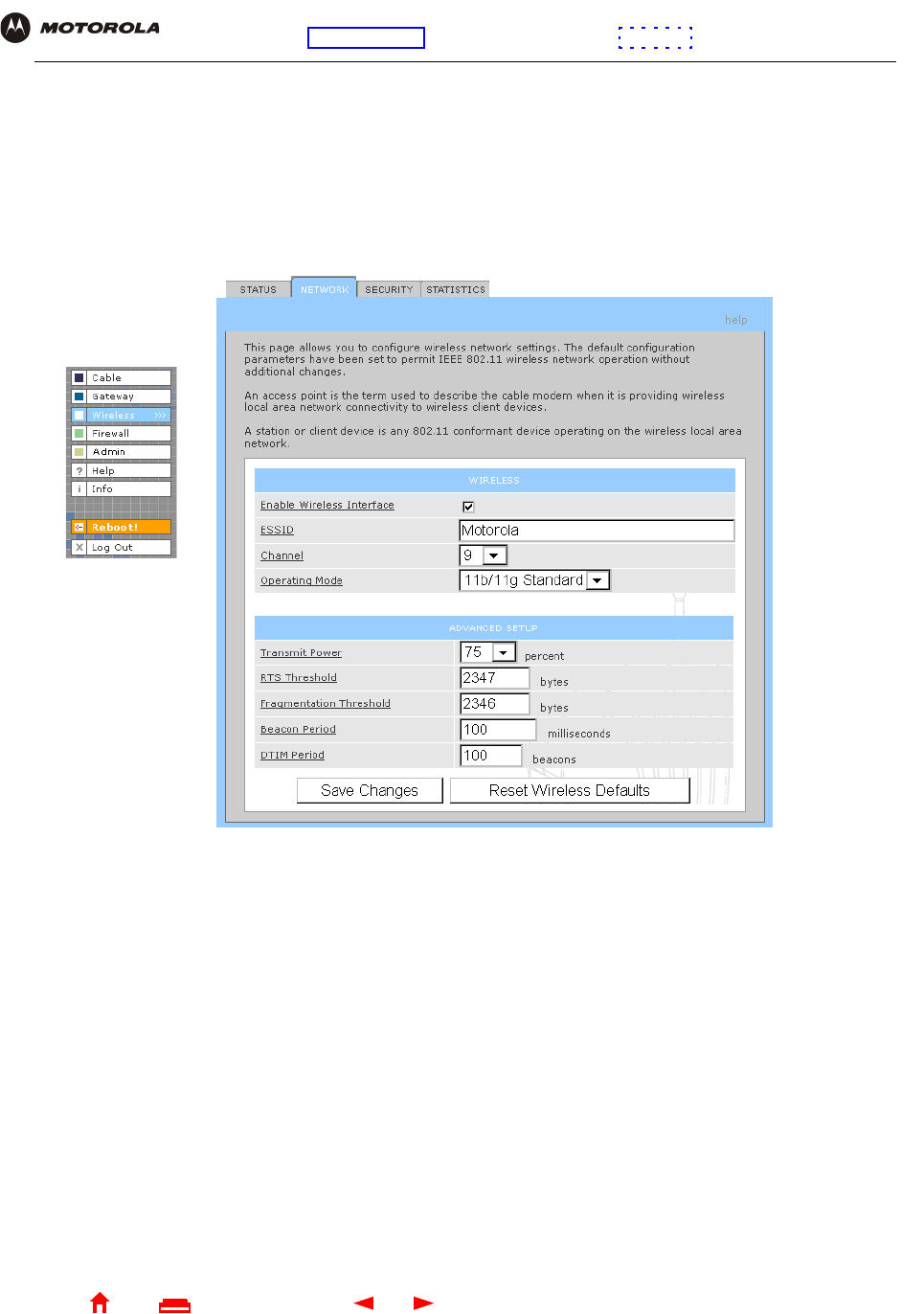

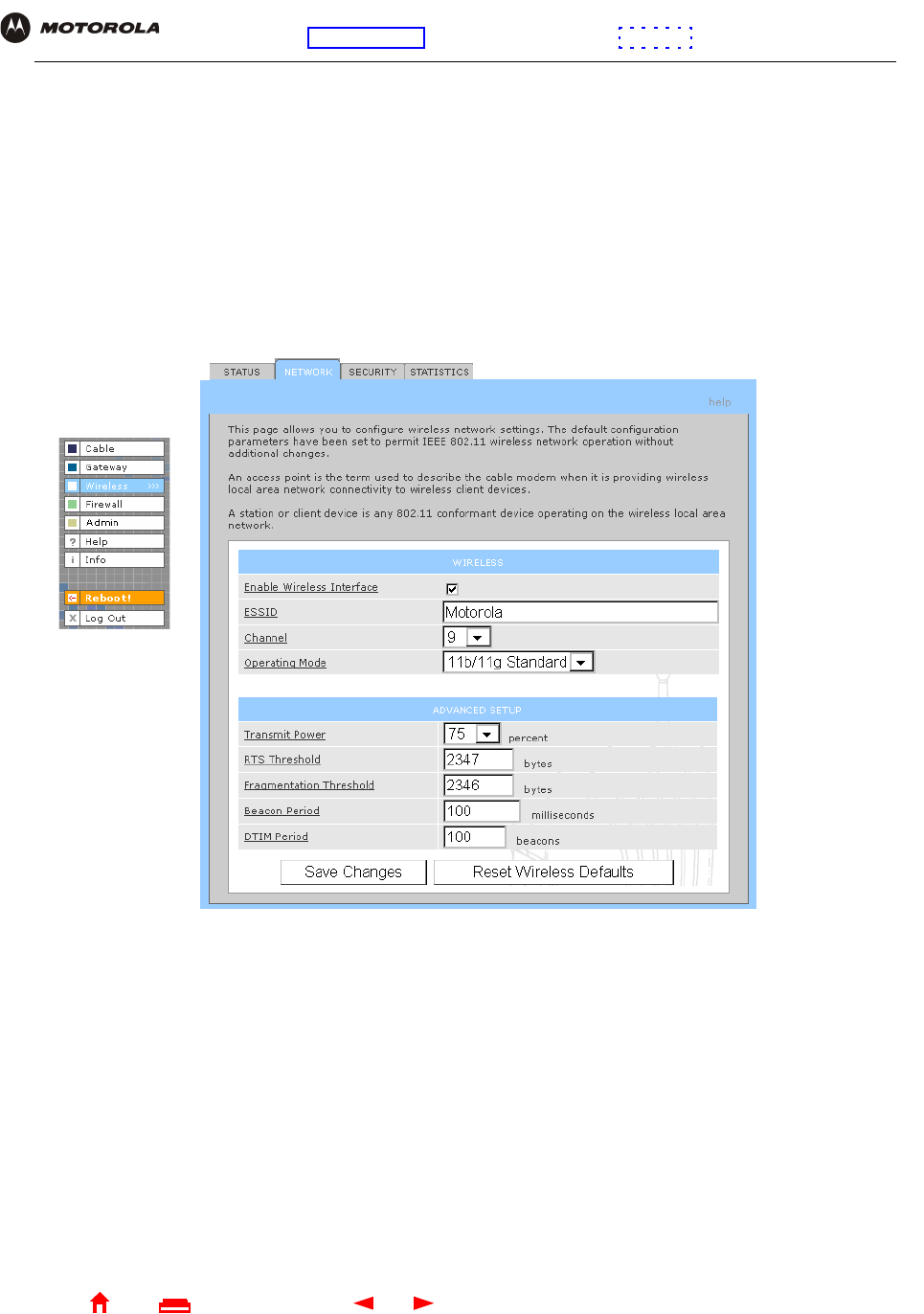

Wireless > NETWORK Page . . . . . . . . . . . . . . . . . . 70
Wireless > SECURITY — basic Page . . . . . . . . . . . 72

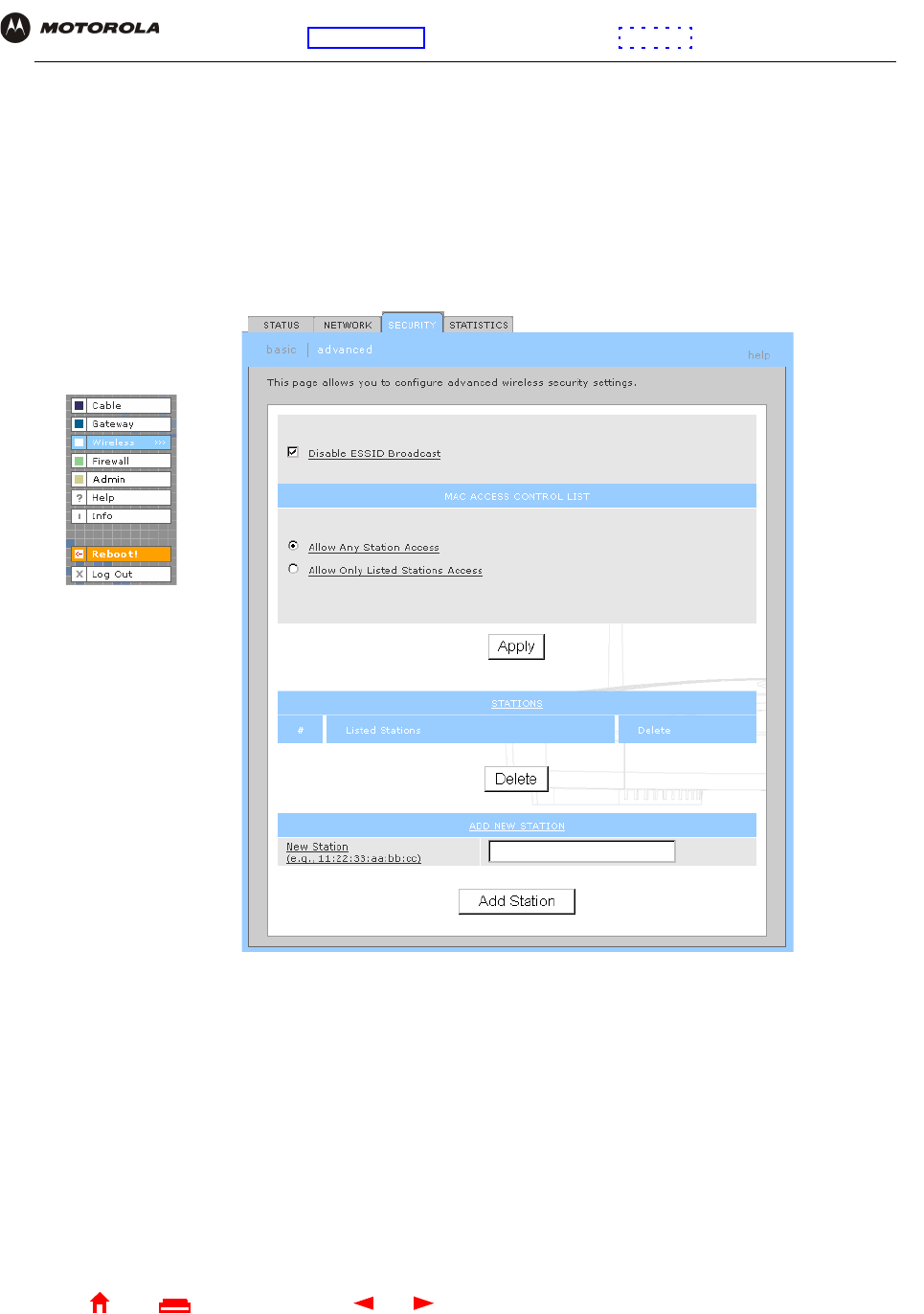

Wireless > SECURITY — advanced Page . . . . . . . 73
Wireless > STATISTICS page . . . . . . . . . . . . . . . . . 74
vi SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Setting Up a USB Driver. . . . . . . . . . . . . . 76
Setting Up a USB Driver in Windows 98 . . . . . . . . . . .77
Setting Up a USB Driver in Windows 2000 . . . . . . . . .81
Setting Up a USB Driver in Windows Me . . . . . . . . . . .84
Setting Up a USB Driver in Windows XP . . . . . . . . . . .85

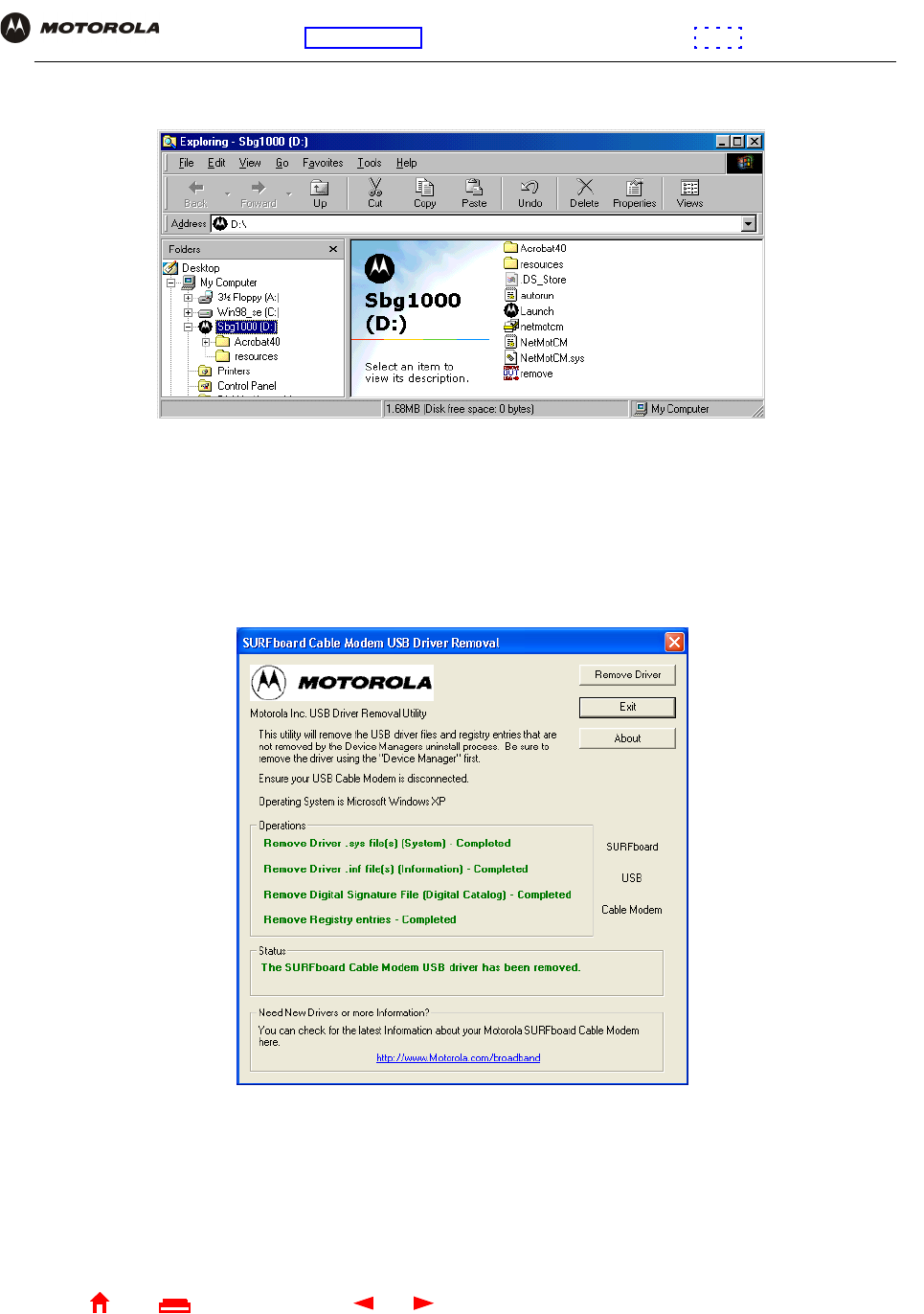

Removing the USB Driver from Windows 98 or
Windows Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Removing the USB Driver from Windows 2000 . . . . . .89

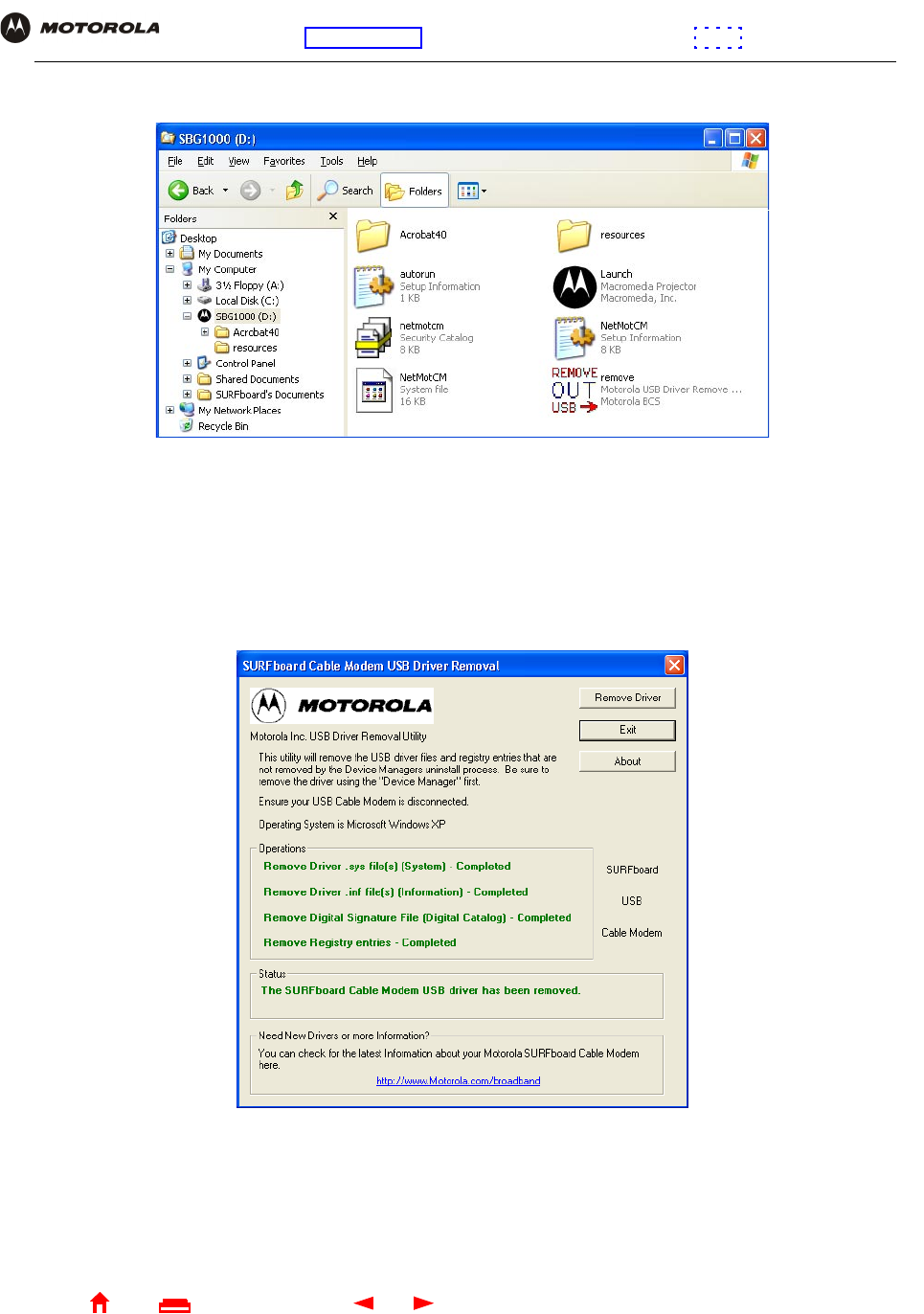

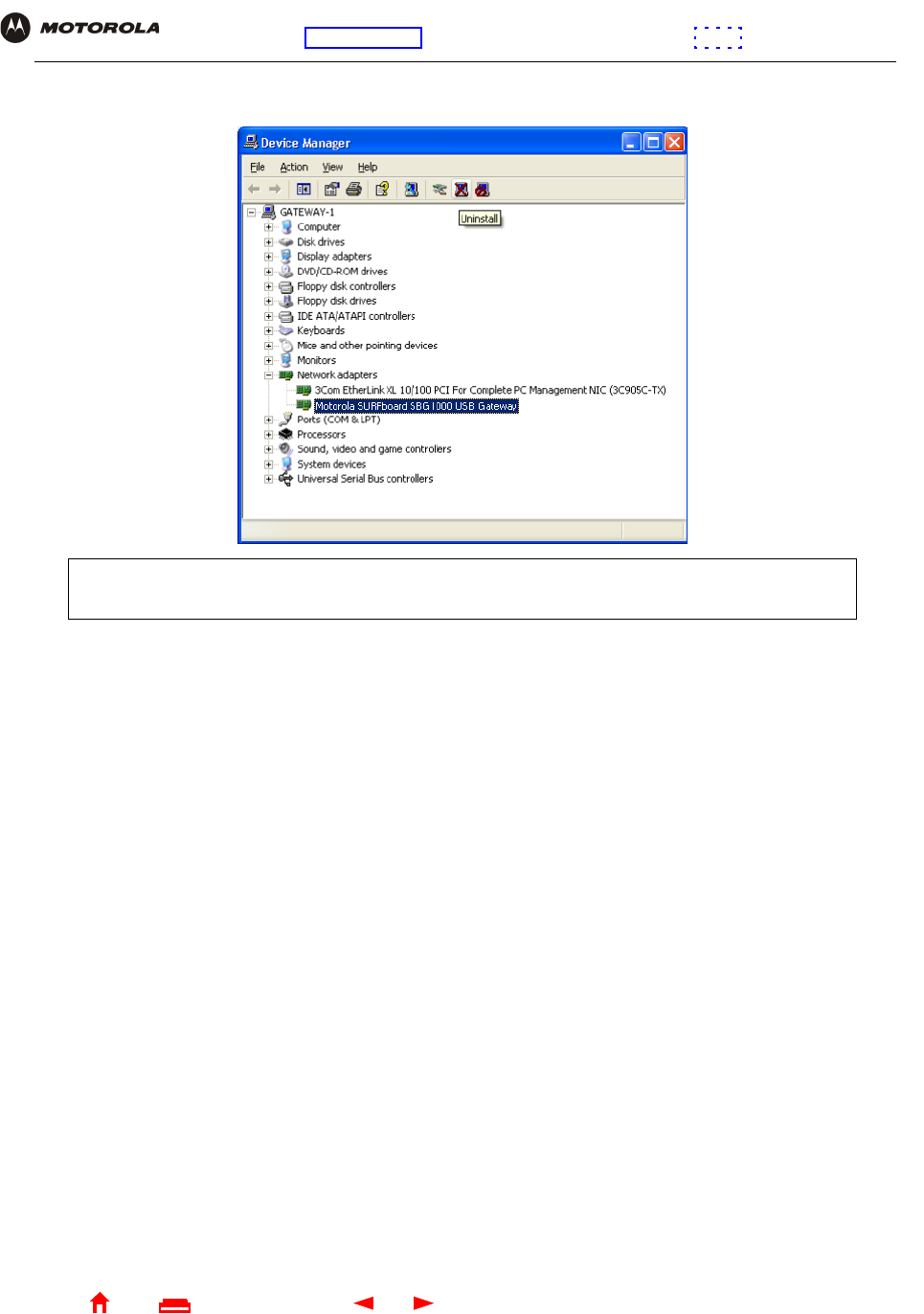

Removing the USB Driver from Windows XP . . . . . . . .92
Troubleshooting . . . . . . . . . . . . . . . . . . . . 97
Front-Panel Lights and Error Conditions . . . . . . . . . . .97
Contact Us. . . . . . . . . . . . . . . . . . . . . . . . . 98
Frequently-Asked Questions. . . . . . . . . . 99
Specifications . . . . . . . . . . . . . . . . . . . . . 101
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Cable Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . 103
Software License . . . . . . . . . . . . . . . . . . 121
1SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Overview
Thank you for purchasing a Motorola® SURFboard® Wireless Cable Modem Gateway SBG900 for your home,
home office, or small business/enterprise. Applications where the SURFboard Gateway (SBG) is especially useful
include:
•Households having multiple computers requiring connection to the Internet and each other
•Small businesses or home offices requiring fast, affordable, and secure Internet access
•Internet gamers desiring easier setup for:
— Programs such as Direct X® 7 or Direct X8
— Sites such as MSN Games by Zone.com or Battle.net ®
•Video conferencing
The features and physical appearance of your SBG900 may differ slightly from the picture.
2SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Home networking enables you to access and move information between two or more computers in your home or
business. Your home network connects to the cable TV system and enables you to connect to the Internet or other
networks connected to the Internet. The SBG900 acts as the central connection point between your computers
and the Internet. It directs (routes) computer data to the Internet and between your computers. A SURFboard
cable modem in the SBG passes information between your home network computers and the Internet. An
SBG900:
•Combines a SURFboard cable modem, IEEE 802.11g wireless access point, Ethernet 10/100Base-T
connection, and an advanced firewall into one compact product
•Eliminates the need for four or five separate products, enabling you to maximize the potential of your existing
resources
•Enables you to create a custom network sharing a single broadband connection, files, and other peripherals
like scanners, with or without wires
•Offers enhanced network security for wired and wireless users
•Provides easy setup
•Enables cable operators to add future value-added services
This product is subject to change. Not all features described in this guide are available on all SBG900 models.
For the most recent documentation, visit the Product Documentation page on the Motorola Broadband website
http://broadband.motorola.com/.
Easy Setup
It is much easier to configure a local area network (LAN) using an SBG900 than it is using typical networking
equipment:
•The Installation Assistant application on the Motorola SURFboard Wireless Cable Modem Gateway CD-ROM
enables easy connection to the cable network.
•For basic operation, most default settings require no modification.
•The Setup Program provides a graphical user interface (GUI) for easy configuration of necessary wireless,
Ethernet, router, DHCP, and security settings. For a list of issues, see “Basic Configuration”.
Network Connection Types
The SBG900 provides different network connection types for your computers to exchange data. The connection
between your computers and the SBG900 may be with a wireless or a wired connection or a combination of the
two. Your network can use one or any combination of all the following network connections:
•Ethernet local area network (LAN)
•Wireless LAN (IEEE 802.11g that also supports IEEE 802.11b devices)
•Universal Serial Bus (USB)
3SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Powerful Features in a Single Unit
An SBG900 combines high-speed Internet access, networking, and computer security for a home or small-office
LAN. An SBG900 provides:
•An integrated high-speed SURFboard cable modem for continuous broadband access to the Internet and
other online services, with much faster data transfer than traditional dial-up or ISDN modems
•A single broadband connection for up to 253 computers to surf the web; all computers on the LAN
communicate as if they were connected to the same physical network
•An IEEE 802.11g wireless access point to enable laptop users to remain connected while moving around the
home or small office or to connect desktop computers without installing network wiring. Depending on
distance, wireless connection speeds can match that of Ethernet.
•A USB connection for a single PC
•A dual-purpose 10/100Base-T Ethernet uplink port supporting half- or full-duplex connections and Auto-MDIX
•Routing for a wireless LAN or a wired Ethernet LAN connected using a hub or switch
•A built-in DHCP server to easily configure a combined wired and/or wireless Class C private LAN
•An advanced firewall supporting stateful-inspection, intrusion detection, DMZ, denial-of-service attack
prevention, and Network Address Translation (NAT)
•Virtual private network (VPN) pass-through operation supporting IPSec, PPTP, or L2TP to securely connect
remote computers over the Internet
•Port Forwarding to configure ports to run applications having special network requirements
4SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Sample LAN
The sample LAN shown in the figure contains the following devices, all protected by the SBG900 firewall:
•A PDA connected through the wireless connection
•One desktop Macintosh on a wireless connection
•One desktop PC on a wireless connection using a Motorola USB Adapter
•A laptop PC on a wireless connection connected using a Motorola PC Card
•One computer connected directly to Ethernet port one
•Three computers connected to Ethernet port two using a hub or switch
•One PC connected to the USB port
Sample SBG900 hybrid network
Internet
High-speed HFC
cable network
Wireless
Firewall
Ethernet
Hub or switch
SBG900
USB to Ethernet
Wireless Adapter
PCC11b
Wireless Card
USB
5SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Optional Accessories
While any IEEE 802.11g or IEEE 802.11b compliant client product will work with the SBG900, Motorola has
wireless adapters available for use with the SBG900.
You can use the Motorola PCC11b wireless card or the USB11b wireless adapter, which comply with the
IEEE 802.11b wireless standard, to connect a PC to the wireless LAN:
Motorola USB11b Wireless Adapter (left) and PCC11b Wireless Card
For installation instructions, see the documentation provided with each product.
USB11b Wireless
Adapter Connects a desktop, laptop, printer, or other peripheral device to the wireless LAN. It has a
built-in antenna and a six feet (two meter) long cable that connects to the PC USB port.
Its light indicates:
•Off — Not connected to a USB port or not receiving power from the PC
•Yellow — Not installed or initializing
•Green — Installed and operational
•Flashing Green — Receiving data from another wireless LAN device
•Flashing Yellow — Transmitting data to another wireless LAN device
PCC11b Wireless Card A credit-card sized adapter that connects a laptop to the wireless LAN. You can roam in, or
around, the home or small office and remain connected. It fits in a PCMCIA Type II
standard slot on the laptop supporting 3.3 Volt PC card. The PCC11b has also has a
built-in antenna.
6SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Front Panel
The front panel provides indicator lights. The model number on your SBG may be different than in some
illustrations and screen images.
Key Light Flashing On
1POWER None The power supply is working properly
2RECEIVE Scanning for a receive (downstream)
channel connection
The downstream channel is connected
3SEND Scanning for a send (upstream) channel
connection The upstream channel is connected
4ONLINE Scanning for a network connection The startup process is complete and the SBG900
is online
5PC/ACTIVITY Transmitting or receiving data A computer or other device is connected to the
USB or Ethernet port
6WIRELESS Wireless activity Wireless feature is functioning normally
1
2
4
5
6
3
7SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Rear Panel
The rear panel provides cabling connectors, status lights, and the power receptacle:
Key Item Description
1 • If you experience a problem, you can push this recessed button to restart the SBG900 (see
“Troubleshooting”). To reset all values to their defaults, hold down the button for more than five
seconds. Resetting may take 5 to 30 minutes because the SBG900 must find and lock on the
appropriate communications channels.
2Use the ETHERNET port to connect an Ethernet LAN cable with RJ-45 connectors to an
Ethernet-equipped computer, hub, bridge, or switch.
3For Windows only, use the USB port for Connecting a PC to the USB Port. You cannot connect the
SBG900 USB port to a Macintosh or UNIX computer.

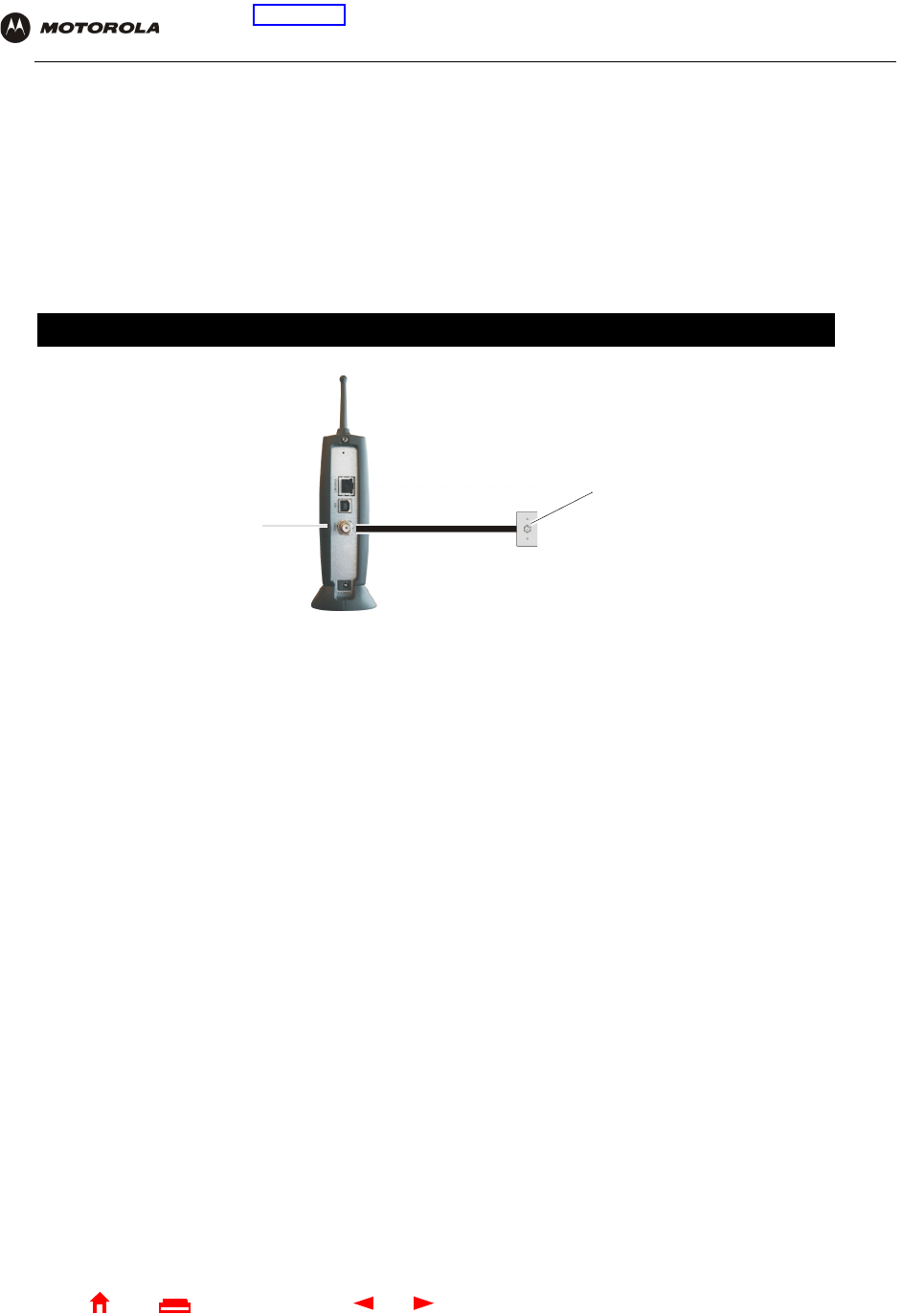

4The CABLE port provides a connection to the coaxial cable outlet.
5The +12VDC power connector to the external power supply.
1
2
4
5
3
8SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Label on the Bottom of the SBG900
To receive data service, you need to provide the MAC address marked HFC MAC ID to your cable service
provider:
SBG900 LAN Choices
The SBG900 enables connection of up to 253 client computers on a combination of:
•Wireless LAN
•Wired Ethernet LAN
•USB Connection
Each computer needs appropriate network adapter hardware and driver software. The clients on the Ethernet,
wireless, or USB interfaces can share:
•Internet access with a single cable service provider account, subject to cable provider terms and conditions
•Files, printers, storage devices, multi-user software applications, games, and video conferencing
Wireless and wired network connections use Windows networking to share files and peripheral devices such as
printers, CD-ROM drives, floppy disk drives, and Iomega® Zip Drives.
Provide the MAC address printed at this location on
your SBG900 to your cable service provider
9SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Wireless LAN
Wireless communication occurs over radio waves rather than a wire. Like a cordless telephone, a wireless LAN
uses radio signals instead of wires to exchange data. A wireless network eliminates the need for expensive and
intrusive wiring to connect computers throughout the home or office. Mobile users can remain connected to the
network even when carrying their laptop to different locations in the home or office.
Each computer on a wireless LAN requires an adapter described in “Optional Accessories”:
Sample wireless network connections
To set up the SBG900, on a computer wired to the SBG900 over Ethernet or USB, perform the procedures in
“Setting Up the Wireless LAN”. Do not attempt to configure the SBG900 over a wireless connection.
To set up each wireless client (station):
1Insert the PCC11b and USB11b Wireless Adapter CD-ROM in the CD-ROM drive on the client.
2Install the device software from the CD.
3Connect the Motorola PCC11b wireless card or USB11b wireless adapter following the instructions supplied
with the card or adapter.
Laptop PCs Use a Motorola PCC11b Wireless Card in the PCMCIA slot.
Desktop PCs Use a Motorola USB11b Wireless Adapter to connect the USB port.
10 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Wired Ethernet LAN
Each computer on the 10/100Base-T Ethernet LAN requires an Ethernet network interface card (NIC) and driver
software installed. Because the SBG900 Ethernet port supports auto-MDIX, you can use straight-through or
cross-over cable to connect a hub, switch, or computer. Use category 5 cabling for all Ethernet connections.
The physical wiring arrangement has no connection to the logical network allocation of IP addresses.
Sample Ethernet to computer connection
A wired Ethernet LAN with more than one computer requires one or more hubs or switches. You can connect a
hub or switch to the Ethernet port on the SBG900.
The following illustration is an example of an Ethernet LAN you can set up using the SBG900. Cable the LAN in an
appropriate manner for the site. A complete discussion of Ethernet cabling is beyond the scope of this document.
Sample Ethernet connection to hubs or switches
Coaxial
cable
Category 5 Ethernet cable
Add additional hubs or switches
for further expansion
11 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
USB Connection
You can connect a single PC running Windows®98, Windows XP™, Windows Me®, or Windows®2000 to the
SBG900 USB V1.1 port. For cabling instructions, see “Connecting a PC to the USB Port”.
Sample USB connection
Caution!
Before plugging in the USB cable, be sure the Motorola SURFboard Wireless Cable Modem Gateway
CD-ROM is inserted in the PC CD-ROM drive.
12 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Security
The SBG900 provides:
•A firewall to protect the SBG900 LAN from undesired attacks over the Internet
•Security measures to prevent eavesdropping of wireless data
Network Address Translation (NAT) provides some security because the IP addresses of SBG900 LAN computers
are not visible on the Internet.
The logical network diagram does not necessarily correspond to the network cabling. A full discussion of network
security is beyond the scope of this document.
SBG900 security measures shown in a logical network diagram
Firewall
The SBG900 firewall protects the SBG900 LAN from undesired attacks and other intrusions from the Internet. It
provides an advanced integrated stateful-inspection firewall supporting intrusion detection, session tracking, and
denial-of-service attack prevention. The firewall:
•Maintains state data for every TCP/IP session on the OSI network and transport layers
•Monitors all incoming and outgoing packets, applies the firewall policy to each one, and screens for improper
packets and intrusion attempts
•Provides comprehensive logging for all:
— User authentications
— Rejected internal and external connection requests
— Session creation and termination
— Outside attacks (intrusion detection)
You can configure the firewall filters to set rules for port usage and to block specific IP domains and networks. For
information about choosing a predefined firewall policy template, see “Setting the Firewall Policy”.
SBG900
Firewall
ComputerComputer
Wired Ethernet LAN Wireless LAN
LaptopComputer PDA
Wireless Security:
WEP shared key encryption
MAC access control list
Disable ESSID Broadcast
Internet
DMZ computer
13 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
DMZ
A de-militarized zone (DMZ) is one or more computers logically located outside the firewall between an SBG900
LAN and the Internet. A DMZ prevents direct access by outside users to private data.
For example, you can set up a web server on a DMZ computer to enable outside users to access your website
without exposing confidential data on your network.
A DMZ can also be useful to play interactive games that may have a problem running through a firewall. You can
leave a computer used for gaming only exposed to the Internet while protecting the rest of your network. For more
information, see Gaming Configuration Guidelines.
Port Triggering
When you run a PC application that accesses the Internet, it typically initiates communications with a computer on
the Internet. In some applications, especially gaming, the computer on the Internet also initiates communications
with your PC. Because NAT does not normally allow these incoming connections to occur, the SBG900 supports
port triggering.
The SBG900 is preconfigured with port triggering for common applications. You can also configure additional port
triggers if needed on the Gateway > PORT TRIGGERS — custom Page.
Wireless Security
Because wireless LAN signals are transmitted using radio signals, it may be possible for your neighbor or
someone else you do not want access your wireless LAN. You need to limit access to only the intended persons.
To prevent unauthorized eavesdropping of data transmitted over the wireless LAN, you must enable wireless
security. The default SBG900 settings provide no security for transmitted data.
The SBG900 enables you to use the following wireless security measures:
•Restrict access to computers having the same unique network name as the SBG900
•Encrypt data transmitted over the wireless interface by configuring a Wired Equivalency Privacy (WEP) key
on the SBG900 and wireless LAN clients (stations)
•Define a MAC access control list to restrict wireless LAN access to clients based on the MAC address.
If you disable ESSID broadcasting to enable closed network operation, the SBG900 does not transmit the network
name (ESSID). This provides additional protection because only wireless stations configured with your network
name can communicate with the SBG900. Closed network operation is an enhancement of the IEEE 802.11b
standard.
For information about configuring a wireless security, see “Setting Up the Wireless LAN”.
14 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Port Forwarding
Port forwarding is the configuration of SBG logical data ports for applications having special network
requirements.
The SBG900 opens logical data ports when a computer on its LAN sends data, such as e-mail messages or web
data, to the Internet. A logical data port is different from a physical port, such as an Ethernet port. Data from a
protocol must go through certain data ports. Here are the data ports used by some protocols:
Some applications, such as games and videoconferencing, require multiple data ports. If you enable NAT, this can
cause problems because NAT assumes that data sent through one port will return to the same port. You may need
to configure port forwarding to run applications with special requirements.
To configure port forwarding, you must specify an inbound (source) port or range of ports. The inbound port opens
only when data is sent to the inbound port and closes again after a specified time elapses with no data sent to it.
You can configure up to 32 port forwarding entries using the Gateway > PORT FORWARDING — config Page.
Virtual Private Networks
The SBG900 allows multiple tunnel VPN pass-through operation to securely connect remote computers over the
Internet through the SBG900. The SBG900:
•Is compatible with Point to Point Tunneling Protocol (PPTP) and Layer 2 Tunneling Protocol (L2TP)
•Is fully interoperable with any IPSec client or gateway and ANX certified IPSec stacks
Related Documentation
The following documents also provide information you can use with the SBG900:
•SURFboard Wireless Cable Modem Gateway Quick Start Guide
•PCC11b Wireless Card Quick Start Guide and on-line help on the PCC11b and USB11b Wireless Adapter
CD-ROM
•USB11b Wireless Adapter Quick Start Guide and on-line help on the PCC11b and USB11b Wireless Adapter
CD-ROM
For the most recent documentation, visit the Product Documentation page on the Motorola Broadband website
http://broadband.motorola.com.
Protocol Port
FTP 20, 21
HTTP 80
NTP 123
Secure Shell 22
SMTP e-mail 25
Telnet 23
15 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Installation
The following subsections provide information about installing the SBG900 hardware:
•Before You Begin
•Precautions
•Signing Up for Service
•Computer System Requirements
•Connecting the SBG900 to the Cable System
•Cabling the LAN
•Obtaining an IP Address for Ethernet
•Connecting a PC to the USB Port
For information about wireless LAN setup, see “Setting Up the Wireless LAN”.
Before You Begin
Before you begin the installation, check that you received the following items with your SBG900:
You will need 75-ohm coaxial cable with F-type connectors to connect the SBG900 to the nearest cable outlet. If a
TV is connected to the cable outlet, you may need a 5 to 900 MHz RF splitter and two additional coaxial cables to
use both the TV and the SBG900.
Determine the connection types you will make to the SBG900. Check that you have the required cables, adapters,
and adapter software. You may need:
Coaxial cable, RF splitters, hubs, and switches are available at consumer electronic stores.

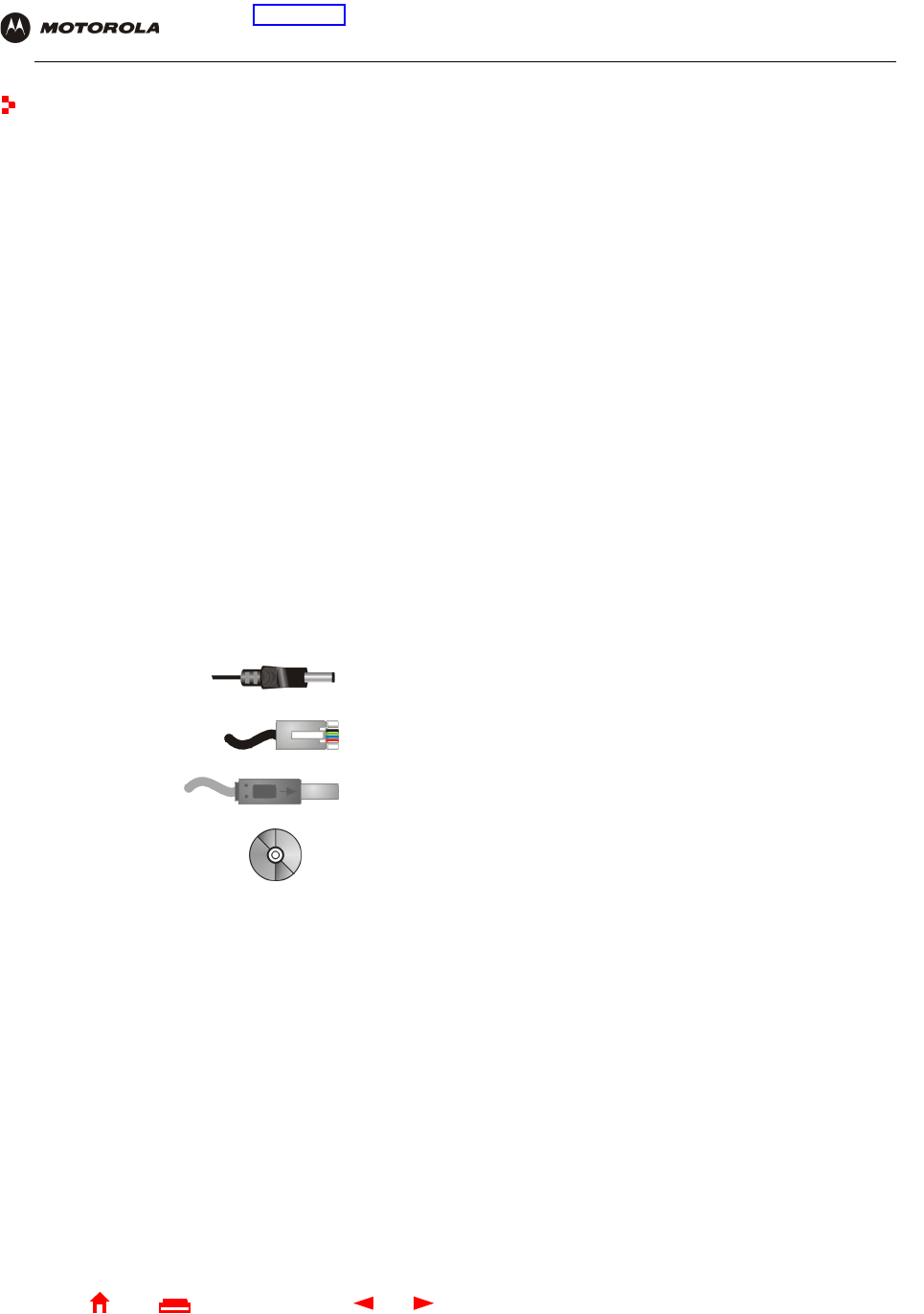

Item Description
Power adapter
cord Connects the SBG 900 to the external AC power supply
10/100Base-T
Ethernet cable Connects to the Ethernet port
USB cable Connects to the USB port
Motorola SURFboard
Wireless Cable Modem
Gateway CD-ROM
Contains this User Guide and USB drivers
Wireless LAN Wireless adapter and driver software for each computer having a wireless connection (see
“Optional Accessories”)
Wired Ethernet LAN Ethernet cables and network interface cards (NICs) with accompanying installation software
To connect more than one computer to the SBG900, one or more Ethernet hubs or switches
USB A USB cable and the Motorola SURFboard Wireless Cable Modem Gateway CD-ROM
containing the software for USB installation
16 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Precautions
Postpone SBG900 installation until there is no risk of thunderstorm or lightning activity in the area.
To avoid damaging the SBG900 with static electricity:
•Always first connect the coaxial cable to the grounded cable TV wall outlet.
•Before you connect or disconnect the USB or Ethernet cable from the SBG900 or PC, always touch the
coaxial cable connector on the SBG900 to release any static charges.
To avoid potential shock, always unplug the power cord from the wall outlet or other power source before
disconnecting it from the SBG900 rear panel.
To prevent overheating the SBG900, do not block the ventilation holes on the sides of the unit.
Do not open the unit. Refer all service to your cable service provider.
Wipe the unit with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray cleaners directly
on the unit or use forced air to remove dust.
Signing Up for Service
You must sign up with a cable service provider to access the Internet and other online services.
To activate your service, call your local cable service provider.
You need to provide the MAC address marked HFC MAC ID printed on the Label on the Bottom of the SBG900. If
you printed this document, you can record it here:
00 : ______ : ______ : ______ : ______ : ______
You should ask your cable service provider the following questions:
•Do you have any special system requirements?
•When can I begin to use my SBG900?
•Are there any files I need to download after I am connected?
•Do I need a user name or password to access the Internet or use e-mail?
To avoid damaging the SBG900 or computers with static electricity:
Always make the wall
connection first.
Before you connect or
disconnect the USB or
Ethernet cables, always
touch the coaxial cable
connector on the SBG900.
17 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Computer System Requirements
You can connect Microsoft Windows, Macintosh, UNIX, or Linux computers equipped as follows to the
SBG900 LAN:
•One of the following:
•PC with Pentium class or better processor
•Windows® 98, Windows® 98 SE, Windows Me®, Windows® 2000, Windows XPtm, Windows NT®, Macintosh,
or Linux operating system with operating system CD-ROM available
•Minimum 16 MB RAM recommended
•10 MB available hard disk space
You can use any web browser such as Microsoft® Internet Explorer or Netscape Navigator® with the SBG900.
You can use the USB connection with any PC running Windows 98, Windows 2000, Windows Me, or Windows XP
that has a USB interface. The USB connection requires special USB driver software that is supplied on the
Motorola SURFboard Wireless Cable Modem Gateway CD-ROM. You can upgrade your USB drivers from the
Downloads page http://broadband.motorola.com/noflash/usb_drivers.asp on the Motorola Broadband website.
Ethernet 10Base-T or 10/100Base-T Ethernet adapter with proper NIC driver software installed
Wireless Any IEEE 802.11g or IEEE 802.11b device
For information about the Motorola PCC11b Wireless Card (PCMCIA type II 3.3 V slot) or
USB11b Wireless Adapter, see “Optional Accessories”.
18 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Connecting the SBG900 to the Cable System
1Be sure the computer is on and the SBG900 is unplugged.
2Connect one end of the coaxial cable to the cable outlet or splitter.
3Connect the other end of the coaxial cable to the cable connector on the SBG900.
Hand-tighten the connectors to avoid damaging them.
4Insert the Motorola SURFboard Wireless Cable Modem Gateway CD-ROM into the CD-ROM drive.
5Plug the power cord into the power connector on the SBG900.
6Connect the external power supply.
7Plug the power cord into the electrical outlet. This turns the SBG900 on. You do not need to unplug it when
not in use. The first time you plug in the SBG900, allow 5 to 30 minutes to find and lock on the appropriate
communications channels.
8Check that the lights on the front panel cycle through this sequence:
Cabling the LAN
After connecting to the cable system, you can connect your wired Ethernet LAN. Some samples are shown in
“Wired Ethernet LAN”. On each networked computer, you must install proper drivers for the Ethernet NIC.
Detailed information about network cabling is beyond the scope of this document.
POWER Turns on when AC power is connected to the SBG900. Indicates that the power supply is working
properly.
RECEIVE Flashes while scanning for the receive channel. Changes to solid green when the receive channel is
locked.
SEND Flashes while scanning for the send channel. Changes to solid green when the send channel is
locked.
ONLINE Flashes during SBG900 registration and configuration. Changes to solid green when the SBG900 is
registered.
PC/ACTIVITY Flashes when the SBG900 is transmitting or receiving data.
Step 2
Step 3
Steps 5 to 7
19 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Obtaining an IP Address for Ethernet
Obtaining an IP Address in Windows 98, Windows 98 SE, or Windows Me
You must do the following on each Ethernet client PC running Windows 98, Windows 98 SE, or Windows Me:
1On the Windows Desktop, click Start.
2Select Run. The Run window is displayed.
3Type winipcfg.exe and click OK. The IP Configuration window is displayed:
4Click the Renew button to obtain an IP address for the PC from the DHCP server on the SBG900.
Obtaining an IP Address in Windows 2000 or Windows XP
You must do the following on each Ethernet client PC running Windows 2000 or Windows XP:
1On the Windows Desktop, click Start.
2Select Run. The Run window is displayed.
3Type cmd and click OK to display a command prompt window.
4Type ipconfig /renew and press ENTER to obtain an IP address for the PC from the DHCP server on the
SBG900.
5Type exit and press ENTER to return to Windows.
Obtaining an IP Address on Macintosh or UNIX Systems
Follow the instructions in your user manual.
20 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Connecting a PC to the USB Port
You can connect a single PC running Windows 98, Windows XP, Windows Me, or Windows 2000 to the SBG900
USB port.
To connect a PC to the USB port:
1Insert the Motorola SURFboard Wireless Cable Modem Gateway CD-ROM in the CD-ROM drive.
2Connect the USB cable to the USB port on the SBG900.
3Connect the other end to the USB port on the computer.
4Install the USB driver following the appropriate procedure for “Setting Up a USB Driver”.
Caution!
Before plugging in the USB cable, be sure the Motorola SURFboard Wireless Cable Modem Gateway
CD-ROM is inserted in the PC CD-ROM drive.
21 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Basic Configuration
The following sections provide information about basic SBG900 configuration:
•Starting the SBG900 Setup Program
•Changing the Default Password
•Getting Help
•Setting the Firewall Policy
•Gaming Configuration Guidelines
For more advanced configuration information, see “Configuring TCP/IP”, “Setting Up the Wireless LAN”, or
“Setting Up a USB Driver”.
For normal operation, you do not need to change most default settings. The following caution statements
summarize the issues you must be aware of:
Caution!
To prevent unauthorized configuration, change the default password immediately when you first
configure the SBG900. See “Changing the Default Password”.
Firewalls are not foolproof. Choose the most secure firewall policy you can. See “Setting the Firewall
Policy”.
For a wireless LAN only, be sure you follow the instructions in “Setting Up the Wireless LAN”.
22 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Starting the SBG900 Setup Program
1On a computer wired to the SBG900 over Ethernet or USB, open a web browser. Do not attempt to configure
the SBG900 over a wireless connection.
2In the Address or Location field, type http://192.168.100.1 and press ENTER to display the Login window:
3In the User ID field, type the User Name; the default is “admin” (this field is case sensitive).
4In the Password field, type the Password; the default is “motorola” (this field is case sensitive).
23 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB

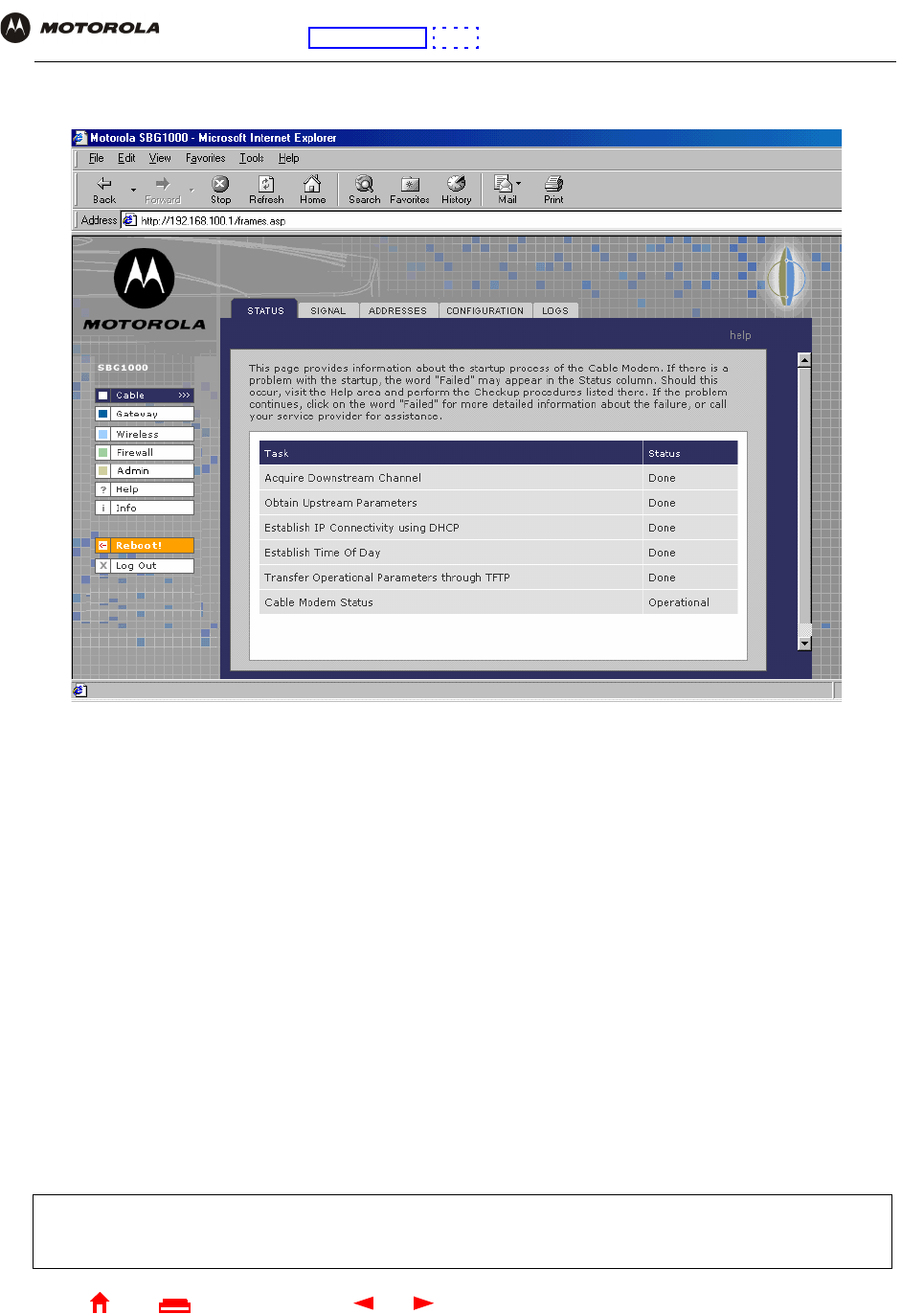

5Click Log In to display the SBG900 user configuration and status windows:
If you have difficulty starting the SBG900 Setup Program, see “Troubleshooting” for information.
Router is a configuration option that may appear on your window but may not be supported.
Click To Perform
Cable Configure and monitor the cable system connection.
Gateway Configure and monitor the gateway preferences (see Configuring the Gateway).
Wireless Configure and monitor the wireless interface (see “Setting Up the Wireless LAN”).
Firewall Configure and monitor the firewall (see “Setting the Firewall Policy”).
Admin Changing the Default Password.
Help Display information about the SBG900 (see “Getting Help”).
Info Display information about the SBG900 Setup Program.
Reboot Restart the SBG900. It is the same as pressing the reset button on the rear panel for less than five
seconds.
Log Out Log out of the SBG900.
For some settings, after you edit the field and click Apply, you are warned that you must reboot for your change
to take effect. Rebooting takes 10 to 15 seconds. After rebooting, you must log-in again.
24 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Changing the Default Password
To change the default password:
1On the SBG900 Setup Program screen, click Admin to display the ADMIN — basic page:
2In the Old Password field, type the old password. The default password is “motorola” (this field is case
sensitive).
3In the New Password field, type the new password.
4In the Verify Password field, type the new password again.
5Click Apply to apply your changes.
Caution!
To prevent unauthorized configuration, change the default password immediately when you first
configure the Motorola SURFboard Wireless Cable Modem Gateway.
25 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Getting Help
To get help on any underlined item or field, click the text. For example, if you click a field or the help button on the
ADMIN — basic page, the following help is displayed:
You can scroll to browse the help or click another item to display help for that item.
This button also displays
help for the window.
26 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Setting the Firewall Policy
The SBG900 firewall protects the SBG900 LAN from undesired attacks and other intrusions from the Internet. This
section describes using the Firewall > POLICY — basic page to choose one of the predefined firewall policy
templates provided with the SBG900.
To select a predefined policy for all packets processed by the SBG900 firewall:
1On the SBG900 Setup Program left panel, click Firewall.
2Click POLICY.
3Click basic to display the predefined firewall policy templates:
4Select the most secure firewall policy you can:
Caution!
Firewalls are not foolproof. Choose the most secure firewall policy you can. To enable easy network
setup, the default firewall policy is None, which provides no security.
High The safest predefined firewall policy template, providing the highest security. We recommend this setting.
Medium A predefined firewall policy template providing a common configuration having modest risk.
Low A predefined firewall policy template providing minimum security, with a higher risk of intrusions.
Custom You may need to create a custom firewall policy on the Firewall > POLICY — advanced Page. Do not
create a custom policy unless you have the necessary expertise and the need to do so.
None Disables the firewall. To enable easy network setup, it is the default. After you set up your network, use
High, Medium, or Low to improve your security.
27 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
5Click Apply to apply your changes.
If you have the need, you can:
•View the rules for the High, Medium, or Low predefined policy templates or create a custom policy on the
Firewall > POLICY — advanced Page
•Configure a firewall alert on Firewall > ALERT — basic Page and Firewall > ALERT — email Page
•View the firewall logs on the Firewall > LOGS Page
For information about how the firewall can affect gaming, see “Gaming Configuration Guidelines”.
The predefined policies provide outbound Internet access for computers on the SBG900 LAN. The SBG900
firewall uses stateful inspection to allow inbound responses when there already is an outbound session running
corresponding to the data flow. For example, if you use a web browser, outbound HTTP connections are permitted
on port 80. Inbound responses from the Internet are allowed because an outbound session is established.
When required, you can configure the SBG900 firewall to allow inbound packets without first establishing an
outbound session. You also need to configure a port forwarding entry on the Gateway > PORT FORWARDING —
config Page or a DMZ client on the Gateway > LAN — nat config Page.
For some settings, after you edit the field and click Apply, you are warned that you must reboot for your change
to take effect. Rebooting takes 10 to 15 seconds. After rebooting, you must log-in again.
28 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Firewall > POLICY — advanced Page
Do not create a custom firewall policy unless you have the necessary expertise and the need to do so. Instead,
select one of the predefined policy templates as described in “Setting the Firewall Policy”.
To create a custom firewall policy, first select Custom and click Apply on the Firewall > POLICY — basic Page.
Then use this page to configure a custom firewall policy:
To base the custom policy on a predefined firewall policy template, choose High, Medium, or Low in the Policy
Template field and click Apply Policy Template.
29 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
.
Firewall > POLICY — advanced page fields
Field Description
NEW FILTER ENTRY Section of the advanced policy window where you can construct a custom firewall
Port ID The name of the protocol being filtered.
Enable Check this box to enable firewall policy filtering for the port.
Allowed Protocol The allowed protocols.
Port Range (From:To) Sets the port range, which must contain all ports required by the protocol.
Protocol Number The protocol number of the IP packets to allow.
Allow Inbound Filters inbound data from the Internet on the specified ports.
Allow Outbound Filters outbound data to the Internet on the specified ports. Stateful inspection ensures
appropriate responses for outbound sessions.
Add Click to add the new filter. It is displayed on the FIREWALL POLICY table.
FIREWALL POLICY Table Lists the firewall policies.
Enable Check this box to enable firewall policy filtering for the port.
Delete Select the Delete box to delete the filter.
Apply Click to apply your changes.
FIREWALL POLICY
TEMPLATE Enables you to select a predefined firewall policy template on which to base your custom
template — High, Medium, or Low.
Apply Policy Template Click to apply the selected predefined firewall policy template and cancel any customizations.
30 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Firewall > ALERT — basic Page
You can use this page to set the alert mechanism for firewall intrusion detection events.
Firewall > ALERT — basic page fields
Field or Button Description
Intrusion Detection Check Email to be alerted through SMTP e-mail. An SMTP server that does not require any
authentication such as a user name or password must be present to receive the e-mail.
Apply Click to apply your changes.
31 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Firewall > ALERT — email Page
You can use this page to configure the e-mail alert parameters:
Firewall > ALERT — email page fields
Field or Button Description
E-mail Server IP Address Sets the e-mail server IP address, in dotted-decimal format.
E-mail Server Port Sets the e-mail server port number.
E-mail Sender Sets the sender e-mail address.
E-mail Recipient List Sets the list of e-mail addresses that receive alerts from the SBG900 firewall.
Apply Click to apply your changes.
32 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Firewall > LOGS Page
You can use this page to set which firewall events are logged.
Firewall > LOGS page fields
Field or Button Description
Enable Session Log Check this box to log session events.
Enable Blocking Log Check this box to log blocking events.
Enable Intrusion Log Check this box to log intrusions.
Apply Click to apply your changes.
33 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Gaming Configuration Guidelines
The following subsections provide information about configuring the SBG900 firewall and DMZ for gaming.
Configuring the Firewall for Gaming
By default, the SBG900 firewall is disabled. If, as recommended, you enable the firewall, refer to the game’s
documentation to ensure that the necessary ports are open for use by that game.
The pre-defined SBG firewall policies affect X-Box Live® as follows:
Configuring Port Triggers
Because the SBG has pre-defined port triggers for games using any of the following applications, no user action is
required to enable them:
•Direct X® 7 and Direct X8
•MSN Games by Zone.com
•Battle.net®
For a list of games supported by Battle.net, visit http://www.battle.net.
You may need to create custom port triggers to enable other games to operate properly. If you set custom port
triggers and enable the firewall, you must customize the firewall to allow traffic through those ports. To create
custom port triggers, use the Gateway > PORT TRIGGERS — custom Page.
Low XBox Live data can pass through the firewall. No user action is required.
Medium or high To enable X-Box Live traffic to pass, you must configure:
•Choose Custom on the Firewall > POLICY — basic Page
•UDP 88:88 and UDP/TCP 3074:3074 on the Firewall > POLICY — advanced Page
34 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Configuring a Gaming DMZ Host
Some games and game devices require one of:
•The use of random ports
•The forwarding of unsolicited traffic
For example, to connect a PlayStation® 2 for PS2® on-line gaming, designate it as the gaming DMZ host because
the ports required vary from game to game. For these games, we recommend configuring the gaming computer or
device as a gaming DMZ device.
To configure a gaming DMZ device, on the Gateway > LAN — dhcp reservations Page:
1Reserve a private IP address for the computer or game device MAC address.
2Designate the device as a DMZ device.
You can reserve IP addresses for multiple devices, but only one can be designated as the gaming DMZ at once.
Caution!
The gaming DMZ host is not protected by the firewall. It is open to communication or hacking from any
computer on the Internet. Consider carefully before configuring a device to be in the DMZ.
35 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Configuring the Gateway
This section describes the Gateway configuration pages in the SBG900 Setup Program:
•Gateway > STATUS Page
•Gateway > WAN Page
•Gateway > LAN — nat config Page
•Gateway > LAN — dhcp server config Page
•Gateway > LAN — dhcp reservations Page
•Gateway > PORT FORWARDING — status Page
•Gateway > PORT FORWARDING — config Page
•Gateway > PORT TRIGGERS — predefined Page
•Gateway > PORT TRIGGERS — custom Page
•Gateway > LOG Page
For some settings, after you edit the field and click Apply, you are warned that you must reboot for your change
to take effect. Rebooting takes 10 to 15 seconds. After rebooting, you must log-in again.
36 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Gateway > STATUS Page
This page displays the gateway status information:
These fields display settings that are set on the other Gateway pages. For field descriptions, see the following
subsections that describe the fields on each tab.
37 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Gateway > WAN Page
Use this page to configure the external (public) wide area network (WAN) interface:
Gateway > WAN page fields
Field Description
Host Name If the cable service provider requires a hostname to access to their network, type the hostname
they provided in this field. The default is None.
Enable DHCP Client Enabling the DHCP client causes the wireless gateway to automatically obtain the public IP
address, subnet mask, domain name, and DNS server(s). Most commonly, the DHCP client is
enabled if the cable service provider automatically assigns a public IP address from their
DHCP server. Enable DHCP Client is on by default.
Disable DHCP Client If the cable service provider does not automatically assign a public IP address using DHCP,
they must provide a static IP address. Select Disable DHCP Client. When you disable the
DHCP client, you must type the static IP address, subnet mask, DNS server(s), and domain
name (if necessary) in the fields provided. Disable DHCP Client is off by default.
Static IP Address If Disable DHCP Client is on, type the static IP address provided by the cable service provider,
in dotted-decimal format. The default is None.
Static IP Subnet Mask If Disable DHCP Client is on, type the subnet mask associated with the static IP address, in
dotted-decimal format. The default is None.
WAN Default Gateway When using a statically assigned IP address from your ISP, enter the default gateway the SBG
should be using to communicate with on the WAN.
38 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
DNS IP Address 1
DNS IP Address 2
DNS IP Address 3
The cable service provider DNS server provides name-to-IP address resolution. If the cable
service provider does not automatically assign DNS addresses from their DHCP server, they
must provide at least one DNS server IP address to enter in these fields, in dotted-decimal
format. The default is None.
TCP Session Wait
Timeout Sets the maximum time in seconds to wait before assuming a TCP session has timed out. The
default is 24 hours.
UDP Session Wait
Timeout Sets the maximum time in seconds to wait before assuming a UDP session has timed out. The
default is 300 seconds (5 minutes).
ICMP Session Wait
Timeout Sets the maximum time in seconds to wait before assuming an ICMP session has timed out.
The default is 300 seconds (5 minutes).
Apply Click to apply your changes.
Gateway > WAN page fields (continued)
Field Description
39 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Gateway > LAN — nat config Page
Use this page to enable NAT and add clients to the CURRENT NAT PASSTHROUGH list:
Gateway > LAN — nat config page fields
Field or Button Description
LAN
Enable NAT If enabled, the single HFC IP Address (public IP address) assigned by the cable service
provider is mapped to many private IP addresses on the SBG900 LAN.
Apply Click to apply your changes. You must reboot the SBG900.
NEW NAT
PASSTHROUGH Specifies up to 32 computers as passthrough clients not subject to NAT, using their MAC
addresses.
MAC Address Type the passthrough client MAC address. The format is 16 hexadecimal numerals.
Bypass Firewall
(True DMZ) Check this box to set the NAT passthrough computer as a DMZ client. Use this setting with
extreme caution because a DMZ client is completely open to Internet hackers.
Add Click to add the MAC address to the CURRENT NAT PASSTHROUGH list.
CURRENT NAT
PASSTHROUGH Lists the computers on the LAN that are configured for NAT passthrough.
Delete Click to delete the selected MAC address from the NAT passthrough list.
40 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB

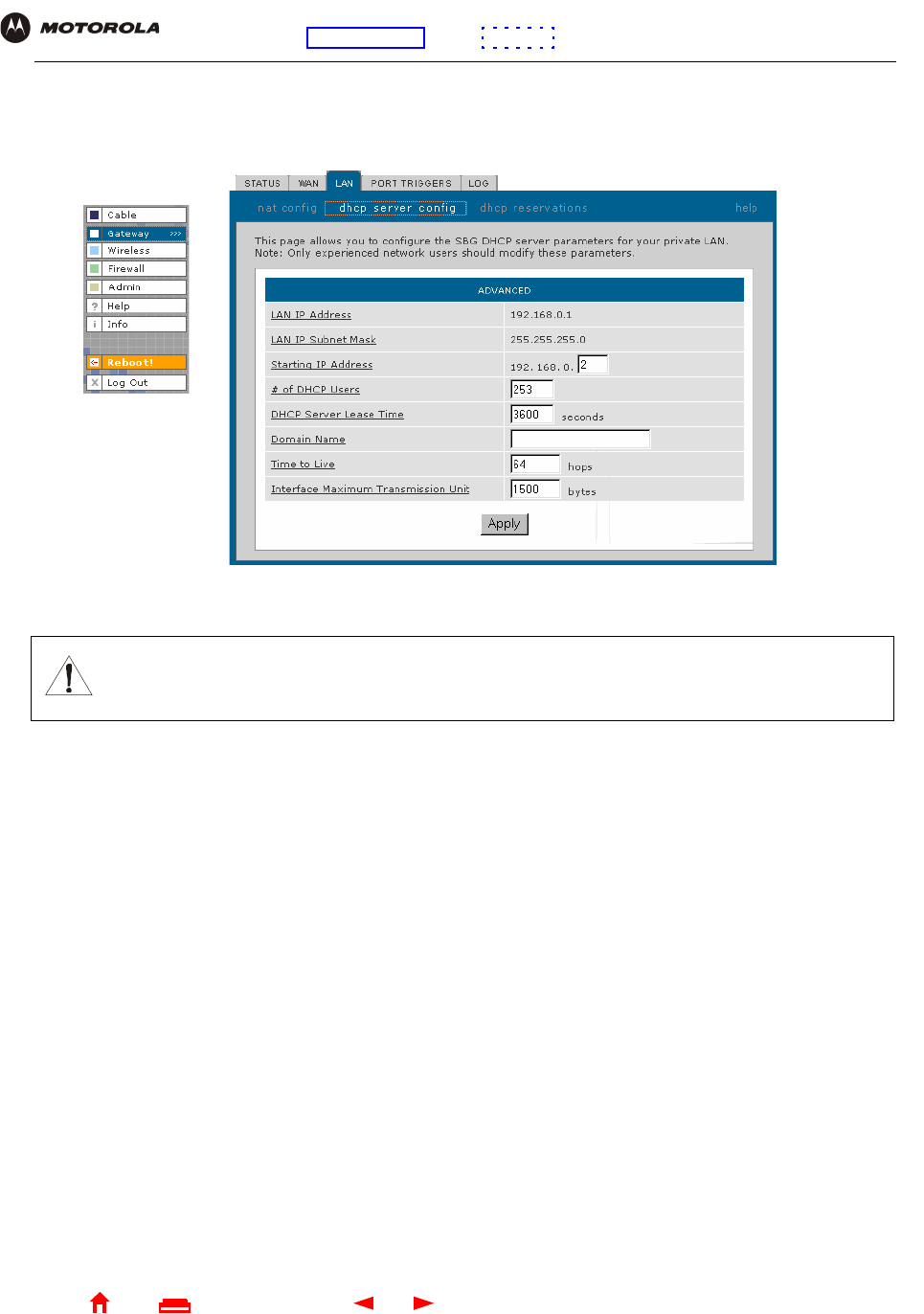

Gateway > LAN — dhcp server config Page
Only experienced network administrators should use this page to perform advanced DHCP server configuration:
CAUTION!
Do not modify these settings unless you are an experienced network administrator with strong
knowledge of IP addressing, subnetting, and DHCP.
Gateway > LAN — dhcp server config page fields
Field Description
LAN IP Address The SBG900 LAN IP address, in dotted-decimal format. The default is 192.168.0.1.
LAN IP Subnet Mask The subnet mask, in dotted-decimal format. The default is 255.255.255.0.
Starting IP Address Sets the starting IP address assigned by the SBG900 DHCP server to clients, in
dotted-decimal format. The default is 192.168.0.2.
# of DHCP Users Sets the number of clients for the SBG900 DHCP server to assign a private IP address. There
are 253 possible client addresses. The default is 253.
DHCP Server Lease Time Sets the time in seconds that the SBG900 DHCP server leases an IP address to a client. The
default is 3600 seconds (60 minutes).
Domain Name Sets the domain name for the SBG900 LAN. The default is None.
Time To Live Sets the TTL (hop limit) for outbound packets. The default is 64.
Interface Maximum
Transmission Unit Sets the SBG900 LAN MTU, in bytes. The minimum is 68 bytes. The default is 1500 bytes.
Apply Click to apply your changes. You must reboot the SBG900.
41 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Gateway > LAN — dhcp reservations Page
Use this page to configure DHCP reservations:
Gateway > LAN — dhcp reservations page fields
Field Description
GAMING DMZ
Enable Gaming DMZ Check this box to designate the selected computer or gaming device as the gaming DMZ
host. For more information, see “Configuring a Gaming DMZ Host”. This can be useful if you
have difficulties running certain applications; typically gaming applications.
(Gaming) DMZ Host The gaming DMZ host is a computer with a reserved IP address designated as the default
DMZ host. Only one gaming DMZ host can be active at once.
The gaming DMZ host is not protected by the firewall. It is open to communication or hacking
from any computer on the Internet. Consider carefully before configuring a computer to be in
the DMZ.
The benefit of using a gaming DMZ host instead of a NAT passthrough host is that a gaming
DMZ host does not require a public IP address as does a NAT passthrough host. If the
application requires a public IP address, configure the computer for NAT passthrough on the
Gateway > LAN — nat config Page.
42 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Gateway > PORT FORWARDING — status Page
Use this page to display the configured port forwarding entries on the SBG900 LAN. The fields are the same as on
the Gateway > PORT FORWARDING — config Page:
RESERVE NEW IP
ADDRESS You can reserve up to 32 IP addresses assigned by the SBG900 DHCP server for specific
LAN clients. For example, to ensure that they always receive the same private IP address,
you can reserve IP addresses for a private FTP server or gaming DMZ device.
MAC Address Type the MAC address of the DHCP client for which a reserved IP address is required. The
format is 16 hexadecimal numerals.
IP Address Sets the host portion of the reserved IP address for the LAN client having the specified MAC
address. When the LAN client requests an IP address, the SBG900 DHCP server assigns the
client this IP address.
Host Name If your ISP requires a hostname to access their network, enter the hostname provided to you
in the Host Name field.
Add Click Add to reserve a new IP address.
CURRENTLY RESERVED
IP ADDRESSES Displays all DHCP clients having reserved IP addresses.
MAC Address Displays the client MAC address.
IP Address Displays its reserved IP address
Host Name Displays its host name.
Delete Click this box to remove the reserved IP address for the client.
Delete Click this button to remove the reserved IP addresses for clients designated by the Delete
box.
Gateway > LAN — dhcp reservations page fields (continued)
Field Description
43 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Gateway > PORT FORWARDING — config Page
Use this page to configure up to 32 virtual servers:
Gateway > PORT FORWARDING — config page fields
Field Description
ADD NEW PORT
FORWARDING ENTRY You can configure up to 32 virtual servers.
Template If you select Custom, you must set the Name, Port Start, Port End, and LAN IP Address.
If you select a predefined template such as HTTP or FTP, the Name, Port Start, Port End
values are provided. You only need to enter LAN IP Address and change default values only
if necessary.
Name Type a unique identifier for the custom virtual server. The typical practice is to use the
protocol as a unique identifier (for example “ftp”).
Port Start Sets the LAN internal interface port or the start of a port range. Inbound Internet connection
requests are statically mapped to this port.
Port End If a range of ports is required, sets the end of the port range.
LAN IP Address Sets the private LAN IP address for the port forwarding page. An Internet user must know the
public IP address to access any port forwarding entry you define on the private LAN.
Enable Check this box to enable the port forwarding entries to be accessed through NAT.
Add Click to add the virtual server to the PORT FORWARDING list.
PORT FORWARDING Displays the configured custom virtual servers.
44 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Gateway > PORT TRIGGERS — predefined Page
When you run a PC application that accesses the Internet, it communicates with a computer on the Internet. In
some applications, especially gaming, the computer on the Internet also communicates with your PC. Because
NAT does not normally allow these incoming connections, the SBG900 supports port triggering.
The SBG900 is preconfigured with port triggering for common applications. You can also configure additional port
triggers if needed. Configuring port triggers for an application requires:
•The application transport protocol — TCP or UDP
•The application port number
You can use the default values for the remaining parameters.
Only one PC at a time connected to the SBG900 can use an application requiring port triggering. Use this page to
view predefined port triggers:
45 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Gateway > PORT TRIGGERS — predefined page fields
Field Description
Name Displays the unique name for the port triggers. This is typically the protocol name.
Enable Select the Enable check box to activate the port triggers for the predefined application.
Protocol Displays the transport protocol for the port trigger — TCP or UDP.
Port Range Displays the port range (From/To) for the port trigger.
Session Chaining Displays the session chaining selection for the port trigger — Disable, TCP, or TCP/UDP.
Session Interval Displays the session interval set for the port trigger.
Address Replace Displays the address replacement method for the port trigger.
Multi Host Displays the multi host selection for the port trigger.
46 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Gateway > PORT TRIGGERS — custom Page
Use this page to create a custom port trigger:
Gateway > PORT TRIGGERS — custom page fields
Field Description
ADD NEW SPECIAL
APPLICATION
Name Enter the unique name for the port trigger. This is typically the protocol.
Enable Check this box to enable the custom port trigger.
Protocol Sets the transport protocol for the port trigger — TCP or UDP.
Port Range
(From:To) Sets the port range for the port trigger. Type the start of the range in the left field and the end in
the right field.
Session Chaining Enable session chaining if the application needs to open one or more ports in different ranges to
operate properly. The options are Disable, TCP, or TCP/UDP.
Session Interval Sets the session interval for the application:
•If the port triggers detect traffic on the Port Range within the Session Interval, it is considered
to be related to the initial session.
•If the port triggers detect traffic on the Port Range after the Session Interval expires, it is
considered to be a new and unique session.
Address Replace Sets the address replacement method for the application.
Multi Host Check if appropriate for the application.
Add Click to add the port trigger to the PORT TRIGGERS TABLE.
47 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Gateway > LOG Page
Use this page to view detailed information about the gateway:
PORT TRIGGERS TABLE Lists all port triggers you defined and their parameters.
Priority Port Select the port to have a priority status.
Gateway > LOG page fields
Field Description
Time The date and time in the format yyyy-mm-dd hh:mm:ss (hours hh are 00 to 23).
Priority Indicates the importance of the message.
Code Code associated with this message.
Message Describes the event.
Gateway > PORT TRIGGERS — custom page fields
Field Description
48 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Configuring TCP/IP
You must be sure all client computers are configured for TCP/IP (a protocol for communication between
computers). Perform one of:
•Configuring TCP/IP in Windows 95, Windows 98, or Windows Me
•Configuring TCP/IP in Windows 2000
•Configuring TCP/IP in Windows XP
•Follow the instructions in your Macintosh or UNIX user manual
After configuring TCP/IP, perform one of the following to verify the IP address:
•Verifying the IP Address in Windows 95, Windows 98, or Windows Me
•Verifying the IP Address in Windows 2000 or Windows XP
•Follow the instructions in your Macintosh or UNIX user manual
49 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Configuring TCP/IP in Windows 95, Windows 98, or Windows Me
1On the Windows Desktop, click Start.
2Select Settings and then Control Panel from the pop-up menus to display the Control Panel window.
3Double-click the Network icon to display the Network window:
4Select the Configuration tab.
5Verify that TCP/IP is installed for the adapter used to connect to the SBG900. If TCP/IP is installed, skip to
step 10. If TCP/IP is not installed for the adapter, continue with step 6.
6Select the adapter to use for the SBG900 connection and click Add. The Select Network Component Type
window is displayed:
7Click Protocol and click the Add button.
Although your SBG model number may be different than in the images in this guide, the procedure is
the same.
50 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
8Click Microsoft in the Manufacturers section and click TCP/IP in the Network Protocol section of Select
Network Protocol window:
9Click OK.
10 Click TCP/IP on the Network window. If there is more than one TCP/IP entry, choose the one for the Ethernet
card or USB port connected to the SBG900.
11 Click Properties. The TCP/IP Properties window is displayed:
12 Click the IP Address tab.
13 Click Obtain an IP address automatically.
14 Click OK to accept the TCP/IP settings.
15 Click OK to close the Network window.
16 Click OK when prompted to restart the computer and click OK again.
When you complete TCP/IP configuration, go to “Verifying the IP Address in Windows 95, Windows 98, or
Windows Me”.
51 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Configuring TCP/IP in Windows 2000
1On the Windows Desktop, click Start.
2Select Settings and then Control Panel from the pop-up menus to display the Control Panel window:
3Double-click the Network and Dial-up Connections icon to display the Network and Dial-up Connections
window:
52 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
4Click Local Area Connection number. The value of number varies from system to system. The Local Area
Connection number Status window is displayed:
5Click Properties. Information similar to the following window is displayed:
6If Internet Protocol (TCP/IP) is in the list of components, TCP/IP is installed. You can skip to step 10.
If Internet Protocol (TCP/IP) is not in the list, click Install. The Select Network Component Type window is
displayed:
53 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
7Click Protocol on the Select Network Component Type window and click Add. The Select Network Protocol
window is displayed:
8Click Internet Protocol (TCP/IP).
9Click OK. The Local Area Connection number Properties window is re-displayed.
10 Be sure the box next to Internet Protocol (TCP/IP) is checked.
54 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
11 Click Properties. The Internet Protocol (TCP/IP) Properties window is displayed:
12 Be sure Obtain IP address automatically and Obtain DNS server address automatically are selected.
13 Click OK to accept the TCP/IP settings.
14 Click OK to close the Local Area Connection number Properties window.
15 Click OK when prompted to restart the computer and click OK again.
When you complete the TCP/IP configuration, go to “Verifying the IP Address in Windows 2000 or Windows XP”.
55 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB

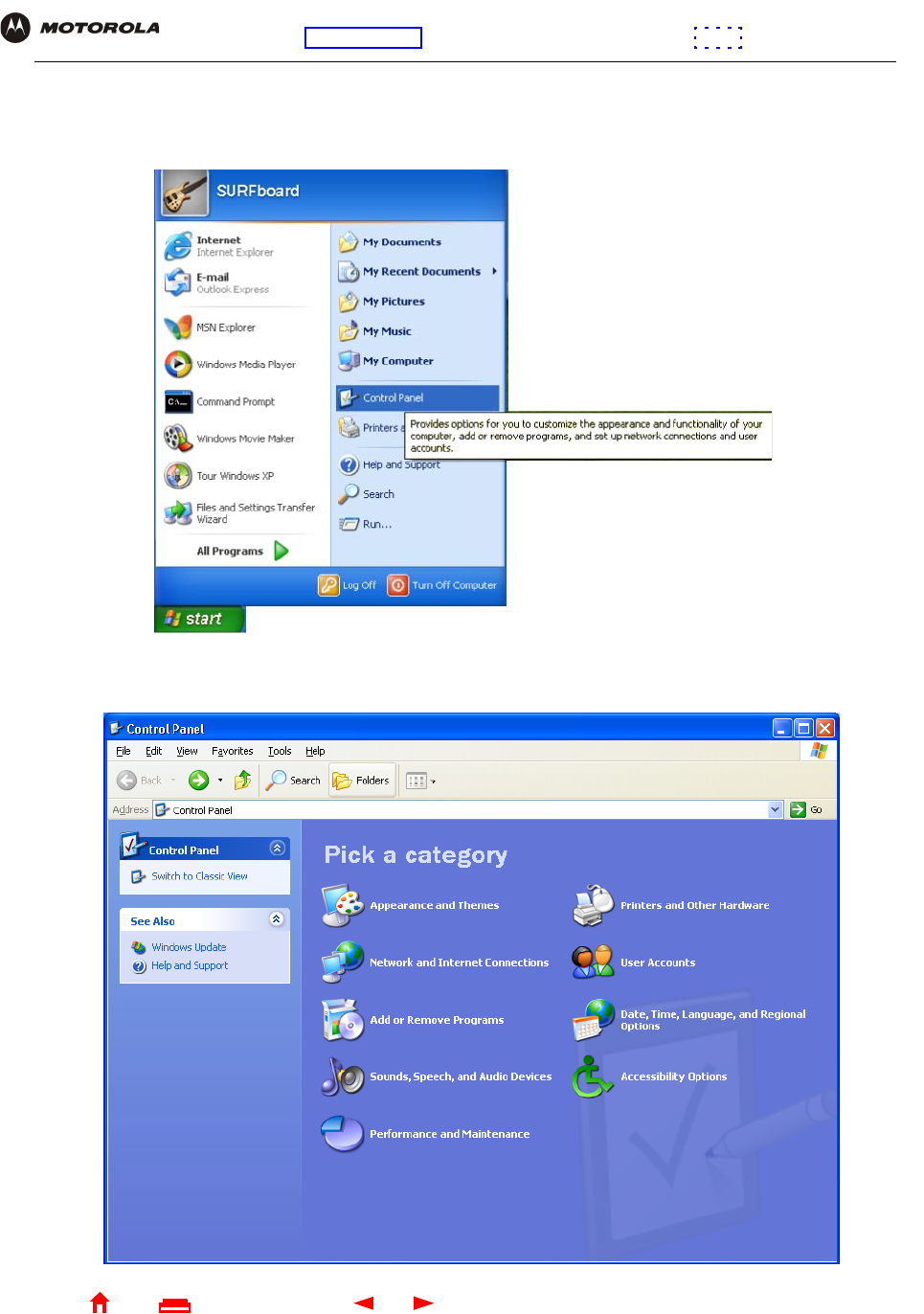

Configuring TCP/IP in Windows XP
1On the Windows desktop, click Start to display the Start window:
2Click Control Panel to display the Control Panel window. The display varies, depending on the Windows XP
view options. If the display is a Category view as shown below, continue with step 3. Otherwise, skip to
step 5.
56 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
3Click Network and Internet Connections to display the Network and Internet Connections window:
4Click Network Connections to display the LAN or High-speed Internet connections. Skip to step 7.
5If a classic view similar to below is displayed:
6Click Network Connections to display the LAN or High-speed Internet connections.
57 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
7Right-click on the network connection. If more than one connection is displayed, be sure to select the one for
your network interface:
8Select Properties from the pop-up menu to display the Local Area Connection Properties window:
9On the Local Area Connection Properties window, be sure Internet Protocol (TCP/IP) is checked. If it is not
selected, check it.
58 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
10 Select Internet Protocol (TCP/IP) and click Properties to display the Internet Protocol (TCP/IP) Properties
window:
11 Verify that the settings are correct, as shown above.
12 Click OK to close the TCP/IP Properties window.
13 Click OK to close the Local Area Connection Properties window.
When you complete the TCP/IP configuration, go to “Verifying the IP Address in Windows 2000 or Windows XP”.
59 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Verifying the IP Address in Windows 95, Windows 98, or Windows Me
To check the IP address:
1On the Windows Desktop, click Start.
2Select Run. The Run window is displayed.
3Type winipcfg.exe and click OK. The IP Configuration window is displayed. The Ethernet Adapter
Information field will vary depending on the system, as shown in the following examples:
The values for Adapter Address, IP Address, Subnet Mask, and Default Gateway on the PC will be different
than in the image.
In Windows 98, if “Autoconfiguration” is displayed before the IP Address as in the following image, call your
service provider.
4Select the adapter name — the Ethernet card or USB device.
5Click Renew.
6Click OK after the system displays an IP address.
If after performing this procedure the computer cannot access the Internet, call your cable service provider for
help.
60 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Verifying the IP Address in Windows 2000 or Windows XP
To check the IP address:
1On the Windows Desktop, click Start.
2Select Run. The Run window is displayed.
3Type cmd and click OK to display a command prompt window.
4Type ipconfig and press ENTER to display the IP configuration. A display similar to the following indicates a
normal configuration:
If an Autoconfiguration IP Address is displayed as in the following window, there is an incorrect connection
between the PC and the SBG900 or there are cable network problems. Check the cable connections and
determine if you can view cable-TV channels on your television:
After verifying the cable connections and proper cable-TV operation, renew the IP address.
61 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
To renew the IP address:
1Type ipconfig /renew and press ENTER. If a valid IP address is displayed as shown, Internet access should
be available.
2Type exit and press ENTER to return to Windows.
If after performing this procedure the computer cannot access the Internet, call your cable service provider
for help.
62 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Setting Up the Wireless LAN
You can use the SBG900 as an access point for a wireless LAN without changing its default settings.
To enable security for your SBG900 wireless LAN, you can do the following on the SBG900:
Connect at least one computer to the SBG900 Ethernet or USB port to use for performing configuration. Do not
attempt to configure the SBG900 over a wireless connection.
You need to configure each wireless client station to access the SBG900 LAN as described in “Configuring the
Wireless Clients”.
For descriptions of all wireless configuration fields, see “Wireless Pages in the SBG900 Setup Program”.
Another common-sense step to improve wireless security is to place wireless components away from windows.
This decreases the signal strength outside the intended area.
Caution!
The default SBG900 settings provide no security for wireless data. After the wireless LAN is
operational, be sure to configure some form of wireless security.
To Perform on the
SBG900 Advantages Disadvantages
Configure an Extended
Service Set Identifier (ESSID)
and enable closed network
operation
Configuring the Wireless
Network Name on the
SBG900
Provides a unique name to
distinguish from other
nearby wireless LANs.
You must configure the
ESSID on each client
computer.
Does not encrypt wireless
data
Enable Wired Equivalent
Privacy (WEP) encryption and
configure a WEP key
Configuring WEP on the
SBG900
Encrypts wireless data You must configure the
WEP key on each client
computer.
Restrict access to computers
with known MAC addresses Configuring a MAC
Access Control List on
the SBG900
No configuration on client
required
No code that can be
broken.
You must input each client
MAC address on the
SBG900
Does not encrypt wireless
data
Caution!
Never provide the ESSID or WEP key to anyone who is not authorized to use your wireless LAN.
63 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Configuring the Wireless Network Name on the SBG900
If you check Disable ESSID Broadcast on the SBG900 Wireless > SECURITY — advanced Page, you must
configure the same network name (ESSID) on all wireless LAN clients (stations). Never provide the ESSID to
anyone who is not authorized to use your wireless LAN.
To configure the ESSID:
1Start the SBG900 Setup Program as described in “Starting the SBG900 Setup Program”.
2On the left frame, click Wireless.
3Click the NETWORK tab to display:
4In the ESSID field, type a unique name. It can be any alphanumeric, case-sensitive string up to
32 characters. The default is “Motorola.” Do not use the default ESSID.
5Click Save Changes to save your changes.
6To restrict wireless LAN access to clients configured with the same Network Name (ESSID) as the SBG900,
click the SECURITY tab.
64 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
7Click advanced to display the Wireless > SECURITY — advanced Page:
8Check Disable ESSID Broadcast to restrict wireless LAN access to clients configured with the same
Network Name (ESSID) as the SBG900.
9Click Apply to save your changes.
65 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Configuring WEP on the SBG900
To enable WEP and set the key on the SBG900:
1On the SBG900 Setup Program left frame, click Wireless.
2Click the SECURITY tab to display the Wireless > SECURITY — basic page:
3Set the following:
4If necessary, click Reset Wireless Defaults to reset the wireless defaults.
5Click Save Changes to save your changes.
Caution!
The default settings provide no security for wireless data. After the wireless LAN is operational, be sure
to enable Shared Key Authentication and Wired Equivalent Privacy (WEP) encryption. You must
configure the same WEP key on the SBG900 access point and all wireless clients (stations). Never
provide the WEP key to anyone who is not authorized to use the wireless LAN.
Authentication Sets whether shared key authentication is enabled to provide data privacy on the wireless LAN:
•Open System — Any wireless LAN client can transmit data to any other client without
authentication. Open authentication provides no security for transmitted data. It is the default.
•Shared Key — All data transmitted over the wireless LAN is encrypted. The SBG900 authenticates
and transfers data to and from all clients having shared key authentication enabled and an identical
WEP key.
Encryption Use a WEP key length that is compatible with your wireless client adapters. Choose one of:
•Enable 64-Bit — Use only if you have wireless clients that do not support 128-bit encryption
•Enable 128-Bit — The recommended setting for stronger encryption; supported by the Motorola
PCC11b wireless card, USB11b wireless adapter, and most current wireless adapters
•Disable WEP — Recommended during network setup only
Key 1 to Key 4 Sets the active WEP key. You can enter up to four 64-bit or 128-bit WEP keys containing the
non-case-sensitive hexadecimal characters 0 to 9 and A to F. Only one key can be active:
•For 64-bit encryption, set the 10-character long key under Enable 64-Bit.
•For 128-bit encryption, set the 26-character long key under Enable 128-Bit.
For optimal security, we recommend changing the WEP keys frequently. Never provide the WEP key
to anyone who is not authorized to use your wireless LAN.
66 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Configuring a MAC Access Control List on the SBG900
You can restrict wireless access to one to 32 wireless clients, based on the client MAC address.
To configure a MAC access control list:
1On the SBG900 Setup Program left frame, click Wireless.
2Click the SECURITY tab.
3Click advanced to display the Wireless > SECURITY — advanced Page:
4To restrict wireless access to systems in the MAC access control list, check Allow Only Listed Stations
Access and click Apply.
5To add a wireless client, type its MAC address in the format xx:xx:xx:xx:xx:xx in the New Station field and
click Add Station.
You can add up to 32 wireless clients to the MAC access control list.
67 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Configuring the Wireless Clients
For each wireless client computer (station), install the wireless adapter — such as a Motorola PCC11b wireless
card or Motorola USB11b wireless adapter — following the instructions supplied with the adapter.
Configure the card or adapter to obtain an IP address automatically. The Motorola PCC11b wireless card and
Motorola USB11b wireless adapter are supplied with a client configuration program called Wireless Client
Manager, which is installed in the Windows Startup group.
If Wireless Client Manager is running, the icon is displayed on the Windows task bar. Double-click the icon to
launch the utility.
After you correctly set the network name and WEP key on the client computer to match the SBG900, you should
be able to use the computer to surf the Internet.
Configuring a Wireless Client with a Network Name (ESSID)
To distinguish it from other nearby wireless LANs, you can identify your wireless LAN with a unique network name
(also known as a network identifier or ESSID). When prompted for the network identifier, network name, or ESSID,
type the name set in the ESSID field on the Wireless > NETWORK Page in the SBG900 Setup Program. For more
information, see “Configuring the Wireless Network Name on the SBG900”.
After you specify the network name, many wireless cards or adapters automatically scan for an access point such
as the SBG900 and the proper channel and data rate. If your card requires you to manually start scanning for an
access point, do so following the instructions in the documentation supplied with the card.
Never provide the ESSID to anyone who is not authorized to use your wireless LAN.
Configuring a Wireless Client for WEP
If shared key Authentication is enabled and a WEP key is set on the SBG900 as described in “Configuring WEP
on the SBG900”, you must enter the same WEP key on the wireless client. The SBG900 cannot authenticate a
client if:
•Shared key Authentication is enabled on the SBG900 but not on the client
•The client WEP key does not match the SBG900 WEP key
Caution!
If shared key authentication is not enabled and no WEP key is set, there is no encryption for wireless
data. You must configure the same WEP key on the SBG900 and all wireless clients. Never provide
the WEP key to anyone who is not authorized to use your wireless LAN.
68 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Wireless Pages in the SBG900 Setup Program
Use the Wireless pages to control and monitor the wireless interface:
•Wireless > STATUS Page
•Wireless > NETWORK Page
•Wireless > SECURITY — basic Page
•Wireless > SECURITY — advanced Page
•Wireless > STATISTICS page
For some settings, after you edit the field and click Apply, you are warned that you must reboot for your change
to take effect. Rebooting takes 10 to 15 seconds. After rebooting, you must log-in again.
69 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Wireless > STATUS Page
You can use this display-only page to
•View the wireless interface status
•Help perform Troubleshooting for wireless network problems
Wireless > STATUS Page Fields
Regulatory Domain Indicates the country the SBG900 is manufactured for. The list of channels depends on the
country’s standards for operation of wireless devices. Depending on the domain set at the factory,
USA FCC, Europe, Spain, France, Japan, or some other country name is displayed.
ESSID Displays the ESSID set on the Wireless > NETWORK Page. For more information, see
“Configuring the Wireless Network Name on the SBG900”. Never provide the ESSID to anyone
who is not authorized to use your wireless LAN.
Channel Displays the radio channel for the access point. If you encounter interference, you can set a
different channel on the Wireless > NETWORK Page.
RTS Threshold Displays the Request to Send Threshold set on the Wireless > NETWORK Page.
Frag Threshold Displays the Fragmentation Threshold set on the Wireless > NETWORK Page.
MAC Address Displays the SBG900 MAC address.
WEP Enabled Displays the type of Wired Equivalent Privacy (WEP) that is enabled. For more information, see
“Configuring WEP on the SBG900”.
MAC Access Control Displays the MAC Access Control setting set on the Wireless > SECURITY — advanced Page:
•Allow Listed — Only clients in the MAC access control list can access the wireless LAN.
•Allow Any Station Access — Any wireless client can access the wireless LAN.
MAC Access Control List Displays the MAC addresses of wireless clients having access. The list is set on the
Wireless > SECURITY — advanced Page.
70 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Wireless > NETWORK Page
Use this page for:
•Configuring the Wireless Network Name on the SBG900
•Configuring other wireless LAN settings
You can use the SBG900 to operate a wireless LAN without changing its default settings.
Wireless > NETWORK page fields
Field Description
WIRELESS
Enable Wireless
Interface Check this box to enable the wireless interface.
ESSID Sets a unique network name for the SBG900 wireless LAN to distinguish between multiple
wireless LANs in the vicinity. If you check Disable ESSID Broadcast on the Wireless >
SECURITY — advanced Page, all clients on the wireless LAN must have the same ESSID
(network name) as the SBG900. It can be any alphanumeric, case-sensitive string up to
32 characters. The default is “Motorola.” We strongly recommend not using the default. Never
provide the ESSID to anyone who is not authorized to use your wireless LAN.
Channel Sets the wireless radio channel. You can change the channel if you encounter interference on
the default channel. The default is 1 (one), except in countries where the first channel
permitted for wireless operation is not one.
71 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Operating Mode Sets how the SBG900 communicates with wireless clients (stations):
•11b/11g Standard — Enables all IEEE 802.11b and IEEE 802.11g clients to work with the
SBG900. We recommend using this default setting in most cases because it is more flexible.
•11g Enhanced — Choose this option only if all IEEE 802.11g clients on the network support
the performance-enhancing features of the IEEE 11g Enhanced mode. It is not supported by
all IEEE 802.11g stations.
ADVANCED SETUP
Transmit Power Sets the transmit power on the SBG900 wireless access point — 1, 2, 5, 10, 25, 50, or 100
mW. The default is 32 mW. Transmit power control is an optional IEEE 802.11b feature.
RTS Threshold The Request To Send Threshold sets the packet size at which the access point issues an RTS
before sending the packet. A low RTS can help when many clients are associated with the
SBG900 or when the clients are far apart and can detect the SBG900 but not each other. It
can be 0 to 2347 bytes. The default is 2347.
Fragmentation
Threshold Sets the size at which packets are fragmented (sent as several packets instead of as one
packet). A low Fragmentation Threshold can help when communication is poor or when there
is a significant interference. It can be 256 to 2346 bytes. The default is 2346.
Beacon Period Sets the time between beacon frames sent by the SBG900 for wireless network
synchronization. It can be from 1 to 999 ms. The default is 100 ms.
DTIM Period The delivery traffic indication message (DTIM) period is the number of Beacon Periods that
elapse before a wireless client operating in power save mode “listens” for buffered broadcast
or multicast messages from the SBG900. It can be from 1 to 99999. The default is 3.
Wireless > NETWORK page fields (continued)
Field Description
72 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Wireless > SECURITY — basic Page
Use this page to configure basic Wired Equivalent Privacy (WEP) settings.
For information about using this page, see “Configuring WEP on the SBG900”.
Caution!
The default Authentication setting Disable WEP provides no security for transmitted data.
73 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Wireless > SECURITY — advanced Page
Use this page to configure advanced wireless security settings.
Wireless > Security — ADVANCED page fields
Field or Button Description
Disable ESSID Broadcast If checked, only wireless clients (stations) having the same Network Name (ESSID) as the
SBG900 can communicate with the SBG900. Closed network operation is a SBG900
enhancement to IEEE 802.11b. The default is unchecked (off).
MAC ACCESS CONTROL
LIST You can restrict wireless access to one to 32 wireless clients, based on the client MAC
address.
Allow Any Station
Access If checked, any wireless client can access the SBG900 wireless LAN.
Allow Only Listed
Stations Access If checked, only wireless clients in the MAC access control list can access the SBG900
wireless LAN.
Apply Click to apply your change.
Listed Stations Lists the wireless clients in the MAC access control list having access if Allow Only Listed
Stations Access is checked.
Delete To delete a wireless client from the MAC access control list, select its Delete check box
and click the Delete button.
74 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Wireless > STATISTICS page
Use this page to display wireless statistics.
ADD NEW STATION
New Station Type the MAC address of the wireless client to add to the MAC access control list. Use the
format xx:xx:xx:xx:xx:xx. The MAC access control list can contain one to 32 clients.
Add Station Click to add the New Station to the MAC access control list.
Wireless > STATISTICS page fields
Field or Button Description
Transmitted
Fragment Count The number of acknowledged MAC protocol data units (MPDUs) with an address in the
address 1 field or an MPDU with a multicast address in the address 1 field of type data or
management.
Multicast
Transmitted
Fragment Count
The number of transmitted fragments when the multicast bit is set in the destination MAC
address of a successfully transmitted MAC service data unit (MSDU). When operating as a
STA in an ESS, where these frames are directed to the AP, this implies having received an
acknowledgment to all associated MPDUs.
Failed Count The number of MSDUs not transmitted successfully because the number of transmit attempts
exceeded the IEEE 802.11b short or long retry limit.
Retry Count The number of successfully transmitted MSDUs after one or more retransmissions.
Wireless > Security — ADVANCED page fields (continued)
Field or Button Description
75 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Multiple Retry Count The number of successfully transmitted MSDUs after more than one retransmission.
Frame Duplicate
Count The number of frames received where the Sequence Control field indicated the frame was a
duplicate.
Request To Send
Success Count The number of CTS messages received in response to RTS messages.
Request To Send
Failure Count The number of CTS messages not received in response to RTS messages.
Acknowledge Failed
Count The number of acknowledgment messages not received when expected from a data
message transmission.
Received Fragment
Count The number of successfully received MPDUs of type Data or Management.
Multicast Received
Fragment Count The number of MSDUs received when the multicast bit was set in the destination MAC
address.
Frame Check
Sequence Error
Count
The number of FCS errors detected in a received MPDU.
Transmitted Frame
Count The number of successfully transmitted MSDUs.
WEP Undecryptable
Count This number of frames received with the WEP subfield of the Frame Control field set to one
and the WEP On key value mapped to the client MAC address. This indicates that the frame
should not have been encrypted or was discarded due to the receiving client not having WEP
enabled.
Refresh Click to collect new data.
Wireless > STATISTICS page fields (continued)
Field or Button Description
76 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Setting Up a USB Driver
The following subsections describe setting up a USB driver if you connect a PC to the USB port on the SBG900.
Perform one of the following procedures based on your Windows version:
•Setting Up a USB Driver in Windows 98
•Setting Up a USB Driver in Windows 2000
•Setting Up a USB Driver in Windows Me
•Setting Up a USB Driver in Windows XP
The SBG900 USB driver does not support Macintosh or UNIX computers. For those systems, you can connect
through Ethernet only.
If you have a problem setting up the USB driver, remove it by performing one of the following procedures:
•Removing the USB Driver from Windows 98 or Windows Me
•Removing the USB Driver from Windows 2000
•Removing the USB Driver from Windows XP
Caution!
Be sure the Motorola SURFboard Wireless Cable Modem Gateway CD-ROM is inserted in the
CD-ROM drive before you plug in the USB cable.
77 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Setting Up a USB Driver in Windows 98
1Insert the Motorola SURFboard Wireless Cable Modem Gateway CD-ROM in the CD-ROM drive. This CD
contains the USB drivers and must be inserted and read by the PC before you connect the SBG900 to the
PC.
2Connect the USB cable as shown in USB Connection.
A few seconds after you complete the USB connection, the Add New Hardware Wizard window is displayed:
3Click Next. The following window is displayed:
4Be sure “Search for the best driver for your device” is selected.
78 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
5Click Next. The following window is displayed:
Be sure “CD-ROM drive” is the only box checked.
6Click Next. The message “Please wait while Windows searches for a new driver for this device” is displayed.
If the computer successfully locates the driver, you can skip to step 9.
If the computer does not locate the driver, the previous window is displayed again.
7Select Specify a location and type the location of the CD-ROM drive:
To load the driver successfully, you may need to click Browse to manually select the NetMotCM.sys file on
the CD-ROM.
79 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
8Click Next. The following window is displayed:
9Select The updated driver... and click Next. If the following window is not displayed, verify that the Motorola
SURFboard Wireless Cable Modem Gateway CD-ROM is properly inserted in the CD-ROM drive. If you still
cannot find the correct driver file, click Cancel to cancel the installation and perform the procedure for
“Removing the USB Driver from Windows 98 or Windows Me”. Then repeat this procedure.
10 After the window shown under step 9 is displayed, click Next.
If a window with the message Copying Files... displays and asks for the CD-ROM drive, type the CD-ROM
drive letter (for example, “D:”) and click OK.
If an Insert Disk window similar to the one below is displayed, Windows 98 system files are needed to
complete the installation. To install the files, insert your Windows 98 CD-ROM in the CD-ROM drive and
click OK.
Although your SBG model number may be different than in the images in this guide,
the procedure is the same.
80 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
After all the necessary files are loaded, the following window is displayed to confirm a successful installation:
11 Click Finish. The Systems Settings Change window is displayed:
12 Click Yes to restart the computer.
When you finish setting up the USB driver, you can continue with “Configuring TCP/IP”.
If you have difficulties setting up the USB driver, perform “Removing the USB Driver from Windows 98 or
Windows Me” and repeat this procedure. If that does not correct the problem, see the Regulatory, Safety, Software
License, and Warranty Information card provided with the SBG900 for information about obtaining warranty
service.
81 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Setting Up a USB Driver in Windows 2000
1Insert the Motorola SURFboard Wireless Cable Modem Gateway CD-ROM in the CD-ROM drive. This CD
contains the USB drivers and must be inserted and read by the PC before you connect the SBG900 to the
PC.
2Connect the USB cable as shown in USB Connection.
A few seconds after you complete the USB connection, the Found New Hardware window is displayed:
3Click Next. The following window is displayed:
Be sure “Search for a suitable driver for my device” is selected.
Although your SBG model number may be different than in the images in this guide, the procedure is
the same.
82 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
4Click Next. The following window is displayed:
Be sure “CD-ROM drives” is the only box checked.
5Click Next. The following window is displayed:
6Click Next.
If the Insert Disk window is displayed, be sure the Motorola SURFboard Wireless Cable Modem Gateway
CD-ROM is in the CD-ROM drive and follow steps 7 to 12. Otherwise, you can skip to step 13.
83 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
7On the Insert Disk window, click OK. The Files Needed window is displayed:
8If necessary, select the CD-ROM drive in the Copy files from list.
9Click Browse.
10 Locate the NetMotCM.sys file in the CD-ROM root directory.
11 Double-click the NetMotCM.sys file. The Files Needed window is displayed.
12 Click OK. The Found New Hardware Wizard window is displayed:
13 Click Finish to complete the installation.
When you finish setting up the USB driver, you can continue with “Configuring TCP/IP”.
If you have any difficulties setting up the USB driver, perform “Removing the USB Driver from Windows 2000” and
repeat this procedure.
84 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Setting Up a USB Driver in Windows Me
1Insert the Motorola SURFboard Wireless Cable Modem Gateway CD-ROM in the CD-ROM drive. This CD
contains the USB drivers and must be inserted and read by the PC before you connect the SBG900 to the
PC.
2Connect the USB cable as shown in USB Connection.
A few seconds after you complete the USB connection, the Add New Hardware Wizard window is displayed:
3Click Next. Windows automatically searches for the correct USB drivers and installs them. If the installation is
successful, the following window is displayed:
4If the window above is displayed, click Finish. Otherwise, be sure the Motorola SURFboard Wireless Cable
Modem Gateway CD-ROM is correctly inserted in the CD-ROM drive.
When you finish setting up the USB driver, you can continue with “Configuring TCP/IP”.
Although your SBG model number may be different than in the images in this guide,
the procedure is the same.
85 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Setting Up a USB Driver in Windows XP
1Insert the Motorola SURFboard Wireless Cable Modem Gateway CD-ROM in the CD-ROM drive. This CD
contains the USB drivers and must be inserted and read by the PC before you connect the SBG900 to the
PC.
2Connect the USB cable as shown in USB Connection.
A few seconds after you complete the USB connection, the Found New Hardware Wizard window is
displayed:
3Be sure “Install the software automatically” is selected.
4Click Next. Windows automatically searches for the correct USB drivers and installs them. If the installation is
successful, the following window is displayed:
Although your SBG model number may be different than in the images in this guide, the procedure
is the same.
86 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
5Click Finish to complete the installation. Otherwise, be sure the Motorola SURFboard Wireless Cable Modem
Gateway CD-ROM is correctly inserted in the CD-ROM drive.
When you finish setting up the USB driver, you can continue with “Configuring TCP/IP”.
Removing the USB Driver from Windows 98 or Windows Me
1On the Windows Desktop, right-click one of:
•In Windows 98, the Network Neighborhood icon
•In Windows ME, the My Network Places icon
The Network window is displayed:
2Click the Motorola SURFboard SBG900 USB Gateway.
Although your SBG model number may be different than in the images in this guide, the procedure is
the same.
87 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
3Click Remove. The Network window no longer displays Motorola SURFboard SBG900 USB Gateway in the
list:
4Click OK. The System Settings Change window is displayed:
5Disconnect the USB cable from the PC or SBG900.
6Click Yes to restart the computer.
7Insert the Motorola SURFboard Wireless Cable Modem Gateway CD-ROM in the CD-ROM drive. After a
short time, a window with language choices is displayed.
8Press the Esc key on the keyboard to exit the start-up screens.
9To start Windows Explorer, click Start and select Run to display the Run window.
10 Type explorer and click OK.
88 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
The Exploring window is displayed. Windows Explorer may appear different than in the image. There are
variations between Windows versions and you can configure Windows Explorer as you like.
11 Double-click the Motorola SBG900 CD-ROM drive (D: in the image above).
12 Double-click remove or remove.exe to run the Remove utility from the Motorola SURFboard Wireless Cable
Modem Gateway CD-ROM. The SURFboard Cable Modem USB Driver Removal window is displayed:
13 Click Remove Driver.
After you remove the USB driver, re-install it on the computer. Perform one of:
•Setting Up a USB Driver in Windows 98
•Setting Up a USB Driver in Windows Me
If you continue to have problems, contact your cable service provider.
89 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB

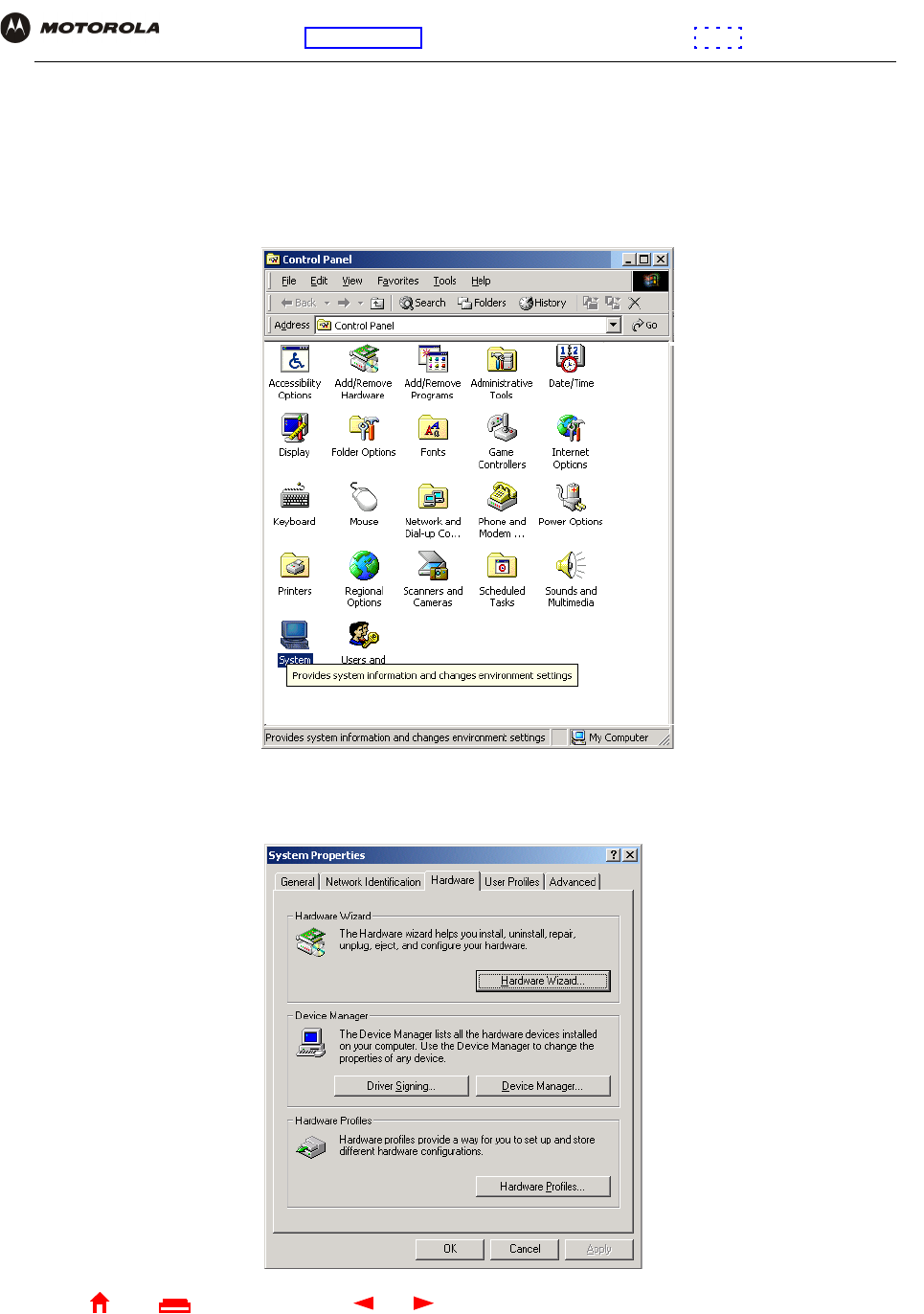

Removing the USB Driver from Windows 2000
1On the Windows desktop, click Start.
2Click Settings.
3Click Control Panel to display the Control Panel window:
4Double-click System to display the System Properties window.
5Click the Hardware tab:
90 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
6Click Device Manager to display the Device Manager window:
7Double-click Network Adapters.
8Click the Motorola SURFboard SBG900 USB Gateway. The Uninstall icon displays on the window near the
top.
9Click the Uninstall icon. The following window is displayed:
10 Click OK.
11 Close the Device Manager window.
12 Close the Control Panel window.
13 Insert the Motorola SURFboard Wireless Cable Modem Gateway CD-ROM in the CD-ROM drive.
14 Press the Esc key on the keyboard to exit the start-up screens.
15 To start Windows Explorer, click Start and select Run to display the Run window.
Although your SBG model number may be different than in the images in this guide, the procedure is
the same.
91 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
16 On the Run window, type explorer and click OK to display Windows Explorer:
Windows Explorer may appear different than in the image. There are variations between Windows versions
and you can configure Windows Explorer as you like.
17 Double-click My Computer.
18 Double-click the Motorola SBG900 CD icon (D: in the image).
19 Double-click remove or remove.exe to run the Remove utility from the Motorola SURFboard Wireless Cable
Modem Gateway CD-ROM. The SURFboard Cable Modem USB Driver Removal window is displayed:
20 Be sure the USB cable is disconnected.
21 Click Remove Driver.
Informational messages similar to the ones shown are displayed on the SURFboard Cable Modem USB
Driver Removal window.
After you remove the USB driver, re-install it following “Setting Up a USB Driver in Windows 2000”. If you continue
to have problems, contact your cable service provider.
92 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Removing the USB Driver from Windows XP
1On the Windows desktop, click Start to display the Start window:
2Click Control Panel to display the Control Panel window. The display varies, depending on the Windows XP
view options:
93 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
3If a Category view similar to the image under step 2 is displayed, click Performance and Maintenance to
display the Performance and Maintenance window. Otherwise, skip to step 5.
4Click System to display the System Properties window. Skip to step 6.
94 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
5If a classic view similar to the following is displayed, click System to display the System Properties window:
6Click the Hardware tab to display the Hardware page:
95 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
7Double-click the Device Manager button to display the Device Manager window:
8Double-click Network adapters.
9Click the Motorola SURFboard SBG900 USB Gateway. The Uninstall icon displays on the window near the
top.
10 Click the Uninstall icon.
11 Close the Device Manager and Control Panel windows.
12 Insert the Motorola SURFboard Wireless Cable Modem Gateway CD-ROM in the CD-ROM drive. After a
short time, a window with language choices is displayed.
13 Press the Esc key on the keyboard to exit the start-up screens.
14 To start Windows Explorer, click Start and select Run to display the Run window.
Although your SBG model number may be different than in the images in this guide, the procedure
is the same.
96 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
15 Type explorer and click OK to display Windows Explorer.
Windows Explorer may appear slightly different than in the image. There are variations between Windows
versions and you can configure Windows Explorer as you like.
16 Double-click My Computer.
17 Double-click the Motorola CD icon (D: in the image).
18 Double-click remove or remove.exe to run the Remove utility from the Motorola SURFboard Wireless Cable
Modem Gateway CD-ROM. The SURFboard Cable Modem USB Driver Removal window is displayed:
19 Be sure the USB cable is disconnected.
20 Click Remove Driver. Informational messages similar to the ones shown are displayed on the SURFboard
Cable Modem USB Driver Removal window.
After you remove the USB driver, re-install it following “Setting Up a USB Driver in Windows XP”. If you continue to
have problems, contact your cable service provider.
97 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Troubleshooting
If the solutions listed here do not solve your problem, contact your cable service provider. Before calling your cable
service provider, try pressing the reset button on the rear panel. Resetting the SBG900 may take 5 to 30 minutes.
Your service provider may ask for the status of the front-panel lights as described in Front-Panel Lights and Error
Conditions.
Front-Panel Lights and Error Conditions
Problem Possible Solutions
POWER light is off Check that the SBG900 is properly plugged into the electrical outlet.
Check that the electrical outlet is working.
Press the Reset button.
Cannot send or
receive data On the top front panel, note which is the first light (starting from the left) that is off. This light
indicates where the error occurred as described in the Front-Panel Lights and Error Conditions
table.
If you have cable TV, check that the TV is working and the picture is clear. If you cannot receive
regular TV channels, the data service will not function.
Check the coaxial cable at the SBG900 and wall outlet. Hand-tighten if necessary.
Check the IP address. Follow the steps for verifying the IP address for your system. See
Configuring TCP/IP. Call your cable service provider if you need an IP address.
Check that the Ethernet cable is properly connected to the SBG900 and the computer.
Problems related to
unsuccessful USB
driver installation
Remove the USB driver. Follow the appropriate procedure for your system in “Setting Up a USB
Driver”.
The SBG900 Setup
Program will not
start
The web cache is full or close to full. In Internet Explorer, choose Internet Options from the
Tools menu, and click the General tab. Click Delete Files and Clear History. Then try Starting
the SBG900 Setup Program again.
Light Turns Off During Startup If Turns Off During Normal Operation If
RECEIVE The receive channel cannot be acquired The receive channel is lost
SEND The send channel cannot be acquired The send channel is lost
ONLINE IP registration is unsuccessful The IP registration is lost
POWER The SBG900 is not properly plugged into the
power outlet
The SBG900 is unplugged
98 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Contact Us
In the United States and Canada, if you need assistance while working with the SBG900 and related equipment
supplied by Motorola:
For information about customer service, technical support, or warranty claims, see the Regulatory, Safety,
Software License, and Warranty Information card provided with the SURFboard SBG900.
For answers to typical questions, see “Frequently-Asked Questions”.
For more information about Motorola consumer cable products, education, and support, visit
http://broadband.motorola.com.
If you rent or lease your SBG900 Contact your cable service provider.
If you own your SBG900 Call 1-877-466-8646 for technical and warranty support. Support is available
24 hours a day, seven days a week.
99 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Frequently-Asked Questions
Here are answers to questions our customers frequently ask:
Q What is high-speed cable Internet access?
A Cable Internet access uses cable television wires instead of telephone lines to connect to the Internet. It is
extremely fast and does not tie up telephone lines for incoming or outgoing calls and faxes.
Q How fast is the Motorola SURFboard Cable Modem Gateway?
A Cable modems offer Internet access at speeds up to 100 times faster than a traditional phone modem. You
can experience speeds of over 1,000 Kbps. Due to network condition such as traffic volume and the speed of
the sites you visit, actual speed may vary. Many network and other factors can affect download speeds.
Q How many users can one SBG900 support?
A A single SBG900 can support up to 253 users, each assigned a unique IP address, on a Class C network.
Q What is Network Address Translation?
A NAT is a technique to translate private IP addresses on your LAN to a single IP address assigned by your
cable service provider that is that is visible to outside users on the Internet.
Q What are IEEE 802.11g and IEEE 802.11b?
A They are IEEE wireless network standards.
Q What type of firewall is provided on the SBG900?
A The SBG900 provides a stateful-inspection firewall.
Q What wireless security measures are provided on the SBG900?
A To protect data transmitted over wireless connections, the SBG900 supports WEP encryption and MAC
access control lists. For information, see “Setting Up the Wireless LAN”.
Q Why is there no Standby button?
A As a security measure, current Motorola SURFboard cable modems provide a Standby button to temporarily
suspend the Internet connection. Because the SBG900 firewall provides high security levels while connected,
the Standby button is not required.
Q Can I still watch cable TV while using my Motorola SURFboard Cable Modem Gateway?
A Yes, your cable TV line can carry the TV signal while you send and receive information on the Internet.
Q What are CableLabs Certified, DOCSIS, and Euro-DOCSIS?
A CableLabs Certified, DOCSIS, and Euro-DOCSIS are the industry standards for high-speed data distribution
over cable television system networks. They are intended to ensure that all compliant cable modems
interface with all compliant cable systems. Your SBG900 is DOCSIS or Euro-DOCSIS certified.
Q If I have an SBG900, can I still use my old 28.8 Kbps or 56 Kbps modem?
A Yes you can. However, once you’ve experienced the speed of cable Internet access, you’ll never again want
to wait for traditional dial-up services.
100 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Q Do I need to change my Internet service provider (ISP)?
A Currently, most Internet service providers do not provide cable Internet access. Contact your cable company
for your specific information.
Q Do I need to subscribe to cable TV to get cable Internet access?
A No, but you will need to subscribe to cable Internet service. Some systems require that you subscribe to basic
service before you can get Internet access and/or offer a discount when you use your own SBG900. Check
with your local cable company for specific information.
Q What type of technical support is available?
A For questions about your Internet service, connection, or SBG900, call your cable service provider.
Q What do I do if my SBG900 stops working?
A “Troubleshooting” provides tips to diagnose problems and simple solutions. If you continue to have problems,
call your cable service provider.
Q Can multiple game players on the SBG900 LAN log onto the same game server and play
simultaneously with just one public IP address?
A It depends on the game server.
101 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Specifications
General
Wireless
Standards compliance IEEE 802.11, IEEE 802.11b Direct Sequence Spread Spectrum - DSSS, IEEE 802.11g
RF frequency range Range 2.4 to 2.4835 GHz, 2.4 to 2.497 GHz for Japan
Data rate Auto, 11, 5.5, 2, and 1 Mb/s
Modulation Auto 11 and 5.5 Mb/s = CCK,
2 Mb/s = DQPSK,
1 Mb/s = DBPSK
Number of channels Europe = 13, Spain = 2, France = 4, US = 11, Japan = 14
Transmit power 17.5 dBm (EIRP)
Receive sensitivity -83 dBm at 11 Mbps
Router
Ethernet standards
compliance IEEE 802.3, IEEE 802.3u
Number of ports One
Number of uplink ports One
Electrical
Input voltage range 100 – 240 VAC, 50 – 60 Hz
Power consumption 5 watts
Environmental
Operating temperature 0° C – 40° C, -150 to 10000 ft.
Storage temperature -30° C to 80° C
Humidity 5 to 95% RH, non-condensing
Antenna Two fixed; one internal and one external
LED Indicators
Modem Receive, Send, Online, Internet
Access point Wireless
Other Power
Interfaces (1) AC Power, (1) F-Type, (1) RJ-45 (1) USB Series B
Dimensions 47.0 W x 149.1 D x 218.2 H (mm)
Weight 485 g (15.6 oz. — unit only)
102 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Cable Modem
Downstream
Modulation 64 QAM or 256 QAM
Maximum data rate 38 Mbps
Frequency 88 MHz to 860 MHz (30 kHz minimum step size)
Bandwidth 6 MHz
Maximum symbol rate 5.069 Msym/s (64 QAM)
5.361 Msym/s (256 QAM)
Operating level range -15 dBmV to +15 dBmV
Input impedance 75 ohms (nominal)
Frequency range 88 to 860 MHz
Upstream
Modulation QPSK, 16 QAM, 32 QAM, 64 QAM, or 128 QAM
Modulation rate
(nominal) TDMA: 160, 320, 640, 1280, 2560, and 5120 KHz
S-CDMA: 1280, 2560, and 5120 KHz
Maximum data rate 30 Mbps
Bandwidth TDMA: 200, 400, 800, 1600, 3200, and 6400 kHz
S-CDMA: 1600, 3200, and 6400 kHz
Frequency 5 MHz to 42 MHz (edge to edge)
Symbol rates 160, 320, 640, 1280, and 2560 ksym/s
Operating level range
(one channel) TDMA:
•+8 dBmV to +54 dBmV (32 QAM, 64 QAM)
•+8 dBmV to +55 dBmV (8 QAM, 16 QAM)
•+8 dBmV to +58 dBmV (QPSK)
S-CDMA:
•+8 dBmV to +53 dBmV (all modulations)
Output impedance 75 ohms nominal
Output return loss > 6 dB (5 to 42 MHz)
General
Cable interface F-Connector, female, 75 ohm
CPE network interface USB, Ethernet 10/100Base-T (auto sensing)
Data protocol TCP/IP
103 SBG900 User Guide
Home
X
E
xitPrint
Overview Installation Troubleshooting Contact FAQ Specifications Glossary License
Configuration: Basic Gateway TCP/IP Wireless USB
Glossary
