User manual
b
User Guide
Motorola SURFboard®
SVG1202 Wireless Voice Gateway
B
©2011 Motorola Mobility, Inc. All rights reserved.
MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. All
other product or service names are the property of their respective owners. No part of this publication may be
reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or
adaptation) without written permission from Motorola Mobility, Inc.
Motorola Mobility reserves the right to revise this publication and to make changes in content from time to time without
obligation on the part of Motorola Mobility to provide notification of such revision or change. Motorola Mobility provides
this guide without warranty of any kind, implied or expressed, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. Motorola Mobility may make improvements or changes in the
product(s) described in this manual at any time.
B
SVG1202 Wireless Voice Gateway • User Guide i
i
Safety and Regulatory Information
IMPORTANT SAFETY INSTRUCTIONS
Read This Before You Begin — When using your telephone equipment, basic safety precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
• Read all of the instructions listed here and/or in the user manual before you operate this device. Give particular attention to all safety
precautions. Retain the instructions for future reference.
• This device must be installed and used in strict accordance with manufacturer’s instructions, as described in the user documentation
that is included with the device.
• Comply with all warning and caution statements in the instructions. Observe all warning and caution symbols that are affixed to this
device.
• To prevent fire or shock hazard, do not expose this device to rain or moisture. The device must not be exposed to dripping or splashing.
Do not place objects filled with liquids, such as vases, on the device.
• This device was qualified under test conditions that included the use of the supplied cables between system components. To ensure
regulatory and safety compliance, use only the provided power and interface cables and install them properly.
• Different types of cord sets may be used for connections to the main POWER supply circuit. Use only a main line cord that complies
with all applicable device safety requirements of the country of use.
• Installation of this device must be in accordance with national wiring codes and conform to local regulations.
• Operate this device only from the type of power source indicated on the device’s marking label. If you are not sure of the type of power
supplied to your home, consult your dealer or local power company.
• Do not overload outlets or extension cords, as this can result in a risk of fire or electric shock. Overloaded AC outlets, extension cords,
frayed power cords, damaged or cracked wire insulation, and broken plugs are dangerous. They may result in a shock or fire hazard.
• Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular
attention to cords where they are attached to plugs and convenience receptacles, and examine the point where they exit from the
device.
• Place this device in a location that is close enough to an electrical outlet to accommodate the length of the power cord.
• Place the device to allow for easy access when disconnecting the power cord of the device from the AC wall outlet.
• Do not connect the plug into an extension cord, receptacle, or other outlet unless the plug can be fully inserted with no part of the
blades exposed.
• Place this device on a stable surface.
• It is recommended that the customer install an AC surge protector in the AC outlet to which this device is connected. This is to avoid
damaging the device by local lightning strikes and other electrical surges.
• Postpone installation until there is no risk of thunderstorm or lightning activity in the area.
• Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from
lightning. For added protection, unplug the device from the wall outlet and disconnect the cables to avoid damage to this device due to
lightning and power surges.
• Do not use this product near water: for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement, or near a
swimming pool.
• Do not use the telephone to report a gas leak in the vicinity of the leak.
• Disconnect TNV circuit connector before removing the cover.
• Disconnect TNV circuit connector(s) before disconnecting power.
• Do not cover the device or block the airflow to the device with any other objects. Keep the device away from excessive heat and
humidity and keep the device free from vibration and dust.
B
SVG1202 Wireless Voice Gateway • User Guide ii
• Wipe the device with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray cleaners directly on the device or
use forced air to remove dust.
• For added protection, unplug the device from the wall outlet and disconnect the cables to avoid damage to this device due to lightning
and power surges.
CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA Certified Telecommunication Line
Cord, or national equivalent.
• Upon completion of any service or repairs to this device, ask the service technician to perform safety checks to determine that the
device is in safe operating condition.
• Do not open the device. Do not perform any servicing other than that contained in the installation and troubleshooting instructions.
Refer all servicing to qualified service personnel.
• This device should not be used in an environment that exceeds 40º C.
SAVE THESE INSTRUCTIONS
Note to CATV System Installer — This reminder is provided to call the CATV system installer’s attention to Section 820.93 of the
National Electric Code, which provides guidelines for proper grounding and, in particular, specifies that the Coaxial cable shield shall be
connected to the grounding system of the building, as close to the point of cable entry as practical.
CARING FOR THE ENVIRONMENT BY RECYCLING
When you see this symbol on a Motorola product, do not dispose of the product with residential or commercial
waste.
Recycling your Motorola Equipment
Please do not dispose of this product with your residential or commercial waste. Some countries or regions,
such as the European Union, have set up systems to collect and recycle electrical and electronic waste items.
Contact your local authorities for information about practices established for your region. If collection systems
are not available, call Motorola Customer Service for assistance. Please visit www.motorola.com/recycle for
instructions on recycling.
IMPORTANT VoIP SERVICE INFORMATION
Please contact your Internet Service Provider (ISP) and/or your local municipality for additional information on
making emergency calls using VoIP service in your area.
IMPORTANT: When using this VoIP device, you CANNOT make any calls, including an emergency call, and
emergency location services (where supported) WILL NOT be available, under the following circumstances:
Your broadband ISP connection goes down, is lost, or otherwise fails.
You lose electrical power.
You have changed the physical address of your VoIP device, and you did not update or otherwise advise your
VoIP service provider of this change.
There are delays in making your location information available in or through the local automatic location
information database.
Note: Your service provider, not Motorola, is responsible for the provision of VoIP telephony services through this
equipment. Motorola shall not be liable for, and expressly disclaims, any direct or indirect liabilities, damages,
losses, claims, demands, actions, causes of action, risks, or harms arising from or related to the services provided
through this equipment.
FCC STATEMENTS
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
SVG1202 Wireless Voice Gateway tUser Guide iii
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the device off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
xReorient or relocate the receiving antenna.
xIncrease the separation between the device and receiver.
xConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
xConsult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired
operation.
FCC CAUTION: Any changes or modifications not expressly approved by Motorola for compliance could void the user’s authority to
operate the equipment.
FCC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To comply with the FCC RF
exposure compliance requirements, the separation distance between the antenna and any person’s body (including hands, wrists, feet
and ankles) must be at least 20 cm (8 inches).
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at
the factory to match the intended destinations. The firmware setting is not accessible by the end user.
WIRELESS LAN INFORMATION
This device is a wireless network product that uses Direct Sequence Spread Spectrum (DSSS) radio technology. The device is designed to
be inter-operable with any other wireless DSSS product that complies with:
xThe IEEE 802.11 Standard on Wireless LANs (Revision B and Revision G), as defined and approved by the Institute of Electrical
Electronics Engineers
xThe Wireless Fidelity (Wi-Fi) certification as defined by the Wireless Ethernet Compatibility Alliance (WECA).
RESTRICTIONS ON THE USE OF WIRELESS DEVICES
In some situations or environments, the use of wireless devices may be restricted by the proprietor of the building or responsible
representatives of the organization. For example, using wireless equipment in any environment where the risk of interference to other
devices or services is perceived or identified as harmful.
If you are uncertain of the applicable policy for the use of wireless equipment in a specific organization or environment, you are
encouraged to ask for authorization to use the device prior to turning on the equipment.
The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of the devices included
with this product, or the substitution or attachment of connecting cables and equipment other than specified by the manufacturer.
Correction of the interference caused by such unauthorized modification, substitution, or attachment is the responsibility of the user.
The manufacturer and its authorized resellers or distributors are not liable for any damage or violation of government regulations that
may arise from failing to comply with these guidelines.
Note: The use of the 5150-5250 MHz frequency band is restricted to Indoor Use Only.
SECURITY WARNING: This device allows you to create a wireless network. Wireless network connections may be accessible by
unauthorized users. For more information on how to protect your network, see the SVG1202 User Guide for instructions or visit the
Motorola website.
SECURITY WARNING :This device allows you to create a wireless network. Wireless network connections may be assessidle by
unauthorized users. For more information on how to protect your, see the SVG1202 User Guide for instructions or visit the Motorola
websits.
B
SVG1202 Wireless Voice Gateway • User Guide iv
Contents
Safety and Regulatory Information ...................................................................................................................... i
Getting Started ...................................................................................................................................................... 1
Inside the Box ......................................................................................................................................................... 1
Minimum System Requirements ............................................................................................................................ 1
Contact Information ................................................................................................................................................. 1
Product Overview .................................................................................................................................................. 2
Front Panel .............................................................................................................................................................. 2

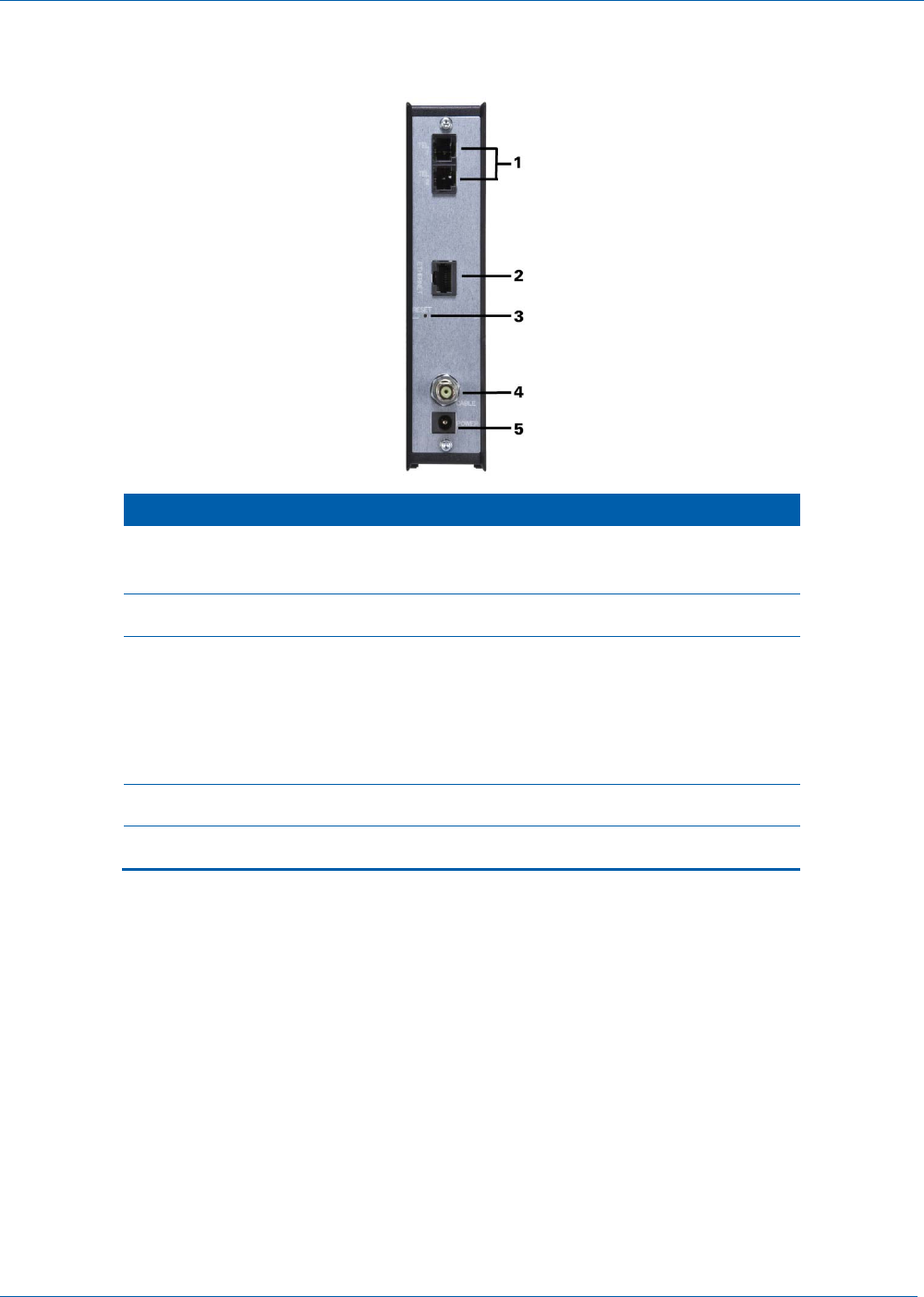

Rear Panel ............................................................................................................................................................... 3
MAC Label ............................................................................................................................................................... 3

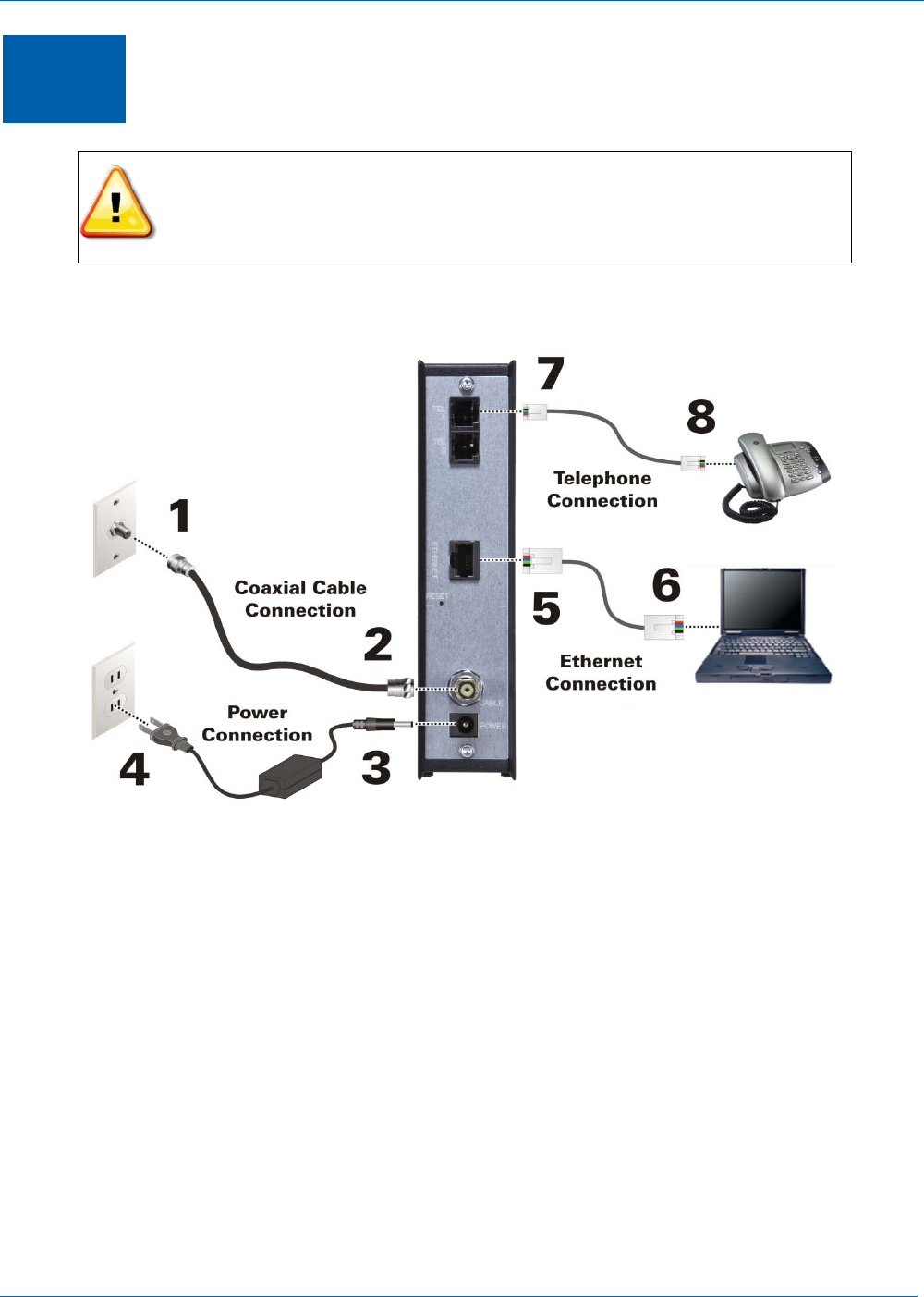

Connecting the Gateway ...................................................................................................................................... 4
Installing the SVG1202 ............................................................................................................................................ 4
Testing the Connections ......................................................................................................................................... 5
Wall Mounting the Gateway.................................................................................................................................... 5
Wall Mounting Template ......................................................................................................................................... 7
Connecting to the Internet ................................................................................................................................... 8
Before You Begin .................................................................................................................................................... 8
Configuring TCP/IP for Windows 7 ......................................................................................................................... 8
Configuring TCP/IP for Windows Vista .................................................................................................................... 8
Configuring TCP/IP for Windows XP ....................................................................................................................... 9
Renewing the IP Address in Windows 7 or Vista ................................................................................................... 9
Renewing the IP Address in Windows XP ............................................................................................................ 10
Verifying the IP Address in Windows 7 or Vista .................................................................................................... 10
Verifying the IP Address in Windows XP .............................................................................................................. 10
Setting Up a Wi-Fi Network Connection ............................................................................................................... 10
Monitoring Your Gateway .................................................................................................................................. 11

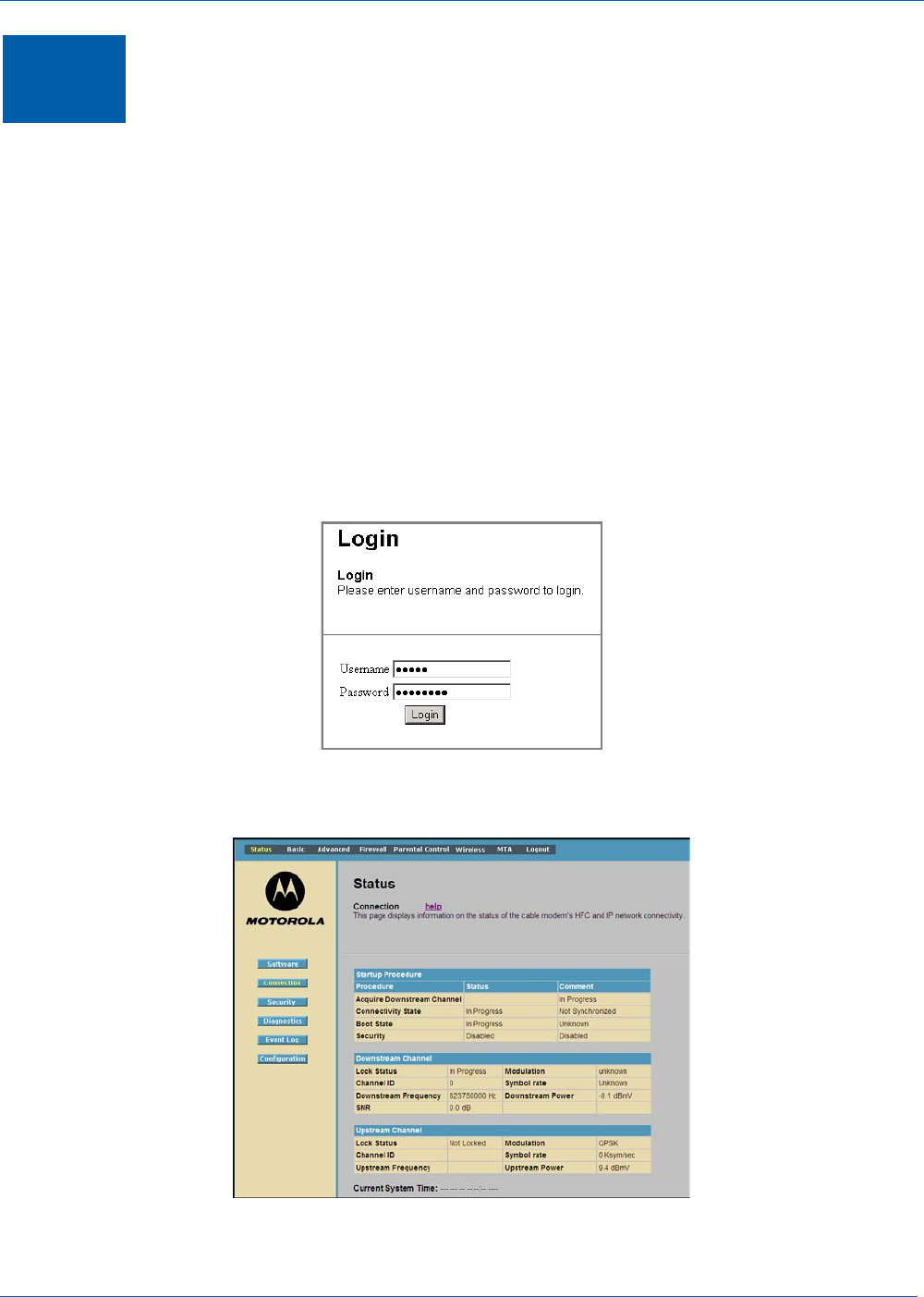

Starting the Gateway Configuration Manager ....................................................................................................... 11

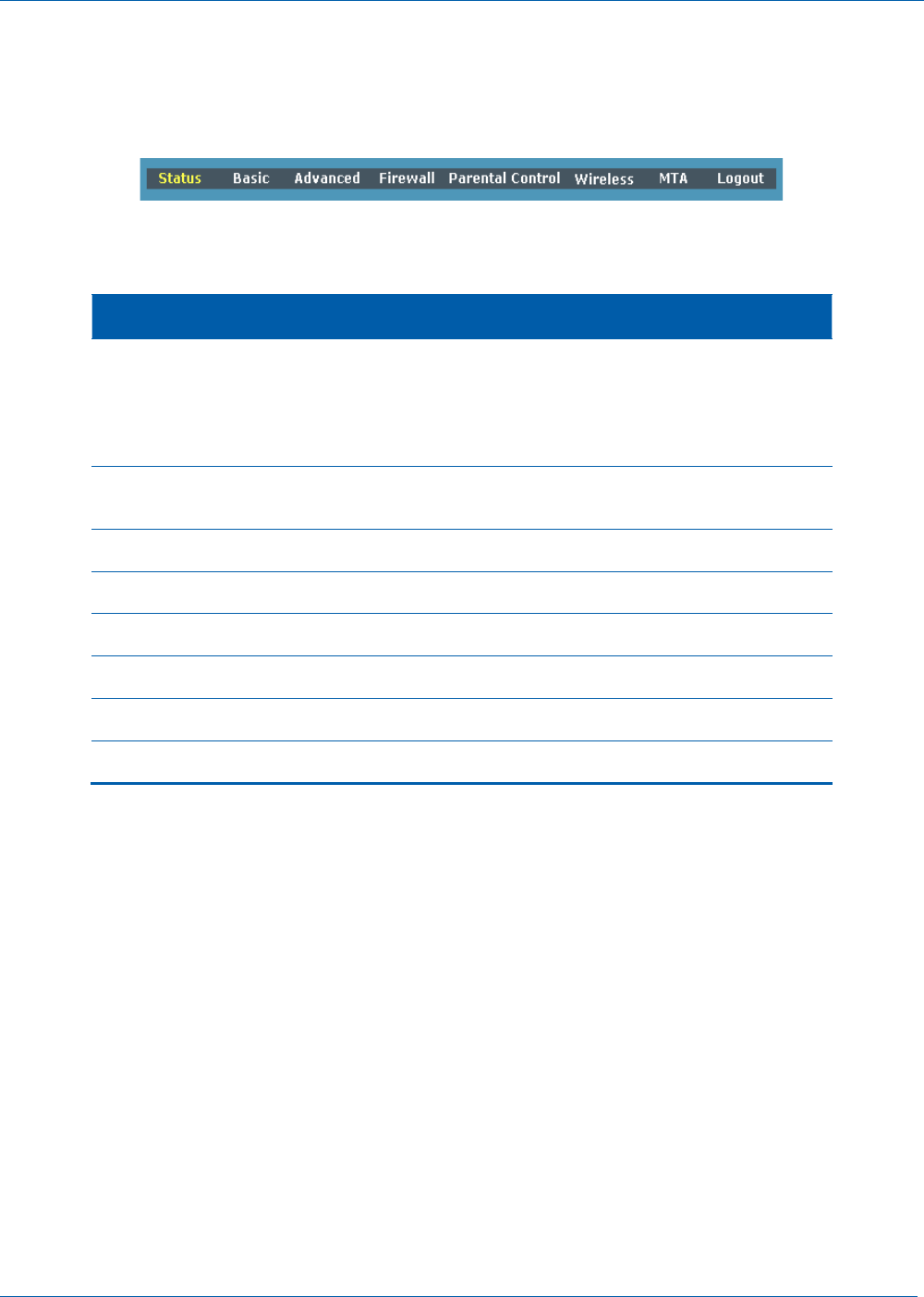

SVG1202 Menu Options Bar ................................................................................................................................. 12

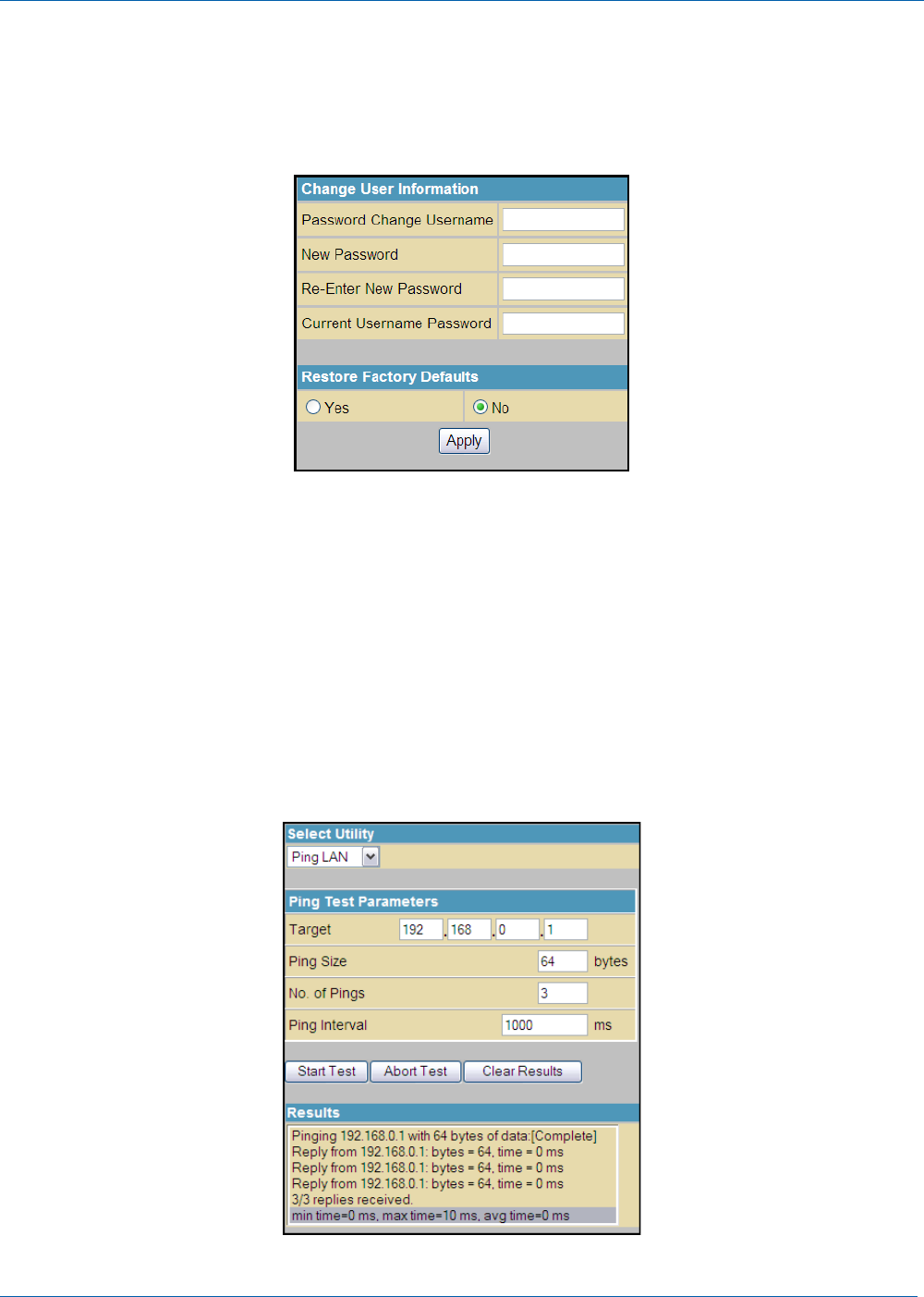

Changing the SVG1202 Default Password ..................................................................................................... 13
Restoring Factory Defaults ............................................................................................................................. 13
Getting Help .......................................................................................................................................................... 13
Exiting the SVG1202 Configuration Manager ........................................................................................................ 13
Status Pages ........................................................................................................................................................ 14
Status Software Page ............................................................................................................................................ 14
Status Connection Page ........................................................................................................................................ 14
Status Security Page ............................................................................................................................................. 15
Status Diagnostics Page ........................................................................................................................................ 15
Ping Utility ....................................................................................................................................................... 15

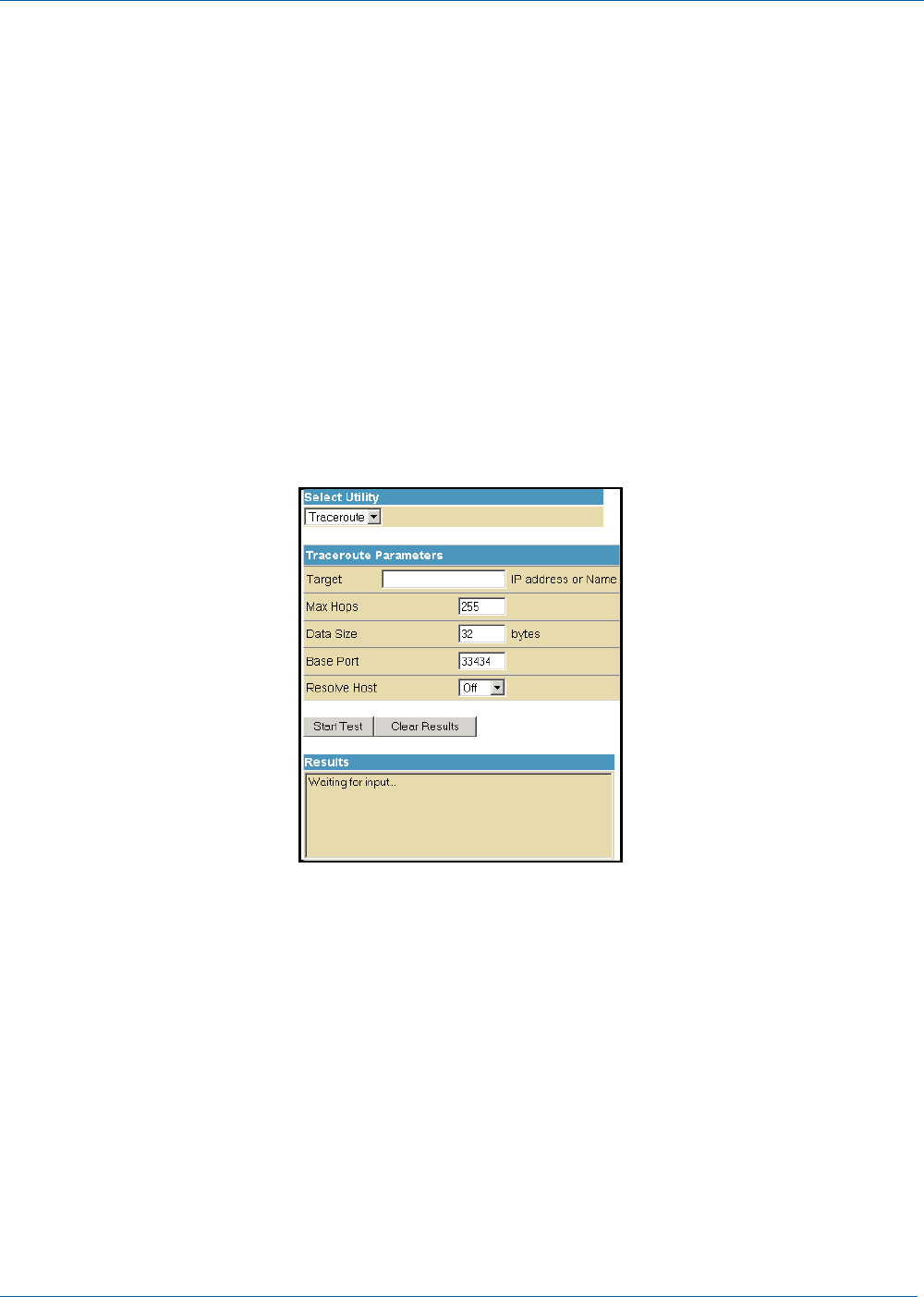

Traceroute Utility ............................................................................................................................................. 16

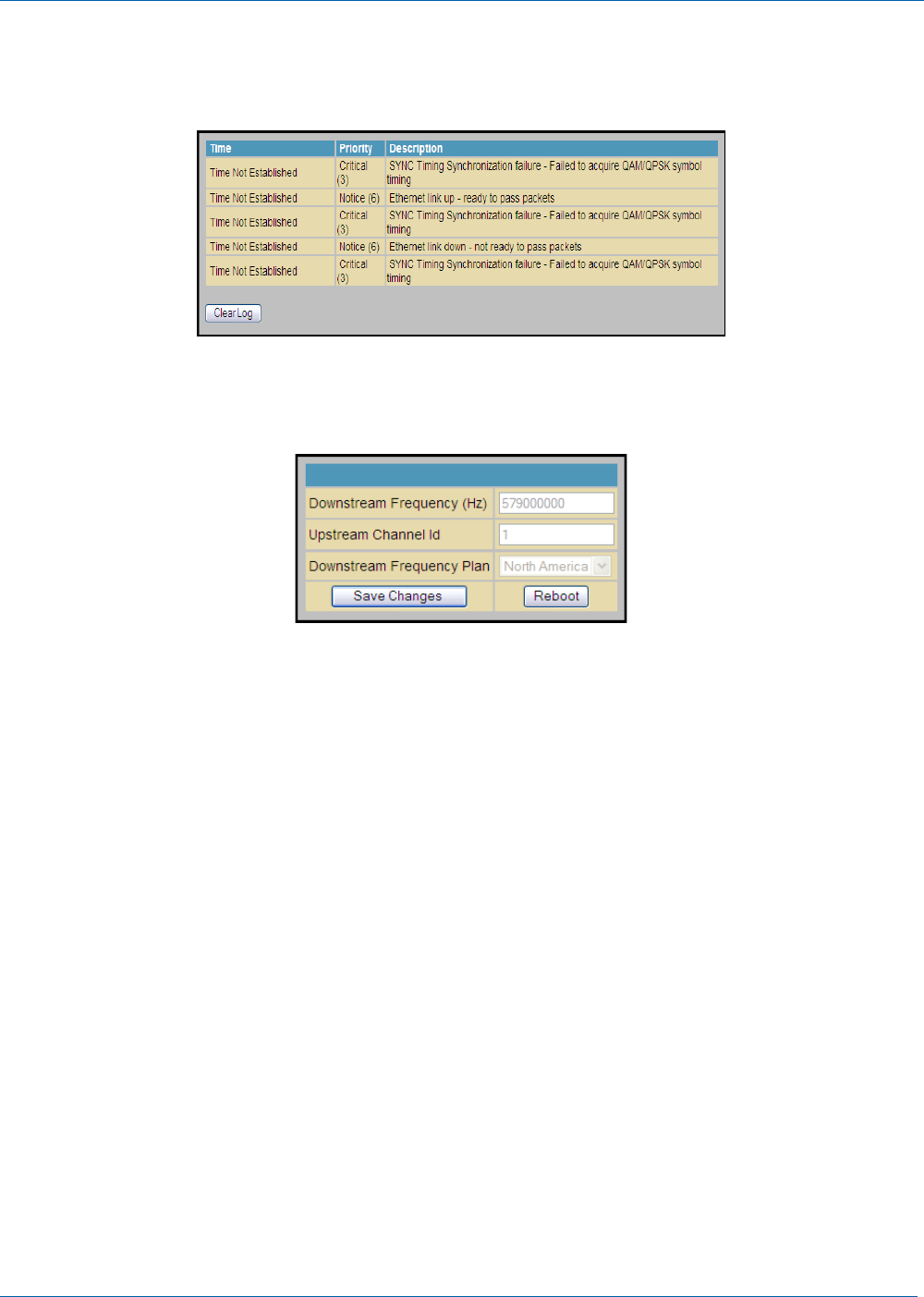

Status Event Log Page .......................................................................................................................................... 17
Status Configuration Page ..................................................................................................................................... 17
B
SVG1202 Wireless Voice Gateway • User Guide v
Basic Pages .......................................................................................................................................................... 18
Basic Setup Page .................................................................................................................................................. 18

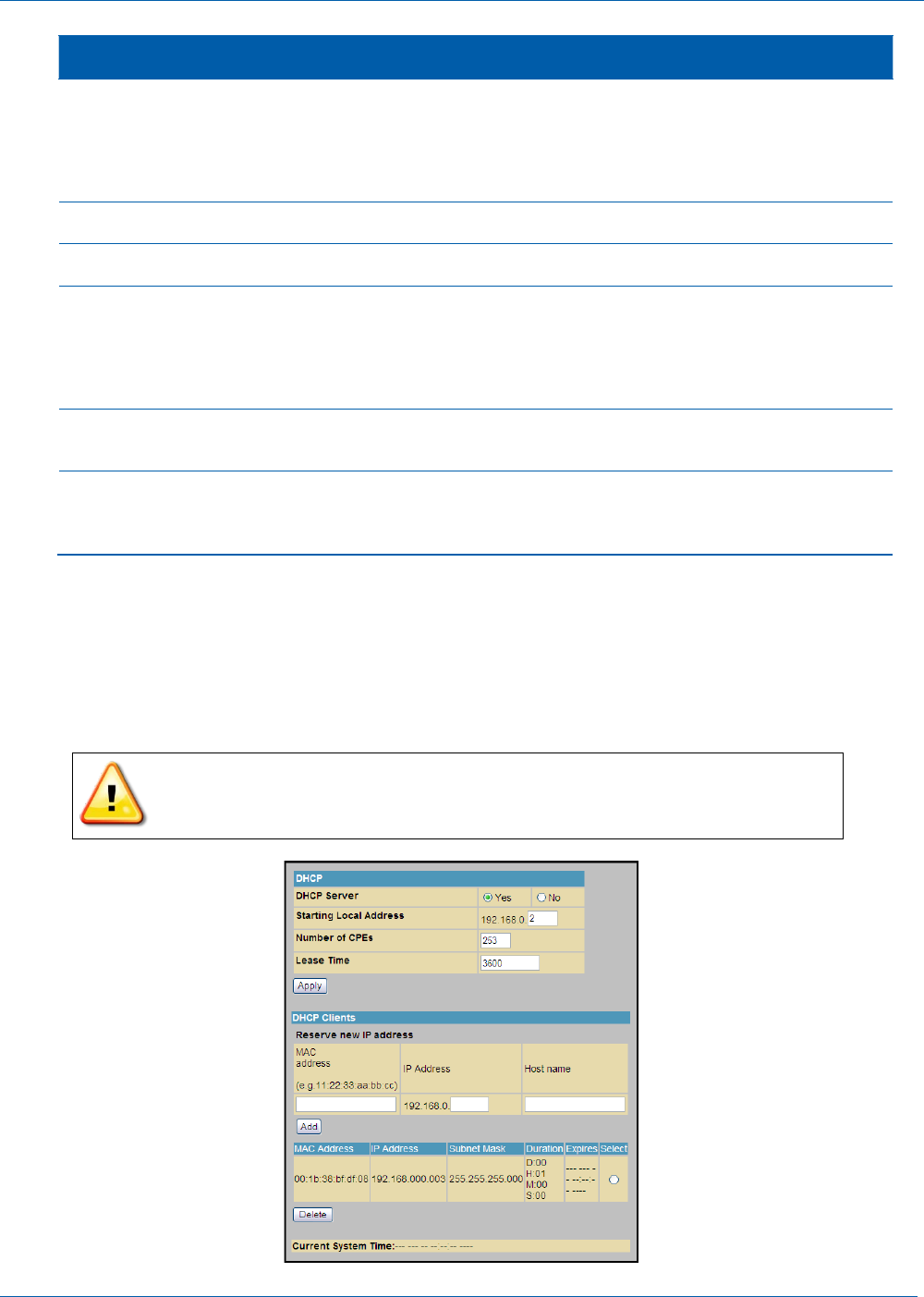

Basic DHCP Page .................................................................................................................................................. 19

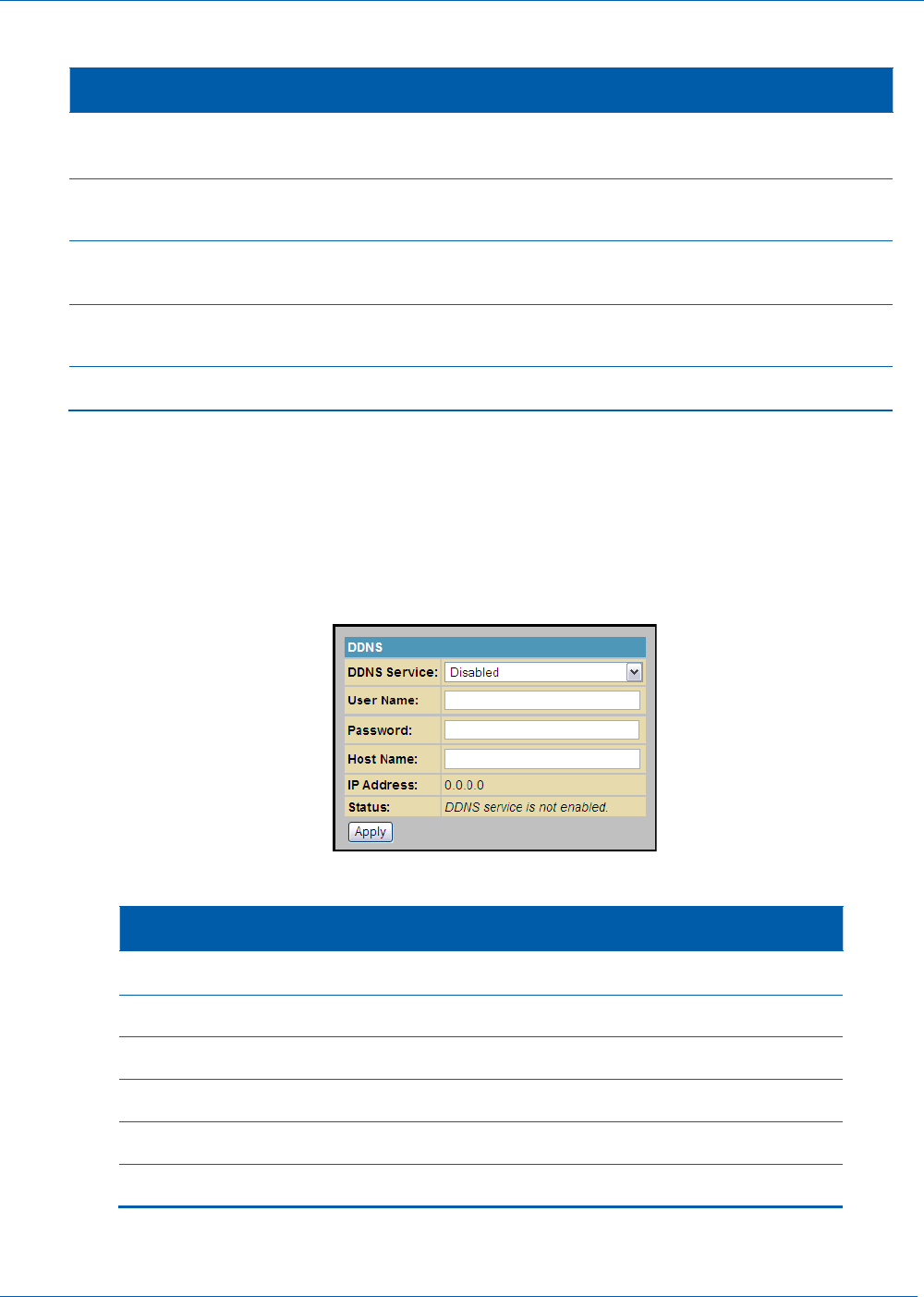

Basic DDNS Page .................................................................................................................................................. 20

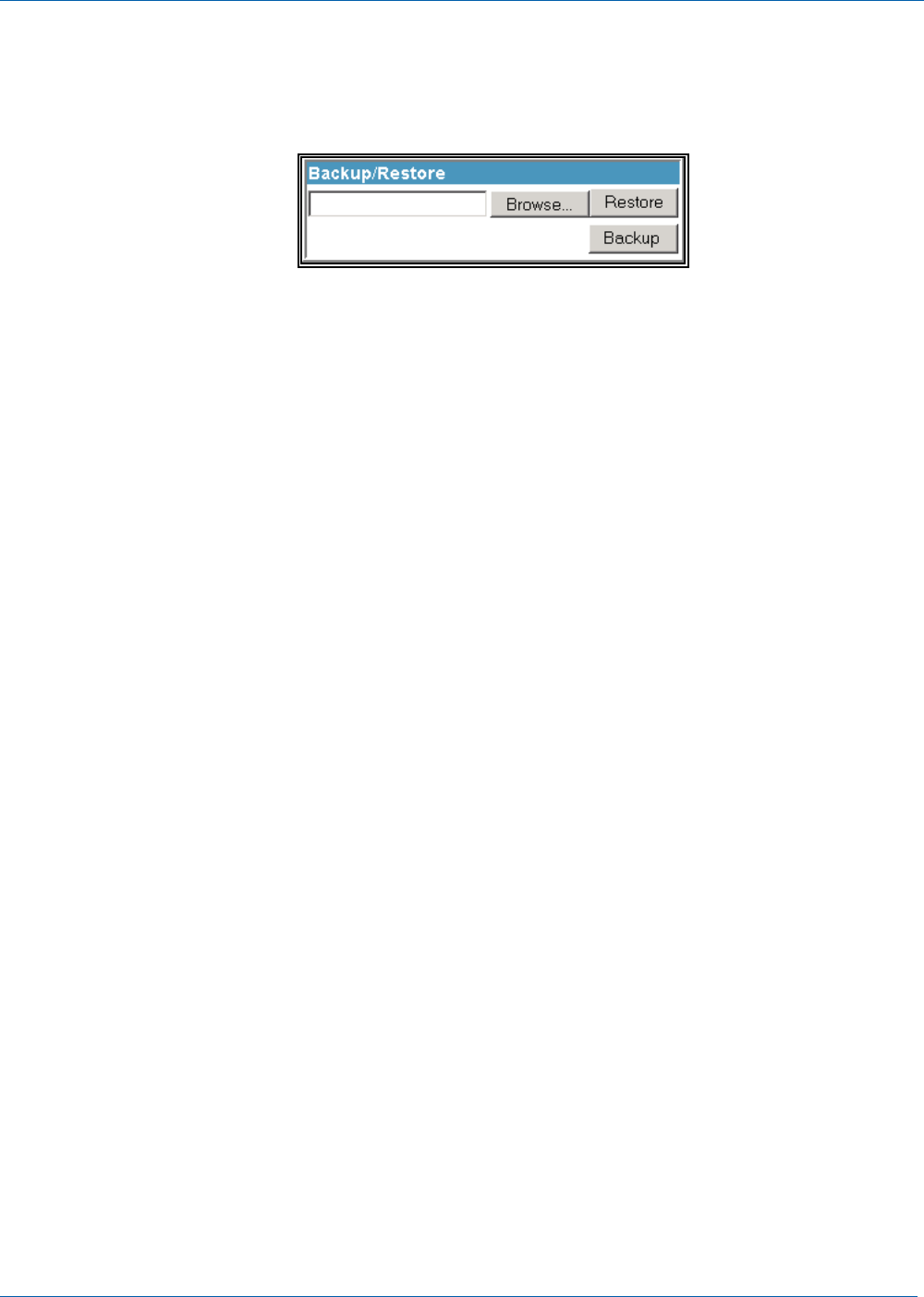

Basic Backup Page ................................................................................................................................................ 21
Restoring Your SVG1202 Configuration.......................................................................................................... 21
Backing Up Your SVG1202 Configuration ....................................................................................................... 21
Advanced Pages .................................................................................................................................................. 22

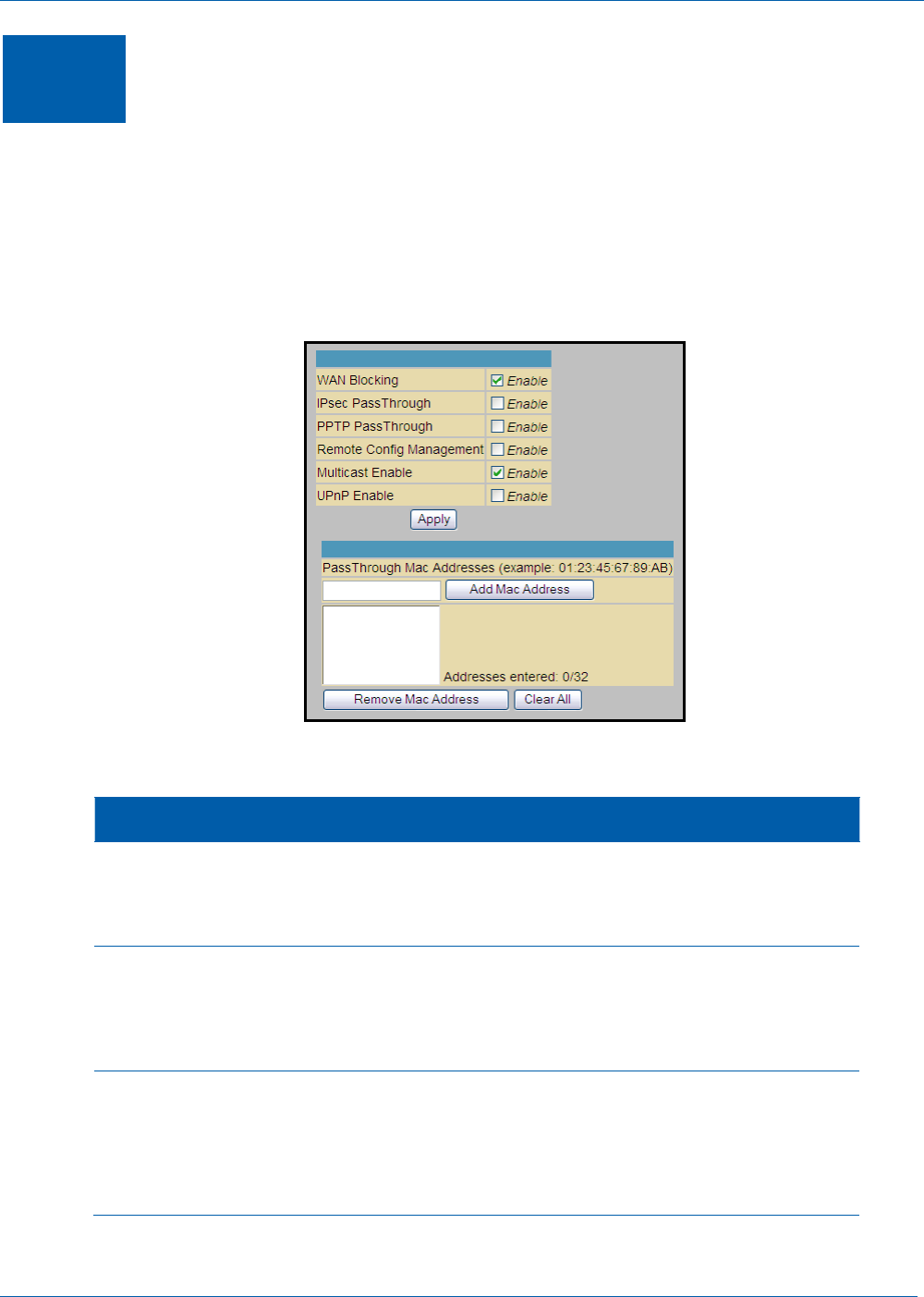

Advanced Options Page ........................................................................................................................................ 22

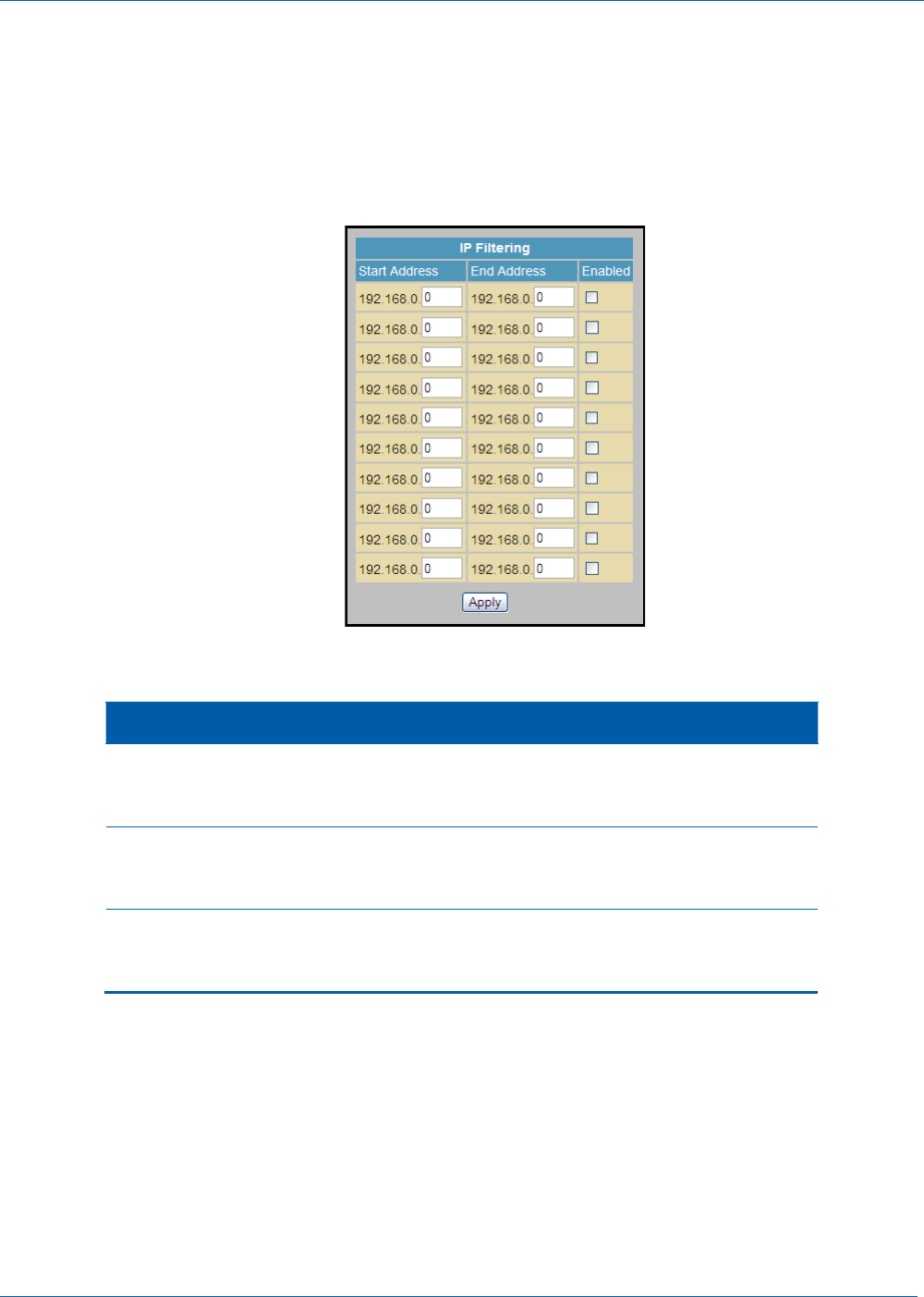

Advanced IP Filtering Page .................................................................................................................................... 24
Advanced MAC Filtering Page............................................................................................................................... 25

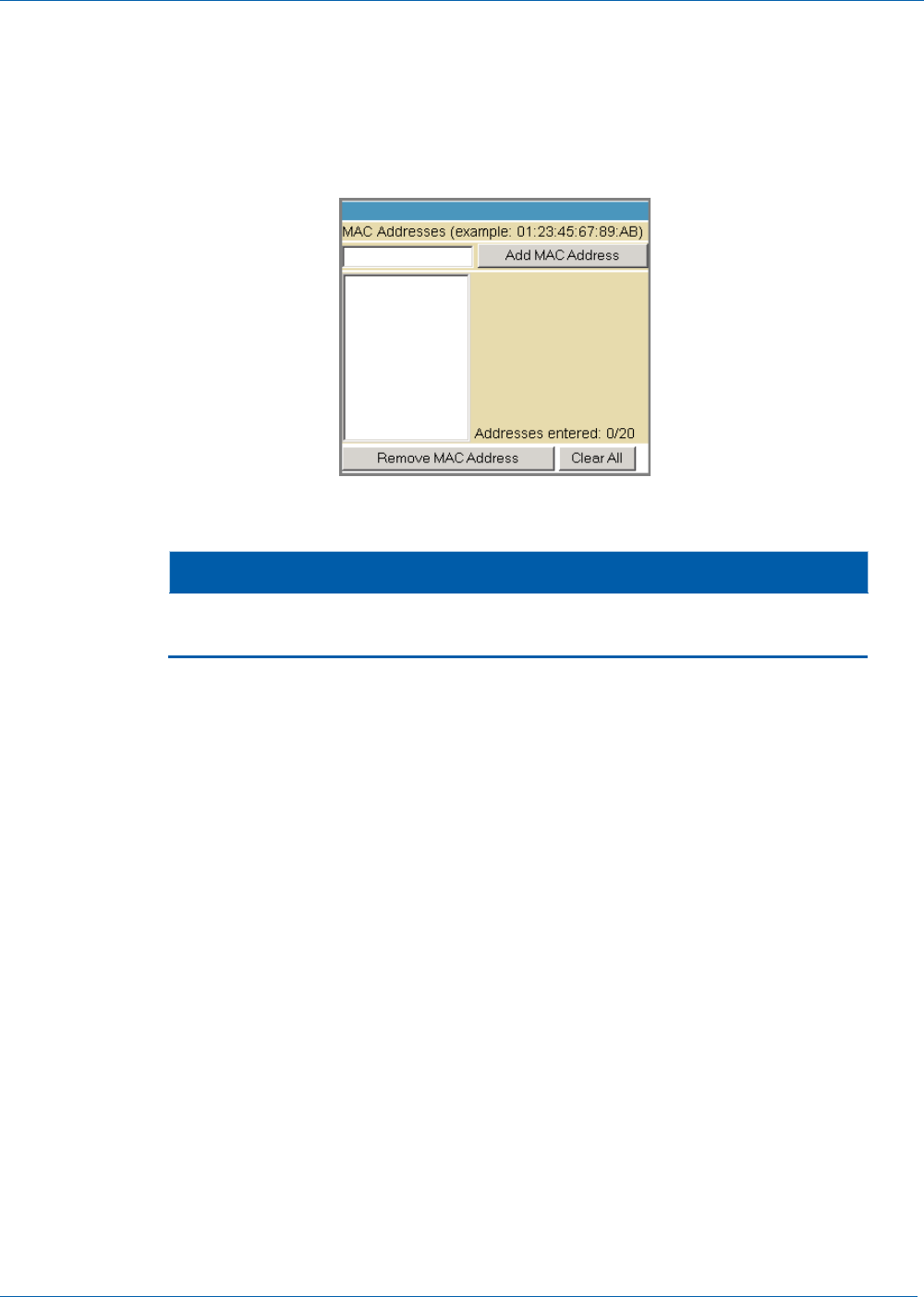

Setting a MAC Address Filter ......................................................................................................................... 25

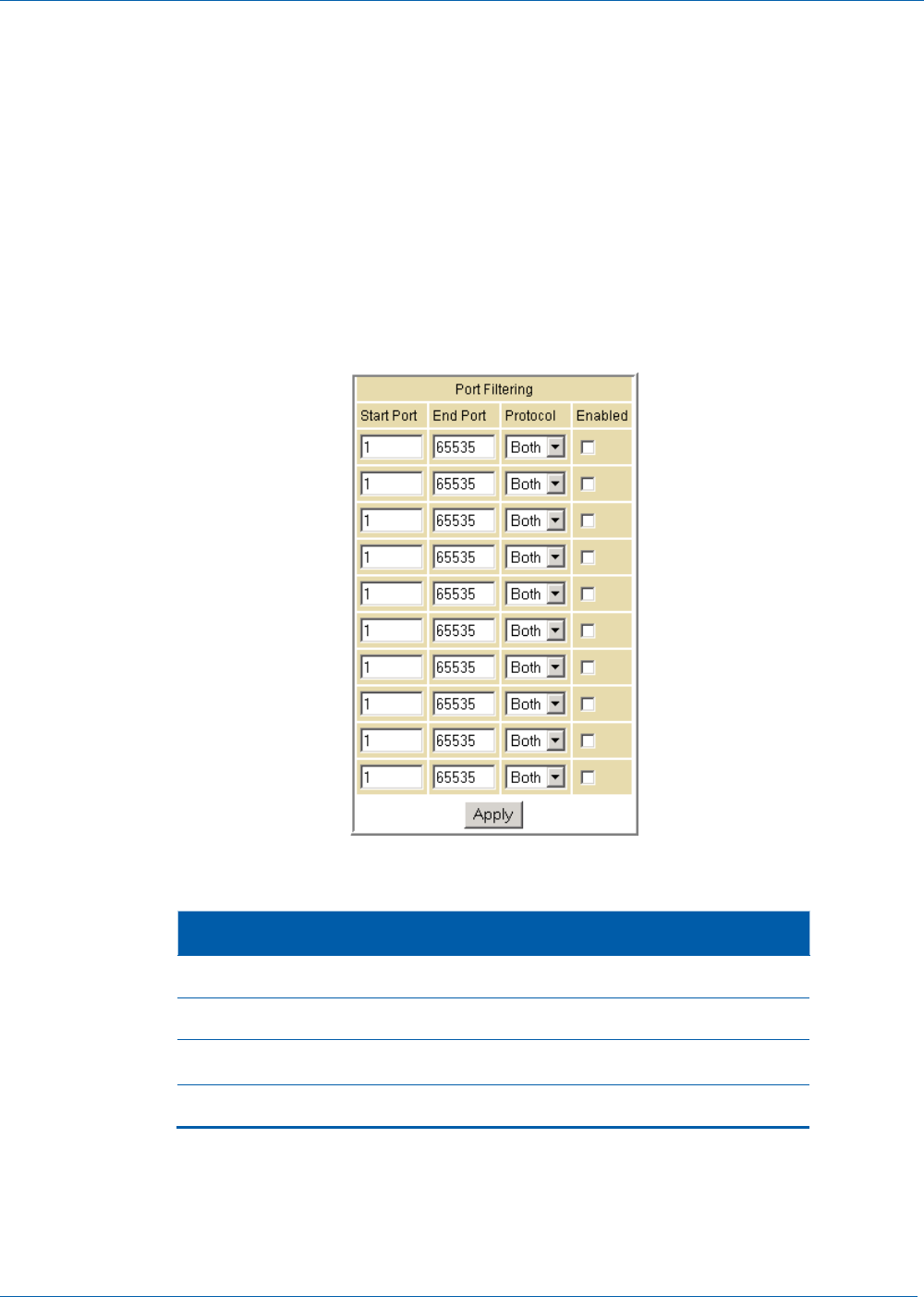

Advanced Port Filtering Page ................................................................................................................................ 26
Advanced Port Forwarding Page ........................................................................................................................... 27

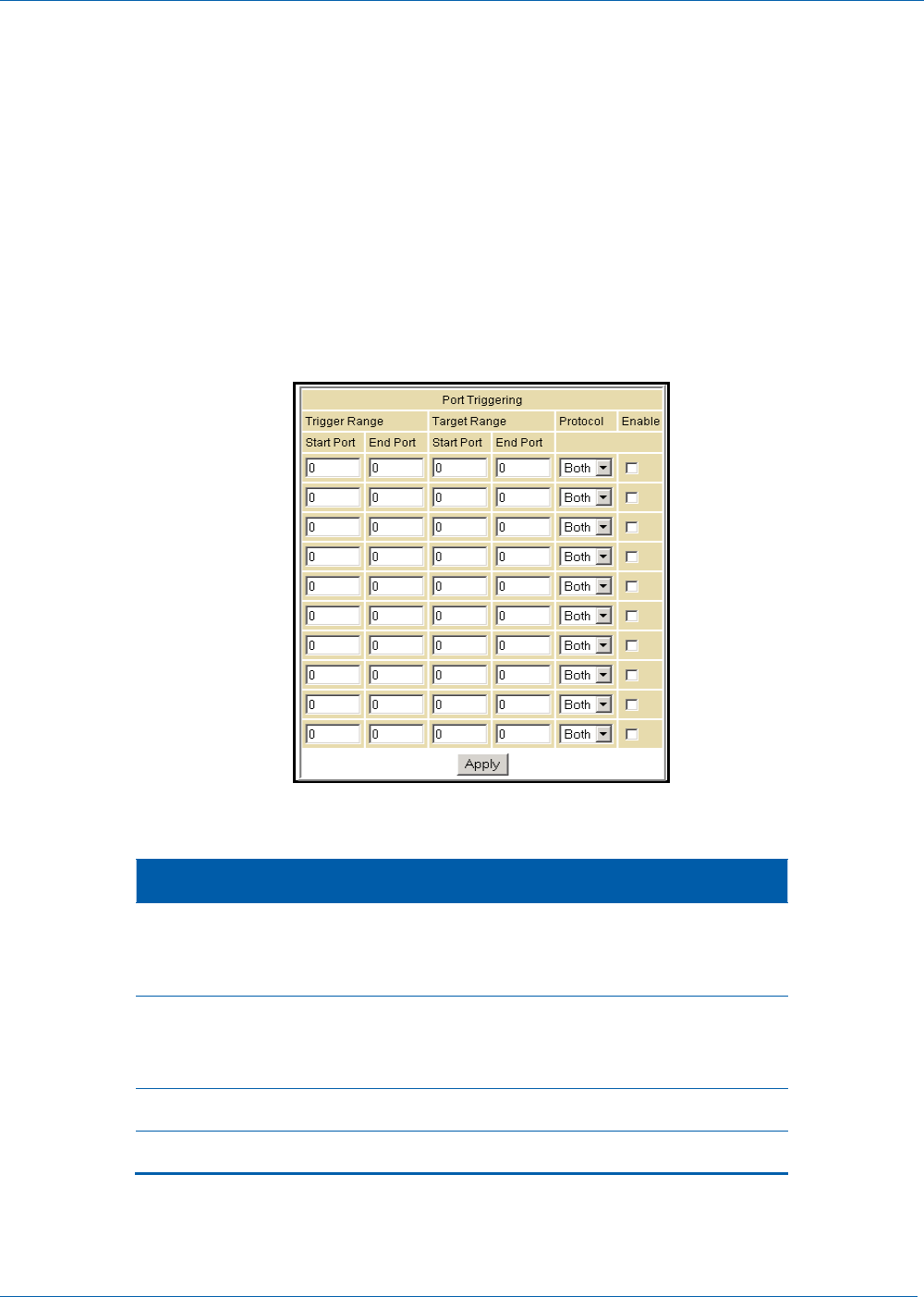

Advanced Port Triggers Page ................................................................................................................................ 28

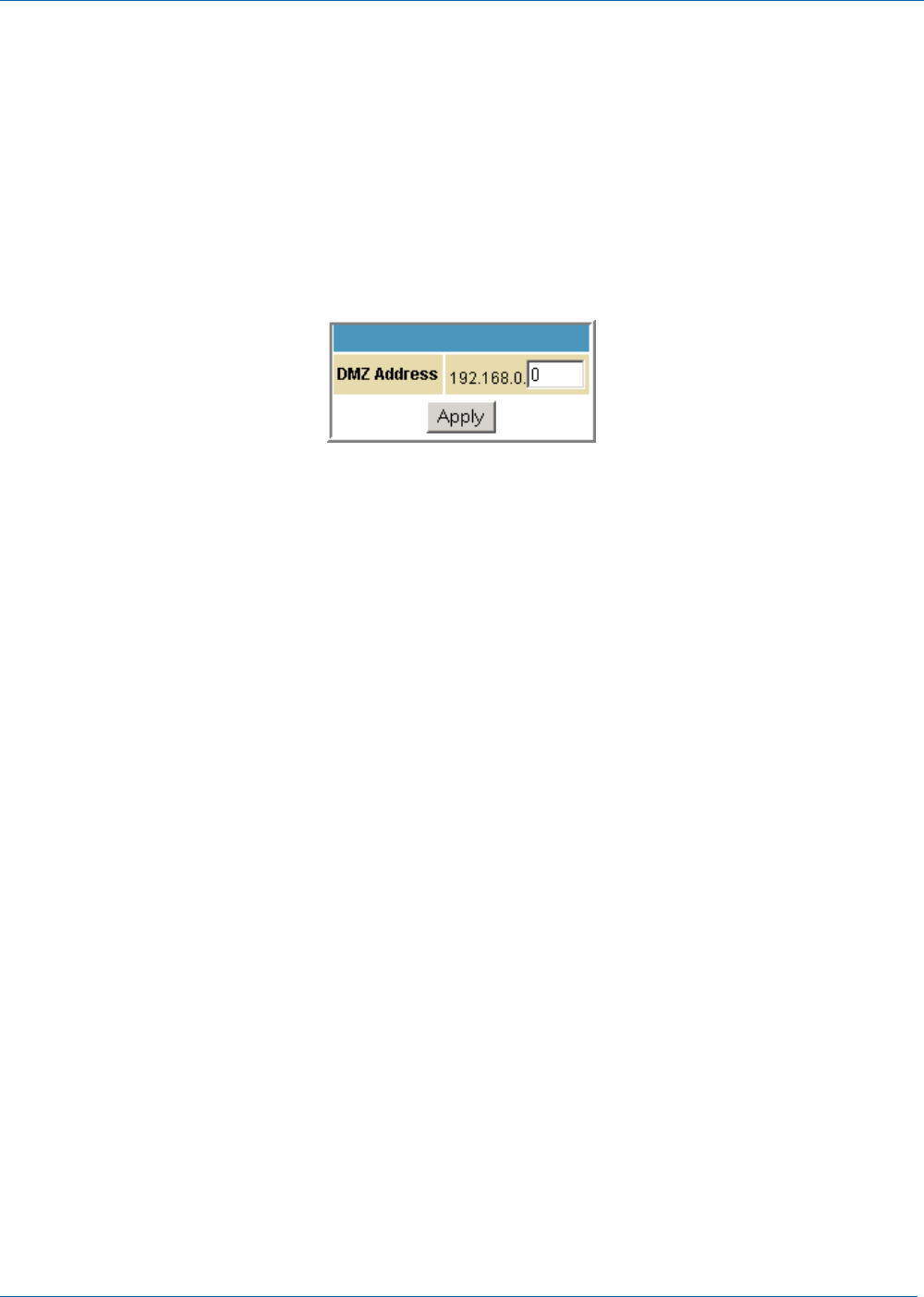

Advanced DMZ Host Page .................................................................................................................................... 29
Setting Up the DMZ Host ............................................................................................................................... 29
Firewall Pages ...................................................................................................................................................... 30

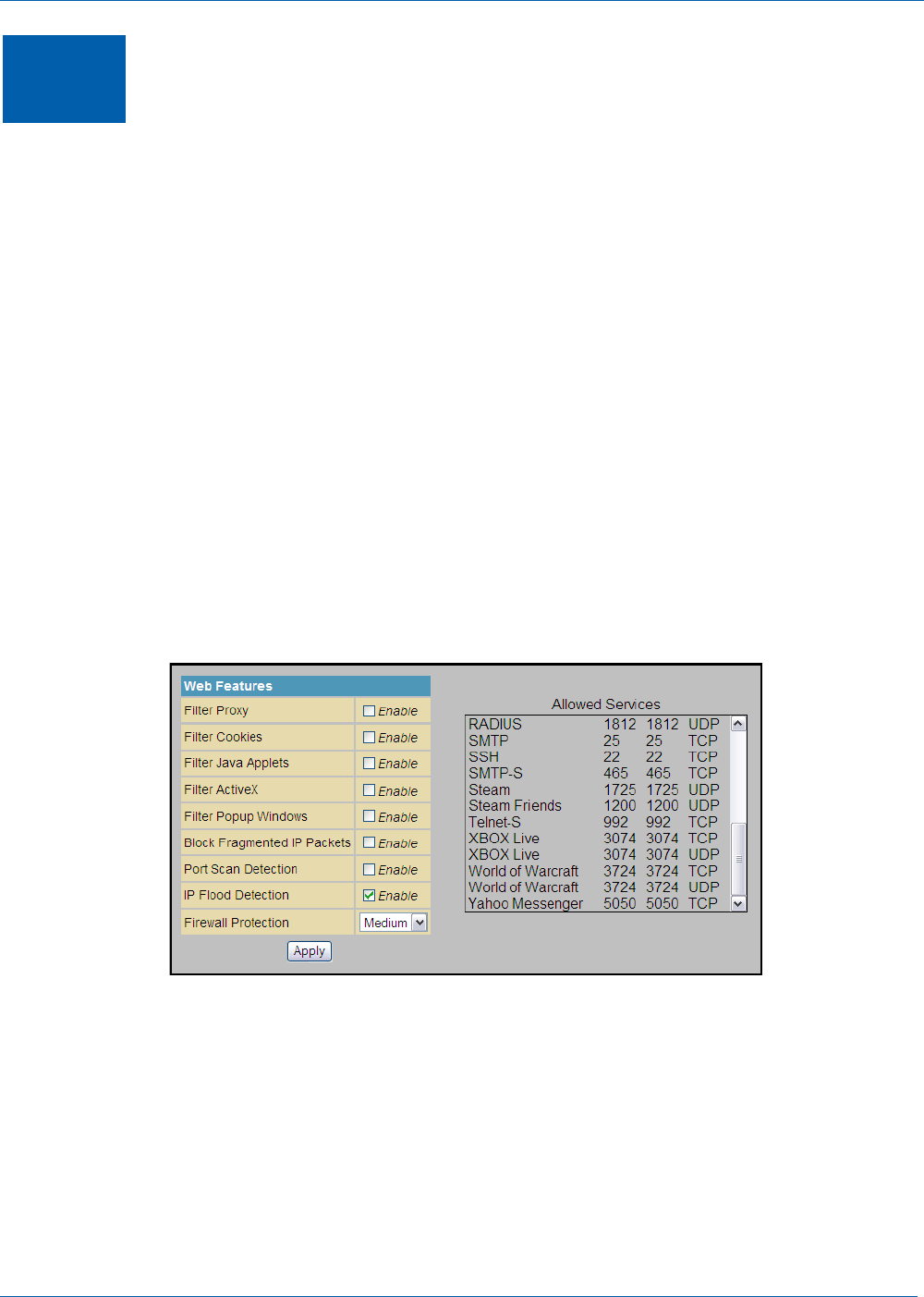

Firewall Web Content Filter Page.......................................................................................................................... 30
Firewall Local Log Page ......................................................................................................................................... 31

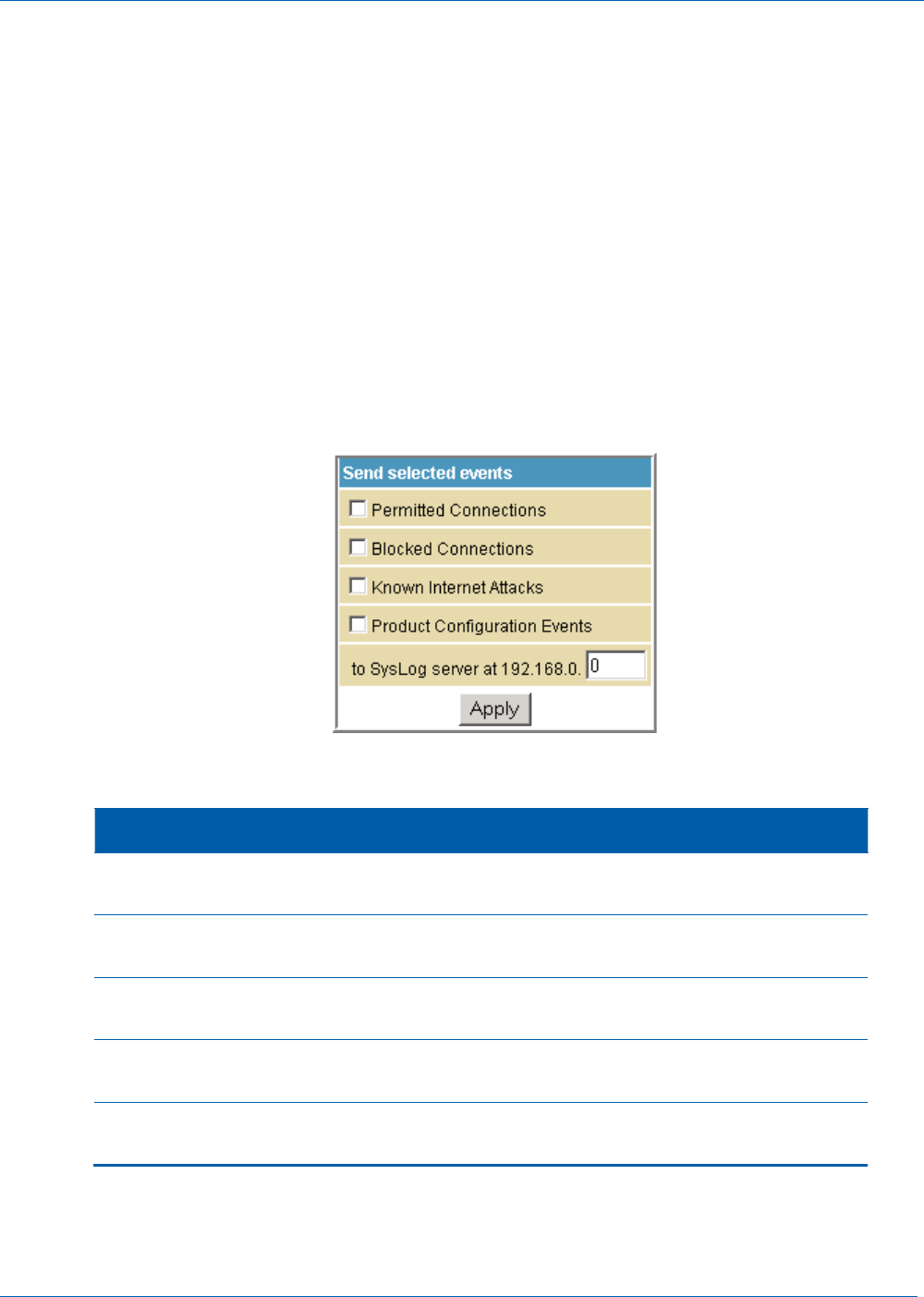

Firewall Remote Log Page .................................................................................................................................... 31
Parental Control Pages ....................................................................................................................................... 32

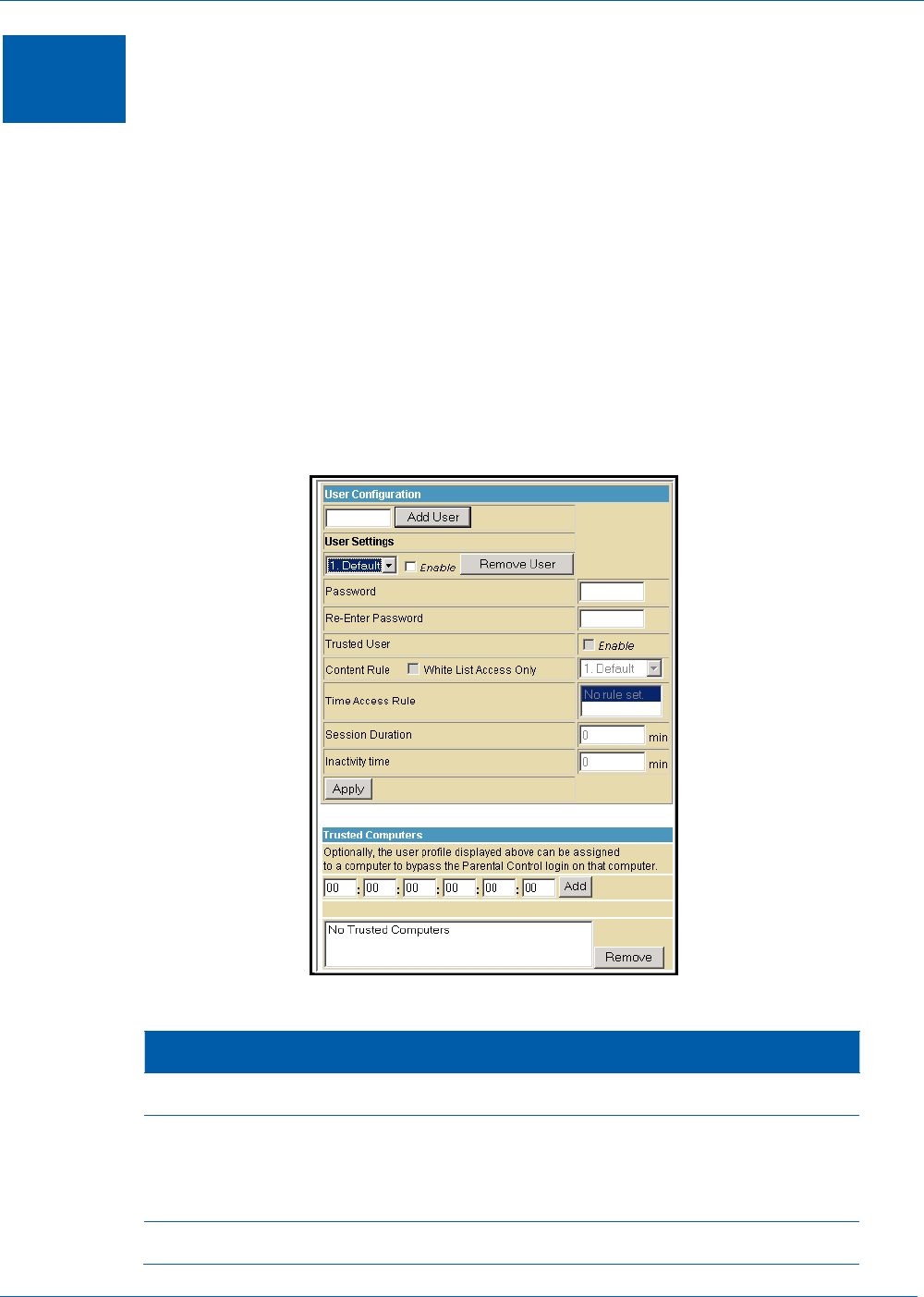

Parental Control User Setup Page ......................................................................................................................... 32
Parental Control Basic Setup Page ........................................................................................................................ 33

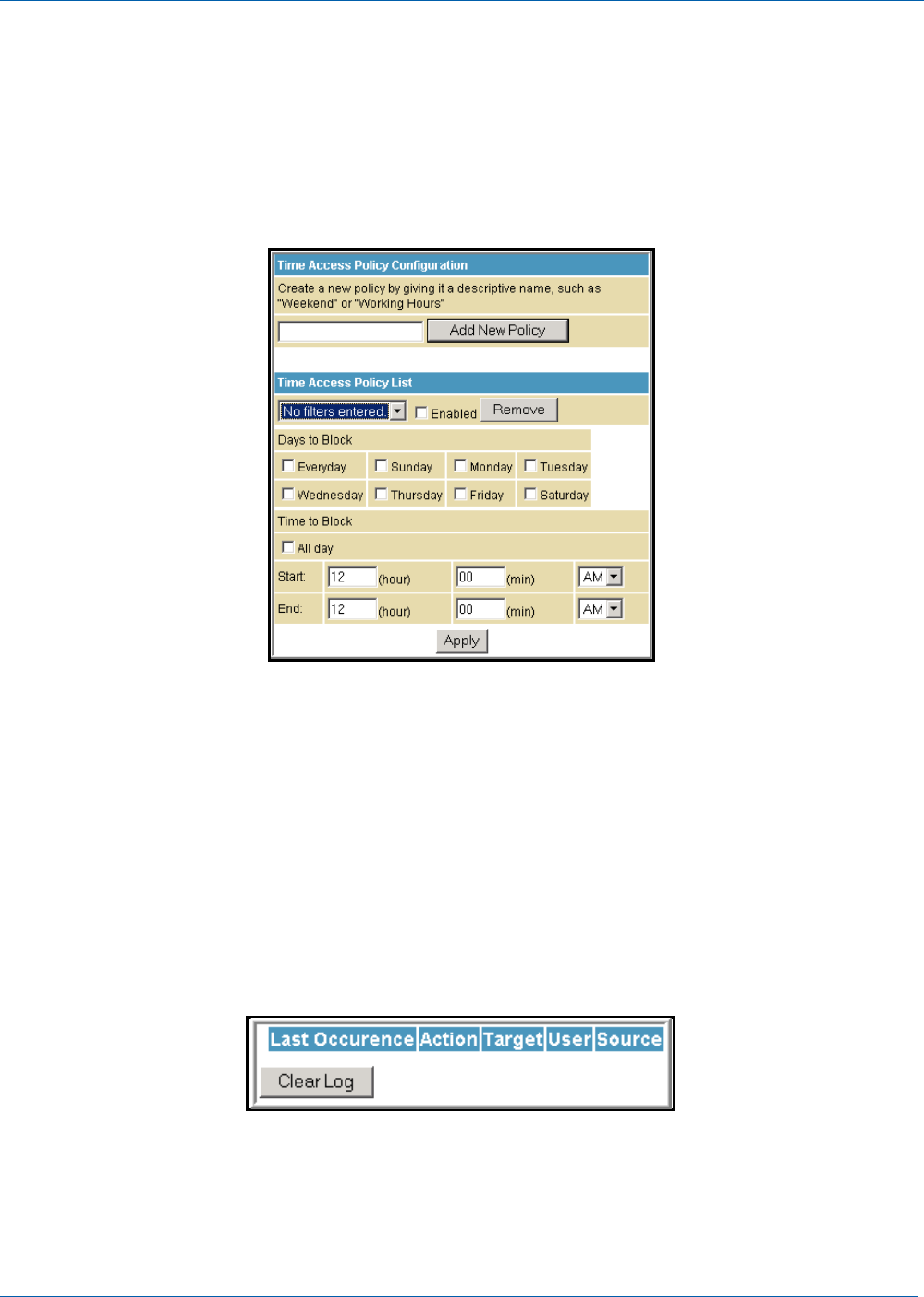

Parental Control Time of Day Filter Page .............................................................................................................. 34
Parental Control Local Log Page ........................................................................................................................... 34
Wireless Pages ..................................................................................................................................................... 35

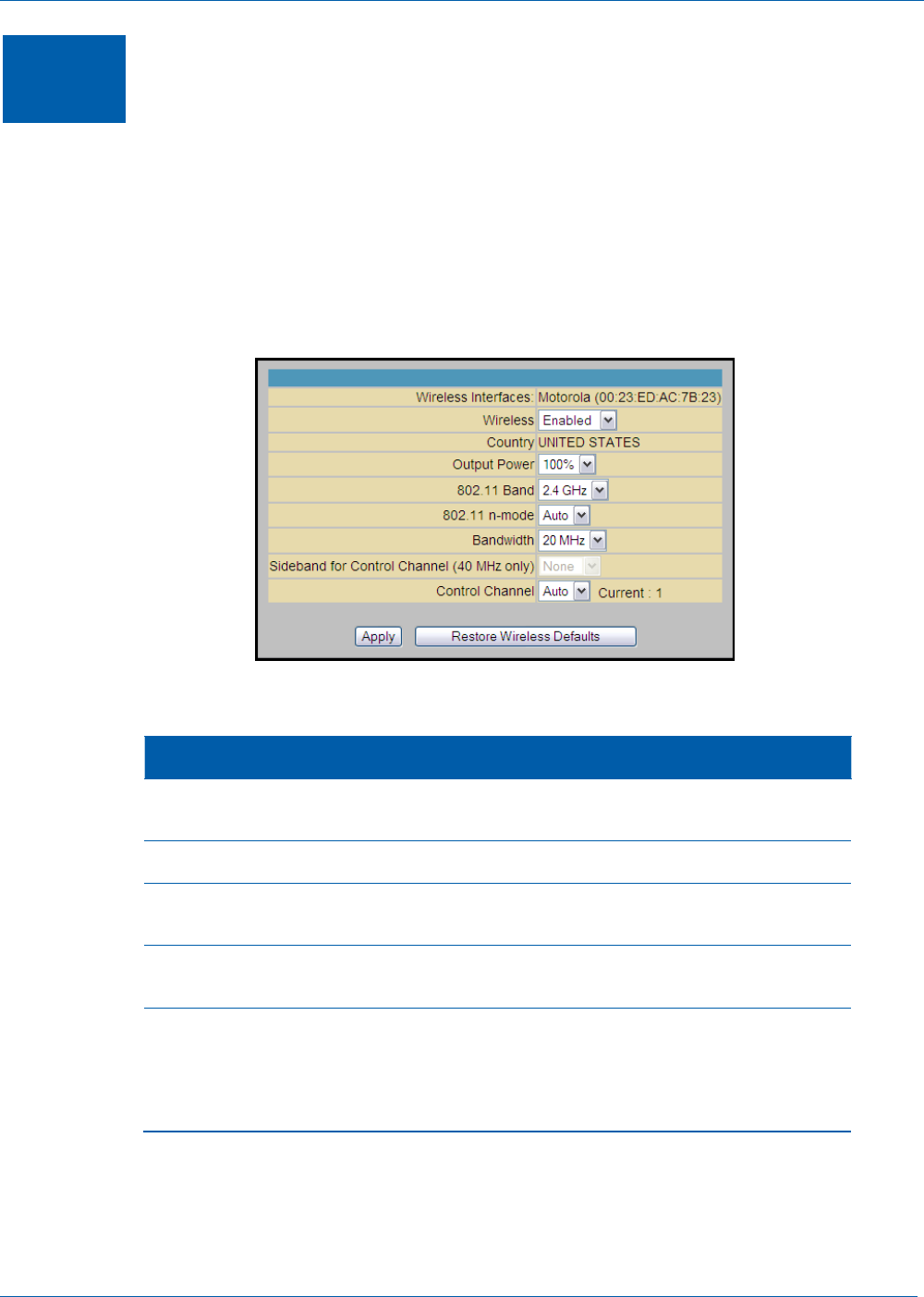

Wireless 802.11 Radio Page ................................................................................................................................. 35
Wireless 802.11 Primary Network Page ............................................................................................................... 36

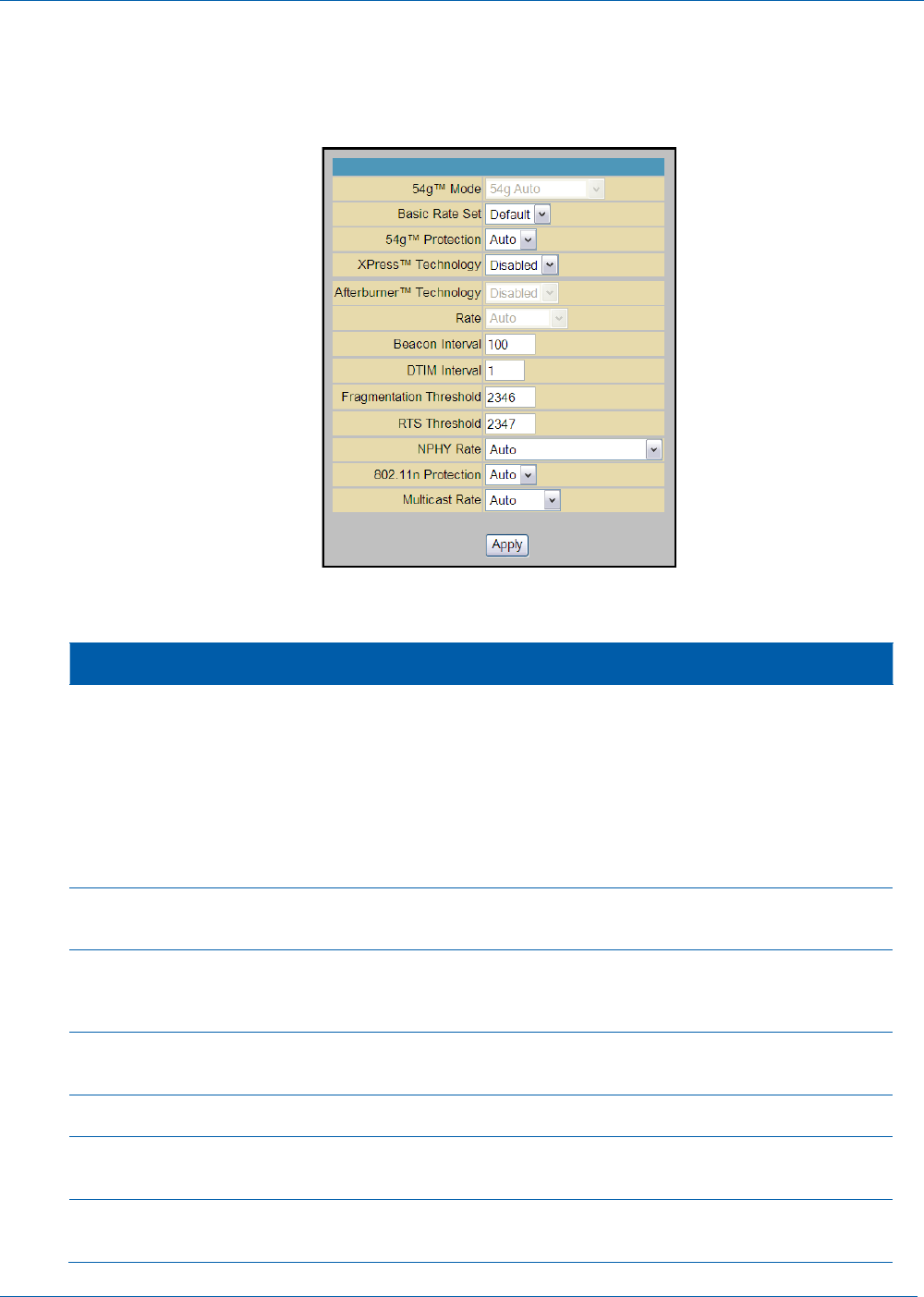

Wireless 802.11 Advanced Page........................................................................................................................... 38

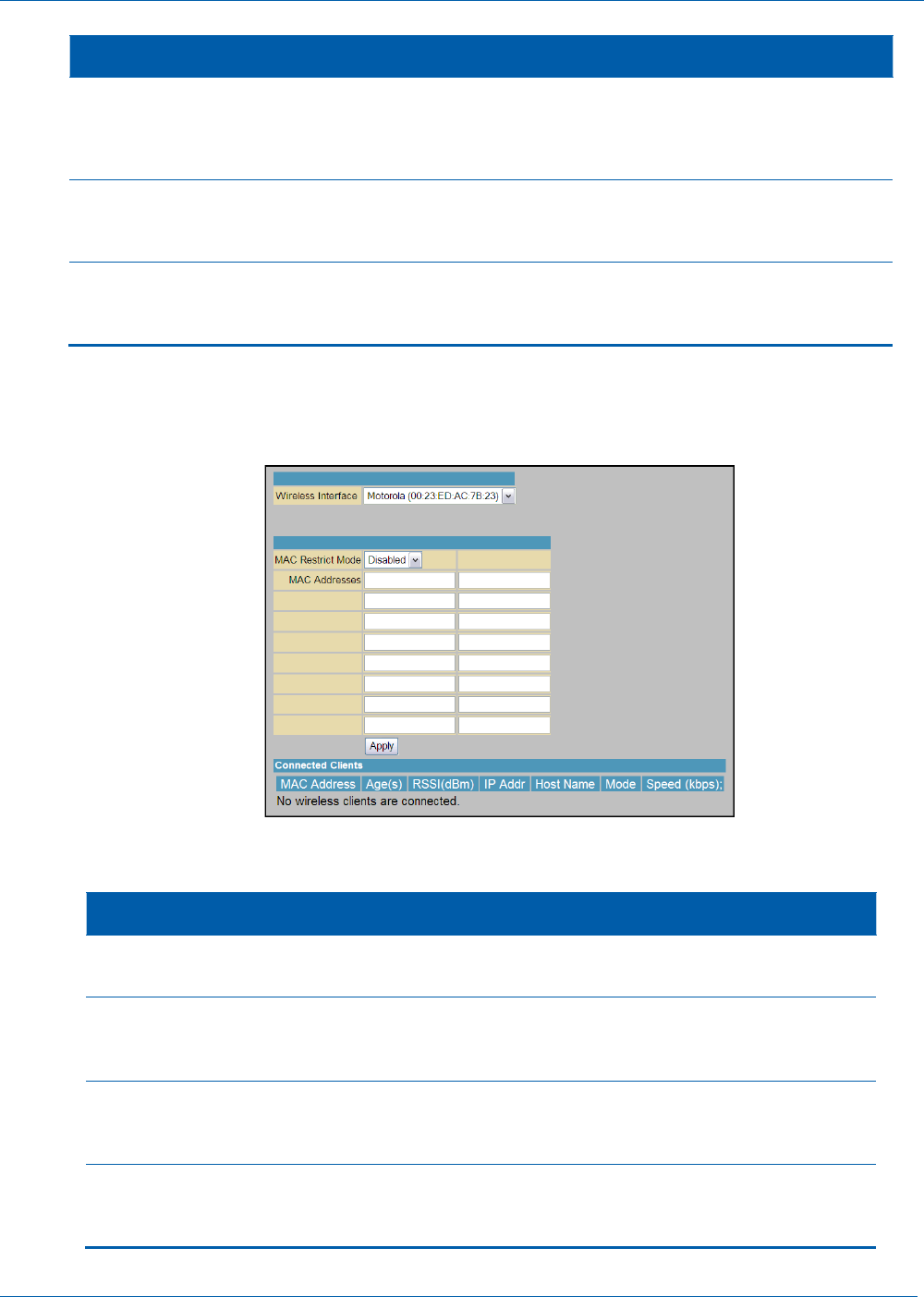

Wireless 802.11 Access Control Page .................................................................................................................. 39

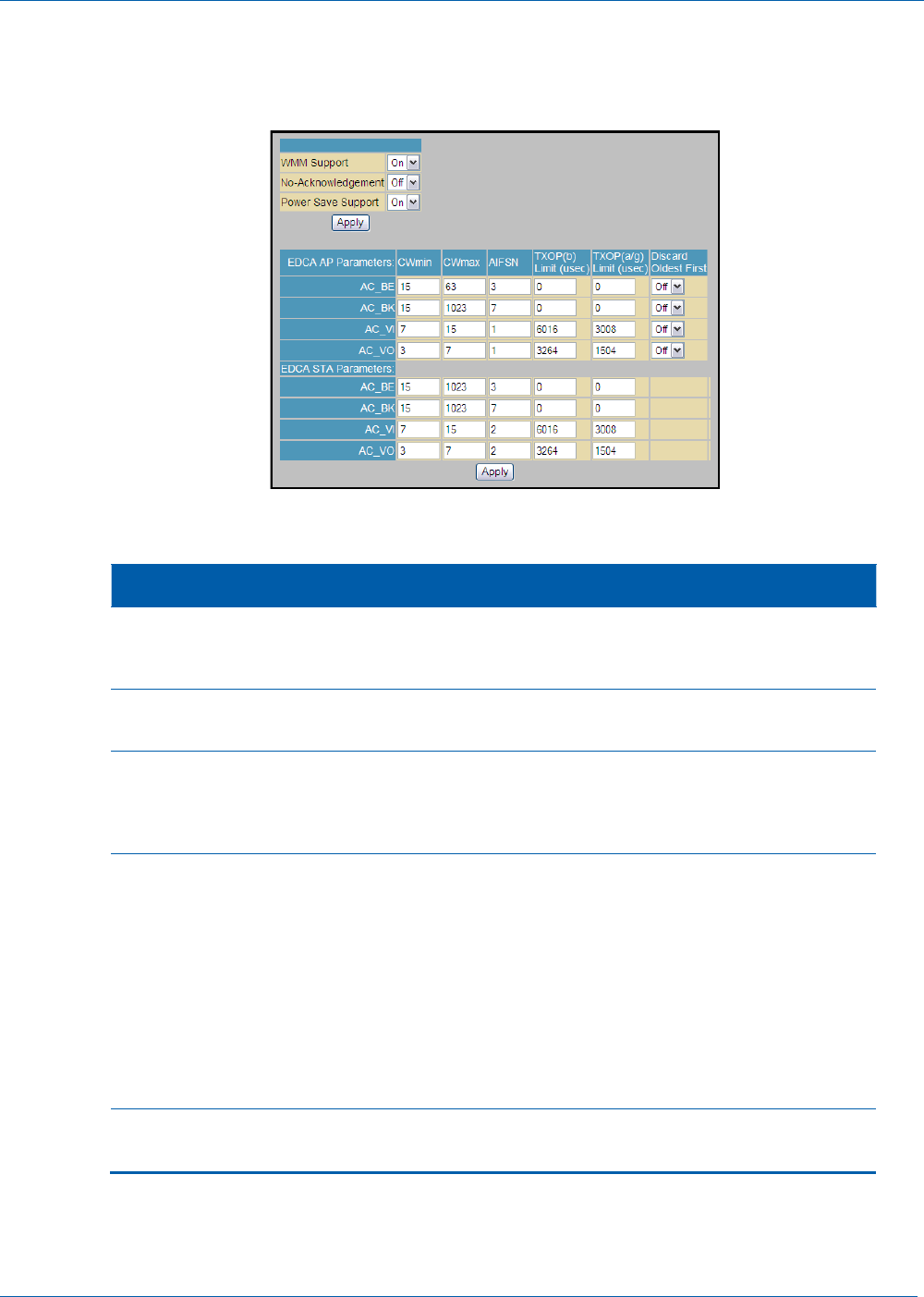

Wireless 802.11 Wi-Fi Multimedia Page ............................................................................................................... 40

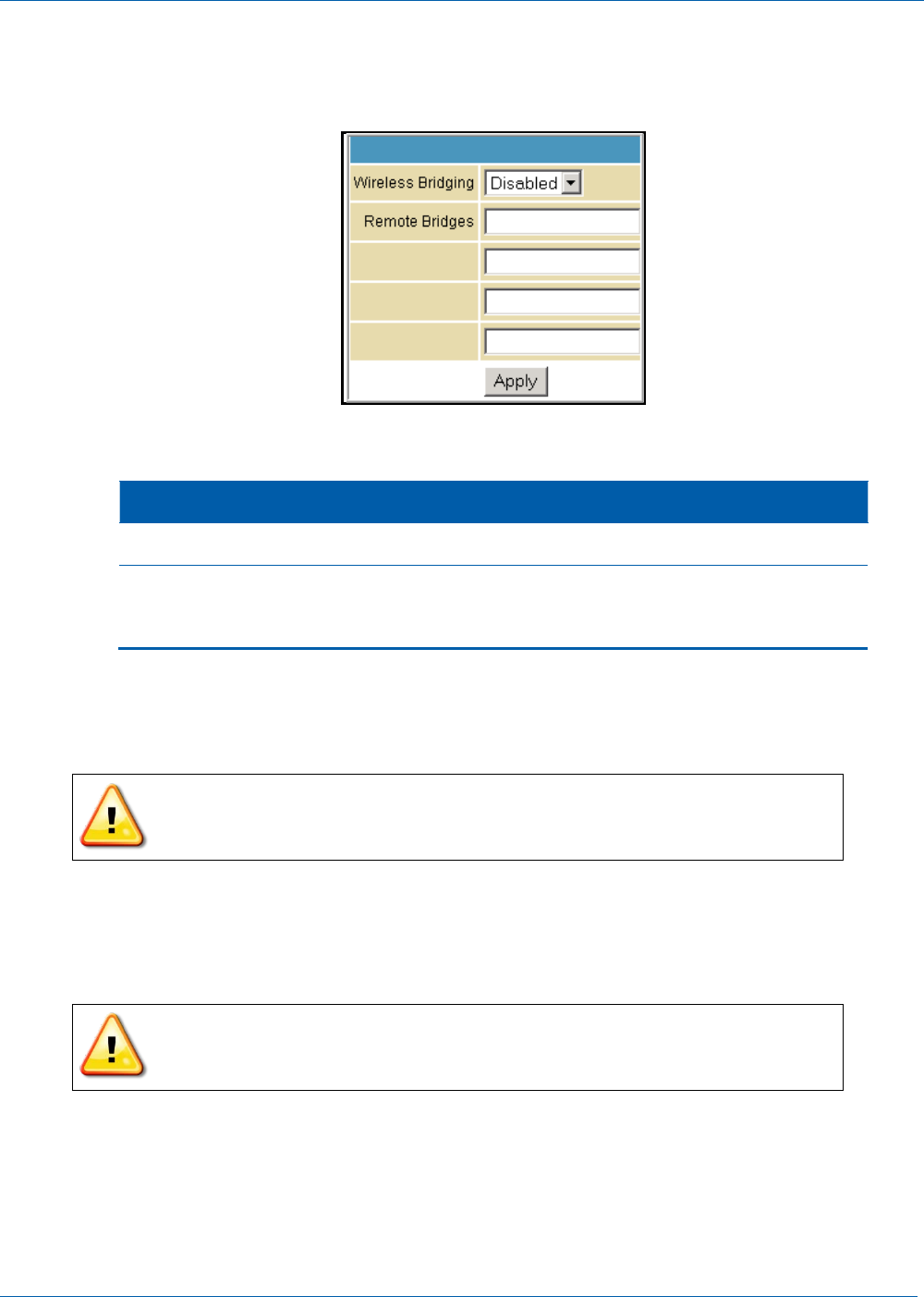

Wireless 802.11 Bridging Page ............................................................................................................................. 41
Setting Up Your Wireless LAN .............................................................................................................................. 41
Encrypting Wireless LAN Transmissions ........................................................................................................ 42
Installing Wireless Clients ..................................................................................................................................... 42
Installing a Wireless Client for WPA ............................................................................................................... 43
Configuring a Wireless Client for WEP ........................................................................................................... 43
Configuring a Wireless Client with the Network Name (SSID) ...................................................................... 43
MTA Pages ........................................................................................................................................................... 44
MTA Status Page .................................................................................................................................................. 44
MTA DHCP Page ................................................................................................................................................... 44
MTA QoS Page ...................................................................................................................................................... 45
Troubleshooting .................................................................................................................................................. 46
B
SVG1202 Wireless Voice Gateway • User Guide vi
Solutions ................................................................................................................................................................ 46
Front Panel LEDs and Error Conditions ................................................................................................................. 47
Warranty Information ......................................................................................................................................... 48
B
SVG1202 Wireless Voice Gateway • User Guide 1
1
Getting Started
The Motorola SURFboard® SVG1202 Wireless Voice Gateway is designed for use in households with
one or more computers capable of wireless and/or wired connectivity.
This guide provides product overview and setup information for the SVG1202. It also provides
instructions for installing and configuring the gateway.
Inside the Box
Before installing the gateway, check that the following items are included in the box with the gateway.
If any items are missing, please contact Motorola Broadband Technical Support at 1-877-466-8646.
ITEM DESCRIPTION
Power Supply
Provides power to the gateway using an
electrical outlet
10/100Base-T Ethernet
Cable Standard Category 5, or higher, cable for
connecting to the network
Software License &
Regulatory Card
Contains software license, warranty, and
safety information for the gateway
SVG1202 Install Sheet
Provides basic information for connecting the
gateway
Minimum System Requirements
The SVG1202 is compatible with the following operating systems:
• Windows® 7
• Windows Vista™, Service Pack 1 or later
• Windows XP, Service Pack 2 or later
• Mac® 10.4 or later
• UNIX®
• Linux®
Contact Information
For additional product information, please visit the Motorola support website:
www.motorola.com/us/support
B
SVG1202 Wireless Voice Gateway • User Guide 2
2
Product Overview
Front Panel
LED BLINKING ON (SOLID)
1 POWER Not applicable — icon does not flash Green: Power is properly connected
2 RECEIVE Scanning for a downstream
(receive) channel connection
Green: Non-bonded downstream channel
is connected
3 SEND Scanning for an upstream (send)
channel connection
Green: Non-bonded upstream channel is
connected
4 ONLINE Scanning for an Internet connection Green: Startup process completed
5 LINK Transmitting or receiving data on the
Ethernet port
Green: A device is connected to the
Ethernet (10Base-T) or Fast Ethernet
(100Base-T) port
6 TEL1
TEL2
Telephone is off-hook; dialing or call
is in progress
Green: Telephone is connected and
activated; on-hook
7 WIRELESS Green: Wi-Fi enabled with encrypted
wireless data activity; long/short
blinking indicates wireless pairing in
progress
Amber: Wi-Fi enabled with
unencrypted wireless data activity
Green: Wireless pairing successfully
established between the gateway and
another Wi-Fi enabled device on your
network — printer, PDA, laptop, etc.
Amber: Wireless pairing was successful;
LED turns solid green after five minutes
8 WPS button Configures a Wi-Fi Protected Setup (WPS) enabled device to connect to a wireless
network
B
SVG1202 Wireless Voice Gateway • User Guide 3
Rear Panel
PORT/CONNECTOR DESCRIPTION
1 TEL 1
TEL 2
VoIP connection for a single or two-line telephone
VoIP connection for a single-line telephone
2 ETHERNET Ethernet port for an RJ-45 cable connection
3 RESET Resets the gateway; may take from 5 to 30 minutes to
scan and connect to the appropriate communications
channels
Press and hold the RESET switch for five seconds or
longer to restore the factory default settings
4 CABLE Coaxial cable connector
5 POWER +12VDC Power connector
MAC Label
The SVG1202 Media Access Control (MAC) label is located on the bottom of the gateway. It contains
specific ID information for the gateway.
To receive data service, you may have to provide the MAC address (HFC MAC ID) and serial number
located on the label to your Internet service provider.
To receive VoIP service, you may have to provide the MTA MAC ID to your VoIP provider.
B
SVG1202 Wireless Voice Gateway • User Guide 4
3
Connecting the Gateway
This product is for indoor use only. Do not route the Ethernet cable or
telephone cord outside of the building. Exposure of the cables to lightning
could create a safety hazard and damage the product.
Installing the SVG1202
Before installing the gateway, choose a location where the computer and gateway are preferably near
existing cable and electrical wall outlets. Also, make sure the computer is powered OFF.
1. Verify that the coaxial cable is connected to a cable outlet or splitter.
2. Connect the other end of the coaxial cable to the Cable connector on the gateway.
Hand-tighten the connectors to avoid damaging them.
3. Plug the power cord into the Power port on the gateway.
4. Plug the other end of the power cord into an electrical wall outlet.
This automatically powers ON the gateway. You do not need to unplug the gateway when it is not
in use.
Note: The first time you plug in the gateway, allow from 5 to 30 minutes for the gateway to scan
and connect to the appropriate communications channels.
5. Connect the Ethernet cable to the Ethernet port on the gateway.
6. Connect the other end of the Ethernet cable to the Ethernet port on the computer.
7. Plug the telephone cord of a single or two-line telephone into the telephone.
8. Plug the other end of the telephone cord into the Tel 1 port on the gateway.
Note: You must contact a VoIP service provider to activate the telephone service.
B
SVG1202 Wireless Voice Gateway • User Guide 5
9. For a second telephone, plug the telephone cord of a single-line telephone into the Tel 2 port on the
gateway.
10. Check that the LEDs on the front panel cycle through one by one in the following sequence:
SVG1202 LED Activity During Startup
LED DESCRIPTION
POWER Turns solid green when AC power is connected to the gateway.
Indicates power is connected properly.
RECEIVE Blinks while scanning for a downstream (receive) channel.
Turns solid green when the downstream channel is connected.
SEND Blinks while scanning for an upstream (send) channel.
Turns solid green when the upstream channel is connected.
ONLINE Blinks during gateway registration and configuration.
Turns solid green when the gateway is registered.
LINK Turns solid when an Ethernet connection is made between the
gateway and computer.
Testing the Connections
Perform the following connectivity test to verify that all the components were connected properly:
1. Power ON the computer and log in.
2. Check that the POWER, RECEIVE, SEND, and LINK front panel LEDs on the gateway are either
solid or blinking. See Front Panel for additional status information.
Note: The ONLINE LED should turn solid after the gateway is provisioned (activated).
Wall Mounting the Gateway
You will need a screwdriver and two M3 (#6) screws.
1. Print the Wall Mounting Template.
Note: You can mount the gateway horizontally or vertically.
2. Remove all cables (power, coaxial, and Ethernet) from the gateway.
3. Choose a location on the wall to mount the gateway.
Notes:
• Locate the unit according to local or national codes governing residential or business cable TV
and communications services.
• Follow all local standards for installing a network interface unit/network interface device
(NIU/NID).
Before drilling holes in the wall, check the structure for potential damage to
the water, gas, or electrical lines.
B
SVG1202 Wireless Voice Gateway • User Guide 6
• It is recommended that you mount the gateway to concrete, masonry, a wooden stud, or some
other solid wall material. Use anchor bolts if necessary (for example, if you mount the unit on
drywall).
4. Position and secure the wall mounting template on the wall to mark the holes.
5. Select an appropriate depth and diameter to drill the holes to a depth of at least 1½ inches (3.8 cm).
Note: There must be .10 inch (2.5 mm) between the wall and underside of the screw head.
6. Insert the #6 screws in the holes and then attach the gateway.
7. Verify the gateway is still securely attached to the wall.
8. Reconnect the coaxial, Ethernet, power cables.
9. Plug the power cord into an electrical outlet.
10. Arrange the cables to prevent any safety hazards.
B
SVG1202 Wireless Voice Gateway • User Guide 7
Wall Mounting Template
B
SVG1202 Wireless Voice Gateway • User Guide 8
4
Connecting to the Internet
Before You Begin
To prevent unauthorized user access, change the default username and password
before proceeding. See Changing the SVG1202 Default Password for more information.
For security reasons, DO NOT configure your SVG1202 Wireless Voice Gateway over a
wireless network connection.
After installing the gateway, you are now ready to connect your computer and other network devices to
the Internet. To do this, you may have to enable the network options on your computer to automatically
obtain an IP address and DNS server address. Follow the steps in this section for your operating
system.
Note: Your computer may already be configured to automatically connect to the Internet. If so, do not
perform any of the steps in this section.
Configuring TCP/IP for Windows 7
1. Click Start and then select Network, Properties.
2. Click Network and Internet to open the Network and Internet window.
3. Click Network and Sharing Center to open the Network and Sharing Center window.
4. Click Change adapter settings to open the Network Connections window.
5. Right-click the network connection for your network interface.
6. Select Properties to open the Local Area Connection Properties window.
7. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties to open the Internet Protocol
Properties window.
8. Select Obtain an IP address automatically and Obtain DNS server address automatically.
9. Click OK to save the TCP/IP settings and close the Internet Protocol Version 4 (TCP/IPv4)
Properties window.
10. Click Close to close the Local Area Connection Properties window.
11. Close the remaining windows and exit the Control Panel.
12. When you complete the TCP/IP configuration, verify the IP address. See Verifying the IP Address in
Windows 7 for more information.
Configuring TCP/IP for Windows Vista
1. Click Start and then right-click Network.
2. Click Network and Internet to open the Network and Internet window.
3. Click Network and Sharing Center to open the Network and Sharing Center window.
4. Click Manage Network Connections.
5. Right-click on the Local Area Connection you want to configure (if more than one is listed).
6. Click Properties to open the Connection Properties window.
7. Click Continue, if prompted for administrator permission.
8. Click Networking tab.
B
SVG1202 Wireless Voice Gateway • User Guide 9
9. Select Internet Protocol Version4 (TCP/IPv4) and then click Properties.
10. Verify that the Obtain an IP address automatically and Obtain DNS server address
automatically options are both selected.
11. Click Advanced. Use the following table to verify the Advanced TCP/IP Settings:
IP SETTINGS TAB DNS TAB WINS TAB
DHCP Enabled listed IP
address box
Default gateways box is
empty
Automatic metric is selected
DNS server addresses box is empty
Append primary and connection
specific DNS suffixes is selected
Append parent suffixes of the
primary DNS suffix is checked
Register this connection’s
addresses in DNS is checked
Append these DNS suffixes (in
order) is not selected
WINS addresses box is empty
Enable LMHOSTS lookup is checked
Default: Use NetBIOS setting from
the DHCP server is selected
12. Click OK.
13. Click Alternate Configuration and verify that Automatic private IP address is selected.
14. Click OK. A prompt to restart your computer will display.
Configuring TCP/IP for Windows XP
1. Click Start and then select Settings and Control Panel.
2. Click Network and Internet Connections or Network Connections (will vary according to
settings).
3. Click Local Area Connection.
4. Click Properties to open the Local Area Connection Properties window.
5. Verify Internet Protocol (TCP/IP) is selected, then click Properties.
6. Verify that Obtain an IP address automatically and Obtain DNS server address automatically are
both selected.
7. Click OK to save the TCP/IP settings.
8. Click OK to exit.
9. When you complete the TCP/IP configuration, verify the IP address. See Verifying the IP Address in
Windows XP for more information.
Renewing the IP Address in Windows 7 or Vista
1. Click Start and then click Start Search.
2. Type cmd and then right-click cmd.exe from the drop-down list.
3. Select Run as administrator.
4. Type ipconfig /renew and press Enter. A new IP address for your computer will display.
5. Type exit and press Enter to return to Windows.
If you still cannot access the Internet, contact your Internet Service Provider.
B
SVG1202 Wireless Voice Gateway • User Guide 10
Renewing the IP Address in Windows XP
1. Click Start and then click Run.
2. Type cmd and click OK to open a command prompt window.
3. Type ipconfig /renew and press Enter. A new IP address for your computer will display.
4. Type exit and press Enter to return to Windows.
If you still cannot access the Internet, contact your Internet Service Provider.
Verifying the IP Address in Windows 7 or Vista
1. Click Start and then click All Programs.
2. Click Accessories.
3. Click Run to open the Run window.
4. Type cmd and click OK to open a command prompt window.
5. Type ipconfig and press Enter to display the IP Configuration.
Verifying the IP Address in Windows XP
1. Click Start and then click Run.
2. Type cmd and click OK.
3. Type ipconfig and press Enter to display your IP configuration.
Setting Up a Wi-Fi Network Connection
Do the following to set up a Wi-Fi network connection using the WPS button on the SVG1202 Wireless
Voice Gateway:
1. Power ON the gateway.
2. Power ON the WPS-enabled devices you want to have access to the network, such as a computer,
router, or telephone.
The Wi-Fi network will automatically detect the WPS devices.
3. Press WPS button on the gateway.
4. If applicable, press WPS button on the other WPS devices.
B
SVG1202 Wireless Voice Gateway • User Guide 11
5
Monitoring Your Gateway
Use the SVG1202 Gateway Configuration Manager to change various default configuration settings on
the gateway.
Note: If the gateway was obtained as part of a service package, your service provider may require
alternative configuration methods. If you cannot access any of the HTML pages in the Configuration
Manager, please contact your service provider for assistance.
Starting the Gateway Configuration Manager
1. Open any web browser on a computer connected to the gateway.
2. In the Address bar, type http://192.168.0.1 for the Gateway Configuration Manager IP address, and
then press Enter. The gateway Login screen displays.
3. Type the default username and password. Both entries are case-sensitive.
Username: admin
Password: motorola
4. Click Login to open the SVG1202 Configuration Manager (CMGR).
The following SVG1202 Status page displays:
Note: If you cannot access the HTML pages in the Gateway Configuration Manager, please contact
your service provider for assistance.
B
SVG1202 Wireless Voice Gateway • User Guide 12
SVG1202 Menu Options Bar
The SVG1202 Menu Options bar is displayed at the top of the SVG1202 Configuration Manager
window.
Configuration Manager Menu Options Bar
MENU OPTIONS FUNCTION
Status Provides information about the gateway hardware and software, MAC
address, voice gateway IP address, serial number, and related
information.
Additional pages provide diagnostic tools and allow you to change your
gateway user name and password.
Basic Views and configures the gateway IP-
related configuration data, includin
Network Configuration, WAN Connection Type, DHCP, and DDNS
Advanced Configures and monitors how the gateway routes IP traffic
Firewall Configures and monitors the gateway firewall
Parental Control Configures and monitors the gateway Parental Control features
Wireless Configures and monitors the gateway wireless networking features
MTA Monitors the telephone features of the gateway
Logout
Closes the SVG1202 Configuration Manager
B
SVG1202 Wireless Voice Gateway • User Guide 13
Changing the SVG1202 Default Password
To prevent unauthorized configuration, immediately change the default password
when you first configure the gateway.
1. From the Status Security page, click Security from the Status menu options.
2. Complete each field entry, but note the following:
• Password Change Username is your new user name.
• New Password is case sensitive.
• Current Username Password is your old password.
3. Select No for Restore Factory Defaults.
4. Click Apply to update the user name and password.
Restoring Factory Defaults
Note: After applying the restore factory settings change, you will have to log in using the default user
name and password.
Under Restore Factory Defaults, select Yes.
1. Click Apply to reset the user name and password to the original factory settings.
2. Log in again using the following defaults. Note that both entries are case-sensitive.
User name: admin
Password: motorola
Getting Help
To retrieve help information for any menu option, click help on that page.
Exiting the SVG1202 Configuration Manager
To log off and close the SVG1202 Configuration Manager:
• Click Logout on the SVG1202 Menu Options bar.
B
SVG1202 Wireless Voice Gateway • User Guide 14
6
Status Pages
Use the SVG1202 Status pages to get information about the gateway hardware and software, MAC
address, gateway IP address, serial number; and to monitor the gateway system connection, access
additional diagnostic tools, and change your gateway user name and password.
Status Software Page
Displays status information for the gateway software.

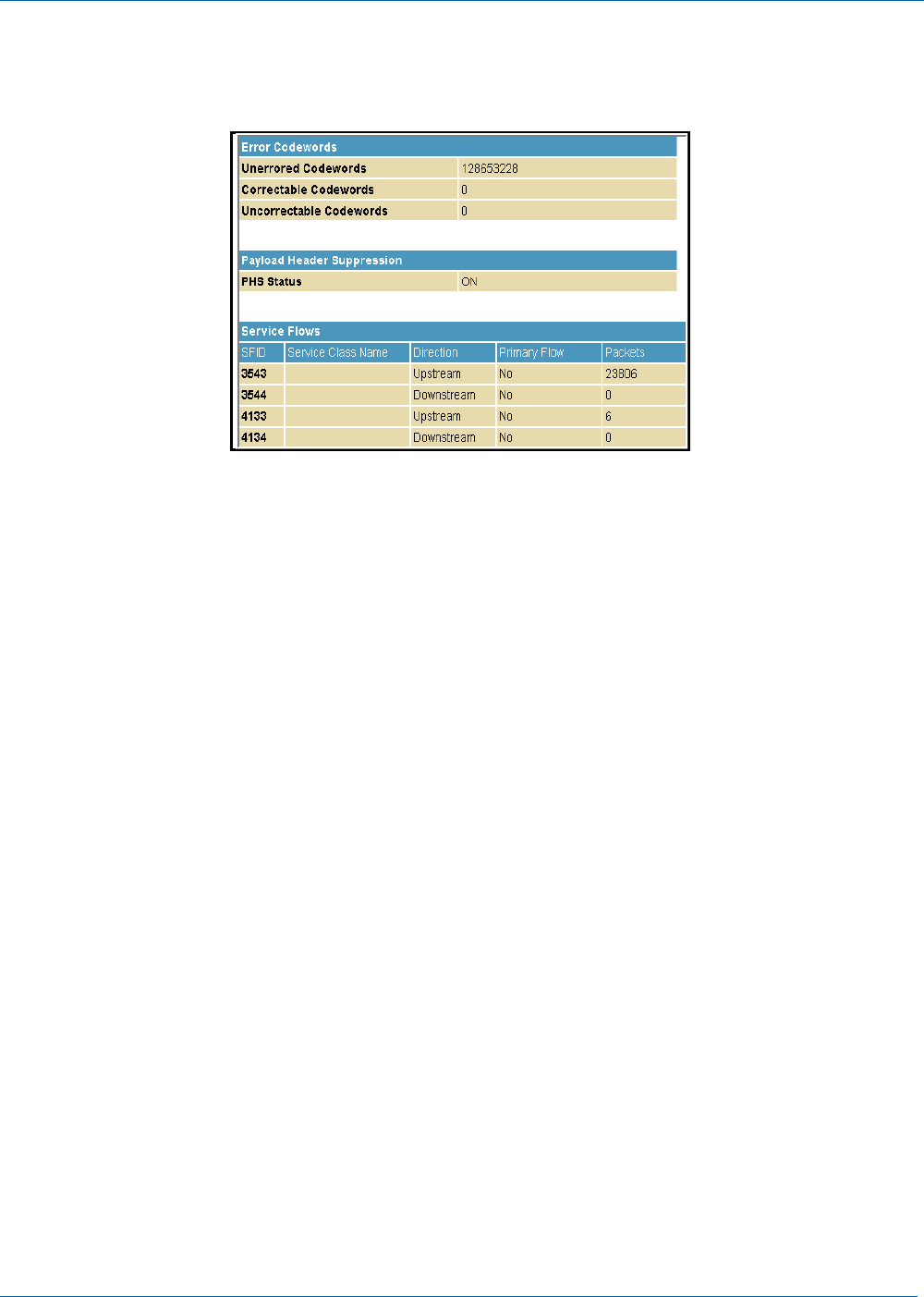

Status Connection Page
Check the HFC and IP network connectivity status of the gateway.
• Click Refresh in your web browser to refresh this information.
B
SVG1202 Wireless Voice Gateway • User Guide 15
Status Security Page
Define administrator access privileges by changing your gateway user name and password, and reset
your user name and password to the default setting. See Changing the SVG1202 Default Password and
Restoring Factory Defaults for more information.
Status Diagnostics Page
Use the following diagnostic tools to troubleshoot IP connectivity problems:
• Ping LAN
• Ping WAN
• Traceroute (WAN)
Ping Utility
Use Ping (Packet InterNet Groper) to check connectivity between the gateway and other devices on the
gateway LAN by sending a small packet of data and then waiting for a reply. A Ping reply confirms that
the computer is connected to the gateway.
B
SVG1202 Wireless Voice Gateway • User Guide 16
Testing Network Connectivity with the SVG1202
Perform the following test to check connectivity between the gateway and other devices on the
SVG1202 LAN:
1. Select Ping LAN from the Select Utility drop-down list.
2. Enter the IP address of the computer you want to Ping in the Target field.
3. Enter the data packet size in bytes in the Ping Size field.
4. Enter the number of ping attempts in the No. of Pings field.
5. Enter the time between Ping send operations in milliseconds in the Ping Interval field.
6. Click Start Test to begin the Ping operation. The Ping results will display in the Results pane.
7. You can click Abort Test at any time during the test to stop the Ping operation.
8. Repeat steps 2 through 6 for each device you want to ping.
9. When done, click Clear Results to delete the Ping results in the Results pane.
Traceroute Utility
Use Traceroute to map the network path from the SVG1202 Configuration Manager to a public host.
1. Enter the IP address or Host Name of the computer you want to target for the Traceroute operation
in the Target field.
2. Enter the maximum number of hops that the Traceroute operation performs before stopping in the
Max Hops field.
3. Enter the data packet size in bytes in the Data Size field.
4. Set the base UDP port number used by Traceroute in the Base Port field. The default is 33434. If a
UDP port is not available, this field can be used to specify an unused port range.
5. In the Resolve Host field, select On to list the names of hosts found during the Traceroute
operation, or select Off to list only the hosts IP addresses.
6. After entering the Traceroute parameters, click Start Test to begin the Traceroute operation. The
Traceroute results will display in the Results pane.
7. When done, click Clear Results to delete the Traceroute results in the Results pane.
B
SVG1202 Wireless Voice Gateway • User Guide 17
Status Event Log Page
Review critical system events in chronological order in the SNMP Event log.
Status Configuration Page
Reboot the gateway after making any configuration changes.
B
SVG1202 Wireless Voice Gateway • User Guide 18
7
Basic Pages
View and configure SVG1202 IP-related configuration data, including Network Configuration, WAN
Connection Type, DHCP, and DDNS in Basic Pages. The Backup option allows you to save a copy of
the SVG1202 configuration on your computer.
Basic Setup Page
Configure the basic features of the SVG1202 gateway related to your service provider’s connection.
Field Descriptions for the Basic Setup Page
FIELD DESCRIPTION
NAPT mode NAPT is a special case of NAT, where many IP numbers are hidden behind a
number of addresses. In contrast to the original NAT, however, this does not
mean there can be only that number of connections at a time.
In NAPT mode, an almost arbitrary number of connections are multiplexed using
TCP port information. The number of simultaneous connections is limited by the
number of addresses multiplied by the number of available TCP ports.
LAN
IP Address
MAC Address
Enter the IP address of the SVG1202 on your private LAN.
Media Access Control address — a set of 12 hexadecimal digits assigned during
manufacturing that uniquely identifies the hardware address of the SVG1202
Access Point.
WAN
IP Address
MAC Address
The public WAN IP address of your SVG1202 device, which is either dynamically
or statically assigned by your ISP.
Media Access Control address — a set of 12 hexadecimal digits assigned during
manufacturing that uniquely identifies the hardware address of the SVG1202
Access Point.
B
SVG1202 Wireless Voice Gateway • User Guide 19
FIELD DESCRIPTION
WAN (continued)
Duration
Expires
Describes how long before your Internet connection expires. The WAN lease
will automatically renew itself when it expires.
Displays the exact time and date the WAN lease expires.
Release WAN Lease Click to release WAN lease.
Renew WAN Lease Click to renew WAN lease.
WAN Connection Type DHCP or Static IP. If your ISP uses DHCP, select DHCP and enter a Host Name
and Domain name, if required.
If your ISP uses static IP addressing, select Static IP and enter the information
provided by your ISP for Static IP Address, Static IP Mask, Default Gateway,
Primary DNS, and Secondary DNS.
MTU Size Maximum Transmission Unit (MTU) is the largest size packet or frame that can
be sent. The default value is suitable for most users.
Spoofed MAC Address If WAN Connection Type is Static IP, enter the information provided by your ISP
for Static IP Address, Static IP Mask, Default Gateway, Primary DNS, and
Secondary DNS.
When done, click Apply to save your changes.
Basic DHCP Page
Configure and view the status of the optional internal SVG1202 DHCP (Dynamic Host Configuration
Protocol) server for the LAN.
Do not modify these settings unless you are an experienced network administrator
with strong knowledge of IP addressing, subnetting, and DHCP
B
SVG1202 Wireless Voice Gateway • User Guide 20
Field Descriptions for the Basic DHCP Page
FIELD DESCRIPTION
DHCP Server Select Yes to enable the SVG1202 DHCP Server.
Select No to disable the SVG1202 DHCP Server.
Starting Local Address
Enter the starting IP address to be assigned by the SVG1202 DHCP server to
clients in dotted-decimal format. The default is 192.168.0.2.
Number of CPEs Sets the number of clients for the SVG1202 DHCP server to assign a private
IP address. There are 245 possible client addresses. The default is
245
.
Lease Time Sets the time in seconds that the SVG1202 DHCP server leases an IP address
to a client. The default is 3600 seconds (60 minutes).
DHCP Clients
Lists the DHCP client device information.
Click Apply to save your changes.
To renew a DHCP client IP address, choose Select and then click Force Available.
Basic DDNS Page
Set up the Dynamic Domain Name System (DDNS) service to assign a static Internet domain name to a
dynamic IP address. This allows the gateway to be easily accessed from various Internet locations.
Field Descriptions for Basic DDNS Page
FIELD DESCRIPTION
DDNS Service Select Disable or wwwDynDNS.org to enable the DDNS Service
User Name Enter your DynDNS user name
Password Enter your DynDNS Password
Host Name Enter your DDNS Host Name
IP Address Lists IP information
Status Shows Enabled or Disabled for the DDNS service status
B
SVG1202 Wireless Voice Gateway • User Guide 21
Basic Backup Page
Save your current SVG1202 configuration settings locally on your computer or restore previously saved
configurations.
Restoring Your SVG1202 Configuration
1. Type the path and file name of the backup file located on your computer, or click Browse to locate
the file.
2. Click Restore to recreate your previously saved SVG1202 settings.
Backing Up Your SVG1202 Configuration
1. Type the path and file name where you want to store the backup file on your computer, or click
Browse to locate the file.
2. Click Backup to create a backup of your SVG1202 settings.
B
SVG1202 Wireless Voice Gateway • User Guide 22
8
Advanced Pages
Configure IP Filtering, MAC Filtering, Port Filtering, Port Forwarding, Port Triggers, DMZ Host, and
Routing Information Protocol (RIP) Setup.
Click any Advanced submenu option to view or change the advanced configuration information for it.
Advanced Options Page
Set the operating modes for adjusting how the SVG1202 device routes IP traffic.
Field Descriptions for the Advanced Options Page
FIELD DESCRIPTION
WAN Blocking Prevents the SVG1202 Configuration Manager or the computers
behind it from being visible to other computers on the SVG1202 WAN.
Select Enable to turn on.
IPsec PassThrough Enables the IPsec Pass-Through protocol to be used through the
SVG1202 Configuration Manager so that a VPN device (or software)
may communicate properly with the WAN.
Select Enable to turn on.
PPTP PassThrough Enables the Point-to-Point Tunneling Protocol (PPTP) Pass-Through
protocol to be used through the SVG1202 Configuration Manager so
that a VPN device (or software) may communicate properly with the
WAN.
Select Enable to turn on.
B
SVG1202 Wireless Voice Gateway • User Guide 23
FIELD DESCRIPTION
Remote Config
Management
Allows remote access to the SVG1202 Configuration Manager. This
enables you to configure the SVG1202 WAN by accessing the WAN IP
address at Port 8080 of the configuration manager from anywhere on
the Internet. For example, in the browser URL window, type
http://WanIPAddress:8080/ to access the SVG1202 Configuration
Manager remotely.
Select Enable to turn on.
Multicast Enable Allows multicast-specific traffic (denoted by a multicast specific
address) to be passed to and from the computers on the private
network behind the configuration manager.
Select Enable to turn on.
UPnP Enable Turns on the Universal Plug and Play protocol (UPnP) agent in the
configuration manager. If you are running a CPE (client) application that
requires UPnP, select this box.
Select Enable to turn on.
PassThrough Mac
Addresses
Specifies up to 32 computers as passthrough clients not subject to
NAT, using their MAC addresses.
To enable this feature, your cable operator may need to provide
additional public IP addresses.
Click Apply to save changes.
B
SVG1202 Wireless Voice Gateway • User Guide 24
Advanced IP Filtering Page
Define which local computers will be denied access to the SVG1202 WAN by configuring IP address
filters to block Internet traffic to specific network devices on the LAN. You enter the LSB (Least-
significant byte) of the IP address; the upper bytes of the IP address are set automatically from the
SVG1202 Configuration Manager’s IP address.
You can store filter settings commonly used but not have them active.
Field Descriptions for the Advanced IP Filtering Page
FIELD DESCRIPTION
Start Address Enter the starting IP address range of the computers you want to deny
access to the SVG1202 WAN.
Enter only the least significant byte of the IP address.
End Address Enter the ending IP address range of the computers you want to deny
access to the SVG1202 WAN.
Enter only the least significant byte of the IP address.
Enabled Activate the IP address filter.
Select each range of IP addresses you want to deny access to the
SVG1202 WAN.
Click Apply to activate and save your settings.
B
SVG1202 Wireless Voice Gateway • User Guide 25
Advanced MAC Filtering Page
Define up to 20 Media Access Control (MAC) address filters to prevent computers from sending
outgoing TCP/UDP traffic to the WAN via their MAC addresses. The MAC address of a specific NIC
card never changes, unlike its IP address which can be assigned via the DHCP server or hard-coded to
various addresses over time.
Field Descriptions for the Advanced MAC Filtering Page
FIELD DESCRIPTION
MAC Addresses Media Access Control address — a unique set of 12 hexadecimal
digits assigned to a computer during manufacturing.
Setting a MAC Address Filter
1. Enter the MAC address in the MAC Addresses field for the computer you want to block.
2. Click Add MAC Address.
3. Repeat above steps for up to twenty MAC addresses.
B
SVG1202 Wireless Voice Gateway • User Guide 26
Advanced Port Filtering Page
Define port filters to prevent all devices from sending outgoing TCP/UDP traffic to the WAN on specific
IP port numbers. Specify a starting and ending port range to determine what TCP/UDP traffic is allowed
out to the WAN on a per port basis.
Note: The specified port ranges are blocked for ALL computers. This setting is not IP address or MAC
address specific. For example, to block all computers on the private LAN from accessing HTTP sites,
enter the following:
• Start Port: 80
• End Port: 80
• Protocol: TCP
• Checkmark: Enabled
• Click Apply
Field Descriptions for the Advanced Port Filtering Page
FIELD DESCRIPTION
Start Port Enter the starting port number
End Port Enter the ending port number
Protocol Select TCP, UDP, or Both from the drop-down list
Enabled
Checkmark to activate the IP port filters
B
SVG1202 Wireless Voice Gateway • User Guide 27
Advanced Port Forwarding Page
Run a publicly accessible server on the LAN by specifying the mapping of TCP/UDP ports to a local
computer. This enables incoming requests on specific port numbers to reach web servers, FTP servers,
mail servers, etc. so that they can be accessible from the public Internet.
Commonly used Port numbers:
To map a port, enter the range of port numbers that should be forwarded locally and the IP address to
which traffic to those ports should be sent. To map only a single port, enter the same port number in
the “start” and “end” locations for that IP address.
B
SVG1202 Wireless Voice Gateway • User Guide 28
Advanced Port Triggers Page
Configure dynamic triggers to specific devices on the LAN. This allows for special applications that
require specific port numbers with bi-directional traffic to function properly. Applications such as video
conferencing, voice, gaming, and some messaging program features may require these special
settings.
The Advanced Port Triggers are not static ports held open all the time. When the Configuration
Manager detects outgoing data on a specific IP port number set in the “Trigger Range,” the resulting
ports set in the “Target Range” are opened for incoming or bi-directional data. If no outgoing traffic is
detected on the “Trigger Range” ports for 10 minutes, the “Target Range” ports close. This is a safer
method for opening specific ports for special applications (e.g. video conferencing programs, interactive
gaming, file transfer in chat programs, etc.) because they are dynamically triggered and not held open
constantly or erroneously left open via the router administrator and exposed for potential hackers to
discover.
Field Descriptions for the Advanced Port Triggers Page
FIELD
DESCRIPTION
Trigger Range
Start Port
End Port
Starting port number of the Port Trigger range
Ending port number of the Port Trigger range
Target Range
Start Port
End Port
Starting port number of the Port Trigger range
Ending port number of the Port Trigger range
Protocol
Select
TCP
,
UDP
, or
Both
from the drop-down list
Enable Select checkbox to activate the IP port triggers
B
SVG1202 Wireless Voice Gateway • User Guide 29
Advanced DMZ Host Page
Specify the default recipient of WAN traffic that NAT is unable to translate to a known local computer.
The DMZ (De-militarized Zone) is a computer or small subnetwork located outside the firewall, between
the trusted internal private LAN and the untrusted public Internet, that prevents direct access by
outside users to private data.
For example, you can set up a web server on a DMZ computer to enable outside users to access your
website without exposing confidential data on your network.
A DMZ is also useful to play interactive games that may have a problem running through a firewall. You
can leave a computer used for gaming only exposed to the Internet while protecting the rest of your
network.
You can configure one computer to be the DMZ host. This setting is generally used for computers
using problem applications that use random port numbers and do not function correctly with specific
port triggers or the port forwarding setups. If you set up a computer as a DMZ Host, set this back to
zero when you are finished with the needed application, since this computer will be effectively exposed
to the public Internet, though still protected from Denial of Service (DoS) attacks via the Firewall.
Setting Up the DMZ Host
1. Enter the IP address for the computer.
2. Click Apply to activate the selected computer as the DMZ host.
B
SVG1202 Wireless Voice Gateway • User Guide 30
9
Firewall Pages
Use the Firewall Pages to configure the firewall filters and firewall alert notifications. The firewall
protects the SVG1202 LAN from undesired attacks and other intrusions from the Internet. The firewall:
• Maintains state data for every TCP/IP session on the OSI network and transport layers.
• Monitors all incoming and outgoing packets, applies the firewall policy to each one, and screens for
improper packets and intrusion attempts.
• Provides comprehensive logging for all:
• User authentications
• Rejected internal and external connection requests
• Session creation and termination
• Outside attacks (intrusion detection)
You can configure the firewall filters to set rules for port usage.
Firewall Web Content Filter Page
Configure the firewall by enabling or disabling various Web filters related to blocking or exclusively
allowing different types of data through the Configuration Manager from the WAN to the LAN.
You can block Java Applets, Cookies, ActiveX controls, popup windows, and Proxies. Firewall
Protection turns on the Stateful Packet Inspection (SPI) firewall features.
Select each Web filter you want to set for the firewall and then click Apply. The Web filters will
activate without having to reboot the SVG1202 Configuration Manager.
Note: At least one Web filter or feature must be enabled for the firewall to be active. Make sure the
firewall is not disabled.
B
SVG1202 Wireless Voice Gateway • User Guide 31
Firewall Local Log Page
Set up notification of the firewall event log in either of the following formats:
• Individual e-mail alerts sent each time the firewall is under attack
• Local log stored within the gateway and displayed on the Local Log page
Firewall Remote Log Page
Send firewall attack reports to a standard SysLog server so multiple instances can be logged over a
period of time. Select individual attack or configuration items to send to the SysLog server so that only
the items of interest will be monitored. You can log permitted connections, blocked connections,
known Internet attack types, and CMRG configuration events. The SysLog server must be on the same
network as the Private LAN behind the Configuration Manager (typically 192.168.0.x).
To activate the SysLog monitoring feature, check all desired event types to monitor and enter the last
byte of the IP address of the SysLog server. Normally, the IP address of this SysLog server is
hard-coded so that the address does not change and always agrees with the entry on this page.
Field Description for the Firewall Remote Log Page
FIELD DESCRIPTION
Permitted Connections Select to have the server e-mail you logs of who is connecting
to your network.
Blocked Connections Select to have the server e-mail you logs of who is blocked
from connecting to your network.
Known Internet Attacks
Select to have the server e-mail you logs of known Internet
attacks against your network.
Product Configuration Events Select to have the server e-mail you logs of the basic product
configuration events logs.
To SysLog server at 192.168.0.x Enter the last digits from 10 to 254 of your SysLog server’s IP
address.
B
SVG1202 Wireless Voice Gateway • User Guide 32
10
Parental Control Pages
Use Parental Control Pages to configure access restrictions to a specific device connected to the
SVG1202 LAN.
Parental Control User Setup Page
Link each user to a specified time-access rule, content filtering rule, and login. You may also specify a
user as a “trusted user” who will have access to all Internet content regardless of the filters. You can
use the Trusted User checkbox as an override to grant a user full access, while storing all of the filtering
settings for easy availability.
You can enable Internet session duration timers, which limit the amount of time for Internet access.
Users must enter their passwords the first time to access the Internet, but not each time a new web
page is accessed. You can also set the inactivity timer so that if there is no Internet access for a
specified time, the user must login again.
Field Descriptions for the Parental Control User Setup Page
FIELD DESCRIPTION
Add User Button Add a user to set parental controls for a specific user.
User Settings Select the user for whom you want to modify access
restrictions.
Select Enable to select the user.
Click Remove User to delete the user from Parental Controls.
Password Enter a user password to log onto the Internet.
B
SVG1202 Wireless Voice Gateway • User Guide 33
FIELD DESCRIPTION
Re-Enter Password Enter the password again for confirmation.
Trusted User Select users who will have full access to Internet content.
Select Enable to override set filters without having to turn off
filter settings.
Content Rule Specify which websites each user is allowed to access.
Select White List Access Only, then choose a user from the
drop-down list.
Time Access Rule Set a rule to restrict when a selected user can use the Internet.
Session Duration Set the amount of time a selected user can use the Internet.
Inactivity time Set the amount of inactivity time before the Internet
automatically closes for a selected user.
Trusted Computers
Enter a user’s CPE MAC address so that CPE can access the
Internet without being censored by the Parental Control.
When done, click Add.
Click Apply to activate and save any changes you made.
Parental Control Basic Setup Page
Set rules to block types of Internet content and certain Web sites.
After you change Parental Control settings, click the appropriate Apply, Add, or Remove button.
Click Refresh in your web browser window to view your current settings.
B
SVG1202 Wireless Voice Gateway • User Guide 34
Parental Control Time of Day Filter Page
Block all Internet traffic to and from specified devices on your SVG1202 network based on day and time
settings. You can block Internet traffic for the entire day or for certain times within each day for specific
users. You can add up to 30 categories (filter names) with different day and time settings. You enter a
name for each time filter in the Add New Policy field.
Apply time filters for limited Internet access for each user in the Time Access Rule field on the
Parental Control User Setup Page.
After creating each new time of day policy, click Apply to store and activate the settings. The same
category names for blocking profiles appear in the Parental Control User Setup page under the “Time
Access Rule” section where each user can be assigned up to four categories simultaneously.
Parental Control Local Log Page
Generate an event log that shows a running list of the last 30 Parental Control access violations,
including:
• If the user’s Internet access is blocked (time filter)
• If a blocked keyword is detected in the URL
• If a blocked domain is detected in the URL
• If the online lookup service detects that the URL falls under a blocked category
B
SVG1202 Wireless Voice Gateway • User Guide 35
11
Wireless Pages
To configure your wireless LAN (WLAN), click any Wireless submenu option to view or change the
configuration information for that option. WPA or WPA2 encryption provides higher security than WEP
encryption, but older wireless client cards may not support the newer WPA or WPA2 encryption
methods.
Wireless 802.11 Radio Page
Configure the Wireless Radio parameters, including the current country and channel number.
Field Descriptions for the Wireless 802.11 Radio Page
FIELD DESCRIPTION
Wireless Interfaces Shows the MAC address of the installed wireless card. It is
not configurable.
Wireless Shows if the wireless network is enabled or disabled.
Country Restricts the channel set based on the country’s regulatory
requirements. This is a display-only field.
Output Power Sets a percentage of the output power of the hardware’s
maximum capability.
Channel Selects the channel for access point (AP) operation. the list of
available channels depends on the designated country.
For this field, the channel selected on the wireless clients on
your WLAN must be the same as the channel selected on the
gateway.
B
SVG1202 Wireless Voice Gateway • User Guide 36
Wireless 802.11 Primary Network Page
Configure your primary wireless network.
Field Descriptions for the Wireless 802.11 Primary Network Page
FIELD DESCRIPTION
Primary Network When Enabled, transmits beacon frames with the Primary Network
SSID.
Network Name (SSID) Sets the Network Name (SSID) of the Primary wireless network
using a 1-32 ASCII character string.
Closed Network In a closed network, users type the SSID into the client application
instead of selecting the SSID from a list.
WPA Enables or disables Wi-Fi Protected Access encryption.
WPA-PSK Enables or disables a local WPA pre-shared key passphrase.
WPA2 Enables or disables Wi-Fi Protected Access 2 encryption.
WPA2-PSK Enables or disables a local WPA2 pre-shared key passphrase.
WPA/WPA2 Encryption
Sets encryption mode to: TKIP, AES, or TKIP + AES. AES.
B
SVG1202 Wireless Voice Gateway • User Guide 37
FIELD DESCRIPTION
WPA Pre-Shared Key
Show Key
Sets the WPA Pre-Shared Key (PSK); either an 8-63 ASCII character
string or a 64-digit hex number. This is specified when the Network
Authentication method is WPA-PSK.
Show Key - displays the WPA Pre-Shared Key.
RADIUS Server Sets the RADIUS server IP address to use for client authentication
using the dotted-decimal format (xxx.xxx.xxx.xxx).
RADIUS Port Sets the UDP port number of the RADIUS server; default is 1812.
RADIUS Key Sets the shared secret for the RADIUS connection; key is a 0 to 255
character ASCII string.
Group Key Rotation Interval
Sets the WPA Group Rekey Interval in seconds. Set to zero to
disable periodic rekeying.
WPA/WPA2 Re-auth Interval Sets the amount of time the wireless router can wait before re-
establishing authentication with the CPE.
WEP Encryption Enables or disables Wired Equivalent Privacy encryption.
Shared Key Authentication Sends an authentication request to the access point. Then the
access point sends a challenge text to the CPE.
The CPE encrypts challenge text which it sends to the access point.
The access point decrypts and compares the message with the
original challenge text. If they are the same, the access point lets the
CPE connect; if it does not match, the access point does not let the
CPE connect.
802.1x Authentication Uses a stronger authentication than WEP.
Network Key 1 – 4 Sets the static WEP keys when WEP encryption is enabled.
Enter five ASCII characters or 10 hexadecimal digits for a 64-bit
key.
Enter 13 ASCII characters or 26 hexadecimal digits for a 128-bit
key.
When both WPA encryption and WEP encryption are enabled, only
keys 2 and 3 are available for WEP encryption.
Current Network Key Selects the encryption (transmit) key when WEP encryption is
enabled.
PassPhrase Sets the text to use for WEP key generation.
B
SVG1202 Wireless Voice Gateway • User Guide 38
Wireless 802.11 Advanced Page
Configure data rates and Wi-Fi thresholds.
Field Descriptions for the Wireless 802.11 Advanced Page
FIELD DESCRIPTION
54g™ Mode Sets these network modes:
54g Auto, 54g Performance, 54g LRS, and 802.11b only
54g Auto accepts 54g, 802.11g, and 802.11b clients but optimizes
performance based on the type of connected clients. 54g Performance
accepts only 54g clients and provides the highest performance
throughout; nearby 802.11b networks may have degraded performance.
54g LRS interoperates with the widest variety of 54g, 802.11g, and
802.11b clients. 802.11b accepts only 802.11b clients.
Basic Rate Set Determines which rates are advertised as basic rates. Default uses the
driver defaults. All sets all available rates as basic rates.
54g™ Protection Improves performance in Auto mode using RTS/CTS protection in mixed
802.11g + 802.11b networks. Turn protection off to maximize 802.11g
throughput under most conditions.
XPress™ Technology Enhances Wi-Fi throughput and efficiency used when there are mixed
wireless networks in the surrounding area from 802.11a/b/g networks.
Afterburner™ Technology Enhances Wi-Fi 802.11g standard by increasing throughput by 40 percent.
Rate Forces the transmission rate for the AP to a particular speed. “Auto”
provides best performance in nearly all situations.
Beacon Interval Sets the beacon interval for the AP. The default is 100, which is fine for
nearly all applications.
B
SVG1202 Wireless Voice Gateway • User Guide 39
FIELD DESCRIPTION
DTIM Interval Sets the wakeup interval for clients in Power Save mode. When a client is
running in Power Save mode, lower SVG1202 bin values provide higher
performance but result in decreased client battery life; higher values
provide lower performance but increased client battery life.
Fragmentation Threshold Sets the fragmentation threshold. Packets exceeding this threshold are
fragmented into packets smaller than the threshold before packet
transmission.
RTS Threshold Sets the RTS threshold. Packets exceeding this threshold cause the AP to
perform an RTS/CTS exchange to reserve the wireless medium before
packet transmission.
Wireless 802.11 Access Control Page
Configure the Access Control to the AP and status on the connected clients.
Field Descriptions for the Wireless 802.11 Access Control Page
FIELD DESCRIPTION
Wireless Interface
Shows the MAC address of the installed wireless card. It is not
configurable.
MAC Restrict Mode Selects whether wireless clients with the specified MAC address are
allowed or denied wireless access.
Select Disabled to allow all clients.
MAC Address Lists wireless client MAC addresses allowed or denied wireless access
based on the Restrict Mode setting. Valid input MAC address formats
are XX:XX:XX:XX:XX:XX and XX-XX-XX-XX-XX-XX.
Connected Clients Lists connected wireless clients. As a client connects or leaves the
network, it is added to or removed from the list, Age is the amount of
time since data was transmitted to or received from the client.
B
SVG1202 Wireless Voice Gateway • User Guide 40
Wireless 802.11 Wi-Fi Multimedia Page
Configure the Wi-Fi Multimedia Quality of Service (QoS).
Field Descriptions for the Wireless 802.11 Wi-Fi Multimedia Page
FIELD DESCRIPTION
WMM Support Sets WMM support to Auto, On or Off.
If enabled (Auto or on), WME Information Element is included in
beacon frames.
No-Acknowledgement Sets No-Acknowledgement support On or Off.
When On, acknowledgments for data are not transmitted.
Power Save Support Sets Power Save support On or Off.
When On, the AP queues packets for STAs that are in Power Save
mode. Queued packets are transmitted when the STA notifies the
AP that it has left Power Save mode.
EDCA AP Parameters Specifies the parameters for traffic transmitted from the AP to the
STA in four Access Categories:
Best Effort (AC_BE)
Background (AC_BK)
Video (AC_VI)
Voice (AC_VO)
Admission control specifies if it is to be enforced for the Access
Categories.
Discard Oldest First specifies the discard policy for the queues. On
discards oldest first; Off discards newest first.
EDCA STA Parameters Specifies the transmit parameters for traffic transmitted from the
STA to the AP in the four Access Categories.
B
SVG1202 Wireless Voice Gateway • User Guide 41
Wireless 802.11 Bridging Page
Enable wireless bridging.
Field Descriptions for the Wireless 802.11 Bridging Page
FIELD DESCRIPTION
Wireless Bridging Enable or disable wireless bridging.
Remote Bridges Build a table of remote bridge MAC addresses authorized to establish a
wireless bridge. You can connect up to four remote bridges. Typically,
you must enter your AP’s MAC address on the remote bridge.
Setting Up Your Wireless LAN
You can use the gateway as an access point for a wireless LAN (WLAN) without changing the default
settings.
Prevent unauthorized eavesdropping or access by enabling wireless security after
your WLAN is operational. The default settings provide no wireless security.
To enable security for your WLAN:
• Encrypt wireless LAN transmissions
• Restrict wireless LAN access to further prevent unauthorized WLAN intrusions using the Wireless
802.11 Access Control Page
Never provide your SSID, WPA or WEP passphrase, or WEP key to anyone who is not
authorized to use your WLAN.
Do not attempt to configure the gateway over a wireless connection.
Connect at least one computer to the Ethernet port on the gateway.
Configure each wireless client (station) to access the gateway.
Place wireless components away from windows. This decreases signal strength outside the intended
area.
B
SVG1202 Wireless Voice Gateway • User Guide 42
Encrypting Wireless LAN Transmissions
To prevent unauthorized viewing of data transmitted over your WLAN, you must encrypt your wireless
transmissions. Choose one of the following:
Encrypting Wireless LAN Transmissions
CONFIGURE ON THE SVG1202 REQUIRED ON EACH WIRELESS CLIENT
If all of your wireless clients support Wi-Fi
Protected Access (WPA), Motorola recommends
configuring WPA on the gateway
If you use a local pre-shared key (WPA-PSK)
passphrase, you must configure the identical
passphrase on the gateway and on each wireless
client. Home and small-office settings typically use a
local passphrase.
Otherwise, configure WEP on the gateway You must configure the identical WEP key on the
gateway and on each wireless client.
Motorola recommends using WPA instead of WEP if all of your wireless clients support WPA
encryption. WPA advantages include:
• Stronger encryption and more secure
• Authentication to ensure that only authorized users can log in to your WLAN
• Easier configuration
• Standard algorithm on all compliant products to generate a key from a textual passphrase
• Incorporation into the new IEEE 802.11i wireless networking standard
For new wireless LANs, Motorola recommends purchasing client adapters that support WPA
encryption.
Installing Wireless Clients
Note: Use the SVG1202 Installation CD to set client security. The passcode is located on the gateway
label.
For each wireless client computer, follow the instructions supplied with the adapter and the steps
below to install the wireless adapter:
1. Insert the CD for the adapter in the CD-ROM drive on the client.
2. Install the device software from the CD.
3. Insert the adapter in the computer MCIA or computer I slot, or connect it to the USB port.
4. Configure the adapter to obtain an IP address automatically.
On a computer with Wireless Client Manager installed, the icon is displayed on the Windows task
bar. Double-click the icon to launch the utility.
B
SVG1202 Wireless Voice Gateway • User Guide 43
You may need to do the following to use a wireless client computer to access the Internet:
Configuring Wireless Clients
IF YOU: YOU NEED TO DO THIS ON EACH CLIENT,:
Configured WPA on the gateway Configure a Wireless Client for WPA or WPA2
Configured WEP on the gateway
Configure a Wireless Client for WEP
Configured the Wireless Network Name
on the gateway
Configure a Wireless Client with the Network Name (SSID)
Configured a MAC Access Control List on
the gateway
No client configuration required
Installing a Wireless Client for WPA
If you enabled WPA and set a PSK Passphrase by configuring WPA on the gateway, you must
configure the same passphrase (key) on each wireless client. The gateway cannot authenticate a client,
if:
• WPA is enabled on the gateway but not on the client
• The client passphrase does not match the SVG1202 PSK Passphrase
Never provide the PSK Passphrase to anyone who is not authorized to use your
WLAN.
Configuring a Wireless Client for WEP
If you enabled WEP and set a key by configuring WEP on the gateway, you must configure the same
WEP key on each wireless client. The gateway cannot authenticate a client, if:
• Shared Key Authentication is enabled on the gateway, but not on the client
• The client WEP key does not match the SVG1202 WEP key
For all wireless adapters, you must enter the 64-bit or 128-bit WEP key generated by the gateway.
Never provide the WEP key to anyone who is not authorized to use your WLAN.
Configuring a Wireless Client with the Network Name (SSID)
After you specify the network name on the Wireless Basic Page, many wireless cards or adapters
automatically scan for an access point, such as the gateway and the proper channel and data rate. If
your card requires you to manually start scanning for an access point, follow the instructions in the
documentation supplied with the card. You must enter the same SSID in the wireless configuration
setup for the device to communicate with the gateway.
B
SVG1202 Wireless Voice Gateway • User Guide 44
12
MTA Pages
Use the Internet to make telephone calls. The Multimedia Terminal Adapter (MTA) supports basic
telephone functions, such as three-way calling, voice mail, and fax transmissions.
MTA Status Page
Displays the initialization status of the MTA.
MTA DHCP Page
Displays the MTA DHCP lease information.
B
SVG1202 Wireless Voice Gateway • User Guide 45
MTA QoS Page
Displays the MTA Quality of Service (QoS) parameters.
B
SVG1202 Wireless Voice Gateway • User Guide 46
13
Troubleshooting
If the solutions listed here do not solve your problem, contact your service provider.
You may have to reset the SVG1202 gateway configuration to its original factory settings if the gateway
is not functioning properly.
Note: Pressing RESET on the rear panel will restore the default settings. You will lose your custom
configuration settings, including Parental Control, Firewall and Advanced settings.
Solutions
Table 1 – Troubleshooting Solutions
GATEWAY PROBLEM POSSIBLE SOLUTION
Power Icon is OFF Check the cable connections to the gateway and electrical outlet.
Check that the electrical outlet is working.
Is the outlet controlled by a light switch?
Cannot Send or Receive
Data
On the front panel, note the status of the icons and refer to Front Panel Icons
and Error Conditions to identify the error.
If you have cable television, check your television to ensure your cable service
is operating properly.
Check the coaxial cable connection at the gateway and cable outlet. Hand
tighten, if necessary.
Check the IP address. Follow the steps for verifying the IP address for your
operating system in Verifying Your IP Address in Windows 7 or Vista or
Verifying Your IP Address in Windows XP. Call your service provider if you
need an IP address.
Check that the Ethernet cable is properly connected to the gateway and the
computer.
If a device is connected via the Ethernet port, check that the ONLINE icon is
ON to verify connectivity.
Call your service provider for further assistance.
Wireless client(s) cannot
send or receive data
Perform the first four checks in “Cannot send or receive data.”
Check the Security Mode setting on the Wireless Primary Network Page:
If you enabled WPA and configured a passphrase on the gateway, be sure
each affected wireless client has the identical passphrase. If this does not
solve the problem, check whether the wireless client supports WPA.
If you enabled WEP and configured a key on the gateway, be sure each
affected wireless client has the identical WEP key. If this does not solve the
problem, check whether the client’s wireless adapter supports the type of
WEP key configured on the gateway.
To temporarily eliminate the Security Mode as a potential issue, disable
security.
After resolving your problem, be sure to re-enable wireless security.
On the Wireless Access Control Page, be sure the MAC address for each
affected wireless client is correctly listed.
B
SVG1202 Wireless Voice Gateway • User Guide 47
Front Panel LEDs and Error Conditions
The SVG1202 front panel LEDs provide status information for the following error conditions:
Table 2 – Front Panel LEDs and Error Conditions
ICON STATUS IF, DURING STARTUP IF, DURING NORMAL OPERATION
POWER OFF Gateway is not properly plugged into
the electrical outlet
Gateway is unplugged
RECEIVE FLASHING Downstream receive channel cannot
be acquired
Downstream channel is lost
SEND FLASHING Upstream send channel cannot be
acquired
Upstream channel is lost
ONLINE FLASHING IP registration is unsuccessful IP registration is lost
LINK OFF No connected device is detected Device is disconnected
B
SVG1202 Wireless Voice Gateway • User Guide 48
A
Warranty Information
SURFboard SVG1202 Wireless Voice Gateway
Motorola Mobility, Inc. (“Motorola”)
Retail Purchasers: If you purchased this Product directly from Motorola or from an authorized Motorola retail
reseller, Motorola warrants to you, the original end user customer, that (A) the Product, excluding Software, will be
free from defects in materials and workmanship under normal use, and (B) with respect to Software, (i) the media on
which the Software is provided will be free from defects in material and workmanship under normal use, and (ii) the
Software will perform substantially as described in its documentation. This Limited Warranty to you, the original end
user customer, continues (A) for Software and the media upon which it is provided, for a period of ninety (90) days
from the date of purchase from Motorola or an authorized Motorola reseller, and (B) for the Product (excluding
Software), for a period of one (1) year from the date of purchase from Motorola or from an authorized Motorola
reseller. To take advantage of this Limited Warranty or to obtain technical support, you must call the Motorola toll-
free phone number 1-877-466-8646. Technical support charges may apply. Motorola’s sole and exclusive obligation
under this Limited Warranty for retail sales shall be to repair or replace any Product or Software that does not meet
this Limited Warranty. All warranty claims must be made within the applicable Warranty Period.
Cable Operator or Service Provider Arrangements. If you did not purchase this Product directly from Motorola or
from a Motorola authorized retail reseller, Motorola does not warrant this Product to you, the end-user. A limited
warranty for this Product (including Software) may have been provided to your cable operator or Internet Service
Provider (“Service Provider”) from whom you obtained the Product. Please contact your Service Provider if you
experience problems with this Product.
General Information. The warranties described in this Section shall not apply: (i) to any Product subjected to accident,
misuse, neglect, alteration, Acts of God, improper handling, improper transport, improper storage, improper use or
application, improper installation, improper testing or unauthorized repair; or (ii) to cosmetic problems or defects
which result from normal wear and tear under ordinary use, and do not affect the performance or use of the Product.
Motorola’s warranties apply only to a Product that is manufactured by Motorola and identified by Motorola owned
trademark, trade name or product identification logos affixed to the Product. Motorola does not warrant to you, the
end user, or to anyone else that the Software will perform error free or without bugs.
MOTOROLA IS NOT RESPONSIBLE FOR, AND PROVIDES “AS IS” ANY SOFTWARE SUPPLIED BY 3RD PARTIES.
EXCEPT AS EXPRESSLY STATED IN THIS SECTION (“WARRANTY INFORMATION”), THERE ARE NO
WARRANTIES OF ANY KIND RELATING TO THE PRODUCT, EXPRESS, IMPLIED OR STATUTORY, INCLUDING
BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
OR THE WARRANTY AGAINST INFRINGEMENT PROVIDED IN THE UNIFORM COMMERCIAL CODE. Some states
do not allow for the exclusion of implied warranties, so the above exclusion may not apply to you.
What additional provisions should I be aware of? Because it is impossible for Motorola to know the purposes for
which you acquired this Product or the uses to which you will put this Product, you assume full responsibility for the
selection of the Product for its installation and use. While every reasonable effort has been made to insure that you
will receive a Product that you can use and enjoy, Motorola does not warrant that the functions of the Product will
meet your requirements or that the operation of the Product will be uninterrupted or error-free. MOTOROLA IS NOT
RESPONSIBLE FOR PROBLEMS OR DAMAGE CAUSED BY THE INTERACTION OF THE PRODUCT WITH ANY OTHER
SOFTWARE OR HARDWARE. ALL WARRANTIES ARE VOID IF THE PRODUCT IS OPENED, ALTERED, AND/OR
DAMAGED.
THESE ARE YOUR SOLE AND EXCLUSIVE REMEDIES for any and all claims that you may have arising out of or in
connection with this Product, whether made or suffered by you or another person and whether based in contract or
tort.
B
SVG1202 Wireless Voice Gateway • User Guide 49
IN NO EVENT SHALL MOTOROLA BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY DIRECT, INDIRECT, GENERAL,
SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY OR OTHER DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE PRODUCT (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, LOSS OF INFORMATION OR ANY OTHER PECUNIARY LOSS), OR FROM ANY BREACH OF
WARRANTY, EVEN IF MOTOROLA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL
MOTOROLA’S LIABILITY EXCEED THE AMOUNT YOU PAID FOR THE PRODUCT.
These matters are governed by the laws of the Commonwealth of Pennsylvania, without regard to conflict of laws
principles and excluding the provisions of the United Nations Convention on Contracts for the International Sale of
Goods.
Retail Purchasers Only. If you purchased this Product directly from Motorola or from a Motorola authorized retail
reseller, please call the Motorola toll-free number, 1-877-466-8646 for warranty service or technical support.
Technical support charges may apply.
Cable Operator or Service Provider Arrangements. If you did not purchase this Product directly from Motorola or
from a Motorola authorized retail reseller, please contact your Service Provider for technical support.
