ARRIS WU830G Wireless USB Adapter User Manual

ARRIS Group, Inc. Wireless USB Adapter

user manual

WU830G

This device must be installed and used in strict accordance with the manufacturer’s instructions as described in the user

documentation that comes with the product.

FCC Compliance Class B Digital Device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Changes or modifications not expressly approved by Motorola for compliance could void the user’s authority to

operate the equipment.

Canadian Compliance

This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Cet

appareil numérique de la classe B respects toutes les exigences du Règlement sur le matériel brouilleur du Canada.

FCC Declaration of Conformity

Motorola, Inc., Broadband Communications Sector, 101 Tournament Drive, Horsham, PA 19044, 1-215-323-1000,

declares under sole responsibility that the WN825G and WPCI810G comply with 47 CFR Parts 2 and 15 of the FCC

Rules as a Class B digital device. This device complies with Part 15 of FCC Rules. Operation of the device is subject to

the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference that may cause undesired operation.

Wireless LAN and your Health

Caution: Exposure to Radio Frequency Radiation.

To comply with the FCC RF exposure compliance requirements, the separation distance between the antenna and any

person’s body (including hands, wrists, feet, and ankles) must be at least 20 cm (8 inches).

Restrictions on Use of Wireless Devices

In some situations or environments, the use of wireless devices may be restricted by the proprietor of the building or

responsible representatives of the organization. For example, these situations may include:

• Using wireless equipment on board an airplane.

• Using wireless equipment in any environment where the risk of interference to other devices or services is perceived

or identified as harmful.

If you are uncertain of the applicable policy for the use of wireless equipment in a specific organization or environment

(such as airports), you are encouraged to ask for authorization to use the device prior to turning on the equipment.

The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of the

devices included with this product, or the substitution or attachment of connecting cables and equipment other than

specified by the manufacturer. Correction of interference caused by such unauthorized modification, substitution, or

attachment is the responsibility of the user.

The manufacturer and its authorized resellers or distributors are not liable for any damage or violation of government

regulations that may arise from failing to comply with these guidelines.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC Certification

The WN825G, WPCI810G, and WU830G contain a radio transmitter and accordingly has been certified as

compliant with 47 CFR Part 15 of the FCC Rules for intentional radiators. Products that contain a radio

transmitter are labeled with FCC ID and the FCC logo.

Canada - Industry Canada (IC)

The wireless radio of this device complies with RSS 210 and RSS 102 of Industry Canada.

This Class B digital device complies with Canadian ICES-003 (NMB-003).

Cet appareil numérique de la classe B respects toutes les exigences du Règlement sur le matériel brouilleur du Canada

Europe - European Declaration of Conformity

All products with the CE marking comply with the EMC Directive (89/336/EEC), the Low Voltage Directive

(73/23/EEC), and the R&TTE Directive (1999/5/EC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms and the equivalent international

standards:

• ETS 300-826, 301 489-1General EMC requirements for radio devices.

• ETS 300-328-2 Technical requirements for Radio equipment.

• EN 60950 Safety

Caution: This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be restricted to certain

frequencies and/or may require a license for operation. Contact local authority for regulations.

translation, transformation or adaptation) without written permission from Motorola, Inc.

Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola

to provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed,

including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Motorola may make improvements or

changes in the product(s) described in this manual at any time.

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Microsoft, Windows, Windows Me and Windows XP

are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Microsoft Windows screen

shots are used by permission of Microsoft Corporation. Wi-Fi is a registered trademark of Wireless Ethernet Compatibility Alliance, Inc. All

other product or service names are the property of their respective owners. © Motorola, Inc. 2004.

Motorola declared that WU830G is limited in CH1-CH11 by specified firmware controlled in USA

WU830G PRELIMINARY I

Contents

Section 1:Overview________________________ 1-1

Features............................................................................................................ 1-1

Understanding Your User Guide...................................................................... 1-2

Box Contents.................................................................................................... 1-2

Simple Home Network Diagram ....................................................................... 1-3

Wireless Connections...................................................................................... 1-3

USB Adapter Physical Description .................................................................. 1-4

Front of USB Adapter..................................................................................... 1-4

Back of USB Adapter ..................................................................................... 1-4

Section 2:Installation ______________________ 2-1

Before You Begin............................................................................................. 2-1

Enterprise Users ............................................................................................ 2-1

Small Office/Home Office Users...................................................................... 2-2

Security Options .............................................................................................. 2-2

Security Example.....................................................................................................2-2

Install Your USB Adapter................................................................................. 2-4

Device Configuration Setup............................................................................. 2-4

Section 3:Configuration ____________________ 3-1

Icon Description............................................................................................. 3-2

Enabling the Motorola Wireless USB Adapter Configuration Utility ............... 3-3

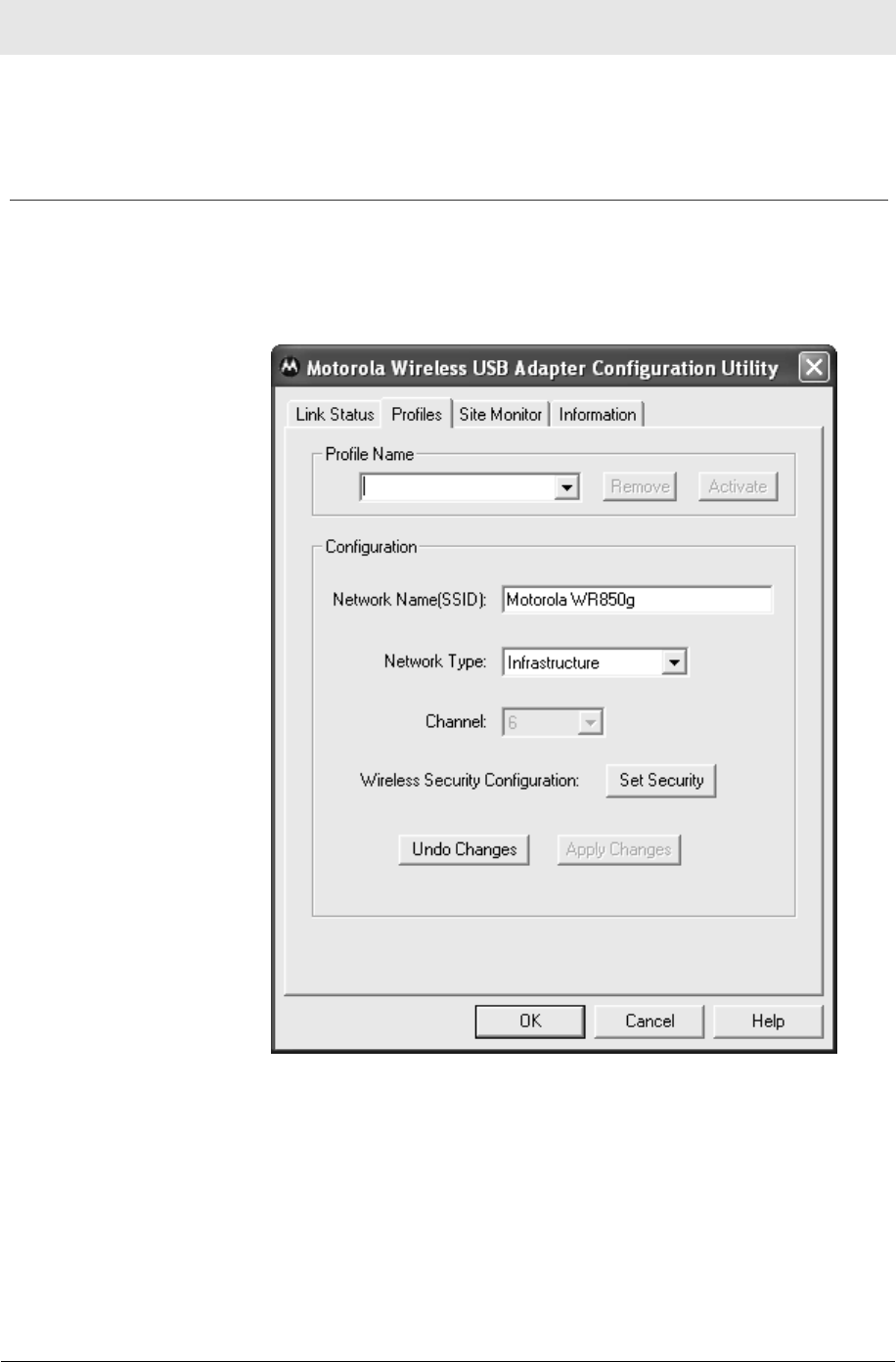

Connecting to an Existing Wireless Network .................................................. 3-4

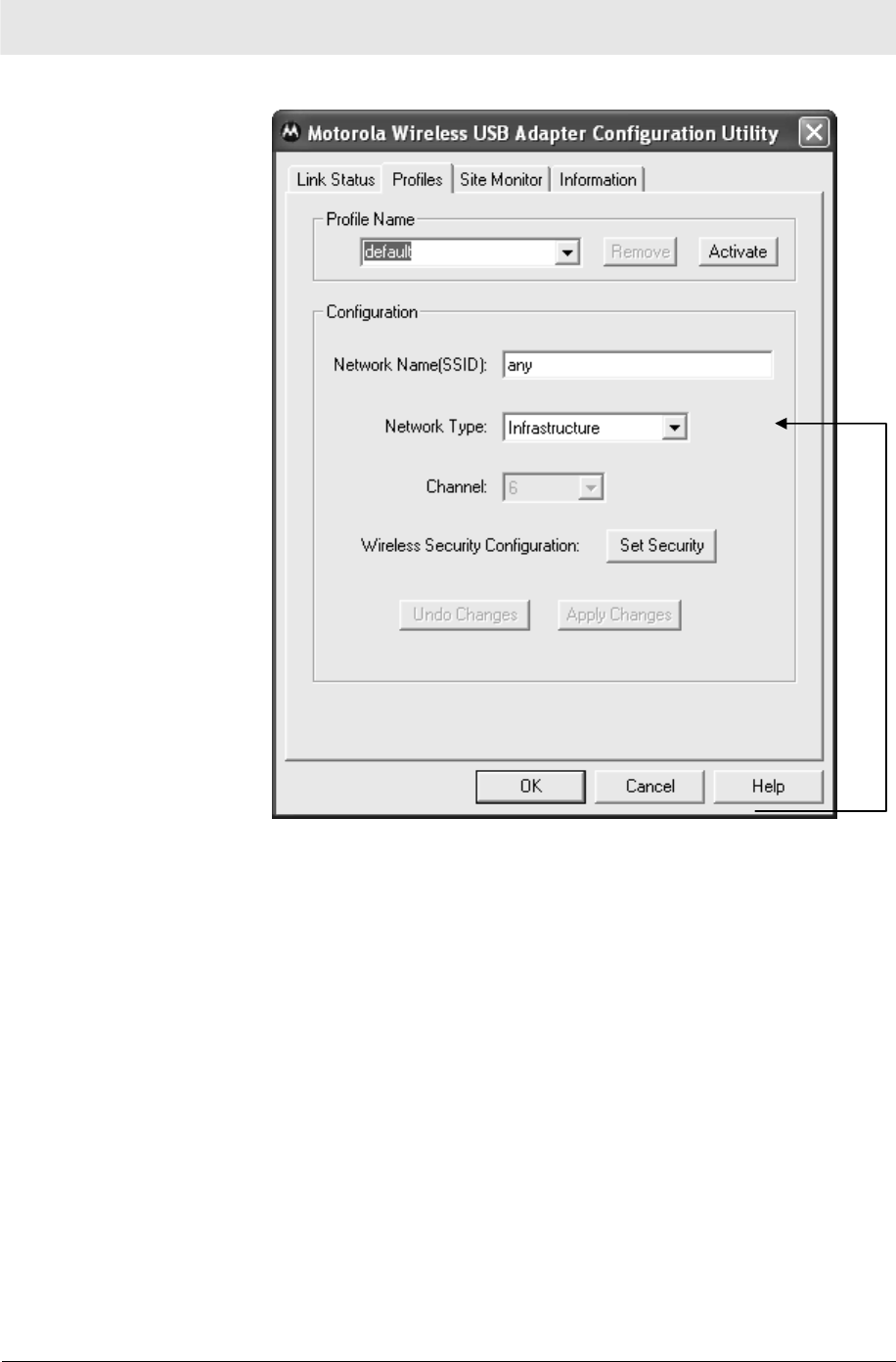

Configuring a New Wireless Network .............................................................. 3-7

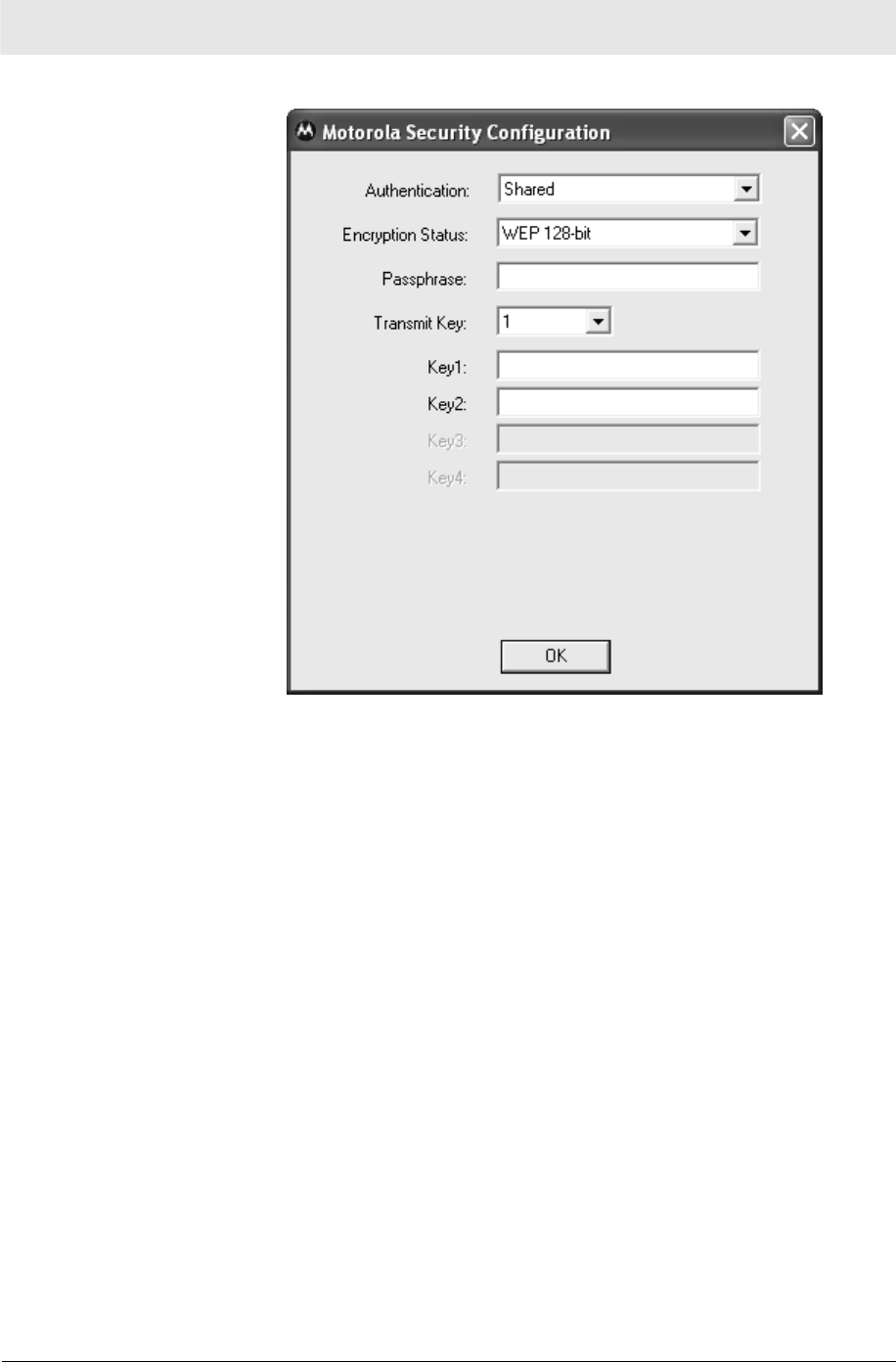

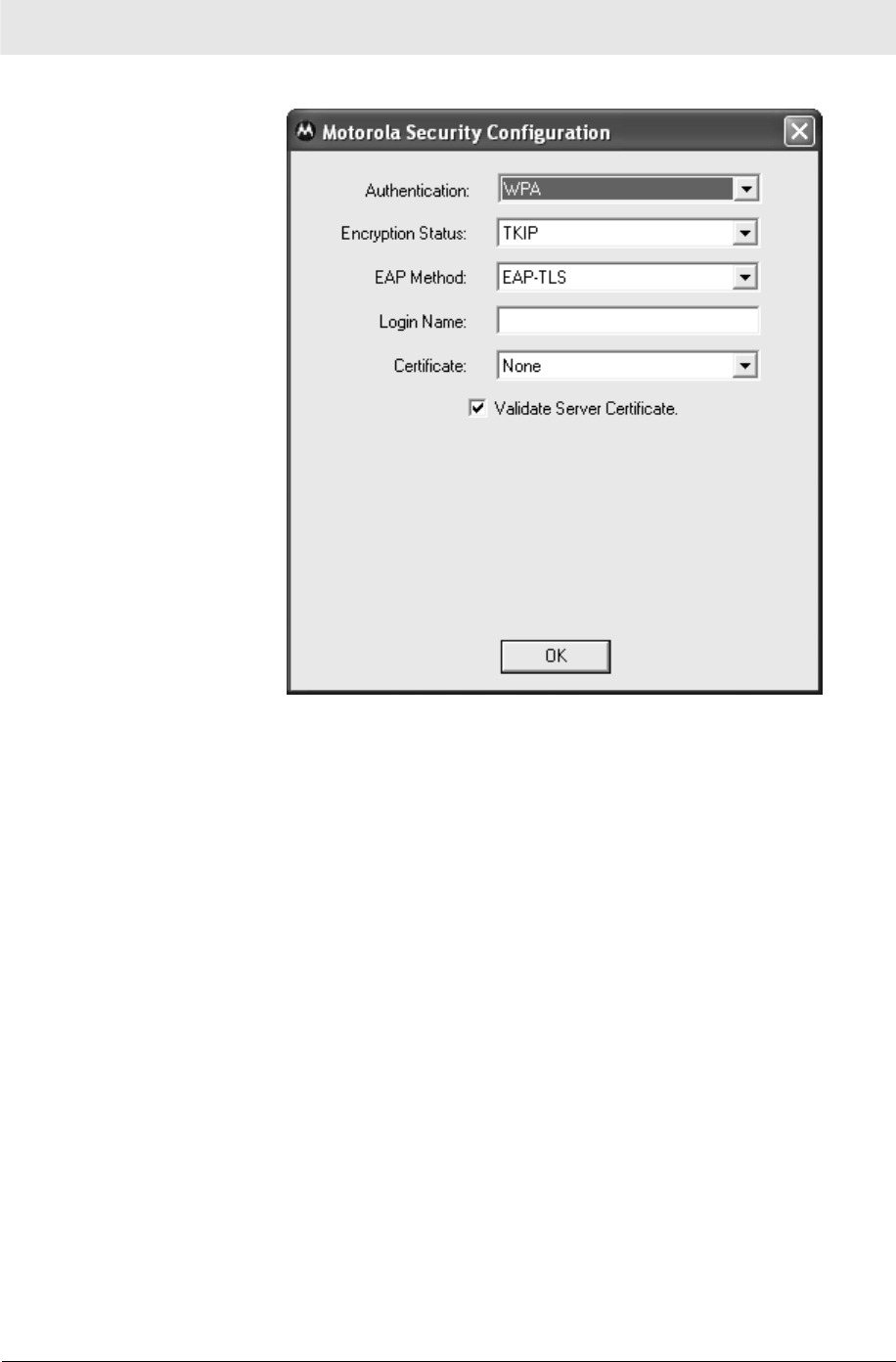

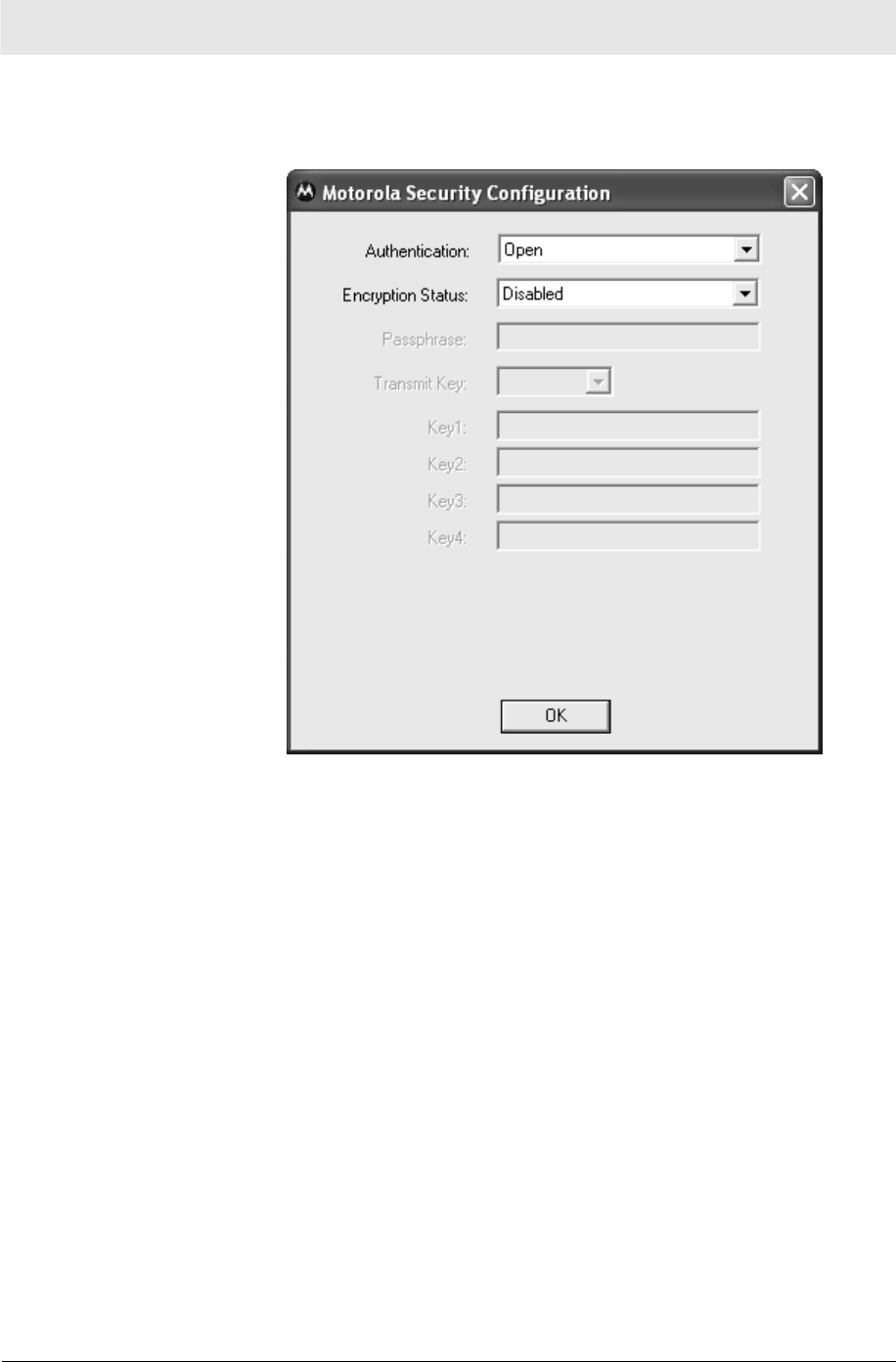

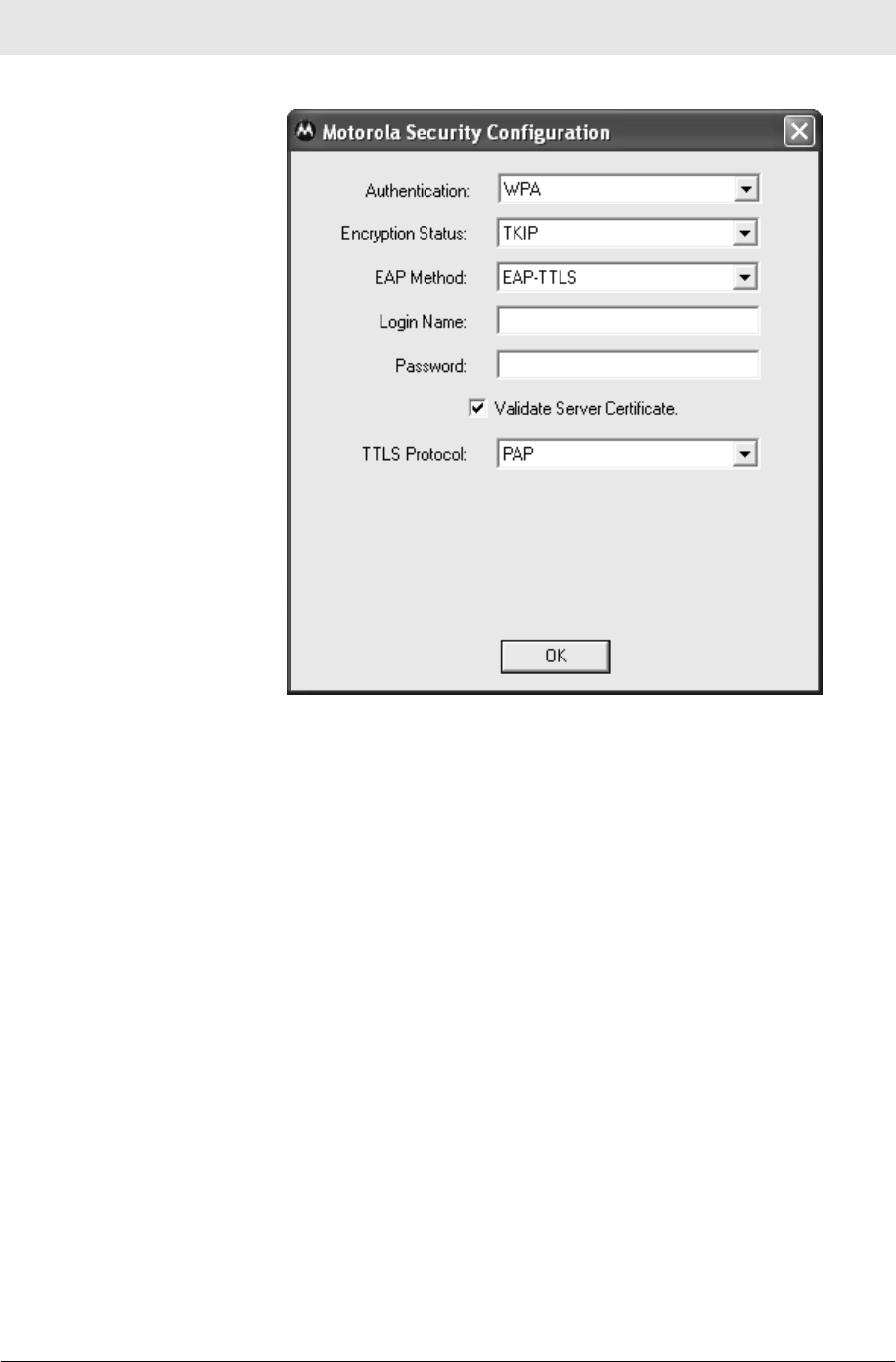

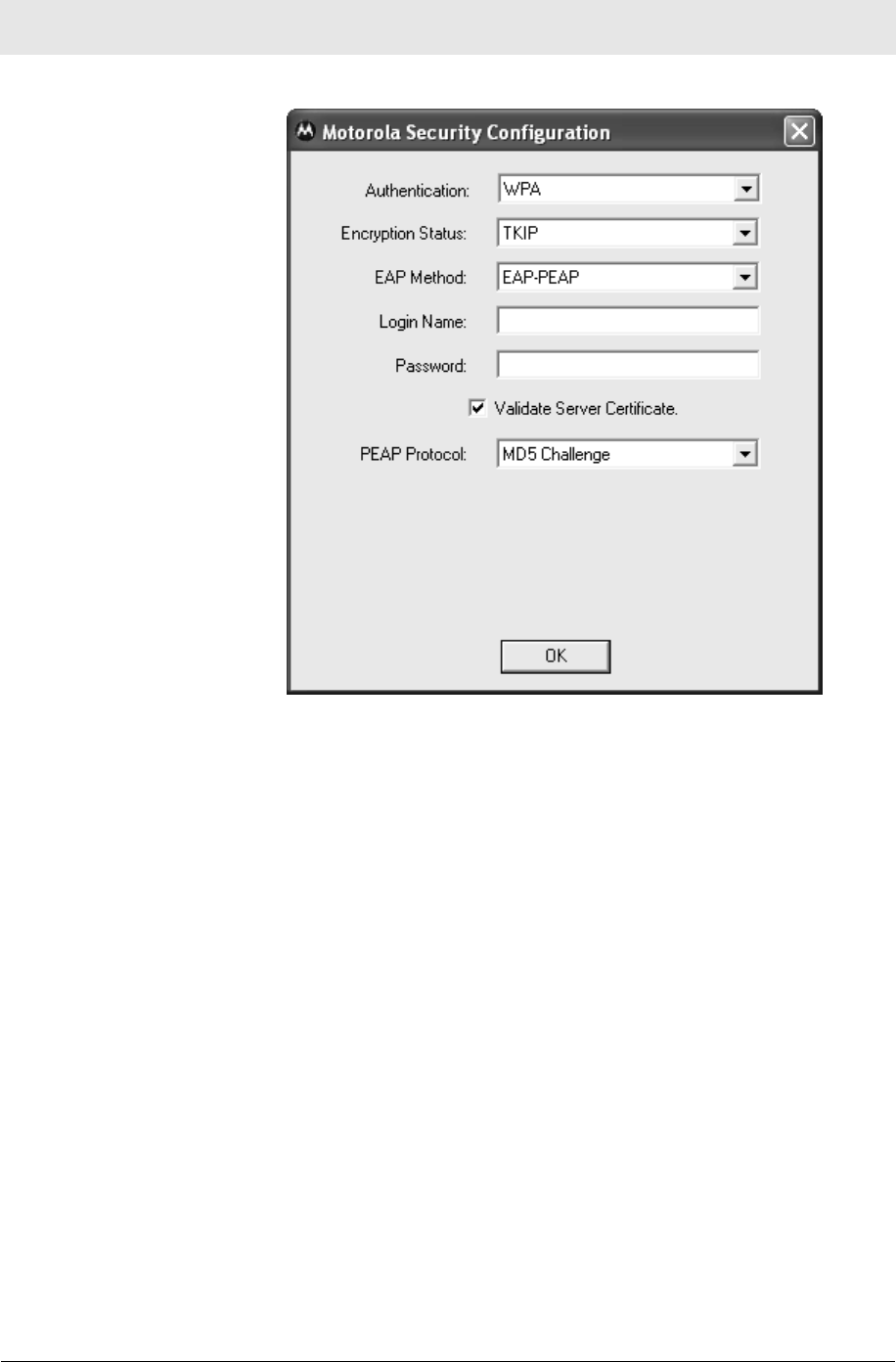

Configuring Security Settings.......................................................................... 3-8

Modifying Properties for a Configured Wireless Network............................. 3-21

Controlling the Radio..................................................................................... 3-22

Removing a Network...................................................................................... 3-23

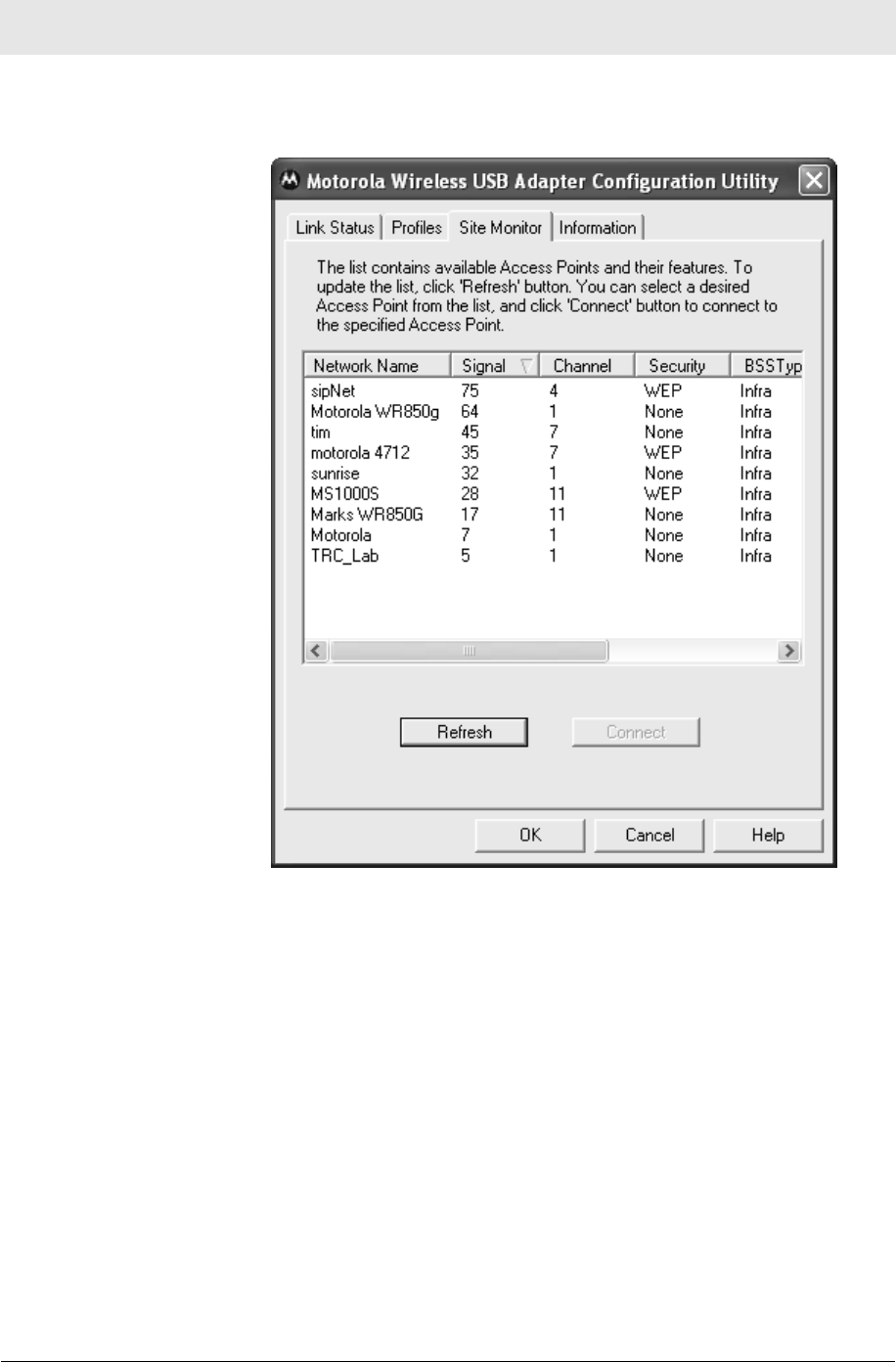

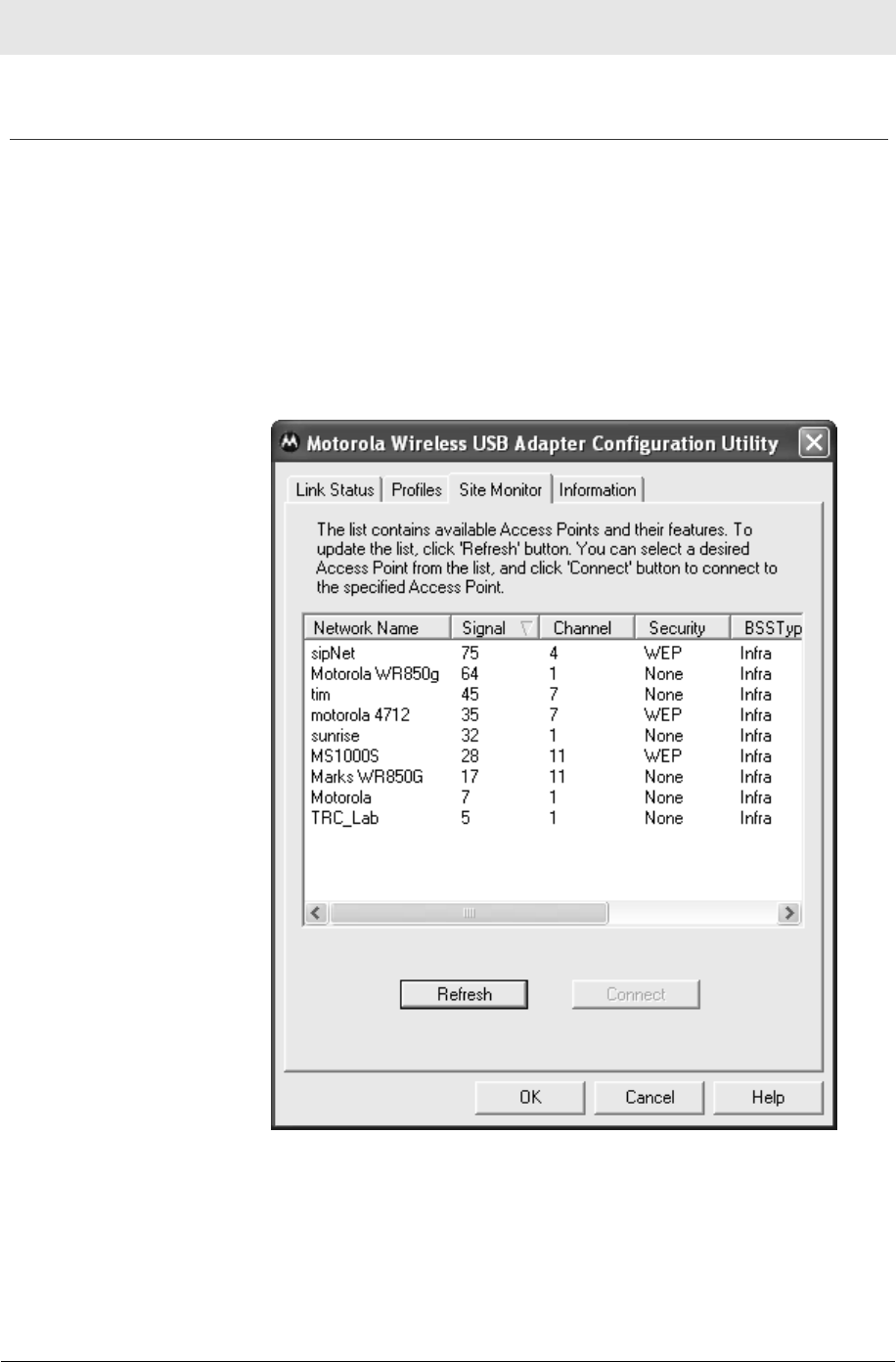

Viewing Site Monitor Information................................................................... 3-24

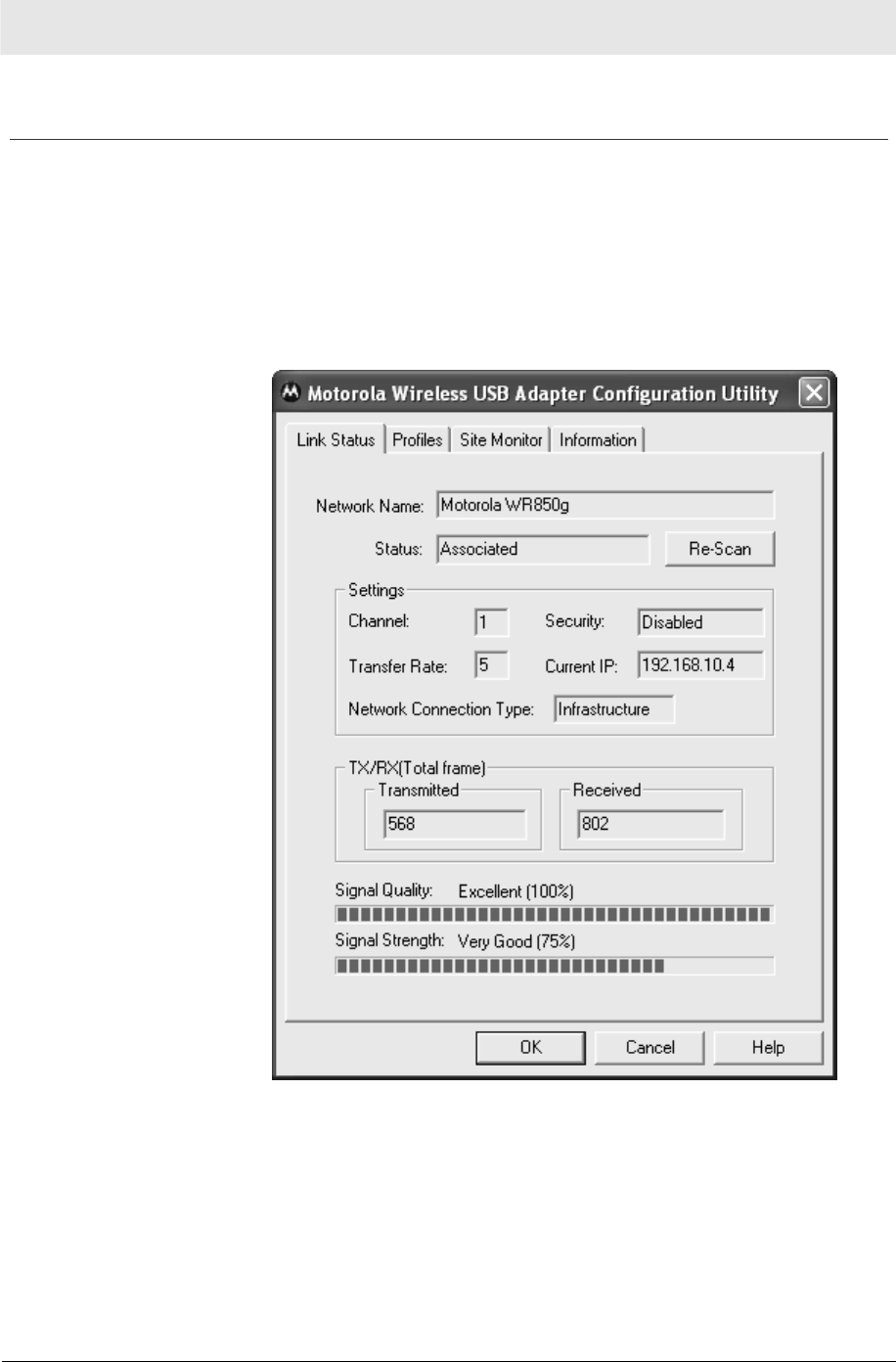

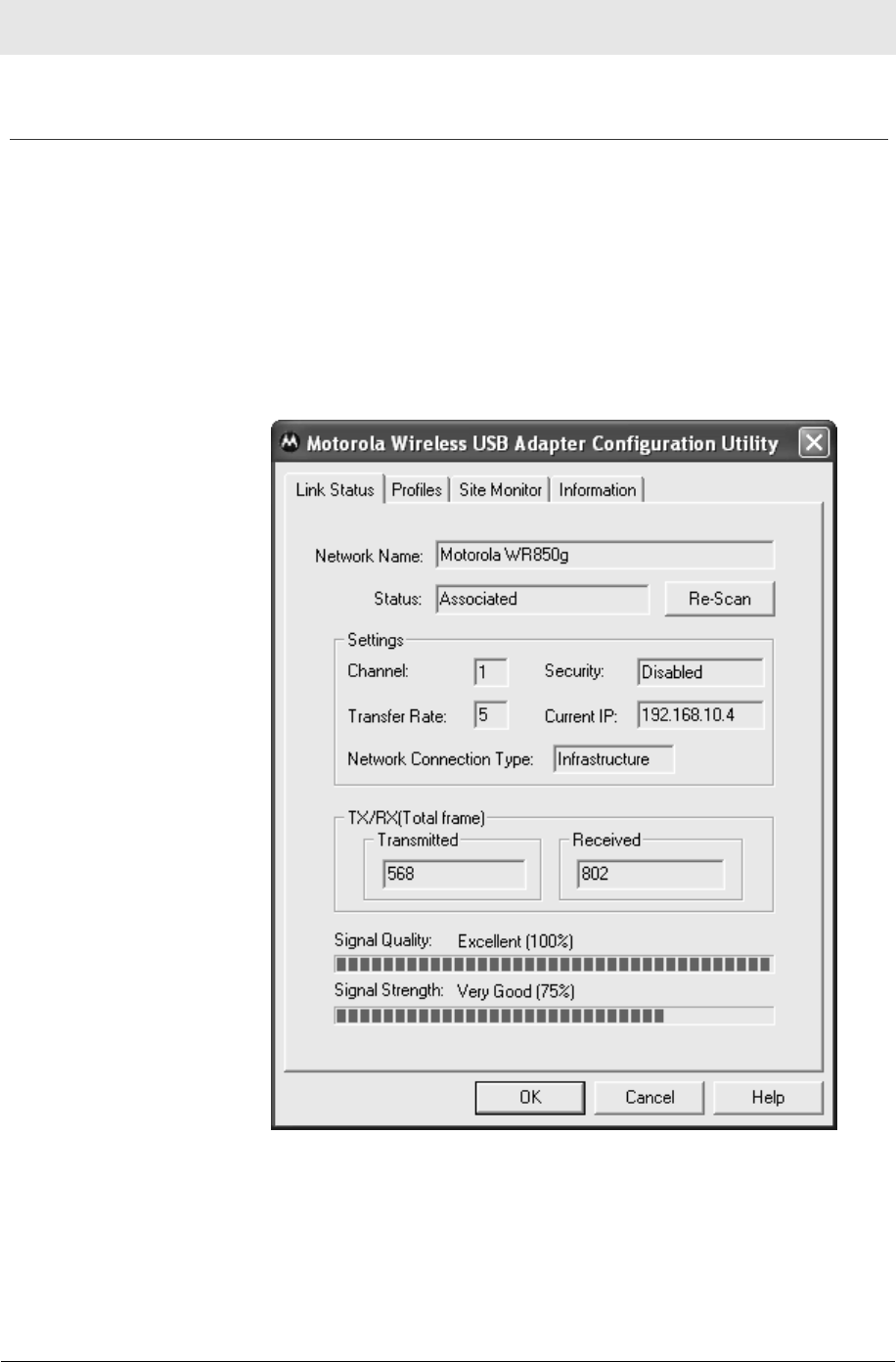

Viewing Link Status........................................................................................ 3-25

Viewing Network Metrics................................................................................ 3-26

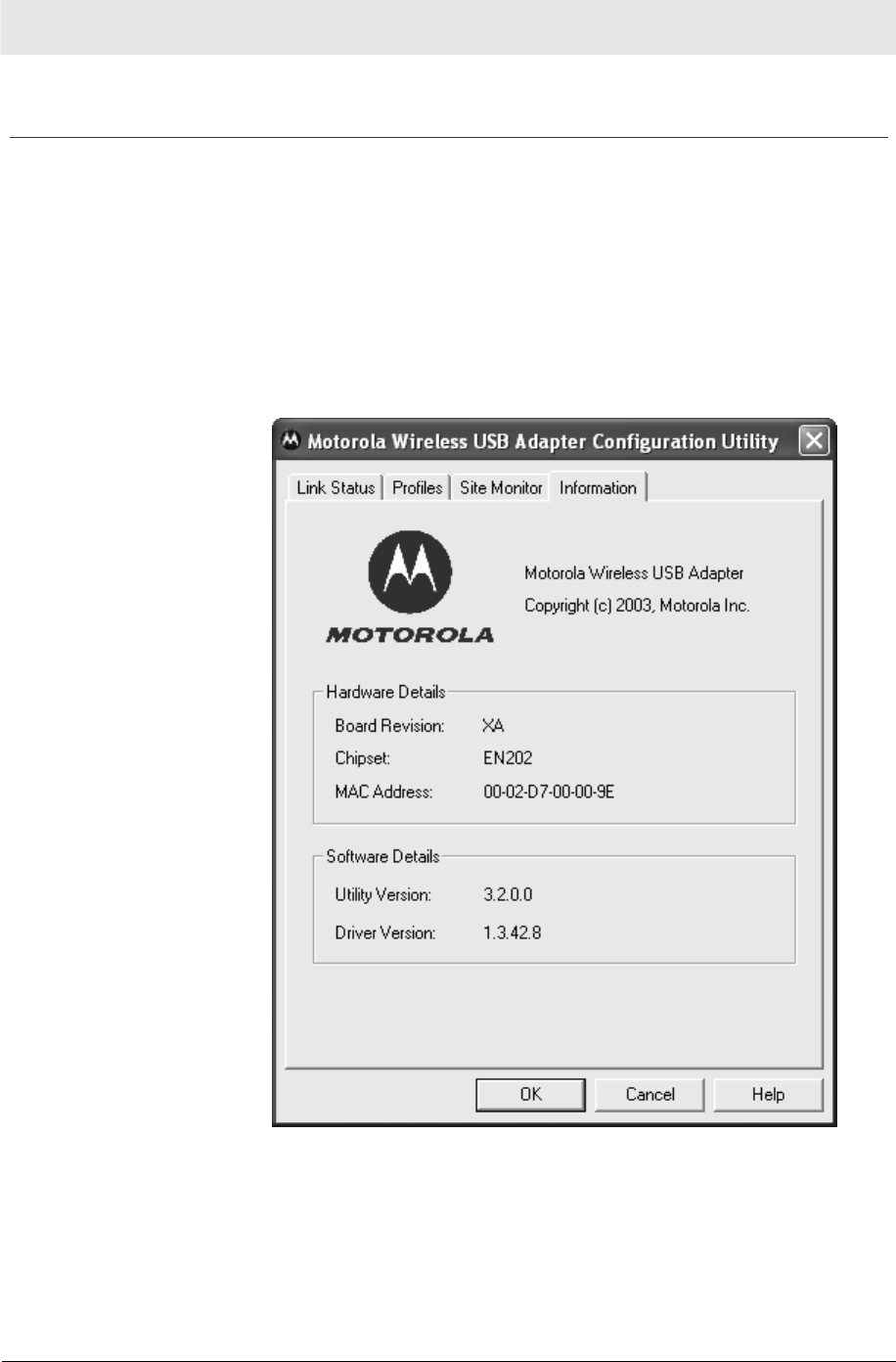

Viewing Utility and Driver Version Information ............................................. 3-27

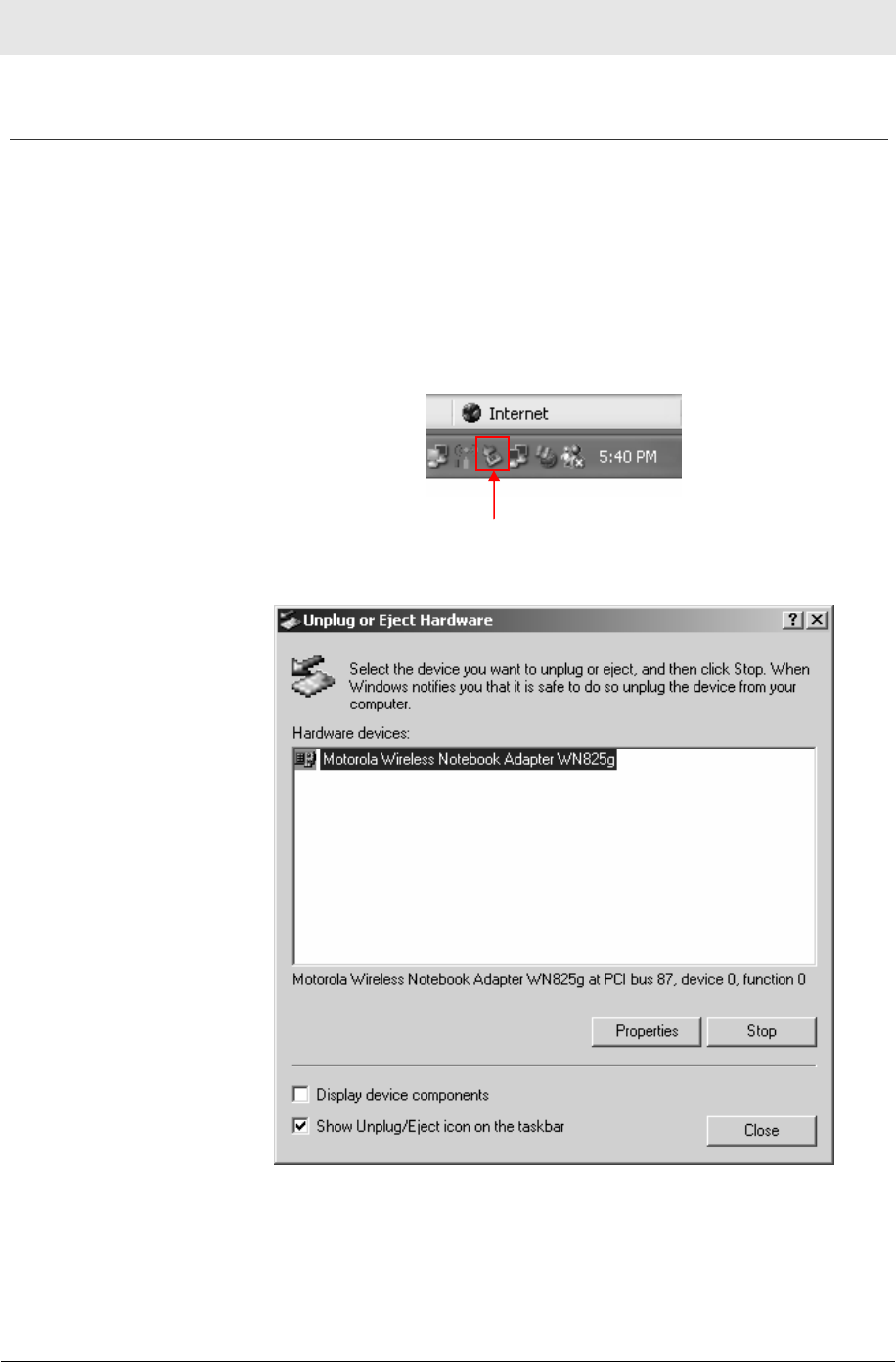

Removing the Wireless Adapter .................................................................... 3-28

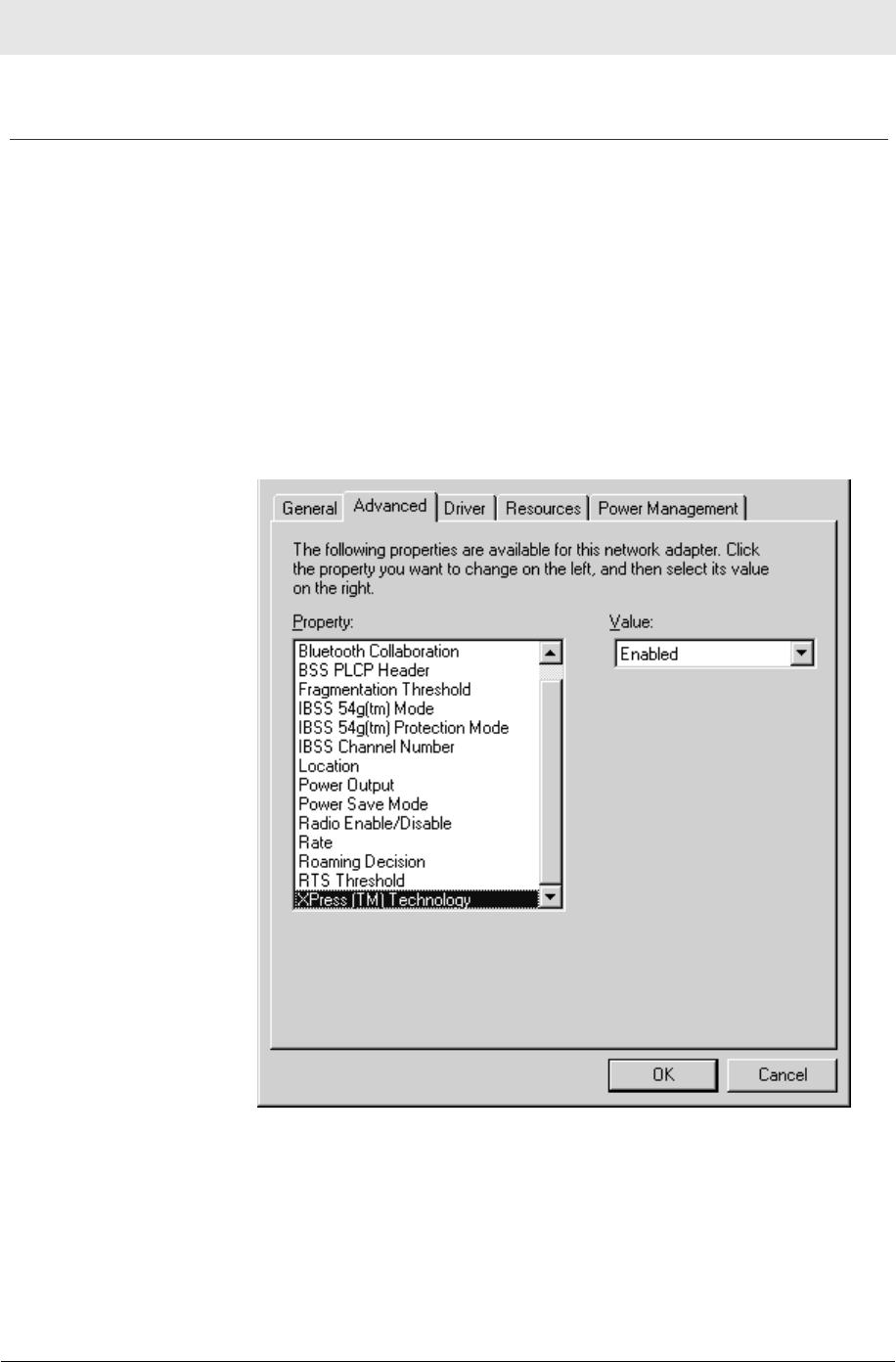

Advanced Configuration of the Wireless USB Adapter................................. 3-30

Contents

II PRELIMINARY WU830G

Section 4:Troubleshooting _________________ 4-1

Hardware Solutions ..........................................................................................4-1

My computer is experiencing difficulty connecting to the wireless

network............................................................................................................4-1

I would like to test if my Internet connection is live.....................................................4-2

Software Solutions............................................................................................4-3

Section 5:Glossary ________________________ 5-1

WU830G PRELIMINARY 1-1

Section 1:Overview

Congratulations on purchasing the Motorola Wireless

USB Adapter WU830G.

With the WU830G, your laptop or desktop computer is free to join

and enjoy all the benefits of an 802.11g wireless home or small office

network. Once connected, you can access a single broadband

connection with everyone else on the network. You can also share

files, pictures, peripherals, printers, and more. You’ll need one

WU830G for each computer.

The WU830G complies with the 802.11b and the new, nearly

5-times-faster, 802.11g wireless standard. With Wi-Fi® Protected

Access (WPA) included, your wireless connections are robust and

secure, giving you the confidence to communicate without fear that

the signal could be compromised.

After installing the USB adapter, you’ll have the ability to wirelessly

connect to your network to: send and receive emails, to print

documents, or game online from your computer.

With the ever-increasing number of wireless Hotspots, you’ll be

accessing the Internet and keeping up with your email in airports,

hotels, coffee shops, and convention centers.

Wireless USB Adapter WU830G

Graphic of Wireless USB Adapter – WU830G

Features

The WU830G has the following features:

CD-ROM based Installation Wizard to provide easy installation

Device Configuration and Status Utility

Wireless security using WPA with TKIP encryption, 802.1X with

EAP-type Authentication

Compatibility with both 802.11g and 802.11b network standards

Upgradeable firmware to stay current with the latest specifications

SECTION 1 OVERVIEW

1-2 PRELIMINARY WU830G

Understanding Your User Guide

The User Guide is subdivided into the following sections:

Overview Describes the WU830G and its functions, the

technology used, and recommended practices

for using it.

Installation Provides instructions for installing the firmware

and hardware and setting up the firmware to get

your adapter up and running.

Configuration

and Status Describes the Configuration and Status Utility

that manages your WU830G.

Troubleshooting

Provides a list of frequently asked questions and

possible solutions.

Glossary List of terms and acronyms.

Box Contents

Your box contains the following:

Location for line drawing of box contents to include:

USB Adapter, USB Cable, CD-ROM, and Quick Start Guide

OVERVIEW SECTION 1

WU830G PRELIMINARY 1-3

Simple Home Network Diagram

Your wireless USB adapter enables you to access files, printers, and

an Internet connection on your network. A sample Local Area

Network (LAN) is shown below:

Graphic of a LAN with the WU830G

connected to a laptop computer

In the example above, the Internet communicates with the modem,

which in turn communicates with the router. The router acts as the

gateway to your network, sending information to whichever device

asks for information. In this example, the USB adapter enables your

notebook computer to be part of the wireless network.

Wireless Connections

Your wireless USB adapter uses a radio transmission technology

defined by the Institute of Electrical and Electronics Engineers (IEEE)

called 802.11 Wireless Fidelity (Wi-Fi). This standard is subdivided

into distinct categories of speed and the frequency spectrum used,

designated by the lower case letter after the standard.

For example, your USB adapter can work with both the ‘b’ and ‘g’

specifications. The 802.11b specification transmits data rates up to

11 Mbps while the 802.11g specification transmits data rates up to

54 Mbps. Both standards operate in the 2.4 GHz range. These are

theoretical speeds so your performance may vary.

A Word About Data Rates: Data rate is the speed at which individual bits of data flow through

a channel. It is not the same speed at which entire files are uploaded or downloaded. These

speeds will vary, and are often less than the maximum data rate. Upload and download

speeds are affected by several factors including, but not limited to: the capacity of and the

services offered by your cable operator or broadband service provider, channel capacity,

network traffic, computer equipment, type of server, number of connections to server, and

availability of Internet router(s).

SECTION 1 OVERVIEW

1-4 PRELIMINARY WU830G

USB Adapter Physical Description

Front of USB Adapter

The following illustration shows the front of the WU830G:

Graphic of the front of the WU830G

The WU830G has the following features:

Feature Description

1 Power LED Indicates that the USB adapter is powered

2 Link LED Indicates the activity of the wireless network

traffic

Back of USB Adapter

The following illustration shows the bottom of the WU830G:

Graphic of the Back of the WU830G

The following describes the features on the bottom of the WU830G:

Feature Description

USB

Connector Connector for one end of the USB cable

Label Includes the model number, part number, serial

number, and MAC Address

MAC

Address Location of the USB adapter’s MAC Address

WU830G PRELIMINARY 2-1

Section 2:Installation

Before You Begin

You need to collect information so that you can setup your WU830G

correctly. Depending upon where you are connecting, the type of

information required is divided between business (enterprise users)

and home settings (small office/home office).

Also, you need to consider the type of security to enable for your

wireless connection. A discussion of the types of security available

follows this section.

Enterprise Users

Obtain the following information from your network administrator:

Network names (SSID) of the specific wireless networks to which

you are going to connect.

WPA (Wi-Fi Protected Access) wireless network key information

(may include network authentication type, encryption type,

network key) for any WPA enabled networks to which you want to

connect.

WEP (Wired Equivalent Privacy) wireless network key information

(network key) for any WEP enabled networks to which you want

to connect.

For Microsoft Windows® networking, the customer name and

workgroup name.

For a network account, the domain name, a user name, and a

password.

An IP address (if not using a DHCP server).

Networks connected to an authentication server, if any.

Section 2 Installation

2-2 PRELIMINARY WU830G

Small Office/Home Office Users

The access point that communicates with the WU830G has a

pre-assigned network name (SSID) that the WU830G recognizes

upon startup.

If you are setting up a new wireless network and want to use

WEP security, use any string of characters for the network key. If

this feature is enabled on the wireless network, you’ll use the

same network key for your WU830G.

If you are connecting to an existing WEP enabled network, obtain

the network key from the access point.

If you are connecting to a WPA-enabled access point, obtain the

WPA (Wi-Fi Protected Access) wireless network key information

(network authentication type, encryption type, network key) from

the access point.

Security Options

The WU830G is designed for both the home user and business.

WPA (Wi-Fi Protected Access) protocol is designed into the chipset.

WPA is a powerful, standards-based, interoperable security

technology for wireless local area networks (the subset of the future

IEEE Std 802.11i standard) that encrypts data sent over radio waves.

The WPA protocol was developed to overcome the weaknesses of

the WEP (Wired Equivalent Privacy) protocol. Both protocols require

the use of network key information, and either protocol can be

enabled or disabled, depending on the type of network connection

being made.

Various options are available for selecting network authentication and

data encryption. It is important for you to understand these options

when deciding which (if any) security protocol to use.

Security Example

If you want to use a more secure protocol, the wireless network to

which you are connecting must also support that protocol. For

example, you decide to enable WPA-PSK on your WU830G, a good

choice because of the robust security WPA-PSK offers. However, the

slightly older wireless network you want to connect to only supports

WEP, which means that you cannot use WPA (and should use WEP)

because the security protocols must match between the network

adapter and the access point.

Installation Section 2

WU830G PRELIMINARY 2-3

The options supported by the adapter:

Network Authentication Data Encryption

Option Description Option Description

Disabled No encryption

used.

Open A network can be set up either to use or not

use a network key for data encryption. WEP

is the type of encryption used. Open WEP is

the first-generation basic level security for

wireless networks.

WEP A network key

used.

Disabled No encryption

used.

Shared The network operates in Shared Key

authentication mode when a network key is

used for data encryption. Data encryption can

be enabled or disabled. WEP is the type of

encryption used. The Shared Key

authentication mode is the least secure.

WEP A network key

used.

WPA-

PSK For infrastructure environments without the

RADIUS infrastructure. WPA-PSK supports

the use of a pre-shared key. WPA-PSK is the

next generation of wireless network security

for home and small office environments.

TKIP A network key

used (more

secure).

AES –

available

with

Windows XP

with WPA

patch, using

Wireless

Zero

Configuration

A network key

used (most

secure).

TKIP A network key

used (more

secure).

WPA The network operates in IEEE 802.1x

authentication mode. This mode is for

environments with a Remote Access Dial-In

User Service (RADIUS) infrastructure.

This environment requires heavy technical

support to set up and maintain and is used by

large corporations.

In a RADIUS environment, various Extensible

Authentication Protocols (EAPs) are

supported. These may include TLS, TTLS,

PEAP, and LEAP.

AES –

available

with

Windows XP

with WPA

patch, using

Wireless

Zero

Configuration

A network key

used (most

secure).

Section 2 Installation

2-4 PRELIMINARY WU830G

Install Your USB Adapter

To install the software and hardware:

1 Insert the supplied CD-ROM into the CD-ROM drive. The

software automatically starts the Installation Wizard program.

2 Follow the prompts to set up your USB adapter.

If Windows 98SE prompts you for the original Windows CD-ROM,

insert the CD-ROM, and direct Windows to its proper location (for

example, D:\WIN98).

3 Locate an empty USB port on your computer.

4 Connect one end of the USB cable to the USB port on the back of

the USB adapter and connect the other end of the USB cable to

the USB port on your laptop or desktop computer:

Graphic of USB cable connecting USB Adapter to

laptop or desktop computer

5 Complete the installation instructions supplied on the CD-ROM.

Device Configuration Setup

After installing the USB adapter and software, you will need to

connect to a network. Refer to Section 3, Configuration for

information on how to create detailed connectivity profiles so you can

connect to a wireless network, setup security, and setup modes of

operation.

WU830G PRELIMINARY 3-1

Section 3:Configuration

You can use the information in this section to:

Discover available wireless networks

Setup operation modes

Create connectivity profiles

Setup security

Monitor the wireless network / environment

Perform diagnostic discovery

The screenshots shown may look slightly different from the ones in your version of

the software.

Section 3 Configuration

3-2 PRELIMINARY WU830G

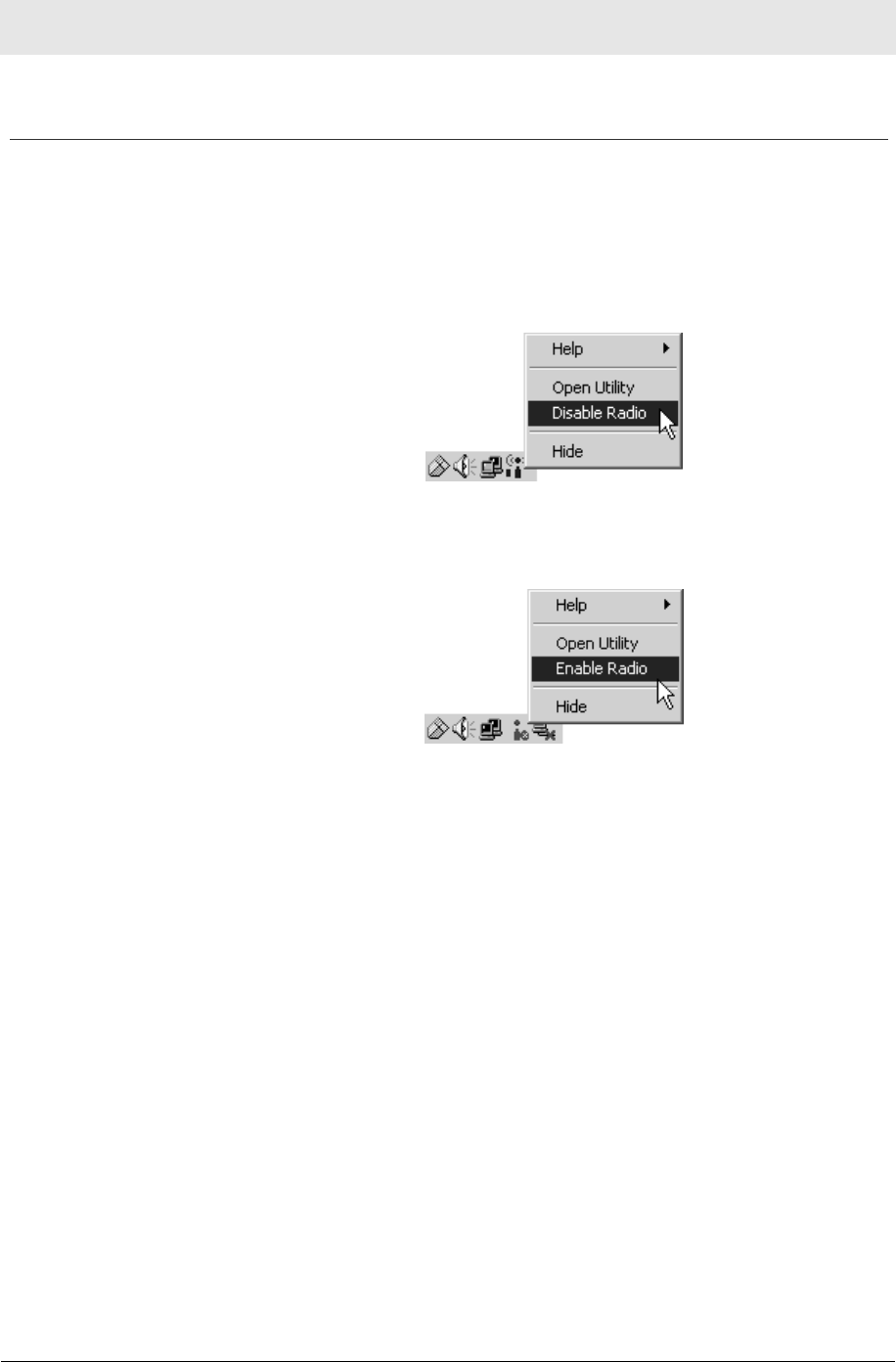

Icon Description

The icon in you system tray (the area at the bottom right of your

screen in your Task Bar) allows you to view the status of the wireless

connection and access the Motorola Wireless USB Adapter

Configuration Utility.

The following table describes the icons used by the utility.

Antenna Icons

The radio transmitter has been disabled from the utility.

To enable, access the utility’s Wireless Networks tab.

There are no networks available.

The signal strength is Very Low.

The signal strength is Low.

The signal strength is Good.

The signal strength is Very Good.

The signal strength is Excellent. The small bars on either

side of the antenna indicate network activity. The bar on

the left indicates receive and the bar on the right indicates

transmit.

Wireless Network Icons

The infrastructure network is connected and

communicating.

The infrastructure network is configured or available, but

not communicating.

The infrastructure network is not available.

The ad-hoc network is connected.

The configured ad-hoc network is not available.

System Tray Icon

Configuration Section 3

WU830G PRELIMINARY 3-3

Enabling the Motorola Wireless USB Adapter Configuration Utility

Windows XP users have the option of using the Wireless Zero

Configuration utility, but will be limited in the amount of status

information available. Motorola’s Wireless USB Adapter

Configuration Utility provides more wireless information about the

network.

To enable the Motorola Wireless USB Adapter Configuration Utility:

1 Right-click the antenna icon in the system tray and select Show

Utility. The Motorola Wireless USB Adapter Configuration Utility

window is displayed:

2 .

3 .

4 .

Section 3 Configuration

3-4 PRELIMINARY WU830G

Connecting to an Existing Wireless Network

After the USB adapter is installed, a red antenna icon displays in your

computer’s system tray .

The Motorola Wireless USB Adapter Configuration Utility

automatically searches for available wireless networks.

To obtain a list of available networks:

1 Click the antenna icon. The Connect to Wireless Network

window is displayed:

A list of networks appear when you open the utility from the system

tray. Wireless Networks identify themselves with their Network Name

(SSID), as seen in the Available networks field in the example below.

To quickly connect to an existing wireless network:

2 Click the antenna icon. The Connect to Wireless Network

window is displayed:

Configuration Section 3

WU830G PRELIMINARY 3-5

The window displays any current wireless networks.

3 xxxxxxxxxxxx.

Section 3 Configuration

3-6 PRELIMINARY WU830G

Configuration Section 3

WU830G PRELIMINARY 3-7

Configuring a New Wireless Network

If you want to connect to a wireless network that is not in the

xxxxxxxxxx field, you can configure a network profile.

1 Right-click the antenna icon in the system tray and select Show

Utility.

2 The Motorola Wireless USB Adapter Configuration Utility window

is displayed.

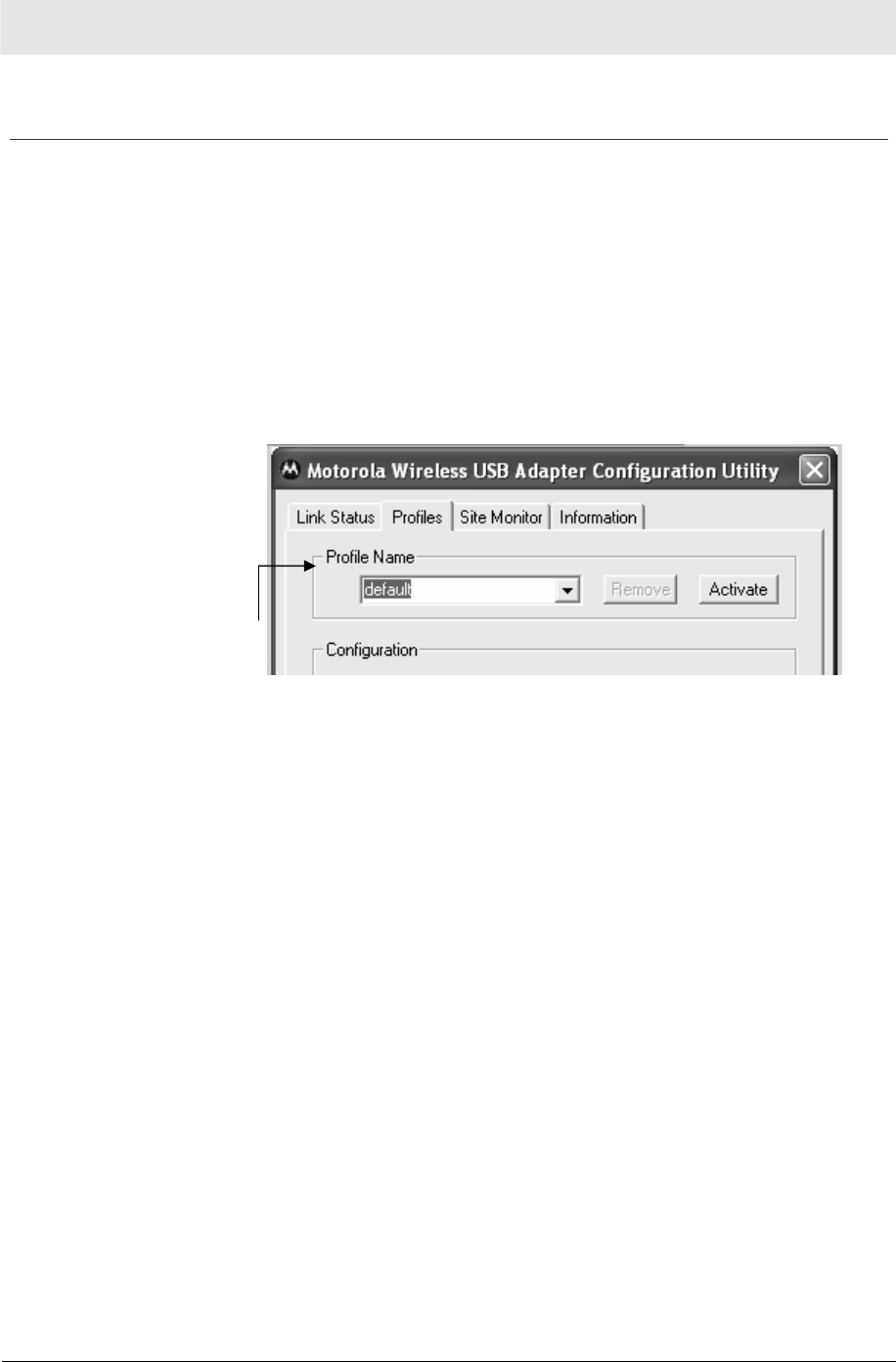

3 Click the Profiles tab. The Profiles tab….

4 Enter a Profile Name.

Section 3 Configuration

3-8 PRELIMINARY WU830G

5 .

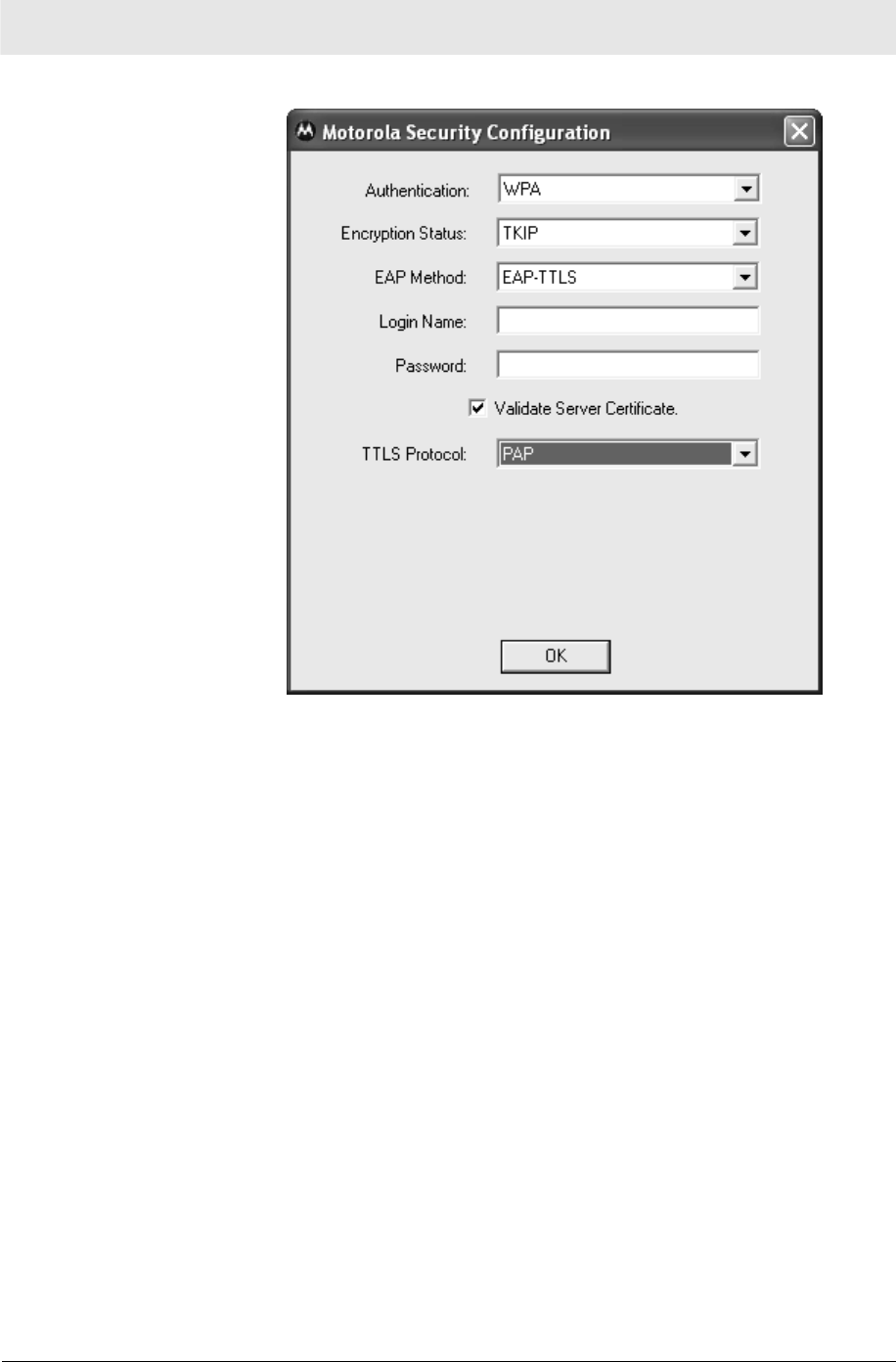

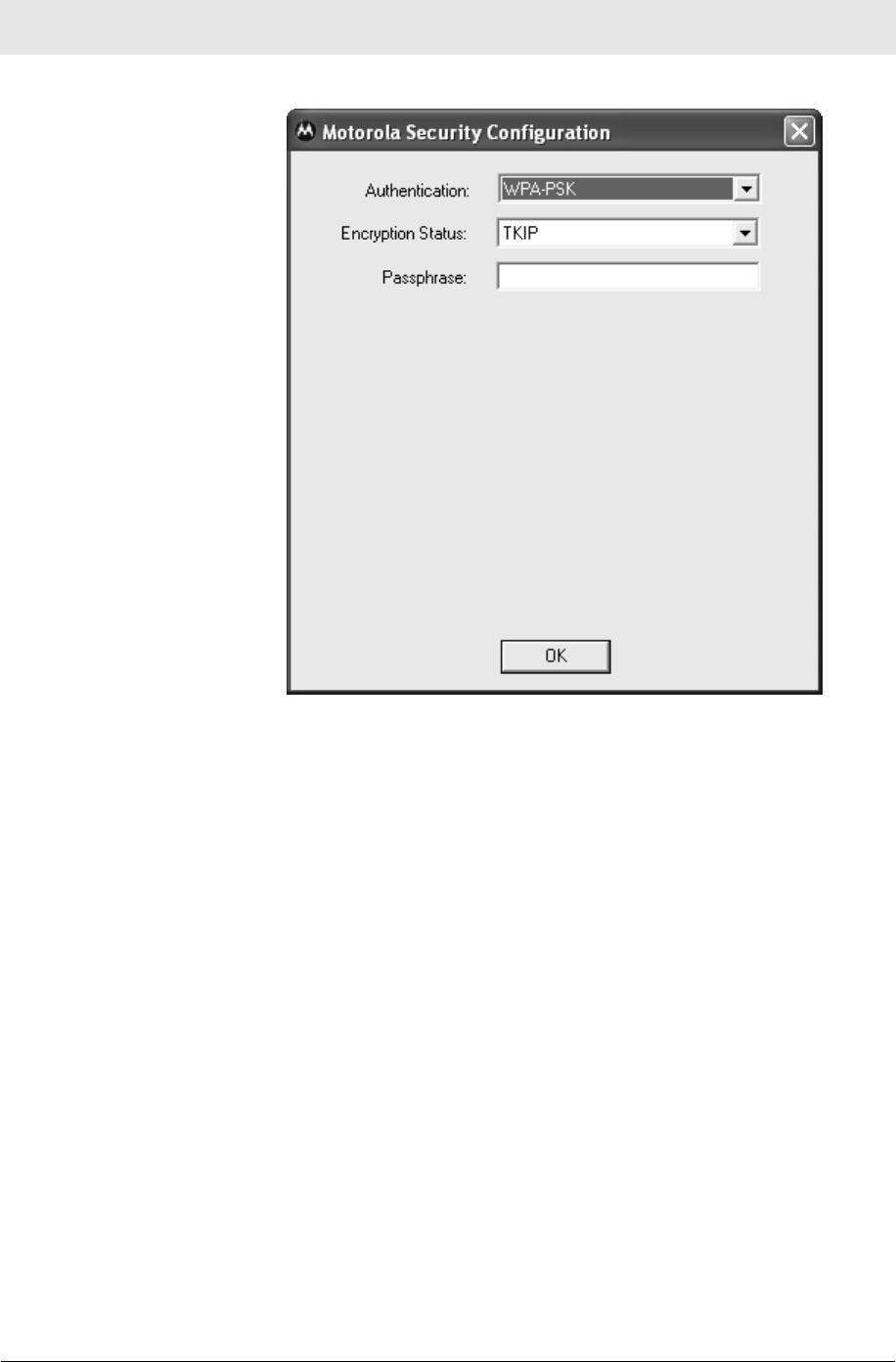

Configuring Security Settings

If you want to connect to a wireless network that is not in the

xxxxxxxxxx field, you can configure a network profile.

Configuration Section 3

WU830G PRELIMINARY 3-9

Section 3 Configuration

3-10 PRELIMINARY WU830G

Configuration Section 3

WU830G PRELIMINARY 3-11

Section 3 Configuration

3-12 PRELIMINARY WU830G

Configuration Section 3

WU830G PRELIMINARY 3-13

Section 3 Configuration

3-14 PRELIMINARY WU830G

Configuration Section 3

WU830G PRELIMINARY 3-15

Section 3 Configuration

3-16 PRELIMINARY WU830G

Configuration Section 3

WU830G PRELIMINARY 3-17

6 Enter information for the new wireless network based on the

descriptions in the following table.

Field Description

Network name

(SSID) Enter a Network Name (SSID) of no more

than 32 alphanumeric characters. This is

the SSID for a particular wireless network.

Section 3 Configuration

3-18 PRELIMINARY WU830G

Field Description

Network

Authentication Select if your access point requires

authentication. Match the authentication

used by the network.

Open No authentication is used.

Shared

The Pre-Shared Key (PSK)

authentication method is

used.

WPA Wi-Fi® Protected Access

(WPA) authentication

(802.1X) is used with an

EAP type.

WPA-

PSK WPA authentication (802.1X)

is used with a Pre-Shared

Key, which enables you to

enter a static Network key.

CCX Cisco® proprietary standard

Lightweight Extensible

Authentication Protocol

(LEAP).

Note: If you select WPA, WPA-PSK, or

CCX, you may be required to enter further

information on the Authentication tab. Ask

your network administrator for additional

information.

Configuration Section 3

WU830G PRELIMINARY 3-19

Field Description

Data Encryption Select the type of security encryption

algorithm used. The available types of

encryption are based on the type of the

authentication selected.

Disabled

No encryption.

WEP Deselect Network Key is

provided for me

automatically and enter the

Key provided by the

network. Available only

with Open and Shared

Authentication.

TKIP Available with WPA and

WPA-PSK Authentication.

CKIP Available with CCX (Cisco®

compatible extension)

Authentication.

Network key Enter the security key for data encryption,

when WEP or WPA-PSK is selected. This

can be entered in ASCII or hexadecimal for

WEP and in ASCII for WPA-PSK.

Key index

(advanced) There are four Keys (1, 2, 3, 4) that can be

selected for WEP. The key index selected

here must match the network’s key index.

The key is

provided for me

automatically

Select if the key is automatically provided.

Most often, the key is not automatically

provided, so you have to un-check this box

and enter the network key. If using a

RADIUS server, the key is automatically

provided.

This is a

computer-to-

computer

(ad hoc) network

Select if the network you are creating or

accessing is a computer-to computer (ad

hoc) network. If you are attempting to

connect to an infrastructure network, then

do not select this setting.

Section 3 Configuration

3-20 PRELIMINARY WU830G

7 After entering the information for this network, click Apply

Changes. The xxxxxxxxxxxxxx window is displayed and the new

network is listed in the xxxxxxxxxxxxx.

8 Your computer is connected to the selected network when you

see a blue bubble on top of the icon for that network. If the blue

bubble does not appear, click Refresh. If it still does not appear,

double-check that the wireless settings match the configuration of

the wireless network.

Configuration Section 3

WU830G PRELIMINARY 3-21

Modifying Properties for a Configured Wireless Network

To modify network properties for a configured wireless network:

1 Right-click the antenna icon in the system tray and select Show

Utility.

2 The Motorola Wireless USB Adapter Configuration Utility window

displays:

Your computer automatically connects to the network displayed at

the top of the xxxxxxxxxxxxxxx list.

3 In the Preferred networks list, highlight the network you want to

configure and click Properties.

4 The Wireless Network Properties window displays with the

current settings:

5 If the network requires Network Authentication, select the type of

authentication required. WPA and CCX might require further

Authentication options found on the Authentication tab. Match the

setting used by the network.

6 If the network requires Data Encryption, select the type of

encryption required. Match the setting used by the network.

7 If using WPA-PSK, enter the Pass Phrase in the Network key

field.

In the example above, the network is configured for WPA-

PSK for Authentication and TKIP for Encryption.

8 For additional information about the fields on this window, refer to

Configuring a New Wireless Network.

9 Click OK to save your changes.

Section 3 Configuration

3-22 PRELIMINARY WU830G

Controlling the Radio

You may need to turn off the radio to comply with restrictions

prohibiting the emission of radio signals; for example, while onboard

a commercial aircraft.

1 To disable the radio using the antenna icon, right-click the

antenna icon in the system tray and click Disable Radio.

2 To enable the radio, right-click the antenna icon and click

Enable Radio.

Configuration Section 3

WU830G PRELIMINARY 3-23

Removing a Network

To remove a wireless network from your network list:

1 Right-click the antenna icon in the system tray and select Show

Utility. The Motorola Wireless USB Adapter Configuration Utility

window displays.

2 Click the Profiles tab. The Profiles tab provides information about

3 In the Profile Name field, click the down arrow and select the

profile name for the network you want to remove.

4 Click Remove. The network is removed from your network list.

5 Click Apply Changes or OK to save the change.

Section 3 Configuration

3-24 PRELIMINARY WU830G

Viewing Site Monitor Information

To view site monitor information:

1 Right-click the antenna icon in the system tray and select Show

Utility. The Motorola Wireless USB Adapter Configuration Utility

window displays.

2 Click the Site Monitor tab. The Site Monitor tab provides

information about all of the detected networks: the Network Name

(SSID), Signal Strength, Channel, Security, BSS Type, Mode,

and MAC Address:

Configuration Section 3

WU830G PRELIMINARY 3-25

Viewing Link Status

To view link status:

1 Right-click the antenna icon in the system tray and select Show

Utility. The Motorola Wireless USB Adapter Configuration Utility

window displays.

2 Click the Link Status tab. The Link Status tab provides

information about the currently connected wireless network:

Section 3 Configuration

3-26 PRELIMINARY WU830G

Viewing Network Metrics

To view network metrics for the network you are connected to:

1 Right-click the antenna icon in the system tray and select Show

Utility. The Motorola Wireless USB Adapter Configuration Utility

window displays.

2 Click the Link Status tab. The Link Status tab provides

information about the total data frames transmitted and received,

the signal quality (by percent), and the signal strength (by

percent):

Configuration Section 3

WU830G PRELIMINARY 3-27

Viewing Utility and Driver Version Information

To view product information for the USB adapter installed in your

computer:

1 Right-click the antenna icon in the system tray and select Show

Utility. The Motorola Wireless USB Adapter Configuration Utility

window displays.

2 Click the Information tab. The Information tab provides the

firmware version number and hardware and software details

about the USB adapter:

Section 3 Configuration

3-28 PRELIMINARY WU830G

Removing the Wireless Adapter

You can safely remove the Wireless Adapter while the computer is

operating. If you encounter problems removing the device, then

follow the steps below.

To remove the adapter:

1 Locate the Device Eject icon located in your system tray. In the

illustration below, it is the third icon from the left – the picture of a

card and a left-pointing arrow.

2 Double-click the Device Eject icon. The Unplug or Eject

Hardware window displays:

Configuration Section 3

WU830G PRELIMINARY 3-29

3 Highlight the device you want to remove.

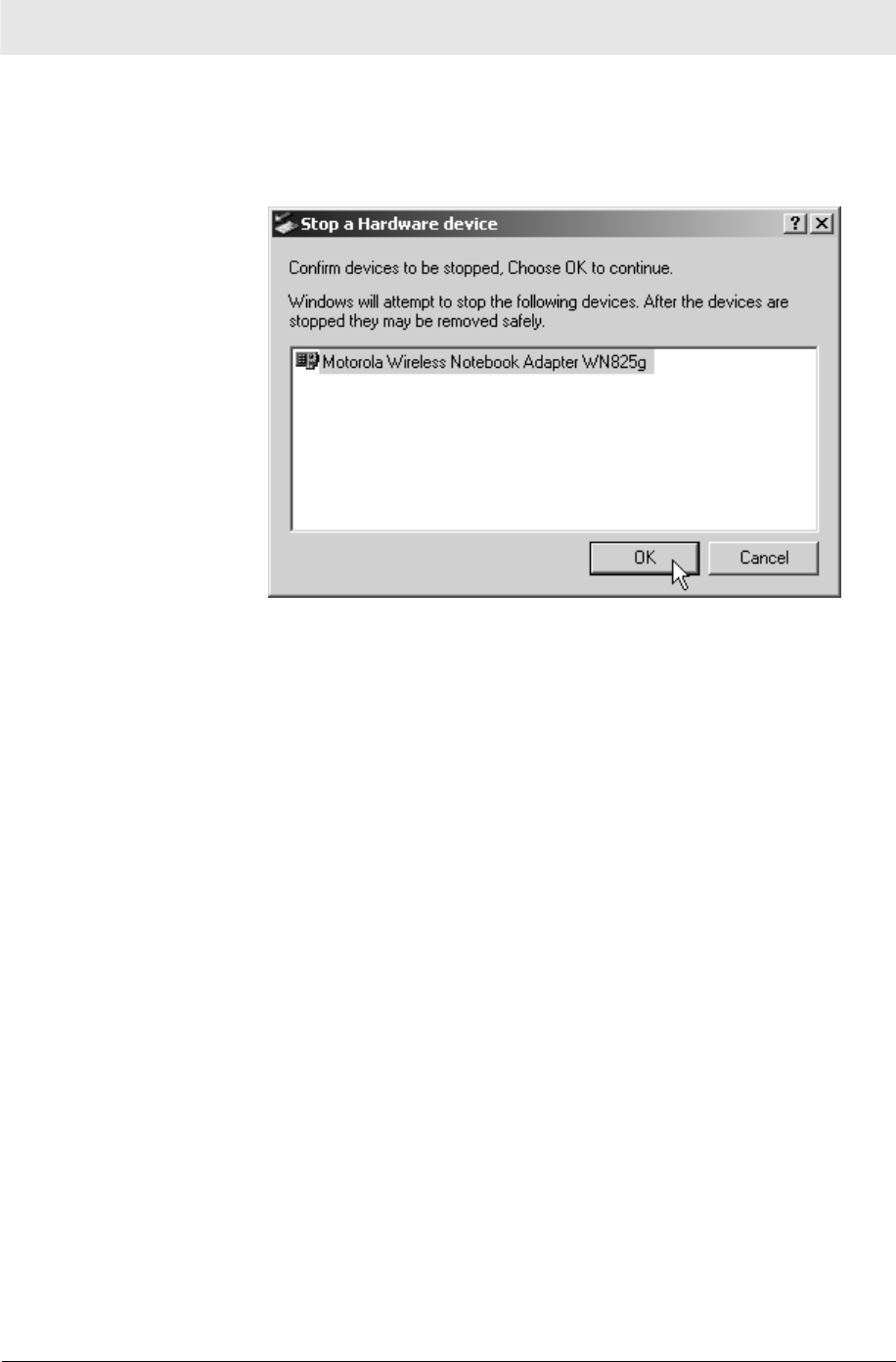

4 Click Stop. The Stop a Hardware device window displays:

5 Confirm that the device listed in the window is the device you

want to stop.

6 Click OK. After you receive a message telling you the device is

stopped, you can safely remove the Wireless Adapter.

Section 3 Configuration

3-30 PRELIMINARY WU830G

Advanced Configuration of the Wireless USB Adapter

You can configure advanced features from this screen. Primarily you

are concerned with the IBSS Channel Number, Location, and

Xpress™ Technology areas.

1 Click Start, click Settings, and then click Control Panel.

2 Click System and select the Hardware tab.

3 Click Device Manager.

4 Click Network adapters.

5 Click Motorola Wireless USB Adapter WU830G and select the

Advanced tab.

Configuration Section 3

WU830G PRELIMINARY 3-31

6 To change the value for any of the listed properties, click the

Property.

7 Change the value in the Value box by either clicking the Value

arrow and selecting a new value, or by typing a new value, as

appropriate.

The default values for these properties are set for maximum

performance.

Field Description

IBSS Channel

Number This selects the channel number on which

to operate. The WU830G comes preset for

use on channels 1-11. These values are

legal in most countries. Some countries

allow use on more channels.

If you travel to one of these countries, you

may change the value for IBSS Channel

Number to 12, 13, or 14.

Location Allows you to match the regulatory

permissions of the country in which you are

using the Adapter.

Match the country in which you are using

the adapter.

Xpress™

Technology Select this option if the network uses

Frame Bursting. The default is enabled.

8 Click OK to save the changes and exit.

WU830G PRELIMINARY 4-1

Section 4:Troubleshooting

This section details possible solutions to common problems that may

occur in using the WU830G.

If you are unable to locate a solution here, please access our website

at www.motorola.com/broadband/consumers for the latest

information. You can also reach us 7 days a week, 24 hours a day at

1-877-466-8646.

Hardware Solutions

My computer is experiencing difficulty connecting to the wireless

network.

Ensure that your computer and wireless access point is powered

on.

Ensure that your wireless USB adapter is installed correctly and

is active.

Ensure that your wireless USB adapter and access point radio

signal is enabled. Review your access point’s documentation for

further instructions.

Ensure that your wireless USB adapter for your computer and the

wireless access point have the same security settings that will

allow your computer to access the wireless network. Refer to the

Configuration section of the documentation that came with your

access point.

Verify that the Access Control List (ACL) is not configured to

block your computer. Refer to the Configuration section of the

documentation that came with your access point.

Ensure that your wireless USB adapter is within range of your

access point or is not behind and obstruction; for example, metal

structures will interfere with the signal, as will 2.4 GHz cordless

phones, and microwaves.

Ensure that your access point antenna is connected.

Section 4 Troubleshooting

4-2 PRELIMINARY WU830G

I would like to test if my Internet connection is live.

Use the ping command to test the connection. Before attempting,

determine the IP Address of your USB adapter.

1 Open a command prompt by clicking Start and Run.

2 For Windows 98 and ME, in the Open field, type command and

press Enter or OK.

For Windows 2000 and XP, type cmd. Or, navigate using your

Start button to Programs>Accessories>Command Prompt.

3 In the Command window, type ipconfig.

You should see an IP address for your adapter, for example:

Ethernet Adapter Local Area Connection:

Connection-specific DNS Suffix. . : Example.example.example.com.

IP Address. . . . . . . . . . . . : 192.168.10.10

Subnet Mask . . . . . . . . . . . : 255.255.255.0

Default Gateway . . . . . . . . . : 192.168.10.1

4 If using a router at home, in the Command window, type ping

followed by the Router’s IP address and press Enter. For

example, type ping 192.168.10.1

The router’s IP address is most likely the default gateway.

If you receive a reply (the first word will be Reply…), then

your computer is connected to the router. Proceed to Step 4.

If you do NOT receive a reply, repeat steps 1 – 4 on a

different computer to verify that the first computer is not the

cause of the problem.

5 In the Command window, type ping and your ISP’s default

gateway IP Address and press Enter. You can determine your

ISP’s default gateway by examining your modem and or router.

Refer to the instructions provided with your modem/router.

If you receive a reply (For example, Reply from

216.109.125.72…), then your connection to the Internet is

live.

If you do NOT receive a reply, repeat steps 1 – 5 on a

different computer to verify that the first computer is not the

cause of the problem.

6 If you cannot determine your ISP’s default gateway, ping

www.yahoo.com or another known web location.

Troubleshooting Section 4

WU830G PRELIMINARY 4-3

Software Solutions

WU830G PRELIMINARY 5-1

Section 5:Glossary

Access Point (AP)

A device that provides wireless LAN connectivity to wireless

clients (stations).

Adapter

A device or card that connects a computer, printer, or other

peripheral device to the network or to some other device. A

wireless adapter connects a computer to the wireless LAN.

Address translation

See NAT.

Ad-Hoc Network

A temporary local area network connecting access clients

together, usually just for the duration of the communication

session. The clients communicate directly to each other and not

through an established, such as through a router. Also known as:

IBSS (Independent Basic Service Set).

ASCII

The American Standard Code for Information Interchange refers

to alphanumeric data for processing and communication

compatibility among various devices; normally used for

asynchronous transmission.

Bandwidth

The transmission capacity of a medium in terms of a range of

frequencies. Greater bandwidth indicates the ability to transmit

more data over a given period of time.

bps

Bits Per Second

Broadband

A communications medium that can transmit a relatively large

amount of data in a given time period.

Section 5 Glossary

5-2 PRELIMINARY WU830G

BSS

Basic Service Set. A configuration of Access Points that

communicate with each other without resorting any infrastructure.

Also known as Ad-Hoc networks. Also see ESS.

Client

In a client/server architecture, a client is a computer that requests

files or services such as file transfer, remote login, or printing

from the server. On an IEEE 802.11b/g wireless LAN, a client is

any host that can communicate with the access point. Also called

a CPE. A wireless client is also called a “station.” Also see server.

Coaxial Cable

A type of cable consisting of a center wire surrounded by

insulation and a grounded shield of braided wire. The shield

minimizes electrical and radio frequency interference. Coaxial

cable has high bandwidth and can support transmission over long

distances.

CPE

Customer Premise Equipment: typically computers, printers, etc,

that are connected to the gateway at the subscriber location. CPE

can be provided by the subscriber or the cable service provider.

Also called a client.

Crossover Cable

A crossover cable is a cable that is used to interconnect two

computers by "crossing over" (reversing) their respective pin

contacts. A crossover cable is sometimes known as a null

modem.

Default Gateway

A routing device that forwards traffic not destined to a station

within the local subnet.

DHCP

A Dynamic Host Configuration Protocol server dynamically

assigns IP addresses to client hosts on an IP network. DHCP

eliminates the need to manually assign static IP addresses by

“leasing” an IP address and subnet mask to each client. It

enables the automatic reuse of unused IP addresses.

DMZ

DeMilitarized Zone. This service opens one IP address to the

Internet, usually for online gaming, and acts as a buffer between

the Internet and your network.

Glossary Section 5

WU830G PRELIMINARY 5-3

DNS

The Domain Name System is the Internet system for converting

domain names (like www.motorola.com) to IP addresses. A DNS

server contains a table matching domain names such as

Internetname.com to IP addresses such as 192.169.9.1. When

you access the world-wide web, a DNS server translates the URL

displayed on the browser to the destination website IP address.

The DNS lookup table is a distributed Internet database; no one

DNS server lists all domain name to IP address matches.

Domain Name

A unique name, such as motorola.com, that maps to an IP

address. Domain names are typically much easier to remember

than are IP addresses. See DNS.

Download

To copy a file from one computer to another. You can use the

Internet to download files from a server to a computer.

Driver

Software that enables a computer to interact with a network or

other device. For example, there are drivers for printers, monitors,

graphics adapters, modems, Ethernet, USB, HPNA, and many

others.

DSL

Digital Subscriber Line

DSSS

Direct-Sequence Spread Spectrum. DSSS is a transmission

technology used in WLAN transmissions where a data signal at

the sending station is combined with a higher data rate bit

sequence, or chipping code, that divides the user data according

to a spreading ratio. The chipping code is a redundant bit pattern

for each bit that is transmitted, which increases the signal's

resistance to interference. If one or more bits in the pattern are

damaged during transmission, the original data can be recovered

due to the redundancy of the transmission.

Dynamic IP Address

An IP address that is temporarily leased to a host by a DHCP

server. The opposite of Static IP Address.

Section 5 Glossary

5-4 PRELIMINARY WU830G

ESS

An Extended Service Set (ESS) is a set of two or more BSSs that

form a single subnetwork. See also BSS.

Ethernet

The most widely used LAN type, also known as IEEE 802.3. The

most common Ethernet networks are 10Base-T, which provide

transmission speeds up to 10 Mbps, usually over unshielded,

twisted-pair wire terminated with RJ-45 connectors. Fast Ethernet

(100Base-T) provides speeds up to 100 Mbps. “Base” means

“baseband technology” and “T” means “twisted pair cable.”’

Each Ethernet port has a physical address called the MAC

address. Also see MAC address.

Event

A message generated by a device to inform an operator or the

network management system that something has occurred.

Firewall

A security software system on some devices that enforces an

access control policy between the Internet and the LAN for

protection.

Firmware

Code written onto read-only memory (ROM) or programmable

read-only memory (PROM). Once firmware has been written onto

the ROM or PROM, it is retained even when the device is turned

off. Firmware is upgradeable.

FTP

File Transfer Protocol is a standard Internet protocol for

exchanging files between computers. FTP is commonly used to

download programs and other files to a computer from web pages

on Internet servers.

Gateway

A device that enables communication between networks using

different protocols. See also router.

GUI

Graphical User Interface

Glossary Section 5

WU830G PRELIMINARY 5-5

Hexadecimal

A base-sixteen numbering system that uses sixteen sequential

numbers (0 to 9 and the letters A to F) as base units before

adding a new position. On computers, hexadecimal is a

convenient way to express binary numbers.

Host

In IP, a host is any computer supporting end-user applications or

services with full two-way network access. Each host has a

unique host number that combined with the network number

forms its IP address.

Host also can mean:

A computer running a web server that serves pages for one or

more web sites belonging to organization(s) or individuals

A company that provides this service

In IBM environments, a mainframe computer

ICMP

Internet Control Message Protocol is a protocol used for error,

problem, and informational messages sent between IP hosts and

gateways. ICMP messages are processed by the IP software and

are not usually apparent to the end-user.

IEEE

The Institute of Electrical and Electronics Engineers, Inc.

(http://www.ieee.org) is an organization that produces standards,

technical papers, and symposiums for the electrical and

electronic industries and is accredited by ANSI. 802.11b and

802.11g are examples of standards they have produced.

Internet

A worldwide collection of interconnected networks using TCP/IP.

Internet Protocol is a set of standards that enable different types

of computers to communicate with one another and exchange

data through the Internet. IP provides the appearance of a single,

seamless communication system and makes the Internet a virtual

network.

Section 5 Glossary

5-6 PRELIMINARY WU830G

IP Address

A unique 32-bit value that identifies each host on a TCP/IP

network. TCP/IP networks route messages based on the

destination IP address.

For a Class C network, the first 24 bits are the network address

and the final 8 bits are the host address; in dotted-decimal format

it appears “network.network.network.host.”

ISDN

Integrated Services Digital Network

ISP

Internet Service Provider

LAN

Local Area Network. A local area network provides a full-time,

high-bandwidth connection over a limited area such as a home,

building, or campus. Ethernet is the most widely used LAN

standard.

LEAP

Lightweight Extensible Authentication Protocol (LEAP) is an

authentication implementation of 802.1X by Cisco, which

provides a challenge-response authentication mechanism and

dynamic WEP key assignment.

MAC Address

The Media Access Control address is a unique, 48-bit value

permanently saved in the ROM at the factory to identify each

Ethernet network device. It is expressed as a sequence of 12

hexadecimal digits printed on the unit’s label. You need to

provide the MAC Address to the cable service provider. Also

called an Ethernet address, physical address, hardware address,

or NIC address.

One megabyte; equals 1,024 x 1,024 bytes, 1,024 kilobytes, or

about 8 million bits.

Mbps

Million bits per second (megabits per second). A rate of data

transfer.

Glossary Section 5

WU830G PRELIMINARY 5-7

MTU

The Maximum Transmission Unit is the largest amount of data

that can be transmitted in one discrete message on a given

physical network. The MTU places an upper bound on the size of

a message that can be transferred by the network in a single

frame. Messages exceeding the MTU must be fragmented before

transmission, and reassembled at the destination.

Multicast

A data transmission sent from one sender to multiple receivers.

ARRIS WU830G Wireless USB Adapter User Manual

ARRIS Group, Inc. Wireless USB Adapter

user manual

Navigation menu

Namespaces

Views

Navigation
