JRV4100
Installation and Owner’s Manual
![](/img.php?id=3986496&img=bg2.png)
Content
01
A
ccessories ………………………………………………………………………………………………………………………………………...02
Unit Installation………………………………………………………………………………………………………………………………..03
Wire Connection………………………………………………………………………………………………………………………………03
Parking Brake Connection ………………………………………………………………………………………………………04
Speaker connection……………………………………………………………………………………………………………………….05
Button Description………………………………………………………………………………………………………………………….06
Remote Control………………………………………………………………………………………………………………………………..07
Main Menu…………………………………………………………………………………………………………………………………………...09
Radio Operation……………………………………………………………………………………………………………………………….09
USB /SD Operation………………………………………………………………………………………………………………………..10
Settings Operation ………………………………………………………………………………………………………………………..10
Bluetooth Operation……………………………………………………………………………………………………………………..12
A
ux-In Operation ……………………………………………………………………………………………………………………………13
T
roubleshooting ……………………………………………………………………………………………………………………………..15
General Specification…………………………………………………………………………………………………………………..16
![](/img.php?id=3986496&img=bg3.png)
Power Cable Trim Ring User Manual
Accessories

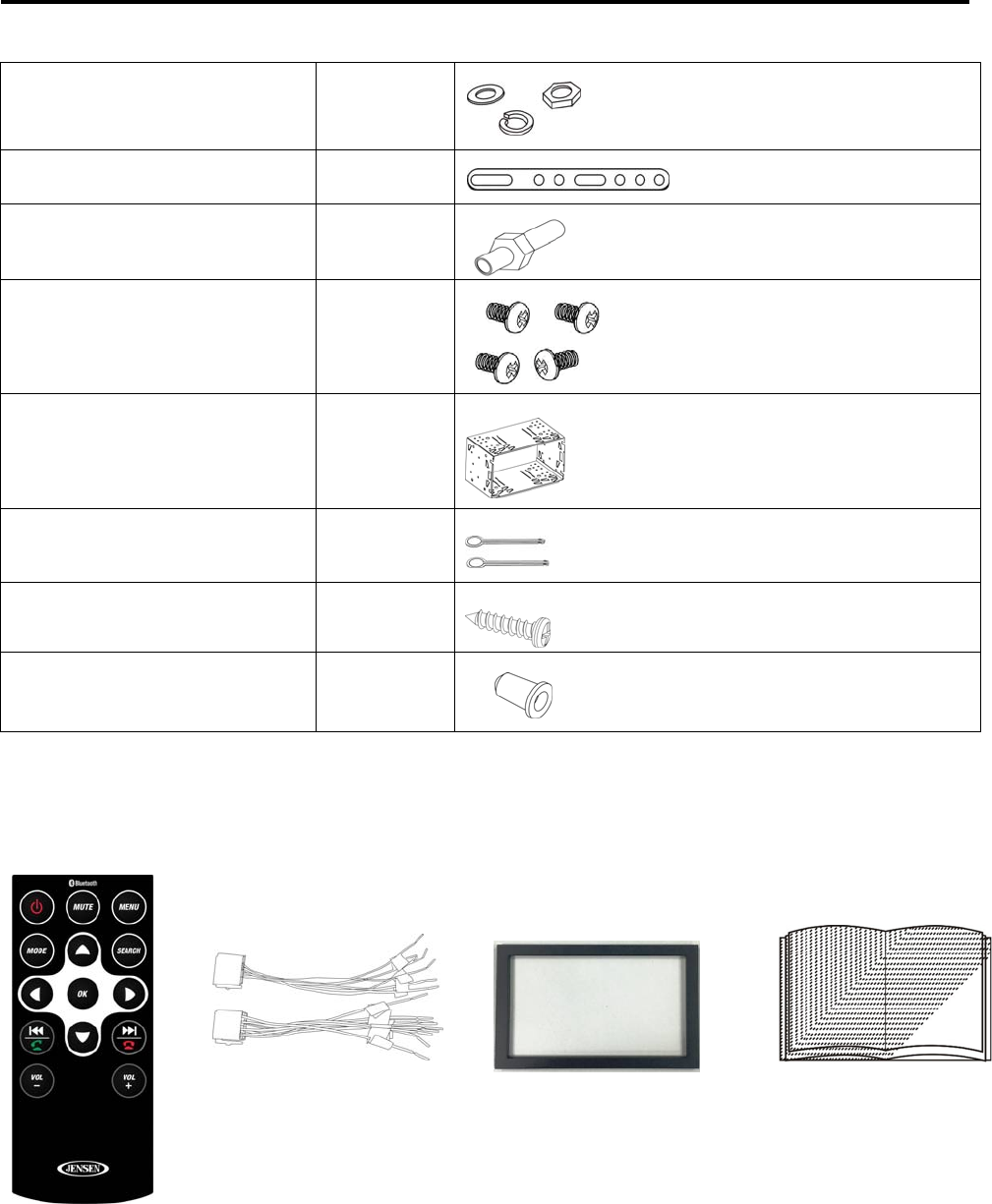

Package contains the following accessories for installation and operation of the unit.
- Washer, Spring Washer,
M5 Nut 1 each
- Metal Mounting Strap 1
- Hex Bolt 1
- Screw
Max. 8mm (7/32 x max.
5/16 in) 4
- Metal
Mounting Sleeve 1
- Release Key 2
- Tapping Screw 1
- Rubber Cushion 1
02
Remote Control
![](/img.php?id=3986496&img=bg4.png)
Unit Installation

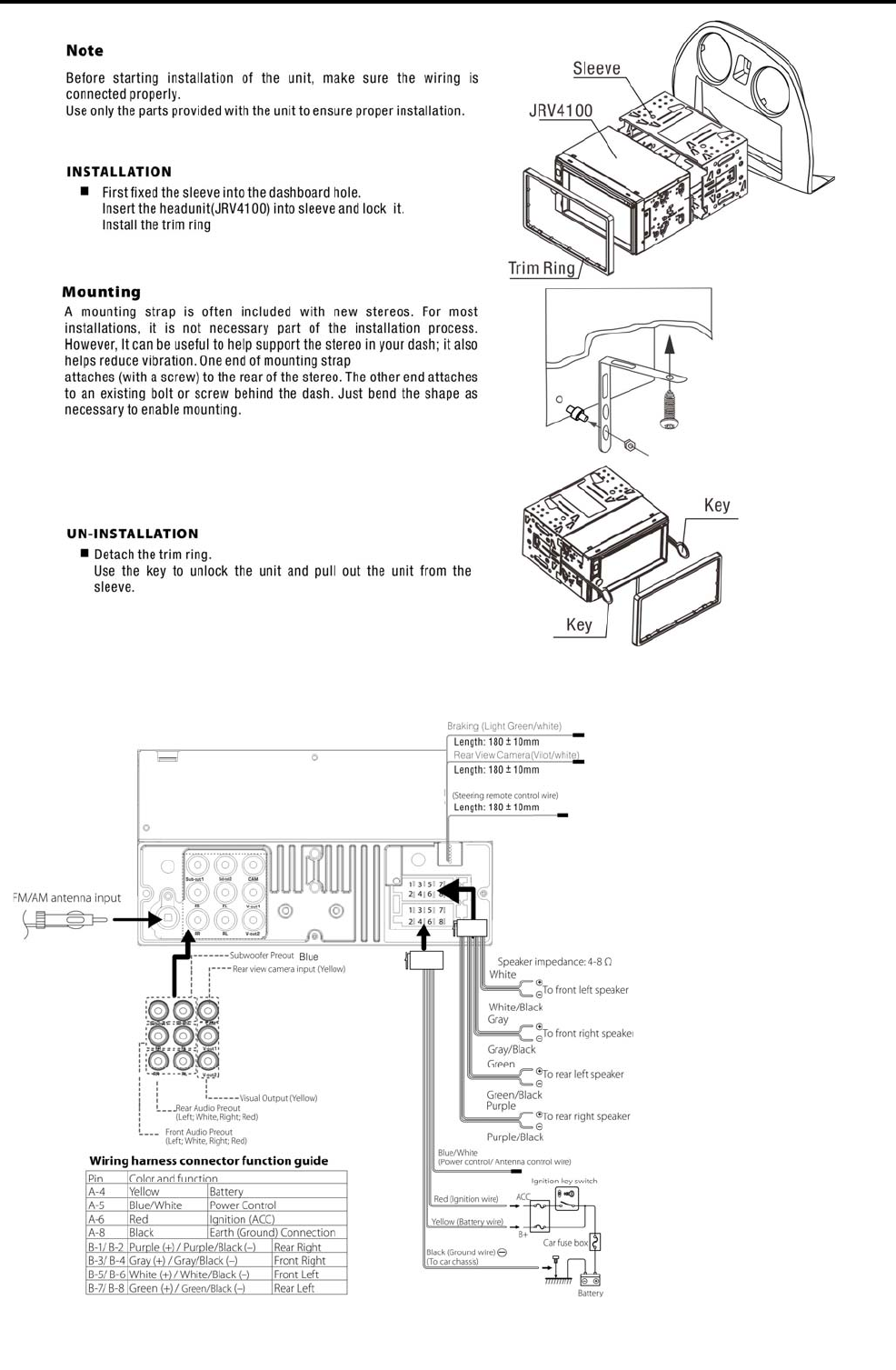

Wire Connection
The Description of the Input/Output Interface of the Rear Chassis.
03
![](/img.php?id=3986496&img=bg5.png)

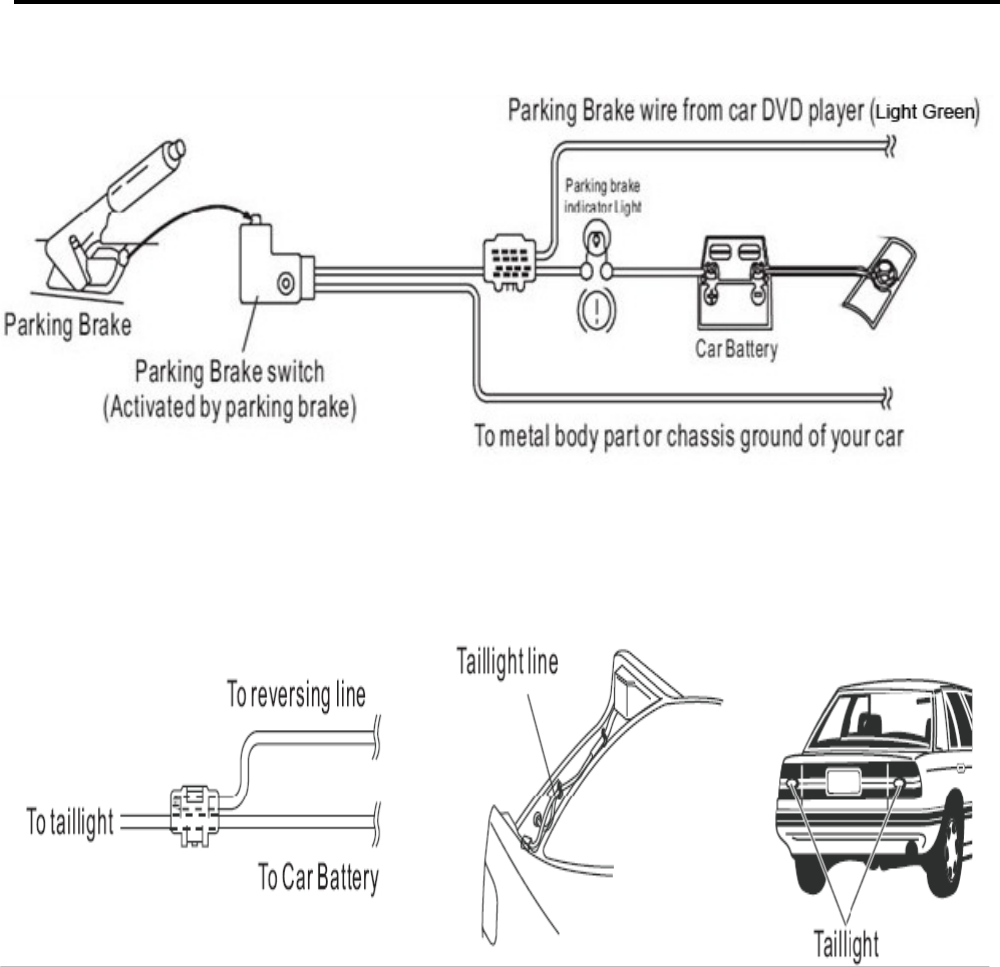

Parking Brake Connection
In order to view videos, the parking brake wire must be connected, and the vehicle is parked
Connecting the reversing line to taillight on the car
04
![](/img.php?id=3986496&img=bg6.png)
Speaker Connection

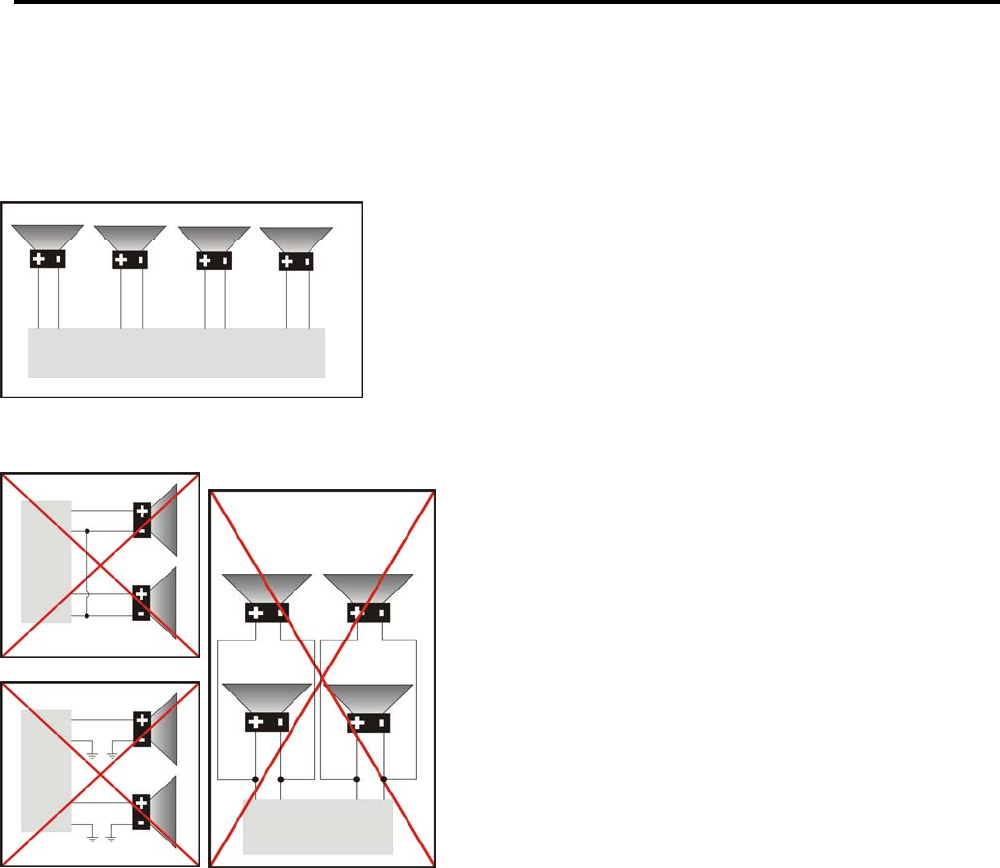

Connect the speakers according to the following diagram, incorrect connections may damage the unit
or your speakers. Do not chassis ground the speakers. Always observe correct polarity.
Correct connection
Left front - Right front | Left rear - Right rear
Incorrect connections
05
![](/img.php?id=3986496&img=bg7.png)
1 78
5
6
2

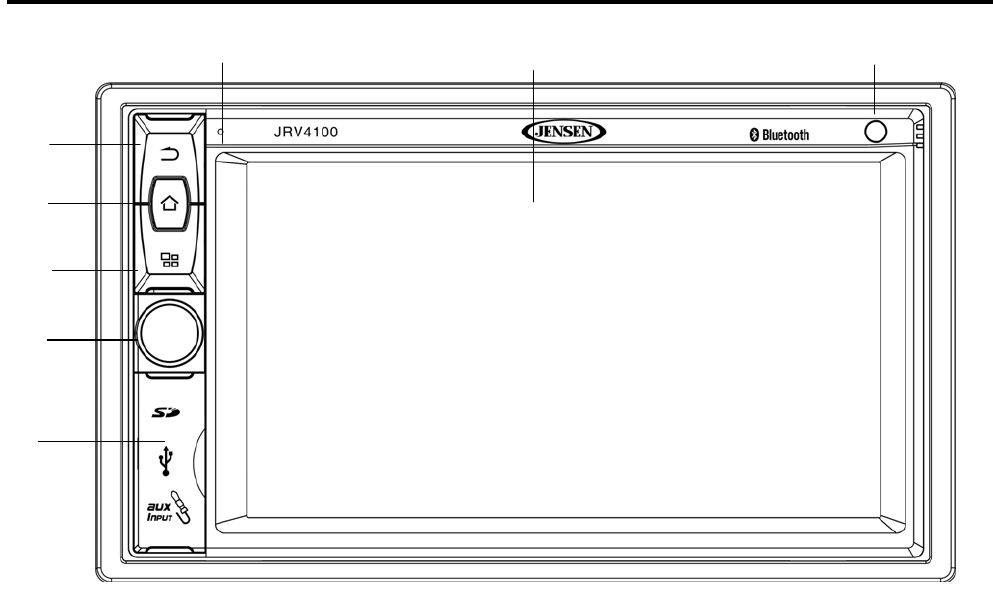

Button Description
1. MIC
2. RETURN Button
Press return button to go back to previous menu.
3. HOME BUTTON
Press home button to return back to main menu.
4. SOURCE BUTTON
Press source button to change mode.
5. POWER / MUTE Button /VOL
Press it to turn on the unit. Press and hold for 2 seconds to turn the unit off .Press the button
briefly to mute .Please notes that the volume will be muted on all audio output connectors.
Rotate VOL knob to increase or reduce the volume.
6. USB/SD/AUX
USB for Multimedia playback files only. insert a USB into this slot and the unit will automatically start
reading and playback. (Supported Music File Format: MP3 and WMA files)
SD card slot, for Multimedia playback files only. Insert a SD CARD into this slot and the unit will
automatically start reading and playback. (Supported Music File Format: MP3 and WMA files)
Put the Aux plug into the Aux-In jack which is marked on front panel.
7. Display
Displays information when operating the unit.
8. Remote Sensor
Remote control signal receiving window. Max distance is 20 ft (6m), 45 deg.
06
3
4
![](/img.php?id=3986496&img=bg8.png)
Remote Control

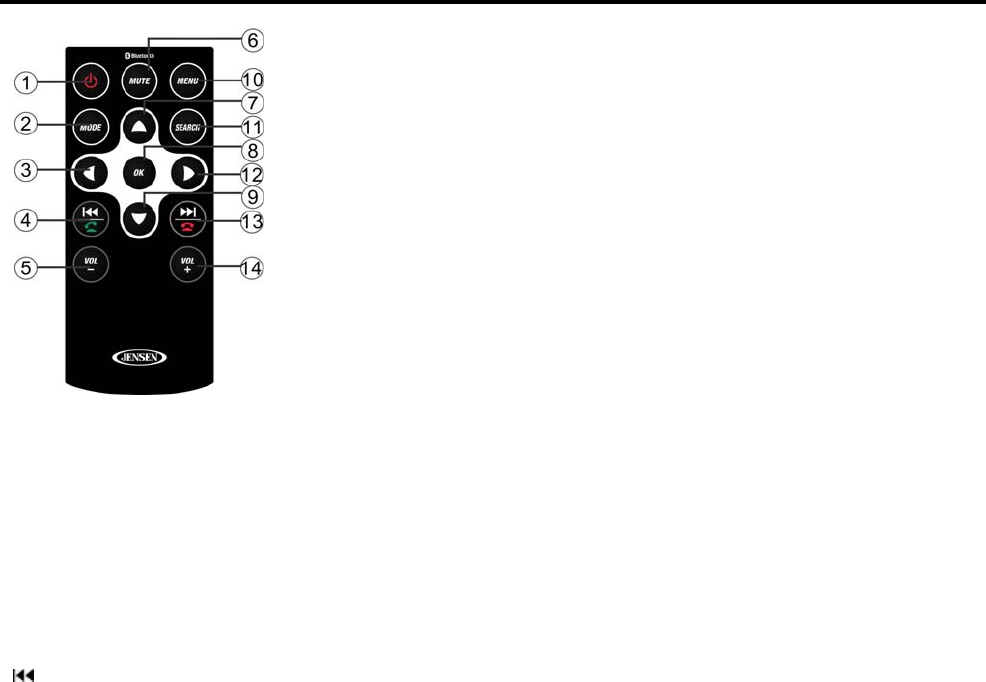

1. POWER button
Power on or power off.
2. MODE button
Press it to select the mode: Radio, USB (if there is a USB device in the unit), SD (if there is a SD/MMC
card in the unit), Bluetooth, Aux-In.
3. LEFT button
Press it to move the cursor left.
4. / ACCEPT
In USB / SD mode, press to skip to the previous track.
In Radio mode, press to seek to previous station.
In Bluetooth mode, press to make a call after inputted a phone number or accept an incoming call.
5. VOLUME DOWN button
Press to decrease volume level.
6. Mute button/Bluetooth button
Short press to mute the volume output, press again to resume volume.
Long press this button to enter into Bluetooth mode (Handsfree).
7. UP button
Press it to move the cursor up.
8: ENTER
Press it to confirm your selection.
9. DOWN button
Press it to move the cursor down.
07
1: POWER
2: MODE
3: LEFT
4: PREVIOUS/Accept
5: VOLUMN DOWN
6: MUTE/BLUETOOTH
7: UP
8: OK
9: DOWN
10: MENU
11: SERARCH
12: RIGHT
13: NEXT/REJECT
14: VOLUMN UP
![](/img.php?id=3986496&img=bg9.png)
Remote Control
10. MENU
Press it to show main menu.
11. SEARCH button
Press to auto store AM/FM stations.
12. RIGHT button
Press it to move cursor right.
13. NEXT/REJECT button
In USB / SD mode,, press button to skip to the next track
In Radio mode, press to seek to next station.
In Bluetooth mode, press to end a call or decline an incoming call.
14. VOLUME UP button
Press to increase volume level.
Note:
The distance may vary according to the brightness of ambient light.

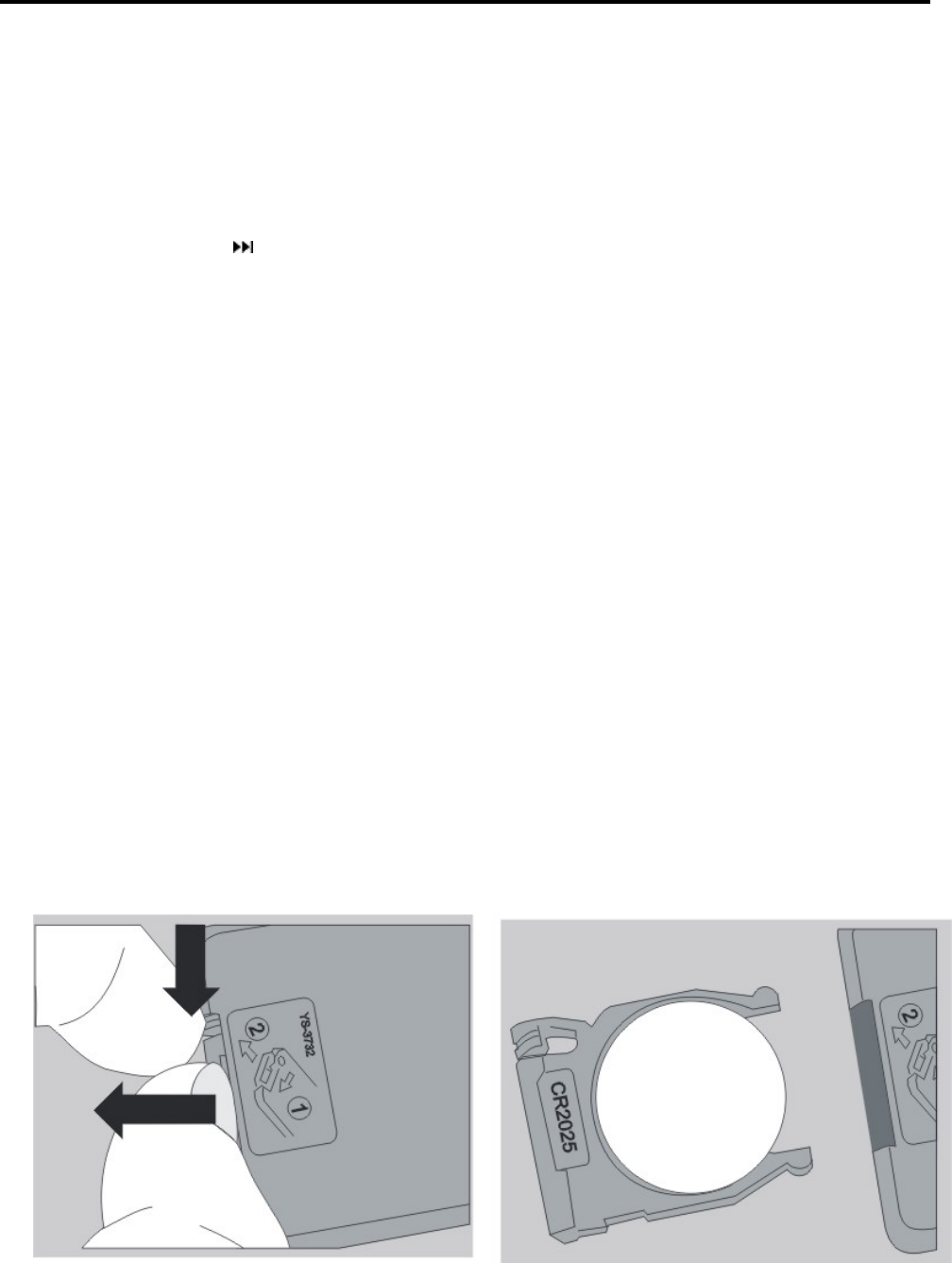

If the remote is not used for an extended period of time, remove the battery to prevent possible
damage from battery leakage or corrosion.
Do not place any objects between the remote control unit and the sensor on the unit.
Do not drop the remote control onto the floor; it may damage it beyond repair.
Do not use the remote control unit while simultaneously operating the remote control unit of any
other equipment; they may interfere resulting in improper operation.
The battery normally lasts for about one year depending how often the remote control is used. If
the remote control unit isn’t working even when it is operated near the unit, replace the battery
with a new battery of the same make and use only a lithium cell battery type: CR2025 (3V).
Dispose empty batteries in accordance with your local governmental regulations.
Do not short-circuit, disassemble, heat or dispose of flammable battery.
Keep the battery out of reach of children, should the battery be swallowed, immediately seek
medical attention.
08
![](/img.php?id=3986496&img=bga.png)

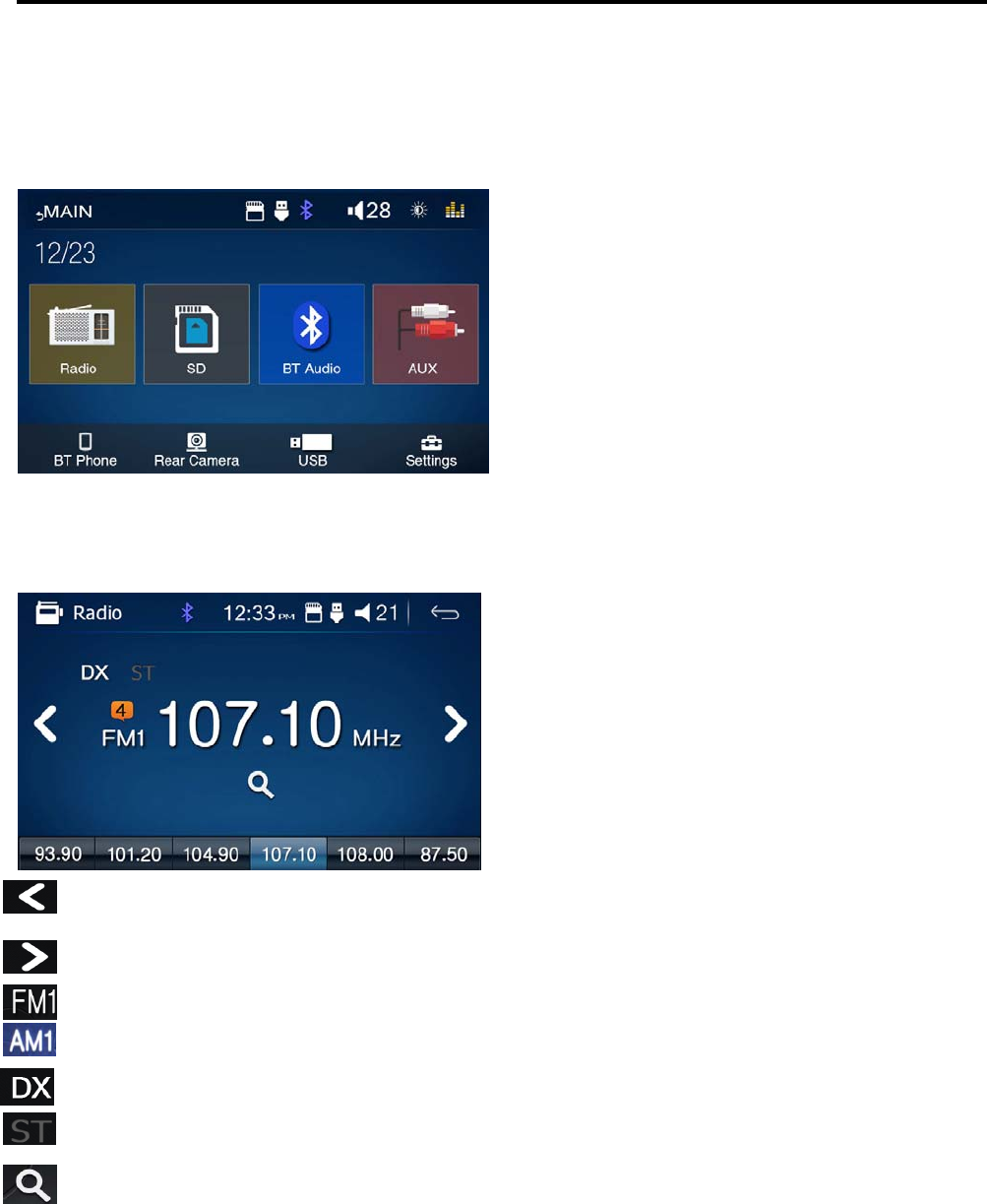

Main Menu
The best way to discover the program is to explore each screen in detail, and to find out how to move
from one to another. Read this chapter for a guided tour.
Unit starts by displaying the main menu.
This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch
screen buttons.
Tap the icons to enter a desired mode.
Pae 1
Radio Operation
To start radio, tap radio button on main menu screen.
Touch it to select station backward automatically, touch and hold this icon to select station
backward manually.
Touch it to select station forward automatically, touch and hold this icon to select station.
forward manually.
Touch it to select FM1—>FM2—>FM3.
Touch it to select AM1—>AM2.
Touch this button can turn on or turn off Local function.
Touch this button to select mono sound reception.
Touch this button can scan the stations from 1-18, Long Touch it to save the stations with
good reception automatically and scan each station for about 5 seconds.
09
![](/img.php?id=3986496&img=bgb.png)
USB/SD Operation
When a file of USB or SD card is played (music, video, photo), the screen will show following interface:
Music Controls
Press to skip to the previous track.
Play/pause button.
Press to skip to the next track.
Press to play track randomly
Press to repeat (REP 1 => REP ALL)
Press to view images
Press to play videos
Video / Picture Controls
Rotate the image clockwise by 90 degrees
Zoom image in or out or change video aspect ratio
Press to show all file

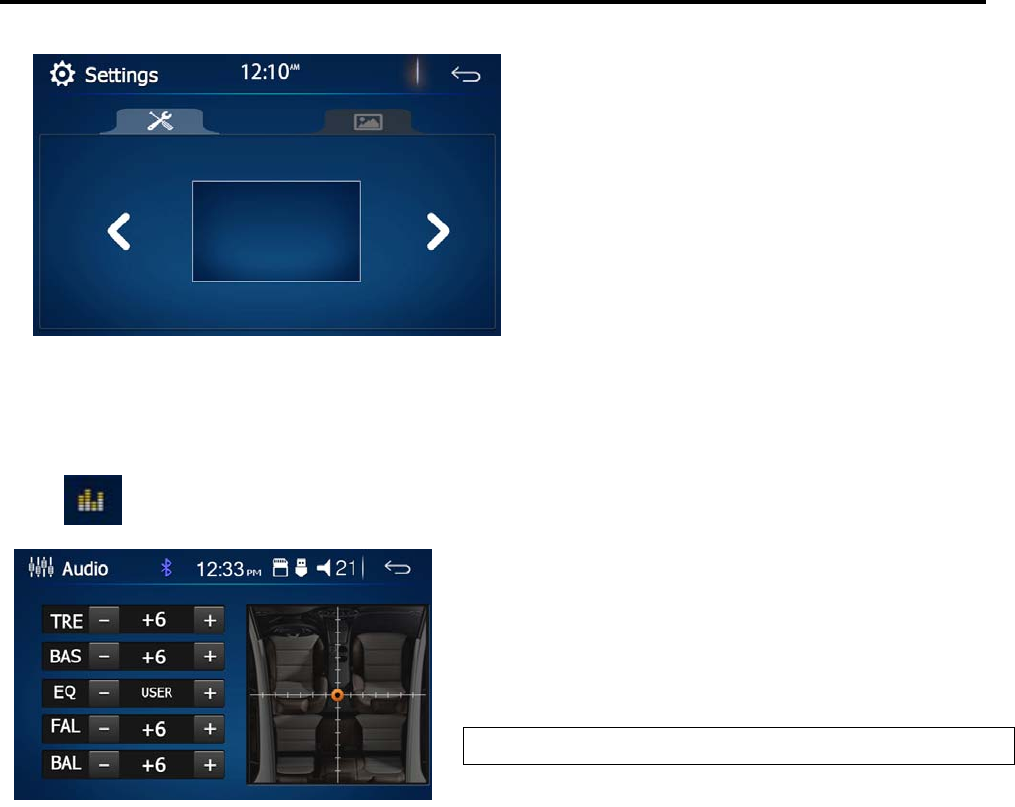

Settings Operation
Setting Control
Your device has default system setting, you can customize the settings to suit your personal needs.
Once you change settings, your new settings will remain until you change it again. To enter the setting
screen, tap it on the main menu.
General Control
10
Clock: setting the clock
Radio Area: select radio area (Europe,
USA, South America, Russian, Asia, Japanese)
Version: firmware version
Key Beep: set beep sound on / off
Loudness: select on / off
Standby Display: set standby display on or off
OSD Language: select English / Spanish
Subwoofer: set subwoofer on / off
![](/img.php?id=3986496&img=bgc.png)
Settings Operation
Tap Wallpaper button to setup wallpaper
SWC: When the green cable for steering wheel control connected to the steering wheel, we
can use the steering wheel to control unit
Sound Control
Tap button to Sound Control page
Subwoofer
Connect the subwoofer to the unit using sub output (see electrical diagram).
Parking
When the car is stopped and the parking brake is on, the screen can display the video/image, otherwise
the screen can't display the video/image.
Rear View Camera
This unit is equipped with Rear View Camera input. The camera is used to observe the situation behind
the vehicle when you are backing the car.
Please connect your Rear View Camera with the back car video input. (Refer to page 4)
Rear View Camera picture will be enabled when you are backing the car.
11
EQ : select User—Classic—Rock—Pop—Jazz—Flat
![](/img.php?id=3986496&img=bgd.png)
Bluetooth Operation
Warning: Driving and having a telephone conversation at the same time is dangerous, please park
your car before having a telephone conversation. The supplier waves any and all liability when this
warning is not followed.
Bluetooth section
To enter bluetooth mode, you can tap bluetooth icon on main menu or long press the mute/bluetooth
button on the remote control or press mode button on remote.
Pairing Mode
For the 1st time using bluetooth, you need to pair the mobile phone.
When a phone has not been paired with the unit, the BT icon and pairing mark will blink continually on
the panel.
When the unit has connected with the phone, the BT icon will turn on and the mobile phone name (if
available) will be display on the panel.
The phone name will available on the panel after the pairing is completed. This means the device is
connected and ready for bluetooth communication.

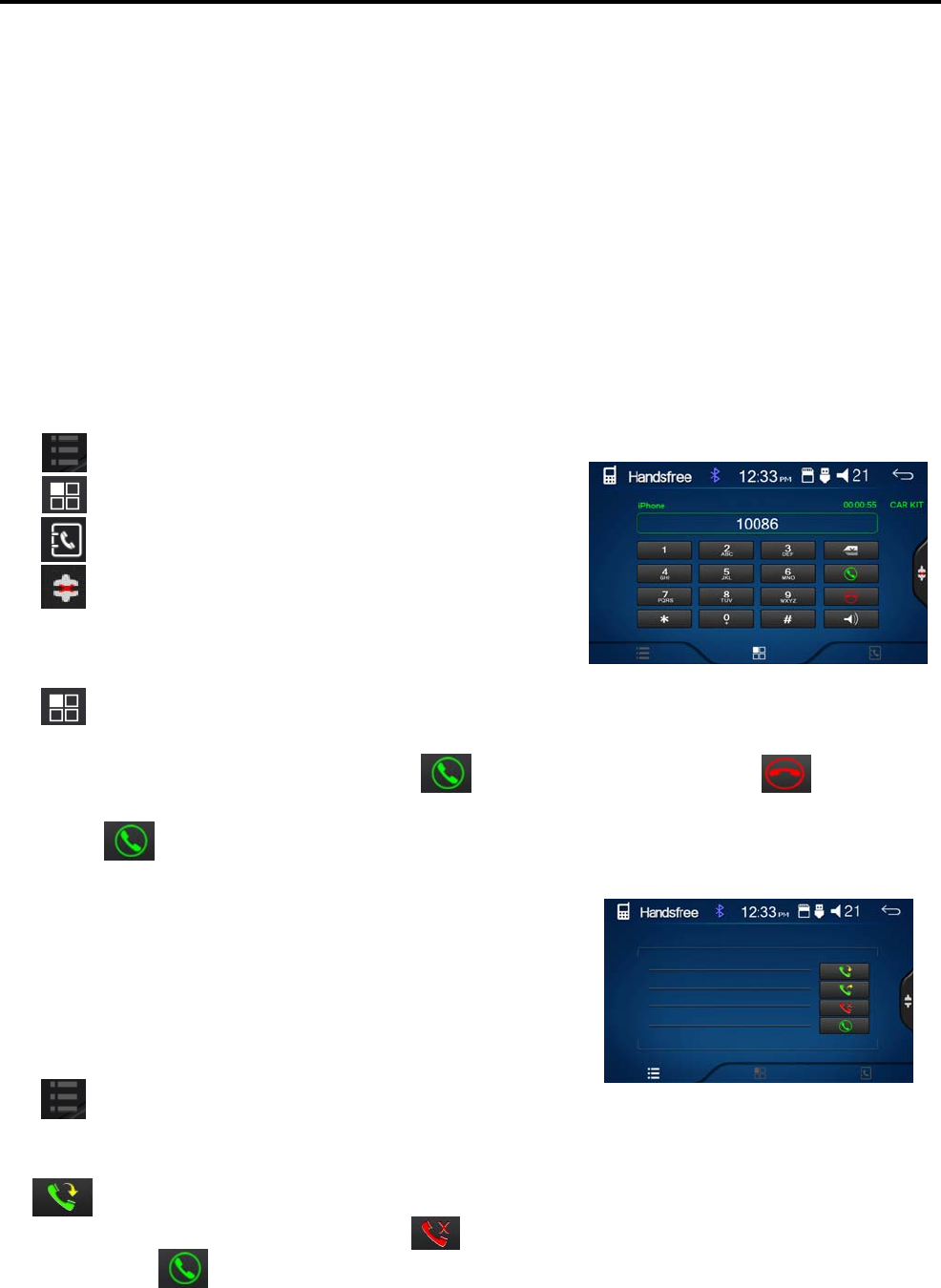

Tap can see call history.
Tap calling key pad menu to make a call.
Tap calling button to use phonebook functions.
Tap to connect / disconnect bluetooth.
calling button
Tap button to enter call mode.
In call mode, the unit can be used as your phone, making and receiving calls are possible with
bluetooth, simply tap phone number and tap button to accept a call, and tap button to hang
up.
1) Tap the button and the device will automatically makes a call to the latest call in its call log.
2) The volume will be operated separately while calling.
Calling History
To upload history & contacts off phone, tap (phone book icon)
to reach contacts menu. Tap (download icon) to gain access
to phone information. The phone may ask for permission to
release information. Select "yes" and contact & call history
will become available.
Tap button can see call history .
After the unit be allowed download the data from phone.
Tap button can see the call records of which have been received , tap button can see the call
records of which have been dialed , tap button can see the call records of which have been
missed , Tap the button to dial the number you chose.
12
![](/img.php?id=3986496&img=bge.png)
Bluetooth Operation
(A2DP) Streaming Music Mode
A2DP (Advanced Audio Distribution Profile) Music Player
A2DP is a function which can receive the audio frequency signal from the mobile phone, amplified by
the car audio and played out by the car speakers.
Notice: your mobile phone need to support A2DP.
Tap the buttons on the screen as shown, or press corresponding buttons (pause/play, stop,
previous/next) on remote control to play, pause, play previous, or next music file.
Tap music streaming icon on main menu to listen to music from your bluetooth device.
Tap button to played and paused ‘music’ in bluetooth mode.
Tap and for previous and next.
Aux-In
Aux-In MODE
To start Aux-In Mode, tap Aux-In icon from main menu screen. connect the external audio signal source
to this unit will display “NOW PLAYING”.
Note: Aux-In does not support a video display function. A "NO SIGNAL DETECTED" display will appear if
there is no audio signal input. Press the icon to to go back to the main menu.
13
![](/img.php?id=3986496&img=bgf.png)
Troubleshooting
Symptom Cause Remedy
General
Power does not turn
on
(No sound is
produced)
Fuse is blown Replace with fuse of the same amperage. If
the fuse blows again, consult your store of
purchase
Incorrect wiring Consult your local retailer
No sound output when
operating the unit with
amplifiers or power
antenna attached
Power antennal lead
is shorted to ground,
excessive current is
required or remote
on the amplifiers or
power antenna
1. Turn off the unit
2. Remove all wires attached to the power
antenna lead, check each wire for a
possible short to ground using an ohm
meter
3. Turn on the unit
4. Reconnect each amplifier remote wire to
the power antenna lead one by one. If the
amplifiers turn off before all wires are
attached, use an external replay to provide
remote-on voltage (excessive current
required)
Nothing happens
when buttons
are pressed
Display is not
Accurate
Unit needs to be
Reset Using a pen or toothpick, press and release
the Where is it located?
Panel or main unit
Connectors are dirty Wipe the dirt off with a soft cloth moistened
with cleaning alcohol
14
![](/img.php?id=3986496&img=bg10.png)
Troubleshooting
symptom Cause Solution
No power
The car ignition is not on If the power supply is properly connected
to the car accessory switch the ignition key
to “ACC”
The fuse is blown Replace the fuse
No sound
Volume is in minimum Adjust volume to a desired level
Wiring is not properly
connected Check wiring connection
The operation keys do
not work
The built-in microcomputer
is not operating properly
due to noise Press the power button for about 10
seconds
to reset the unit
Front panel is not properly
fix into its place
Sound skips
The installation angle is
more than 30 degrees Adjust the installation angle to less than 30
degrees
The disc is extremely dirty
or defective Clean the compact disc/try to play a new
one
The radio does not
work, the radio station
automatic selection
does not work
The antenna cable is not
connected the signals are
too weak
Insert the antenna cable firmly select a
station manually
15
![](/img.php?id=3986496&img=bg11.png)
General Specification
General
Power supply 11~16V DC
Current consumption Max. 10 A
Maximum power output 45W x 4 channels (max)
Compatible formats MP3,WMA,JPEG,AVI
Dimensions (W x D x H) / weight 6.5” x 7.0” x 3.9” /4.15 lbs
Working temperature range -4°F -- +140°F
TFT display
Screen size 6.2 inch
Resolution 800*480 pixel
Aspect ration 4:3/16:9
Brightness 460 cd/㎡
Contrast ratio 500:1
FM radio
Frequency range(Europe area) FM:87.5 –108MHz(Step 50KHz)
Frequency range(America area) FM:87.5 –107.9MHz(Step 200KHz)
Frequency range(Asia area) FM:87.5 –108MHz(Step 100KHz)
Frequency range(South America area) FM:87.5 –108MHz(Step 100KHz)
Frequency range(Russia area) FM:87.5 –108MHz(Step 50KHz) 65-74MHz(Step 30KHz)
Preset memory stations 18
AM(MW)radio
Frequency range(Europe area) AM:522-1620(Step 9KHz)
Frequency range(America area) AM:530-1710(Step 10KHz)
Frequency range(Asia area) AM:531-1602(Step 9KHz)
Frequency range(South America area) AM:520-1710(Step 10KHz)
Frequency range(Russia area) AM:522-1620(Step 9KHz)
Preset memory stations 12
Audio specification
Frequency response 20 Hz-20 KHz
TV Color System Color system NTSC/PAL
USB interface
USB type USB 2.0 full speed
Specifications are subject to change without notice, mass and dimension are approximate.
16
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be
installed and operated with minimum 20cm distance between the radiator your body: Use
only the supplied antenna.
