1 SCOPE OF MANUAL
This manual describes ASK LDB 307 «Safe ID» reader main features and setup information.
This manual is intended for use by end users. No specific tools are required for operation
described in this document.
LDB 307 «Safe ID» is a contactless smart card reader compliant with the following standards
: - ISO 7816
- ISO 14443 type A&B
- ISO 15693
High speed protocols are supported:
Up to 424 Kb/s for Type A and Type B cards.
848 Kb/s is supported using ASK qualified cards.
LDB 307 «Safe ID» integrates also Philips component to read/write on Mifare® standard
cards.
The LDB307 is compliant with USB1.1 or USB2.0 computer interface.
1.1 UNPACKING AND INSPECTION

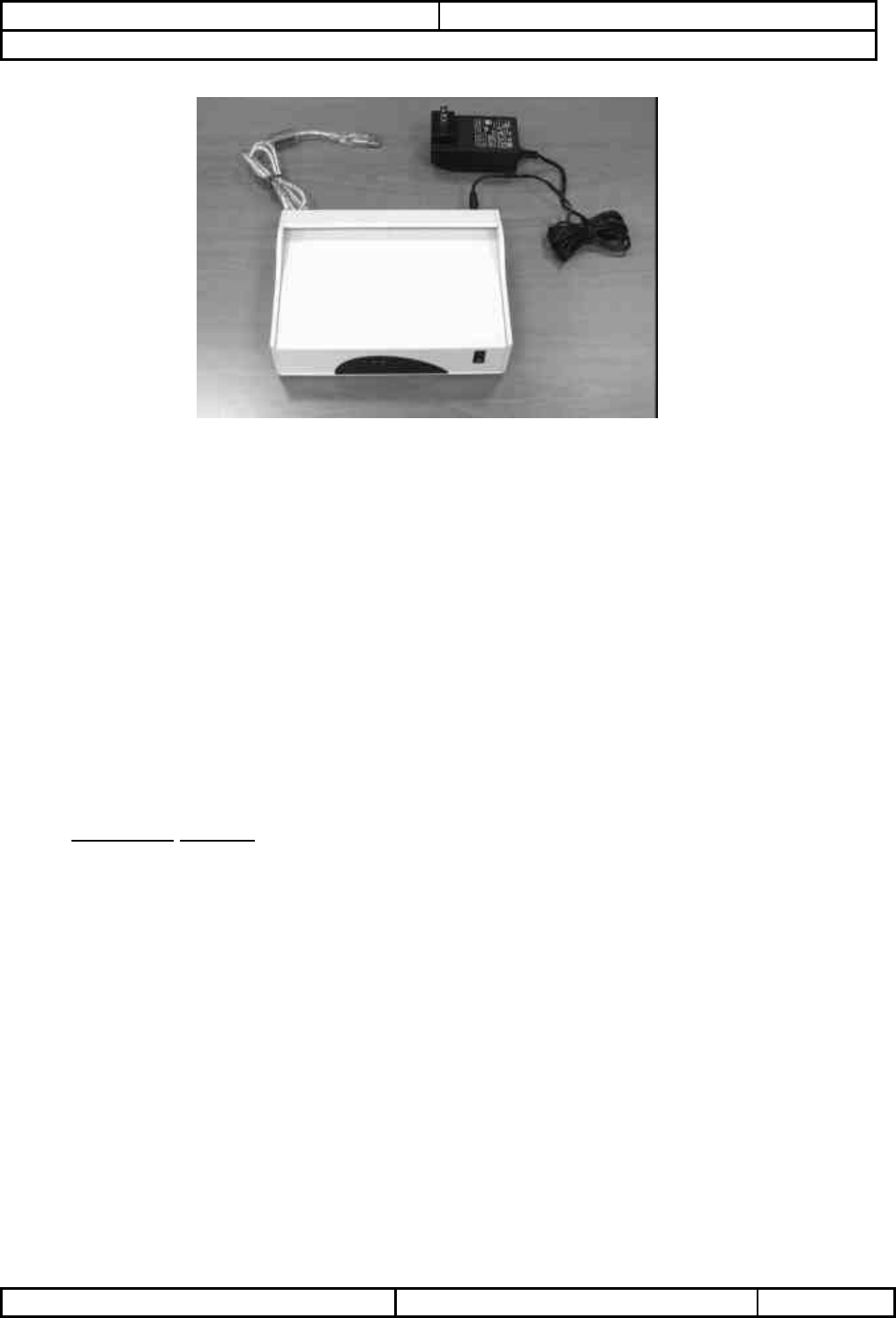

Each LDB 307 «Safe ID» kit is shipped with :
- USB cable attached (length: 0,8 meters)
- This user manual
- One power supply: Universal 100 ~240V AC / 12V DC 500mA or
appropriate plug and mains voltageà 12V DC 500mA depending on purchase
location.
- LDB 307 «Safe ID» reader packaged in plastic case
USER MANUEL LDB 307 «Safe ID»
DESKTOP READER
ASK R&D Réf. : RD-MU-050656-11 4 / 12
Copyright ASK SA - 2003
LDB 307 «Safe ID» reader is a contactless reader dedicated for operators as desktop reader
for passport verification, due to its specific design, but also for card issuing center, point of
sales, etc…
LDB 307 «Safe ID» provides the communication between a terminal and customer smart
cards.
1.2 READER COMPONENTS
LDB 307 «Safe ID» consists of a control board called ”coupler board”, and antenna board, a
DC supply converter board (with two extra SAM sockets).
A FTDI “USB to serial” interface is included
1.2.1 COUPLER BOARD
The coupler board contains a microprocessor, non-volatile memory and a radio frequency
transmitting circuitry. This board communicates with smart cards via RF link (provided by an
antenna board), and to the terminal via “USB to serial” interface. The coupler platform is
GEN327 which can be purchased separately at ASK. This OEM coupler board is compliant
with ISO/IEC14443-2 directives (Radio frequency power and signal interface).
Communications can be executed according to the type A or type B of the directive.
USER MANUEL LDB 307 «Safe ID»
DESKTOP READER
ASK R&D Réf. : RD-MU-050656-11 5 / 12
Copyright ASK SA - 2003

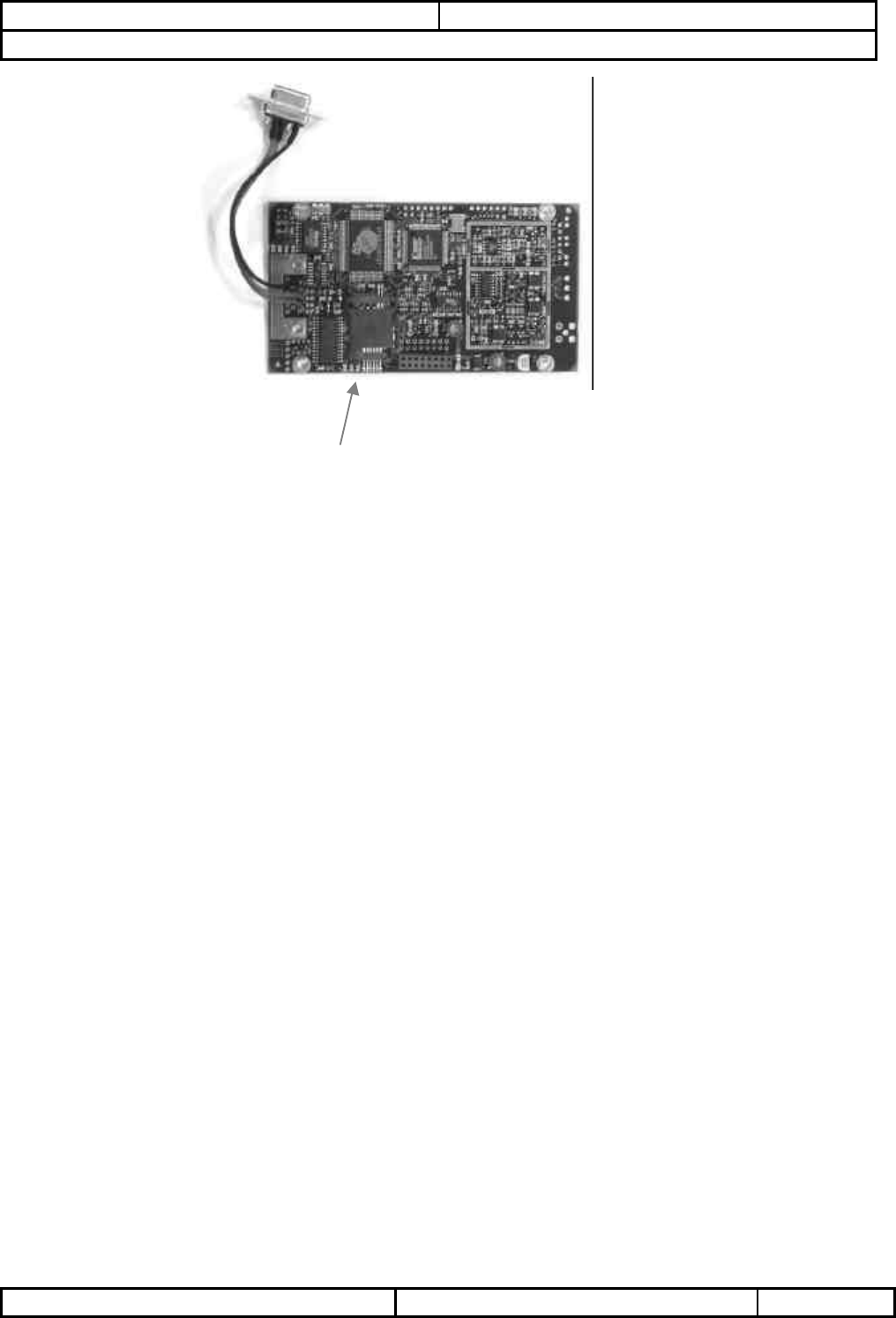

Figure121 : LDB 307 «Safe ID» coupler : GEN 327
SAM1 location
USER MANUEL LDB 307 «Safe ID»
DESKTOP READER
ASK R&D Réf. : RD-MU-050656-11 6 / 12
Copyright ASK SA - 2003
1.2.2 ANTENNA BOARD
The antenna board consists of a printed circuit board with copper traces forming the transmit
and the receive antenna. Antenna may be one of several types, varying in dimensions and
connection. LDB 307 «Safe ID» receives GEN 535 antenna because its area (178x125mm)
matches well with a passport verification application. This antenna has a tuning capacitor, but
no setting is required because it has been optimized in factory.
Optimal tuning is obtained when LED indicator is at its maximum illumination.

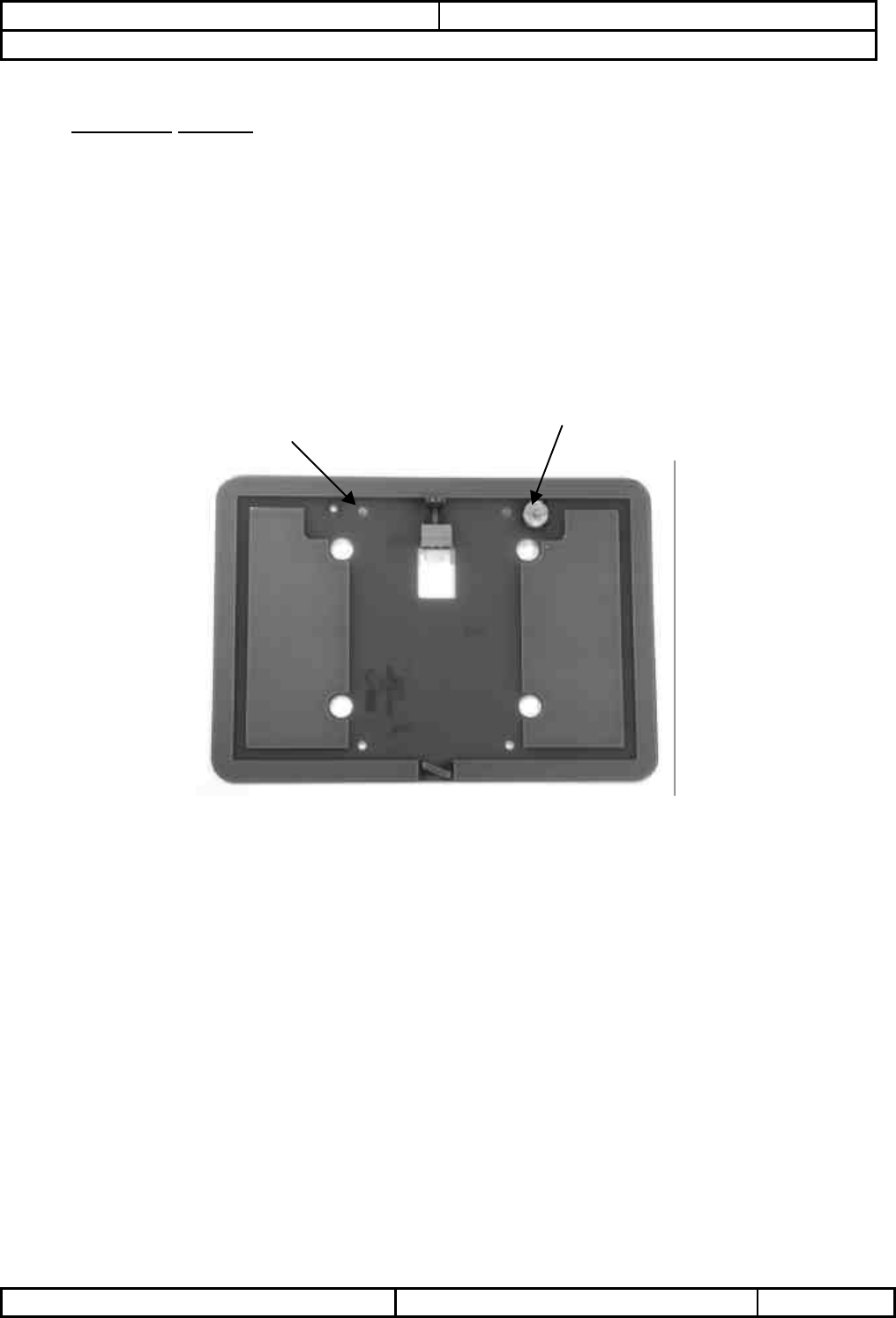

Figure 22 : LDB 307 «Safe ID» antenna : GEN 535
Tuning trimmer
Tuning LED indicator
USER MANUEL LDB 307 «Safe ID»
DESKTOP READER
ASK R&D Réf. : RD-MU-050656-11 7 / 12
Copyright ASK SA - 2003
1.2.3 POWER SUPPLY BOARD
This board contains a DC-DC converter and two extra SAM locations. Input line should be
from 9V to 36V DC. Typically an AC power bloc with output 12V 500mA (with or without
regulation) should be used.

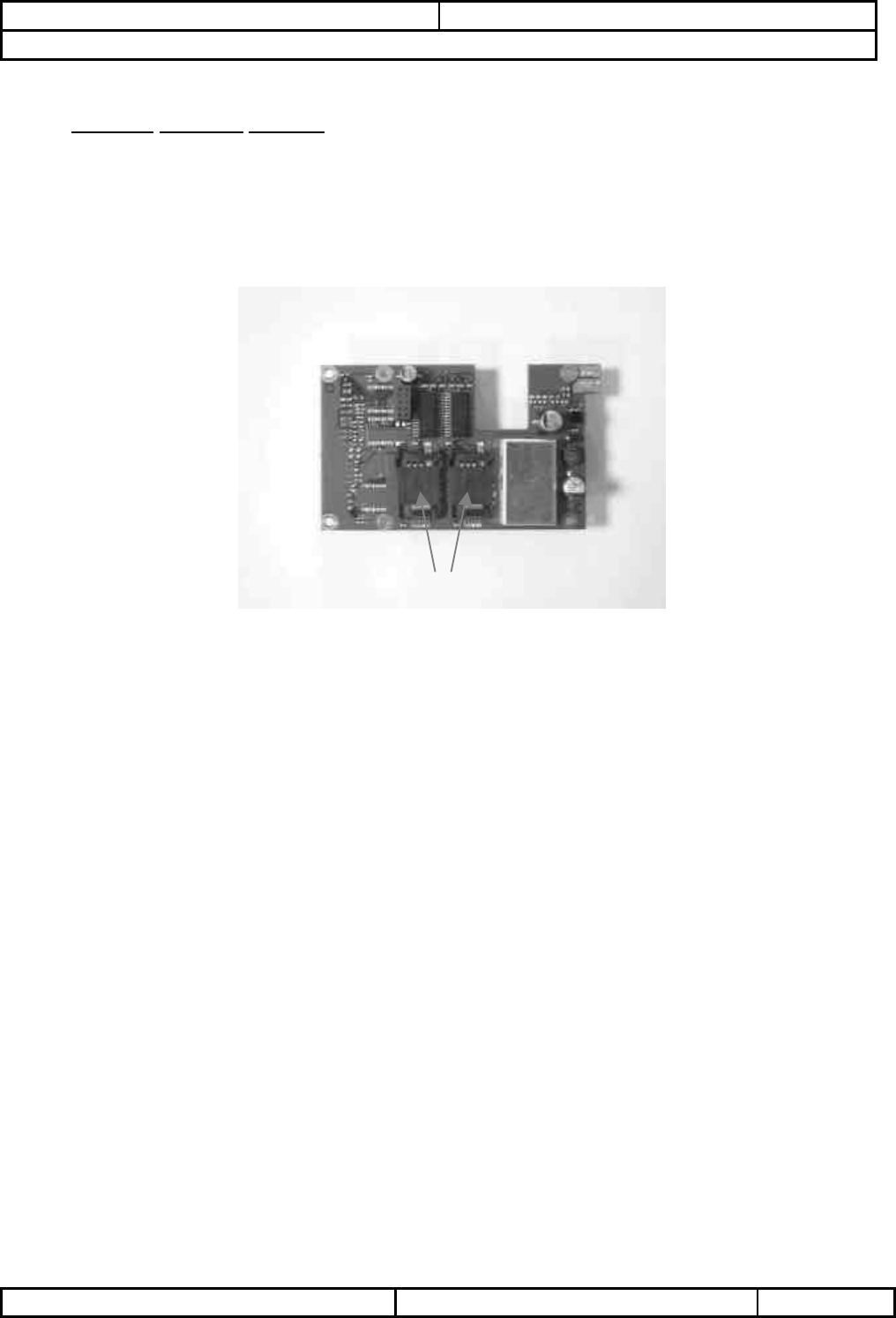

Figure 3 : LDB 307 «Safe ID» DC conversion / SAM extension board : GEN 351
SAM location
USER MANUEL LDB 307 «Safe ID»
DESKTOP READER
ASK R&D Réf. : RD-MU-050656-11 8 / 12
Copyright ASK SA - 2003
1.3 ASSEMBLY
Inside the plastic case these boards are stacked together (
Figure 4).

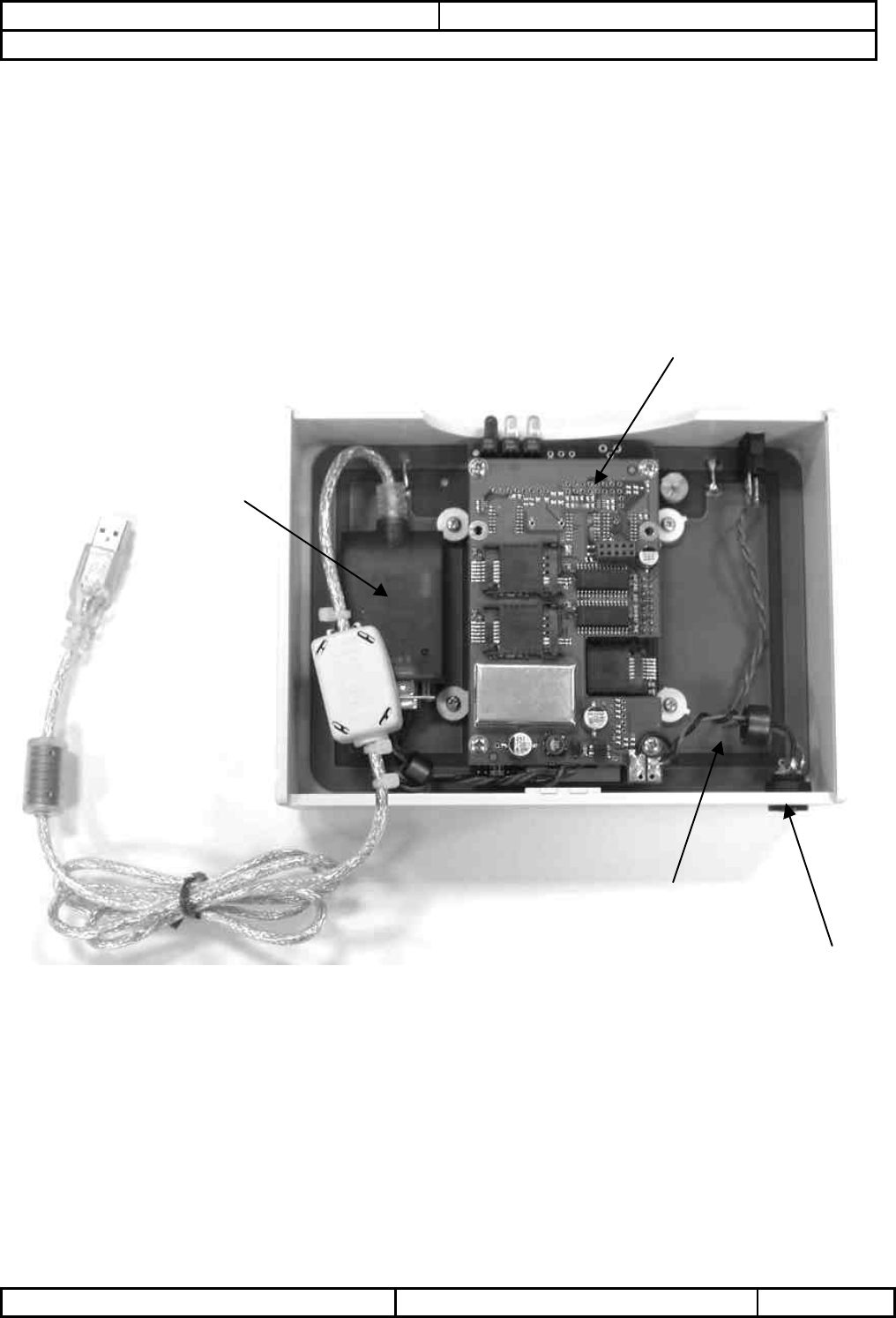

Figure 4 : stacked boards in reader
Power supply board
USB adaptor
Antenna board
DC input
USER MANUEL LDB 307 «Safe ID»
DESKTOP READER
ASK R&D Réf. : RD-MU-050656-11 9 / 12
Copyright ASK SA - 2003
2 READER SETUP
2.1 INSTALLING A NEW SAM IN READER
In most applications, one SAM (Security Application Module) or more is required.
These components are provided separately, so to set a SAM, the plastic case
should be opened.
For opening, flip over the plastic case. You have to put a blade in the rear slot and
lift the bottom of the case in order to set free a central ergot. Then the bottom of the
box should be removed by sliding in the front side direction.
The stacked board will appear as in
Figure 4, the first SAM should be installed on coupler board GEN 32X (Erreur !
Source du renvoi introuvable.) and next SAMs should be installed on DC
conversion board GEN 351 (Figure 3).
Caution: In a first time, µSIM SAMs must be gently inserted in the open door
socket (Figure 5), then in a second time the door should be locked.

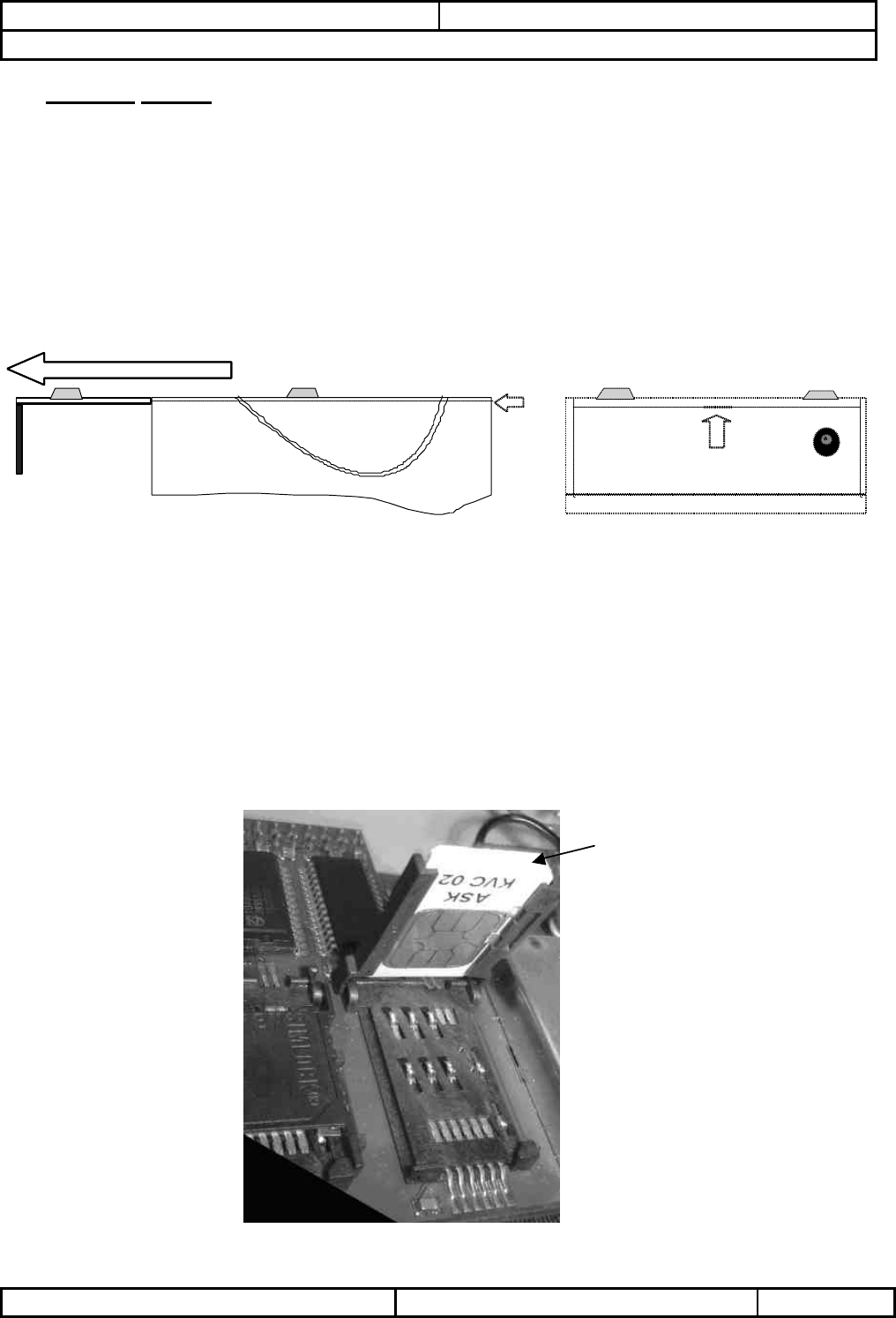

Figure 5 : SAM in open door
SAM
USER MANUEL LDB 307 «Safe ID»
DESKTOP READER
ASK R&D Réf. : RD-MU-050656-11 10 / 12
Copyright ASK SA - 2003
2.2 READER CONNEXION
The reader’s USB cable should be connected to a USB computer port.
You will be asked to install “USB serial port” driver located in the furnished toolkit.
Suitable driver is also available on FTDI website http://www.ftdichip.com/
at the following link: http://www.ftdichip.com/Drivers/FT232-FT245/VCP/Win/R9052154.zip
Plug the main adapter included in the « Power-Jack » connector. The main adapter should
provide 12V DC – 500mA.
Turn on the switch located at the front side, the red LED will light at power-on. The LDB 307
«Safe ID» is then in power and ready to work.
3 HOW TO USE THE READER
3.1 CONTACTLESS OPERATIONS
All the top surface of LDB 307 «Safe ID» reader is active.
Passport card must be laid opened on the reader.
USER MANUEL LDB 307 «Safe ID»
DESKTOP READER
ASK R&D Réf. : RD-MU-050656-11 11 / 12
Copyright ASK SA - 2003
3.2 SOFTWARE
The LDB is delivered by default with an application software called CSC which supports the
ASK cards and C.ticket families.
The external LEDs of the reader can be controlled by customer applicative software using
CSC software commands.
In the same way, the extra SAM modules supported by the GEN351 board have to be
managed by the host application via CSC protocol.
3.3 CLEANING
No adjustment on the reader is required. To clean, simply wipe with a wet cloth and plastic
cleaner, abrasive products are prohibited.
4 STANDARD COMPLIANCE
4.1 FCC COMPLIANCE STATEMENTS
For the FCC compliance, the 110V power supply was considered.
This equipment has been tested and found to comply with the radiated limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide a
reasonable protection against harmful interferences in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try the correct interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions. (1) This device may not cause harmful interferences. And (2) this device must
accept any interference received, including interference that may cause undesired operation.
The ASK LDB 307 «Safe ID» reader was submitted and a grand of authorization received
from the FCC as device under the intentional radiator requirements of Part 15, Subpart C.
USER MANUEL LDB 307 «Safe ID»
DESKTOP READER
ASK R&D Réf. : RD-MU-050656-11 12 / 12
Copyright ASK SA - 2003
Compliance accessories : The accessories associated with this equipment are: shielded
USB cable and Universal switching mains adaptor (12V DC 500mA). These accessories are
required to be used in order to ensure compliance with the FFC rules.
Caution : Any changes or modification not approved by ASK could void user’s authority to
operate the equipment. Switching power mode adaptors are prohibited.
It is strictly prohibited to remove the ferrites from the device.
4.2 CE COMPLIANCE STATEMENT
The ASK LDB 307 «Safe ID» reader is in conformity with European requirements, this
product has been assessed to the following standard:
EN 300330
EN 301 489-3
EN 50121-4
EN 60950-1
