ASKA ELECTRONICS F8 Bluetooth Headphone User Manual F8 20161103

ASKA ELECTRONICS CO., LIMITED Bluetooth Headphone F8 20161103

User Manual

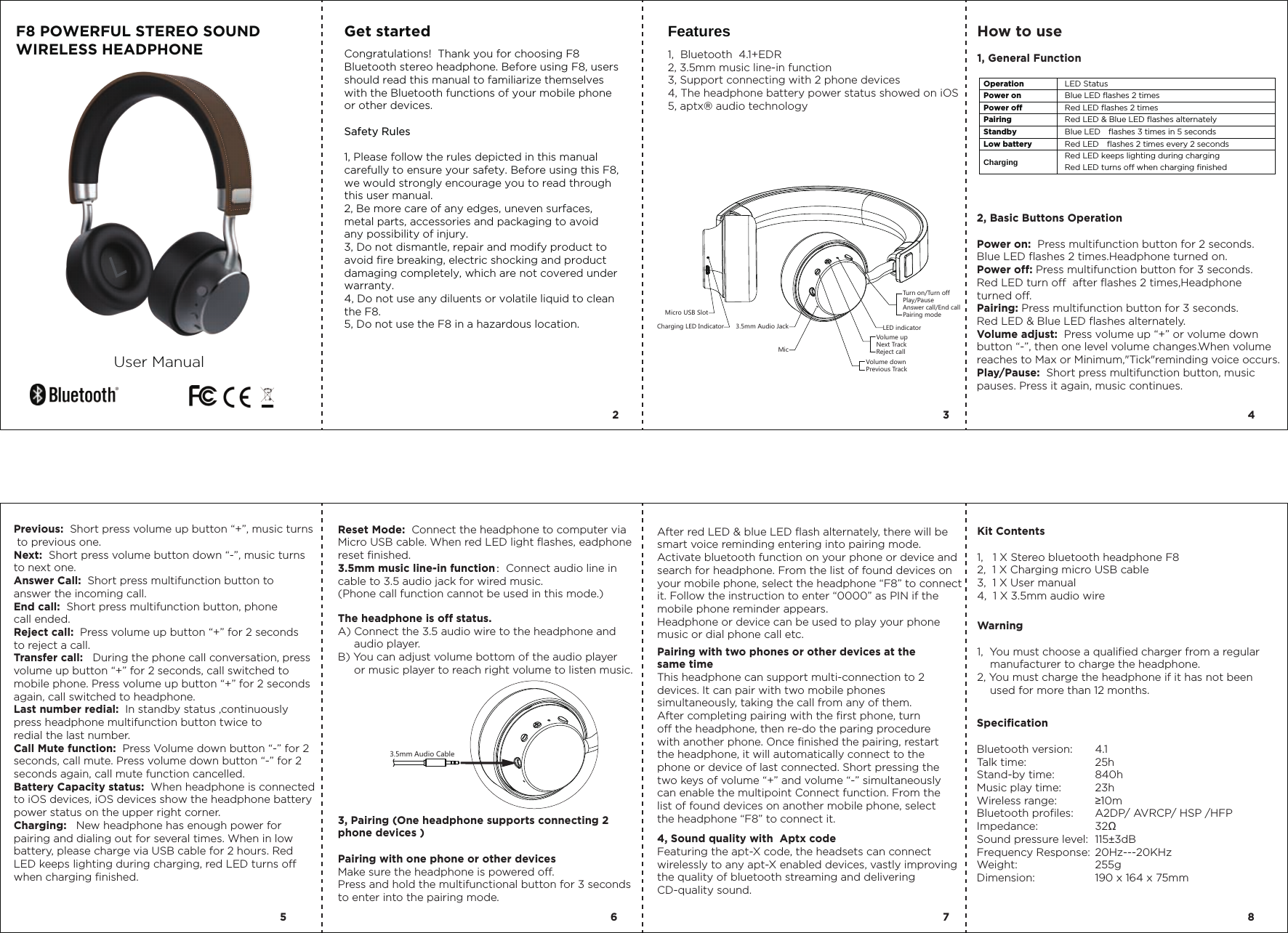

Micro USB SlotCharging LED Indicator LED indicatorVolume upNext TrackReject callVolume downPrevious TrackTurn on/Turn offPlay/PauseAnswer call/End callPairing modeMic3.5mm Audio Jack3.5mm Audio CableF8 POWERFUL STEREO SOUND WIRELESS HEADPHONEUser ManualGet started Features1, Bluetooth 4.1+EDR2, 3.5mm music line-in function3, Support connecting with 2 phone devices 4, The headphone battery power status showed on iOS5, aptx® audio technology How to use1, General Function 2, Basic Buttons OperationPower on: Press multifunction button for 2 seconds.Blue LED flashes 2 times.Headphone turned on.Power off: Press multifunction button for 3 seconds. Red LED turn off after flashes 2 times,Headphoneturned off.Pairing: Press multifunction button for 3 seconds. Red LED & Blue LED flashes alternately.Volume adjust: Press volume up “+” or volume down button “-”, then one level volume changes.When volume reaches to Max or Minimum,"Tick"reminding voice occurs.Play/Pause: Short press multifunction button, music pauses. Press it again, music continues.Previous: Short press volume up button “+”, music turns to previous one.Next: Short press volume button down “-”, music turnsto next one.Answer Call: Short press multifunction button to answer the incoming call.End call: Short press multifunction button, phone call ended.Reject call: Press volume up button “+” for 2 seconds to reject a call.Transfer call: During the phone call conversation, press volume up button “+” for 2 seconds, call switched to mobile phone. Press volume up button “+” for 2 seconds again, call switched to headphone. Last number redial: In standby status ,continuously press headphone multifunction button twice to redial the last number.Call Mute function: Press Volume down button “-” for 2 seconds, call mute. Press volume down button “-” for 2 seconds again, call mute function cancelled.Battery Capacity status: When headphone is connected to iOS devices, iOS devices show the headphone battery power status on the upper right corner.Charging: New headphone has enough power for pairing and dialing out for several times. When in low battery, please charge via USB cable for 2 hours. Red LED keeps lighting during charging, red LED turns off when charging finished.Reset Mode: Connect the headphone to computer via Micro USB cable. When red LED light flashes, eadphone reset finished.3.5mm music line-in function：Connect audio line in cable to 3.5 audio jack for wired music.(Phone call function cannot be used in this mode.)The headphone is off status. A) Connect the 3.5 audio wire to the headphone and audio player.B) You can adjust volume bottom of the audio player or music player to reach right volume to listen music.3, Pairing (One headphone supports connecting 2 phone devices )Pairing with one phone or other devicesMake sure the headphone is powered off.Press and hold the multifunctional button for 3 seconds to enter into the pairing mode.Kit Contents1, 1 X Stereo bluetooth headphone F82, 1 X Charging micro USB cable3, 1 X User manual4, 1 X 3.5mm audio wire4, Sound quality with Aptx codeFeaturing the apt-X code, the headsets can connect wirelessly to any apt-X enabled devices, vastly improving the quality of bluetooth streaming and delivering CD-quality sound.Pairing with two phones or other devices at the same timeThis headphone can support multi-connection to 2 devices. It can pair with two mobile phones simultaneously, taking the call from any of them. After completing pairing with the first phone, turn off the headphone, then re-do the paring procedure with another phone. Once finished the pairing, restart the headphone, it will automatically connect to the phone or device of last connected. Short pressing the two keys of volume “+” and volume “-” simultaneously can enable the multipoint Connect function. From the list of found devices on another mobile phone, select the headphone “F8” to connect it.4.125h 840h23h ≥10mA2DP/ AVRCP/ HSP /HFP32Ω115±3dB20Hz---20KHz255g190 x 164 x 75mmSpecificationBluetooth version:Talk time: Stand-by time:Music play time:Wireless range:Bluetooth profiles:Impedance:Sound pressure level:Frequency Response:Weight:Dimension:2 35 6 7 84After red LED & blue LED flash alternately, there will be smart voice reminding entering into pairing mode.Activate bluetooth function on your phone or device and search for headphone. From the list of found devices on your mobile phone, select the headphone “F8” to connect it. Follow the instruction to enter “0000” as PIN if the mobile phone reminder appears.Headphone or device can be used to play your phone music or dial phone call etc. Warning 1, You must choose a qualified charger from a regular manufacturer to charge the headphone.2, You must charge the headphone if it has not been used for more than 12 months.Operation LED Status Power on Blue LED flashes 2 times Power off Red LED flashes 2 times Pairing Red LED & Blue LED flashes alternately Standby Blue LED flashes 3 times in 5 seconds Low battery Red LED flashes 2 times every 2 seconds Charging Red LED keeps lighting during charging Red LED turns off when charging finished Congratulations! Thank you for choosing F8 Bluetooth stereo headphone. Before using F8, users should read this manual to familiarize themselves with the Bluetooth functions of your mobile phone or other devices.Safety Rules1, Please follow the rules depicted in this manual carefully to ensure your safety. Before using this F8, we would strongly encourage you to read through this user manual.2, Be more care of any edges, uneven surfaces, metal parts, accessories and packaging to avoid any possibility of injury.3, Do not dismantle, repair and modify product to avoid fire breaking, electric shocking and product damaging completely, which are not covered under warranty.4, Do not use any diluents or volatile liquid to clean the F8.5, Do not use the F8 in a hazardous location.

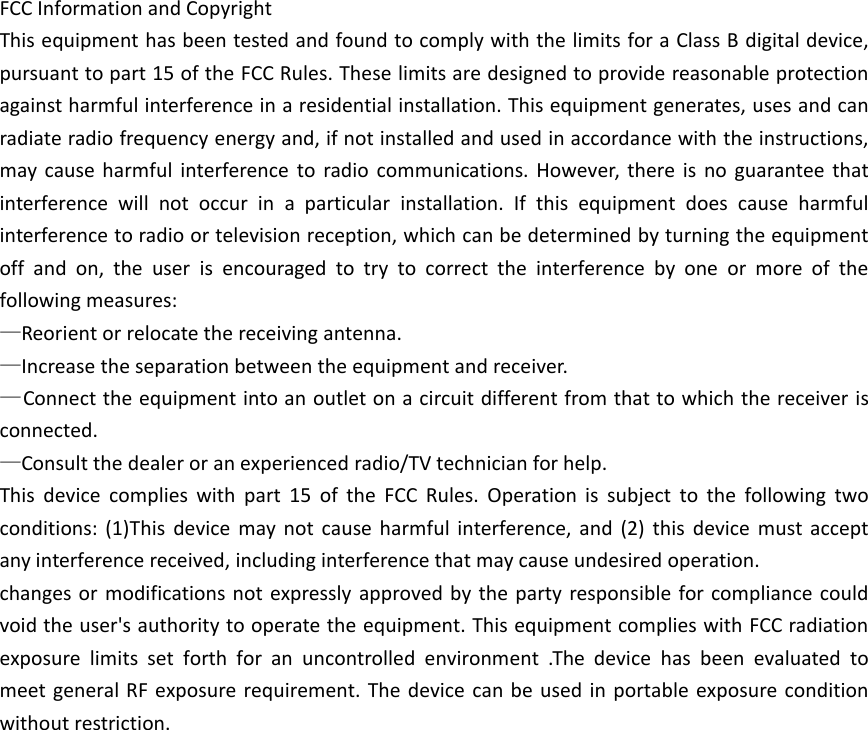

FCC Information and CopyrightThis equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.—Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1)This device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment. This equipment complies with FCC radiationexposure limits set forth for an uncontrolled environment .The device has been evaluated tomeet general RF exposure requirement. The device can be used in portable exposure conditionwithout restriction.
