ASOKA USA PL8651-RS2 ETHERNET ADAPTER User Manual PL8651 User s Manual
ASOKA USA Corporation ETHERNET ADAPTER PL8651 User s Manual
Users Manual
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a
※※※CAUTION※※※
Caution content:changes or modifications not expressly approved by the part responsible for
compliance could void the user’s authority to operate the equipment.
For a Class B digital device or peripheral, the instructions furnished the user shall include the
following or similar statement, placed in a prominent location in the text of the manual:
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
---Consult the dealer or an experienced radio/TV technician for help.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a
Asoka USA PlugLANTM
PL8651-RSB PLC Turbo Smart RS-Bridge
User’s Manual
Version: 1.01a
© Copyright 2005. Asoka USA Corportation. All rights reserved .Asoka USA
reserves the right to modify product offerings or specifications without advance
notice. No part of this publication may be produced in any format without the
express written permission of Asoka USA Corporation.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a
1. Introduction...............................................................................................................................4
1.1 Features...............................................................................................................................4
1.2 Package ...............................................................................................................................5
2. Hardware Installation............................................................................................................5
2.1 The Front Panel.................................................................................错误！未定义书签。
2.2 Connect Device and PC ......................................................................................................5
3. Smart Bridge Configuration..........................................................................................................5
3.1 Login...................................................................................................................................6
3.2 System.................................................................................................................................6
3.2.1 System Details..........................................................................................................6
3.2.2 System Password......................................................................................................7
3.2.3 System Logs.............................................................................................................8
3.2.4 System Reset............................................................................................................8
3.2.5 System Backup.........................................................................................................9
3.2.6 Firmware upgrade ..................................................................................................10
3.3 Advanced...........................................................................................................................12
3.3.1 SNMP Configuration..............................................................................................12
3.3.2 Relay Control .........................................................................................................13
3.4 IP ADDRESS ....................................................................................................................14
3.4.1 IP Address ..............................................................................................................14
3.5 POWER LINE...................................................................................................................15

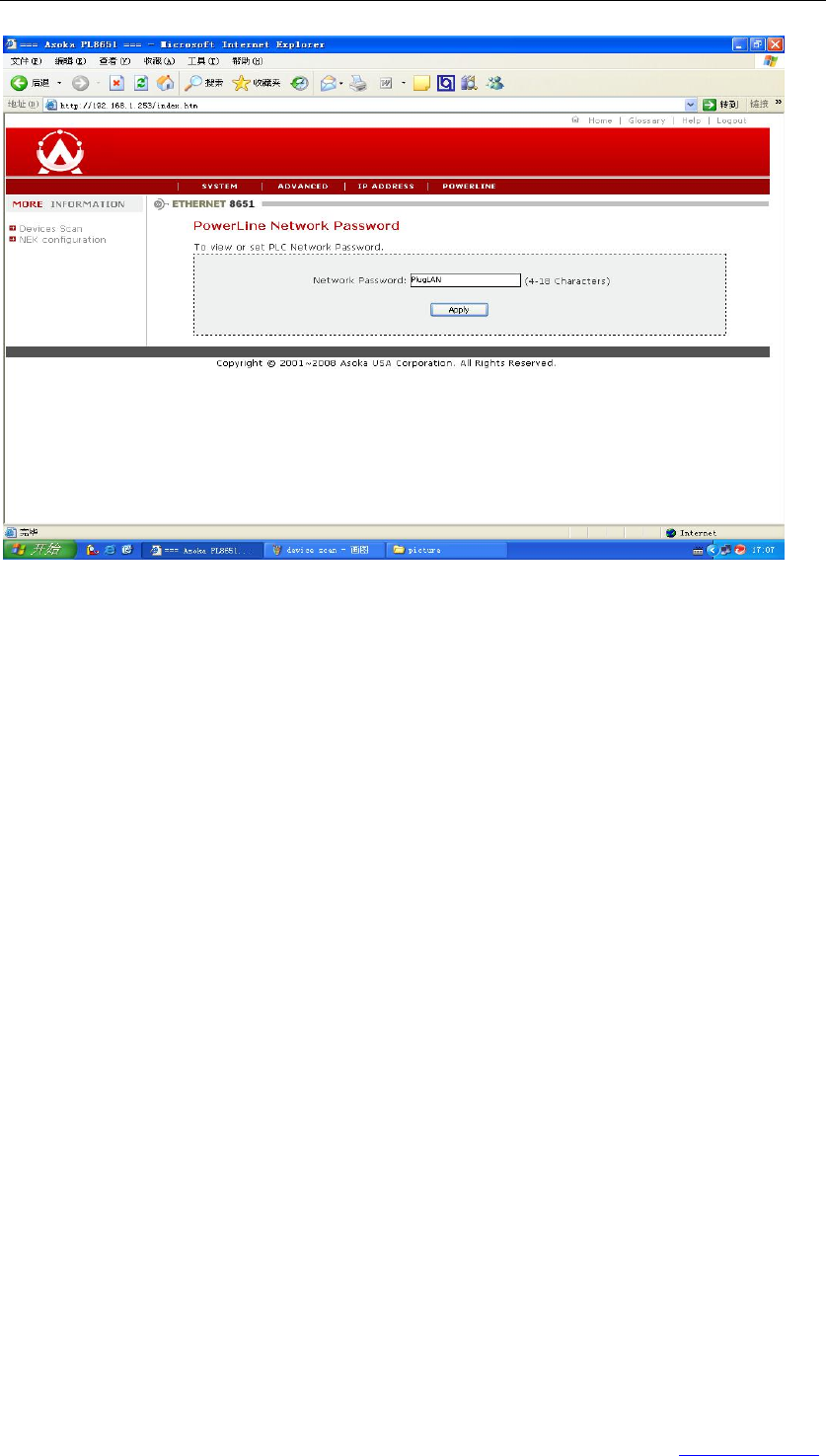

3.5.1 Password Setting....................................................................................................15

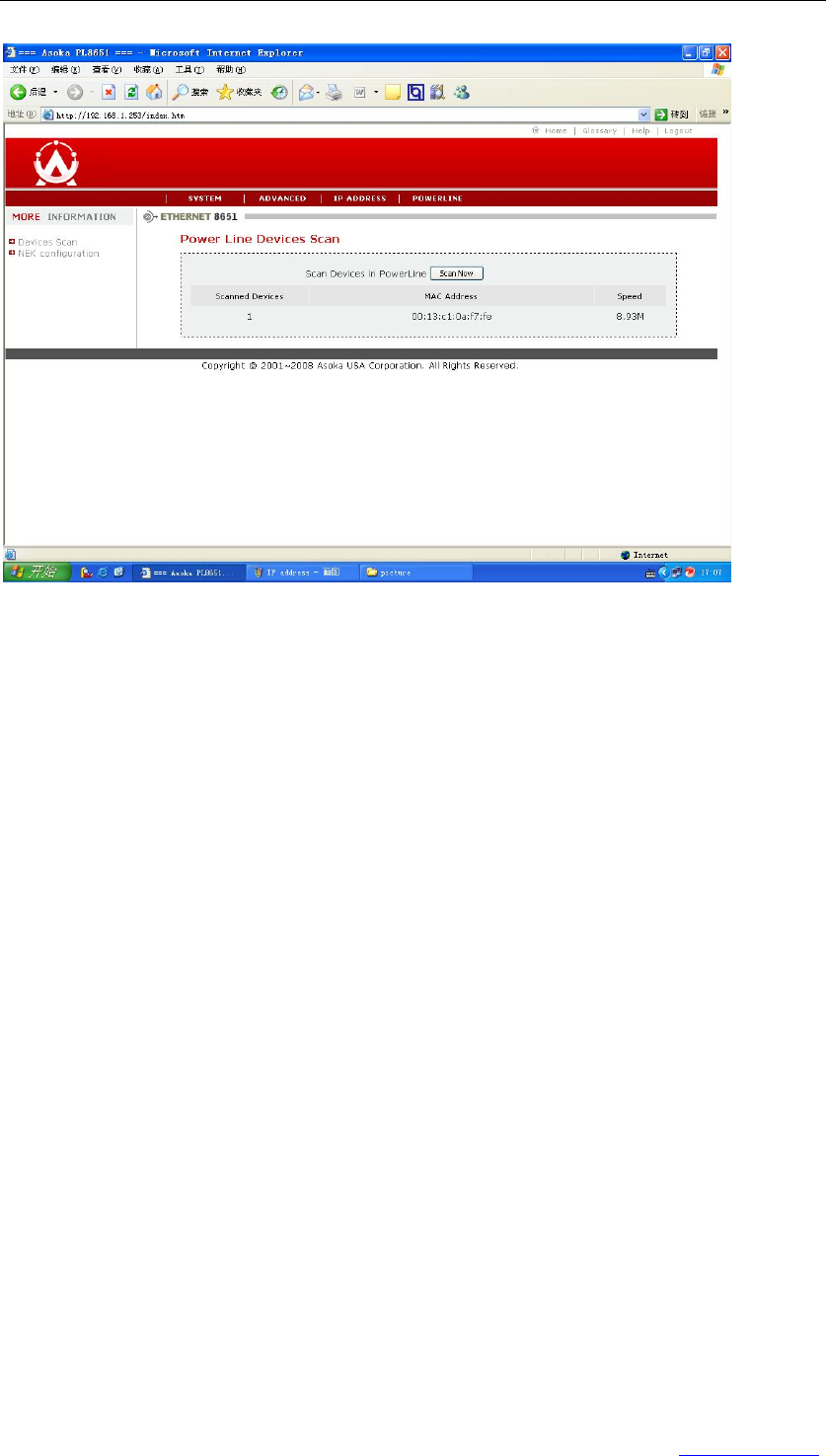

3.5.2 Device Scan............................................................................................................16
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a
Technical Support
You can download latest software from our website. If you have any
question or difficulty during installation or using PlugLANTM
PL8651-RSB, please contact our technical support engineer.
About User’s Manual
User’s Manual of PL8651-RSB is released in August, 2008, the
version is 1.01a. This manual illustrate how to installation and
configure PL8651-RSB. Please spend some time to read this manual
before using our smart bridge.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a
1. Introduction
Thanks for your selection of Asoka USA PlugLANTM PL8651-RSB. We are
devoting to provide powerful, high-performance and applied power line
networking system. The product is designed for hotel, office, apartment . It
provides a full commercial network solution with PLC technique.
1.1 Features
Complies IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE 802.3z/ab standards
Complies with IEEE802.1Q VLAN tag
Complies with HomePlug 1.0
Supports QAM 256/64/16,DQPSK,DBPSK and ROBO modulation schemes
Supports OFDM with patented signal processing techniques
Supports up to 85M bps with PLC
Supports SNMP
Supports RIPV1/2 including static routing and dynamic routing
Supports Web-based GUI (CGI , SSL)
Supports TFTP for firmware upgrade
Supports RS232/RS485 industrial interface
1.2 Package
Please make sure the package with contents as below:
z 1 PL8651-RSB ( PL8651-RS1 or PL8651-RS2)
z 1 CAT-5 UTP Cable
z User’s Manual
z 1 CD with Product Document
z 1 202 thermostat board
If you find any item as upper lost or damaged, please contact the local sales.
2. Hardware Installation
2.1 Connect Device and PC
a. Connect PL8651-RSB to AC power lines(just plug it into the AC plug if use
PL8651-RS1, but connect the wires to other connectors if use PL8651-RS2).
b. Connect the smart bridge to a PC or Laptop with CAT5 cable through RJ45
port.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a
c. Set network configuration of PC to communicate with the smart bridge. The
default IP address of the smart bridge is as below:
z Default LAN IP address: 192.168.1.253
d. Power on the smart bridge, Use command “ping” in PC side to test the
connection between the Gateway and PC. For example, you connect PC to LAN
port, the IP address of PC should be set to “192.168.1.x” (1<x<255 and x!=253),
the network mask is “255.255.255.0”.
2.2 Connect Device and thermostat board
a. Plug the cable connector into the connector on the device.
3. Smart Bridge Configuration
The Smart Bridge provides Web-based GUI for user to configure the device. It
means user can use any web explorer (Internet Explorer ,Netscape Communicator
etc. ) to implement configuration of PL8651-RSB.
3.1 Login
Connect monitor PC to RJ45 port, Start web explorer program, input
corresponding IP address of the smart bridge, then will display login page as
Figure 1, input correct User ID & Password, then can enter management
interfaces.

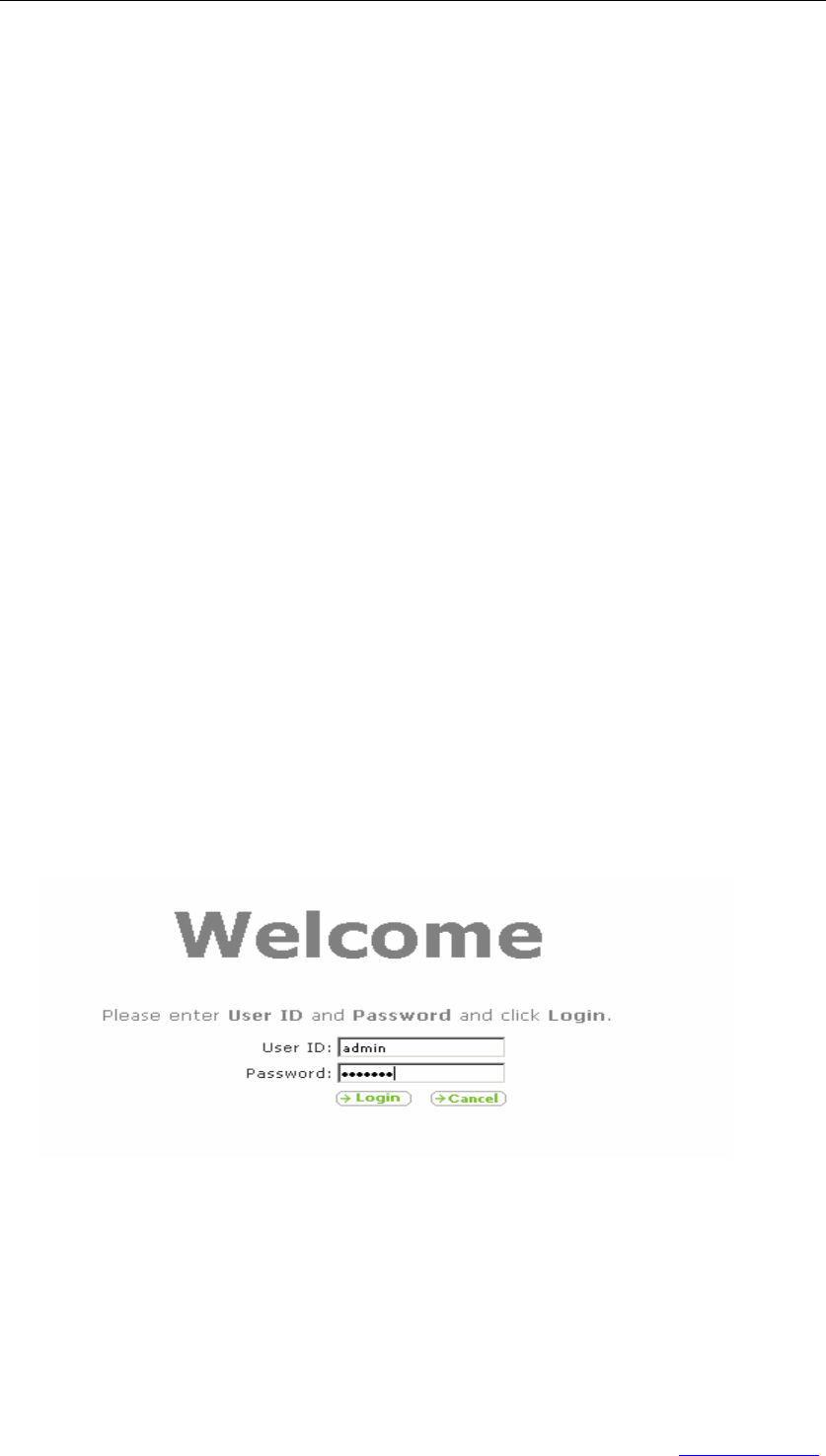

Figure 1. system login
The default User ID is “admin” and the default Password is “welcome”. Please
remember to modify User ID and Password after you login successfully first time.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a
3.2 System
System configuration provides interface to view the general configuration and
status and set general configuration of the device including Date & Time,
Password & User ID etc. It also provides interface to backup configuration, reset
system, update firmware etc.
3.2.1 System Details
When you login the web-based GUI of PL8651-RSB, The pages as below will be
shown as Figure 2 of the system details including status and basic configuration.
Figure 2. system details
z From the page, we can find that there is one main menu in the upper part for
configuration.
z The submenu in the left part of the page show all items for each menu
selected.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a

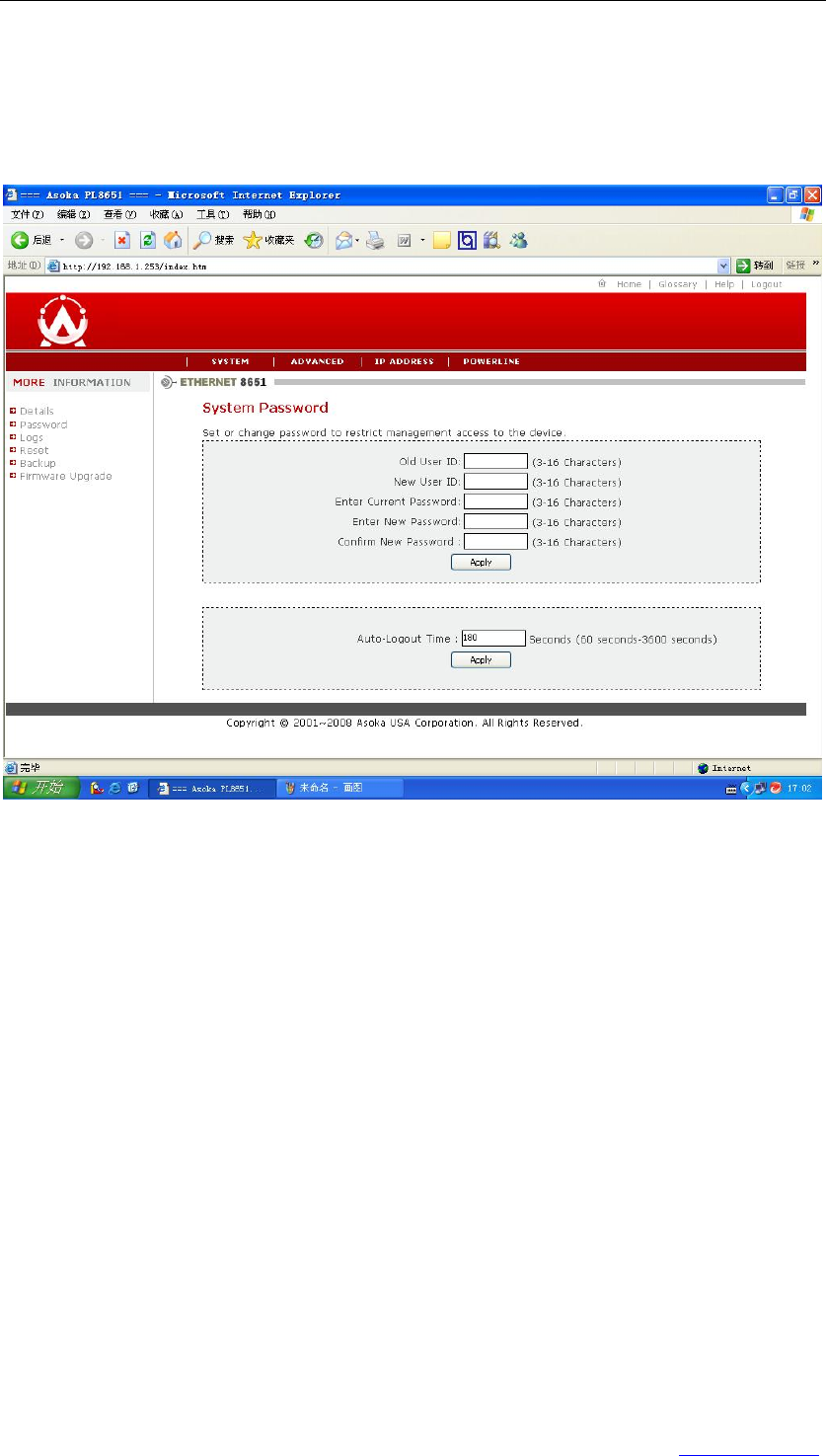

3.2.2 System Password
To change User ID or Password of the gateway, click submenu “SYSTEM->
password”, the page as Figure 3 will display.
Figure 3. access configuration
z Input old user id in the first text box
z Input new user id in the second text box (input old user id means keep user id
without change )
z Input current password in the third text box
z Input new password in the fourth text box
z Reinput new password in the fifth text box
z Click button ‘Apply’ begin set new user id or password, then a new page will
show the result of the setting
3.2.3 System Logs
To view the system logs and set some parameters of logs, click submenu
“SYSTEM->System Logs”, a page as Figure 4 will display.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a

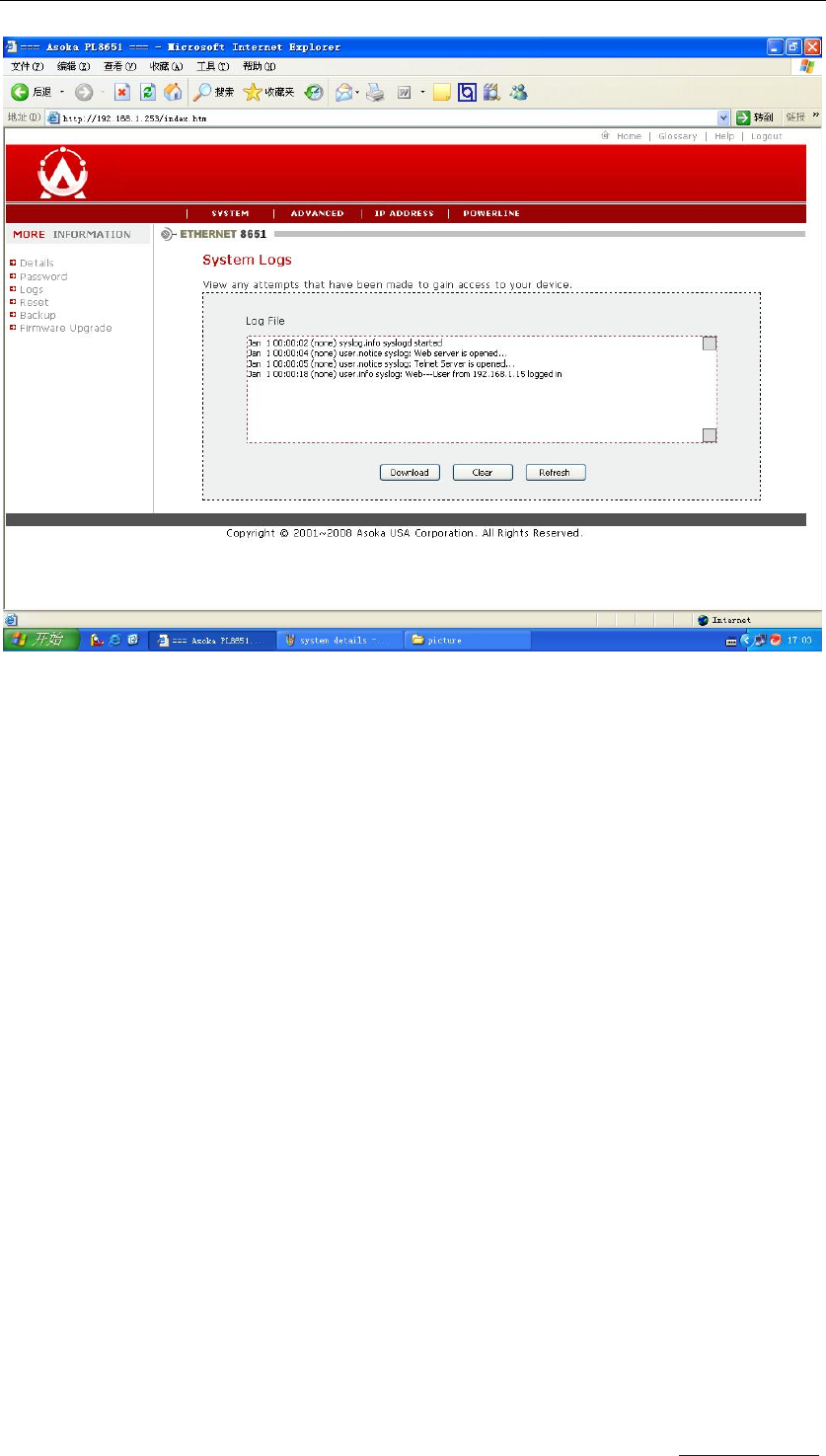

Figure 4.
z The upper list box shows the current system logs
z Click button “Download”, a dialog will display to begin log file downloading
z Click button “Clear” to delete all current logs
z Click button “Refresh” to refresh this page to show latest logs
3.2.4 System Reset
To reset the smart bridge or set the configuration to factory default, click submenu
“SYSTEM->Reset”, a page as Figure 5 will be shown.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a

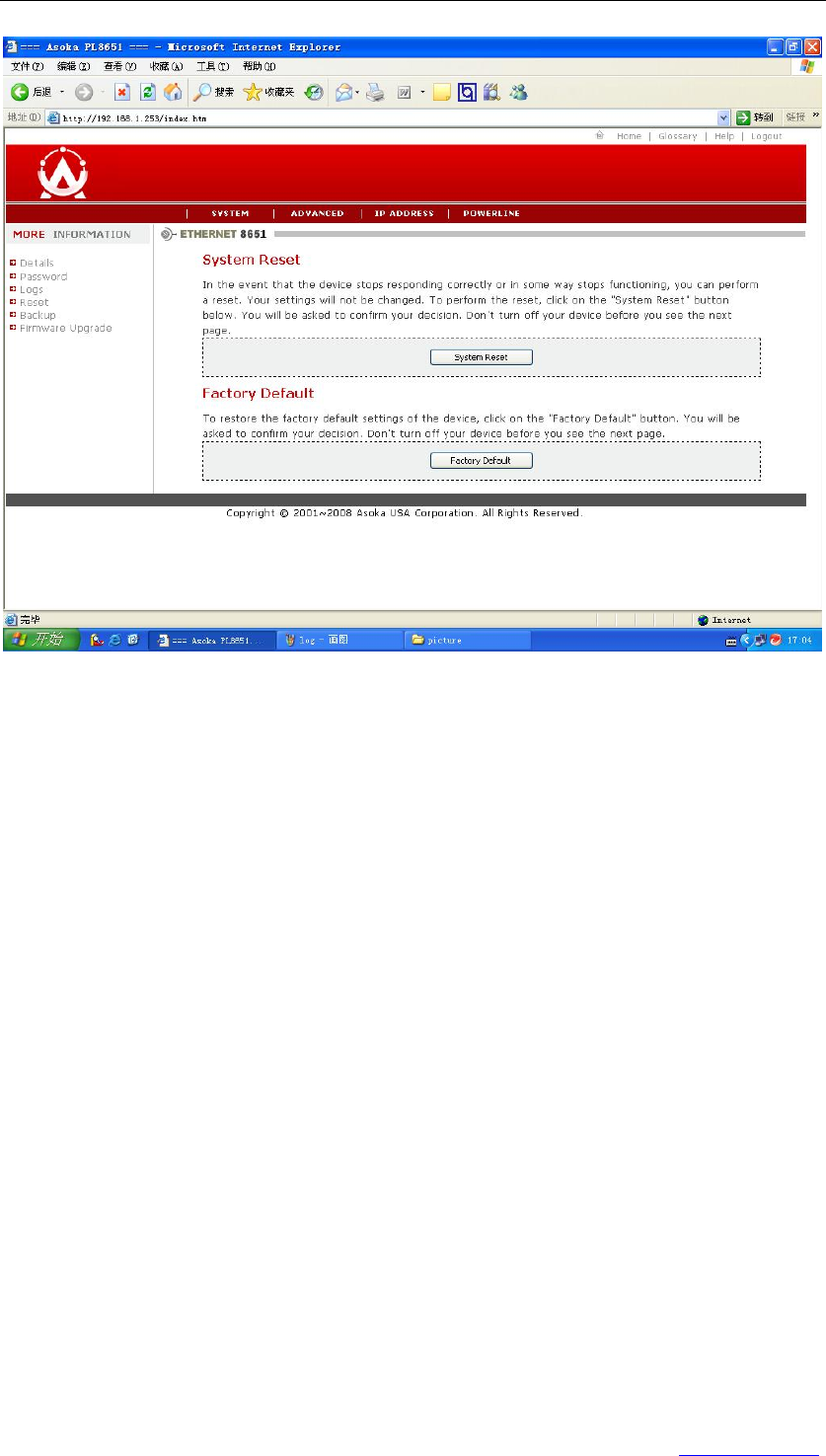

Figure 5. System reset
z To reset system, click button “System Reset”. If you confirm your decision,
please wait a minute for the system reboot.
z To restore the factory setting to the gateway, click button “Factory Default”. If
you confirm your decision, please wait a minute because the system need to
be reboot.
3.2.5 System Backup
To save the system configuration or restore the system configuration with saved
file, click submenu “SYSTEM-> Backup”, a page as Figure 6 will be shown.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a

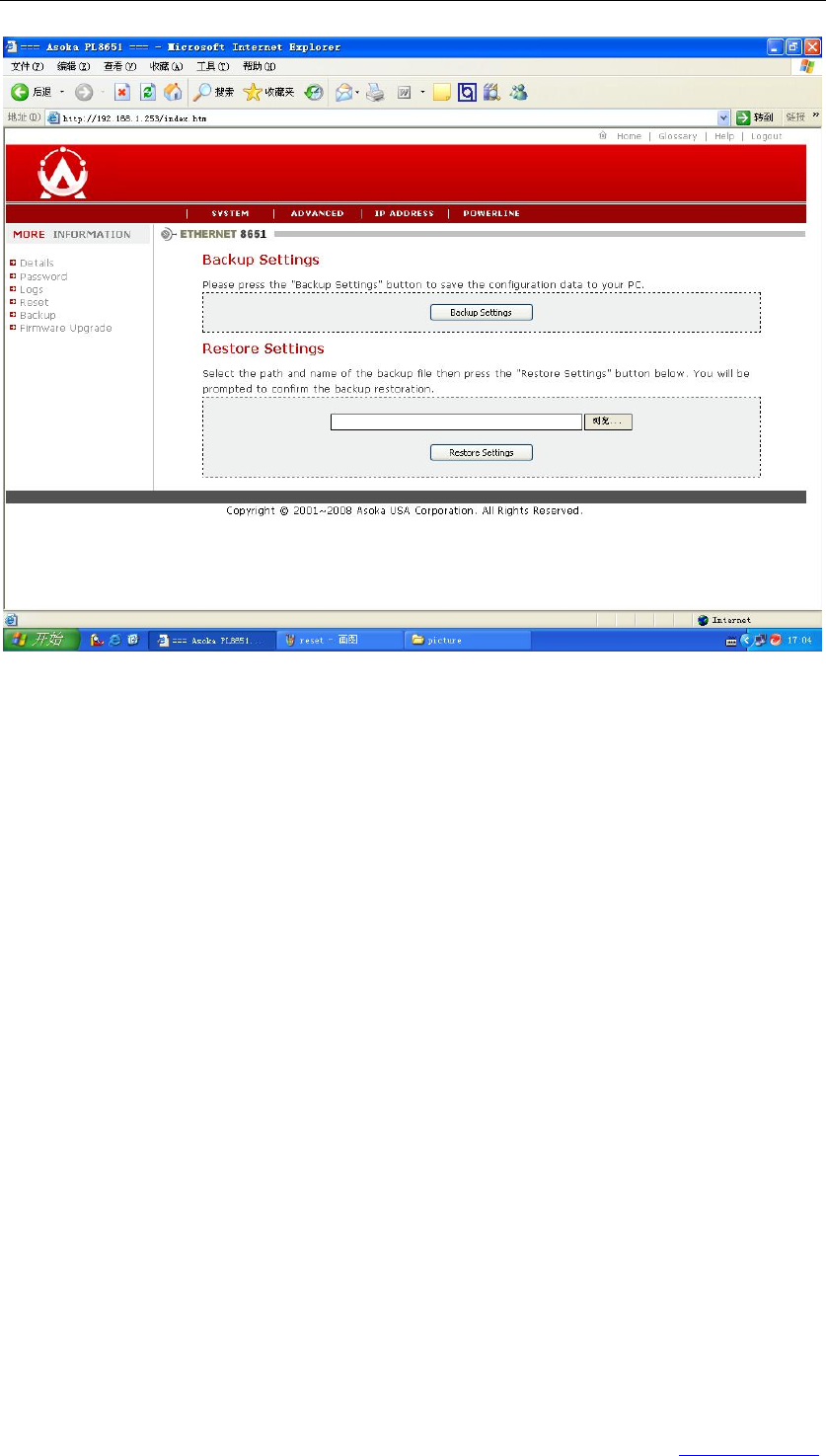

Figure 6. system reset
z To save the system configuration in local disk, click button “Back Settings”,
then a windows dialog will be pop to guide you how to save the file to local
disk.
z To restore settings of the smart bridge, click button “Browser” to select the
configuration file which saved in local host. then click button “Restore
Settings” begin to restore.
3.2.6 Firmware upgrade
To upgrade firmware, click submenu “System->Firmware upgrade”, then a page
as Figure 7 will be displayed.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a

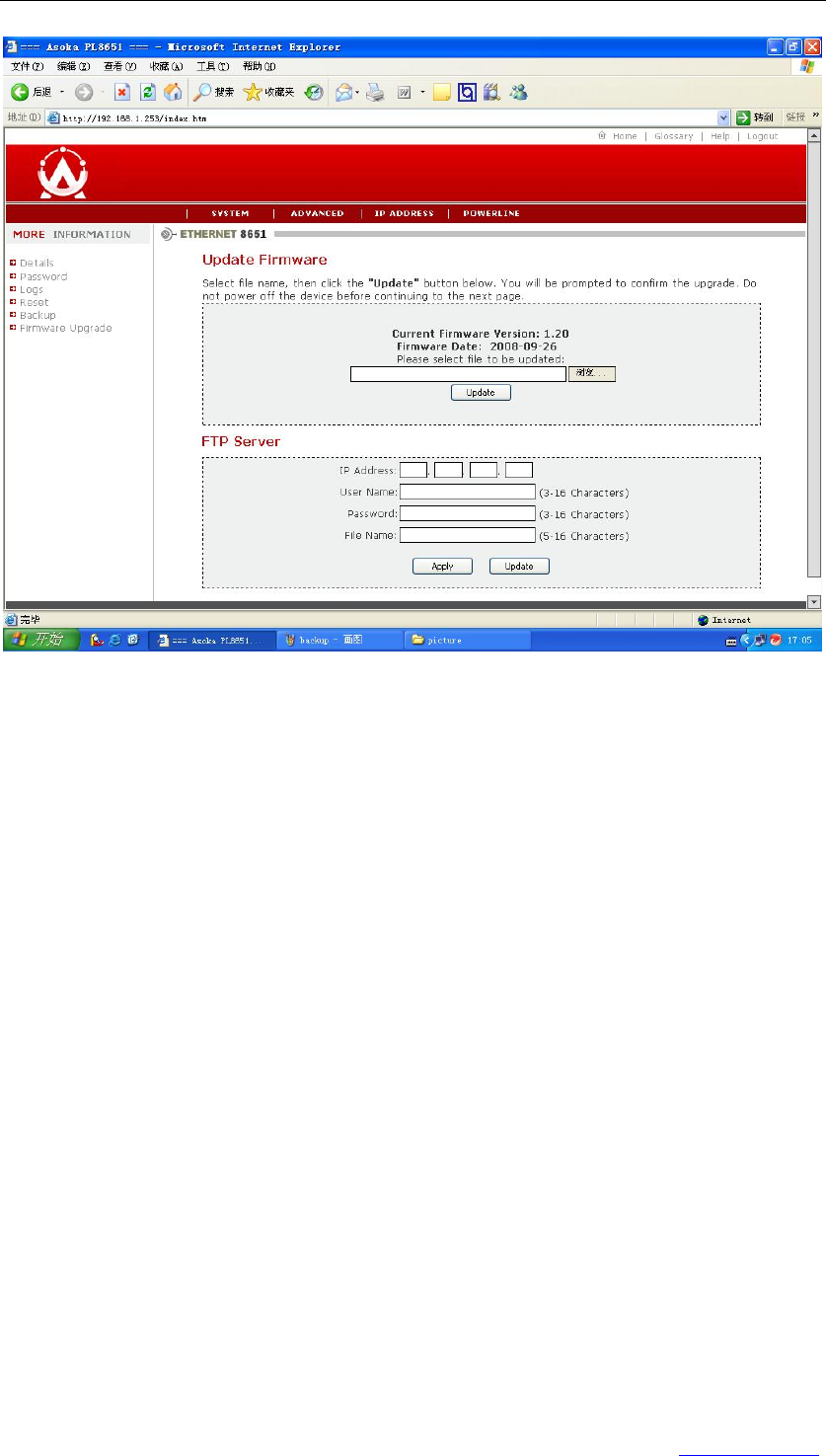

Figure 7. Firmware upgrade
z Click button “Browse” to select firmware file, then one windows dialog will
be popped up for user to select local file
z Click button “Update” to begin update. if you confirm your decision, It will
update the firmware and reboot the gateway, the process will cost about 2
minutes.
3.3 Advanced
Advanced Menu provides the interface for advanced administer to set the smart
bridge including SNMP and control relays in thermostat 202.
3.3.1 SNMP Configuration
To view or set SNMP configuration, click on the link SNMP Configuration of the
left submenu, a screen is displayed as shown in Figure 8.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a

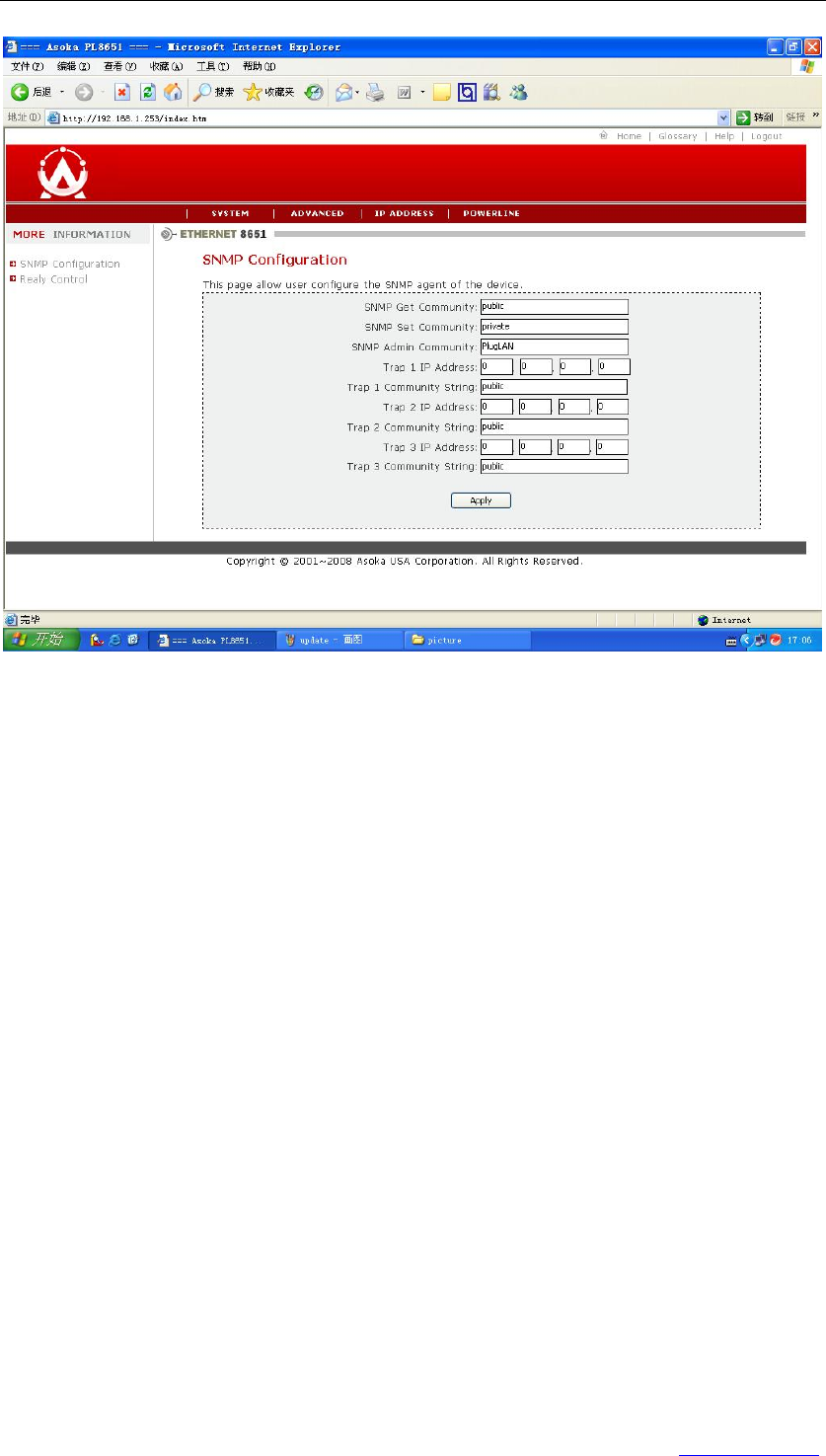

Figure 8. SNMP Configuration
The screen contains the following details.
z Enable/Disable SNMP: To enable or disable SNMP agent. Select the check
box to enable SNMP agent
z Server IP: To enter the IP address of the SNMP Server
Click button “Apply” to save the information had entered.
3.3.2 Relay control
To view or control relay, click on the link Relay Control of the left submenu, a
screen is displayed as shown in Figure 9.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a
Figure 9. Relay control
The screen contains the following details.
z #1 Relay on/off To switch on/off relay1 in the thermostat 202
z #2 Relay on/off To switch on/off relay2 in the thermostat 202
3.4 IP ADDRESS
IP ADDRESS menu provides interface to set IP address of the smart bridge, user
can access smart bridge by this IP address.
3.4.1 IP Address
To configure the IP Address of the smart bridge, click on the link IP Address in the
left submenu, a screen is displayed as shown in Figure 10.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a
Figure 10. IP Address Configuration
The screen contains the following details:
1. IP Address: To enter the IP address of the smart bridge
2. Subnet mask: The fix subnet mask is “255.255.255.0”
Click button “Apply” to save the configuration and renew system IP address.
3.5 POWER LINE
PowerLine menu provides interface to set NEK or scan devices of the Power line
network.
3.5.1 Password Setting
To set NEK of the smart bridge, click on the link NEK Configuration of the left
submenu, a screen is displayed as shown in Figure 11.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a
Figure 11. NEK setting
z Input new NEK configuration of the power line network
z Click button “Apply” to save and set the configuration
3.5.2 Device Scan
To view and scan devices in the same power line network with smart bridge,
click on the link Device Scan in the left submenu, a screen is displayed as shown
in Figure 12.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
Asoka USA PlugLANTM PL8651-RSB User’s Manual V1.01a
Figure 12.
The screen contains the following details.
1. Scanned Devices: The No. of the device have been scanned
2. MAC Address: The MAC address of the device in the
same power line network
Click button “Scan Now” to refresh the device list.
Asoka USA Corporation Tel: +1 650 286 1700
2344-A Walsh Avenue Santa Clara, CA 95051 USA Fax: +1 650 286 1790
URL: www.asokausa.com
