Congratulations on your purchase of the PlugLink AV 9660 Ethernet
Adapter!
This adapter allows you to network your home or office by plugging
directly into an electrical outlet. With your PlugLink AV 9660
Ethernet Adapter, you can easily share your high-speed Internet,
mp3s, video, and gaming throughout the home or office.
This manual describes how to connect your PlugLink AV 9660
Ethernet Adapter to a PC or cable/DSL router.
Package Contents
• PlugLink AV 9660 Ethernet Adapter (PL9660-ETH)
• 6-foot Ethernet cable
• Quick Installation Guide
• Installation Resource CD (for advanced users only)
• Warranty and Support Information Card
If any of the parts are incorrect, missing, or damaged, contact the
retailer where you made your purchase. Keep the carton, including
the original packing materials, in case you need to return the unit
for repair.
Types of Connections
This section describes what you need to do to before installing the
PlugLink AV 9660 Ethernet Adapter. You can set up a home or an
office network or compliment your existing network by connecting
to any device with a 10BaseT/100BaseT Ethernet-capable device.
1–2 Simple Installation
PlugLink AV 9660 Ethernet Adapter User’s Guide
Simple Connection (Peer to Peer)
To share a simple connection between computers, attach one PL9660-ETH
device to each computer.
Simple Broadband Connection
The following items are needed to share a Broadband connection with
computers:
• One (1) PL9660-ETH device attached to a standard cable, DSL, or wireless
router
• One (1) PL9660-ETH device attached to each computer
NOTE: Do not connect the PlugLink AV 9660 Ethernet Adapter into a power
strip, extension cord, un-interruptible power supply (UPS), or surge
protector. This may prevent the unit from working properly or degrade the
network performance.
Simple Installation 1–3
PlugLink AV 9660 Ethernet Adapter User’s Guide
Other Connections
You can also use the PlugLink AV 9660 Ethernet Adapter with other Ethernet
enabled devices, such as IP Cameras, IP set top box, game consoles, etc.
Finding a Suitable Location
Find a suitable location to install your PlugLink AV 9660 Ethernet Adapter.
Where you install the units can affect their performance. Find a location that
is:
• Acceptable temperature and humidity ranges.
• Free of strong electromagnetic field generators (such as motors),
vibration, dust, and direct exposure to sunlight.
• An electrical outlet for your PlugLink AV 9660 Ethernet Adapter. Outlet
must be is within six feet (1.82 meters) of the device you are connecting
to.
Installing the Hardware
Connect each of your PlugLink AV 9660 Ethernet Adapters.
1. Connect the unit into a nearby wall outlet (Do not plug the adapter into a
power strip).
2. Connect the enclosed Ethernet cable to the Ethernet port of the unit.
3. Connect the other end of the cable to the Ethernet port of the PC or
device.
Congratulations! You have completed the installation of the PlugLink AV 9660
for normal use.
1–4 Simple Installation
PlugLink AV 9660 Ethernet Adapter User’s Guide
Advanced Configuration (Expert Users Only) 2–1
PlugLink AV 9660 Ethernet Adapter User’s Guide
2
Advanced Configuration
(Expert Users Only)
This chapter provides information on installing and setting up the
PlugLink AV 9660 Ethernet Adapter.
Installing the Software
Following are software installation procedures for advanced users.
1. Insert the enclosed Installation Resource CD into your CD-ROM
drive. If the PlugLink AV 9660 Ethernet Adapter Installation
Utility does not appear within 30 seconds, select your CD-ROM
drive and double-click the Setup.exe icon to start the
Installation Utility.
2. Select the language preference, and click the Run button.
NOTE: Do not connect the PlugLink AV 9660 Ethernet Adapter into a power
strip, extension cord, un-interruptible power supply (UPS), or surge
protector. This may prevent the unit from working properly or degrade the
network performance.
NOTE: Software installation is not required for normal use. The utility is
used to change the security settings and view information about the network.
2–2 Advanced Configuration (Expert Users Only)
PlugLink AV 9660 Ethernet Adapter User’s Guide
3. In the Start screen, click Install Driver to start the installation.
4. In the Welcome screen of the screen of the wizard, click Next to begin
the installation.
Advanced Configuration (Expert Users Only) 2–3
PlugLink AV 9660 Ethernet Adapter User’s Guide
5. Read the End User Software License Agreement, and if you agree, click the
Agree button to continue the installation.
6. To change the name of the PlugLink AV unit, select Yes, and enter a name
in the text field. Otherwise, select No. Click Next to advance to the next
screen.
2–4 Advanced Configuration (Expert Users Only)
PlugLink AV 9660 Ethernet Adapter User’s Guide
7. This following screen allows you to change the network password for your
PlugLink AV 9660 units. To change the network password, select Yes and
then enter the new password in the text field. Or, select No and click the
Next button to continue.
8. Select the location where you want to install the drivers and software and
click the Install button.
NOTE: All devices on your network must share the same password to
communicate. Use care when changing the network password. The default
password is HomePlugAV.
Advanced Configuration (Expert Users Only) 2–5
PlugLink AV 9660 Ethernet Adapter User’s Guide
9. When the installation of the PlugLink AV drivers and software is complete,
you can use Power Manager Utility for advanced configuration of your
PlugLink AV 9660 unit. Click Finish to finish the installation wizard.
2–6 Advanced Configuration (Expert Users Only)
PlugLink AV 9660 Ethernet Adapter User’s Guide
Network Management 3–1
PlugLink AV 9660 Ethernet Adapter User’s Guide
3
Network Management
The Power Manager Utility allows you to manually
configure a PlugLink AV 9660 Ethernet Adapter that is
directly connected to your Personal Computer or to
any PlugLink AV 9660 Ethernet Adapters that are
remotely residing on your PlugLink AV Mealybug
network.
Viewing Device Information
Use the Profile screen to view information on all Mealybug devices
attached directly to your PC and other Mealybug devices on your
network.
The Profile screen displays the following information:
•Device Name
• MAC Address
• Firmware version of your devices
• Estimated device transmission rate
To refresh the list of Mealybug devices, Click the Rescan button.
NOTE: The Power Manager Utility is for all Asoka PLC devices.
NOTE: Devices set up with a different network password will NOT show up
on this list.
3–2 Network Management
PlugLink AV 9660 Ethernet Adapter User’s Guide
Changing Names and Encryption Keys
Use the Device Screen to change your local and remote device names and
change local and remote device Network Encryption Keys (NEK). Always
change the remote devices before changing the one you are connected to.
To change a remote device's NEK:
1. Check the box next to the device that you want to change the NEK.
2. Enter the password of the remote device. The password is printed on the
device label. The default password is “HomePlugAV.”
3. Enter a new password.
4. Click the Update button.
NOTE: The device will not appear again until the device you are connected
to is changed to the same password. All devices must have the same
password.
Network Management 3–3
PlugLink AV 9660 Ethernet Adapter User’s Guide
Resetting and Upgrading the PlugLink AV
Use the Upgrade Screen to perform the following functions:
• Reset the PlugLink AV 9660 to factory default settings.
• Reboot the PlugLink AV 9660 device. You can also reboot the device by
unplugging and replugging the unit into the electrical outlet.
• Upgrade the firmware for the PlugLink AV 9660 device. Visit
www.asokausa.com to upgrade the firmware.
3–4 Network Management
PlugLink AV 9660 Ethernet Adapter User’s Guide
Manually Resetting Firmware and NID
You can use the buttons on the PlugLink device to reset the firmware to its
default, or NID to associate a network.
NOTE: The PlugLink device must be plugged into an electrical outlet when
using these buttons. If you have questions, please contact Asoka USA
Technical Support at (888) 276-5287.
Network Management 3–5
PlugLink AV 9660 Ethernet Adapter User’s Guide
Prioritizing Network Traffic
Use the QoS screen to prioritize your traffic through the device.
•IGMP - (default CAP 3) - sets the channel access priority for IGMP group
management frames
•Unicast - (default CAP 1) - sets the default channel access priority
for Unicast frames not matching any other classification or mapping.
•IGMP managed Multicast Stream (It is better set it fixed to CAP 2) -
sets the default channel access priority for stream data belonging to
a snooped IGMP multicast group.
•Multicast/Broadcast - sets the default CAP for multicast frames not
in a snooped group and for broadcast frames.
3–6 Network Management
PlugLink AV 9660 Ethernet Adapter User’s Guide
Viewing Network Statistics
The Statistics screen shows information on HomePlug packets that are
transmitted and received by the devices in your network. To enable this
function, click Enable Statistics.
Viewing Ethernet and HomePlug Connection
The Link screen has two sub-screens that provide information about your
Ethernet and HomePlug connection.
Network Management 3–7
PlugLink AV 9660 Ethernet Adapter User’s Guide
Viewing Connection Speed
The Ethernet subscreen shows the Ethernet connection speed of the local and
destination devices in your network. You can select the destination device in
the Destination Address drop down menu. Click the Retrieve button to get
the information.
Statistics Subscreen
Use the Statistics subscreen to view statistical information about your
connection between a source device and a specific destination device in your
network. Click the Retrieve button to start accumulating the statistical
information.
3–8 Network Management
PlugLink AV 9660 Ethernet Adapter User’s Guide
Scanning Devices
Use the Rescan button to rescan the devices on the HomePlug network. This
refreshes the information on all devices using the same password.
Troubleshooting 4–1
PlugLink AV 9660 Ethernet Adapter User’s Guide
4
Troubleshooting
Following are solutions to a few situations you might encounter. If
you do not find a solution in this chapter, contact Asoka USA
Technical Support by phone at (888) 276-5287 or through email at
support@asokausa.com.
Symptom: I can't connect to anything and there are no lights
activated on my PL9660-ETH.
Solution:
1. Unplug the device from the electrical outlet in question.
2. Locate another available outlet in your home.
3. Test the outlet by plugging in another electrical device such as
a lamp or radio.
4. Plug the PL9660-ETH into the working electrical outlet.
5. Check to see if the lights work
6. If the above does not work, the device might be defective.
7. Please contact Technical Support for instructions on returning
the device for repair or replacement.
Symptom: Some of my devices cannot connect to the Internet or
other computers in my network. The lights seem to be functionally
normally.
Solution #1:
1. Re-Initialize the PL9660-ETH device.
2. Unplug the PL9660-ETH from the electrical outlet.
3. Disconnect the Ethernet cable from the device
4. Plug the PL9660-ETH back into the electrical outlet.
5. Reconnect the Ethernet cable.
4–2 Troubleshooting
PlugLink AV 9660 Ethernet Adapter User’s Guide
Solution #2:
The Network Encryption Key (NEK) may not be correct on your devices.
1. Reset the Network Encryption Key using the Factory Reset button located
on the bottom of your PL9660 AV device. This will reset the NEK back to
the default of HomePlug.
2. Test your connection again. If this still does not work, perform the factory
reset on all of your other PL9660 AV devices in your network.
Solution #3:
It is possible some outlets in your home are not connected together.
1. Unplug the PL9660 AV from the current electrical outlet.
2. Locate another outlet in the home.
3. Plug the PL9660 AV into that outlet.
4. Attach a computer to the PL9660 AV.
5. Open the Power Manager Utility (located on the enclosed CD).
6. Under the Profile button, check if your PL9660 AV is displayed (it will be
the first) and see if your other PL9660 AV devices can be seen. If you can
see other devices under the Profile screen, your PL9660 AV device is
functioning properly.
Solution #4:
Your broadband connection may have stopped working.
1. Power down your broadband router and/or DSL/cable modem (if
applicable) for about 30 seconds and then power them back on.
2. If this step fails, please contact your ISP for assistance.
Specifications A–1
PlugLink AV 9660 Ethernet Adapter User’s Guide
A
Specifications
This appendix lists the specifications for your PlugLink AV 9660
Ethernet Adapter.
Standards
Compliance:
•HomePlug® AV
• IEEE 802.3, IEEE 802.3x, IEEE 802.3u
Software Utility System
Requirements:
Microsoft Windows® 98 SE, 2000, ME, XP, and Vista operating
systems
Network
Protocol:
TCP/IP, CSMA/CA, TDMA (supported in the future)
Network
Interface:
One-port 10/100 Ethernet (RJ-45) switch
Bandwidth: Up to 200 Mbps
Distance: Up to 656 feet (200 meters)
Operating
Frequency:
2 to 30MHz
Modulation
Schemes:
• Orthogonal Frequency Division Multiplexing (OFDM)
• QAM 1024/256/64/16
•QPSK
•BPSK
EMI and Safety: • FCC Part 15 Class B
•UL (US and Canada)
•CE
Additional Protocols: • Forward Error Correction (FEC)
• Automatic Channel Adaptation
Power Supply: • US Version: 100-120VAC
• UK/EU Version: 220-240VAC
Surge Energy Rating: 4KV
Power
Rating:
• US Version: 100-120VAC 15A max, 60Hz
• UK/EU Version: 220-240VAC 10A max, 50Hz
Security: 128-bit AES
A–2 Specifications
PlugLink AV 9660 Ethernet Adapter User’s Guide
Environmental
Specifications:
• Operating temperature:
32°F to 131°F (0°C to 55°C)
• Operating humidity:
10% to 85% Non-condensing
• Storage temperature:
-4°F to 158°F (-20°C to 70°C)
• Storage humidity:
5% to 90% Non-condensing
Quality of Service: •ToS
• 802.1q
• TDMA (supported in the future)
Warranty: 1-year limited
Components B–1
PlugLink AV 9660 Ethernet Adapter User’s Guide
B
Components
Front Panel
Use the status lights on the front panel to verify connections.
B–2 Components
PlugLink AV 9660 Ethernet Adapter User’s Guide
The following table describes the status light functions in the front panel:

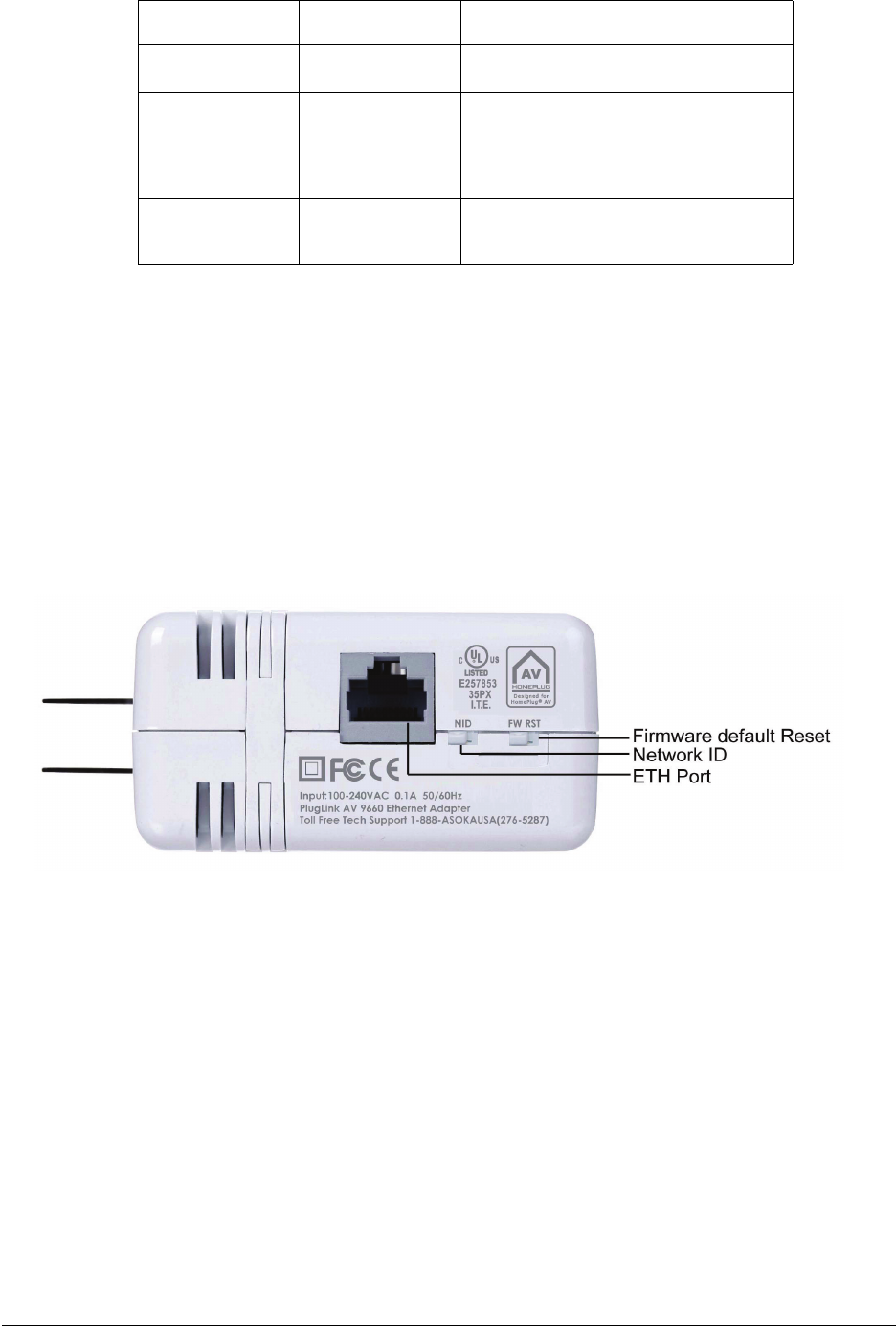

Bottom Panel
The bottom panel of the PL9660-ETH contains the following components:
• RJ-45 Ethernet port
• Firmware reset button
•Network ID button
• Regulatory information
• Electronic information
• Support information
Rear Panel
The label on the rear panel of the PlugLink AV 9660 Ethernet Adapter contains
the information listed below.
• MAC address
• Model number
•Part number
• Serial number
• Unique device password
Status Light State Indication
Power Illuminated
Off
Device is powered on
Devices has no power
PLC Activity Blinking Red
Blinking Yellow
Blinking Green
Off
Traffic is running at < 7 Mbps
Traffic is running at > 7 Mbps and < 40 Mbps
Traffic is running at > 40 Mbps
No activity on powerline
(should blink intermittently)
Eth Link Illuminated
Blinking
Off
Ethernet connectivity
Ethernet traffic
No ethernet connectivity
Components B–3
PlugLink AV 9660 Ethernet Adapter User’s Guider
Note: Write this information down in your Warranty Support Information card
for future reference.
Buttons
The Pluglink AV 9660 device has two hardware push buttons:
•FW RST button - Resets the PlugLinkAV 9660 back to factory default
settings. Press and hold the button with a pin or other sharp object for
about 2 seconds until you see the lights on the device flash briefly.
•NID button - Allows you to set a randomized Network Encryption Key
(NEK) by pressing on it. You can then have additional units use the same
randomized NEK by using their respective NID buttons.
Following is an example of how the button can be used:
1. Select a PlugLink AV 9660 (#1) device in your network. Press and hold the
NID button for 10 seconds. After about 10 seconds, the lights on your
device will blink off briefly and come back on immediately. This will
change the existing Network Encryption Key (NEK) to a randomized NEK.
2. On the PlugLinkAV 9660 (#1) device from Step #1, press and hold the NID
button for about 3 seconds. The power light on the device will begin
flashing. This unit has now been set to allow other units to join the
network and be assigned the same password. This unit will remain in
“adder” mode for about 3 minutes.
3. Before the three minutes have elapsed from Step #2, select another
PlugLink AV 9660 (#2) device from your network. Press and hold the NID
button for about 3 seconds. The power light on the device will blink as
well. The #1 and #2 devices will communicating and the #2 device will
have it's NEK set to the NEK of the #1 device. This should happen in about
15 to 20 seconds. Once the process has been completed, you can then test
if the two devices are communicating.
4. If you add units at a later time, you only need to perform Step #2 (using
any device in the network) and Step #3 (any new devices). Step #1 is not
necessary unless you wish to change your NEK.
B–4 Components
PlugLink AV 9660 Ethernet Adapter User’s Guide
The use of the NID button is optional. You may also use the application software
described in the manual to set NEK's as well.
Declarations of Conformity C–1
PlugLink AV 9660 Ethernet Adapter User’s Guide
C
Declarations of Conformity
This appendix lists the declarations of conformity for your PlugLink
AV 9660 Ethernet Adapter.
C–2 Declarations of Conformity
PlugLink AV 9660 Ethernet Adapter User’s Guide
Warranty D–1
PlugLink AV 9660 Ethernet Adapter User’s Guide
D
Warranty
Asoka warrants that (a) the hardware components of the product
will be free from defects in materials and workmanship under
normal use for one (1) year from the date of purchase when used
within the limits set forth in the Specifications section of the User
Guide, and (b) the software components will perform substantially
in accordance with Asoka's published specifications for ninety (90)
days from the date of purchase, but does not warrant that the
software will be error-free or free of all defects.
Should a product fail to perform as described in the User Guide
within the warranted period, it will be repaired or replaced with
the same or functionally equivalent product by Asoka, at its
discretion, free of charge provided that you: (a) return the failed
product to an Asoka designated repair facility with shipping charge
prepaid, and (b) provide Asoka with proof of the original date of
purchase. Repaired or replacement products will be returned to
you with shipping charges prepaid. Asoka warrants any replaced or
repaired product or component for the remainder of the initial
warranty period whichever is longer. Replacement products may be
refurbished or contain refurbished materials or components. If
Asoka, by its sole determination, is unable to restore the product
to proper operating condition, it will refund the depreciated
purchase price of the product.
This warranty extends only to you, the original purchaser and is not
transferable to any subsequent purchasers.
This warranty does not apply if, in the judgment of Asoka, the
product fails due to damage from shipment, handling, storage,
accident, abuse, misapplication or misuse, or if it has been used or
maintained in a manner not conforming to product manual
instructions, has been modified in any way, or has had any serial
number removed or defaced. Repair by anyone other than Asoka or
an approved agent will void this warranty. The maximum liability
of Asoka under this warranty is limited to the purchase price of the
D–2 Warranty
PlugLink AV 9660 Ethernet Adapter User’s Guide
product covered by the warranty. Prior to returning any defective product,
the purchaser or the authorized merchant from whom the purchaser originally
bought the product must obtain a Return Material Authorization (RMA)
number from Asoka. All defective products should be returned to Asoka with
shipping charges prepaid. Asoka will not accept collect shipments.
WHILE ASOKA HAS MADE EVERY EFFORT TO PROVIDE CLEAR AND ACCURATE
TECHNICAL INFORMATION ABOUT ITS PRODUCTS, ASOKA ASSUMES NO
LIABILITY FOR ANY EVENTS ARISING OUT OF THE USE OF THE TECHNICAL
INFORMATION OR THE PRODUCT, EXCEPT AS SPECIFICALLY PROVIDED IN THIS
AGREEMENT OR AS REQUIRED BY LAW. THE WARRANTIES AND REMEDIES STATED
ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS, ORAL OR WRITTEN,
EXPRESS OR IMPLIED. ANY AND ALL OTHER WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NON-INFRINGEMENT OF THIRD PARTY RIGHTS ARE EXPRESSLY EXCLUDED.
ASOKA SHALL NOT BE LIABLE, UNDER ANY CIRCUMSTANCES, TO ANY PERSON
OR ENTITY FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL
DAMAGES, INCLUDING WITHOUT LIMITATION, DAMAGES RESULTING FROM THE
USE OR MALFUNCTION OF THE PRODUCTS, LOSS OF PROFITS OR REVENUES,
BUSINESS INTERRUPTION, OR COSTS OF REPLACEMENT GOODS, EVEN IF ASOKA
IS INFORMED IN ADVANCE OF THE POSSIBILITY OF SUCH DAMAGES.
FCC Notice E–1
PlugLink AV 9660 Ethernet Adapter User’s Guide
E
FCC Notice
FCC Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
E–2 FCC Notice
PlugLink AV 9660 Ethernet Adapter User’s Guide
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 20 centimeters between the radiator
and your body.
13
PlugLink AV 9660 Ethernet Adapter User’s Guide
66-0331-00Rev.001
Asoka USA Corporation
2344 Walsh Avenue
Suite A
Santa Clara, California 95051
USA
Phone: (650) 286–1700
Fax: (650) 286–1790
www.asokausa.com
