PlugLink 200 MIMO ETH
User’s Guide
PL9661-C2
QUICKFIND L
OCATOR
Contact
Information
Getting Help
Table of Contents
Installation
66‐0360‐05Rev.003
2 of 39 PlugLink 200 MIMO ETH User’s Guide
© 2011 Asoka USA Corporation
ALL RIGHTS RESERVED
Notice: No part of this publication may be reproduced or transmitted in any form or by any means, electronic
or mechanical, including photocopying and recording, or stored in a database or retrieval system for any
purpose without the express written permission of Asoka USA Corporation.
Asoka USA Corporation reserves the right to make changes to this user’s guide at any time without notice and
assumes no responsibility for its use. Asoka USA products and services can only be ordered under the terms
and conditions of Asoka USA Corporation's applicable agreements. All of the features described in this user’s
guide may not be currently available. Refer to the most recent product announcement for information about
feature and product availability.
This user’s guide contains the most current information available at the time of publication. When new and/
or revised information becomes available, this entire user’s guide is updated and distributed to all registered
users.
All company and product names mentioned herein are trademarks of their respective companies. Mention of
third-party products is for informational purposes only and constitutes neither an endorsement nor a
recommendation. Asoka USA Corporation assumes no responsibility with regard to the performance or use of
these products.
Revision
Date
Description
66-0360-05Rev.003 Mar
2011
Preliminary Release
Changes in This Revision
• Not applicable (preliminary release)
3 of 39 PlugLink 200 MIMO ETH User’s Guide
Contact Information
For more information about the PlugLink 200 MIMO ETH or any of Asoka’s
other leading-edge solutions, please contact us using any of the following
methods:
z Voice calls: We welcome your calls Monday through Friday, from 9:00 am
to 5:00 pm Pacific Time at (408) 550-8167. Voice mail is available during non-
business hours.
z Email: If you prefer, you can send information requests to our e-mail address:
sales@asokausa.com.
z Fax calls: You can also send your requests for information to our 24-hour fax
number: (408) 884-2390.
z Web site: Our Web site contains valuable information about our products,
solutions, and services. We encourage you to visit us at
http://www.asokausa.com.
Getting Help
Asoka USA backs its products with unparalleled customer service and technical
support for our valued customers.
Customer Service
Customer service, the customer-satisfaction arm of Asoka USA, is available Monday
through Friday, from 9:00 am to 5:00 pm Pacific Time, by calling (408) 550-8167 or
emailing custserv@asokausa.com.
Technical Support
Technical support is available Monday through Friday, from 6:00 am to 6:00 pm
Pacific Time, by calling (408) 550-8173 or through email at support@asokausa.com.
Please provide the following information about the problem:
z Product name, model number, part number (if applicable) and serial number
z System configuration, including a description of the devices connected to your
PL9661
z The circumstances surrounding the error or failure
z A detailed description of the problem and what has been done to try to solve it
4 of 39 PlugLink 200 MIMO ETH User’s Guide
Table of Contents
1 Simple Installation ............................................................................. 5
Package Contents ....................................................................................................... 5
Types of Connections ................................................................................................. 5
Simple Connection (Peer to Peer)................................................................................. 6
Simple Broadband
Connection
..................................................................................... 6
Other Connections ...................................................................................................... 7
Finding a Suitable Location ......................................................................................... 7
Installing the Hardware .............................................................................................. 7
2 Advanced Configuration(Expert Users Only) ......................................... 8
Installing the Software ................................................................................................ 8
3 Network Management .......................................................................13
Viewing the Device Information (Profile) .................................................................... 13
Changing your device Name and Network Encryption Key (NEK) .................................. 14
DEVICE NETWORK ENCRYPTION KEY (NEK) .............................................................. 17
Resetting and Upgrading the PlugLink 200 MIMO ETH ................................................ 21
Prioritizing the Network Traffic .................................................................................. 21
Viewing the Network Statistics screen ........................................................................ 23
Viewing the Link screen ............................................................................................ 23
Viewing the LED screen ............................................................................................ 25
Rescanning your Powerline Network .......................................................................... 25
Manually Resetting the Firmware and Network ID (NID) ............................................. 26
4 Troubleshooting ................................................................................27
A Specifications ...................................................................................29
B Components .....................................................................................31
C Warranty .........................................................................................36
D FCC Notice .......................................................................................38
5 of 39 PlugLink 200 MIMO ETH User’s Guide
Simple Installation
Congratulations on your purchase of the PlugLink 200 MIMO ETH !
This adapter allows you to network your home or office by plugging directly into an
electrical outlet. With your PlugLink 200 MIMO ETH, you can easily share your high-speed
Internet, mp3s, video, and gaming throughout the home or office.
This manual describes how to connect your PlugLink 200 MIMO ETH to a PC or cable/DSL
Router.
Package Contents
z PlugLink 200 MIMO ETH(PL9661-C2)
z 6-foot Ethernet cable
z Quick Installation Guide
z Installation Resource CD (for advanced users only)
z Warranty and Support Information Card
If any of the parts are incorrect, missing, or damaged, contact the retailer
where you made your purchase. Keep the carton, including the original packing
materials, in case you need to return the unit for repair.
Types of Connections
This section describes what you need to do to before installing the PlugLink 200 MIMO
ETH. You can set up a home or an office network or compliment your existing network by
connecting to any device with a 10BaseT/100BaseT Ethernet- capable device.
6 of 39 PlugLink 200 MIMO ETH User’s Guide
Simple Connection (Peer to Peer)

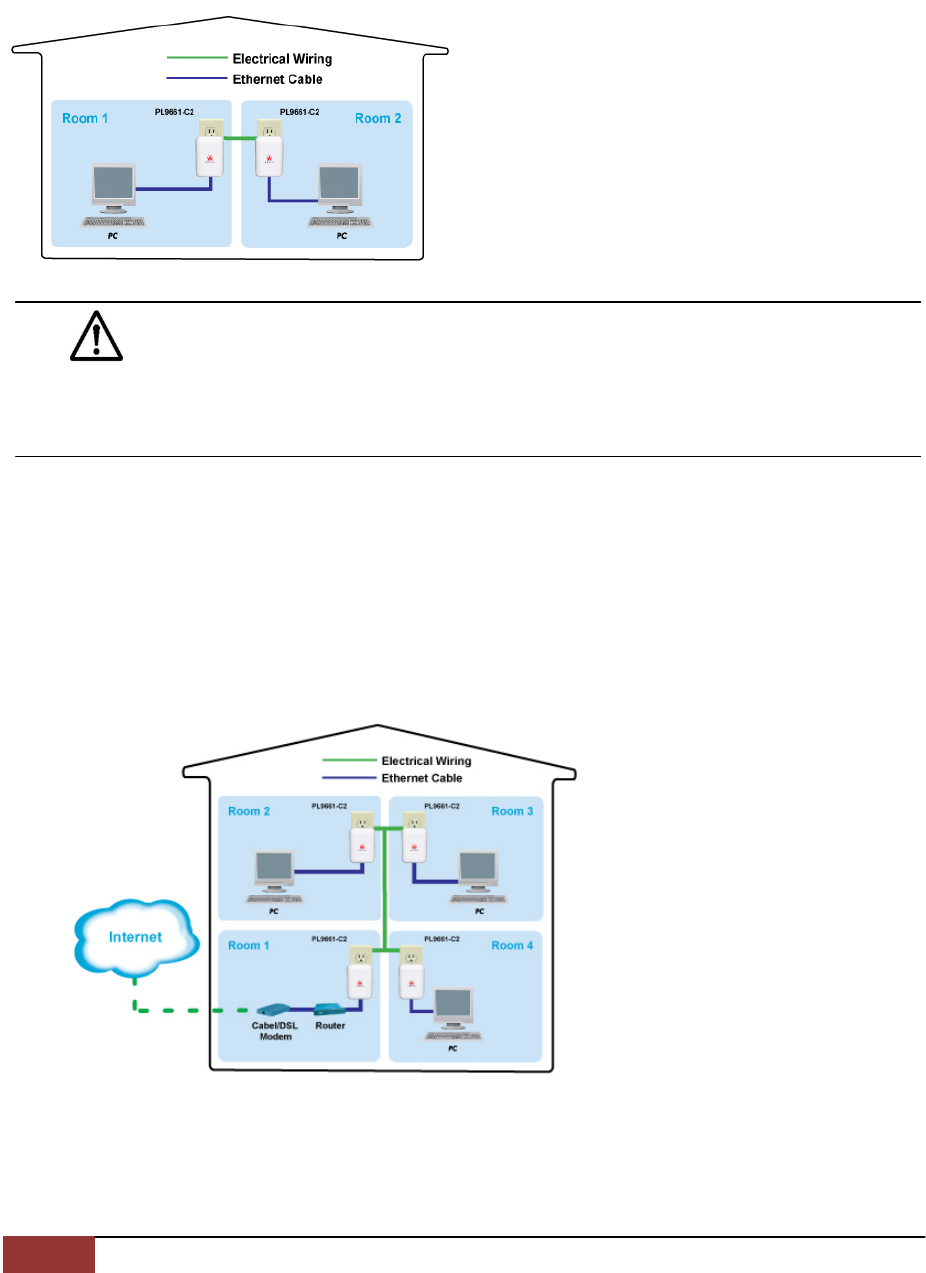

To share a simple connection between computers, attach one PL9661-C2 device to
each computer.
NOTE: Do not connect the PlugLink 200 MIMO ETH into a power strip,
extension cord, un-interruptible power supply (UPS), or surge protector. This may
prevent the unit from working properly or degrade the network performance.
Simple Broadband
Connection

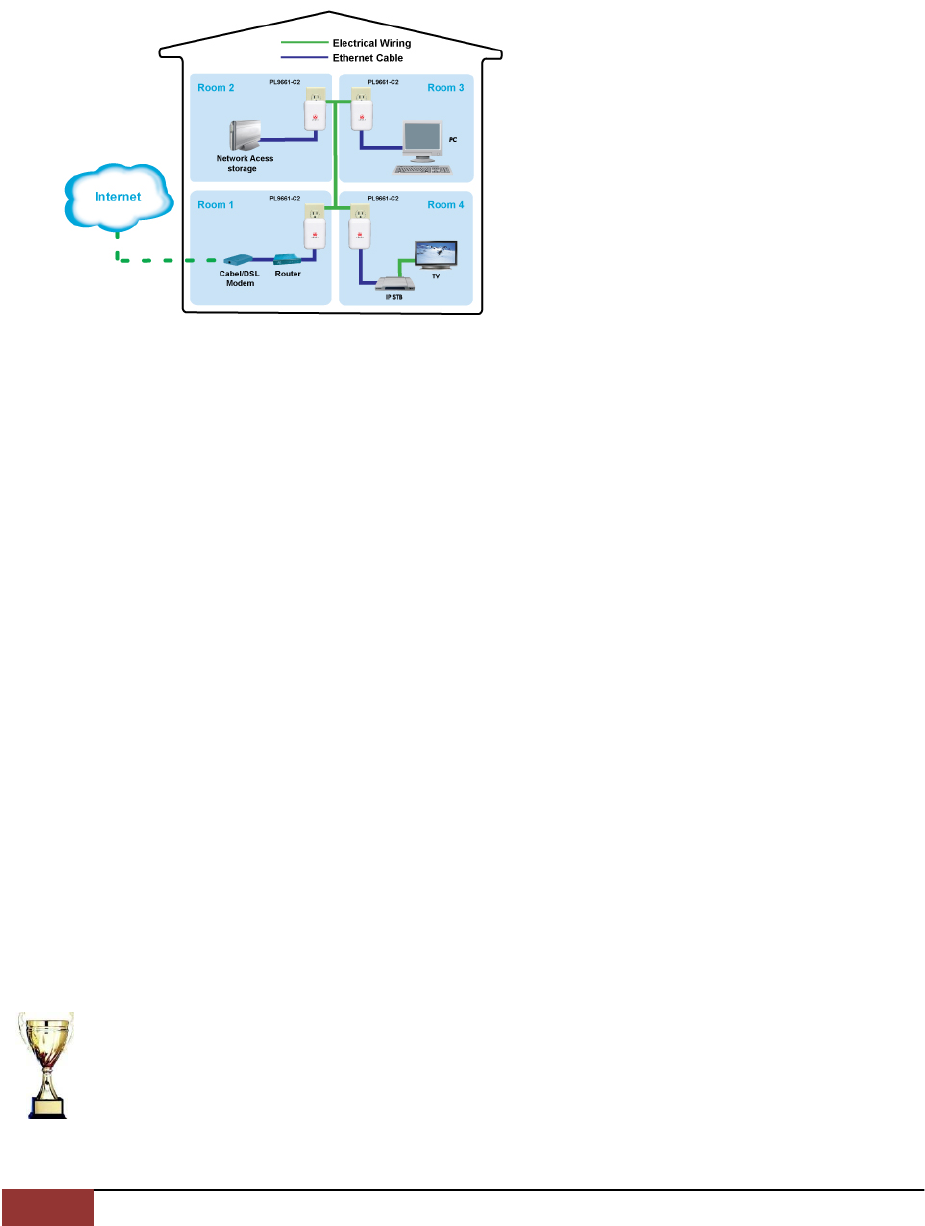

The following items are needed to share a Broadband connection with computers:
z One (1) PL9661-C2 device attached to a standard cable, DSL, or wireless router;
z One (1) PL9661-C2 device attached to each computer;
7 of 39 PlugLink 200 MIMO ETH User’s Guide
Other Connections
You can also use the PlugLink 200 MIMO ETH with other Ethernet enabled devices,
such as IP Cameras, IP set top box, game consoles, etc.“Up to eight (8) PL9661 can
be placed on the same PLC (Powerline Communication) network.”
Finding a Suitable Location
Find a suitable location to install your PlugLink 200 MIMO ETH. Where you install the
units can affect their performance. Find a location that is:
z Acceptable temperature and humidity ranges.
z Free of strong electromagnetic field generators (such as motors), vibration, dust,
and direct exposure to sunlight.
z An electrical outlet for your PlugLink 200 MIMO ETH. Outlet must be is within six
feet (1.82 meters) of the device you are connecting to.
Installing the Hardware
Connect each of your PlugLink 200 MIMO ETH.
1. Connect the unit into a nearby wall outlet (Do not plug the adapter into a power
strip).
2. Connect the enclosed Ethernet cable to the Ethernet port of the unit.
3. Connect the other end of the cable to the Ethernet port of the PC or device.
Congratulations! You have completed the installation of the
PL9661 for normal use.
8 of 39 PlugLink 200 MIMO ETH User’s Guide
Advanced Configuration
(Expert Users Only)
This chapter provides information on installing and setting up the PlugLink 200 MIMO
ETH.
NOTE: Do not connect the PlugLink 200 MIMO ETH into a power strip, extension
cord, un-interruptible power supply (UPS), or surge protector. This may prevent the
unit from working properly or degrade the network performance.
Installing the Software
Following are software installation procedures for advanced users.
NOTE: Software installation is not required for normal use. The utility is used to
change the security settings and view information about the network.
1. Insert the enclosed Installation Resource CD into your CD-ROM drive If the PlugLink
200 MIMO ETH Installation Utility does not appear within 30 seconds, select your
CD-ROM drive and double-click the Setup.exe icon to start the Installation Utility.
2. Select the language preference, and click the Run button.
9 of 39 PlugLink 200 MIMO ETH User’s Guide

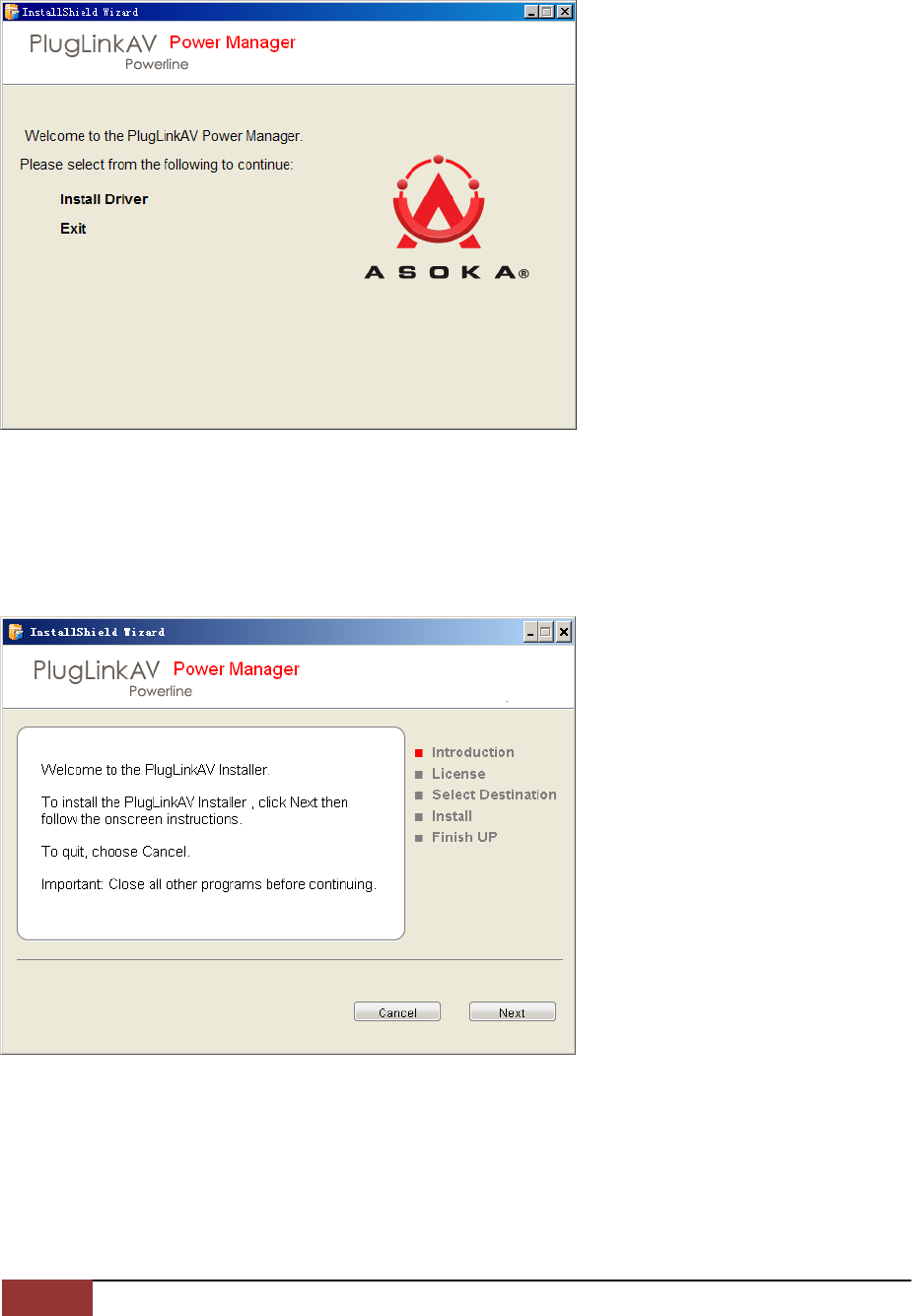

3. In the Start screen, click Install Driver to start the installation.
4. In the Welcome screen of the screen of the wizard, click Next to begin the
installation.
10 of 39 PlugLink 200 MIMO ETH User’s Guide

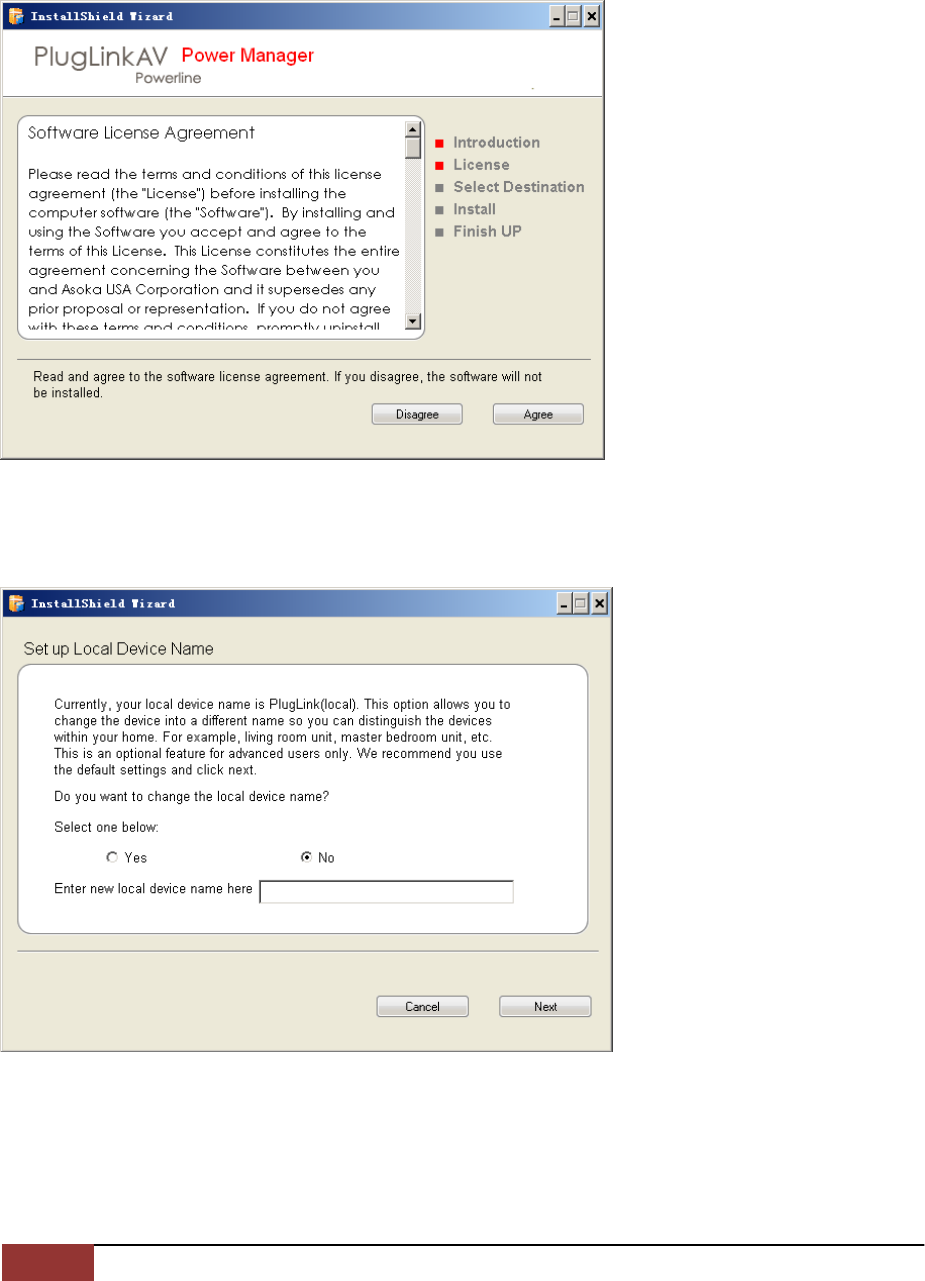

5. Read the End User Software License Agreement, and if you agree, click the Agree
button to continue the installation.
6. To change the name of the PlugLink AV unit, select Yes, and enter a name in the
text field. Otherwise, select No. Click Next to advance to the next screen.
11 of 39 PlugLink 200 MIMO ETH User’s Guide
7. This following screen allows you to change the network password for your
PL9661 units. To change the network password, select Yes and then enter the
new password in the text field. Or, select No and click the Next button to
continue.
NOTE: All devices on your network must share the same password to
communicate. Use care when changing the network password. The default password is
HomePlug AV.
8. Select the location where you want to install the drivers and software and click the
Install button.
12 of 39 PlugLink 200 MIMO ETH User’s Guide

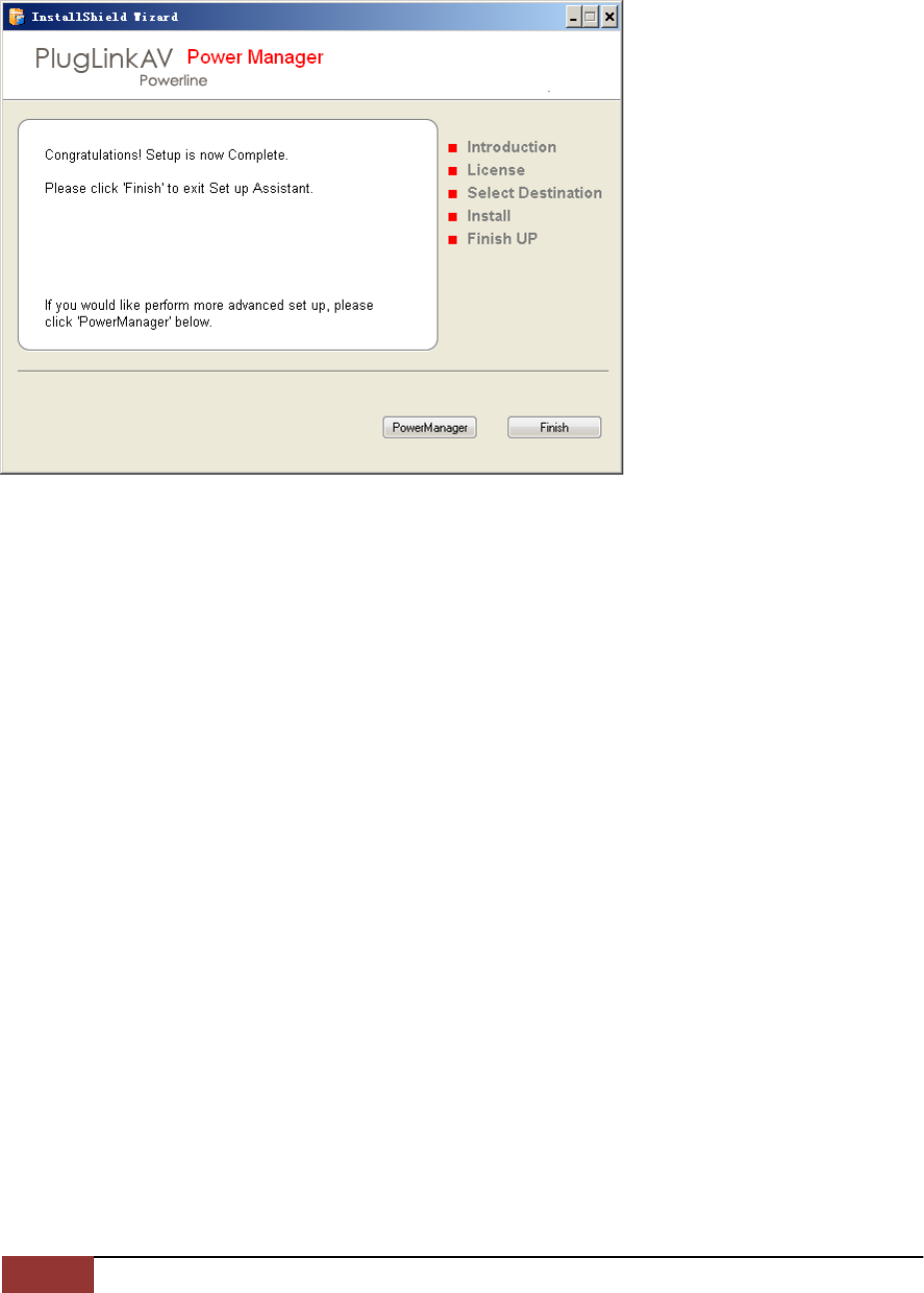

9. When the installation of the PlugLink drivers and software is complete, you can
use Power Manager Utility for advanced configuration of your PL9661 unit. Click
Finish to finish the installation wizard.
PlugLink 200 MIMO ETH Us
e
r’s Guid
e
13 of 39
Network Management
The PlugLinkAV Power Manager utility software allows you to manually configure a
PlugLink 200 MIMO ETH that is directly connected to your Personal Computer or to
any PlugLinkAV Adapters that are remotely residing on your PlugLinkAV Home
network.
NOTE: The Power Manager Utility software is for all Asoka
PlugLinkAV devices.
Viewing the Device Information (Profile)
Run the PlugLinkAV Power Manager and use the Profile screen to view information
on your PlugLinkAV device attached directly to your PC and other PlugLinkAV
devices on your network.
The Profile screen displays the following information:
• Device Name
• MAC Address
• Firmware version of your devices
• Estimated device transmission rate
To refresh the list of your PlugLinkAV devices, click the Rescan
button.
NOTE: Devices set up with a different Network Encryption Key (NEK)
also known as the network password will NOT appear on this list.
PlugLink 200 MIMO ETH Us
e
r’s Guid
e
14 of 39

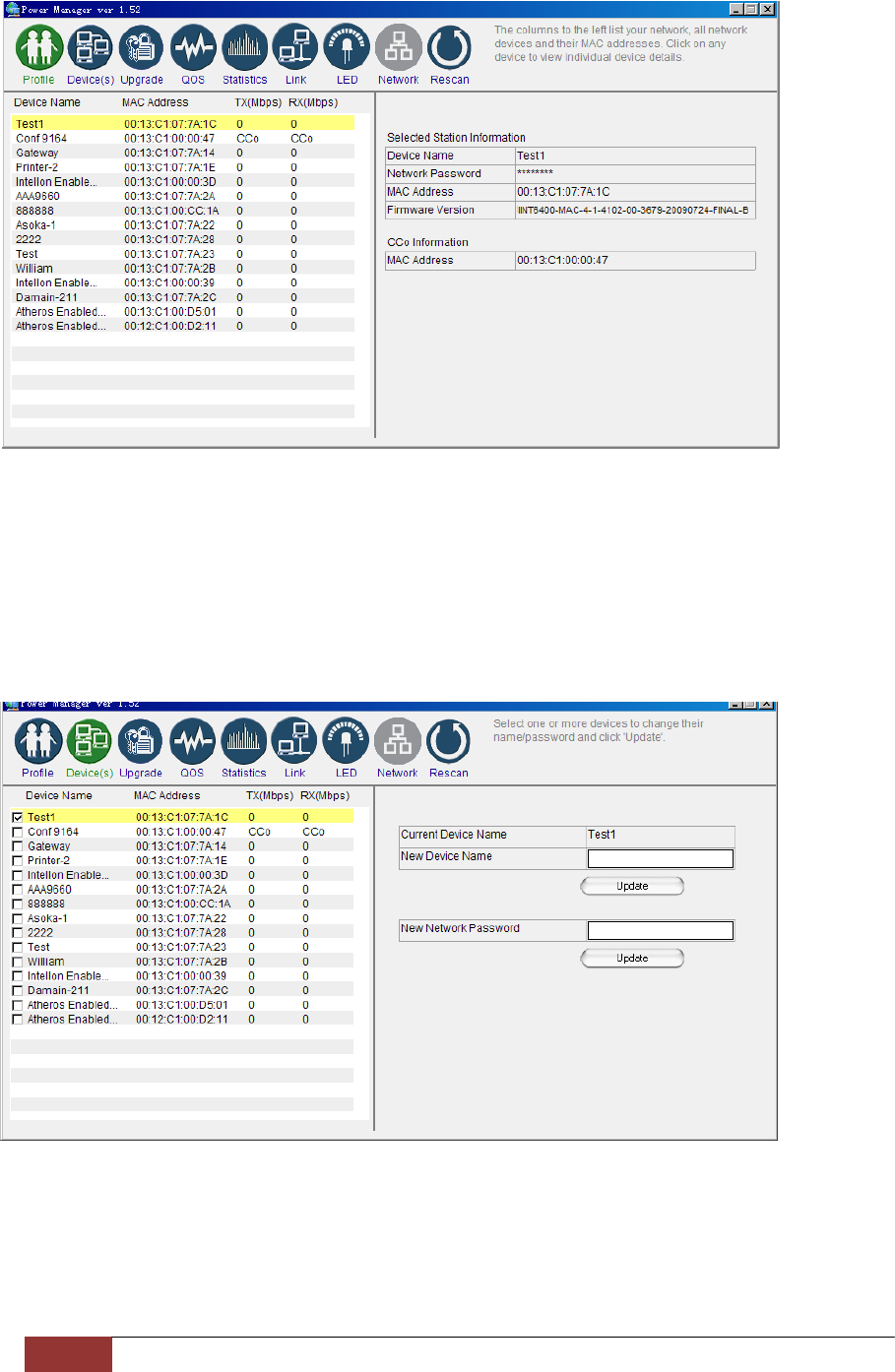

Profile Screen
Changing your device Name and Network Encryption
Key (NEK)
Use the Device(s) Screen to change your local and remote device name, also to change
your local and remote device Network Encryption Key (NEK) (also known as the
Network Password).
Device(s) Screen
15 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
DEVICE NAME
Changing your local device name:
1. Connect your PlugLinkAV adapter to your PC. For instructions on how to connect
your PlugLinkAV to your PC, please refer to page 7 (Installing the Hardware).
2. Run the PlugLinkAV Power Manager software. If you have not installed the
PlugLinkAV Power Manager software onto a PC, please refer to page 8 (Installing
the Software).
3. From the Power Manager main menu, click “Device(s)”.
4. A list of PlugLinkAV devices will appear on the left side of your Power Manager
screen. Your Local Device will always be the first device in the list by default.
5. Select your local device, by clicking on the first device MAC Address from the
list. Make sure that the device selected is highlighted in yellow. NOTE: It is not
necessary to check the box to the left of the Device Name.
6. Enter the new name in the New Device Name field. The new name must be at
least 4 characters long and can’t have spaces.
7. Click “Update” to update the new name.
8. If the new name was accepted, the message “You have successfully changed
your Device name.” will appear.
9. Congratulations, you have successfully changed your local device name.

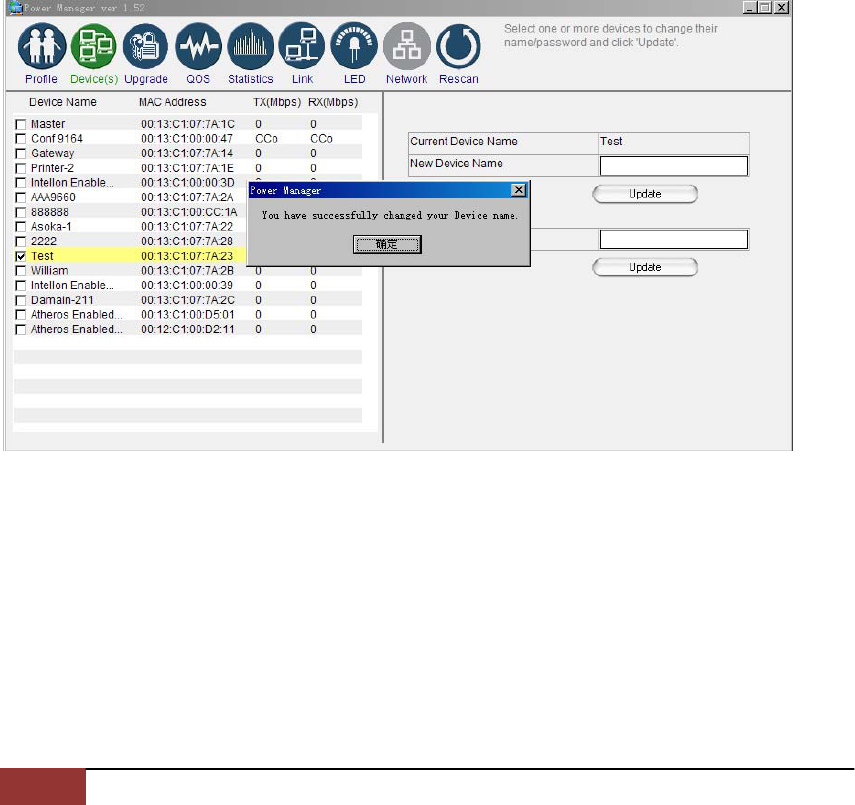

Changing your local device name
16 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Changing your remote device name:
1. Connect your PC to one of your PlugLinkAV adapters. For instructions on how to
connect your PlugLinkAV to your PC, please refer to page 7 (Installing the
Hardware).
2. Run the PlugLinkAV Power Manager software. If you have not installed the
PlugLinkAV Power Manager software onto a PC, please refer to page 8 (Installing
the Software).
3. From the Power Manager main menu, click “Device(s)”.
4. A list of PlugLinkAV devices will appear on the left side of your Power Manager
screen. Your Remote Devices will always appear under the first device in the list
by default.
5. Select your remote device, by clicking on the device MAC Address from the list.
Make sure that the device selected is highlighted in yellow. NOTE: It is not
necessary to check the box to the left of the Device Name.
6. Enter the new name in the New Device Name field. The new name must be at
least 4 characters long and can not have spaces.
7. Click “Update” to update the new name.
8. If the new name was accepted, the message “You have successfully changed
your Device name.” will appear.
9. Congratulations, you have successfully changed your remote device name.

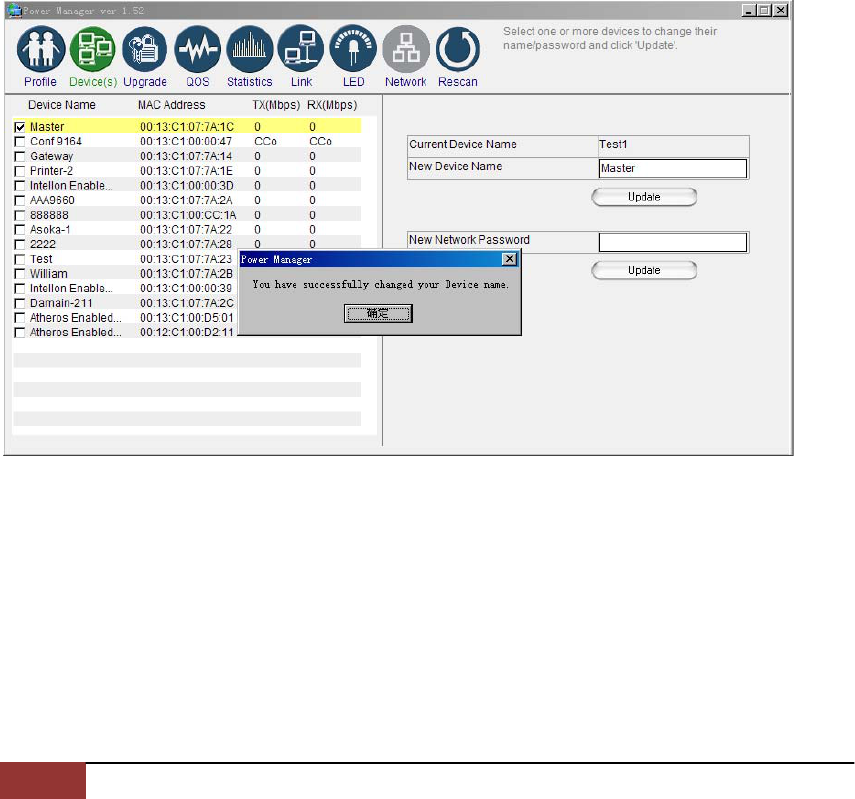

Changing your remote device name
17 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
DEVICE NETWORK ENCRYPTION KEY (NEK)
Understanding the Network Encryption Key: The Network Encryption Key (NEK) is
similar to a domain name or work group. Only those devices encrypted with the
same domain name or work group, will have access to your Powerline Network. All
Asoka PlugLinkAV adapters are encrypted with the same default Network
Encryption Key. The default Network Encryption Key is: HomePlugAV.
It is recommended to change your device default Network Encryption Key (NEK) to
secure your Powerline Network from unauthorized access; especially if you live in
an Apartment building.
Use caution when changing your device Network Encryption Key (also known as the
Network Password). If you change the Network Encryption Key on one device, you
must change the Network Encryption Key on all your PlugLinkAV adapters to the
new Network Encryption Key.
You can change your device Network Encryption Key by:
¾ Using the PlugLinkAV Power Manager described in this section “Changing
your local device Network Encryption Key” (bellow).
¾ Using the Network ID (SECURITY) button described on page 33 “SETTING A
RANDOMIZED NETWORK PASSWORD”.
Changing your local device Network Encryption Key (NEK):
WARNING: If you change your local device Network Encryption Key
(Network Password) your local device will no longer be able to
communicated with all your other PlugLinkAV adapters. You must
change the Network encryption key on all your PlugLinkAV adapters to
the new Network Encryption Key in order for them to communicate.
1. Connect your PlugLinkAV adapter to your PC. For instructions on how to connect
your PlugLinkAV to your PC, please refer to page 7 (Installing the Hardware).
2. Run the PlugLinkAV Power Manager software. If you have not installed the
PlugLinkAV Power Manager software onto a PC, please refer to page 8
(Installing the Software).
3. From the Power Manager main menu, click “Device(s)”.
4. A list of PlugLinkAV devices will appear on the left side of your Power
Manager screen. Your local Device will always be the first device in the list
by default.
18 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
5. Select your local device, by clicking on the first device MAC Address from
the list. Make sure that the device selected is highlighted in yellow.
IMPORTANT: You must check the box to the left of the Device Name.
6. Enter the new Network Encryption Key (NEK) in the New Network Password
field. The new Network Password must be at least 8 characters long and
can not have spaces.
7. Click “Update” to update the new Network Password.
8. If the new Network Password was accepted, the message “Network
Encryption Key is successfully changed. The utility will now scan the
powerline network” will appear.
9. Congratulations, you have successfully changed your local device Network
Password.

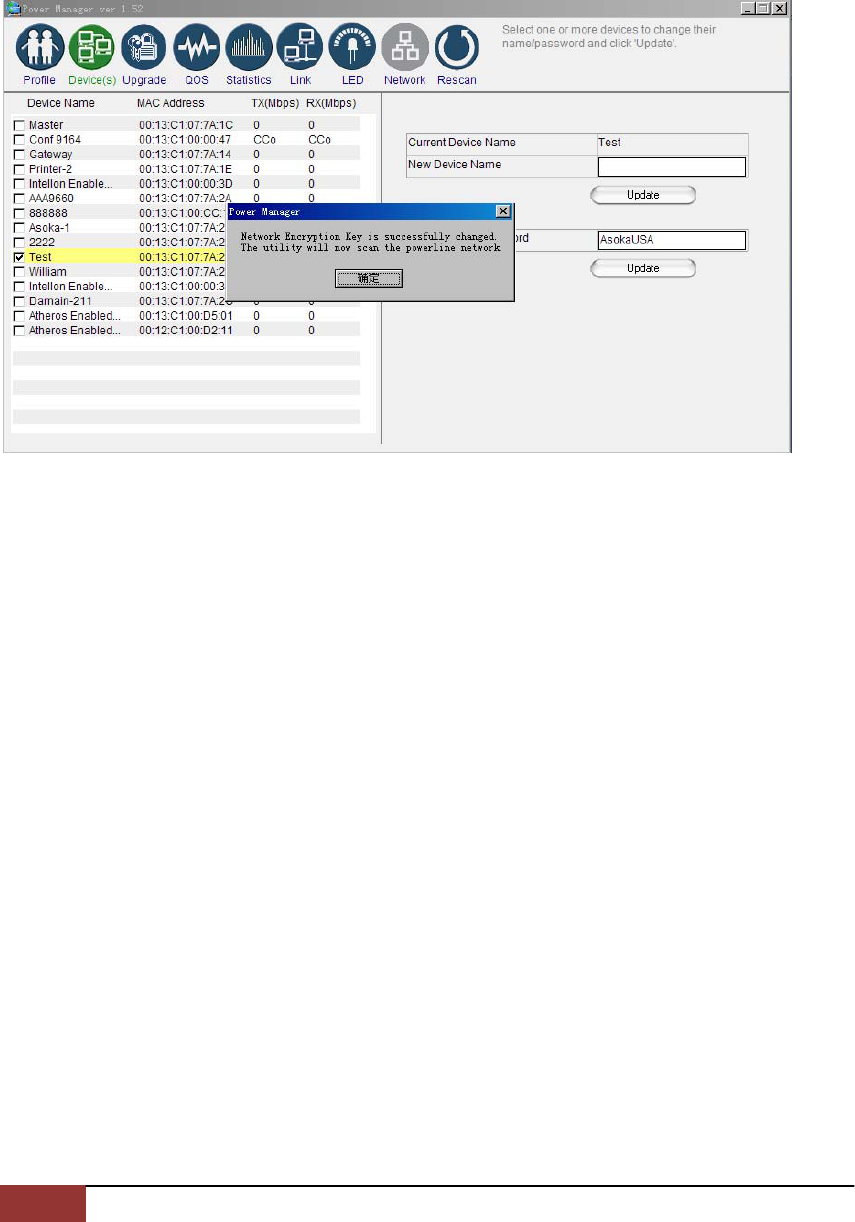

Changing your local device Network Encryption Key (NEK)
19 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Changing your remote device Network Encryption Key (NEK):
WARNING: If you change your remote device Network Encryption Key (Network
Password) your remote device will no longer be able to communicated with all
your other PlugLinkAV adapters. You must change the Network encryption key
on all your PlugLinkAV adapters to the new Network Encryption Key in order for
them to communicate.
NOTE: When changing your remote device NEK, you will be prompted to enter the
selected device 16-digit Password at least once. You can find the device password on
the label. See image bellow.
1. Connect your PC to one of your PlugLinkAV adapters. For instructions on
how to connect your PlugLinkAV to your PC, please refer to page 7
(Installing the Hardware).
2. Run the PlugLinkAV Power Manager software. If you have not installed the
PlugLinkAV Power Manager software onto a PC, please refer to page 8 (Installing
the Software).
3. From the Power Manager main menu, click “Device(s)”.
4. A list of PlugLinkAV devices will appear on the left side of your Power Manager
screen. Your Remote Devices will always appear under the first device in the list
by default.
5. Select your remote device, by clicking on the device MAC Address from the list.
Make sure that the device selected is highlighted in yellow. IMPORTANT: You
must check the box to the left of the Device Name. If you are prompted; enter
the 16 digits remote device password (Example Password: AIAI-AFZO-FMP-FLUI).
See image above for your reference.
6. Enter the new Network Encryption Key (NEK) in the New Network Password field.
The new Network Password must be at least 8 characters long and
Can’t have spaces.
7. Click “Update” to update the new Network Password.
20 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
8. If the new Network Password was accepted, the message “Network Encryption
Key is successfully changed. The utility will now scan the Powerline network”
will appear.
9. Congratulations, you have successfully changed your local device Network
Password.
Changing your remote device Network Encryption Key (NEK)
21 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Resetting and Upgrading the PlugLink 200 MIMO ETH
Run the PlugLinkAV Power Manager and use the Upgrade screen to:
z Reset your PlugLink 200 MIMO ETH to Factory Defaults
z Reset (Reboot) your PlugLink 200 MIMO ETH
z Upgrade the Firmware
How to reset your PlugLink 200 MIMO ETH to its Factory Defaults, reboot and Upgrade the
firmware.
1. Connect your PC to one of your PlugLinkAV adapters. For instructions on how to
connect your PlugLinkAV to your PC, please refer to page 7 (Installing the
Hardware).
2. Run the PlugLinkAV Power Manager software. If you have not installed the
PlugLinkAV Power Manager software onto a PC, please refer to page 8 (Installing
the Software).
3. From the Power Manager main menu, click “Upgrade”.
4. A list of PlugLinkAV devices will appear on the left side of your Power Manager
screen.
5. Select the device, by clicking on the device MAC Address from the list.
6. Select the option button that you want to perform (Factory Default, Reset
Device or Upgrade).
NOTE: Asoka may, from time to time, create new firmware for your device. Visit
www.asokausa.com for the latest firmware. – Resetting the PlugLinkAV to its Factory
Defaults, will reset the Network Encryption Key (NEK or Network Password) to
HomePlugAV.
Upgrade Screen
Prioritizing the Network Traffic
22 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Use the QoS screen to prioritize your traffic through the device. QoS requirements are
different for various data types such as streaming video or music, voice and raw data.
To provide higher QoS for streaming data, priority levels can be set using tags at the
beginning of data frames.
The QoS level settings are: CAP3: Highest CAP2: Medium and CAP1: Lowest.
• IGMP management packets: (Default to CAP3) – Sets the channel
access priority for IGMP group management frames.
• Unicast packets: (Default to CAP1) – Sets the default channel
access priority for Unicast frames not matching any other
classification or mapping.
• IGMP managed multicast stream: (Default to CAP2) – Sets the
default channel access priority for stream data belonging to a
snooped IGMP multicast group.
• Other multicast or Broadcast packets: (Default to CAP3) – Sets the
default CAP for multicast frames not in a snooped group and for
broadcast frames.

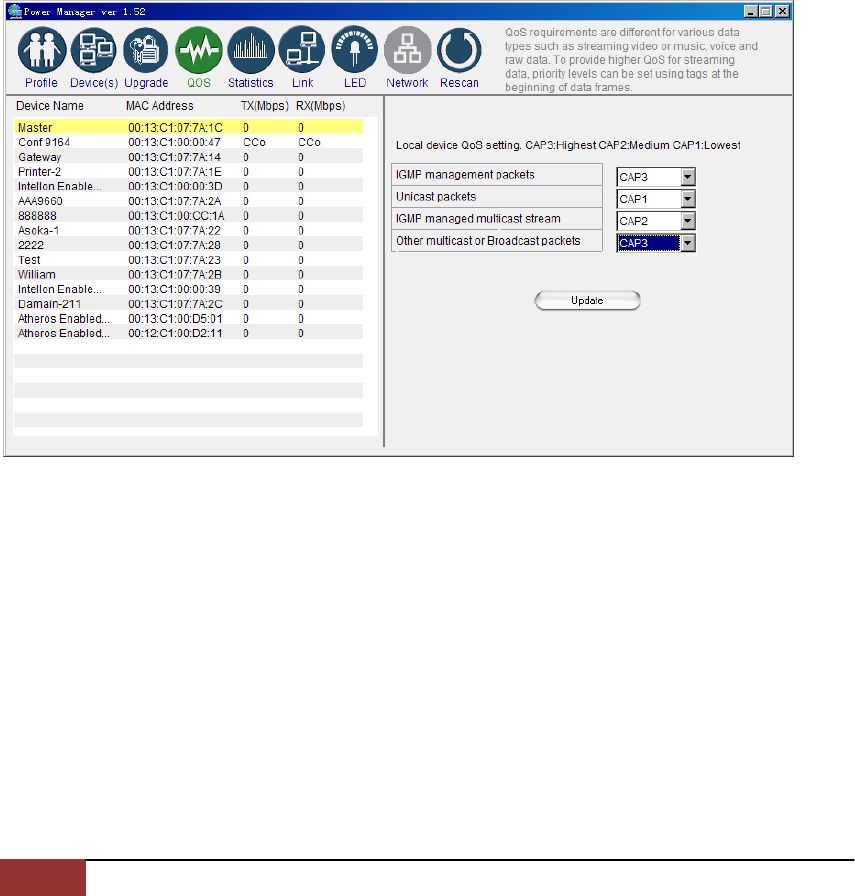

QoS Screen
23 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Viewing the Network Statistics screen
The Statistics screen shows information on HomePlug packets that are transmitted and
received by the devices in your network. To enable this function, click Enable
Statistics. The value shown by the Power Manager is a cumulative total of the packet
data that was collected from the start of the “Enabled Statistics” button.
Statistics screen
Viewing the Link screen
The Link Screen has two sub-screens that provide information about your Ethernet and
HomePlug connection.
Ethernet Sub Screen:
The Ethernet sub screen shows the Ethernet connection speed of the local and
destination devices in your network. You can select the destination device in the
Destination Address drop down menu. Click the Retrieve button to get the information.
24 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Link Screen; Ethernet Sub-Screen
Statistics Sub Screen:
Use the Statistics sub screen to view statistical information about your
connection between a source device and a specific destination device in your
network. Click the Retrieve button to start accumulating the statistical information.
Link Screen; Statistics sub screen
25 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Viewing the LED screen
This is the LED Manager tab. It allows you to configure the LED functionality threshold.
IMPORTANT: YOU CAN ONLY ENTER WHOLE NUMBERS DIVISIBLE BY 4. Example: 100, 80,
60 (no odd numbers) etc. If you enter a value that is not divisible by 4; then you will
get the message: “The value Yellow or Green must divide by 4!”
LED screen
Rescanning your Powerline Network
Use the Rescan button to scan for your Powerline devices under the same Network
Password in your HomePlug network. This option refreshes the information on your
Power Manager.
Note: The Network button (tab) is for TR-069 compliant adapters only. The
Network Tab does not apply to this product. If you have questions, please contact
Asoka USA Technical Support at (408) 550-8173.
26 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Manually Resetting the Firmware and Network ID (NID)
You can use the buttons on your PlugLinkAV device to reset the firmware back to its
factory defaults, and to create or associate your PlugLink 200 MIMO ETH to a
randomized Powerline Network. For details on how to use the buttons on your
PlugLinkAV adapter, please refer to page 33 of this manual.
Note: The PlugLinkAV device must be plugged into an electrical outlet
when using these buttons. If you have questions, please contact Asoka USA
Technical Support at (408) 550-8173.
27 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Troubleshooting
Following are solutions to a few situations you might encounter. If you do not find
a solution in this chapter, contact Asoka USA Technical Support by phone at (408)
550-8173 or through email at support@asokausa.com.
Symptom: I can't connect to anything and there are no lights activated on my
PL9661-C2.
Solution:
1. Unplug the device from the electrical outlet in question.
2. Locate another available outlet in your home.
3. Test the outlet by plugging in another electrical device such as a lamp or radio.
4. Plug the PL9661-C2 into the working electrical outlet.
5. Check to see if the lights work
6. If the above does not work, the device might be defective.
7. Please contact Technical Support for instructions on returning the device for
repair or replacement.
Symptom: Some of my devices cannot connect to the Internet or other computers
in my network. The lights seem to be functionally normally.
Solution #1:
1. Re-Initialize the PL9661-C2 device.
2. Unplug the PL9661-C2 from the electrical outlet.
3. Disconnect the Ethernet cable from the device
4. Plug the PL9661-C2 back into the electrical outlet.
5. Reconnect the Ethernet cable.
28 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Solution #2:
The Network Encryption Key (NEK) may not be correct on your devices.
1. Reset the Network Encryption Key using the Factory Reset button located on the
bottom of your PL9661-C2 device. This will reset the NEK back to the default of
HomePlug.
2. Test your connection again. If this still does not work, perform the factory reset
on all of your other PL9661-C2 devices in your network.
Solution #3:
It is possible some outlets in your home are not connect together.
1. Unplug the PL9661-C2 from the current electrical outlet.
2. Locate another outlet in the home.
3. Plug the PL9661-C2 into that outlet.
4. Attach a computer to the PL9661-C2.
5. Open the Power Manager Utility (located on the enclosed CD).
6. Under the Profile button, check if your PL9661-C2 is displayed (it Will be the first)
and see if your other PL9661-C2 devices can be seen. If you can see other devices
under the Profile screen, your PL9661-C2 device is functioning properly.
Solution #4:
Your broadband connection may have stopped working.
1. Power down your broadband router and/or DSL/cable modem (if applicable) for
about 30 seconds and then power them back on.
2. If this step fails, please contact your ISP for assistance.
29 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Specifications
This appendix lists the specifications for your PL9661-C2.
Standards Compliance: •HomePlug® AV • IEEE 802.3, IEEE 802.3x, IEEE 802.3u
Software Utility
System Requirements:
Microsoft Windows® 98 SE, 2000, ME, XP, Vista , 7(32bit) and 7(64bit)
operating systems
Network Protocol: TCP/IP, CSMA/CA, TDMA (supported in the future)
Network Interface: One-port 10/100 Mbps Ethernet (RJ-45)
PHY-Rates: Up to 200 Mbps
Distance: Up to 656 feet (200 meters)
Operating Frequency: 2 to 30 MHz
Modulation Schemes: • Orthogonal Frequency Division Multiplexing (OFDM) • QAM
1024/256/64/16 •QPSK •BPSK
EMI and Safety: • FCC Part 15 Class B •UL (US and Canada) •CE
Additional Protocols: • Forward Error Correction (FEC) • Automatic Channel Adaptation
Power Supply: • US Version: 100-120VAC • UK/EU Version: 220-240VAC
Surge Energy Rating: 4KV
Power Rating: • US Version: 100-120VAC 0.1A max, 60Hz • UK/EU Version:
220-240VAC 0.08A max, 50Hz
Security: 128-bit AES
30 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Environmental
Specifications:
• Operating temperature: 32°F to 131°F (0°C to 45°C) • Operating humidity: 10% to 85%
Non-condensing • Storage temperature: -4°F to 158°F (-20°C to 70°C) • Storage
humidity:
5% to 90% Non-condensing
Quality of Service: •ToS • 802.1q • TDMA (supported in the future)
Warranty: lifetime
31 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Components

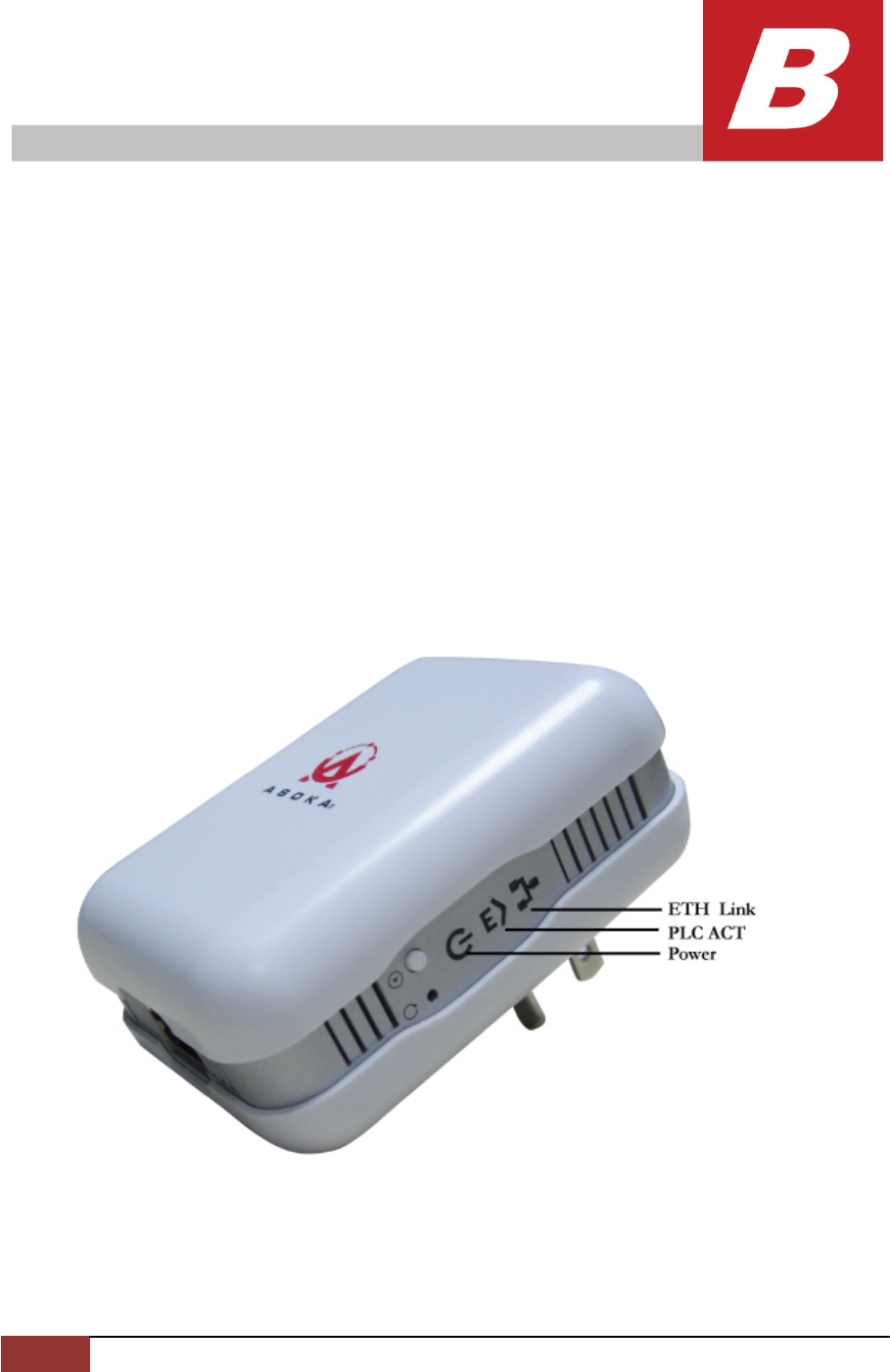

Front Panel
Use the status lights on the front panel to verify connections.
32 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
The following table describes the status light functions in the front panel:
Status Light State Indication
Power
Illuminated
Off
Red and Green
illuminate alternately
Device is powered on
Devices has no power
Stand by mode (After 3 minutes no link)
PLC Activity Blinking
Red
Blinking
Yellow
Blinking Green
Off
Low connection
Good connection
Excellent connection
No connection
Eth Link Illuminated
Blinking
Off
Ethernet connectivity
Ethernet traffic
No Ethernet connectivity

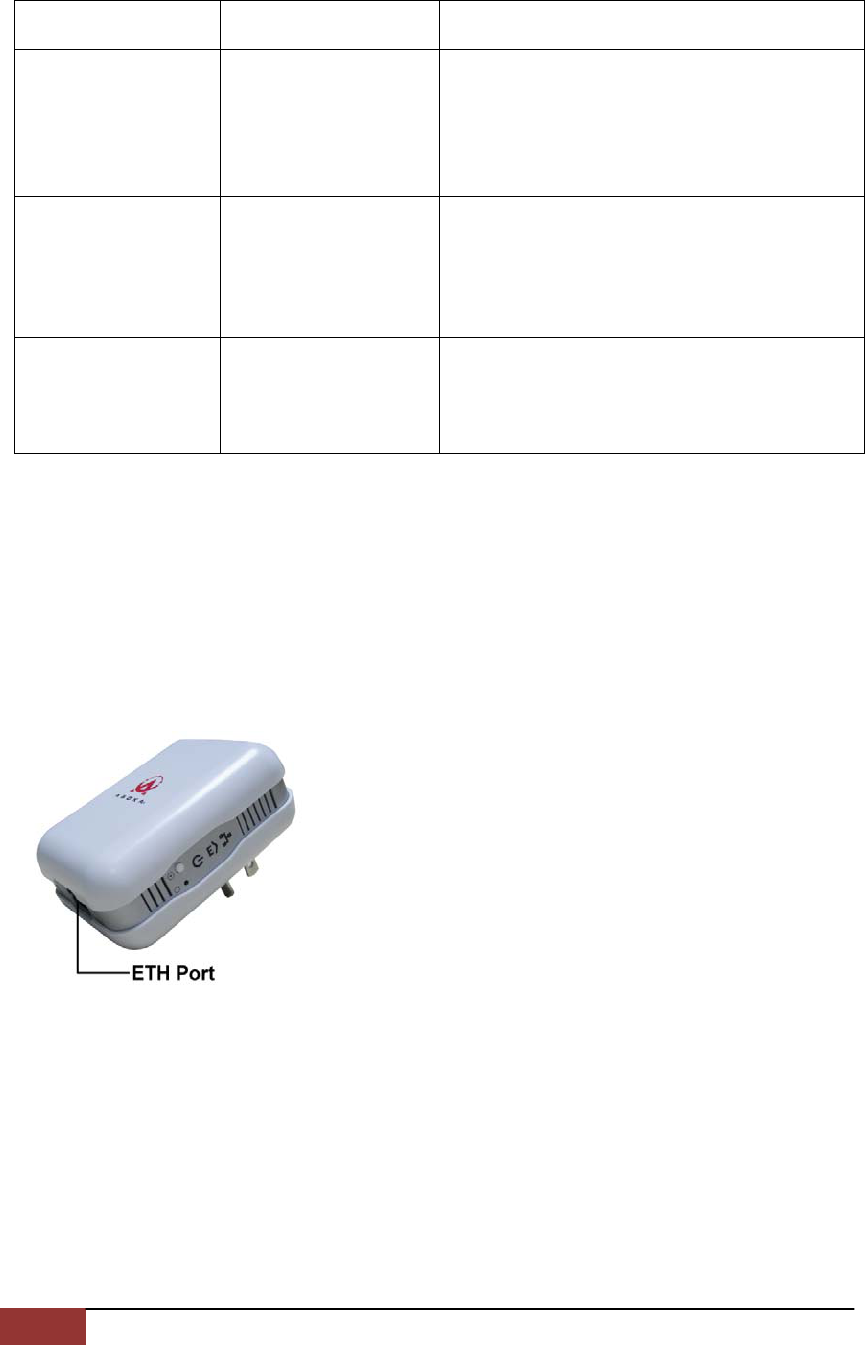

Bottom Panel
The bottom panel of the PL9661-C2 contains the following components:
z RJ-45 Ethernet port
The label on the rear panel of the PlugLink 200 MIMO ETH contains the
information listed below.
z MAC address
z Model number
z Part number
z Serial number
z Unique device password
33 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Note: Write this information down in your Warranty Support Information
card for future reference.
Buttons
The PlugLink 200 MIMO ETH device has two hardware push buttons:
• FW RST (Firmware Default Reset ) button – Resets the PlugLink 200 MIMO
ETH back to factory default settings. Press and hold the button with a pin or
sharp object for about 2 seconds until you see the lights on the device flash
briefly.
• SECURITY (Network ID) button – All PlugLink 200 MIMO ETH devices have a
default password Network Encryption Key (NEK) set to “HomePlugAV”
allowing them to communicate to each other. The SECURITY button allows
you to set a devices’ password to a randomized Network Encryption Key
(NEK) for maximum security. You can then set other devices to the same
NEK by using their SECURITY button. Only units with the same NEK can
communicate to each other.
SETTING A RANDOMIZED NETWORK PASSWORD
1. Select a PlugLink 200 MIMO ETH (Device A) and plug into an AC outlet. The
POWER light indicator should be lit solid green.
a. Press the SECURITY button BRIEFLY (1 second) and release. The
POWER light should now be blinking green.
b. IMPORTANT: If the POWER light is not blinking green, repeat Step “a”
until the power light blinks green.
c. This unit is now ready to create a new randomized NEK (Net
Encryption Key) network. This unit will remain in this “adder” mode
for about 2 minutes.
Ethernetlight
PLCACTlight
Powerlight
DeviceADeviceB
34 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
2. Select another PlugLink 200 MIMO ETH (Device B) and plug into a second
outlet.
a. Press the SECURITY button BRIEFLY (1 second) and release. The
POWER light should now be blinking green.
b. IMPORTANT: If the power light is not blinking green, repeat Step “a”
until the power light is blinking green.
3. In about 15 seconds the POWER light will change from flashing green to
solid green and the PLC ACT (Power line Communication Activity) light will
turn solid green (flashing green when there is data traffic) indicating they
are synchronized with the same NEK.
4. Congratulations, you are done!
ADDING A THIRD OR MORE PLUGLINK HD AV DEVICES
1. Plug your new PlugLink 200 MIMO ETH (Device C) into an AC outlet. The
POWER light indicator should be lit solid green.
a. Press the SECURITY button BRIEFLY (1 second) and release. The
POWER light should now be blinking green.
b. IMPORTANT: If the POWER light is not blinking green, repeat Step “a”
until the power light is blinking green.
c. This unit is now ready to join the existing HD AV network. This unit
will remain in this “adder” mode for about 2 minutes.
2. From your existing devices (either device A or device B) press the SECURITY
button BRIEFLY (1 second) then release. The POWER light should now be
blinking green.
d. IMPORTANT: If the power light is not blinking green, repeat Step “2”
until the power light is blinking green.
3. In about 15 seconds the POWER light will change from flashing green to solid
green and the PLC ACT (Power line Communication Activity) light will turn
solid green (flashing green when there is data traffic) indicating they are
synchronized with the same NEK.
4. To add more PlugLink devices; simple repeat this process per device.
5. Congratulations, you are done!
Notes:
1. The other devices already in the Power line network with the proper NEK
are not affected and do not need to be reconfigured.
2. If you disconnect power from any device, its NEK value will remain and will
not default back to “HomePlugAV” NEK.
3. An adapter can only generate a private key once. To replace a private key,
first reset the unit back to its factory defaults by pressing the Firmware
DeviceADeviceBDeviceC
Ethernetlight
PLCACTlight
Powerlight
35 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Default Reset (FW RST) button for 1 second, then follow the procedure
above.
The use of the SECURITY (Network ID) button is optional. You may also
use the application software described in the manual to set NEK's as
well.
36 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
Warranty
Asoka warrants that (a) the hardware components of the product will be free from
defects in materials and workmanship under normal use from the date of purchase
when used within the limits set forth in the Specifications section of the User Guide,
and (b) the software components will perform substantially in accordance with
Asoka's published specifications for lifetime from the date of purchase, but does not
warrant that the software will be error-free or free of all defects.
Should a product fail to perform as described in the User Guide, it will be repaired
or replaced with the same or functionally equivalent product by Asoka, at its
discretion, free of charge provided that you: (a) return the failed product to an
Asoka designated repair facility with shipping charge prepaid, and (b) provide Asoka
with proof of the original date of purchase. Repaired or replacement products will
be returned to you with shipping charges prepaid. Asoka warrants any replaced or
repaired product or component for the life of the product.
This warranty extends only to you, the original purchaser and is not transferable to
any subsequent purchasers.
This warranty does not apply if, in the judgment of Asoka, the product fails due to
damage from shipment, handling, storage, accident, abuse, misapplication or misuse,
or if it has been used or maintained in a manner not conforming to product manual
instructions, has been modified in any way, or has had any serial number removed or
defaced. Repair by anyone other than Asoka or an approved agent will void this
warranty. The maximum liability of Asoka under this warranty is limited to the
purchase price of the
37 of 39 PlugLink 200 MIMO ETH Us
e
r’s Guid
e
product covered by the warranty. Prior to returning any defective product, the
purchaser or the authorized merchant from whom the purchaser originally bought
the product must obtain a Return Material Authorization (RMA) number from Asoka.
All defective products should be returned to Asoka with shipping charges prepaid.
Asoka will not accept collect shipments.
WHILE ASOKA HAS MADE EVERY EFFORT TO PROVIDE CLEAR AND ACCURATE
TECHNICAL INFORMATION ABOUT ITS PRODUCTS, ASOKA ASSUMES NO LIABILITY FOR
ANY EVENTS ARISING OUT OF THE USE OF THE TECHNICAL INFORMATION OR THE
PRODUCT, EXCEPT AS SPECIFICALLY PROVIDED IN THIS AGREEMENT OR AS REQUIRED
BY LAW. THE WARRANTIES AND REMEDIES STATED ABOVE ARE EXCLUSIVE AND IN LIEU
OF ALL OTHERS, ORAL OR WRITTEN, EXPRESS OR IMPLIED. ANY AND ALL OTHER
WARRANTIES, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR
A PARTICULAR PURPOSE AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS ARE
EXPRESSLY EXCLUDED. ASOKA SHALL NOT BE LIABLE, UNDER ANY CIRCUMSTANCES,
TO ANY PERSON OR ENTITY FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, DAMAGES RESULTING
FROM THE USE OR MALFUNCTION OF THE PRODUCTS, LOSS OF PROFITS OR REVENUES,
BUSINESS INTERRUPTION, OR COSTS OF REPLACEMENT GOODS, EVEN IF ASOKA IS
INFORMED IN ADVANCE OF THE POSSIBILITY OF SUCH DAMAGES.
38 of 39 PlugLink 200 MIMO ETH User’s Guide
FCC Notice
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct
The interference by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
Asoka USA Corporation
2344 Walsh Avenue Suite A
Santa Clara, California 95051
USA Phone: (408) 550–8167
Fax: (408) 884–2390
www.asokausa.com
66-0360-05Rev.003
39 of 39 PlugLink 200 MIMO ETH User’s Guide
