ASOKA USA PL9677-B1 PlugLink Pass-Through-500 User Manual PL9677 B1 Manual 20100812
ASOKA USA Corporation PlugLink Pass-Through-500 PL9677 B1 Manual 20100812
T37PL9677-B1_Manual_Rev1
PlugLink Pass-Through-500
User’s Guide
PL9677-B1
QUICKFIND L
OCATOR
Contact
Information
Getting Help Table
of Contents
Installation
66‐0366‐01Rev.001
2 of 34 PlugLin
k
Pass
-
Through
-
500 User’s Guid
e
© 2010 Asoka USA Corporation
ALL RIGHTS RESERVED
Notice: No part of this publication may be reproduced or transmitted in any form or by any means, electronic
or mechanical, including photocopying and recording, or stored in a database or retrieval system for any
purpose without the express written permission of Asoka USA Corporation.
Asoka USA Corporation reserves the right to make changes to this user’s guide at any time without notice and
assumes no responsibility for its use. Asoka USA products and services can only be ordered under the terms
and conditions of Asoka USA Corporation's applicable agreements. All of the features described in this user’s
guide may not be currently available. Refer to the most recent product announcement for information about
feature and product availability.
This user’s guide contains the most current information available at the time of publication. When new and/
or revised information becomes available, this entire user’s guide is updated and distributed to all registered
users.
All company and product names mentioned herein are trademarks of their respective companies. Mention of
third-party products is for informational purposes only and constitutes neither an endorsement nor a
recommendation. Asoka USA Corporation assumes no responsibility with regard to the performance or use of
these products.
Revision
Date
Description
66-0366-01Rev.001 Aug
2010
Preliminary Release
Changes in This Revision
• Not applicable (preliminary release)
3 of 34 PlugLin
k
Pass
-
Through
-
500 User’s Guid
e
Contact Information
For more information about the PlugLinK Pass-Through-500 or any of Asoka’s other leading-
edge solutions, please contact us using any of the following methods:
z Voice calls: We welcome your calls Monday through Friday, from 9:00 am to 5:00 pm
Pacific Time at (408) 550-8167. Voice mail is available during non-business hours.
z Email: If you prefer, you can send information requests to our e-mail address:
sales@asokausa.com.
z Fax calls: You can also send your requests for information to our 24-hour fax number:
(408) 884-2390
z Web site: Our Web site contains valuable information about our products, solutions,
and services. We encourage you to visit us at http://www.asokausa.com.
Getting Help
Asoka USA backs its products with unparalleled customer service and technical support for
our valued customers.
Customer Service
Customer service, the customer-satisfaction arm of Asoka USA, is available Monday through
Friday, from 9:00 am to 5:00 pm Pacific Time, by calling (408) 550-8167 or emailing
custserv@asokausa.com.
Technical Support
Technical support is available Monday through Friday, from 6:00 am to 6:00 pm Pacific
Time, by calling (408) 550-8173 or through email at support@asokausa.com.
Please provide the following information about the problem:
z Product name, model number, part number (if applicable) and serial number.
z System configuration, including a description of the devices connected to your PL9677-
B1.
z The circumstances surrounding the error or failure.
z A detailed description of the problem and what has been done to try to solve it.
4 of 34 PlugLin
k
Pass
-
Through
-
500 User’s Guid
e
Table of Contents
1 Simple Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Types of Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Simple Connection (Peer to Peer) . . . . . . . . . . . . . . . . . . . .6
Simple Broadband Connection. . .. . . . . . . . . . . . . . . . . . . . 6
Other Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Finding a Suitable Location. . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing the Hardware . . . . . . . . . . . . . . . . . .. . . . . . . . . . 7
2 Advanced Configuration (Expert Users Only) . . . . . . . . . . . . . 8
Installing the Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Network Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Viewing Device Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Changing Names and Encryption Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Resetting and Upgrading the PlugLink AV . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

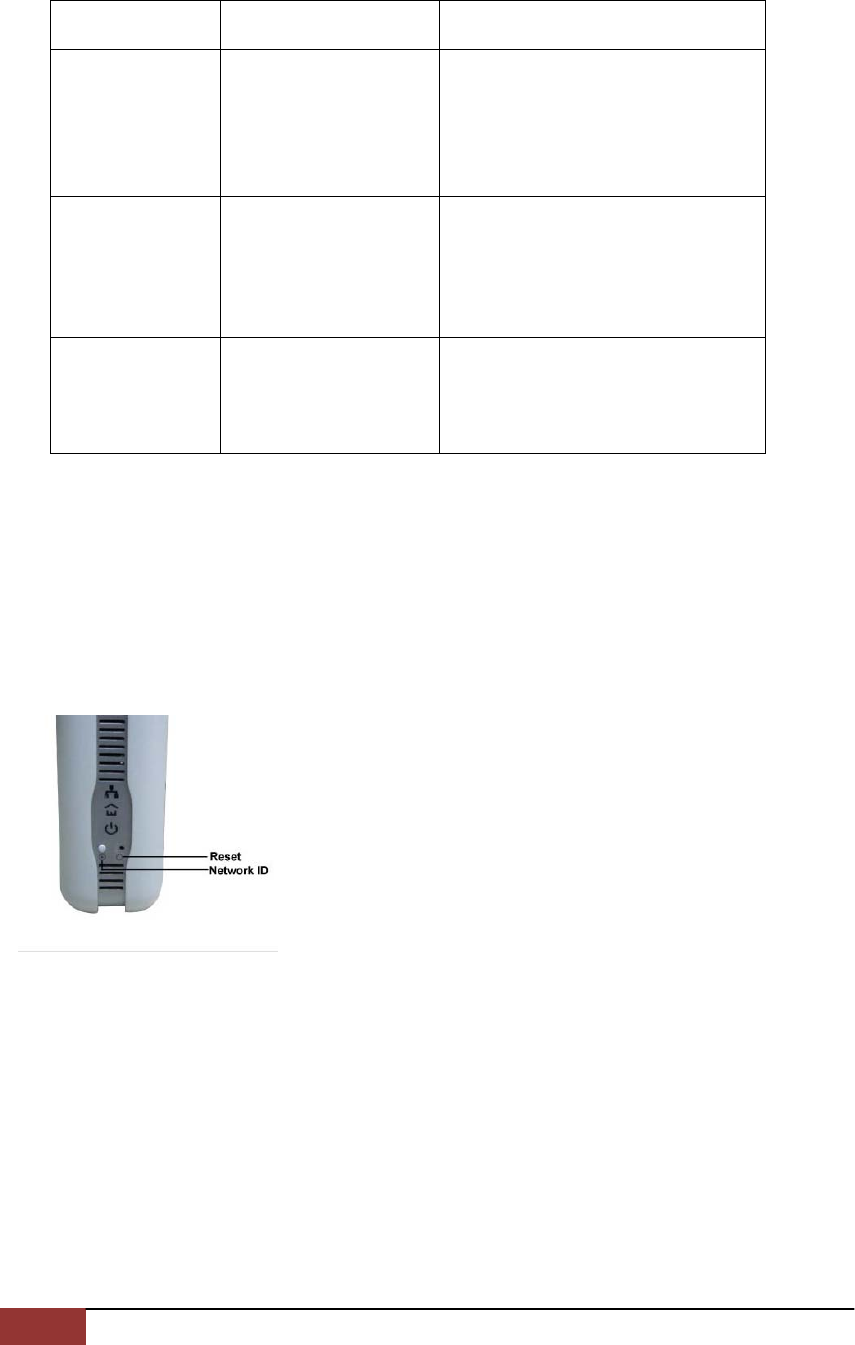

Manually Resetting Firmware and NID. . . . . . . . . . . . . . . . . . . . . . . . . . . 16

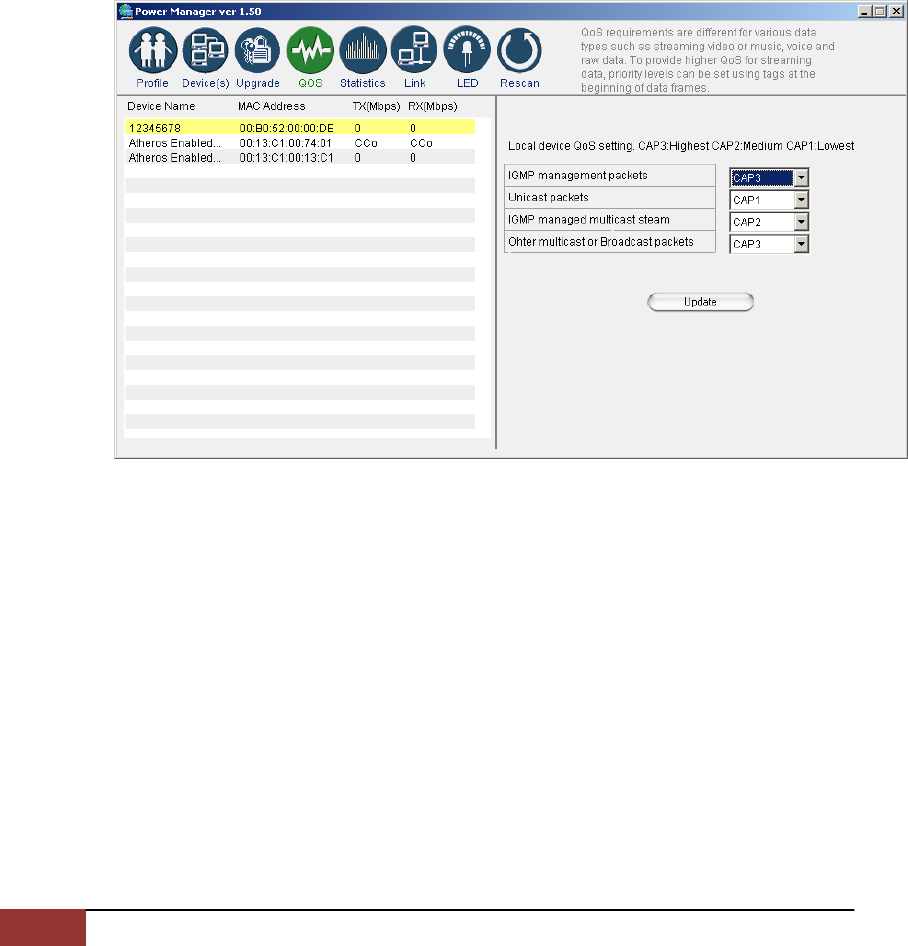

Prioritizing Network Traffic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

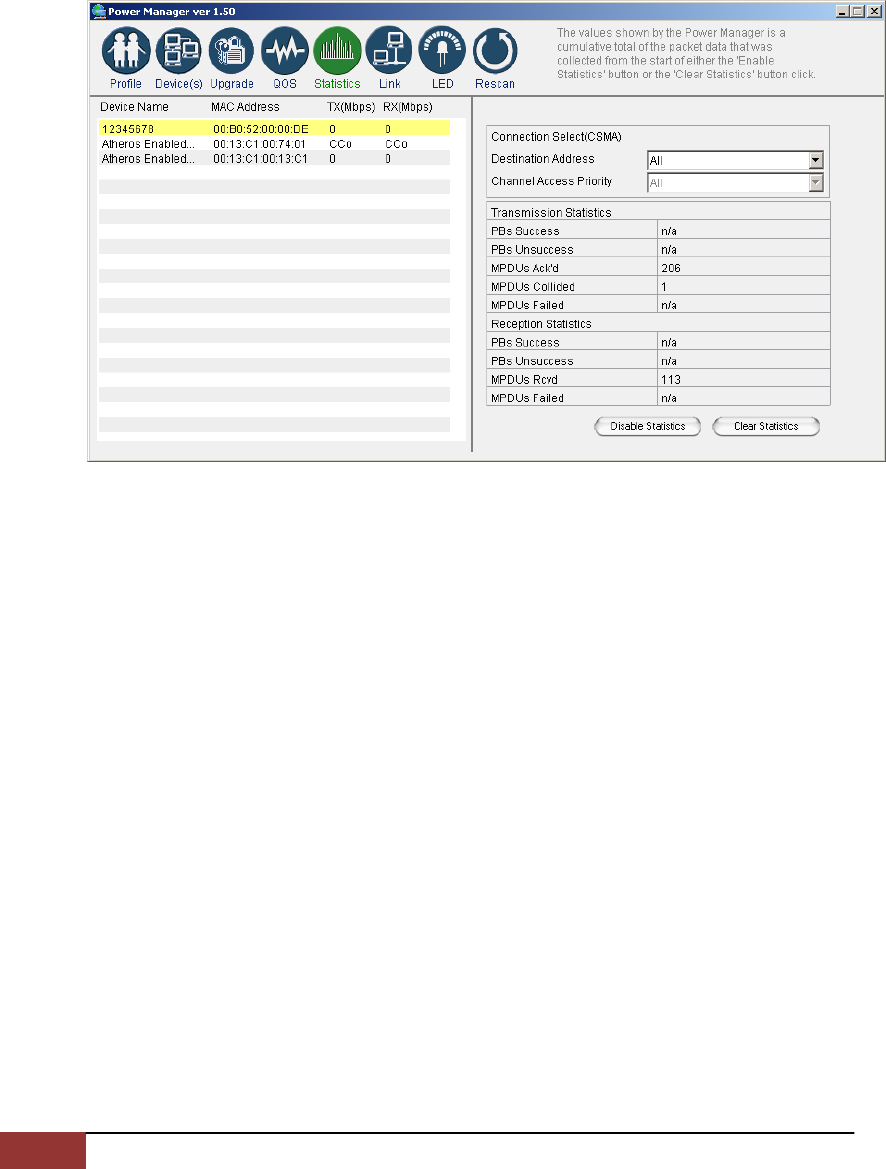

Viewing Network Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Viewing Ethernet and HomePlug Connection . . . . . . . . . . . . . . . . . . . . . . . . . 18
Viewing Connection Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Statistics Subscreen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Scanning Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
A Specifications .....................................................................23
B Components.......................................................................25
D Warranty ..........................................................................30
E FCC Notice .........................................................................32
5 of 34 PlugLin
k
Pass
-
Through
-
500 User’s Guid
e
Simple Installation
Congratulations on your purchase of the PlugLinK Pass-Through-500!
This adapter allows you to network your home or office by
plugging directly into an electrical outlet. With your PlugLinK
Pass-Through-500, you can easily share your high-speed
Internet, mp3s, video, and gaming throughout the home or office.
This manual describes how to connect your PlugLinK Pass-Through-500 to a
PC or cable/DSL router.
Package Contents
z PlugLinK Pass-Through-500 (PL9677-B1)
z 6-foot Ethernet cable
z Quick Installation Guide
z Installation Resource CD (for advanced users only)
z Warranty and Support Information Card
If any of the parts are incorrect, missing, or damaged, contact the retailer
where you made your purchase. Keep the carton, including the original
packing materials, in case you need to return the unit for repair.
Types of Connections
This section describes what you need to do to before installing the
PlugLinK Pass-Through-500. You can set up a home or an office
network or compliment your existing network by connecting to any
device with a 10BaseT/100BaseT Ethernet-capable device.
6 of 34 PlugLin
k
Pass
-
Through
-
500 User’s Guid
e

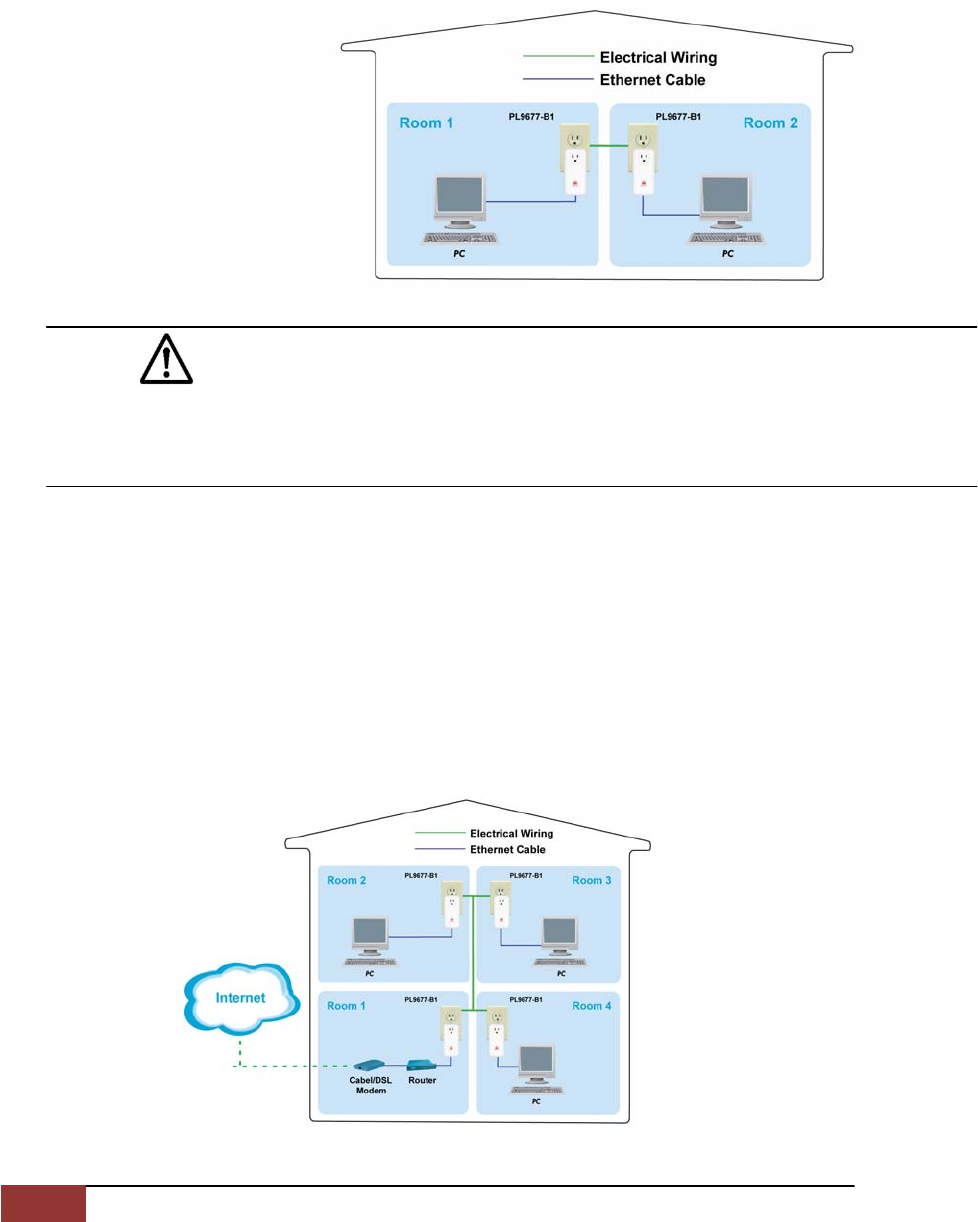

Simple Connection (Peer to Peer)
To share a simple connection between computers, attach one PL9677-B1
device to each computer.
NOTE: Do not connect the PlugLinK Pass-Through-500 into a power strip,
extension cord, un-interruptible power supply (UPS), or surge protector. This may
prevent the unit from working properly or degrade the network performance.

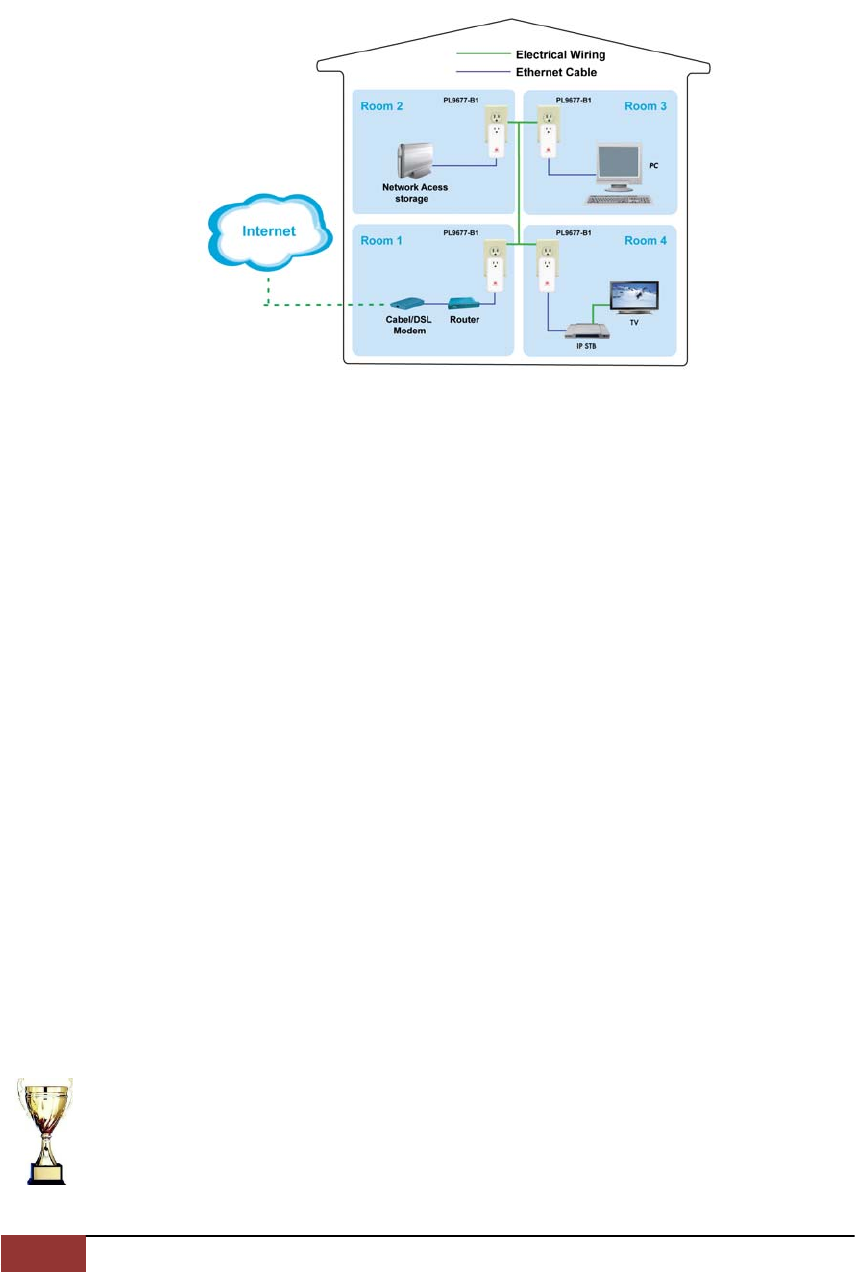

Simple Broadband
Connection
The following items are needed to share a Broadband connection with
computers:
♦ One (1) PL9677-B1 device attached to a standard cable, DSL, or wireless
router;
♦ One (1) PL9677-B1 device attached to each computer;
7 of 34 PlugLin
k
Pass
-
Through
-
500 User’s Guid
e
Other Connections
You can also use the PlugLinK Pass-Through-500 with other Ethernet enabled
devices, such as IP Cameras, IP set top box, game consoles, etc.
Finding a Suitable Location
Find a suitable location to install your PlugLinK Pass-Through-500. Where you
install the units can affect their performance. Find a location that is:
z Acceptable temperature and humidity ranges.
z Free of strong electromagnetic field generators (such as motors),
vibration, dust, and direct exposure to sunlight.
z An electrical outlet for your PlugLinK Pass-Through-500. Outlet must
be is within six feet (1.82 meters) of the device you are connecting to.

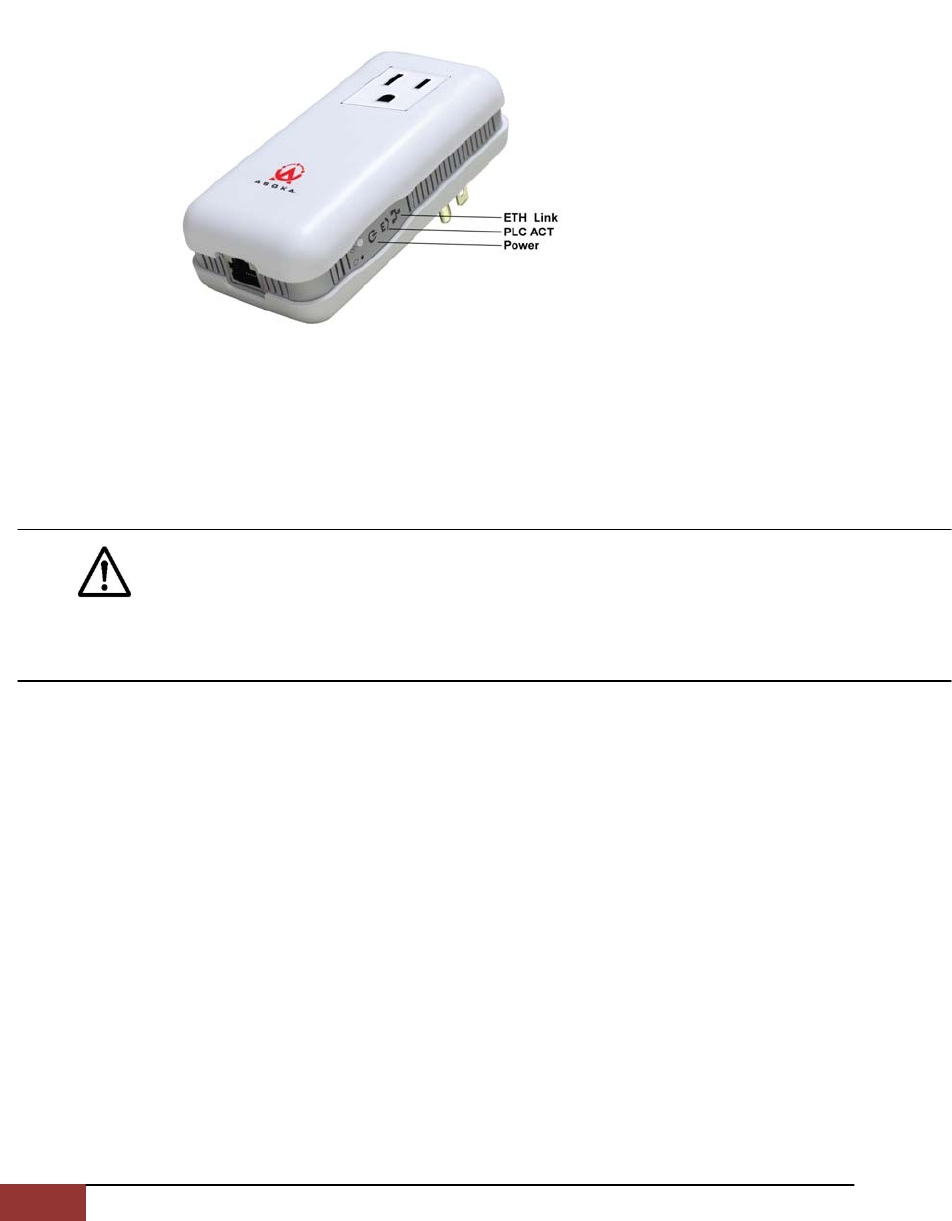

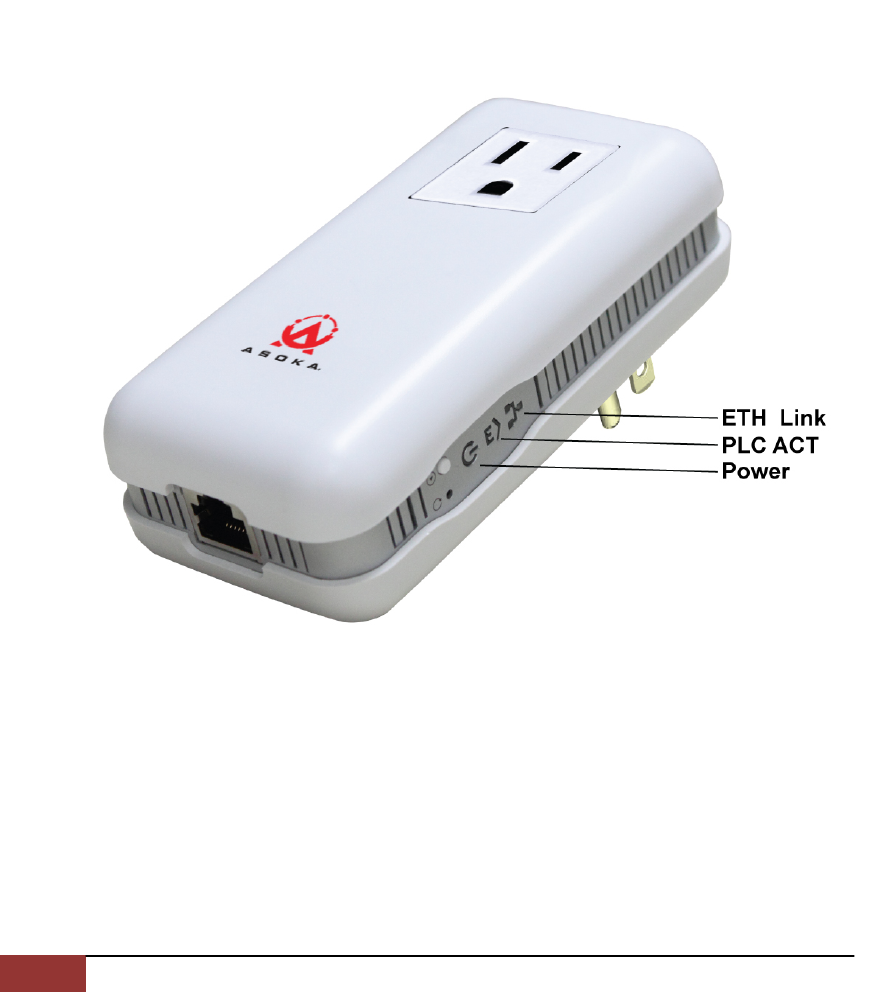

Installing the Hardware
Connect each of your PlugLinK Pass-Through-500.
1. Connect the unit into a nearby wall outlet (Do not plug the adapter into a
power strip).
2. Connect the enclosed Ethernet cable to the Ethernet port of the unit.
3. Connect the other end of the cable to the Ethernet port of the PC or
device.
Congratulations! You have completed the installation of the 9677 for
normal use.
8 of 34 PlugLin
k
Pass
-
Through
-
500 User’s Guid
e

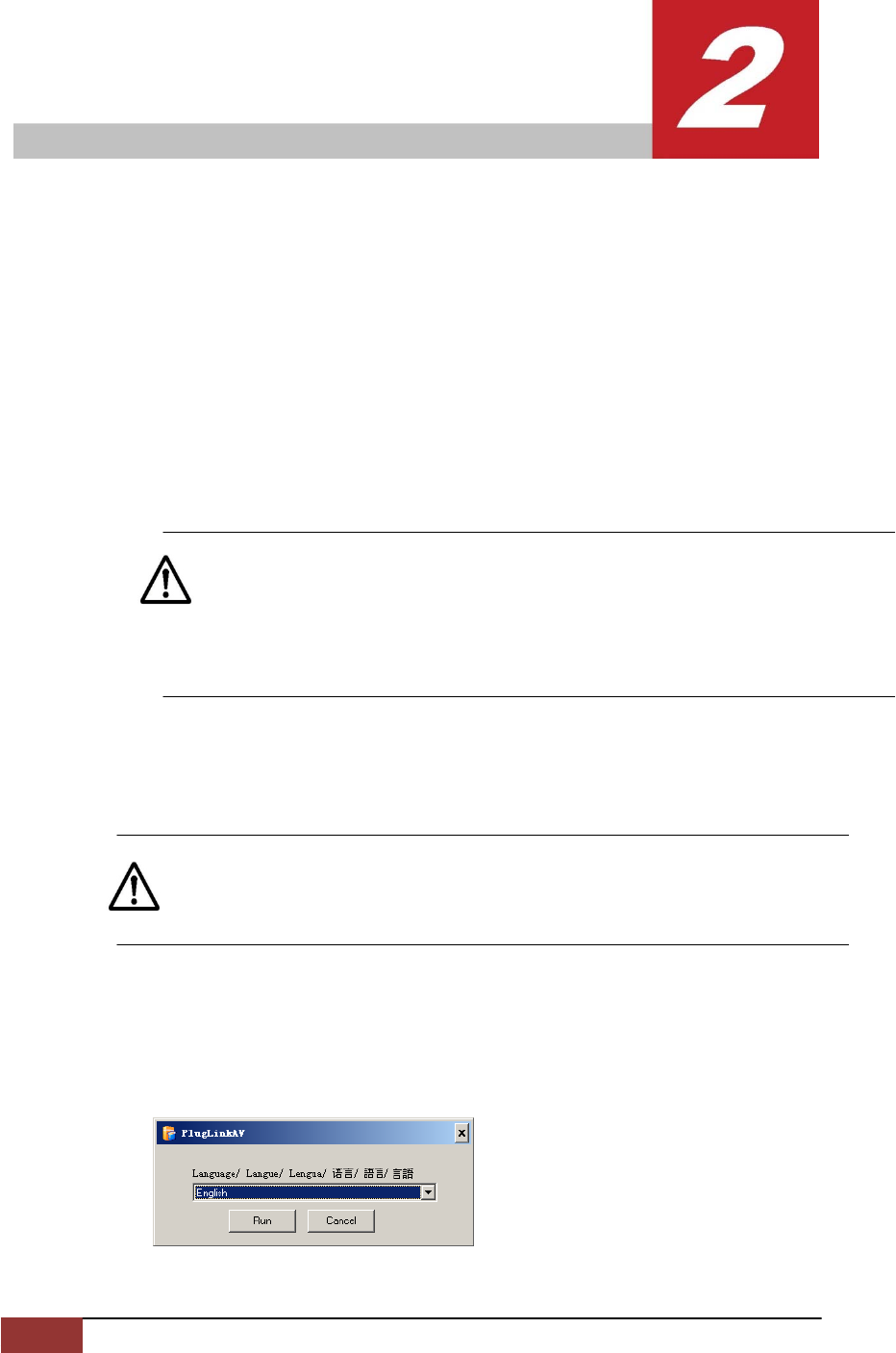

Advanced Configuration
(Expert Users Only)
This chapter provides information on installing and setting up the
PlugLinK Pass-Through-500 Adapter.
NOTE: Do not connect the PlugLinK Pass-Through-500 into a power
strip, extension cord, un-interruptible power supply (UPS), or surge
protector. This may prevent the unit from working properly or
degrade the network performance.
Installing the Software
Following are software installation procedures for advanced users.
NOTE: Software installation is not required for normal use. The
utility is used to change the security settings and view information
about the network.
1. Insert the enclosed Installation Resource CD into your CD-ROM drive If
the PlugLinK Pass-Through-500 Installation Utility does not appear
within 30 seconds, select your CD-ROM drive and double-click the
Setup.exe icon to start the Installation Utility.
2. Select the language preference, and click the Run button.
9 of 34 PlugLin
k
Pass
-
Through
-
500 User’s Guid
e

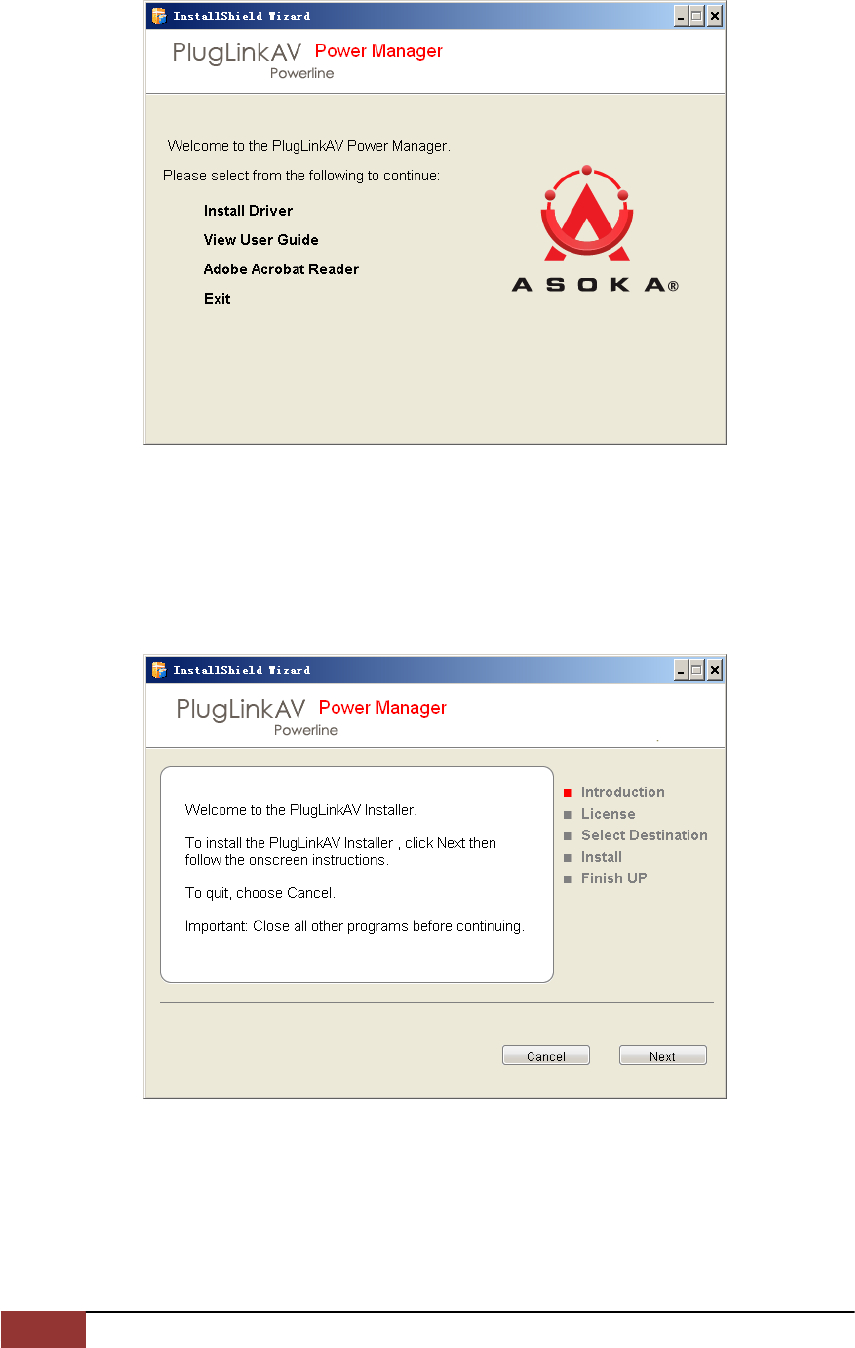

3. In the Start screen, click Install Driver to start the installation.
4. In the Welcome screen of the screen of the wizard, click Next
to begin the installation.
10 of 34 PlugLin
k
Pass
-
Through
-
500 User’s Guid
e
5. Read the End User Software License Agreement, and if you
agree, click the Agree button to continue the installation.
6. To change the name of the PlugLink AV unit, select Yes, and
enter a name in the text field. Otherwise, select No. Click
Next to advance to the next screen.
11 of 34 PlugLin
k
Pass
-
Through
-
500 User’s Guid
e

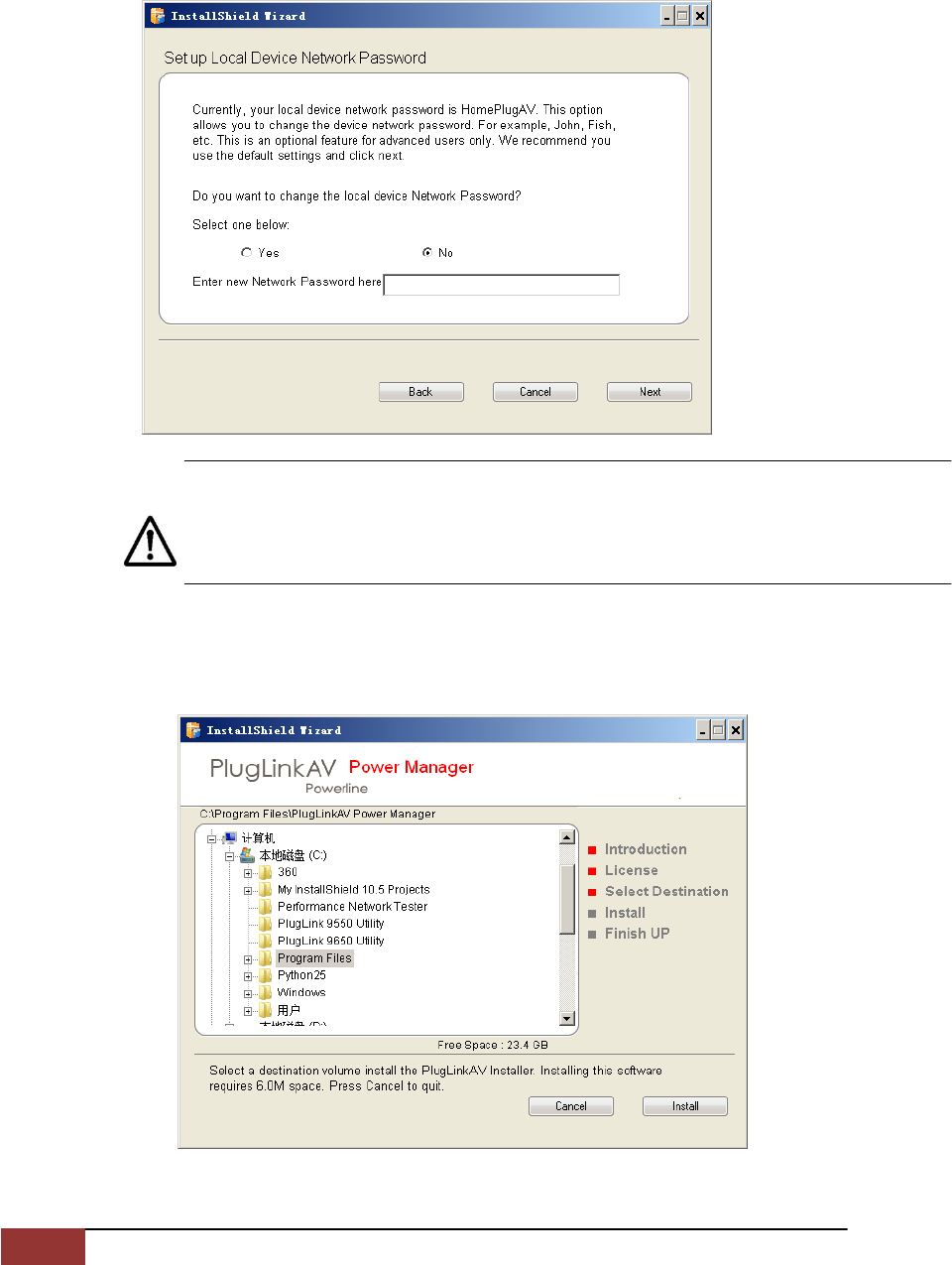

7. This following screen allows you to change the network password for your
PlugLink 9677 units. To change the network password, select Yes and then
enter the new password in the text field. Or, select No and click the Next
button to continue.
NOTE: All devices on your network must share the same password to
communicate. Use care when changing the network password. The default
password is HomePlug AV.
8. Select the location where you want to install the drivers and software and
click the Install button.
12 of 34 PlugLin
k
Pass
-
Through
-
500 User’s Guid
e

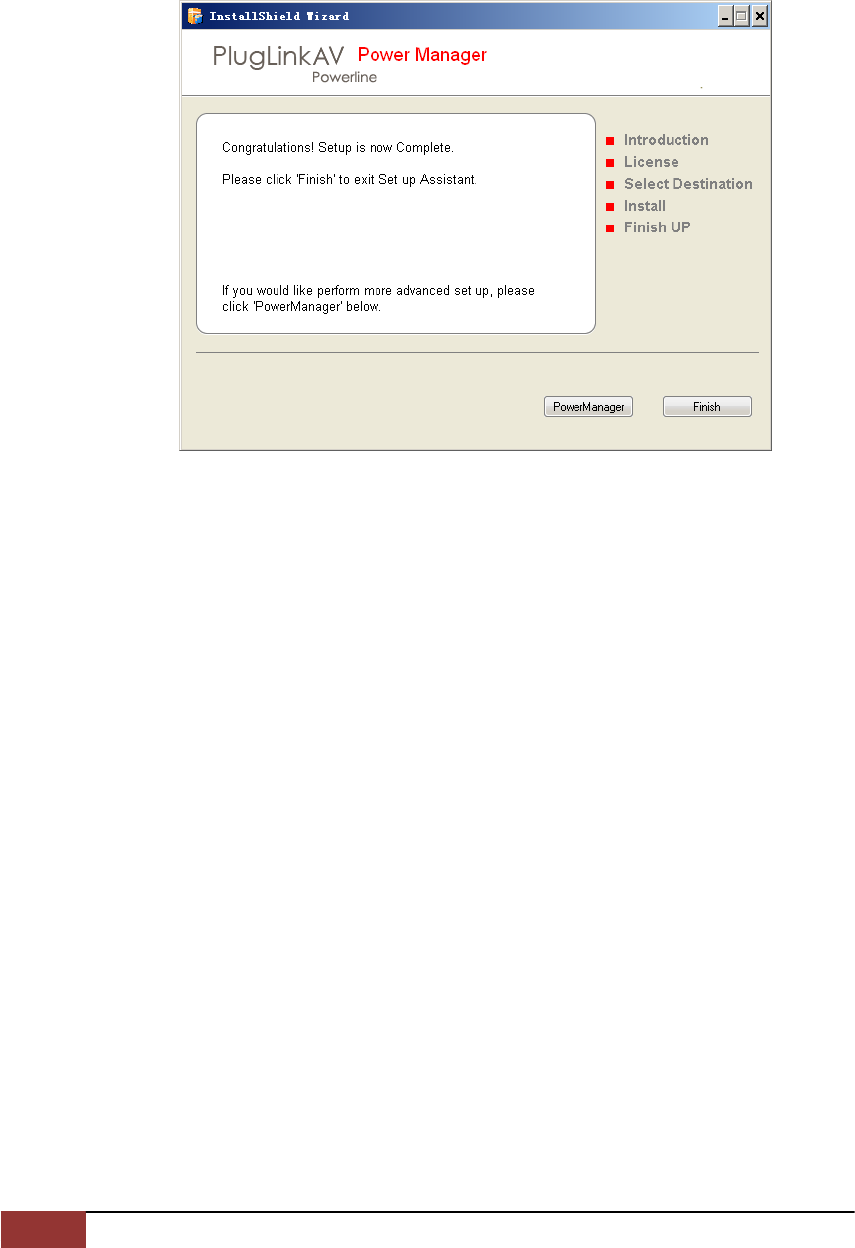

9. When the installation of the PlugLink drivers and software is
complete, you can use Power Manager Utility for advanced
configuration of your PlugLink 9677 unit. Click Finish to finish
the installation wizard.
PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
13 of 34
Network Management
The Power Manager Utility allows you to manually configure a
PlugLinK Pass-Through-500 that is directly connected to your
Personal Computer or to any PlugLinK Pass-Through-500 that are
remotely residing on your PlugLink Home network.
NOTE: The Power Manager Utility is for all Asoka PLC devices.
Viewing Device Information
Use the Profile screen to view information on your devices
attached directly to your PC and other HD AV devices on your
network.
The Profile screen displays the following information:
z Device Name
z MAC Address
z Firmware version of your devices
z Estimated device transmission rate
To refresh the list of your HD AV devices, click the Rescan button.
NOTE: Devices set up with a different network password will NOT
show up on this list.
PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
14 of 34

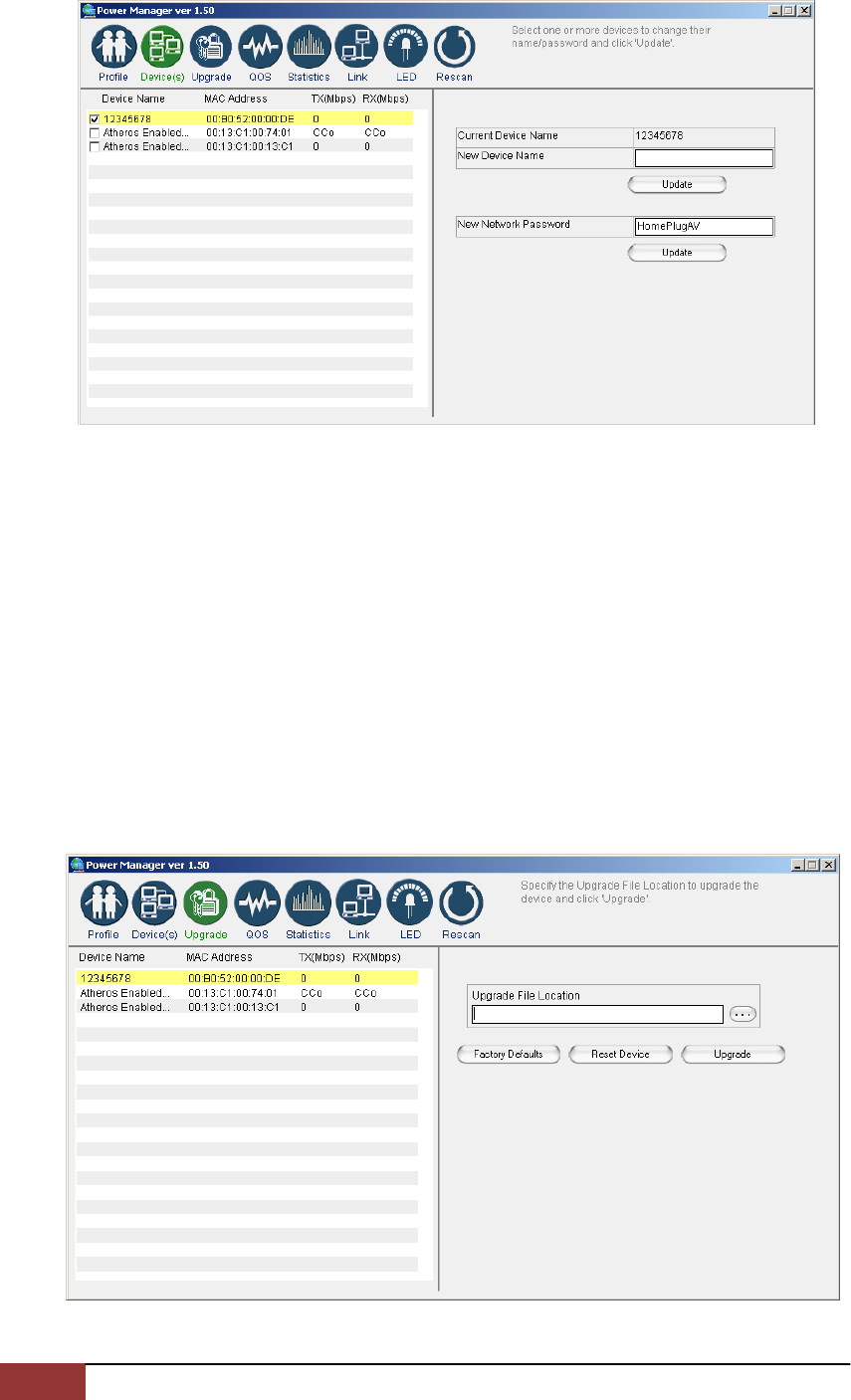

Changing Names and Encryption Keys
Use the Device Screen to change your local and remote device names and
change local and remote device Network Encryption Keys (NEK). Always
change the remote devices before changing the one you are connected to.
To change a remote device's NEK:
1. Check the box next to the device that you want to change the NEK.
2. Enter the password of the remote device. The password is printed on the
device label. (example: AIAI-AFZO-FFMP-FLUI)
3. Enter a new NEK (Network Encryption Password) password.
4. Click the Update button
NOTE: The device will not appear again until the device you are connected
to is changed to the same password. All devices must have the same
password.
15 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
Resetting and Upgrading the PlugLinK Pass-
Through-500
Use the Upgrade Screen to perform the following functions:
1. Reset the PlugLinK Pass-Through-500 to factory default settings.
2. Reboot the PlugLinK Pass-Through-500 device. You can also reboot the
device by unplugging and plugging the unit into the electrical outlet.
3. Upgrade the firmware for the PlugLinK Pass-Through-500 device. Visit
www.asokausa.com to upgrade the firmware.
16 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
Manually Resetting Firmware and NID
You can use the buttons on the PlugLink device to reset the firmware to its
default, or NID to associate a network.
NOTE: The PlugLink device must be plugged into an electrical outlet
when using these buttons. If you have questions, please contact Asoka USA
Technical Support at (408) 550-8173
17 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
Prioritizing Network Traffic
Use the QoS screen to prioritize your traffic through the device.
z IGMP - (default CAP 3) - sets the channel access priority for IGMP group
management frames
z Unicast - (default CAP 1) - sets the default channel access priority for
Unicast frames not matching any other classification or mapping.
z IGMP managed Multicast Stream (It is better set it fixed to CAP 2) -sets the
default channel access priority for stream data belonging to a snooped
IGMP multicast group.
z Multicast/Broadcast - sets the default CAP for multicast frames not in a
snooped group and for broadcast frames.
18 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e

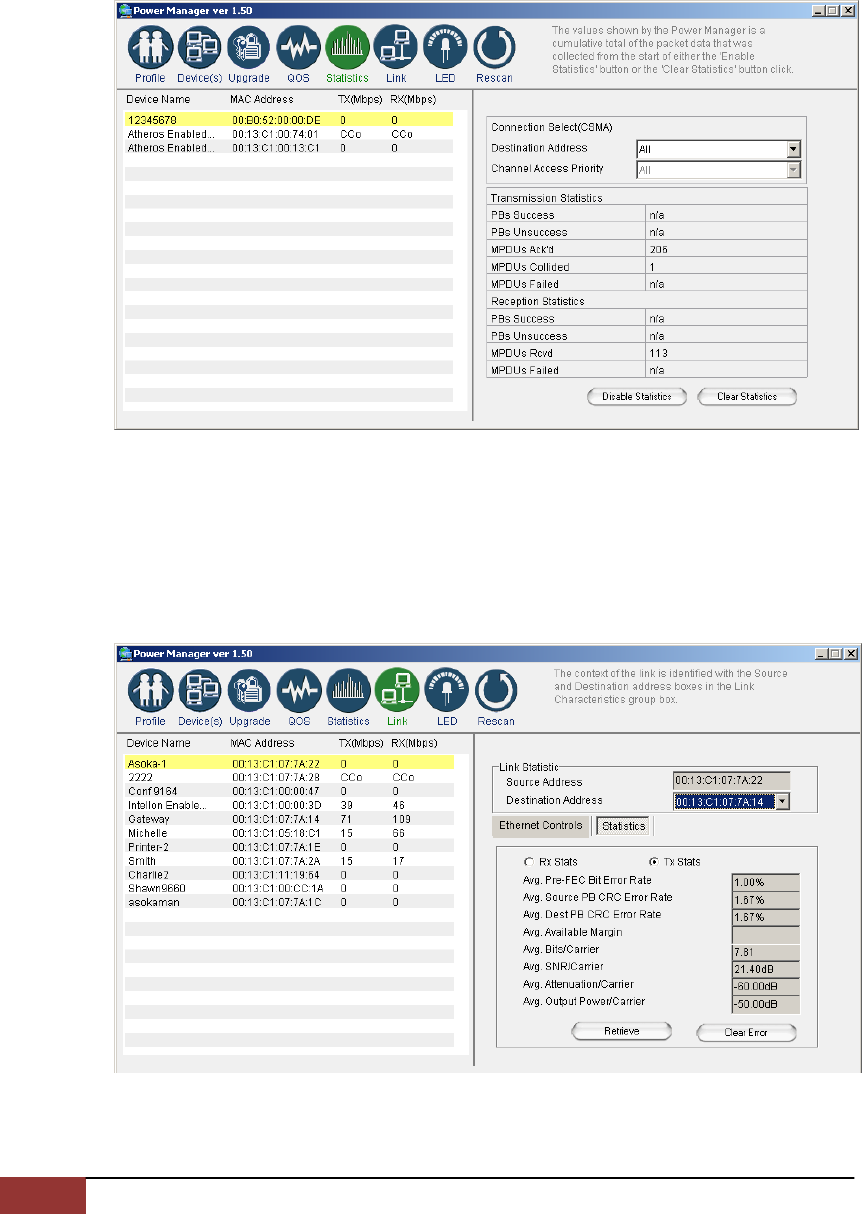

Viewing Network Statistics
The Statistics screen shows information on HomePlug packets that are
transmitted and received by the devices in your network. To enable this
function, click Enable Statistics.
Viewing Ethernet and HomePlug Connection
The Link screen has two sub-screens that provide information about your
Ethernet and HomePlug connection.
19 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
Viewing Connection Speed
The Ethernet sub screen shows the Ethernet connection speed of the local
and destination devices in your network. You can select the destination
device in the Destination Address drop down menu. Click the Retrieve
button to get the information.
Statistics Sub screen
Use the Statistics sub screen to view statistical information about your
connection between a source device and a specific destination device in your
network. Click the Retrieve button to start accumulating the statistical
information.
20 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
Scanning Devices
Use the Rescan button to rescan the devices on the HomePlug network. This
refreshes the information on all devices using the same password.
21 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
Troubleshooting
Following are solutions to a few situations you might encounter. If
you do not find a solution in this chapter, contact Asoka USA
Technical Support by phone at (408) 550-8173 or through email at
support@asokausa.com.
Symptom: I can't connect to anything and there are no lights
activated on my PL9677-B1.
Solution:
1. Unplug the device from the electrical outlet in question.
2. Locate another available outlet in your home.
3. Test the outlet by plugging in another electrical device such as a
lamp or radio.
4. Plug the PL9677-B1 into the working electrical outlet.
5. Check to see if the lights work
6. If the above does not work, the device might be defective.
7. Please contact Technical Support for instructions on returning the
device for repair or replacement.
Symptom: Some of my devices cannot connect to the Internet or
other computers in my network. The lights seem to be functionally
normally.
Solution #1:
1. Re-Initialize the PL9677-B1 device.
2. Unplug the PL9677-B1 from the electrical outlet.
3. Disconnect the Ethernet cable from the device
4. Plug the PL9677-B1 back into the electrical outlet.
5. Reconnect the Ethernet cable.
22 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
Solution #2:
The Network Encryption Key (NEK) may not be correct on your devices.
1. Reset the Network Encryption Key using the Factory Reset button
located on the bottom of your PL9677 device. This will reset
the NEK back to the default of HomePlug.
2. Test your connection again. If this still does not work, perform
the factory reset on all of your other PL9677-B1 devices in your
network.
Solution #3:
It is possible some outlets in your home are not
connected together.
1. Unplug the PL9677-B1 from the current electrical outlet.
2. Locate another outlet in the home.
3. Plug the PL9677-B1 into that outlet.
4. Attach a computer to the PL9677-B1.
5. Open the Power Manager Utility (located on the enclosed CD).
6. Under the Profile button, check if your PL9677-B1 is displayed (it
Will be the first) and see if your other PL9677-B1 devices can be
seen. If you can see other devices under the Profile screen,
your PL9677-B1 device is functioning properly.
Solution #4:
Your broadband connection may have stopped working.
1. Power down your broadband router and/or DSL/cable modem (if
applicable) for about 30 seconds and then power them back on.
2. If this step fails, please contact your ISP for assistance.
23 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
Specifications
This appendix lists the specifications for your PL9677-B1.
Standards Compliance: IEEE 1901•HomePlug® AV • IEEE 802.3, IEEE 802.3x, IEEE 802.3u
Software Utility
System Requirements:
Microsoft Windows® 98 SE, 2000, ME, XP, and Vista operating
systems
Network Protocol: TCP/IP, CSMA/CA, TDMA (supported in the future)
Network Interface: One-port 10/100 MHz Ethernet (RJ-45) switch
Bandwidth: Up to 500 Mbps
Distance: over 300 Meter
Operating Frequency: 2 to 70 MHz
Modulation Schemes: • Orthogonal Frequency Division Multiplexing (OFDM) • QAM
4096/1024/256/64/16 •QPSK •BPSK
EMI and Safety: • FCC Part 15 Class B •UL (US and Canada) •CE
Additional Protocols: • Forward Error Correction (FEC) • Automatic Channel Adaptation
Power Supply: • US Version: 100-120VAC • UK/EU Version: 220-240VAC
Surge Energy Rating: 4KV
Power Rating: • US Version: 120VAC 0.1A max, 60Hz • UK/EU Version:
220-240VAC 0.08A max, 50Hz
Security: 128-bit AES
24 of 34 PlugLink Pass-Through-500 User’s Guide
Environmental
Specifications:
• Operating temperature: 32°F to 104°F (0°C to 40°C) •
Operating humidity: 10% to 85% Non-condensing • Storage
temperature: -4°F to 158°F (-20°C to 70°C) • Storage humidity:
5% to 90% Non-condensing
Quality of Service: •ToS • 802.1q • TDMA (supported in the future)
Warranty: lifetime
25 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
Components
Front Panel
Use the status lights on the front panel to verify connections.
26 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
The following table describes the status light functions in the front panel:
Status Light State Indicatio
n
Power
Illuminated
Off
Red and Green
illuminate alternately
Device is powered on
Devices has no power
Stand by mode (After 3 minutes no link)
PLC Activity Blinking
Red
Blinking
Yellow
Blinking Green
Off
Traffic is running at < 7 Mbps
Traffic
is running
at > 7 Mbps and < 40
Mbps Traffic
is
running at > 40 Mbps
No activity on
power line
Eth Link Illuminated
Blinking
Off
Ethernet connectivity
Ethernet traffic
No Ethernet connectivity
Bottom Panel
The button panel of the PL9677-B1 contains the following components:
z RJ-45 Ethernet port

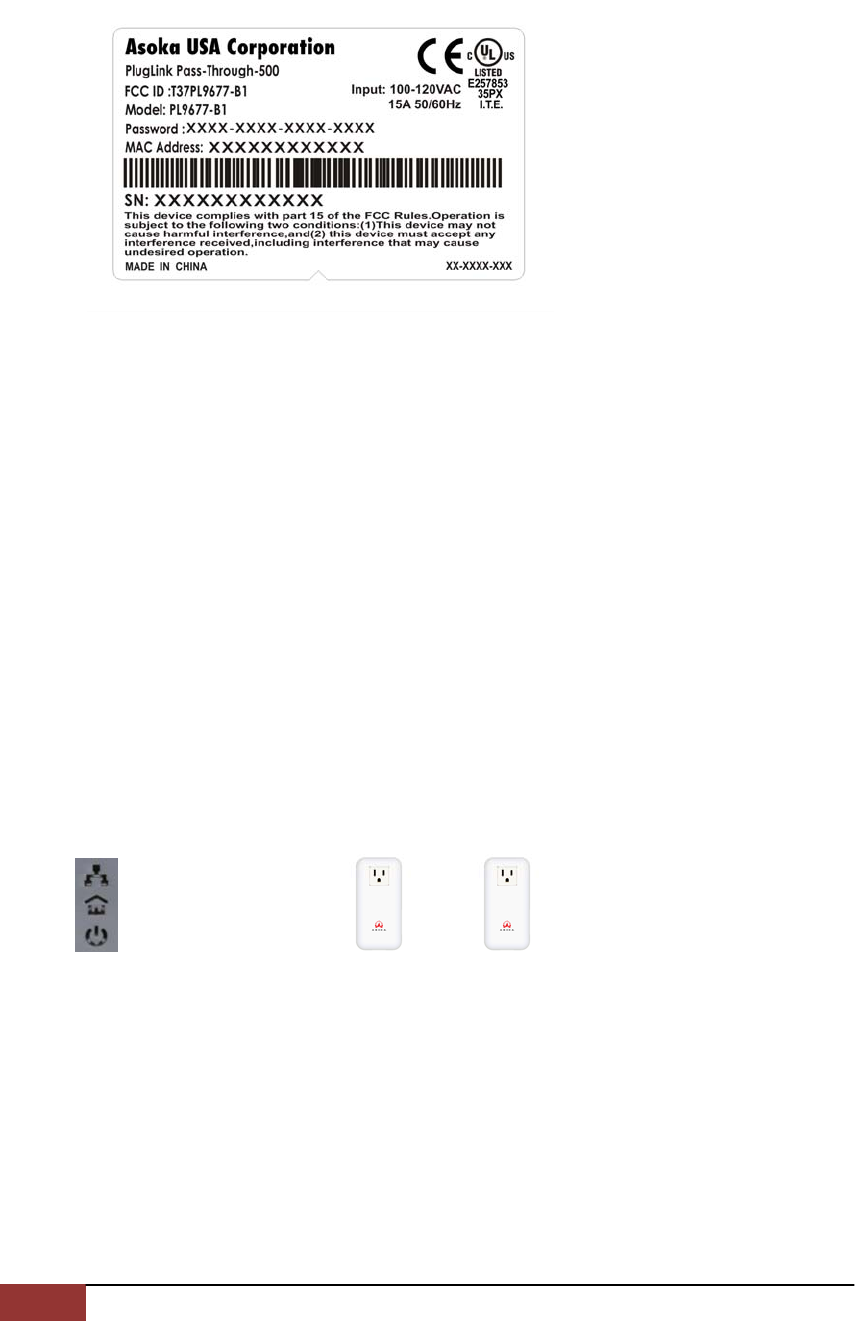

The label on the rear panel of the PlugLinK Pass-Through-500 contains
the information listed below.
z MAC address
z Model number
z Part number
z Serial number
z Unique device password
27 of 34 PlugLink Pass-Through-500 User’s Guide
Note: Write this information down in your Warranty Support Information
card for future reference.
Buttons
The PlugLinK Pass-Through-500 device has two hardware push buttons:
• FW RST button – Resets the PlugLinK Pass-Through-500 back to factory
default settings. Press and hold the button with a pin or sharp object for
about 2 seconds until you see the lights on the device flash briefly.
• SECURITY button – All PlugLink AV devices have a default password Network
Encryption Key (NEK) set to “HomePlugAV” allowing them to communicate
to each other. The SECURITY button allows you to set a devices’ password to
a randomized Network Encryption Key (NEK) for maximum security. You can
then set other devices to the same NEK by using their SECURITY button. Only
units with the same NEK can communicate to each other.
SETTING A RANDOMIZED NETWORK PASSWORD
1. Select a PlugLinK Pass-Through-500 (Device A) and plug into an AC outlet.
The POWER light indicator should be lit solid green.
a. Press the SECURITY button again BRIEFLY (less than 2.0 second) and
release. The POWER light should now be blinking green.
b. IMPORTANT: If the POWER light is not blinking green, repeat Step “a”
until the power light blinks green.
c. This unit is now ready to create a new randomized NEK (Net
Encryption Key) network. This unit will remain in this “adder” mode
for about 2 minutes.
Ethernetlight
PLCACTlight
Powerlight
DeviceADeviceB
28 of 34 PlugLink Pass-Through-500 User’s Guide
2. Select another PlugLinK Pass-Through-500 (Device B) and plug into a second
outlet.
a. Press the SECURITY button again BRIEFLY (less than 2.0 second) and
release. The POWER light should now be blinking green.
b. IMPORTANT: If the power light is not blinking green, repeat Step “a”
until the power light is blinking green.
3. In about 15 seconds the POWER light will change from flashing green to solid
green and the PLC ACT (Powerline Communication Activity) light will turn
solid green (flashing green when there is data traffic) indicating they are
synchronized with the same NEK.
4. Congratulations, you are done!
ADDING A THIRD OR MORE PLUGLINK HD AV DEVICES
1. Plug your new PlugLinK Pass-Through-500(Device C) into an AC outlet. The
POWER light indicator should be lit solid green.
a. Press the SECURITY button again BRIEFLY (less than 2.0 second) and
release. The POWER light should now be blinking green.
b. IMPORTANT: If the POWER light is not blinking green, repeat Step “a”
until the power light is blinking green.
c. This unit is now ready to join the existing HD AV network. This unit
will remain in this “adder” mode for about 2 minutes.
2. From your existing devices (either device A or device B) press the SECURITY
button BRIEFLY (less than 2.0 second) then release. The POWER light should
now be blinking green.
d. IMPORTANT: If the power light is not blinking green, repeat Step “2”
until the power light is blinking green.
3. In about 15 seconds the POWER light will change from flashing green to solid
green and the PLC ACT (Power line Communication Activity) light will turn
solid green (flashing green when there is data traffic) indicating they are
synchronized with the same NEK.
4. To add more PlugLink devices; simple repeat this process per device.
5. Congratulations, you are done!
Notes:
1. The other devices already in the Power line network with the proper NEK are
not affected and do not need to be reconfigured.
2. If you disconnect power from any device, its NEK value will remain and will
not default back to “HomePlugAV” NEK.
DeviceADeviceBDeviceC
Ethernetlight
PLCACTlight
Powerlight
29 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
3. An adapter can only generate a private key once. To replace a private
key,first reset the unit back to its factory defaults by pressing the FW TST
button for 3 seconds, then follow the procedure above.
The use of the SECURITY button is optional. You may also use the
application software described in the manual to set NEK's as well.
30 of 34 PlugLink Pass-Through-500 User’s Guide
Warranty
Asoka warrants that (a) the hardware components of the
product will be free from defects in materials and
workmanship under normal use from the date of purchase
when used within the limits set forth in the Specifications
section of the User Guide, and (b) the software components
will perform substantially in accordance with Asoka's
published specifications for ninety (90) days from the date
of purchase, but does not warrant that the software will be
error-free or free of all defects.
Should a product fail to perform as described in the User
Guide, it will be repaired or replaced with the same or
functionally equivalent product by Asoka, at its discretion,
free of charge provided that you: (a) return the failed
product to an Asoka designated repair facility with shipping
charge prepaid, and (b) provide Asoka with proof of the
original date of purchase. Repaired or replacement products
will be returned to you with shipping charges prepaid. Asoka
warrants any replaced or repaired product or component for
life of the product.
This warranty extends only to you, the original
purchaser
and
is not transferable to any subsequent purchasers.
This warranty does not apply if, in the judgment of Asoka,
the product fails due to damage from shipment, handling,
storage, accident, abuse,
misapplication
or misuse, or if it
has been used or maintained in a manner not conforming to
product manual instructions, has been modified in any way,
or has had any serial number removed or defaced. Repair by
anyone other than Asoka or an approved agent will void this
warranty. The maximum liability of Asoka under this
warranty is limited to the purchase price of the
31 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
product covered by the warranty. Prior to returning any defective
product, the
purchaser
or the
authorized merchant
from whom the
purchaser
originally bought the product must obtain a Return Material
Authorization (RMA) number from Asoka. All defective products
should be returned to Asoka with shipping charges prepaid. Asoka will
not accept collect shipments.
WHILE ASOKA HAS MADE EVERY EFFORT TO PROVIDE CLEAR AND
ACCURATE TECHNICAL INFORMATION ABOUT ITS PRODUCTS, ASOKA
ASSUMES NO LIABILITY FOR ANY EVENTS ARISING OUT OF THE USE OF
THE TECHNICAL INFORMATION OR THE PRODUCT, EXCEPT AS
SPECIFICALLY PROVIDED IN THIS
AGREEMENT
OR AS
REQUIRED
BY LAW.
THE
WARRANTIES
AND
REMEDIES
STATED ABOVE ARE EXCLUSIVE AND IN
LIEU OF ALL OTHERS, ORAL OR WRITTEN, EXPRESS OR IMPLIED. ANY
AND ALL OTHER WARRANTIES, INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NON-
INFRINGEMENT OF THIRD PARTY RIGHTS ARE EXPRESSLY EXCLUDED.
ASOKA SHALL NOT BE LIABLE, UNDER ANY CIRCUMSTANCES, TO ANY
PERSON OR ENTITY FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION,
DAMAGES RESULTING FROM THE USE OR MALFUNCTION OF THE
PRODUCTS, LOSS OF PROFITS OR REVENUES, BUSINESS
INTERRUPTION,
OR COSTS OF
REPLACEMENT
GOODS, EVEN IF ASOKA IS INFORMED IN
ADVANCE OF THE POSSIBILITY OF SUCH DAMAGES.
32 of 34 PlugLin
k
Pass
-
Through
-
500 Us
e
r’s Guid
e
FCC Notice
FCC Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including
interference that may cause undesired operation.
33 of 34 PlugLink-ETH-500 User’s Guide
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. such modifications could void the user’s
authority to operate this equipment.
Asoka USA Corporation
2344 Walsh Avenue Suite A
Santa Clara, California 95051
USA Phone: (408) 550–8167
Fax: (408) 884–2390
www.asokausa.com
66-0366-01Rev.001
34 of 34
33 of 34 PlugLinK Pass-Through-500 User’s Guide
